Driller Park - Site Master Plan

DRILLER PARK DESIGN DEVELOPMENT

08/31/23

A STUDY OF THE PARK Driller Park, located in Kilgore, Texas, was constructed in 1947. It was built for the Kilgore Drillers, aligning with the town’s identity as a hub for the oil industry. The park has functioned as a central point for community activities and local baseball games over the years. Significant refurbishment work was completed which helped modernize the park’s facilities. Despite this, time and usage have led to certain areas showing signs of wear and requiring further updates. As we prepare for these additional improvements, we maintain a focus on the practical needs of the park, ensuring it remains a functional and valuable asset to the Kilgore community.

MHS PLANNING & DESIGN, LLC

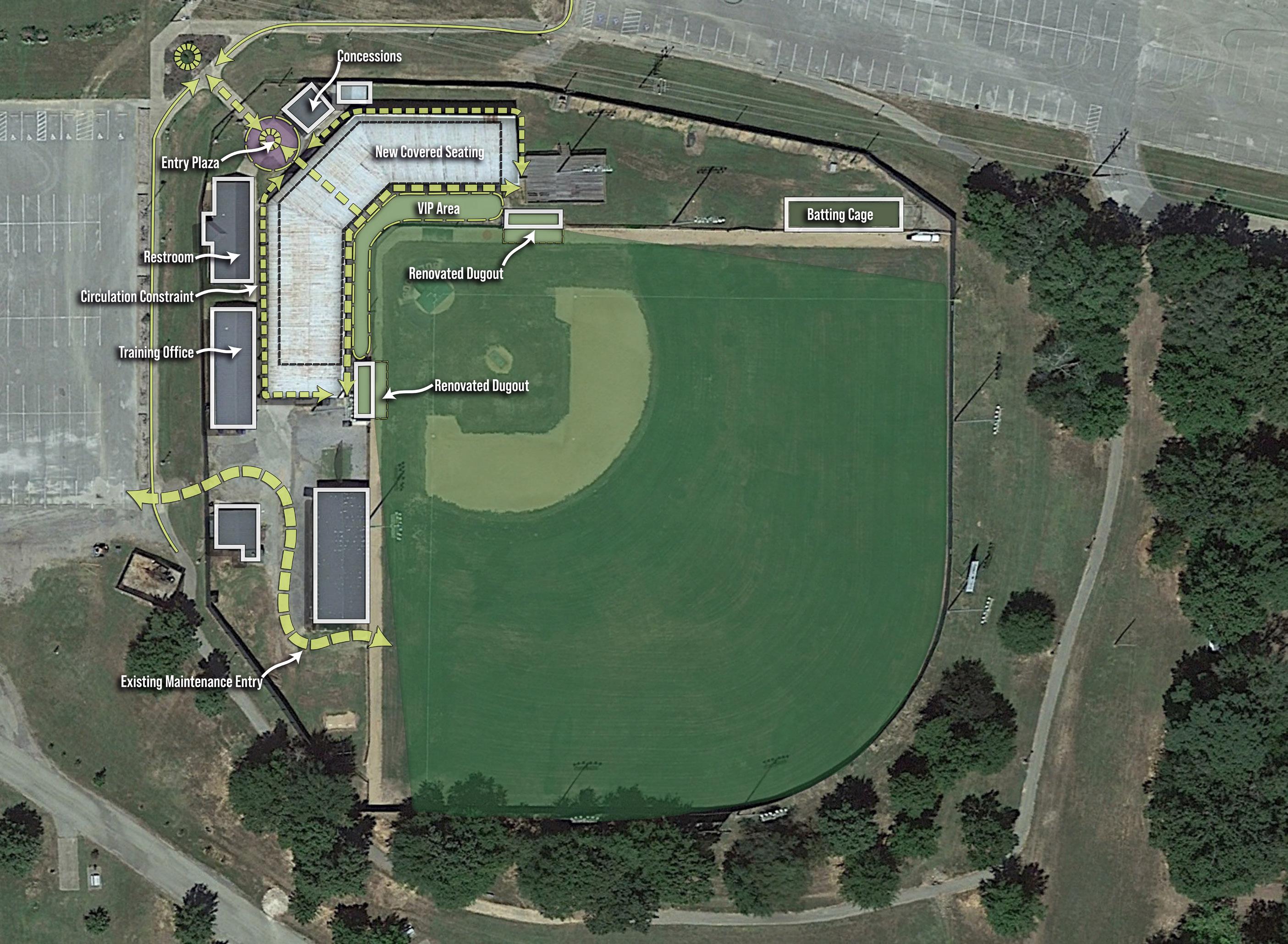

SITE ANALYSIS KEY TAKEAWAYS VIP AREA The current VIP area provides an opportunity to craft a more inviting and inclusive space

SPECTATOR SEATING & SHADE The spectator seating, can be reconfigured to improve both comfort and viewing experience. The existing shade structure is showing signs of wear. We suggest implementing a safer, more contemporary design

PLAYER DUGOUTS The dugouts offer an opportunity to increase player protection and sense of belonging

ADA ACCESSIBILITY ADA Access offers an opportunity to promote a more inclusive environment for all ball park fans

DRILLER PARK - KILGORE, TEXAS

3

SITE ANALYSIS MHS PLANNING & DESIGN, LLC

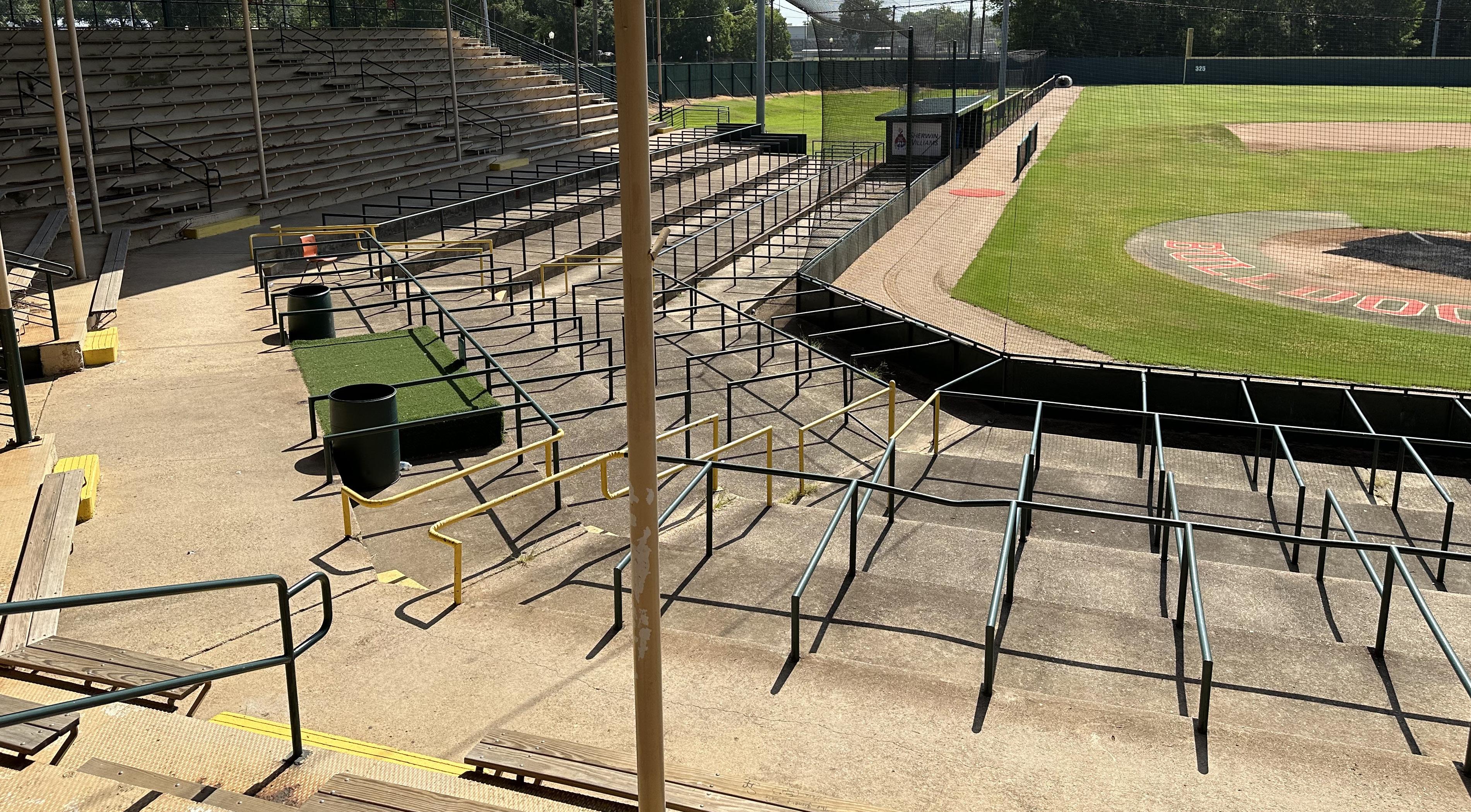

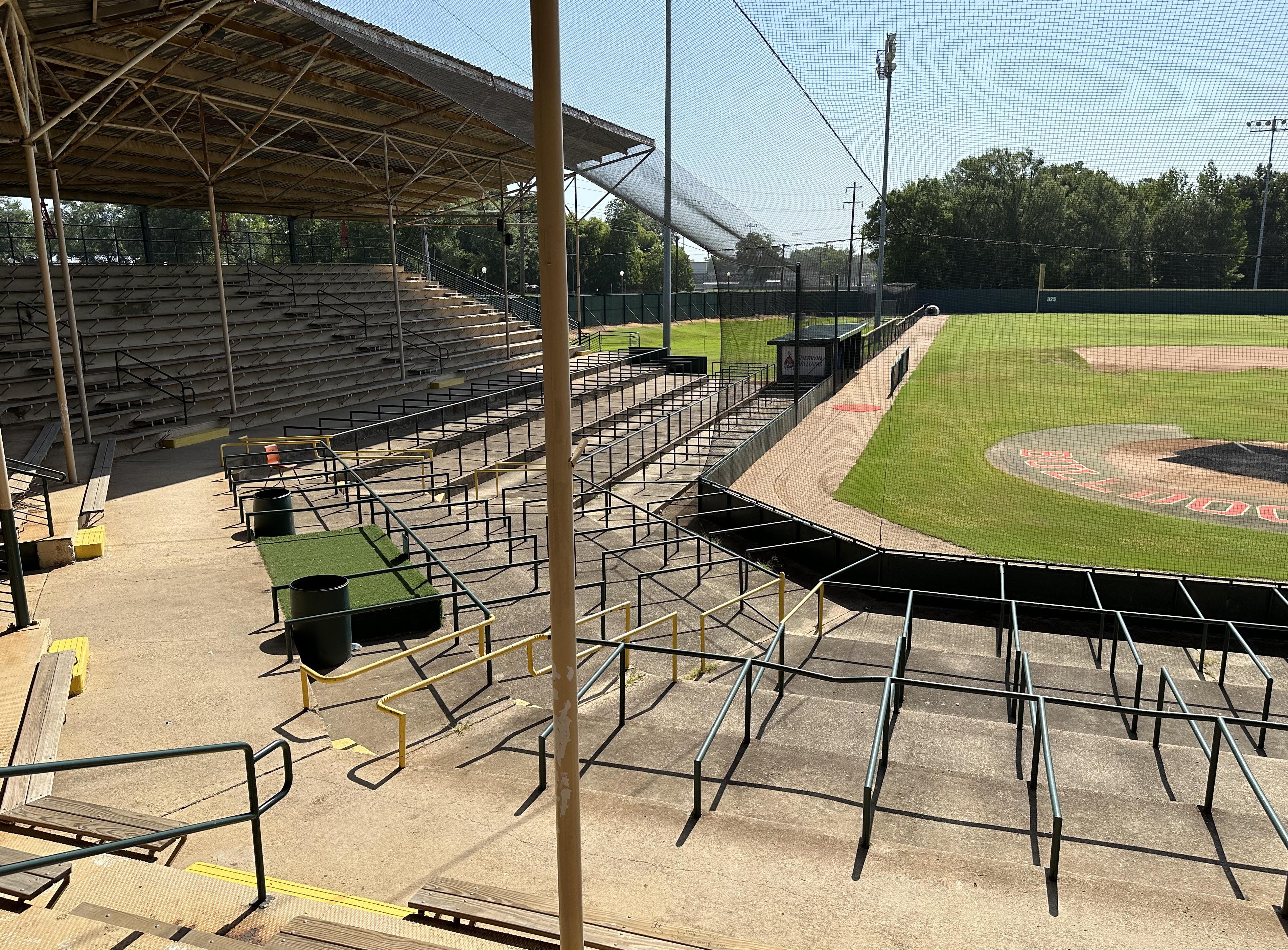

CURRENT STATE

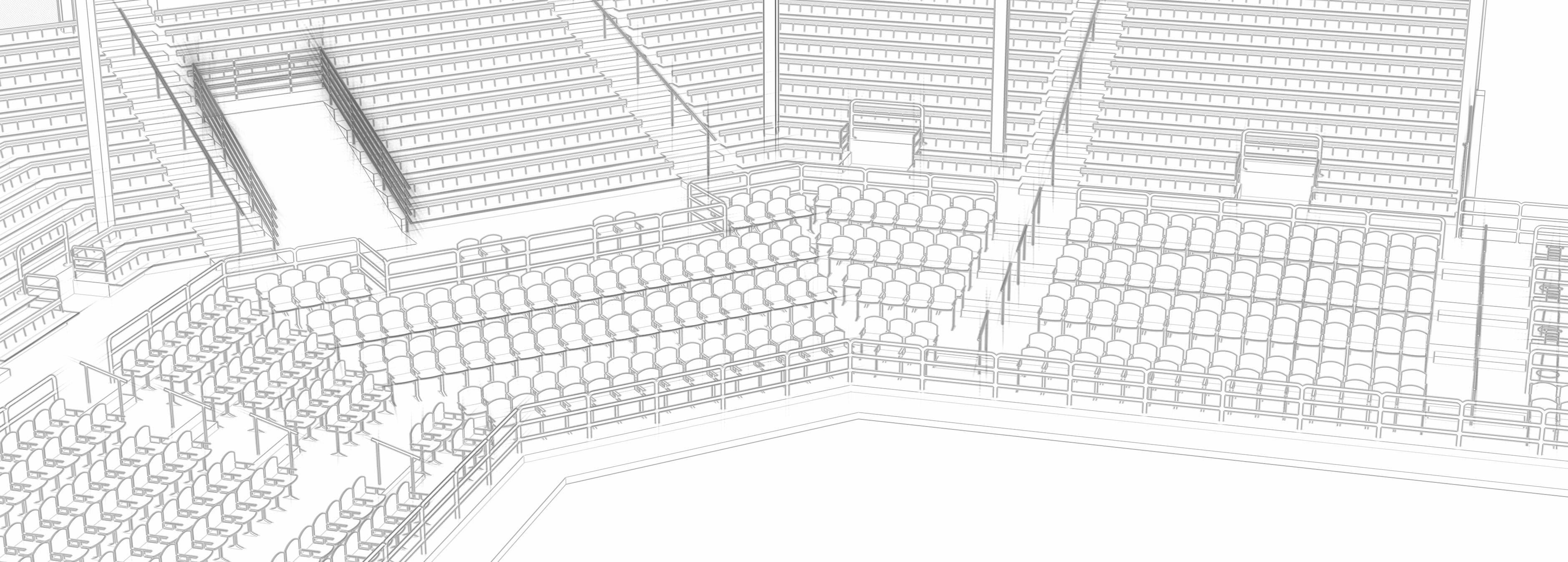

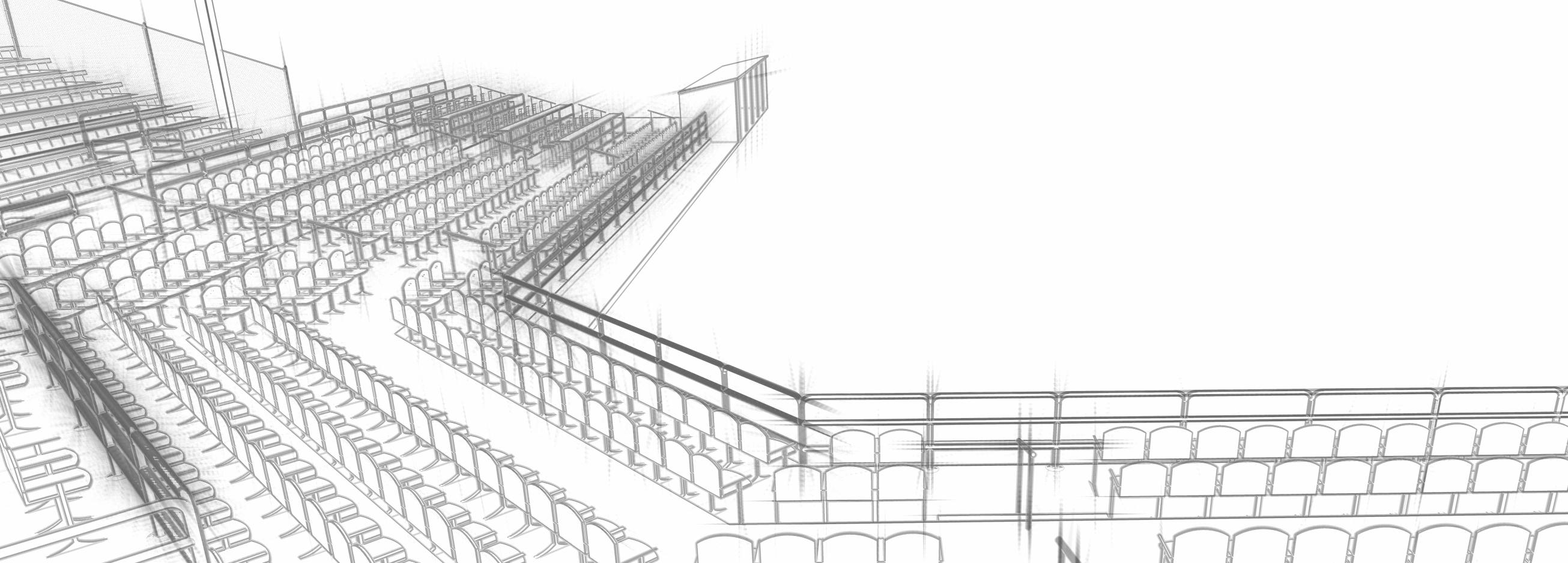

CASTING A VISION This section encapsulates our vision for Driller Park’s renovations. These illustrations represent the potential transformation of key areas identified in the site analysis: spectator seating, shade structure, ADA accessibility, and the VIP areas. This approach provides a tangible vision of how these renovations can improve both the safety and visitor experience on game day.

DRILLER PARK - KILGORE, TEXAS

5

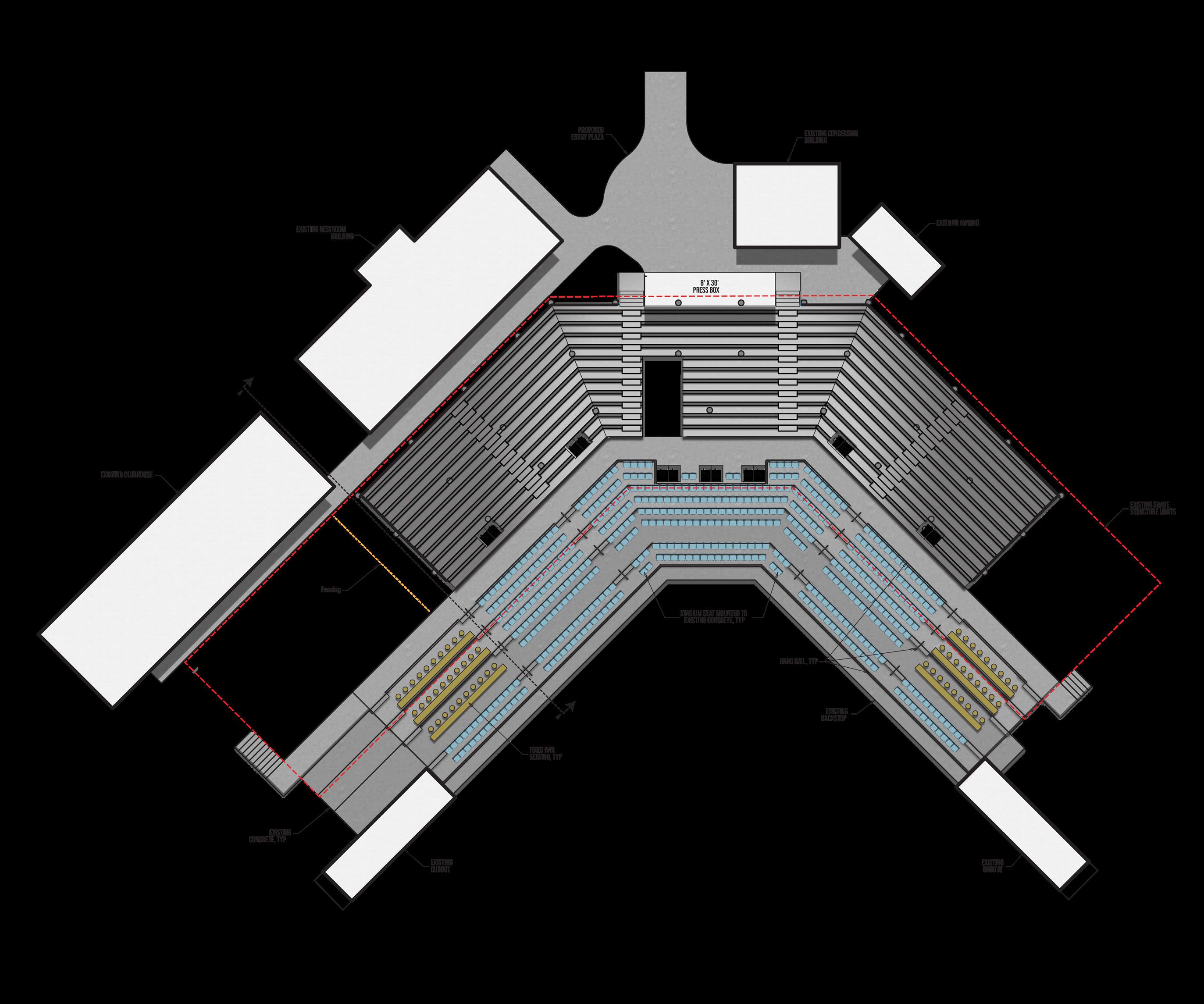

SEATING CAPACITY 509 - STADIUM SEATS 57 - FIXED BAR SEATS ±1,050 - BLEACHER SEATS 14 - ACCESSIBLE SEATING LOCATIONS (13 REQ.)

±1,650 - TOTAL CAPACITY

PLAN “A” MHS PLANNING & DESIGN, LLC

SEATING CAPACITY 509 - STADIUM SEATS 57 - FIXED BAR SEATS ±1,400 - BLEACHER SEATS 14 - ACCESSIBLE SEATING LOCATIONS (13 REQ.)

±2,000 - TOTAL CAPACITY

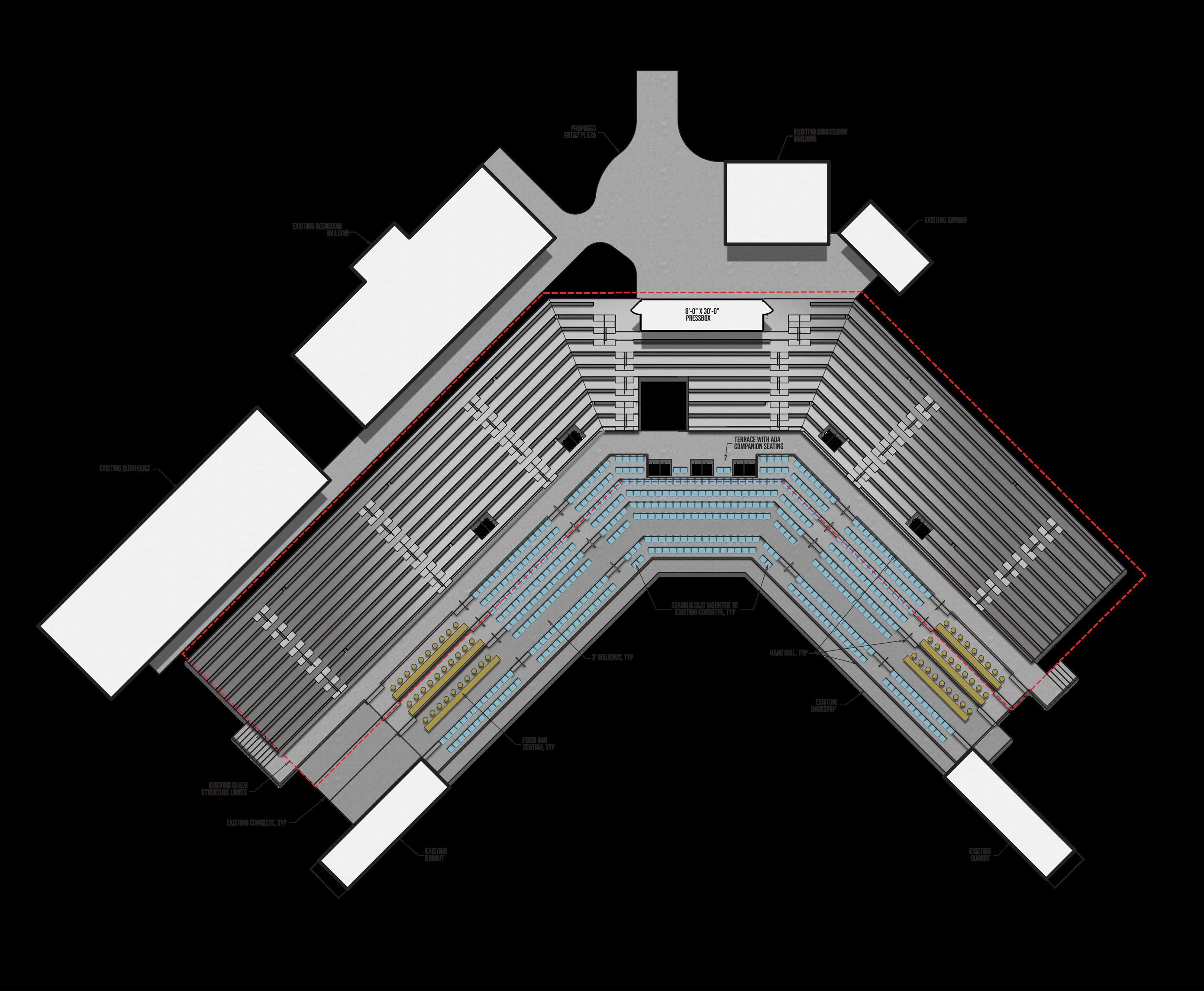

PLAN “B” DRILLER PARK - KILGORE, TEXAS

7

MHS PLANNING & DESIGN, LLC

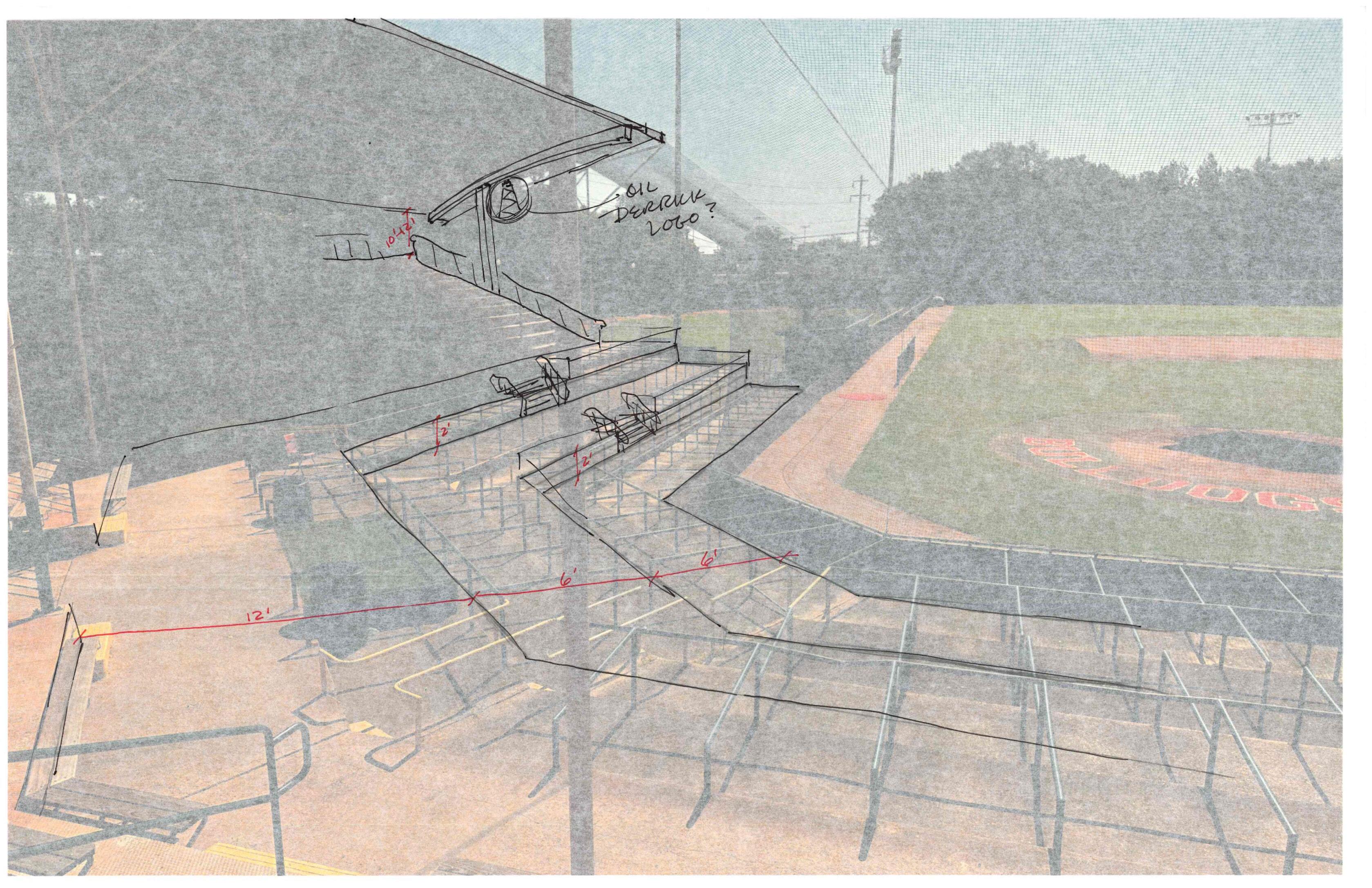

VISION PROCESS Our initial step involved a thorough site analysis of Driller Park, highlighting areas for potential enhancement. Guided by these findings, our design development phase focused on crafting practical solutions to address the identified opportunities. The resulting conceptual renderings are not definitive designs, but rather illustrative tools that articulate our overall vision and approach to these design opportunities.

DRILLER PARK - KILGORE, TEXAS

9

MHS PLANNING & DESIGN, LLC

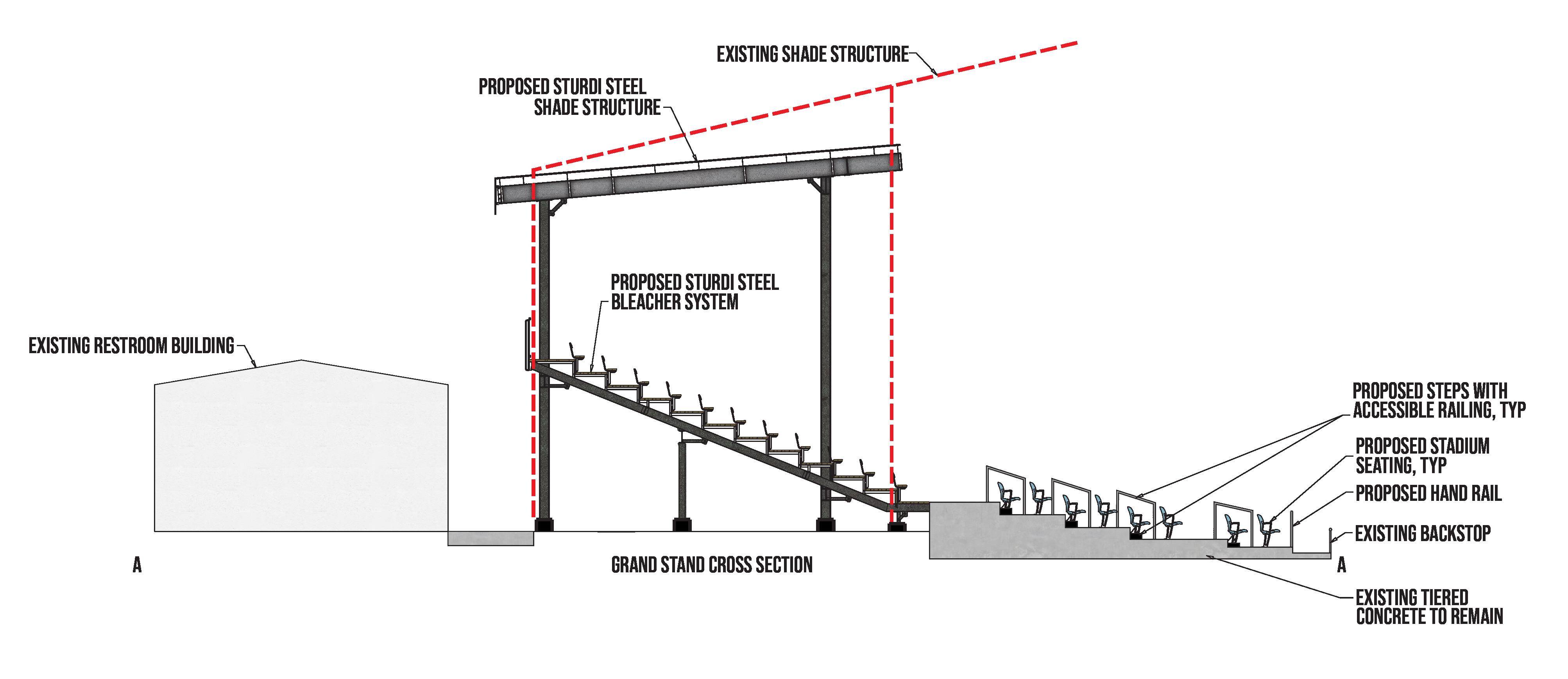

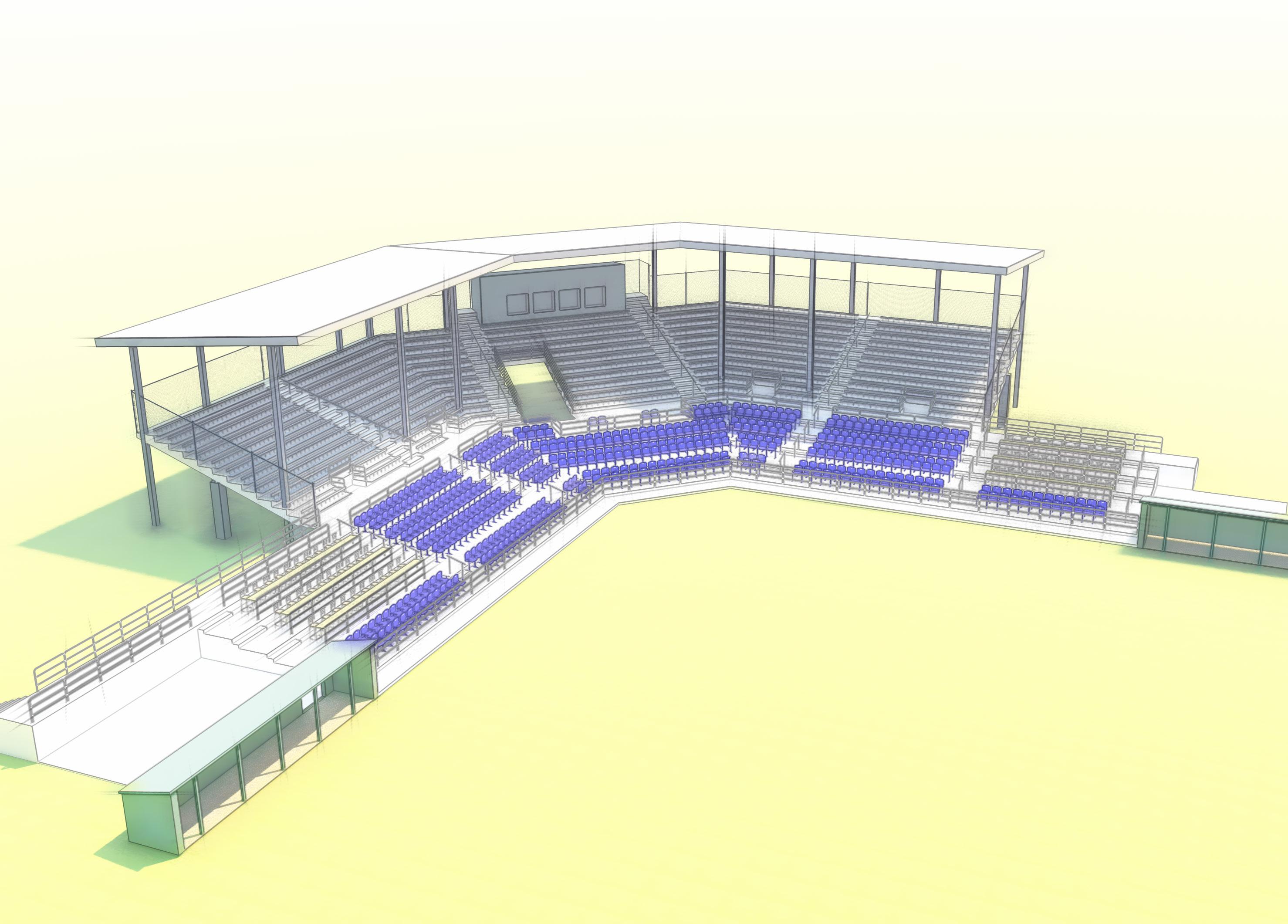

NEW SHADE STRUCTURE

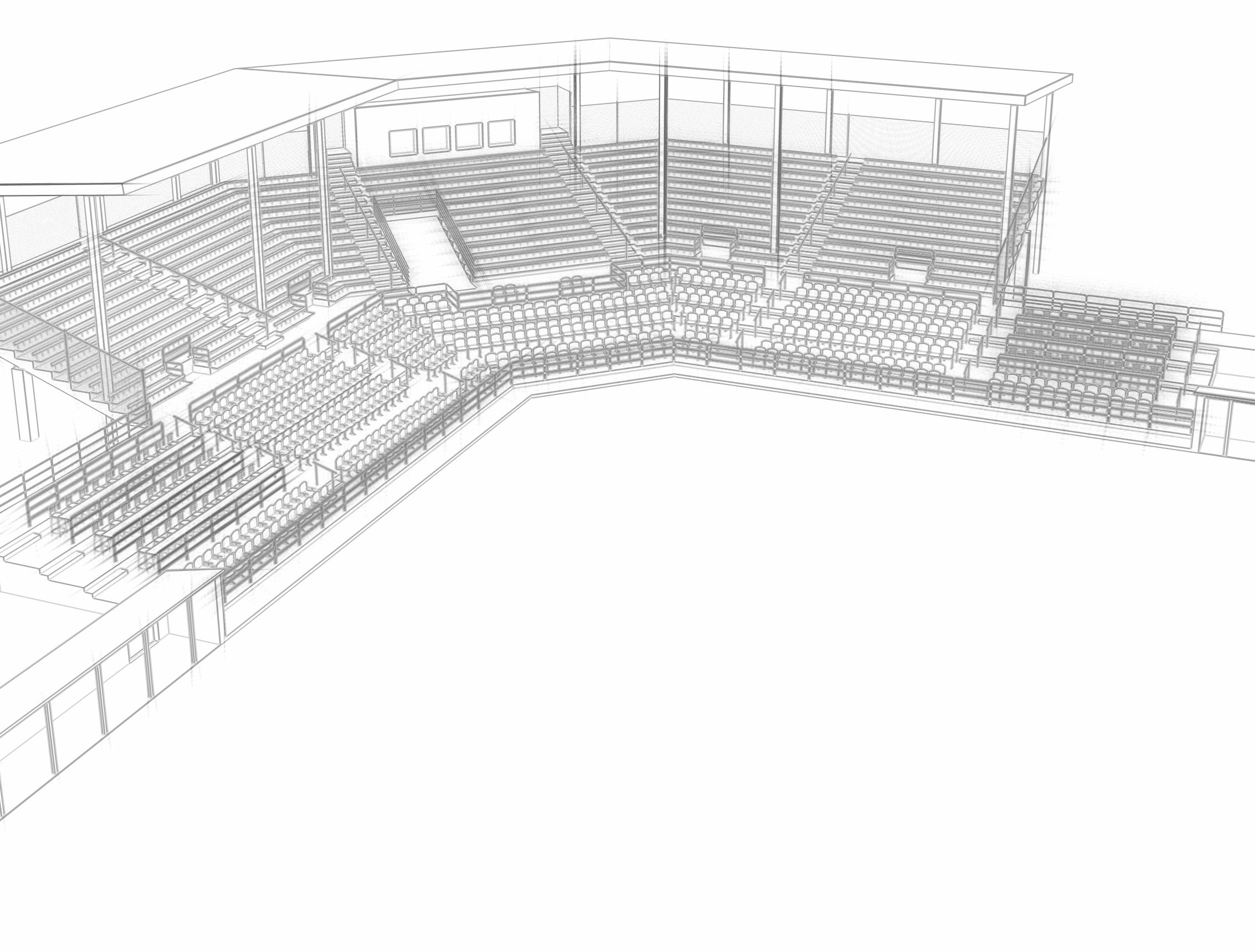

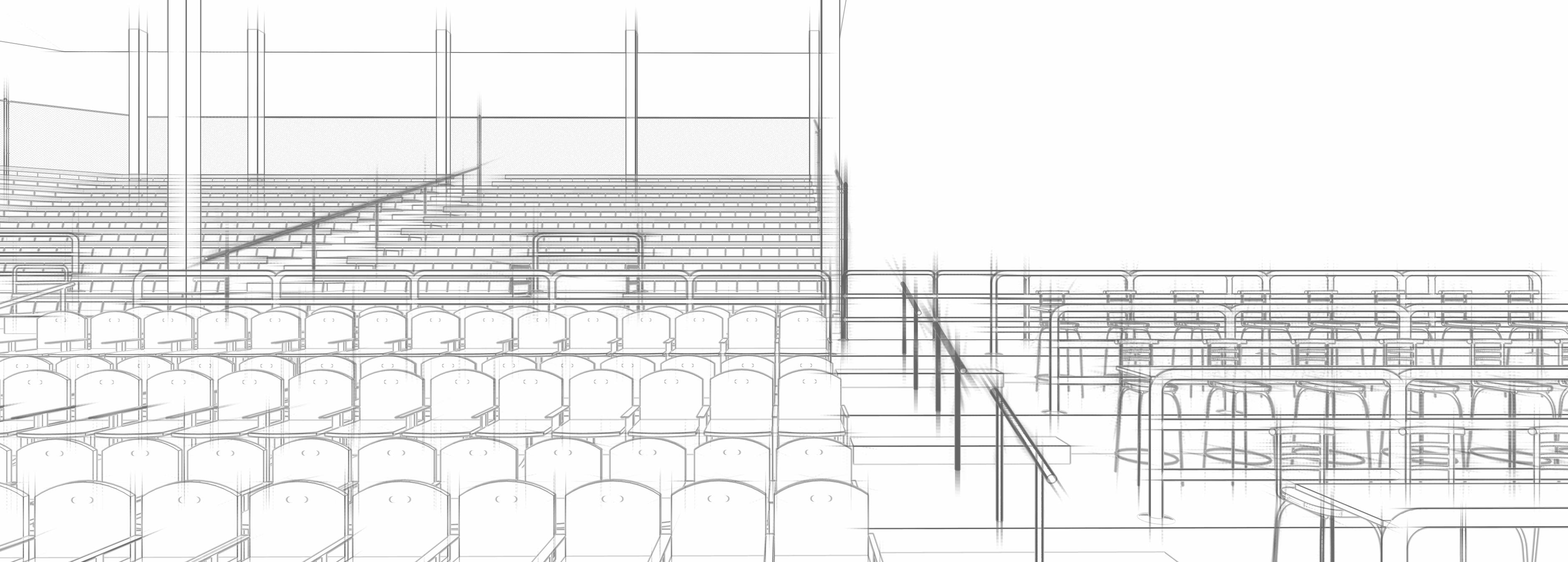

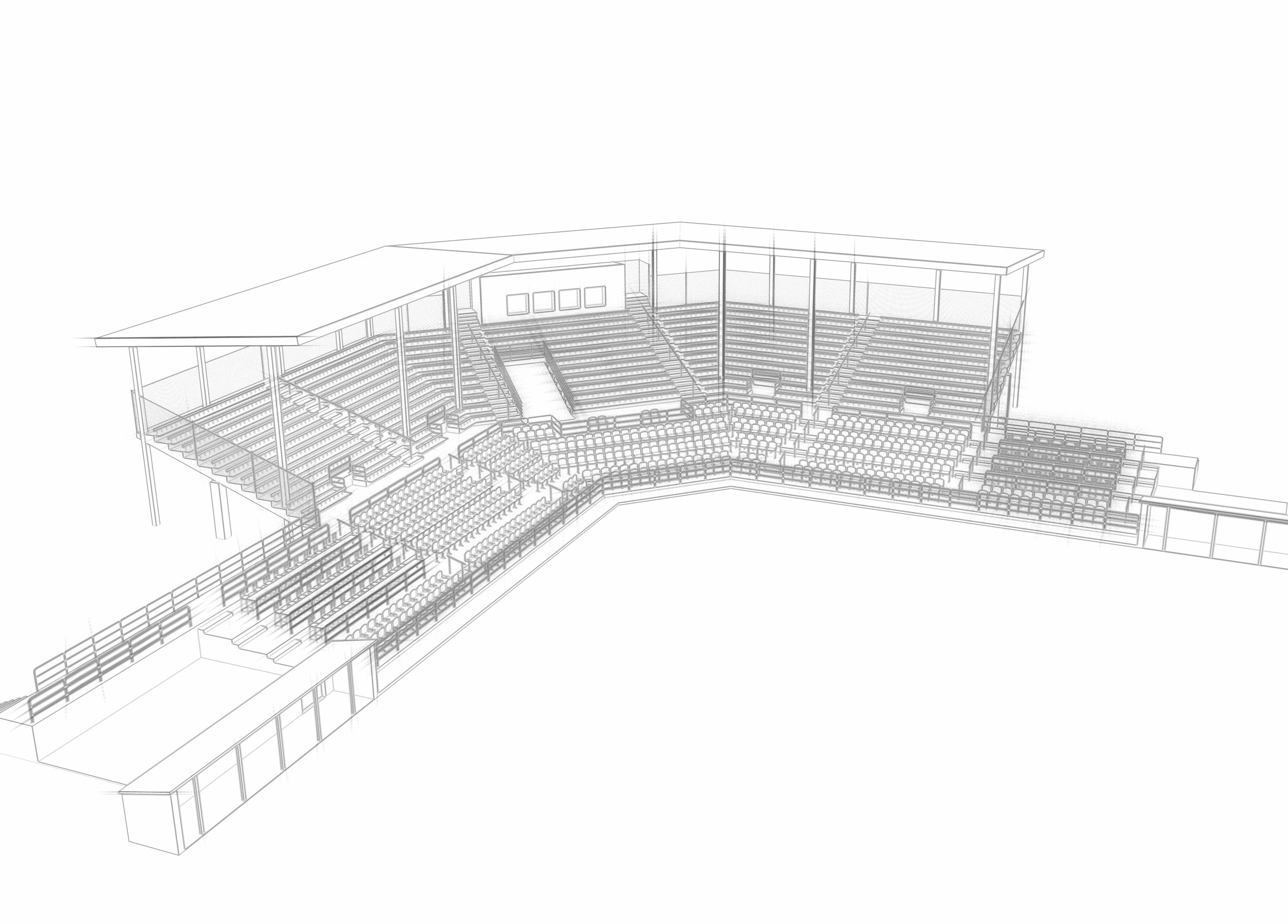

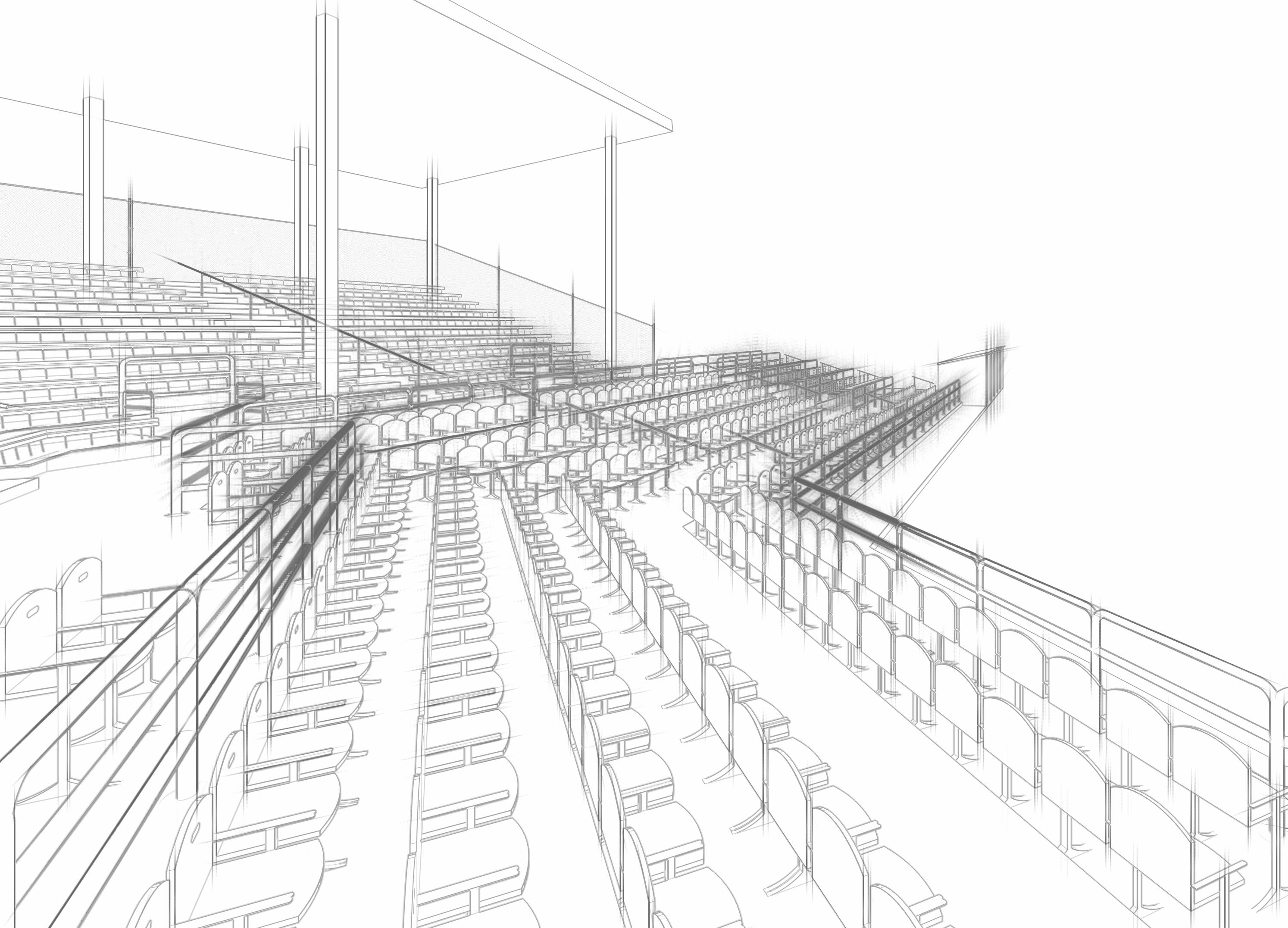

PROJECTED VISION

BLEACHER STYLE SEATING SPECTATOR STAIRS

ADA SEATING NODES

VIP SEATING

DRILLER PARK - KILGORE, TEXAS

11

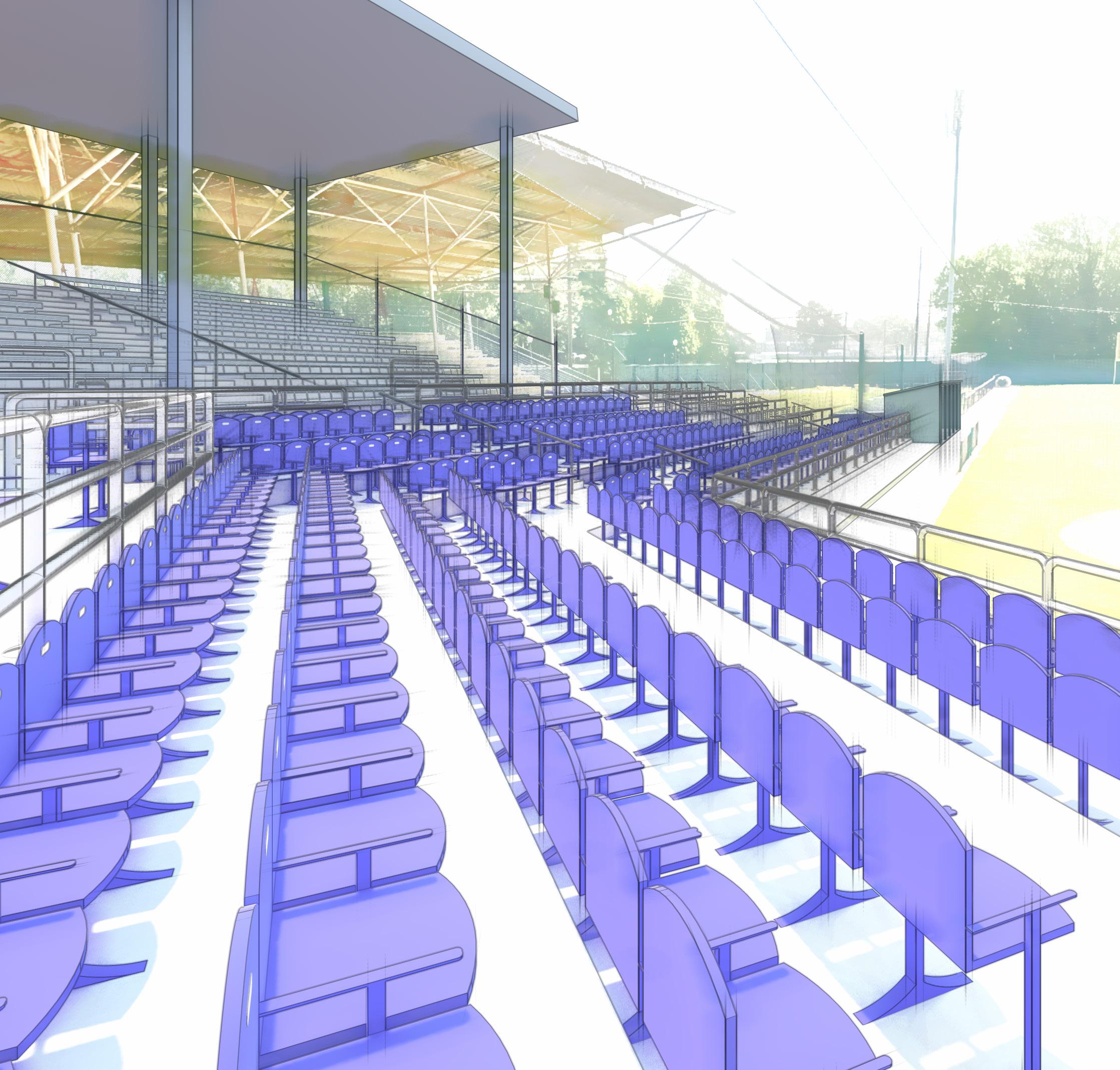

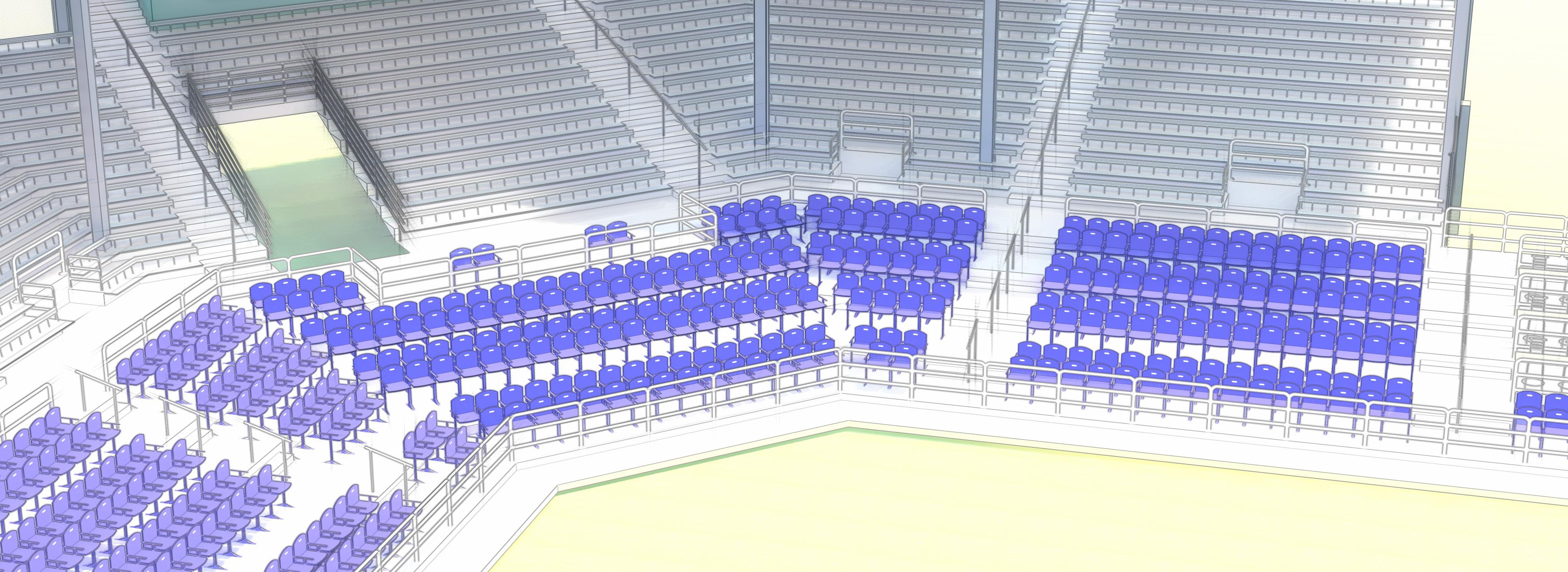

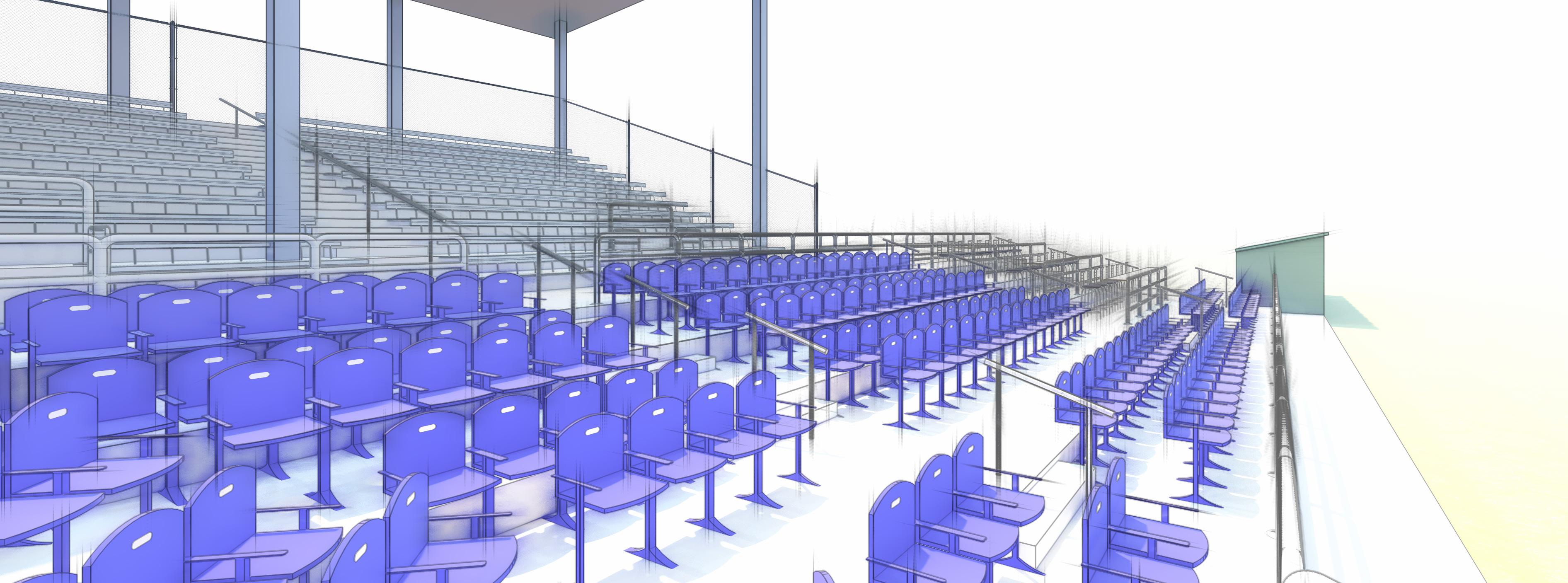

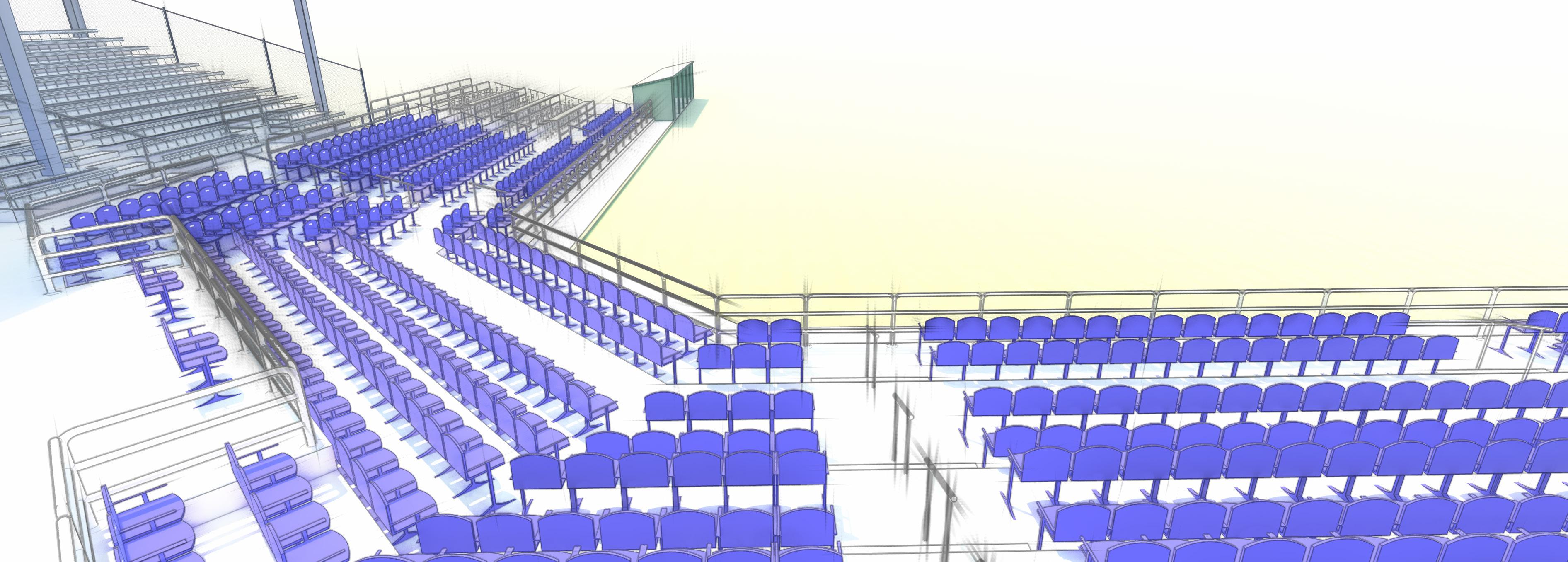

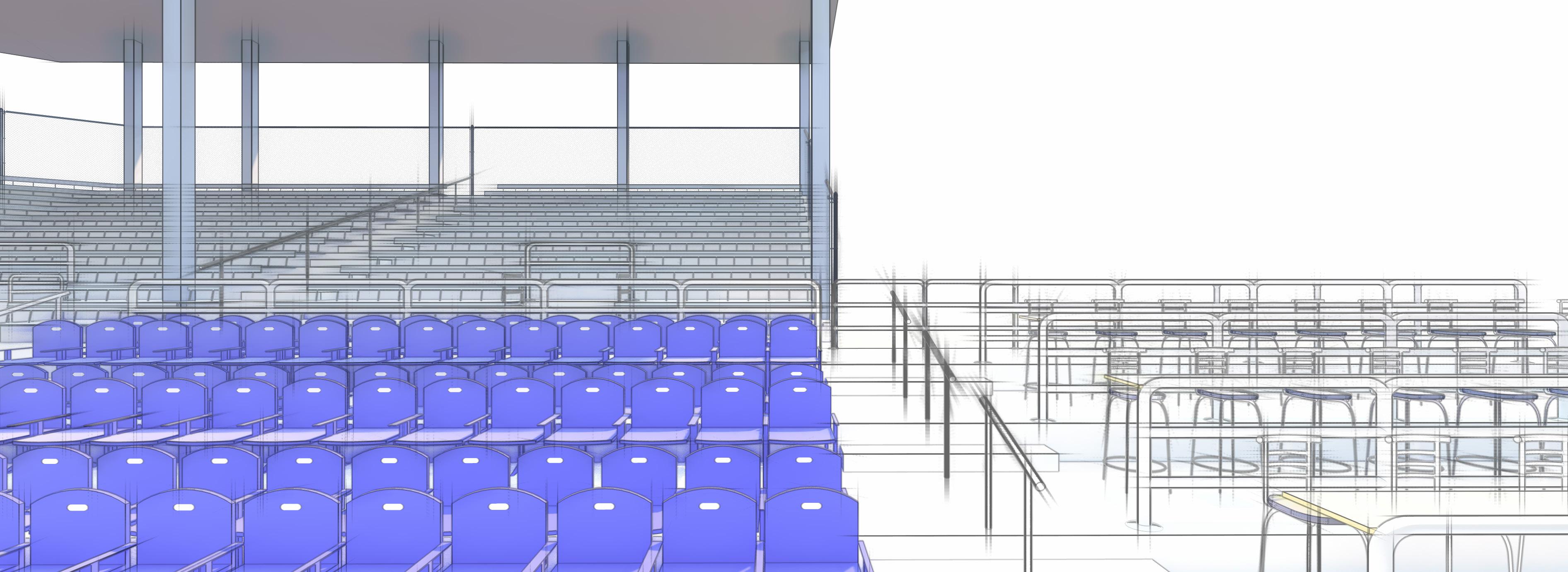

VIP SEATING AREA In our vision for the VIP area, we prioritize both efficiency and user comfort. Our seating options encompass tiered stadium seats with backs for optimal comfort, flexible seating configurations, and importantly, dedicated ADA-compliant seating.

This approach ensures that every guest, regardless of their needs, enjoys an unobstructed and comfortable view of the game.

MHS PLANNING & DESIGN, LLC

DRILLER PARK - KILGORE, TEXAS

13

MHS PLANNING & DESIGN, LLC

DRILLER PARK - KILGORE, TEXAS

15

MHS PLANNING & DESIGN, LLC

DRILLER PARK - KILGORE, TEXAS

17
