SPINAL INSTRUMENTS

Surgical Instruments of Excellence www.merciansurgical.com


Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com


Surgical Instruments of Excellence

INTRODUCTION Mercian has been established as a supplier of high quality surgical instrumentation for over 50 years. We present our catalogue detailing our range of instrumentation for Spinal Surgery. These specialist instruments are manufactured to the highest possible standards with the most modern processes. STANDARDS Mercian is certified to meet standard ISO 13485:2016. Recognised as a mark of excellence applicable to our management systems, processes, procedures and surgical instruments. We are subject to continual assessment of these procedures to ensure standards are maintained by an independent outside notified body. Annual surveillance ensures our compliance with ISO 13485: 2016 and medical directive 93/42/EEC Annex V. WARRANTY To ensure our instruments perform as expected, all Mercian Instruments are covered by a 12 month warranty covering any manufacturing/material defect. Any instrument failing these standards will be repaired or replaced without charges. CODE NUMBERS Mercian code numbers are designed to allow you to identify an instrument from only the number.

Category

Titanium or other variations

{

SP1001-15T Speciality

Length of instrument Instrument No.

& CONTACT SALES ON: 0844 879 1133

established over

50 years Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com


INDEX

Page No.

KERRISON PUNCHES

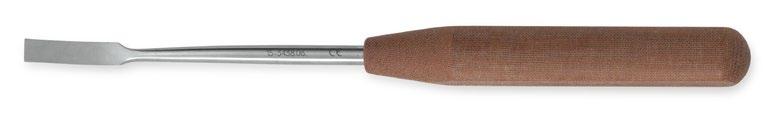

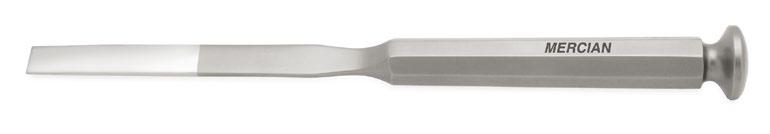

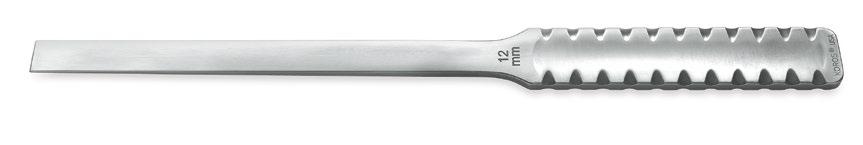

OSTEOTOMES & MALLETS

Laminectomy Punch 1&2 Thin Footplate Kerrison Punch 3 Wide Opening Kerrison Punch 3 Titanium Dismantable Punch 4 Curved Foramenotomy Punch 4 Long Anterior Kerrison Punch 5 Bayonet Kerrison Punch 5 Ferris-Smith Kerrison Punch Ring Handled 6 Osteo-Rotating Punch 6

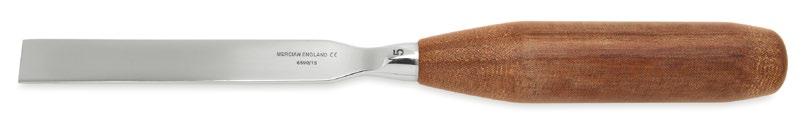

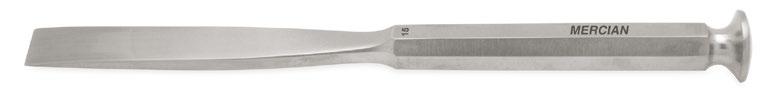

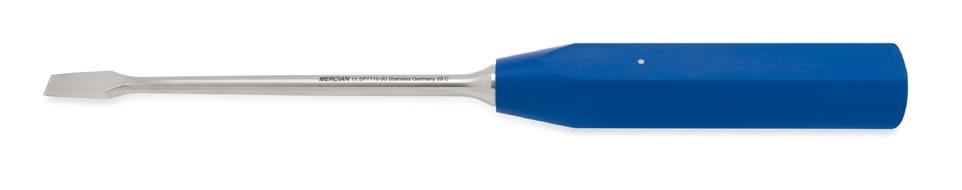

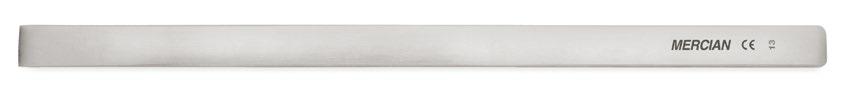

Capener Osteotome Lexer Osteotome Dahmen Osteotome Scaglietti Osteotome Lambotte Osteotome Mini-Stille Osteotome Stille (Swedish) Osteotome Hibbs Osteotome Smith Petersen Osteotome Mallets

Page No. 20 20 20 21 21 22 22 22 22 23

DISC RONGEURS Intervertebral Disc Rongeur Caspar Disc Rongeur Schlesinger Toothed Rongeur Williams Disc Rongeur 'Pea Pod' Disc Rongeur Beck Disc Rongeur Weil-Blakesley Forceps Decker Rongeur Nicola Micro Cupped Biopsy Forceps Micro Disc Rongeur Micro Toothed Disc Rongeur Cushing Disc Rongeur Toothed Fine Disc Rongeur Ferris-Smith Rongeur Anterior Disc Rongeur

7 8 8 9 9 9 10 10 10 11 11 11 11 12 12

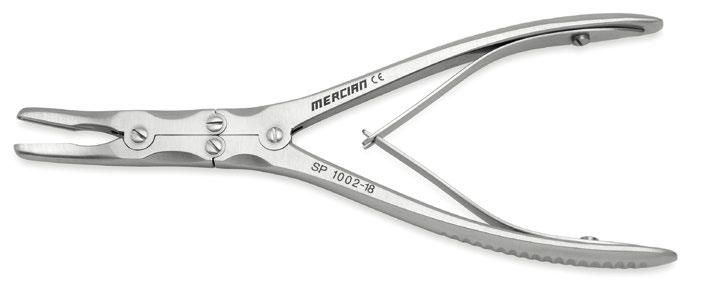

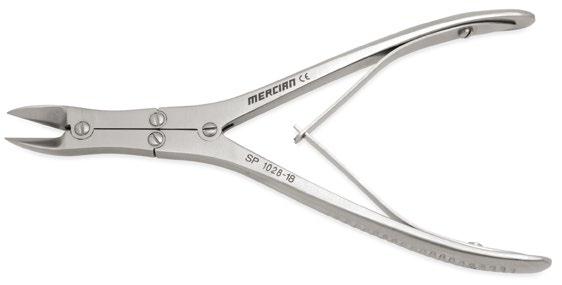

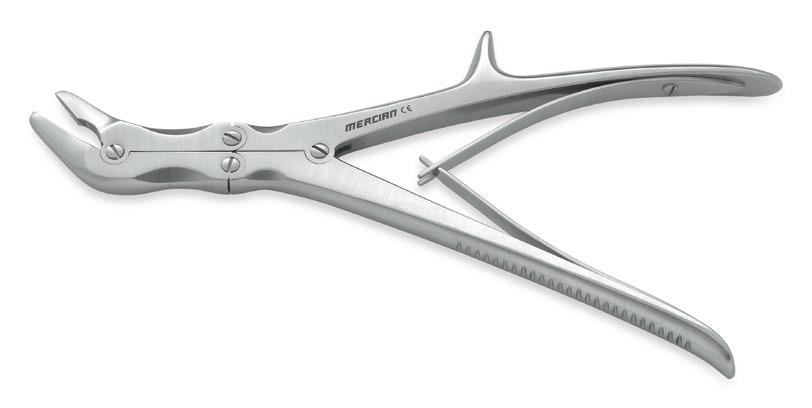

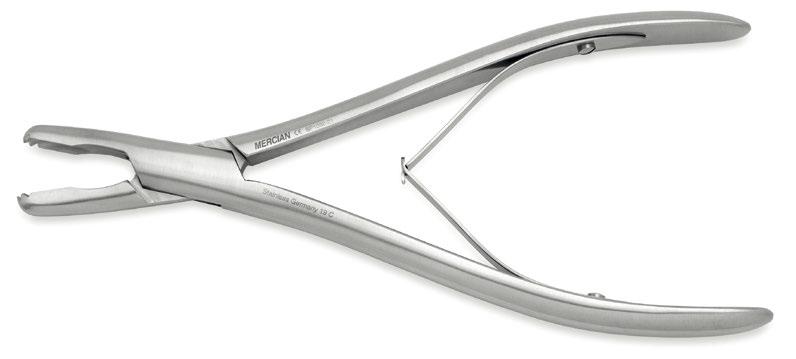

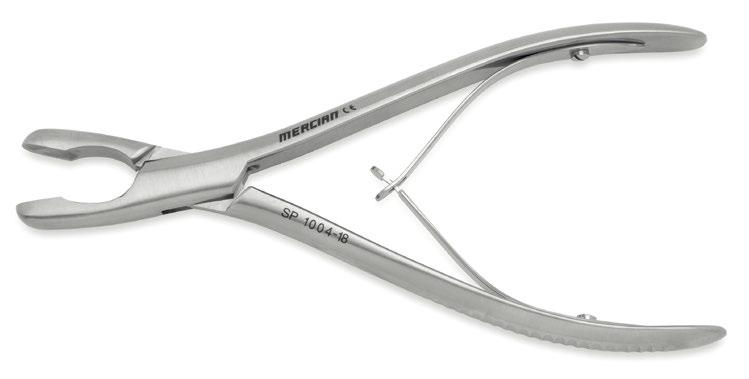

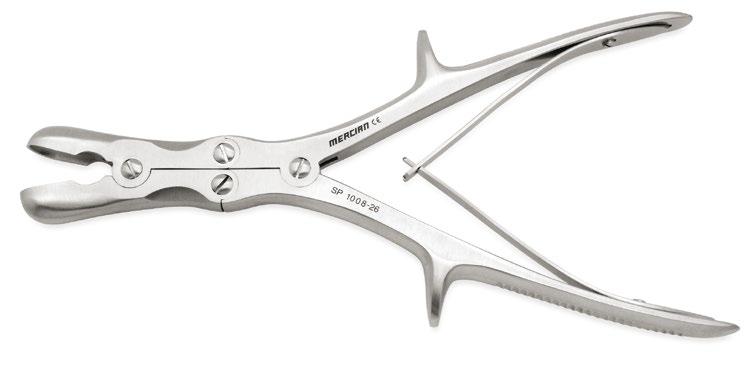

BONE NIBBLERS & CUTTERS Lempert Bone Nibbler Luer Bone Nibbler Adson Bone Nibbler Pennybacker Bone Nibbler Northfields Bone Nibbler 'Rat Toothed' Bone Nibbler Zielke Rongeur Matzen Rongeur Beyer Bone Nibbler Jansen Bone Nibbler Marquardt Bone Nibbler Smith-Peterson Bone Nibbler Leksell Bone Nibbler Stille-Luer Bone Nibbler 'Mr Blobby' Stille-Luer Bone Nibbler Echlin Duckbill Nibbler Long Anterior Leksell Bone Nibbler Sypert Bone Nibbler McIndoe Bone Cutters Stille-Liston Bone Cutters Liston-Key-Horsley Bone Cutters Tudor Edwards/Vehmehren Costotome

13 13 13 14 14 14 15 15 15 16 16 16 17 17 17 18 18 18 19 19 19 19

BONE GRAFT IMPACTORS Cervical Impactor Lumbar Impactor Anterior Impactor Caspar Dowel Holder & Impactor

24 24 24 24

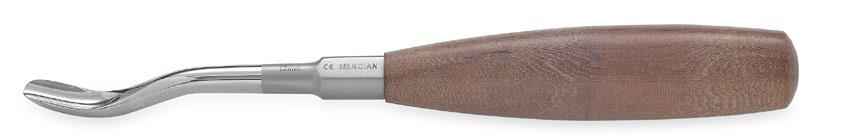

ELEVATORS & GOUGES Cobb Elevators Adson Elevator Pennybacker Elevator Bone Raspatory Farabeuf Elevator Trethowan Elevator Bristow Elevator Zielke Gouge Capener Gouge

25 & 26 27 27 27 27 28 28 28 28

DISSECTORS Swedish Dissector Howarth Elevator MacDonald Elevator/Dissector Watson Cheyne Dissector Freers Elevator/Dissector Penfield Dural Dissectors Woodson Dissector Tonnis Dura Dissector

29 29 29 29 29 30 30 30

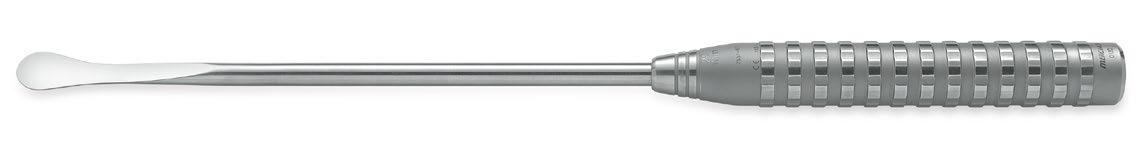

SPINAL CURETTES Bayonet Cervical Micro Curettes Lempert Curette Bruns Curette Tufnol Handle Curette Cobb Bone Curette Comfort Handle Curette Long Anterior Curette Light-Grip Cervical Curette Light-Grip Lumbar Curette Cones Curette Karl Ring Curette Zielke Curette Volkmann Curette

31& 32 33 33 33 34 34 34 35 36 37 37 38 38

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com


Inch

cm 1 2

Page No.

LAMINA SPREADERS

2 3 6 7

75 & 76 77 78 78

21

79 80

8

20

OPERATING CHAIRS Surgeons Operating Stools Coburg Micro Surgery Stool

5

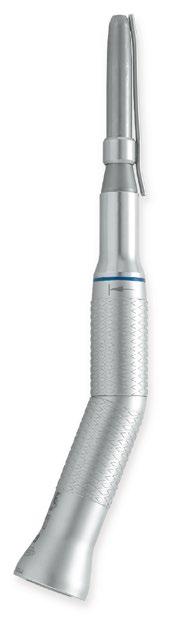

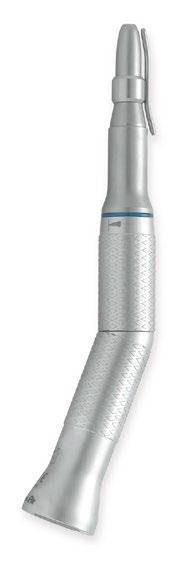

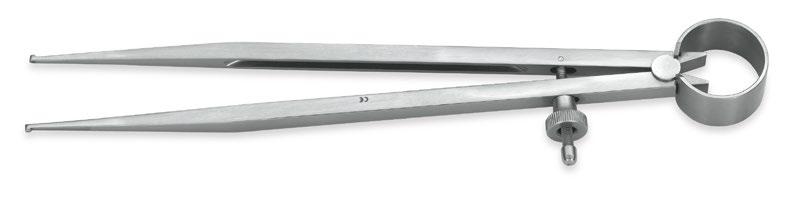

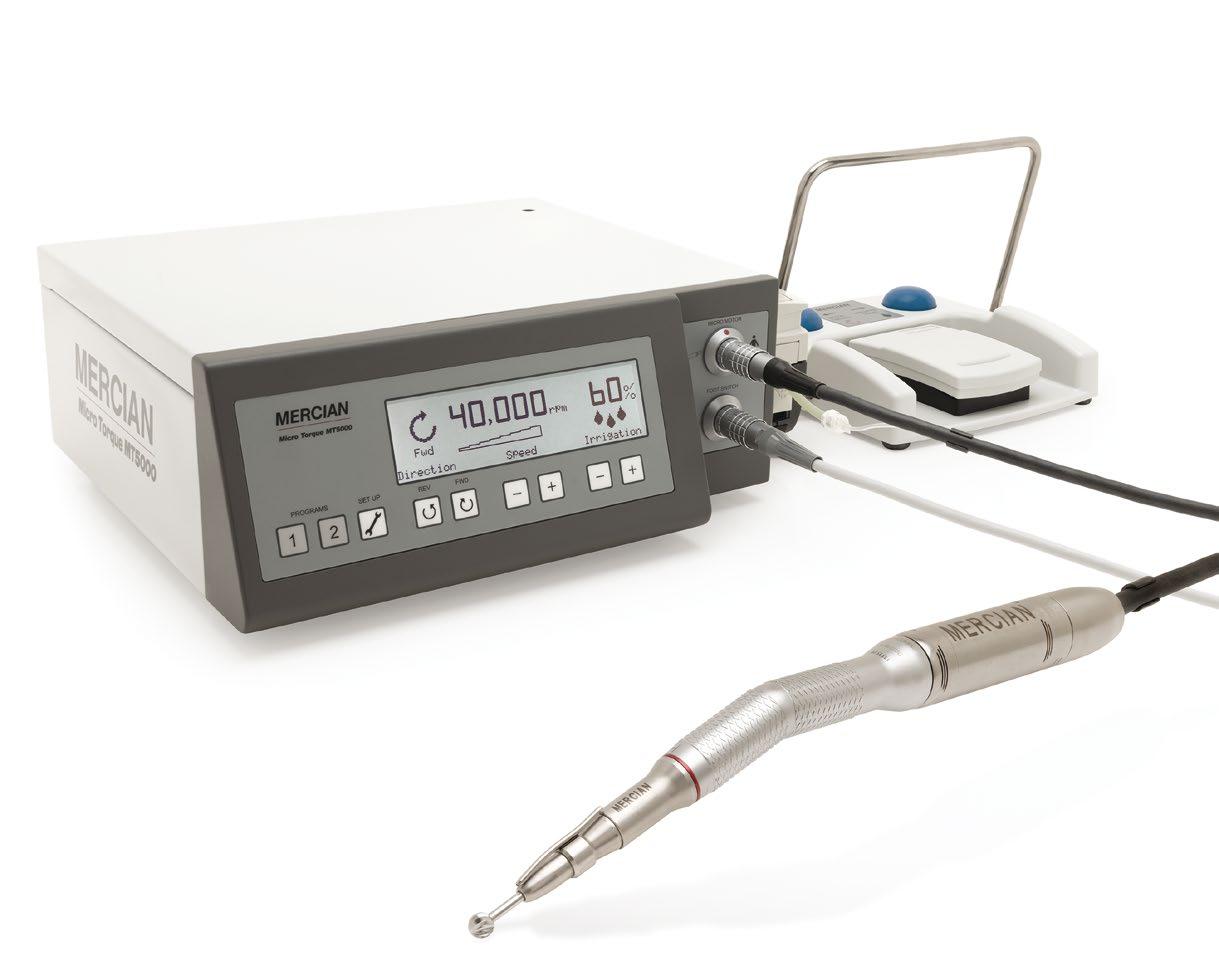

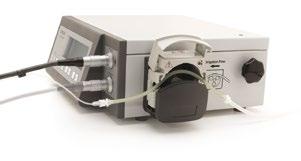

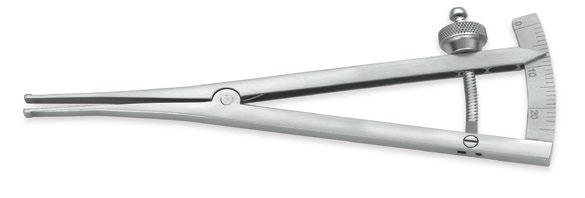

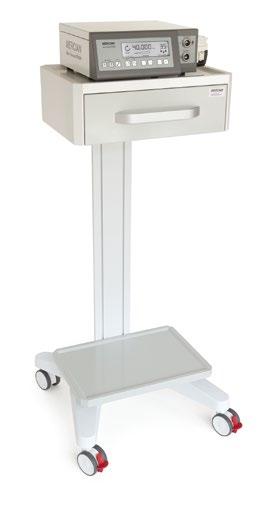

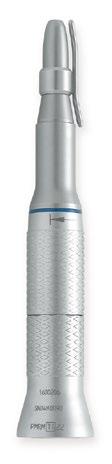

Micro Torque Surgical Drill Measuring Caliper/Gauges Frazier Suction Tube Bayonet Dissecting Forceps

4

MISC INSTRUMENTS

19 22 9

23 24 25 1 0

26

49 49 49 49 49 50 50 50 50 51 51 51 & 52 52

74 74 74 74

18

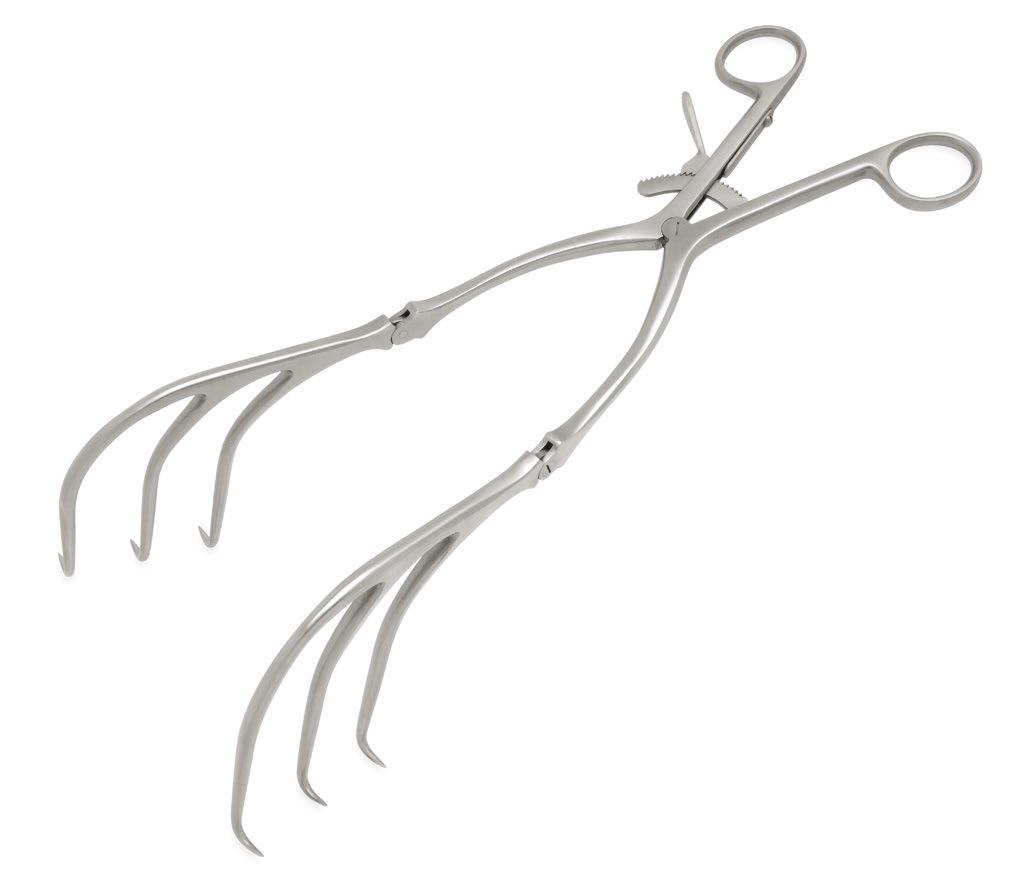

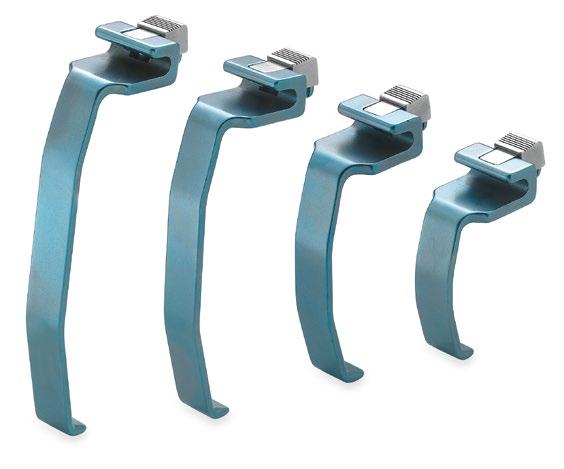

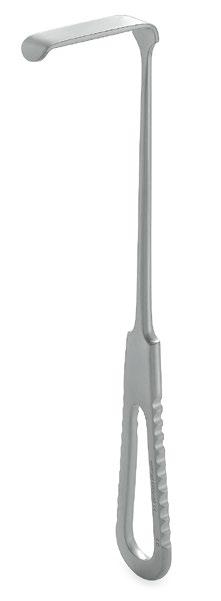

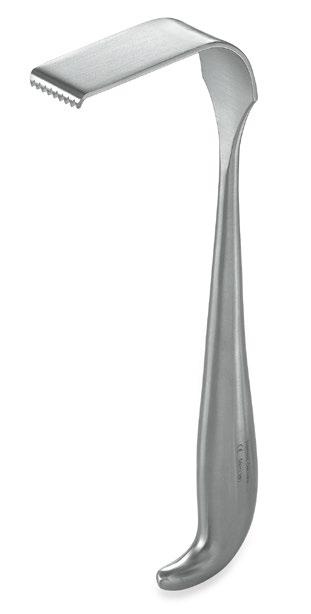

Meyerding Retractor Langenbeck Retractor Taylor Hip Retractor Cloward Style Blade Retractor Volkmann Retractor Wests Retractor Weitlaner Retractor Mollison Retractor Jefferson Retractor Irwin Retractor Travers Retractor Norfolk & Norwich Retractors Cones Retractor

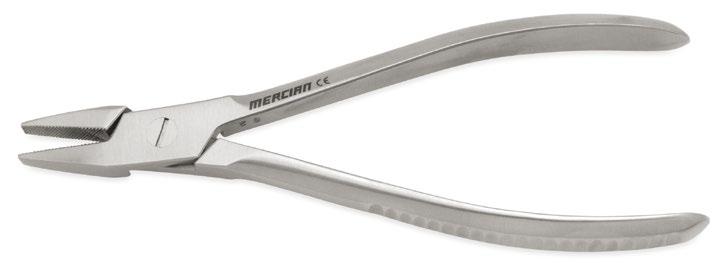

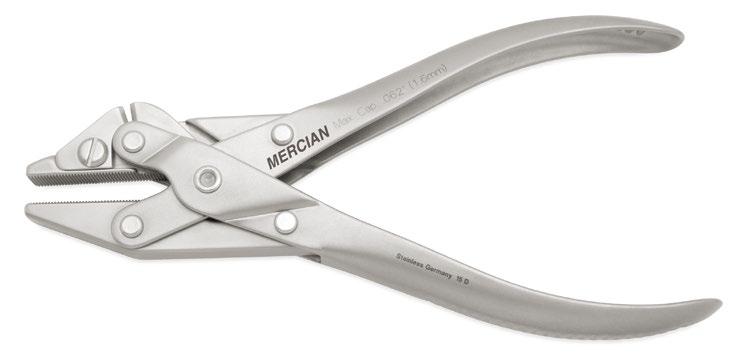

Slim & Square Ended Wire Pliers Muller Claus Wire Cutters Combined Wire Cutters & Pliers Bolt Cutters

17

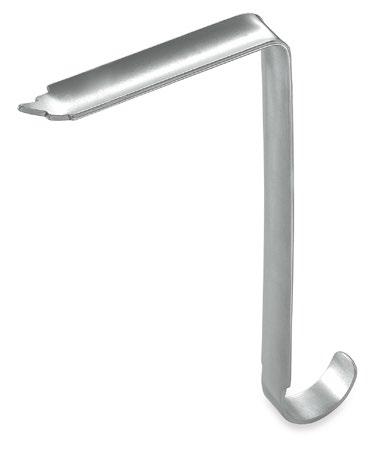

RETRACTORS

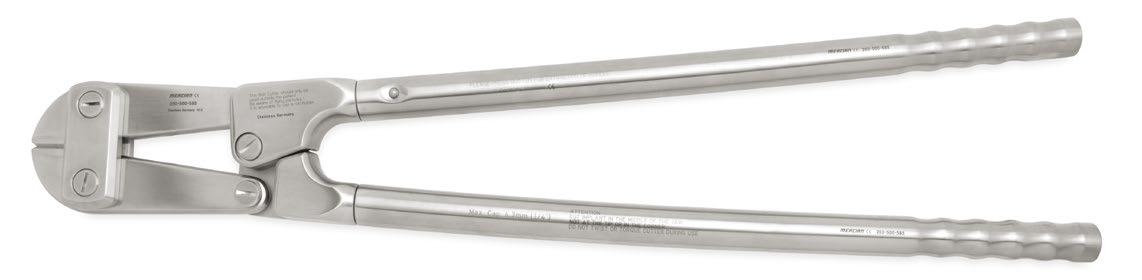

WIRE & BOLT CUTTERS

16

47 47 47 47 47 48 48 48

71 72 & 73 73 73

15

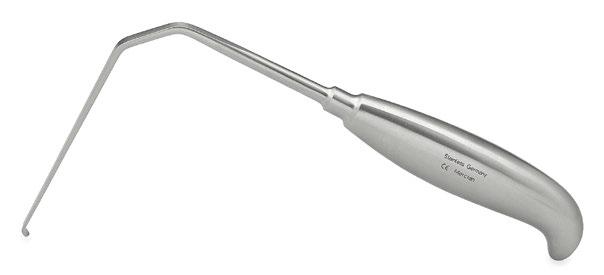

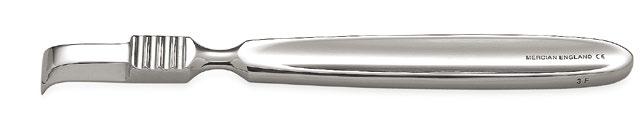

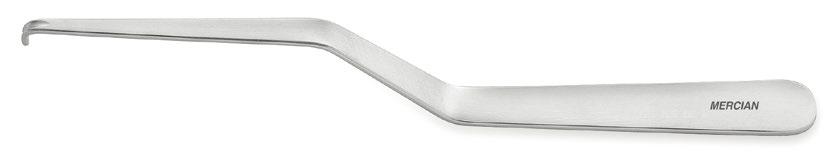

Love Bayonet Nerve Root Retractor Krayenbuhl Nerve Root Retractor Caspar Bayonet Nerve Root Retractor O'Connell Nerve Root Retractor Love Nerve Root Retractor Sheppered Suction Nerve Root Retractor Nerve Root Retractor Hess Nerve Root Retractor

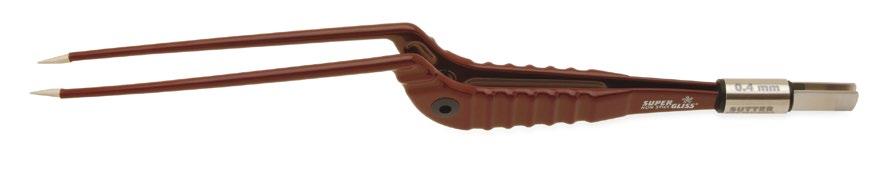

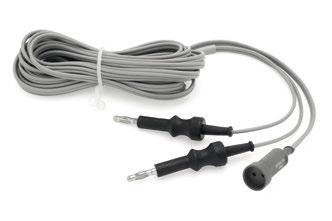

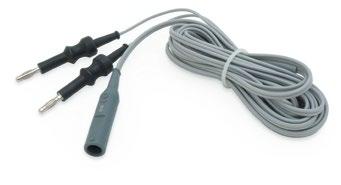

Straight Bipolar Forceps Bayonet Bipolar Forceps Bipolar Coagulation Unit & Foot Switch Bipolar Cables

14

NERVE ROOT RETRACTORS

BIPOLAR FORCEPS

13

45 & 46

69 69 70 70

12

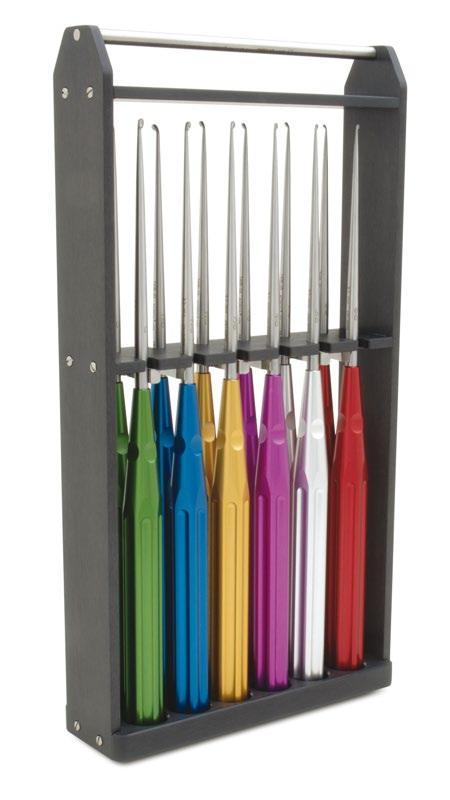

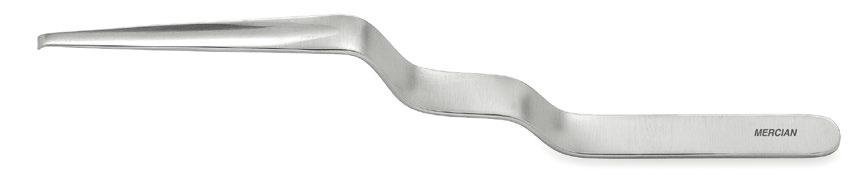

Titanium Rhoton Micro Dissectors

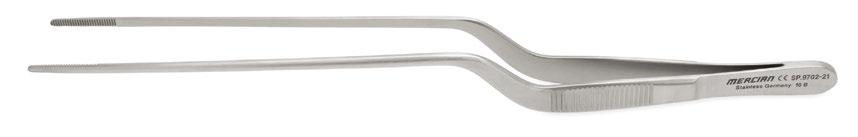

Yasargil Bayonet Micro Forceps Yasargil Bayonet Tumour Grasping Forceps Yasargil Bayonet Micro Needle Holder Yasargil Bayonet Micro Scissors

11

RHOTON MICRO DISSECTORS

BAYONET MICRO INSTRUMENTS 10

43 43 43 43 43 43 44 44 44 44 44

9

Pedicle Probe Adson Dural Hook Weary Nerve Hook Crile Hook Emmet Hook Cushing Hook Adson Hook Ball Probe Manipulation Hook Blalock Blunt Hook Caspar Exploration Hook

8

HOOKS & PROBES

7

41 41 41 42 42 42 42

6

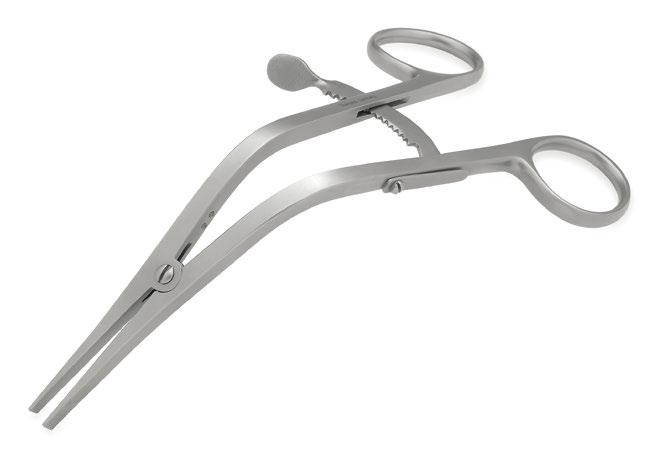

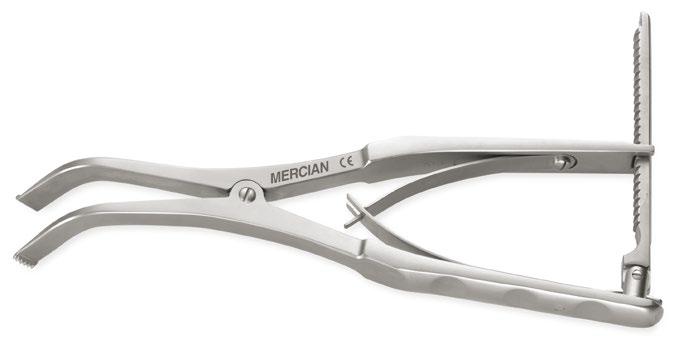

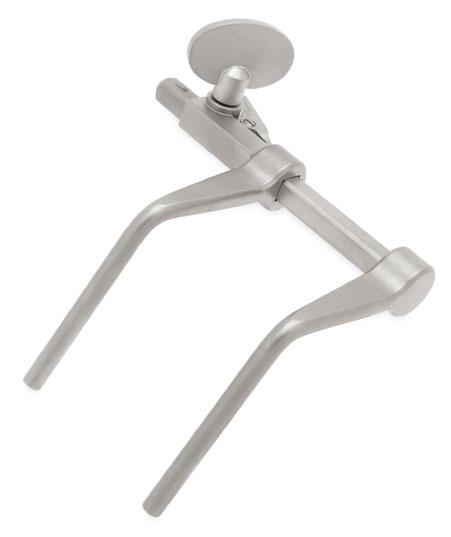

Cervical Vertebral Spreader Cloward Cervical Spreader Cloward Lamina Spreader Baby Inge Lamina Spreader Inge Lamina Spreader Scaglietti Lamina Spreader Long Anterior Lamina Spreader

52 52 53 53 53 54 55 & 56 57 & 58 59 & 60 61 & 62 63 & 64 65 & 66 67 & 68

5

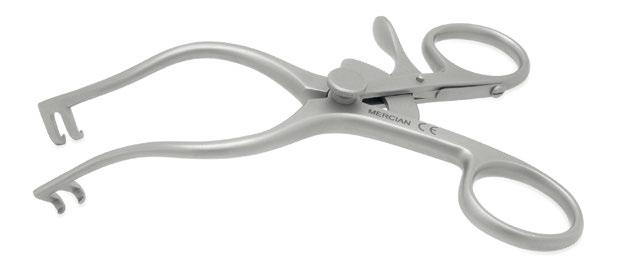

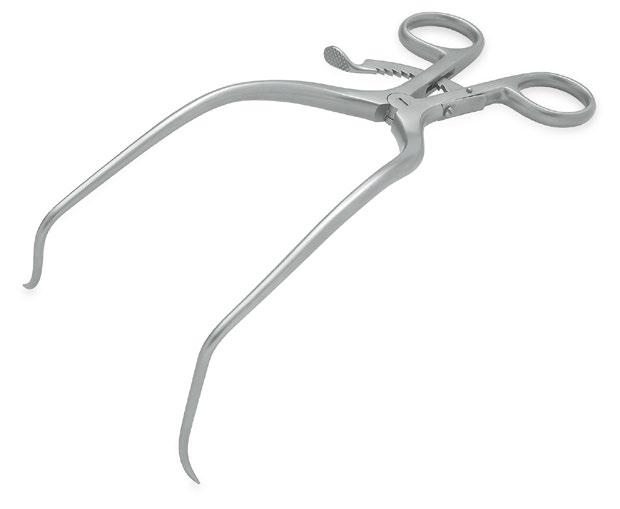

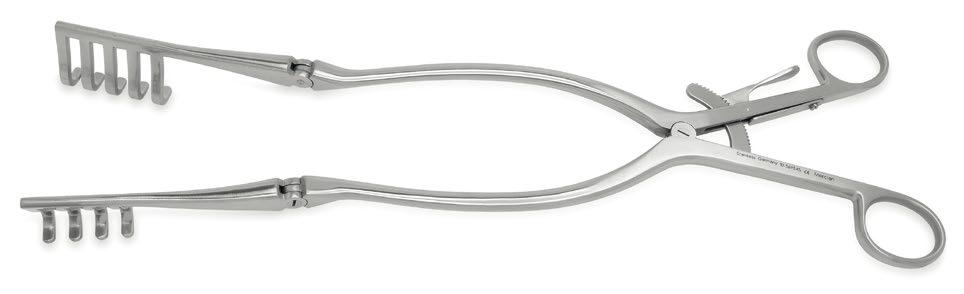

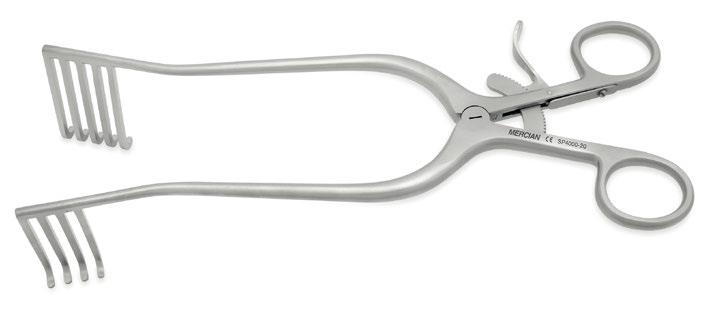

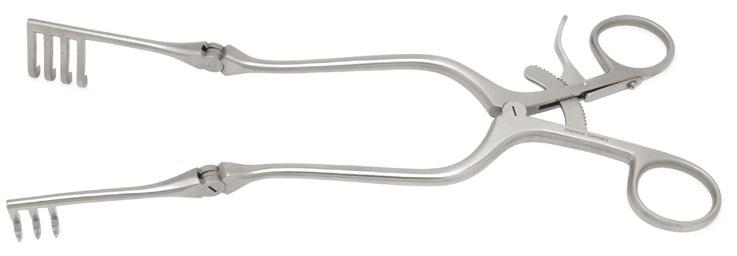

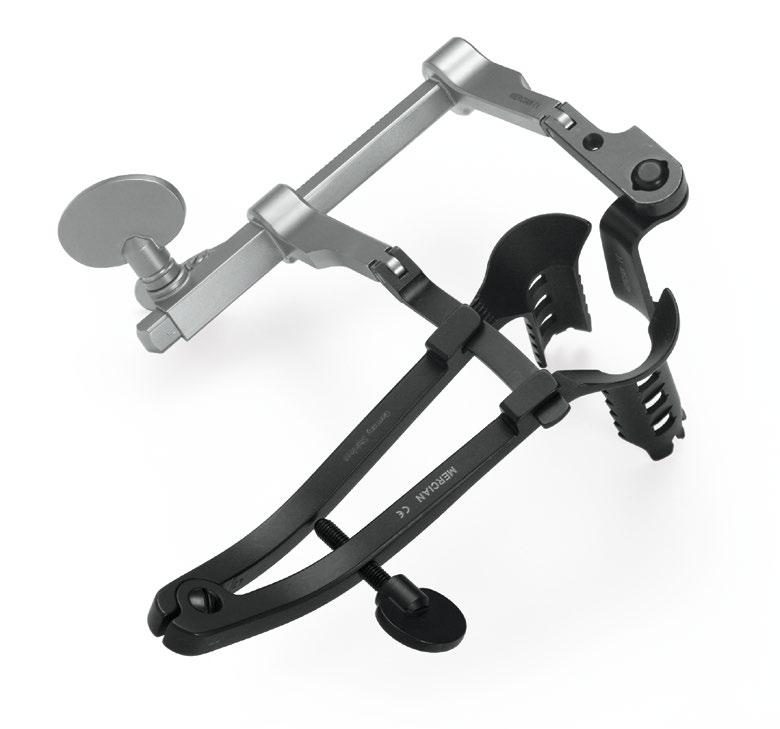

Harvey Jackson Retractor Beckman- Adson Retractor Gelpi Laminectomy Retractor Hardman Retractor Meyerding Retractor Viper Scoliosis Retractor McCulloch Retractor Set Micro Discectomy Instrument Set 'Black Belt' Cervical Retractor Set Super-Slide Laminectomy Retractor Set Caspar Retractor Set MIS Tubular Retractor Set Lumbar Spinal Instrument Set

39 & 40

4

RETRACTORS cont.

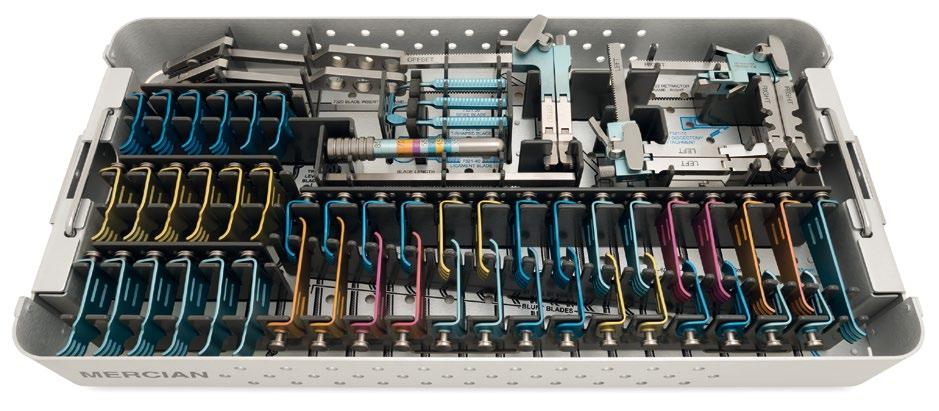

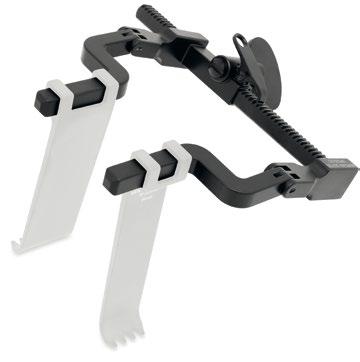

Caspar Distraction Set

3

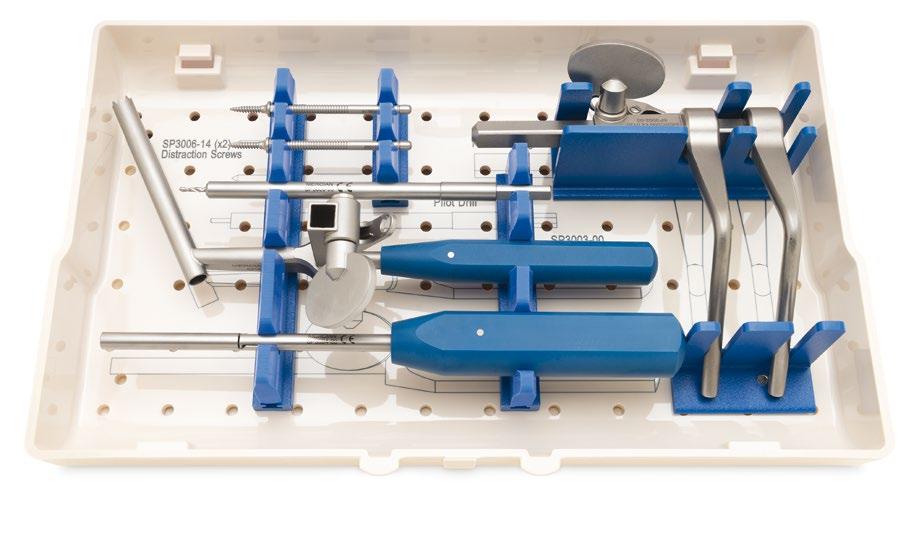

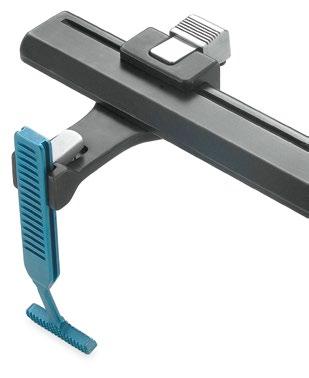

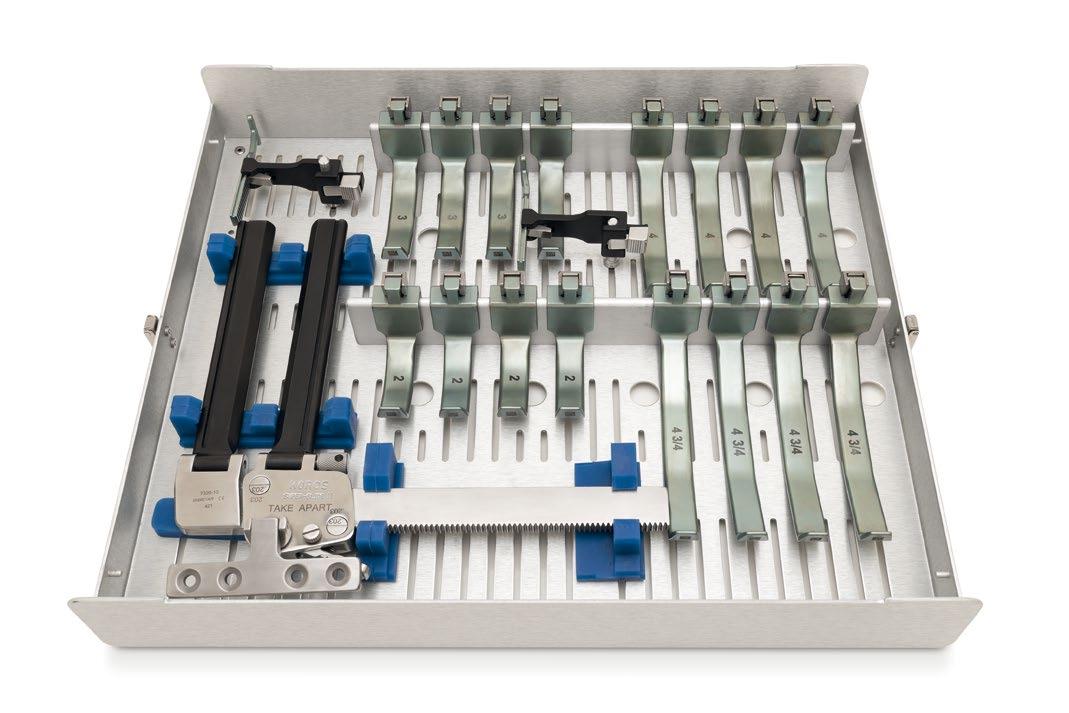

CASPAR CERVICAL DISTRACTION SET

Page No.

1

27 1 1

28

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com 29

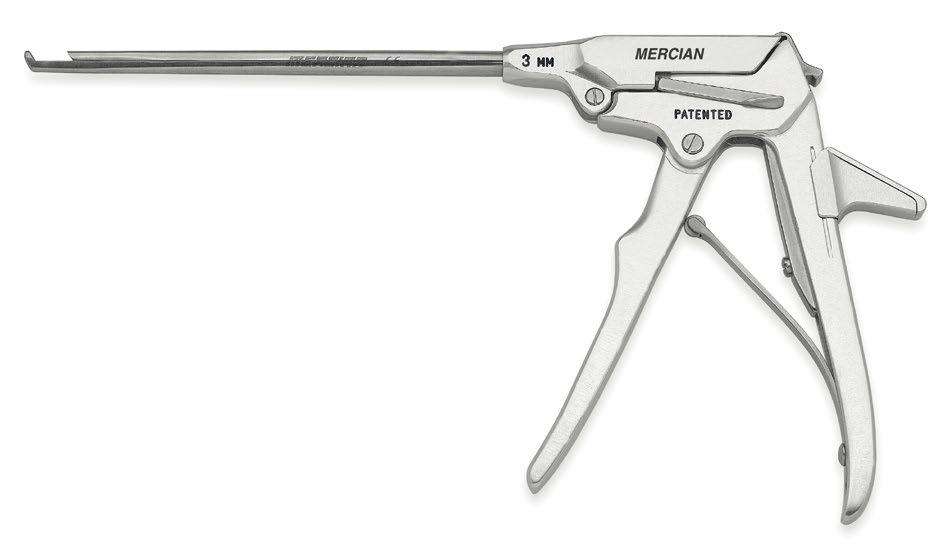

LAMINECTOMY PUNCH

Surgical Instruments of Excellence

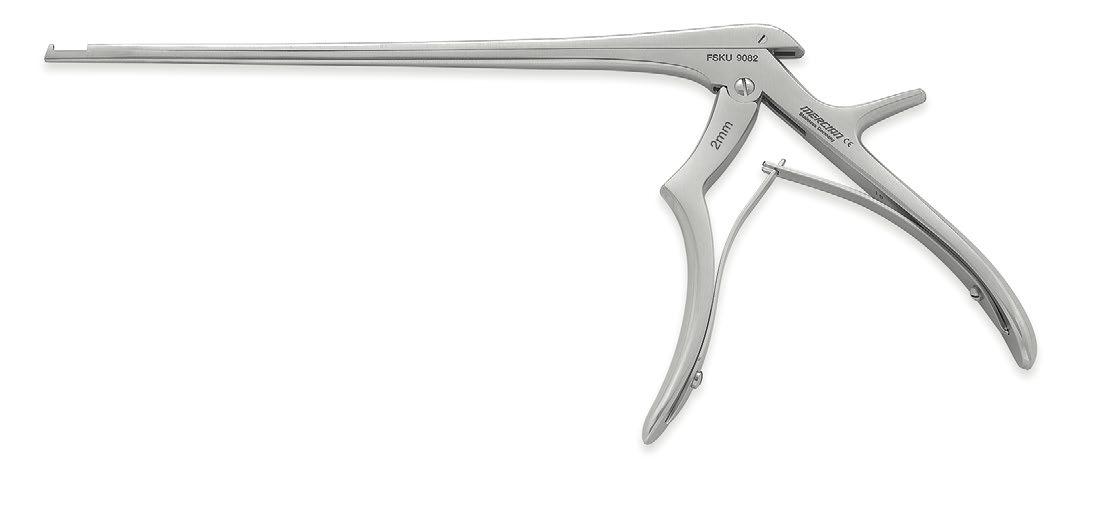

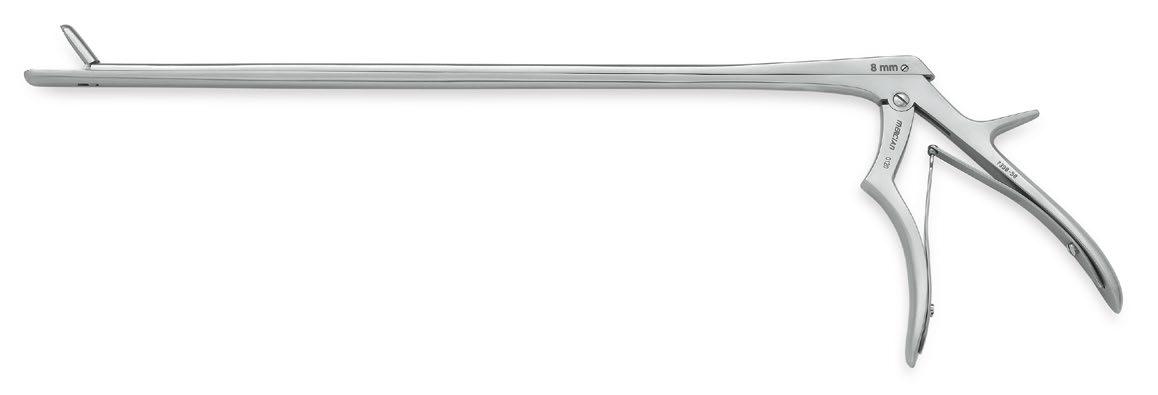

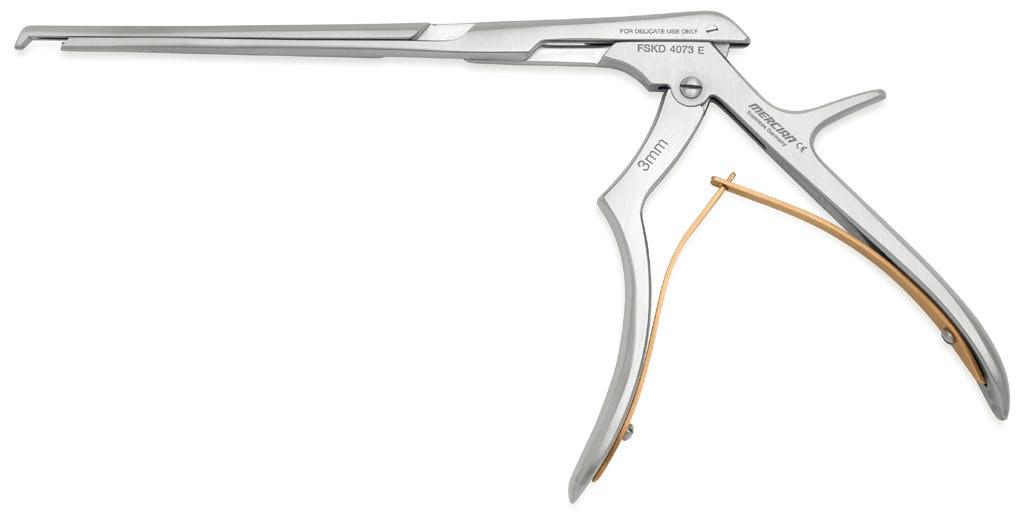

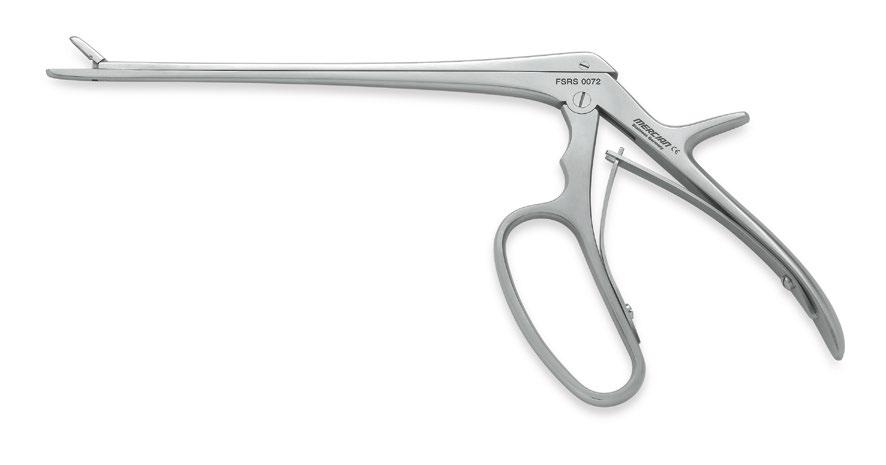

Kerrison Laminectomy Punch l

90˚ jaw angle

90˚ UPWARD

90˚ DOWNWARD

90˚ UPWARD JAW 18cm/7" shaft 20cm/8" shaft bite size

90˚ DOWNWARD JAW 18cm/7" shaft 20cm/8" shaft bite size

FSKU 9071

FSKU 9081

1mm

FSKD 9071

FSKD 9081

FSKU 9072

FSKU 9082 2mm

FSKD 9072

FSKD 9082 2mm

FSKU 9073

FSKU 9083 3mm

FSKD 9073

FSKD 9083 3mm

FSKU 9074

FSKU 9084 4mm

FSKD 9074

FSKD 9084 4mm

FSKU 9075

FSKU 9085 5mm

FSKD 9075

FSKD 9085 5mm

FSKU 9076

FSKU 9086 6mm

FSKD 9076

FSKD 9086 6mm

1mm

Kerrison Laminectomy Punch l

40˚ DOWNWARD jaw angle

40˚ DOWNWARD JAW 18cm/7" shaft 20cm/8" shaft bite size FSKD 4071

FSKD 4081

1mm

FSKD 4072E

FSKD 4082E 2mm

FSKD 4073E

FSKD 4083E 3mm

FSKD 4074E

FSKD 4084E 4mm

FSKD 4075E

FSKD 4085E 5mm

FSKD 4076E

FSKD 4086E 6mm

40˚ DOWNWARD

1

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com


LAMINECTOMY PUNCH

Surgical Instruments of Excellence

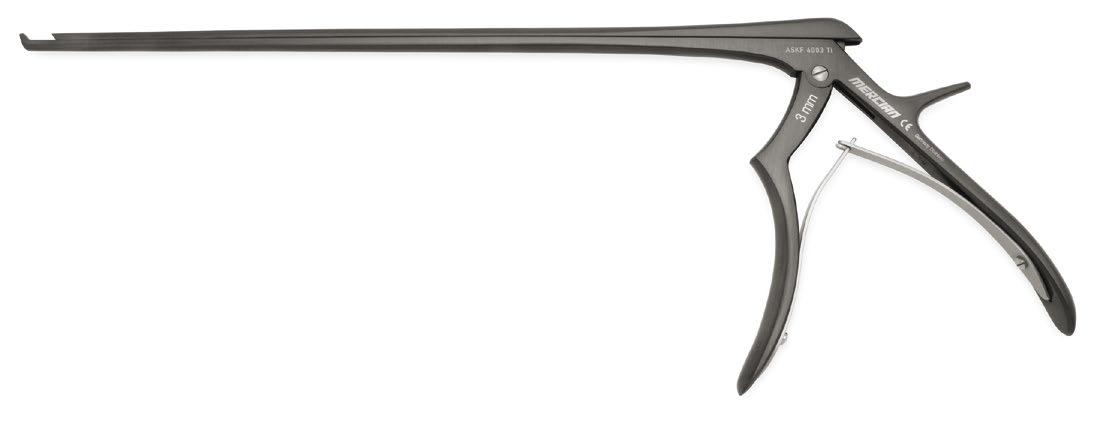

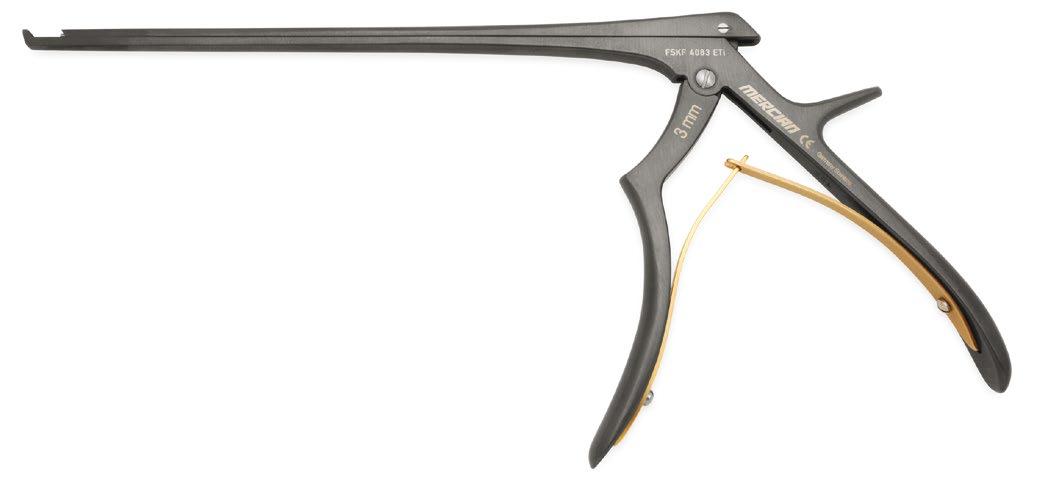

'Black Line' Kerrison Laminectomy Punch l ● ●

40˚ UPWARD jaw angle With special titanium coating on surface Bone ejector

18cm/7" shaft

40˚ UPWARD JAW 20cm/8" shaft 23cm/9" shaft bite size

FSKF 4071 Ti

FSKF 4081 Ti

FSKF 4072 ETi

FSKF 4082 ETi

FSKF 4092 ETi 2mm

FSKF 4073 ETi

FSKF 4083 ETi

FSKF 4093 ETi 3mm

FSKF 4074 ETi

FSKF 4084 ETi

FSKF 4094 ETi 4mm

FSKF 4075 ETi

FSKF 4085 ETi

FSKF 4095 ETi 5mm

FSKF 4076 ETi

FSKF 4086 ETi

FSKF 4096 ETi 6mm

FSKF 4091 Ti

1mm*

*1mm size not available with Bone Ejector

40˚ UPWARD

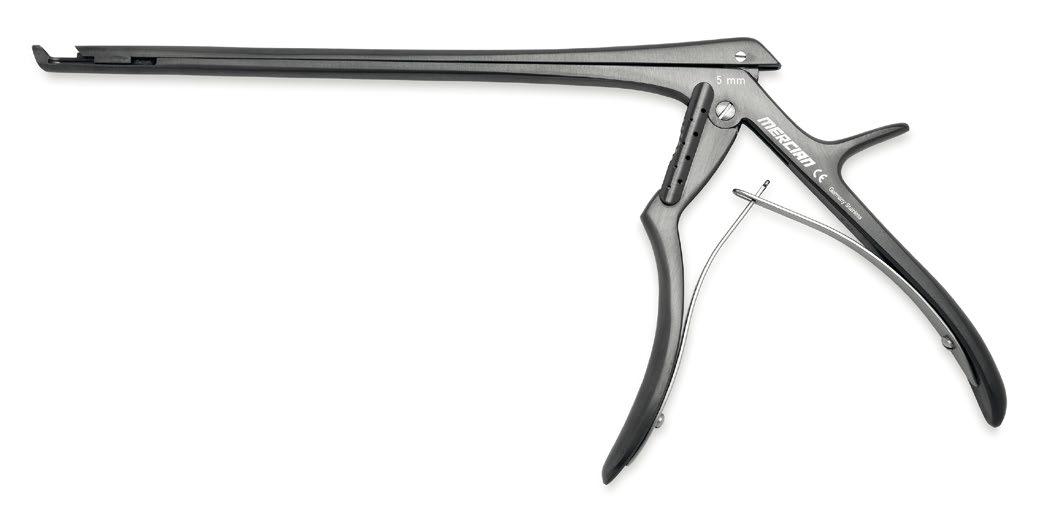

Kerrison Laminectomy Punch with Bone Ejector l ●

40˚ UPWARD jaw angle Bone ejector

18cm/7" shaft

40˚ UPWARD JAW 20cm/8" shaft 23cm/9" shaft bite size

FSKF 4071

FSKF 4081

FSKF 4091

1mm*

FSKF 4072E

FSKF 4082E

FSKF 4092E

2mm

FSKF 4073E

FSKF 4083E

FSKF 4093E

3mm

FSKF 4074E

FSKF 4084E

FSKF 4094E

4mm

FSKF 4075E

FSKF 4085E

FSKF 4095E

5mm

FSKF 4076E

FSKF 4086E

FSKF 4096E

6mm

*1mm size not available with Bone Ejector

40˚ UPWARD

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com

2


LAMINECTOMY PUNCH

Surgical Instruments of Excellence

Thin Footplate Kerrison Laminectomy Punch l ●

40˚ UPWARD jaw angle Thin footplate for cervical surgery

40˚ UPWARD JAW 18cm/7" Shaft 20cm/8" Shaft Bite size FSKF 4071T

FSKF 4081T

1mm

FSKF 4072T

FSKF 4082T

2mm

FSKF 4073T

FSKF 4083T

3mm

FSKF 4074T

FSKF 4084T

4mm

FSKF 4075T

FSKF 4085T

5mm

FSKF 4076T

FSKF 4086T

6mm

Reduced footplate

A reduced footplate thickness useful for a restricted operating area ●

40˚ UPWARD

Wide Opening Kerrison Laminectomy Punch l ● ●

40˚ UPWARD jaw angle 16mm wide opening jaw Bone ejector

40˚ UPWARD JAW 20cm/8" Shaft Bite size FSKW 4081 Ti

1mm*

FSKW 4082 ETi 2mm FSKW 4083 ETi 3mm

● Wide opening jaws allowing the surgeon to envelope more bone

FSKW 4084 ETi 4mm FSKW 4085 ETi 5mm FSKW 4086 ETi 6mm

16mm

40˚ UPWARD *1mm not available with bone ejector

3

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com


LAMINECTOMY PUNCH

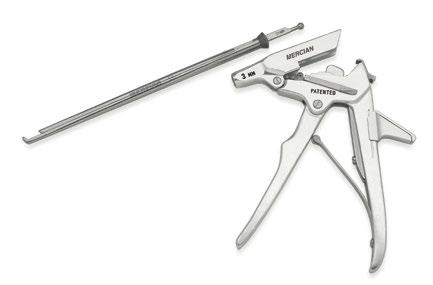

Titanium Kerrison Dismantable Punch 40˚ UPWARD jaw angle Titanium coating ● Take apart for cleaning ● Bone ejector l

Surgical Instruments of Excellence

Press here to open

18cm/7" Shaft

40˚ UPWARD JAW 20cm/8" Shaft 23cm/9" Shaft Bite size

FSKF 4071 DTi

FSKF 4081 DTi

FSKF 4091 DTi

1mm

FSKF 4072 DETi

FSKF 4082 DETi FSKF 4092 DETi

2mm

FSKF 4073 DETi

FSKF 4083 DETi FSKF 4093 DETi

3mm

FSKF 4074 DETi

FSKF 4084 DETi FSKF 4094 DETi

4mm

FSKF 4075 DETi

FSKF 4085 DETi FSKF 4095 DETi

5mm

FSKF 4076 DETi

FSKF 4086 DETi FSKF 4096 DETi

6mm

40˚ UPWARD

Curved Foramenotomy Punch l ●

40˚ UPWARD jaw angle Curved shaft designed to improve access to the foramen

20cm/8" shaft

Bite size

FFKC 4082

2mm

FFKC 4083 3mm

FFKC 4084 4mm

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com

4


LAMINECTOMY PUNCH

Surgical Instruments of Excellence

Long Anterior Kerrison Laminectomy Punch l ● ● ●

40˚ UPWARD jaw angle With special titanium coating on surface Extra-long shaft for thoracic approach Bone ejector

40˚ UPWARD JAW 28cm/11" shaft Bite size ASKF 4001TI

1mm*

ASKF 4002ETI 2mm ASKF 4003ETI 3mm

40˚ UPWARD

ASKF 4004ETI 4mm ASKF 4005ETI 5mm ASKF 4006ETI 6mm *1mm not available with bone ejector

working length

Bayonet Kerrison Punch l ● ● ●

40˚ UPWARD jaw angle Allows improved visibility With special titanium coating on surface Bone ejector

40˚ UPWARD JAW 20cm/7¾" Shaft 23cm/9" Shaft 28cm/11" Shaft working length working length working length 12cm/4¾" 18cm/7" 20cm/7¾"

5

Bite size

FSKF 4081BTi

FSKF 4091BTi

ASKF 4001BTi

1mm

FSKF 4082BETi

FSKF 4092BETi

ASKF 4002BETi

2mm

FSKF 4083BETi

FSKF 4093BETi

ASKF 4003BETi

3mm

FSKF 4084BETi

FSKF 4094BETi

ASKF 4004BETi

4mm

FSKF 4085BETi

FSKF 4095BETi

ASKF 4005BETi

5mm

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com


LAMINECTOMY PUNCH

Surgical Instruments of Excellence

Ferris-Smith Kerrison Laminectomy Punch l ●

40˚ UPWARD jaw angle Modified ring handle

40˚ UPWARD JAW 18cm/7" Shaft 20cm/8" Shaft Bite size

FSKR 4072

FSKR 4082

2mm

FSKR 4073

FSKR 4083

3mm

FSKR 4074

FSKR 4084

4mm

FSKR 4075

FSKR 4085

5mm

FSKR 4076

FSKR 4086

6mm

40˚ UPWARD

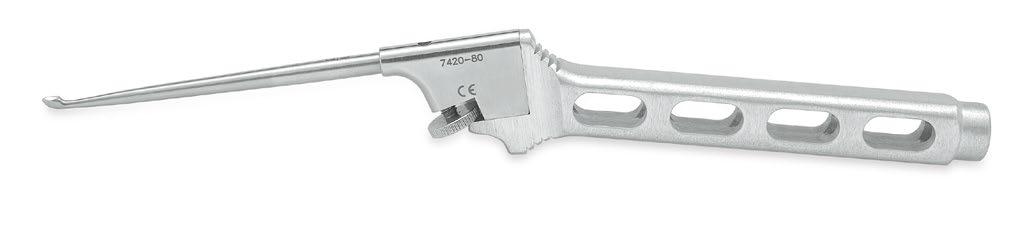

Osteo-Rotating Punch l ● ● ● ●

40˚ UPWARD jaw angle Thin foot plate for tight areas Full 360˚ rotation of shaft Removable shaft allows cleaning & replacement Ergonomically shaped handle

40˚ UPWARD JAW 18cm/7" Shaft 21cm/8¼" Shaft Bite size SP7375-40 SP7376-40 0.6mm SP7375-41

SP7376-41

1mm

SP7375-42

SP7376-42

2mm

SP7375-43

SP7376-43

3mm

SP7375-44

SP7376-44

4mm

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com

6


DISC RONGEURS

Surgical Instruments of Excellence

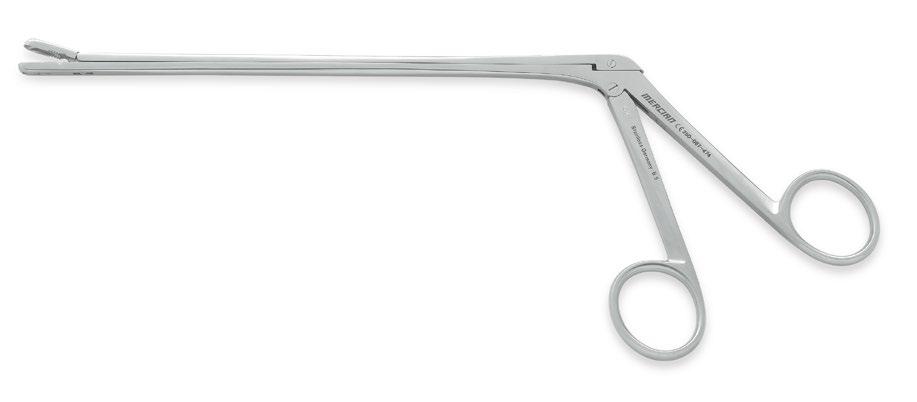

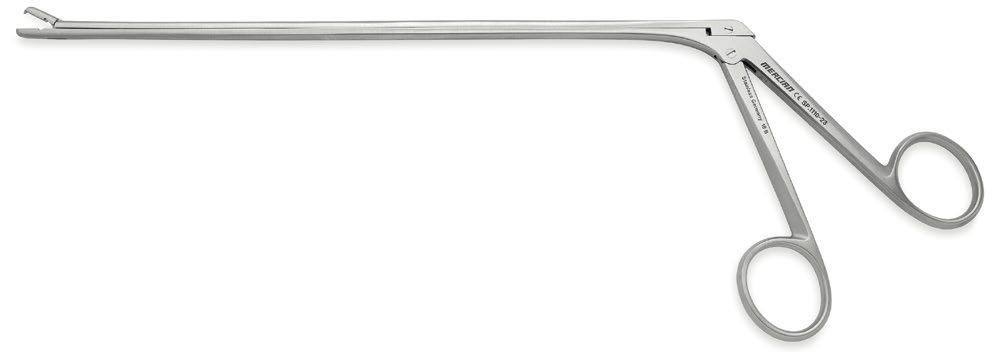

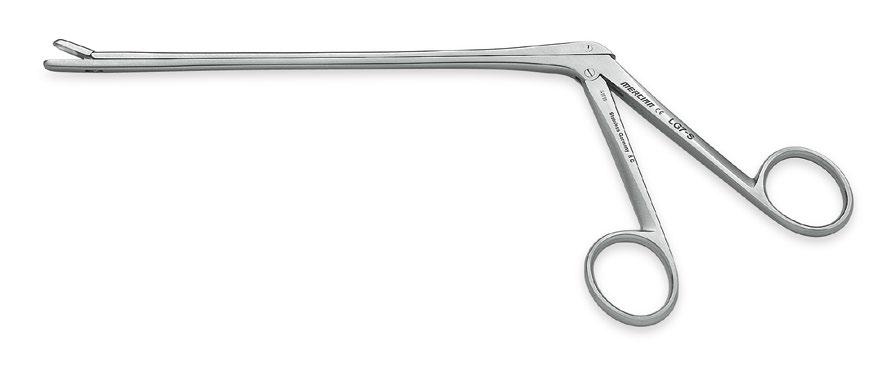

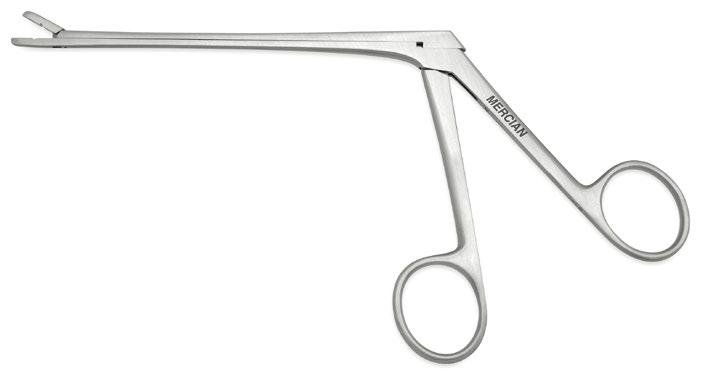

Intervertebral Disc Rongeur

STRAIGHT JAW 15cm/6" Shaft 18cm/7" Shaft 20cm/8" Shaft

Bite size

F6-S F7-S F8-S 1mm K6-S K7-S K8-S 1.5mm C6-S C7-S C8-S 2mm LG6-S LG7-S LG8-S 3mm S6-S S7-S S8-S 4mm R6-S R7-S R8-S 5mm P6-S P7-S P8-S 6mm Q6-S Q7-S Q8-S 7mm

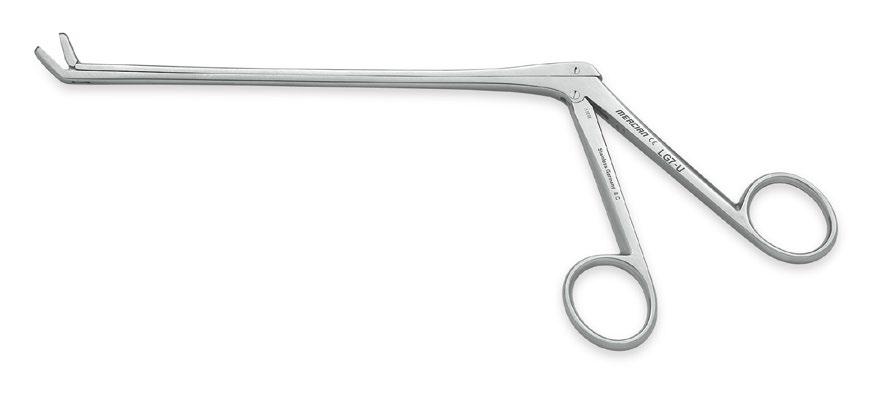

Intervertebral Disc Rongeur

40° ANGLED UPWARD JAW 15cm/6" Shaft 18cm/7" Shaft 20cm/8" Shaft

Bite size

F6-U F7-U F8-U 1mm K6-U K7- U K8-U 1.5mm C6-U C7-U C8-U 2mm LG6-U LG7-U LG8-U 3mm S6-U S7-U S8-U 4mm R6-U R7-U R8-U 5mm P6-U P7-U P8-U 6mm Q6-U Q7- U Q8-U 7mm

Intervertebral Disc Rongeur

40° ANGLED DOWNWARD JAW 15cm/6" Shaft 18cm/7" Shaft 20cm/8" Shaft

Bite size

F6-D F7- D F8-D 1mm K6-D K7-D K8-D 1.5mm C6-D C7-D C8-D 2mm LG6-D LG7-D LG8-D 3mm S6-D S7-D S8-D 4mm R6-D R7-D R8-D 5mm P6-D P7- D P8-D 6mm Q6-D Q7-D Q8-D 7mm

7

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com


DISC RONGEURS

Surgical Instruments of Excellence

Caspar Toothed Disc Rongeur

Serrated and fenestrated jaws

STRAIGHT JAW 16cm/6¼" Shaft 18cm/7" Shaft

Bite size

SP1502-16 SP1502 -18 2mm SP1503-16 SP1503 -18 3mm SP1504-16 SP1504 -18 4mm SP1505-16 SP1505 -18 5mm

UPWARD JAW 16cm/6¼" Shaft 18cm/7" Shaft

Bite size

SP1602-16 SP1602-18 2mm SP1603-16 SP1603-18 3mm SP1604-16 SP1604-18 4mm SP1605-16 SP1605-18 5mm

DOWNWARD JAW 16cm/6¼" Shaft 18cm/7" Shaft

Bite size

SP1702 -16 SP1702 -18 2mm SP1703 -16 SP1703 -18 3mm SP1704 -16 SP1704 -18 4mm SP1705 -16 SP1705 -18 5mm

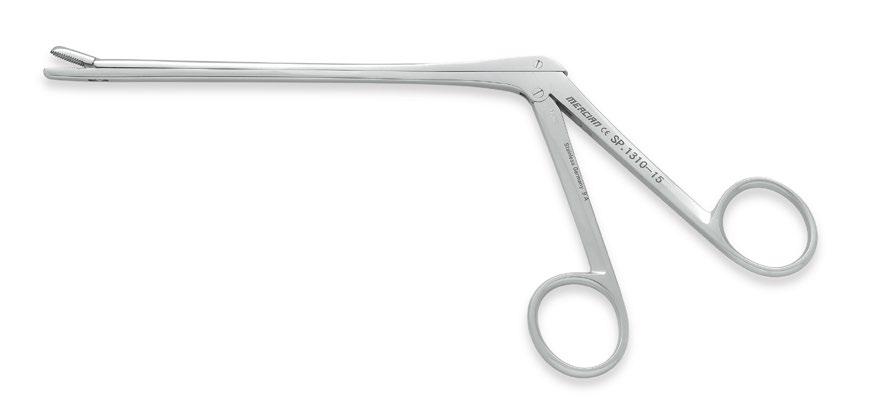

Schlesinger Toothed Rongeur ●

Fine serration on the jaw edge

15cm/6" Shaft

STRAIGHT JAW 18cm/7" Shaft

Bite size

SP1210 -15 SP1210-18 2mm SP1310-15 SP1310-18 3mm SP1410 -15 SP1410-18 4mm

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com

8


DISC RONGEURS

Surgical Instruments of Excellence

Williams Discectomy Rongeur ●

14cm/5½" shaft length SP1110-14

Single toothed cup 1mm bite

Williams Discectomy Rongeur longer pattern ●

23cm/9" shaft length SP1110 -23

‘Pea Pod’ Disc Rongeur ●

Short 10mm length jaw

15cm/6"

Bite size

SP1510-15 2mm SP1610-15 3mm SP1710 -15 4mm 13cm/5¼" Bite size SP1510-13 2mm Extra fine pattern 5mm length jaws

Beck Disc Rongeur ● ●

13cm/5¼" shaft length 2mm bite size SP1910-13

9

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com


DISC RONGEURS

Surgical Instruments of Excellence

Weil-Blakesley Forceps ● ●

18cm/7" shaft length Fenestrated jaw

Straight jaw

Upward 30˚ angled jaw

Bite size

SP1825-18 2.5mm SP1830-18 3.0mm SP1835-18 3.5mm

Bite size

SP1925-18 2.5mm SP1930-18 3.0mm SP1935-18 3.5mm

Decker Rongeur ● ●

15cm/6" shaft length Straight jaw

SP1223-15

1.5mm jaw

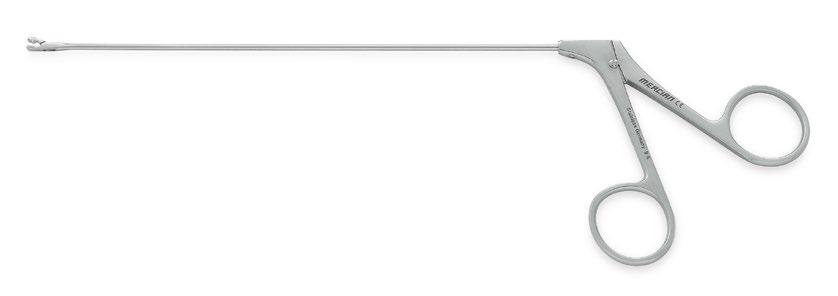

Nicola Micro Cupped Biopsy Forceps ●

16.5cm/6½" shaft length SP1222-16

16.5cm/6½”

Ø 2.5mm

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com

10


DISC RONGEURS

Surgical Instruments of Excellence

Micro Disc Rongeur

● ● ● ●

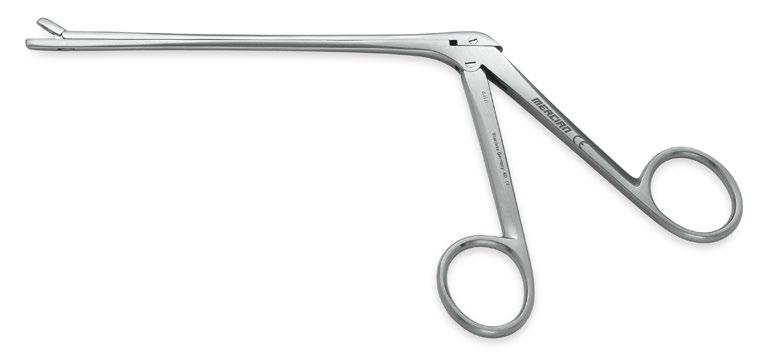

17cm/6¾" shaft length 2mm bite size Black titanium coating Very slim shaft

Straight jaw

40˚ Upward jaw

SP1331-17

SP1332-17

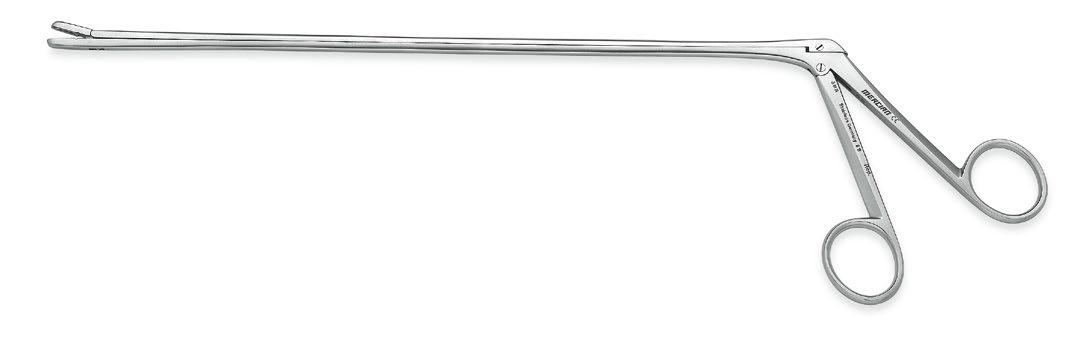

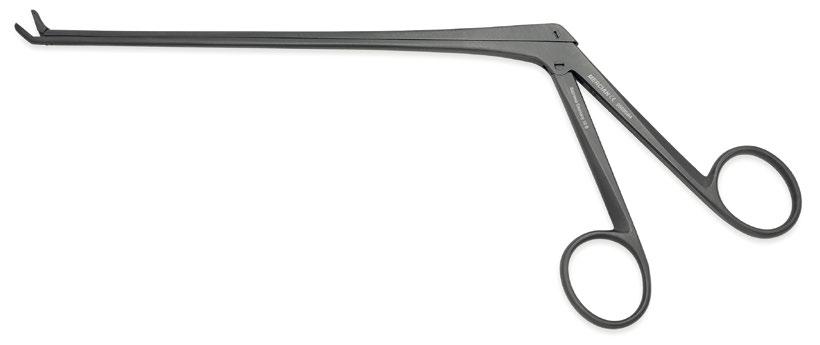

Micro Toothed Disc Rongeur

● ● ● ●

17cm/6¾" shaft length 2mm micro toothed jaw Black titanium coating Very slim shaft 40˚ Upward jaw SP1335-17

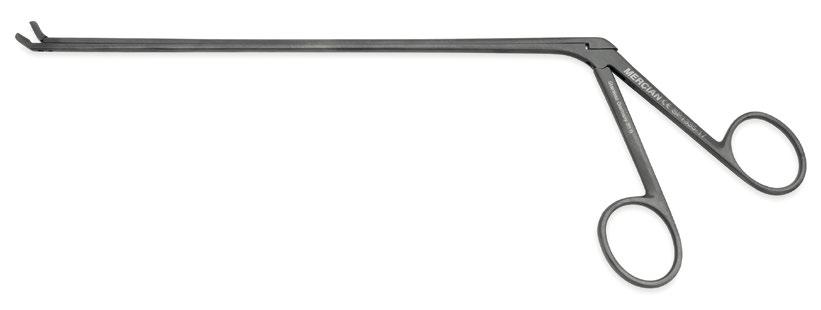

Cushing Disc Rongeur

● ● ●

17cm/6¾" shaft length 2mm x 10mm short jaw Black titanium coating

40˚ Upward jaw SP1334-17

Toothed Fine Disc Rongeur

● ● ●

17cm/6¾" shaft length 2mm fine toothed jaw Black titanium coating

Straight jaw SP1333-17

11

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com


DISC RONGEURS

Surgical Instruments of Excellence

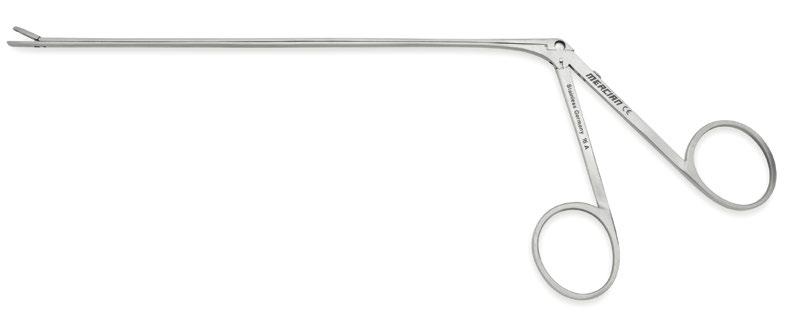

Ferris-Smith Disc Rongeur ●

Ring handle

18cm/7" Shaft

Straight Jaw 20cm/8" Shaft

Bite size

FSRS 0072

FSRS 0082

2mm

FSRS 0073

FSRS 0083

3mm

FSRS 0074

FSRS 0084

4mm

FSRS 0075

FSRS 0085

5mm

40˚ Upward Jaw 18cm/7" Shaft 20cm/8" Shaft

Bite size

FSRU 0072

FSRU 0082

2mm

FSRU 0073

FSRU 0083

3mm

FSRU 0074

FSRU 0084

4mm

FSRU 0075

FSRU 0085

5mm

Anterior Disc Rongeur ● ●

28cm/11" shaft length Longer 28cm shaft for greater reach in the anterior approach

Straight

Upward

Bite size

A11S-2 A11U-2 2mm A11S-3 A11U-3 3mm A11S-4 A11U-4 4mm A11S-5 A11U-5 5mm

Anterior Disc Rongeur ● ●

35cm/13½" shaft length Extra-long length shaft for deeper areas

Straight

Upward

SP7390-52

Bite size

- 2.4mm

SP7390-54 SP7390-84 4mm SP7390-56 - 6mm

with teeth

SP7390-58 SP7390-88 8mm

with teeth

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com

12


BONE NIBBLERS

Surgical Instruments of Excellence

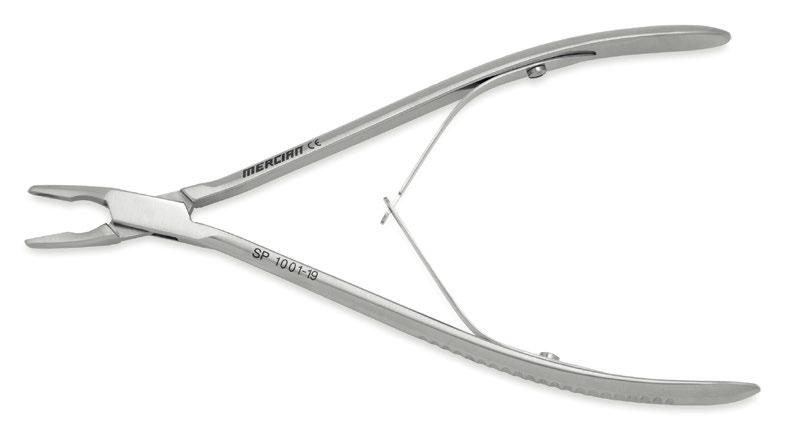

Lempert Bone Nibbler ● ●

19cm/7½" length Single action

3mm Bite SP1001-19

Luer Bone Nibbler ● ●

18cm/7" length Single action

Straight 8mm Bite SP1004 -18

Curved 8mm Bite SP1005 -18

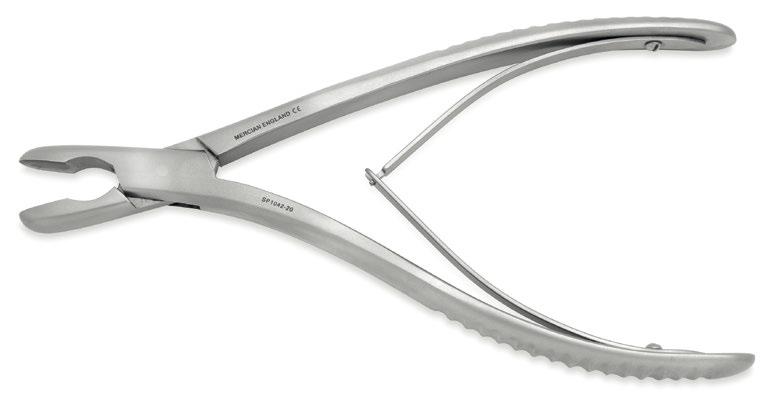

Adson Bone Nibbler ● ●

20cm/8" length Single action

7mm Bite SP1040-20

13

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com


BONE NIBBLERS

Surgical Instruments of Excellence

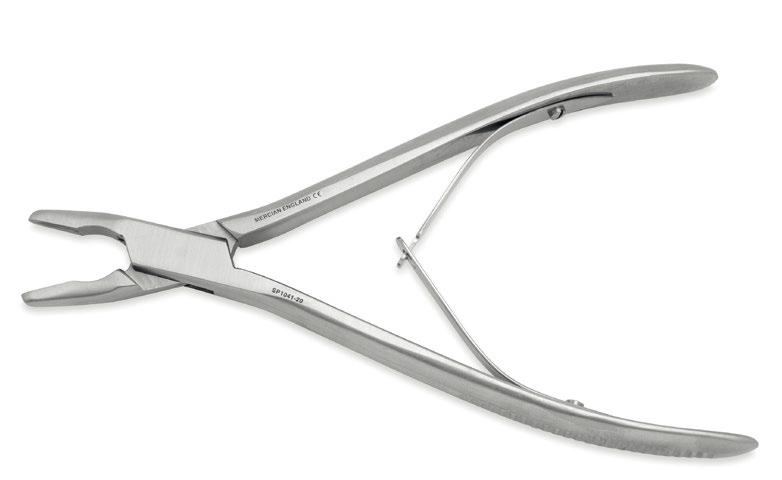

Pennybacker Bone Nibbler ● ●

20cm/8" length Single action

4mm Bite SP1041-20

Northfields Bone Nibbler ● ●

20cm/8" length Single action

10mm Bite SP1042-20

'Rat Toothed' Bone Nibbler ● ●

21cm/8¼" length Single action

5mm Bite SP1035-21

3 x 3 Teeth

8mm Bite SP1030-21

3 x 3 Teeth

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com

14


BONE NIBBLERS

Surgical Instruments of Excellence

Zielke Intervertebral Rongeur ●

Angled parallel jaws

21cm/8¼" 25cm/9¾" Bite size SP1026-21 SP1026-25 3mm SP1027-21 SP1027- 25 5mm 3mm Bite

5mm Bite

Matzen Intervertebral Rongeur ● ●

20cm/8" length Angled jaws

8mm Bite SP1043-20

Beyer Bone Nibbler ● ●

18cm/7" length Curved double action

4mm Bite SP1002 -18

15

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com


BONE NIBBLERS

Surgical Instruments of Excellence

Jansen Bone Nibbler ● ●

18cm/7" length Curved double action

5mm Bite SP1003 -18

Marquardt Bone Nibbler ● ●

20cm/8" length Curved double action

3mm Bite SP1002-20

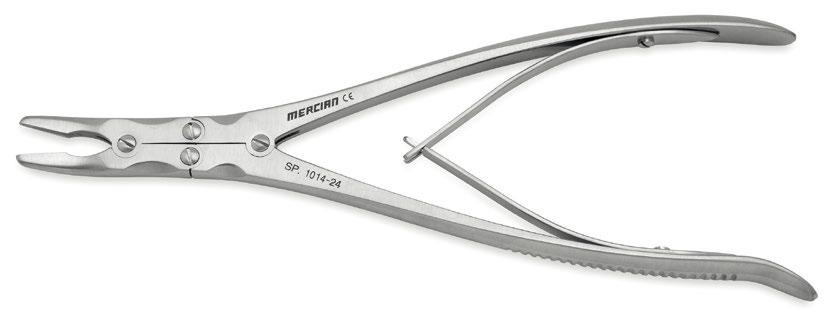

Smith-Peterson Bone Nibbler ● ●

24cm/9½" length Double action

Straight

Light curve

Bite size

SP1010-24 SP1014-24 3mm SP1011-24

SP1015-24 4mm

SP1012-24

SP1016-24 5mm

SP1013-24

SP1017-24 6mm

Straight

Light Curve

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com

16


BONE NIBBLERS

Surgical Instruments of Excellence

Leksell Bone Nibbler 24cm/9½" length Double action angled

● ●

Angled jaw

Bite size

SP1018-24 3mm SP1019- 24 5mm SP1020- 24 8mm

3mm

5mm

8mm

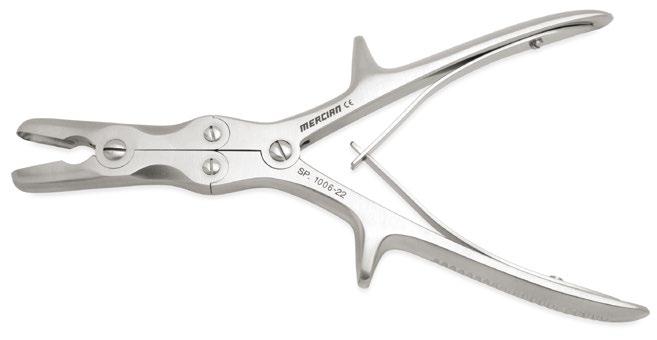

Stille-Luer Bone Nibbler ● ●

22cm/8¾" length Double action

Straight 10mm bite SP1006-22

Curved 10mm bite SP1007-22

'Mr Blobby' Stille-Luer Bone Nibbler ● ●

26cm/10¼" length Double action

Straight 17mm bite SP1008-26

17

Curved 17mm bite SP1009-26

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com


BONE NIBBLERS

Surgical Instruments of Excellence

Echlin Duckbill Nibbler 23cm/9" length Double action

● ●

2mm Bite SP1044-23

3mm Bite SP1045-23

4mm Bite SP1046-23

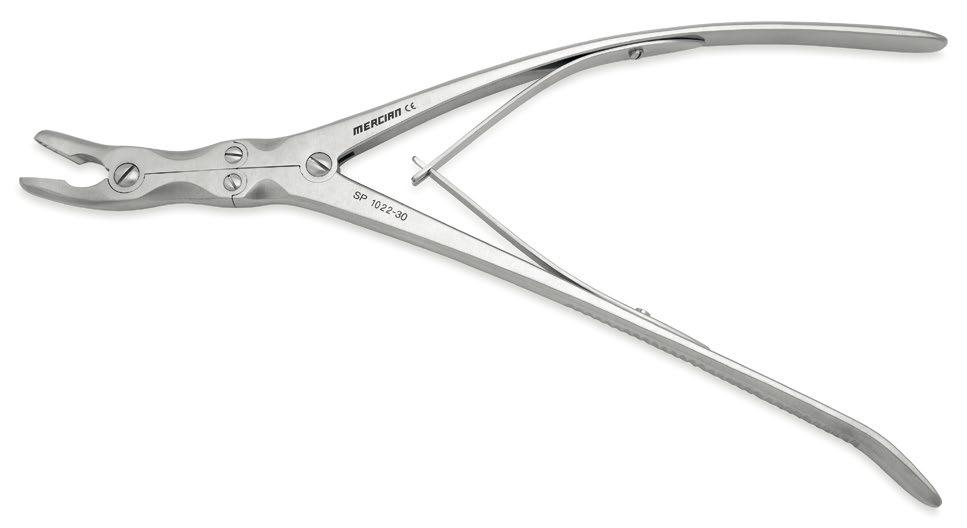

Long Anterior Leksell Bone Nibbler ● ●

30cm/12" length Double action

5mm Bite SP1021-30

8mm Bite SP1022-30

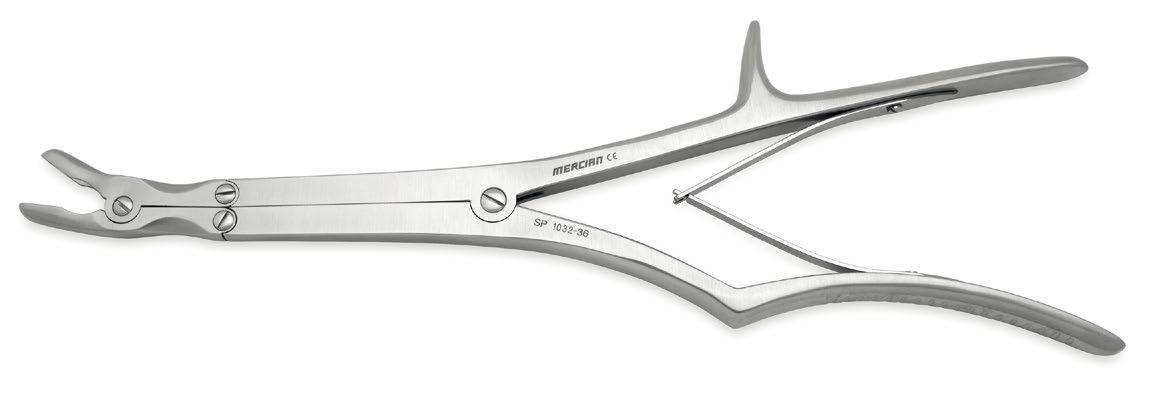

Sypert Bone Nibbler ● ●

36cm/14¼" length Double action - very long

5mm Bite SP1031- 36

8mm Bite SP1032-36

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com

18


BONE CUTTERS

Surgical Instruments of Excellence

McIndoe Bone Cutters ● ● ●

18cm/7" length Double action Angled jaws

SP1028 -18

Stille-Liston Bone Cutters ●

27cm/10¾" length

Straight SP1024-27

Angled SP1025-27

Liston-Key-Horsley Bone Cutters ●

27cm/10¾" length

SP1023-27

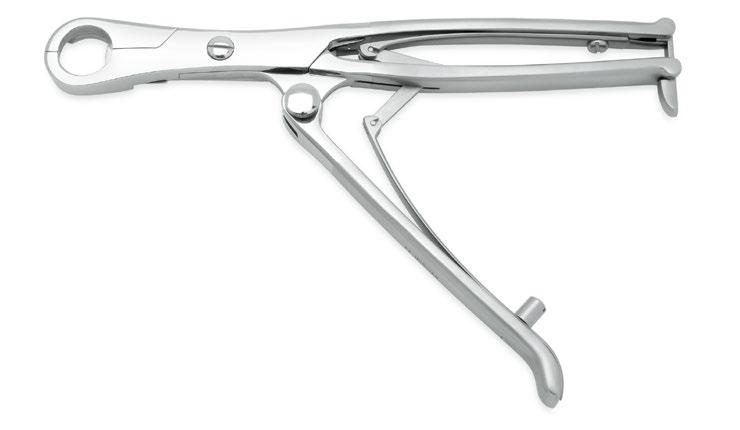

Tudor Edwards/Vehmehren Costotome ● ●

24cm/9½" length For cutting ribs

SP1023-24

19

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com

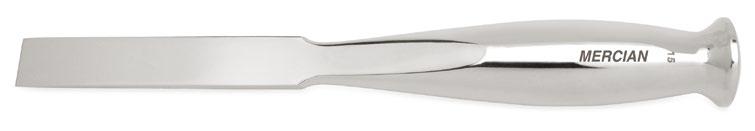

OSTEOTOMES

Surgical Instruments of Excellence

Capener Osteotome l ●

25cm/9¾" length Tufnol handle

Straight

Width

Curved

Width

SP7210-25 10mm

SP7310-25 10mm

SP7212-25 12mm

SP7312-25 12mm

SP7215-25 15mm

SP7315-25 15mm

SP7220-25 20mm

SP7320-25 20mm

SP7225-25 25mm

SP7325-25 25mm

SP7230-25 30mm

SP7330-25 30mm

Lexer Osteotome ● ●

22cm/8½" length Tufnol handle

Width

SP7207-22 7mm SP7210-22 10mm SP7215-22 15mm SP7220-22 20mm SP7225-22 25mm

Dahmen Osteotome ● ●

30cm/12" length Tufnol handle

5mm 10mm

Straight

Width

Angled

Width

SP7105-30 5mm

SP7305-30 5mm

15mm

SP7110-30 10mm

SP7310-30 10mm

20mm

SP7115-30 15mm

SP7315-30 15mm

SP7120-30 20mm

SP7320-30 20mm

SP7125-30 25mm

SP7325-30 25mm

SP7130-30 30mm

SP7330-30 30mm

25mm 30mm

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com

20


OSTEOTOMES

Surgical Instruments of Excellence

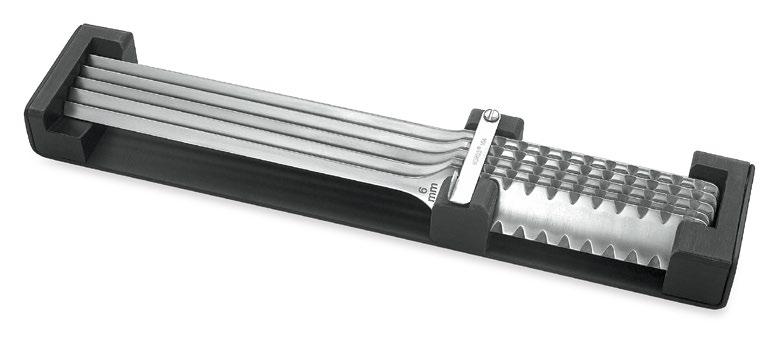

Scaglietti Straight Osteotome Set SP7452-00

Complete set consisting of: Qty

Order code

Description

5

Scaglietti Osteotomes - 5 sizes

1

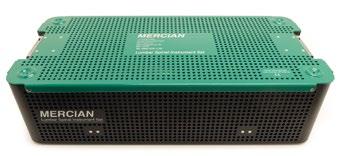

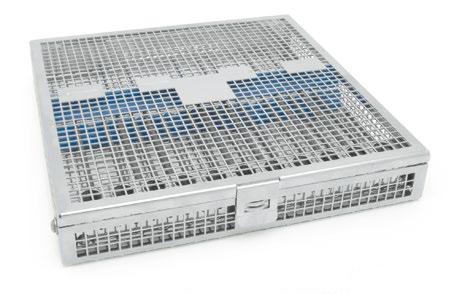

Instrument Case

SP7452- 52

Scaglietti Osteotomes ●

28cm/11" length

Straight Size

SP7452-06 6mm SP7452-09 9mm SP7452-12 12mm SP7452-16 16mm SP7452-19 19mm

Lambotte Osteotome

21

25cm/9¾" length Straight Width

23cm/9" length Curved Width

SP7970-04 4mm

SP7971- 04 4mm

SP7970-06 6mm

SP7971- 06 6mm

SP7970-08 8mm

SP7971- 08 8mm

SP7970-10 10mm

SP7971-10 10mm

SP7970-13 13mm

SP7971-13 13mm

SP7970-16 16mm

SP7971-16 16mm

SP7970-18 18mm

SP7971-18 18mm

SP7970-20 20mm

SP7971- 20 20mm

SP7970-25 25mm

SP7971- 25 25mm

SP7970-30 30mm

SP7971- 30 30mm

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com


OSTEOTOMES

Surgical Instruments of Excellence

Mini- Stille Osteotome l

16cm/6¼" length

Straight

Width

SP7704-16 4mm SP7706-16 6mm SP7708-16 8mm

Stille (Swedish) Osteotome ●

20cm/8" length

Straight

Width

Curved

Width

SP7706-20 6mm

SP7506-20 6mm

SP7708-20 8mm

SP7508-20 8mm

SP7710-20 10mm

SP7510-20 10mm

SP7712-20 12mm

SP7512-20 12mm

SP7715-20 15mm

SP7515-20 15mm

SP7720-20 20mm

SP7520-20 20mm

SP7725-20 25mm

SP7525-20 25mm

SP7730-20 30mm

SP7530-20 30mm

Hibbs Osteotome with thin blade ● ●

20cm/8" length Extra thin blade

Straight

Width

Curved

Width

SP7804-20 4mm

SP7904-20 4mm

SP7806-20 6mm

SP7906-20 6mm

SP7808-20 8mm

SP7908-20 8mm

SP7810-20 10mm

SP7910-20 10mm

SP7812-20 12mm

SP7912-20 12mm

SP7815-20 15mm

SP7915-20 15mm

SP7820- 20 20mm

SP7920-20 20mm

SP7825- 20 25mm

SP7925-20 25mm

SP7830- 20 30mm

SP7930-20 30mm

Smith Petersen Osteotome ●

20cm/8" length

Straight

Width

SP7610-20 10mm SP7615-20 15mm SP7620-20 20mm SP7625-20 25mm SP7630-20 30mm

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com

22


MALLETS

Surgical Instruments of Excellence

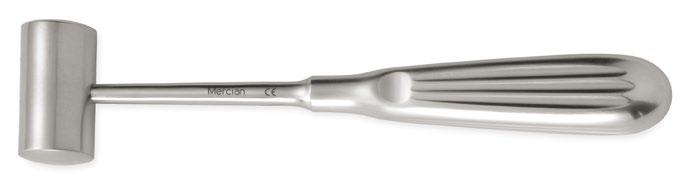

Toffee Mallet 19cm/7½" length Head size 22mm Ø l Weight 165g/6oz l l

HA5808-21

Mallet with Tufnol Handle l

l l

23cm/9" length Small head size 30mm Ø Weight 350g/12oz

HA5803-23 l l

Medium head size 35mm Ø Weight 550g/20oz

HA5804-23 l l

Large head size 40mm Ø Weight 700g/25oz

HA5805-23

Heavy Orthopaedic Mallet 25cm/10" length Head size 40mm Ø l Weight 900g/32oz l Ergonomic handle l l

HA5806-21 A very heavy mallet suitable for hip surgery with an ergonomic handle for comfort

23

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com


BONE GRAFT IMPACTORS

Surgical Instruments of Excellence

Cervical Bone Graft Impactor 90˚Offset ●

22cm/8½" length

6mm x 12mm tip SP7222-10

3.5mm x 6mm tip SP7222-55 18cm length

Lumbar Bone Graft Impactor ●

22cm/8½" length

7mm x 12mm SP7222-40

10mm x 13mm SP7222-50

Anterior Bone Graft Impactor ●

34cm/13½" length

9 x 16mm tip SP7439-48

9 x 23mm tip SP7439-50

Caspar Bone Graft Holder and Impactor ●

21.8cm/8¼" length

6 x 12mm tip SP6023-21

Dowel holder for taking larger block grafts and for vertebral body replacement

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com

24


COBB ELEVATORS

Surgical Instruments of Excellence

Cobb Spinal Elevator ● ●

31cm/12¼" overall length 18cm/7" handle length

10mm SP7561-10

13mm SP7561-13

19mm SP7561-19

Harrington Cobb Spinal Elevator ●

30.5cm/12" overall length

10mm SP7661-10

13mm SP7661-13

19mm SP7661-19

Cobb Spinal Elevator Extra Long Handle ● ●

34cm/13½" overall length 22cm/8¾" handle length

10mm SP7662-10

25

15mm SP7662-15

20mm SP7662-20

25mm SP7662-25

30mm SP7662- 30

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com


COBB ELEVATORS

Surgical Instruments of Excellence

Comfort Cobb Elevator ● ●

32cm/12½" overall length 20cm/8” handle length

10mm SP7551-10

15mm SP7551-15

20mm SP7551- 20

25mm SP7551- 25

30mm SP7551- 30

20mm SP7553-20

25mm SP7553-25

30mm SP7553-30

25mm SP7551-65

30mm SP7551-70

Karl Cobb Elevator ● ●

32.5cm/12¾" overall length 20cm/8” handle length

10mm SP7553-10

15mm SP7553-15

Long Anterior Comfort Cobb Elevator ●

47cm/18¼" overall length

10mm SP7551-50

15mm SP7551-55

20mm SP7551-60

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com

26


ELEVATORS

Surgical Instruments of Excellence

Adson Periosteal Elevator 16cm/6¼" length Curved blunt

l l

Width SP3055-16 SP3007-16

5mm 7mm

Pennybacker Periosteal Elevator 16cm/6¼" length Curved sharp

l l

Width SP3064-16 SP3066-16 SP3068-16

4mm 6mm 8mm

Bone Raspatory with Tufnol Handle l

19cm/7½" length

Straight

Width

Curved

Width

SP7016-19

6mm

HA7023-19 HA7026-19

3mm 6mm

Farabeuf Rugine Elevator l

15cm/6" length Straight

Width

SP3001-15

12mm

Curved*

Width

SP3002-15

12mm

*illustrated

Farabeuf Rugine Elevator with Hollow Handle l

27

16cm/6¼" length Straight

Width

SP3011-16

12mm

Curved*

Width

SP3012-16

12mm

*illustrated

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com


ELEVATORS & GOUGES

Surgical Instruments of Excellence

Trethowan Bone Elevator ●

22.5cm/8½" length

SP3030-22

Bristow Periosteal Elevator ● ● ●

23cm/9" length Curved sharp 10mm width SP3003-23

Zielke S-Shaped Gouge ●

23cm/9" length

*illustrated

Curved*

Width

SP6520-23 6mm SP6521-23 9mm

S-shaped

Width

SP6522-23 6mm SP6523-23 9mm

Capener Lamina Gouge ● ●

23cm/9" length Cranked shaft

Width

SP6506-23 6mm SP6508-23 8mm SP6511-23 11mm SP6516-23 16mm

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com

28


DISSECTORS

Surgical Instruments of Excellence

Swedish Dissector ●

18cm/7" overall length

SP9201-18

Howarth Elevator ●

21.5cm/8½" overall length

SP9207-21

MacDonald Elevator/Dissector

Size

HA7105 -19 18cm/7" SP9206-23 23cm/9"

Watson Cheyne Dissector

Size

HA7203-18

18cm/7"

SP9203-23

23cm/9"

SP9203-25 25.5cm/10"

Freers Elevator/Dissector ●

18.5cm/7¼" overall length

HA7602-18

29

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com


DISSECTORS

Surgical Instruments of Excellence

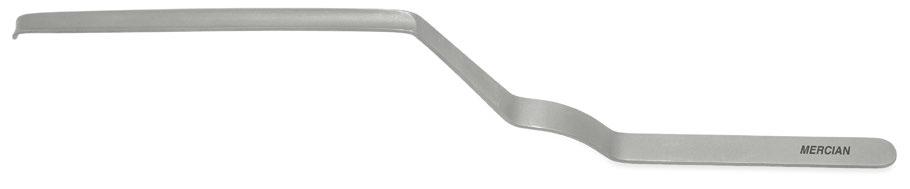

Penfield Dural Dissector No.1 ●

17.5cm/17" overall length

SP9211-17

Penfield Dural Dissector No.2 ●

19.5cm/17¾" overall length

SP9212-19

Penfield Dural Dissector No.3 ●

19.5cm/17¾" overall length SP9213-19

Penfield Dural Dissector No.4 ● ●

20.5cm/18" overall length Single ended

SP9214-20

Long Penfield Dural Dissector No.5 ●

29cm/11½" overall length

HA9215-29

Woodson Dissector ● ●

25cm/19¾" overall length Double ended

SP9220-25

Tonnis Dural Dissector ● ●

24cm/19½" overall length Double ended

HA9222-24

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com

30


BAYONET CERVICAL MICRO CURETTES

Surgical Instruments of Excellence

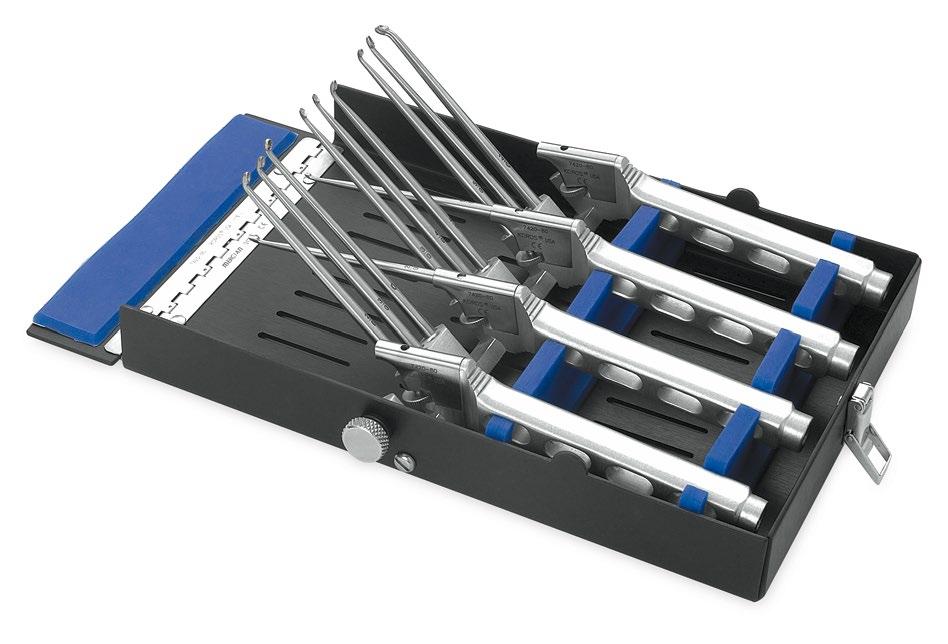

Cervical Micro Discectomy Curette Set

SP7420-00 Complete set consisting of: Qty Code Description 4

SP7420-80

Curette Handles

12

Cervical Curette Shafts - includes: 5 Straight Shafts/5 Angled Shafts/2 Down Pushing Shafts

1

Sterilising Case

SP7420 -90

Slim Micro Discectomy Curette Handle SP7420-80

Bayonet handled design for improved visualisation 360˚ rotating shafts are interchangeable ● Shaft length is adjustable ● Lightweight handle ● Instrument length: 23cm max. for standard curettes ● Shaft length 10cm ● ●

31

Straight cup

Cup size

Forward angle

00000 cup size

Cup size

0000 cup size

000 cup size

00 cup size

Down pushing

0 cup size

Cup size

SP7420-50 00000

SP7422-50 00000

SP7424-20 00

SP7420-40 0000

SP7422-40 0000

SP7424-10 0

SP7420-30 000

SP7422-30 000

SP7420-20 00

SP7422-20 00

SP7420-10 0

SP7422-10 0

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com


BAYONET CERVICAL MICRO CURETTES

Surgical Instruments of Excellence

m 120m

Bayonet Cervical Curette ● ●

24cm/9½" overall length 12cm/4¾" shaft length

Straight cup

0000 cup size

Forward angled Backward straight Backward angled

000 cup size

00 cup size

0 cup size

1 bone cutter

Cup size

SP7418- 40CL SP7418-42CL SP7418-44CL

SP7418-46CL

SP7418-30CL

SP7418- 32CL SP7418-34CL

SP7418-36CL

1mm 000

SP7418- 20CL

SP7418-22CL SP7418-24CL

SP7418-26CL

2mm 00

SP7418-10CL

SP7418-12CL SP7418-14CL

SP7418-16CL

3mm 0

SP7418-80CL

SP7418- 82CL SP7418-84CL

SP7418-86CL

4mm

Bone Cutter

SP7418-86CL

Knife Handle

0.5mm

0000

Container for 12 curettes SP7418-95

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com

32


SPINAL CURETTES

Surgical Instruments of Excellence

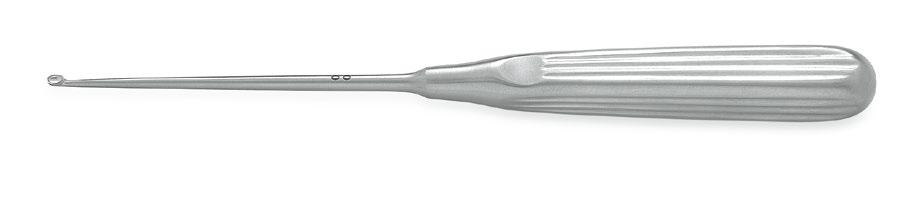

Lempert Curette ●

21cm/8¼" overall length

Straight

Cup size

Angled

Cup size

SP8010-21 00000

SP8110-21 00000

SP8015-21 0000

SP8115-21 0000

SP8020-21 000

SP8120-21 000

SP8025-21 00

SP8125-21 00

SP8030-21 0

SP8130-21 0

SP8040-21 1

SP8140-21 1

00000 cup size

0000 cup size

000 cup size

00 cup size

0 cup size

1 cup size

000 cup size

00 cup size

0 cup size

1 cup size

2 cup size

3 cup size

0000 cup size

000 cup size

00 cup size

0 cup size

1 cup size

Bruns Curette ●

23cm/9" overall length

Straight

Cup size

Angled

Cup size

SP8220-23 000

SP8320-23 000

SP8225-23 00

SP8325-23 00

SP8230-23 0

SP8330-23 0

SP8240-23 1

SP8340-23 1

SP8250-23 2

SP8350-23 2

SP8260-23 3

SP8360-23 3

Tufnol Handle Micro Curette ●

33

26cm/10" overall length

Straight

Cup size

Angled

Cup size

SP8010-27 0000

SP8110-27 0000

SP8020-27 000

SP8120-27 000

SP8030-27 00

SP8130- 27 00

SP8040-27 0

SP8140-27 0

SP8050-27 1

SP8150-27 1

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com


SPINAL CURETTES

Surgical Instruments of Excellence

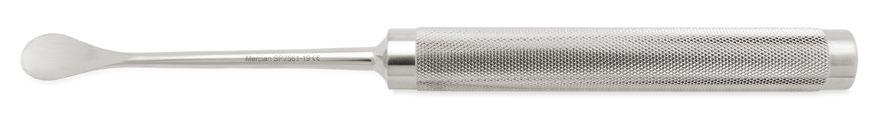

Cobb Bone Curette ●

28cm/11" length

Straight

Cup size

Angled

Cup size

SP7564-20 2.0mm SP7565-20 2.0mm SP7564-25 2.5mm SP7565-25 2.5mm SP7564-30 3.0mm SP7565-30 3.0mm SP7564-35 3.5mm

SP7565-35 3.5mm

SP7564-40 4.0mm

SP7565-40 4.0mm

SP7564-45 4.5mm

SP7565-45 4.5mm

SP7564-50 5.0mm

SP7565-50 5.0mm

SP7564-55 5.5mm

SP7565-55 5.5mm

SP7564-65 6.5mm

SP7565-65 6.5mm

SP7564-80 8.0mm SP7565-80 8.0mm

2.0mm 2.5mm 3.0mm 3.5mm cup cup cup cup size size size size

4.0mm cup size

4.5mm 5.0mm 5.5mm cup cup cup size size size

6.5mm cup size

8.0mm cup size

6.5mm 8.5mm 11mm cup cup cup size size size

13mm cup size

15mm cup size

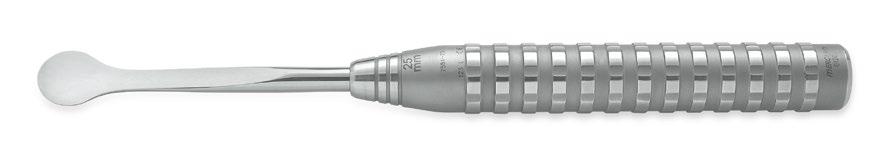

Comfort Handle Curette ● ●

29cm/11½" overall length 20cm/8" handle length

Straight

Cup size

Angled

Cup size

SP7561-07 6.5mm SP7563-07 6.5mm SP7561-09 8.5mm SP7563-09 8.5mm SP7561-11 11mm SP7563-11 11mm SP7561-13 13mm

SP7563-13 13mm

SP7561-15 15mm SP7563-15 15mm

Long Anterior Curette ●

38cm/15" overall length

Straight

Cup size

Angled

Cup size

SP8043-38 4.3mm

SP8143-38 4.3mm

SP8070-38 7mm

SP8170-38 7mm

SP8080-38 8mm

SP8180-38 8mm

4.3mm cup size

7mm cup size

8mm cup size

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com

34


SPINAL CURETTES

Surgical Instruments of Excellence

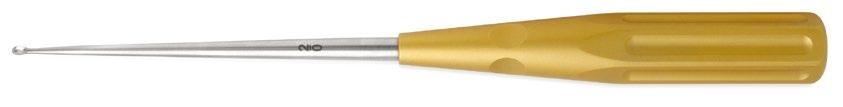

Light-Grip Cervical Curettes ● ● ●

26cm/10¼" overall length 13cm/5¼" handle length Colour coded handles

Cup size

Straight

Forward angled

Down angled

6-0

SP7403 - 06

SP7405-06

SP7406-06

5-0

SP7403-05

SP7405-05

SP7406-05

4-0

SP7403-04

SP7405-04

SP7406-04

3-0

SP7403-03

SP7405-03

SP7406-03

2-0

SP7403-02

SP7405-02

SP7406-02

0

SP7403-01

SP7405-01

SP7406-01

1

SP7403 -10

SP7405 -10

SP7406 -10

2

SP7403-20

SP7405-20

SP7406-20

3

SP7403-30

SP7405-30

SP7406-30

4

SP7403-40

SP7405-40

SP7406-40

5

SP7403-50

SP7405-50

SP7406-50

6

SP7403-60

SP7405-60

SP7406-60

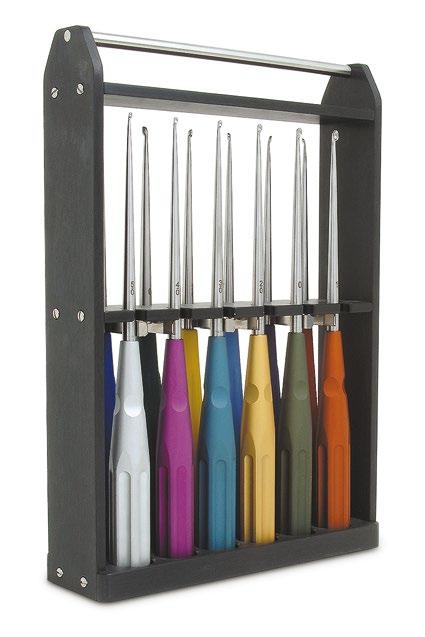

Light-Grip Cervical Curette Rack Holds 12 Cervical Curettes SP7404 - 90

6-0 cup size

35

5-0 cup size

4-0 cup size

3-0 cup size

2-0 cup size

0 cup size

1 cup size

2 cup size

3 cup size

4 cup size

5 cup size

6 cup size

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com


SPINAL CURETTES

Surgical Instruments of Excellence

Light-Grip Lumbar Curettes ● ● ●

34cm/13½" overall length 20cm/8" handle length Colour coded handles

Cup size

Straight

Forward angled

Down angled

6-0

SP7407- 06

SP7408-06

SP7409-06

5-0

SP7407- 05

SP7408-05

SP7409-05

4-0

SP7407- 04

SP7408-04

SP7409-04

3-0

SP7407- 03

SP7408-03

SP7409-03

2-0

SP7407- 02

SP7408-02

SP7409-02

0

SP7407- 01

SP7408-01

SP7409-01

1

SP7407-10

SP7408-10

SP7409-10

2

SP7407- 20

SP7408-20

SP7409-20

3

SP7407- 30

SP7408-30

SP7409-30

4

SP7407- 40

SP7408-40

SP7409-40

5

SP7407- 50

SP7408-50

SP7409-50

6

SP7407- 60

SP7408-60

SP7409-60

Light-Grip Lumbar Curette Rack Holds 12 Lumbar Curettes SP7407- 90

6-0 cup size

5-0 cup size

4-0 cup size

3-0 cup size

2-0 cup size

0 cup size

1 cup size

2 cup size

3 cup size

4 cup size

5 cup size

6 cup size

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com

36


SPINAL CURETTES

Surgical Instruments of Excellence

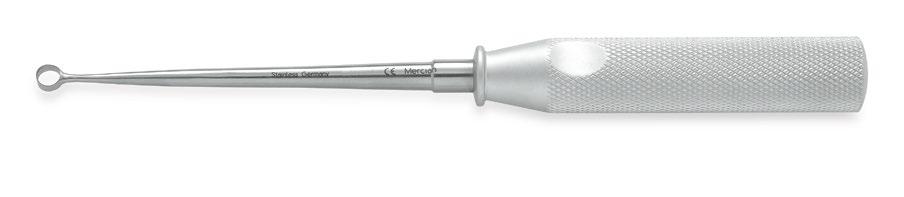

Cones Ring Curette ●

23cm/9" overall length

Straight

Ring size

Angled

Ring size

3mm ring size

SP8803-23 3mm

SP8903-23 3mm

SP8806-23 6mm

SP8906-23 6mm

SP8808-23 8mm

SP8908-23 8mm

8mm ring size

6mm ring size

6mm ring size

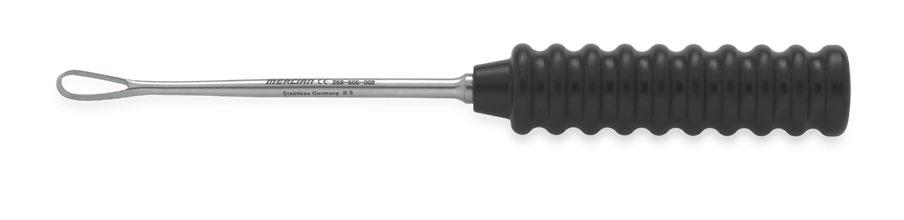

Karl Ring Curette ●

32.5cm/12¾" overall length

Straight

Ring size

SP8886-32

6mm

SP8876-32

6mm

SP8888-32

8mm

SP8878-32

8mm

SP8880-32 10mm

37

Angled

Ring size

SP8870-32 10mm

8mm ring size 10mm ring size

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com


SPINAL CURETTES

Surgical Instruments of Excellence

Zielke Curette ●

21cm/8¼" overall length

Straight

Size

Angled

Size

SP8608-21

8mm

SP8708-21

8mm

SP8611-21 11mm

SP8711-21 11mm

Volkmann Double Ended Curette ●

22cm/8¾" overall length

Size

SP8401-22 Small SP8402-22 Medium SP8403-22 Large

Small

Medium

Large

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com

38


CASPAR CERVICAL DISTRACTION SET

Caspar Vertebral Body Distraction Set SP3001-00 For retraction of the vertebral body in the cervical spine to allow access to the disc ● Less instrumentation in the disc space ● Distraction screws are secured into the vertebral body either side of the disc, the retractor is then slid over the screws and retracted ●

Surgical Instruments of Excellence

Complete set consisting of: Qty

Order code

Description

1

SP3002-00

Retractor Right

1

SP3003-00

Drill Guide Right

1

SP3004-00

Screw Driver

1

SP3005-00

Distraction Drill

1 SP3006-14

Sterile Distraction Screws 14mm Boxes of 10

Distraction Retractors SP3002-00

39

right

SP3002-10

left

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com


CASPAR CERVICAL DISTRACTION SET

Surgical Instruments of Excellence

Drill Guide SP3003-00

right

SP3003-10

left

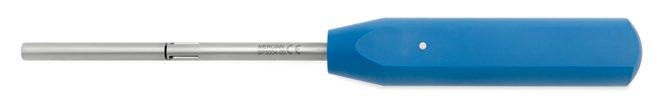

Screw Driver SP3004-00

Distraction Drill ● ●

For pre-drilling pilot holes for distraction screws in combination with the drill guide Drill 2mm Ø

SP3005-00

Caspar Distraction Screws ● ●

7cm/2¾" post length Sterile packed

Thread length

Thread length SP3006-12 12mm SP3006-14 14mm SP3006-16 16mm Supplied sterile in boxes of 10

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com

40


LAMINA & VERTEBRAL SPREADERS

Surgical Instruments of Excellence

Cervical Vertebral Spreader ● ●

13cm/5¼" length 3mm tip

Depth

*Illustrated depth 95mm

SP2002-70 70mm SP2002-95 95mm*

Cloward Cervical Spreader ● ●

17cm/6¾" length Max opening 20mm SP2003-17

Depth 50mm

Cloward Lamina Spreader ●

15cm/6" length

SP2004 -70 Depth 70mm

41

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com


LAMINA & VERTEBRAL SPREADERS

Surgical Instruments of Excellence

Baby Inge Lamina Spreader l

18cm/7" length

7mm Toothed

7mm Smooth

7mm Cross serrated

HA5134-18

HA5134-18S

HA5134-18X

Inge Lamina Spreader ● ●

24cm/9½" length Max opening 50mm

SP2006-24 10mm

20mm

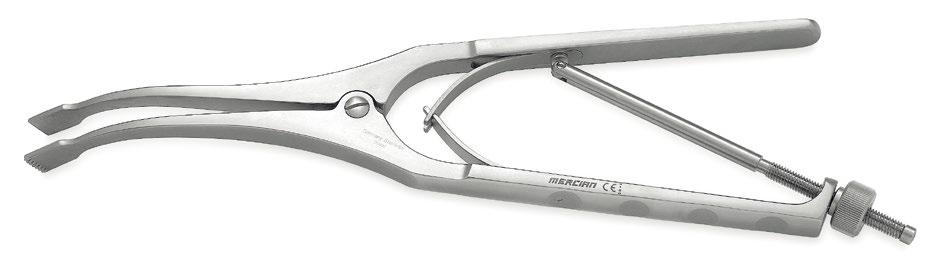

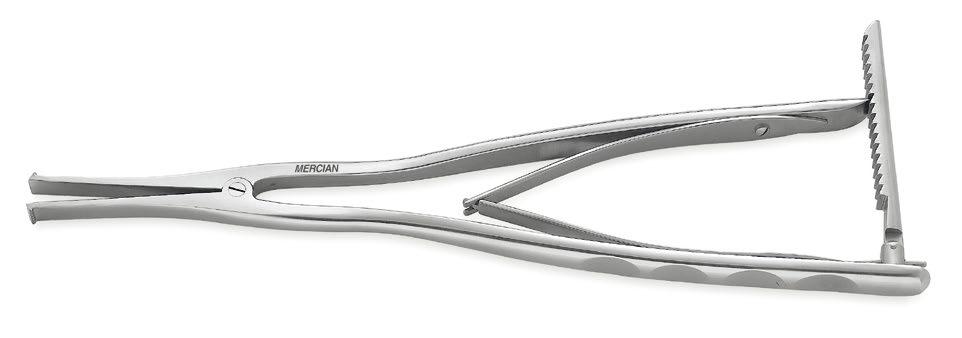

Scaglietti Lamina Spreader ● ●

28cm/11" length With speed lock

SP2009-28

Long Anterior Lamina Spreader ● ●

28cm/11" length Max opening 40mm

SP2008-28

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com

42


HOOKS & PROBES

Surgical Instruments of Excellence

Pedicle Probe ● ●

22.5cm/8¾" length Graduated with ball tip SP9100-22

Pedicle Probe 27.5cm/11½" length Graduated with ball tip

● ●

SP9132-27

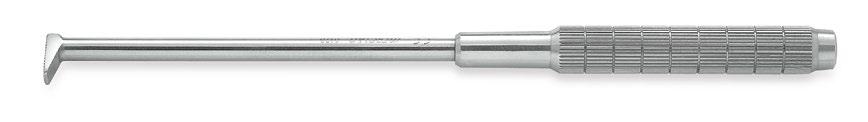

Adson Dural Hook ● ●

19cm/7½" length 3mm tip length Sharp SP9103 -19

Blunt SP9104-19

Weary Blunt Nerve Hook ●

19.5cm/7¾" length

3mm fine tip length

6mm fine tip length

SP9105-19S

SP9105-19

Crile Blunt Hook ● ●

20cm/8" length 7mm tip length SP9111-20

Emmet Sharp Hook ● ●

22cm/8¾" length 5mm tip length

SP9106-22

Cushing Blunt Hook ● ●

28cm/11" length 5mm tip length

SP9107-28

43

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com


HOOKS & PROBES

Surgical Instruments of Excellence

Adson Hook 20cm/8" length 5mm tip length

● ●

Blunt SP9102-20

Sharp SP9101-20

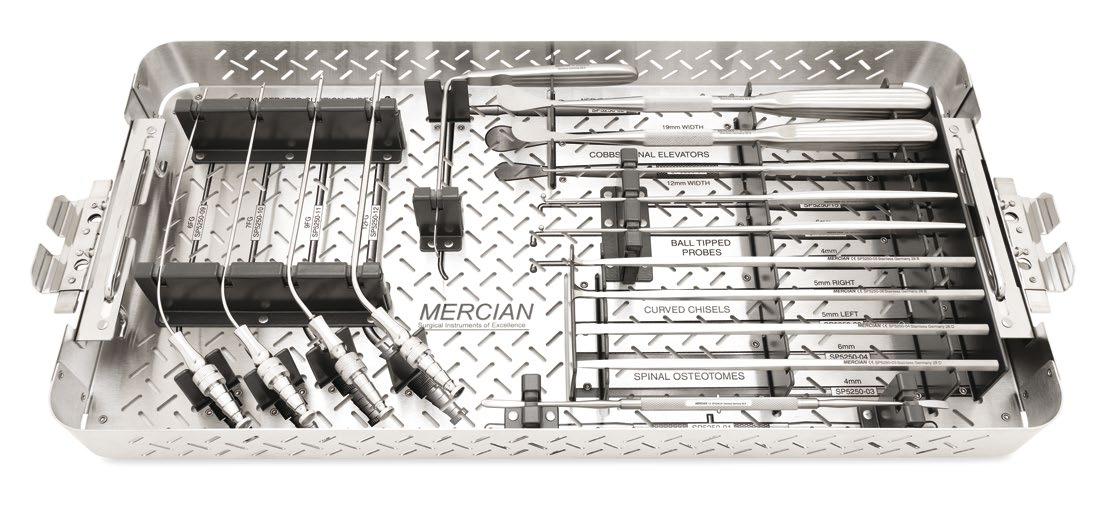

Ball Tipped Probe 23cm/9" length 2mm Ø ball

● ●

8mm

6mm

4mm

SP5250-14

SP5250-13

SP5250-17

Ball Tipped Probe - Fine Pattern ● ●

23cm/9" length 1mm Ø ball

SP5250-14S

SP5250-13S

8mm

6mm

4mm

SP5250-17S

Manipulation Hook ● ●

23.5cm/9¼" length 4mm tip length SP5250 -15

Blalock Blunt Hook ● ●

24cm/9½" length 5mm tip length

SP9108-24

Caspar Exploration Hook Insulated ● ●

24.5cm/9¾" length Insulated shaft

SP9151-24

SP9152-24

SP9153-24

SP9154-24

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com

44


RHOTON MICRO DISSECTORS

Surgical Instruments of Excellence

Titanium Micro Round Dissectors ●

19cm/7½" length No.1

No.2

No.3

1mm Small

2mm Medium

3mm Large

MV8101-19

MV8102 -19

MV8103 -19

Titanium Micro Elevators ●

19cm/7½" length No.4

No.5

Curved

Angled

MV8104 -19

MV8105 -19

Titanium Micro Spatula Dissectors ●

19cm/7½" length No.6

No.7

1mm Small

1.7mm Medium

2mm Large

MV8106 -19

MV8107-19

MV8108 -19

No.8

Titanium Micro Hooks ●

45

19cm/7½" length No.9

No.10

No.11

No.12

90˚ Semi-sharp MV8109 -19

90˚ Blunt MV8110-19

45˚ Semi-sharp MV8111-19

Straight point needle MV8112-19

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com


RHOTON MICRO DISSECTORS

Surgical Instruments of Excellence

Titanium Micro Curettes ●

19cm/7½" length No.13

No.14

Small cup

Large cup

MV8113-19

MV8114-19

Titanium Micro Ball Dissectors ●

19cm/7½" length

no.15

no.16

Straight

90˚3mm tip

90˚5mm tip

40˚4mm tip

40˚8mm tip

MV8115-19

MV8116-19

MV8117-19

MV8118-19

MV8119-19

no.17

no.18

no.19

Complete Set ●

Including rack and 19 micro dissectors MV8100 -19

Dissector Sterilising Rack ●

To hold 19 micro dissectors MV8100-00

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com

46


NERVE ROOT RETRACTORS

Surgical Instruments of Excellence

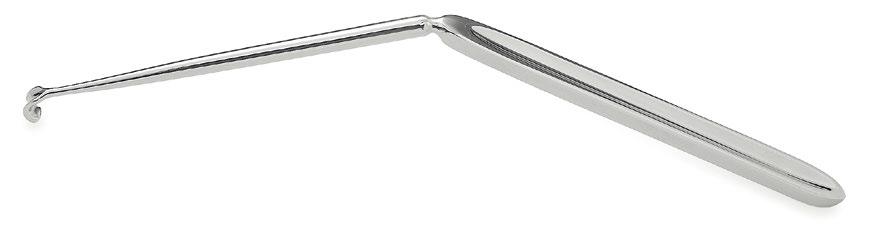

Love Bayonet Nerve Root Retractor ●

21cm/8¼" length

Width

SP5000-21 4mm

Krayenbuhl Nerve Root Retractor ●

Double bayonet

Width

21cm/8¼" SP5041-21 3mm 24cm/9½" SP5042-24 4mm

Caspar Bayonet Nerve Root Retractor ●

24cm/9½" length 100mm length

Width

SP5054-24 4mm SP5056-24 6mm

O’Connell Nerve Root Retractor ●

21.5cm/8½" length

SP5002-21

Love Nerve Root Retractor ● ●

22cm/8¾" length 5mm tip width

*illustrated

SP5010-22 Straight SP5011-22 25˚ Angled* SP5012-22 90˚ Angled

47

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com


NERVE ROOT RETRACTORS

Surgical Instruments of Excellence

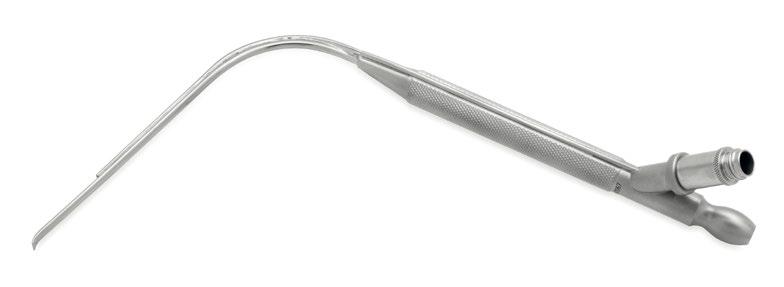

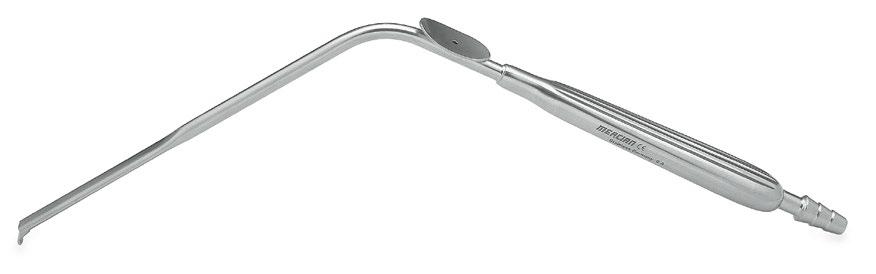

Sheppered Suction Nerve Root Retractor ● ● ●

With suction aspiration Fibre optic illumination 4mm tip width

26cm/10½" length

Suction

SP5015-26

Illumination

31cm/12¼" length SP5015-31

Nerve Root Retractor ● ● ●

31cm/12" length With suction 7mm tip width SP5013-31

Hess Nerve Root Retractor ●

19cm/7½" length

width

SP5003-19 3mm SP5004-19 4mm SP5005-19 5mm SP5007-19 7mm 3mm 4mm

Nerve Root Retractor

5mm

19cm/7½" length With fibre optic illumination ●

7mm

Width

SP5033-19 3mm SP5055-19 5mm

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com

48


HAND HELD RETRACTORS Meyerding Retractor ●

22.5cm/9" length

Surgical Instruments of Excellence

Langenbeck Retractor ●

21.5cm/8½" length

Blade size

Blade size

SP5050-22

50mm x 16mm

SP5122-21

22mm x 6mm

SP5075-22

75mm x 25mm

SP5145-21

45mm x 13mm Medium

SP5090-22

90mm x 50mm

SP5165-21

65mm x 25mm Large

SP5190-21

90mm x 20mm X-Large

Small

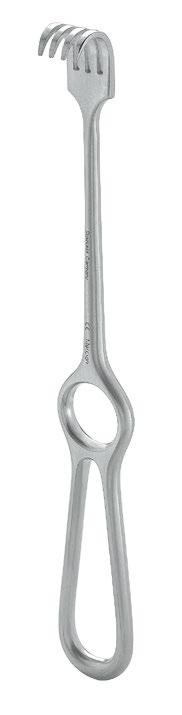

Volkmann Catspaw Retractor ● ●

21.5cm/8½" length Semi sharp prongs

Taylor Hip Retractor ●

19cm/7½" length

Depth SP5006-19 70mm SP5008-19 85mm SP5010-19 100mm

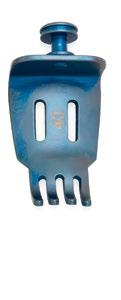

Cloward Blade Retractor ●

15 x 15mm 3 prong SP5015-21

15 x 20mm 4 prong SP5020-21

11cm/4¼" length

Width

SP5013-11 13mm SP5018-11 18mm SP5020-11 20mm

49

15 x 30mm 6 prong SP5030-21

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com


SELF RETAINING RETRACTORS

Surgical Instruments of Excellence

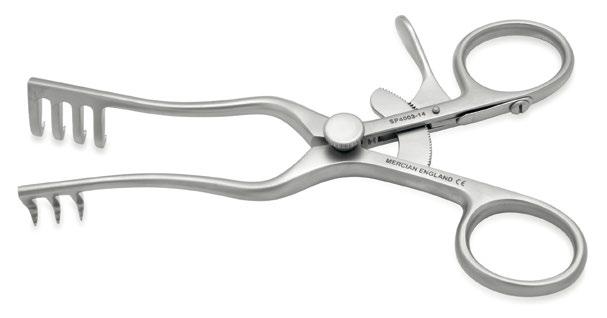

Wests S/R Retractor ● ● ●

14cm/5½" length 3 x 4 sharp prongs Prong depth 18mm SP4003-14

Weitlaner S/R Retractor ● ● ●

14cm/5½" length 3 x 4 blunt prongs Prong depth 18mm SP4002-14

Mollison S/R Retractor - Child ● ●

13cm/5¼" length 2 x 2 sharp prongs 12mm depth SP4005-13

Mollison S/R Retractor - Adult ● ●

17cm/6¾" length 4 x 4 sharp prongs 15mm depth SP4005-17

Jefferson S/R Retractor ● ●

13cm/5¼" length 3 x 4 blunt prongs 16mm depth SP4008-13

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com

50


SELF RETAINING RETRACTORS

Surgical Instruments of Excellence

Irwin S/R Retractor ● ● ●

17.5cm/6¾" length 4 x 4 sharp prongs Prong depth 20mm SP4018-17

Travers S/R Retractor ● ● ●

20cm/8" length 4 x 5 blunt prongs Prong depth 26mm

SP4004-20

Travers S/R Retractor Curved ● ● ●

20cm/8" length 4 x 5 blunt prongs Prong depth 26mm

SP4016-20

Norfolk and Norwich S/R Retractor 20cm/8" length 4 x 5 blunt prongs ● Prong depth 50mm x 23mm width ● ●

SP4000-20

51

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com


SELF RETAINING RETRACTORS

Surgical Instruments of Excellence

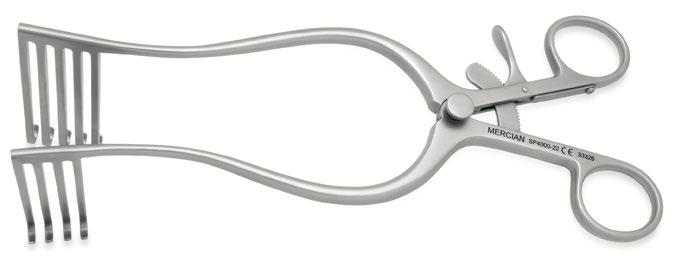

Norfolk and Norwich Deeper Prongs S/R Retractor 20cm/8" length 4 x 5 blunt prongs Prong depth 70mm x 23mm width

● ● ●

SP4000-22

Cones Self Retaining Retractor 3x4 Prongs Jointed arms

● ●

Blunt prongs

Length Depth

Sharp prongs

Length Depth

SP4064-13 13cm/5" 15mm

SP4063-13 13cm/5" 15mm

SP4066-16 16cm/6½" 15mm

SP4065-16 16cm/6½" 15mm

SP4068-20 20cm/8" 20mm

SP4067-20 20cm/8" 20mm

SP4070-24 24cm/9½" 25mm

SP4069-24 24cm/9½" 25mm

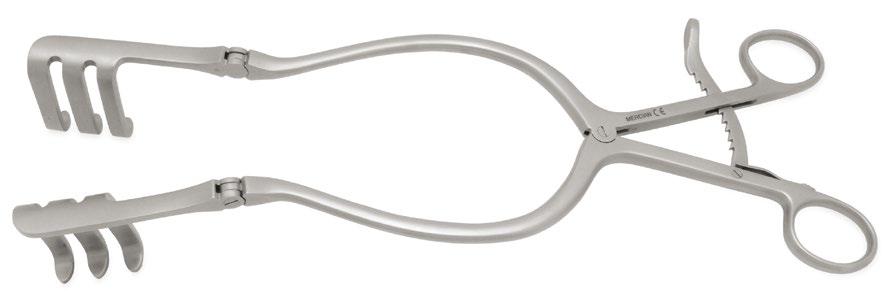

Harvey Jackson Self Retaining Retractor 30.5cm/12" length Prong depth 45mm 3x3 Sharp prongs

● ● ●

SP4010-30

Beckman - Adson Retractor 33cm/13" length 4 x 5 blunt prongs ● Prong depth 32mm ● Jointed arms ● ●

SP4001-32

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com

52


SELF RETAINING RETRACTORS

Surgical Instruments of Excellence

Gelpi Laminectomy Retractor

Sharp prongs Prong depth

Blunt prongs

Prong depth

18.5cm/7¼" SP4030-16 30mm

18.5cm/7¼" SP4030-16B

30mm

19.5cm/7¾" SP4050-16 50mm

19.5cm/7¾" SP4050-16B

50mm

20cm/8"

SP4070-16 70mm

20cm/8"

SP4070-16B

70mm

20cm/8"

SP4090-16 90mm

20cm/8"

SP4090-16B

90mm

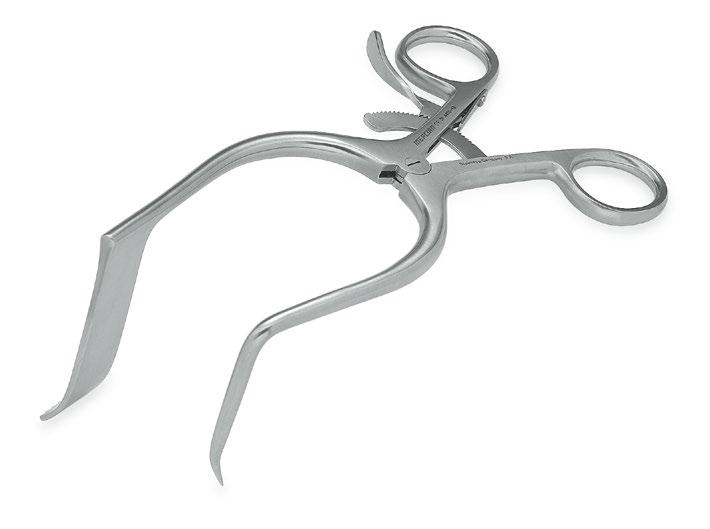

Hardman Retractor ●

20cm/8" length

Prong depth

SP4550-20

50mm equal prongs

SP4500-20

long prong - Left*

SP4300-20

long prong - Right Short prong 30mm depth

* Long left prong illustrated 50mm depth

Meyerding Hemi Laminectomy Retractor ●

53

18cm/7" length

Solid blade left

Blade size

Solid blade right

SP4150-18

50 x 10mm

SP4250-18

SP4160-18

60 x 10mm

SP4260-18

SP4170-18

70 x 10mm

SP4270 -18

SP4350-18

50 x 20mm

SP4450-18

SP4360-18

60 x 20mm

SP4460-18

SP4370-18

70 x 20mm

SP4470-18

Narrow Blade

Wide Blade

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com


SELF RETAINING RETRACTORS

Surgical Instruments of Excellence

Viper Hinged Scoliosis Retractor ● ●

30cm/11¾" length Sharp

Depth prongs

SP7248-38H

40mm

SP7248-40H

70mm

SP7248-50H 100mm

40mm prong depth 70mm prong depth

Viper Scoliosis Retractor ● ●

100mm prong depth

30cm/11¾" length Sharp prongs

Depth prongs

SP7248-38

40mm

SP7248- 40

70mm

SP7248- 50 100mm

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com

54

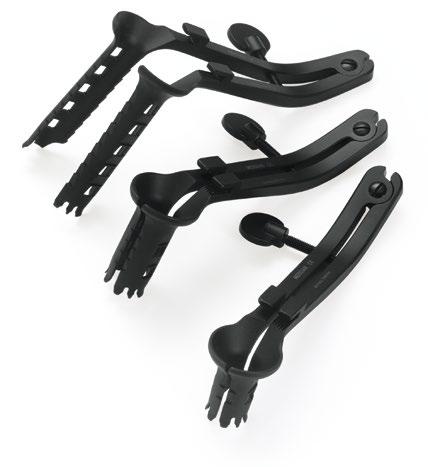

McCULLOCH RETRACTOR SET

This Specialist Retractor allows the consultant the optimal exposure to the disc with the minimum incision.

Surgical Instruments of Excellence

The black finish eliminates distracting reflections under the microscope during surgery.

The wide selection of blades available allows the surgeon full flexibility in approaches to the disc.

The design of the retractor allows unhindered access around the wound with the jointed arms folding along the patients back.

Basic McCulloch Retractor Set

Extended McCulloch Retractor Set

SP5200-00 Complete set consisting of:

Complete set consisting of:

Qty

Order code

Description

SP5202-00

Retractor Frame

2 each

4 pairs SP5204-40

Wide Muscle Blades Sizes 4cm to 7cm depth

6 pairs SP5204-60

Wide Muscle Blades Sizes 3cm to 8cm depth

4 pairs SP5206-40

Narrow Muscle Blades Sizes 4cm to 7cm depth

6 pairs SP5206-60

Narrow Muscle Blades Sizes 3cm to 8cm depth

4 each SP5208-40

Hook Blades Sizes 3cm to 6cm depth

6 each SP5208-60

Hook Blades Sizes 2cm to 7cm depth

4 each SP5210-40

Toothed Blades Sizes 3cm to 6cm depth

6 each SP5210-60

Toothed Blades Sizes 2cm to 7cm depth

1 each

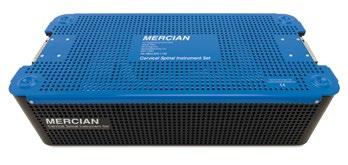

Instrument Container

1 each

Instrument Container

1 each

55

SP5200-01

SP5200-10

Qty

Order code

Description

SP5202-00

Retractor Frames

SP5200-10

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com

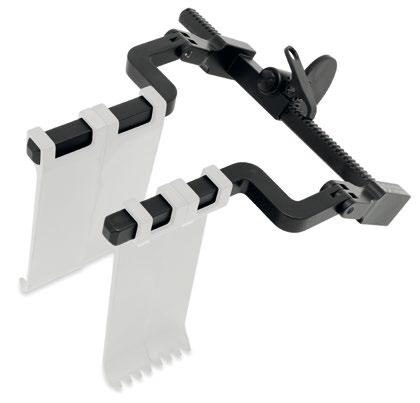

McCULLOCH RETRACTOR SET

Surgical Instruments of Excellence

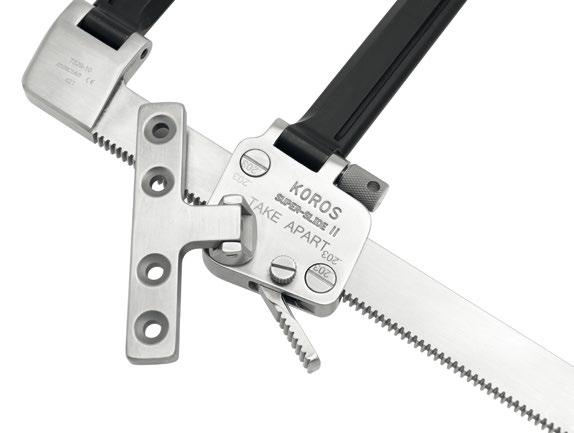

Extra long rack allowing a wider exposure

Standard Frame

Frame with Extra Long Rack

Jointed arms ● Maximum opening 7cm ●

● ●

SP5202-00

Jointed arms Maximum opening 14cm

SP5202-00S

Jointed arms

Jointed arms

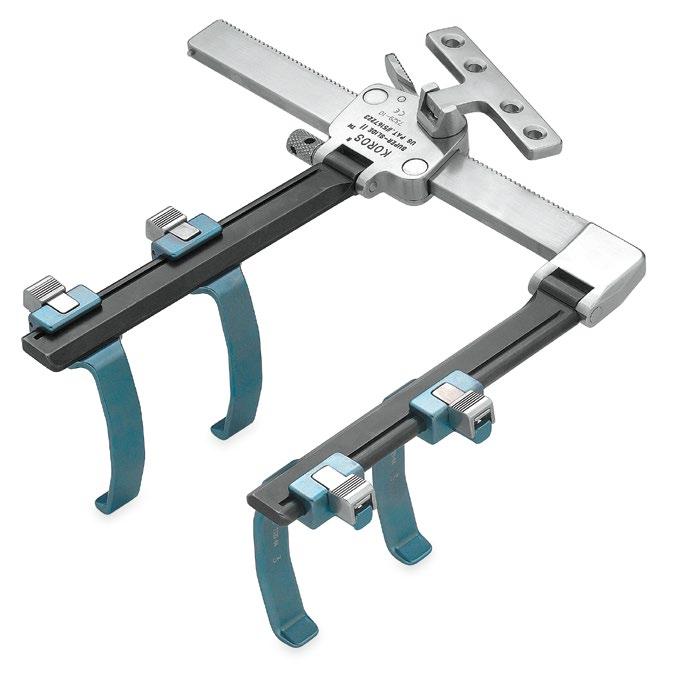

Frame with Longer Arms Jointed arms Accommodates 2 blades on each arm l Maximum opening 7cm l l

27mm width

SP5202-00X

Jointed arms Longer arms accommodating 2 blades on each arm. Useful for multi-level approach.

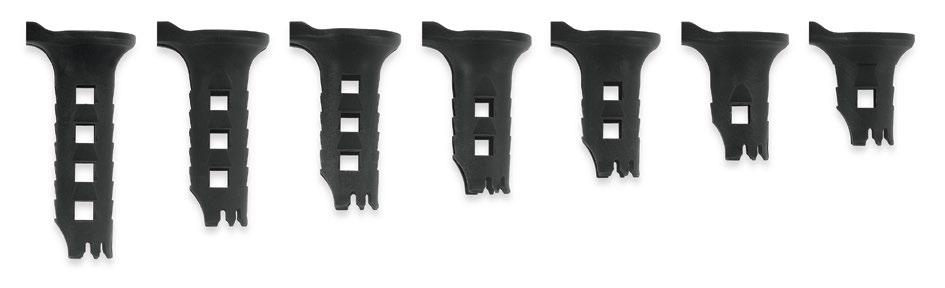

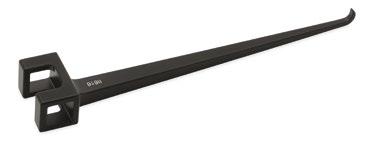

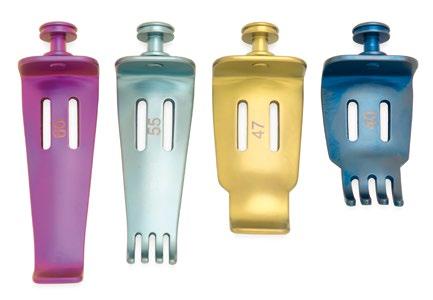

Hook Blades

Extra deep

{

SP5208-02

2cm depth

SP5208- 03

3cm depth

SP5208- 04

4cm depth

SP5208- 05

5cm depth

SP5208- 06

6cm depth

SP5208- 07

7cm depth

SP5208-08

8cm depth

SP5208-09

9cm depth

SP5208-10

10cm depth

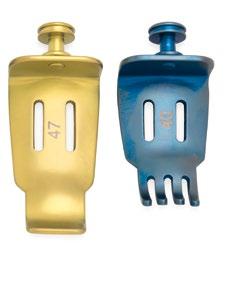

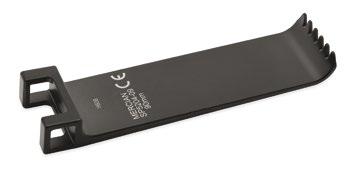

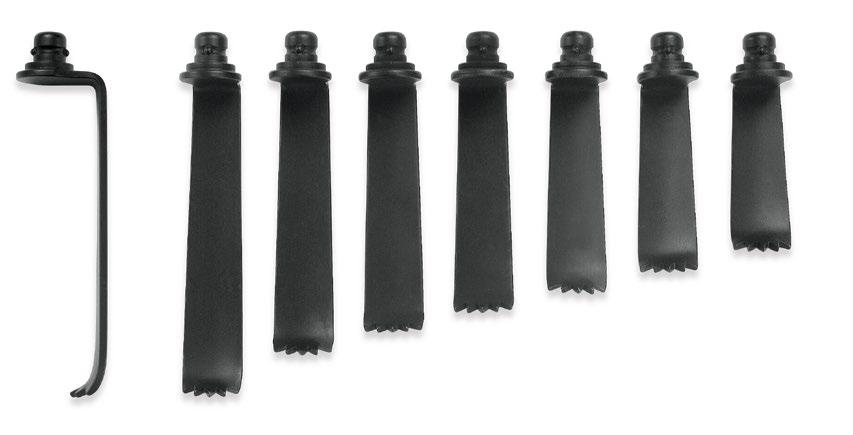

Wide Muscle Blades - 6 Teeth Extra deep

Extra deep

{

3cm depth

SP5204-04

4cm depth

SP5204-05

5cm depth

SP5204-06

6cm depth

SP5204-07

7cm depth

SP5204-08

8cm depth

SP5204-09

9cm depth

SP5204-10

10cm depth

SP5204-12

12cm depth

20mm width

Narrow Muscle Blades - 4 Teeth

Extra deep

Toothed Blades

{

SP5204-03

{

SP5206-03

3cm depth

SP5206-04

4cm depth

SP5206-05

5cm depth

SP5206-06

6cm depth

SP5206-07

7cm depth

SP5206-08

8cm depth

SP5206-09

9cm depth

SP5206-10

10cm depth

SP5206-12

12cm depth

SP5210-02

2cm depth

SP5210-03

3cm depth

SP5210-04

4cm depth

17mm width

SP5210-05

5cm depth

SP5207-03

3cm depth

SP5210-06

6cm depth

SP5207-04

4cm depth

SP5210-07

7cm depth

SP5207-05

5cm depth

SP5210-08

8cm depth

SP5207-06

6cm depth

SP5210-09

9cm depth

SP5207-07

7cm depth

SP5210-10

10cm depth

SP5207-08

8cm depth

Thin Muscle Blades - 2 Teeth

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com

56


MICRO DISCECTOMY SET

McCulloch Style Intrument Set with Container

Surgical Instruments of Excellence

SP5200-05

Complete set consisting of: Qty

Order code

Description

1

SP5250-15

McCulloch Spinal Hook, 4mm tip - 23cm/9" length

1

SP5250-13

McCulloch Spinal Probe, 4mm tip - 23cm/9" length

1

SP5250-14

McCulloch Spinal Probe, 6mm tip - 23cm/9" length

1

SP5250-07

Cobb Spinal Elevator, 12mm width - 26cm/10¼" length

1 SP5250-08

Cobb Spinal Elevator, 19mm width - 26cm/10¼" length

1 SP5250-03

Spinal Osteotome, 4mm width - 22cm/8½" length

1 SP5250-04

Spinal Osteotome, 6mm width - 22cm/8½" length

1 SP5250-05

'Hockey Stick' Chisel, 5mm width - 22cm/8½" length, curved right

1 SP5250-06

'Hockey Stick' Chisel, 5mm width - 22cm/8½" length, curved left

1

Elevator Double Ended, 24cm/9¾" length

SP5250-01

1 SP5250-09

McCulloch Suction Tube, Fenestrated tip, 23cm/9" length, 6FG, 2.0mm Ø

1

SP5250-10

McCulloch Suction Tube, Fenestrated tip, 23cm/9" length, 7FG, 2.3mm Ø

1

SP5250-11

McCulloch Suction Tube, Fenestrated tip, 23cm/9" length, 9FG, 3.0mm Ø

1

SP5250-12

McCulloch Suction Tube, Fenestrated tip, 23cm/9" length, 12FG, 4.0mm Ø

1

SP5250-02

McCulloch Nerve Root Retractor, 90˚ angled, 6mm tip, 12.5cm/5" working length

McCulloch Style Spinal Hook/Probe ●

23cm/9" length

Hook tip 4mm SP5250-15

57

Probe Ball tip 4mm SP5250-13

8mm

6mm

4mm Probe Ball tip 6mm SP5250-14

Probe Ball tip 8mm SP5250-17

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com


MICRO DISCECTOMY SET

Surgical Instruments of Excellence

Cobb Spinal Elevator ●

26cm/10¼" length

Width SP5250-07 12mm SP5250-08 19mm

Spinal Osteotome ●

22cm/8½" length

Width SP5250-03 4mm SP5250-04 6mm

'Hockey Stick' Chisel ● ●

22cm/8¾" length 5mm width

SP5250-05

curved right

SP5250-06

curved left

Elevator Double Ended ●

24cm/9¾" length

SP5250-01

McCulloch Suction Tube ● ●

23cm/9" length Fenestrated tip

FG

Diameter

SP5250-09 6FG SP5250-10 7FG SP5250-11 9FG SP5250-12 12FG

2.0mm Ø 2.3mm Ø 3.0mm Ø 4.0mm Ø

McCulloch Nerve Root Retractor ● ● ●

12.5cm/5" working length 90˚ angled 6mm tip

SP5250-02 ● ● ●

16cm/6¼" working length 90˚ angled 8mm tip

SP5250-02L

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com

58


'BLACK BELT' CERVICAL RETRACTOR SET

Surgical Instruments of Excellence

* Titanium Blade Set illustrated

An advanced cervical retractor system suitable for both anterior and posterior cervical surgery including attachments for micro discectomy surgery.

Basic ‘Black Belt’ Cervical Retractor System

7320-05M

Complete set consisting of:

Complete set consisting of:

Qty

Description

Qty

1 7320-22

Retractor Frame RIGHT (Corpectomy)

1 7320-22M

Retractor Frame RIGHT (Corpectomy)

1

7320 - 20

Retractor Frame LEFT

1

7320-20M

Retractor Frame LEFT

1

7320- 30

Retractor Frame OFFSET

1

7320- 30M

Retractor Frame OFFSET

2

7320- 40

Blade Insertion Clamps

2

7320- 40M

Blade Insertion Clamps

14 7322-34/70

Pronged Blades 34mm-70mm

14 7322-34/70M Pronged Blades 34mm - 70mm

14 7324-34/70

Blunt Blades 34mm-70mm

14 7324-34/70M Blunt Blades 34mm - 70mm

12 7326-40/55

Two Level Pronged Blades

12 7326-40/55M Two Level Pronged Blades

40mm-55mm

6 7328-40/55

Two Level Blunt Blades

6 7328-40/55M Two Level Blunt Blades

40mm-55mm

1

Order code

Order code

1

7320-50 Container

Description

40mm - 55mm 40mm - 55mm

7320-50M Container

1

7321-10

Micro Disc attachment

1

7321- 20

Spike Blade

1

7321- 30 T-Shape Blade

Consisting of:

1

7321- 40

Inner Spine Ligament Blade

Standard ‘Black Belt’ Retractor with the addition of Micro Discectomy Attachments as detailed on page 60.

1

7321- 85

Pronged Blade 85mm depth

Extended ‘Black Belt’ Cervical Retractor System

59

7320-00

Coloured Titanium Extended ‘Black Belt’ Cervical Retractor System

7320-05

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com


'BLACK BELT' CERVICAL RETRACTOR SET

Surgical Instruments of Excellence

Full jointed retractor arms ● Non-glare finish ● Wide blade range ● Suitable for single or multi level retraction ●

Blades The blade shape is designed to resist climbing out of the surgical site ● The wider two level blades have an extra bend near the tip, which follows the contour of the vertebrae for visualising

Thumb screw

Blade Inserter Clamp

Spring loaded clamp jaws

Spring loaded clamping jaws for easy blade engagement

Clamp handles create minimal visual obstruction

Blade/clamp assembly may be used for hand retraction

Clamps are quickly/ easily removed after retractor arms have securely engaged the blades

22mm wide blunt blade

22mm wide pronged blade

27mm wide two level blunt blade

27mm wide two level pronged blade

Lumbar Micro Discectomy Attachments Interspinus Ligament blade

T-Shape blade

With this set the standard Cervical Retractor becomes a Lumbar Microdiscectomy Retractor unit. 7321-00 Complete set consisting of:

Spike blade Arm lock Blade lock

Qty

Order code

Description

1

7321-10

Micro Disc attachment

1

7321-20

Spike Blade

1

7321- 30

T-Shape Blade

1

7321-40

Inner Spine Ligament Blade

1

7322-85

Pronged Blade 85mm depth

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com

60


SUPER-SLIDE II LAMINECTOMY RETRACTOR SET

Surgical Instruments of Excellence

* Titanium Blade Set illustrated

A powerful retractor with a selection of blade depths which can be positioned anywhere along the retractor arms. Allows excellent exposure of the spine in Pedicle Screw and Laminectomy procedures.

Super-Slide Retractor Basic Set 7329-00

7329-06

Complete set consisting of:

Complete set consisting of:

Qty

Order code

Description

Qty

Order code

1

7329 -10

Retractor Frame

1

7329-10

Retractor Frame

4

7329-20

Small Blades 2" depth

4

7329-82

Small Titanium Blades 2" depth

4

7329-30

Medium Blades 3" depth

4

7329-84

Medium Titanium Blades 3" depth

4

7329-40

Large Blades 4" depth

4

7329-86

Large Titanium Blades 4" depth

1

7329-50

Instrument Container

1

7329-90

Instrument Container

Super-Slide Retractor Extended Set Includes components of basic set plus: Order code Description

7329-05 Qty

61

Titanium Super-Slide Retractor Basic Set

Description

Titanium Super-Slide Retractor Extended Set Includes components of titanium basic set plus: Order code Description

7329-09 Qty

4 7329-47

Supplementary Blades 4ž" depth

4 7329-87

Supplementary Titanium Blades 4ž" depth

2

7329-60

Unilateral Blade heads

2

7329-60

Unilateral Blade Heads

2

7329-62

Unilateral T-Blades

2

7329-62M

Unilateral Titanium T-Blades

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com


SUPER-SLIDE II LAMINECTOMY RETRACTOR SET

Surgical Instruments of Excellence

Crank handle

Super-Slide Retractor Blades Quick release for blades

Will not slip out of wound during surgery

Narrow blade design minimises potential of tissue necrosis at blade and tissue contact point

Jointed arms

Blades feature quick release locking system

* Titanium Blades illustrated

IMPROVED INSTRUMENT ACCESS

Supplementary 7329-87 4¾" depth

Large 7329-86 4" depth

Medium 7329-84 3" depth

Small 7329-82 2" depth

Unilateral Blade Attachment Arm lock

Blades lock into any chosen position along the retractor arms and may be changed at any time during surgery

7329-60

Arm locks allow the surgeon the choice of either attaching to the retractor arms then placing the unit into the wound or placing the blades into the wound then engaging the frame arms

To obtain a unilateral exposure, use the unilateral blade attachments contained in the extended set. The T-Blade is designed to attain a firm purchase on the Spinous process

Blade lock

The T-Blade can be adjusted to the correct depth with the blade lock

Unilateral T-Blade

7329-62T

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com

62


CASPAR MICRO LUMBAR DISCECTOMY RETRACTOR SET

Surgical Instruments of Excellence

Counter retractor Ball snap locking

Lateral blades

Specula

Jointed arms

Caspar Micro Discectomy Retractor ●

This Retractor Set allows a micro surgery a pproach to Lumbar Disc

Specula have a black surface finish to prevent glare

Fenetrasted blades on the specula reduce the risk of movement during surgery

Complete Set SP5100-00 Consisting of: Lateral blades

Depth

SP5101- 40 40mm

SP5100-40 40mm

SP5102-00

Counter Retractor Frame

SP5101- 45 45mm

SP5100-45 45mm

SP5103-00

Blade Ejector Forceps

SP5101- 50 50mm

SP5100-50 50mm

SP5104-00

Sterilising Container

SP5101- 55 55mm

SP5100-55 55mm

SP5105-00

Tray Insert for Specula

SP5101- 60 60mm

SP5100-60 60mm

SP5106-00

Tray Insert for Lateral Blades

SP5101- 65 65mm

SP5100-65 65mm

SP5101- 75 75mm

SP5100-75 75mm

SP5101-80 80mm SP5101-85 85mm SP5101- 10 100mm

63

Specula

Depth

{

SP5100-80 80mm SP5100-85 85mm SP5100-10 100mm

{

Optional extra depth

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com


CASPAR MICRO LUMBAR DISCECTOMY RETRACTOR SET

Surgical Instruments of Excellence

Lateral Blades

depth

60mm

55mm

50mm

45mm

40mm

65mm 75mm

Blade Ejector Forceps SP5103-00

Specula Range

depth

65mm

60mm

55mm

50mm

45mm

40mm

75mm

Caspar Micro Discectomy Retractor Frame SP5102-00

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com

64


MIS TUBULAR RETRACTOR SYSTEM

Surgical Instruments of Excellence

LEVEL 3

LEVEL 2

LEVEL 1

Mercian presents the ideal system configuration for MIS tubular retraction, including everything a surgeon requires for optimal exposure. Our MIS Tubular Retractor System is suitable for the following procedures: Discectomy, Laminectomy, Stenosis, MIS TLIF, Pedicle Screws and Cervical Foraminotomy. System features: ● 18mm, 22mm and 26mm tubes ● 50mm, 60mm, 70mm, 80mm, 90mm, 110mm and 120mm tube length ● Aluminium MIS tubes are radiolucent ● All tubes and dilators are colour anodized for easy size identification ● All tubes have two light cable pathways. Our configurations come with a light cable and a light source designed to work seamlessly with our system ● MIS instruments are glare resistant and black titanium-nitrate coated to provide extended instrument life ● A rigid and flexible arm

65

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com


MIS TUBULAR RETRACTOR SYSTEM SP5600-00

Surgical Instruments of Excellence

Complete Set

Complete set consisting of:

1 SP5605-01 1 SP5605-02 1 SP5605-03 1 SP5605-04

Articulating Retractor Holding Arm Table Clamp for Holding Arm Fibre Optic Light Cable for Tubes Quick Lock Attachment to hold Tubes to Arm

1 SP5618-50 1 SP5618-60 1 SP5618-70 1 SP5618-80 1 SP5622-50 1 SP5622-60 1 SP5622-70 1 SP5622-80 1 SP5626-50 1 SP5626-60 1 SP5626-70 1 SP5626-80 1 SP5610-08 1 SP5610-13 1 SP5610-18 1 SP5610-22

Tubes Retractor Tube, 50mm length Retractor Tube, 60mm length Retractor Tube, 70mm length Retractor Tube, 80mm length Retractor Tube, 50mm length Retractor Tube, 60mm length Retractor Tube, 70mm length Retractor Tube, 80mm length Retractor Tube, 50mm length Retractor Tube, 60mm length Retractor Tube, 70mm length Retractor Tube, 80mm length Dilator #1, 8mm, silver Dilator #2, 13mm, green Dilator #3, 18mm, blue Dilator #4, 22mm, red

1 SP7484-30 1 SP7487-30 1 SP9214-27 1 SP5255-27 1 SP9220-27 1 SP5057-34 1 SP9045-23 1 FSKF4082BETi 1 FSKF4083BETi 1 LG7-SBTi 1 LG7-UBTi 1 SP7480-24

Instruments Bayonet Curette, silicone handle, 4.6mm reverse angled cup, 30cm Bayonet Curette, silicone handle, 7.5mm reverse angled cup, 30cm Penfield Dissector #4, 4mm width, Bayonet, WL 150mm, total length 270mm Short Ball Probe, 7mm, Bayonet, WL 150mm, total length 270mm Woodson Probe, 6mm width, Bayonet, WL 150mm, total length 270mm Bayonet Nerve Root Retractor, silicone handle, 3mm tip, 34cm Frazier Suction Tube, 10Fr, 230mm, total length 300mm Bayonet Kerrison, 40˚up-cutting, 2mm bite, 180mm with ejector Bayonet Kerrison, 40˚up-cutting, 3mm bite, 180mm with ejector Bayonet Love-Gruenwald Ronguer, 3x10mm bite, 180mm straight Bayonet Love-Gruenwald Ronguer, 3x10mm bite, 180mm angled up Rhoton Knife Handle, 5-1/8" WL, total length 9½"

LEVEL1

Description

18mm Diameter

Blue 22mm Diameter

Red 26mm Diameter

Violet

LEVEL 2

Order Code

LEVEL 3

Qty

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com

66


LUMBAR SPINAL SET

Surgical Instruments of Excellence

LEVEL 3

LEVEL 2

LEVEL 1

Mercian introduce a new set of spinal instruments for lumbar spine surgery. The Mercian Lumbar Spine Set has three levels of instruments consisting of Bone Curettes and Nerve Root Retractors on the first level, Bone Nibblers and Hooks on the second level with the lower level consisting of Kerrison Punches 2mm to 5mm and Disc Ronguers.

67

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com


LUMBAR SPINAL SET SP1000-00

Surgical Instruments of Excellence

Complete Set

Complete set consisting of:

Titanium Kerrison Punches - x 4 Kerrison Titanium Punch, 2mm - 20cm/8" length Kerrison Titanium Punch, 3mm - 20cm/8" length Kerrison Titanium Punch, 4mm - 20cm/8" length Kerrison Titanium Punch, 5mm - 20cm/8" length

Disc Ronguers x 6 1 C7-S Cushing Disc Ronguer, 2mm - 18cm/7" straight 1 LG7-S Love-Gruenwald Disc Ronguer, 3mm - 18cm/7" straight 1 S7-S Spurling Disc Ronguer, 4mm - 18cm/7" straight 1 LG7-U Love-Gruenwald Disc Ronguer, 3mm - 18cm/7" upward 1 S7-U Spurling Disc Ronguer, 4mm - 18cm/7" upward 1 SP1110-23 Williams Disc Ronguer, toothed 1mm - 23cm/9" straight 1 SP1018-24 1 SP1019-24 1 SP1003-18 1 SP1027-21 1 SP1030-21 1 SP1006-22

Bone Nibblers x 6 Leksell Bone Nibbler, 3mm bite size - 24cm/9½" length Leksell Bone Nibbler, 5mm bite size - 24cm/9½" length Jansen Bone Ronguer D/A, curved 5mm bite size - 18cm/7" length Zielke Disc Ronguer, 5mm bite size - 21cm/8¼" length Rat Toothed Nibbler, 8mm bite size - 21cm/8¼" length Stille-Luer Bone Nibbler, 10mm bite size - 22cm/8½" length

1 70-01-92

Bipolar Forceps Bayonet Bipolar Forceps, 1.5mm tips x 23cm/9" length

1 SP5250-13 1 SP5250-14

Ball Tipped Probes x 2 Ball End Probe with 4mm tip - 23cm/9" length Ball End Probe with 6mm tip - 23cm/9" length

1 SP8040-27 1 SP8050-27 1 SP8140-27 1 SP8150-27 1 SP8250-23 1 SP8240-23 1 SP8350-23 1 SP8340-23

Bone Curettes x 8 Curette, straight, cup size 0 (2mm) - 27cm/10" length Curette, straight, cup size 1 (3mm) - 27cm/10" length Curette, angled up, cup size 0 (2mm) - 27cm/10" length Curette, angled up, cup size 1 (3mm) - 27cm/10" length Bruns Curette, straight, cup size 2 (4mm) - 23cm/9" length Bruns Curette, straight, cup size 1 (5mm) - 23cm/9" length Bruns Curette, angled up, cup size 2 (4mm) - 23cm/9" length Bruns Curette, angled up, cup size 1 (5mm) - 23cm/9" length

1 SP7561-13 1 SP7561-19

Cobb Elevators x 2 Cobbs Elevator, 13mm width x 32cm/12¾" length Cobbs Elevator, 19mm width x 32cm/12¾" length

1 SP9101-20 1 SP9102-20

Adson Hooks x 2 Adson Sharp Hook 90,˚ 5mm tip - 20cm/8" length Adson Blunt Hook 90,˚ 5mm tip - 20cm/8" length

1 SP9206-23 1 SP9203-23

Dissectors x 2 MacDonald Dissector - 23cm/9" length Watson Cheyne Dissector - 23cm/9" length

1 SP5041-21 1 SP5042-24 1 SP5250-02 1 SP5013- 31

Nerve Root Retractors x 4 Krayenbuhl Nerve Root Retractor - 21cm/8¼" length Krayenbuhl Nerve Root Retractor - 24cm/9½" length McCulloch Nerve Root Retractor 90˚ (Level 2) Nerve Root Retractor with Suction - 31cm/12" length

LEVEL LEVEL 11

1 FSKF 4082 ETi 1 FSKF 4083 ETi 1 FSKF 4084 ETi 1 FSKF 4085 ETi

Description

LEVEL LEVEL22

Order Code

LEVEL LEVEL 33

Qty

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com

68


BAYONET MICRO INSTRUMENTS

Surgical Instruments of Excellence

Yasargil Bayonet Micro Forceps ● ●

Flat handled Blunt tips Tip size

22.5cm/8½"

MV2301- 22*

1mm

24cm/9½"

MV2301- 24

1mm

*illustrated

Yasargil Bayonet Tumour Grasping Forceps ●

Flat handled

Spoon shaped jaws

Tip size

22.5cm/8½"

MV2303-22

3mm

22.5cm/8½"

MV2304-22

5mm

Flat serrated jaws

Tip size

22.5cm/8½"

MV2307-22*

3mm

22.5cm/8½"

MV2308-22

5mm

Curette toothed jaws

*illustrated

Tip size

22.5cm/8½"

MV2305-22

3mm

22.5cm/8½"

MV2306-22

5mm

Bayonet Micro Forceps ●

Round bodied

Tip size 21cm/8¼"

MV2302-21

1mm

23cm/9"

MV2302-23*

1mm

*illustrated

Bayonet Tumour Grasping Forceps ● ●

Round bodied Flat serrated jaws Tip size

23cm/9"

69

MV2309-23

5mm

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com


BAYONET MICRO INSTRUMENTS

Surgical Instruments of Excellence

Yasargil Bayonet Micro Needle Holder ● ●

Flat handled Delicate 1mm jaws

Straight

With lock

Without lock

23cm/9"

MV1012-23

MV1112-23

Cuved 23cm/9"

With lock

Without lock

MV1013-23

MV1113-23

With lock

Without lock

Bayonet Micro Needle Holder ● ●

Round bodied Delicate 1mm jaws

Cuved

Straight

With lock

Without lock

21cm/8¼"

MV1010-21

MV1110-21

21cm/8¼"

MV1111-21

MV1011- 21

23cm/9"

MV1010-23

MV1110-23

23cm/9"

MV1111-23

MV1011- 23

Yasargil Bayonet Micro Scissors ● ●

Flat handled 22.5cm/8¾" length

Regular Blades

Vannas Fine Blades Straight

Straight

MV3005-22

MV3007-22

Curved

Curved

MV3006-22

MV3008-22

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com

70


STRAIGHT BIPOLAR FORCEPS

Surgical Instruments of Excellence

Classic Bipolar Forceps 11cm/4½" length

Tip size

70-02-41 0.5mm 70-02-43 1.0mm

Fine tip Regular tip

16.5cm/6½" length Tip size 70-01-52 0.7mm 70-01-51 1.0mm

19cm/9" length

Tip size

78-01-72 0.7mm 78-01-71 1.0mm 26cm/10¼" length

Fine tip Regular tip

Fine tip Regular tip

Tip size

70-02-80 2.0mm

Broad tip

Supergliss® Bipolar Forceps Non-Stick Tips The material specially developed for SuperGliss® non-stick forceps prevents overheating of the tips during coagulation. 12cm/4¾" length

Tip size

78-04-37SG 0.2mm 78-02-37SG 0.4mm 78-02-38SG 0.7mm 78-02-43SG 1.0mm

Micro tip Micro tip Fine tip Regular tip

18.5cm/7¼" length Tip size 78-01-54SG 0.4mm 78-01-52SG 0.7mm 78-01-51SG 1.0mm

20cm/8" length

71

Micro tip Fine tip Regular tip

Tip size

78 01 72SG 0.7mm 78 01 71SG 1.0mm

Fine tip Regular tip

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com


BAYONET BIPOLAR FORCEPS

Surgical Instruments of Excellence

Classic Bayonet Bipolar Forceps

19cm/7½" length

Tip size

70-01-83 0.7mm 70-01-81 1.0mm 70-01-82 2.0mm

23cm/9" length

Tip size

70-01-91 0.7mm 70-01-92 1.2mm

25cm/9¾" length

Fine tip Regular tip Broad tip

Fine tip Regular/broad tip

Tip size

78-02-91 0.7mm 78-02-92 1.2mm

Fine tip Regular/broad tip

SuperGliss® Bayonet Bipolar Forceps Non-Stick Tips

20cm/8½" length

Tip size

78-21-83SG 0.7mm 78-21-81SG 1.0mm 78-21-84SG 1.2mm 23cm/9" length

Tip size

78-01-91SG 0.7mm 78-01-98SG 1.0mm 78-01-92SG 1.2mm 25cm/9¾" length

Fine tip Regular tip Regular/broad tip

The material specially developed for SuperGliss® non-stick forceps prevents overheating of the tips during coagulation.

Fine tip Regular tip Regular/broad tip

Tip size

78-02-91SG 0.7mm 78-02-98SG 1.0mm 78-02-92SG 1.2mm

Fine tip Regular tip Regular/broad tip

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com

72


BAYONET BIPOLAR FORCEPS

Surgical Instruments of Excellence

Bayonet Bipolar Forceps ● ● ●

22.5cm/8¾” length Non-Stick tips Mallis 2 pin fitting

Tip size

10-5402 AU 0.5mm 10-5403 AUS/0.7 0.7mm 10-5403 AU 1.0mm

Fine tips Fine tips Regular tips

Tip size

10-5403 AUS 1.3mm 10-5401 AU 1.5mm 10-5401 AUS 2.0mm

Regular tips Broad tips Broad tips

Bipolar Cables 37- 01-38L

● Fitting Block End Forceps ● Erbe BM780 Machine Fitting ● 4.5 metre length

37-01-35L

● Fitting Block End Forceps ● Banana Plug Vallylab Machine Fitting ● 4.5 metre length

37-01-35S

● Fitting the Mallis 2-Pin Forceps ● Banana Plug Vallylab Machine Fitting ● 4.5 metre length

Bipolar Coagulation Unit BM780 MK II ● ●

70 Watts Foot switch control

36-00-80-01 36-01-05

73

Foot Switch

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com


WIRE & BOLT CUTTERS

Surgical Instruments of Excellence

Slim & Square Ended Wire Pliers ●

19cm/7½" length

*illustrated Slim Nose SP7645-19

Square Ended* SP7644-19

Serrated jaw

Muller Claus Wire Cutters ●

Tungsten carbide edges 8-810E18

● ●

18cm/7" length* Cuts wire up to 2mm Ø 8-800E22

● ●

22cm/8¾" length Cuts wire up to 3mm Ø

*illustrated

Combined Wire Cutters & Pliers ● ● ●

18cm/7" length Suitable for wires up to 1.6mm Ø Parallel closing jaws

200-512-185

Bolt Cutters with dismantable arms ●

Max. cap 6.3mm pins

Take apart arms for easier sterilisation

200-500-585

Must be used in conjunction with a Rod Holder. Ordering code: 200-675-200

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com

74


MICRO TORQUE SURGICAL DRILL

The MT5000 Micro Torque Surgical Drill System is equipped with the most up to date and powerful micro motor which delivers high levels of reliability. The variation of handpieces available are ideally suited to Spinal Surgery. The precisely controlled Irrigation System results in the cutting tool continually irrigated to the surgeons requirements.

Autoclavable micro motor ● Irrigation system ● Digital display ● Programmable settings ● Full handpiece range

Surgical Instruments of Excellence

Mobile stand MT5017- 00

Controlled Irrigation with lower setting for Spinal Surgery

Programmable Micro Motor speed up to 40,000 RPM Forward & Reverse

75

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com


MICRO TORQUE SURGICAL DRILL

Straight Extra Long Handpiece PMRM1124

Surgical Instruments of Excellence

Straight Oral Surgery Handpiece PMRM1124

Straight Handpiece PMRM1122 ●

Angled Extra Long Handpiece PMRM1122

1:1 Transmission ● For 44mm & 50mm Burs ● Max speed 40,000 RPM

1600052 - 001

1600206 - 001

1:1 Transmission For 70mm Burs ● Max speed 40,000 RPM

1:1 Transmission For 95mm Burs ● Max speed 40,000 RPM

1600340- 001

Angled Handpiece PMRM1124 1:1 Transmission For 70mm Burs ● Max speed 40,000 RPM

1600207- 001

1:1 Transmission For 95mm Burs ● Max speed 40,000 RPM ●

1600336- 001

COMPONENTS

MICRO TORQUE MT5000 ELECTRONIC  CONSOLE The electronic console allows the user to select the maximum speed required also the irrigation flow. There is also the possibility of selecting forward & reverse. MT5010-00

FOOTSWITCH CONTROL A foot pedal allows the constant control over the speed range of the micro motor. From the foot pedal you can also switch the irrigation on/off and switch the micro motor into forward or reverse. MT5011- 00

IRRIGATION PUMP The irrigation system is easy to set up and precisely controllable. The rotary pump runs in sync with the micro motor. Lower settings for E.N.T. Surgery allows a fine flow of irrigation onto the Bur. MT5018-00

MICRO MOTOR CABLE The sterilizable micro motor is a high performance self cooling micro motor. Brushless with a variable speed range from 500 to 40,000 RPM.

MT5012-00

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com

76


MISC INSTRUMENTS

Surgical Instruments of Excellence

Measuring Caliper ● ●

25cm/10" length Measuring range 0 to 50mm SP7334- 20

Castroviejo Caliper ● ●

7cm/2¾" length Measuring range 3mm to 25mm SP7334-10

Vernier Caliper ● ●

22.5cm/9" length Measuring range 15cm SP7338- 00

Depth Gauge ●

Measuring depth up to 50mm SP7350-00

Depth Gauge ●

Measuring depth up to 70mm SP7370-00

Direct Reading Depth Gauge ● ●

23cm length Measuring depth up to 40mm SP7333-10

77

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com


MISC INSTRUMENTS

Surgical Instruments of Excellence

Frazier Suction Tube ●

17cm/6¾" length

FG

Diameter

SP9041-17 6FG SP9042-17 7FG SP9043-17 8FG SP9044-17 9FG SP9045-17 10FG SP9046-17 11FG SP9047-17 12FG

2.0mm Ø 2.3mm Ø 2.7mm Ø 3.0mm Ø 3.3mm Ø 3.7mm Ø 4.0mm Ø

Frazier Suction Tube ●

23cm/9" length

FG

Diameter

SP9041-23 6FG SP9042-23 7FG SP9043-23 8FG SP9044-23 9FG SP9045-23 10FG SP9046-23 11FG SP9047-23 12FG

2.0mm Ø 2.3mm Ø 2.7mm Ø 3.0mm Ø 3.3mm Ø 3.7mm Ø 4.0mm Ø

Bayonet Dissecting Forceps

19cm/7½"

Tip size

SP9701-19 SP9702-19

1mm 2mm

21cm/8½"

Tip size

SP9701-21 SP9702-21

1mm 2mm

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com

78


OPERATING CHAIRS

Surgical Instruments of Excellence

Back rest

The Severn Operating Stool with Back Rest Suitable for all disciplines of surgery

Urology version with Back Rest Lower height range 48cm to 67cm

l

GS3221-57

Comfortable Surgeon’s seat l Adjustable back rest l 5 anti-static castors l Height adjustment with foot plate height range 55cm to 78cm l

GS3221-67 Severn Stool with Back Rest Foot plate for height adjustment

The Avon Operating Stool without Back Rest Suitable for all disciplines of surgery

Urology version without Back Rest Lower height range 48cm to 67cm

l

GS3221-55

Comfortable Surgeon’s seat l 5 anti-static castors l Hydraulic height adjustment with foot plate, range 55cm to 78cm l

GS3221-65 Avon Stool without Back Rest Foot plate for height adjustment

79

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com


OPERATING CHAIRS

Surgical Instruments of Excellence

Adjustable Arm Rest

Coburg Micro Surgery Stool Suitable for all micro surgery including: Neuro, Ophthalmic & ENT Surgery.

GS3016-00S with Arm Rests + Saddle Seat

Arm rests with swivel ball joints, detachable and autoclavable l Hydraulic height adjustment with foot pump l Adjustable back rest l Foot brake l Comfortable Surgeon’s seat, either round or saddle shaped l 5 anti-static castors l Height range 61cm to 76cm l

Brake

GS3016-00R with Arm Rests + Round Seat

Foot Pump

Coburg Stool Suitable for all disciplines of surgery including: Neuro, Ophthalmic & ENT Surgery. GS3014-00S l Hydraulic height adjustment with foot pump l Adjustable back rest l Foot brake l Comfortable Surgeon’s seat, either round or saddle shaped l 5 anti-static castors l Height range 61cm to 76cm

Saddle Seat without armrest

GS3014-00R Round Seat without armrest

Brake

Foot Pump

Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com

80


established over

Surgical Instruments of Excellence

50 years

Mercian Surgical Supply Co. Limited 10 Topaz Business Park, Topaz Way, Bromsgrove, Worcestershire B61 0GD. UK. Tel: +44 (0) 844 879 1133 Fax: +44 (0) 844 879 1155 Email: info@merciansurgical.com

www.merciansurgical.com @MercianSurgical

Mercian Surgical

Profile for Mercian Surgical

Mercian Spinal Instrument brochure

Mercian Spinal Instrument brochure
