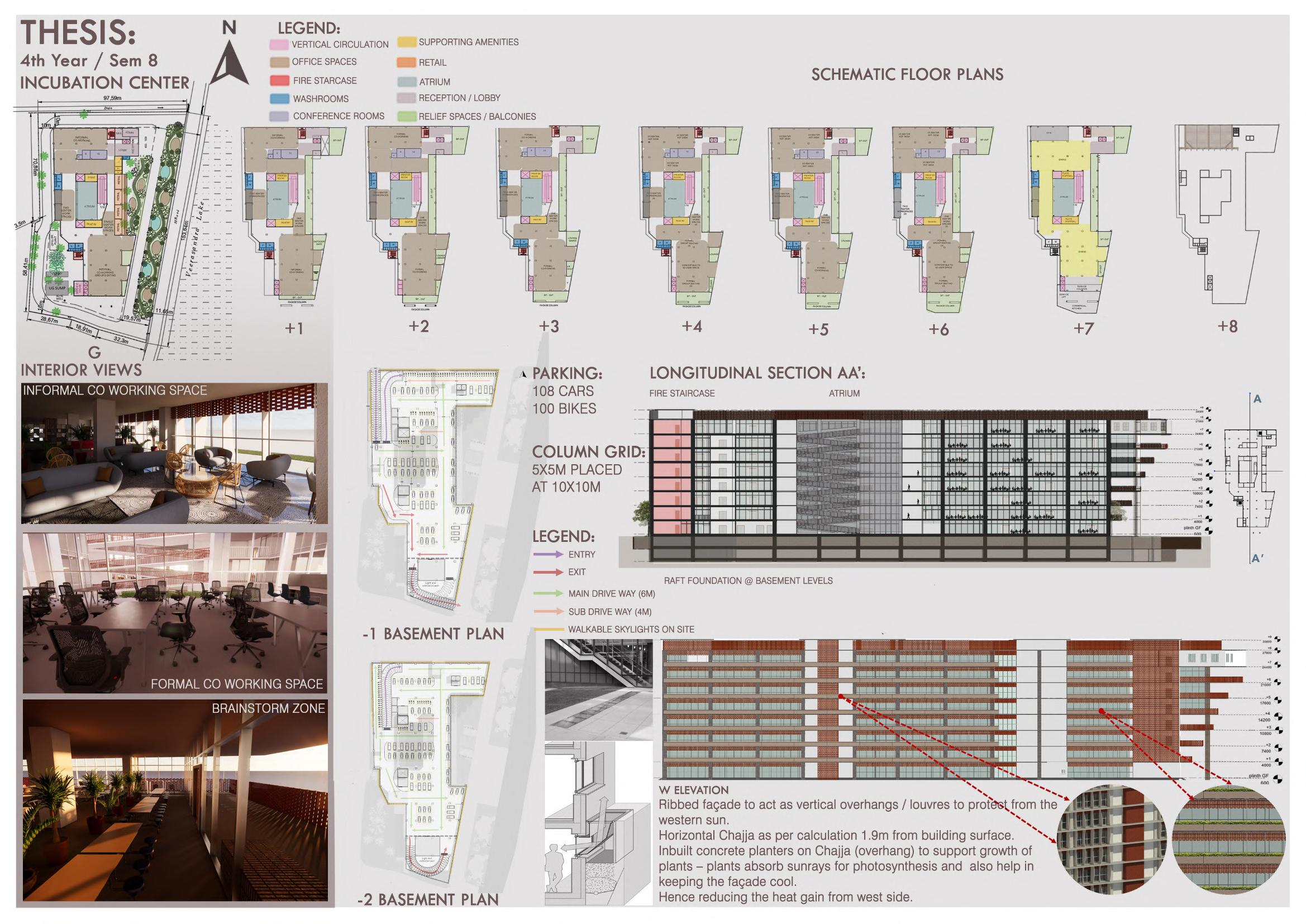

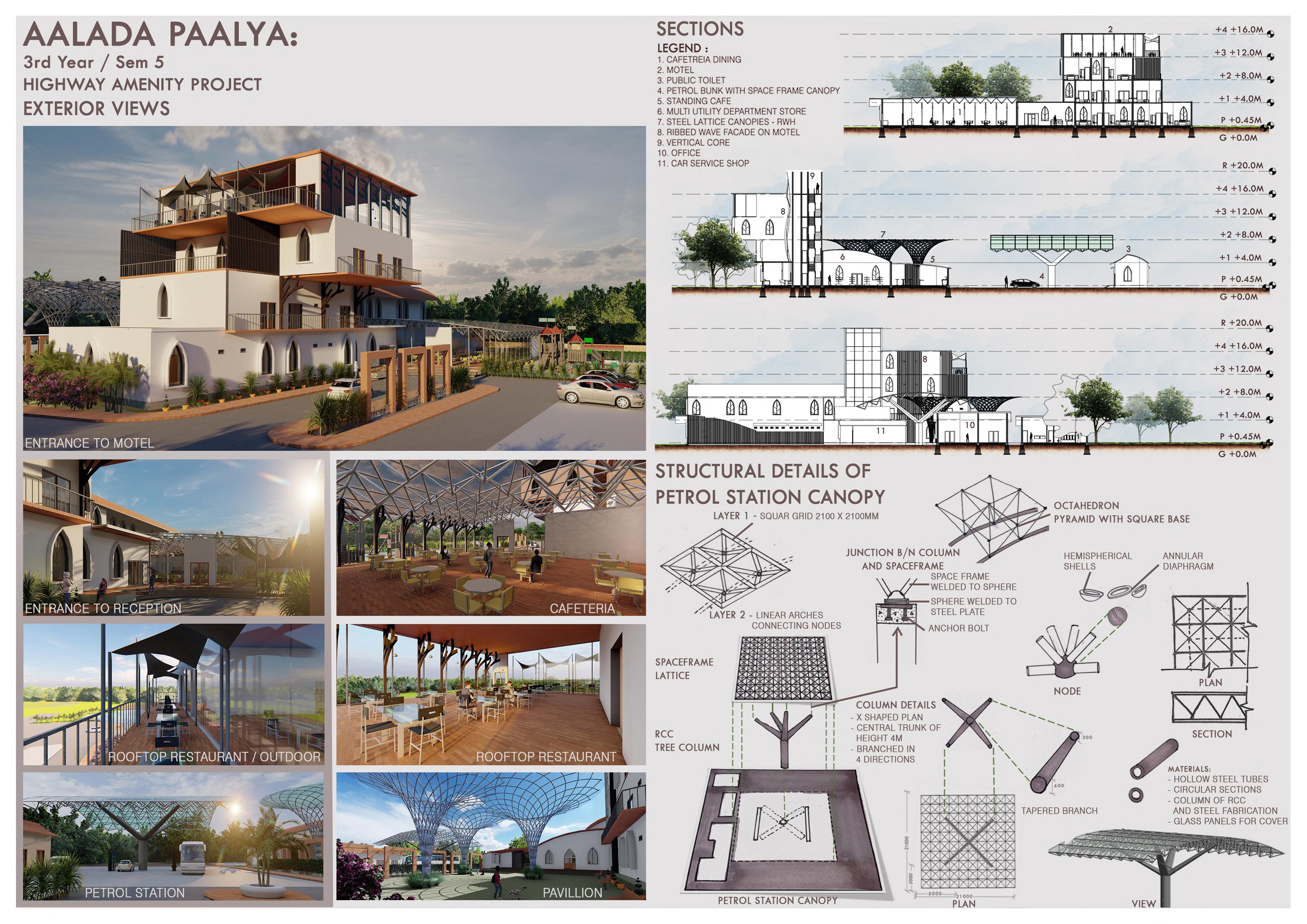

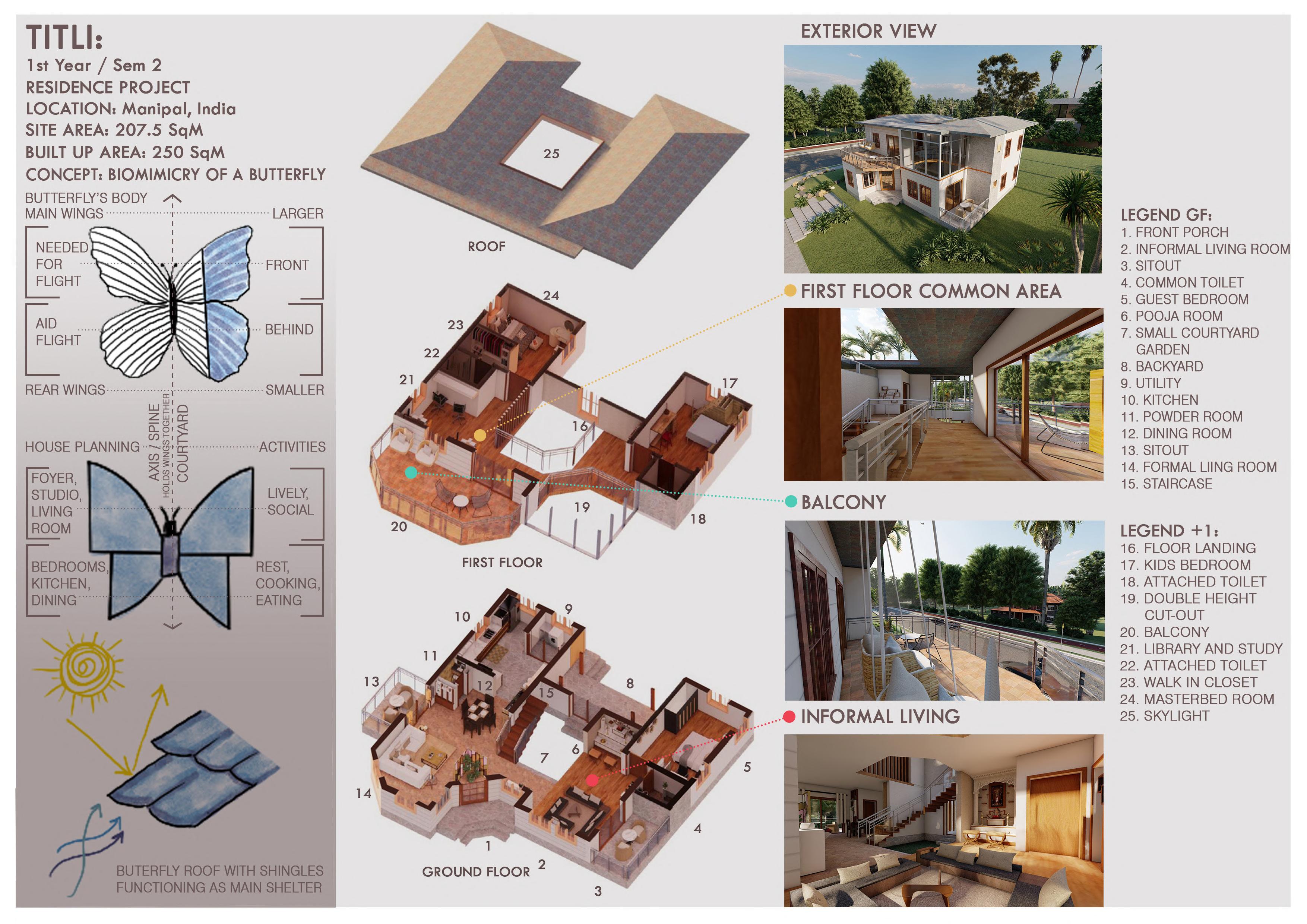

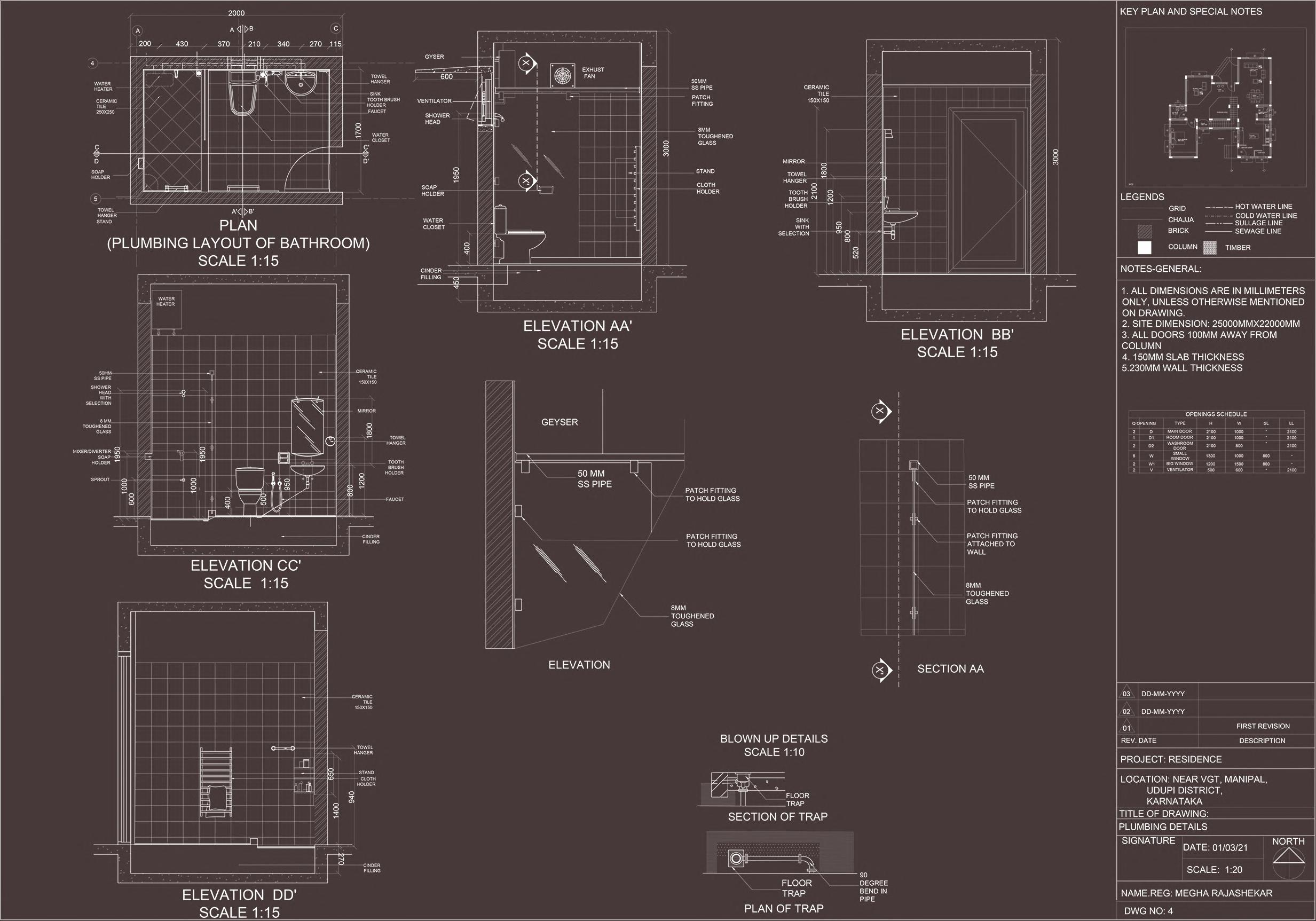

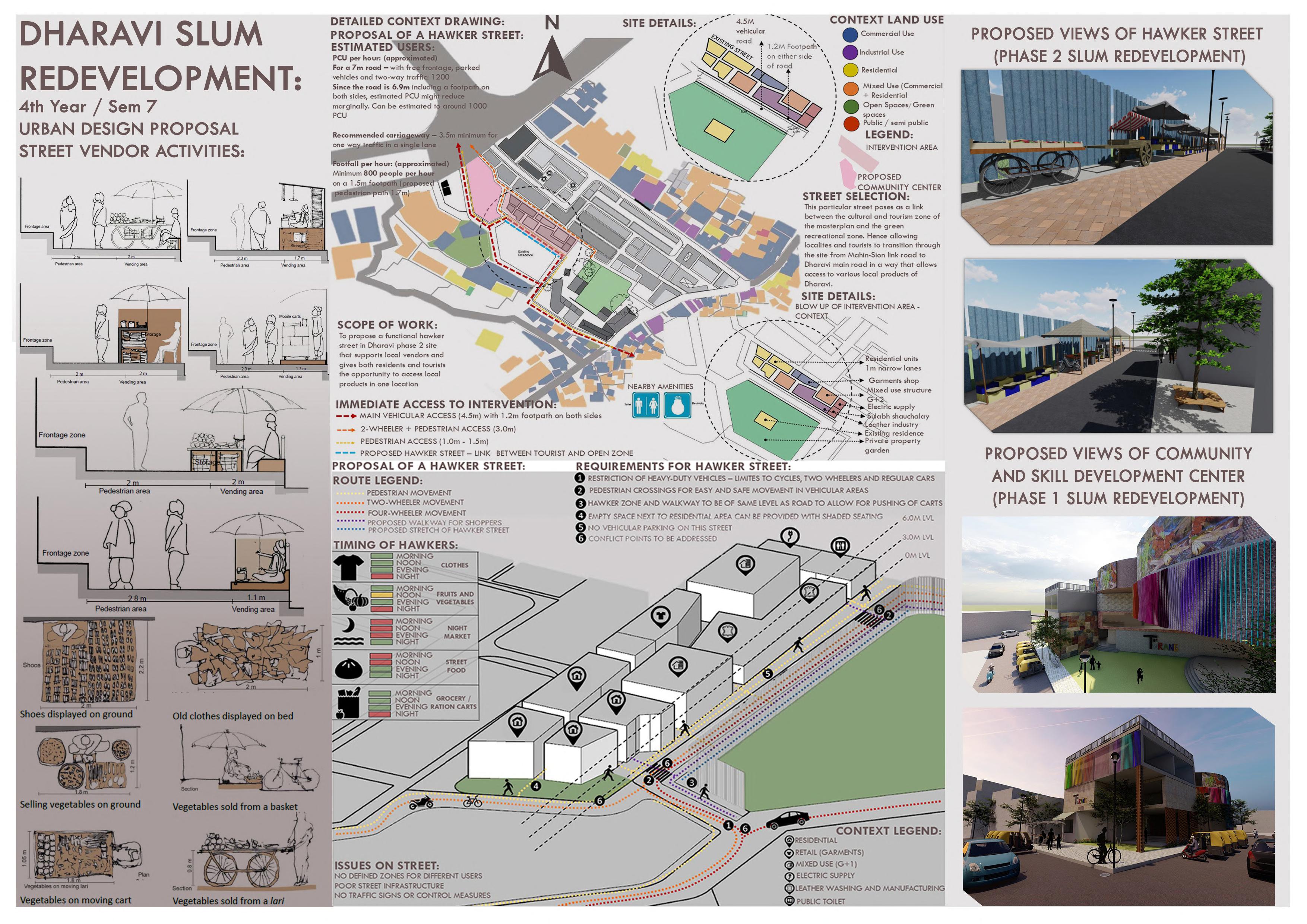

150 250 50 50 19mm Thk Ply Ceiling HVAC Grill As Per Consultant Suggestion 19mm Thk Ply Support With White Paint Finish 150 100 20 100 45 45 250 50 50 19mm Thk Ply Support For False Ceiling 20mm Thk Glass Toughned Partition HVAC GRill As Per Consultant Suggestion Led Light Profile As Per Lighting Consultant Suggestion 8x8mm Groove Pop ceiling With White Paint Finish 1115/F-27 1090/F-12 1075/F-12 200 250 FC @ 3150MM FFL @ 000MM FC @ 3150MM FFL @ 000MM FC @ 3000MM FC @ 3000MM 250 3000/F1 3000/F1 150 150 200 650/F9 650/F9 TOILET 850 1200 (HVAC) DUCT 1000 25 25mm Thk ply Support For Loft On Existing Beam Existing Beam 40 50 25 110 100x150mm Thk Ms Box Section Support For Lintel 19mm Thk Ply With Blue Textured Paint Finish 25mm Thk Teakwood Frame Finished With White Shade Paint Colored Lamination 50mm Thk Sliding Shutter Including Blue Shade Paint Colored lamination 50 25x50mm Thk Teakwood Frame For Sliding Door 20mm Thk Existing Marble Flooring 50mm Thk Sliding Shutter Including Blue Shade Paint Colored lamination 150 250 50 50 19mm Thk Ply Support For Lintel 19mm Thk Ply ceiling HVAC Grill As Per Consultant Suggestion 460 29 860 100 355 80 45 110 150 750 25 25 925 1970/F-16 1000/F-16 3150/F1 750 1480 200 3000/ F-1 150 350 250 50 2675 75 50 / F-9 250 FC @ 3150MM FFL @ 000MM FC @ 3150MM FFL @ 000MM FC @ 3000MM FC @ 3000MM 750 500/F9 ADVAITYA'S BEDROOM FOYER WIC 150 200 75 RADIANT COOLING RADIANT COOLING DETAIL - 20 DETAIL 18 WARDROBE DETAIL 19 75 350 DETAIL - 17 25 40 790 40 25 1 2 3 4 5 6 7 A B C D E F G H PROPERTY OF THE GAYATHRI & NAMITH ARCHITECTS PVT. LTD. COPYING OR DISSEMINATION/DISTRIBUTION TO UNAUTHORIZED PERSONS IS PROHIBITED 06 I3.G20.05 SECTION 3 1:30 06 I3.G20.05 SECTION 4 1:30 DETAIL - 17 DETAIL - 18 DETAIL - 19 DETAIL - 20 DETAIL - 21 DETAIL - 22 PRODUCED BY AN AUTODESK STUDENT VERSION PRODUCED BY AN AUTODESK STUDENT VERSION INTERNSHIP - SEMESTER 9 @ Gayathri and Namith Architects Project - Luxury Residence Scope - Boy’s bedroom Loft

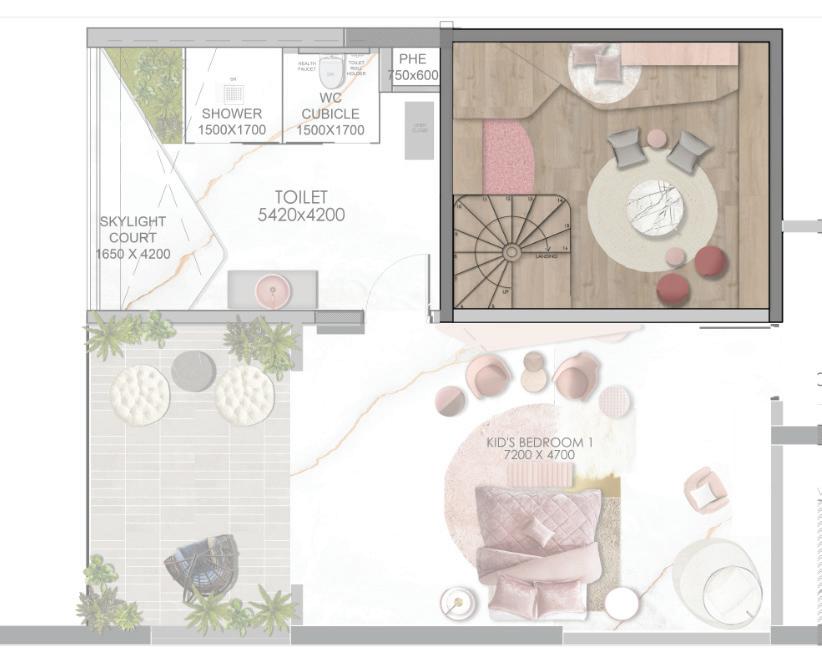

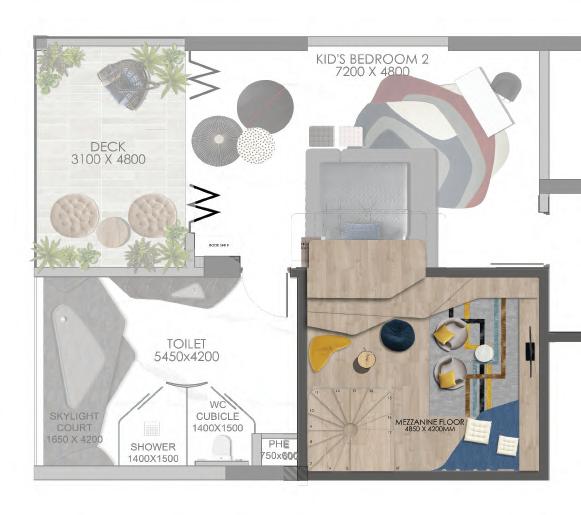

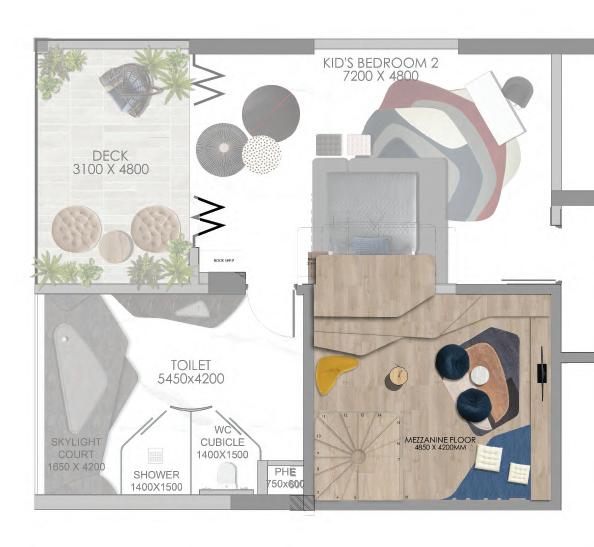

BOY’S BEDROOM IN LUXURY RESIDENCE KID’S LOFT PLAN - OPTION 1 BOY’S BEDROOM PLAN KID’S LOFT PLAN - OPTION 2 KID’S LOFT PLAN - OPTION 3
600 /F-22 Grey 7065 /F-25 3150/F-1 45 775 3150/F-1 150 110 225 250 750 450 750 250 200 75 750 75 200 200 200 150 150 100 100 350 715 R300 R150 R150 R200 R200 500 FC @ 3150MM FFL @ 000MM FC @ 3150MM FFL @ 000MM D D SEERAT'S BEDROOM DECK (HVAC) DUCT DETAIL - 10 DETAIL - 11 RADIANT COOLING DETAIL 12 75 F-25 F-14 F-19 DETAIL 13 250 8x8mm Groved Led Light Profile As Per lighting Consultant Suggestion Ply Supports For Light Profile/HVAC Return Or Supply Grill Pop Ceiling 6x6mm Groved 250 55 195 20 45 45 75 75 Led Light Profile As Per lighting Consultant Suggestion Ply Supports For Light Profile/HVAC Return Or Supply Grill Pop Ceiling 150 100 100 Ply Supports To Pop Ceiling 1 2 3 4 5 6 7 E F G H A0 PROPERTY OF THE GAYATHRI & NAMITH ARCHITECTS PVT. LTD. COPYING OR DISSEMINATION/DISTRIBUTION TO UNAUTHORIZED PERSONS IS PROHIBITED ELECTRICAL ASSOCIATE W DETAIL - 10 DETAIL - 11 PRODUCED BY AN AUTODESK STUDENT VERSION PRODUCED BY AN AUTODESK STUDENT VERSION 600 /F-22 Grey 7065 /F-25 3150/F-1 45 775 3150/F-1 150 110 225 250 750 450 750 250 200 75 750 75 200 200 200 150 150 100 100 350 715 R300 R150 R150 R200 R200 500 FC @ 3150MM FFL @ 000MM FC @ 3150MM FFL @ 000MM D D SEERAT'S BEDROOM DECK (HVAC) DUCT DETAIL 10 DETAIL - 11 RADIANT COOLING DETAIL 12 75 F-25 F-14 F-19 DETAIL - 13 40 35 225 220 235 R150 R150 R300 R200 R200 350 545 315 175 715 1000 440 1190 395 3085 145 125 110 800 1065 145 1765 150 170 465 4810 2250 178 515 250 8x8mm Groved Led
6x6mm
250 55 195 20 45 45 75 75 Led
150 100
200 150
45 20
A B C D E F G H 05 I3.G20.05 SECTION - 01 1:30 05 I3.G20.05 MARKING & DETAIL 1:30
DETAIL - 13
PRODUCED BY AN AUTODESK STUDENT VERSION 1 PINK ONYX 2 23.65 SQM (AS PER DRAWING) WHITE ONYX WITH BROWN STREAX BRAND – A CLASS 5.31 SQM (AS PER DRAWING) 3 MANHATTAN GREY MARBLE 4.16 SQM (AS PER DRAWING) 4 PAINT FINISH (AS PER DRAWING) B C D E F G H BKT FARM HOUSE AT SURVEY NO 23 & 24, MOLSARI AVENUE, WEST END GREENS, NEW DELHI DRAWING DESCRIPTION ARCHITECTS PROJECT DESCRIPTION # 14, TEMPLE TREES ROW, CAUVERY COLONY, NEAR KORAMANGALA 1ST BLOCK, BANGALORE -560047 PHONE : 91-80-25535449 FAX 25533774 E MAIL : info@gnarchitects.com STRUCTURAL CONSULTANTS: REVISIONS DATE REV. DESCRIPTION CLIENT: BKT FARM HOUSE ELECTRICAL CONSULTANTS: GAYATHRI & NAMITH ARCHITECTS. THE DESIGNER'S CONSORTIUM B-4/25, 2nd Floor, SAFDARJUNG ENCLAVE, NEW DELHI - 110 029 ASSOCIATE CONSULTANTS (PLUMBING & FIRE FIGHTING) SANITARY CONSULTANTS: MKG ENGINEERING SERVICES PVT. LTD. A-8, PARYAVARAN COMPLEX NEW DELHI- 110 030, INDIA, INDRA GANDHI NATIONAL OPEN UNI. RD. PHONE: 011-29532257 29532720 E-MAIL: mail@mkgconsultants.com Environmental Design Solutions Pvt.
Vasant Vihar, New Delhi 110057, India
11 2614 7085, Fax: +91 11 4056 8633
S E W SECTIONS 1 & DETAIL SEERAT'S BEDROOM FIRST FLOOR PLAN - WEST BLOCK---PRODUCED BY AN AUTODESK STUDENT VERSION
INTERNSHIP - SEMESTER 9
Light Profile As Per lighting Consultant Suggestion Ply Supports For Light Profile/HVAC Return Or Supply Grill Pop Ceiling
Groved
Light Profile As Per lighting Consultant Suggestion Ply Supports For Light Profile/HVAC Return Or Supply Grill Pop Ceiling
HVAC Grill As Consultant Suggested
100 100 Pop Ceiling Ply Supports To Pop Ceiling
6mm thk Solid Surface With Grey Shade On Top of Study Table 19mm Ply Support For Study Table 4mm thk Groove For Ply To Finish
DETAIL - 10 DETAIL - 11
DETAIL - 12
Ltd.[EDS] D-1/25,
Ph: +91
www.edsglobal.com
LEGEND
@ Gayathri and Namith Architects Project - Luxury Residence Scope - Girl’s bedroom Loft

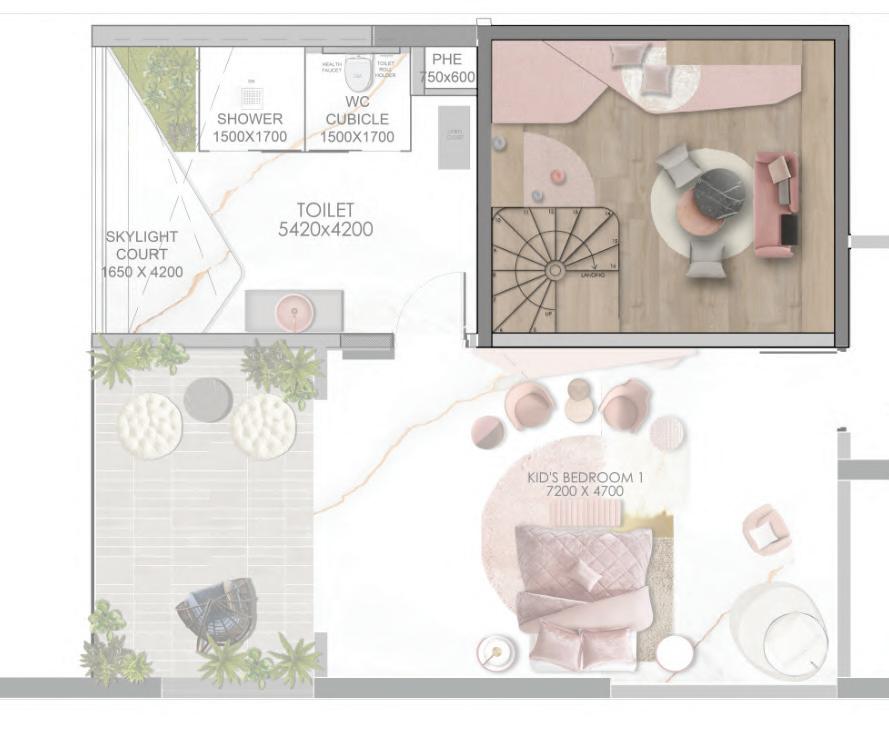

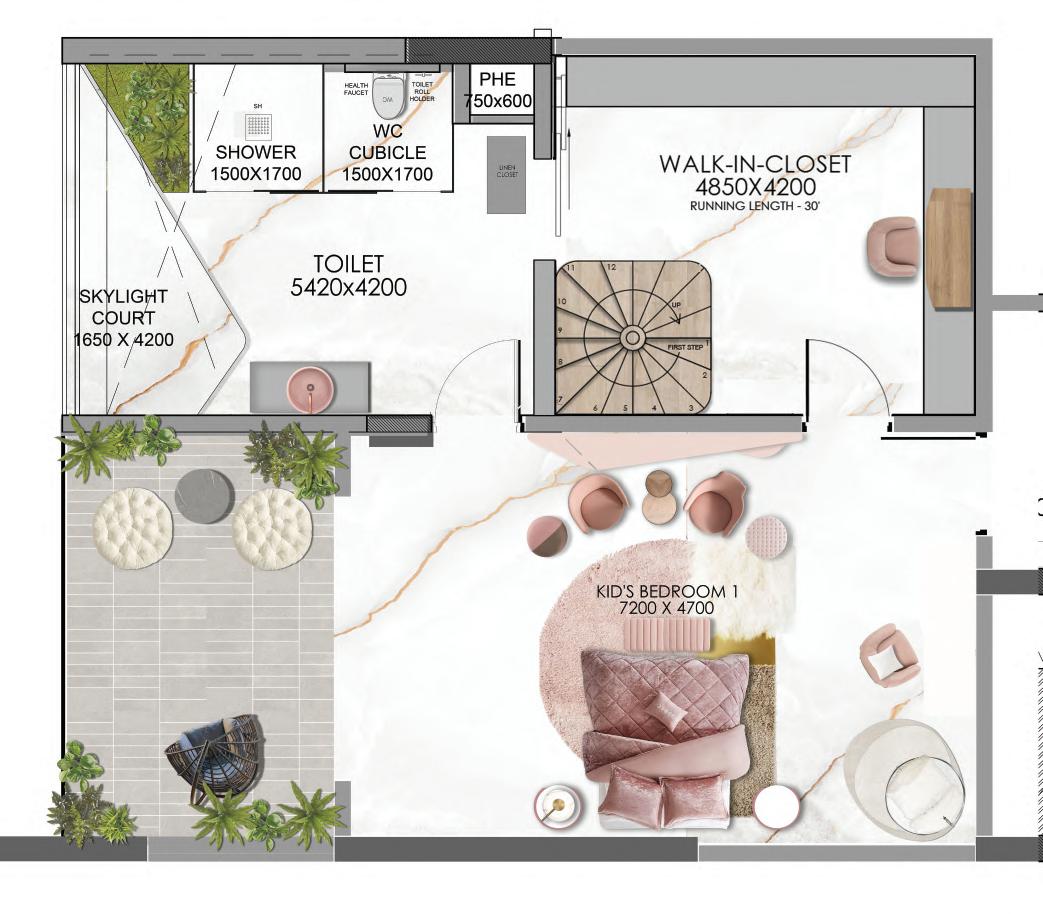

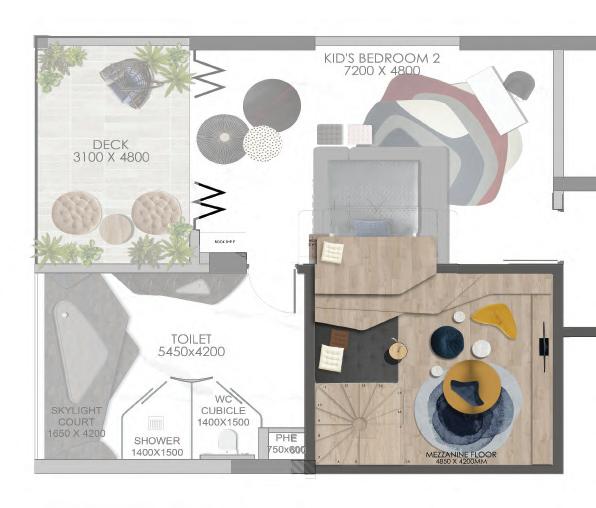

KID’S LOFT PLAN - OPTION 1 KID’S LOFT PLAN - OPTION 2 KID’S LOFT PLAN - OPTION 3
BEDROOM IN

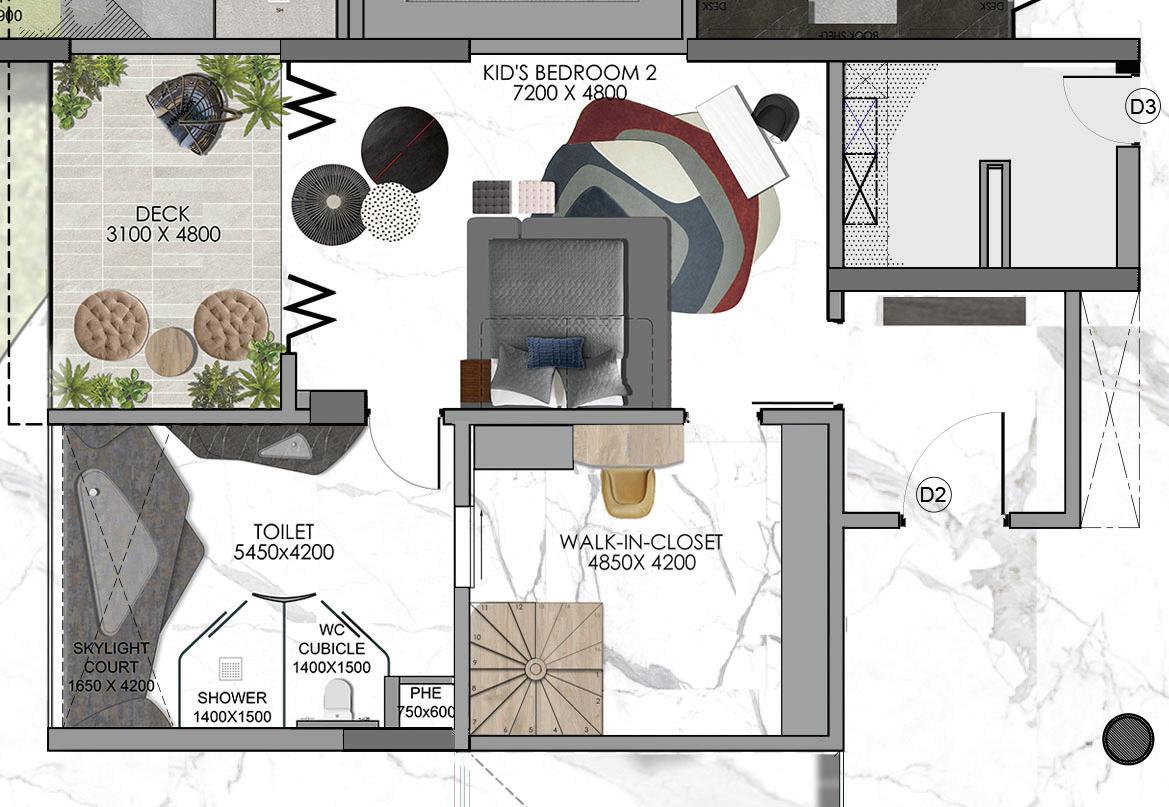

GIRL’S BEDROOM PLAN
GIRL’S
LUXURY RESIDENCE
FOOD COURT BLOCK IN URBAN PARK

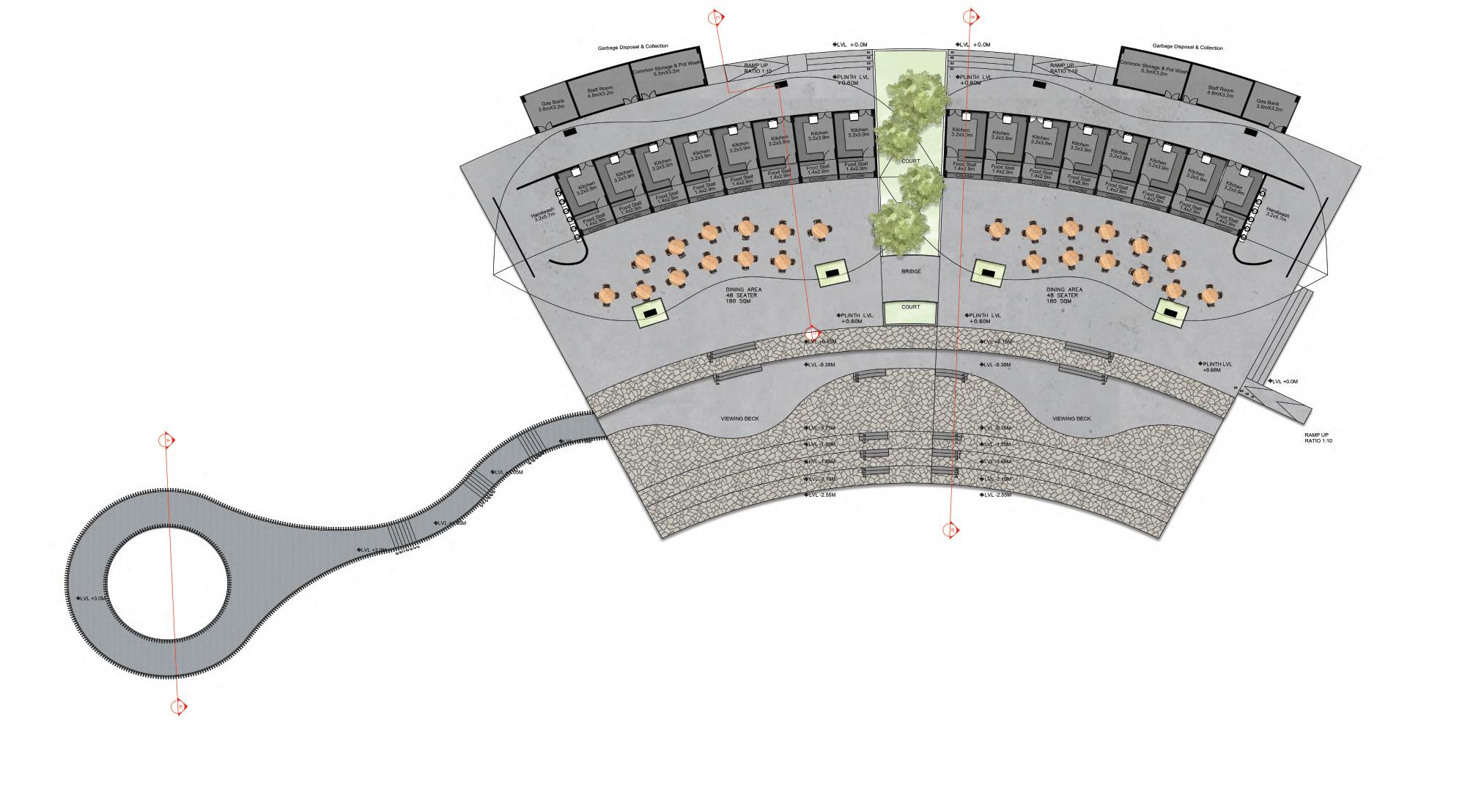

FOOD COURT FLOOR PLAN
