Automation Product Catalog
Our Products Vial Filling..................................................................................................................4 CountAssist CountMate Pouch Packaging....................................................................................................8 PACMED D Series PACMED DOC Series PACMED C Series PACMED NS Series PACMED HC Pouch Packaging Inspection...............................................................................18 PACVision C PACVision EX Packaging Accessories.........................................................................................22 EZCut EZTok Wizer Blister Card Packaging.........................................................................................26 BlistAssist BlistMED
3
Vial Filling Automation

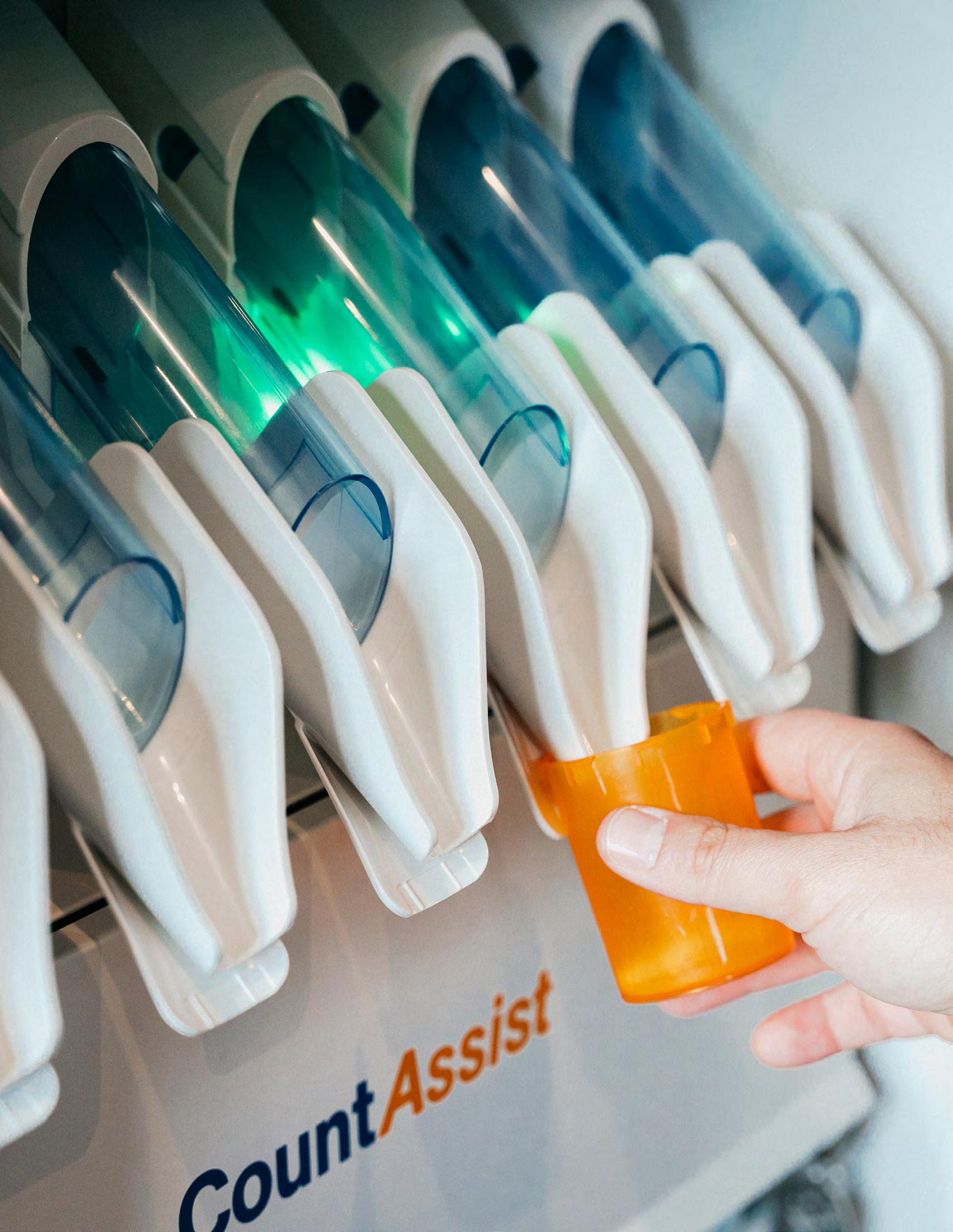

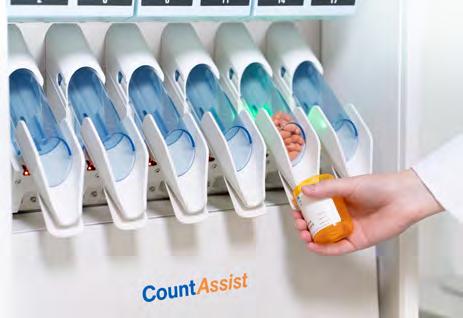

A reliable counting technology that streamlines vial filling, CountAssist is the most cost-effective counting automation on the market. Each compact cabinet contains 18 canisters, each with its own locked chute, eliminating the risk of cross-contamination and ensuring the security of your patients.

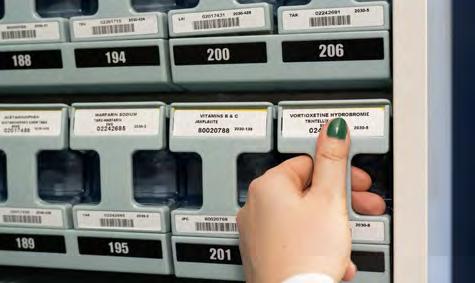

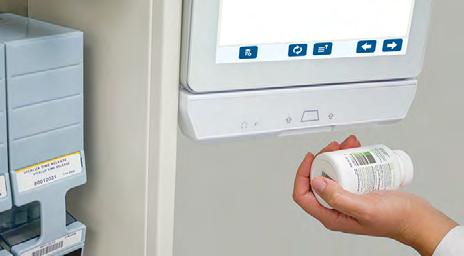

Stock bottle scanning for traceability and safety
Its slim, one-sided design makes CountAssist perfect for installation in any size dispensary. You can easily add cabinets to expand the system based on your prescription volume or as you grow. CountAssist sets a new standard in vial filling that is quickly becoming the most efficient choice of national pharmacy chains and independent owners alike.
Improved efficiency
Scalable for future growth
Ensured patient safety
Click to watch the video 4
Canister refill for inventory management

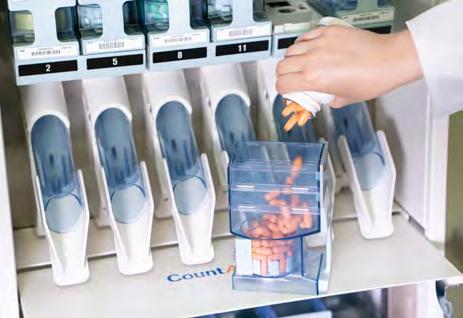

Counting and filling for time savings
Since CountAssist is only accessed from the front and needs minimal space, I was able to install two cabinets in my pharmacy. It’s simple to use, so it got my staff comfortable with automation. Now our counts are more accurate and our efficiency has improved thanks to the system’s reliability. Karim Merani, Pharmacist & Owner
We’re filling twice as many medications in the same amount of time as we were without the CountAssist. It’s made our workflow so much more efficient and has allowed us to spend more time with our customers, which is what we’re all about. Wendy McMullen, CPhT Certified Pharmacy Technician Point City Drug
CountAssist | Vial Filling Automation
Why CountAssist
Specifications
Efficiency • With one cabinet, you can automate up to 35% of your oral solid prescriptions. • Software developed in-house, designed with retail pharmacies in mind. • User-friendly GUI makes it easy to learn and simple to operate.
Main cabinet Dimensions Width
75 cm (30")
54 cm (21")
Height
195 cm (77")
195 cm (77")
Depth
25 cm (10")
25 cm (10")
Number of canisters
• Reporting functions help you optimise its use.
18 per cabinet
• Requires little supervision and minimal upkeep.
Scalability
Flexibility • Integrate with your pharmacy management software to support two-way information exchange, where available through the pharmacy management software provider. • Compact one-sided cabinet can be installed at end of bay, against a wall or in multiple configurations. • Scalable technology that adapts to your growing business demand.
Auxiliary cabinet
Up to 10 cabinets can be connected together Electrical requirements Standard 120V/15A
Small footprint that fits in any dispensary, ideal for end-of-bay placement.
• Up to 10 cabinets can be connected to a single controller, for a total of 180 canisters.
Safety • Rx label barcode scanning ensures the right medication goes in the right vial to go to the right patient. • Dedicated locked chutes eliminate crosscontamination. • Locking door secures one row of canisters in each cabinet, limiting access to expensive or narcotic medications.
1.888.606.6337 sales@bakeradvanced.com
5
Vial Filling Automation

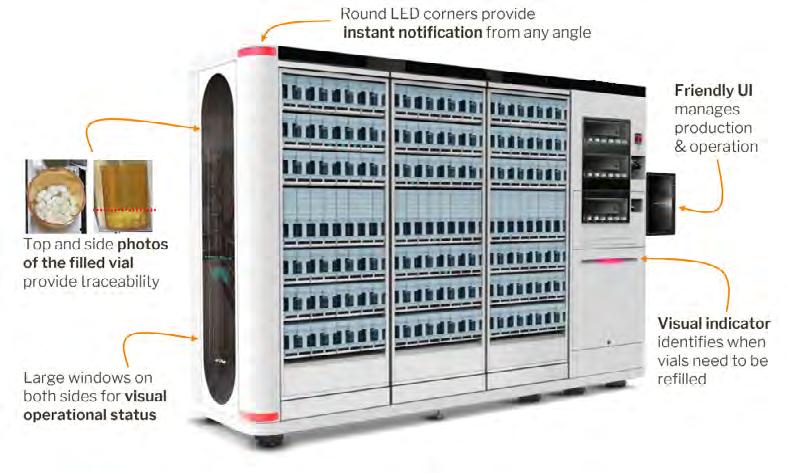

Experience unprecedented production with CountMate. This quiet automated vial filling robot provides a space-saving front access design, allowing for placement against a wall to maximize workspace.
A CountMate C84 model is depicted. The image shown here is for illustration purposes only and may not be an exact representation of the product.
Space & Versatility
Workflow & Efficiency
Efficiently count multiple prescriptions simultaneously using trusted canister technology for uninterrupted production. Two multitasking robotic arms work in tandem to fill vials, photograph, label, and drop-off prescriptions into 18 lanes sorted by patient. CountMate produces up to three vials per minute. Choose between 84 or 168 canister models to suit various pharmacy footprints.

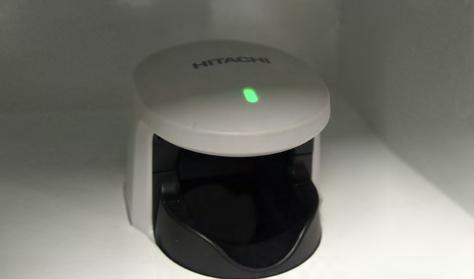

Biometric vein reader provides added user security and traceability.
Fill directly from the canister to the vial to eliminate cross-contamination.

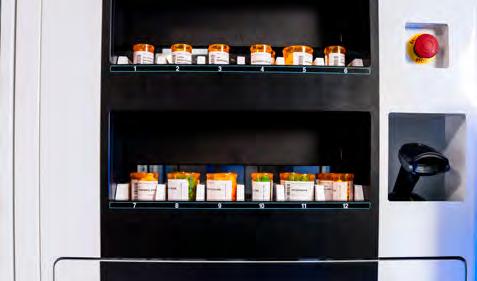

Security & Traceability Sorting lanes grouped by patient expediate prescription pickup.
Click to watch the video 6

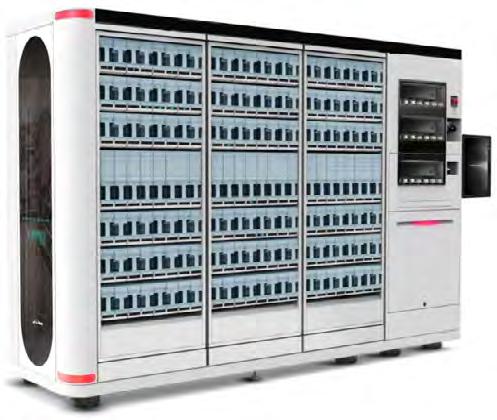

A CountMate C168 model is depicted. The images shown here are for illustration purposes only and may not be an exact representation of the product.
CountMate | Vial Filling Automation
Why CountMate
Specifications C84
Space & Versatility • Quiet operation allows device placement anywhere in the pharmacy, enhancing the overall employee and patient experience. • One-sided access reduces required square footage and optimizes workspace. • Simultaneous filling and replenishment minimizes downtime. • Supports 13 dram and 30 dram vials in various color for maximum versatility.
Dimensions Width
74”
111”
Height
77”
77”
Depth
30”
30”
Weight*
2,094 lb
2,425 lb
Capacity Canisters
Workflow & Efficiency • Canisters count simultaneously, holding filled counts in dedicated chutes within the robot. • Two multi-tasking robotic arms enable simultaneous filling, photography, labelling, and vial drop off.
C168
84
168
72 standard Up to 12 super
144 standard Up to 24 super
Speed Up to 160 vials/hour Electrical Requirements 120V~, 60Hz, 5A (500W) * Weight excluding canisters.
• Produce up to three vials per minute for unmatched productivity, with trusted hardware and software technology. • Integrate with your pharmacy management software to support two-way information exchange, where available through the pharmacy management software provider. • Replenish canister inventory during production to avoid incomplete prescriptions and the need to return part fills back to stock. • Sorting lanes are grouped by patient to expediate prescription pick up.
Security & Traceability • An internal camera captures an image of every vial from both the top and side for traceability and easy audit. • Barcode driven verification ensures patient safety and accuracy when replenishing canisters. • Integrated biometric vein reader for additional security. • Secure canisters with optional locking doors to monitor medication access and prevent loss.
Pivoting sections allow for easy cleaning and maintenance.
1.888.606.6337 sales@bakeradvanced.com
7
Pouch Packaging Automation
Begin with confidence. Expand with ease.

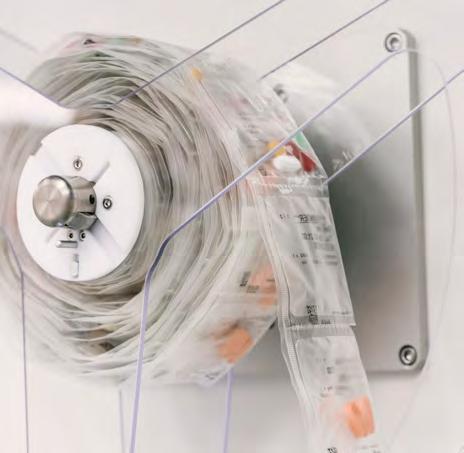

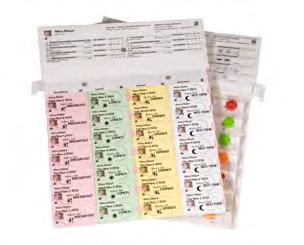

Medication pouch packaging
Proven and affordable compliance packaging solutions
A progressive solution that is convenient, easy to use, portable, personalized and totally secure. Thanks to our unique packaging technology, you can now provide better quality services while improving medication adherence.
Differentiate Grow Protect
Improved patient outcomes
PACMED – Making life easier for you and your patients
Increased business growth
Why PACMED D Differentiate • Ensure a competitive advantage and customer loyalty by offering your patients a unique and innovative solution
Protect your patients and market share
• Individual pouches are discreet, convenient and easy to carry • Personalized pouches display the day and time each medication needs to be taken, even more than 4 times a day • Through increased efficiency, you have more time to focus on your patients’ needs and offer other revenue generating services
Grow • Expand your target market beyond long-term care to independent and active seniors and other patients with complex medication regimes
Protect
Click to watch the video
8
• Improves medication adherence with reminder pouches for on-time renewal • Brings security and flexibility to your patients’ daily medication routine • Reduces errors as well as dispensing time
PACMED D | Pouch Packaging Automation

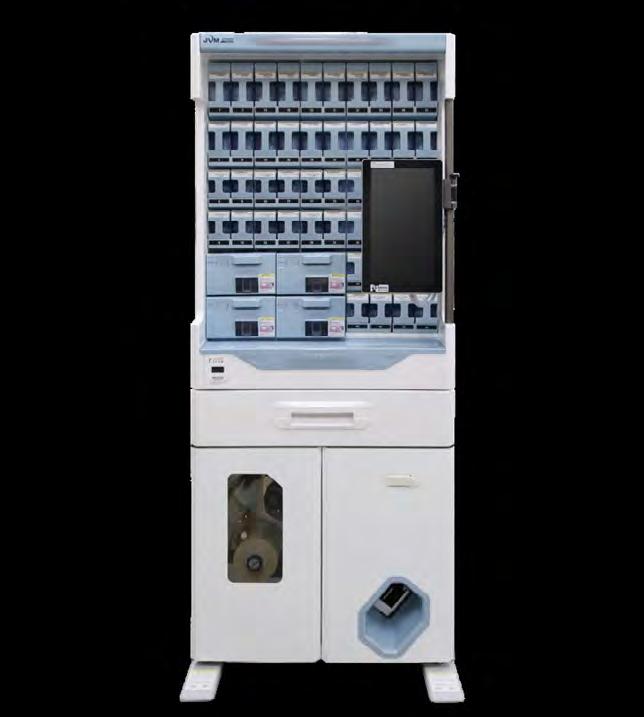

Specifications D
D36
D84
Dimensions (W)
37.5”
37.5”
37.5”
(H)
37”
67”
82.5”
(D)
21”
21”
21”
Unit footprint Capacity 0
36
ICONS Denote hours of administration, international language characters and identify multiple pouches
Monday
REMINDER POUCHES
5.5 sq.ft.
Canisters
The medication to be taken for the next dose will be in the next pouch on the strip
84
Remind patients when to take non-oral solid medication or number of days left until renewal
Speed Unit-Dose
Up to 60 pouches per minute
Multi-Dose
Up to 50 pouches per minute
Tuesday
UNLIMITED ADMIN/DAY Package pills for complex medication regimes with complete flexibility
PERSONALIZED POUCH DESIGN
2
Pouch 1 of 2
Easily customizable appearance and information for different needs PACMED D
36 canisters
D36
UPGRADE READY Start with a PACMED D0 today and upgrade to a D36 or D84 as your business grows
Pouch 2 of 2
Supporting Product PACMED D
84 canisters
D84

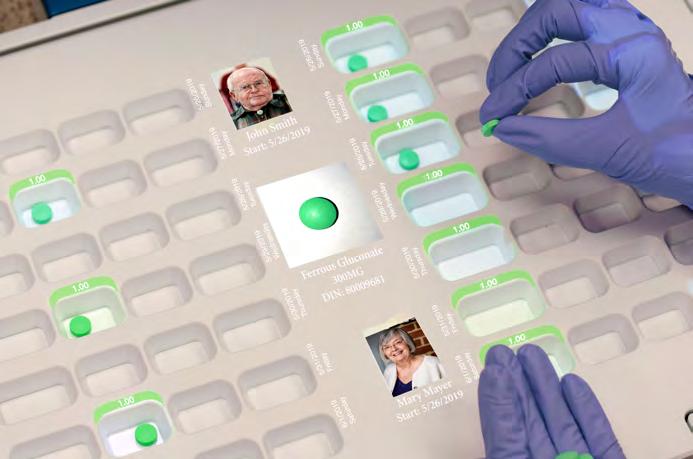

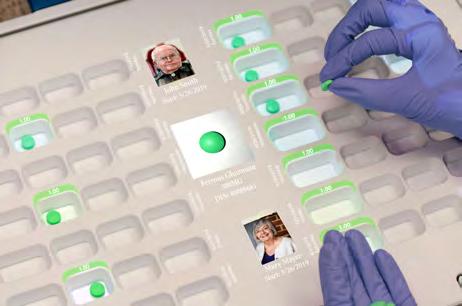

PACMED LTL Load to Light TM The light system guides the technician in preparing trays of non-canister medication and partial pills
Reminder pouch for a non-oral medication
Reminder pouch of number of days to renewal
1.888.606.6337 sales@bakeradvanced.com
9
Pouch Packaging Automation
Series Slim design. Serious control. Grow beyond long-term care. Serve a wide range of patients with complex needs without adding complexity to your operations. PACMED simplifies pouch packaging with customizable options that fit your workflow. Save time, reduce errors, and deliver a personalized experience so your team can spend less time on manual tasks and more time with patients.

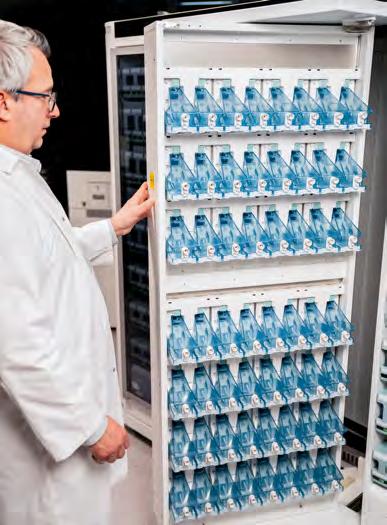

Fridge-style door swings open for easy access to canisters.
PACMED DOC offers a single-door design, available exclusively through Baker Advanced.
Photo disclaimer: A PACMED DOC174 model is depicted. The images shown here are for illustration purposes only and may not be an exact representation of the product.
Efficiency
Increase patient safety
Pouches for each administration date/time, and reminders for non-oral solids.
Accelerate growth 2 standard auto-canisters for partial tablet dispensing. Special Tablet System (STS) tray for non-canister medications and partial pills.
Click to watch the video
10
PACMED DOC | Pouch Packaging Automation
Why PACMED DOC174
Specifications
Efficiency • A slim design and high canister-count produces more pouches without needing more room. • Powered by trusted hardware and software, PACMED ensures uptime so your time is spent on patient care, not managing pouches.
Dimensions Width
32”
Height
77 ½”
Depth
24 ¼”
Weight*
771 lbs
• Special Tablet System (STS) trays, universal canisters, optional accessories, allow for uninterrupted packaging of non-canister medication and partial pills. • Built-in shelf slides out to create a convenient workspace for refills. • EASY REFILL canister extensions allow medications to be replenished quickly without removing canisters.
Safety • An automatic locking door guarantees safe storage of controlled and/or high-cost medications. • Barcode driven verification prepopulates lot number and expiry date while ensuring patient safety and accuracy during canister replenishment.
Unit footprint 5.4 sq. ft. Canister capacity 168 canisters + 2 auto-canisters (Expandable with additional swappable canisters) Speed Unit-Dose Multi-Dose
Up to 60 pouches per minute Up to 50 pouches per minute Packaging types
Clear/Clear, Clear/White, White/Clear Power consumption 500W * Weight excluding canisters.
• Improve patient’s medication adherence with daily medication pouches and optional reminder pouches for medications external to the pouch (e.g. a nitroglycerin patch).
Growth • Handle more prescriptions without adding more team members all while delivering patients an experience they’ll come back for. • Expand your target market beyond long-term care to independent and active seniors.

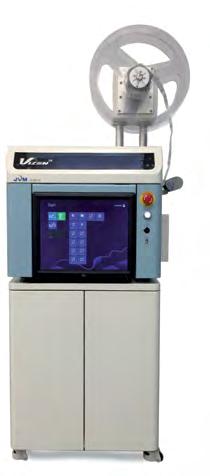

PACVision® C The smarter way to check every pouch. PACVision C is compact, precise and built to work without slowing you down. Inspect each pouch for pill quantity, color, size and shape in seconds. PACVision C is immune to distractions and human error. Direct integration with PACMED ensures smooth operation.
1.888.606.6337 sales@bakeradvanced.com
11
Pouch Packaging Automation
Your patients juggle a lot of medications. Now you can make it simple. A compact automated pouch-packaging system, PACMED C sorts and packages each patient’s medications into individual, time-labeled pouches.
Medication pouch packaging A progressive solution that is convenient, easy to use, portable, personalized and totally secure. Thanks to our unique packaging technology, you can now provide better quality services while improving medication adherence. PACMED – Making life easier for you and your patients
Your patients are managing more medications than ever, and many of them struggle to keep up. That’s both a problem for their health and an opportunity for your pharmacy. PACMED C gives you the ability to offer personalized medication pouches, sorted by date and time, directly from your store.
Improved operational efficiency
It’s a service that keeps patients on track and keeps them coming back. And because it fits into just 6.8 square feet, you don’t need a bigger pharmacy to make it happen.

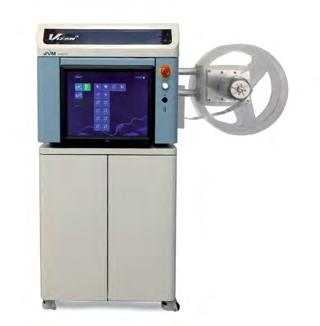

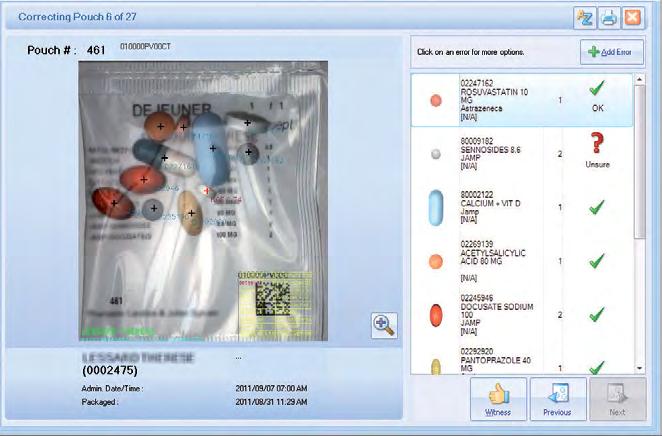

PACVision® C An unparalleled high accuracy automated inspection unit that safely and efficiently verifies every PACMED pouch for pill quantity, colour, size and shape in less than a second. Fully integrated with PACMED to allow for seamless operation.
Grow without adding staff
Minimizes pharmacist intervention, freeing up time for patient counselling and other responsibilities.
12
Protect your patients and market share
A user-friendly interface allows for the easy search and retrieval of all pouch images for traceability.
PACMED C | Pouch Packaging Technology
Specifications C208 Dimensions (W)
39" doors closed 64" doors open
(H)
79" (base is 37")
(D)
25" 44" base doors open
Unit footprint 6.8 sq.ft.
Capacity Canisters
208 (expandable with additional swappable canisters)
Speed Unit-Dose
Up to 60 pouches per minute
Multi-Dose
Up to 50 pouches per minute
Packaging types Clear/Clear, Clear/White, White/Clear

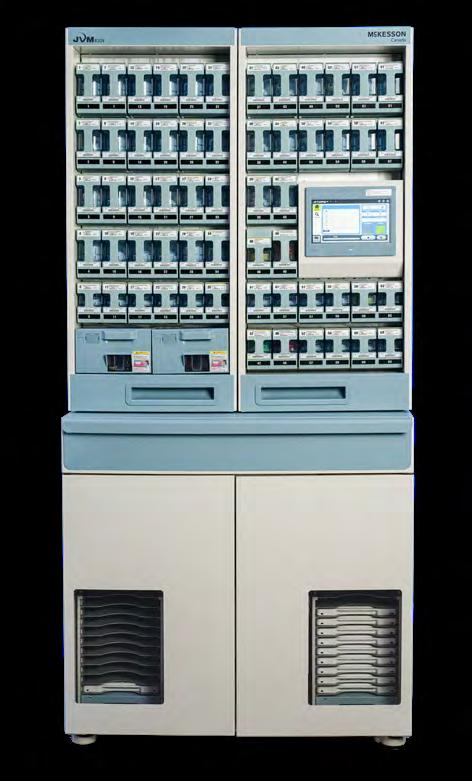

Why PACMED C Efficiency • Compact, high-capacity and highefficiency solution with the flexibility to increase capacity by adding additional swappable canisters. • With the choice of 3 types of supported paper, manipulation during manual verification and at bedside is reduced. • The TransPAC transportation case for PACMED strips was designed to reduce receiving and cart-loading time.
ICONS Denote hours of administration, international language characters and identify multiple pouches
REMINDER POUCHES Remind patients of when to take non-oral medication or number of days left to renewal
UNLIMITED ADMIN/DAY Package pills for complex medication regimes with complete flexibility
• Through increased efficiency, you have more time to focus on your patients’ needs and offer other revenue generating services.
PERSONALIZED POUCH DESIGN
Growth
Easily customizable appearance and information for different needs
• Ensure a competitive advantage
and customer loyalty by offering your patients a unique and innovative solution.
• Expand your target market beyond long-term care to independent and active seniors and other patients with complex medication regimes.
Protection • Improves medication adherence
with reminder pouches for on-time renewal.
EASILY CRUSH PILLS Safely and conveniently crush pills directly in the pouch without requiring an additional specialized pouch
PATIENT LABELS WITH IMAGES PACMED Core® software offers the option to print patient labels with color images of patient and drugs, facilitating the identification and verification of the medication by the caregiver
• Brings security and flexibility to your patients’ daily medication routine. • Reduces errors as well as dispensing time.

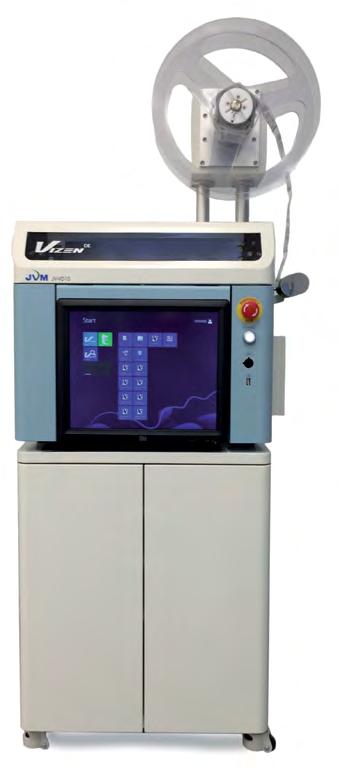

Ask about the PACMED support products: Wizer, CrushPAC, TransPAC and ComPAC boxes.
1.888.606.6337 sales@bakeradvanced.com
13
Pouch Packaging Automation
Support more patients with less disruption. High efficiency and high capacity packagers that produce easy to use, portable, personalised, and totally secure compliance packaging.
Medication pouch packaging

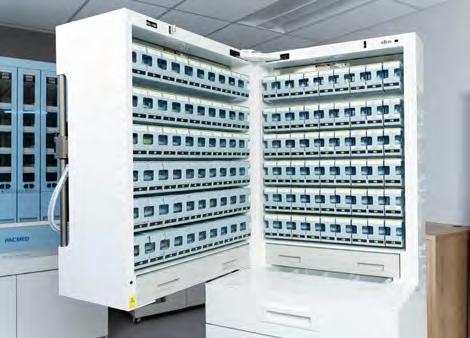

Sliders offer easy access to canisters

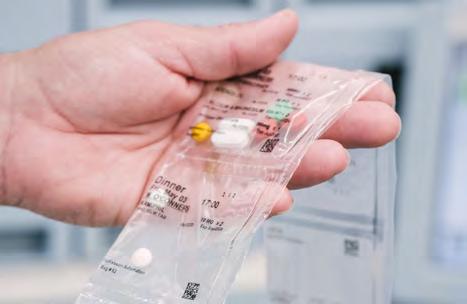

With PACMED® pouches, medication administration is simple and safe. • Improves resident safety • Reduces frequency of medication errors • Optimizes nurses’ time • Medications can be conveniently organized and kept inside a medication cart

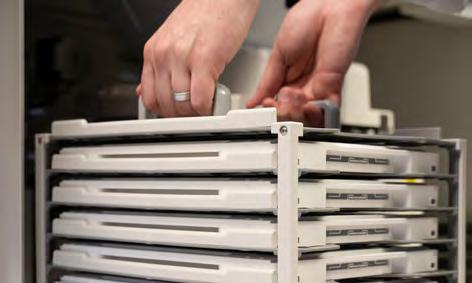

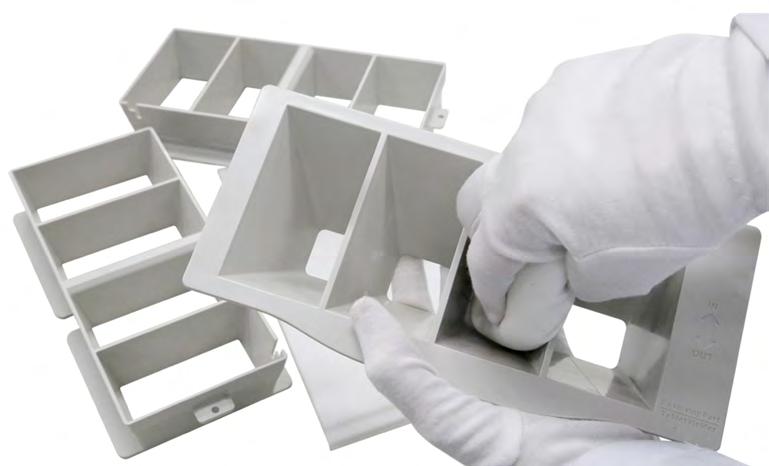

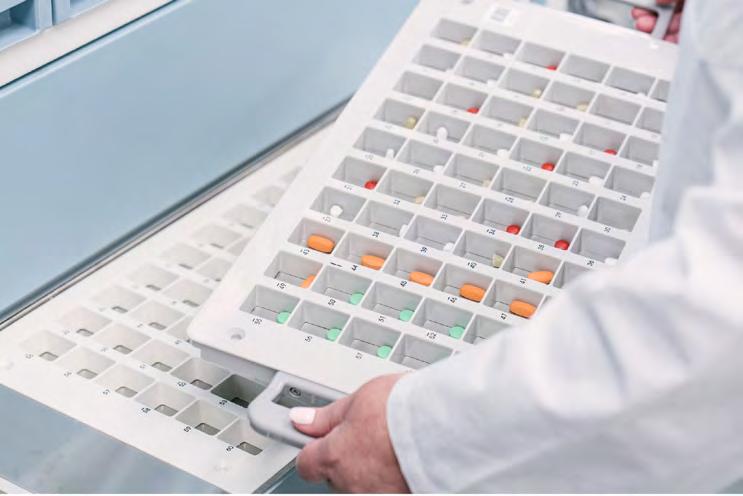

Optional accessory: Special Tablet System (STS) tray for controlled substances
• Easily crush medication directly in the PACMED® pouch
Improved efficiency
Accelerate Ensured your growth patient safety
Click to watch the video
14
Pouches for each administration date/time and reminders for non-oral solids
I loved the efficiencies that came with my original PACMED, but the enhanced features of my new PACMED NS have taken it a step further. We have been able to reduce over 30% of our STS trays with the new universal canisters by automating our top partial tablets. The one-sided design means we can operate efficiently in a smaller workspace.
The universal canisters capability in the new PACMED NS, for partial and special tablets, is a substantial time saving for us; we were able to cut down 50% of the STS trays. The new PACMED holds more canisters with higher capacity. The eight towers are independent of each other, allowing refills while the machine is running.
Blair Snow, Pharmacist & Co-Owner Roulston’s Pharmacy
Tessa Valg, Regional Manager Fraser Health
PACMED NS | Pouch Packaging Automation
Why PACMED NS
Specifications
Efficiency
NS360
• High canister-count solutions ensure less human intervention, reduced errors, increased productivity, and less down-time.
Dimensions
• High-volume medication canisters can be conveniently positioned up-front for faster refilling .
Width
38”
50”
Height
86”
86”
Depth
34 ¼”
40”
Canister capacity
• Special Tablet System (STS) trays, an optional accessory, allow for uninterrupted packaging flow of non-canister medication and partial pills. • Manipulation during manual verification and at bedside is reduced.
Growth
NS576
352 canisters + 2 auto-canisters
560 canisters + 4 auto-canisters
Speed Unit-Dose
Up to 60 pouches per minute
Multi-Dose
Up to 50 pouches per minute
Packaging types
• Ensure a competitive advantage and customer loyalty by offering your patients a unique and innovative solution.
Clear/Clear, Clear/White, White/Clear
• Allows you to absorb increased prescription volume with your current infrastructure.
Safety • Reduces errors and dispensing time. • Standardised bar-code formats facilitate bedside scanning. • Bar coding allows for the verification from pharmacy production to patient delivery. • Ensures that pills are given consistently and correctly, allowing caregivers to focus on their patients’ needs. • Pouch packaging allows for automated verification which improves the safety and accuracy of the process.
Canisters
Choose 360 or 576 canisters to optimise dipensing of your inventory
Optional accessory:

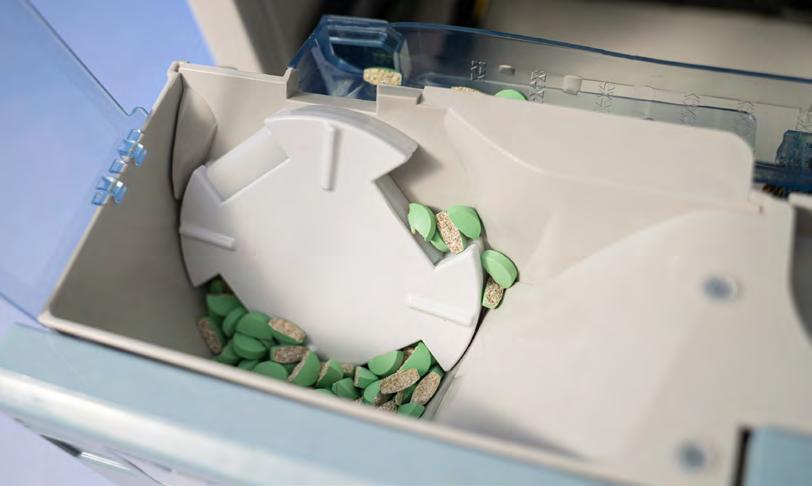

Universal canister Automate dispensing of partial pills
Sliders
Convenient access to all canisters Optional accessory:

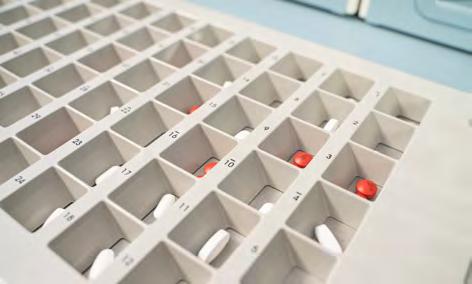

STS tray Variable pouch size Adapt packaging for each care home or patient group
Package non-canister medications and partial pills
Swappable mainframe Optional interchangeable mainframe unit packager
1.888.606.6337 sales@bakeradvanced.com
15
Pouch Packaging Automation
High-capacity PACMED for low-stress pharmacies Designed for high volume operations, PACMED® HC is a high capacity pouch packaging system that enhances productivity, efficiency, and convenience. The all-in-one concept with verification allows production with fewer interventions. By analyzing the prescription data, the internal robot in PACMED HC optimizes the canisters needed to dispense in advance, minimizing the manual preparation of exception drugs. Canisters are properly sized to accommodate the high production rate.
Improve efficiency
Accelerate your growth
Ensure patient safety
With two separate packaging lanes, PACMED HC can simultaneously produce up to 60 pouches per minute on each side.
Accurate and fast dispensing and packaging
RFID technology and barcoding verification for safe medication management
PACMED HC features an integrated PACVision system for internal inspection, ensuring that every pouch packaged is inspected. With a compact footprint, it accelerates pouch filling and verification while requiring less labour, and offering superior efficiency compared to standalone pouch packaging and verification robots.

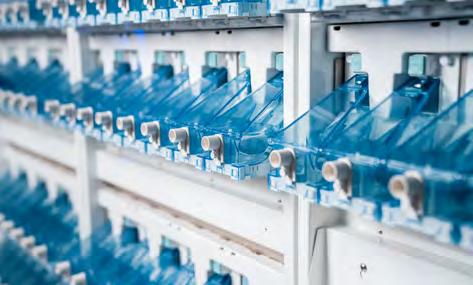

Large capacity canisters accommodate the high production rate

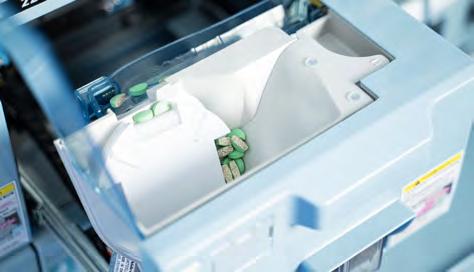

Autocanister: can be easily detached, so you can quickly replace the empty container with a prefilled one.
Click to watch the video
16
PACMED HC | Pouch Packaging Automation
Why PACMED HC
Specifications
Efficiency
Dimensions
• Produces up to 120 pouches/min; 60 per mainframe.
Width
6.2 ft (1.88 m)
• Variable size pouch packaging available.
Depth
12.3 ft (3.74 m)
• Special Tablet System (STS) trays allow for uninterrupted packaging flow of non-canister medication and partial pills on each corridor.
Height
8.4 ft (2.56 m)
• The prescription data is analyzed, to optimize canister placement, refills and dispensing, to reduce preparation time. • Supports up to 10 universal canisters for automatic dispensing and packaging of partial or exception tablets. • Large canisters with a high capacity.
Weight (Excluding canisters) 1,800 kg (3,968 lbs) Canister capacity 864 (each) (S: 600, D: 264) max. 10 universal canisters Maximum Working rate 120 pouches/min; 60 per mainframe Power consumption
Growth • Absorb increased prescription volume with minimal staffing disruption.
800W (Max. 1,400W)
Safety • Pouches are verified within PACMED HC, increasing accuracy. • Verification images are stored for increased traceability and tracking. • Each canister has its own RFID tag to prevent potential errors.
Internal inspection checks each pouch for pill quantity, color, size and shape in seconds.
1.888.606.6337 sales@bakeradvanced.com
17
Pouch Inspection Automation
See More. Do More. The smarter way to check every PACMED® pouch. Compact, precise and built to work without slowing you down. Ensure every pouch is right every time. Automate your verification so you can spend less time checking and more time with patients. Designed for small and mediumsized operations, PACMED and PACVision C work together to handle packaging and verification without taking up valuable space. No need to juggle multiple systems. Everything connects smoothly and PACVision C keeps your workflow focused and accurate, even when things get busy.
Increased accuracy
Increased efficiency and productivity
Protect your patients

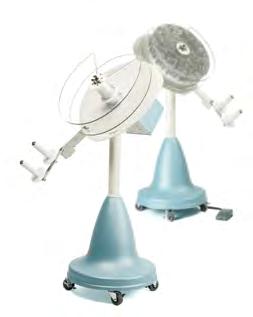

i-Rolly No more tangled pouches or manual winding. Keep pouches neat and ready to go.
Click to watch the video
18
PACMED C | Pouch Inspection Automation
Why PACVision C
Specifications Dimensions
Accuracy • Using an advanced pill recognition system, PACVision C verifies every pouch for pill quantity, color, size and shape. • Color recognition accuracy is ensured with our unique high-precision method that takes the environmental characteristics of your site into consideration.
Efficiency • Automated inspection minimizes pharmacist intervention, freeing up time for patient counselling and other responsibilities. • Full integration with PACMED provides an efficient and seamless process between packaging and verification.
Safety and traceability
Width
28” (base doors closed)
Height
70” (including stand) 40” (without stand)
Depth
19” Validation/Work Stations Supports 1 station Support product
Comes with 2 i-Rolly units that will roll strips of PACMED® pouches quickly and easily Speed Verifies up to 40 pouches/minute
• Immune to distractions or fatigue, PACVision C verifies pouches consistently, quickly and securely. • A user-friendly interface allows for the easy search and retrieval of all pouch images for traceability.
User-friendly Correction Screen
• With the added capability to capture a colour image of a corrected pouch, all verified pouches can be documented without exception.
1.888.606.6337 sales@bakeradvanced.com
19
Pouch Inspection Automation
Clear images, confident decisions. Inspect PACMED® pouches with confidence without slowing down production. PACVision EX uses advanced vision technology with AI to capture high-quality images and verify tablet count, size, shape, and color against prescription details. With high-speed inspection and a compact design, it helps pharmacies boost efficiency, save space, and keep the pharmacy running smoothly. When PACVision EX pairs with PACMED, you get more than technology. You have a solution that combines fast, precise inspection with high-volume pouch packaging.
Speed
Safety
Accuracy
PACMED NS
i-Rolly No more tangled pouches or manual winding. Keep pouches neat and ready to go.
Click to watch the video
20
PACVision EX | Pouch Inspection Automation
Why PACVision EX
Specifications
Speed • Inspect up to 320 pouches per minute to keep up with production from multiple PACMED devices. That’s 5 pouches per second! • Speed up your process with the optional winding module that combines winding, cutting, and labelling in one compact unit.
Safety • Three high-resolution cameras capture every angle of each pouch, delivering complete visibility and confidence that every tablet is correct. • Enhanced AI reduces false positives and improves precision by learning from past inspections. • Quickly find pouch images to ensure traceability and patient safety.
Dimensions Width
17 3/8”
Height
66 15/16”
Depth
46 1/16”
Weight
414 lbs Validation/Work Stations Supports multiple work stations Verification Speed
Winding unit
Up to 150 pouches/minute
Without winding unit
Upgrade up to 320 pouches/minute
Accuracy • Automated inspection checks every pouch and alerts you if something looks suspicious, so patient safety is never compromised. • Adapts to your lighting and environment for accurate color verification on every pouch.
Clear images and enhanced AI continuously learns from past inspections to reduce false positives and improve confidence in pouch verification.
1.888.606.6337 sales@bakeradvanced.com
21
Packaging Accessories
Complementary products to help you maximize production Universal Canister
STS Preparation Station
• Automates high volume partial pills (½, ¼). • Works with most medication shapes and sizes. • Reduces the number of STS trays. • Easy to clean.
• Light-guided process makes preparation more efficient, accurate and consistent. • Barcode scanning ensures the right medication is used and the right tray is inserted into PACMED. • Lot and expiry date traceability. • Enables a paperless process.
EZCut Automated Tablet Cutter • Automatically cuts in half and counts tablets of different shapes and sizes. • Enables filling of Universal Canister and STS Preparation Station to maximize PACMED production. • Does not require a medication database or canisters. • Offers clean and safe production. • Easy to operate.
1.888.606.6337
22
sales@bakeradvanced.com
Packaging Accessories
EZCut is an automatic tablet cutting and counting device. EZCut automatically recognizes different tablet shapes (round,oval, rectangular) for halving and counting. Tablet shapes and dimensions don’t need to be registered in EZCut before cutting or counting operations. EZCut will only cut tablets in half or quarters.
Pour the medication in
Why EZCut • Precision when cutting tablets • No need to count the amount required Enter the desired quantity of partial pills
• Faster than cutting manually • Prevents employees from fatigue caused by repetitive task TimeEfficient
Leaves more time for other tasks
Increase Precision
• Pills get collected from a separated bin
Simply pick up your tablets!
Specifications
Click to watch the video
Specification
Cutting
Counting
Speed (maximum)
20 tablets per minute
100 tablets per minute
Speed (minimum)
n/a
40 tablets per minute
tablet size in inches (maximum)
Round: 0.59 × 0.28 in (WxH) Oval: 0.79 × 0.39 × 0.28 (WxDxH)
0.79 × 0.39 × 0.28 (WxDxH)
tablet size in inches (minimum)
Round: 0.24 × 0.08 (WxH) Oval: 0.31 × 0.16 × 0.12 (WxDxH)
0.24 × 0.12 × 0.08 (WxDxH)
1.888.606.6337 sales@bakeradvanced.com
23
Packaging Accessories
EZTok automates the timeconsuming, repetitive, tedious manual removal of medication from blister packaging. EZTok protects your employees by minimizing the risk of repetitive strain injury, sore fingers and carpal tunnel syndrome. It quickly and easily deblisters different types of blister layouts and formats.
Adjust the size of the pill using the wheel
Why EZTok • Prevents foil contamination. Pills and the waste blister are collected separately • Maintenance free • Ultra-compact design saves counter space
Let it slide through
• Lightweight machine can be easily moved Time-efficient
Leaves more time for other tasks
Improved efficiency
• Technicians can perform more motivating and productive tasks
Retrieve the pills
Specifications
Click to watch the video
Model
JV-DB20
Dimensions (W-D-H)
9.45 × 7.09 × 6.30 in
Weight
About 6 kg (13 lb)
Power Consumption
17 W
Power Supply
Americas: 120V, 60Hz / Europe: 220-240V, 50/60Hz
Operation Temperature/Humidity
0-40ºC, 10-80%
1.888.606.6337
24
sales@bakeradvanced.com
Packaging Accessories
Automate the time-consuming, manual spooling of PACMED pouches or any other strip packaging with the help of the Wizer! Protect your employees by minimizing the risk of joint pain and wrist injuries caused by manual spooling.
Insert the strip inside the slot
The Wizer can be used by any pharmacy that dispenses from an automated strip packaging device.
Why Wizer • Automatically compensates for increased tension during winding to prevent tearing • Maintenance free Fully automated
Time Efficient
Safety
Use the pedal to control the speed
• Ultra-compact design saves counter space • Machine can be placed to the left or right of the operator therefore allowing greater flexibility in workspace layout
Once complete, let go of the pedal
Specifications
Click to watch the video
Model
JV-WD10
Dimensions (W-D-H)
9.84 × 13.39 × 11.42 in
Weight
About 6.5kg (14.3 lb)
Winding Speed
MAX. 300 pack/min
Power Consumption
10 W
Power Supply
100-240V~, 50/60Hz
Operation Temperature/Humidity
0-40ºC, 10-80%
1.888.606.6337 sales@bakeradvanced.com
25
Blister Card Packaging Automation
Increase accuracy, streamline verification, and have a traceable record when producing blister cards with BlistAssist! Stock bottle scanning and light guided filling ensure patients received the right drug & dose, at the right time. Exploded cell view simplifies the verification process. Our customers report an average time-saving in verification time of 70%!
Bottle scanning and light-guided filling increases accuracy

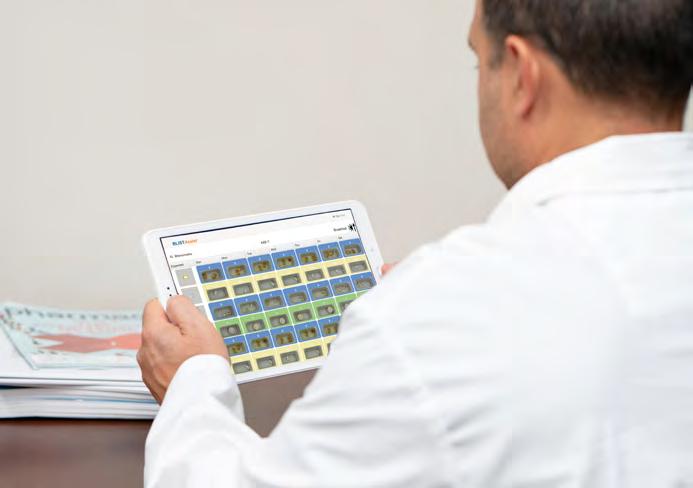

Verification images can be accessed from anywhere you can access your pharmacy network. They are then archived for future reference.
Increased accuracy
Improved traceability
Ensured patient safety
Customize the blister card cover to promote your pharmacy services and build customer loyalty. Remote verification streamlines the process
Compatible with SureMed®
QubeTM Mini
QubeTM
by
Click to watch the video
by
What really sold us on it was how we could save on pharmacists’ time and save on checking. After lots of shopping around, we decided to go with the BlistAssist. […] We couldn’t see ourselves going back now. The pharmacists’ time saving is unbelievable. [...] There is much less room for error. Nicole Barkhouse, Pharmacist & Owner
26
Hybrid blister
by
BlistAssist took over the repetitive tasks, the ones that drain your energy. This freed everyone to focus on what matters most - interacting with patients, and providing the personal guidance that builds trust. Karl Phillips Pharmasave Notre Dame, Owner
BlistAssist | Blister Card Packaging Automation
Why BlistAssist
Specifications
Accuracy • A light-guided tray facilitates the time-consuming and labor-intensive manual preparation process. • Barcodes and pill images drive the process to greatly improve accuracy and reduce potential errors. • The software monitors preparation progress, allowing you to resume production after an interruption.
Approximate Dimensions Width
58 cm (23")
Height
66 cm (26")
Depth
58 cm (23") Work Stations All-in-one PC with 2 or 4 blister card set-up
Traceability • Lot numbers and expiry dates are tracked, an unparalleled ability for manually prepared blister cards. • A log-in name and password ensure operator traceability.

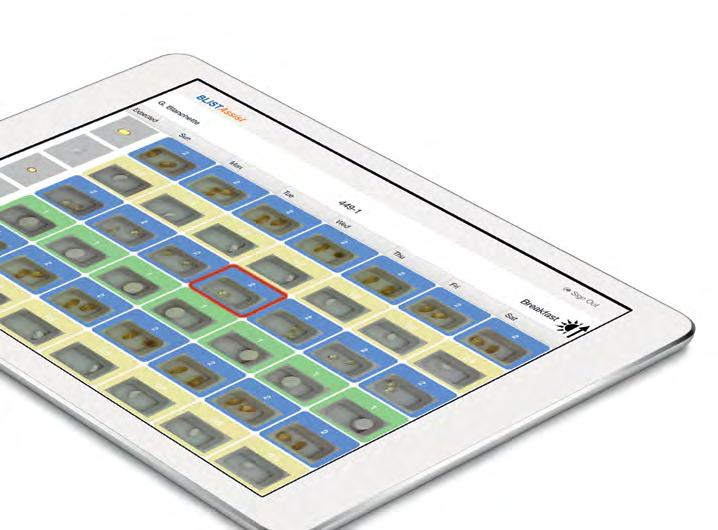

The unique exploded pill-by-pill view simplifies and accelerates verification by displaying each cup’s components.
• Captures final preparation pictures for archiving purposes.
Safety • Uses an innovative layer verification process to create a quick and convenient verification pattern. • A distinctive pill-by-pill view displays each cup’s components to simplify and accelerate verification.
Medication expected in the cup.
Expecting two pills in the cup. One pill is missing.
• The unique remote verification feature liberates the preparation area and promotes workflow flexibility.
Colour-coded doses.
1.888.606.6337 sales@bakeradvanced.com
27
Blister Card Packaging Automation
Automate the labor intensive process of packaging blister cards, to free up staff time and focus on your patients. Up to 10 blister cards can be packaged continuously, streamlining workflow and minimizing packaging time. Easy-to-transport detachable magazines streamline workflow
Improve fill accuracy, efficiency, and patient safety, while taking up minimal footprint.
Improve efficiency
Accelerate your growth
Special Tablet System (STS) trays allow for uninterrupted packaging flow of non-canister medication
Ensure patient safety
Compatible with SureMed®
FlexRxTM
by
QubeTM
by
QubeTM Mini Auto
Hybrid blister
by
EcoPill
by AutoCanisters automate filling of partial or odd-shaped tablets.
Click to watch the video
28
BlistMED | Blister Card Packaging Automation
Why BlistMED
Specifications
Efficiency • Package blister cards with more accuracy and in significantly less time, versus the manual process. • Automate filling of partial tablets to limit manual intervention and streamline workflow. • RFID driven canisters allow swapping and refilling during operation, limiting idle time.
Dimensions Width
39"
Depth
25"
Height
85" Weight (Excluding canisters) 957 lbs Canister capacity
Growth • Continuous packaging of up to 10 blister cards to maximize workflow. • Build your blister packaging business and increase revenue, without increasing your staffing. • Flexibility to add additional canisters, if needed, as your business grows.
202 canisters + 2 auto-canisters (Expandable with additional swappable canisters) Maximum working rate 25-30 cards/hour with one operator Tray capacity Holds 10 cards at a time
Safety • RFID trays ensure the right meds go to the right patients. • Auto-canisters allow the packaging of your highest use partial pills, drastically decreasing the risk of fill errors.
Power consumption 150W (MAX. 180W)
• Lot & expiry tracking and logged packaging history, adds traceability and piece of mind.
Easily review blister cards before sealing to dispense with confidence.
All tablet holders can be detached for easy cleaning and maintenance.
1.888.606.6337 sales@bakeradvanced.com
29
1.888.606.6337 sales@bakeradvanced.com
