01 Micro Interventions | Stay over program
Year : 2023
Site : San Francisco, CA
Team : Mohamed Meawad, Lowai Ghaly, Edgar Castillo, Andrew Hart, Peter Peritos, Shadi Vakilian, Kim Ebueng Estacio.
Instructors : Sameena Sitabkhan, Karen Seong.

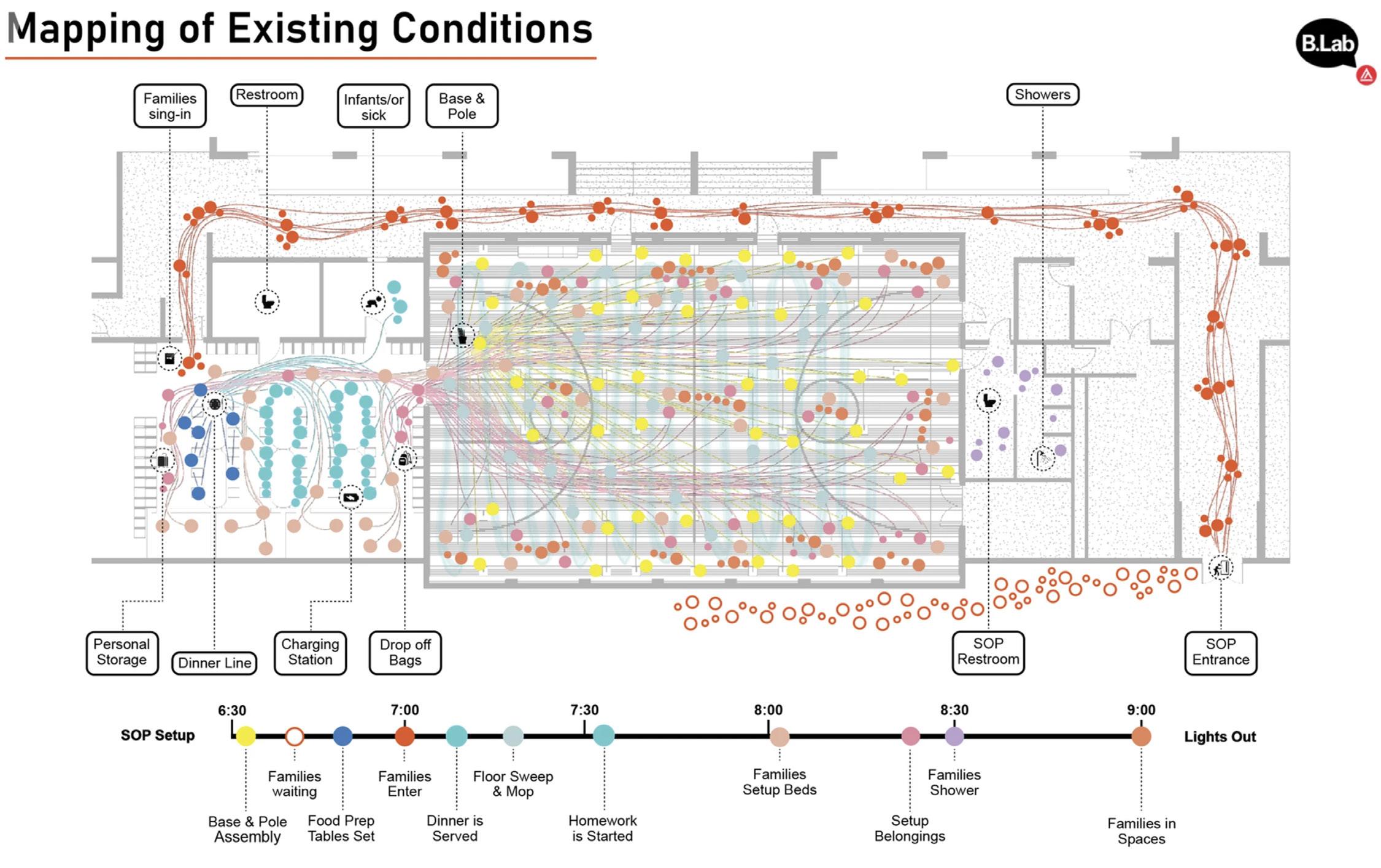

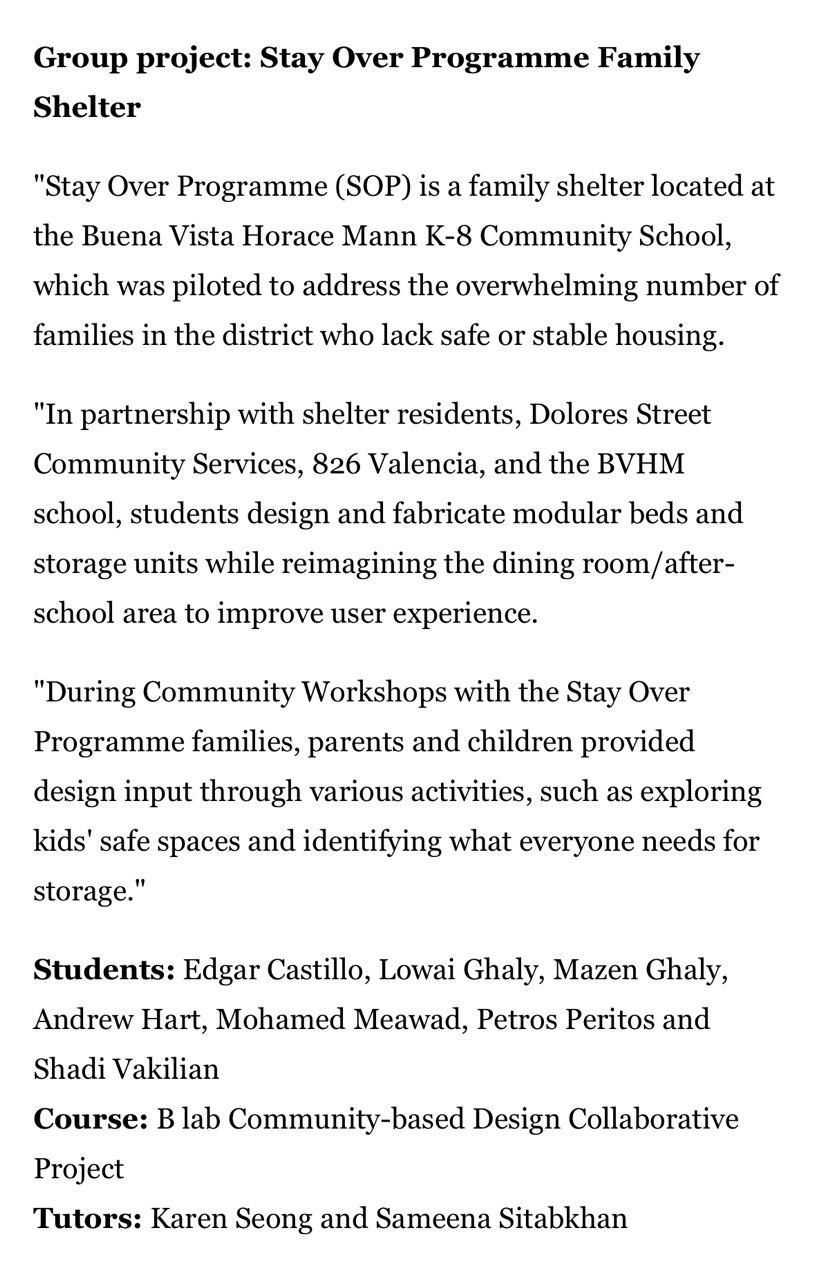

The Stay Over Program was created in 2018 as an emergency family shelter. The non-profit shelter operator, Dolores Street Community Services (DSCS), worked closely with BVHM to create a warm and supportive culture leveraging the shared commonality of parents with school-aged children and their familiarity of the school grounds. The emergency shelter filled an unmet need at the community school to provide wrap-around services to meet the basic needs of the families.

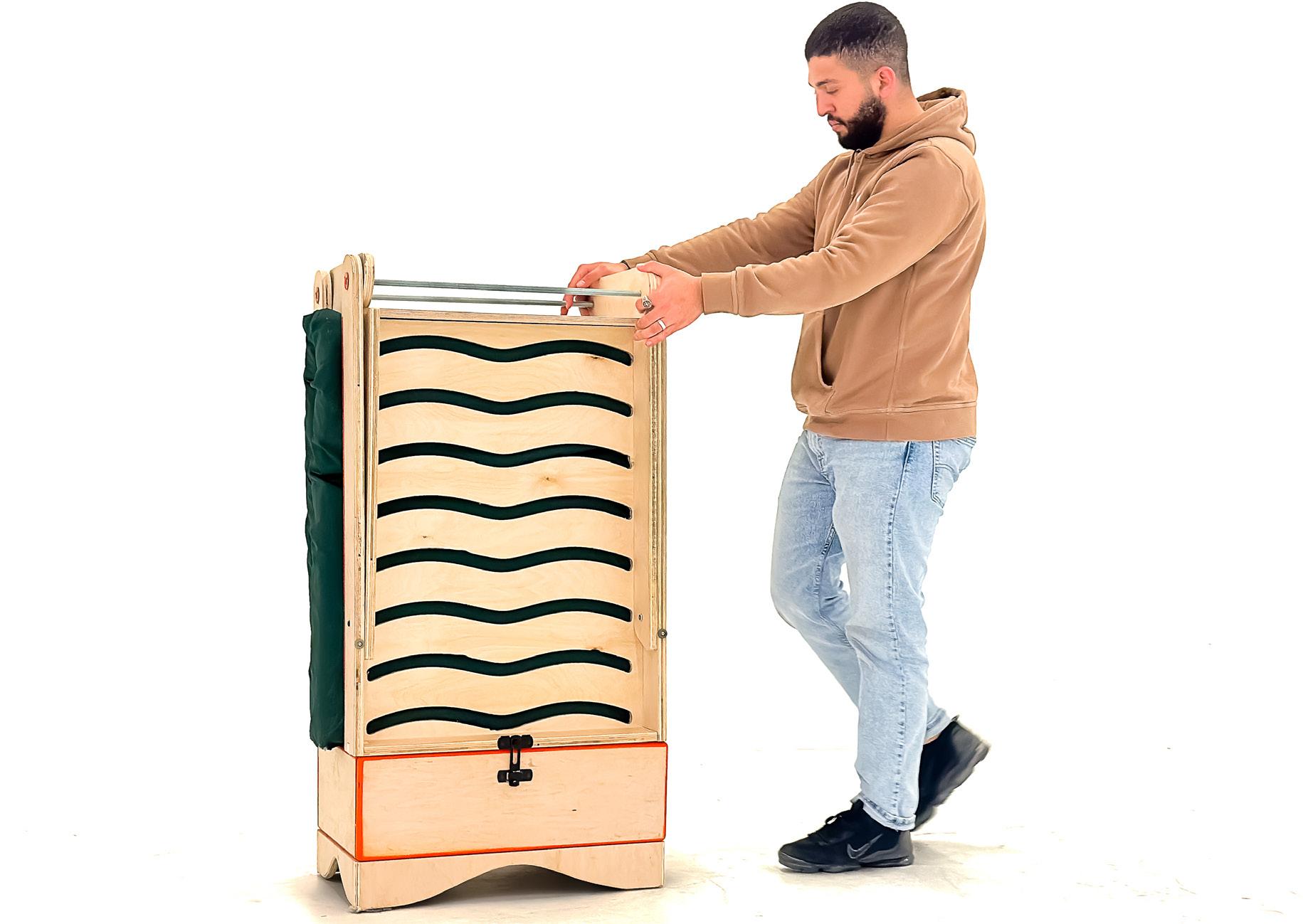

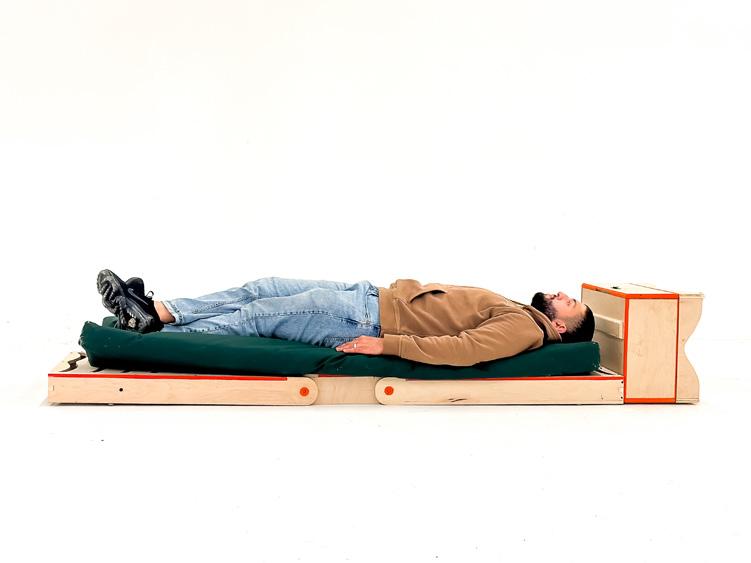

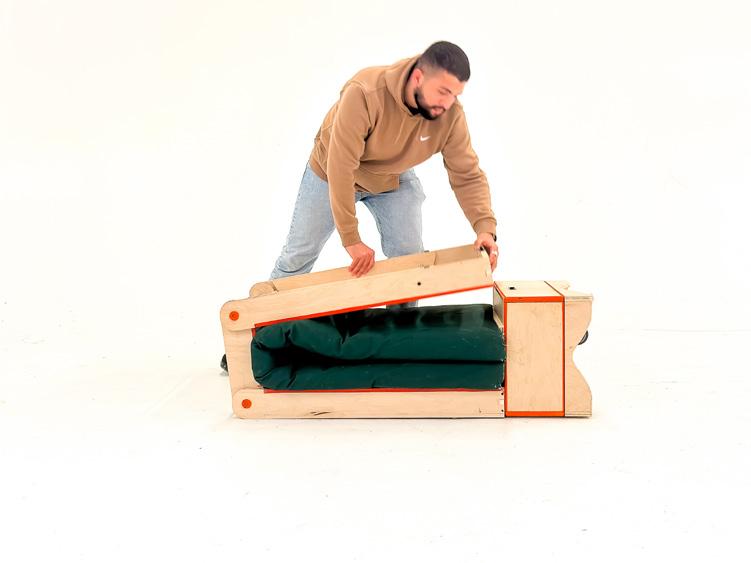

Partnering with Buena Vista Horace Mann K-8 Community School (BVHM), Dolores Street Community Services, and 826 Valencia. Our primary goal is to conceptualize, design, and fabricate 69 foldable bed units and storage solutions for over 25 families in need.
Mazen Ghaly 6
Selected Work 7
8
Mazen Ghaly

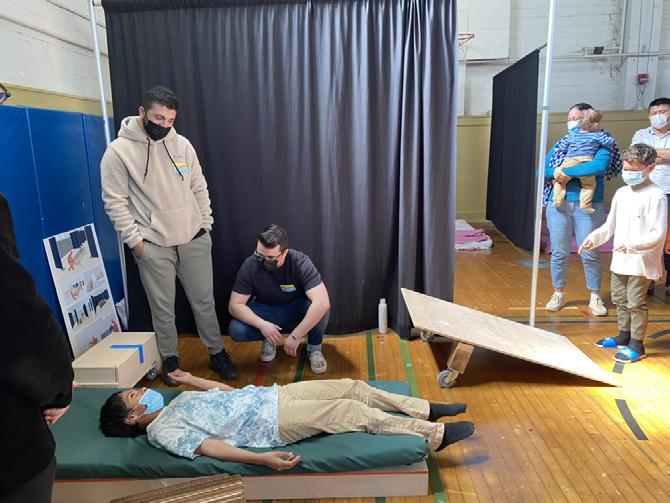

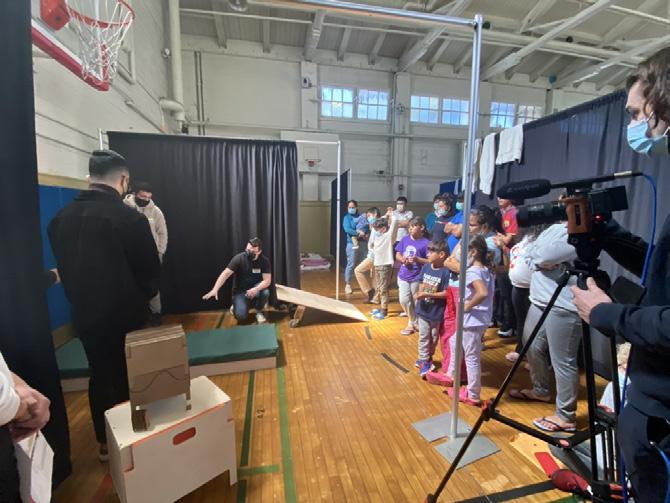

Prototype Testing during Community Workshop

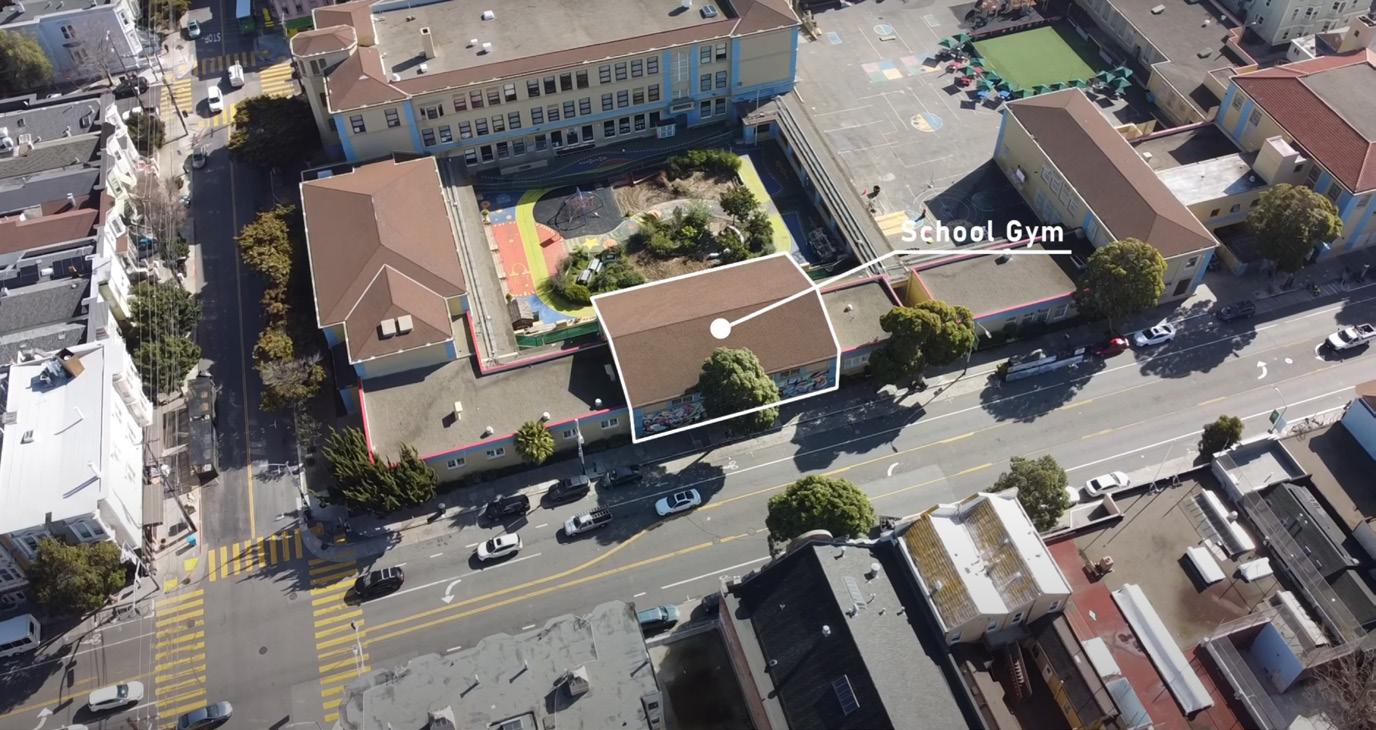

BVHM School Gym
Community Workshop
Selected Work 9
Design
Final
10
Mazen Ghaly

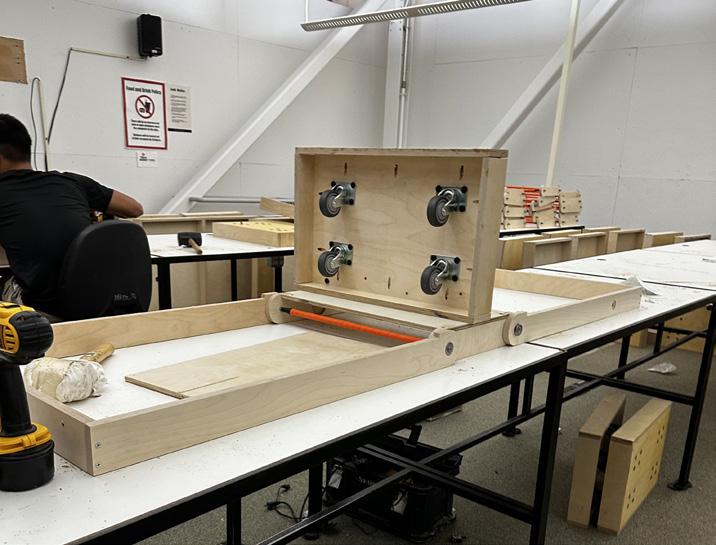

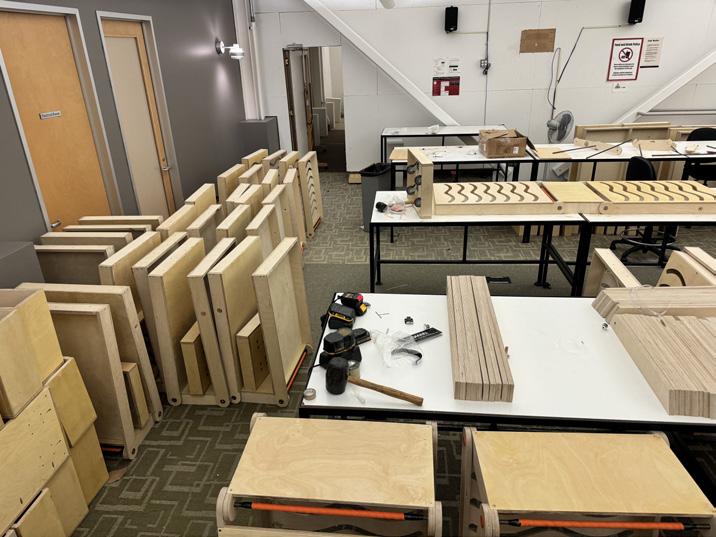

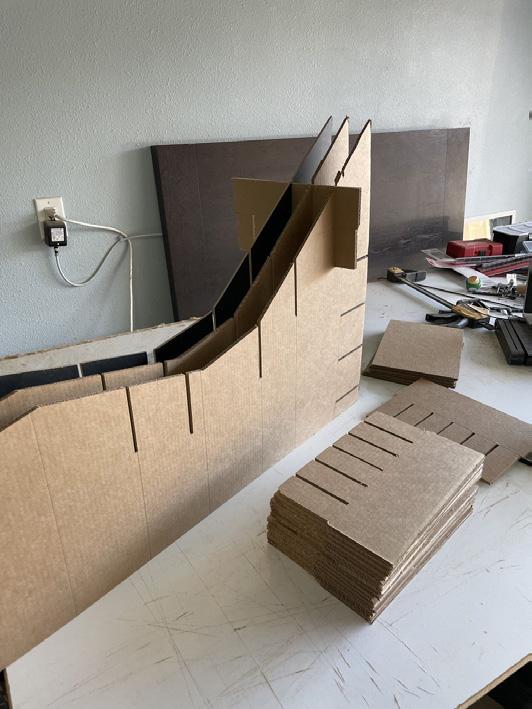

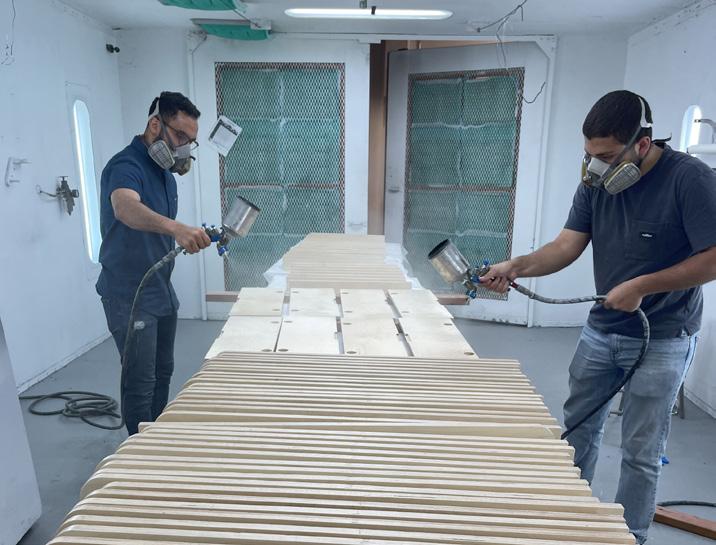

Fabrication Process
Exploded Axon

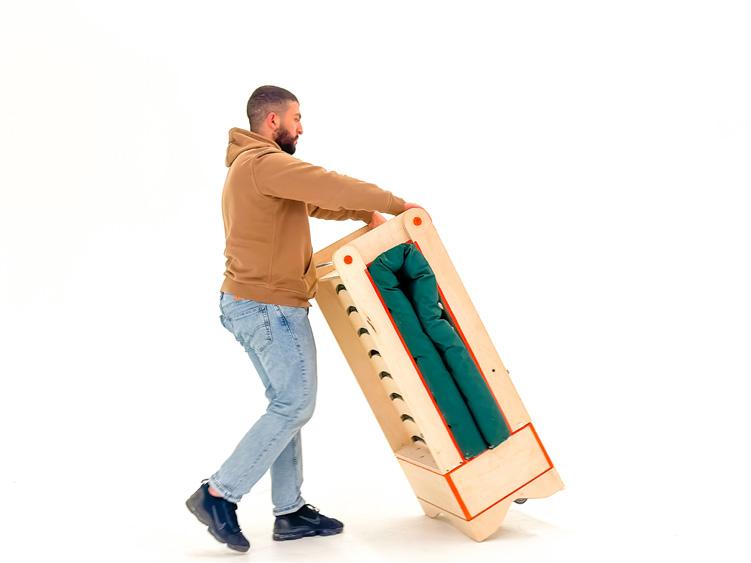

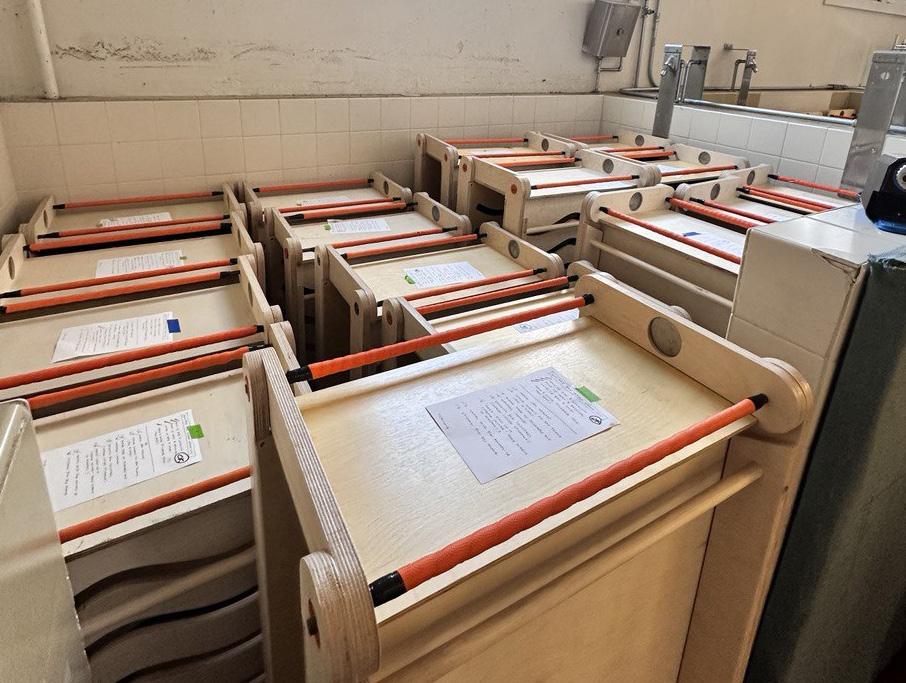

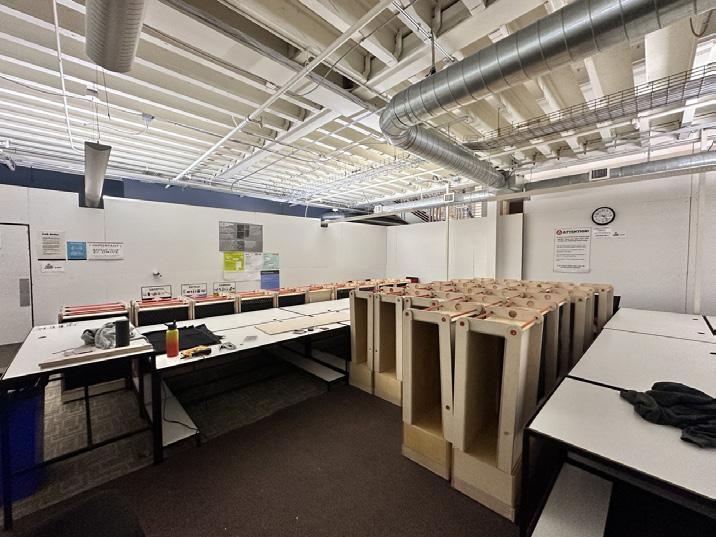

Selected Work 11 Details Delivery Day
3/4" Plywood Ø1" 1/2" Plywood Ø3" 1 4 " 1 1 2 1 1 2 Ø3 1 2 66° 65°
3/4" Plywood 1/2" Cap Nut 1/2" Cap Nut 1/2" Metal Rod 1/2" Bolt 24 3 4
SOP
SOP
Awards / Achievments
Mazen Ghaly 12
Danzeen “Ten architecture and landscape projects by Academy Of Art University” Danzeen Staff, November 23, 2023.
Selected Work 13
Bay Area Pround “SF college students design, construct dozens of beds for homeless students and families”
By Garvin Thomas, February 28, 2024.
02 The Canvas, Artists’ Housing
Year : 2022
Site : Oakland, CA
Team : Mohamed Meawad, Lowai Ghaly
Instructors : Paul Adamson

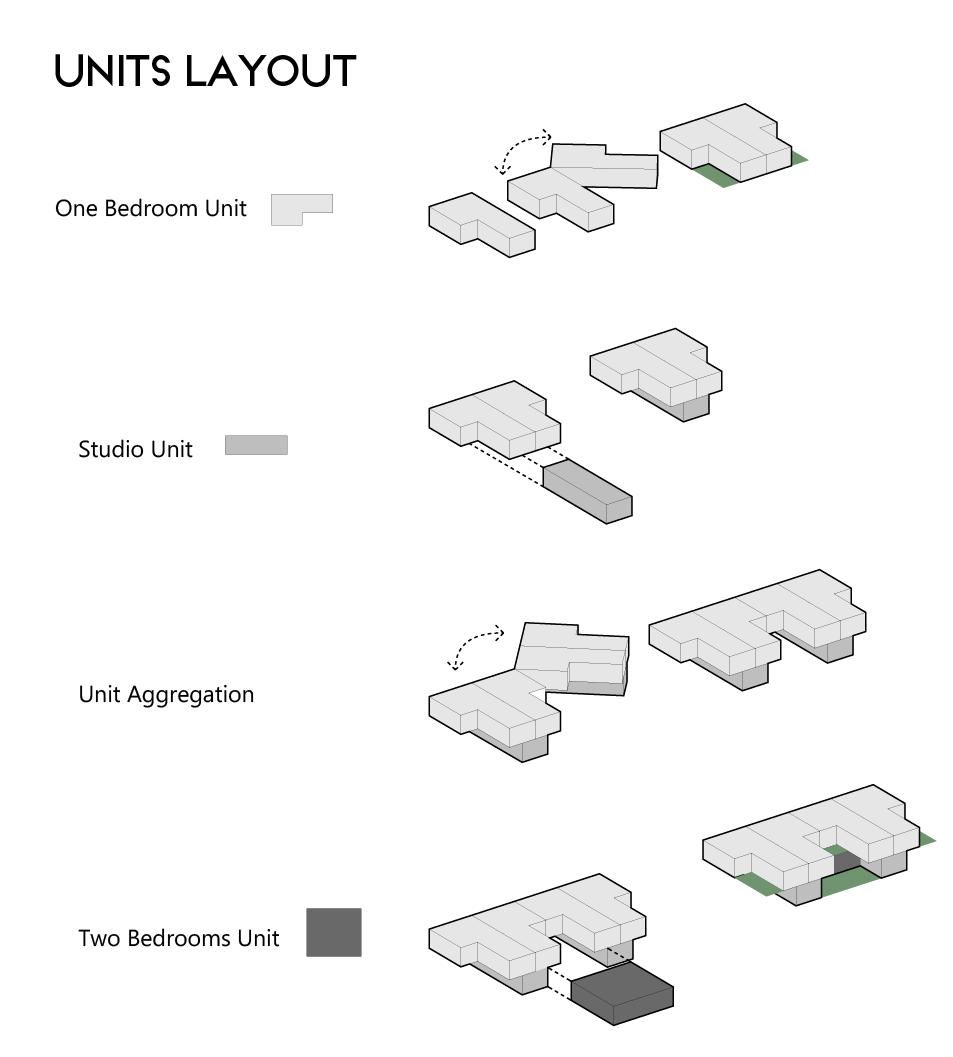

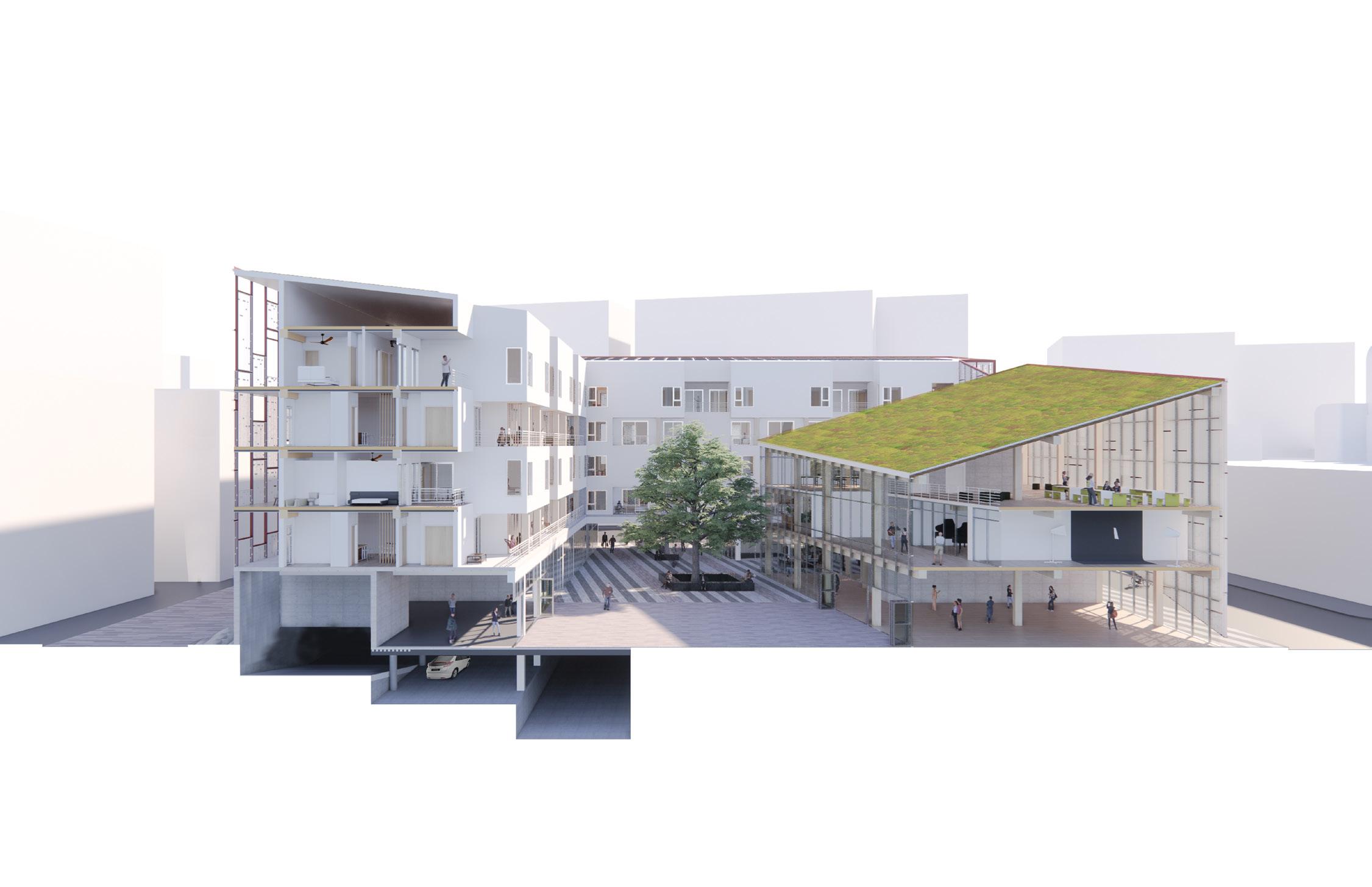

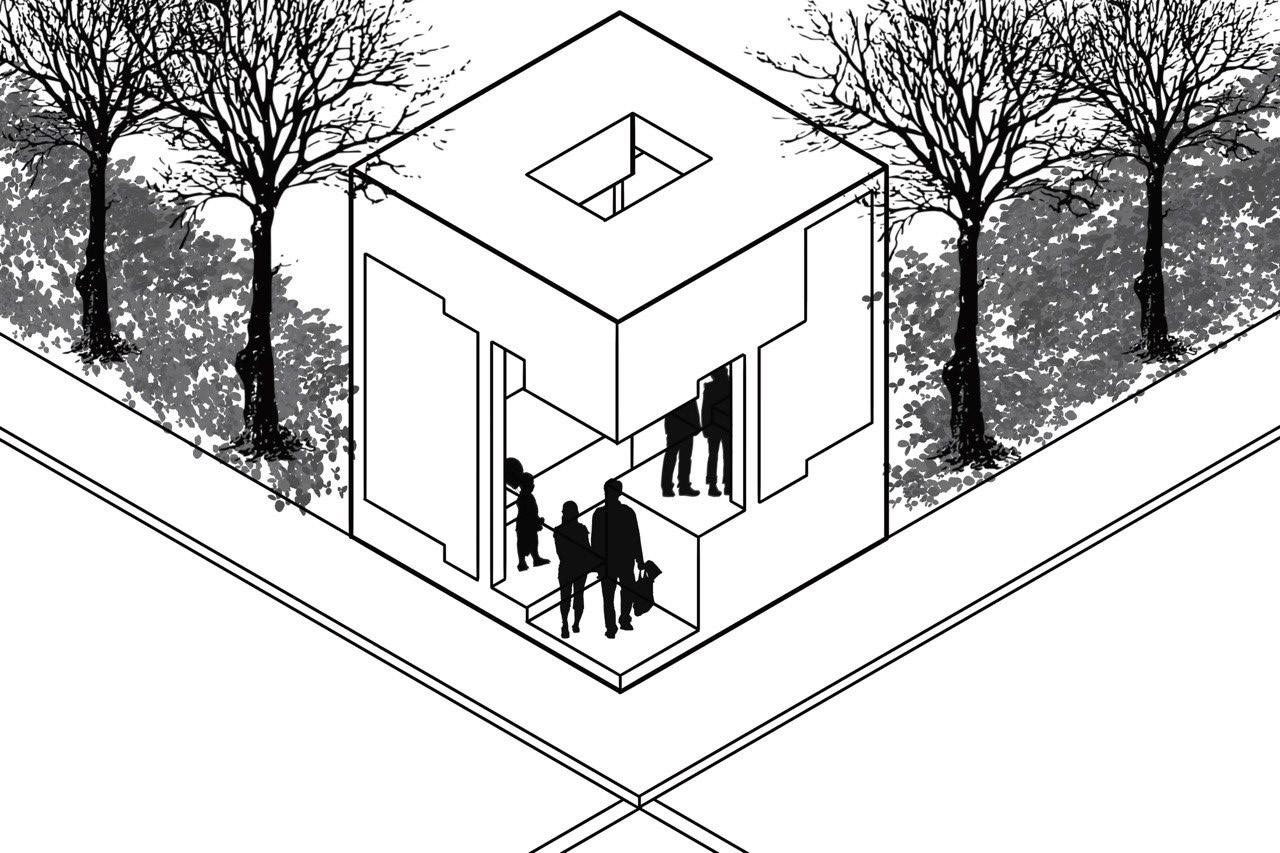

Most Artists usually lead a double life which is mentally and physically crushing . Our project provides exposure to artists work , through Open Exhibition , Gallerias, and Work Spaces. The residential building offers open air circulation that connects to gathering spaces where artists can display their arts on the skin of the building.
Mazen Ghaly 14
Selected Work 15
Mazen Ghaly 16 DESIGN FOR EQUITABLE COMMUNITIES DESIGN FOR WELLNESS DESIGN FOR ECOLOGY DESIGN FOR ENERGY DESIGN FOR DESIGN FOR WATER DESIGN FOR ECONOMY EQ1 Work shops for the community EQ2 Gallery and exhibition spaces EQ3 Bike Parking EQ4 Electric car charging station EQ5 Gender neutral restrooms in common areas EQ6 Integrated elements for children to play WE1 Generous courtyard WE2 Units o er view and daylight WE3 Cross ventilation provided for each unit WE4 Heating control and natural ventilation WE5 Connection to outdoor for each unit WE6 Common areas for each level EN1 Orientation strategies reduce loads EN2 High performance building enclosure EN3 Covered outdoor space EN4 LED lighting and fans used throughout the building EN5 Roof top solar photo voltaic panel system EN6 Radiant oor heating WA1 Low ow water xtures WA2 Smart sensors at green roof & courtyard WA3 Storm and gray water used for plants EG1 Dark sky compliant light xtures EG 2 High-re ectance paving for heat island mitigation EM1 Durable nishes reduce maintenance EM2 Passive design allows low-cost operation EM3 Amenities and support service available WA2 WA3 EN1 EN2 EN4 EN6 WA1 EN5 EN3 EN2 EQ5 EQ1 EQ2 EQ3 EQ6 WE1 EG2 EG1 WE2 WE5 WE6 WE3 EM1 EM2 EM3 EQ4
Selected Work 17
Mazen Ghaly 18 2ND & 4TH Floor Plans 3ND &5TH Floor Plans
Selected Work 19
03 Western Addition, Education Center
Year : 2022
Site : San Francisco, CA
Instructors : Karen Seong, Simon McKenzie
An outdoor exhibition space is at the center of this project, for highschool students and their families. the center void connects the north and south buildings physically on the ground floor and visually on the upper floors. Outdoor circulation along the perimeter of the exhibition space creates a buffer zone, or a gray space, to provide privacy and changing sight lines
Mazen Ghaly 20
Selected Work 21 Services Retail Stores Outdoor Spaces/Urban Rooms Residential
Mazen Ghaly 22 4.Gathering Exhibition 1.Entrance 6 . Computer Lap 5. library 1.Entrance 6.Computer Lap 5.libarary Post ST Book Area 5. Library Scott ST Geary Blvd 3.Multipurpose Rooms Lounge Area Cafe Restrooms A A B B 2.Main Lobby 1.Entrance 4.Gathering Exhibition 3.Multipurpose Rooms Lobby Book Area Lounge Areas Staff Rooms Restrooms MEP Trash Room 2.Main Lobby Rotating Exhibit Food Serving Seatings Areas 1.Entrances
Selected Work 23
Mazen Ghaly 24
Selected Work 25

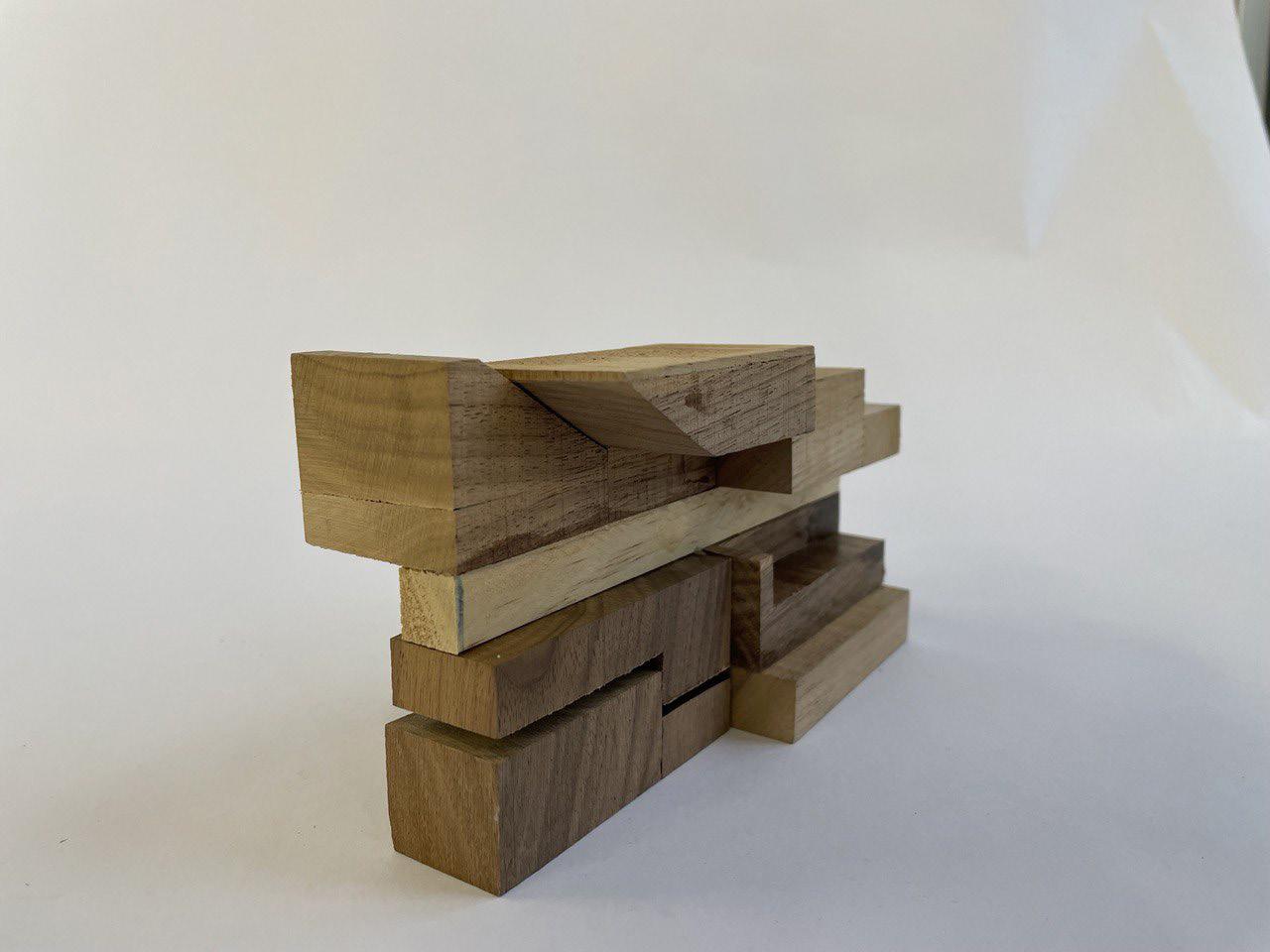

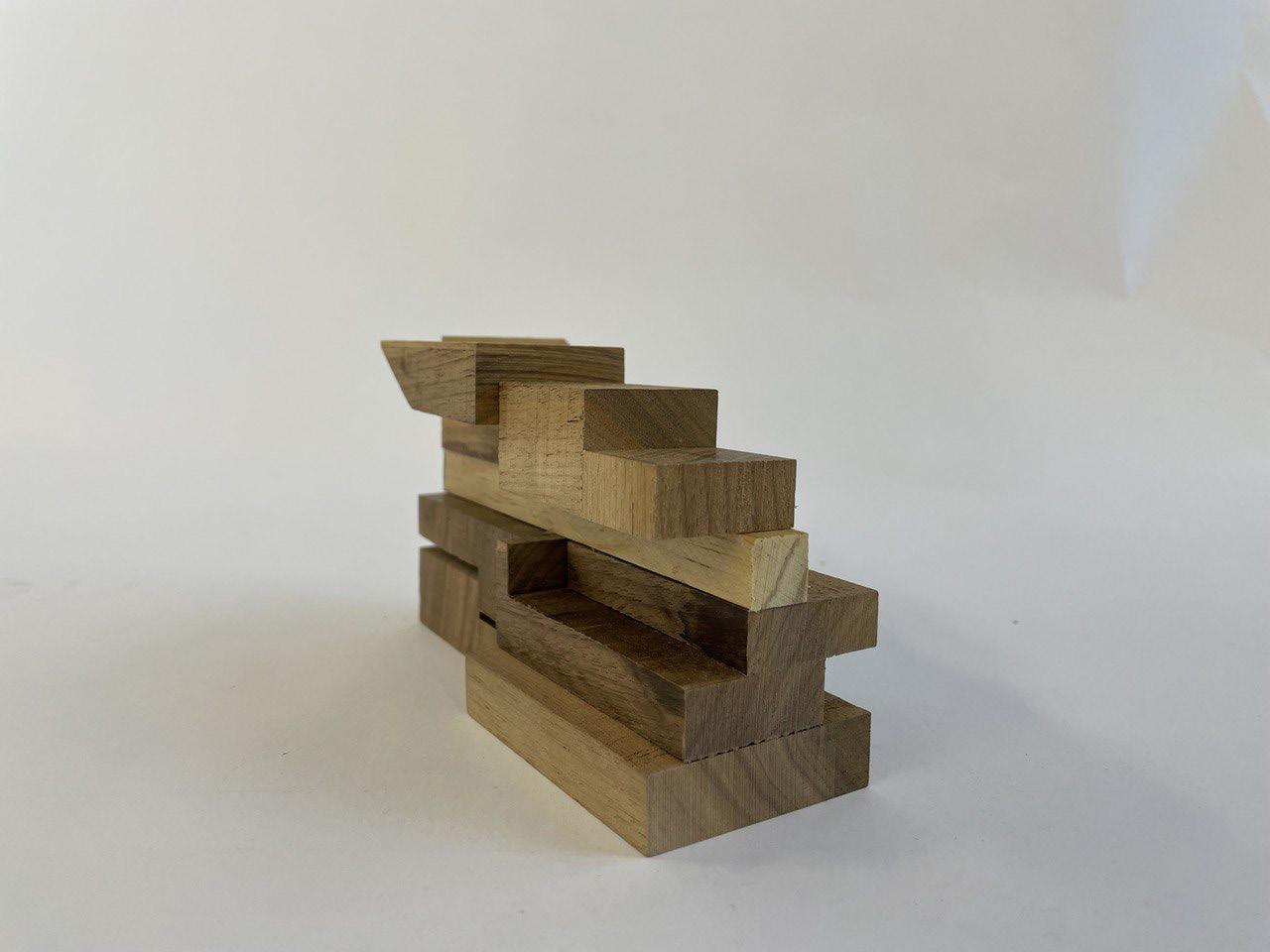

Notations Model
04 Foldable Lounge Chair
Year : 2021

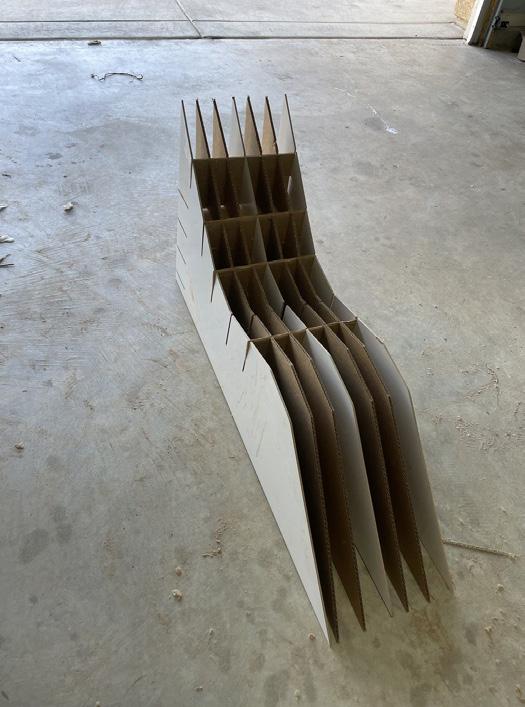

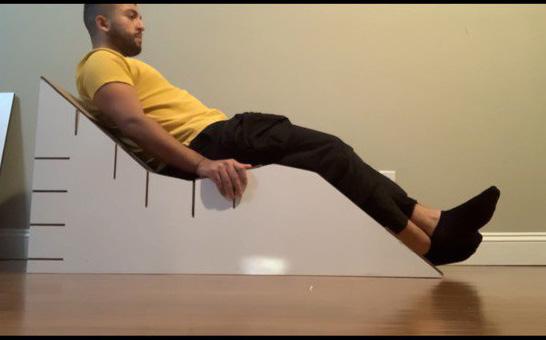

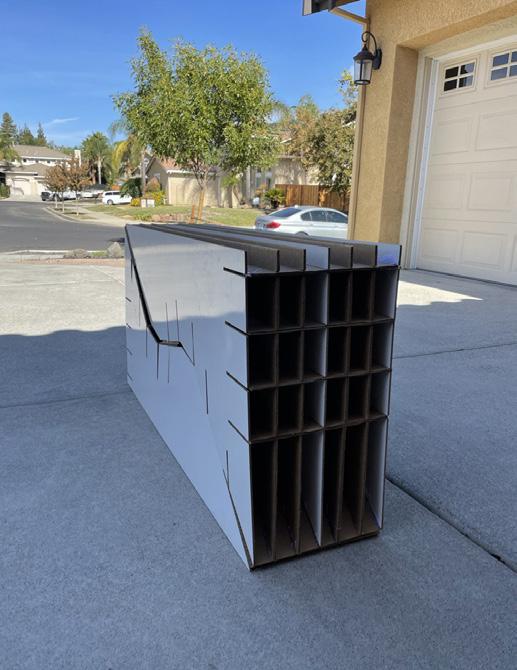

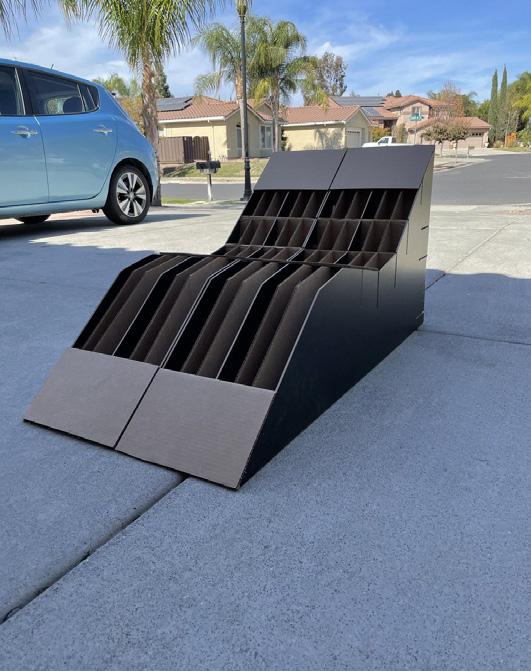

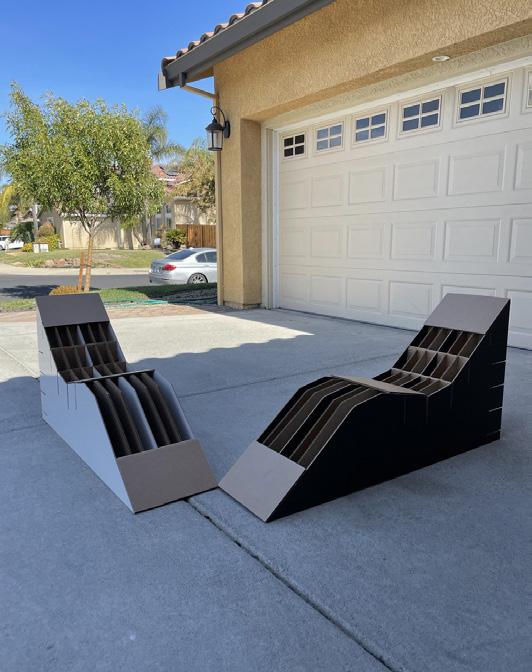

Instructors : Francesca OliveiraThis foldable lounge chair is designed to maximize space efficiency while minimizing material waste. Crafted from 4 layers of cardboard and 3 layers of MDF, the chair embodies the goal of utilizing 100% of its materials without any wastage. Despite its minimalist approach, the chair maintains a robust structure capable of supporting weights up to 300 lbs.
Functionality is key with this versatile piece of furniture. It seamlessly transitions from a lounge chair to a table, effectively saving space in any room. Furthermore, it can be separated into two smaller chairs, offering flexibility in seating arrangements. The symmetry of the two lounge chairs ensures that when folded down, they form a neat rectangular cube measuring 12” * 48” * 24” in height.
Mazen Ghaly 26
Selected Work 27

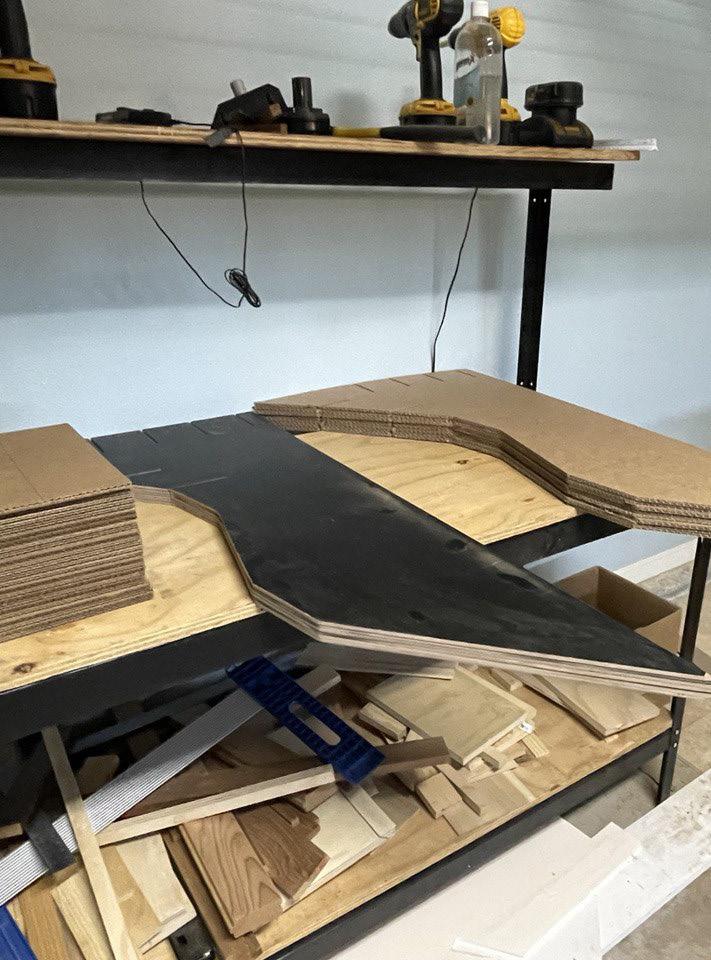

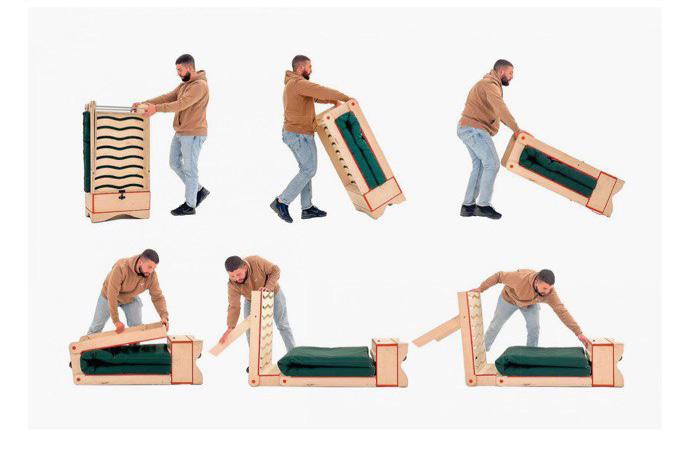

Assembly Process
STEP 1
STEP 2
Cardboard
STEP 3

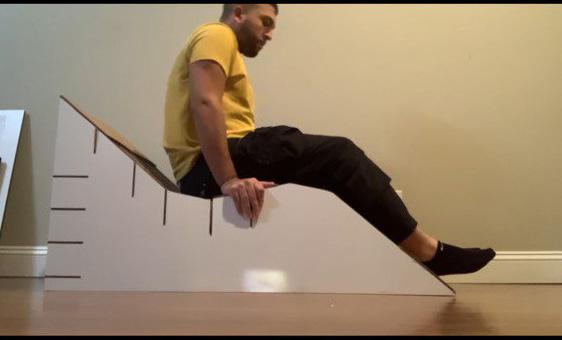

Chair Dimentions
STEP 4
Mazen Ghaly 28
MDF 24"
48"

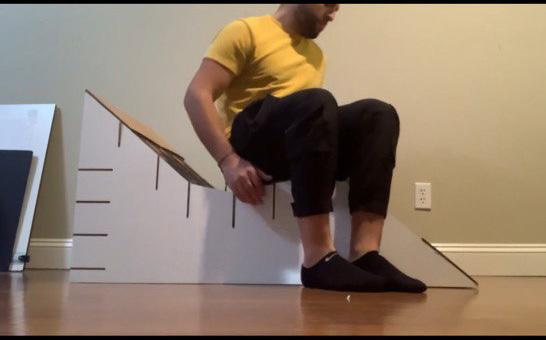

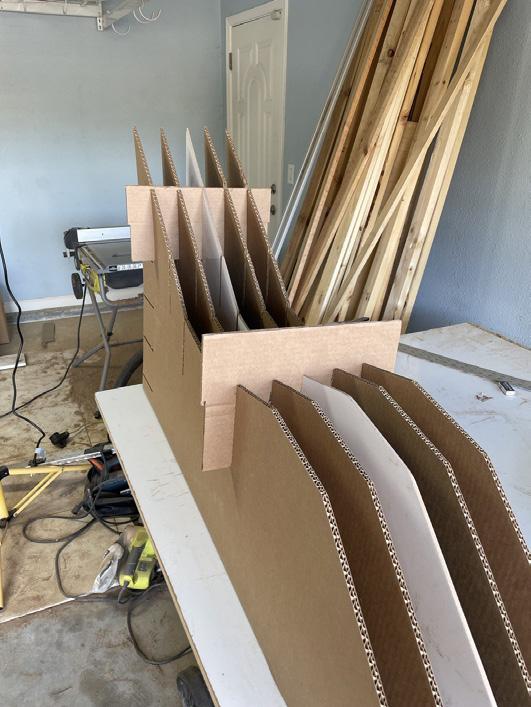

Process Images
Selected Work 29
Final Images

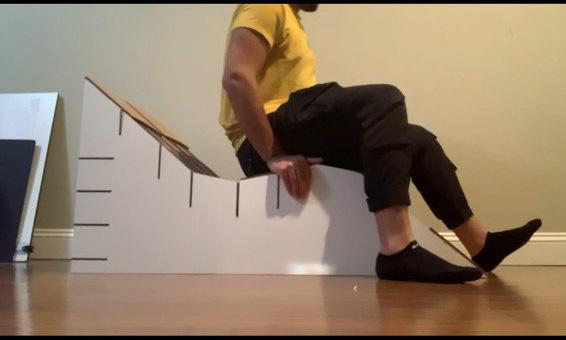

Test Images
48"
24"
48"
24"
24"
12"
Chair
Process Images
Dimentions
| ARH 239 | FALL21 | Francesca Oliveira
Mazen Ghaly
Process Images
05 Work samples at AS architecture
In the projects listed below, I have been involved in both new residential developments and remodelings. My responsibilities have included generating various design options and renders for clients, as well as preparing construction documents. Additionally, I worked closely with structural engineers to ensure the accurate production of necessary details.
