A highly motivated and experienced architectural designer with a passion for design that began in childhood. With a diverse background in architecture, including studies and internships in Jordan, Germany, and the US, I am a multi-dimensional designer with a strong appreciation for all design fields. Committed to continued learning and skill development, I strive to be a well-rounded designer who can make valuable contributions to the world of architecture.
2020 - PRESENT | WASHINGTON, DC, USA
DAVID M. SCHWARZ ARCHITECTS
JOB CAPTAIN
2019 - 2020 | WASHINGTON, DC, USA
DAVID M. SCHWARZ ARCHITECTS
ARCHITECTURAL DESIGNER
2017 - 2019 | BETHESDA, MD, USA
GILMORE LIGHTING DESIGN ARCHITECTURAL LIGHTING DESIGNER
2015 - 2016 | SILVER SPRING, MD, USA BUILD IT LLC CAD DETAILER
07/2013 - 2014 | AMMAN, JORDAN
GERMAN JORDANIAN UNIVERSITY
GRADUATED WITH A BACHELOR’S DEGREE IN THE SCIENCE OF ARCHITECTURE
03/2013 - 07/2013 | DÜSSELDORF, GERMANY MEYER ARCHITEKTERN ARCHITECTURE INTERN
09/2012 - 03/2013 | DETMOLD, GERMANY OWL, DETMOLD ARCHITECTURE STUDENT
2009 - 09/2012 | AMMAN, JORDAN
GERMAN JORDANIAN UNIVERSITY
ARCHITECTURE STUDENT
INFO
Revit english en ar ge PhotoshoP sketch UP AUtocAd ARAbic illUstRAtoR RhinoceRos enscAPe geRmAn indesign ms office 90% fluent 90% 60% 90% native 90% 40% 90% Beginner 90% 90%
& EDUCATION TIMELINE | 2
Architecture Academic Architecture Professional Architectural Lighting Design 03 01 05 04 02 06 Armani Pavilion Dodson Specialty Clinic Expansion DC Fish Market Residential Complex For Artists 8th & Pennsylvania Garage Ballston Exchange 14 - 21 04 - 09 32 - 33 22 - 31 10 - 13 34 - 35
TABLE OF CONTENT
DODSON SPECIALTY CLINIC EXPANSION COOK CHILDREN’S HOSPITAL CAMPUS
ARCHITECT: DAVID M. SCHWARZ ARCHITECTS
LOCATION: FORT WORTH, TX
TYPE: PROFESSIONAL - HEALTHCARE
David M. Schwarz Architects has been designing buildings for Cook Children’s Hospital for over 30 years. Recently, I served as a job captain for an expansion of the Dodson Specialty Clinic and the construction of a new parking garage to accommodate the hospital’s growth.
The architectural style of the 238,000 SF expansion and garage is inspired by early 20th century stripped classicism, with the incorporation of childlike fantasy and whimsy, a design aesthetic that has been implemented in all campus buildings since the mid-80s and is well-loved by residents and visitors alike.
The expansion includes a 2-story south wing and 7-story clinic building, as well as a mechanical penthouse and basement. The significance of this building lies in its location at the tip of the U-shaped campus, where it will be the first building that visitors see as they approach the hospital from the interstate east of the campus.
CAMPUS SITE PLAN
01
1” = 200’-0” 0’ 50’ 200’ 100’ 400’ 0 50’ 100’ N 1 3 4 6 9 5 11 12 2 7 10 8
Hospital
South Expansion
1. Main
2.
3. North Pavilion 4. North Tower
Specialty
5. Dodson
Clinics
6. Seventh Avenue Garage 7. Medical Office Building
8. Terrel Avenue Garage
9. North Utility Plant
10. South Tower
11. Dodson Specialty Clinics Expansion
| 4
12. 8th & Pennsylvania Garage
WEST ELEVATION
NORTH ELEVATION
VIEW AT SOUTH WEST CORNER
VIEW AT SOUTH FACADE
| 6
VIEW AT NORTH WEST CORNER
VIEW AT NORTH PEDESTRIAN WALKWAY
DODSON EXPANSION FIRST FLOOR PLAN
ATRIUM SPACE
Our interior scope of work included the public circulation corridors, specifically the north-south and east-west main streets. At the intersection of these two main streets, we designed a two-story atrium space. Given its strategic location, we decided to make the atrium an octagonal shape to increase design possibilities. To make the space more engaging and playful, we incorporated features such as balconies, turrets, castle-themed balconettes, and fun column capitals. Additionally, we designed a labyrinth floor pattern for children to play on as they explore the atrium, promoting interaction in the space.
0 50’ 100’ N
1. South Entry Canopy
2. North South Main Street
3. Retail lobby
4. Patient Registration Lobby
5. Atrium Space
6. North Pedestrian Pathway
7. Sibling Center
8. Public Amenities
9. Outpatient Lab
10. Elevator Lobby
11. East West Main Street
12. Retail Pharmacy
1 2 3 4 5 10 11 12 13 6 8 9 7
13. Shell Space
VIEW AT WEST FACADE OF ATRIUM VIEW AT SOUTH FACADE OF ATRIUM
| 8
MAIN STREET
The interior design of the main streets maintains the theme established in the existing clinic, but with an emphasis on showcasing the enhancements and newness of the expansion. To achieve this, we incorporated details such as intricate trim casing profiles, vibrant terrazzo floor patterns, and cove light ceilings with friezes in specific areas, as seen in the patient registration lobby and the retail lobby.
VIEW AT NORTH FACADE OF ATRIUM
VIEW AT PATIENT REGISTRATION LOBBY VIEW AT RETAIL LOBBY
8TH & PENNSYLVANIA GARAGE COOK CHILDREN’S HOSPITAL CAMPUS
ARCHITECT: DAVID M. SCHWARZ ARCHITECTS
LOCATION: FORT WORTH, TX
TYPE: PROFESSIONAL - GARAGE
The garage, spanning 448,000 SF, includes a basement level and 7 above-ground floors, providing 979 parking spots, including spaces for 11 vans and 14 HC vehicles. It connects to the Dodson Expansion via a pedestrian walkway from the south.
The architectural design of the garage varies depending on the side. The west and half of the north and south facades feature intricate design, located on the main 8th avenue street. Meanwhile, the east and the other half of the north and south facades have a simpler design in keeping with the existing garage located further east.
CAMPUS SITE PLAN
02
1” = 200’-0” 0’ 50’ 200’ 100’ 400’ 0 50’ 100’ N 1 3 4 6 9 5 11 12 2 7 10 8
1. Main Hospital 2. South Expansion 3. North Pavilion 4. North Tower 5. Dodson Specialty Clinics 6. Seventh Avenue Garage 7. Medical Office Building 8. Terrel Avenue Garage
North Utility Plant
South Tower
Dodson Specialty Clinics Expansion
8th
Pennsylvania
| 10
9.
10.
11.
12.
&
Garage
NORTH ELEVATION
WEST ELEVATION
VIEW AT NORTH WEST CORNER
VIEW AT NORTH EAST CORNER
| 12
VIEW AT SOUTH WEST CORNER
VIEW AT SOUTH EAST CORNER
ARMANI PAVILION TIMELESS DESIGN FOR TIMELESS MINDSET
ARCHITECT: PERSONAL LOCATION: AMMAN, JORDAN TYPE: ACADEMIC - PAVILION
In this project, our objective was to design a pavilion that would serve as a symbol for Armani products. After researching Georgio Armani, I was inspired by his statement, “I love things that age well, things that don’t date, that stand the test of time, and that become a living example of the absolute best,” to create a concept of a timeless building.
The goal was to develop a design that could seamlessly exist in any era. I began with basic geometries, such as the circle, that are often associated with timelessness. I experimented with applying forces from different directions to envision the potential outcome. The final shape was derived from multiple iterations of different geometries merging together to create one cohesive and enduring form.

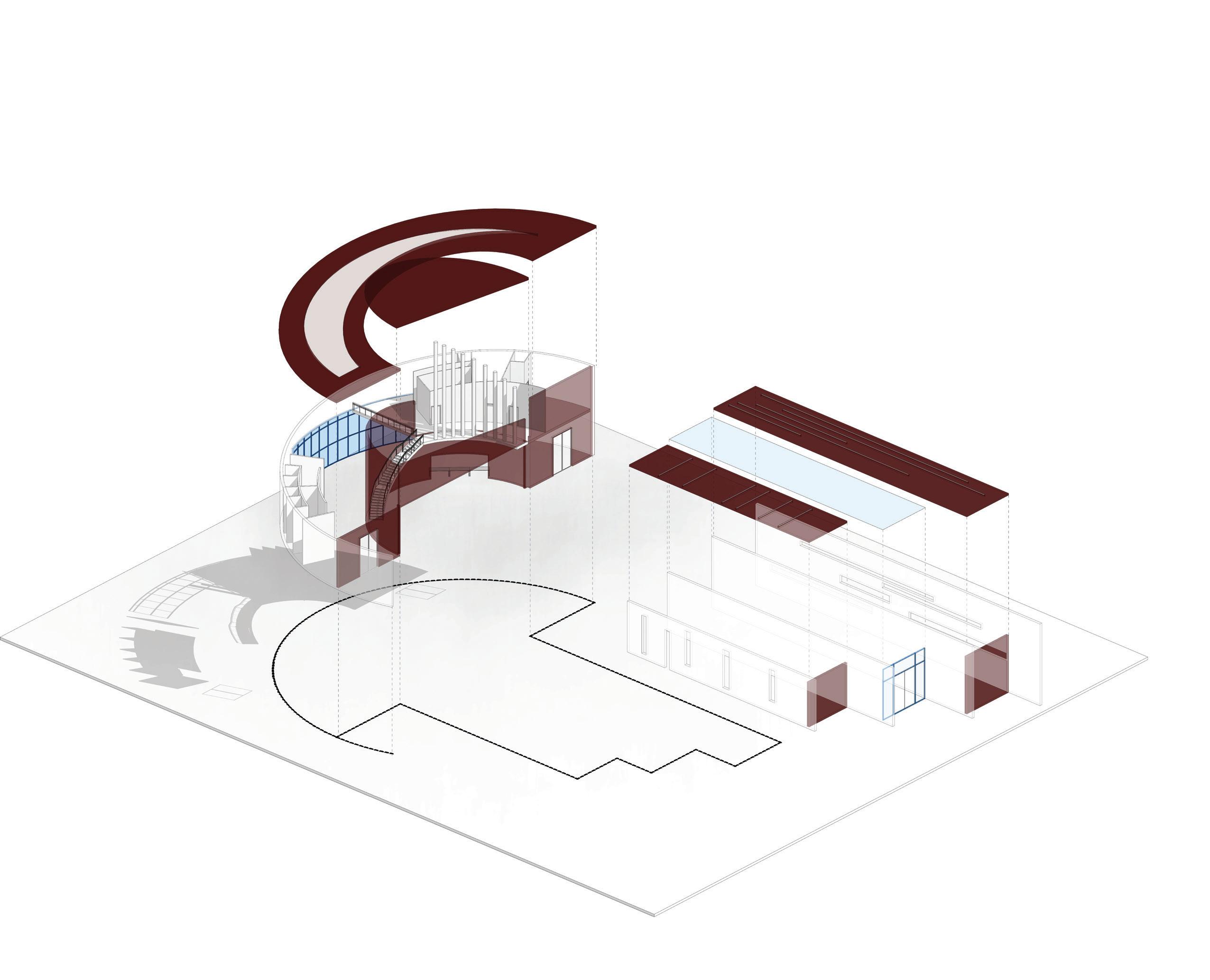

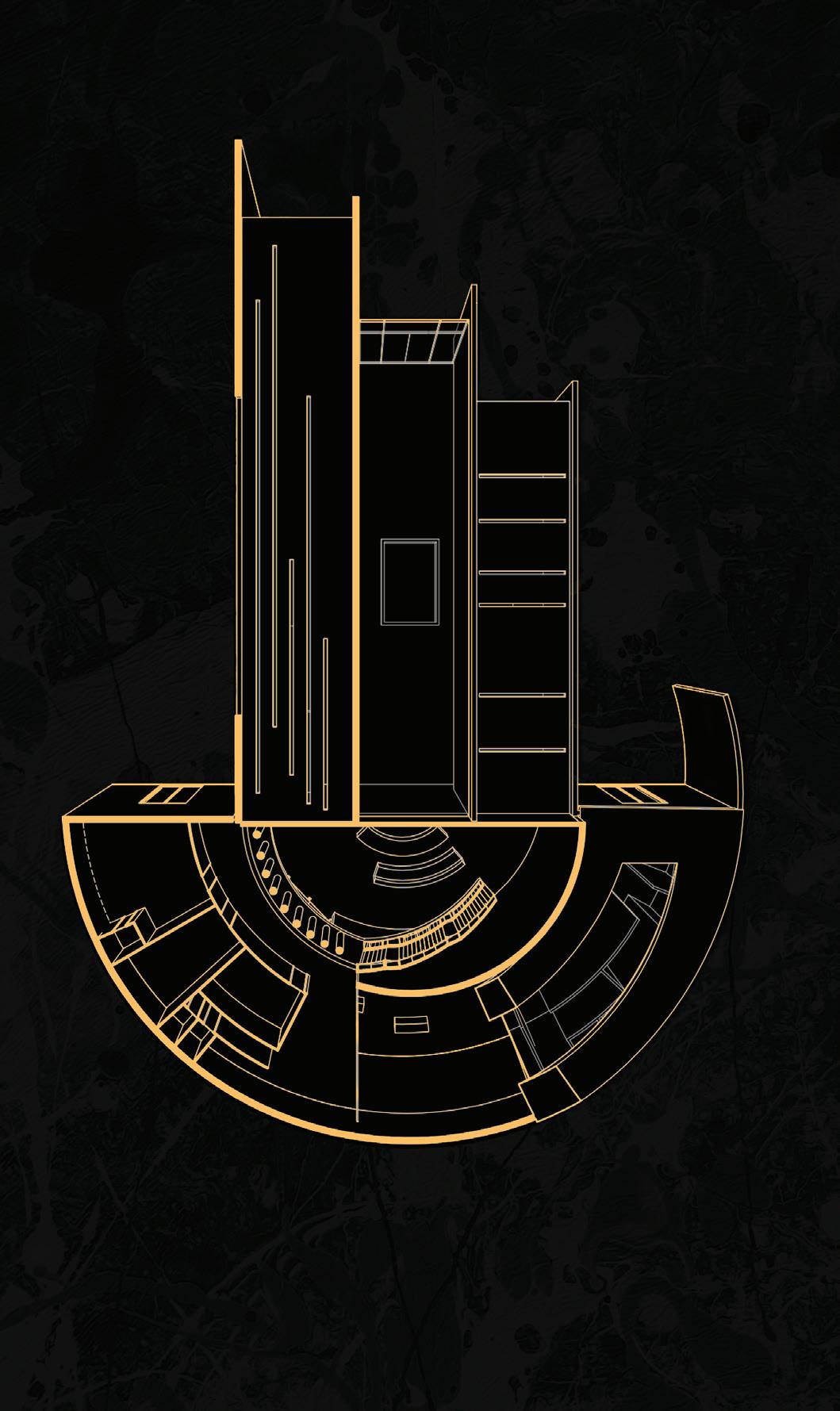

The diagrams on the right depict the form generation process, while the axon below illustrates the final building shape.
| 14
03
FORM GENERATION DIAGRAMS
1 | Simple Shape
3 | Basic Walls Incorporated
4 | Gradual Wall Heights Diminution
2 | Shape Adjustment
FUNCTIONAL DIAGRAM
Administration
Reception
Restrooms
Shops
Interior Garden
Museum
| 16
AERIAL VIEWS

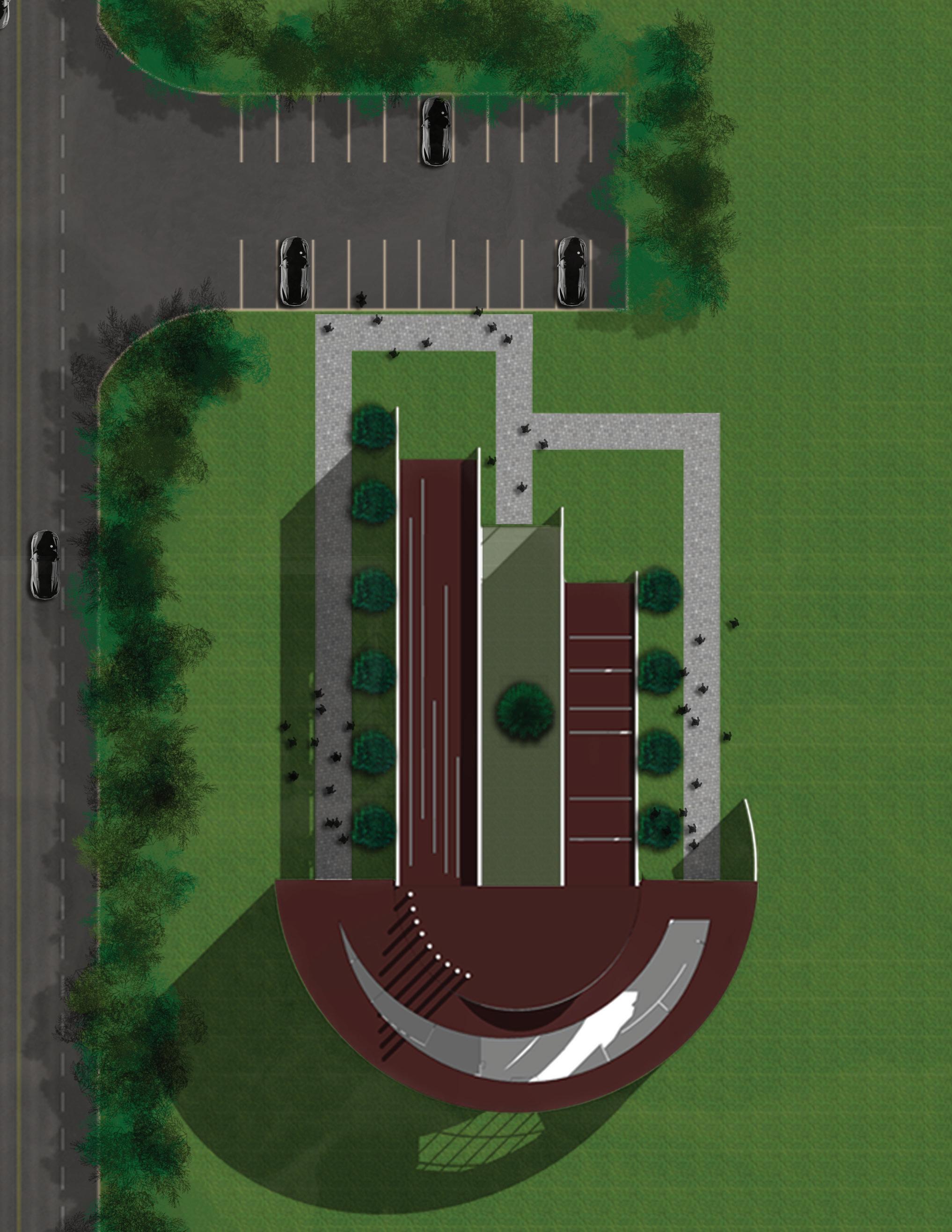

SITE PLAN 0 15 30 N | 18

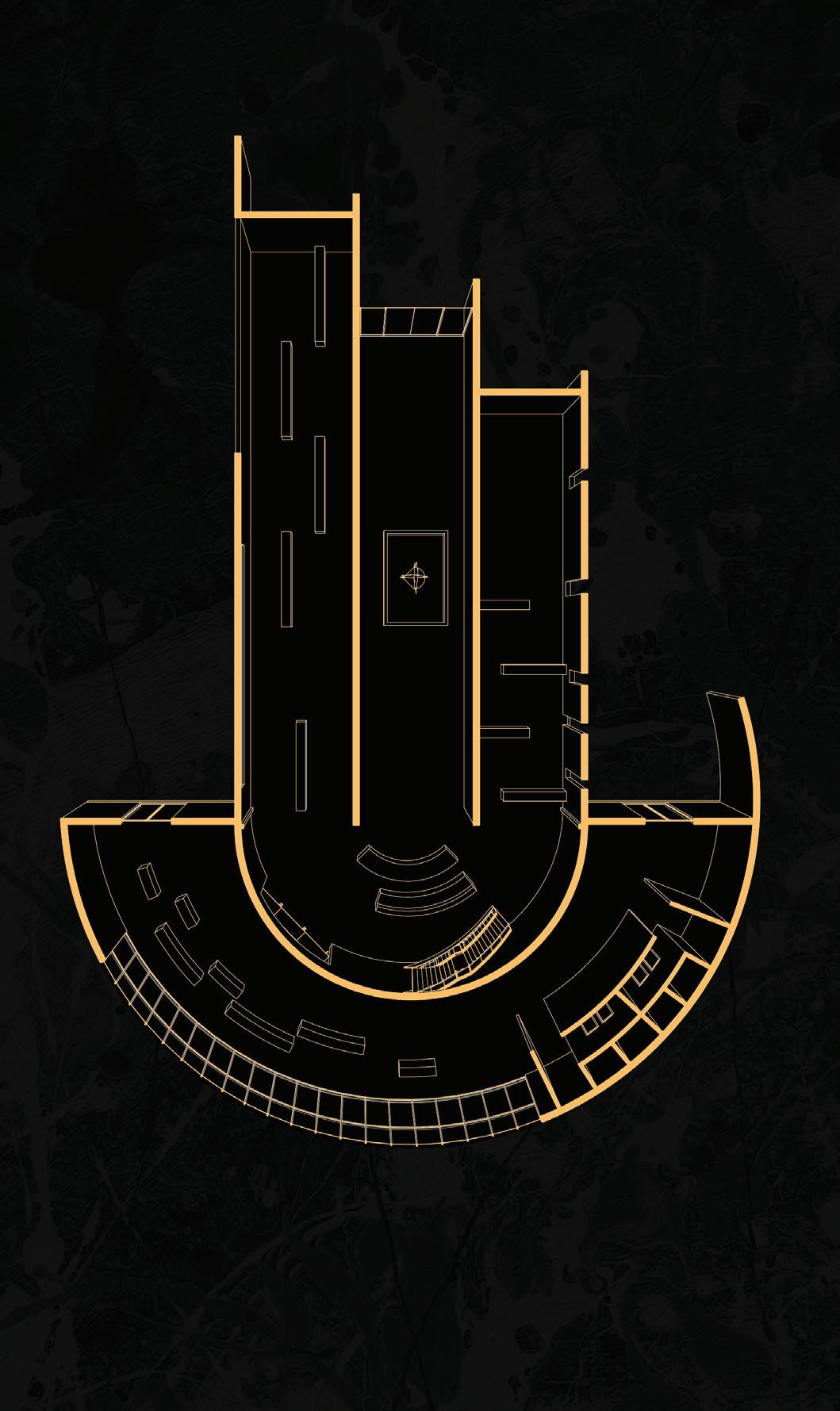

1ST FLOOR PLAN
SECTION 0 10 20 N
2ND FLOOR PLAN
| 20 INTERIOR SHOTS
EXTERIOR SHOTS
RESIDENTIAL COMPLEX FOR ARTIST
ART AS A WAY OF LIFE
ARCHITECT: PERSONAL LOCATION: AMMAN, JORDAN TYPE: ACADEMIC - RESIDENTIAL
In this project, our task was to design a 40,000 SF steep site to be a residential complex with amenities catering to artists residing in the downtown area of Amman. I aimed to facilitate interaction between the artists and the surrounding community by increasing the number of public entry points to the site. Additionally, I created a central piazza as a semi-public destination.
Public Semi Public Semiprivate Private | 22
04
The diagram below illustrates the privacy zones within the site, with the red circle highlighting the bustling central piazza.
SCHEMATIC VIEW AT CENTRAL PIAZZA
FUNCTIONAL DIAGRAM
Building Type A
Building Type B
GYM Cafe
| 24
SITE PLAN
AERIAL VIEW | 26
ISOMETRIC
BUILDING TYPE A
PLANS
level
level
level
level
| 28
BUILDING TYPE B
level 1
1 level 2
2
3
4
ISOMETRIC PLANS
level 1
level 2
level 1
GYM
level 2 CAFE
SHOTS
| 30
3D RENDERED
3D RENDERED SHOTS
WASHINGTON FISH MARKET, THE WHARF ARCHITECTURAL LIGHTING DESIGN
ARCHITECT: STUDIO MB
LIGHTING DESIGN: GILMORE LIGHTING DESIGN LOCATION: WASHINGTON, DC
As part of The Wharf development on the SW waterfront in DC. Lighting a tower known as “SMOCK STACK” was a small but important aspect of Gilmore’s broader scope of work.
The challenge in lighting such a tall tower was finding suitable mounting locations and ensuring even distribution of light along the tower’s height. After evaluating potential mount options on both sides of the tower, we ultimately decided to use the top of an existing pole on the right side and the building on the left side.
After researching various lighting fixtures, we selected a suitable fixture head that met the necessary lumen output and had the capability to use a special lens for linear light distribution, resulting in even coverage.
Plan
Diagram
| 32
Front Elevation Diagram
05
The diagrams below show the location of the lighting fixture heads, indicated in red, in a plan view (left) and a section view (right).

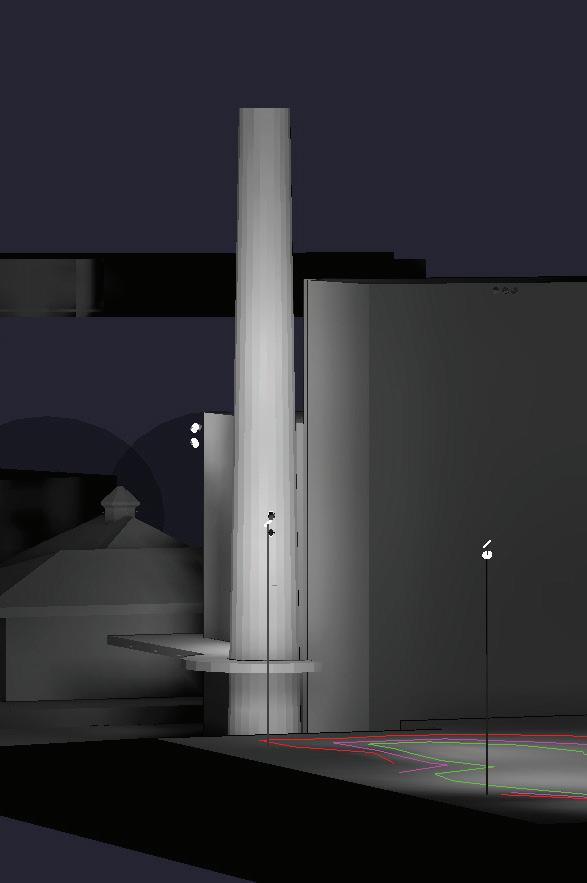

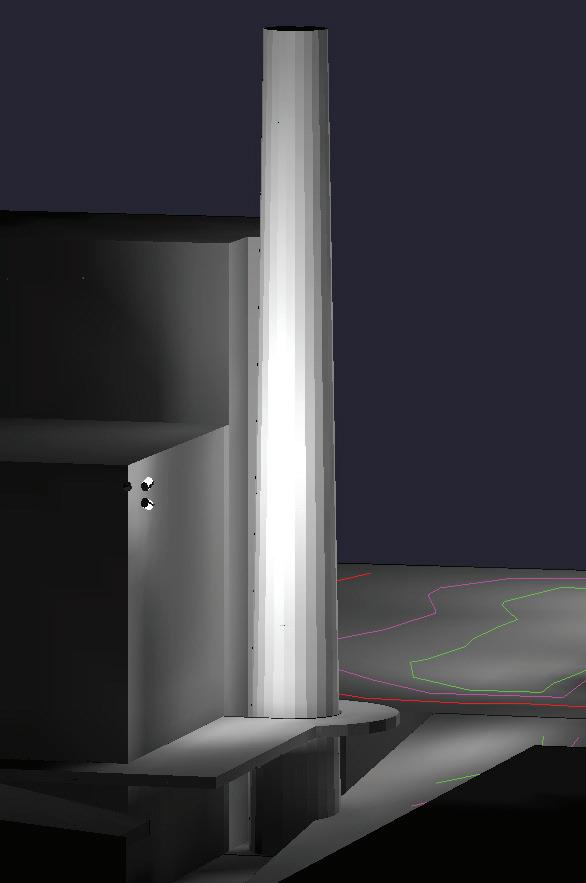

*Above lighting photometric study was done in AGi32 to determine the light engine needed for specification

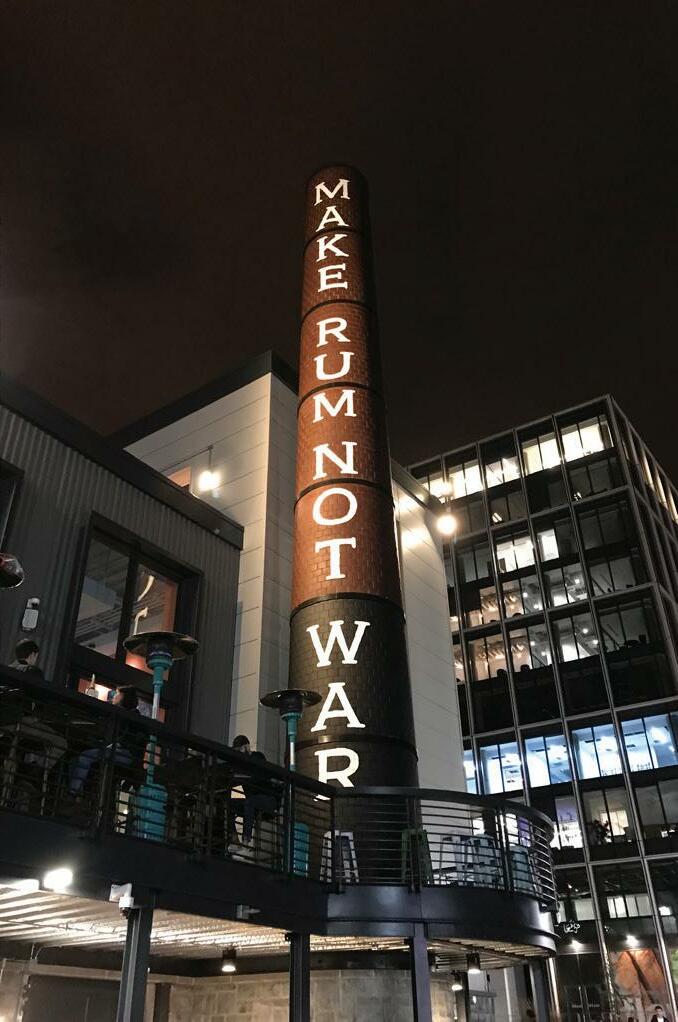

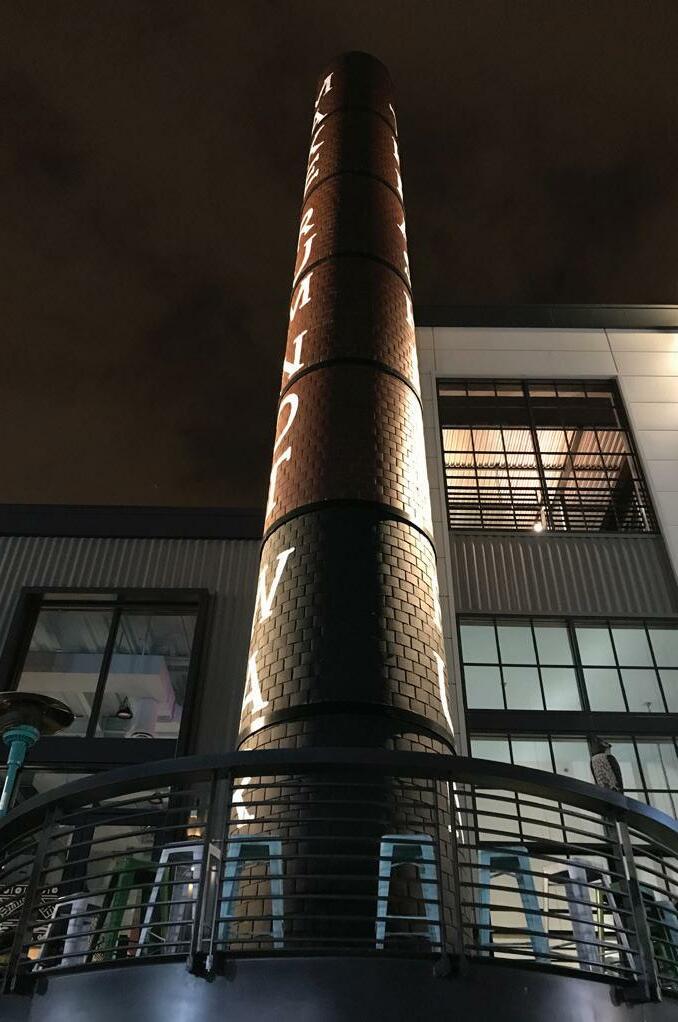

*Above shots showing final installation and lighting of the tower
BALLSTON EXCHANGE ARCHITECTURAL LIGHTING DESIGN
ARCHITECT: STUDIOS ARCHITECTURE
LIGHTING DESIGN: GILMORE LIGHTING DESIGN
LOCATION: ARLINGTON, VA
The Atrium of this commercial building had previously been designed but was re-imagined to incorporate three new structural pavilions.
The goal was to create lighting that would be suitable for hospitality-like functions. Our strategy was to use small fixtures that were integrated into the pavilion structures, providing either diffuse or targeted accent lighting. We also employed skylight-mounted fixtures to illuminate the rest of the atrium floor. Additionally, we utilized different color temperatures that were most appropriate for the function of each pavilion.
The diagrammatic plan below illustrates the lighting design concepts for the atrium.
Green Wall
• Surface mounted adjustable linear accent
Stair
• Linear glow in riser
Decorative Lighting
Planter Accent
• Spot lights from pavilion structure
Ambient General Illumination
• Skylight fixtures
• Consider adding dimming zones
F&B - Brightest Pavilion
• Decorative glowing pendants by others
• Spot accents for display and prep
• Linear glow emphasizing seating and for softening facial shadows
Meeting Space - Central Glow with perimeter accent
• Decorative fixture over tables by others
• Linear glow emphasizing seating and softens facial shadows
• Spot accents on plants define edges and enlivens atmosphere
Family Room - Warm welcoming space
• Linear glow emphasizing seating and softens facial shadows
• Floor lamp
Change layout to include wall accentLinear and/or Wall Wash
1 2 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 4 5 6 7 7 3 8 9 5
1.
2.
3.
4.
5.
6.
| 34
7. 8. 9.
06
F&B PAVILION F&B PAVILION MEETING PAVILION MEETING PAVILION FAMILY PAVILION FAMILY PAVILION

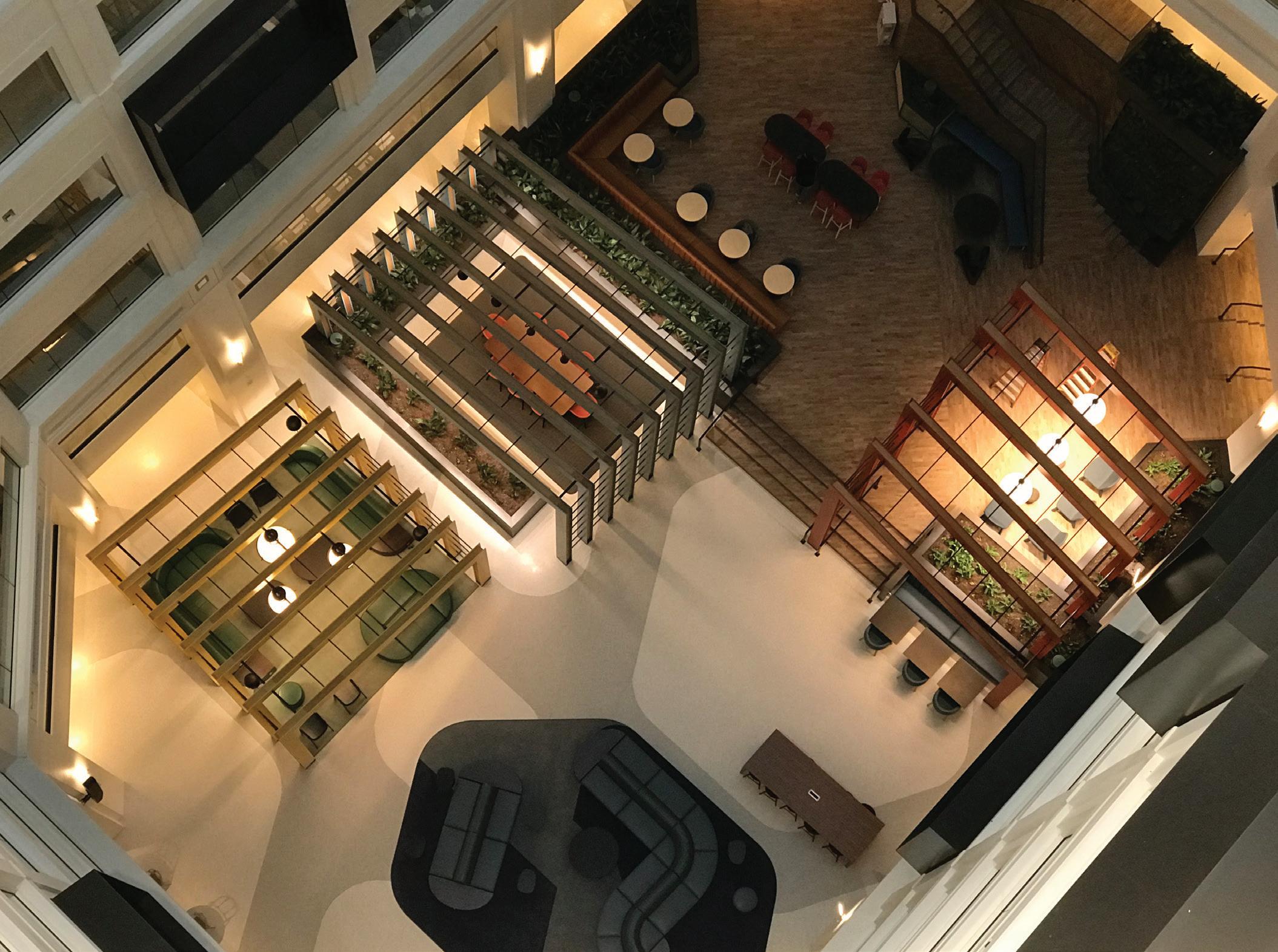

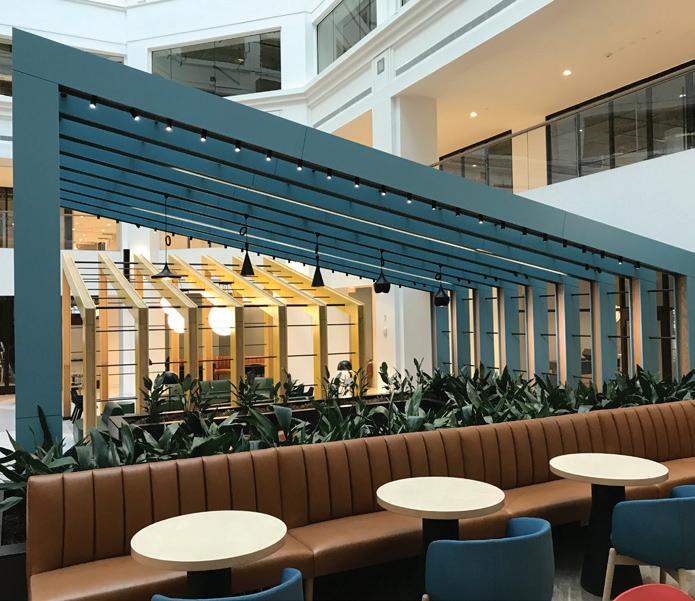

*View from 12th floor to Atrium showing all pavilions in the space

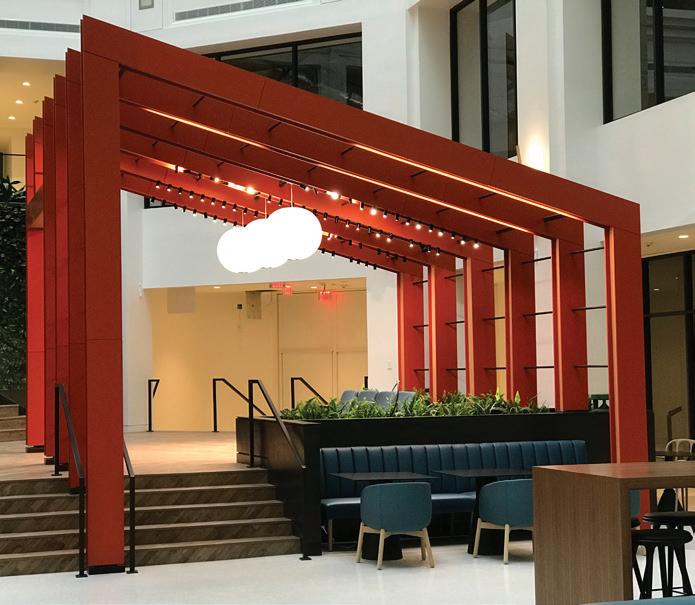

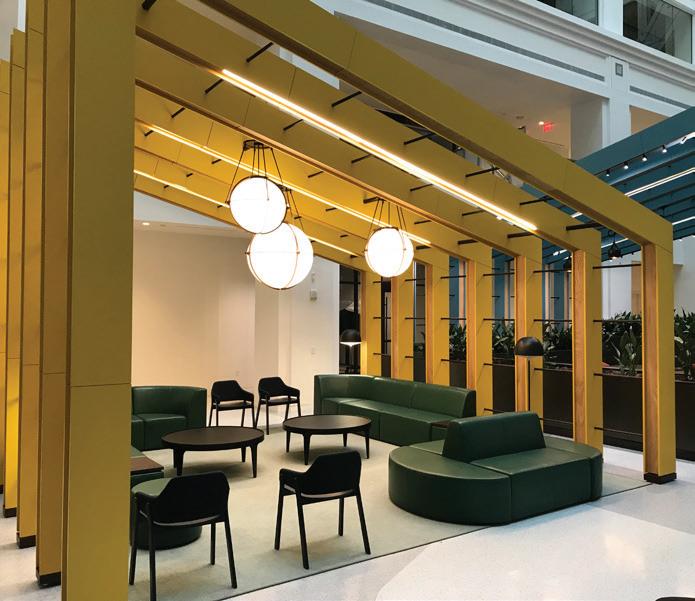

FINAL INSTALLATION SHOT
