Chapter1

TechnologiesforRestoring LimbFunction

WilliamCraelius

DepartmentofBiomedicalEngineering, RutgersUniversity,599TaylorRoad, Piscataway,NJ08854,USA billcraelius@gmail.com

1.1Introduction

1.1.1 Needsofthepopulation

Motorimpairmentsofthelimbsaccompanymanyneurologicalor musculoskeletalconditionsandinjuries,includingstroke,cerebral palsy,Parkinson’s,injurytothecentralnervoussystem(CNS), rheumatoidarthritis,andmanyothers.Strokeistheleadingcauseof seriouslong-termdisability,affectingoverhalfofthesurvivorsover 60yearsofage.AccordingtotheU.S.CDC,over795,000peoplein theUnitedStatessufferfromstrokeseachyear,andabout610,000 ofthesearefirstornewstrokes,andthereareover4.8millionstroke survivors,makingittheleadingcauseofparalysisintheU.S.Stroke affectsupto8peopleinevery1,000overtheageof25yearsand 47peopleinevery1,000overtheageof55years.Intheyear2007, theestimatedeconomicimpactofstrokewas$62.7billion.Together, braininjuriesfromaccidentandbraindamagefromstrokeaccount forover10millionpeopleintheUnitedStatesleftwithlong-term disabilities.Incidenceofstrokeislikelytoincrease,asriskfactors forstroke,suchashighbloodpressureandcarotidarterydisease, andagingincrease.Cerebrovasculareventsusuallyaffectprimarily oneside,resultinginhemiplegia.Thisconditionlimitsfundamental

W.Craelius

activitiesofdailyliving(ADL),suchaswalking,eating,dressing, drivingacar,writingandtyping,telephoneusage,equipmentoperation,andself-care.Beyondfunctionalloss,peoplecanexperience chronicpainanddistortionintheaffectedlimb,aswellasinexorable musculoskeletaldeteriorationandfurtherneuronalthroughlearned disuse(Platz etal.,2001).

Cerebro-vascularevents(CVEs)generallycausehemiplegia, aweaknessthatprimarilyaffectsonesideofthebody,resultingin asymmetricbodydysfunction.Incaseswherethelocomotiveparts ofthebrainaredestroyed,walkingisdifficultorimpossible.Itisa majorconcernforpeoplesurvivingastrokebecauseitmaynegativelyaffecttheabilitytoperformactivitiesofdailylivingandlimit overallindependence.Asaresult,improvingmobilityisoneofthe maingoalsofstrokerehabilitationandhasrelevancethroughoutthe strokesurvivor’slife.Asecondresultofastrokeisthattherecanbe atleastpartiallossofbodilyawarenessoftheaffectedside.

Someambulatoryabilitycanberestoredbyimmobilizingor assistingtheaffectedanklewithanorthosis,butthisassistance tendstoinhibitneurorehabilitationthatdependsonactiveneuromuscularefforts.Restorationofnormalgaitandlower-limb(LL) functionisthusrareafterhemiplegia.Restorationofupper-limb (UL)functionisevenmoreproblematicdueto(1)itsenormous complexityand(2)thehigherprioritiesgiventorestoringambulation.Furthermore,compensatorystrategies,learnedbythepatient forADL,tendtoinhibitrecovery.Asaresult,manypeoplewithUL paralysisareunlikelytorecovermuchfunctionality.Forexample,a studyofstrokepatientsenteringrehabilitationwithnon-functional armsrevealedthat61%showednoimprovementafter2years (Turton etal.,2002).Manyindividualsthatdorecoversignificant armfunctionexperienceepisodicrelapses,makingitriskyforthem tocarrythings.

Ingeneral,recoveryoutlookaftercentralhemiplegiaispoor,and mostindividualscanexpecttoregainonlypartialmobilityandlimitedULfunctionality.Mountingevidencesuggests,however,that theCNSissufficientlyplastictoeffectmoresignificantreversals fromparalysis,whengiventheproperstimuli(Edgerton etal.,2001; Krebs etal.,2003;Feys etal.,2004;Reinkensmeyer etal.,2004;

Bharadwaj etal.,2005;Riener etal.,2005).Itisbelievedthatsensorimotorstimulationprovidedbyrepeatedvoluntaryattemptsto extendmovementsofthelimbs,orevenappliedsensorystimulation, cancausethebraintoreorganizeandre-gaincontrolandcoordination.Restorationofatleastsomefunctionalitymaybepossible throughintensivephysicaltherapyinvolvingrepetitiveexercising, bothpassiveandactive,oftheaffectedlimb.Wecannotpredict, however,thetypes,amount,anddurationofmovements,exercise,or stimulationthatwillbeeffectivenorpredictwhichindividualswill respondtogivenprotocolsandwhethertheoutcomeofsuchdemandingtherapywillbeworthwhile.Moreover,therearefewtoolsavailabletohelptheprocess,andonlyalimitedavailabilityofrehabilitationservices,sincetheyarecostly,constrainedbytime,practicality, traveldistance,andmotivationandarevariablyapplieddepending onindividualproviders.

Tosummarize,bionictechnologiesappliedtopeoplewithhemiplegiaareincreasinglycapableofrestoringsignificantfunctionality topeoplewithstrokeorotherinjuries.

1.1.2 Potentialforfunctionalrestoration

Fortunately,mostindividualswithhemiplegiahaveaccesstophysiotherapydeliveredbydedicatedprofessionals,butthisaccessis necessarilylimitedbytimeandavailabletechnology.Eventherapiesthatemploystate-of-the-artapproachesofferlittleforneural recovery,sincetheyfocusonassistivedevices,encouragingcompensatorystrategiesthroughconstraint-inducedmovementtherapy, oronactivemanipulationofthejointswithroboticdevices.Except forsimpleassistivedevices,theseregimensanddevicesaregenerally impracticalformostindividualswithoutexpertassistanceandlarge expense,andthemoreadvancedapproachesareunlikelytobewidely availablesoon.Asaresult,afterterminationofregularphysiotherapy,neglect-induceddeclinesinfunctionareinevitable,andclients mayincreasinglydependonmedicalandpharmacologicaltreatments forspasticity,sores,andpain.

Neglectingtheaffectedmusclesandjointsiscounter-productive, sincedisusepatternsandassociatedpathologycommencesoonafter

W.Craelius

immobilizationoflimbs.Thissituationcouldberemediedifscientificallydesignedtoolswereavailabletoencourageclientstoimplement provensensorimotorprotocolsathome.Thevalueofrelativelyshorttermsensorimotorexercisetraining,withinsupervisedrehabilitation protocols,iswellestablished(Ouellette etal.,2004;Pang etal.,2006; Lam etal.,2008),andtheadditivebenefitsofin-homeexercisecarriedonfor12weeksbeyondthestandardpost-stroketherapyhave beenshowninclinicalstudies(Duncan etal.,2003).Thus,thereis noreasontobelievethatprogresswouldnotcontinueindefinitely withpropertrainingtools.

1.2RehabilitationApproaches

1.2.1 General

Amyriadofstrategies,devices,andprotocolshavebeendevelopedto helprestorefunctiontopeoplewithhemiplegia,eachofwhichmay infactbeefficaciousforneurorehabilitation,butnoneofwhichis apriori superiororindicatedforanygivenclient.Therearetwo assumptionscommonlyheldamongtheemergingandcompeting therapyoptions:(1)theCNSissufficientlyplastictoreorganizeitself andregainsensorimotorcontrolafterinjuryand(2)sustainedand repetitivemovementsoftheaffectedlimbscanpromotere-learning bytheCNS,leadingtosensorimotorrecovery.Beyondthese,thereis insufficienttheoryuponwhichtobuildarationaltreatmentplan,due totheenormouscomplexityofhemiplegiaanditssequelae,involving notonlytheCNSbutalsotheperipheralnervoussystem(PNS), muscles,joints,metabolism,aswellaspsychology.Forthisreason,it hasbeensuggestedthatthemostpromisingtherapyregimensshould beopentoempiricallycombininganarrayoftechnologies(Hogan etal.,2006).

Whileneurorehabilitationstrategiesdifferwidely,andoftenoverlapinmethods,theygenerallycanbecategorizedasthosethatwork on(1)strengtheningorrelaxingindividualmusclesor(2)promoting functionalmovements.Thefirstcategoryincludesstandardphysiotherapeuticexercisesadministeredbyaprofessional.Thesecondcategoryincludestools,suchasconstraint-inducedmovementtherapy,

biofeedbackdevices,movementassistivedevices,andelectricalstimulation,thatgenerallyinduceorencouragebothpassiveandactive motions.

Thesecondcategoryisknownas“sensorimotortraining”(SMT), wherebytheclientattemptstomovetheaffectedlimbwhilereceiving sensoryinputregardinghissuccessatnormalmotion.The goalof SMTisthustocoercere-organizationofthedamagedmotorcortex byhelpingtheclientassociatehisvolitionswithsubsequentmovementswiththeirsensoryconsequences,includingproprioceptive,tactile,andvisualmodalities.SMTrequiresactivevolitionbytheclient, whetherornothe/sheisassistedbymechanicalrobots.

1.2.2 TrainingtheaffectedUL

RehabilitativeapproachestoparalysisoftheULcanbecategorizedas(1)standardsupervisedexerciseprotocols,(2)constraintinducedmovements,(3)assistivedevices,(4)activedevices,and (5)biofeedbackofmovementsusingelectromyographic(EMG)and virtualreality.Theseapproachesinvolvesensorimotortrainingto variousdegreesthatencouragesand/orassistsrepetitivemotionsof theaffectedlimbs.

Toapplyappropriatetechnology,therehabilitationengineer shouldhaveanunderstandingofthepotentialuser.Thefollowing tables(Tables1.1and1.2)arenotexhaustivebutaremeanttooutlinespecificproblemsofthetargetpopulationsandtheirpotential forrehabilitation.

Commonstrategiesforrehabilitationfromapplyingrigorousprotocolstoencouragemovementexerciseswithorbyconstrainingthe soundarmforseveralhoursperweekcanforceclientstousetheir affectedlimb,therebyencouragingplasticreorganizationwithinthe CNS.Highlymotivatedclientswhoconstantlyusetheiraffectedarm forseveralmonths,eitherwithexerciseregimenorbyconstraint,have regainedconsiderablefunction(Page etal.,2005;Wolf,2007).Toprovidestructureforpatientsdoingconstraint-inducedtherapy,aworkstationfordirectingandrecordingtaskshasbeendeveloped(Lum etal.,2004).Unsupervisedexerciseandconstrainttherapieshave limitations,however,sincetheymayteachcompensatorystrategies

W.Craelius

Table1.1.ProblemsofstrokeandTBIandpotentialsolutions.

ResidualAbilities

“Irrepairable”damage toareasofthebrain thatformerly controlledoneor morelimbs,i.e., strokeandTBI.

Centralnervoussystem plasticity;sensory perceptionintact.

Fixedflexureof affectedarmand generallystiffjoints andco-contraction ofagonistand antagonistduring movement,i.e., “synergy”.

Lossofwristandhand dexterity.Poorforce control.

Usuallycanbe extendedby unaffectedarm. Proprioceptionmay beintactbutpossibly anomalous.

Somemusclesare usuallyactive,even inearlyrecovery.

Re-learningmovements throughproper trainingandsensory feedbacktoreduce conflict.Repetitive tasktrainingand playinginan engaging environment.

Anti-flexionexercise, stretching,and weightbearing.

Stagedprotocolsthat beginwithrestoring reachingabilityand progresstohand grasping.

Source :Corrias etal. (2021). involvingthetrunkandshoulder,withlittleimpactontheunderlying paralysis.

Thetypicalproblemsandresidualabilitiesofpeoplewithstroke arelistedinTable1.1.

AsshowninTable1.1,strokedestroysmanyaspectsofmotor controlneuronsinthebrain,causinglossoflimbfunction.Recovering limbfunctionafterstrokeisdifficult,andrecoveryprospectsdecline withtime.Standardrehabilitationexercisesattempttorecruitsurvivingneuronsforthetaskofrestoringspecificmotorfunctions,however,theseareseldomentirelysuccessful.Successisdependenton manyfactors,includingearlytherapeuticinterventionandoptimal retraining.

Table1.2.ProblemsofSCIandpotentialsolutions.

ResidualAbility

C1-C2

Allvegetativeand motorfunctionsare notcontrolled.

C3-C5

Lostallmotor functionsbelowneck.

Braincognitionintact.Brainsignals,either fromEEGorinternal electrodes,can controlcomputerfor communicationwith humanandrobot BCI.

Usuallycanbe extendedby unaffectedarm. Proprioceptionmay beintactbutpossibly anomalous.

C6-C8Somemusclesare usuallyactive,even inearlyrecovery.

Anti-flexionexercise, stretching,and weightbearing. Neuroprosthesesto restorestanding.

Stagedprotocolsthat beginwithrestoring reachingabilityand progresstohand grasping. Neuroprosthesesfor armandlegs.

AnexampleofasimplerehabilitationdeviceisDynawheel. Dynawheeltherapyengagestheuserwithagripchallengegame basedonFitts’paradigm.Theuserispromptedtoexecutevarious handgripswithDynawheelandisscoredbasedonthesuccessofthe user’sgripforcetrackingoftheprompts.Therapycanbeenhanced byAI,whichwilllogandreporttheneurologicalfeatureswhichproduceoptimalperformance,intermsofgripforceanddexterity.This paradigmissimilartothosethatmyresearchgroupandothershave developedforspinalcordstimulation.Thus,theAIsystemrecords themechanicalandelectricalinputsfromtheuserandselectsthose mostefficaciousforgainingoptimalperformance.

EfficacyofDynawheelwasdemonstratedinastudyof6subjects withrightupper-limbparesiscausedbystroke.Agerangewas64–72 years,andtheaveragepost-stroketimewas7.3years.RehabilitationtrainingwithDynawheelconsistedofgripforcedynamometry. Grippingstrengthsandfunctionalityweretestedfollowing6weeks

W.Craelius

oftraining.Subjectsshowedmajorgainsinstrengthandcontrolof grip.Thetherapythusrestoredsignificantfunctiontotheaffected upperlimb.Theseresultsareparticularlysignificant,sincefunctional recoveryisseldomsuccessfulwithsubjectswhosestrokeoccurred morethan5yearspreviously.Ourstudieson6ULpatientshaving experiencedstrokeformorethan7yearspreviouslyshowedthat trainingwithDynawheelrestoredsignificantdexterity.Thisstudy wasselectedforspecialmentionbythe JournalofPhysicalTherapy (Kim etal.,2010).

Functionalelectricalstimulation(FES)ofmusclesrepresentsa typeofsensorimotortraining.Theearliestcommercialversionswere developedatCaseWesternReserveUniversity(CWRU),suchasthe FreeHand(Fig.1.1).ThevalueofFESintheacutephaseofstroke wasshowninarandomizedtrialinvolving100patientswhowere givenSMTfor6weeksshortlyfollowingtheevent.Thesepatients outperformedthecontrolsevenafter5years(Feys etal.,2004). ArmandhandfunctioncanberestoredtosomedegreeusingFES. TheFreehandusedimplantedmyoelectrodestostimulatemuscles forgraspingandbendingtheelbow.Theelectrodes,andsubsequent movementsoftheparalyzedUL,wereactivatedbythemovements ofacontralateralarm.

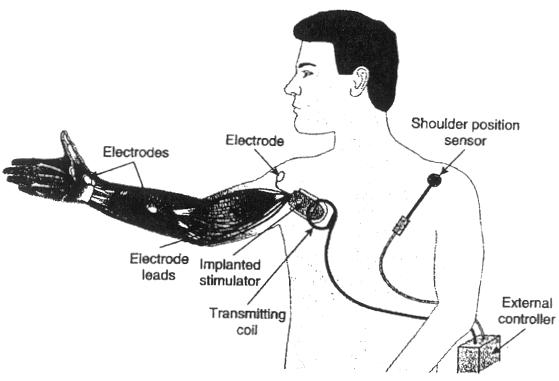

Figure1.1.TheFreehand,showingelectrodesimplantedintothearm,atransmittingcoiltoactivatethem,ashoulderpositionsensortoindicatevolitionto grasp,andanexternalcontroller.

Figure1.2.GraspcontrolwithsurfaceEMGelectrodes.Thewristpositioncontrolsopeningandclosings.

VariationsoftheFreehandincludeastrictlyexternalorthosis thatactivatesthegripmusclesusingnon-invasiveEMGelectrodes, withactivationbybuttons,asshowninFig.1.2.

Amoresophisticatedinterfacetomuscularcontrolisthe BIONSTM ,asshowninFig.1.3.Bionsarethesizeofagrainof riceandcanbeinjectedintomuscles,withoutexternalwires(Micera etal.,2006).Theyareactivatedbyanexternalradiofrequency (RF)coilthatisactivatedbytheuser.ClinicaltrialswithBions haveshowntheirefficacyinreversingshouldersubluxationfollowing stroke,byrestoringtonetoparalyzedshouldermuscles(Salter etal., 2004).Tobettercontrolmuscleactivity,usingclosed-loopfeedback, Bionswillhavemusclesensingability.

AdvancedassistivedevicesuseFES,eitherexternallyappliedor usingBIONSTM .Adepictionofagraspingcontrolsystem,controlling theextrinsicforearmmuscles,isshowninFig.1.4.

1.2.3 SMTandfeedbacktools

Task-orientedsensorimotortraining,sometimesaidedbyconstrainingthesoundarm,iscentraltopromotingneuroplasticrehabilitationoftheupperlimb(Platz,2003;Winstein etal.,2004;Goffredo etal.,2008).Incomparisontoprotocolsforstrengtheningspecific
