TABLE OF WORKS Professional Works A Brooklyn Townhome

4-17

A Co-Living Flagship

18-23

Paper Factory Hotel Bar

24-27

The Trinity Affordable Apartments

28-31

60 Brooklyn Townhouses Survey

32-35

Academic Works (Un)folding Facades

36-39

4 Professional Work

A B r o o k l y n To w n h o m e

The design intent for this Brooklyn townhome was to bring more light and openess to the interior space. One of the design strategies was to open up the parlor floor and bring the heart of the home to the center spotlight: the kitchen becomes a feature and provides a boundary for the different programmatic spaces of the floor. By opening up the parlor floor, the townhome becomes more light and airy, bringing a contemporary feel within the traditional features that remains in the space.

Location: Brooklyn, New York

Project Type: High End Residiential Gut Renovation

Role: Designer

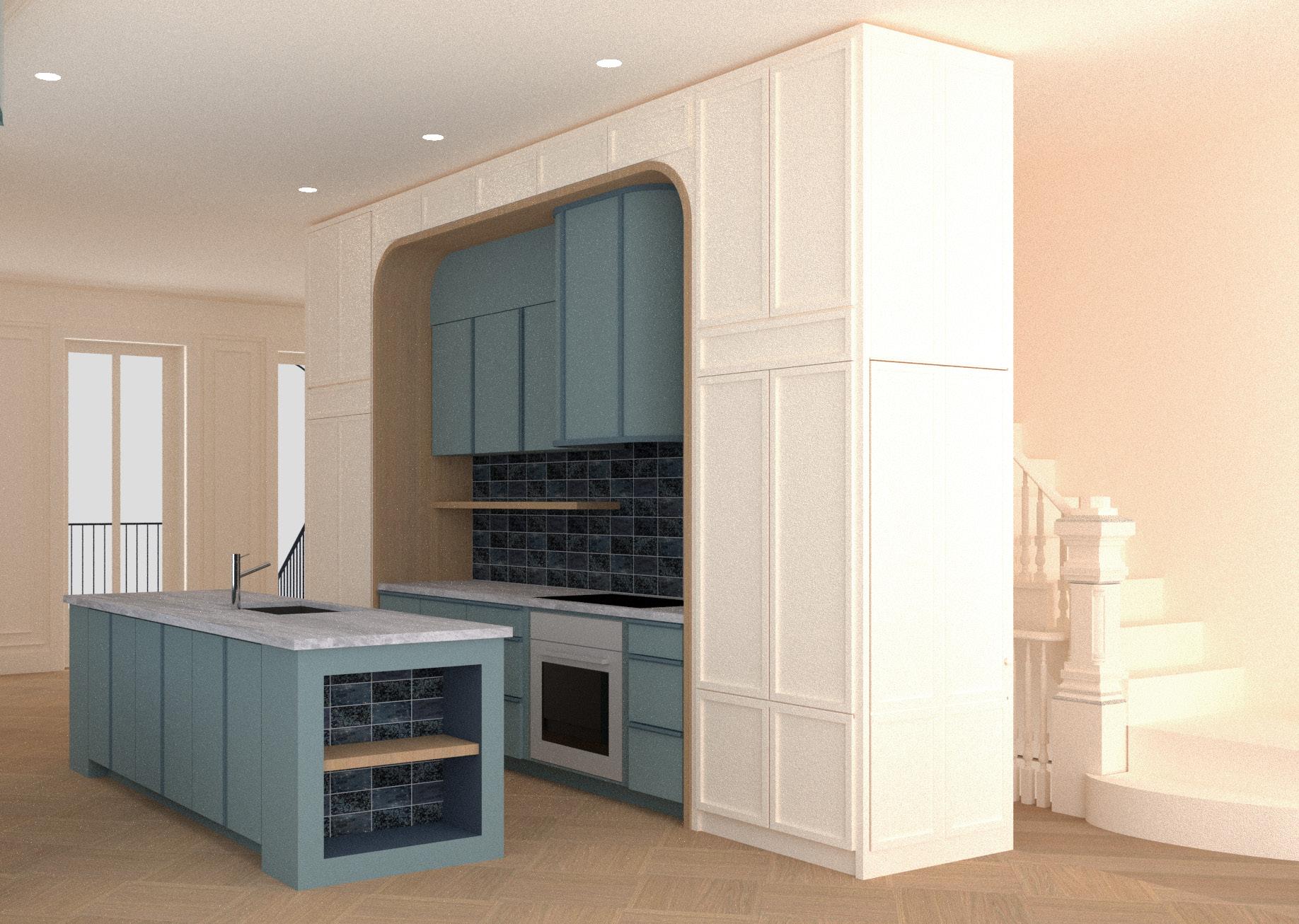

RENDERING / KITCHEN 5 A Brooklyn Townhome

Corner rear yard with new balcony and landscaping

MADE / 2204A01 / ST MARKS AVENUE TOWNHOUSE / 230202

LOOR PLAN / PARLOR FLOOR / 3/16” SCALE 6 Professional Work

BUILT IN NICHE

KITCHEN

DINING ROOM LIVING ROOM

VESTIBULE

2204A01 / ST MARKS AVENUE TOWNHOUSE / 230202

POWDER ROOM

PROPOSED PARLOR FLOOR

BALCONY

7 A Brooklyn Townhome

WHITE OAK WITH CLEAR SATIN FINISH

PAINT GRADE WOOD MILLWORK IN FARROW AND BALL JAMESTOWN BLUE & NEWBURY BLUE

RENDERING / KITCHEN

WHITE OAK FLOORING MOSAIC PATTERN

SOAPSTONE MARBLE COUNTER TOP

CERAMIC TILE BACKSPLASH: TOWN AND COUNTRY OBSIDIAN

MIELE COOKTOP AND INDUCTION RANGE

MADE / 2204A01 / ST MARKS AVENUE TOWNHOUSE / 230202

PAINT GRADE WOOD MILLWORK IN FARROW AND BALL AURA LIME WHITE

/16

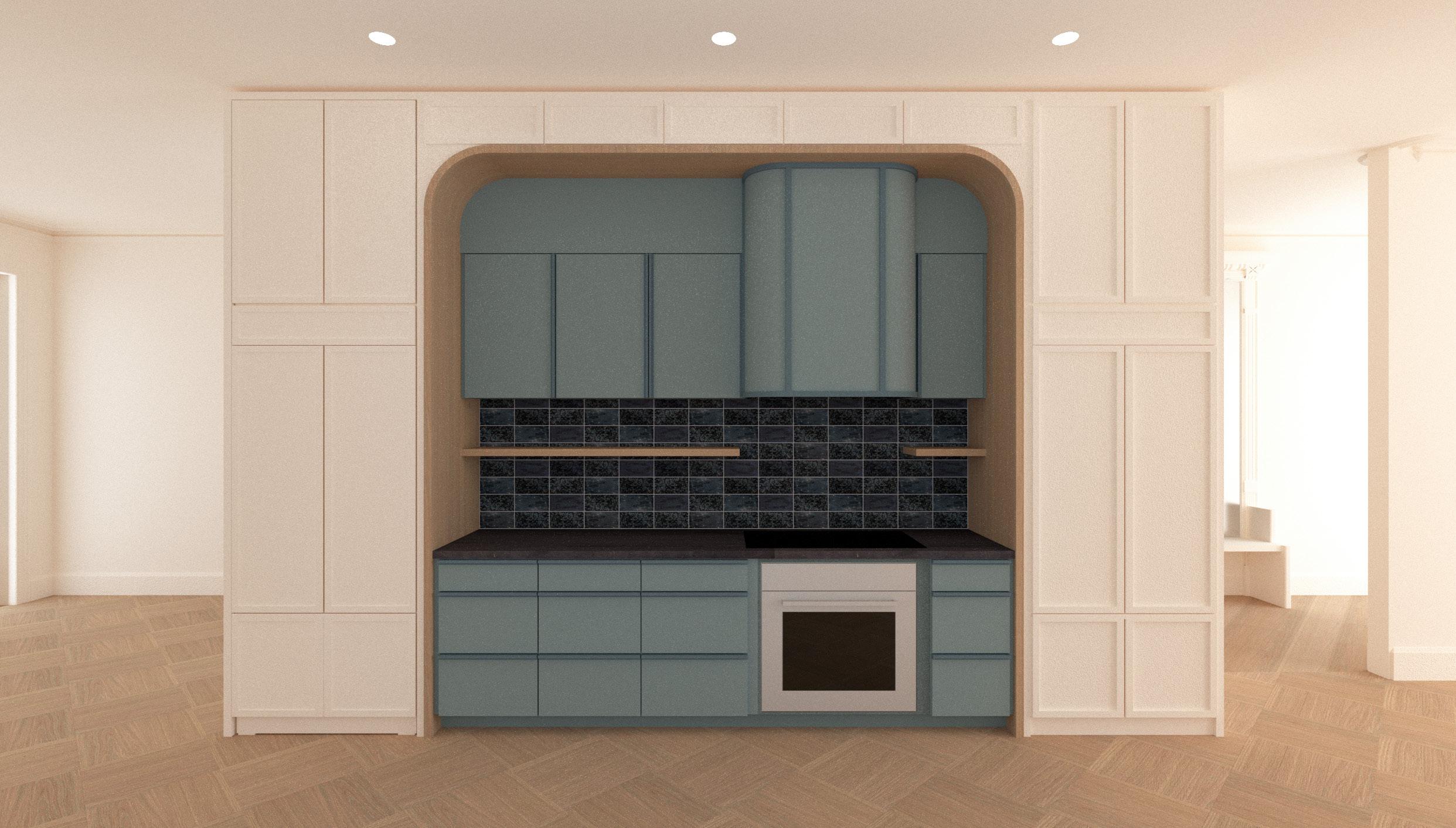

ELEVATION RENDER OF KITCHEN

8 Professional Work

RENDERING / DEN

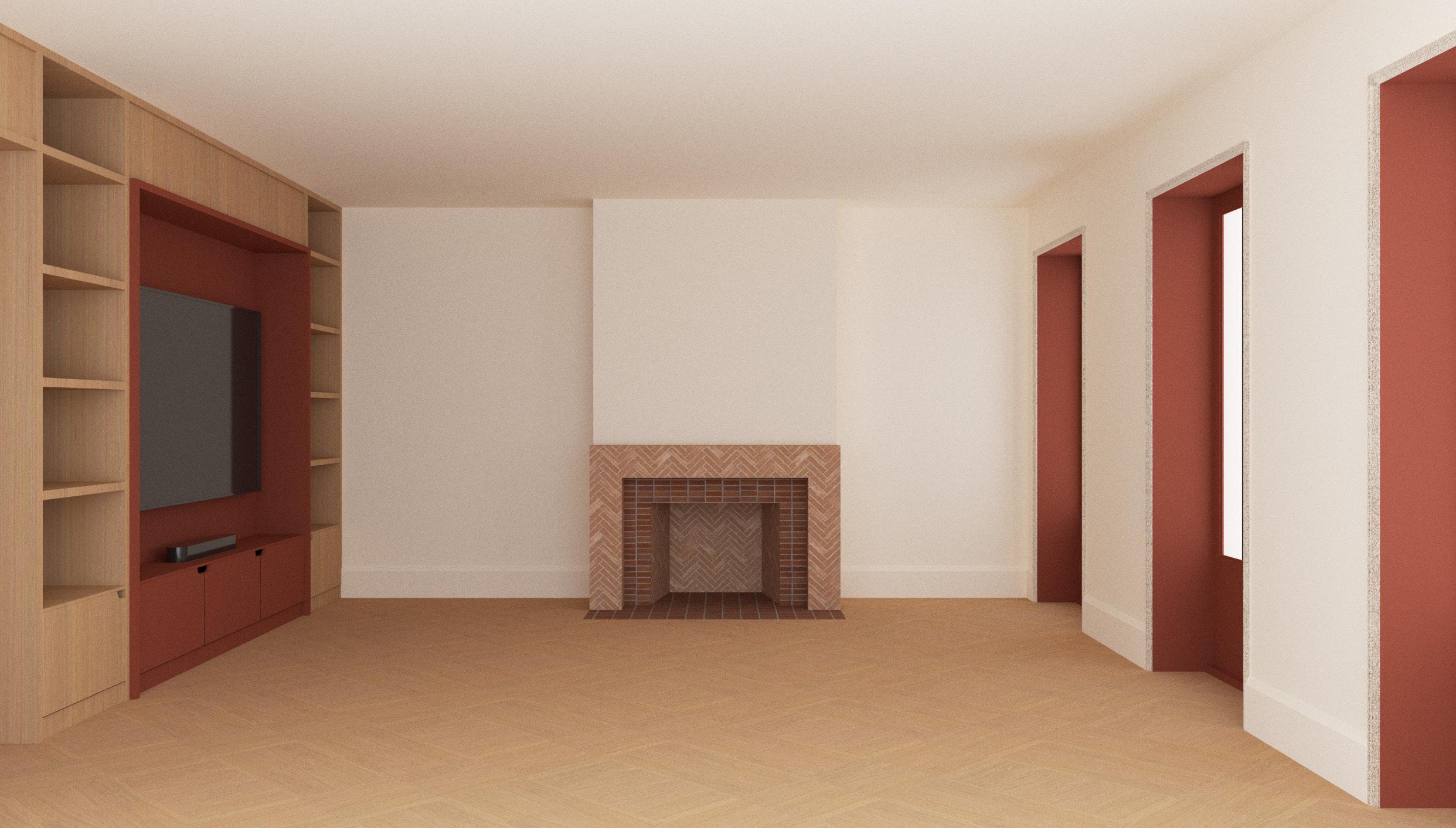

PROPOSED DEN ROOM FIREPLACE RENDER MADE / 2204A01 / ST MARKS AVENUE TOWNHOUSE / 230202

/9

NUE TOWNHOUSE / 230202

9 A Brooklyn Townhome

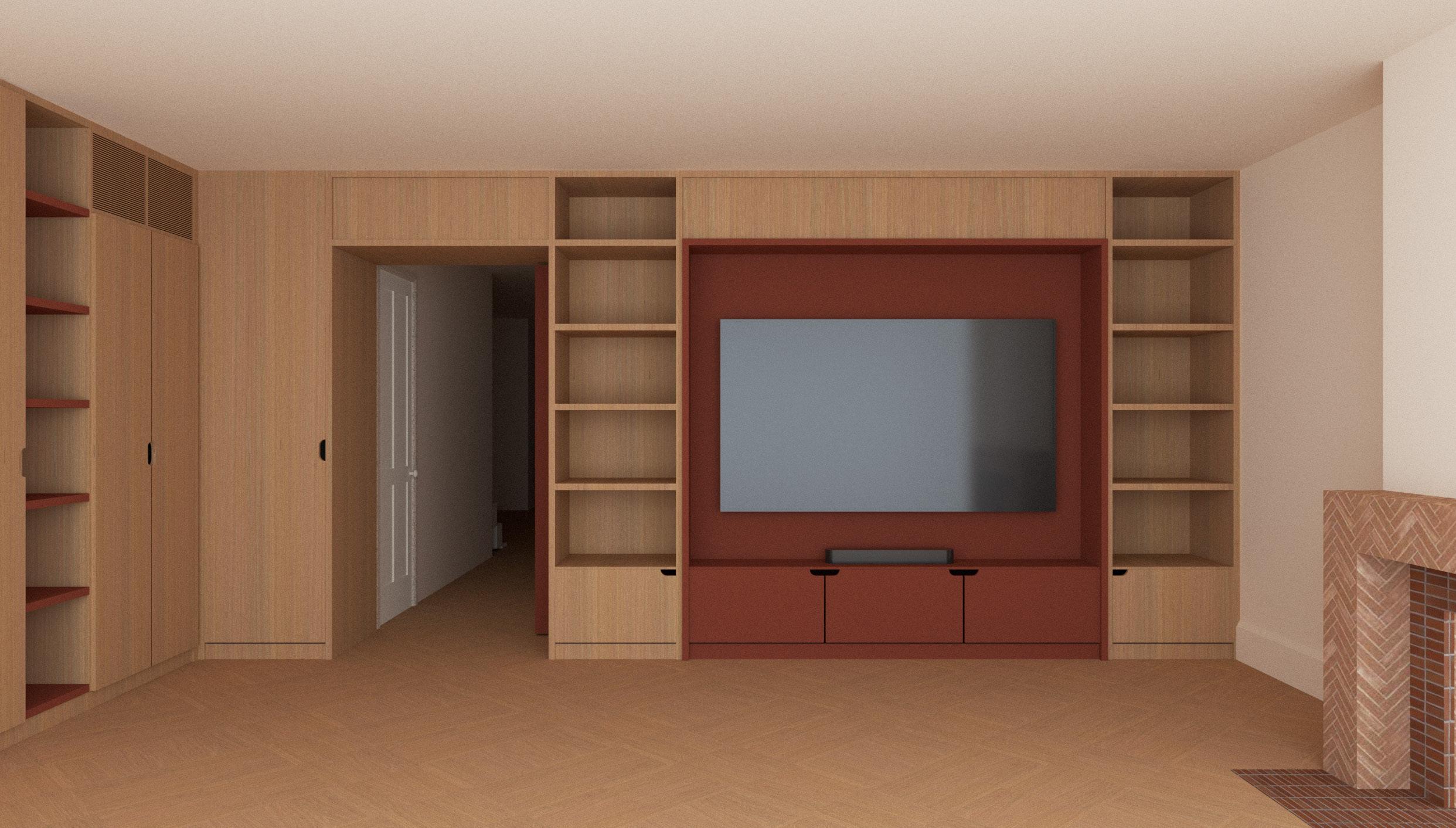

PROPOSED DEN ROOM MILLWORK RENDER /10

10 Professional Work

RENDERING / DEN

MADE / 2204A01 / ST MARKS AVENUE TOWNHOUSE / 230202

/11

PROPOSED DEN ROOM MILLWORK RENDER

/

11 A Brooklyn Townhome

A

12 Professional Work

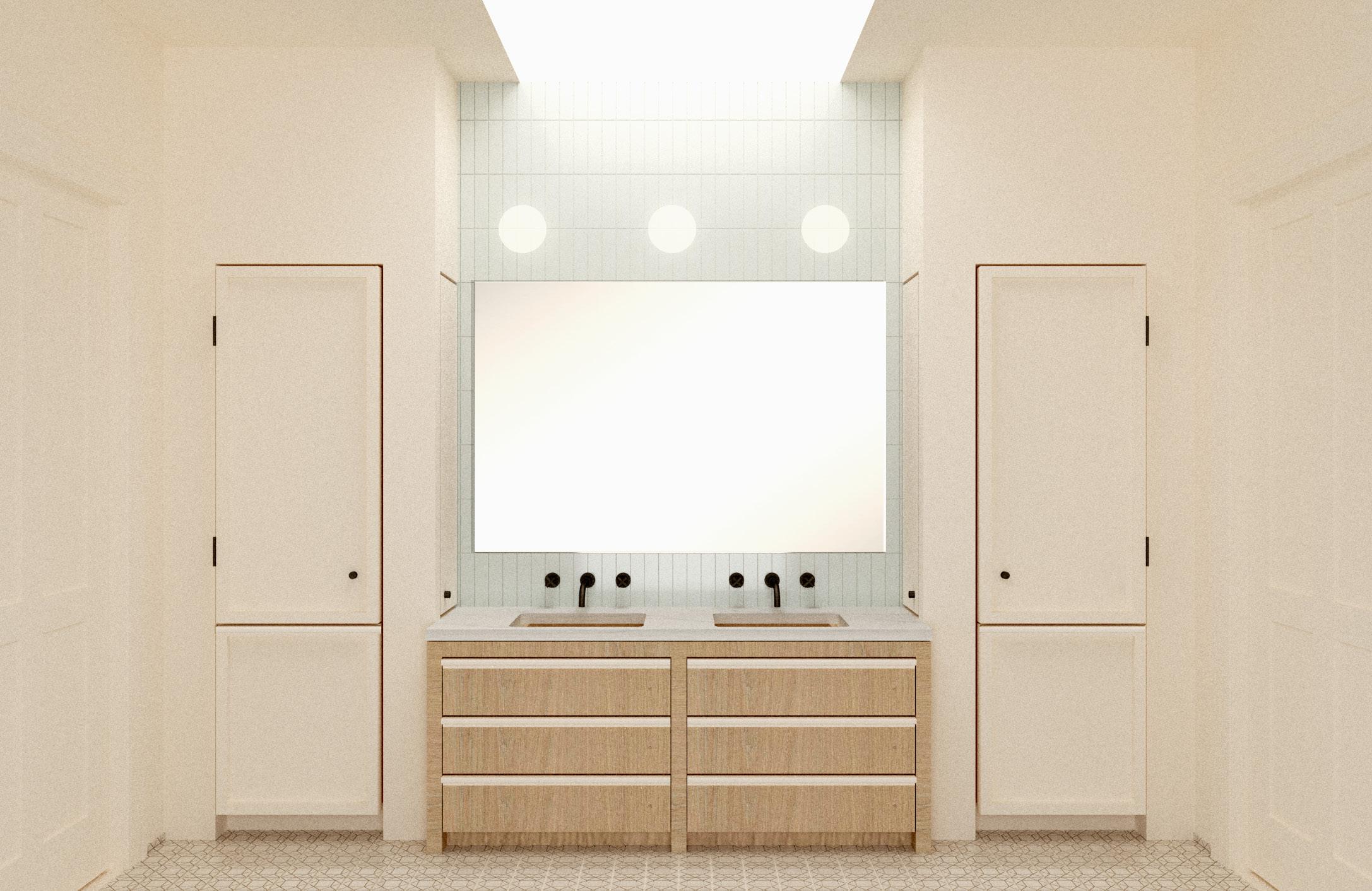

RENDERING / PRIMARY BATH

MADE / 2204A01 / ST MARKS AVENUE TOWNHOUSE / 230202

/19

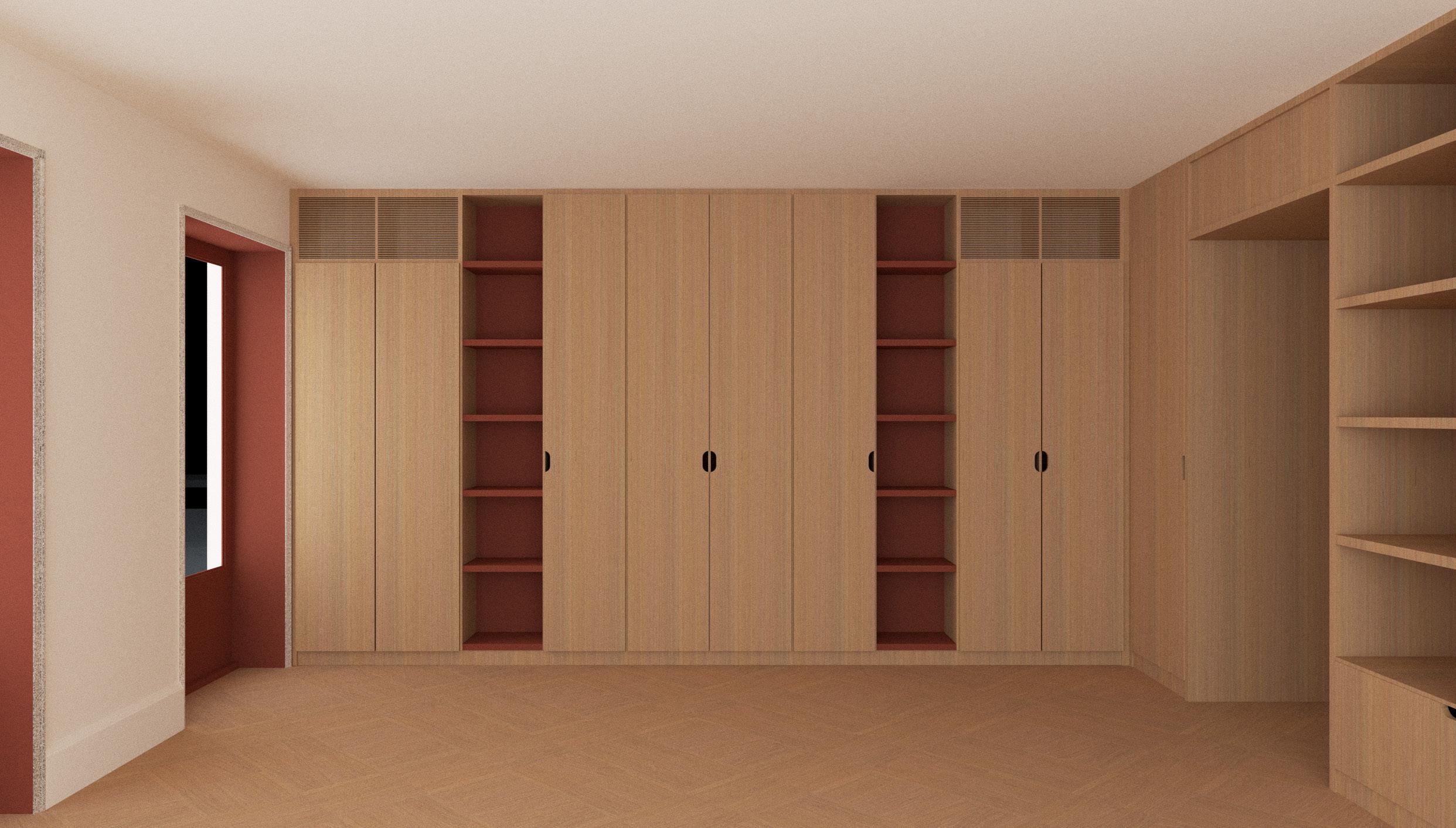

PROPOSED PRIMARY BATH VANITY AND MILLWORK CLOSETS

PRIMARY BATH

A01 / ST MARKS AVENUE TOWNHOUSE / 230202

13 A Brooklyn Townhome

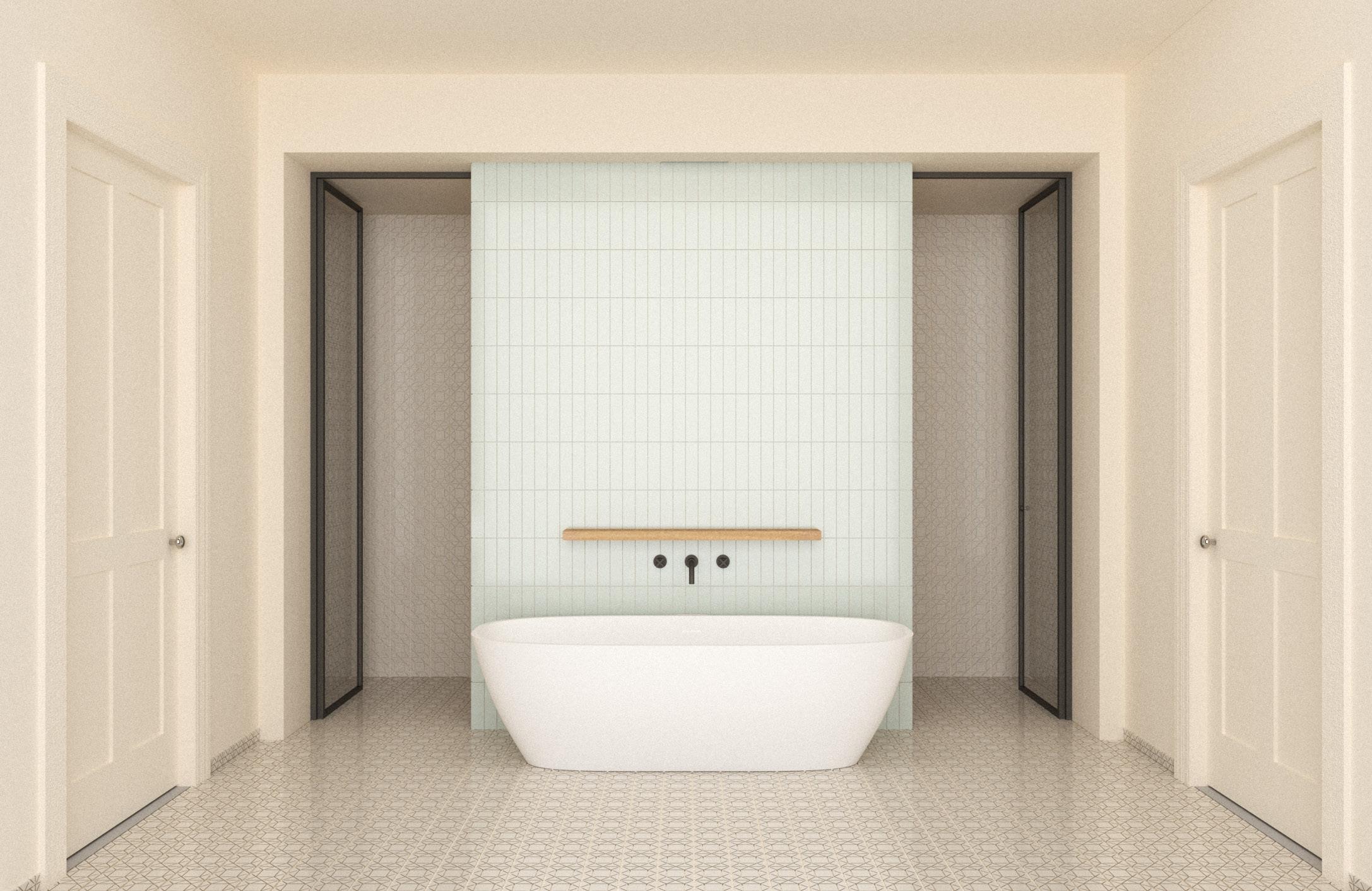

PROPOSED PRIMARY BATH FREESTANDING TUB, TOILET ROOM, & SHOWER

14 Professional Work

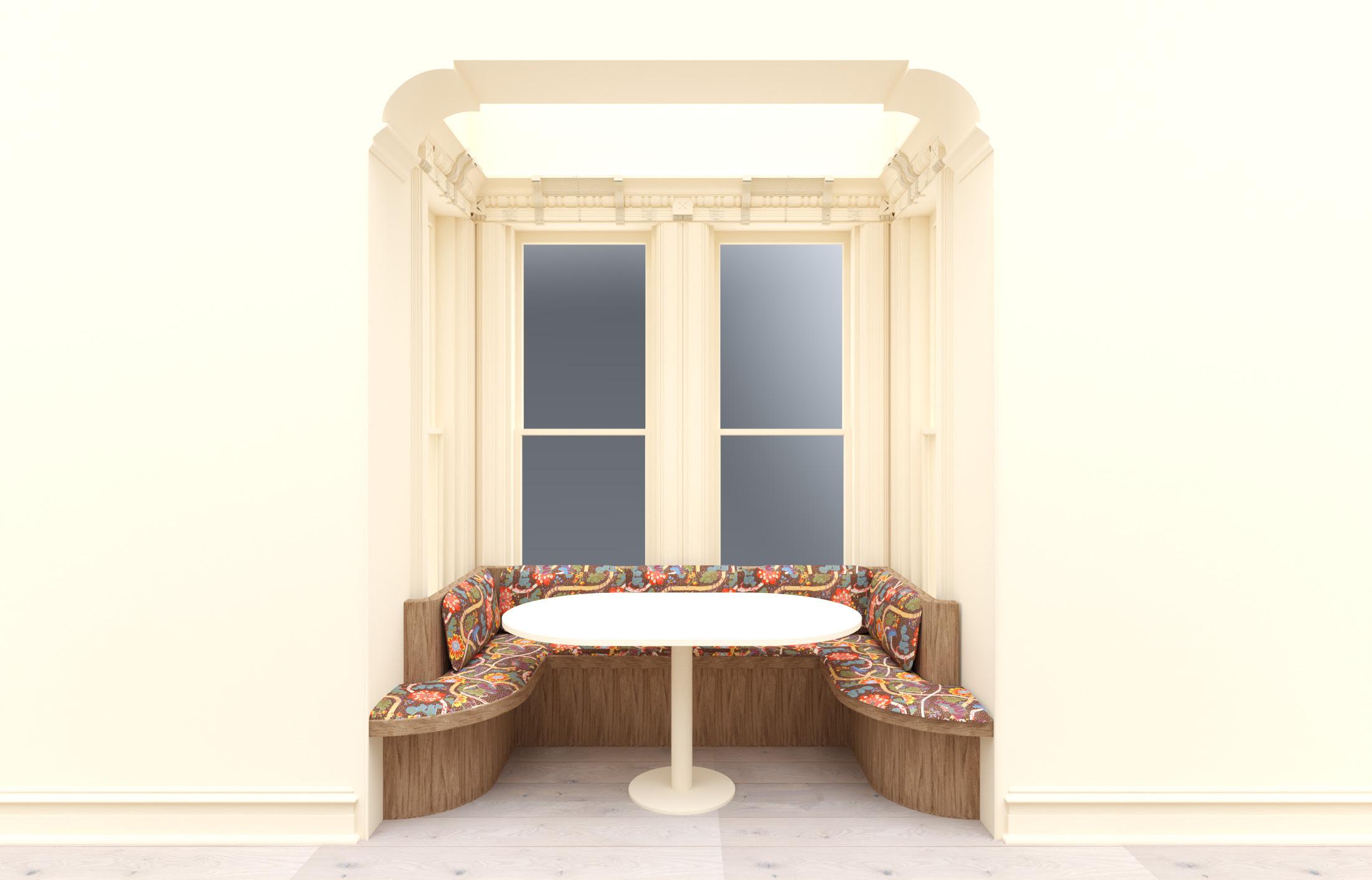

PROPOSED PARLOR FLOOR KITCHEN NICHE MILLWORK

15 A Brooklyn Townhome

MADE / 2204A01 / ST MARKS AVENUE TOWNHOUSE / 230309

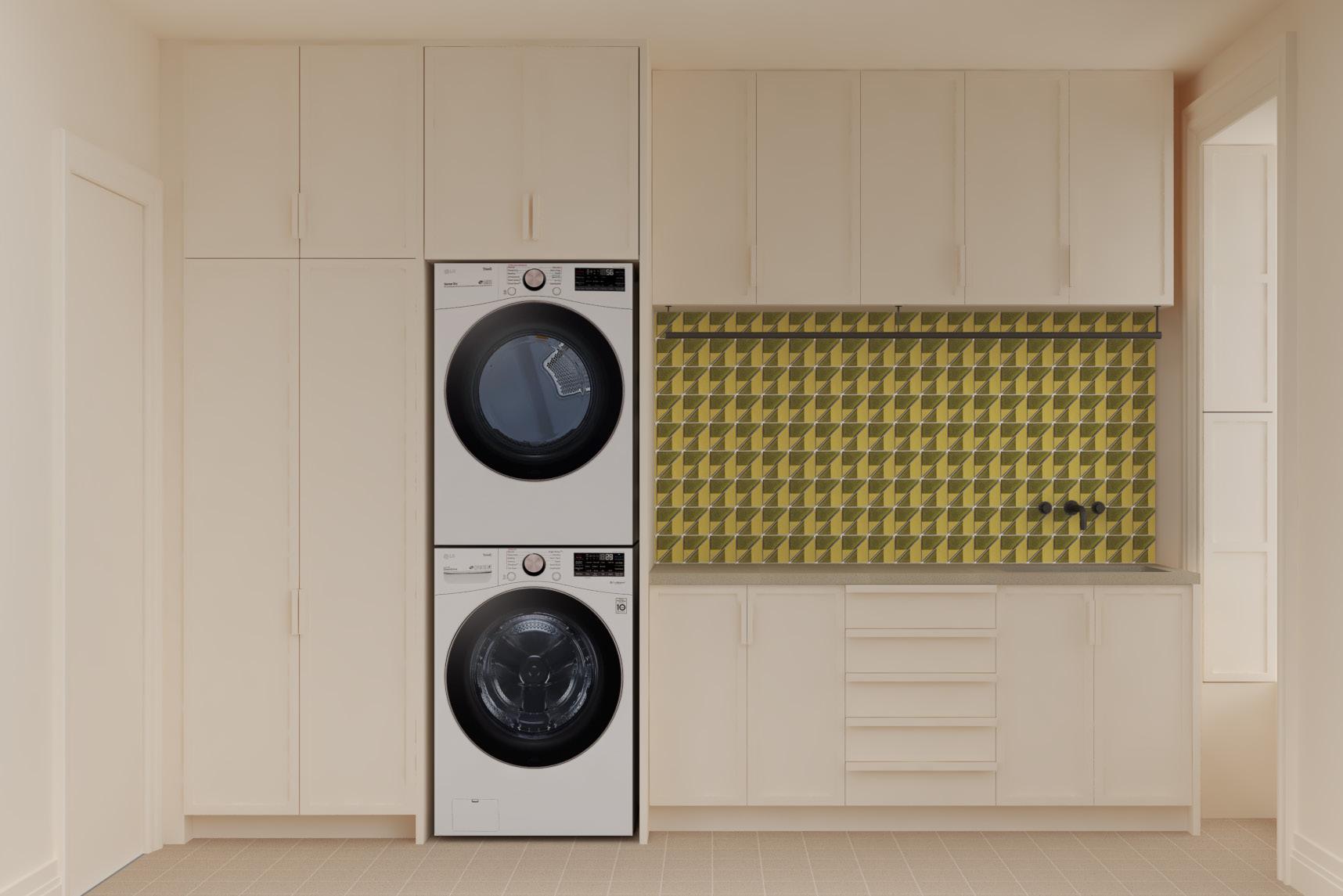

PROPOSED LAUNDRY ROOM MILLWORK

16 Professional Work

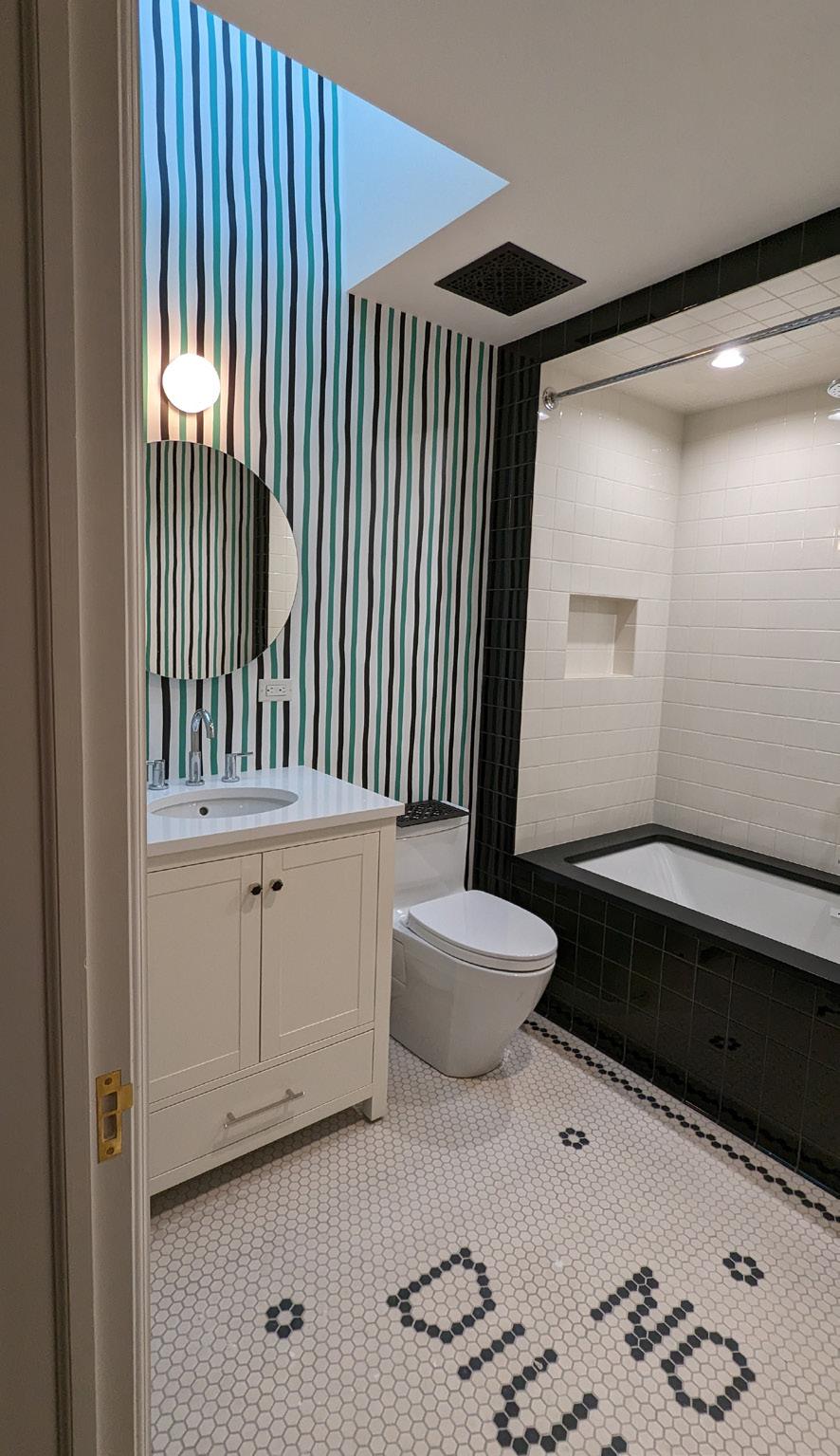

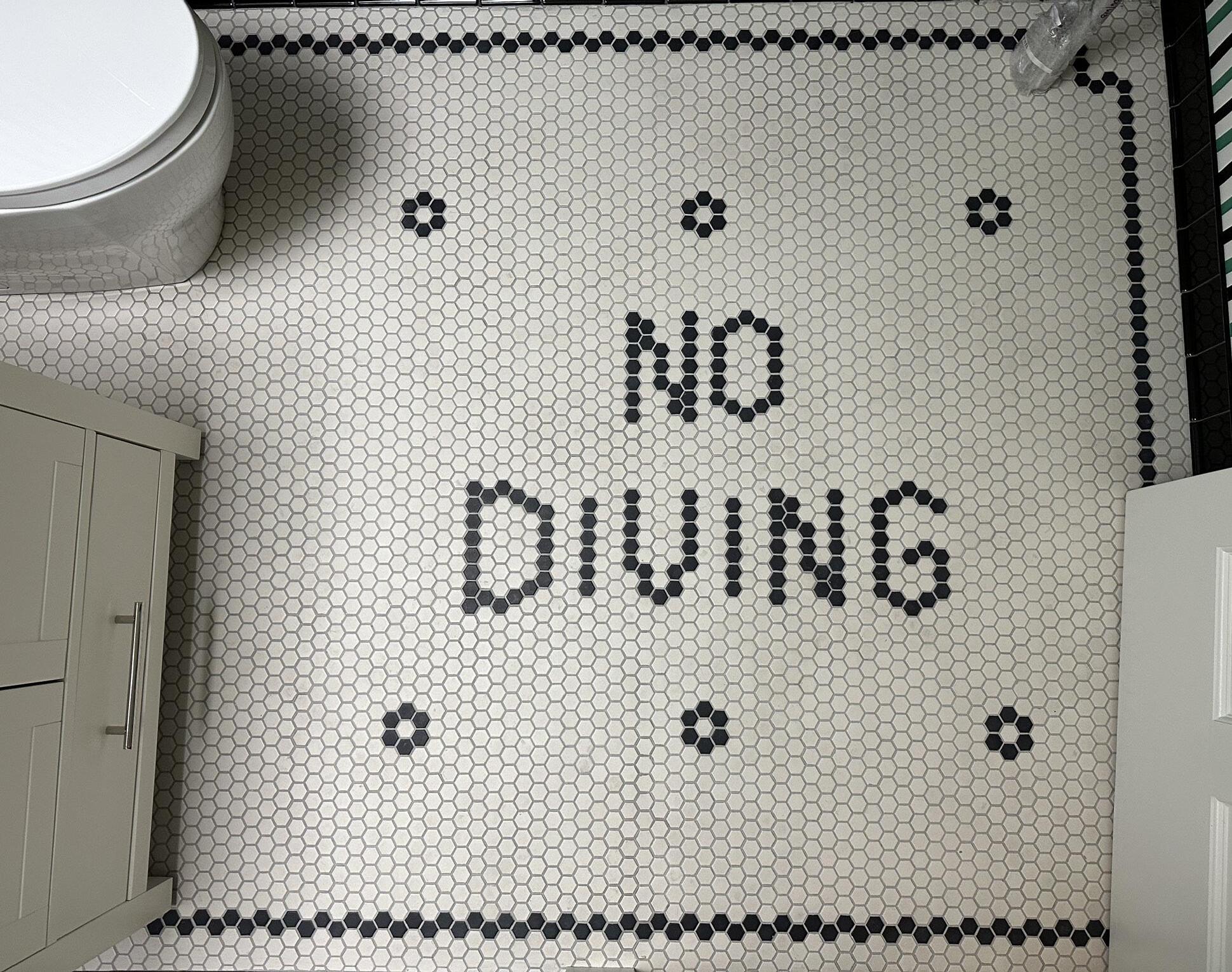

FINISHED KIDS’ BATH

CSK-11.00

MADE PROJECT 2109A01

37 MONTGOMERY PLACE BROOKLYN, NY 11215

MONTOGMERY PL TOWNHOUSE

17 A Brooklyn Townhome

18 Professional Work

A Co-Living Flagship

Co-living­, although not a new housing typology, is being reintroduced at an urban scale as a solution for the city’s disparate housing market. As opportunities increase in the city so does the need for better housing. The Collective flagship is a 640-units new construction hotel and residential building located in Williamsburg, Brooklyn. The Collective offers a fully furnished apartment: an individual bathroom and a small kitchenette with each space. The shared living component for each member is a series of amenities spaces distributed throughout the building, thus creating microcommunities and engagement within each co-living building.

Location: Brooklyn, New York

Project Type: New Construction Hotel & Multi-Family Residential

Role: Designer

19 Co-living

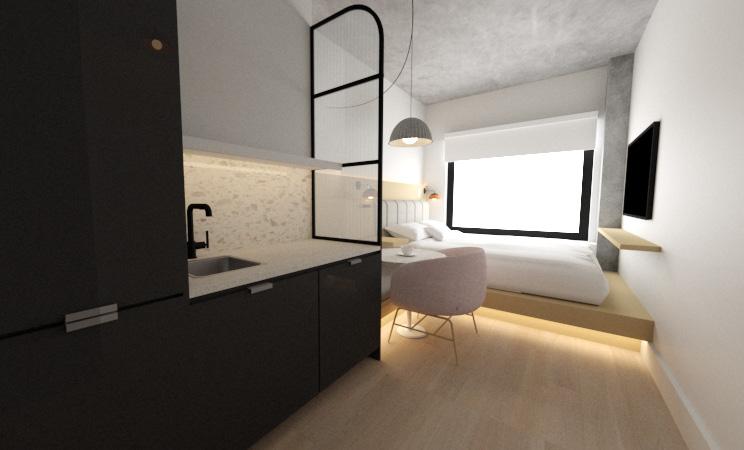

Storage & Kitchenette Compartmentalize storage with room for luggage, ironing board, and clothing space.

Included in the compact kitchen is a sink, shelving, counterspace, and an undercounter refrigerator

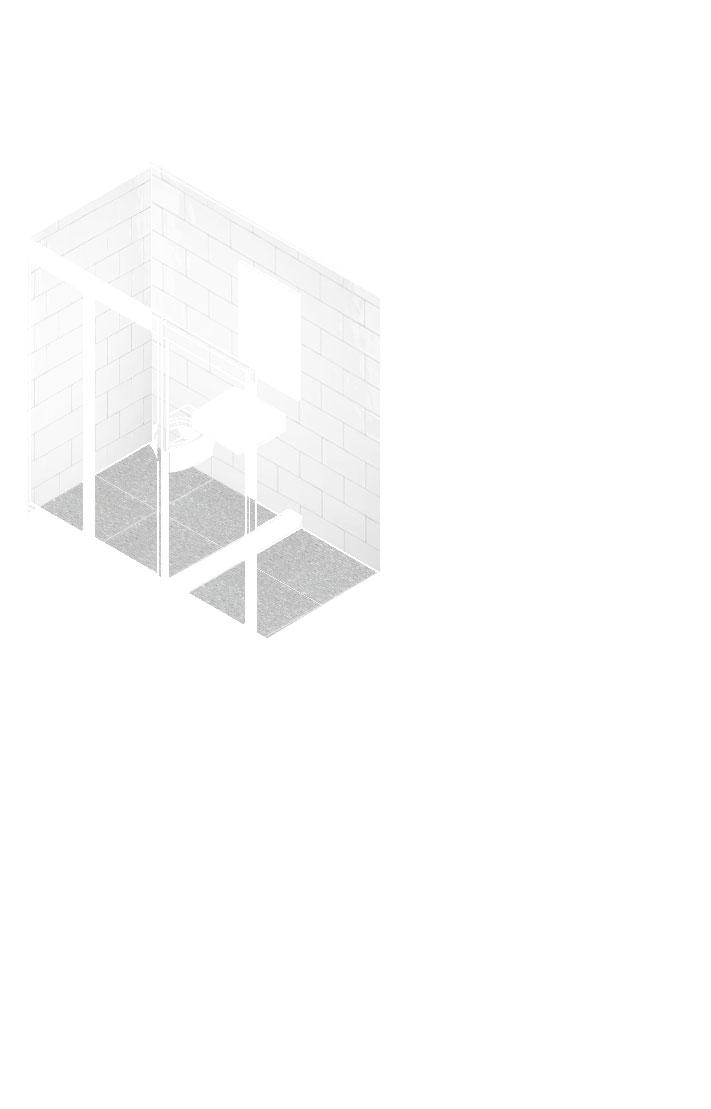

Bathroom Each 32 sq ft bathroom includes ribbed glass doors, wall hung toilet, shower, mirror, and wall hung sink.

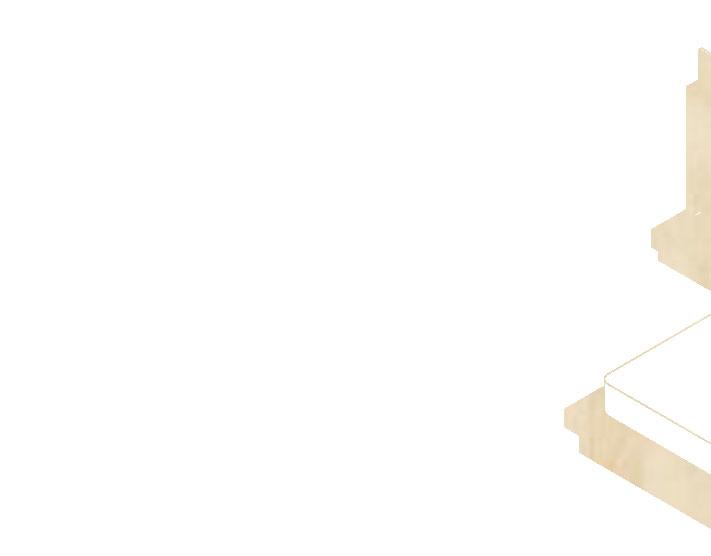

Sleeping & Living Millwork bedframe that includes built in lighting, outlets, seating with cushioning folding side table.

LARGE IN-SWING WINDOW

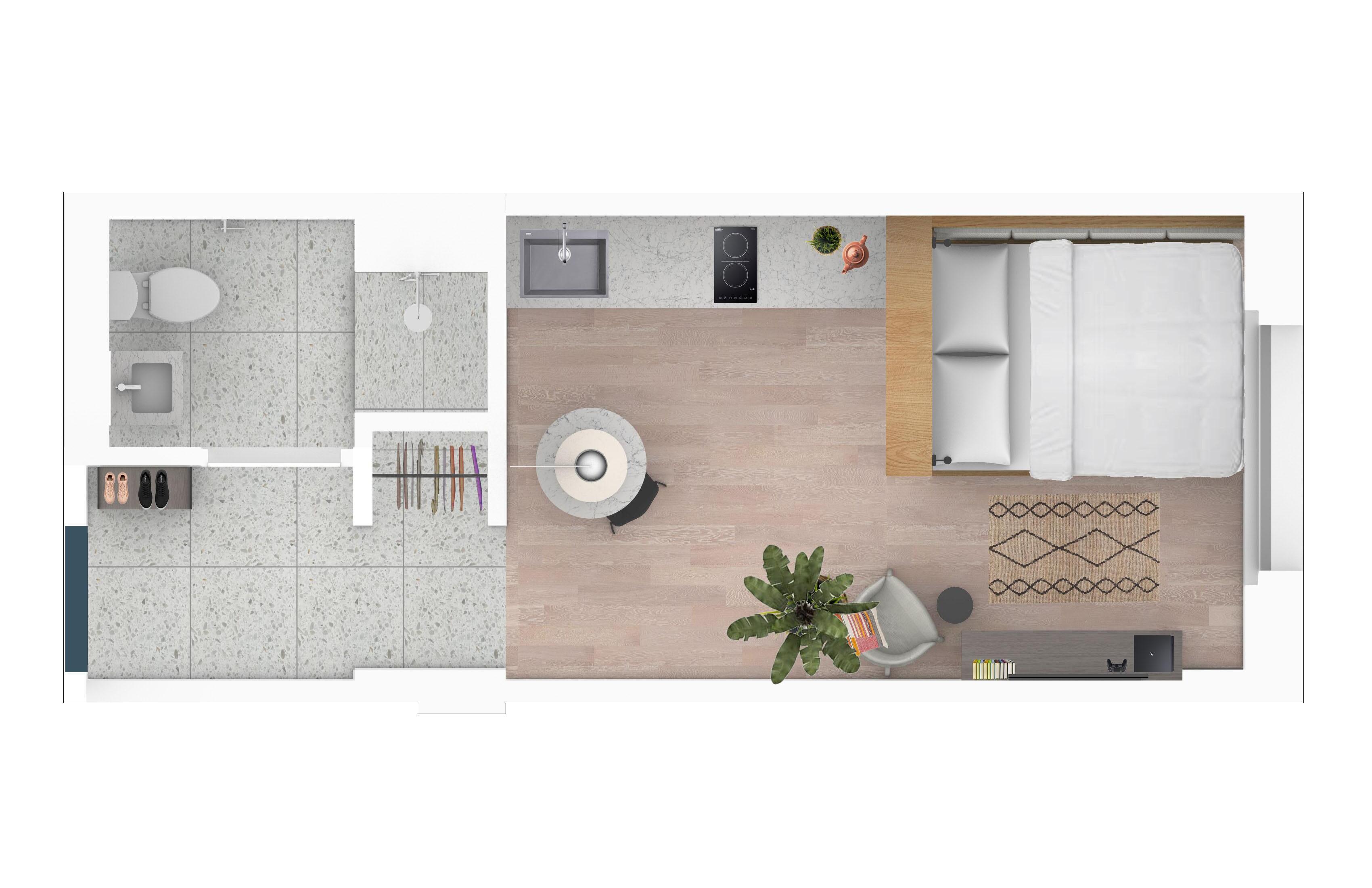

Typical Co-living Unit Components

To let more natural light in and to make the space feel more airy, large window is placed in each unit space.

20 Professional Work

BATHROOM

KITCHENETTE

SLEEPING/LIVING

Non-ADA Bathroom Microfluted wall and door

Closet, sink, U/C refrigerator, shelving

Bed and Banquette 7'-9"

A-103 B-1

3'-9"

3'-8"

7'-9"

D1

Fur out wall

2'-2" VIF

CL-1

2'-11" 6'-11"

7" VIF

TP-1

4'-0"

26'-0"

D2

B-1

7" 2'-1"

5'-4"

A

10'-51 4"

D

A-410

B

C

Typical inswing casement window, See Architectural dwgs.

8'-0"

A

SHORT STAY KIT OF PARTS : BATHROOM, KITCHENETTE, & LIVING/BEDROOM

DETAIL FLOOR PLAN

Detail Floor Plan

B

21 Co-living

Shelf with undermount LED light strip

Wall mount shade & large inswing window

Exposed concrete column

KEY: B-1 A-103

EQ

UPRIGHT SPRINKLER HEAD

EQ

CONCEALED SPRINKLER HEAD

℄ L1

7'-6" A.F.F

RECESSED DOWNLIGHT CEILING PENDANT WALL MOUNTED PENDANT L4

2'-0"

Provide master switch as required

L1

LIGHT FIXTURE TAG TELEPHONE/DATA THERMOSTAT SMOKE/CARBON DETECTOR ELECTRICAL OUTLET DOUBLE

L2

USB OUTLET LIGHT SWITCH

Bathroom exhaust vent, see MEP dwgs

LIGHT SWITCH DIMMABLE

L1

LIGHT JAMB SWITCH

8'-0" A.F.F

1'-4" L3

℄

L1

J

Undermount linear fixture Above counter outlets

℄

J

EQ. EQ.

Linear LED closet fixture on jamb switch

3-WAY DIM. LIGHT SWITCH TV AC UNIT

HVAC UNIT

AC UNIT

HVAC unit, HVAC unit locations as discussed on 11.27.19 is acceptable

L3 D

L4

10'-2 1/2" UOS

UNDER CAB LIGHT TV HOOKUP JUNCTION BOX

Project: 555 Broadway

J

Title:

TV

SS-NON-ADA TYPICAL UNIT RCP & POWER PLAN & FURNITURE PLAN

L5 BF-1

Date: 12.19.19 Scale: AS NOTED Drawn by: MR Checked by: AV Page:

L5

A

RCP & POWER PLAN 1/4"=1'-0"

B

FURNITURE PLAN 1/4"=1'-0"

RCP & Power Plan

Drawing NO.:

A-102 VIEW LOOKING TOWARD LIVING/BEDROOM ZONE

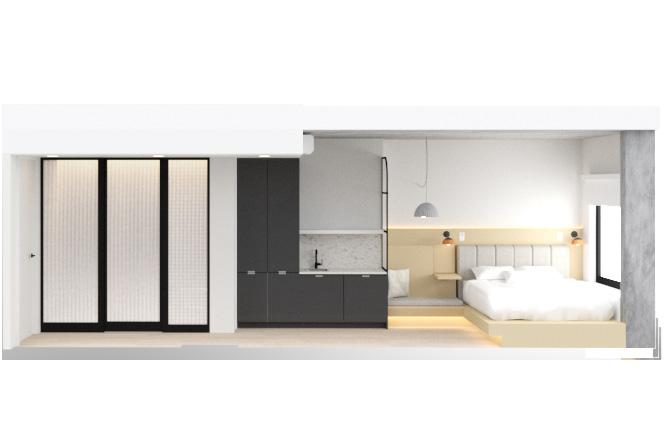

PAINT GRADE WOOD MILLWORK

White Oak engineered wood 6” panel

22 Professional Work

12/18/2018 03/29/2019 06/14/2019 06/14/2019 10/09/2019 10/16/2019 12/23/2019 03/13/2020

8'-11" U.O.S.

8'-0" to Soffit

PT-02

PT-01

SCHEMATIC DESIGN 50% DD 100% DESIGN DEVELOPMENT DOB FILING DOB FILING 100% DESIGN DEVELOPMENT VE 50% CD BID SET

W0-01

8

ID-102

CONSULTANTS CODE JAM 104 West 29th St. New York, NY 10001 212.244.4427

D1

STRUCTURAL ENGINEER MCNAMARA SALVIA 45 west 45 Street, 10th Floor New York, NY 10036 212.246.9800

FACADE LAUFSED NEW YORK 46-01 5th Street 2nd Floor Long Island City, NY 11101 212.529.3905

LS-S-1 ELEVATION B Elevation SCALE: 1/2" = 1'-0" B

6

ID-102

W0-01

GEOTECH RA CONSULTANTS LLC 512 7th Ave. New York, NY 10018 646.484.3250 CONSTRUCTION MANAGER Time Square Construction 355 Lexington Ave, 17th Floor New York, NY 10017

8'-11" U.O.S. L05

6

J

BRID-102 OA DW AY

SCALE: 1/2" = 1'-0"

L01

7'-6" A.F.F

BF-2

WB-01

4'-0"

8'-0" to Soffit

L05

L04

WL-01

TL-03

OWN

COLLECTIVE 17 John Stree New York, NY

8'-11" U.O.S.

PT-01

PT-01

7'-11" Smoke baffle to ceiling

24 BOERUM ST. NEW CONSTRUCTION

KT-1 8'-1"

8

8'-0" to Soffit

HVAC unit

L04

6

5

ID-102

SCALE: 1/2" = 1'-0"

Long Stay Residential: Typical Unit Elevations

D4

D1

TV

ID-102

EQ.

7

WD-1

ID-102

D

8'-11" U.O.S.

LS-S-1 ELEVATION8Elevation B LS-S-1 ELEVATION DD

L02

PT-02 5

WB-01

1'-7" Typ.

8'-6"

8'-11" UOS

ST-03

℄

8'-0" to Soffit

KT-1

TL-03

D 12/1 03/2 06/1 06/1 10/0 10/1 12/2 03/1

BOERUM ST.

5'-0"

AC UNIT

HVAC unit

EQ.

REV

BF-2

KT-1

W0-01

WD-1

L01 EQ.

PT-02 ST-03

D4

D1

BLOCK: 3076 LOT: 6&18 ZONING MAP: 13b

8'-11" U.O.S.

SCALE: 1/2" = 1'-0"

EQ

N

LORIMER ST.

8'-6"

EQ.

6'-11"

L01

PT-01

PT-02

24 BOERUM ST. BROOKLYN, NY 11206

J

EQ.

LS-S-1 7Elevation CC 3'-3"ELEVATION

ID-102

7'-6" A.F.F

250 P NEW 646-4

PT-01

LOCATION PLAN

WB-01

BF-2

26'-1"

3'-5"

D4

L01

MB01

HVAC unit

8'-0" to Soffit

EQ.

6'-1"

7'-11" Smoke baffle to ceiling

D1

Artwork location here

HVAC unit

PARKING AKRF Inc. 440 Park Avenue South, 7th Floor New York, NY 10016 212.726.0942

PT-01

SCALE: 1/2" = 1'-0"

5'-0"

CIVIL SULLIVAN GROUP DESIGN LLC. 109 West 27th Street, 11th Floor New York, NY 10001 212.352.8636

LS-S-1 ELEVATION D

8'-11" U.O.S.

5'-3"

D3

8

ID-102

ELEVATOR JENKINGS&HUNTINGTON INC. 1251 Avenue of the Americas New York, NY 10020 212.696.1818

10'-6"

PT-01

BF-2

KT-1

WD-1

MEP ENGINEER COSENTINI 2 Pennsylvania Plaza #3 New York, NY 10121 212.615.3600

LS-S-1 ELEVATION A Elevation A ID-102 7 LS-S-1 ELEVATION C SCALE: 1/2" = 1'-0" SCALE: 1/2" = 1'-0"

D4

8'-0" to Soffit

WD-1 WB-01

ID-102

4'-10"

Artwork location here 8'-0" to Soffit

PT-02

8'-11" U.O.S.

COLLECTIVE 545 BROADWAY LLC. 17 John Street, 5th Floor New York, NY 10038

8'-11" U.O.S.

8'-11" U.O.S.

7'-11" Smoke baffle to ceiling

4'-0" 1'-7" Typ.

BF-2

PT-01

OWNER

8'-11" U.O.S.

5

PT-01

PT-01

7'-11" Smoke baffle to ceiling

WB-01

WB-01

SCALE: 1/2" = 1'-0"

HVAC unit

5'-0"

8'-0" to Soffit

HVAC unit

LS-S-1 ELEVATION D

CONS

CODE JAM 104 West 29th New York, NY 212.244.4427

WD-1

STRUCTURA MCNAMARA 45 west 45 St New York, NY 212.246.9800

MEP ENGINE COSENTINI 2 Pennsylvan

23 Co-living

Kitchenette & Dining

10’-6”

Type B + Appx P Bathroom

3’-6”

5’-3”

3’-0”

A D pg.18

B

4’-10”

C

Vestibule

26’-1”

Long Stay Residential: Typical Floor Plan

Sleeping & Living Zone

24 Professional Work

The Paper Factory Hotel

The Paper Factory project involved a lobby gut renovation of an existing hotel to align with The Collective’s brand identity. The goal with the lobby is to redistribute amenity spaces­on the ground floor to become a more informal hotel lobby while inviting the public into different amenity spaces. ‘The Light Box’, the backdrop and storage space for BOH, becomes the element provides an informal boundary for the different programs of the groun floor.

Location: Queens, New York

Project Type: Interior Gut Renovation: Hotel Ground Floor

Role: Designer

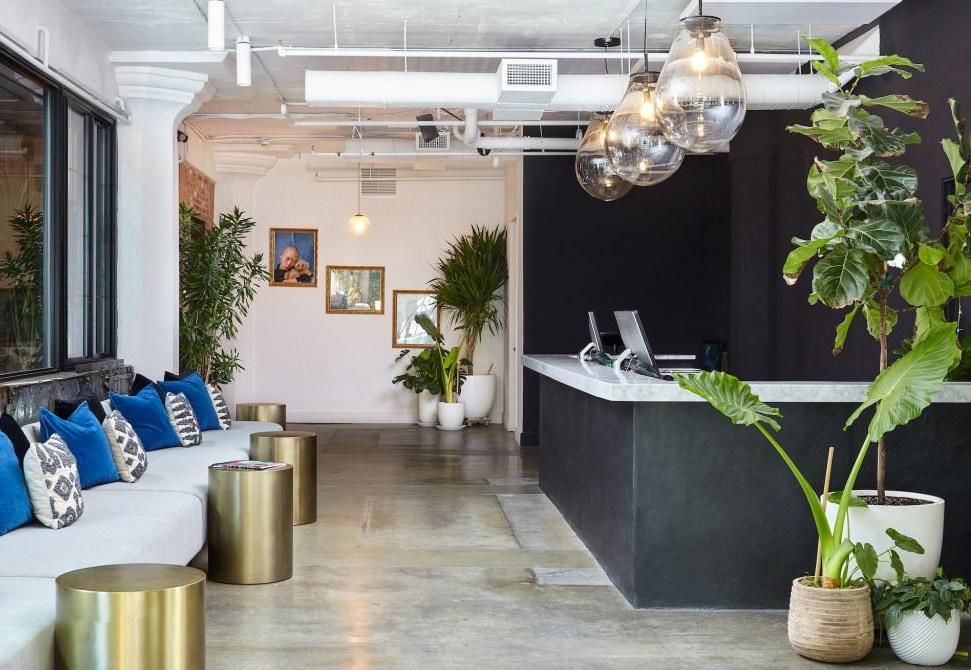

25 Paper Factory

26 Professional Work

PAPER FACTORY HOTEL PROJECT ADDRESS: 37-06 36TH ST LONG ISLAND CITY, NY 11101

VE

2

1

3

4

5

6

7

8

9

10

11

EXISTING STAIR TO REMAIN PROTECT DURING COURSE OF WORK

15' - 11"

D1

WALLS AND DOORS TO BE RELOCATED TO DOOR 101

3

E D1

4

STAIR 1

EXIT DOOR 3 40"

ELEVATOR

REMOVE WINDOW AND WALL UNDERNEATH. NEW OPENING TO BE COORDINATED WITH ARRIVAL OF NEW DOOR.

STAIR 2

Closet 0111 50 SF

3

3' - 0" 1' - 2 1/2"

A2

A2 STRUCTURAL ENGINEER: RODNEY D. GIBBLE CONSULTING 102 ENGINEERS 18 West 21st Street, 3rd Floor New York, NY 10010

EXISTING RECEPTION DESK

ICE WELL

TOR

LIQUO R

REFR IGERA

REF

GLAS S STOR & LIQUIRE AGE ABOV E

POS U/C

ICE U/C REF

POS

SHEL F CLEA N

HAND SINK

GLAS S WASH

MEP/SP/FA E

KEG REF

TRASH

DUMP SINK LIQUO R

ICE

KEG REF POS U/C REF

GLAS S STOR & LIQUIRE AGE ABOV E

EXISTING CONVENIENCE STAIR

U/C REF POS

2' - 1"

NEW STEEL RAILING

STAIR 3

Ground floor demo plan

EXPEDITOR: EAST COAST CONSULTING 132 NASSAU NEW YORK,

CLEAR COUN TER FOR PASTR Y DISPL AY

01.02.01

01.02.02 1.05.01 1

A A-644

101

RELOCATED ENTRY DOORS

118

3

1 Snug 0105 407 SF

2

CE

117

NEW EXTERIOR STEEL AND GLASS DOORS, U-FACTOR OF ASSEMBLY TO BE.35 MINIMUM 0' - 0"

1 A-627

Lobby 0103 1746 SF

RECYC LE

3

A-627 3

HOTEL LOBBY

REMOVE VINYL BASE AROUND COLUMNS, TYP

2

TRASH

E

4

A-628

36TH ST

Circulation REMOVE AND SALVAGE RAILING 0108 240 SF 112 N 4 11' - 0" PRIMARY ENTRY

11' - 8"

EXISTING LIFT TO REMAIN 5' - 3 1/2" 2' - 11" 1' - 11 1/2"

3 REMOVE AND SALVAGE DOORS.

6' - 5 1/2"

D1

ROMOVE MILLWORK/APPLIANCES FOR COFFEE SHOP

A-626

CONSULTING INC. 132 NASSAU ST SUITE 309 NEW YORK, NY 10038

REMOVE WALLS

D1

4

8' - 0"

ACCESSORY EATING AND DRINKING

REMOVE AND SALVAGE DOOR

3 Office EXPEDITOR: 0109 EAST COAST EXPEDITING & CODE 118 SF

DECORATIVE BOOKS TO BE REMOVED

1 A-643

RECYC LE

2' - 1"

REMOVE WALLS, COUNTERS, AND FIXTURES

Restaurant 0101 2263 SF

B.O.H. 0102 103 SF

DESIGNER: THE COLLEC 17 JOHN ST. NEW YORK,

8' - 5 1/2 "

SINK

1

F

HAND

108

COWORKING

9' - 1"

D DROP

109

Consulti ng Engi neers 499 Seventh Avenue 11th Floor, South Tower New York, N.Y. 10018 Phone:212Phone:212-629629-6810 Fax: 212212-594594-4272 E-mail:: : MEP@Concessi.com

SOILE

107

01.02.01

1/2"

SINK

CE

UC

110

REMOVE WALLS, COUNTERS, AND FIXTURES

CONCESSI ENGINEERING,P.C.

COUN TERTOP CARV ING STAT WITH ION HEAT LAMP

RELOCATE SINKS, MAINTAIN BRANCH PIPING IF POSSIBLE

106

2' - 8 1/ 2" 3' -

111 REMOVE BAR

11' - 1"

STRIP TILE FROM COLUMN CAPITAL

COUN TERTOP INDUC TION WARM ERS

NSF 2 SNEE ZE GUAR D

7' - 11

PALETTE AR 31 PERRY ST NEW YORK,

ICE

1 A-645

3' - 0"

MEP/SP/FA ENGINEER: 105

REMOVE BATHROOM WALLS, FIXTURES, TILE FLOOR DOWN TO ORIGINAL SLAB,AND DROP CEILING,REMOVE AND SALVAGE DOORS

OFFICE

104 A1

2

HEAT ED CABIN ET

Toilets 0140

01.02.01 A1

3

ARCHITECT: FIXTURES INSTALLED BY THIRD PARTY. CONTRACTOR TO PROVIDE ROUGHING FOR WATER/ELECTRICAL. SEE F&B SK-01

7 A-642

14' - 10 "

REMOVE WALL, REMOVE AND SALVAGE DOOR

3 1/2"

DESIGNER: THE COLLECTIVE 17 JOHN ST. NEW YORK, NY

1' - 9 1/2"

SAWCUT OPENING FOR NEW DOOR

2 SEE A-642 FOR DETAIL OF PARTITION TYPE F

2

2 A-600

2' - 1"

REMOVE DECORATIVE DOORS BENEATH WINDOWS TO LEAVE EXPOSED BRICK, TYP

PROJECT AD 37-06 36TH S LONG ISLAN

12

PALETTE ARCHITECTURE 31 PERRY ST, 2ND FLOOR NEW YORK, NY 10014

EMOVE DROP CEILINGS

INSET FLOOR PHICS, FILL IN TCH AND SEAL AB TO MATCH EXISTING

ARCHITECT:

36TH ST

TION DESK TO REMAIN

PAPER 37TH AVE

2

3 Entrance 0104 259 SF

1 A-649

STRUCTURA RODNEY D. G ENGINEERS 18 West 21st New York, NY

STAIR 4

A-629 1.03.01

Ground floor proposed plan

N

Existing Courtyard

SECURITY SERVER TO BE RELOCATED UNDER STAIR IN NEW ENCLOSURE

SEAL: Courtyard 01 0150 1393 SF OPEN TO BELOW Boardroom 0107 442 SF

3

ACOUSTIC SEALS TO BE REPLACED ON EXISTING DOOR FROM LEGACY MANUFACTURING LLC

Demo and Proposed Plans of Ground Floor Lobby

EXISTING EXTERIOR CONVENIENCE STAIR

EXISTING STAIR TO REMAIN

5'

LEVEL 01 FLOOR PLAN

6'

7'

4 3

Contract Set Issuance Bid Addenda

03-25-19 4

SYMBOL LEGEND 02-25-19 3

NEW EXTERIOR DECK SEE STRUCTURAL DRAWINGS AND A-500

N SEAL:

27 Paper Factory

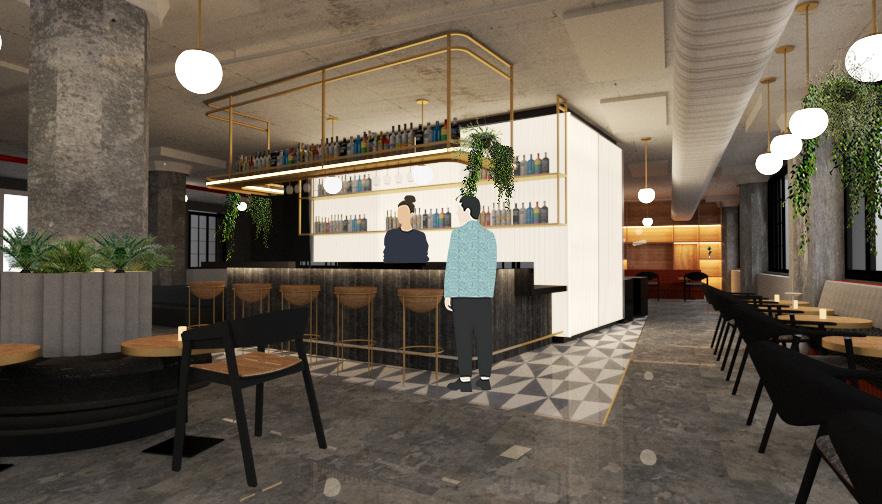

Lobby Restaurant and Bar Light Box, coworking space in the background

28 Professional Work

T h e Tr i n i t y A f f o rd a b l e A p a r t m e n t s

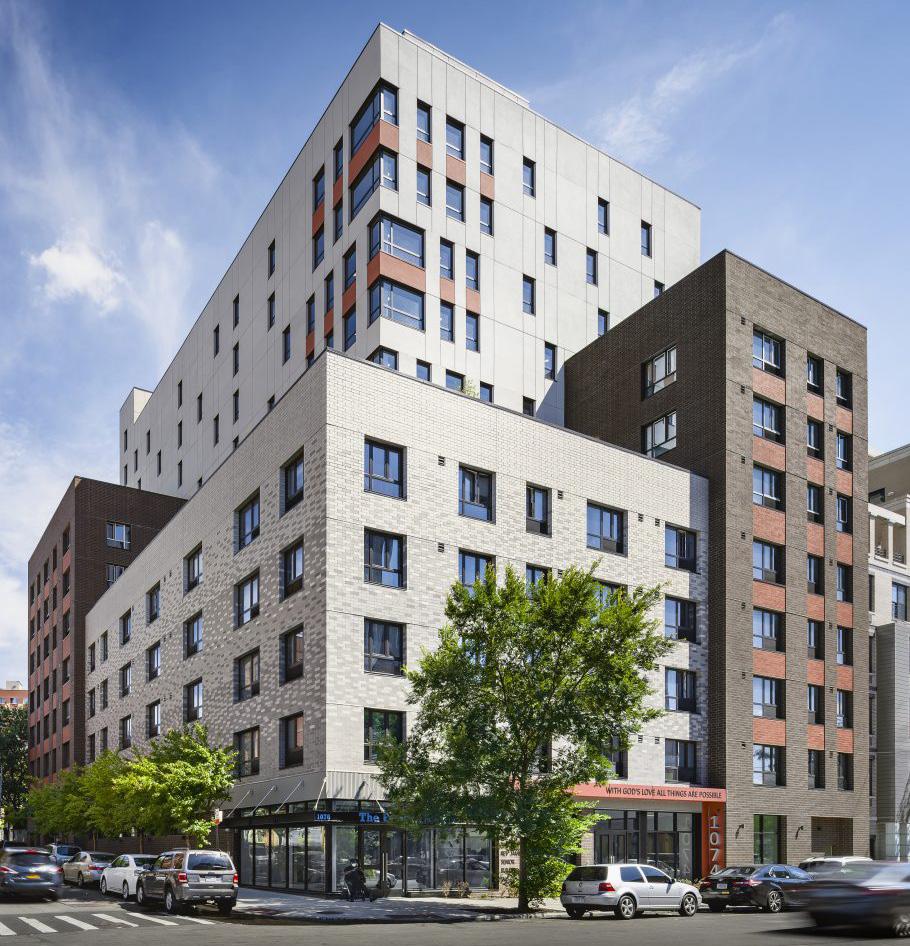

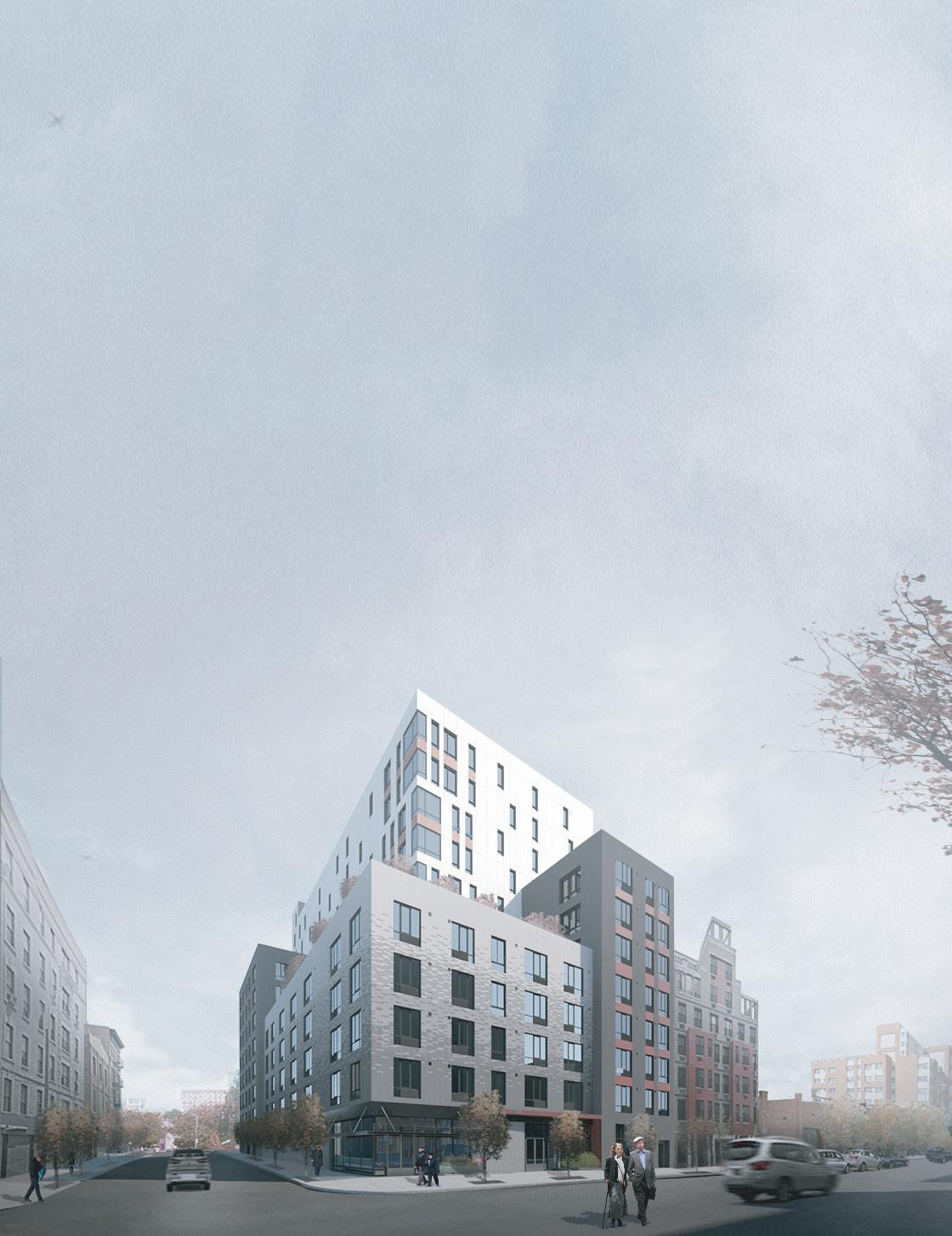

The Trinity is a 154-unit affordable housing project located in the Bronx. The building is made up of studios, 1-bedrooms, 2-bedrooms, & 3-bedrooms that comply with HPD guidelines. The design intent of the building was to showcase a play of light and heavy. The dark brick provides the anchor of the building mass while the white concrete panel provides a light and playful upper mass. The different shades of grey bricks were used to create a gradient facade from the dark to light materials.

Location: Bronx, New York

Project Type: New Construction:Senior Housing

Role: Designer

29 The Trinity

30 Professional Work

Finished Project Post Completion

31 31The The Trinity

1

2

3

11' - 7 5/8" 36' - 5 5/8"

9' - 9"

UNIT B

4' - 0 3/8" 10' - 9 5/8"

1

A2

B1

X-1

C

MATCH LINE SEE DRAWING A-124 FOR THIS AREA

J

X-1

4' - 0 3/8"

6' - 11 3/4"

UFAS UNIT @ 3RD FL (AUDIO/VISUALLY IMPAIRED)

J

1

12' - 11 5/8"

UFAS UNIT @ 8TH FL (MOBILITY IMPAIRED)

B1

4' - 0 3/8"

B D1

D5

180 SF

B

BR 2

BR 1

110 SF

130 SF

10' - 8 1/2"

No

11' - 3 1/2"

7' - 7 5/8"

5' - 0"

812 SF

11' - 5 1/2"

B1

2' - 8 3/8"

AFT MECH. SH

L L-2 BR LR/DA

23

B3

8' - 3 5/8"

X-4

B SD CO

ERV

B2

1' - 11 3/8"

D5

SD CO

3' - 0"

22

3' - 4 3/8"

B5 B

SD CO

6' - 5 1/2"

ERV

D4

B5

B

3' - 6"

B

G1

11' - 8 1/2"

13' - 4 1/4"

X-1

KT K TYPE 12

D

J4

LR/DA

KE

BATH TYPE 4 UFAS

C

30

LR/DA/K (301 SF) APT 8TH-11THFL. G1 LR/DA (180 SF) APT. 2ND-7TH FL.

Su 10 Ne

7' - 1 1/8"

4' - 0" 1' - 6"

31

180 SF 2' - 1 5/8"

La

B

DW

787 SF

H1

H1

D3

G1

K K-2 BR

W 29 Ne

H1

H1

D1

TYPE 12A UFAS

G1

B

B

KT TYPE 8 TYPE 8A UFAS

D8 3' - 0"

B

BATH TYPE 4A UFAS

B5

8' - 7"

11' - 0 1/4"

8' - 3 3/4"

5' - 0"

SD CO

2' - 0 5/8"

D5

6' - 4"

10' - 2 1/4"

3' - 8 1/4"

2' - 0"

B

K FK TYPE 6 W/O DROP ARCH FROM 8TH FL TO 11TH FL KT TYPE 16 DROP ARCH FROM 2ND FL TO 7TH FL ONLY

110 SF

E J4

D3 J1

J1

A.P.

SD CO

MUA 2

H1

D

BR2 C1

5' - 0"

29

C

C2

C

Bu

8' - 4"

3' - 4 1/8"

J1

C2

2' - 10"

DW

A

5' - 8 3/4"

BR 1

4' - 11 1/8"

ME

Ro 22 Ne

42

C2

C2

A

D2

A.P.

DW

A

De 15 W

D6

H1

H4

2' - 2 1/2"

B

Str

B

E

5' - 0"

41

Q4

C

B

4' - 5 3/4"

1' - 7 1/2"

C2

D2

1' - 8" HOLD

8' - 0"

B

B

B

3' - 4"

5' - 0"

5' - 0"

D4

130 SF

A.P.

6' - 4"

C2

A.P.

B

11' - 3 1/2"

5' - 1 5/8"

H4

D

5' - 0"

E

SD CO

2' - 1"

9' - 5"

40

B

B5

BATH TYPE 1 C

C

29 Ne

D5

SD CO

SD CO

UFAS UNIT @ 2ND FL AUDIO/VISUALLY IMPAIRED

H1

C4

A

C2

B

SD CO

H

B

Arc

133 SF

B

UFAS UNIT @ 10TH FL (MOBILITY IMPAIRED)

B5 6' - 1"

B

E

3' - 10"

G1

D

9' - 4"

D5

DW

H

B

BR1 B

225 SF

2' - 0"

R THIS AREA ING A-124 FO SEE DRAW

SD CO

" 11' - 10 7/8

B

B

D5 5' - 0"

J4

131 SF SD CO

B

A

H

B

15' - 3 1/8"

BR2 124 SF D

C2

614 SF

Ow

Mo c/o 88

LR/DA D5

BR1

SD CO

3' - 7 5/8"

A A-1 BR

5' - 0"

B

2' - 4"

BATH H TYPE 7

4' - 1 1/8"

270 SF

C2

J1

1' - 10 5/8"

LR/DA/K

D2

J1

X-1

1

762 SF

39

DRYER EXHAUST (DX-1)

J

B B-2 BR

FK K TYPE 3

29

X-1

G1

10' - 7 1/8"

E MATCH LIN

2' - 4 1/8"

M

X-1

G1 12' - 7 5/8"

ERV

49

G1 J4

B

51

J

A1

50

A2

A1

ERV

7' - 0 3/8"

5' - 1 5/8"

7' - 0 3/8"

6' - 10 5/8"

5' - 0 3/8"

5' - 7 5/8"

4 5' - 0 3/8"

X-1

X-1

24

1

B3

7' - 7 5/8"

2' - 8 3/8"

2

B2

6' - 11 5/8"

3' - 4 3/8"

5' - 0 1/8"

A-126

No Tit

9' - 4 3/4"

E F

13' - 1" 10' - 2 3/4"

1 A-126

14' - 0 1/8"

2-11 TYPICAL FLOOR PLAN - C 1/4" = 1'-0"

9' - 4"

Enlarged Floor Plan showing Unit Layouts 22

B1

4' - 0 3/8"

23

B1

6' - 3 5/8"

4' - 0 3/8"

A1

7' - 5 5/8"

7' - 0 3/8"

24

A1

7' - 3 5/8"

7' - 0 3/8"

B1

6' - 1 5/8"

4' - 0 3/8"

B1

6' - 3 5/8"

4' - 0 3/8"

5' - 0 1/8"

N

32 Professional Work

6 0 B r o o k l y n To w n h o u s e s

For this project, myself and 3 other intern architects surveyed 60 townhouses in Clinton Hill, Brooklyn, within the span of 10 months. We surveyed all floors, including the roof and cellar. After surveying the buildings, we drafted all 60 townhouse floor plans, roof plan, and exterior elevations to be included in a document set for record and future renovations.

Location: Brooklyn, New York

Project Type: Survey & Draft Existing Townhouses

Role: Designer

33 Survey

Front Elevation

Side Elevation

34 Professional Work

1

2

3

4

IMPACCT PRESERVATION, LLC Brooklyn, NEW YORK

WEST (RED) CLUSTER Owner

IMPACCT Preservation, LLC 1865 Palmer Avenue - Suite 203 Larchmont, NY, 10538 Architect

A

A

ARCHITECTS LLP

299 Broadway, Suite 1107 New York, New York 10007 MEP

Rodkin Cardinale Consulting Engineers, PC 214 West 29th Street, Suite 601 New York, NY 10001 212 239 1892

B

B

No.

Date

Revision

No. Title:

Date

Submission

105 QUINCY STREET FLOOR PLANS

C

C

c 2015 CURTIS + GINSBERG ARCHITECTS LLP

1423

Job No.: Date:

MAY 1, 2015

Scale:

AS NOTED

Drawn By:

105 QUINCY STREET 4 ROOF PLAN

105 QUINCY STREET 3 CELLAR PLAN

105 QUINCY STREET 2 TYPICAL FLOOR PLAN

105 QUINCY STREET 1 GROUND FLOOR PLAN

3

4

Checked By: Sheet No.: 1 of

1

2

Survey & Draft of oas built floor plans

A-105.00

35 Survey 06 Professional Work

1124 Fulton Street

53-55 Hancock Street

1108-1110 Fulton Street

1116 Fulton Street

674 Myrtle Avenue

218 St. James Place

193 Skillman Avenue

225 Lefferts Place

848 Greene Avenue

689 Dekalb Avenue

460 Lexington Avenue

567 Gates Avenue

1116 Fulton Street

285 Classon Avenue

753 Dekalb Avenue

36 Academic Work

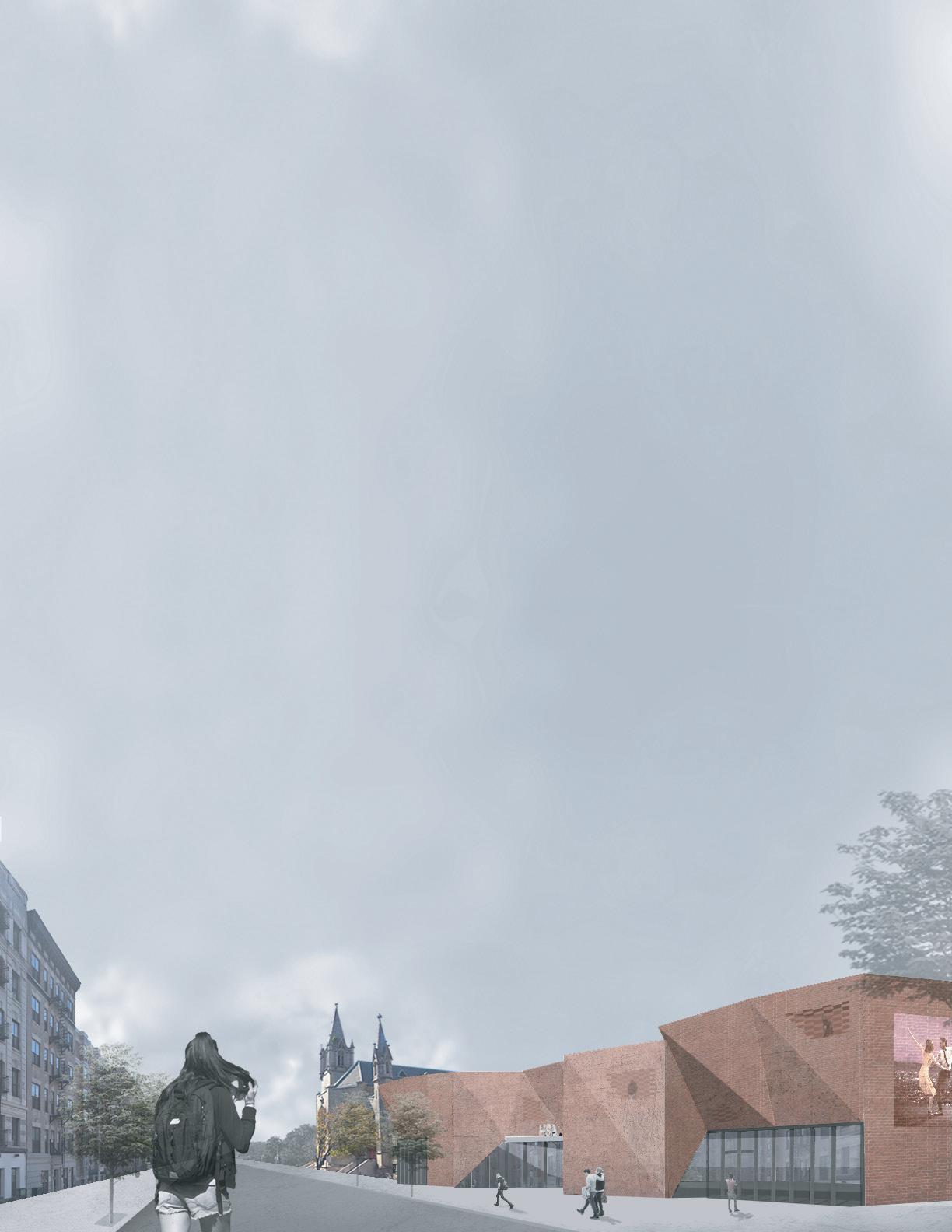

(Un)Folding Facade

Hidden behind the brutalist brick wall is an institutuion essential to the Harlem community. The educational facility that exposes and guides children to the different disciplines of the arts is currently outdated and physically disconnected from its Harlem community. The current facility has a solid brick wall with no transparency to the community. Through a series of folded surfaces, the street wall creates transparency between the school and the community.

Location: Brooklyn, New York

Project Type: Survey & Draft Existing Townhouses

Role: Designer

ADMIN DANCE

Music

DANCE

ADJACENT BUILDING

DANCE LOUNGE

37 Unfolding Facades ART

THEATRE

ADMIN VESTIBULE

ADMIN LOBBY

matic layout diagrams

DRESSING ROOM/ STORAGE

ADMIN

ART

FACULTY LOUNGE

ADMIN DANCE

DANCE

ADJACENT BUILDING

THEATRE

ADMIN VESTIBULE ADMIN LOBBY ADMIN

FACULTY LOUNGE

ADMIN

ADJACENT BUILDING

DANCE ADMIN VESTIBULE

Gro

Ground Floor Plan

38 Academic Work

Theatre

Visual Art

Dance

Music

programmatic layout diagrams

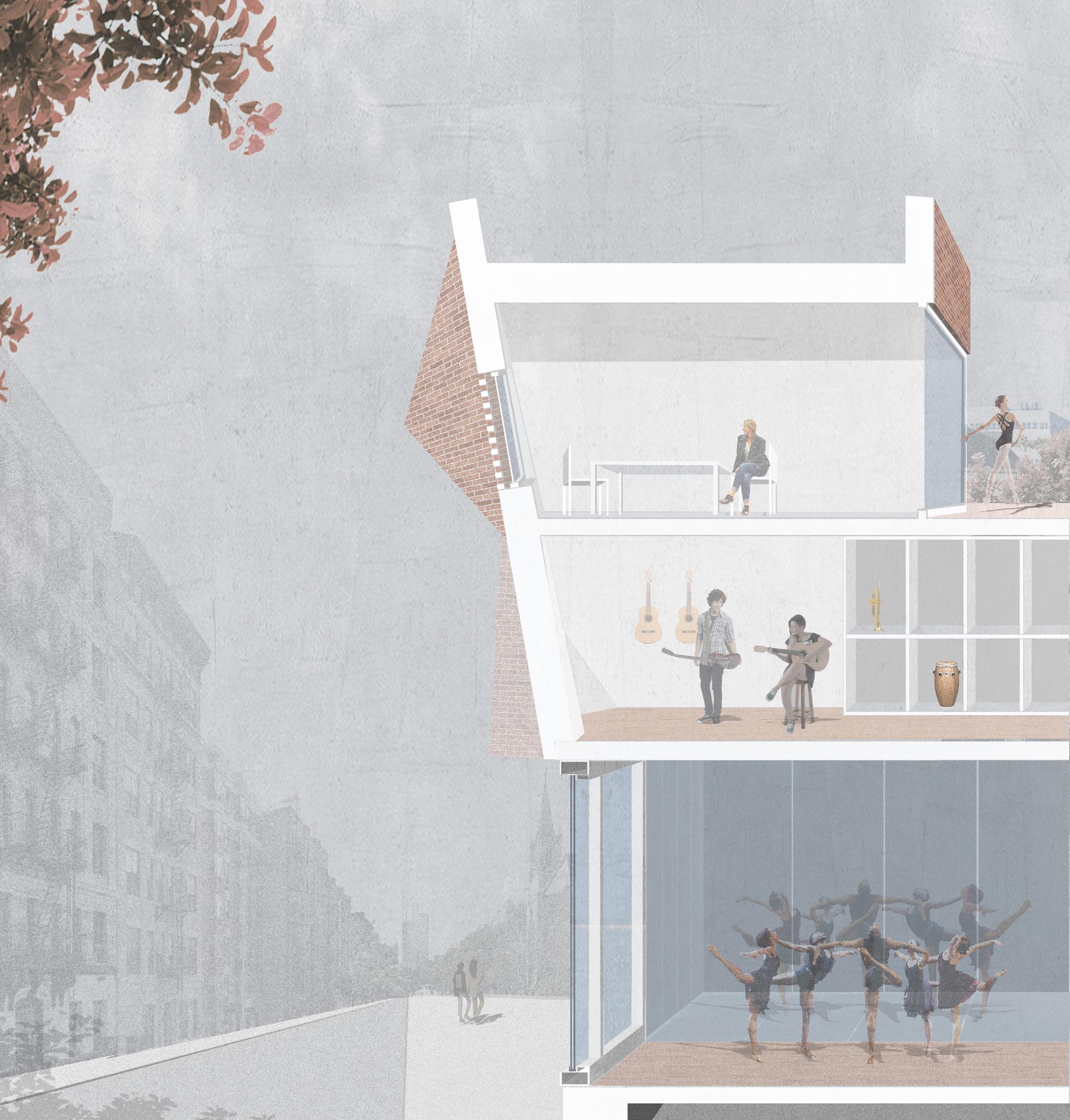

cross-section through St. Nicholas Avenue

ADJACENT BUILDING

39 Unfolding Facades

DRESSING ROOM/ STORAGE

Ground Floor Plan

ART

DANCE LOUNGE

ART

DANCE THEATRE

ADMIN LOBBY ADMIN

FACULTY LOUNGE

ADMIN

ADJACENT BUILDING

DANCE

ADMIN VESTIBULE

Ground Floor Plan

MARY B. RIZALDO SELECTED WORKS

SELECTED WORKS 2015-2020

begin.
