Trafford Wharfside - Strategic Masterplan Document

Trafford Wharfside

Group Members: Mark Waleczek - 9866911 Bhumit Mistry - 10084797 Nathan Filkins - 11151402 Ting Wu - 11449592 Runyi Tian - 11361047 Yueting Jin - 11308131

Word Count: 4,209 (Within 10%)

bridging the gap between work & play

01

Introduction Development Context

03

02

Policy Context Sub-Regional Policy

04

Strategic Context

Local Policy

Local Profile

National Policy

Key Developments Strategic Location

Heritage and History

Socio-Economic Context

Development Context Transport and Connectivity Green and Blue Infrastructure Public Realm Facilities and Attractions Character Legibility Site Attributes Site Identity Matchday

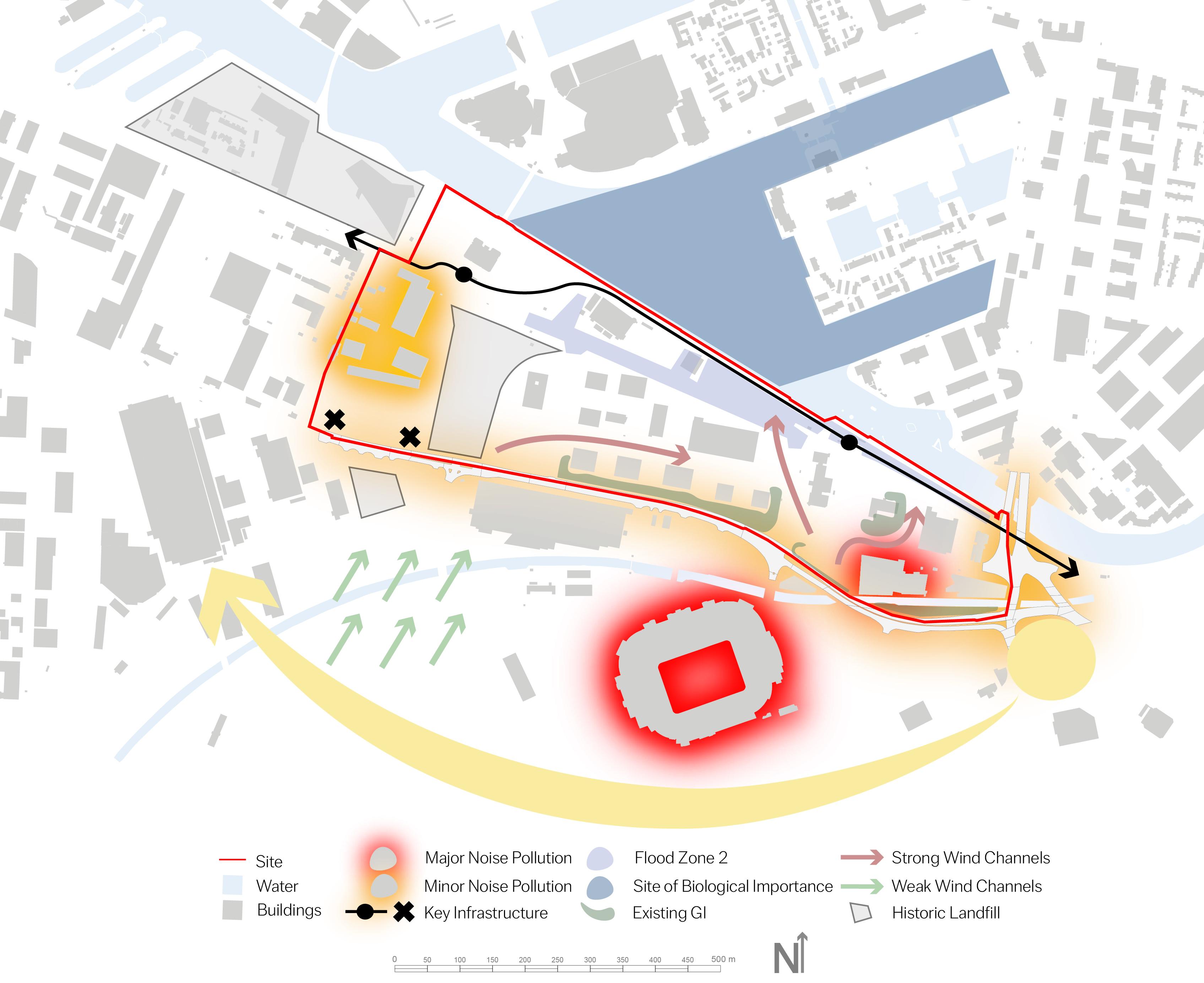

05 Constraints

06

Hard and Soft Analysis

Vision

Design Considerations Opportunities

07

Trafford Wharfside bringing together work & play

Objectives and Actions Key Objectives Key Actions

08 Bibliography

5

01

Trafford Wharfside bringing together work & play

Introduction

Introduction

MediaCity (N.D)

No1. Old Trafford (2022)

Development Context The regeneration of Trafford Wharfside has been a long considered priority for Trafford Council with its strategic location between Trafford Park and Salford Quays having the potential to revitalise the North side of the Borough. With strong links to the city and major transport nodes, Wharfside holds promise to drive extensive development in the area which could result in positive economical and social benefits for the Council and community.

Graham (2014)

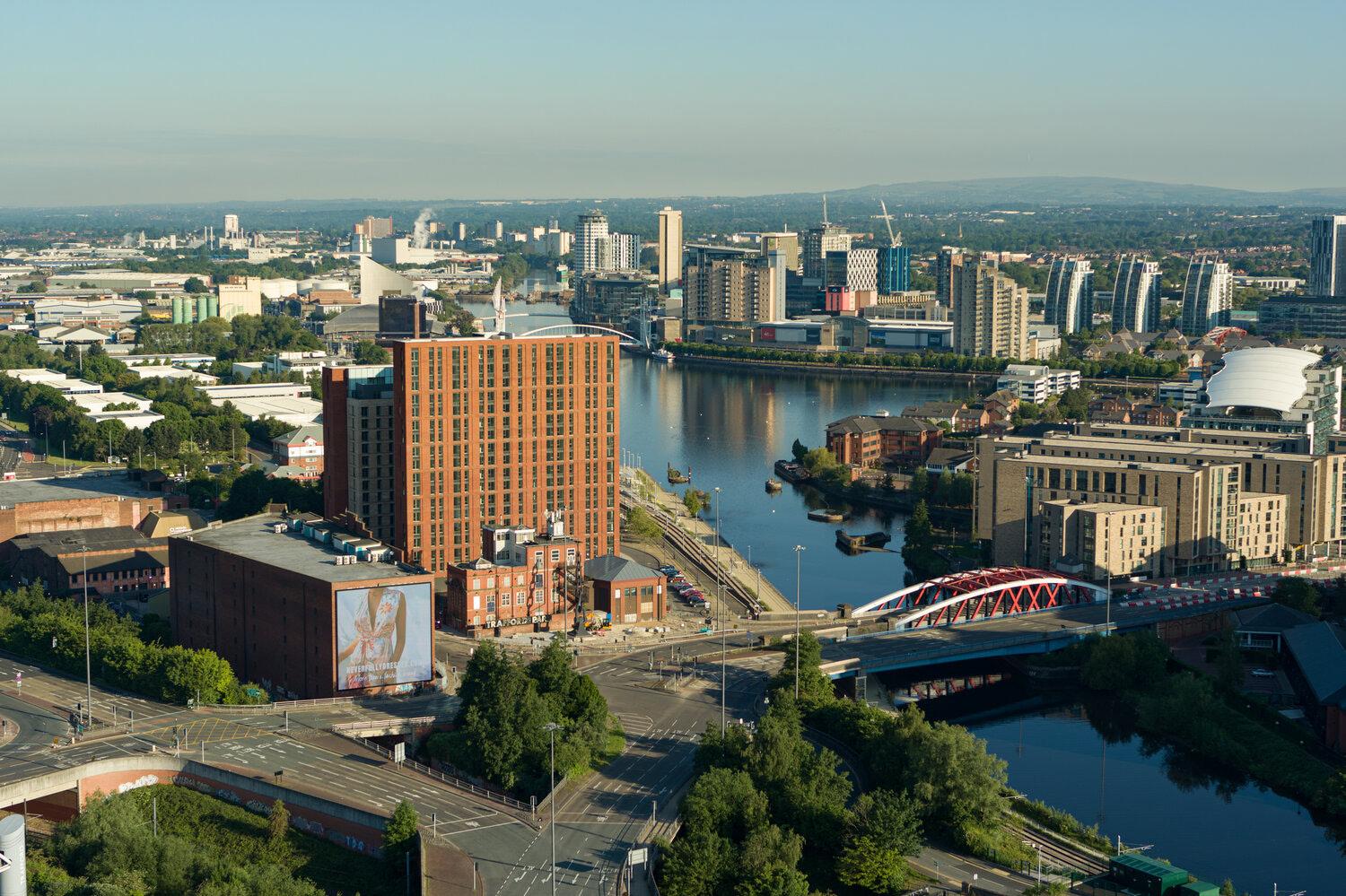

The prime waterfront location of the 29 hectares of land presents a unique, sought after opportunity for development that could enrich the lives of local residents whilst driving investment from national businesses. With the additional presence of sporting facilities, such as the monumental Old Trafford Stadium and Lancashire County Cricket Club, there is a chance to enhance the experience for millions of visitors who travel to area every year.

Independent (2013)

The revitalisation of Trafford Wharfside not only sits strategically to form the bridge between work and play but has the potential to create a vibrant home from what is currently a temporary destination.

This SMF is designed to explore the economic, physical and social context of Trafford Wharfside and its potential for development. Following a thorough analysis, the document sets out a vision for the area with an aim to engage with local communities and drive investment into the borough.

THE BRIDGE BETWEEN INDUSTRY AND INNOVATION

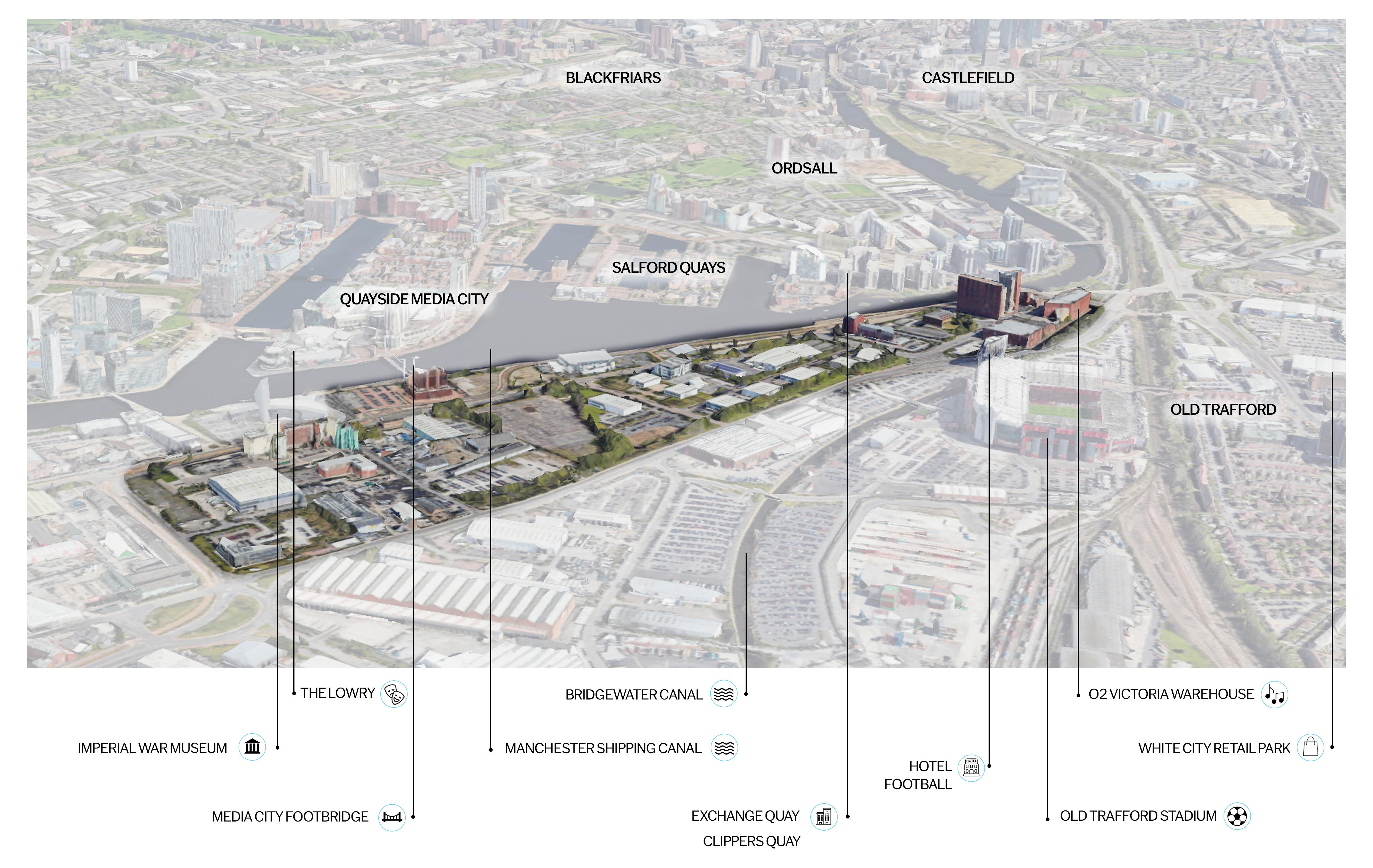

THE SITE:

TRAFFORD, MANCHESTER

6

29

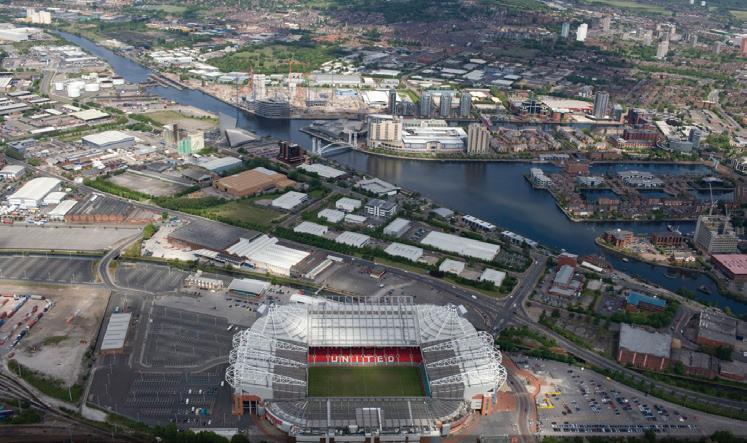

A PRIME WATERFRONT DESTINATION

HA

MANCHESTER UNITED

STRONG LINKS INTO THE CITY AND BEYOND

PROXIMAL TO A MAJOR SPORTING LANDMARK

Trafford Wharfside bringing together work & play

Google Maps (2024)

7

02

Trafford Wharfside bringing together work & play

Strategic Context

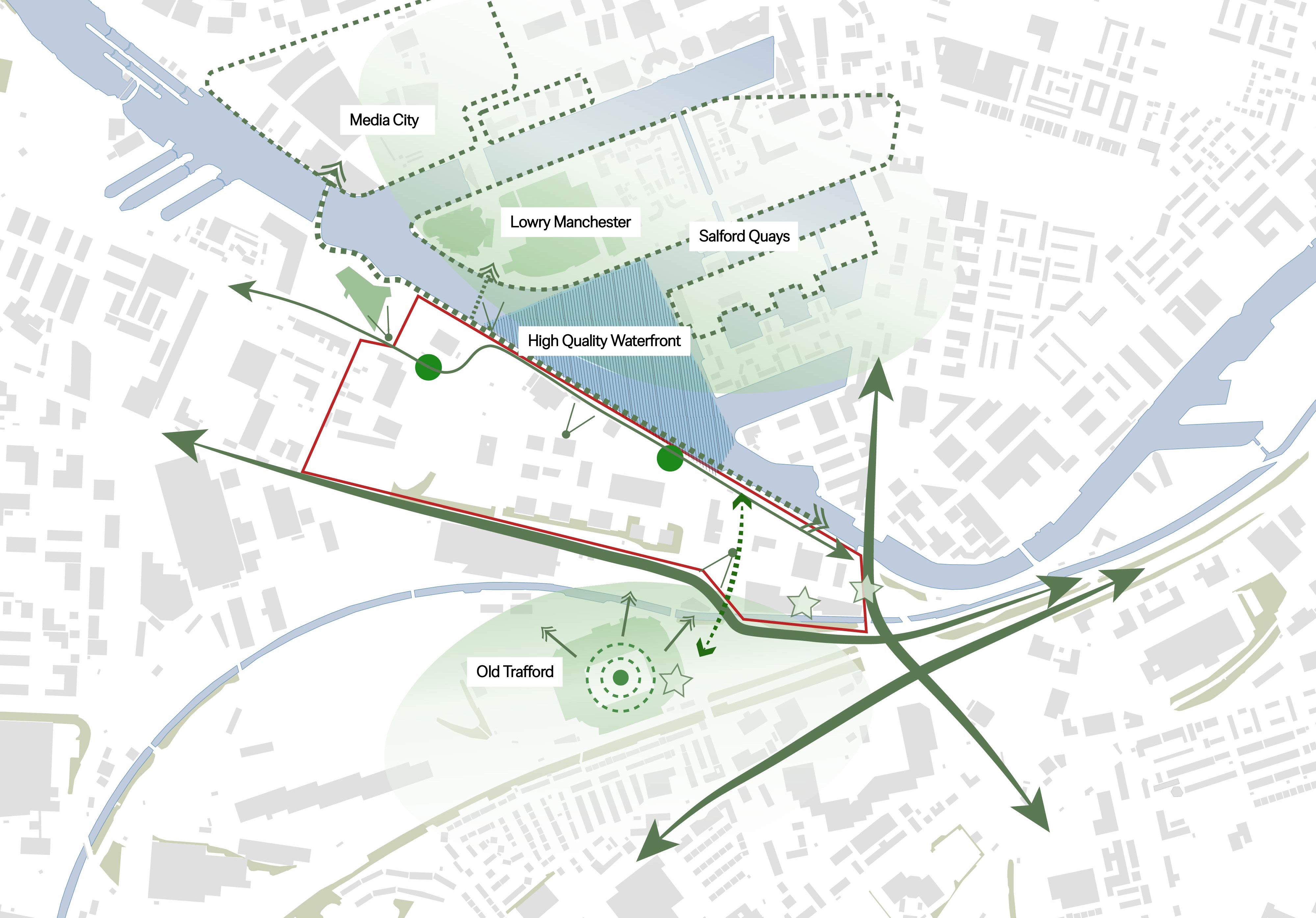

Strategic Context Strategic Context Map

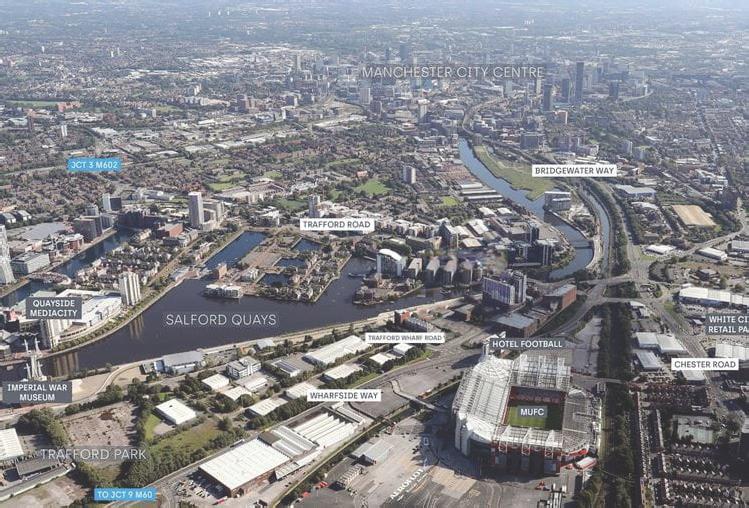

Site Location Trafford Wharfside is strategically located just outside of Manchester City Centre, sitting adjacent to Europe’s largest industrial park (Trafford Park) and opposite MediaCity, a hub of economic and social activity.

The historical use of the site as an industrial and commercial centre has led to a fragmented arrangement of inward looking buildings in the area. However, immense structures to the West and South of the site such as the Imperial War Museum and Old Trafford Stadium act as key footfall drivers into space.

Wharfside is well connected to the city and wider regions around Greater Manchester (GM) via the Metrolink. The Metrolink accommodates immediate connections to the airport and train stations which can be used to travel to cities within the Northern Powerhouse and beyond.

15 Mins 10 Mins

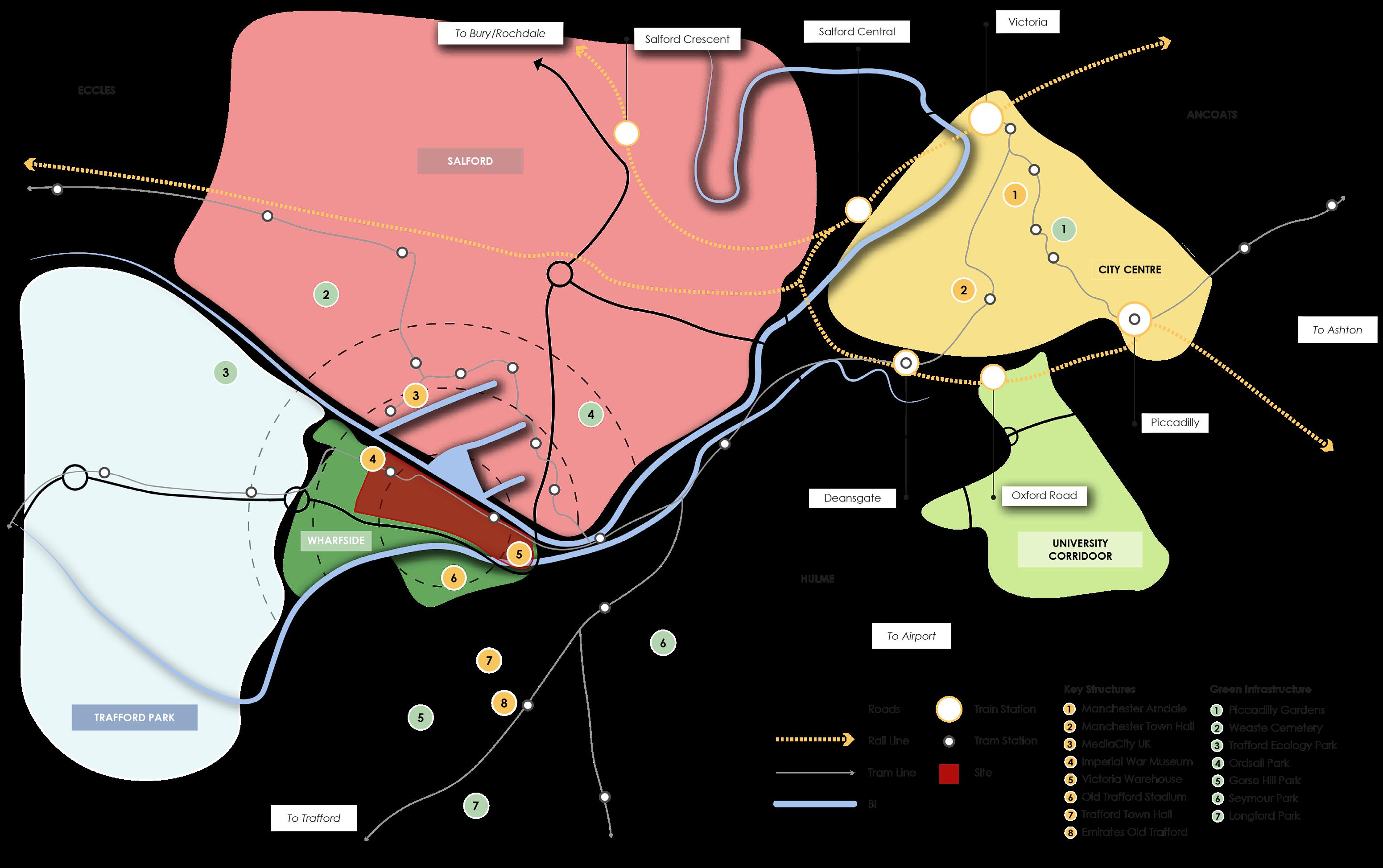

Strategic Location Map

5 Mins

0

Kilometres

2

Journey Times to Primary Facilities Not to Scale

10

Airport 20 Mins (by car)

Piccadilly Station 25 Mins (by tram)

Universities Salford - 30 Mins Manchester - 25 Mins (by bus)

Shopping Centres Quayside MediaCity - 10 Mins Trafford Centre - 20 Mins Arndale - 25 Mins (by tram)

Trafford Wharfside bringing together work & play

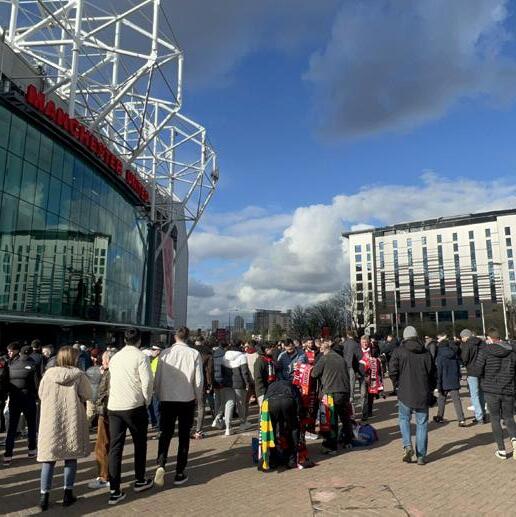

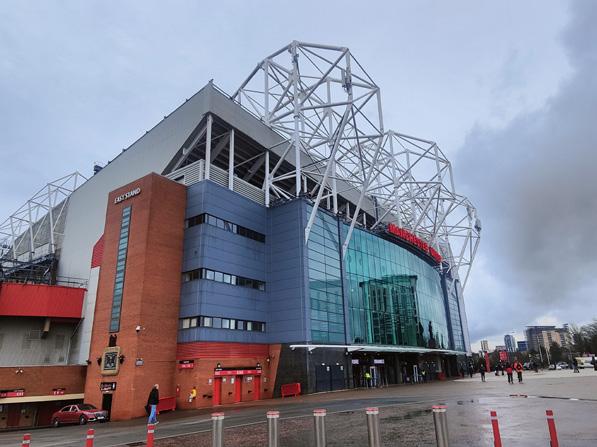

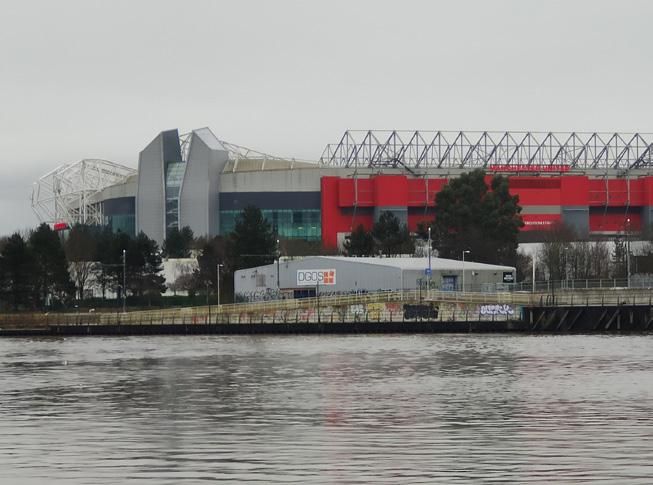

Socio-Economic Context Old Trafford Stadium holds 74,000 visitors every home game and attracts regular tourists.

Population Pyramid Male

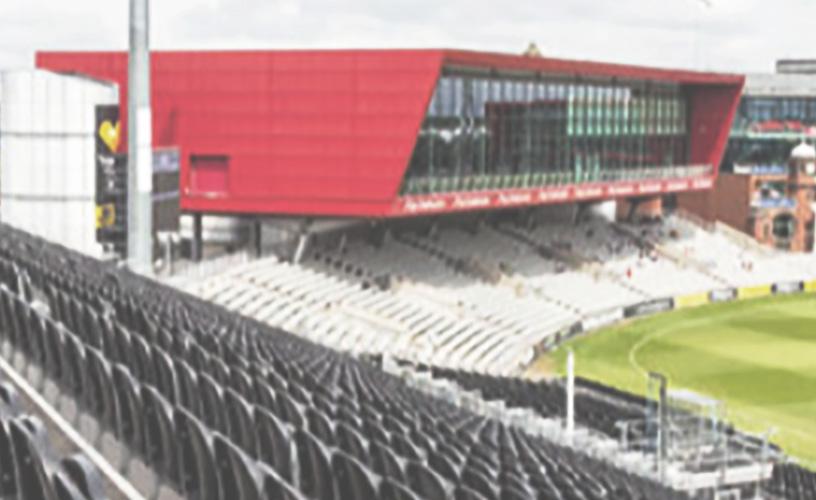

Old Trafford Cricket Club is home to Lancashire Cricket Club, hosting games and other entertainment.

Occupational Status/Role

Female Higher managerial, admin and professional roles Lower managerial, admin and professional roles

75+ 65 - 74

Intermediate roles

50 - 64

Small employers and own account workers Lower supervisory and technical roles

35 - 49

The Imperial War Museum attracts 1 million visitors per year.

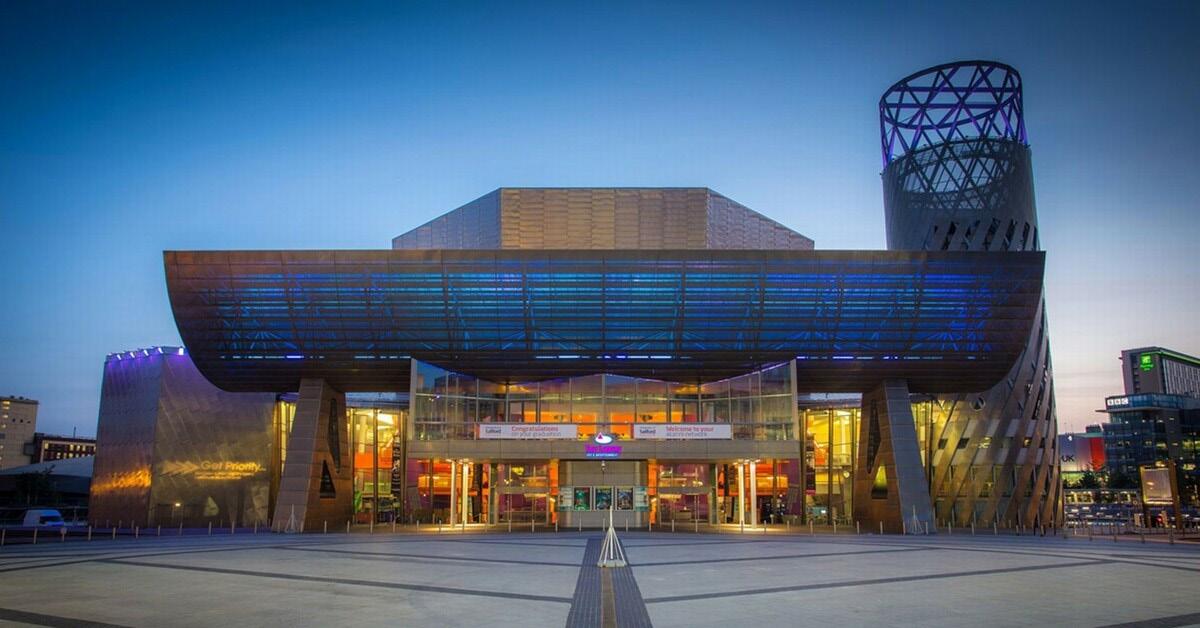

The Lowry welcomes 85,000 visitors per year.

25 - 34

Semi routine occupations

16 - 24

Routine occupations

3 - 15

Never worked and long term unemployment

0-2

Full time students 10%

5%

0%

5%

10%

Percentage of residents

Key Takeaways: •

Wharfside’s key transport facilities alongside key visitor landmarks within the area places it in a prime position for development.

•

The demographic makeup of the area with an ageing population among a high number of students makes the site perfect to act as a residential hub. Simultaneously, the reliance of local economy on the industrial and knowledge based economy suggests that commercial development could also be extremely successful in the area.

0%

5%

10%

15%

20%

Percentage of residents 16+

Educational Attainment among the highest in the North West

High proportions of rented living

Ethnically diverse communities

Low rates of crime

11

03

Trafford Wharfside bringing together work & play

Policy Context

Policy Context National Policy

Regional and Sub-Regional Policy Greater Manchester Local Industrial Strategy 2019 The Greater Manchester Local Industrial Strategy sets out an ambitious plan to drive economic activity and prosperity within the region.

Trafford is identified within the strategy as a key location for driving industrial activity on a regional scale. The role of Trafford Park is seen as a spatial opportunity for the large scale production and manufacturing of advanced materials.

The Salford Innovation Triangle is also highlighted within the strategy as one of the key growth sectors in close vicinity to the Wharfside site. The Innovation Triangle made up of the Royal Hospital, Salford University and MediaCity, is already home to 75,000 jobs with the vision to create an additional 20,000 jobs and bring in £1.5 billion in investment.

National Design Guide (NDG)

Greater Manchester Strategy 2021 - 2031

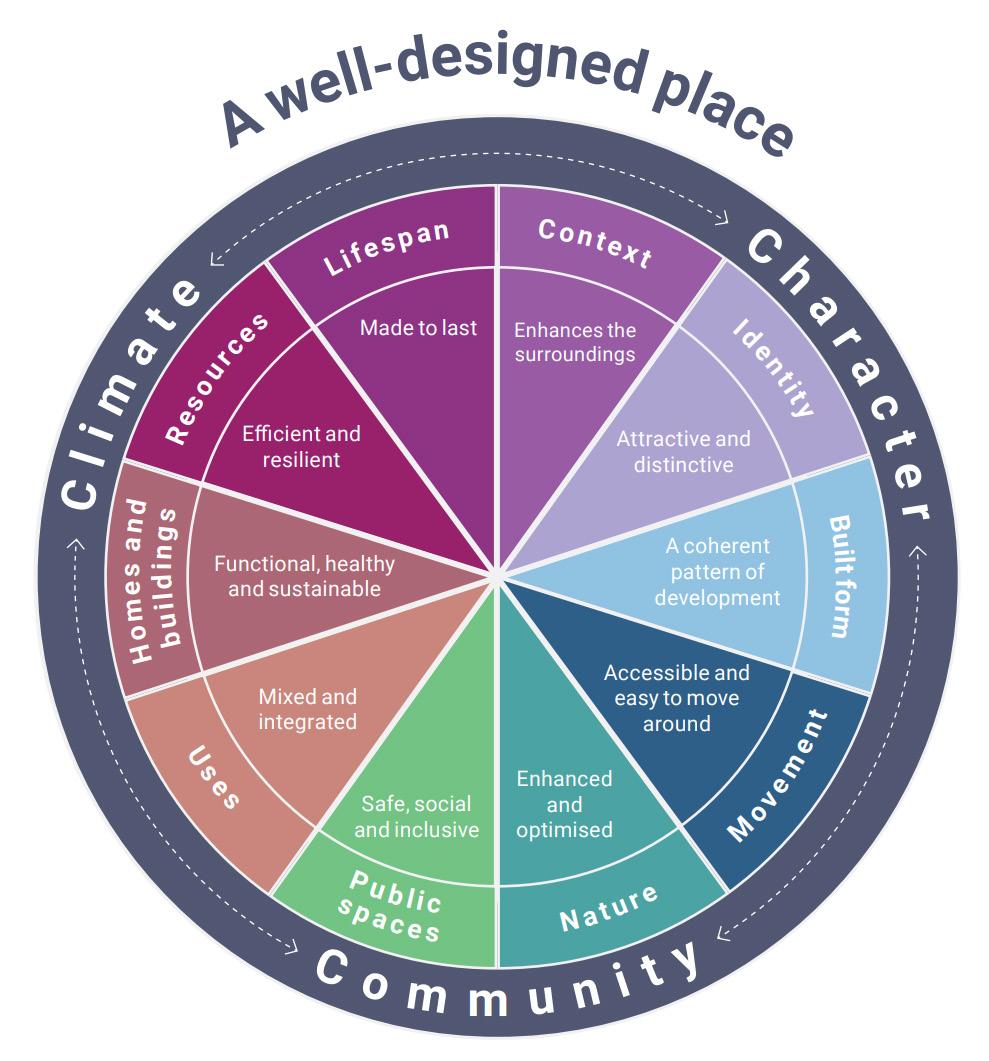

The National Design Guide sets out the ten characteristics of a “well designed place” which has been considered in the development of this framework.

The Greater Manchester Strategy is a decade long plan developed by ten councils and a variety of wider organisations. The strategy provides a clear direction for development, following the shared vision of:

“Good Lives for All: that Greater Manchester is a great place to grow up, get on and grow old; a great place to invest, do business, visit and study” Places for Everyone (PfE) 2024 - EMERGING The Places for Everyone Emerging plan outlines how the nine boroughs within the Greater Manchester region should be developed by 2039. Trafford is identified within Core Growth Area and Sustaining Southern Competitiveness policies within the PfE document that focus on economic and residential growth as well as redevelopment of previously used land.

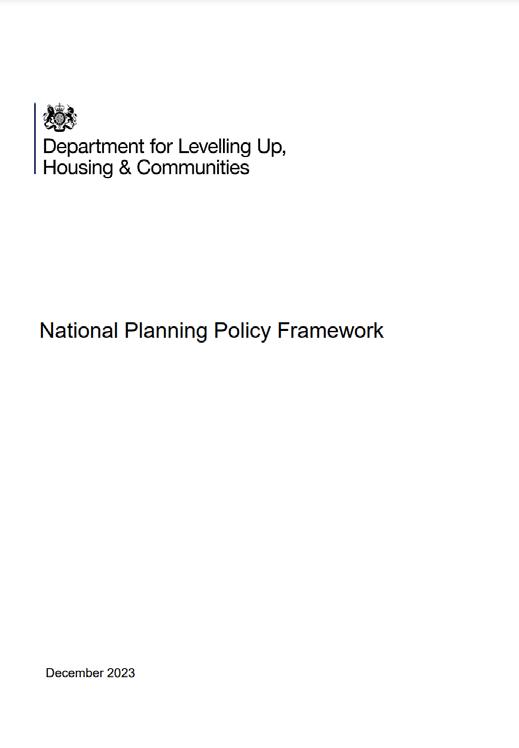

Gov.UK (2019) National Planning Policy Framework (NPPF) The NPPF identifies the government’s economic, environmental and social policies to be followed in the preparation of plans and frameworks.

14

Greater Manchester Transport Strategy 2040 The Greater Manchester Transport Strategy outlines a long term vision to create a well developed transport system; helping to improve accessibility, reduce road congestion and promote cleaner and greener movement across the region.

Salford Innovation Triangle

Trafford Wharfside bringing together work & play

Local Policy and Guidance

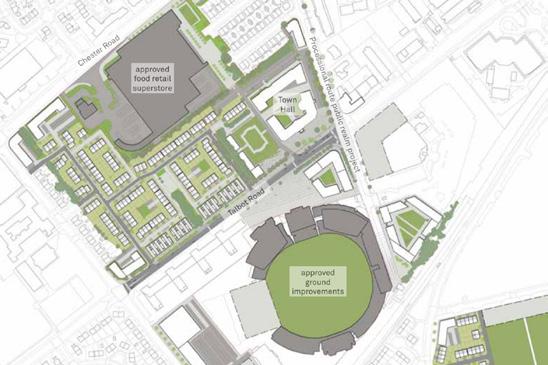

Trafford Local Plan: Core Strategy 2012

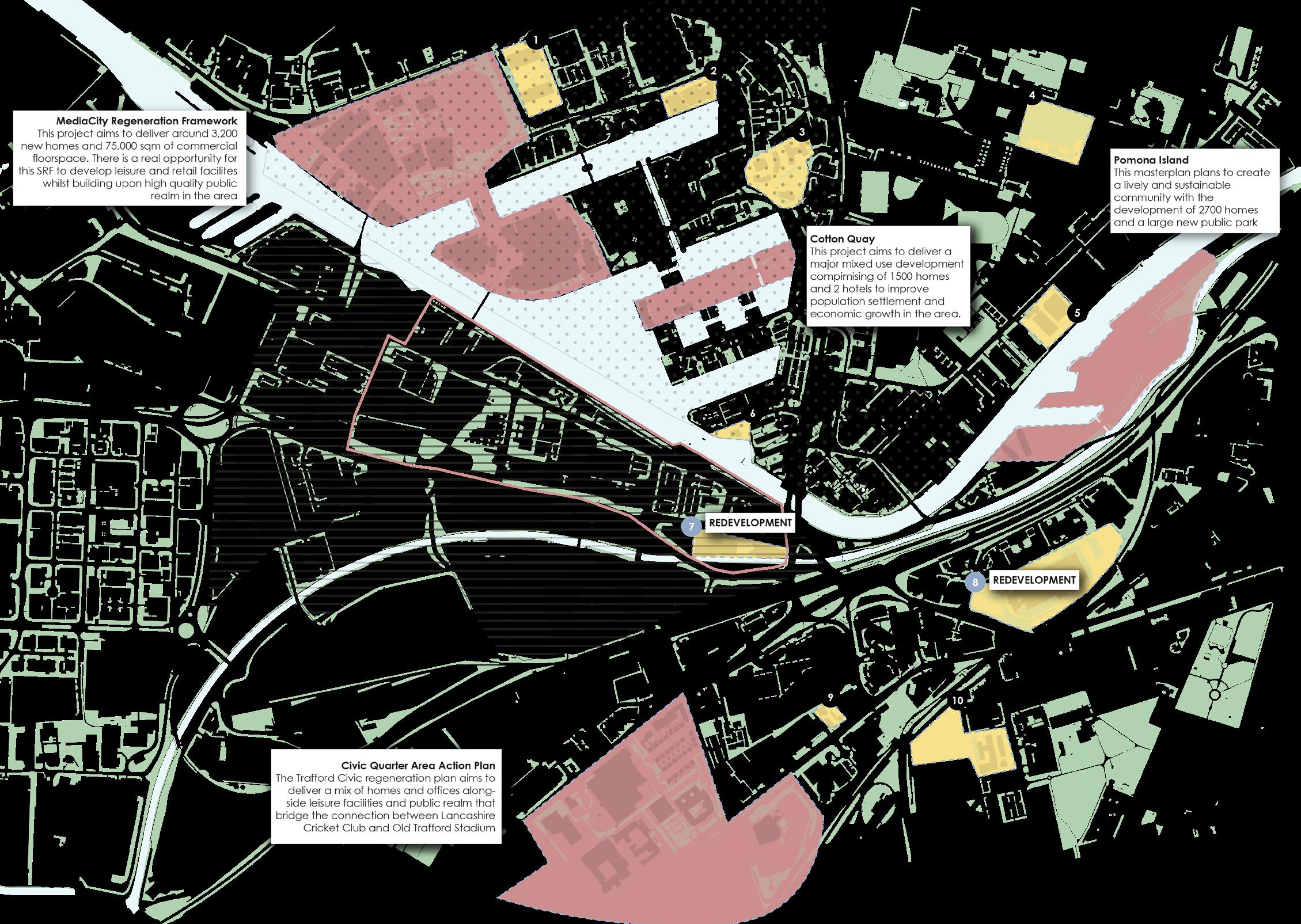

Development Context 1

X1 Michigan Towers

2

Anchorage Quay

3

Fortis, Furness & Victoria Quay

4

Phoebe St

5

Berkeley Square

6

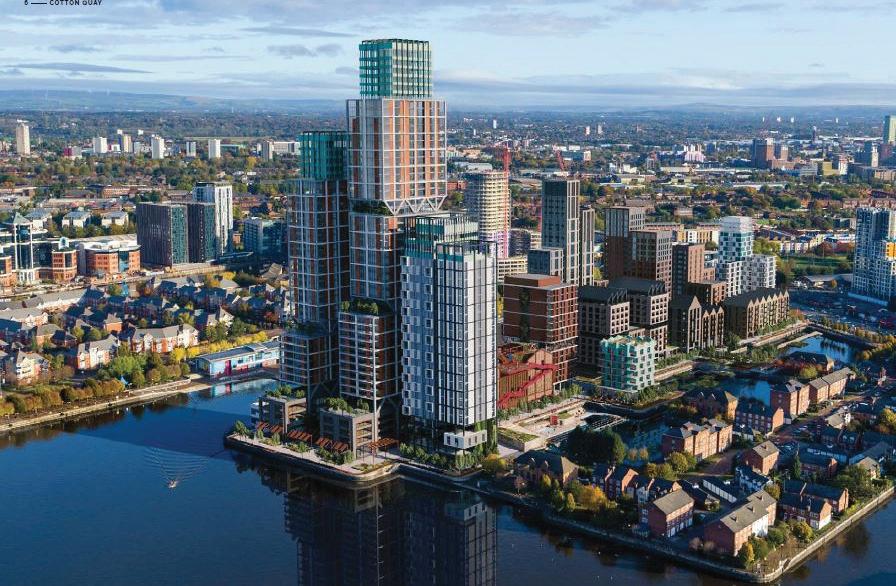

Cotton Quay CERT Tower

7

Victoria Warehouse Hotel

8

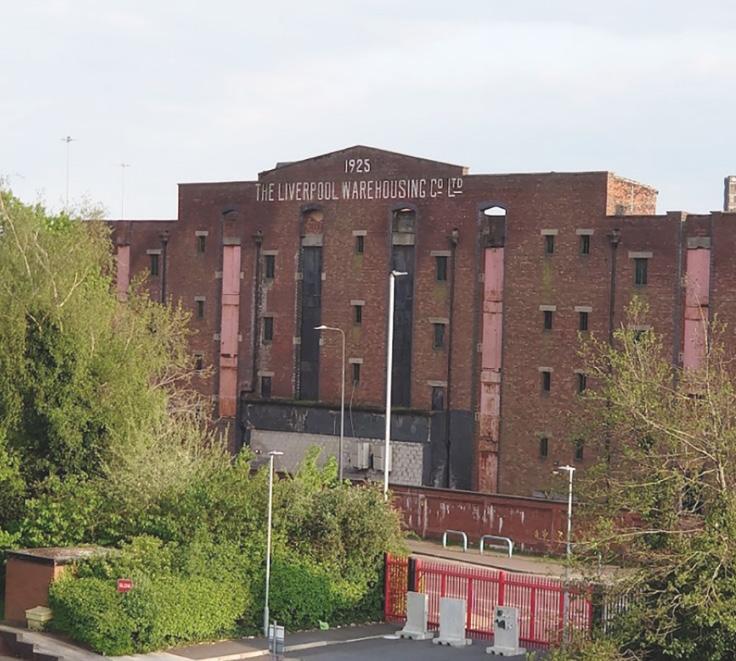

Cornbrook Warehouse

9

Botanical Gardens

10

Skerton Road & Grove House

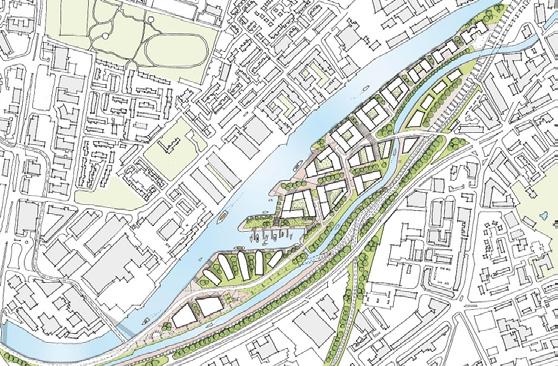

The Trafford Core Strategy spatially identifies the development needs within the borough as well as identifying social, economic and environmental challenges up to 2026. SL2 of the Core Strategy focuses on the potential for Wharfside to deliver a mixed use area with: • •

Masterplan Developments Singular Developments Salford Quays SRF

An Economic Hub for Digital and Media Industries Leisure and Affordable Residential Development for Communities

Wharfside SRF Site

The Local Strategy also requires the following for acceptable development:

0

Civil Quarter SRF

The guidance documents identify a vision for Wharfside to become a moderen digital city with mixed use development linking to an urban park which reflects on Manchester’s historical and architectural achievments.

Peel L&P (2022)

1000

Salford Council (2023)

Salford Quays SRF

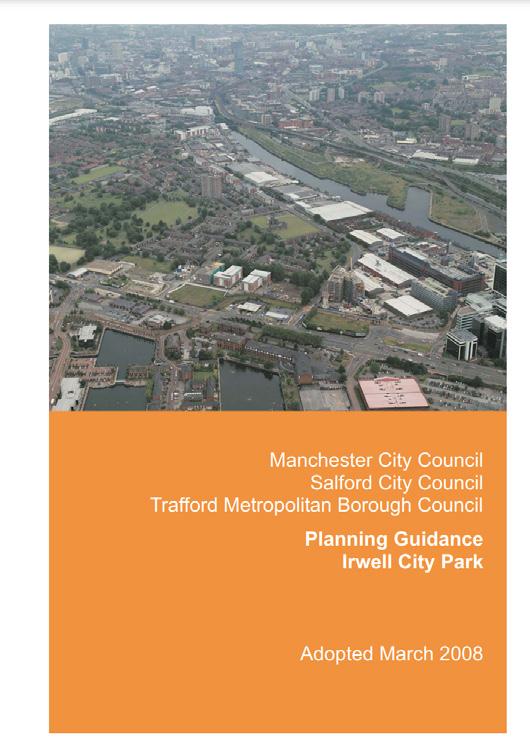

Media City and Quays Point / Irwell City Park Guidance

Skyscraper City (2021)

Pomona Island SRF

Provision of High Frequency Public Transport (e.g. Metrolink) Provision of a Strategic Processional Route A New Bridge Crossing, linking with the Irwell River Park Scheme A New Primary School serving the Residential Community Re-Development of the Victoria Warehouses

MediaCity SRF

• • • • •

Metres

Key Takeaways: •

There is a high number of regeneration projects happening within the Wharfside area. The majority of developments are primarily for residential usage, however some have some mixed use elements.

•

When developing a design on the Wharfside site, it will be key to balance the development of residential buildings alongside commercial and industrial structures to clearly link to the immediate areas outside the red line boundary.

Trafford Council (2022)

15

04

Trafford Wharfside bringing together work & play

Local Profile

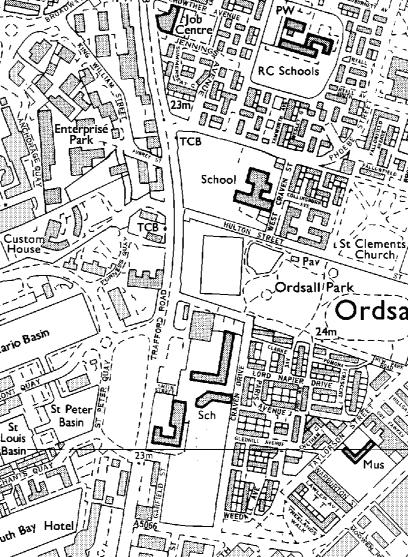

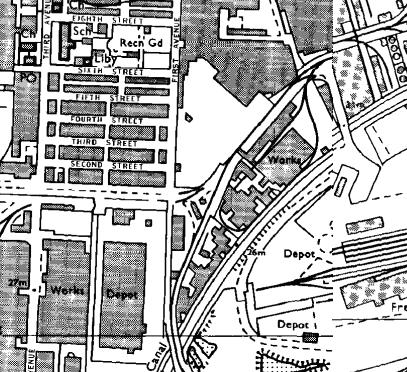

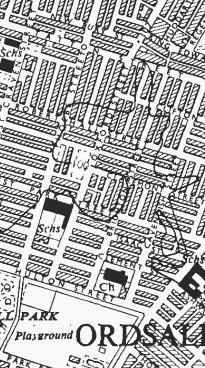

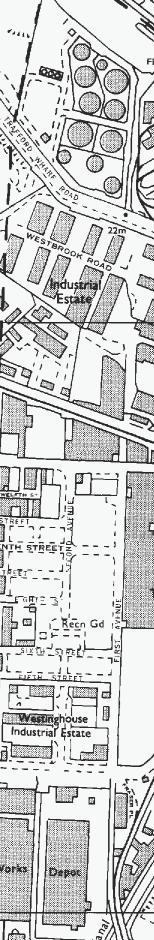

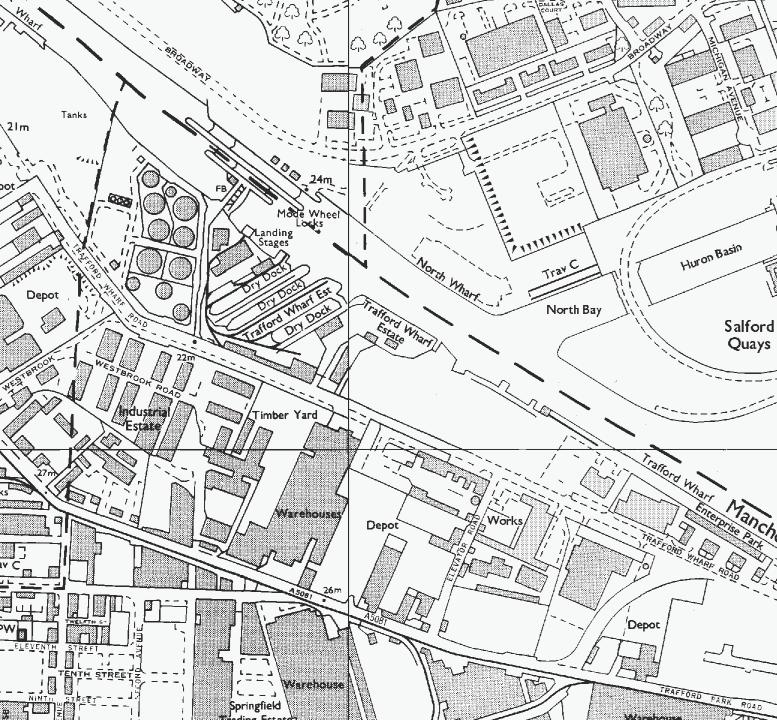

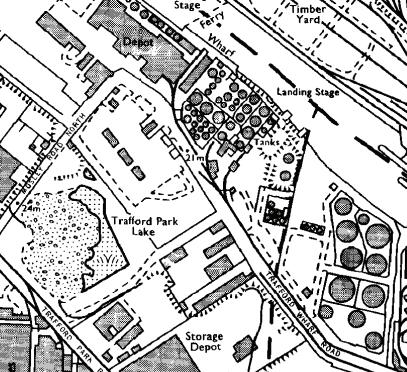

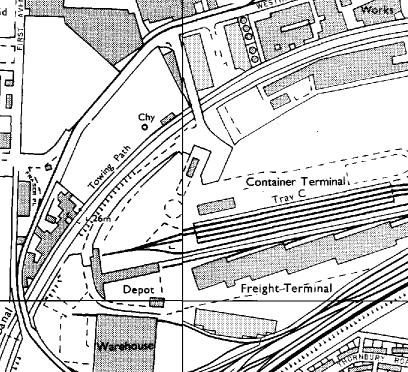

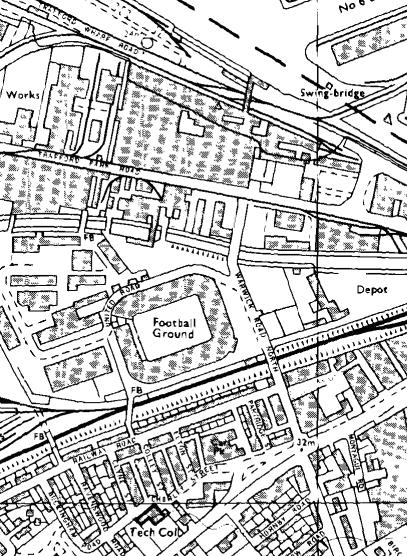

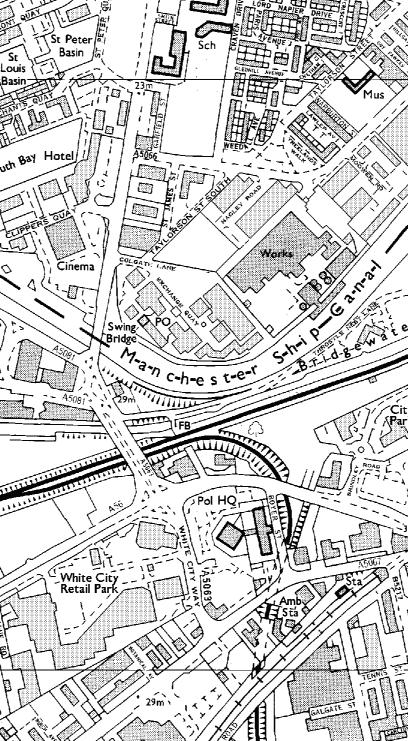

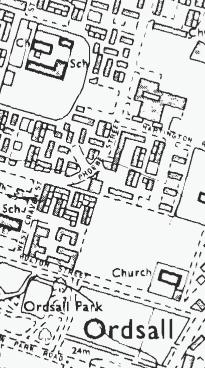

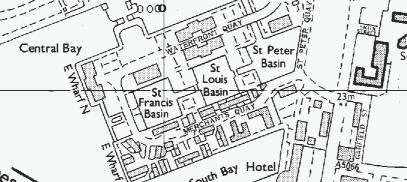

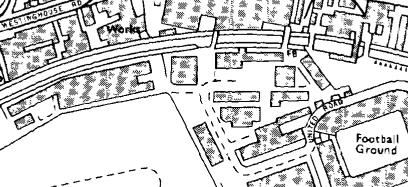

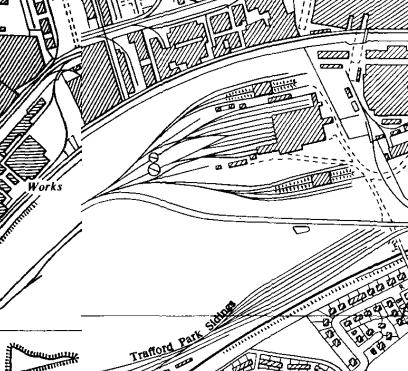

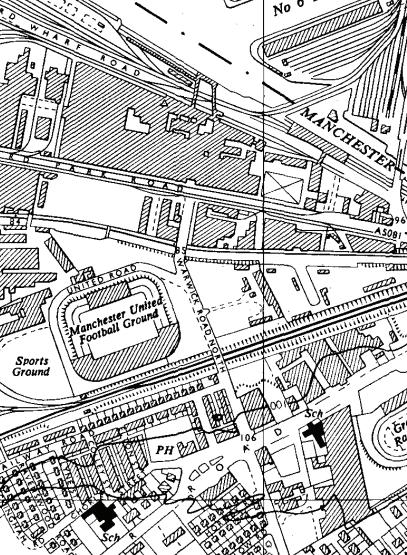

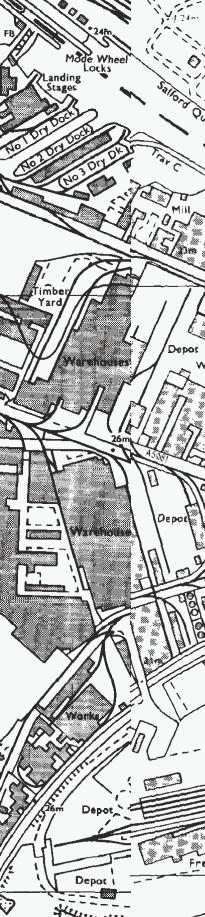

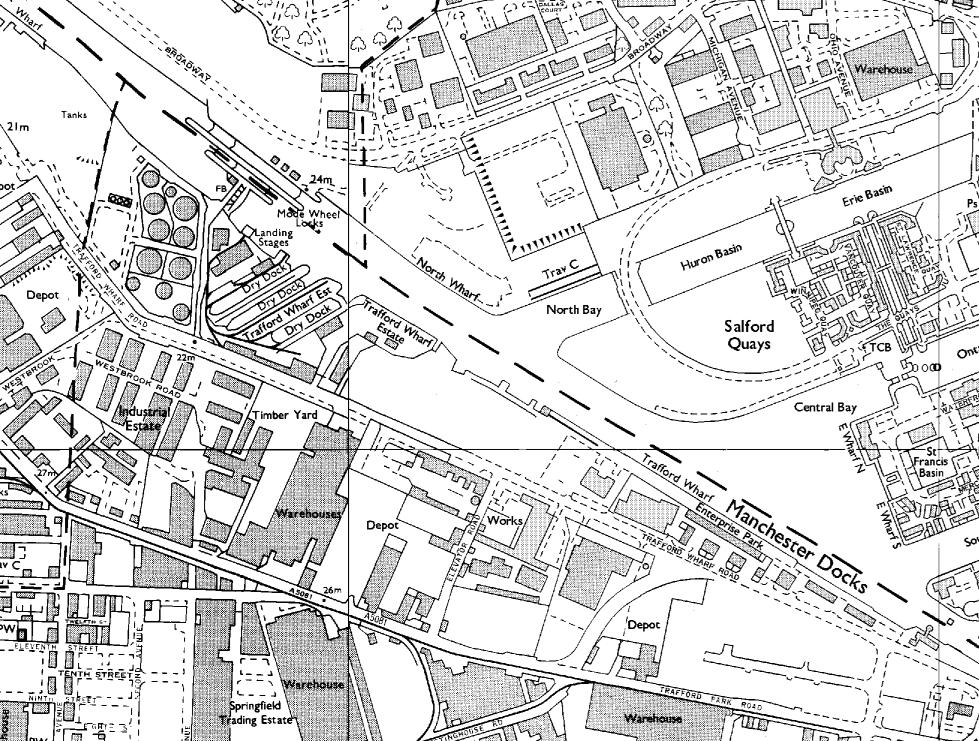

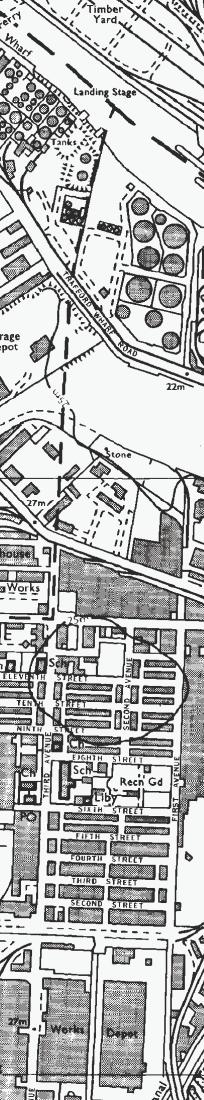

Heritage and History Herron, A. (2015) manchesterhistory.net. (n.d.)

Media City UK. (n.d.)

Woden (2019) Historic England (2024) Hoare, C. (2020) John, M. (2014)

1800

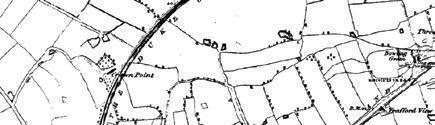

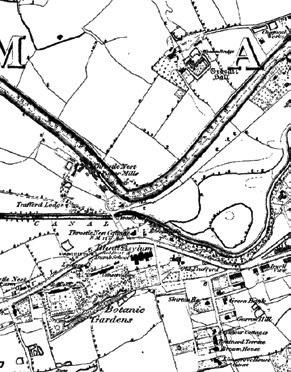

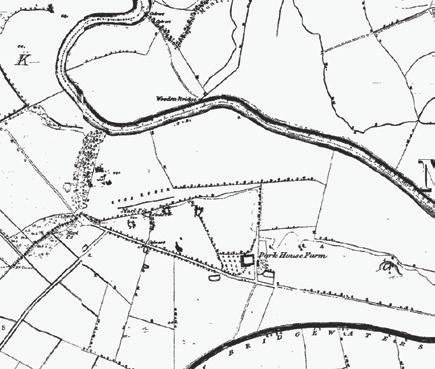

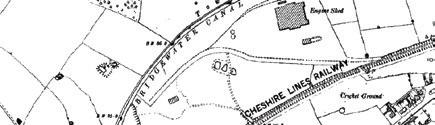

In the 1800s, Trafford was part of a “beautifully timbered deer park”.

1890

1920

1950

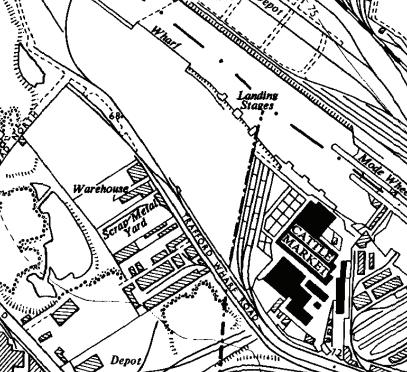

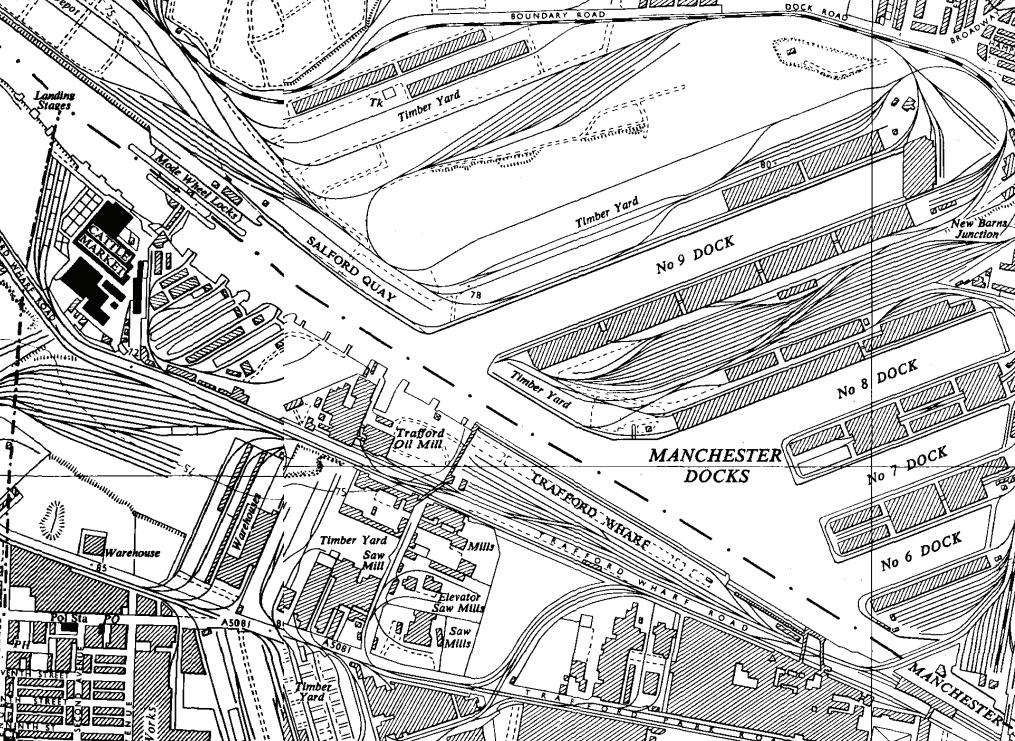

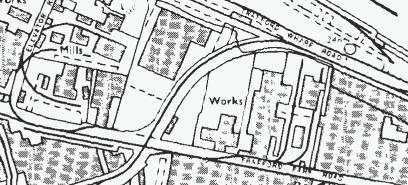

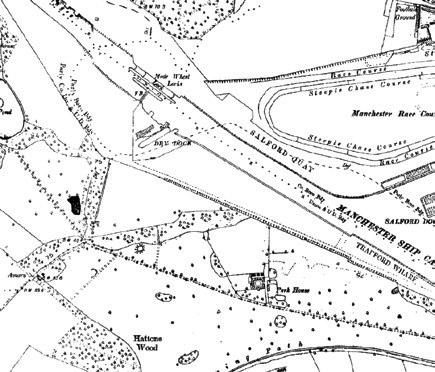

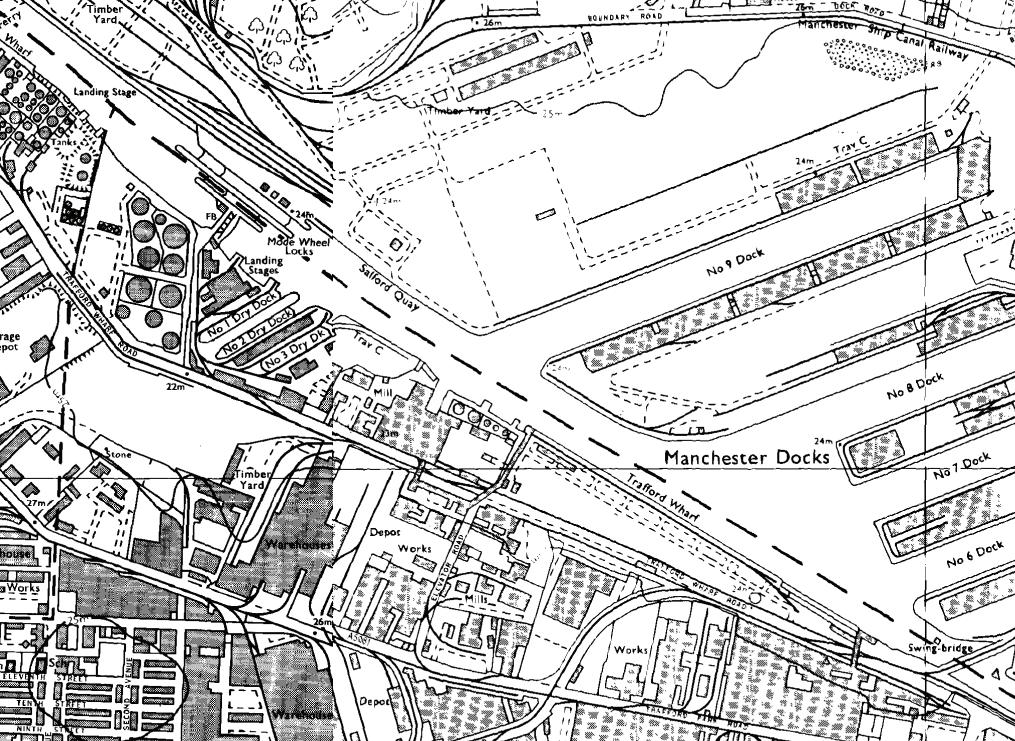

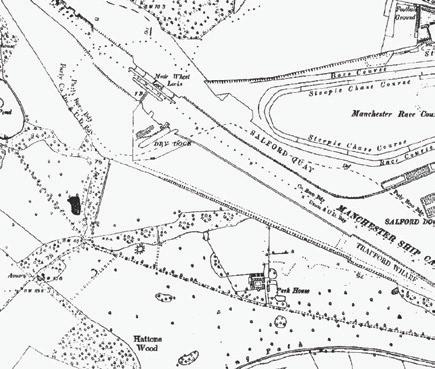

In 1888, the construction of the Manchester Ship Canal begun alongside the auctioning of land around the area.

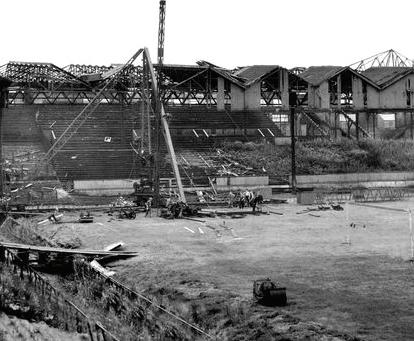

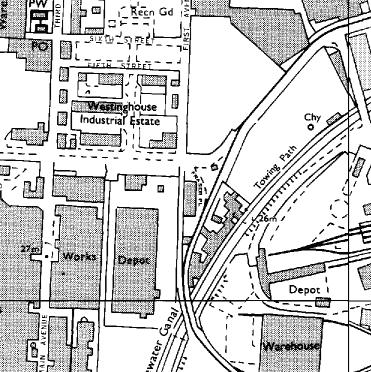

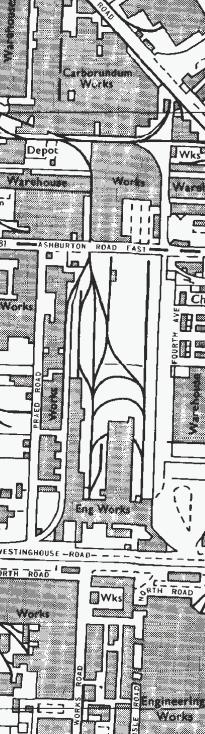

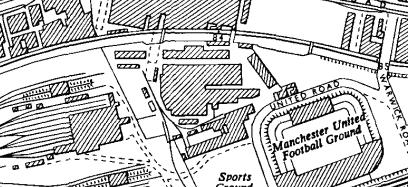

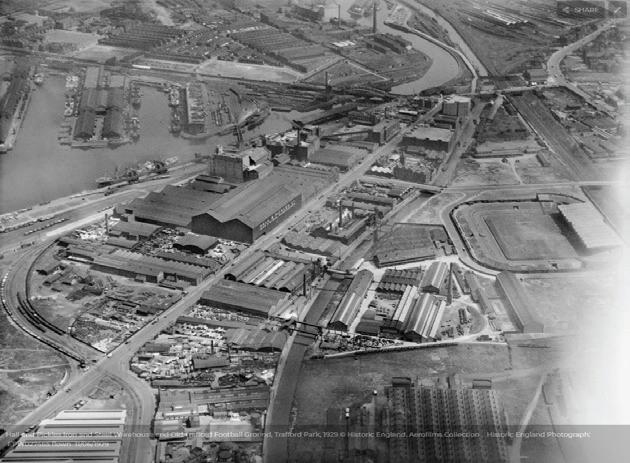

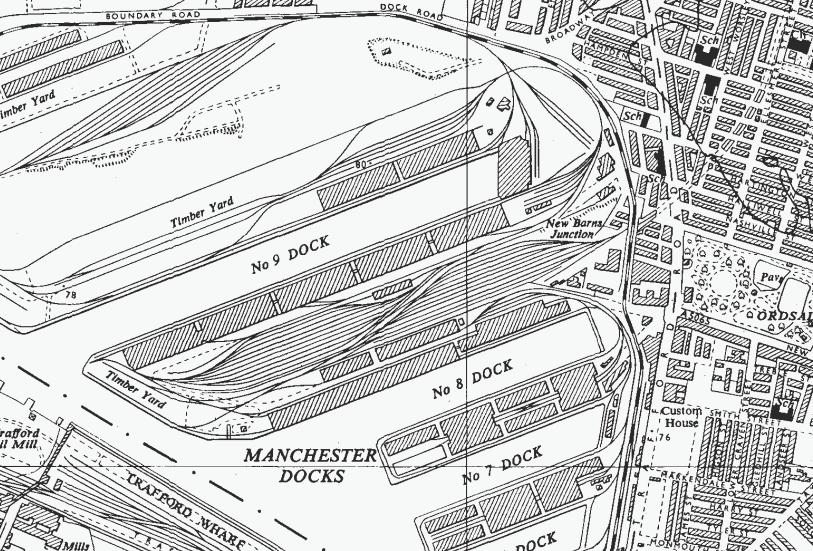

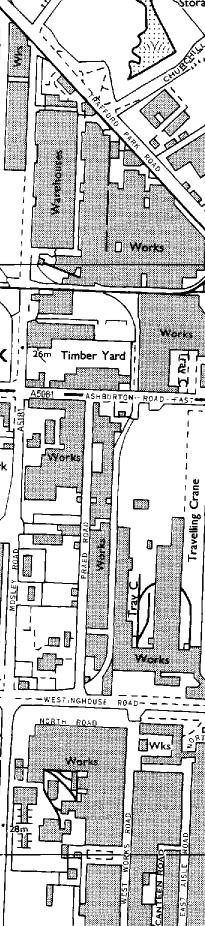

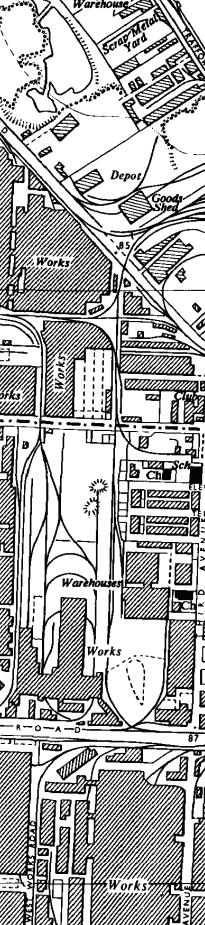

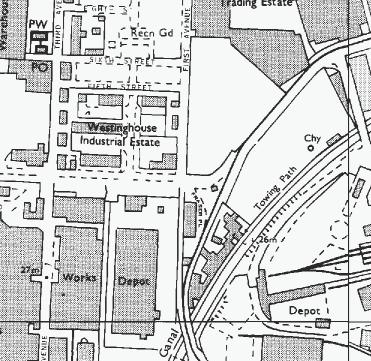

The 1930s saw the establishment of the largest private railway in the UK, specialising in the transport of WW1 and WW2 resources. More generally, the area became a prime industrial site, appealing internationally.

18

1980

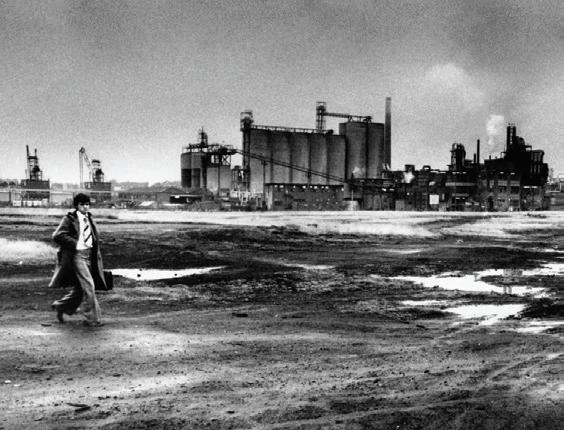

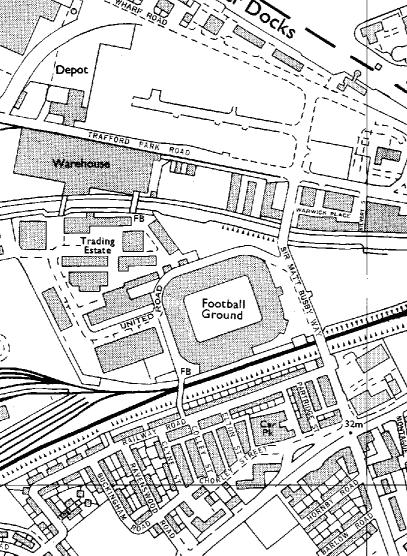

The 1970s saw the decline of industrial economy in the area, largely due to the shipping canal being unable to accommodate newer, larger container ships that became more common in the late 1900s.

In 1987, th generated around 10 investmen

Trafford Wharfside bringing together work & play

Nearby Heritage 1 2 3 4 5 6 1

1990

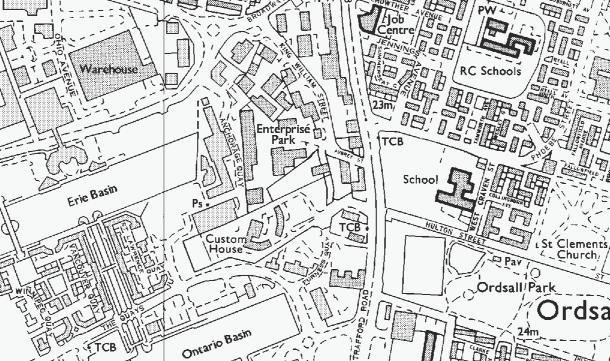

he Trafford Park Development Corporation red 3,130 acres of land. The corporation attracted 000 companies and £1.7 billion in private sector nt.

2010

2020

1998 - Dock Office Gateway A key dock that once formed part of the Port of Manchester 2

1177-Ordsall Hall Grade 1 residential building that is now a popular attraction 3

4

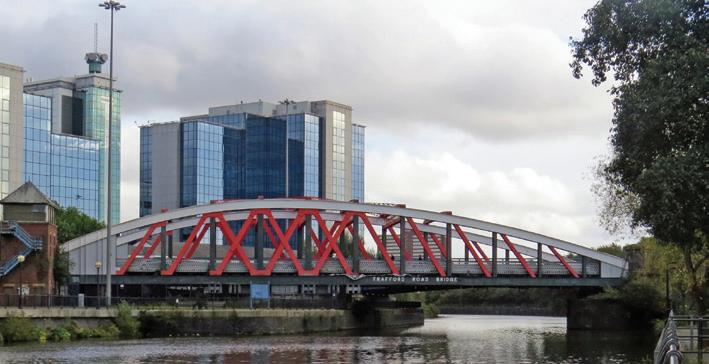

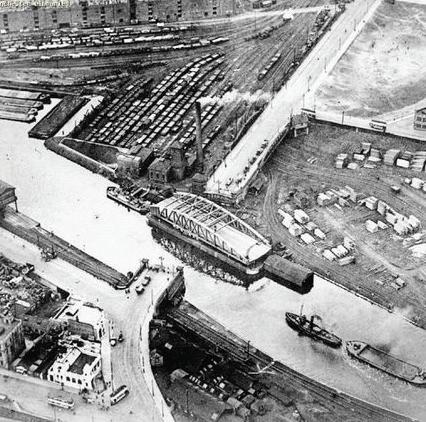

1892 - Trafford Road Bridge A heavy Ship Canal bridge linking Trafford and Salford.

5

1932 -Victoria Warehouse A textile industry warehouse that is now used to host events.

6

Key Takeaways: •

The area immediately surrounding the site has a rich history of industrial economy which has seen peaks and troughs throughout the past 200 years. Such is the scale of this masterplan, its implentation has the potential to establish a new period in time for the area.

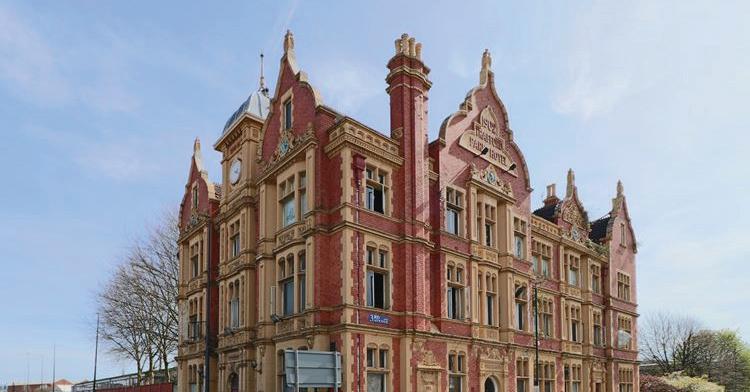

1902-Trafford Park Hotel A gothic style boutique hotel that now remains abandoned

1830- White City Gateway A symbol of White City and Botanic Garden gateway

19

Development Context Morphology

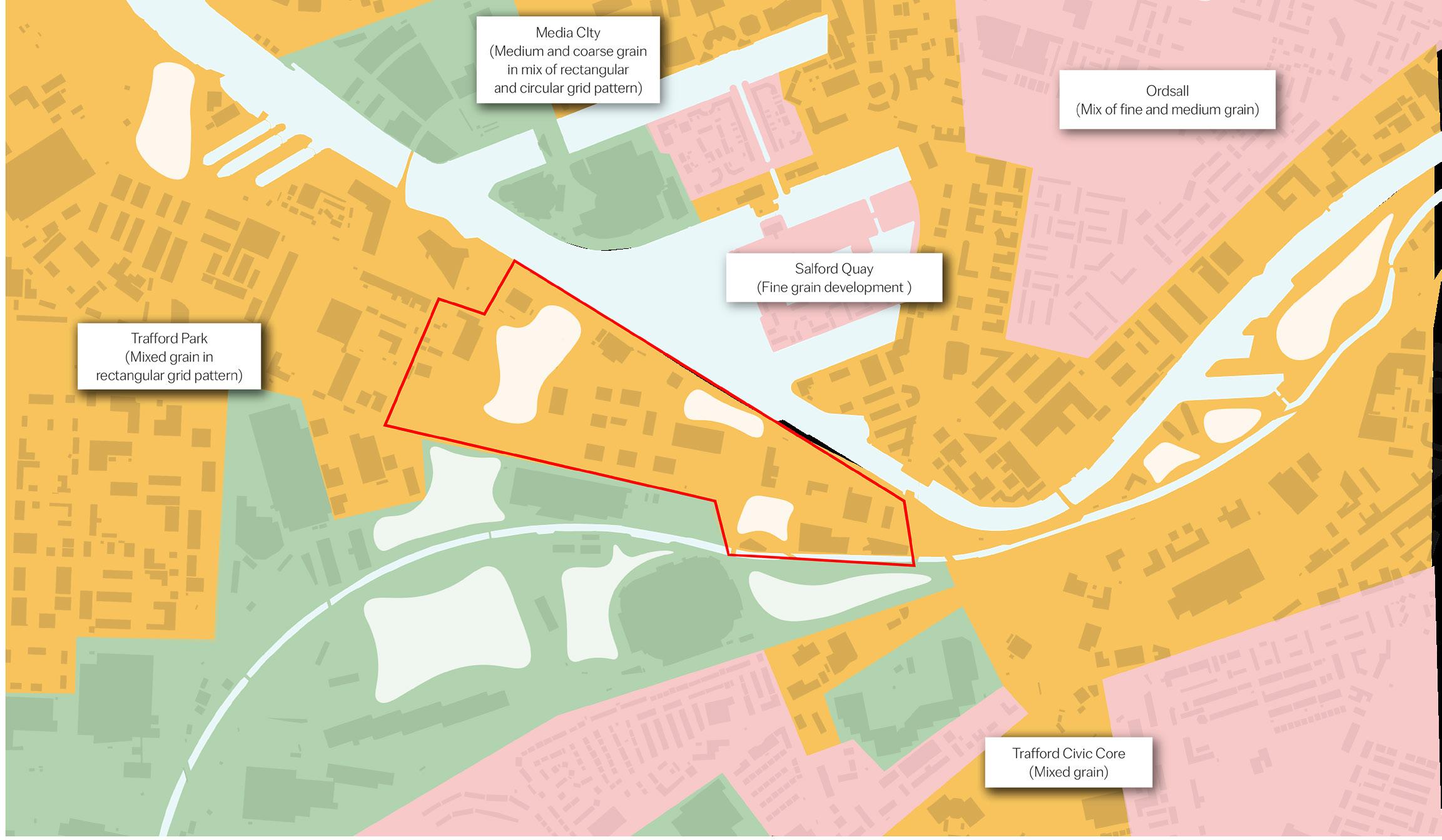

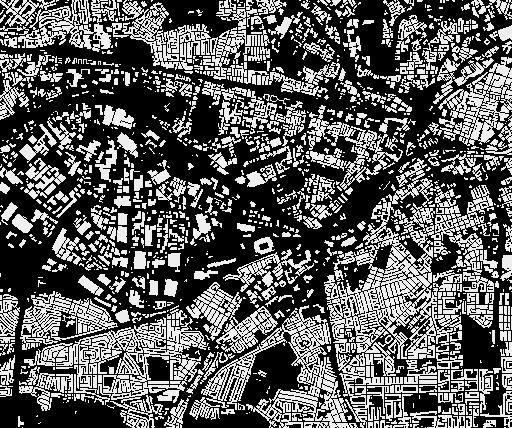

Land Morphology Map

All images on page are taken from Google Maps (2024)

Building Heights

Building Heights Map

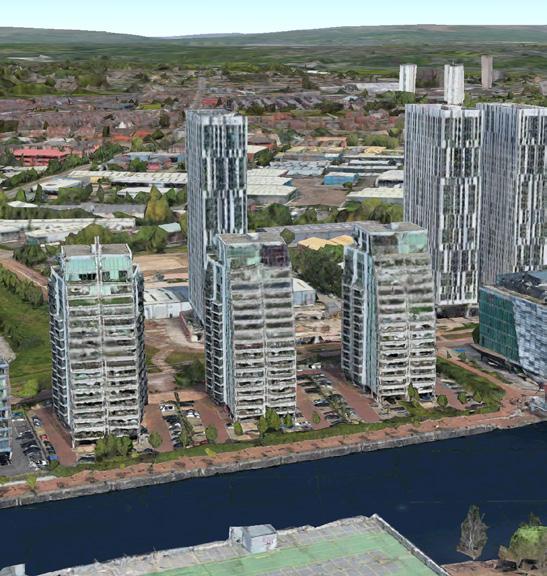

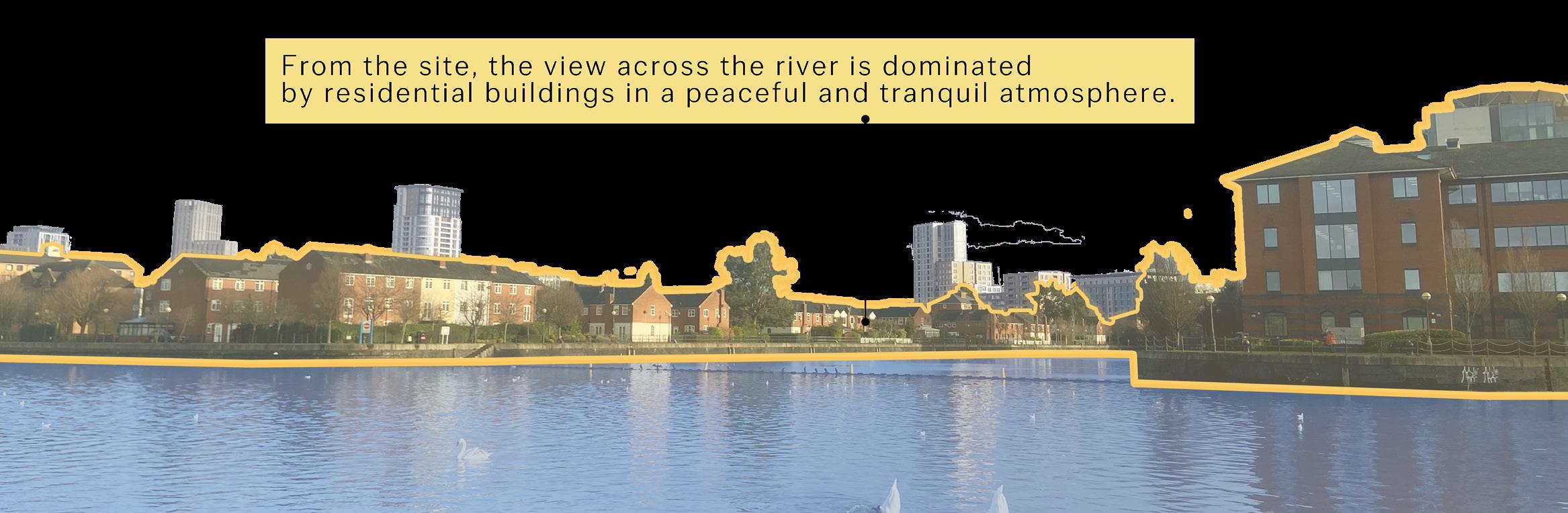

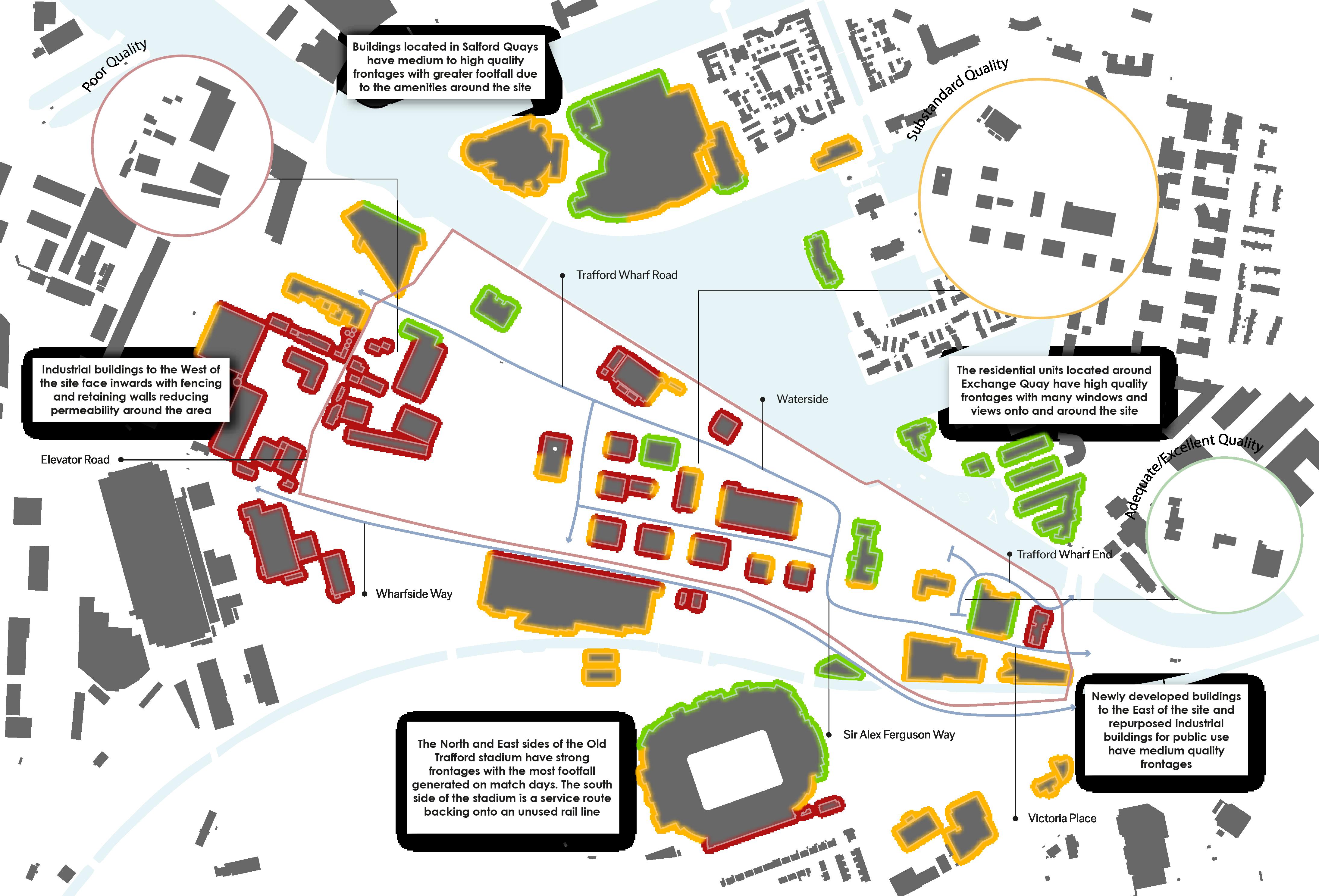

To the east of the site are taller buildings, often either residential or office in use, as tall as 13 stories

The site is surrounded by a number of urban voids whereby built form is informally arranged 1 2

3

To the west of the site are low-rise industrial buildings measuing 1-3 storeys

Site

Coarse Grain

1

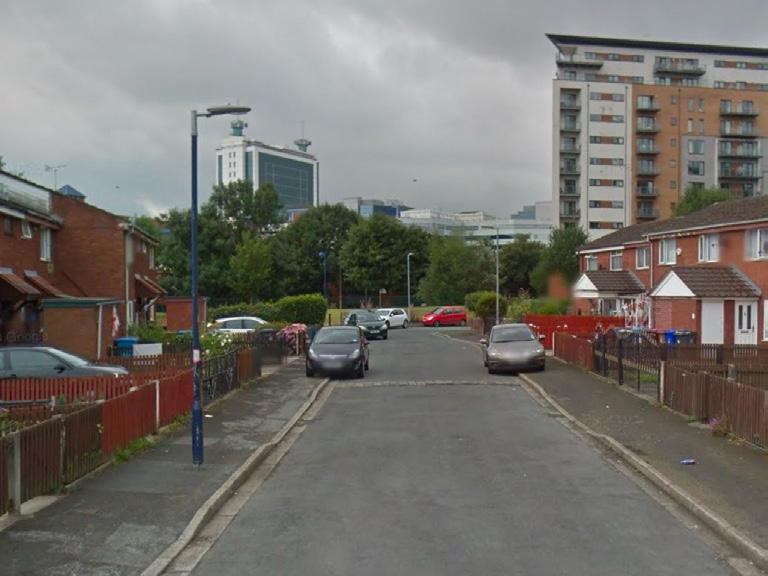

Fine Grain Small footprint urban form, often associated with residential uses. Often appear as a ‘peppercorn’ morphology.

20

Medium Grain

Fine Grain

Voids

2

3

Medium Grain Larger footprint buildings that may be residential, commercial or industrial in use. Buildings are taller, and streets are often more enclosed.

Coarse Grain Low density, often industrial units that are separated by large urban voids - some used for car parking.

Site

4-6 Storey

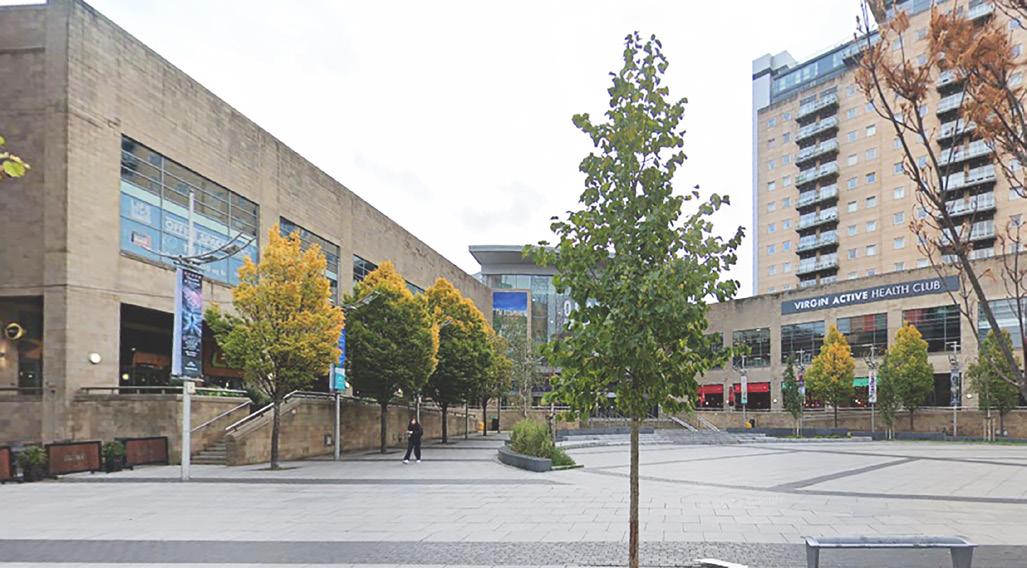

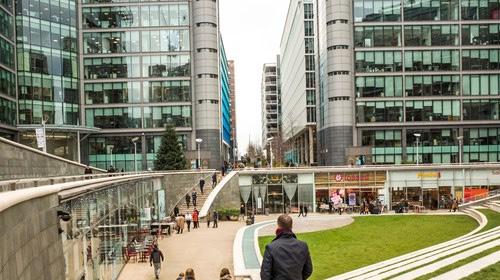

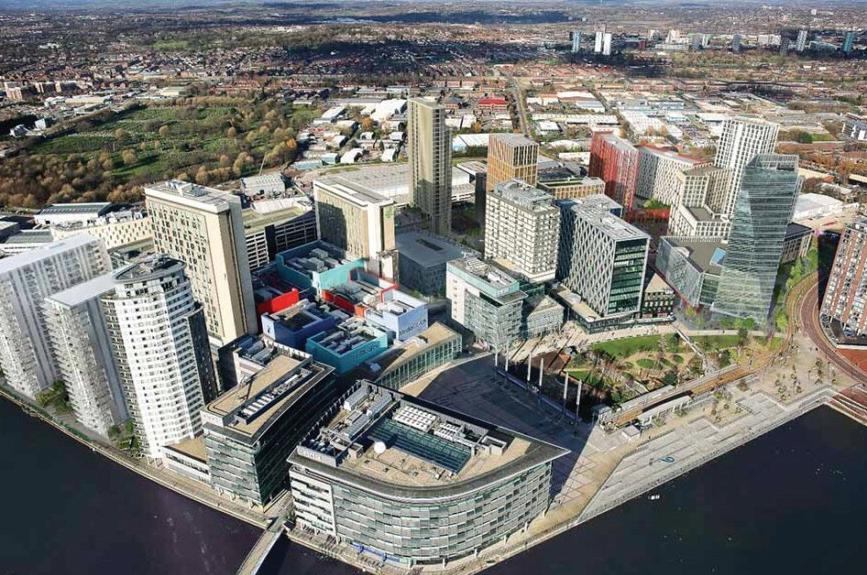

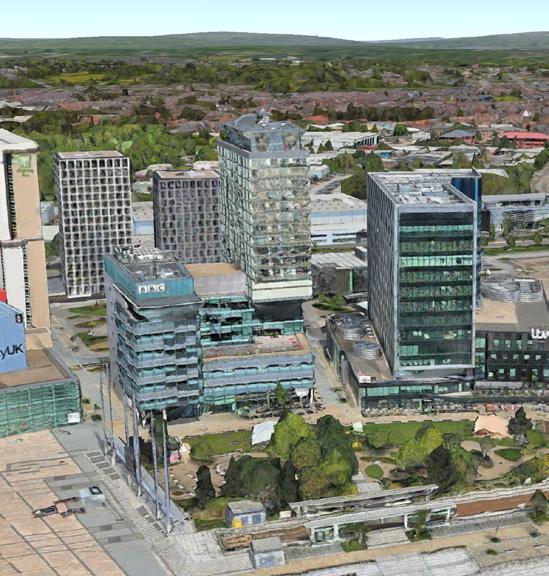

Office buildings in MediaCity, primarily used by creative media companies

10-12 Storey

High rise residential buildings with some office spaces

1-3 Storeys

Office and commercial buildings that front directly onto the waterfront

7-9 Storey

13+ Storey

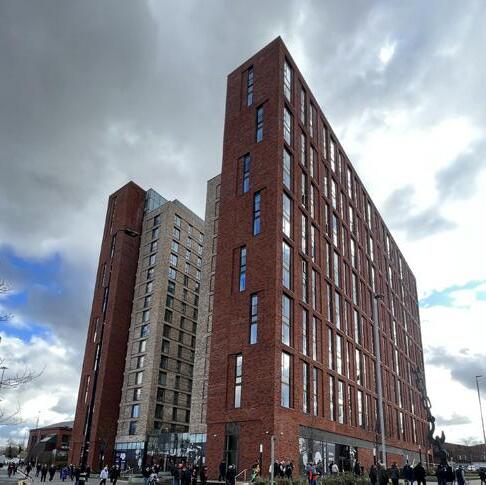

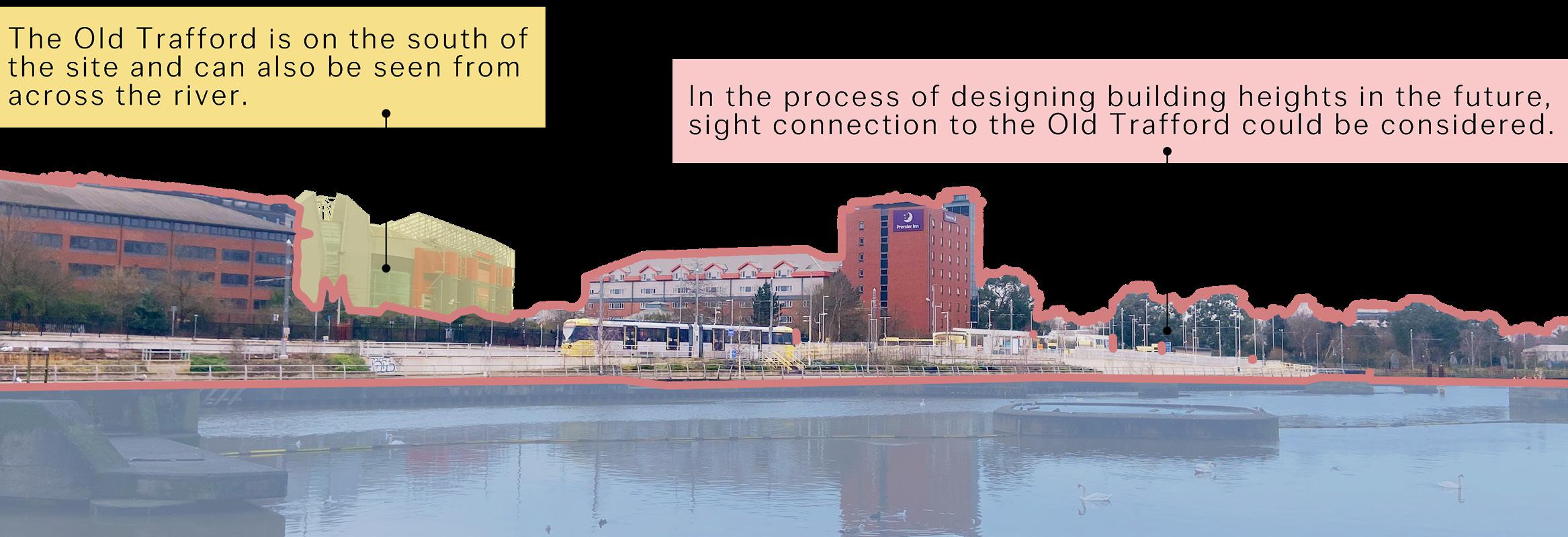

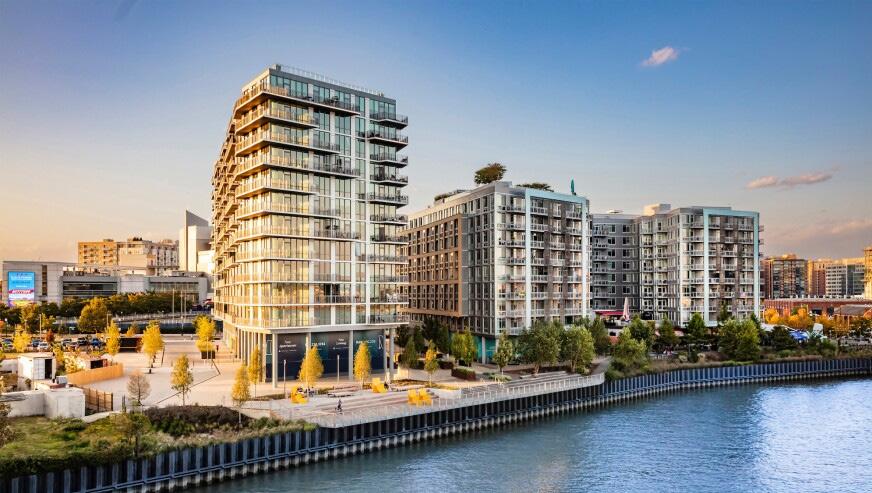

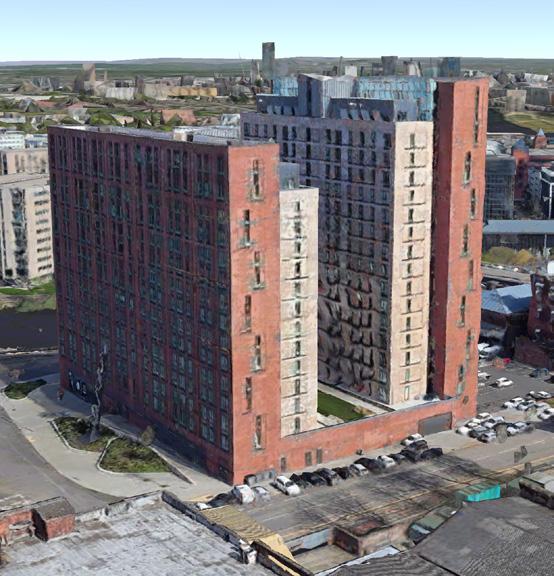

The new mixed use No.1 Old Trafford building acts as a model for high rise development in Wharfside

Trafford Wharfside bringing together work & play

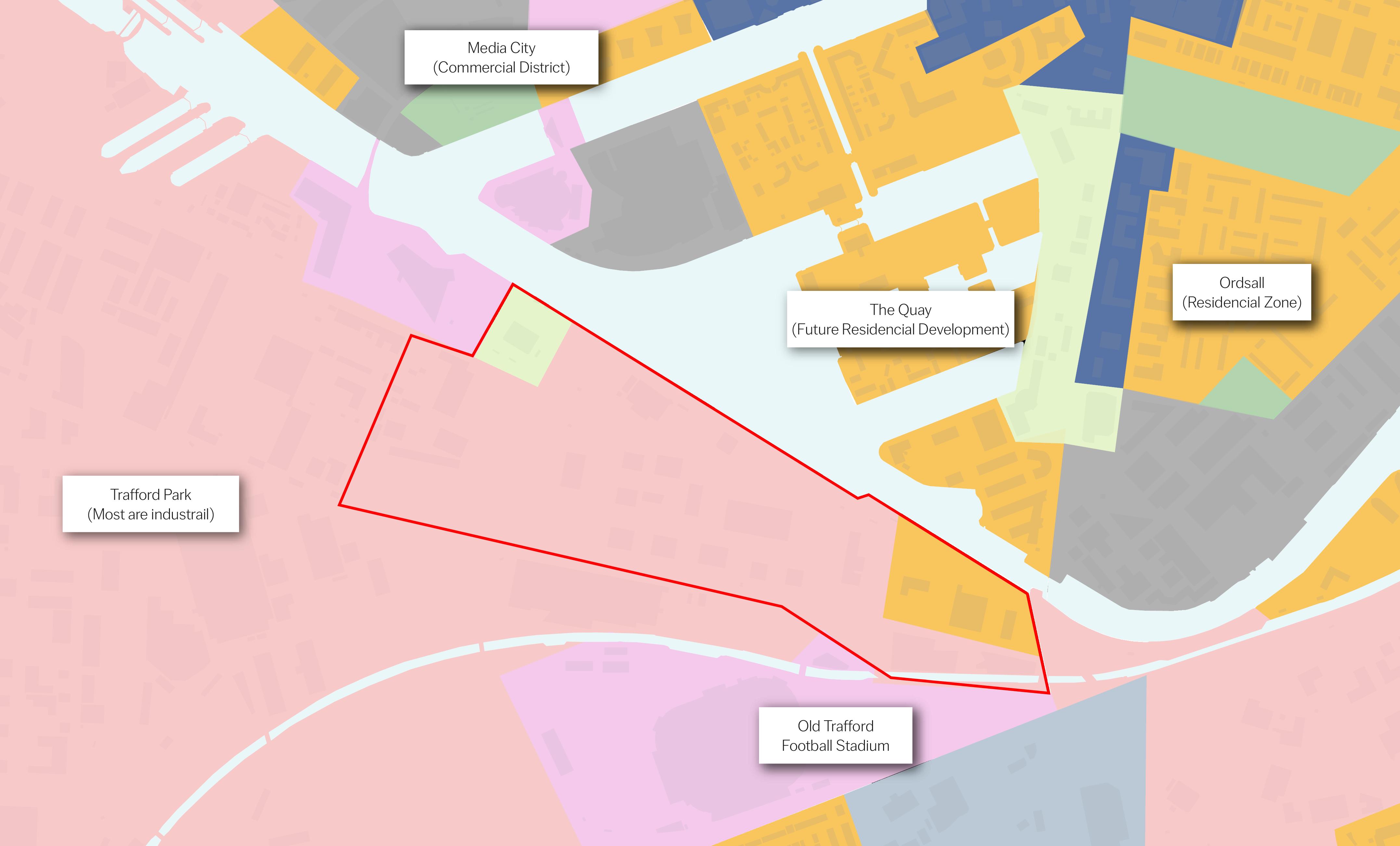

Land Use

Land Use Map

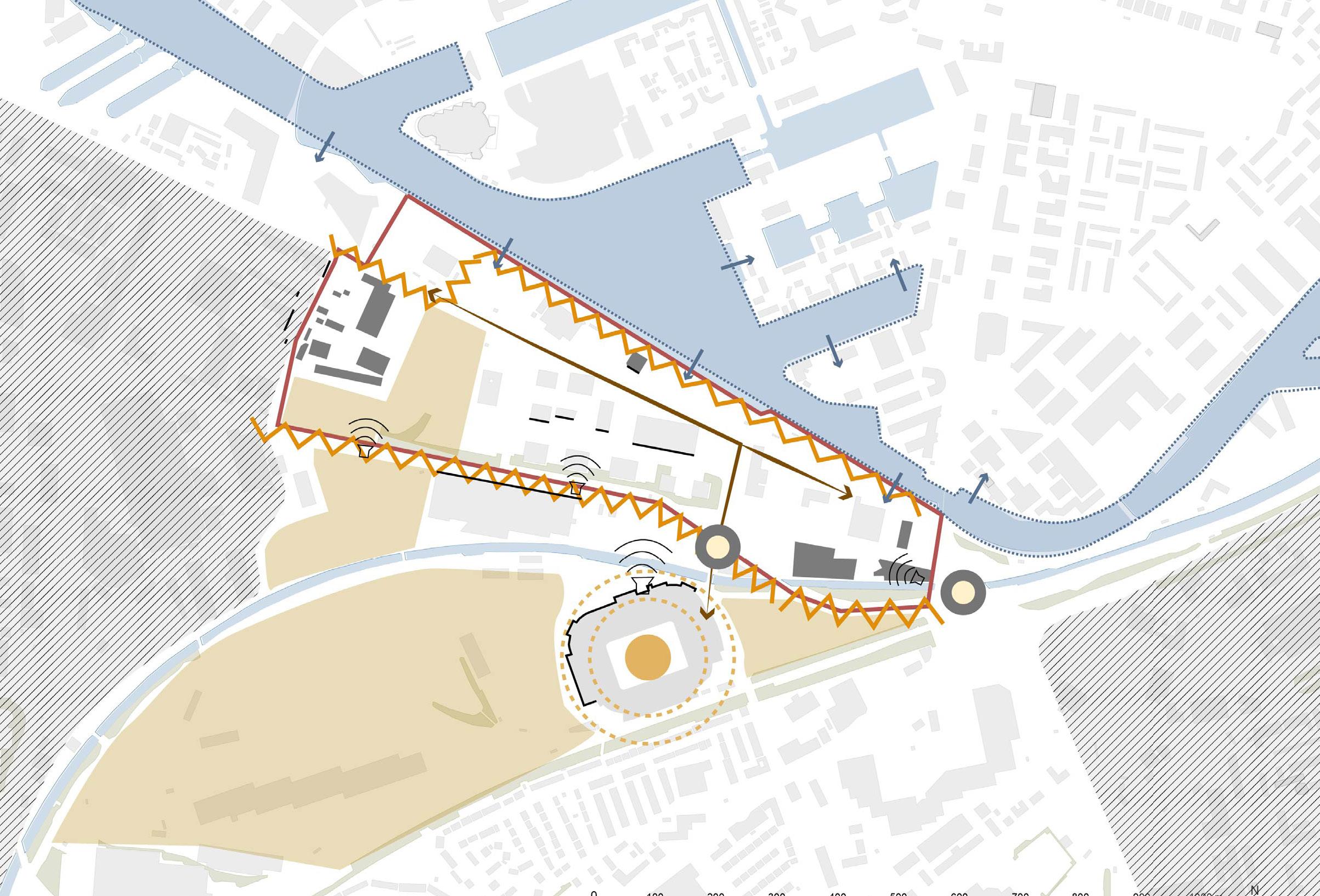

Evening Activity Analysis

To the north of the site lie much more varied land uses which help to sustain the Ordsall Community

Evening Activity Plan

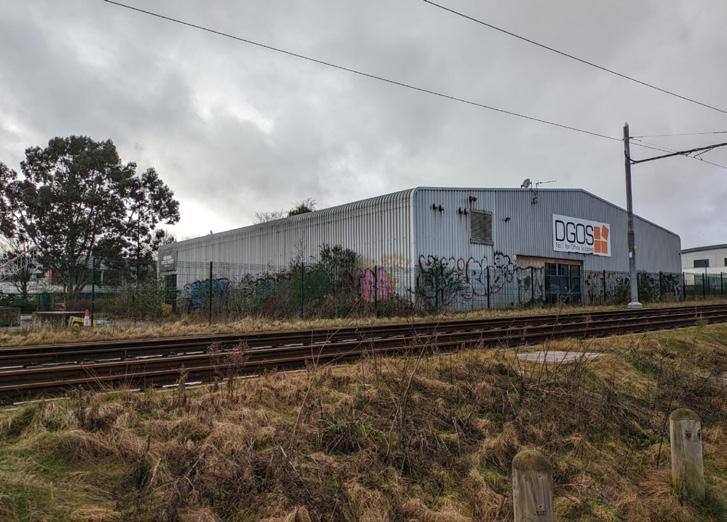

Industrial land uses dominate the site and surrounding area, correlating with building heights often between one and three stories

1

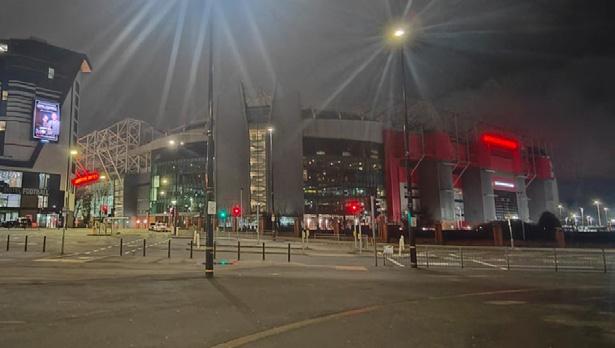

The site feels unwelcoming in the evening due to its primary use as an industrial area, resulting in low levels of passive surveillance.

However, key structures such as Old Trafford, the Imperial War Museum and MediaCity are well illuminated and attract pedestrian activity. Wharfside and IWM tram stations are also well lit, but the site is mainly dominated by cars in the evening.

2

Site

1

Residential

Recreational

Office

Blue Infrastructure

Mixed Use

Commercial Industrial

Retail

Green Infrastructure

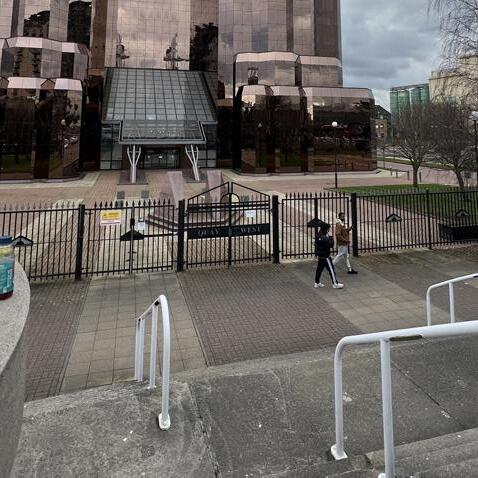

Quay West

2

Old Trafford

Key Takeaways: •

The site currently sits in between a large area of industry and commercial activity.

•

Whilst the site is used by employees and residents in the daytime, the area has a very limited amount of use in the evening with only the arterial routes and key structures around the site providing a hub for socialisation.

21

Transport and Connectivity

All images on page are taken from Google Maps (2024)

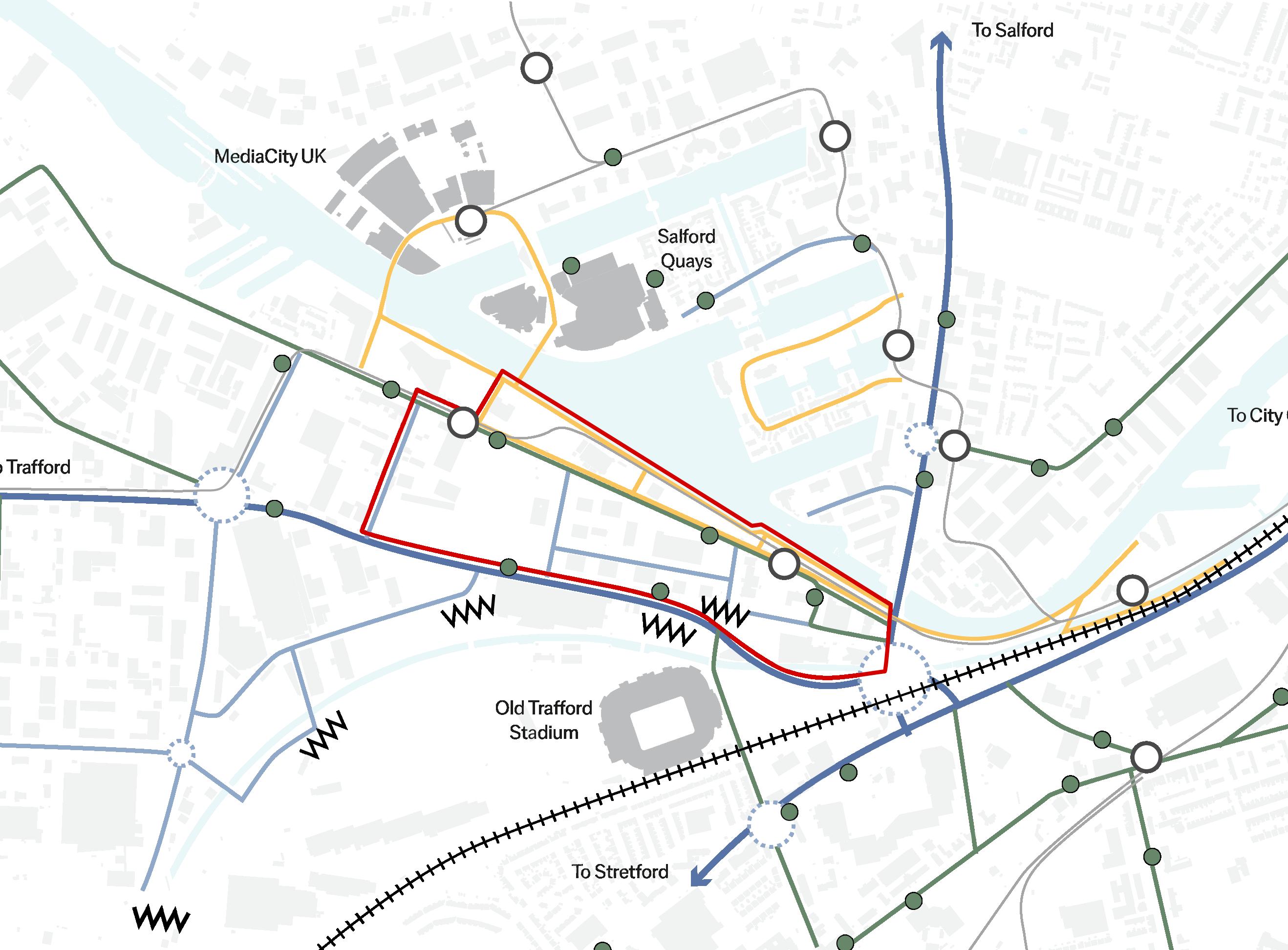

Route Hierarchy Trafford Wharfside is situated between the edges of Trafford and Salford, strategically located at the gateway of Trafford Park. It holds significant importance due to its proximity to Media City, Salford Quay, and Old Trafford Stadium, which are all accessed by major arterial routes which pass near by the site from wast to west.

Route Hierarchy pedestrian

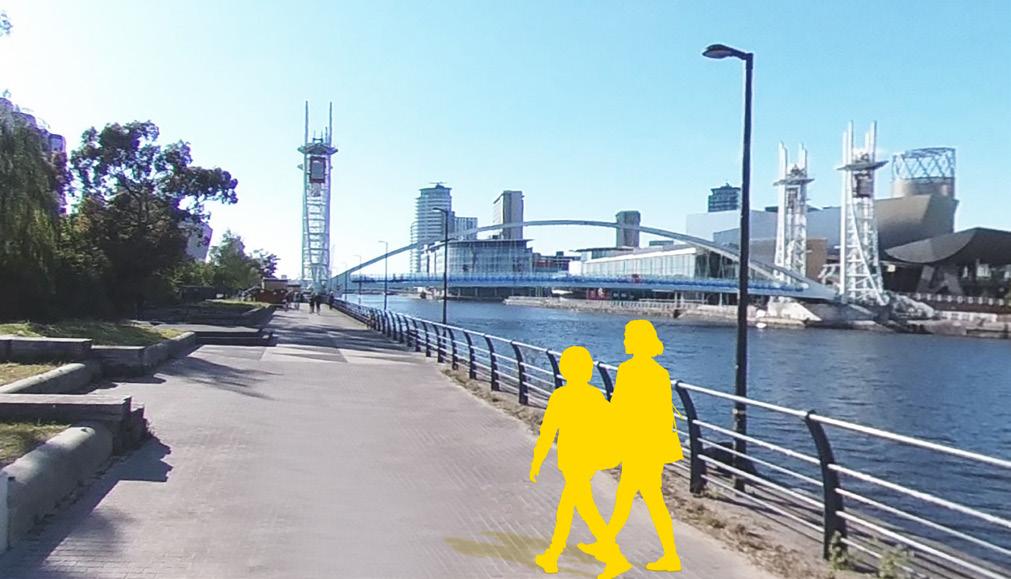

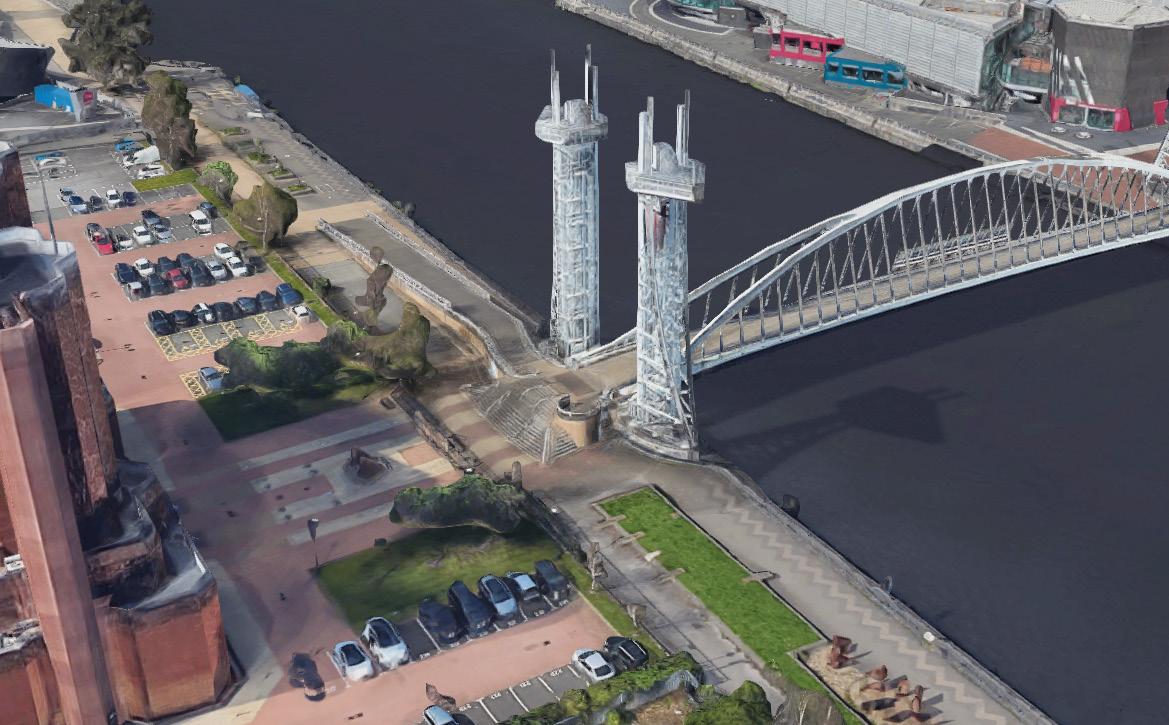

This is a pedestrian bridge linking to Salford Quay. The waterfront is a low-quality pedestrian sidewalk.

tram

This area serves as a transportation hub for freight and shipments.

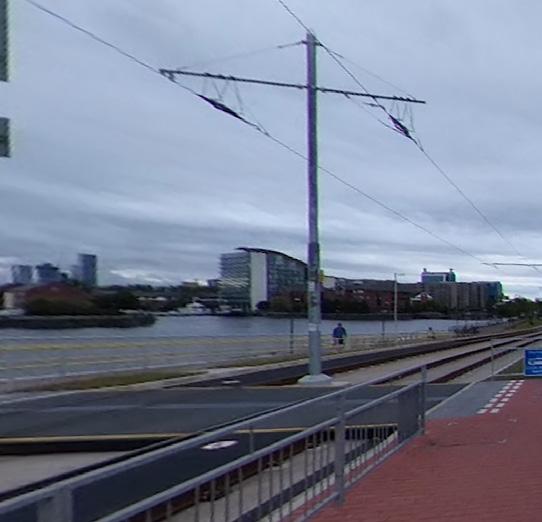

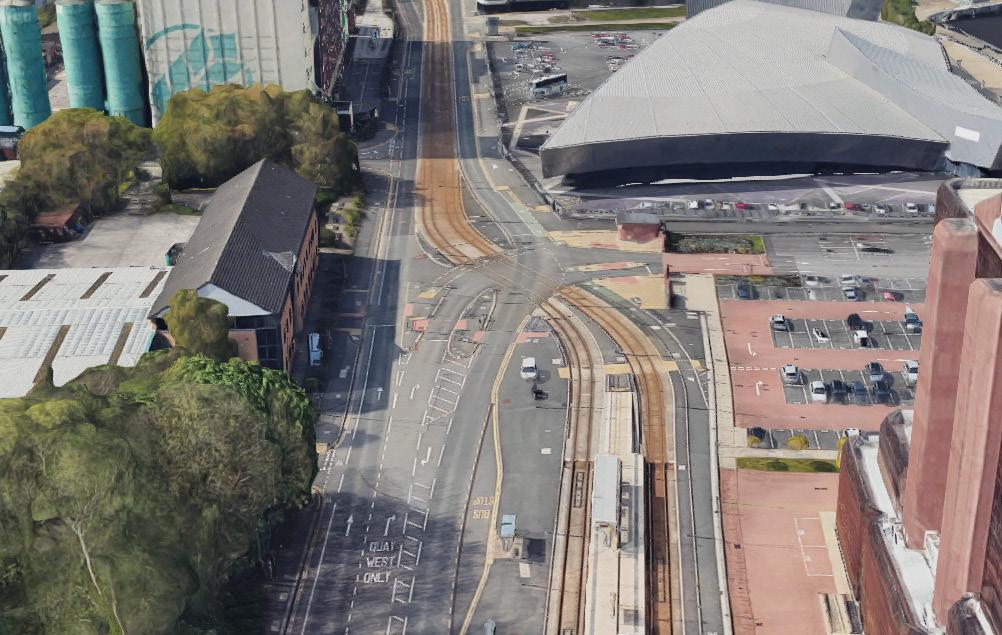

The tram line cross through the main road making the complex intersection, and it blocks the movement from waterfront to Trafford Park. pedestrian

pedestrian

Wharfside Way is not connected to Sir Alex Ferguson Way. Instead, the space in between is designated as a pedestrian zone for football spectators to pass through and reach the tram station.

22

Arterial Road Main Road Secondary Route

Pedestrian Route Tram Line Rail Line

Bus Station Intersection Tram Station

Barrier Key Structures

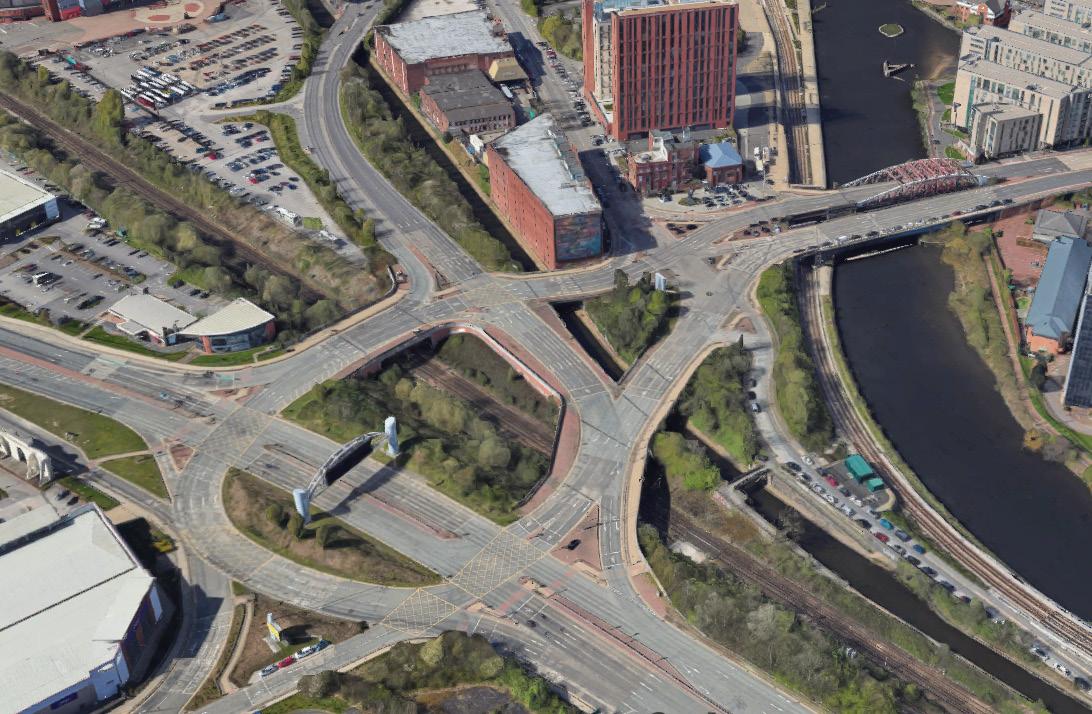

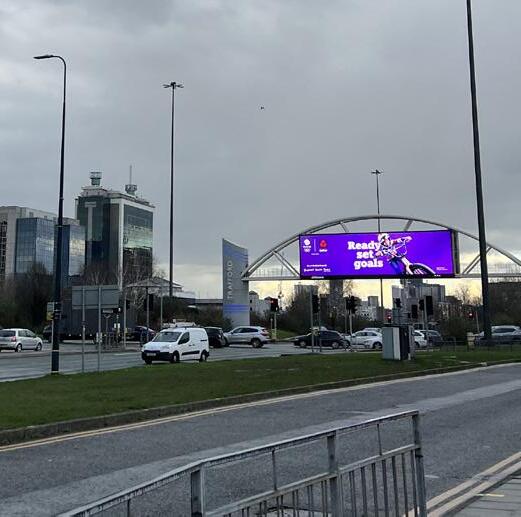

It is a traffic hub connecting Trafford and Salford.

The high traffic volume results in poor-quality access to the Wharfside site.

Trafford Wharfside bringing together work & play

Site Connectivity and Sustainable Modes

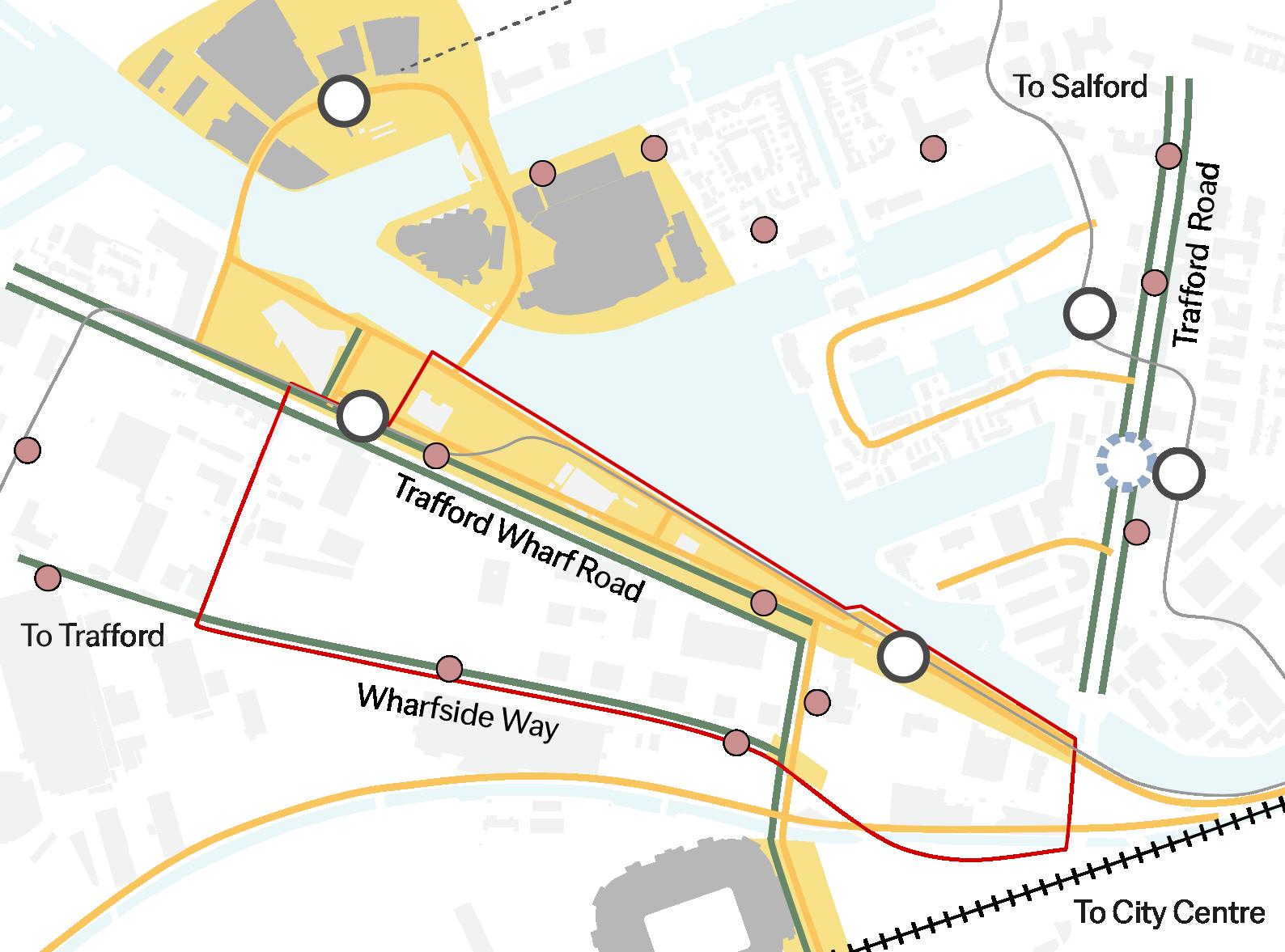

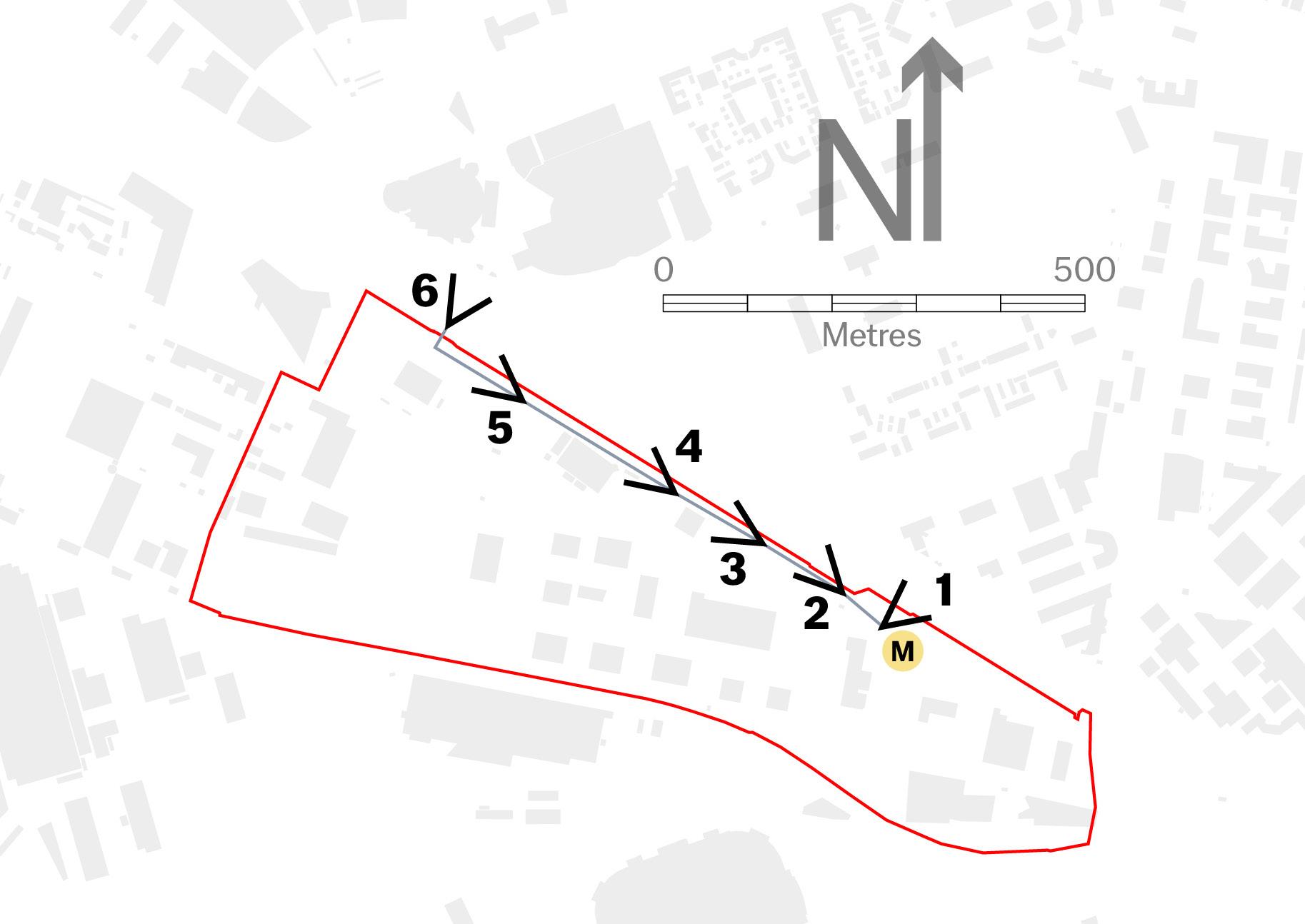

Site Scale Connectivity and Sustainable Routes Map 4

Within the site, pedestrian and cyclist flows are minimal. The waterfront sidewalk is of low quality but holds significance as it connects to The Lowry and Media City by two bridges. The processional road from Old Trafford Stadium becomes crowded on matchdays, but otherwise the site is largely devoid of pedestrian activity with exeption for the waterfront route.

For cycling, Trafford Wharf Road has two separate cycling paths, and Trafford Road also provides cycling lanes. To the south of the site, the Bridgewater Canal has a small sidewalk of low quality, shared with pedestrians.

Secondary roads within the site are mainly used by employees.

2

1

5

4

3 Metres

Pedestrian route Cycling route Tram line Railway

500

Intersection Tram station Bus station Pedestrian zone

1

10 minutes by car to the city centre.

30 minutes walk to the Trafford Park Train Station

20 minutes by bike to the city centre.

5

2

6

0

20 minutes by public transportation to the City Centre.

3

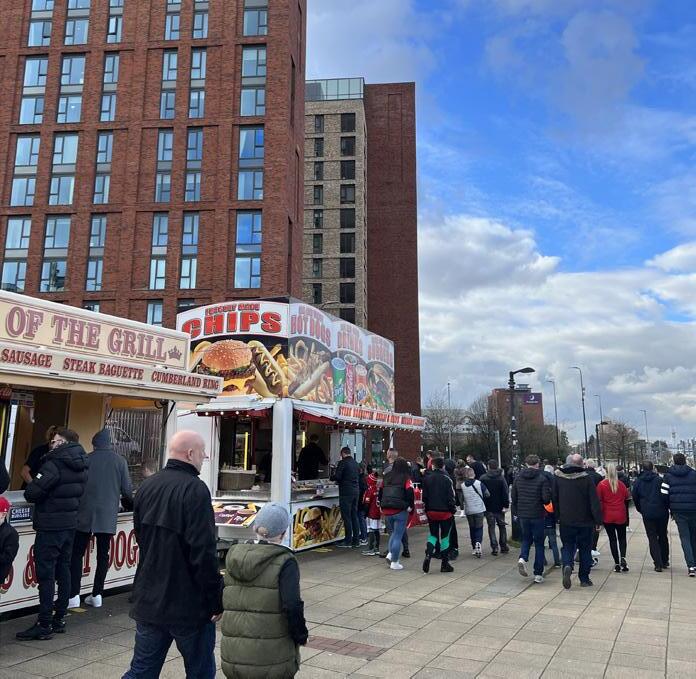

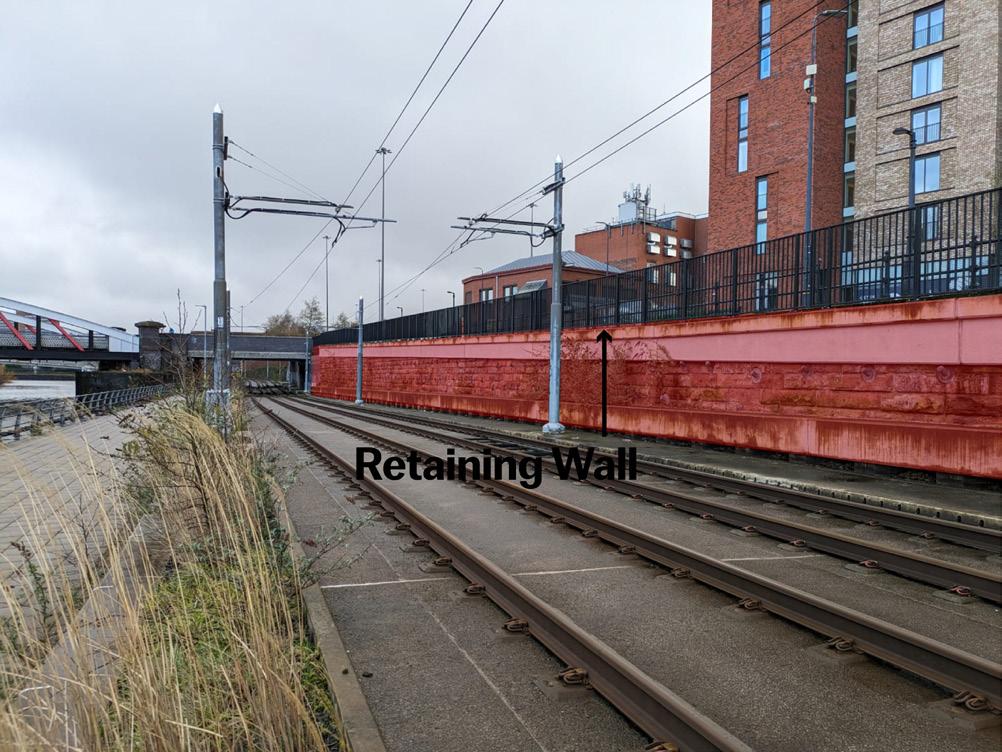

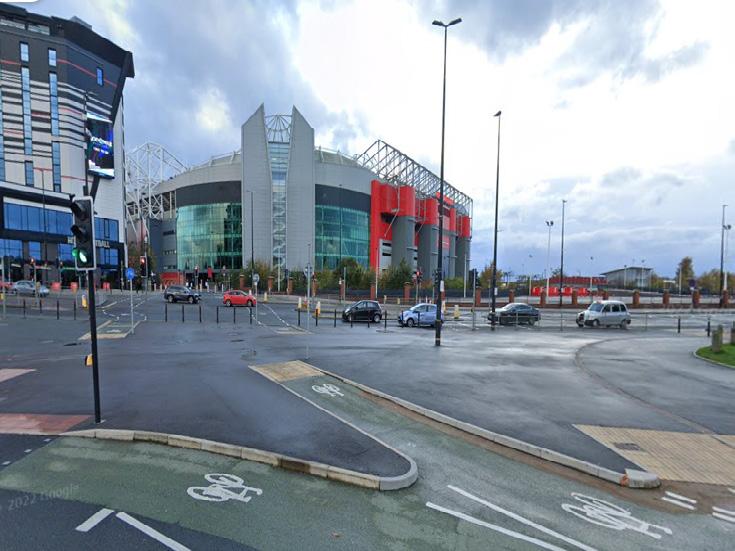

A route between Old Trafford Stadium and the tram station has been retrofitted to re-prioritise pedestrians.

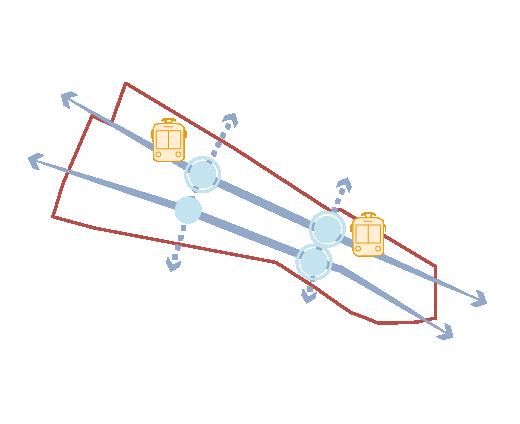

6 Key Takeways: • Two tram stations fall within the site • Wharfside Way serves as an arterial road through Trafford Park, primarily used for shipments and access to Lowry’s.

The sidewalk beside the waterfront is low quality although there are some sculptures showing the area’s history.

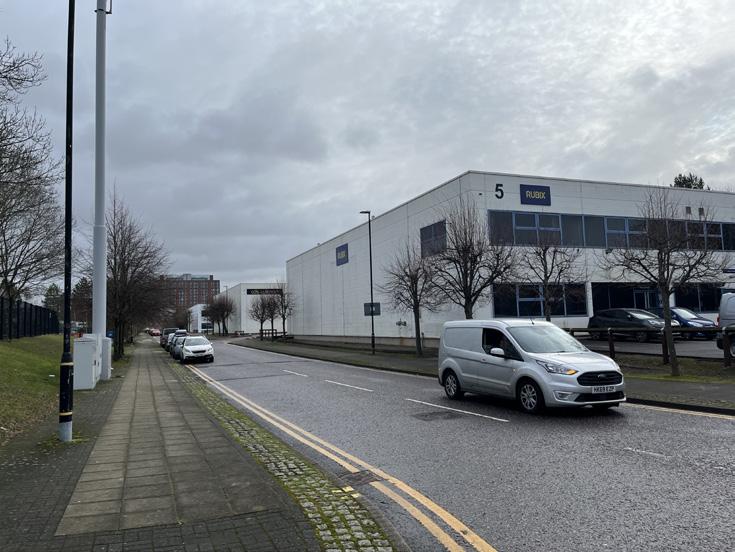

Trafford Wharf Road is a main road that runs through the site and features segregated cycling paths.

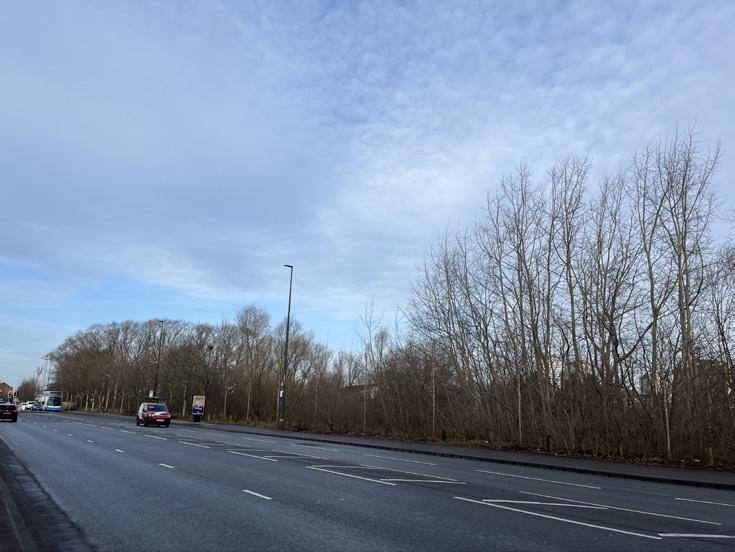

Wharfside Way features high volumes of traffic and offers poor walkability.

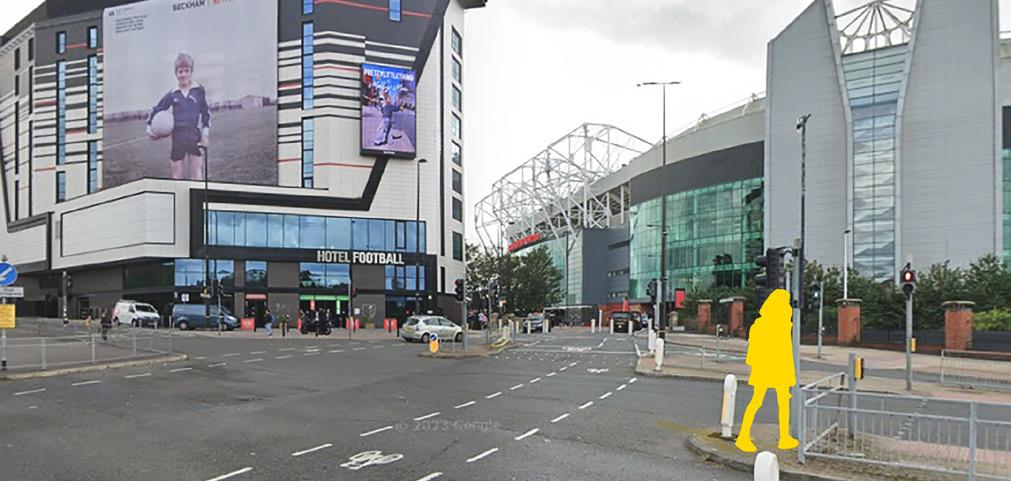

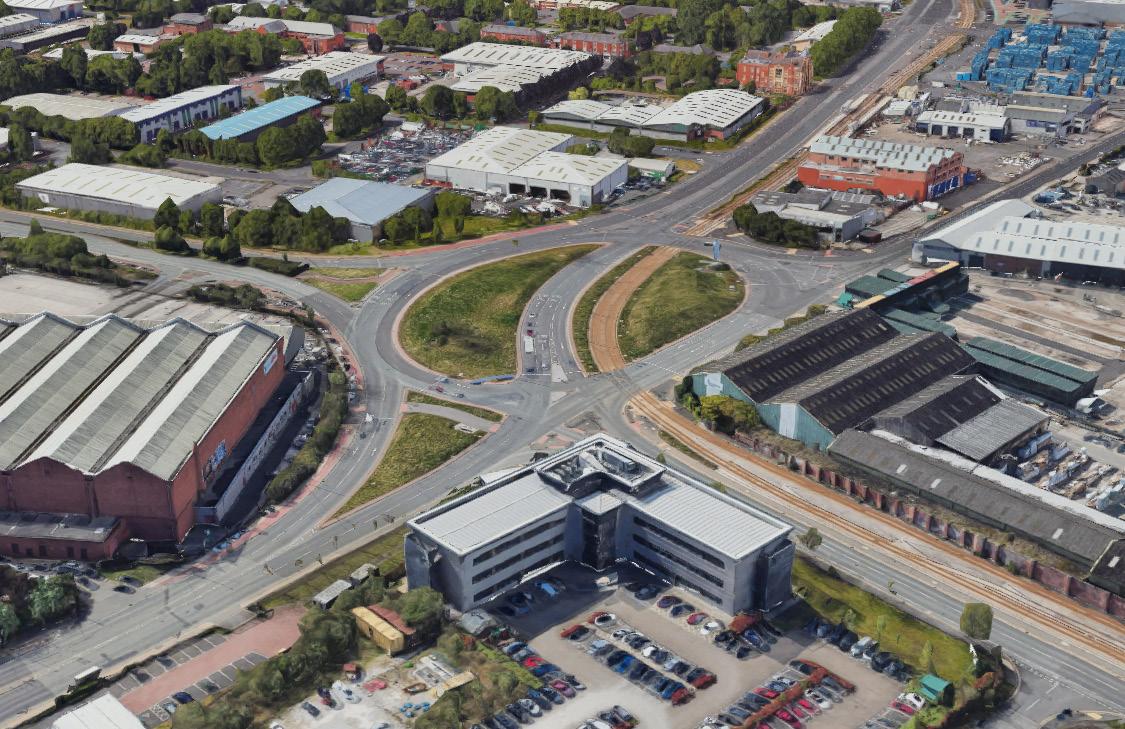

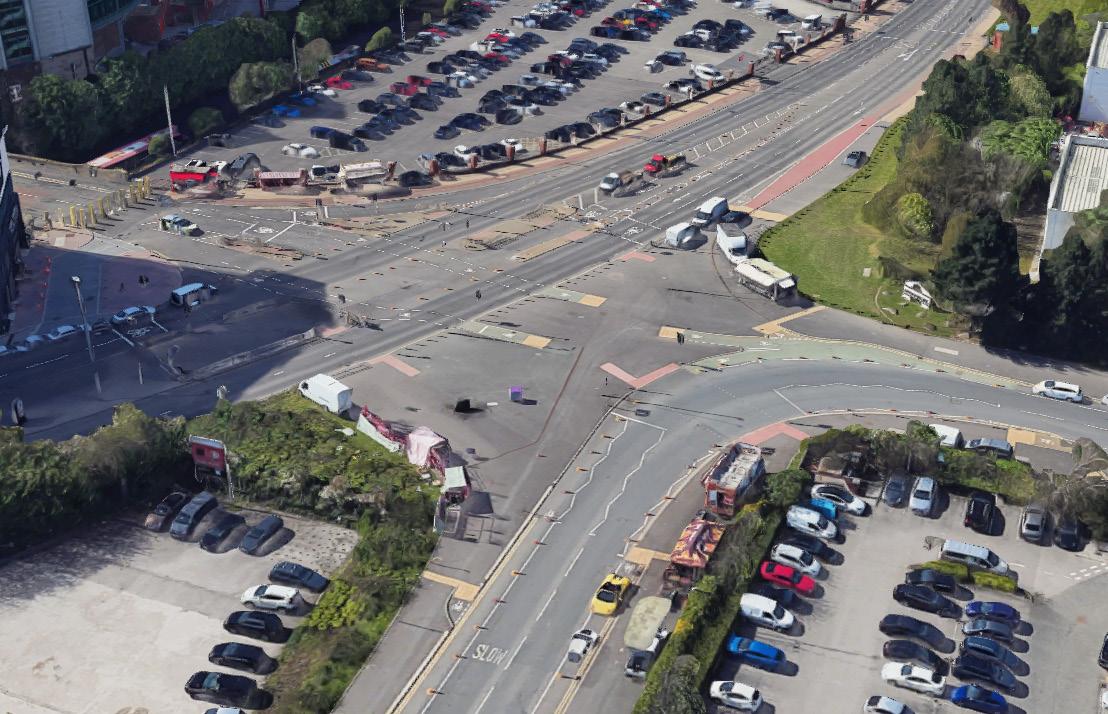

The main junction connects Salford and Trafford which is hard for pedestrians to pass through.

• The waterfront sidewalk, although of low quality, is essential for its views and connects to Media City and The Lowry.

23

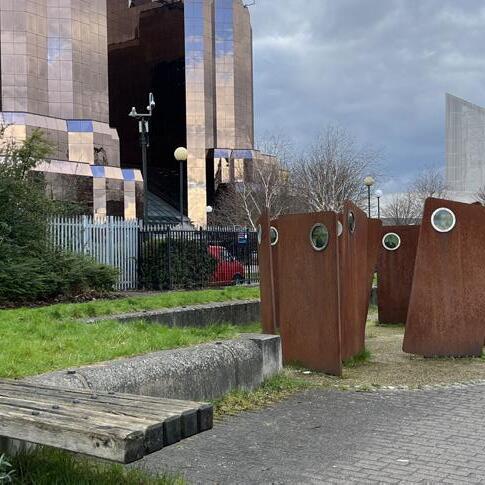

Green and Blue Infrastructure All images on page are taken from Google Maps (2024)

Green Infrastructure

Green Infrastructure Network Map

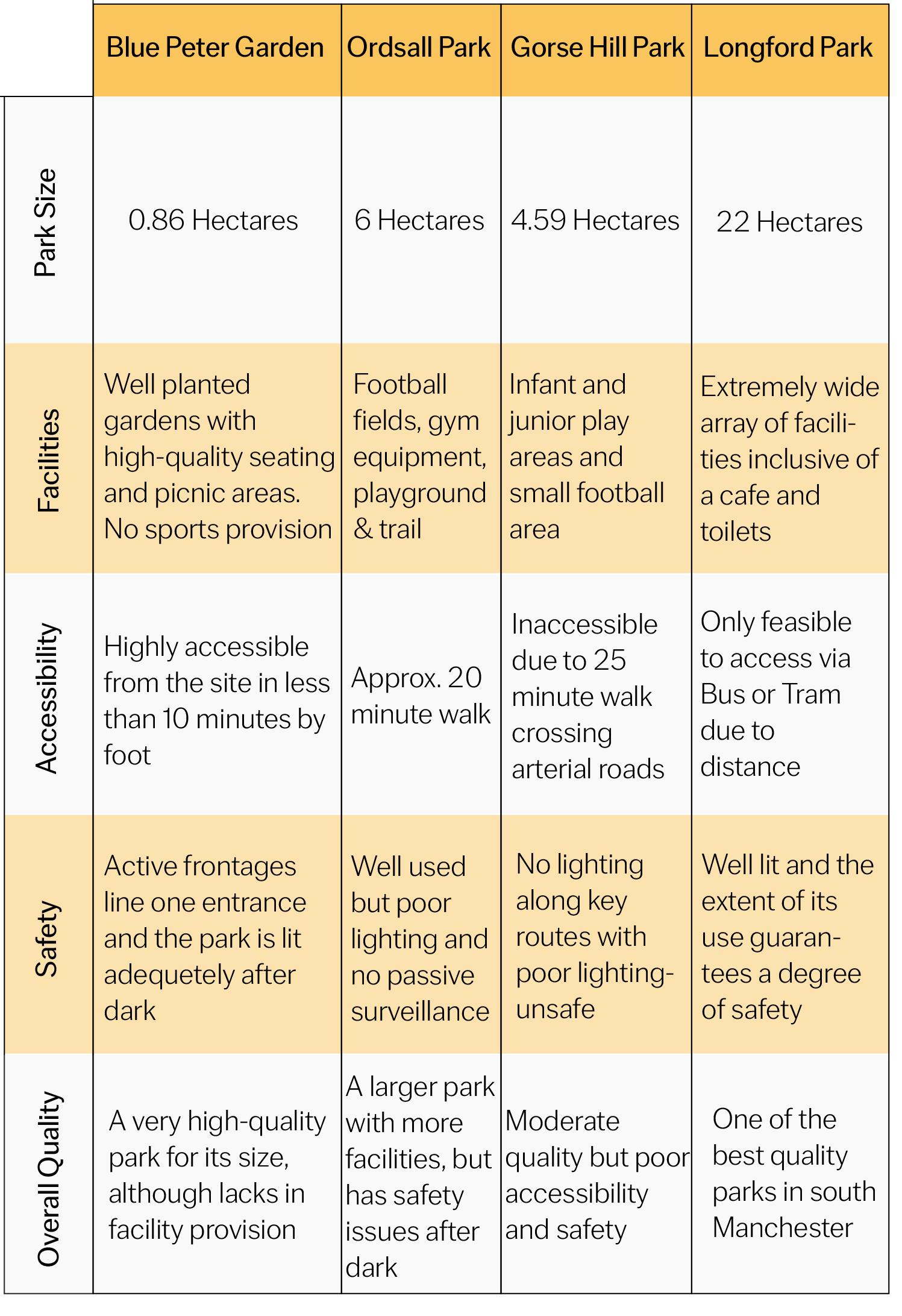

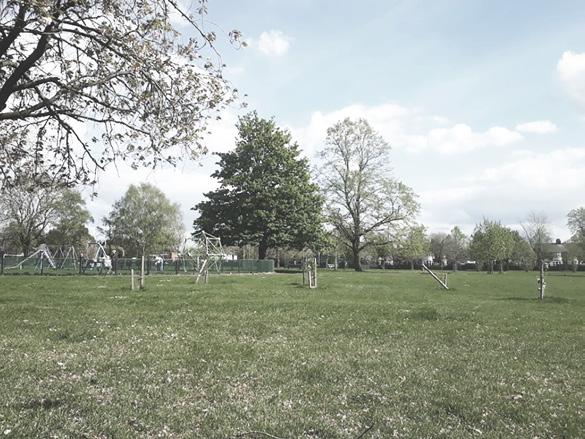

The site is devoid of high-quality green spaces, yet in its vicinity lies an expansive network of green infrastructure. When assessing the dimensions, internal amenities, proximity to the site, and other factors, four major green spaces emerge. These identified green spaces not only enrich the environmental landscape but also play a pivotal role in fostering community well-being and promoting a sustainable and ecologically conscious living environment.

Weaste Cemetery

1500m 30min walk

1000m 20min walk Blue Peter Garden

Trafford ecology park

Blue peter garden

Ordsall park

1

2

Saint Georges park Monmouth park Ordsall Park

500m 10min walk

Hullard park Seymour park

Nansen park Gorse Hill Park

Gorse hill park 3

Longford park 4

Longford Park

0

Major GI Intermediate GI Minor GI GI connection

24

Other green space Trafford canal Area of biological importance Major pedestrian bridge

Metres

Licenced pleasure craft and water sports Water sports only Vehicle bridge Site Minor pedestrian bridge

1000

Trafford Wharfside bringing together work & play

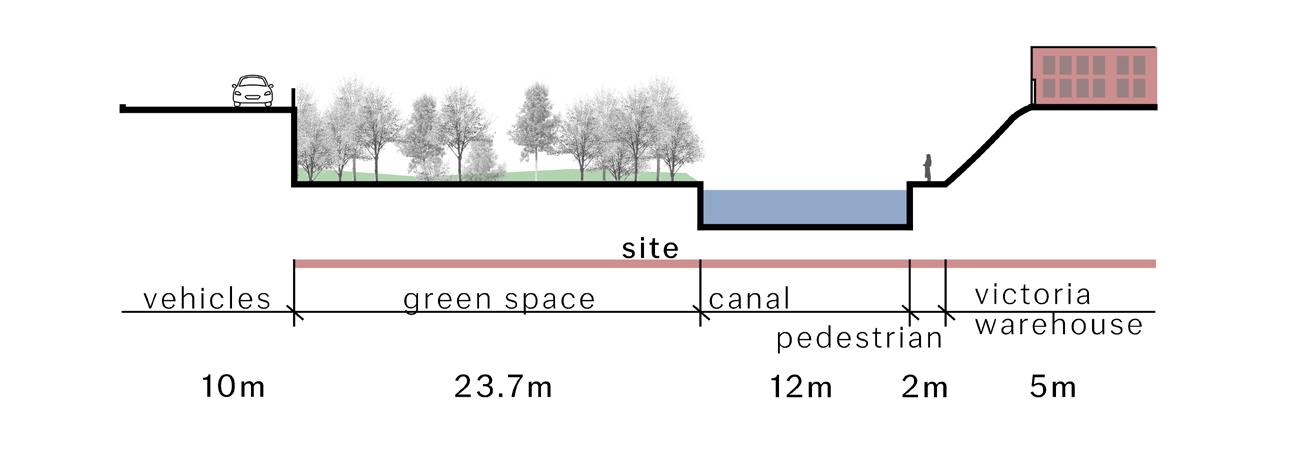

Blue Infrastructure

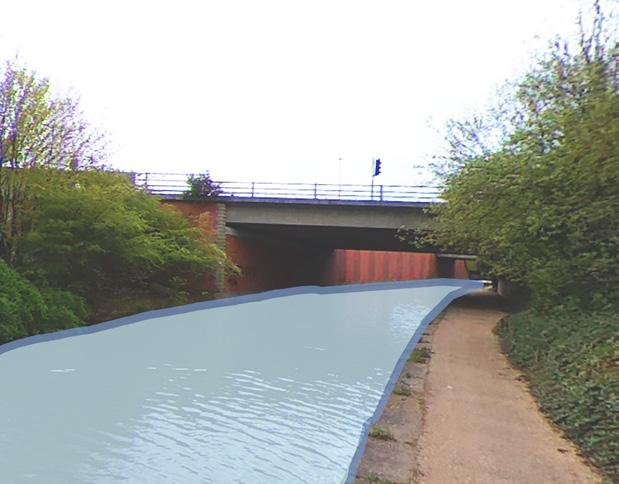

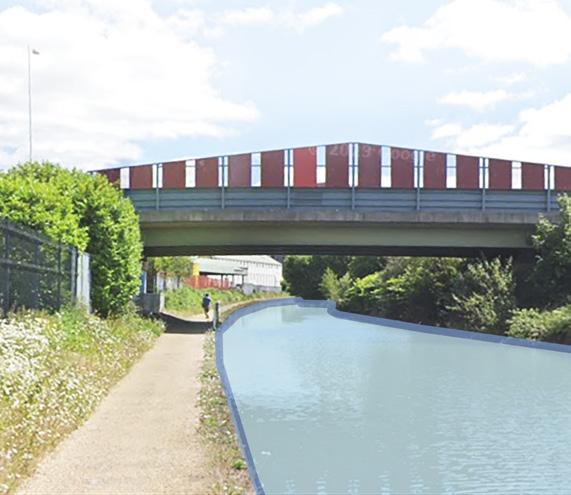

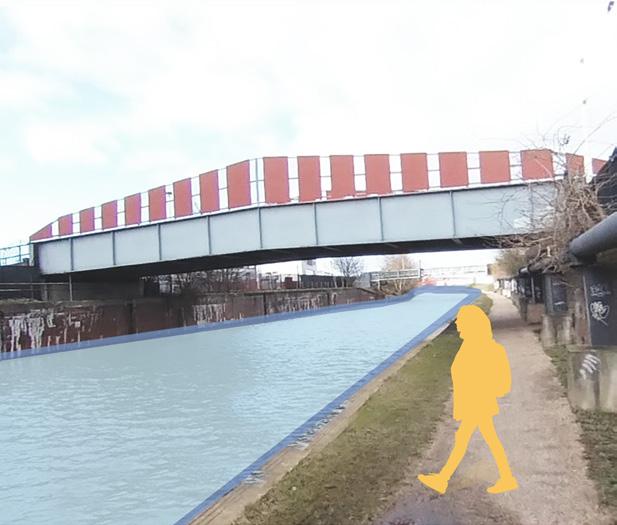

Bridgewater Canal

Bridgewater Canal Analysis Map

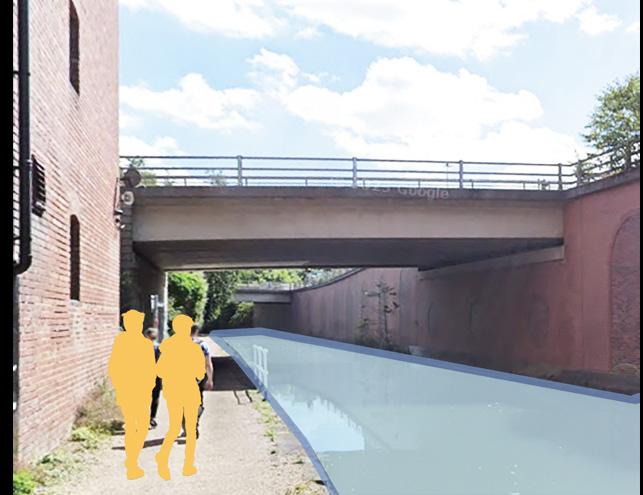

The local Blue Infrastructure Network establishes direct connections with key water bodies, namely the Manchester Ship Canal, North Bay, Eerie Bay, and Huron Bay. Each of these aquatic environments boasts its own distinctive character and serves unique functions within the overall ecosystem.

The walking experience on the canal is average, the green space on the south side is overgrown with trees and the buildings on the north side are of average quality and lack active frontage.

0

Metres

1500

View from the site

Key Takeaways •

Even though the site is connected to some of the higher quality GI, there is a lack of high quality green space internally.

•

The north side of the riverbank is well landscaped and should be fully utilised.

•

The canal on the south side has more bridges and is more connected compared to the river on the north side.

25

Public Realm Public Realm Analysis and Network Within the site and its surrounding neighbourhood, a tapestry of significant public spaces adorned with landmarks unfolds, contributing to the area’s rich cultural fabric. There are four major public realm within area which not only enrich the urban landscape with their architectural splendor but also serve as dynamic hubs that cater to a spectrum of cultural, recreational, and communal needs, including:

Media City UK

26

The Lowry

Old Trafford

IWM North

Trafford Wharfside bringing together work & play Public Realm Network Map The pedestrian experience along the waterfront possesses moderate walkability. While a scenic river vista enhances the right side, the adjacent left green space suffers from inadequate design, exhibiting substandard quality. This demands attention as part of any comprehensive design interventions.

1500m 30min walk 1000m 20min walk

Oasis academy media city UK

4 Media city UK

The Lowry IWM North

Way to the city center

3

Situated along a bustling urban artery, the stadium’s accessibility hinges on a major traffic thoroughfare.

The influx of vehicular activity, exacerbated on match days, poses a safety concern for pedestrians navigating the space.

Lowry outlets

2

500m 10min walk 1 Old trafford

White retail park Trafford rown hall Trafford college Old trafford cricket ground

Community center 0

Metres

Key Takeaways

1500

•

Major public realm

Minor public realm

Intermediate public realm

Church

Public realm connection Active area

•

There are four major public spaces that are within a 20 minute walk of the site, with Old Trafford on the south side being a landmark building with a high concentration of people at certain days and times.

The site itself is a vacuum within this network and disconnects public spaces to the north and south.

Site

27

Facilities and Attractions Facilities The site is enveloped by a diverse range of high-activity zones, each serving distinct urban functions. An array of vibrant entertainment, tourism, and commercial hubs are strategically complemented by proximate hotel amenities.

This hotel network forms a crucial foundation for fostering further growth in tourism and entertainment.

Media City boasts a dynamic mixed-use character, featuring high-quality office spaces, educational institutions, entertainment venues, retail outlets, and tourism amenities. On-site, Victoria Warehouse stands as an additional event facility ripe for strategic utilisation.

Cricket Ground

Although the site accommodates some lodging and tourist infrastructure, there is a noticeable absence of community facilities. Particularly noteworthy is the poor accessibility to existing schools. The dynamics of matchdays also significantly alters the site’s context, a facet to be explored in greater detail later.

Facilities and Amenities Map

Lowry Outlets

1500m 30min walk 1000m 20min walk

Ridge and Partners (2019)

VisitNorthWest (N.D)

White City Retail Park

Premier Inn

500m 10min walk

Community Education Retail Leisure Parking Active area Tourism Police station Hotel Medical Site Relevant road

Yandex (2020) Victoria Warehouse

28

VisitManchester (N.D)

Premier Inn (2024) Old Trafford

0

Metres

1000

Byrne (2024)

Trafford Wharfside bringing together work & play

Lowry Outlets

Cricket Ground

Old Trafford

Victoria Warehouse

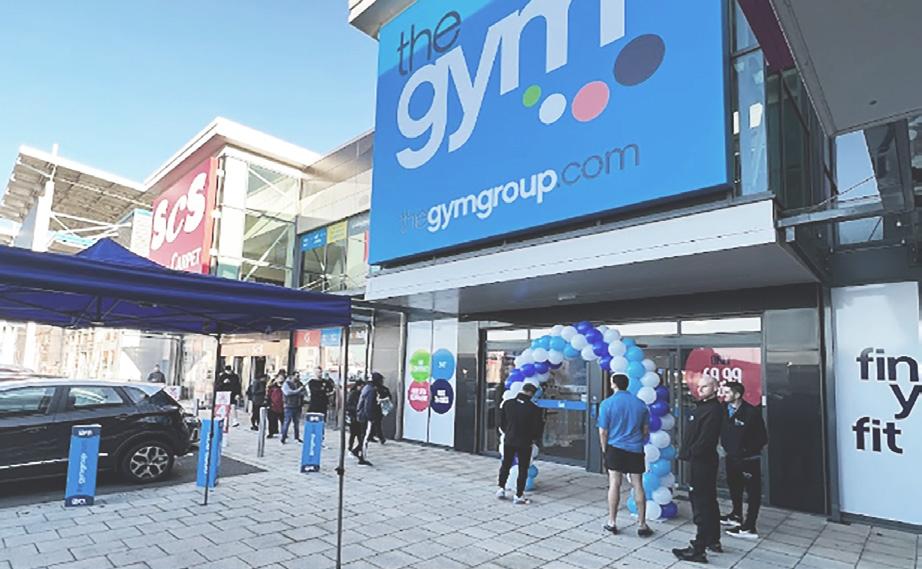

The Lowry Outlets integrates retail and leisure uses within a contemporary urban landscape.

Old Trafford Cricket Groundoffers a dynamic space for cricket enthusiasts, though is increasingly used as a venue for other summer events.

Old Trafford has an important role as a football stadium but is also a symbol of pride for Manchester United fans.

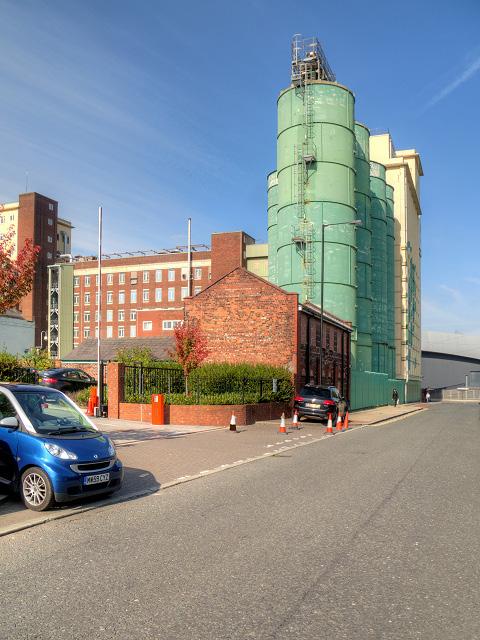

Victoria Warehouse integrates a remaining element of the area’s industrial heritage within a modern events space.

29

Character Wider Area

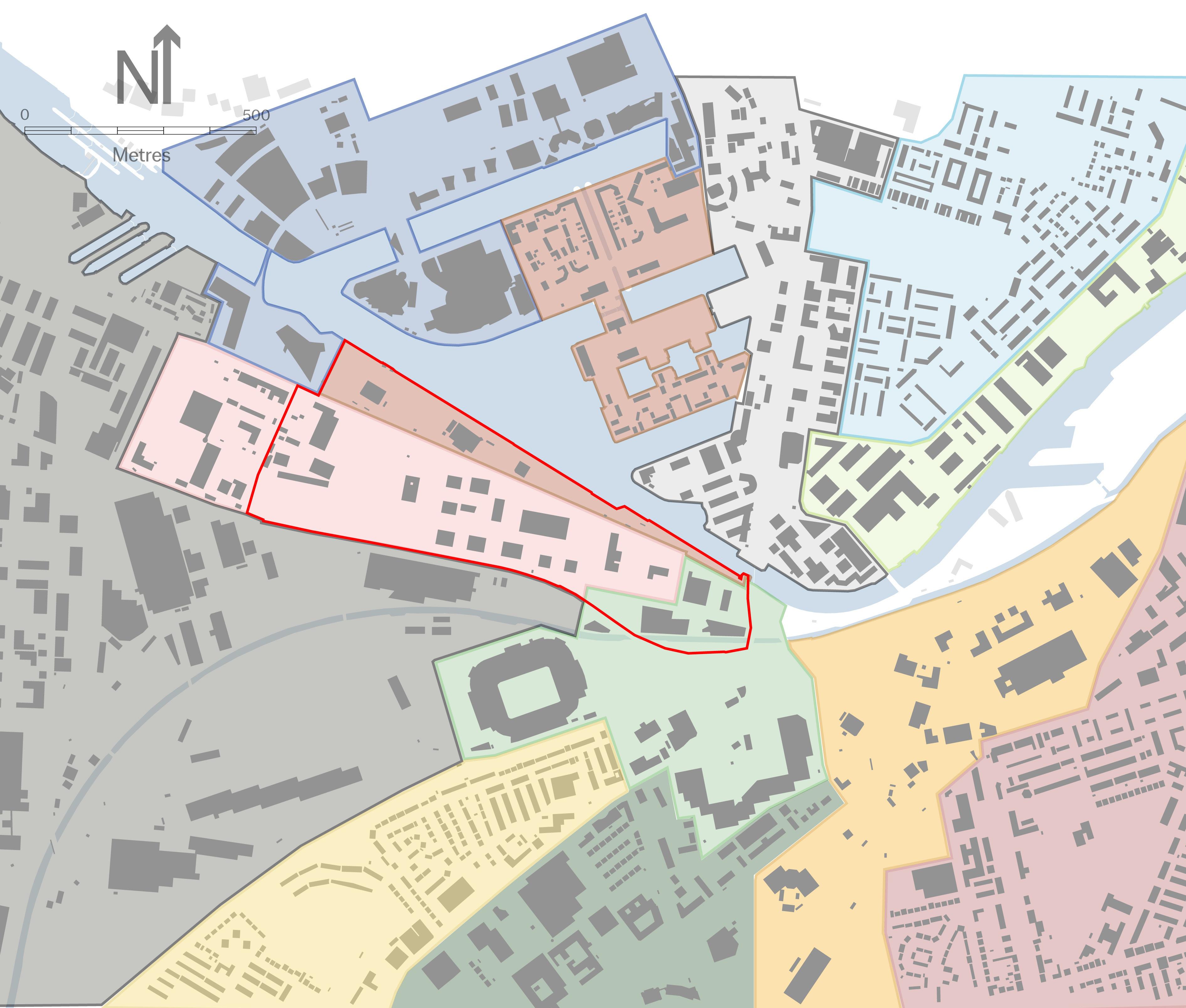

Character Areas Map

The area surrounding Trafford Wharfside features a wide range of different land uses, morphologies, architectural styles, building sizes or forms and landscapes which contribute to a range of character areas which can be identified.

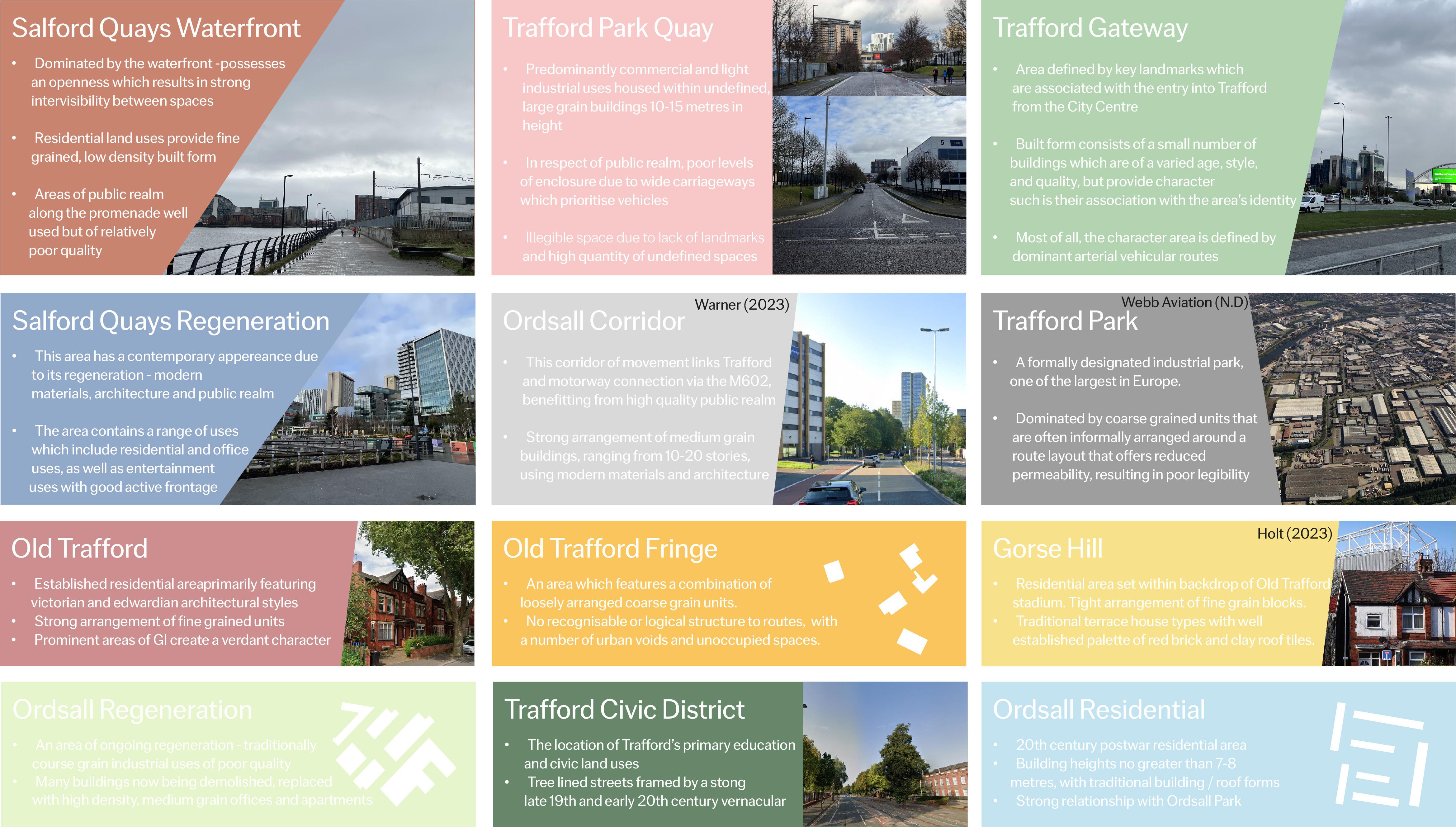

Twelve character areas have been identified within one kilometre of the site boundary which are extremely varied in typology, ranging from areas dominated by victorian terraced and semi-detached housing, areas of contemporary mixed use waterfront regeneration and areas dominated by a character resulting from heavy industrial land uses.

Site Character To the east of the site are large, vacant areas of land which have no prevailing character

Salford Quays Residential

Trafford Park Quay Trafford Gateway

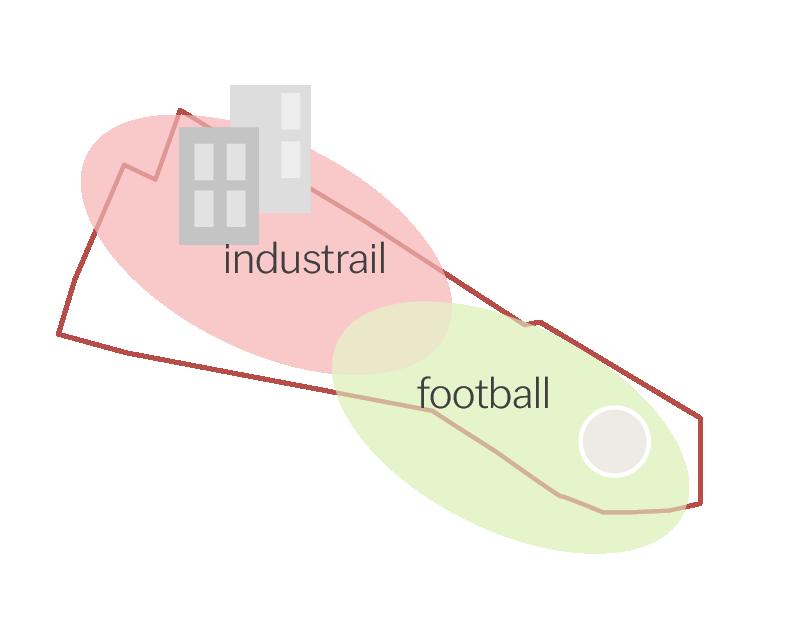

Three seperate character areas are located within the site Three seperate character areas can be observed within the site. Such is the nature of these areas, the transition from one area to the next is stark and results in harsh boundaries between areas. Of these three areas, none are particularly strong and do not contribute significantly to this area of Trafford.

Key Takeaways: •

The site and wider area contain significantly varied characters which are relatively disconnected from eachother, beginning and ending abruptly without transition.

•

Three character areas can be identified within the site, all of which extend beyond the site boundary.

30

Trafford Wharfside bringing together work & play

31

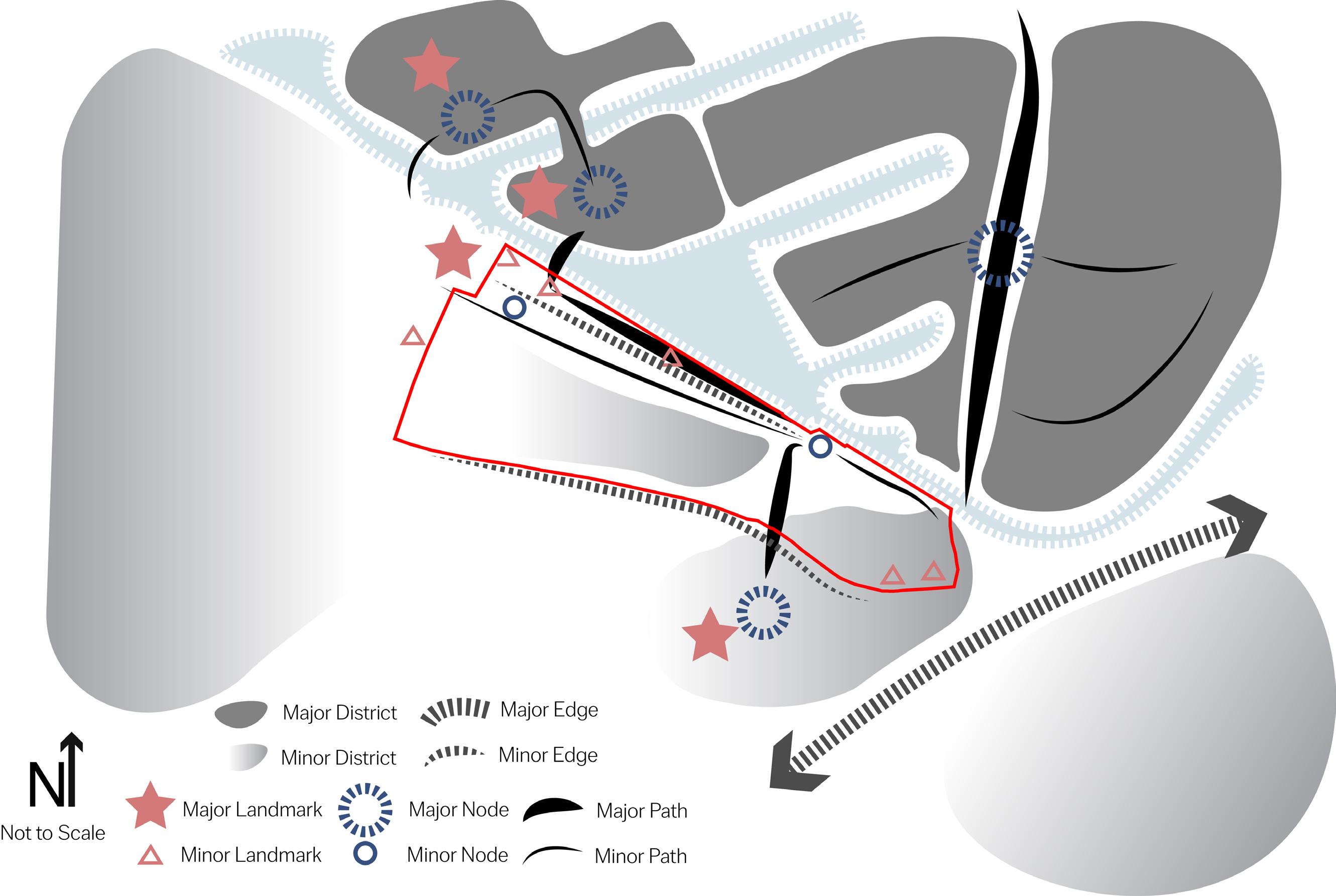

Legibility All major, recognisable districts which help provide legibility are across the waterfront which is a barrier.

Serial Vision Salford Quays / MediaCity

Ordsall (Salford)

Strong sense of legibility to north of site where there are fewer barriers, more established routes and major landmarks

Trafford Park

Chester Road acts as a major barrier to pedestrians which prevents almost all movement south west of the site

Old Trafford

Tram Line prevents pedestrian connections between Trafford Wharf Road and the Waterfront

The site lies in a compromised position with regard to legibility insofar as there are poorly defined districts to the south, east and west. The two major districts within the area are located across the waterfront, which although visible from the site, are not easily accessible.

The northern edge of the site is where the most pedestrian activity occurs.

This area benefits from a clear route which is well lit and features a series of landmarks, however, the presence of the Metrolink line severely restricts movement.

32

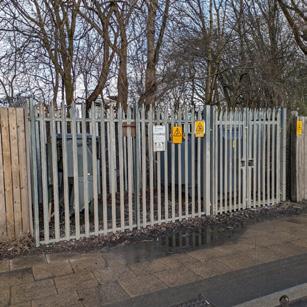

Metal gates bordering private space impede on legibility on approach from Millenium Bridge

Most pedestrians which use the site often arrive by Tram. Immediately next to the tram stop, an existing waterfront promenade provides a well used area of public realm which connects the site with Salford Quays and Media City.

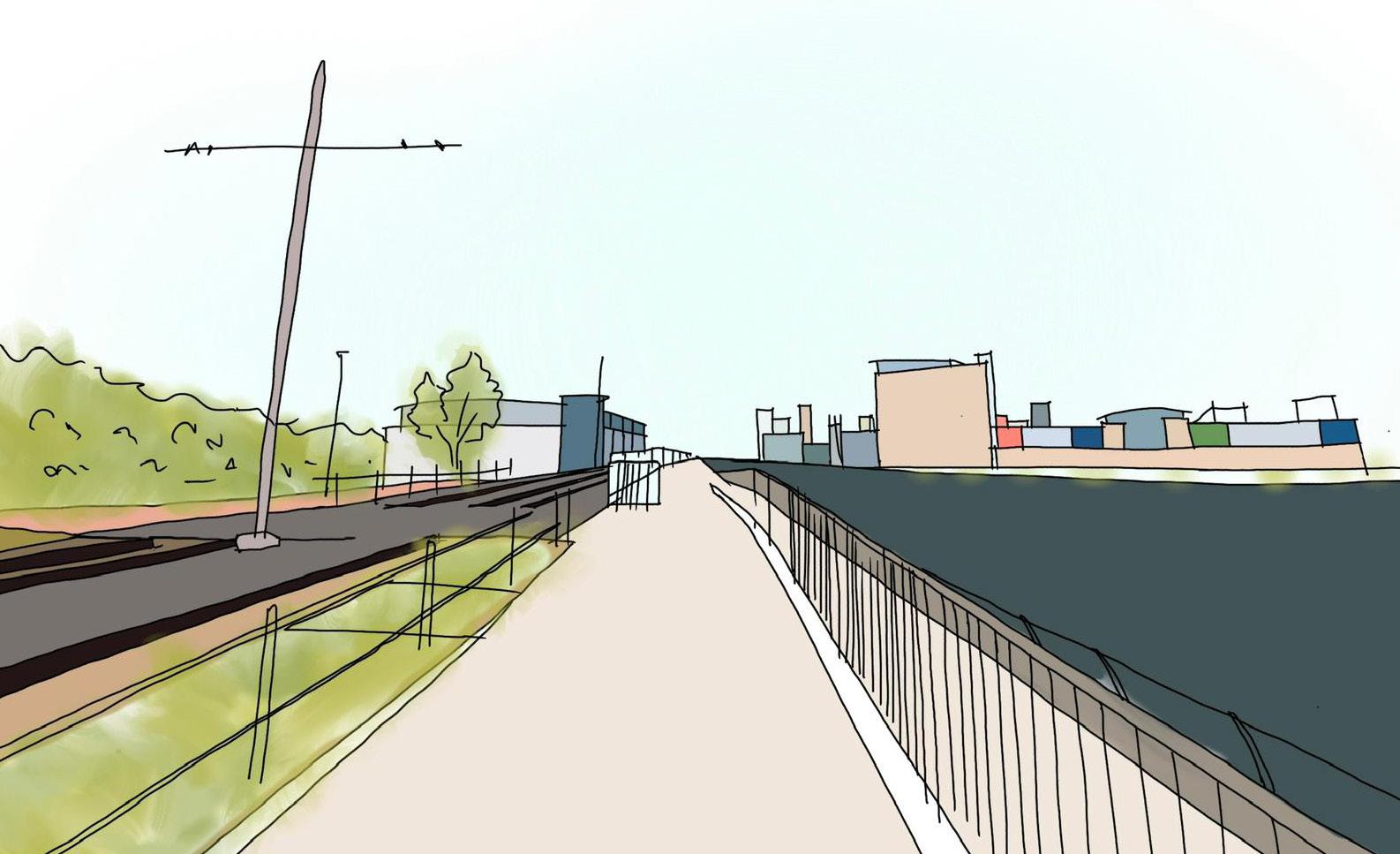

A serial vision of this route illustrated on the page opposite indicates that the pedestrianised waterfront route can be experienced differently at various stages on the route. It is clear that the Metrolink line and ovegrown vegetation provide significant physical and visual barriers which result in a poor sense of place and awareness of the surrounding environment.

Key Takeaways: •

A large number of landmarks surround the site but there insufficient routes and recognisable districts which significantly restrict legibility

•

Three character areas can be identified within the site, all of which extend beyond the site boundary.Additional character areas terminating at the site boundary contribute to a complex surrouding context in respect of Character.

Trafford Wharfside bringing together work & play

1.

Emerging from the tram to the right, regeneration across the waterfront in Ordsall is visible.

4.

A level crossing provides a single opportunity to cross the Metrolink line, with reduced prominence of GI.

2.

Turning left, the route naturally progresses along the waterfront which has a feel of openness.

3.

Dense vegetation and Green Infrastructure screens the Metrolink line but is significantly overgrown.

5.

Close to the bridge between the site and Salford Quays, the route divides around an area of public realm.

6.

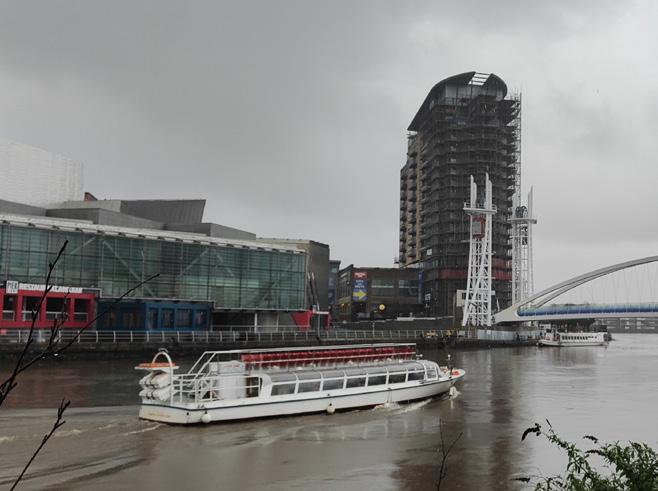

The Millenium Bridge signifies arrival into Salford Quays, framed by the Lowry Theatre and the Lowry Shopping Centre.

33

Site Attributes Topography Long Section between Canal and Ship Canal

A.

B.

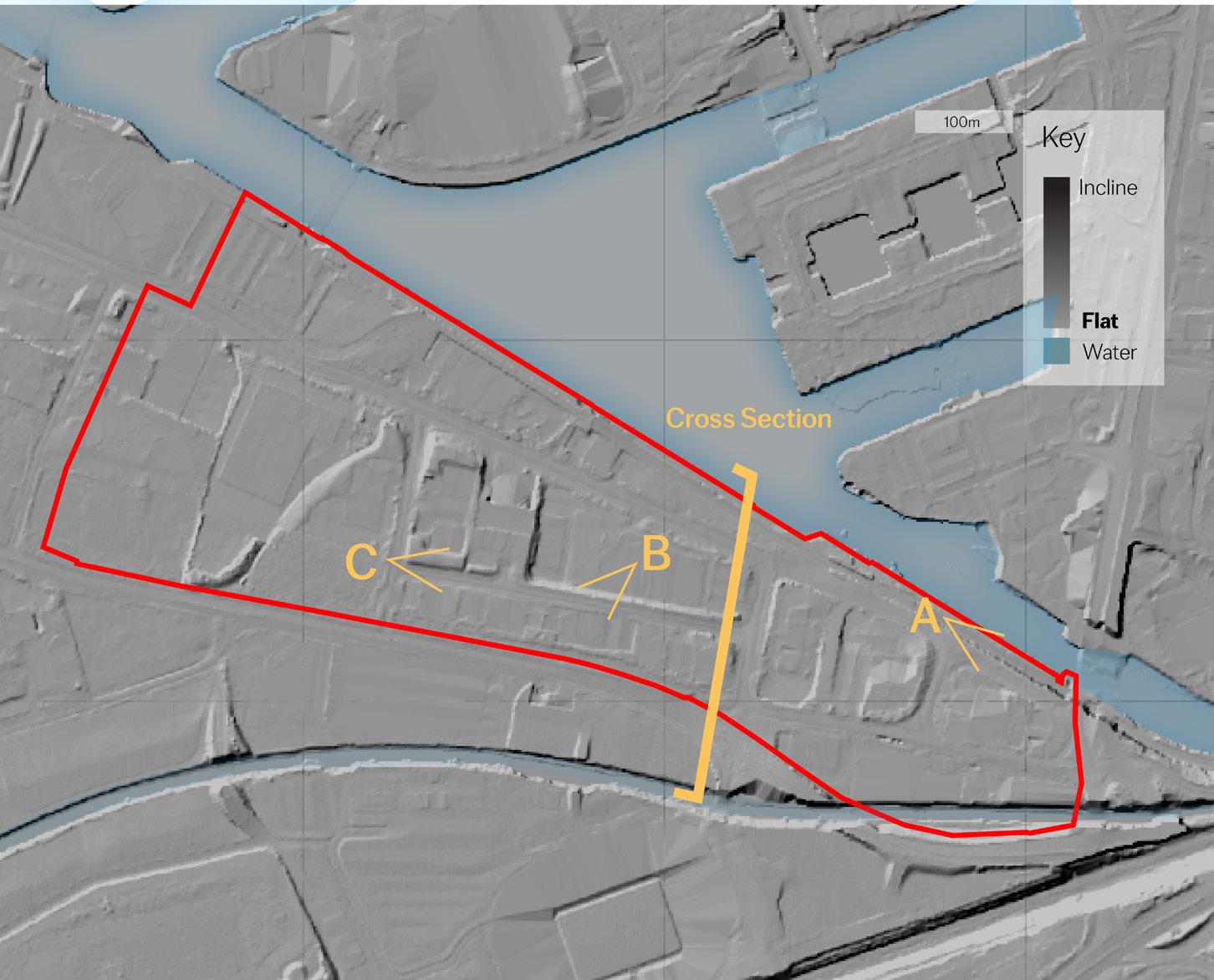

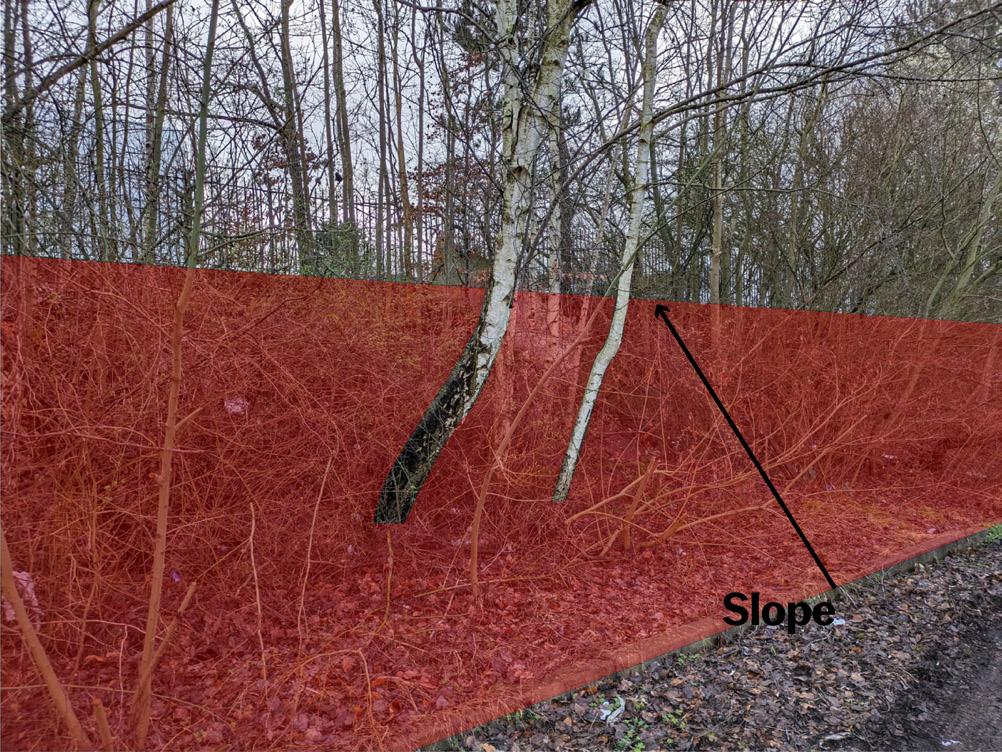

The lidar map to the left accurately depicts the topography of the site by showing in darker the areas that are inclined. In the map there are three viewpoints which can be seen above. These represent some of the most significant level changes within the site.

34

C.

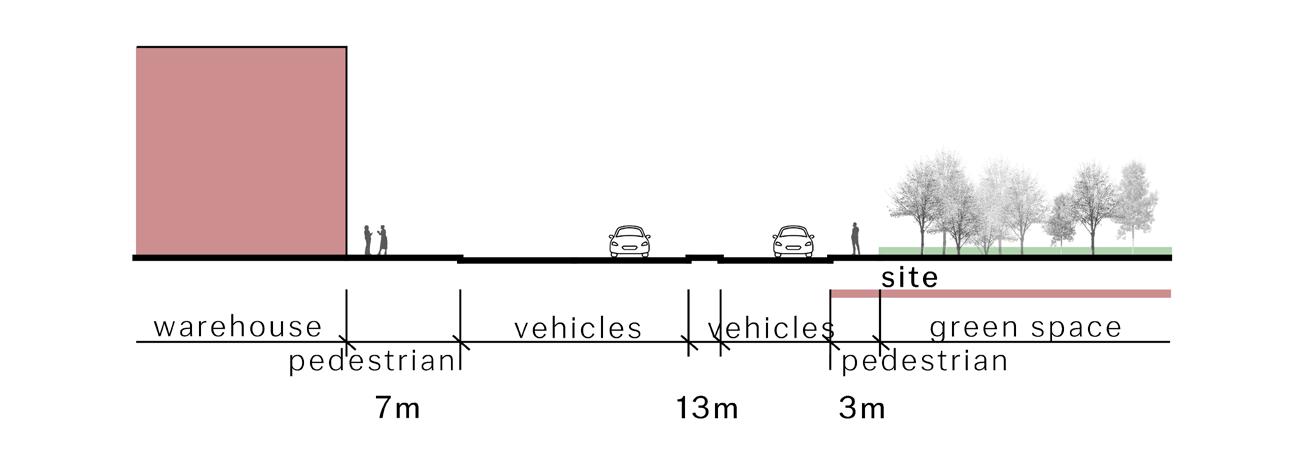

The cross section located above shows that the canal to the South (lefthand side), and Salford Quays to the North (right-hand side) of the site are at different heights, as the site slopes down to the north. The cross-section indicates the relative width of the site at this point and shows the width of traffic lanes, with heavily prioritise vehicles.

Trafford Wharfside bringing together work & play

Master Manchester (2023) Environmental Considerations Map

Metrolink Stop

Key Environmental Issues Site of Biological Importance

A combination of the site’s size, historic use and surroundings results in a number of environmental considerations that must be taken into account.

Flood Zone 2 masks the edges of the canal as well as some of Trafford Wharf road that is within the site, with areas of historic landfill located within and surrounding the site which may require remediation.

Whilst the presence of two Metrolink stops provides a unique benefit and opportunity for the site, the infrastructure associated with it including tram lines, stops and overhead wires, are physical and visual contraints.

Birds of Salford Quays

Substation

The Salford Quays Site of Biological Importance (SBI) directly adjoins the site and provides an important habitat for a range of birds.

5G Towers European Goldfinch

Chiffchaff

Swan

Comorant

Canadian Goose

Coot

Red-Breasted Merganser

Peregrine Falcon

Trafford Road Junction

Key Takeaways: •

The site features various environmental constraints which must be considered. A number of these, such as the site of biological importance and Metrolink infrastrusture, do however provide key opportunities for the site to deliver improvement to these assets.

•

Other aspects such as areas of historic landfill and flood zones constrain the feasbility of development in certain areas.

Matchday Activity

35

Site Identity

Building Frontage and Quality Map

Building Quality and Frontages Poorer Quality buildings are located to the West side of the site. These buildings have enough maintenance for industrial use, however, they serve on aesthetic purpose and add no value to the townscape. These buildings also provide poor frontages onto the surrounding area.

Substandard Quality buildings are concentrated in the central part of the site. These structures are well maintained, have decent architectural quality, however their impact on the surrounding townscape is minimal. The frontages are not very strong, especially with a GI barrier surrounding most buildings.

Excellent and Adequate Quality buildings are located to the East of the site.

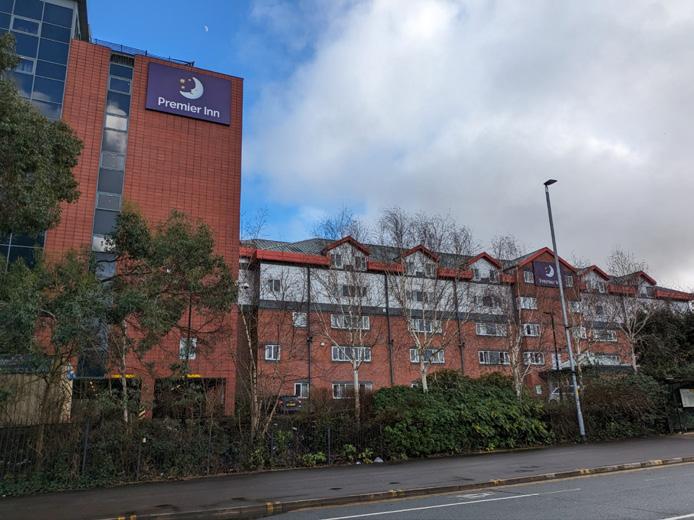

Some of these buildings have a more public use such as the Premier Inn hotel and Victoria Warehouse hence their stronger frontage. The new development in this area has excellent architectural quality, is well maintained and has a significant impact on the local townscape.

0

Metres

Site

Key Takeaways:

Strong Frontage

Stronger frontages and higher quality buildings are located to the East of the site whilst poorer buildings are located centrally and to the West. Key structures in the surrounding area such as Old Trafford and MediaCity UK provide strong frontage onto the site from a distance which we will hope to take advantage of when developing the area.

Medium Frontage Poor Frontage

36

500

Trafford Wharfside bringing together work & play Views and Edges Map

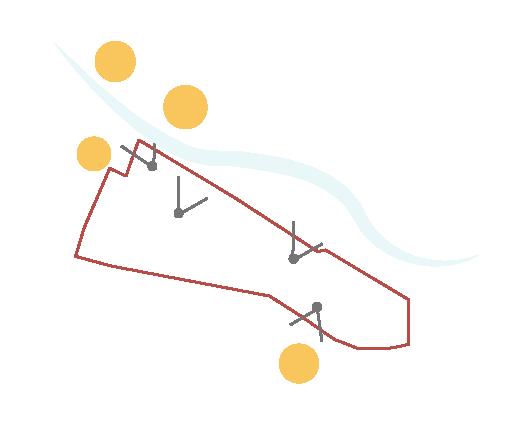

Edges and Views The strategic location of the site on the waterfront provides key views towards MediaCity UK and Salford Quays. There are also key views towards Old Trafford at the South side of the site; some of these views are also available from Bridgewater canal. Sections below show the relationship between the site and various surrounding buildings and roads as well as the topographical changes that occur.

A-A

B-B

0

Metres

500 C-C

D-D

37

Matchday

Matchday Analysis Map

Extraordinary Events, Everday Places Old Trafford is one of two significant football venues located in Manchester, with a capacity of around 74,000 people. On matchdays the site and its surrounding area changes dramatically, with road closures, heavy traffic congestion, an increase in pedestrian movement and greater noise pollution. Quiet residential spaces such as Sir Matt Busby Way are completely altered and dominated by football fans walking to Old Trafford. Noise from the stadium can be heard up to 300m away.

Surface level car parks are usually full around the site and several routes extending from the Talbot Road junction to the stadium are lined with food and souvenir stalls. Some of the main hotel that are used by fans are also located along the main processional route between Old Trafford tram station and Wharfside.

0

38

Metres

500

Site

Old Trafford

Limited Fan Movement

Barrier

Main Hotels

Tram Station

Car Parking

Rail Line

Main Fan Movement

Tram Line

Security Checks

Bike Park

Trafford Wharfside bringing together work & play

1.

Talbot Road acts as a key junction when fans are travelling from the Old Trafford tram station towards the stadium.

4.

After passing the stadium, fans move towards the waterfront to access key public transport facilities and Salford Quays.

2.

Fans continue to walk along the processional route on Sir Matt Busby Way, lined by the terraced houses.

3.

Upon passing security points and the souvenir stalls, Old Trafford stadium and Hotel Football come into a clearer view.

5.

Fans turn onto Trafford Wharf Road to access the proximal tram station which allows travel into and out of the city.

6.

Fans may continue past the tram station and continue along Wharf End, towards Trafford Road Bridge.

39

05

Co

Trafford Wharfside bringing together work & play

Design onsiderations

Opportunities

0

Metres

500

Key Takeaways: •

The site benefits from a number of opportunities, many of which are not contained within the site but instead are located on the site’s periphery. Integrating these assets into a future masterplan will help to unlock the full potential of the site.

42

Opportunities Map

Trafford Wharfside

Constraints

bringing together work & play Constraints Map

0

Metres

500

Key Takeaways: On match days, Old Trafford’s liveliness brings with it a range of nuisances. The tram line and canal create barriers, disrupting pedestrain flows. Addressing these issues demands innovative solutions to ease traffic, preserve site integrity, and improve environmental quality, ensuring sustainable coexistence with the historic venue’s surroundings and the community.

43

Hard and Soft Analysis The analysis presented in this document has enabled informed judgments to be made for each element of the site in respect of the desirability and feasibility of its retention. The hard and soft plan shown opposite indicates that in the most part, the site features a range of buildings which are of poor architectural quality. In addition, the streets and spaces surrounding them are in need of significant uplift so that they are capable of providing genuine value to potential residents.

Spillover from Trafford Park has caused the western edge of the site to be encapsulated by low-quality buildings. Their replacement with better quality development is preferential.

The Casuals’ is a sculpture by Broadbent Studios that encapsulates the heritage of this waterfront within the public realm. However, the space has fallen into disrepair and requires renovation.

Currently, the waterfront is a pederstrian network with little value to wider links into the site. With better integration and improvement to the route, this can change

Metrolink stops are perfectly situated along the waterfront to accomodate first-class transit-oriented development.

No. 1 Old Trafford is a high density, ‘The Casuals’ sculpture celebrates an modern development of good quality important part of the site’s history but that is fit for retention without change. has fallen into disrepair.

Roads within the site function well for The majority of the site consists of surtheir purpose but redesigning to priori- face car parks, vacant land and poor tise pedestrian movement. quality buildings to be removed.

Key Takeaways: • •

The majority of the site features buildings and curtilage which are of poor physical and visual quality and are likely to be removed, although the businesses which they accommodate are important.

Some development within the site is sound in principle, but could benefit with significant redesign. Other elements such as Metrolink infrastructure and the Victoria Warehouses should be retained.

44

The centre of the site possesses uninspiring architecture with no frontage onto key public routes and spaces. This has created a hostile character which requires change.

Trafford Wharfside bringing together work & play

06

Trafford Wharfside bringing together work & play

Vision

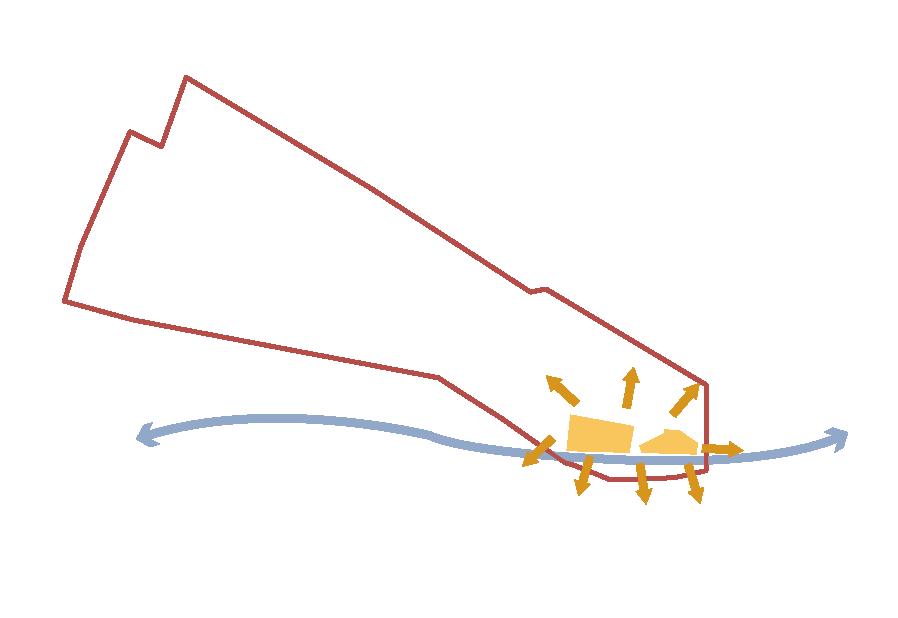

Vision Trafford Wharfside will bridge the gap between work and play to deliver a new, mixed-use district to Trafford’s waterfront. By embracing the world leading creative enterprise and key visitor attractions on its doorstep, the development will attract new investment and residents to what will become one of the most successful and exciting creative neighbourhoods in Europe.

The Masterplan will establish a new beating heart to serve Trafford and Salford’s ecological network whilst boldy pursuing the delivery of inclusive streets, spaces and public realm which provide fun, enjoyment and respite for all.

48

Trafford Wharfside bringing together work & play

49

07

Trafford Wharfside bringing together work & play

Objectives and Actions

Objectives

Prioritise Human Scale Experiences Making a Destination a Home

Innovating for the Future

52

Unearthing and Revitalising Capitalising on the Waterfront

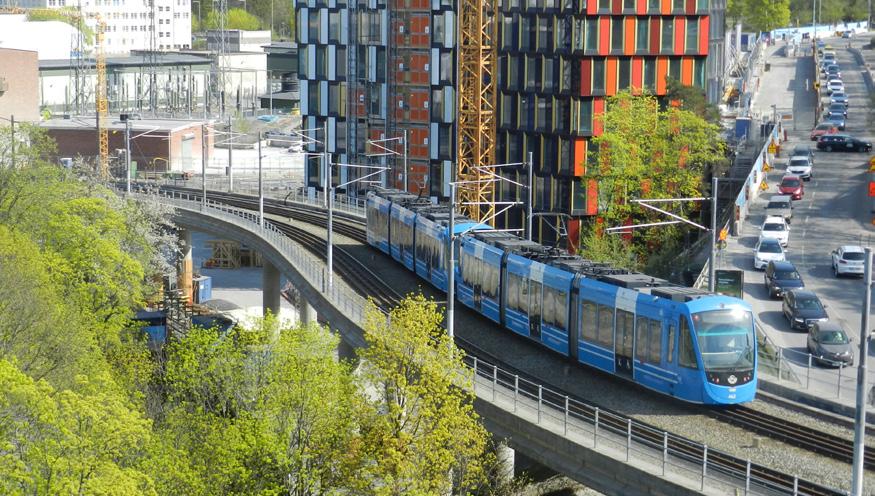

Best Practice: Hammarby , Stockholm World Leading Sustainability Trafford Wharfside will deliver a masterplan that is led by greener and cleaner living; taking advantage of existing sustainable transport routes

Valuing the Fans

Inclusive Places and Spaces

Best Practice: Lots Road Power Station, London A Perfect Transition Trafford Wharfside will transition effectively between land uses and character areas, from heavy industry through to key visitor attractions

Soloman (2023)

Reflecting on the Past

World Leading Sustainability

Zquid (2019)

A Perfect Transition

Trafford Wharfside bringing together work & play

Gollings (2019)

V.P.P.R (no date)

MFE (2022)

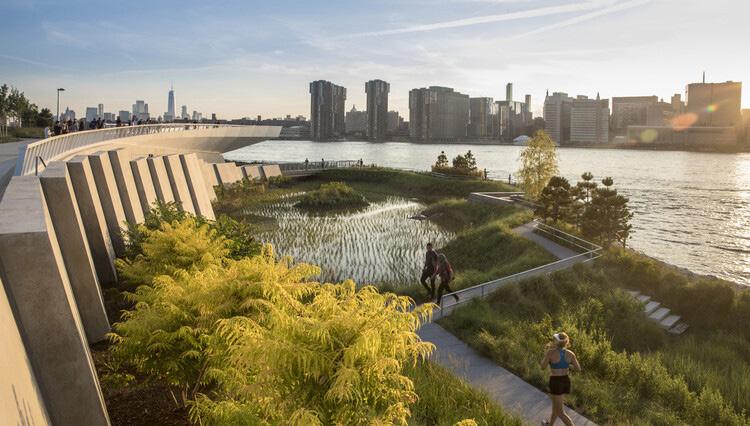

Vercerka (2023) Best Practice: Hunters Point, New York

Best Practice: Maren , Washington

Best Practice: Olympic Way, Wembley

Best Practice: Port Phillip, Australia

Revitalising and Unearthing The masterplan will reintroduce new spaces of Green Infrastructure and create a soft landscape edge to frame the waterfront

Capitalising on the Waterfront This landmark development will create a new frontage and visual gateway on the Trafford and Salford waterfront.

Valuing the Fans The matchday atmosphere will be embraced by optimising elements of the public realm to provide a rich experience for fans whilst reducing the negative impacts associated with events

Inclusive Places and Spaces The masterplan will contain a range of public spaces and facilities accessible for all in order to establish a truly inclusive community

Making a Destination a Home Introduce a range of mixed land uses which will sustain a community and overcome the transient nature of the area.

Reflecting on the Past The masterplan will embrace the industrial heritage of both the waterfront and wider industrial park

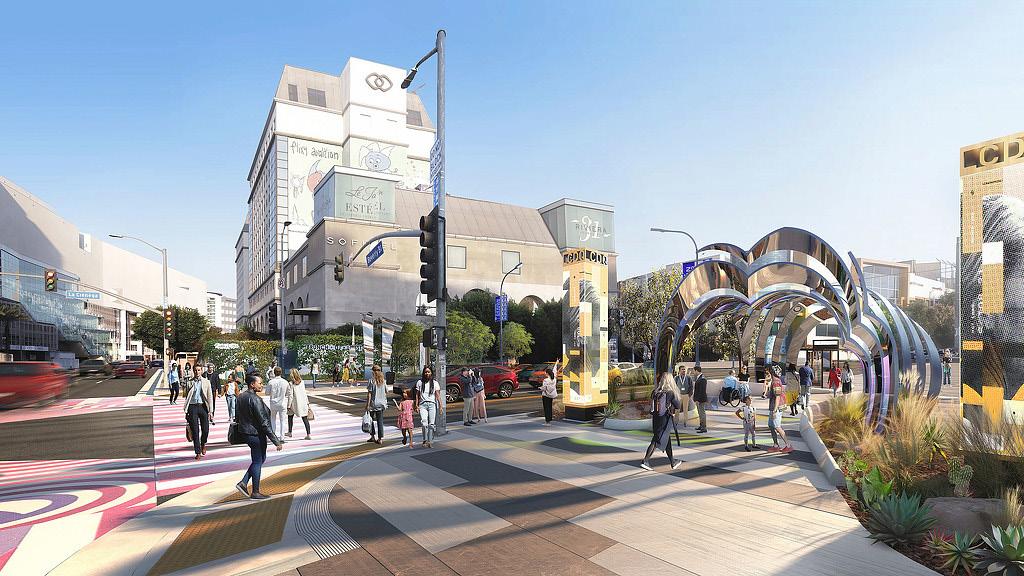

Best Practice: La Cienega, Los Angeles Innovating for the Future Expanding Salford’s innovation triangle by providing high-quality workspace for innovative commercial enterprise

53

Leeuwen (2022)

Prioritise Human Scale Experiences The masterplan will create a permeable and legible district to the Trafford Waterfront that is considerate of safety,

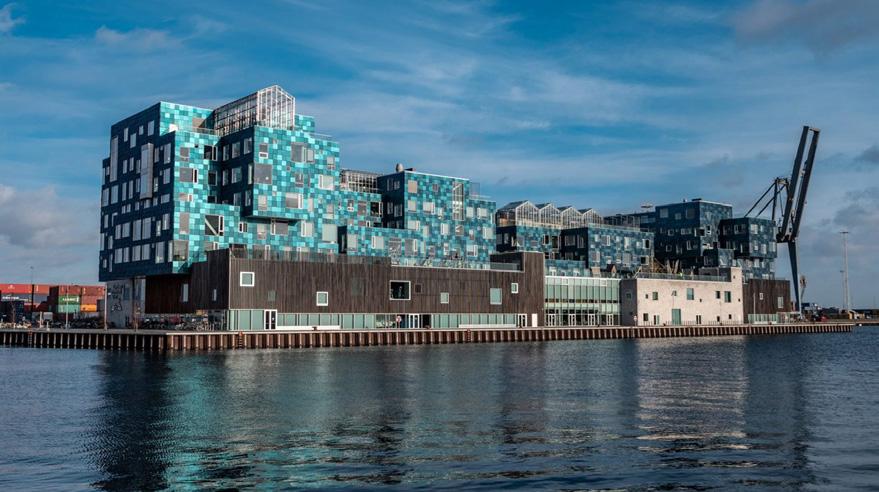

Best Practice: Nordhavn Community Centre, Copenhagen

Dezeen (2022)

Best Practice: Paddington Central, London

Bellharbour (2020)

Diskin (2020) Best Practice: Buchanan Street, Glasgow

Actions A

B

C

Strategically diversify land uses in the area; blending residential, commercial, and recreational zones, complemented by essential amenities and infrastructure

Regenerate the warehouses seamlessly into the comprehensive masterplan, leveraging their unique spatial attributes and historical character.

Revitalize the site’s waterfront by enhancing public realm and green infrastructure, elevating the overall urban design and human experience.

F

G

H

Preserve and enhance key views into, out of and through the site, whilst establishing new sightlines through to the waterfront and surrounding landmarks.

Contribute to the wider amenity provision needed for matchdays by providing appropriate facilities that are highly demanded such as hotels and other retail.

Create several character areas which reflect, enrich and further develop the industrial and sporting culture of the area.

54

Trafford Wharfside bringing together work & play

D

E

K Extend the processional route connecting the Football and Cricket Ground through the site to Wharfside Tram Station and Salford

Improve the permeability of the space by establishing a nuanced network of streets and spaces that consider the key sustainable transport hubs already in the area.

I

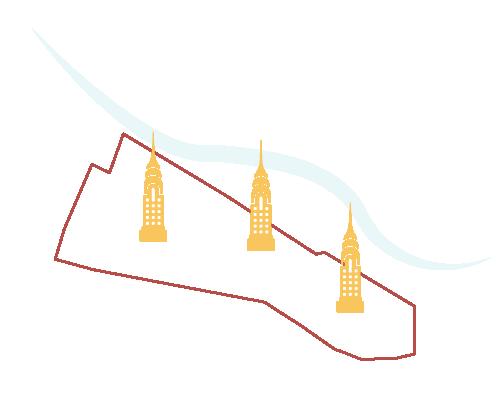

J Landmark or statement architecture will be developed in a small number of strategically important locations to frame the waterfront and improve legibility

Enhance the waterfront’s human experience through strategic urban design interventions; fostering active frontages to promote engagement and safety

Focus development of structures and GI along the arterial route of the site to mitigate the effects of noise and pollution on pedestrians

55

08

Trafford Wharfside bringing together work & play

Bibliography

Bibliography Text Reference List 1. Gov.UK. (2019). National Design Guide. [Online]. Available at: https://assets.publishing.service.gov.uk/media/602cef1d8fa8f5038595091b/National_design_guide.pdf (Accessed 26 February 2024).

2. Herron, A. (2015). Manchester’s Trafford Park, the world’s first industrial estate – a history of cities in 50 buildings, day 26. [Online]. The Guardian. Available at: https://www.theguardian.com/cities/2015/apr/29/manchester-trafford-park-world-first-industrial-estate-history-cities-50-buildings (Accessed 26 February 2024).

3. Manchesterhistory.net. (n.d.). The Trafford Road Swing Bridge. [Online]. Available at: https://manchesterhistory.net/manchester/outside/traffordbridge.html (Accessed 25 February 2024).

4. Media City UK. (n.d.). Mediacity History. [Online]. Available at: https://www.mediacityuk.co.uk/about-us/history/ (Accessed 26 February 2024).

5. Woden. (2019). Salford History: Trafford Road Swing Bridge : an encomium. [Online]. Salford History. Available at: https://salfordhistory.blogspot.com/2019/01/trafford-road-swing-bridge-encomium.html (Accessed 25 Feb. 2024).

Image Reference List 1. Bellharbour. (2020). Mixed Use Developments – London Paddington Central. [Online]. Available at: https://www.bellharbour.co.uk/about-us/news-insights/2020/mixed-use-developments/ (Accessed 26 February 2024).

2. Byrne, P. (2023). Old Trafford Stadium. [Online]. Available at: https://www.telegraph.co.uk/football/2023/12/26/manchester-united-knock-down-old-trafford-new-stadium-plan/ (Accessed 26 February 2024).

3. Dezeen. (2022). Copenhagen Industrial Community Centre. [Online]. Available at: https://www.dezeen.com/2022/12/06/copenhagen-harbour-development-denmark/ (Accessed 26 February 2024).

4. Diskin, E. (2020). Cool Pedestrian Streets – Buchanan Street. [Online]. Available at: https://matadornetwork.com/read/coolest-pedestrian-streets-around-world/ (Accessed 26 February 2024).

5. Gollings, J. (2019). Creating Places and Communities in Port Phillip. [Online]. Available at: https://haveyoursay.portphillip.vic.gov.au/public-space-strategy/creating-places-and-communities (Accessed 26 February 2024).

6. Google Maps. (2024). Google Maps. [Online]. Available at: https://www.google.com/maps?authuser=0 (Accessed 26 February 2024).

7. Graham, H. (2014). Evening view of Lowry. [Online]. Available at: https://www.dreamstime.com/editorial-image-lowry-centre-salford-quays-manchester-uk-june-night-view-gallery-image51395690 (Accessed 26 February 2024).

8. Historic England. (2024). Heritage Listings. [Online] Available at: https://historicengland.org.uk/listing/the-list/map-search/ (Accessed 26 February 2024).

9. Hoare, C. (2020). World War 2: Chilling unearthed photos show Old Trafford in Blitz. [Online] Express.co.uk. Available at: https://www.express.co.uk/news/uk/1245090/world-war-2-old-trafford-man-united-christmas-blitz-nazi-germany-adolf-hitler-spt. (Accessed 26 February 2024).

10. John, M. (2014). Dock Office Gates. [Online]. Available at: https://www.geograph.org.uk/photo/3823611 (Accessed 24 Feb. 2024).

11. Leeuwen, D. V. (2022). Innovation Districts – La Cienega. [Online]. Available at: https://www.gensler.com/blog/innovation-districts-affinity-districts-and-the-future-city (Accessed 26 February 2024).

12. MediaCity. (N.D). Summertime view of Media City UK. [Online]. Available at: https://www.mediacityuk.co.uk/visit-us/ (Accessed 26 February 2024).

13. MFE. (2022). Maren High Rise Awards. [Online]. Available at: https://www.multifamilyexecutive.com/design-development/mfe-awards/waterfront-setting-inspires-washington-d-c-high-rise_o (Accessed 24 February 2024).

14. No1. Old Trafford. (2022). Aerial Vision Render. [Online]. Available at: https://www.no1oldtrafford.co.uk/ (Accessed 26 February 2024).

15. Peel L&P. (2022). Pomona Island Regeneration. [Online]. Available at: https://www.placenorthwest.co.uk/pomona-island-regen-held-up-by-planning-stand-off/ (Accessed 26 February 2024).

16. Premier Inn. (2024). Premier Inn Manchester. [Online]. Available at: https://www.premierinn.com/gb/en/hotels/england/greater-manchester/manchester/manchester-old-trafford.html (Accessed 26 February 2024).

17. Ridge and Partners. (2019). Cricket Ground. [Online]. Available at: https://ridge.co.uk/projects/old-trafford-cricket-ground/ (Accessed 26 February 2024).

18. Salford Council. (2023). Regeneration Framework. Available at: https://sccdemocracy.salford.gov.uk/documents/s66310/230831_Media%20City%20Phase%202%20SRF%20Final%20Draft_ISSUE_Rev5_pages%20lowres.pdf (Accessed 26 February 2024).

19. Skyscraper City. (2021). Salford Quays. [Online]. Available at: https://www.skyscrapercity.com/threads/salford-quays.261595/page-101 (Accessed 26 February 2024).

20.Soloman, A. (2023). Lots Road Power Station. [Online]. Available at: https://luxurylondon.co.uk/property/sales-launch-at-powerhouse-development-lots-road-power-station-luxury-residences-property-apartments/ (Accessed 26 February 2024).

21. The Independent. (2013). Evening view of Old Trafford. [Online]. Available at: https://www.independent.co.uk/sport/football/premier-league/manchester-united-pull-old-trafford-from-running-to-be-world-cup-venue-8557916.html (Accessed 26 February 2024).

22. Trafford Council. (2022). Lancashire County Cricket Club Quarter Development Framework. [Online]. Available at: https://www.trafford.gov.uk/planning/development-control/Inquiries/Former-BQ/CDH-local-policy-guidance-adopted-development-plan-supplementary-planning/23.

H10-LCC-Development-Framework.pdf (Accessed 26 February 2024).

23. V.P.P.R. (N.D). Wembley Olympic Way and Steps. [Online]. Available at: https://vppr.co.uk/wembley-olympic-way/ (Accessed 26 February 2024).

24. Vercerka, A. (2023). Hunters Point Public Park. Available at: https://www.archdaily.com/996676/a-waterfront-park-as-public-amenity-and-climate-mitigator (Accessed 24 February 2024).

25. VisitManchester. (N.D). Victoria Warehouse, Accessed 20/02/2024, Available at: https://www.visitmanchester.com/listing/victoria-warehouse/31133101/ 26. VisitNorthWest. (N.D). Lowry Outlets, Accessed 20/02/2024, Available at: https://www.visitnorthwest.com/malls/lowry-outlet-mall/ 27. Yandex. (2020). The Gym Group. [Online]. Available at: https://findit.chad.co.uk/company/1490442259931136 (Accessed 26 February 2024).

28. Zquid. (2019). Hammarby Sjostad Public Transport. [Online]. Available at: https://commons.wikimedia.org/wiki/File:Tv%C3%A4rbanan_Sthlm_01_Hammarby_Sj%C3%B6stad_2019_DSCN6104.jpg (Accessed 24 February 2024).

58

Trafford Wharfside bringing together work & play

Trafford Wharfside bringing together work & play
