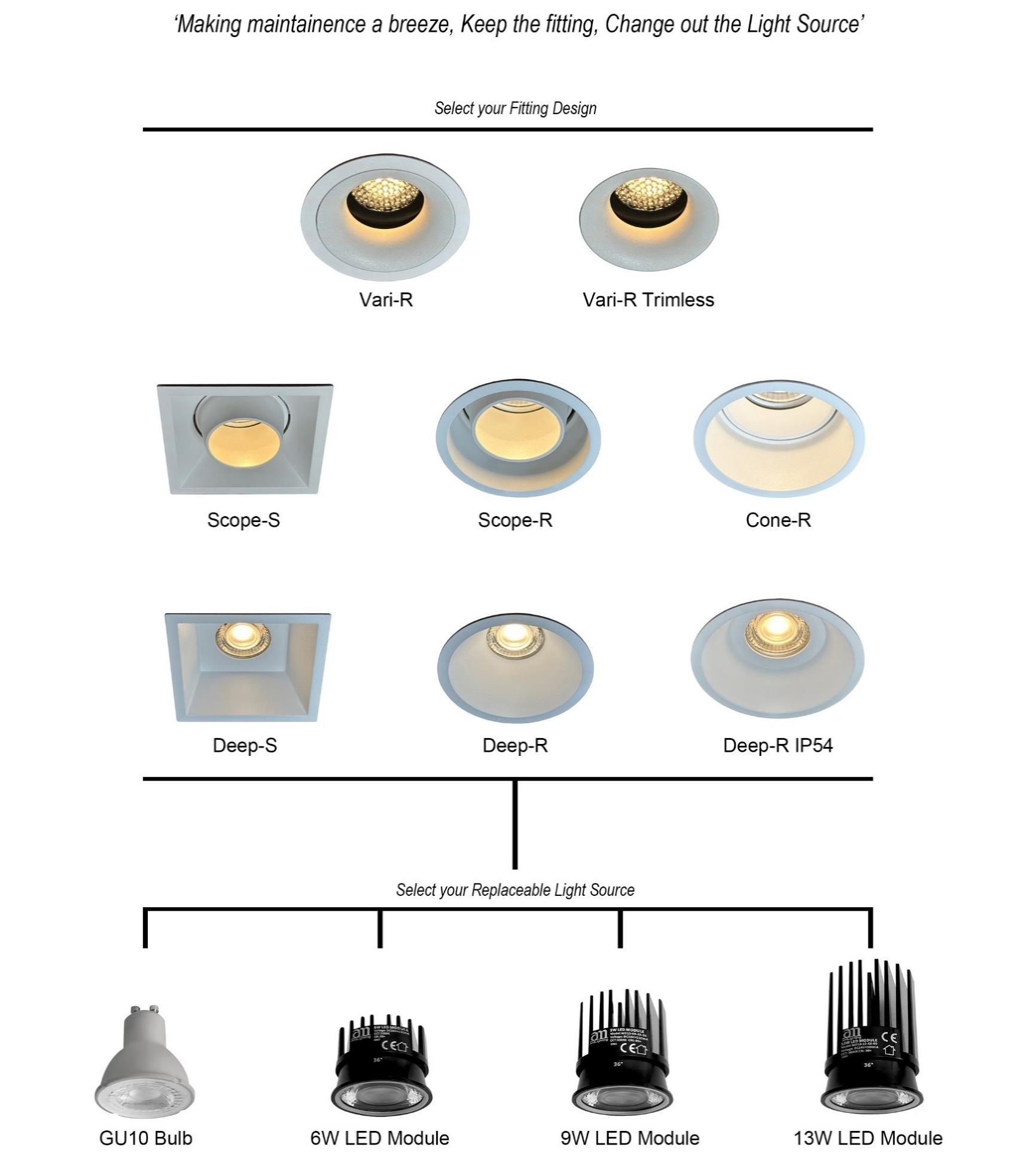

Retrofit
Vari-R
IP Rating 20
Fitting Size Ø83*H48
Cut Out Ø75
Finishes Black/White
Optics Colour Black/White
Tilt Angle 30°
Rotation Angle 355°

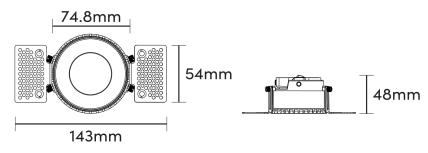

Vari-R Trimless
IP Rating 20
Fitting Size L143*W74.8*H48
Cut Out Ø78
Finishes Black/White
Optics Colour Black/White
Tilt Angle 30°
Rotation Angle 355°

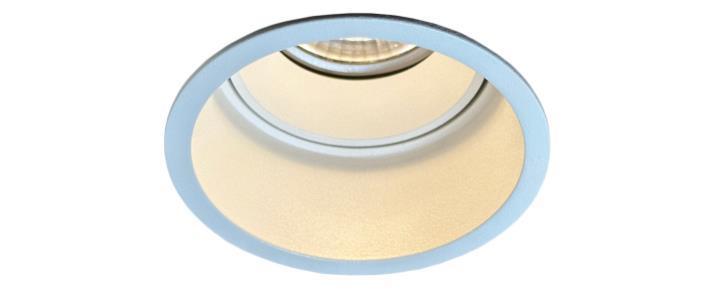

Scope-R
IP Rating 20
Fitting Size Ø75*H57
Cut Out Ø68
Finishes White
Optics Colour White
Tilt Angle 20°
Rotation Angle -
Scope-S
IP Rating 20
Fitting Size L89*W89*H45
Cut Out L80*W80
Finishes White
Optics Colour White
Tilt Angle 30°
Rotation Angle -
Cone-R
IP Rating 20
Fitting Size Ø75*H56
Cut Out Ø68
Finishes White
Optics Colour White
Tilt Angle 20°
Rotation Angle -

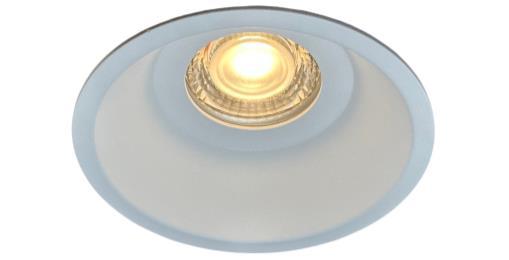

Deep-R

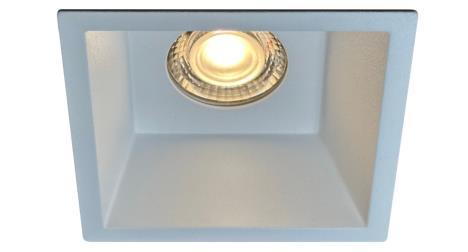

Deep-S
IP Rating 20
Fitting Size Ø100*H56
Cut Out Ø90
Finishes Black/White
Optics Colour Black/White
Tilt Angle -
Rotation Angle 20
IP Rating 20
Fitting Size L100*W100*H50
Cut Out L90*W90
Finishes Black/White
Optics Colour Black/White
Tilt Angle -
Rotation Angle -
Deep-R IP54
IP Rating 54
Fitting Size Ø100*H50
Cut Out Ø90
Finishes Black/White
Optics Colour Black/White
Tilt Angle -
Rotation Angle 20
AML 6W LED Module
IP Rating 20
Fitting Size Ø49.8*H40
Finishes Black
Light Source Bridgelux COB LED Power 6W
Lumen 485-570Lm
CRI >90
CCT 2700K/3000K/4000K
Beam Angle 15°/24°/36°/60°
Dimming Non-Dim/Triac /110V/Dali

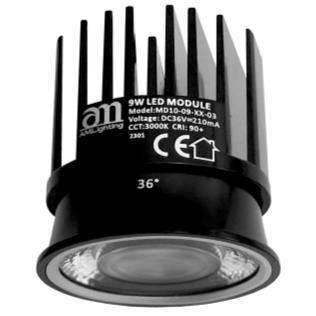

AML 9W LED Module
IP Rating 20
Fitting Size Ø49.8*H50
Finishes Black
Light Source Bridgelux COB LED Power 9W
Lumen 740-910Lm
CRI >90
CCT 2700K/3000K/4000K
Beam Angle 15°/24°/36°/60°
Dimming Non-Dim/Triac /110V/Dali

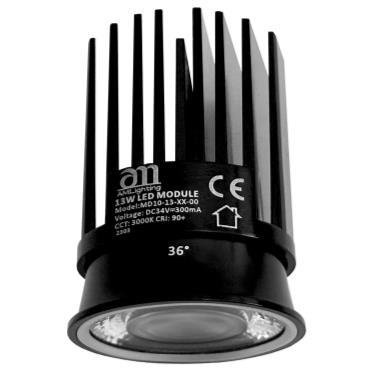

AML 13W LED Module
IP Rating 20
Fitting Size Ø49.8*H65
Finishes Black
Light Source Bridgelux COB LED
Power 13W
Lumen 950-1280Lm
CRI >90
CCT 2700K/3000K/4000K
Beam Angle 15°/24°/36°/60°
Dimming Non-Dim/Triac /110V/Dali
LED Strips
Designed for seamless installation and versatile applications.

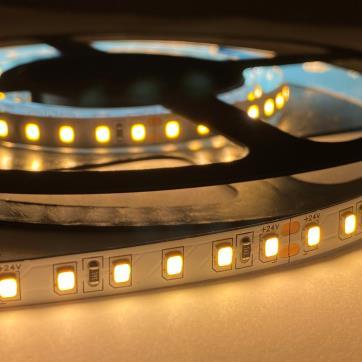

AML 2835 LED Strip
IP Rating 20
Fitting Size L(Vary)*W8*H1 (mm)
Cutting 50mm
Light Source 2835 SMD
LED/M 120
Power 9W/M
Lumen 1200Lm/M
CRI >90
CCT 2700K/3000K/4000K/ 6000K
Beam Angle 120°
Dimming Triac/0-10V/PWM
Input DC 24V
IP Rating 65
Fitting Size L(Vary)*W10*H4 (mm)
Cutting 50mm
Light Source 2835 SMD
LED/M 120
Power 9W/M
Lumen 1200Lm/M
CRI >90
CCT 2700K/3000K/4000K/ 6000K
Beam Angle 120°
Dimming Triac/0-10V/PWM
Input DC 24V

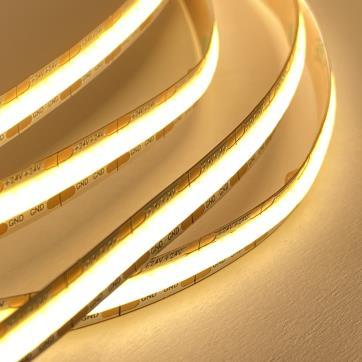

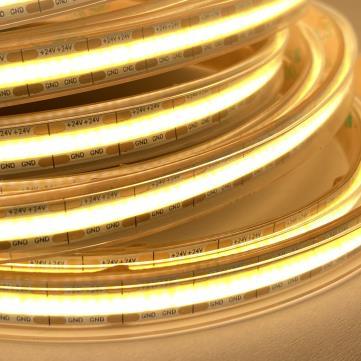

AML COB LED Strip
IP Rating 20
Fitting Size L(Vary)*W8*H1 (mm)
Cutting 11.36mm
Light Source COB
LED/M 528
Power 10W/M
Lumen 1130-1200Lm/M
CRI >90
CCT 2700K/3000K/4000K/ 6000K
Beam Angle 180°
Dimming Triac/1-10V/PWM
Input DC 24V
IP Rating 65
Fitting Size L(Vary)*W10*H4 (mm)
Cutting 11.36mm
Light Source COB
LED/M 528
Power 10W/M
Lumen 1130-1200Lm/M
CRI >90
CCT 2700K/3000K/4000K/ 6000K
Beam Angle 180°
Dimming Triac/1-10V/PWM
Input DC 24V
Aluminum Profile

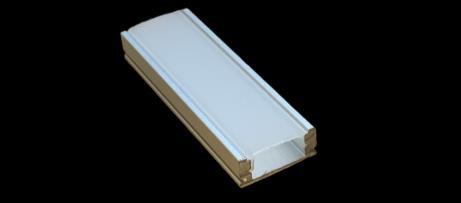

Slim Aluminum Profile
Dimension L(Vary)*W17*H7
Cutout -
LED strip COB

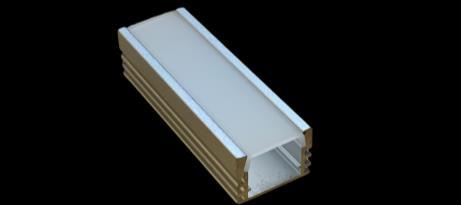

Deep Aluminum Profile
Dimension L(Vary)*W17*H12
Cutout -
LED strip 2835 / COB

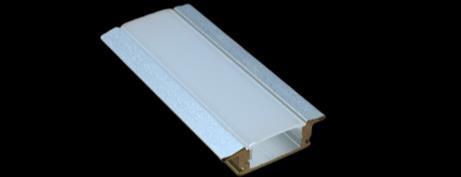

Recessed Aluminum Profile
Dimension L(Vary)*W25*H7
Cutout W17*H6
LED strip COB

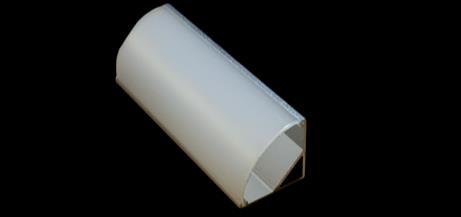

45° Aluminum Profile
Dimension L(Vary)*W16*H16
Cutout -
LED strip 2835 / COB

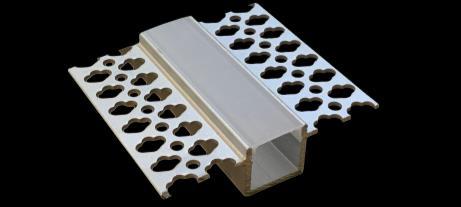

Trimless Aluminum Profile
Dimension L(Vary)*W55*H15
Cutout W15*H11
LED strip 2835 / COB
