Spiral Structures

SCAFFOLD STUDIO SPIRAL STRUCTURES JENNA TETZLAFF

1

COMPONENT AND ASSEMBLY

COMPONENT CREATION GIF

I explored different geometries with aggregation potential and landed on this ‘spiral’ component. I tested the higher levels of clustering by grouping 4 together as my base component, and the repetition of this component allowed a lot of variability. The 90 degree flat facial connectiong also made aggregating a lot more flexible with my rotated clusters.

| 2

| SCAFFOLD STUDIO

| JENNA TETZLAFF

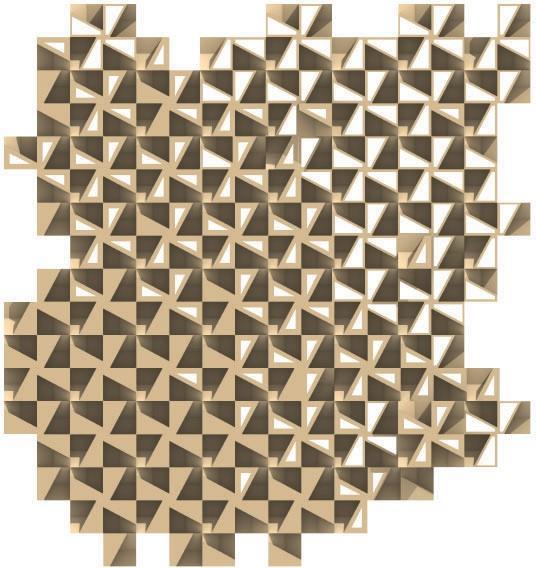

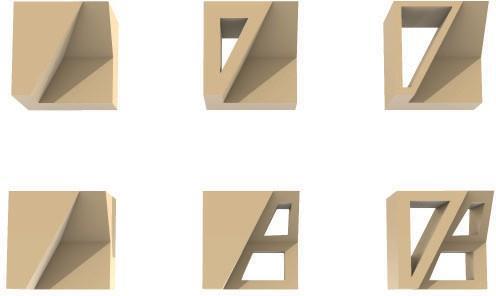

POROSITY VARIATIONS

I tested two different sequences of porosity components, the first modifying one opening and the second modifying three openings.

Modifying one aperture delivered a beautiful gradient with gradual transitonal properties.

| 3

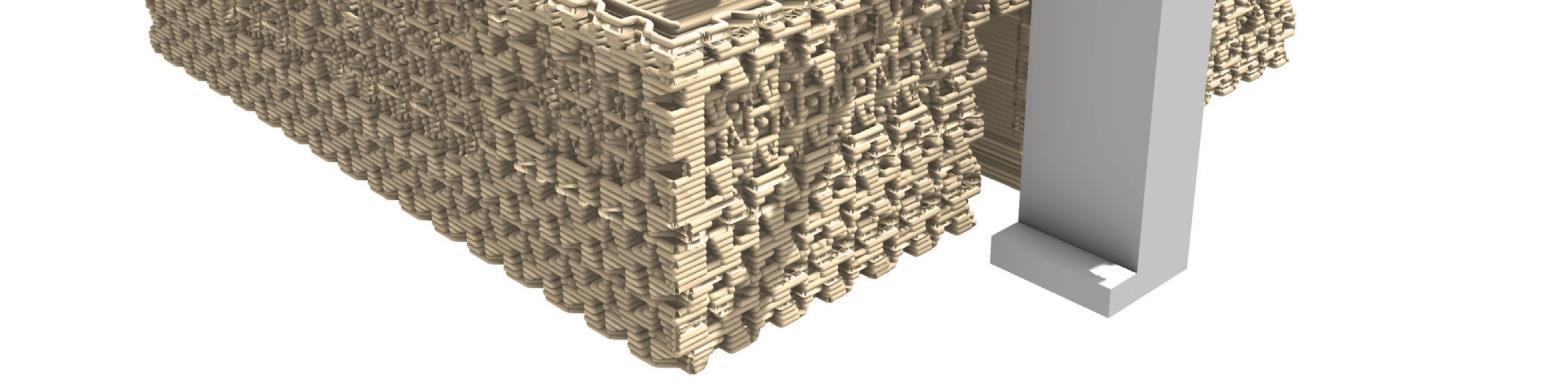

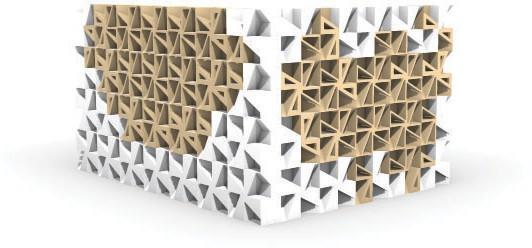

POROSITY ASSEMBLY

Aligning the porosity components into a cluster, I tested the transitional properties of the different porosities and found that the progression of these components were effective and had a lot of potential.

| SCAFFOLD STUDIO

2

ASSEMBLY AND SPACE

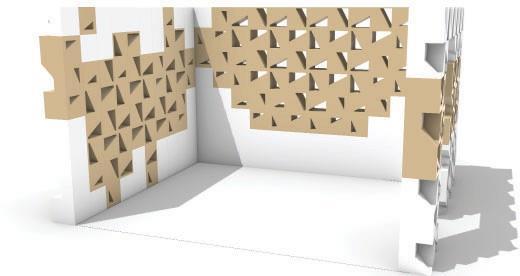

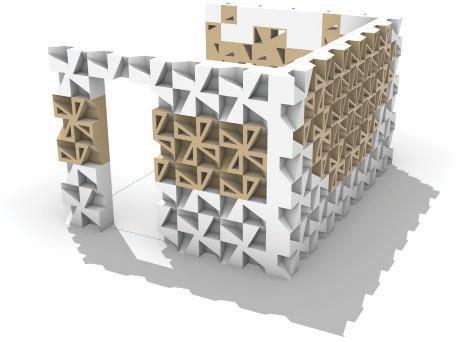

POROSITY ROOM STUDY

Experimenting with the porosity components in a prototype room.

Testing scale, visibility, cluster groupings, patterns, and how the interior of the component is viewed.

| 4

| SCAFFOLD STUDIO

| JENNA TETZLAFF

| 5

| SCAFFOLD STUDIO

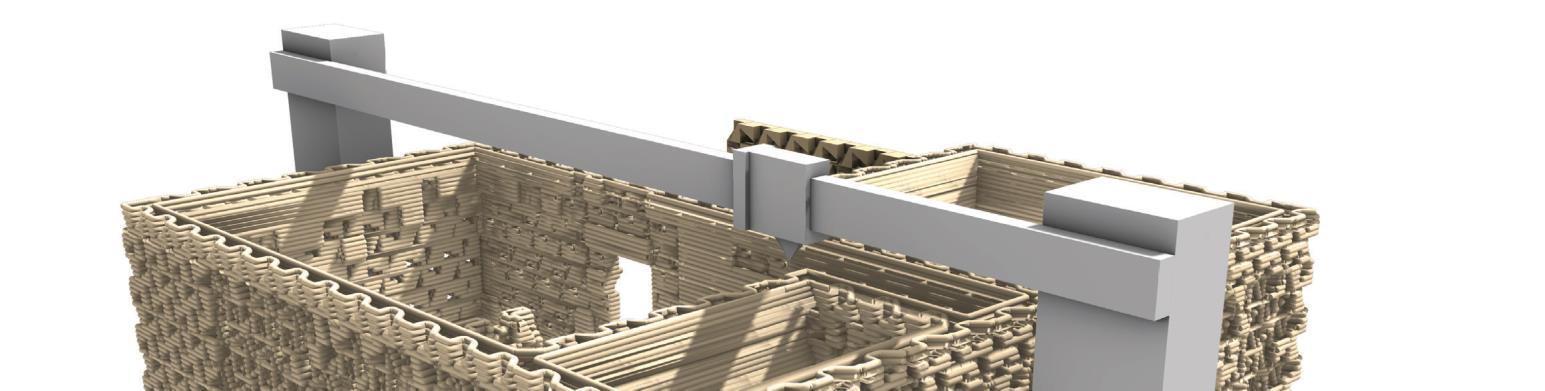

COMPONENT FABRICATION AND SITE ASSEMBLY UTILIZING 3D PRINTING LESSENS PRODUCTION COSTS AND PRODUCTION TIME

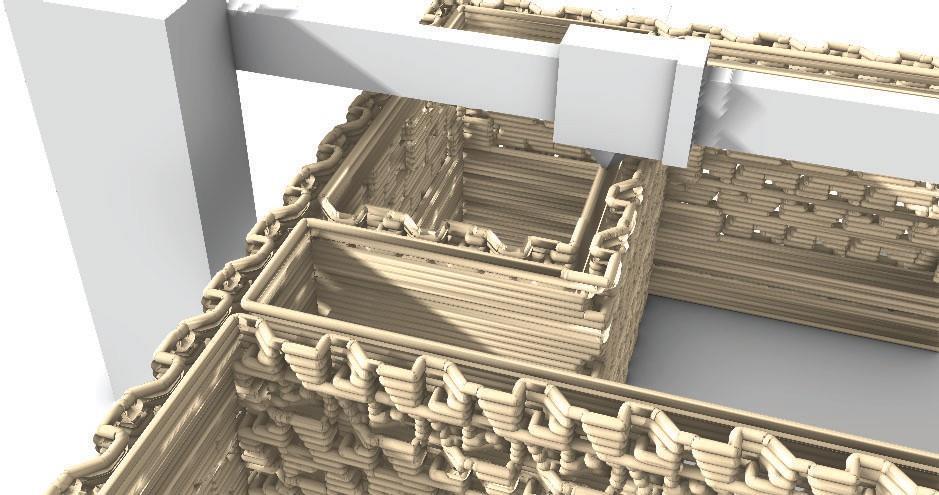

3D PRINTERS PLACED DIRECTLY ON-SITE FOR CONTINUOUS PRINTING

ORTHOGONAL AND 90 DEGREE FACE-TO-FACE CONNECTIONS ALLOW FOR EFFICIENT CONTINUOUS PRINTING

These housing units will be fabricated continuously and will be 3d printed directly on site. These methods will cut production costs and production time.

3

SITE STRUCTURE

| 6

| SCAFFOLD STUDIO

DIAGRAMS GREEN SPINE / OUTDOOR ROOMS

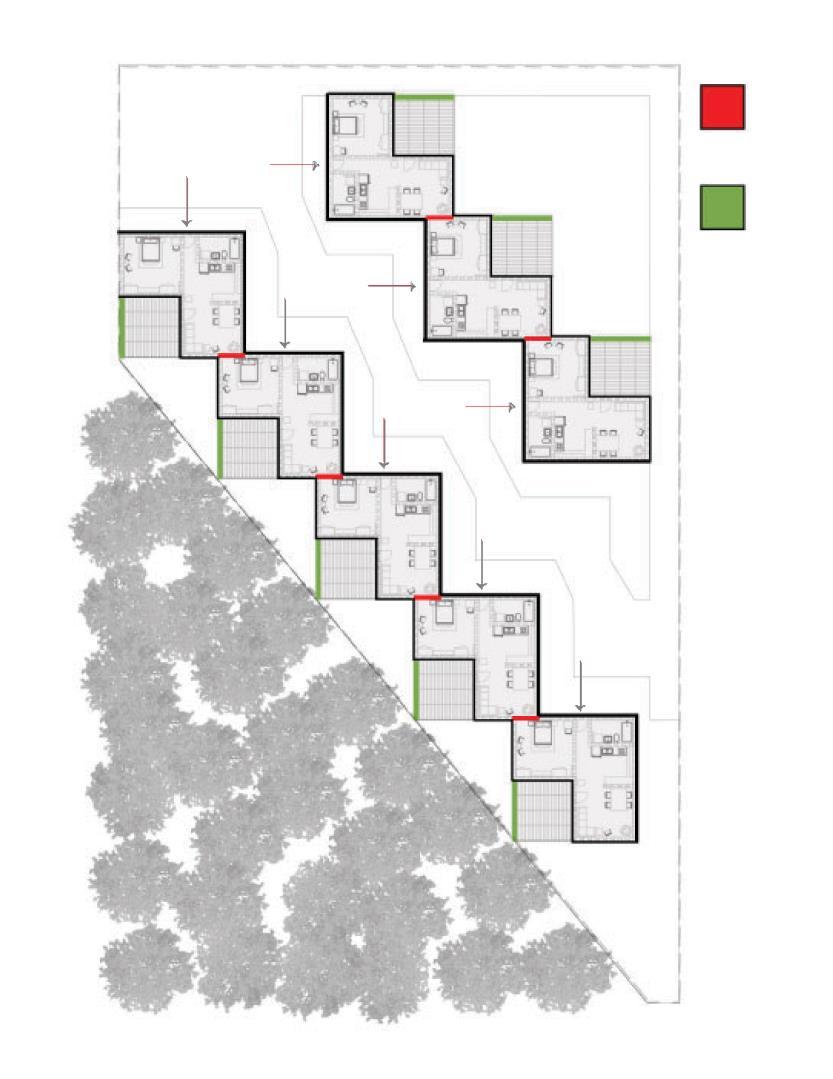

HOUSING LOGISTICS

= SHARED WALLS = PRIVACY WALLS

The green spine in my community is lined with trees, bushes, and grassy areas, and serves as a public area for the housing units to come together.

The backyards with the green walls serve as outdoor living rooms for the tenants and their guests.

These housing units incorporate shared walls to save construction time and material, and they also incorporate versatile green walls in the backyard which also serve as privacy walls. The entrances of each unit follow the green spine, descending southeast.

| JENNA TETZLAFF

| 7

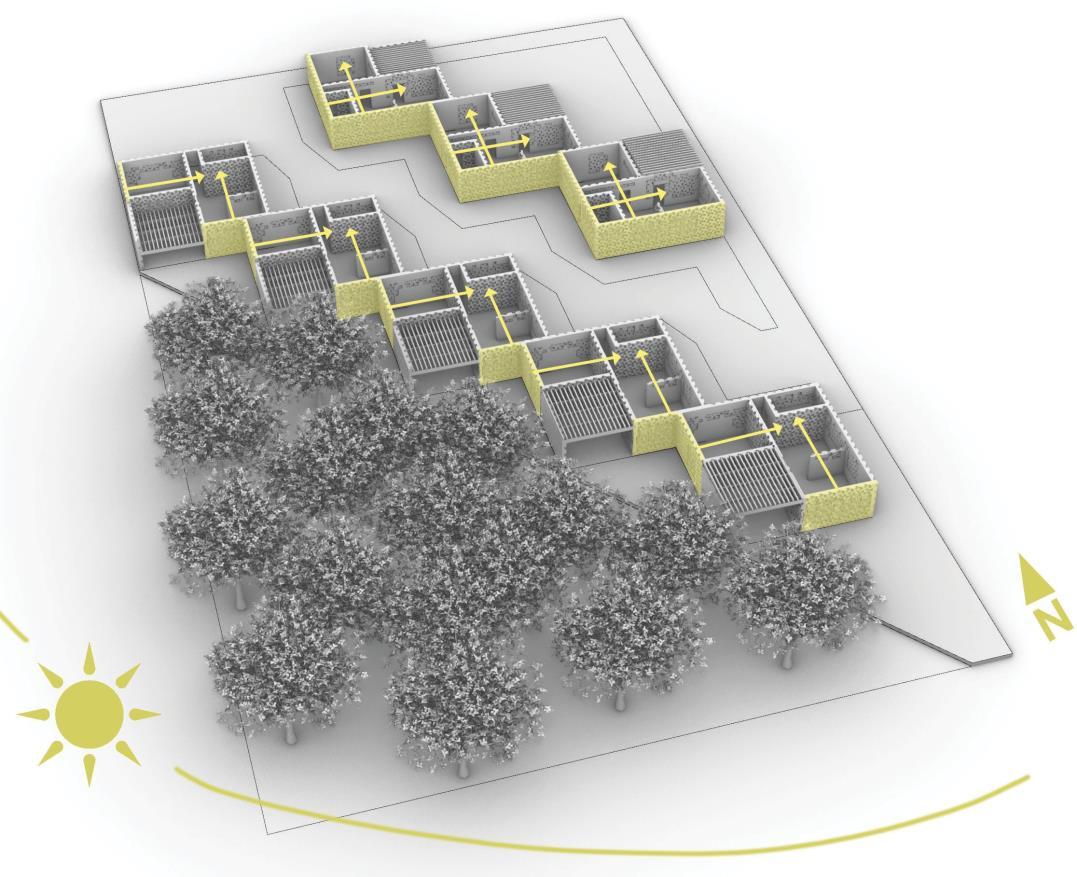

DIAGRAMS DAYLIGHT ACCESS

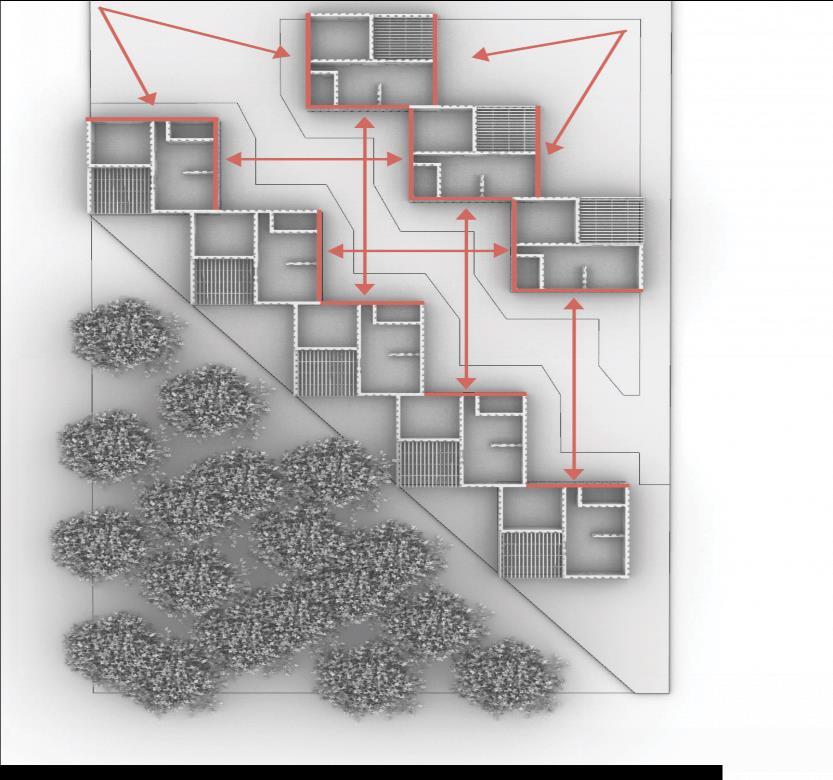

VISUAL ACCESS / LEVELS OF PRIVACY

With the sun in a southwest position, the sun access paths are visualized on the yellow walls of the housing units, with arrows to display how the light would travel through each house.

Visual access can be translated from the arrows, showing what each unit has visual access to.

The red walls display if they can be seen, which can show which units are more public versus private.

| SCAFFOLD STUDIO

3

SITE STRUCTURE

| SCAFFOLD STUDIO

| 8

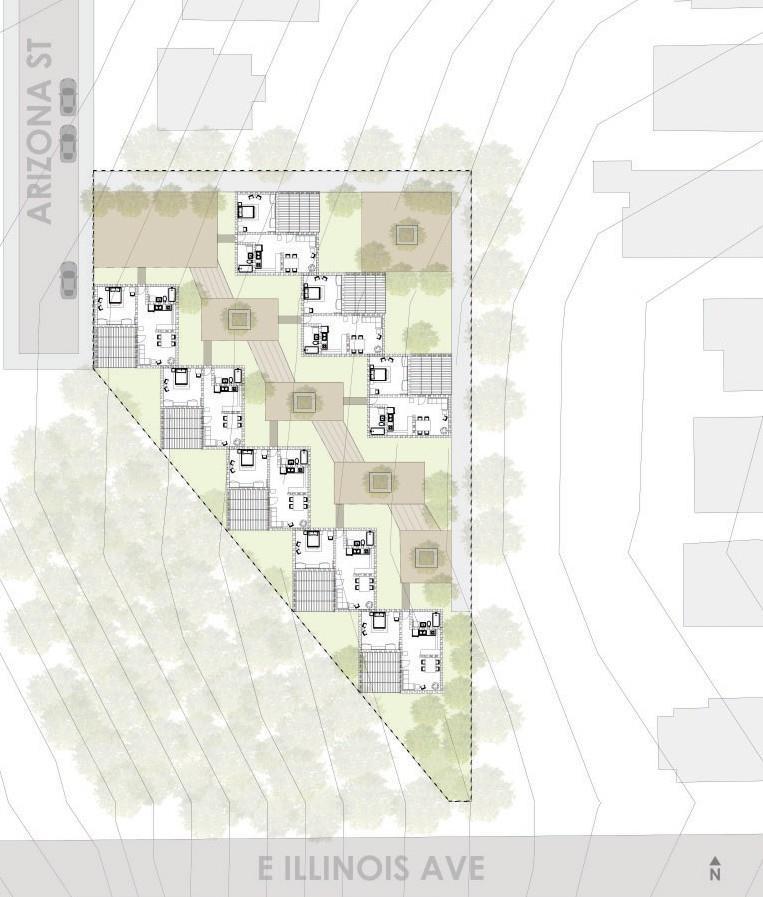

SITE PLAN 1/50th SCALE, DALLAS, TX

Dallas’s hot and humid environment led to each housing unit having a backyard trellis for shading, and led to every roof’s high point facing north. Main attributes of my site are my geometric housing units, the outdoor living rooms in each backyard, and the public green spine lined with vegetation and plazas.

0 10

25

50

| JENNA TETZLAFF

| 9

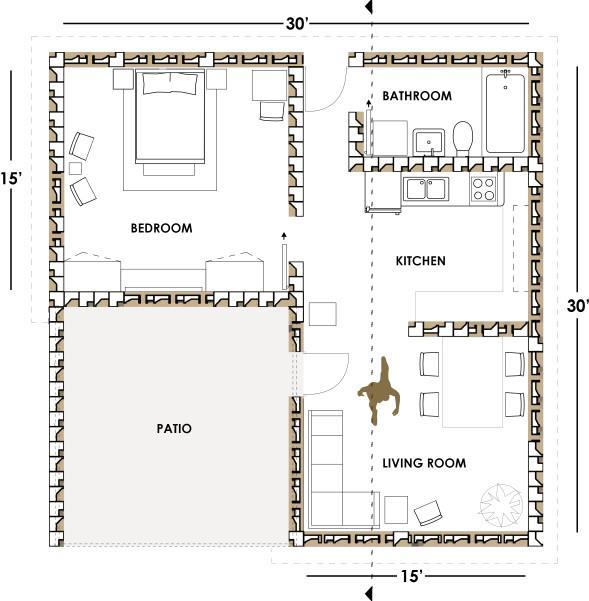

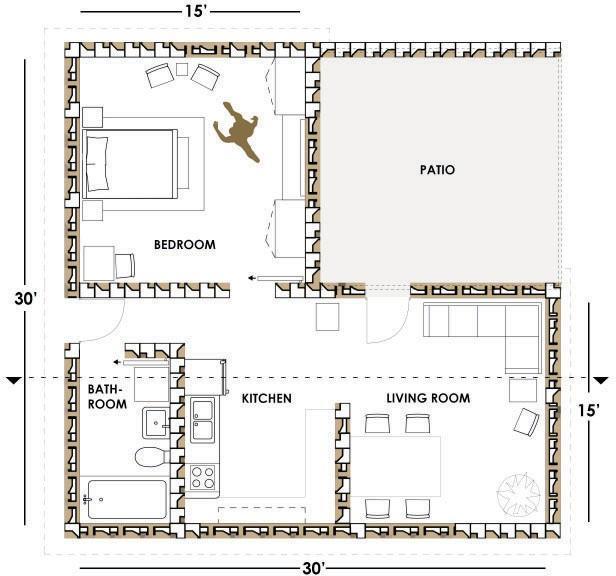

HOUSING UNIT A FLOORPLAN

HOUSING UNIT B FLOORPLAN

1/8th Scale, 675 SF

1/8th Scale, 675 SF

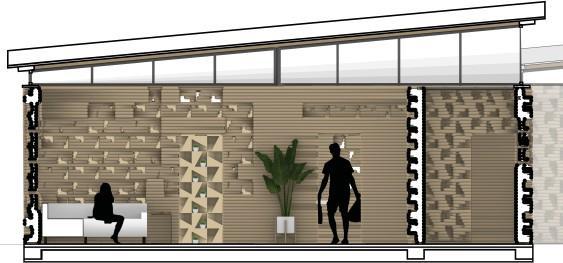

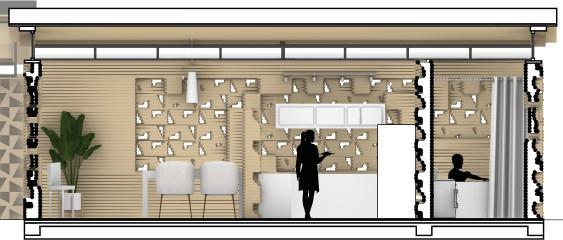

SECTION

SECTION

1/8th Scale, WEST VIEW

1/8th Scale, SOUTH VIEW

| SCAFFOLD STUDIO

3

SITE STRUCTURE

WALL DETAILS

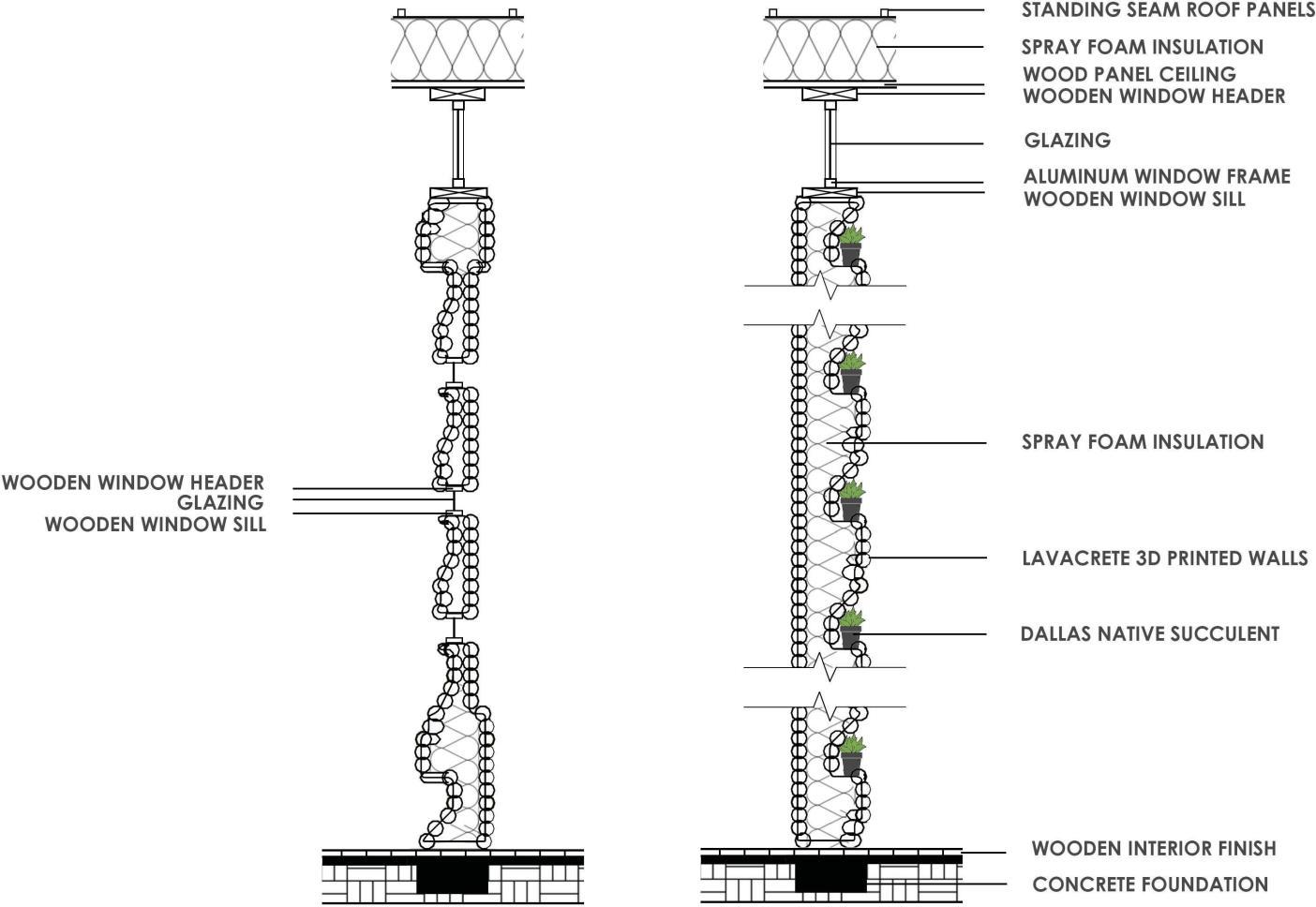

WALL SECTION DETAIL

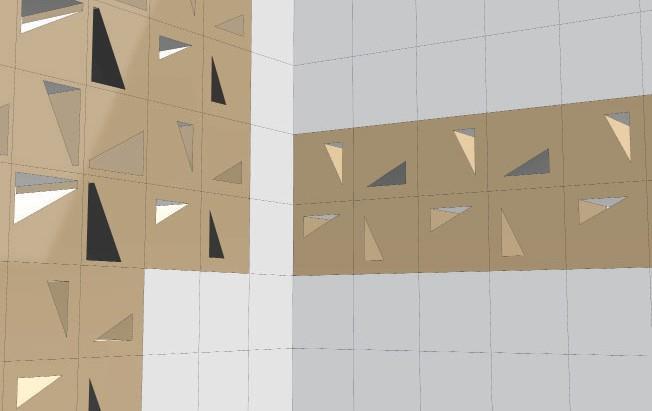

WALL ELEVATION

The components in my units that have porosity and act as windows are flattened by 50% to create an interesting tiling effect, and also allow for easier sun access.

| SCAFFOLD STUDIO

| 10

GREEN WALL SECTION DETAIL

GREEN WALL ELEVATION

By utilizing succulents for my green wall, no additional water system is needed which saves water and costs. The green wall is also the privacy wall in the backyards, as there are no porosity components which leaves a fully solid private wall.

| JENNA TETZLAFF

| 11

| SCAFFOLD STUDIO

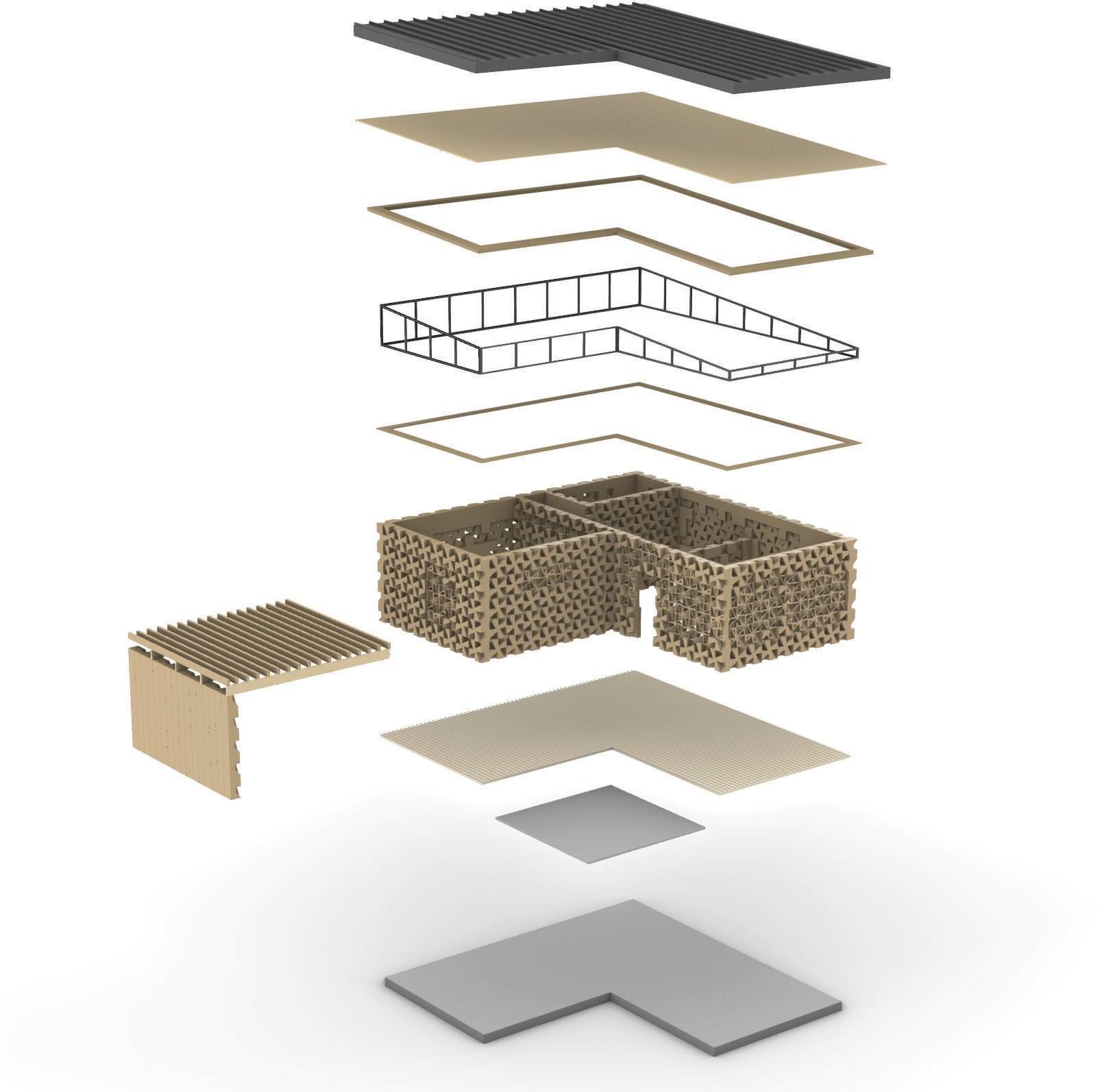

STRUCTURE ELEMENTS AXON

STANDING SEAM METAL ROOF SYSTEM

WOOD PANEL CEILING WOODEN WINDOW FRAME HEADER ALUMINUM CLERESTORY WINDOW SYSTEM WOODEN WINDOW SILL OUTDOOR WOODEN TRELLIS

3D PRINTED LAVACRETE WALLS WITH FINISHING RENDER

3D PRINTED LAVACRETE PRIVACY GREEN WALL

FINISHED WOODEN INTERIOR FLOORING SYSTEM

CAST IN PLACE CONCRETE SLAB As my fabrication method is continuous and printed on-site, my roof had to be made out of different material. I decided on a sleek aluminum and wood aesthetic to connect with the tan colored 3d printed walls.

4

COMMUNITY CLOSE-UP

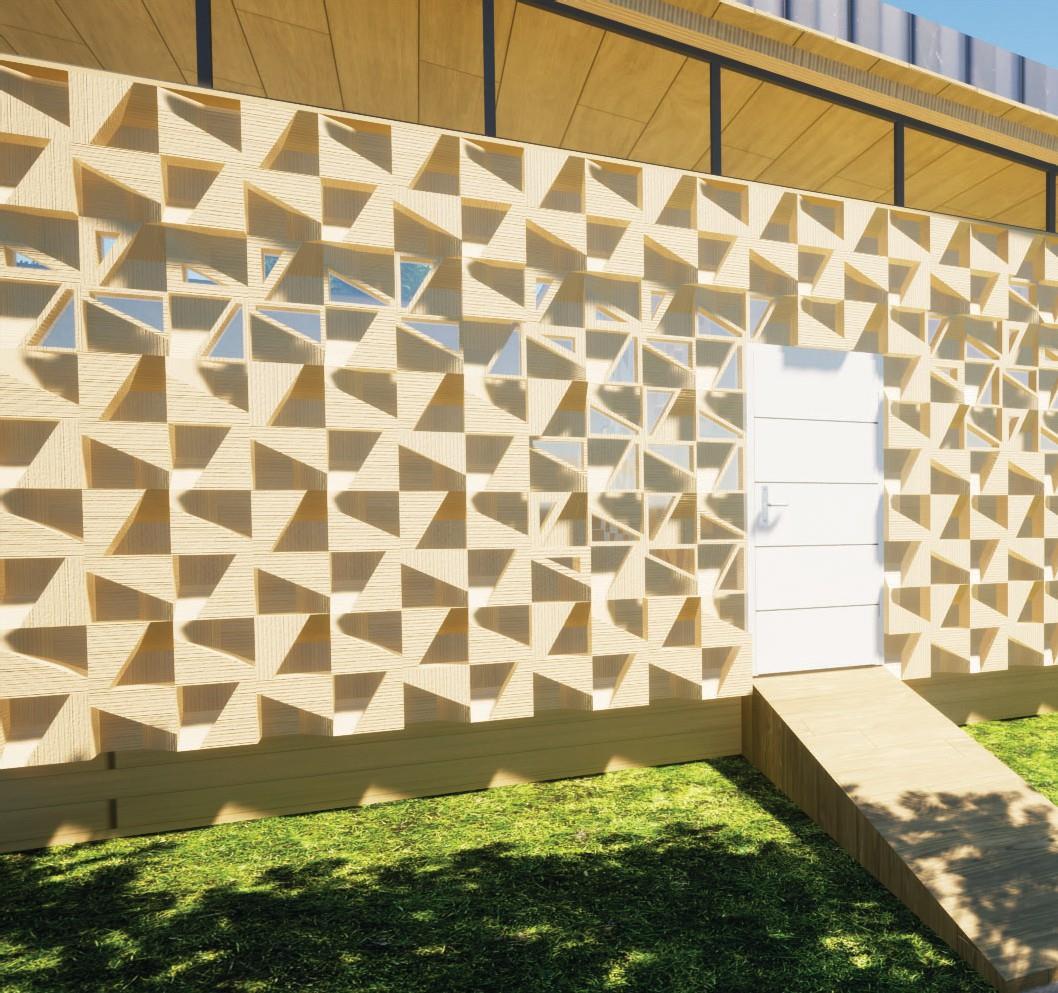

INTERIOR PERSPECTIVE FRONT VIEW OF HOUSING UNIT

| 12

| SCAFFOLD STUDIO

| JENNA TETZLAFF

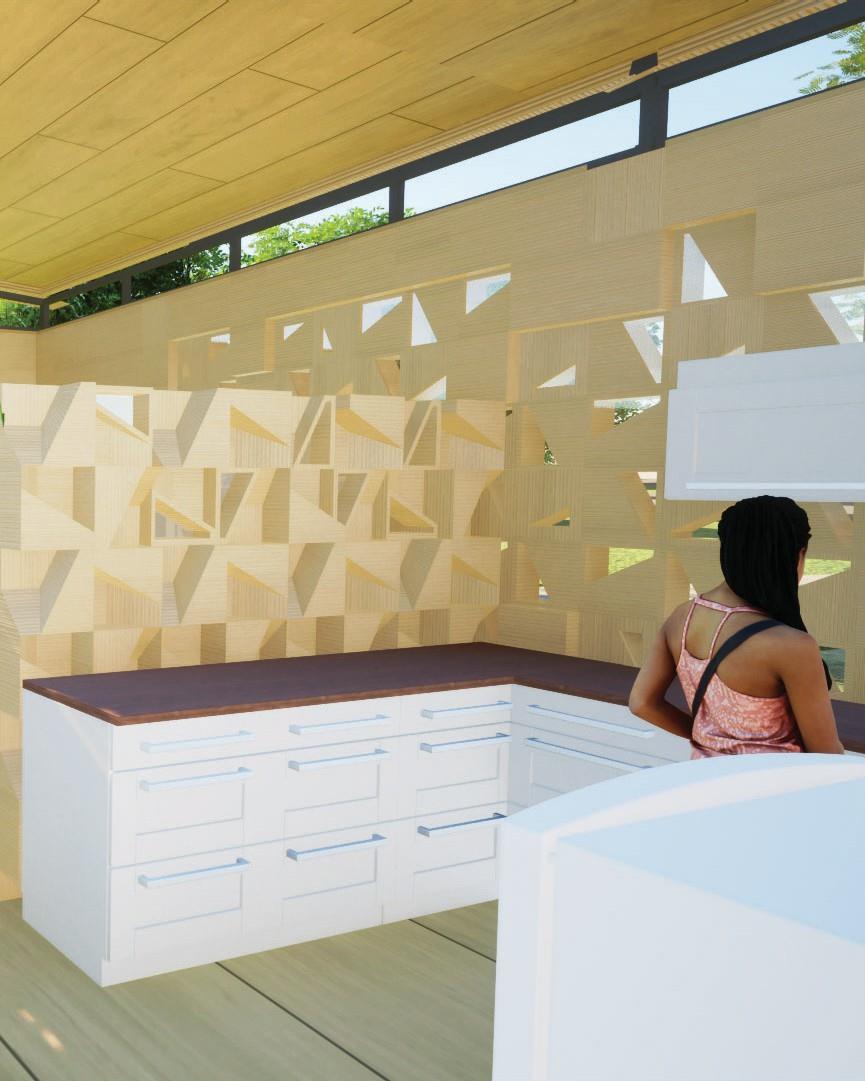

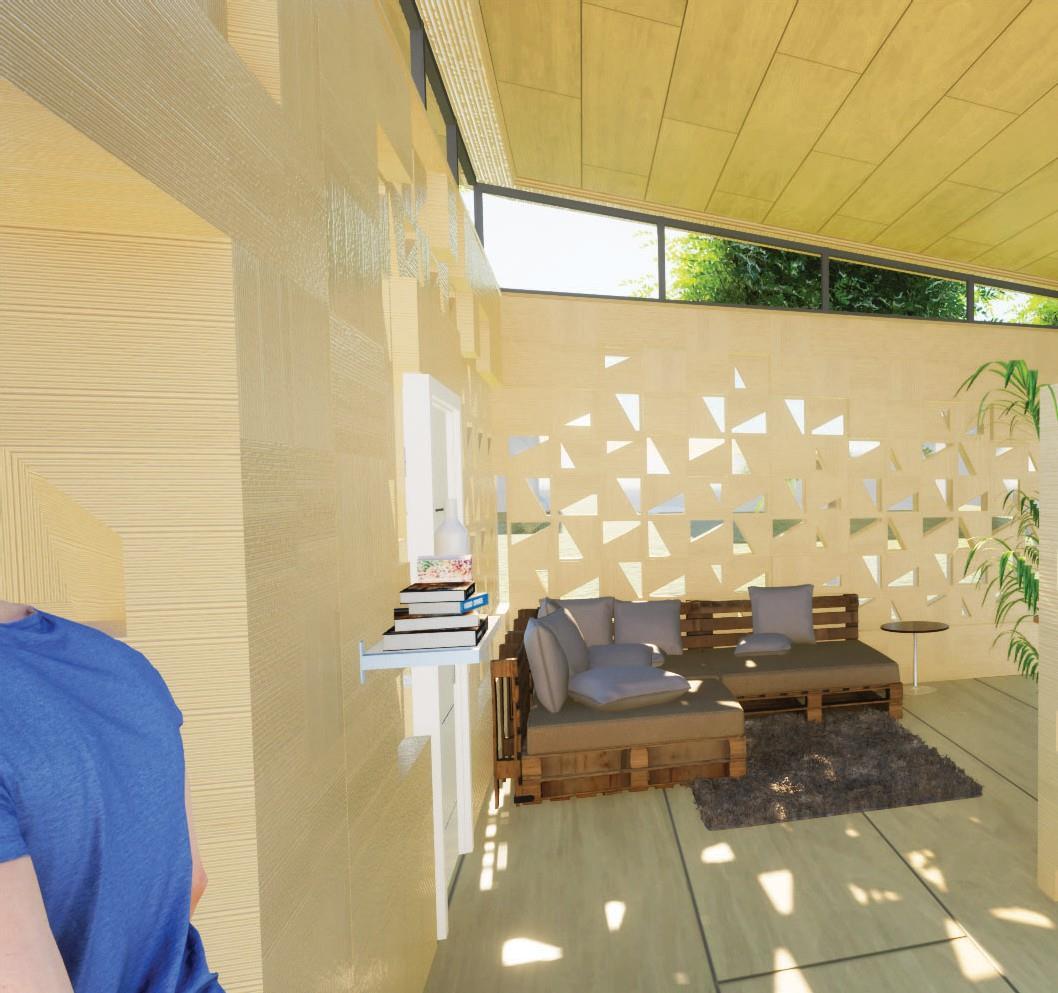

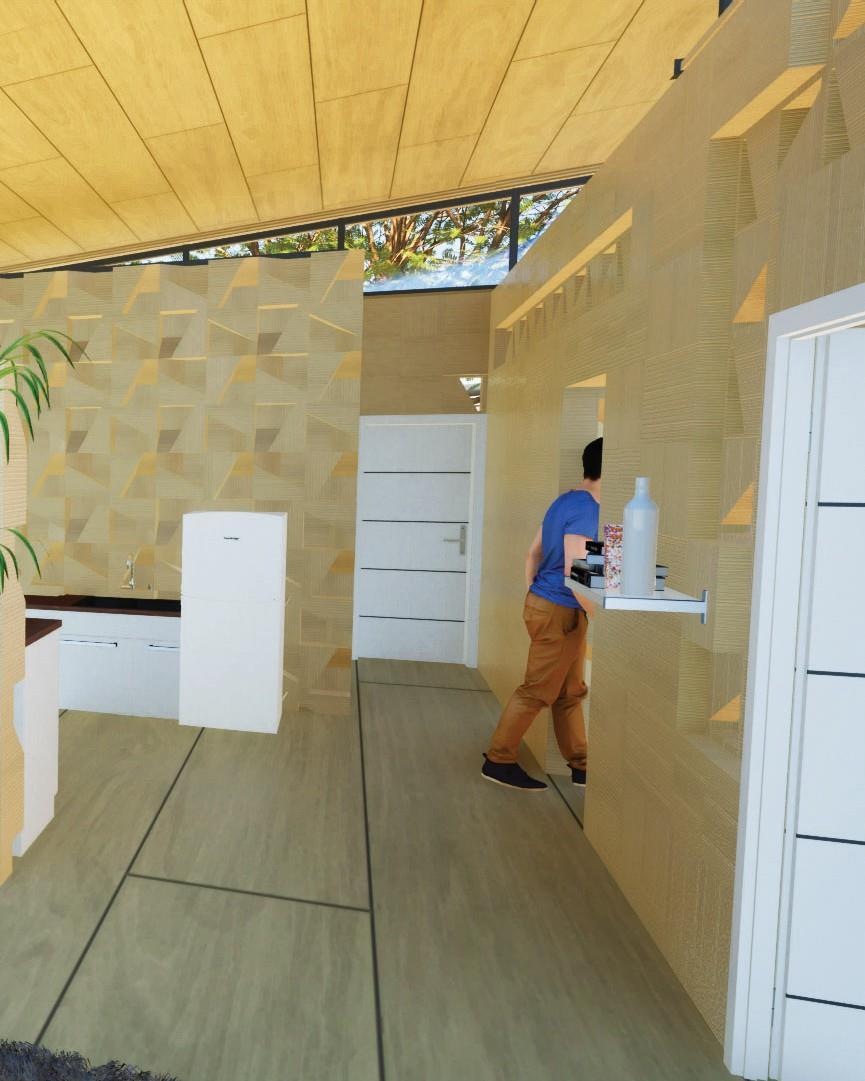

INTERIOR PERSPECTIVE FIRST LOOK INSIDE HOUSING UNIT

| 13

| SCAFFOLD STUDIO

4

COMMUNITY CLOSE-UP

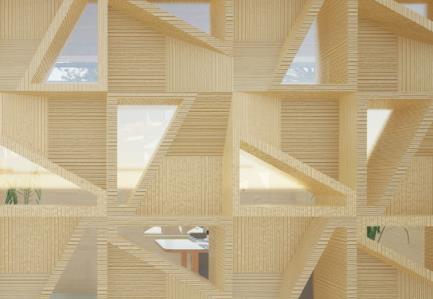

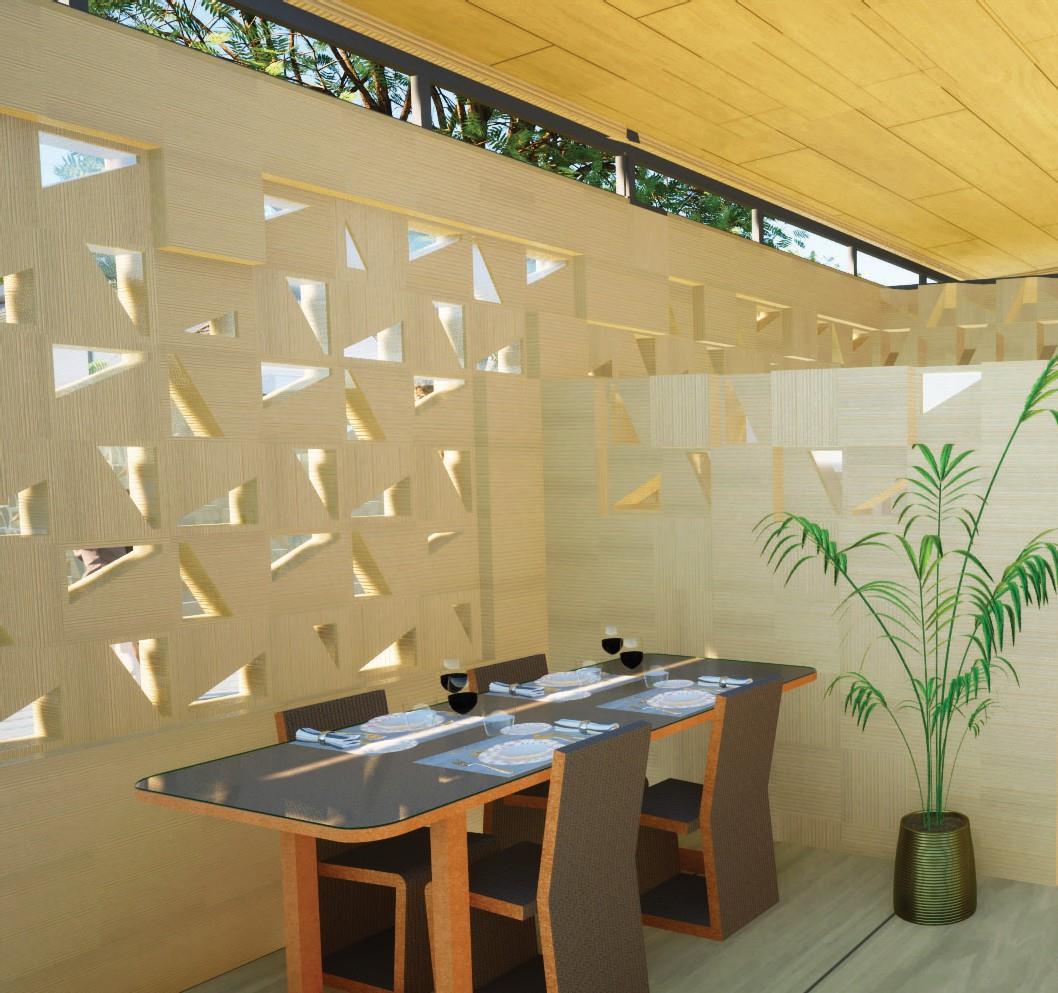

INTERIOR PERSPECTIVE ALTERNATE VIEW OF FRONT ROOM

| 14

| SCAFFOLD STUDIO

| JENNA TETZLAFF

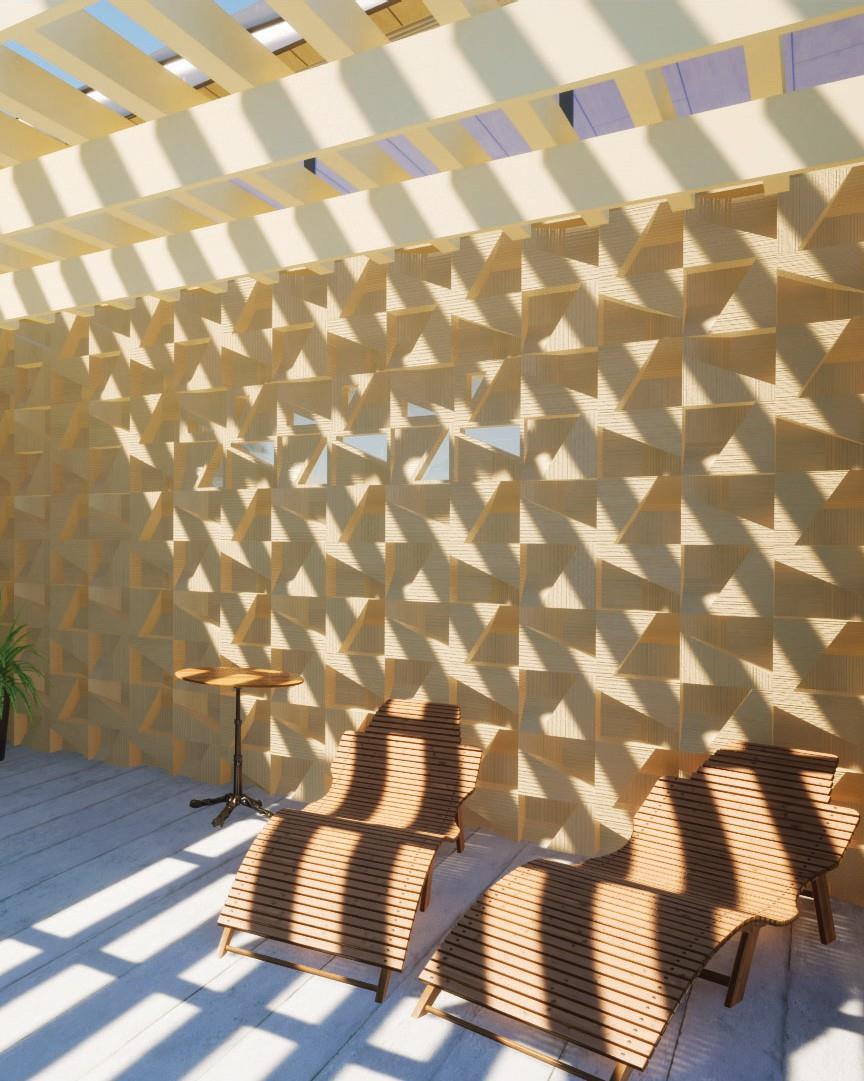

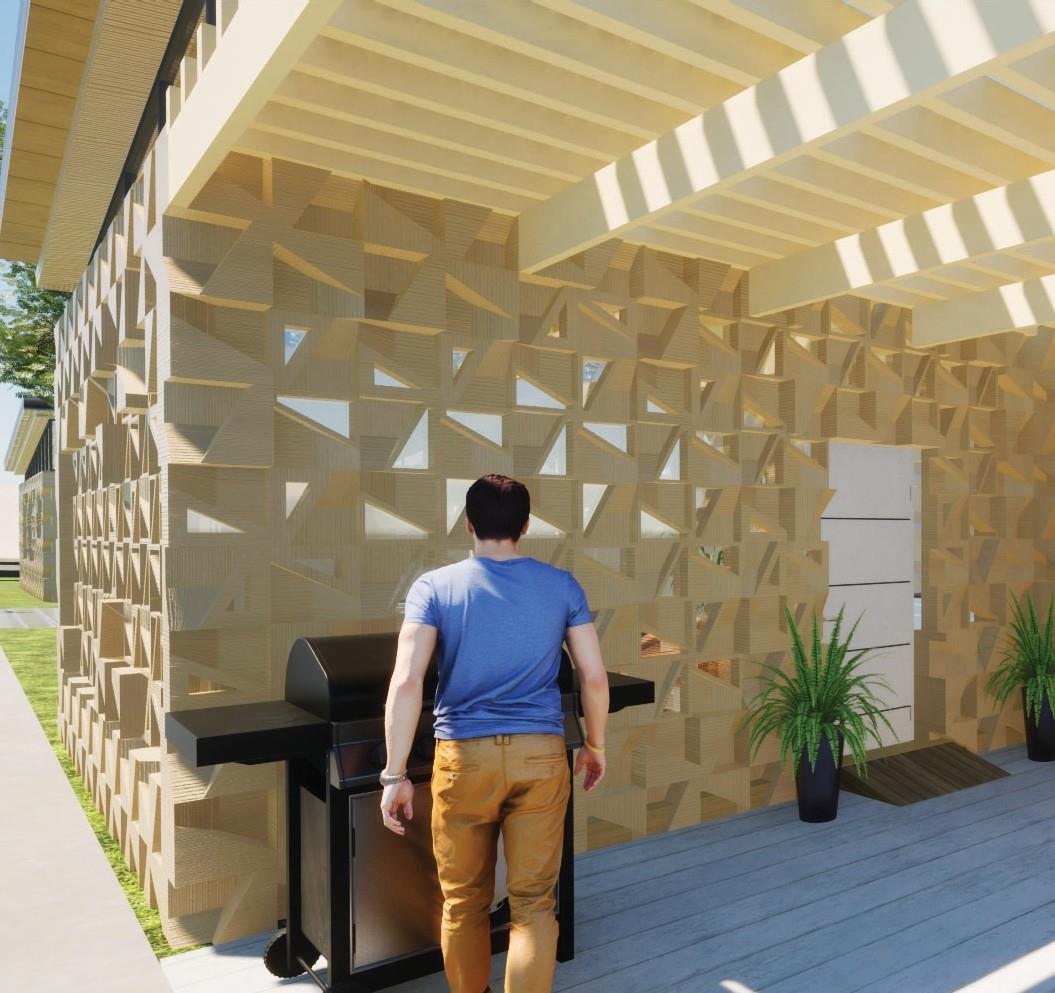

INTERIOR PERSPECTIVE VIEW OF BACKYARD AND TRELLIS

| 15

| SCAFFOLD STUDIO

4

COMMUNITY CLOSE-UP

| 16

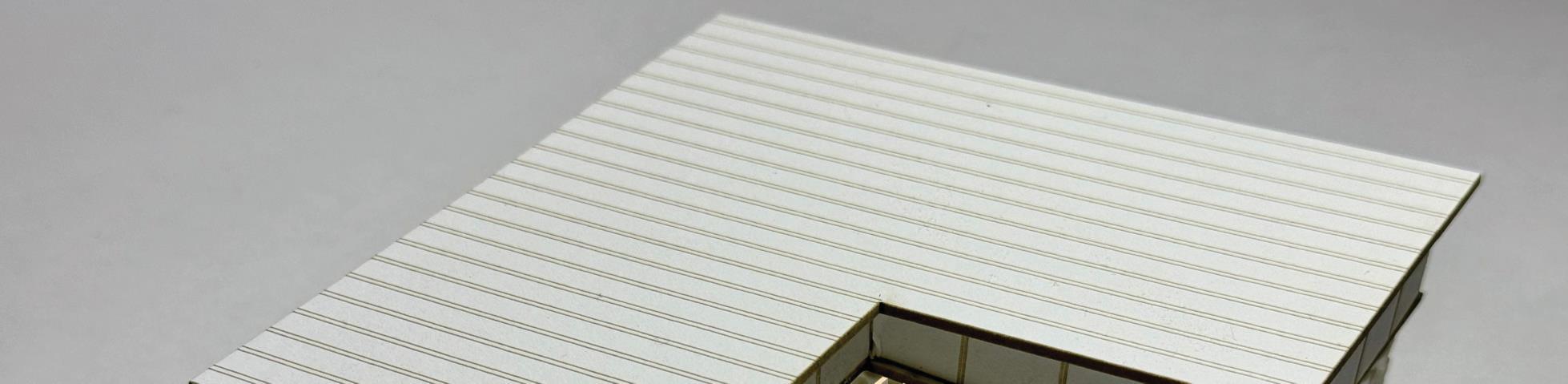

MODEL PHOTO OVERHEAD VIEW OF 1/8TH MODEL

e photos p model

| SCAFFOLD STUDIO

| JENNA TETZLAFF

| 17

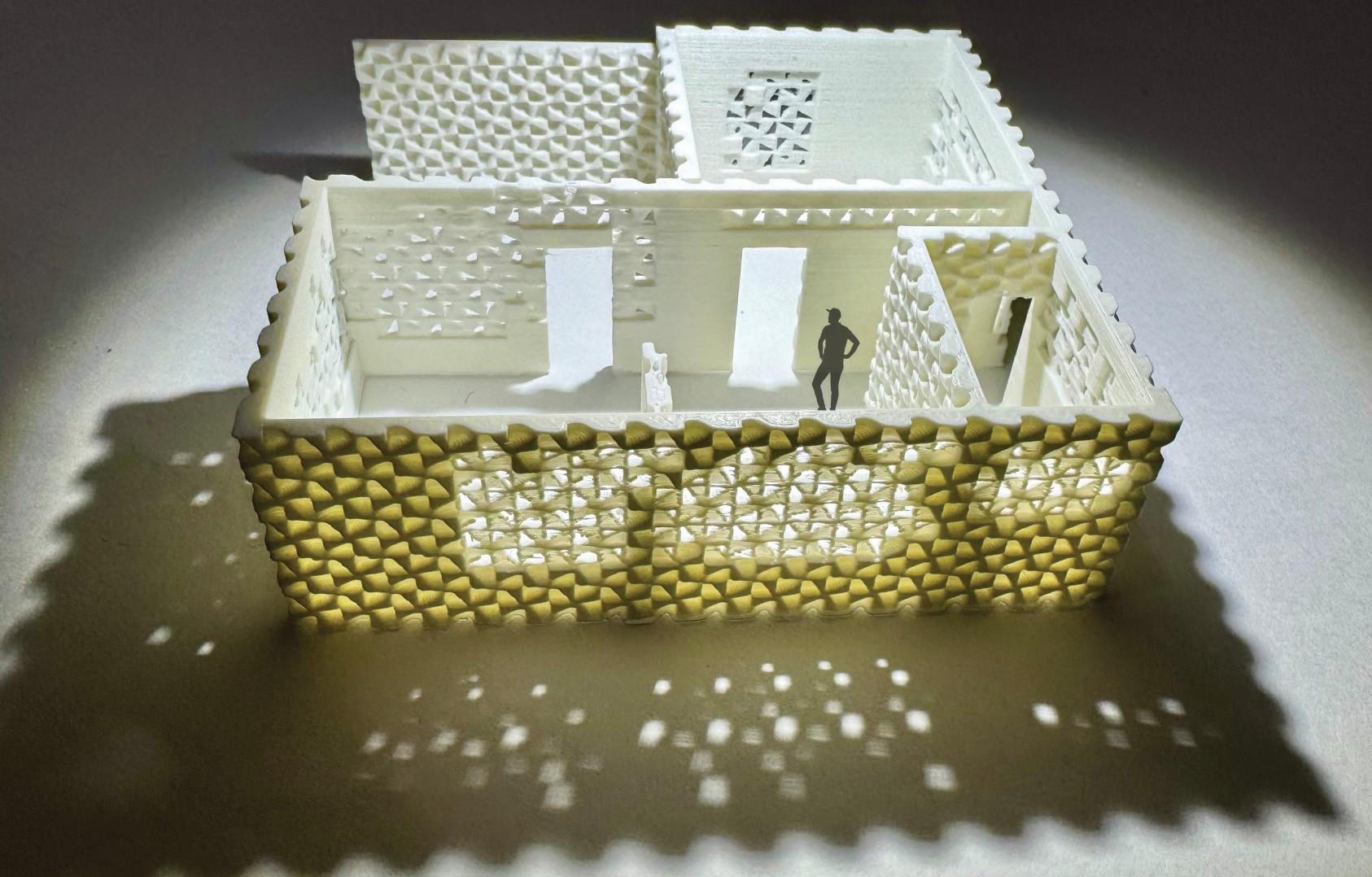

MODEL PHOTO POROSITY AND STRUCTURE VIEW OF 1/8TH MODEL

model photos

| SCAFFOLD STUDIO

4

COMMUNITY CLOSE-UP

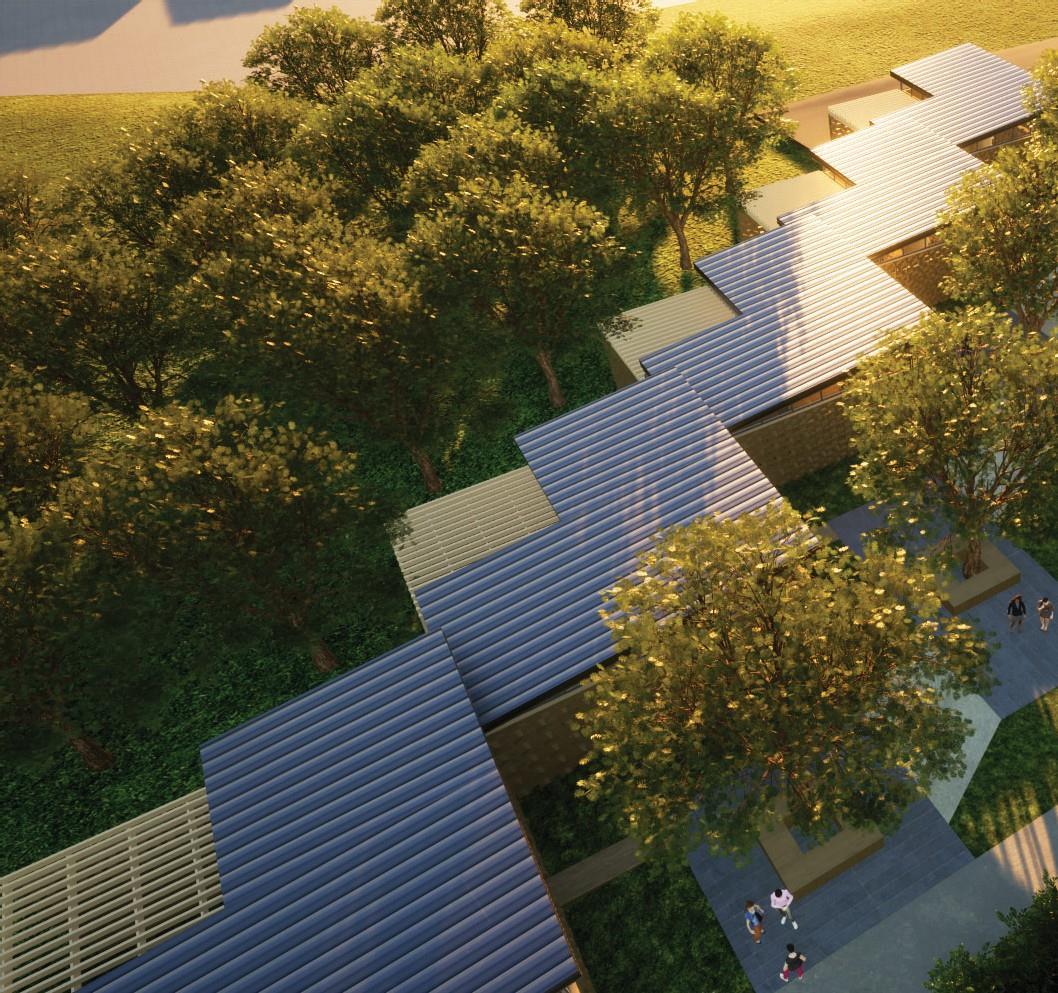

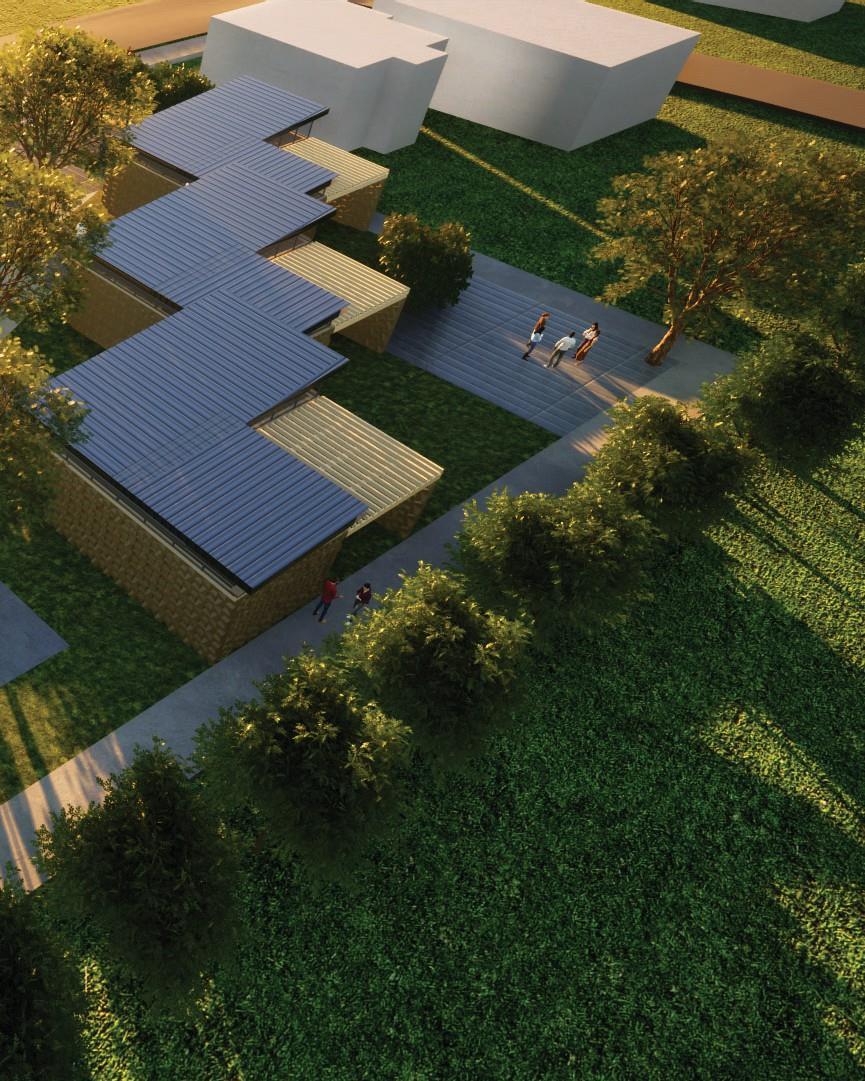

EXTERIOR PERSPECTIVE OVERHEAD VIEW OF COMMUNITY

| 18

| SCAFFOLD STUDIO

| JENNA TETZLAFF

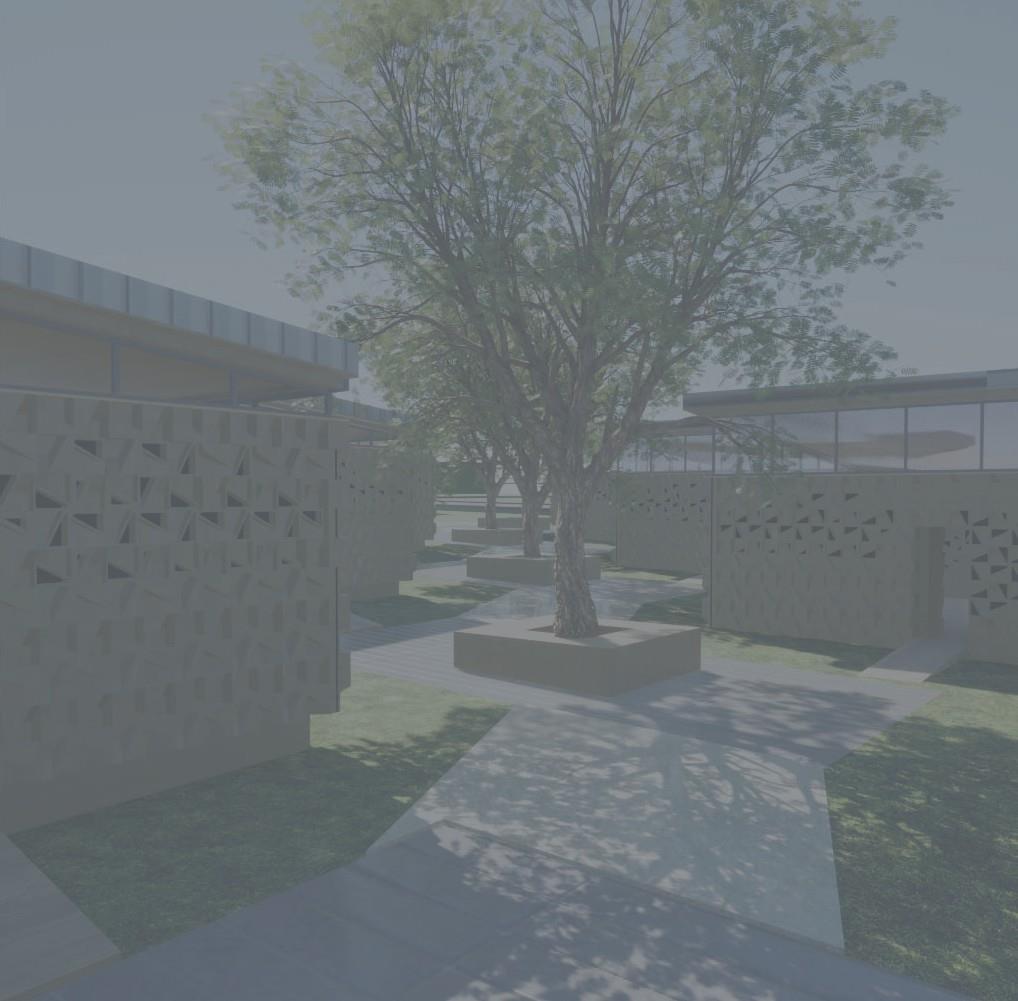

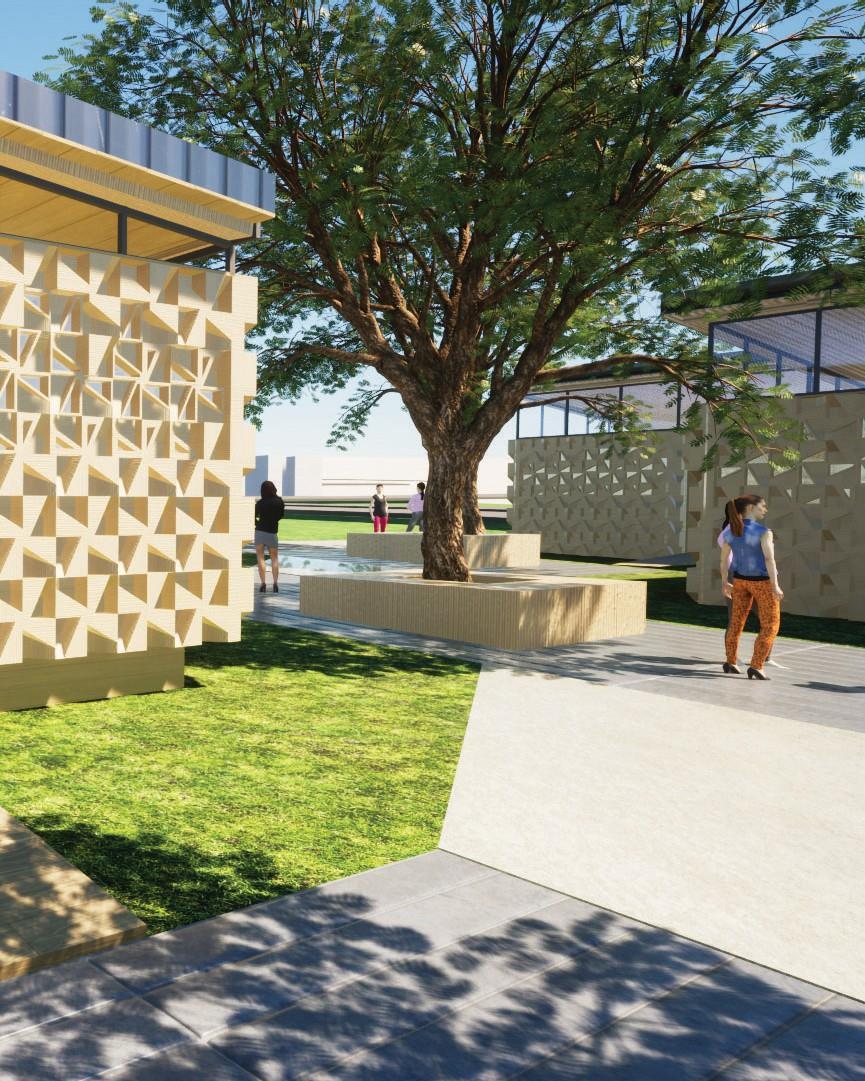

EXTERIOR PERSPECTIVE EYE-LEVEL VIEW OF GREEN SPINE AND HOUSING UNITS

| 19
