education compititions

DEVISE’24 13’o clock

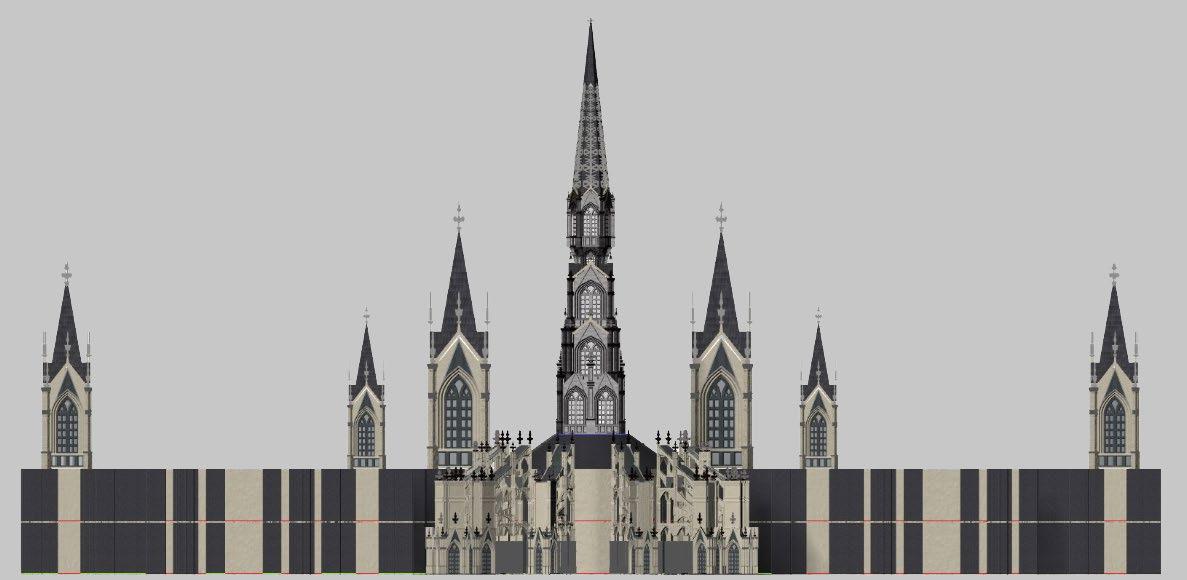

Design of a Modern Typology Building which draws inspiration from a specific historical period.

Solar Decathlon India

Educational Category - Design of an Institutional Building in the hilly terrain of Sikkim while achieving energy efficiency and striving towards a net-possitive building

research

Temperate tensions: Energy performance of building facade in Bengaluru’s office spaces

Aimed at analyzing Energy Performance of different facades on a building envelope located in Bengaluru to identify optimal solutions for the temperate climate of Bengaluru.

software skills

Rhino 3D Expert

Grasshopper Expert

Autocad Expert

Adobe suite Expert

Vray Expert

D5 Render Expert

Lumion Advanced

Enscape Advanced

Fabrication Advanced

3D Printing Novice

Revit Novice

AI in architecture Novice

Genesis Architecture, Bengaluru

Architectural Intern

Design of villas, detailed modeling and high-quality visualization

Ladybug

Honey-bee

Climate Studio Proficient Proficient Advanced

languages experience energy simulation

English

Hindi Kannada Tamil

Proficient Proficient Native Intermediate

personal interests

sketching, football, music, reading, travelling, hiking, digital art, roller-skating, AI in architecture

BANGALORE 26 JULY 2024

SUB: INTERNSHIP LETTER

WE ARE GLAD TO INFORM YOU THAT MANU SAGAR A STUDENT OF SPA NEW DELHI HAS DONE A SUMMER INTERNSHIP AT GENESIS ARCHITECTURE, BANGALORE.

THE DURATION OF INTERNSHIP WAS 1 MONTH FROM 18 JUNE – 18 JULY 2024

WISHING HIM SUCCESS IN FUTURE ENDEAVORS BEST WISHES !!

FOR GENESIS ARCHITECTURE

PRAKASH SELVARAJ COA Reg : CA/2003/31389

Acena Yangchen Prayana

04 05 terminal airport terminal 3D modeling, visualization, artworks

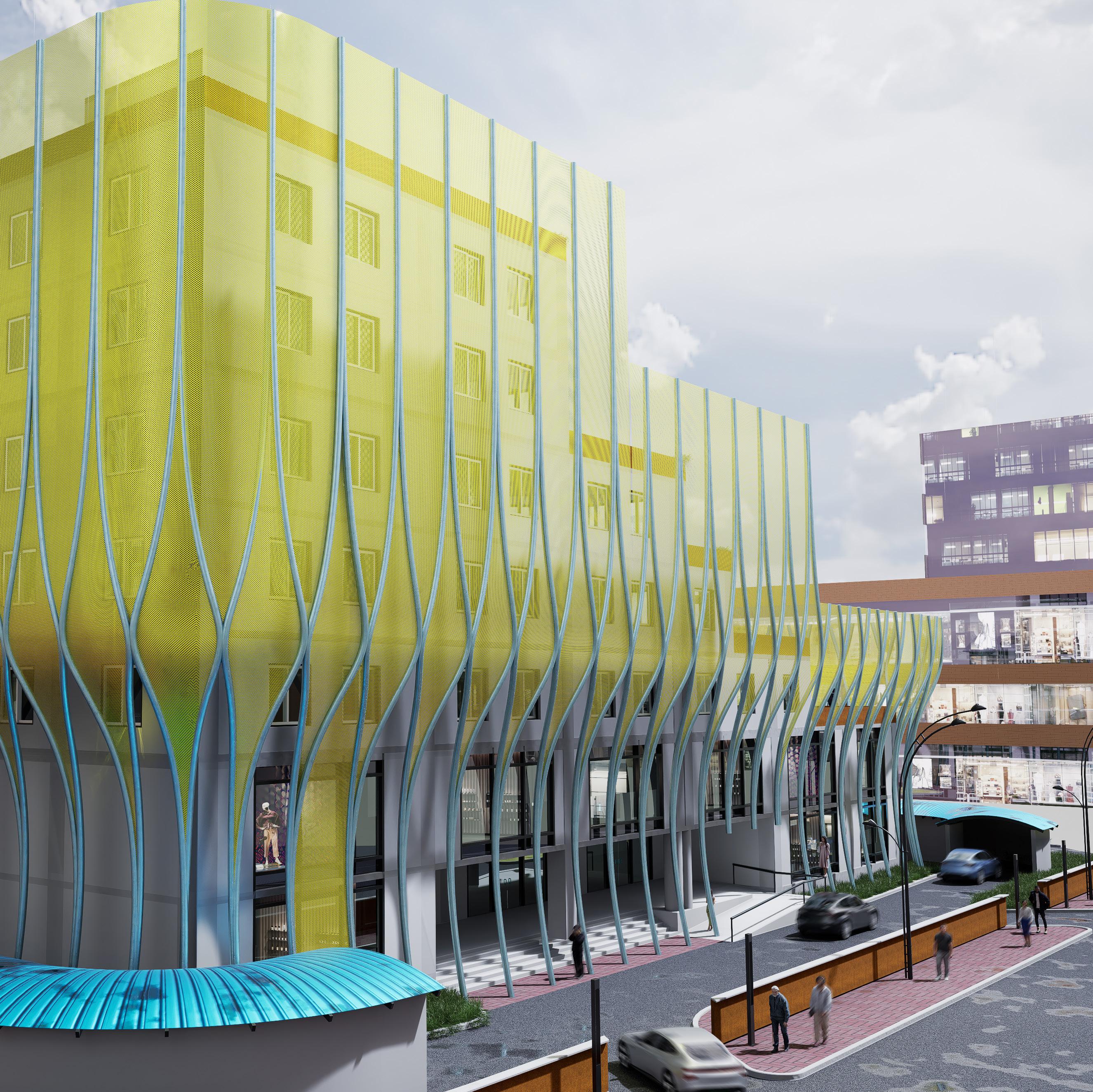

Acena

mixed-use building

Typology

Mixed-use(Retail + Office)

Location

Panaji, Goa

Built-up Area

Panaji, Goa

Collaboration

Individual Academic

Role

Concept design, parametric testing, 3D visualizations, Illustrations and Working Drawings

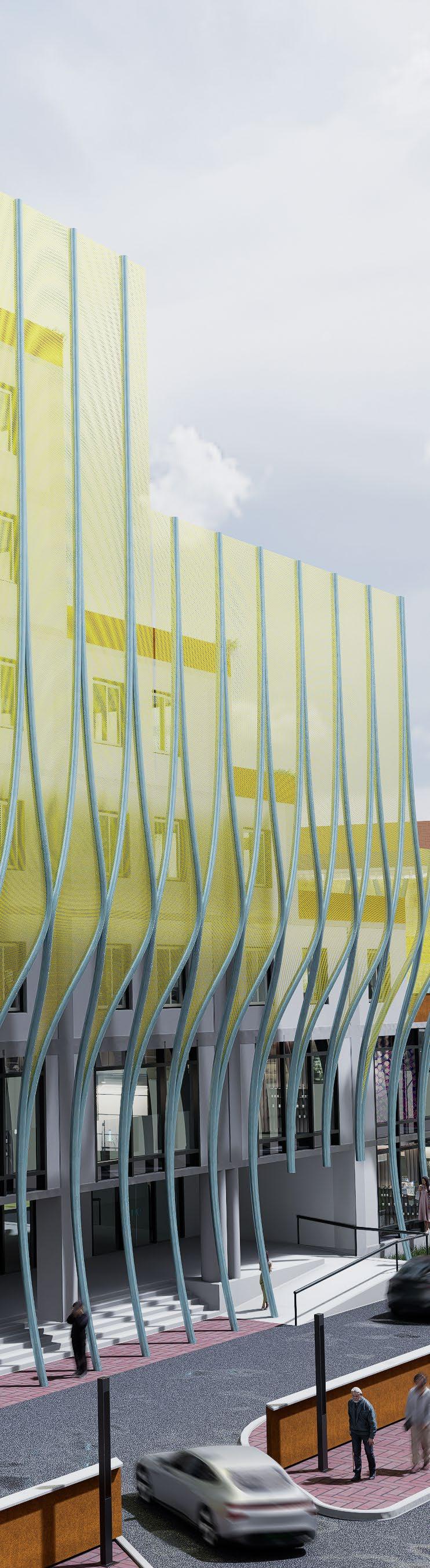

Goa, known for its pristine beaches and vibrant culture draws the attention of tourists while leaving it’s locals in search of entertainment.

In the office heavy Zone of Panaji, Acena will serve as a mean to keep the street safe through ensuring public survailance till late night and reduce loitering near the Heritage zone of Fountainhas. Introduction of a Mixeduse complex close to the creek Rio de Ourem will inrease connectivity and cater to the locals as well as tourists. The complex aims to provide oportunities and increase employment.

The complex also aims on dealing with the issues caused by the stagnation of water at the end of creek. The design guides the users through the complex. With seamless circulation in mind, the design focuses on sustainability and energy efficiency. With the vast views of Fountainhas the design is oriented and optimised to ensure breath taking views.

Softwares used Autocad, Rhino, Grasshopper, Photoshop,D5 Render

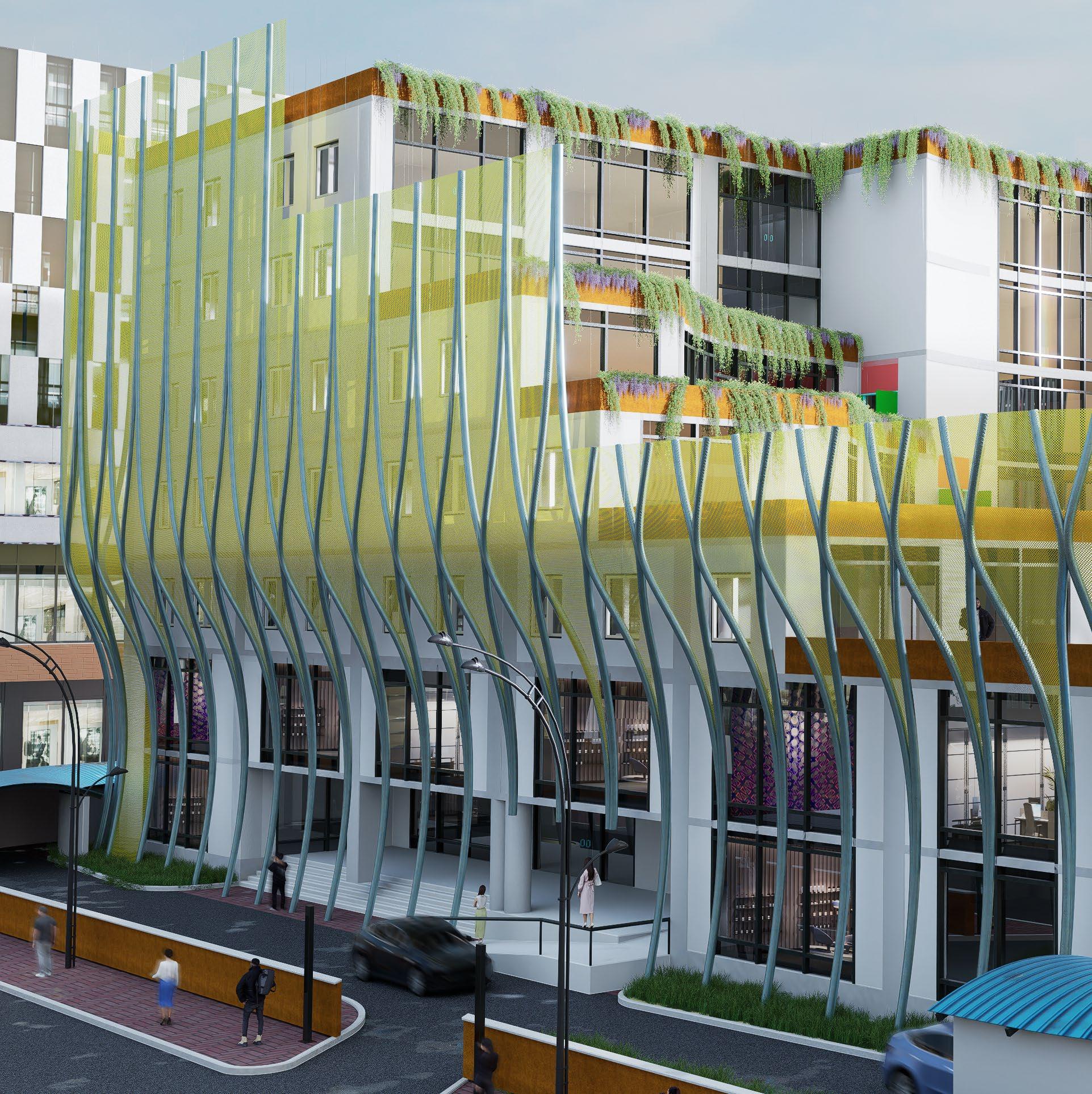

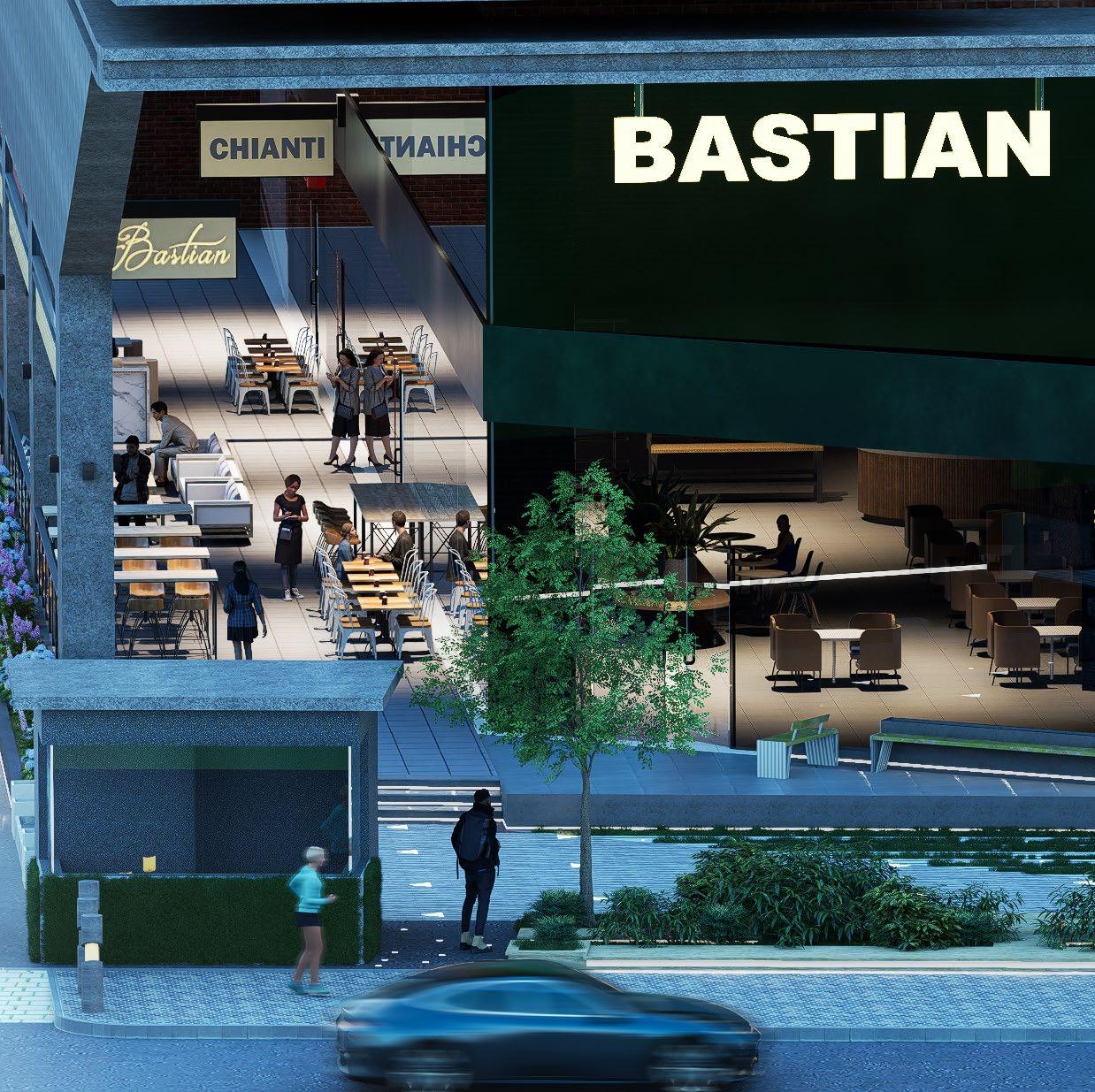

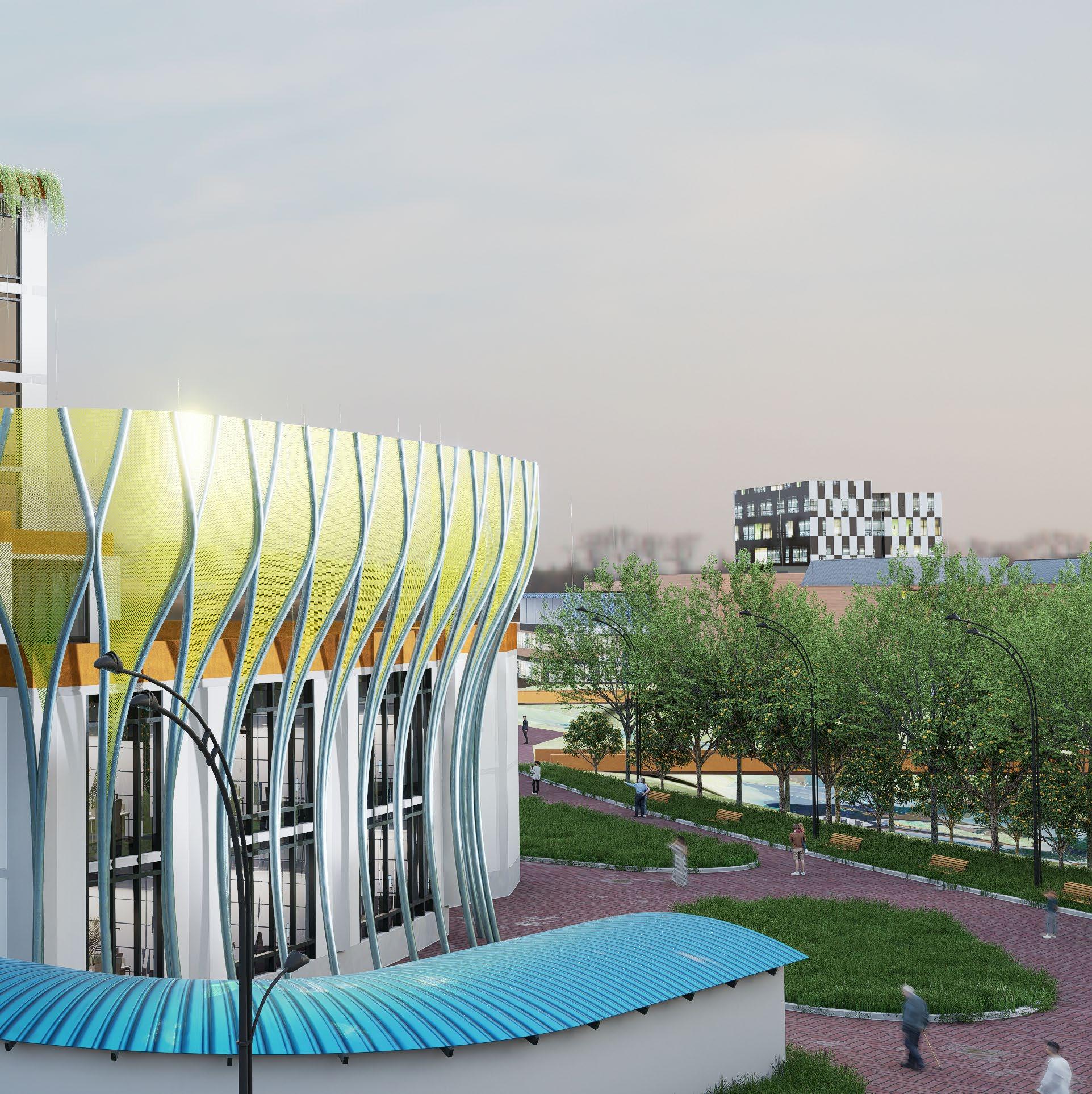

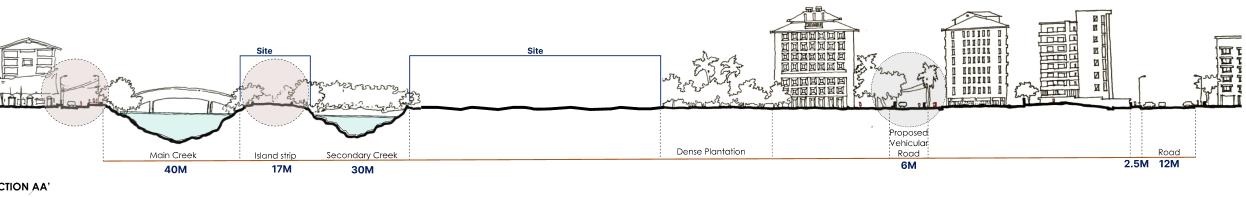

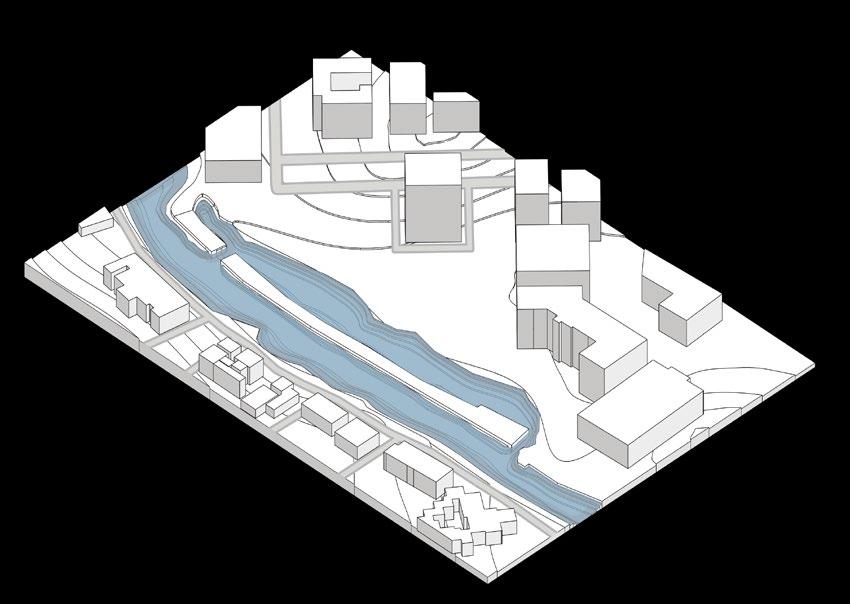

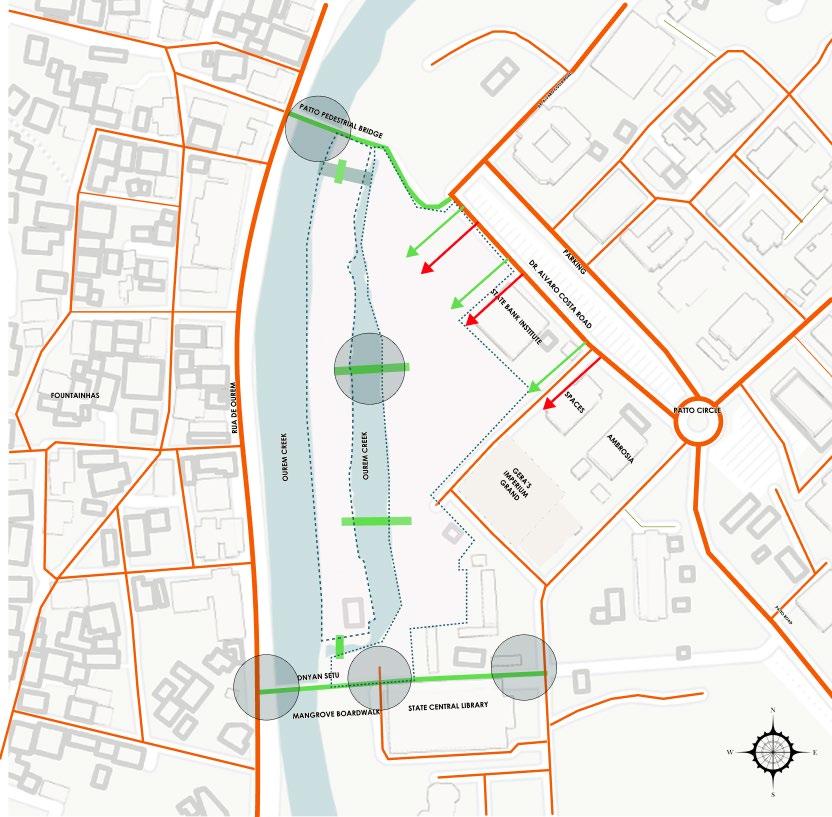

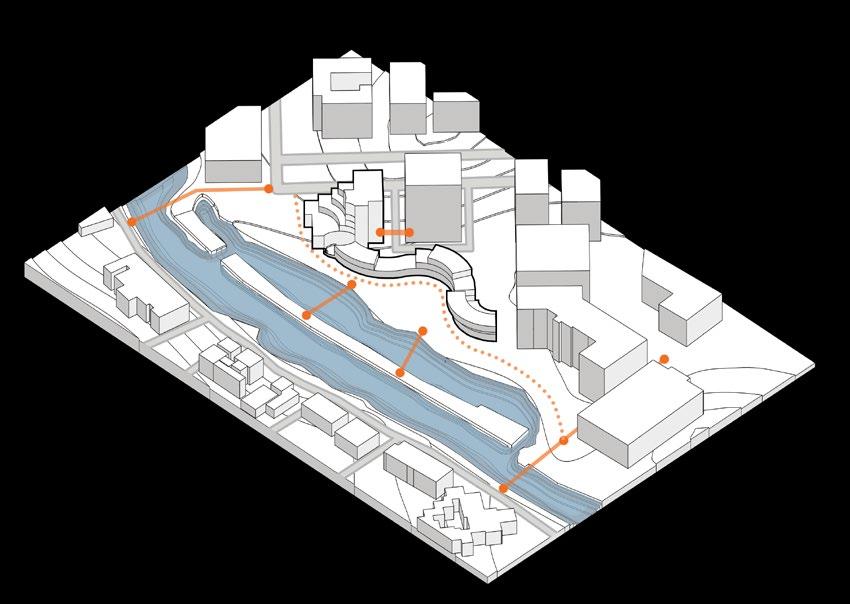

Site analysis, marking of hotspots, identifying major connecting networks to the site and studying the skyline of the context. Understanding the depth of the creeks and drawing inspiration from the existing bridges to understand the clear heights and other factors. Designing according to the bye-laws and accomodation of enough parking spaces in the basement was a challenge. Due to the site constraints the construction of more than two basements would prove dangerous, hence optimising the basement was crucial. Study of public movement patterns lead to the definition of two definite entries with no vehicular movement.

The design weaves through the site mimicking the mangrooves while ensuring enough space for the functions to take place. Mangroves act as natural barriers, reducing erosion caused by waves and storms. Their intricate root systems dissipate wave energy, protecting coastlines and inland areas. The mangroves play a vital part in the context and hence no tree was cut down to accomodate design needs.

02 03

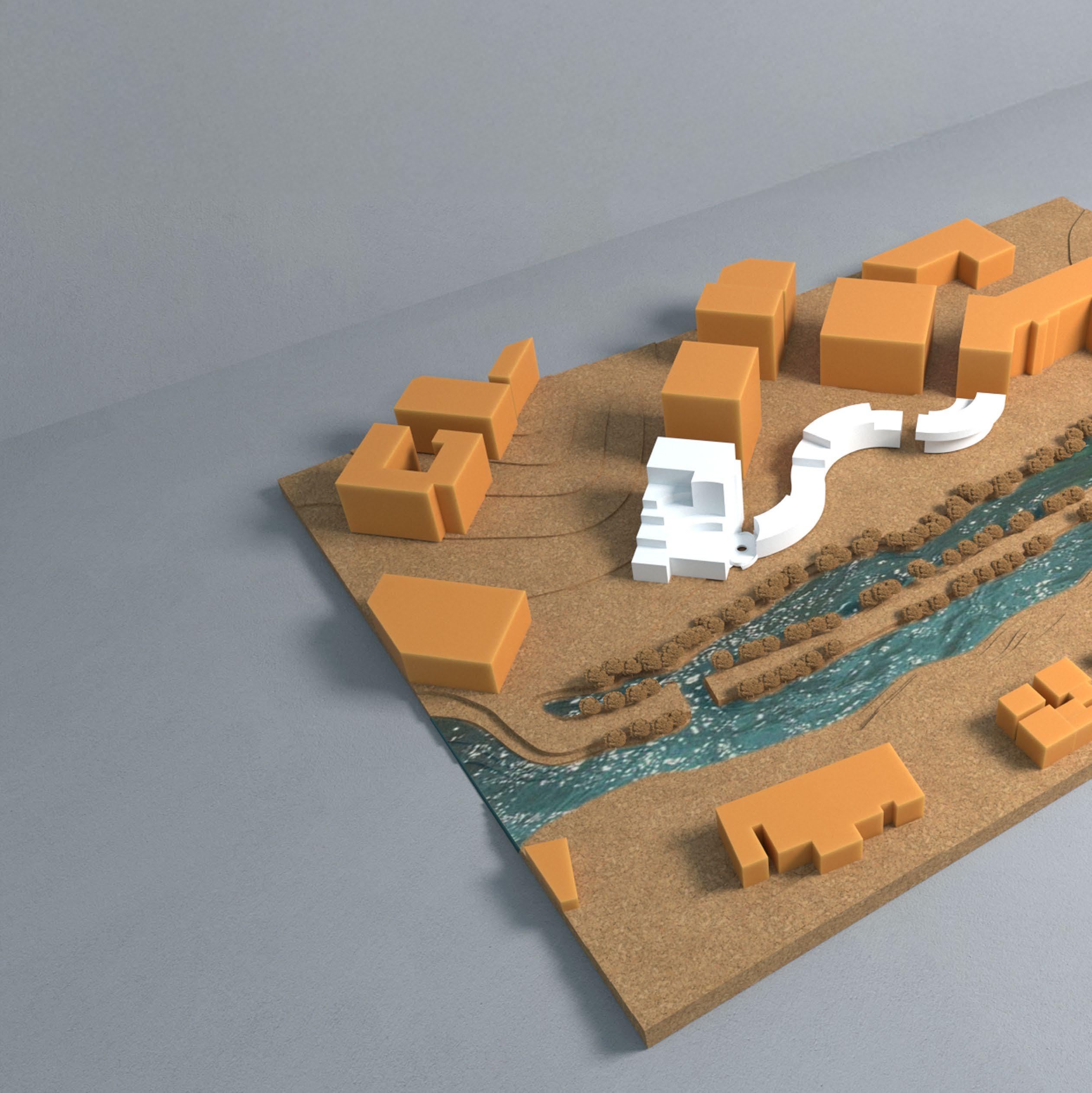

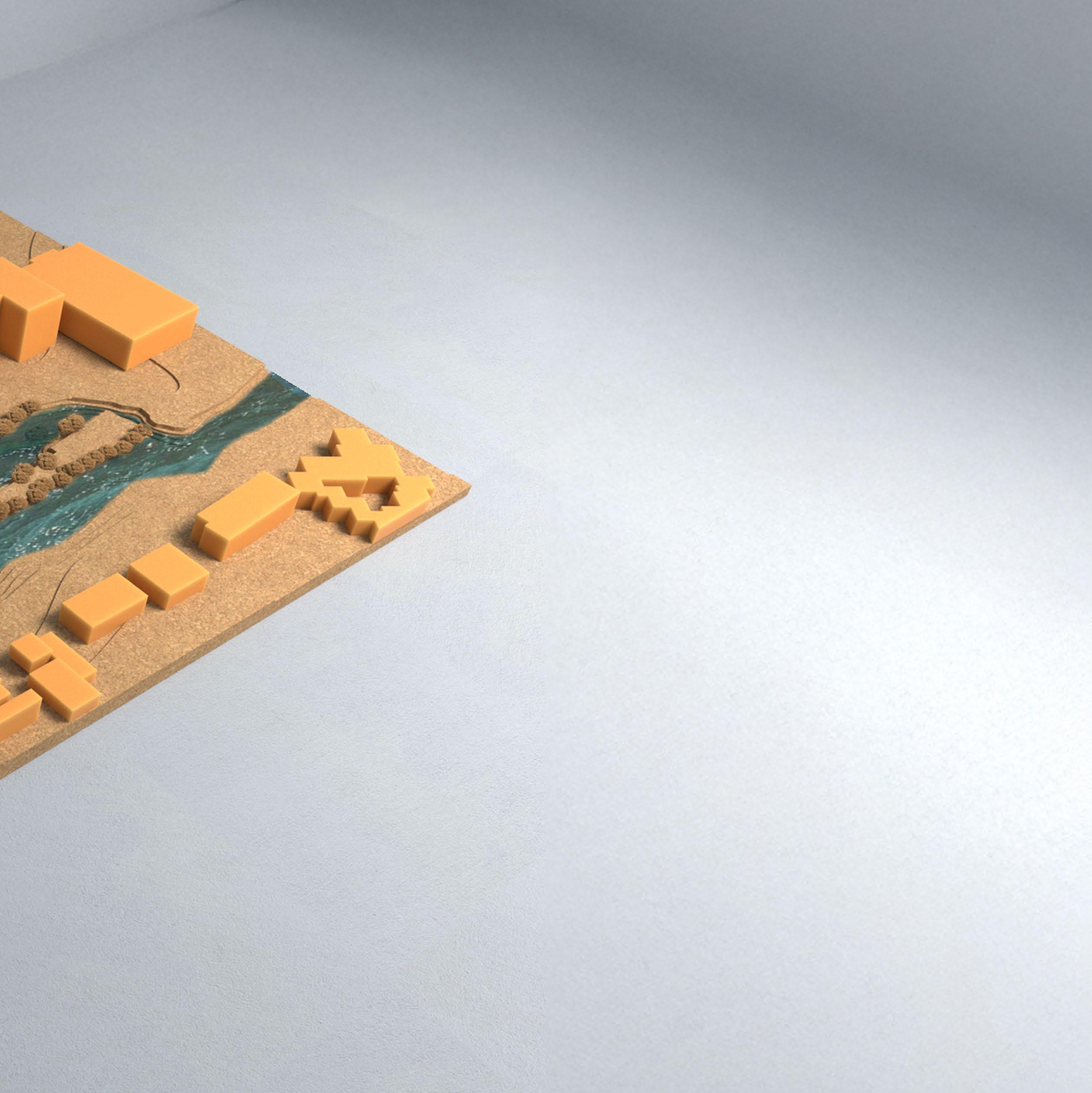

Before Optimization

No flow of water in the creek gives rise the mosquito infestation and foul odours.

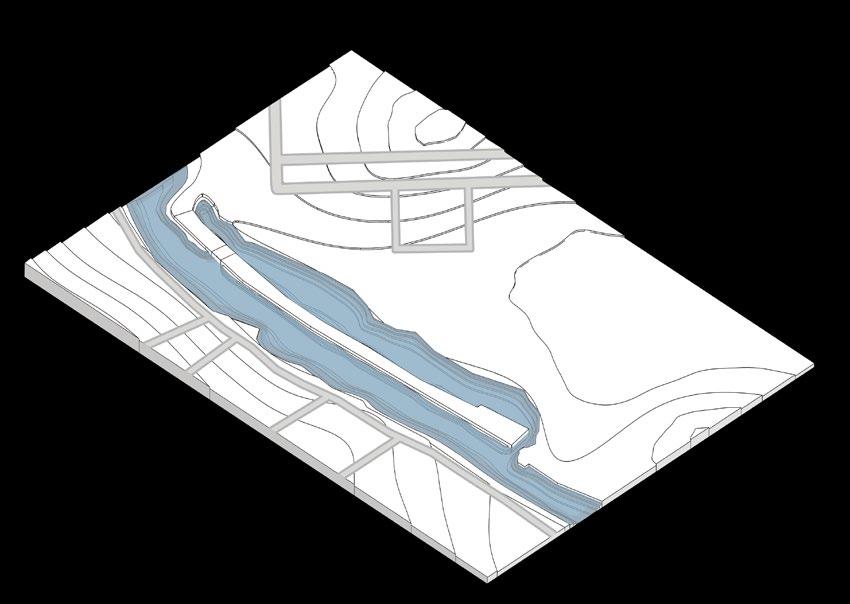

Channel introduction

Introduction of a small channel by removing a small part of the island to enable water flow.

Addition of Bridges

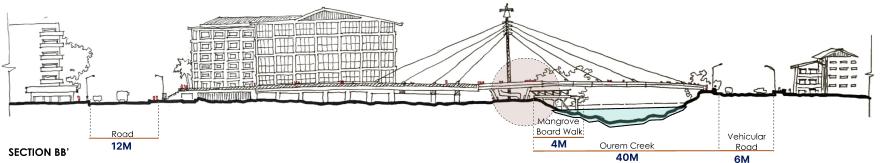

The unused island now becomes accesible and will be used as walkways and act as a space to showcase installations.

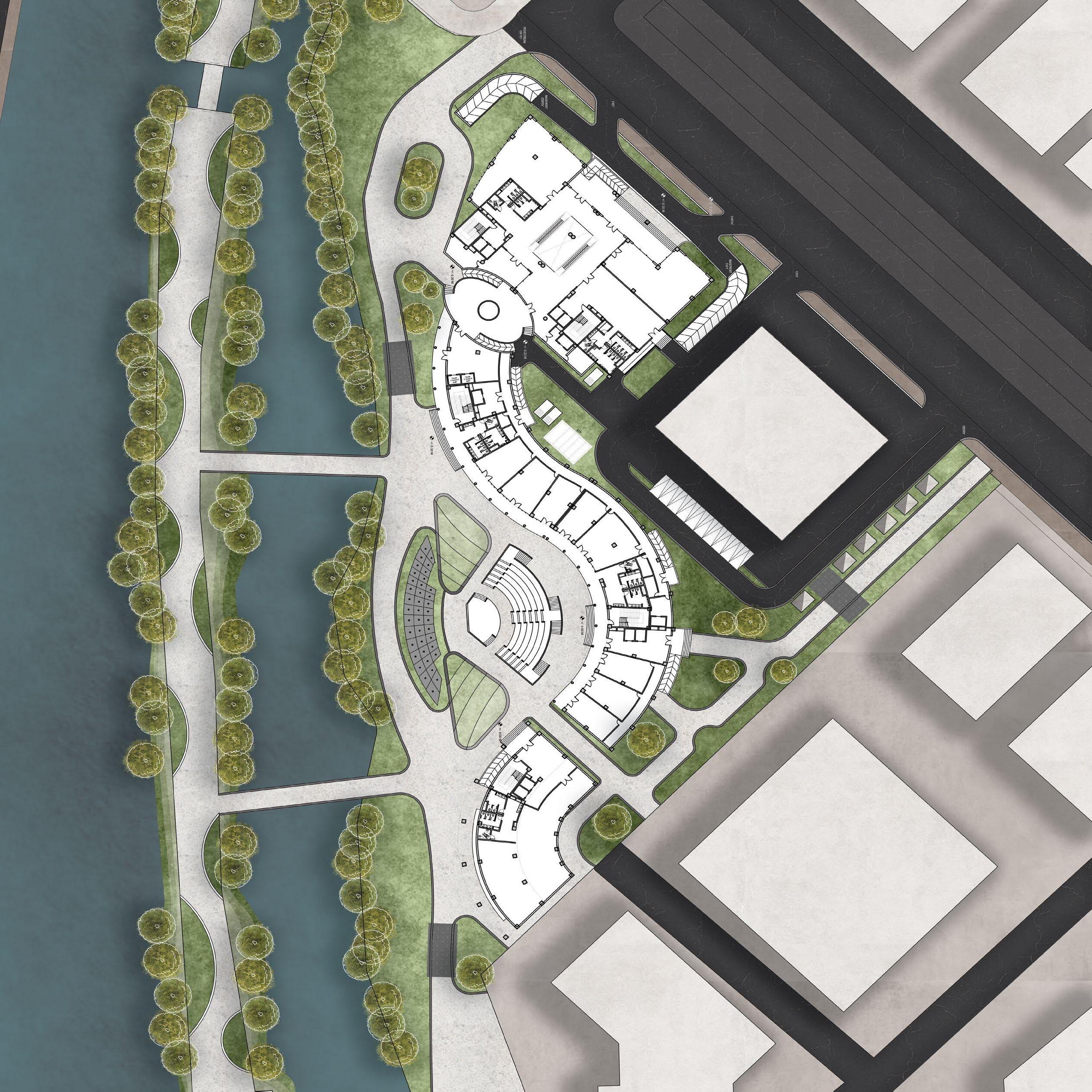

Working Drawings

Yangchen

institutional building

Typology

Institutional

Location

Pacheykhani, Sikkim

Built-up Area

4600 SQM

Collaboration Team of 2

Role

Concept design, parametric testing, 3D visualizations, Illustrations, Energy optimization

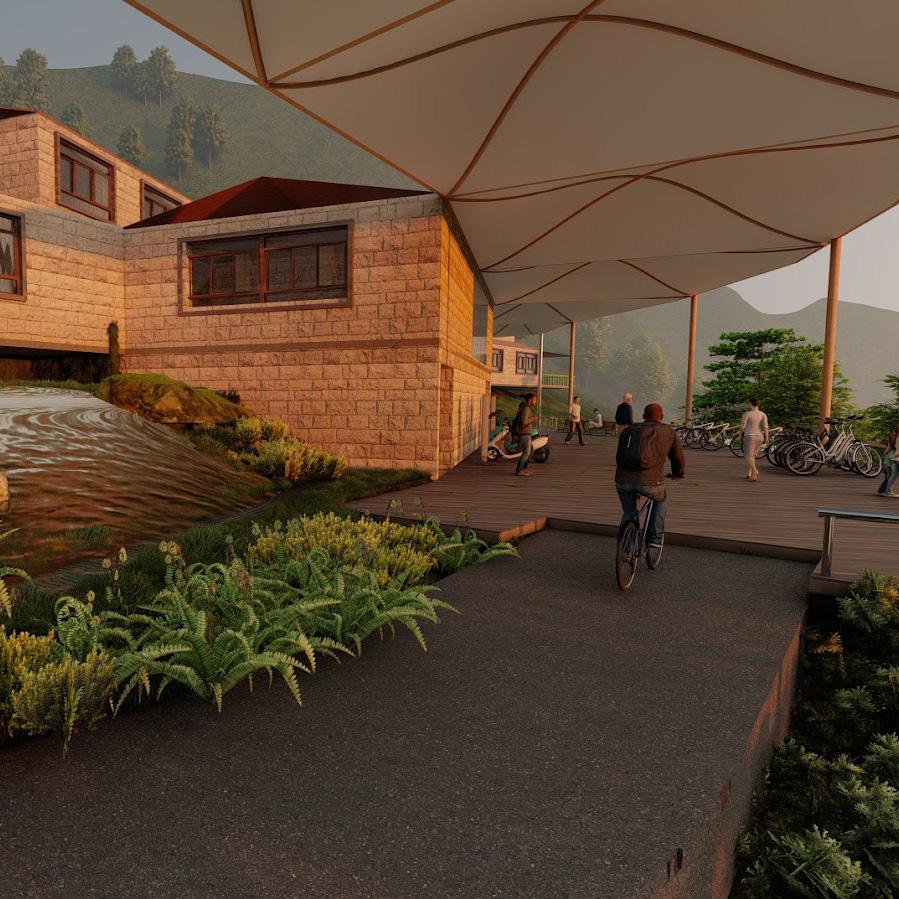

Sikkim known for it’s rich heritage and beautiful terrain very difficult to construct upon. The soil needs to be paid the utmost resoect while doing so.

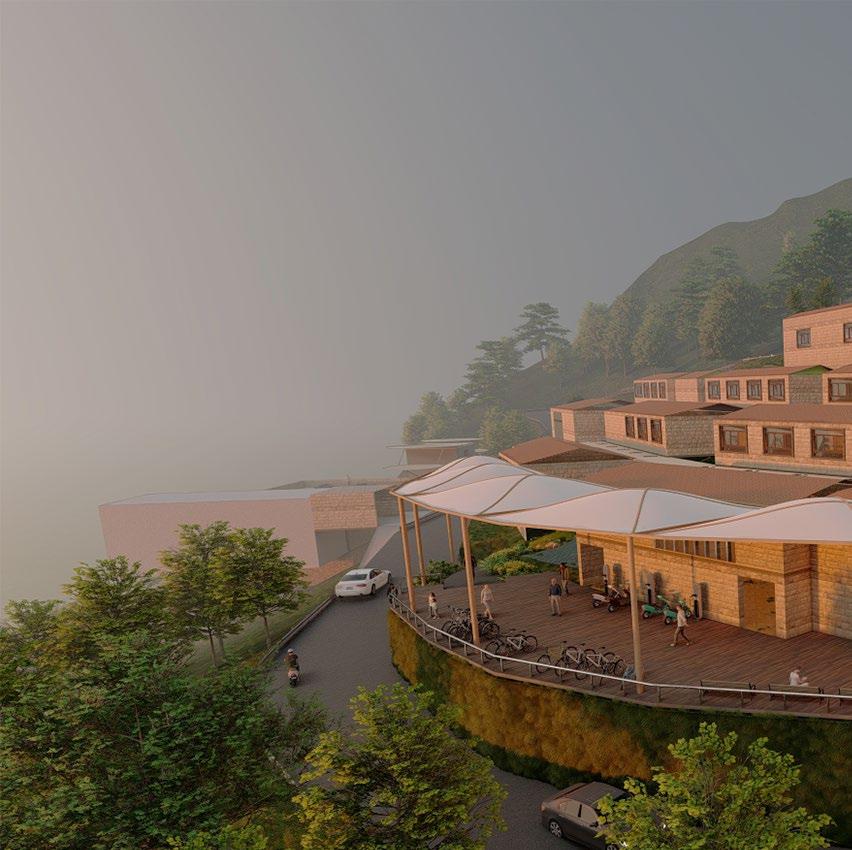

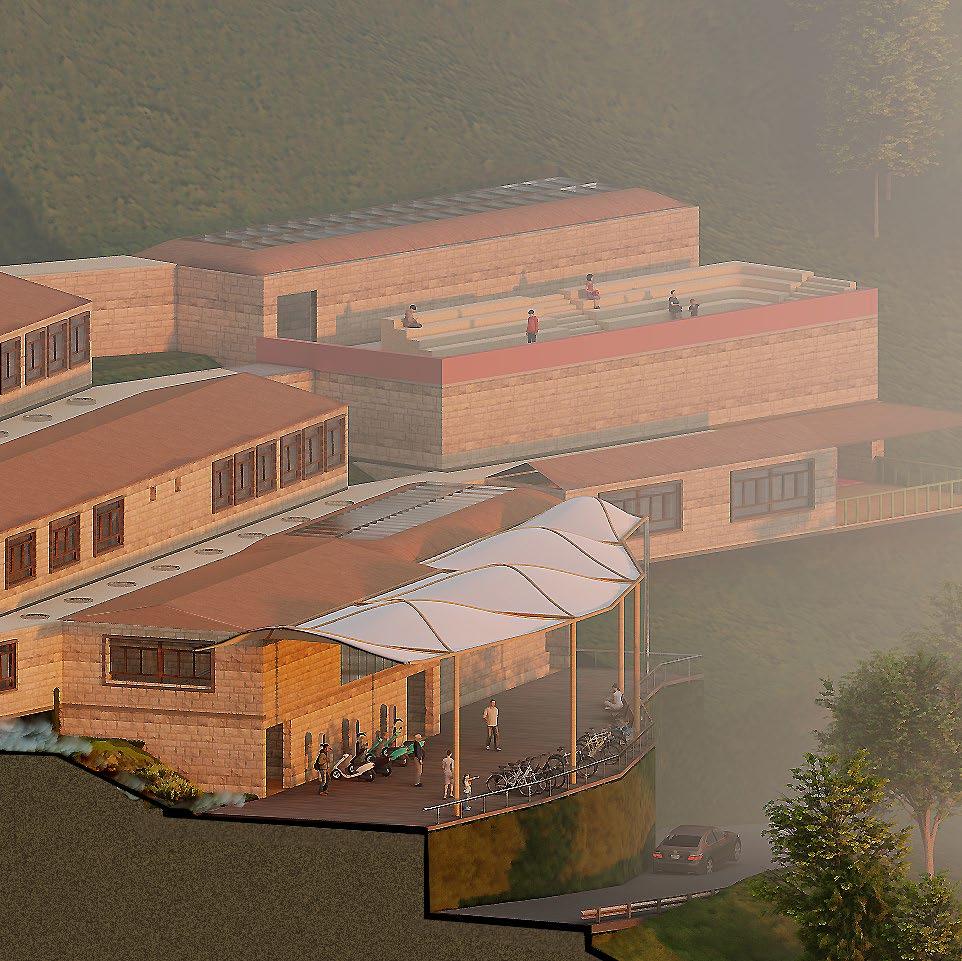

Yangchen is an entry to Solar Decathlon India, the design aims to achive a net-positive energy output. Striving for self-sufficiency and more. The design uses locally sourced materials and traditional as well as modern techniques to reduce it’s cost. Enegy generation is optimised through the use of Hydro-turbines and Solar pv pannels.

Yangchen lays down on the terrain in a way which balances daylight and reduced cut and fill of the terrain. Conncetivity and universal accesibility was a major consideration for the design, ramps are placed at close intervals as a ramp connecting three levels would put too much load on the land. This results in a eco-friendly learning environment with the natural landscape.

Softwares used Autocad, Rhino, Grasshopper, Photoshop,Lumion

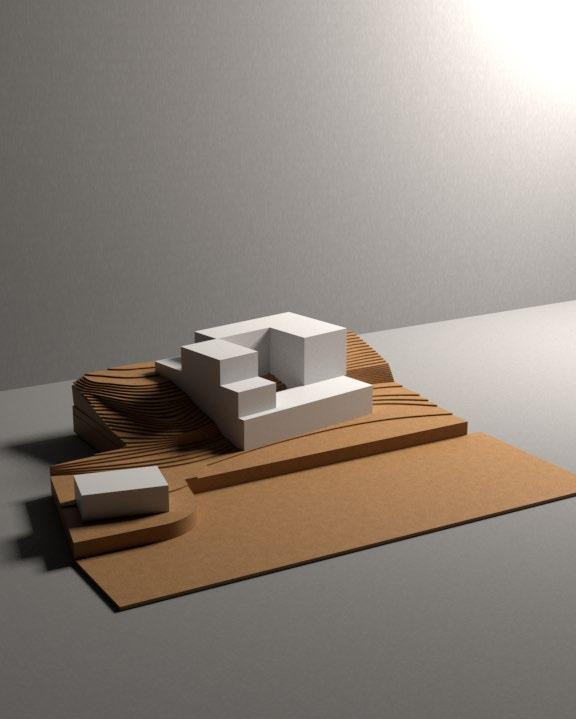

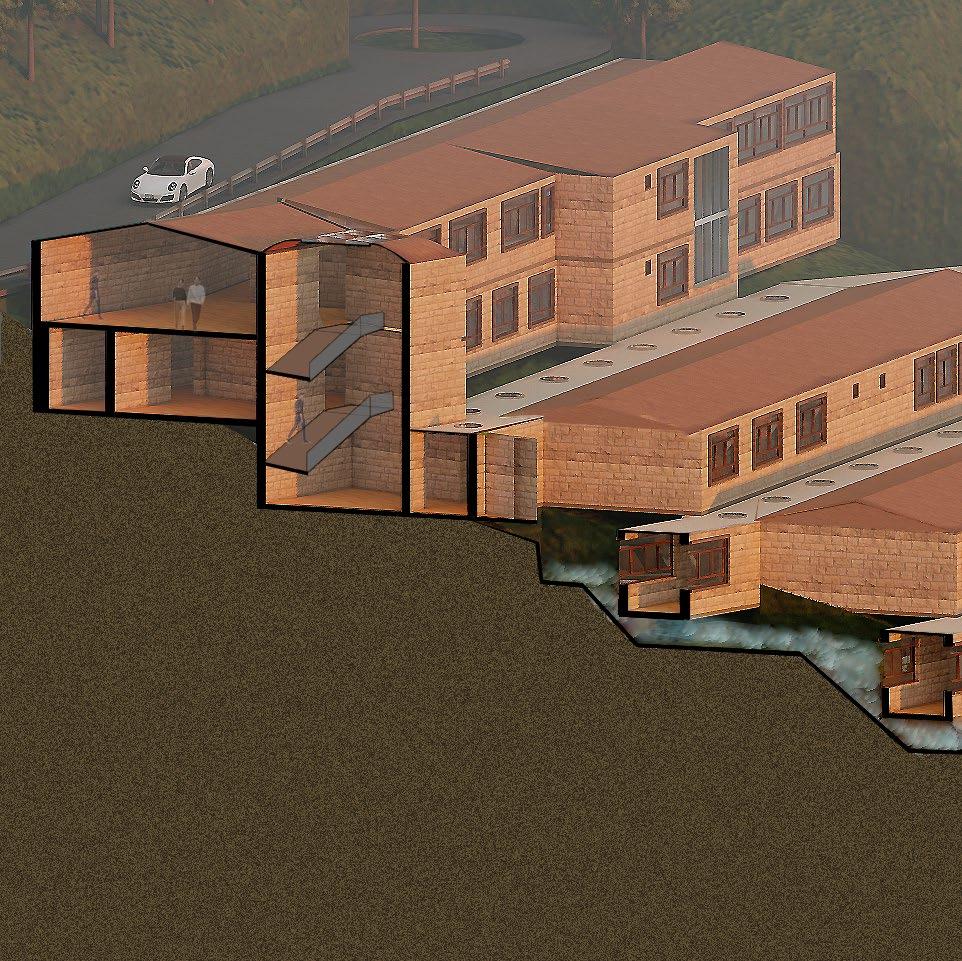

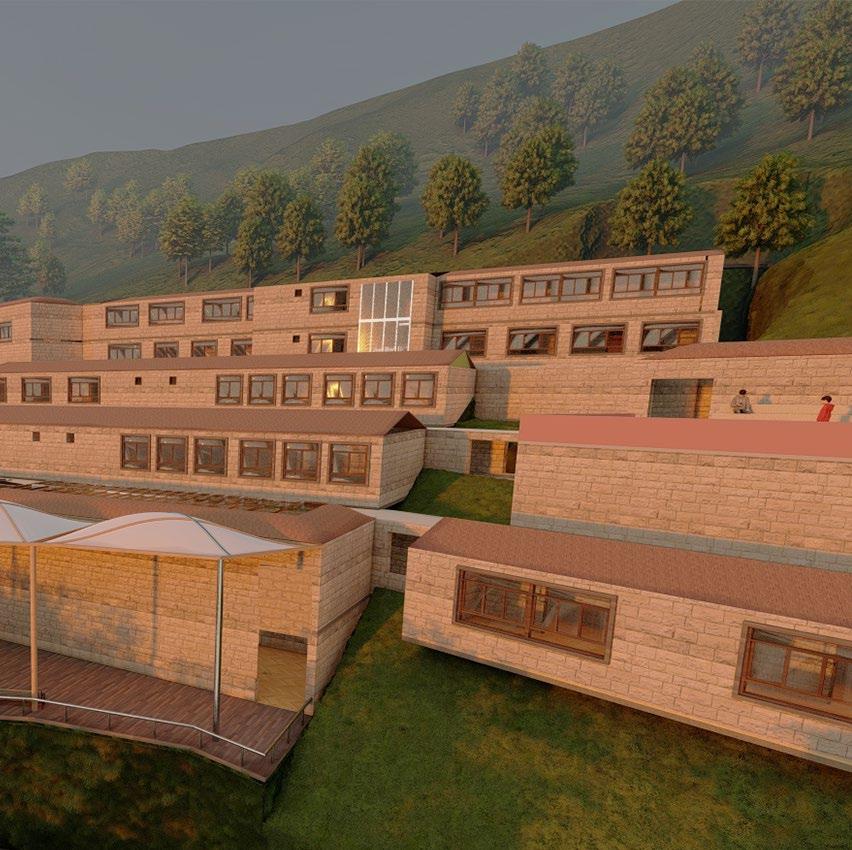

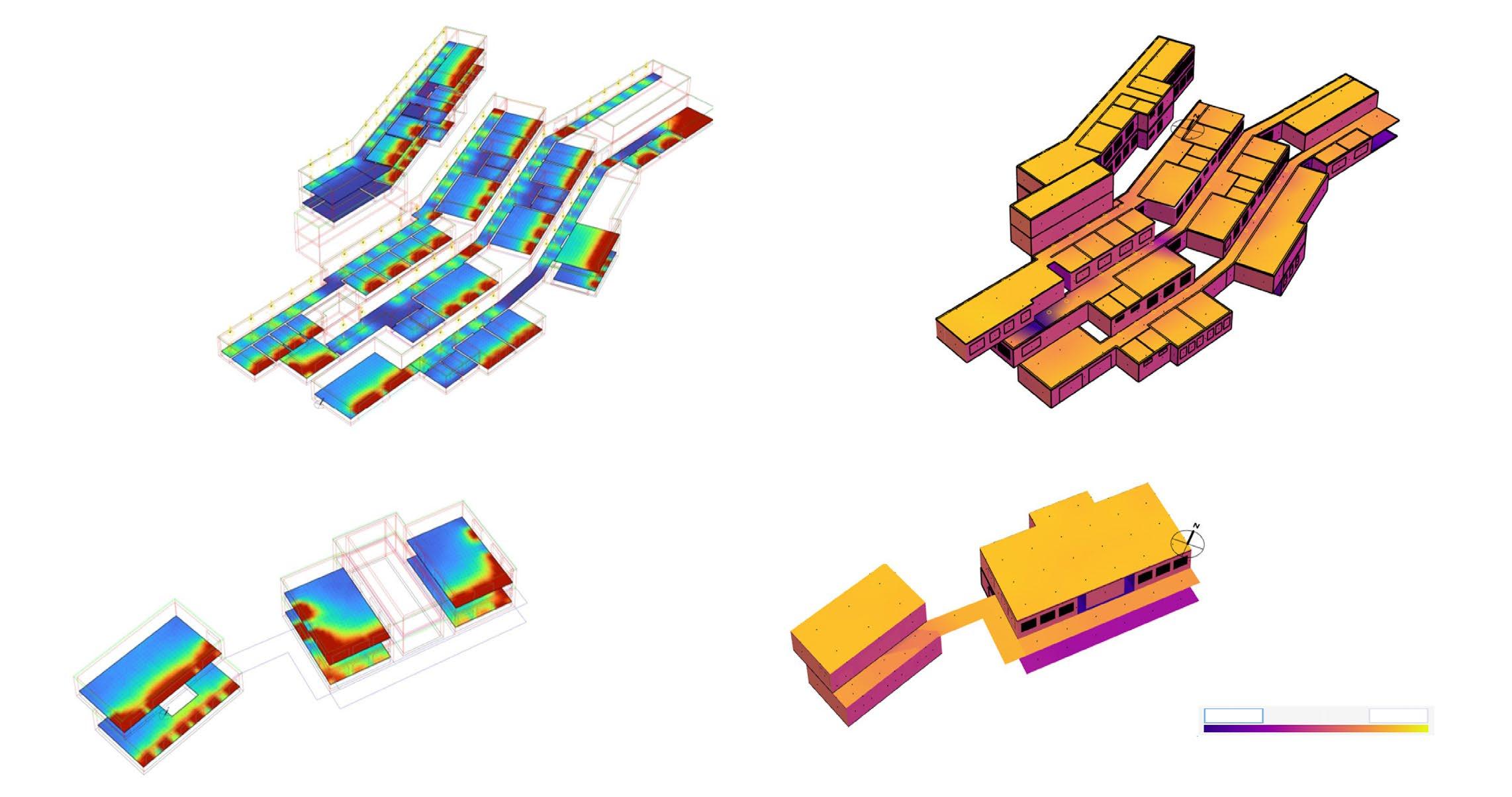

Optimization to orient the building for maximum sunlight and reduced excavation

Staggered blocks to reduce deep and heavy foundations

Blocks angled at 20-degrees helped in water catchment

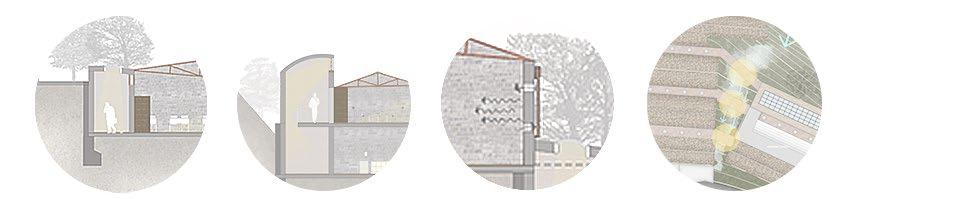

Skylights are used in the circulation areas

Convex Skylight

Ceiling Reflected Skylight

Hydro-turbines

Trombe-wall

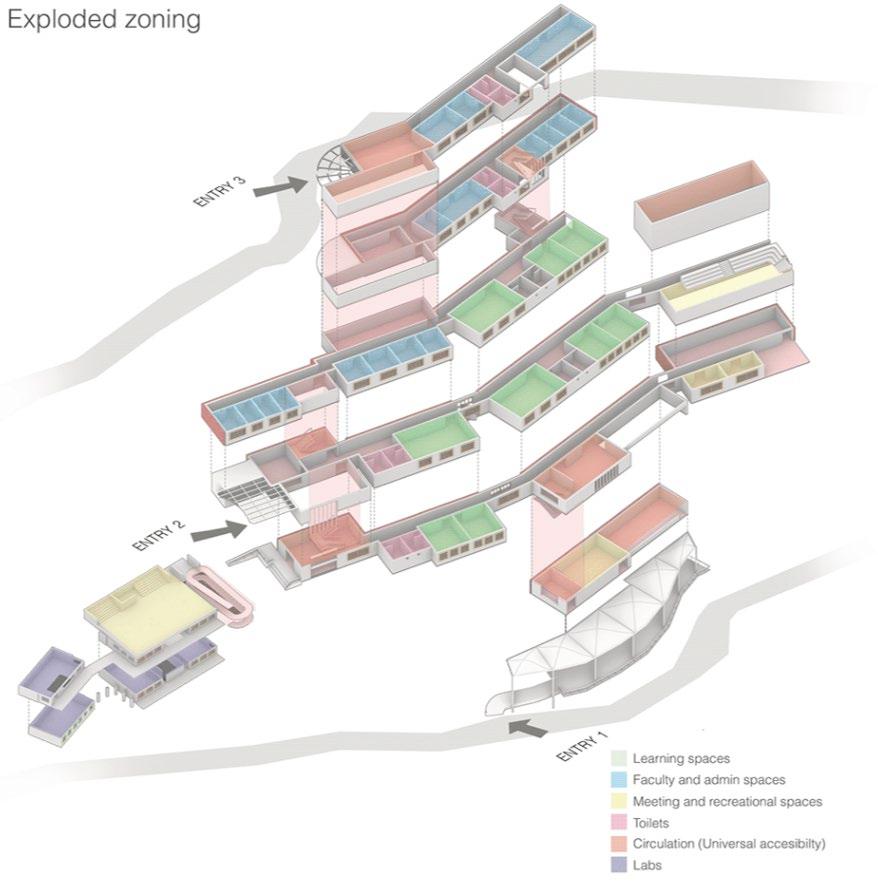

Exploded Zoning Diagram

ENTRY 03 LOBBY

COMPUTER LAB

The design aims to reduce excavation and laying the massing out in an optimised way. Ramps played a crucial role for universal accessibility while significantly saving the energy which would be dedicated to lifts. Due to Sikkim’s heavy rainfalls solar pv pannels are not ideal during monsoons. To combat this turbines were startegically placed in the major valleys of the terrain. Accesibility at three levels ensured seamless circulation for pedestrians, vehicle users as well as cycle users.

TURBINE

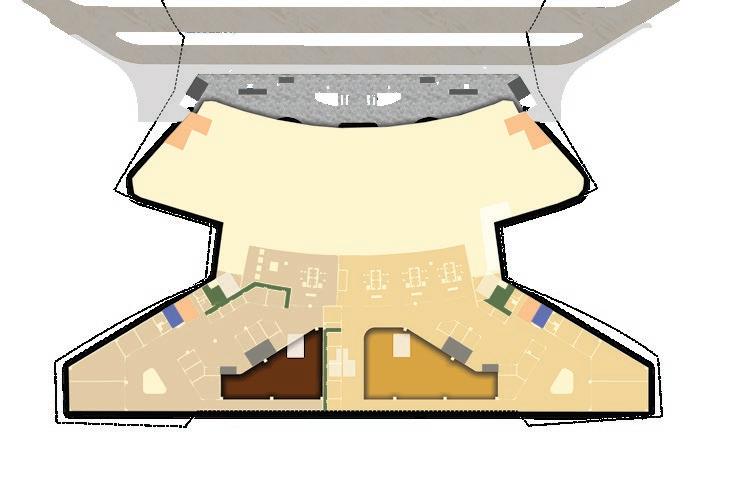

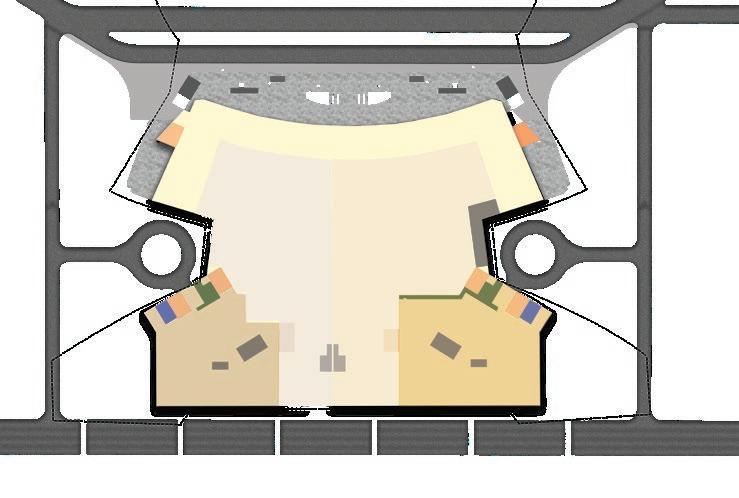

Prayana

airport terminal

Typology

Infrastructure + Transport

Location

Udaipur, Rajasthan

Built-up Area

55000 SQM

Collaboration

Team of 3

Role

Concept design, parametric testing, 3D visualizations, Illustrations, 3D printing, Energy optimization

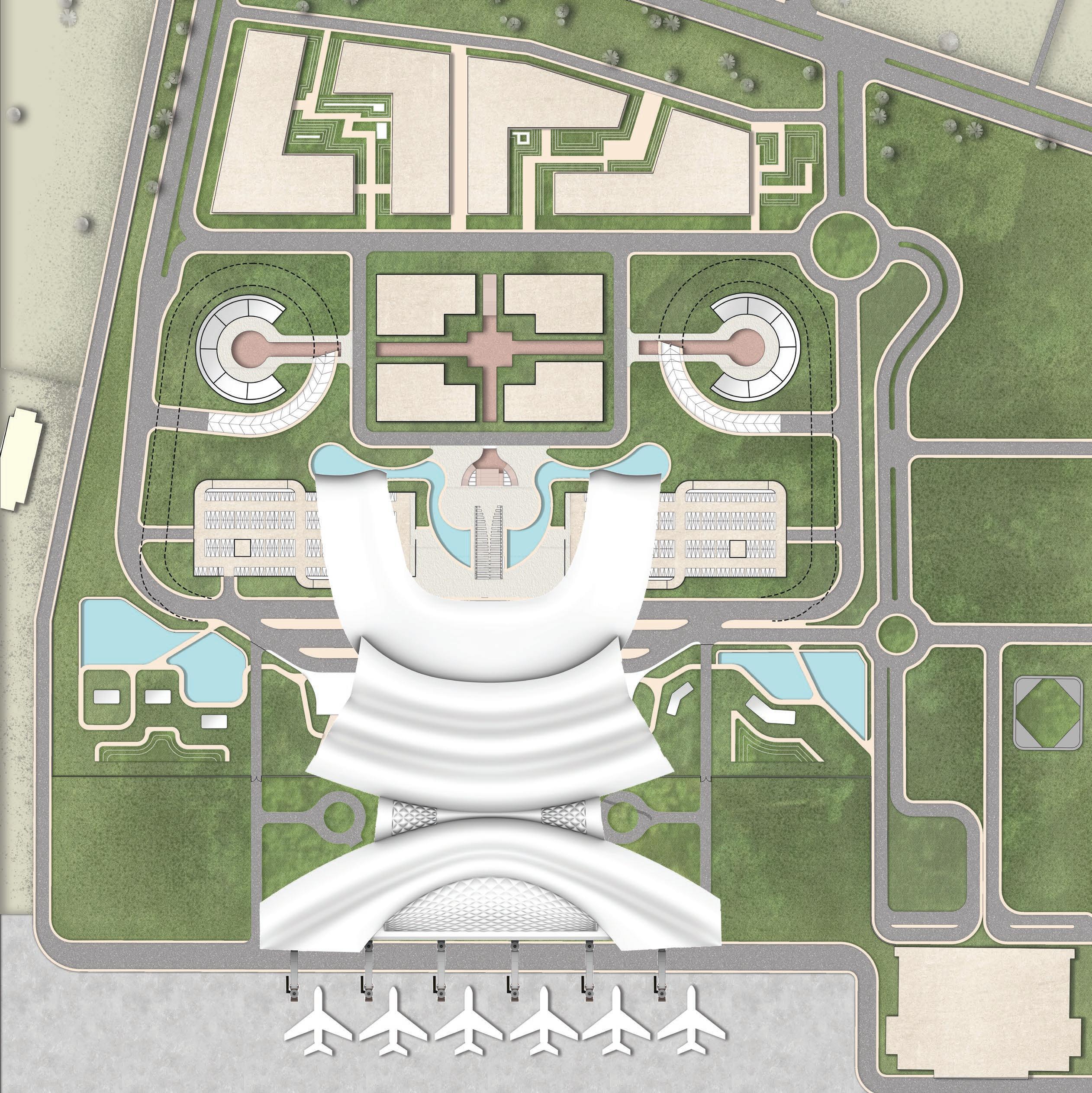

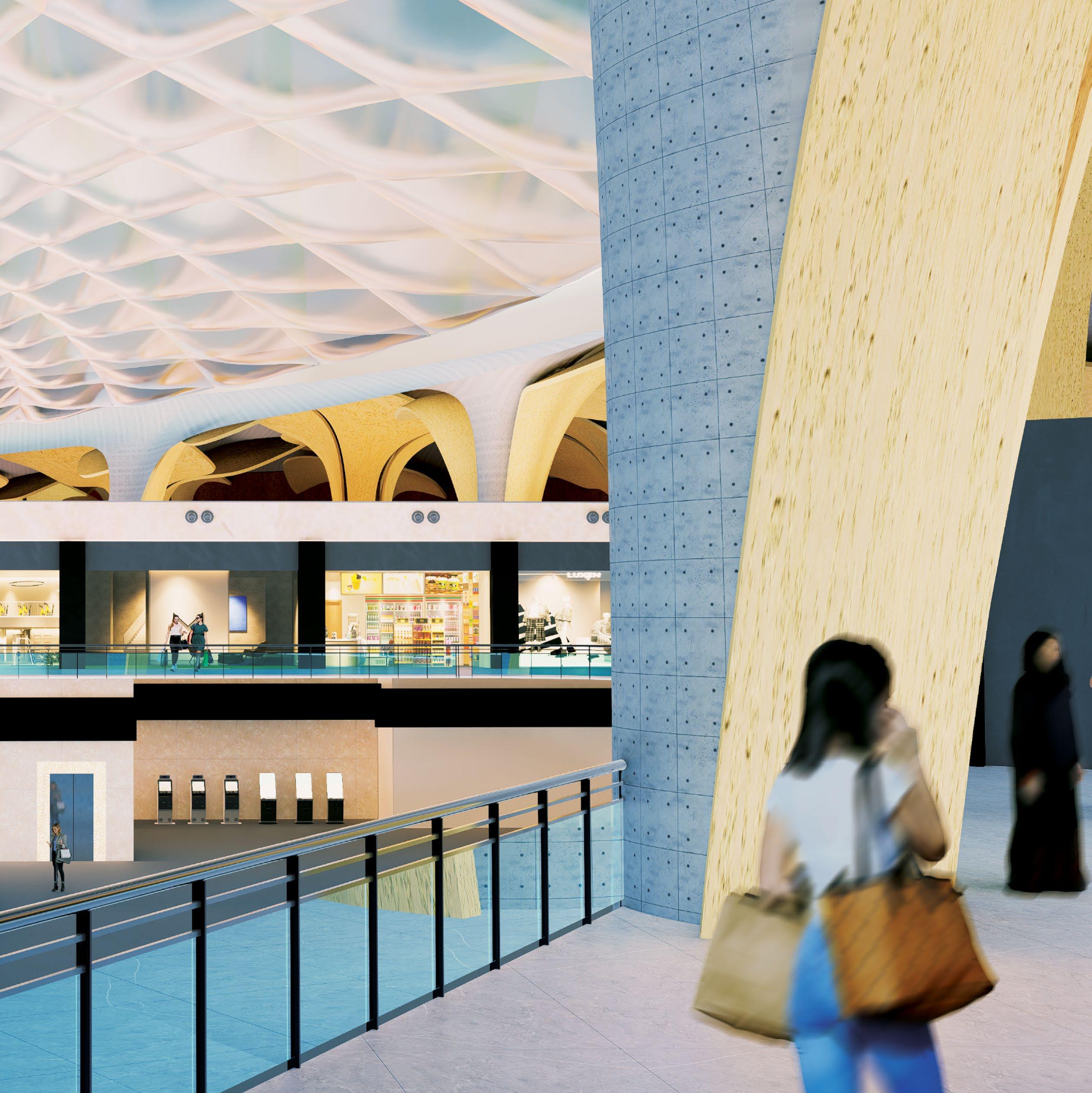

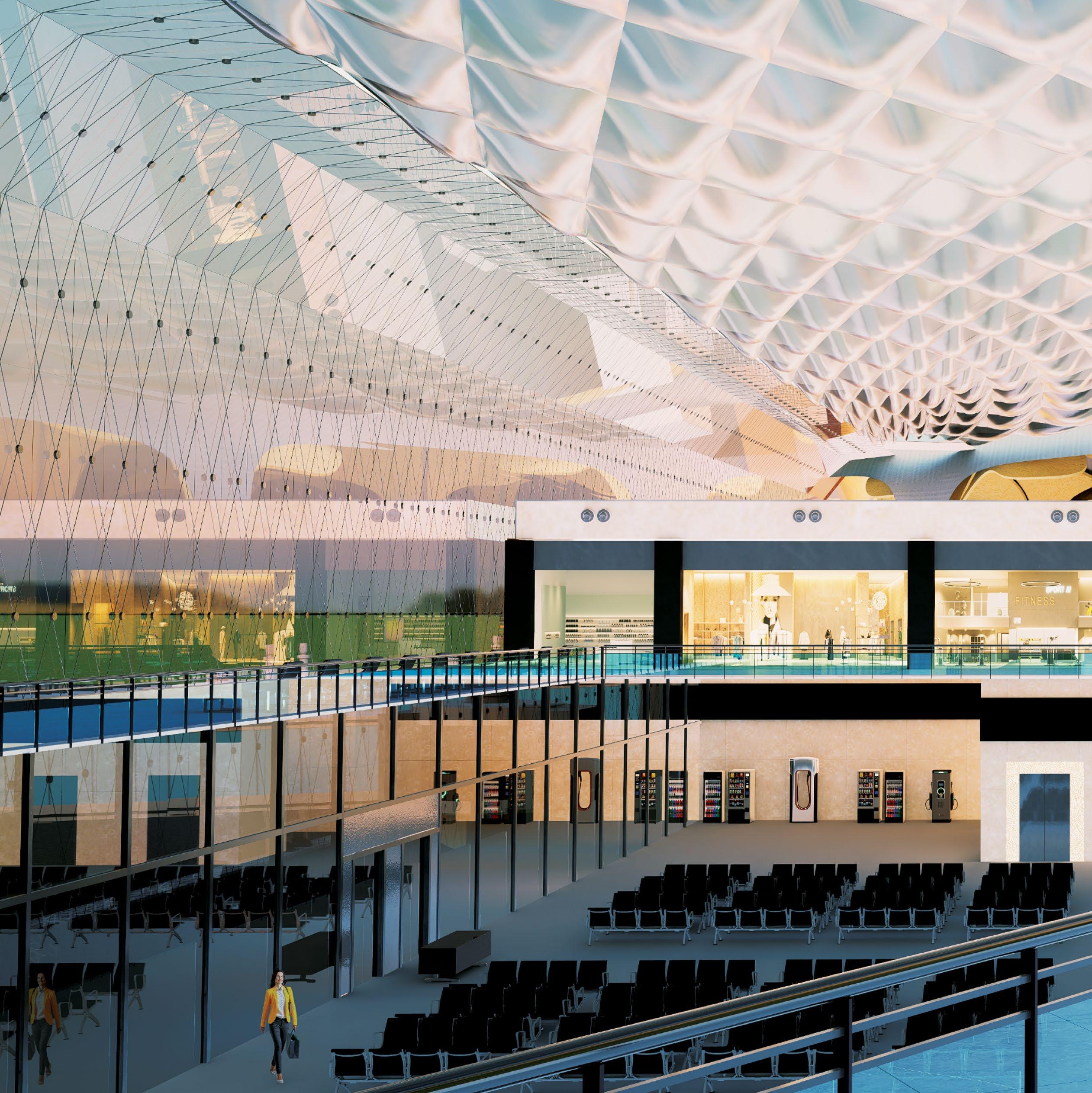

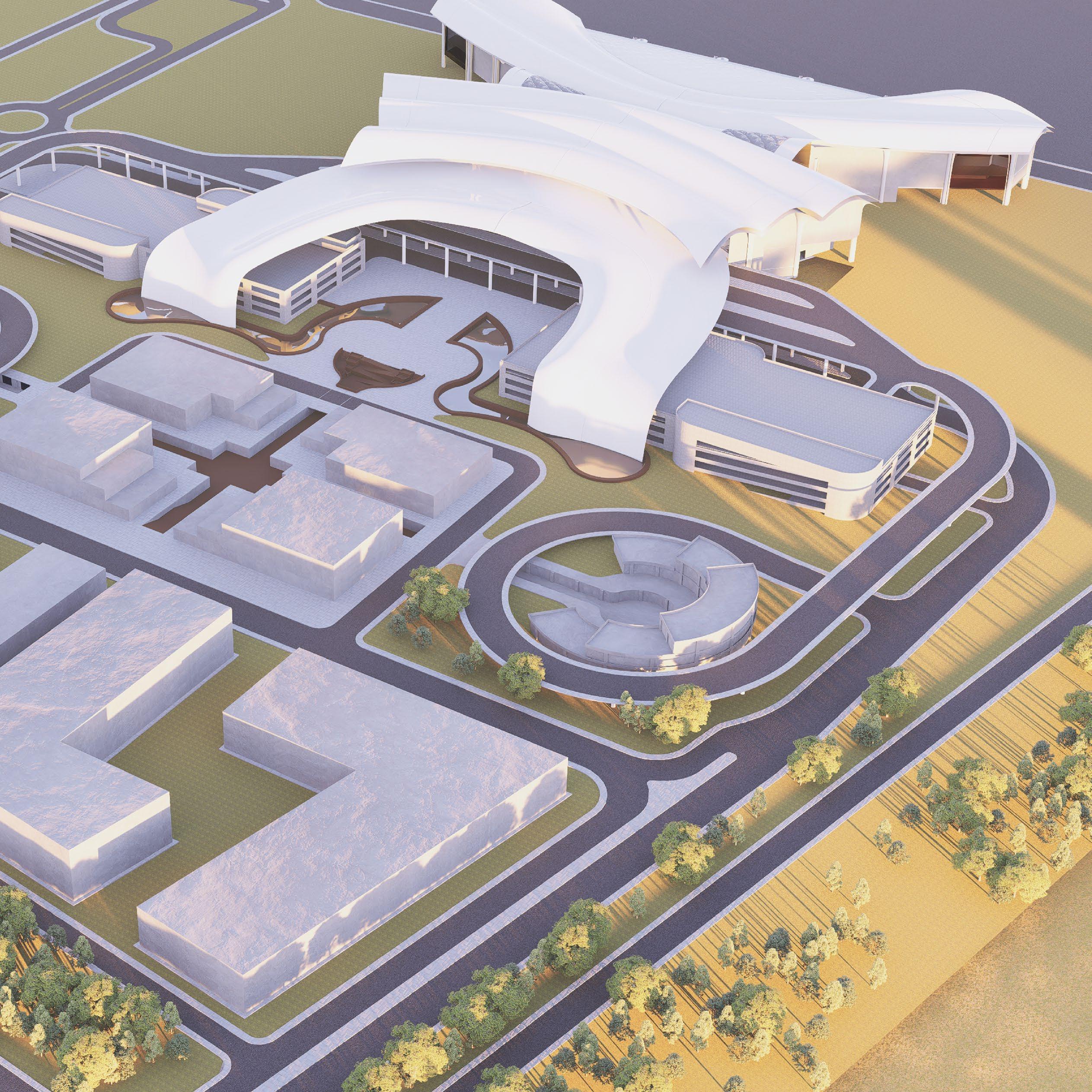

The design reimagines airport architecture by the integration of modern functionality,the heritage of Udaipur and user experience .

The design aims to convey the cultural essence of a space through architectural character. Achieving efficiency in circulation while abiding to the regualtion of design guidelines such as ICAO. Abundant daylight and breath-taking views were prioritized. A sunken high-street in the commercial area was introduced to mimic the effect of the famous stepwells of Rajasthan.

The design was optimised to bear the windloads of udaipur and the water-bodies and humidifier ensures thermal comfort during the peak summer. The roof is designed to optimise draining and provide a pleasant expirence for the passengers. Modern materials such as ETFE will enable the regulation of daylight and hence result in reduced energy-loads.

Softwares used Autocad, Rhino, Grasshopper, Orca Slicer,Photoshop, D5 Render

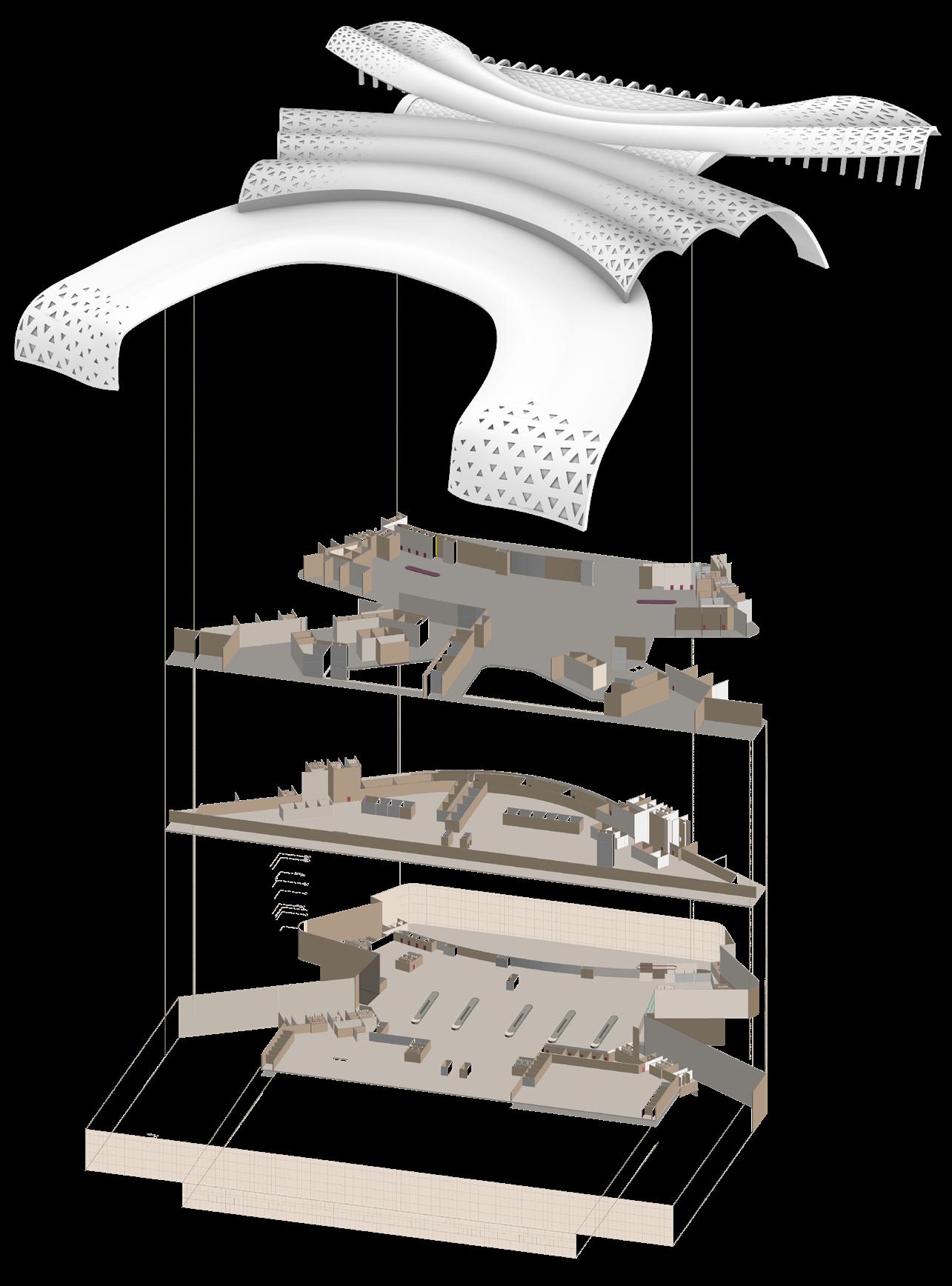

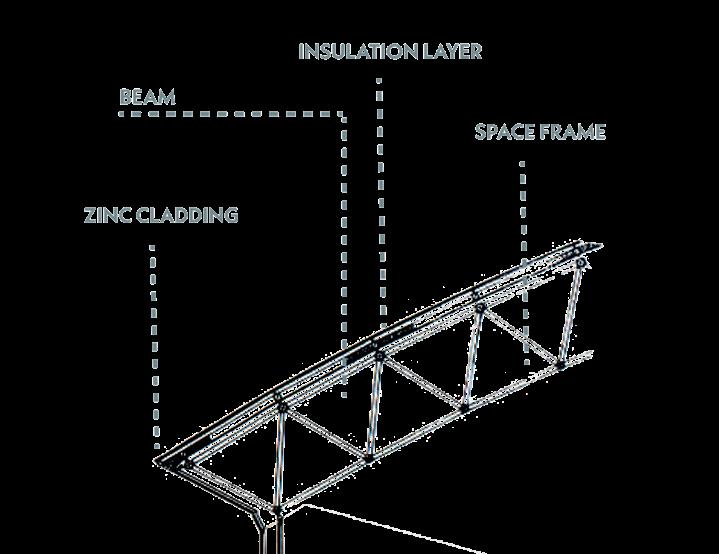

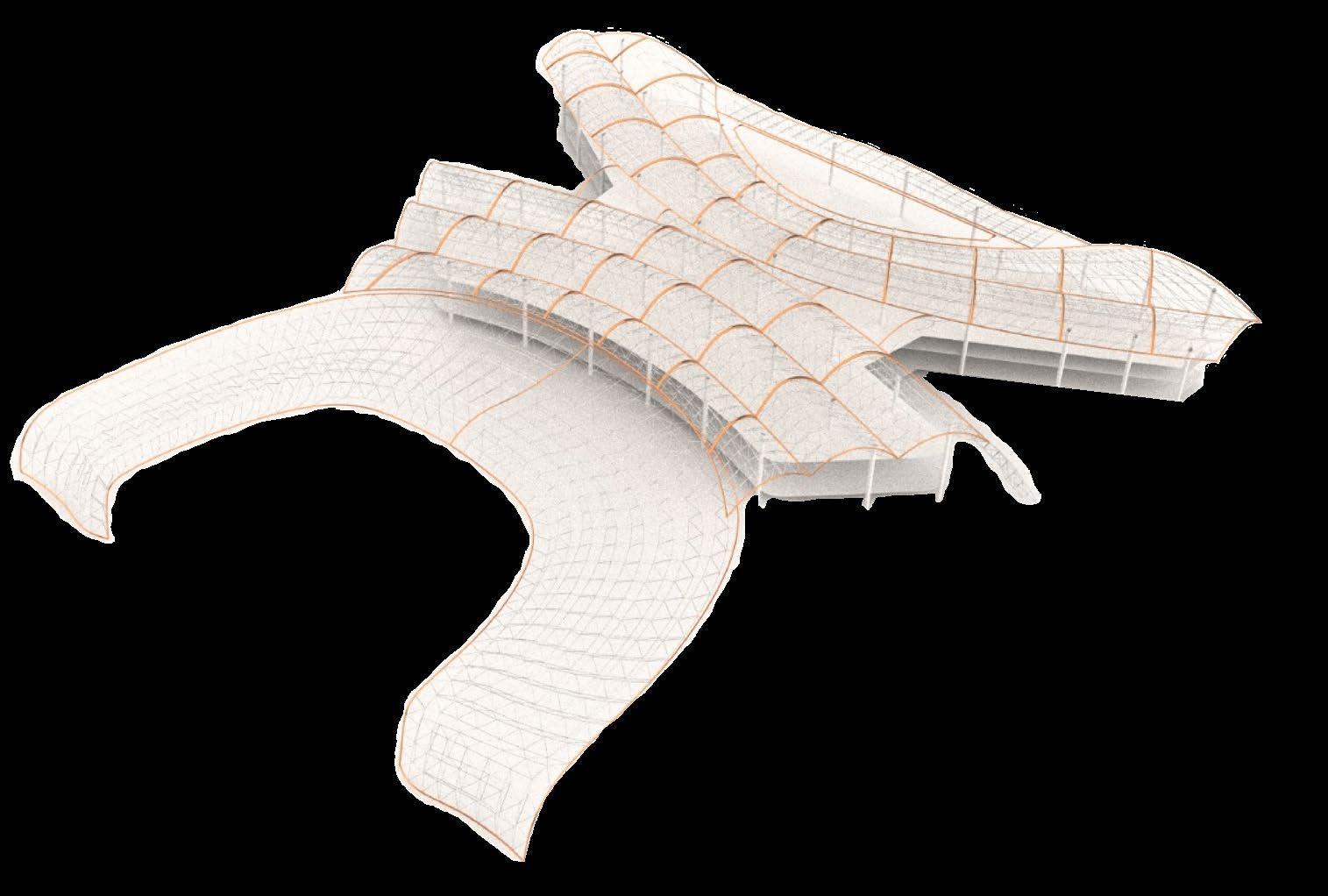

Structure

Peripheral beams

Space frame

Primary beams

Longitudinal beams

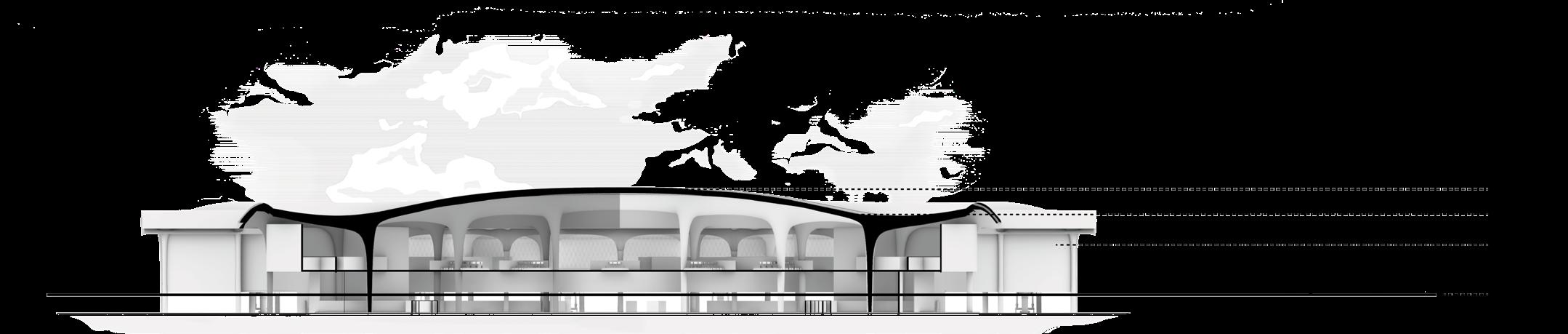

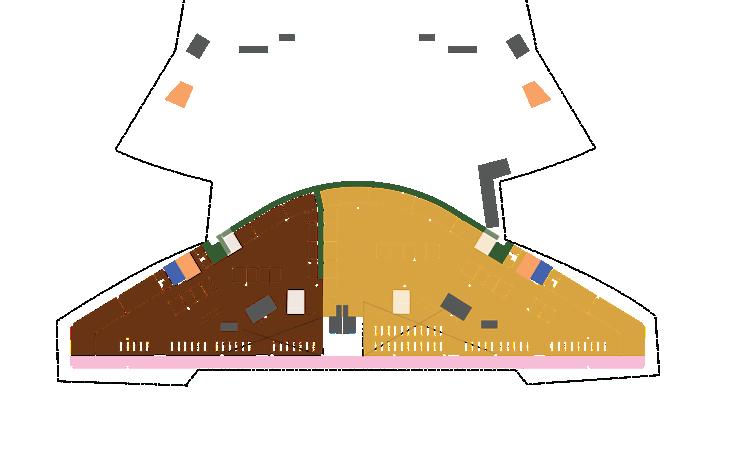

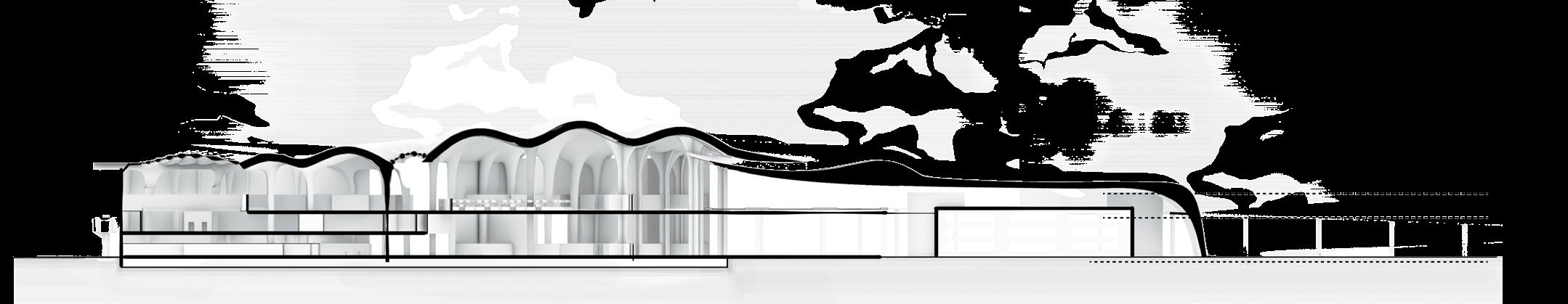

Sections

Sketch Intents

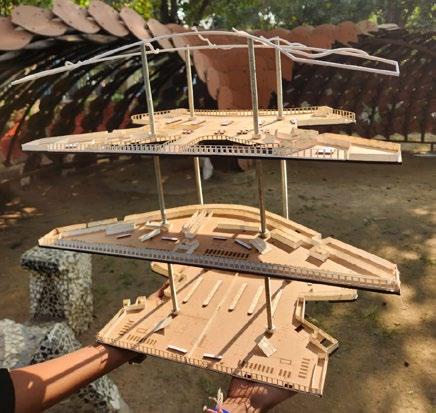

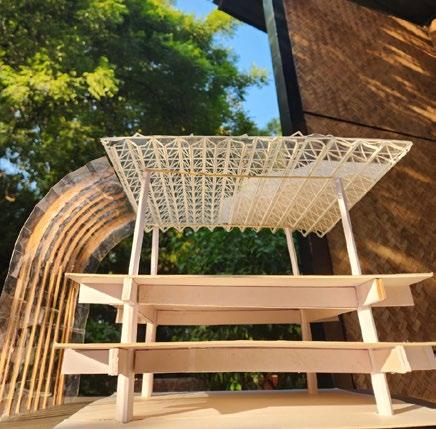

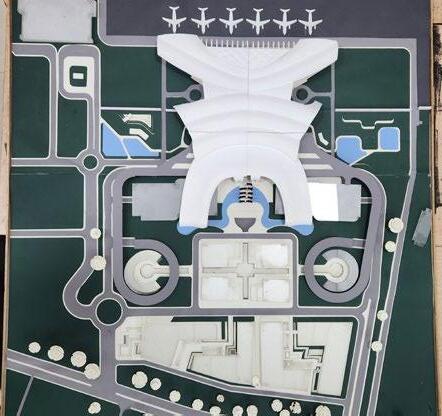

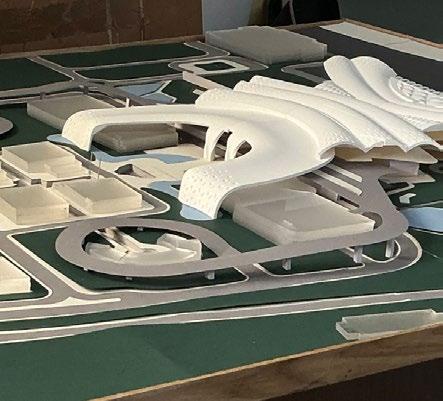

Physical Models

Gutter

Aluminium mullions and transom

Double glass panel

Stone tiles

Service Ducts

Steel I section with Concrete

Timber battens

RCC

Statuario Marble

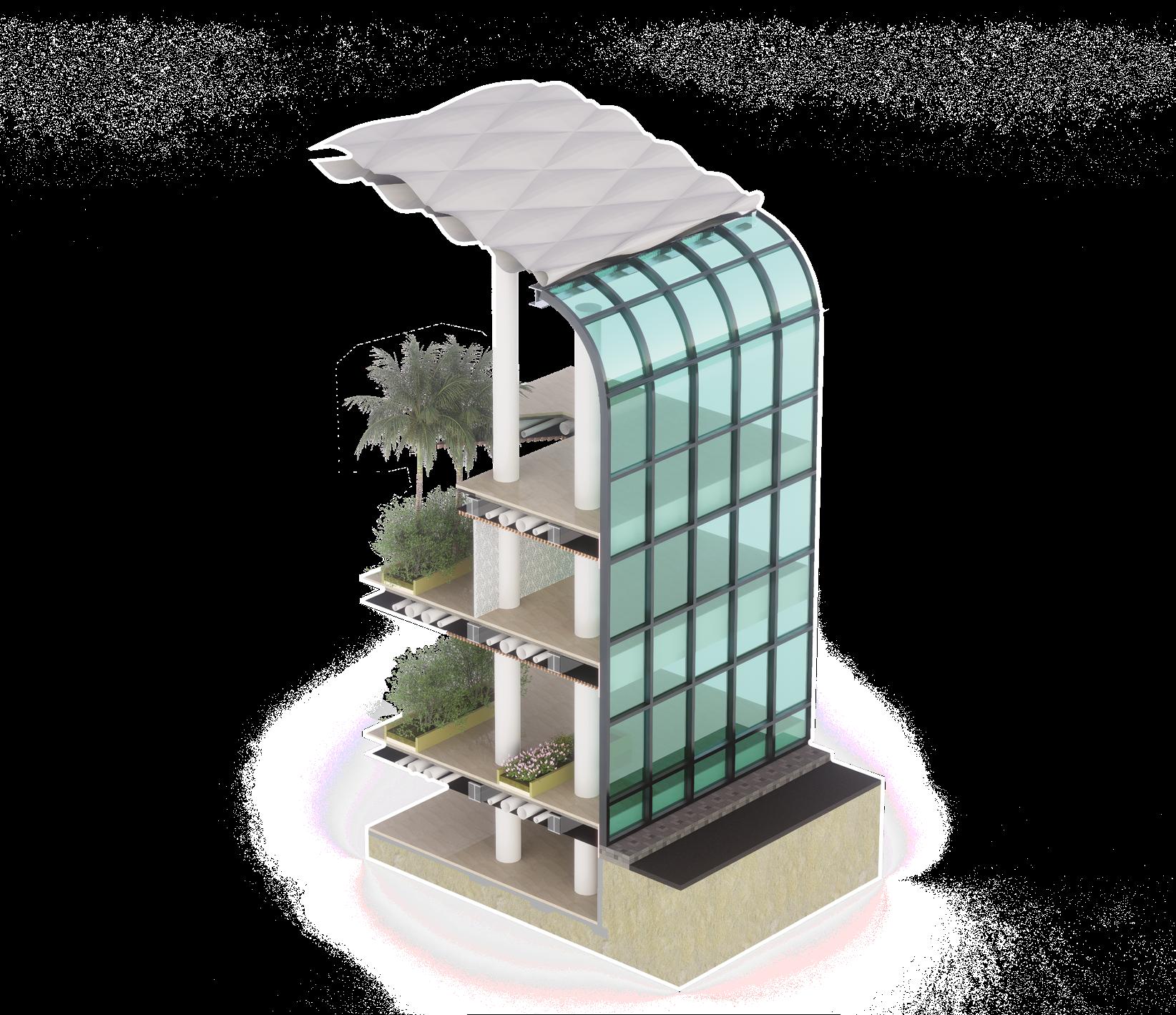

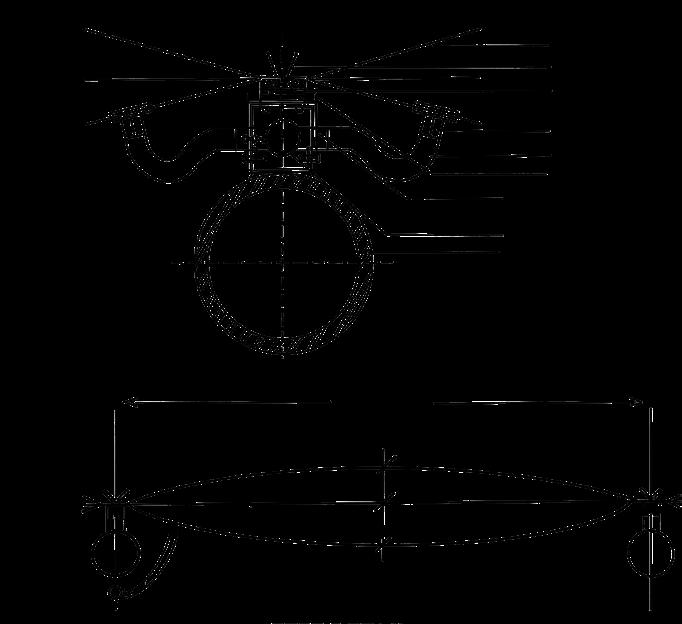

Airside Skin Section

Sky light

For rainwater

Curtain wall system

Noise reduction and insulation

Airside Pavement

Plumbing HVAC Fire

Main Beams

False ceiling

Circular column

Flooring

Work Experience

Geneis Architecture, a firm based in Bengaluru known for it’s wide range of architecture and landscape projects. During the period of my internship I got to work on the villa designs of a project named “Advaita eco-spaces” which is a large scale premium residential villa project located at Devanahalli, Bengaluru. Rendering, landscape drawing production, 3D modelling, parametric optimiztion, postproduction .etc were some of the works done during my one month as an intern.

Genesis Architecture

Bengaluru, Karnataka

Duration 01 month

Year 2024

Mode On site

Projects

Advaita Eco-Spaces

Terrum

Edizi Tools

Typology

Residential + Retail

Location

Bengaluru, Karnataka

Built-up AreaCollaboration

Individual Role

Parametric testing, 3D visualizations, Illustrations

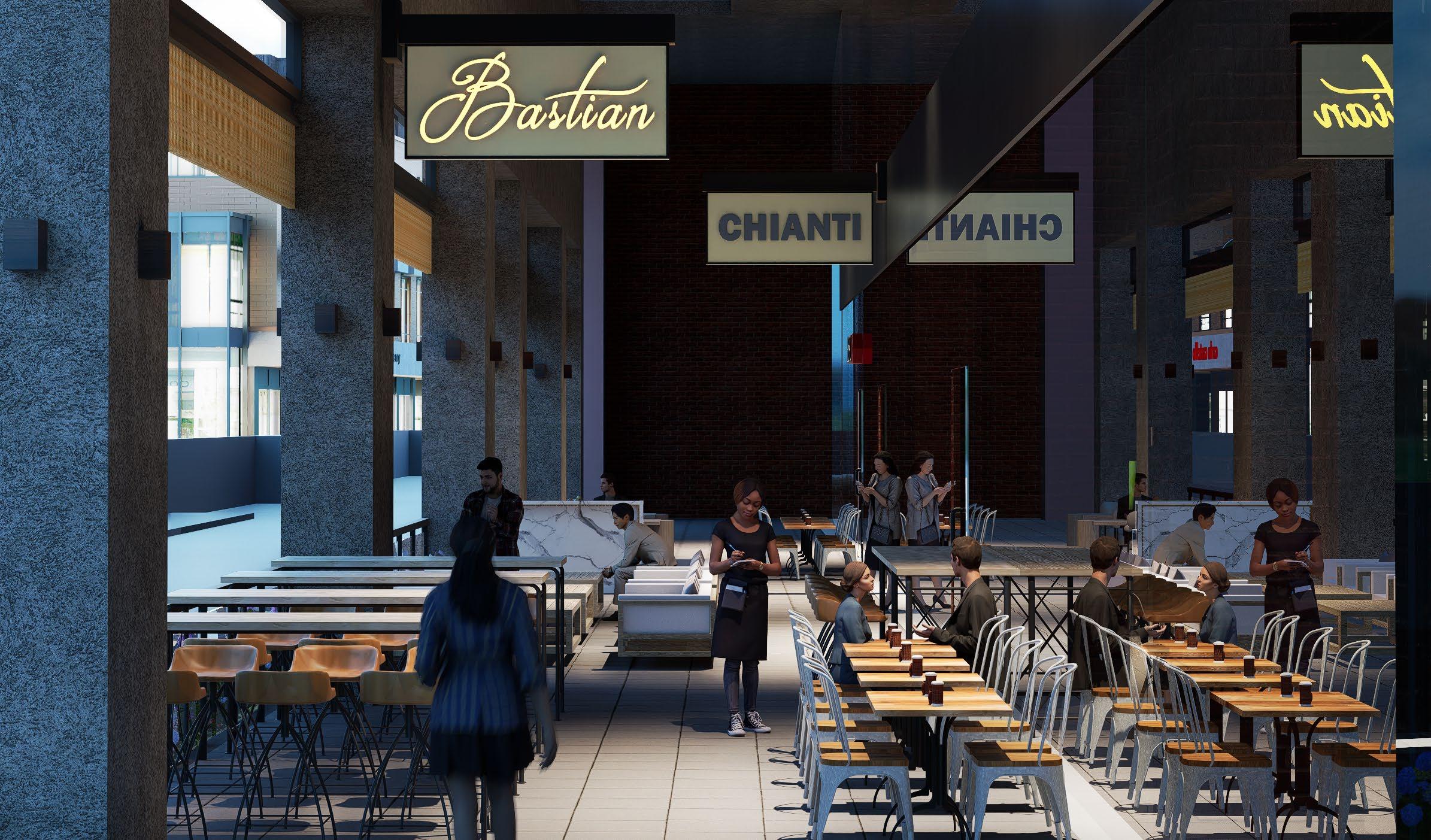

Interior Render 01

Interior Render 02

Interior Render 03

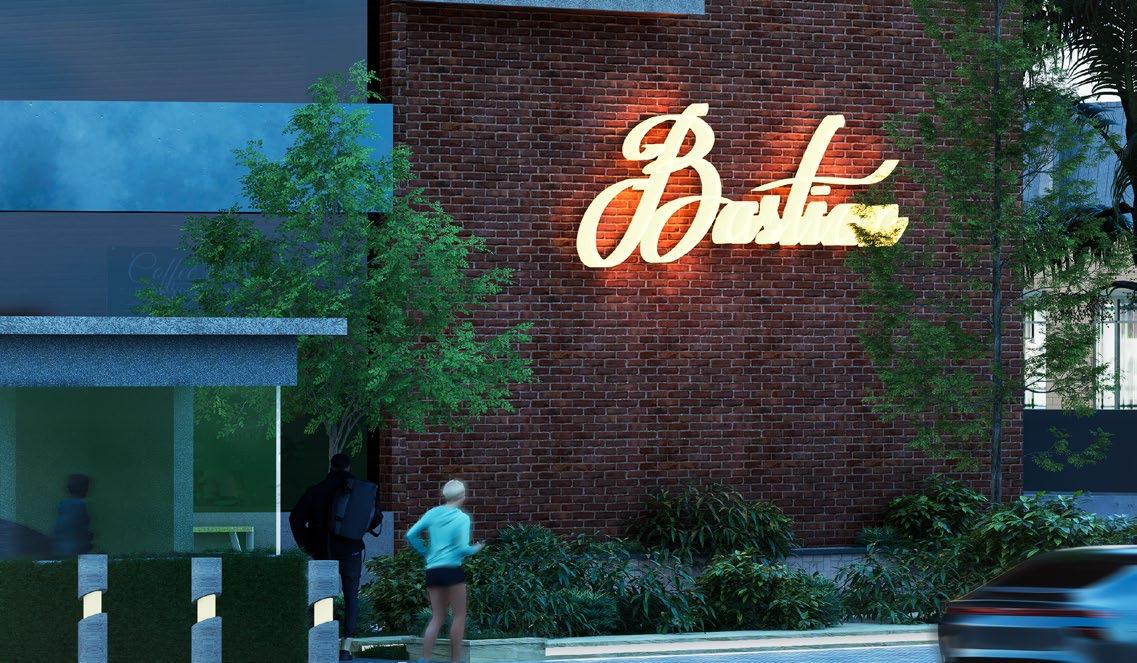

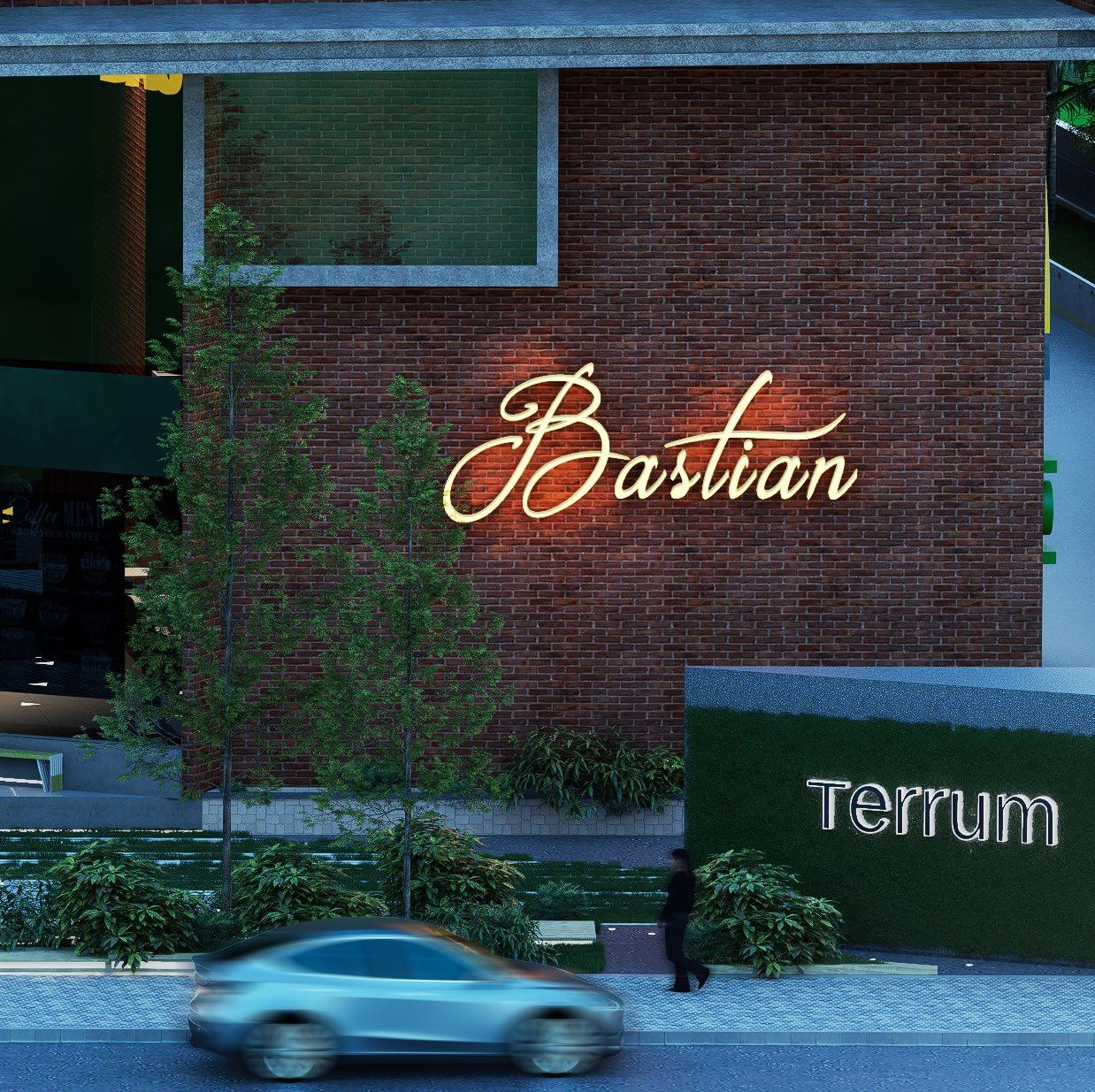

Outdoor Render 01

Outdoor Render 02

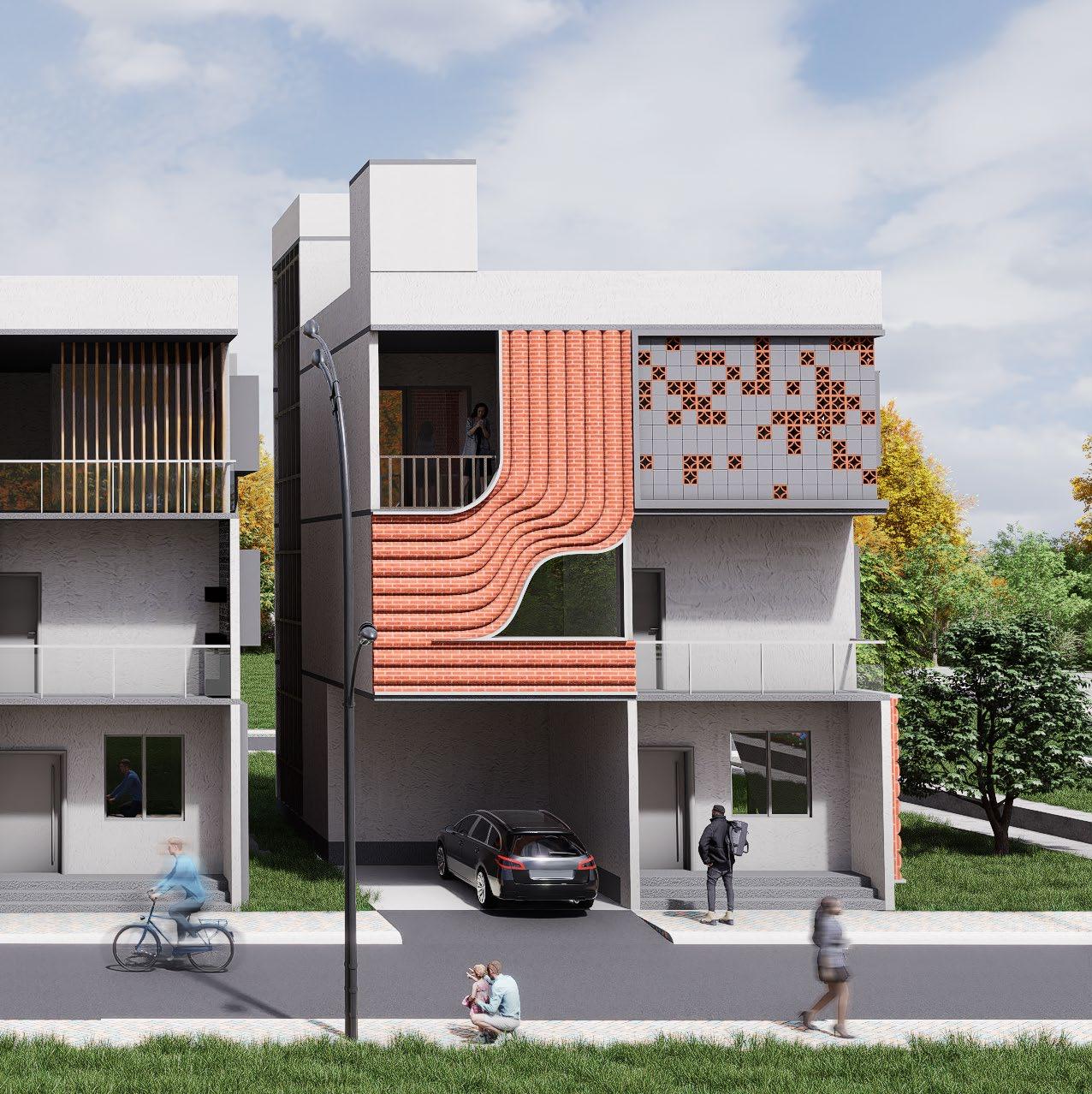

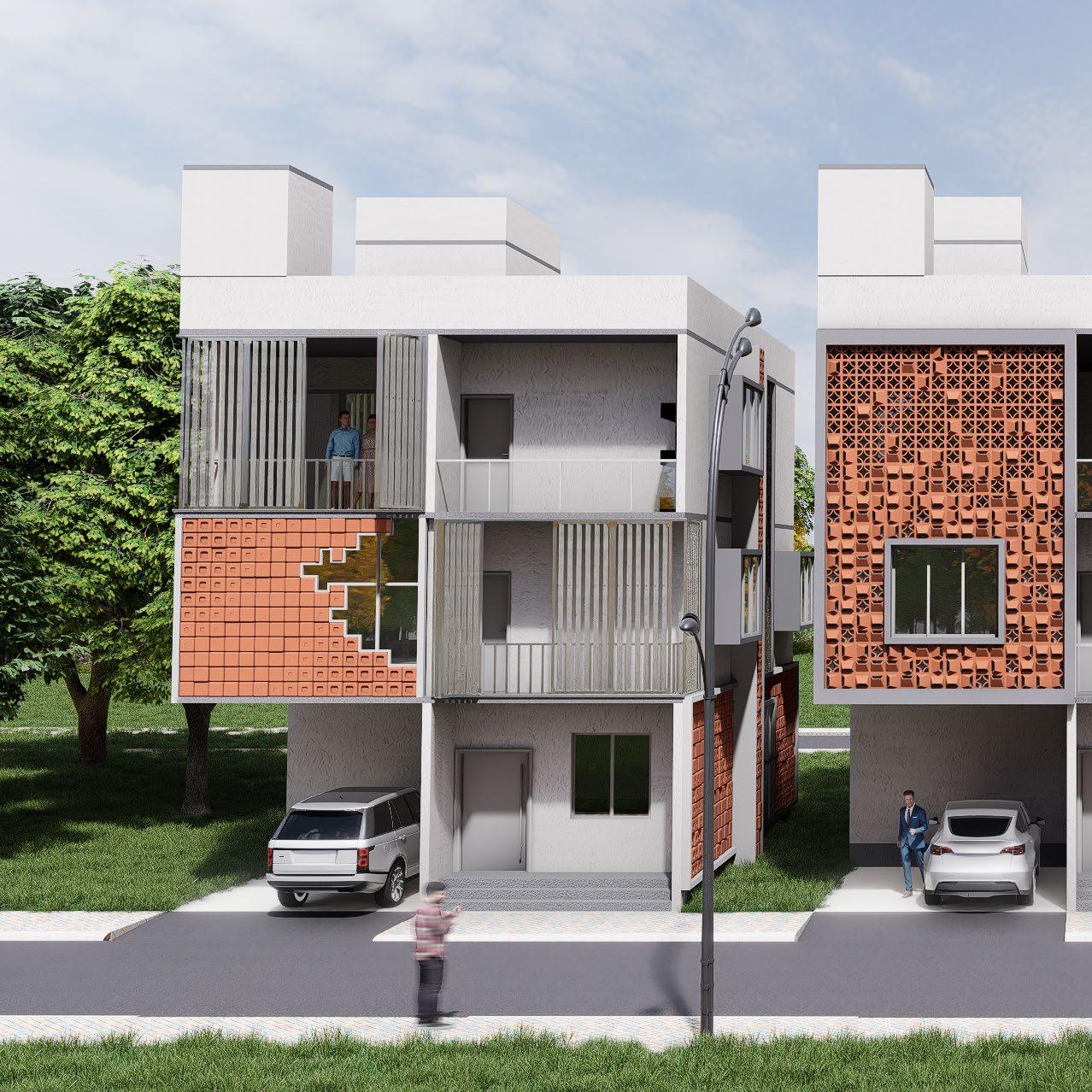

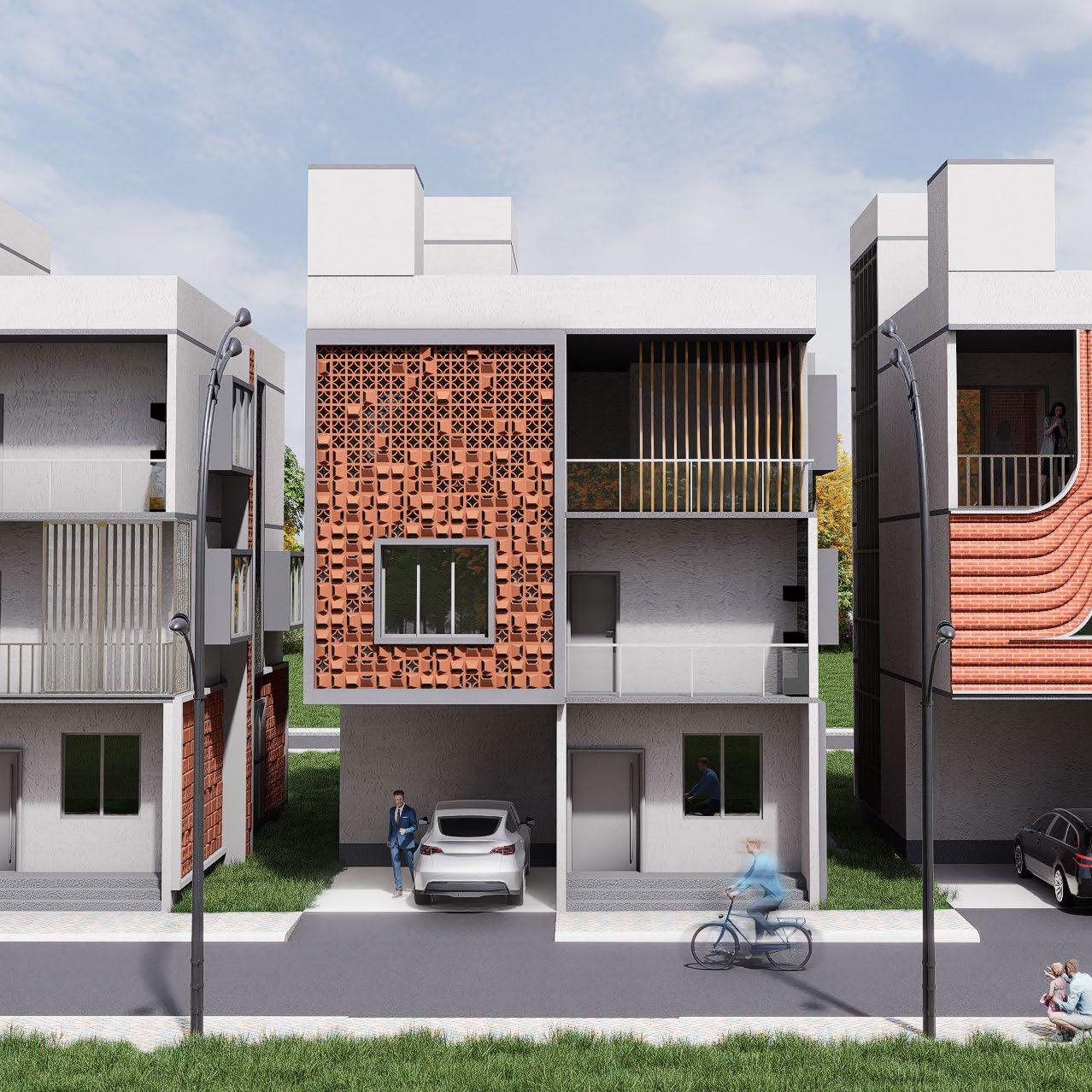

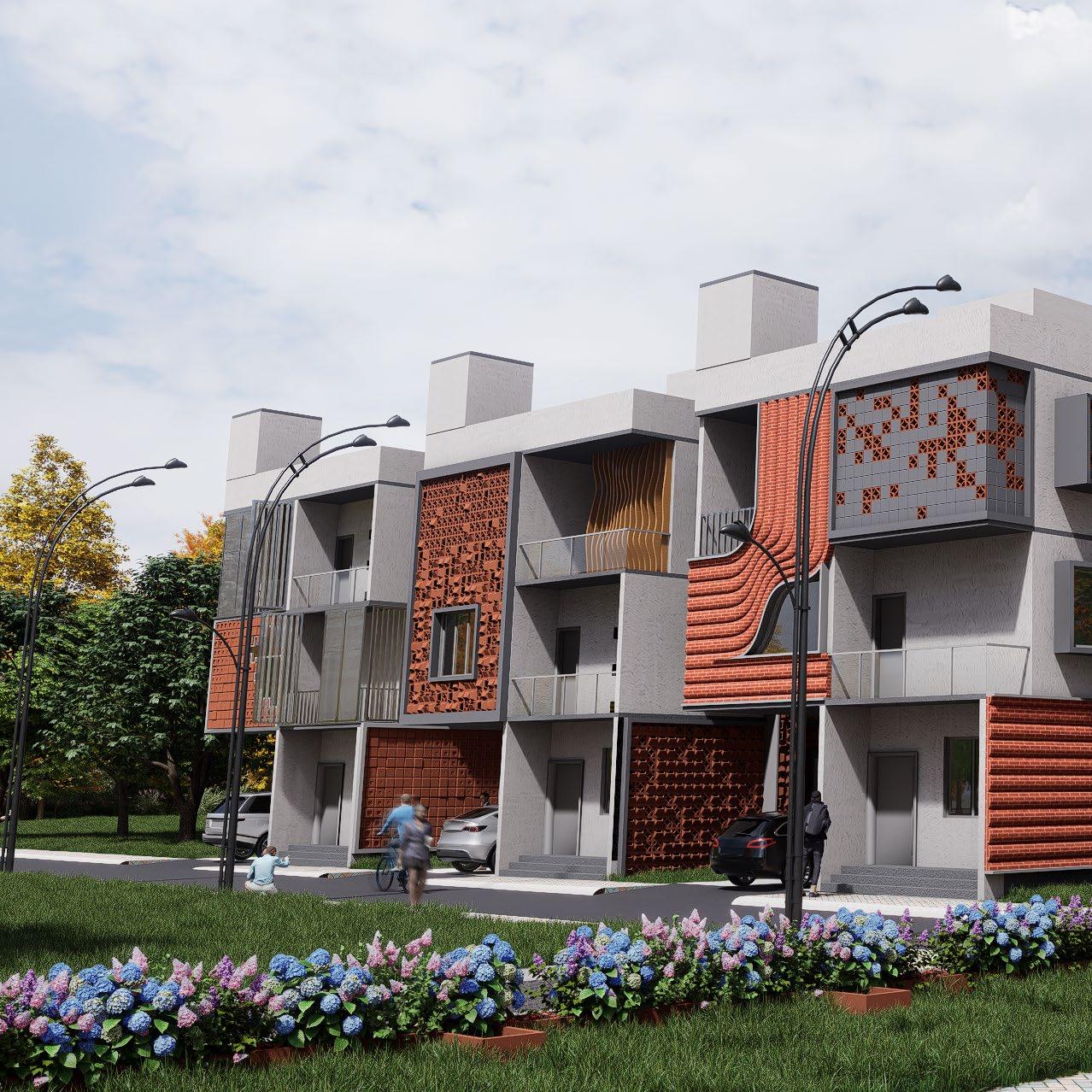

The East facades of the villas of Advaita Eco-spaces was designed to keep viewers mesmorised. Terracoda tiles, hempcrete and othr sustainable materials will provide a homely experience while staying in touch with nature. Vastu played a crucial part in the design of the villas.

Miscellaneous

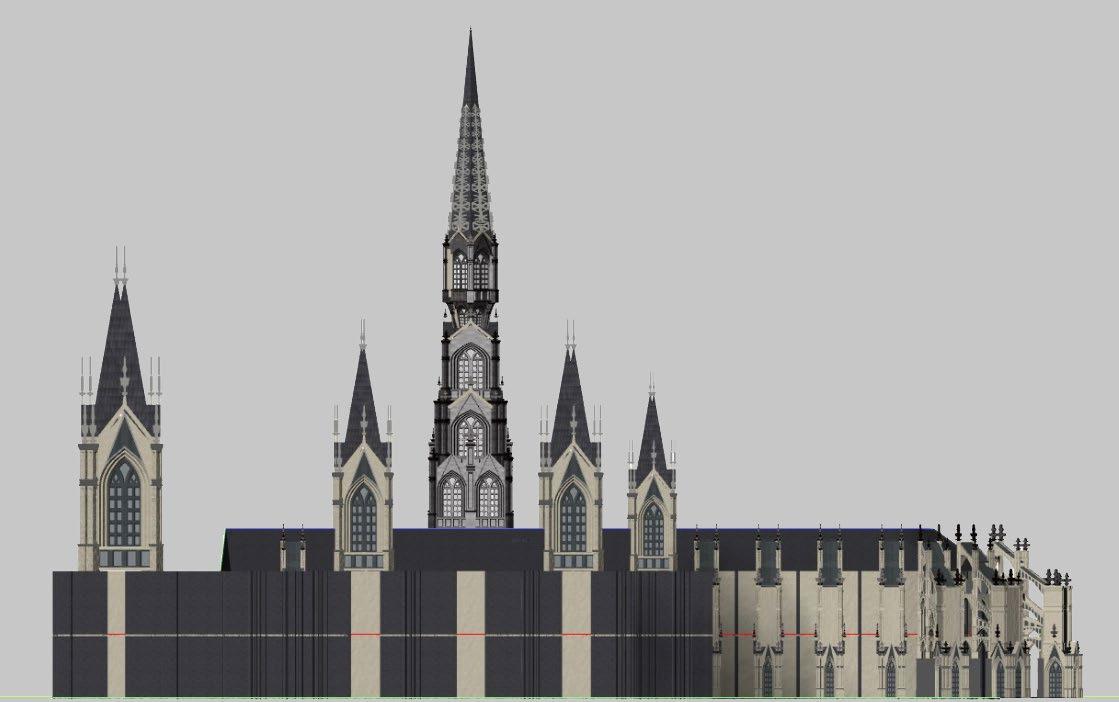

Works include Rhino hard-surface and subD modelling, Renders from v-ray and AI as well as a couple of sketches. These are a couple of works to showcase my skill in 3D visualization ,subD modeling and scuplting and traditional art.
