Chontos - Design Development & Elevations

Design Development Scott and Michele Chontos June 11th, 2025

Chevron Flooring in Entry, Library & Game Room

Floor Plan

7" Wide Plank, Over the Moon Carlisle Wood Flooring

Interior Door One Panel

Interior Door Hardware Hinges to match Emtek Door Handles confirm hinge length.

Double Iron Front Door

7" Wide Plank, Over the Moon Carlisle Wood Flooring

General Selections

Drapery Pocket Examples

2

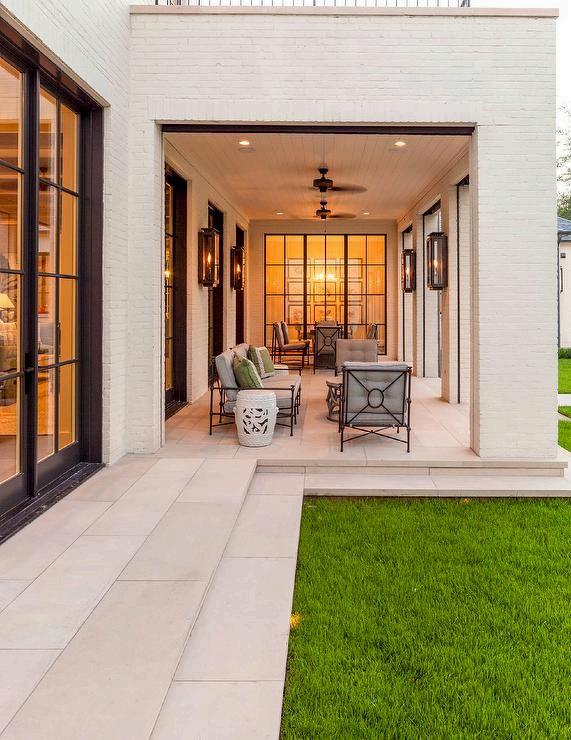

Brick column examples with tracks for screens

These columns are not brick but example shows overall view from under the porch with screens in between columns. You could achieve the same set up and look with brick columns.

Outdoor Columns - Brick Wrapped

Metal options

Options with wood & metal

Awning Options (By Garages)

Solid Option (without lights)

4

Below are different directions you could go for trim and baseboards, Do any of these styles stand out toy ou?

Option A. Both of these images show an example of a slimmer, flat trim (approx. 2-3"W) No added details, very clean.

Option B. These images show an example of a thicker trim (approx.

4"W) with a few, simple and minimal details added to it.

Trim Details

Option C. shows a thicker trim with a clean, pencil edge detail around door Baseboard Options A.

B.

C.

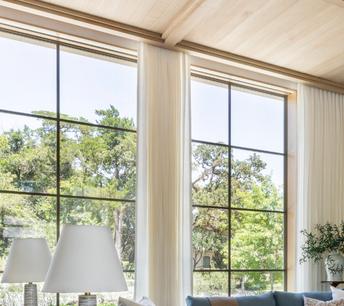

Example of a slim, flat trim around windows, flowing into clean baseboard

Example of recessed window cased in, showing only the slim profile of the trim

6

Example Casing detail and header for transition from foyer into Living room and hallway.

Foyer Elevation Looking into Living Room

Chevron Floor Pattern

Foyer

Foyer Chandelier

Wallpaper walls in Foyer

8

Wide Angle View of Living Room

View of Living Room from Kitchen - Ceiling height change from 16' to 12'

Living Room Elevation Looking into Foyer

10

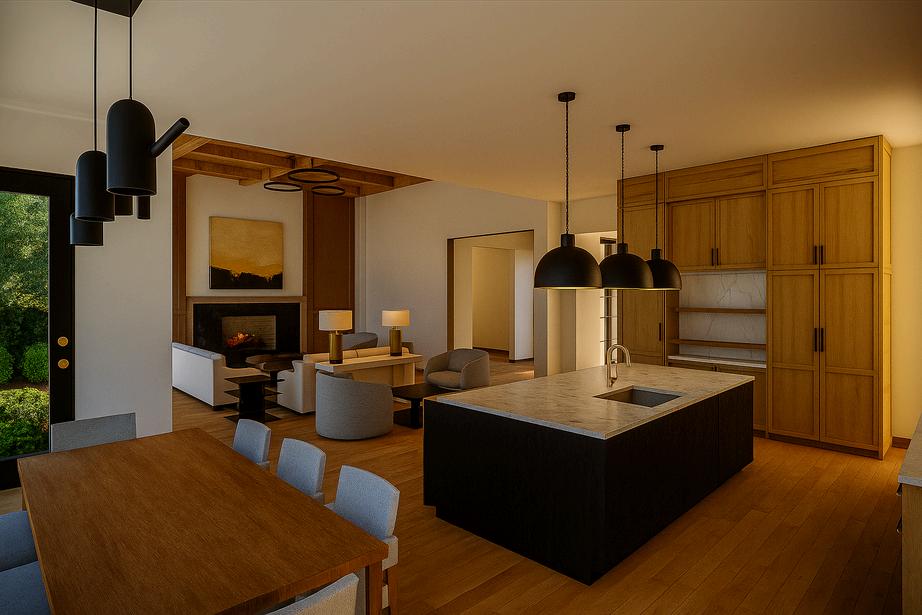

Kitchen, Living, & Dining

Dining Room

12

Living Room Ceiling Detail

Family Room Fixture Suggestion

Family Room

Make sure ceiling detail is aligned with hallway wall since the kitchen wall is now bumped out to scullery

14

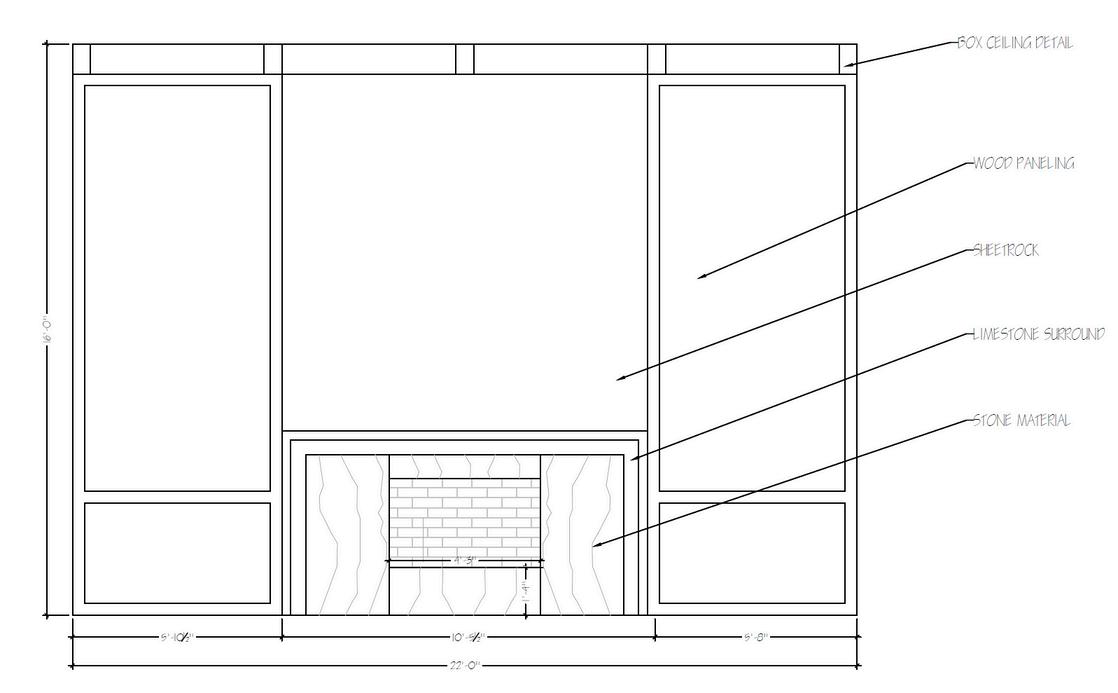

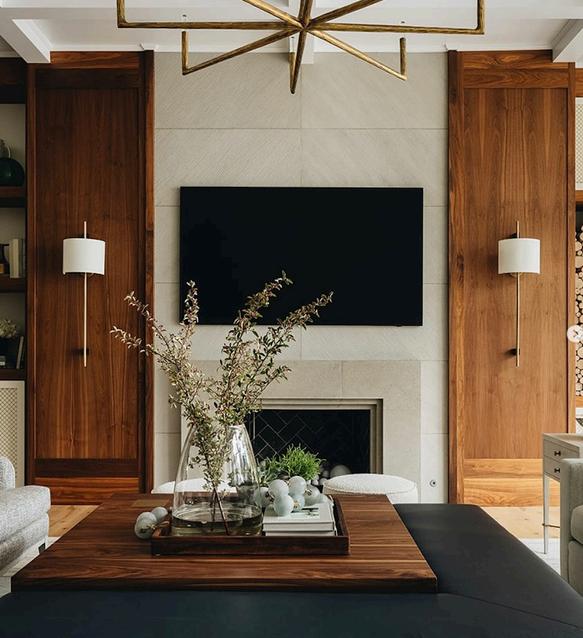

Fireplace Wall

16

Kitchen

Island Pendant Options A.

B.

Countertop Selection

Brizo Odin Faucet Brilliance Luxe Gold

Stained Cabinetry

Ruvati 39 X 19 X 9-7/8 Workstation Sink

Slim Shaker Cabinet Door Style Stained

18

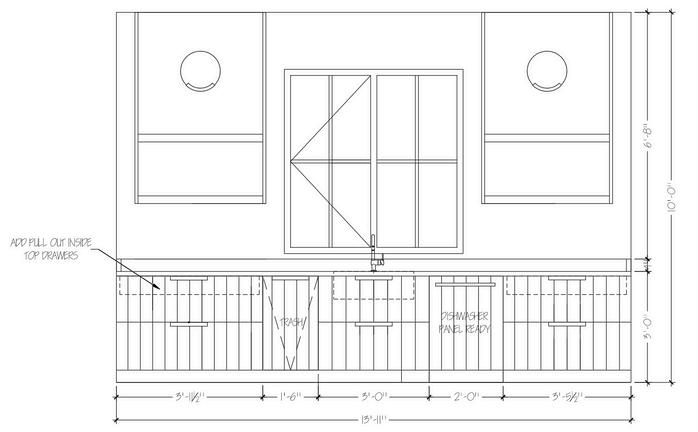

Kitchen

Confirm wall measurements on site.

20

Add heavy duty rails to support weight of dishes and large items

Brizo Odin Faucet Brilliance Luxe Gold Confirm finish preference

Countertop Ruvati 39" Workstation Sink

Island Cabinetry - Slab Front, Ebonized or Stained Grade Wood

Kitchen - Island

Banquette Seating in Front of Window

Light Fixture Options

Dining

22

18" Ceiling Fixture (x2)

Delta Nicoli Faucet Stainless Finish Delta Lenta Undermount Sink 26"

Countertop Option A. Countertop Option B.

16"x24" Tile Flooring

Scullery

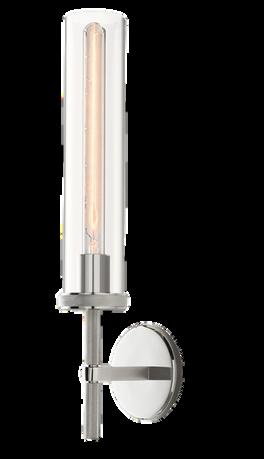

Wall mounted sconce (x2)

Cabinet Front Example Ceiling Mounted Shelving Example

24

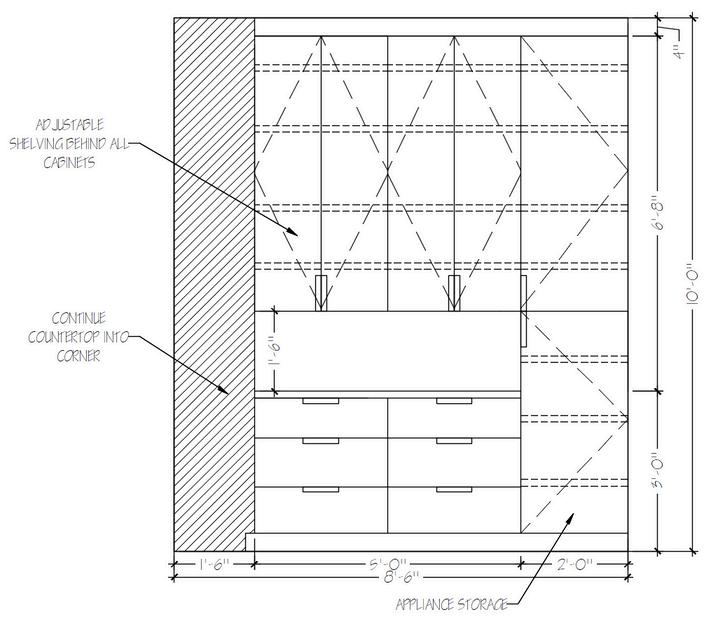

Upper cabinet and corner cabinet details to be resolved

Skinny Shaker Cabinet Front Style Painted, to match Scullery

16"x24" Tile Flooring

Pantry

26

Keep hallway ceiling sheetrock and line with pendants Option A.

Front Hallway Ideas

Option B.

Doorway into Guest Suite ideas Disquised in a panel wall detail Part of a planked wood wall Stained or Painted

28

Chandelier Options A.

B. C.

Picture Light

Room & Built-Ins painted all the same color Possibly use Existing Blue Sofa Reupholstered if Needed

Library Chevron Pattern carried into Library

Possible Gallery Art Wall above to compliment heads

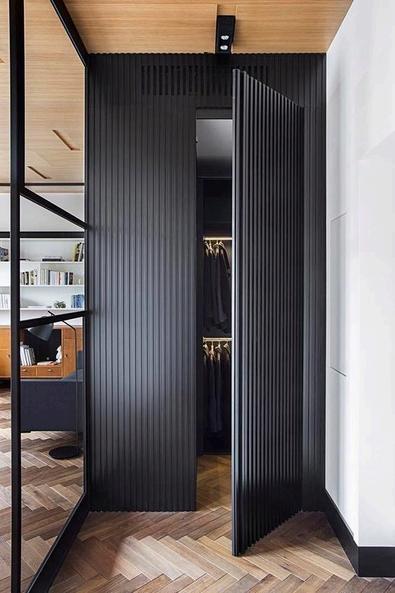

Hidden Door Example

Elevation - Front Wall with Hidden Door

Elevation - Left Wall

Elevation - Right Window Wall

30

Confirm Wall Thickness to ensure sound barrier from plumbing

Primary Suite

Thicker wall on floating wall to help buffer sound from Bathroom

32

Litze Widespread Faucet Brilliance Luxe Steel

Essential Series 12" Linear Rainhead and 10" Shower Arm Brilliance Luxe Nickel

Countertop

Litze Handshower Slab Front Cabinetry Stained

Litze Wall Mounted Tub Faucet Brilliance Luxe Nickel

Primary Bath

34

Ceiling Fixture

Bath 2 / Guest Suite

Kohler Casita Vibrant Polished Nickel

Vanity Design Stain Grade, Inset

Kohler Purist Vibrant Polished Nickel

36

Powder/Pool Bath

Newport Brass Muncy Wall Mounted Faucet Polished Nickel Countertop Remnant

Floating Countertop with Integrated Sink

Possible Color Palette Either paint or wallpaper

38

Game Room

Slab Option for Countertop & Backsplash

Slab front with metal hardware detail, Stained Cabinetry

Game Room

40

Modern Sectional & Recliners Carpet, Dark wall and ceiling

Wall Sconce Options

Media Room

Work Out Room 42

Delta Nicoli Faucet Stainless Finish

Pure White Quartz Countertop

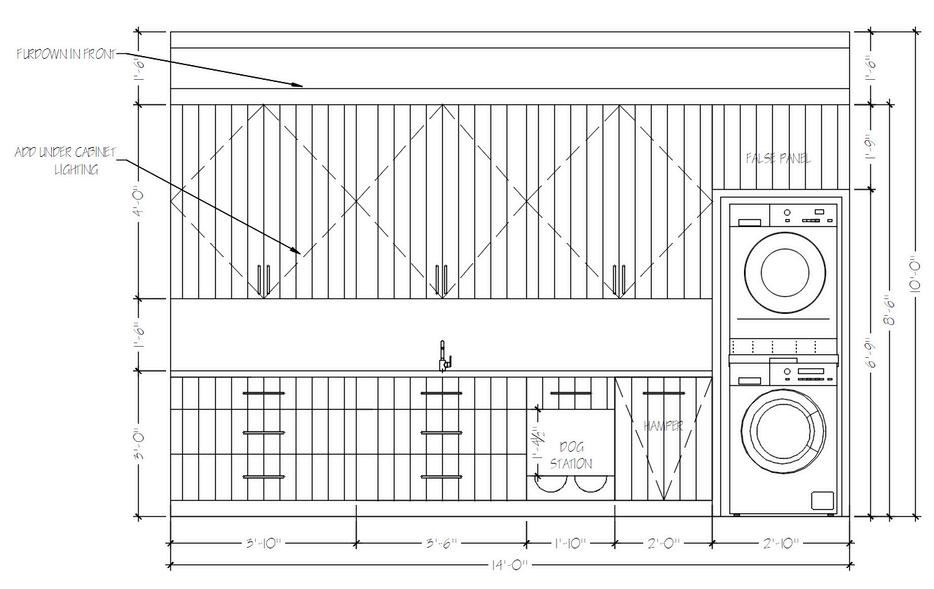

Utility

Cabinet Style Groove Front (Match Image) Paint Grade

Cabinet Front Style

44

Mudroom

46

Bedroom & Bath 3 (Bunkroom)

Wall Sconce Option Different Colors Available

Kohler Casita Single Handle Faucet Vibrant Brushed Modern Brass Countertop Remant

Example of Tile change in shower from terrazzo to smaller scale above

Bath 3

Slab Front Cabinet Door Style Painted

48

Flushmount Light Option

White Oak Hardwood Flooring

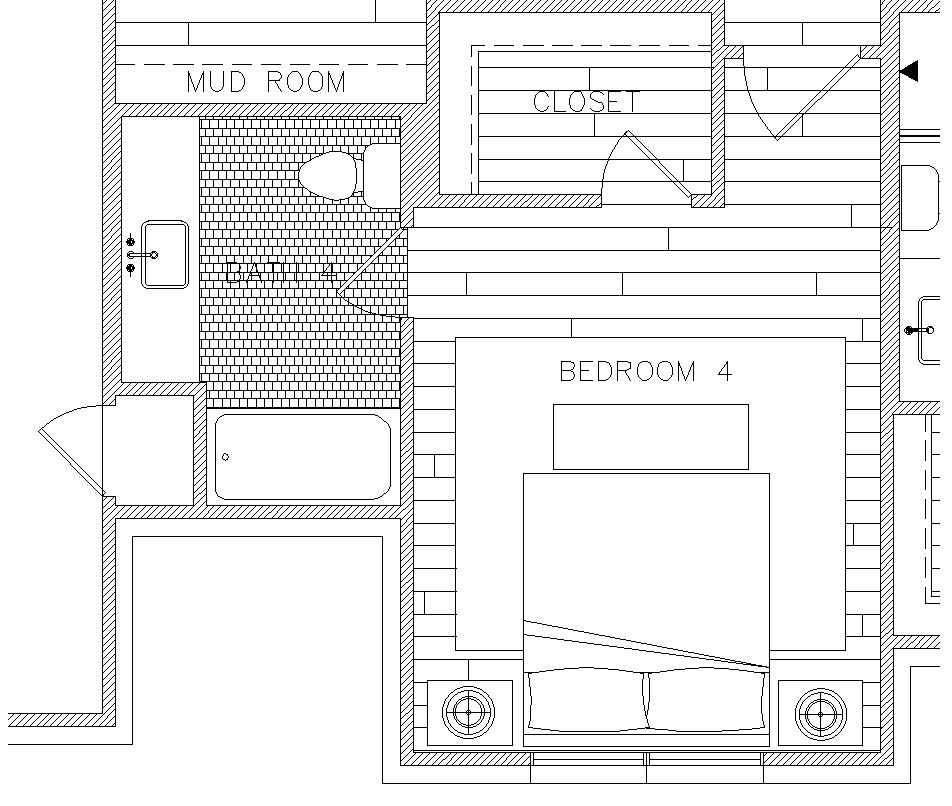

Bedroom & Bath 4 (Guest Room 2)

Kohler Casita Widespread Faucet Matte Black Countertop Remnant

Mosaic Flooring

Bath 4

Slim Shaker Cabinet Front Style Painted

50

Bedroom & Bath 5 (Craft Room)

Kohler Casita Widespread Faucet

Countertop Remnant

Bath 5

Slab Front Cabinet Door Style Painted

52

This could be the same tile as the other garage or if it will be used as working garage, then the Drive Series 12" x 12" Tile is recommended 1/16" Grout Joint

Porsche 30" X 60" Tile Offset Layout 1/16" Grout Joint

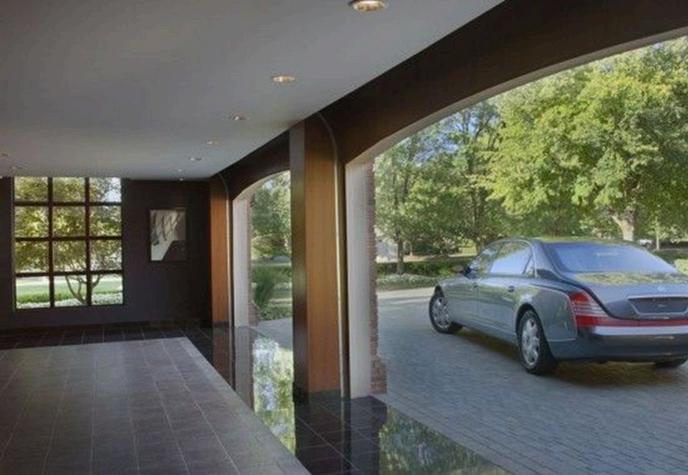

Garage 30" X 60" Tile Offset

The 30" x 60" tiles can be laid in a straight stack to provide a sleeker look. However, the slab will need to be level as these imperfections will be more visible in a straight stack vs offset tile layout

This could be the same tile as the other garage or if it will be used as working garage, then the Drive Series 12" x 12" Tile is recommended 1/16" Grout Joint

Porsche 30" X 60" Tile Straight Stack 1/16" Grout Joint

Garage 30" X 60" Tile Straight Stack

The 30" x 60" tiles can be laid in a straight stack to provide a sleeker look. However, the slab will need to be level as these imperfections will be more visible in a straight stack vs offset tile layout 54

Brizo Litze Matte Black with T Lever

Countertop Remnant

Vanity Design

Office Powder

I prefer the larger rectangular blocks. Is there a reason to have the varied light detail?

If so I would probably only have 2 options. In the office area I would reduce it to areas of defined ceiling detail. Both strip and teacups offer a nice look. The key is that you want to make sure the have the option to be warm and not cool. In general we use 2700 - 3000 Kelvin throughout a home with the exception of the garage, but that would be a non display garage. You may have a desire to have something brighter but ideally you would want to also think how you view this gallery from the rest of the house.

56

Garage Doors

The Amarr Axolotl Doric door would look great with your Vista clear glass panel doors. There is also a black flat panel door that could work. Amarr may make a door that matches the panel fo the glass door but in solid and that would also work. I would need to ask the builder’s rep as my request did not get me a good answer.

Garage Doors

58
