The Block: City-Within-A-City

Mixed-Use Hotel & Residential Skyscraper, LA, California

Graduate Design Studio | Instructor : Paul Armstrong

Team : Manali Londhe & Kinjal Bhojani

The proposed mixed-use complex seamlessly integrates luxury condominiums, a hotel, and diverse amenities within a sustainable, climate-conscious design. Embracing the outdoor lifestyle, the development provides sky gardens and terraces that cater to breathtaking views, fostering a vibrant "city within a city" atmosphere while prioritizing environmental harmony and urban connectivity.

Number of Residences - 230

Number Hotel rooms - 300

Total no. of floors - 60

Building Area - 2 million Sq Ft

Software used: Revit, Rhino, Sketchup, Enscape, Photoshop, Illustrator

Post produced physical model

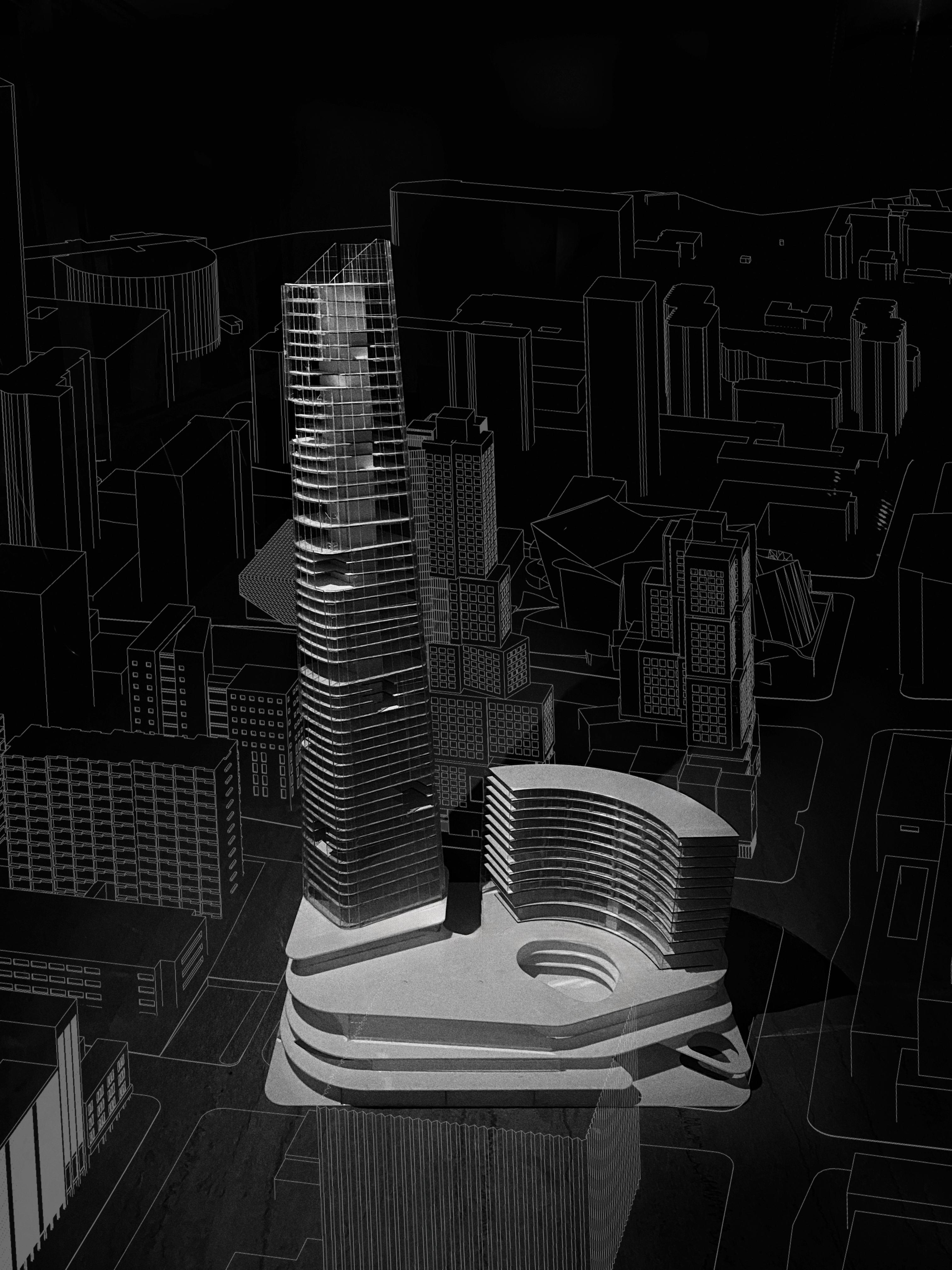

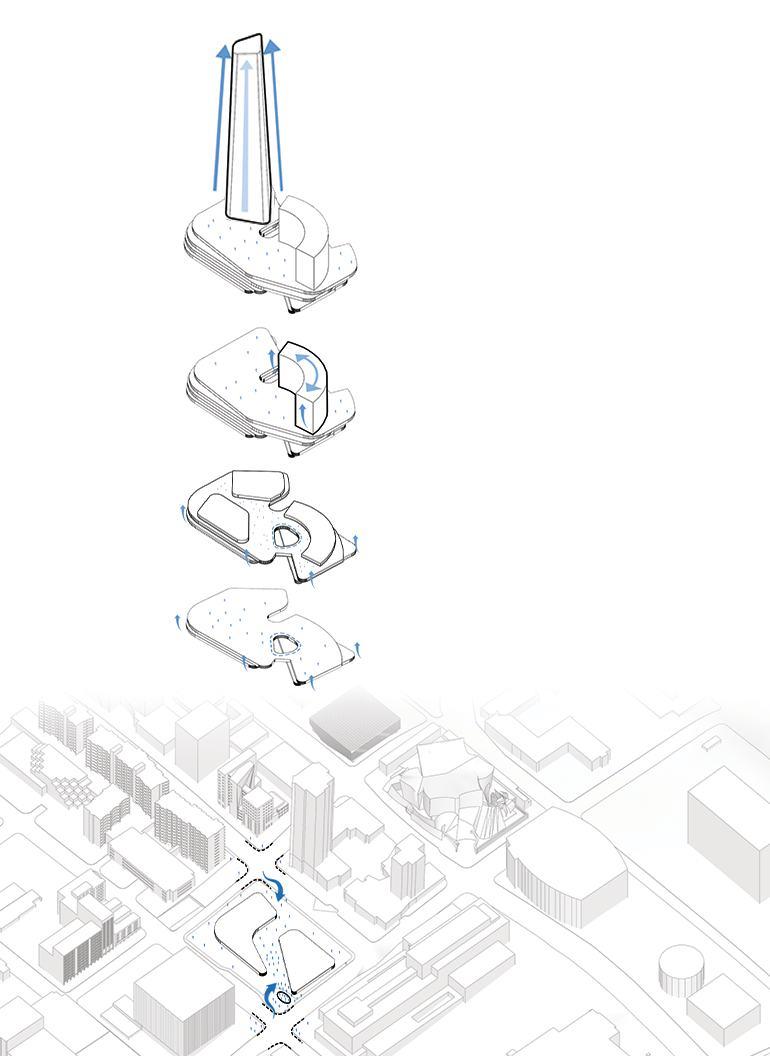

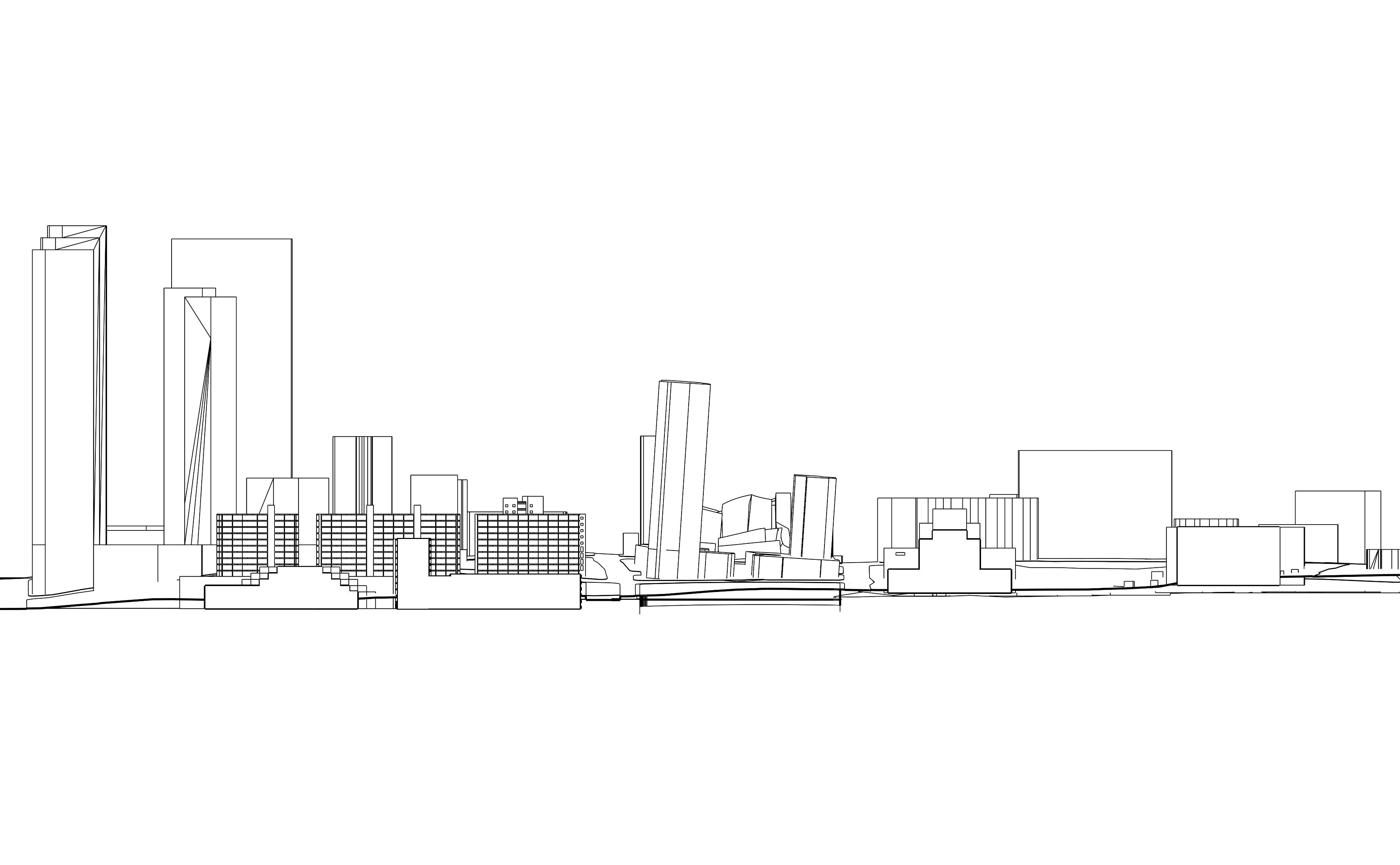

Located adjacent to renowned architectural landmarks, namely the Walt Disney Concert Hall and The Grand, the initial strategy was analyzing the dynamic corners of the site. The aim was to skillfully attract public and elevate their experience on a stage to enjoy the panoramic view of the surroundings. Each elevated podium has an 'Oculus', opening up the center of the project and enhancing its spatial quality. Finally, concluding in the uppermost podiums, sits the grand hotel and tower, ascending higher.

The L.A. Grand Hotel

Walt Disney concert hall

Dorothy Chandler Pavilion

Stanley Mosk Courthouse

Housing complex Metro Station US Courthouse

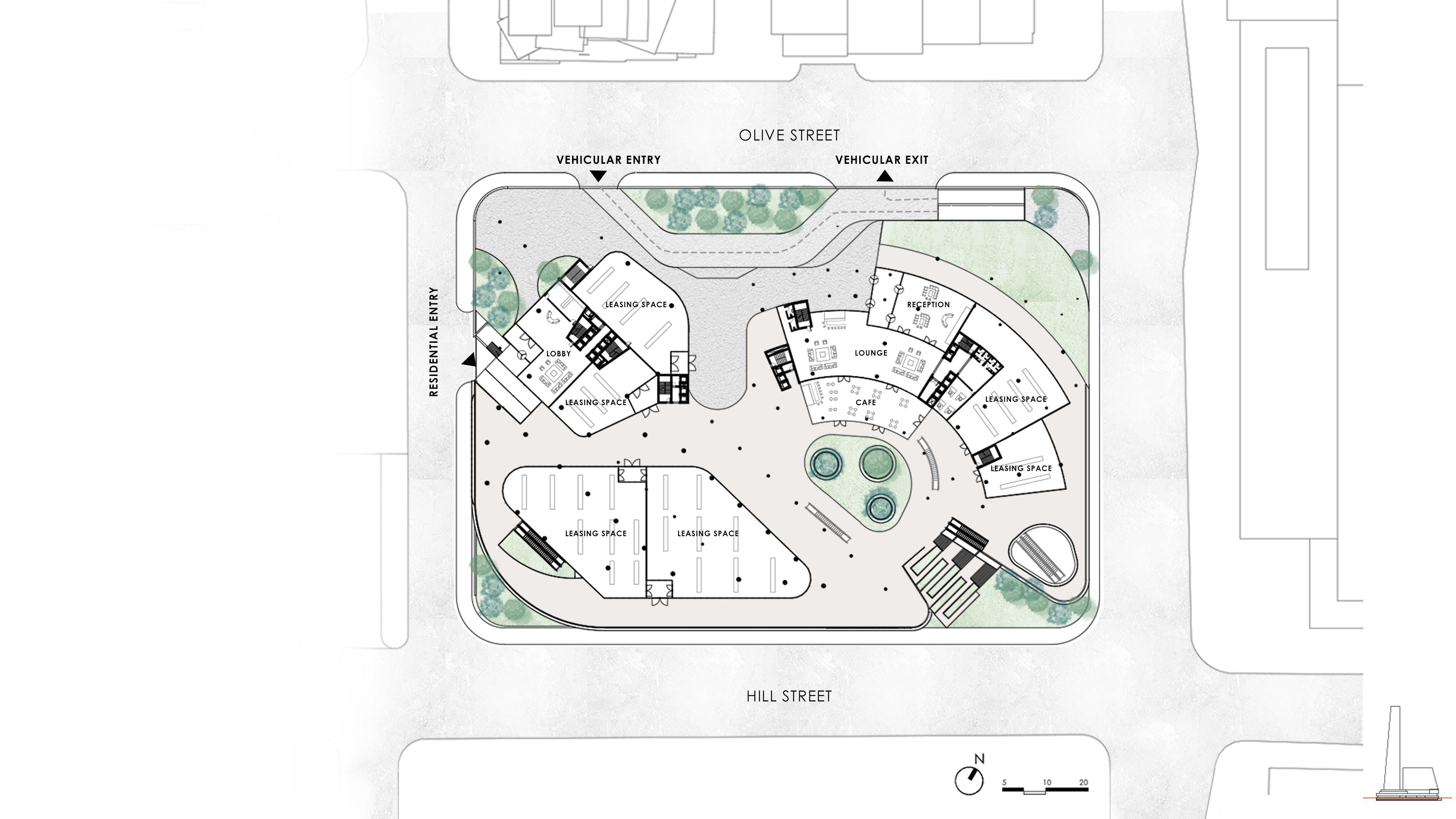

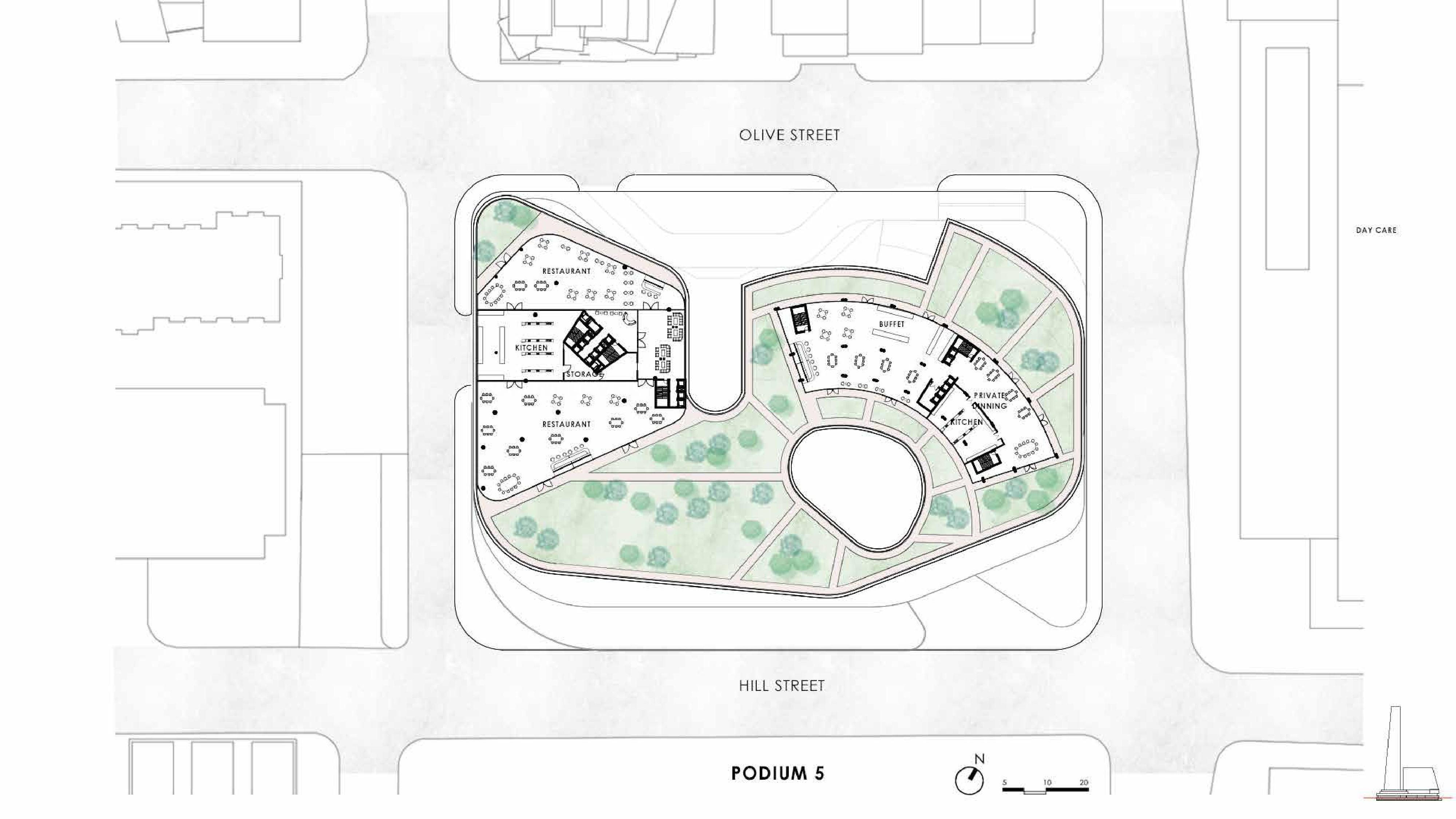

Podium Plan Layout at the level of Olive street

Podium Plan Layout at the top level

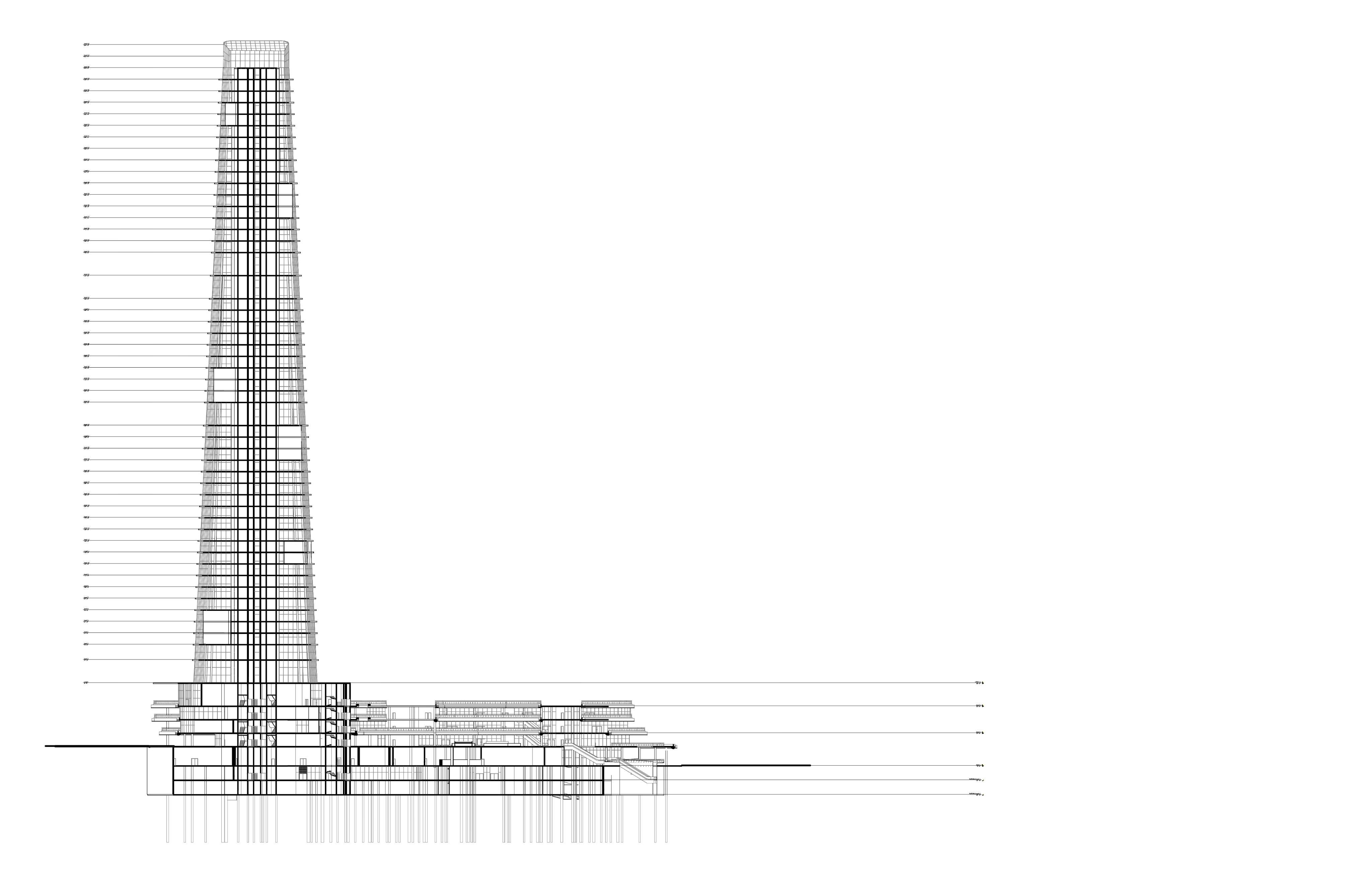

Rooftop restaurant

Penthouse above

Luxury above

Mechanical floor

Sky lobby

Semi-Luxury above

Mechanical floor

Semi-Luxury above

floor

Sky gardens

View from top level of Sky Garden

- 18’’

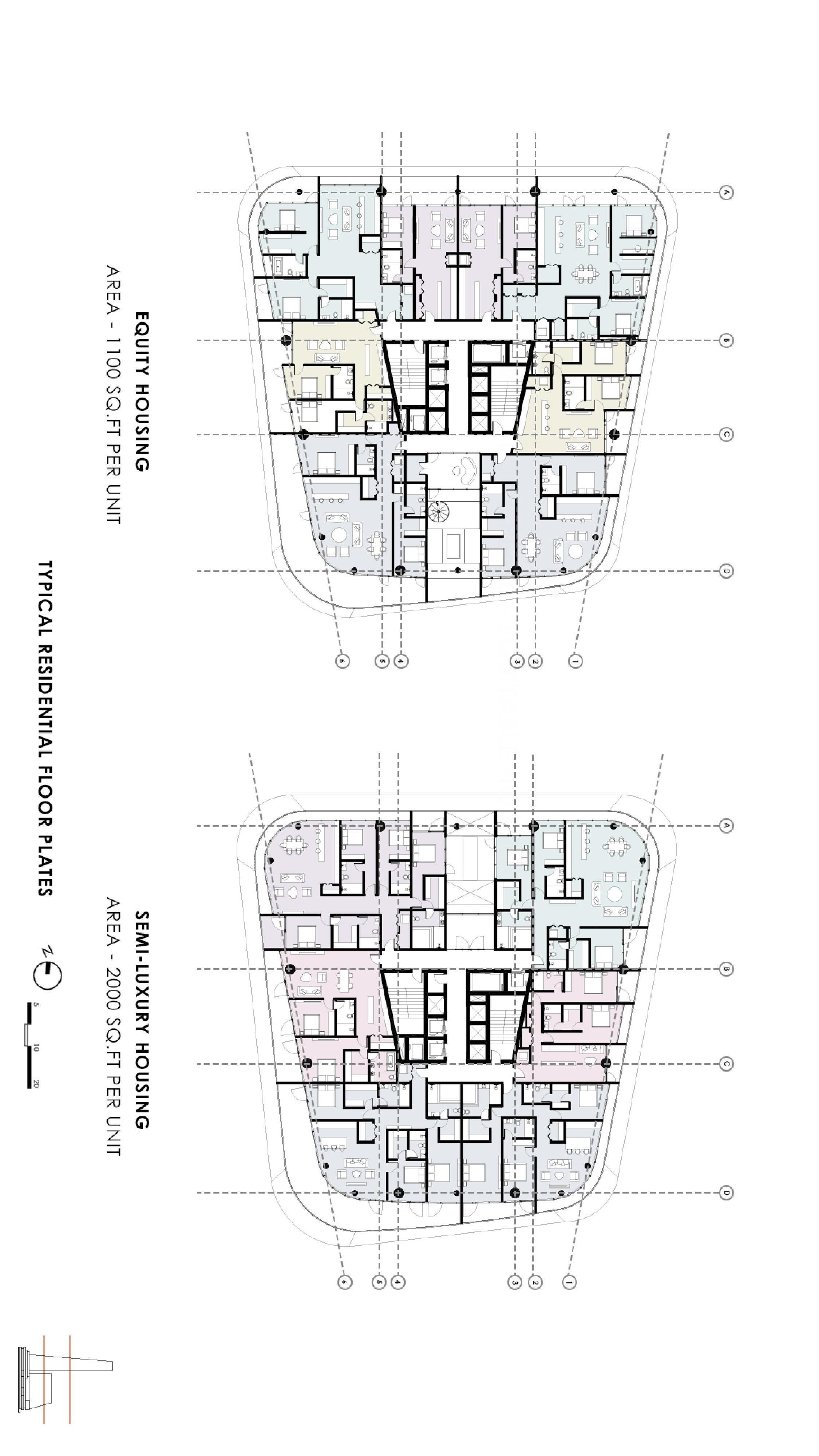

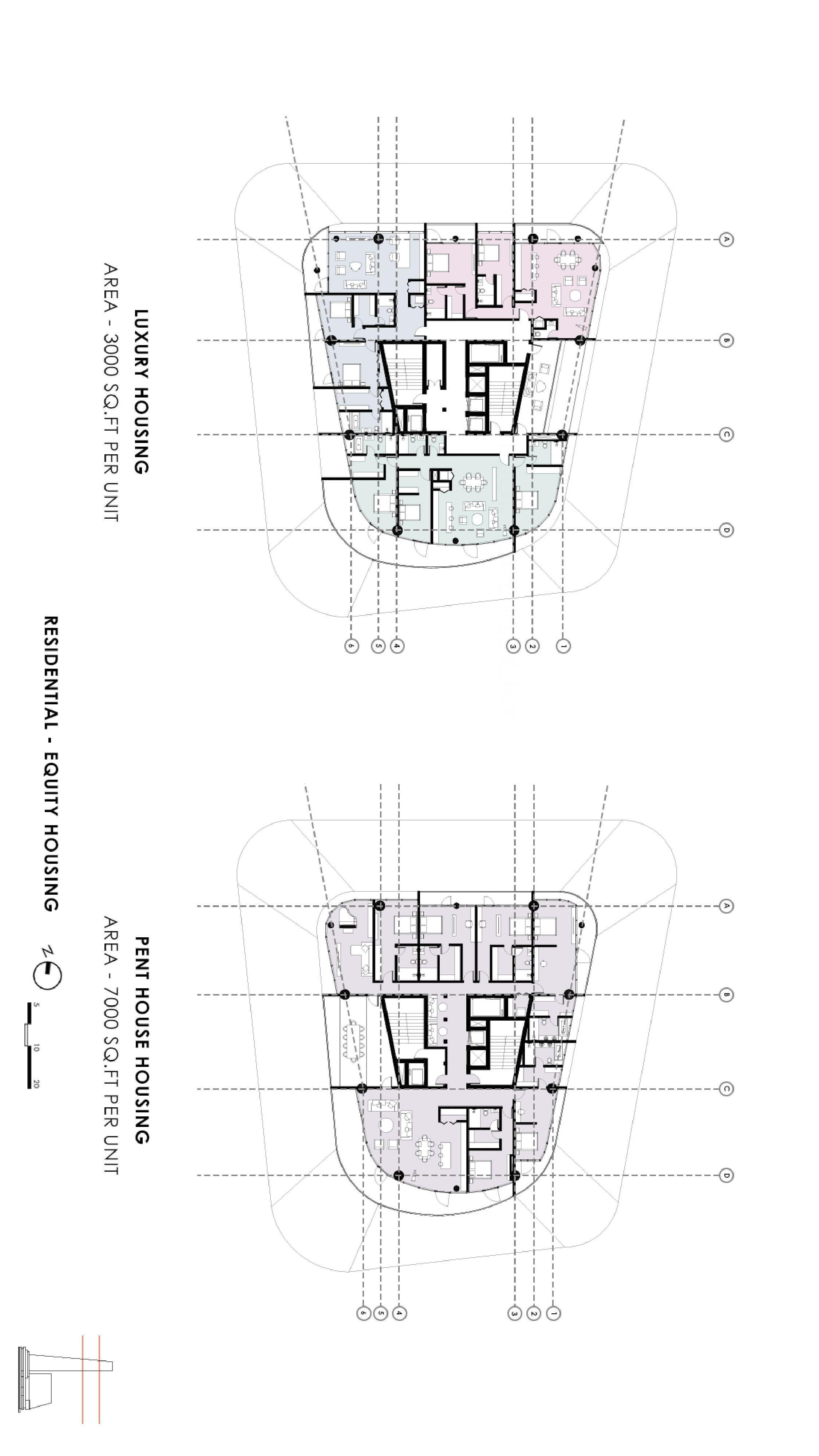

SIZE - 45’X30’ BELT TRUSS MEMBER SIZE- 1.5’X3’ Semi - Luxury Housing plan Penthouse Plan

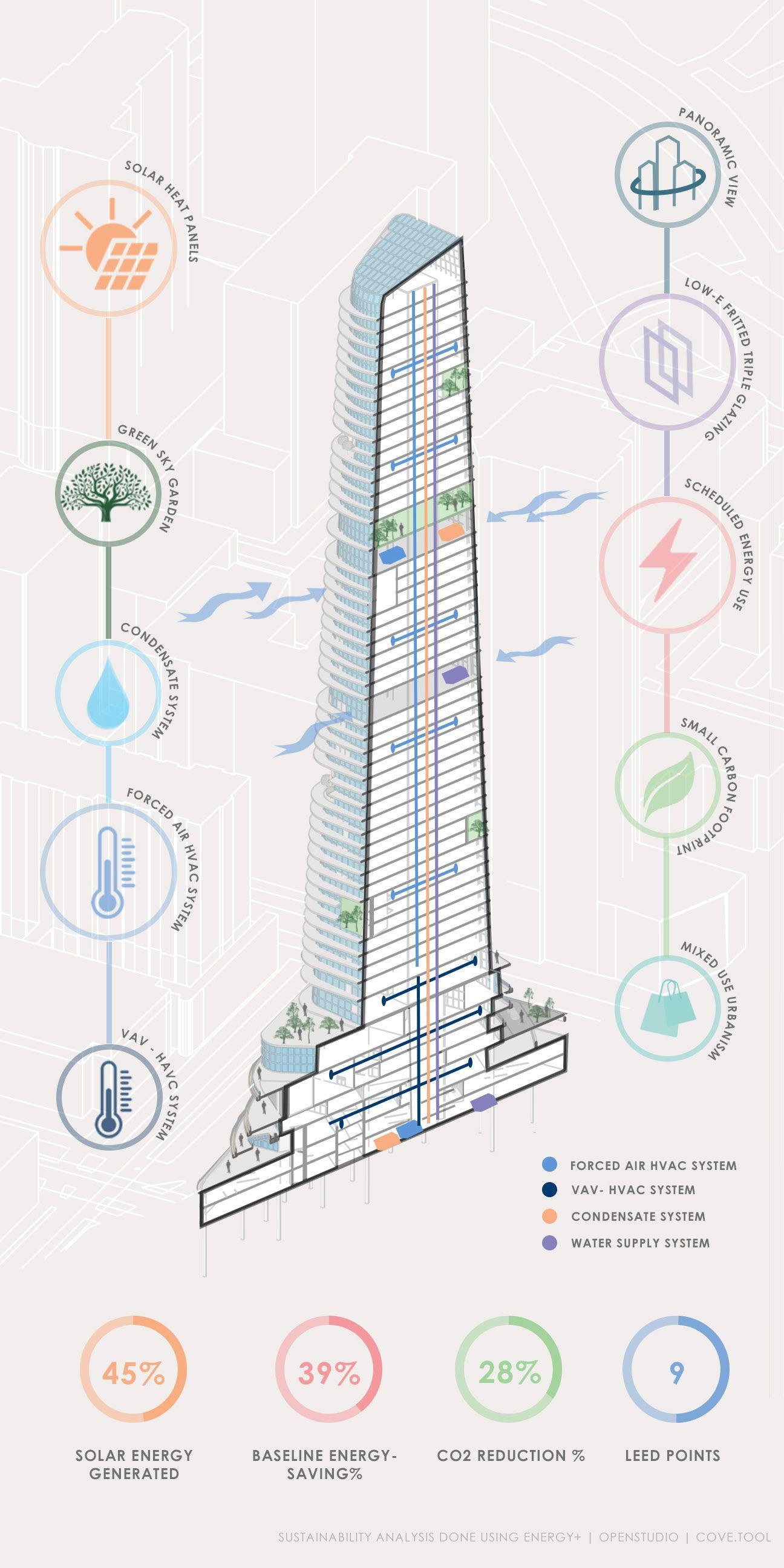

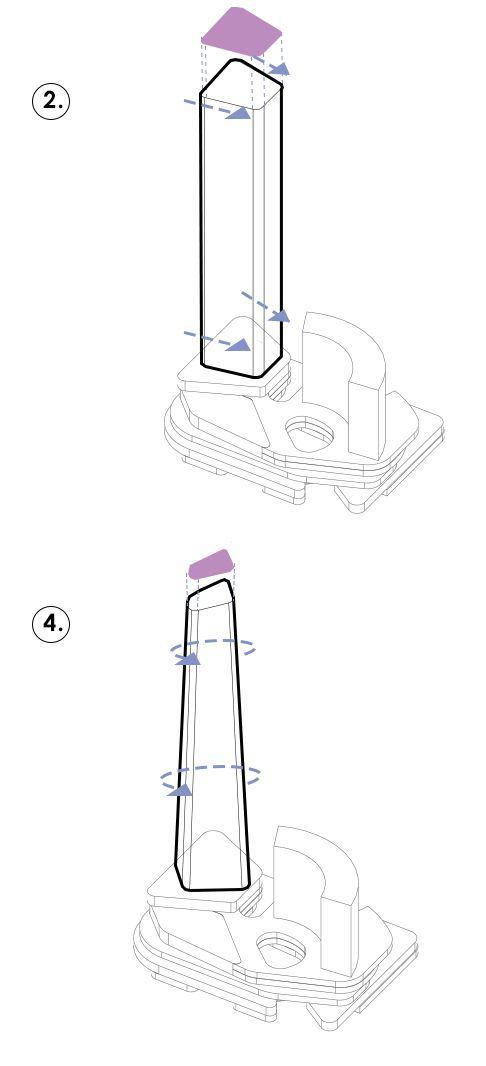

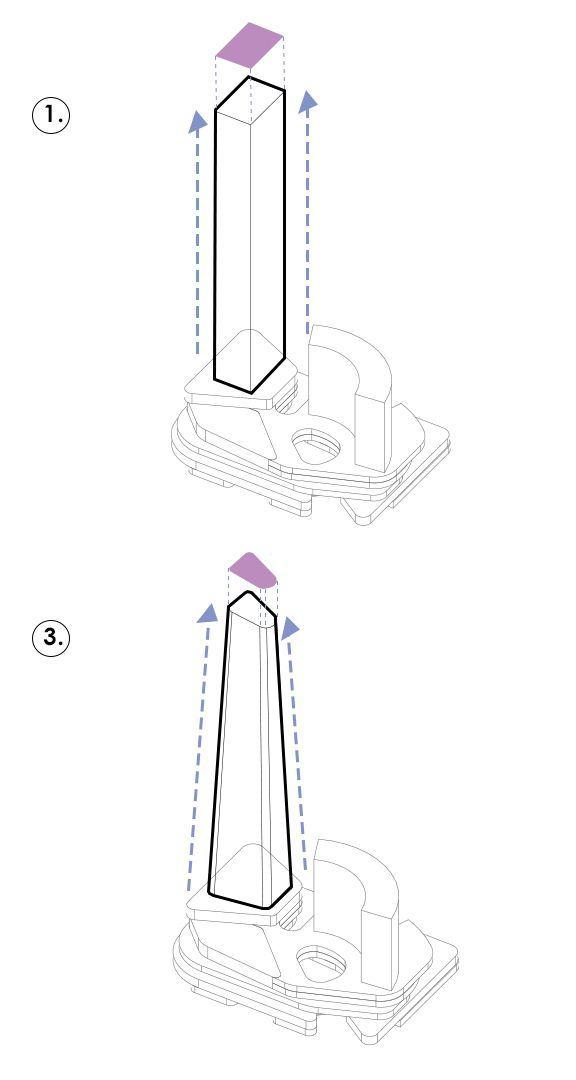

Form development wind analysis Autodesk CFD/

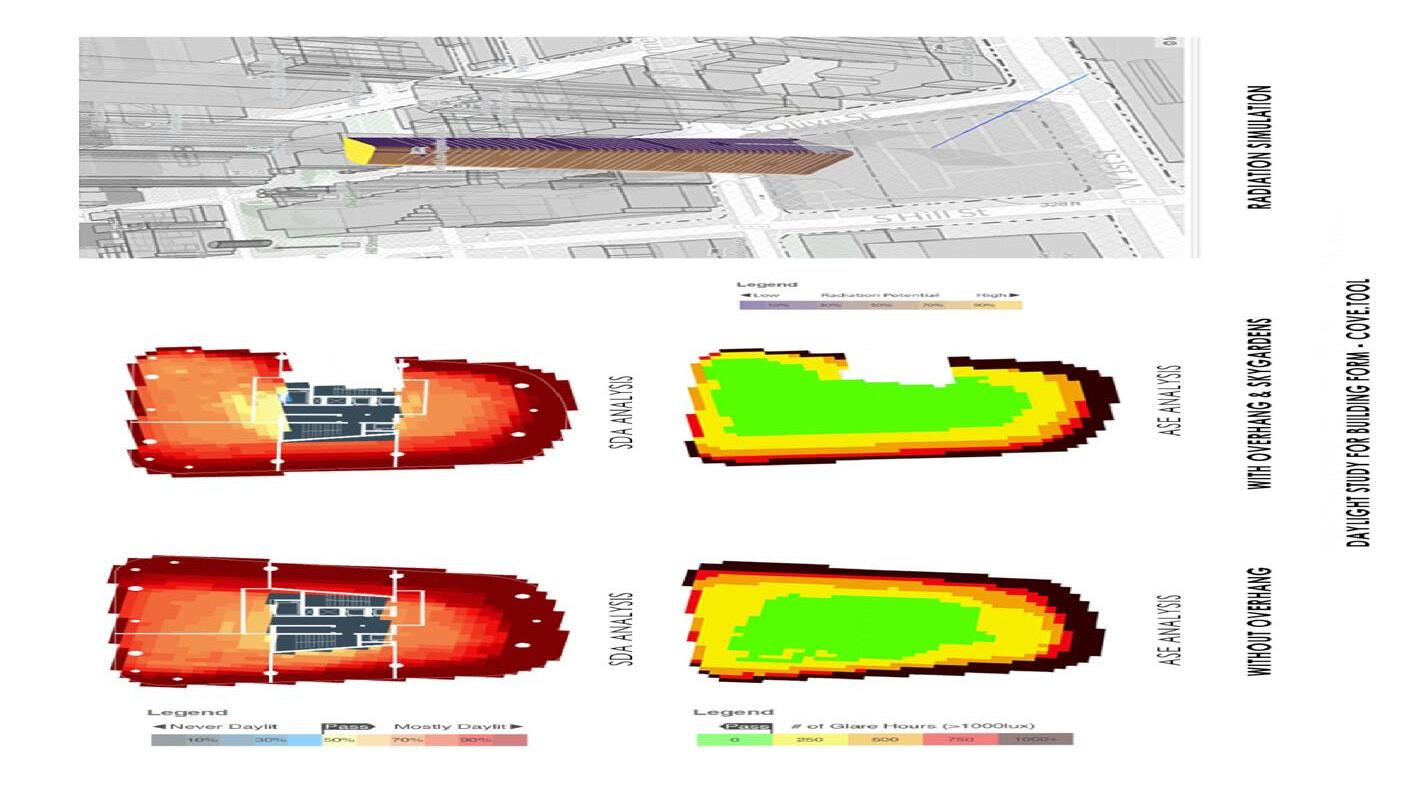

DAYLIGHT STUDY FOR BUILDING FORM - COVE.TOOL

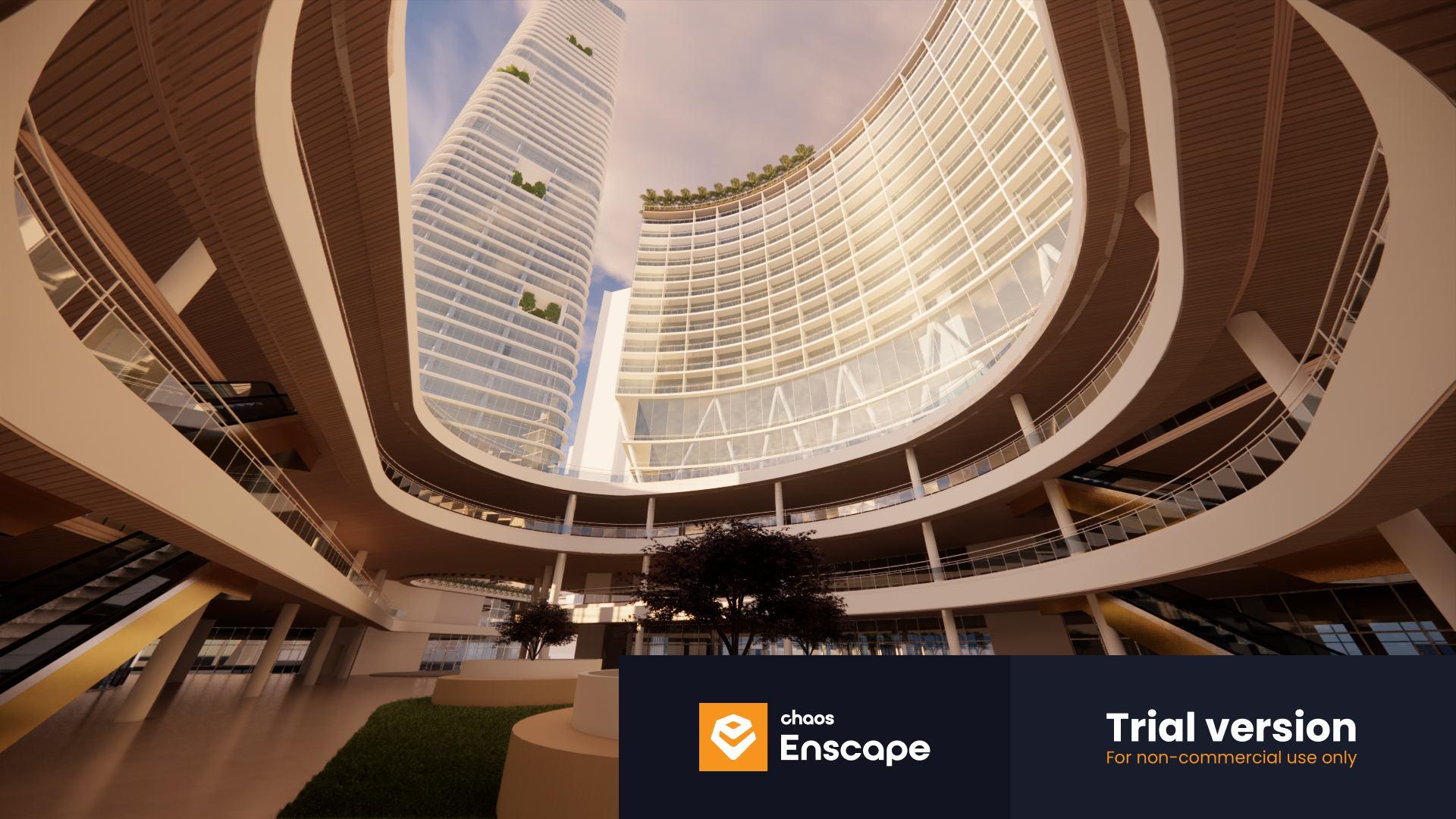

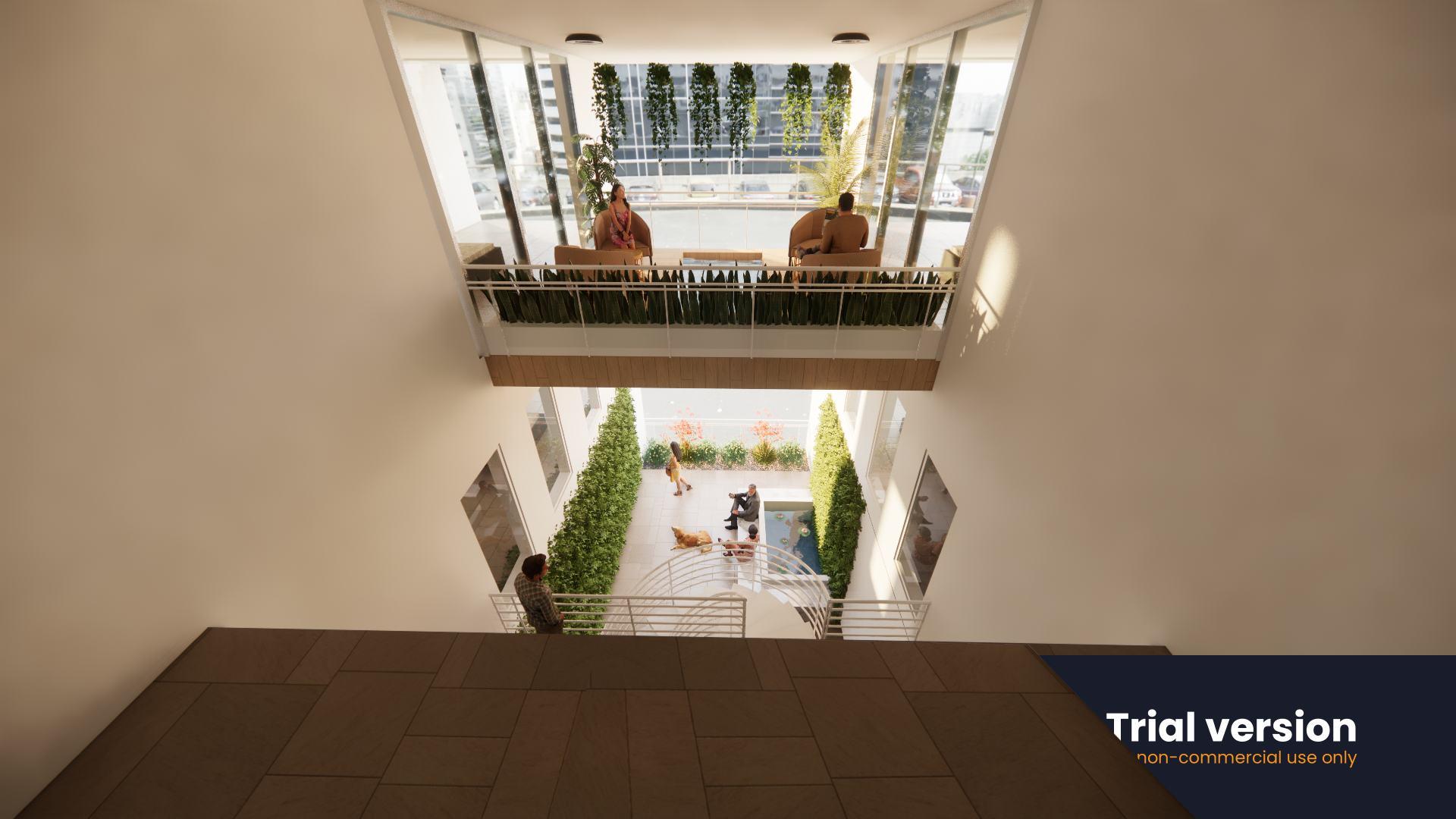

Looking through oculus towards tower & hotel

Kandinsky’s Kromatic

Library extension, Champaign, Illinois

Graduate Design Studio | Instructor : Yun Kyu Yi

Team : Manali Londhe & Avinash Verma

In this studio, our focus was on findin a fresh approach to the desi n process, inte ratin AI technolo y to explore new possibilities. We aimed to reima ine traditional methods by usin Grasshopper and Rhino to combine different software seamlessly. Our oal was to develop a flexible framework capable of eneratin diverse outputs based on varyin inputs. For this project, we chose Kandinsky's Paintin as our input source, usin it to inform the desi n layouts for an extension to the UIUC library.

Drawin inspiration from dominant colors of Kandinsky's Paintin

Midjourney: Utilizin Variable A.I. ima es

Python: Reco nizin colors by points

DALL.E: Generatin more varied ima es focusin on color points

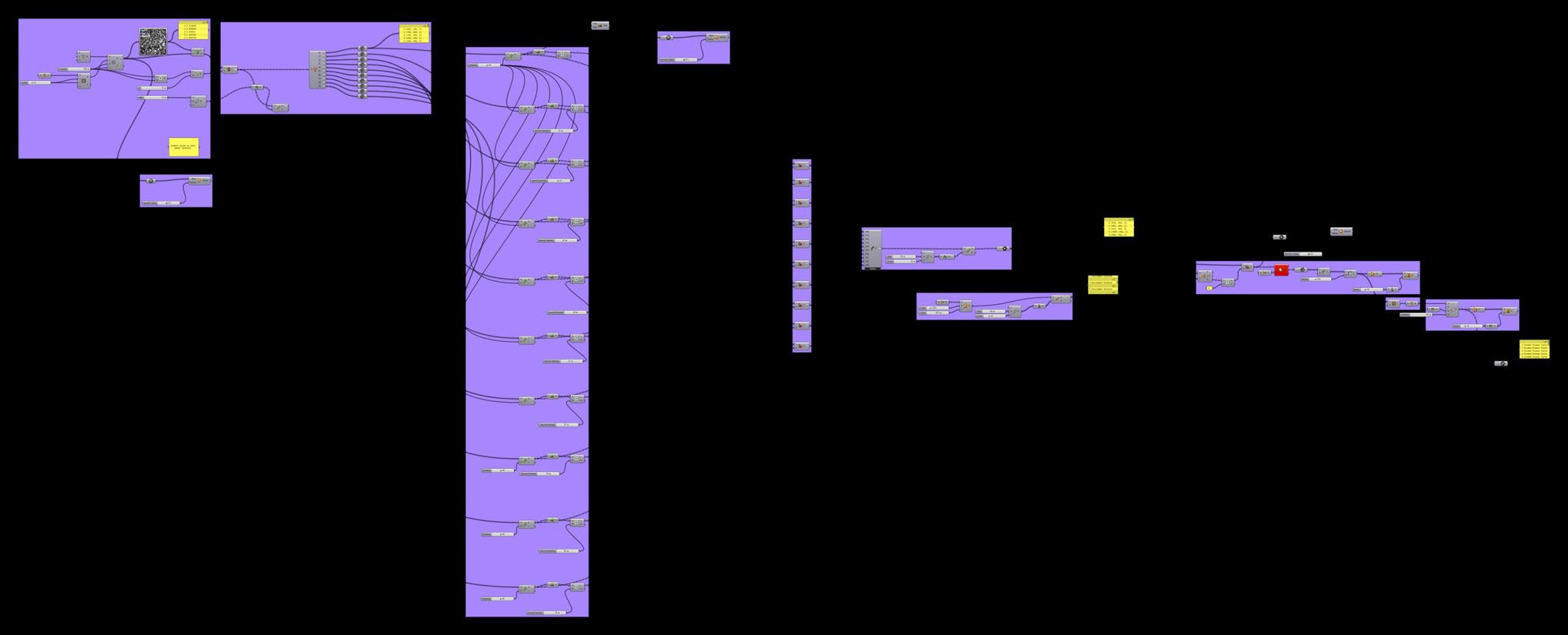

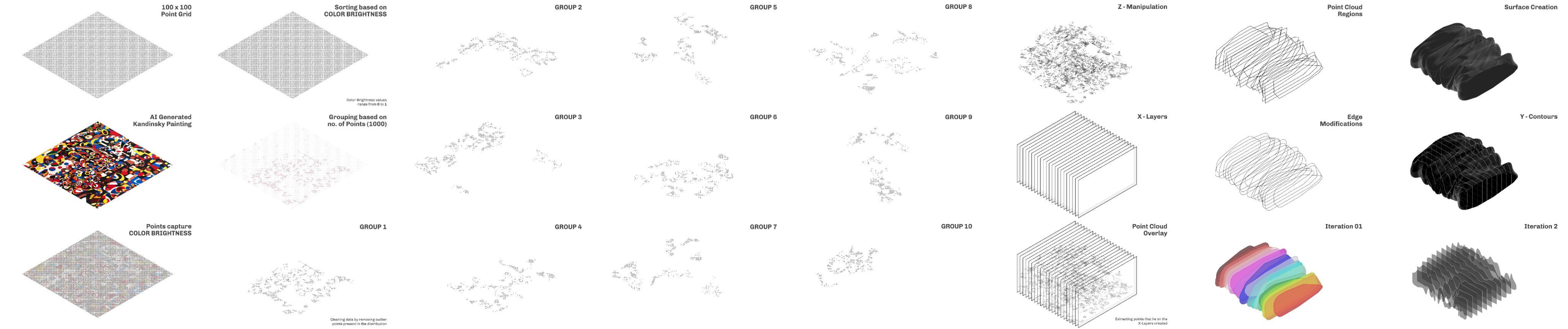

Grasshopper: Groupin points with 'K means clusterin

Rhinoceros: Cuttin & expandin surface by XYZ Axis

Software used: MidJourney, DALL.E, Python, Rhino, Grasshopper, Photoshop

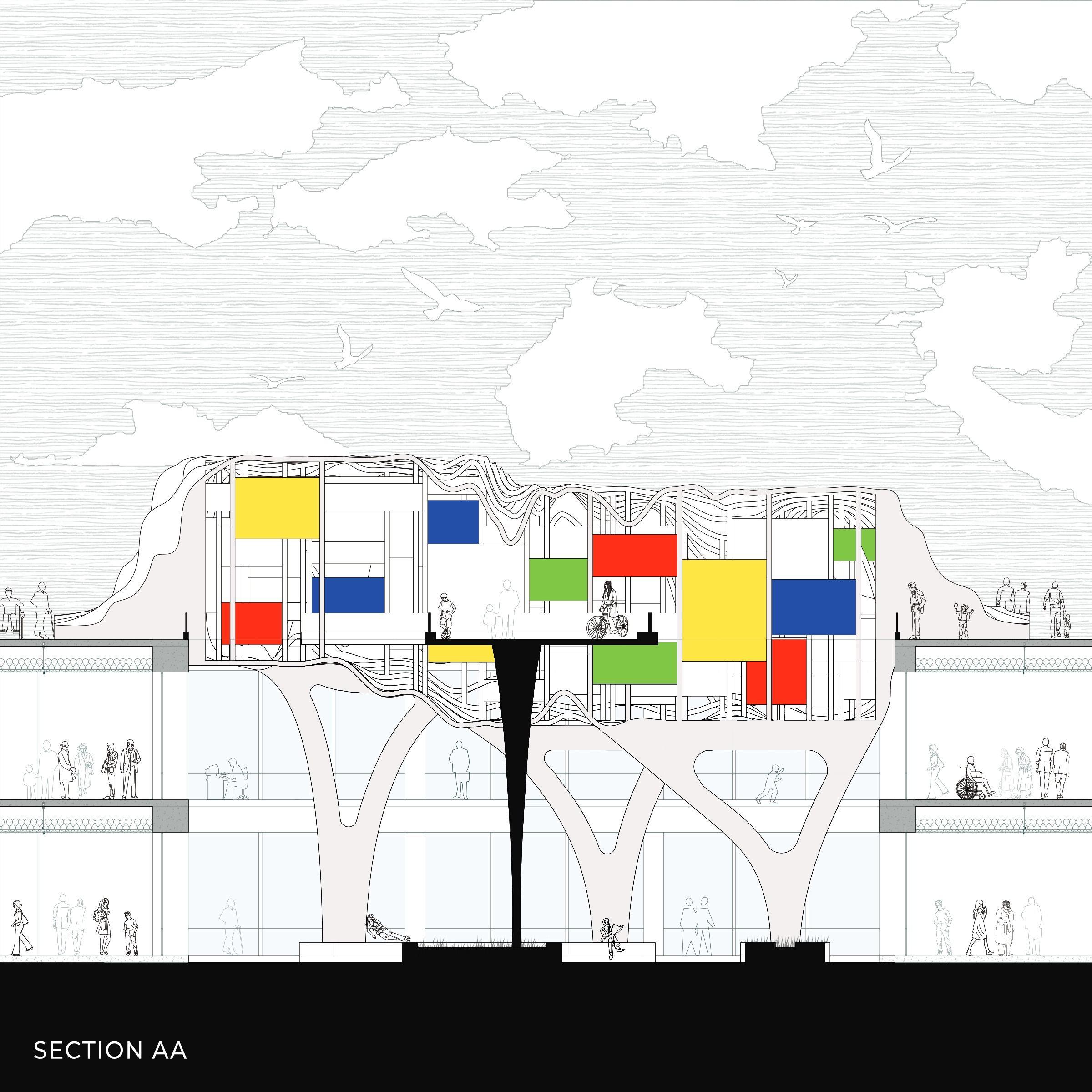

Section cut through the courtyard

Physical Model

Plywood

Phase 1 : Fixed Process - Input of image or 2D base by designer

INPUT BY DESIGNER

Phase2 : Flexible process - Designers choice to select X or Y or Z direction to decide the output.

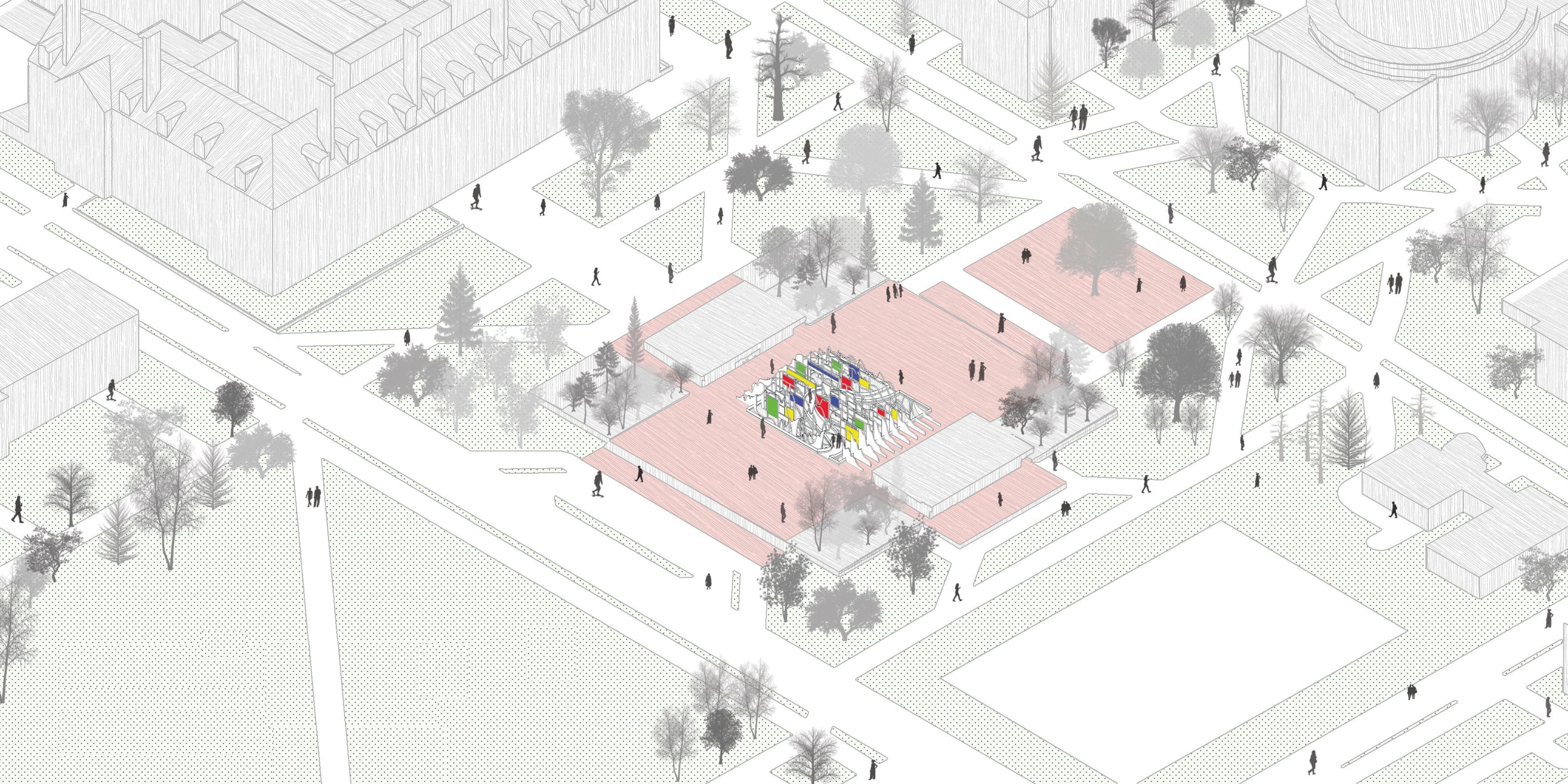

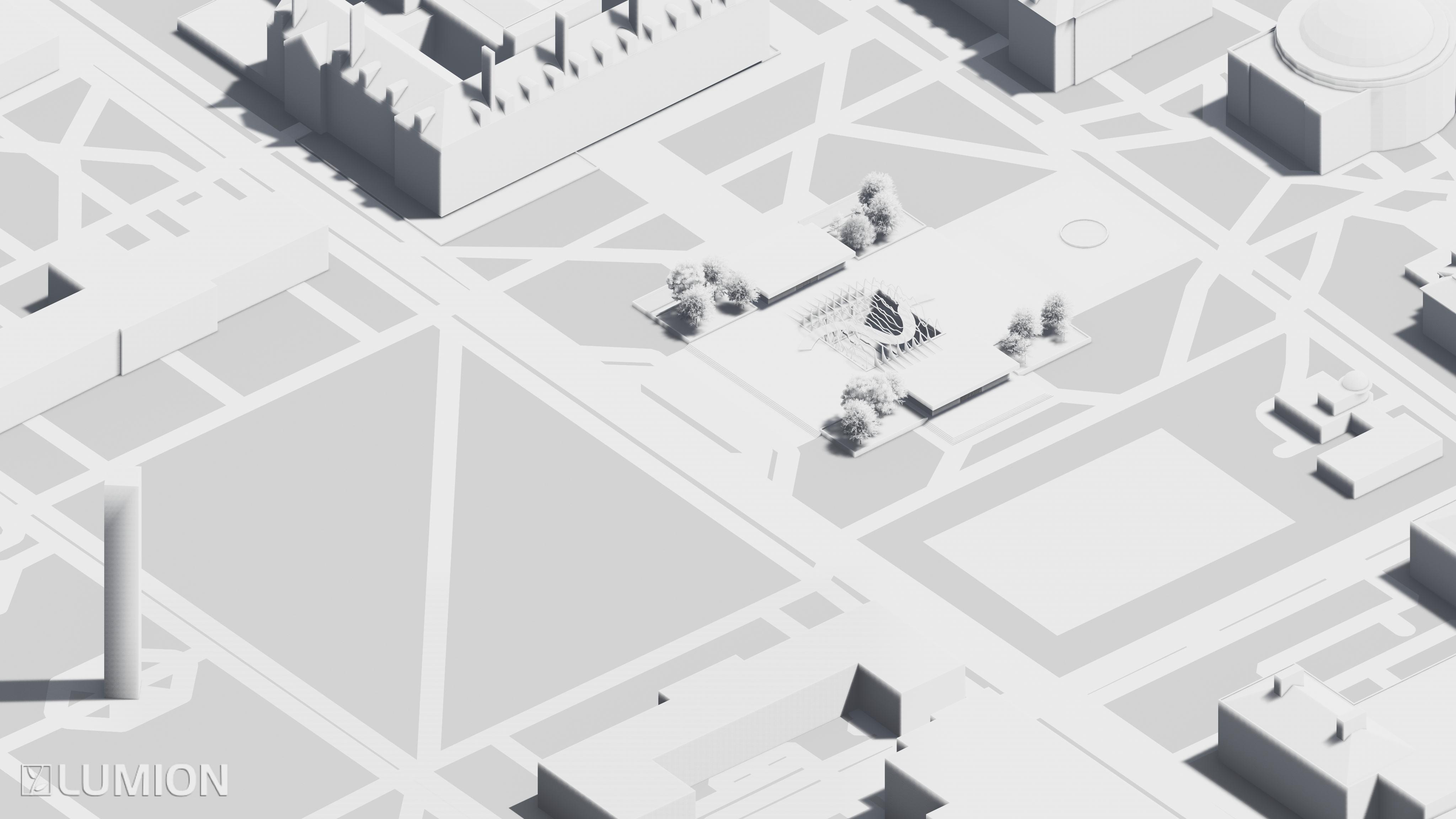

Orthographic View through the South-Quad

Cross - Pollination of Ideas

Design Institute, Goa, India

Undergraduate Design Studio | Instructor : Priti Dhanwat

Individual Thesis Project

This institute for design students integrates various disciplines such as architecture, product design, and apparel design. Its core mission is to cultivate a vibrant community where students can freely explore creativity and collaborate across diverse ideas. Serving as a nexus between the design realm and the public, it also serves as a platform to educate the public through workshops and exhibitions led by local artisans, aiming to serve as a bridge between the two worlds.

Number of Buildings - 12

Number of students - 300

Number of residential units- 103

Site Area - 360,600 Sq Ft

Program Area - 150,000 Sq Ft

Site Slope - 1:6

Software used: AutoCAD, Sketchup, Lumion, Photoshop

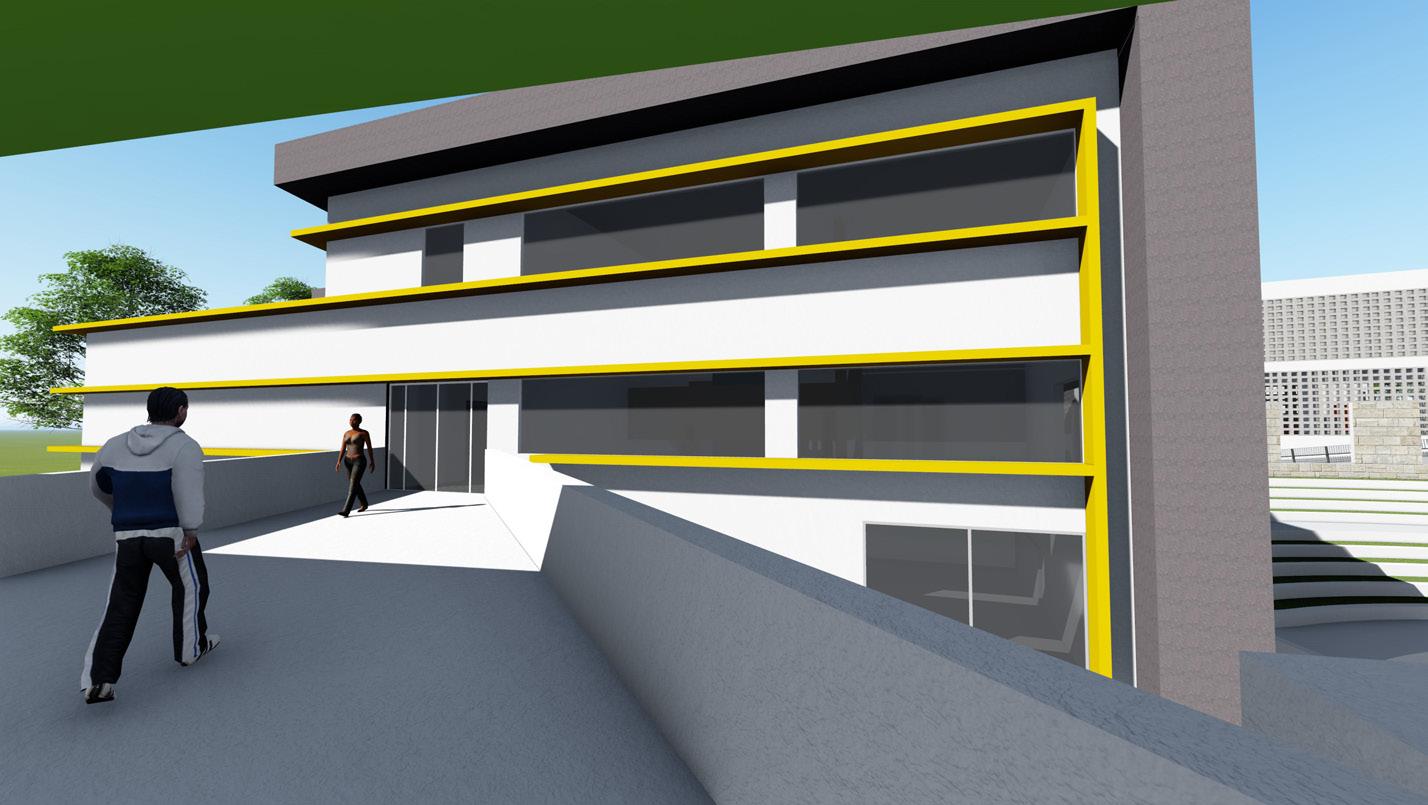

Creating a connection bridge between two academic blocks to facilitate collaboration among students from diverse disciplines.

The main foyer of apparel design building features a catwalk platform where students present their work and discuss ideas.

Each block is nestled within a contoured site, creating a landscape where the steps around it form cozy seating areas making it feel harmonious and inviting.

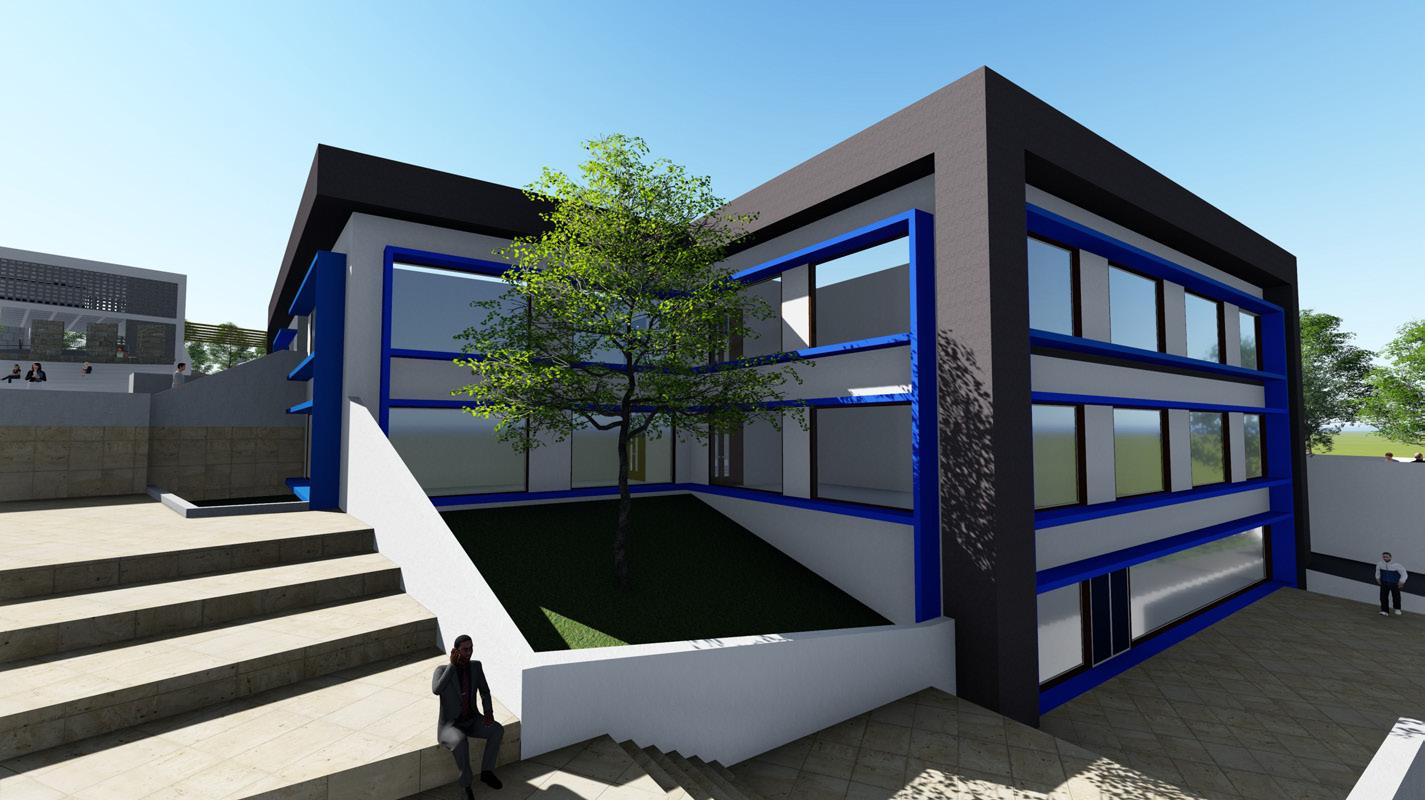

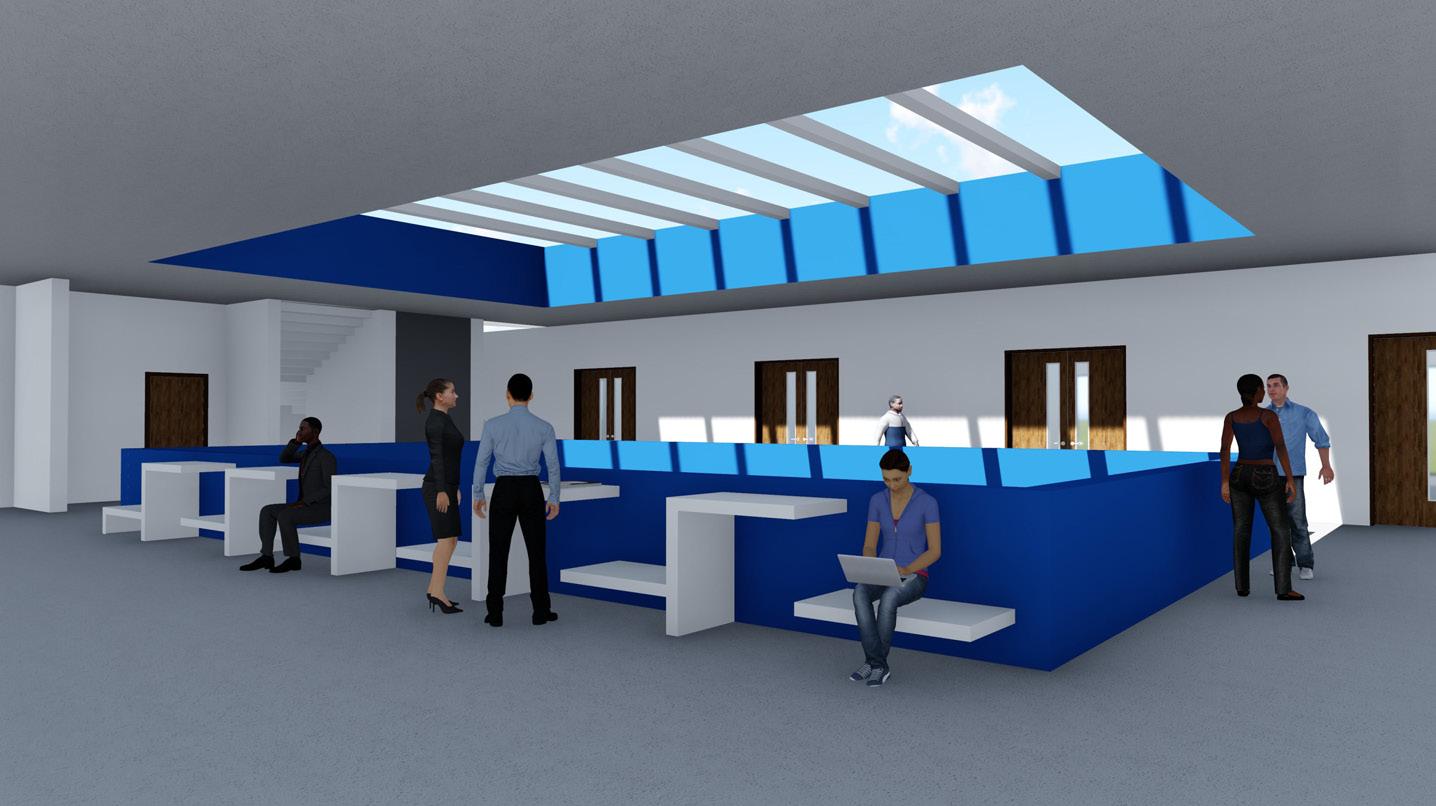

Every academic block features a central courtyard that provides comfortable seating for students to work, eat, or talk

Transmission of

Exhibition - Jaali facade to block direct sun and help control heat gain

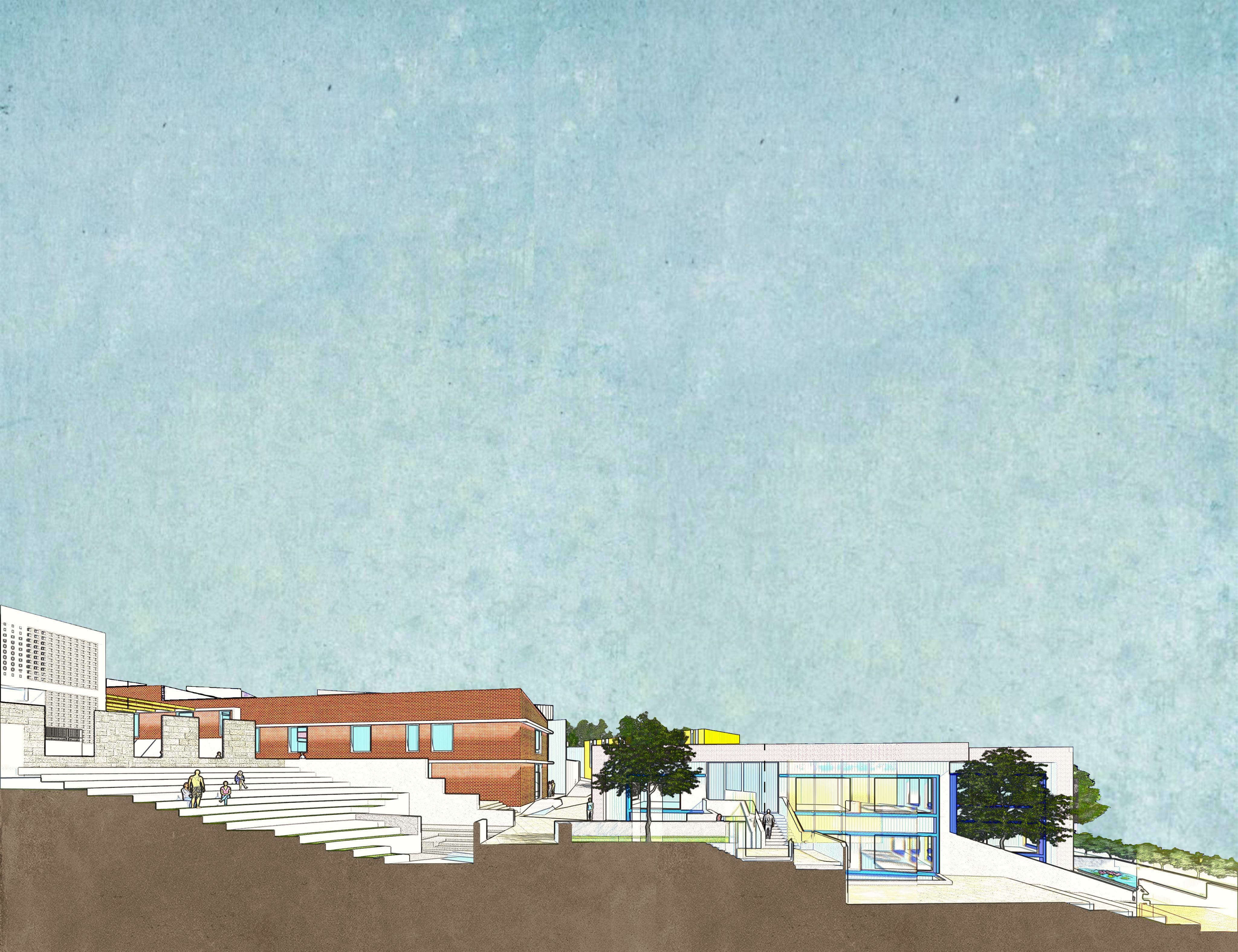

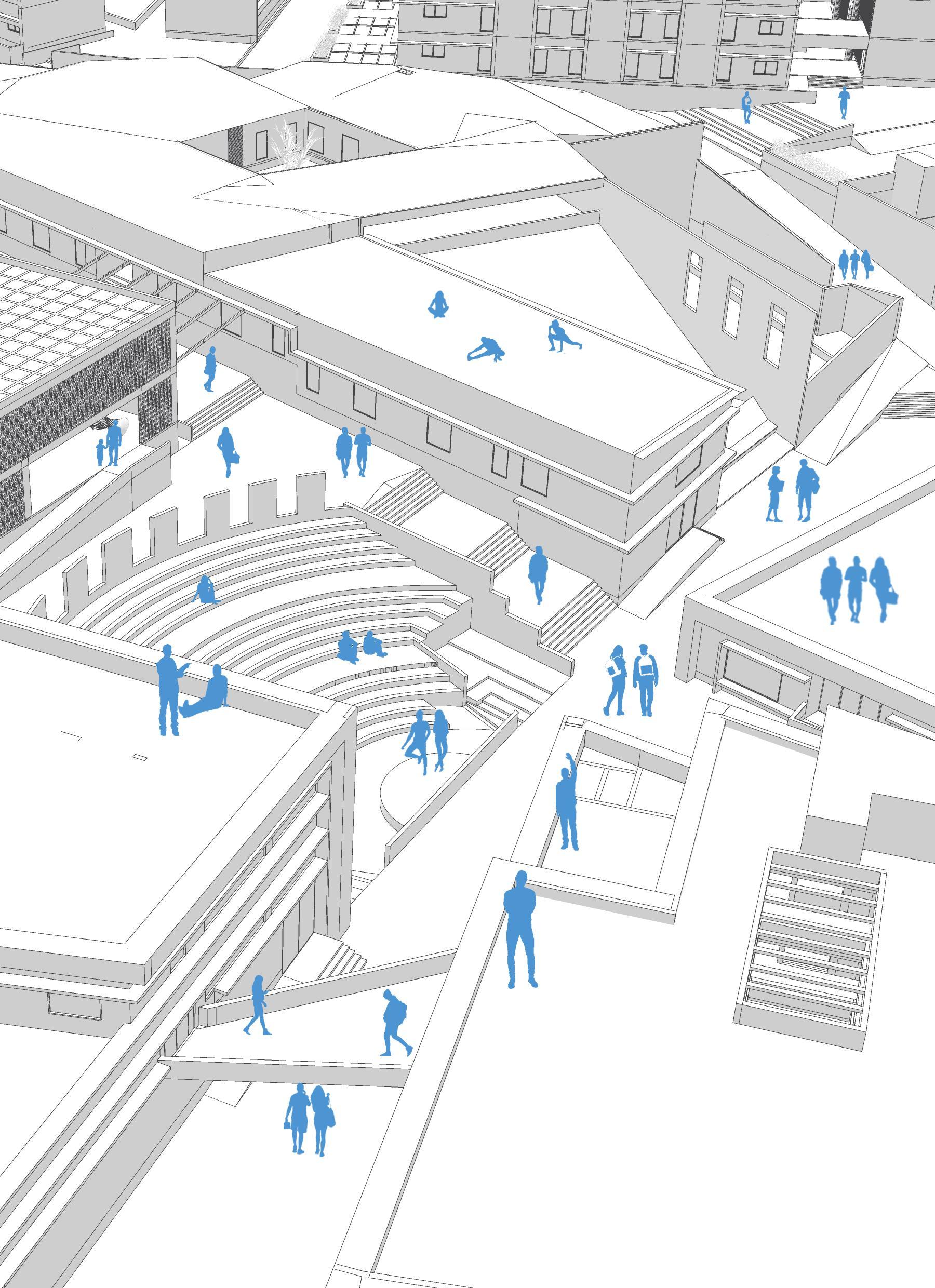

Section through amphitheatre

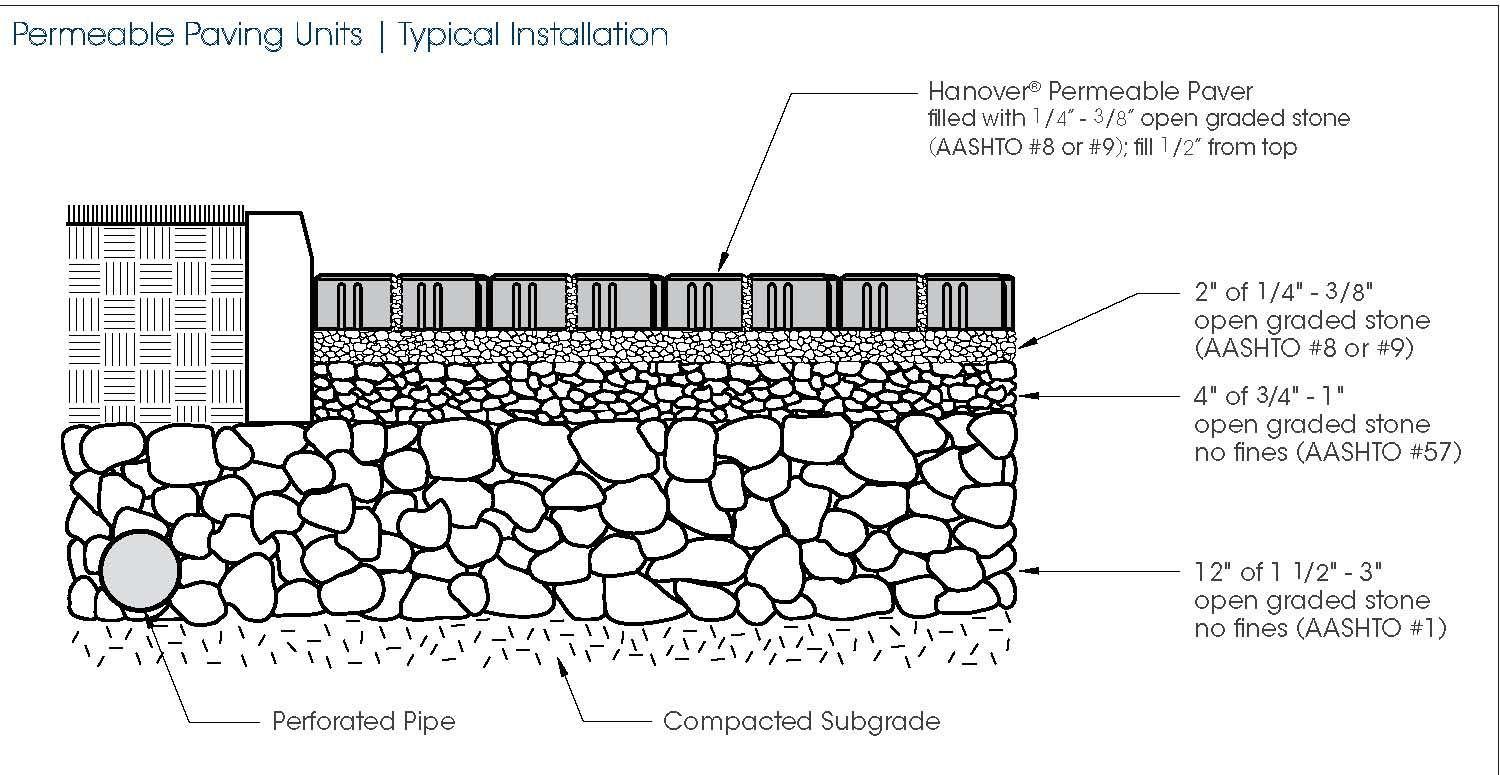

Permeable paving unit

Into The Matrix

Residential Complex, Pune, India

Undergraduate Design Studio | Instructor : Sourabh Agashe

Individual Project

Location Advantage: Situated with easy access to major roads and commercial hubs, enhancing connectivity and convenience for residents from three sides of the site.

Diverse Housing Options: Designed multiple housing options catering to lower, middle, and higher-income groups.

Integration of Green Spaces: Incorporating expansive green areas towards the hills not only offers a picturesque foreground, but also serves as a communal space fostering a sense of togetherness encouraging play, and relaxation amidst nature.

Number of Buildings - 8

Variations in layouts - 7

Type of apartments - 1 bed to 5 bed apt

Number of Residences - 650

Project Area - 2.3 million Sq Ft

Software used: Revit, AutoCAD, Lumion, Illustrator, Photoshop

01. Site

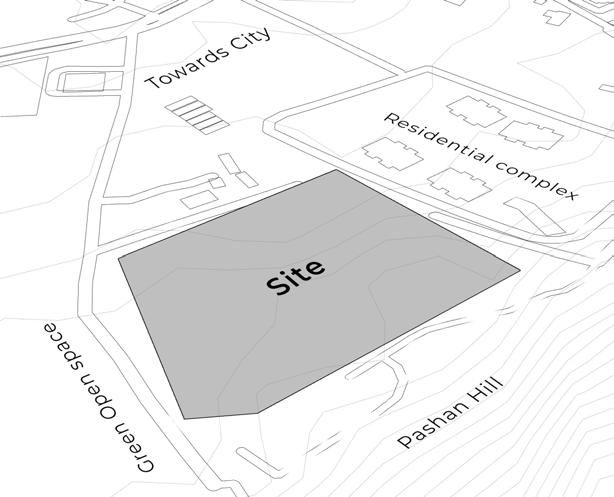

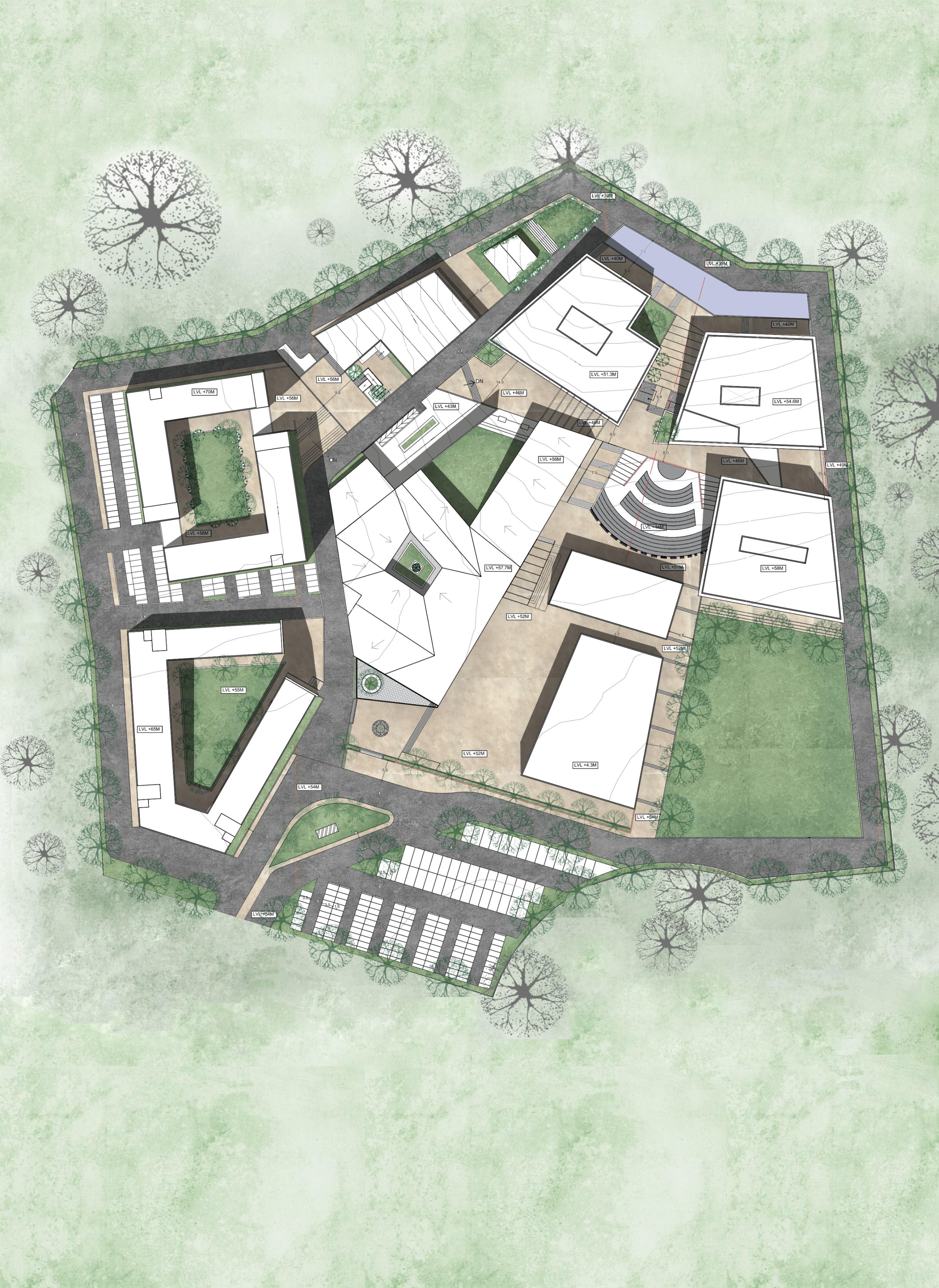

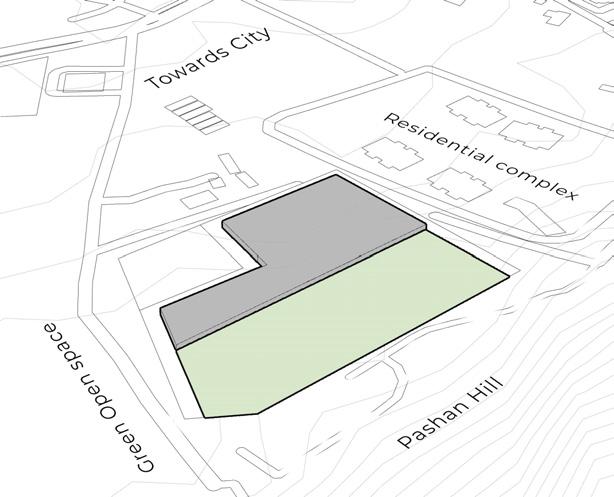

The site spans approximately 45,000 square feet and is conveniently situated between two main roads. Adjacent to one side is a hill that transitions into residential areas.

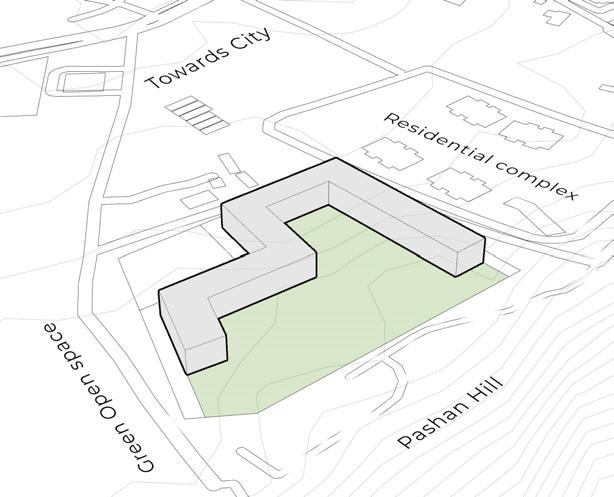

03. Initial Massing

The site is divided into built and unbuilt green spaces. The green park, positioned at the forefront of the hill, then offers a magnificent view.

05. Program Development

Division of buildings according to specific needs optimizes functionality and space efficiency.

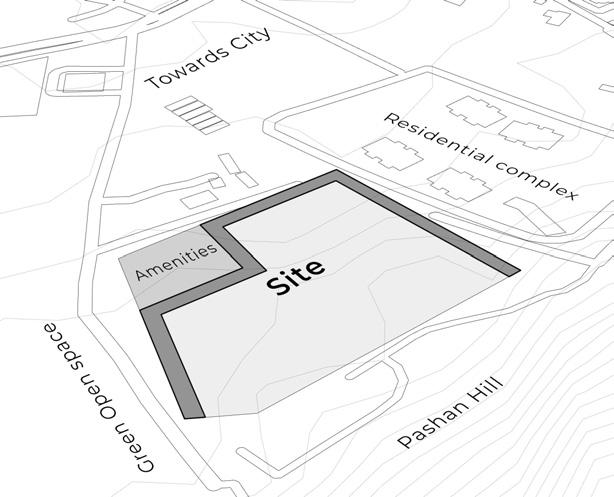

02. Zoning

Public amenities are conveniently situated at the corner for accessibility, while the roads at the rear of the contoured site ensure buildings take precedence at the forefront.

04. Extrusion

The built mass is then extruded into a podium, forming a platform for the buildings on top. It provides a separation between the structures and landscape.

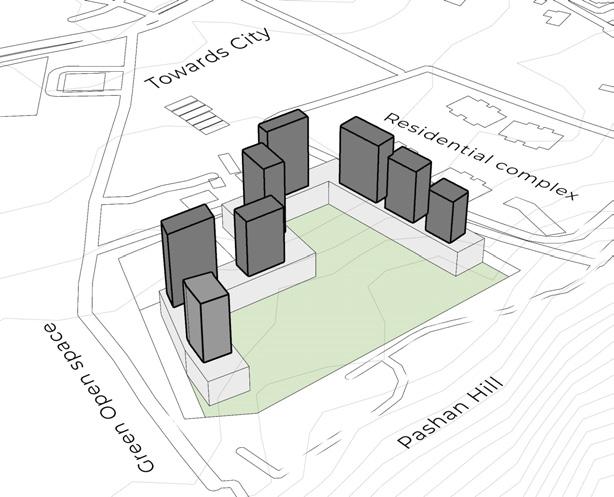

06. Hierarchy

Developing these buildings with varying heights to fulfill different programs creates a sense of hierarchy and architectural interest.

BUILDING A

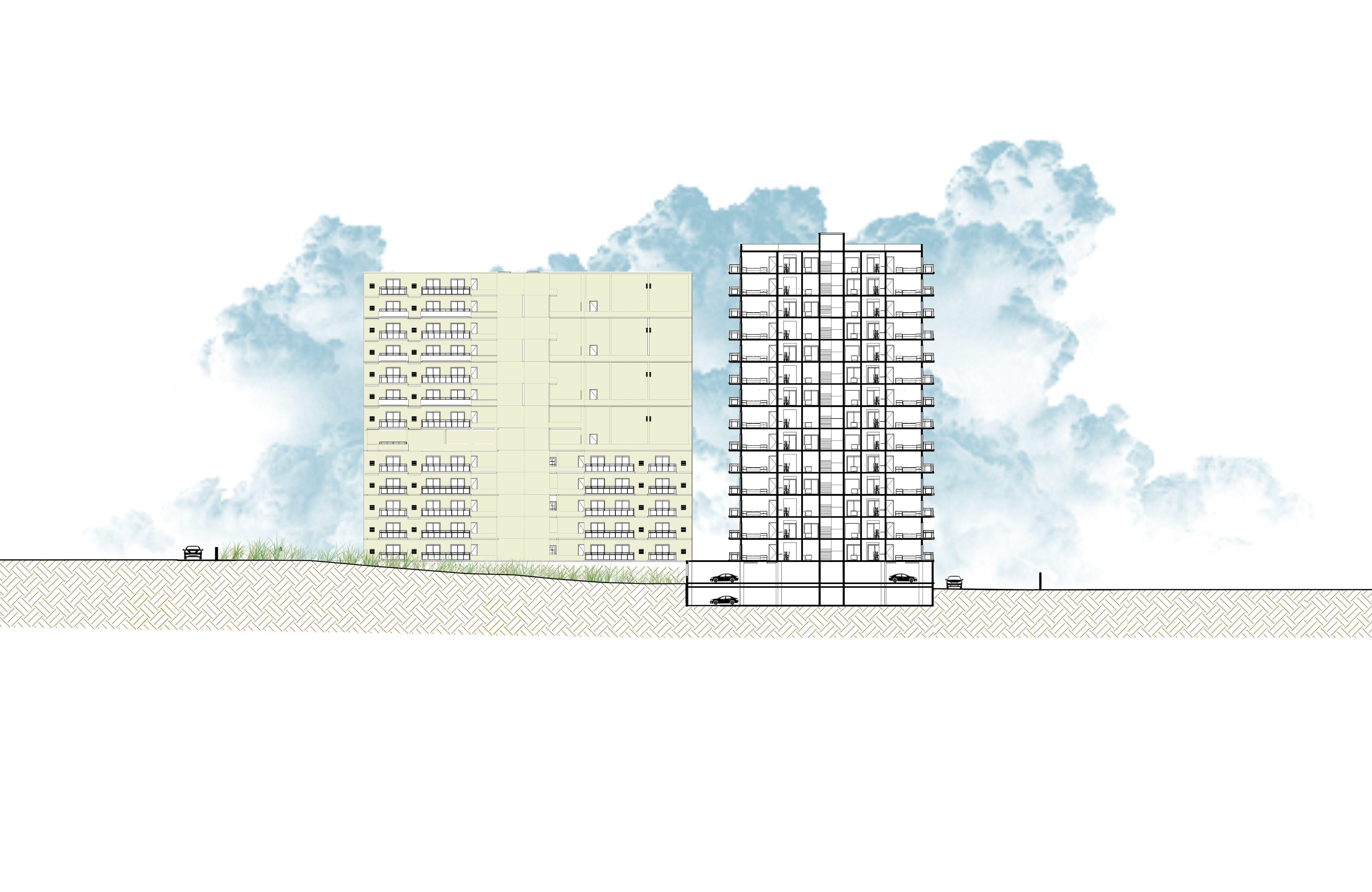

Sectional Elevation AA - Contour development

30’ ROAD 150’

PODIUM + BASEMENT

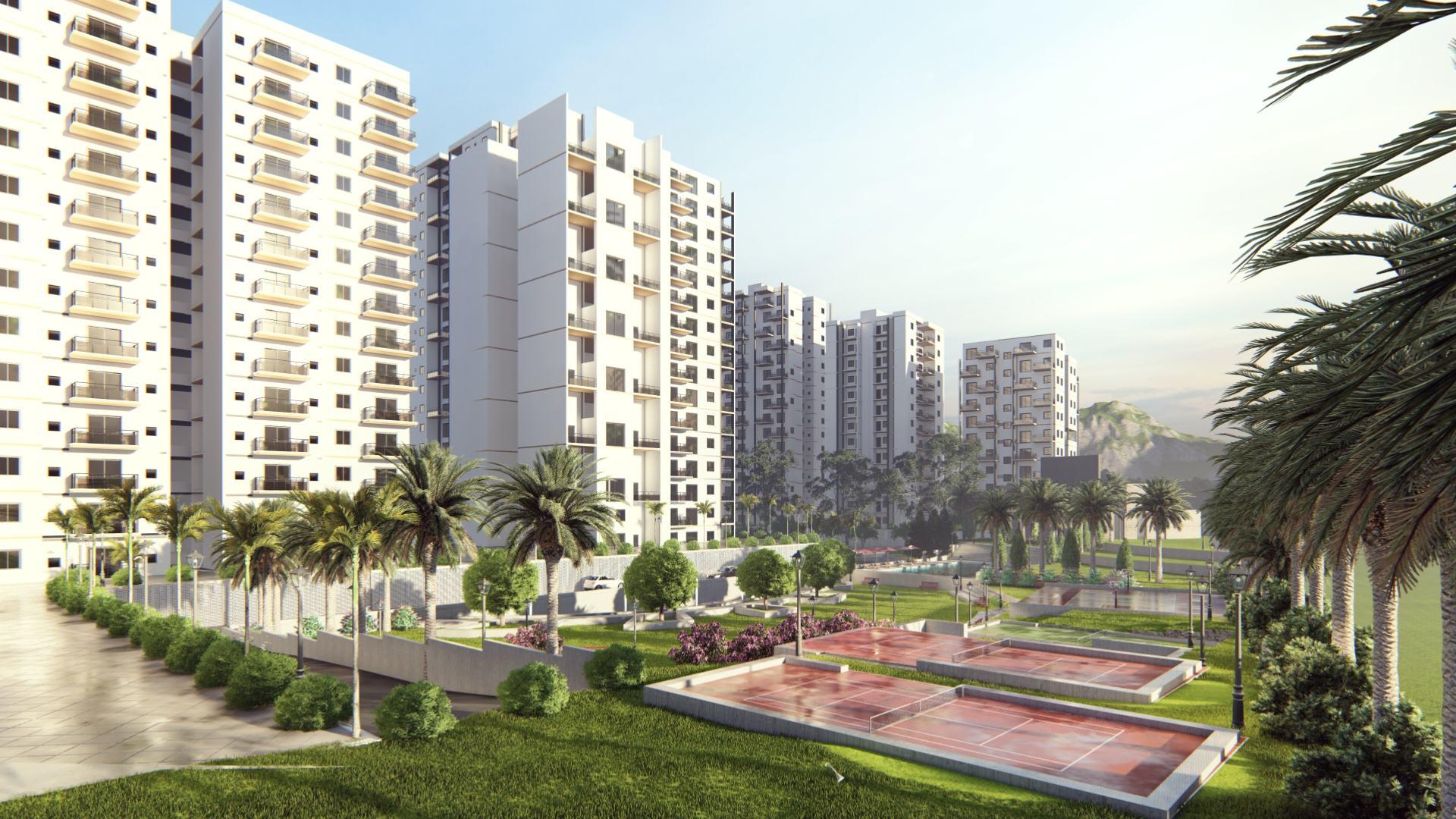

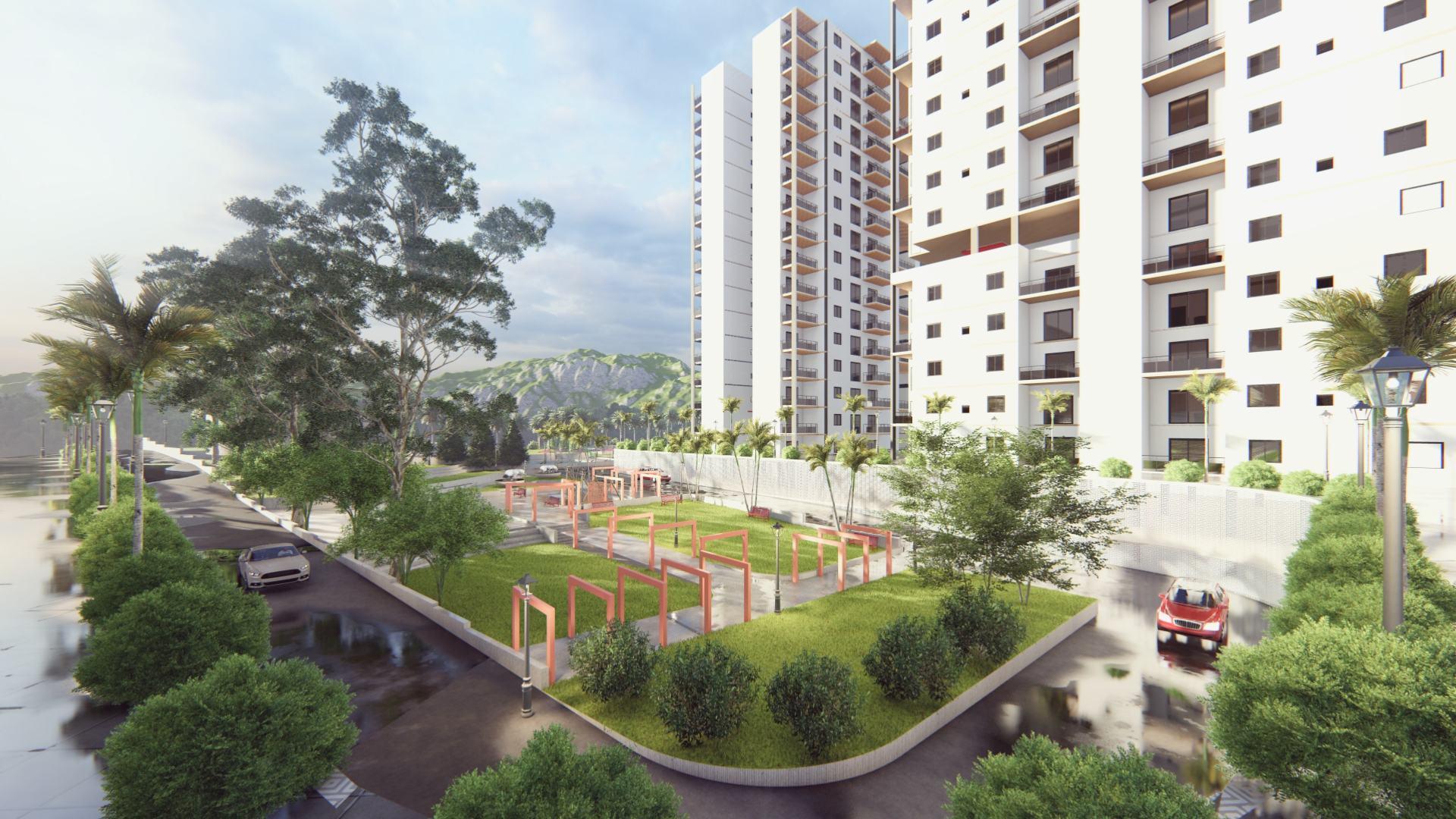

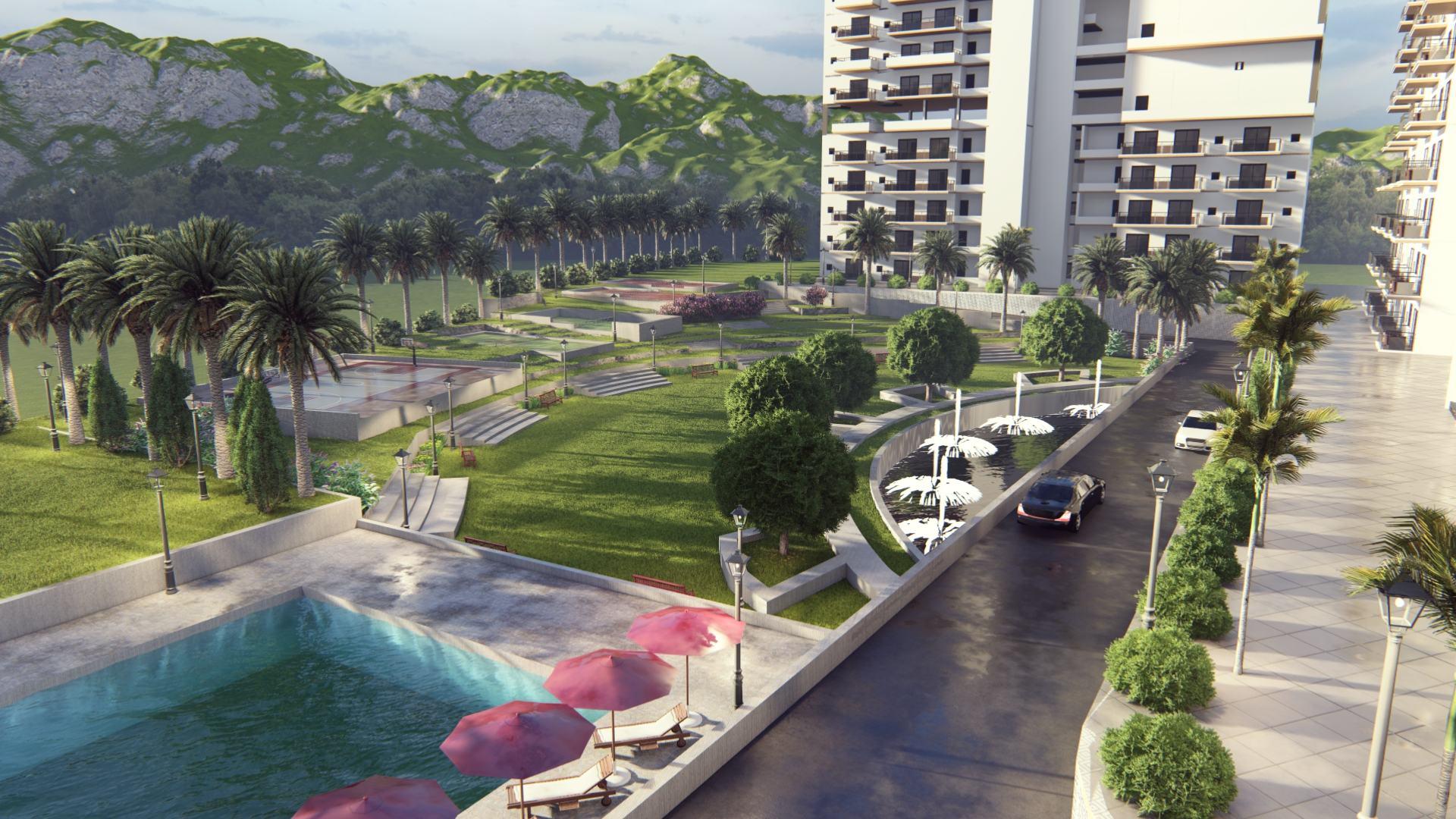

View towards the green-scape

Studio Plan Layout

3BHK Plan Layout

2 Bed Plan Layout

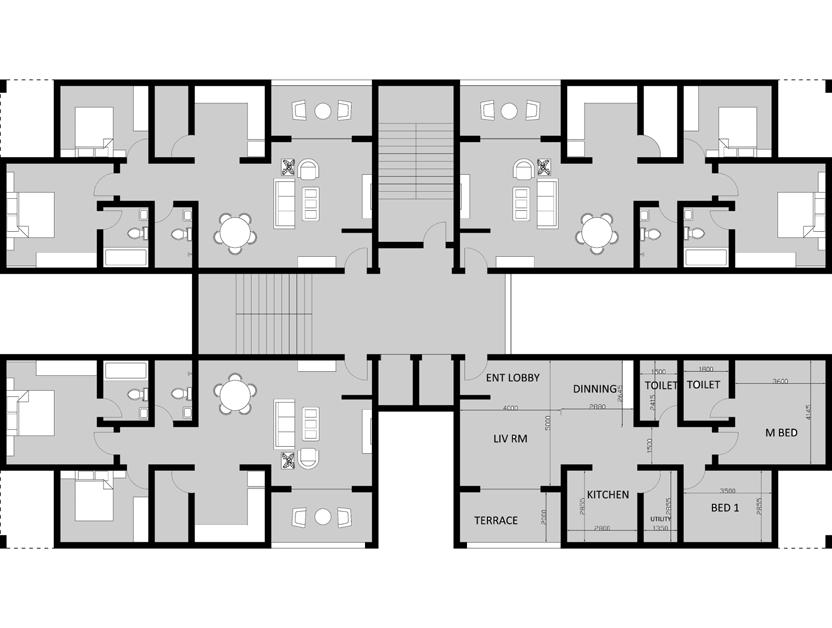

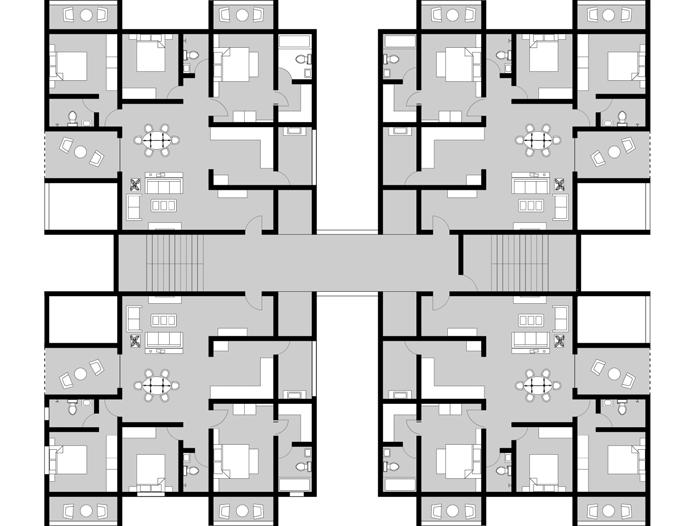

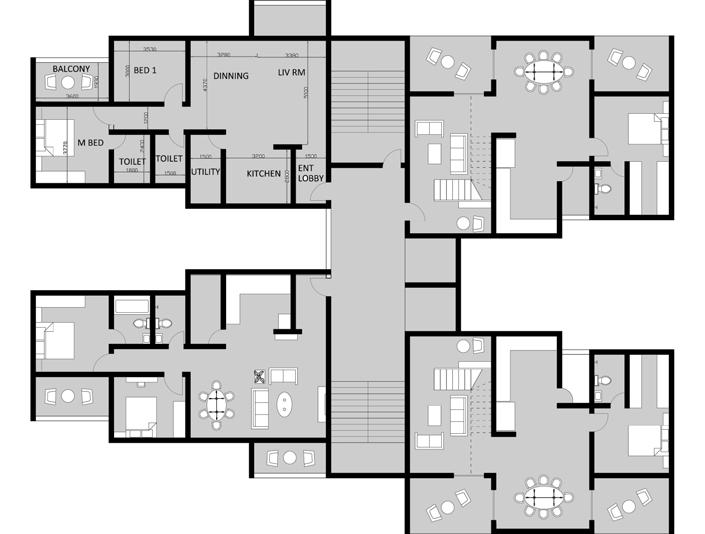

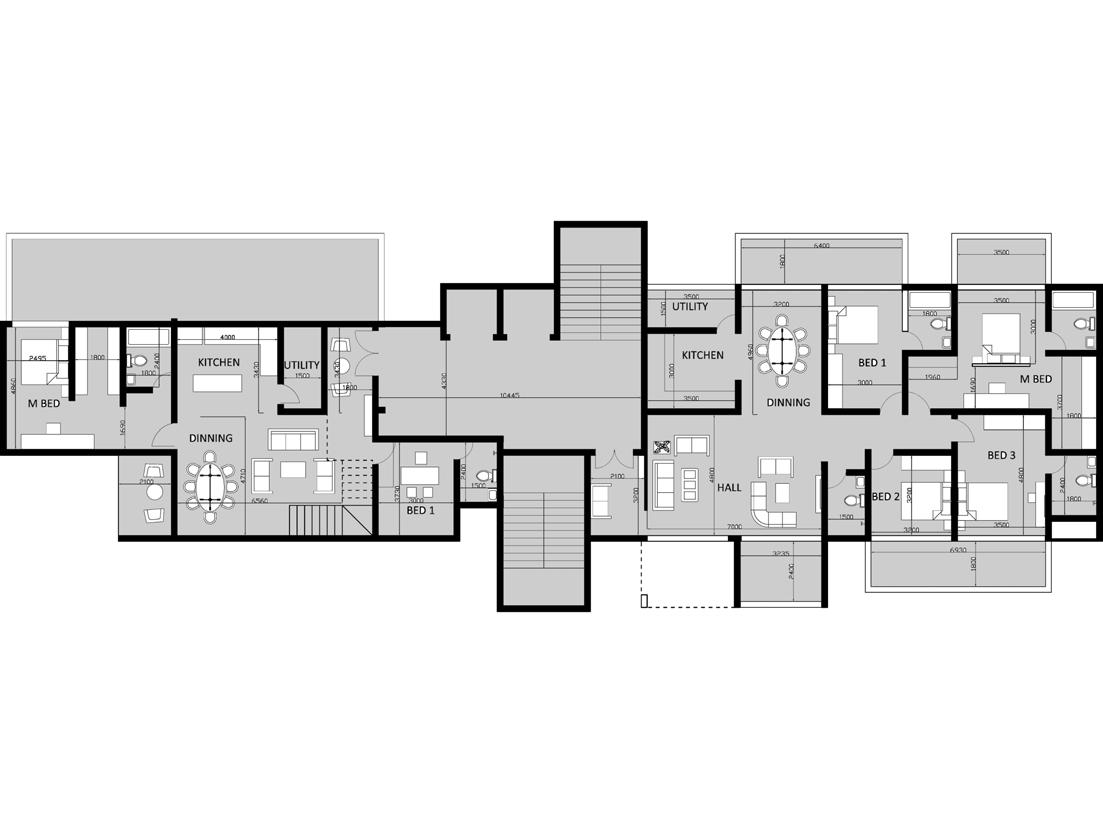

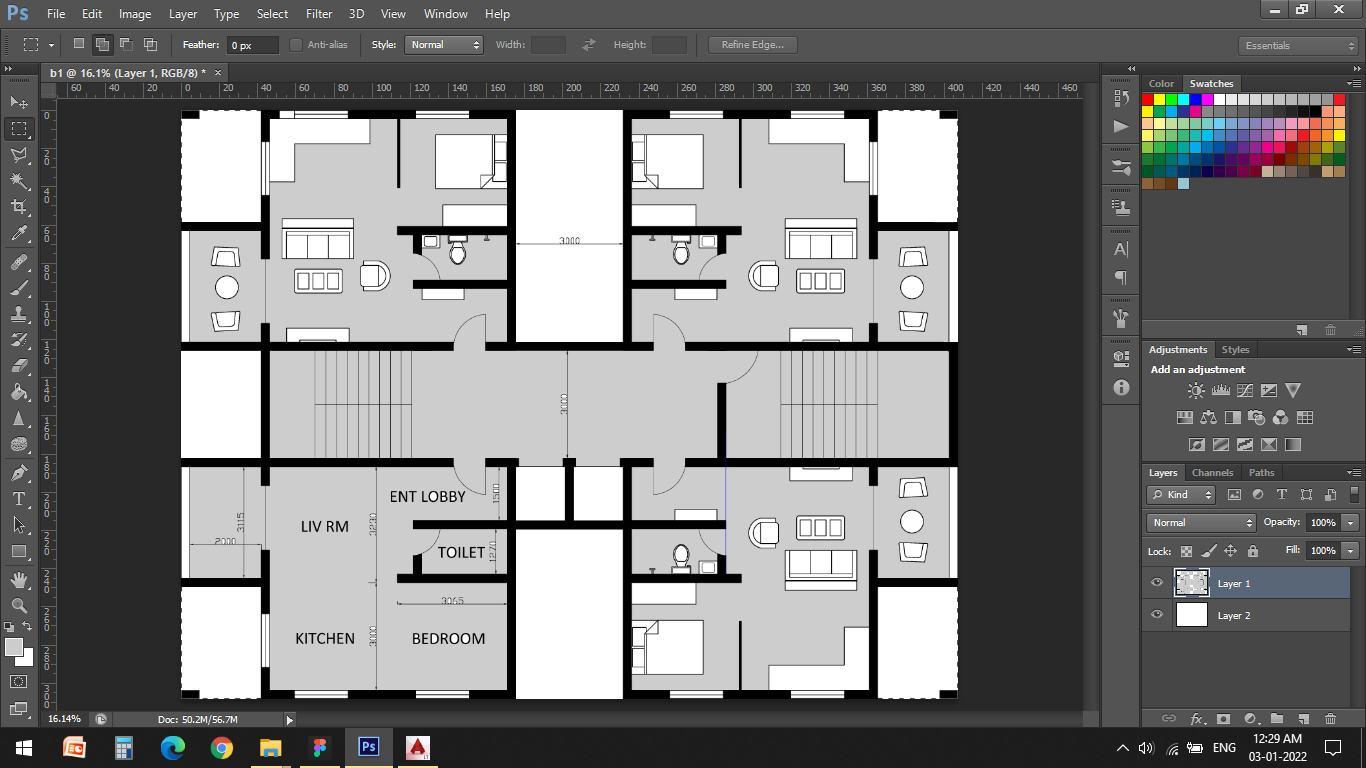

Apartment Layouts

2+3BHK Plan Layout

Section through amphitheatre

Office Design, India

Project Link

Professional Work | Amit Bhat Architects | New Construction

Team Lead : Pravin Rasal (Team of 4)

Total no. of floors - 17

Number of offices - 135

Number of terraces - 8

Building Area - 193,500 Sq Ft

Role :

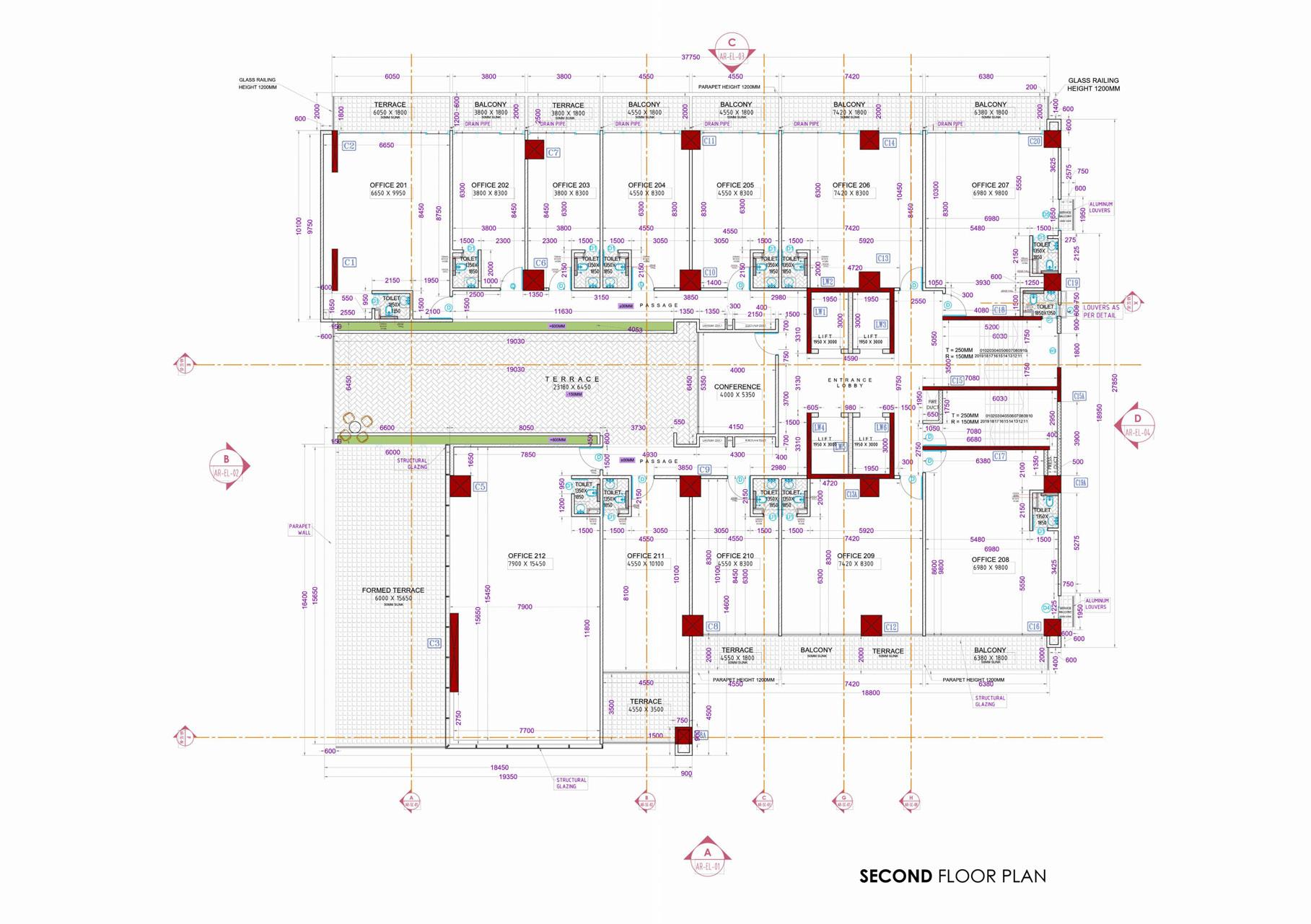

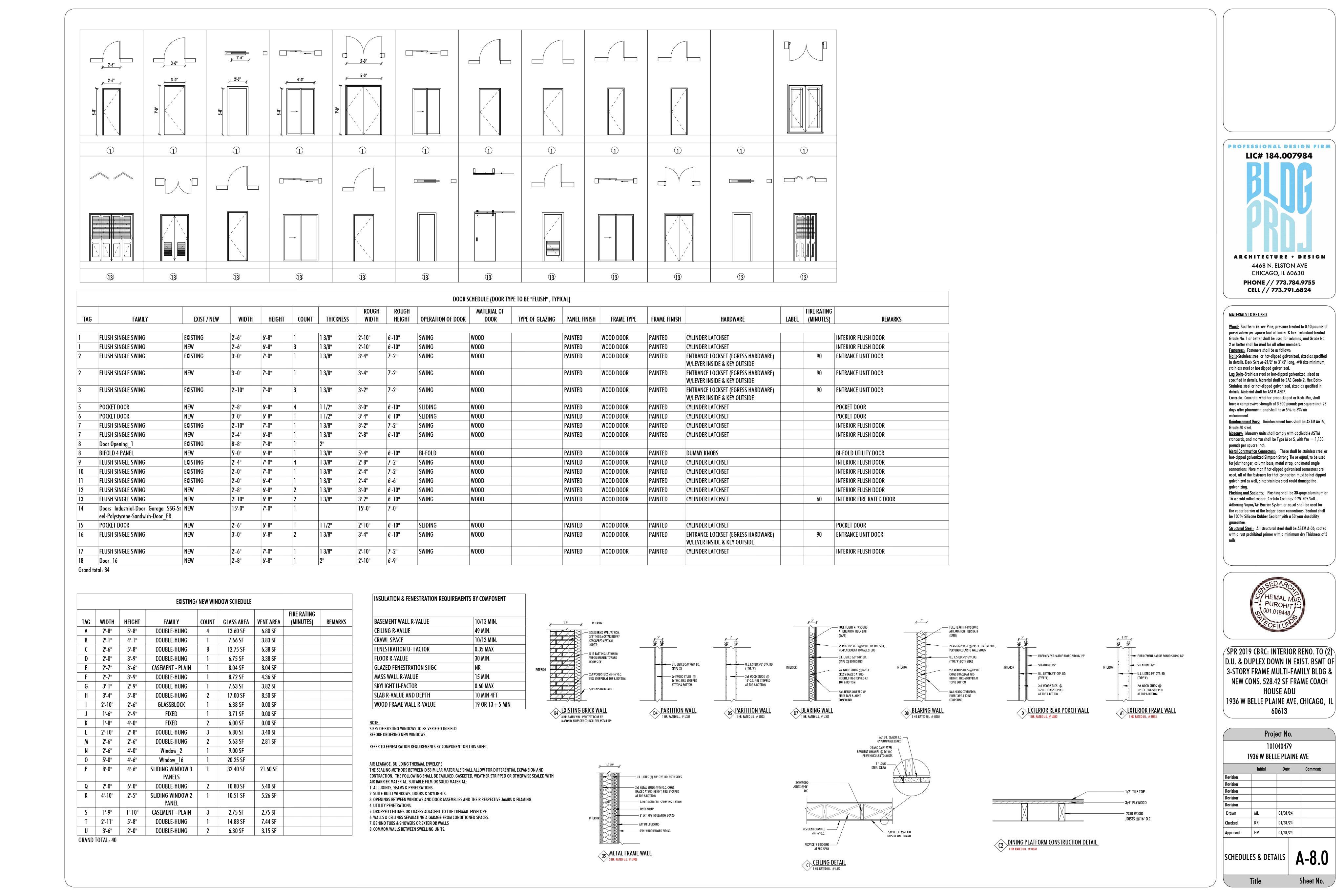

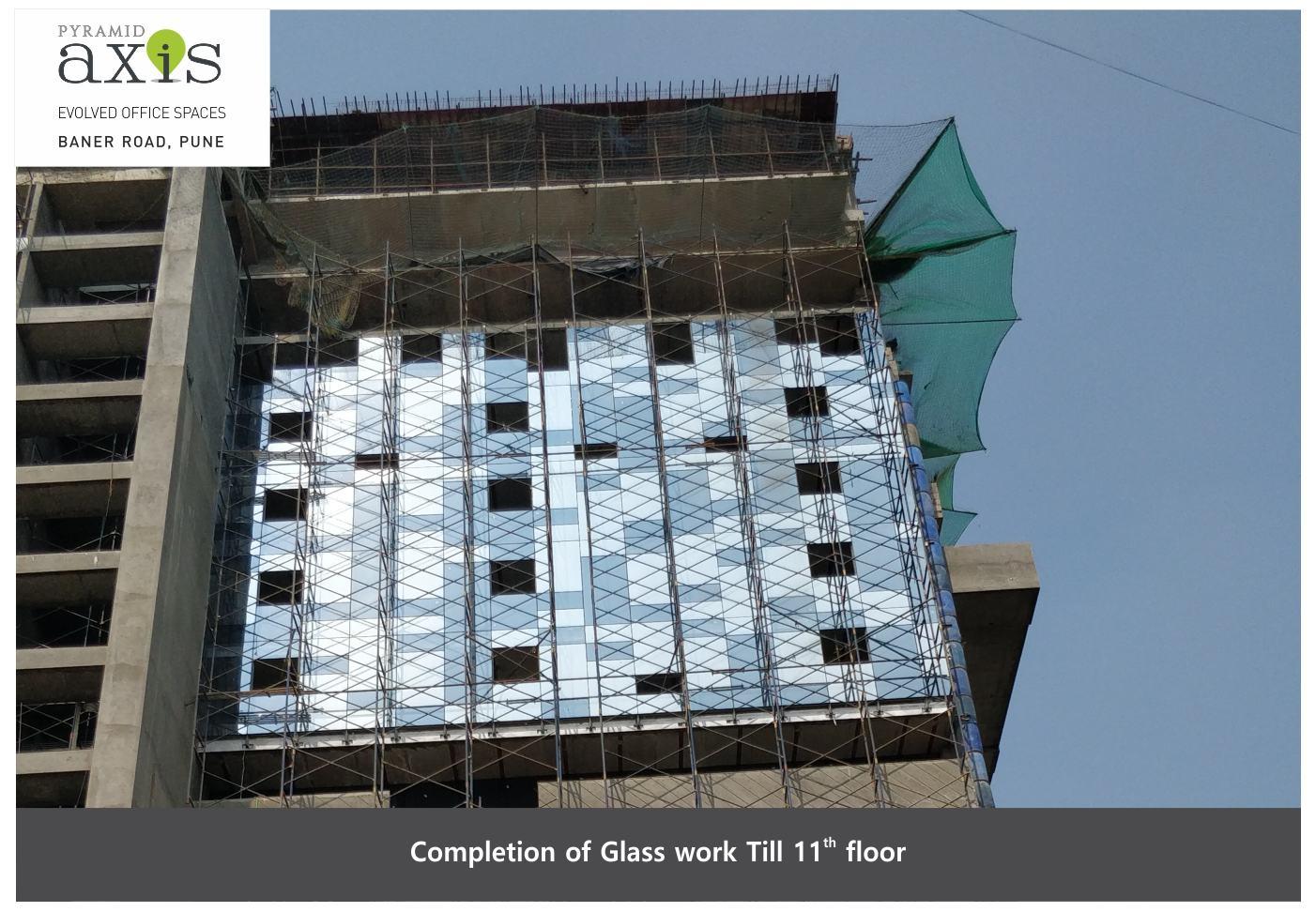

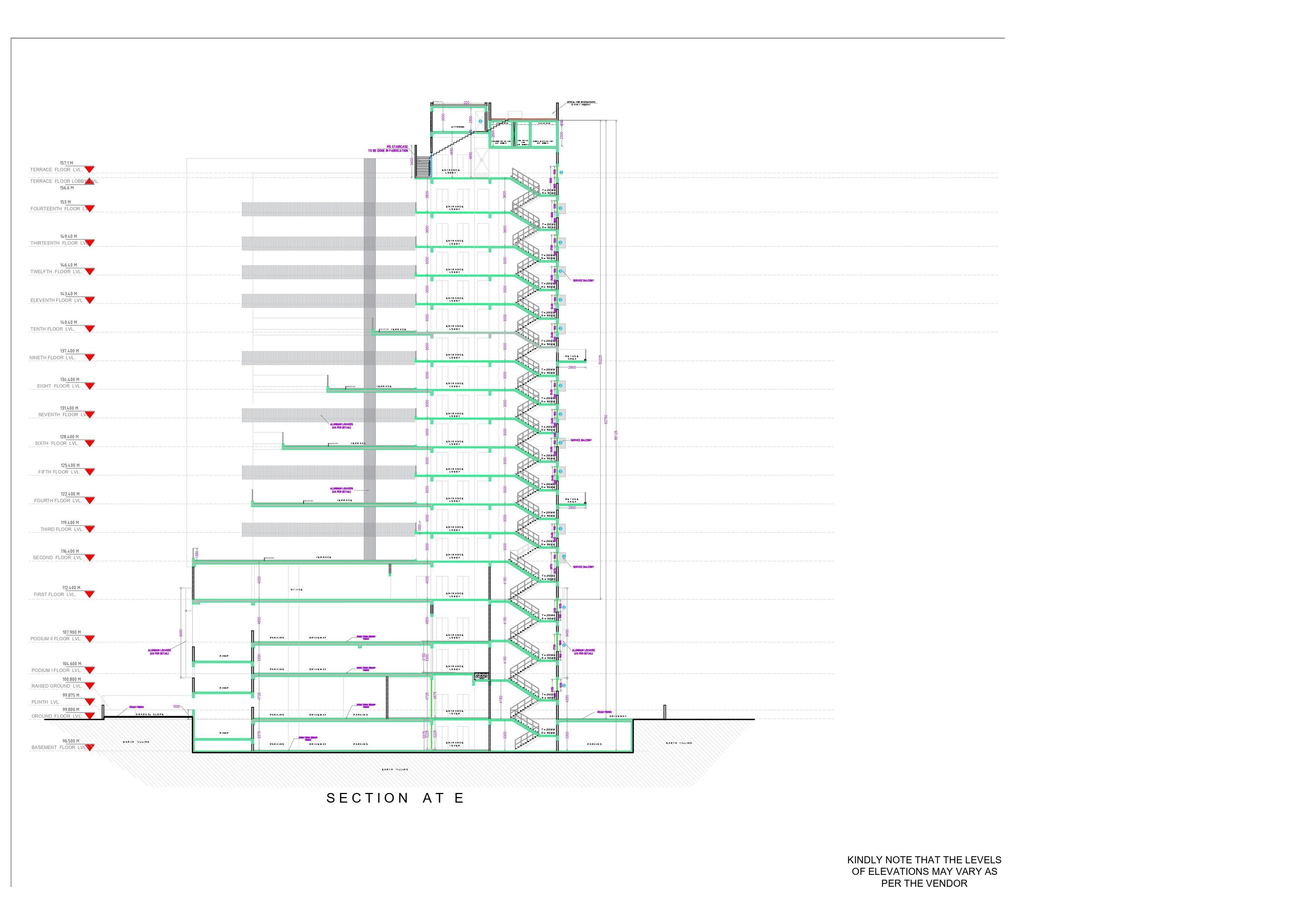

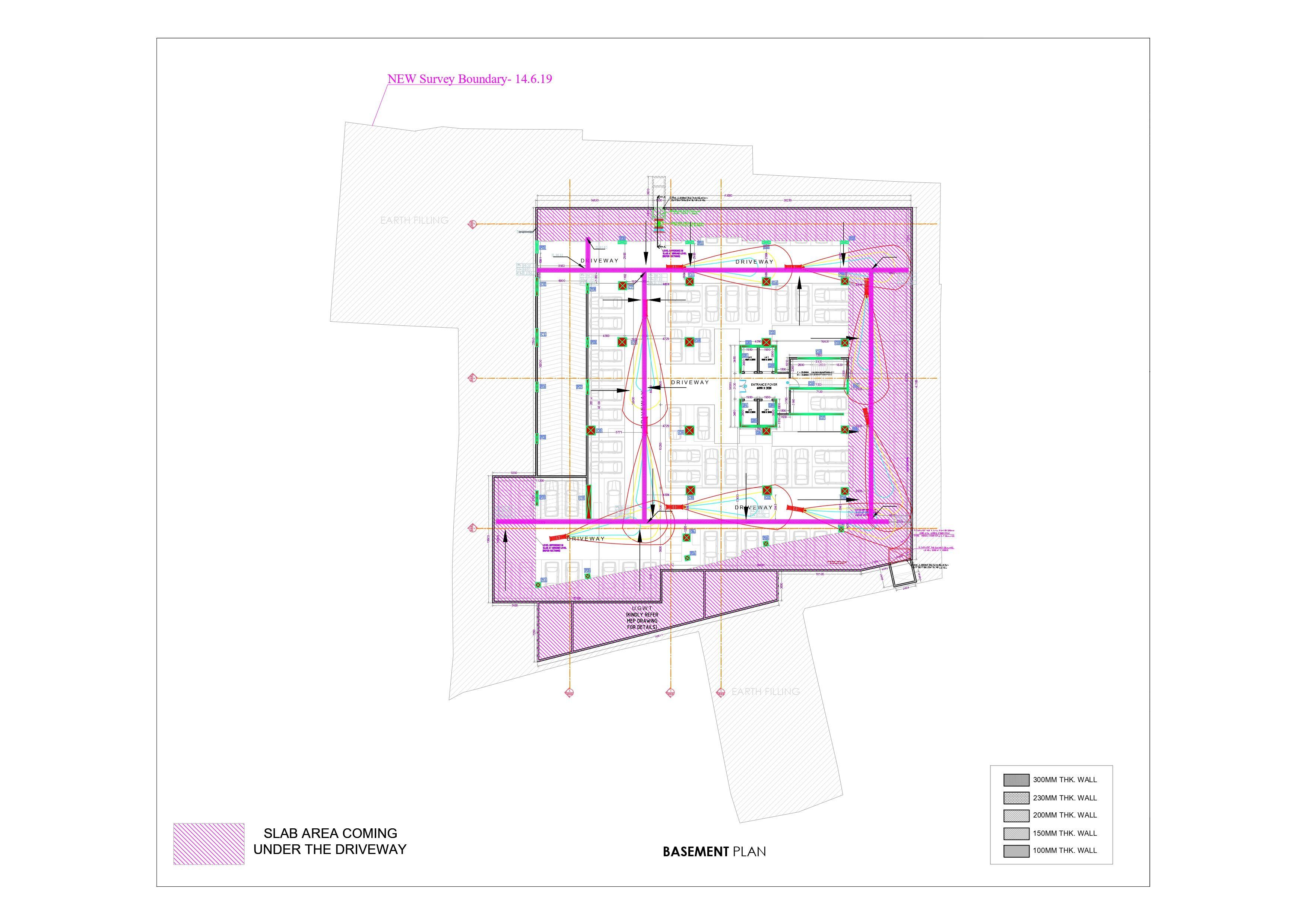

Developed 12 detailed construction drawings, encompassing plan layouts and sections, to provide comprehensive project guidance.

Produced mechanical and electrical details for 5 office floors, seamlessly integrating inputs from various consultants.

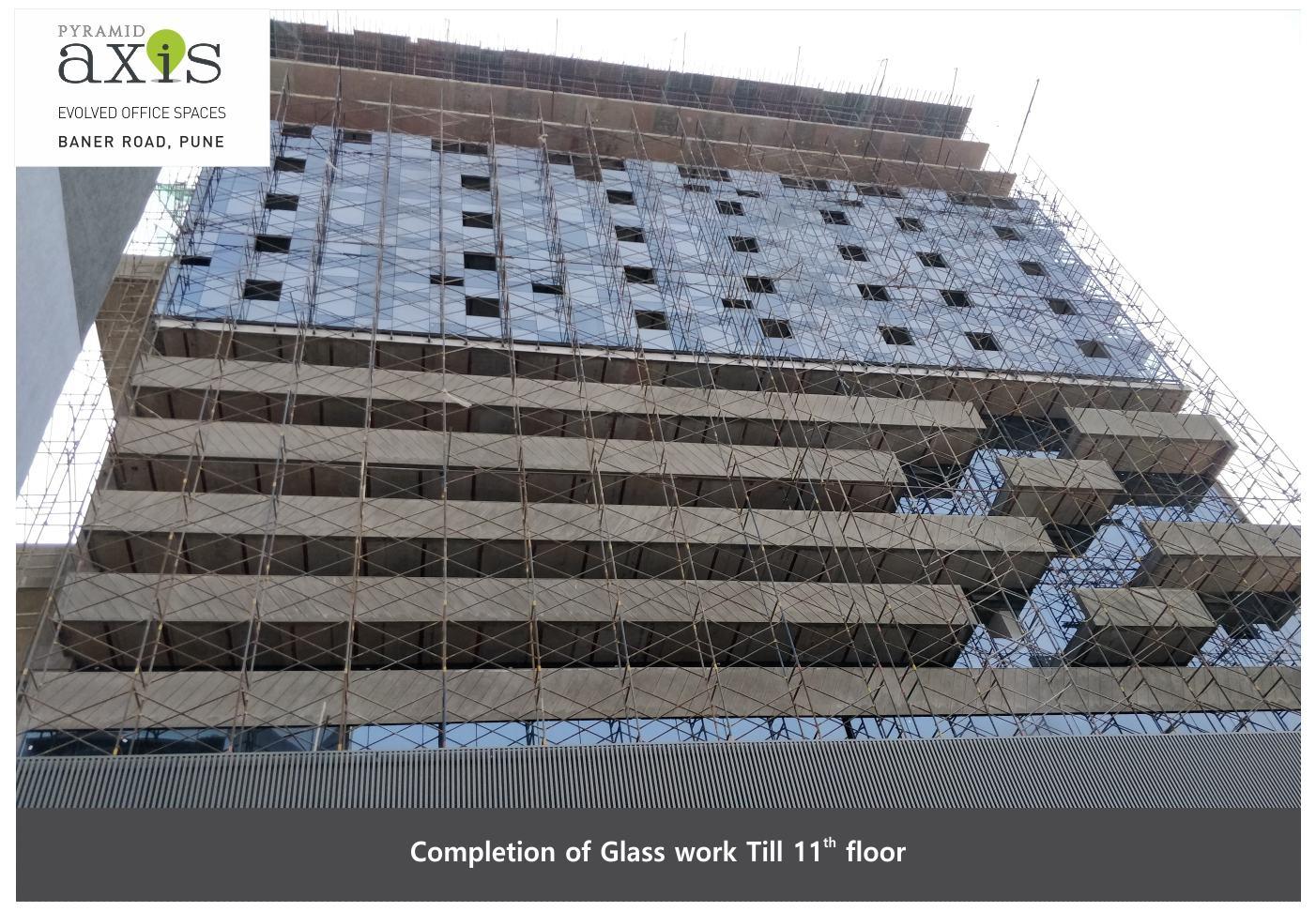

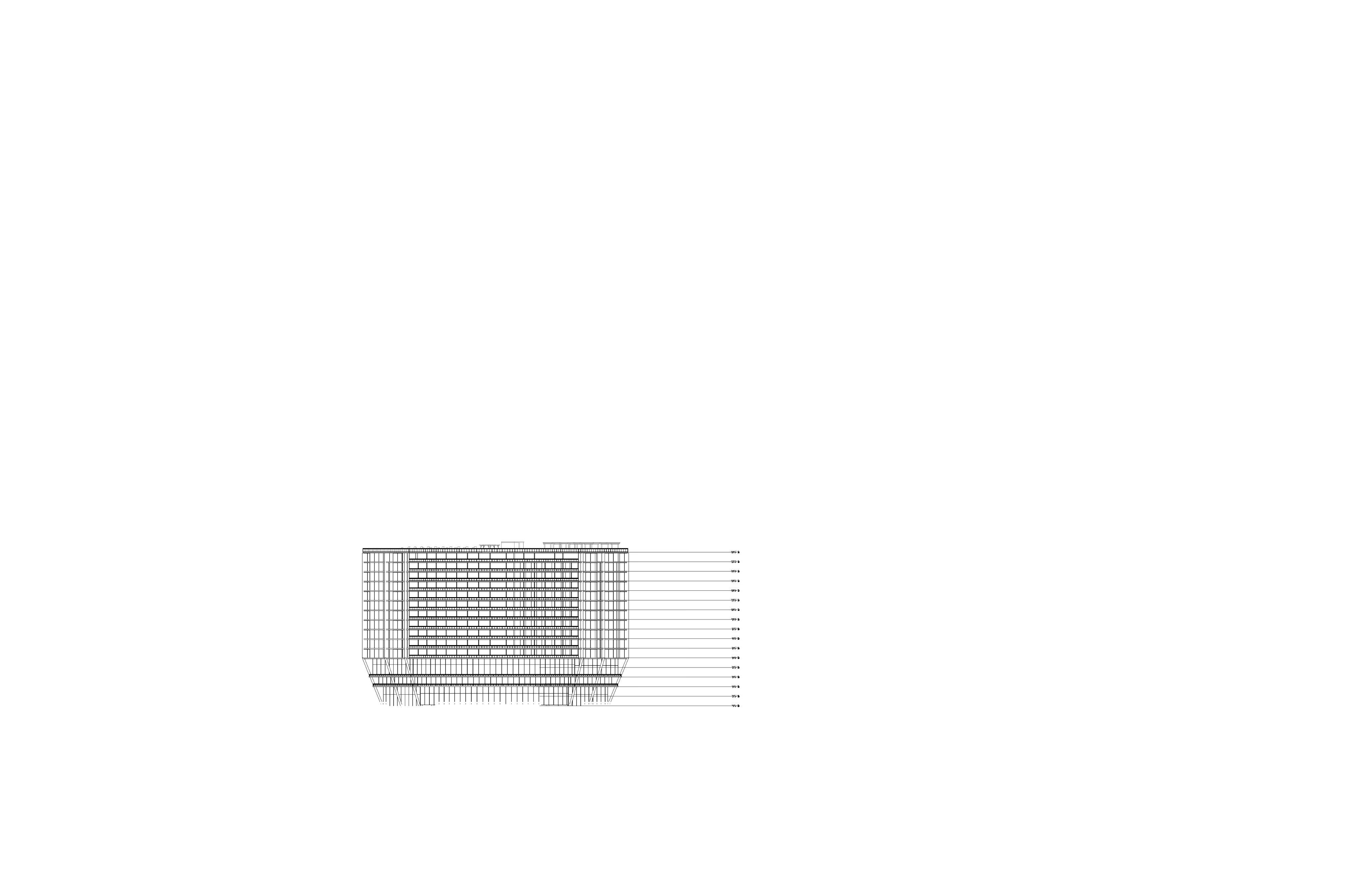

Worked on site elevations to accurately reflect updated facade designs.

Updated architectural drawings promptly to effectively incorporate on-site modifications.

Software used : Autocad, Sketchup, Lumion, Vray, Photoshop

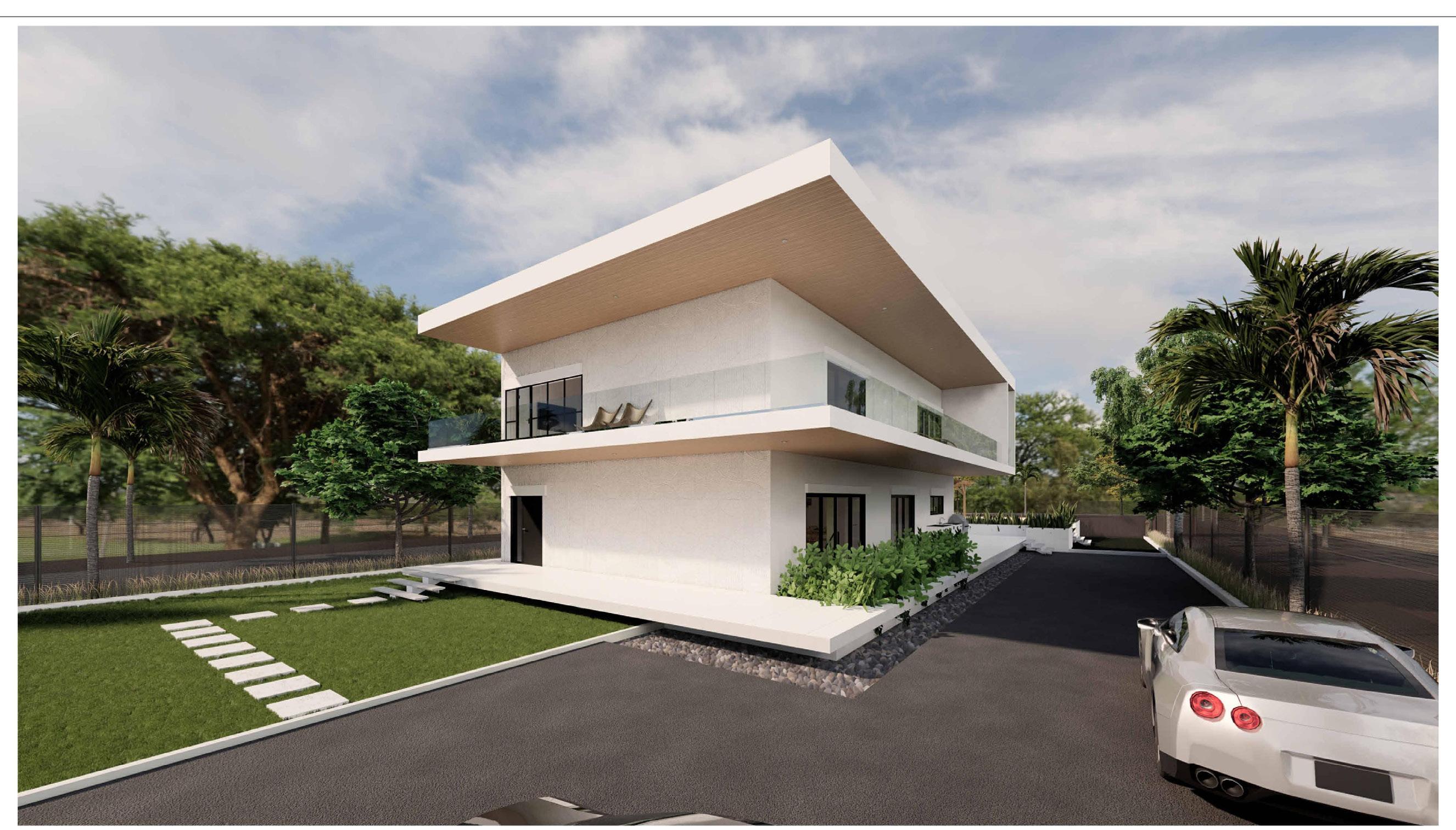

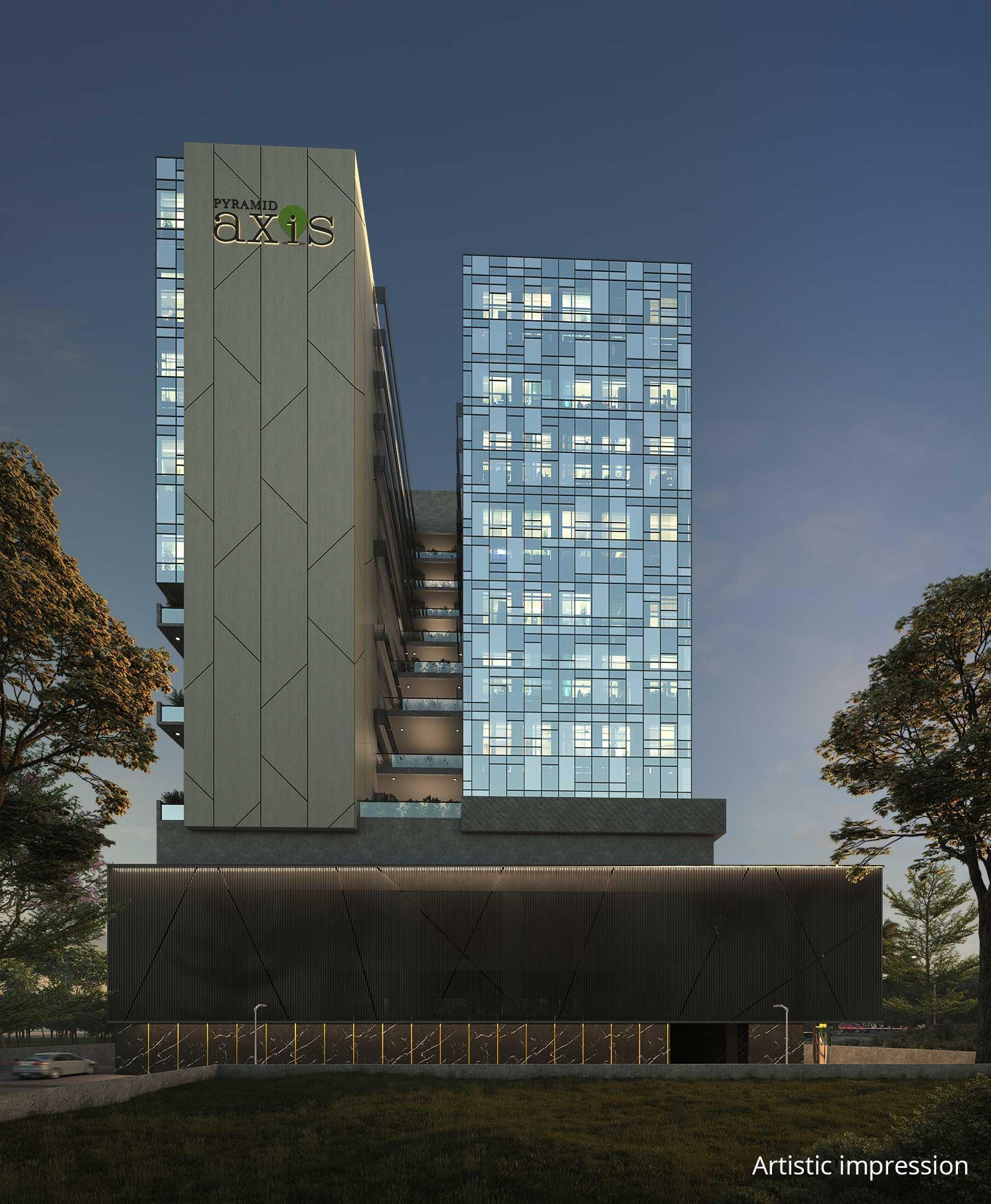

Rendered image

Dwelling Design, Chicago

Professional Work | BLDG Projects | Renovation

Lead Designer : Manali Londhe

Drawings approval : Katmerka Ramic (Principal)

Technical assistance : Nikola Milasinovic

Tolulope yeniyi

Role:

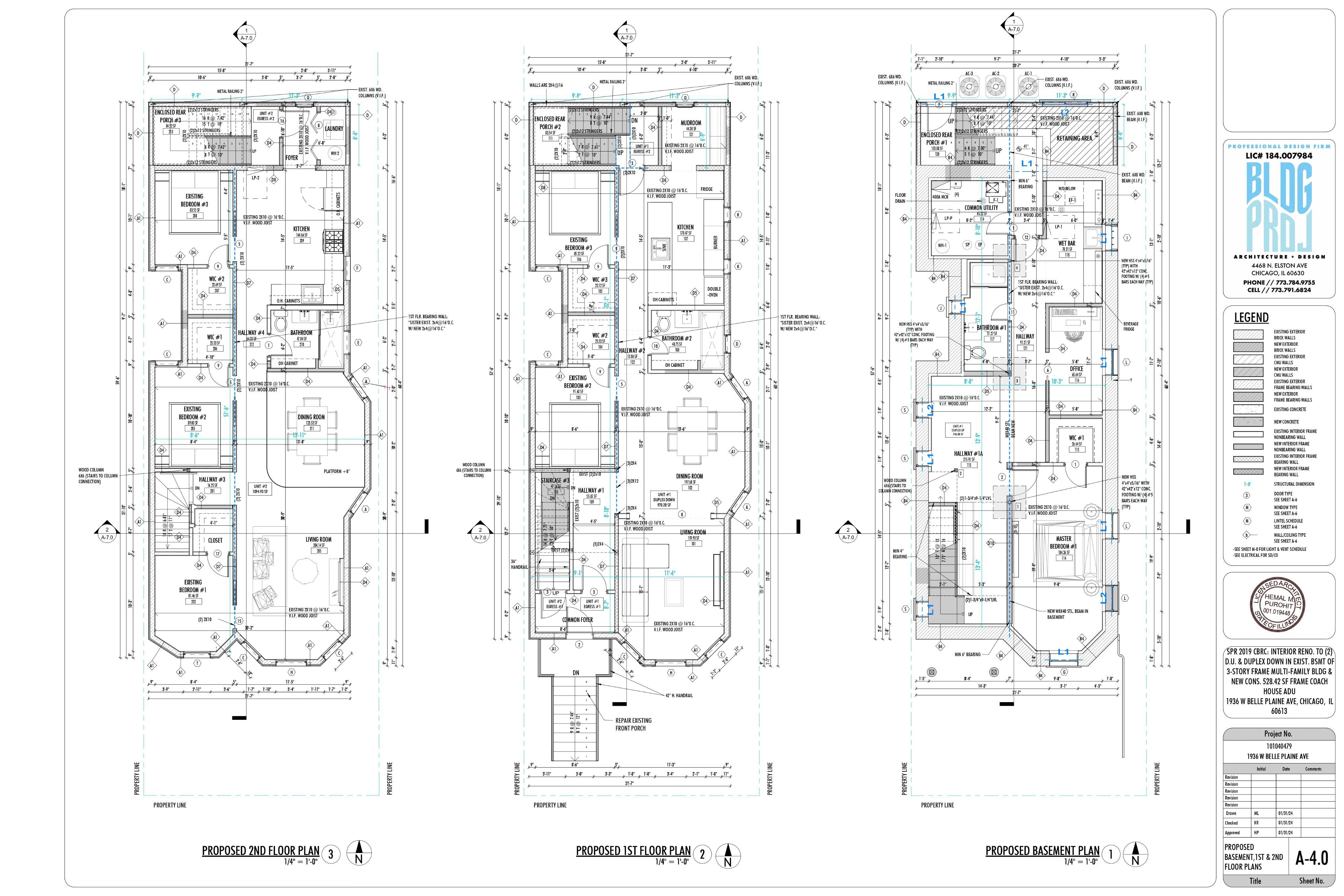

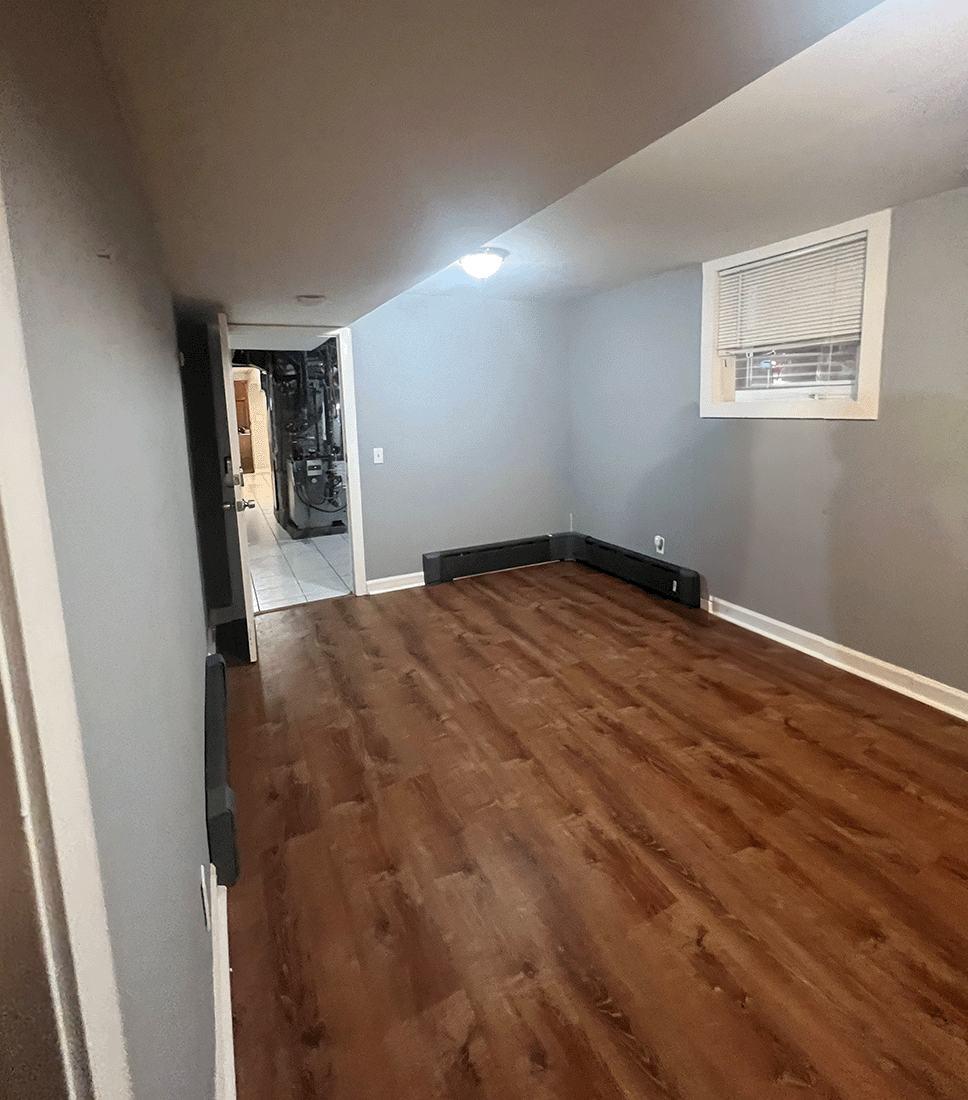

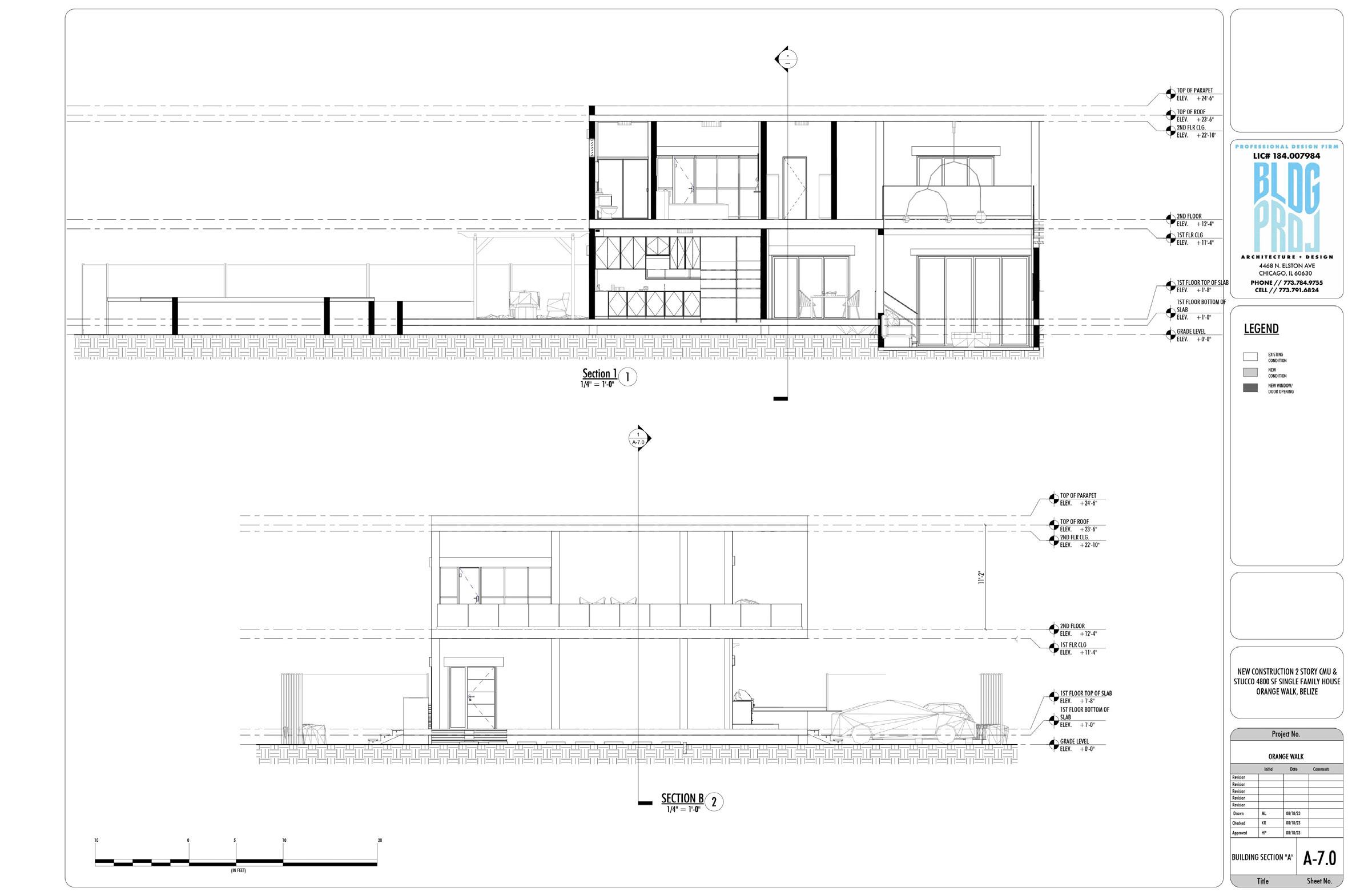

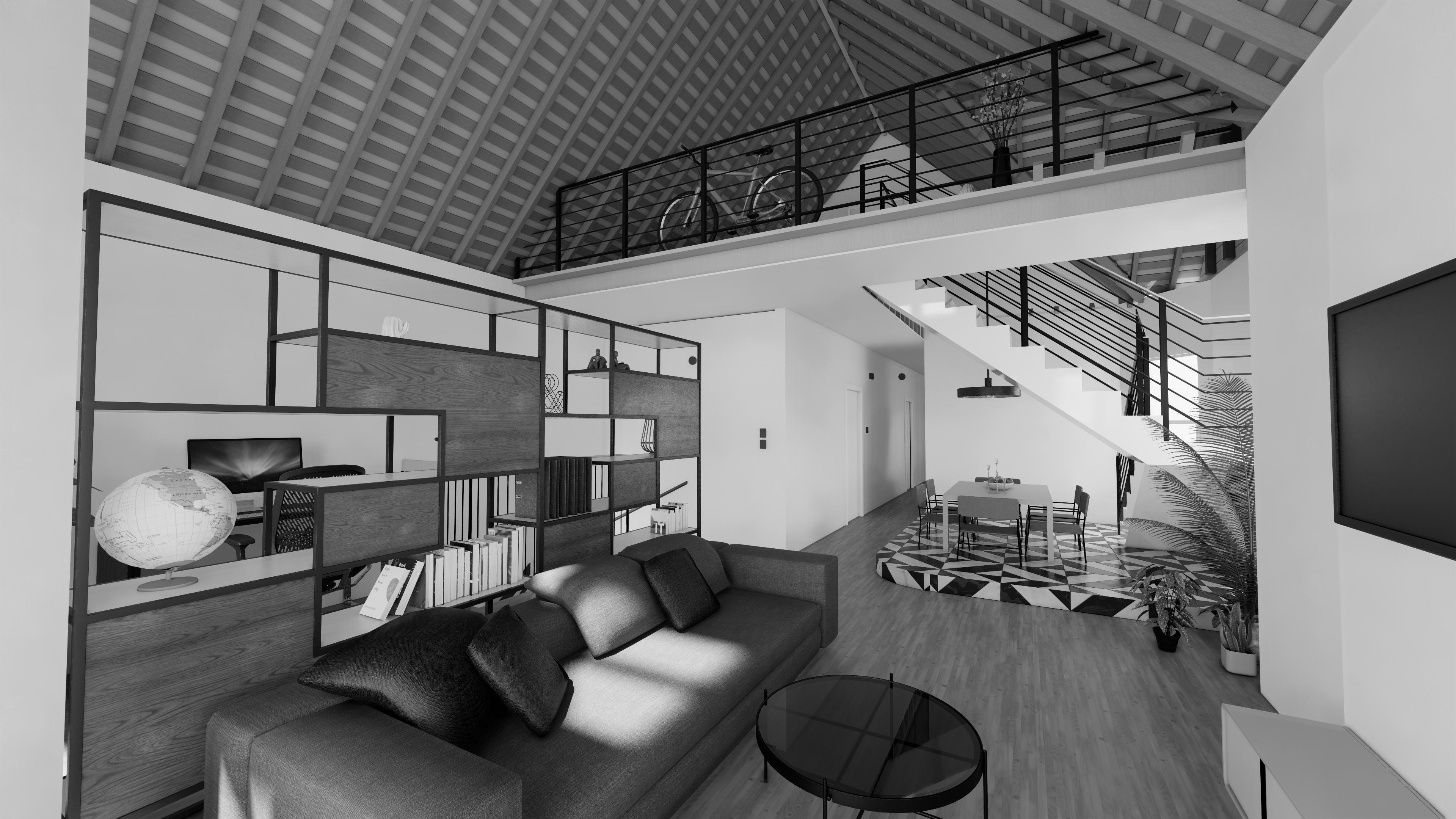

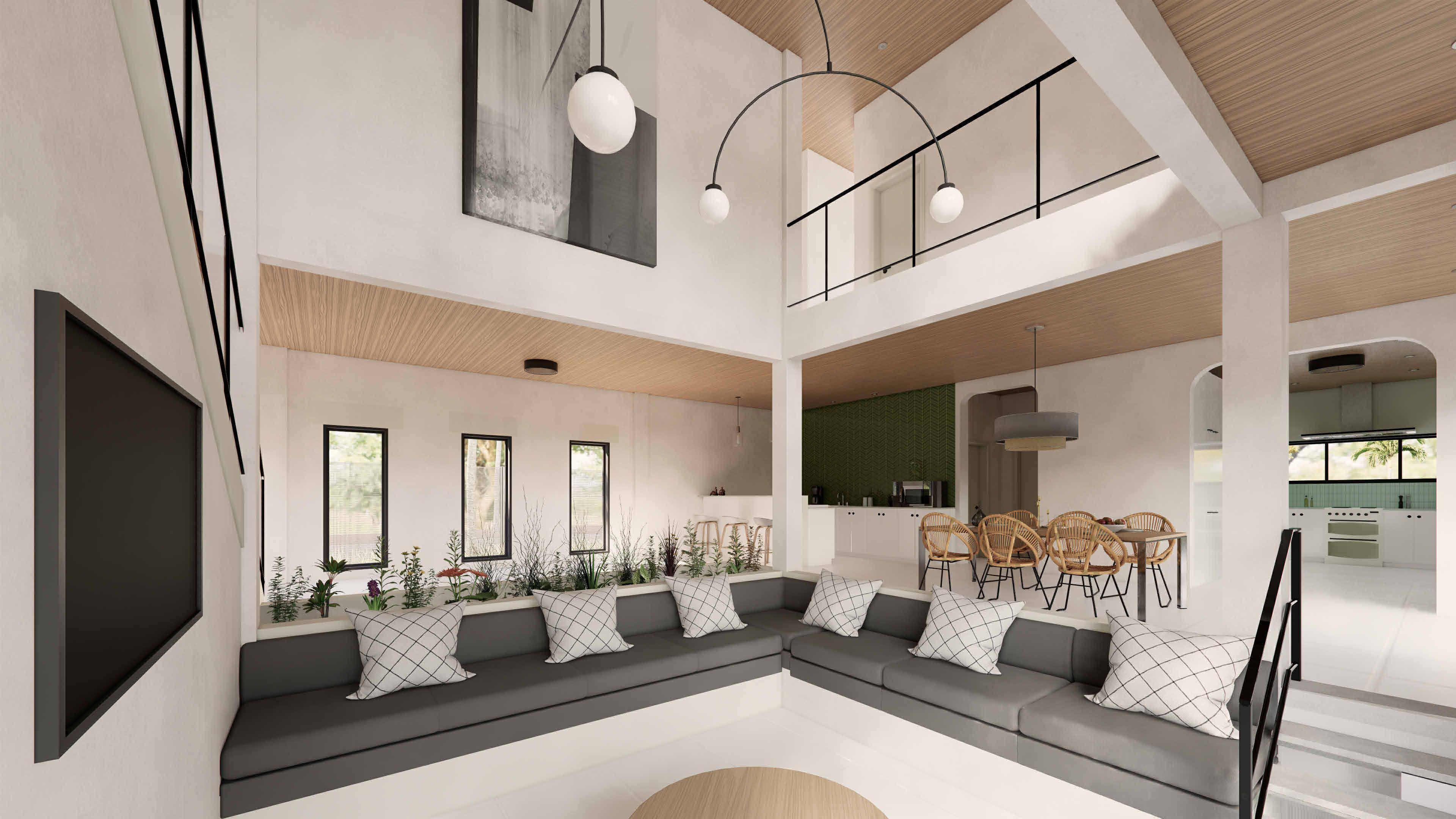

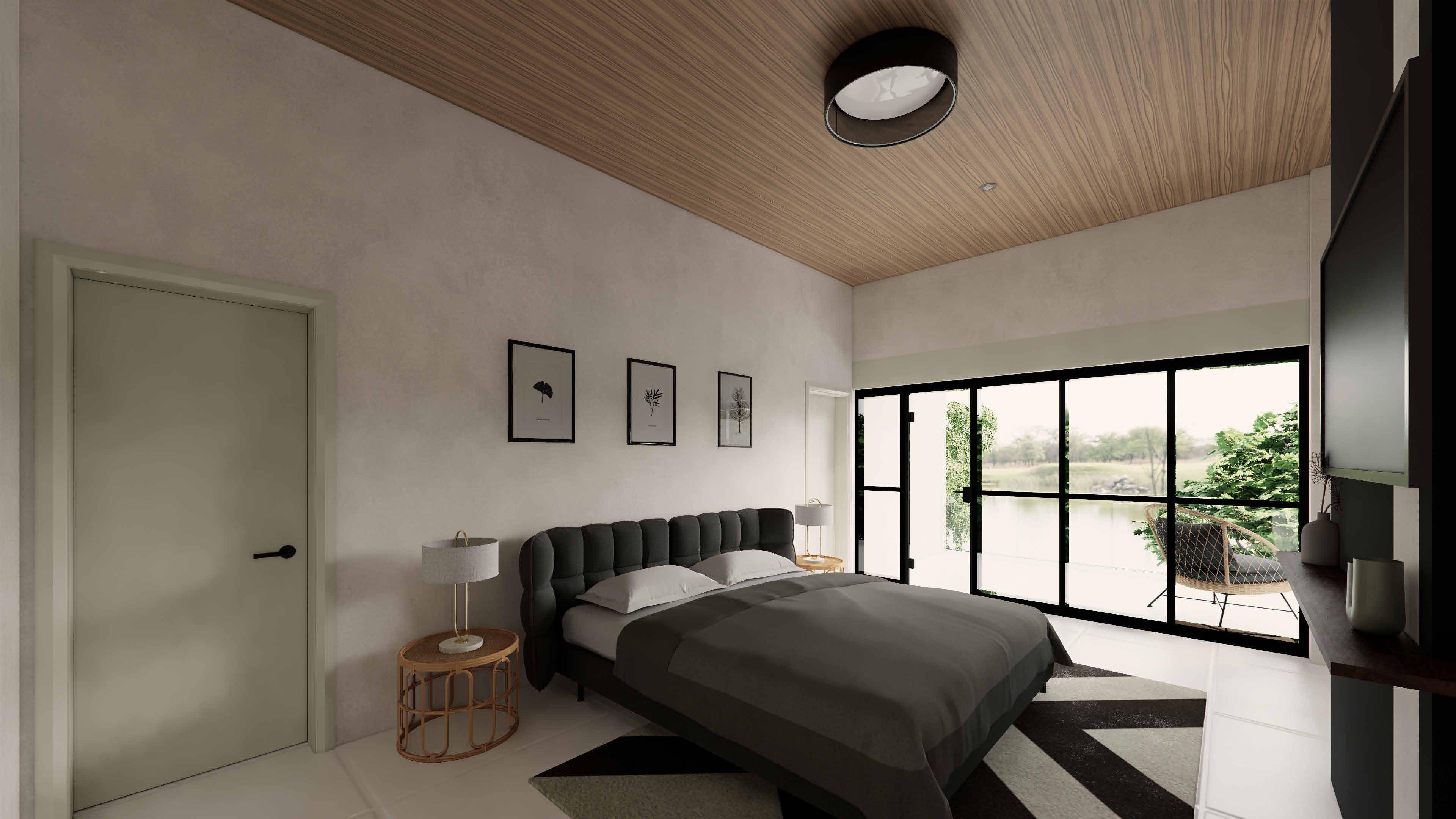

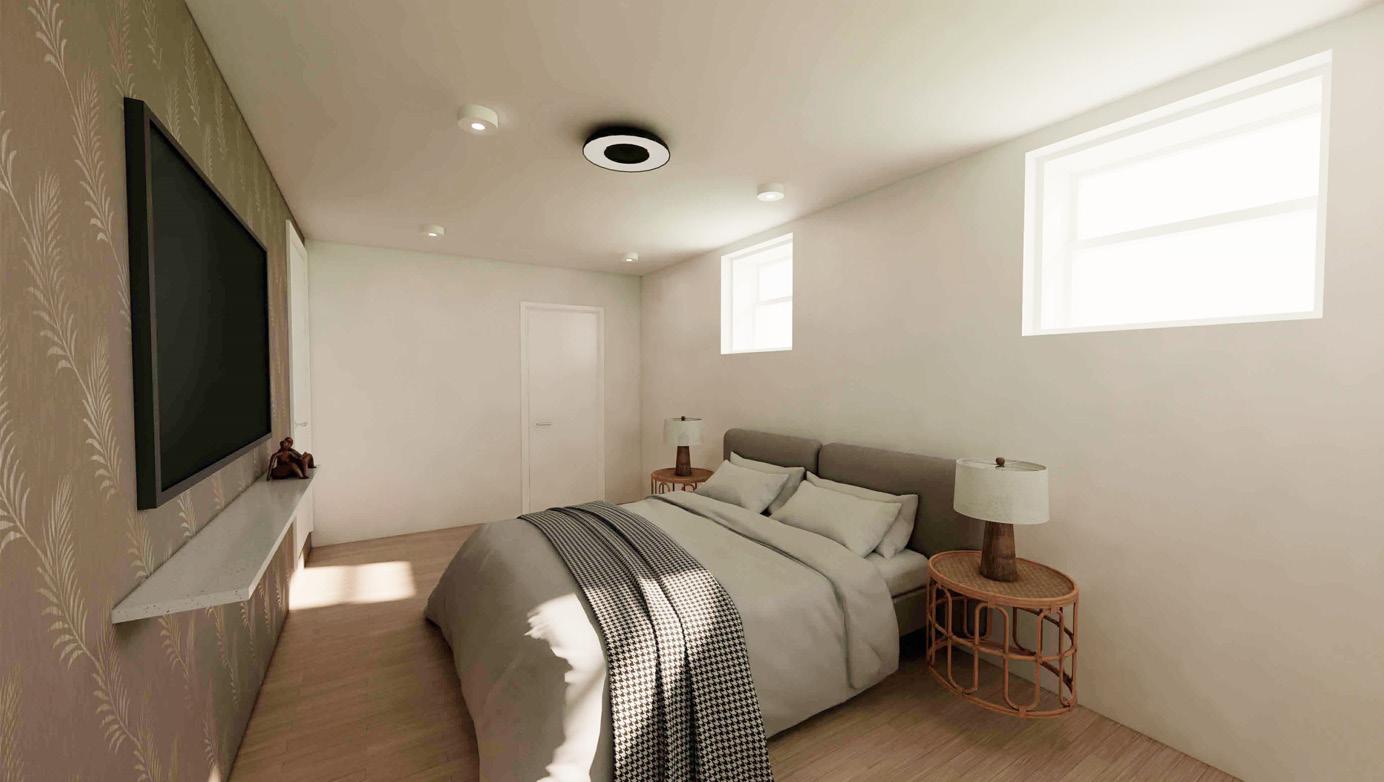

Designed a duplex unit within a 4000 sqft house, ensuring compliance to building codes and permit submissions.

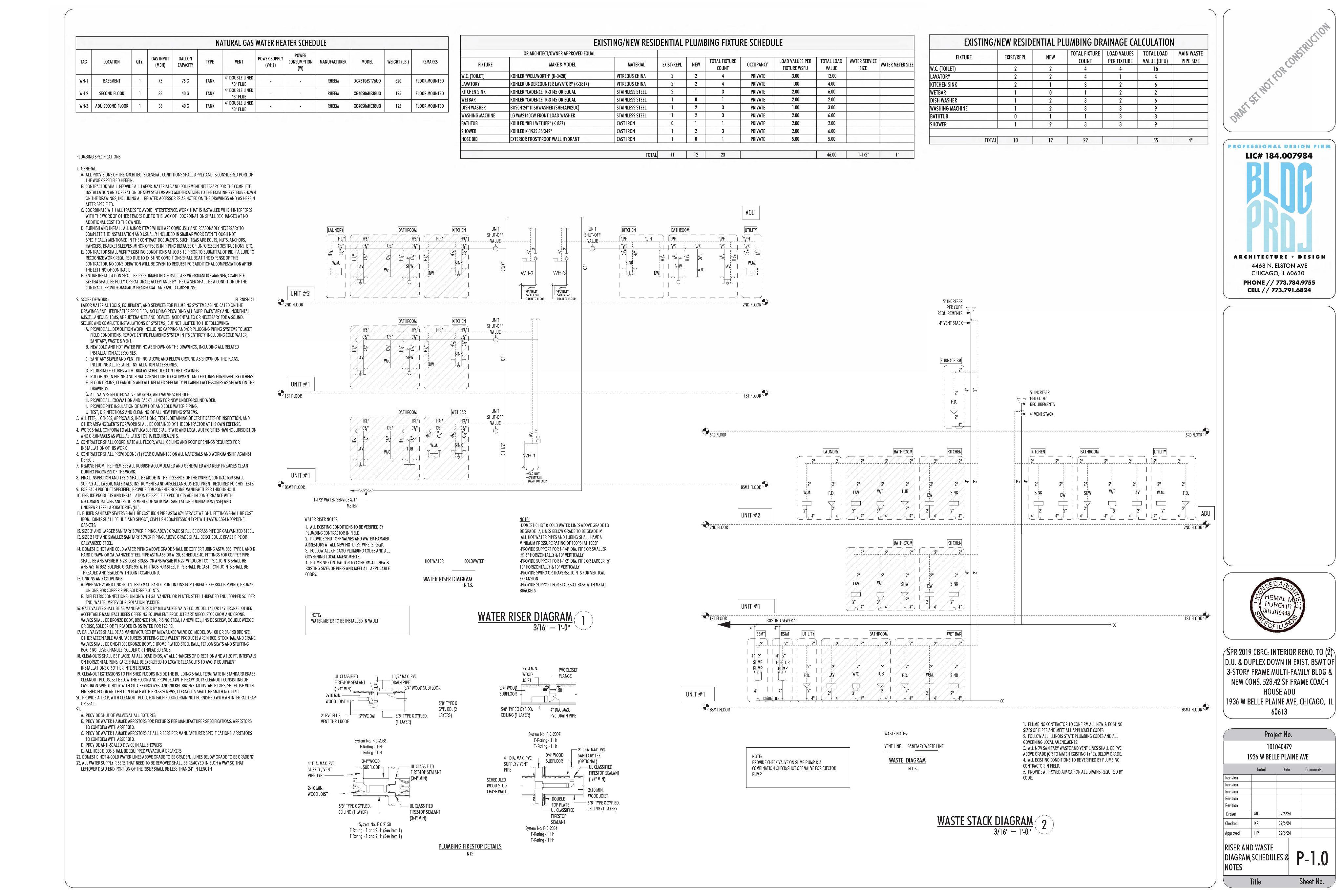

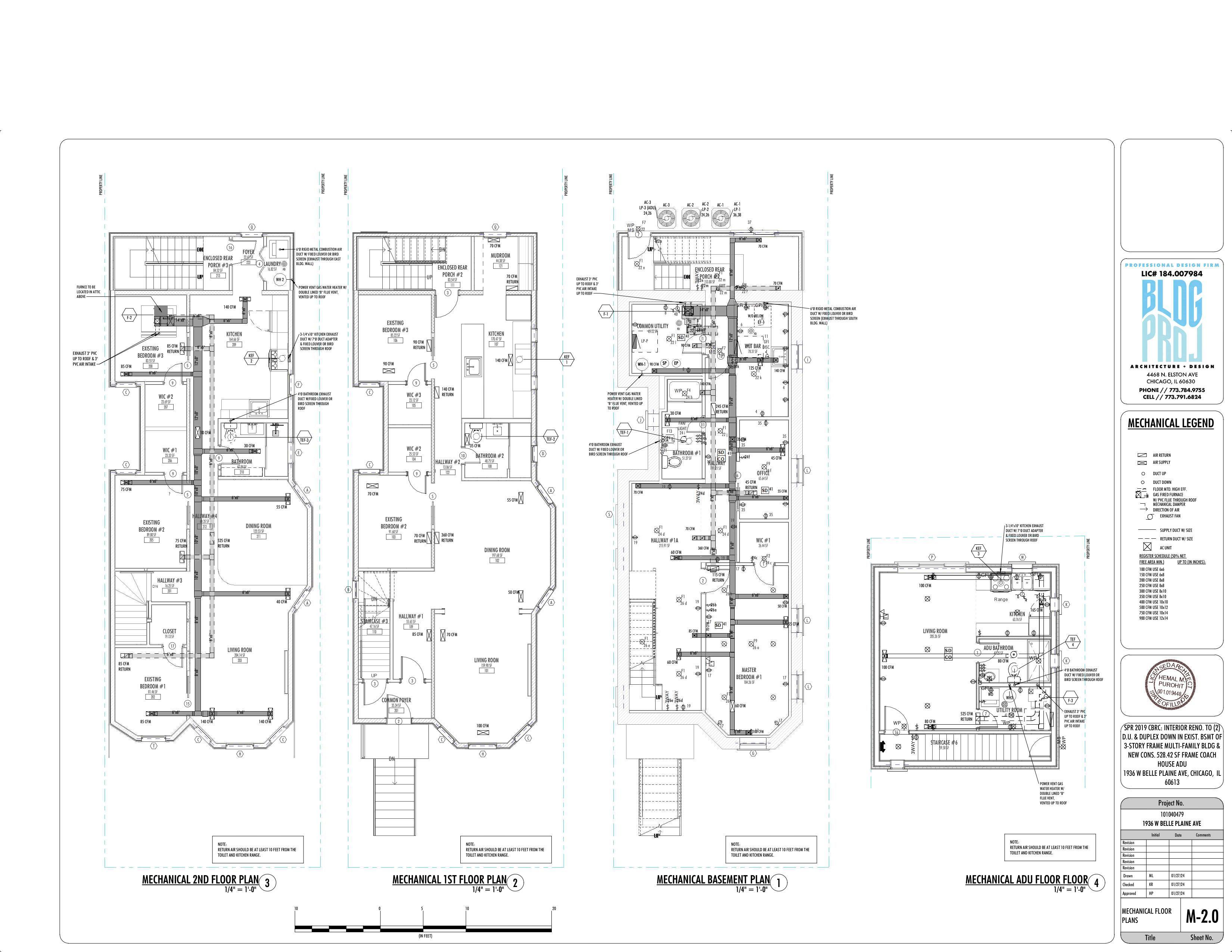

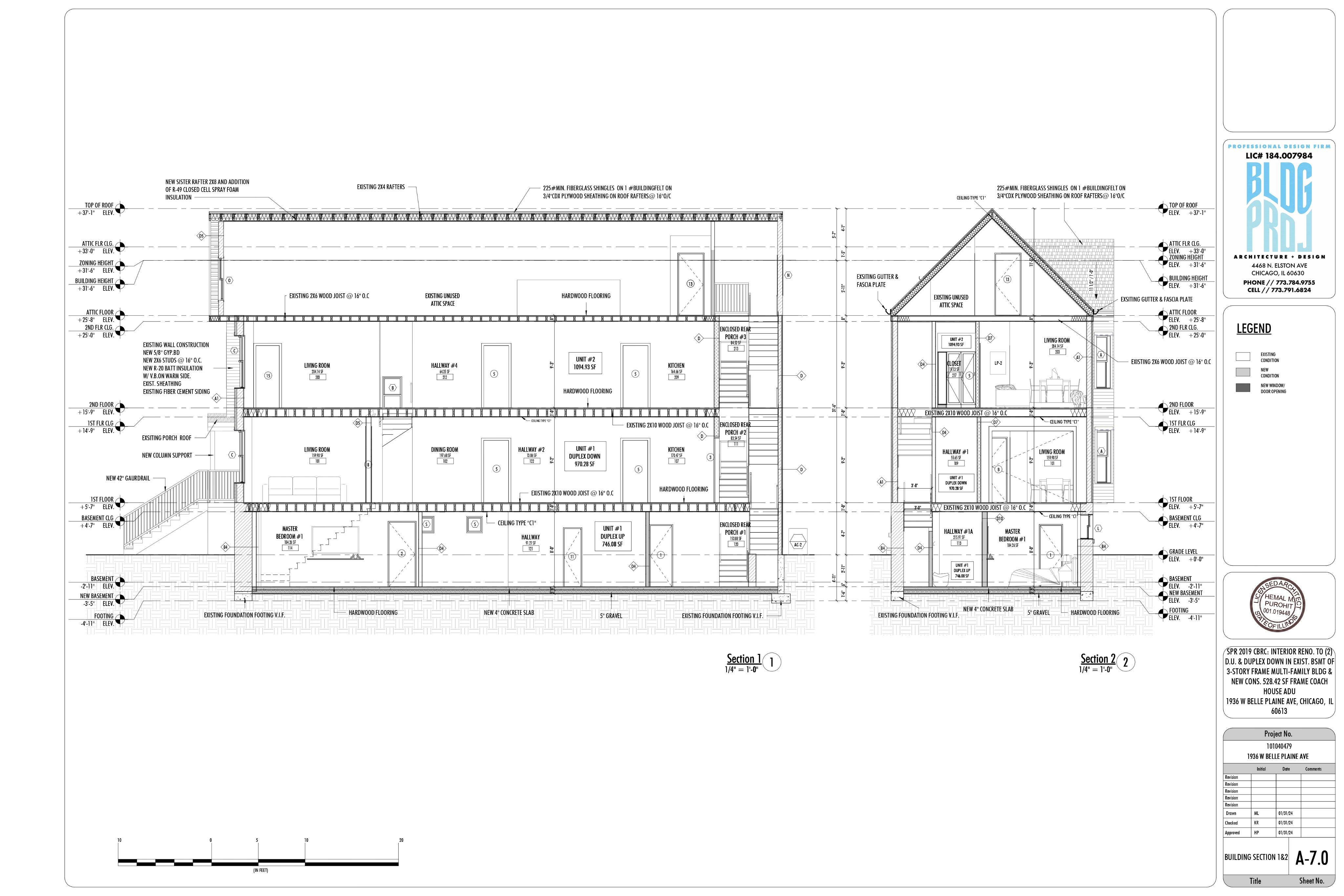

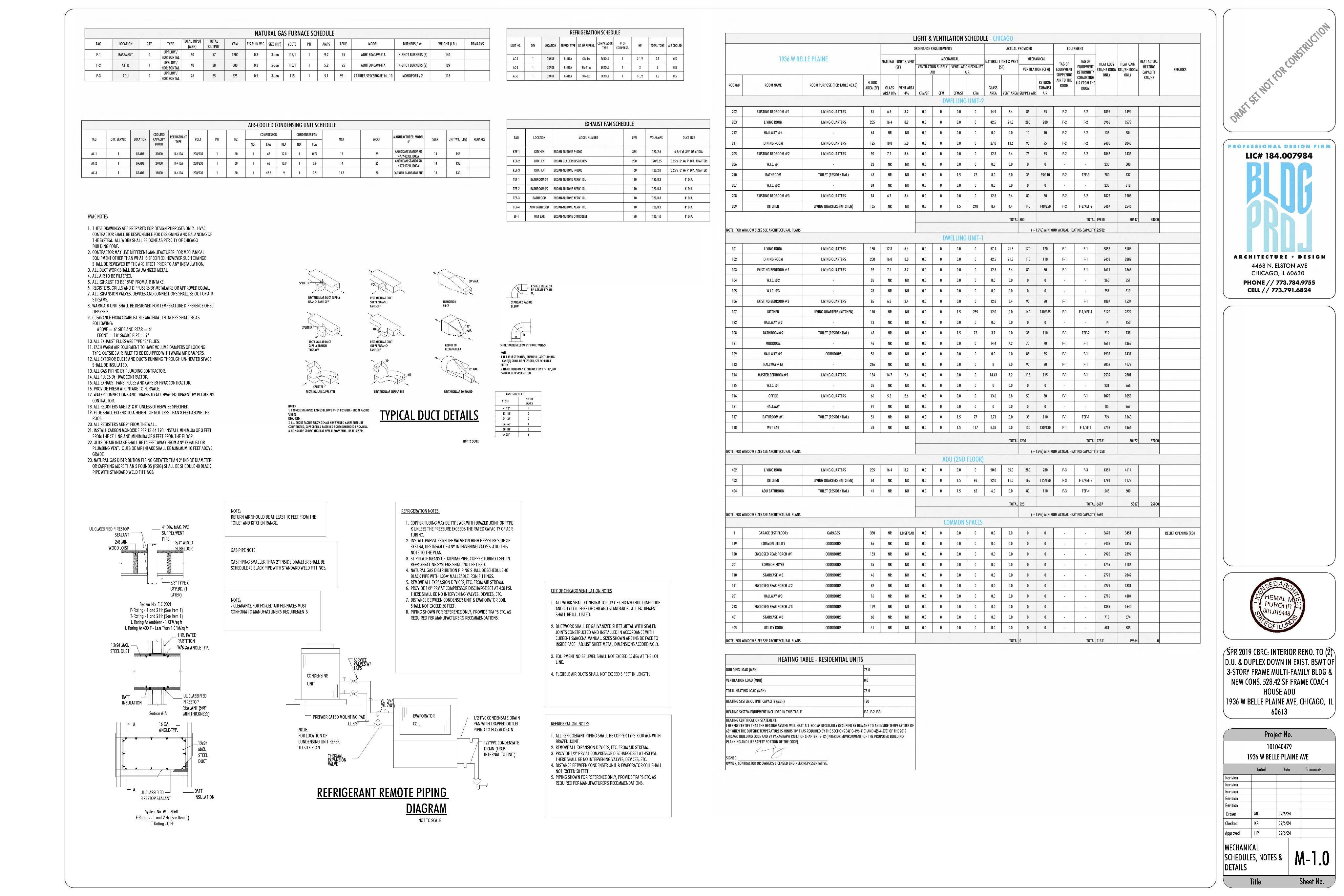

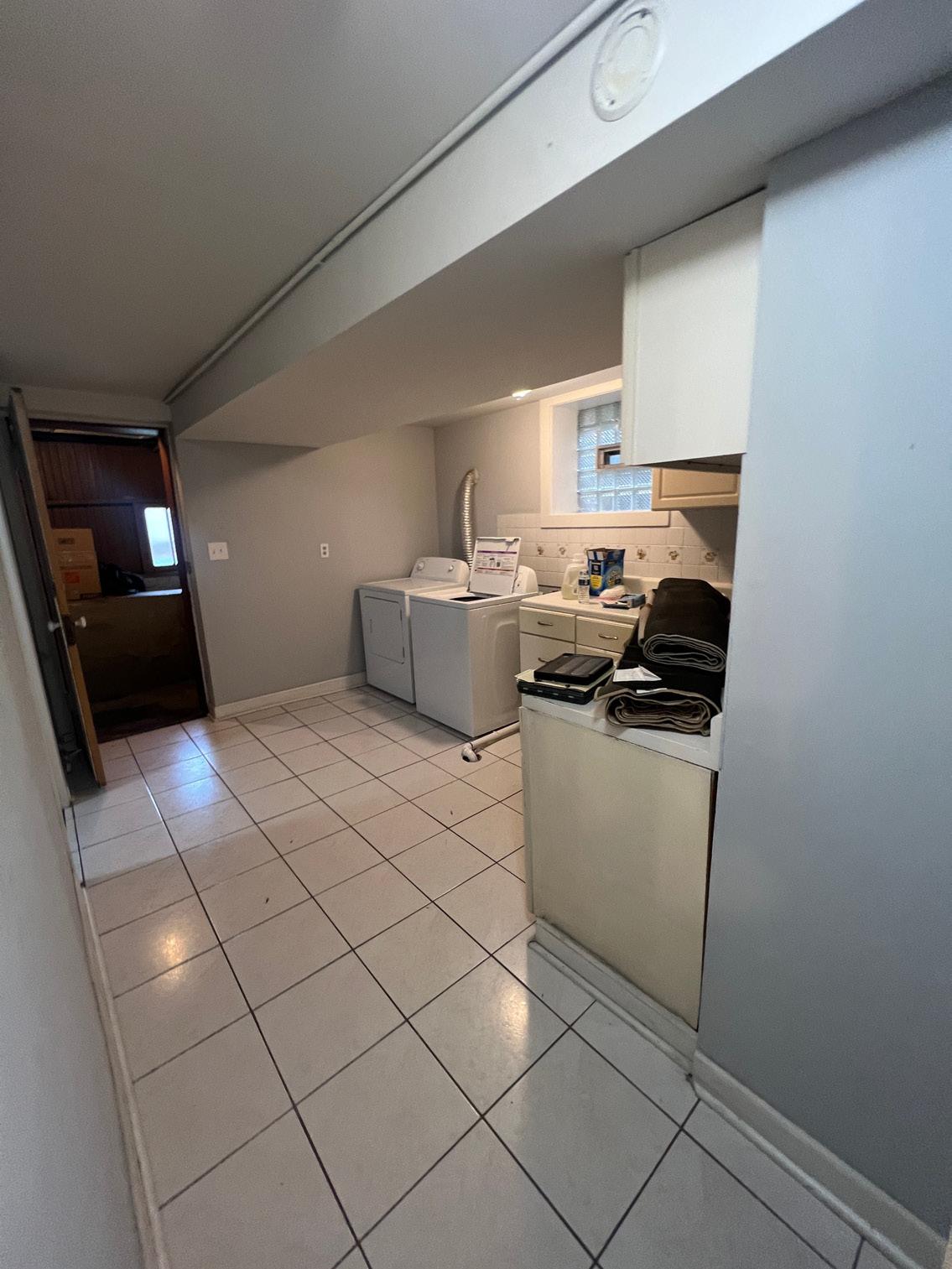

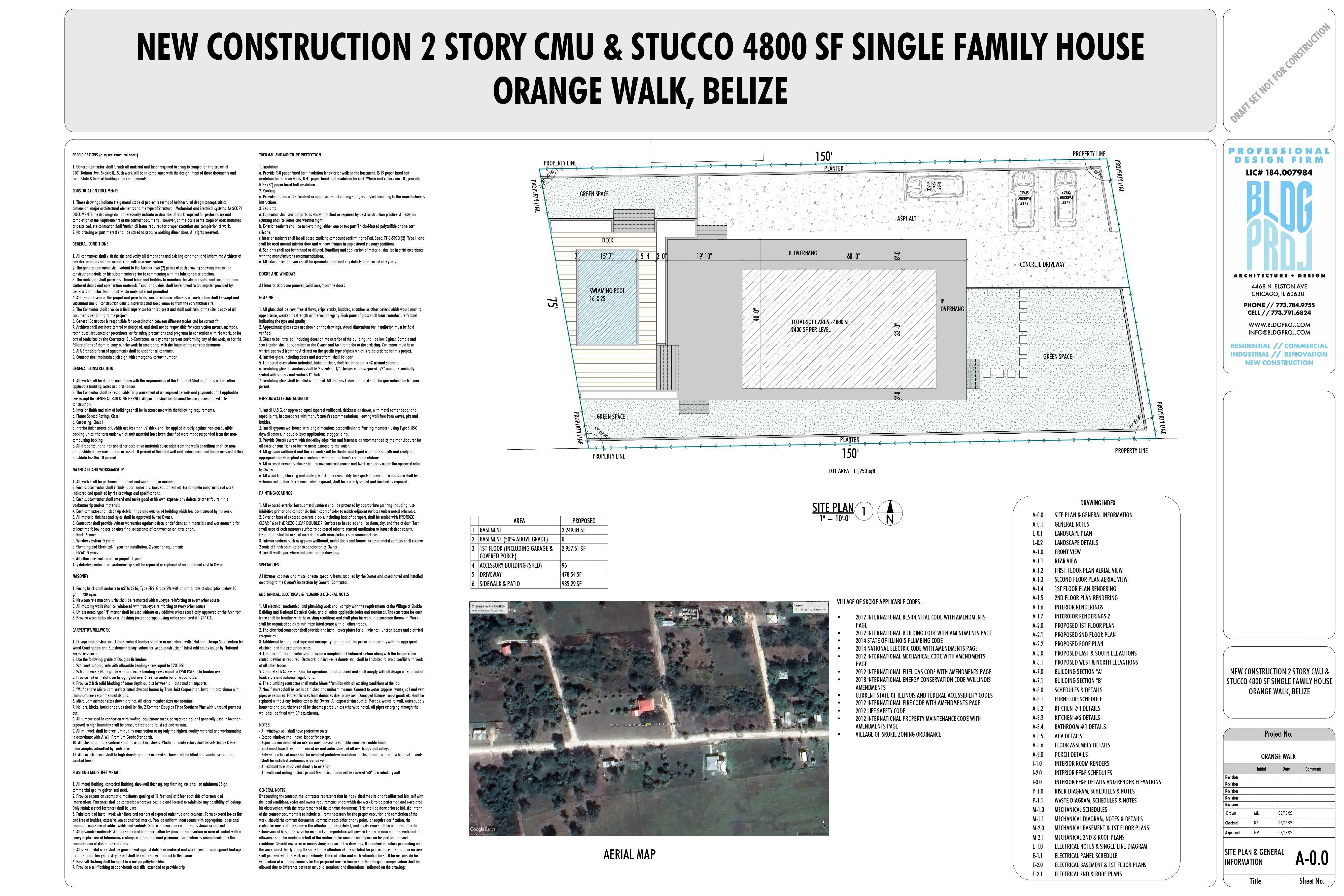

Generated precise existing drawings through meticulous site measurements. Developed comprehensive Proposed, Mechanical, Electrical, and Plumbing drawings to facilitate project execution.

Aligned proposed plans and renders meticulously with client preferences, ensuring satisfaction and clarity throughout the design process.
