LIFE SAFETY PLAN GENERAL NOTES
1. INSTALL FIRE EXTINGUISHER CABINETS, EXIT SIGNS, SMOKE DECTECTORS, EMERGENCY LIGHTS, AND A/V FIRE ALARMS ACCORDING TO DRAWINGS.
2. EXIT SIGNS, SPRINKLER HEADS, AND OTHER CEILING ELEMENTS ARE TO BE POSITIONED IN THE CENTER OF CEILING TILES, U.O.N.
3. FIRE EXTINGUISHER CABINETS, EXIT SIGNS, SMOKE DECTECTORS, EMERGENCY LIGHTS, AND A/V FIRE ALARMS SHALL BE BUILDING STANDARD. SEE CLIENT FOR REFURBISHED STOCK AND/OR SPECIFICATIONS.
4. ELECTRICAL CONTRACTOR TO PROVIDE EMERGENCY LIGHTING AND EXIT SIGNS AS REQUIRED BY CODE AND THE AMERICANS WITH DISABILITIES ACT.
5. CONTRACTOR TO NOTIFY DESIGNER OF INSPECTION DATES.
6. CLASSIFICATIONS OF FIRE EXTINGUISHERS TO BE DETERMINED BY FIRE INSPECTOR. LOCATIONS OF FIRE EXTINGUISHERS TO BE APPROVED BY FIRE INSPECTOR.
7. ALL EXIT DOORS SHALL BE OPERABLE FROM THE INSIDE WITHOUT THE USE OF A KEY OR ANY SPECIAL KNOWLEDGE OR EFFORT.
Refrigerator Refrigerator CODE REVIEW BUILDING INFO: BUILDING CLASSIFICATION: BLDG CONSTRUCTION TYPE: SPRINKLER SYSTEM: OCCUPANCY TYPE: ADJ TENANT OCCUPANCY: OCC. SEPARATION REQ'D BUILDING OCCUPANCY TYPE: NON-SEPARATED II-B COMPLETE, NFPA13 B B NONE B & S-2 GOVERNING CODE: 2015 MINNESOTA BUILDING CODE (MBC) 2015 MINNESOTA ACCESSIBILITY CODE (MAC) SPACE DESCRIPTION SQ. FT. OCCUPANTS TOTAL GROSS SQUARE FOOTAGE NOT USED FOR LEASING PURPOSES GENERAL OFFICE TOTAL: TOTAL OCCUPANTS: OFFICE SF 150 CODE REVIEW EXISTING EXITS AND EXIT ACCESS DOORWAYS (SECTION 1015) 2 2 300' 100' 50' 30' EXIT ACCESS TRAVEL DISTANCE (SECTION 1015.2) EXITS ACCESS TRAVEL DISTANCE (SECTION 1016) MEANS OF EGRESS WIDTH (SECTION 1005) AISLES (SECTION 1017 AND 1018) (PER TABLE 1015.1) EXITS REQUIRED: EXITS PROVIDED: DIAGONAL LENGTH: (1/3 DIAGONAL LENGTH, PER 1015.2.1) DISTANCE REQUIRED: DISTANCE PROVIDED: (PER TABLE 1016.2) MAX. ALLOWED TRAVEL DISTANCE: ACTUAL TRAVEL DISTANCE: (PER TABLE 1014.3) MAX. ALLOWED COMMON PATH OF EGRESS: ACTUAL COMMON PATH OF EGRESS: (OCCUPANTS X 0.15", PER 1005.3.2) MIN. REQ'D. EXIT WIDTH: ACTUAL EXIT WIDTH: (PER 1018.4) MAXIMUM DEAD END CORRIDOR: (PER 1017.3) MAXIMUM DEAD END AISLE: PLUMBING REVIEW OCCUPANT INFO: OCCUPANCY TYPE: TOTAL OCCUPANTS: OCCUPANTS PER SEX: B 33 (FROM CODE REVIEW) 16.5 (TOTAL/2 FOR M/F) GOVERNING CODE: 2015 MINNESOTA BUILDING CODE (MBC) 2015 MINNESOTA ACCESSIBILITY CODE (MAC) REQUIRED WATERCLOSETS PER SEX (PER MBC TABLE 2902.1) 1 YES 1 PER 50 FOR THE REMAINDER EXCEEDING 50 REQUIRED LAVATORIES PER SEX (PER MBC TABLE 2902.1) REQUIRED DRINKING FOUNTAINS (PER MBC TABLE 2902.1) 1 PER 25 FOR THE FIRST 50 NUMBER OF WATERCLOSETS PROVIDED NUMBER OF WATERCLOSETS REQUIRED 1 PER 80 FOR THE REMAINDER EXCEEDING 80 1 PER 40 FOR THE FIRST 80 NUMBER OF LAVATORIES PROVIDED NUMBER OF LAVATORIES REQUIRED 1 PER 100 IS THE REQUIRED (1) SERVICE SINK PROVIDED NUMBER OF HI/LO DRINKING FOUNTAINS PROVIDED PLUMBING COUNT INCLUDES RESTROOMS IN PUBLIC AREA M F 1 1 2" 4" 2 2 2" 2" 9.45 50' 70' 32' - 4" 97' - 4" 63 6355 6355 3805 38 63 95' - 8" SHEET INDEX TITLE SHEET PROJECT INFORMATION DOORS, FRAMES, AND PARTITIONS DEMOLITION SHEET CONSTUCTION SHEET REFLECTED CEILING PLAN FINISH PLAN FINISH SPECIFICATIONS FURNITURE AND EQUIPMENT PLAN FURNITURE AND EQUIPMENT SPECIFICATIONS ENLARGED PLANS ELEVATIONS SECTIONS AND DETAILS POWER, DATA, AND COMMUNICATION PLAN T1.00 A0.01 A0.02 D1.00 A1.00 A2.00 A3.00 A3.01 A4.00 A4.01 A5.00 A6.00 A7.00 E1.00
FIRE SAFETY LEGEND AUDIO/VISUAL FIRE ALARMS EMERGENCY LIGHTS FIRE EXTINGUISHER CABINETS SMOKE DECTECTOR RATED WALLS F SD EXIT EXIT SIGN 901 Deming Way ste. 102, Madison, WI 53717 PROJECT TEAM DIRECTORY DESIGN FIRM SIGNING ARCHITECT BUILDING OWNER ENGINEERING FIRM GENERAL CONTRACTOR FURNITURE DEALER ICONICA DESIGN FIRM SARA BANKS 901 DEMING WAY (608) 664-3500 EUA ARCHITECT ABBY TESSEN 315 BALWIN ST EUA@GMAIL.COM (608) 594-2359 JIM PIENTKA 89TH ST E. PIENTKA@GMAIL.COM (608) 574-8921 KRENZ DESIGN FIRM ROBERT FURRER 1140 PARK ST KRENZR@GMAIL.COM ISTHMUS DESIGN DIANA DAVIS 443 WASHINGTON AVE DISTHMUS@GMAIL.COM (608) 574-9430 ARO FURNITURE 3001 JOHNSON ST AROF@GMAIL.COM (608) 576-5479 1 2 3 4 5 6 7 8 9 10 3.1 7.1 A B C D E F G H I J C.1 G.1 I.1 A.1 C4 CONSTRUCTION AREA 3 4 5 6 7 8 9 10 3.1 7.1 A B C D E F G H C.1 G.1 A.1 LONGEST97'-4"DIAGONAL EXIT EXIT SD SD SD SD SD SD SD SD SD SD SD SD SD F F F F F F F SF: 4871 OCC: 65 TRAVEL DISTANCE = 70' (<300' MAX ALLOWED COMMON PATH OF TRAVEL = 50' (<100' MAX ALLOWED EXIT F F EXIT EXIT EXIT EXIT EXIT EXIT EXIT F EXIT www.autodesk.com/revit Scale Project number Date Drawn by Checked by Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail As indicated 5/2/2023 12:23:41 PM T1.00 TITLE SHEET DES-414-002 NEW OFFICE SPACE BPM STUDIO 5/2/2023 MAKAYLA PARKIN KEF No. Description Date 3/64" = 1'-0" 1 BUILDING PLAN 3/32" = 1'-0" 2 LIFE SAFETY PLAN
PROJECT GENERAL NOTES
1. DO NOT SCALE DRAWINGS, WRITTEN DIMENSIONS GOVERN. NOTIFY PROJECT
DESIGNER IMMEDIATELY OF ANY DISCREPANCIES.
2. GENERAL CONTRACTOR TO CHECK MECHANICAL DRAWINGS FOR EXISTING PIPES AND DUCTS FURRED IN WALLS. VERIFY SIZE AND LOCATION WITH MECHANICAL CONTRACTOR PRIOR TO PROCEEDING WITH REMODEL.
3. STORAGE, DISPENSING OR USE OF ANY FLAMMABLE LIQUIDS, COMPRESSED GASES OR HAZARDOUS MATERIALS SHALL COMPLY WITH UNIFORM FIRE CODE REGULATIONS.
4. ALL WORK SHALL CONFORM TO THE REQUIREMENTS OF THE LATEST EDITION OF THE STATE, FEDERAL AND LOCAL BUILDING CODES AND ORDINANCES, ADA, OSHA AND ALL OTHER APPLICABLE CODES AND ALL OTHER GOVERNING AUTHORITY HAVING JURISDICTION.
5. ALL WORK SHALL CONFORM TO INDUSTRY STANDARDS.
6. SUBCONTRACTORS ARE RESPONSIBLE TO REVIEW ALL DRAWINGS, ELEVATIONS AND DETAILS.
7. GC TO CONTACT PROJECT DESIGNER WITH ANY QUESTIONS PERTAINING TO CONSTRUCTION DRAWINGS OR DESIGN DETAILS BEFORE COMMENCING WORK.
8. NO SUBSTITUTIONS WITHOUT DESIGNERS APPROVAL.
MOUNTING HEIGHTS NOTE
1. 2015 MINNESOTA ACCESSIBILITY CODE (MAC) TAKE PRECEDENCE OVER ANY DICREPANCIES SHOWN.
2. ALL DIMENSIONS FROM FINISHED SURFACE, UNO.
3. ANY VARIATIONS NOTES ON PLANS.
4. FIXTURE AND ACCESSORIES SHOWN FOR REFERENCE ONL, REFER TO PLANS FOR ACTUAL FIXTURES AND SPECIFICATIONS.
5. NOT ALL DETAILS MAY APPLY.
DISCIPLINE
A = ARCHITECTURE
C = CIVIL
D = DEMOLITION E = ELECTRICAL M = MECHANICAL P = PLUMBING
D 3 F
S
TYPE/FUNCTION 0
GENERAL 1 = FLOOR 2 = CEILING 3 = FINISH 4 = FURNITURE 5 = ENLARGED 6 = ELEVATION 7 = SECTION *SEQUENCE TO EQUAL FLOOR NUMBER IF APPLICABLE NUMBER A 1 2 3 DISCIPLINE TYPE FUNCTION *SEQUENCE SHEET NAMING LEGEND (16-18") 1' 5" 1'7" (33-36") 2'11" 3' 0" MAX 2' - 0" MIN 1' - 0" WC LOCATION REAR GRAB BAR MAC 604.02 604.5.2 2' 0" MIN 3' 6" MAX DISPENSER IF PROTRUDING (SOLID GRAY) 4' 0" MIN 1' 0" MAX 3' 0" 3' 0" MAX 2' 0" MIN (17-19") 1'7" (33-36") 2'10" (46-50") 4'0" DISPENSER IF RECESSED (DIAGONAL) SEAT HEIGHT SIDE BARS DISPENSERS MAC 604.4 / 604.51 604.7 MAX 1'3" MIN 1'6" 0'0 1/2" CLEAR 2' - 6" MIN LAVATORY MIRROR (15" MIN) 1' - 6" T.O. SINK 2'8 1/2" 3'6" MAX EQ EQ MIN 0' - 8" 2'6" 1' 4" 0' - 6" 0'9" KNEE & TOE CLEARENCE 2' 6" EQ EQ URINAL MAC 605 1'5" 4'0" MAX FIRE EXTINGUISHER THERMOSTAT LIGHT SWITCH PAPER TOWEL DISPENSER TO OPERABLE PART 4'0" TO OPERABLE PART 4'0" TO OPERABLE PART 4'0" TO OPERABLE PART 4'0" SYMBOL/ABBREVIATION LEGEND 101 X Room name 101 A101 1 Ref 1 Ref 1 Ref 1 Ref 1 A101 SIM 1i X XX" A.F.F. DEMOLITION WALL EXISTING WALL NEW CONSTRUCTION WALL 2 x 2 RECESSED TROFFER 4 RECESSED DOWNLIGHTS SWITCH 3-WAY SWITCH DIMMER SWITCH FLOORING WALL COVERING BASE TRANSITION STRIP D GFI DUPLEX RECEPTACLE DEDICATED DUPLEX RECEPTACLE GFI DUPLEX RECEPTACLE 4-PLEX RECEPTACLE COMMUNICATION/DATA OUTLET LOCATION ABOVE FINISH FLOOR KEYNOTE SYMBOL WALL TAG SECTION ELEVATION ROOM TAG DIMENSIONS NORTH ARROW DOOR TAG AUDIO/VISUAL FIRE ALARMS EMERGENCY LIGHTS FIRE EXTINGUISHER CABINETS SMOKE DETECTOR CEILING MOUNTED EXIT SIGN WALL MOUNTED EXIT SIGN SD TYP. TYPICAL U.O.N. UNLESS OTHERWISE NOTED A.F.F. ABOVE FINISH FLOOR CH CHAIR D DESK TC TASK CHAIR WS WORKSTATION ST STOOL S SOFA T TABLE LF LATERAL FILES CPT CARPET VF VINYL FLOORING FT FLOOR TILE GRT GROUT LIN LINOLEUM B RUBBER BASE TS TRANSITION STRIP MT METAL TRIM PT PAINT WC WALL COVERING ACT ACOUSTIC CEILING TILE PLAM PLASTIC LAMINATE SSM SOLID SURFACING MATERIAL LINEAR PENDANT RATED WALLS RETURN SUPPLY CEILING POWER DATA www.autodesk.com/revit Scale Project number Date Drawn by Checked by Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail As indicated 5/2/2023 12:23:19 PM A0.01 INFORMATION SHEET DES-414-002 NEW OFFICE SPACE BPM STUDIO 5/2/2023 MAKAYLA PARKIN KEF No. Description Date 1/2" = 1'-0" 3 ADA MOUNTING HEIGHT
= STRUCTURAL
=
DOORS
1. ALL INTERIOR DOORS TO BE: VT INDUSTRIES, PALLADIUM COLLECTION WITH FIXED EDGES, FLUSHED WOOD VENEER, FINISH PROFILE: NATURAL BIRCH, COLOR: ONYX
ON18
2. ALL INTERIOR BIFOLD AND SLIDING DOORS TO BE: VT INDUSTRIES, PALLADIUM COLLECTION WITH FIXED EDGES, FLUSHED WOOD VENEER, FINISH PROFILE: WHITE BIRCH, COLOR: CLEAR CL
3. ALL INTERIOR 90 MIN. FIRE RATED DOORS TO BE: VT INDUSTRIES, PALLADIUM WITH FIXED EDGES, 90 MIN. FIRE RATED, FINISH PROFILE: WHITE MAPLE, COLOR: CLEAR18
4. ALL 3 HOUR RATED DOORS TO BE: TOTAL DOOR SYSTEMS PF 200 FLUSH EXIT DEVICE, TDH ELECTROMAGNETIC HOLDER, TDC96 CONCEALED CLOSER, DARK BRONZE
5. ALL RATED DOORS TO BE LABELED SMOKE AND DRAFT CONTROL DOOR AND SHALL MEET ALL REQUIREMENTS OF UL1784, DOOR SHALL BE TESTED USING NFPA 252.
6. ALL SWING DOOR PANELS TO BE 1 ¾ THICK U.O.N.
7. ALL SLIDING DOORS PANELS TO BE 1 3/8 THICK U.O.N.
DOOR FRAMES
1. ALL HOLLOW METAL DOOR FRAMES TO BE 16 GAUGE PREPARED FOR 1 ¾ THICK DOORS U.O.N.
2. ALL HOLLOW METAL DOOR FRAMES TO BE WELDED AND GROUNDED SMOOTH.
3. PRIME ALL HOLLOW METAL DOOR FRAMES AND PREPARE FOR PAINT FINISH.
FINISH HARDWARE
1. LEVER LOCKS AND LATCHES: SCHLAGE AL SERIES, SATURN HANDLE, #626 FINISH
2. BUTTS: HAGER AS SPECIFIED AS FOLLOWS:
A. DOOR UP TO 8 -0 HIGH: 3 BUTTS
B. RATED DOORS WITH CLOSERS; BALL BEARING BUTTS
3. TRIM: HAGER
4. STRIPS, THRESHOLDS AND SWEEPS: NATIONAL GUARD, PEMKO OR REESE.
5. CLOSERS: LCN
6. BI-FOLD AND SLIDING DOORS: PROVIDE COMPLETE TRACK AND GUIDE SYSTEM FOR ALL DOORS.
7. FINISH: ALL HARDWARE TO BE SATIN CHROME U.O.N.
8. ALL LOCKS TO BE KEYED PER CLIENTS SPECIFICATIONS NO SUBSTITUTIONS WITHOUT APPROVAL.
DOOR AND FRAME SCHEDULE NOTES
PROVIDE AN A.D.A. COMPLIANT POWER ASSIST DOOR OPENER WITH ACTIVATOR BUTTONS AT SUITE ENTRY. PROVIDE POWER TO OPENER BUTTONS AND ELECTRONIC STRIKE. INCLUDE KEY LOCK AND WALL SWITCH TO DEACTIVATE THE POWER OPENER
LEGEND - DOOR/FRAME NAMING
DOOR AND FRAME GENERAL NOTES
PANEL TYPE
HM
WD
MATERIAL PANEL WD-FG FRAME TYPE PANEL MATERIAL TRANSOM 0 = NO 1 = YES SIDELIGHT 0 = NO 1 = ONE SIDE 2 = BOTH SIDES FRAME THICKNESS 1 = 1-1/4" OR 1-1/2" 2 = 2" 4 = 4" HEAD BF BI-FOLD F FLUSH HM-012
AT 30" - 36" A.F.F.
TENANT'S RECEPTION DESK. 2. PROVIDE A CLOSER AT DOOR. HARDWARE GROUPS LEGEND PASSAGE LATCH LEVER LATCHSET SCHLAGE AL SERIES (OR EQUAL) WALL STOP 1 1/2 PAIR BUTTS MUTES EXIT LOCK LEVER LATCHSET SCHLAGE AL SERIES (OR EQUAL) WALL STOP 1 1/2 PAIR BUTTS MUTES OFFICE LOCK H-2 LEVER LOCKSET SCHLAGE AL SERIES (OR EQUAL) WALL STOP 1 1/2 PAIR BUTTS MUTES H-1 H-3 DOOR PANEL AND FRAME TYPE ELEVATIONS REFER TO SCHEDULE REFER TO SCHEDULE 8'0" WD-F WOOD FLUSH HM-002 HOLLOW METAL FRAME 8'0" 0'2" 0' - 2" 0' 2" 0'0 3/4" MAX. 0'0 1/4" MIN. MIN. 4 1/2" THICK REINFORCED CONCRETE FIRESTOP SEALANT STEEL TRACK MECHANICALLY FASTEN 24" O.C. MAX. (SLOTTED TRACK OPTIONAL) POLYETHYLENE BACKER ROD. GLASS FIBER INSULATION, OR MINERAL WOOL INSULATION 2 LAYERS 5/8" FIRE-SHEILD GYPSUM BOARD STEEL TRACK MECHANICALLY FASTEN 24" O.C. MAX. 3 5/8" STEEL STUD 24" O.C. MAX. GLASS FIBER INSULATION (OPTIONAL) 2 LAYERS 5/8" FIRE-SHEILD GYPSUM BOARD FLEXIBLE SEALANT (OPTIONAL) WALL TYPE A FIRE-RATED FLOORING/CEILING ASSEMBLY ACOUSTICAL SEALANT SLIP JOINT 5/8" GYPSUM WALLBOARD SOUND ATTENUATION INSULATION 3-5/8" METAL STUDS BASE AS SCHEDULED ACOUSTICAL SEALANT FIRE-RATED FLOOR/CEILING ASSEMBLY SUSPENDED CEILINGS WALL TYPE B FIRE-RATED
ACOUSTICAL SEALANT SLIP JOINT 5/8" GYPSUM WALLBOARD SOUND ATTENUATION INSULATION 5-1/2" METAL STUDS BASE AS SCHEDULED ACOUSTICAL SEALANT FIRE-RATED FLOOR/CEILING ASSEMBLY SUSPENDED CEILINGS WALL TYPE D 5/8" GYPSUM WALLBOARD SOUND ATTENUATION INSULATION 3-5/8" METAL STUDS BASE AS SCHEDULED ACOUSTICAL SEALANT FIRE-RATED FLOOR/CEILING ASSEMBLY SUSPENDED CEILINGS WALL TYPE C 1'-0" ABOVE ACT MIN 0' 0 1/2" VERTICAL WINDOW WALL MULLION CONTINUOUS ALUMINUM CHANNEL ATTACHED TO MULLION STUD ATTACHED TO TOP AND BOTTOM RUNNERS WALLBOARD SCREWED TO STUD AND FINISHED WITH JOINT COMPOUND CONDITION E ACOUSTICAL SEALANT OR GASKET GYPSUM WALLBOARD TRIM SINGLE OR DOUBLE LAYER GYPSUM WALLBOARD CONDITION F 0' - 0" 0' 0 1/2" MAX 0' 0 1/2" MIN METAL RUNNER ATTACHED TO STRUCTURE RESILENT INSULATION www.autodesk.com/revit Scale Project number Date Drawn by Checked by Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail As indicated 5/2/2023 12:23:20 PM A0.02
DES-414-002
5/2/2023 MAKAYLA PARKIN KEF No. Description Date 1/4" = 1'-0" 1 DOOR & FRAME 1 1/2" = 1'-0" 2 PARTITION SECTIONS DOOR STYLE SCHEDULE DOOR NUMBER SIZE DOOR TYPE FRAME TYPE HARDWARE GROUP 2801 36" X 96" WD-F HM-002 H-1 2802 72" X 96" WD-F HM-002 H-1 2803 36" X 96" WD-F HM-002 H-1 2804 36" X 96" WD-F HM-002 H-2 2805A 36" X 96" WD-F HM-002 H-1 2805B 36" X 96" WD-F HM-002 H-1 2806A 72" X 96" WD-F HM-002 H-2 2806B 72" X 84" WD-F HM-002 H-1 2807 72" X 96" WD-F HM-002 H-3 2808 72" X 96" WD-F HM-002 H-3 2809 72" X 96" WD-F HM-002 H-3
MATERIAL
HOLLOW METAL
WOOD
1.
LOCATE POWER SWITCH BEHIND
FLOORING/CEILING ASSEMBLY
DOOR FRAMES AND PARTITIONS
NEW OFFICE SPACE BPM STUDIO
PLAN GENERAL NOTES: 1. ALL PARTITION LOCATIONS SHALL BE AS SHOWN ON FLOOR PLAN. IN CASE OF CONFLICT NOTIFY DESIGNER.
FLOOR PLAN BY DESIGNER TAKES PRECEDENCE OVER ALL OTHER PLANS.
2. ALL WORK SHALL BE ERECTED AND INSTALLED PLUMB, LEVEL, SQUARE AND TRUE.
3. THE CONTRACTOR SHALL PROVIDE SUFFICIENT FRAMING OR BLOCKING OF ALL WALL OPENINGS FOR MECHANICAL, ELECTRICAL, AND ARCHITECTURAL ELEMENTS, INCLUDING SHELVING, SIDELIGHT, DOORS, MILLWORK, ETC. LOCATED IN OR ON WALLS. ALL CONCEALED LUMBER TO BE SEALED AND FIRE TREATED.
4. ALL GYPSUM BOARD PARTITIONS SHALL BE TAPED AND SANDED SMOOTH WITH NO VISIBLE JOINTS. ALL EXPOSED GYPSUM BOARD EDGES TO HAVE FLEXIBLE VINYL CORNER GUARDS AS SPECIFICIED, U.O.N.
5. NEW PARTITIONS TO ALIGN WITH EXISTING WINDOW FRAMES/SILLS OR EXISTING WALLS/COLUMNS U.O.N.
6. NEW PARTITIONS AT WINDOWS TO BE CENTERED ON MULLLIONS U.O.N.
7. ALL PARTITIONS IN EXCESS OF 30 -0 LENGTH SHALL HAVE FULL HEIGHT CONTROL JOINT INSTALLED WITH 30 -0 MAXIMUM SPACING.
8. WHENEVER OPENINGS ARE CUT THROUGH FIRE RATED PARTITIONS, IT SHALL BE THE RESPONSIBILITY OF THE CONTRACTOR FOR WHOM THE HOLE IS CUT TO PATCH AND REPAIR ANY OPENINGS TO MAINTAIN THE INTEGRITY OF THE FIRE RATING.
9. FIREPROOFING, IF ANY, SHALL BE UNPIERCED. ANY SUBCONTRACTOR PENTRATING THE FIREPROOFING SHALL BE REQUIRED TO REPLACE FIREPROOFING TO THE ORIGINAL CONDITION AND FIRE RATING, AT THE SUBCONTRACTORS EXPENSE.
10. ALL DOOR FRAMES TO BE INSTALLED PLUMB, STRAIGHT AND TRUE. MAINTAIN ADEQUATE TOLERANCES AND CLEARANCES SO THAT ALL DOORS FIT AS SPECIFIED.
11. ALL DOORS SHALL HAVE 1 -6 CLEARANCE ON STRIKE/PULL SIDE OF DOOR. NOTIFY DESIGNER OF EXCEPTIONS PRIOR TO CLOSING OF PARTITIONS.
12. PROVIDE ALL PARTS NECESSARY FOR PROPER OPERATION OF ALL DOORS.
13. ALL HARDWARE TO BE ADA COMPLIANT AND AS SPECIFIED.
14. ALL DOUBLE DOORS TO BE CENTERED IN WALL SPACE U.O.N.
Refrigerator NEW DOOR EXISTING WALL EXISTING DOOR NEW WALL DEMO WALL WALL AND DOOR LEGEND BI-FOLD DOOR DOUBLE DOOR 3 4 5 6 7 8 9 10 3.1 7.1 A B C D E F G H C.1 G.1 A.1 CONFERENCE 2801 OPEN OFFICE 2802 HUDDLE ROOM 2803 PRINT AREA 2804 BREAKROOM 2805 RECEPTION 2806 B B B B B D C C C C B A A A A A A A A A A A A A A C C A A6.00 3 NORTH COPY ELEVATION 2 EAST COPY ELEVATION 1 BREAK ELEVATION 2801 2805A 2805B 2803 2804 2802 2806B 2806A 2807 2809 2808 WOMENS RESTROOM 2812 MENS RESTROOM 2811 41'3" 30' - 0 3/4" 40' - 8 3/4" 1 1 2 3 15'0" 34'9 3/4" 7'8" 59'2 3/4" 8'7" 15'5 1/2" 25'9 1/2" 5' - 0" 41' - 2 3/4" WEST CORRIDOR 2810 NORTH CORRIDOR 2807 EAST CORRIDOR 2808 SOUTH CORRIDOR 2809 4'5" 13'0" 2'5 1/2" 5'0" 3'2 1/2" 21'8" 14'4 3/4" 21' 7" 68' 3 1/4" 4' - 11 3/4" 75'5 1/2" 3'8 1/4" 7' 8" 67' 10" 3' - 2" 38' - 0 3/4" F F F F 14'9 1/2" 9'3" 8' - 1 1/4" 5' 10 3/4" 8' - 3 3/4" 29' 6 1/4" 3' 6" 22' 4" 4' - 8 1/4" 28' - 4 1/4" 34' 5 3/4" 78' 1 3/4" 3' - 2 1/4" 26' 5" 11' 7 1/2" 3' 2" 7'6 3/4" 71'6 3/4" ALIGN ALIGN ALIGN ALIGN A B C E F D RATED TO THE DECK ABOVE INSULATED TO THE DECK ABOVE TO THE CEILING PLUMBING CONDITION AT EXTERIOR MULLION CONDITION AT CONCRETE/COLUMN WALL TYPE SYMBOLS ROOM SCHEDULE 2801 2802 2803 2804 2805 2806 2807 2808 2809 2810 2811 2812 CONFERENCE OPEN OFFICE HUDDLE ROOM PRINT AREA BREAKROOM RECEPTION NORTH CORRIDOR EAST CORRIDOR SOUTH CORRIDOR WEST CORRIDOR MENS RESTROOM WOMENS RESTROOM CONSTRUCTION
15.
16.
HAVE
17.
SYSTEM MUST NOT BE DISRUPTED DURING CONSTRUCTION. 18. MECHANICAL CONTRACTOR TO REVIEW ALL THERMOSTAT LOCATIONS WITH DESIGNER PRIOR TO INSTALLATION. CONSTRUCTION PLAN KEYNOTES: 1. SEE SHEET A5.00 FOR ENLARGED DEMO AND CONSTRUCTION PLAN OF RESTROOMS. 2. SEE SHEET A7.00 FOR RECEPTION DESK DETAILS. 3. PROVIDE AND INSTALL WATER LINE FOR ICE MAKER IN BREAK ROOM REFRIGERATOR. www.autodesk.com/revit Scale Project number Date Drawn by Checked by Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail 1/8" = 1'-0" 5/2/2023 12:23:22 PM A1.00 CONSTRUCTION PLAN DES-414-002 NEW OFFICE SPACE BPM STUDIO 5/2/2023 MAKAYLA PARKIN KEF No. Description Date 1/8" = 1'-0" 1 A1.00 CONSTRUCTION PLAN
ALL THRESHOLDS NOT TO EXCEED 1/2 IN HEIGHT.
PROVIDE AND INSTALL COMMERCIAL GRADE ROLLER SHADES AT ALL EXTERIOR WINDOWS. SHADES TO
3% OPENNESS FACTOR. CONTRACTOR TO SUBMIT COLOR OPTIONS TO DESIGNER FOR SELECTION.
MODIFY AND SUPPLEMENT EXISTING SPRINKLER SYSTEM AS REQUIRED BY CODE PER PARTITION LAYOUT. BUILDING SPRINKLER
REFLECTED CEILING PLAN GENERAL NOTES:
1. ALL CEILINGS TO BE 9 -0” A.F.F. U.O.N.
2. GC TO COORDINATE WORK WITH ALL CEILING TRADES TO INSURE CLEARANCES FOR FIXTURES, DUCTS, PIPING, SUSPENSION SYSTEM, ETC. NECESSARY TO MAINTAIN THE FINISHED CEILING HEIGHTS INDICATED HEREIN.
3. ALL LAMPS FOR NEW AND EXISTING FIXTURES SHALL BE FURNISHED BY THE CONTRACTOR.
4. LIGHT FIXTURES, EXIT SIGNS, SPRINKLER HEADS, AND OTHER CEILING ELEMENTS ARE TO BE POSITIONED IN THE CENTER OF CEILING TILES, U.O.N.
5. ALL ROOMS SHALL BE SWITCHED SEPARATELY. RECEPTION AND HALLWAYS SHALL BE SWITCHED TO ENTRANCE DOORS. WHERE MORE THAN ONE SWITCH IS LOCATED AT SAME LOCATION, THEY SHALL BE INSTALLED UNDER SAME GANG TYPE COVER PLATE.
6. ALL SWITCH COVER PLATES TO BE LEGRAND SMOOTH WHITE U.O.N.
7. DESIGN DRAWINGS ARE FOR CONCEPT ONLY. ELECTRICAL ENGINEER/CONTRACTOR SHALL DETERMINE THE ACTUAL NUMBER OF CIRCUITS AND SWITCHING DEVICES REQUIRED BY CODE AND STANDARD PRACTICE.
8. SPRINKLER SYSTEM SHALL BE INSTALLED OR MODIFIED AS REQUIRED IN ACCORDANCE WITH ALL APPLICABLE CODES AND BUILDING STANDARDS. CEILING FIXTURES AND FEATURES AS DRAWN HEREIN TAKE PRECEDENCE OVER SPRINKLER HEAD LOCATIONS.
9. PROVIDE FIRE ALARMS/STROBE. GC TO COORDINATE WITH CONTRACTORS TO INSTALL ACCORDING TO REQUIRED CODE.
10. UNLESS OTHERWISE NOTED ALL SWITCHES ARE TO BE LOCATED 4 -0 A.F.F.
11. MECHANICAL CONTRACTOR TO COORDINATE WITH ELECTRICAL CONTRACTOR SO THAT THE LOCATIONS OF THERMOSTATS AND LIGHT SWITCHES ARE IN VERTICAL ALIGNMENT.
12. NOTIFY DESIGNER OF ANY DISCREPANCIES BETWEEN ARCHITECTURAL, ELECTRICAL AND MECHANICAL DRAWINGS AND OBTAIN CLARIFICATION BEFORE COMMENCING CONSTRUCTION.
REFLECTED CEILING PLAN KEYNOTES:
1. SEE SHEET A5.00 FOR ENLARGED REFLECTED CEILING PLAN OF RESTROOMS.
2.
SOFFIT HEADER TO BE INSTALLED AT 8 -0 A.F.F.
3 3 3 3 2 3 D D D 3 3 ROOM SCHEDULE 2801 2802 2803 2804 2805 2806 2807 2808 2809 2810 2811 2812 CONFERENCE OPEN OFFICE HUDDLE ROOM PRINT AREA BREAKROOM RECEPTION NORTH CORRIDOR EAST
SOUTH
WEST
CORRIDOR
CORRIDOR
CORRIDOR MENS RESTROOM WOMENS RESTROOM
3 4 5 6 7 8 9 10 3.1 7.1 A B C D E F G H C.1 G.1 A.1 2806 2807 2808 2810 2802 2803 2804 2801 2805 2809 1 1 2812 2811 RECESSED CAN CURRENT LUMINATION LED LUMINAIRE DECAUX SERIES 6" ROUND, DIMMABLE ROUND REFLECTOR #RDI6RWDFWT HOUSING SPEC # LDXB6R030T35LE 2x2 TROFFER CURRENT LUMINATION LED LUMINAIRE LVT22 SERIES SPEC # LVT22A20MM840VQLTWHITE LINEAR PENDANT – CURRENT LUMINATION SS SPEC # SSI080H3VWHTN RECESSED CAN CURRENT LUMINATION LED LUMINAIRE – DECAUX SERIES – 4 ROUND, DIMMABLE ROUND REFLECTOR # RDI4RWDFWT HOUSING SPEC # LDXB4R030T35LE HART AND COOLEY, RH45T ALUMINUM RETURN AIR GRILLE, 45-DEGREE DEFLECTION, COLOR: BRIGHT WHITE, SIZE: 23 ¾ X 23 ¾” HART AND COOLEY, ARS – ALUMINUM LOUVERED CEILING DIFFUSER, BEVELED MARGIN, COLOR: BRIGHT WHITE, 24 X 24 CIRCUIT SWITCH DOUBLE CIRCUIT SWITCH THREE WAY CIRCUIT SWITCH DIMMER ACT S2 S3 SD LIGHTING SYMBOL LEGEND AND SPECIFICATION www.autodesk.com/revit Scale Project number Date Drawn by Checked by Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail 1/8" = 1'-0" 5/2/2023 12:23:22 PM A2.00
DES-414-002
5/2/2023 MAKAYLA PARKIN KEF No. Description Date 1/8" = 1'-0" 1 REFLECTED CEILING PLAN
GYP. BD.
REFLECTED CEILING PLAN
NEW OFFICE SPACE BPM STUDIO
FINISH PLAN GENERAL NOTES
1. SUBMITTALS: UPON RECEIPT OF ALL FINISHES FROM MANUFACTURE(S) A PROPERLY TAGGED SAMPLE WITH MANUFACTURER'S LABEL
SHALL BE SUBMITTED TO PROJECT DESIGNER FOR APPROVAL BEFORE INSTALLATION. GOODS SUPPLIED FROM MORE THAN ONE DYE LOT FOR
USE IN A SINGLE AREA WILL NOT BE ACCEPTED. DRAWDOWNS OF PAINTS SPECIFIED TO BE SUBMITTED TO DESIGNER FOR APPROVAL.
2. FLOOR PREPARATION: FLOORS SHALL BE CHECKED FOR MOISTURE CONTENT. FLOOR MUST BE FREE FROM MOISTURE, DUST, OILS, GREASE, WAX, OR OTHER FOREIGN MATTER. CRACKS 1/8" OR MORE, HOLES AND UNEVENNESS MUST BE FILLED WITH LATEX-BASED FLOOR
FILLER. ANY PROTRUDING OBJECTS SHOULD BE GROUND SMOOTH WITH THE FLOOR SURFACE.
CARPETING GENERAL NOTES
1. FLOOR PREPARATION: PREPARE SUBSTRATE TO INSURE QUALITY INSTALLATION. CLEANING FLOORS: THE CONTRACTOR SHALL BROOM
CLEAN AND PREPARE FLOORS TO SATISFACTORY CONDITION TO RECEIVE MATERIALS. CURING: CONCRETE SUB FLOORS SHOULD HAVE CURED FOR AT LEAST 90 DAYS PRIOR TO INSTALLATION. UNDERLAYMENT/LEVELING COAT: SHALL BE USED TO ELIMINATE HEIGHT DIFFERENCES AT FINISH FLOORING TRANSITIONS. UNDERLAYMENT TO CONSIST OF PLYWOOD IN THE APPROPRIATE THICKNESS TO BE GLUED AND POWER NAILED TO THE SUB FLOOR. FOR MINOR FINISH THICKNESS DIFFERENCES, PROVIDE LATEX COMPOUND "FEATHERING" TO MAKE A SMOOTH TRANSITION.
2. LAYOUT: ALL CARPET, UNLESS OTHERWISE STATED, SHALL RUN IN SAME DIRECTION. STANDARD SEAMLESS BROADLOOM WIDTHS SHALL BE USED UNLESS THE SIZE REQUIRED NECESSITATES SEAMING. SEAMS SHALL BE KEPT TO A MINIMUM. SEAMS SHALL GENERALLY NOT
OCCUR AT DOORWAYS PERPENDICULAR TO THE DOOR. SEAMS OCCURRING AT DOORS PARALLEL TO THE DOORS SHALL BE CENTERED DIRECTLY UNDER THE DOOR.
3. CARPET TO PORCELAIN TILE TRANSITIONS TO BE FLUSH. CARPET INSTALLER TO FUR UP SUBFLOOR SO CARPET MEETS TILE FLUSH.
4. RUBBER BASE: STANDARD (AS SPECIFIED) 4" VINYL COVE BASE TO BE INSTALLED WHERE CARPET OCCURS, UNLESS OTHERWISE NOTED.
VCT AND LINOLEUM TILE GENERAL NOTES
1. ALL FLOORING TILES SHALL BE LAID IN A "MONOLITHIC" PATTERN WITH ALL GRAIN OR TEXTURE RUNNING IN THE SAME DIRECTION, UNLESS OTHERWISE NOTED.
2. ADHESIVE: SHALL BE A PRODUCT APPROVED FOR USE IN THIS TYPE OF INSTALLATION BY THE FLOORING OR BASE MANUFACTURER.
3. EXECUTION: FLOORING SHALL BE INSTALLED BY EXPERIENCED INSTALLERS APPROVED BY MANUFACTURER, AND IN STRICT ACCORDANCE WITH MANUFACTURER'S INSTALLATION SPECIFICATIONS.
4. VINYL BASE: STANDARD (AS SPECIFIED) 4" VINYL COVE BASE TO BE INSTALLED WHERE VCT OR LINOLEUM TILE OCCURS, UNLESS
OTHERWISE NOTED.
WALL FINISH GENERAL NOTES:
1. SURFACE PREPARATION: ALL WALLS SHALL BE PROPERLY PREPARED, SPACKLED, SANDED, ETC. TO PROVIDE A SMOOTH SURFACE. ALL ELECTRICAL SWITCHES AND OUTLET PLATES, SURFACE HARDWARE, ETC., SHALL BE REMOVED BEFORE PAINTING OR WALLCOVERING.
2. PROTECTION: ALL WORK BY OTHERS SHALL BE ADEQUATELY PROTECTED AGAINST DAMAGE FROM PAINT AND FROM THE APPLICATION OF THE VARIOUS ADHESIVES USED IN INSTALLING ALL WALL COVERINGS. ON COMPLETION, ALL OTHER WORK SHALL BE LEFT FREE OF DAUBS, SPOTS, AND SPLATTERS OF PAINT AND ADHESIVES.
3. INSTALLATION: ALL WALL COVERING SHALL BE HUNG IN STRICT ACCORDANCE WITH THE RESPECTIVE MANUFACTURER'S WRITTEN INSTRUCTIONS. ALL SEAMS MUST BE CLOSELY AND NEATLY BUTTED AND ALIGNED TO THE WALL COVERING PATTERN, ALL AIR POCKETS AND BUBBLES ELIMINATED, AND THERE MUST BE A FIRM BOND OF THE WALL COVERING TO THE UNDERLYING WALL SURFACES. EXCEPT WHERE INDICATED, ALL SEAMS MUST BE MADE A MINIMUM OF 4" FROM ALL INSIDE AND OUTSIDE CORNERS AND NO HORIZONTAL SEAMS WILL BE ACCEPTED. ALL FINISHED SURFACES MUST BE CLEANED AS THE WORK PROGRESSES AND ALL EXCESS PASTE AND ADHESIVES MUST BE REMOVED.
4. PAINTING: ALL PAINT SHALL BE RECOMMENDED BY THE PAINT MANUFACTURERS FOR SPECIFIC SURFACES. PROVIDE THE FOLLOWING PAINT SYSTEMS FOR THE VARIOUS SUBSTRATES INDICATED. SEE FINISH PLANS FOR EXACT LOCATION.
DRYWALL PARTITIONS:
1ST COAT PRIMER
2ND COAT LATEX, EGGSHELL
3RD COAT LATEX, EGGSHELL
DRYWALL SOFFITS & COVES:
1ST COAT PRIMER
2ND COAT LATEX, FLAT
3RD COAT LATEX, FLAT
HOLLOW METAL FRAMES & MISC. METAL ITEMS:
1ST COAT PRIMER
2ND COAT LATEX, SEMI-GLOSS
3RD COAT LATEX, SEMI-GLOSS
5. ALL HOLLOW METAL DOORS FRAMES TO BE PAINTED P 3
6. PAINTING
FINISH PLAN KEY NOTES 1. PROVIDE AND INSTALL WT WITH
CAP
SCHLUTER TRIM FROM FLOOR TO 4 -0 A.F.F. INSTALL WC 1 FROM 4 -0 A.F.F. TO CEILING. 2. PAINT GYP. BOARD CEILING PT 1 3. SEE 4/A5.00 FOR BREAKROOM FLOORING PATTERN PLAN. NEW DOOR EXISTING WALL EXISTING DOOR NEW WALL DEMO WALL WALL AND DOOR LEGEND BI-FOLD DOOR DOUBLE DOOR ROOM SCHEDULE 2801 2802 2803 2804 2805 2806 2807 2808 2809 2810 2811 2812 CONFERENCE OPEN OFFICE HUDDLE ROOM PRINT AREA BREAKROOM RECEPTION NORTH CORRIDOR EAST CORRIDOR SOUTH CORRIDOR WEST CORRIDOR MENS RESTROOM WOMENS RESTROOM FLOORING WALL BASE TRANSITION FINISH SYMBOL LEGEND 3 4 5 6 7 8 9 10 3.1 7.1 A B C D E F G H C.1 G.1 A.1 1 1 2801 2802 2803 2804 2805 2806 2807 2808 2809 2810 2811 2812 CPT1 CPT 3 CPT 2 CPT 2 CPT 2 CPT 2 CPT 2 CPT 2 CPT 2 CPT 2 CPT 2 CPT 2 CPT 2 CPT 2 CPT 2 CPT 2 CPT 2 CPT 2 CPT 2 CPT 2 CPT 2 CPT 2 CPT 2 CPT 2 CPT 2 CPT 2 CPT 2 CPT1 CPT1 CPT1 CPT1 CPT1 CPT1 CPT1 CPT1 CPT1 CPT1 LIN LIN SC SC SC SC SC SC SC SC SC SC SC SC SC SC SC FT FT FT FT 2 2 WC 2 B WC 2 B P 1 B P 3 B P 3 B P 3 B WC 2 B P 1 B P 1 B TS 2 P 2 B 3 TS 2 TS 1 TS 1 WC 1 B TS 1 WC 1 B TS 1 TS 1 TS 1 TS 1 WC 1 B TS 1 TS 1 TS 1 TS 3 TS 3 WC 1 B WT B WT B WC 1 B TS 1 WC 1 B TS 1 TS 1 TS 1 www.autodesk.com/revit Scale Project number Date Drawn by Checked by Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail 1/8" = 1'-0" 5/2/2023 12:23:23 PM A3.00
DES-414-002 NEW
5/2/2023 MAKAYLA PARKIN KEF No. Description Date 1/8" = 1'-0" 1 A3.00 FINISH PLAN
& WALL COVERING INSTALLATION TO OCCUR BEFORE MILLWORK INSTALLATION. PORCELAIN/CERAMIC TILE GENERAL NOTES: 1. GROUT LINES AT TILE FLOORS AND WALLS NOT TO EXCEED 3/16 WIDTH.
COORDINATING BULLNOSE
OR
FINISH PLAN
OFFICE SPACE BPM STUDIO
WALLS
FINISH SPECIFICATION SUMMARY
TRAFFIC TRANSITION 1/8" - 1/4" HIGH 38 PEWTER RUBBER
P1 BENJAMIN MOORE AF-660/BEN INTERIOR PAINT GRANITE EGG-SHELL
P2 BENJAMIN MOORE AF-180/BEN INTERIOR PAINT WENGE MATTE
P3 BENJAMIN MOORE OC-66/BEN INTERIOR PAINT SNOW WHITE EGG-SHELL
WC 1 WOLF GORDON TRIENNIAL/TRN 290/DIGITAL WALLCOVERING 54" WIDE SALT NON WOVEN BACKING
WC 2 WOLF GORDON RIDGELINE/RGL 5410/CONTRACT WALLCOVERING 52" WIDE ASH NON WOVEN BACKING
WT DALTILE AMITY/AM50 RANDOM LINEAR WHITE FINISH GLASS
PLASTIC LAMINATE
P-LAM 1 SOLID SURFACE CORIAN SOLID SURFACE SO125-030-E700 13" X 14" X 1/2" WHITE JASMINE NSF/ANSI 51 CERTIFIED
P-LAM 2 OCTOPUS OCTOLAM PLASTIC LAMINATE 1133 48" X 96" LAUREL OAK WHIRL NSF/ANSI 51
WOOD
WOOD GRAIN LAMINATES
WD 1 EMPIRE TODAY OVERLAND 7 1/2" WIDE CANYON ENGINEERED HARDWOOD
WD 2 LOWES ULTRAWOOD HARDWOOD WALL PANEL #5336644 7" X 15" VINTAGE BROWN ASIAN NATURAL TEAKWOOD
RUBBER BASE
B TARKETT WALL BASE/STICKS/BW
TRANSITION STRIP
4" WIDE 4' LONG .080" THICK BRIGHT WHITE/VINYL 30 STRIPS COME IN A PACK. FLOOR SCORE CERTIFIED & PHTHALATE FREE
TS 1 TARKETT NUGEN T-MOLDING/DRIFTWOOD SAND/TTM85010 7.83 FT (2.4 M) L GREY RUBBER
TS 2 TARKETT NUGEN UNIVERSAL REDUCER/CHESTNUT RIDGE FURROWED/TUR85005
7.83 FT (2.4 M) L BROWN RUBBER
7.83 FT (2.4 M) L GREY METAL GROUT GRT
TS 3 TARKETT PROGEN END CAP/ARCADIAN FEATHERSTONE/EDC88002
www.autodesk.com/revit Scale Project number Date Drawn by Checked by Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail 5/2/2023 12:23:23 PM A3.01 FINISH SPECIFICATION DES-414-002 NEW OFFICE SPACE BPM STUDIO 5/2/2023 MAKAYLA PARKIN KEF No. Description Date
CODE MANUFACTURER STYLE/NAME/NUMBER SIZES COLOR/FINISH NOTE FLOORING CPT 1 PATCRAFT REALIZE 24" X 24" PURPOSE 00710 MULTI-LEVEL PATTERN LOOP CPT 2 PATCRAFT LINEA 2 24" X 24" PEWTER 00520 PATTERN LOOP CPT 3 INTERFACE MOSS 50 CM X 50 CM FLINT/MOSS 105562 ENGAGED TUFTED PATTERN LOOP LIN FORBO MARMOLUEM MODULAR 100 CM X 25 CM GREY GRANITE FT 1 DALTILE PORTFOLIO 24" X 24" WHITE/UNPOLISHE D CEMENT PORCELAIN TS 1 TARKETT ADAPTORS 1/4" HIGH 38 PEWTER RUBBER TS 2 TARKETT WHEELED
1
CEILING ACT 1 ARMSTRONG CEILINGS RANDOM TEXTURED/935 24 X 24 X 5/8 WHITE SQUARE LAY-IN 15/16 GYP 1 USG ENSEMBLE
DRYWALL CEILING WHITE FINISH SCHEDULE ROOM FLOOR BASE N WALL E WALL S WALL W WALL CLG RECEPTION CPT 1 B WC 2 P 3 P 3 P 3 ACT 1 CONFERENCE CPT 2 B P 1 P 1 P 1 WC 2 ACT 1 OPEN OFFICE CPT 1 B P 3 P 3 P 3 P 3 ACT 1 HUDDLE ROOM CPT 2 B P 3 P 3 P 3 WC 2 ACT 1 BREAKROOM LIN TS 2 B P 2 P 2 P 2 P 2 ACT 1 PRINT AREA CPT 1 B P 1 P 1 P 1 P 1 ACT 1 NORTH CORRIDOR CPT 2 / TS 1 B WC 1 WC 1 WC 1 WC 1 ACT 1 EAST CORRIDOR CPT 2 / TS 1 B WC 1 WC 1 WC 1 WC 1 ACT 1 SOUTH CORRIDOR CPT 2 / TS 1 B WC 1 WC 1 WC 1 WC 1 ACT 1 WEST CORRIDOR CPT 2 / TS 1 B WC 1 WC 1 WC 1 WC 1 ACT 1 MENS RESTROOM FT TS 3 GRT 1 B WT WC 1 WT / WC 1 WT WC 1 WT / WC 1 GYP1 WOMENS RESTROOM FT TS 3 GRT 1 B WT WC 1 WT / WC 1 WT WC 1 WT / WC 1 GYP 1
TILEBAR LATICRETE PERMACOLOR BRIGHT WHITE GROUT-8LB 8 LBS WHITE
ACCOUSTICAL
PLAN GENERAL NOTES: 1. FURNITURE INFORMATION IS FOR MOVING AND PLACEMENT REFERENCE ONLY. 2. VERIFY FURNITURE SPECIFICATIONS WITH MANUFACTUTER REPRESENTATIVE.
3. TENANT IS RESPONSIBLE FOR MOVING AND FURNITURE COORDINATION.
4. TENANT AND TENANT S CONTRACT WORKERS ARE RESPONSIBLE FOR REPAIRING ANY DAMAGE DONE TO FINISHED CONSTRUCTION WORK DUE TO MOVING FURNITURE, FIXTURES AND/OR EQUIPMENT.
PLAN KEY NOTES:
SEE A7.00 FOR RECEPTION DESK DETAILS.
SEE A5.00 FOR ENLARGED EQUIPMENT PLAN OF RESTROOMS.
CLIENT PROVIDED REFRIDGERATOR.
Refrigerator ROOM SCHEDULE 2801 2802 2803 2804 2805 2806 2807 2808 2809 2810 2811 2812 CONFERENCE OPEN OFFICE HUDDLE ROOM PRINT AREA BREAKROOM RECEPTION NORTH CORRIDOR EAST CORRIDOR SOUTH CORRIDOR WEST
MENS
WOMENS
CORRIDOR
RESTROOM
RESTROOM FURNITURE/EQUIPMENT
3.
NEW DOOR EXISTING
EXISTING DOOR NEW WALL DEMO WALL WALL AND DOOR LEGEND BI-FOLD DOOR DOUBLE DOOR 3 4 5 6 7 8 9 10 3.1 7.1 A B C D E F G H C.1 G.1 A.1 2801 2802 2803 2804 2805 2806 2807 2808 2809 2810 2811 2812 3 1 2 2 C1 WS C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 WS WS WS WS WS WS WS WS WS WS WS T1 C2 C2 T2 T3 T3 T3 T3 C3 C3 C3 C3 C3 C3 C3 C3 T4 T4 S S S S S S S S S S S S C4 C4 C4 C4 C4 C4 C4 C4 C4 C4 C4 C4 C4 C4 C4 C4 C4 C4 WS SPECS BY FURNITURE DEALER T4 C1 19 18 17 16 15 14 www.autodesk.com/revit Scale Project number Date Drawn by Checked by Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail 1/8" = 1'-0" 5/2/2023 12:23:26 PM A4.00 FURNITURE EQUIPMENT PLAN DES-414-002 NEW OFFICE SPACE BPM STUDIO 5/2/2023 MAKAYLA PARKIN KEF No. Description Date 1/8" = 1'-0" 1 A4.00 FURNITURE/EQUIPMENT PLAN
FURNITURE/EQUIPMENT
1.
2.
WALL

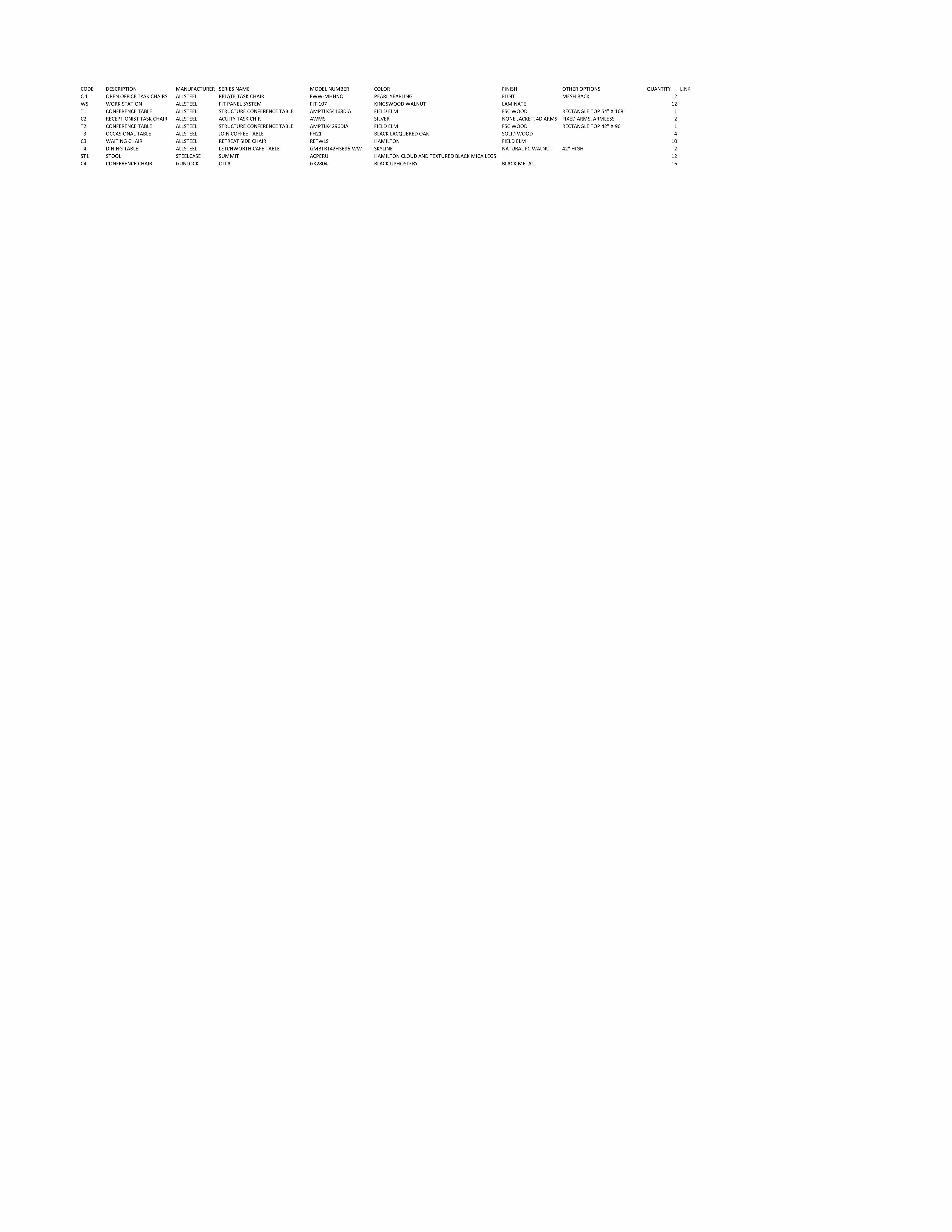

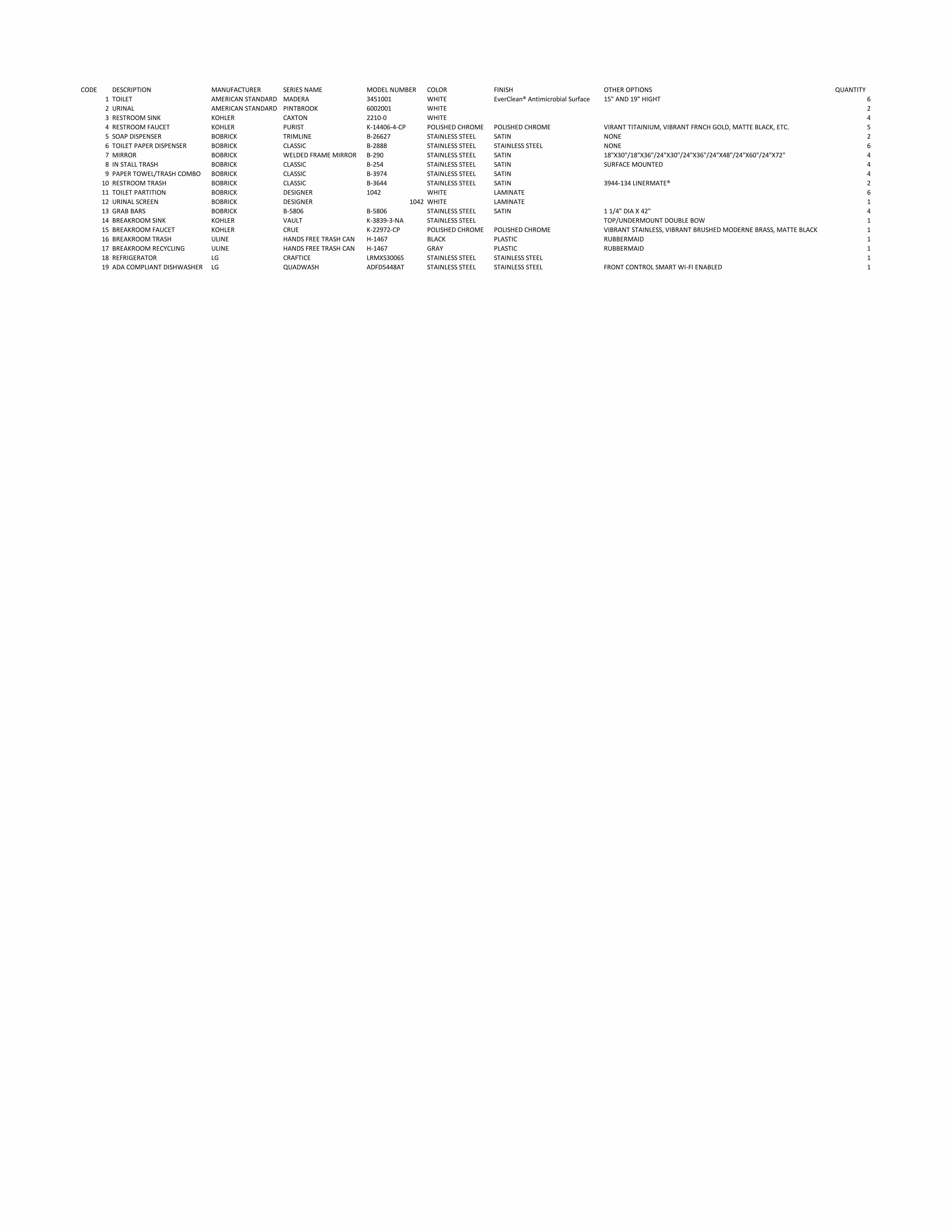

QUANTITY FURNITURE SPECIFICATION SUMMARY 8 OPTIMIZE WORK STATIONS P16524TP EQUIPMENT SPECIFICATION SUMMARY 1042 www.autodesk.com/revit Scale Project number Date Drawn by Checked by Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail As indicated 5/2/2023 12:23:30 PM A4.01 FURNITURE EQUIPMENT SPECS DES-414-002 NEW OFFICE SPACE BPM STUDIO 5/2/2023 MAKAYLA PARKIN KEF No. Description Date
D D NOTE: SEE A3.01 FOR FINISH SPECIFICATIONS 0'11 1/4" 2'0" 2'0" 2'0" 2'0" 2'0" 2'0" 2'0" 2' 0 1/4" 2' 0" 2' - 0" 2' - 0" 2' 0" 2' 0" 2' - 0" 2' 0" 2' 0" 2' 0" 2' - 0" 2' 0" 2' 0" 2' - 0" 1' 0" NOTE: SEE A4.01 FOR EQUIPMENT SPECIFICATIONS 1 1 1 1 1 1 2 2 3 3 3 3 4 4 4 4 5 5 6 6 6 6 6 6 7 7 8 8 8 8 8 8 9 9 9 9 10 10 11 11 11 11 11 12 11 11 13 13 13 13 A6.00 5MENSRRELEVATION A6.00 4 WOMENSRR ELEVATION 1'-0" 3'-01/4" 5'-0" 5'-0" 3'-71/4" 3'-7" 1'-7" 3'-0" 2'-1" 0'-61/2" 0'-61/2"2'-1" 1'-7" 3'-0" 1'-0" 3'-01/4"5'-0" 5'-1" 3'-7" 3'-71/4" 3'-4" 1'-7" 3'-4" 5'-111/2" 5'-11" 1'-7" 2'-5" HATCH LEGEND LIN 1 LIN 2 NOTE: SEE A2.00 FOR RCP SPECIFICATIONS TYP4'-0" TYP4'-0" 4'-0" 3'-0" 3'-91/2" 3'-0" 6'-0" 2'-111/2" 2'-111/2" 4'-3" 3'-0" 3'-91/2" 3'-0" 6'-0" 2'-111/2" 2'-111/2" www.autodesk.com/revit Scale Project number Date Drawn by Checked by Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail As indicated 5/2/2023 12:23:31 PM A5.00 ENLARGED PLANS DES-414-002 NEW OFFICE SPACE BPM STUDIO 5/2/2023 MAKAYLA PARKIN KEF No. Description Date 1/4" = 1'-0" 1 ENGLARED PLAN OF COPY/BREAK ROOM FLOOR PATTERN 1/4" = 1'-0" 2 ENLARGED EQUIPMENT PLAN OF RR 1/4" = 1'-0" 3 ENLARGED CONSTRUCTION PLAN RR 1/4" = 1'-0" 4 ENLARGED REFLECTED CEILING PLAN
1' 0" 4' - 0" 4' - 0" 1' 0" 2' 0" CLEAR 3' - 6" CLEAR 2' 0" 1' 3" 1' - 3" 0' - 8" CLEAR 4' 0" 0' 2 3/4" 14' 10 3/4" 9'0" 0'4" 0'1 1/2" 0'4" 2'10" 1'4" 2'6" 2'0" 1 A7.00 NOTE: CABINET CONTRACTOR TO FIELD VERIFY MEASUREMENTS BEFORE COMMENCING WORK PLAM 2 PLAM 2 PLAM 1 PLAM 2 WC 1 3' 9" WC 1 PLAM 1 14' - 10 1/2" 2' 0" 1' 0" 1' - 6" 2' 6" 2' 0" 3' 0" 1' - 6" 2' 6" 2' 0" 0'4" 0'1 1/2" 0'4" 2'10" 1'4" 2'6" 2'0" 2' 2" 2 A7.00 NOTE: CABINET CONTRACTOR TO FIELD VERIFY MEASUREMENTS BEFORE COMMENCING WORK PLAM 2 PLAM 1 PLAM 2 PLAM 2 WC 1 WC 1 PLAM 2 0'4" 0'4" 9'0" 2'10" 2'0" 2'6" 1'4" 0' 1 1/2" 0' 1 1/2" 4' 0" 2' 6" 2' - 6" 1' - 0" 12' 3 1/4" 2' - 0" 3' 0" 2' - 6" 0' 1 1/2" 4' 0" 0' 1 1/2" 2' 6" NOTE: CABINET CONTRACTOR TO FIELD VERIFY MEASUREMENTS BEFORE COMMENCING WORK PLAM 2 PLAM 2 PLAM 2 PLAM 1 WC 1 0'1 1/2" WC 1 4'0" 0'1 1/2" 0'4" 2'10" 3'4" 4'6" 1'2" 1' 7" 2' - 9 3/4" 3' - 7" 3' - 6 1/4" 1'3" 1'3" 1'3" 1'7" 0'8" 3' 11" 2'10" 1' 3 1/4" 7'0" 1'4" 0' - 1" 3' 6 1/4" 0' - 1" 3' 6" 0' - 1" NOTE: CABINET CONTRACTOR TO FIELD VERIFY MEASUREMENTS BEFORE COMMENCING WORK 1'7" 2'9" 3 A7.00 4'0" WT 1 PLAM 1 WC 2 0' 6" 1'0" 3' 7" 3' - 3" 0' 6" 2' - 3" 0' - 5 3/4" 2' 3" 4' 11" 3'2" 2'10" 3' - 4" 0' 5" 1' 7" 2' - 9 3/4" 1' 7" 3' 7" 1' - 7" 2' - 9" 3' - 6" 3' 11" 3' 3" 2'10" 0'4" 0'1 1/2" 3' 11" 7'0" 0'8" 1'3" 2'10" 0' 8" 1'8" 1'8" 0' 1" 3' - 6 1/4" 0' 1" 3' 6" 0' - 1" 5' 0" 4'0" 1' - 7" 2' - 9" 4'6" 1'2" 3'4" 1'7" NOTE: CABINET CONTRACTOR TO FIELD VERIFY MEASUREMENTS BEFORE COMMENCING WORK 1'7" 2'9" 4'0" WT 1 WC 2 PLAM 1 0' 6" 1'0" 3' 8" 3' 3" 3'2" 2'10" 0' 6" 2' 3" 0' 7" 2' 3" 0' 5" 3' - 4" 1' 7" www.autodesk.com/revit Scale Project number Date Drawn by Checked by Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail 1/2" = 1'-0" 5/2/2023 12:23:32 PM A6.00 ELEVATIONS DES-414-002 NEW OFFICE SPACE BPM STUDIO 5/2/2023 MAKAYLA PARKIN KEF No. Description Date 1/2" = 1'-0" 1 BREAK ELEVATION 1/2" = 1'-0" 2 EAST COPY ELEVATION 1/2" = 1'-0" 3 NORTH COPY ELEVATION 1/2" = 1'-0" 4 WOMENS RR ELEVATION 1/2" = 1'-0" 5 MENS RR ELEVATION
MILLWORK GENERAL NOTES
1. ROUGH CARPENTRY: THE CONTRACTOR SHALL PROVIDE SUFFICIENT FRAMING OR BLOCKING OF ALL WALL OPENINGS FOR MECHANICAL, ELECTRICAL, AND ARCHITECTURAL ELEMENTS INCLUDING SHELVING, SIDELIGHT, DOORS, MILLWORK, ETC. LOCATED IN OR ON WALLS.
2. ALL MILLWORK TO BE FASTENED TO THE PARTITION. PROVIDE BLOCKING FOR ALL MILLWORK NOT ON FLOOR
SLAB. ALL CONCEALED LUMBER TO BE SEALED AND FIRE TREATED.
3. SHOP DRAWINGS: CONTRACTOR SHALL PROVIDE SHOP DRAWINGS FOR ALL MILLWORK INDICATING PROFILES, JOINT DETAILS, CONNECTIONS, AND CONSTRUCTION METHODS AND MATERIALS FOR ALL INCLUDED ITEMS. ALL
DETAILS SHALL BE DRAWN AT NO SMALLER SCALE THAN 3/4" = 1' -0" AND SHOW ALL REQUIRED STRUCTURAL
SUPPORTS AND BLOCKING, INCLUDING ITEMS WHICH MAY BE REQUIRED OR SUPPLIED BY OTHERS.
4. FINISHING SAMPLES: ALL MILLWORK IS TO BE SHOP FINISHED BY THE FABRICATOR. SAMPLES OF LAMINATES AND SOLID SURFACING WITH SPECIFIED FINISHES SHALL BE SUBMITTED TO PROJECT DESIGNER FOR APPROVAL
PRIOR TO FABRICATION. COMPLETED WORK SHALL CONFORM TO APPROVED SAMPLES.
5. MILLWORK HARDWARE: IS PROVIDED BY MILLWORK CONTRACTOR AND SHALL BE AS FOLLOWS.
FINISH: POLISHED CHROME UNLESS NOTED OTHERWISE: PROVIDE SAMPLES AND SPECIFICATION SHEET TO PROJECT DESIGNER FOR APPROVAL.
DRAWER PULLS: EPCO DP-46, OR EQUAL, POLISHED CHROME
CABINET PULLS: STANLEY 4484-METAL FINISHES, OR EQUAL, POLISHED CHROME, CABINET HINGES: HAFELE "METALLAMAT" CONCEALED TYPE. 180 DEGREE HINGES, OR EQUAL.
DRAWER GLIDES: KV 1250 STANDARD FINISH, OR EQUAL
SILENCERS: (2) PER CABINET DOOR - HEAVY DUTY
STANDARDS & BRACKETS: KV85-185, OR EQUAL, ANACHROME FINISH
MAGNETIC CATCHES: STANLEY SP45/SP46, STANDARD FINISH
GROMMETS: DOUG MOCKETT & CO., EDP SERIES POLISHED CHROME, OR BLACK
COUNTER METAL SUPPORTS:1 TUBE STEEL, PAINTED. PROVIDE FIRE-RATED WOOD BACKING.
6. FINISHES: SHALL BE AS FOLLOWS: EXTERIOR SURFACES: COUNTERTOPS, CABINET FRONTS, DOORS, ALL SURFACES, EXPOSED END PANELS, AND SUPPORTS TO BE HIGH-PRESSURE PLASTIC LAMINATE OR WOOD VENEER AS INDICATED ON DRAWINGS. INTERIOR SURFACE
FINISHING: MILLWORK SHALL BE DRESSED AND SANDED FREE FROM MACHINE AND TOOL MARKS, ABRASIONS, RAISED GRAIN OR OTHER DEFECTS ON SURFACES EXPOSED TO VIEW. ALL EXPOSED OUTSIDE CORNERS OF COUNTERTOPS TO HAVE 2 RADIUS.
7. MILLWORK FABRICATION/ASSEMBLE: SHALL BE AS FOLLOWS:
INSTALLATION: WORK SHALL BE CAREFULLY INSTALLED IN THE MOST RIGID MANNER, STRAIGHT, PLUMB, LEVEL AND IN TRUE ALIGNMENT, NEATLY AND ACCURATELY FITTED AND SCRIBED AND THOROUGHLY SECURED. WORK SHALL BE LEFT CLEAN. MILLWORK CONTRACTOR TO FURNISH AND INSTALL FILLERS AS NECESSARY.
8. ALL MILLWORK TO COMPLY WITH AWI GUIDELINES FOR CUSTOM GRADE
PLAM 1 SHELF BRACKET 4" INTERGRAL BACKSPLASH 2 LAYERS 3/4" MDF WITH DRIPLESS EDGE 2'0" 2'6" 1'4" 0'4" 0'1 1/2" 2'10" 9'0" 0' 4 1/2" 0' - 7" 0' - 5" 106.00° 2'3" 0'7" 1/2" MDF WITH PLAM 1 0' 8 1/2" 2' 1" 0'10 1/2" PLAM 1 2' 0" 0'4" 0'1 1/2" 1'8" 2'6" 2'0" 9'0" 1' - 0" 2 LAYERS 3/4" MDF 4' INTEGRAL BACKSPLASH PLAM 1 SHELF BRACKET 0'4" 0' 4" 2'10" 9'0" DRAIN TRIP WITH ADA COMPLIANT PIPE INSULATION SLEEVE 2 LAYERS 3/4" MDF WITH DRIPLESS EDGE 2' - 1" MIRROR 4" INTEGRAL BACKSPLASH 0'4" 0'1 1/2" 3'4" 4'6" 1'2" 0'2" 0' - 4" 0'8" 1'3 3/4" 2'10" 3'3 1/2" 9' 0" 2'0" 0'4" 0' - 4" 0'4" 0' - 4" 2' - 0" 3' 0" 1' 4 3/4" 2' 3 1/4" 1'8" 1' 8" 2'10" 5'2" 5 A7.00 A7.00 A7.00 6 FRONT ELEVATION 7 BACK ELEVATION PLAM 1 PLAM 1 PLAM 1 PLAM 1 0'1" 2'6" 0'9" 0' 4" 2' 0" 2' - 10" 3'3" PLAM 1 PLAM 1 PLAM 1 SUPPORT 2'6" 2'5" 2'6" 0'1" 3'3" 3' 8 3/4" 3' - 0" 2' - 3 1/4" 9' 0" PLAM 1 PLAM 1 PLAM 1 2'6" 5' 3 1/4" 2' - 3 1/4" 3' 0" 2'5" 0'1" 0' 4" 1' 4 3/4" 2' - 0" 2'6" 3'3" 3' 8 3/4" 9' 0" PLAM 1 MDF X PLAM 1 PLAM 1 PLAM 1 SUPPORT 0'1" 0'7 1/2" 0'7 1/2" 0'7 1/2" 0'7 1/2" 2'6" 9'0" SUPPORT www.autodesk.com/revit Scale Project number Date Drawn by Checked by Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail As indicated 5/2/2023 12:23:33 PM A7.00 SECTIONS AND DETAILS DES-414-002 NEW OFFICE SPACE BPM STUDIO 5/2/2023 MAKAYLA PARKIN KEF No. Description Date 3/4" = 1'-0" 1 BREAKROOM SINK SECTION 3/4" = 1'-0" 2 COPYROOM CABINET SECTION 3/4" = 1'-0" 3 RESTROOM SINK SECTION 1/2" = 1'-0" 4 RECEPTION DESK PLAN 1/2" = 1'-0" 5 ADA COUNTER SECTION 1/2" = 1'-0" 6 FRONT ELEVATION 1/2" = 1'-0" 7 BACK ELEVATION
DEMOLITION PLAN GENERAL NOTES
1. REMOVE ALL WALLS, DOORS, AND MILLWORK AS SHOWN DASHED ON PLAN.
2. IN PARTITIONS TO BE REMOVED, CAP ALL CONDUIT, PIPING, OUTLETS, SWITCHES, WIRES, CABLES, THERMOSTATS, ETC TO THEIR SOURCE AS REQUIRED.
3. IF ANY QUESTIONS ARISE AS TO THE REMOVAL OF ANY MATERIAL, CLARIFY THE POINT IN QUESTION WITH THE DESIGNER BEFORE PROCEEDING.
4. DEMOLITION IS NOT NECESSARILY LIMITED TO WHAT IS SHOWN ON DRAWINGS. THE INTENT IS TO INDICATE THE GENERAL SCOPE OF DEMOLITION REQUIRED TO COMPLETE THE WORK IN ACCORDANCE WITH THE CONTRACT DRAWINGS.
5. REMOVE ALL FLOORING IN AREAS AS NOTED HEREIN. SUBSURFACE ARE TO BE CLEANED OF ALL DEBRIS, REMAINING GLUE AND OTHER RESIDUE.
6. ALL EXISTING WIRING AND CABLING IN PLENUM IS TO BE REMOVED AND DISPOSED OF.
7. ALL EXISTING CEILING GRID, CEILING TILES AND LIGHTS ARE TO BE REMOVED AND RETURNED TO BUILDING STOCK OR DISPOSED OF AS DIRECTED BY CLIENT.
8. ALL DOORS, FRAMES, HARDWARE, MECHANICAL ITEMS, PLUMBING FIXTURES, LIGHT FIXTURES AND SPECIAL EQUIPMENT SHOWN TO BE REMOVED SHALL BE CLEANED, PROTECTED, SAVED AND REUSED AS DIRECTED HEREIN OR RETURNED TO BUILDING STOCK OR DISPOSED OF AS DIRECTED BY CLIENT.
9. AT COMPLETION OF DEMOLITION WORK THE CONSTRUCTION AREA
3 4 5 6 7 8 9 10 3.1 7.1 A B C D E F G H C.1 G.1 A.1
SHALL BE LEFT IN A BROOM CLEAN CONDITION. ALL DEBRIS AND MISCELLANEOUS MATERIAL SHALL BE REMOVED. 10. ALL PLUMBING FIXTURES AND WALL IN RESTROOM TO BE DEMOLISHED NEW DOOR EXISTING WALL EXISTING DOOR NEW WALL DEMO WALL WALL AND DOOR LEGEND BI-FOLD DOOR DOUBLE DOOR www.autodesk.com/revit Scale Project number Date Drawn by Checked by Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail 1/8" = 1'-0" 5/2/2023 12:23:34 PM D1.00 DEMOLITION PLAN DES-414-002 NEW OFFICE SPACE BPM STUDIO 5/2/2023 MAKAYLA PARKIN KEF No. Description Date 1/8" = 1'-0" 1 D1.00 DEMOLITION PLAN
POWER, DATA & COMMUNICATION SHEET GENERAL NOTES
1. WORK SHALL BE INSTALLED IN ACCORDANCE WITH ALL APPLICABLE CODES BY DULY LICENSED AND AUTHORIZED TRADES PEOPLE. ANY EXISTING ELECTRICAL WORK WITHIN PROJECT AREA NOT COMPLYING WITH EXISTING CODE REQUIREMENTS IS TO BE CORRECTED. OPENINGS AROUND CONDUIT THAT PENETRATE FIRE-RATED PARTITIONS SHALL BE FILLED WITH FIREPROOFING MATERIAL.
2. THE ELECTRICAL ENGINEER SHALL BE RESPONSIBLE FOR DETERMINING CIRCUITING OF ALL ELECTRICAL OUTLETS AND FIXTURES AND SHALL PROVIDE ENGINEER STAMPED DRAWINGS.
3. THE ELECTRICAL CONTRACTOR IS RESPONSIBLE FOR EVALUATING EXISTING FIELD CONDITIONS BY VISITING THE JOB SITE PRIOR TO PREPARING BIDS AND COMMENCING ANY WORK. VERIFY THAT ALL EXISTING WIRING AND CABLING IN PLENUM HAS BEEN REMOVED AND DISPOSED OF. DO SO, IF NOT.
4. ALL DEVICE BOXES SHALL BE INSTALLED FLUSH AND CONDUIT RUNS CONCEALED IN FINISHED AREAS U.O.N.
5. ALL OUTLETS INSTALLED BACK TO BACK ON PARTITIONS SHALL OFFSET 1 -0 MAX.
6. INDICATED DIMENSIONS ARE TO CENTER OF COVER PLATE OR CENTER OF SIDE BY SIDE OUTLETS.
7. ALL COMMUNICATION AND OUTLET COVER PLATES TO BE LEGRAND SMOOTH WHITE U.O.N.
8. ALL POWER, DATA AND COMMUNICATION OUTLETS SHALL BE MOUNTED VERTICALLY AND BE IN COMPLIANCE WITH CODE REQUIREMENTS AND ADA GUIDELINES. MOUNT AT 15 ON CENTER A.F.F. U.O.N. ALTERNATE MOUNTING HEIGHTS ARE EXPRESSED WITH A NUMBER ADJACENT TO SYMBOL. ALL OUTLETS MORE THAN 40 A.F.F. ARE TO BE MOUNTED HORIZONTALLY. SIDE BY SIDE OUTLETS SHALL BE MOUNTED 4 CENTER TO CENTER.
9. IF ANYTHING CANNOT BE INSTALLED AS SHOWN HEREIN CLARIFY WITH DESIGNER BEFORE COMMENCING
NEW DOOR
EXISTING DOOR
DOUBLE DOOR
WALL AND DOOR LEGEND BI-FOLD DOOR
NEW WALL DEMO WALL
EXISTING WALL
GFI
WORK. 10. DEDICATED CIRCUITS SHALL BE A UNIQUE AND SEPARATE CIRCUIT TO ONLY ONE (1) RECEPTACLE WIRED DIRECTLY TO PANEL WITH NO OTHER OUTLETS OR EQUIPMENT ATTACHED. 11. ALL ELECTRICAL WORK SHALL BE COORDINATED WITH ALL MILLWORK ITEMS. 12. FOR ALL TELE/COM OUTLETS PROVIDE AN OUTLET BOX WITH PULL WIRE TO WALL CAVITY FROM CEILING. 13. ALL TELE/COM EQUIPMENT AND CABLING TO BE PROVIDED AND INSTALLED BY TENANTS CONTRACTOR U.O.N. 14. COORDINATE SECURITY SYSTEM WITH TENANT S CONTRACTOR AS REQUIRED. PDC KEYNOTES: 1. ALL OUTLETS IN EXISTING RESTROOMS SHALL REMAIN. PROVIDE NEW COVER PLATES. 3 4 5 6 7 8 9 10 3.1 7.1 A B C D E F G H C.1 G.1 A.1 CONFERENCE 2801 OPEN OFFICE 2802 HUDDLE ROOM 2803 PRINT AREA 2804 BREAKROOM 2805 RECEPTION 2806 WOMENS RESTROOM 2812 MENS RESTROOM 2811 41'3" 1 1 WEST CORRIDOR 2810 NORTH CORRIDOR 2807 EAST CORRIDOR 2808 SOUTH CORRIDOR 2809 D D D 42" CEILING POWER CEILING POWER 30' 6" 21' 5 1/4" 16' 4" 2'5" 2'5" 8'5" 27' 9 3/4" 20' - 8 1/2" 29' 7 1/2" 42" D 10'1" 21'10" 21'4 3/4" 19'10" 6'0" 19' 3 3/4" 21' 11 1/2" 19' 4 1/2" 21' 8 1/2" 8'4 3/4" 12'1 1/4" 4'11 1/2" 1'3" 1'3" 2'0" 4'0" 3'6 1/4" 5'5" 12' - 6" 9' 10 1/4" 6' 8" 3'10" 6' 11 3/4" 2'4" D 42" 42" 7'0" 15'5" 22'1 1/2" 22'1 1/2" 4' - 0" 9' - 0" 4' 0" DUPLEX RECEPTACLE 4-PLEX RECEPTACLE DEDICATED DUPLEX RECEPTACLE GFI DUPLEX RECEPTACLE COMMUNICATION/DATA OUTLET CEILING POWER/DATA D GFI POWER, DATA, & COMM. LEGEND www.autodesk.com/revit Scale Project number Date Drawn by Checked by Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail 1/8" = 1'-0" 5/2/2023 12:23:34 PM E1.00 POWER DATA AND COMM PLAN DES-414-002 NEW OFFICE SPACE BPM STUDIO 5/2/2023 MAKAYLA PARKIN KEF No. Description Date 1/8" = 1'-0" 1 E1.00 POWER DATA AND COMM PLAN
