CONTENTS 01 ARCHITECTURE SCHOOL DESIGN 2021 BHUTAN,PHUENTSHOLING 02 ARTIST RETREAT VILLAGE 2021 KESHAV NAGAR, MUNDHWA,PUNE 03 HOUSING 2023 PUNE 04 WORKING DRAWINGS 2022

CONTENTS 05 COMPETITION 2021 ART INSTALLATION ,CALICUT 06 HANDWORK 2021 FURNITURE DESIGN AND CEILING 08 INTERNSHIP WORK 2021-23 07 SKILLS MODEL MAKING AND OTHER

01 ARCHITECTURE COLLEGE

ARCHITECTURE IS THE ART AND SCIENCE OF DESIGNING AND ENGINEERING LARGE STRUCTURES THIS COURSE IS A BLEND OF ART, SCIENCE AND TECHNOLOGY. THROUGH THE UNDERGRADUATE STUDENTS LEARN ABOUT THE CONSTRUCTION PROCESS OF DIFFERENT STRUCTURES OR SPACES INSTITUTIONAL, CAMPUS ETC. THE PROJECT WAS ASSIGNED TO DESIGN AN ARCHITECTURE COLLEGE THERE IS NO COLLEGE WAS THERE PROVIDING THE STUDENTS OF BHUTAN TO EXPLORE THE

SECTION SECTION

SITEPLAN 1 1 COMPUTER LAB 2 DESIGN STUDIO 3 THEORY CLASSES 4 ADMIN 5 GENERAL STORE 6 PANTRY 7 NASA ROOM 8 PRINCIPAL CABIN 9 HEAD OF DEPARTMENT 10 STAFF ROOM 11 CONFERENCE ROOM 12 TOILETS 13 CAFETERIA 14 REST ROOM 15 OPEN AMPHITHEATRE

KEYPLAN

1 2 2 3 3 3 3 3 4 5 4 6 7 8 9 10 11 12 13 14 15 14

A-A' SECTION THROUGH ADMIN,COURTYARD,STUDIOS,CLASSROOMS,REST ROOMS

SECTION B-B' SECTION THROUGH LIBRARY,STUDIO,TOILETS,ADMIN

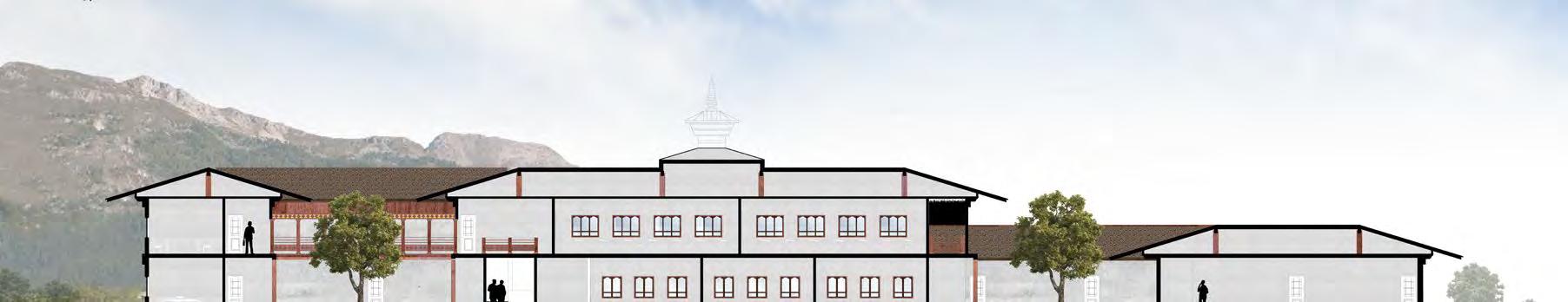

NORTH EAST ELEVATION

SOUTH EAST ELEVATION

STRUCTURES AND BUILDING. UNDERGRADUATE ARCHITECTURE DEGREE, SPACES LIKE COMMERCIAL, COLLEGE IN BHUTAN AS THE NEW FIELD.

GL +00 PLINTH 500MM GF SLAB 3500MM FF SLAB 6500MM ROOF TOP EDGE 6500MM

RENDERS

LANDSCAPE PLAN

SECTION A-A' SECTION THROUGH ADMIN,COURTYARD,STUDIOS,CLASSROOMS,REST ROOMS SITE SECTION CUTTING THROUGH OPEN AMPHETHERE

02 ARTIST RETREAT VILLAGE

ARTIST RETREAT ARE BREAKS FROM LIFE THAT ALLOW CRAFTSPEOPLE WORKING IN DIFFERENT MEDIA TO EXPERIENCE A CALMING ENVIRONMENT IN WHICH TO CREATE REWARDING WORK WITHIN A COMMUNITY. THE PROJECT WAS ASSIGNED TO DESIGN AN ARTIST RETREAT VILLAGE FOR THE ARTS LIKE COPPER ART, POETRY AND WARLI PAINTING. THE VICINITY SHOULD BE DESIGNED IN SUCH A MANNER THAT INTERESTED PEOPLE WILL JOIN THE WORKSHOPS WHILE STAYING AND ENJOYING THE OTHER FACILITIES PROVIDED IN THE CAMPUS.

SITE STUDY

LOCATION-KESHAV NAGAR, MUNDHWA,PUNE,411036

SITE AREA-17083 SQM

LATITUDE -18°32'36.6"N

LONGITUDE-73°57'33.2"E

TOPOGRAPHY-SITE IS COMPLETLY FLAT ,A LITTLE SLOPE IS SEEN IN NORTH EAST SIDE .THE SITE IS GOES DOWN 3.5 M IN NORTH DIRECTION. SOIL TYPE-BROWN SOIL

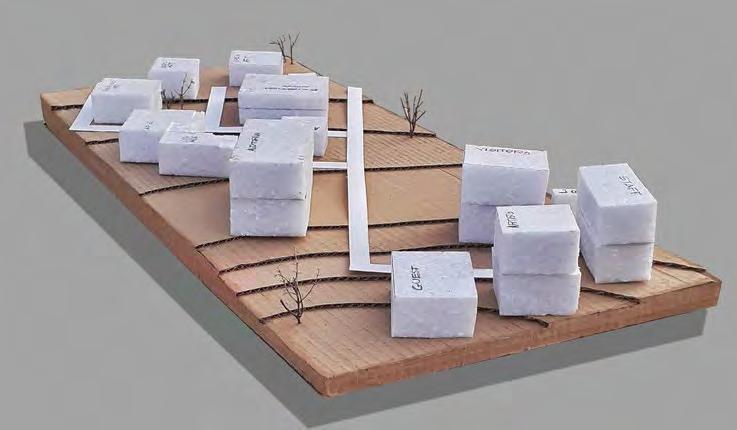

BLOCK MODEL OPTIONS

SITE

FINAL OPTION

ZONING SINGLE

LINE PLAN

SECTION THROUGH ART BLOCKS

SECTION THROUGH COTTAGES, AUDITORIUM, ADMIN, EXHIBITION SITE

PLAN

EXHIBITION AND OPEN ART BLOCK

OPEN ART BLOCK WARLI PAINTING

KEY PLAN

SOUTH EAST ELEVATION

NORTH EAST ELEVATION

PLAN

A A'

KEY PLAN

SECTION A-A'

EXHIBITION BLOCK

PLAN

NORTH WEST ELEVATION

NORTH EAST ELEVATION

KEY PLAN

REGIONAL ART BLOCK WARLI PAINTING PLAN

NORTH WEST ELEVATION

SOUTH WEST ELEVATION

SECTION A-A'

A A'

KEY PLAN

LOCAL ART BLOCK COPPER ART

NORTH WEST ELEVATION

SOUTH WEST ELEVATION

SECTION A-A'

PLAN

A A'

RESIDENCIAL UNITS(COTTAGE, QUARTERS,BUILDING)

SOUTH VIEW

ENTRY

PARKING

LOCAL ART BLOCK OPEN ART BLOCK REGIONAL

ART

EXHIBITION BLOCK

CAFETERIA

AUDITORIUM

COTTAGES

SERVICE ROOM

AMPHITHEATRE

SERVICE ROOM ADMIN

ART BLOCK BLOCK NORTH VIEW

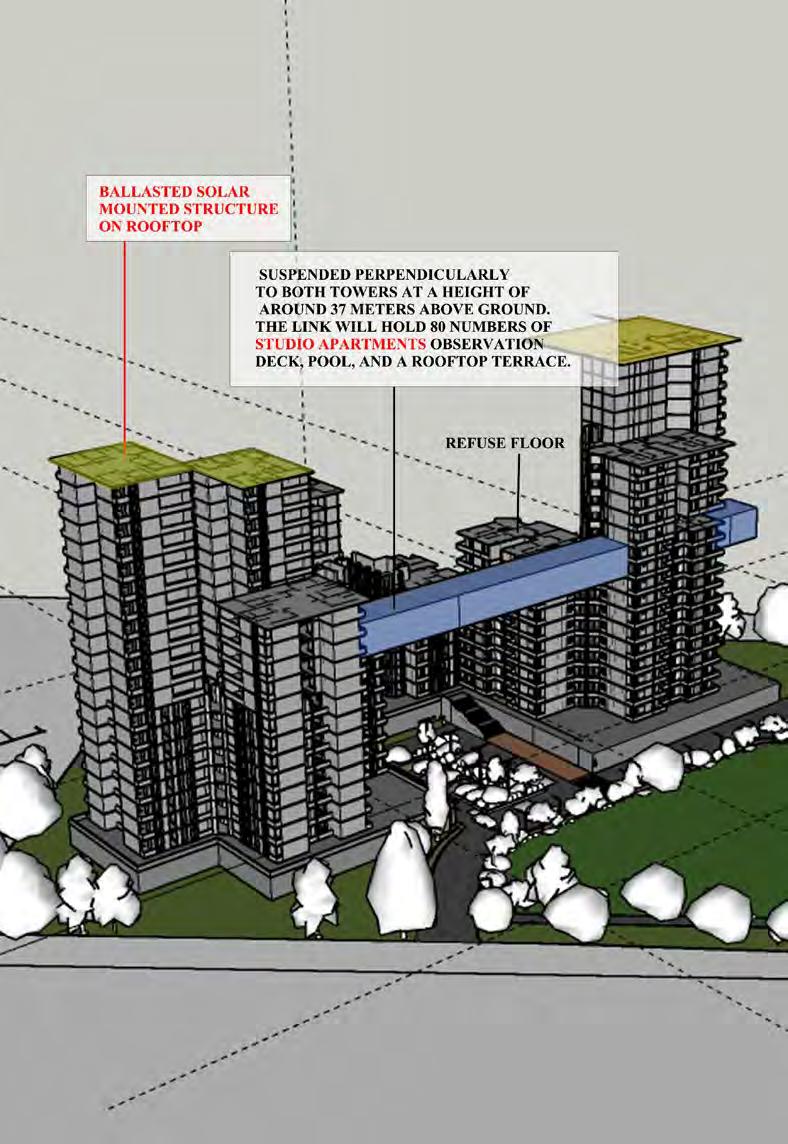

03 HOUSING

CORPORATE FOOTPRINTS HAVE ONLY BEEN GOING UP IN PUNE AND THIS HAS MADE IT ONE OF THE FASTEST GROWING, THEREBY UPLIFTING THE RESIDENTIAL REAL ESTATE MARKETS IN INDIA. REPORTS STATE THAT, PUNE DISPLAYED A SHARP INCREASE IN DEMAND AND HAS WITNESSED SIZABLE DEMAND FOR MID RANGE PROPERTIES. THE PROJECT WAS ASSIGNED TO DESIGN A HOUSING PROJECT BY FOLLOW PROPER UDCPR RULES FOR THE STATE OF MAHARASHTRA.

SITE STUDY SITE PLAN

11T,12TH,13TH

GROUND FLOOR TO 8TH FLOOR 9TH AND 10TH FLOOR 3BHK LAYOUT 4BHK LAYOUT FLOORS 14TH AND 15TH FLOOR

TERRACE

16TH FLOOR

LAYOUT

19TH FLOOR

2BHK

1BHK

17TH AND 18TH FLOOR

PHYSICAL MODEL

DINING CUM KITCHEN AREA

BEDROOMS

LIVING ROOMS

DISPLAY AREA VERANDAH ARTIST CABIN OFFICE AND SALE AREA 10000X7000 3800X3900 3800X4100 4000X7000 C1 C2 C3 C4 C5 C6 C7 C8 C9 C10 C11 C12 C13 C14 C15 C16 C17 C18 C19 C20 C21 C22 C23 C24 C25 C26 C27 16.6900 7.1500 9.9600 1.3800 18.4900 O (0,0) B (850MM) C (3940MM) D (7115MM) E (7200MM) F (11115MM) G (13340MM) H (16575MM) A (290MM) 1 (290MM) 2 (3135MM) 3 (7010MM) 5 (9995MM) 6 (11615MM) 7 (14230MM) 8 (16995MM) 9 (18290MM) 4 (7275MM) PROJECT TITLE: CENTRELINE PLAN NORTH SCALE PROGRESSIVE SIGNATURES SHEET NO CHECK 1 CHECK 2CHECK3 CHECK WINDOW SCHEDULE DESCRIPTION NO. TYPE SIZE DOOR SCHEDULE NO. TYPE SIZE DESCRIPTION SINHGAD COLLEGE OF ARCHITECTURE NAME : MAHESH D. RAKH YEAR 3RD YEAR B-ARCH ROLL NO : 17 STAMP REMARK 1.THIS DWG. IS TO BE READ IN CONJUCTION WITH RELEVANT ARCHITECTURAL AND STRUCTURAL DWG. 2.THE SITE IN CHARGE SHOULD CHECK AND VERIFY ALL DWGS AND 3.ANY DISCRIPANCY TO BE BROUGHT TO THE NOTICE OF THE ARCHITECT IMMEDITELY IN WRITING. STRUCTURAL DWGS. 5.FOUNDATION PCC SHOULD NOT BE CAST UNLESS GIVEN BY THE NORMS AND THE RESULTS SHOULD BE SUBMITTED TO THE ARCHITECTS OFFICE IMMEDIATELY. IMPORTANT NOTES ON RCC AND CONCRETE WORK NOTES 1.CHECK FRESHNESS AND QUALITY OF CEMENT AND STEEL BEFORE USE LAB TESTING. 2.ANY CONC. USED ON SITE SHALL BE MIXED IN MECH. MIXER. 3.ANY STRUCTURAL MEMBER SHALL NOT BE CAST UNLESS SIZE, REIFORCEMENT AND FORMEORK IS CHECKED AND CERTIFIED IN WRITING THE STRUCTURAL DESIGNER. 5.SUFFICIENT NO. OF SUPERVISORS SHOULD BE PRESENT ON SITE DURING CONCRETING WORK TO ENSURE PROPER WATER CEMENT RATIO, MIXING, DEAD, LIVE AND DYNAMIC LOADS. PROPRE BRACING SHOULD BE PROVIDED. 7.SPECIAL CARE SHOULD BE TAKEN TO ENSURE THAT STRUCTURAL DETAILS AND STRICTLY FOLLOWED. IMPORTANT NOTES FOR SAFETY ON SITE 2.NECESSARY SAFETY GEAR SUCH AS HELMET, SAFETY BELT TO BE PROVIDED TO THE WORKMEN. 3.NECESSARY BARRICADES, RAILINGS, WARNING SIGNS TO BE INSTALLED 4.ISURANCE POLICY FOR WORKMEN TO BE PROVIDED FOR THE PROJECT, COPY TO BE SUBMITTED TO THE PMC. SHOULD BE TAKEN TO SEE THAT ELECTRICAL WIRES ARE NOT LEFT OPEN, WATER DOES NOT COME IN CONTACT WITH WIRES OR MACHINERY, PROPER 6.FIRST AID KIT SHOULD BE KEPT IN SITE OFFICE AND BOARD EXPLAINING STEPS TO BE TAKEN IN AN EMERGENCY KEPT IN EASY VIEW IN THE OFFICE MENTIONING IMP PHONE NUMBERS. SPECIFICATION DATE : SHEET TITLE OAB C DE FG H 9 8 7 6 5 4 3 2 1 6000X4000 C28 25.4320 25.4320 DISPLAY AREA VERANDAH ARTIST CABIN SALE AREA 10000X7000 0.7300 2.9250 1.2680 1.5000 0.5950 0.8425 1.3000 1.8370 1.3000 4.0255 0.80000.3550 0.5000 2.9250 0.3450 1.3000 1.4000 1.3000 2.8494 0.6750 1.5000 0.5950 2.0000 3.3500 0.9000 0.2500 0.6125 1.3000 1.8370 1.3000 0.9522 4.0000 0.9000 2.9300 2.9300 1.6184 2.1500 2.5684 1.8500 0.2500 2.0000 2.0000 1.8500 1.0500 1.8500 0.2500 0.8000 2.0000 2.8484 0.33000.9000 9.0000 0.5444 1.0000 0.7540 4.0000 3.2000 3.2000 1.6200 2.0000 0.2500 2.0000 2.0000 2.0000 1.2000 1.4200 2.1500 0.3500 0.5500 0.5000 0.8000 1.45000.8000 2.9000 2.0000 1.2000 1.2000 1.6200 0.5500 0.5500 1.7000 2.0000 1.2000 4.1300 2.0000 3.1500 3.3950 0.4000 0.4000 3.7350 1.8500 4.1950 1.8500 1.3900 2.8500 2.6200 3.8500 1.5300 1.4000 4.1500 0.3000 2.2800 0.7700 7.1500 1.4300 1.3000 1.8500 1.3000 1.8500 1.3000 1.4300 1.2000 1.3000 1.8500 1.3000 1.8500 1.3000 1.4300 10.0000 1.4800 6.9200 9.0204 0.9000 6.9200 6.5904 0.90000.3096 10.4600 7.0000 9.9600 6.2300 0.4300 0.8000 0.5500 0.8000 0.5500 0.8000 2.2000 0.8000 0.5500 0.8000 0.4300 0.7540 1.0000 0.7760 4.2300 15.4700 1 2 3 1 2 3 OFFICE 3700X4000 3700X2600 6000x4000 6.0000 UP 1.2000 3 2 1 4 5 6 7 8 9 10 14 13 12 11 17 16 15 20 19 18 0.3000 D4 D4 D4 D4 D4 D3 D3 D3 D3 D4 D1 D2

CENTRE LINE GROUND FLOOR 04 WORKING DRAWING

FIRST FLOOR TERRACE

OFFICE AND SALE AREA DISPLAY AREA UP STORAGE 3.7700 1.3000 1.5775 6.7700 0.9200 4.3850 1.3000 1.5775 9.9600 1.2000 4.0000 3.4300 2.0000 1.2000 1.2000 2.0000 1.2000 2.1500 1.4200 0.8000 1.3000 6.5700 0.90000.3300 9.0000 6.9200 1.2000 1.3000 1.8500 1.3000 1.8500 1.3000 1.2000 6.9200 6.8050 6.2300 2.0016 2.0000 1.2000 2.0000 2.0000 1.2000 0.7700 7.1500 1.4300 1.3000 1.8500 1.3000 1.8500 1.3000 1.4300 1.4000 7.4300 3.7350 4.1950 1.3900 3.7700 5.8500 3.2000 1.6200 0.3500 0.5500 2.9000 1.6200 0.5500 0.5500 1.7000 0.4300 0.8000 0.5500 0.8000 0.5500 0.8000 2.2000 15.4700 ARTIST CABIN 0.6125 1.3000 1.8370 1.3000 0.9522 4.0000 2.9300 2.9300 1.6184 2.1500 2.5684 1.8500 0.2500 2.0000 2.0000 0.2500 0.8000 2.0000 10.4600 7.0003 7.1500 10.4600 6.2316 9000x6920 3770x6770 6000x4000 6.0000 23 22 21 24 25 26 27 28 29 30 34 33 32 31 37 36 35 40 39 38 D4 D4 D4 D4 D4 D3 D3 D3 D3 D3 D3 D4 RIDGE LINE PROJECT TITLE: NORTH PROGRESSIVE CHECK 1 CHECK WINDOW SCHEDULE NO. TYPE SIZE DOOR SCHEDULE NO. TYPE SIZE SINHGAD COLLEGE NAME : MAHESH YEAR : 3RD YEAR ROLL NO : 17 REMARK AND STRUCTURAL DWG. 2.THE SITE IN CHARGE DIMENSIONS ON SITE 3.ANY DISCRIPANCY TO IMMEDITELY IN WRITING. 4.FOR SIZES OF RCC MEMBERS STRUCTURAL DWGS. 5.FOUNDATION PCC SHOULD STRUCTURAL DESIGNER. 6.CONCRETE CUBE TEST NORMS AND THE RESULTS IMPORTANT NOTES NOTES 1.CHECK FRESHNESS LAB TESTING. 2.ANY CONC. USED ON 3.ANY STRUCTURAL MEMBER REIFORCEMENT AND THE STRUCTURAL DESIGNER. 4.AGGREGATE SHALL 5.SUFFICIENT NO. OF CONCRETING WORK 6.FORMWORK SHOULD DEAD, LIVE AND DYNAMIC 7.SPECIAL CARE SHOULD RELEVANT TO EARTHQUAKE AND STRICTLY FOLLOWED. IMPORTANT NOTES 1.NO PERSON SHOULD 2.NECESSARY SAFETY PROVIDED TO THE WORKMEN. 3.NECESSARY BARRICADES, SITE ESPECIALLY FOR 4.ISURANCE POLICY FOR COPY TO BE SUBMITTED 5.ALL ELECTRICAL WIRING SHOULD BE TAKEN TO WATER DOES NOT COME EARTHING IS PROVIDED. 6.FIRST AID KIT SHOULD STEPS TO BE TAKEN MENTIONING IMP PHONE SPECIFICATION SHEET TITLE 7.0000 10.4600 17.4600 15.4700 3.0200 6.2316 10.4600 7.1500 9.9600 17.1100 16.6916 18.4900 RIDGE LINE RIDGE LINE RIDGE LINE 23 22 21 24 25 26 27 28 29 30 34 33 32 31 37 36 35 40 39 38 DOWN 1500X2100 D11 1000X2100 D22 900X2100 D33 1300X2100 W11 800X600 V12 1400X2100 W33 800X2100 D44

COLUMN MAIN ENTRY AND EXIT 10M LANDSCAPING LANDSCAPING DOWN DOWN BASEMENT EXIT SWITCH EQUIPMENT ROOM ROOMGENERATOR ROOMSUPPLYELECTRICAL ROOMCCTV ROOMMAINTENANCE RAMP SECURITY CABIN CHANNELDRAINAGE DRAINCHANNEL TWO WHEELERS PARKING 6MWIDEENTRYTOBASEMENT SINHGAD COLLEGE NAME-MAHESH DIV-C ROLL SIGN MULTIBASEMENT FOR HOTEL SCALE 1:200 LOBBY FIRE STAIRCASE CABINSECURITY BASEMENT2EXIT 4 WHEELERS 4 WHEELERS PARKING 4WHEELERS PARKING 2WHEELERS PARKING SERVICE ENTRY 6M 4M WIDE DRIVEWAY 6MWIDE DRIVEWAY 7.8M WIDE DRIVEWAY DRAINCHANNEL BASEMENT2ENTRY SLOPERATIO-1:10 BASEMENT 1 PLAN 7.2600 4.5000 6.4000 3.6489 6.4042 JETFANS(OUTLET) JET FAN POSITION (INLET) JET FAN (OUTLET) 6MWIDE 6.0000 -1.2 SWITCH EQUIPMENT ROOM ROOMGENERATOR ROOMSUPPLYELECTRICAL ROOMCCTV (INLET)JETFANS ROOMMAINTENANCE SECURITY CABIN DRAINCHANNEL SINHGAD COLLEGE OF ARCHITECTURE SIGN SCALE LIFT FIRE STAIRCASE DRAIN CHANNEL DRAINCHANNEL 6MWIDEDRIVEWAY 6.2M WIDE DRIVEWAY 6.4M WIDE DRIVEWAY 7.2MWIDEDRIVEWAY 6MWIDEDRIVEWAY6.4MWIDEDRIVEWAY JETFANS ROOMPUMP SLOPE RATIO-1:10 6.2610 6.4042 21 TWO WHEELERS FOUR WHEELERS BASEMENT 60 TO BASEMENT 1 EXIT (6M ) JETFANS(OUTLET) JET FAN POSITION (INLET) JET FAN (OUTLET)

BASEMENT 2 PLAN

BASEMENT 1 PLAN

MULTIBASEMENT FOR HOTEL MECHANICAL VENTILATION

CAST IRON GRILL 25 MM THICK 100 MM THK PCC GRATING DETAIL BASEMENT WALL SUMP PIT SUMP MOTOR FOOTING SUMP CHANNEL DETAIL MAIN ENTRY AND EXIT 10M DOWN DOWN SWITCH EQUIPMENT ROOM ROOMGENERATOR ROOMSUPPLYELECTRICAL ROOMCCTV ROOMMAINTENANCE RAMP SECURITY CABIN GRATED DRAIN DRAINCHANNEL DRAINCHANNEL DRAIN CHANNEL DRAIN CHANNEL TWO WHEELERS PARKING 6MWIDEENTRYTOBASEMENT SINHGAD COLLEGE OF ARCHITECTURE NAME-MAHESH DEVIDAS RAKH DIV-C ROLL NO-16 SUB-ABCS SIGN MULTIBASEMENT FOR HOTEL SCALE 1:200 LOBBY FIRE STAIRCASE 4 WHEELERS 4WHEELERS PARKING 2WHEELERS PARKING 3.6M WIDE DRIVEWAY 4M WIDE DRIVEWAY 4.5MWIDE DRIVEWAY 7.8M WIDE DRIVEWAY GRATED DRAIN DRAINCHANNEL BASEMENT2ENTRY GRATED DRAIN SLOPERATIO-1:10 BASEMENT 1 DRAINAGE LAYOUT BASEMENT EXIT GRATED DRAIN GRATED DRAIN GRATED DRAIN DRAIN CHANNEL JETFANS(OUTLET) JET FAN POSITION (INLET) JET FAN (OUTLET) CABINSECURITY RIDGELINE RIDGELINE RIDGE LINE RIDGE LINE

DRAINAGE LAYOUT MAIN ENTRY AND EXIT 10M LANDSCAPING DOWN DOWN SWITCH EQUIPMENT ROOM ROOMGENERATOR ROOMSUPPLYELECTRICAL ROOMCCTV ROOMMAINTENANCE RAMP SECURITY CABIN CHANNELDRAINAGE DRAINCHANNEL DRAINCHANNEL DRAIN CHANNEL DRAIN CHANNEL TWO WHEELERS PARKING JET FANS JETFAN 5.8MWIDEENTRYTOBASEMENT LOBBY FIRE STAIRCASE CABINSECURITY 2 4 WHEELERS PARKING INLET JET OUTLET JET BASEMENT 1 4WHEELERS PARKING 2WHEELERS PARKING SERVICE ENTRY 6M 3.6M WIDE DRIVEWAY 4M WIDE DRIVEWAY 4.5MWIDE DRIVEWAY 7.8M WIDE DRIVEWAY GRATED DRAIN BASEMENT2ENTRY SLOPERATIO-1:10 BASEMENT EXIT 2 INTERNAL JETS FOR CIRCULATION 7 JETFANS(OUTLET) JET FAN POSITION (INLET) JET FAN (OUTLET) FRESHAIR EXHAUST FAN DRUM EXHAUST FAN WINDOW EXHAUST FAN A DETAIL AT A OUT LET JET FANS DETAIL INLET JET FAN RCC SLAB

VENTILATION LAYOUT
