Proguard Pacific 2023 Catalogue

The purpose of Protective Guards, Pipe Protectors, Bollards, Machine Guards, Height Restriction Tubes, and Pedestrian Traffic Control is to prevent and protect people and property from damage, loss of use, downtime, and preventable accidents/incidents.

At PROGUARD PACIFIC, we accomplish this through design, innovation, high-quality materials, certified welders and staff, engineering, and customer feedback. We believe in manufacturing a quality product domestically, using properly sized materials intended to withstand the wear and tear that these items will inevitably be required to endure due to the nature of their purpose.

PROTECTIVE GUARDS

BOLLARDS

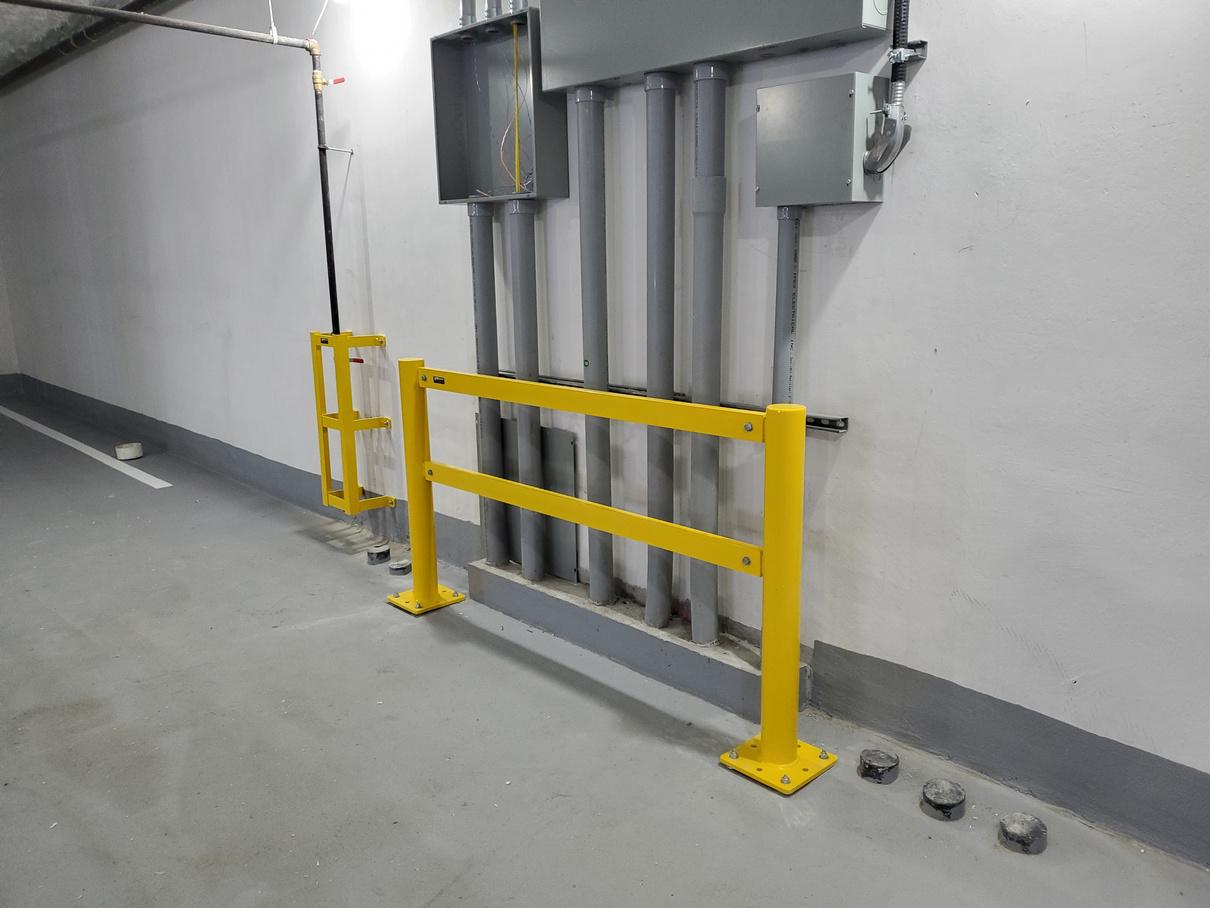

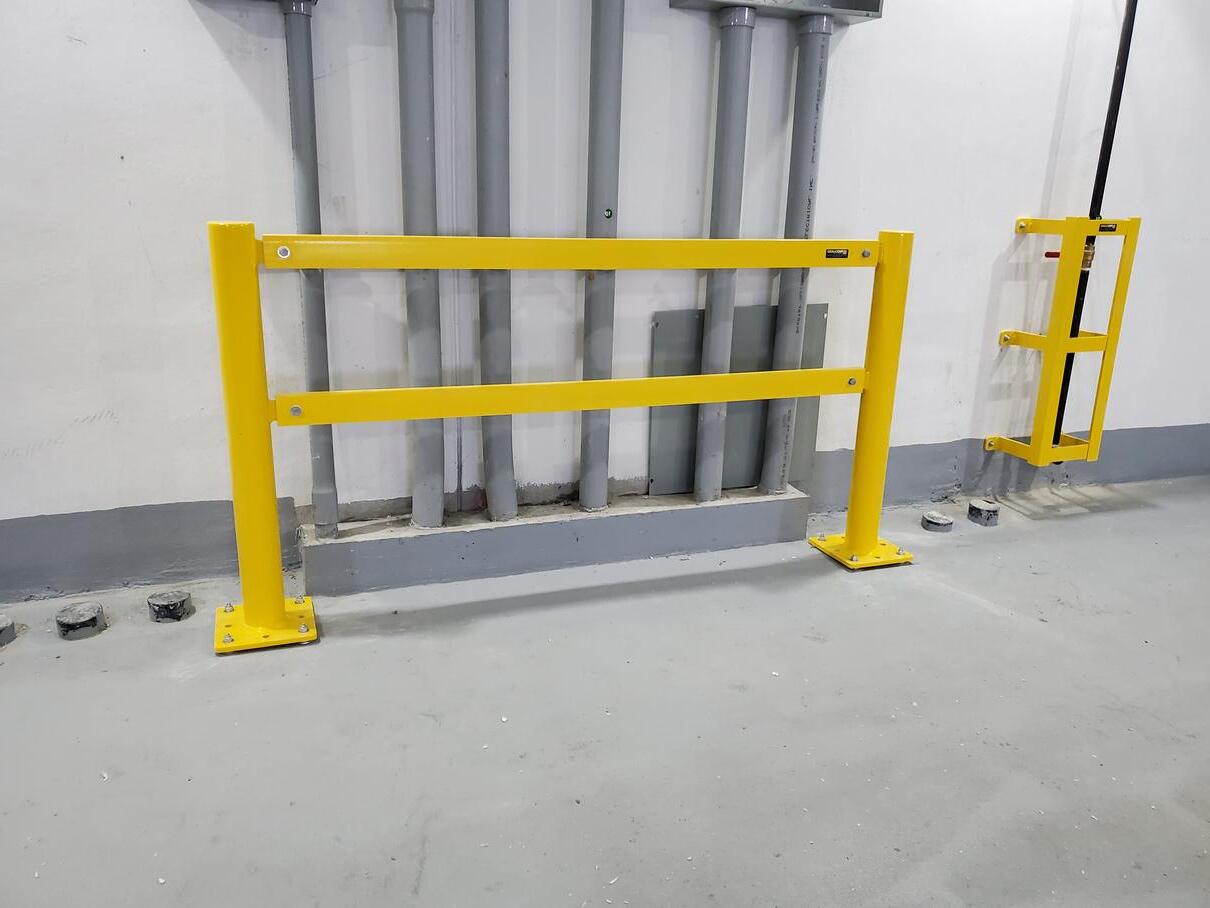

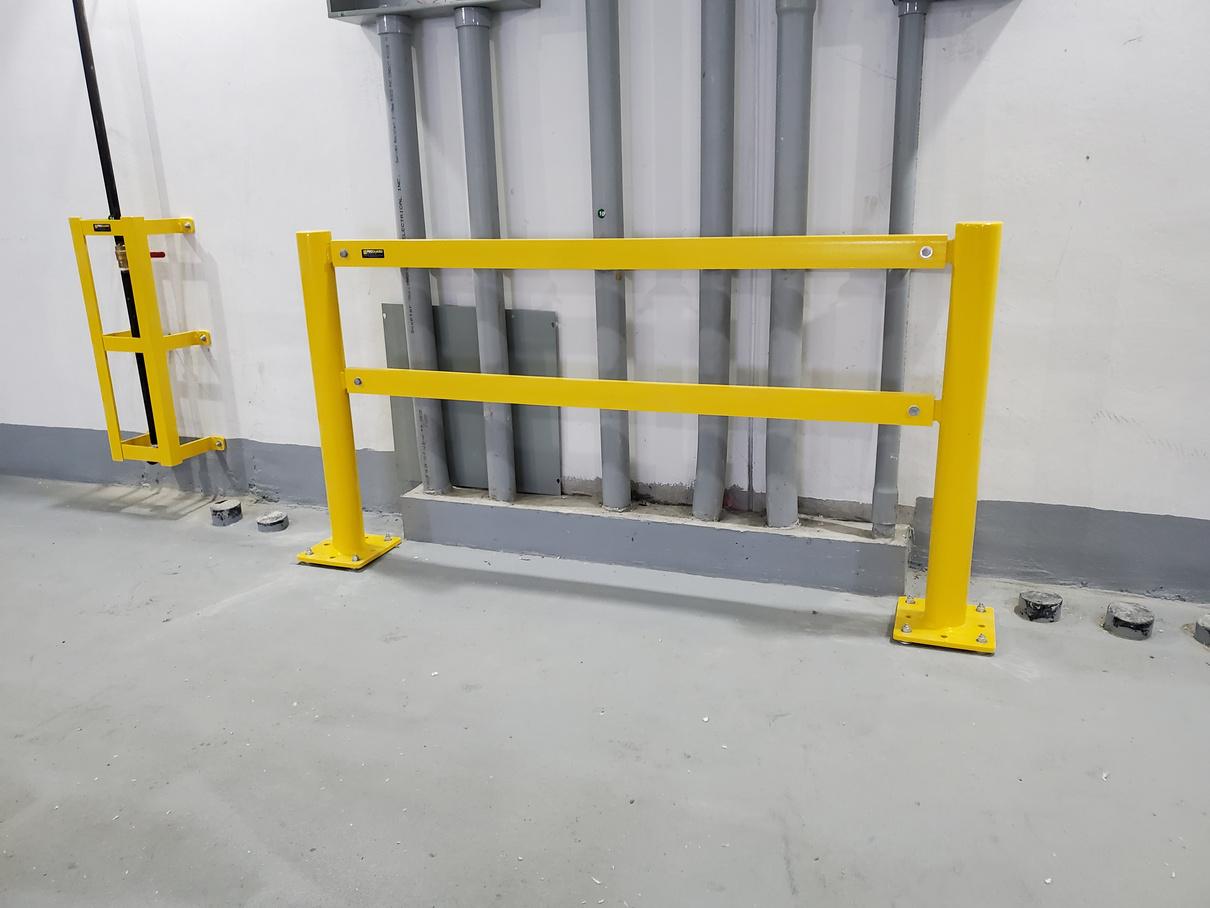

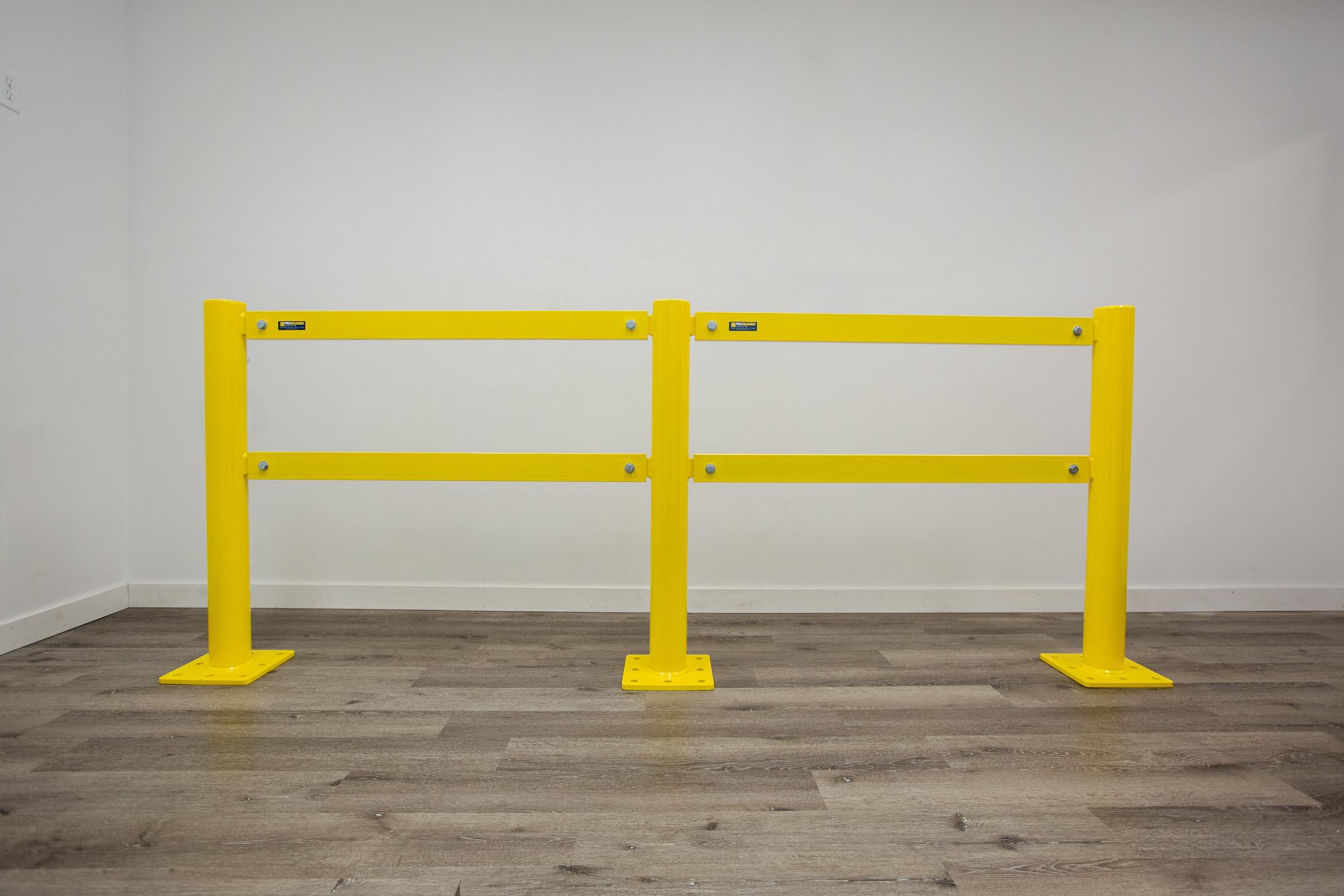

BARRIER RAILS

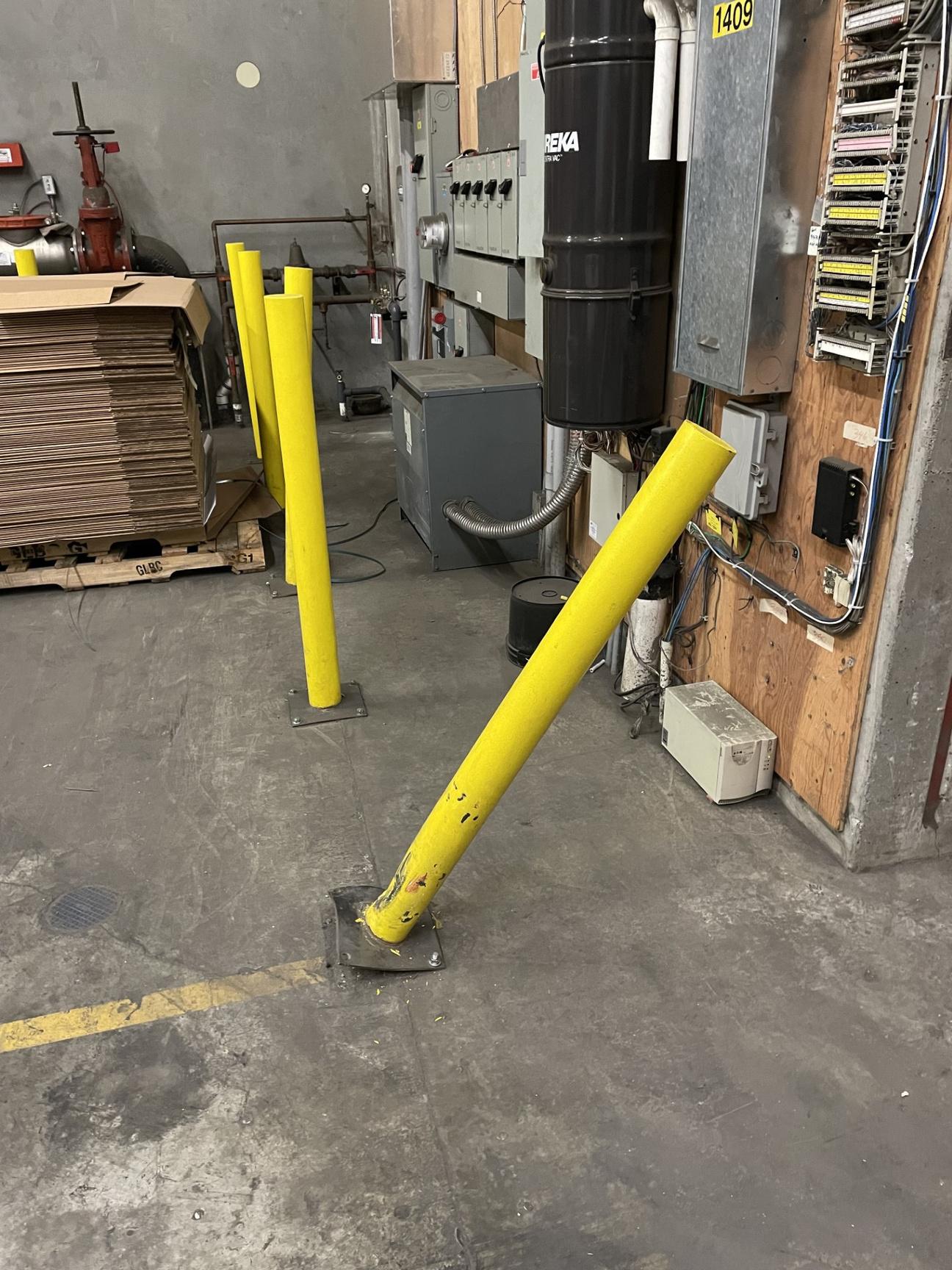

DON'T SETTLE FOR SUBSTANDARD OVERSEAS PRODUCTS

1 0 G A U G E

P

P

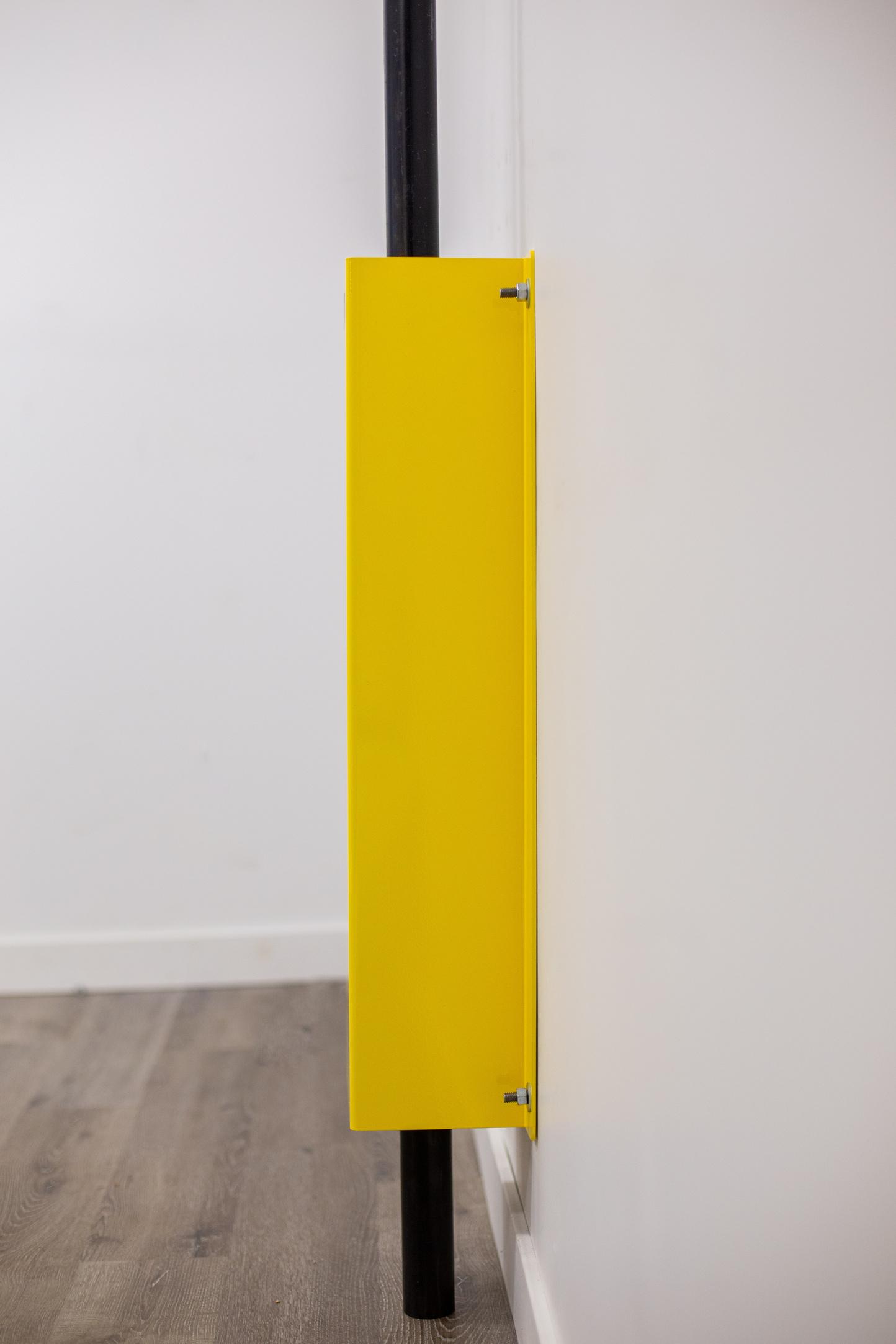

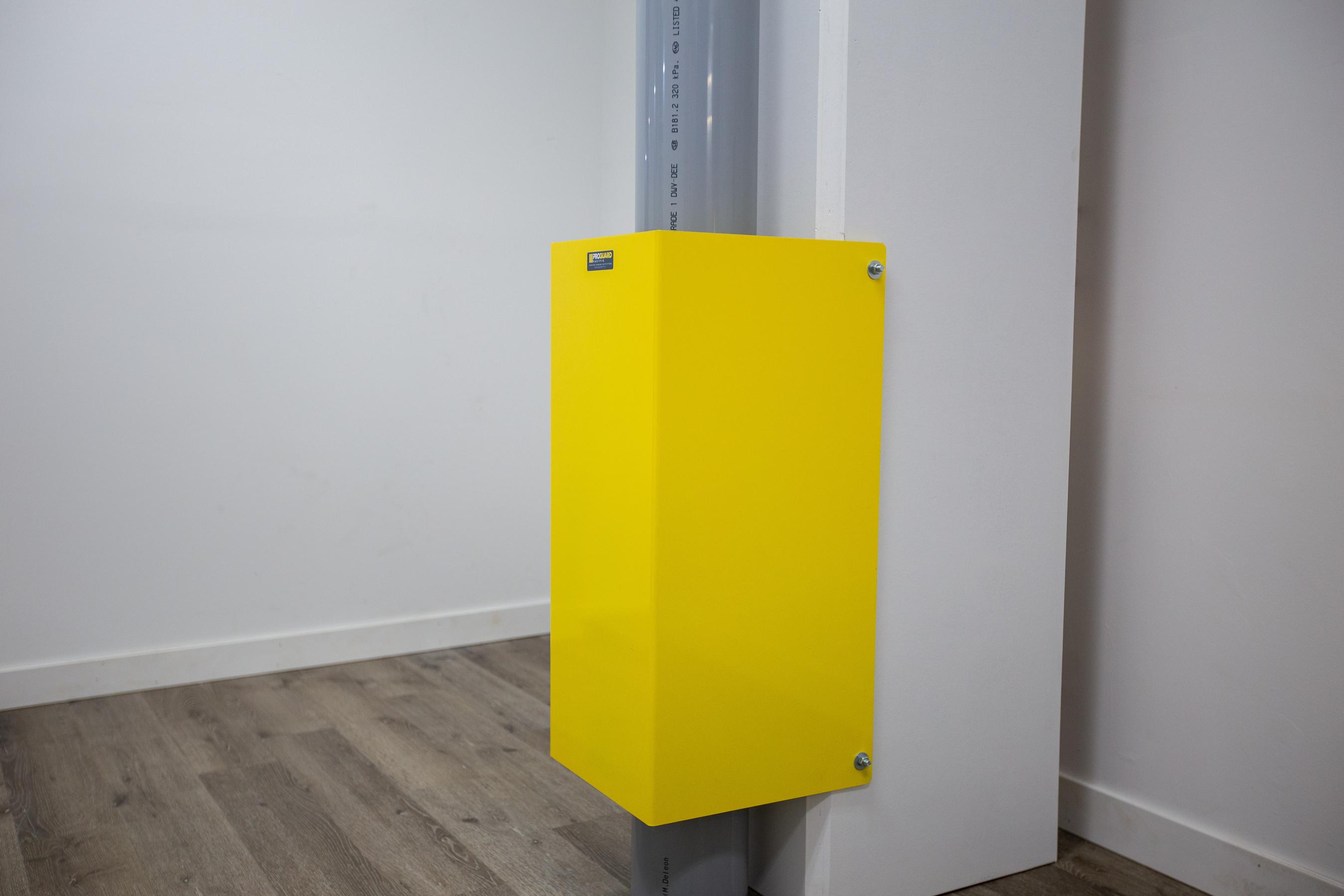

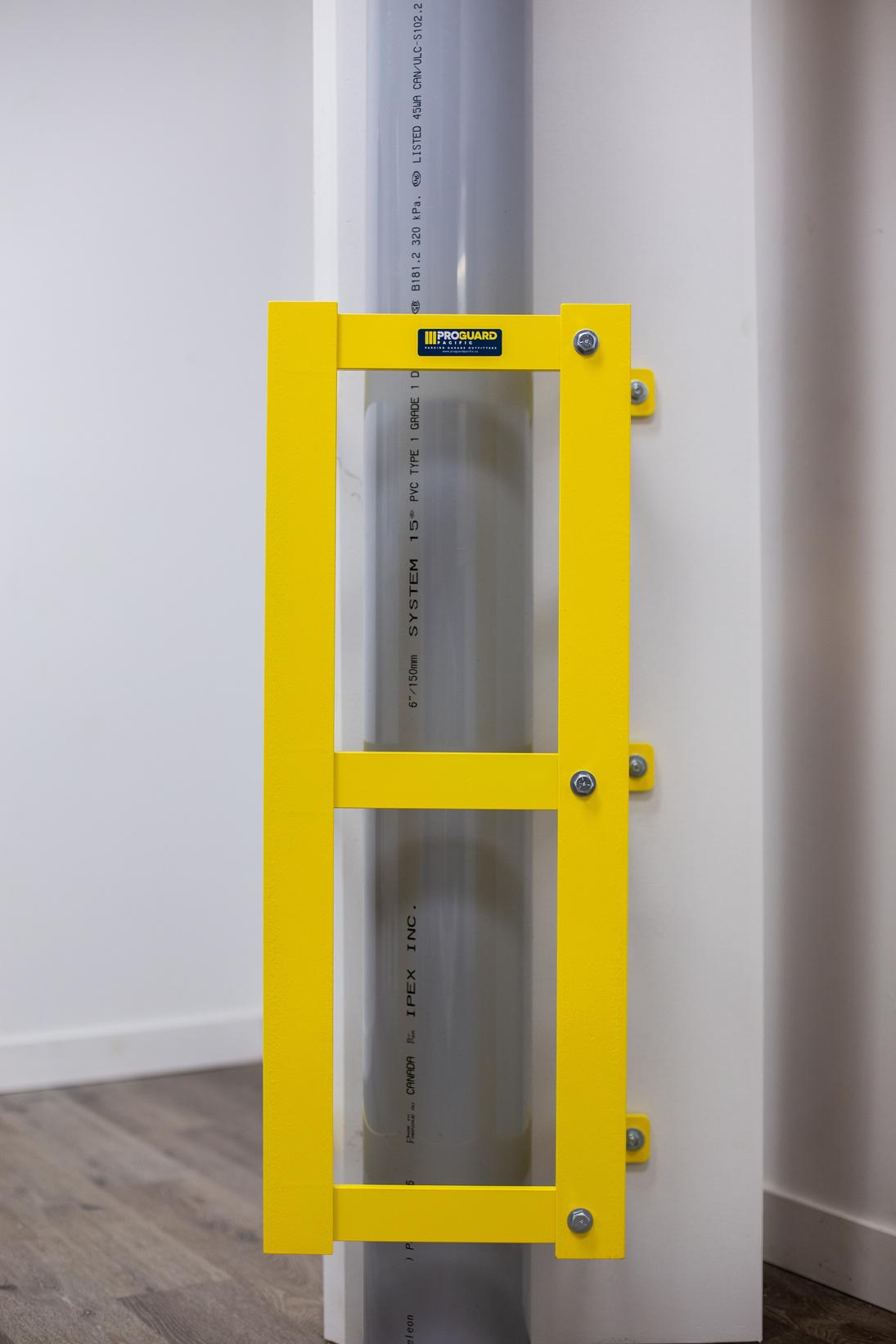

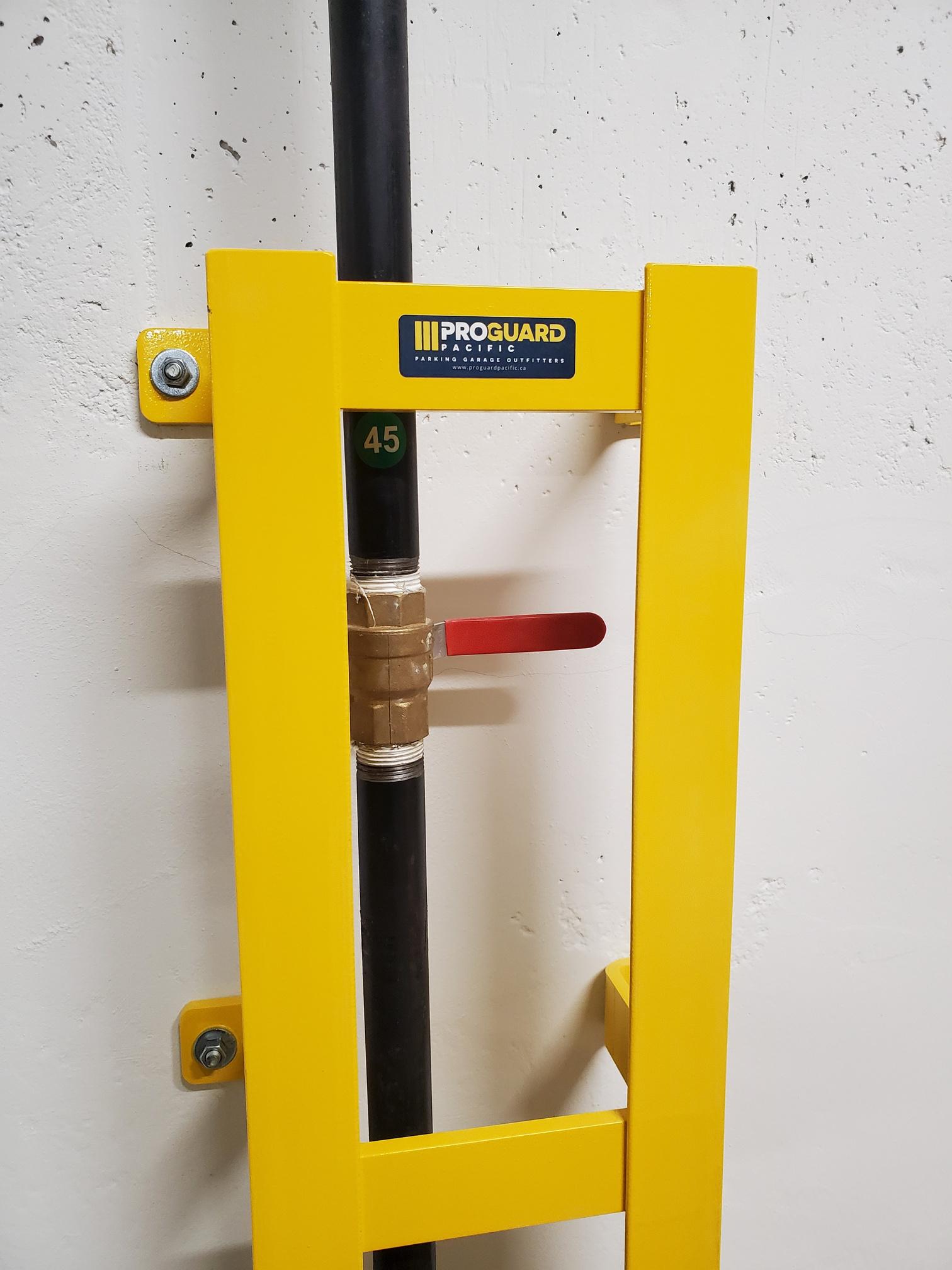

Sturdy one-piece or twopiece 10Ga formed sheet metal construction

Four mounting locations include provisions for 3/8” (10 mm) mounting hardware

Finished in durable, allweather ‘Gloss Safety Yellow’ powder coating

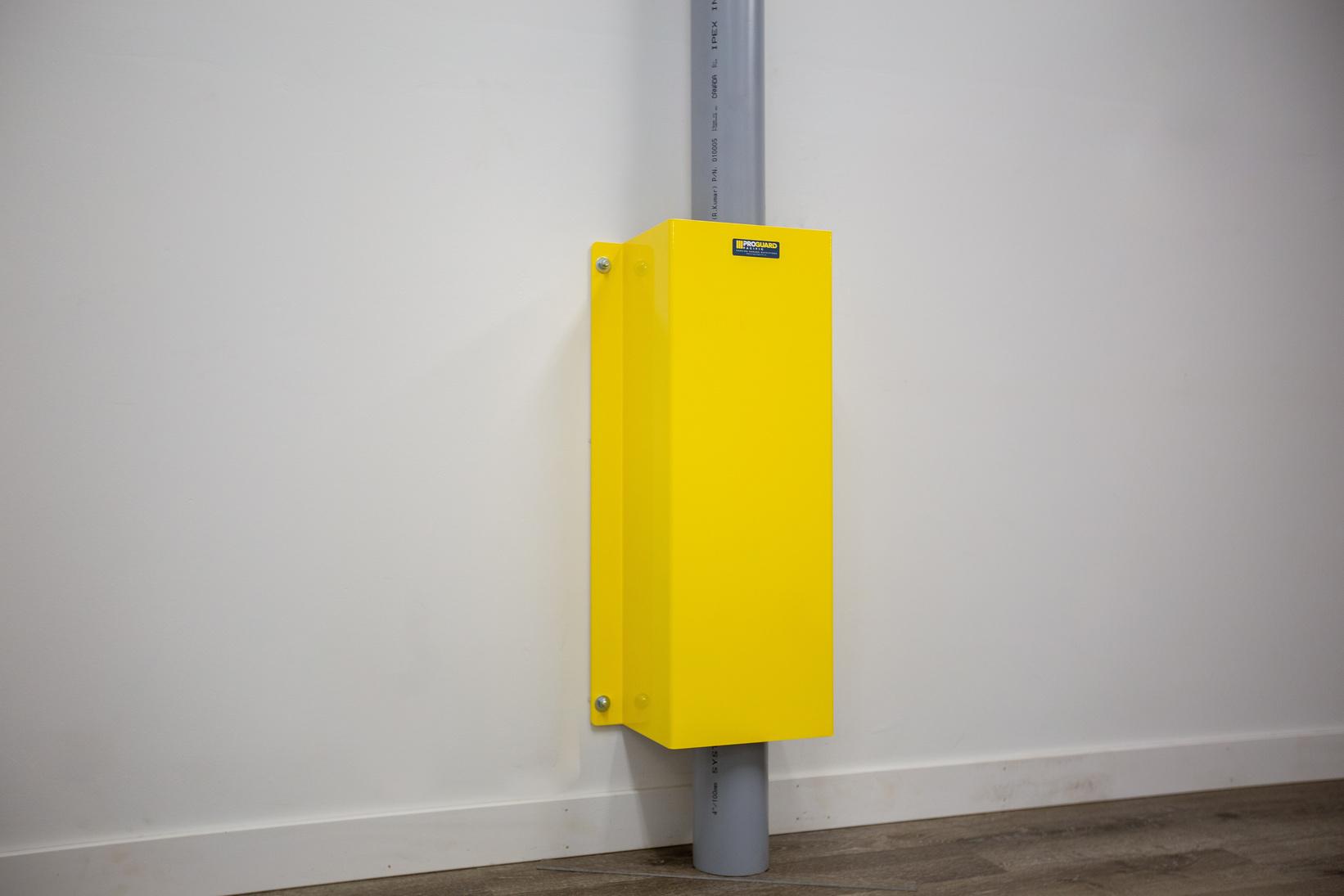

T h e 1 0 G a S h e e t M e t a l P i p e P r o t e c t o r s a r e i n t e n d e d t o g u a r d l i g h t - d u t y e l e c t r i c a l w i r e s , p l u m b i n g a n d g a s p i p e s , g u t t e r d o w n s p o u t s , a n d o t h e r m i s c e l l a n e o u s i t e m s a g a i n s t d a m a g e . T h e s e p i p e p r o t e c t o r s o f f e r a c o s te f f e c t i v e s o l u t i o n , m a k i n g t h e m a n i d e a l c h o i c e w h e n b u d g e t c o n s t r a i n t s a r e a c o n s i d e r a t i o n .

T h e 1 0 G a S h e e t M e t a l W a l l M o u n t e d P i p e

P r o t e c t o r c a n b e e a s i l y m o u n t e d t o c o n c r e t e , w o o d f r a m i n g , o r a n y o t h e r d u r a b l e w a l l m a t e r i a l f r o m i t s f o u r m o u n t i n g p o i n t s .

T h i s d e s i g n a l l o w s f o r c o m p l e t e p r o t e c t i o n o f a n y i t e m o n c e i n s t a l l e d ( i . e . , f a u c e t s , w a t e r s h u t - o f f v a l v e s , e l e c t r i c a l p l u g s , e t c . ) .

T h i s v e r s i o n o f t h e p i p e p r o t e c t o r i s v a i l a b l e i n o n e - p i e c e d e s i g n f o r t h e a r d u n i t s o r t w o - p i e c e d e s i g n f o r l a r g e r a p p l i c a t i o n s .

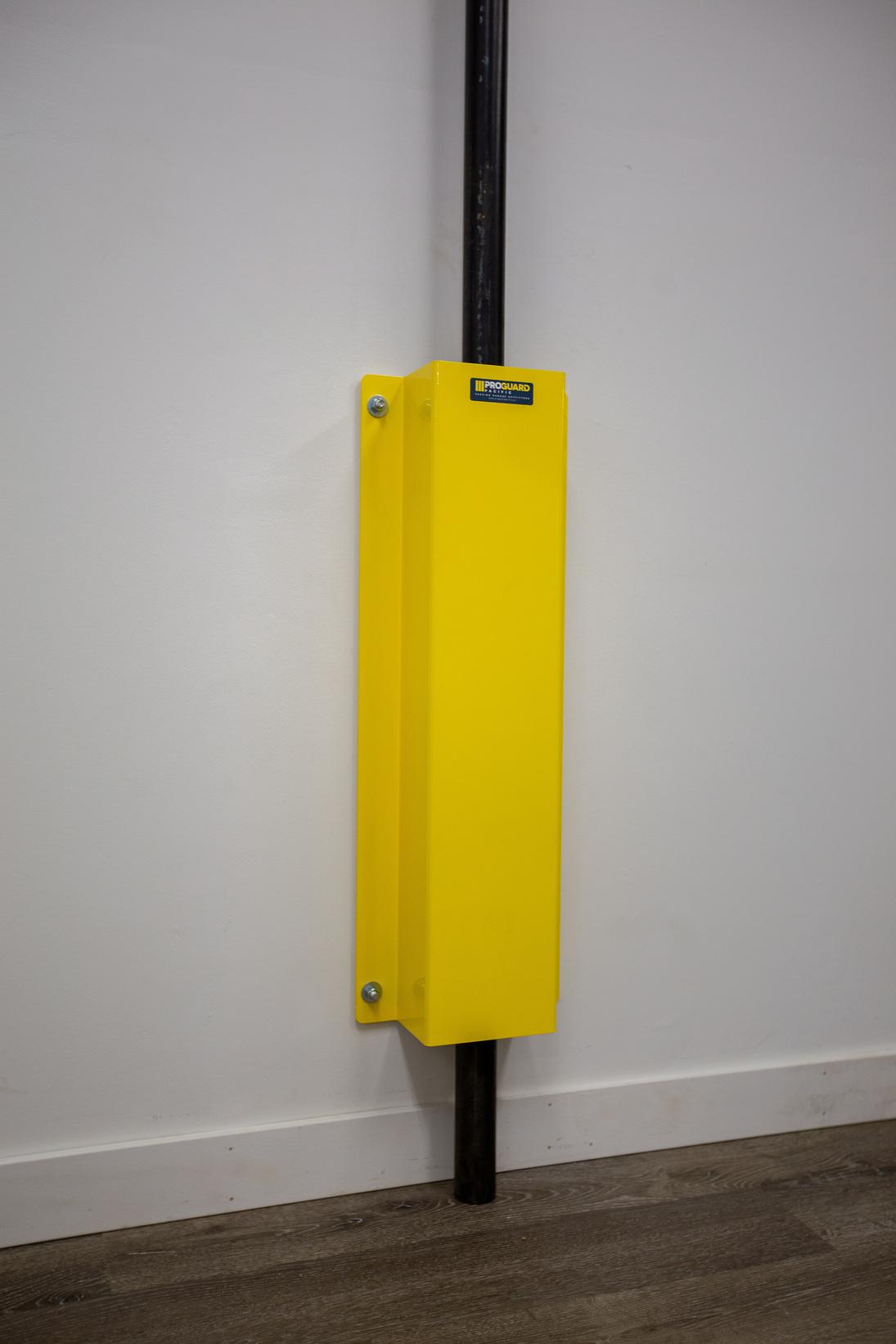

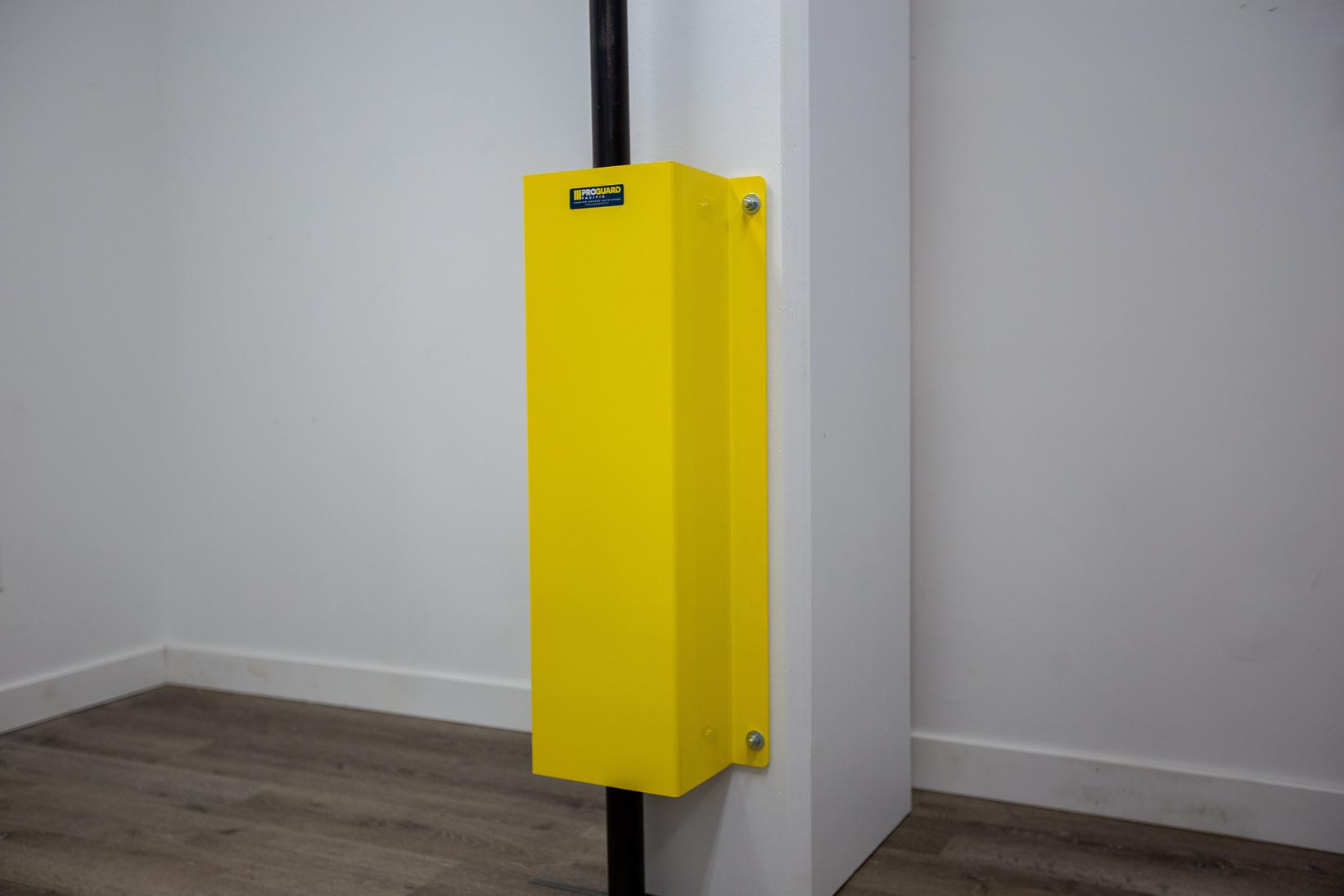

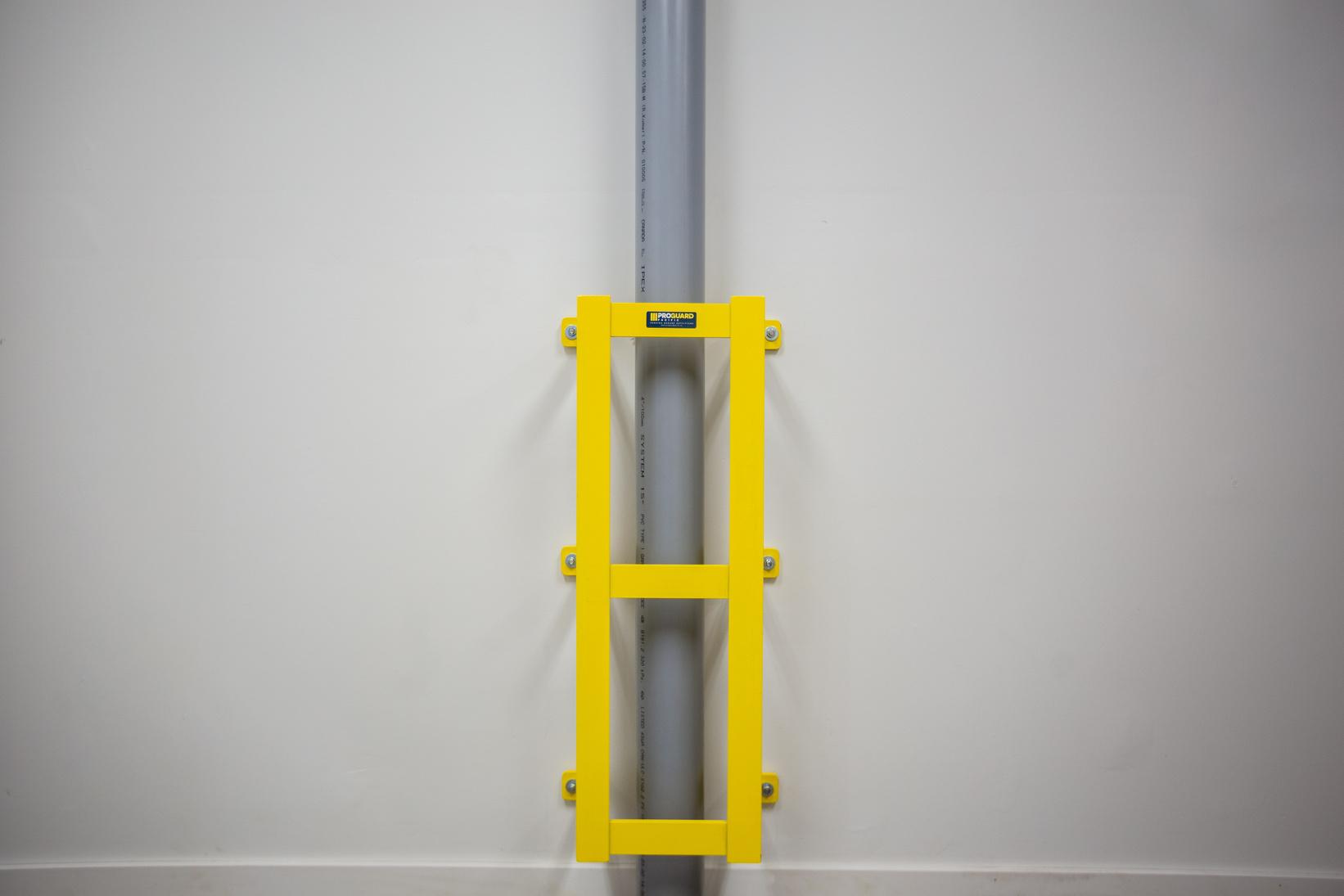

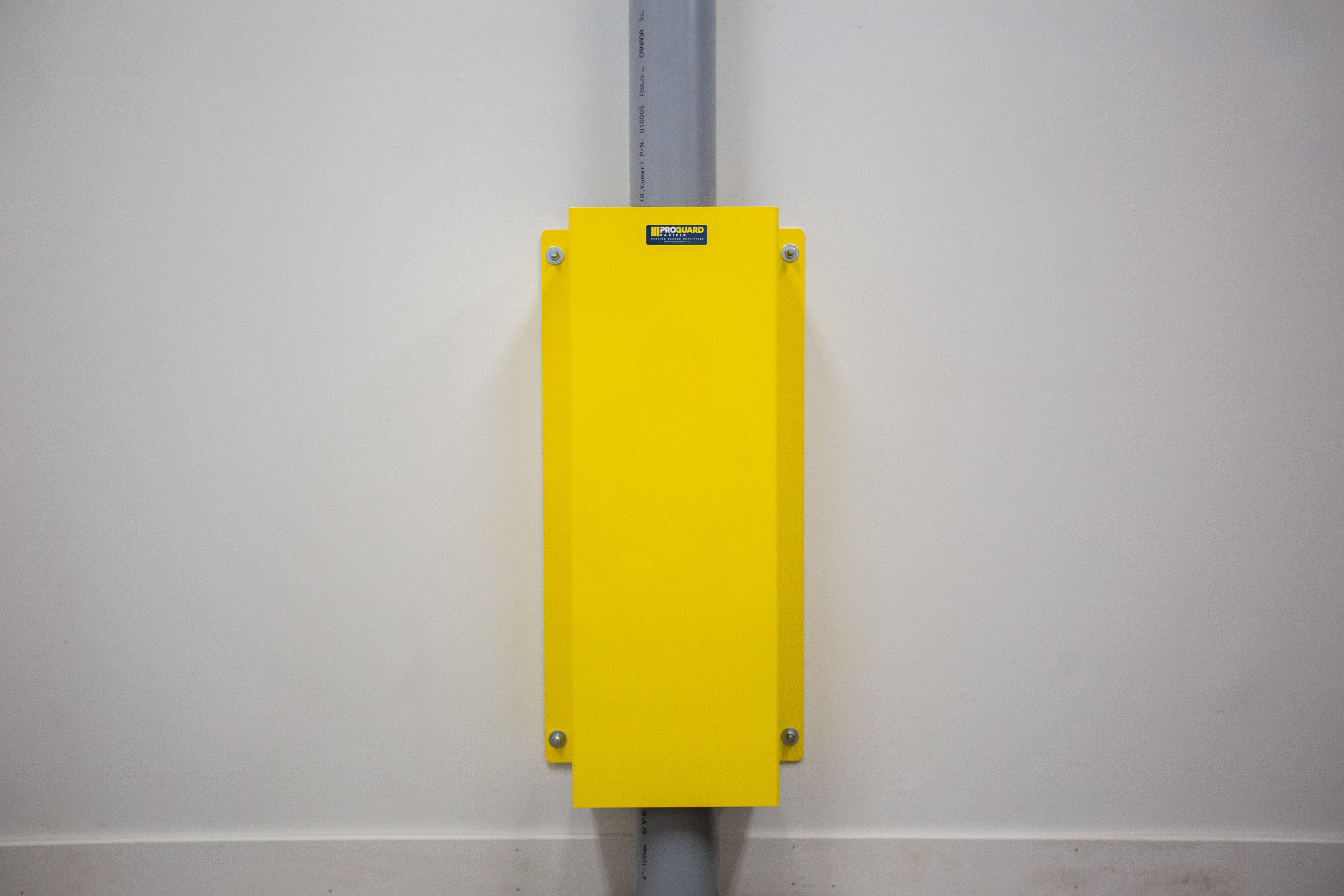

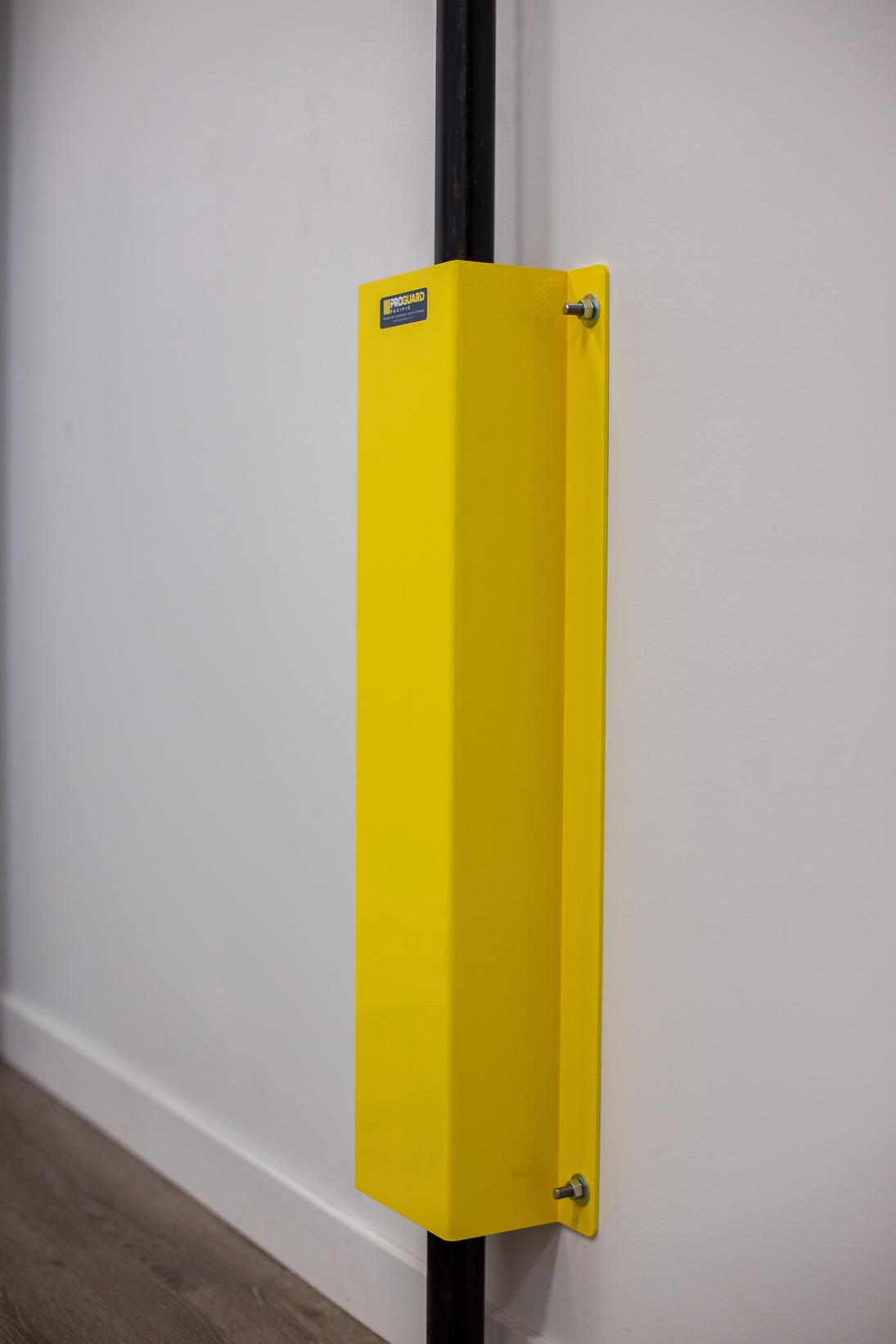

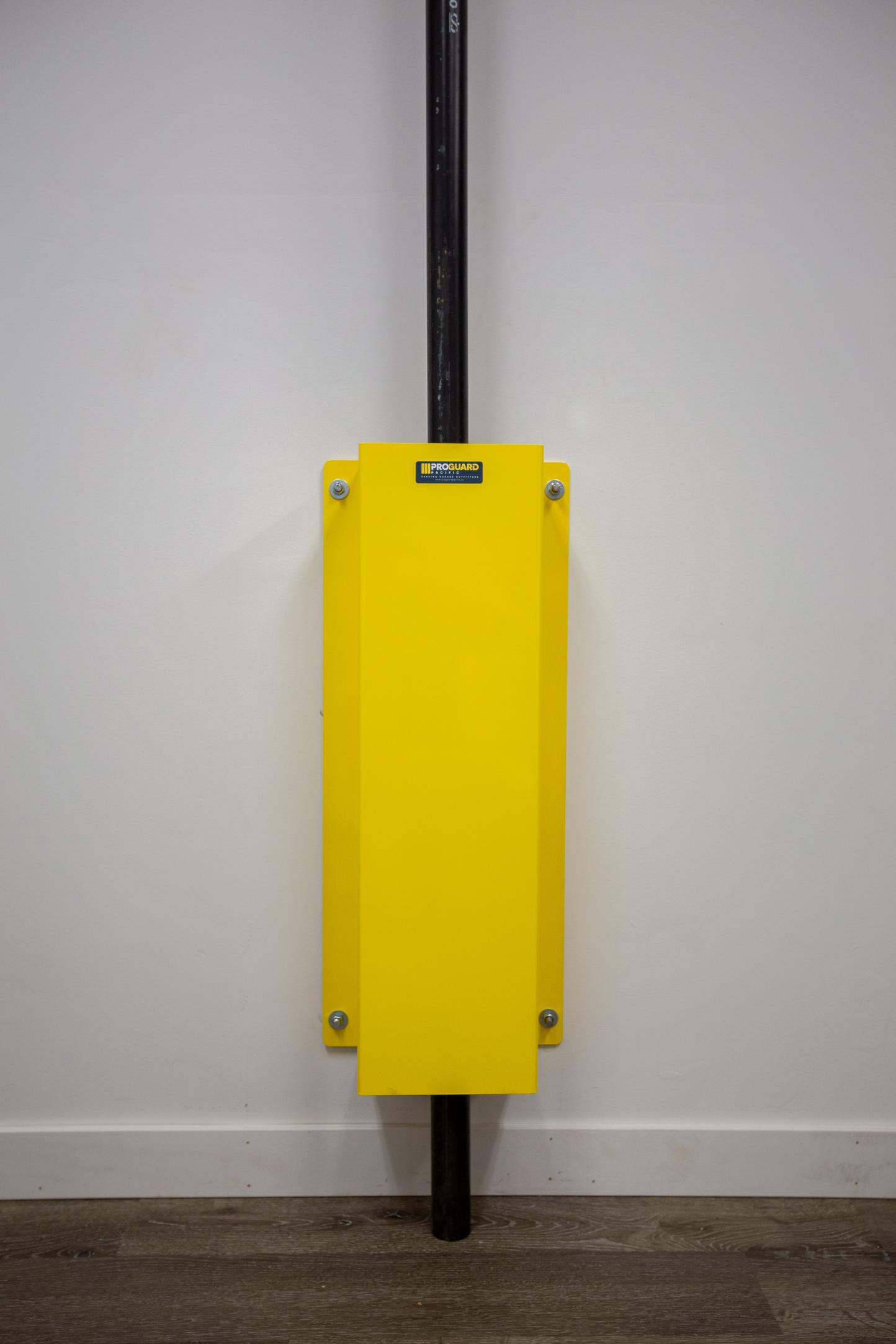

10GA WALL MOUNT

6" Wide x 4" Deep

PRODUCTNUMBER:PGP-W10PP-64-1

STYLE: 10 GAUGE

SIZE & DETAILS:

Width6”(152mm)insidedimension/Depth4” (102mm)insidedimension

Height29½”(750mm)

Weight20lbs/9.07kg

10 GA WALL MOUNT

8" Wide x 6" Deep

PRODUCTNUMBER:PGP-W10PP-86-1

STYLE: 10 GAUGE

SIZE & DETAILS:

Width8”(203mm)insidedimension/Depth6” (152mm)insidedimension

Height29½”(750mm)

Weight26.2lbs/11.8kg

10 GA WALL MOUNT

10" Wide x 8" Deep

PRODUCTNUMBER:PGP-W10PP-108-1

STYLE: 10 GAUGE

SIZE & DETAILS:

Width10”(254mm)insidedimension/Depth8” (203mm)insidedimension

Height29½”(750mm)

Weight 33 lbs / 14.9 kg

IMAGECOMINGSOON

10GA WALL MOUNT

12" Wide x12" Deep

PRODUCTNUMBER:PGP-W10PP-1212-1

STYLE: 10 GAUGE

SIZE & DETAILS:

Width12”(294mm)insidedimension/Depth12” (294mm)insidedimension

Height29½”(750mm)

Weight465lbs/211kgs

click here to view 10 Gauge Pipe Protectors, pricing, purchasing and additional pictures on our website

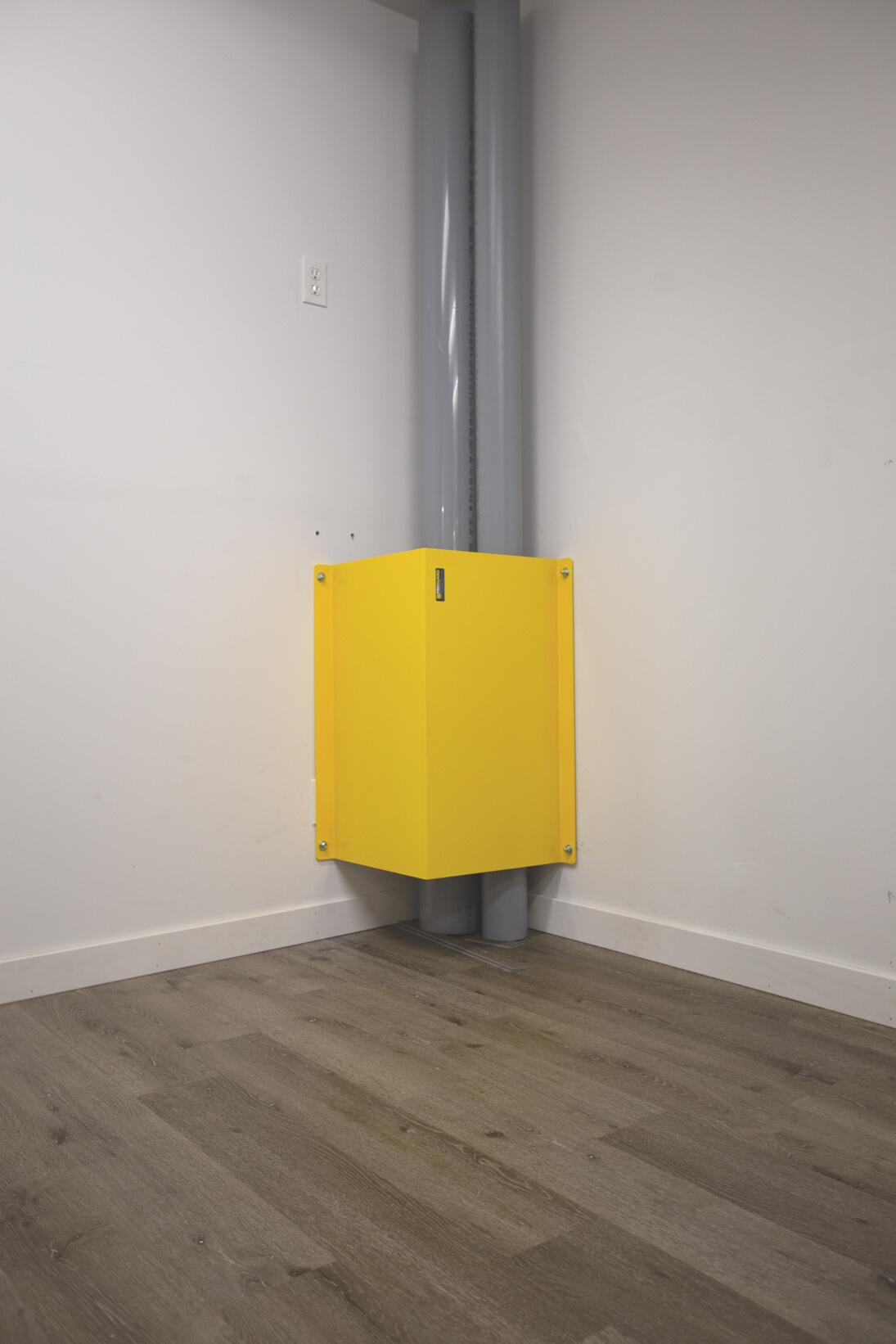

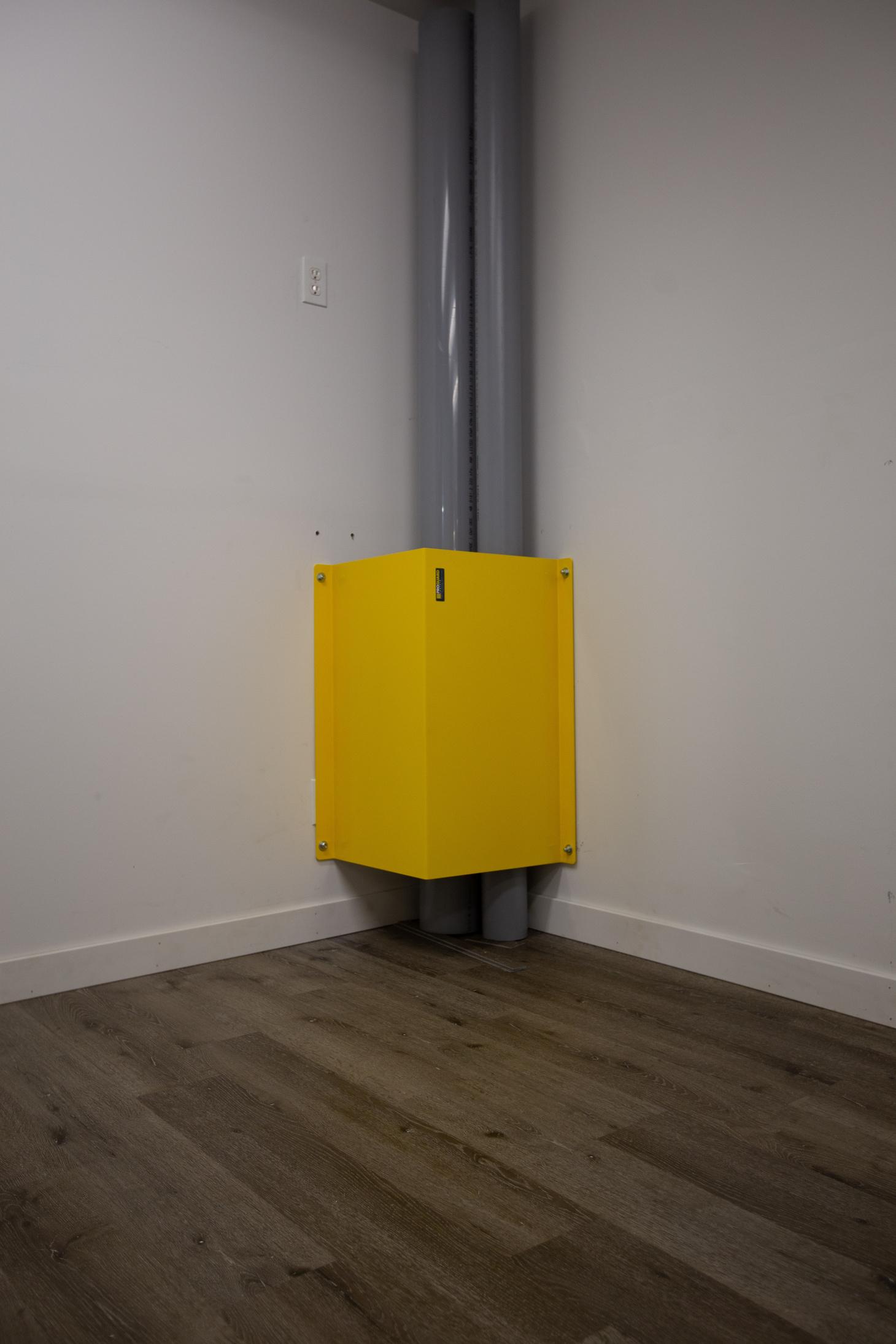

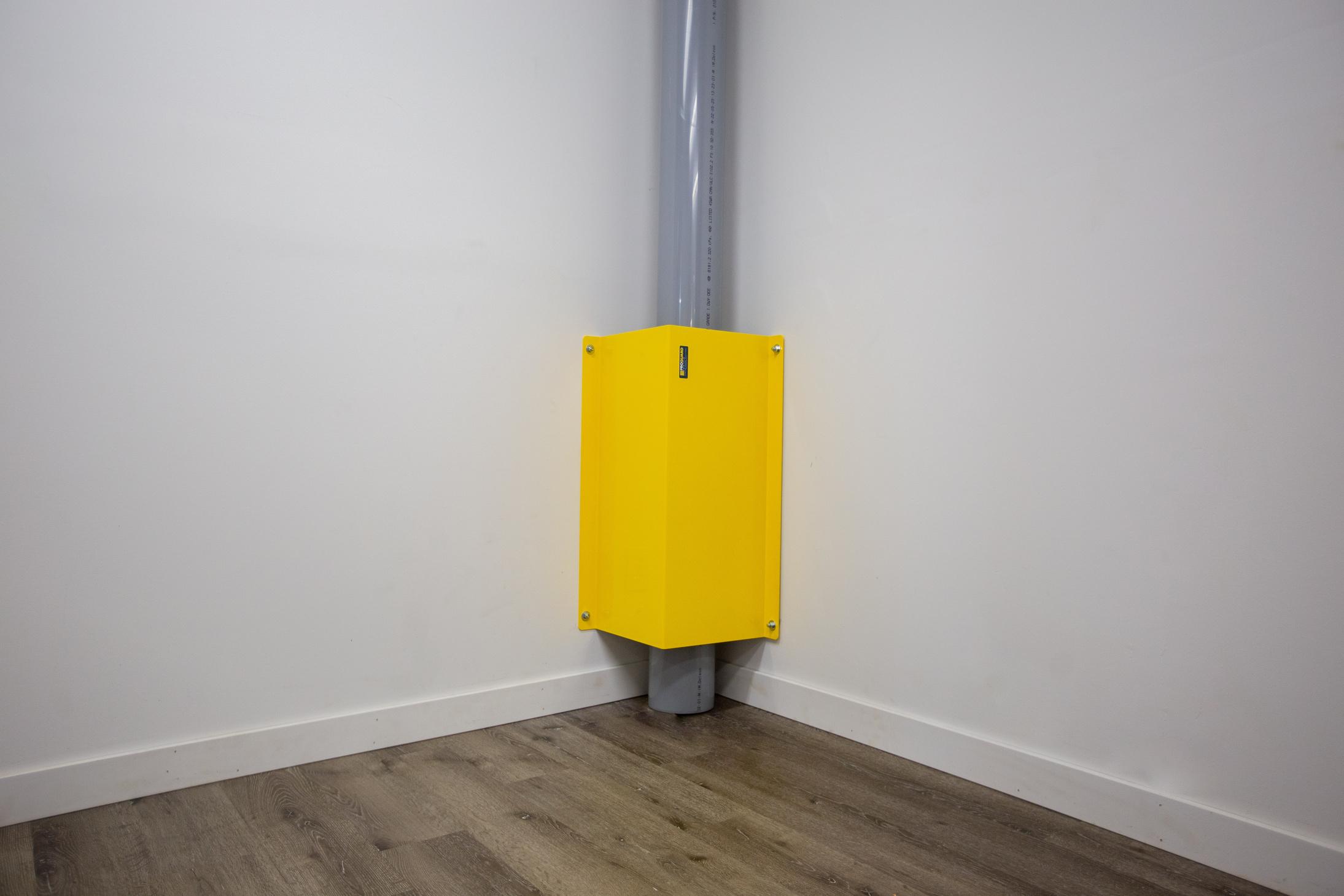

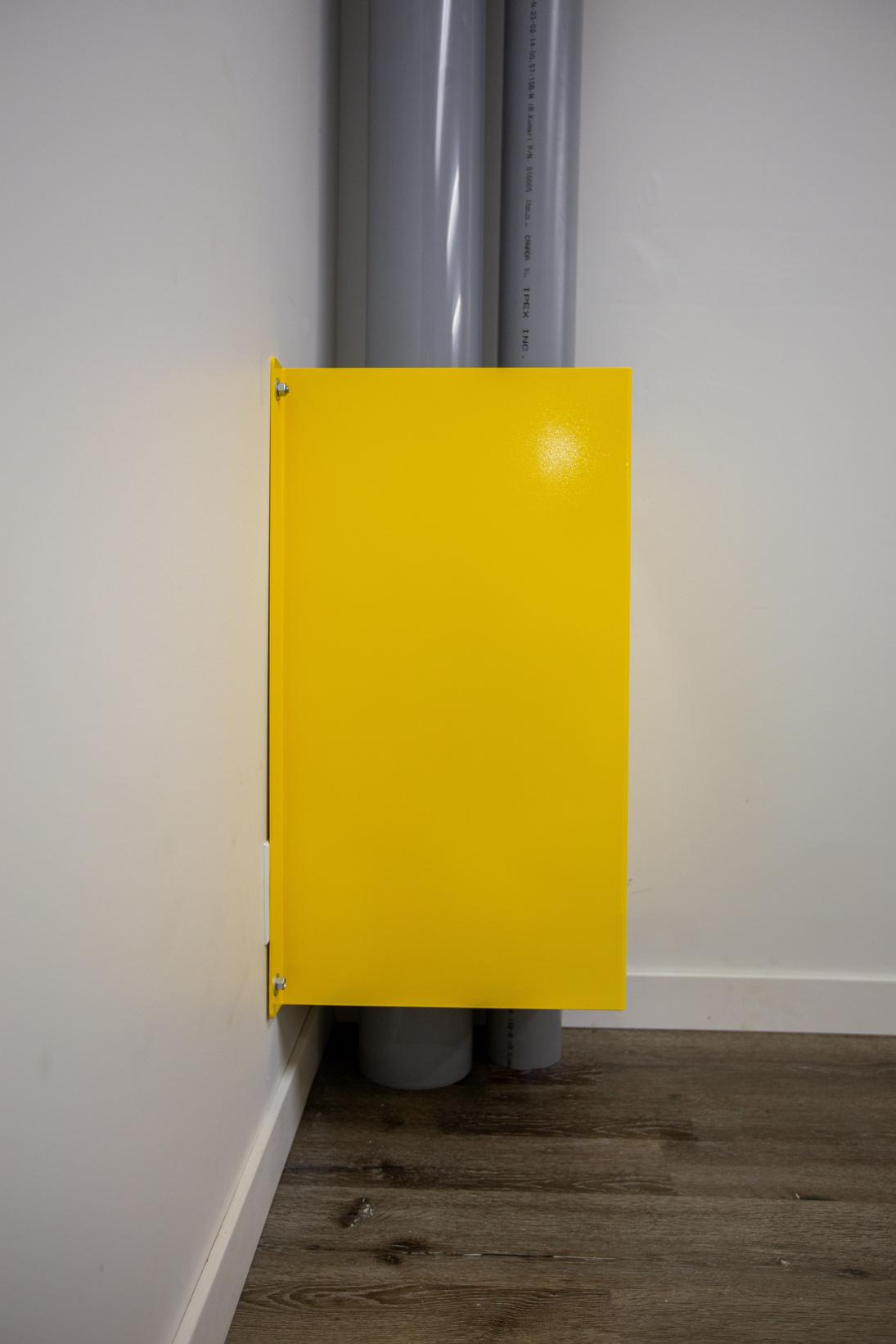

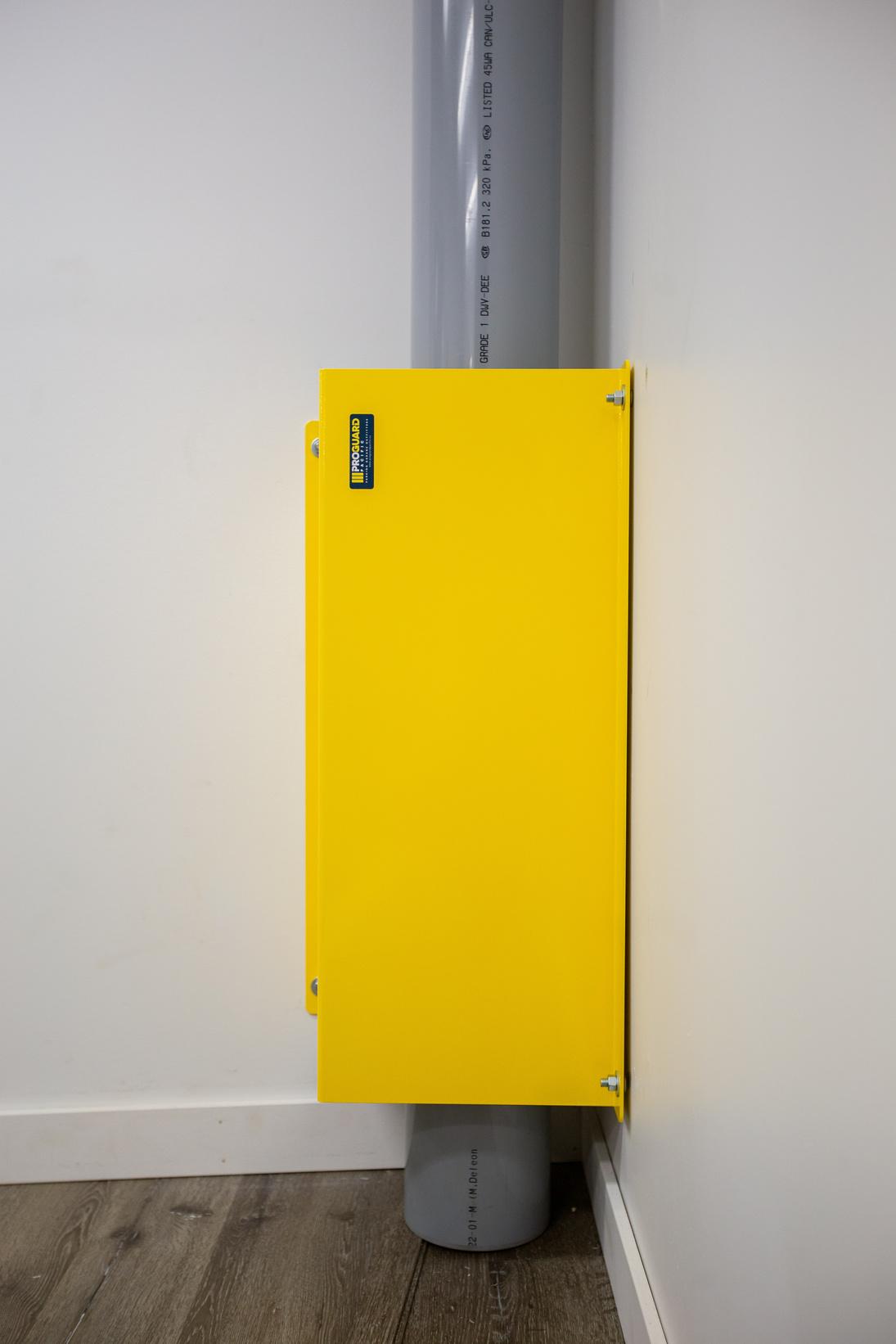

10 GAUGE INSIDE CORNER MOUNT

10GA INSIDE CORNER MOU

12" Wide x 12" Deep

PRODUCTNUMBER:PGP-IC10PP-1212-1

STYLE: 10 GAUGE

SIZE & DETAILS:

Width12”(305mm)insidedimension/Depth12” (305mm)insidedimension

Height29½”(750mm)

Weight314lbs/142kg

16" Wide x 16" Deep

PRODUCTNUMBER:PGP-IC10PP-1616-1

STYLE: 10 GAUGE

SIZE & DETAILS: Width16”(406mm)insidedimension/Depth16” (406mm)insidedimension

Height29½”(750mm)

Weight400lbs/118kg

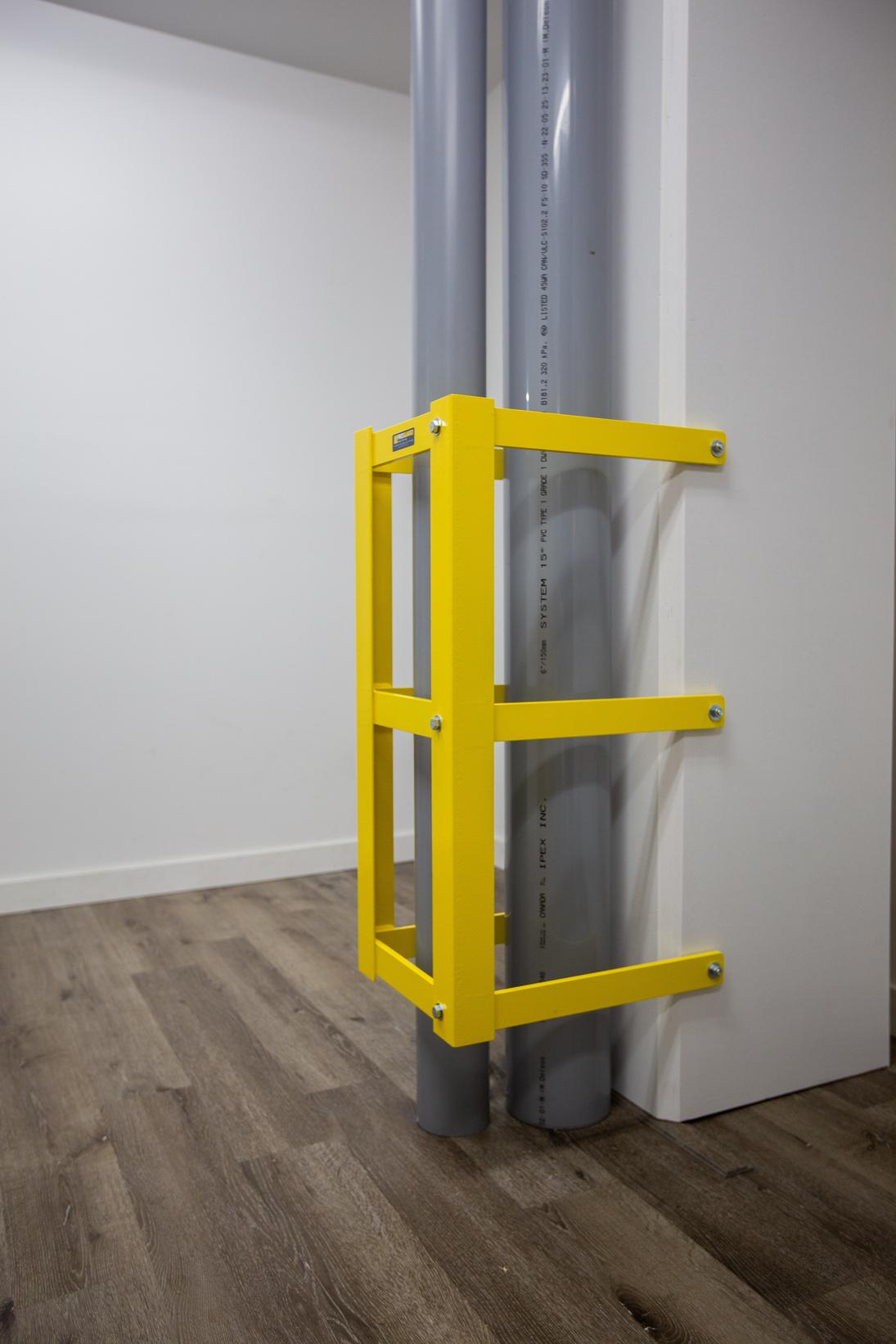

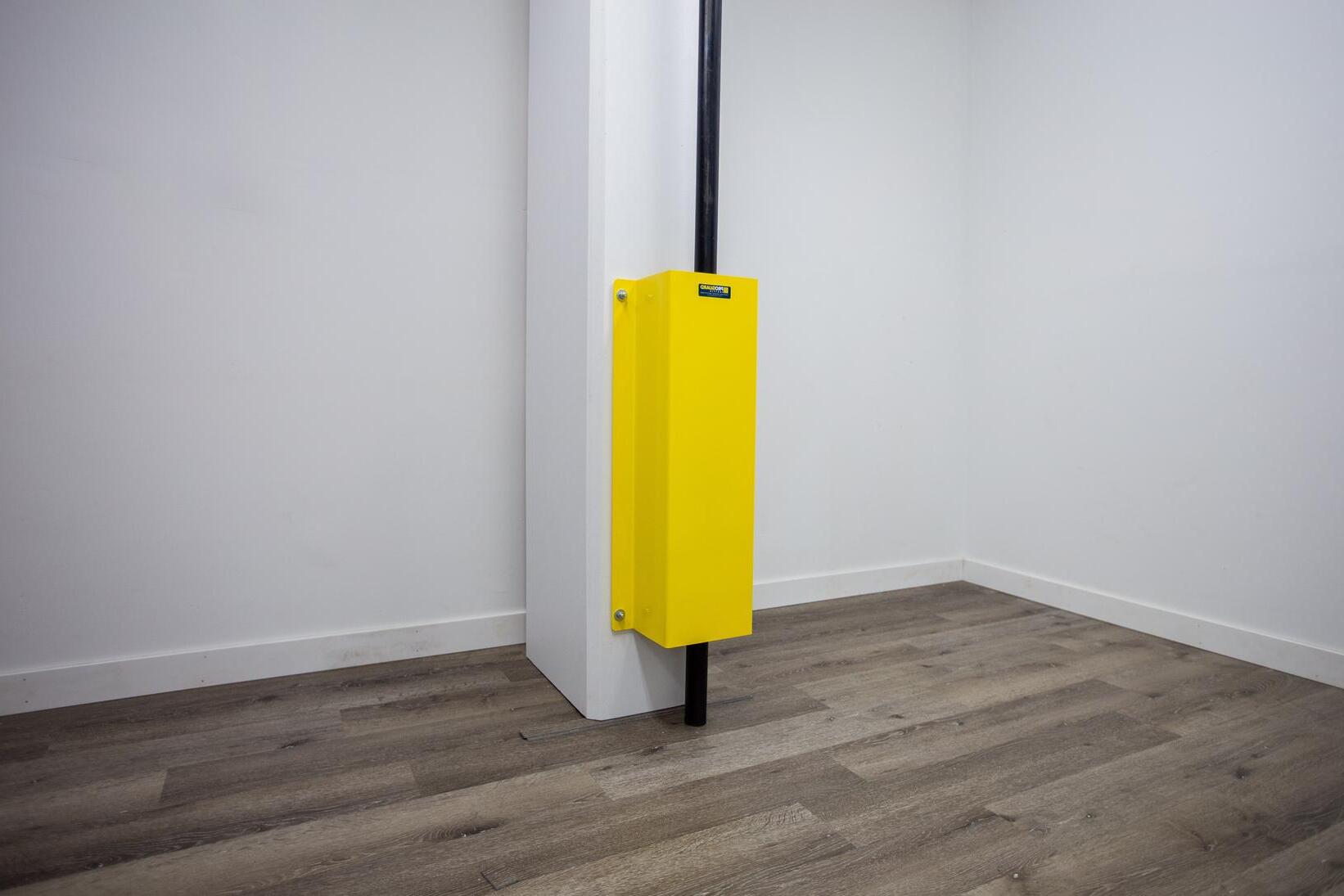

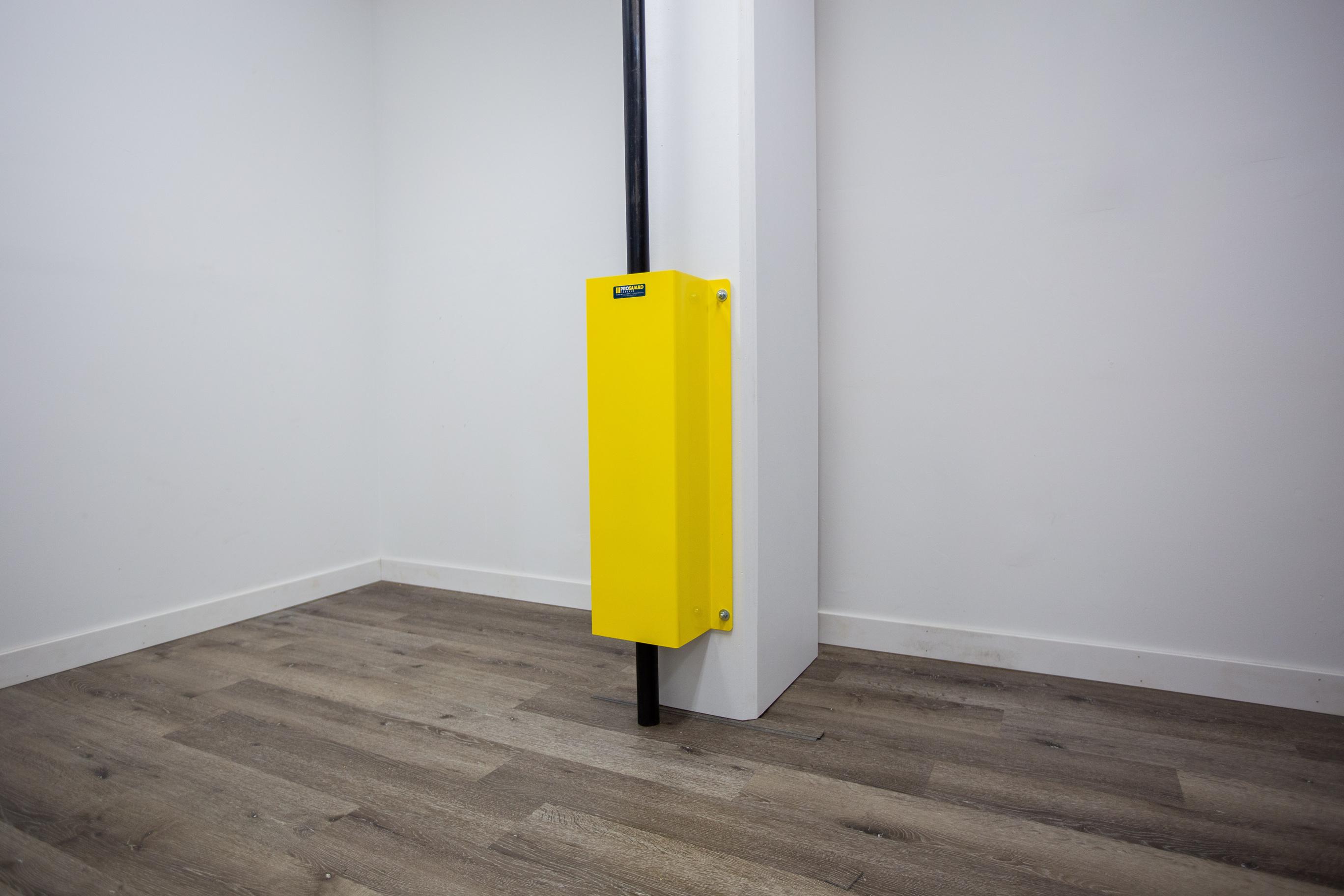

10GA OUTSIDE CORNER MOUNT

8" Wide x 6" Deep

PRODUCTNUMBER:PGP-OC10PP-86-1

STYLE: 10 GAUGE

SIZE & DETAILS:

Width8”(203mm)insidedimension/Depth6” (152mm)insidedimension

Height29½”(750mm)

Weight28.4lbs/12.8kg

STYLE: 10 GAUGE

SIZE & DETAILS:

Width10”(254mm)insidedimension/Depth8” (203mm)insidedimension

Height29½”(750mm)

Weight350lbs/158kg

IMAGECOMINGSOON

10GA OUTSIDE CORNER MOUNT

12" Wide x12" Deep

PRODUCTNUMBER:PGP-OC10PP-1212-1

STYLE: 10 GAUGE

SIZE & DETAILS:

Width12”(294mm)insidedimension/Depth12” (294mm)insidedimension

Height29½”(750mm)

Weight486lbs/220kg

*Two-piecedesign*

10GA INSIDE CORNER MOUNT

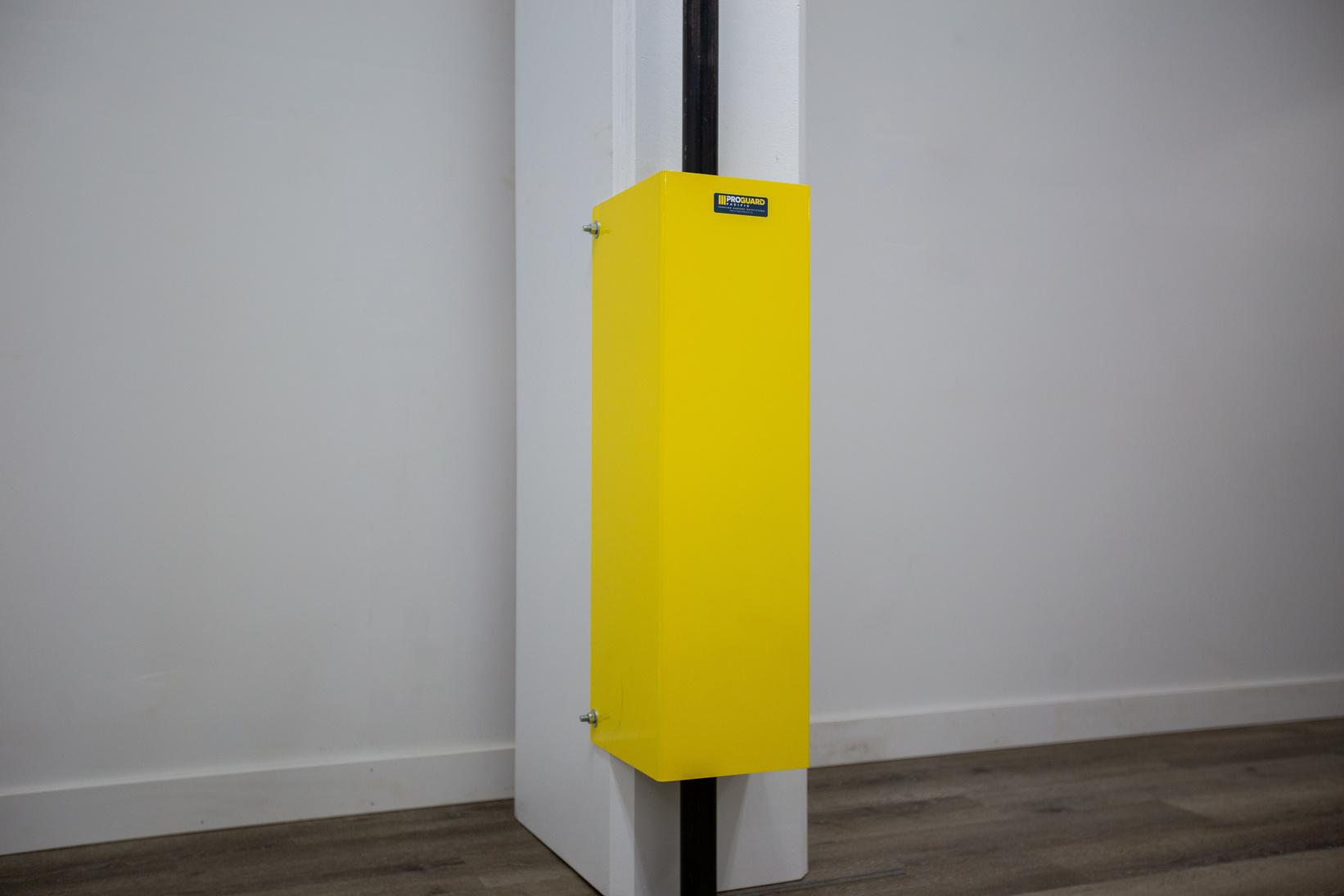

10 GAUGE PILLAR MOUNT

10GA PILLAR MOUNT

12" Wide x 10" Deep

PRODUCTNUMBER:PGP-P10PP-1210-1

STYLE: 10 GAUGE

SIZE & DETAILS:

Width12”(294mm)insidedimension/maximum Depth10”(254mm)insidedimension

Height29½”(750mm)

Weight463lbs/210kg

*Two-piecedesign*

10GA PILLAR MOUNT

12" Wide x 14" Deep

PRODUCTNUMBER:PGP-P10PP-1214-1

STYLE: 10 GAUGE

SIZE & DETAILS:

Width12”(294mm)insidedimension/maximum Depth14”(355mm)insidedimension

Height29½”(750mm)

Weight554lbs/251kg

*Two-piecedesign*

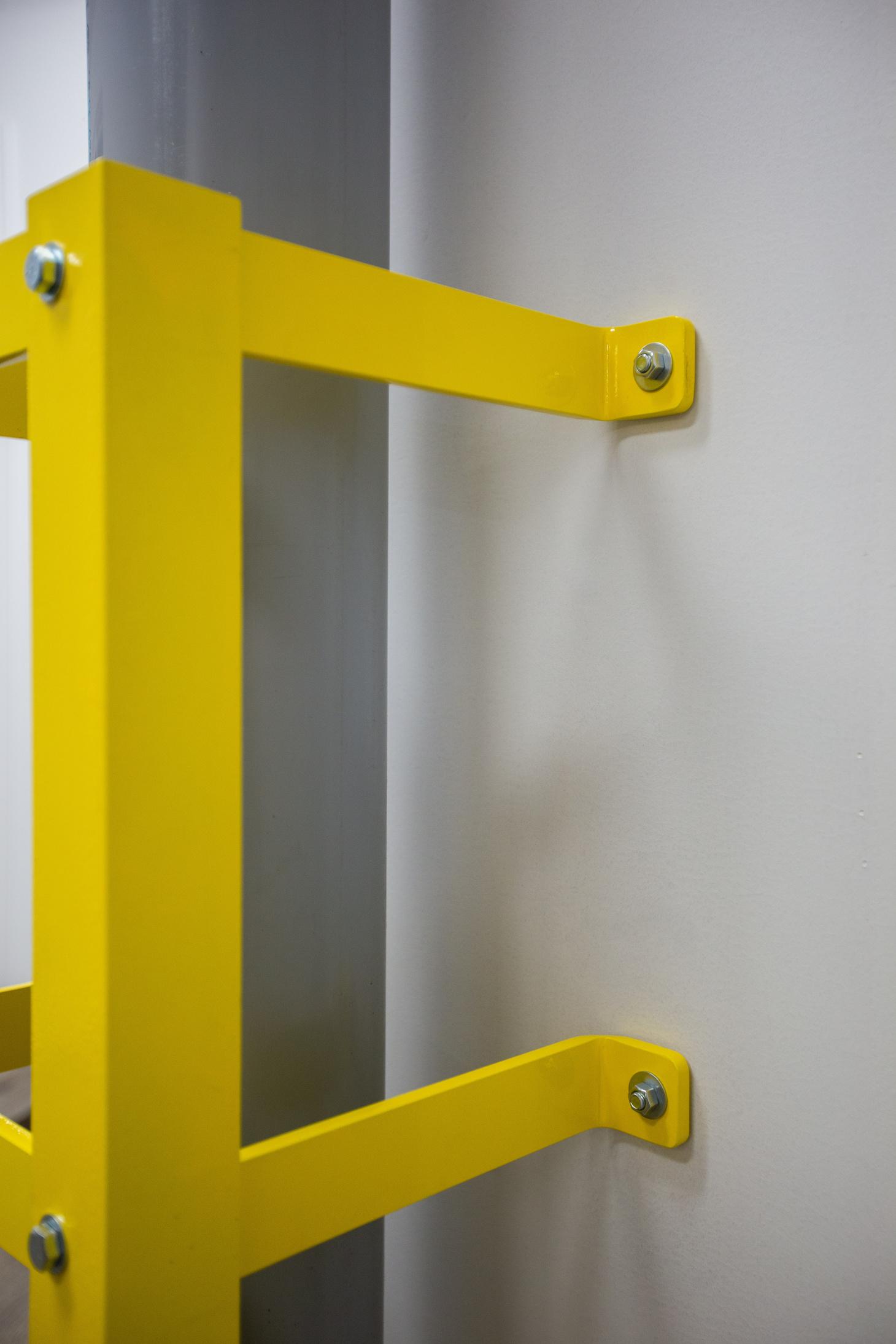

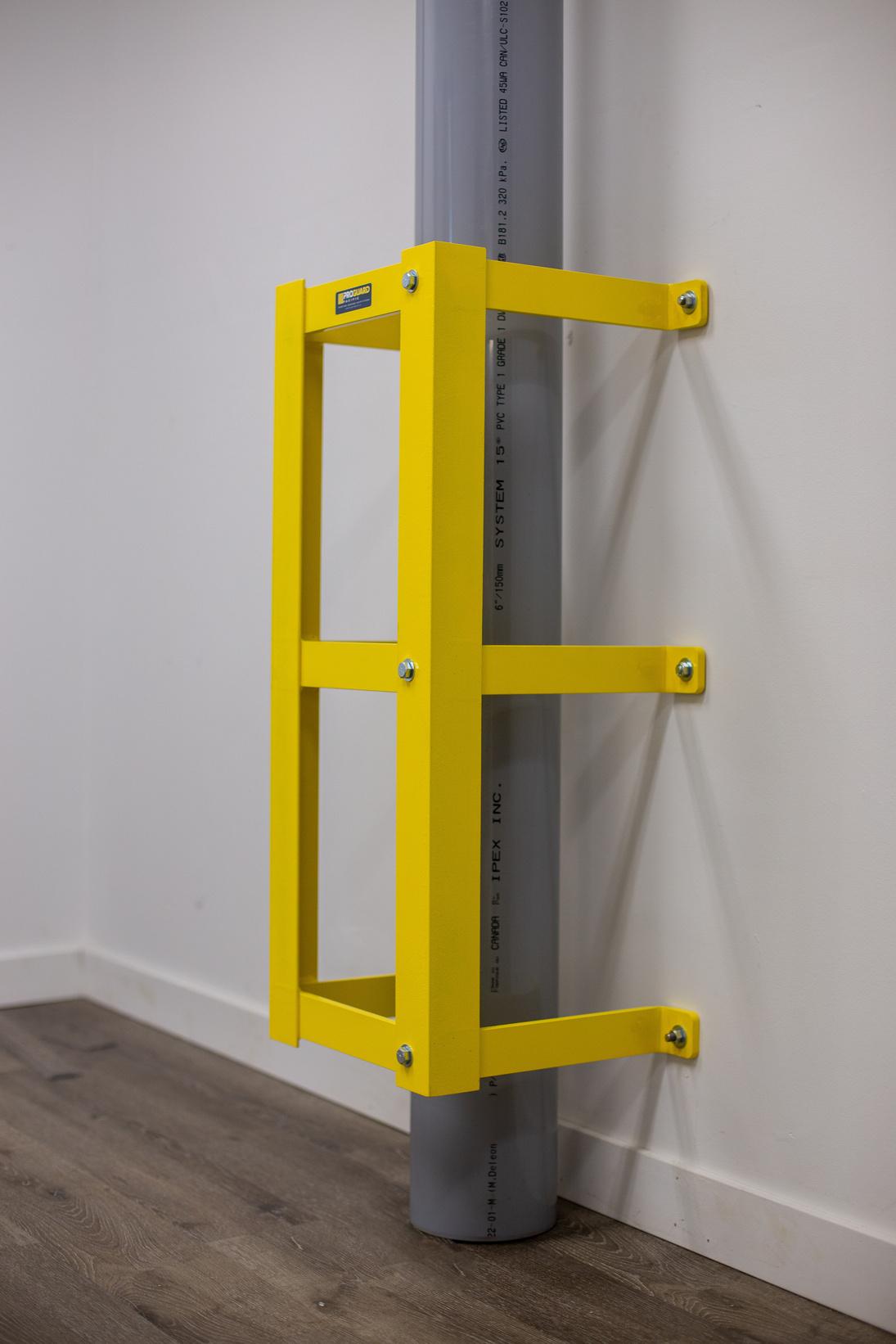

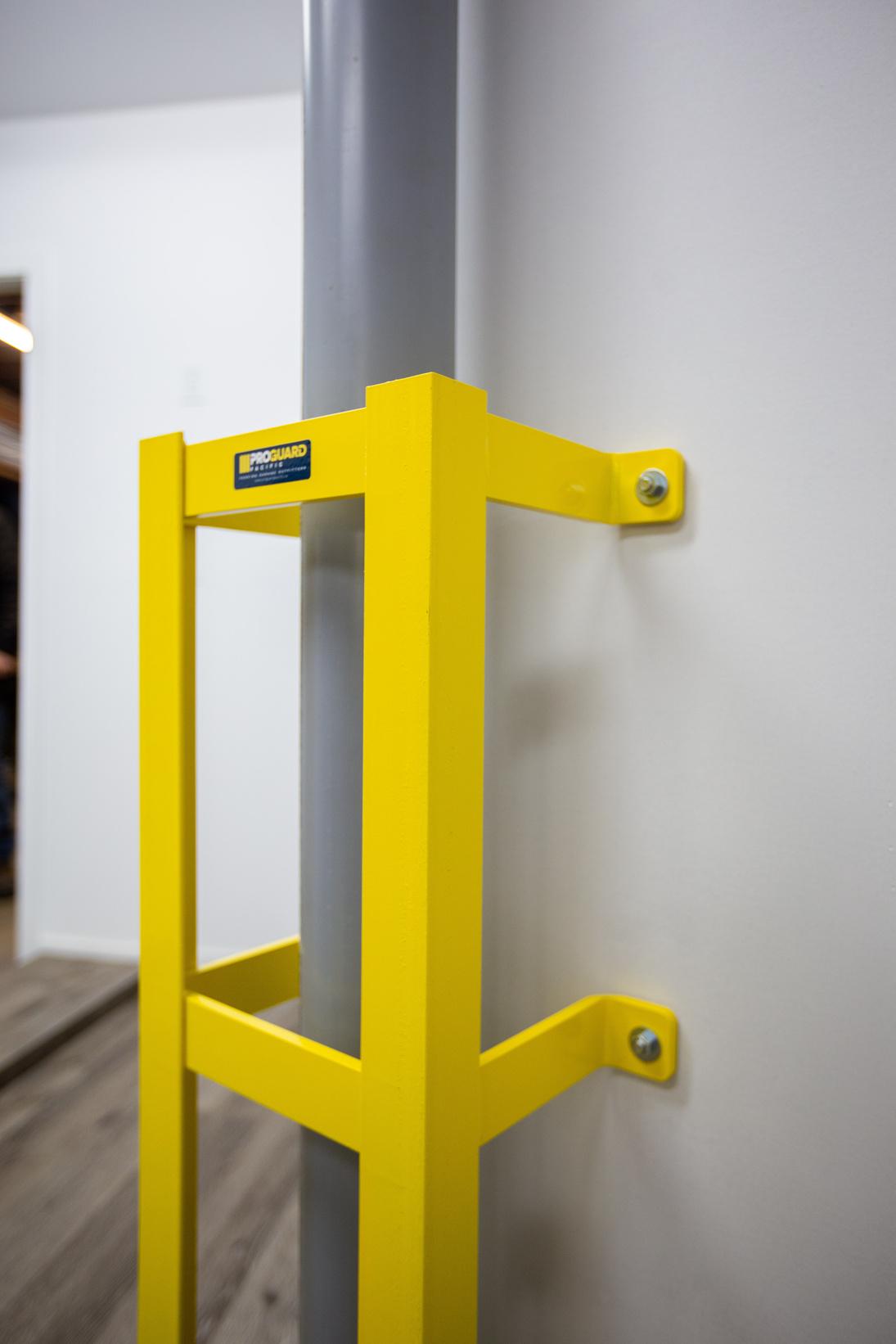

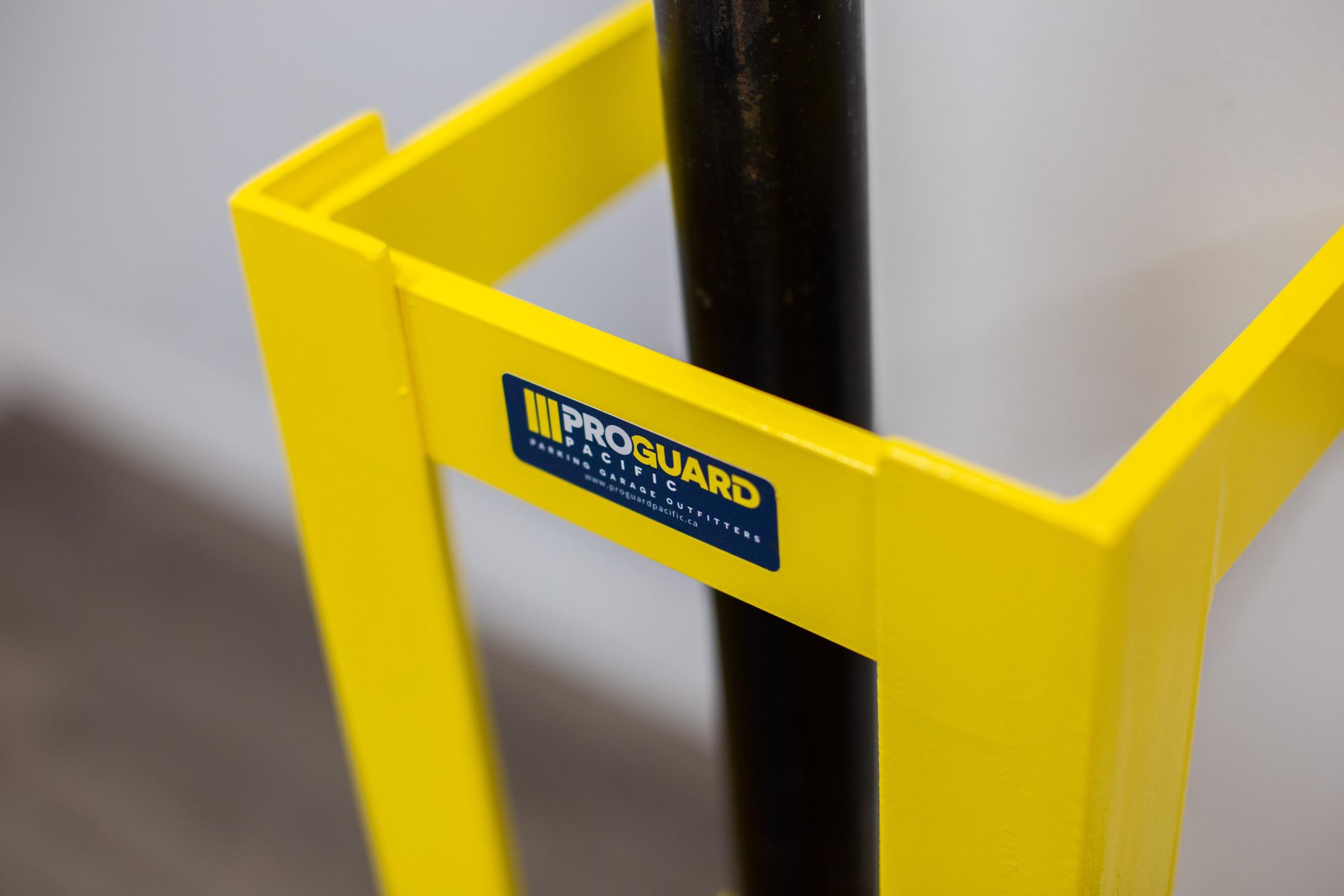

Sturdy

10GaugeSteel construction

Mountsto anydurable surface

Heavy Duty vertical angle iron support frame

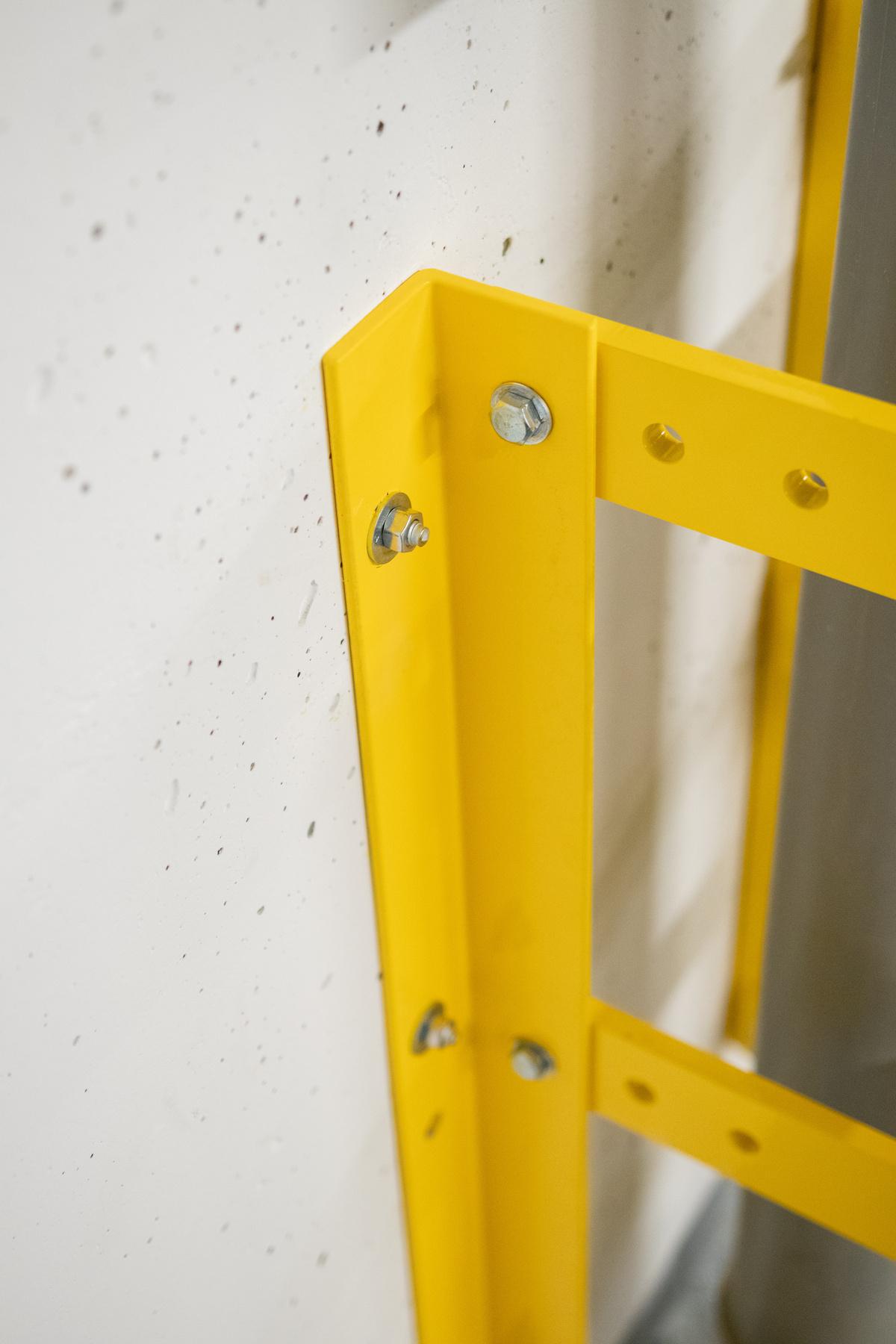

Six heavy duty formed mounting tabs include provisions for 3/8” (10 mm) mounting hardware

Finished in durable, allweather ‘Gloss Safety Yellow’ powder coating

d u r a b l e w a l l m a t e r i a l f r o m i t s s i x m o u n t i n g p o i n t s .

T h e o p e n - c o n c e p t d e s i g n o f t h i s m o d e l a l l o w s f o r e a s y a c c e s s t o a n y i t e m o n c e i n s t a l l e d ( i . e . , f a u c e t s , w a t e r s h u t - o f f v a l v e s , e l e c t r i c a l p l u g s , e t c . ) .

T h i s p r o d u c t i s a v a i l a b l e i n o n e - p i e c e ( s m a l l v a r i a t i o n s ) o r t w o - p i e c e d e s i g n s ( l a r g e r v a r i a t i o n s ) a n d i n c l u d e s i n s t a l l o a l l o w f o r e a s y n .

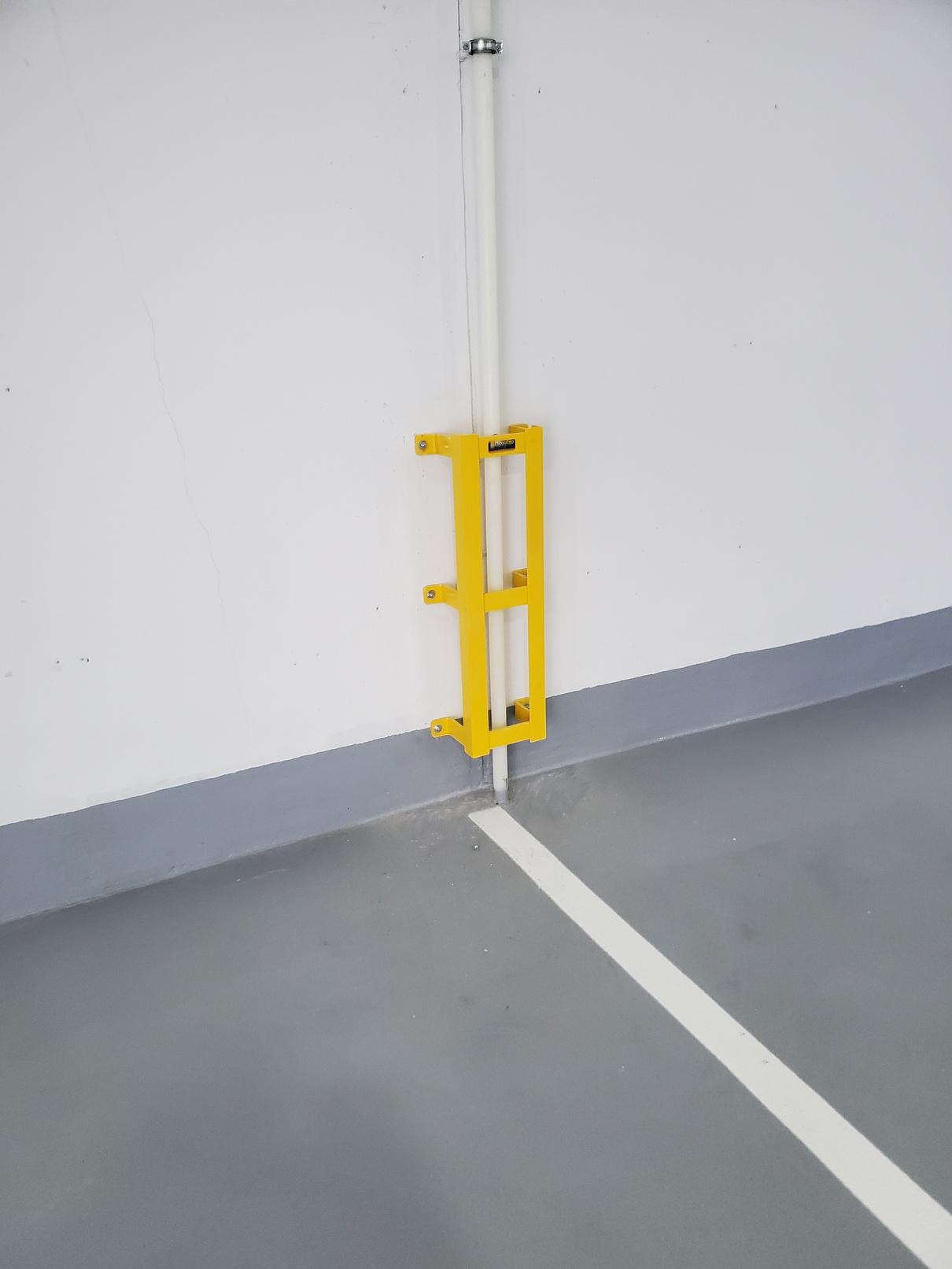

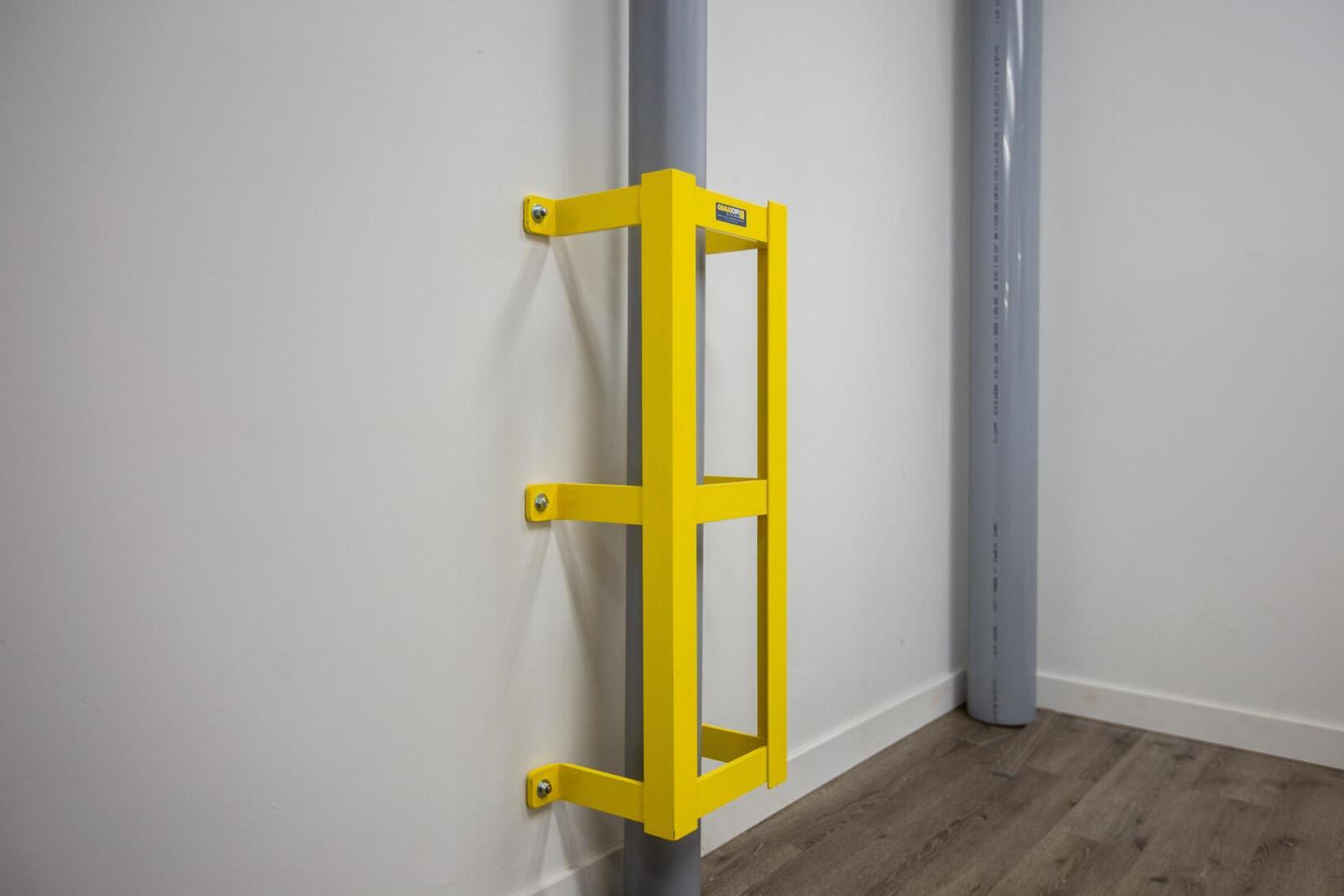

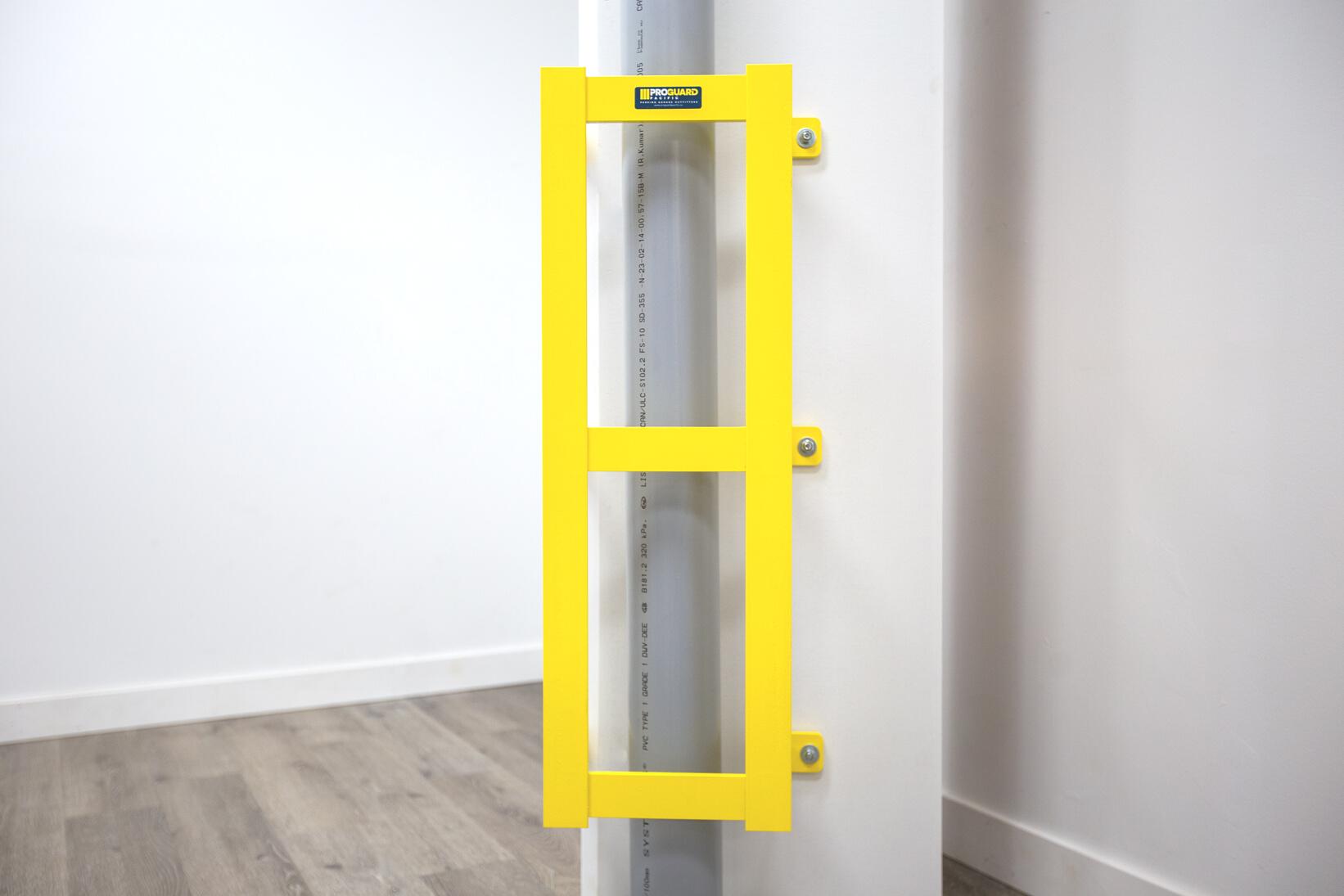

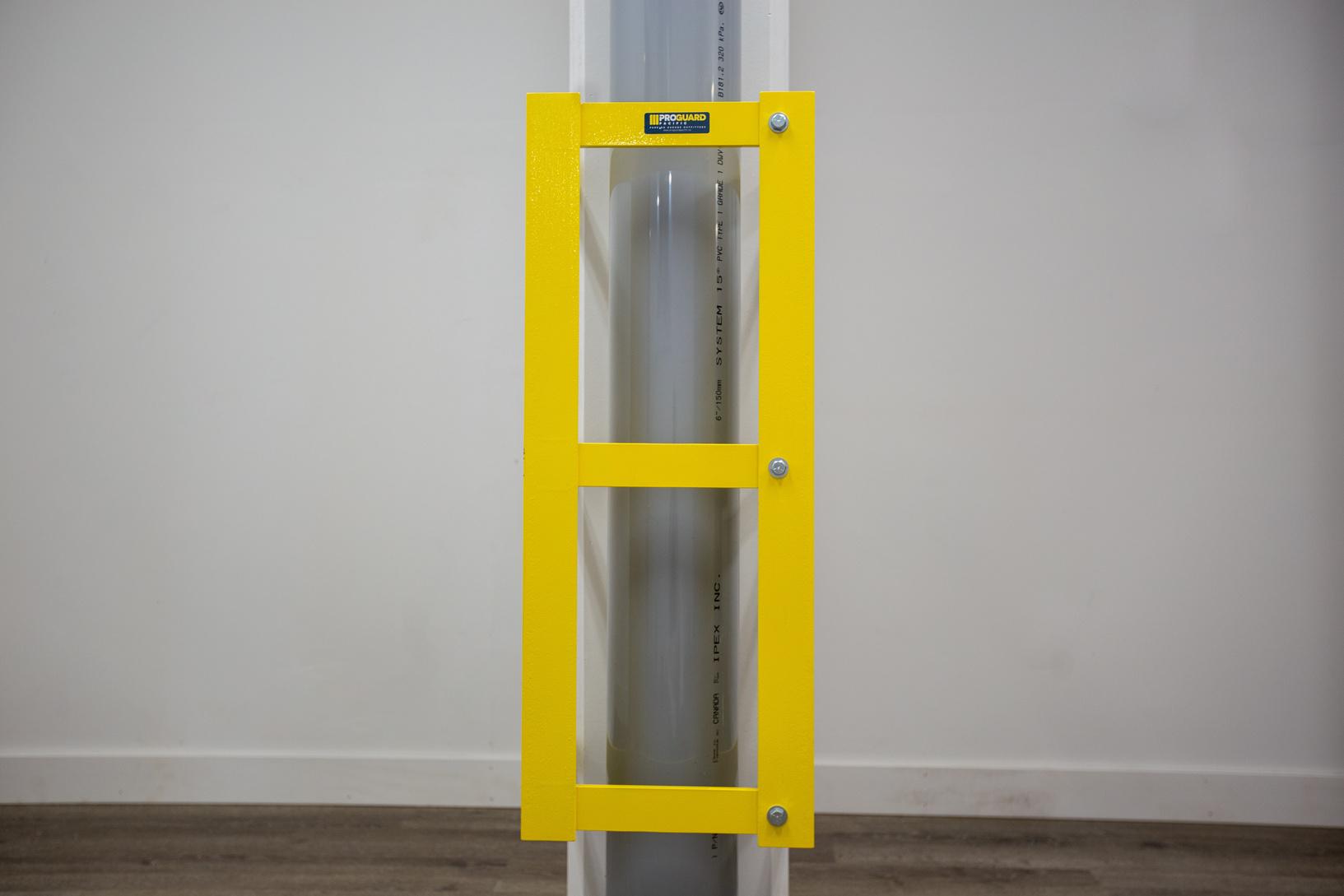

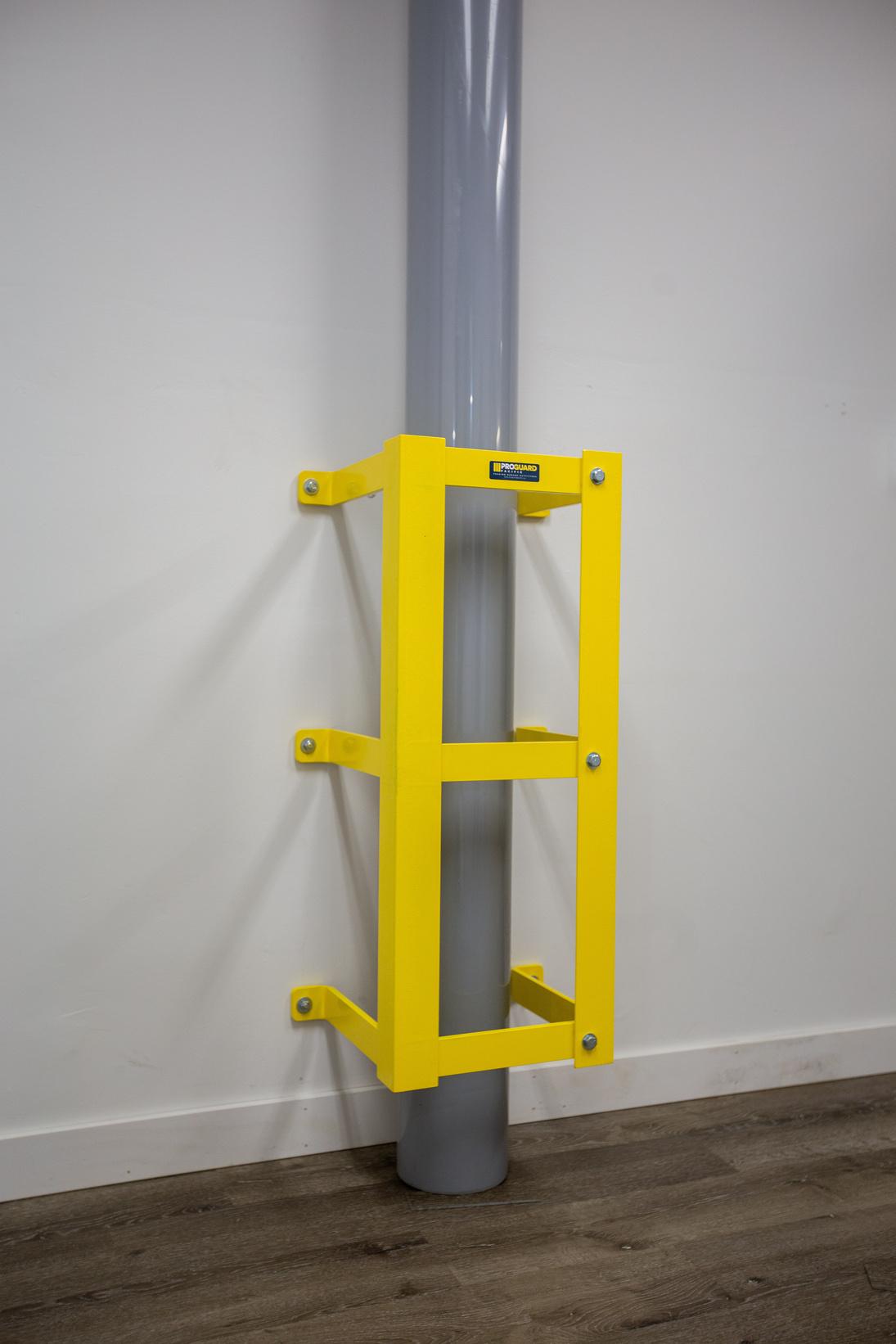

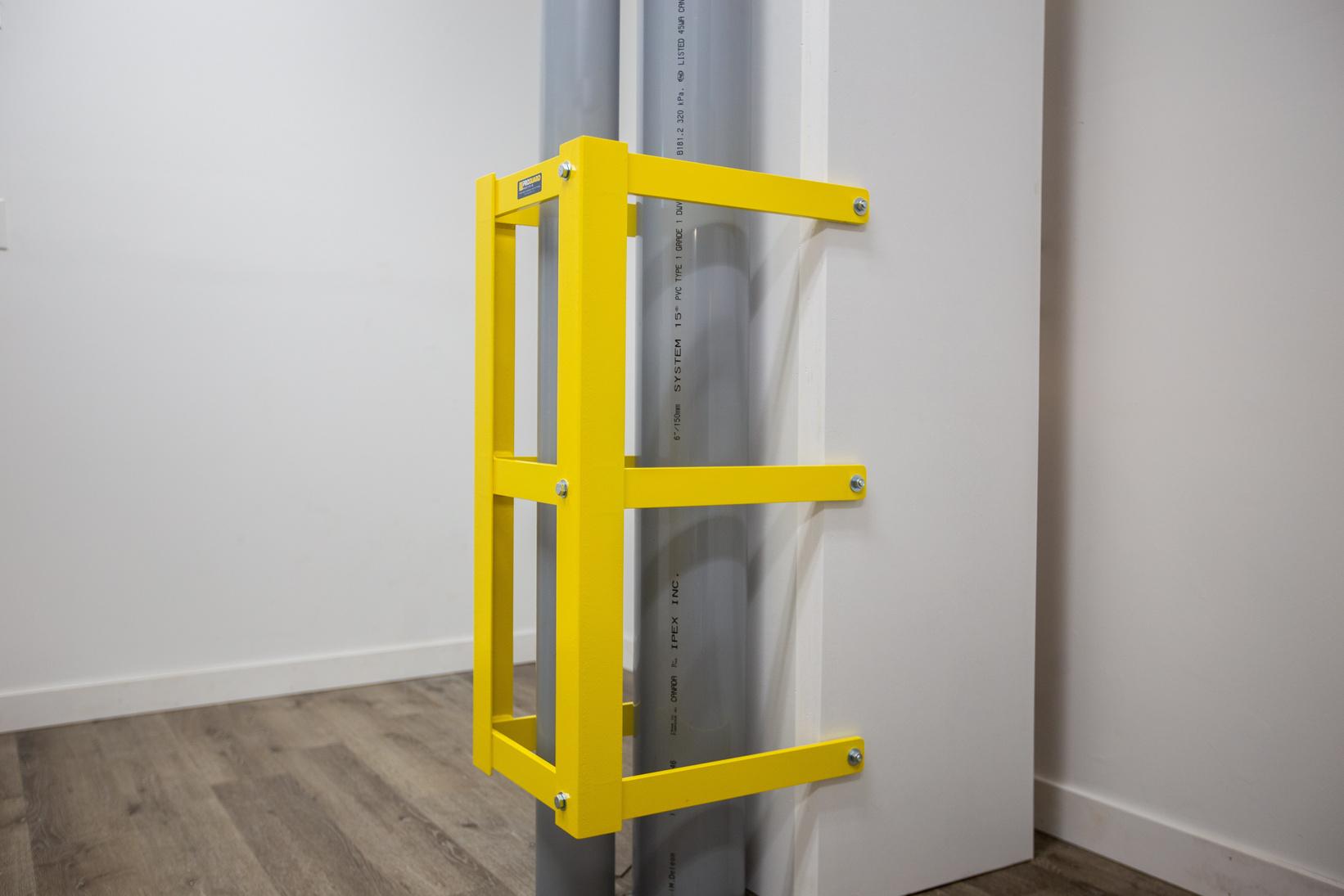

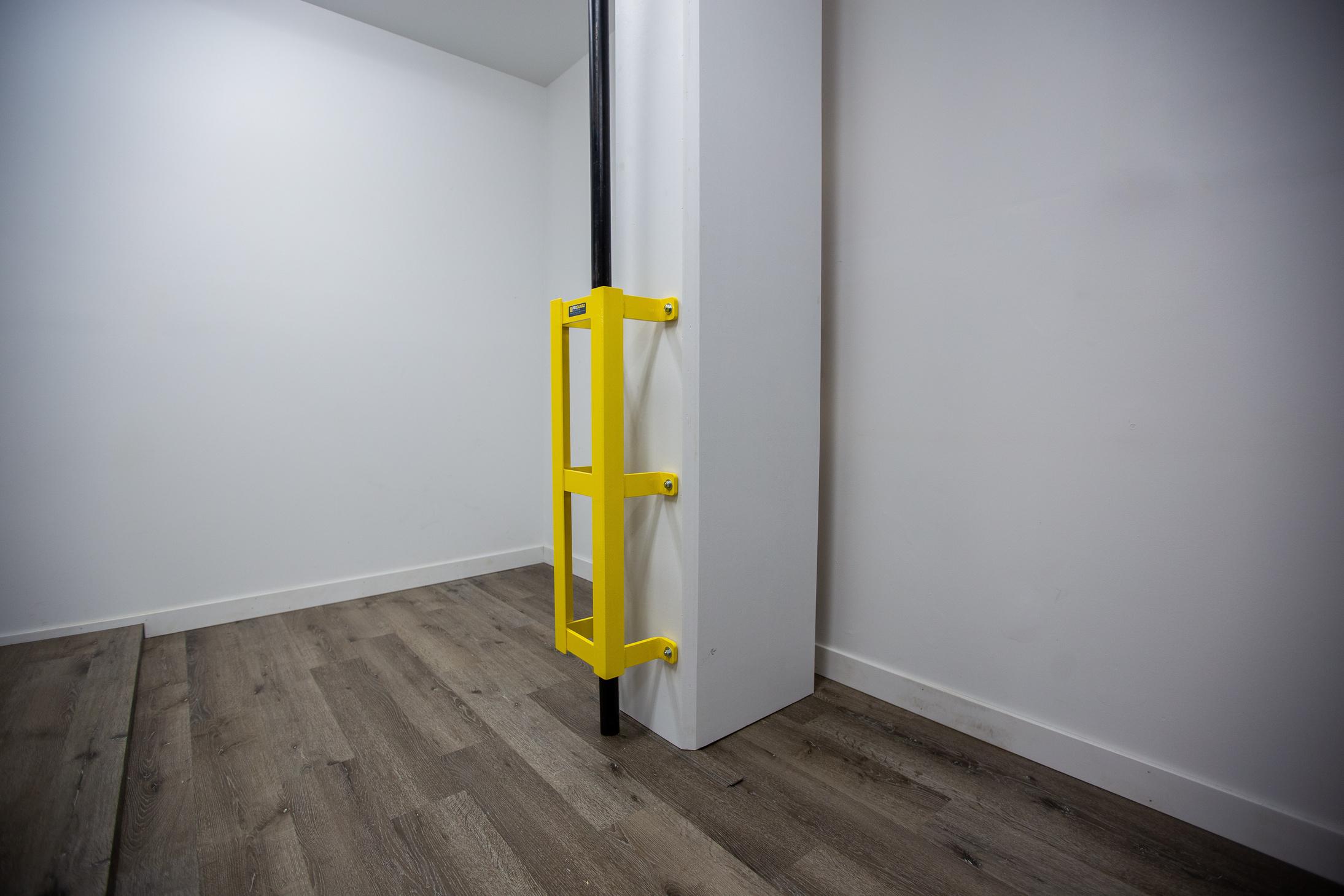

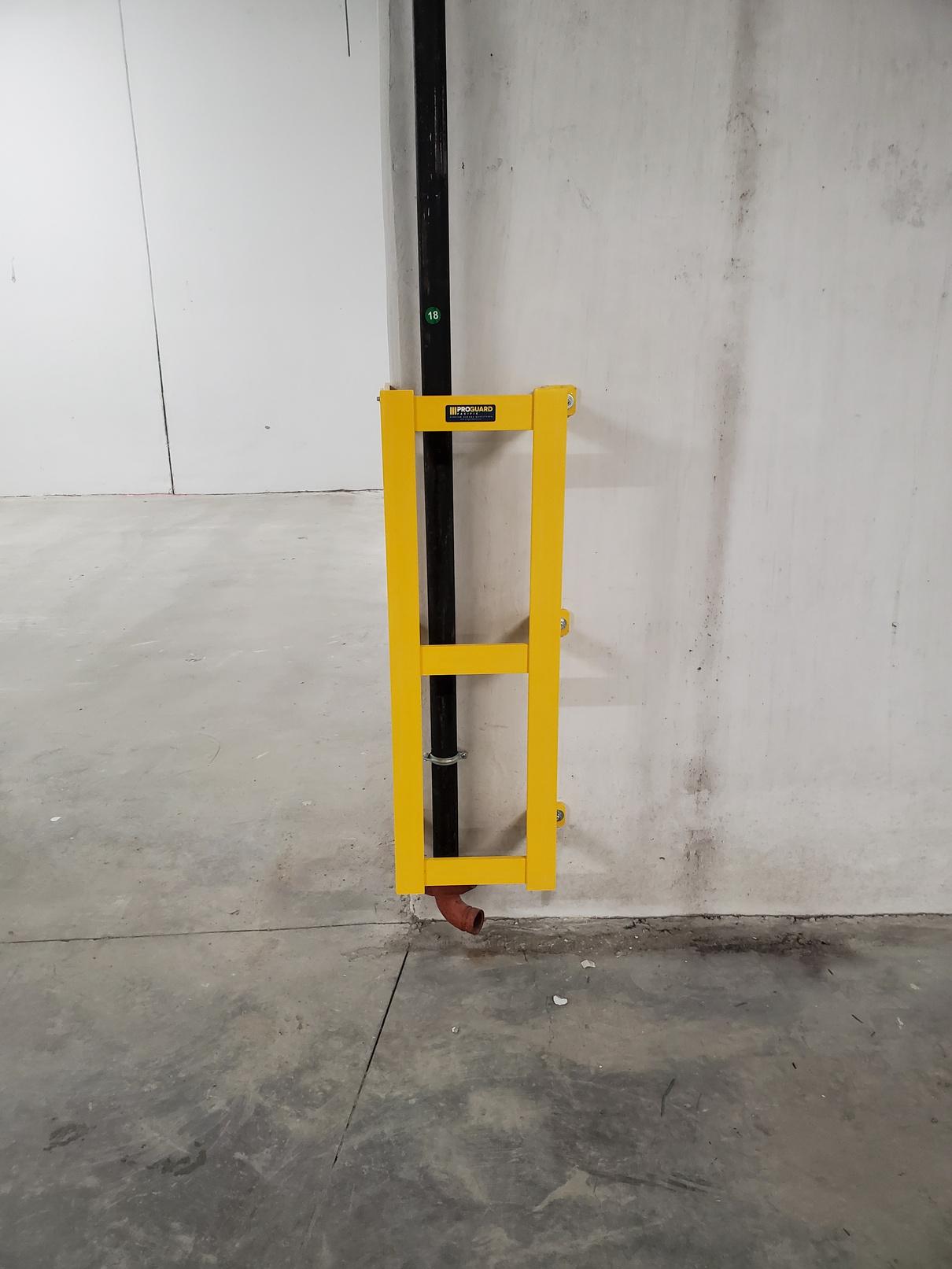

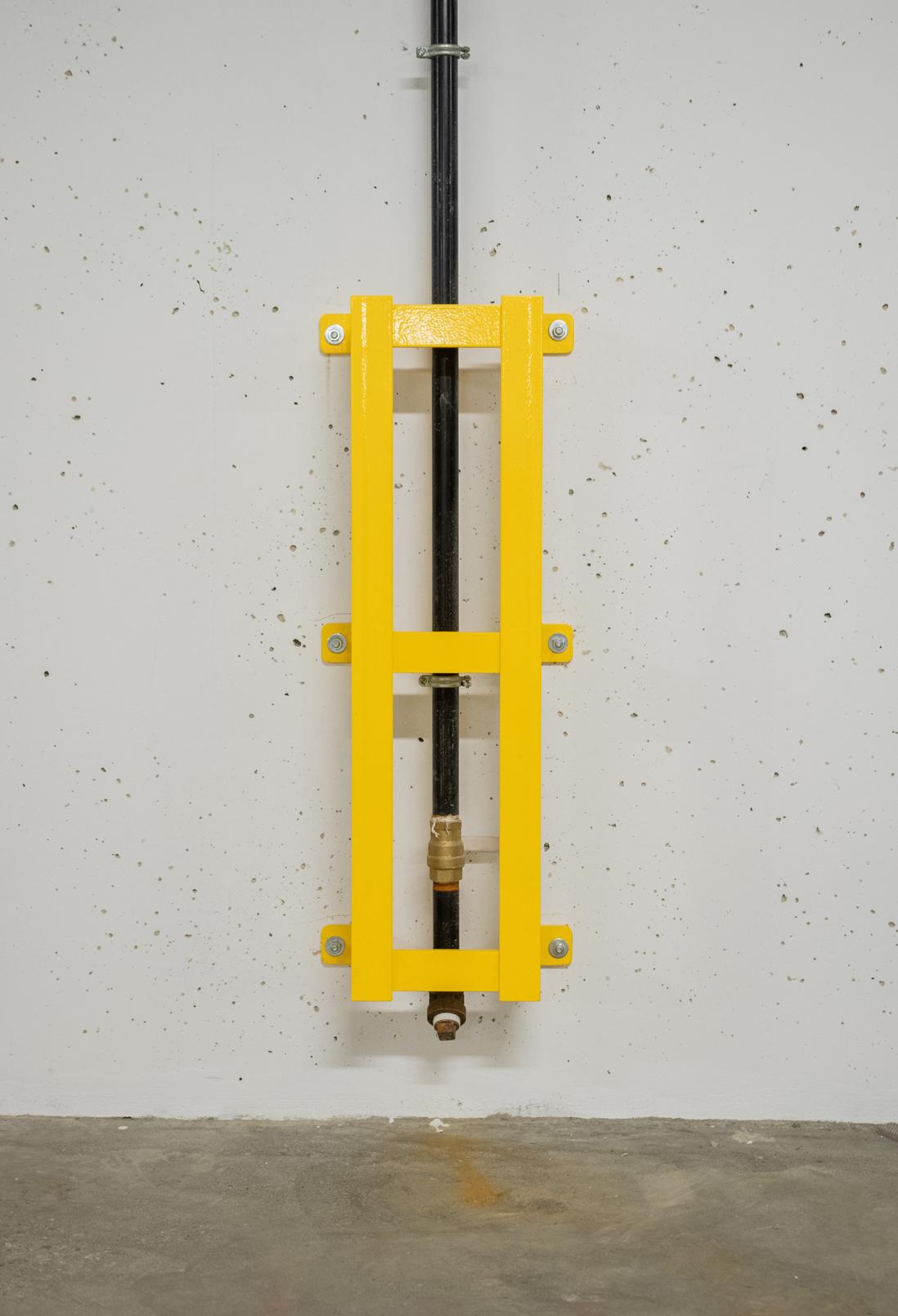

STANDARD WALL MOUNT

STANDARD WALL MOUNT

6" Wide x 4" Deep

PRODUCTNUMBER:PGP-WSPP-64-1

STYLE: STANDARD

SIZE & DETAILS:

Width6”(152mm)insidedimension/Depth4” (102mm)insidedimension

Height34”(864mm)

Weight247lbs/112kg

STANDARD WALL MOUNT

8" Wide x 6" Deep

PRODUCTNUMBER:PGP-WSPP-86-1

STYLE: STANDARD

SIZE & DETAILS:

Width8”(203mm)insidedimension/Depth6” (152mm)insidedimension

Height34”(864mm)

Weight292lbs/132kg

STANDARD WALL MOUNT

10" Wide x 8" Deep

PRODUCTNUMBER:PGP-WSPP-108-1

STYLE: STANDARD

SIZE & DETAILS:

Width10”(254mm)insidedimension/Depth8” (203mm)insidedimension

Height34”(864mm)

Weight32.8lbs/14.8kg

STANDARD WALL MOUNT

12" Wide x12" Deep

PRODUCTNUMBER:PGP-WSPP-1212-1

STYLE: STANDARD

SIZE & DETAILS:

Width12”(294mm)insidedimension/Depth12” (294mm)insidedimension

Height34”(864mm)

Weight422lbs/ 191kg

*Two-piecedesign*

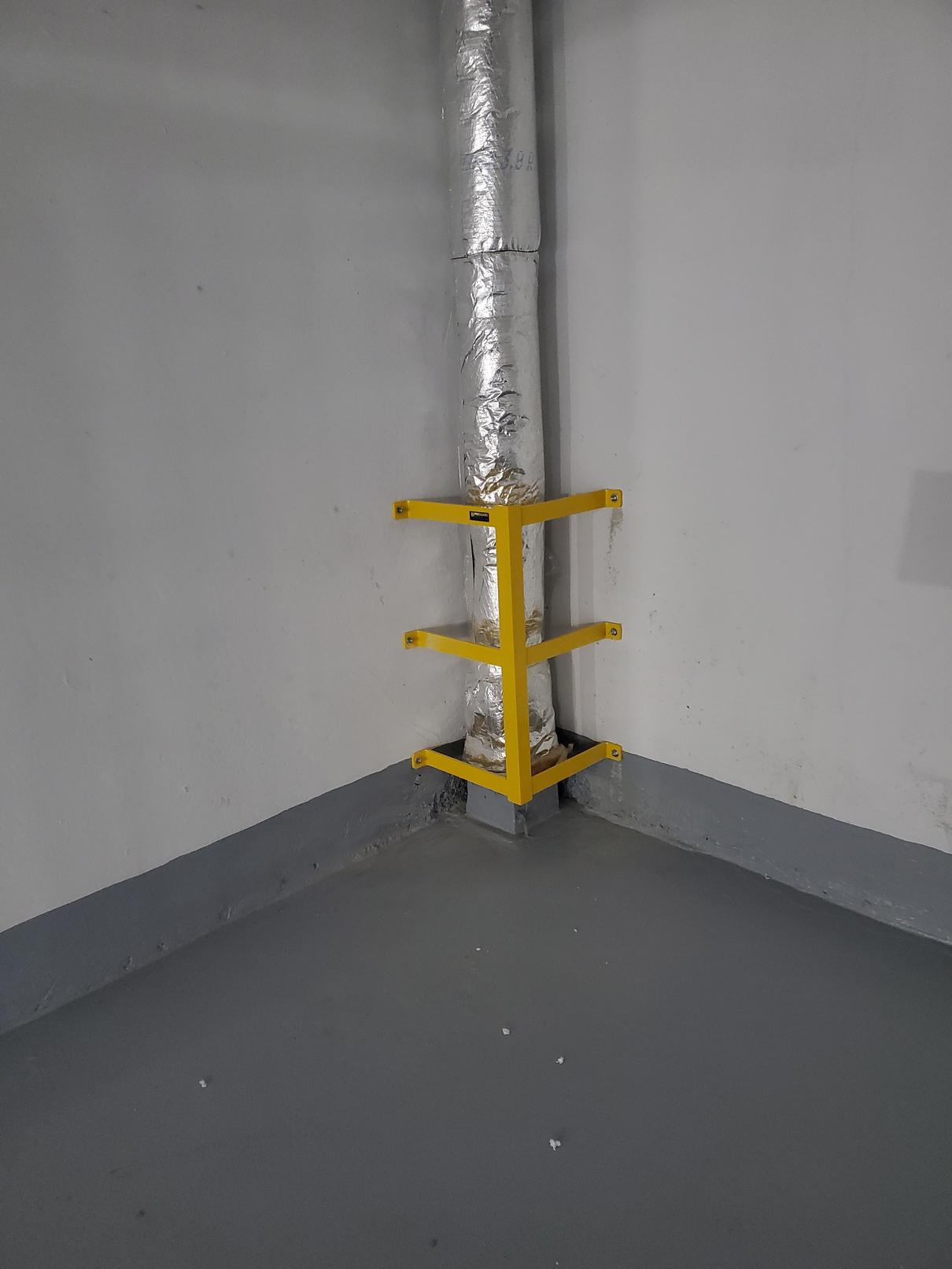

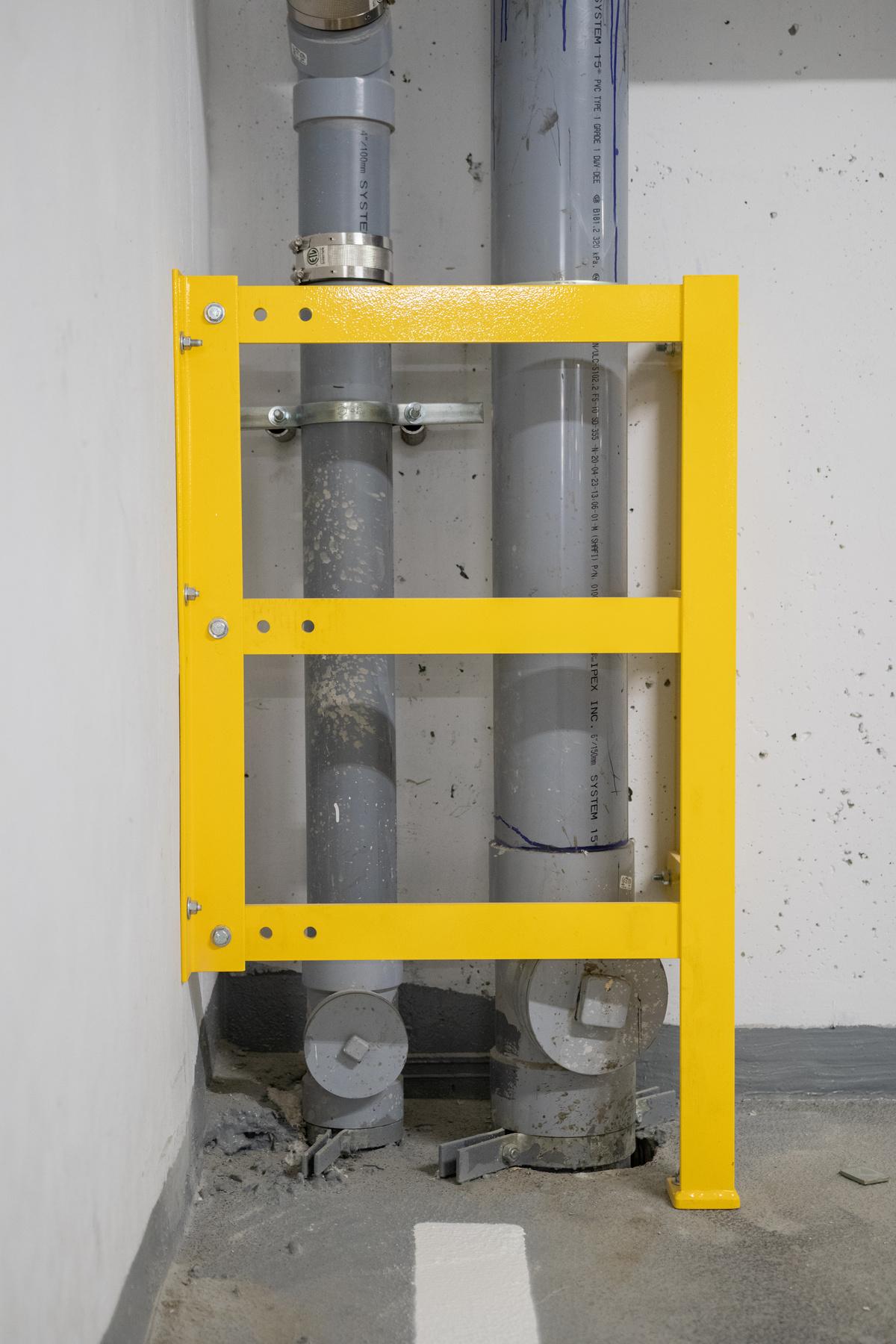

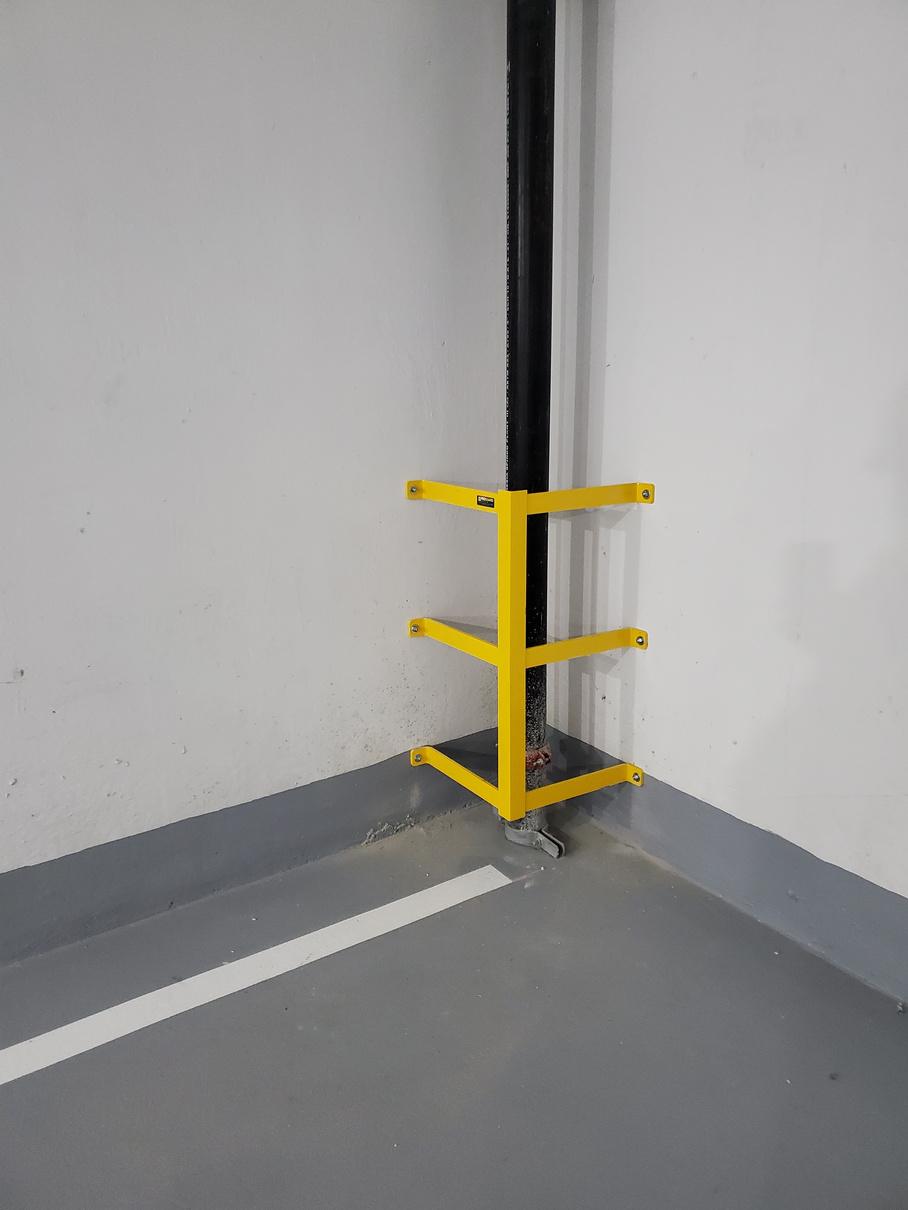

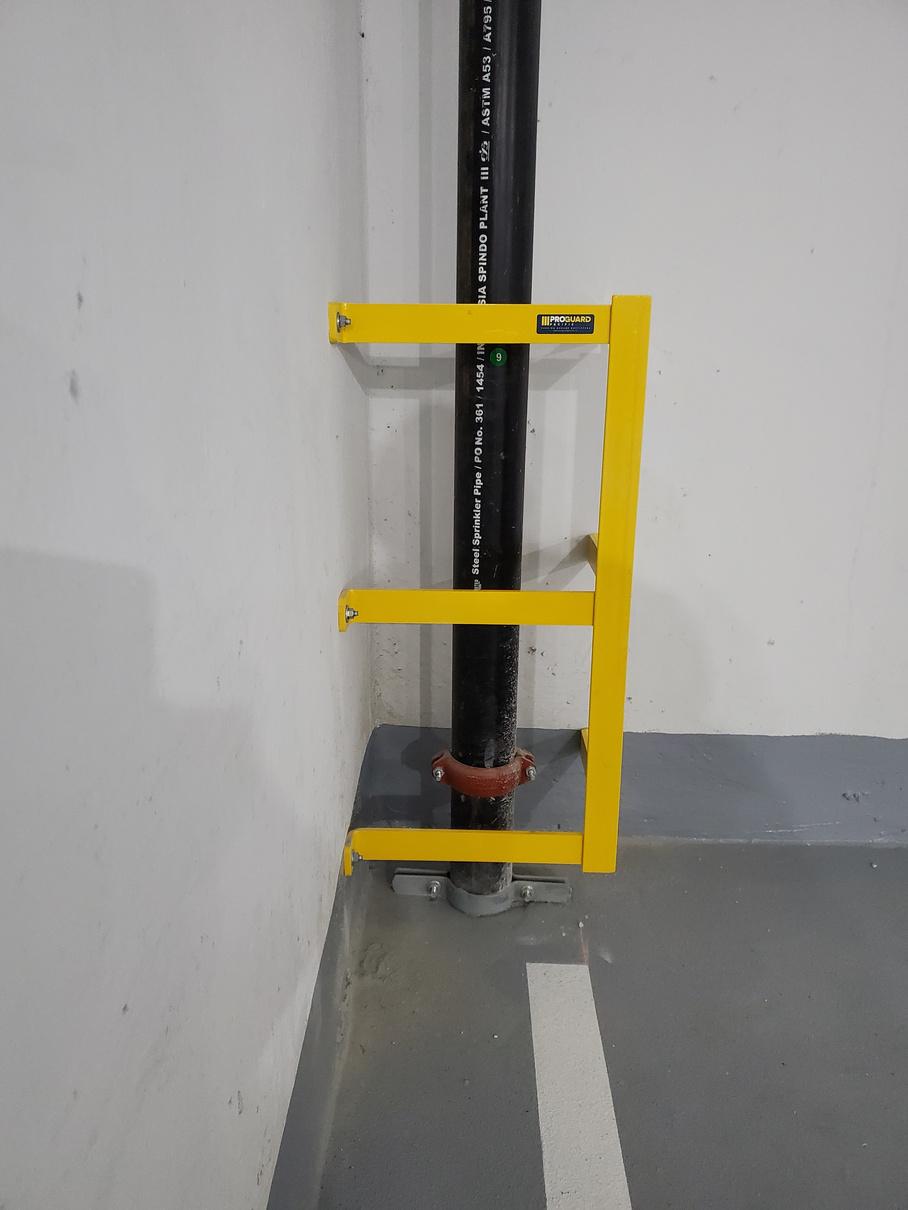

STANDARD INSIDE CORNER MOUNT

STANDARD INSIDE CORNER MOUNT

12" Wide x 12" Deep

PRODUCTNUMBER:PGP-ICSPP-1212-1

STYLE: STANDARD

SIZE & DETAILS:

Width12”(305mm)insidedimension/Depth12” (305mm)insidedimension

Height34”(864mm)

STANDARD OUTSIDE CORNER MOUNT

STANDARD INSIDE CORNER

MOUNT

16" Wide x 16" Deep

PRODUCTNUMBER:PGP-ICSPP-1616-1

STYLE: STANDARD

SIZE & DETAILS:

Width16”(392mm)insidedimension/Depth16” (392mm)insidedimension

Height34”(864mm)

Weight29.8lbs/13.5kg

STANDARD OUTSIDE CORNER MOUNT

8" Wide x 6" Deep

PRODUCTNUMBER:PGP-OCSPP-86-1

STYLE: STANDARD

SIZE & DETAILS:

Width8”(196mm)insidedimension/Depth6” (147mm)insidedimension

Height34”(864mm)

Weight29.8lbs/13.51kg

STANDARD OUTSIDE CORNER MOUNT

10" Wide x 8" Deep

PRODUCTNUMBER:PGP-WSPP-108-1

STYLE: STANDARD

SIZE & DETAILS:

Width10”(245mm)insidedimension/Depth8” (196mm)insidedimension

Height34”(864mm)

Weight344lbs/156kg

STANDARD OUTSIDE CORNER MOUNT

12" Wide x 12" Deep

PRODUCTNUMBER:PGP-OCSPP-1212-1

STYLE: STANDARD

SIZE & DETAILS:

Width12”(294mm)insidedimension/Depth12” (294mm)insidedimension

Height34”(864mm)

Weight40lbs/181kg

*Two-piecedesign*

click here to view Standard Pipe Protectors, pricing, purchasing and additional pictures on our website

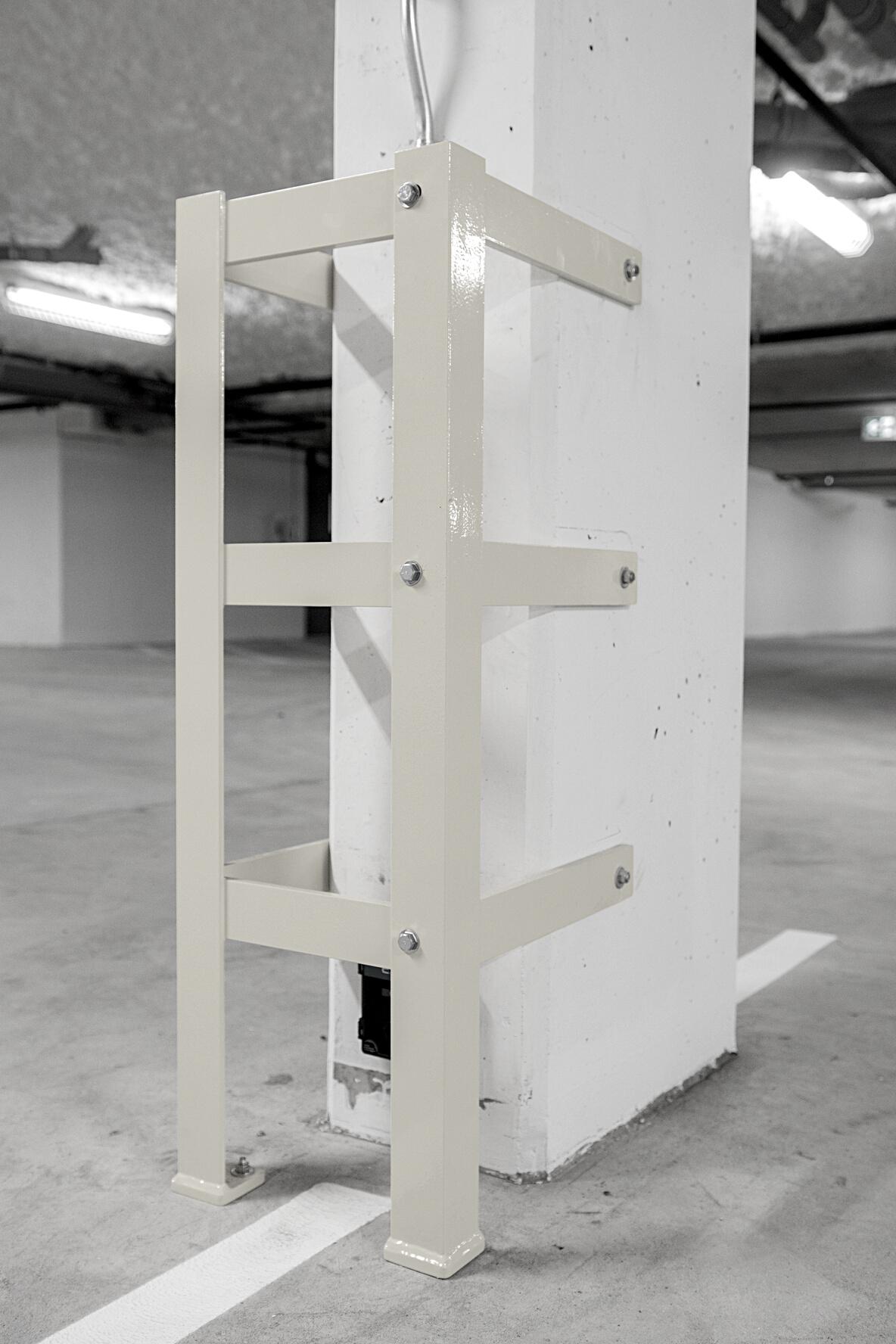

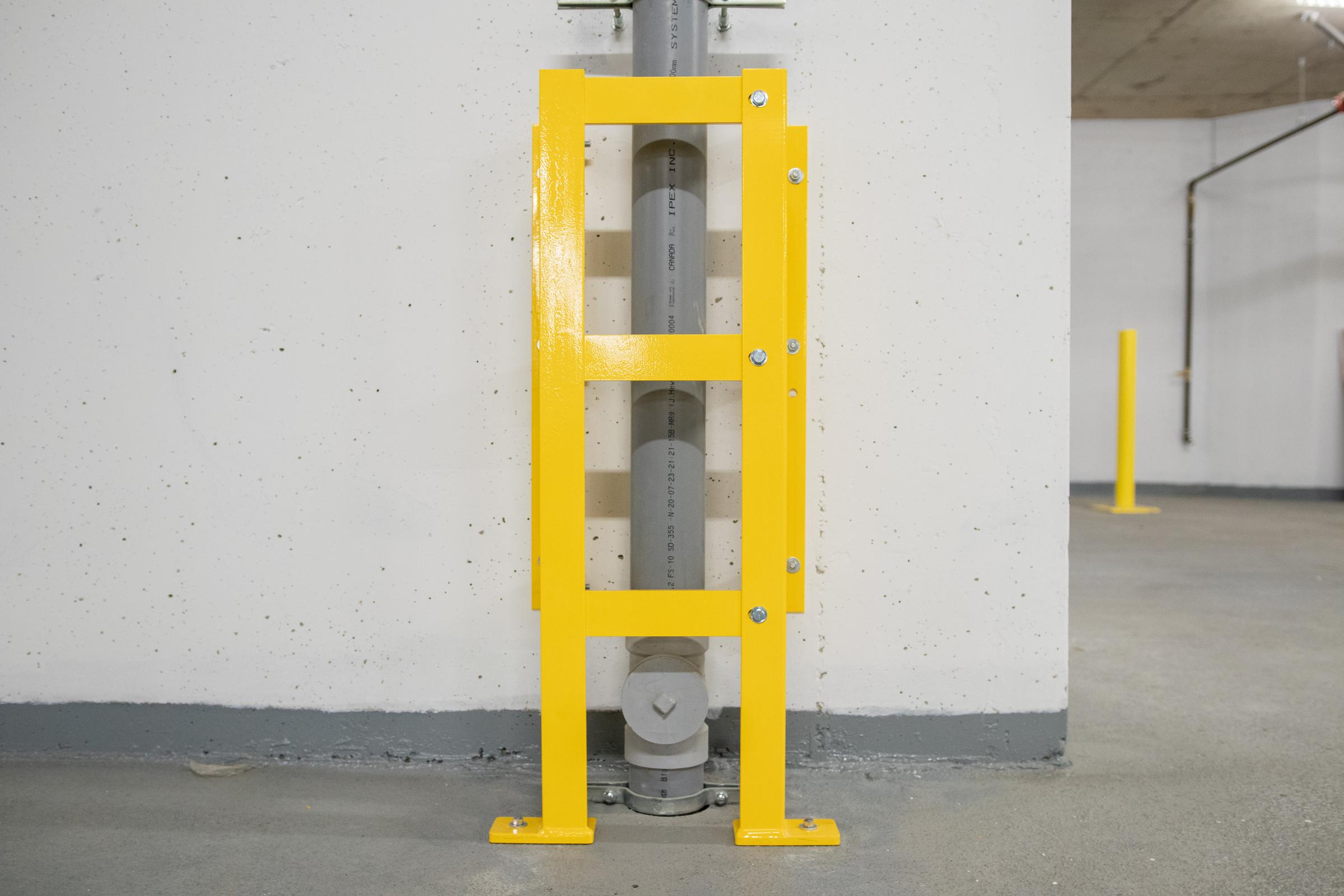

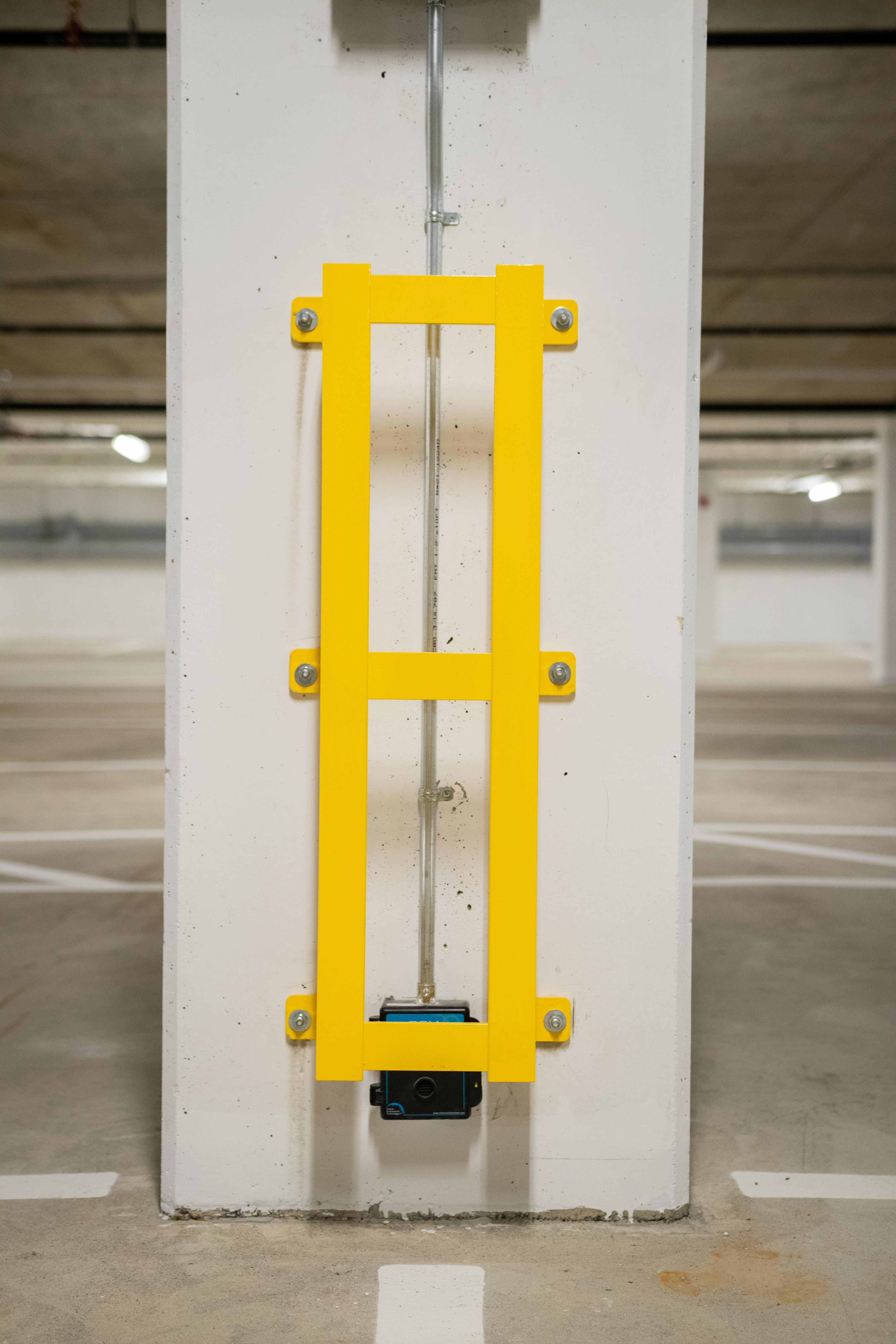

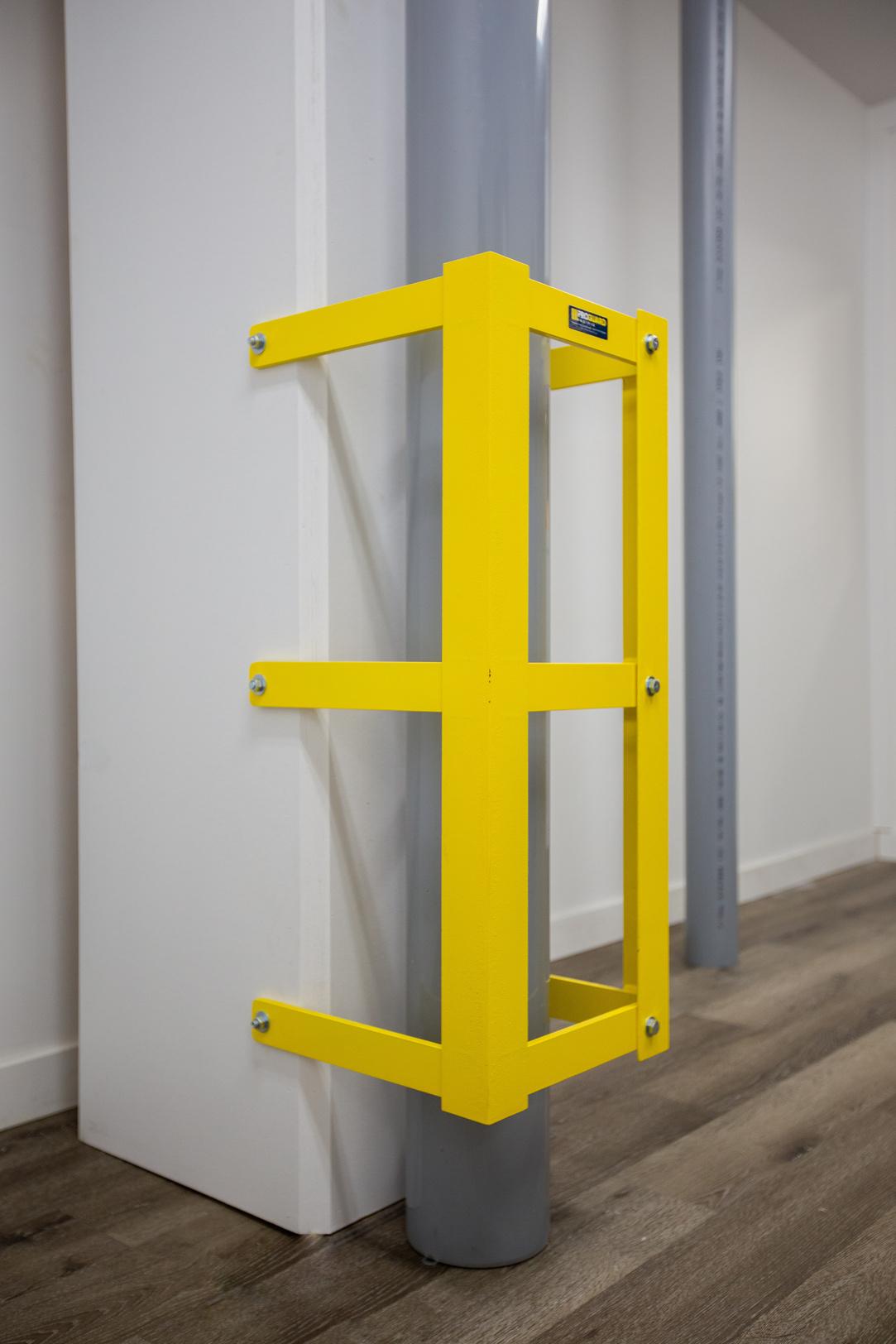

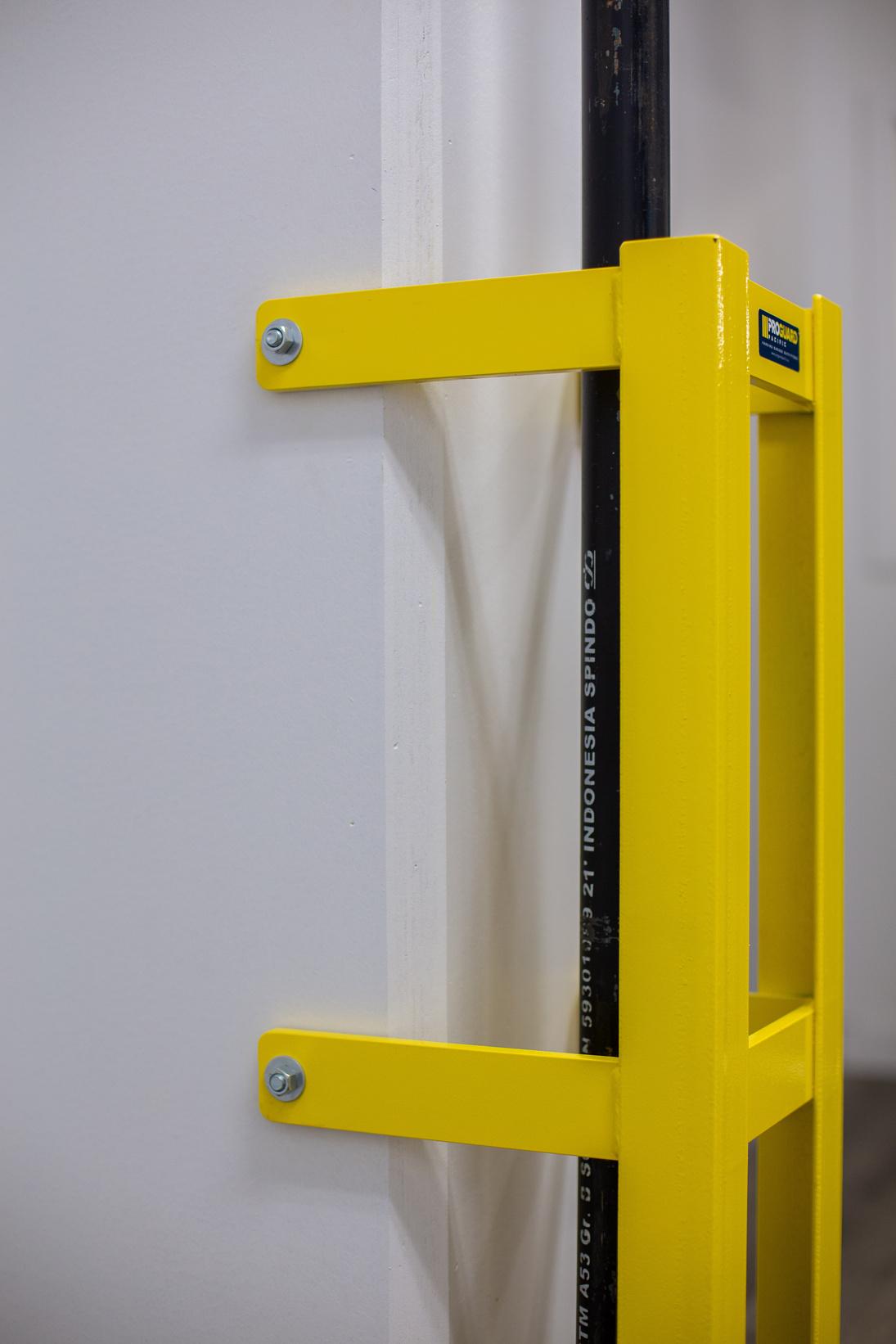

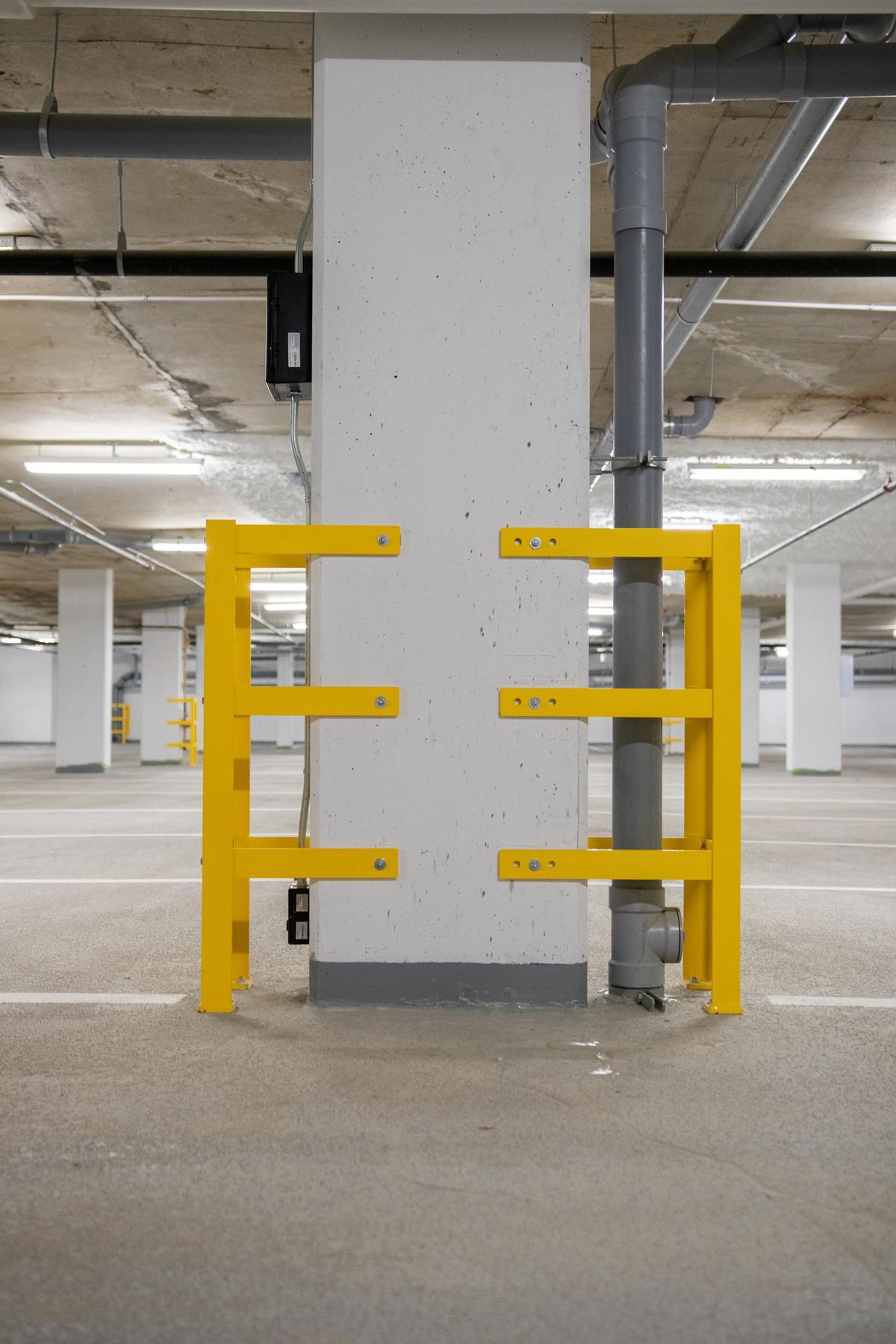

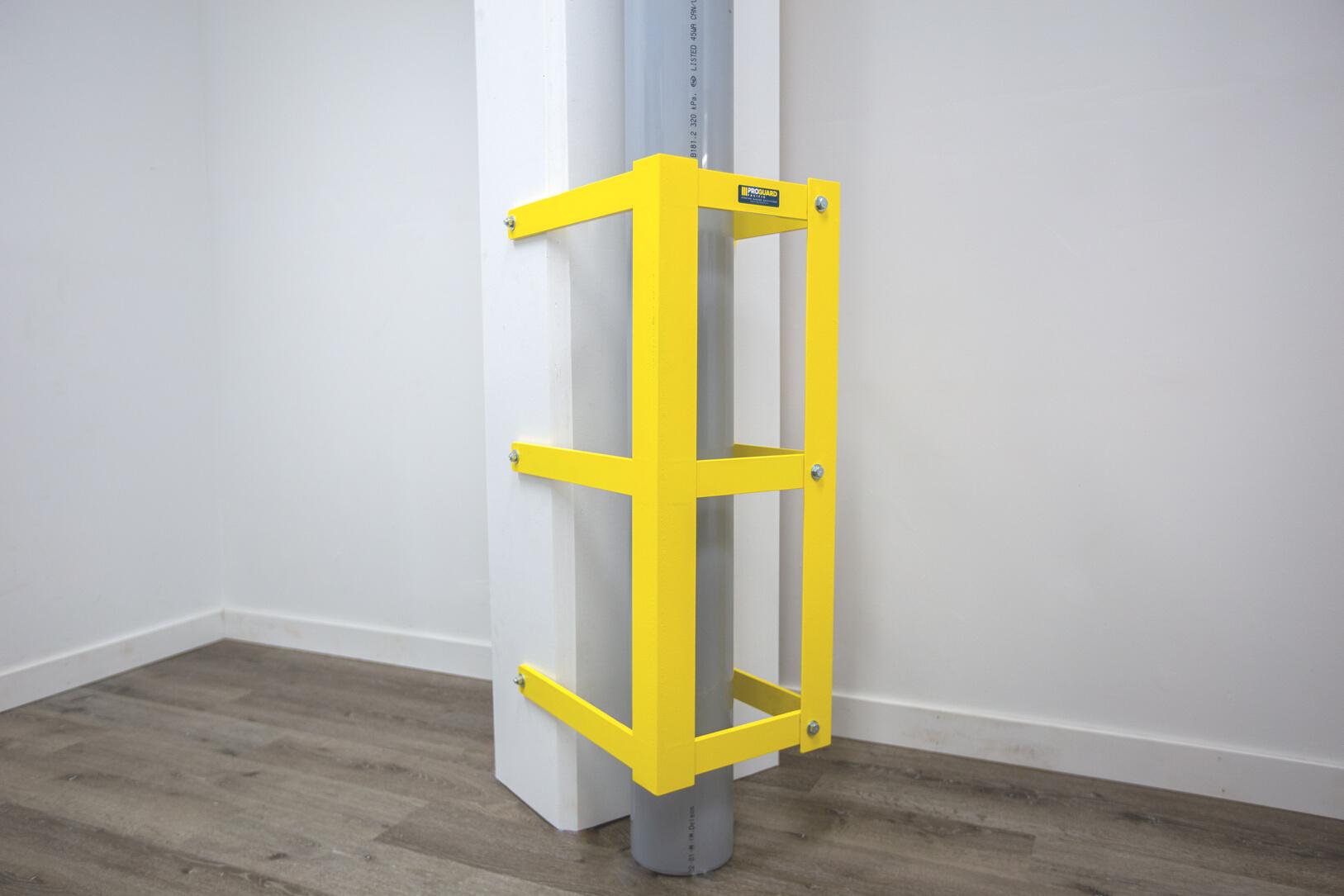

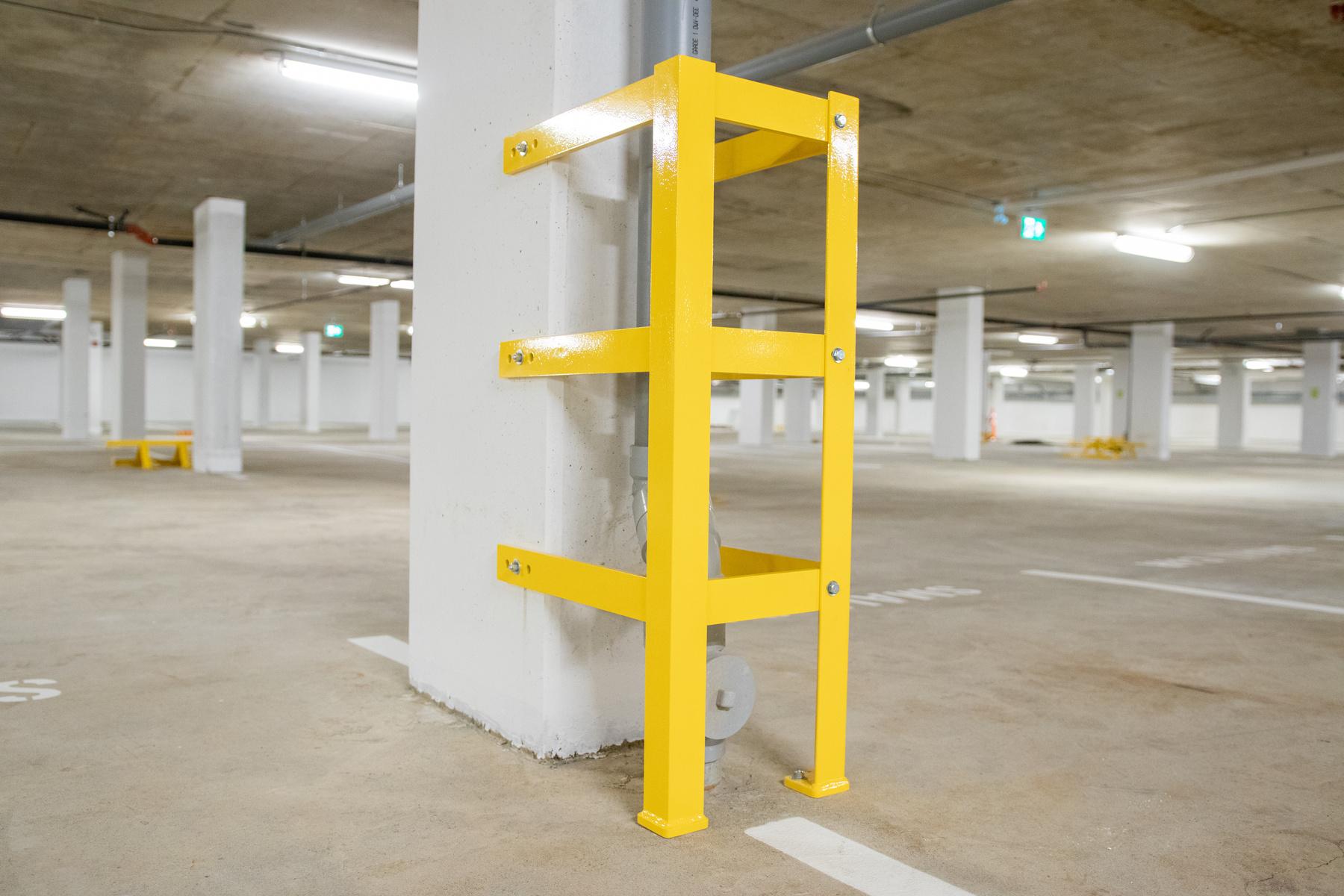

STANDARD PILLAR MOUNT

STANDARD PILLAR MOUNT

12" Wide x 10" Deep

PRODUCTNUMBER:PGP-PSPP-1210-1

STYLE: STANDARD

SIZE&DETAILS:

Width12”(294mm)insidedimension/maximumDepth10” (254mm)insidedimension

Height34”(864mm)

Weight412lbs/186kg

*Two-piecedesign*

Easyaccess towatervalves, electricalplugs, andpower shutoffs

STANDARD PILLAR MOUNT

12" Wide x 14" Deep

PRODUCTNUMBER:PGP-PSPP-1214-1

STYLE:STANDARD

SIZE&DETAILS:

Width12”(294mm)insidedimension/maximumDepth14” (355mm)insidedimension

Height34”(864mm)

Weight466lbs/2113kg

*Two-piecedesign*

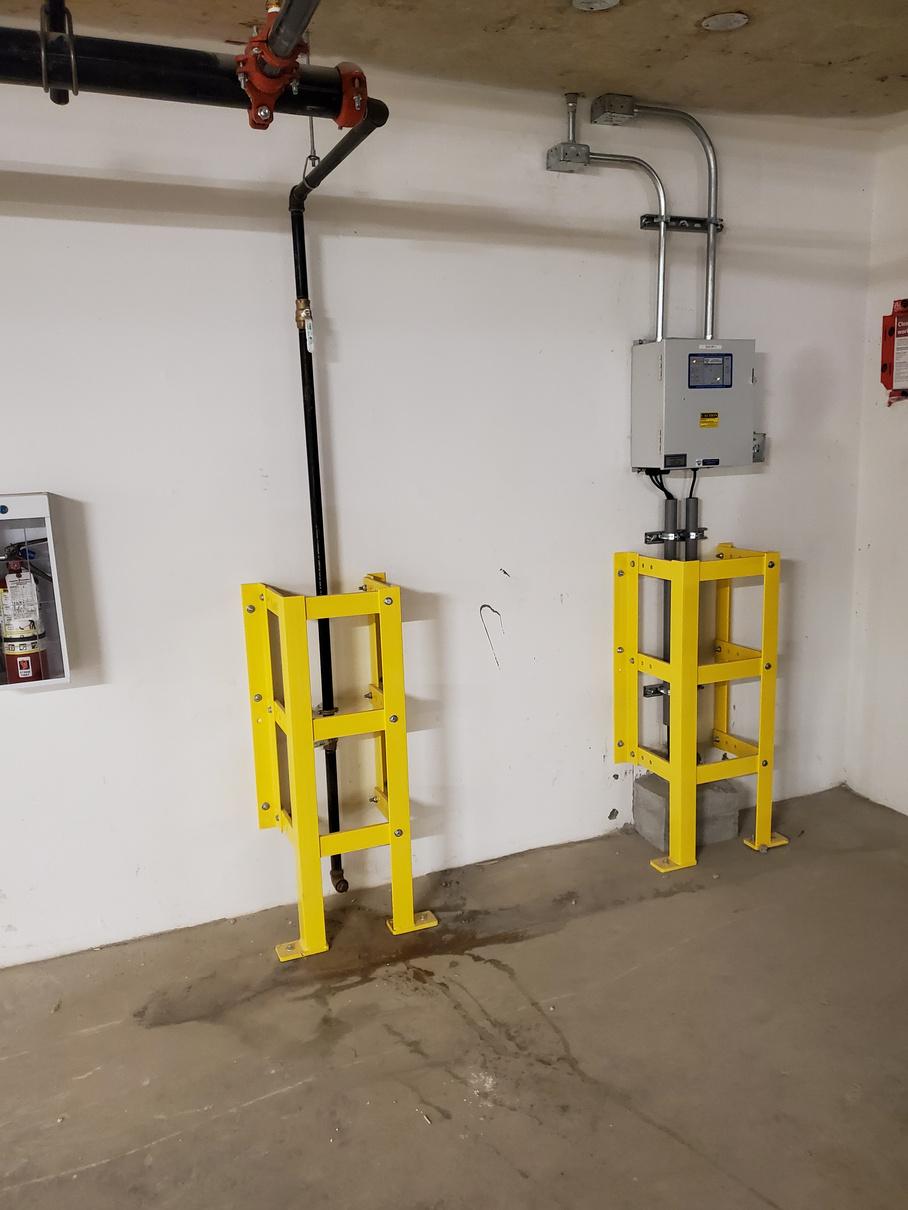

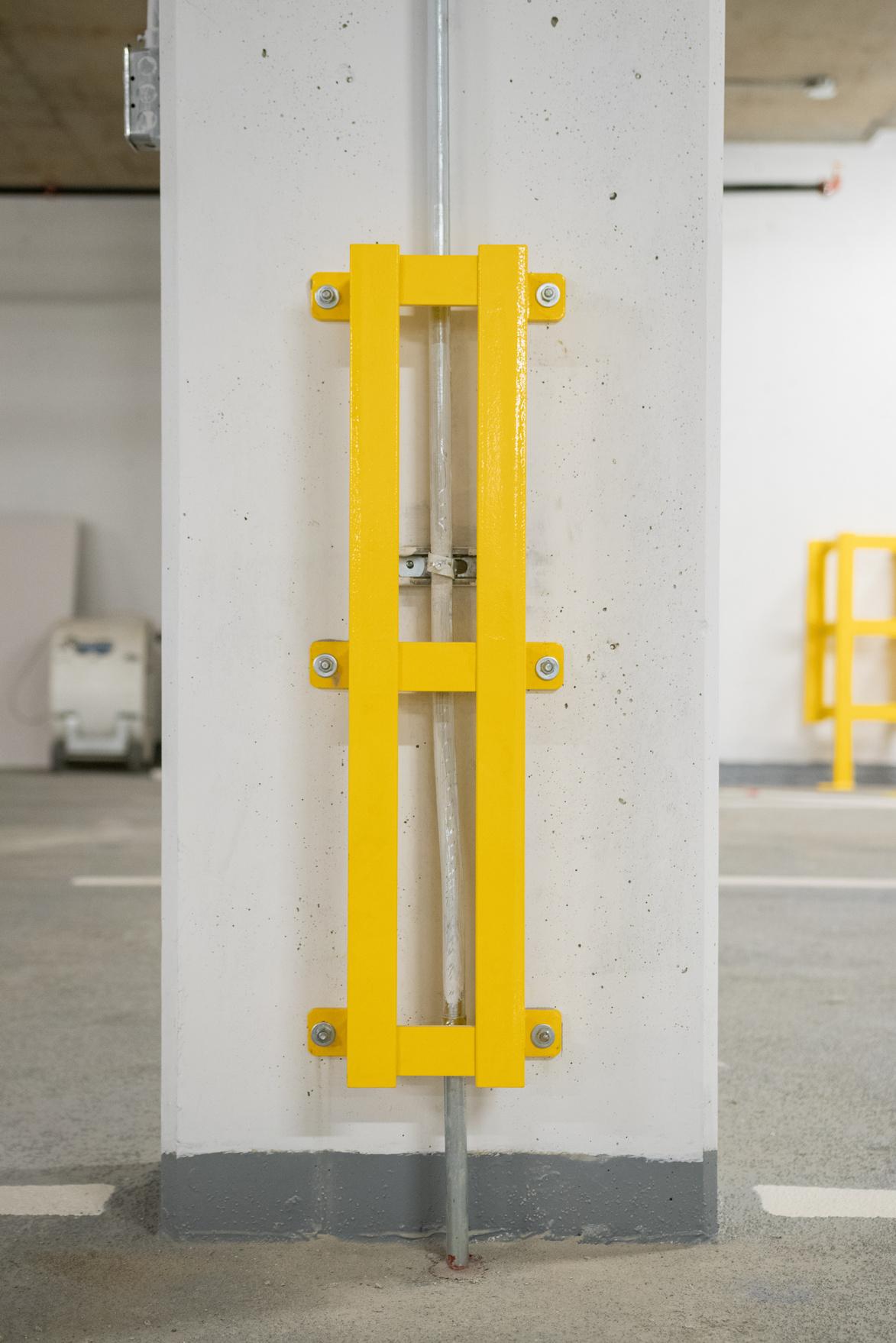

Mountsto anydurable surface

Heavy Duty 2 ½” (64 mm) x 3/16” (5 mm) thick vertical support frame with ½” (12mm) thick feet

Heavy Duty 2 ½ ” (64 mm) x 1/4” (12 mm) thick mounting tabs and bars

Heavy Duty 2 ½” (64 mm) x 3/16 ” (5 mm) thick vertical wall and pillar mount brackets

Eight heavy duty formed mounting tabs and feet include provisions for ⅜” (10 mm) mounting hardware

Finished in durable, all-weather ‘Gloss Safety Yellow’ powder coating

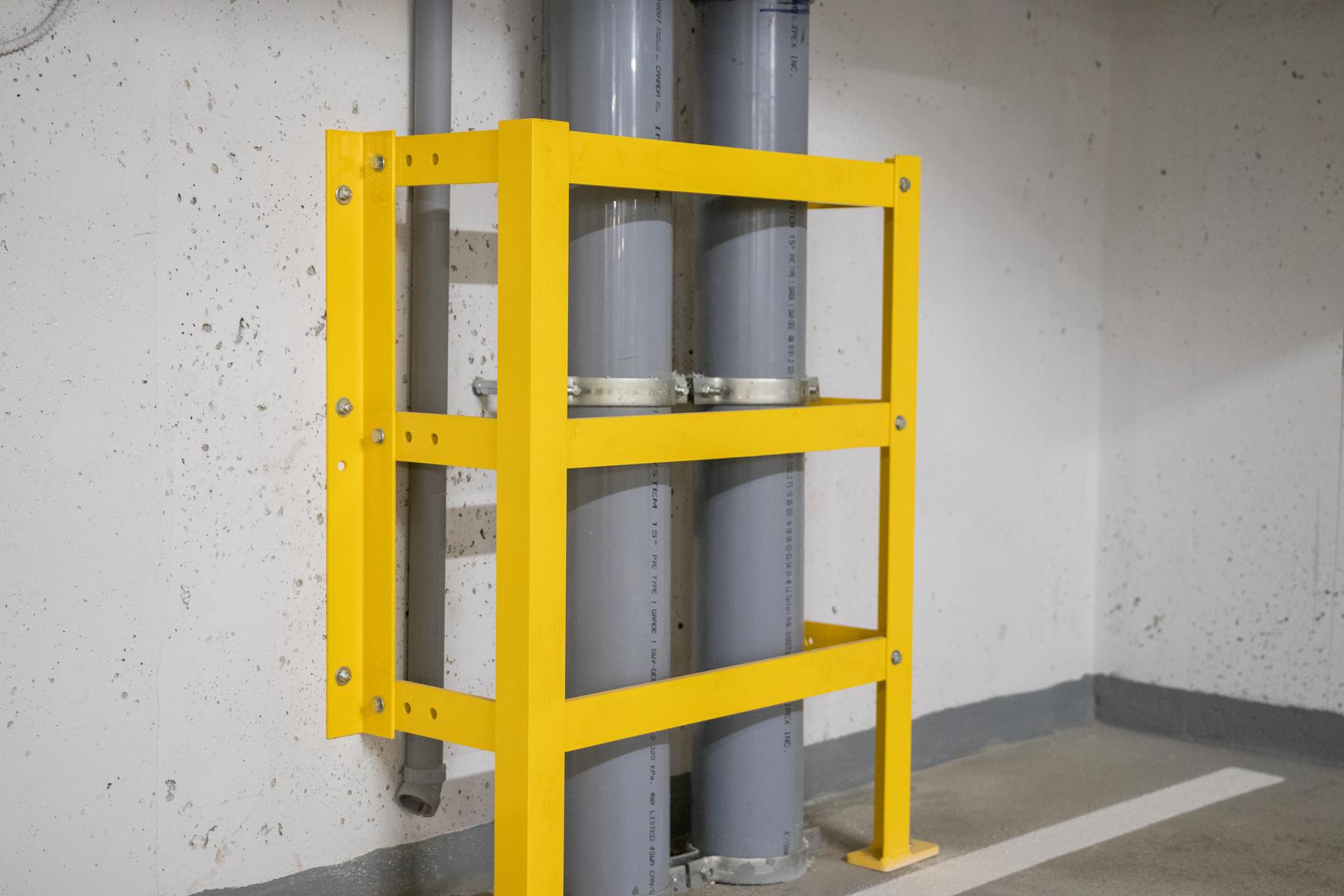

O u r v a r i o u s m o d e l s o f p r o t e c t i v e g u a r d s a r e i n t e n d e d t o g u a r d e l e c t r i c a l w i r e s , p l u m b i n g a n d g a s p i p e s , g u t t e r d o w n s p o u t s a n d o t h e r m i s c e l l a n e o u s i t e m s a g a i n s t d a m a g e i n a n a p p l i c a t i o n w h e r e a s t a n d a r d ‘ o f f t h e s h e l f ’ u n i t w i l l n o t s u i t t h e n e e d e d a p p l i c a t i o n .

A l l m o d e l s c a n b e e a s i l y m o u n t e d t o c o n c r e t e , w o o d f r a m i n g , o r a n y o t h e r d u r a b l e w a l l m a t e r i a l f r o m i t s e i g h t m o u n t i n g p o i n t s .

T h e o p e n - c o n c e p t d e s i g n o f t h i s m o d e l a l l o w s f o r e a s y a c c e s s t o a n y i t e m o n c e i n s t a l l e d ( i e : f a u c e t s , w a t e r s h u t - o f f v a l v e s , e l e c t r i c a l p

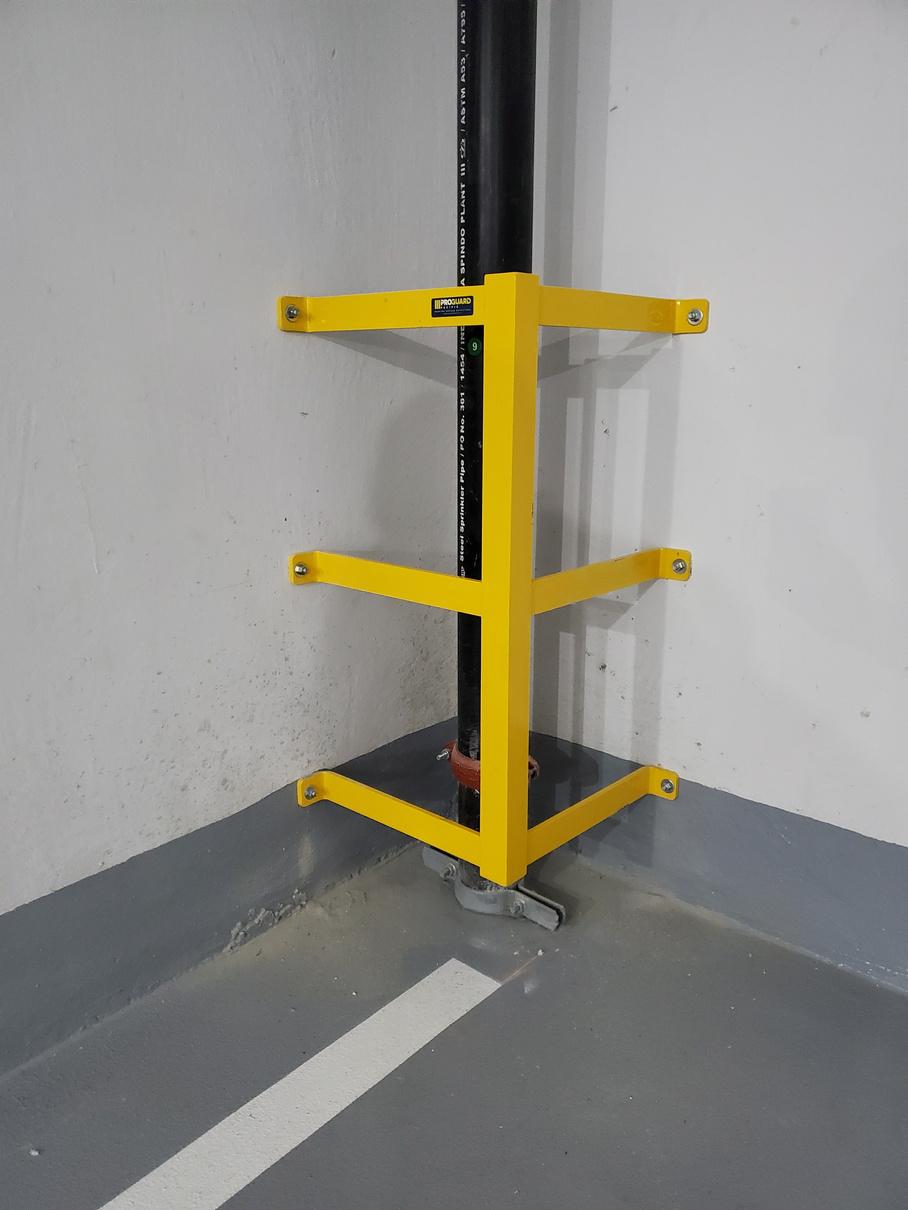

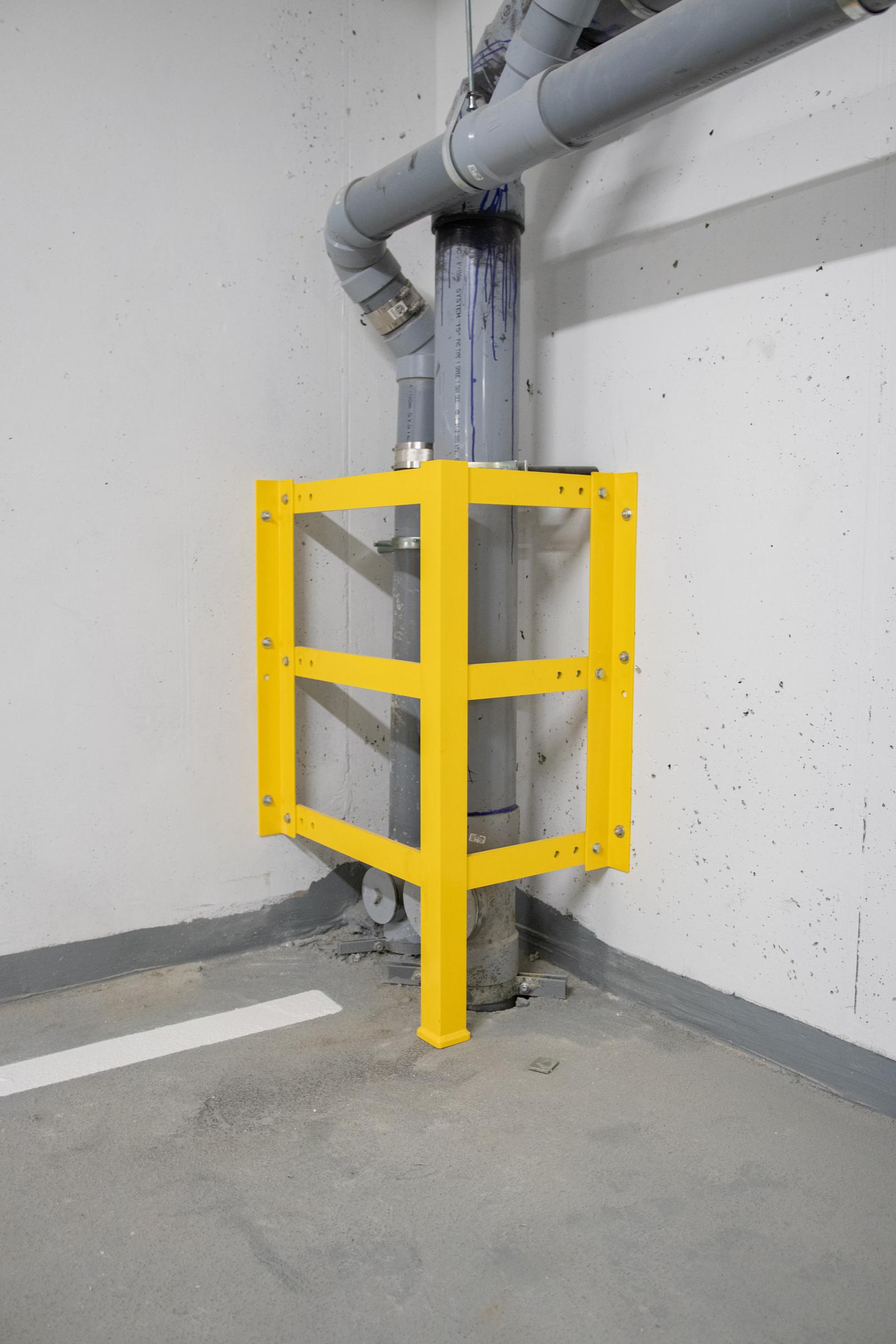

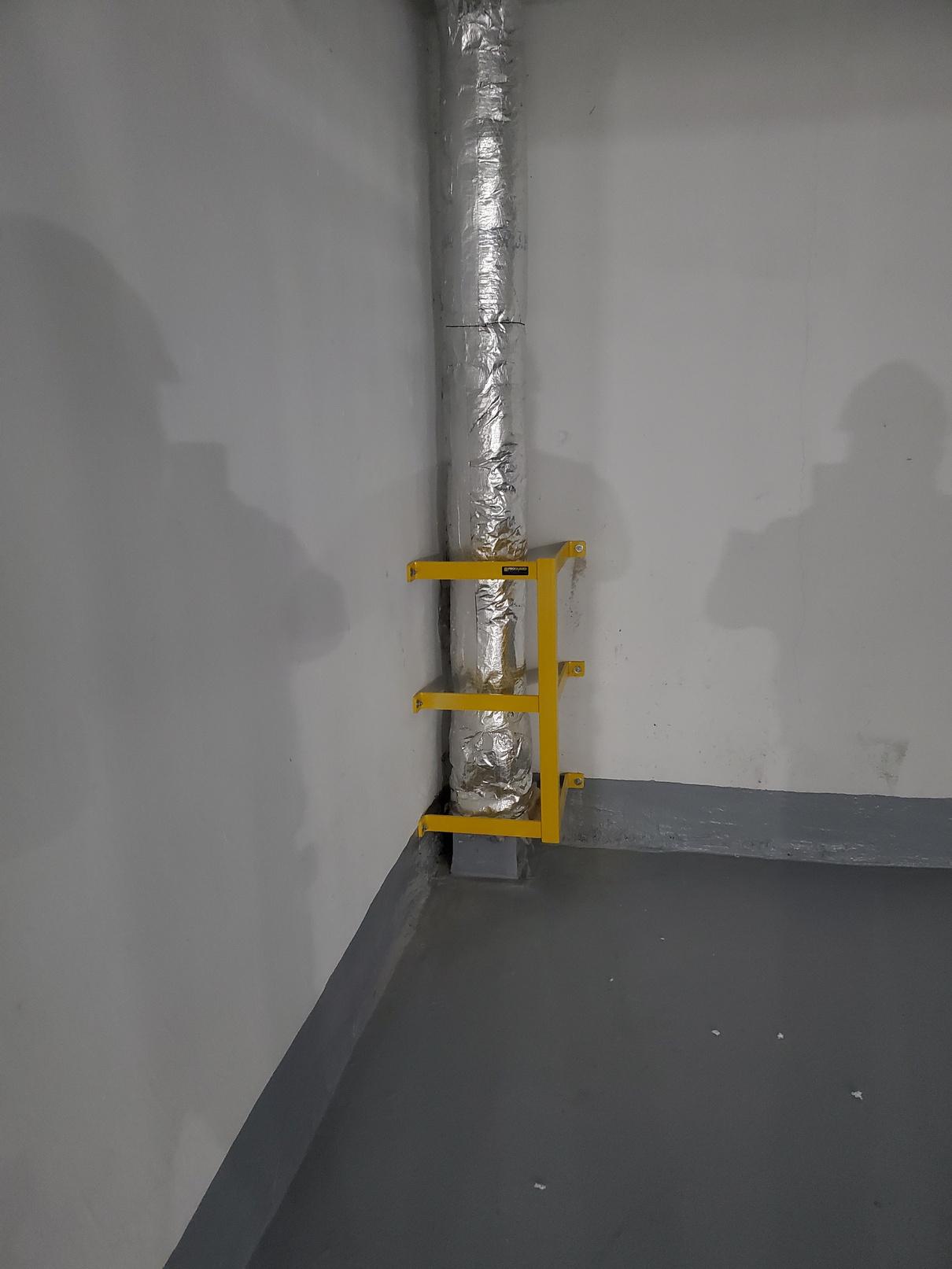

WALL MOUNT INSIDE CORNER MO

Ranging in sizes from 12 - 36 Wide x 12 - 36 Deep

PRODUCTNUMBER:PGP-WWLD-1212-1

SIZE & DETAILS:

Width12”-36”(305mm-915mm)insidedimension/ Depth12”-36”(305mm-915mm)insidedimension

Height42”(1067mm)

Weight75+lbs/34+kg

Ranging in sizes from 12 - 36 Wide x 12 - 36 Deep

PRODUCTNUMBER:PGP-ICWLD-1212-1

SIZE & DETAILS:

Width12”-36”(305mm-915mm)insidedimension/ Depth12”-36”(305mm-915mm)insidedimension

Height42”(1067mm)

Weight75+lbs/34+kg

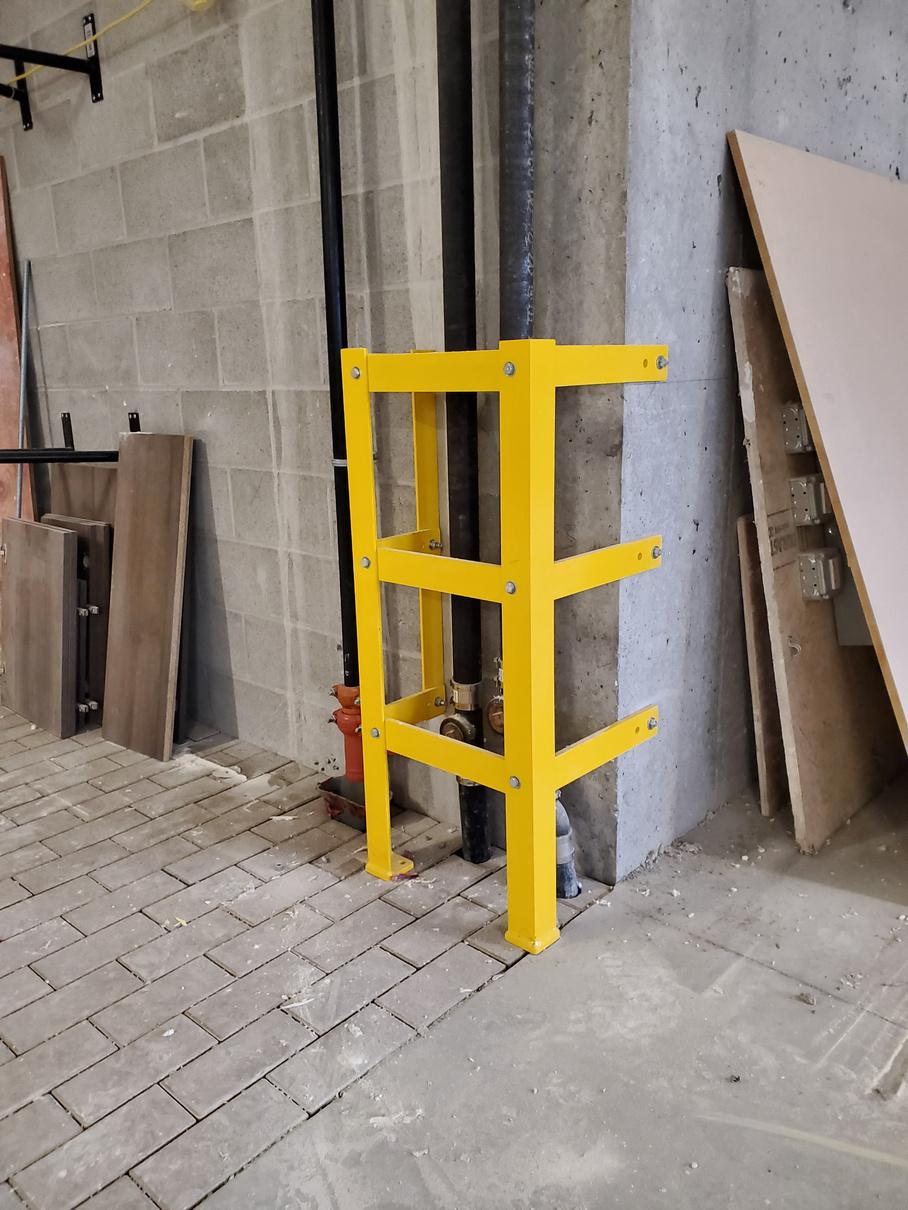

OUTSIDE CORNER MOUNT

Ranging in sizes from 12”- 36” Wide x 12”- 36” Deep

PRODUCTNUMBER:PGP-OCWLD-1212-1

SIZE & DETAILS:

Width12”-36”(305mm-915mm)insidedimension/ Depth12”-36”(305mm-915mm)insidedimension

Height42”(1067mm)

Weight75+lbs/34+kg

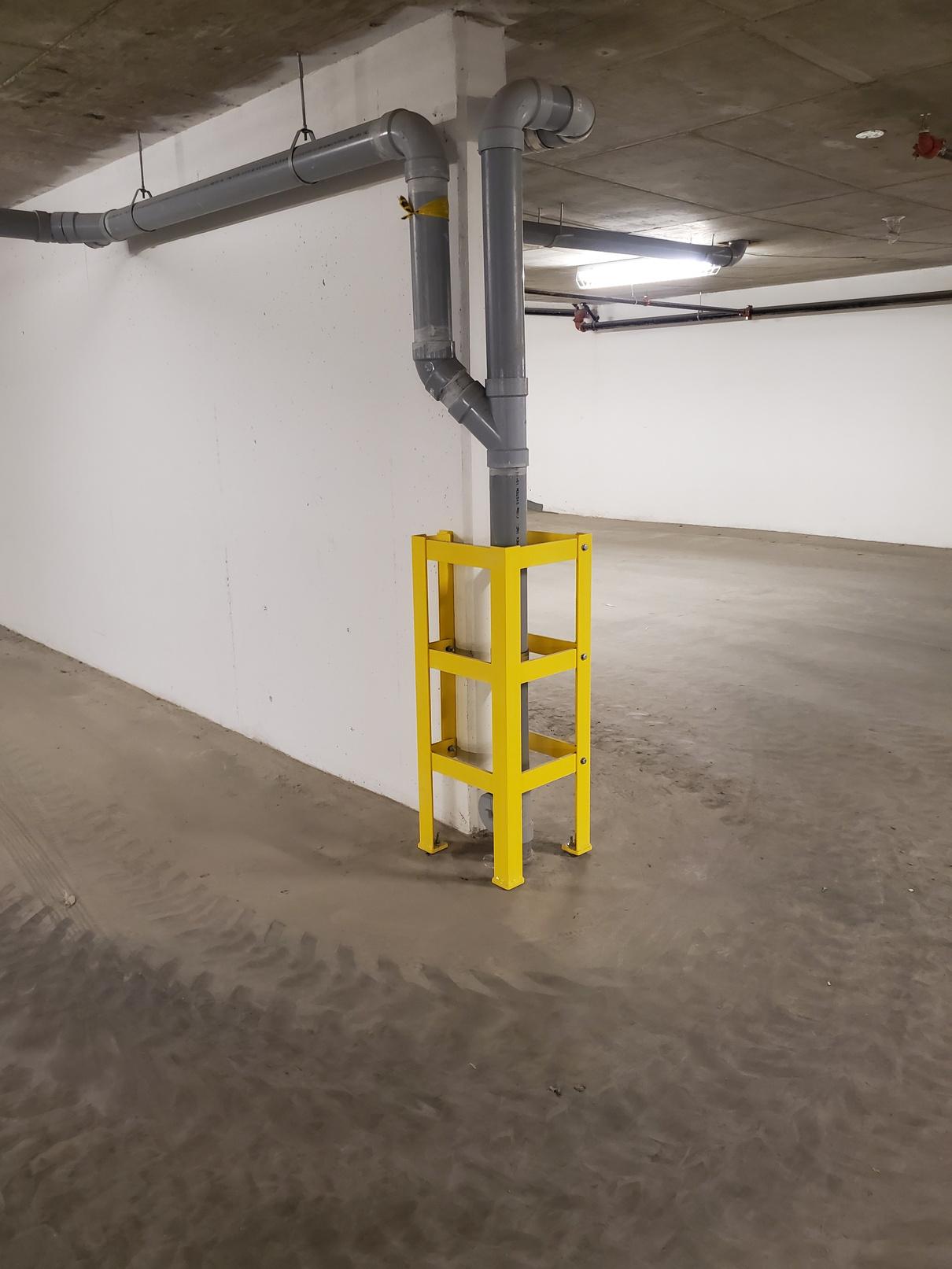

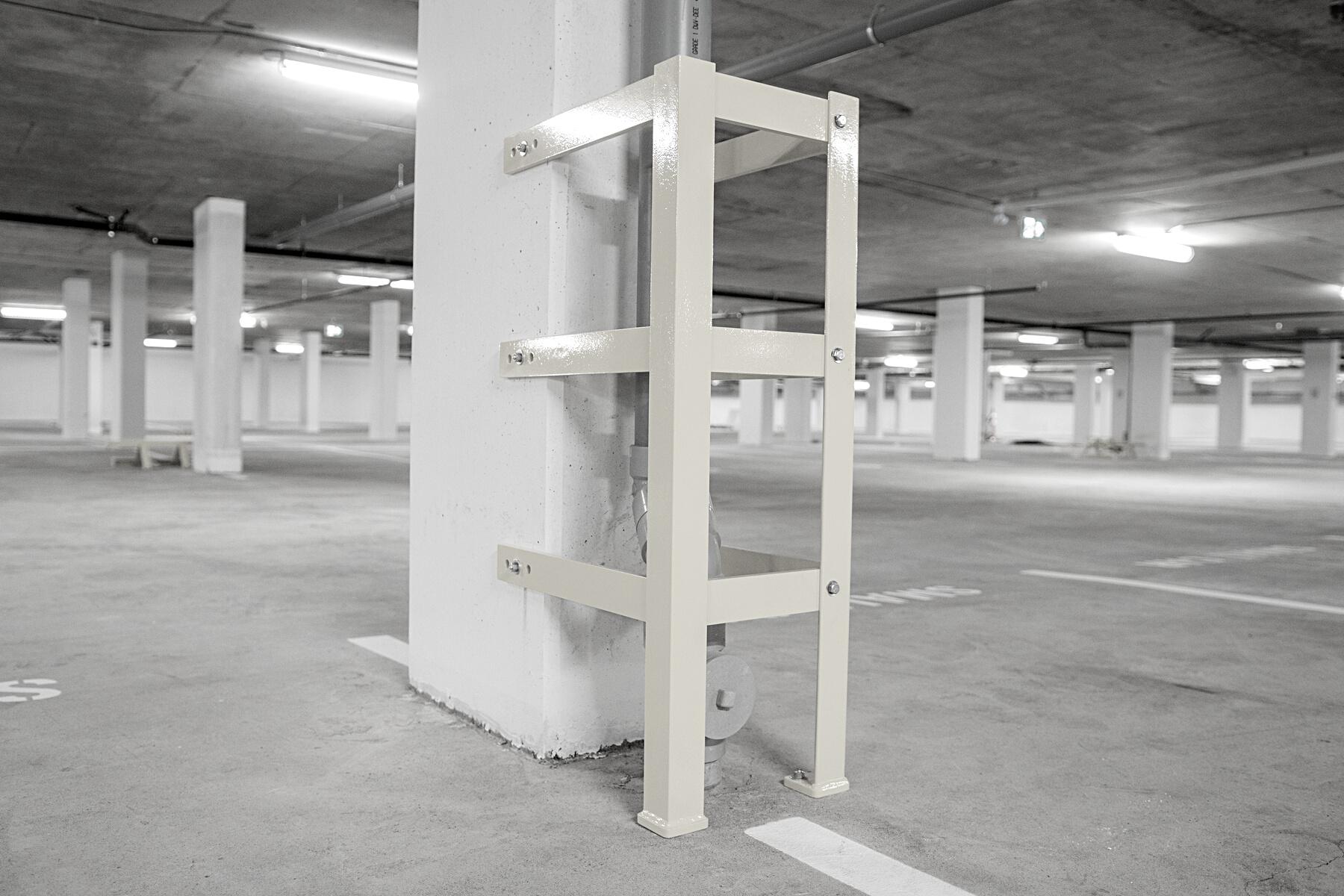

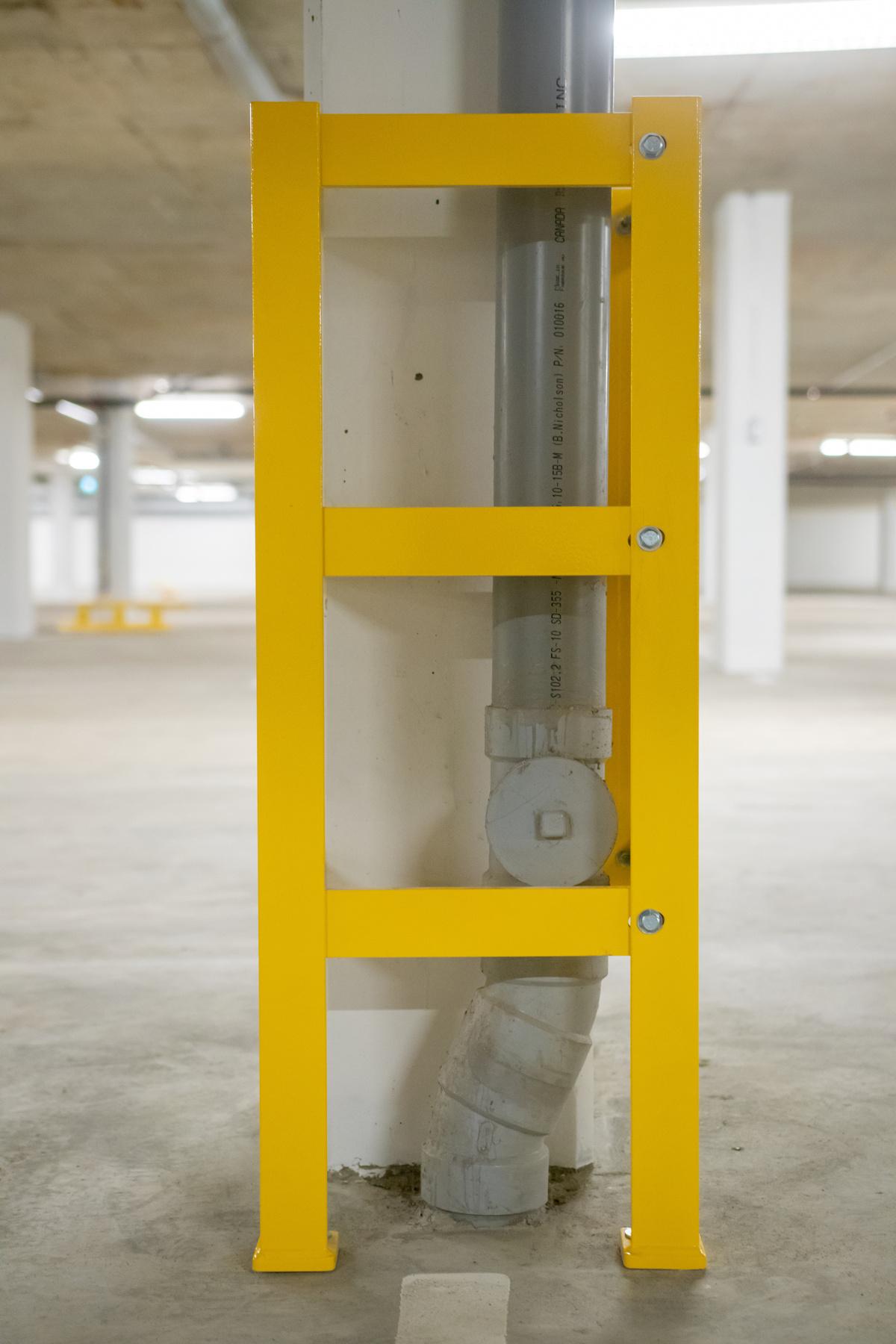

PILLAR MOUNT

Ranging in sizes from 12”- 36” Wide x 12”- 36” Deep

PRODUCTNUMBER:PGP-PWLD-1212-1

SIZE & DETAILS:

Width12”-36”(305mm-915mm)insidedimension/ Depth12”-36”(305mm-915mm)insidedimension

Height42”(1067mm)

Weight75+lbs/34+kg

OFFSET PILLAR MOUNT

Ranging in sizes from 12”- 36” Wide x 12”- 36” Deep x 2”- 24” Offset

PRODUCTNUMBER:PGP-OPWLD-1212-O2-1

SIZE & DETAILS:

Width12”-36”(305mm-915mm)insidedimension/ Depth12”-36”(305mm-915mm)insidedimension

Offset2”-24”(50mm-610mm)insidedimension

Height42”(1067mm)

Weight75+lbs/34+kg

Thismodelisbestsuitedforuniquescenarioswhere anelectricalwire,plumbingandgaspipe,gutter downspoutorothermiscellaneousitemhasbeen installedpasttheoutermostpointofthepillarorwall, whereatraditionaldesignwillnotfitorinstalleasily.

click here to view Protective Guard pricing, purchasing and additional pictures on our website

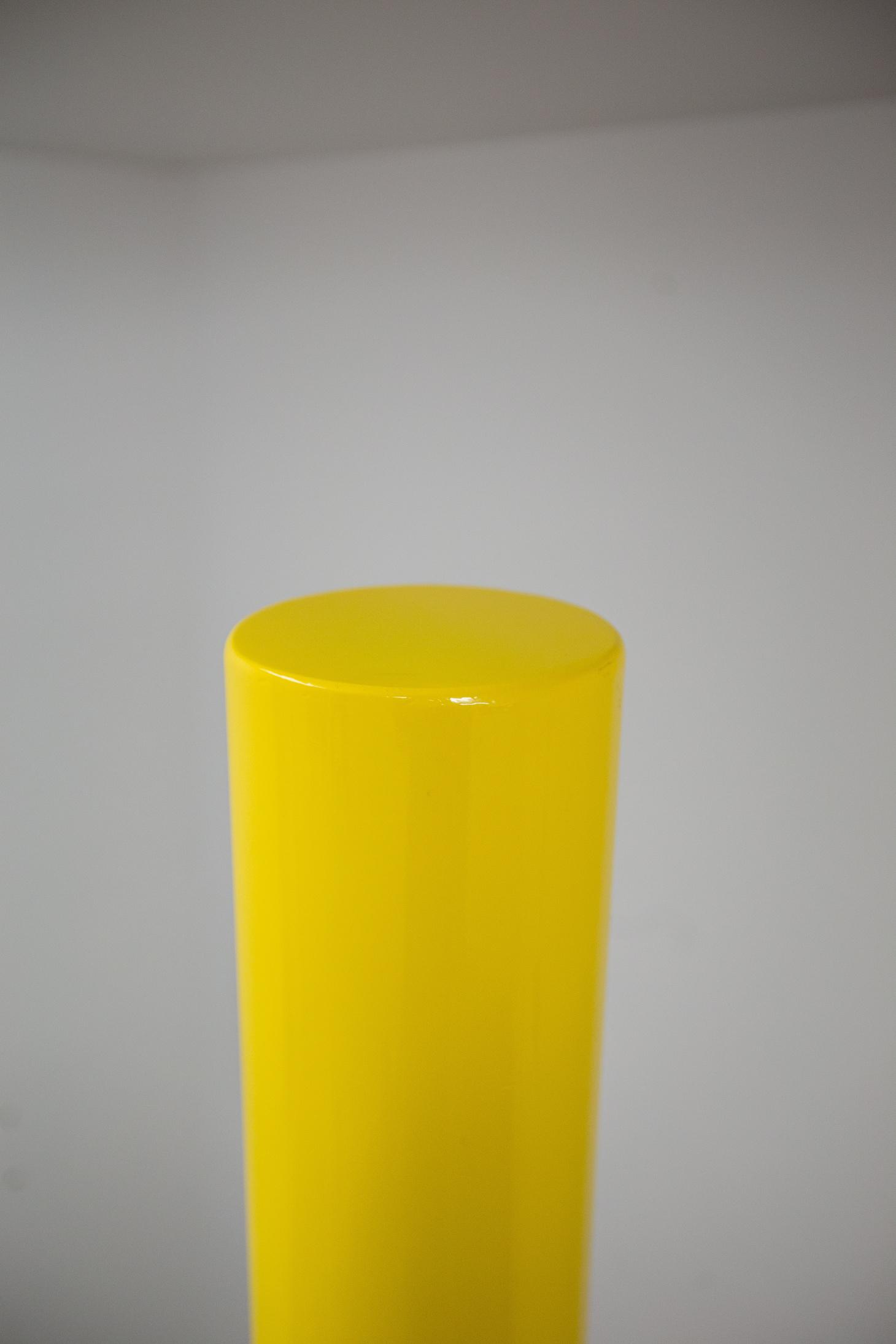

B

O L L A R D S

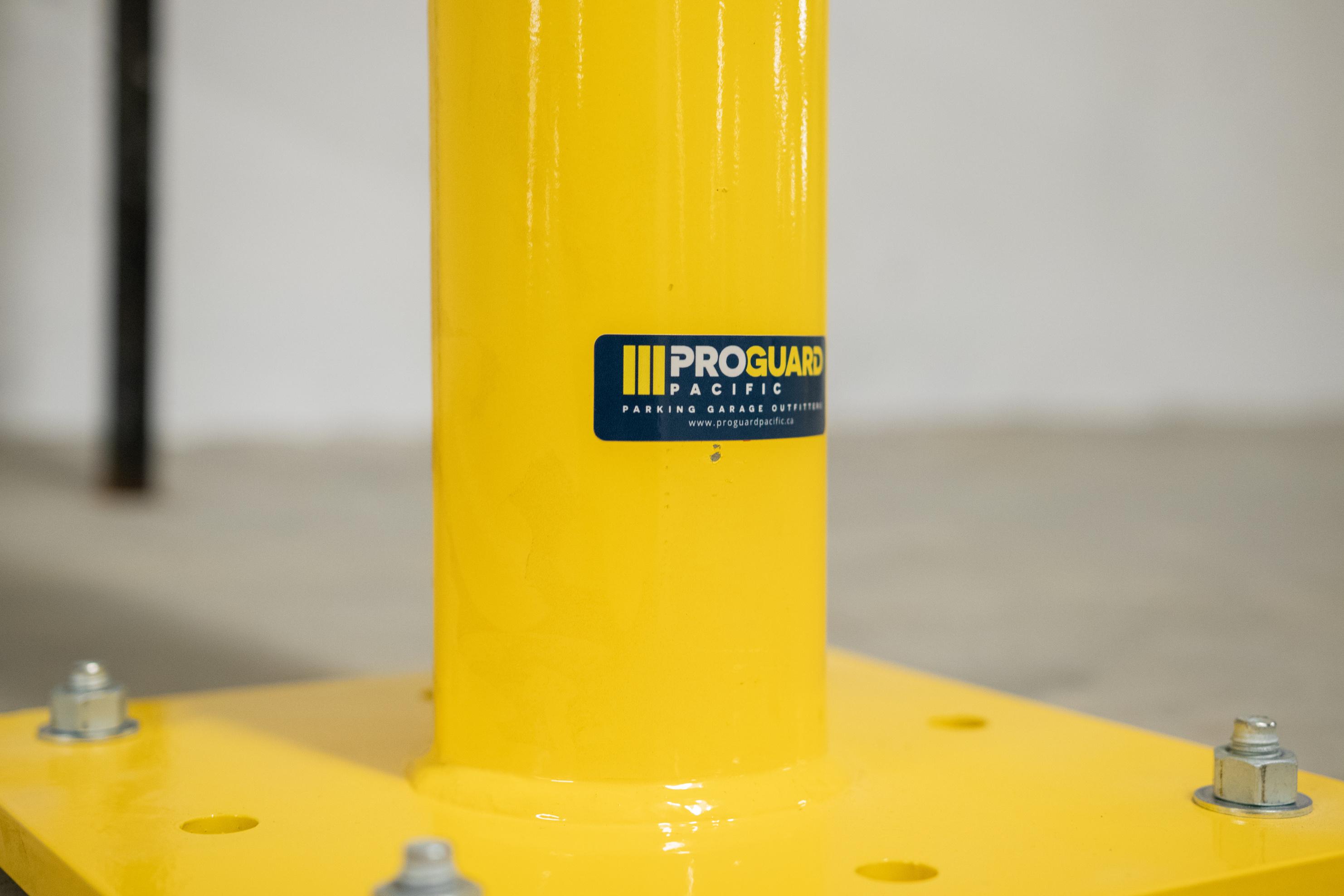

Heavy Duty high strength steel round tubing

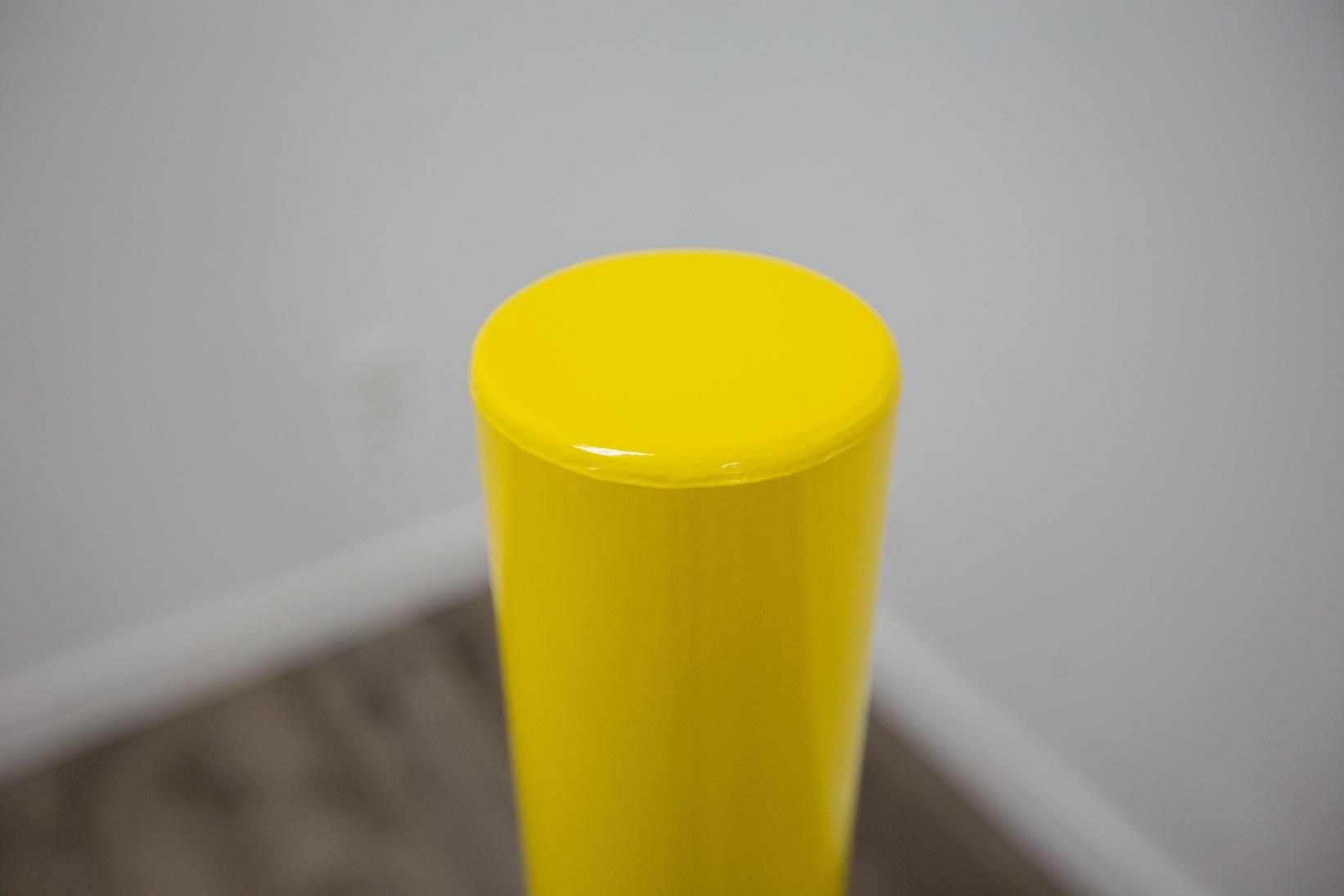

Fully welded top cap on standard duty versions

Finished in durable, allweather ‘Gloss Safety Yellow’ powder coating

Surface Mount, Pour in Place and 10 Gauge options

W e o f f e r a w i d e v a r i e t y o f b o l l a r d m o u n t i n g o p t i o n s a n d s i z e s , a n d h e i g h t s . o p t i o n s - s u r f a c e m o u n t , p o u r - i n - p l a c e a n d r e m o v a b l e . T h e s e m o d e l s a r e i n t e n d e d t o g u a r d e x p o s e d e l e c t r i c a l w i r i n g , p l u m b i n g p i p e s , g u t t e r d o w n s p o u t s , d r i v e w a y e n t r a n c e s , p e d e s t r i a n c o n t r o l a s w e l l a s o t h e r m i s c e l l a n e o u s i t e m s a g a i n s t d a m a g e .

A l l b o l l a r d v a r i a t i o n s c a n b e e a s i l y m o u n t e d t o c o n c r e t e , w o o d f r a m i n g , o r a n y o t h e r d u r a b l e f l a t m o u n t i n g s u r f a c e f r o m i t s h e a v y - d u t y b a s e p l a t e .

T h e h e a v y - d u t y b a s e p l a t e c o m e s c o m p l e t e w i t h e i g h t m o u n t i n g h o l e s f o r a v a r i e t y o f i n s t a l l a t i o n a n d r e p a i r o p t i o n s w h e r e a t r a d i t i o n a l f o u r - h o l e d e s i g n m a y b e u n a b l e t o a c c o m m o d a t e s i t e - s p e c i f i c n e e d s a n d c o n d i t i o n s .

Click here to view Bollard pricing, purchasing and additional photos on our website

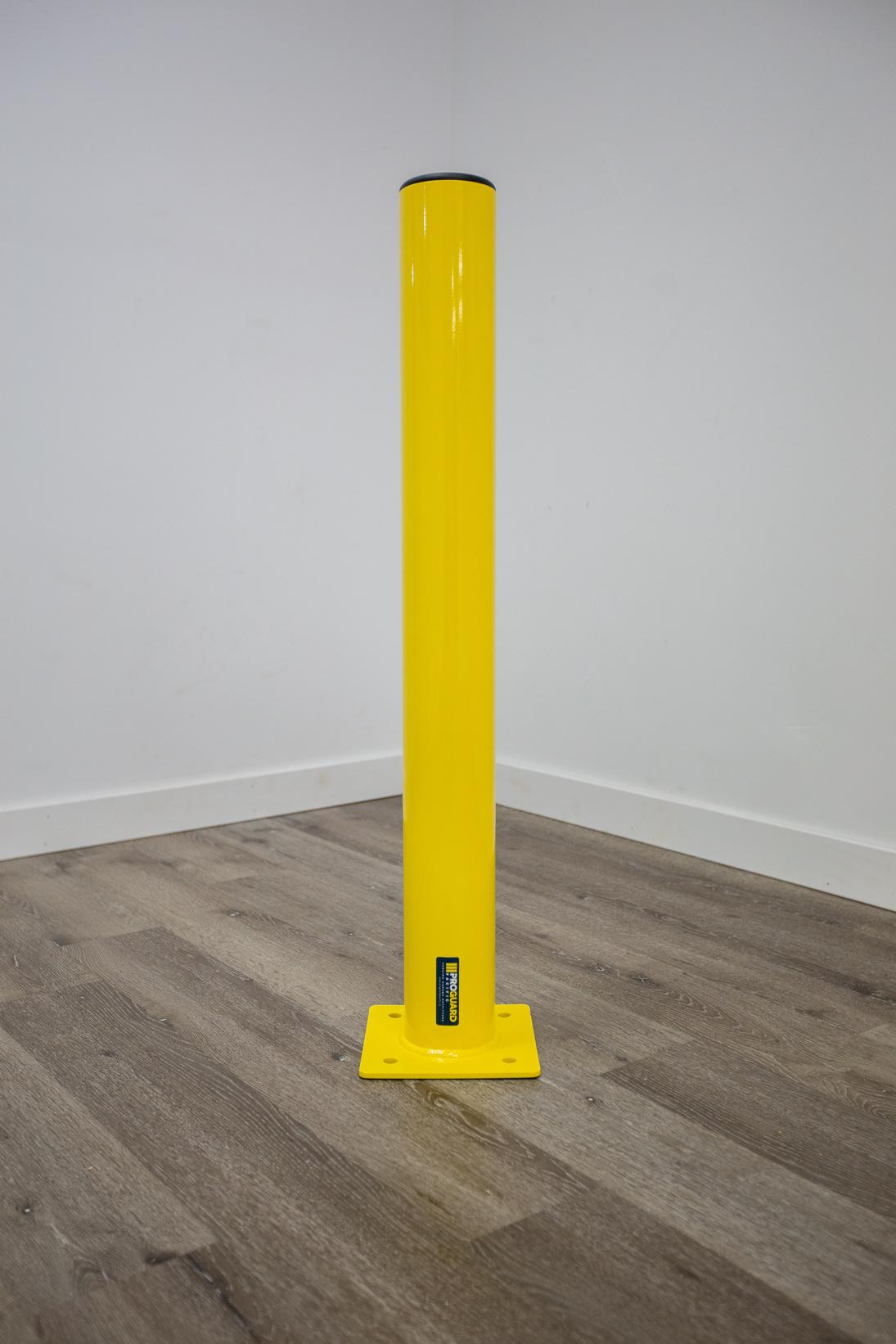

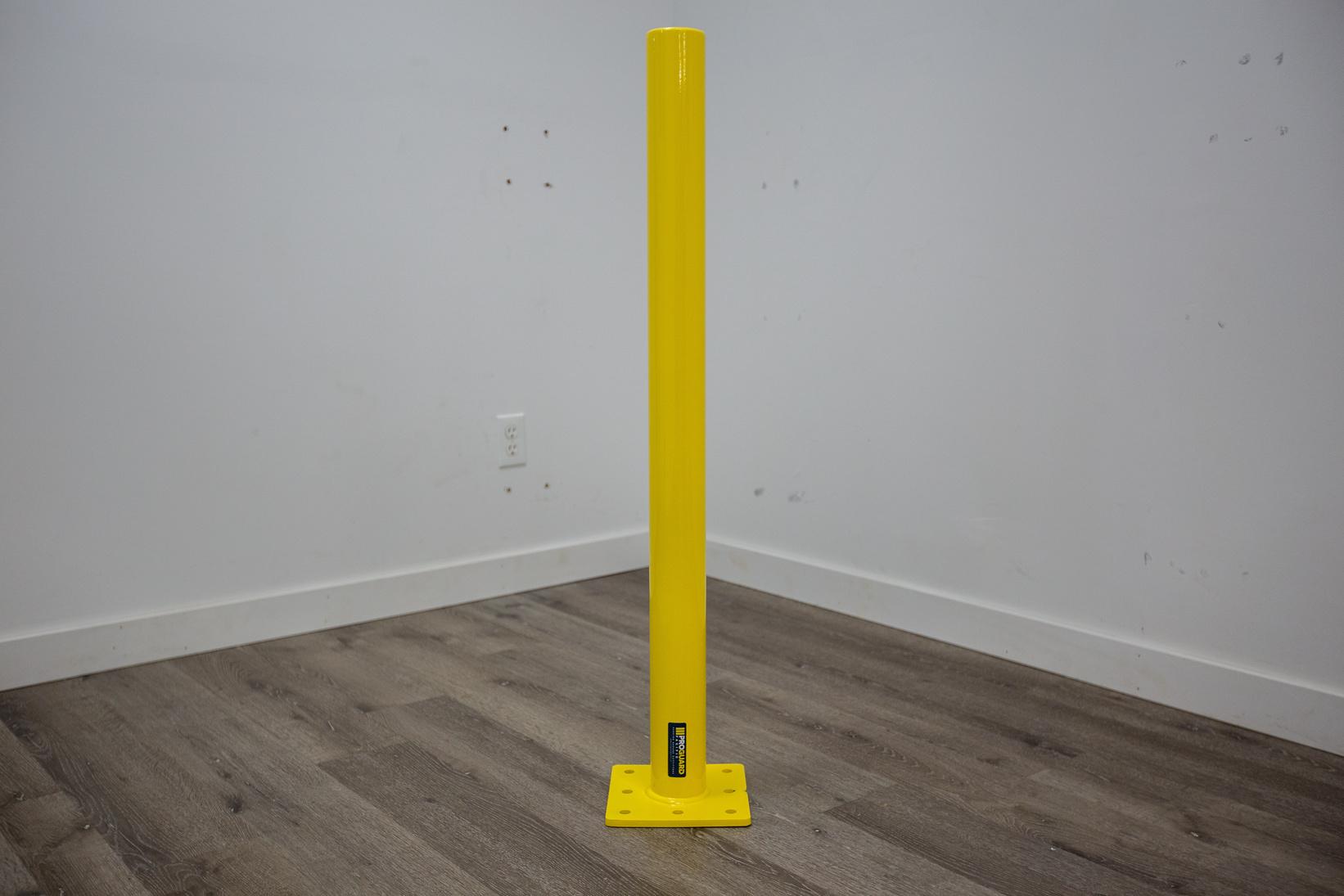

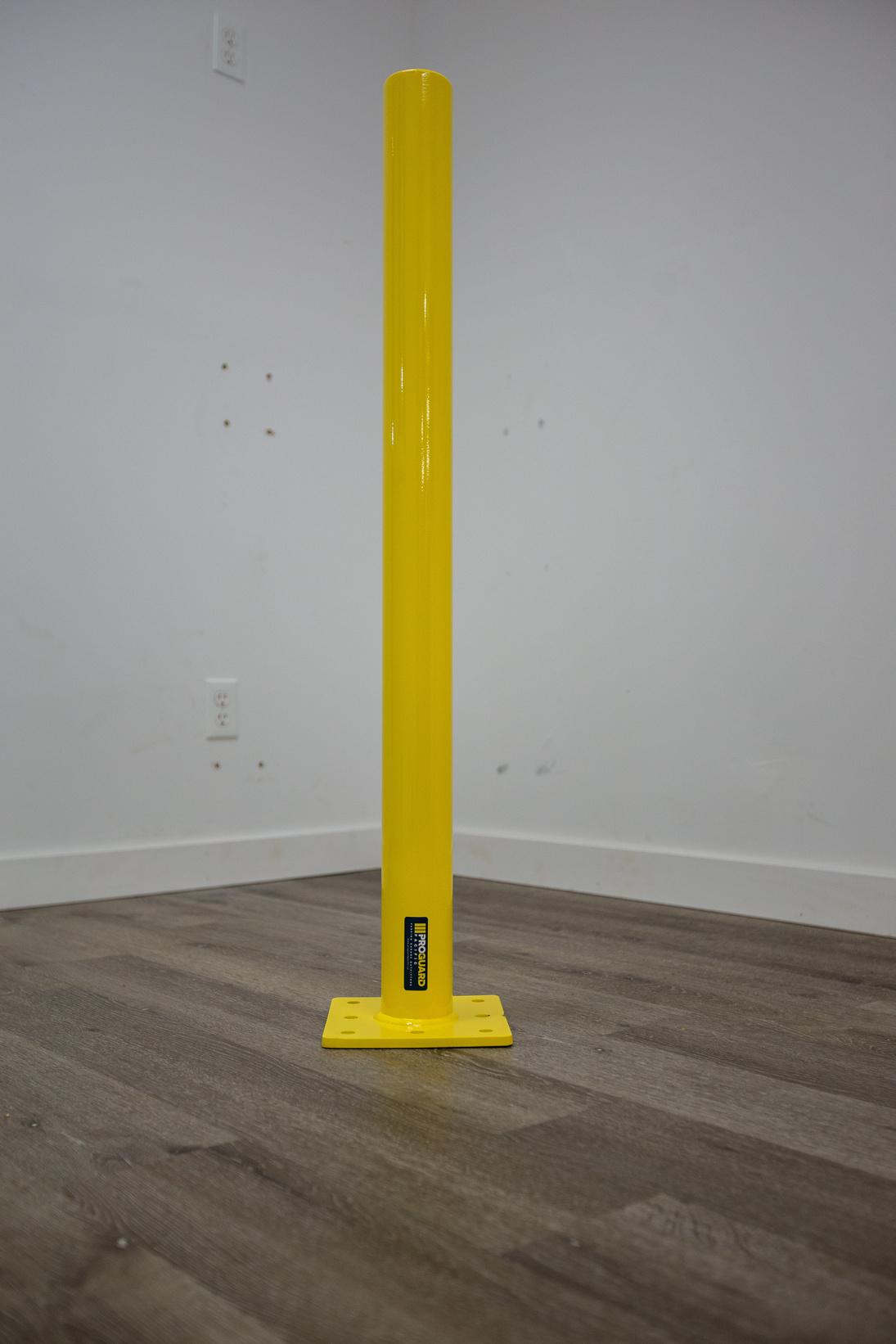

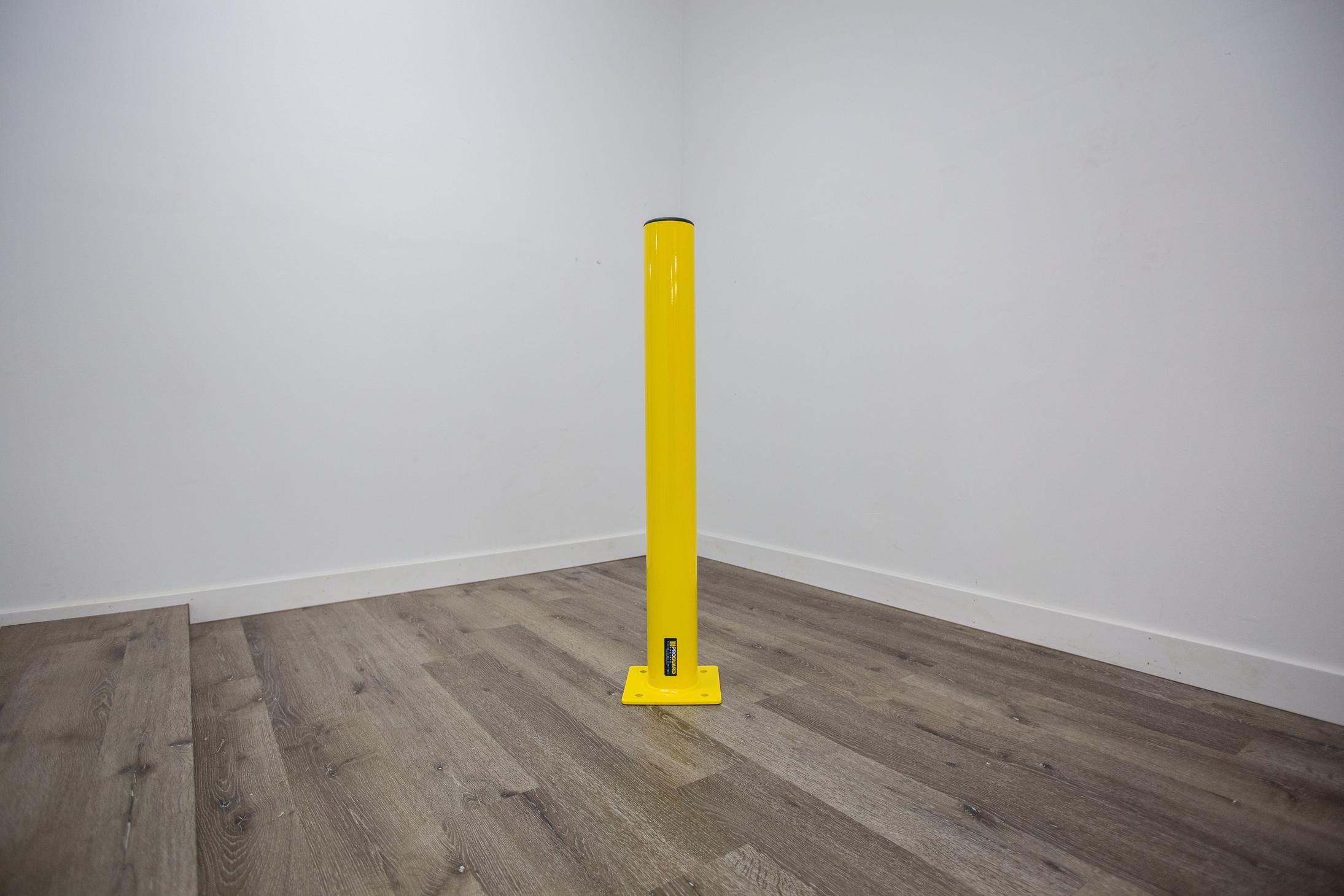

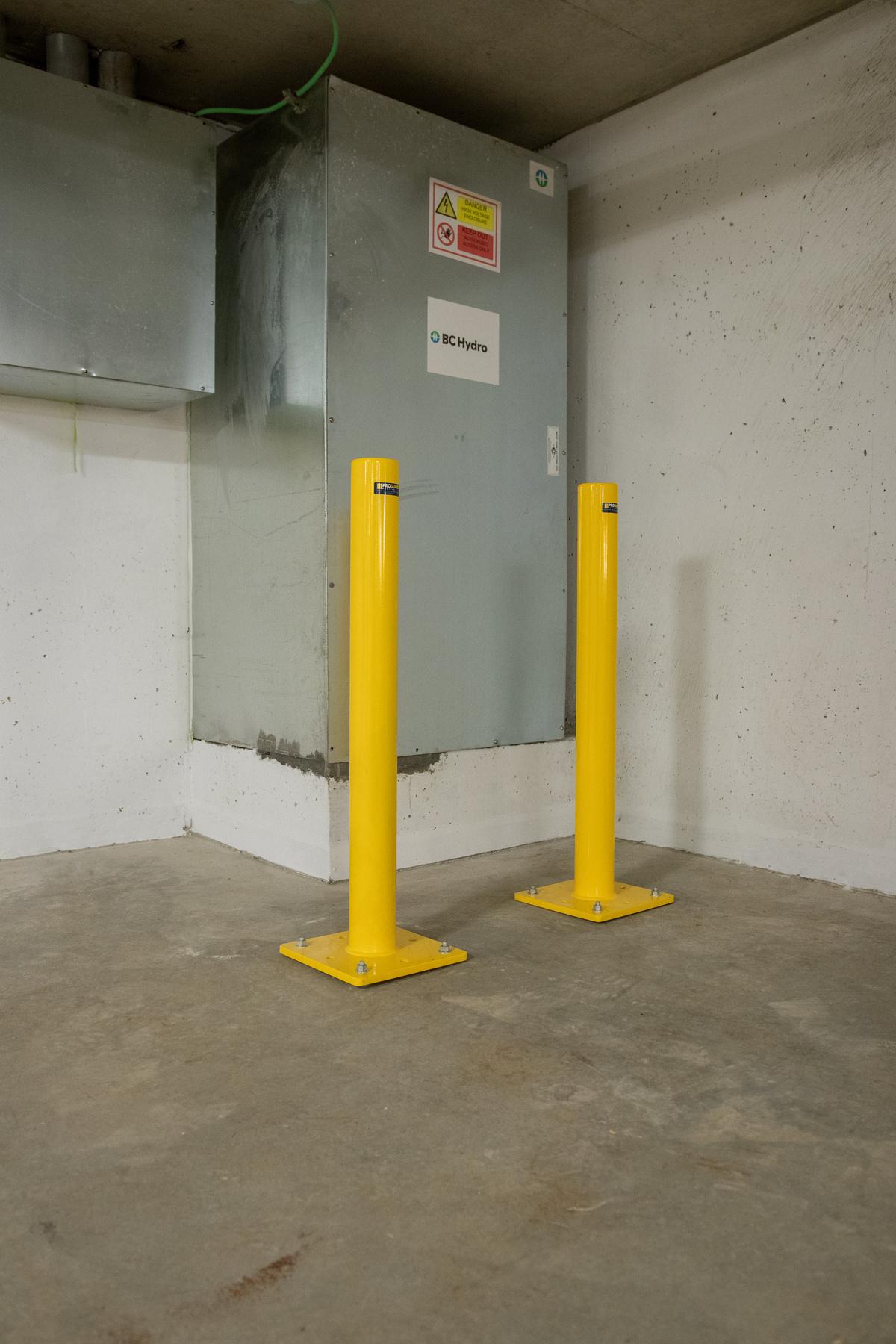

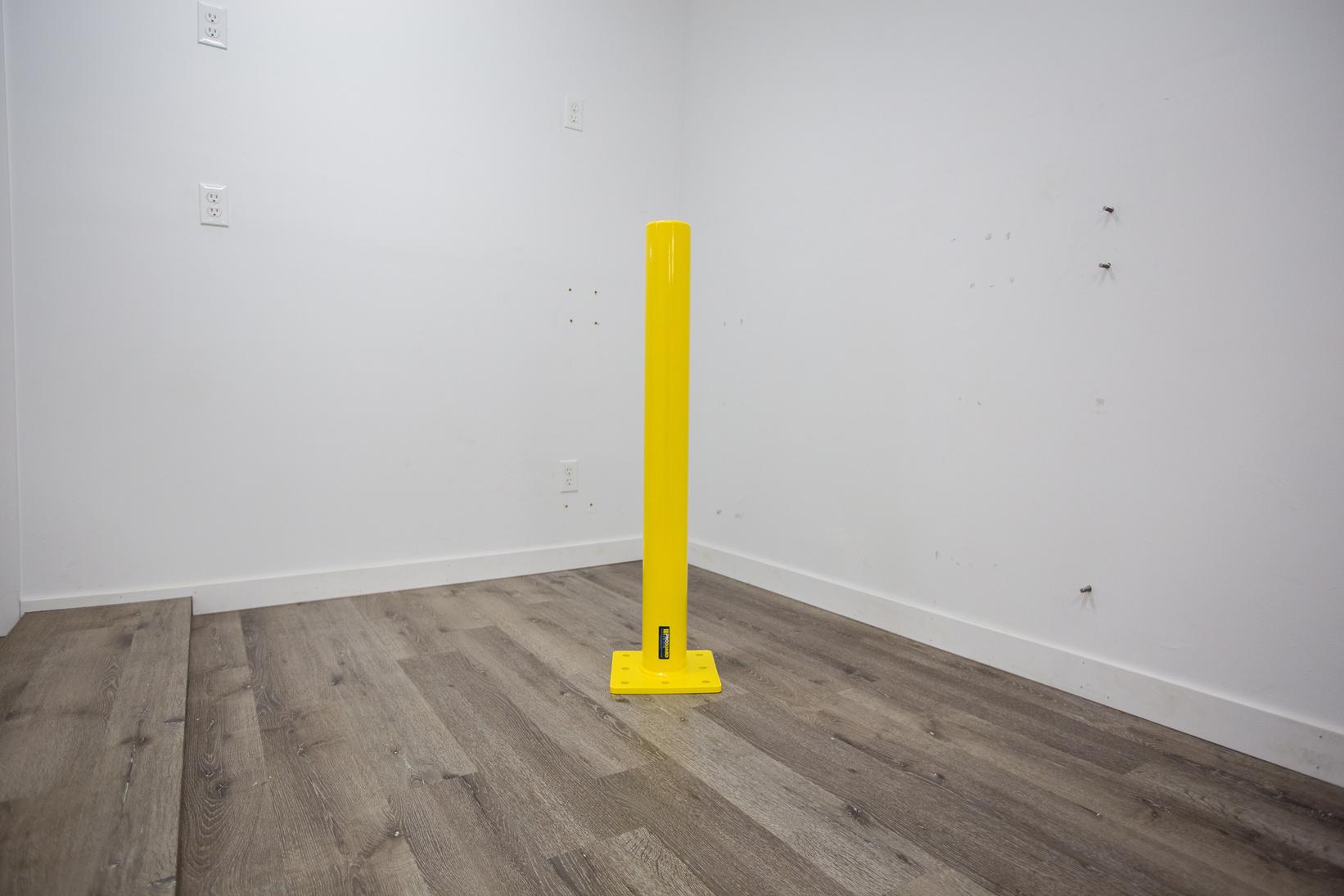

10 GAUGE SURFACE MOUNT BOLLARD

BUDGET FRIENDLY

SURFACE MOUNT 10 GA BOLLARD

4" Dia x 36" Tall HSS 10 Gauge BOLLARD

PRODUCTNUMBER:PGP-S10B-4 36HSS-1

SIZE & DETAILS:

4”(102mm)Diax⅛”(3mm)thickHSSroundtubing

7½”(190mm)x7½”(190mm)x¼”(6mm)thickbase platewithfour9/16”(14mm)mountingholes

Height36”(915mm)

RemovableBlackPlasticEndCap

Four9/16”(14mm)Diamountingholesfor3/8” (10mm)or½”(12mm)mountinghardware

Weight18lbs/8.1kg

1/4"thick Mounting Plate

10Gauge thickHSS roundtubing

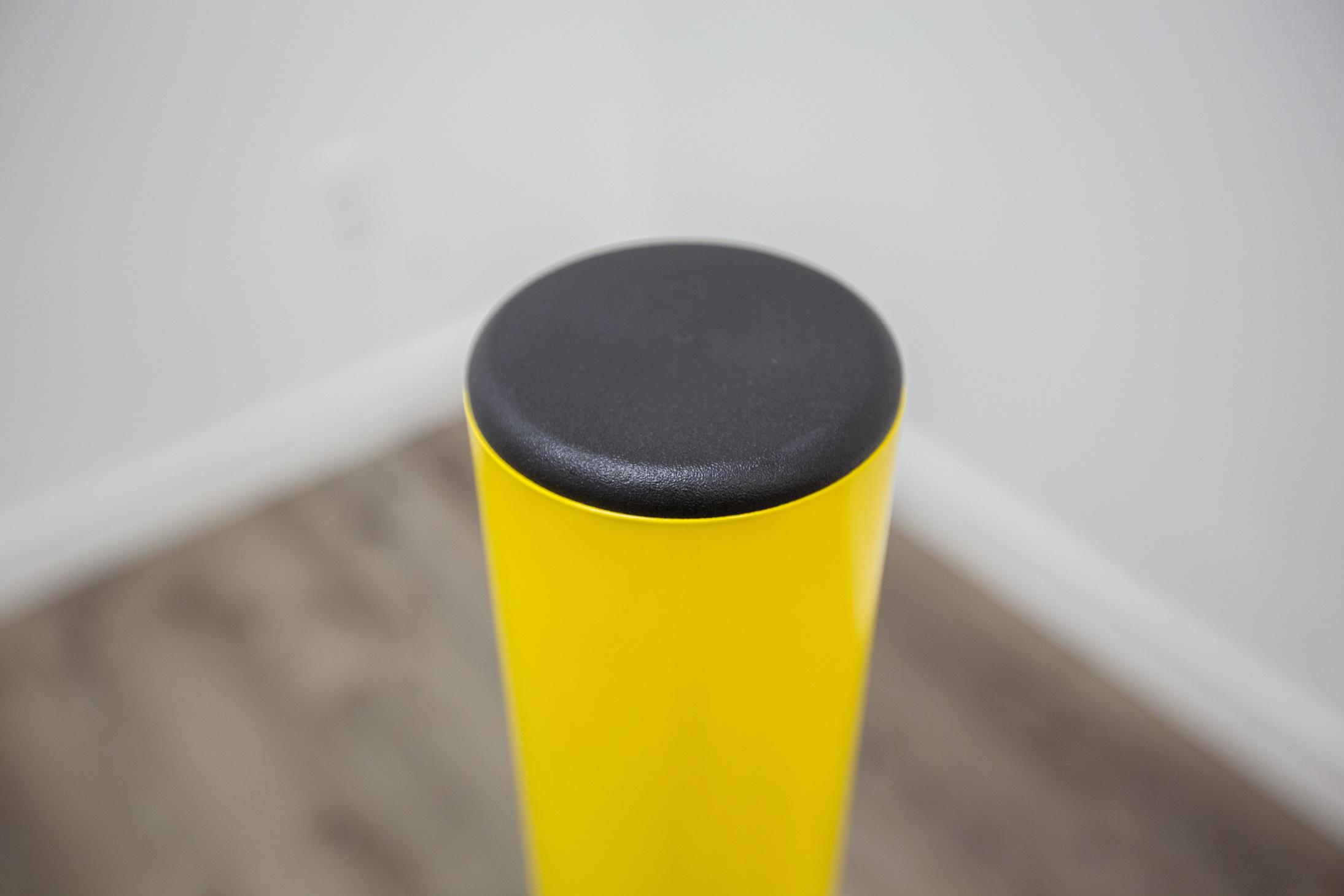

Plastic TopCap

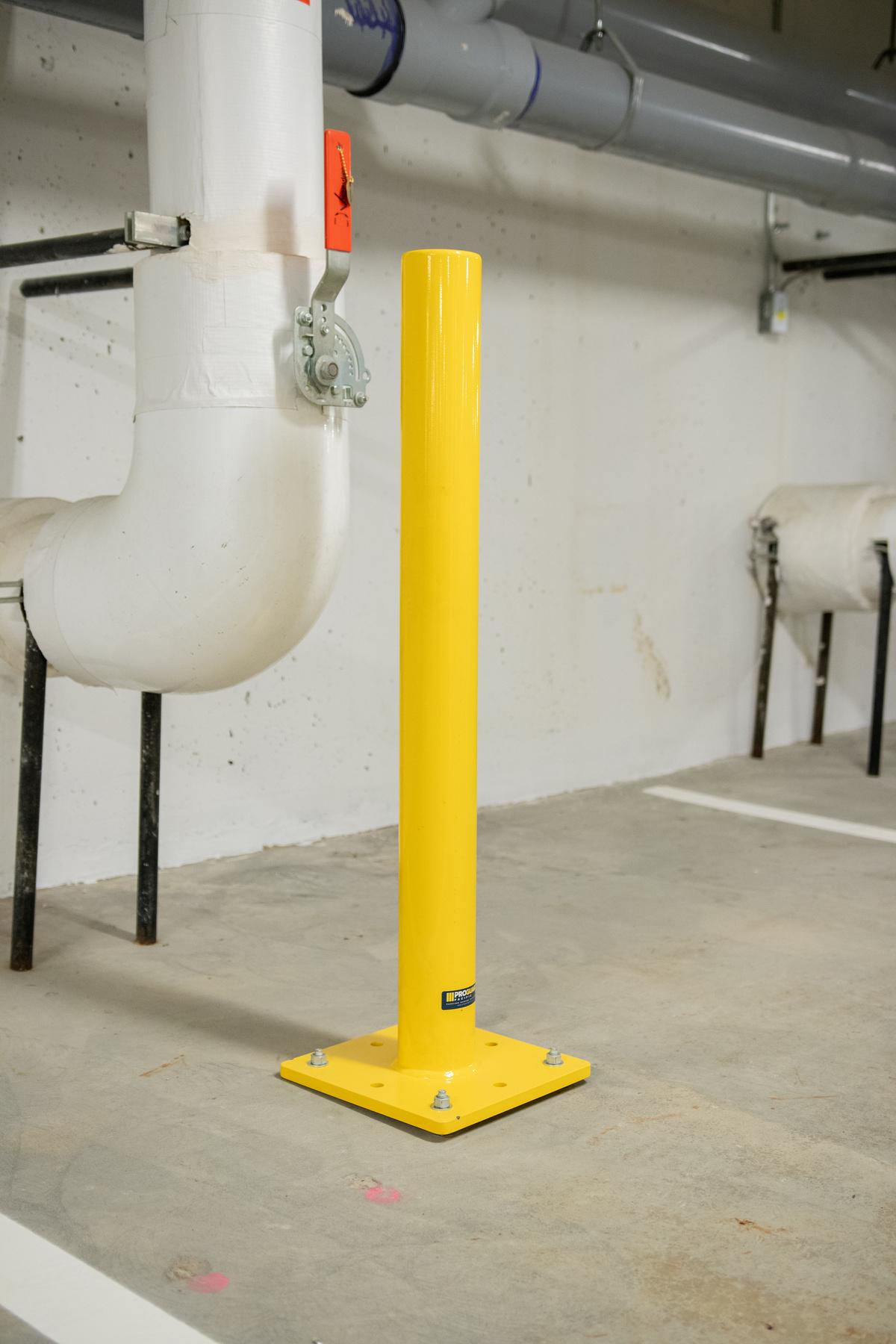

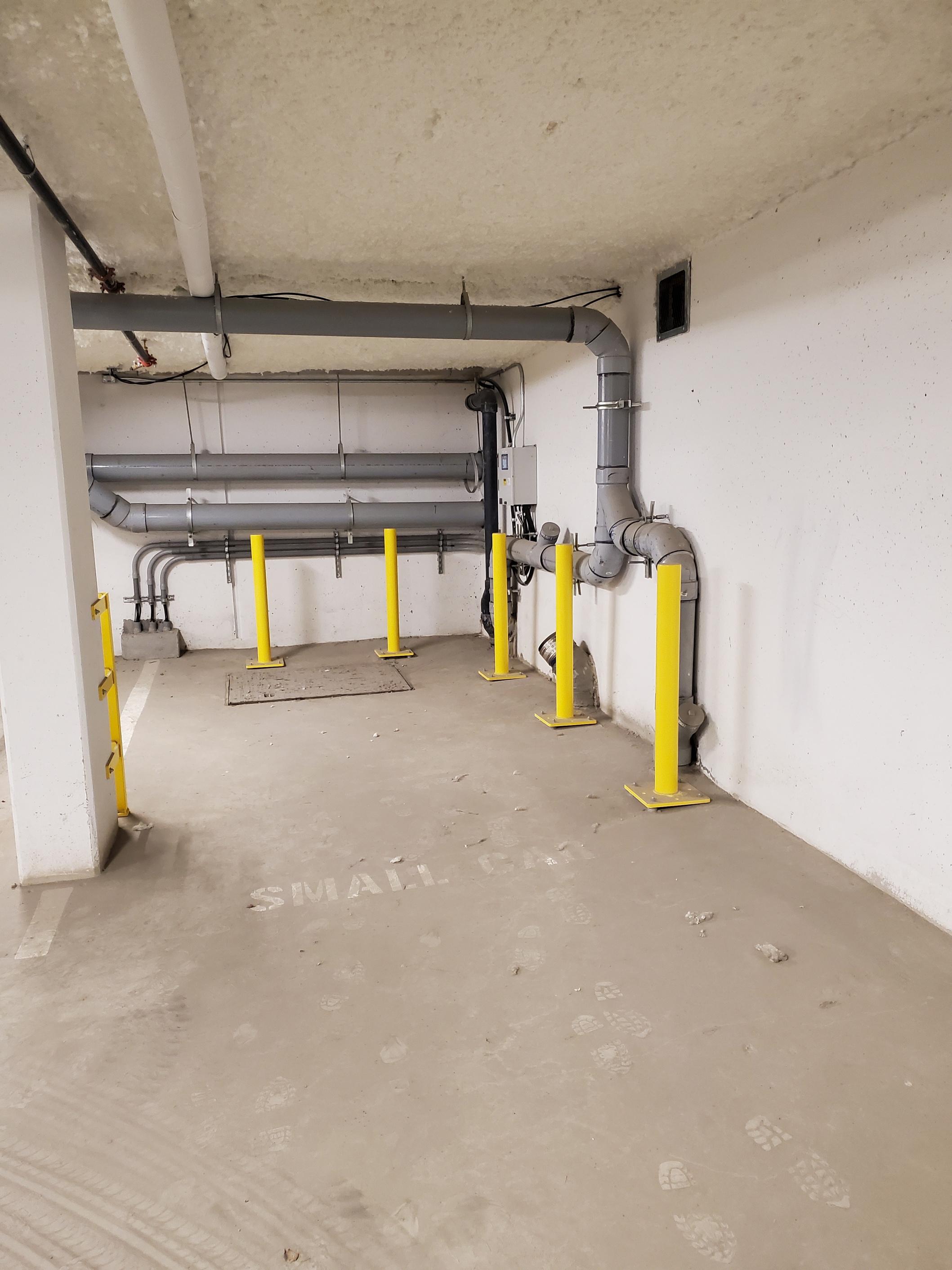

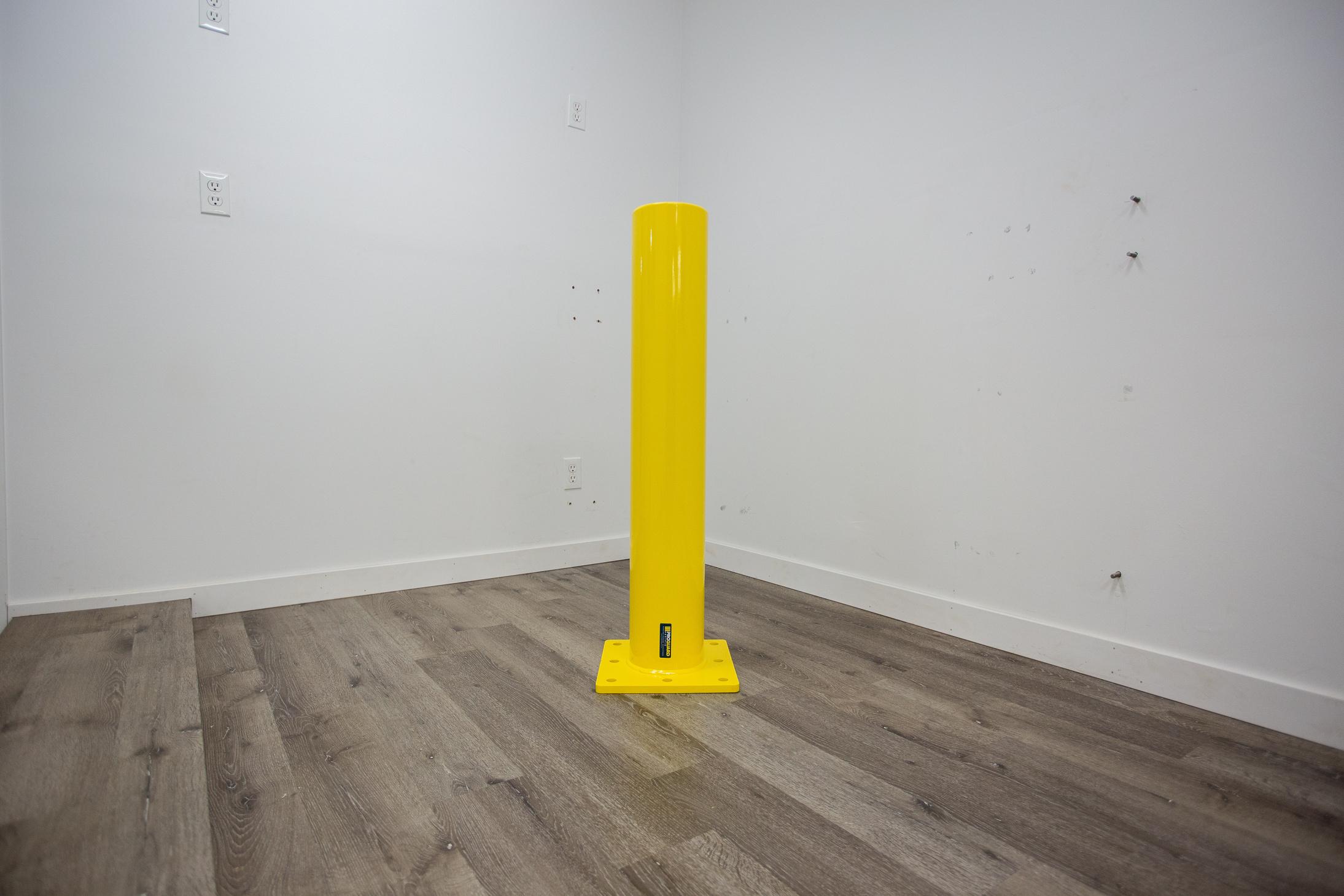

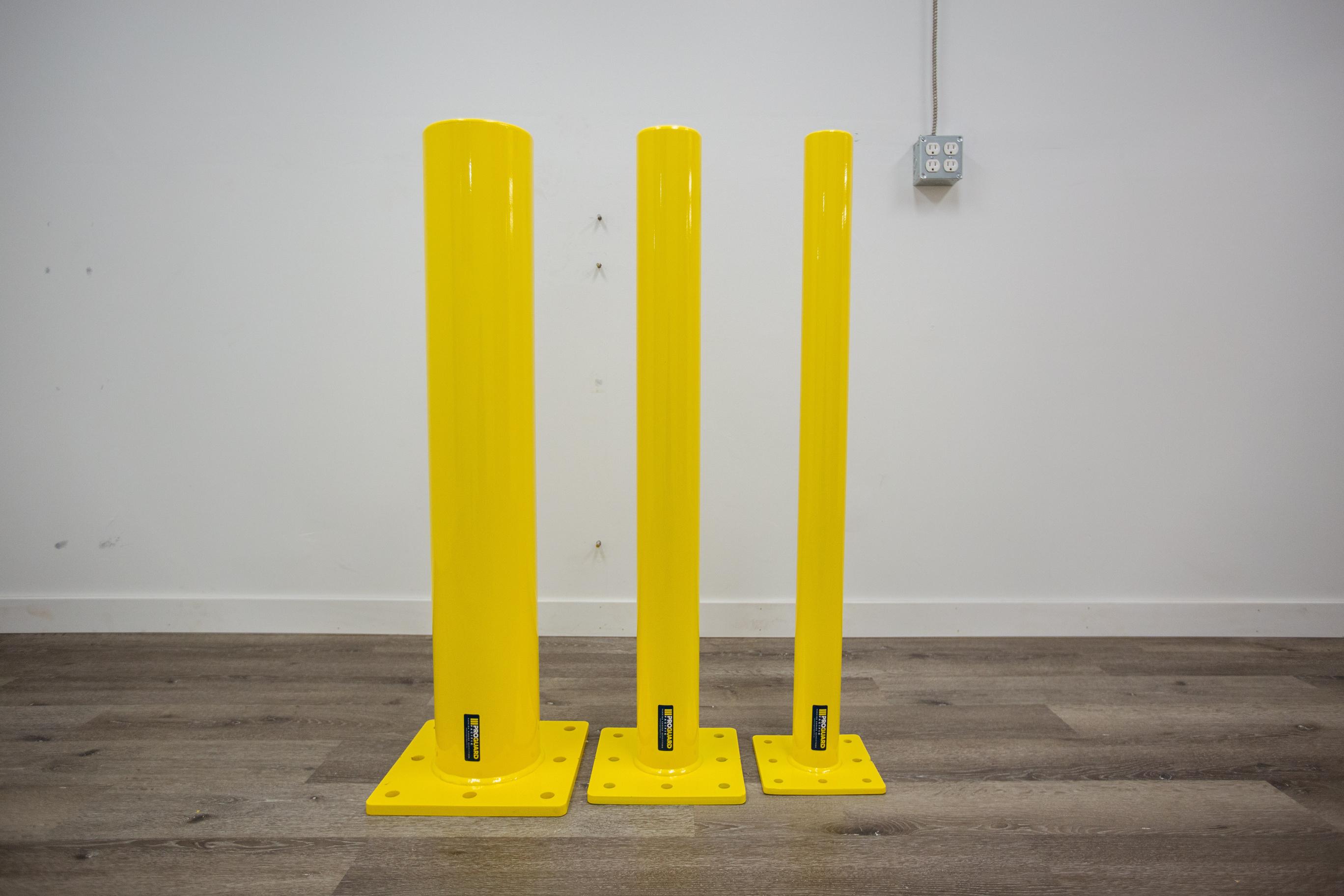

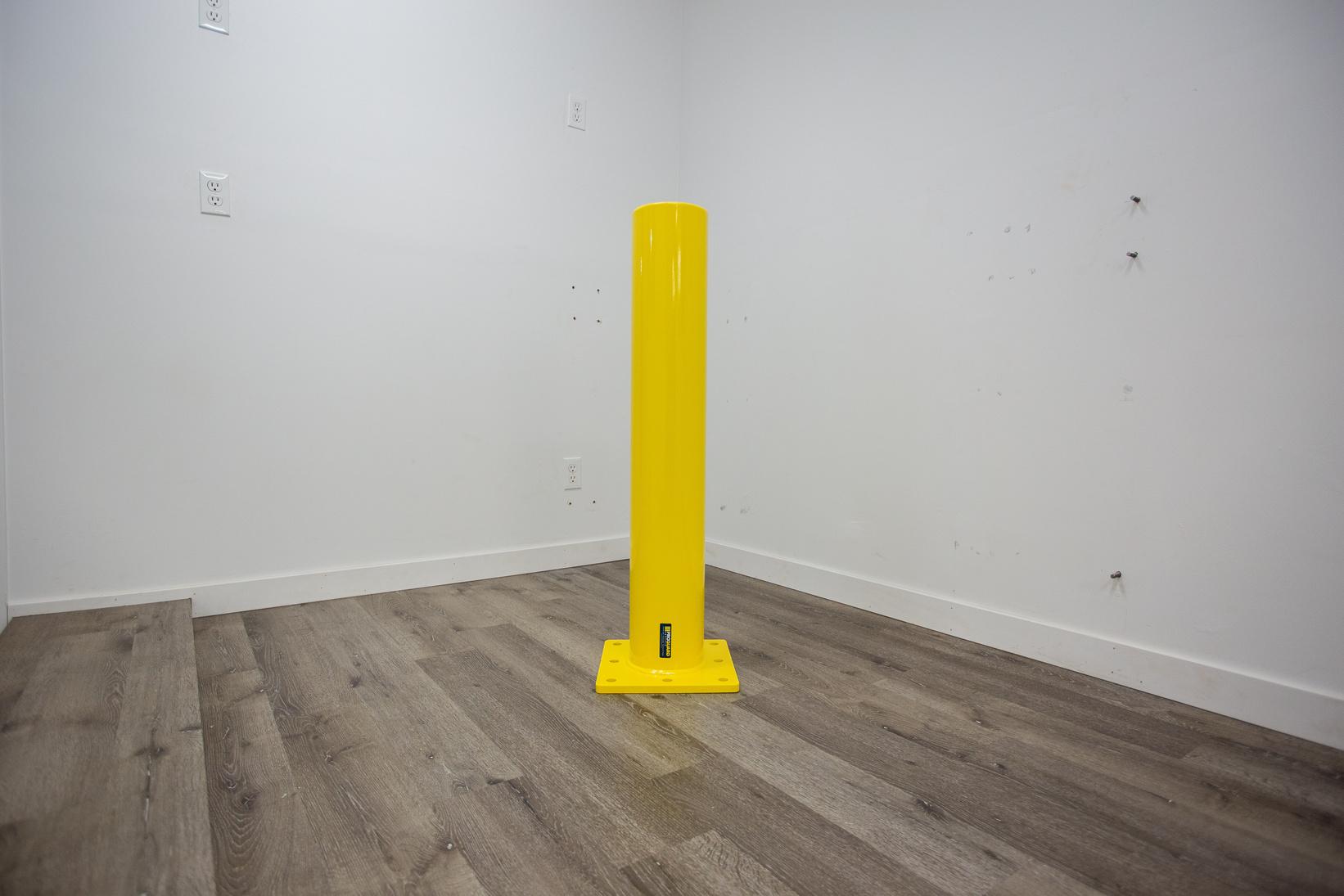

SURFACE MOUNT BOLLARDS

SURFACE MOUNT

PRODUCTNUMBER:PGP-SB-3 40HSS-1

SIZE & DETAILS:

3”(76mm)Diax3/16”(45mm)thickHSSround tubing

7½”(190mm)x7½”(190mm)x3/8”(10mm)thick baseplatewitheight9/16”(14mm)mountingholes

Height40”(1016mm)

Fullyweldedtopcap

Eight9/16”(14mm)Diamountingholesfor⅜(10mm) or½”(12mm)mountinghardware

Weight268lbs/121kg

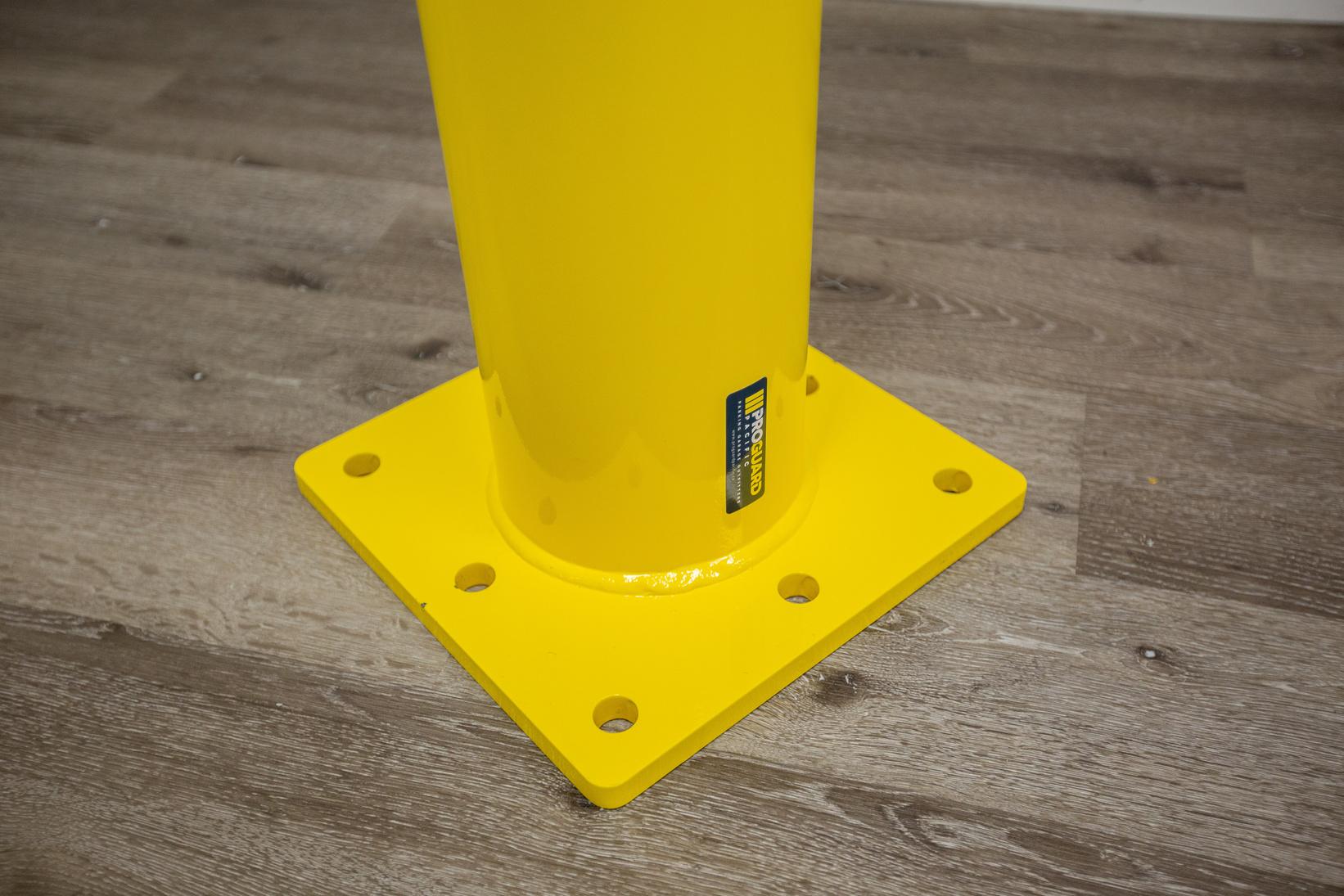

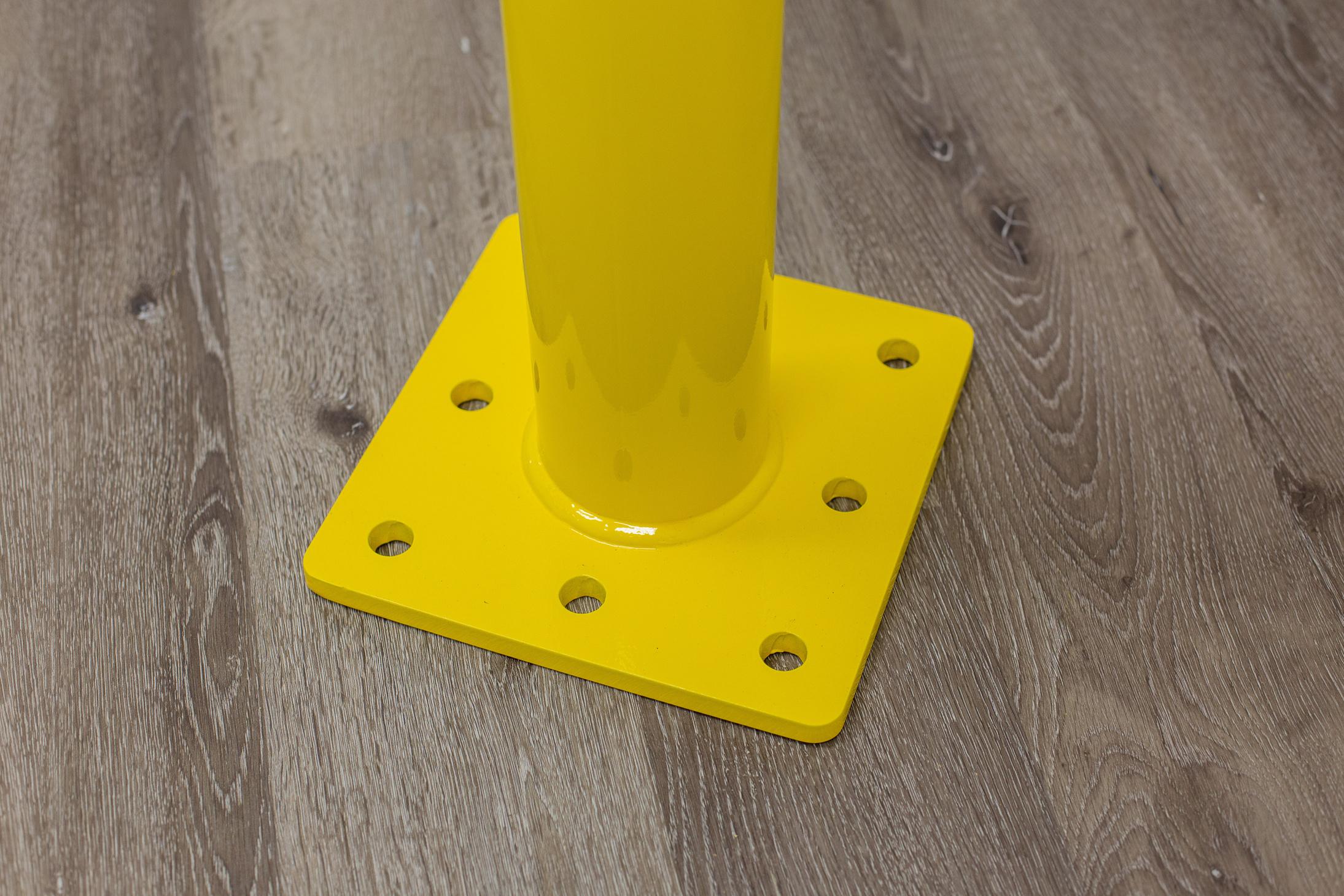

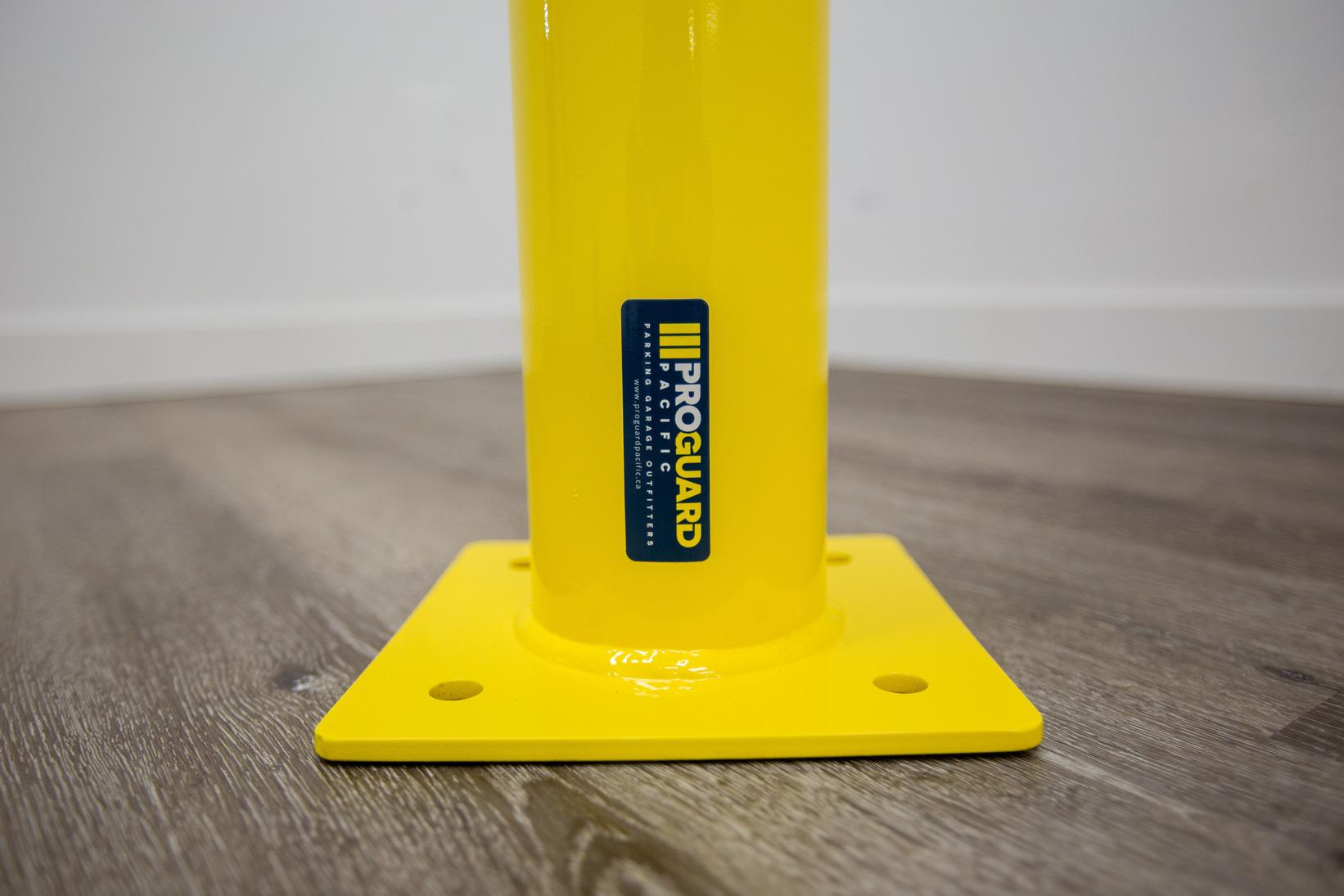

HeavyDuty Mounting Plates

SURFACE MOUNT

4” Dia x 40” TALL HSS BOLLARD

PRODUCTNUMBER:PGP-SB-4 40HSS-1

SIZE & DETAILS:

4”(102mm)Diax¼”(6mm)thickHSSroundtubing

9½”(241mm)x9½”(241mm)x½”(12mm)thick baseplatewitheight⅝”(16mm)mountingholes

Height40”(1016mm)

Fullyweldedtopcap

Eight⅝”(16mm)Diamountingholesfor½”(12mm) mountinghardware

Weight430lbs/195kg

SURFACE MOUNT

PRODUCTNUMBER:PGP-SB-6 40HSS-1

Fully Welded TopCap

6-5/8”(168mm)Diax¼”(6mm)thickHSSround tubing

11¾”(298mm)x11¾”(298mm)x⅝”(16mm)thick baseplatewitheight⅝”(16mm)mountingholes

Height40”(1016mm)

Fullyweldedtopcap

Eight⅝”(16mm)Diamountingholesfor½”(12mm) mountinghardware

Weight76lbs/344kg

Multiple mountinghole configurations

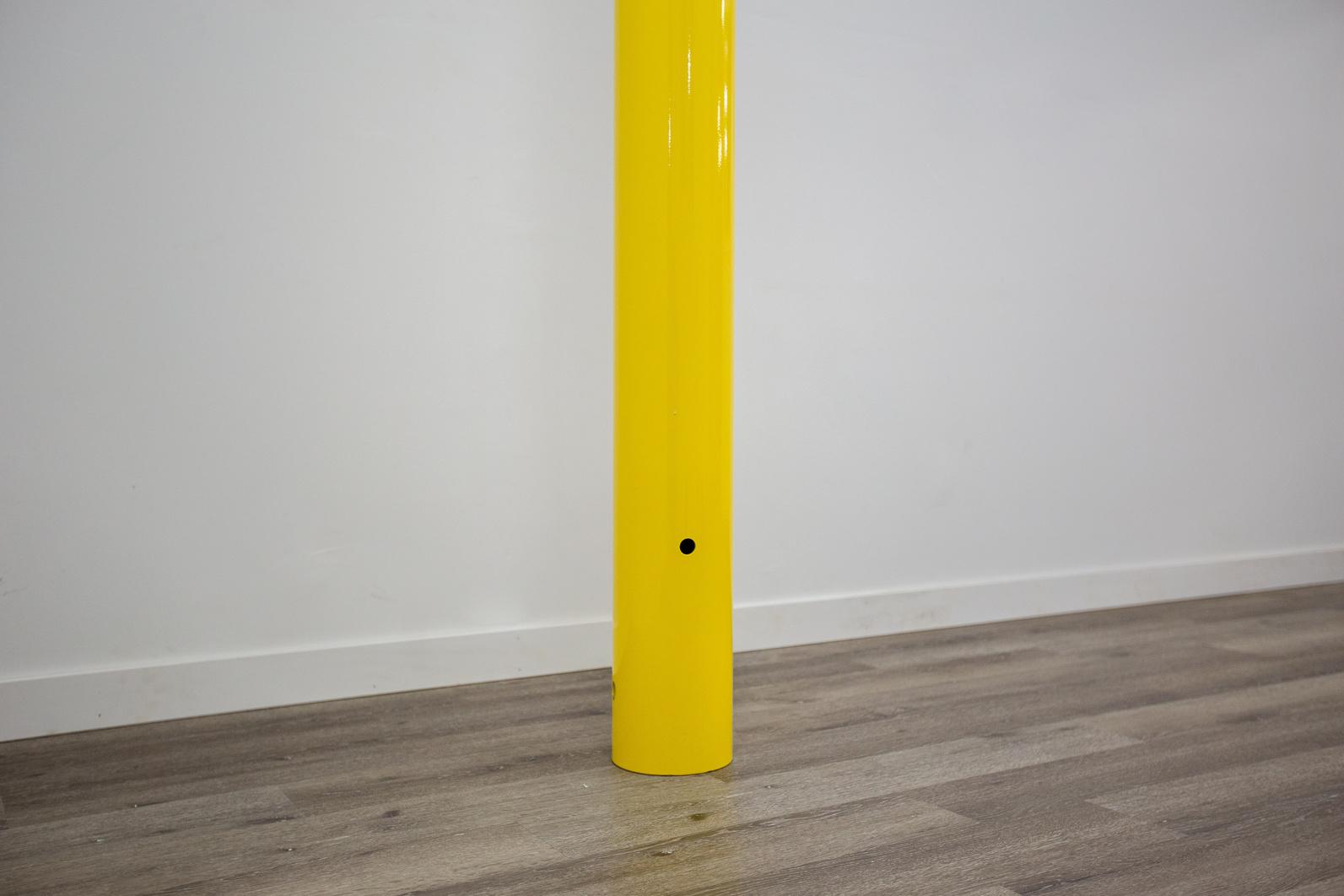

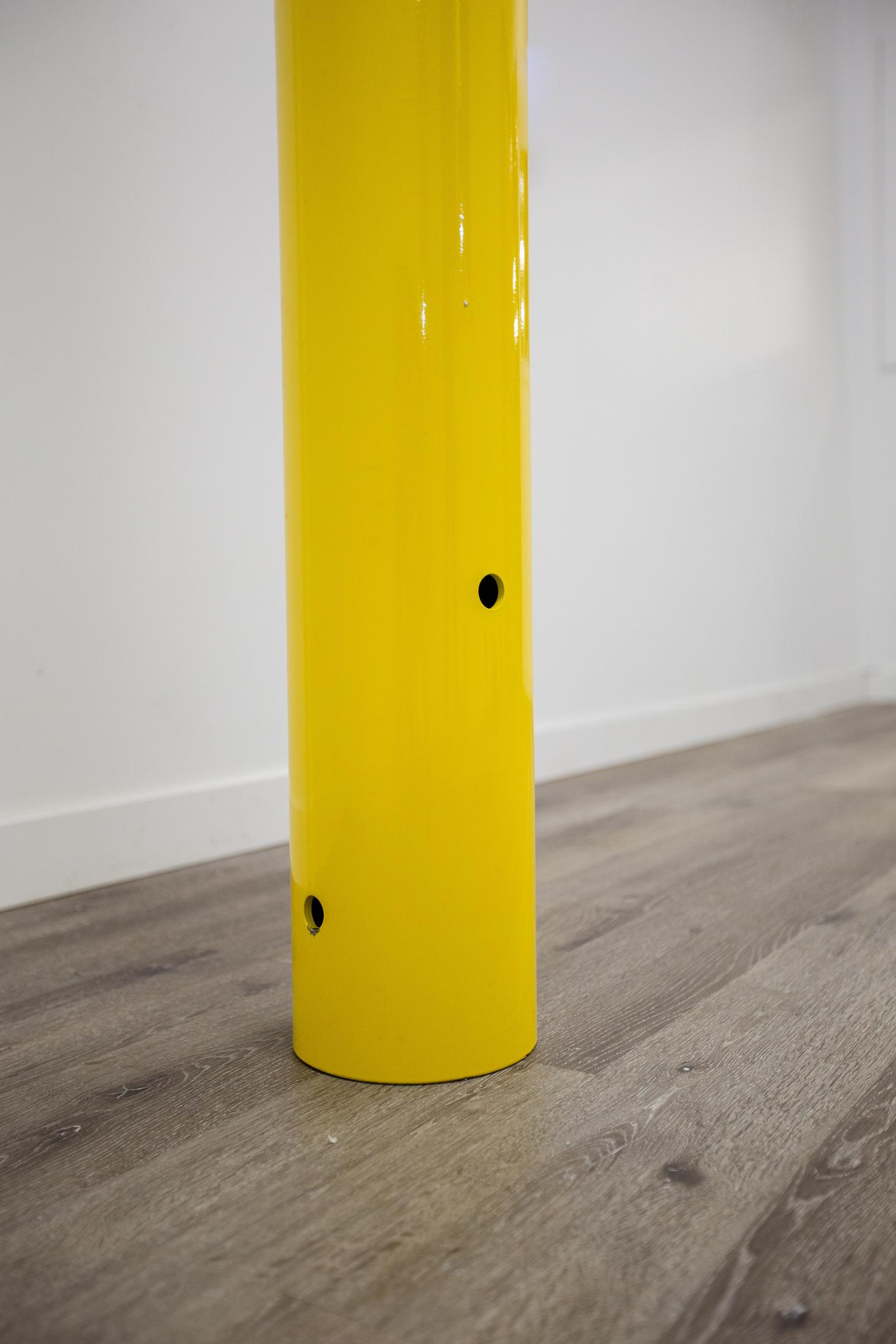

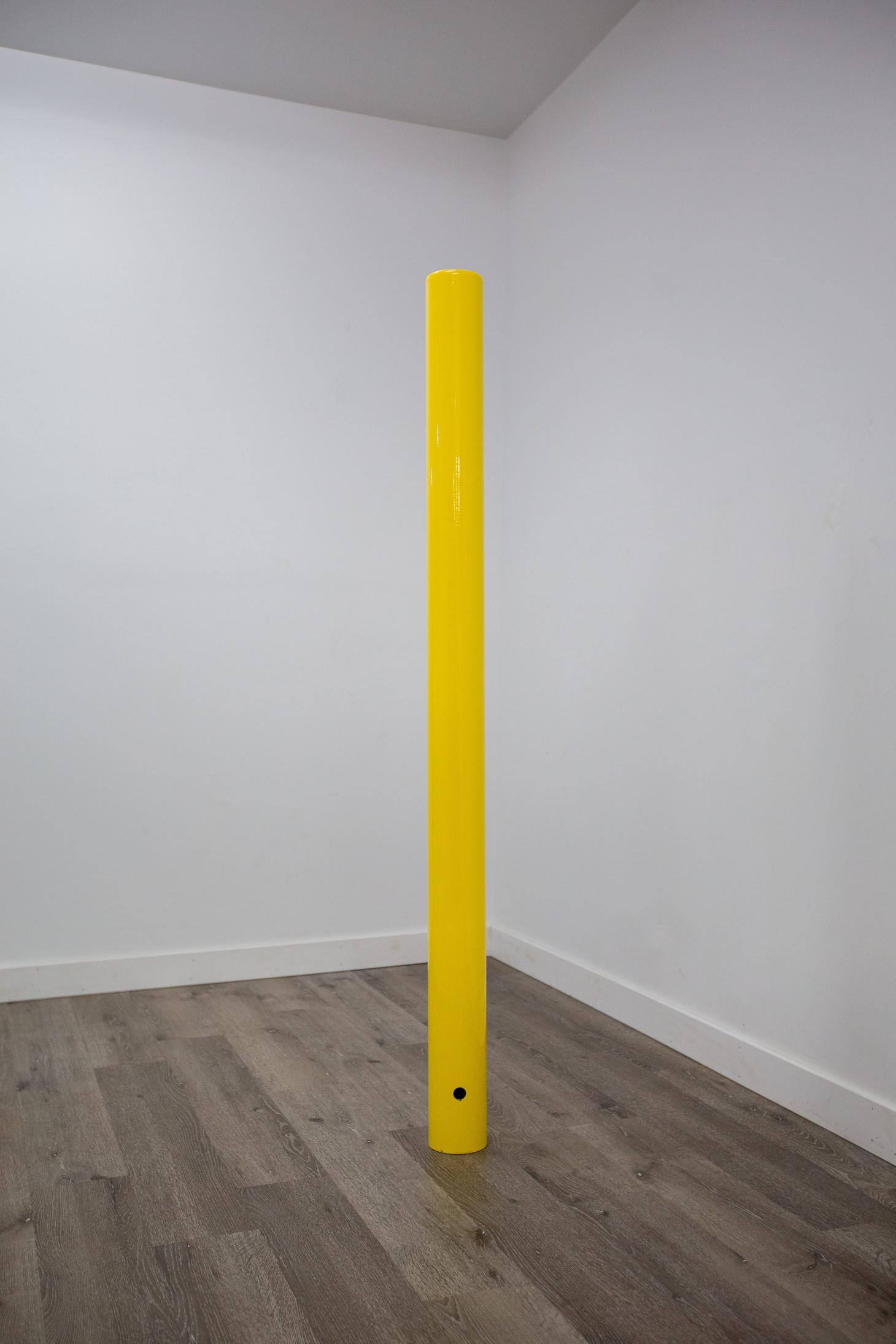

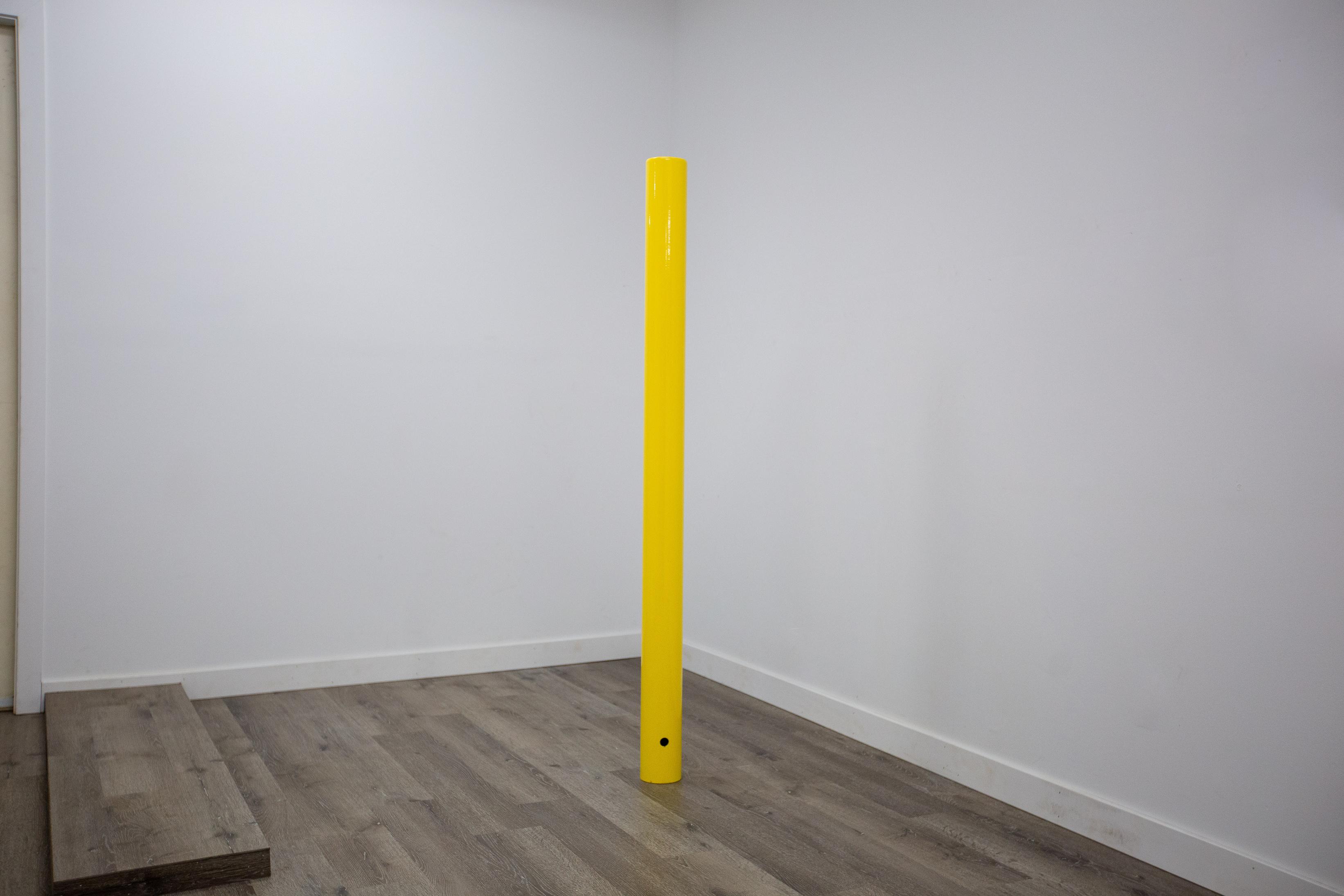

POUR IN PLACE BOLLARDS

POUR IN PLACE BOLLARD

PRODUCTNUMBER:PGP-PIPB-4

SIZE & DETAILS:

4”(102mm)Diax¼”(6mm)thickHSSroundtubing

TotalheightofthePourinPlaceBollardis60” (1524mm) Thisprovidesapprox 40”(1016mm)of exposedbollardabovegradewithapprox.20” (508mm)embeddedinground

Fullyweldedtopcap

¾”(19mm)throughholeforrebaranchoring

Weight466lbs/211kgs

POUR IN PLACE BOLLARD

PRODUCTNUMBER:PGP-PIPB-6

SIZE & DETAILS:

6-5/8”(168mm)Diax¼”(6mm)thickHSSround tubing

TotalheightofthePourinPlaceBollardis84” (2133mm).Thisprovidesapprox.48”(1219mm)of exposedbollardabovegradewithapprox.36” (914mm)embeddedinground

Fullyweldedtopcap

Two¾”(19mm)throughholesforrebaranchoring Weight110.2lbs/49.9kgs

6” Dia x 48” TALL with 36" Embed HSS BOLLARD

84HSS-1

4” Dia x 40” TALL with 20" Embed HSS BOLLARD

60HSS-1

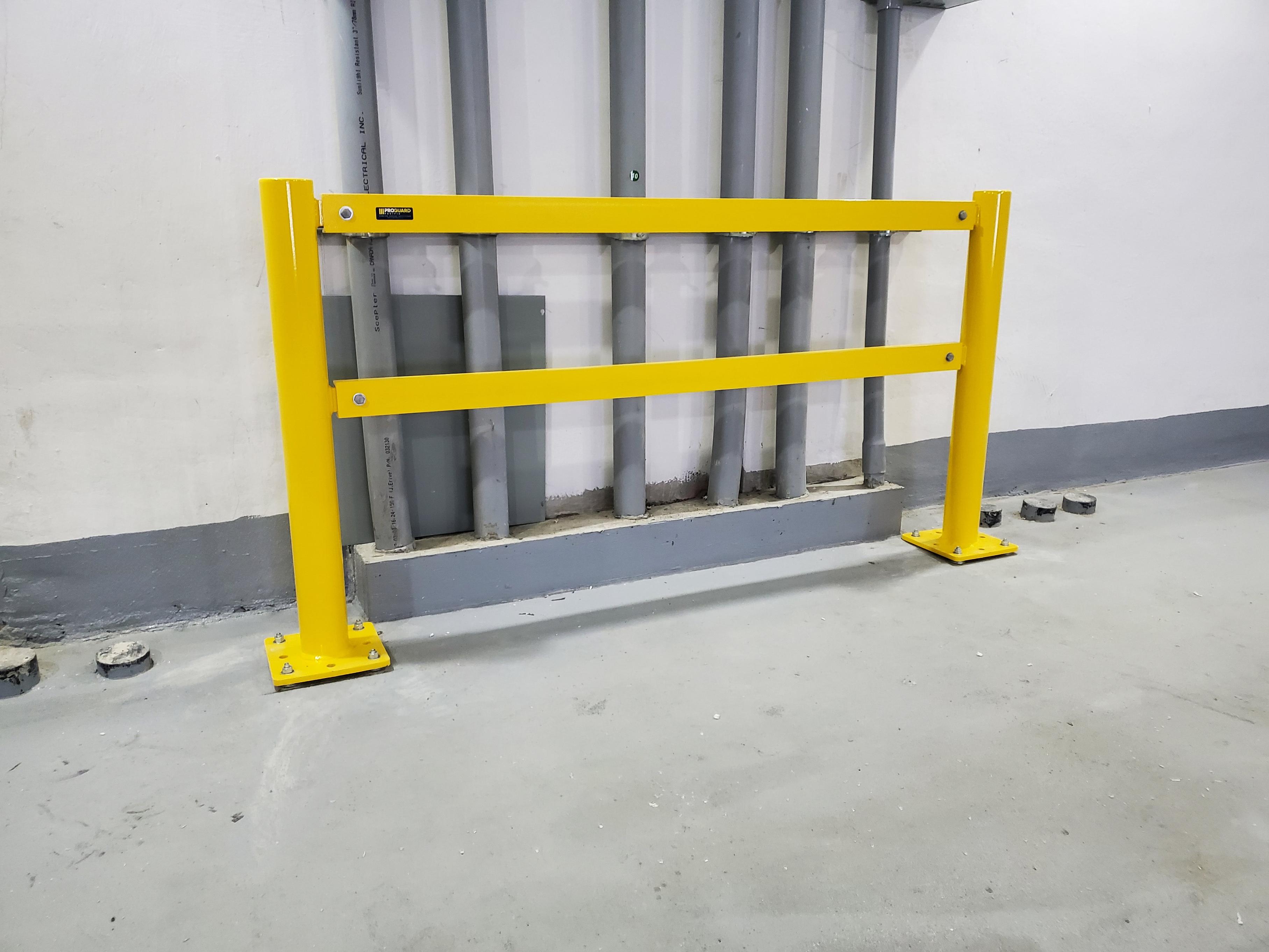

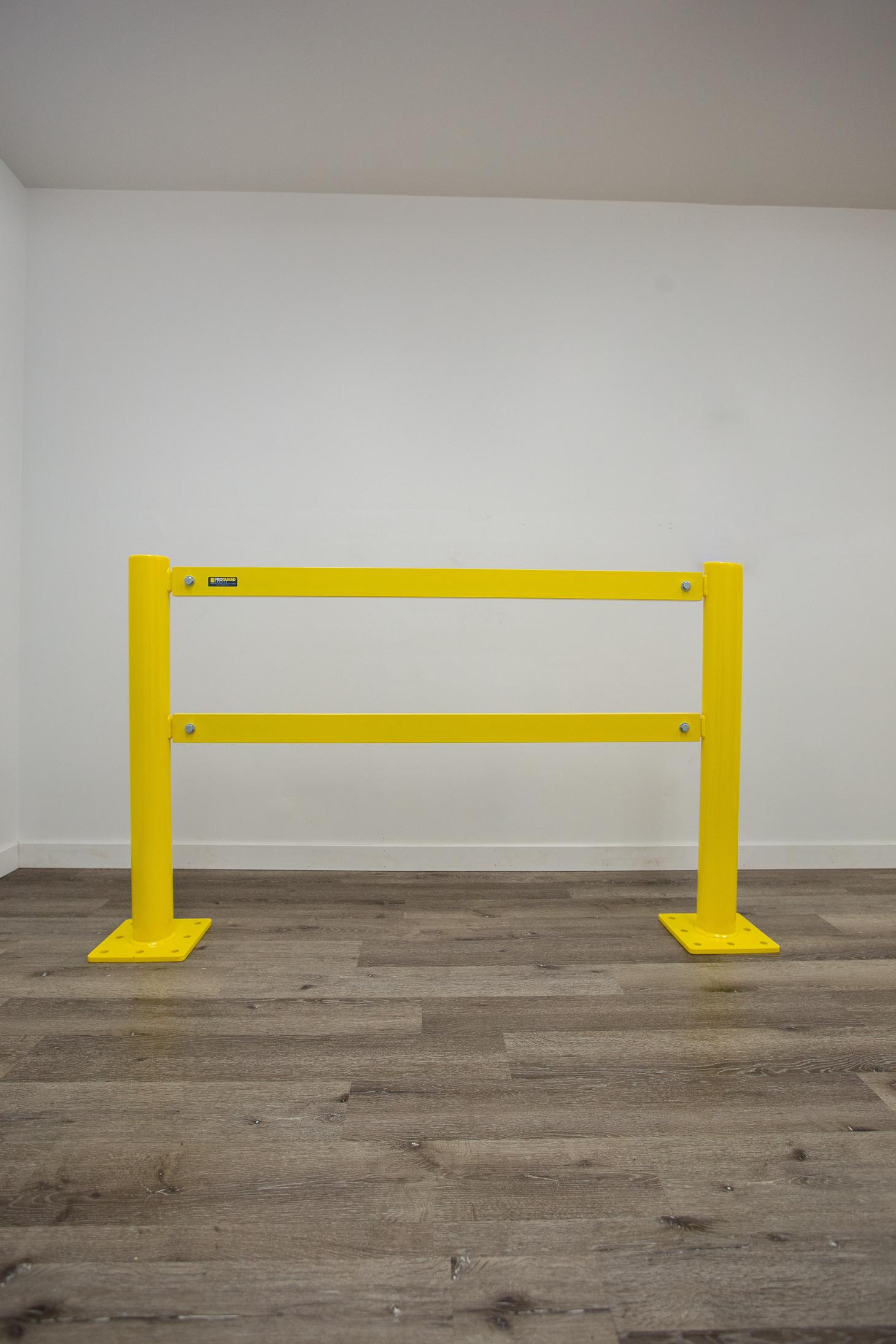

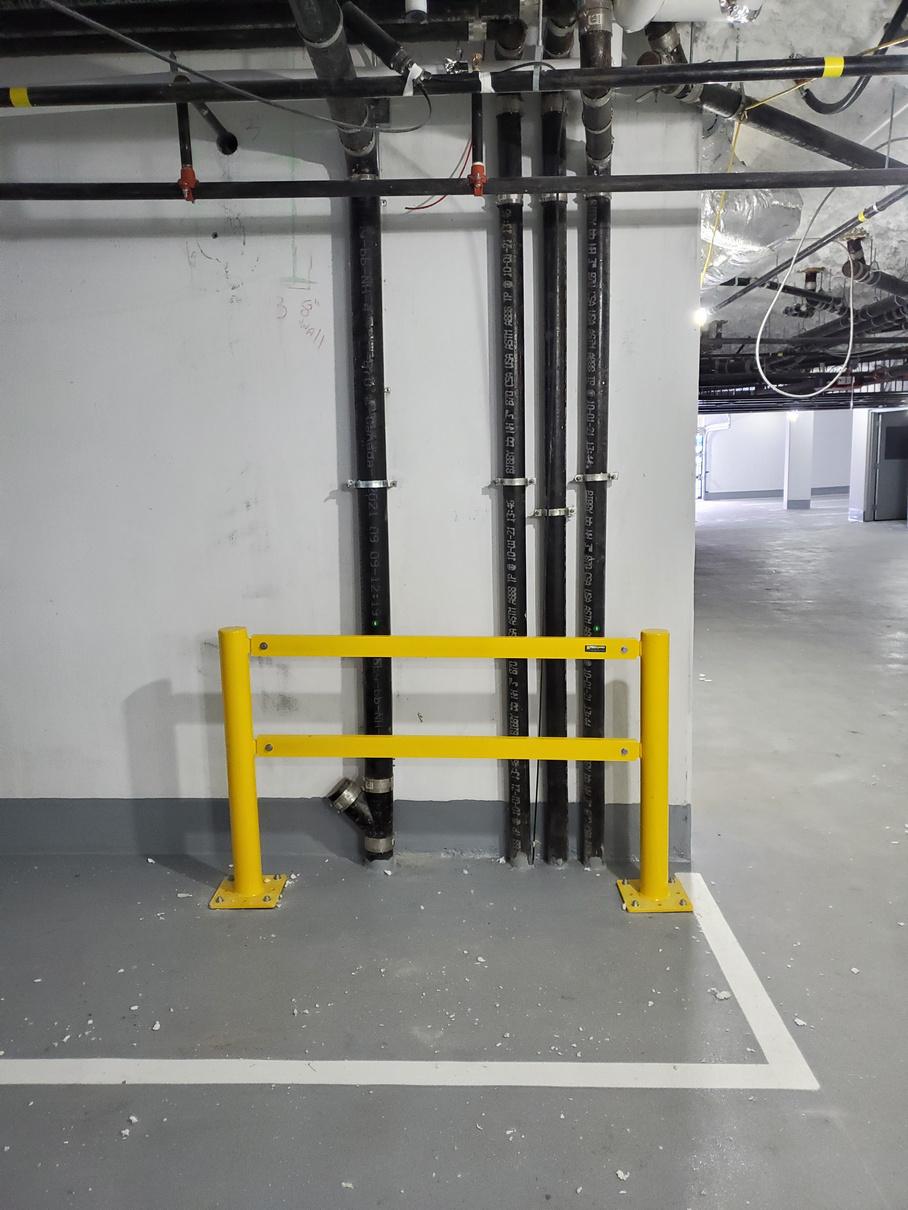

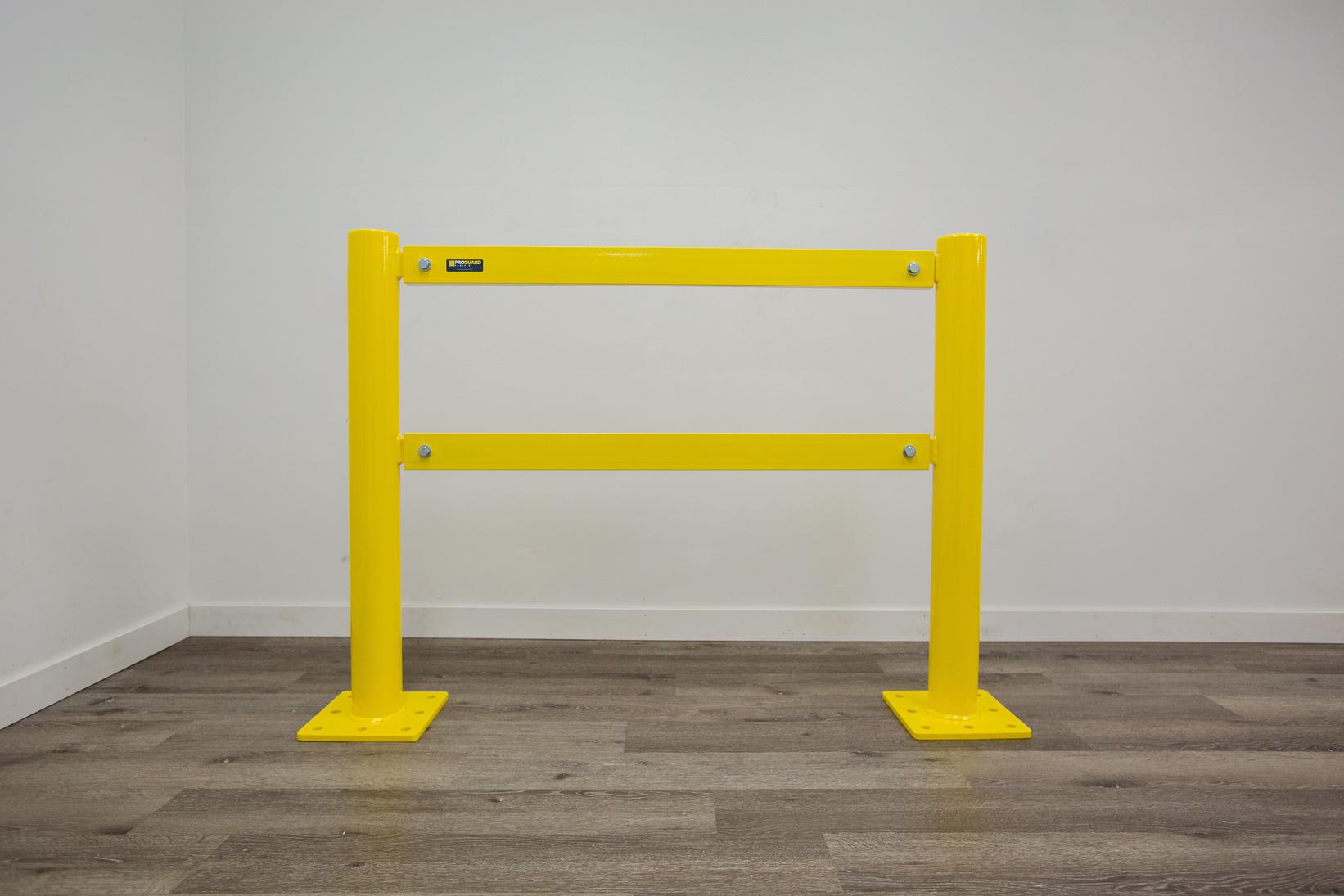

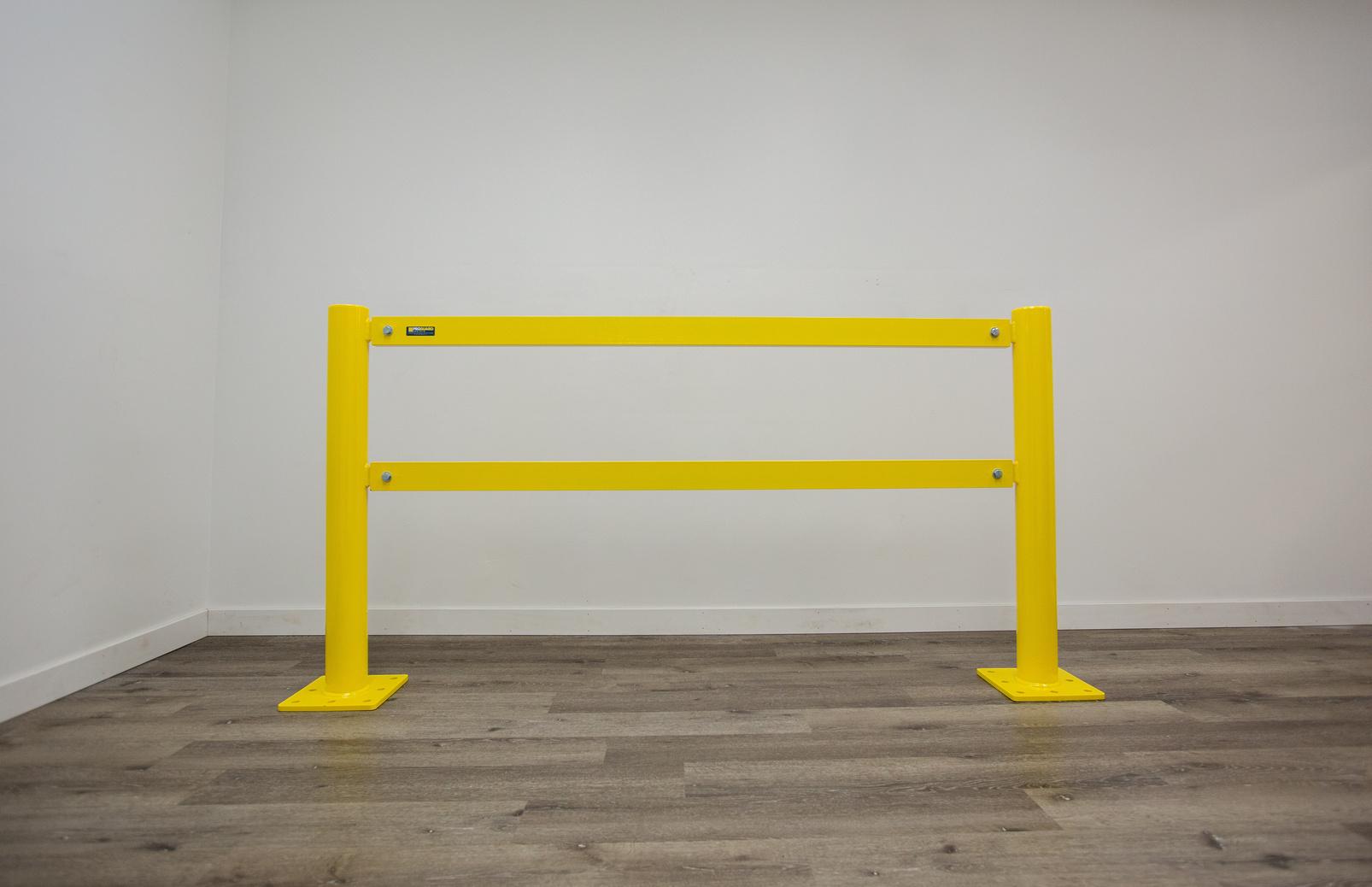

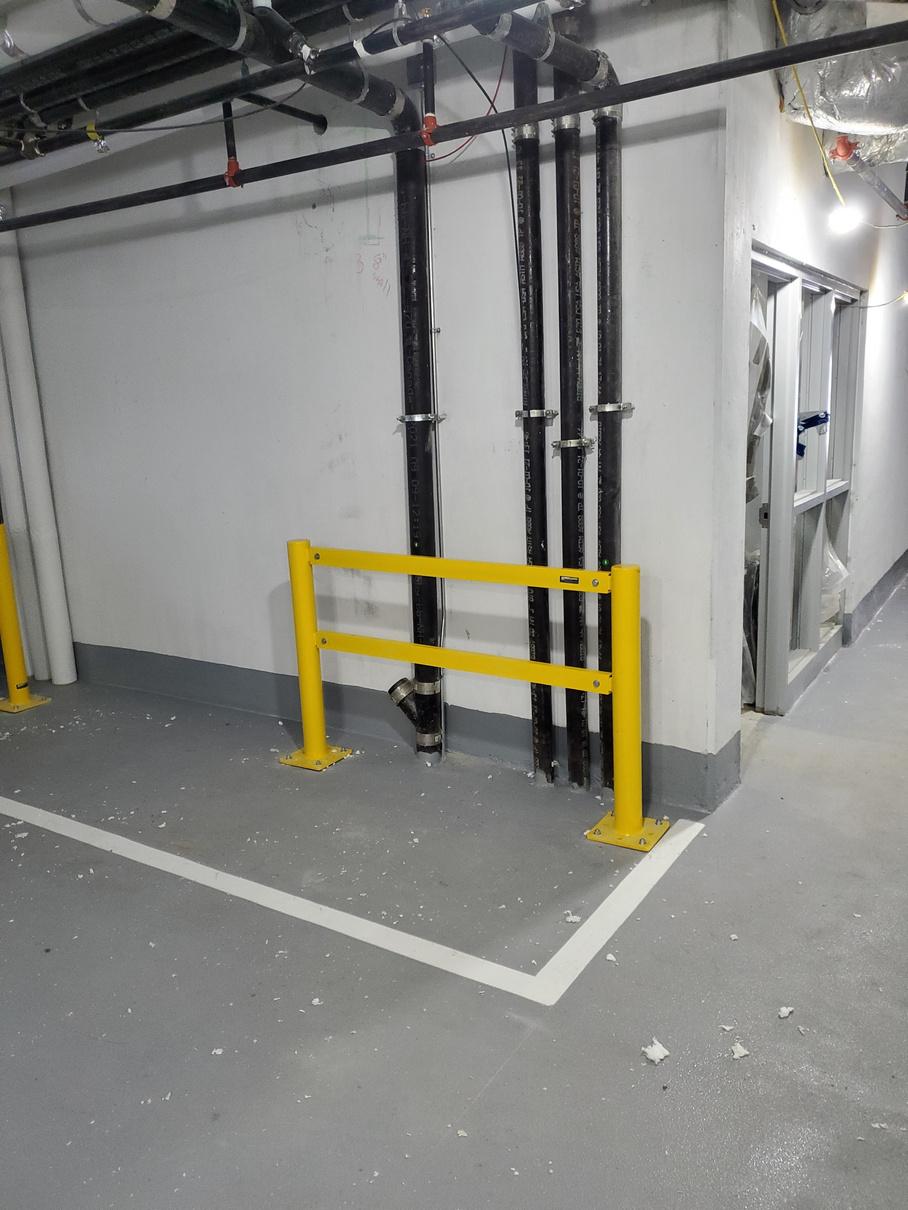

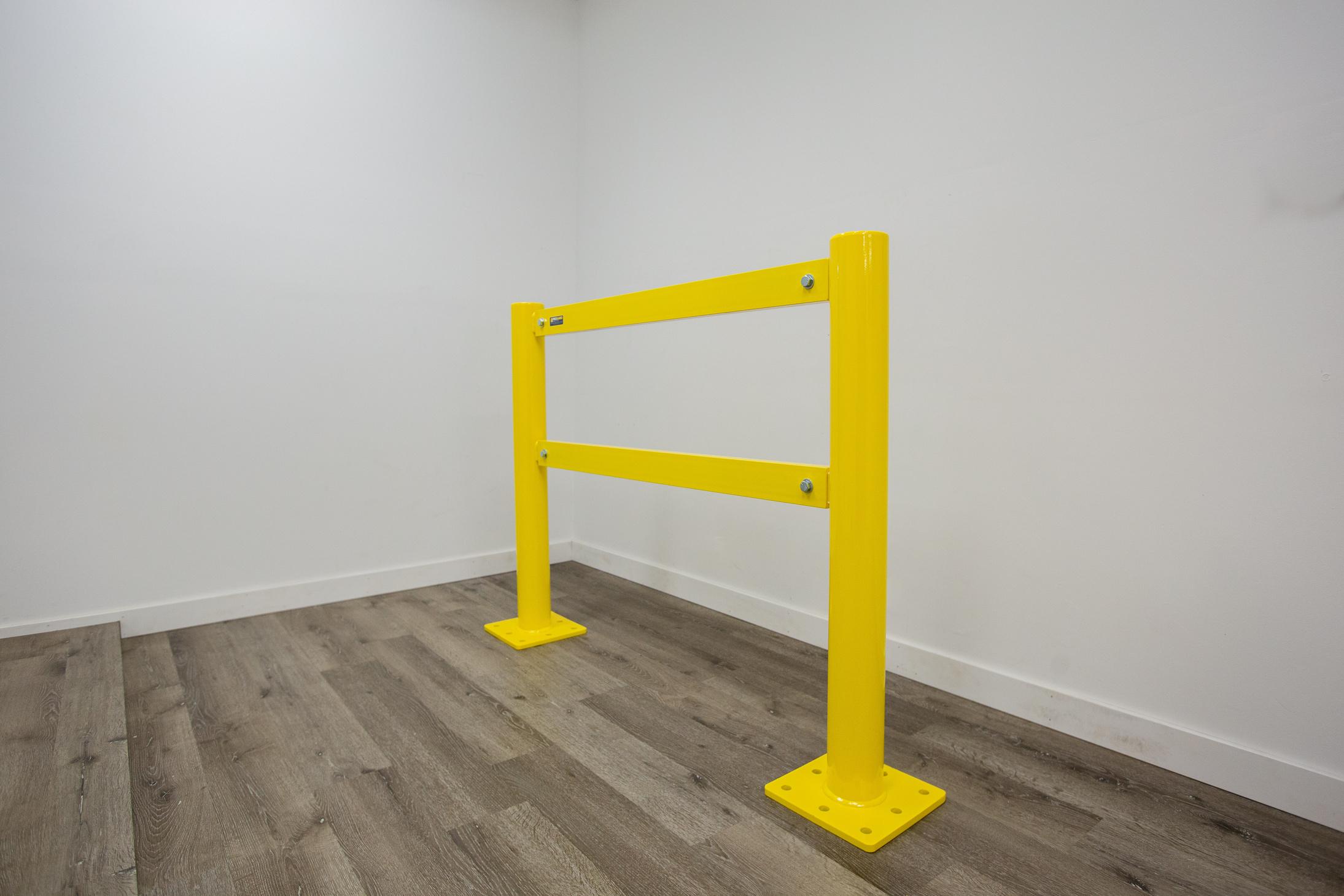

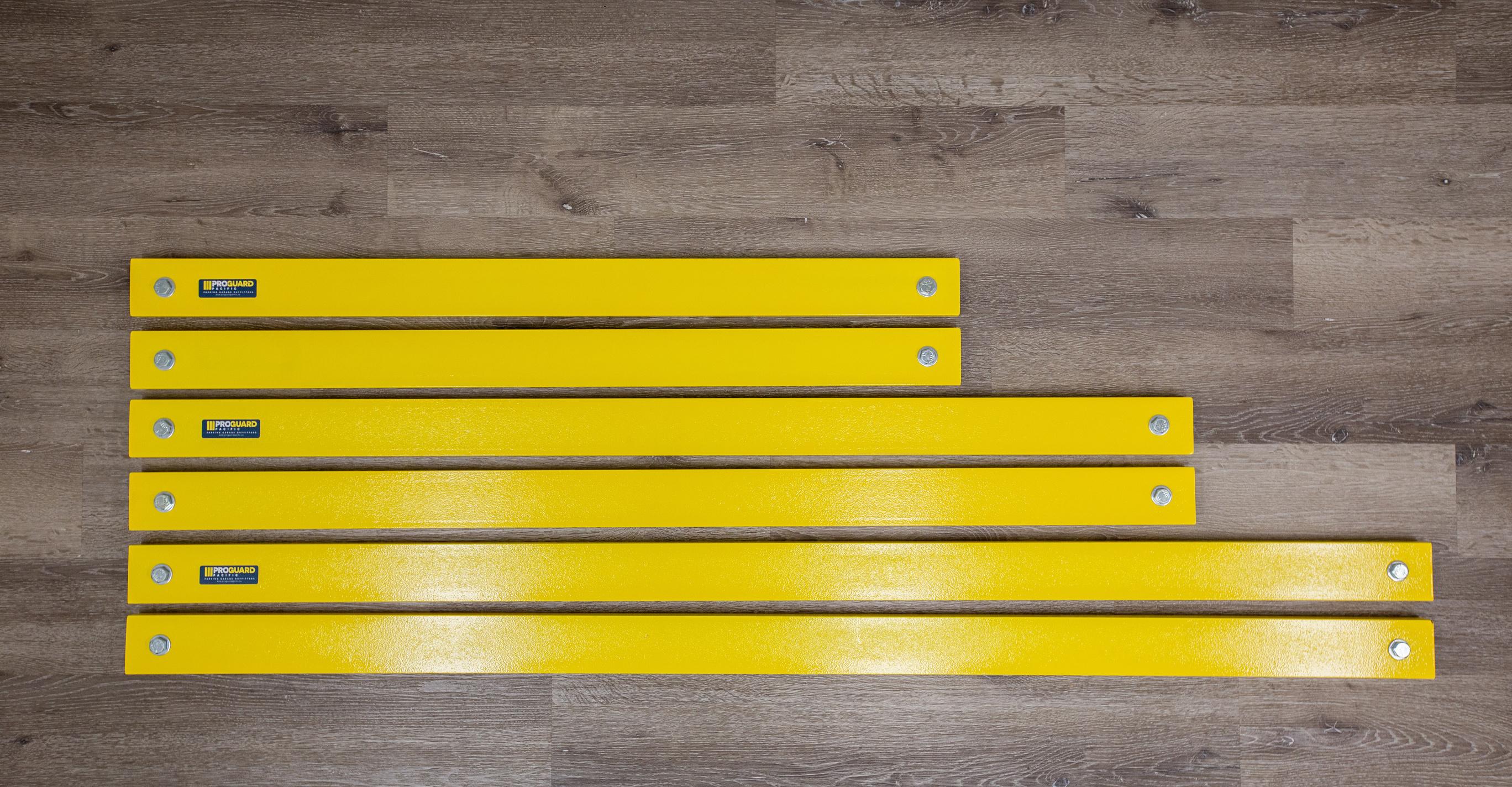

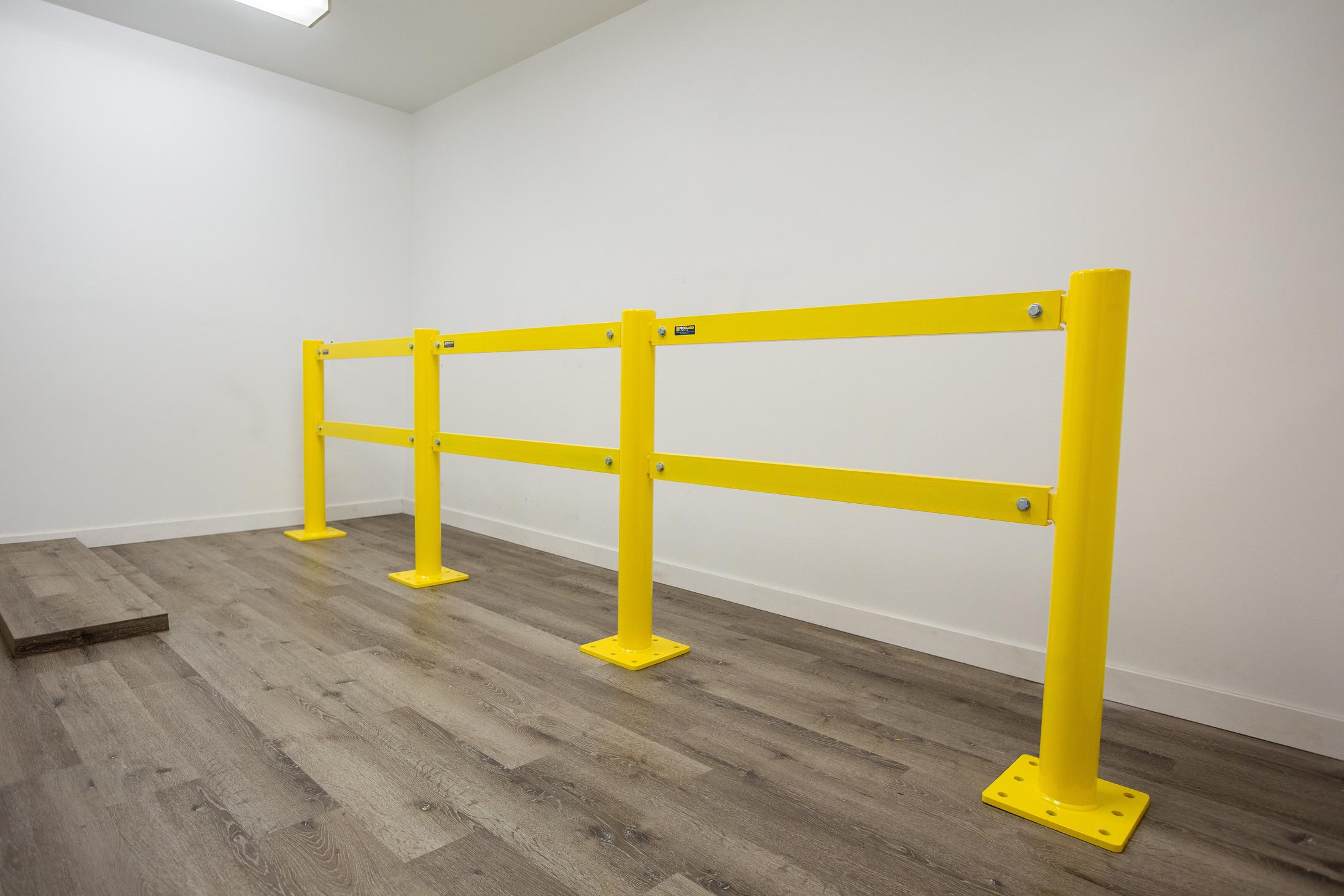

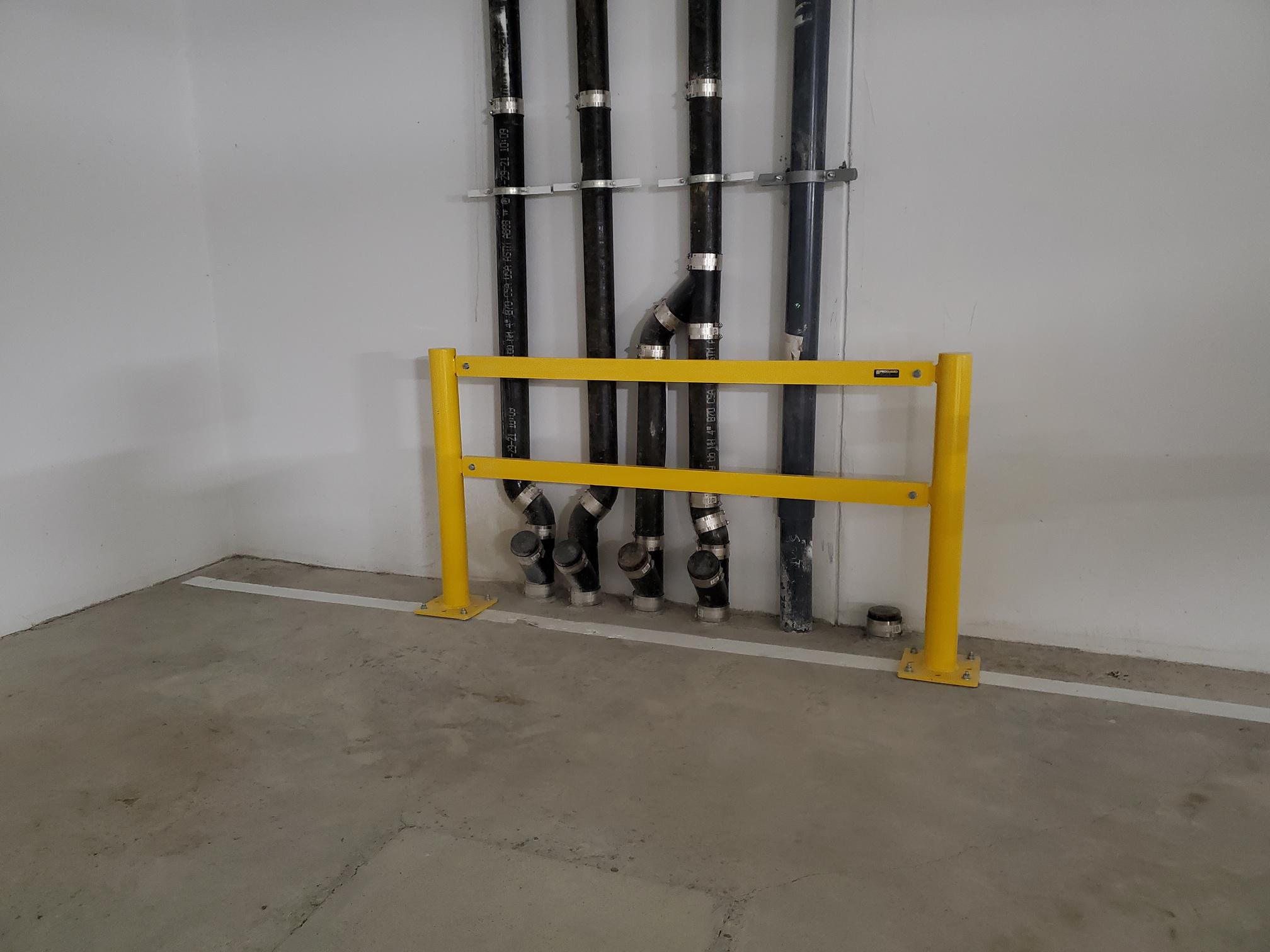

B A R R I E R

A I L S

Barrier Rail posts have a center to center distance of 48” (1219mm) *Total length is approx. 52” (1321mm) not including post base plates*

Horizontal C-channel cross bar heights:

Middle C-channel is set with a top height of 24” (610mm)

Top C-channel is set with a top height of 39” (990mm)

Includes two Barrier Rail posts

Fully welded top cap

Finished in durable, allweather ‘Gloss Safety Yellow’ powder coating

click to here view Barrier Rail pricing, purchasing and additional photos on our website

t s u c h a s H V A C u n i t s a n d g e n e r a t o r s . A d d i t i o n a l l y , i t c a n b e u s e d f o r p e d e s t r i a n c o n t r o l a n d s a f e g u a r d i n g v a r i o u s m i s c e l l a n e o u s i t e m s .

T h e b a s e p l a t e f e a t u r e s e i g h t m o u n t i n g h o l e s , p r o v i d i n g m o r e f l e x i b i l i t y f o r i n s t a l l a t i o n a n d r e p a i r i n s c e n a r i o s w h e r e a t r a d i t i o n a l f o u r - h o l e d e s i g n m a y n o t s u f f i c e t o a c c o m m o d a t e s p e c i f i c s i t e n e e d s a n d c o n d i t i o n s .

E a c h b a r r i e r r a i l i n c l u d e s t w o r e m o v a b l e h o r i z o n t a l C - c h a n n e l c r o s s b a r s f o r e x t e n d e d p r o t e c t i o n . T h e m o d u l a r d e s i g n o f t h e b a r r i e r r a i l p e r m i t s t h e a d d i t i o n o f e x t r a c o m p o n e n t s t o e x t e n d i t s l e n g t h a n d e n a b l e d i r e c t i o n a l c h a n g e s ( e . g . , c o r n e r p o s t , m i d d l e p o s t , C - c h a n n e l s , e t c . ) t o a c c o m m o d a t e l a r g e r o b j e c t s o r s p e c i f i c s i t e s c e n a r i o s . I n c l u d e d i n s t r u c t i o n s a l l o w f o r e a s y i n s t a l l a t i o n .

SURFACE MOUNT

4" Dia x 40" Tall HSS Barrier Rail at 48" Long

PRODUCTNUMBER:PGP-SBR-4 _ 40HSS48-1

SIZE & DETAILS:

GeneralSpecifications

BarrierRailpostshaveacenter-to-centerdistanceof 48”(1219mm)*Totallengthisapprox.52”(1321mm) notincludingpostbaseplates*

HorizontalC-channelcrossbarheights:

MiddleC-channelissetwithatopheightof 24”(610mm)

TopC-channelissetwithatopheightof39” (990mm)

Finishedindurable,all-weather‘GlossSafetyYellow’ powdercoating

BarrierRailPostSpecifications

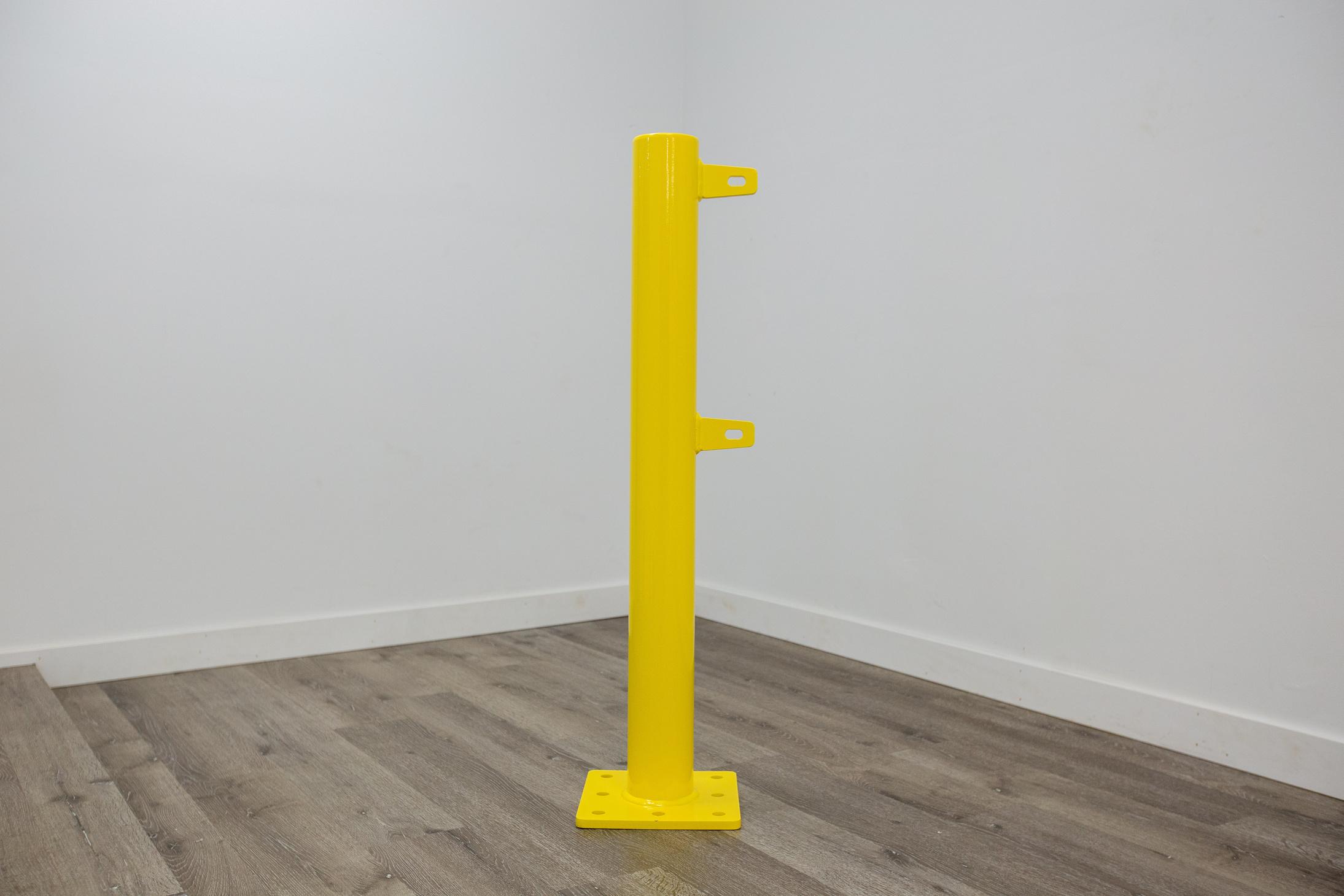

IncludestwoBarrierRailposts

4”(102mm)Diax¼”(6mm)thickHSSround tubing

9½”(241mm)x9½”(241mm)x½”(12mm)thick baseplatewitheight⅝”(16mm)mountingholes Height40”(1016mm)

Fullyweldedtopcap

Eight⅝”(16mm)Diamountingholesfor½” (12mm)mountinghardware

HorizontalC-ChannelCrossBarSpecifications

SURFACE MOUNT

PRODUCTNUMBER:PGP-SBR-4 40HSS60-1

SIZE & DETAILS:

GeneralSpecifications

BarrierRailpostshaveacentertocenterdistance of60”(1524mm)*Totallengthisapprox.64” (1625mm)notincludingpostbaseplates* HorizontalC-channelcrossbarheights:

MiddleC-channelissetwithatopheightof 24”(610mm)

TopC-channelissetwithatopheightof39” (990mm)

Finishedindurable,all-weather‘GlossSafety Yellow’powdercoating

BarrierRailPostSpecifications

IncludestwoBarrierRailposts

4”(102mm)Diax¼”(6mm)thickHSSround tubing

9½”(241mm)x9½”(241mm)x½”(12mm)thick baseplatewitheight⅝”(16mm)mountingholes Height40”(1016mm)

Fullyweldedtopcap

Eight⅝”(16mm)Diamountingholesfor½” (12mm)mountinghardware

HorizontalC-ChannelCrossBarSpecifications

Includestwoheavyduty3”(76mm)C-channelcross b ith bl h d

CUSTOM CONFIGURATIONS AND OPTIONS AVAILABLE

SURFACE MOUNT

SIZE & DETAILS:

GeneralSpecifications

BarrierRailpostshaveacentertocenterdistance of72”(1829mm)*Totallengthisapprox.76” (1930mm)notincludingpostbaseplates* HorizontalC-channelcrossbarheights: MiddleC-channelissetwithatopheightof 24”(610mm)

TopC-channelissetwithatopheightof39” (990mm)

Finishedindurable,all-weather‘GlossSafety Yellow’powdercoating

BarrierRailPostSpecifications

IncludestwoBarrierRailposts 4”(102mm)Diax¼”(6mm)thickHSSround tubing 9½”(241mm)x9½”(241mm)x½”(12mm)thick baseplatewitheight⅝”(16mm)mountingholes Height40”(1016mm)

Fullyweldedtopcap

Eight⅝”(16mm)Diamountingholesfor½” (12mm)mountinghardware

HorizontalC-ChannelCrossBarSpecifications

Includestwoheavy-duty3”(76mm)C-channelcross b ith bl h dware

PRODUCTNUMBER:PGP-SBR-4 40HSS72-1

4" Dia x 40" Tall HSS Barrier Rail at 60" Long

4" Dia x 40" Tall HSS Barrier Rail at 60" Long

HeavyDuty 1/2"thick Mounting Plates

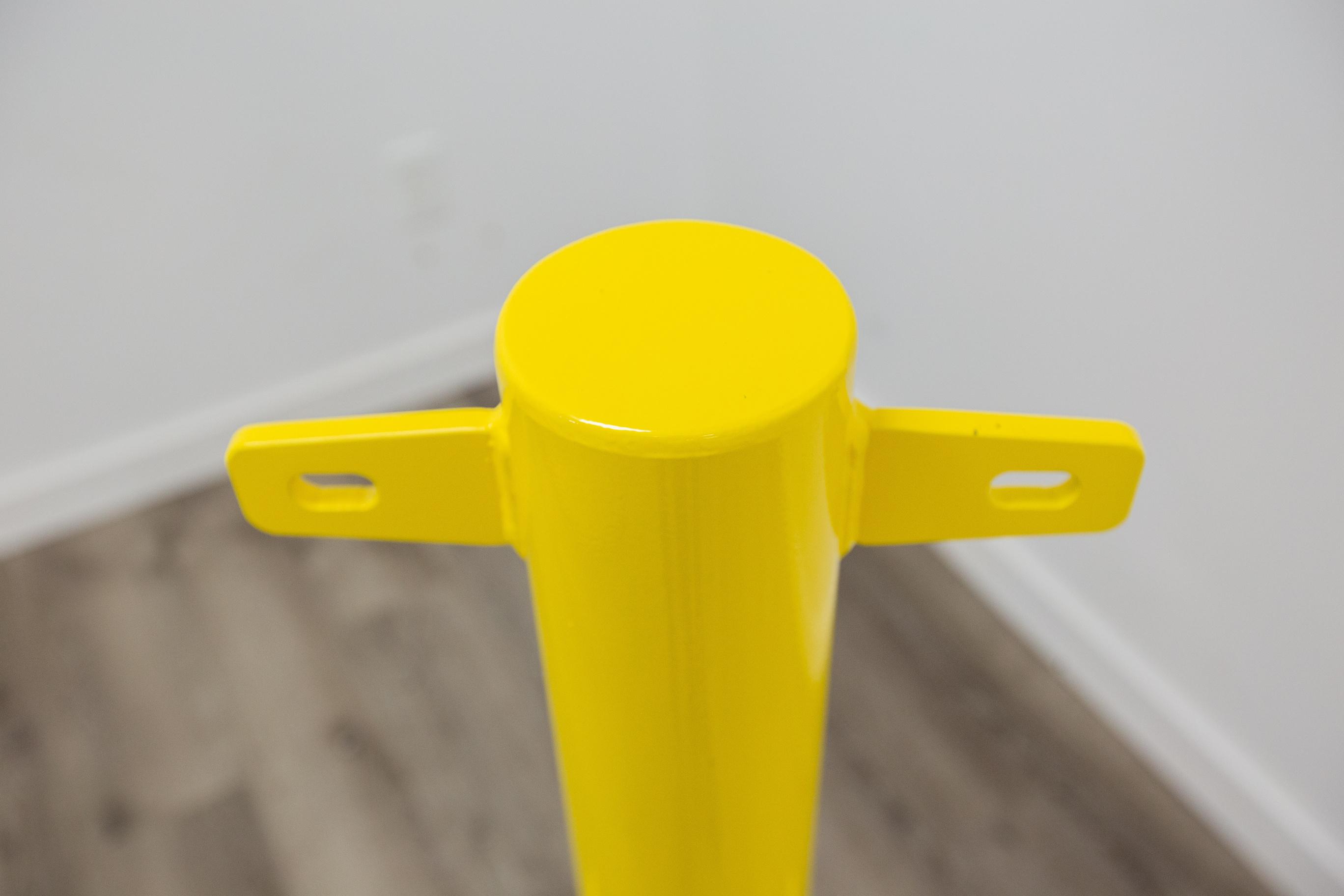

Fully Welded TopCap

Additional components and configurations available

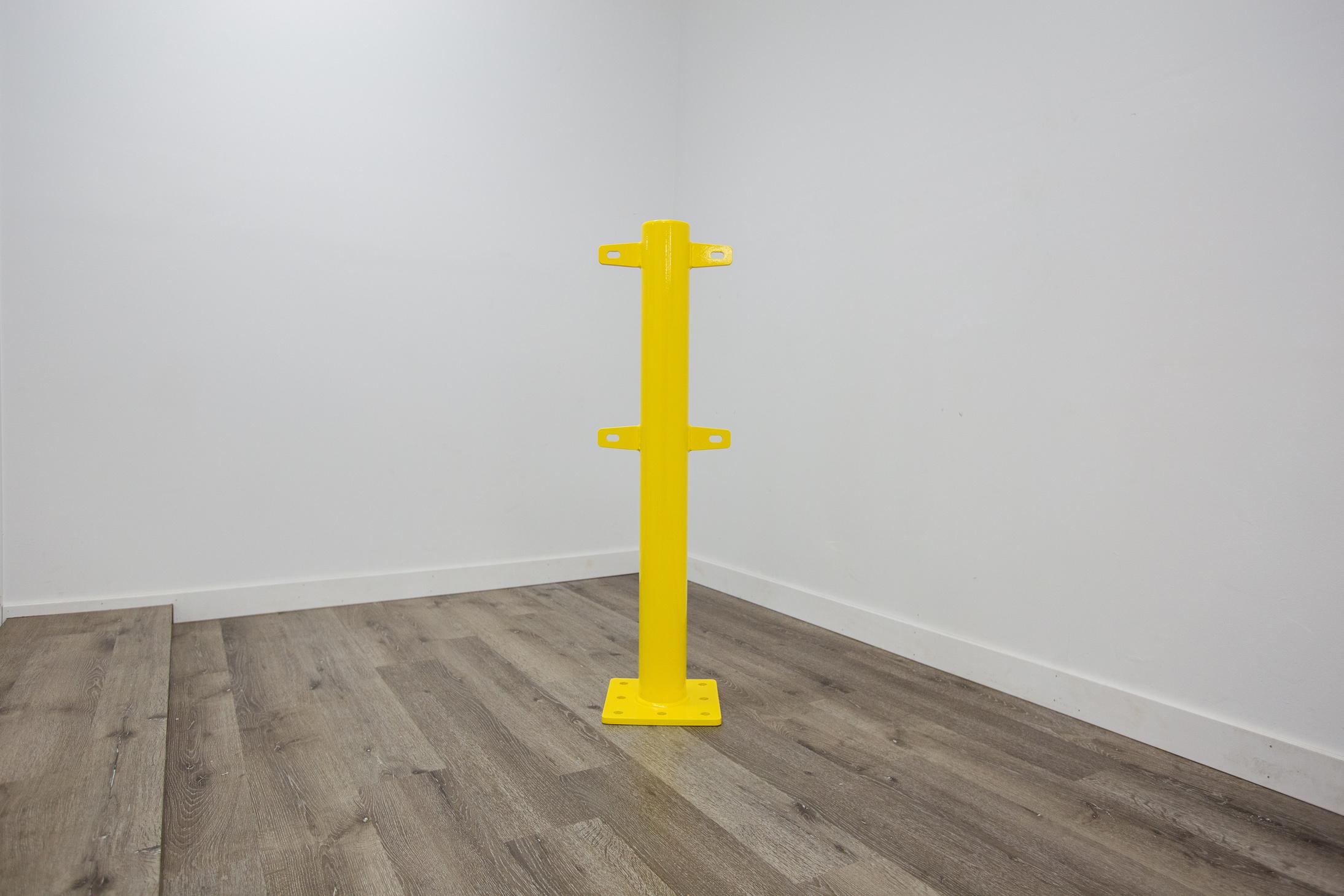

CornerPost

WHY CHOOSE PROGUARD PACIFIC OVER OTHER LARGE CHAIN SUPPLIERS, RETAILERS OR LOCAL MISCELLANEOUS METAL FABRICATORS? 3 REASONS WHY:

1) The number one reason to choose PROGUARD PACIFIC products over our competitors is our extensive experience in the construction metalworking industry. Over many years, we have been part of the design, engineering, manufacturing, installation, and inspection process of many projects This experience has led us to create a full line of finished parking garage products so that valued customers don’t need to source a steel vendor, installer, or painter at the end of a construction or renovation project to complete the required parking garage protection

2 ) Large chain retailers may have similar products for sale but upon further inspection of their products and specifications, you will notice that material thickness, quality standards, overall value, and ease of installation are secondary to maximum profitability

3) The purpose of Protective Guards, Pipe Protectors, Bollards, Machine Guards, Height Restriction Tubes, and Pedestrian Traffic Control is to prevent and protect people and property from damage, loss of use, downtime, and preventable accidents/incidents

WHY CHOOSE PROGUARD PACIFIC OVER OTHER LARGE CHAIN SUPPLIERS, RETAILERS OR LOCAL MISCELLANEOUS METAL FABRICATORS?

While you browse our online product catalogue, you will discover numerous product model and series of options: from entry-level models to customizable pieces which will make this choice easy for you. Simply browse the product line and determine what is best for your project as it relates to durability and need.

Explore the various parts of our website to find handy tools such as the ORDER FORM.

WHAT IS THE BEST WAY TO LAY OUT THE LOCATIONS OF PRODUCTS IN MY PARKING GARAGE DURING THE ORDERING PROCESS?

It is not uncommon to lose track of where your item locations are from point of ordering to point of product delivery and installation Best practice is to number the physical locations with a piece of tape and a sharpie or use numbered stickers (these can be purchased separately from Amazon or a local craft store – we like these from Luter) to ease in finding the proper location at the time of install The location numbers can then be filled into the printable ORDER FORM on the website while performing layout so that when the product arrives you can go from location to location matching up the product and location listed on your ordering form with the physical numbered location in your parking garage.

HOW DO I MEASURE A SITE LOCATION FOR THE PROPER FITMENT OF A PRODUCT AROUND THE ITEMS THAT NEEDS PROTECTION?

Please note that most dimensions of our products are based on "inside dimensions" as these are usually the critical measurements when it comes to the item that requires protection.

All measurements, layout, left and right-hand versions, offsets, and corner orientations are taken from the perspective of standing directly in front of the item requiring protection while facing it

All measurements of our products start with width, then depth, then height where applicable (W x D x H) If an offset or left-hand/right-hand orientation is required for a custom application that would then need to be indicated in the notes section of the order form

The height of most items is already predetermined by the product series and is available for review on our website

HOW MUCH SPACE DO YOU RECOMMEND AROUND ITEMS TO BE PROTECTED FOR PROPER FITMENT?

For proper fitment, it is recommended there be a minimum of 1" of clearance around the item requiring protection Please note: Any water shut-off valves, wall brackets, faucets, pipe brackets, electrical plugs, or any other miscellaneous item may require additional clearance to facilitate installation or proper operation

WHAT IF I DON'T SEE ANY PRODUCTS TO SUIT MY NEEDS OR SITE-SPECIFIC APPLICATION?

We are continually manufacturing, creating new products, and solving customer problems. If you don’t see something which will work for your application, please feel free to CONTACT US directly as we may have a solution in mind that is not shown online Our staff and local manufacturing facility are ready to welcome and take on any project

WHAT FINISH IS USED TO PROTECT YOUR ITEMS FROM RUST AND CORROSION?

All our products are finished with an exterior grade semi-gloss safety yellow powder-coated finish for maximum visibility, safety, and durability Other anti-corrosion and rust finish options are available upon special order

ARE ITEMS AVAILABLE ON OTHER COLOURS BESIDES 'SAFETY YELLOW'?

Yes, all our products are available in a wide array of colours to suit location-specific colour schemes, branding and design of your location/application Please keep in mind that additional pre-planning and lead time will be required to manufacture your specific order to suit In some circumstances, there may be an additional fee for the colour change depending on the quantity and colour chosen

IS POWDER COATING THE ONLY TYPE OF FINISH AVAILABLE?

No, powder coating is not the only finishing option We are able to accommodate also priming, galvanizing, and bare steel finish depending on the application and environment that the components will be installed in.

The advantages of the different finishes:

POWDER-COATING: The advantage of powder coating is that it is available in a wide array of colors with a long-lasting durable finish

PRIMING: The advantage to priming is that the product will arrive ready to paint whatever colour schemes and design your location requires

GALVANIZING: The advantage to galvanizing is that it will provide a very corrosion-resistant grey finish that will stand up in a wide variety of environments for a very long time

BARE STEEL: The advantage of a bare steel finish (or lack thereof) is the ability to modify a particular item on-site during installation if required The item could then be primed and painted by the customer once complete

ARE PROGUARD PACIFIC PRODUCTS WARRANTIED?

We believe in the quality of our products and therefore always warrant against manufacturers' defects. However due to the intended nature of the product and that it’s intended use to absorb impact while protecting your asset, we do not warrant wear and tear or any damage that may be incurred on our products or any incidental, consequential, or special damages to the end user facility or property by outside forces or the individuals that have installed them If more information is required on our terms and conditions, a liability waiver is available upon request

HOW LONG DOES IT TAKE TO INSTALL, AND CAN I INSTALL THE ITEMS BY MYSELF?

Installation times vary from one product to the next based on design however as installers ourselves we have manufactured all our products to be as quick and easy to install as possible with minimum amounts of tools. Anyone with basic construction experience, knowledge of tools, and an understanding of safe work practices can easily install our products

CAN I PICK UP FROM YOUR LOCATION?

All items can be picked up from our location in person if preferred, with loading assistance from our staff, if needed We are also able to load customer couriers

HOW LONG DOES IT TAKE GENERALLY TO RECEIVE MY ORDER?

We try to keep the most popular inventory on the shelf and ready to ship at all times however depending on the specifications/preferences or customization of the order lead times may be required

HOW LONG DOES IT TAKE GENERALLY TO RECEIVE MY ORDER?

We try to keep the most popular inventory on the shelf and ready to ship at all times however depending on the specifications/preferences or customization of the order lead times may be required

WILL YOU SHIP THE ITEMS TO ME? HOW DOES IT WORK?

We are able to facilitate shipping for our customers, with logistical dialog whether through phone or email A good plan will make shipping and delivery successful as an order of items can become quite heavy

ARE THE PRODUCTS MANUFACTURED RESPONSIBLY, SAFELY AND ETHICALLY?

PROGUARD PACIFIC is a firm believer in safety and employee worth. We have won multiple safety awards and are an active member of the Manufacturing Safety Alliance of BC All our staff are valued, trained, and treated fairly regardless of race and social standing We employ lean manufacturing processes to reduce waste, repurpose, and recycle whenever possible to minimize our impact on the environment
