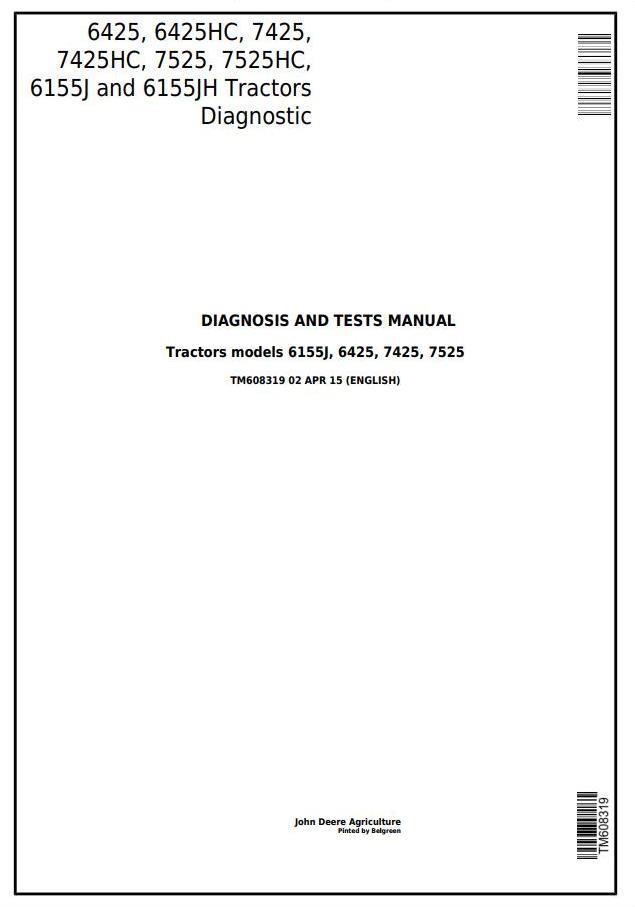

JD 6425, 6425HC, 7425, 7425HC, 7525, 7525HC, 6155J, 6155JH Test Service ManualTM608319
This is Diagnostic manual, including electrical and hydraulic wiring diagrams, Repair manual are sold separate.
Language: English
Format: PDF, 1222 pages
Covered models:
6425
6425HC
6155J
6155JH 7425
7425HC 7525
7525HC
Contents:
Foreword Safety SafetyPrecautions
GeneralReferences
DiagnosticTroubleCodes
BCUDiagnosticTroubleCodes
ObservableSymptoms
ElectricalSystem
Transmission
DriveSystems
SteeringAndBrakes
HydraulicSystem
Engine
FunctionTest
TestsandAdjustments
Fuel,AirIntakeandCoolingSystems
TestsandAdjustments
Descriptions
ElectricalSystem
Sub-SystemDiagnostics(CabTractor)
Sub-SystemDiagnostics(OpenOperatorStationTractor)
ComponentTests
Functionalschematics
WiringHarnessesandConnectors(CabTractor)
WiringHarnessesandConnectors(OpenOperatorStationTractor)
ElectronicControlUnits
OperationandGeneralInformationonDiagnostics
DataBUSSystemDiagnostics
DataBUSSystems,Operation
BCU-BasicControlUnit
Forward/ReverseModule
FunctionTest
TestsandAdjustments
Operation
PowrQuadTransmissions
PreliminaryTests
FunctionTest
TestsandAdjustments
Operation
SyncroPlusTransmission
OperationalChecks
TestsandAdjustments
Operation DriveSystems
FunctionTests
TestsandAdjustments
Operation
Operationfor6425and6425HCTractorsOnly
SteeringandBrakes
FunctionTest
TestsandAdjustments
Operation
HydraulicSystem
FunctionTests
TestsandAdjustments
Operation
OilFilter,ChargePumpandHydraulicPump
Hitch
SelectiveControlValves(SCV)
HydraulicBlock
Operator′sCab
TestsandAdjustments
Operation
SpecialTools
SpecialTools(Dealer-Fabricated)
SpecialTools(AvailableasSpareParts)
