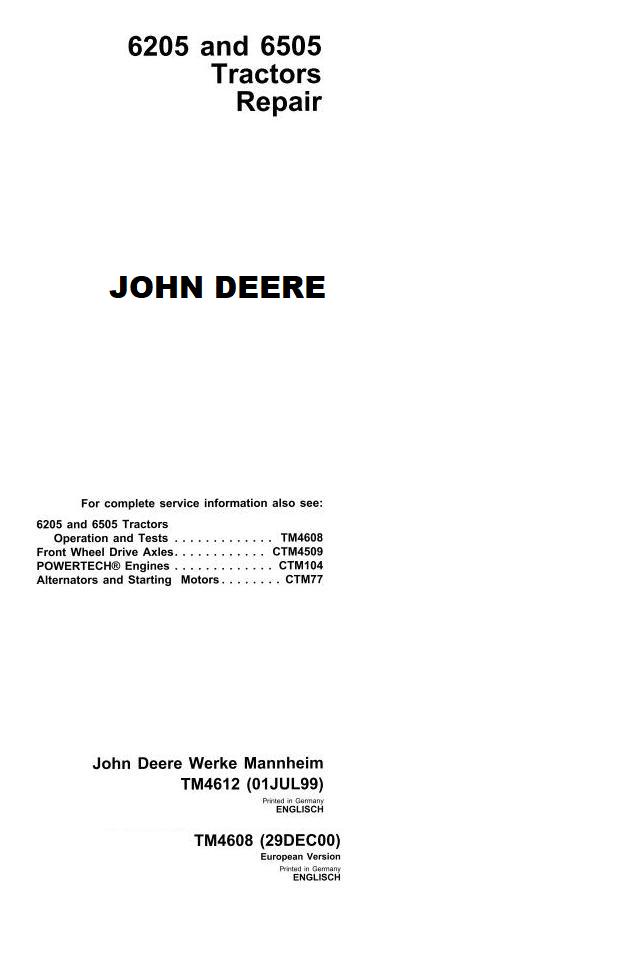

JD 6205, 6505 Tractor Service and technical
Repair Manual -
This is repair only manual, Diagnostic Manual with electrical wiring diagrams are sold separate.
Language: English
Format: PDF, 648 pages
Covered models: 6205
6505
Contents:
SECTION05-SAFETY
Group05-SafetyMeasures
SECTION10-GENERALINFORMATION
Group05-Specifications
Group10-Tune-Up
Group15-PredeliveryInspection
SECTION20-ENGINE
Group00-EngineRemovalandInstallation
SECTION30-FUEL,AIRINTAKE,COOLINGANDEXHAUSTSYSTEMS
Group05-SpeedControlLinkage
Group10-FuelSystem
Group15-AirIntakeSystem
Group20-CoolingSystem
Group25-Cold-WeatherStartingAids
Group30-ExhaustSystem
SECTION40-ELECTRICALSYSTEM
Group05-Connectors
Group10-WiringHarnessRouting
Group15-ChargingCircuit
Group20-StartingCircuit
Group25-Fuses,RelaysandSwitches
Group30-MonitoringSystems
Group35-AuxiliaryLightingandElectricalComponents
SECTION50-SYNCROPLUSTRANSMISSION
Group00-RemovalandInstallationofTransmissionComponents
Group05-TransmissionShiftControls
Group10-PermaClutchII
Group15-GearTransmission
PSECTION51-OWERREVERSER
Group00-RemovalandInstallationofTransmissionComponents
Group05-TransmissionShiftControls
Group10-PowerReverserModule
Group15-GearTransmission
Group20-RangeTransmission
SECTION56-DRIVESYSTEMS(excepttransmission)
Group00-ComponentRemovalandInstallation
Group15-U-JointedShaftsandTorsionDamper
Group10-Front-WheelDriveClutch
Group15-Differential
Group20-HydraulicPumpDrive
Group25-FinalDrives
Group30-RearPTOOptions
Group35-FrontImplementDrive
SECTION60-STEERINGANDBRAKES
Group05-HydrostaticSteering
Group10-SteeringCylinders
Group15-BrakeValve
Group20-RearBrakes
Group25-Handbrake
Group30-HydraulicTrailerBrake
SECTION70-HYDRAULICSYSTEM
Group05-Controls
Group10-HydraulicPump
Group15-Valves
Group20-Rockshaft,LiftCylindersandCenterLinkSupport
Group35-SelectiveControlValvesandCouplers
SECTION80-MISCELLANEOUS
Group00-ComponentRemovalandInstallation
Group05-MainFrame
Group10-FrontAxle
Group15-FrontandRearWheels
Group20-CenterLinkBracketandSwingingDrawbar
SECTION90-OPERATOR’SSTATION
Group00-RemovalandInstallationofOperator’sStation
Group05-ControlsandInstruments
Group10-Operator’sSeat
Group15-2-PostROPS
SECTION99-SPECIALTOOLS(Dealer-Fabricated)
Group05-SpecialTools(Dealer-Fabricated)
