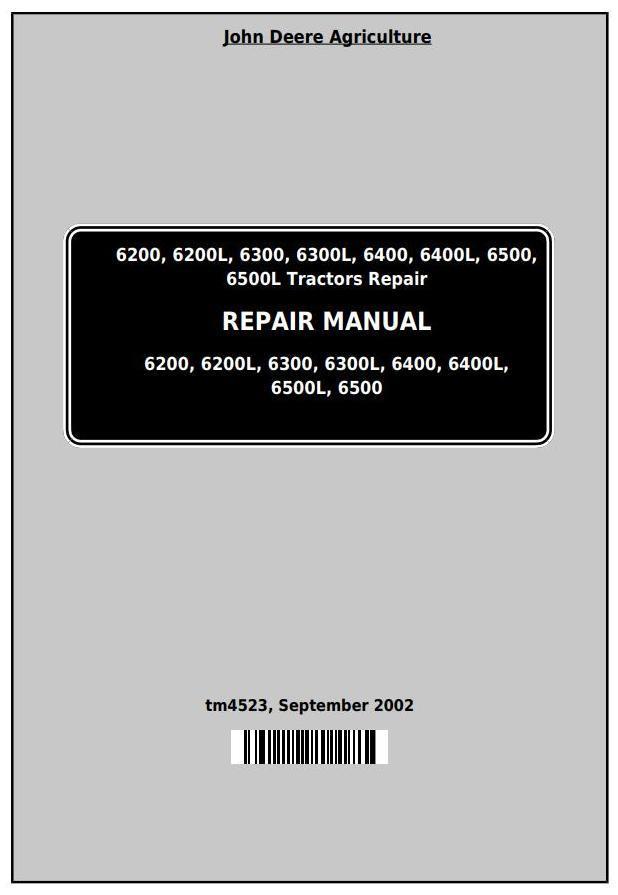

JD 6200,6200L, 6300,6300L, 6400,6400L, 6500,6500L Tractor technical Manual -
TM4523
This is repair only manual, Diagnostic Manual with electrical wiring diagrams are sold separate.
Language: English
Format: PDF, 1326 pages
Covered models:
6200
6200L
6300
6300L
6400
6400L
6500
6500L
Contents:
Foreword
Safety
SafetyMeasures
GeneralInformation Specifications
Tune-Up
PredeliveryInspection
Engine
RemovalandInstallation
Fuel,AirIntake,CoolingandExhaustSystems
SpeedControlLinkage
FuelSystem
AirIntakeSystem
CoolingSystem
ColdWeatherStartingAids
ExhaustSystem
ElectricalSystem
Connectors
WiringHarnessRouting
ChargingCircuit
StartingCircuit
Switches,RelaysandSolenoids
MonitoringSystem
AuxiliaryLightingandElectricalComponents
ConvenienceandAccessoryComponents
SyncroPlusSyncroPlusisatrademarkofDeere&Company. Transmission
RemovalandInstallationofTransmissionComponents
SummaryofImportantSpecifications
TransmissionShiftControls
PERMA-CLUTCH2PERMA-CLUTCH2isatrademarkofDeere&Company.,TransmissionOil
PumpandValves
GearTransmission
CreeperTransmission
RangeTransmission
PowrQuadPowrQuadisatrademarkofDeere&Company.Transmission RemovalandInstallationof PowrQuadPowrQuadisatrademarkofDeere&Company. Module
TransmissionShiftControls
PowrQuadPowrQuadisatrademarkofDeere&Company.Module DriveSystems
ComponentRemovalandInstallation
U-JointedShaftsandTorsionDamper
FrontWheelDriveClutchUptoTransmissionSerialNo.114447
FrontWheelDriveClutch,Transm.SerialNo.114448to161066
FrontWheelDriveClutchFromTransmissionSerialNo.161067
Differential
HydraulicPumpDrive
FinalDrives
RearPTOOptions
FrontImplementDrive
SteeringandBrakes
HydrostaticSteering
SteeringCylinders
BrakeValve
RearBrakes
HydraulicSystem
Controls
HydraulicPumpandChargePump
Valves
RockshaftandRockshaftCylinder
Three-PointHitch
SelectiveControlValvesandCouplers
IndependentControlValve
Miscellaneous
ComponentRemovalandInstallation
MainFrame
FrontAxle
FrontandRearWheels
CenterLinkBracket
SwingingDrawbar
OperatorStation
Tilting,RemovingandInstallingtheOperator’sCab
Controls
AirConditioningSystem
HeatingSystem
Seat
ROPSandComfortGardComfortGardisatrademarkofDeere&Company.Cab
LowClearanceCab
ElectronicHitchControlComponents
SpecialTools(Dealer-Fabricated)
SpecialTools(Dealer-Fabricated)
