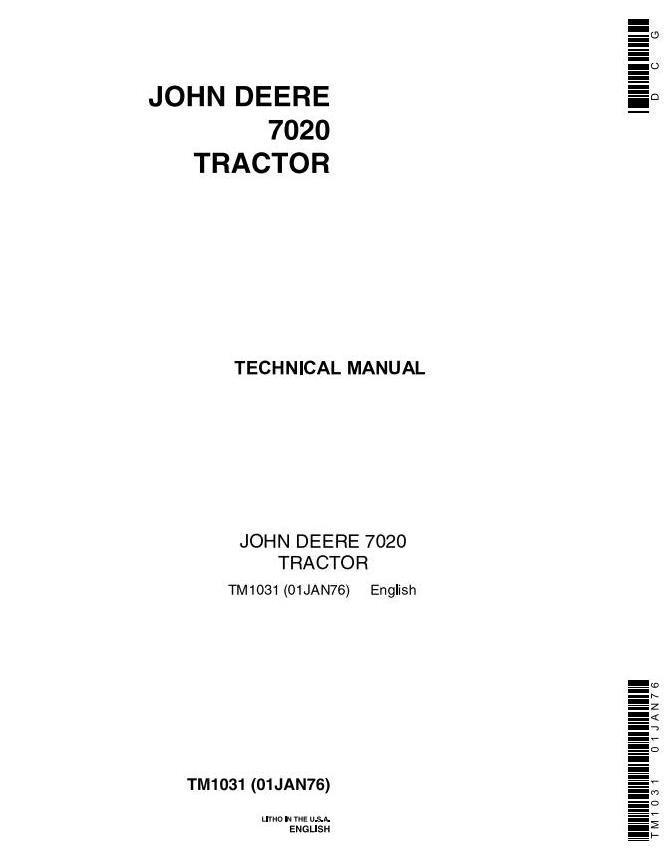

JD 4wd articulated Tractor Service
Repair Manual - TM1031
Language: English
Format: PDF, 282 pages
Covered models: 7020
Contents:
SECTION10-GENERAL
Group5-Specifications
Group10-Predelivery,Delivery,andAfter-SaleServices
Group15-Tune-Up
Group20-Lubrication
Group25-Separation
SECTION20-ENGINE
Group5-GeneralInformation,Diagnosis,andTests
Group10-CylinderHead,ValveTrain,andCamshaft
Group15-CylinderBlock,Liners,Pistons,andRods
Group20-Crankshaft,MainBearings,andFlywheel
Group25-LubricationSystem
Group30-CoolingSystem
SECTION30-FUELSYSTEM
Group5-DiagnosingMalfunctions
Group10-AirIntakeSystem
Group15-FuelInjectionSystem
Group20-ControlLinkage
SECTION40-ELECTRICALSYSTEM
Group5-InformationandWiringDiagrams
Group10-MotorolaChargingCircuit
Group12-DelcotronChargingCircuit
Group15-Delco-RemyStartingCircuit
Group17-JohnDeereStartingCircuit
Group20-LightingandAccessoryCircuits
SECTION50-POWERTRAIN
Group5-Clutch
Group10-TorqueDivider
Group15-Syncro-RangeTransmission
Group20-DifferentialsandDriveShafts
Group25-FinalDrives
Group30-PTO
SECTION60-STEERINGANDBRAKES
Group5-GeneralInformation
SECTION70-HYDRAULICSYSTEM
Group5-GeneralInformation,Diagnosis,andTests
Group10-MainReservoir,Filters,Valves,OilCooler,andOilReservoir
Group15-HydraulicPumps
Group20-PowerSteering
Group25-PowerBrakes
Group30-RockshaftandImplementHitches
Group35-SelectiveControlValve,BreakawayCouplers,andRemoteCylinders
SECTION80-MISCELLANEOUS
Group5-HingeAssembly
