LYDIA RHYS COLLINS

SELF PORTRAIT 1.26.24

Hello! I am a fif th year student at the Universit y of Wisconsin - Milwaukee pursuing my Bachelor of Architecture. My approach to architecture comes from a long-standing passion for detail, precision, and creative iteration. I am dedicated to ecological integration and sustainabilit y, and I have a deep appreciation for the transformative qualities of the built environment.

Designing with empathy and understanding of culture, enivironment, and communit y is my priorit y. These selected works seek to create inclusive and beautiful spaces.

Outside of my classes, I love to read, write, draw, and travel at any given oppor tunit y.

2

TABLE OF CONTENTS THOREAU ELEMENTARY 4 - 11 RARE BOOKS ARCHIVE 12 - 21 BEND HOUSE 22 - 29 ECO DISTRICT 30 - 35 BLUE BRANCHES 36 - 41

3

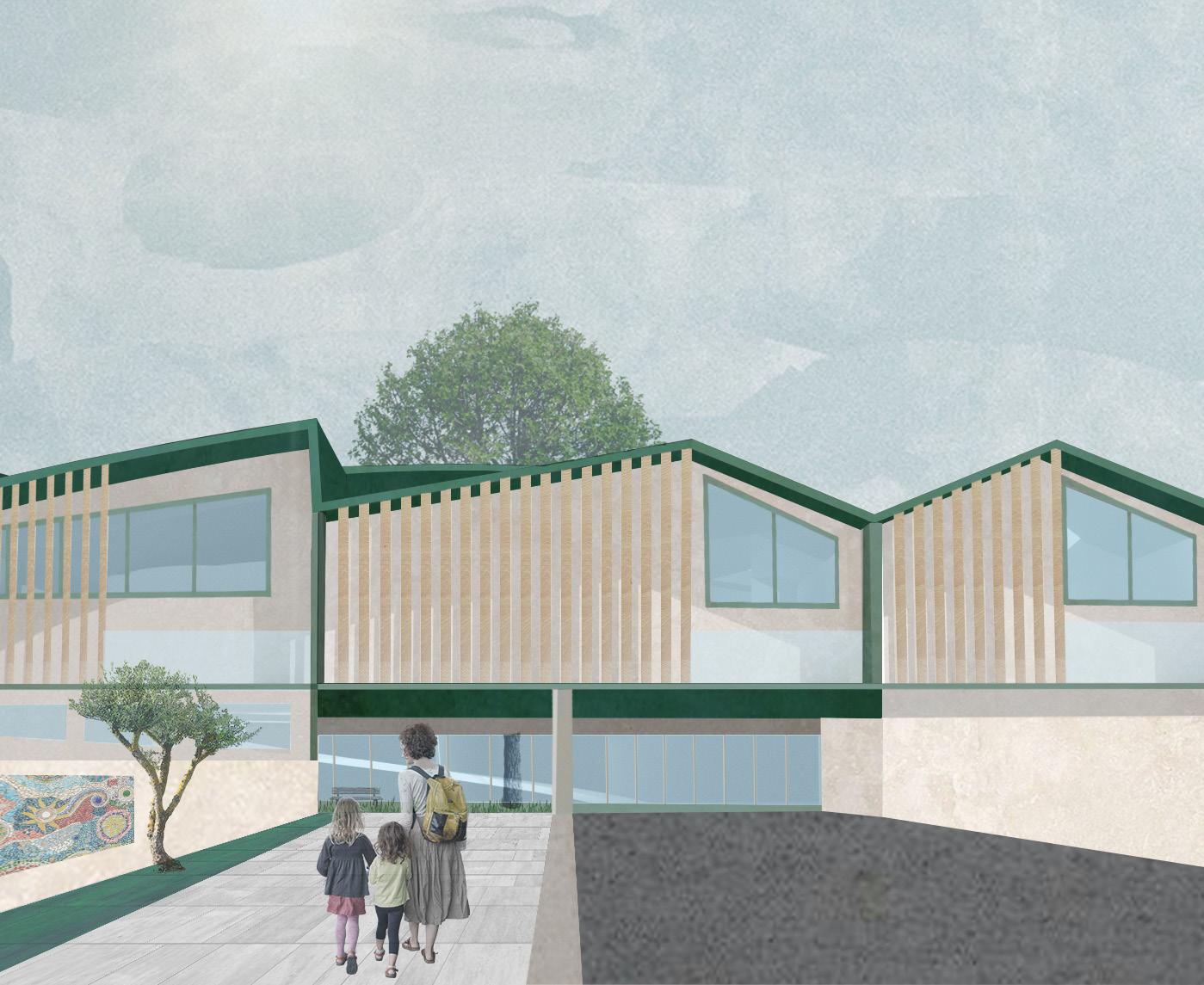

THOREAU ELEMENTARY In this fundamentaI design studio, I designed an ecology-based early learning center on a site in Riverwest, Milwaukee.

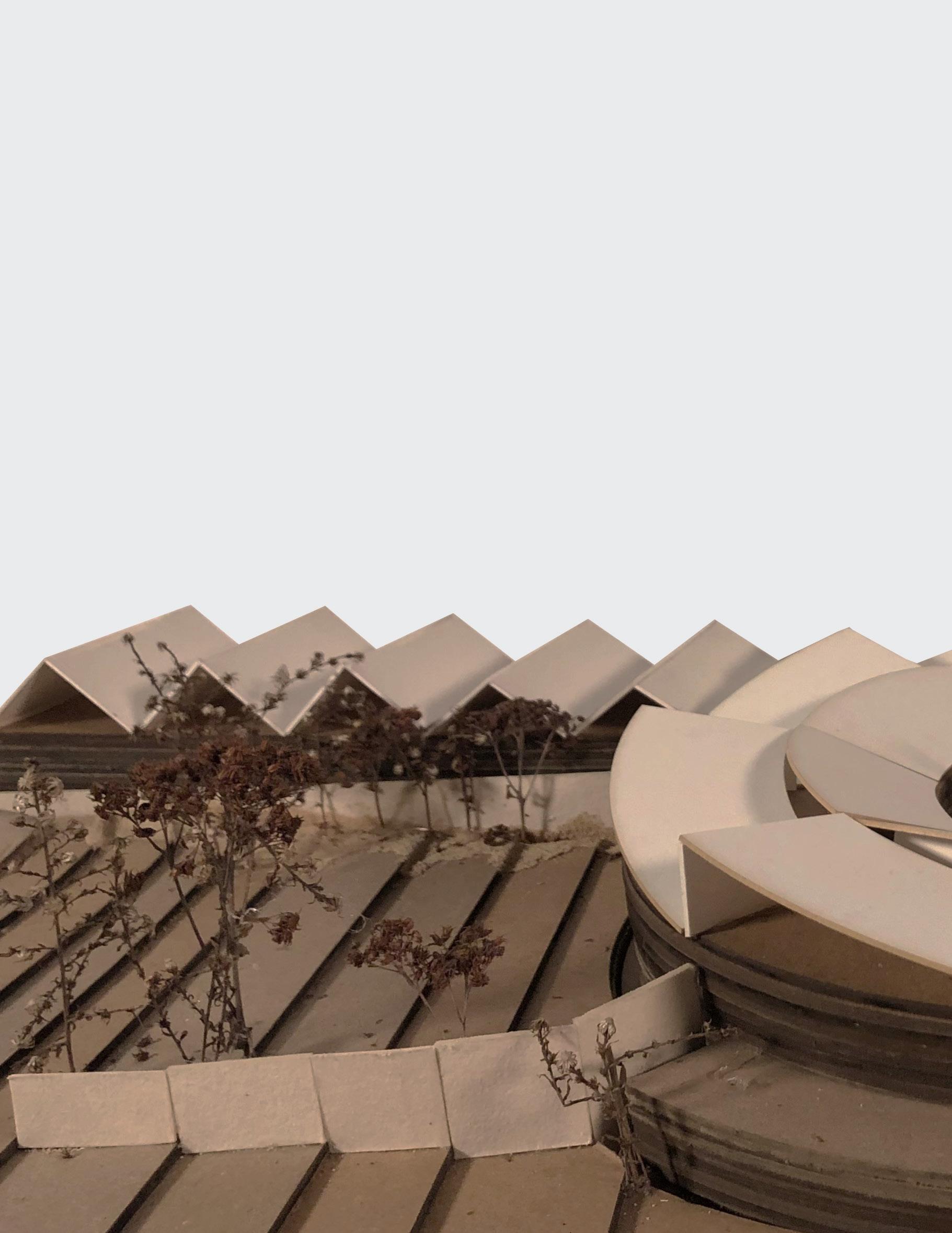

My priorities for this project were complex roofing systems, natural forms, and accomodating different teaching styles.

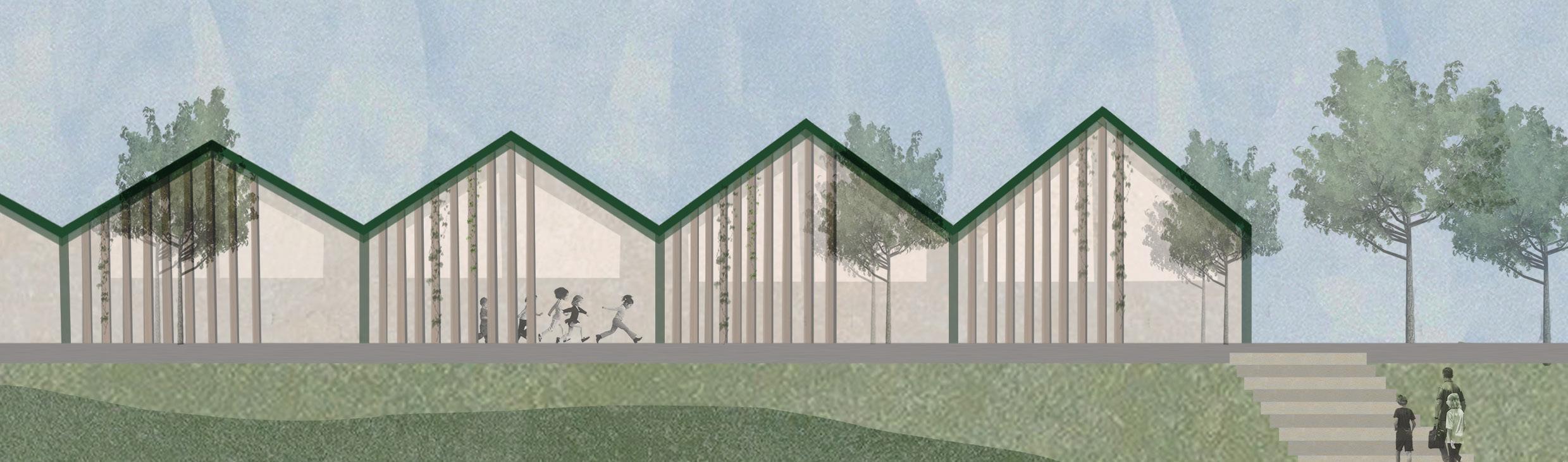

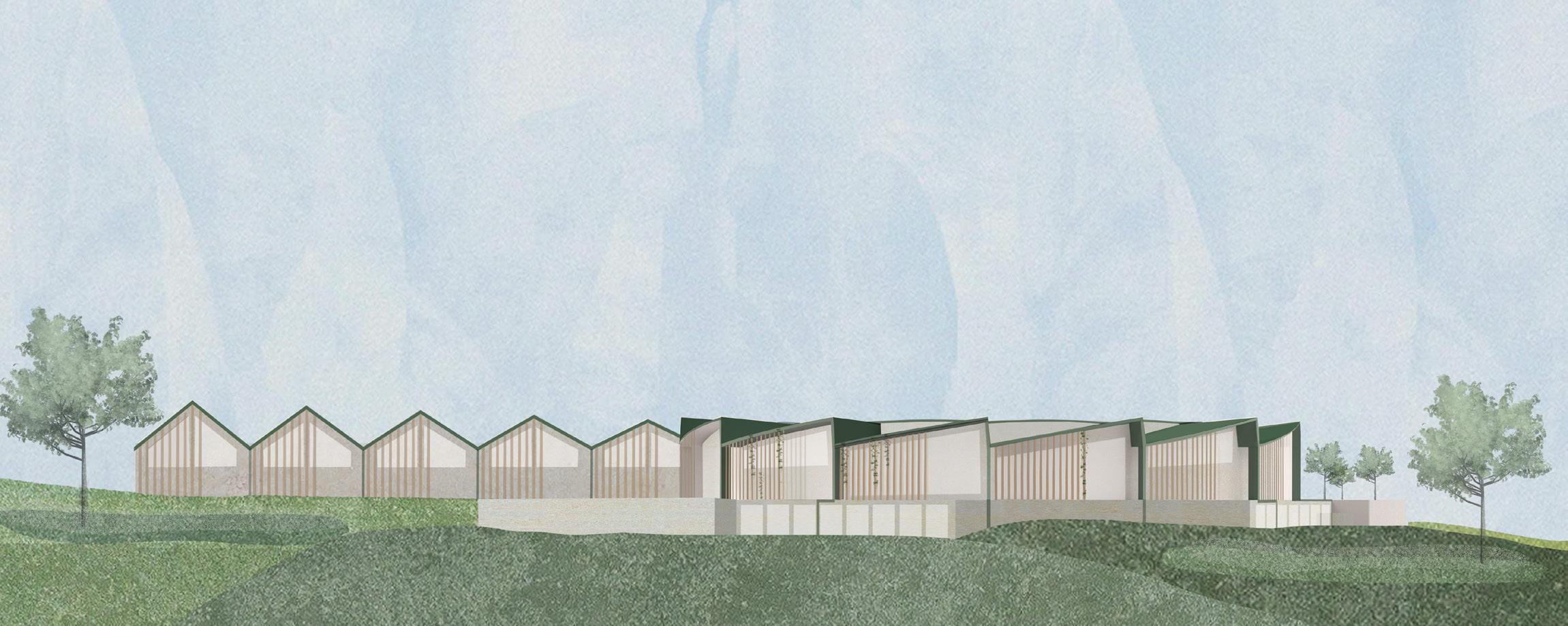

The roof was my star ting point. The form was dynamic and featured a dramatic change in geometry. The biggest challenge was finding the link between the two styles of roof structure.

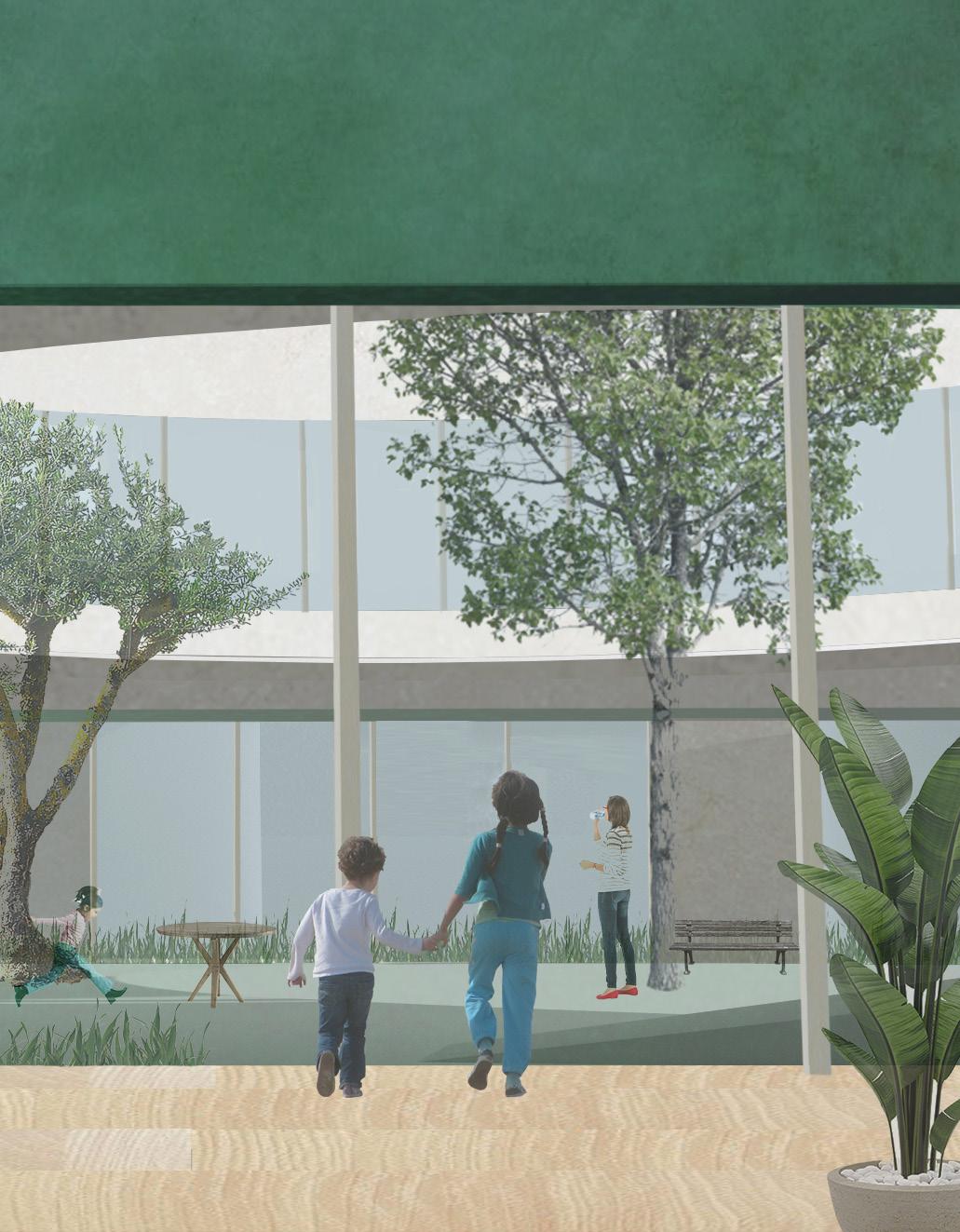

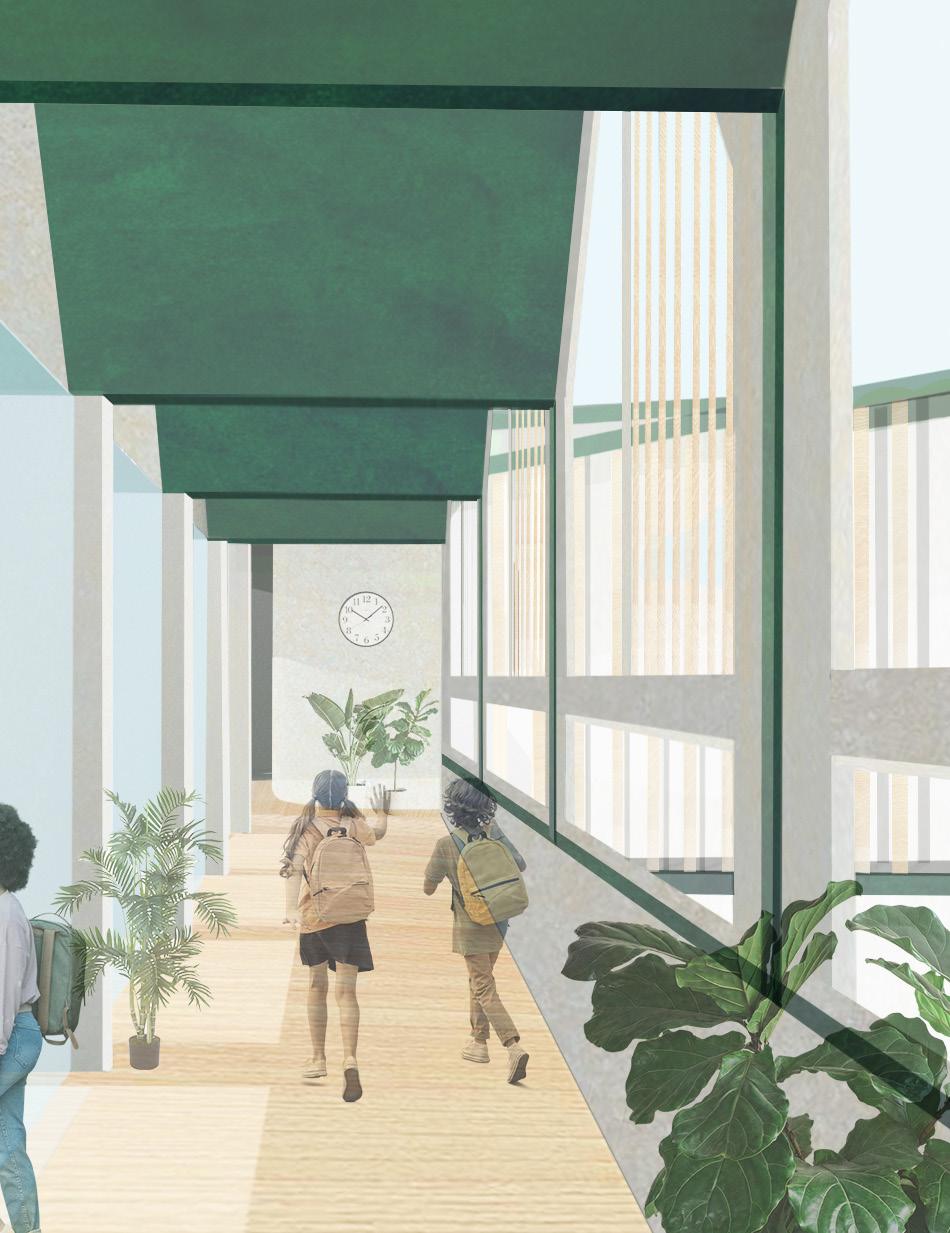

Natural forms as well as daylighting were essential to this project. An elementary school should be whimsical and energetic.

The students should feel engaged by the form and uplifted by the natural light.

SP22 Professor Karl Wallick Site: Riverwest, Milwaukee

34

35

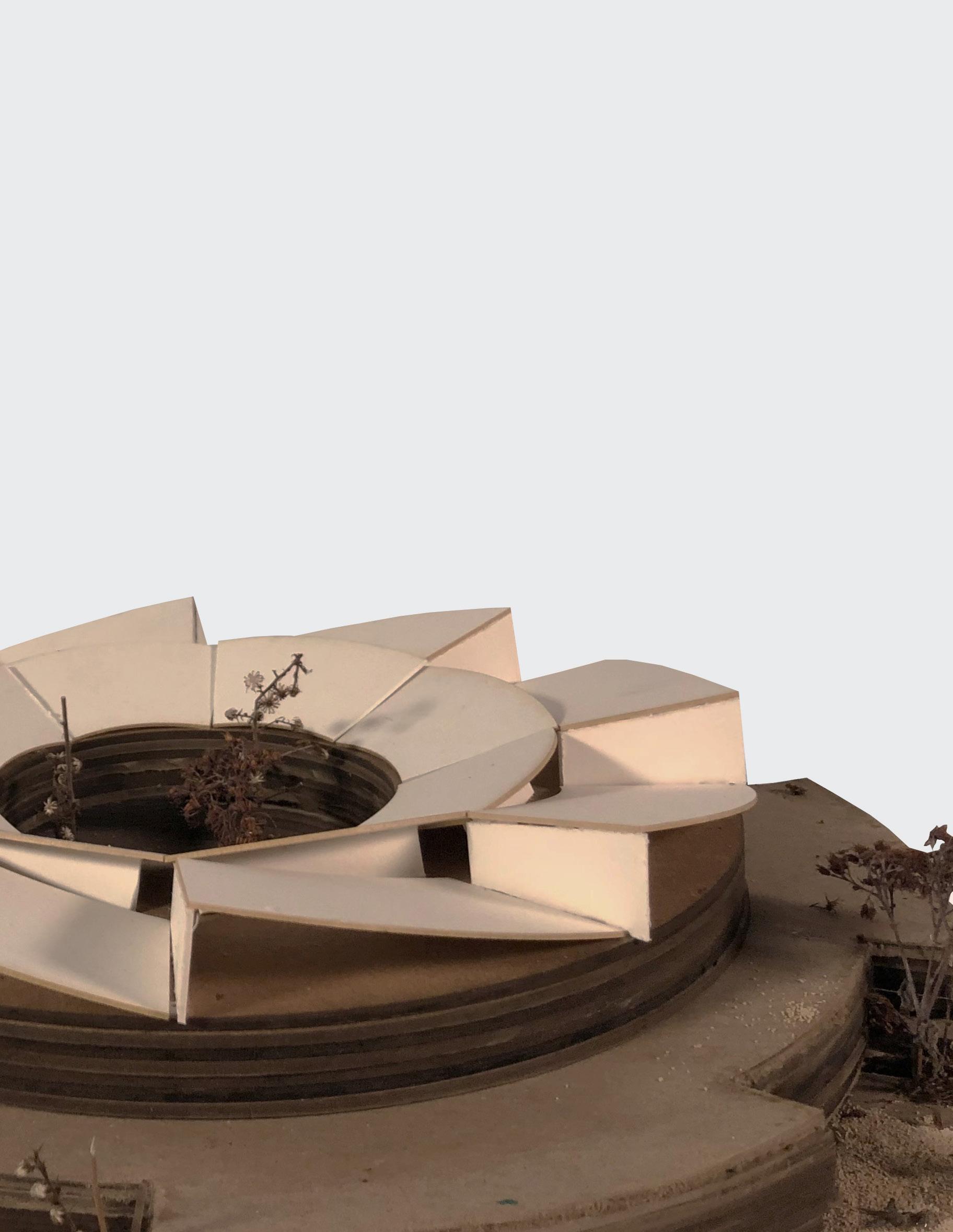

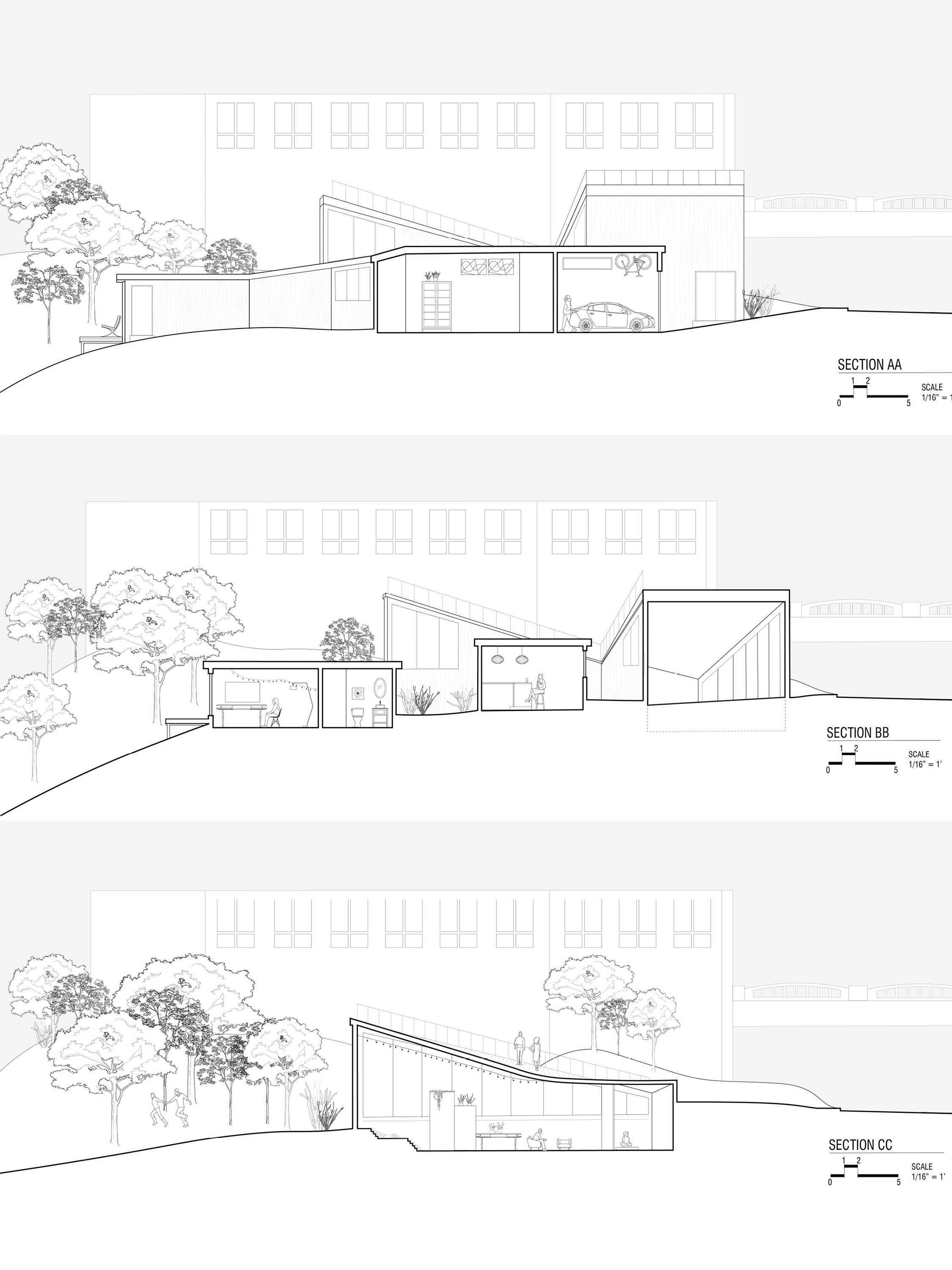

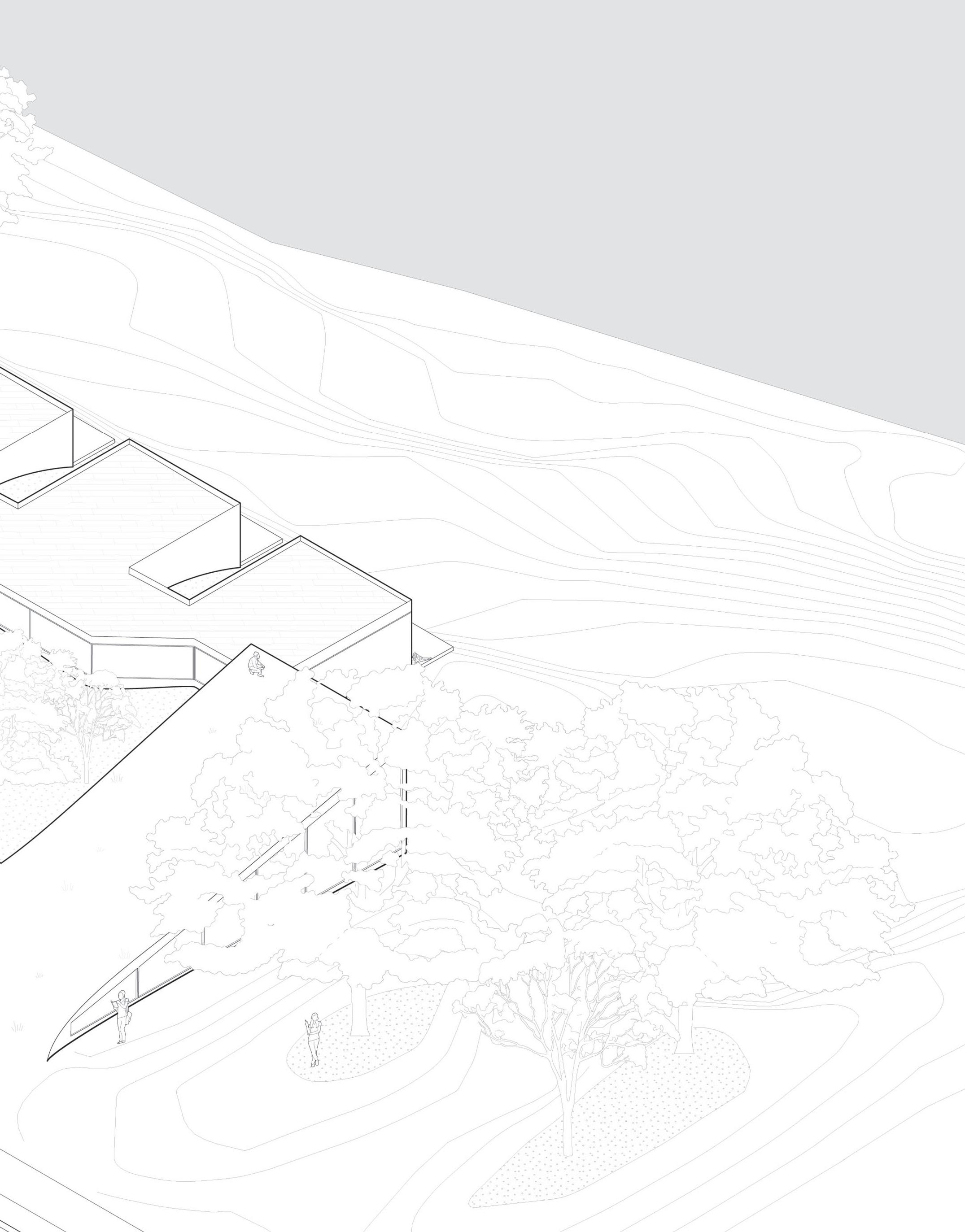

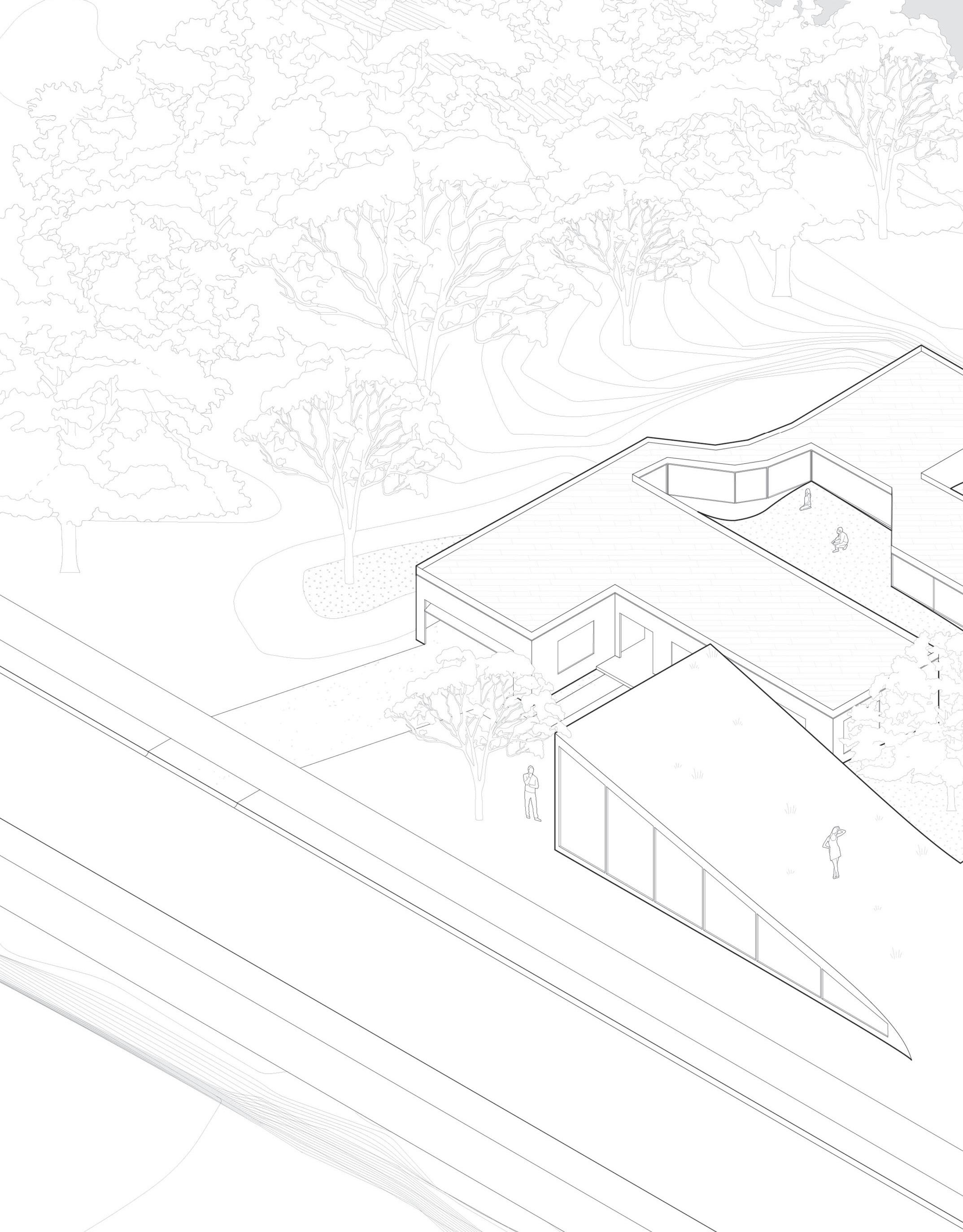

MODEL AND TOPOGRAPHY A big focus in this project was integrating the existing topography into the design of the building. The site featured a steep slope on the North and East ends.

Instead of ignore this change in topography and simply flatten the site, I decided to rework the site and sink the building into the landscape. This choice provided many advantages - underground parking, more control over apertures and lighting, and increased environmental connection for students and staff.

36

37

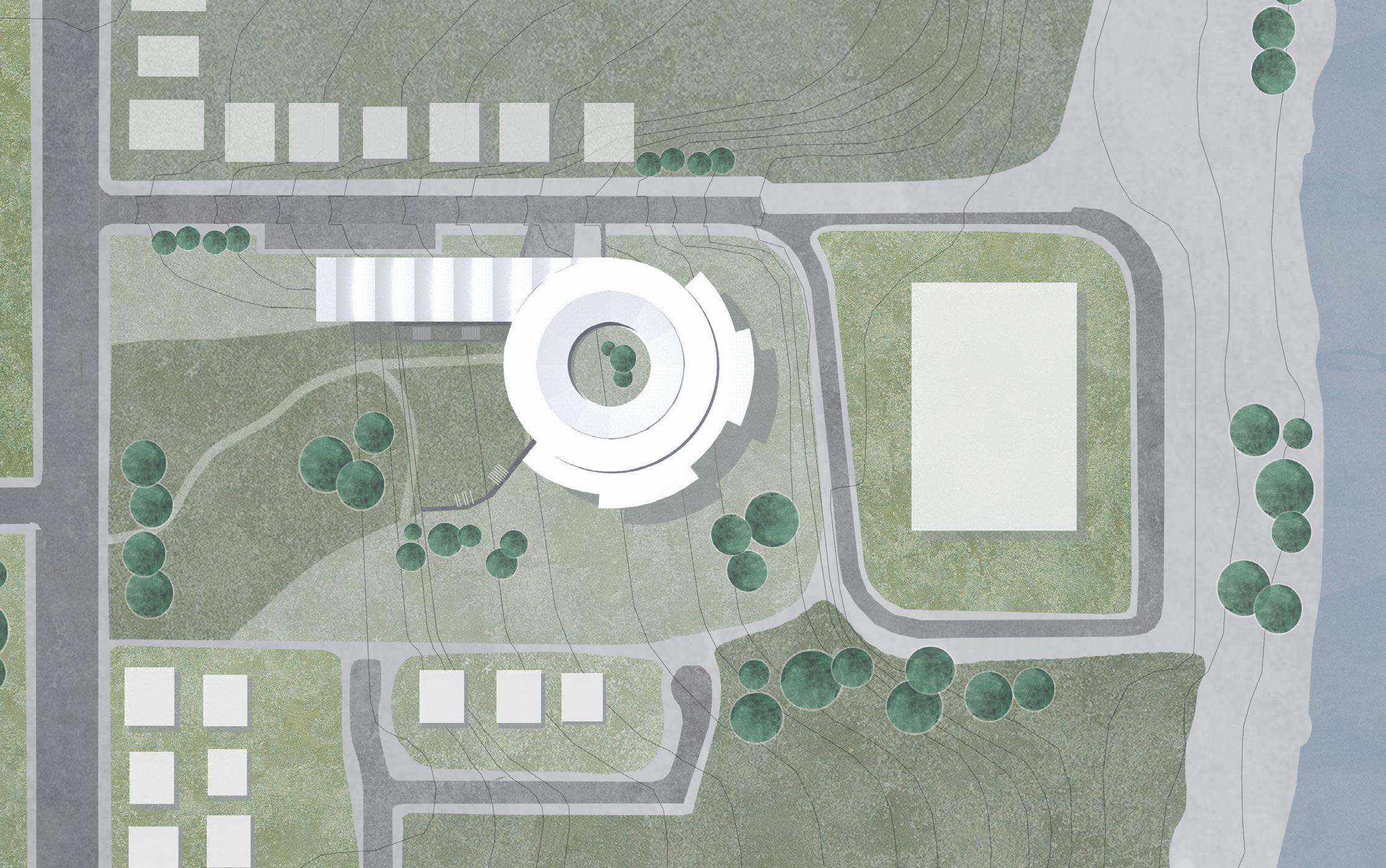

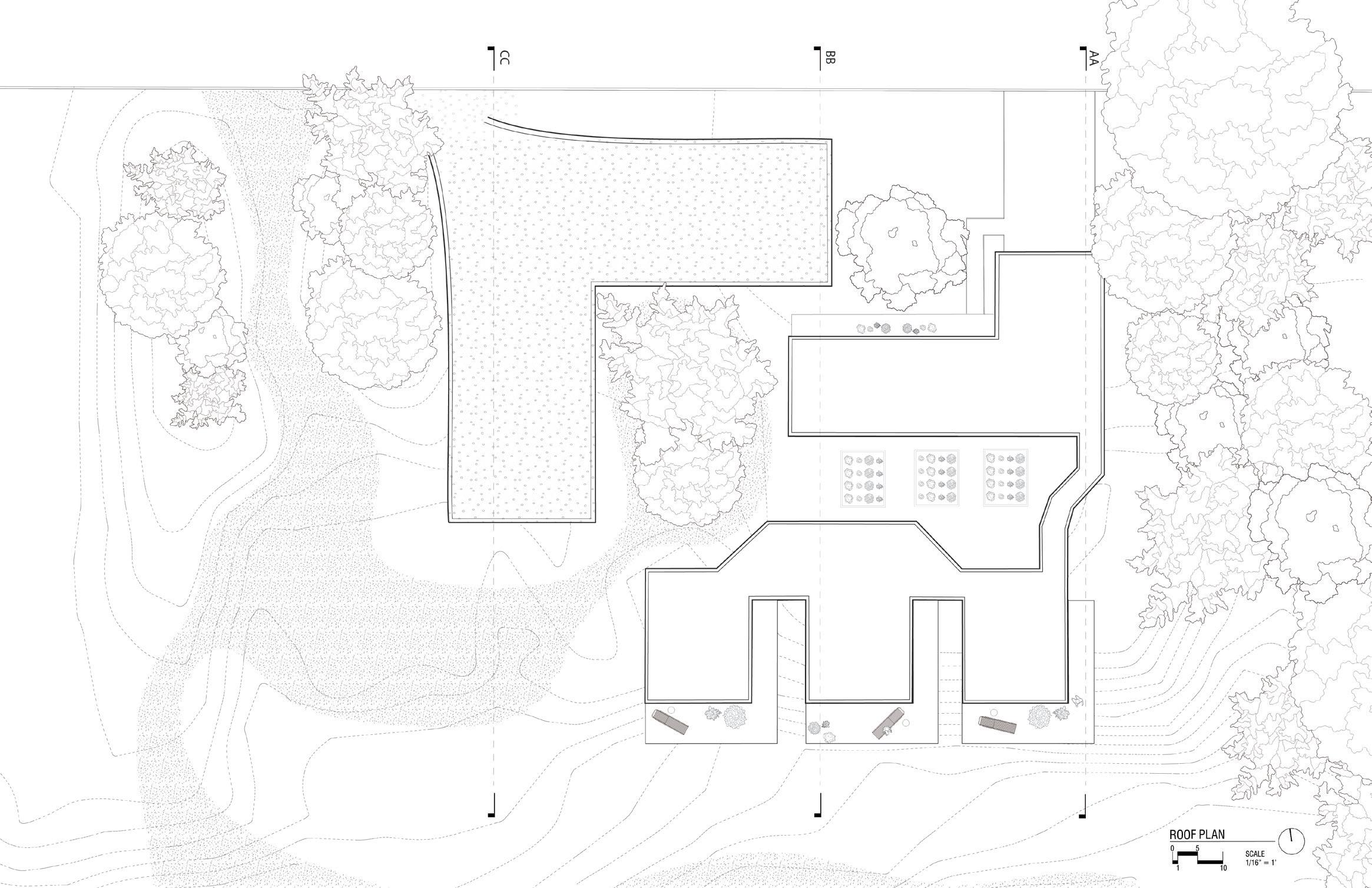

SITE PLAN 1/64” = 1’

38 640

642

644

646

648

650

652

654

656

658

660

FIRST FLOOR PLAN 1/16” = 1’

SECOND FLOOR PLAN 1/16” = 1’

39

40

41

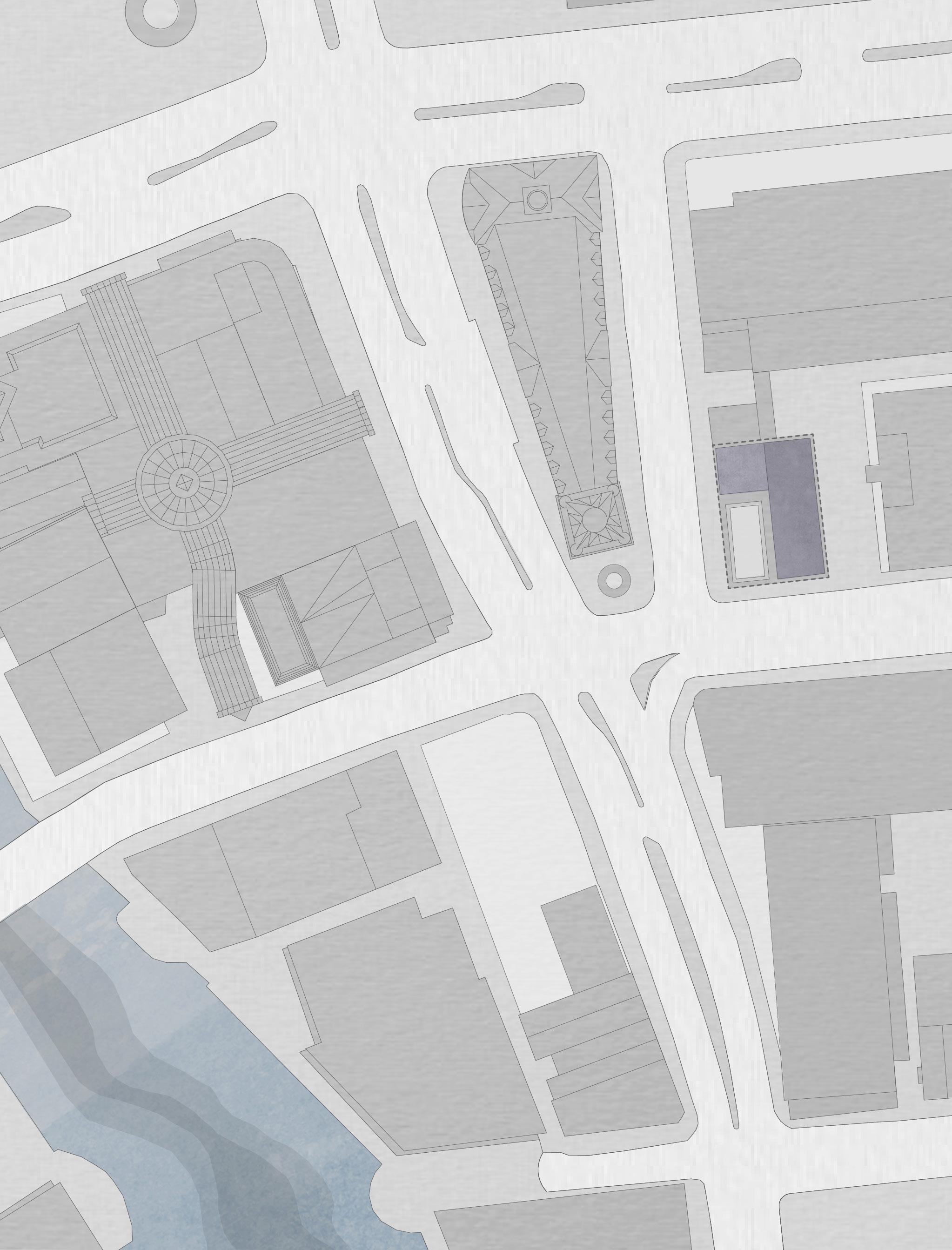

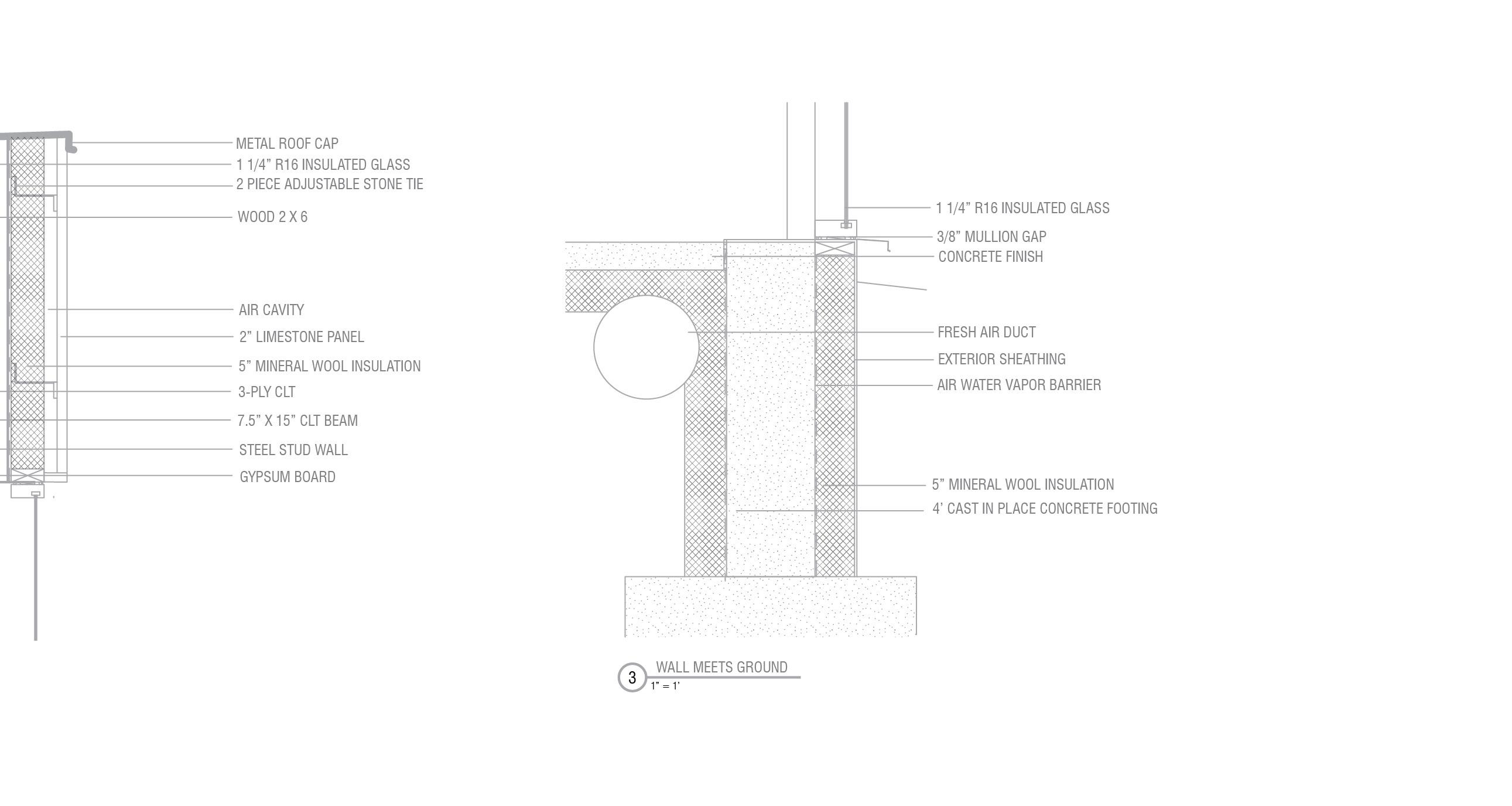

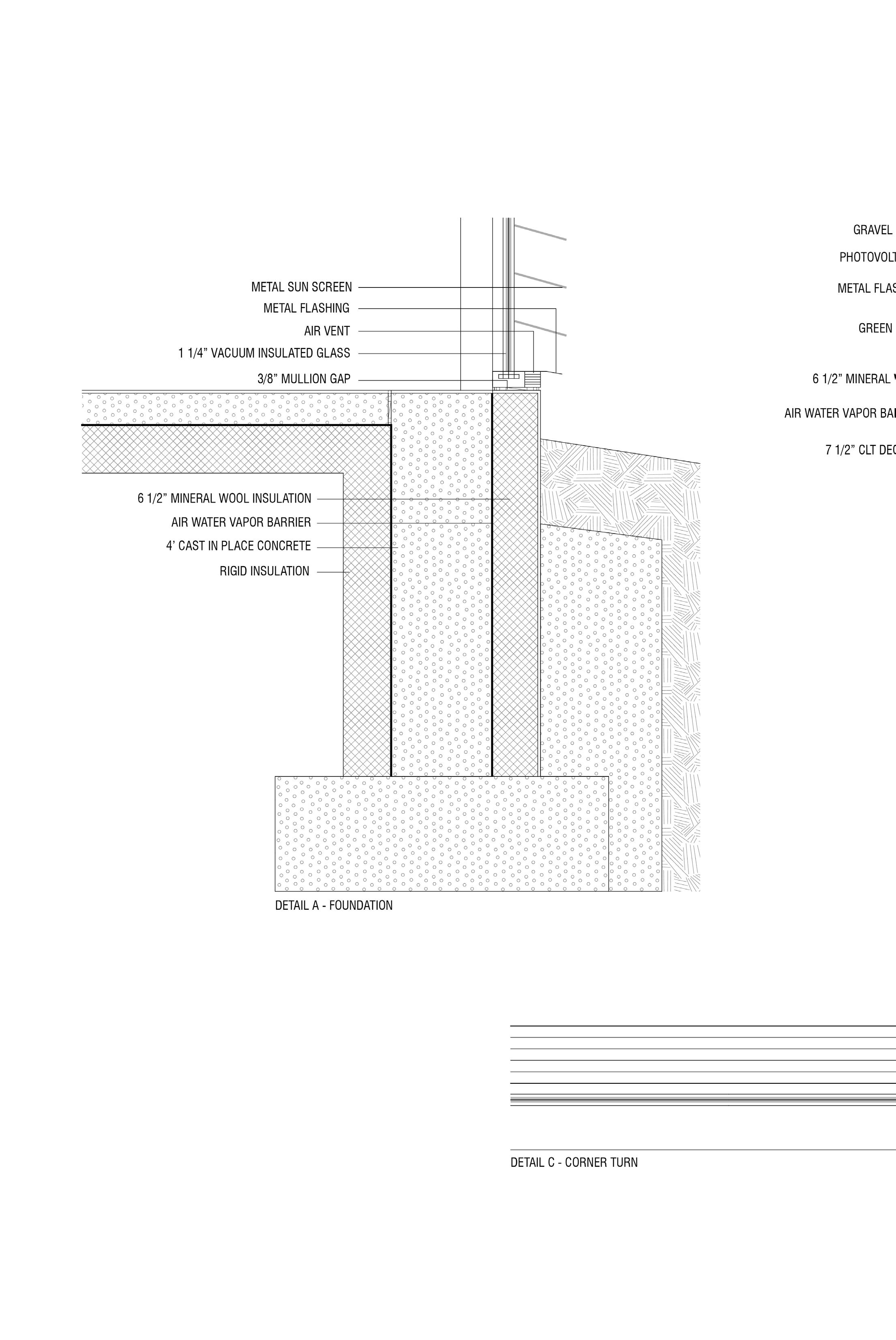

RARE BOOKS ARCHIVE Comprehensive studio required a complete set of design documents including site analysis, pre-design, design development, and construction documentation. We were asked to design a rare books archive for the city of Milwaukee, including a space for events and a public facing cafe to enliven the adjacent market street.

My design prioritized preserving the historical aesthetics of downtown Milwaukee while evoking modernity through exposed timber construction. I wanted to highlight the intimate interior space, emphasizing the beauty of wood in its different forms and appearances.

In a dense urban environment, the building stands out as a unique ar tifact with historical connotations.

FA23 Professor Jim Shields Site: Downtown Milwaukee 4

5

55

N 6

LEVEL 1

LEVEL 2

LEVEL 3

N

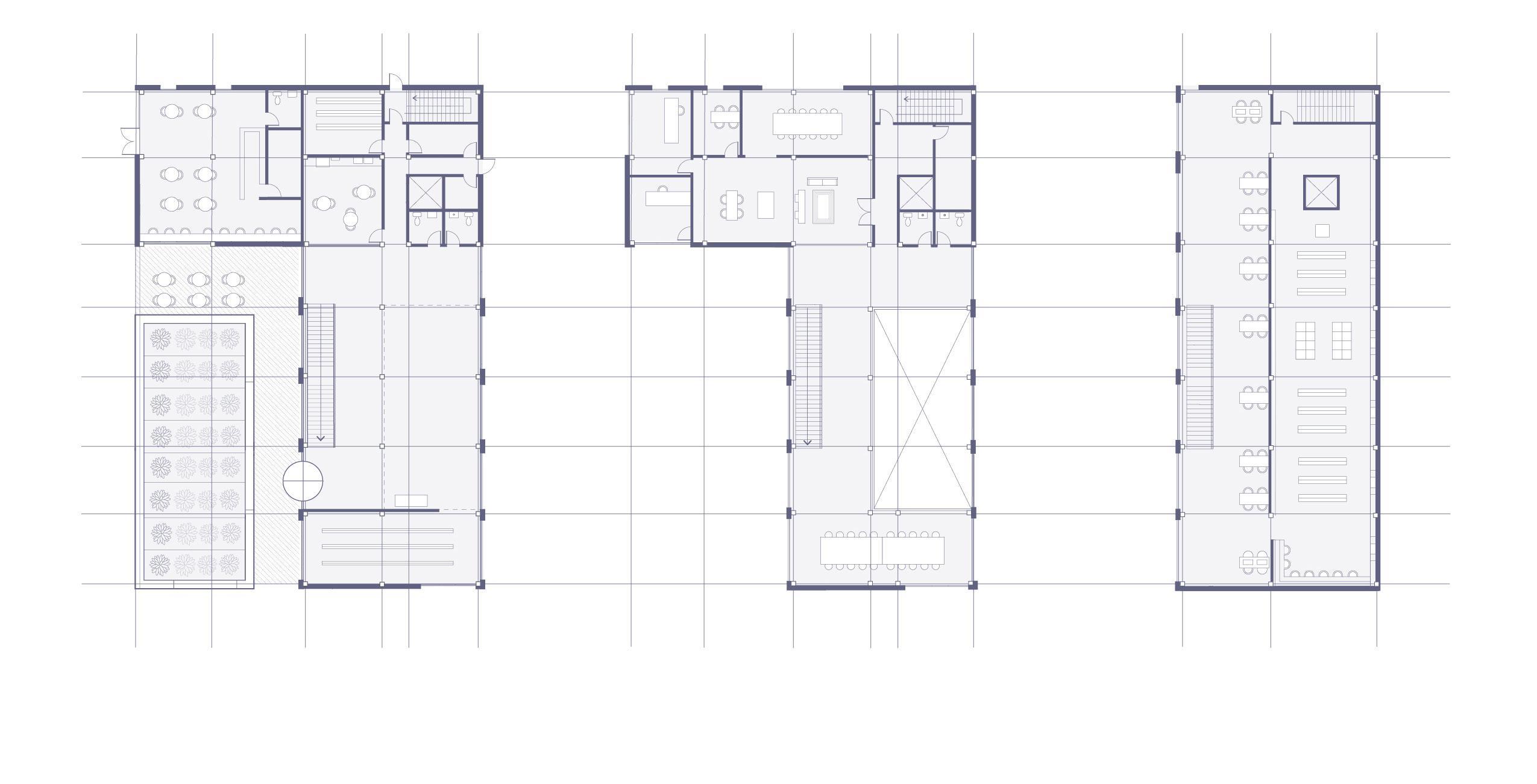

A simple, L-shaped plan offers simple and effective circulation throughout the space. The single run, lateral stair creates a unique experience when traveling from floor-to-floor - supplimented by beautiful views of the adjacent city hall. A large, open lobby is a perfect event space and offers a double height atrium.

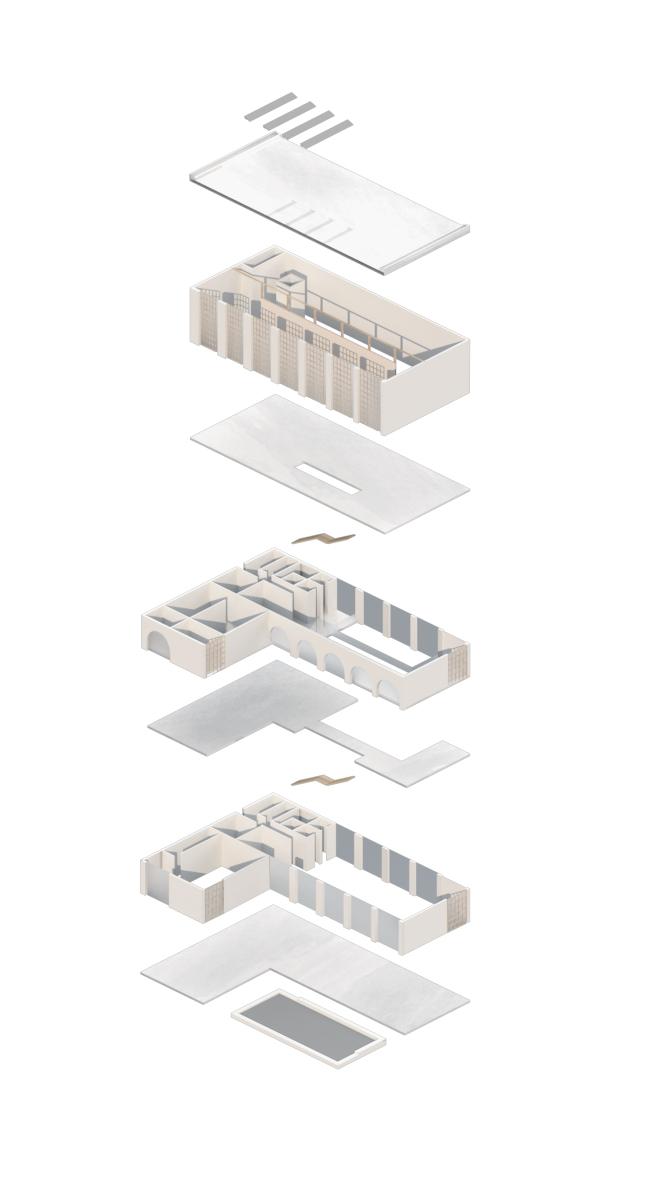

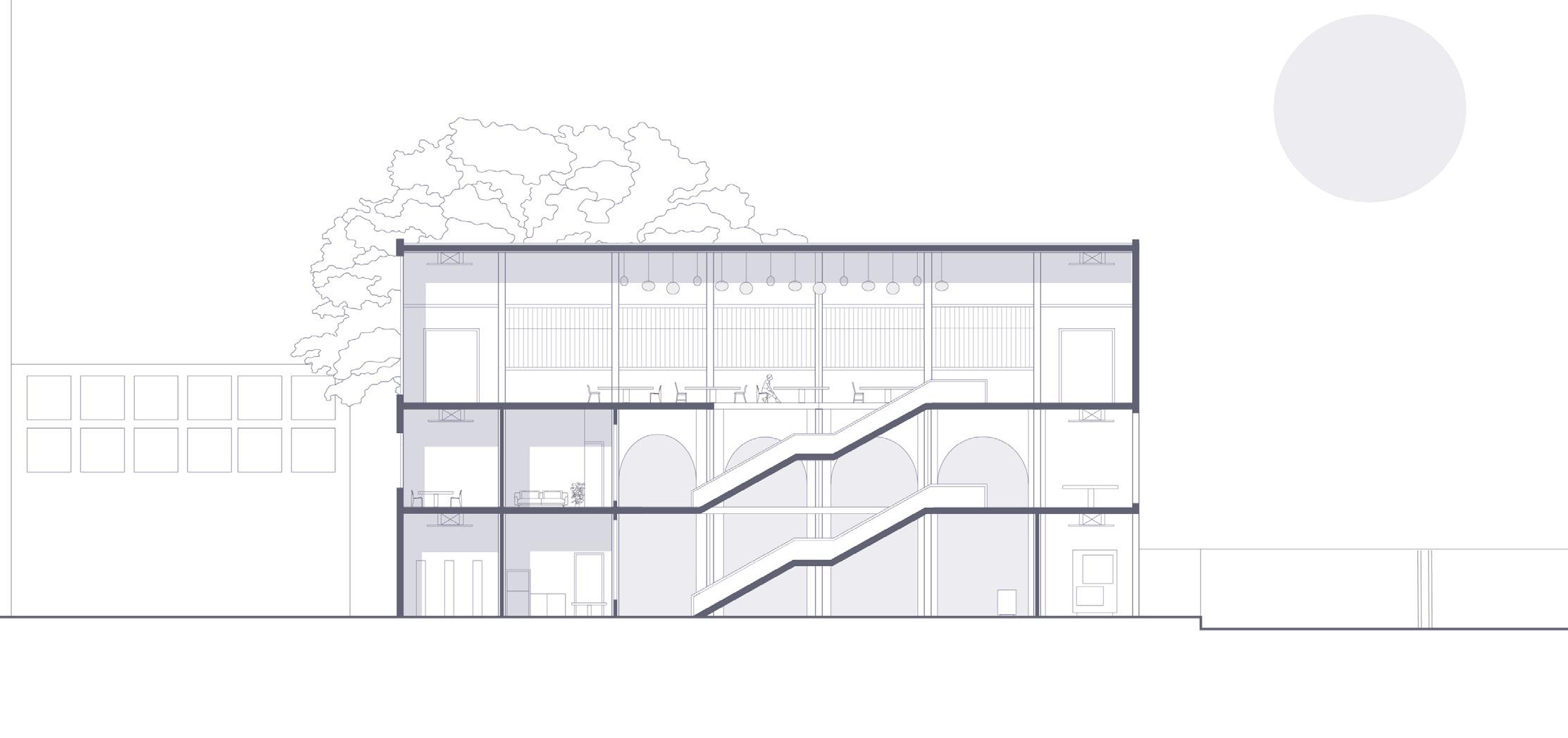

LONGITUDINAL SECTION

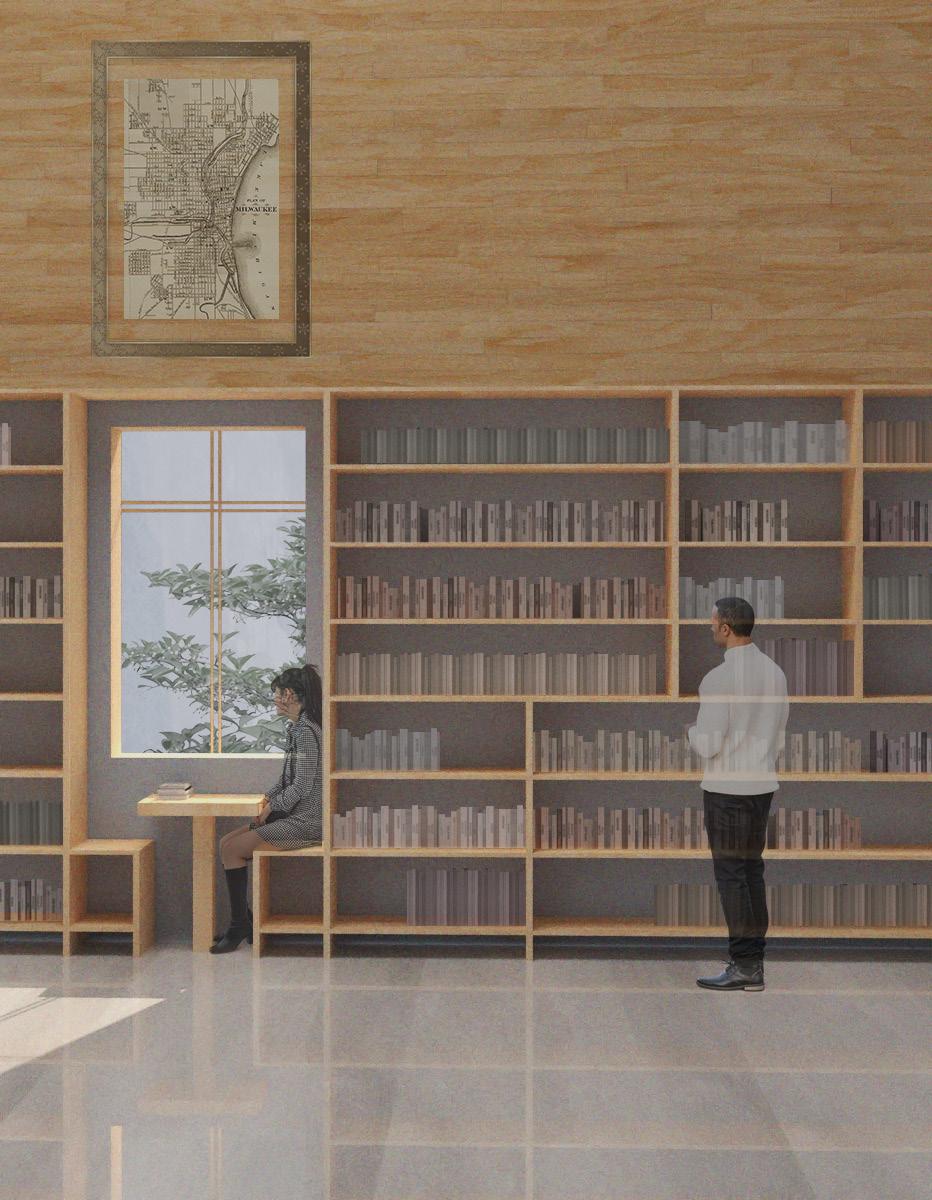

The third floor hosts the jewel of the building - the reading room and collection stacks. The reading room doubles as a circulation space, highlighting views and natural light. The space effortlessly transitions into the collection stacks, allowing patrons to browse and read freely.

7

8

9

10

11

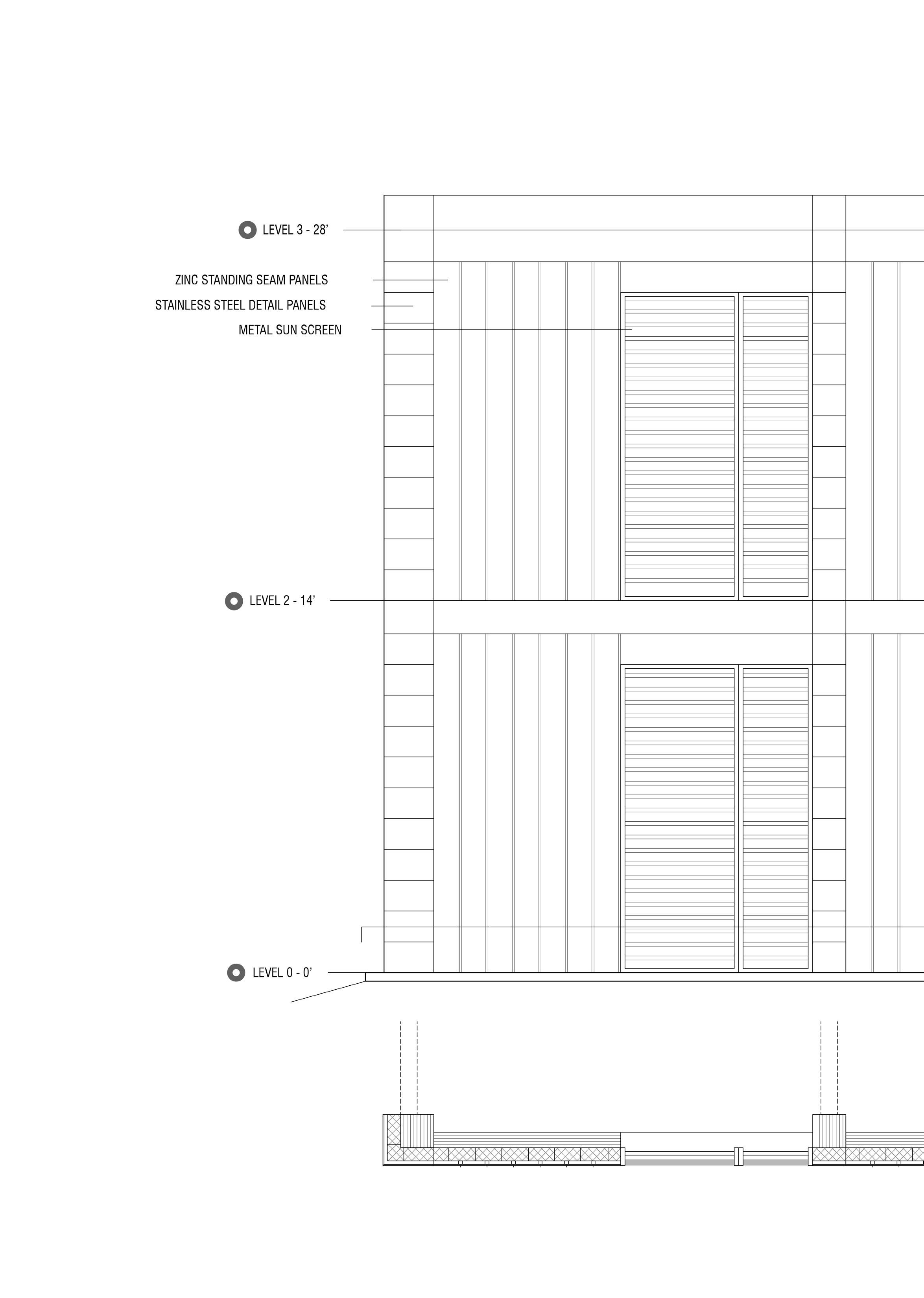

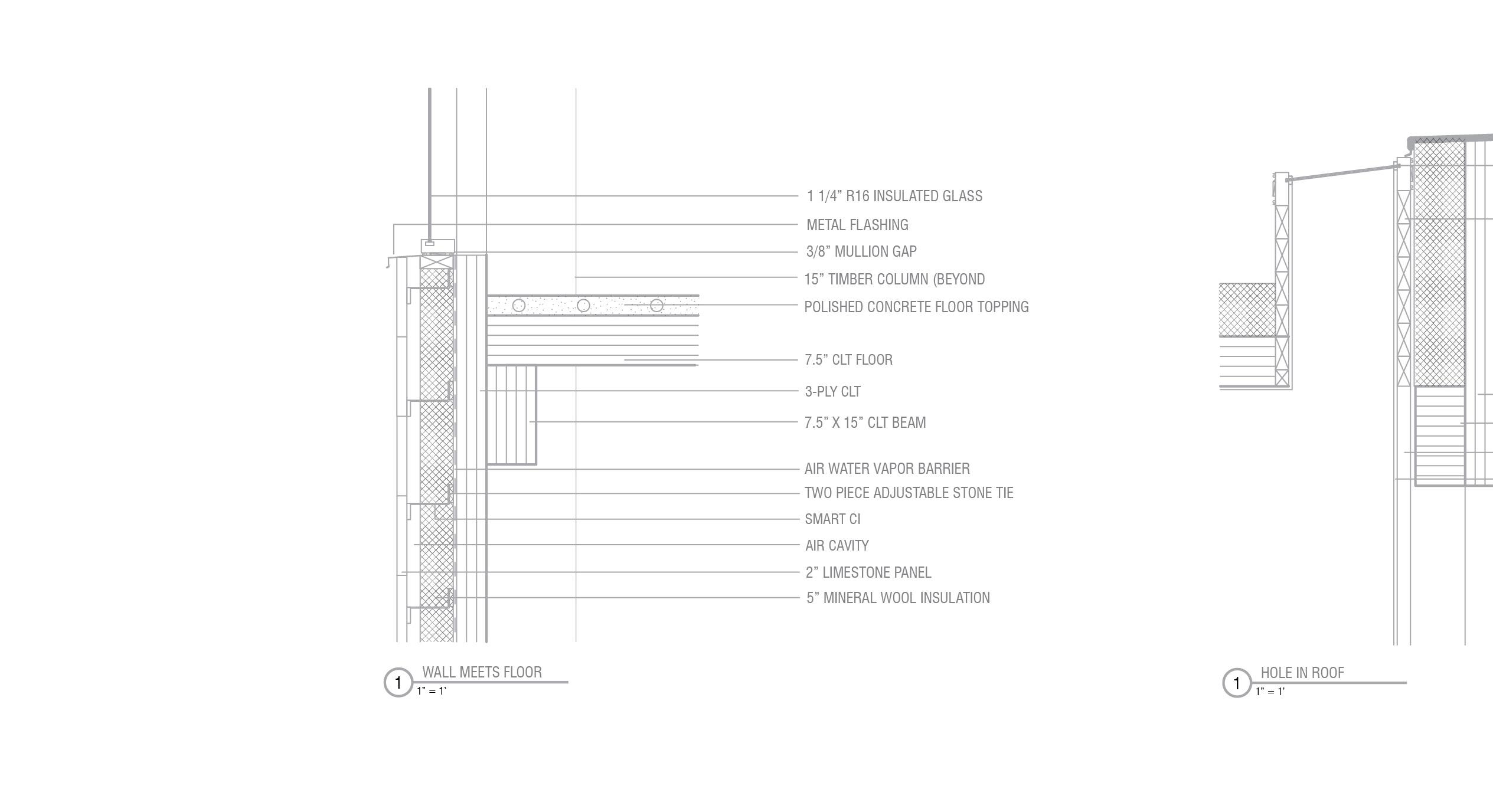

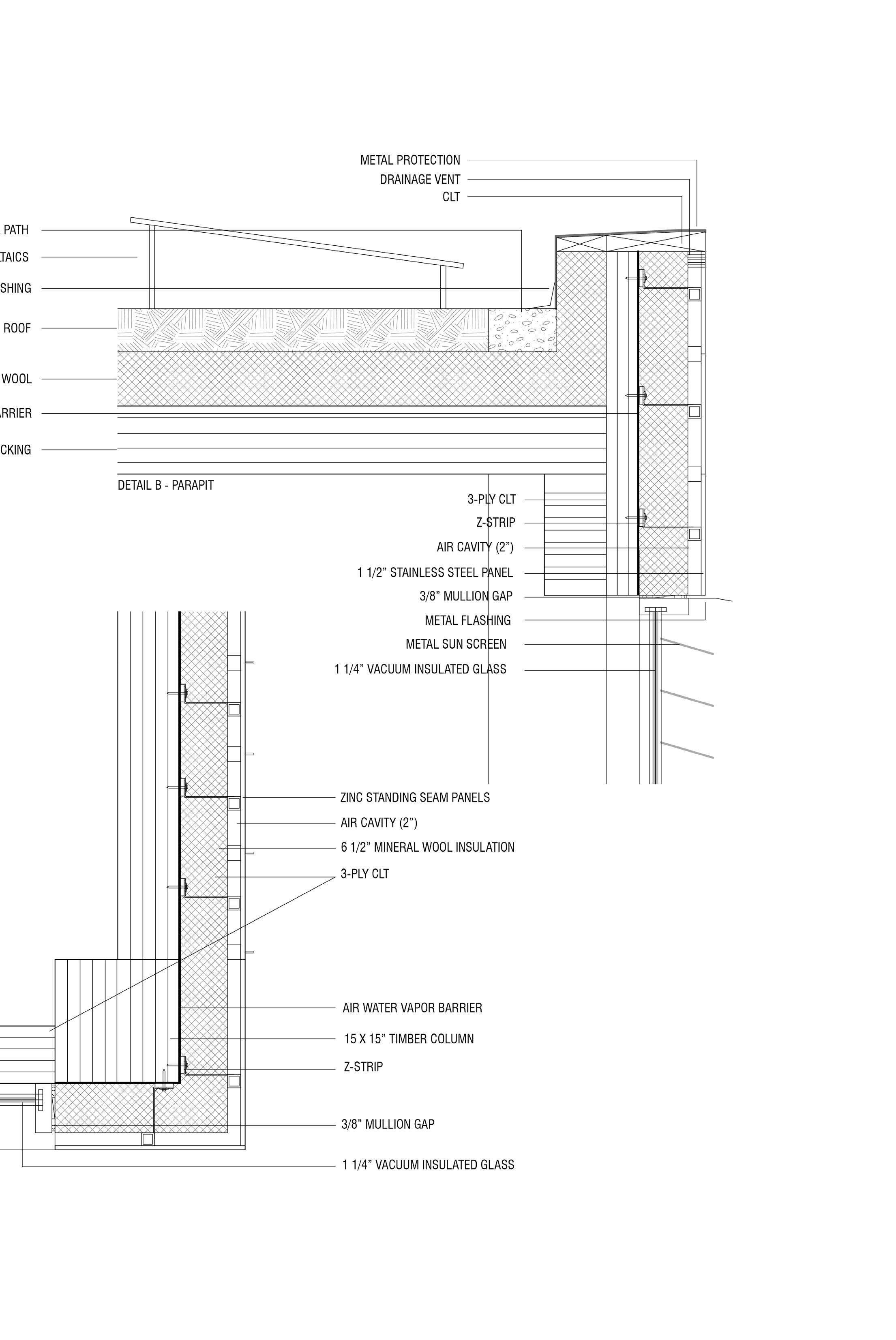

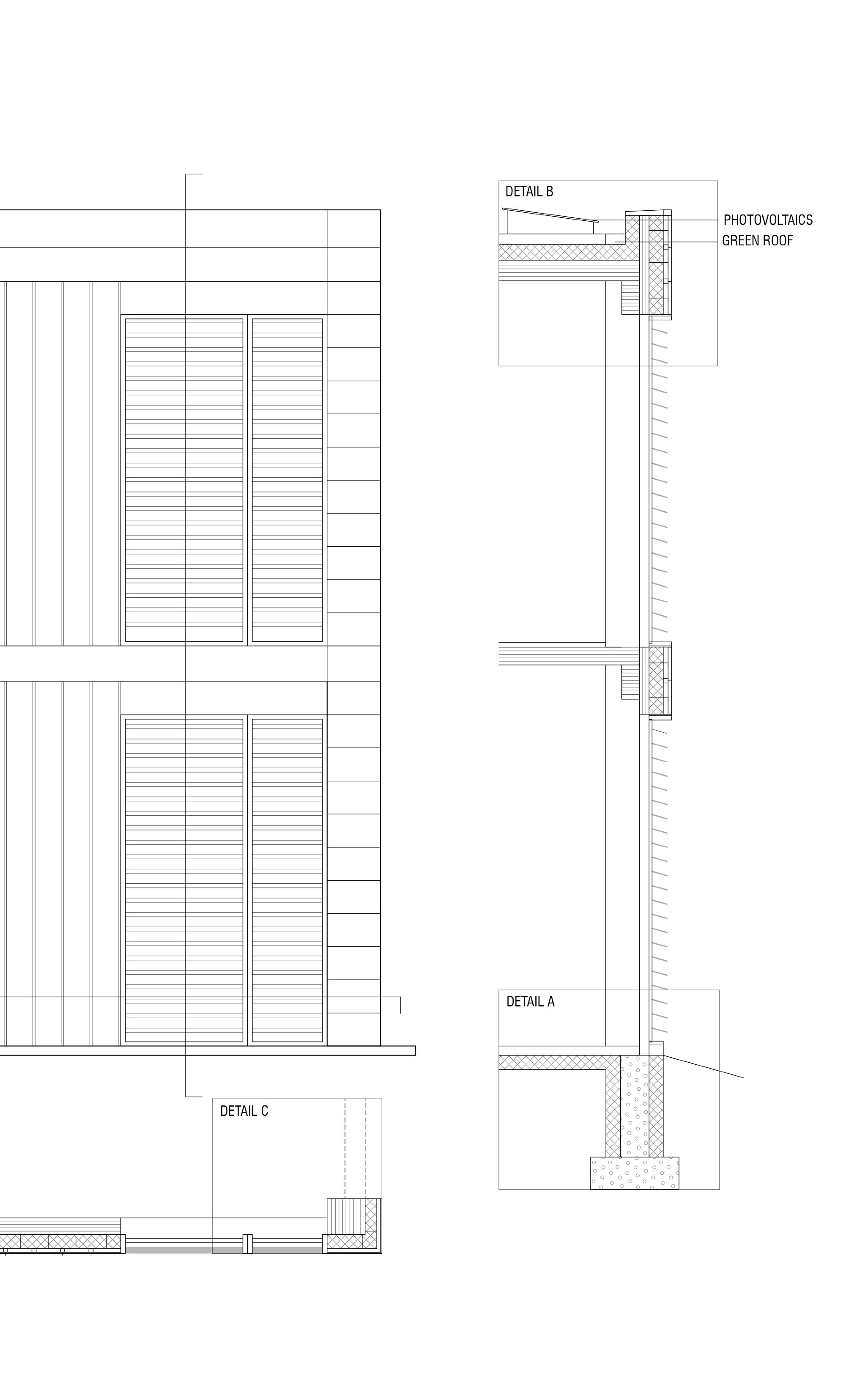

ROOFTOP PV PANEL

HORIZONTAL SKYLIGHT

FIRE STAIR INTERIOR CLERESTORY

MULLION GRID

POLISHED CONCRETE FLOOR

LATERAL STAIR

RESTROOMS & STORAGE

ATRIUM POLISHED CONCRETE FLOOR LATERAL STAIR

MULLION GRID

GARDEN BOX

12

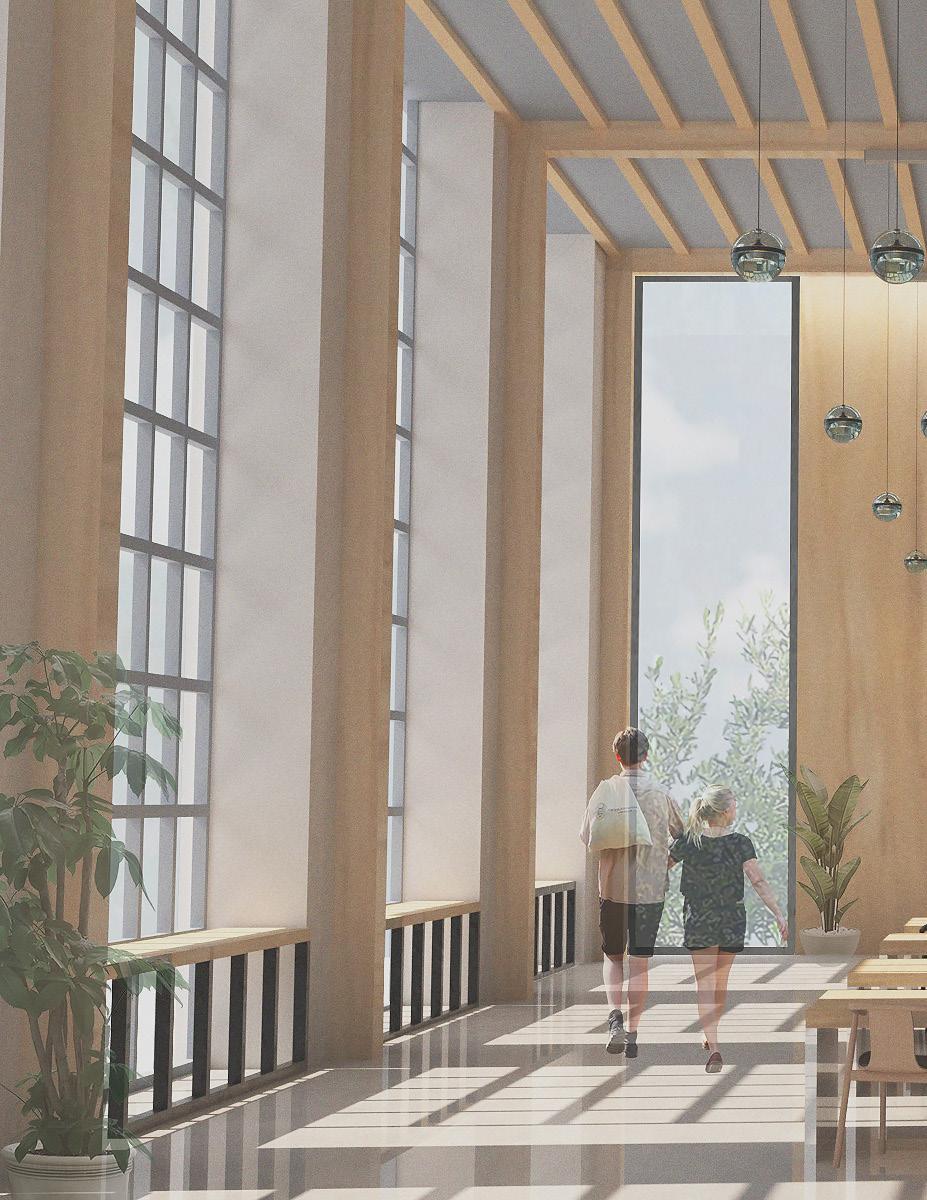

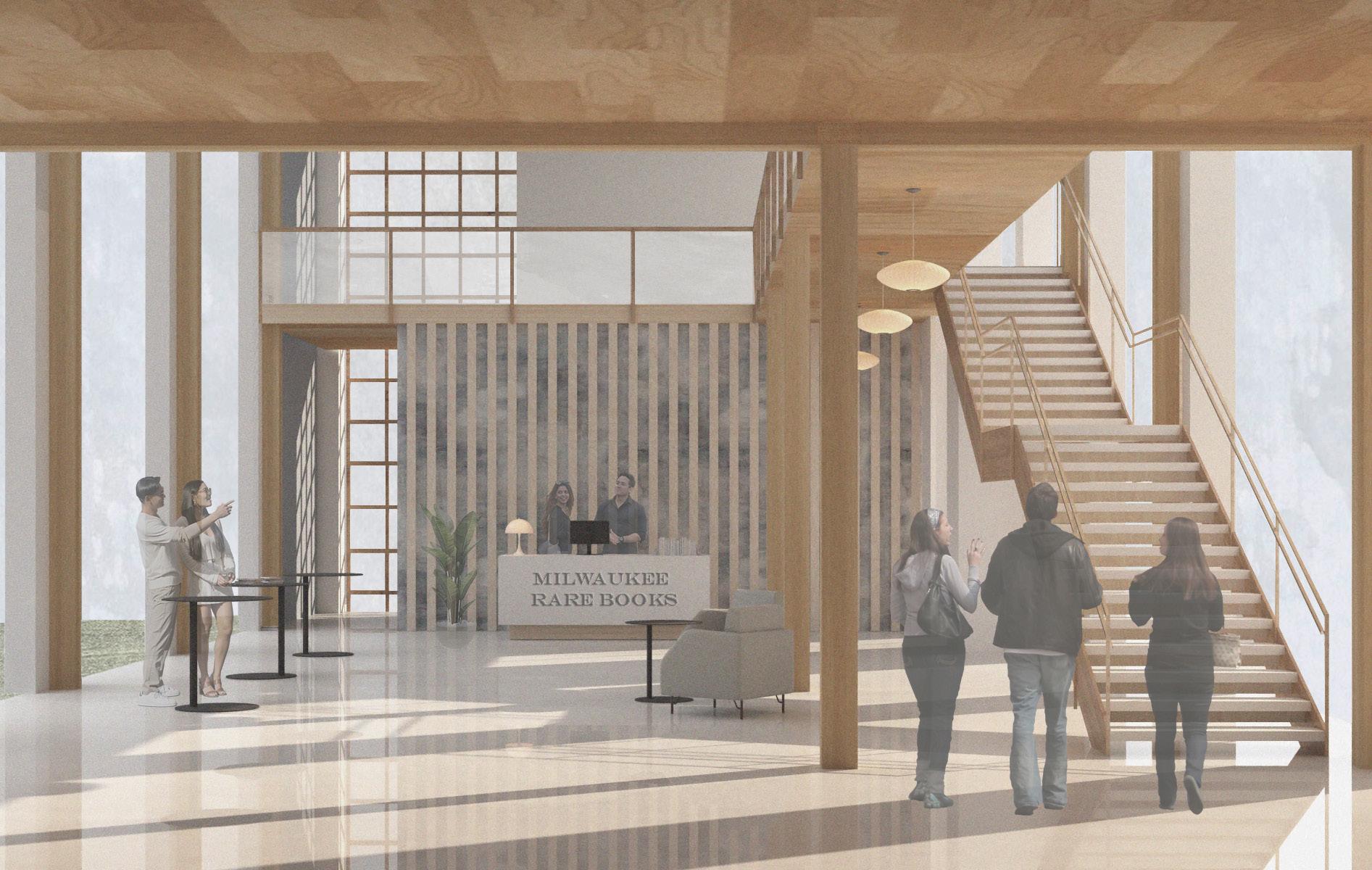

INTERIOR RENDER - LOBBY

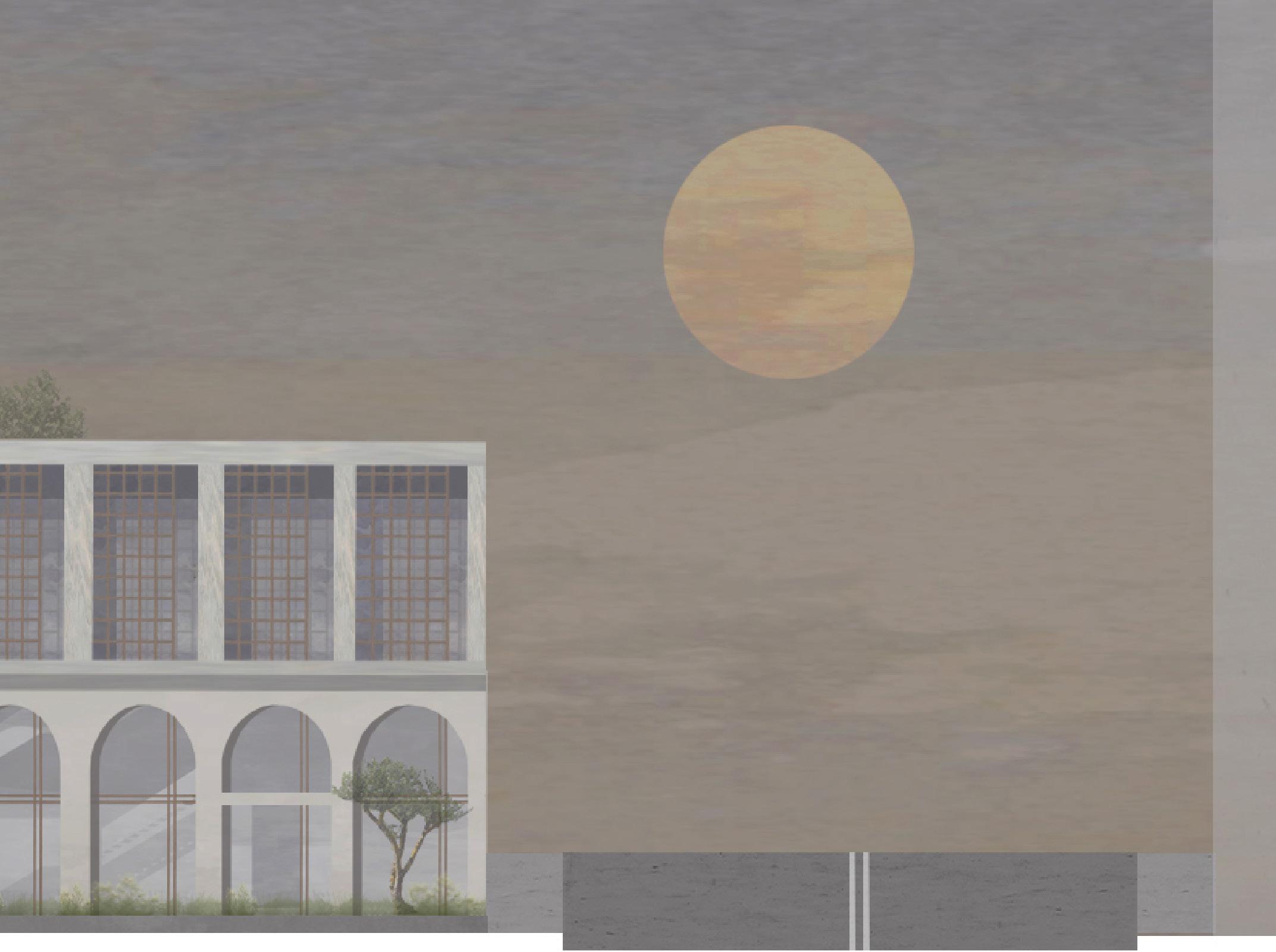

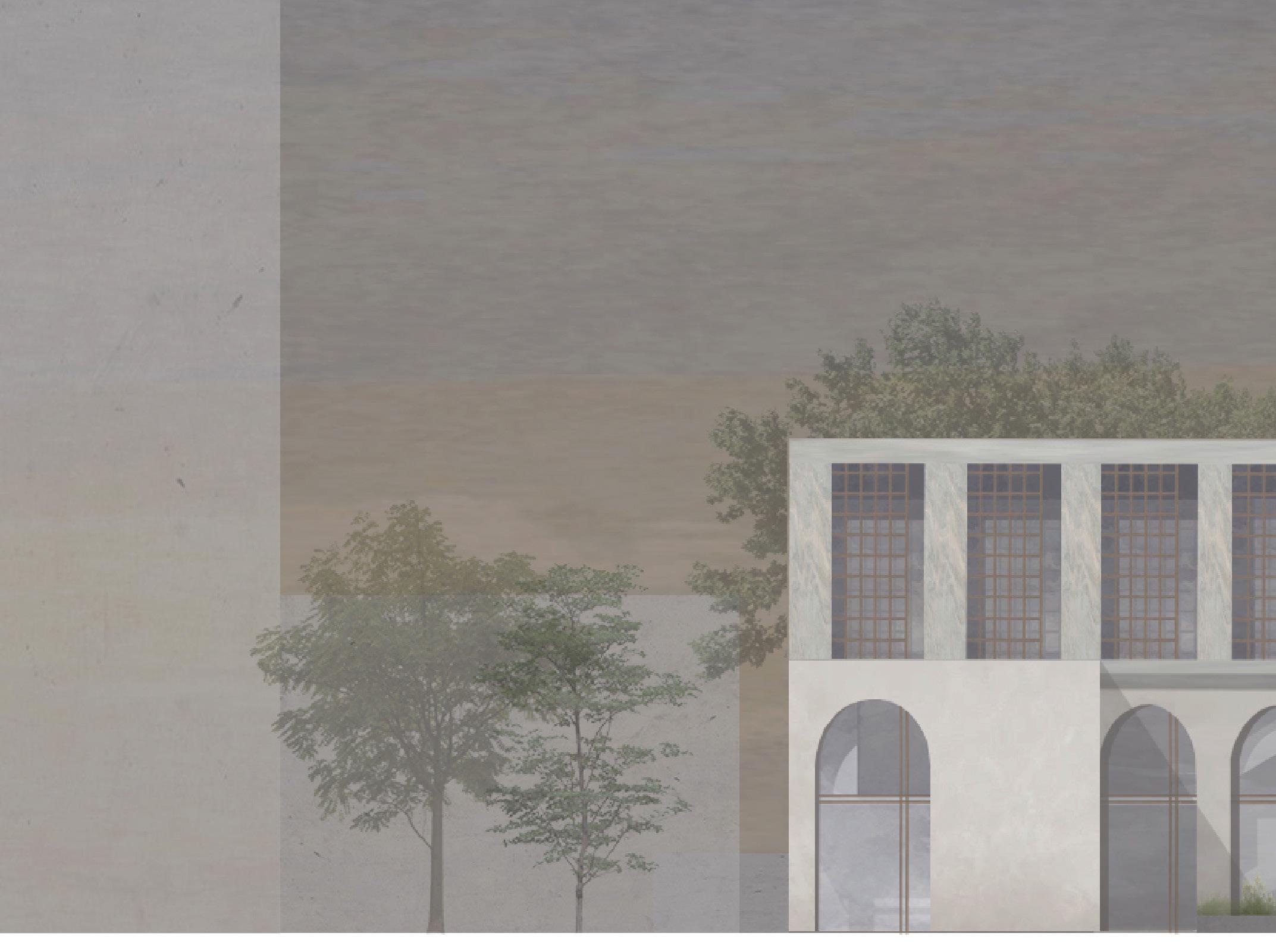

EXTERIOR RENDER - ENTRY

13

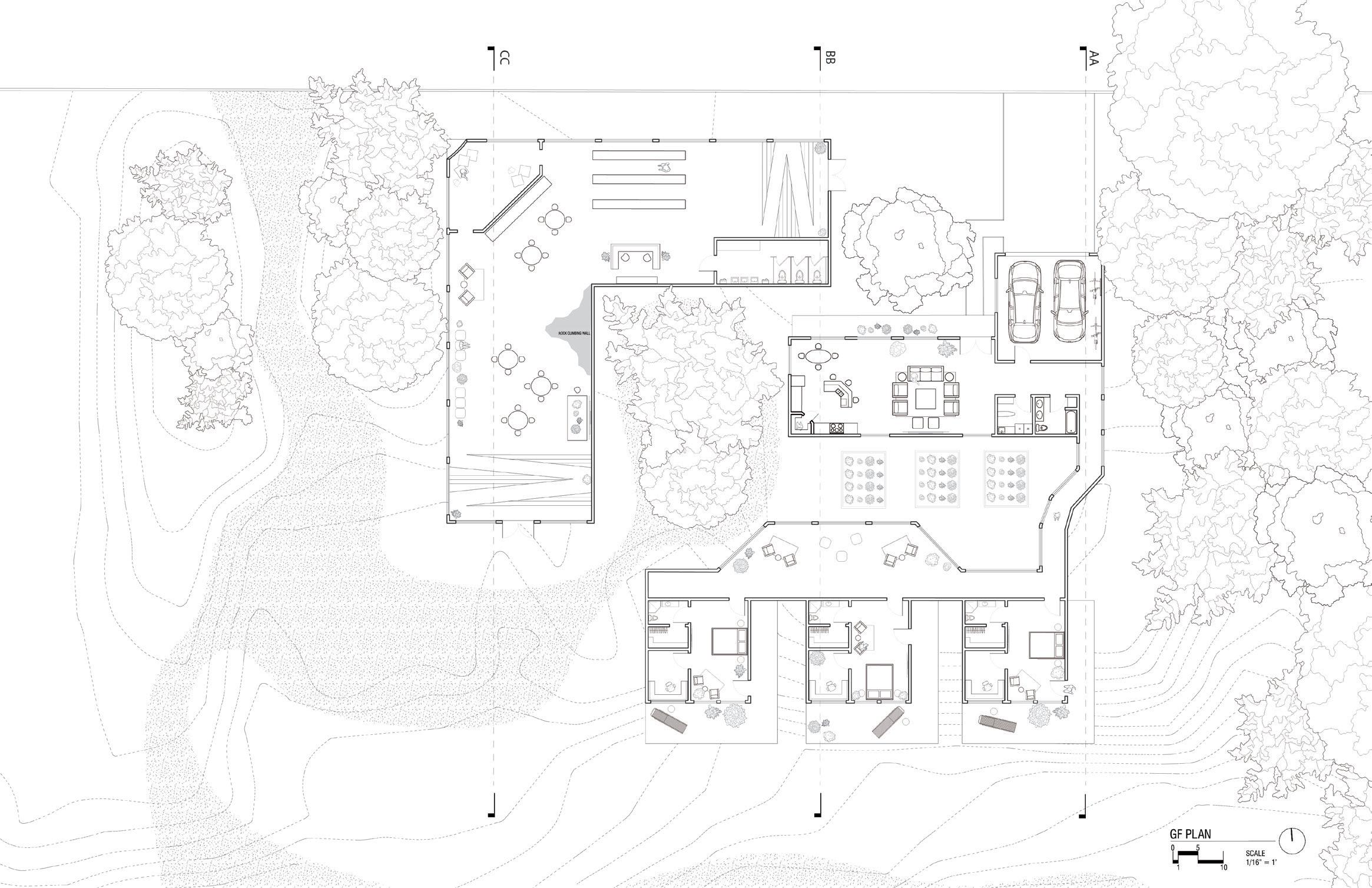

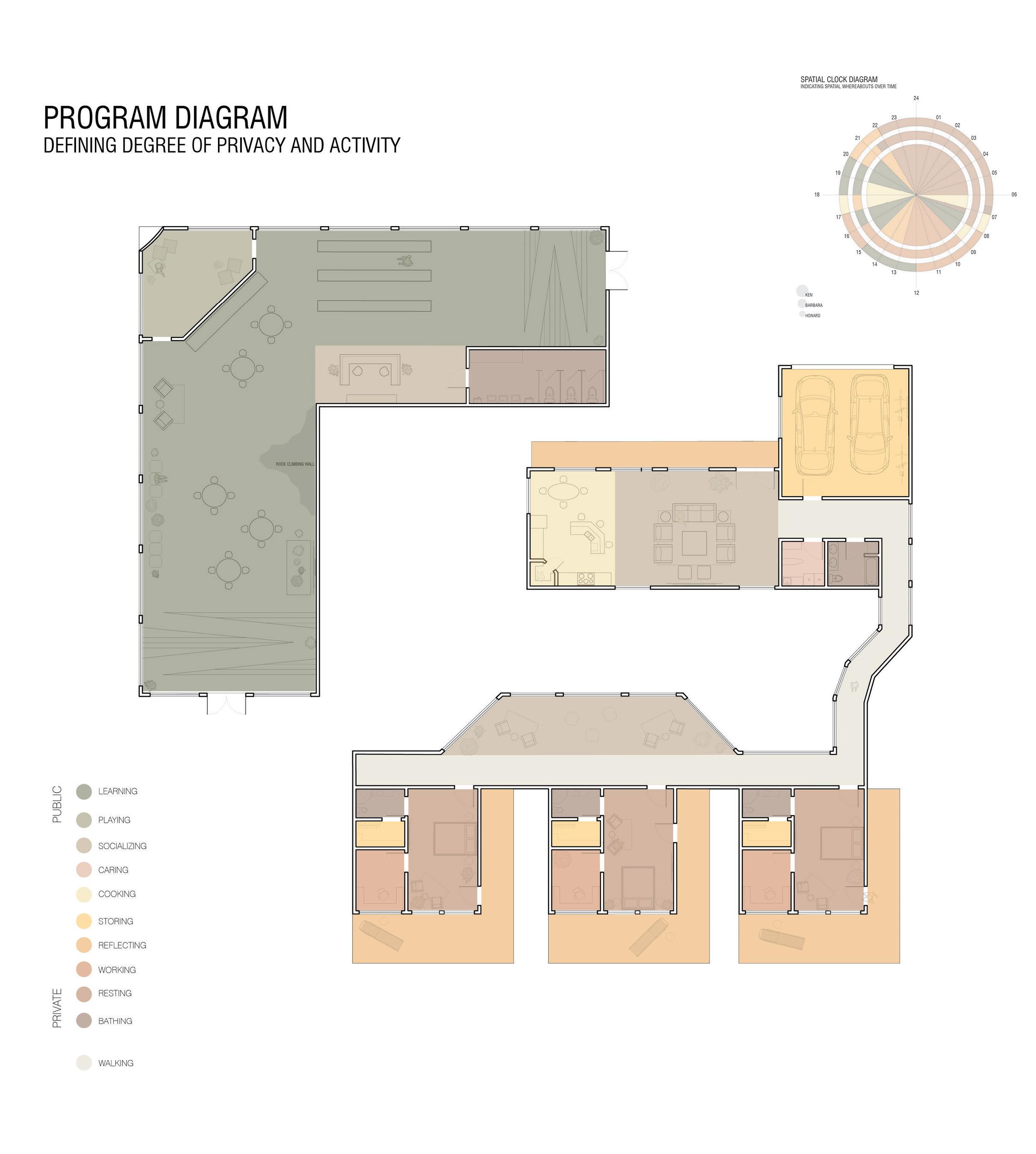

BEND HOUSE In this group project, we were tasked with designing a co-living structure for three prominent figures in Milwaukee. Our assigned site featured a dramatic slope on the edge of the Milwaukee river. We designed a modular living quarters as well as a community center to complete this SUPERjury award winning project.

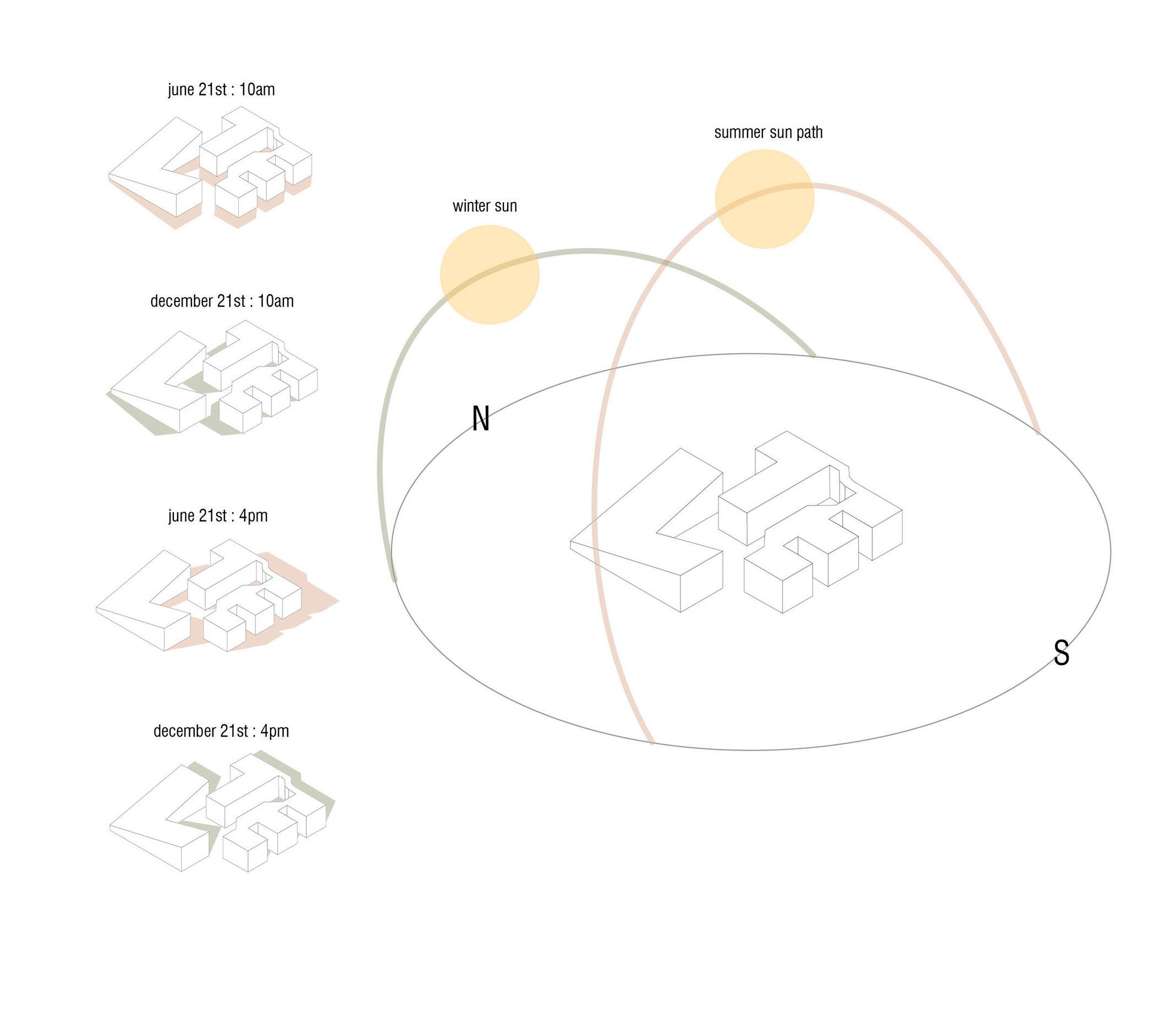

Our priorities for this project were the distinctions between private and public spaces, daylighting, and integrating our form into the existing topography.

SP21 Professor Trudy Watt Collaboration with Alana Dunne Site: Riverwest, Milwaukee

20

21

22

23

24

25

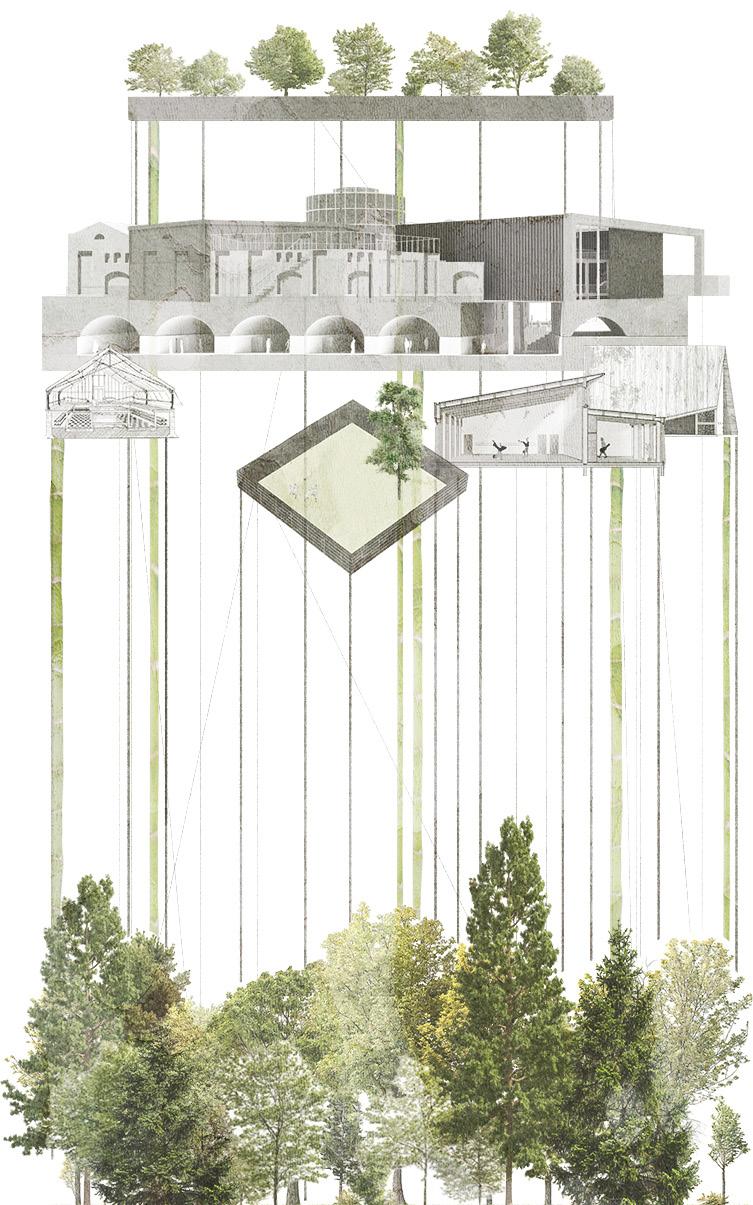

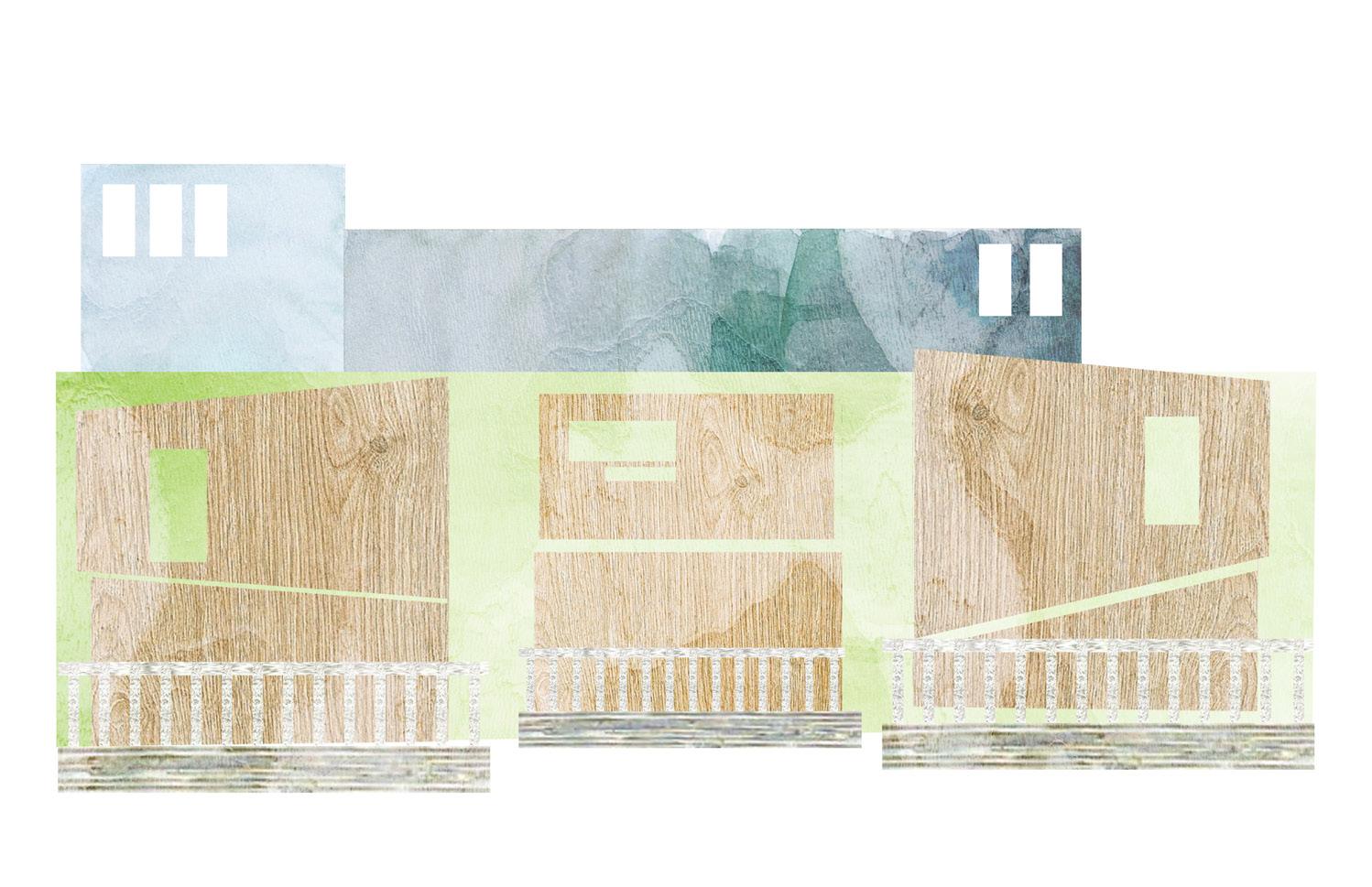

CONCEPT COLLAGE

26

GREEN INTEGRATION

CONCEPT COLLAGE

OUTDOOR CONNECTION

CONCEPT COLLAGE

INDOOR SPACE

CONCEPT COLLAGE

MASSING

27

ECO DISTRICT In this urban design studio, we were tasked with designing the layout of a new ecodistrict on the site of the Milwaukee Mile near the state fair grounds, as well as daylighting the existing Honey Creek which currently runs underground through the site. My group decided to make our central focus a large lake in the center of the site - inspired by Phoenix-See in Dortmund, Germany.

Along with the lake, we wanted to prioritize placemaking for the residents of the proposed eco-district. We created a large lateral park bordering the lake, filled with marshland to provide natural habitats and stunning views. We presented our ideas through a series of experietial “vignettes,” detailed site diagrams, and a large-scale physical model.

FA22 Professor Jim Wasley Collaboration with Olivia Wegner and Megan Phillips Site: Milwaukee Mile Speedway 14

15

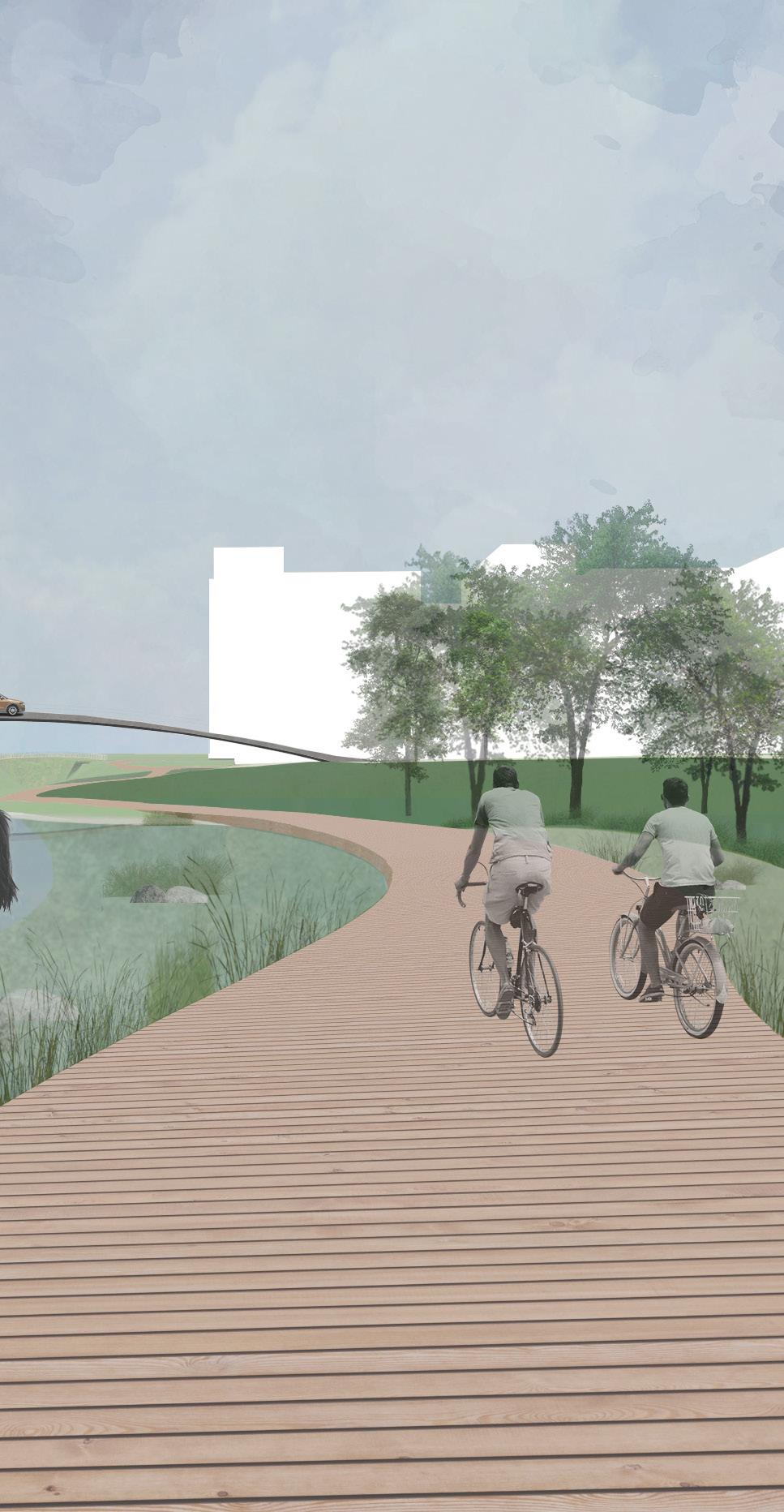

VIGNETTE 1

WINTER PATH

A central bridge leads to a circular trellis and gathering area, guiding residents over the lake and creating beautiful pathways underneath.

16

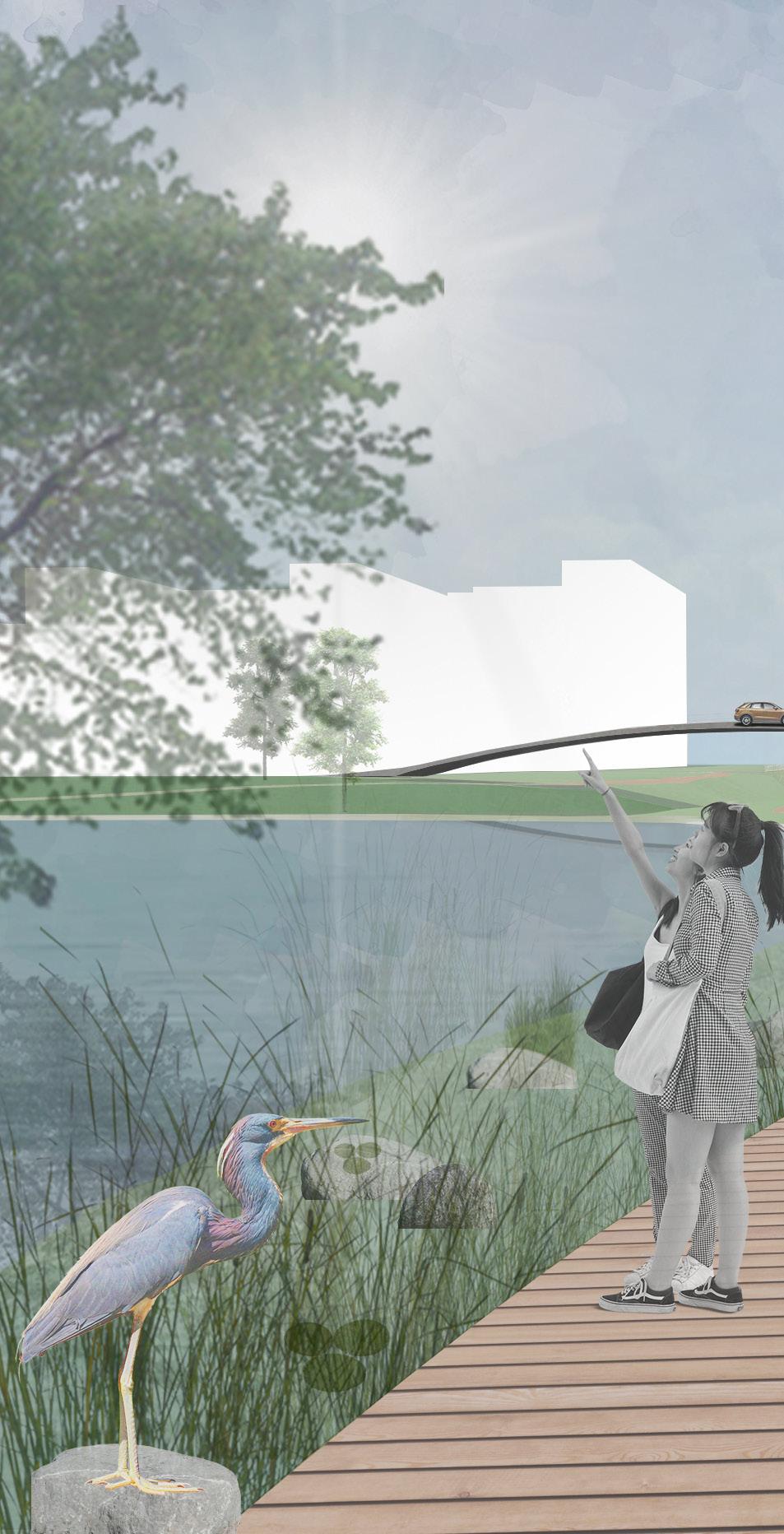

VIGNETTE 2

A winding pathway is built into nat immersion into nature while viewing

MARSHLAND

tive Wisconsin marshland, allowing the dense cityscape in the distance.

VIGNETTE 3

OVERLOOK

Overlooks are placed off the lateral plaza, creating space for relaxation and meditation. Residents are encouraged to enjoy views of the central lake.

17

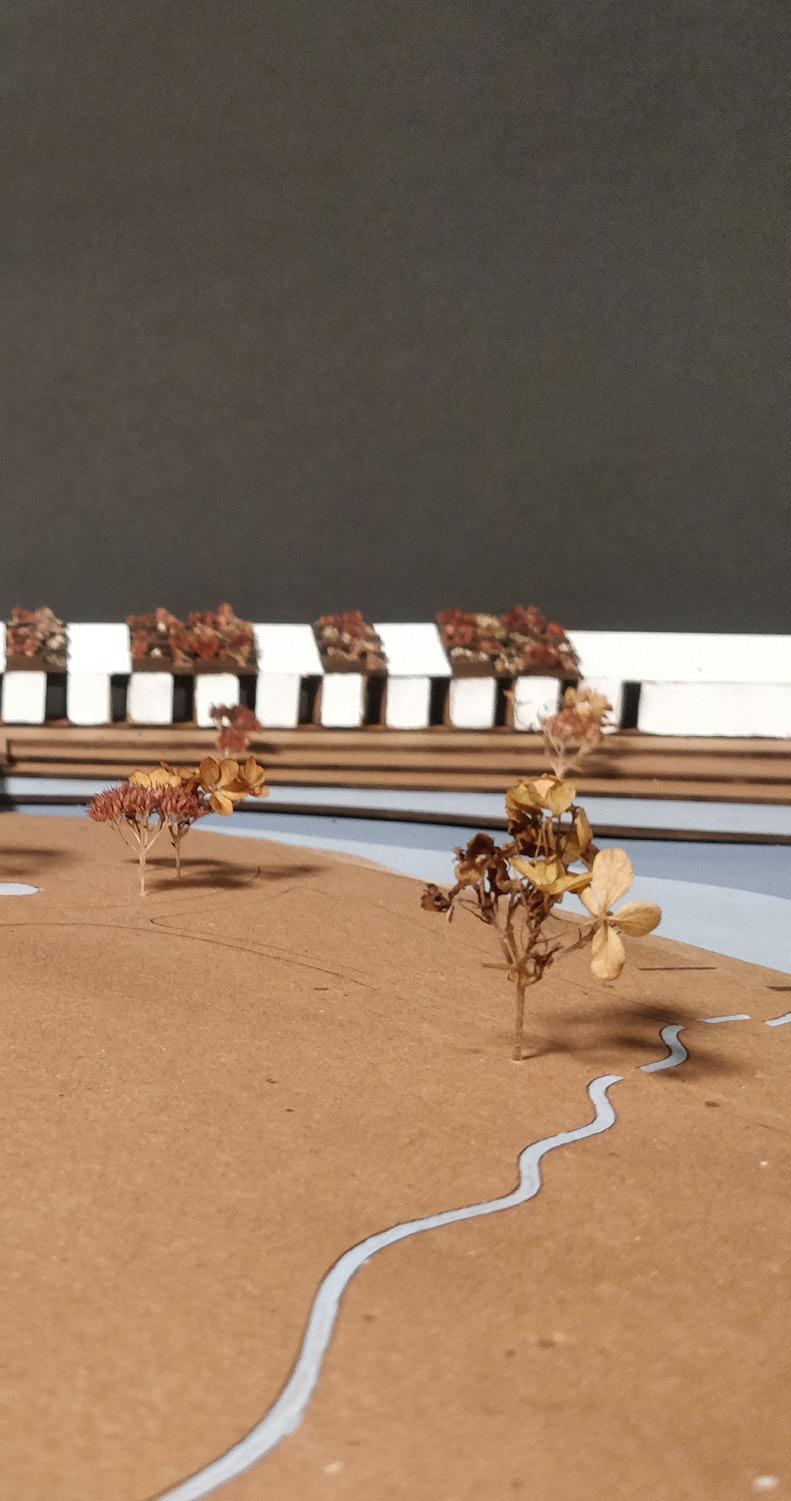

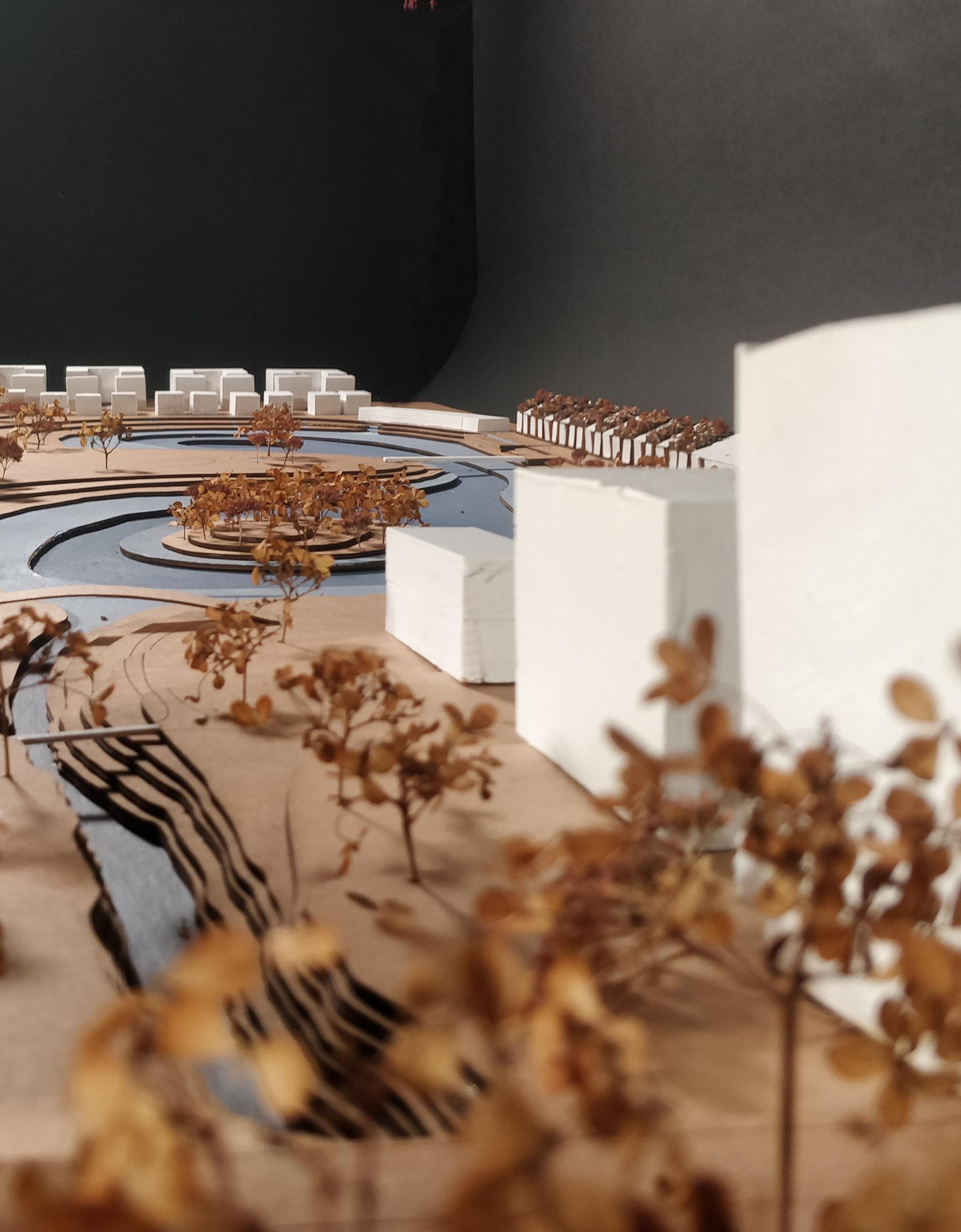

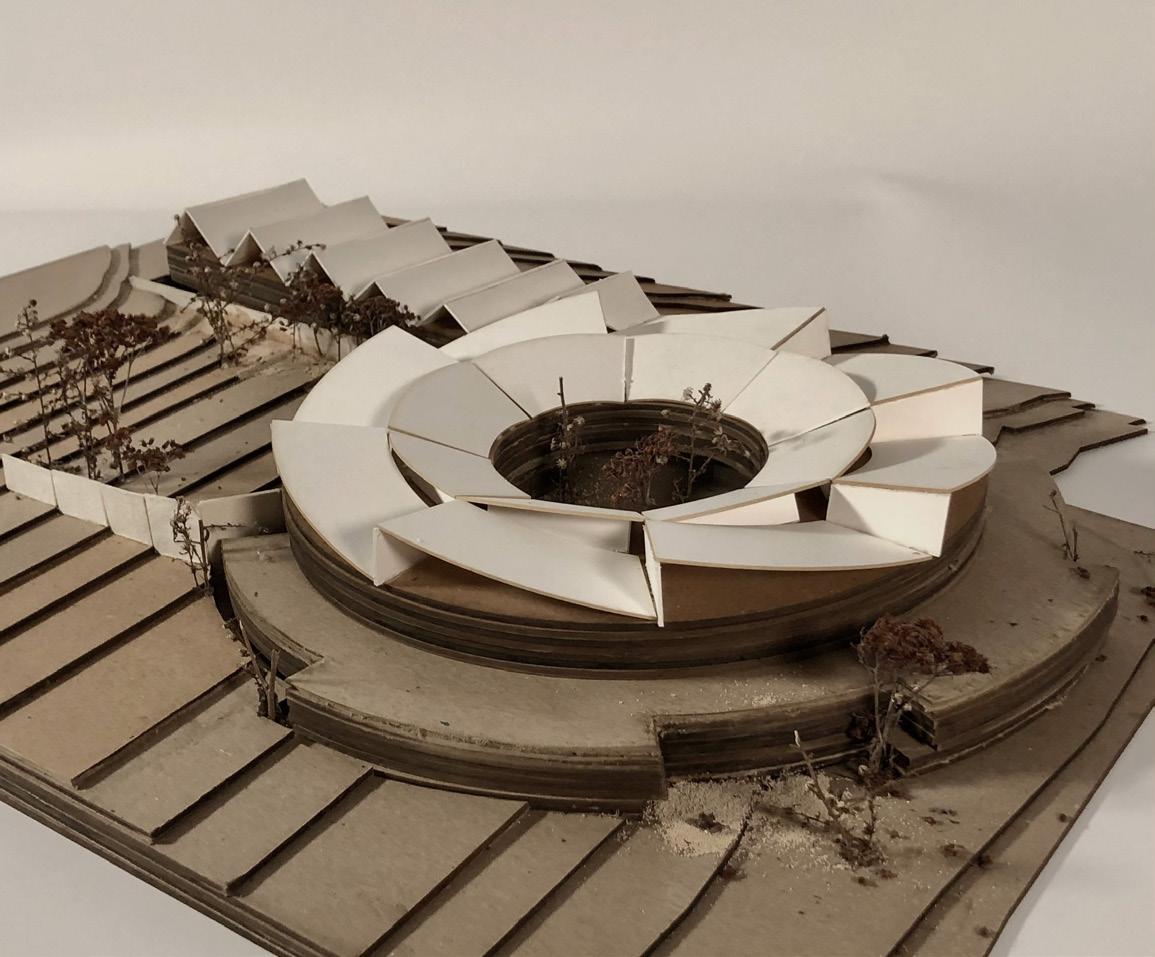

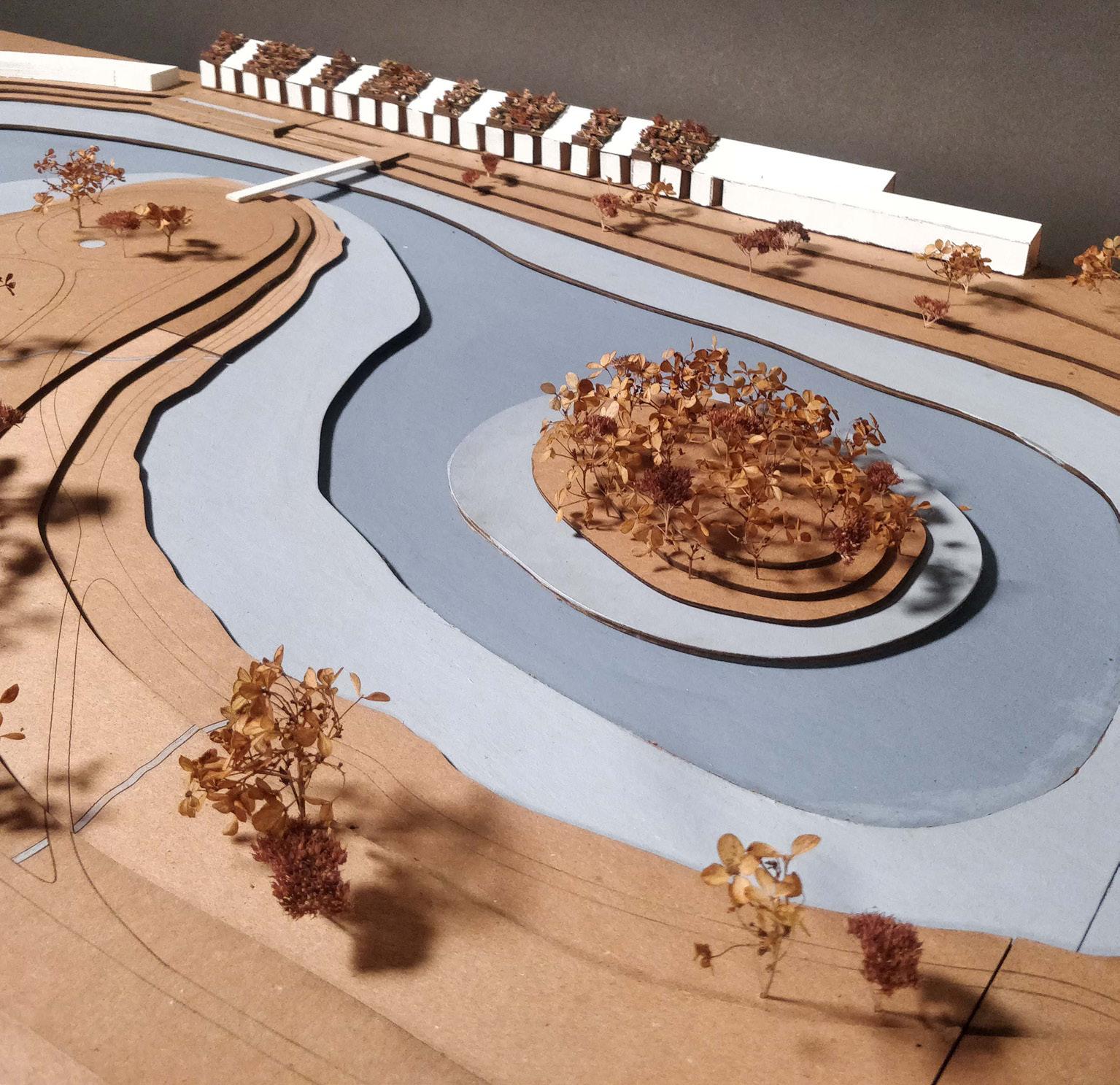

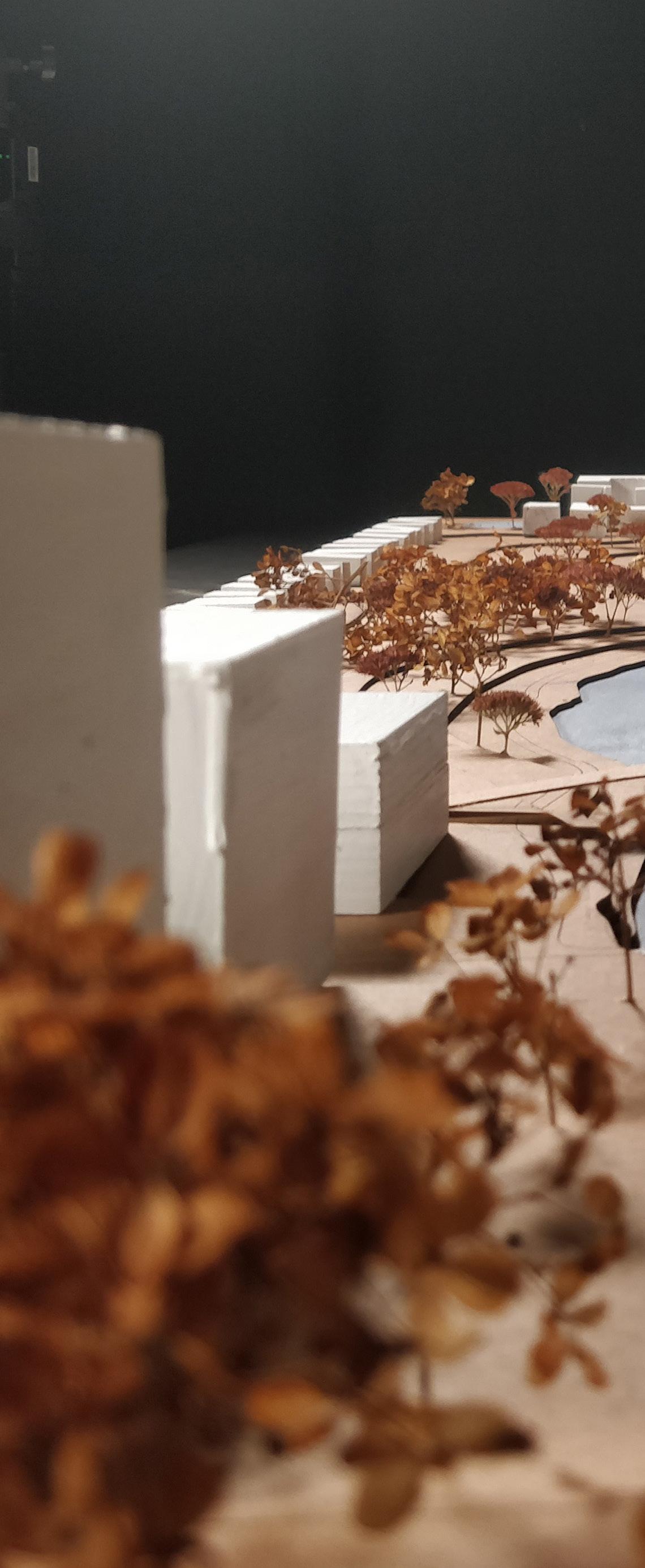

MODEL PHOTO 1

MIXED USE

The existing Honey Creek becomes a large lake, which separates the district by program. Mixed use and commercial occupies the south end, while high volume residential occupies the north end.

18

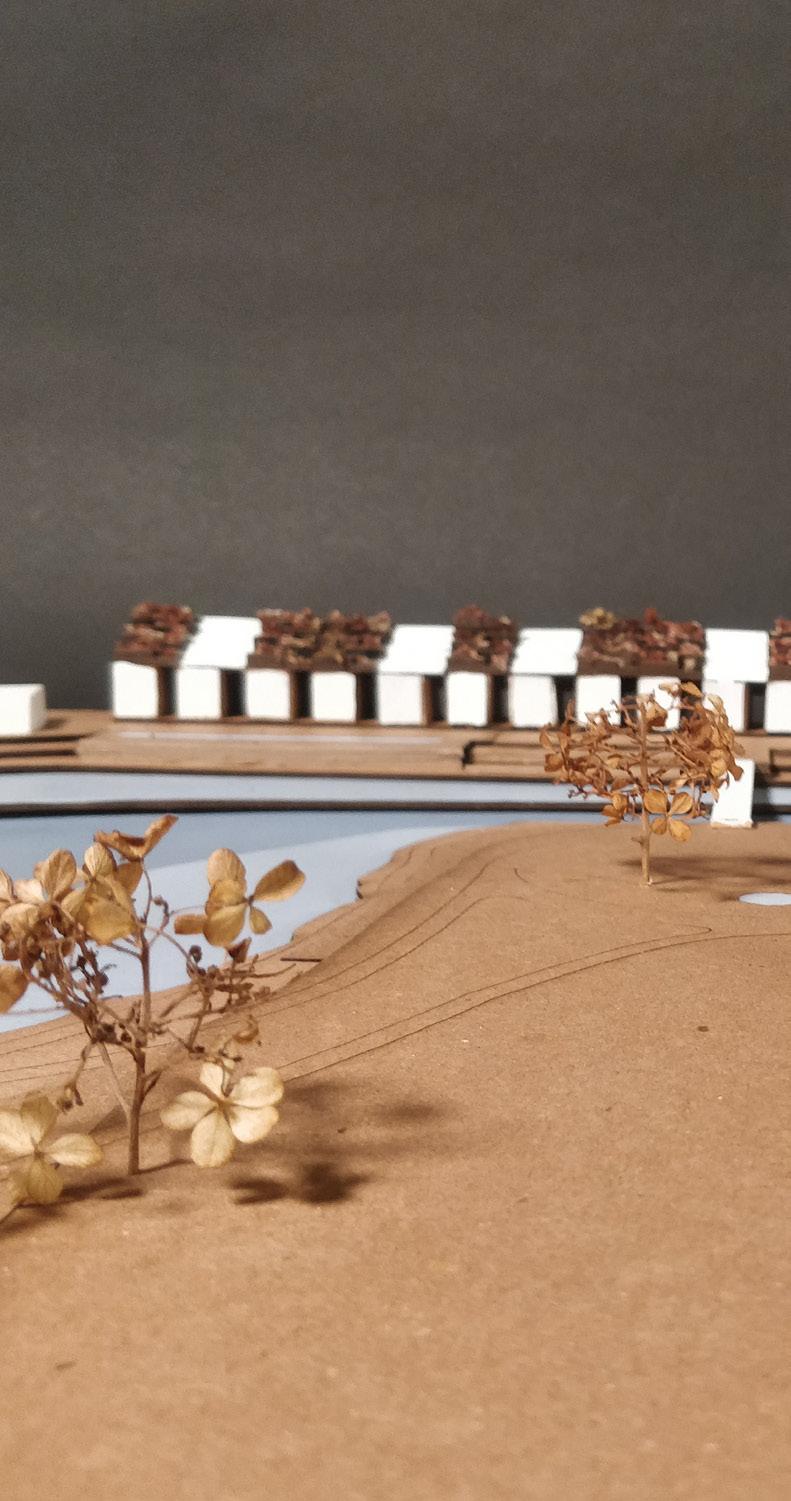

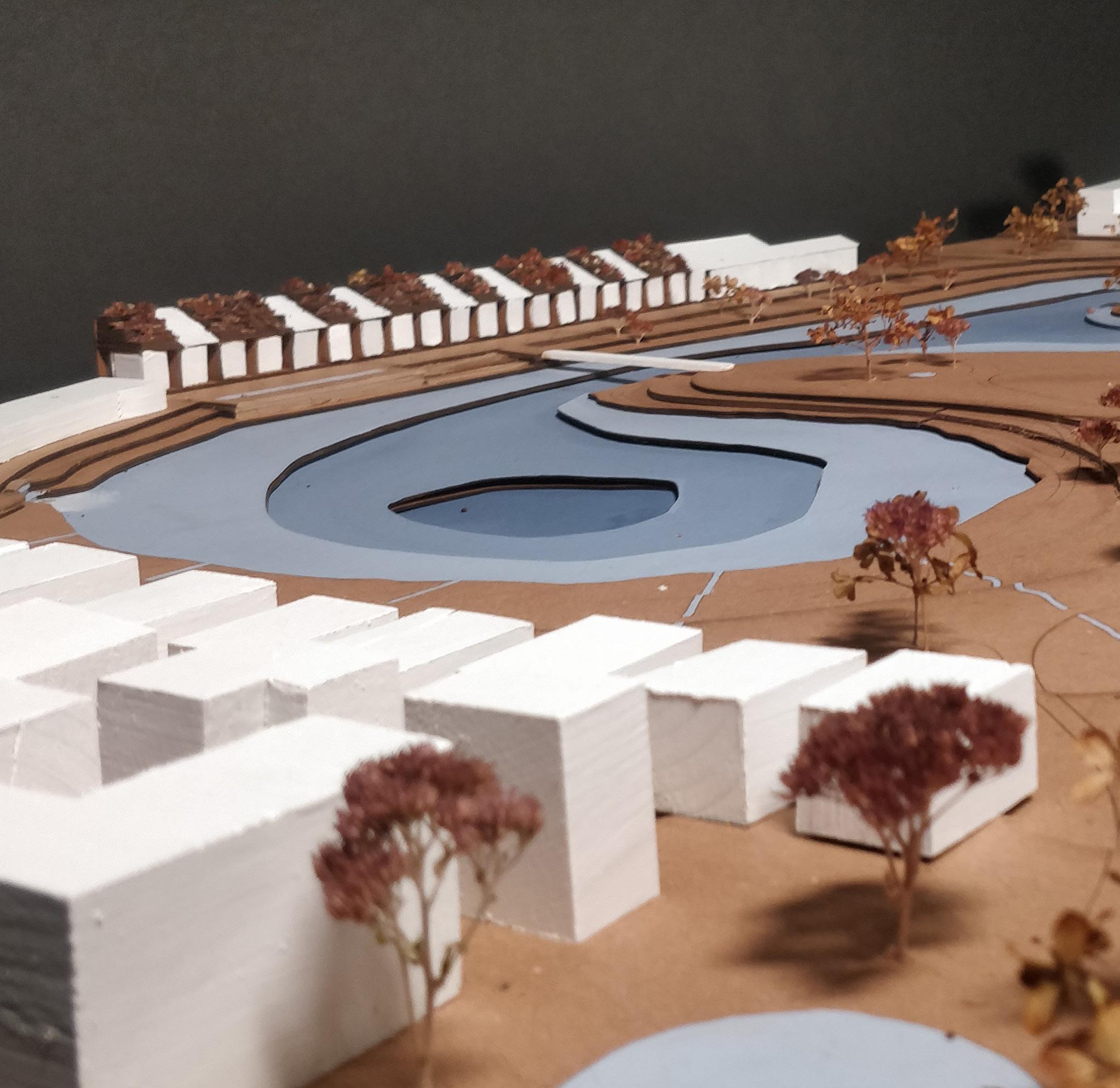

MODEL PHOTO 2

The Grandstands exist to provide active Milwaukee Mile racetrack. T season public market and event spac

GRANDSTANDS

spectator seating for the onceThe grandstands become a fource, complete with rooftop gardens.

MODEL PHOTO 3

ISLAND

The lake provides ecological advantages for native flora and fauna. The island is inaccessable for residents, creating a safe habitat for marshland creatures. Views of wildlife also allows residents escape from city life.

19

BLUE BRANCHES This study abroad design charaette required me and my partner to develop stormwater management solutions that would provide beautiful natural and ecological features to the Frankfurt UAS campus. “Blue Branches” describes the arms of water that connect throughout campus, collecting stormwater and cooling surrounding areas.

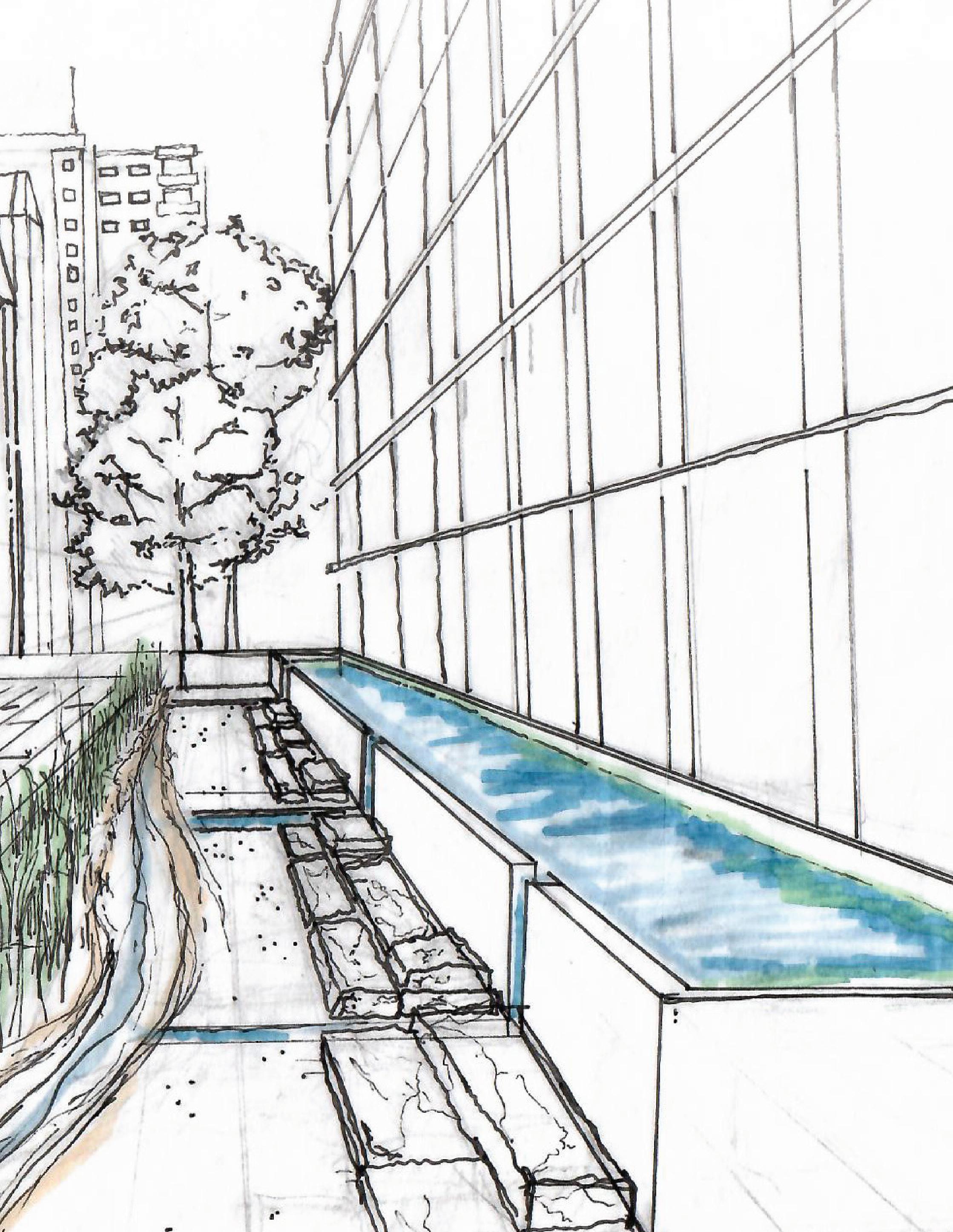

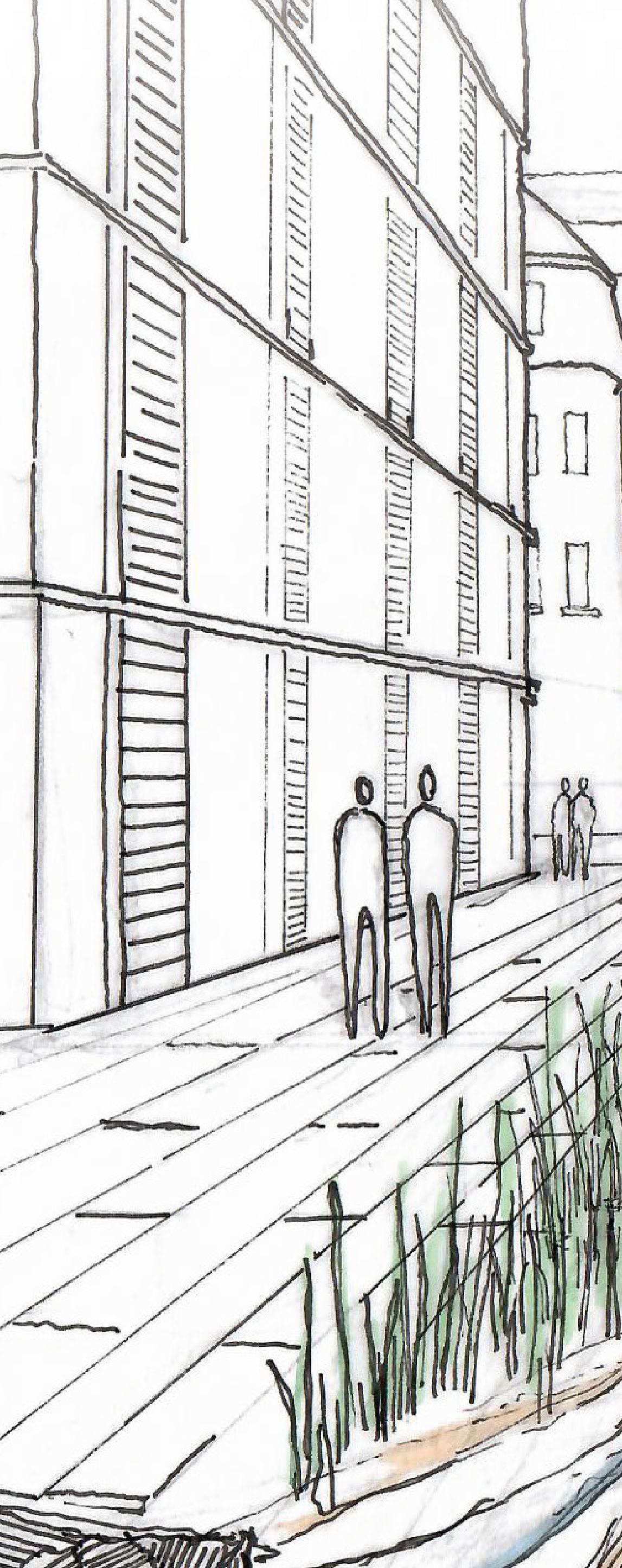

We challenged ourselves to create these blue features through hand drawn imagined conditions. Touring the campus, we discovered five areas in dire need of nature within hardscape.

At the end of this project, we presented our findings and subsequent drawings to a jury of environmentalist architects on the Frankfurt UAS campus.

SP23 Professor Jim Wasley Site: Frankfur t, Germany Collaboration with Tayler Forsberg 28

29

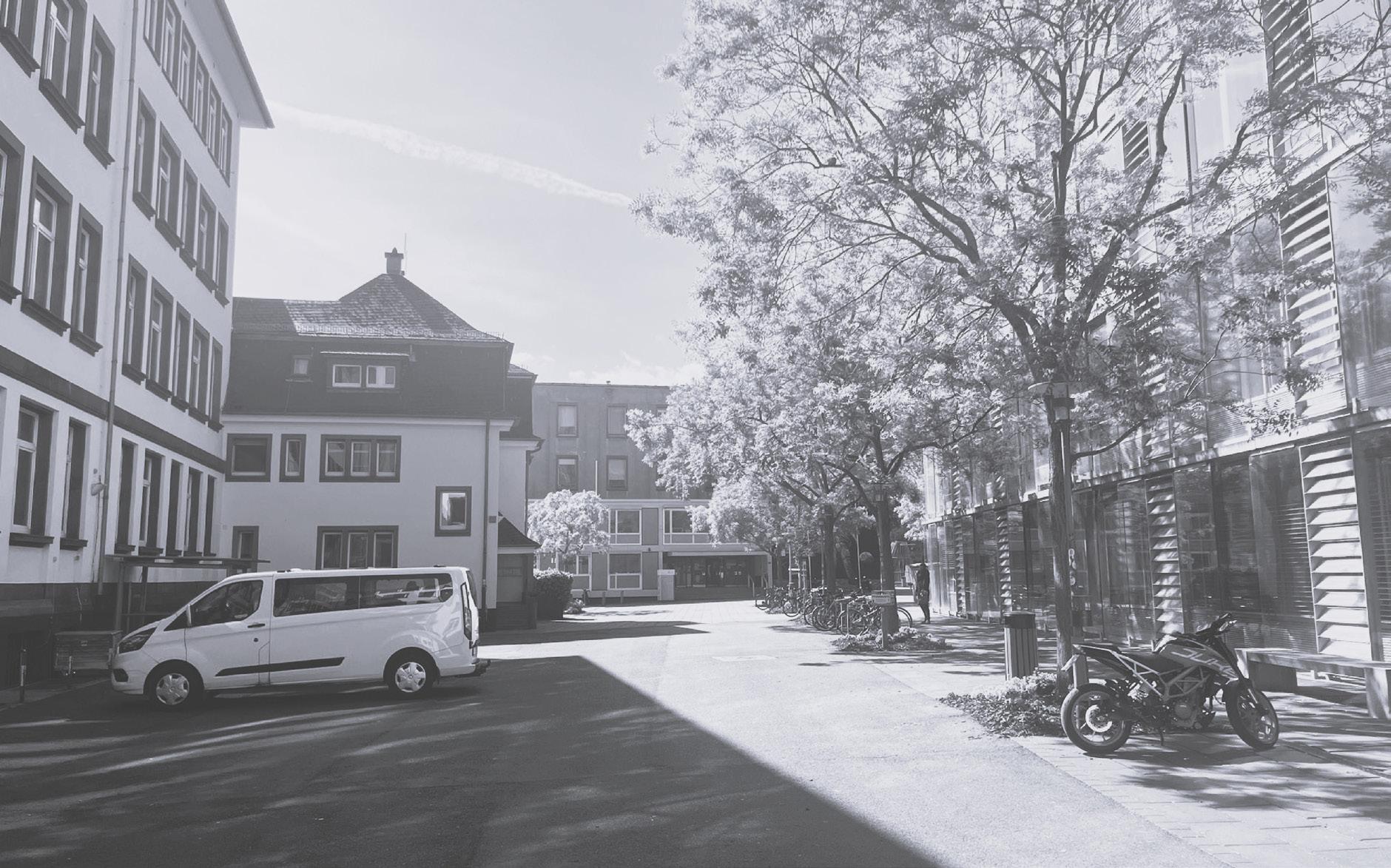

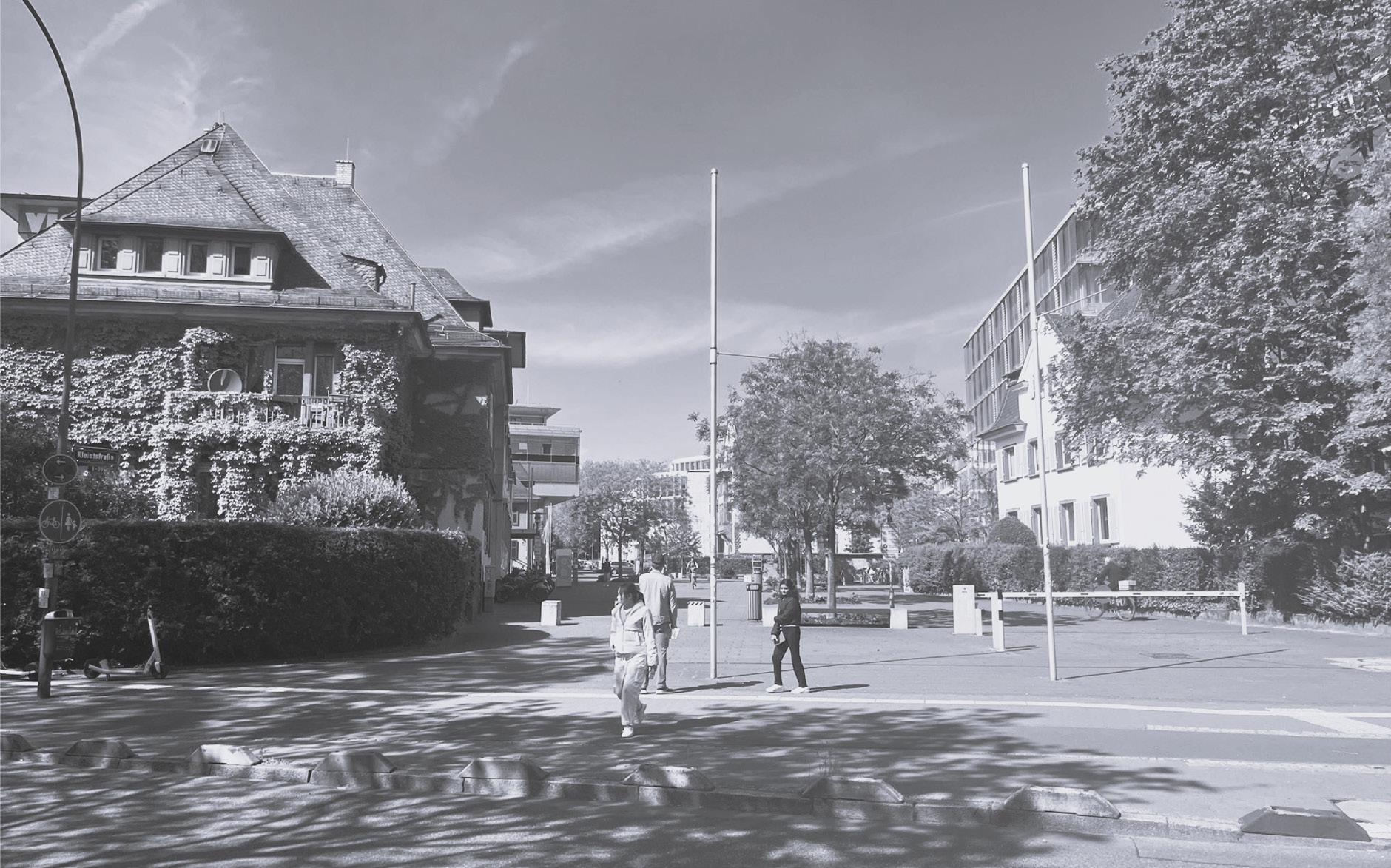

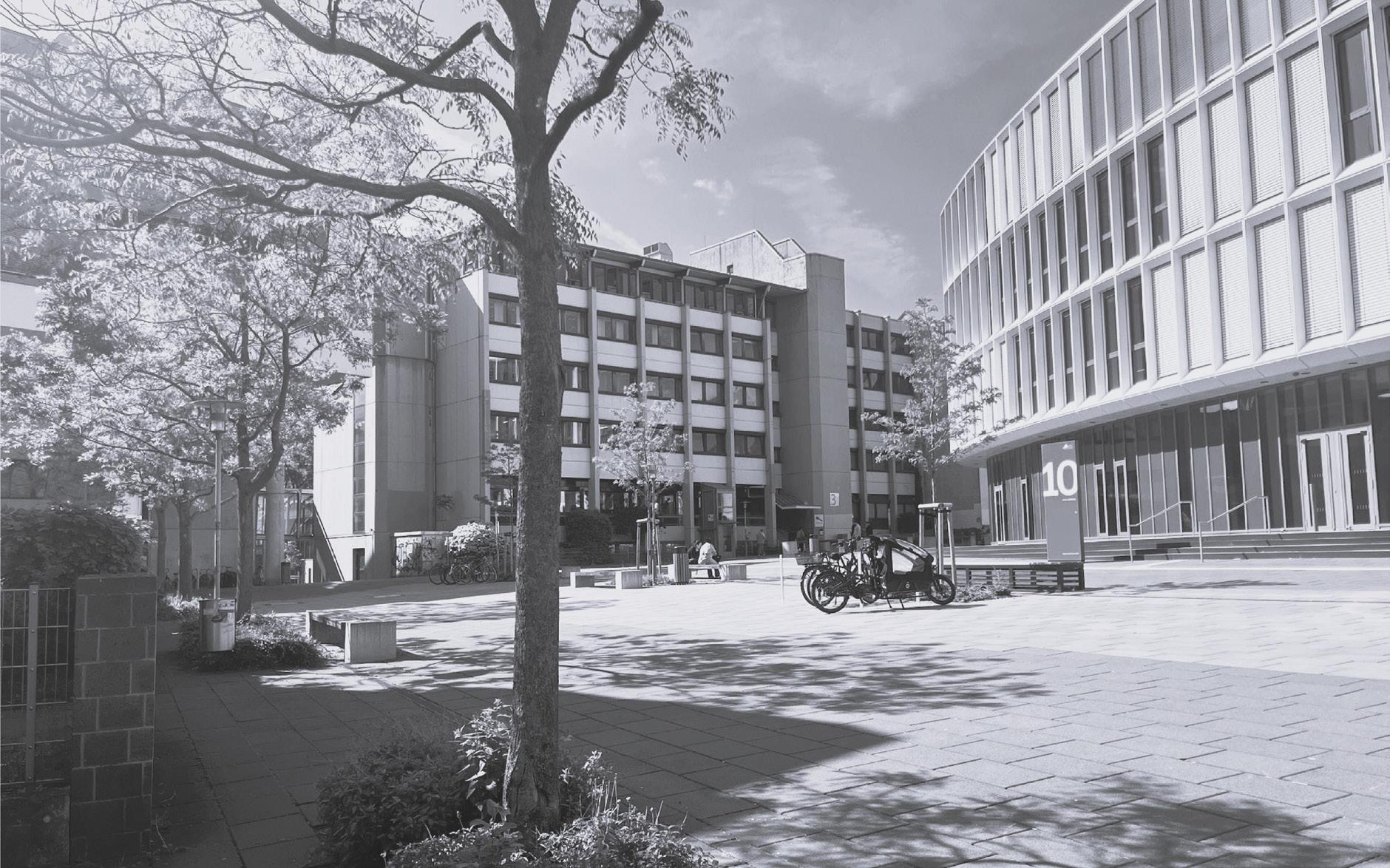

EXISTING CONDITION

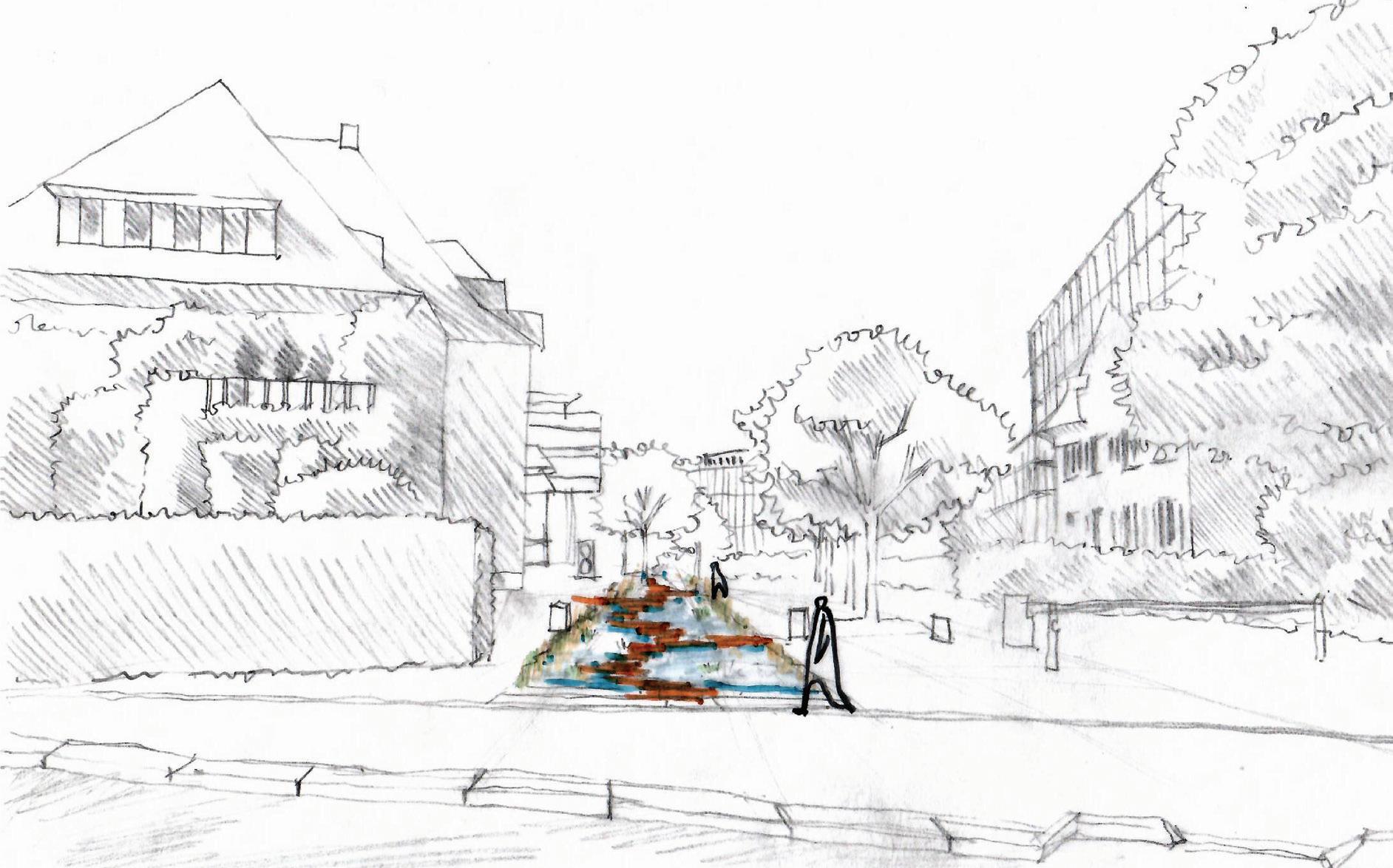

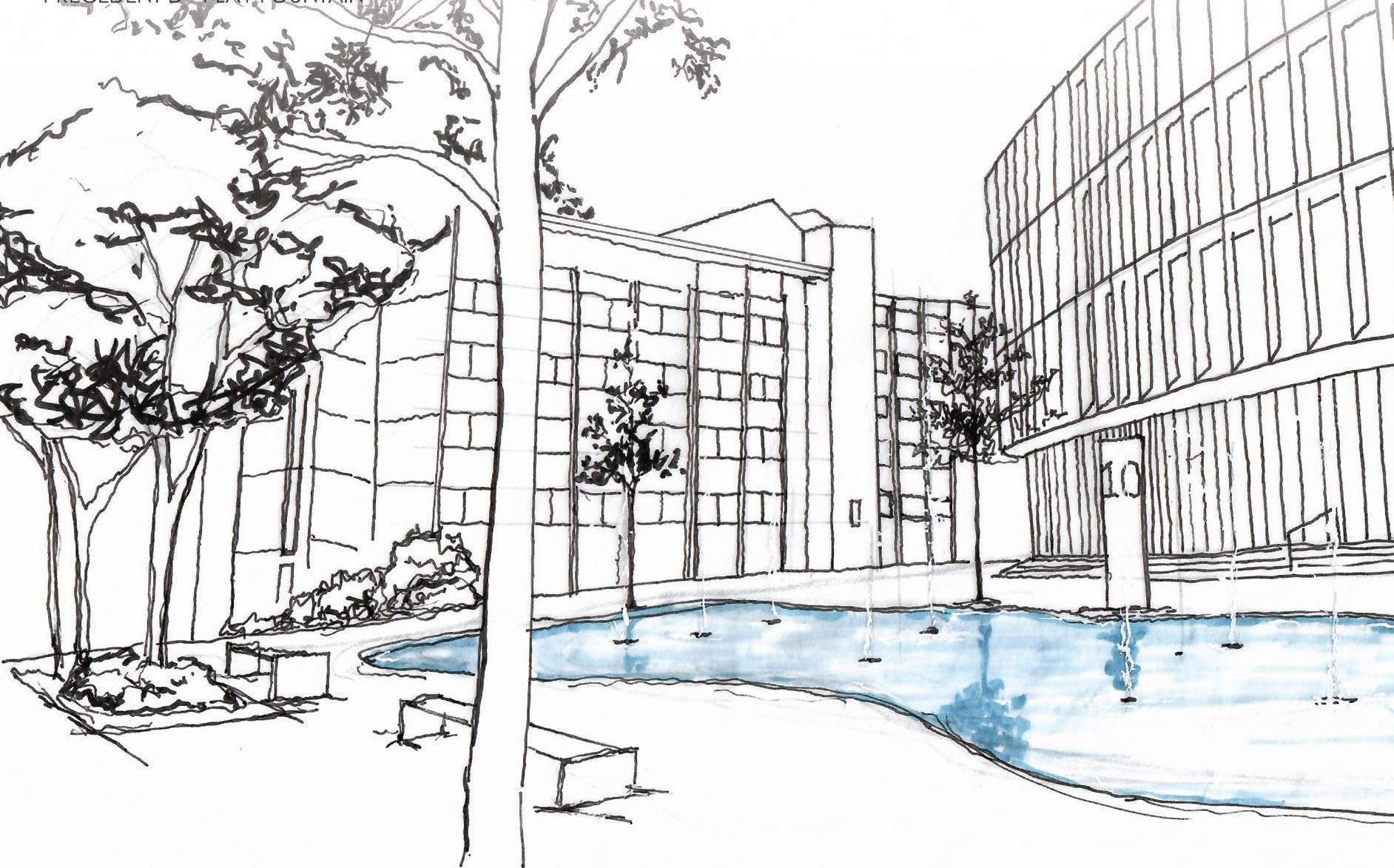

REIMAGINED CONDITION

30

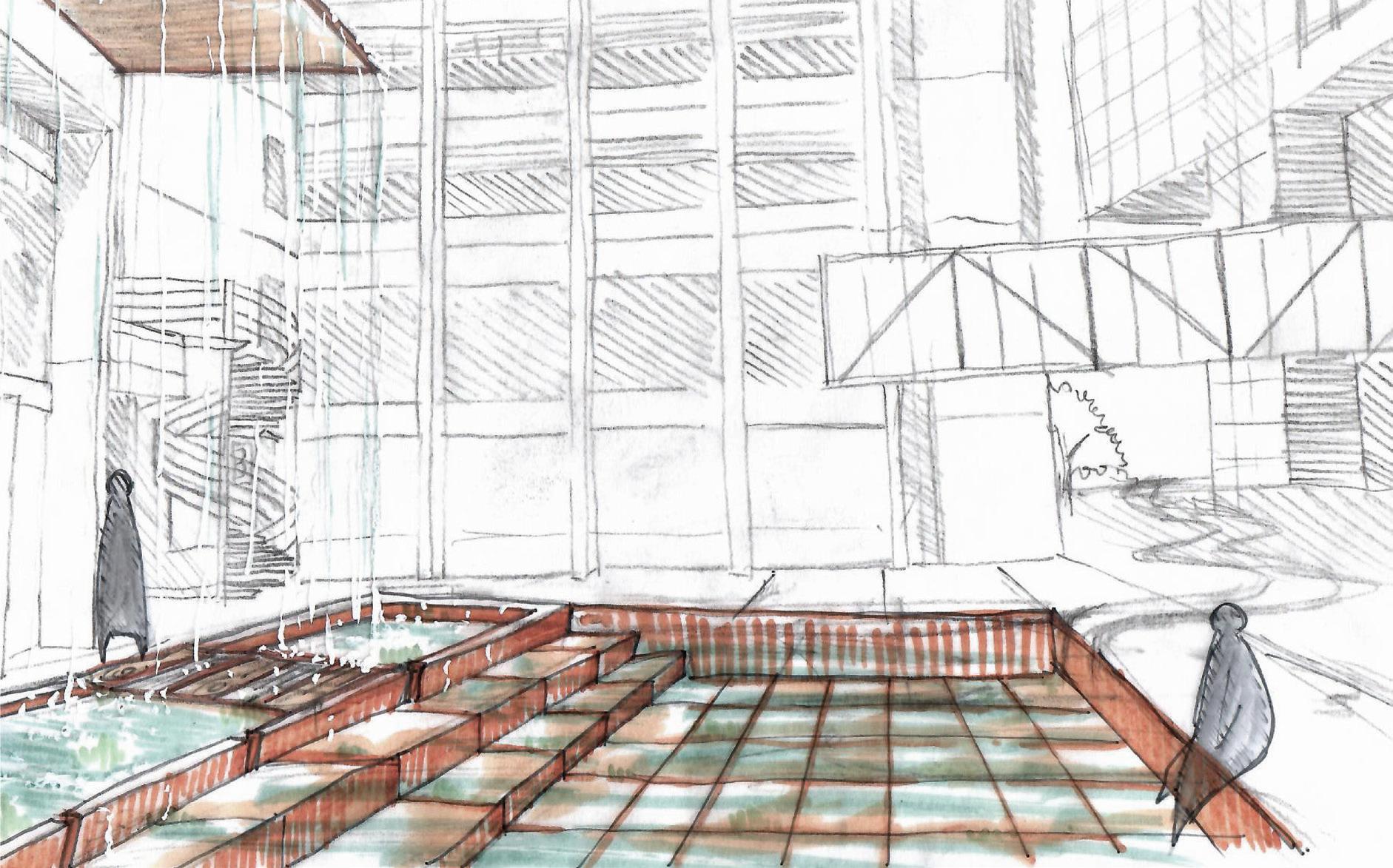

WATERFALL FOUNTAIN

EXISTING CONDITION

REIMAGINED CONDITION

BIO-FILTRATION FOUNTAIN

31

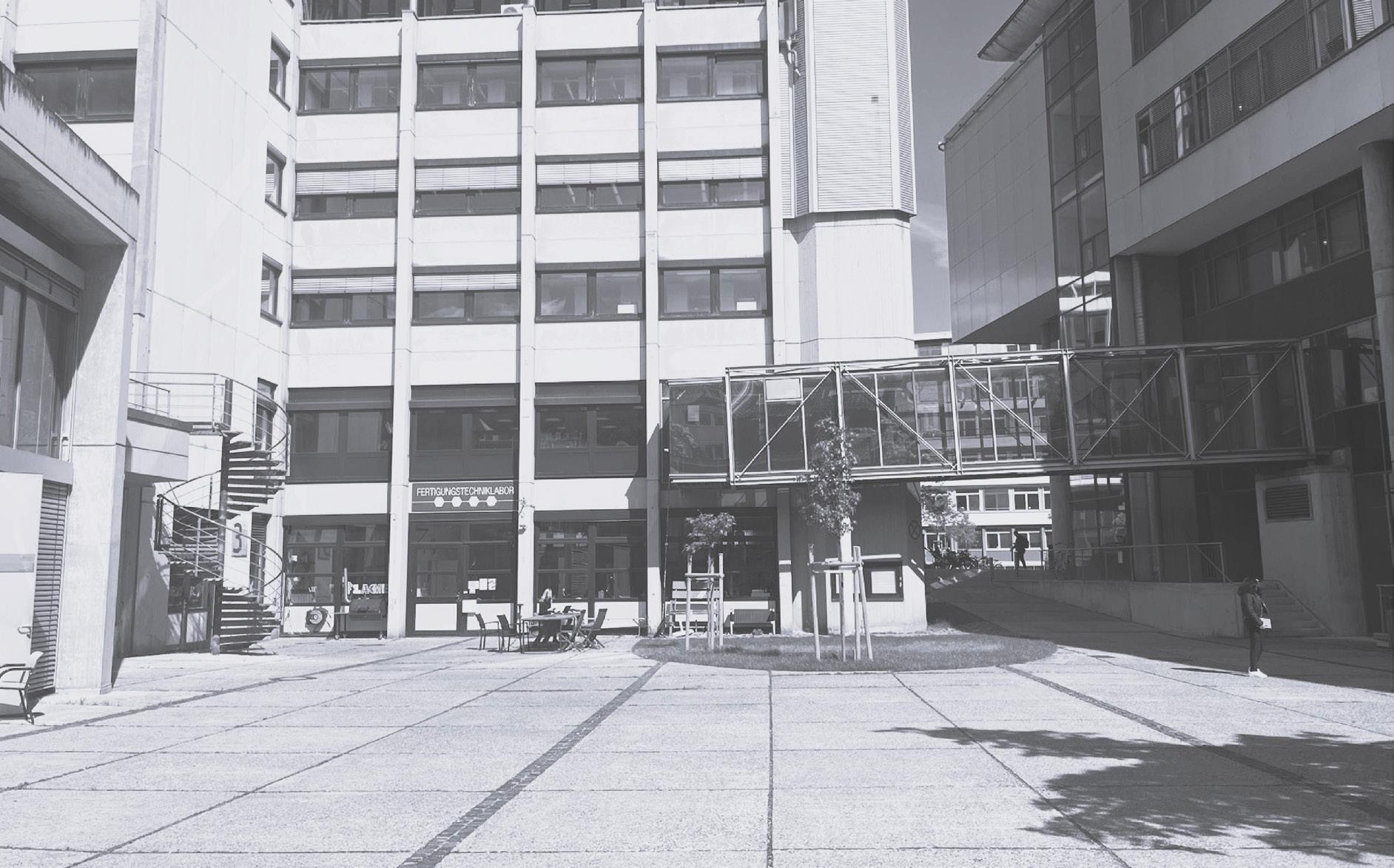

EXISTING CONDITION

REIMAGINED CONDITION

30

SPLASH PAD

EXISTING CONDITION

REIMAGINED CONDITION

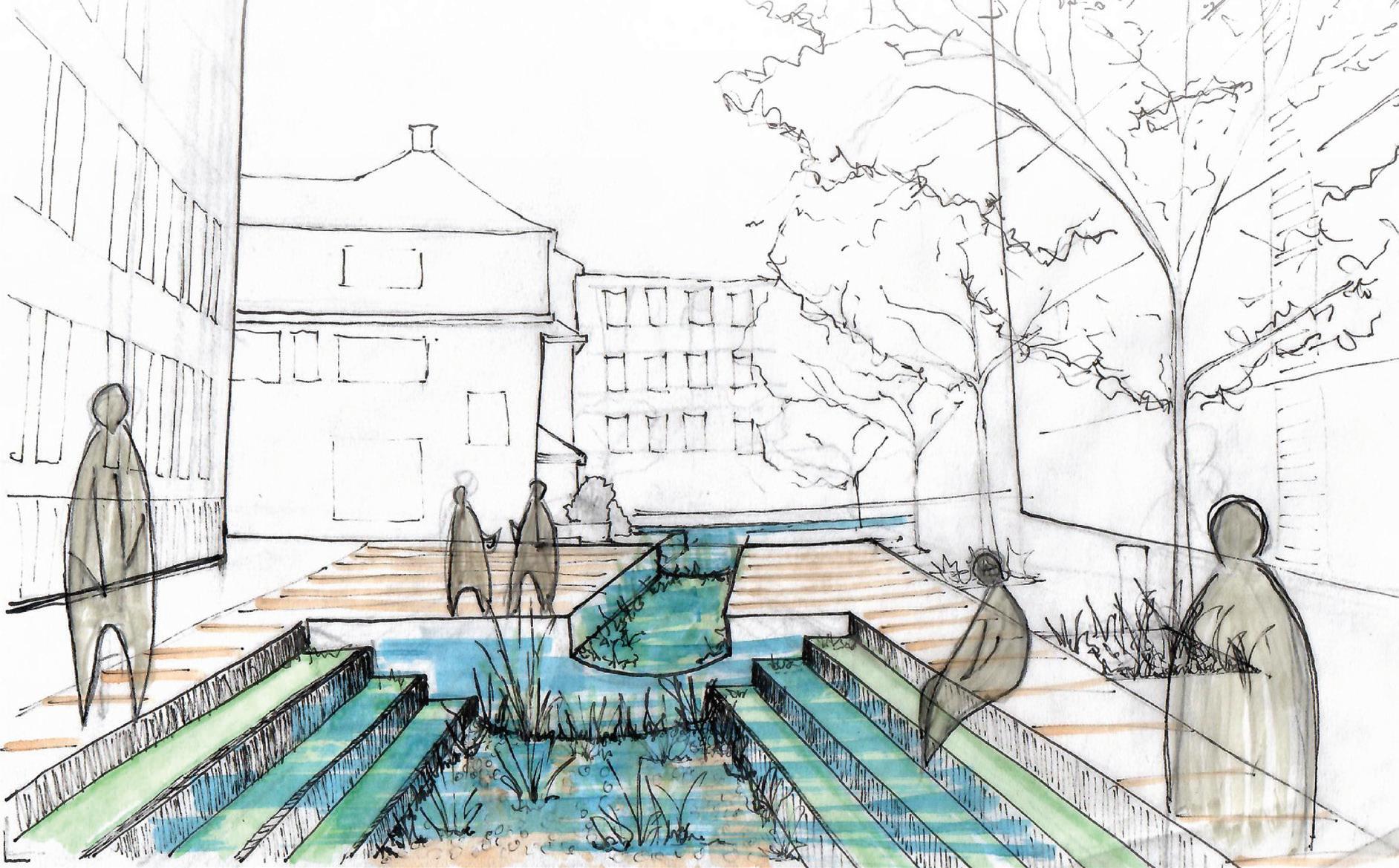

CENTRAL SWALE
