D' Blenduk

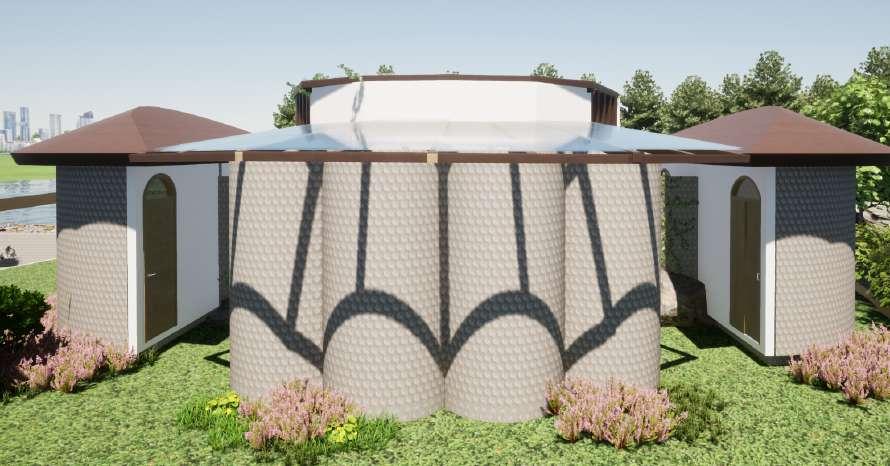

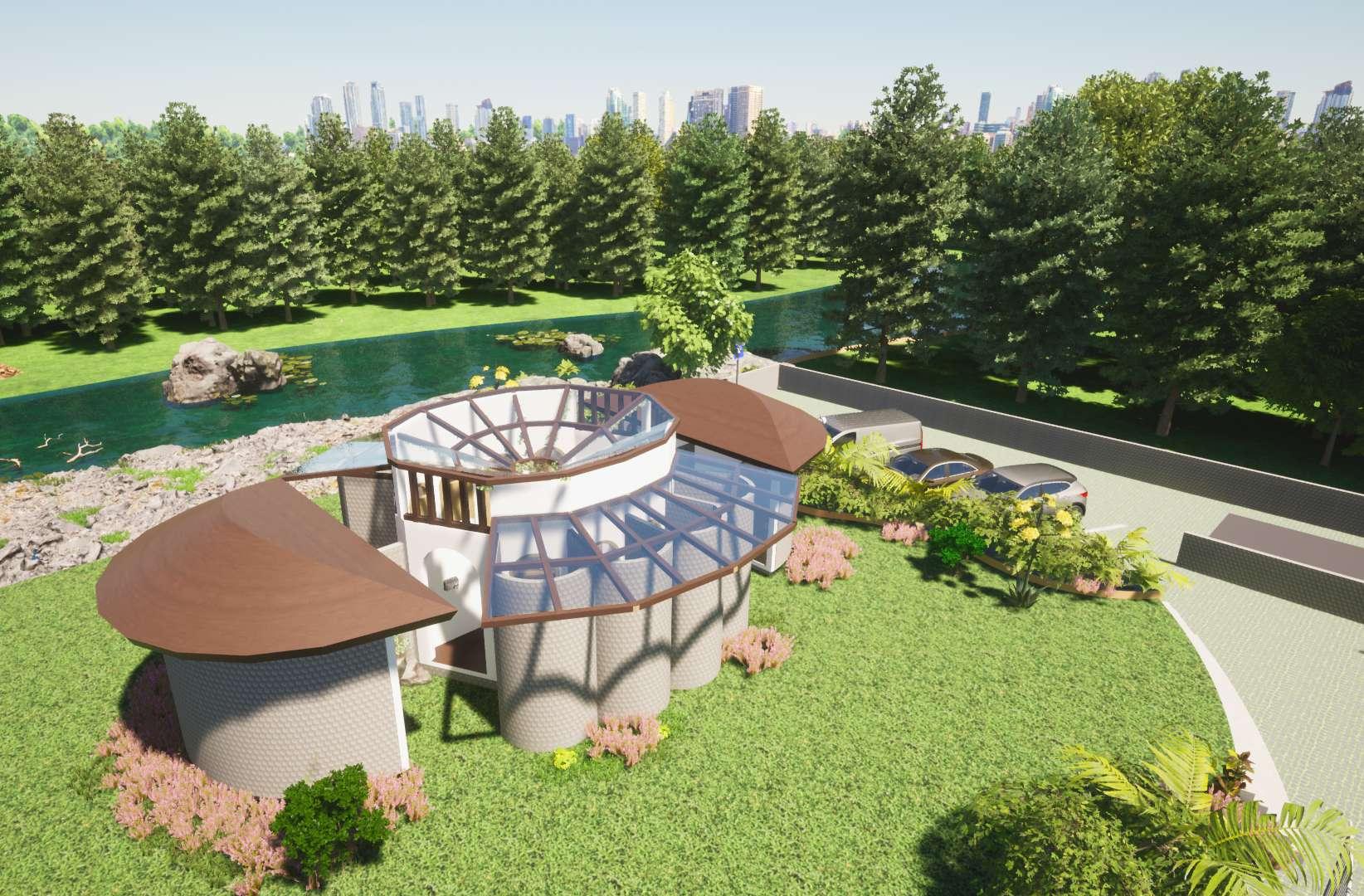

D' Blenduk is a design of public toilet It is Ja means "curvy" The project is making a decent quality of toilet with consideration to material innovation, beauty, human spatial behavior, and also the function Lots of public toilets in Indonesia are having bad quality and does not apply the standards So the intention of this project is for correcting it by applying the existing standard but resulting in a better design
Material Modul
The modul is made from cement grav sand, and plastic bottle by comparison
3 : 2 The use of plastic bottle is to g textures to the modul The formed of t modul take some of the principle making concrete roof/floor tiles T size is 10x10x10 cm to make it light a

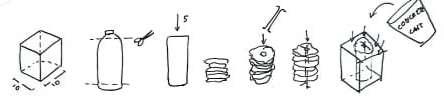

Process of making
Making a mold from thick paper board (double layers)
Pressing 6 plastic bottles (cap and base were removed)
Connecting every bottles with 2 wires which are 2 cm bent to hold the bottle not overflow
Mixing the cement sand and gravel by comparison 1 : 2 3

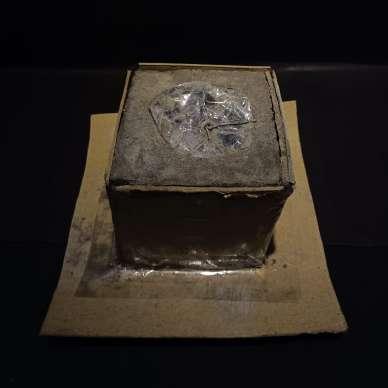

Putting the bottle in the middle of the mold and then pouring the concrete cast around the bottle carefully then let it dry Smoothing and flattening parts that are still perforated with the concrete cast
Form Exploration of The Material

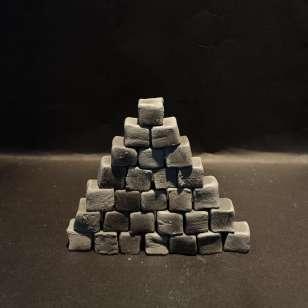

Arranging alternately like how the bricks usually arranged with horizontal line

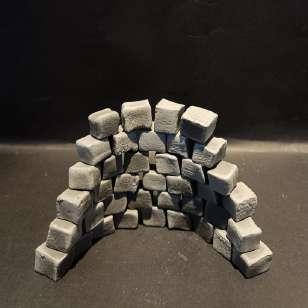

Arranging alternately like how the bricks usually arranged with curvy line

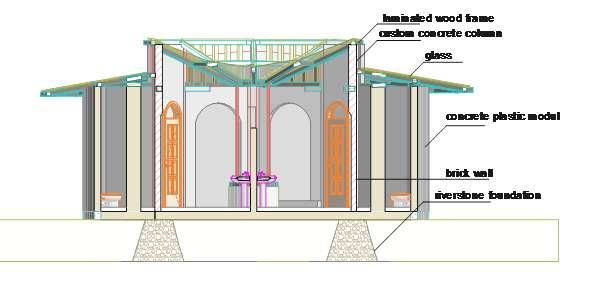

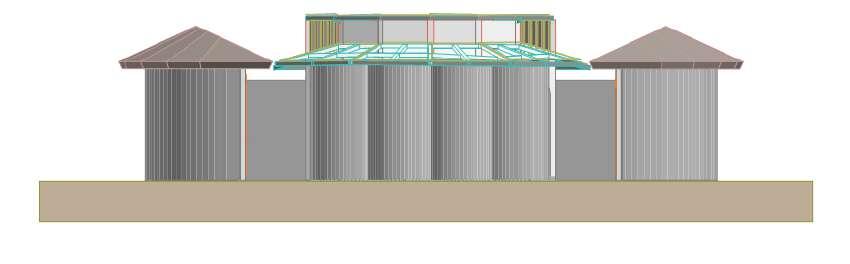

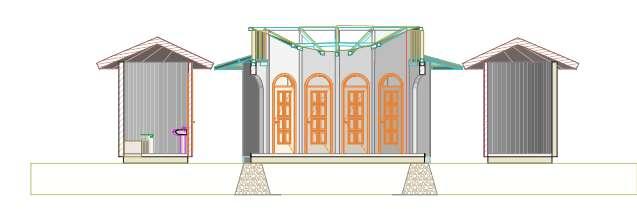

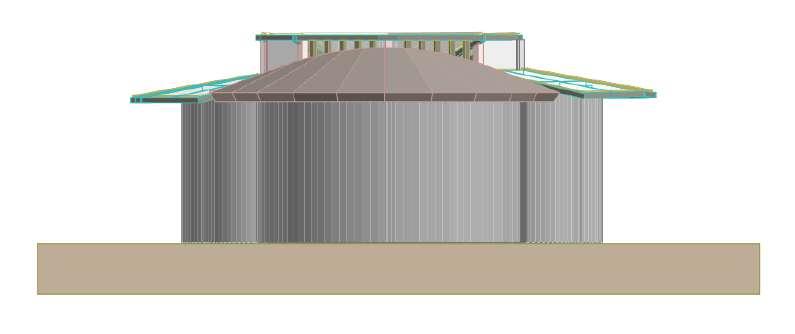

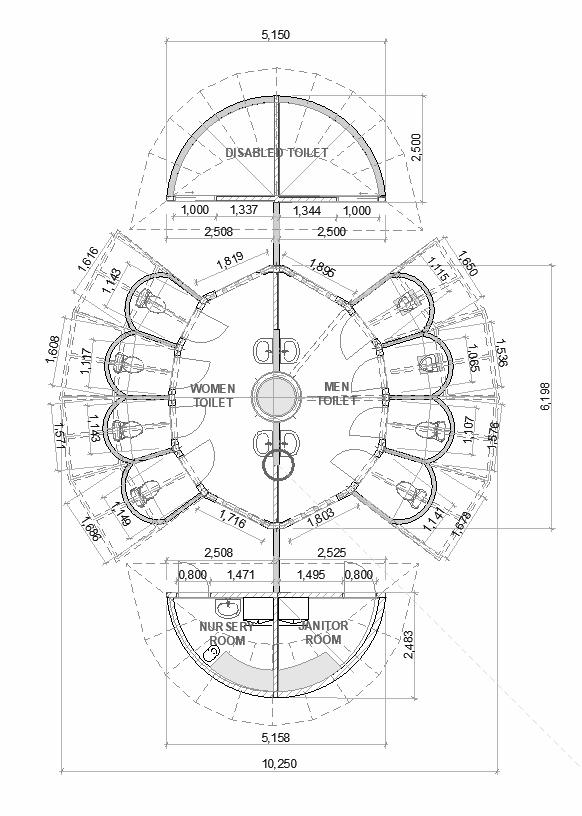

Technical Drawing

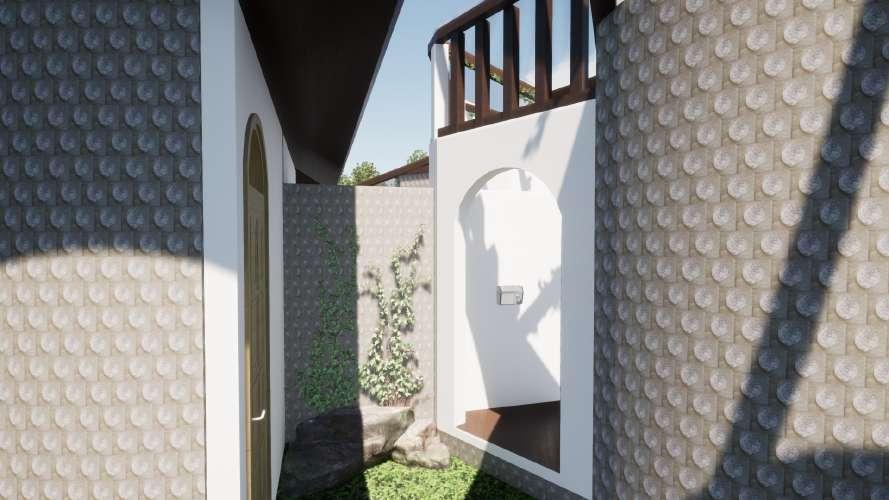

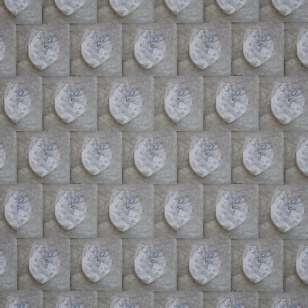

Material Texture
ll Construction
The wall is arranged mostly with the modul It applied on the curvy wall partition wall disabled wa etc Some parts like the wall for door is constructed by brick wall because door frame stucked by the wall Many parts of the arranged in straight line So it columns so that the walls can b maximum The column itself use concrete

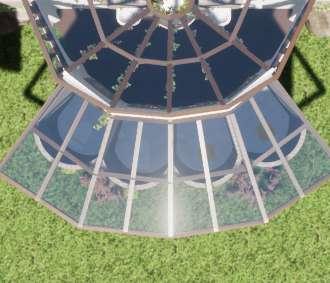

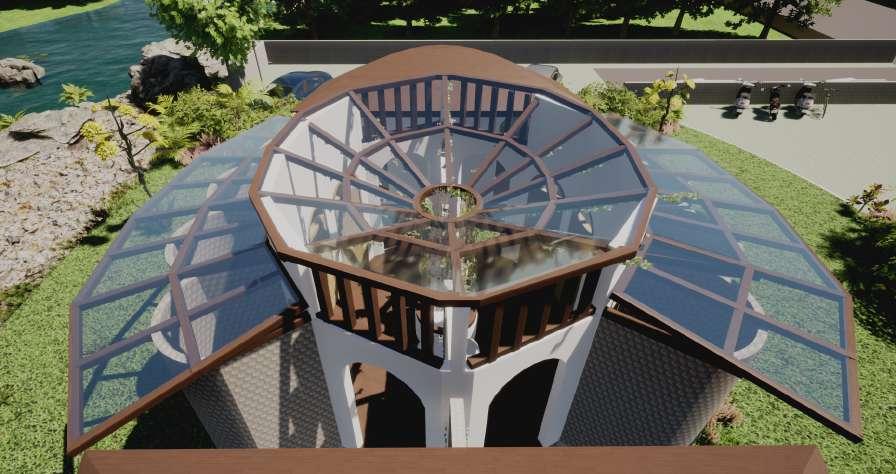

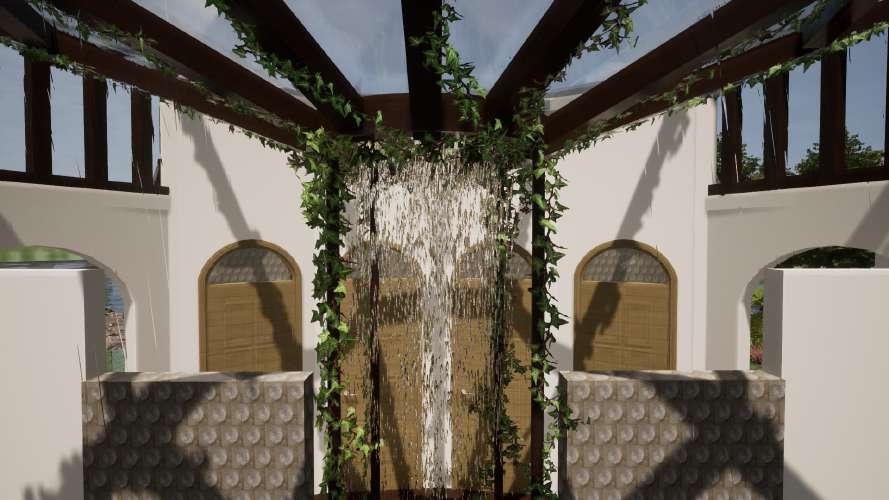

The roof consists of two part which are the main, the cubicles, and the edge parts The main roof and the roof of cubicles are frame structure which is from laminated wood for the frames For the top surface is glasses The intention is to get natural sunlight and save elctricity The form of the main roof itself is like upside down cone Hole in the middle is to let the rainwater fall into the pool so it will be utilized as recycling into clean water For the edge roof is also the same but the surface is using wood
