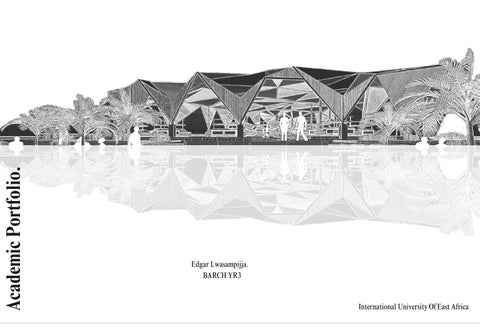

Academic Portfolio.
Edgar Lwasampijja.
International University Of East Africa
BARCH YR3

SKILLS

Archicad

Lumion

Sketch Up

Adobe photoshop

Adobe Indesign

EDUCATION

International University Of East Africa. Kampala. Bachelor of Architecture 2023- 2026 Diploma In Architecture

International University Of East Africa. Kampala.

2020 - 2022 +256 770475943

lwasaedgar@outlook.com

linkedin.com/in/edgar-lwasampijja 10a Kyebando 2431

CONTACT

WORK EXPERIENCE

DIMENSIONS ARCHITECTS & INTERIOR DESIGNERS (U) LTD

ARCHITECTURE INTERN

JUN 2022- JAN 2023

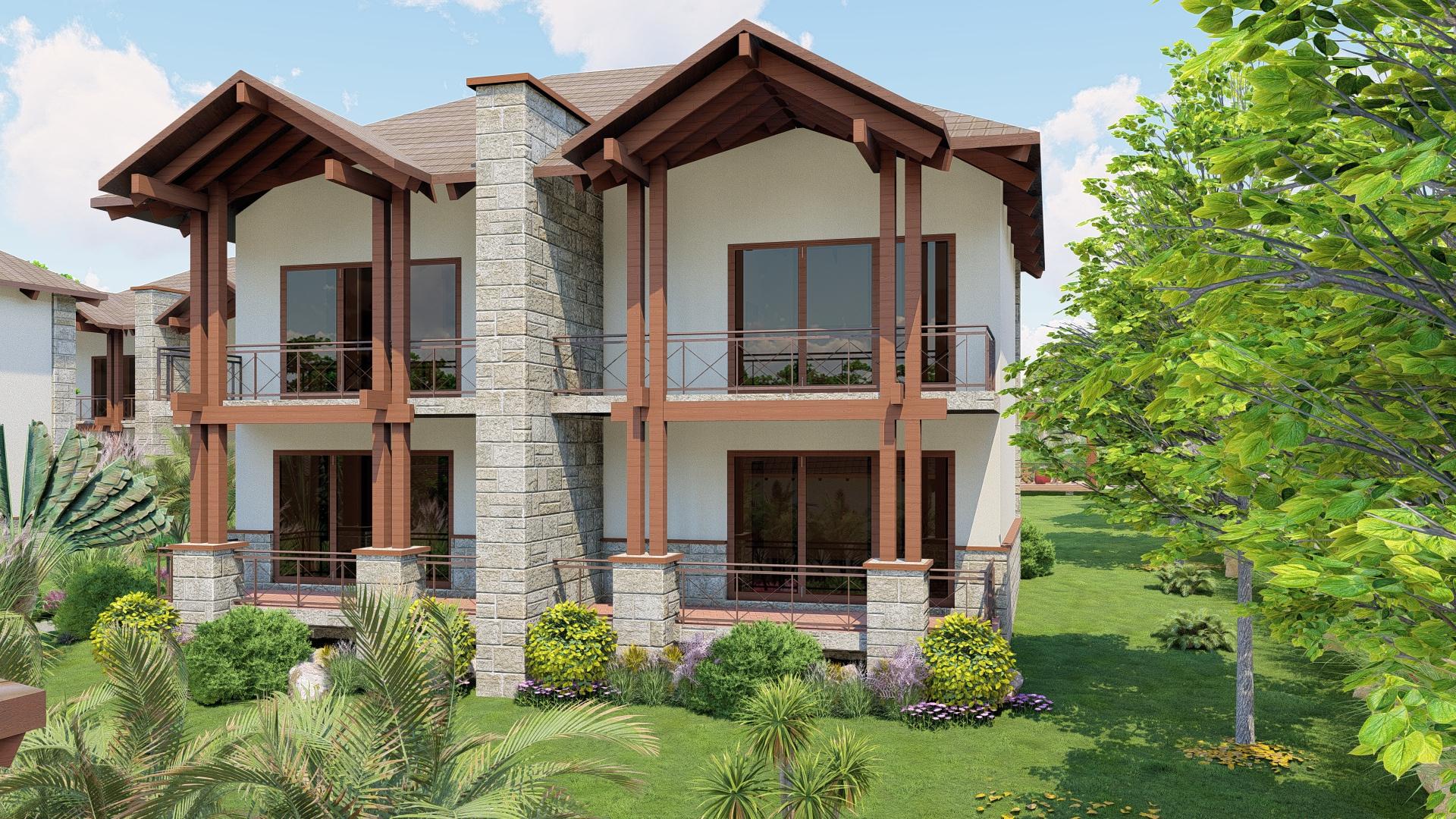

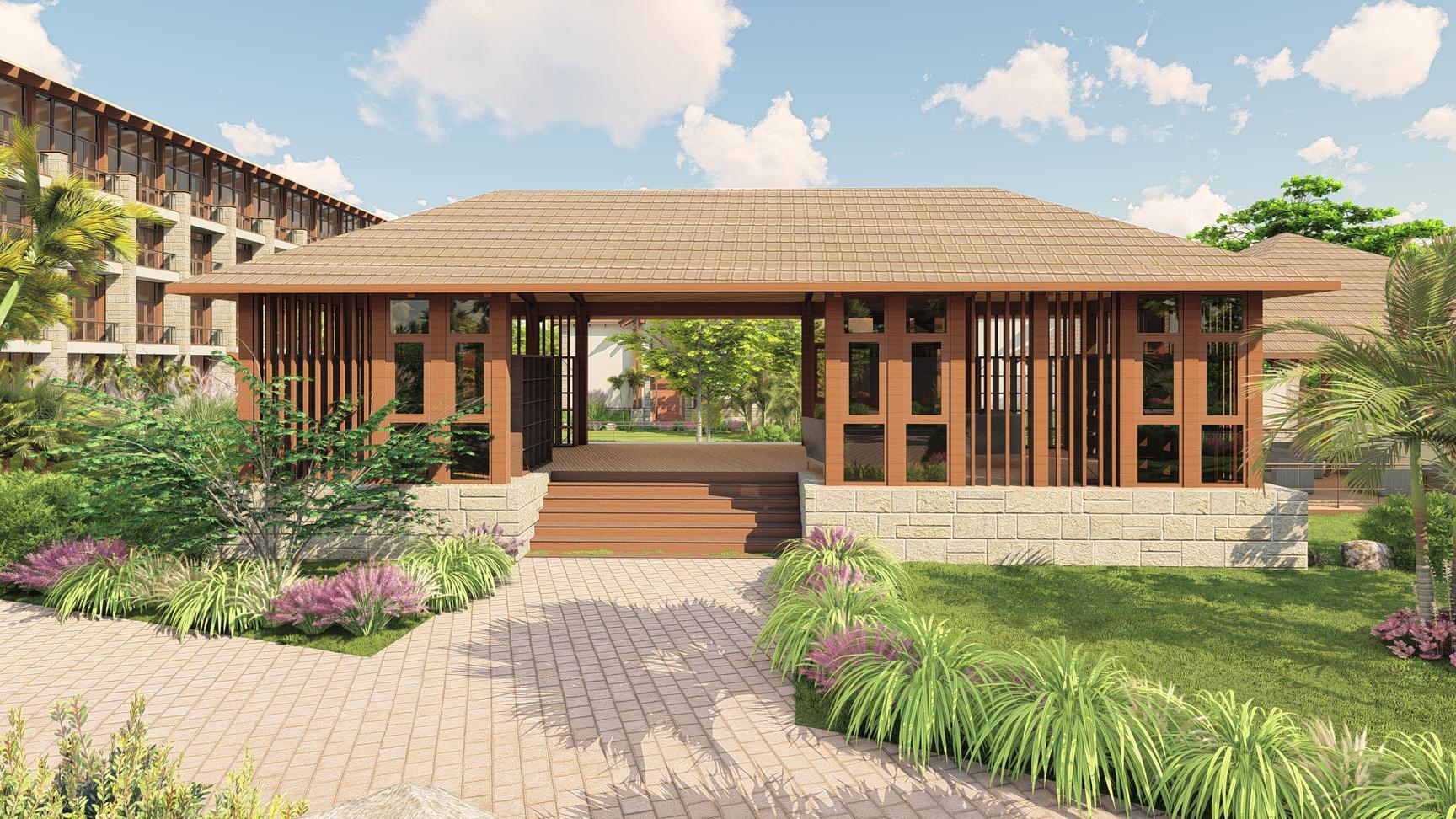

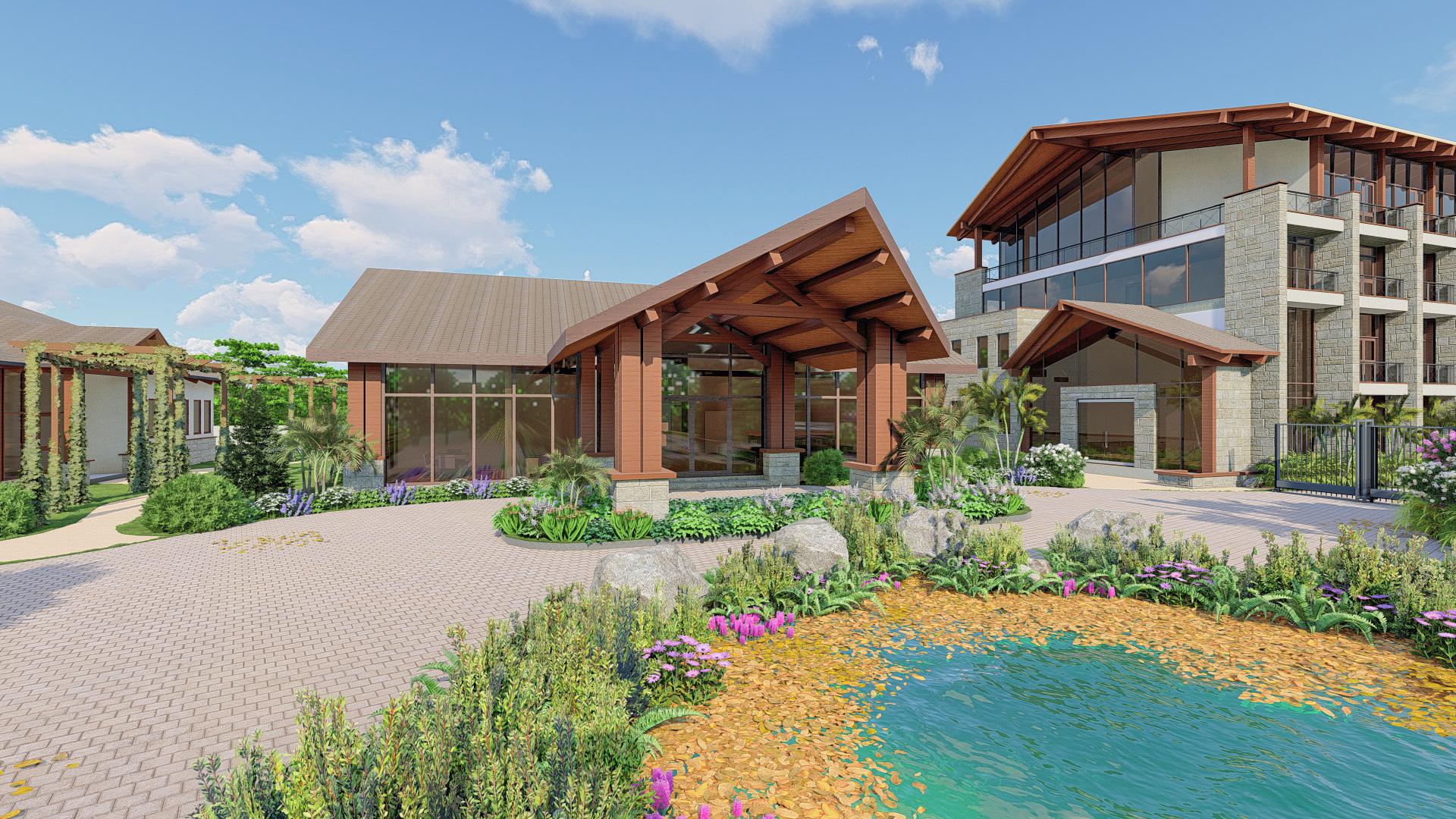

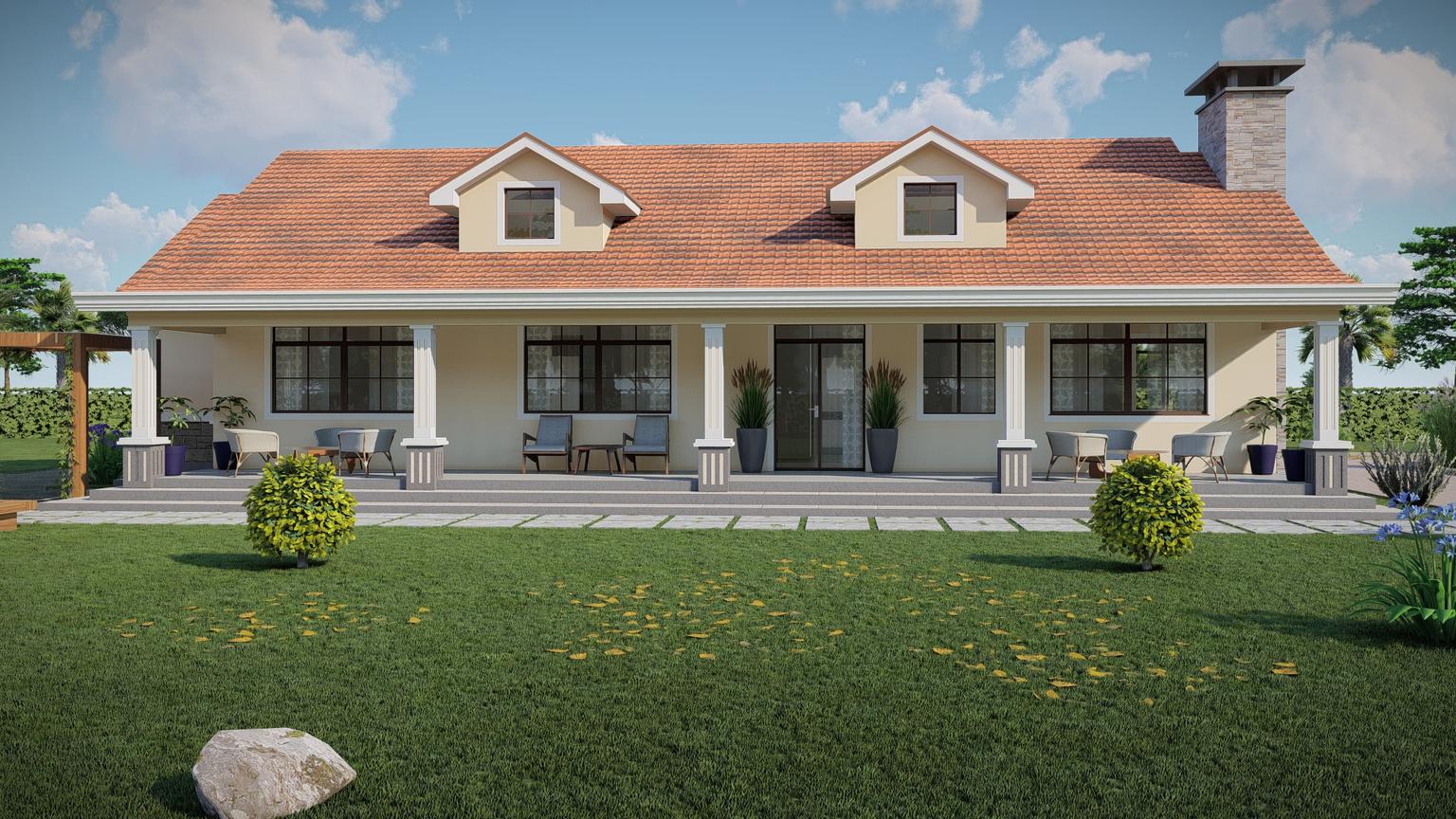

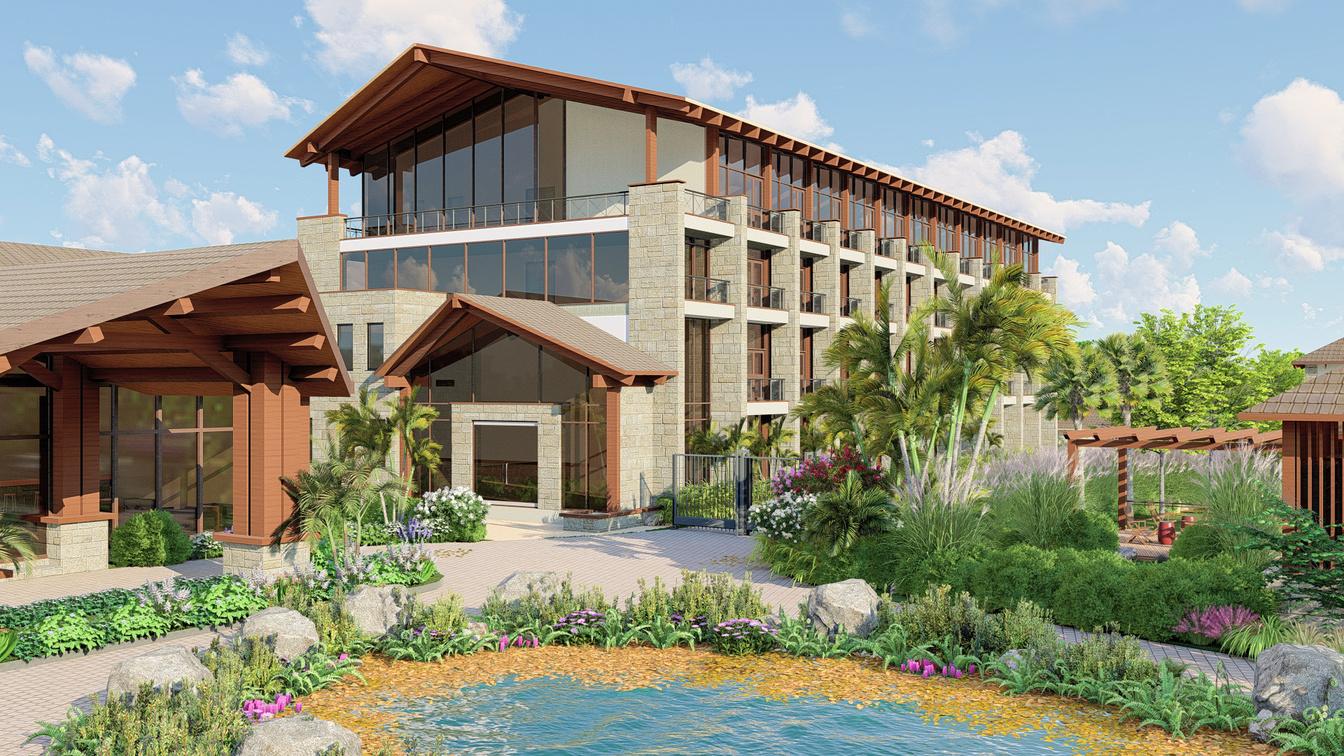

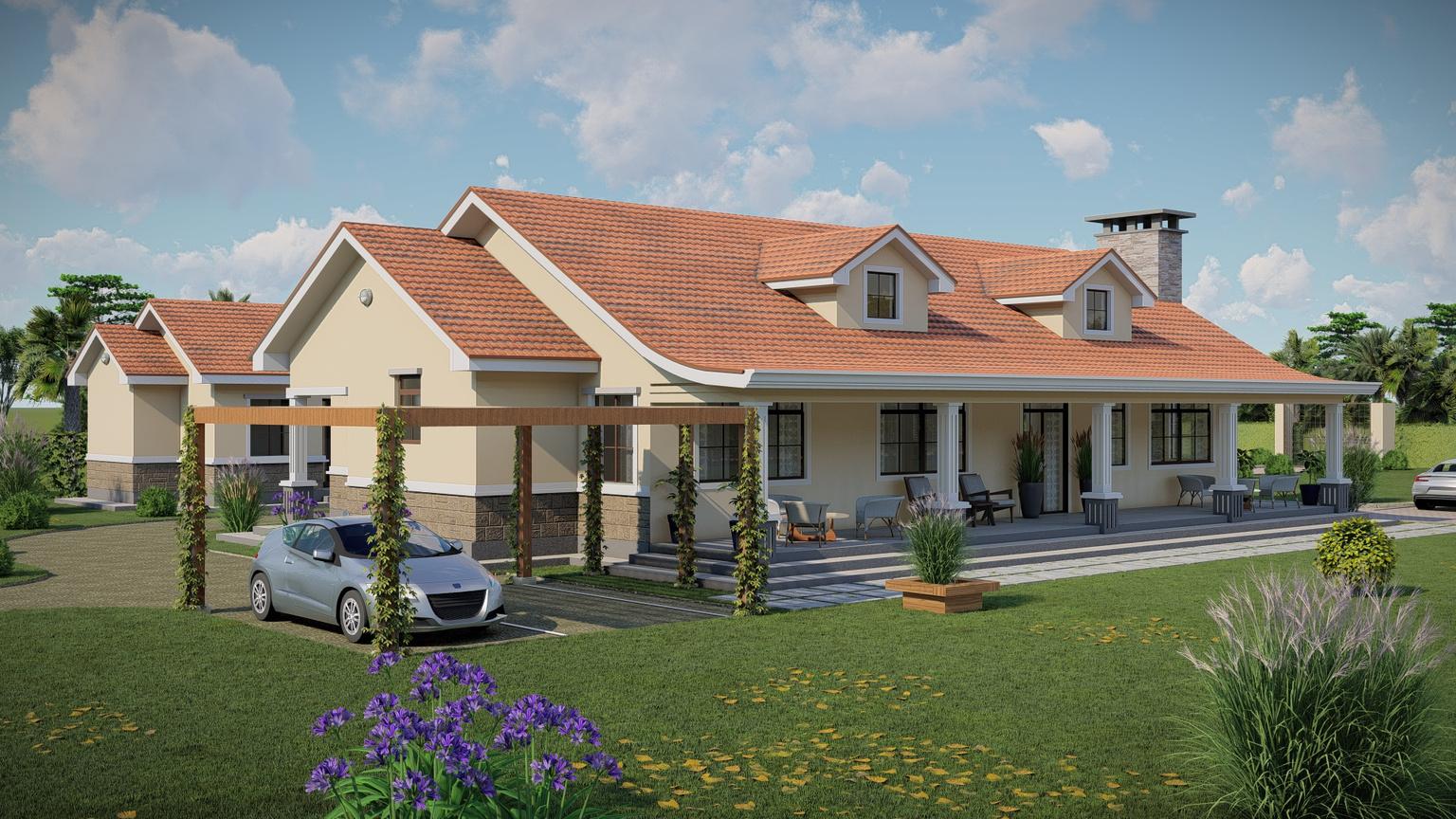

Engaged in various design phases for two housing developments in Uganda and one in Kenya. Additionally, contributed to the design process for a prospective resort in Kampala, involving layout modifications and the creation of 3D CAD models and renders.

Created detailed construction drawings, production drawings, and finish schedules.

Participated in conducting snagging at Royal Palms Butabika, Uganda.

Created As-built drawings for the Redcorr factory located in the Namanve industrial area of Kampala.

Engaged in weekly office meetings, consistently delivering updates on the tasks assigned to me for the week.

1 2 3 4

CONTENTS

Kiwempe Community Market

Year 2 semster 2 studio

Student Dormitory

Year 2 semster 1studio

Nalukolongo train station

Year 3 semster 2studio

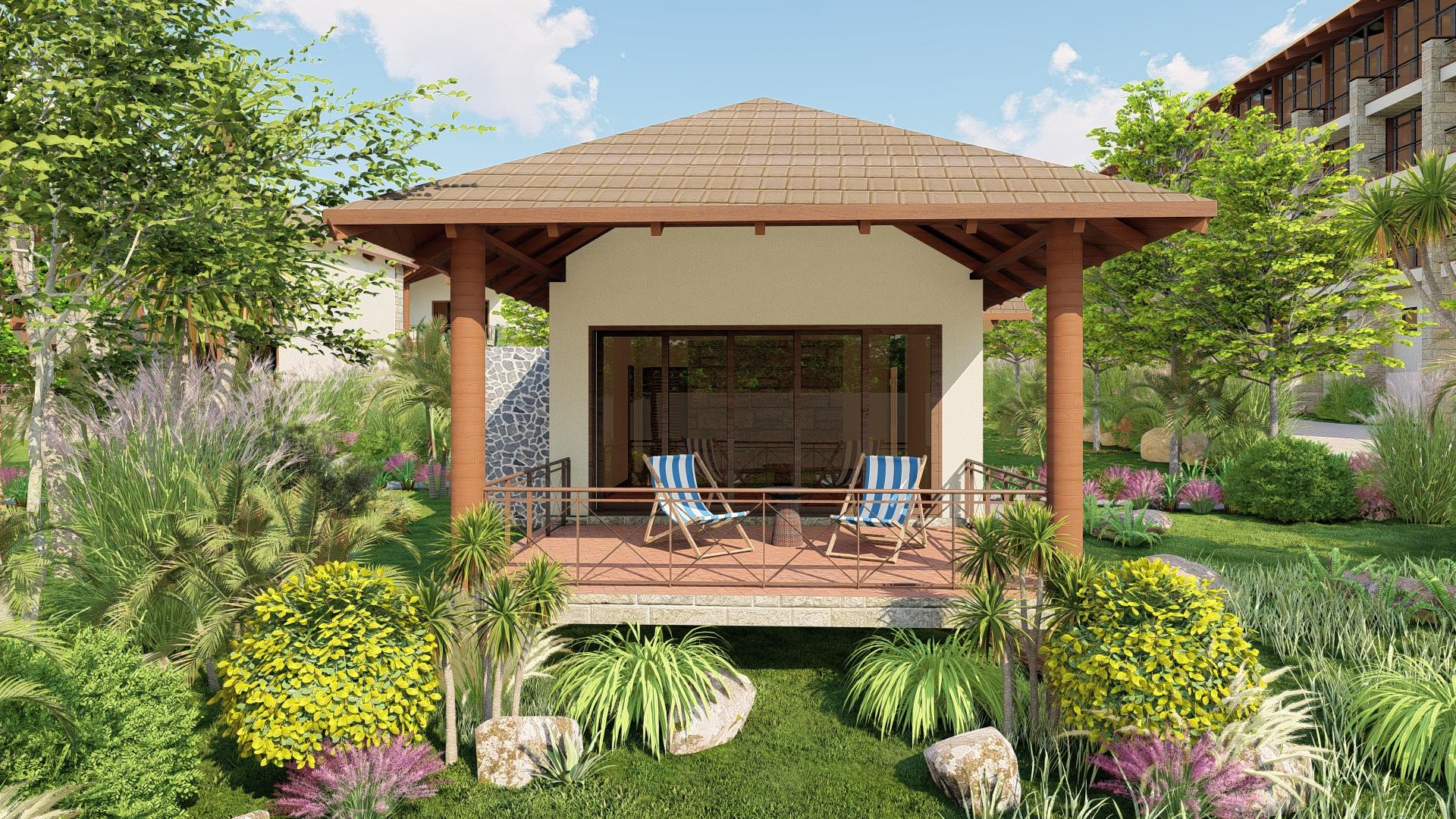

Works from previous internship

1 2 3 4

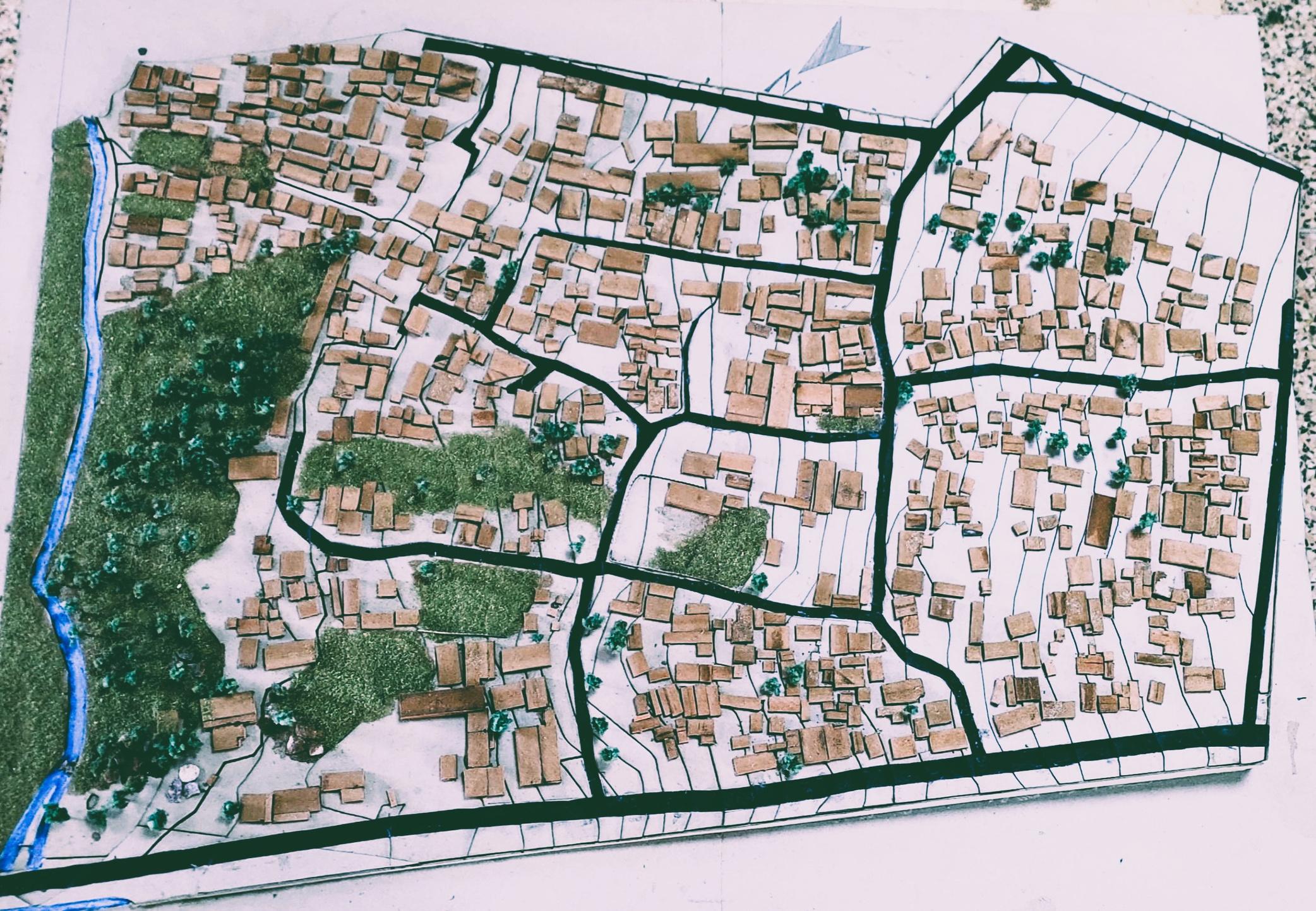

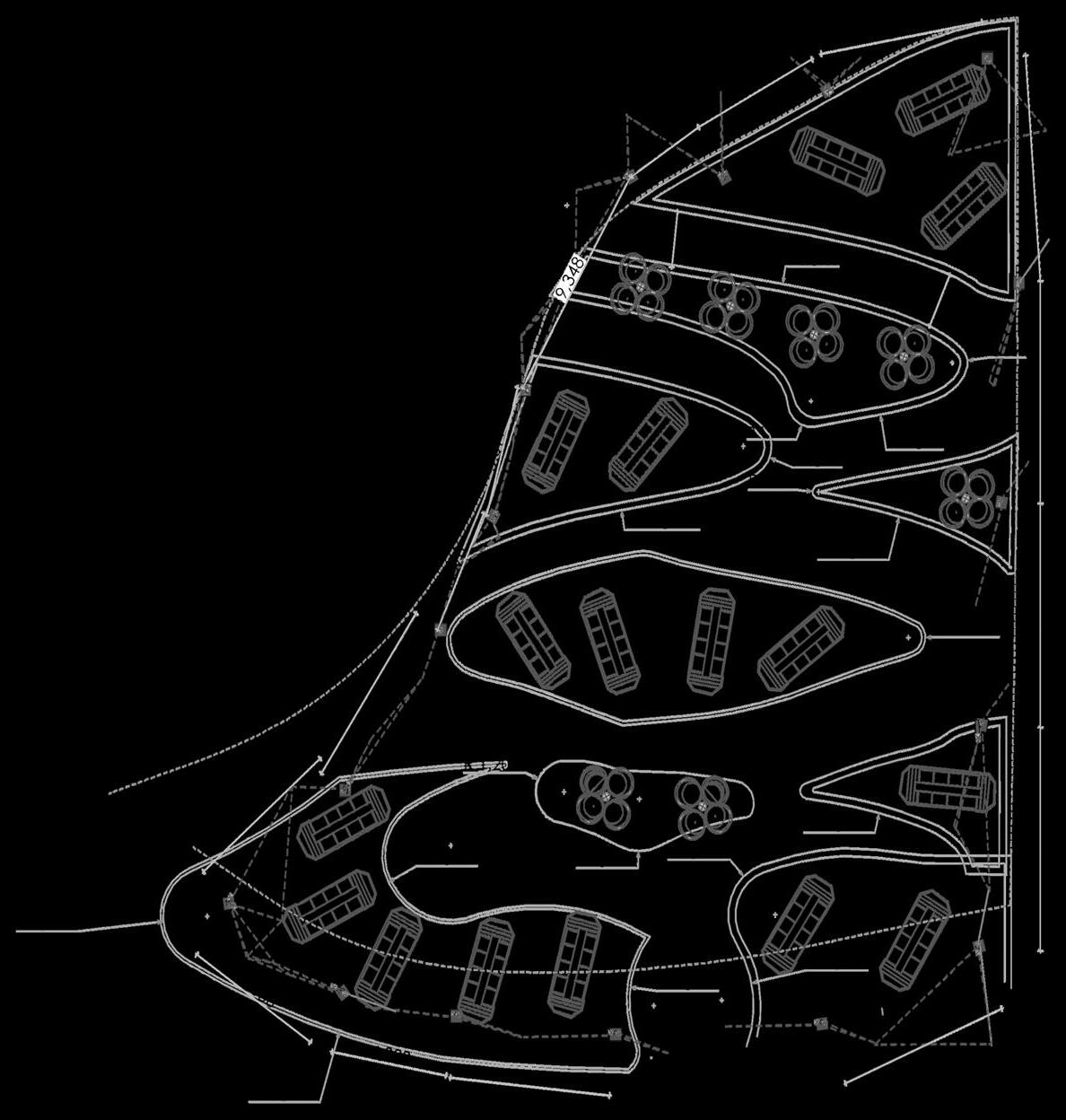

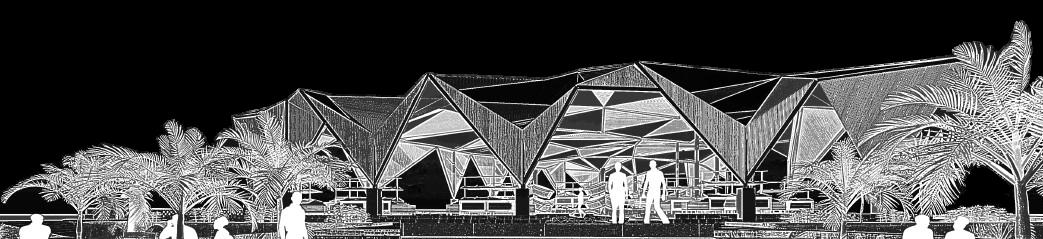

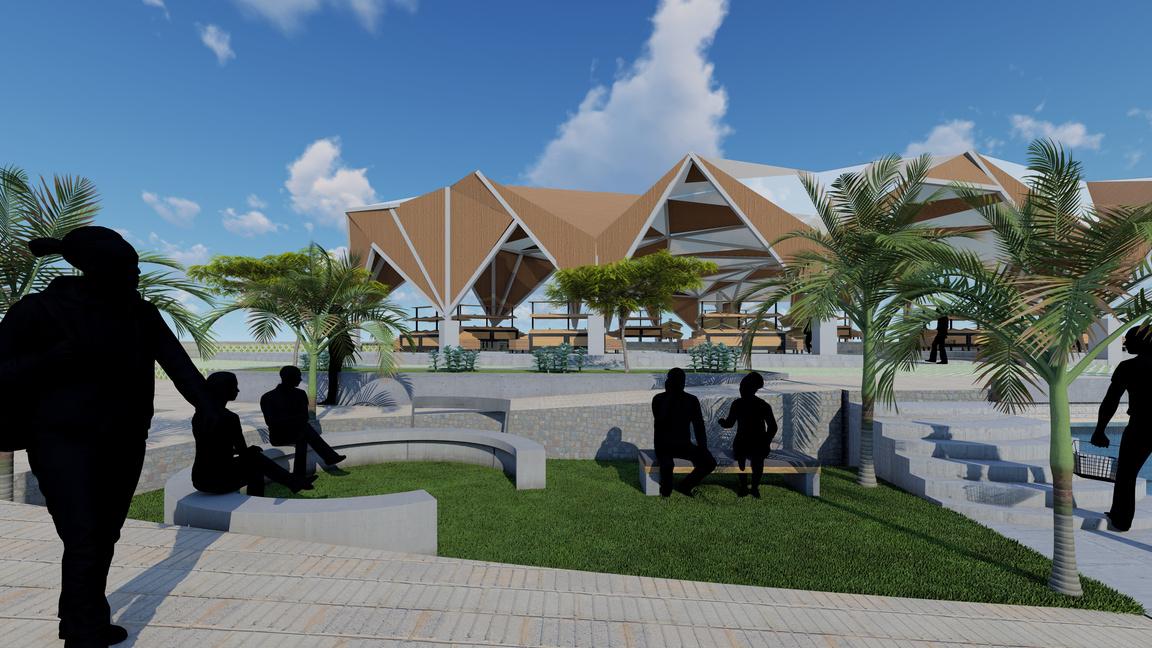

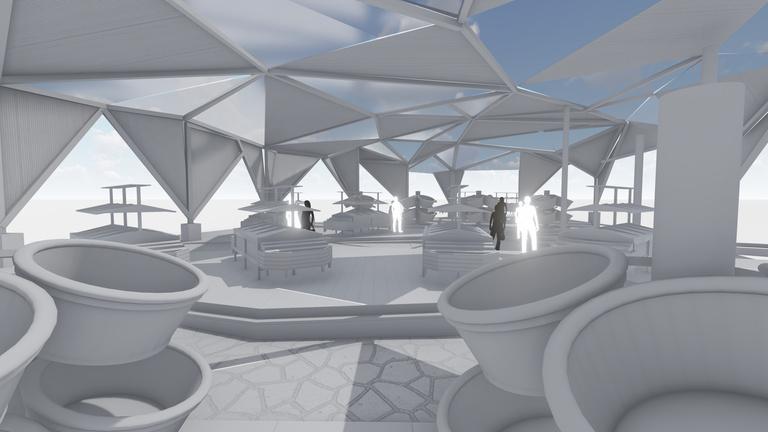

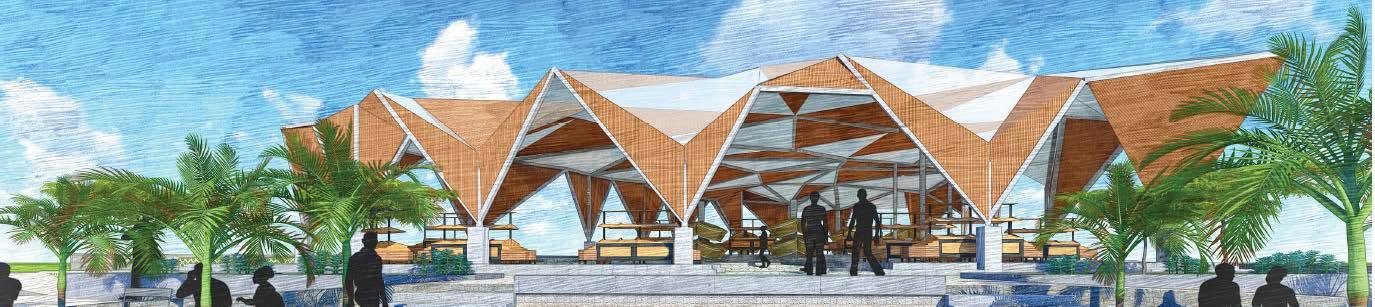

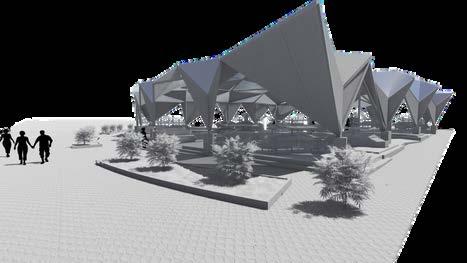

The project's goal was to spark urban renewal in the Kiwempe slum by establishing a lively marketplace to drive positive transformations. By incorporating creative design, backing local entrepreneurship, and organizing interactive events, the aim was to stimulate economic development, revive culture, and boost community spirit.

This marketplace not only supports the growth of local businesses but also acts as a lively social and cultural center, fostering a united and vibrant urban setting for all residents to appreciate. The Kiwempe community market aims to turn Kiwempe into a thriving community where prosperity and liveliness are enjoyed by all.

K I W E M P E C O M M U N I T Y M A R K E T
Year 2 semester2 1

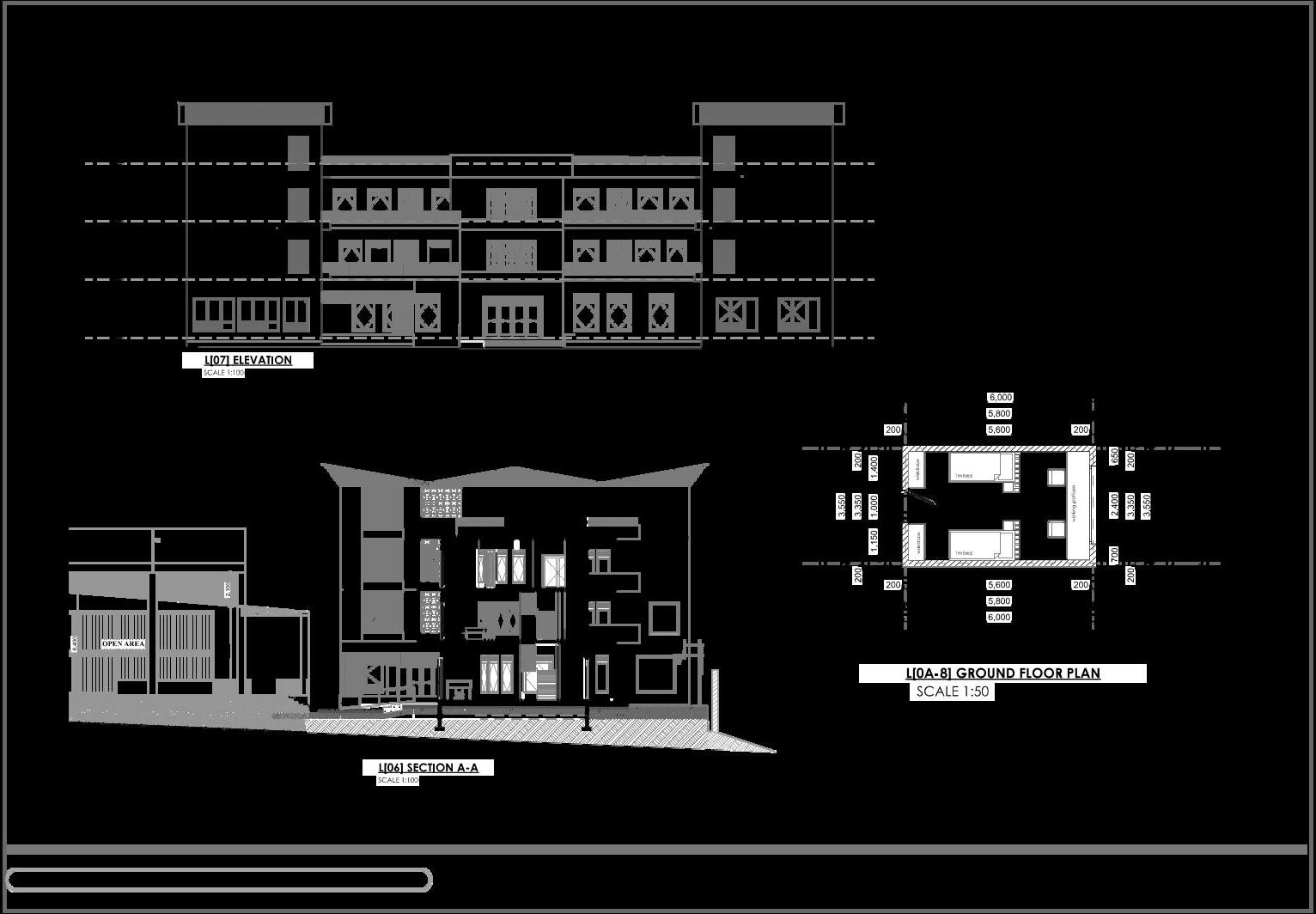

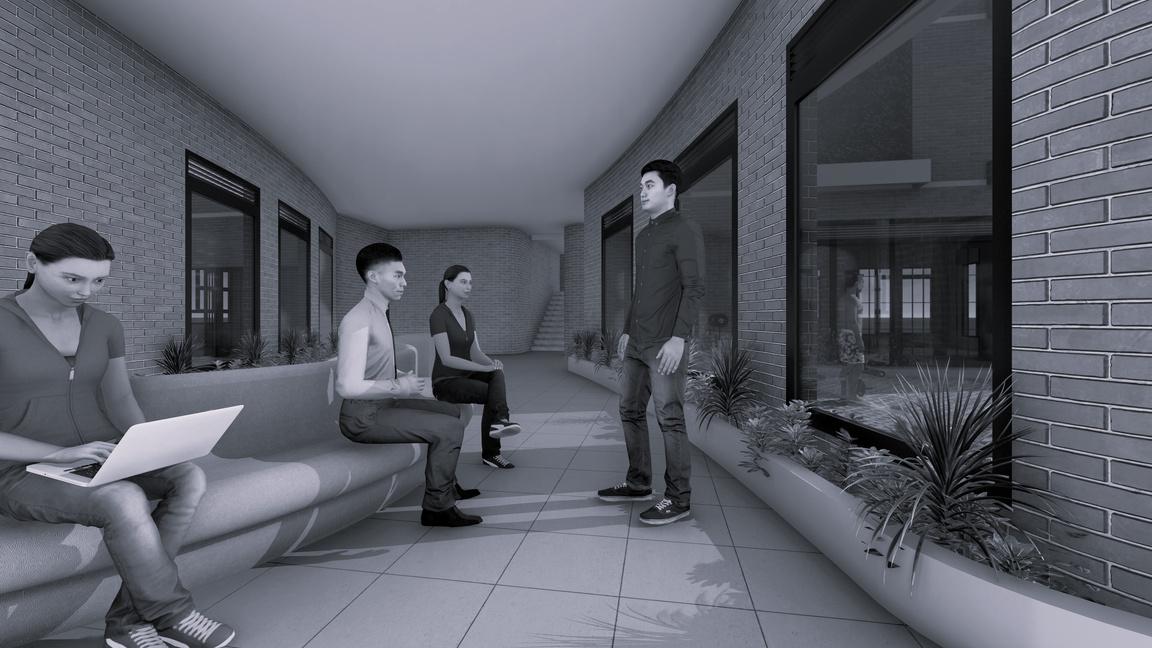

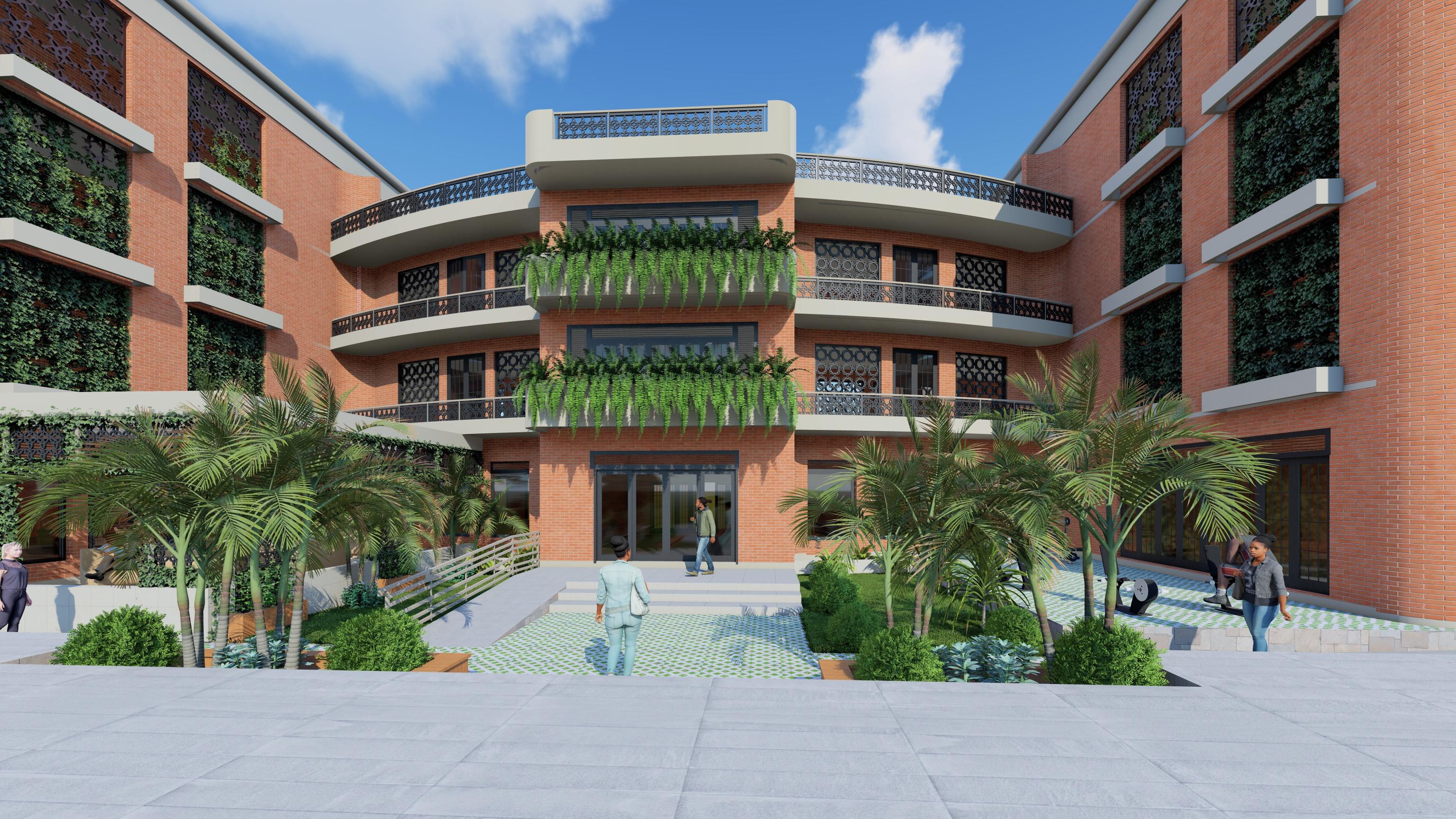

S T U D E N T D O R M I T O R Y

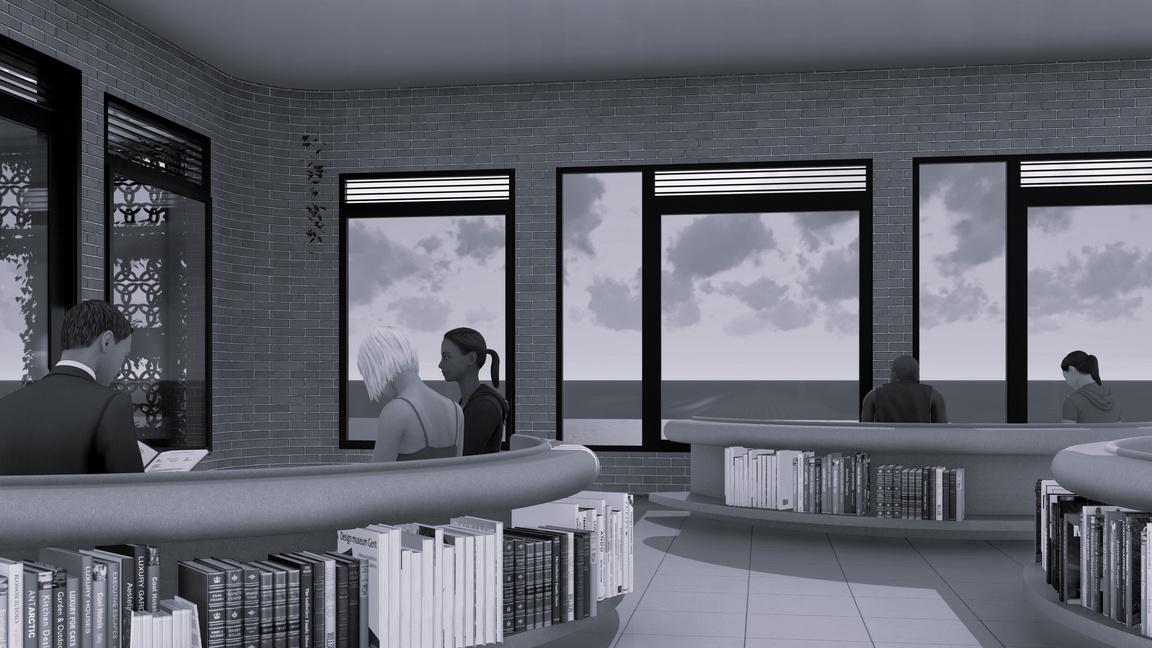

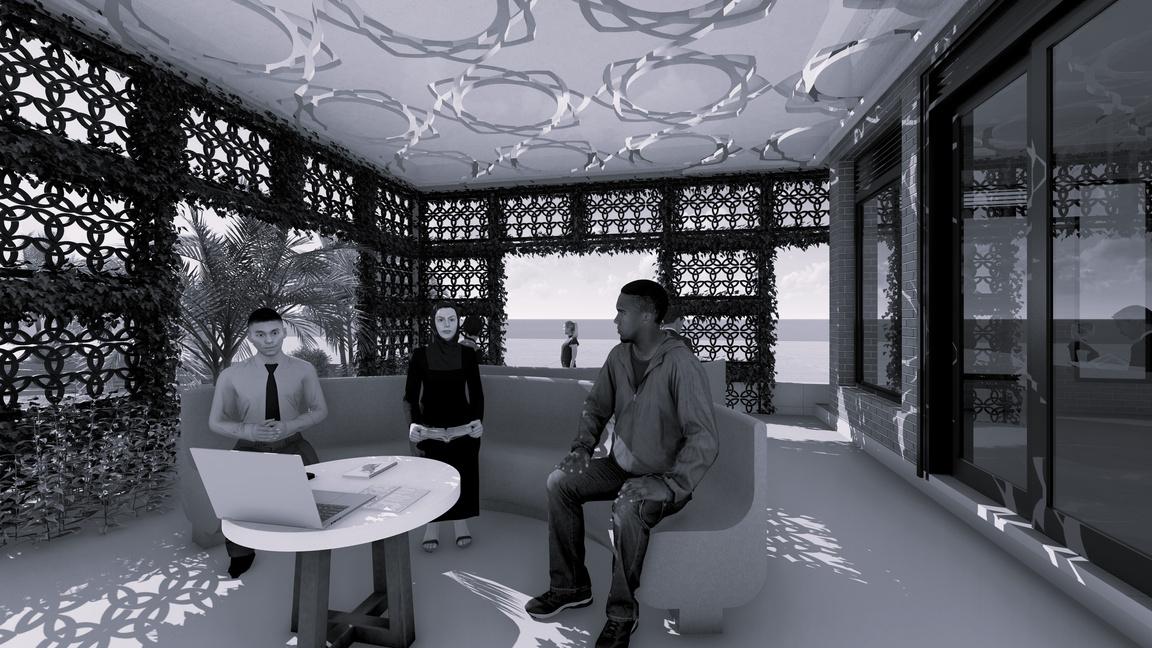

The Unity Residence at the International University of East Africa serves as a student dormitory aimed at promoting unity and cultural exchange among its diverse student body. Its architectural design focuses on communal areas such as common rooms, study lounges, and multicultural hubs to encourage interactions and meaningful conversations.

Outdoor gyms, gardens, and a rooftop terrace provide peaceful settings for socializing and relaxation, while a mix of private and shared rooms offer comfortable living spaces that balance personal space with community living.

Sustainable design features like use of locally available brick and natural ventilation and passive cooling enhance the eco-friendly aspect of the residence. The Unity Residence cultivates an inclusive community where students can engage, share their stories, and build lasting connections.

Year 2 semester1
2

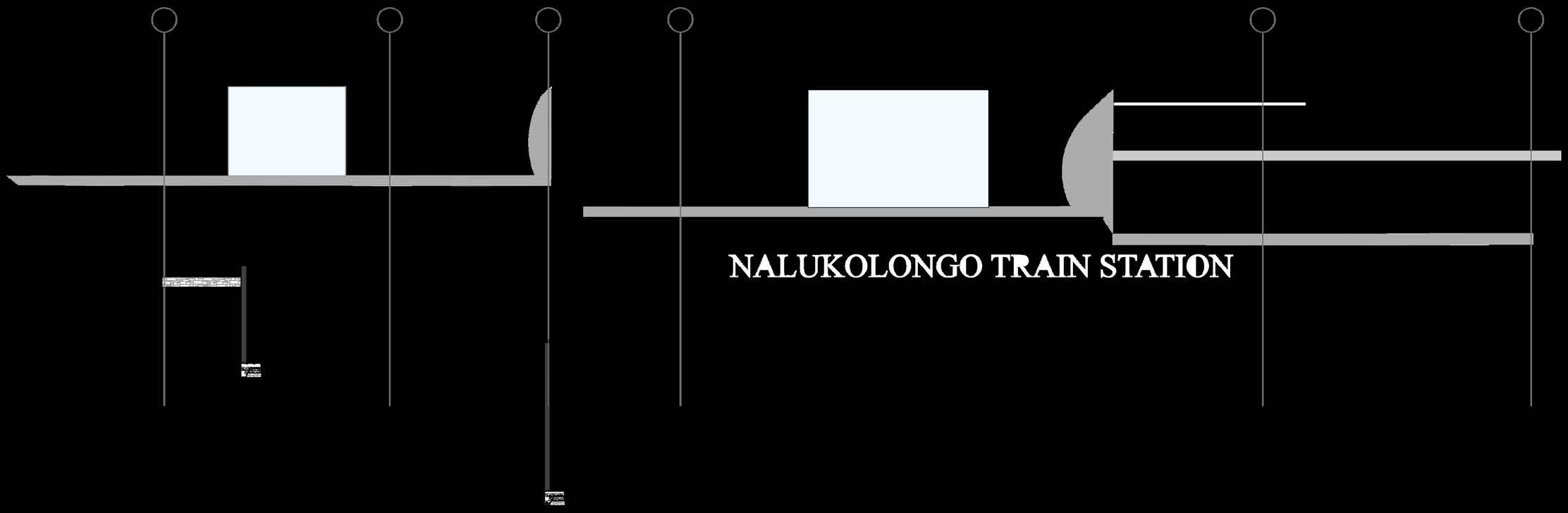

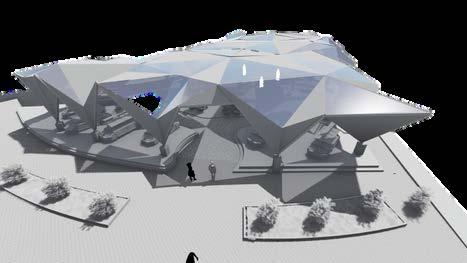

N A L U K O L O N G O T R A I N S T A T I O N

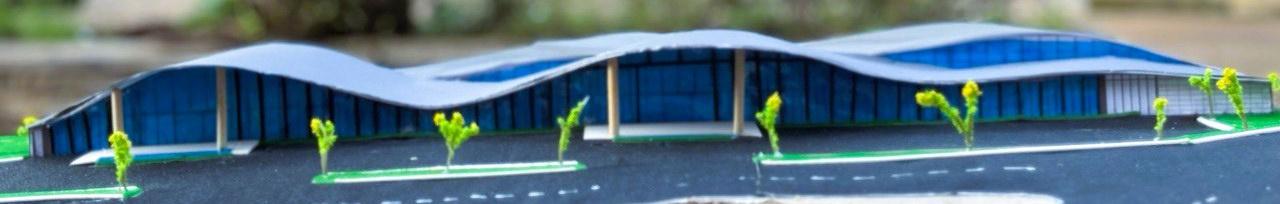

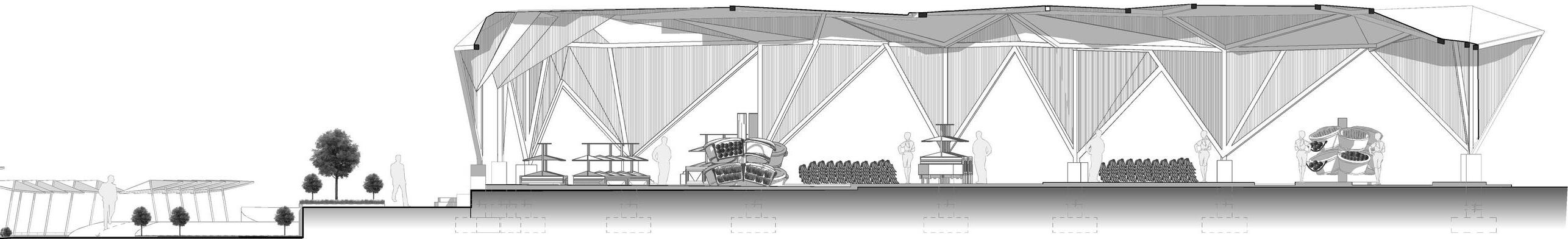

The Nalukolongo Train Station in the Rubaga Division of Kampala epitomizes the concept of "Radiant Stream," designed to harness the 14-meter height difference of the site to facilitate the seamless flow of passengers from higher levels to the tracks.

The station's terraced structure follows the natural slope of the land, creating a cascading effect that not only optimizes passenger movement but also integrates harmoniously with the environment. Ramps, escalators, and staircases are strategically placed to ensure accessibility and efficient navigation across different levels.

The architectural form, characterized by fluid lines and expansive canopies, maximizes natural light and offers panoramic views, creating a welcoming and airy atmosphere. By including community spaces such as a public plaza and green areas, the station transcends its role as a mere transit point, becoming a vibrant community hub that enhances the urban fabric of Rubaga Division

Year 3 semester2
3

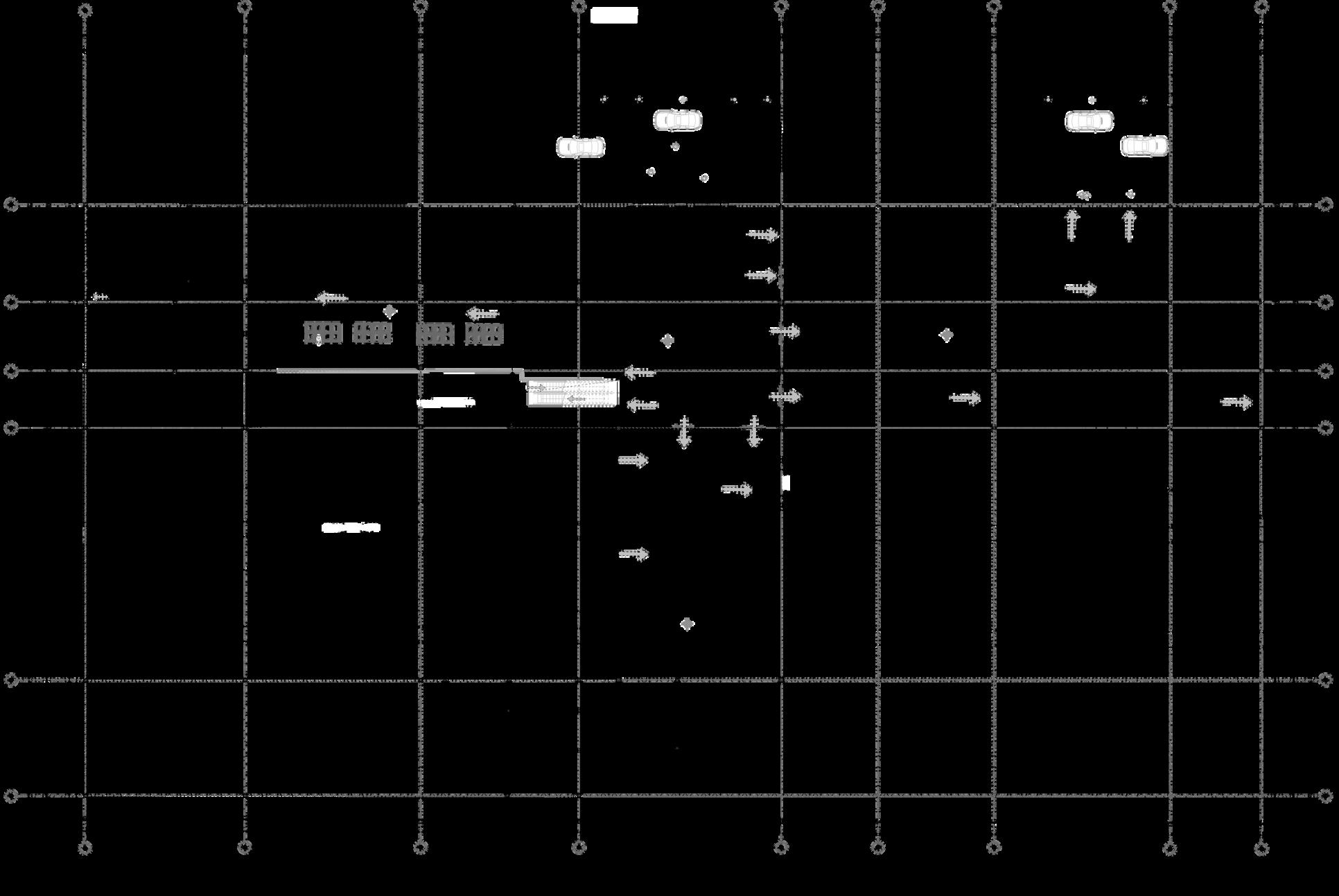

GSPublisherVersion0.0.100.100 200 7,029 200 10,708 200 3,658 200 16,024 18,001 26,550 2,478200 200 48,197 18,150 18,150 20,000 20,000 18,000 18,000 133,461 E[--]03 23,000 133,783 133,783 23,000 11,000 11,000 13,200 13,200 20,000 20,000 10,432 10,432 67,249 13,200 28,650 6,500 7,800 11,100 S [--]01 13,200 28,650 6,500 7,800 11,100 67,249 48,256 7,806 48,349 1,502 4,672 200 200 200 200 1,000 1,000 1,900 2001,189 1,2001,200200 2001,500200 660 1,7528818 548 81 881 1,832 3,554 1,371254 13,200 28,650 6,500 7,800 11,100 +0 +0 +0 +0 VOIDBELOW VOIDBELOW TICKETINGAREA LIFT LIFT LOBBY ENTRANCE ARRIVALHALL ATM ATM ATM ATM ATM LOST&FOUND INFORMATIONDESK SHOP SHOP SHOP EXIT SHOP SHOP SHOP STAFFLOUNGE OFFICES LAGGUAGEHOLDING LIFT SECURITY ROOM DISPATCH CENTER SECURITY ROOM CONTROLROOM OFFICE ICTROOM TOILETS TOILETS pwdtoilet Jenitor's closet INFORMATION DESK TICKETINGAREA TICKETINGVENDING AREA Jenitor's closet pwdtoilet Arrivingpassengers Arrivingpassengers Throughsecurity FIREESCAPE ToOffices ToOffices EXIT Departingpassengers Departingpassengers RestrictedAccess EXIT Tobankingarea Tobankingarea Shopafewcomodities EXIT Shopafewcomodities EXIT FIREESCAPE DROPOFFAREA ARRIVALSPICKUP Restricted Access FOUNTAINPOSITION FOUNTAINPOSITION S [--]01 E [--]04 E[--]01 E [--]02 1 2 3 4 5 6 A A B B C C D D E E F F G G H H I I 1 2 3 4 5 6 CHECK Walkthrough Metaldetector Walkthrough Metal CHECK POINT CHECK POINT

MAINCARGOWAREHOUSE (fromtruck2)

RETAINEDEARTH

CARGOWAREHOUSEEXTENSION (fromtruck1)

(lightweightcargooffloading)

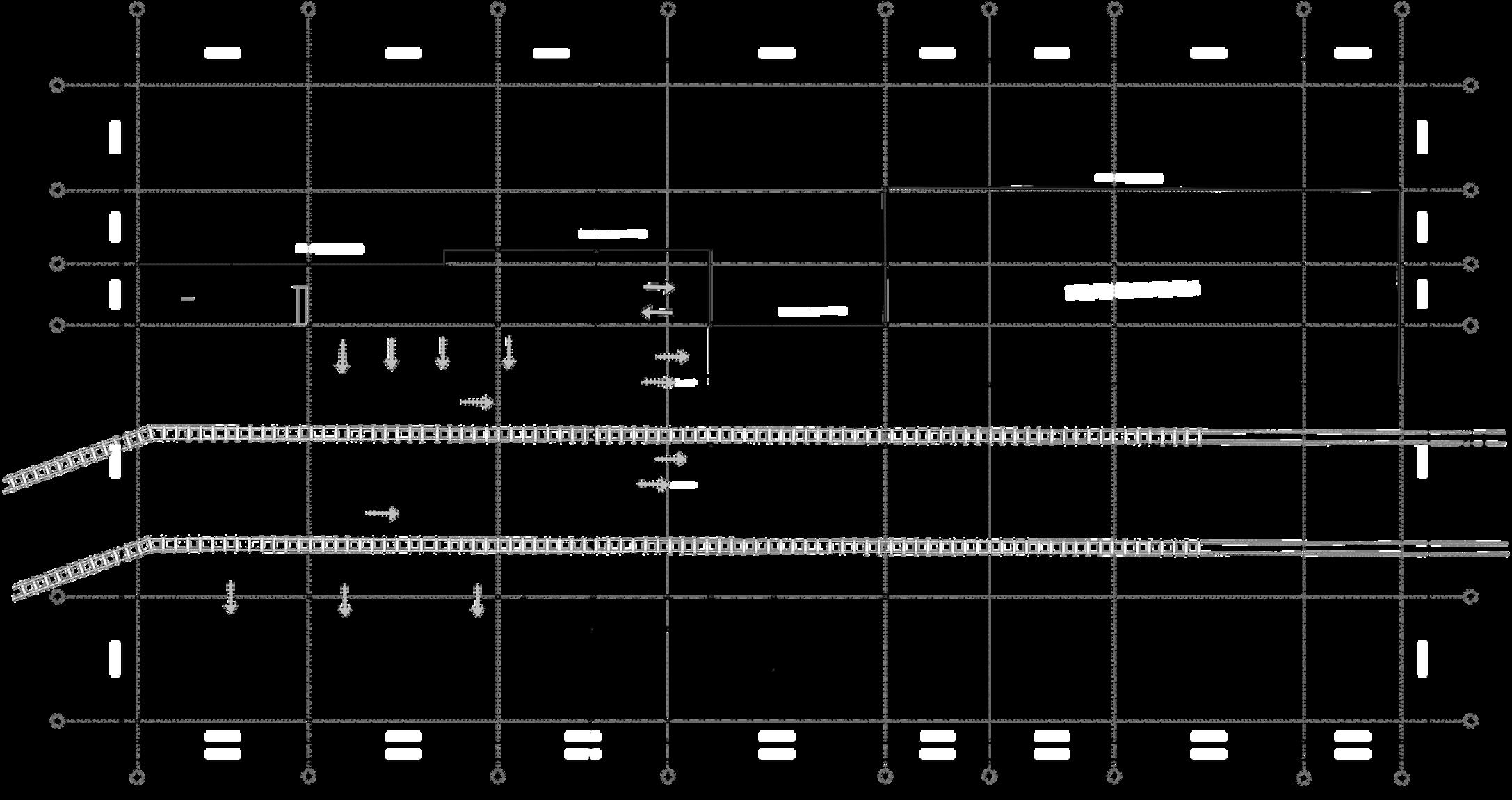

18,150 18,150 20,000 20,000 18,000 18,000 22,995 22,995 11,005 11,005 13,200 13,200 20,000 20,000 10,432 10,432 18,150 20,000 18,000 E[--]03 22,995 11,005 13,200 20,000 10,432 6,500 13,200 7,800 28,650 11,100 S [--]01 6,500 13,200 7,800 28,650 11,100 SECURITYROOM DEPATURESEXIT AREA LIFT LIFT LIFT SECURITYROOM (staffcheckin/out) TOILETS TOILETS TOILETS STAFFACCESS STAFFACCESS RETAINEDEARTH
PLATFORM3
PLATFORM2 PLATFORM1 LIFT RETAINEDEARTH SORTINGCENTER STORAGE RETAINEDEARTH
(lightweightcargooffloading)
takelifttonextfloor takelifttonextfloor Tobridge Tobridge S [--]01 E [--]04 E [--]02 E[--]01 6 5 4 3 2 1 A A B B C C D D E E F F G G H H I I 5 6 3 4 1 2

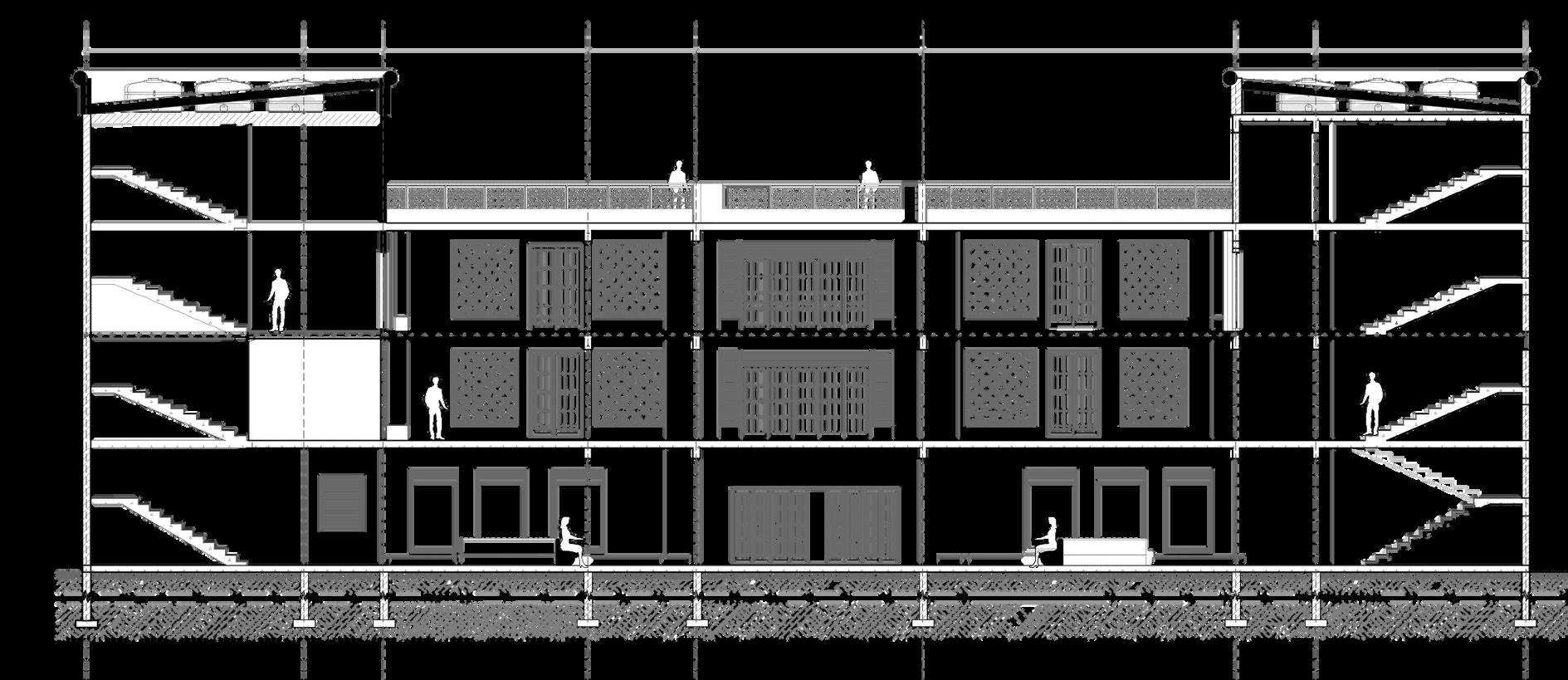

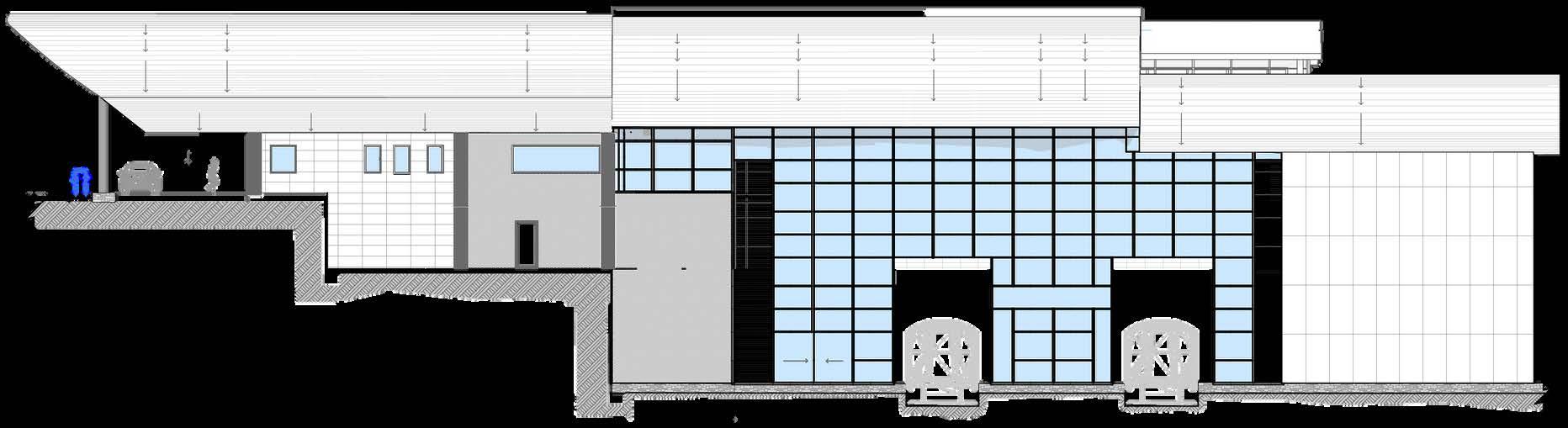

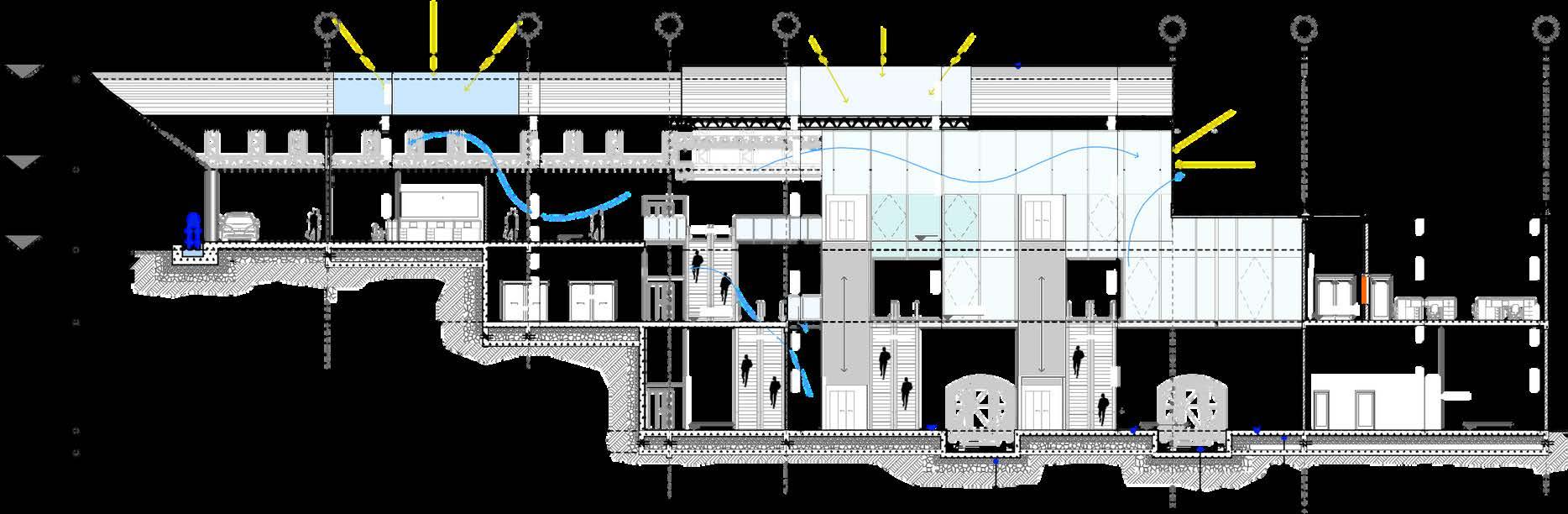

ROOF DETAIL Profiled corrugated roof sheeting onto100x100Z-purlins welded onto welded50x50SHS steel trusstie beam 45mm floor finish onto 200mm thick r.c onto100mm thick sand blinding onto 300mm well compact hardcore onto well compact rammed earth. Raft Foundation Sunlight Sunlight Sunlight Sunlight tSunligh 11,100 7,800 6,500 21,348 7,302 13,200 SKY LIGHT ±0 - 4,000 - 10,000 SKY LIGHT ±0 - 4,000 - 10,000 - 4,000 - 10,000 DROP OFF TICKETING OFFICE TICKETING OFFICE LOBBY LIFT DEPURTURE HALL LIFT BRIDGE BRIDGE LIFT BRIDGE BRIDGE FOUNDATION SHOP SHOP ESCALATOR ESCALATOR ESCALATOR PLATFORM 1 TRAIN TRACK ESCALATOR PLATFORM 2 TRAIN TRACK PLATFORM WAREHOUSE CARGO OFFICE +0 +9,000 +4,000 -4,000 -10,000 -11,000 Sunlight Sunlight 1 2 3 4 5 6 7 2,450 2,200750 4,000 2,450 2,200750 300 4,000 3,600300 2,750 2,200750 4,000 300 4,000 300 5,400 4,000 2,750 750 6,150 6,000 4,000 2,750 750 6,150 6,000 745 250 5,755 5,750 745 200250 5,755 5,550
