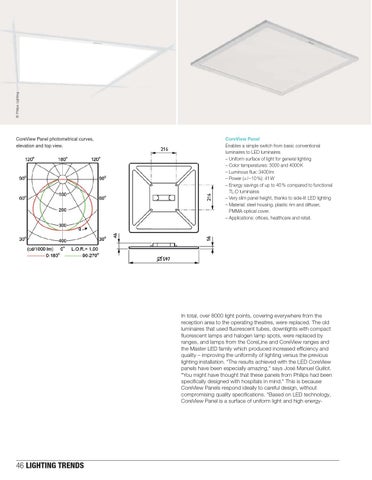

CoreView Panel photometrical curves, elevation and top view.
CoreView Panel Enables a simple switch from basic conventional luminaires to LED luminaires – Uniform surface of light for general lighting – Color temperatures: 3000 and 4000 K – Luminous flux: 3400 lm – Power (+/– 10 %): 41 W – Energy savings of up to 40 % compared to functional TL-D luminaires – Very slim panel height, thanks to side-lit LED lighting – Material: steel housing, plastic rim and diffuser, PMMA optical cover. – Applications: offices, healthcare and retail.
In total, over 8000 light points, covering everywhere from the reception area to the operating theatres, were replaced. The old luminaires that used fluorescent tubes, downlights with compact fluorescent lamps and halogen lamp spots, were replaced by ranges, and lamps from the CoreLine and CoreView ranges and the Master LED family which produced increased efficiency and quality – improving the uniformity of lighting versus the previous lighting installation. "The results achieved with the LED CoreView panels have been especially amazing," says José Manuel Guillot. "You might have thought that these panels from Philips had been specifically designed with hospitals in mind." This is because CoreView Panels respond ideally to careful design, without compromising quality specifications. "Based on LED technology, CoreView Panel is a surface of uniform light and high energy-
