SPORTS LIGHTING GUIDE
Sports Lighting Specialists at Every Level
Welcome to Lumineux
should choose Why you
family-run, UK-based business distributing quality LED lighting products.
OVER 35 EXPERTISEYEARS
Providing lighting solutions for over 35 years, founded on an approach of high quality, innovation and dependability.
NEXT DAY DELIVERY
Over £4m worth of stock available for nextdaydelivery! Orderbefore4pm forguaranteed samedaydespatchon stockeditems.
AWARD WINNING
Winners of Best Lighting Brand in 2023 & 2024 and Best New Product 2024 at the Electric Wholesaler Awards.
ACCREDITEDPrioritising the needs and satisfaction of customers, buildingrelationships.long-term
whenSupport you need it!
INNOVATIVEContinuously improving, developing and researching new ideas and technologies.new
ON-SITE WARRANTY
Dedicated to providing peace of mind. That’s why we’re excited to introduce our on-site warranty for your projects. For full terms see lumineux.co.uk/ warranty.
Extended Onsite Warranty
In addition to the standard warranty of the product, Lumineux & truSmart will offer onsite warranty on products that carry 5 year or more warranty
For the onsite warranty you must registrar your project on our website within 90 days with proof of purchase for unique reference number You will need this unique code if you need to make a claim.
Sports lighting soloutions tailored to you
Lumineux is a trusted UK-based and familyrun company, offering high-quality lighting solutions designed to elevate every sporting experience. Whether it’s a stadium, football field, or swimming pool, Lumineux ensures exceptional visibility and atmosphere with energy-efficient lighting systems that let fans and athletes focus entirely on the game. Our commitment to quality and innovation means spectators can enjoy an immersive experience while clubs and facilities benefit from cost-effective, longlasting performance. With Lumineux, it’s not just about lighting up a space, it’s about enhancing every moment of sport.
Why upgrade your LED lighting?
Upgrading your sports lighting brings a range of benefits for both performance and audience experience. Modern LED systems offer brighter, more uniform illumination with less glare, improving visibility for players, officials, and spectators alike. Energy-efficient lighting reduces running costs and carbon footprint, while advanced controls allow for dimming, scheduling, and scene-setting tailored to different events. With longer lifespans and lower maintenance needs, new lighting solutions ensure reliable performance and reduced disruptions—making them a smart investment for any club, facility, or venue aiming to meet modern standards.
“Efficient lighting leads to lower bills and higher performance.”
Cost Effectiveness
LED lighting cuts energy costs and needs little upfront investment.
Maintenance
LEDs last longer, come with hassle-free warranties meaning fewer replacements.
Improved Performance
The right lighting boosts focus, vision, and mood.
Environment
Cut your carbon emissions, benefiting the planet.
Dedicated Internal & External ASM’s Ensuring a more personalised service.
Project Sales Engineers Expert guidance and site surveys.
Customer Service
Technical & support teams providing the best service.
Next Day Delivery
Order before 4pm for guaranteed same day dispatch on stocked items.

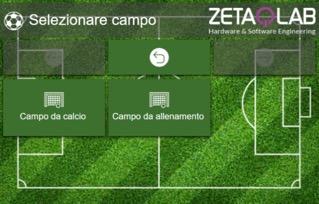

Lumineux Controls
Lumineux Controls enables you to remotely control your sports lights, available through touch screen, a phone app or battery powered gateways. This ensure you have lighting where and when you need it.
Maximum Efficiency
Control your lighting and reduce energy waste. Lumineux Controls enables you to light only the areas you need, when you need them. With options to light sections of your facility, you can reduce your energy costs without sacrificing lighting quality.
Simple Control
Lumineux Controls are simple to use. Available through touch screen, a phone app or battery powered gateways. All devices are designed to be user-friendly, fast and understandable regardless of your lighting knowledge or experience.
Tailored to Your Needs
Make your lighting work for you. Lumineux Controls enables you to tailor lighting to suit your needs. Whether that’s pre-sets for specific sports of routines or bespoke scenes targeting specific lighting or energy management. You can consistently find the balance between effective lighting and running costs.
Lighting Design
Our lighting designers can help provide the correct lighting for your building or outdoor space. With over 60 years of combined experience in the lighting industry, our team understands the critical role that effective lighting design plays in any project. We recognise the value a skilled lighting engineer brings, ensuring that every design meets the required light levels and complies with current regulations.
FREE Lighting Design Service
Lumineux offers a comprehensive and free lighting design service aimed at offering the right solution, whilst also providing the very best energy and cost savings.
Site Survey Service
Lumineux’s experts can provide a site survey to maximise your lighting needs, whilst offering the best solution for your budget and the right products for the right environment.
Return on Investment
Our ROI calculator factors variables, including maintenance and occupancy of the environment, to ensure a comprehensive payback calculation.
We offer a wide range of suitable sports fittings for both indoor and outdoor applications and if you take advantage of our free in-house lighting design service we can tailor a bespoke solution for suit all environments whilst providing excellent return on investment in terms of energy and money savings.
Suitable for: Outdoor Tennis Courts, Large Swimming Pools & Driving Ranges.

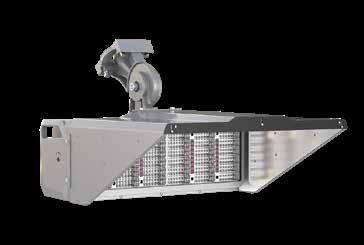

The Harlock is an asymmetric sports light with an optic lens and up to 93% lighting transparency. It’s a tough light, suitable for outdoors with an IP66 and IK10 rating.
Wimbleball Harlock

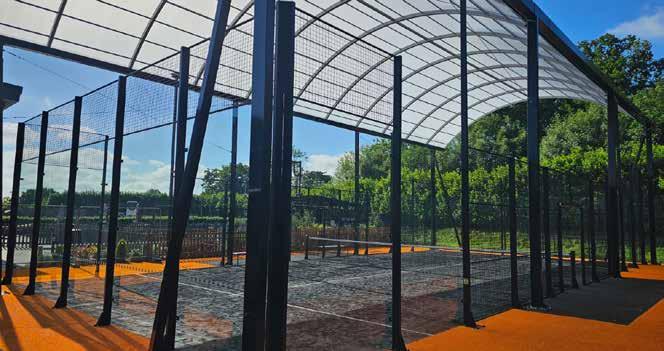

Suitable for: Padel courts
Wimbleball is specifically designed to LTA Standards for Padel Court Lighting, energy efficient at 165 lm/W & featuring Lumineux’s most advanced optics for even light distribution.
Wilton
Suitable for: Swimming pools and Tennis Courts.

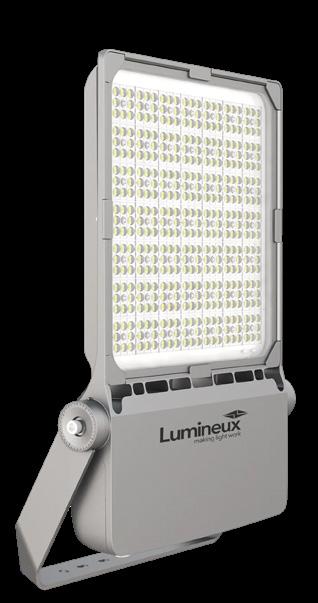

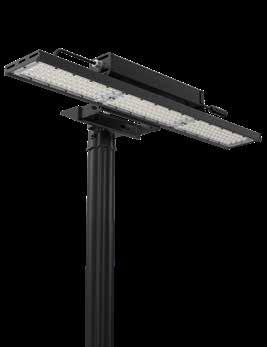

The Wilton is a high quality sports light with asymmetric optics, ideal for environments that require a specific direction of light.
Arnfield
Suitable for: Indoor Tennis Courts
Reaching LTA Standards, the Arnfield can be adapted to the environment with bespoke court lighting optics.
Suitable for: Sports halls, Gymnasiums and Assembly Halls.
The High impact Belmont is a robust linear High Bay with outstanding performance and low glare.
Averon Plus & Carsington Plus
Football Pitches, Rugby Pitches, Golf Courses &
The Averon and Carsington Plus are our most popular floodlights available, with adjustable beam angles and light polution visors included, meaning the light can be directed exactly where it is needed.
Call us to discuss our new and improved sports lighting ranges.
Your Sport Your Needs
Our Solution
Floodlighting plays an important role whatever your sport. In some cases it is a key requirement for clubs within National League Systems. Our lighting can extend community use which allows for increased hours of play, this in turn assists in increasing revenues and improving sustainability of the facility. The following illustrations show a standard lighting scheme for semi-professional competition courts and pitches. This gives your customer an idea of lighting positions and the appropriate amount of light fittings required. We have also provided specific sport lighting guidance links from the relevant governing bodies.
For detailed information and lighting guidance visit the England rugby website: englandrugby. com or scan this QR code Rugby Levels 2-5 Levels 6-12

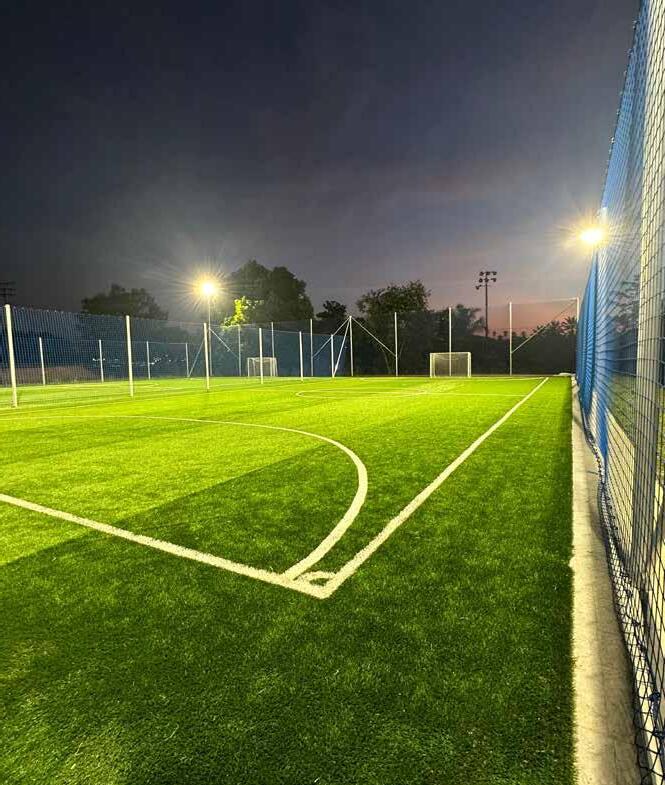

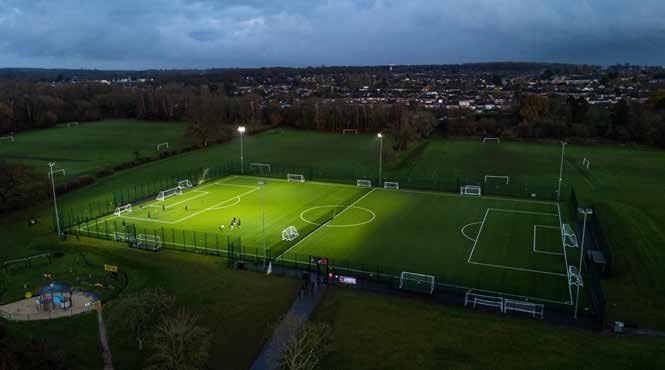

Football
Product Types x12 Averon Plus 1650W x12 Averon Plus 1200W
Mounting Height 15m 15m
Designed to 0.85 MF (Maintenance factor)
For detailed information and lighting guidance visit the FA website: thefa.com or scan this QR code
GRADE A B-G
Grade A Grade B-G

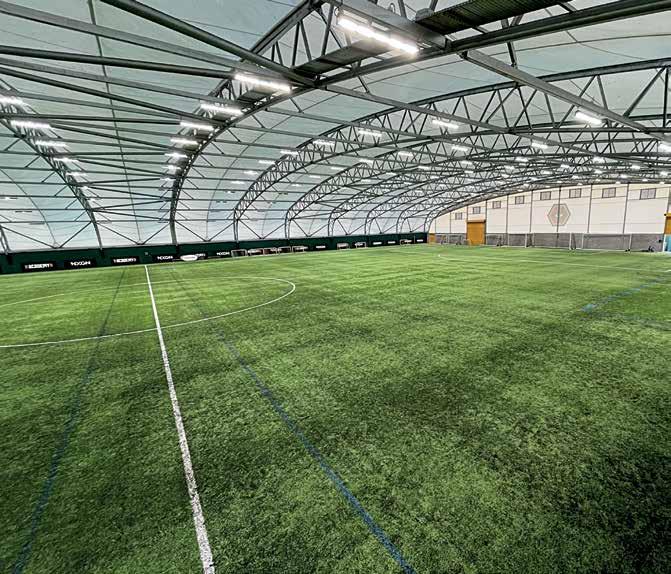

Wolves Training Centre
Working with the contractor, Lumineux’s lighting design team built a solution to improve the coverage and cost effectiveness of the Premier league club’s current set up. The training centre now has over 220 lights
installed, throughout the pitch, balcony, evaluation area and training room. The lighting has made an immediate impact, especially on the training pitch where the difference between the old and new lighting is clear to see.
“Significantimprovementinlightingcoupled withareductioninrunningcosts.”
CASE STUDY
For detailed information and lighting guidance visit the England hockey website: englandhockey.co.uk or scan this QR code
Product Types x8 Carsington Plus 960W x8 Carsington Plus 600W
Mounting Height 10m 10m
Designed to 0.85 MF (Maintenance factor)
LTA Requirement - Block of 4 (All on)
LTA Requirement - Block of 4 (individually switched)
For detailed information and lighting guidance visit the LTA website: lta.org.uk or scan this QR code Designed to 0.85 MF (Maintenance factor)
Swimming
Padel Court
LTA RequirementNational
LTA Requirement -
Horse Ménage
CIBSE - Class II - 40m x 20m
CIBSE - Class III - 40m x 20m Designed to 0.85 MF (Maintenance factor)
II III
Product Types x12 Wilton 200W x12 Wilton 100W
Mounting Height 8m 8m Total Wattage 2,424W 1184W
CLASS

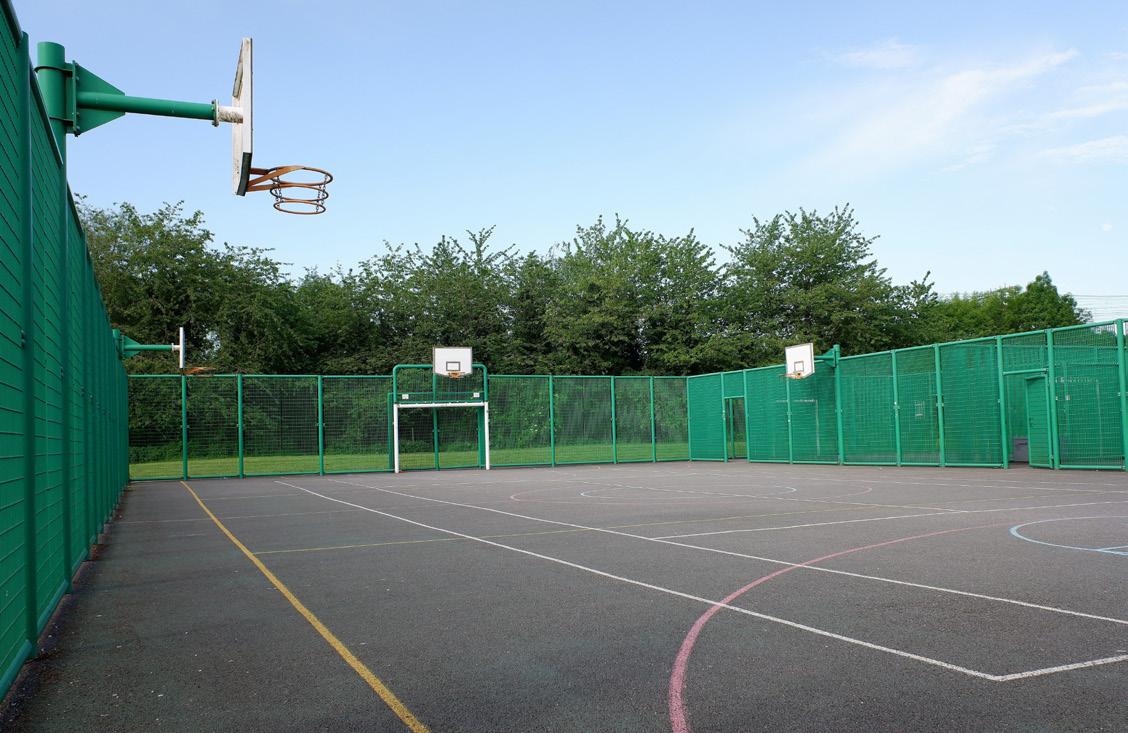

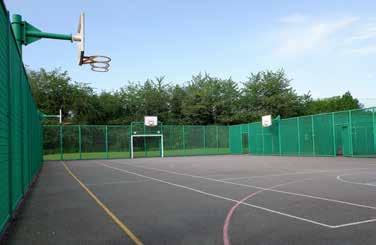

MUGA
Multi-Use Games Area - 38m x 18m
Sports Hall
Designed to 0.85 MF (Maintenance factor) Designed to 0.85 MF (Maintenance factor)
CIBSE
CIBSE
Sport England - Block of 4 (All on) Designed to 0.85 MF (Maintenance factor)
Badminton
Cricket Nets
Track Lighting
CIBSE - Class II
Lighting Colour Temperature Scale
2700K - 3000K Warm & Inviting
Adds a yellow tint while enhancing reds and oranges
4000K Efficient & Neutral
Enhances all colours equally
6000K Vibrant & Attentive
Adds a bluish tint, flattens reds and enhances existing blues
CCT Selectable Correlated Colour Temperature
Products that are CCT Selectable allow you to choose the colour temperature of the light using a switch on the fitting. This lets you adjust the light to suit different rooms or preferences without needing to change the fixture.
BasketBall
The perfect light for every space, every time.
Lumineux provides tailored lighting solutions for every sports, enhancing spaces with efficient, adaptable illumination that supports comfort, focus, and well-being for athletes and spectators.
Tennis
Equestrian
Football
High-quality lighting ensures clear visibility for players, officials, and spectators during fastpaced matches.
Equestrian
Even, natural-feel lighting promotes rider safety and horse comfort during training and events.
Rugby
Powerful, uniform lighting supports dynamic gameplay and safe tackling, even in poor weather conditions.
Padel Ball
Consistent illumination reduces shadows and improves depth perception in this fast, reactive game.
Swimming pool
Specialist lighting enhances visibility in and around the water, improving safety and competition clarity.
Hockey Padel
Basket Ball
Crisp indoor lighting enhances reaction time and precision in this high-speed, high-skill sport.
Tennis
Glare-free lighting helps players track fast-moving balls and maintain focus through long rallies.
Hockey
Bright, uniform lighting allows players to track the ball and make accurate passes under pressure.
MUGA
(Multi-Use Games Area)
Versatile lighting supports a range of sports, ensuring safety and enjoyment across all activities.
Bowls
Balanced lighting ensures precision play and clear visibility of jack and bowls across the green.
SwimmingPool MUGA
• High quality LED chips and driver
• Asymmetric optics
• Suitable for swimming pools and coastal areas
• 304 stainless steel bracket powder-coated
• Easy installation
• High efficiency up to 140 lm/W
• IP67 and tough IK09 rated construction
Equestrian MUGA Basket Ball Padel
Swimming Pool Bowls (external) Tennis Hockey
Harlock
• 10kVA L/N-PE surge protection
• High efficiency 150 lm/W Asymmetric Optic, 170 lm/W Symmetric Optic
• IP66 and tough IK08 rated construction
• 3000K & 5000K available on request
Football Rugby Equestrian
MUGA Basket Ball Padel
Swimming Pool Bowls (external) Tennis Hockey

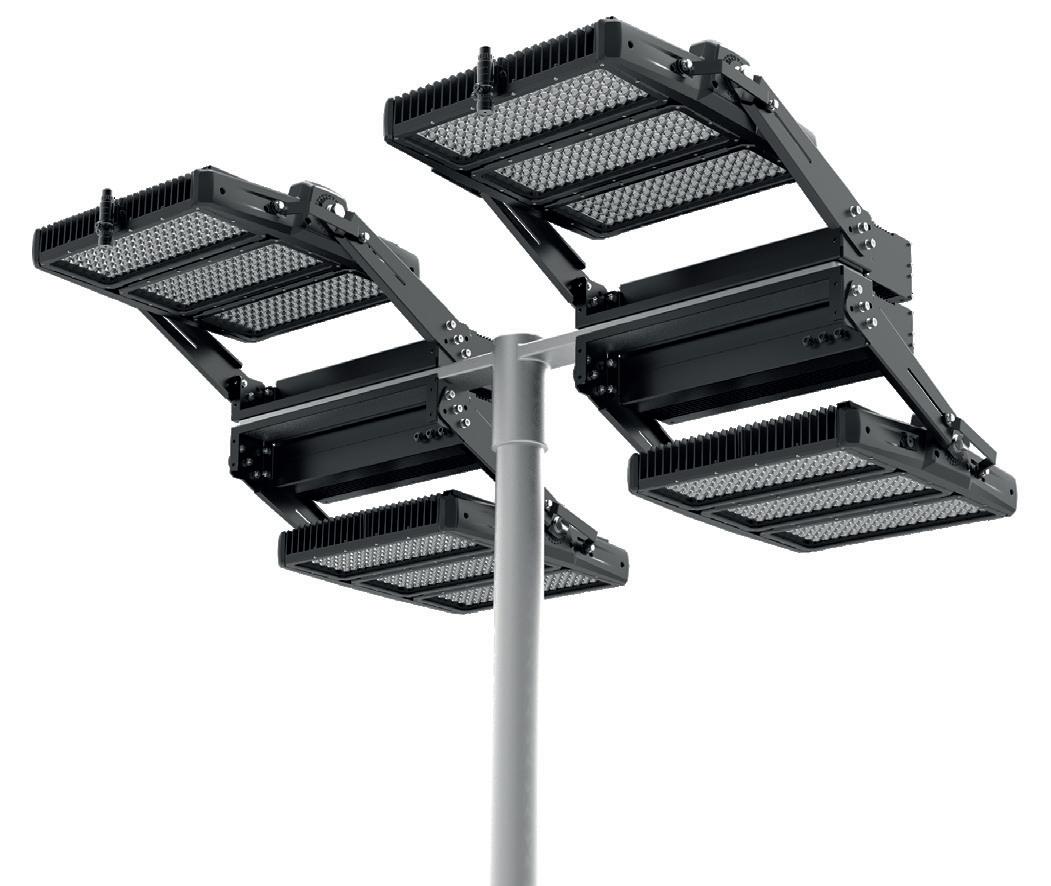

Averon & Averon Plus
• 3000K & 5000K available on request
• 10KV surge protection
• High thermalconductive aluminium alloy
• IP66 ingress protection
• 1,000 hours salt spray tested
Football Rugby
Equestrian
MUGA
Basket Ball
Padel
Swimming Pool
Bowls (external) Tennis Hockey
• Designed to meet LTA Standards
• Bespoke court lighting optics
• Supplied with 1.5M prewired H05RN-F cable
• IK10 rating
• Option of lumens maintenance
Football
Rugby
Equestrian MUGA
Basket Ball
Padel
Swimming Pool Bowls (internal) Tennis
Hockey
CASE STUDY

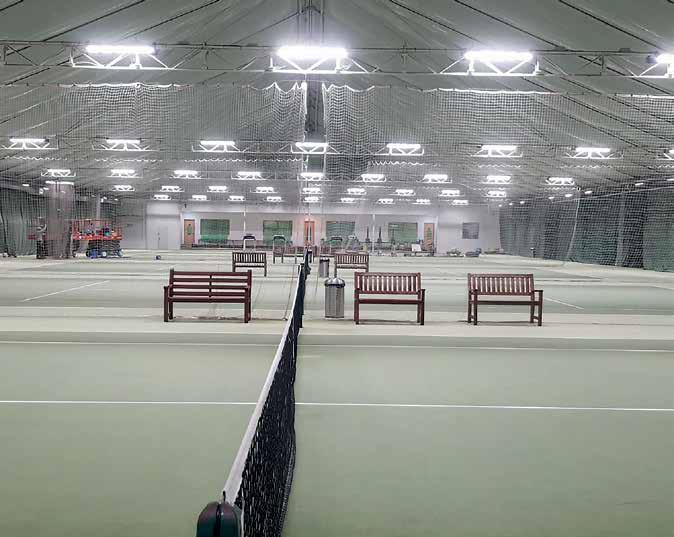

Indoor Tennis Courts
David Lloyd Leisure in Southampton is one of a number of David Lloyd facilities where Lumineux products have been installed. The Southampton Club were looking to improve the lighting in their indoor tennis courts, without increasing their energy costs. Working alongside our
Lighting Design team, a solution was created to replace their existing lighting for an LED alternative. Throughout the courts, 264 Arnfields were installed, leading to noticeably improved lighting on the courts and a dramatic saving in running and maintenance costs.
“Theestimatedsavingwascalculated at£136,235over5years”

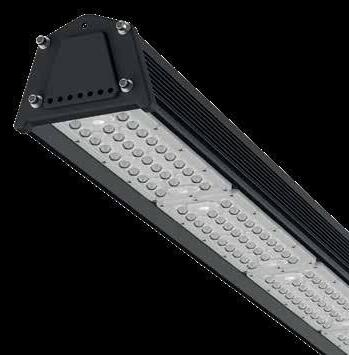

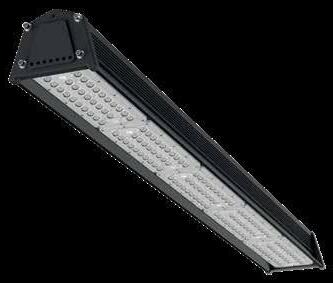

Belmont
Linear High Bay - Zhaga Plug & Play
• Fresnel optics for improved glare control
• Tough, impact resistant IK10 housing
• Plug & Play Options
Football (internal)
Rugby
Equestrian (internal)
MUGA Basket Ball Padel
Swimming Pool Bowls (internal) Tennis
Hockey
CASE STUDY

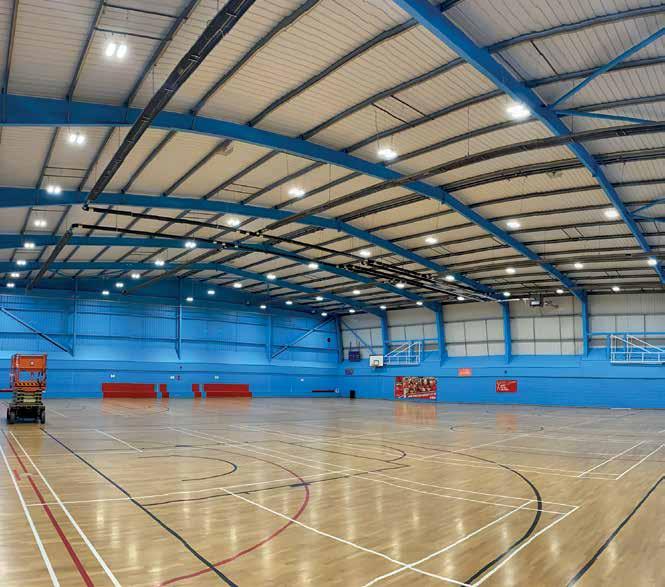

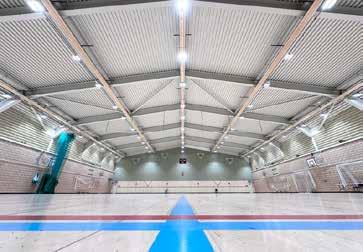

Philips High School
The Sports Hall at Philips High School has been transformed with the introduction of the 120W Belmont Linear High Bay. It’s tough and durable, impact resistant housing is perfect for the environment, whilst having a flicker-free driver with an IK10 impact rating.
“It’stoughanddurable,impactresistant housingisperfectfortheenvironment”

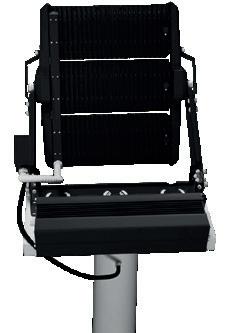

Control Gear Mounting Options
Depending on the size of installation, we would recommend installing the cabinet option as this offers the greatest flexibility in terms of installation of the Control Gear and ease of maintenance.
Mounted on Brackets
Control Gear mounted on the bracket is ideal when there is a small installation.
The Control Gear can also be installed either within the pole (where available) or on the outside as shown.
Mounted within a Static Cabinet
Perfect for large installations. We would recommend this option as it provides very good installation and maintenance all in one cabinet.
Outside Pole Mounted
Inside Pole Mounted

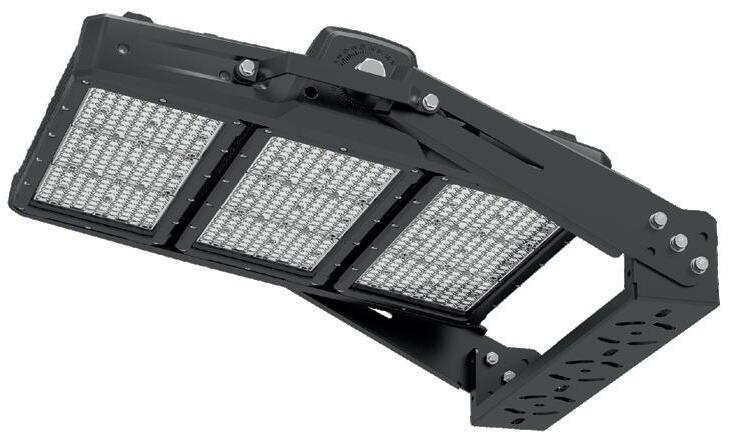

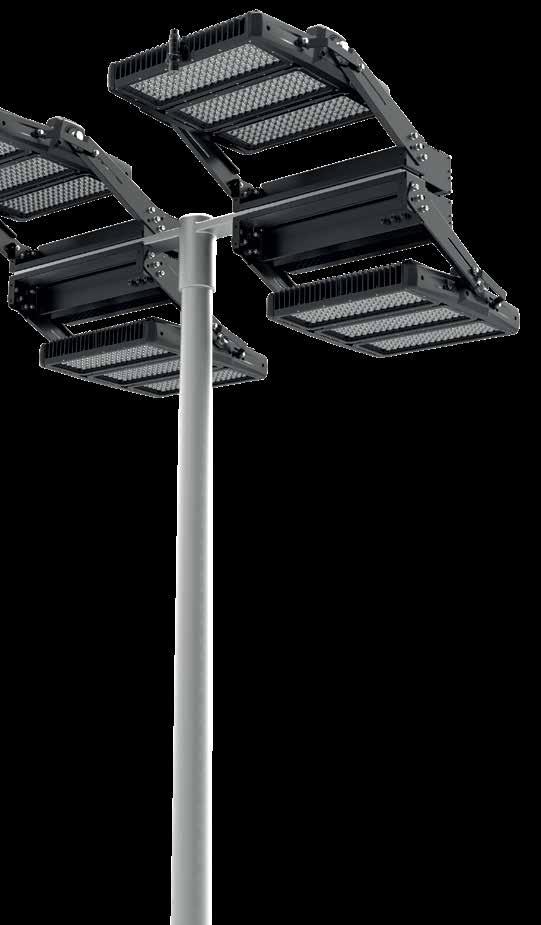

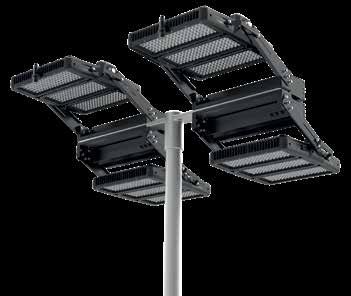

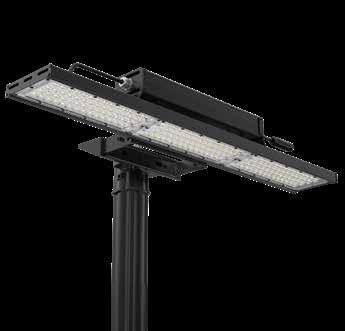

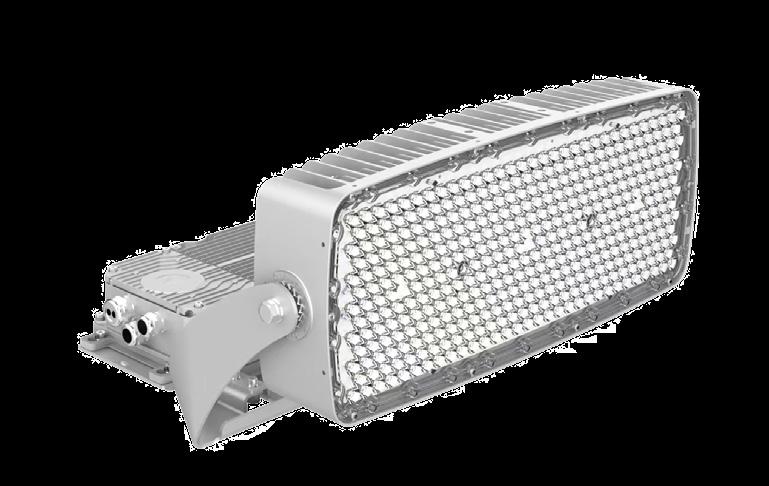

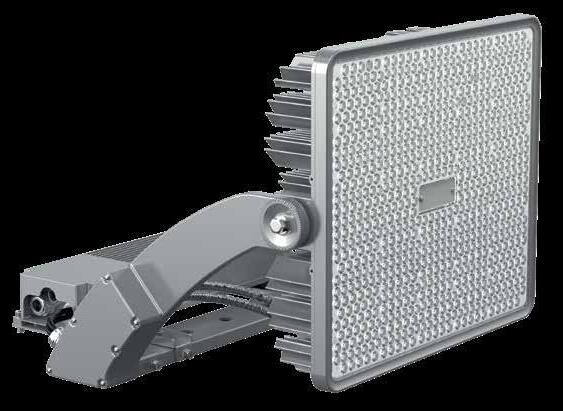

Carsington Plus
• Massive light output of up to 183,600lm
• Ultra-high system efficiency over 140 lm/W
• High quality Lumileds LED chip and Inventronics driver
• Control gear has IP68 Plug & Play connectors
• Professionally designed true asymmetric flat optics
• High quality Akzo Nobel anti-corrosion powder coating
• DALI Driver

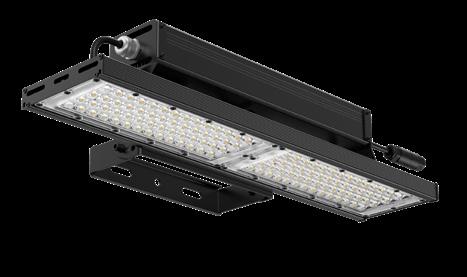

Wimbleball
• C5 corrosion resistance
• Designed to meet LTA padel court standards
• Bespoke court lighting optics
• IK10 rating
• 120° polarised 38° optics
Available with DALI

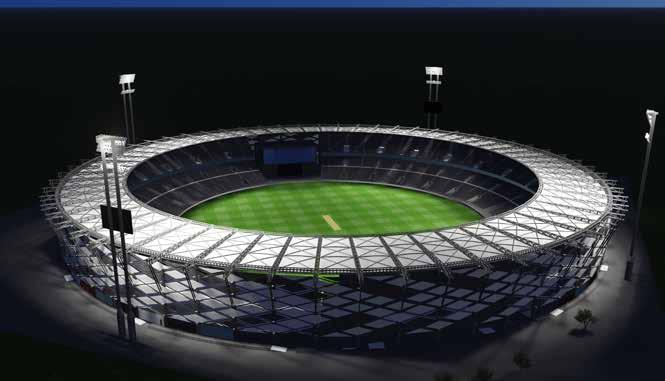

Brayside
• Suitable for outdoor professional sports and entertainment venues
• Beam angles: 15°/20°/25°/40°
• RGBW
Equestrian MUGA Basket Ball Padel
Swimming Pool Bowls (external) Tennis
Is your Emergency Lighting up to Standard?
We offer a full and free survey on emergency lighting, ensuring your safety lighting fits your needs and meets the latest regulations. All our emergency fittings now come with E-SEL3 selectable emergency fitted as standard - this gives the installer the option to select either a Self-Test or Manual emergency function. Offering flexibility, easier maintenance, and better compliance. Self-test saves time and labour by automatically checking for faults, Manual mode gives full control when needed. Reliable, cost efficient options for busy maintenance staff.

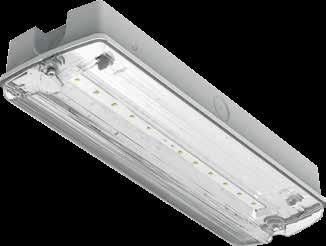

Darwell
Emergency Bulkhead
• Switchable Emergency - Self-Test / Manual
• Maintained / Non-maintained
• Multiple 20mm conduit entry points
• Loop in / Loop out terminals

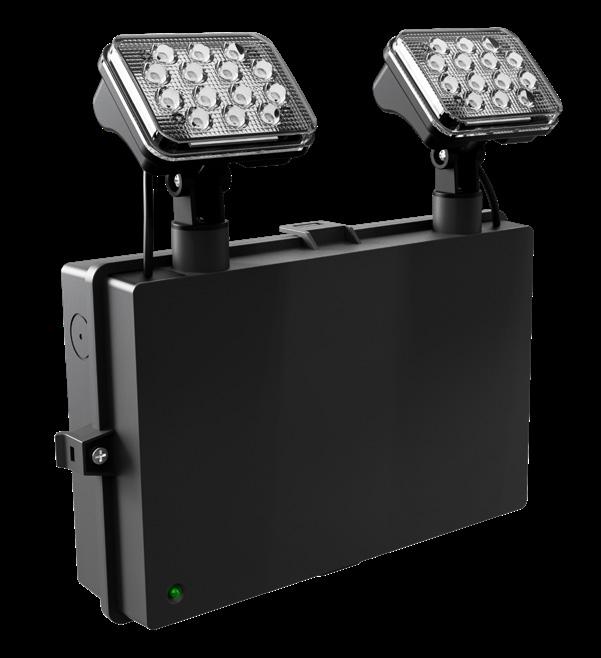

Draycote
Emergency Twin Spot
• Black/White polycarbonate body
• E-SEL3 Self-Test and Manual Switchable via dip-switch
• 360º Directional Heads
• Non-Maintained only
• 20mm conduit entry - Side, Base & Rear
• Loop in / Loop out terminals
INFORMATION

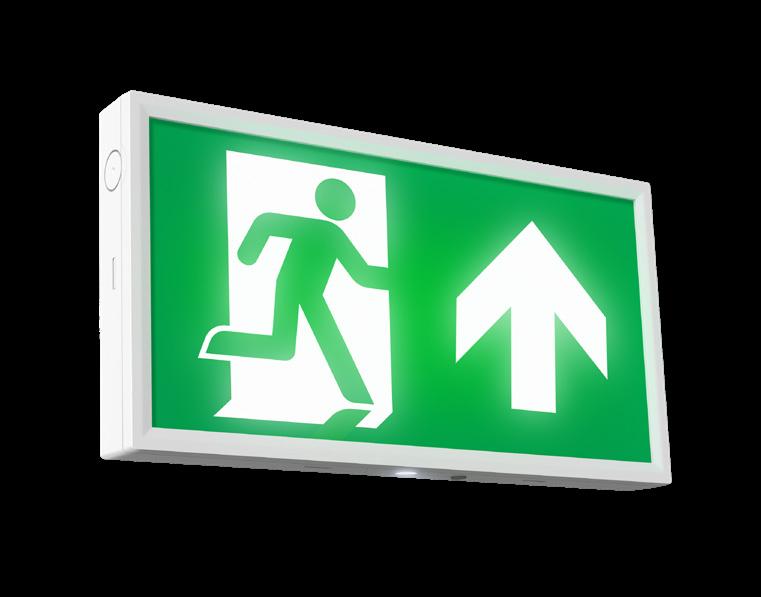

Redbrook
Emergency Exit Box
• 20mm conduit entry on sides, rear & top
• E-SEL3 Manual / Self Test selection inside
• Included in Box 4 legends, up, down, left & right (ISO7010 Legends as Standard)

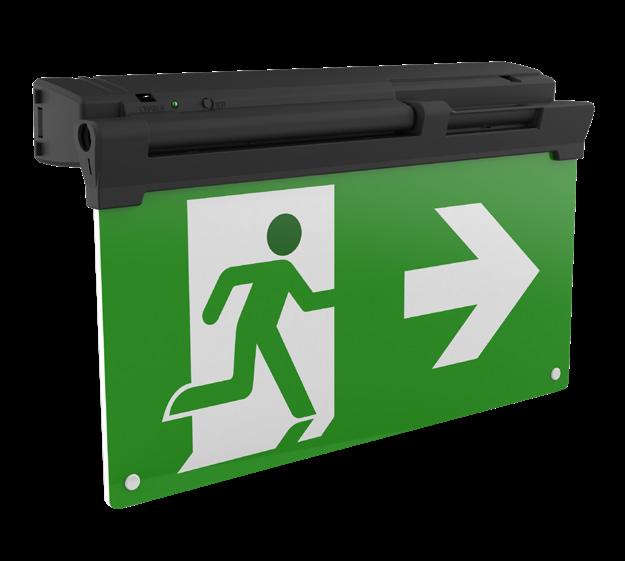

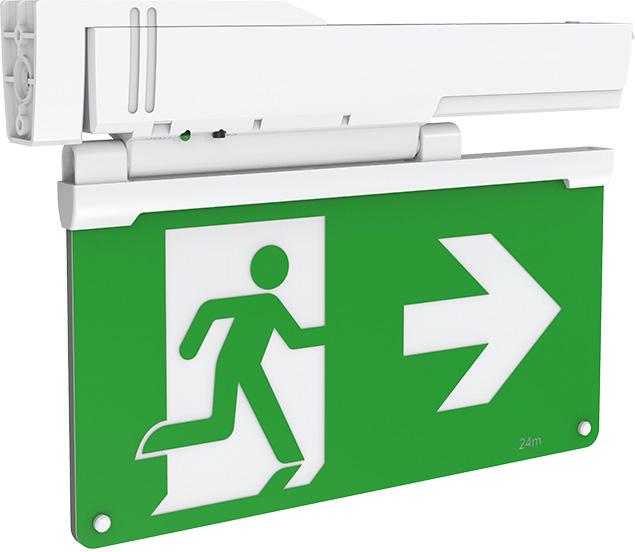

Fontburn
5 in 1 Emergency Exit Sign
• White/Black polycarbonate body with polycarbonate legends
• Maintained
• E-SEL3 Manual / Self Test selection inside
• Included in Box: 3 Legends for changing (UP/LEFT and RIGHT)

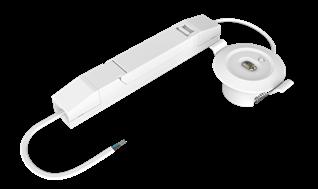

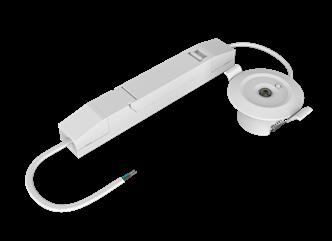

Woodhead
Downlight
• Black and White Bezel included
• LifePO4 battery
• E-SEL3 Manual / Self-Test selection inside
• Non-Maintained
• Recessed installation
Smart Lighting

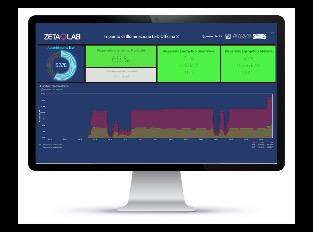

truSmart Intelligent Lighting is the smart choice for any sporting environment, offering total control over lighting to create the perfect setting for performance, safety, and experience. Whether it’s adjusting brightness, setting the ideal colour temperature, or programming lighting scenes for different events or times of day, truSmart gives you complete flexibility—while ensuring energy is used efficiently.
Designed with simplicity in mind, truSmart systems can be managed effortlessly via a mobile app or the truSmart Controller, making them easy for venue staff to operate without technical expertise.
Smart occupancy sensors, such as PIR detectors, are a valuable addition in hightraffic areas like locker rooms, corridors, and concourses. These sensors automatically switch off lighting when areas are unoccupied, helping reduce energy costs and supporting your venue’s sustainability goals.
Look for the truSmart logo on our products—it means you’re choosing intelligent technology that adapts to your needs, supports environmental responsibility, and helps create a high-performance environment for athletes, staff, and spectators alike.
truSmart Features
What features do I need?
truSmart does so much – sometimes it can be overwhelming. That’s why we offer free consultations with our lighting experts, to understand exactly what you are looking to achieve and to build a tailored solution for you. If you have any questions, or would like to know more about truSmart, please visit www.lumineux.co.uk

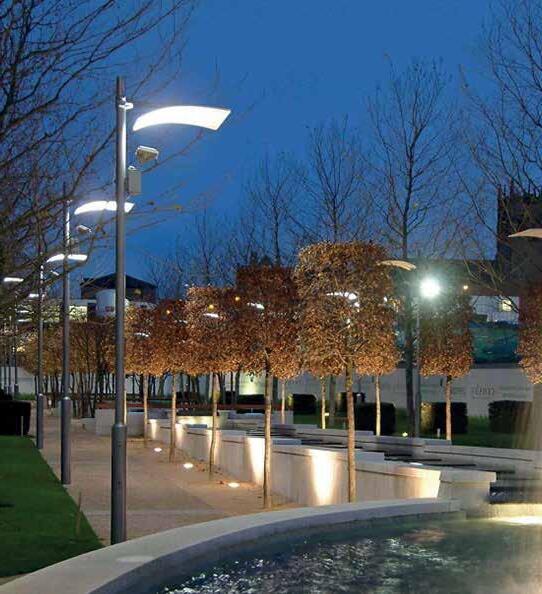

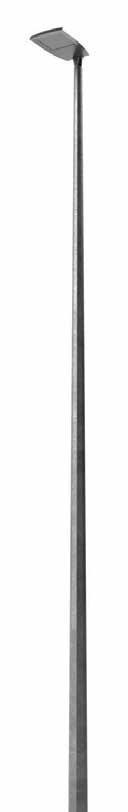

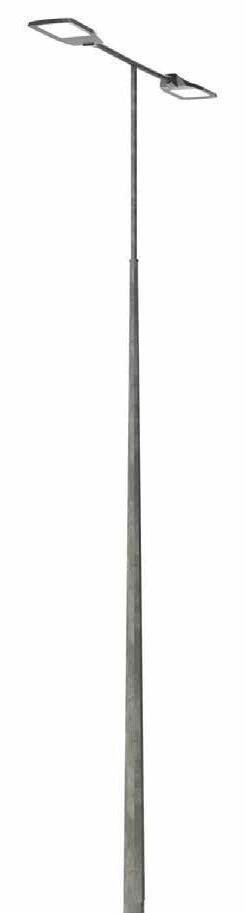

Columns
Modular and Bespoke
The Columns are a range of lighting options that can be tailored to your individual requirements. They are available with custom heights and mounting options and custom brackets and T-bars for easy installation. Columns can be designed to maximise the impact of your lighting, whilst minimising the impact on the environment it illuminates.
Types of Conical
• Tubular
• Tapered
• Multi-Sided Tapered
Columns can be tailored to suit your individual needs. For more information, please get in touch.
General Information
UGR <19
Indicates low glare lighting suitable for comfortable environments like offices or classrooms.
At Lumineux, we have combined manual testing with self-testing to provide versatile and manageble emergency products.
Quick and easy to connect Plug & Play Emergency and Sensor modules are available for products with this logo.
Lumineux is leading the way in the next generation of LED Lighting! Products with this logo have maximised ROI due to new higher lumen efficiency and reduced wattage.
Easy to connect Loop-inLoop out connections in both 3 and 4 Pole.
At Lumineux we’re redefining efficiency of LED luminaires with our range of ultra efficient products. Our nextgen luminaires maximise lumens, energy saving and ROI - delivering performance you can count on.
UK energy labels and how to read them
Energy labels start from a green bar labelled ‘A’ and cascade down through the rainbow (and alphabet) to a red bar, labelled ‘F’. This scale represents the product’s energy consumption. The green bar being the most efficient and red the poorest.
The information, technical specification and photography contained in this catalogue is representative of general models and is correct at the time of going to press. All dimensions and weights given are advisory and should be checked and confirmed prior to any crucial installation procedures such as ceiling cut-outs taking place. Whilst suggestions regarding luminaire applications are given, it is the responsibility of the installer to verify suitability.
B&T Associates Ltd reserves the right to make any modification necessary to parts or details without prior notice. The information contained in its publication does not form part of any contract with B&T Associates Ltd. Any item supplied is done in full accordance of our Conditions of Sale. (A copy of which is available on request).
