WALL HOUSE ...............................................................................6 CASA MURALLA THE HOUSE 09 ............................................................................14 LA CASA 09 TERRA HOMES .............................................................................34 VIVIENDAS TERRA REVITALIZATION OF DOWNTOWN MONTERREY ...................................48 REVITALIZACIÓN DEL CENTRO DE MONTERREY
INDEX
COLLABORATION:
Fidel Alejandro Villarreal Salomón
Daniela Sánchez Enriquez
Linette Navarro Arámbula

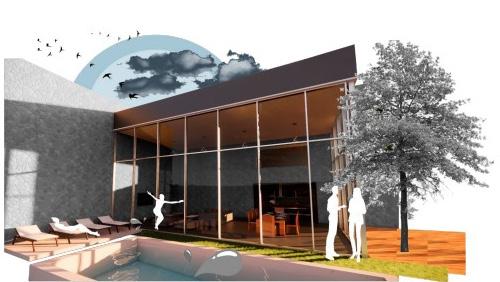

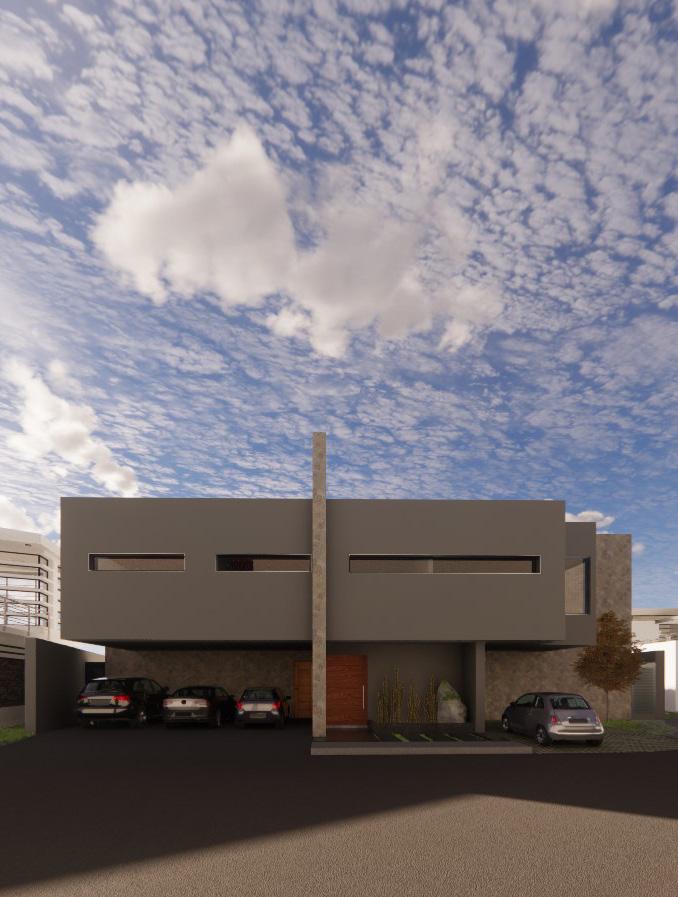

WALL HOUSE
6
PROJECT’S LOCATION
The site is located in San Pedro Garza García, Nuevo León, Mexico. In Calle Independencia #475-int, Casco Urbano. (fig.1)

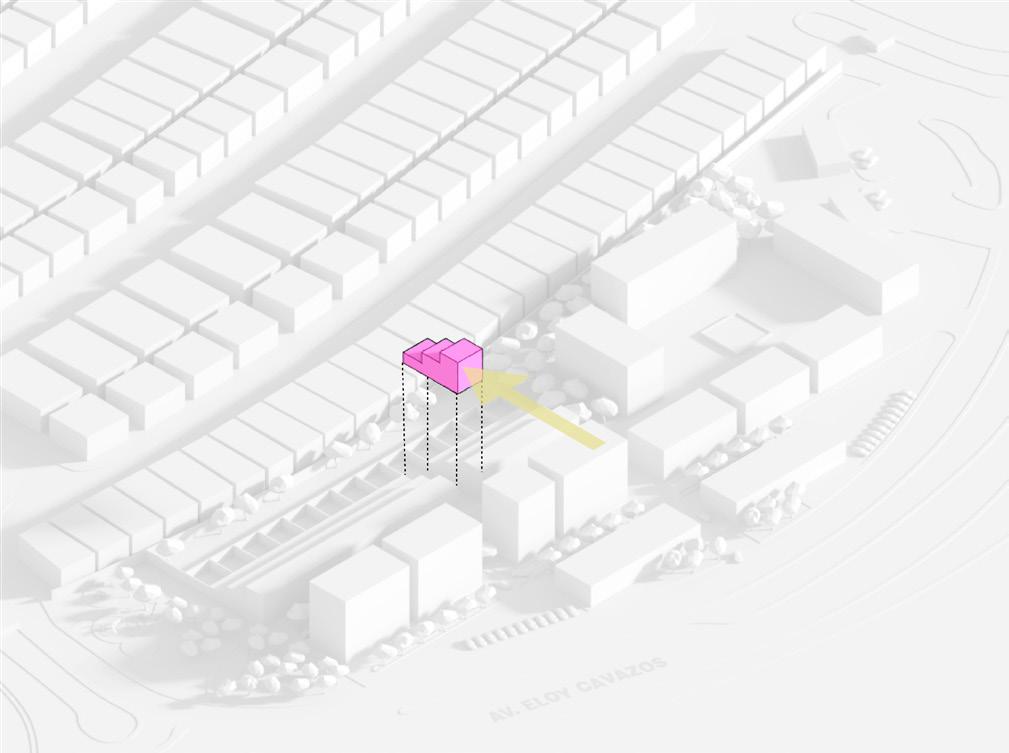

The dominant winds come from the east during summer, and from the south during winter.
The project is located at the northeastern part of Mexico; famous for its long droughts and high temperatures that can reach 40 degrees Celsius.
The site is surrounded by beautiful views of the Sierra Madre Oriental and
las Mitras. (fig. 2 y 3)
Cerro de
(Fig. 1) Pictures of the site
7
(Fig. 3) Picture of the Cerro de las Mitras (Fig. 2) Picture of the Sierra Madre Oriental
LOW LEVEL
UP DN
FIRST LEVEL 8
1) There is a difference with the height of the south and north neighbors, the one on the sou th has more height and the one on the north has less height that the building designed.
2) The structure infront has a window facing straight to the site, interfering with the privacy of the people inside. The openings in the main facade are limited.
3) The height difference with the neighboring structure to the north, allows the entry of sunli ght, and views of “El Cerro de las Mitras”.
4) The house has two axis that allows the di vision of the spaces in the interior, separating the services and private spaces with the public space.
9

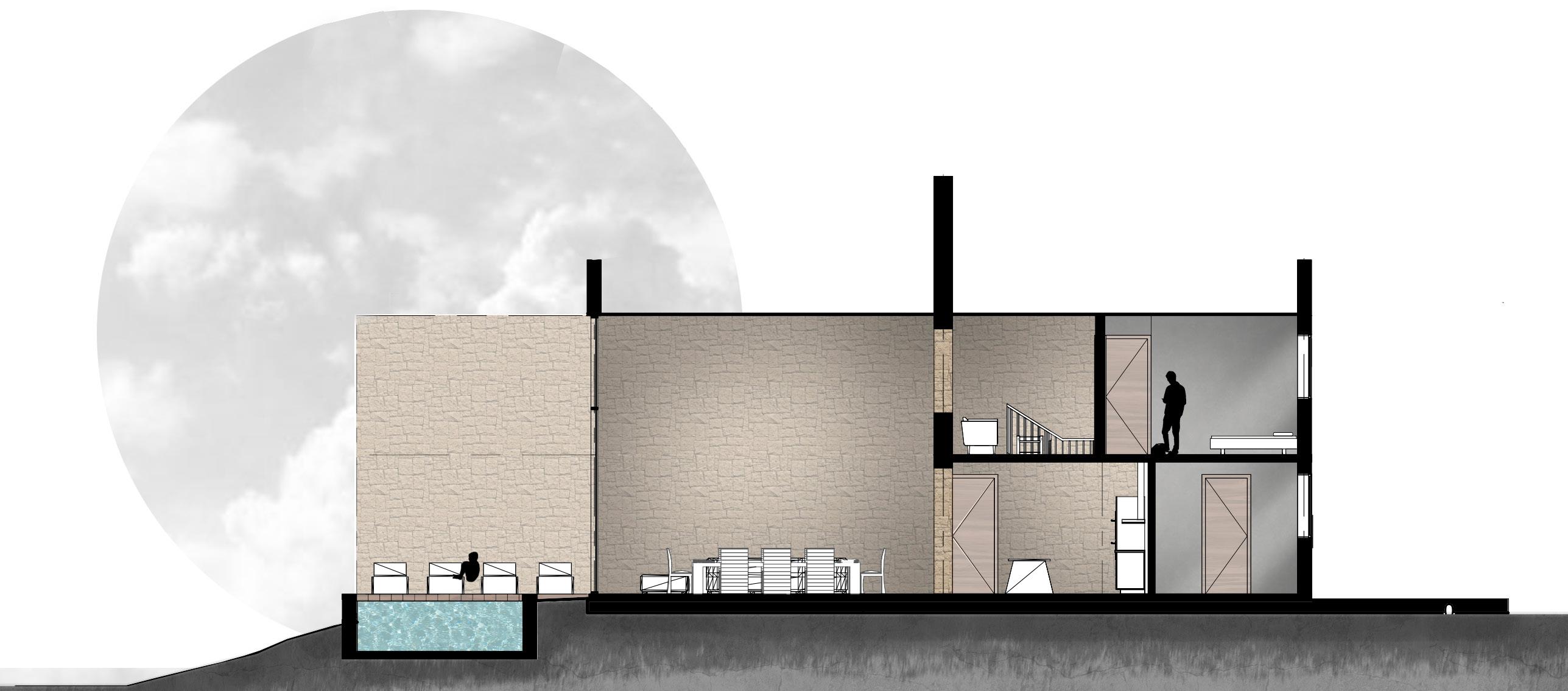

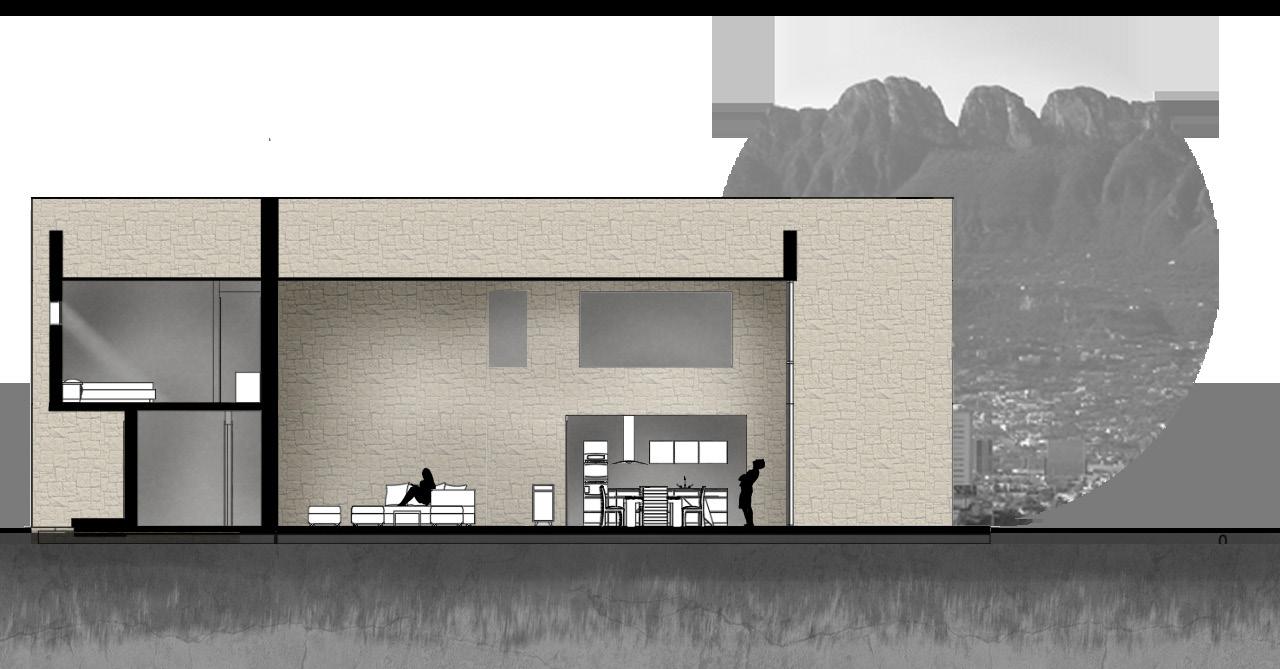

LONGITUDINAL SECTION
CROSS SECTION
10
UP DN
Space
Space
Space Service/Private Space 11
Public
Service/Private
Public
12
COLLABORATION OF THE MASTERPLAN:
Fidel Alejandro Villarreal Salomón
Mariana Jímenez
Ana Daniela Treviño
Marijose Treviño
THE HOUSE 09
14
PROJECT’S LOCATION
The site is located at Guadalupe, Nuevo León, Mexico. In Bosques del Country Sector A-1. (fig. 4)
The dominant winds come from the east during summer, and from the south during winter.
The site is located at the northeastern part of Mexico, this region is famous for its long droughts and high temperatures that can reach 40 degrees Celsius.
The site is surrounded by several recreational and tourist places, which encourage a wide array of housing and commercial opportunities.

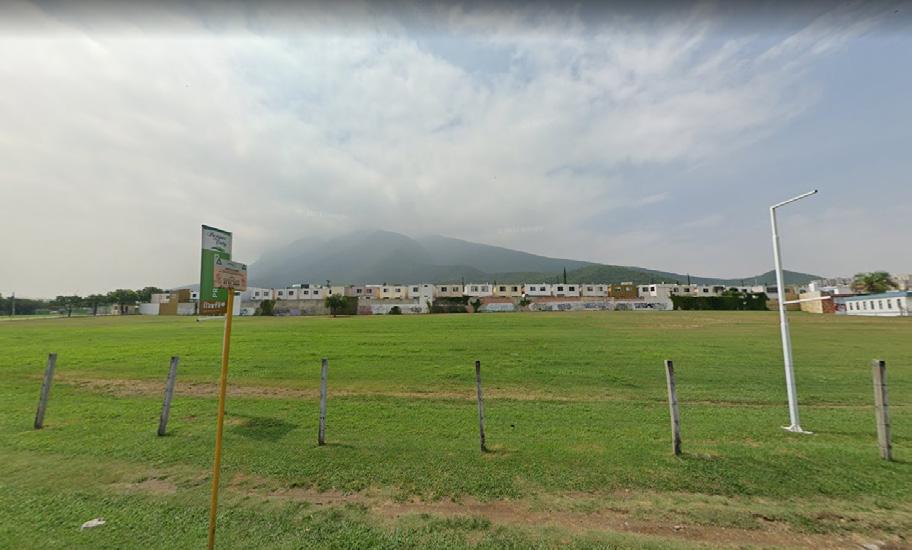

(Fig. 4) Picture of the site
15

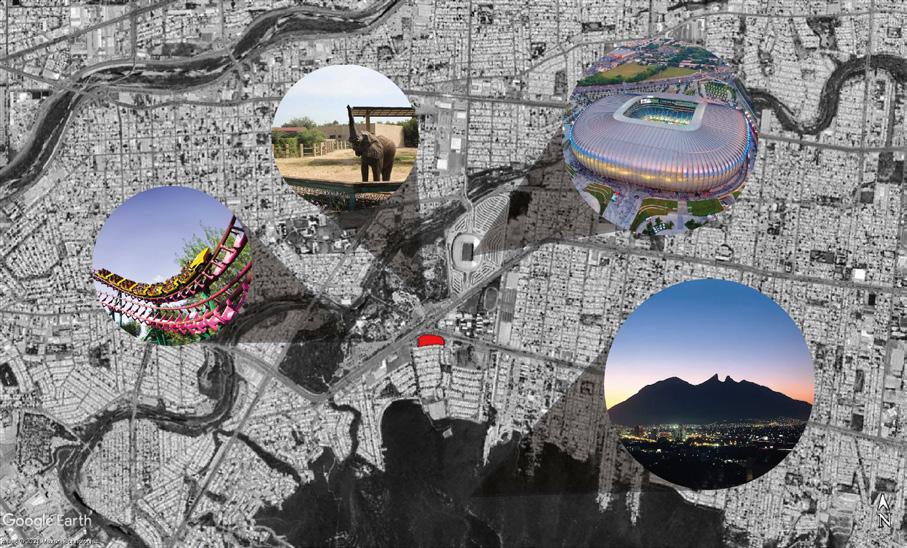

(Fig. 5) Touristic sites in the area
LEVEL
16
UP LOWER
FIRST LEVEL
DN TOP LEVEL 17 DN UP
COMMERCE
APARTMENTS

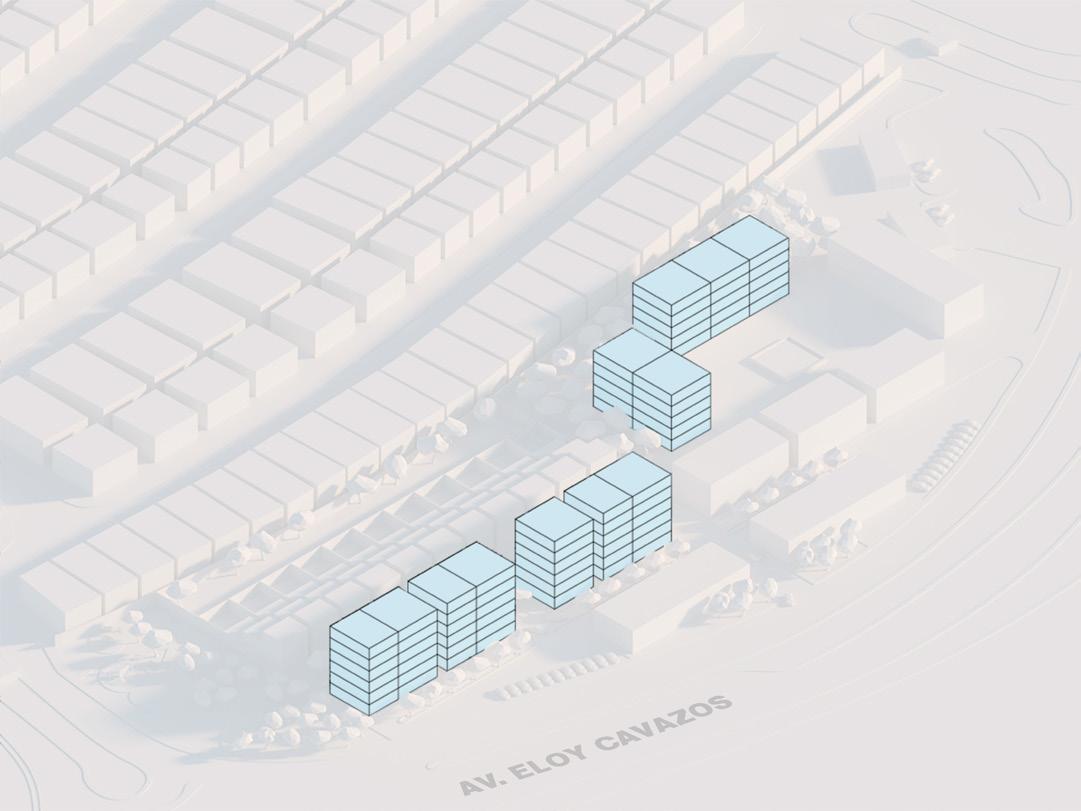

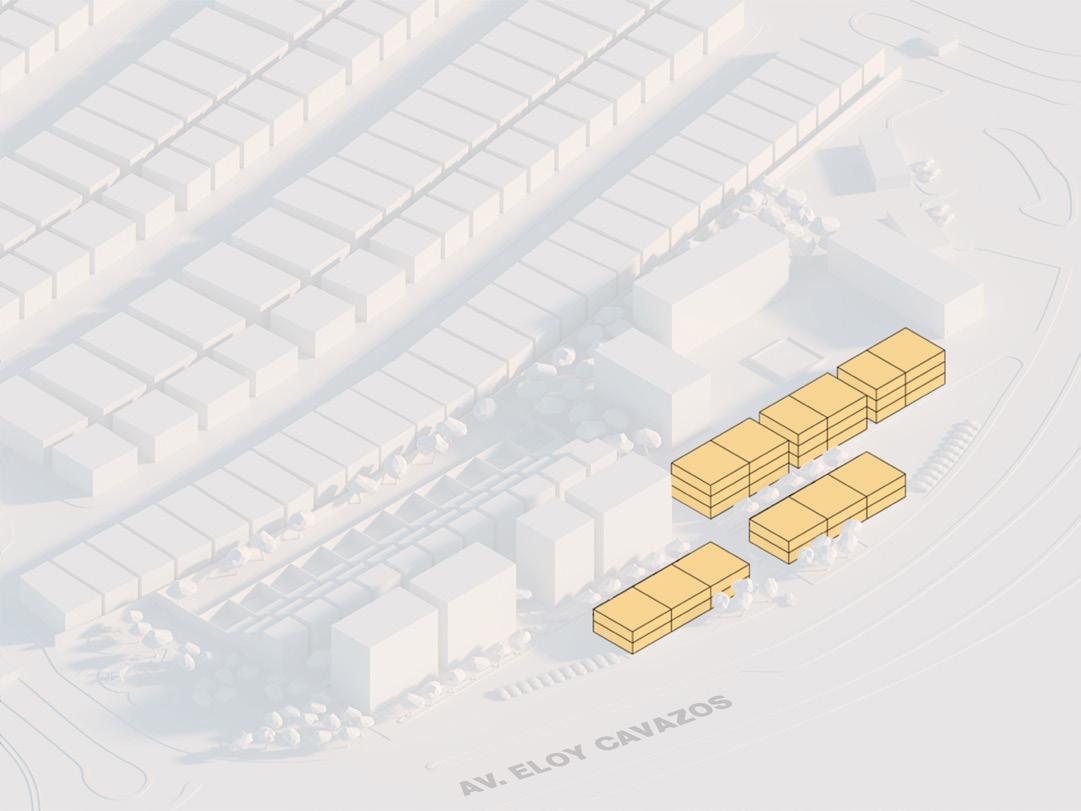

HOUSING 18
MIXED USE
GREEN AREAS
COMPLETE
19

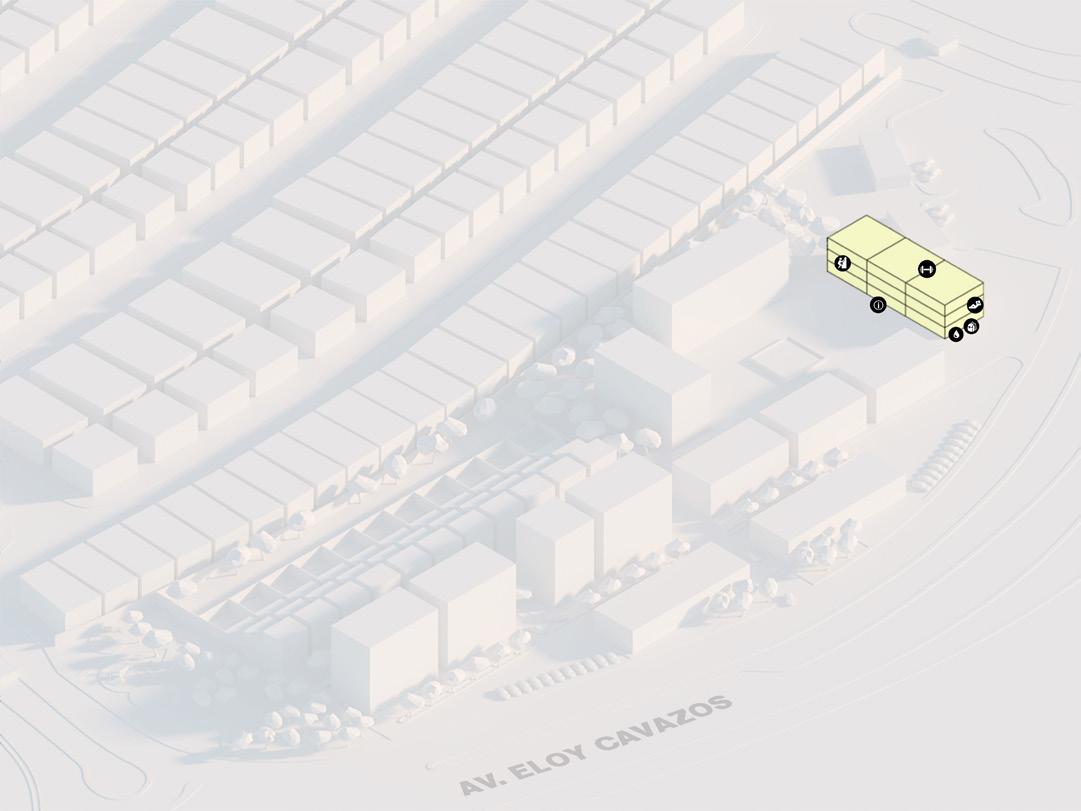

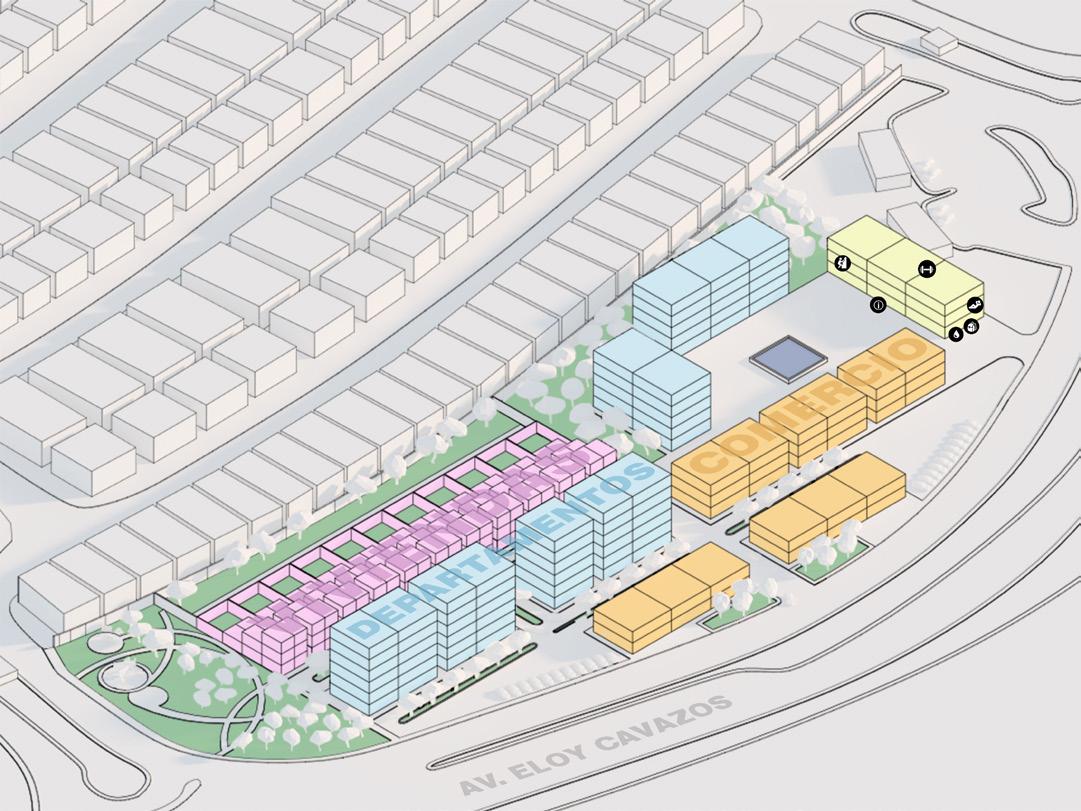

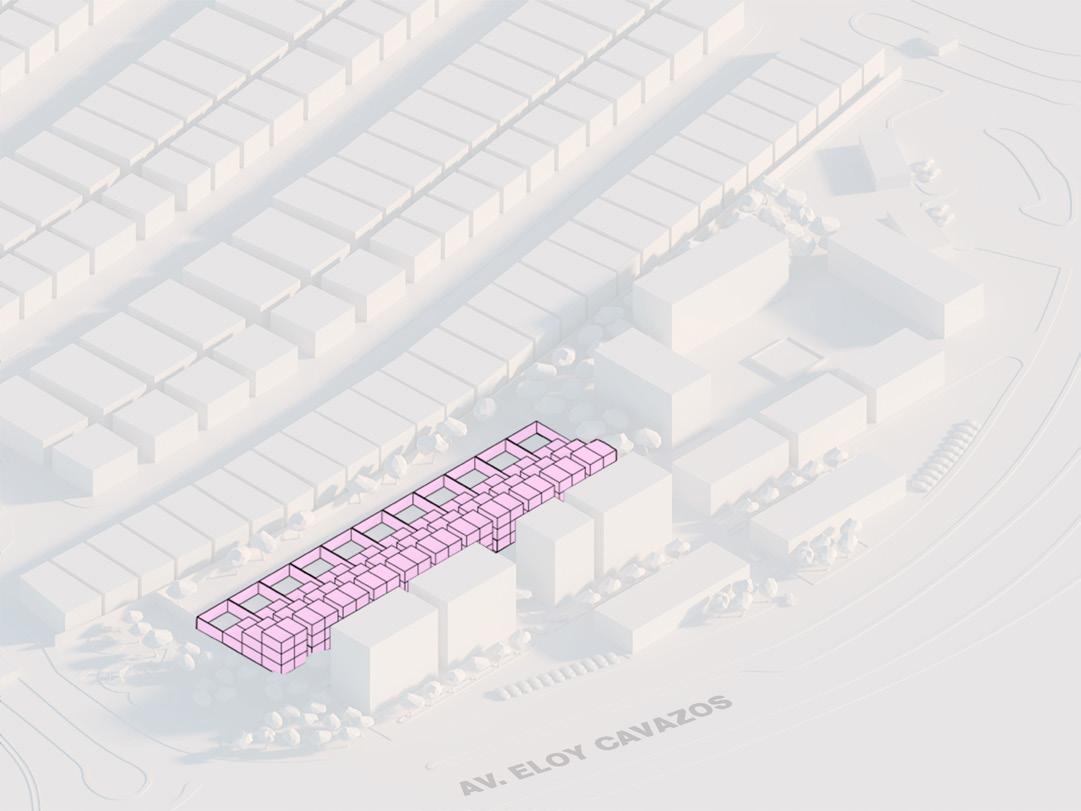

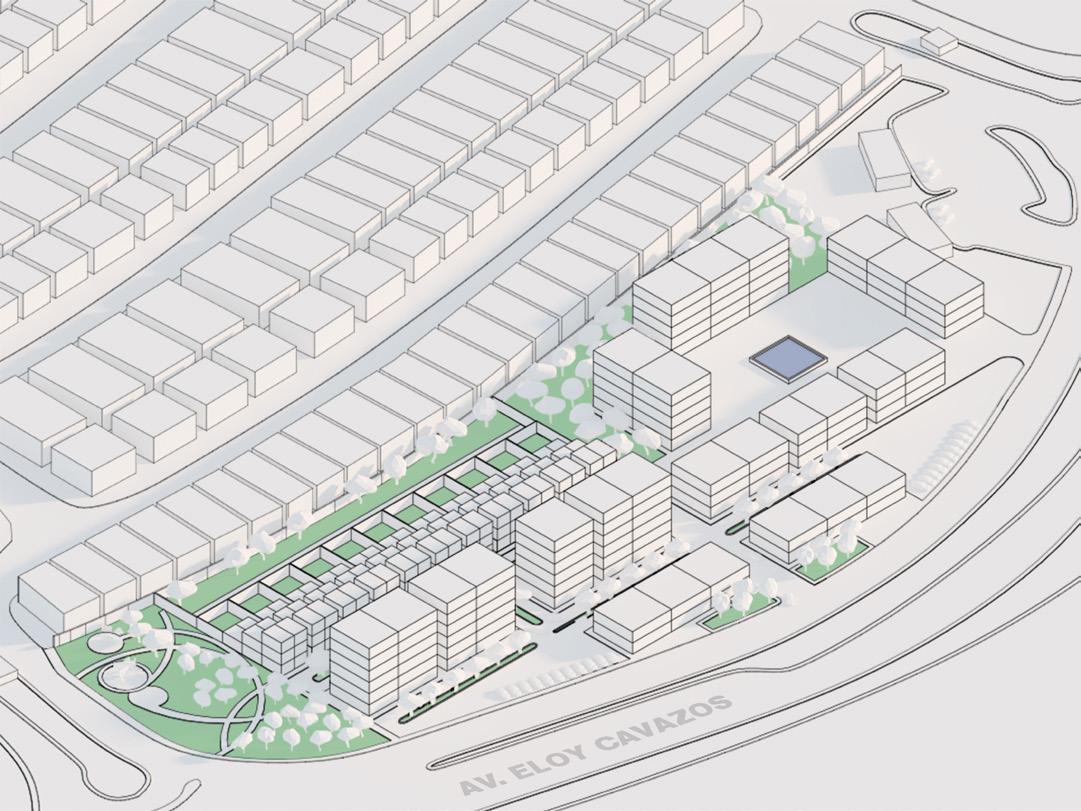

MASTERPLAN
1) The indirect light is taken advantage of in the main facade to illuminate the main bedrooms.
2) The creation of terraces allows getting diffe rent views to the “El Cerro de la Silla”, from the low level all the way to the top level.
3) To avoid the continuous view of the neighbo ring building from behind, a staggered structure is used. This structure creates additional terra ces and hides the interior.
20

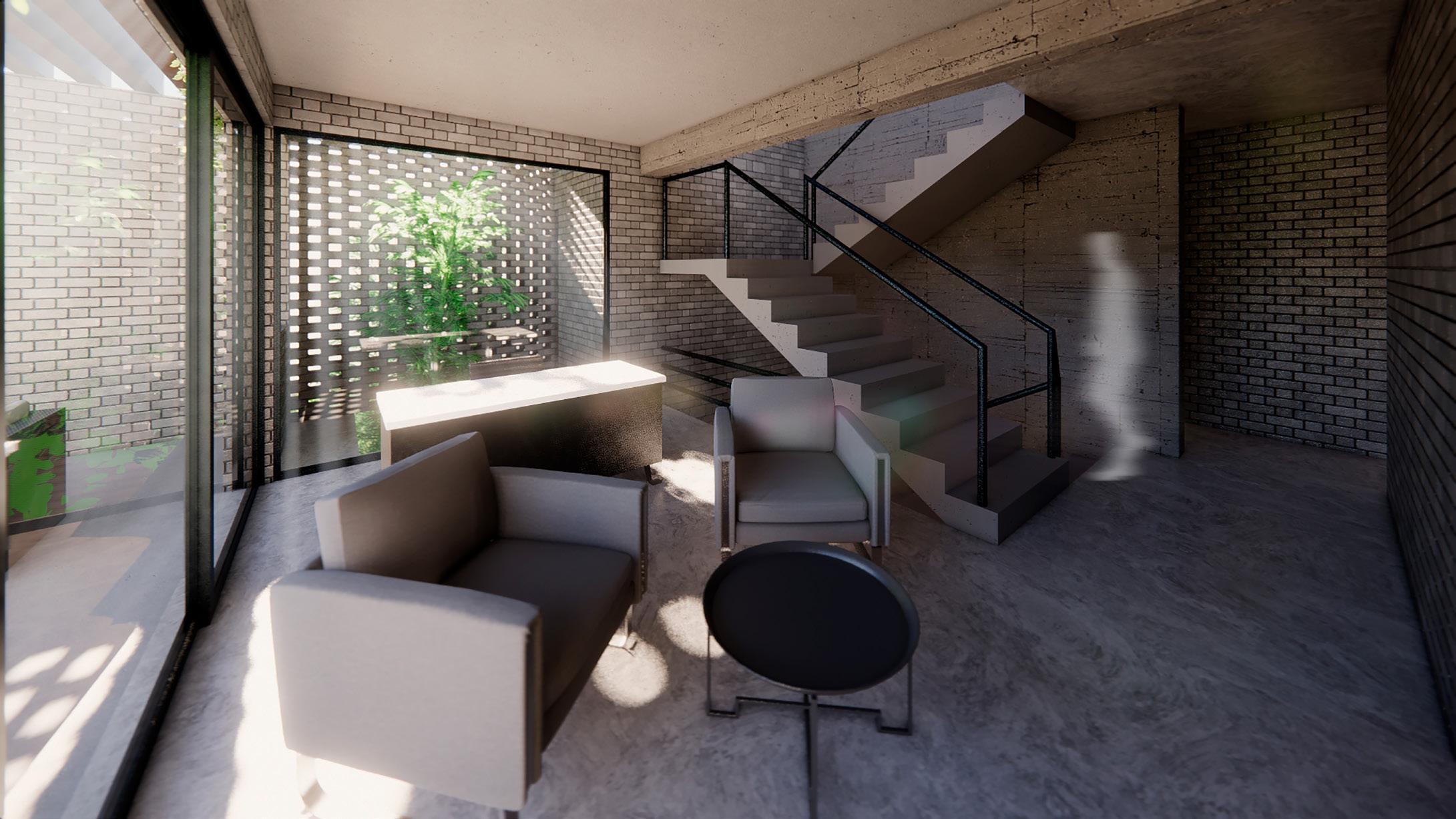

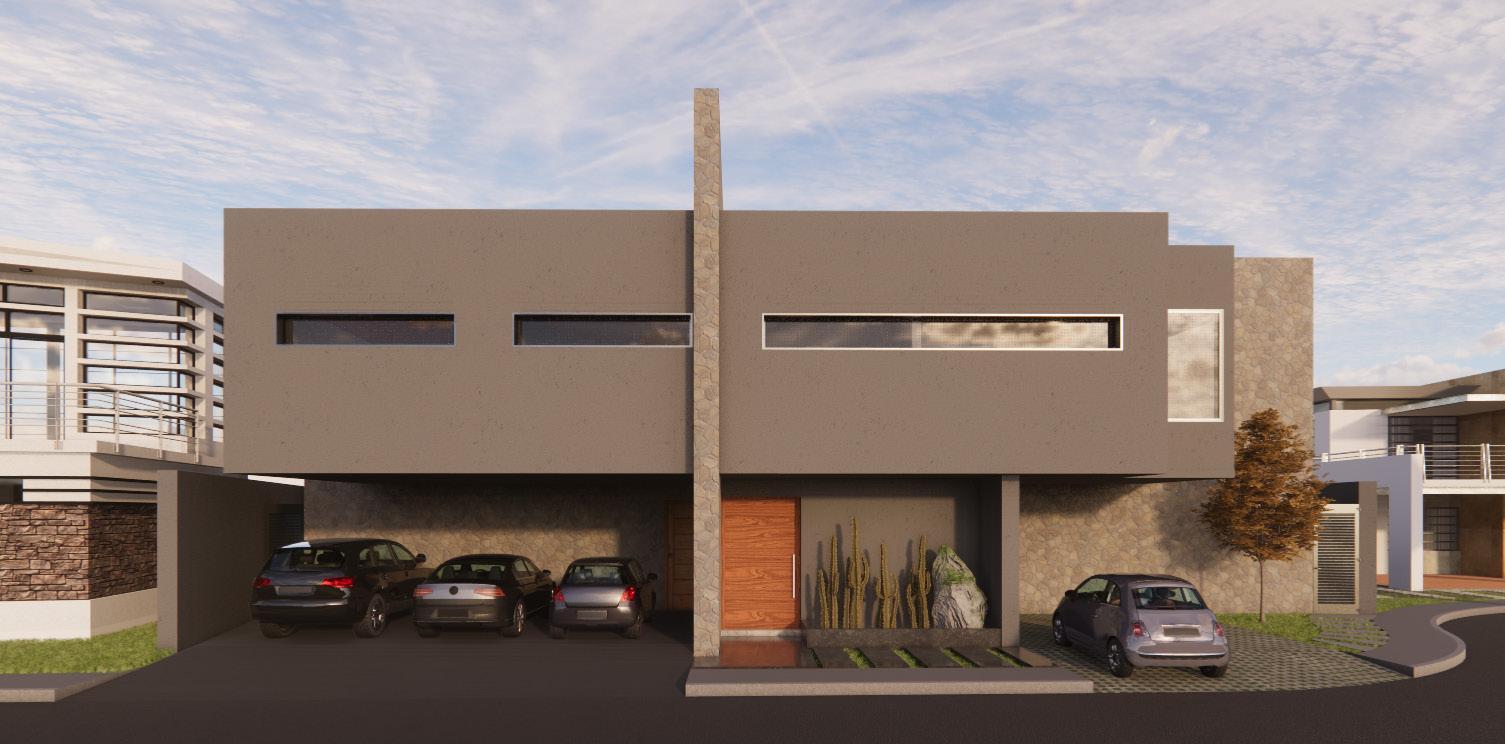

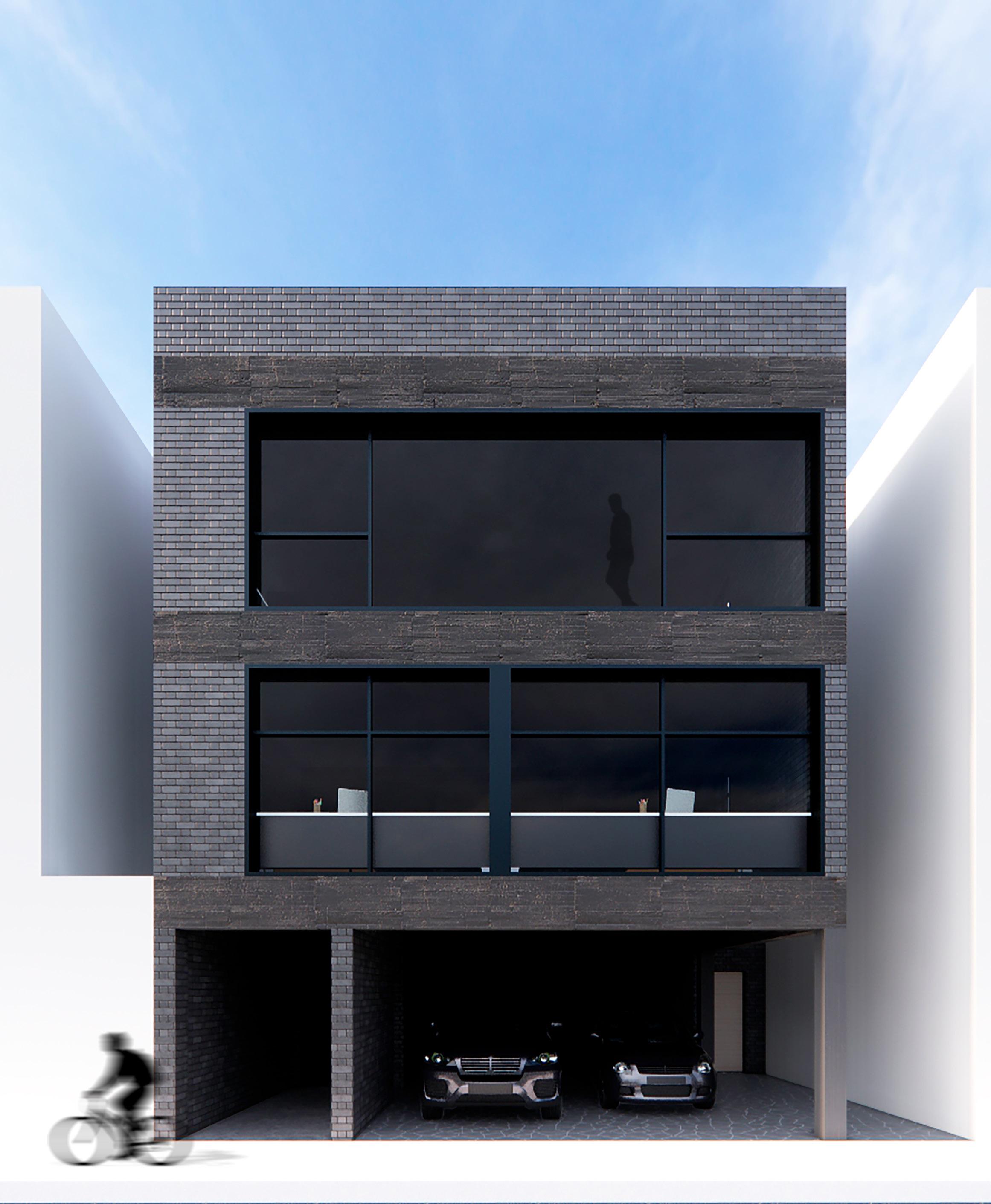

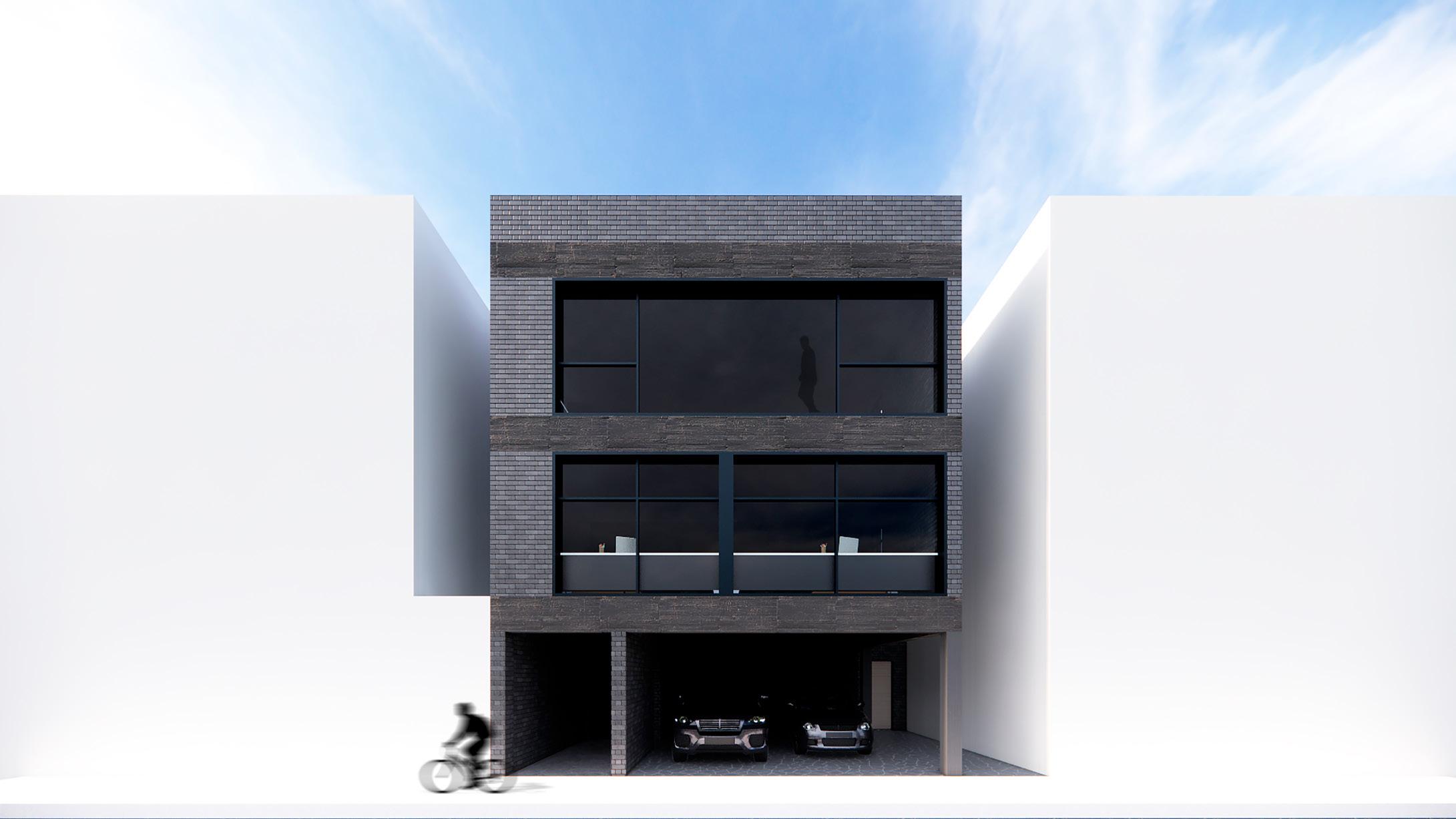

EXTERIOR VIEW STUDIO
21

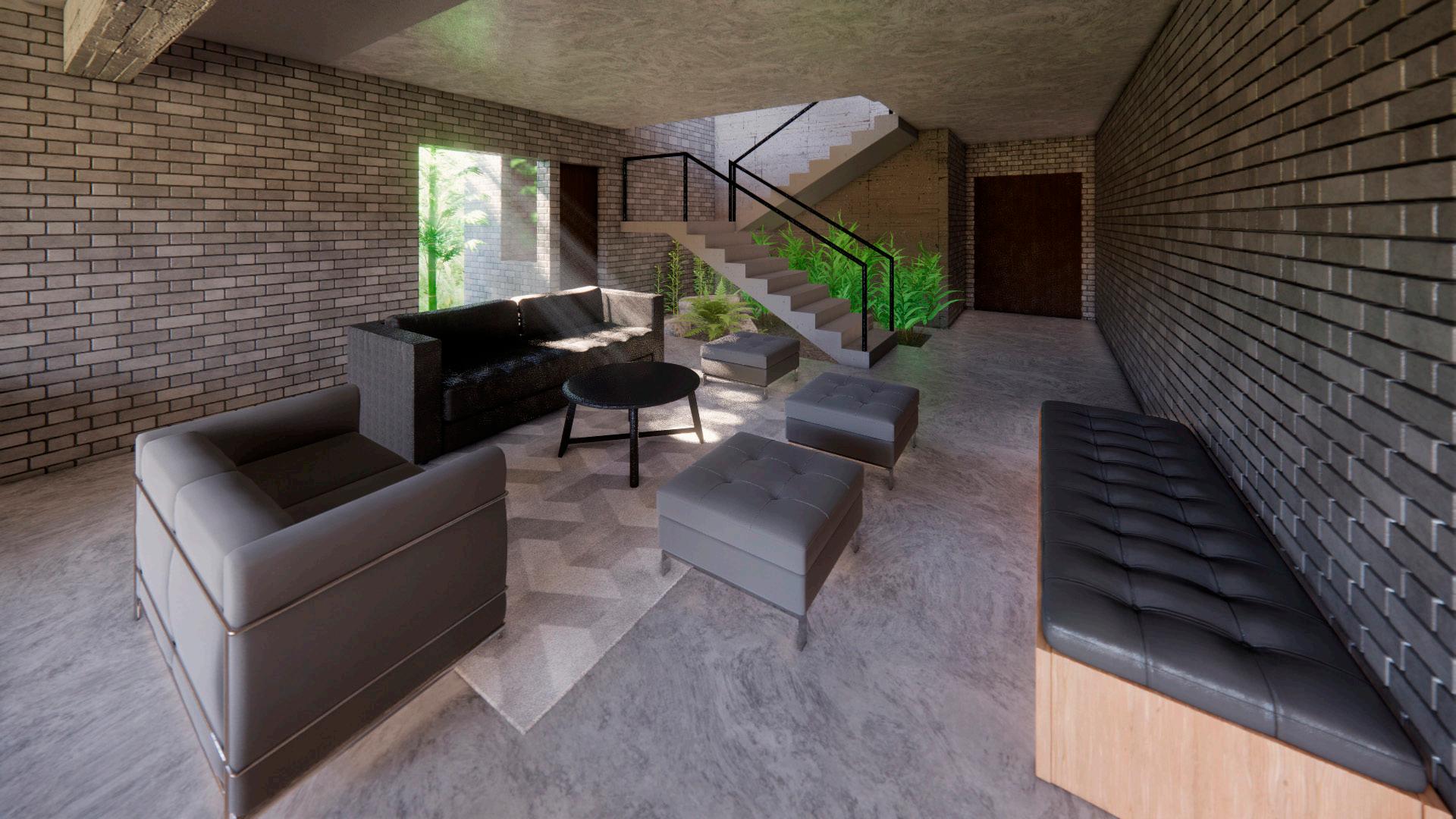

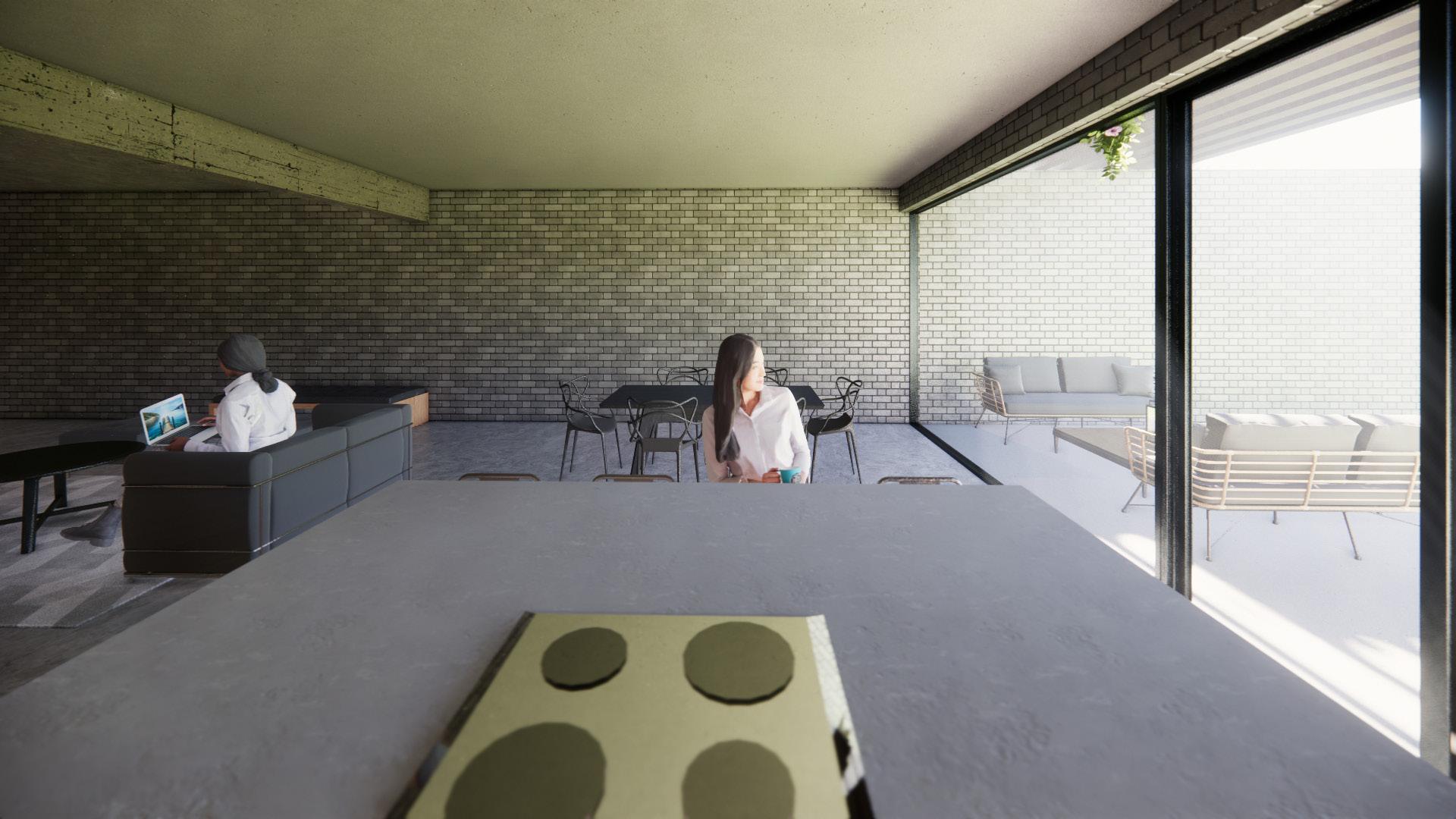

LIVING ROOM
KITCHEN AND DINNING ROOM
22
COLLABORATION:
Gabriela Palau Dávila Alfonso Garza
TERRA HOMES
Karen Michelle Garza Garza
24
PROJECT’S LOCATION
The site is located in Dr. José Ma. Coss 523, Downtown, Monterrey, Mexico.
The dominant wind comes from the east during the summer and from the south during winter.
The site is located at the northeastern part of Mexico, this region is famous for its long droughts and high temperatures that can reach 40 degrees Celsius.

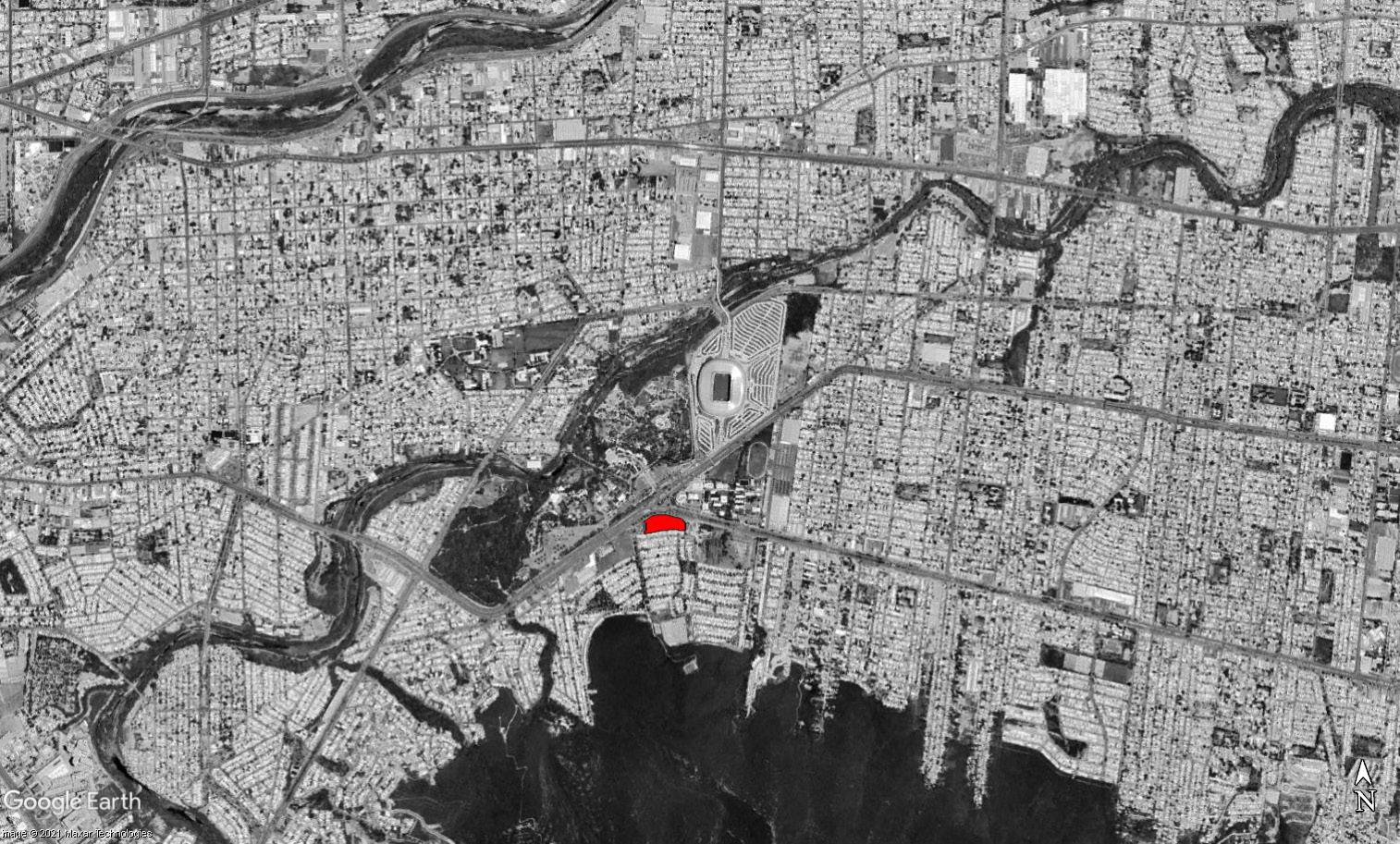

The selected site is abandoned in front of the “Plaza del Chorro”, the objective is to increase the population of the neighborhood. Therefore it is created a replicable mixed-use multifamily housing design for the different abandoned points of the city’s downtown. (fig.8)
To gain population that has been withdrawn from the area in the last decades, since in the downtown the range of ages inclines more for older people, around 40 - 75 years old. It seeks to attract younger people to the city’s downtown and not letting get more abandoned.
25

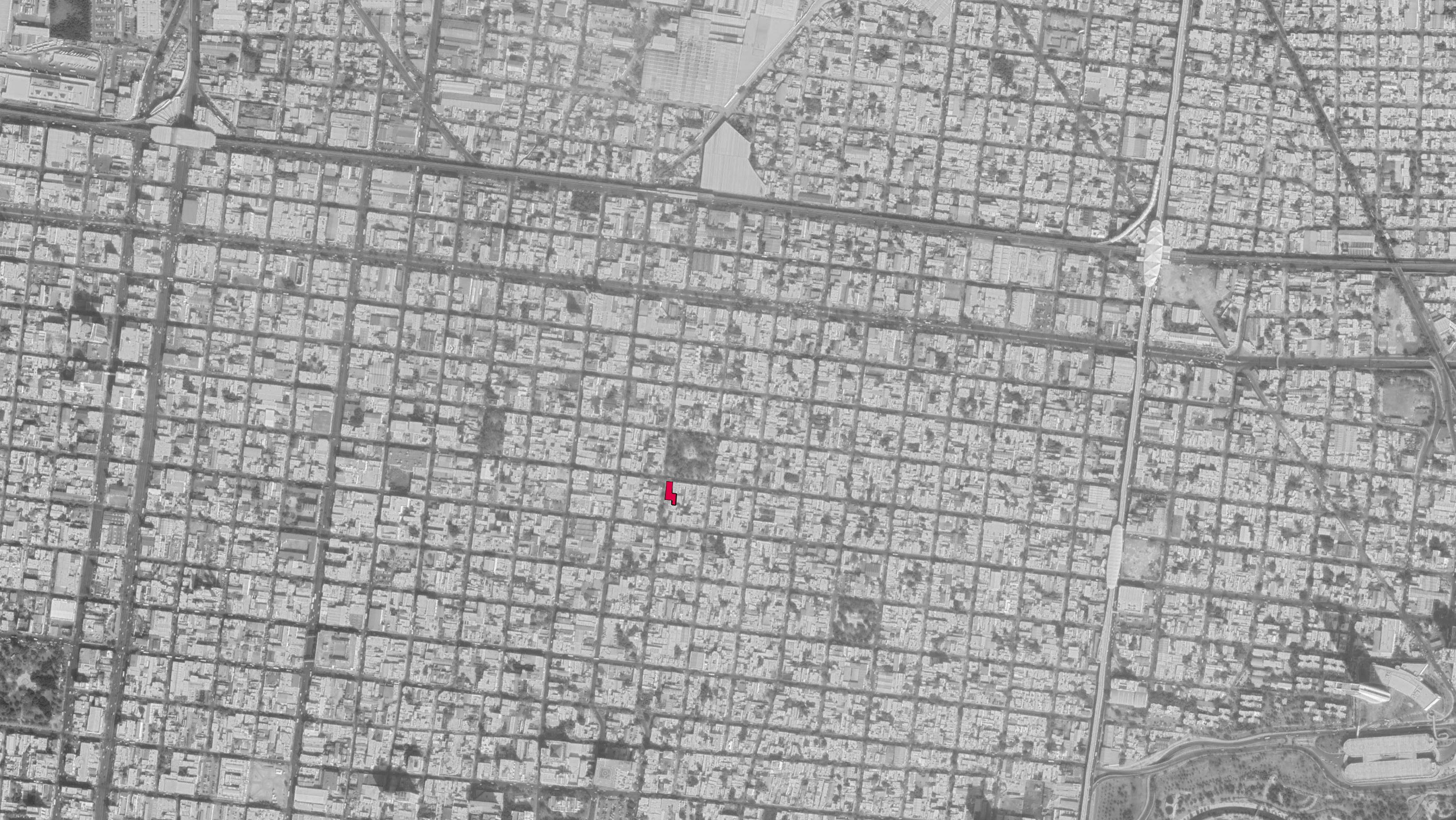

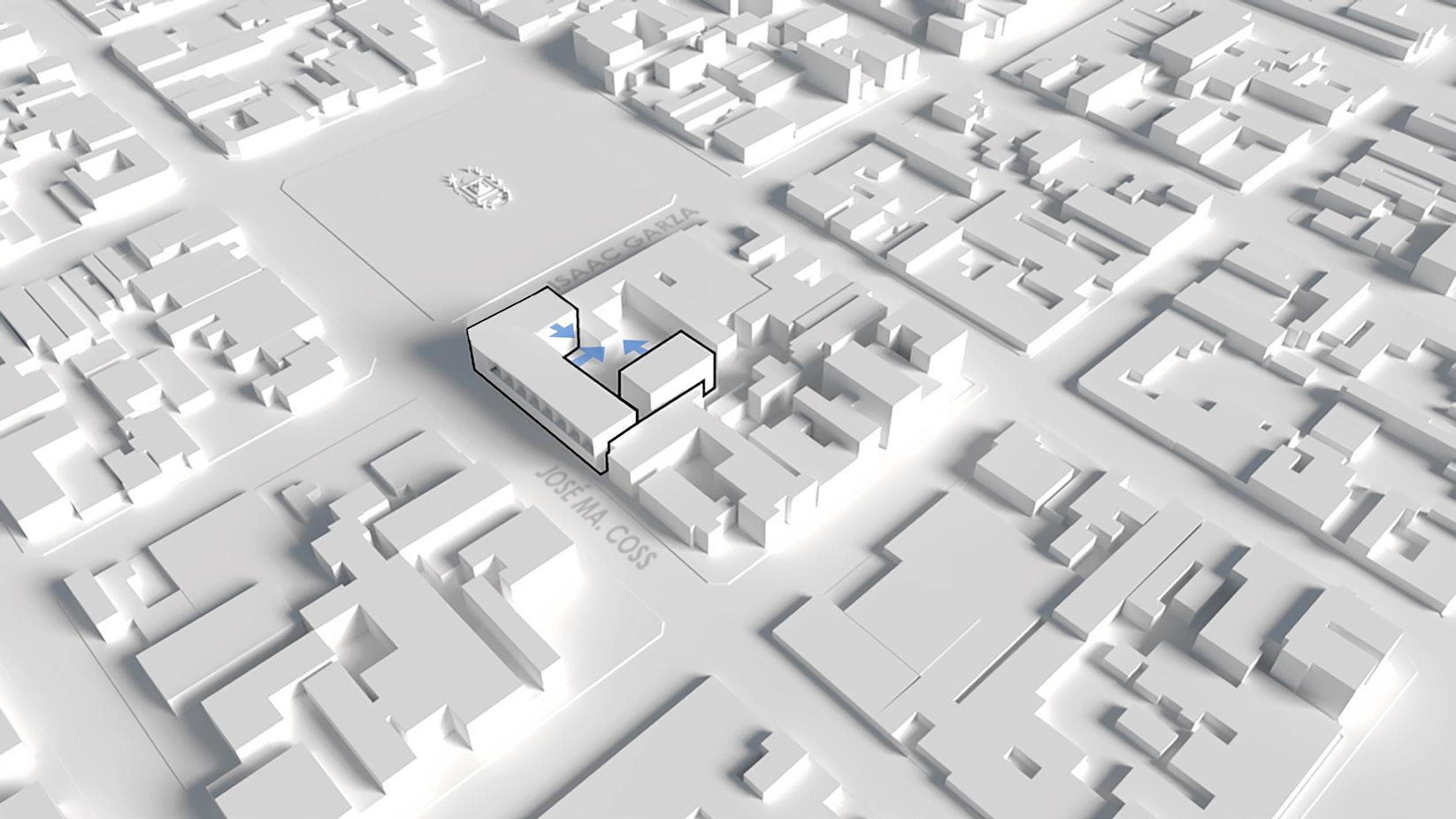

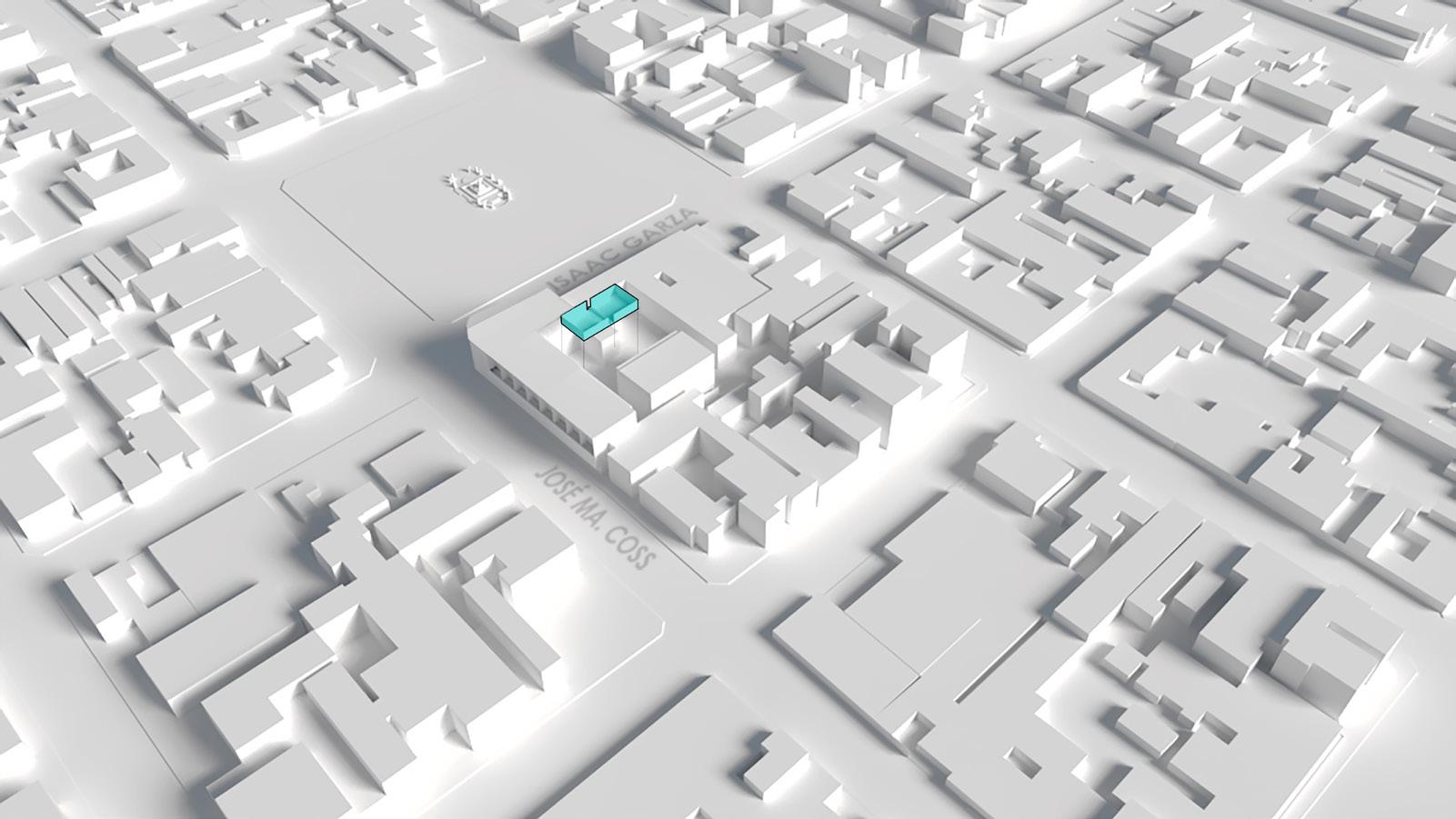

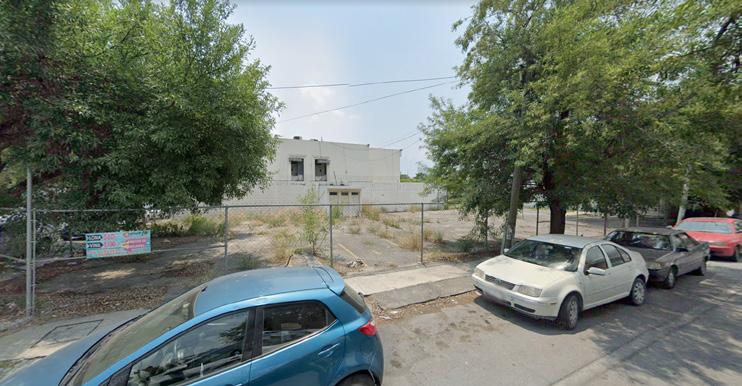

(Fig. 8) Site in Dr. José Ma. Coss
LOW LEVEL FIRST LEVEL
S S S S S S S S S S S S S S S
26
SECOND LEVEL
B B B B B B S S S S S S S S S S S B B B B B B B B B B B B B B B
THIRD
27
LEVEL
28

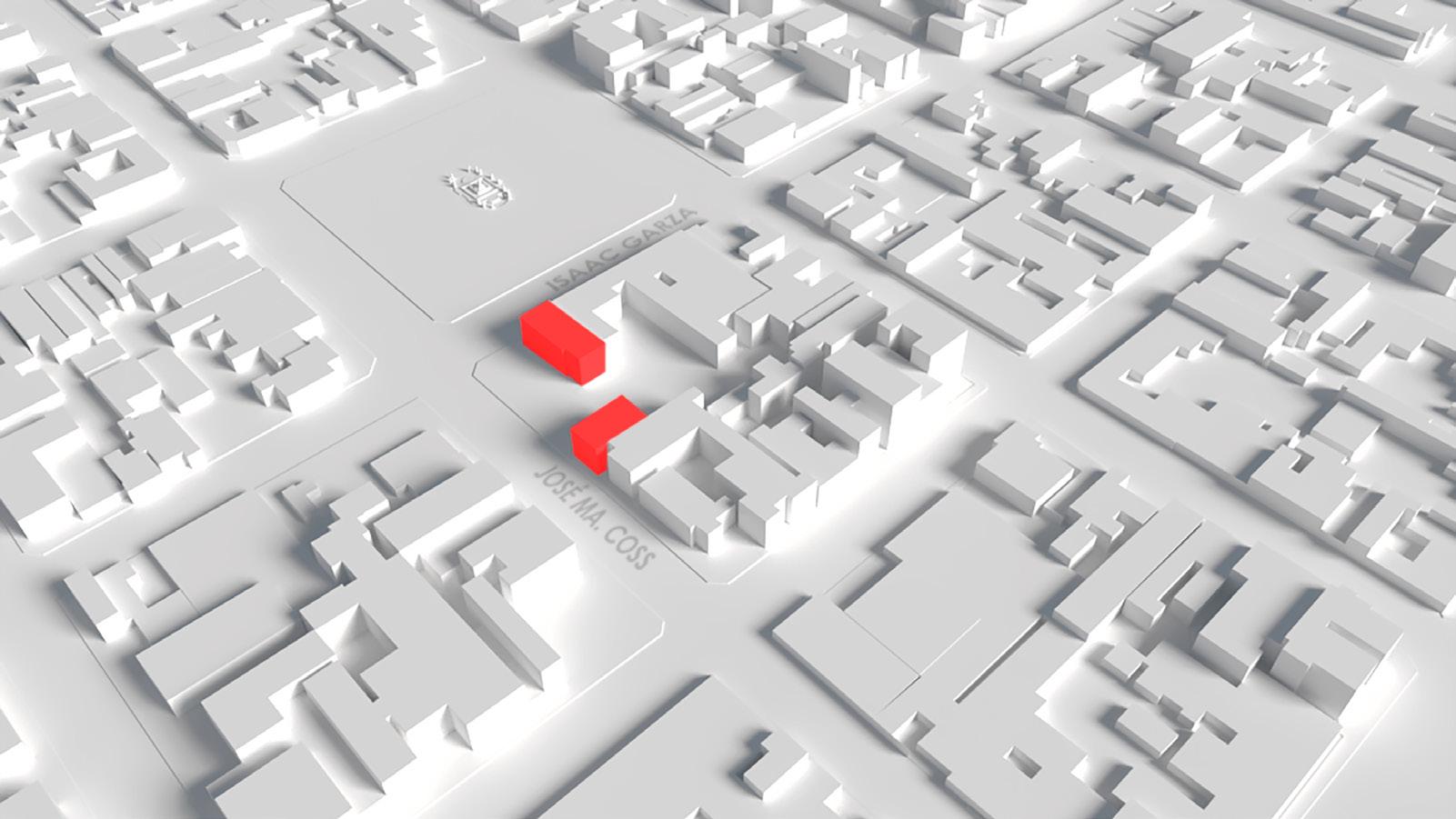

SET PLAN

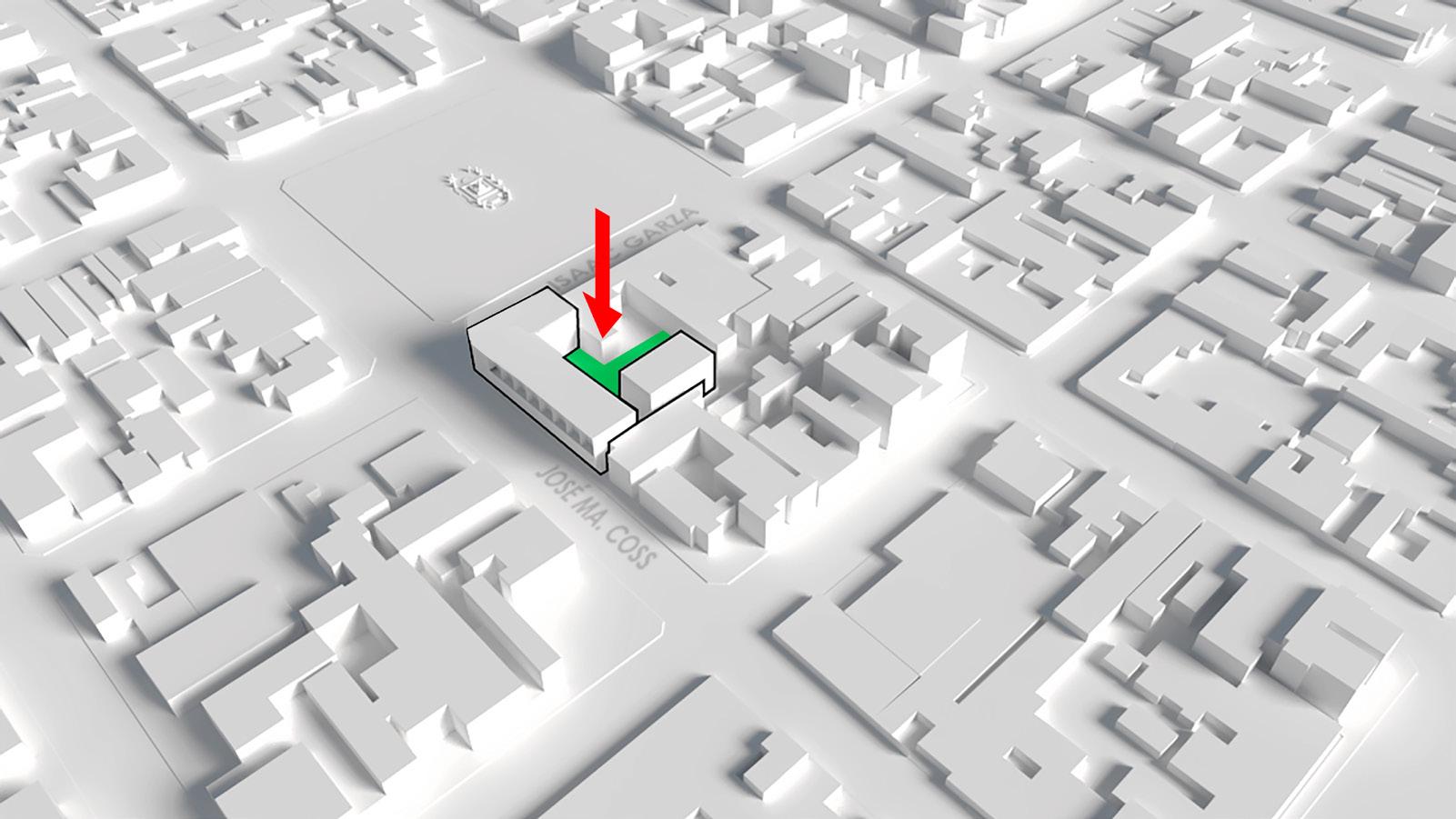

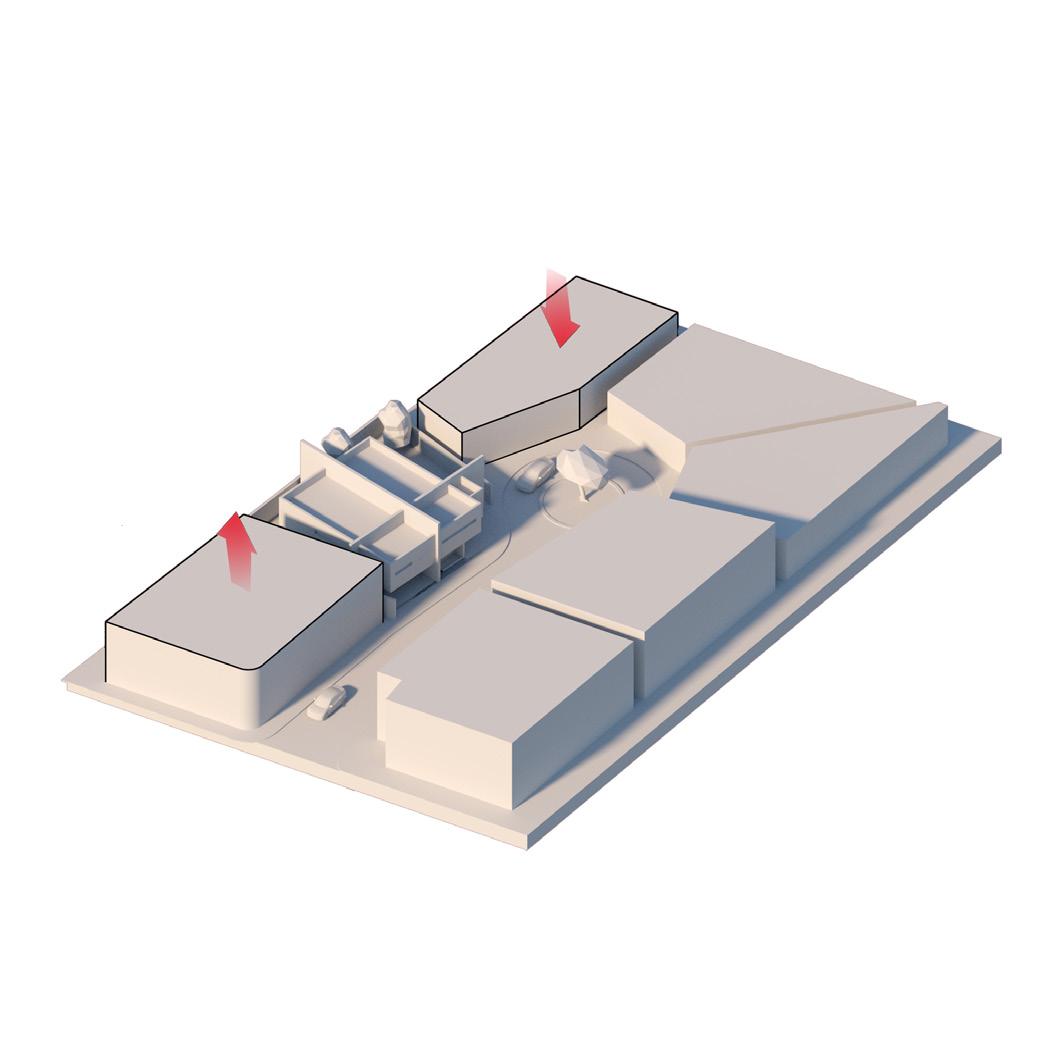

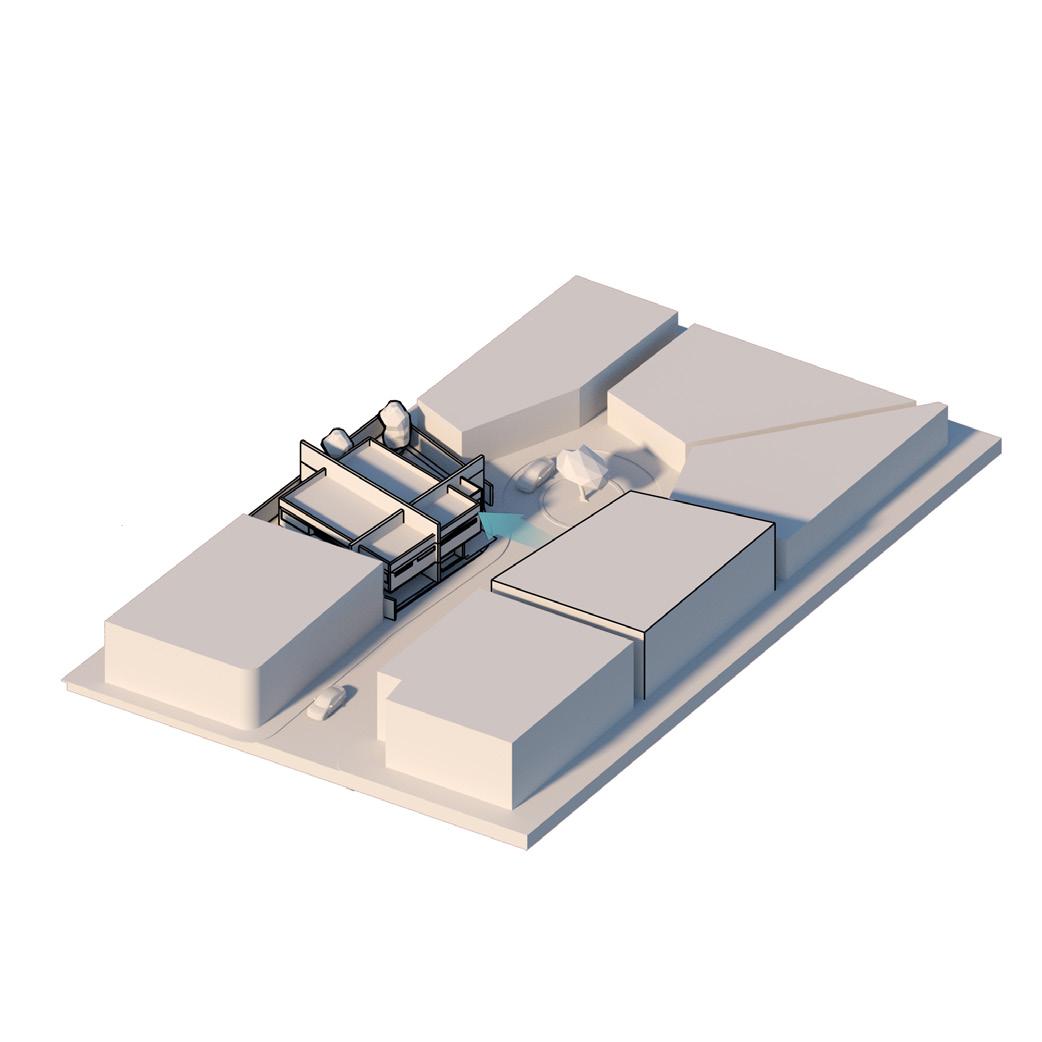

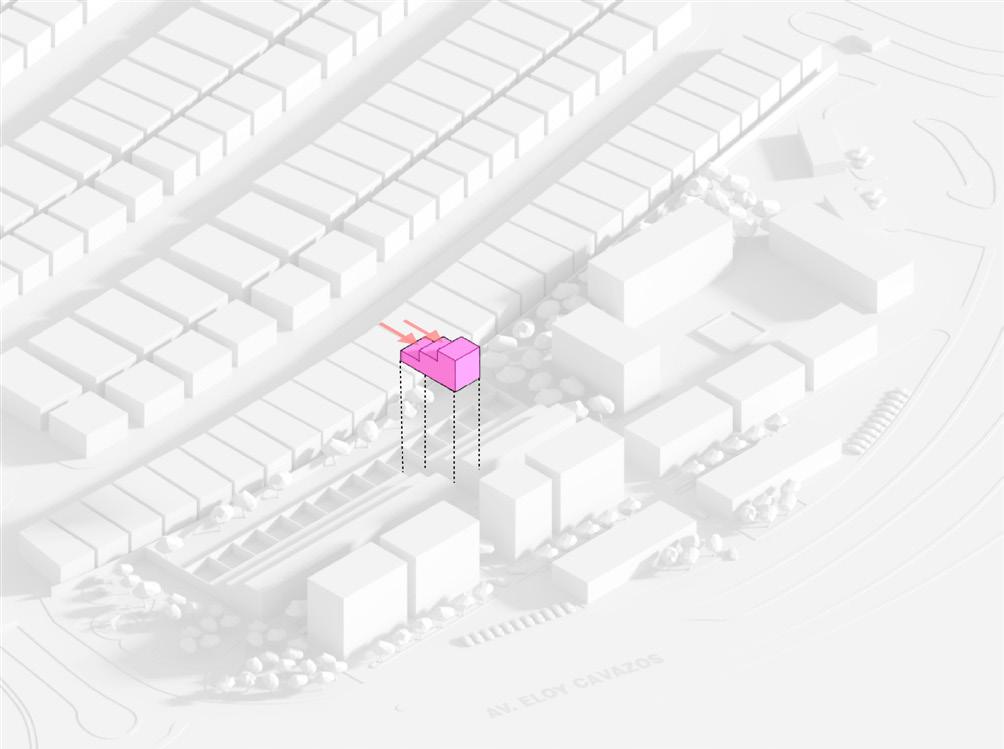

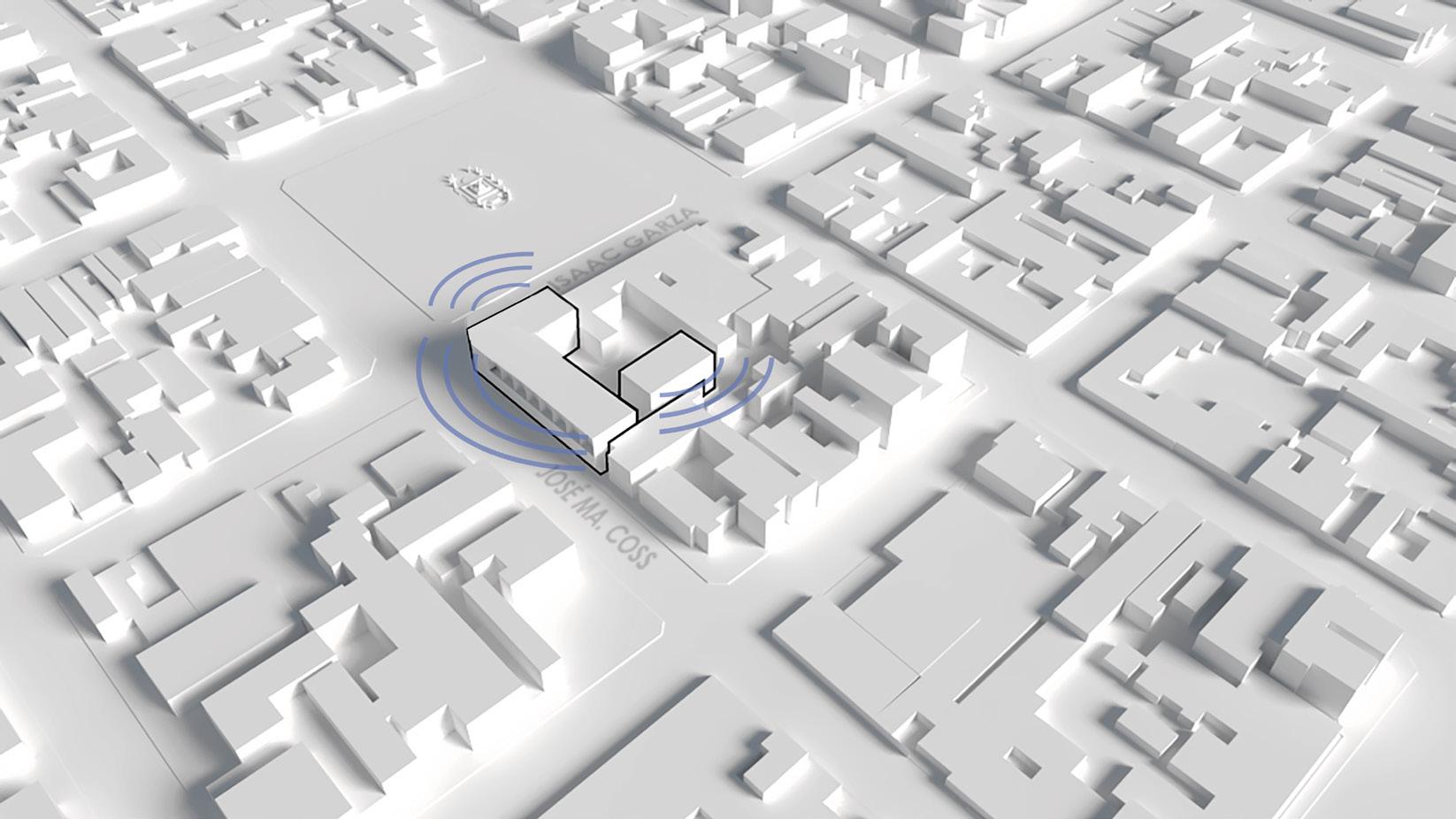

1) An abandoned site is selected in Monterrey’s Downtown, places in a corner to take advantage of the double facade, and the north and west views of the city.
2) Two of the surrounding buildings were in disuse/abandoned, so it was decided to use these lots for the same project.
29

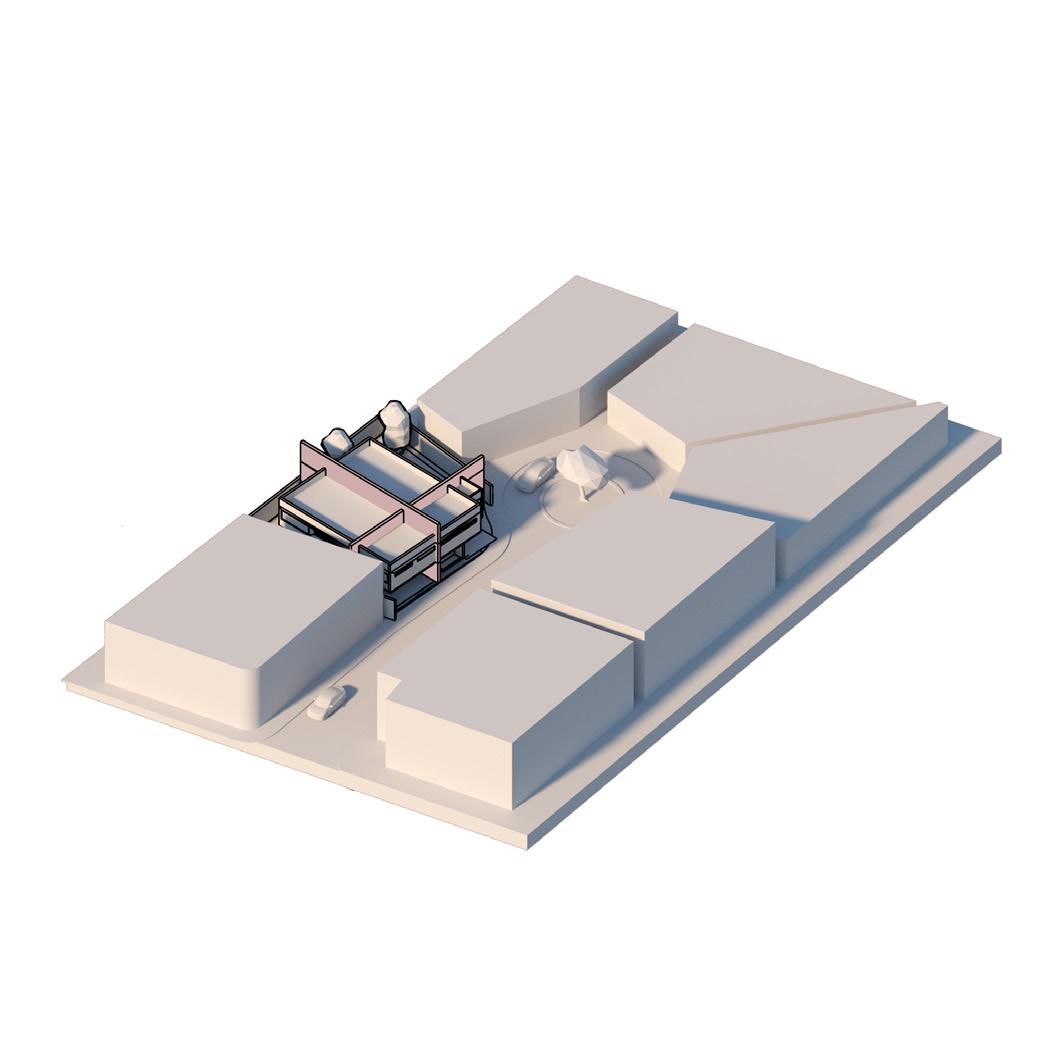

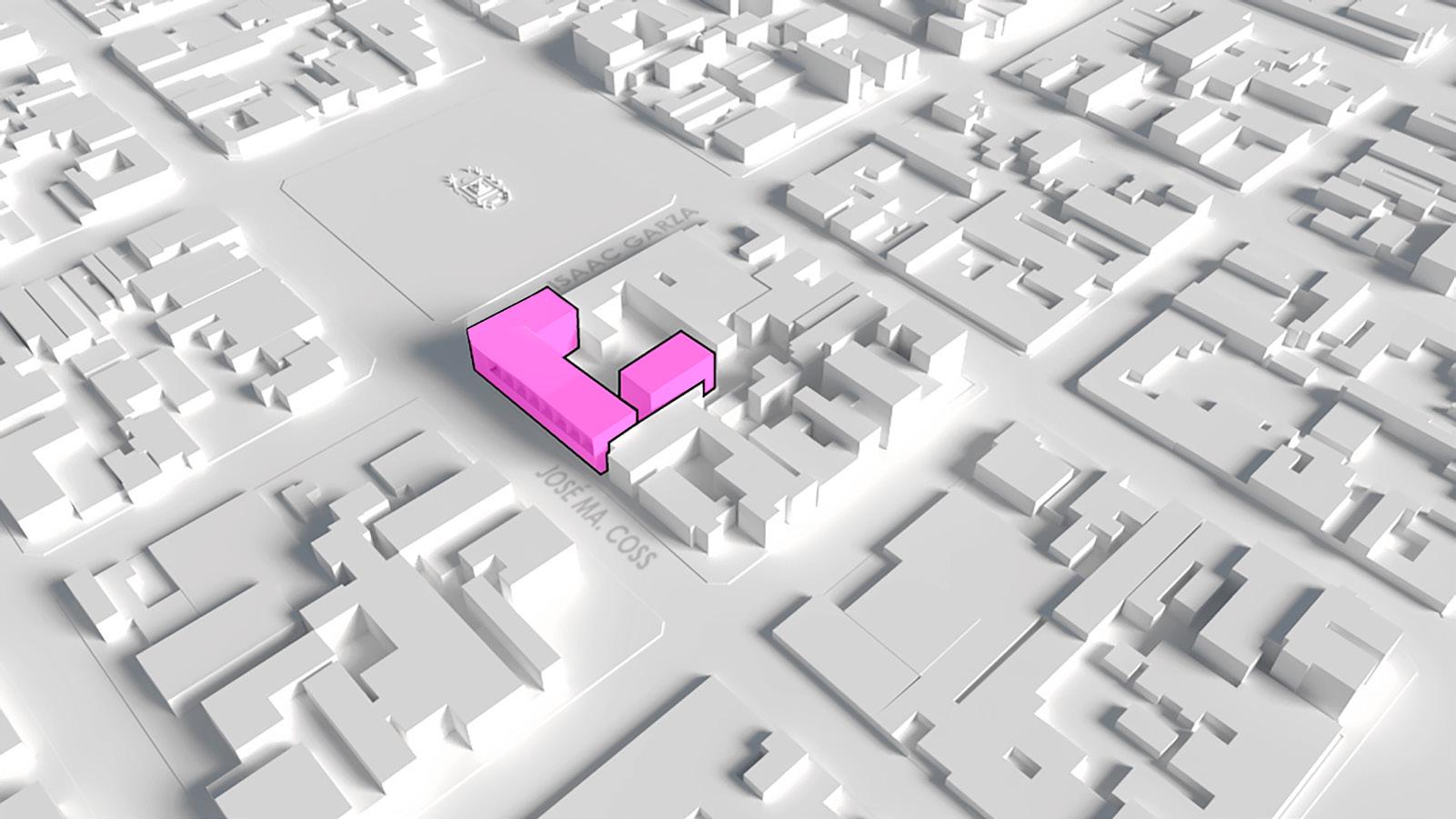

3) The “Viviendas Terra” building is placed on the site, it is made up of two volumes, the first one that is the main volume and then the smaller one.
4) A space between the two volumes is cleared up to create a public environment and interaction the housing.
30
5) The volumes have views to the outside, to the north, south, and west, taking advantage of the indirect light and protecting itself against the hot rays of the sun.
6) The interior space between the volumes is used to have a view and ventilation, having indirect light from the north, as well as from the south and east.
31

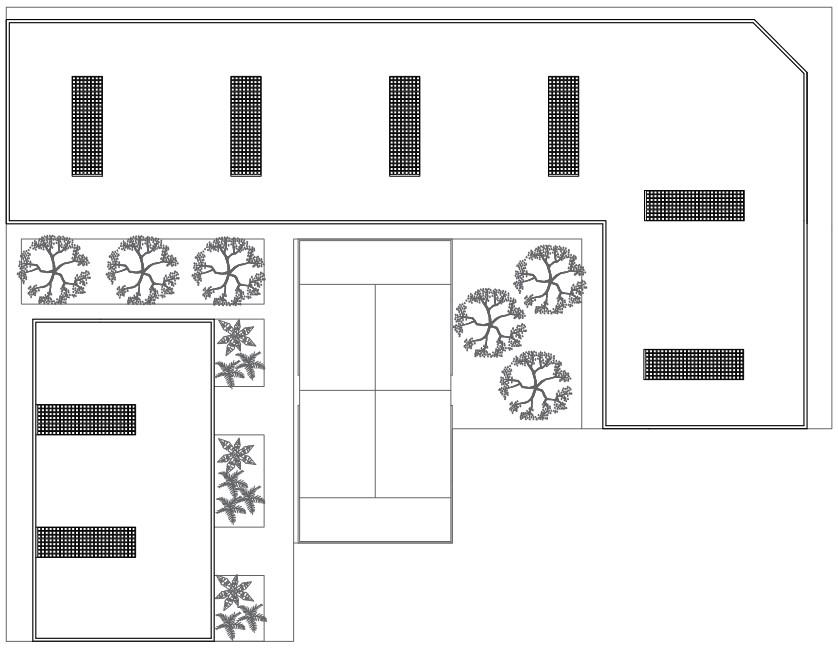

7) The use of the interior space between the buildings is used to implement a paddle tennis court for public and resident use.
32

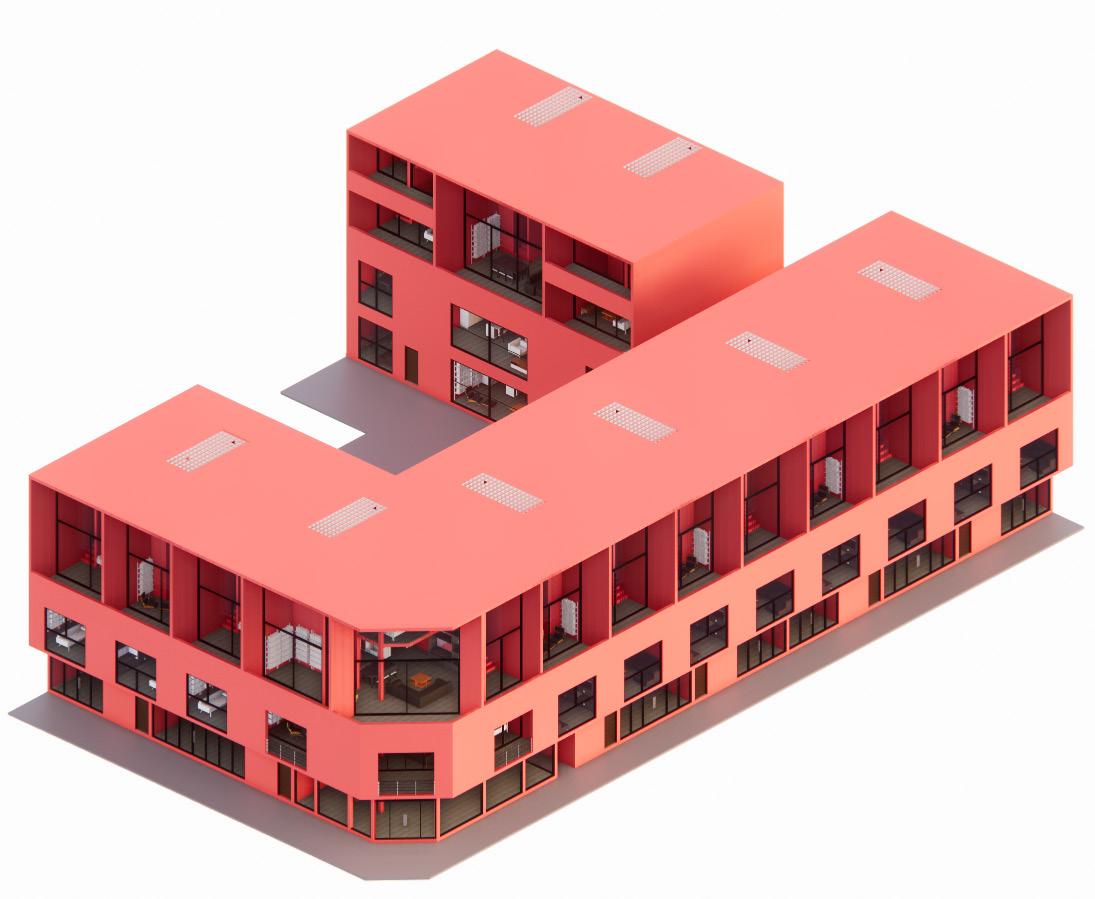

ISOMETRIC
33
34

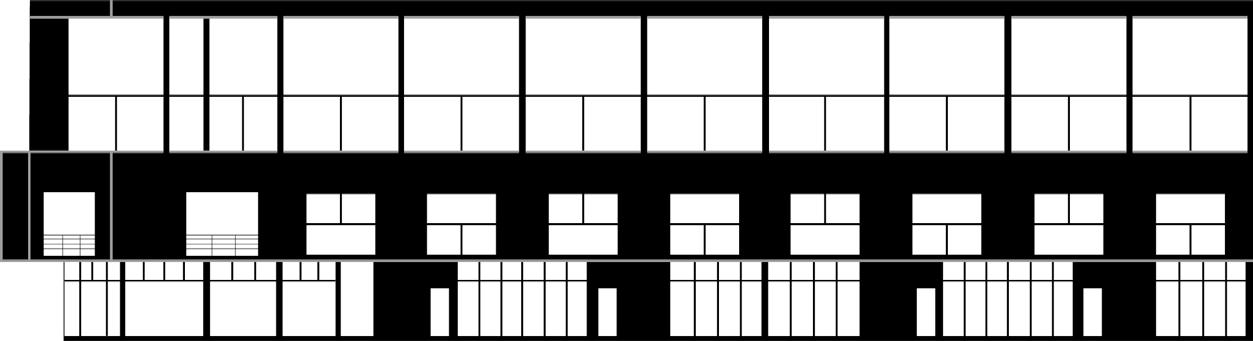

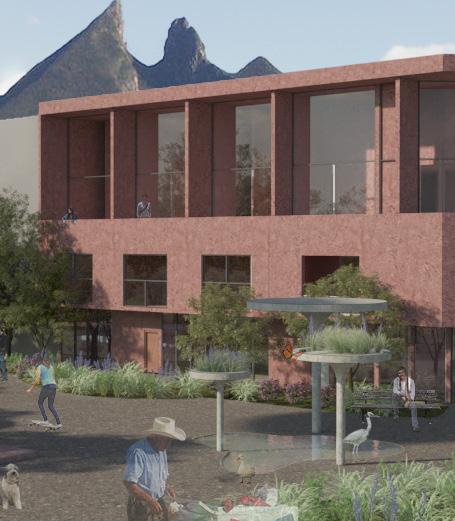

CORNER COMMERCE
36
1st Place
Grand Prize for Young Architecture XV edition ANAMTY
1st Place
Proyecta Awards/ Participatory Architecture of Medium Complexity Category
Proyecta Prize Proyecta Awards
COLLABORATION:
REVITALIZATION OF DOWNTOWN MONTERREY
Karen Michelle Garza Garza
Gabriela Palau Dávila
Alfonso Garza
38
PROJECT’S LOCATION

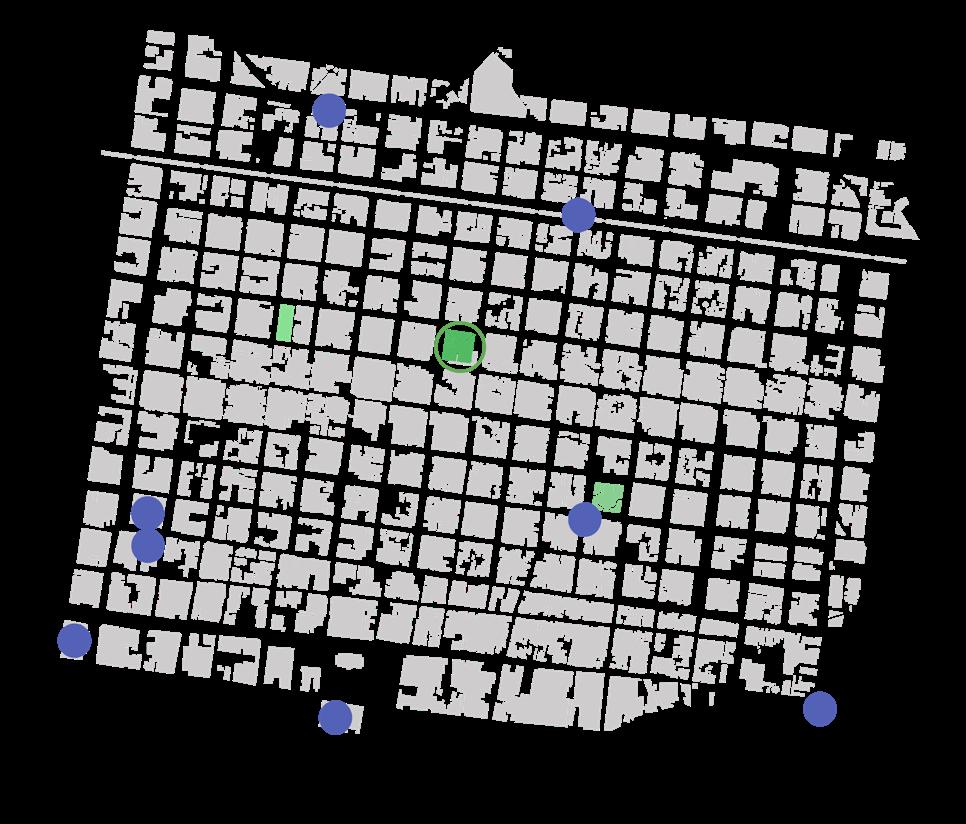

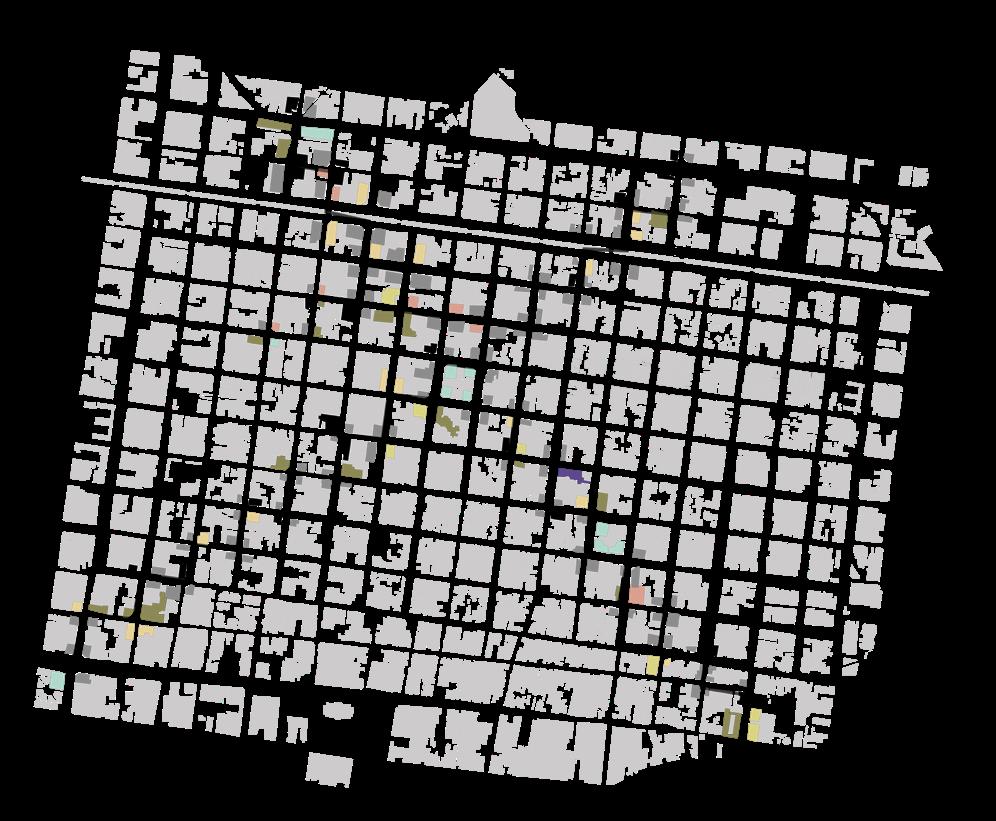

The project works on the scales, Large, medium and small, on the large scale it focuses on the way in which Monterrey’s downtown moves, the motor mobility, the pedestrians, and even the public transport routes such as public buses and the subway. In turn, it is responsible for connecting the three different plazas, the Plaza de lo Enamorados, the Plaza del Chorro and the Plaza de la Luz.

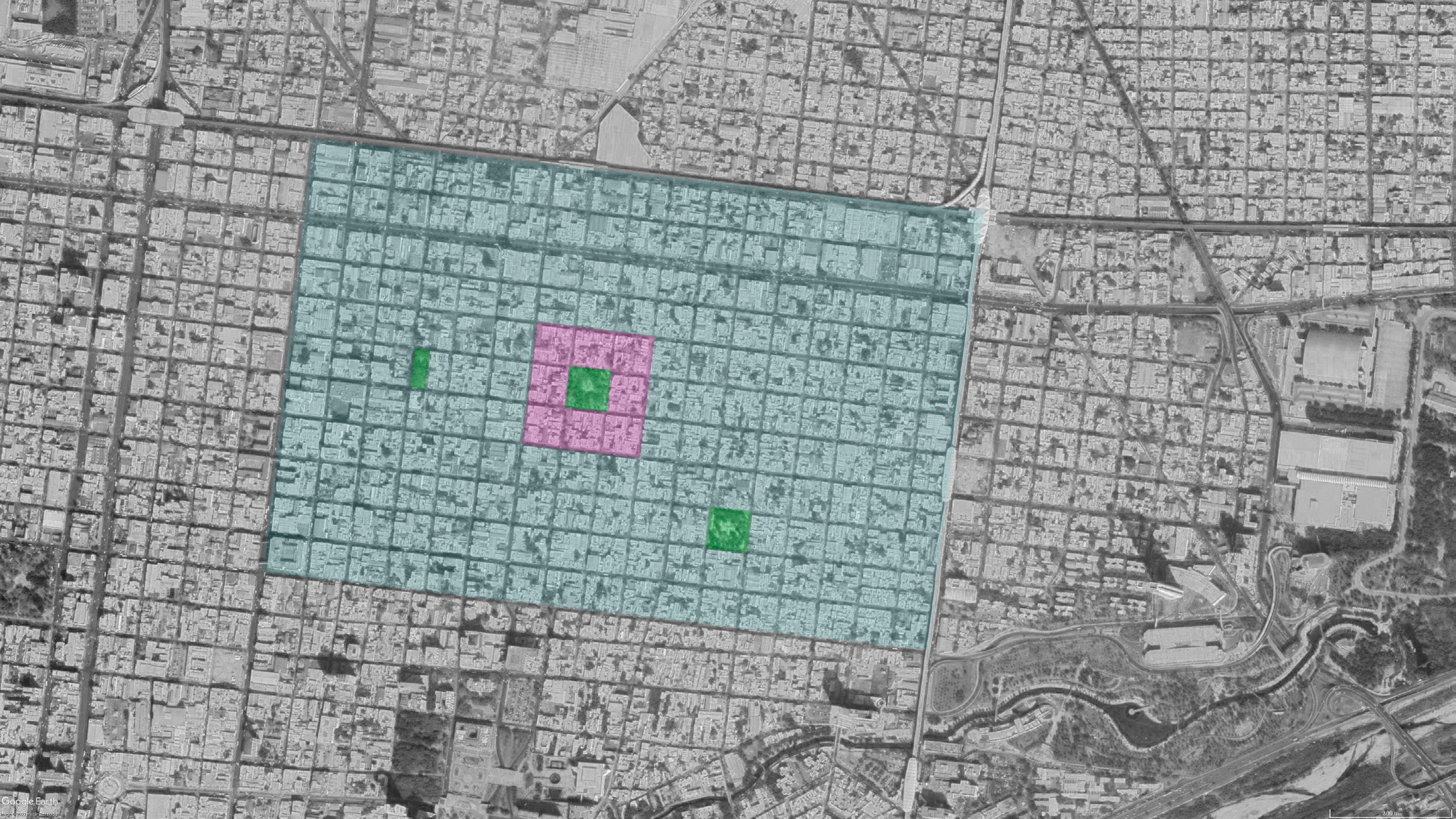

The medium scale focuses on creating a superblock, the Plaza del Chorro was chosen and around it surroun ding blocks were chosen to create a 3x3 superblock, creating a neighborhood of El Chorro.
The small scale focuses on the creation of a design for the plaza of the chosen superblock, in this case the Plaza del Chorro, it had to focus on the daily activities of people, how they moved around the place, how the people felt being there, the itinerant market that takes place on Fridays, the lighting and the maintenance that is given to it. (fig.9)
39

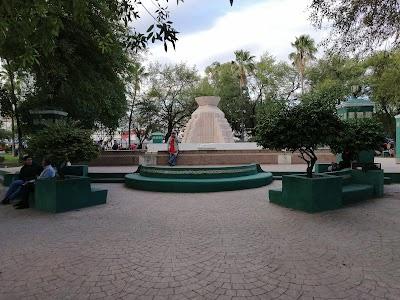

(Fig. 9) Plaza del Chorro
1) The plaza is converted into a social center, the cultural points that promotes activities that generates identity and community are located.
2) The downtown of the city is liberated from the car. The urban space gives the priority to the pedestrians, creating a comunication between the people and Monterrey’s cultural points.
3) The “Plaza del Chorro” is connected with the rest of the city. The resulting urban form potentializes the corners. A urban culture focused on the people is promoted.
CULTURE 40
After analysing the potential of the cultural points in the area and seeing the possible connections of these points, a master plan is proposed to promote the preservation of the heritage and identity of Monterrey’s downtown, It integrates the residents of the neigborhood in a revitalized context that generates a sense of community. In turn, it attracts external populations to enjoy the public and cultural space of the city.

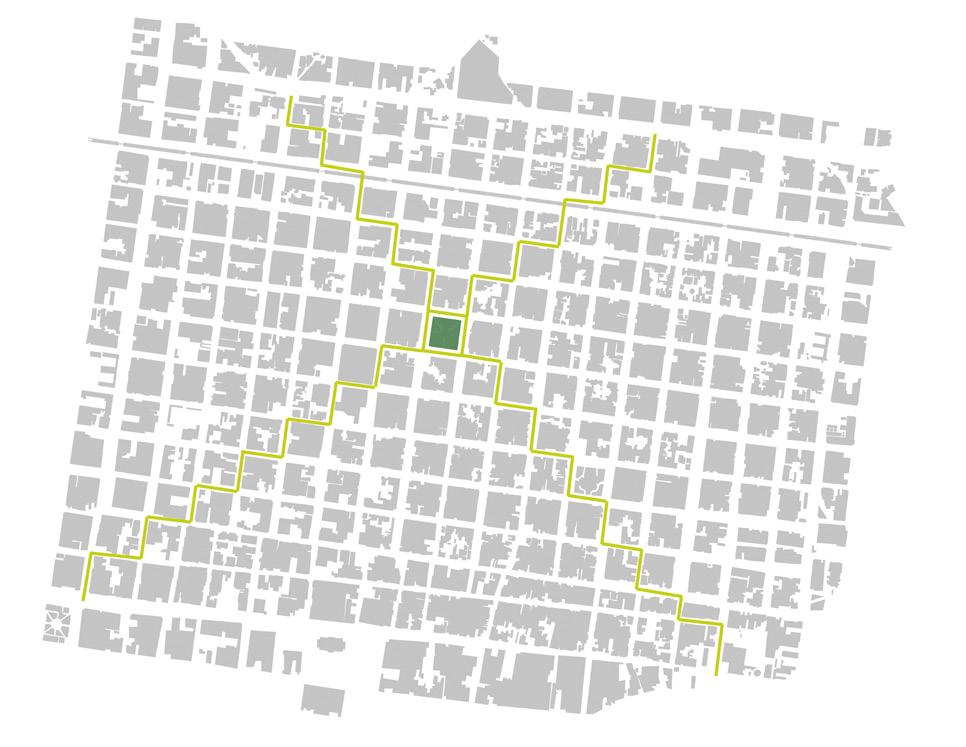

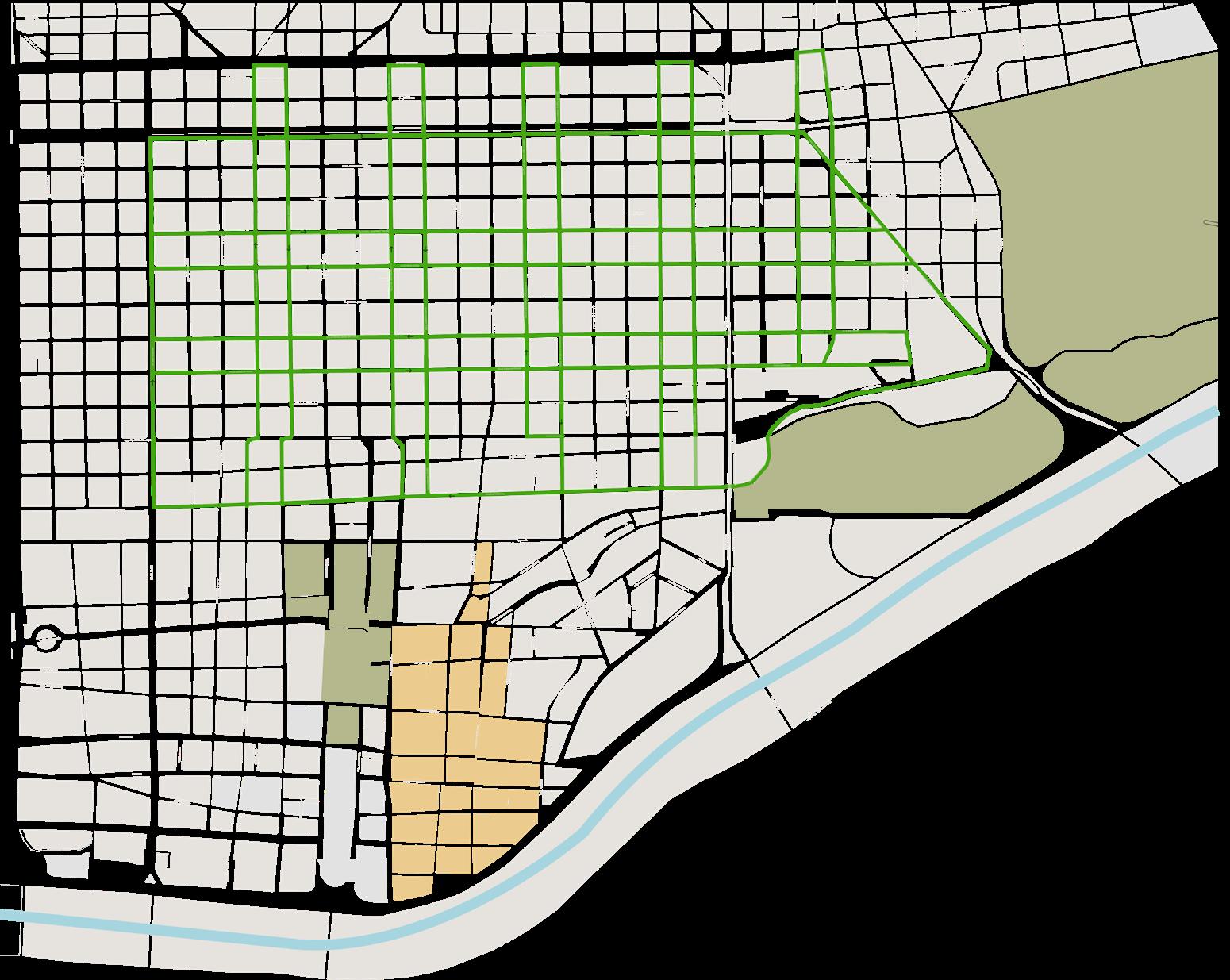

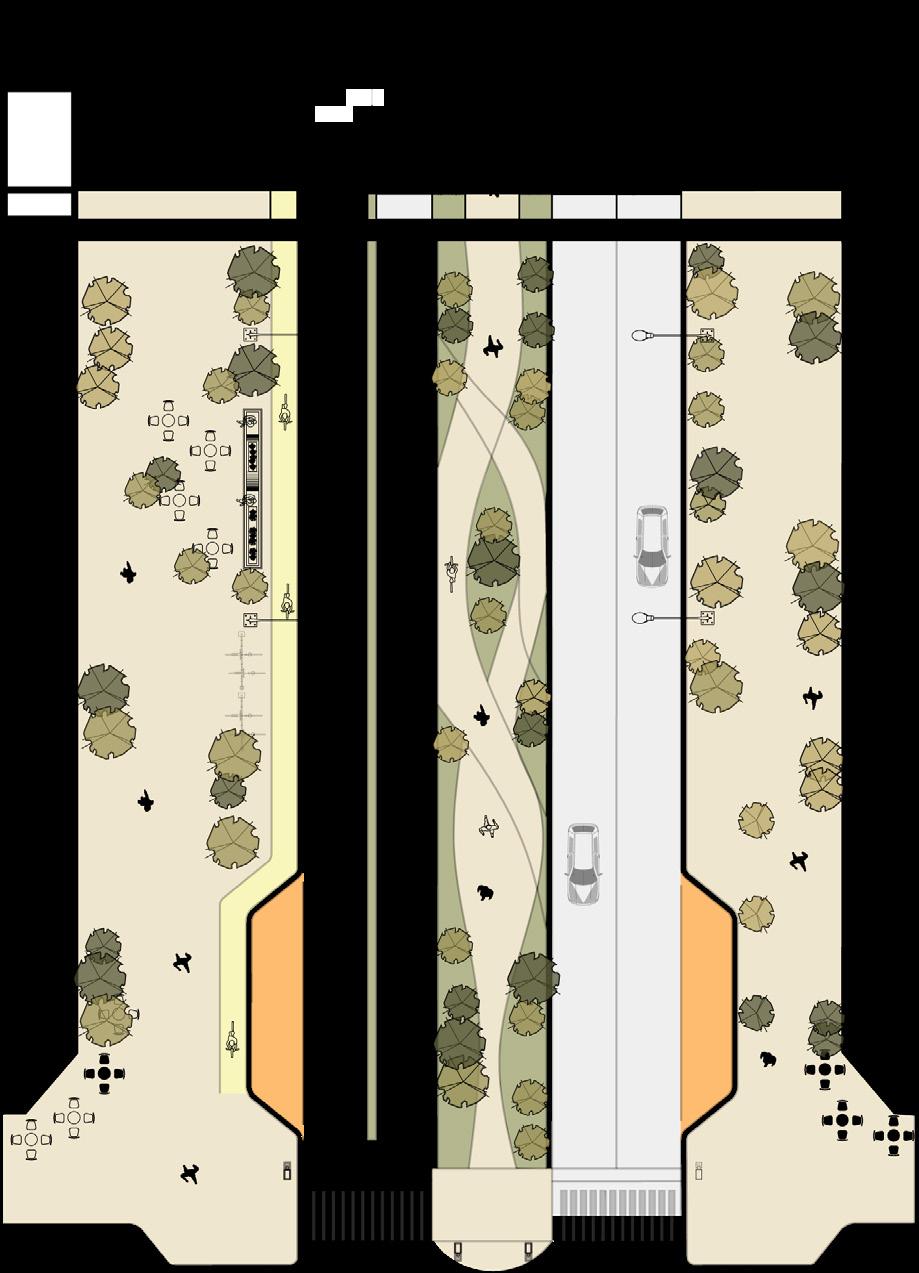

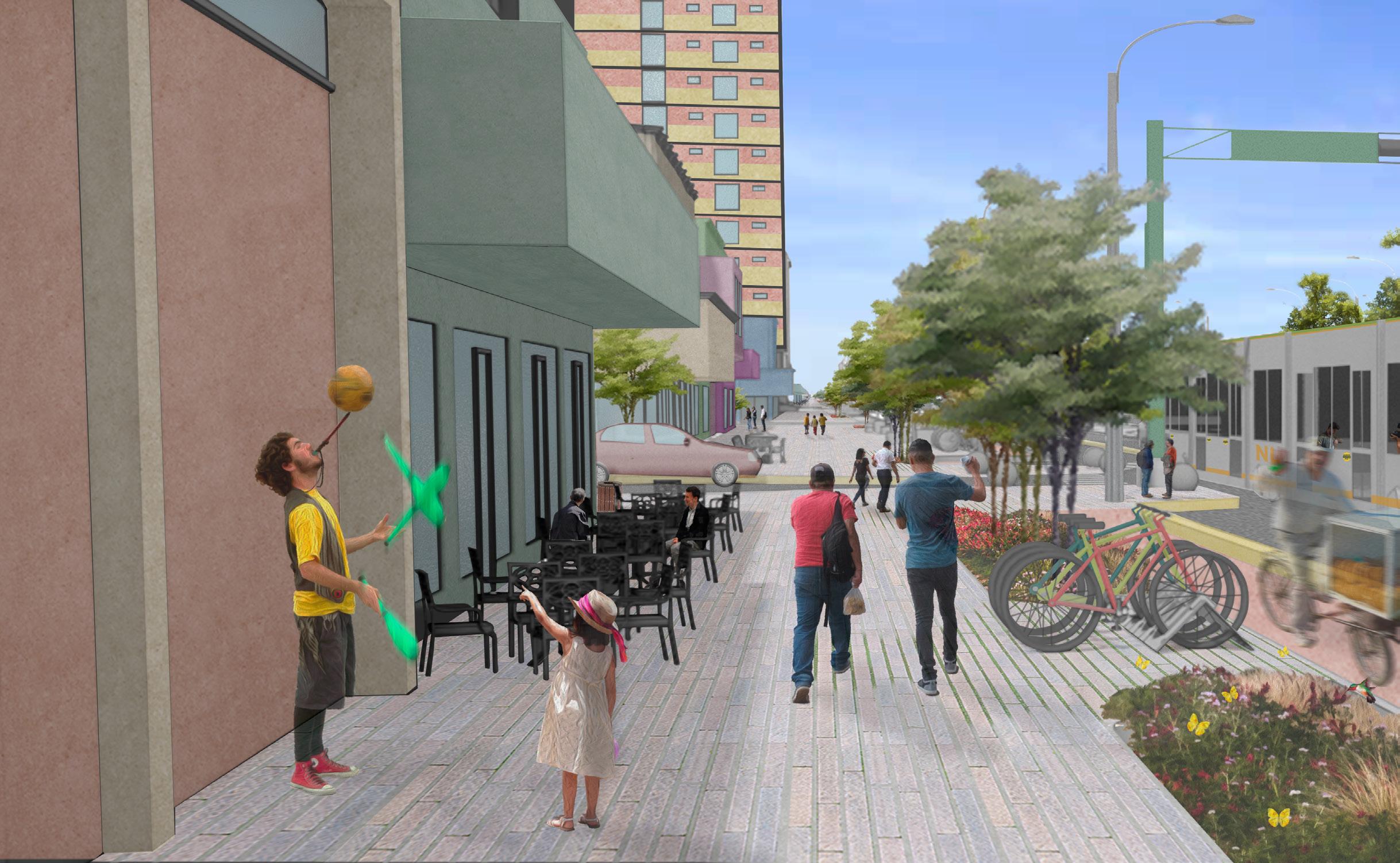

Stepped Pedestrain Route
A connection that seeks to link cultural, historical and social meeting points.
Replicable Methodology
The stepped pedestrain route is replicable throughout the city. Starting from a central point and intervening in the pedestrian area

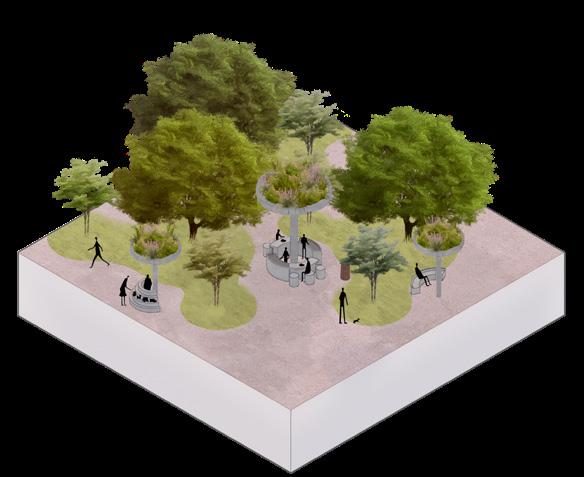

Pocket Parks
Pocket parks will be placed in open spaces that are conside red underutilized or abandoned within the stepped route.

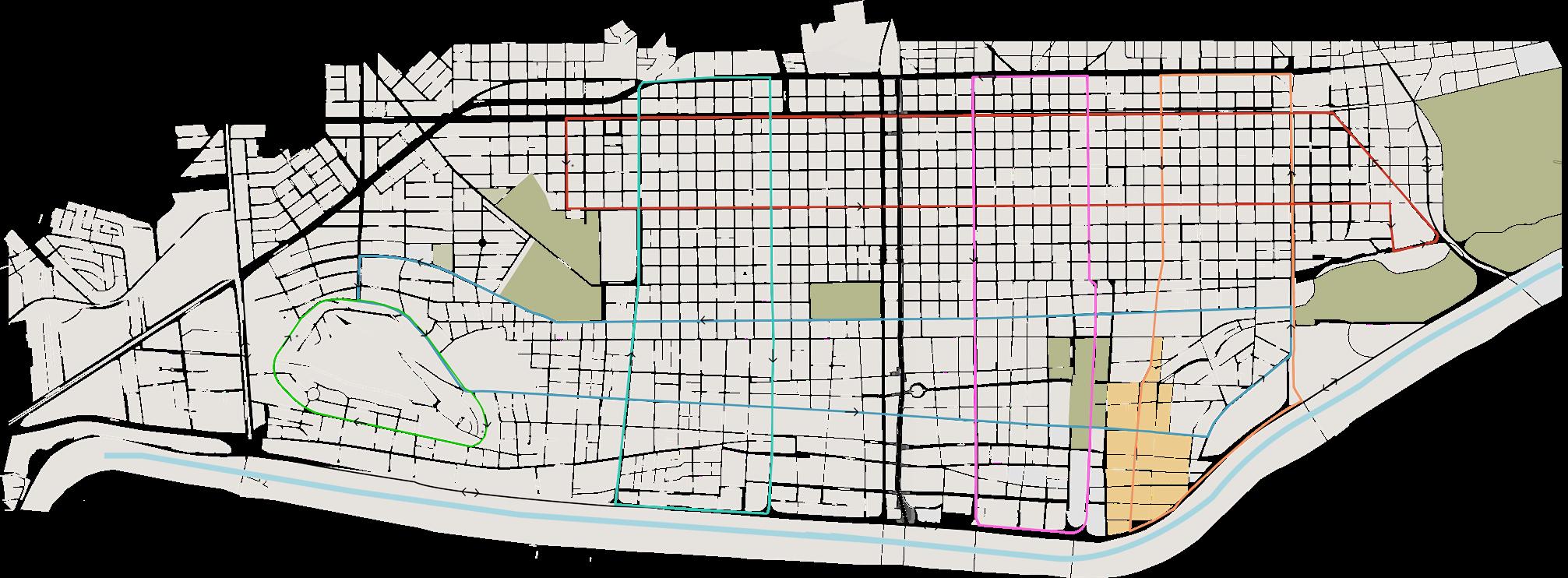

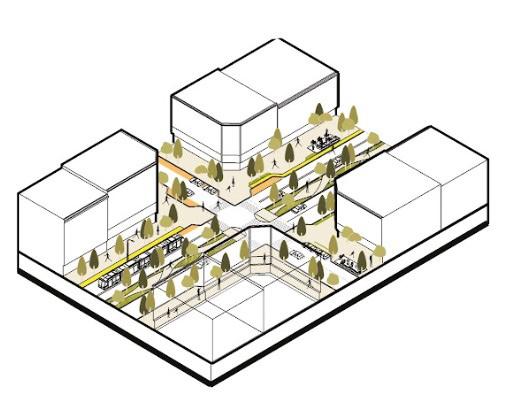

Connection to the urban transport Bike Lane
The walkable streets are directly connected to the public trans port services of the city.
Vehicular Mobility
In order to set free the area of cars, it is proposed that vehicular access be made from the peri meter; since the stepped route prevents vehicular traffic.

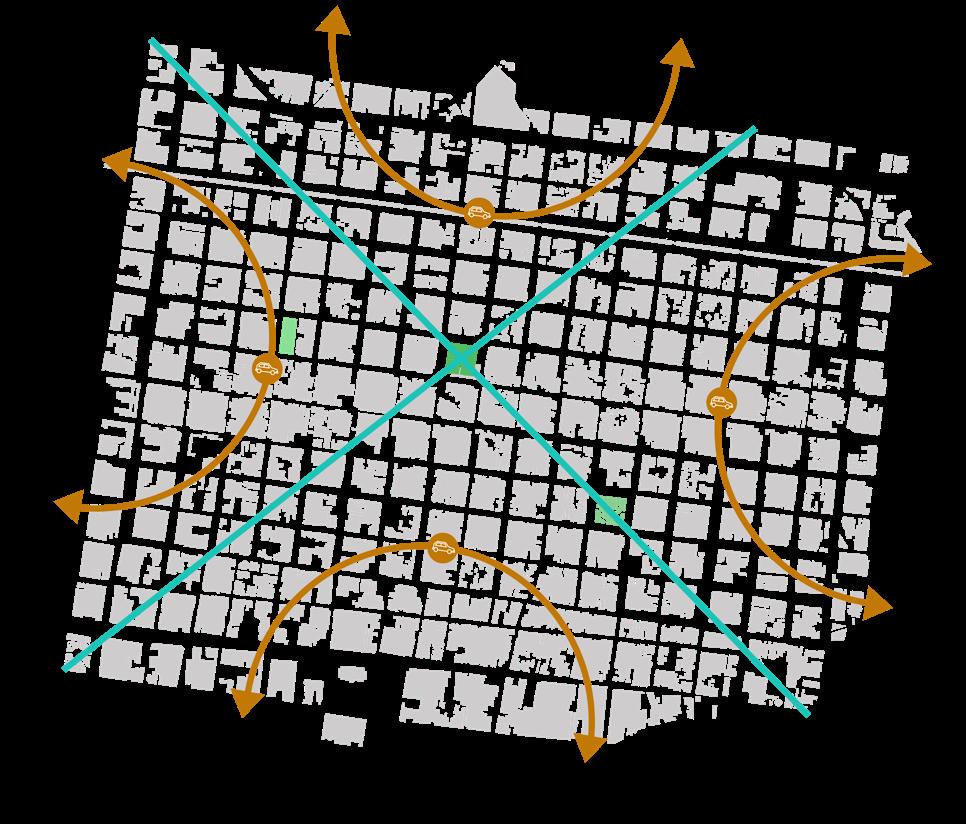

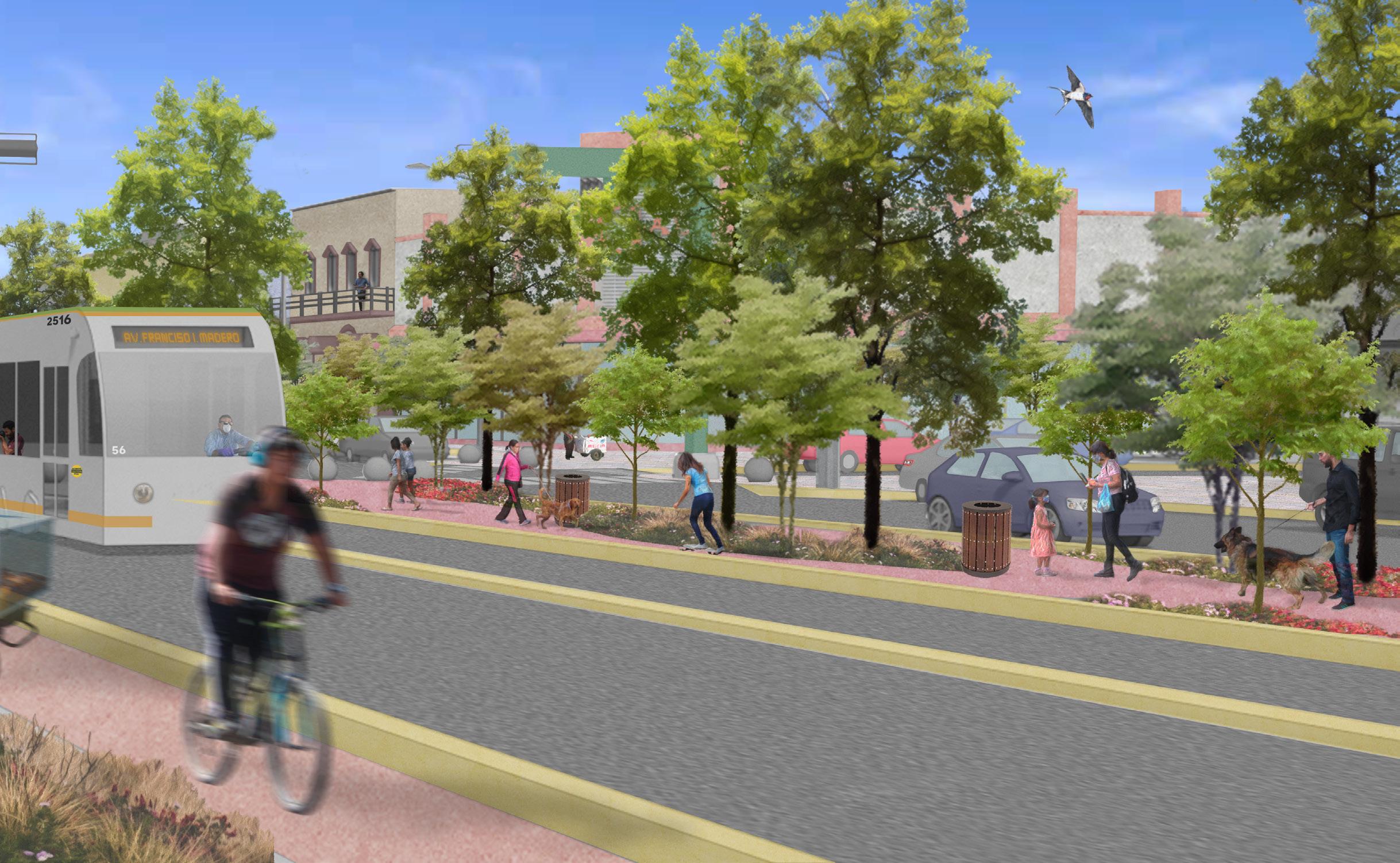

Reinterpretation of “Calzada Madero”
The “Calzada Madero” is reinterpreted, to restore the cultural greatness and economic importance that it once had.
A bike lane is implemented as a form of non-motorized transportation within the area.

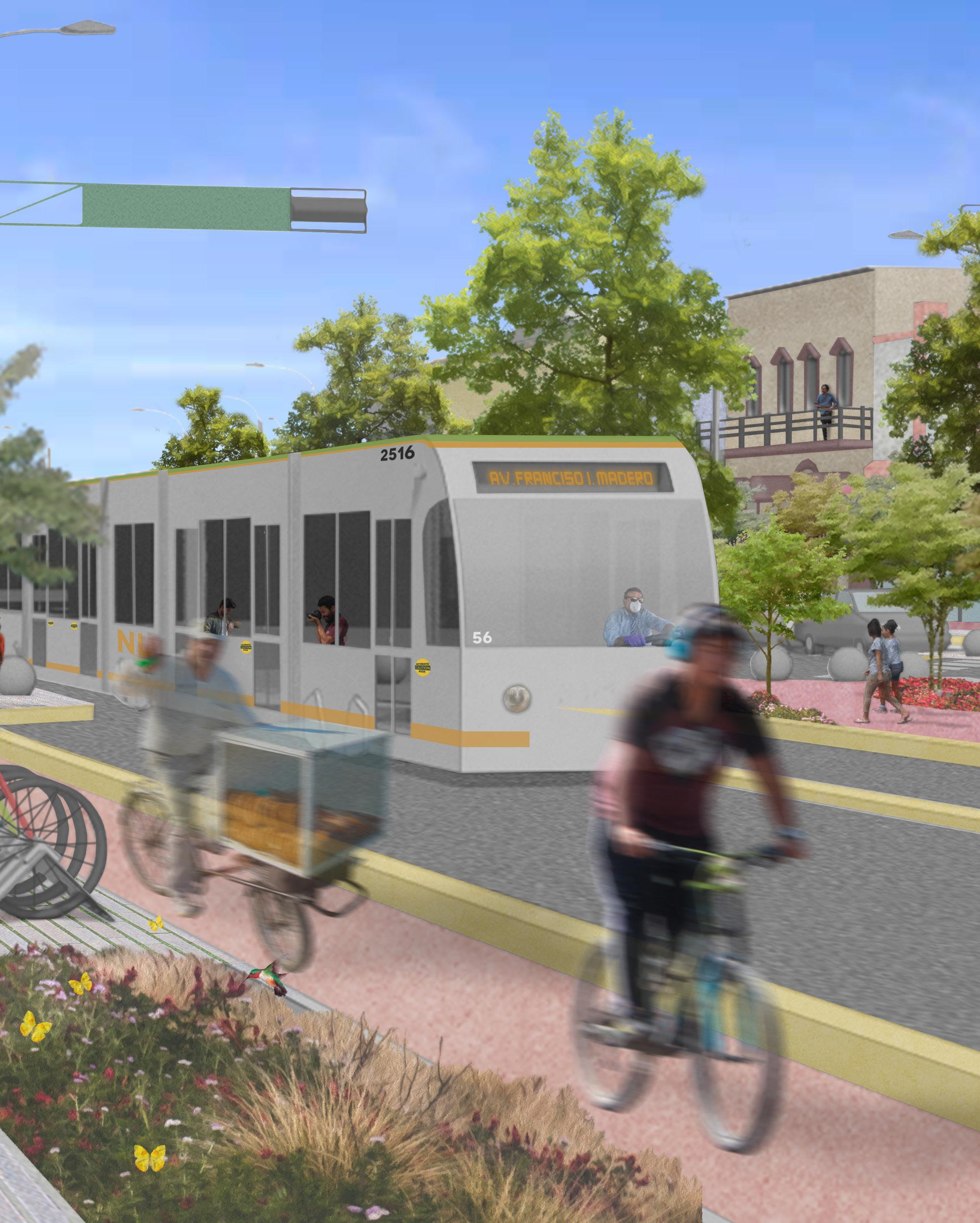

Tram
Public transport that travels in the perimeter of the district, freeing the center from traffic jams, pollution and motor mobility.

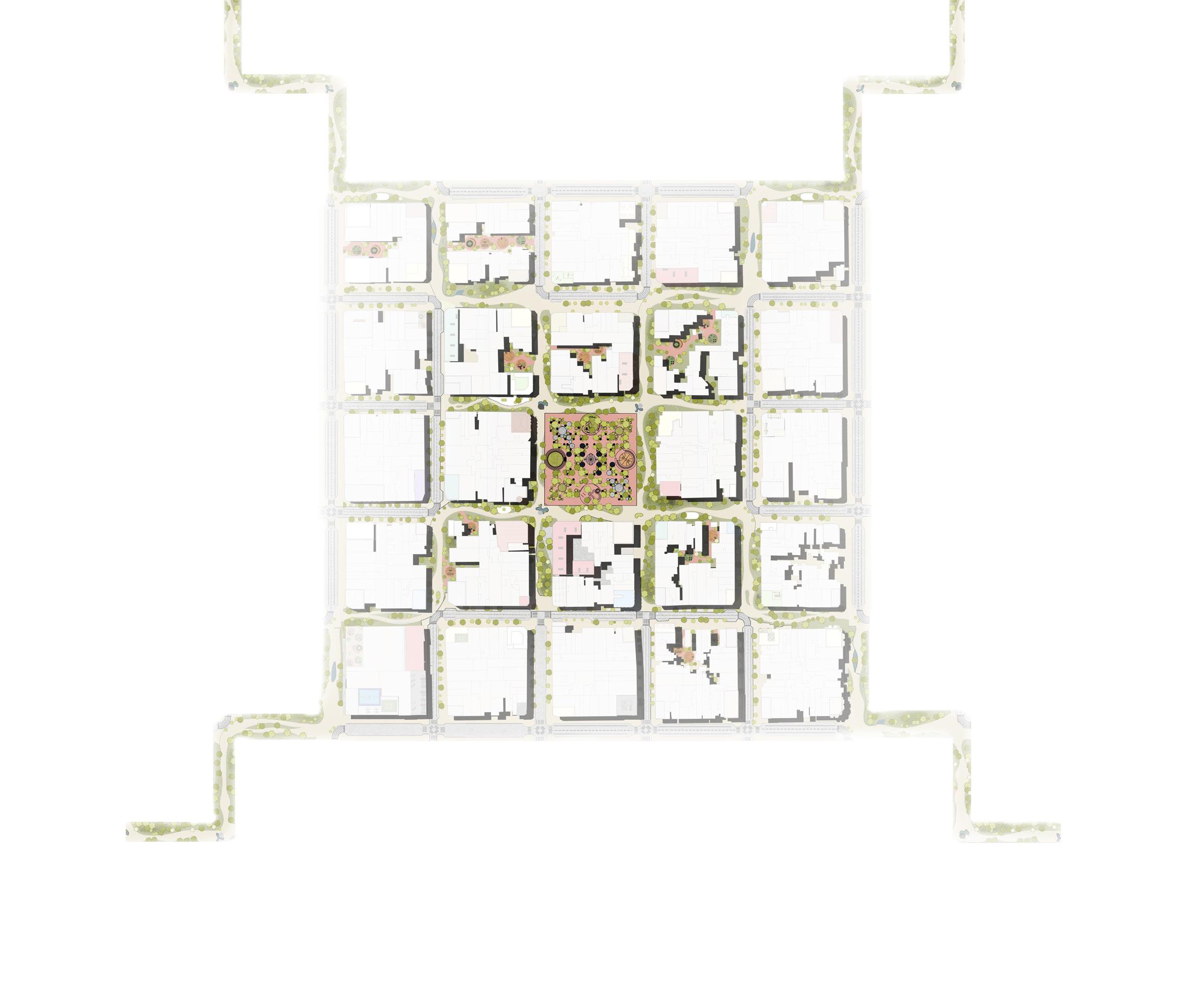

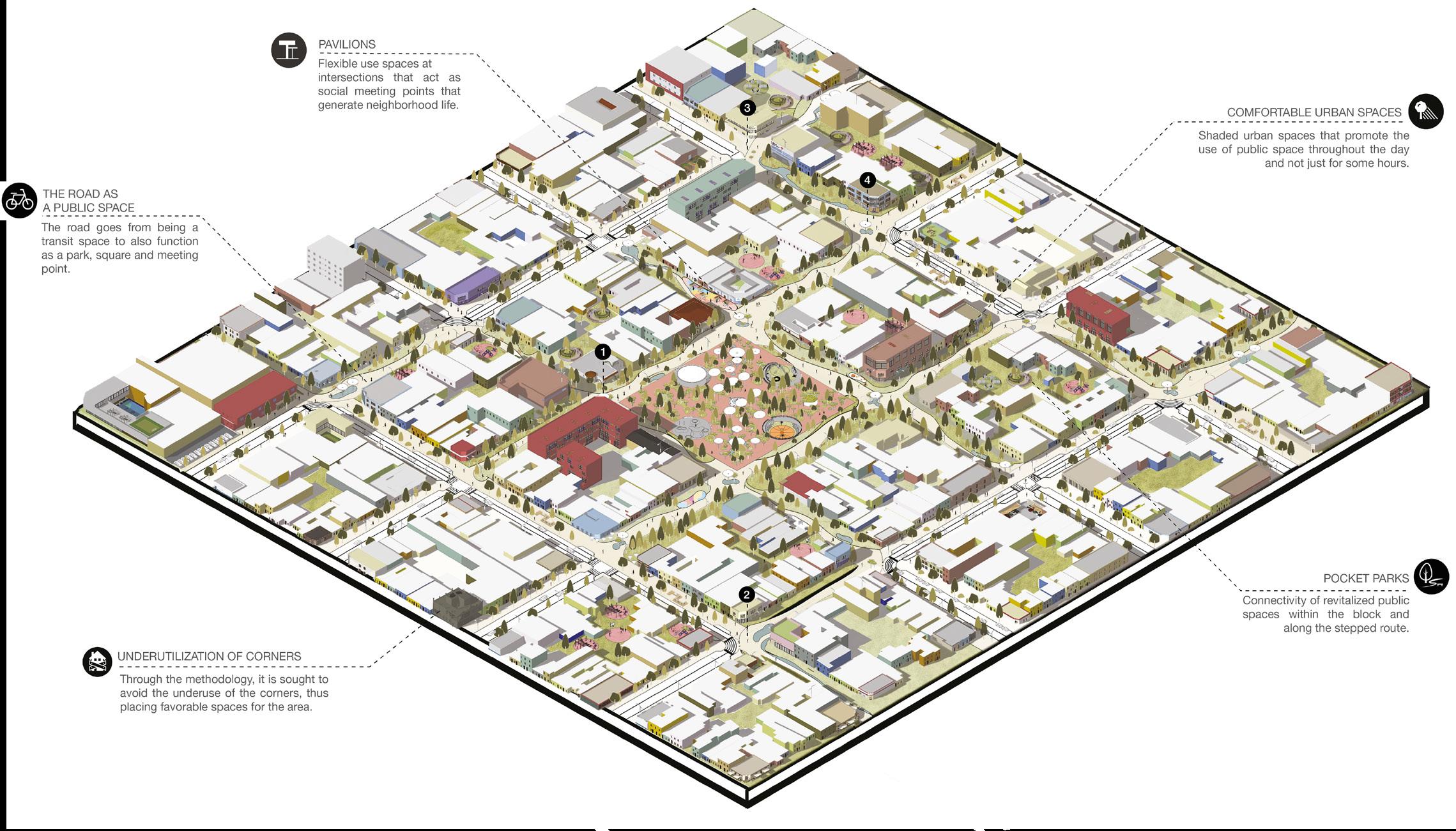

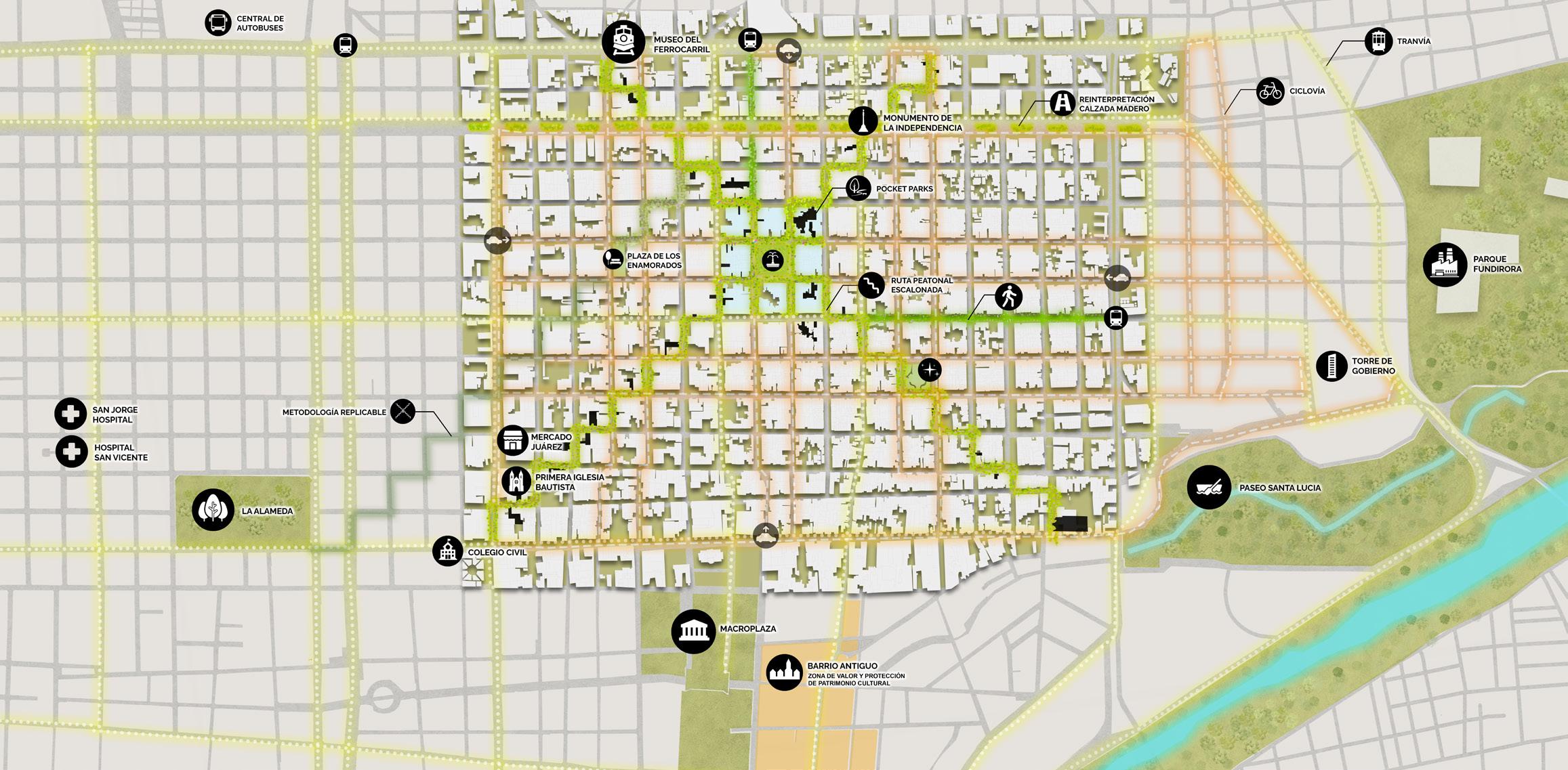

MASTER
PLAN
41

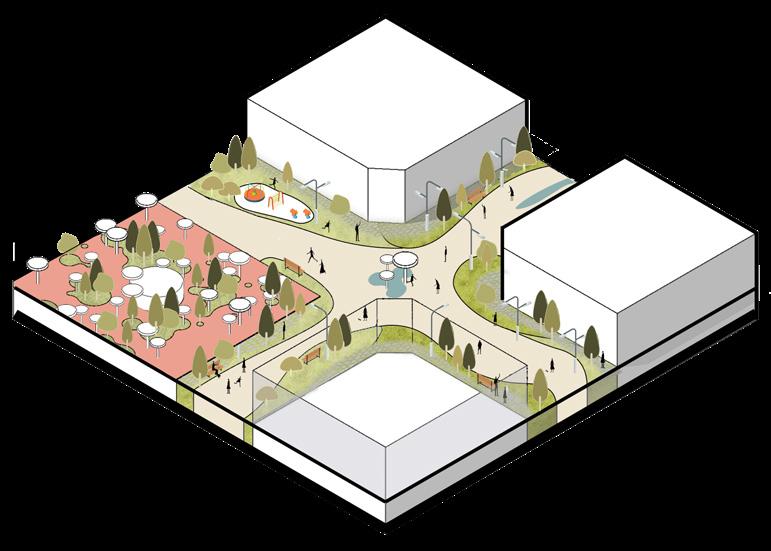

POCKET PARKS

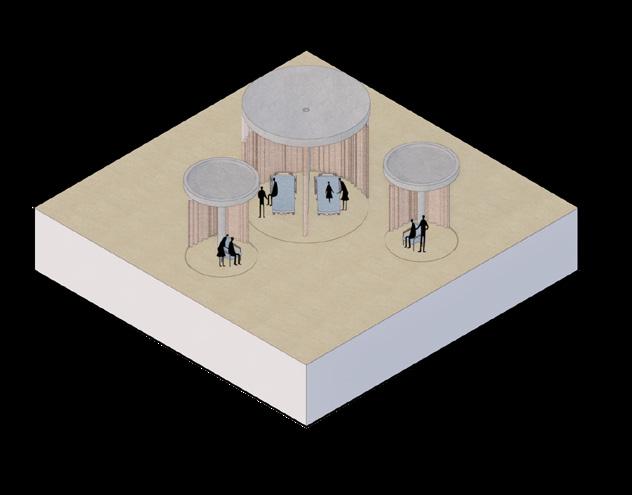

The pocket parks consist of 5 flexible modules that can be integrated in different ways to generate public spaces.
PABELLONES

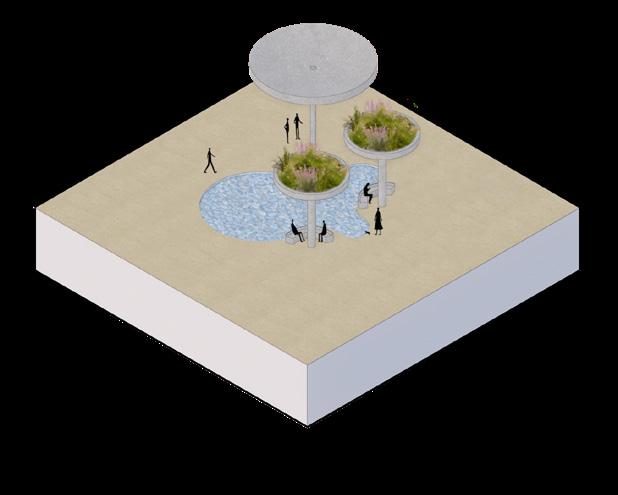

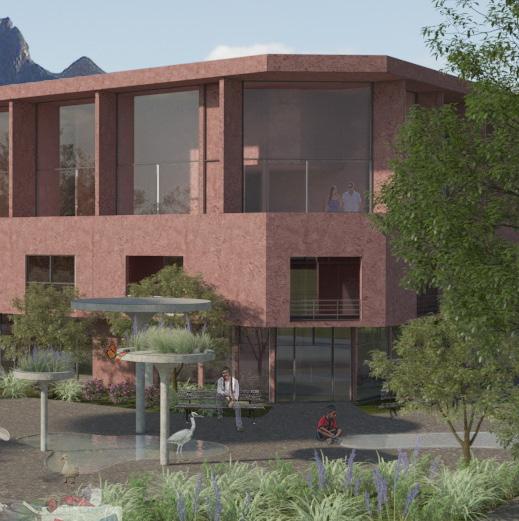

Pond Intersection

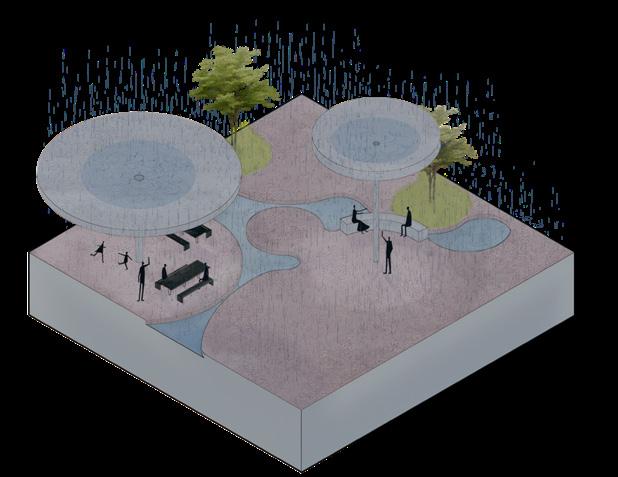

Pavilions for the gathering of rainwater with an absorption pond, which allows user interaction.
Commerce Intersection
Pavilions with areas of interaction and rest, which seeks to organize informal commerce.
Health Intersection
Pavilions for flexible medi cal use at the intersection, allowing vaccination and COVID testing, as well as general consultation.

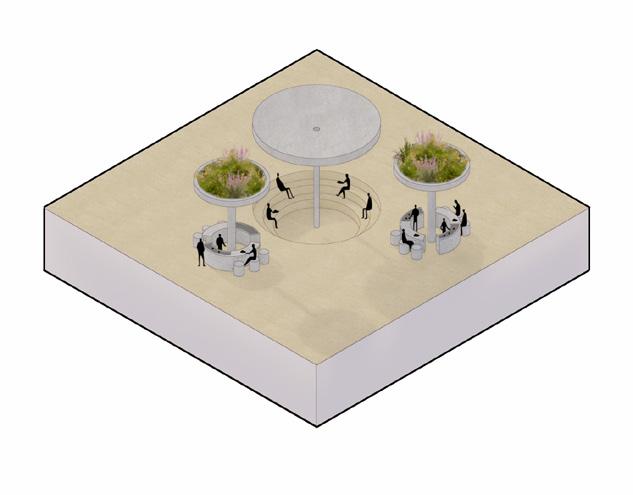

Rainwater Gathering Pavilion
Pavilions for the gathering for rainwater with an ab sorption pond, which allows user interaction.
Solar Energy Pavilion

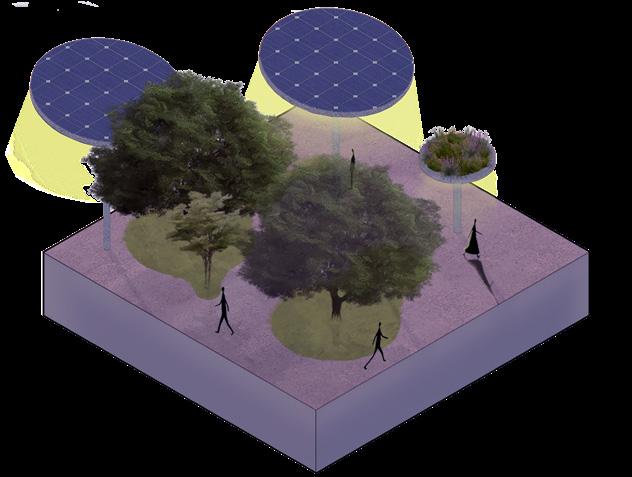

Pavilion with solar panels that allows the collection of energy for the electriciy su pply of the Plaza. The pavi lions also functions as public lightning.

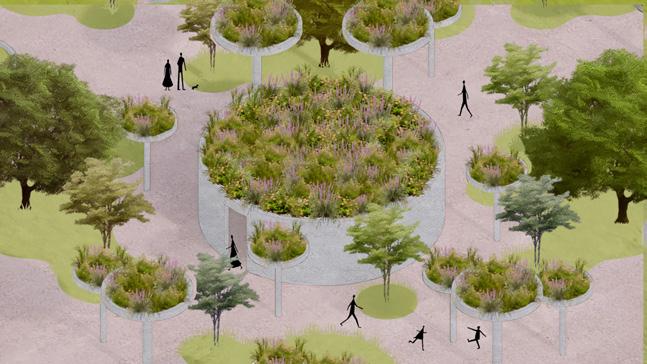

Green Pavilion
Pavilion with a green roof for the integration of flora and fauna. The roofs allows cooler shade for business and rest.

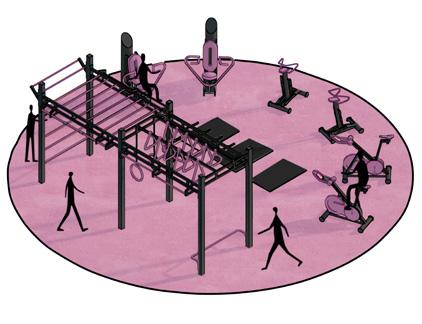

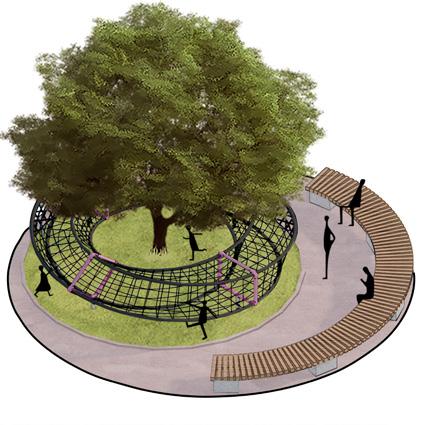

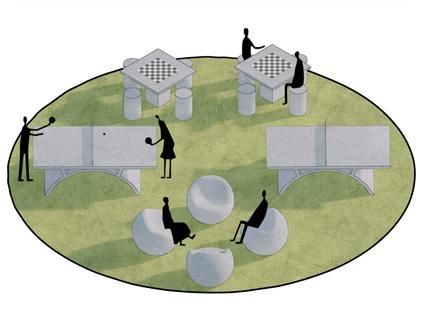

Interaction Module Sports Module Outdoor gym Module Climb Module Game Module
42

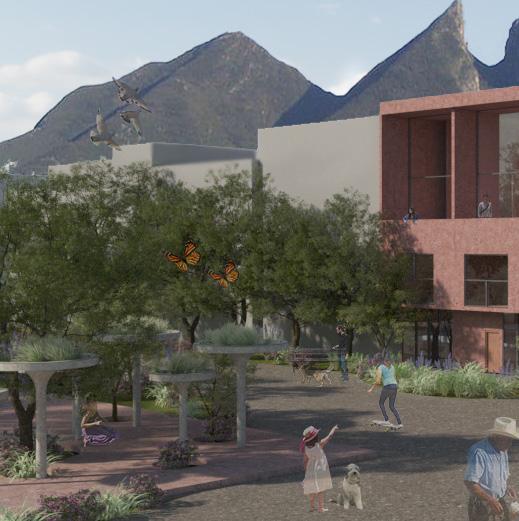

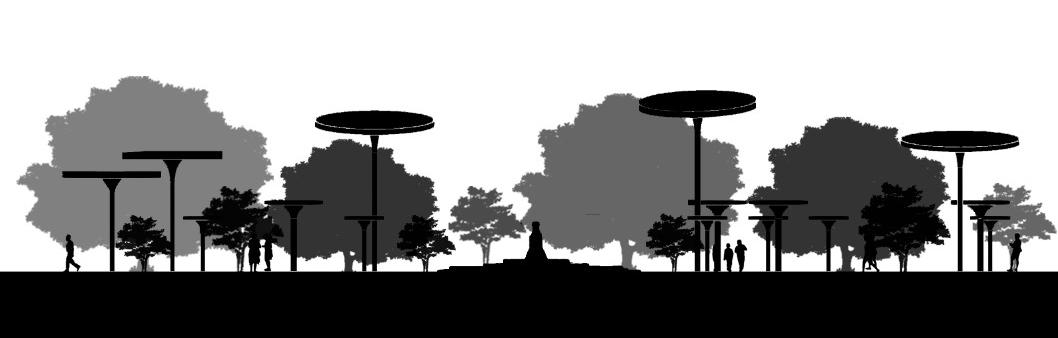

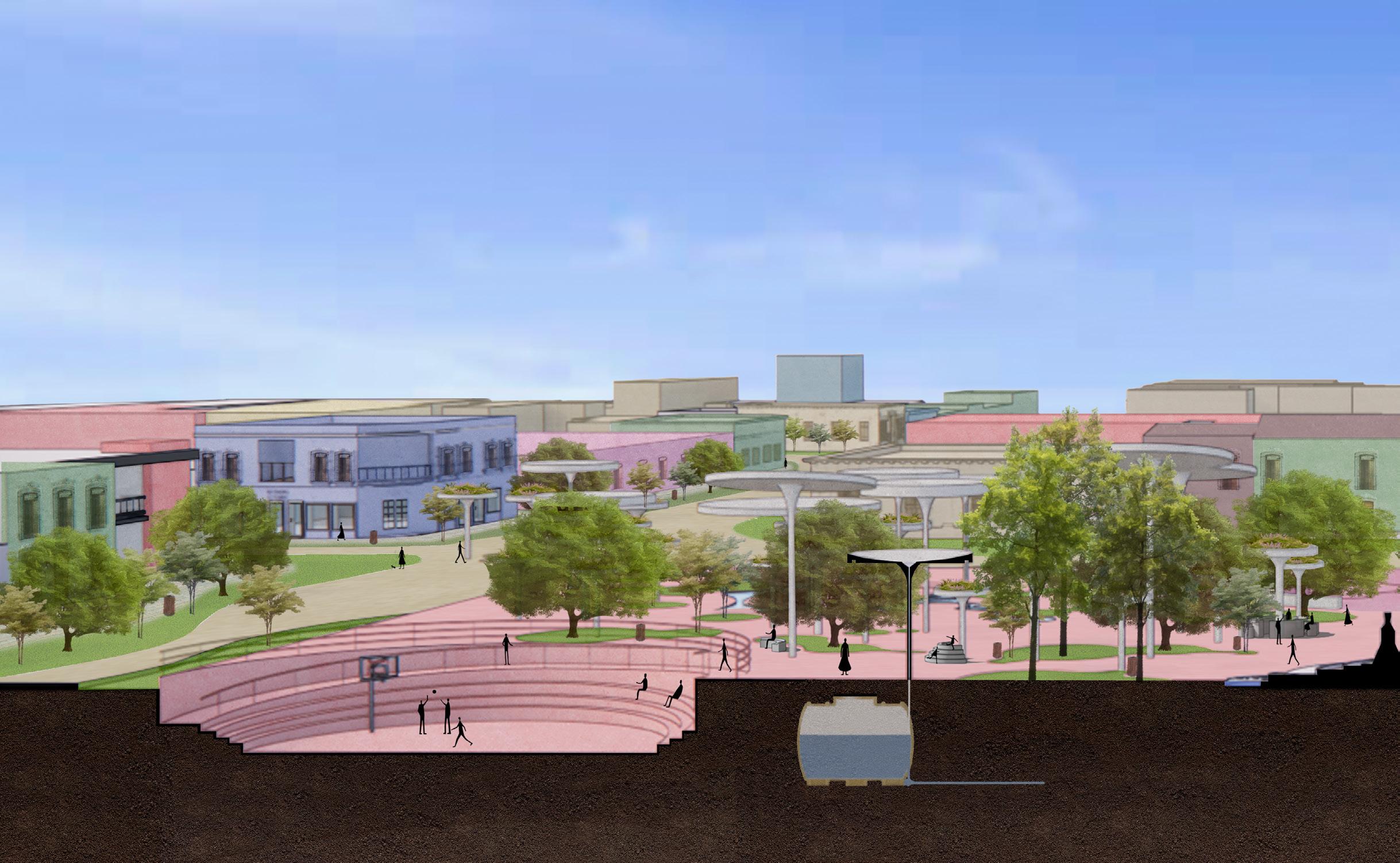

PLAZA DEL CHORRO

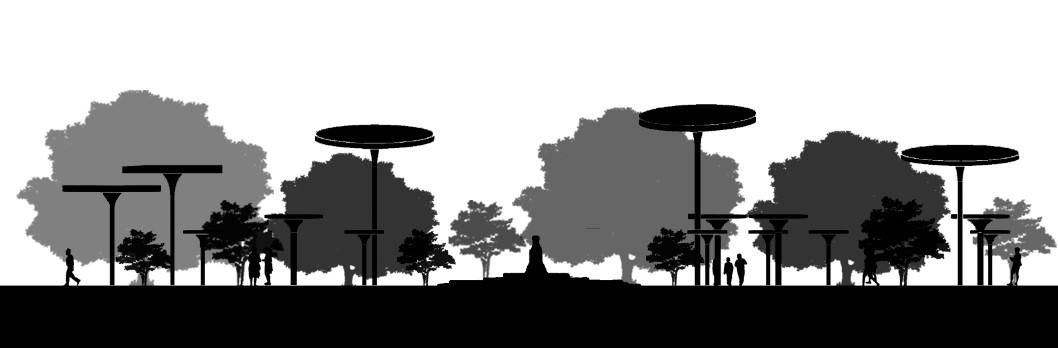

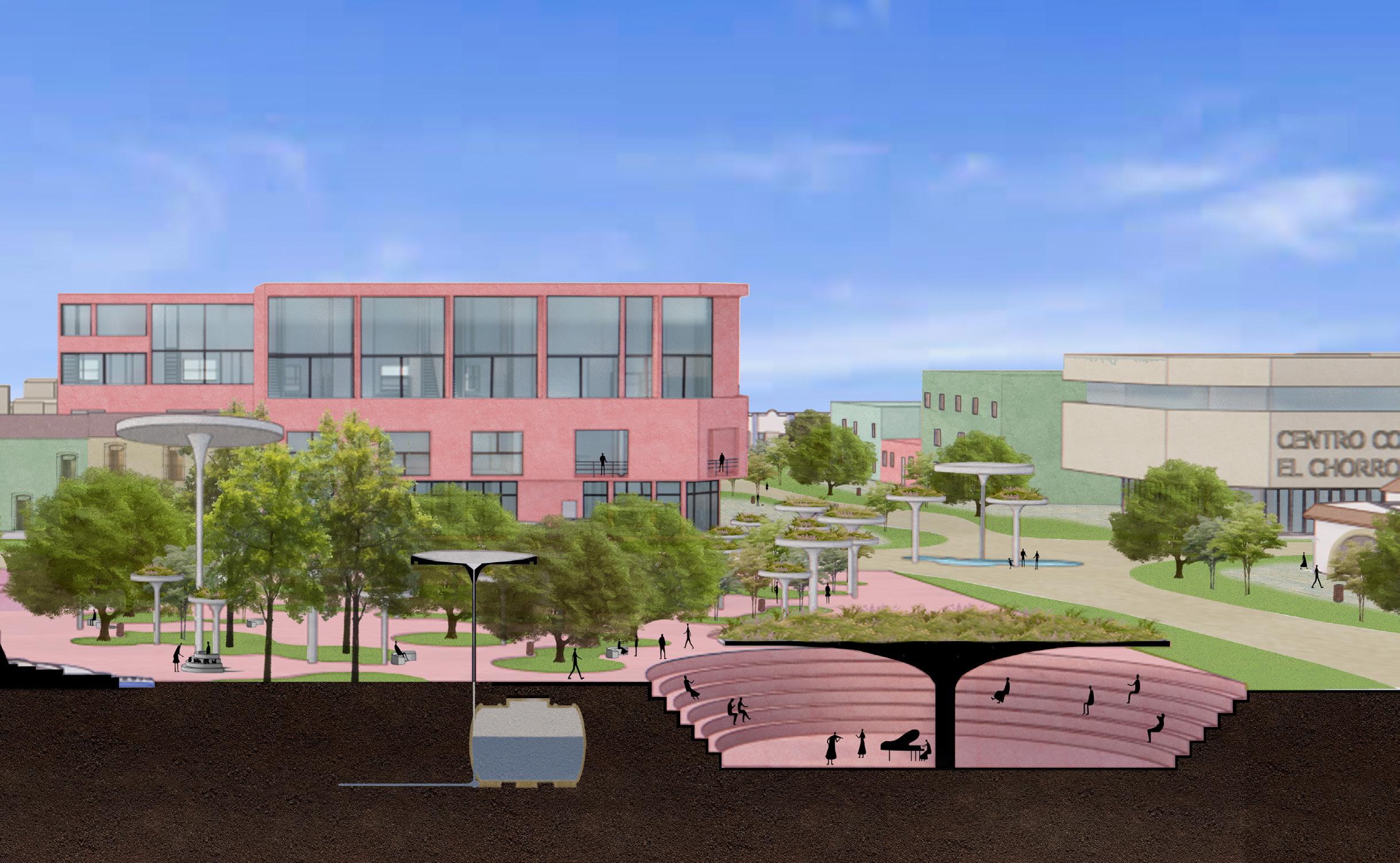

Through a reinterpretation, the new design for the Plaza del Chorro seeks to help create a stable meeting point that invites people to stay. 4 modules are integrated with different recreational activities and 2 more for services.
The pavilions within the plaza allows flexibility of use: besides from provi ding shade and protection from the rain, it serves as commerce points, rainwater collectors, planters, and even as solar panels.
The fountain is restored as in its time of glory, in turn a rainwater collection system is created for the use of the bathroom modules.
Sports Module
Rainwater Gathering Pavilion Commerce
Fountain Restauration
Rainwater Collection
Bathroom Module
Full bathroom module in the plaza, designed without blind spots for greater safety towards women and children.
Rest Module
Spaces for rest and food con sumption, which also serves as a shelter from the rain and gathers rainwater.

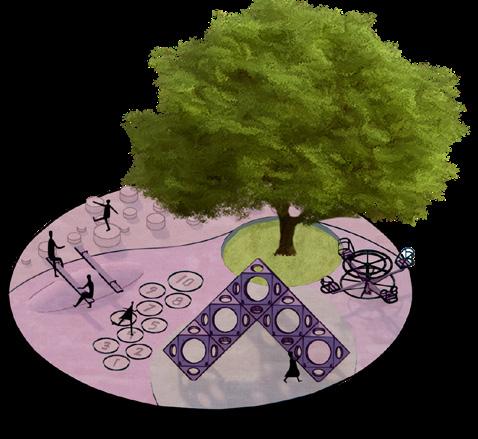

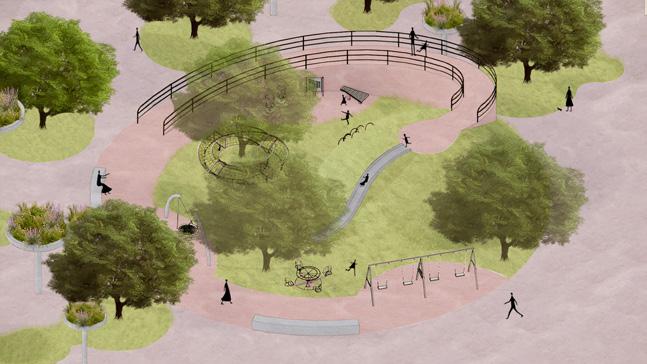

Game Module
Recreation space for all people that requires physical activity and the use of the game.

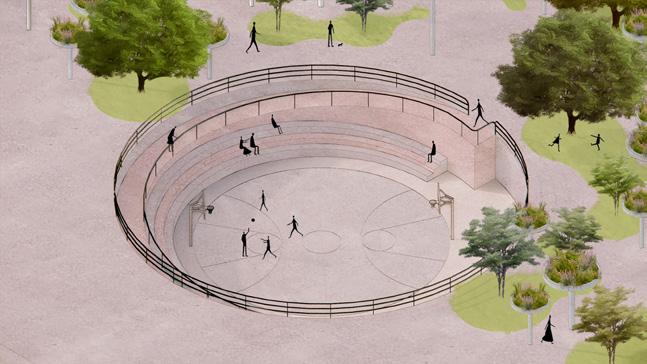

Sports Module

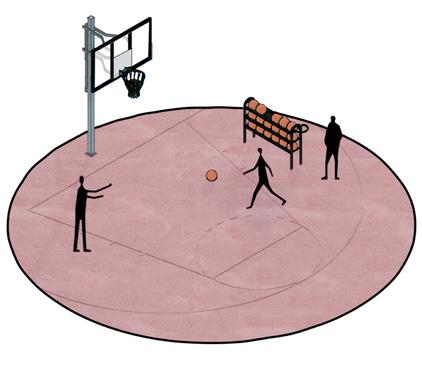

A basketball court, in which the games can be seen from different parts, whether in the stands, the ramp or at the plaza level.
Skate Park Module
Recreational space that pro motes physical activity and also works as a meeting point.
Culture Module
An amphitheater in which cultural activities can be carried out, such as workshops, lectures, concerts and exhibitions.
Restauration
Solar Energy Pavilion
Cultural Module Pond Intersection
44
Supply to Bathroom Modules
RE-ACTION
The Re-action Methodology

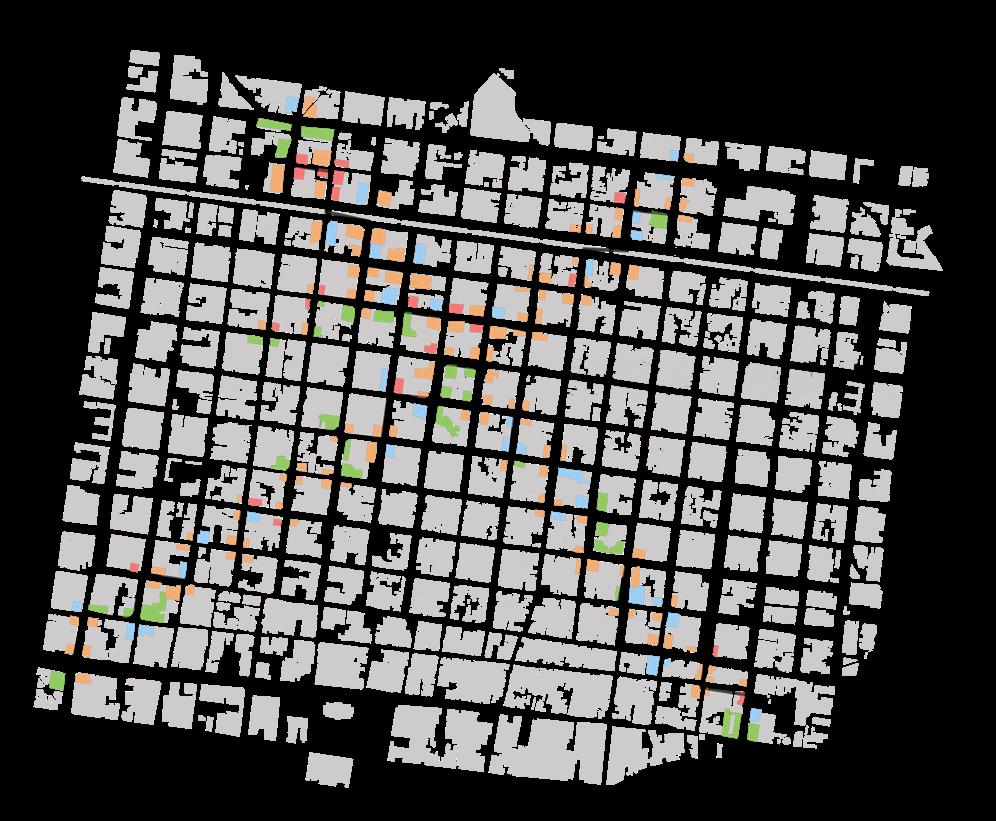

Parking Lots Sale/Rent Mechanical Workshop
Unsuccessful businesses
Public Spaces without use Abandoned Gas Station Buildings to repair

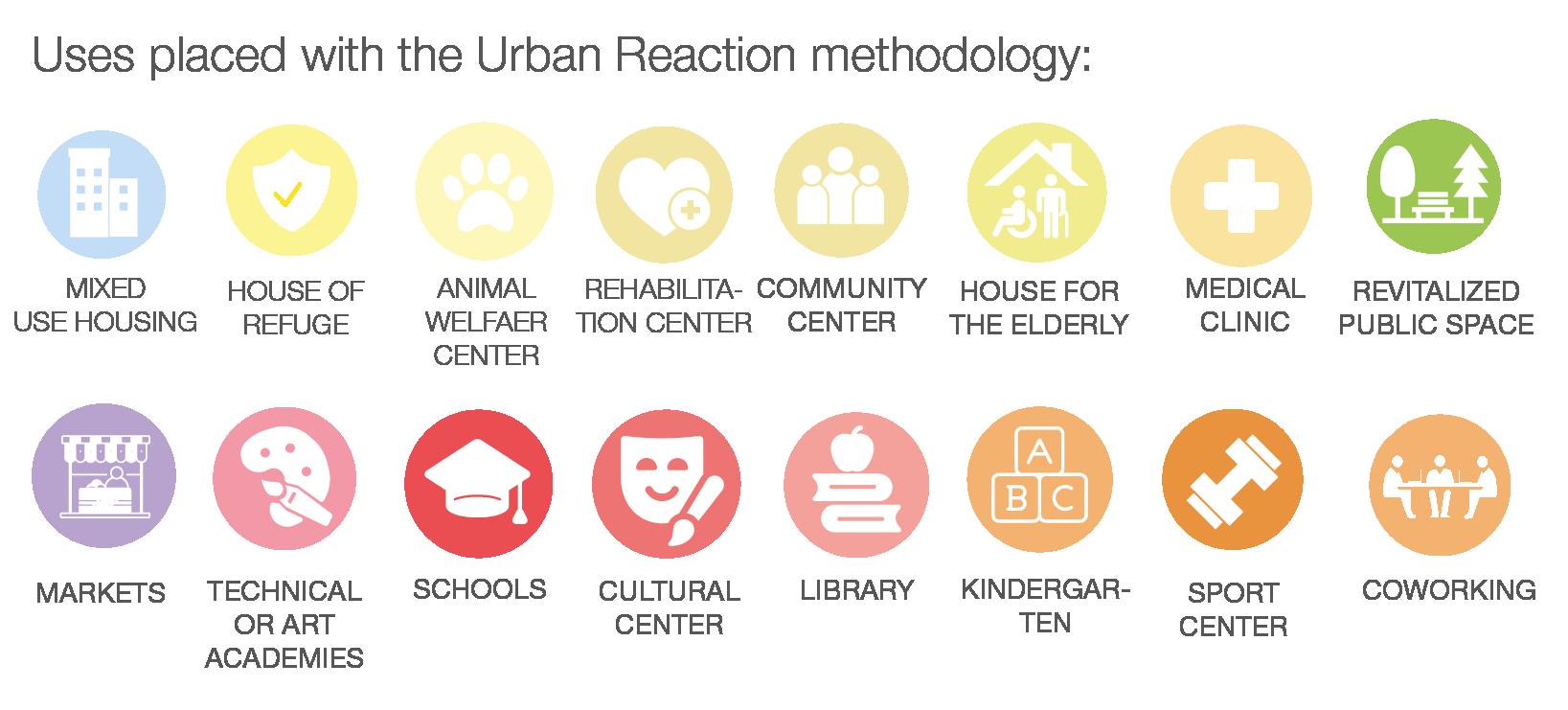

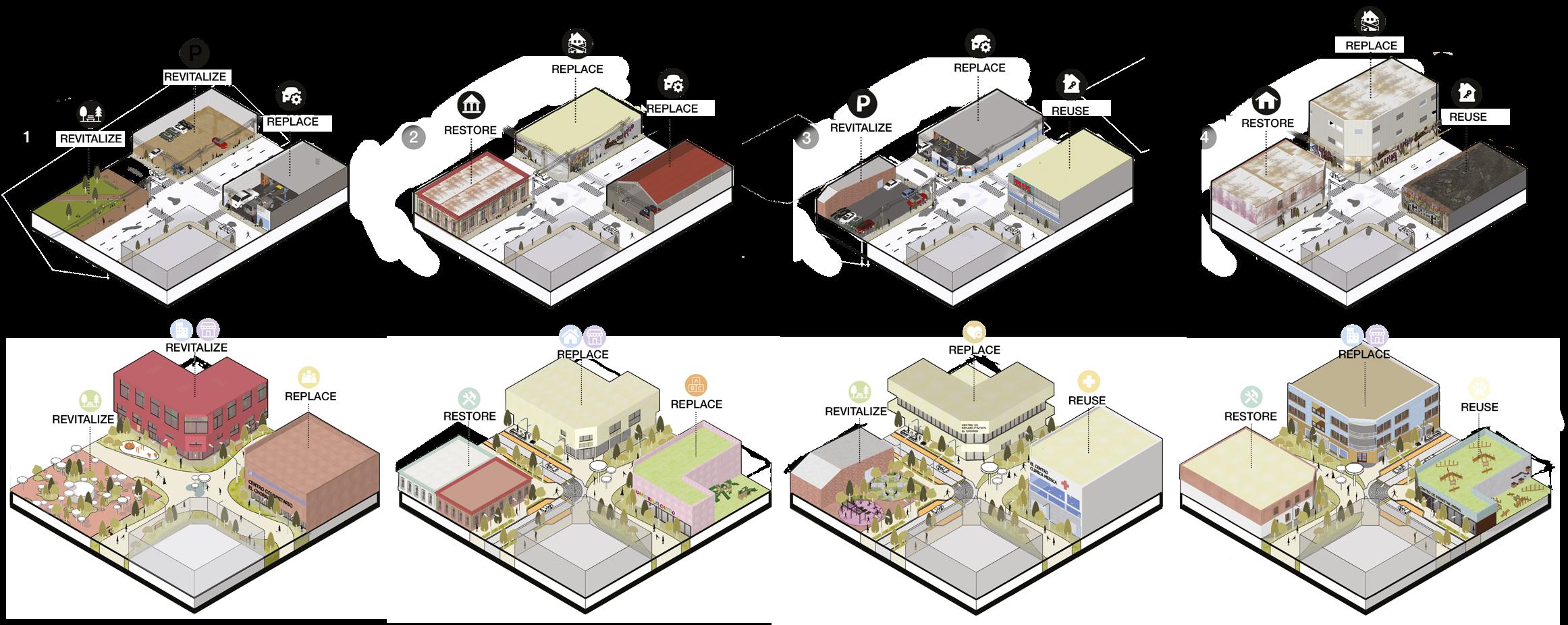

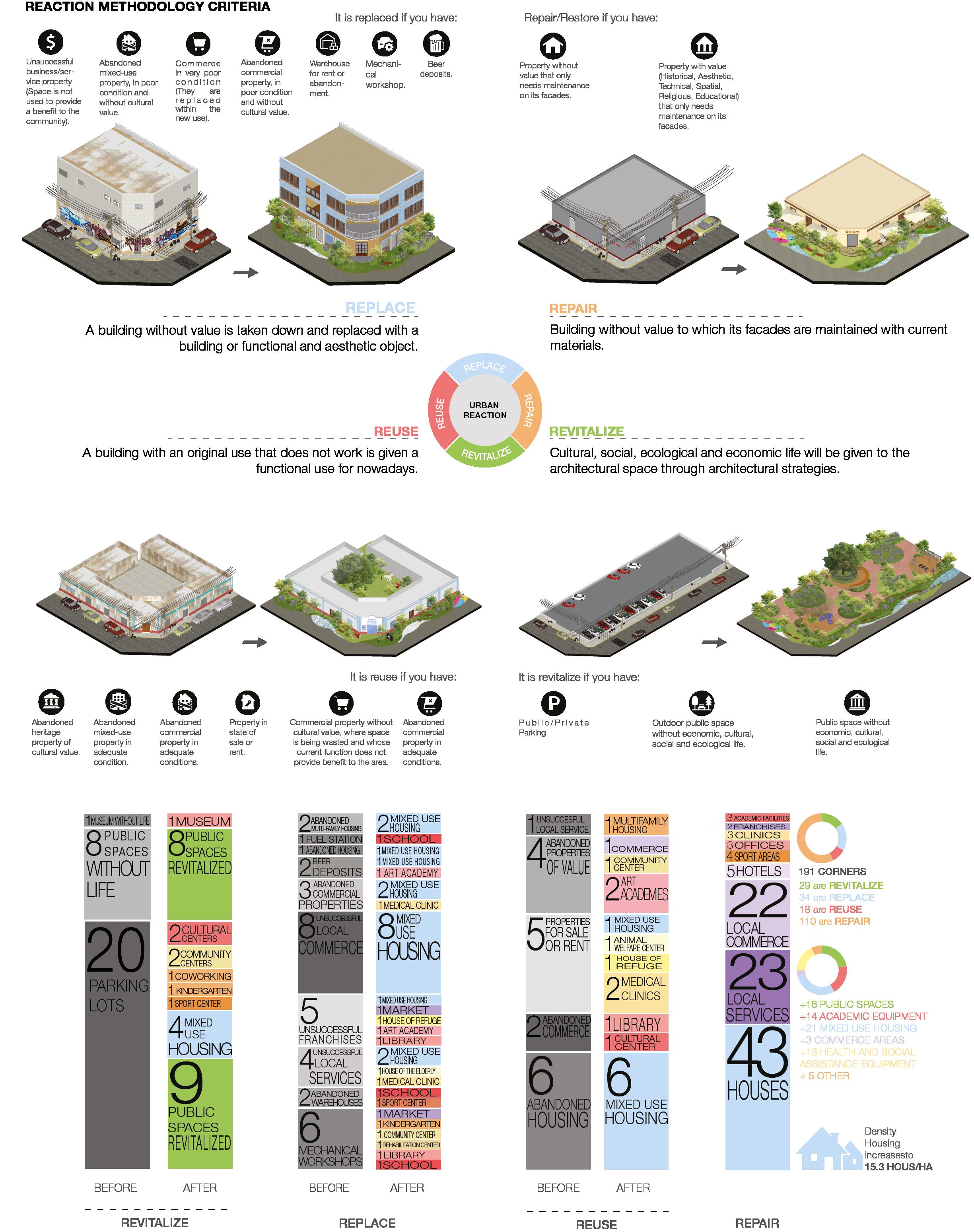

The Re-action methodology seeks to develop sustainable urban actions that promotes the use of public space, reactivates the local economy, encourages citizen participation and generates healthy and safe neighborhood dynamics that promote the development and integration of the inhabitants of the area and captivate the attention of external population.
Revitalize Repair Reuse Replace
45
46
47

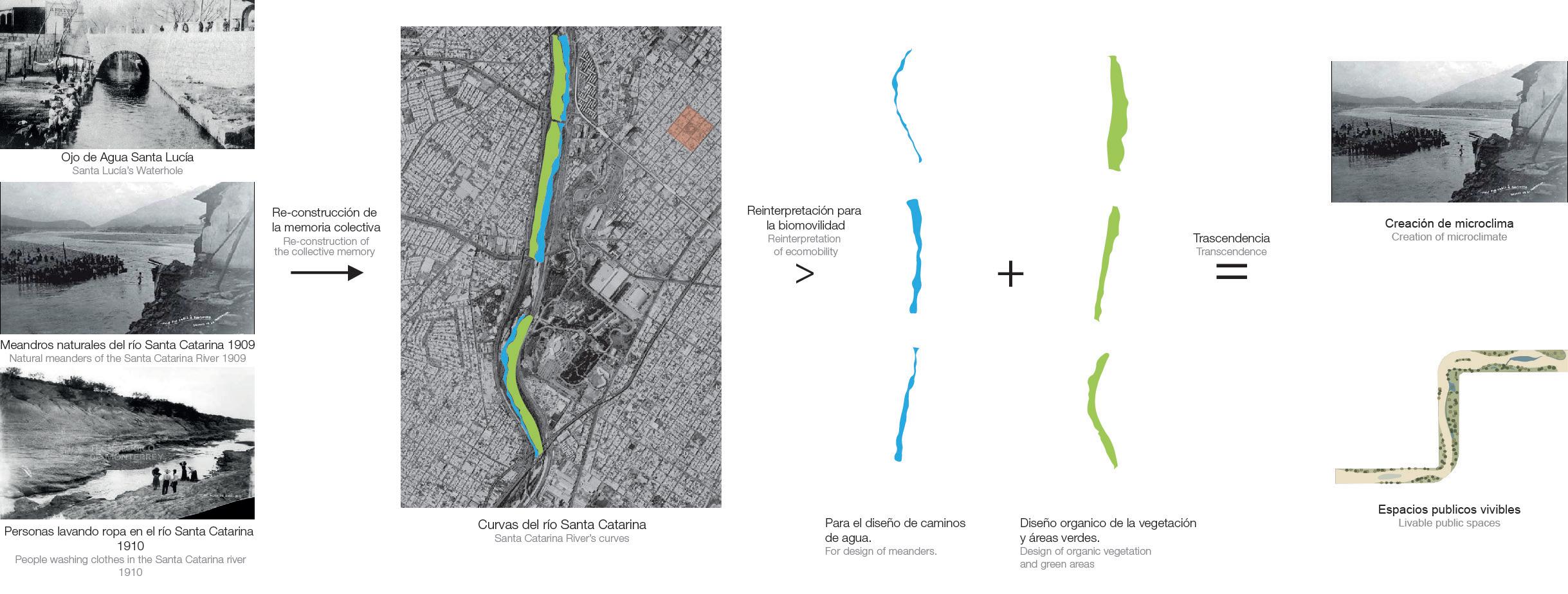

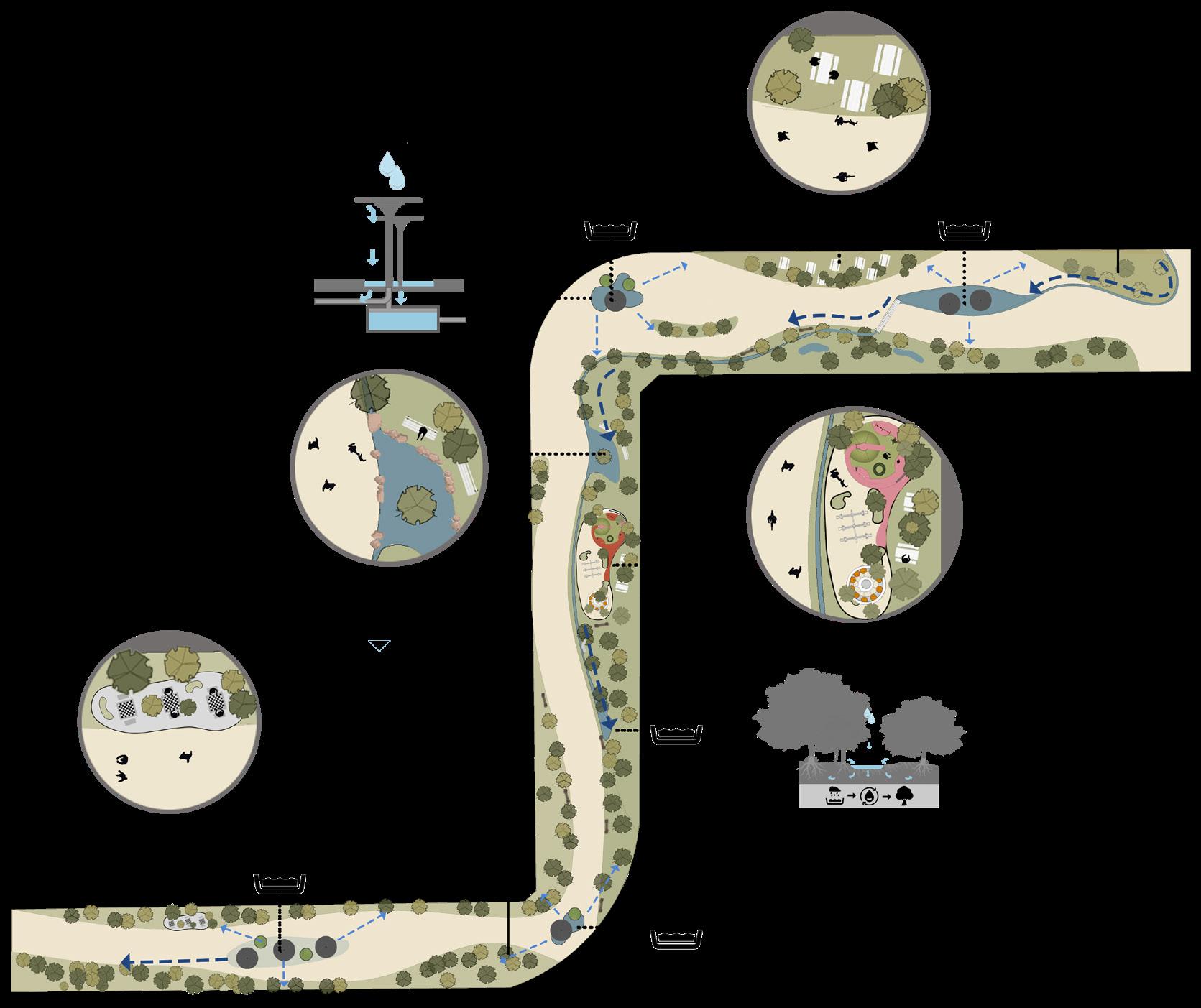

Historically, the city of Monterrey and its inhabitants had a direct relationship with water, a large part of their activities and the way they moved through the city was related to the water flows of the Santa Catarina River and the Santa Lucía’s waterholes. With the arrival of the 20th century and the channeling of these elements, the relationship between water and city in Monterrey was lost.
Spaces of Rest

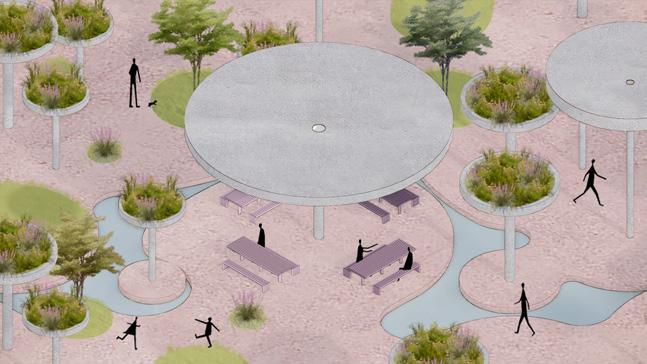

Rain Collection Pavilions
It allows collecting rainwater in sumps to channel it for irrigation use.
Comfort Spaces
Urban furniture for rest and vegetation is included to create a microclimate for greater comfort.
Recreation Spaces
Meeting points that allow fun activities and interaction.
Focused meeting points to generate communication and social activities.
Game Spaces
Points that seek the interaction of people through games for physical activities and play.
Absorption Ponds
Ensures infiltration into planters and trees to improve irrigation systems.

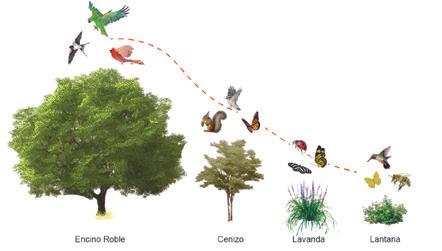

Flora Palette
Tolerates high temperatures and regulates microclimates

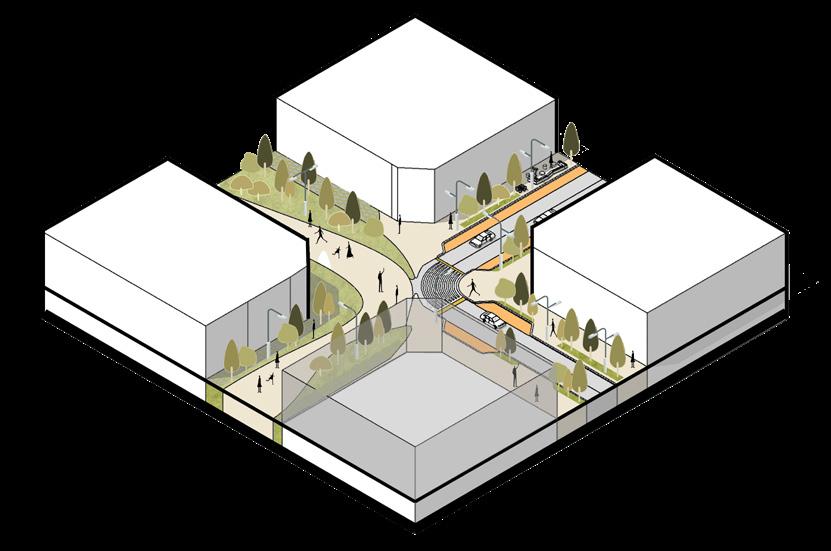

MOBILITY
48

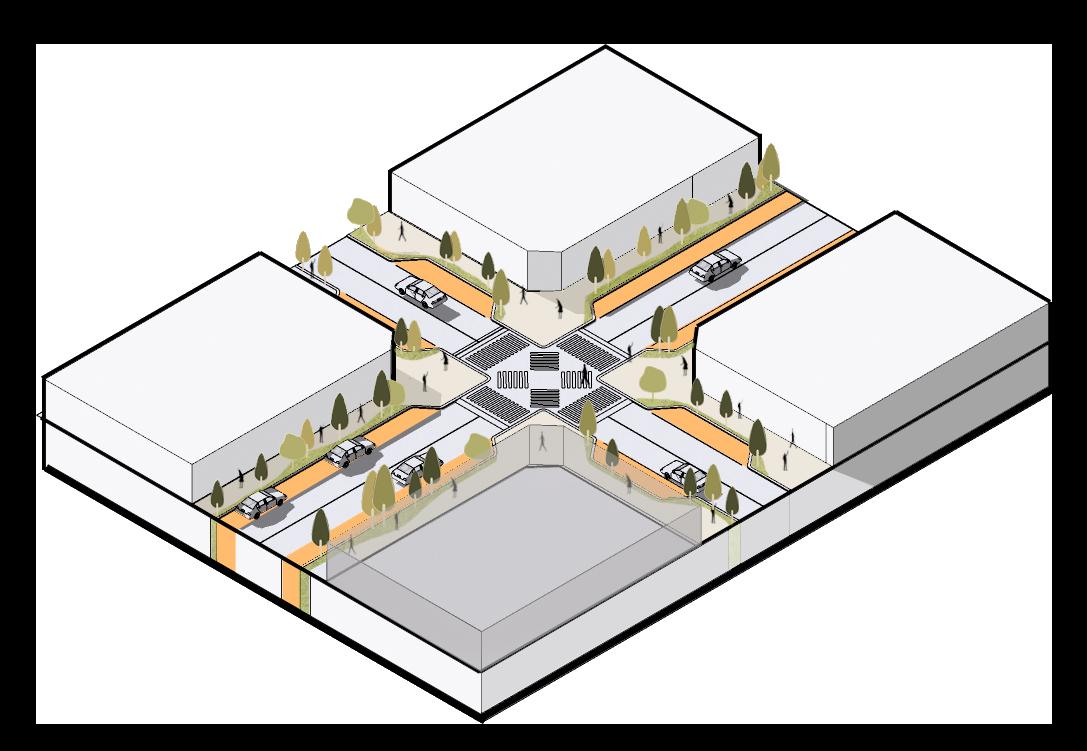

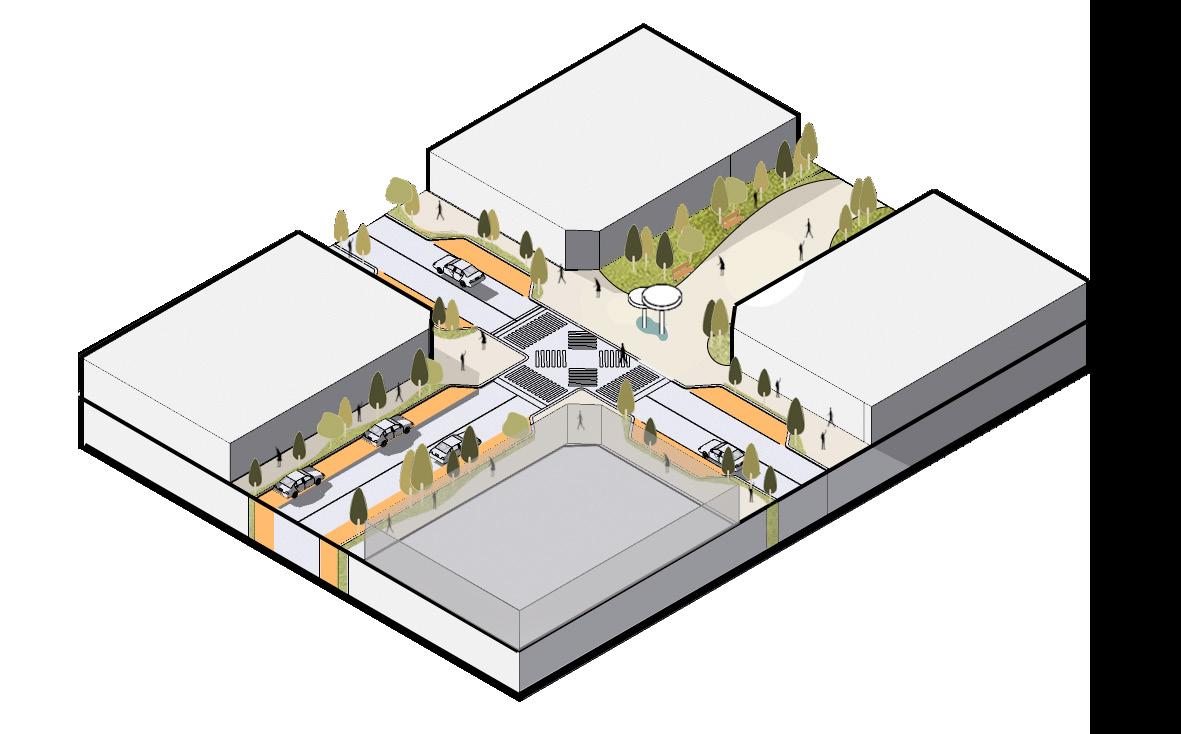

3 3 3 3 3 3 3 3 3 3 3 3 1 1 1 1 2 2 2 2 2 4 4 4 2 2 2 3 3 1 2 4 3 INTERSECTION TYPE T CROSS INTERSECTION NON-MOTORIZED INTERSECTION INTERSECTION WALKABLE - MOTORIZED TYPOLOGY OF INTERSECTIONS 49
