Lucas Gunby Architectural Portfolio University of Bath

CV

Experience

2022 Mar - Sep Hampshire County Council Property Services

Worked within the in house multi-disciplinary team on a range of public projects. Most of my time was spent on a net-zero pilot scheme to reclad an existing 70s system-build SCOLA primary school (RIBA stage 3). I assisted the project architect with the elevation design and produced planning drawings and a Revit model, coordinating with the structural engineer. I assisted the carbon consultants to produce detailed analysis of the scheme by calculating volumes, producing details, and researching lowcarbon products. Other projects included a feasibility for a small primary school extension which I designed, as well as visits to a number of construction sites.

email. ljg60@bath.ac.uk mobile. 07928582158 linkedin. Lucas Gunby

CAD Skills

AutoCAD - to produce 2D drawings.

Sketchup - to create models from early design development to detailed final models, to produce drawings and visualisations.

2021 Sep - Dec

RIBA Mentoring with Studio Lime

Over multiple sessions I was introduced to the role of an architectural assistant in a practice. I gained an understanding of the RIBA Work Stages and the way in which a small practice functions.

Revit - to produce accurate models for the production of drawings at HCC, where I undertook an approved Autodesk beginner course. used the HBERT plug-in for elemental whole life carbon analysis.

2021 Jun - Aug

Work Experience at Henry Mein Partnership

Under the supervision of an Architect worked on multiple projects, including a medium scale residential project in Westminster and the remodelling of a house in Nottingham. This involved RIBA Work Stages 1 (Preparation & Briefing) and 2 (Concept Design).

Education

2020 – 2024 Architecture BSc - University of Bath

Third-year design studio (75%)

Enscape - to visualise spaces throughout the design process and produce final visualisations.

Adobe Photoshop - to produce diagrams and images.

Adobe InDesign - to produce design reports and documents.

Procreate (iPad) - to produce digital drawings.

Interests

2018 – 2020

A levels - Rawlins Academy, Loughborough

4 A*s in Product Design, Mathematics, Further Mathematics, and Physics. Also, A* in EPQ.

Designing furniture

Photography

2013 – 2018

GCSEs - Humphrey Perkins Academy, Loughborough

10 GCSEs grades 9-7, Mathematics (9), English (7)

Sketching

Coffee

Contents 04 Hiltingbury Junior School 18 Castle Park Medical Centre 06 Turl Street Community Theatre 22 Commune 14 Church Forest Settlement

Hiltingbury ‘Net-Zero’ Reclad

A pilot project, producing a new method for SCOLA re-cladding projects to align with Hampshire County Council’s 2050 climate targets. The project will inform a long term strategy for the decarbonisation and adaptation of the wider HCC built-estate.

was able to experience the project being developed from first principles with a focus on low embodied carbon design. From attending meetings with specialist consultants, I learned a lot about approaches for whole life carbon reduction, Passivhaus principles and off -site construction.

Some of the work I produced was to explain the differences between the benchmark approach and the low-carbon option, such as the detailed axonometrics on this page.

produced a set of planning drawings and completed a Revit model of the existing and proposed.

04

METSEC

2022

Benchmark

option Low-carbon, timber frame option

Hampshire County Council

1. Stofix brick slip cladding

2. Composite window system

3. Shucco aluminium doors

4. Secure ventilation louvre

5. Aluminium flashing between panels 6. GRP roof edge trim 7. Powder coated aluminium

8. Western red cedar cladding

vertical

Western red cedar cladding

Equitone panel

Galvanised steel angle

05 Datum: 45.00 *SC *SC *SC *SC *SC *SC *SC *SC *SC *SC *SC *SC *SC *SC *SC *SC *SC *SC *SC *SC *SC metres 0 2004 Extension Notes: For Information P1 Scola Net Zero Hiltingbury Junior School Proposed Elevations Sheet cad file name: S:\CHILDRENS SERV\GHI\HILTINGBURY JUNIOR - 2274\C10261 SCOLA RECLAD\01 WIP\AUTOCAD\2000 GA PLANS\CURRENT CAD\C10261 GA PLANNING SET 1.1.DWG General Notes Rev Description 1. This drawing is © copyright Hampshire unauthorised reproduction of any 2. No dimensions to be scaled from prior to construction. Immediately document to the Architect/Contract shall be read in conjunction with associated and related consultant's documents. 3. Drawing to be read with all relevant M&E, Drainage/Public Health, Landscape, drawings and specifications. 4. This map is reproduced from Ordnance permission of Ordnance Survey on reproduction infringes Crown Copyright civil proceedings (100019180) 2022. HCC Property Services, Three Minsters House, 76 High Street, Winchester SO23 8UL tel: (01962) 847801 SCALE SHEET NAME PROJECT NAME Majesty's Stationery Office © Crown 1 For Information P2 For Information P3 3 1 9 2 5 12 7 7 5 6 1 2 3 6 8 7 4 5 4 6 Proposed Elevation 1 - South 1:200 Elevation 2 - East 1:200 Key: 1 - Stofix brick slip cladding 2 - Composite window 3 - Shucco aluminium 4 - Secure Ventilation 5 - Aluminium flashing 6 - GRP roof edge trim 7 - Powder coated aluminium 8 - Western red cedar 150mm vertical 9 - Western red cedar vertical 10 - Equitone panel 11 - Galvanised Steel 12 - Aluminium spandrel N 11 11 11 8 8 Existing Elevation 1 - South 1:200 2004 Extension Revit Model - Existing Revit Model - Proposed

cill

150mm

50mm

10.

11.

12.

9.

vertical

Aluminium spandrel panel

Turl Street Community Theatre, Oxford

Year 3 Project 2

Brief: To create a community theatre in central Oxford, with additional spaces for community use.

Concept: Using contextual forms to create a humble architecture, in opposition to the strong elevations of the adjacent colleges. The market hall typology is used for the community spaces, and a courtyard creates space for public performances, evoking early Elizabethan theatres.

CAD programmes: AutoCAD, Sketchup, Enscape, Adobe Photoshop, Procreate and HBERT (Revit).

A performance at the George Inn Theatre, with a temporary stage. The audience would watch in the yard or from the balconies which came at a higher price.

06

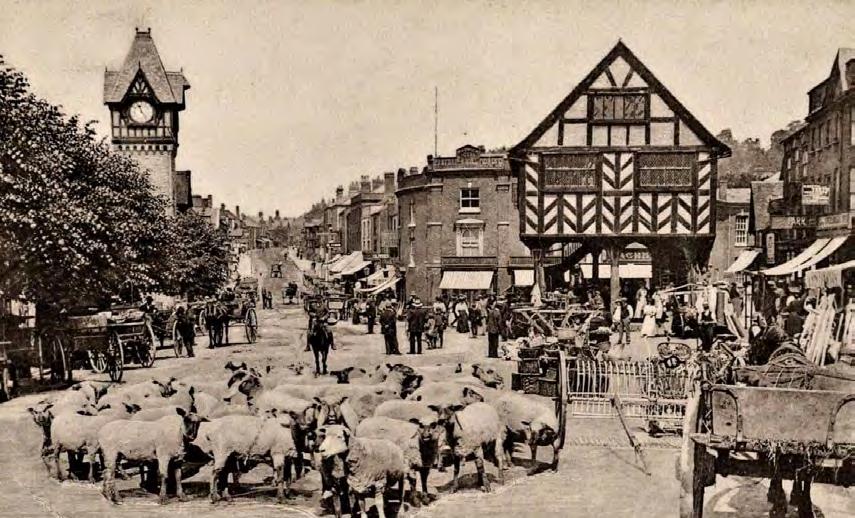

Ledbury Market House, with market space on the ground floor and a community space above

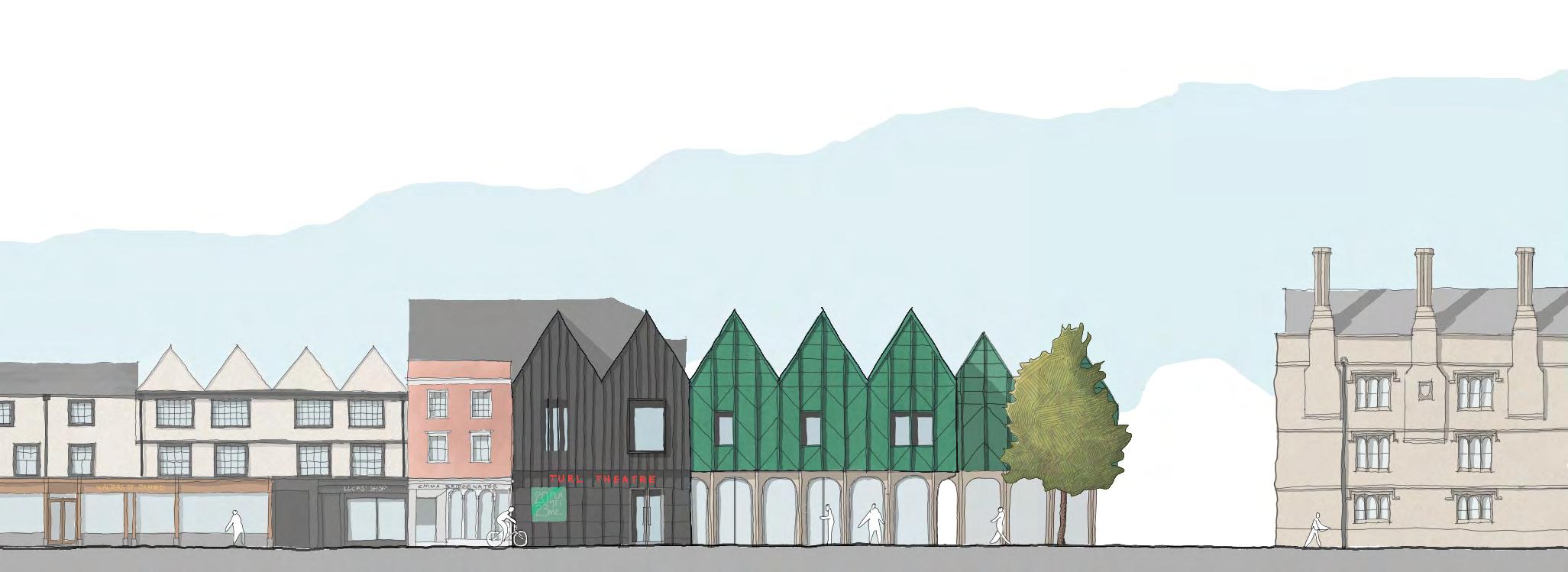

07 1:200 0 Turl Street elevation 10

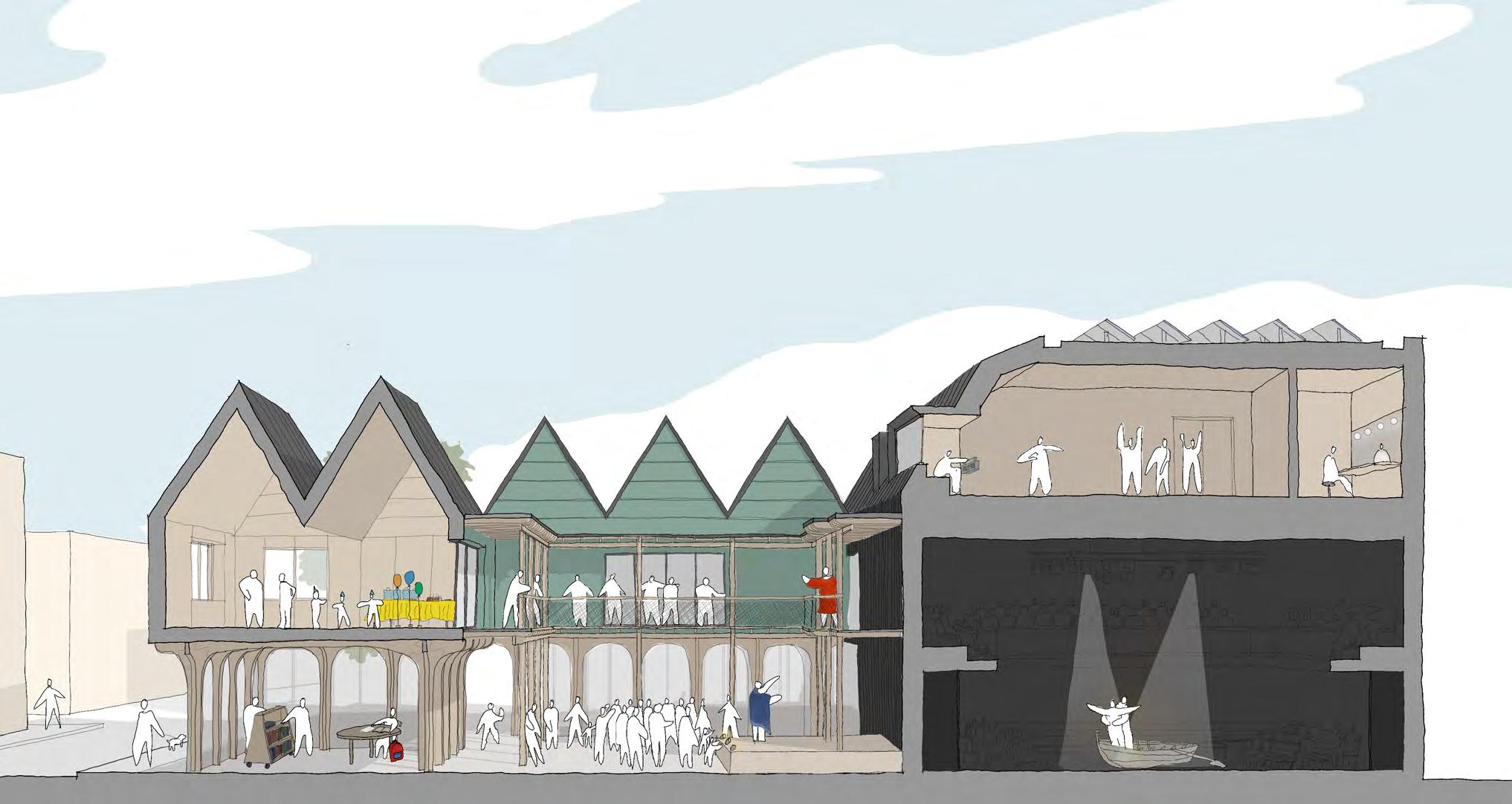

08 10 1:200 0 Section AA

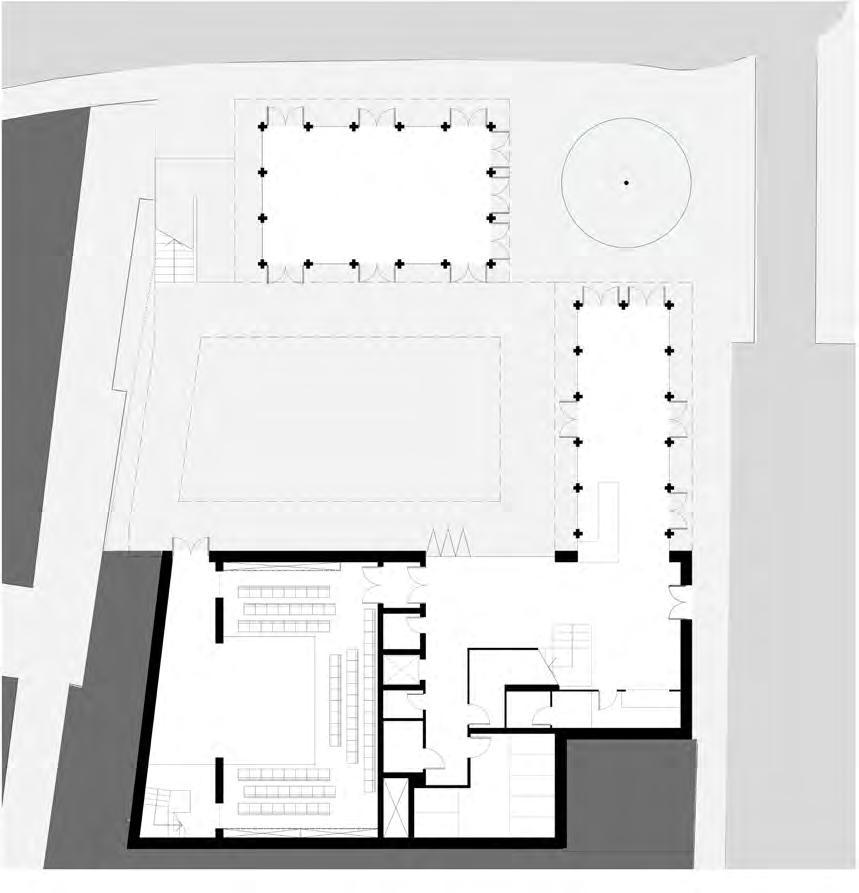

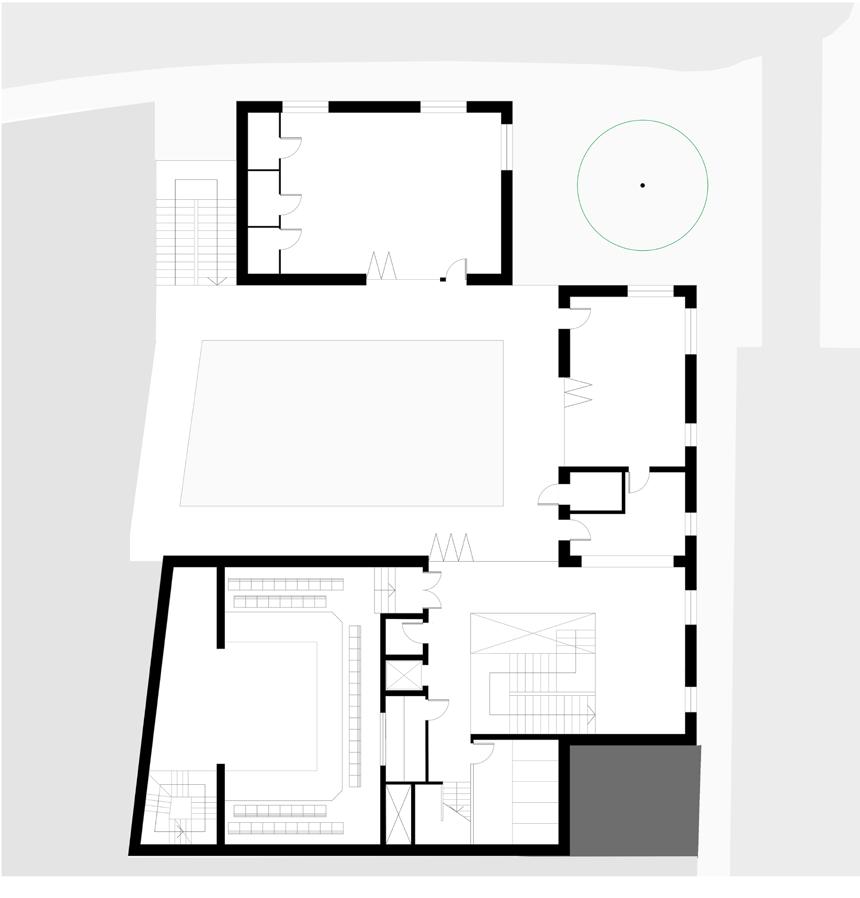

09 Ground Floor Plan First Floor Plan 1 2 5 6 7 9 3 4 8 A A 1. Auditorium 2. Foyer 3. WCs 4. Accessible WC 5. Box Office 6. Cafe 7. Pubic courtyard 8. Community Room 9. Covered Market A A 1 2 5 6 7 3 4 8 9 1. Auditorium 2. Bar 3. WCs 4. Tech. desk 5. Accessible WC 6. Community Room 7. Community Hall 8. WC 9. Store / Plant

10

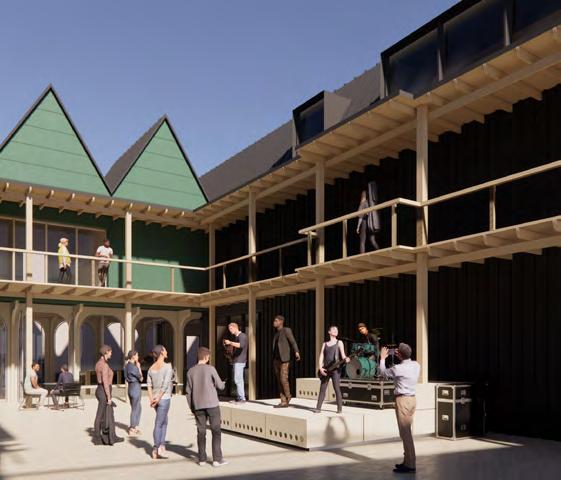

Public courtyard, creating a space for informal productions and street performance, inspired by the courtyards of inns. Acts as a transition space from the covered market.

11

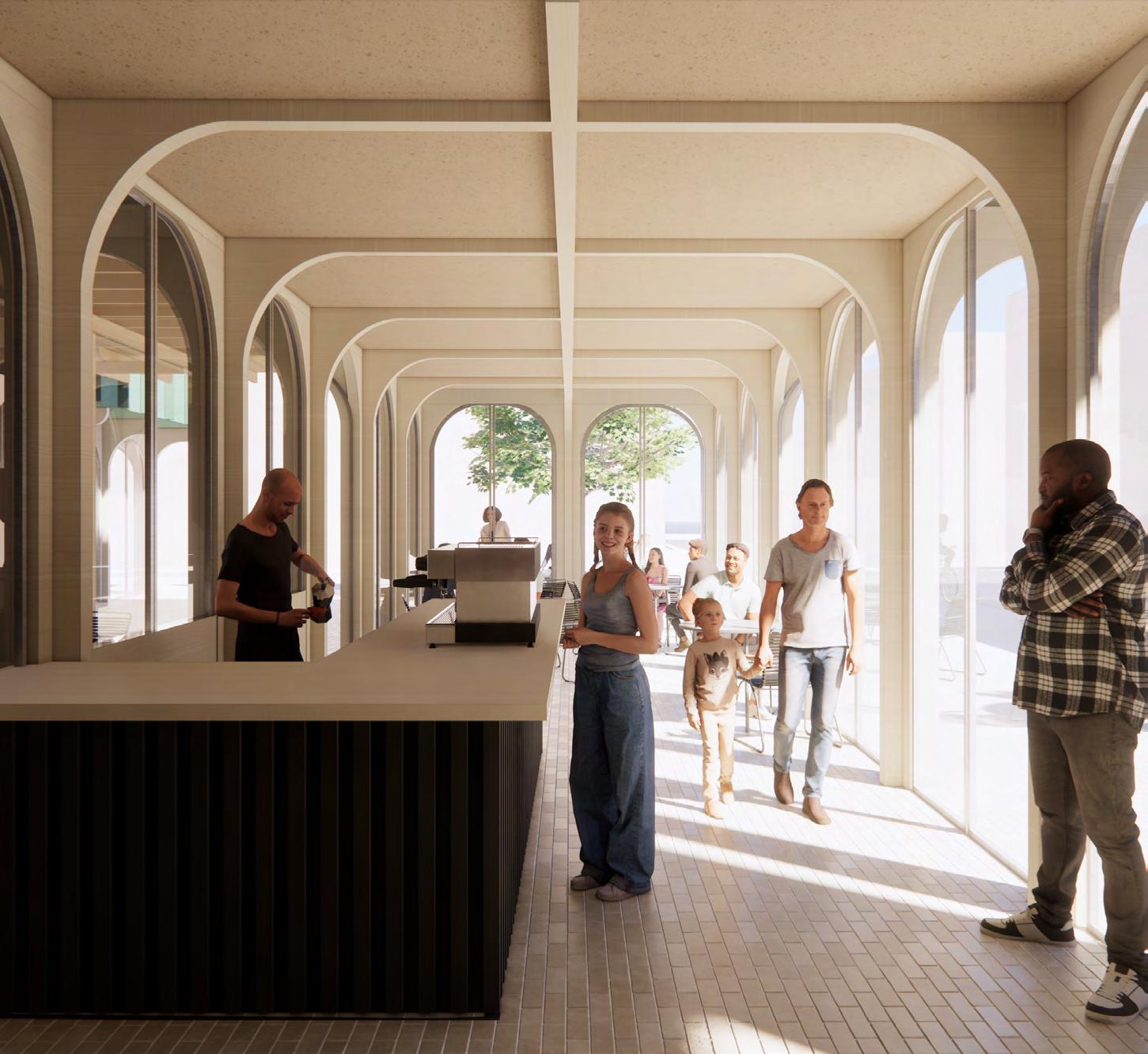

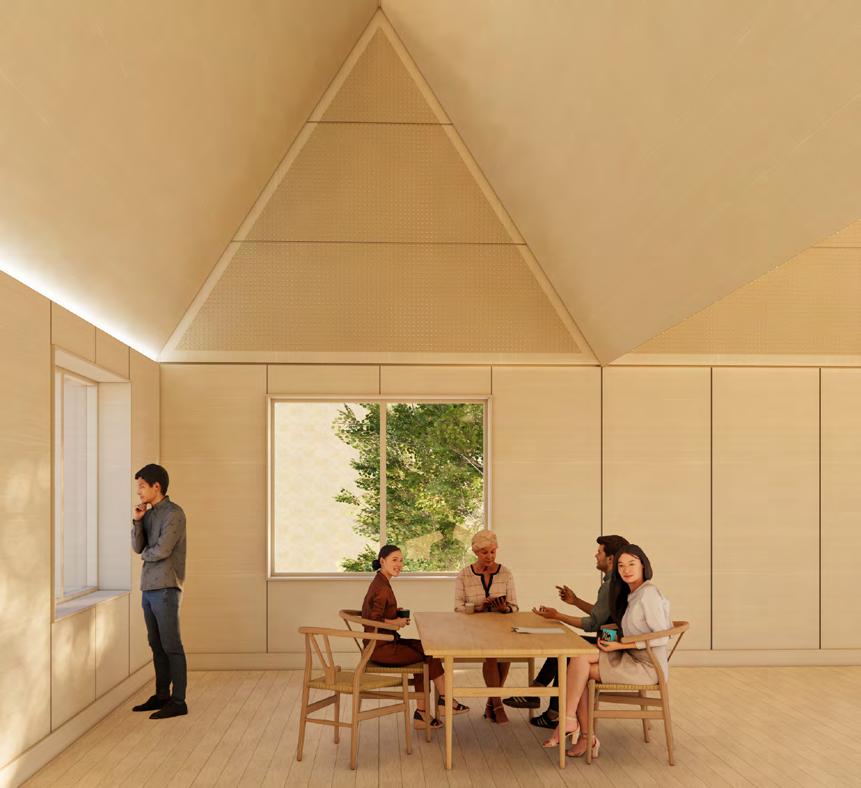

Cafe space beneath community rooms, which opens out to the courtyard. Community hall, with CLT roof and ply-lined walls.

1 50mm paving stone

10mm mortar bed

Vapour control membrane

75mm screed with embedded underfloor

heating pipes

175mm rigid EPS insulation

175mm hardcore

2 25mm engineered hardwood flooring

Electric heating foil

45mm acoustic underlay

277mm off-site panel:

Vapour barrier on 18mm OSB

100mm rockwool acoustic insulation

between 245mm engineered joists

18mm OSB

Vapour control membrane

38mm service cavity

18mm birch plywood with acoustic perforations, backed with acoustic fabric

3 1.5mm standing seam zinc

18mm marine plywood

50mm battens

Damp proof membrane

200mm flexible wood fibre insulation bats

between rafters

175mm CLT (forming airtight layer)

4 12mm Viroc cladding panel

38mm vertical battens

38mm horizontal battens

80mm rigid wood fibre sheathing board

232mm off-site panel:

Breather membrane

18mm OSB

195mm blown cellulose insulation

between engineered joists

12mm OSB

Vapour control membrane

25mm service cavity

12mm birch plywood

5 Triple-glazed composite window

6 Double-glazed aluminium frame window, base hidden between paving

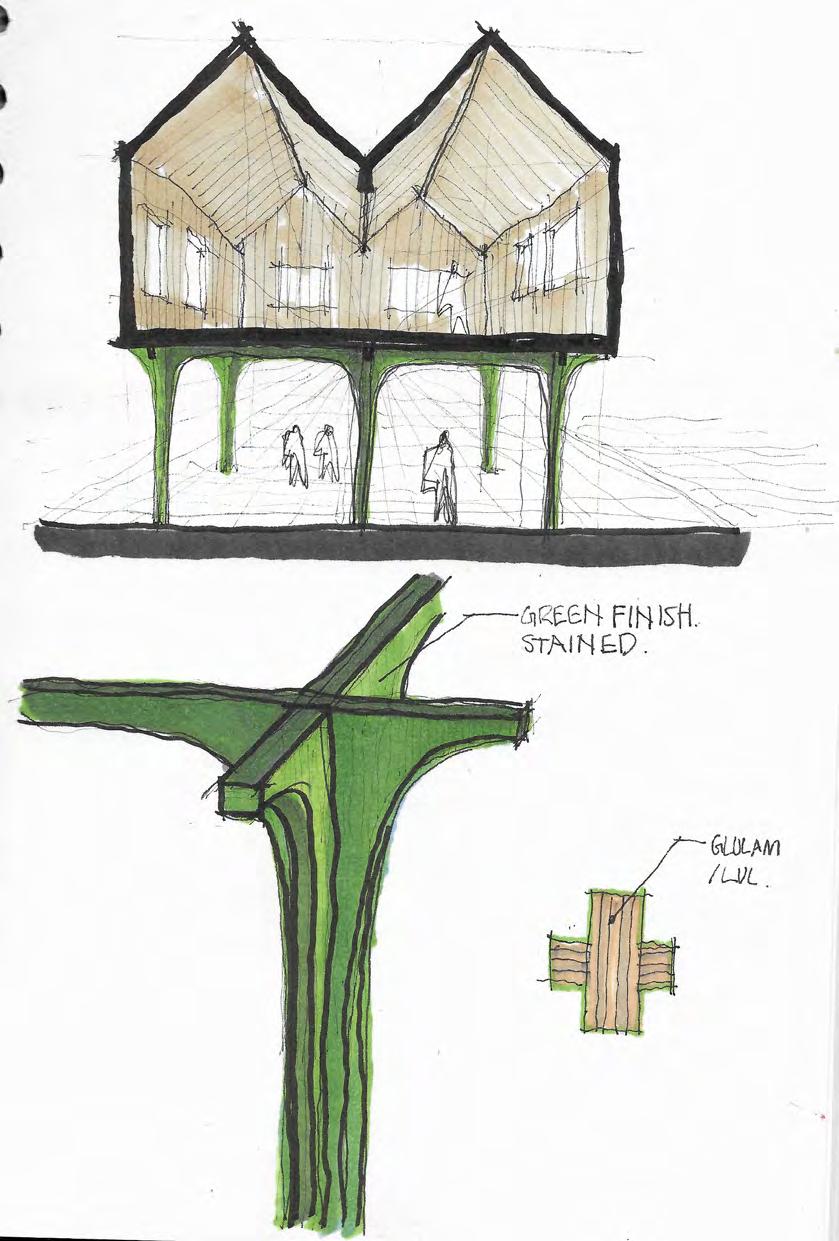

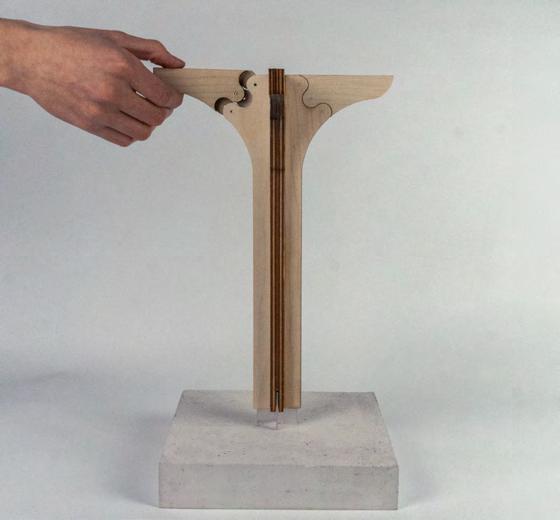

7 Glulam frame, with bespoke CNC milled fixings, pinned together on site

8 150mm galvanised steel gutter

9 Birch plywood with acoustic perforations, backed with acoustic fabric

10 Slot drain

12 1 10 9 2 3 5 8 6 4 7 2 1:20 @ A1 0

Community building detail section

13

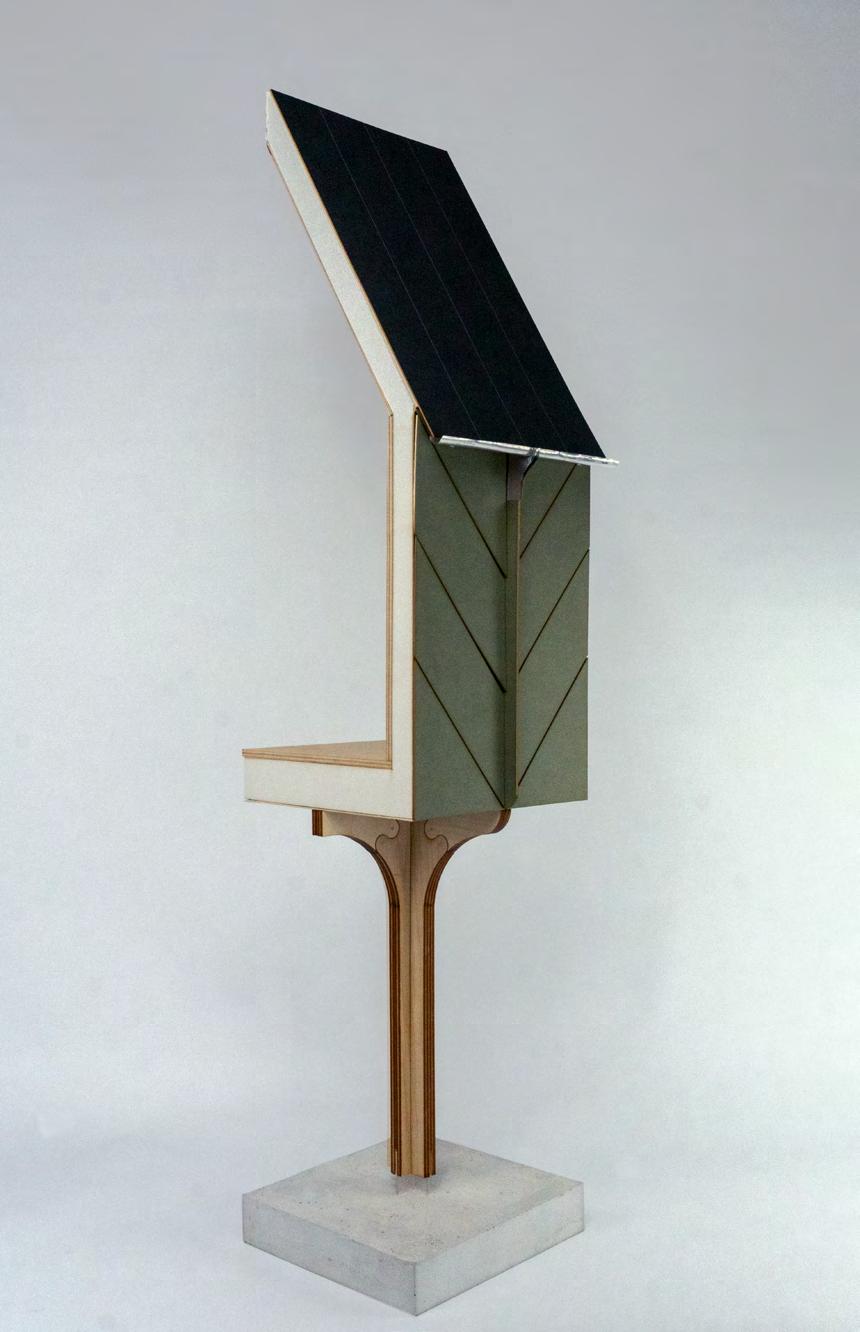

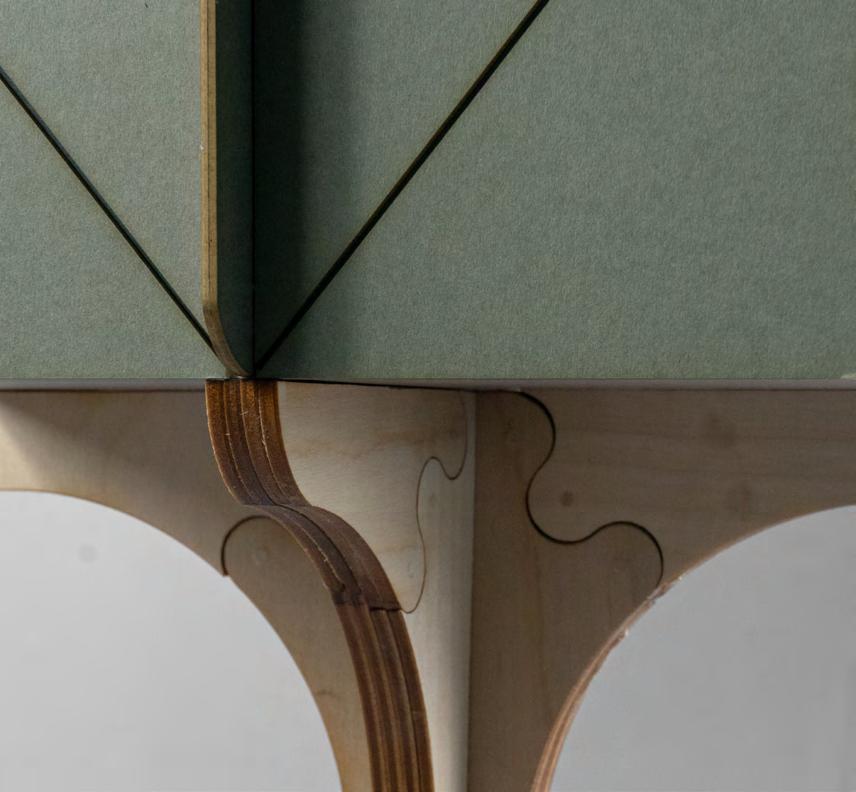

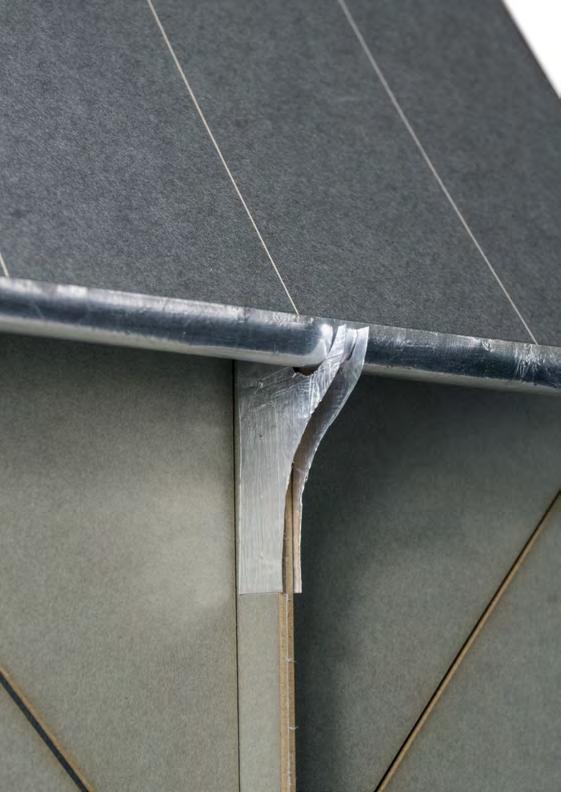

1:10 Tectonic model of community building elevation

Church Forest Settlement, Amhara Ethiopia

2022 UIA International Student competition, group project

Brief: To design a sustainable dwelling in a settlement for 25 people within a country in the Great Green Wall across the Sahel Desert.

Concept: Over the past century, 90% of Ethiopia’s forests have been lost to agriculture. The majority of remaining forest within the Amhara province is found surrounding Orthodox Tewahedo churches. Known locally as debr or geddam, these church forests appear as islands of greenery amongst vast, dry agricultural land. In a holistic approach, the settlement is a part of a vision to restore native forest corridors, whilst implementing sustainable land management processes.

The dwelling design was drawn from an understanding of local vernacular architecture as well as the proposed adoption of bamboo, a material suited to meet the housing demand of Ethiopia’s growing population. The plan is optimised for cross ventilation

CAD programmes: AutoCAD, Sketchup, Enscape, Adobe Photoshop, Procreate.

Proposed connection between church

and settlement

*image completed by teammate forests

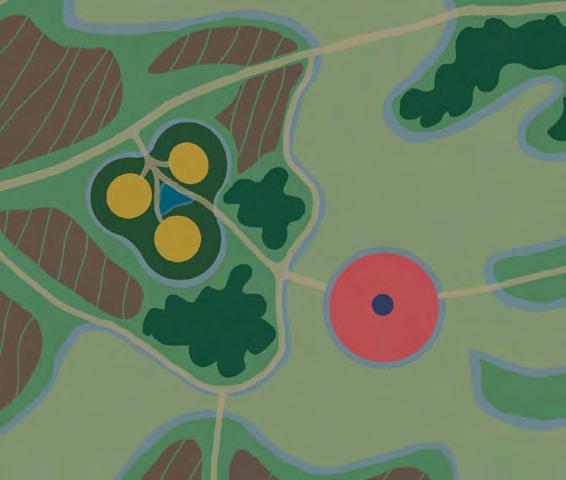

Concept Land Use Diagram

Early sketch of settlement, with central fog catcher Site - St Gabriel’s Church Forest near Anbesame

15 Construction sequence

16

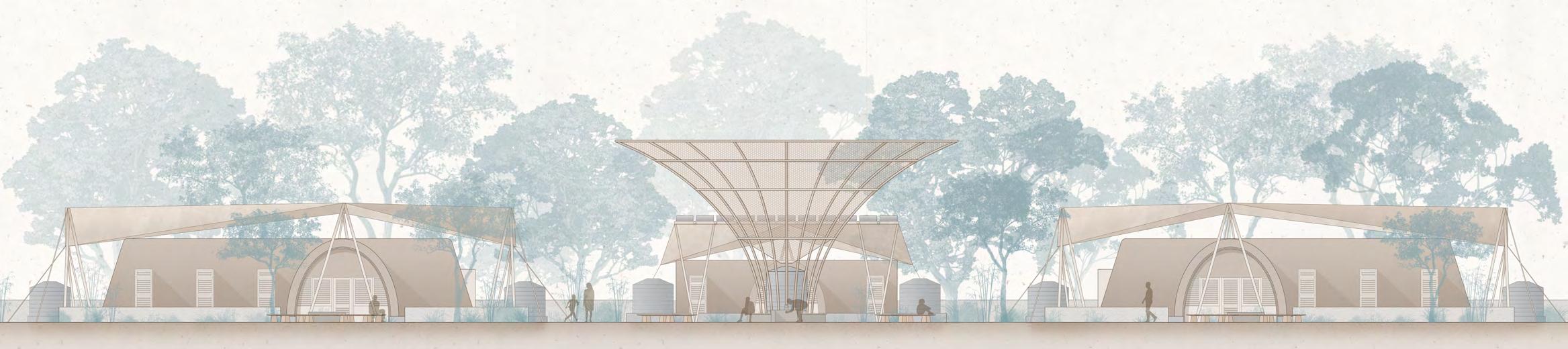

Settlement Elevation*

Settlement Masterplan* Dwelling Plan*

17

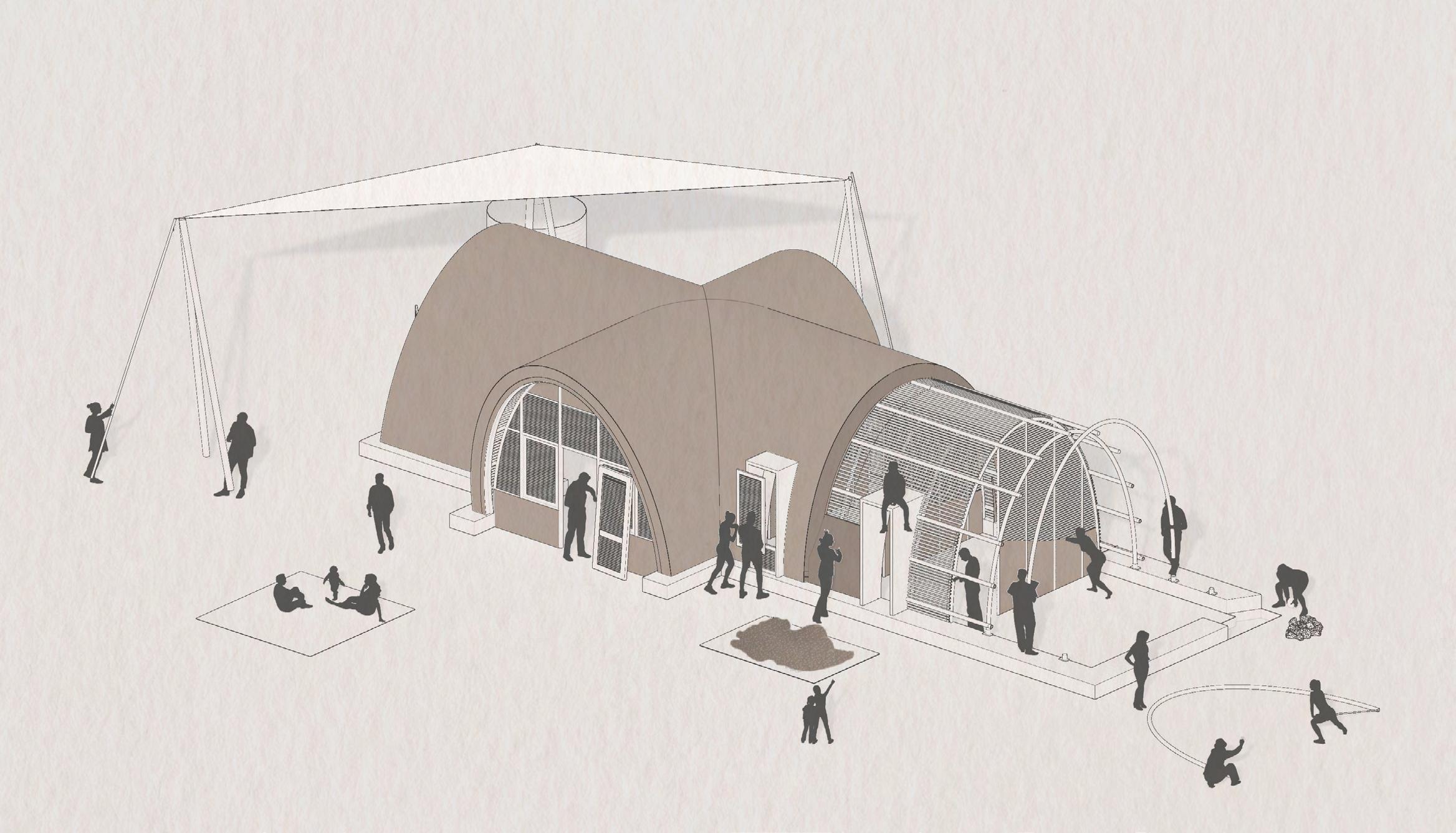

The dwelling, viewed from beneath the fog catcher* The fog catcher in the centre of the settlement* Approach to settlement* The living space of the dwelling

Castle Park Medical Centre, Bristol

Year 2 Project 2

Brief: To create a medical centre in the heart of Bristol.

Concept: Creating a landmark building using the language of towers in response to the local context.

CAD programmes: AutoCAD, Sketchup, Enscape and Adobe Photoshop

18

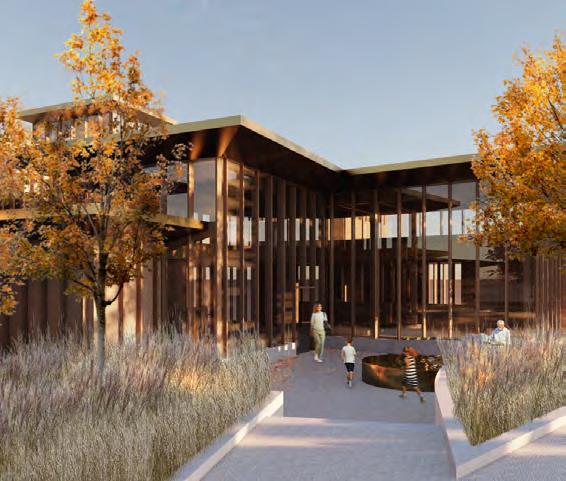

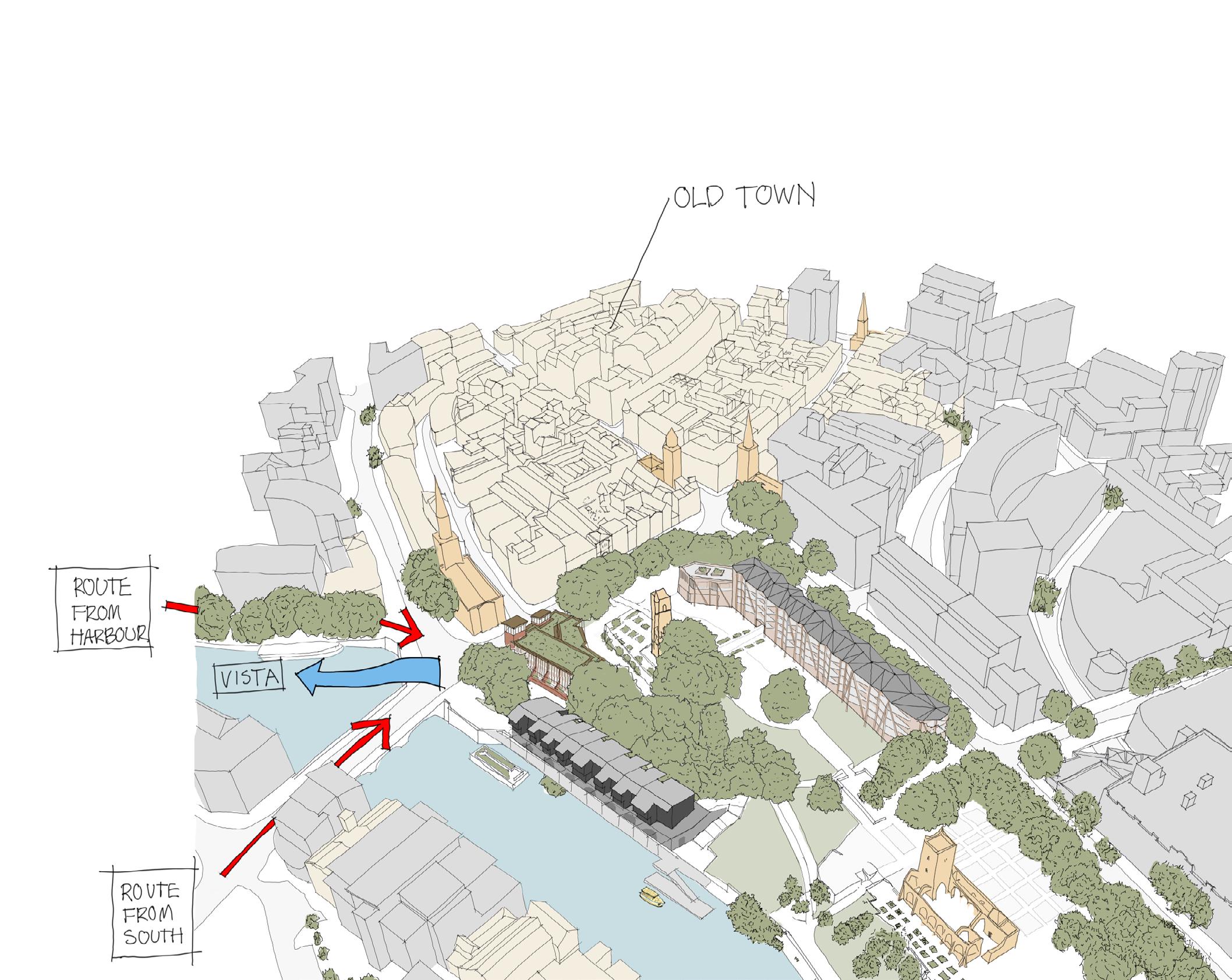

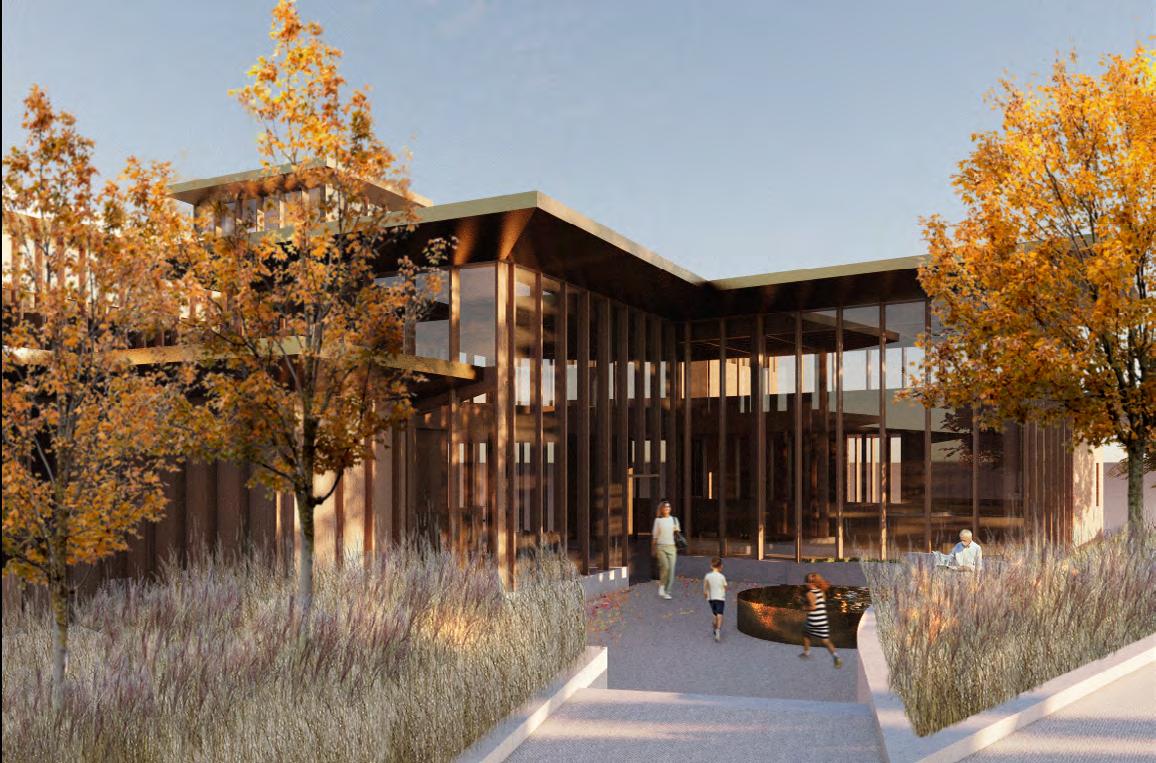

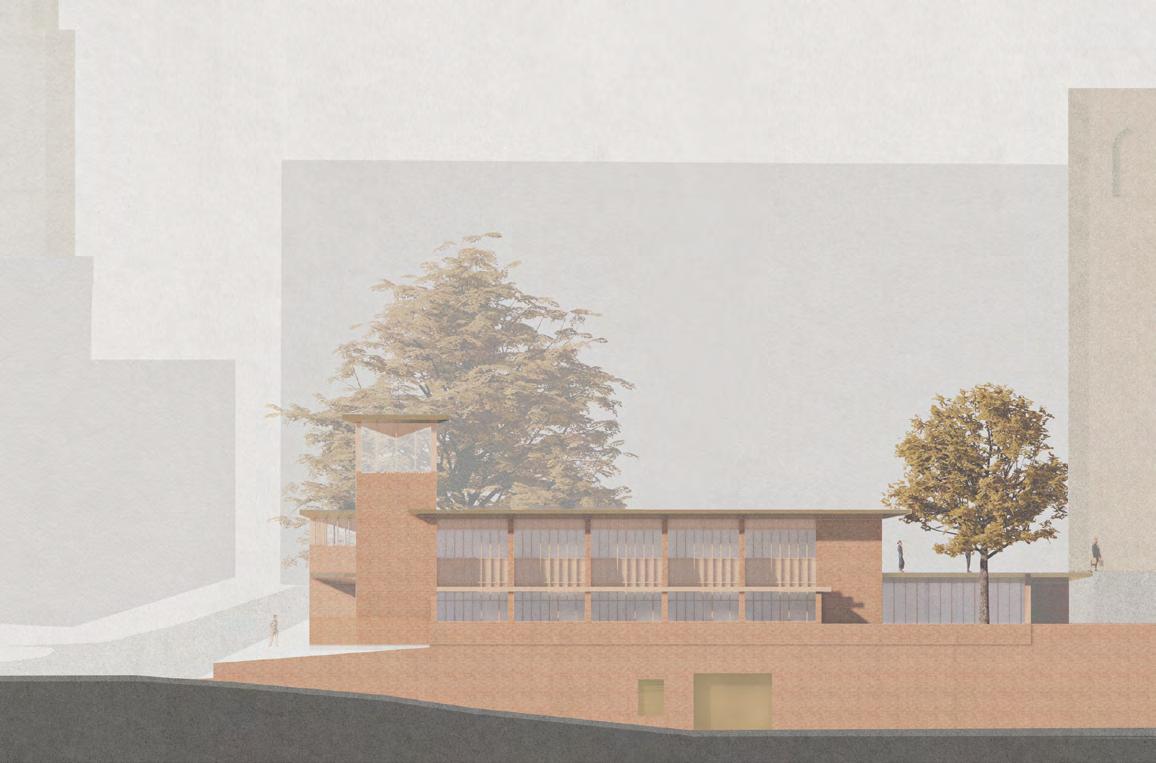

3D view of the medical centre in its context

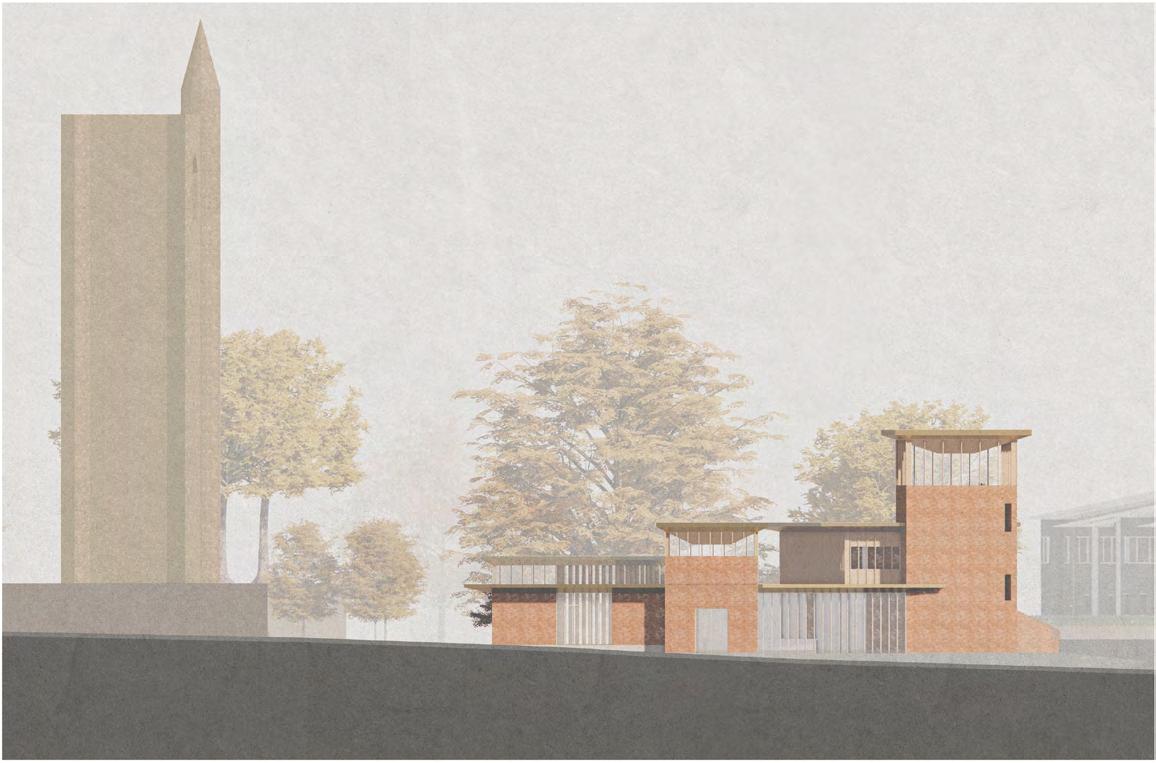

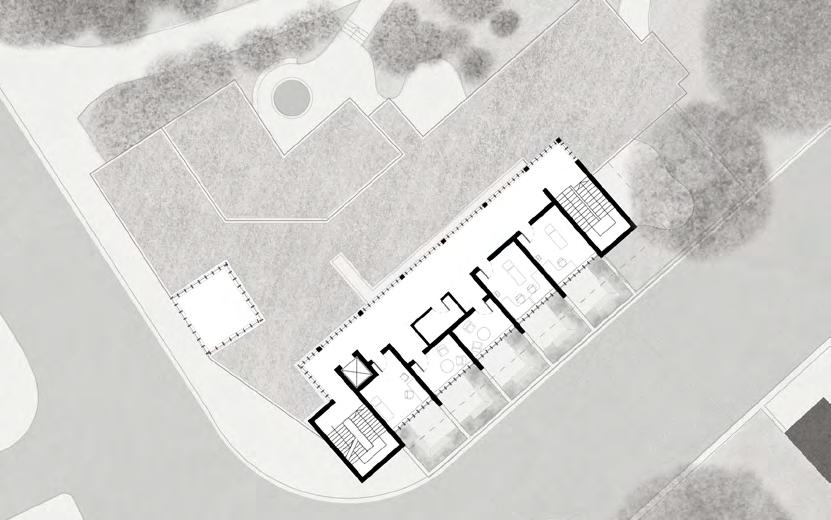

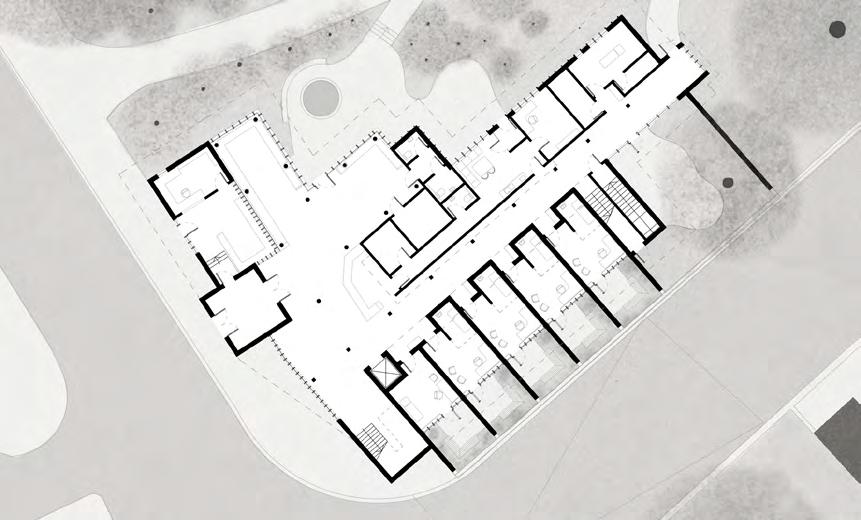

19 1 2 3 6 5 4 1. Entrance 2. Reception 3. Waiting area 4. Consultation rooms 5. Pharmacy 6. Staff 4 First Floor Plan Ground Floor Plan West Elevation South Elevation

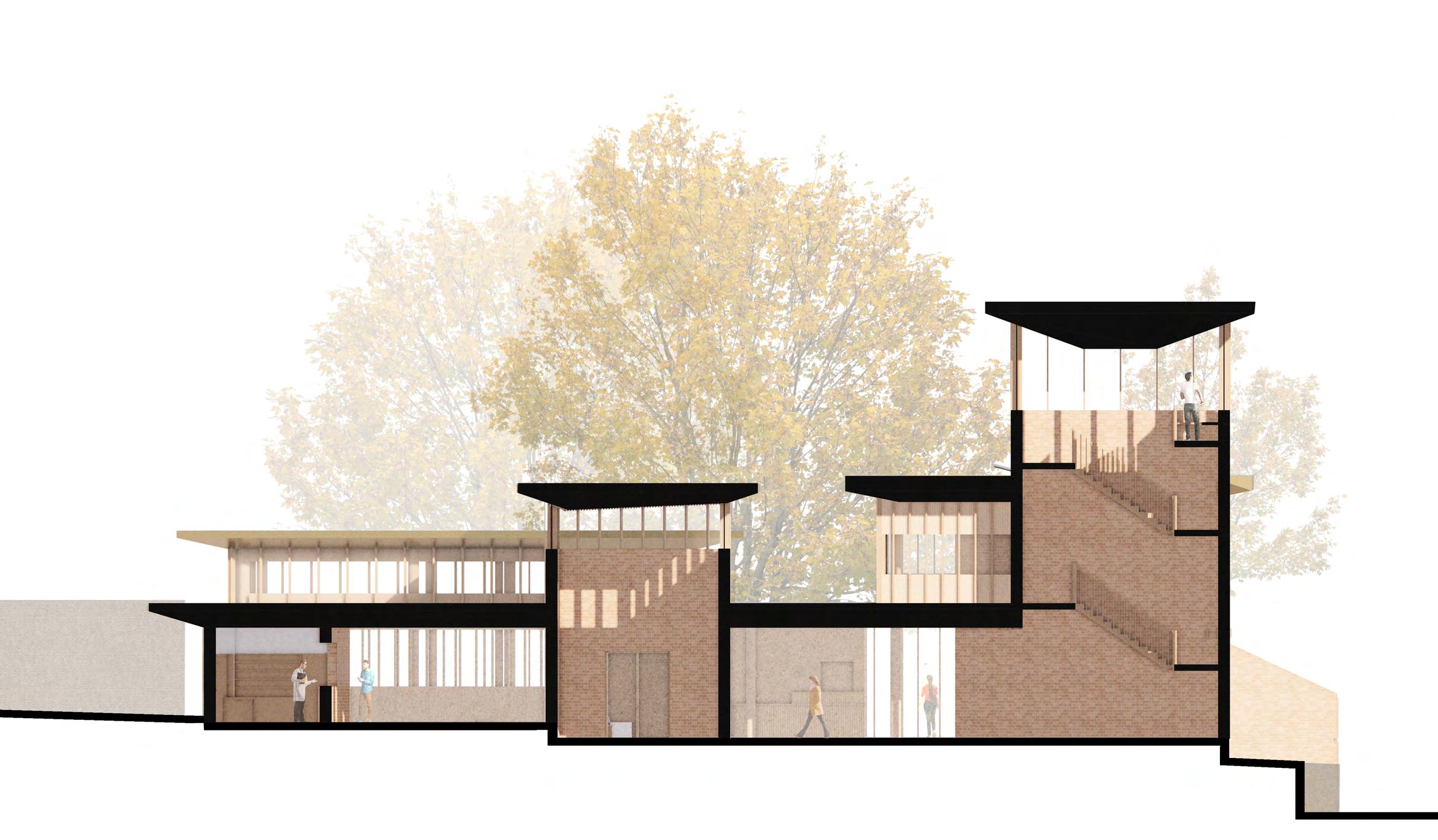

20 Towers Section

21

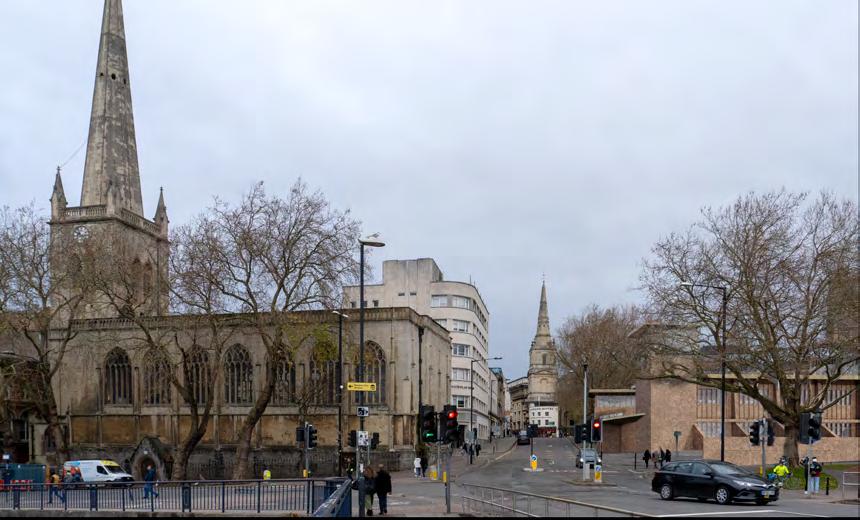

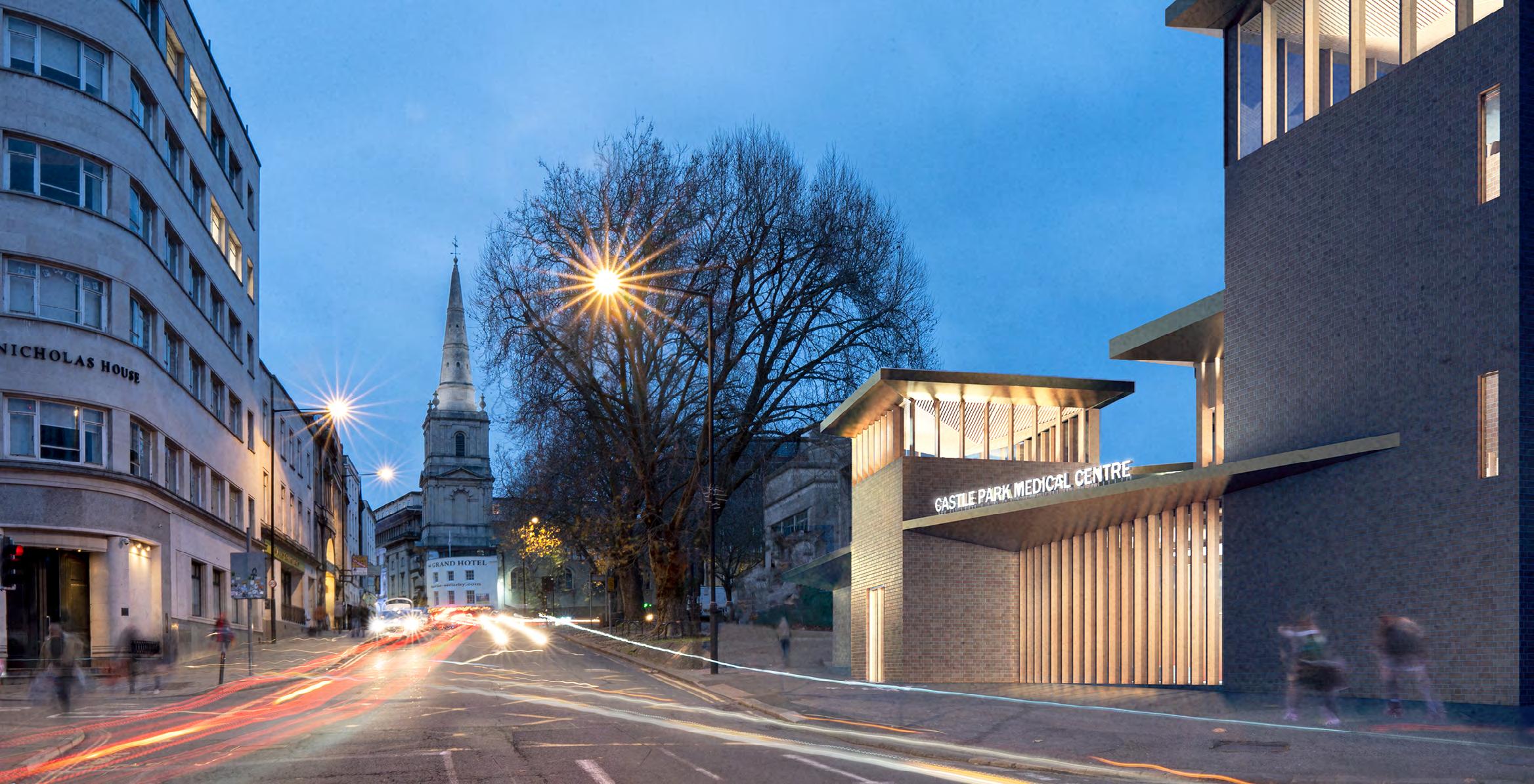

View from St Nicholas Street View from Bristol Bridge View of outdoor area View of the waiting room

Commune

Year 1 Project 3

Brief: To create a boat building workshop/retreat on a remote island off the coast of Northumberland.

Concept: Taking influences of the local Coble, using masonry vaults and timber fins internally. The boat is built with a view to the sea.

CAD Programmes: AutoCAD, Sketchup, Enscape and Adobe Photoshop.

22

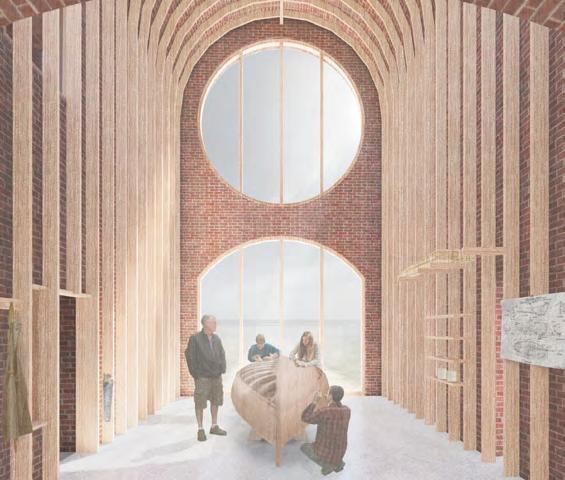

View of the boat workshop

23 1 2 3 9 8 7 6 5 4

1. Timber store 2. Workshop 3. Boat assembly 4. Vestibule

5. WC / Utility

6. Kitchen / Dining 7. Living 8. Bathroom 9. Bedroom

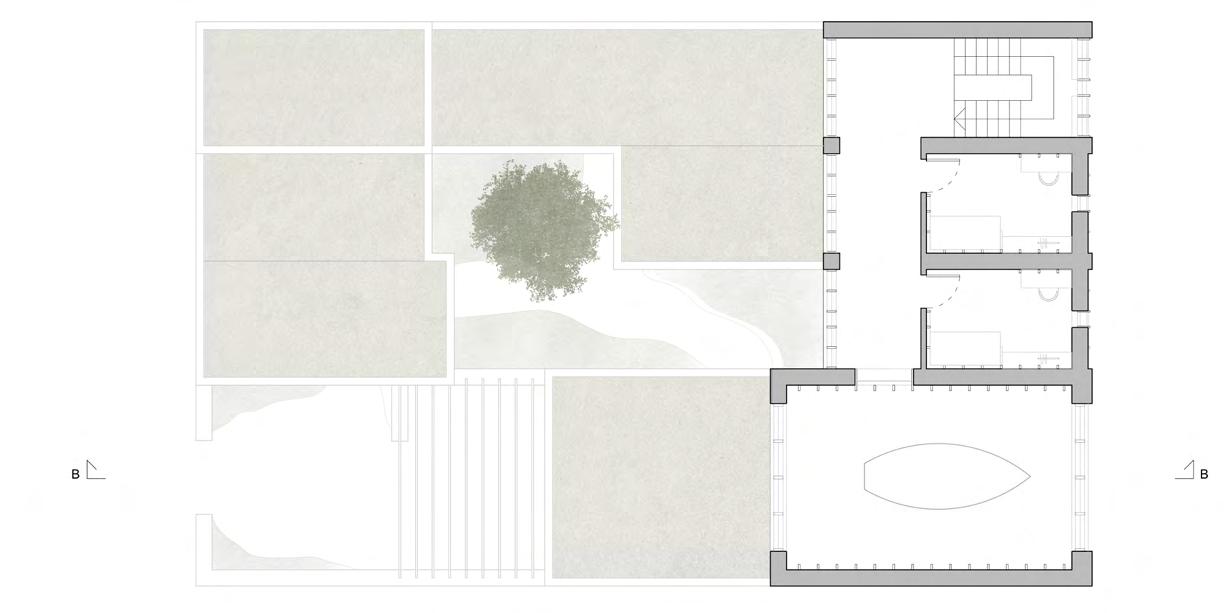

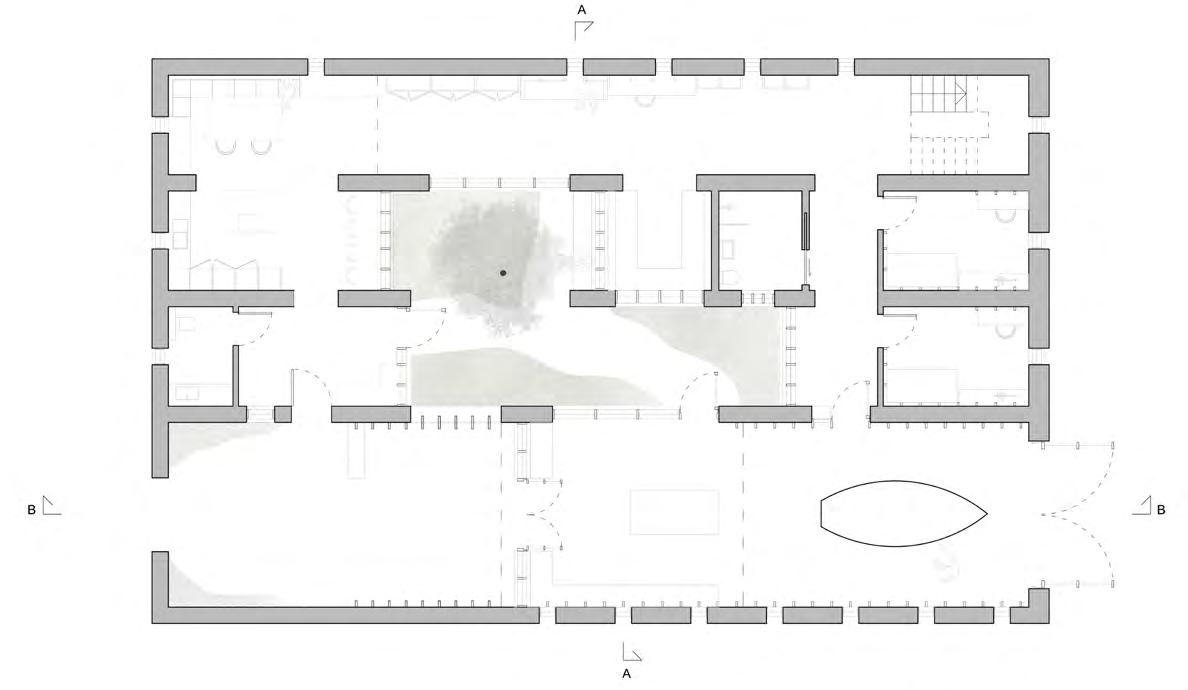

1 2 Ground Floor Plan First

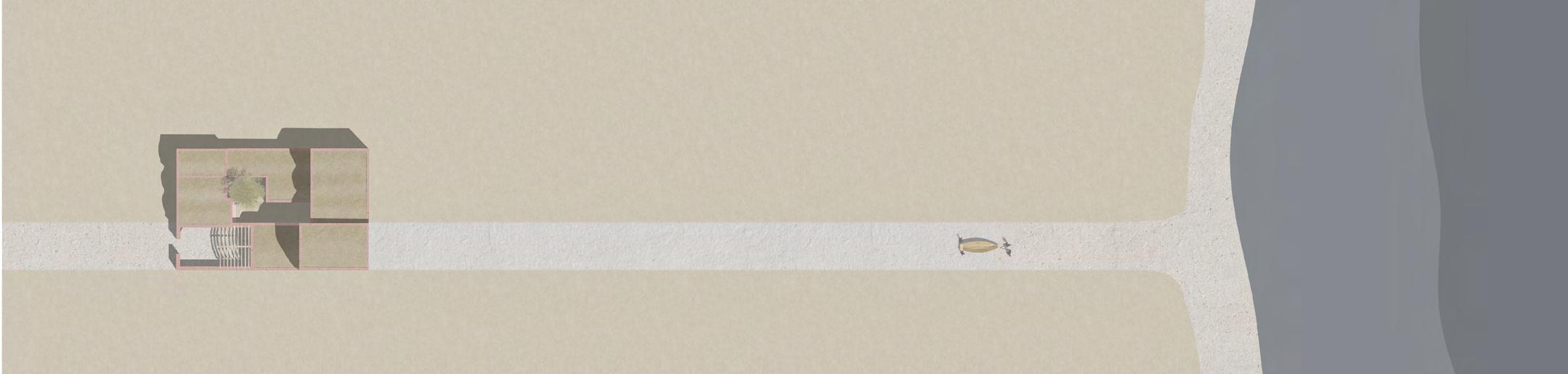

Site Plan N

1. Bedroom 2. Void Floor Plan

24

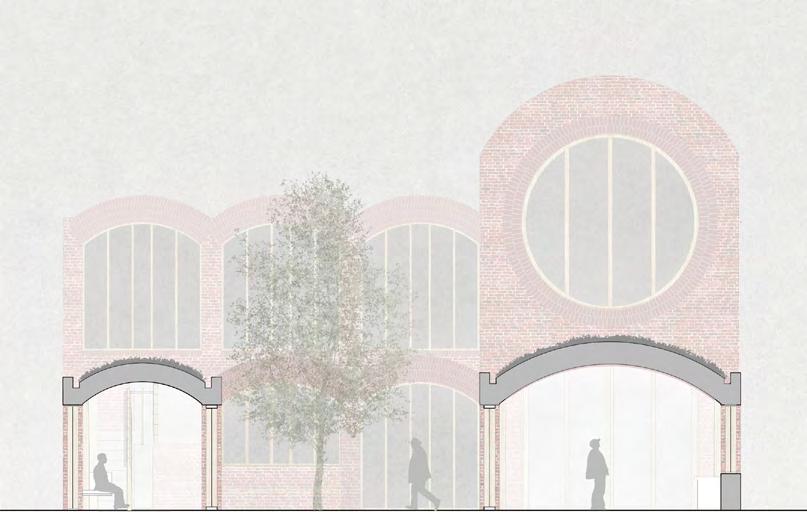

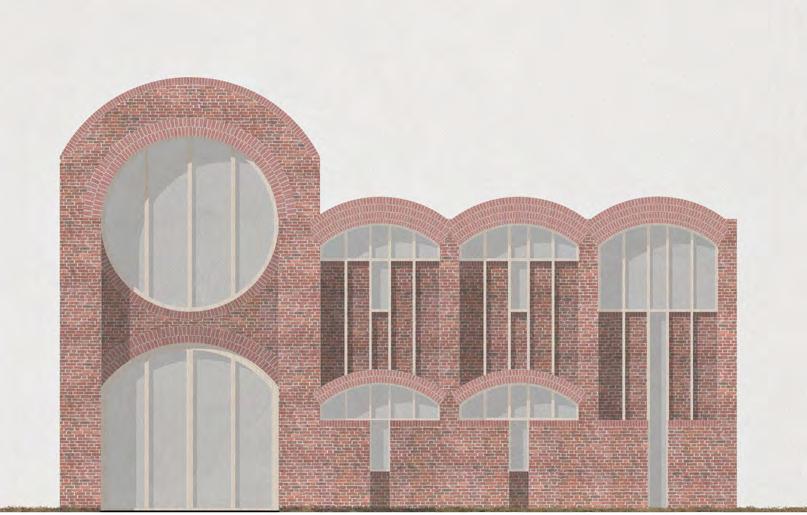

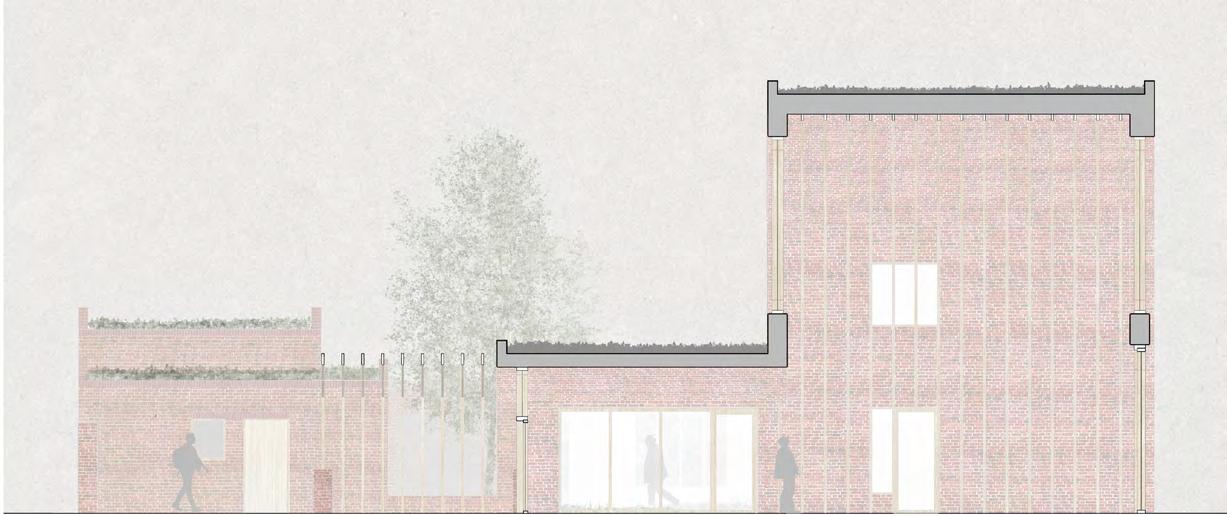

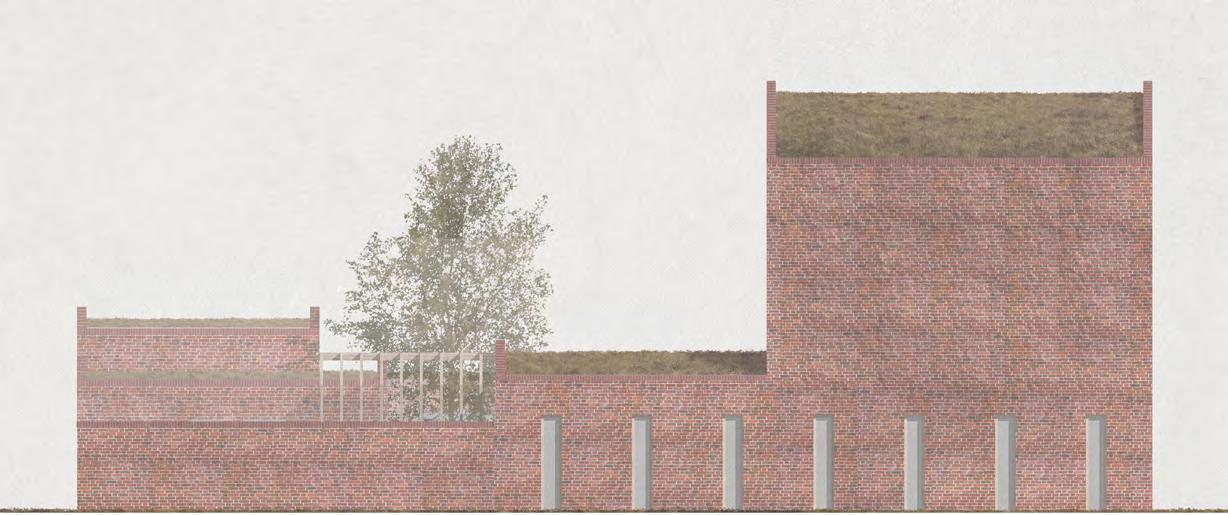

East Elevation South Elevation Section AA Section BB

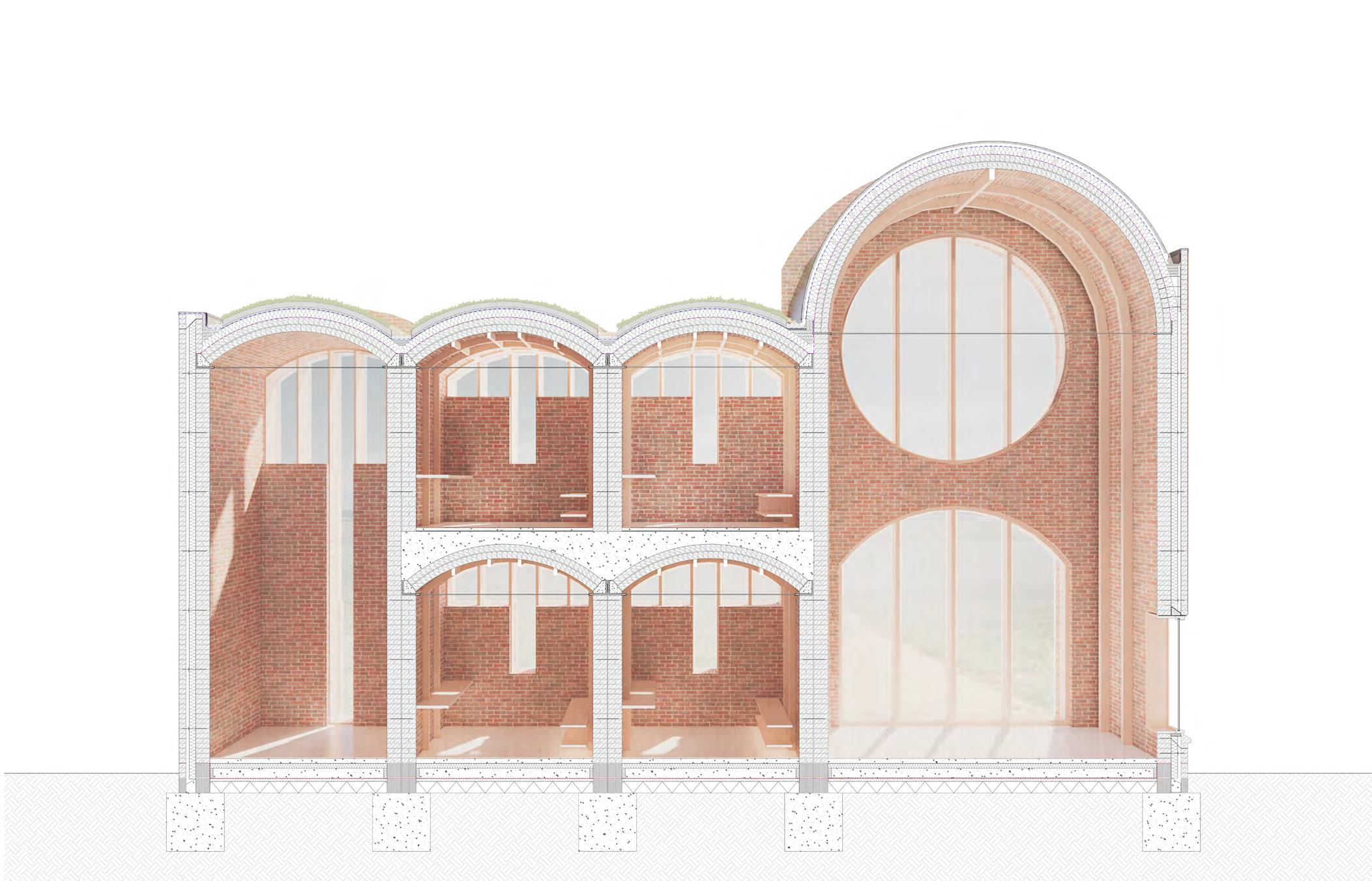

25 Detail Section 1:20 @ A1

26

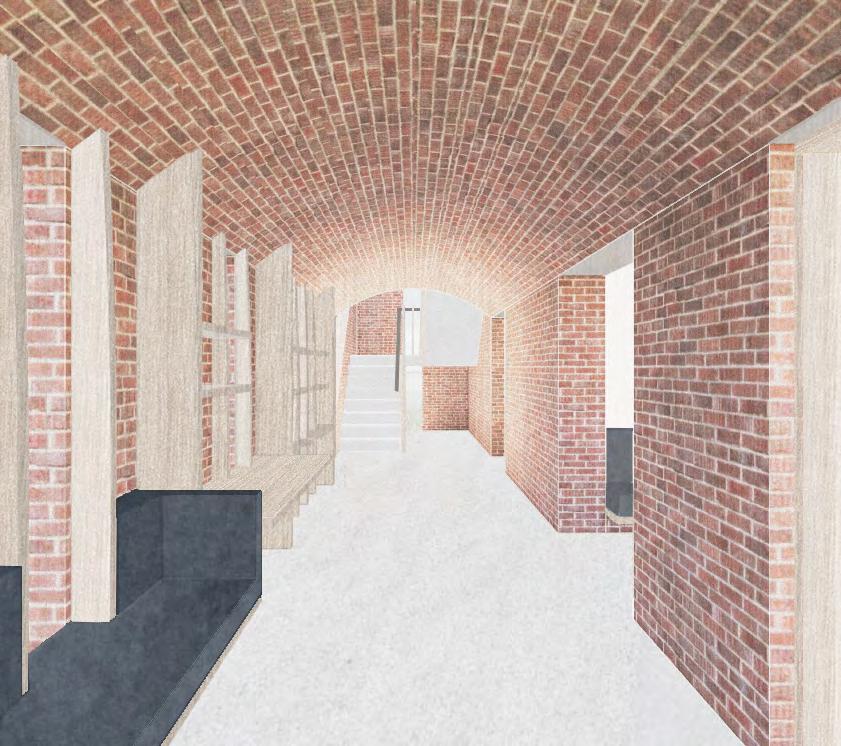

Entrance Bedroom

Living Space

Courtyard The interiors feature built-in oak furniture, inspired by the Northumbrian Coble.

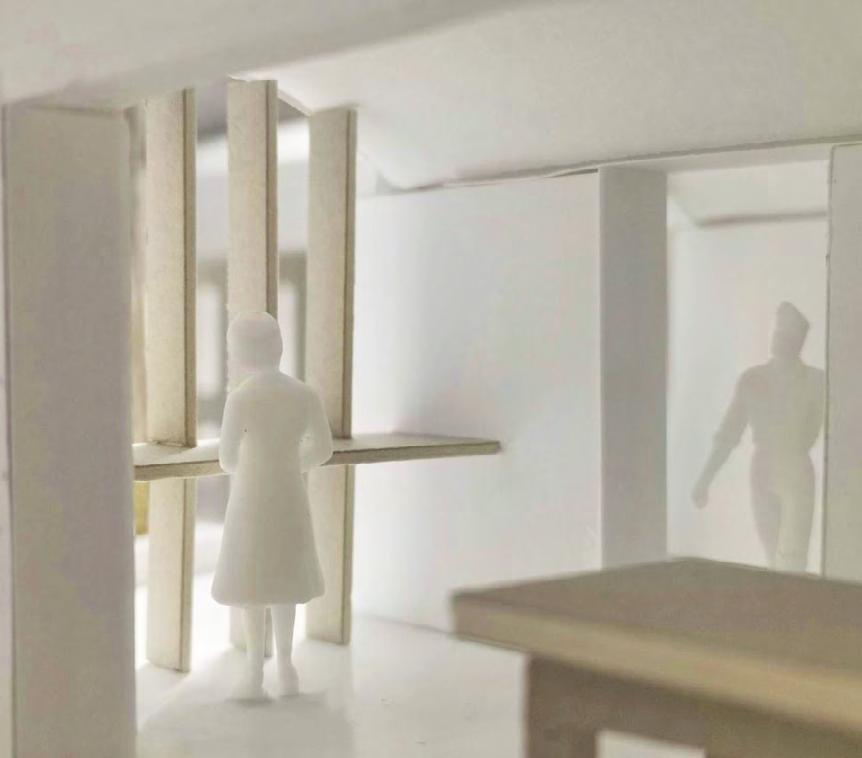

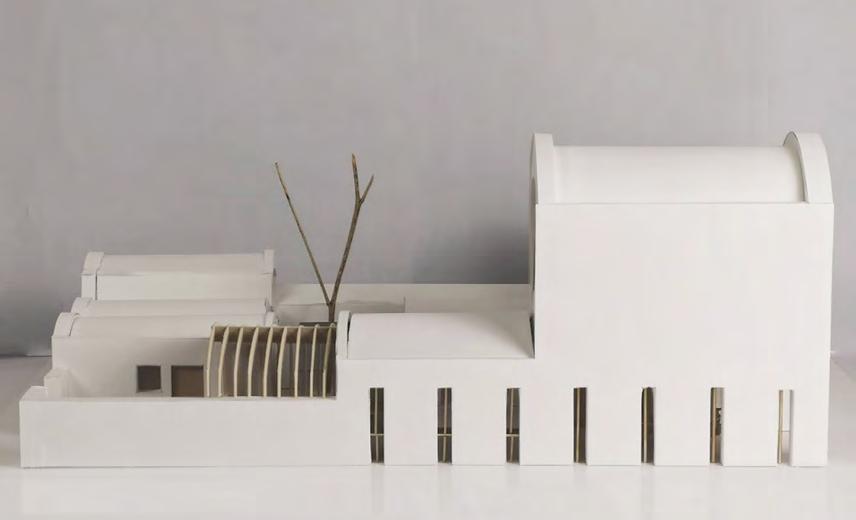

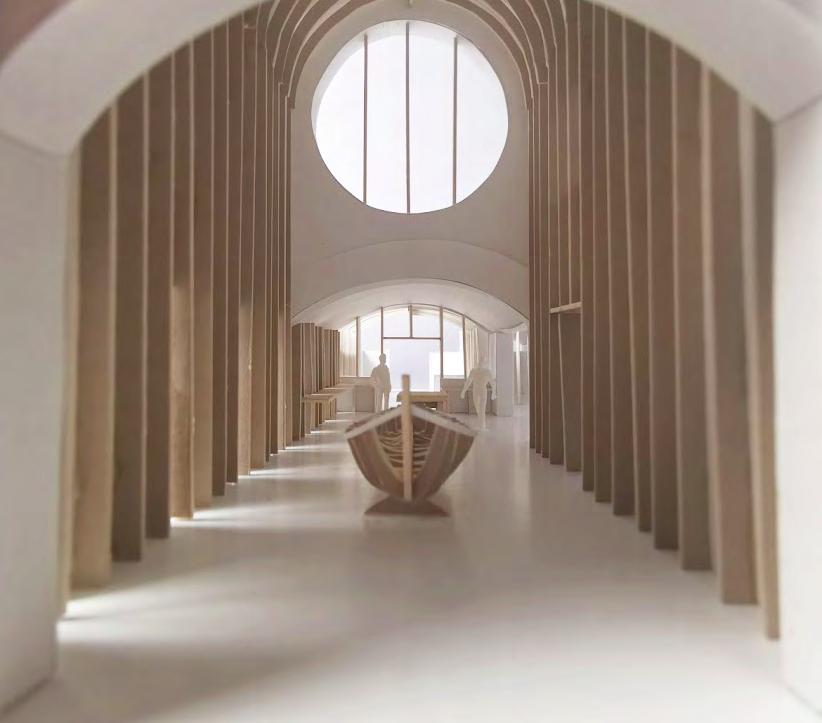

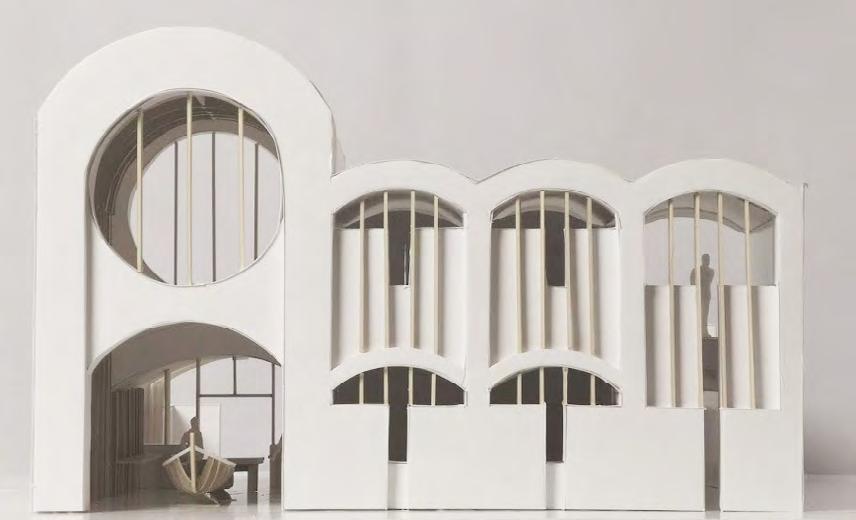

27 1:50 Model

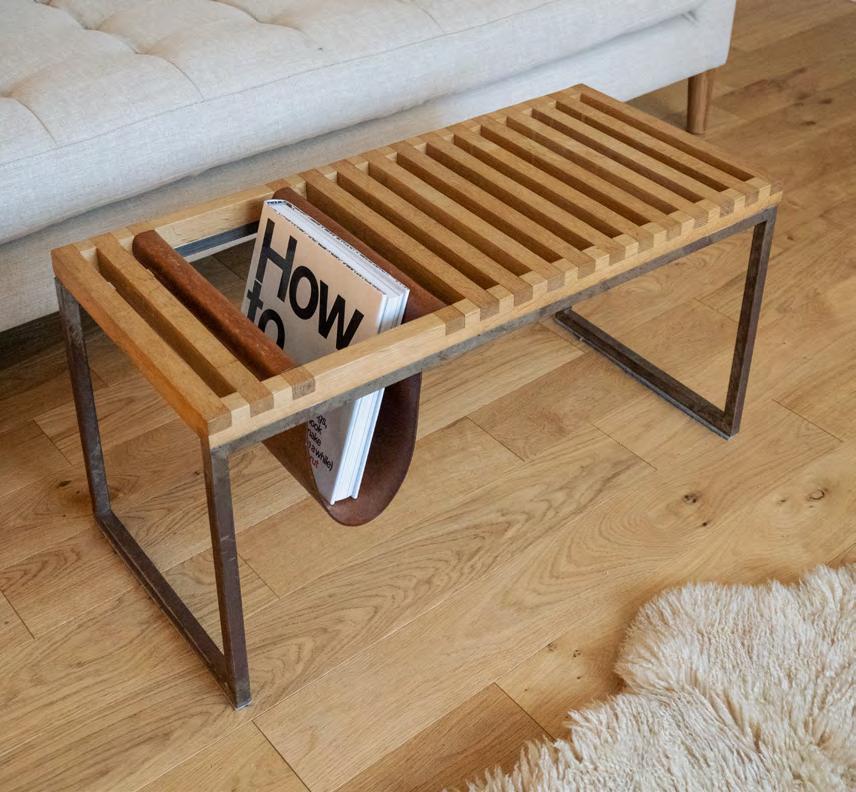

Before architecture, I had a passion for furniture design, from which gained an understanding of different materials and making, which influence my work today.
