overview

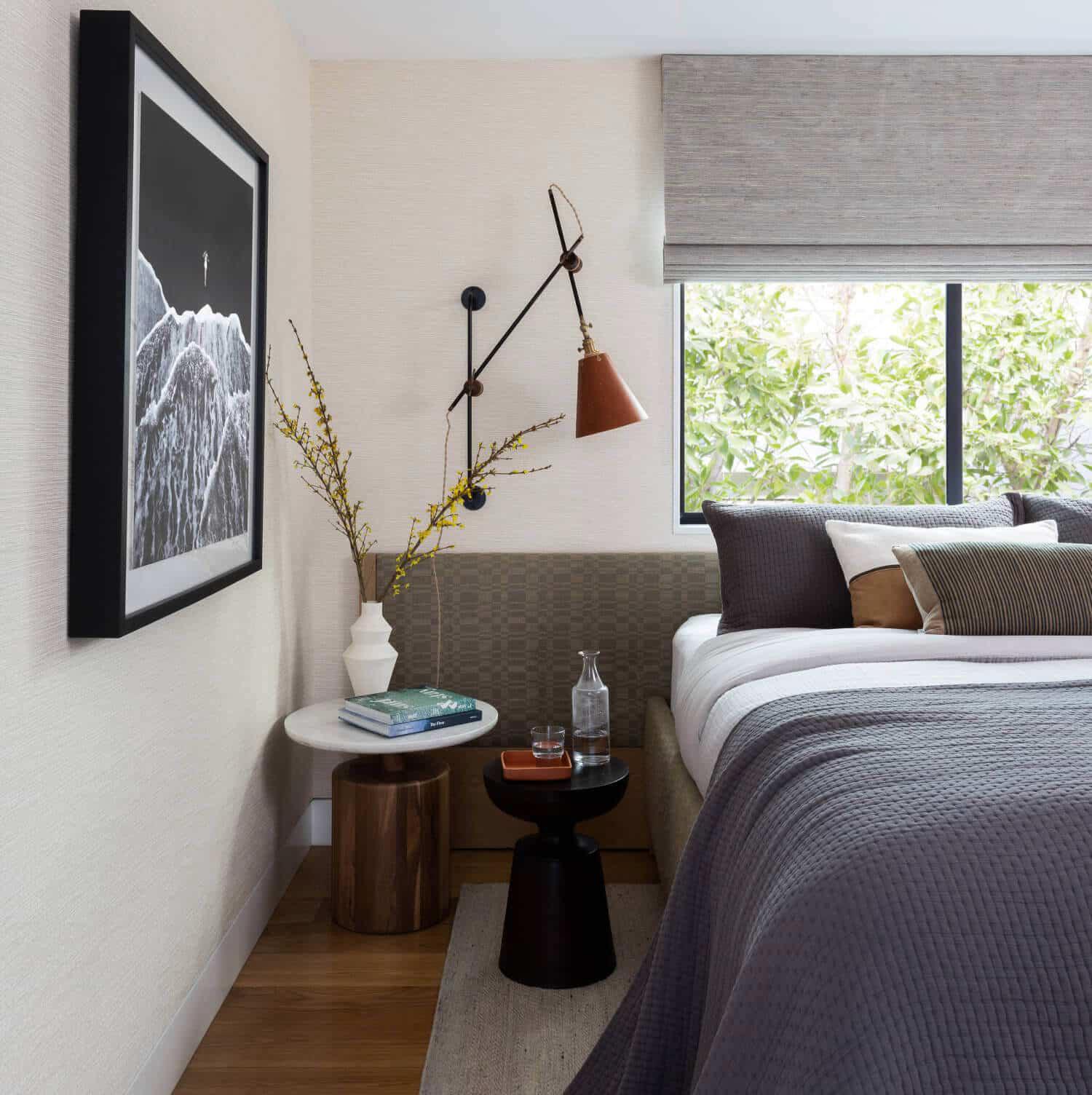

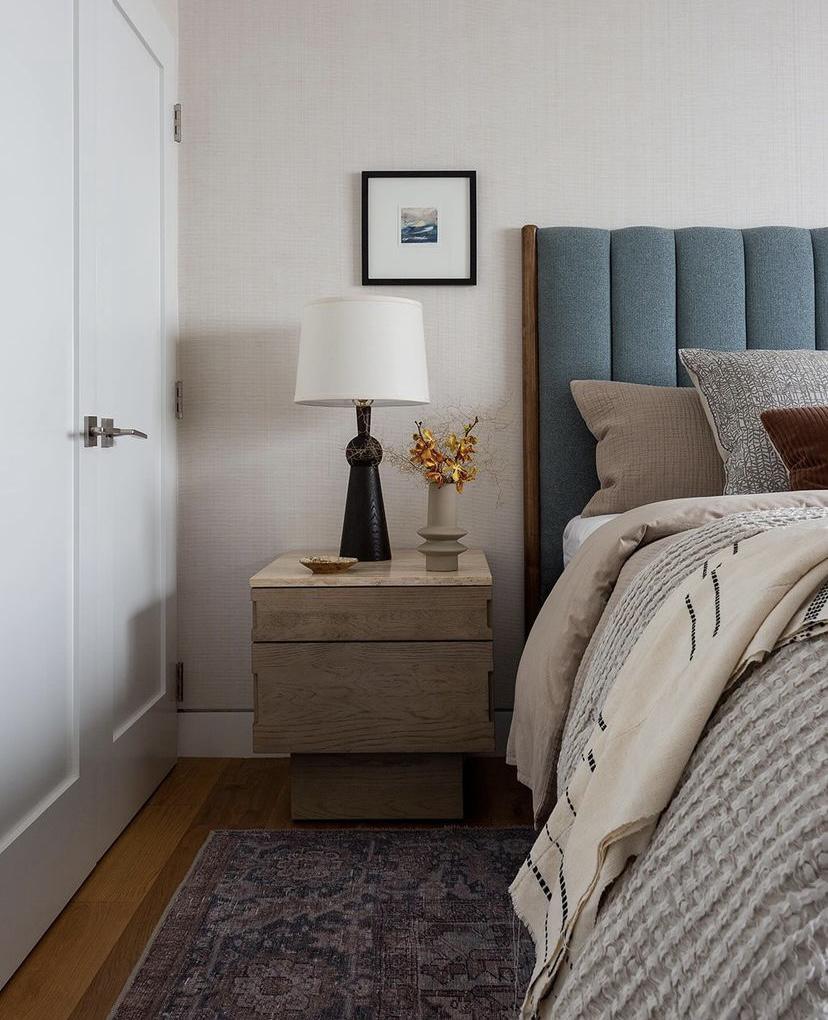

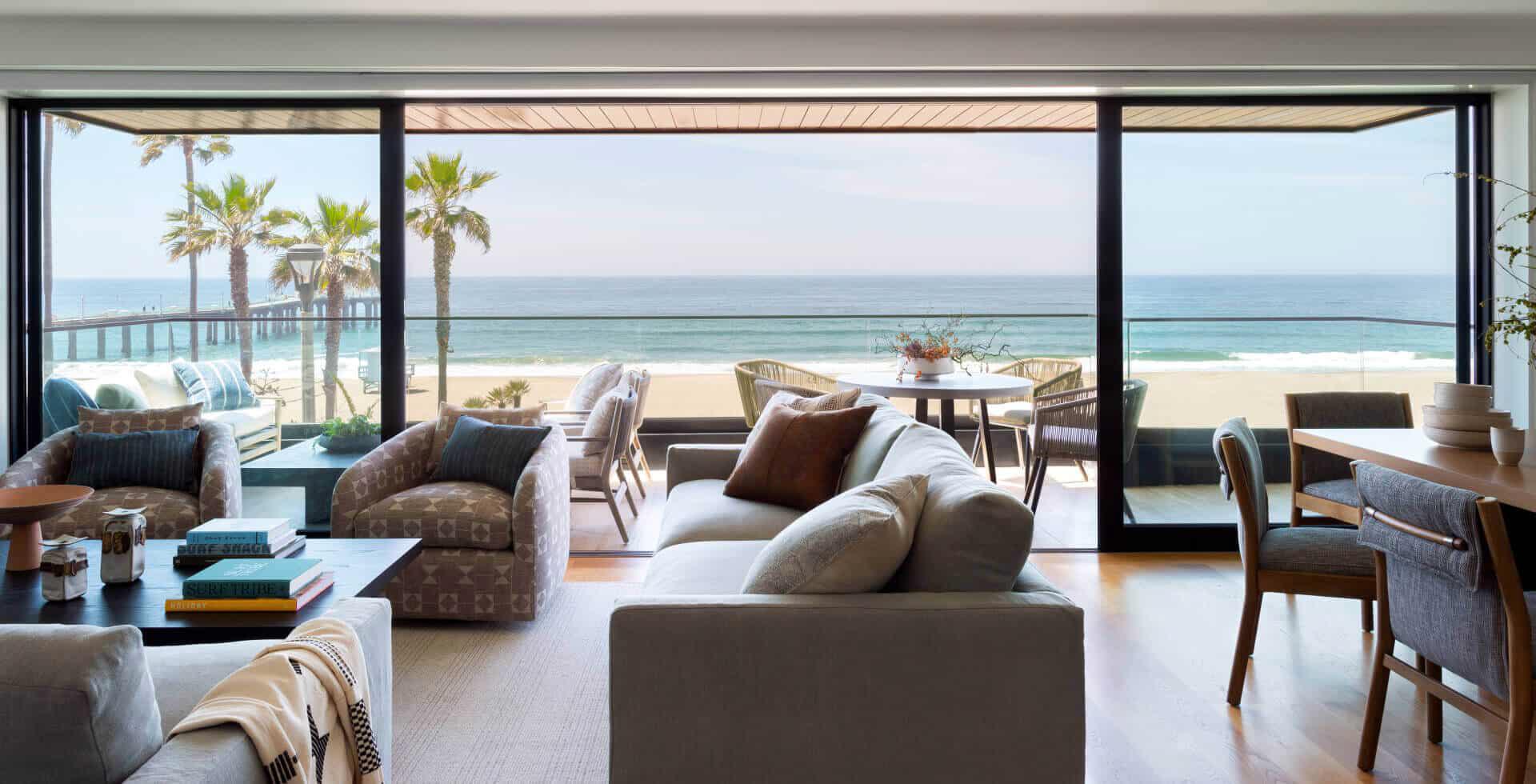

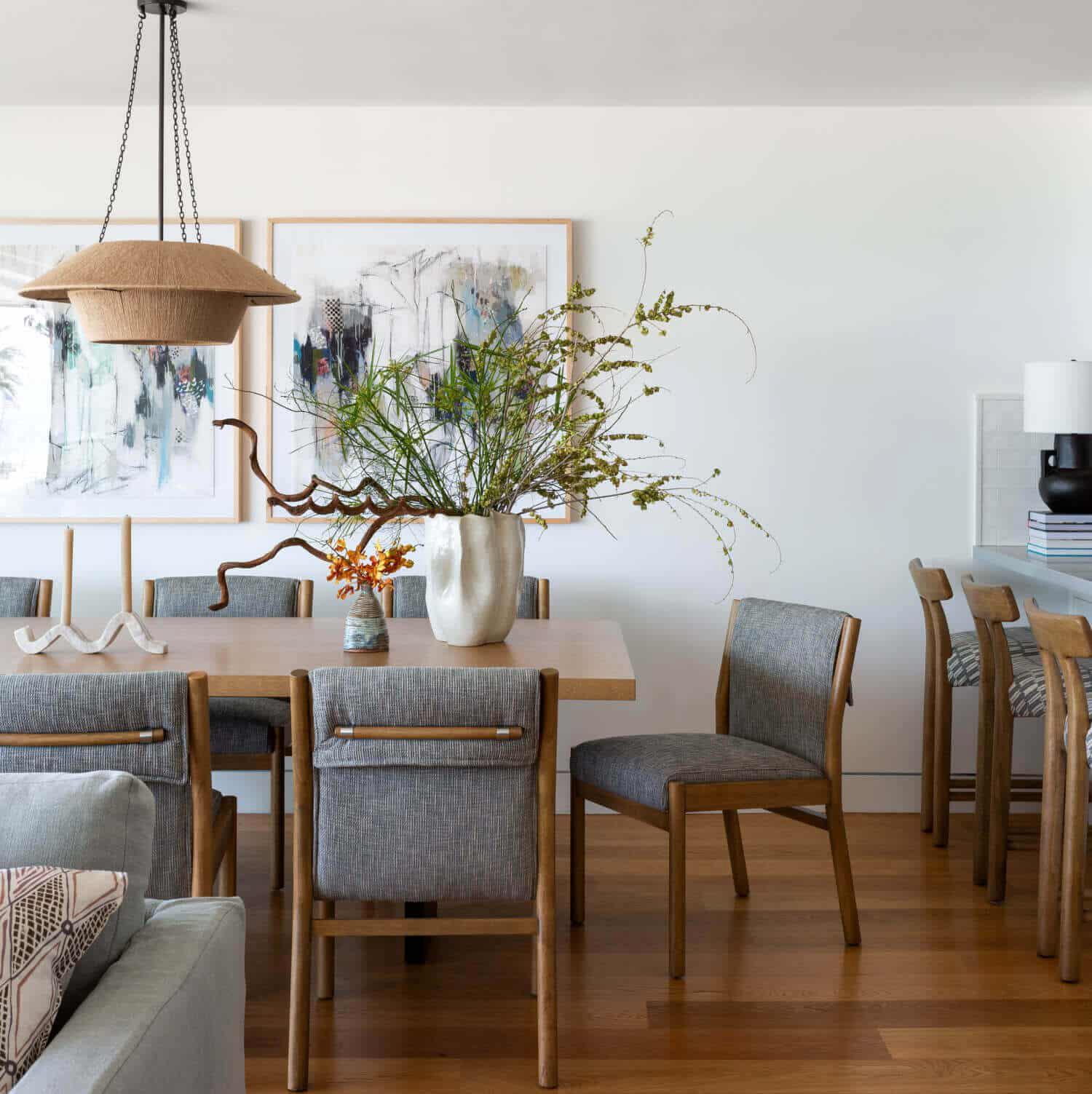

In this project for Kate Lester Interiors, located in Manhattan Beach, I served as the project lead. This project was primarily focused on furnishing an existing condo with the addition of lighting, wallpaper and paint. I worked on this project from the beiginning and was invovled in the selection process of all funtiure, lighting, wallpaper and accessories. I created all the drawings including floor plans and elevations. I also created custom furniture drawings for two sofas, the coffee and dining table, as well as the two beds. I oversaw all aspects of ordering, vendor relations and contractor management to get this project from idea to completion.
CHAIN FORGE FOOD HALL
105 13TH ST BOSTON, MA
overview
For the thesis project the task was to develop a program with the goal of a positive social impact, select a site for the proposed program and develop it into a comprehensive project. This took place over three terms, each with a different goal in mind. The first term was focused on developing a program based on the chosen issue/goal and gathering data both on the issue itself and potential user surveys. The site was also selected in the first term and existing drawings were compiled. The next two terms were focused on developing the program within the chosen building.
concept statement
Concept Statement: Create a food hall that informs users of the impact food has on the environment through classes and demonstrations, as well as promoting locally sourced ingredients through local markets and restaurants.
guiding principles
Transparency within food service
Create spaces that foster the awareness of where food comes from through learning and transparency.
Central garden gathering
Create central spaces that connect individuals though nature.
Functional park within
Create functional parks that are restorative spaces while also acting as a means of food production.
Pockets of Discovery
Pockets of discovery allow users to stumble upon new spaces through a winding circulation path.
Site Selection

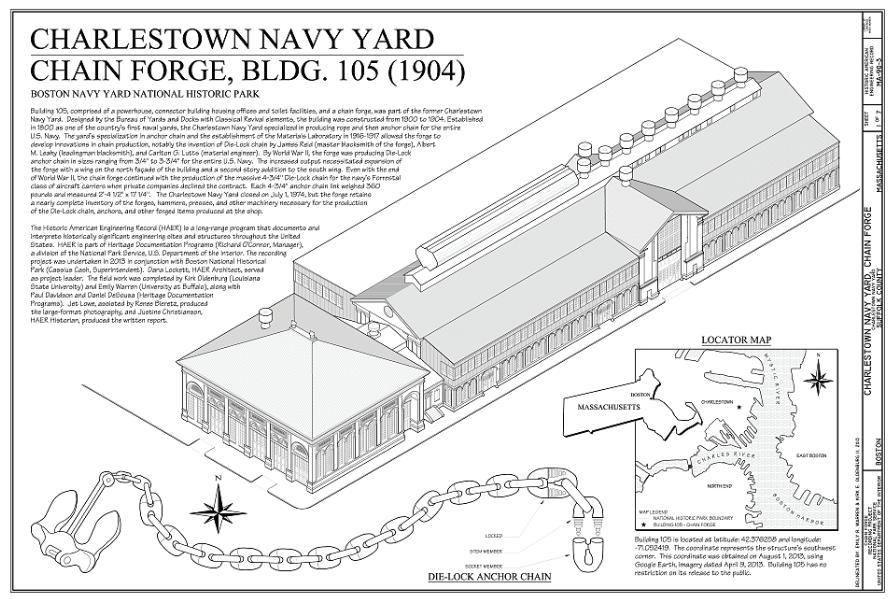

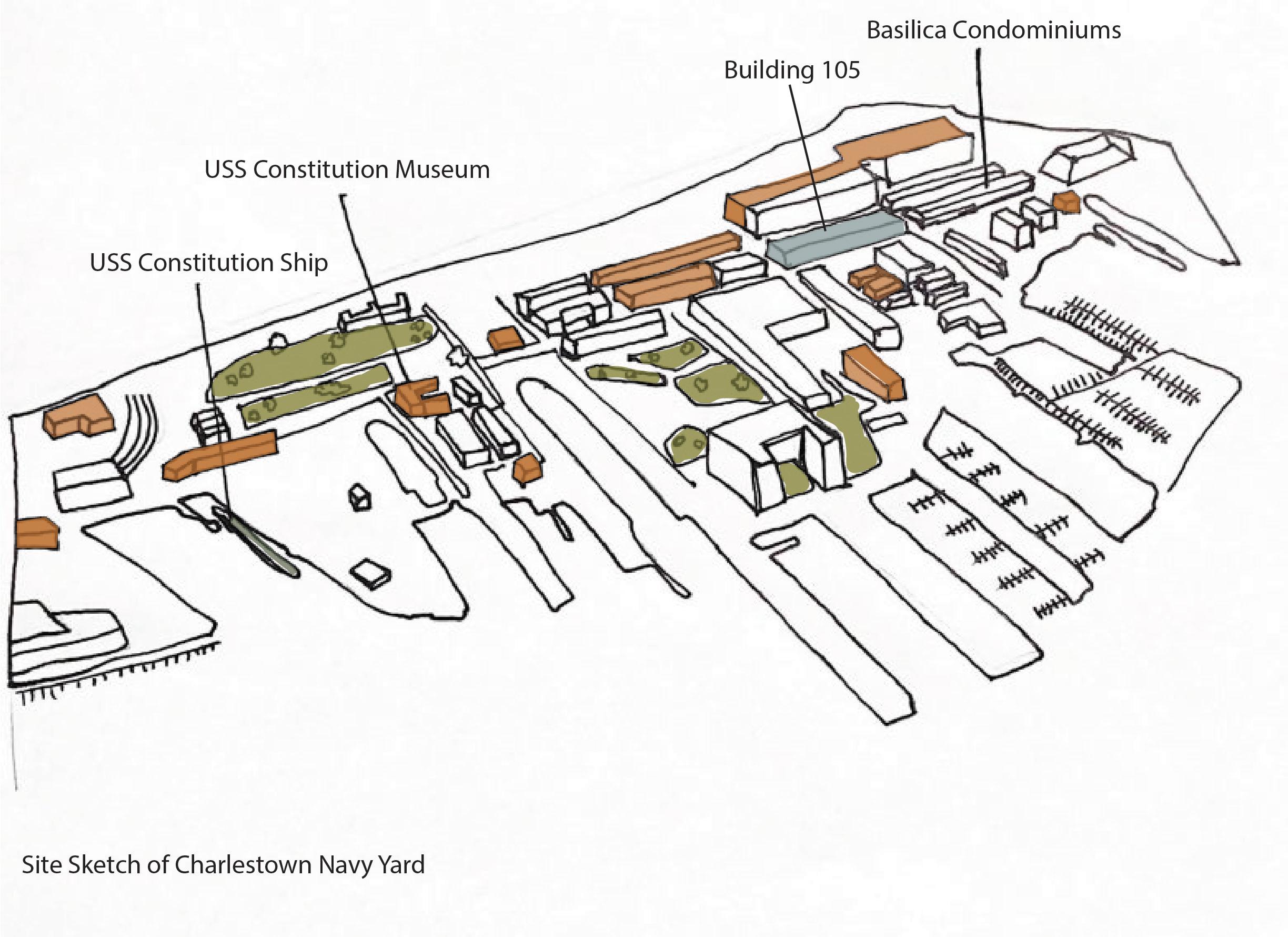

The site for the proposed food hall is Building 105, also known as “The Chain Forge”, located in the historic Charlestown Navy Yard in Charlestown, MA, two miles outside of Boston. The building is compelling due to its historic character and abundance of open space. Today the Charlestown Navy Yard houses the USS Constitution Museum as well as two ships that tourists can experience. Most of the buildings are now apartments or business headquarters and there is a growing desire to develop the space further. Adding a food hall to this area would make the surrounding area a social hub and a place where residents and tourists can appreciate Boston’s history and gather as a community.
Square Footage: 85,858
Year Constructed: 1904
Structure: Steel-Framed
Current Occupancy: Vacant
Classification: Historic
FLOOR PLAN

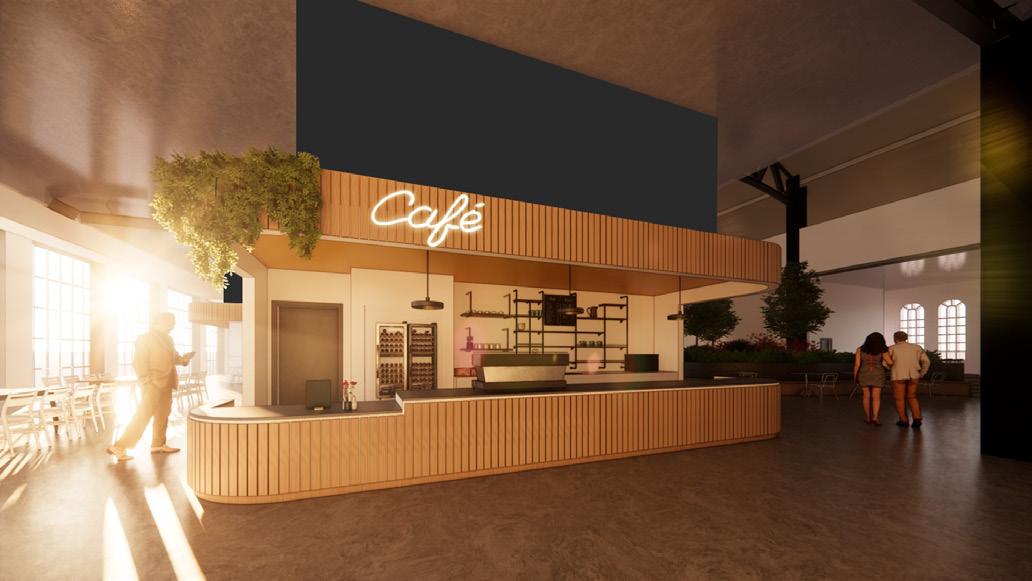

PERSPECTIVE RENDERINGS
Building System Detail

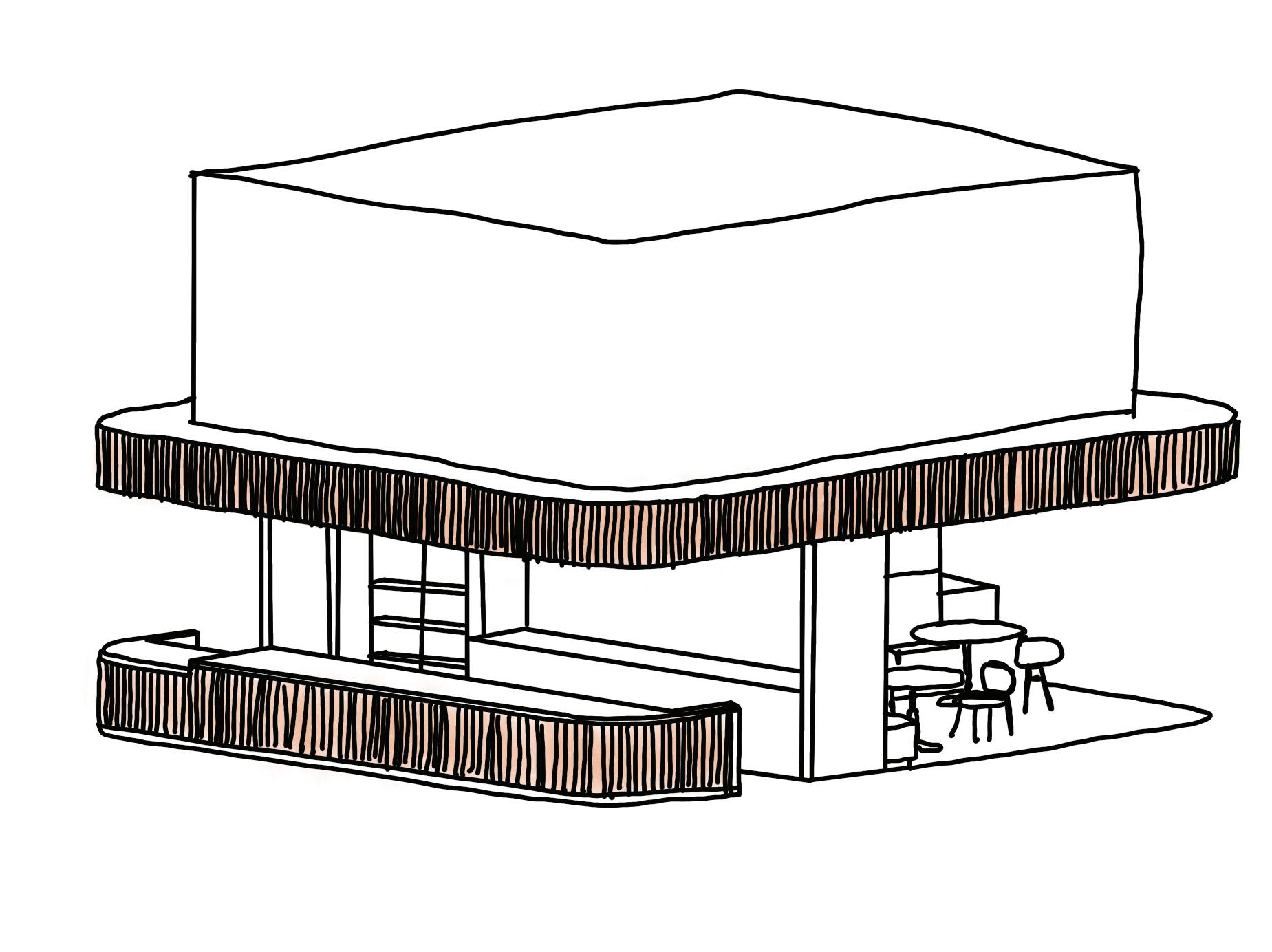

FOOD STALL PLAN
SCALE: 1/8” = 1’ - 0”
SPRINKLER PIPES
VENTING OVER KITCHEN
FOOD STALL SECTION
Each food stall will be connected by the main HVAC duct. That duct will run through each food stalls “box” that is intended to hide where all the pipes and ducts connect to each respective area within the food stall.
WALLS TO ENCLOSE HVAC AND OTHER DUCTWORK/PIPES
MAIN HVAC DUCT
FOOD STALL CEILING
Human scale Detail
HERB GARDEN PLAN
The herb garden has a combination of small functional herbs used for the test/demo kitchen as well as larger foliage plants. The garden is separated in the middle by a 3 foot wide path that allows access for harvesting and watering.
HERB GARDEN SECTION

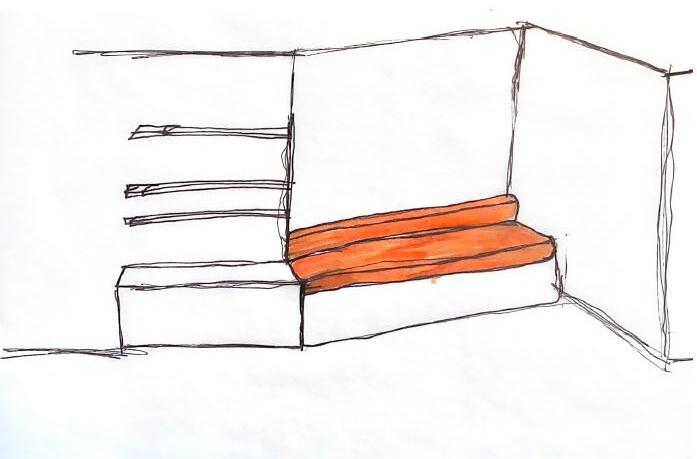

The planter beds are 2 feet off the ground which allows the outer rim of the garden to be made into integrated bench seating.
DRAINAGE
2”
Marley’s Monsters

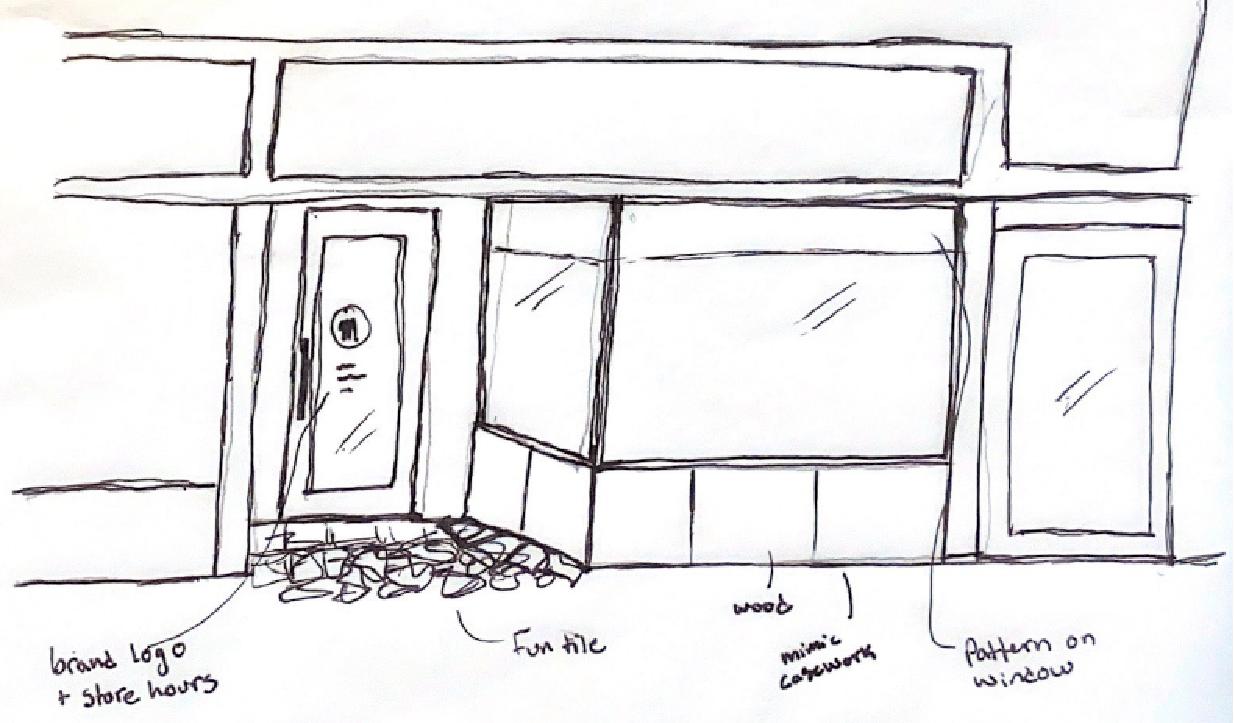

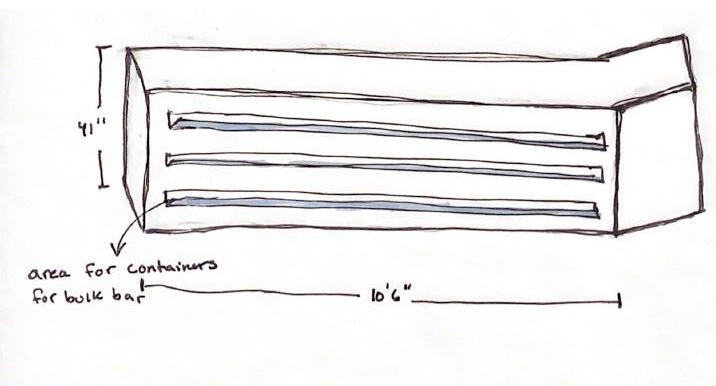

Marley’s Monsters is an eco-shop local to the Eugene/Springfield area that sells alternatives to single use products.. In this studio we were tasked with creating a retail space for the brand that showcased their products and had adequate storage. We worked with an existing building and created a set of working drawings on Revit to showcase and detail our design.
I focused my design on creating a functional space for the brand that let their products shine while still incorporating fun patterns and colors. I learned a lot from this studio and it was challenging, but rewarding to create a full set of drawings and details that were placed on sheets at the end.

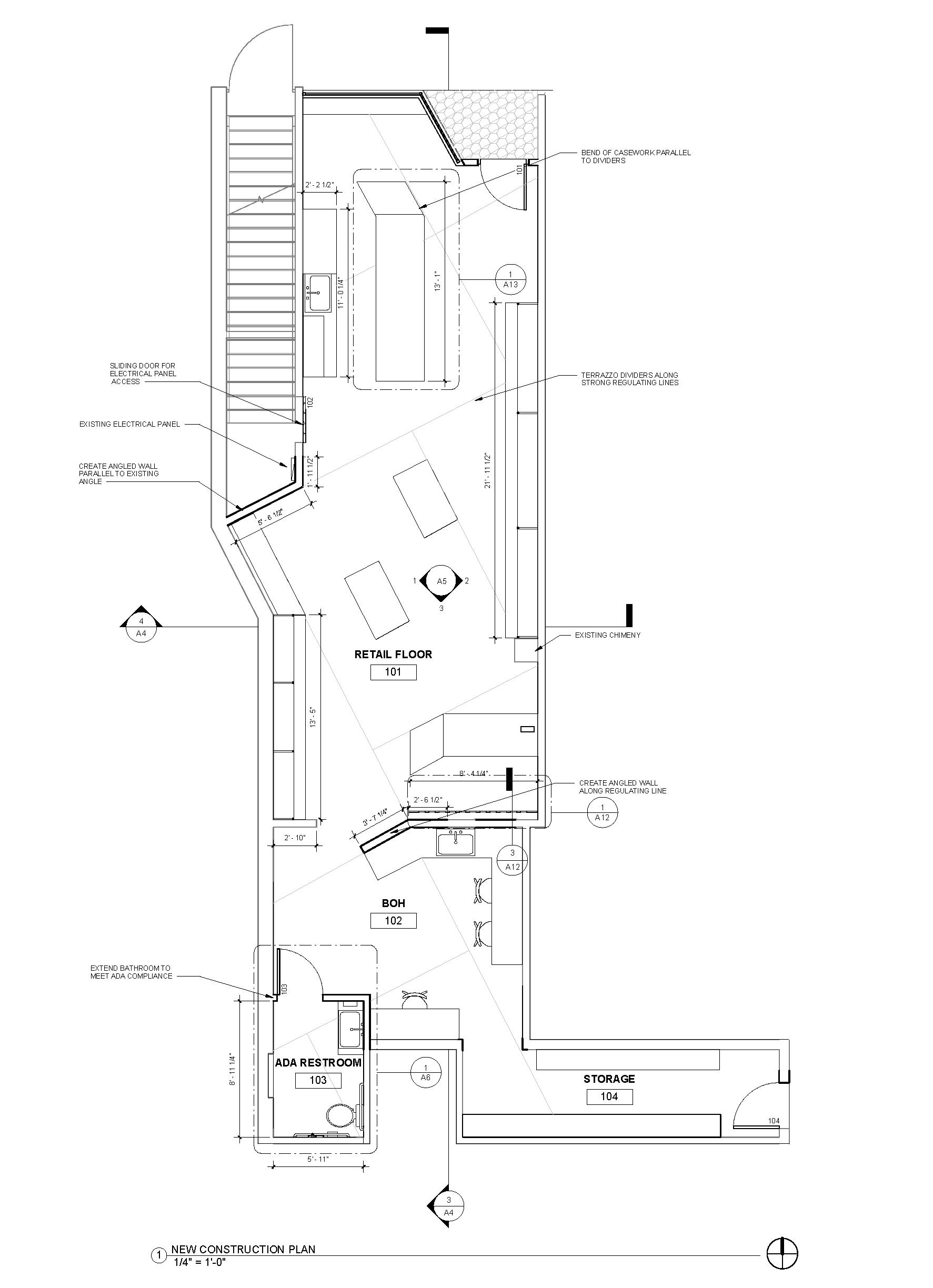

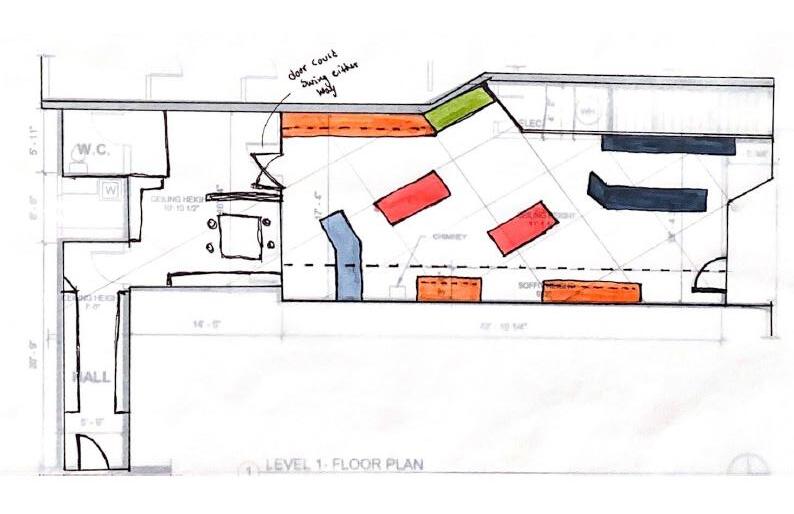

floor plan (NTS)
interior elevations (NTS)

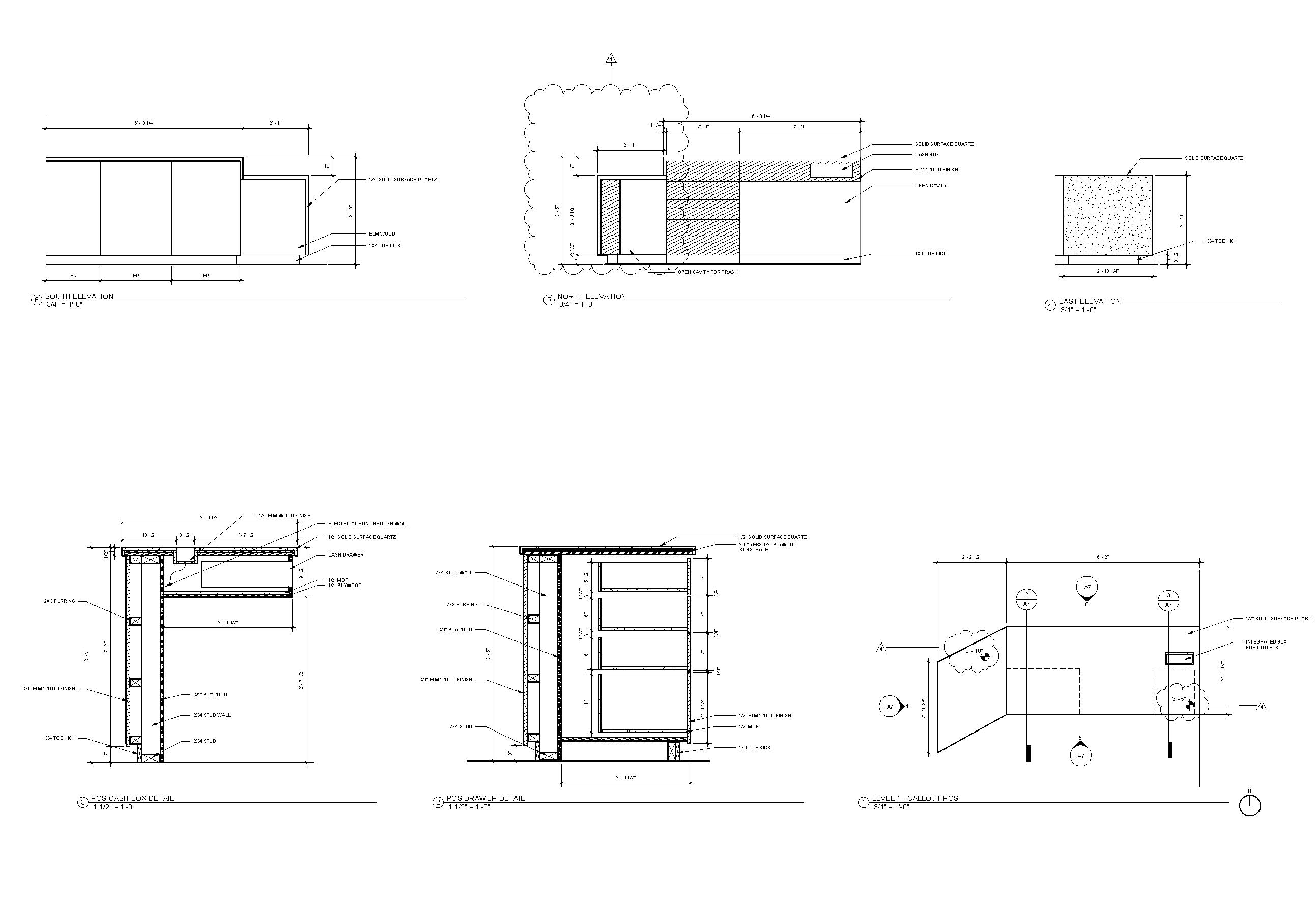

point
of sale details (NTS)

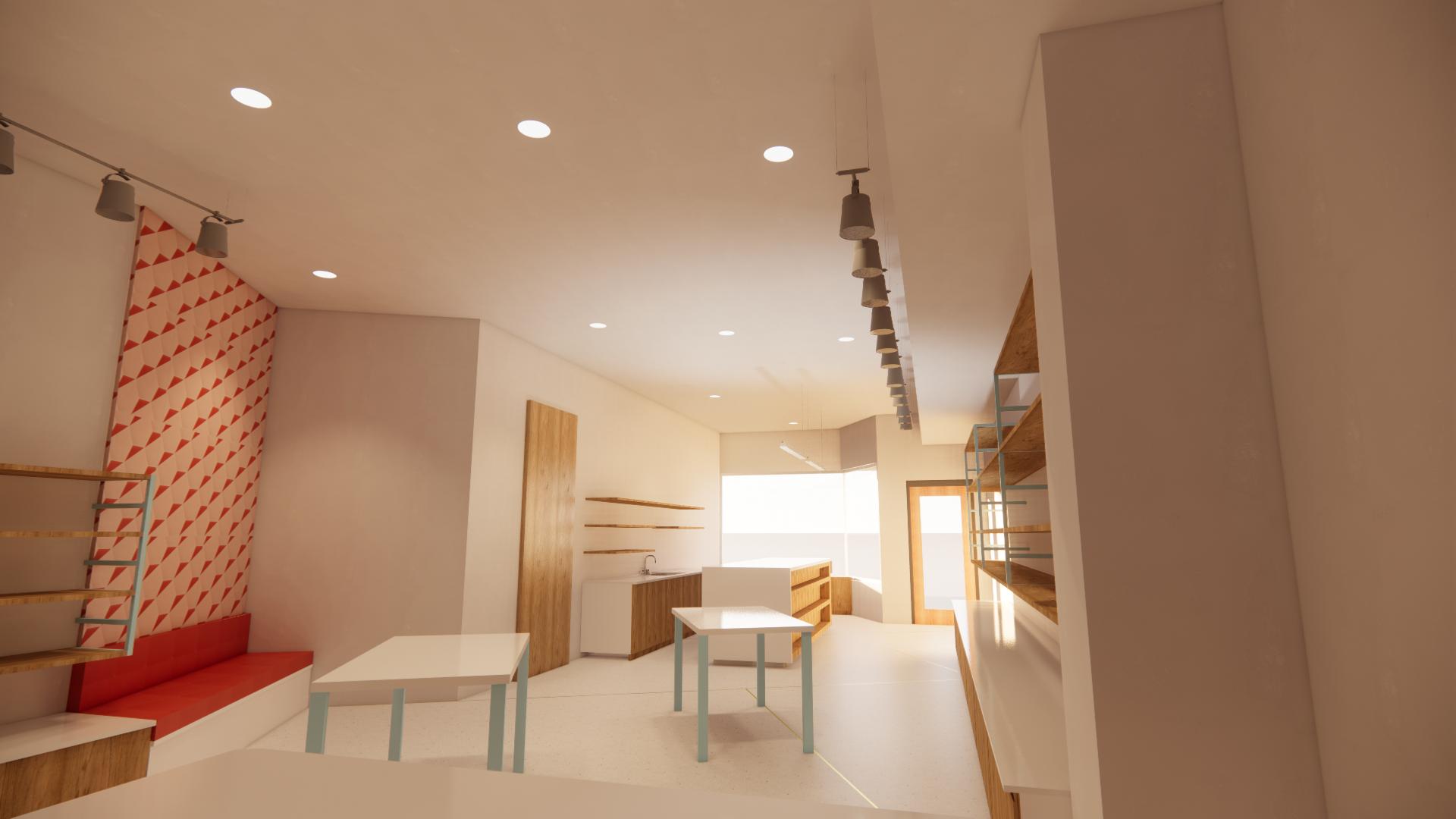

pano perspective
Longitudinal Connection
The Weissenhof Estate, Stuttgart, Germany

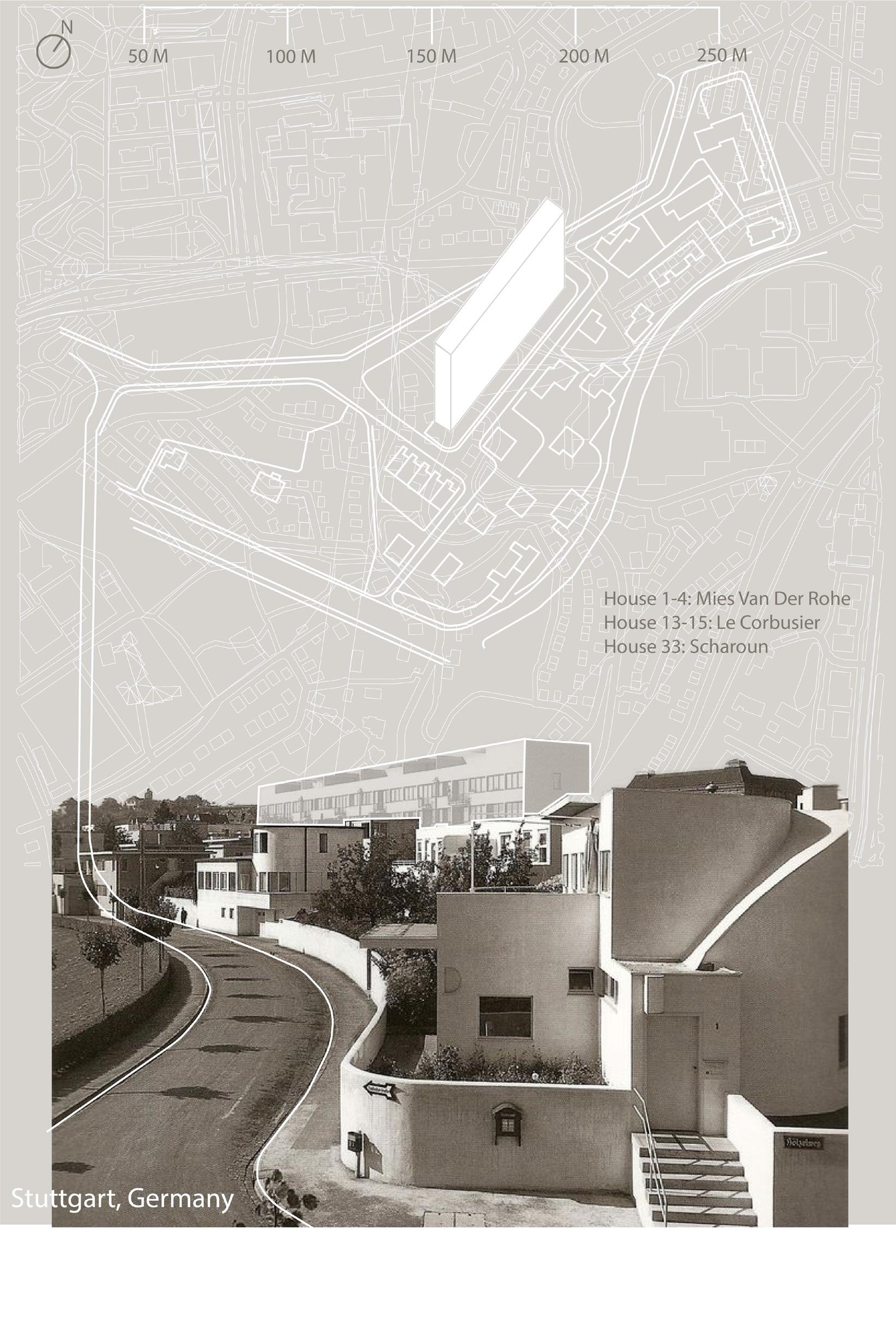

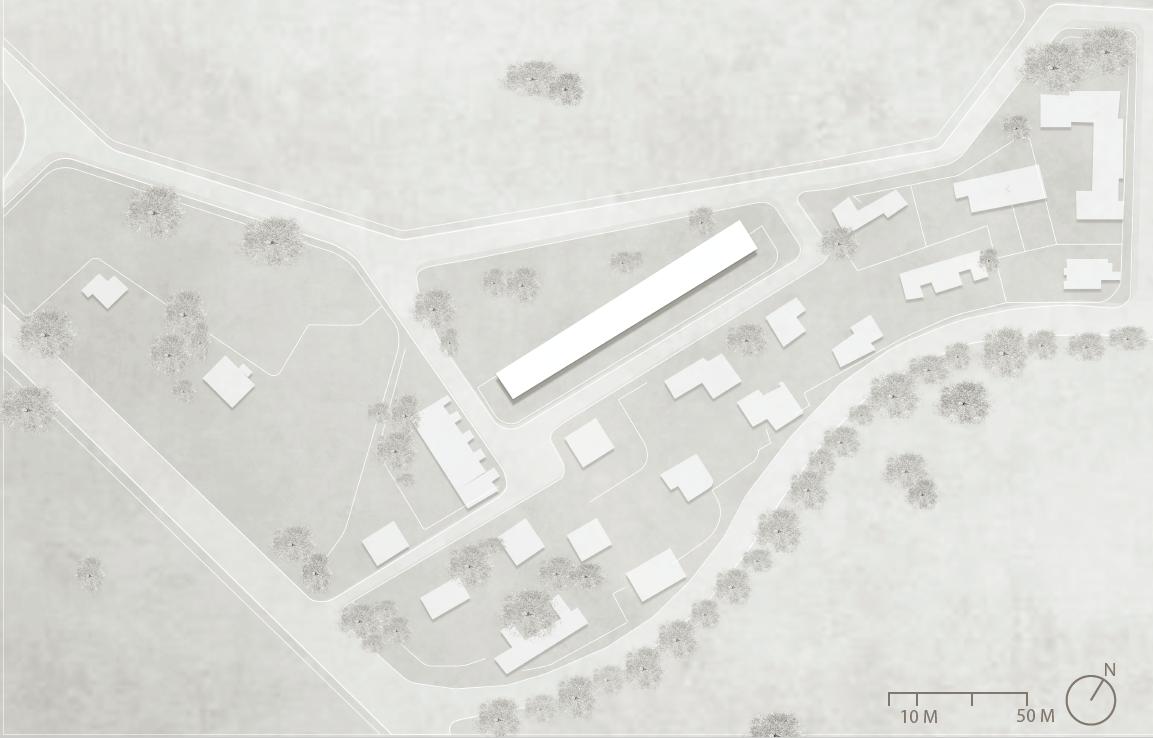

One major issue I faced was creating a space that was accessible while keeping the structure of the building as close to the original as possible. The fact that this project is located in Germany I focused on accessibility standards in that country and worked in metrics for the entirety of the studio which was also a challenge. Site Plan
The site I worked with for this project was The Weissenhof Estate in Stuttgart, Germany. For this project we were asked to use Mies Van Der Rohe’s building and turn it into a senior living facility. I focused on connection and modularity. Each unit consists of custom modular furniture that allows for access regardless of ability.
room book (NTS)
Creekside Community High School

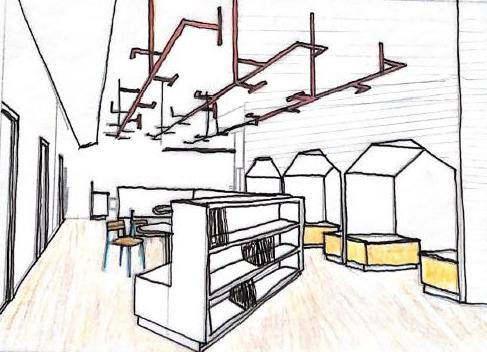

The Creekside Community High School project focused on creating a library/student run cafe space in the historic Durham School building. Creekside Community High School is an alternative high school that focuses on unique ownership style teaching, Preparing students for real world experiences.
The guiding principles for my design focus on celebrating the historical geometry and showcasing what is existing. Celebrating existing and historical aspects of the space allow for community members of all ages to feel a sense of ownership and belonging Creating a space that fosters community involvement through shared history and showcased student art allows for intertwined growth. Not only does highlighting existing features create a welcoming space for everyone but it also creates an impact in terms of sustainability and cost.

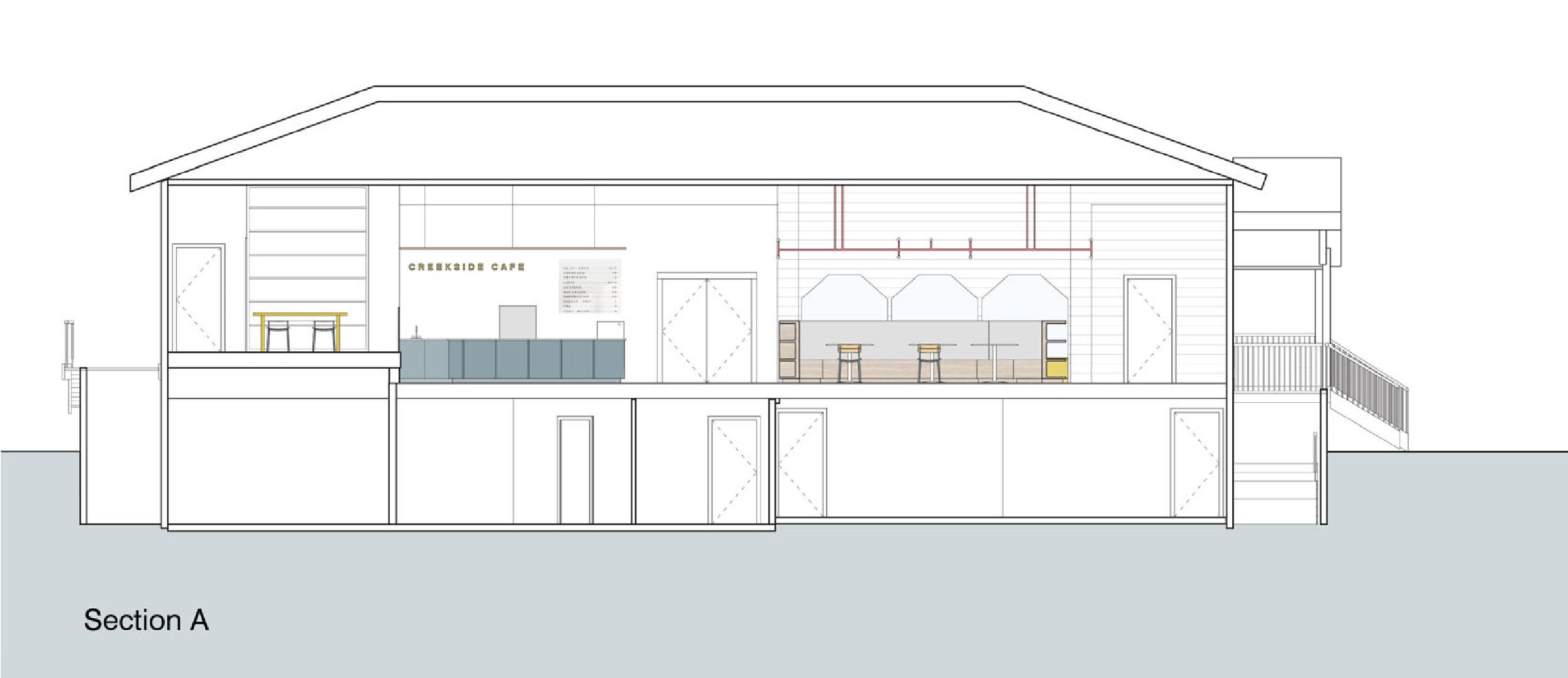

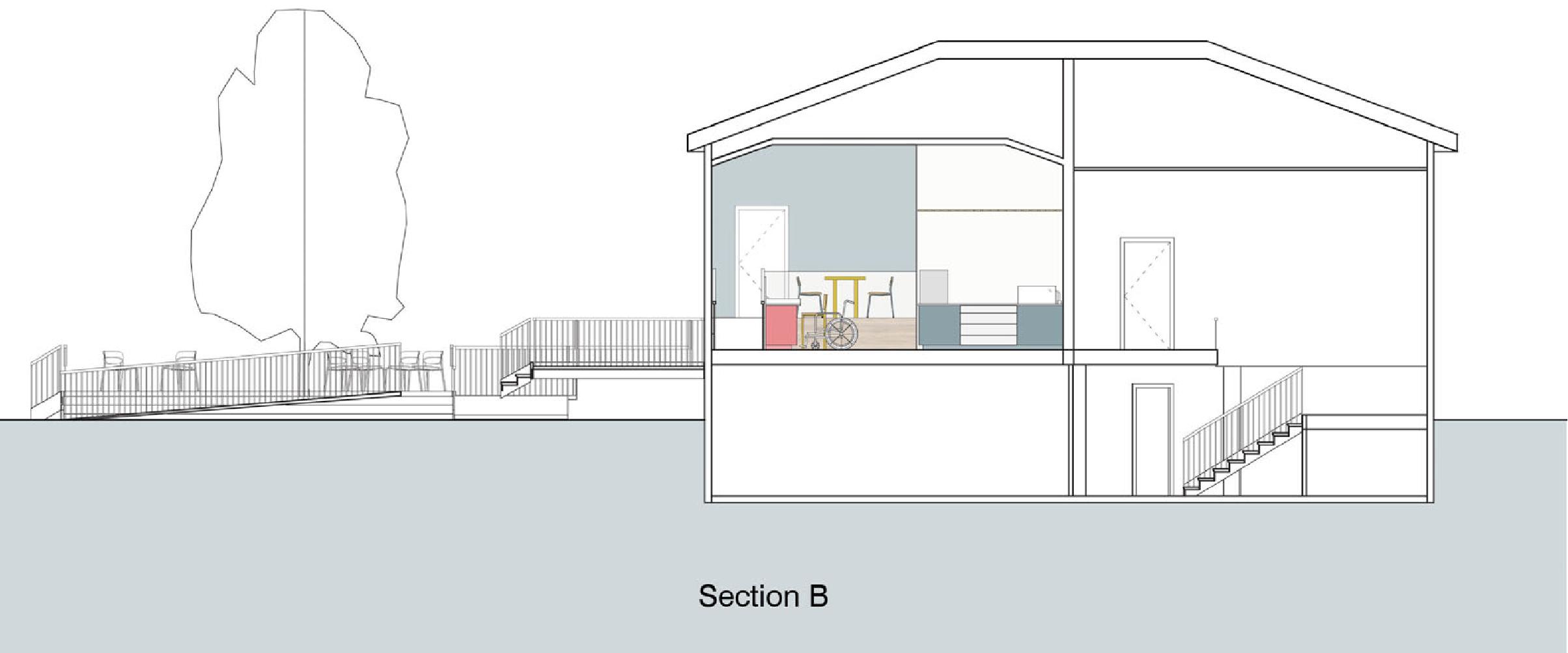

sections

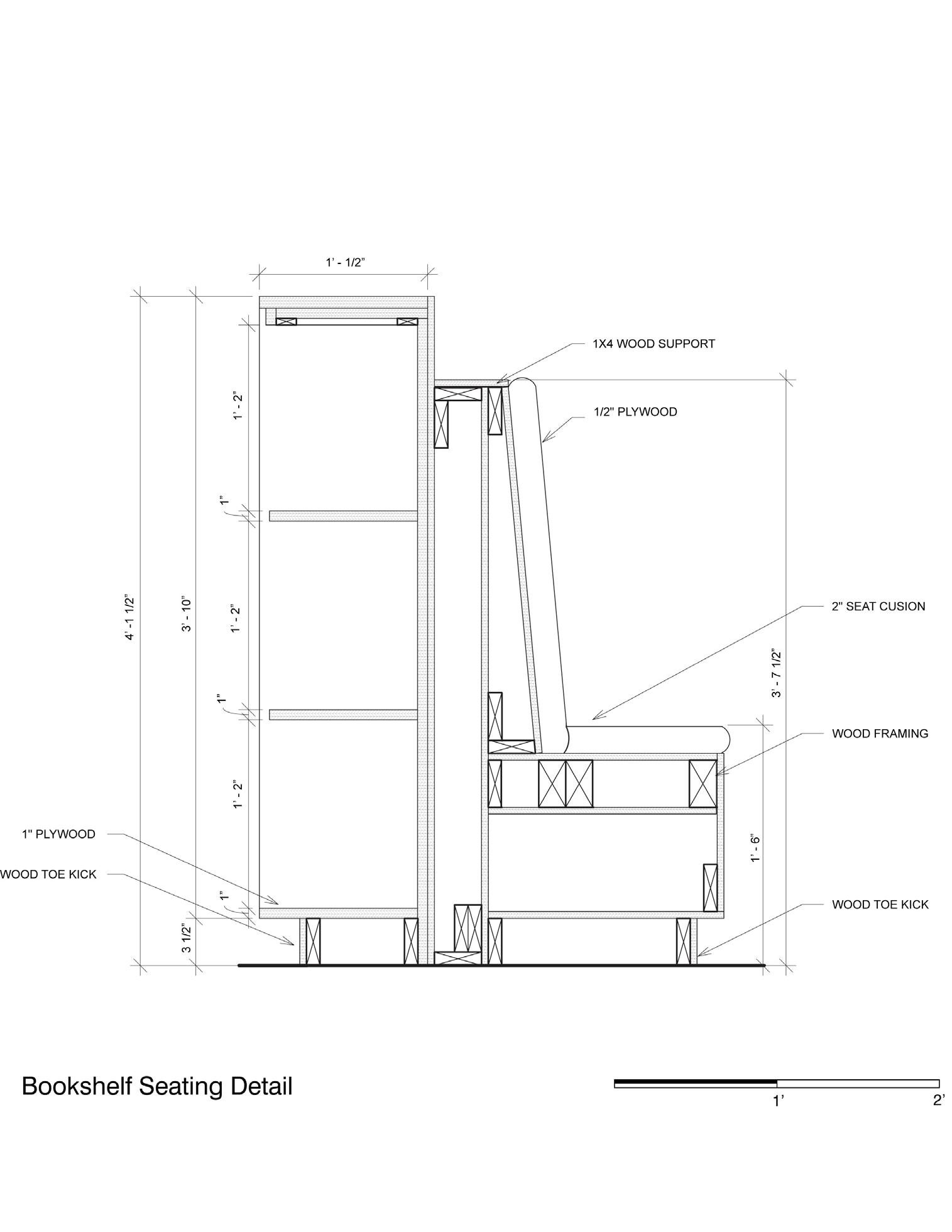

bookshelf detail
Brenton Chair

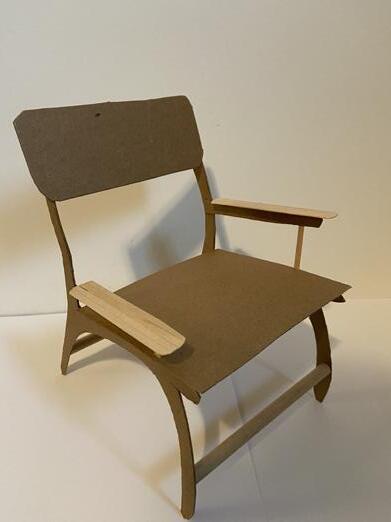

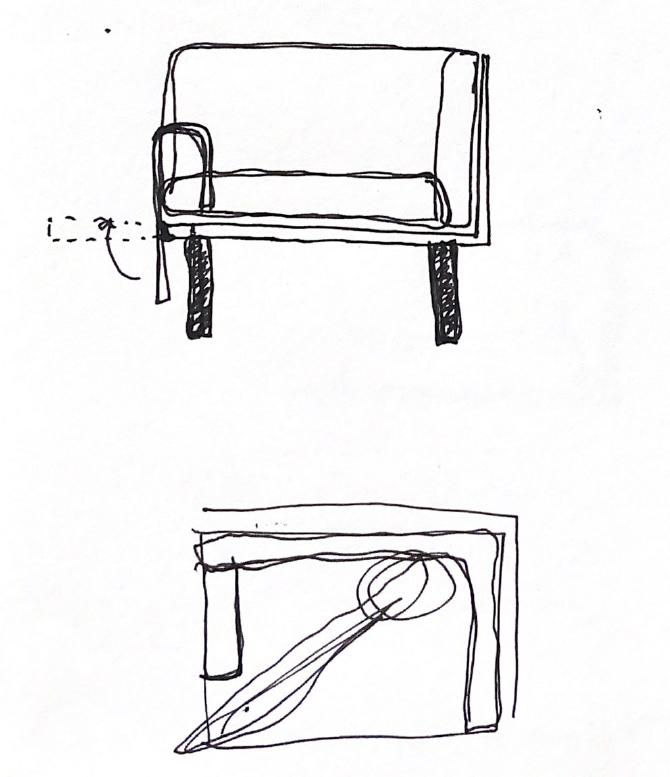

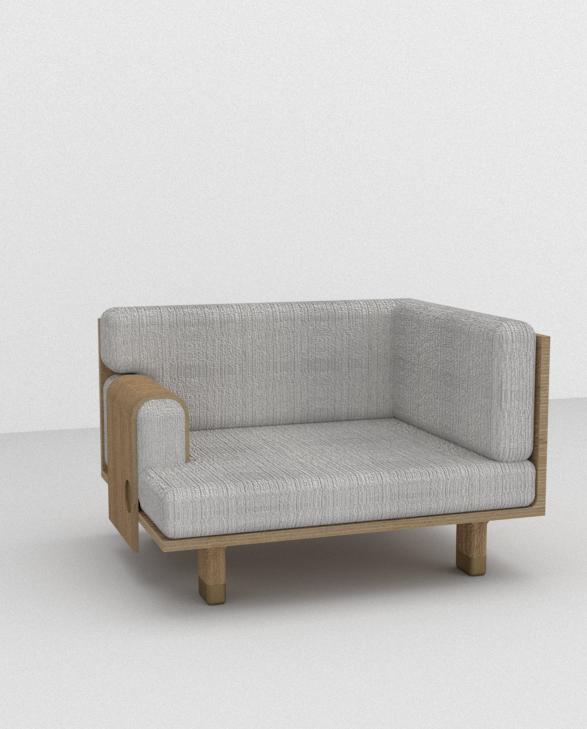

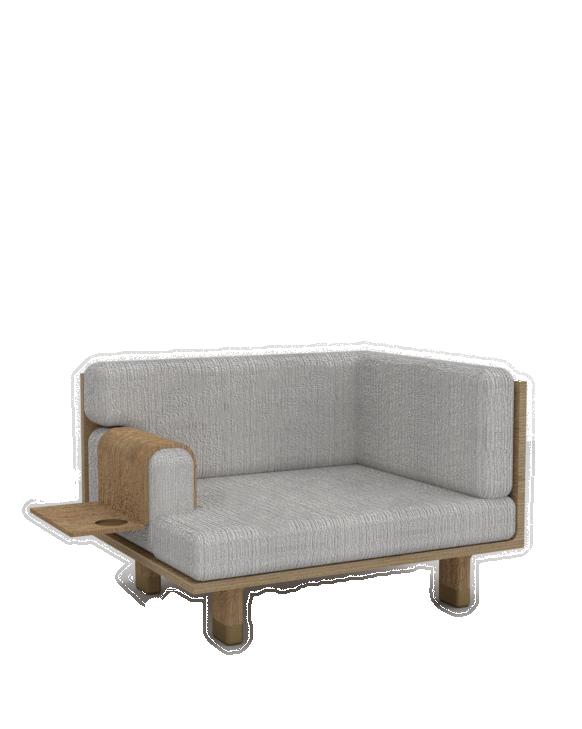

The Brenton Chair is designed to be a perfect place to sit for any user. Brenton can accommodate multiple seated orientations and includes an attached side table with a routed in cup holder for that perfect cup of coffee. When the table is not in use fold it down to create a seamless extension of the arm.
Dimensions
seating positions
Table Details
Hinge-like system that latches when in an upright position
NOT TO SCALE
Cup holder built into the table 1/4” deep and wrapped in brass
