Architecture portfolio

A R C H I T E C T U R E ARCHITECTUREPORTFOLIO

LOJINE BREAKAH

Functional latency

Multi-use Center submission for MKM Student Design Compitition

Arch 302

Muncie Community Center

Health and Wellness Center meant to create a safe space for underrepresented communities

New Oﬃce Building

Exoskeleton Building that considered latent design and column free spaces

Arch 302

Arch 301

Starry Night Inn

Hotel exploring diﬀerent deﬁnitions of sacred spaces

Arch 202

Perforated Film

Movie Theater sumbission for IHLA wood competition

Arch 202

Transitional House

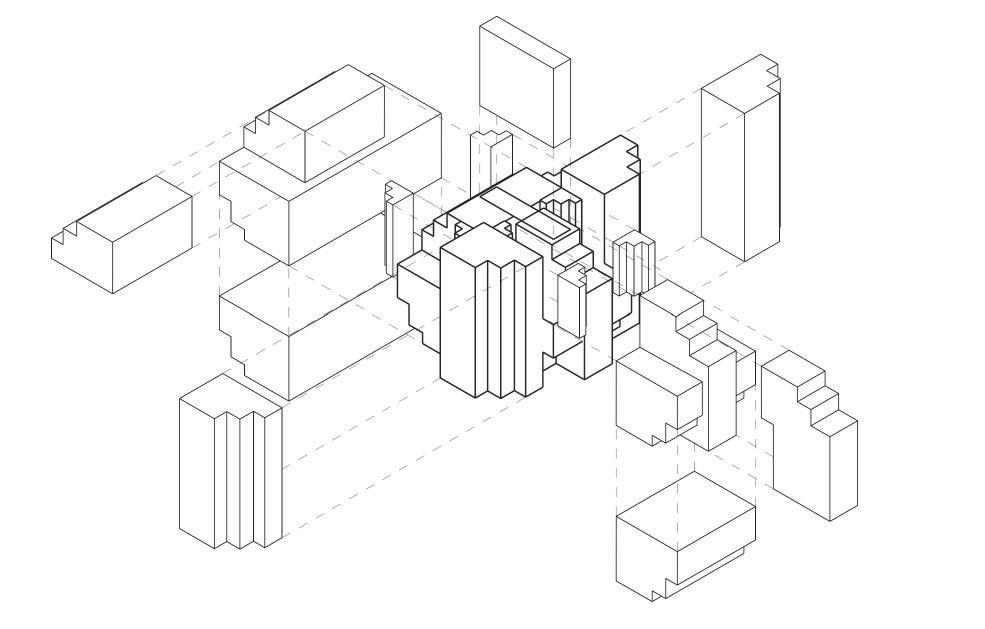

House created by expirementing with pre-existing shapes

Arch 201

01 02 04 06 07 03 05

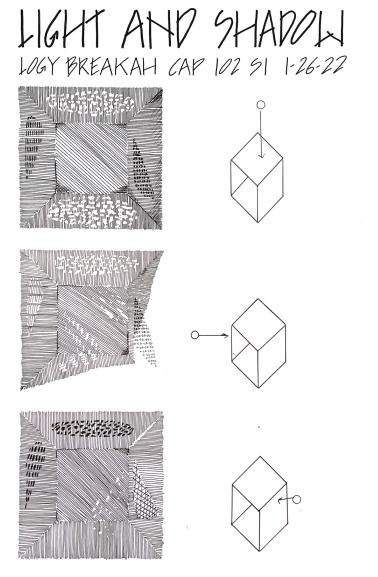

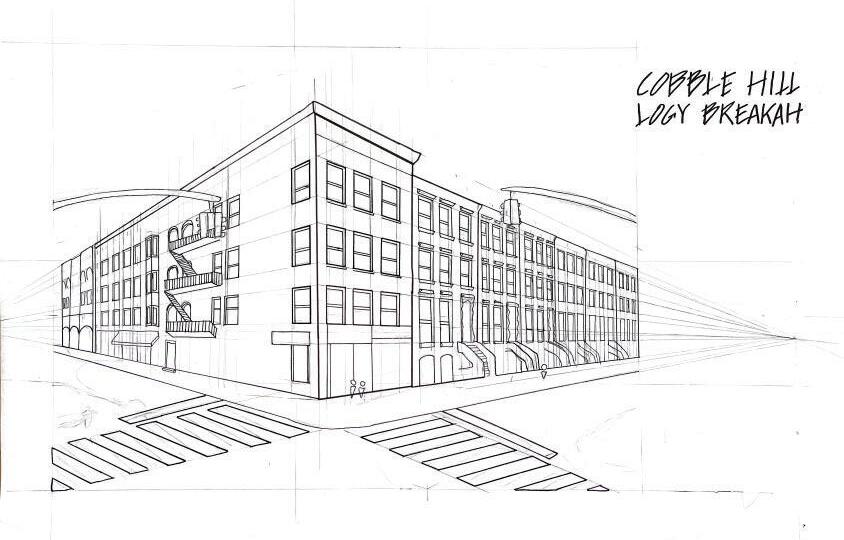

Early work

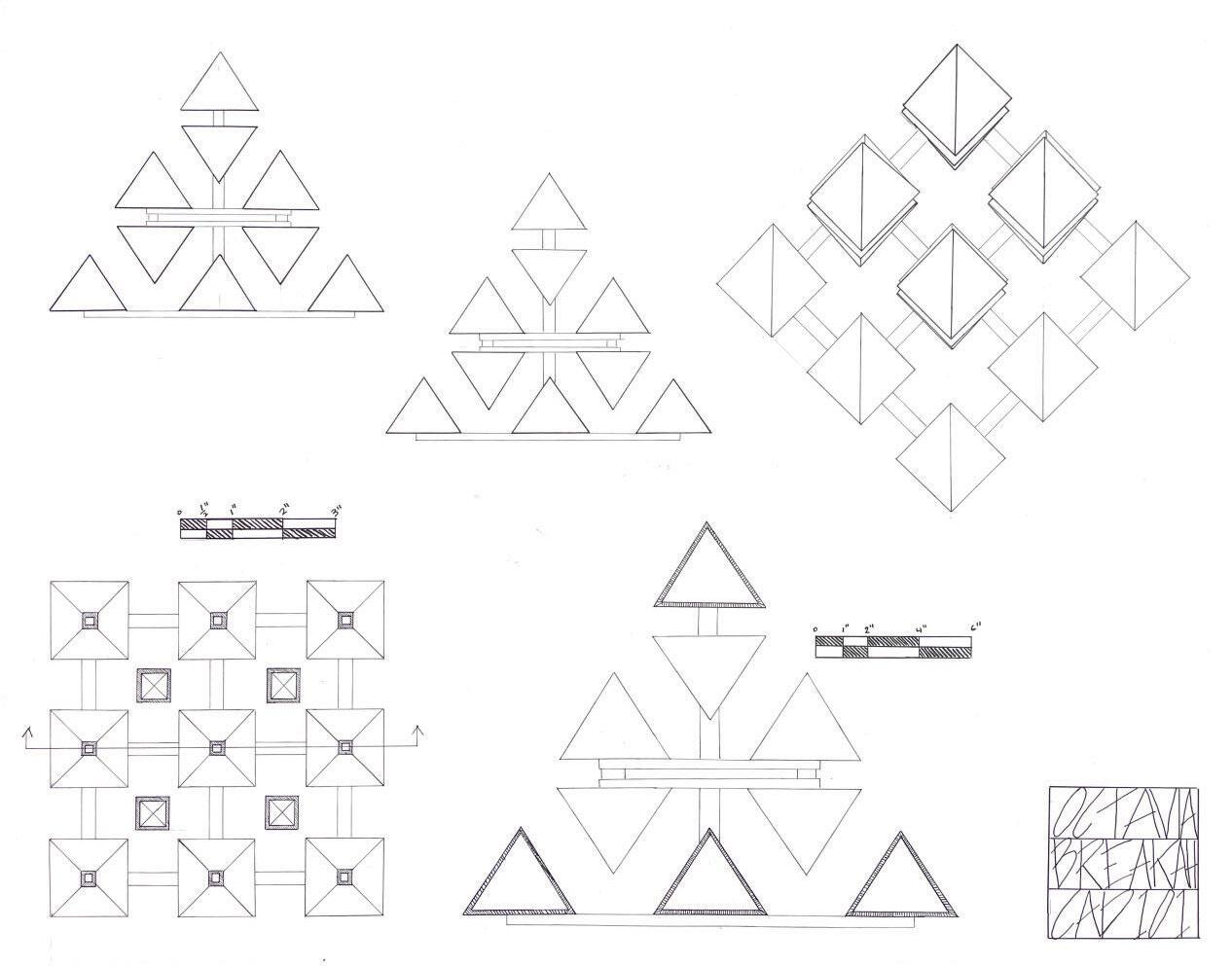

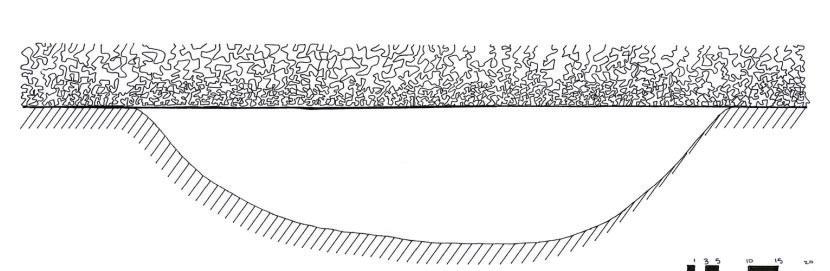

Hand drawings from First Year program

CAP 101, CAP 161, CAP 102

Contents

Contact Lojine Breakah 317-790-9861 lojine.breakah@bsu.edu LinkedIn: Lojine Breakah

Functional Latency

Arch 302 - Joshua Coggeshall - 8 weeks - MKM Student Design Competition Finalist

Latent: present but not visible, apparent, or activated; existing as potential.

ulation

Functional Latency, located west of the Fort Wayne Tin Cap stadium, was designed to allow for a diversity of programs to coexist and interact. Users have autonomy over their own spaces, from the layout of interiors to the intensity of sun shading devices. The composition of the floors and their varying ceiling heights create opportunity for expansion, growth, and flexibility. To that end, the interior layout has the capacity to be modi ed and changed in the future due to the absence of load bearing walls. The layout iteration within this representation consists of a mix of office spaces as well as civic spaces distributed across the seven stories. Office spaces are located on the second, fourth, and sixth floors with escalators spanning between. The vertical circulation allows for express connections linking such areas, while simultaneously giving users a glimpse of the interstitial spaces.

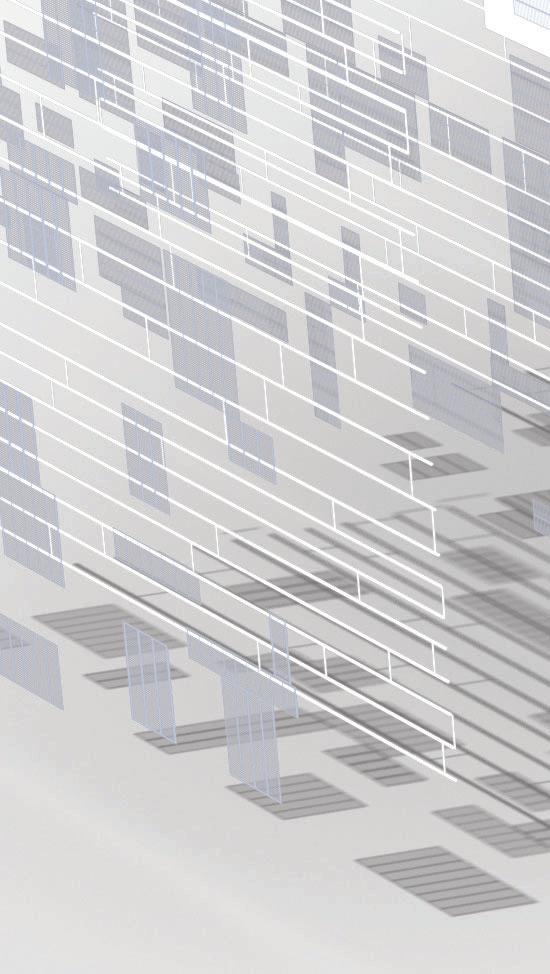

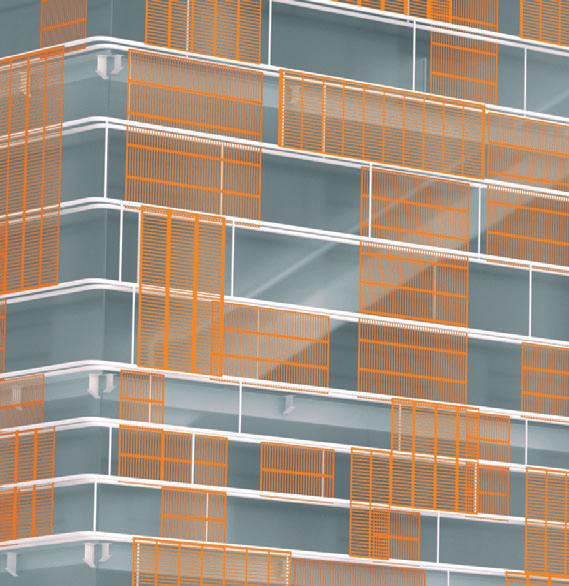

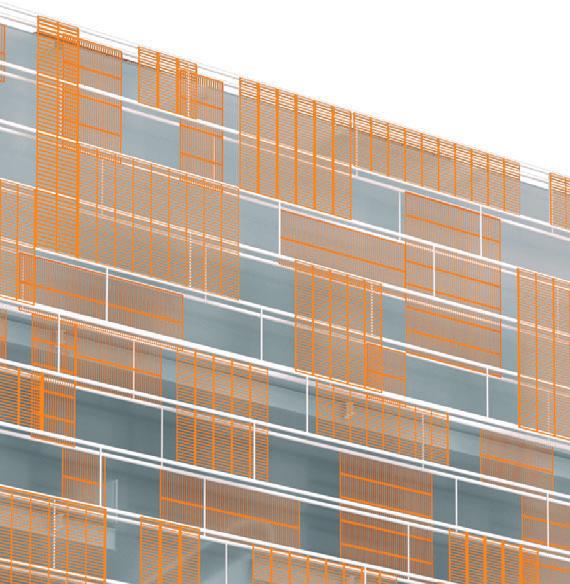

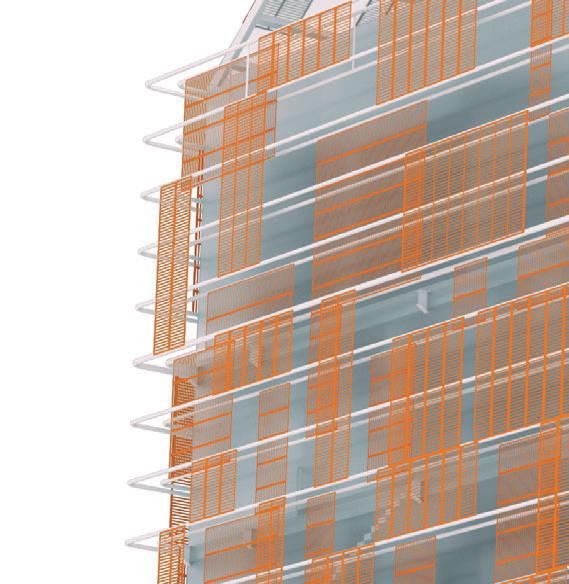

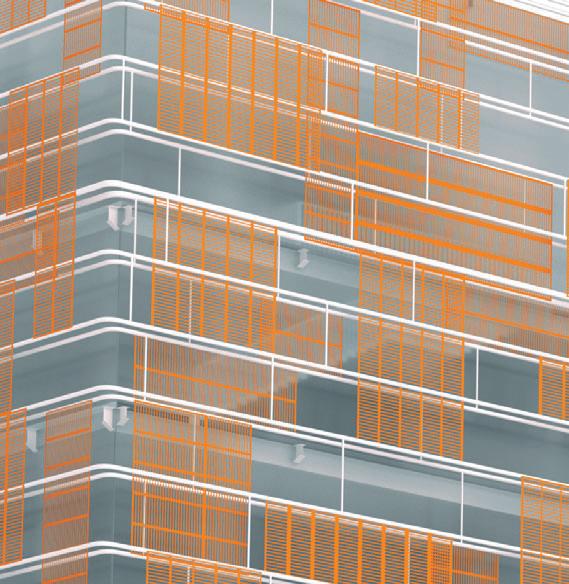

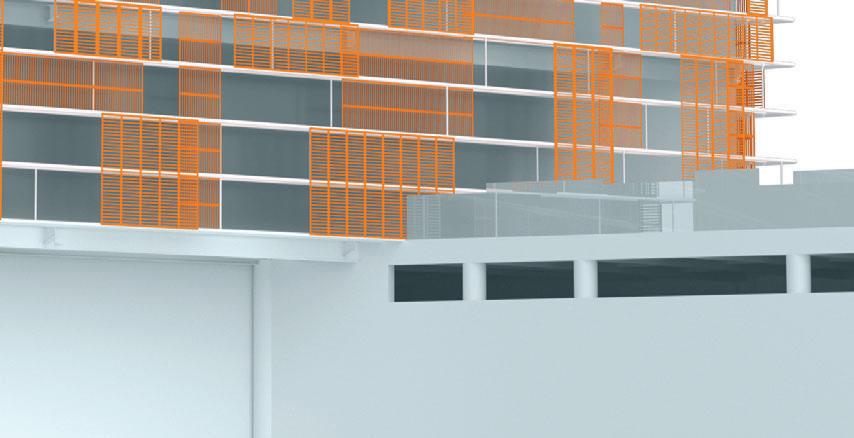

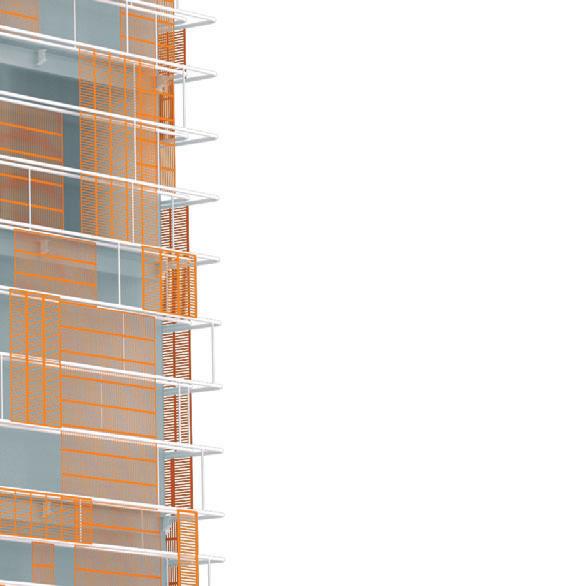

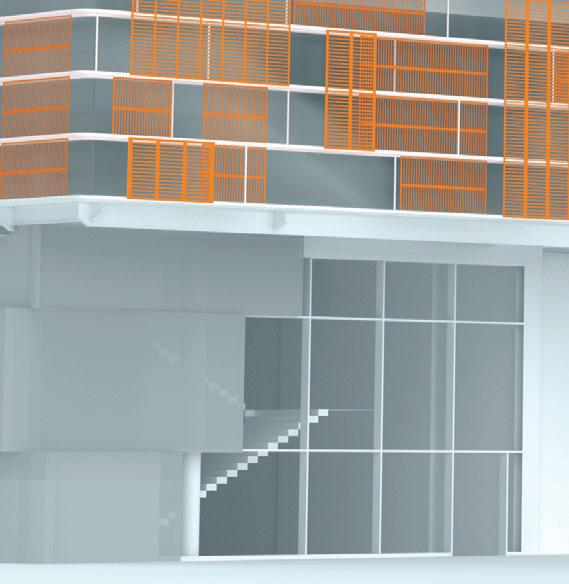

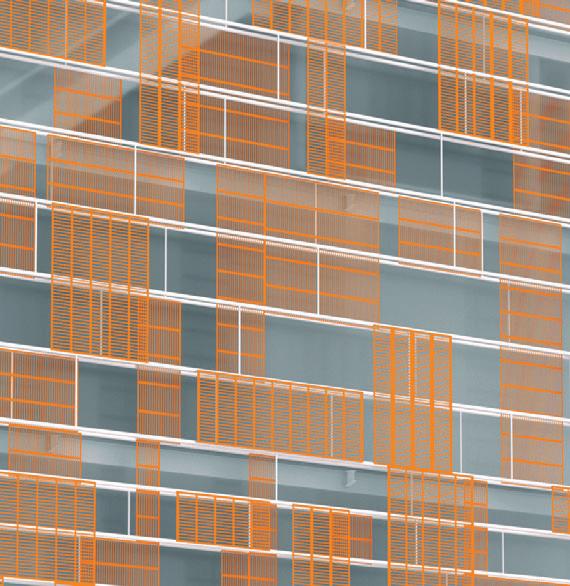

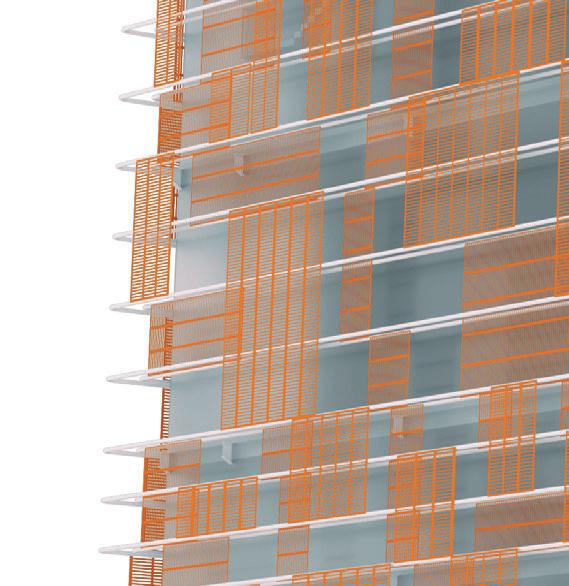

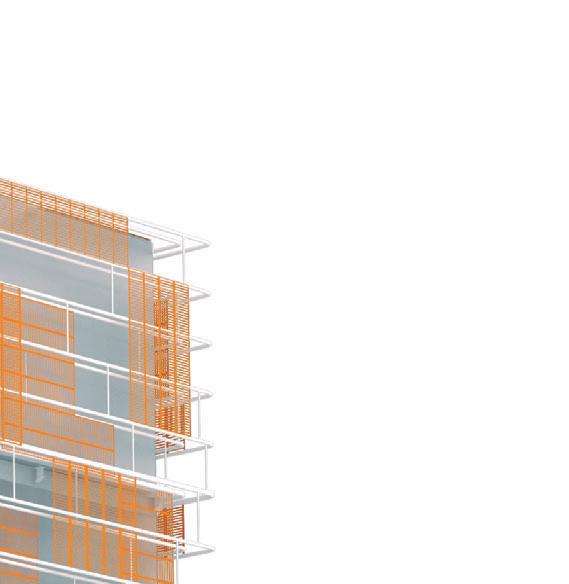

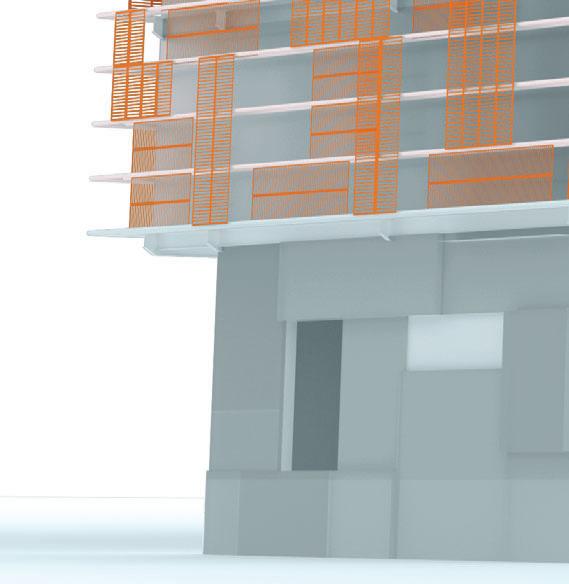

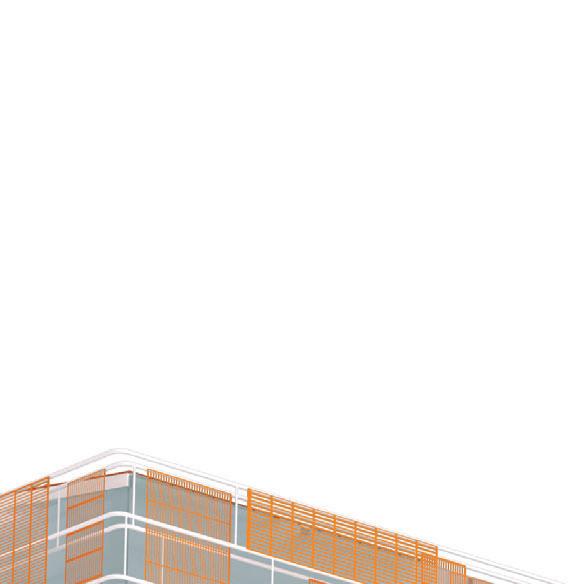

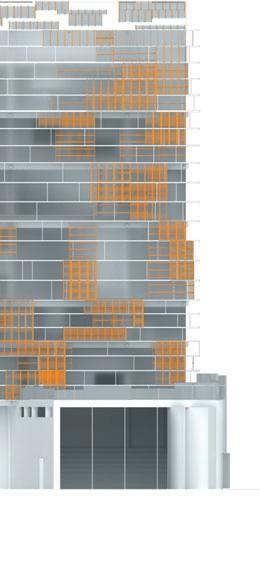

The tectonic language of the building is defined through a double skin façade that wraps around floors two through seven. Steel perforated panels sit on two layers of tracks to allow for movement, which allows for activation of spaces differently depending on user preference. The building is clad with polycarbonate glass and interior spaces are recessed from the edge of the building to allow for semi-exterior spaces. Such spaces are defined with a juxtaposition of the rectangular exterior and the rounded edges of the interior. sity of iors to create odifi ntation

rstitial rs ws for ss and ces are

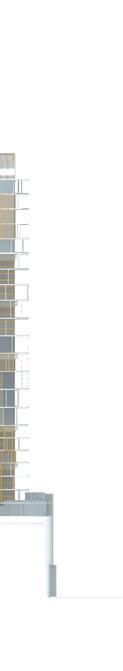

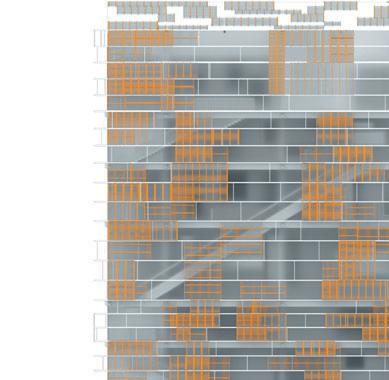

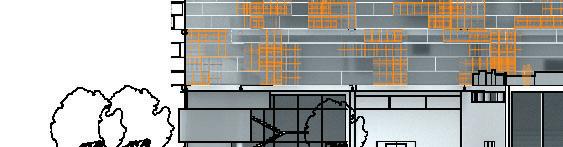

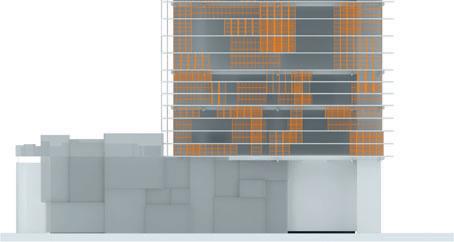

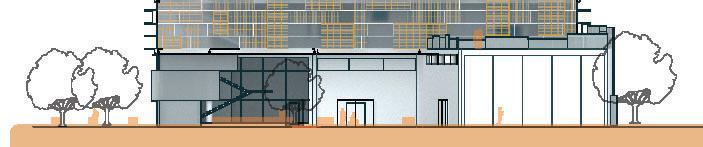

1.7 0.1 1.6 1.5 1.4 1 .4 2.1 2.1 3.1 4.1 5. 1 5. 2 5. 3 5. 6 6.1 7.1 7.2 7.3 7.3 7.4 7.5 7.6 7. 6 7.1 6.2 6.2 5.7 5 .8 5 .8 5. 5 5. 4 5. 2 4.1 4.2 3 .2 3.3 3.3 2. 2 1.3 1.1 1. 2 1.1 nutrition education area 300 sqft 1.2 market | 2500 sqft 1.3 lobby | 1000 sqft 1.4 restrooms | 200 sqft ea 1.5 auditorium breakout space 400 sqft 1.6 loading unloading and storage | 800 sqft 1.7 auditorium 3500 sqft 2.1 restrooms 110 sqft ea 2.2 office space | 4900 sqft 3.1 kitchen | 1000 sqft 3.2 restaurant | 2300 sqft 3.3 restrooms | 100 sqft ea 4.1 restroom 200 sqft ea 4.2 office space 4300 sqft 5.1 storage | 250 sqft 5.2 therapy rooms |130 sqft 5.3 admins office | 100 sqft 5.4 health center lobby 220 sqft 5.5 group therapy | 360sqft 5.6 restroom | 60 sqft 5.7 free weights gym 3000 sqft 5.8 locker rooms | 450 sqft ea 6.1 office space | 4521 sqft 6.2 restroom 165 sqft ea 7.1 locker room | 250 sqft ea 7.2 admin / storage 500 sqft 7.3 exercise room | 410 sqft ea 7.4 event space 1350 sqft 7.5 kitchen | 250 sqft 7.6 restroom 70 sqft ea 0.1 Mechanical room 500 sqft 0. Basement Ground Floor 1. Second Floor Third Floor 2. 3. Fourth Floor Fifth Floor Sixth Floor Seventh Floor 4. 5. 6. 7. Floor PlansElevations/Kinetics Diagram

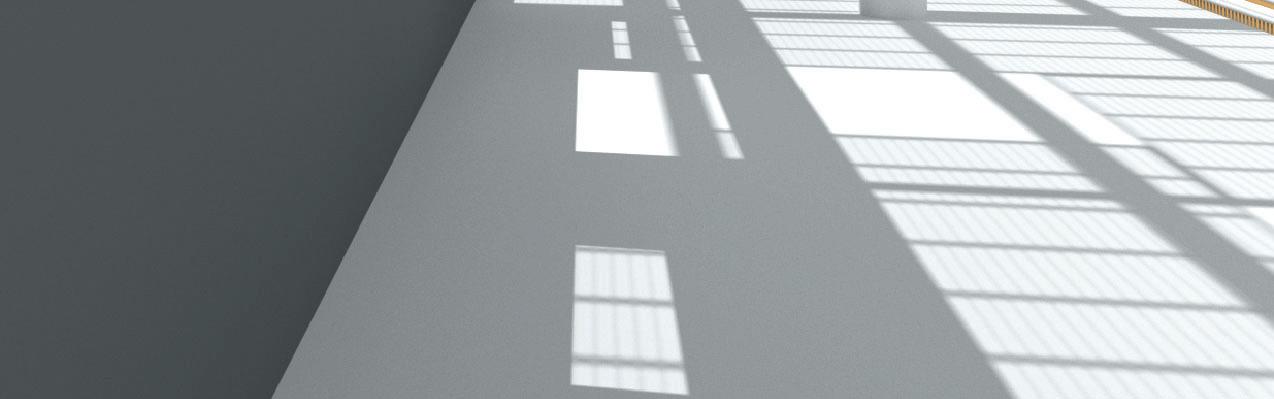

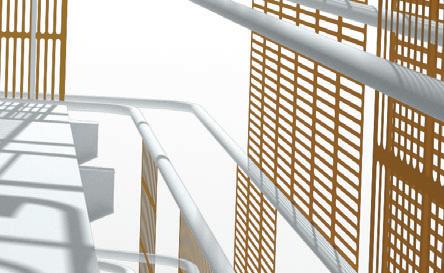

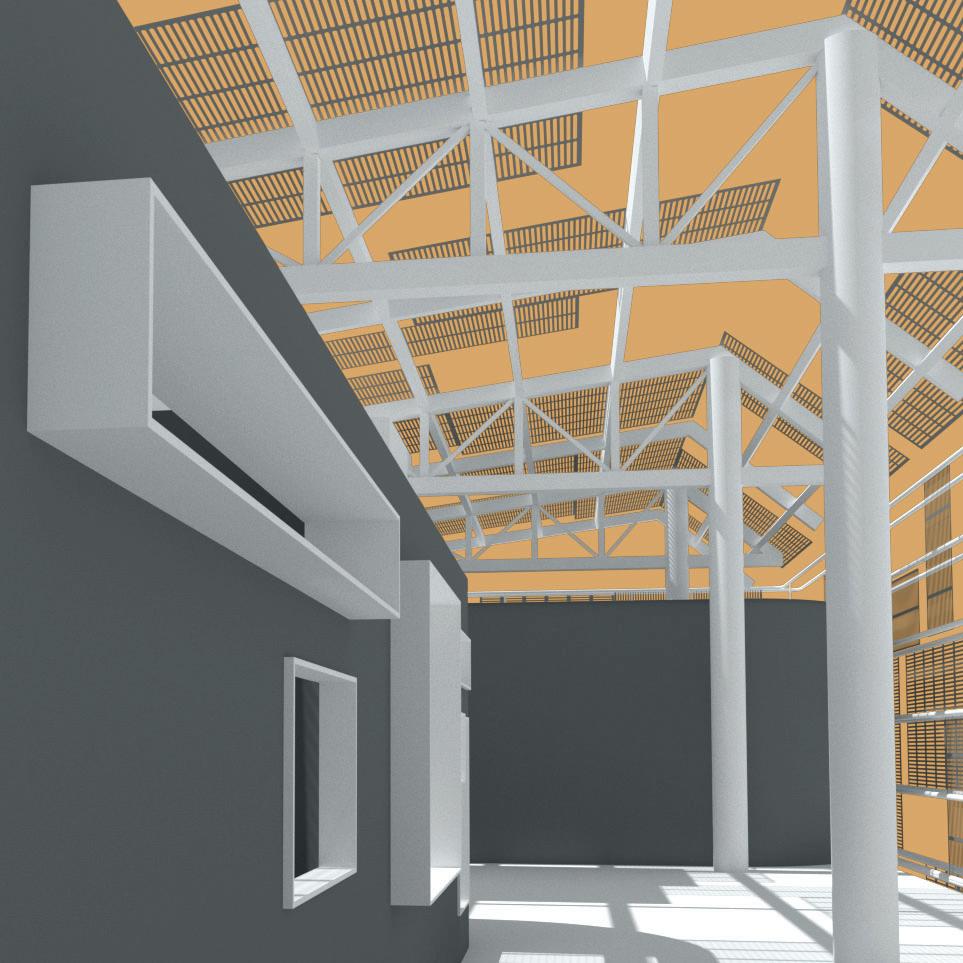

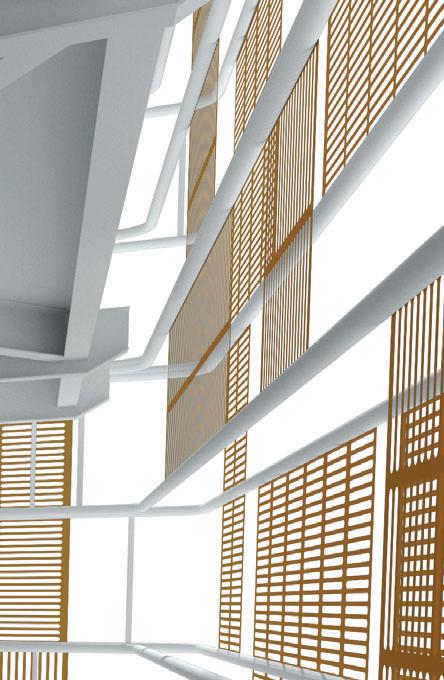

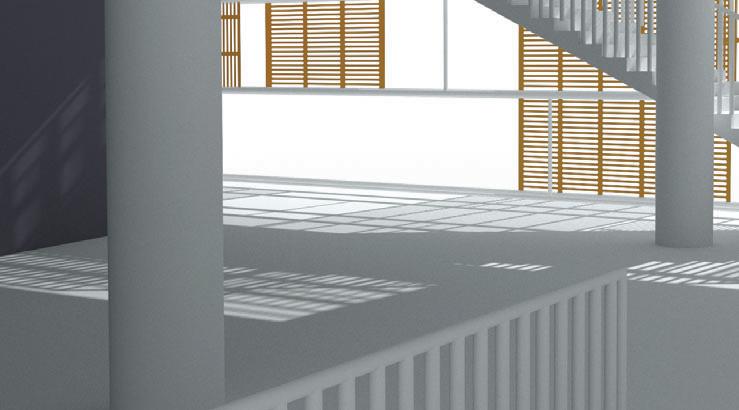

Interior Render 1

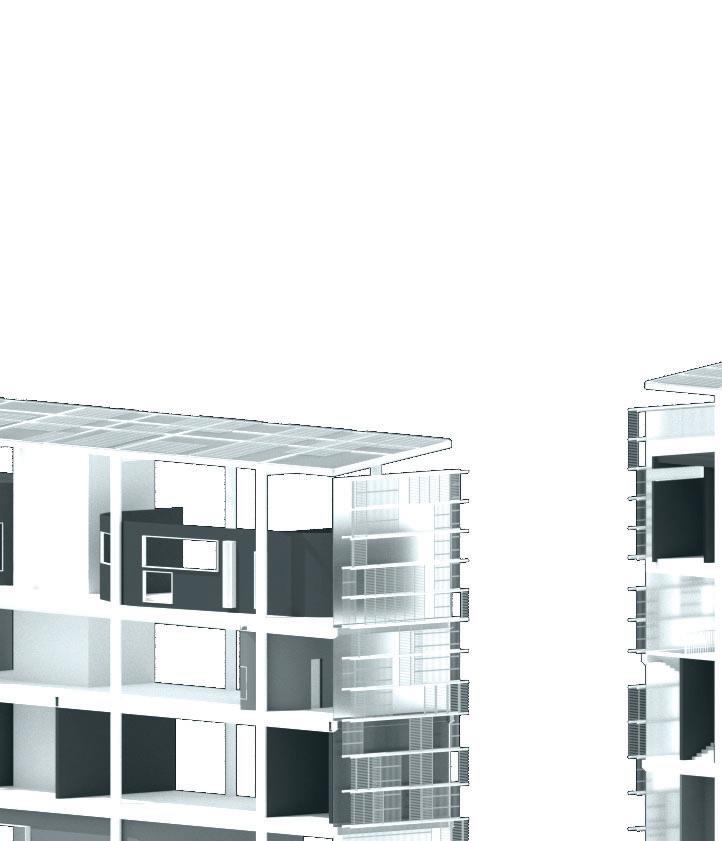

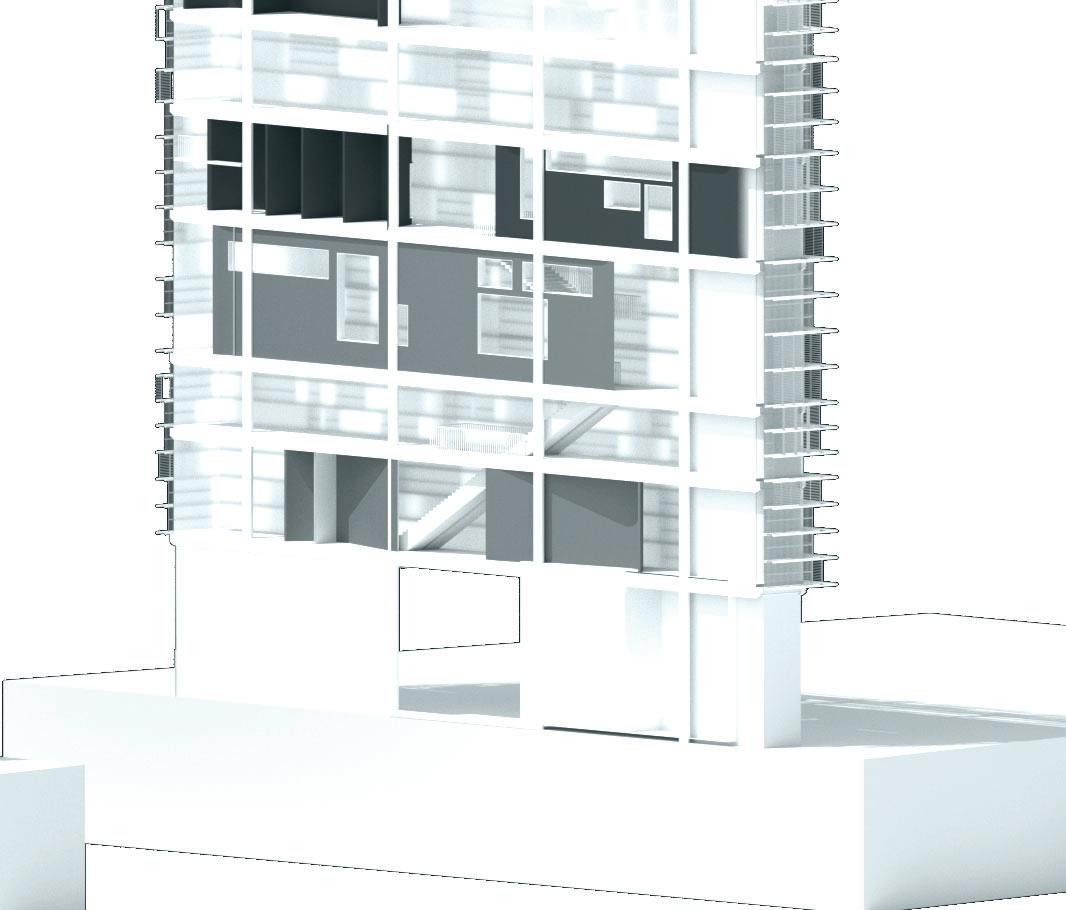

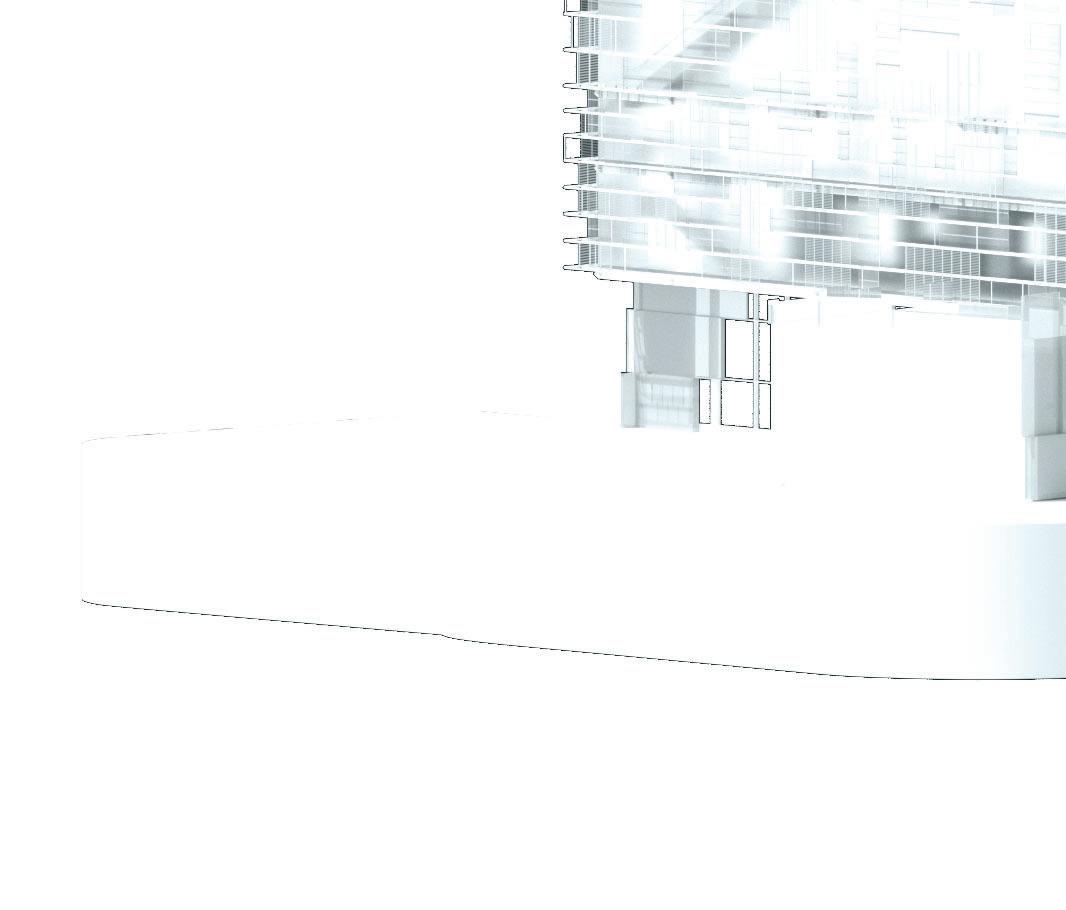

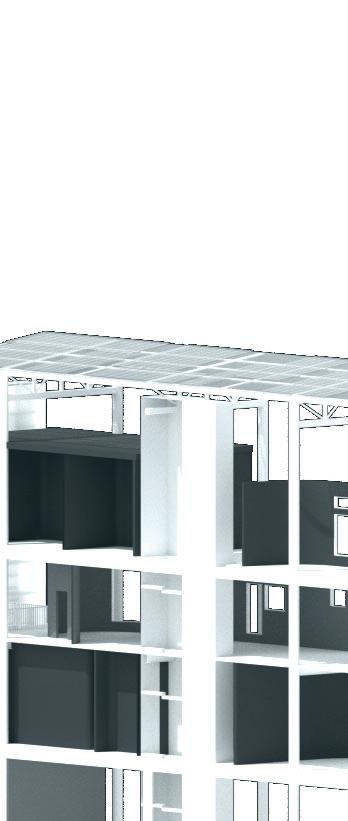

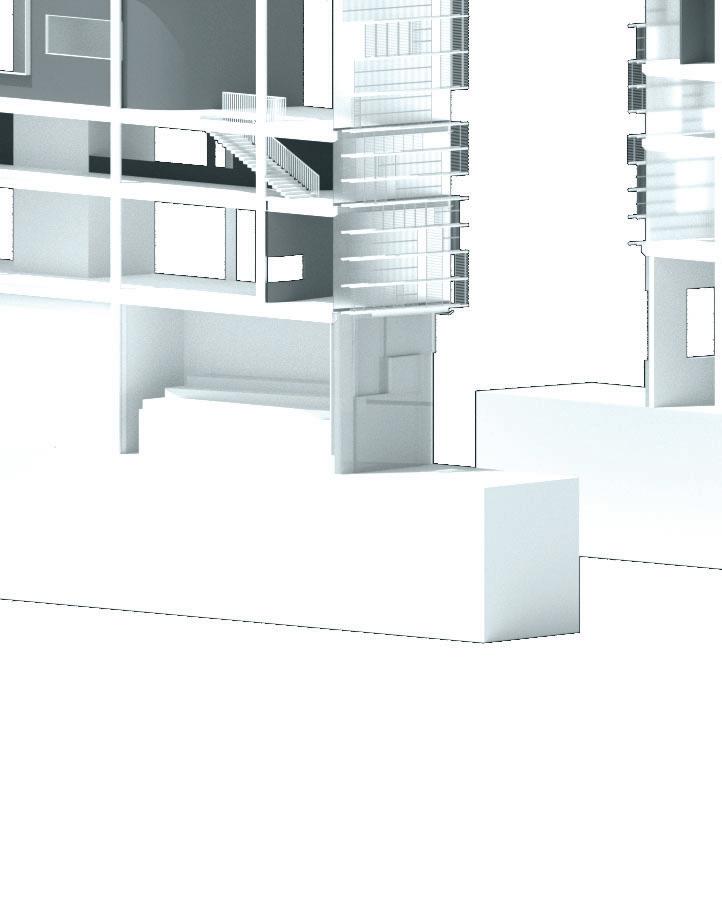

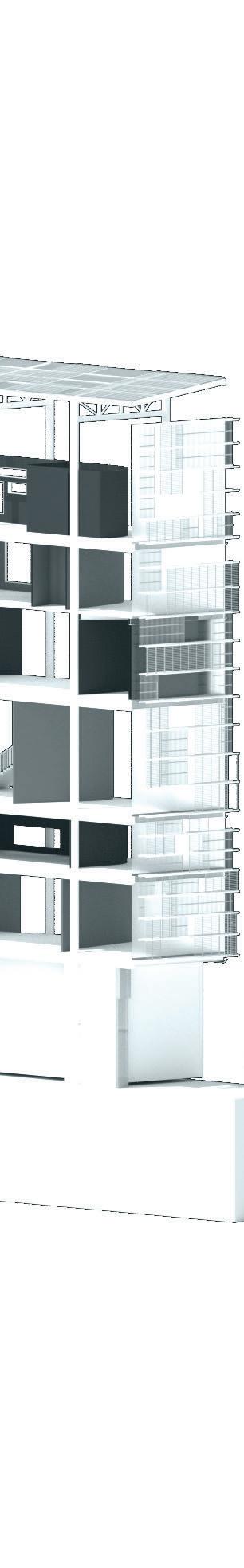

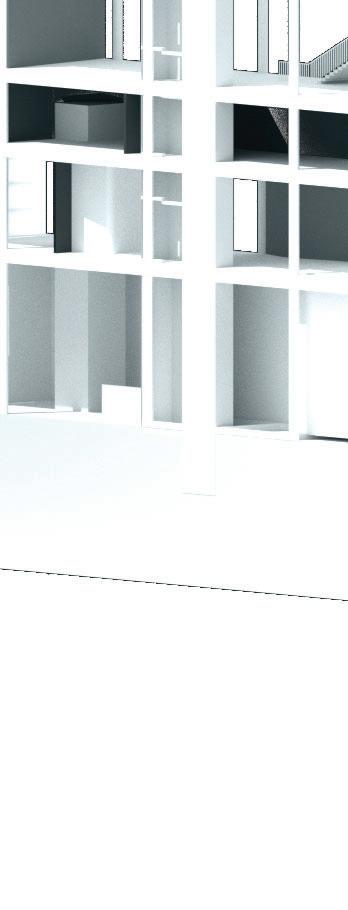

Section

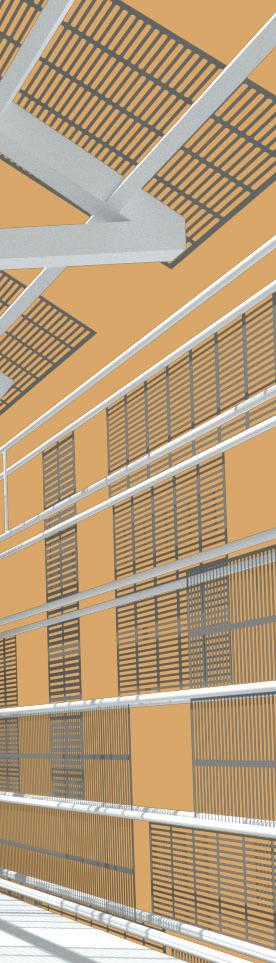

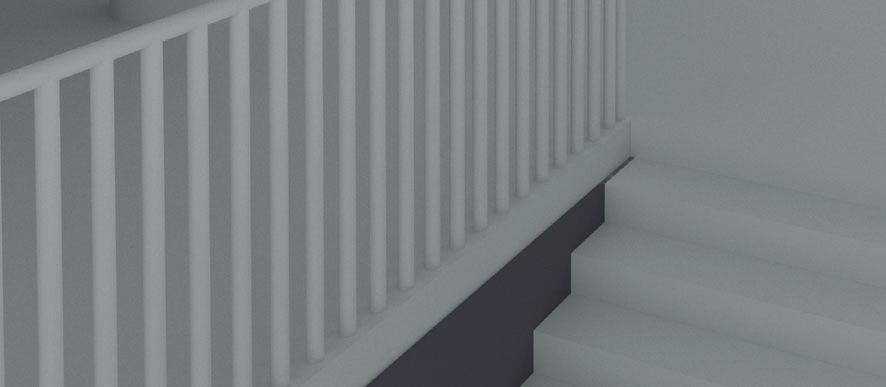

Interior Render 2

Track

Wheel

Rigid Plate Connector

Bolt

Steel Panels

Steel Detail

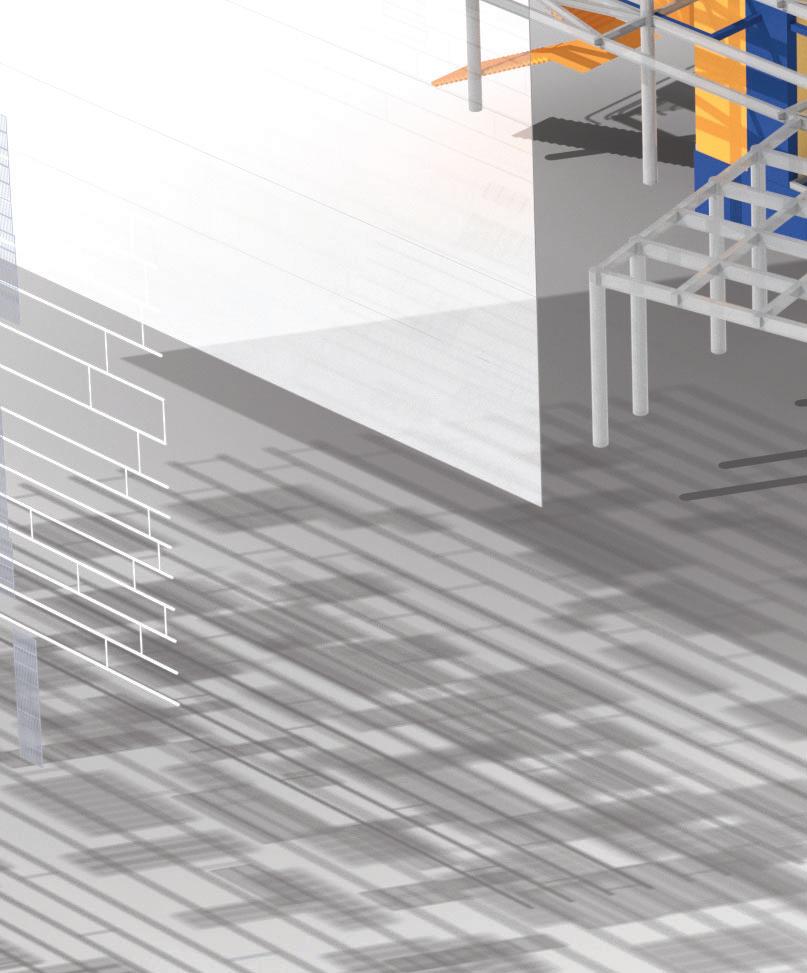

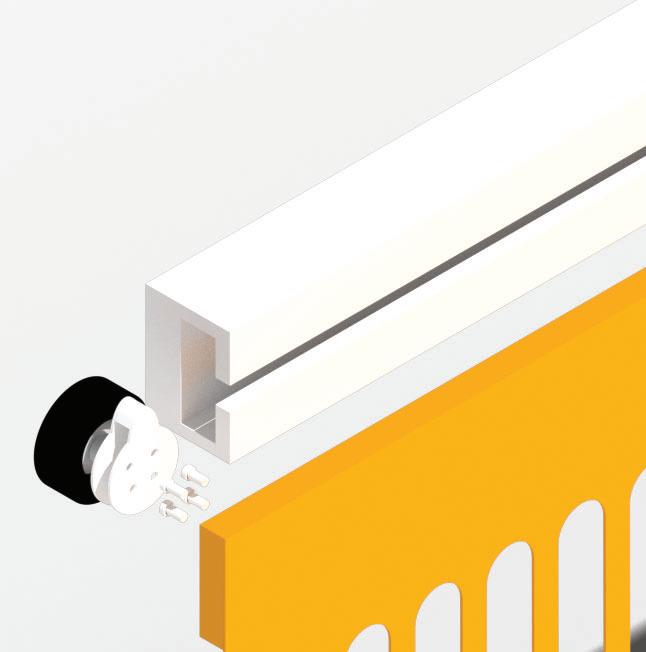

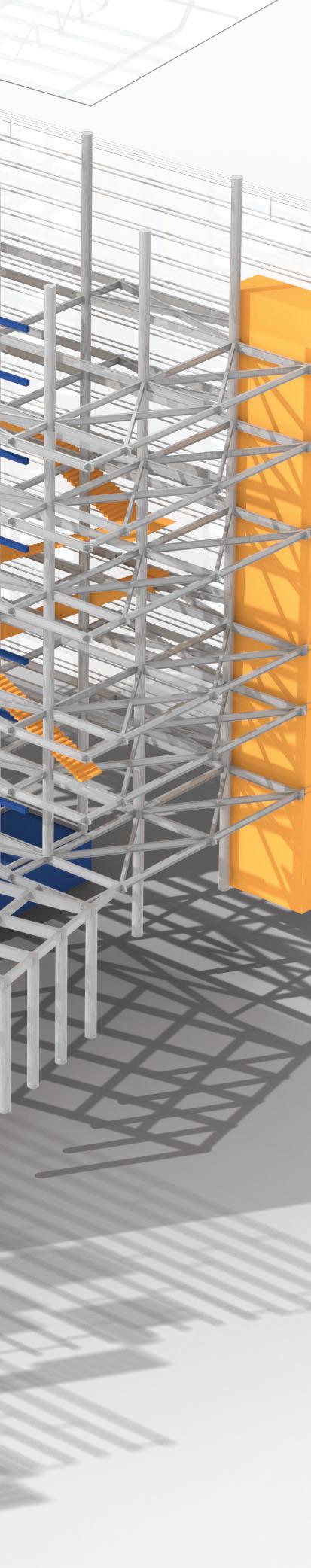

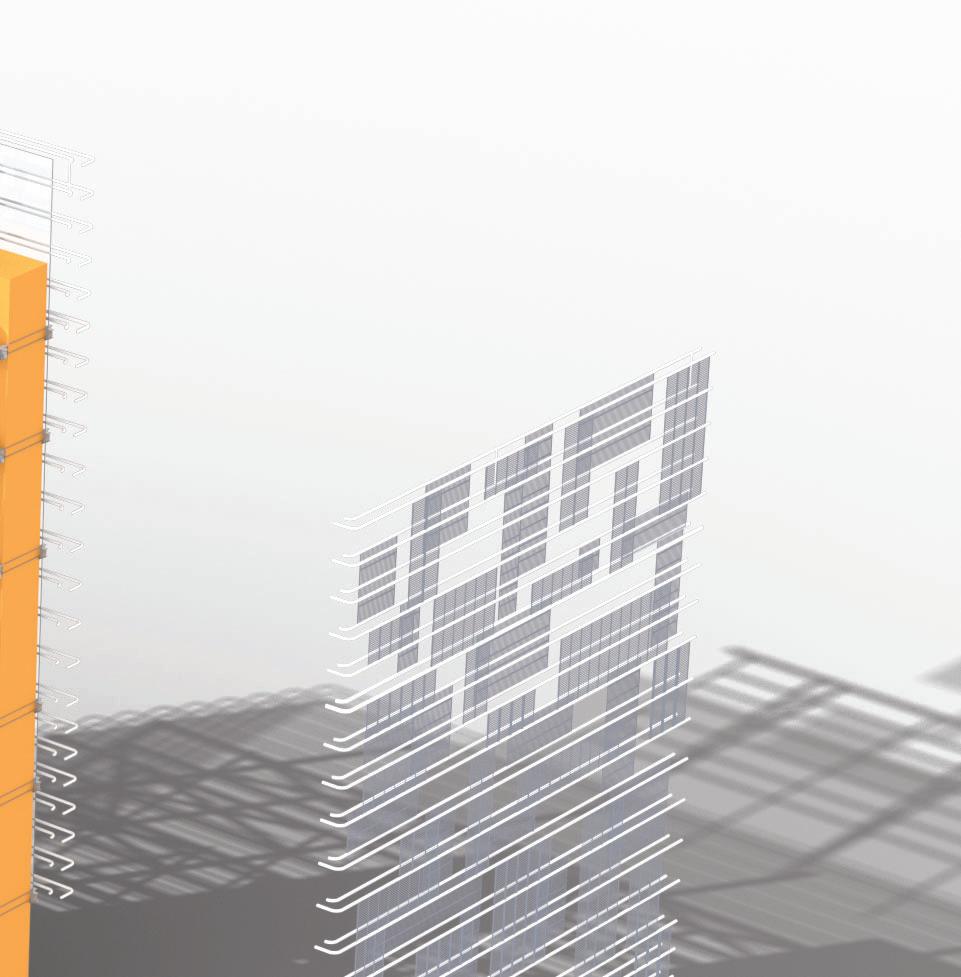

Steel Exploded Axon

Muncie Community Center

Arch 301 - Eric Kutche - 5 weeks

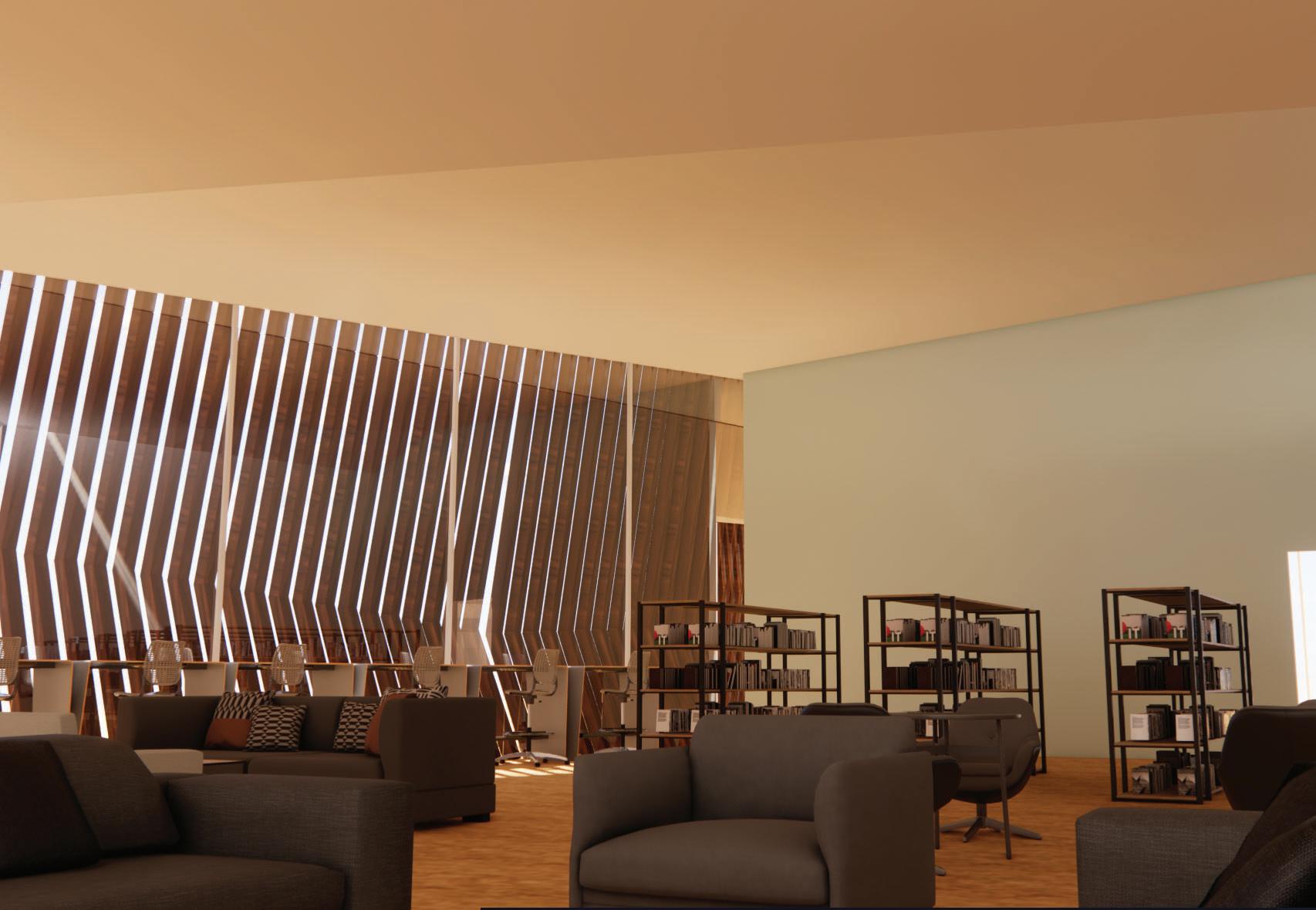

The Muncie community center focuses on spaces that allow for community engagement, growth and educa Center targets underprivileged member of the community by providing them with opportunities that they may o not be introduced to. Through education, the center works to ensure people learn the lifelong skills that they survive in today’s world. They are also presented with spaces where they can practice those skills and grow w communities, from community gardens to job counseling areas. The center also collaborates with the nearby hig and offers spaces for students to enhance their skills and learn things they may not be introduced to in early e The layout of the building focuses on offering ideal views for all spaces throughout, the building façade works spaces that are on the west and east façade. The façade is made out of glue laminated wood that is locally sou roof structure is equipped with skylights that are meant to open during summer time to offer cross ventilation a the quality of the light coming into the space.

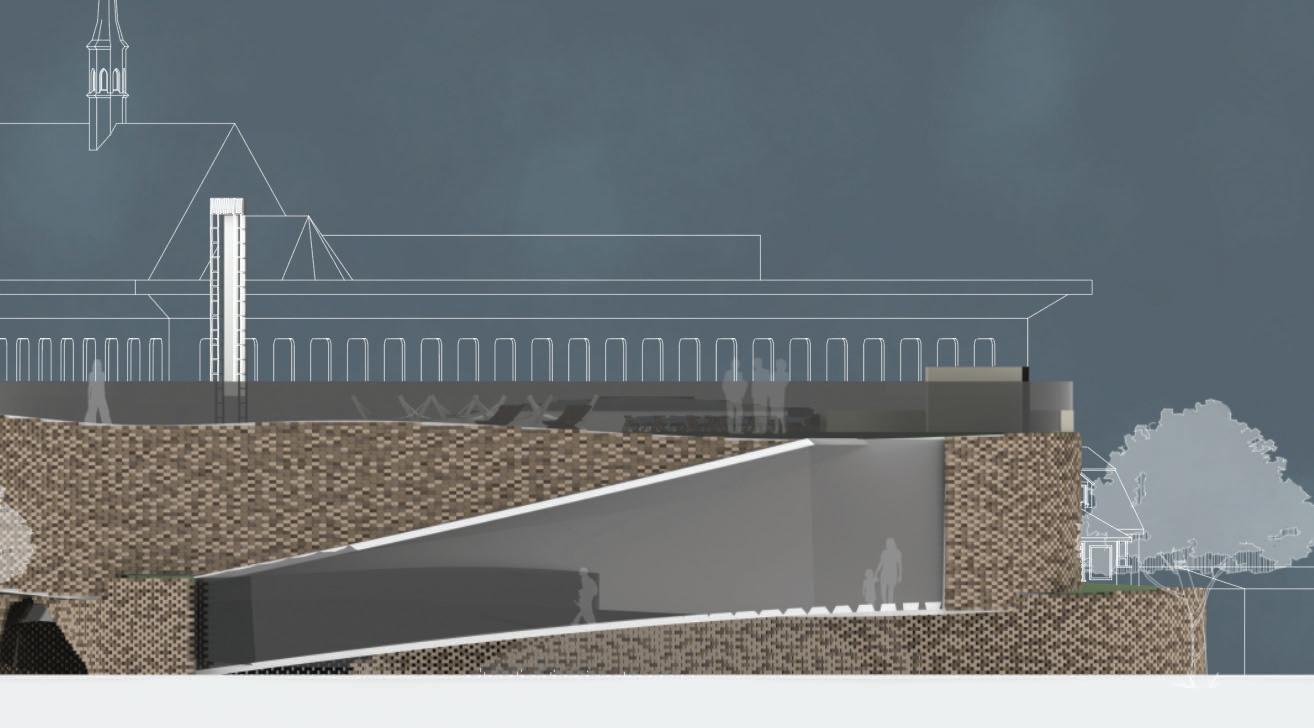

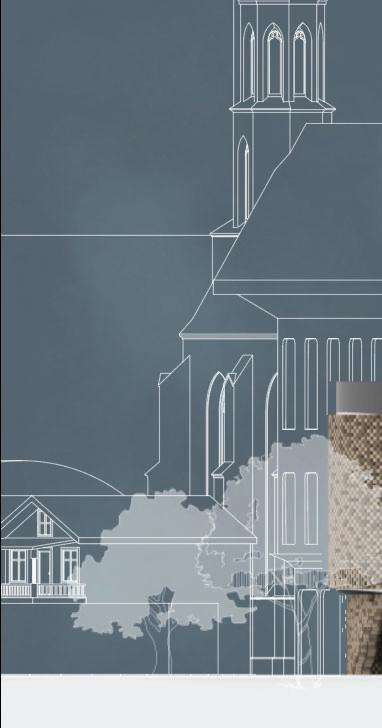

West Elevation

ation. The otherwise y need to ithin their gh school ducation. to shade urced, the nd add to

051525 1/16”=1’-0” 50

1.meeting rooms

2.office

3.food pantry rapid pick up

4.food pantry

5.cafe

6.elevators

7.bathroom

8.storage

9.nutrition education center

10.walk in fridge

11.walk in freezer

12.pantry / supply room

13.elecrical room

14.fire stairs

15.gym

16.private workout room

17.yoga room

18.lockerroom

19.resource center

20.t-com room

21.job counceling

22.reception

23.childcare

24.computer lab

25.art studio

26.community market

27.classroom

28.private study rooms

29.multi-use space

30.therapy waiting area

31.group therapy

32.counceling rooms

33.quiet meditation rooms

34.mechanical rooms

35.elevatorrooms

First floor Second floor Basement 051525 1/32”=1’-0” 50

1 2 3 4 5 9 10 12 13 13 13 34 35 35 8 14 14 14 15 16 17 17 18 18 19 20 21 22 23 24 25 27 2828 30 32 33 32 31 31 29 28 26 20 14 11 7 7 7 7 77 8 8 6 6 6 2222 1 1 mullions angle anchors structural glass firestop poured in place concrete floor metal decking vapor retarder wide flange steel beam wall to ﬂoor detail

New Oﬃce Building

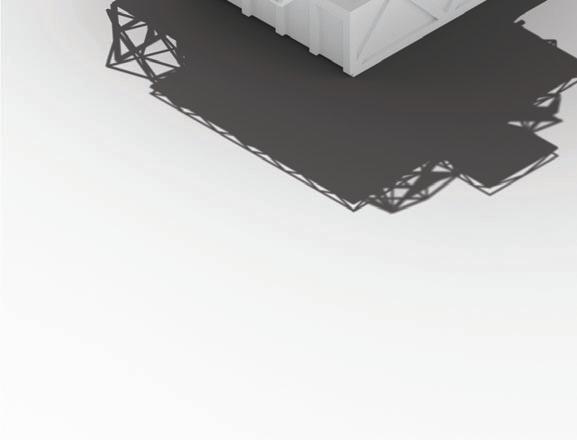

For this project we were tasked with creating new idea for an Office building in downtown Indianapolis. The challenge was to create a latent design with a focus on an exoskeleton to allow for a column free space. The layout of this building was created by arranging three different office space heights: 13’-6”, 16’-6”, 23’-0”, with the goal to create outdoor spaces to be used by anyone around the offices. A diagrid was used to create the structure, as the building was inspired by the Urban Folly by NADAA, the building was then clad with the goal to create a sense of randomness and different shadows within each space, create a truly unique experience in each office area.

A B C D D E 01 02 03 04 05 06 07 09 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 FIRSTFLOOR_+0' SECONDFLOOR_+14' THIRDFLOOR_+36' FOURTHFLOOR_+48' FIFTHFLOOR_+0'

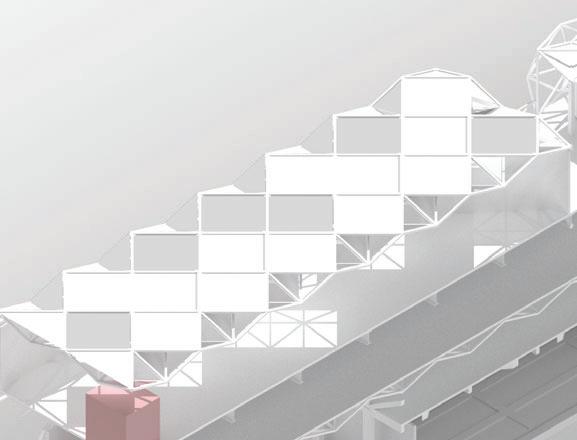

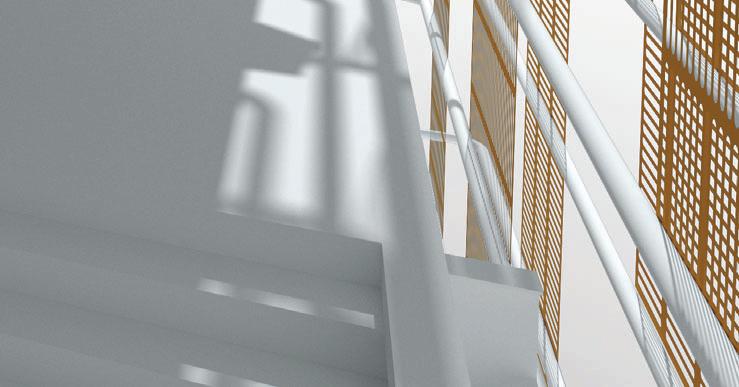

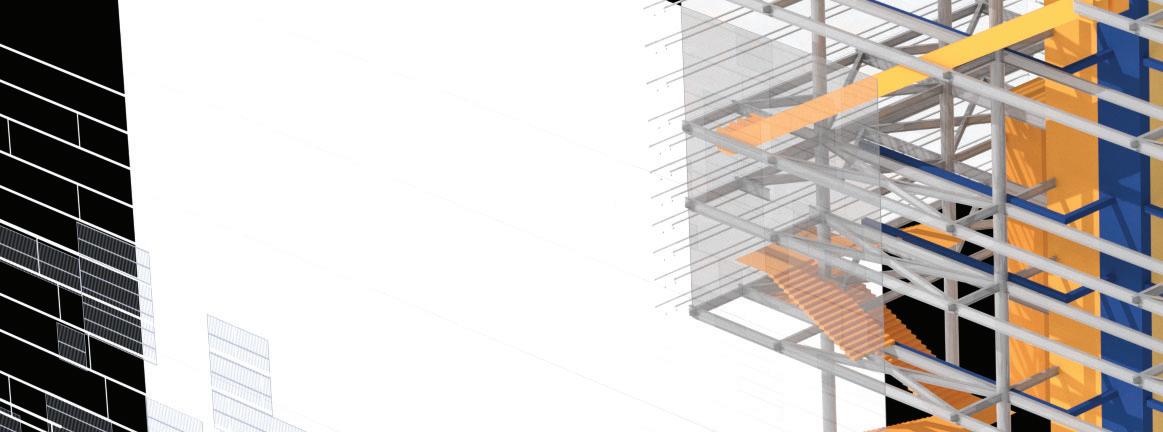

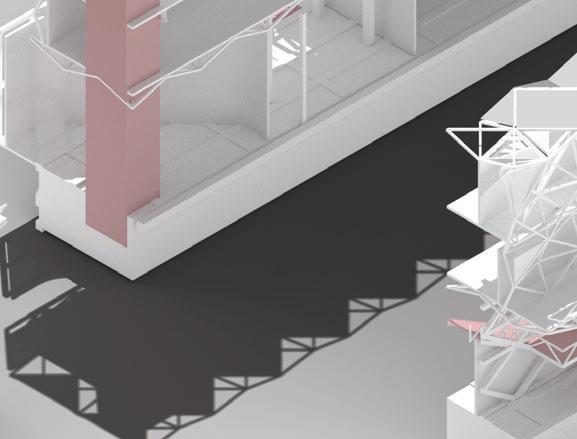

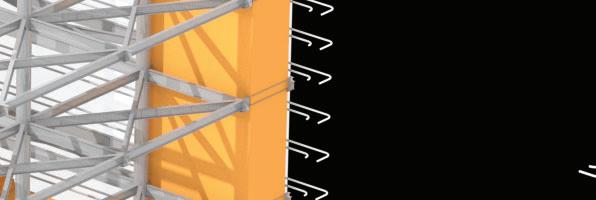

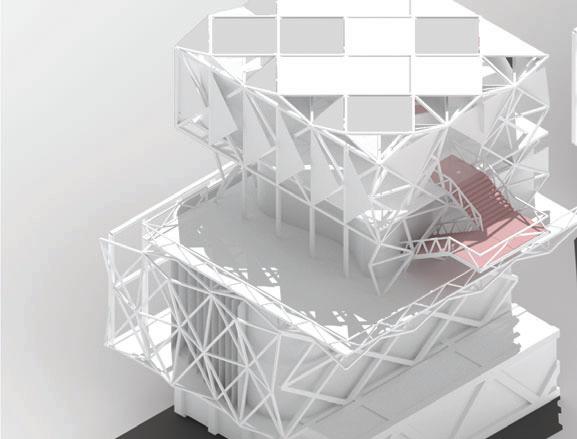

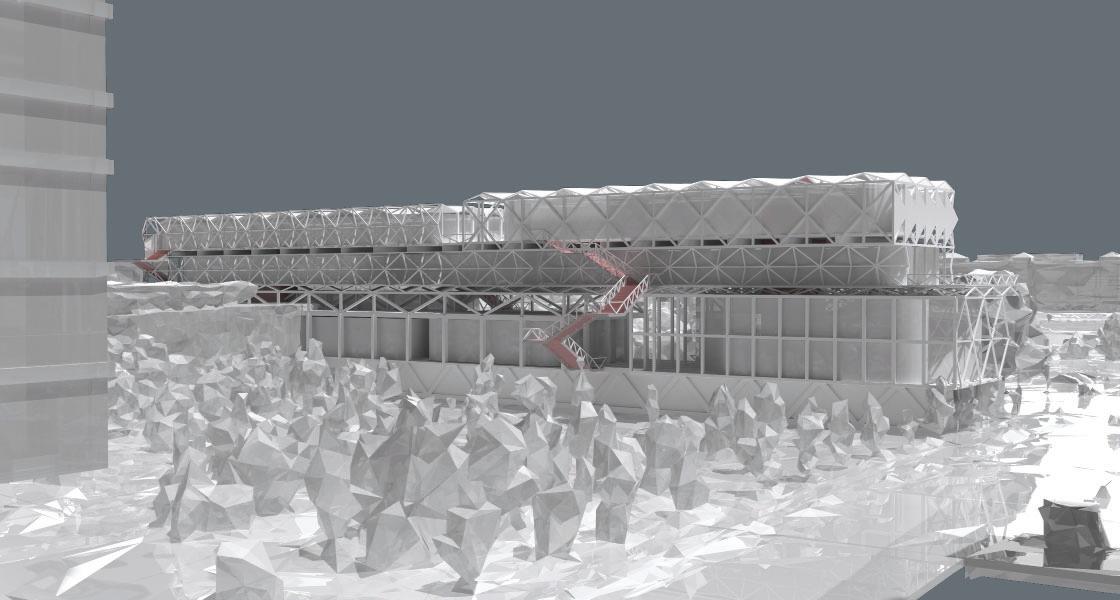

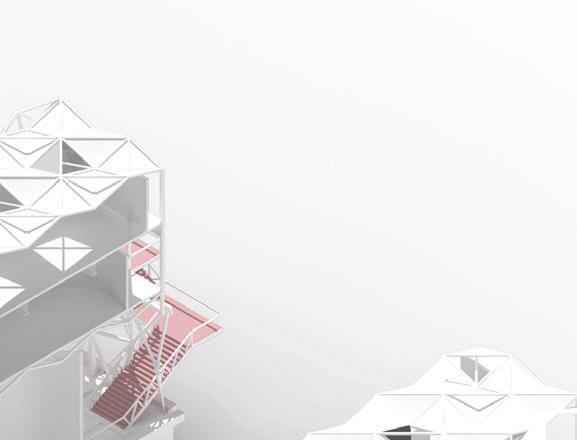

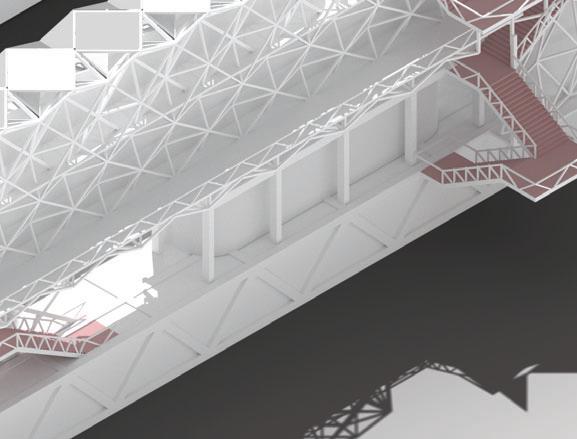

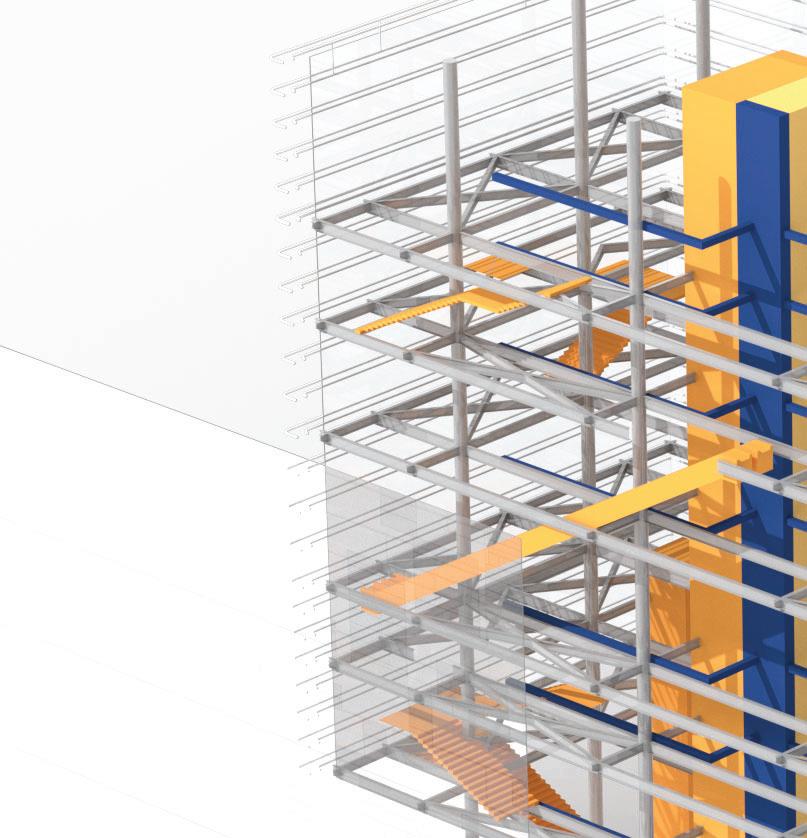

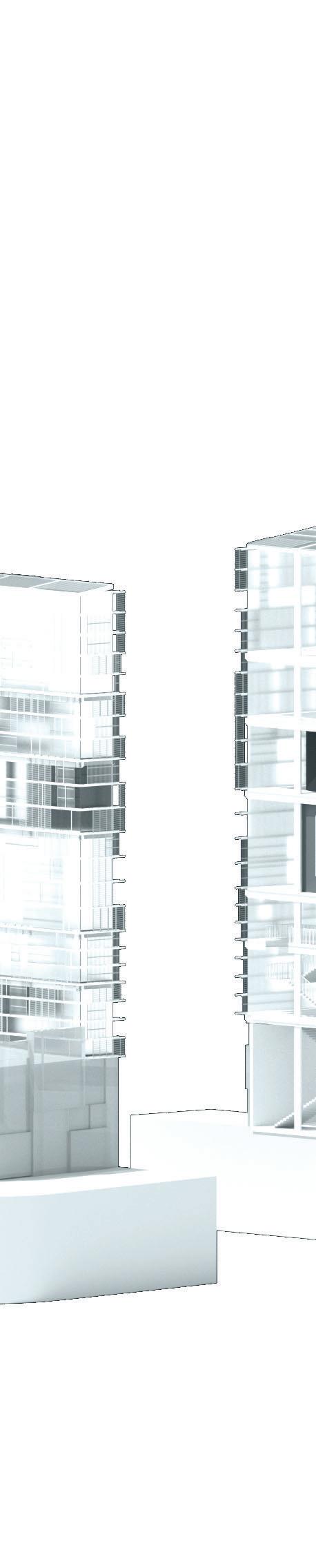

Exterior render of north facade Axonometric section Detail of stair Arch 302 - Joshua Coggeshall - 6 weeks

G F E

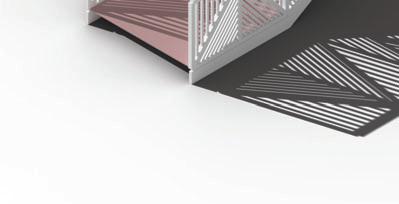

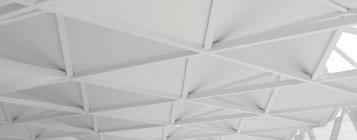

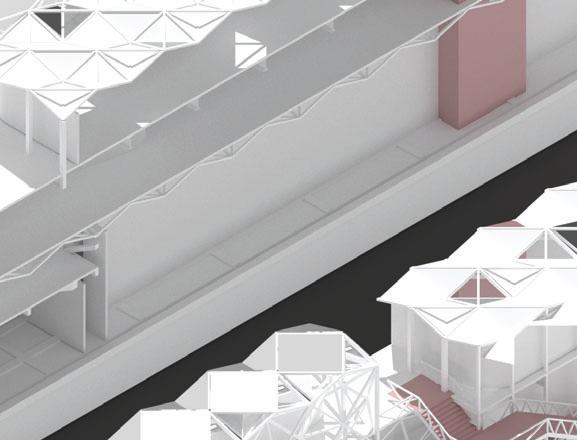

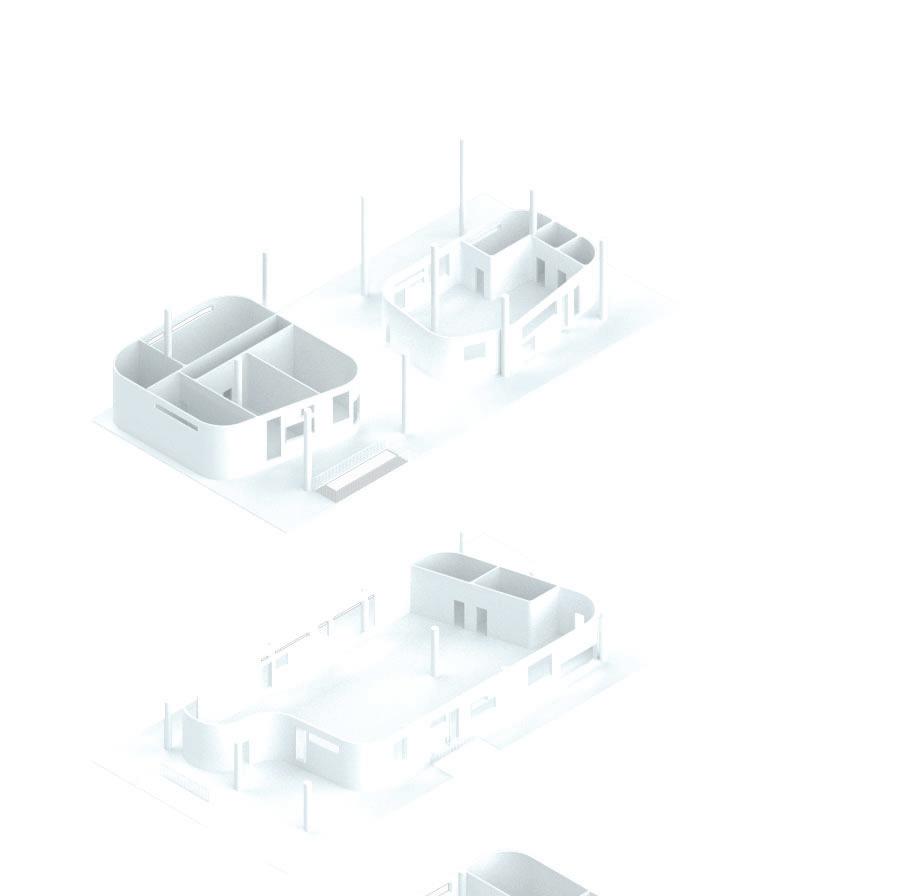

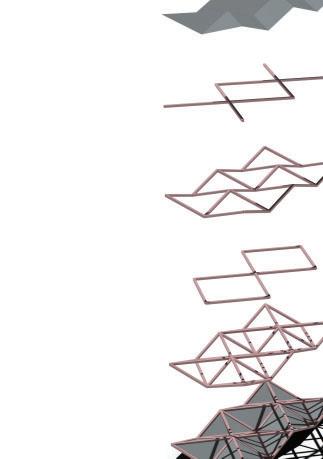

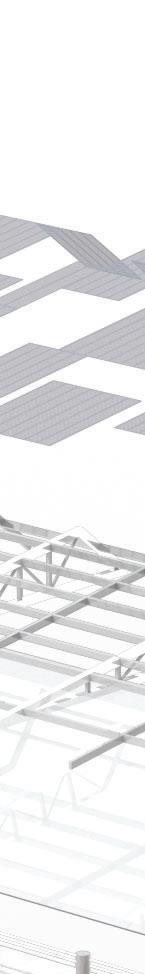

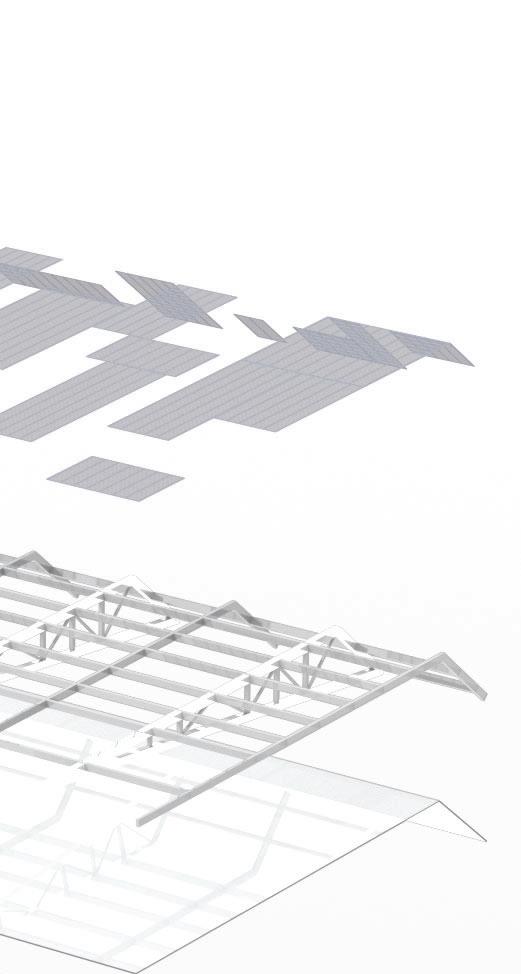

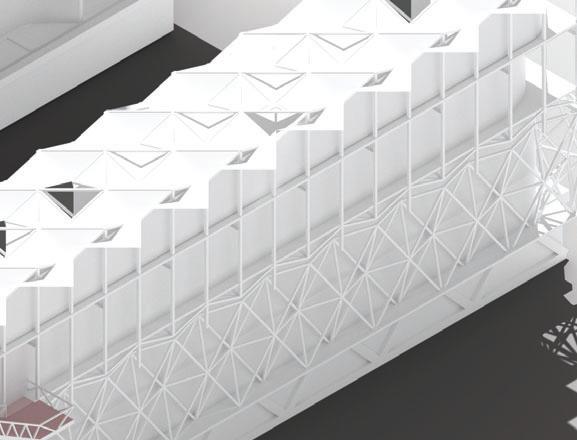

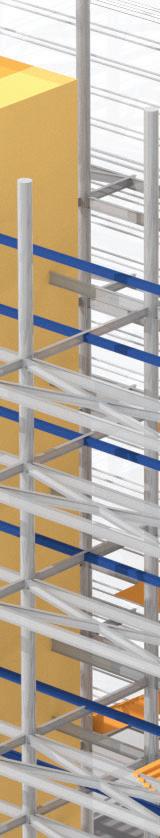

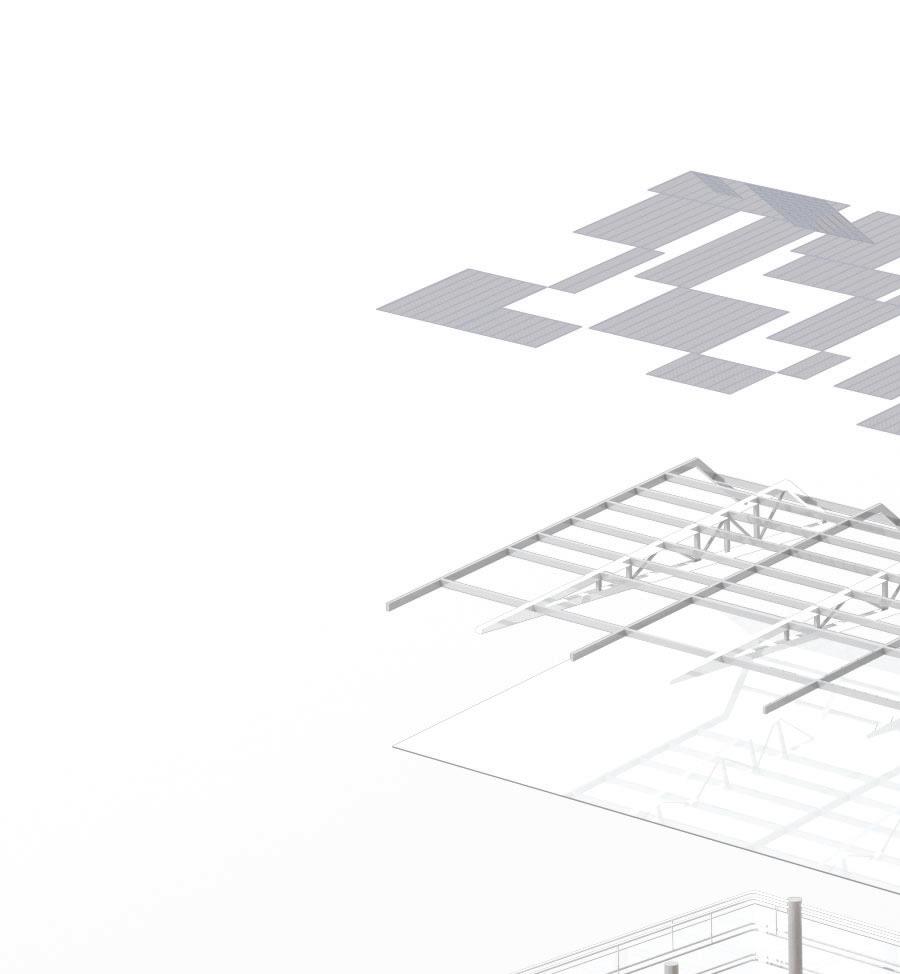

Corners were ﬁlleted to create unique interior wall conditions Stairs caniliver out of the building to follow the language represented thoughout the design Expolded axon of roof structure Interior render

Perforated Film

Arch 202 - Adriana Elser- 6 weeks

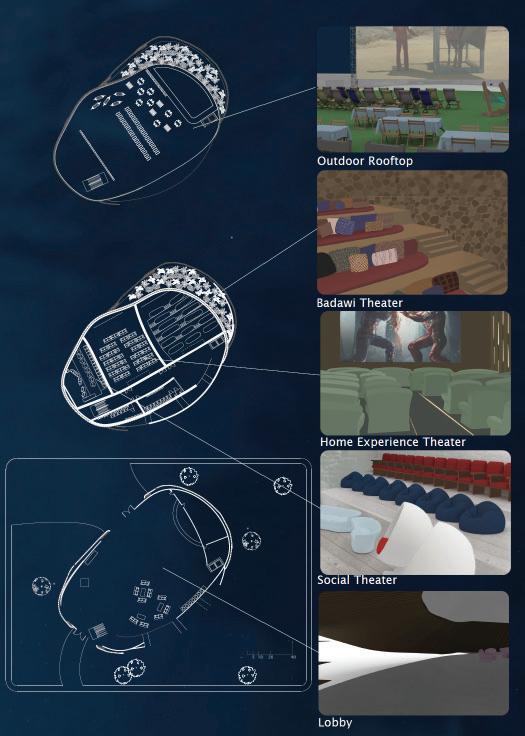

The Perforated Film Center aims to create a memorable experience that cannot be replicated at home. The first floor offers an open space with community activities, ranging from stop motion film creating to a fully stocked snack bar offering all the movie watching essentials. The second floor is where three movie theaters are located, each with their own unique viewing conditions. Guests are first met with the Badawi theater, where users can experience a cozy Arabian nights experience while drama and romance movies. The Home Experience movie theater is furnished with sofas creating perfect conditions to catch an action movie. A mix of seating conditions are offered in the final theater encouraging social engagement between movie theaters while a large variety of movies are being played. Finally, the guests are encouraged to visit the rooftop movie theater at night to experience special guest-picked movie viewing while enjoying food and refreshments from the rooftop café.

Starry Night Inn

Arch 202 - Adriana Elser- 5 weeks

The Starry Night Inn oﬀers a space designed to further enright the sacred bond between humans and their appreciation of their surroundings, with the goal to educate and inspire. Located in central Idaho, a designated night sky reserve, the hotel, ensures clear views of the Milky Way from almost every point in space, reconnnecting guests with an under appreciated part of their everyday lives.

5

10 10 15 20 10 20 30 40 Public Private Transitional 10 20 30 40

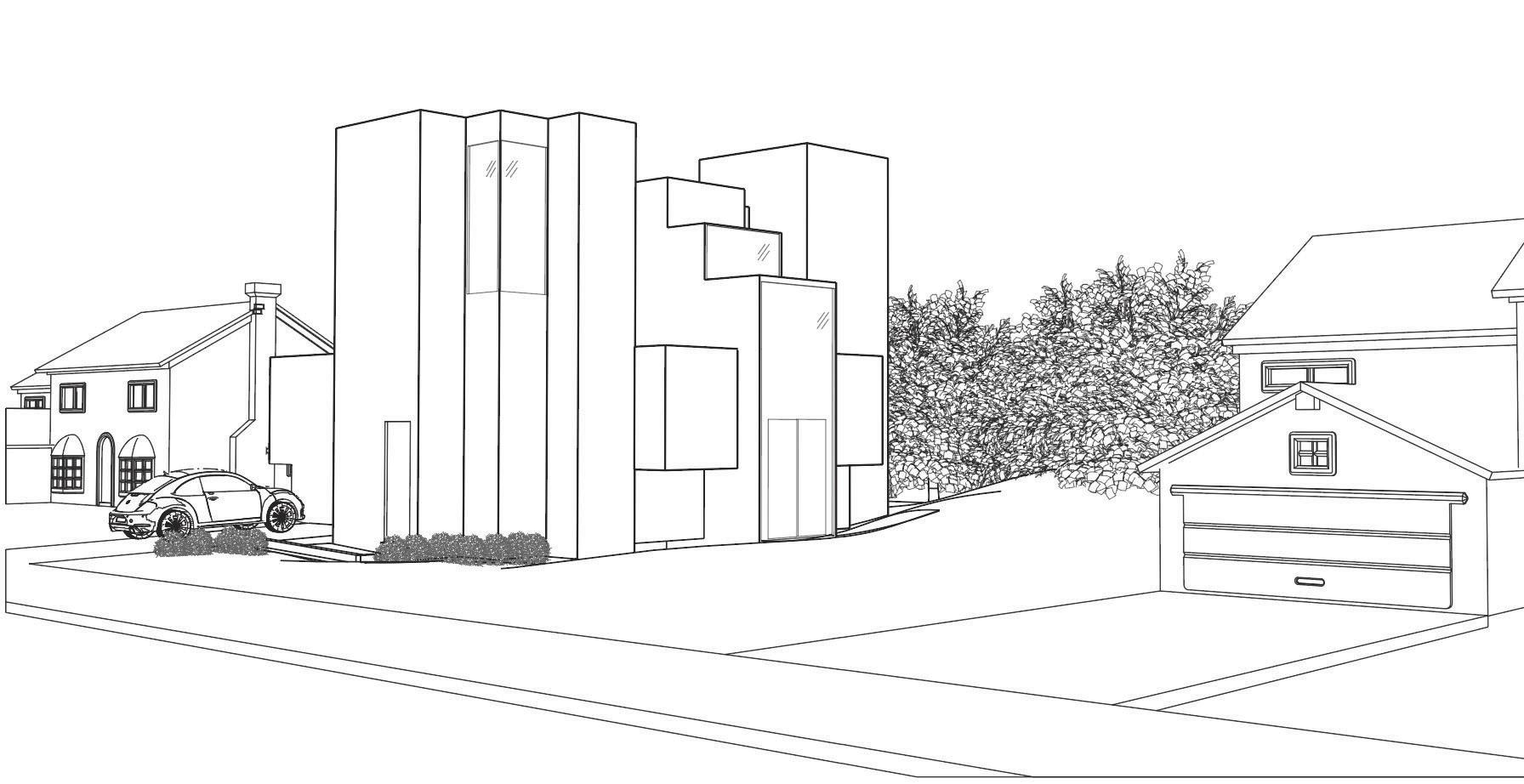

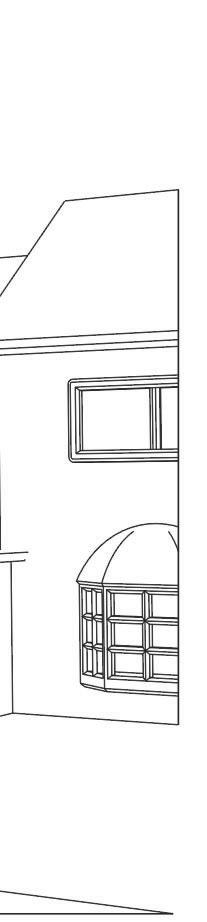

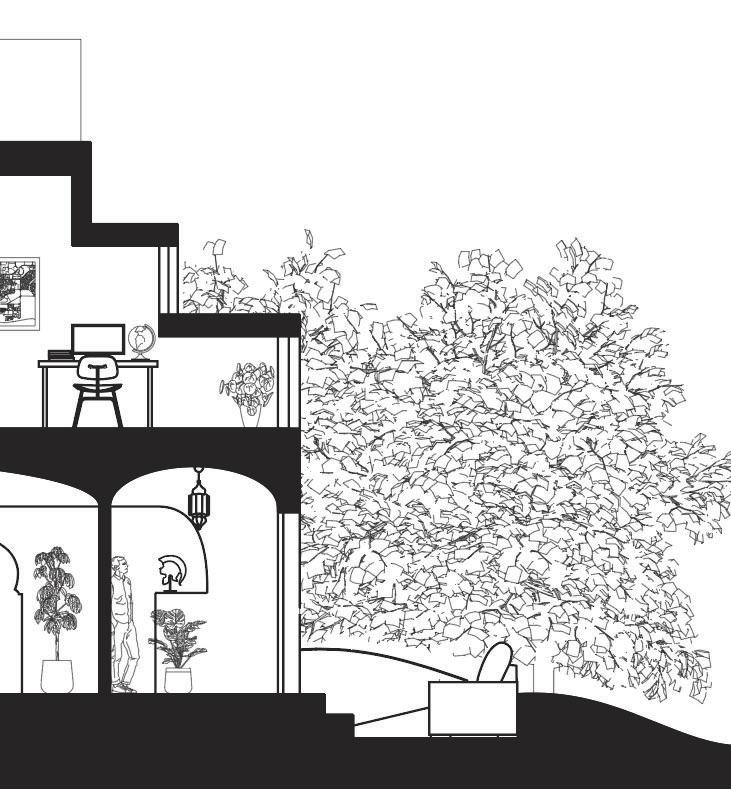

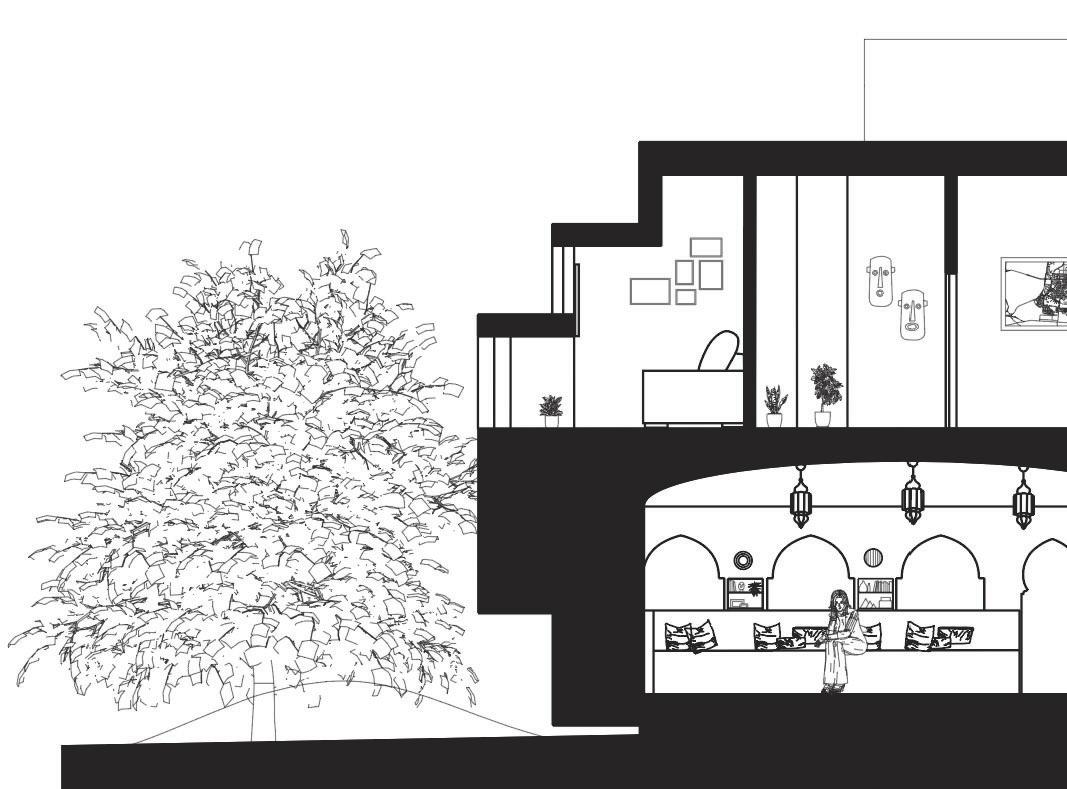

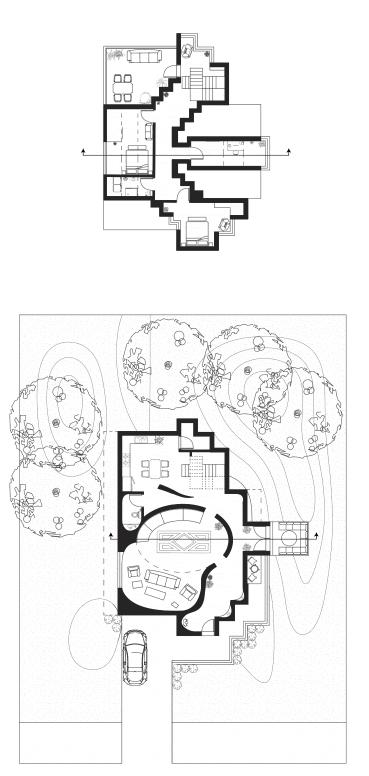

Transitional House

Arch 201- James Kerestes - 5 weeks

This house was designed for a couple of travelers and provides a space to relax as well as show oﬀ their collection of artifacts. It is designed to show gradual trasitions through the stepping in the exterior, in adition to the circulation.
