COASTAL RINGS

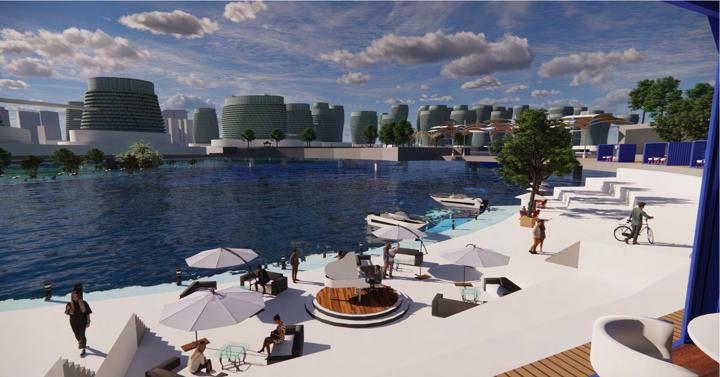

Typology A: Urban Promenade

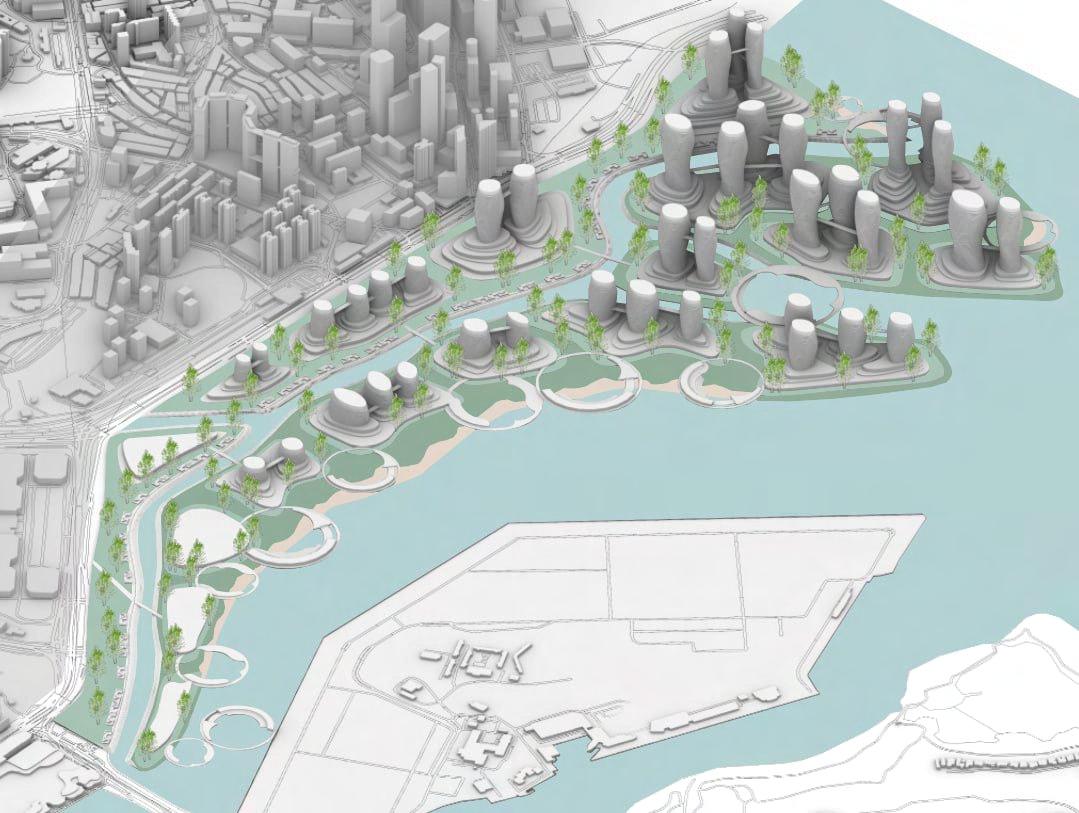

In our proposal, rising sea levels are seen as an opportunity rather than a threat, and our design embraces this by creating spaces that adapts to the rising water levels. The integration of what will be the history of keppel harbour (shipping containers) creates a unique identity for the site and promotes a sense of community among its residents. The design also addresses the need for alternative transportation options as the water level rises to ood the roads, with cycling paths becoming the main mode of transport as the water level rises, which also promotes a car-lite space. and the large ringed promenades act as the rst layer of coastal defense and creates arti cial pockets of calm water near the shore, allowing for a multitude of activities to take place.
Flexibility Liveability
Rather than trying to curb the rising sea level, our proposal aims to instead allow water to envelope the space as the sea level rises through the implementation of hardscape and softscape, creating di erent topographies during low tides, high tides, and as the sea level rises in the short and long term.
History and culture is integrated into physical and cultural aspects of the design, where cargo containers are repurposed and used for commercial purposes, and life along the water recalls a time before the commercialisation of Keppel Harbour, when the pace of living was much more gradual.
Sustainability
As heavy rain and storms tend to lead to oods in low lying areas, greenery has been implemented in between and around the elevated spaces to help with mitigation. By revitalising the area with greenery, we can implement a natural framework that builds connections from the waterfront to riverside.
Opportunities Challenges

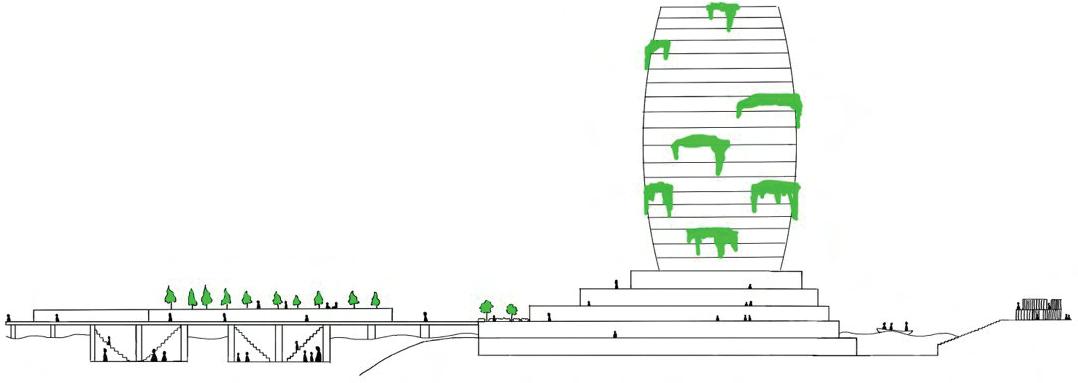

Sea Level - 0m
Sea Level - 5m
Design Strategies
Mix-Use Buildings
Commercial zones
Recreational Zones

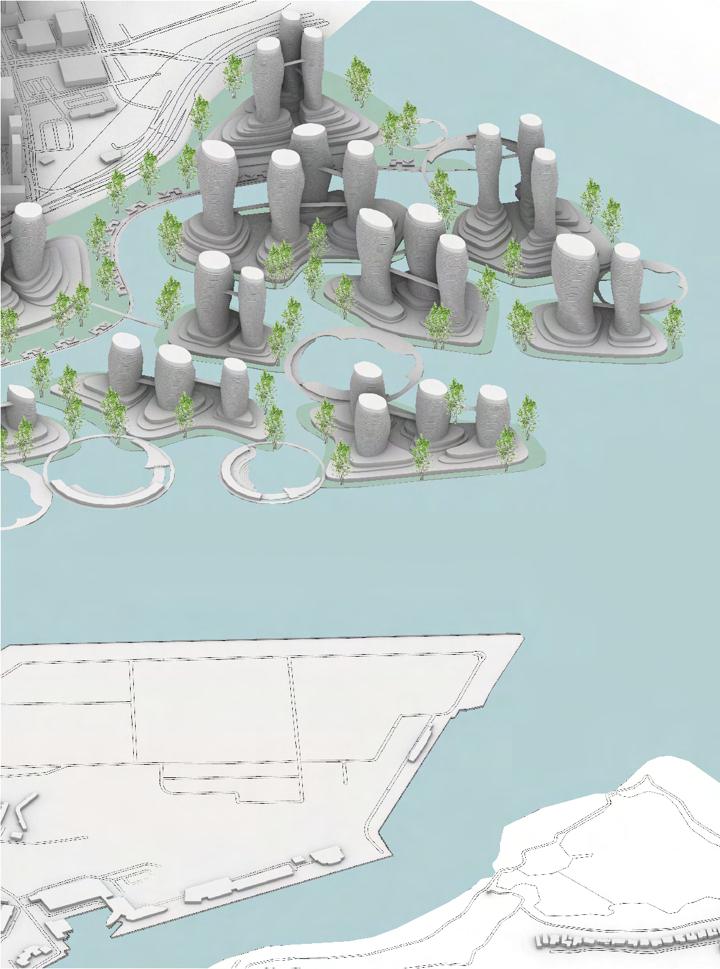

CHOSEN SEGMENT
Access to Brani Island

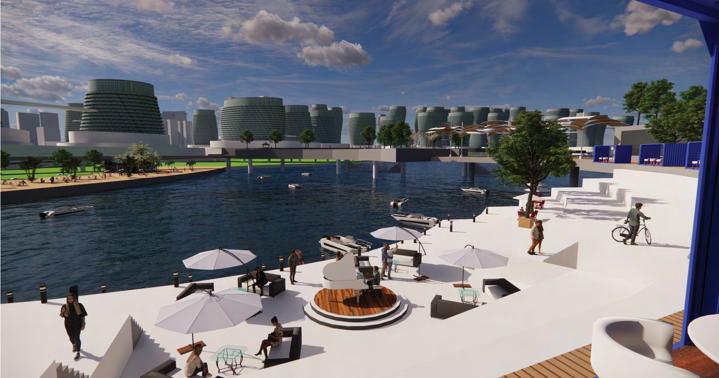

Rather than building entire seawalls to push the seawater back when sea levels rise, we instead sought to implement and integrate the water as an essential system to the site. over the course of rising sea levels, the roads will slowly become ooded, allowing residents to transition from the current standard of living with cars and carparks into a car-lite area. The main mode of transport will become walking with the option of cycling along designated paths along the intersecting bridges and rings connecting the mix use buildngs to one another. For a more scenic option, boats also have the option to travel along the river throughout the entire site, along the commercial stretch, where repurposed shipping containers act as shops. Boats enter through the site from the rings at the seafront, which act as coastal protection as well as a promenade, segregating zones for the water to create recreational spaces.
Rather than building sea walls to keep water out, the site is designed to let water ood in, creating new typologies over the course of sea level rise and tide changes.

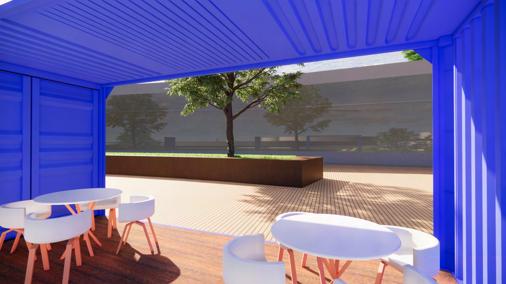

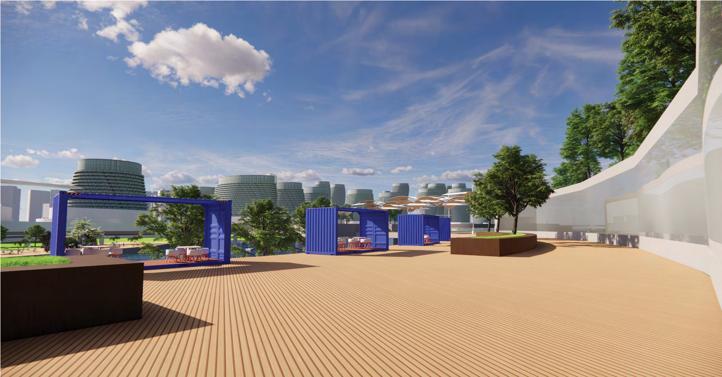

History of the site is integrated into the spaces, such as shops entirely made of shipping containers, which pays tribute to keppel harbour’s roots, while also acting as an inexpensive alternative for a building’s structural and aesthetic qualities.
Rather than building sea walls to keep water out, the site is designed to let water ood in, creating new typologies over the course of sea level rise and tide changes.
Level - 0m
Level - 5m
Sea
Sea
1 1 2 2 3 3 4 4 5 5
Flexible Space Near tourist attractions Sea views No Greenery Limited Circulation No Connectivity

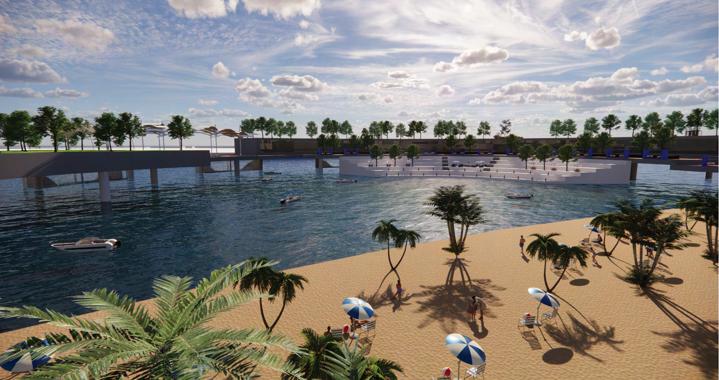

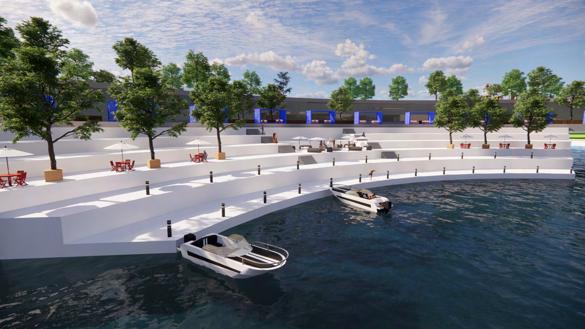

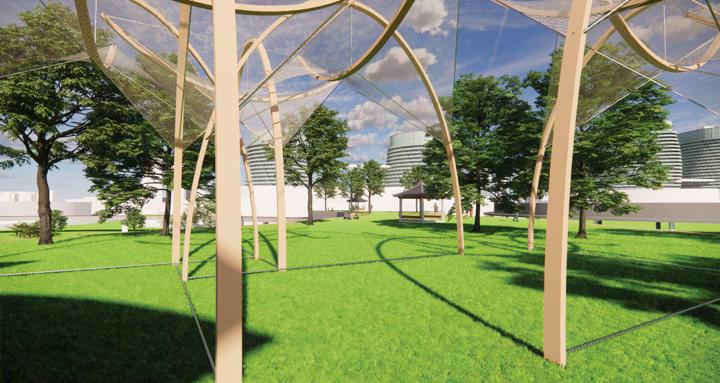

Resting Areas - Beach
Sea Level - 5m
Resting Areas - Beach

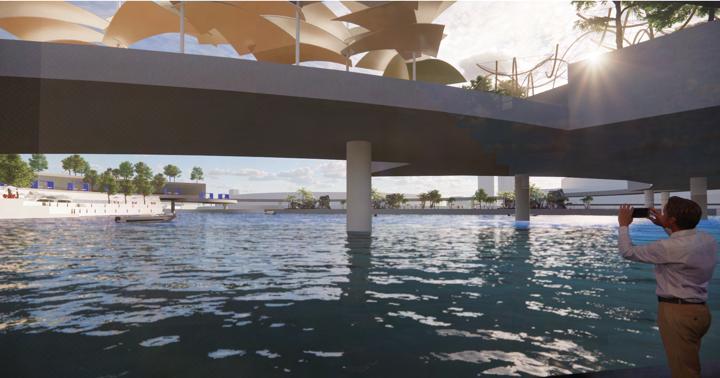

Areas Bridge

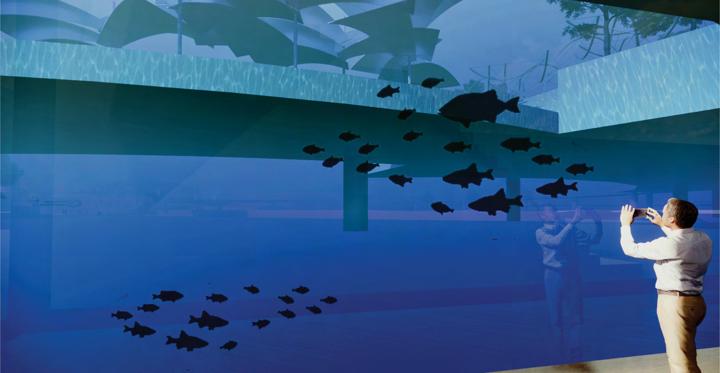

Submerged Pod
Elevated Cycling network

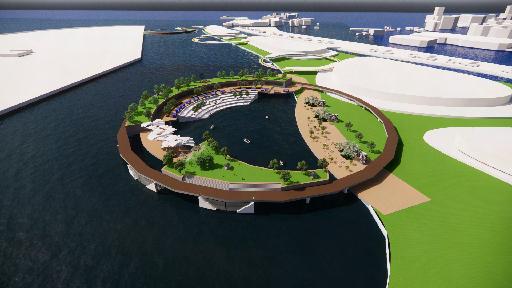

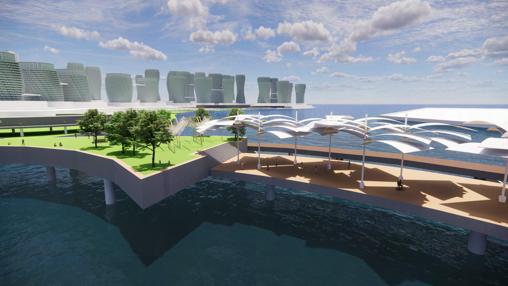

RESTING AREAS SEAWALL PODS

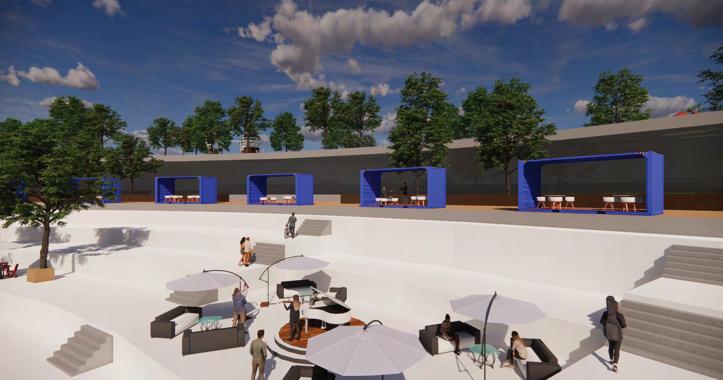

PORT
F&B
F&B
Port - Sea level 0m
Seawall Pod - Sea level 0m
F&B
Port - Sea level 5m
Seawall Pod - Sea level 5m

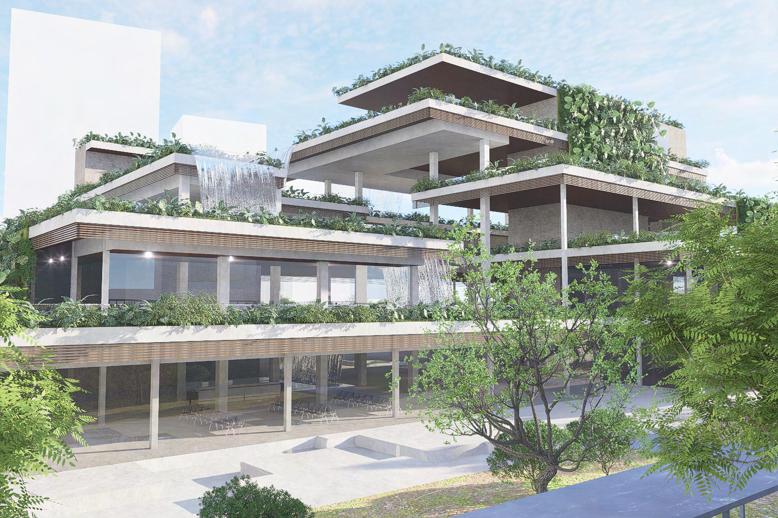

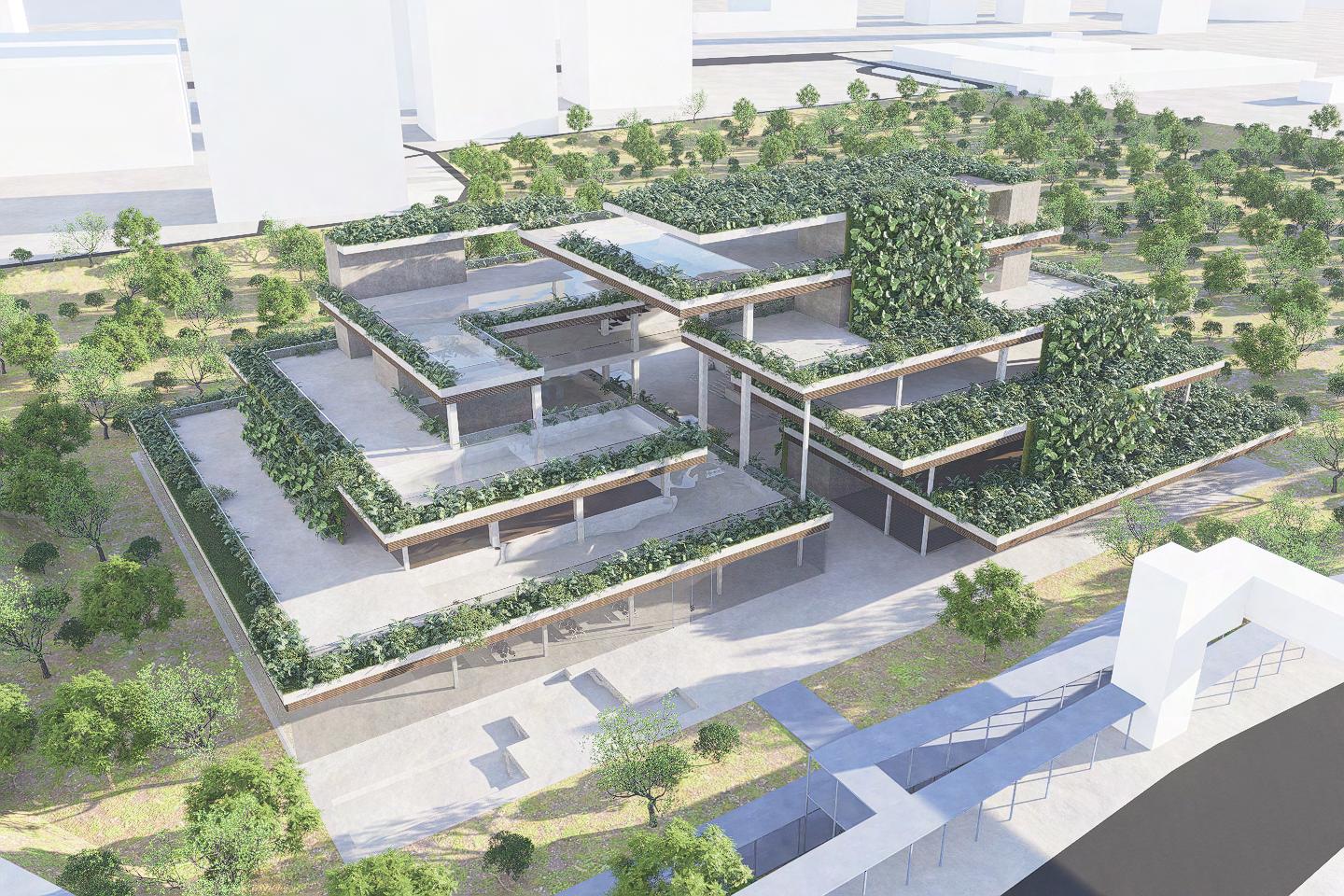

CASCADE

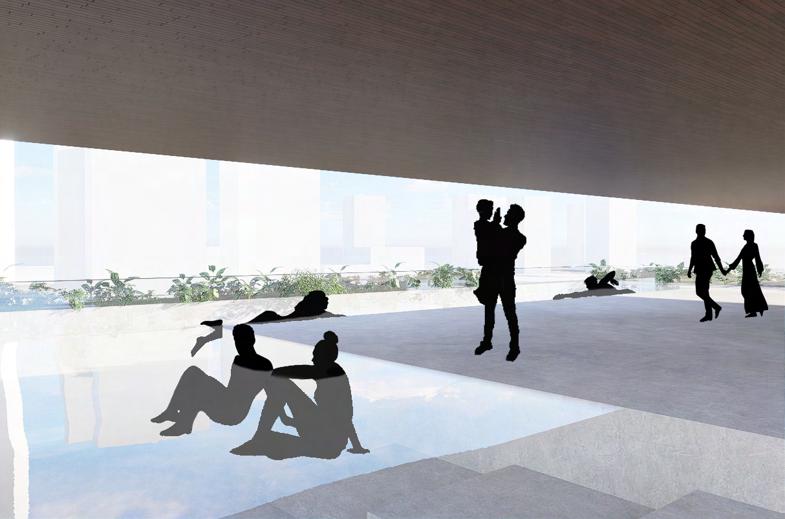

Welcome to the Cascade, where cascading hydro pools and greenery intersect a staggered design, creating a serene oasis. Greenery punctures spaces throughout the building, creating havens for people to unwind and connect. Large planes express strong horizontality, yet staggering of the spaces allows for verticality in terms of visual connectivity, where the design seamlessly weaves panoramic views into the experience of the site.

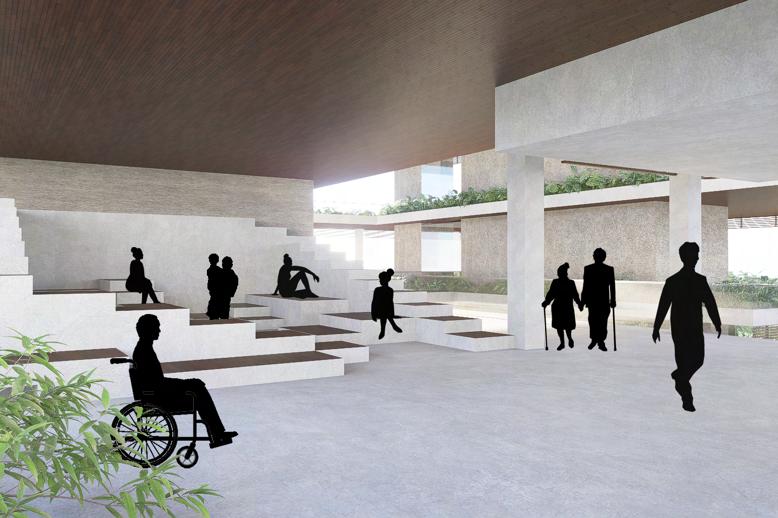

The staggered design not only creates visual interest but also allows for the e cient utilization of space, maximizing opportunities for relaxation and social interaction. By orienting the Cascade to capture optimal views and balance natural light and shade, the design fosters a connection with the outdoors. Additionally, exible spaces and communal areas are strategically placed throughout the Centre to encourage spontaneous interactions and cater to diverse user preferences.

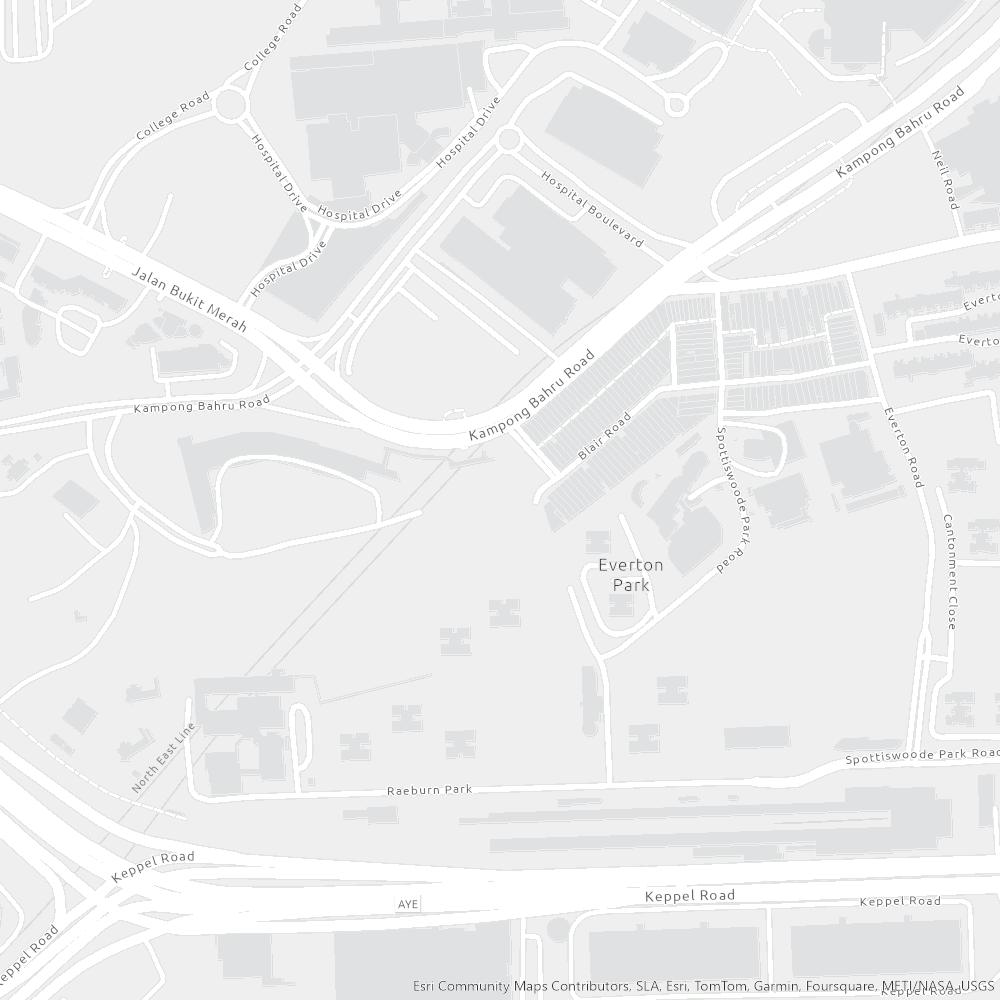

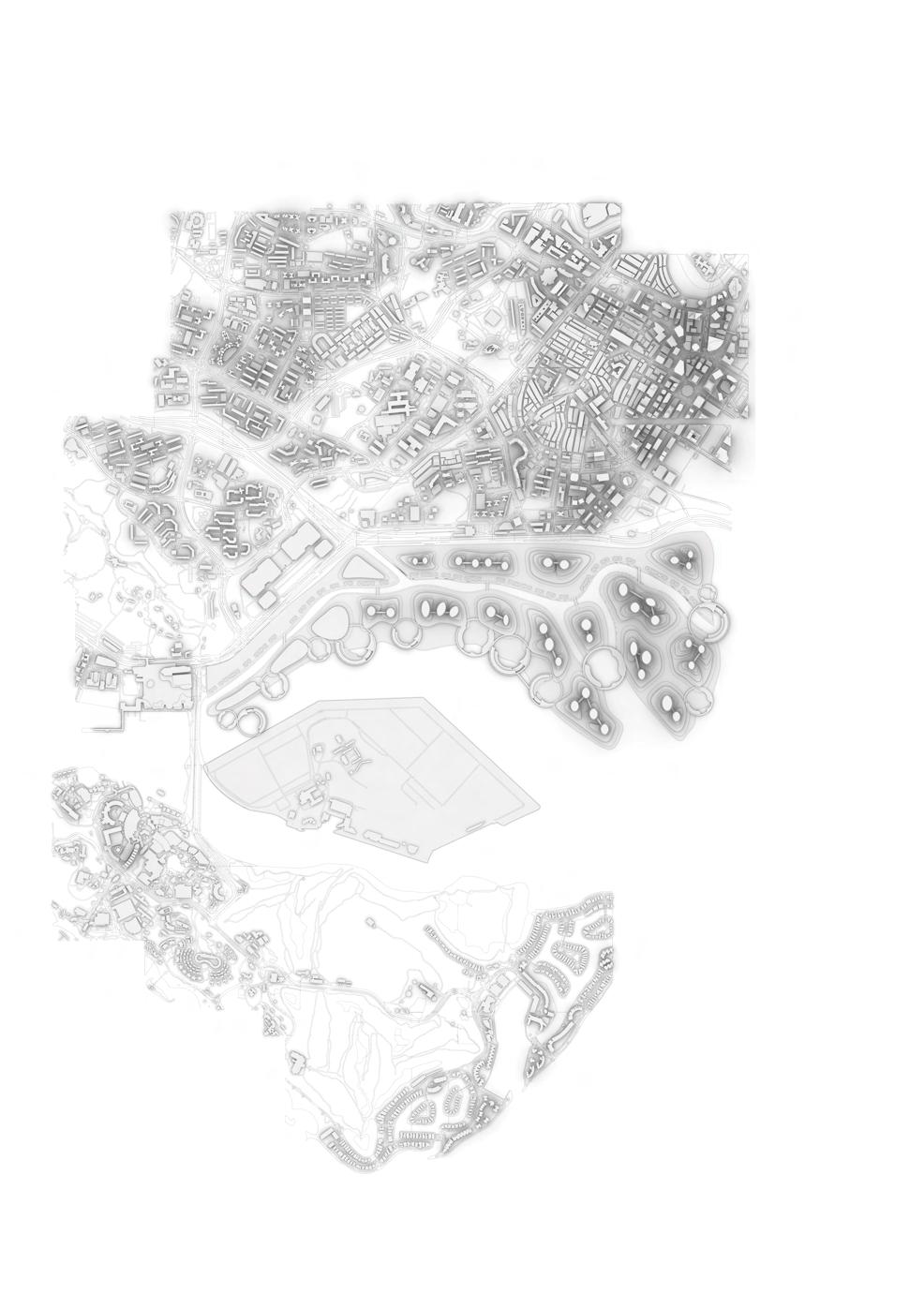

KampongBahruRoad
Keppel Rd
Spooner Rd Carpark
SGH

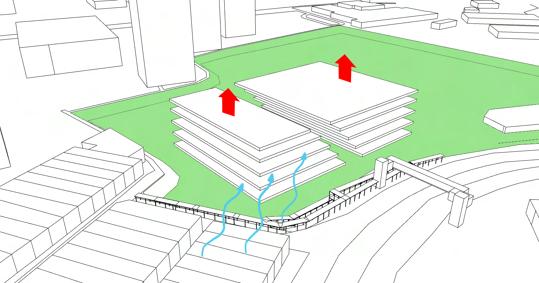

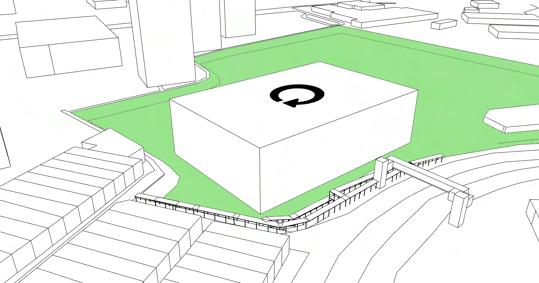

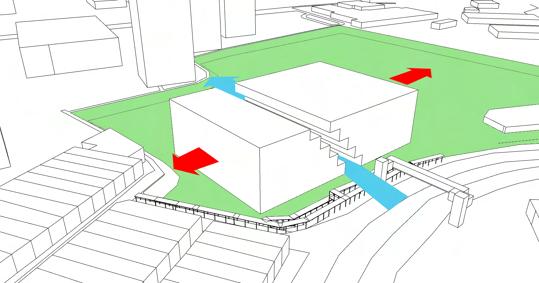

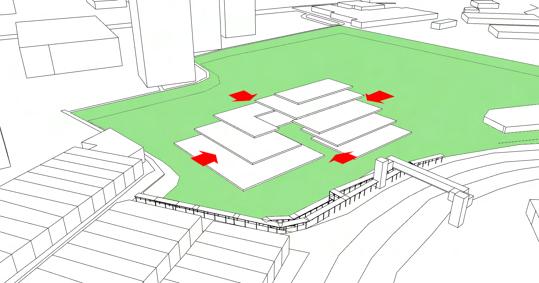

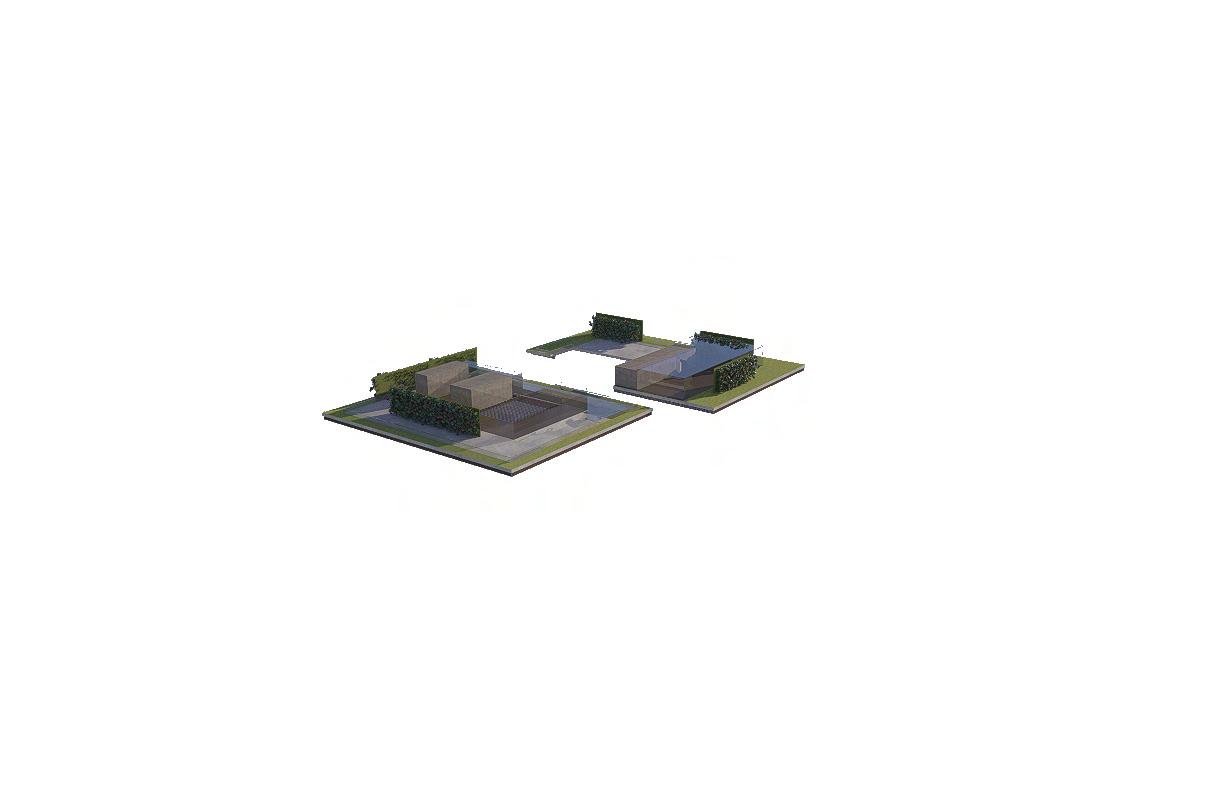

Optimising Orientation to maximise views
Adjusting Massing for direct views through siteMinimising physical barriers to maximise ventilation

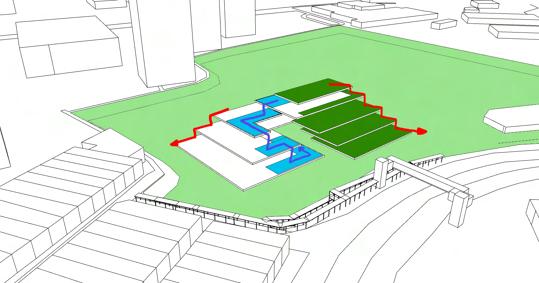

Emphasizing Horizontality through hierarchy by staggering oor slabs

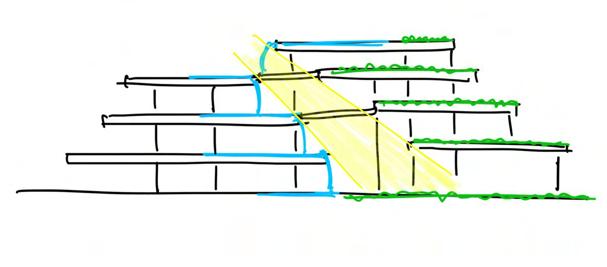

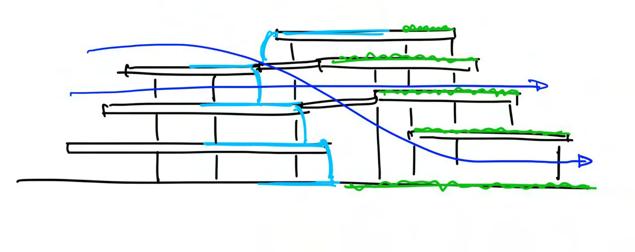

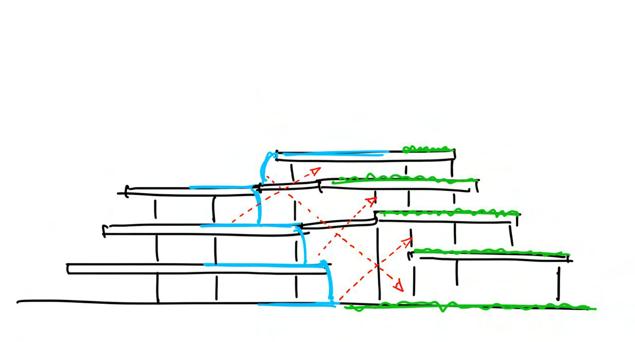

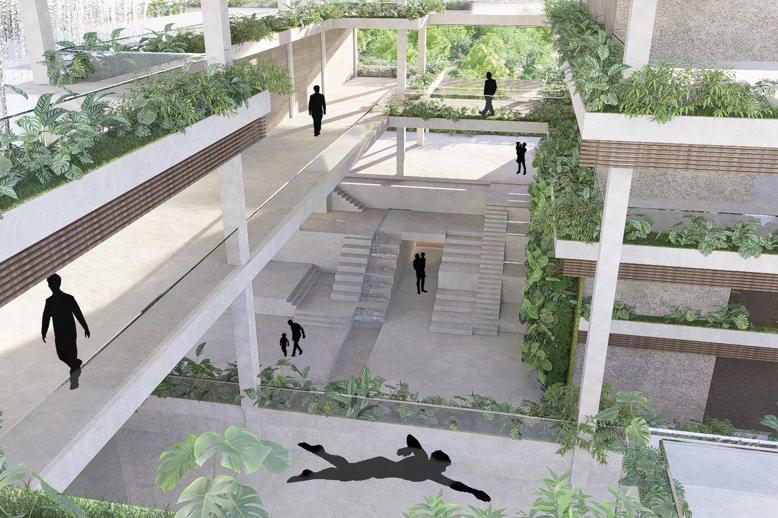

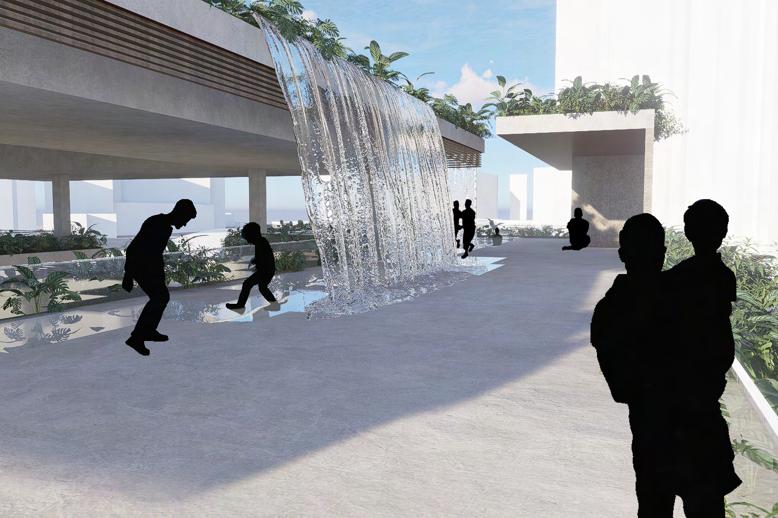

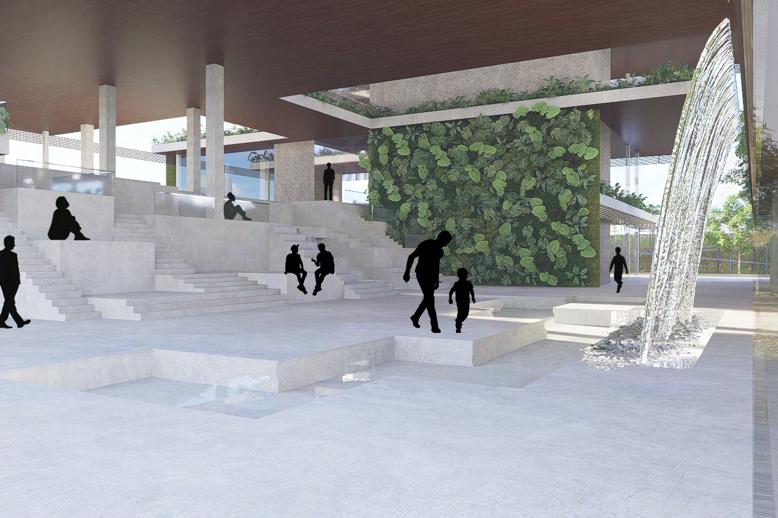

Emphasizing cascading of water and greenery, promoting a calm and multisensory spatial experience
Passive Design Strategies

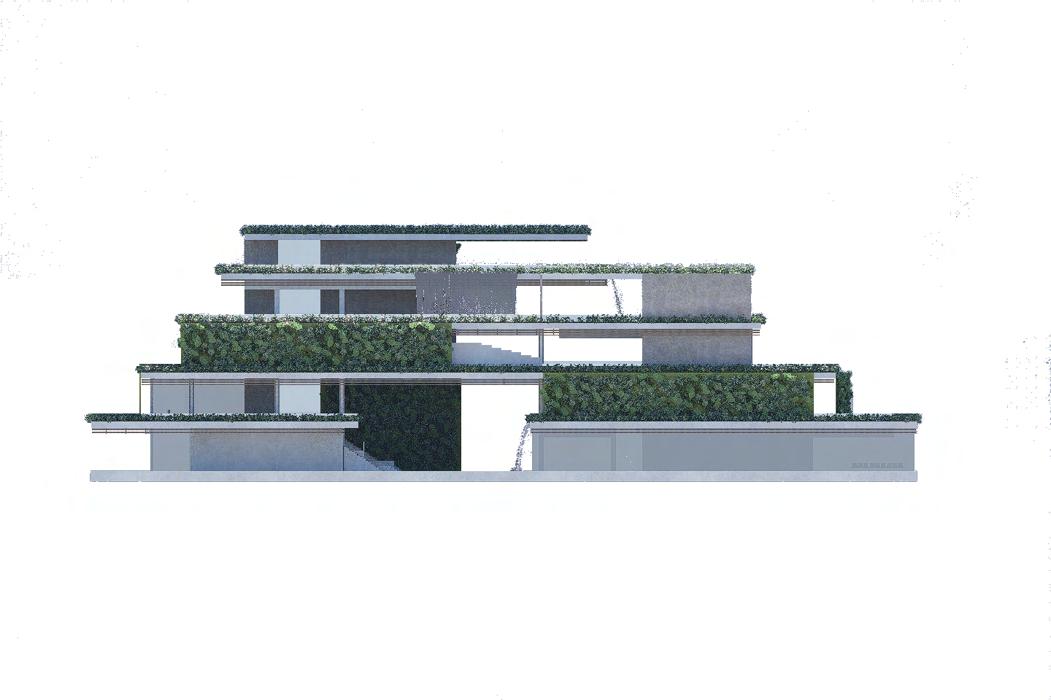

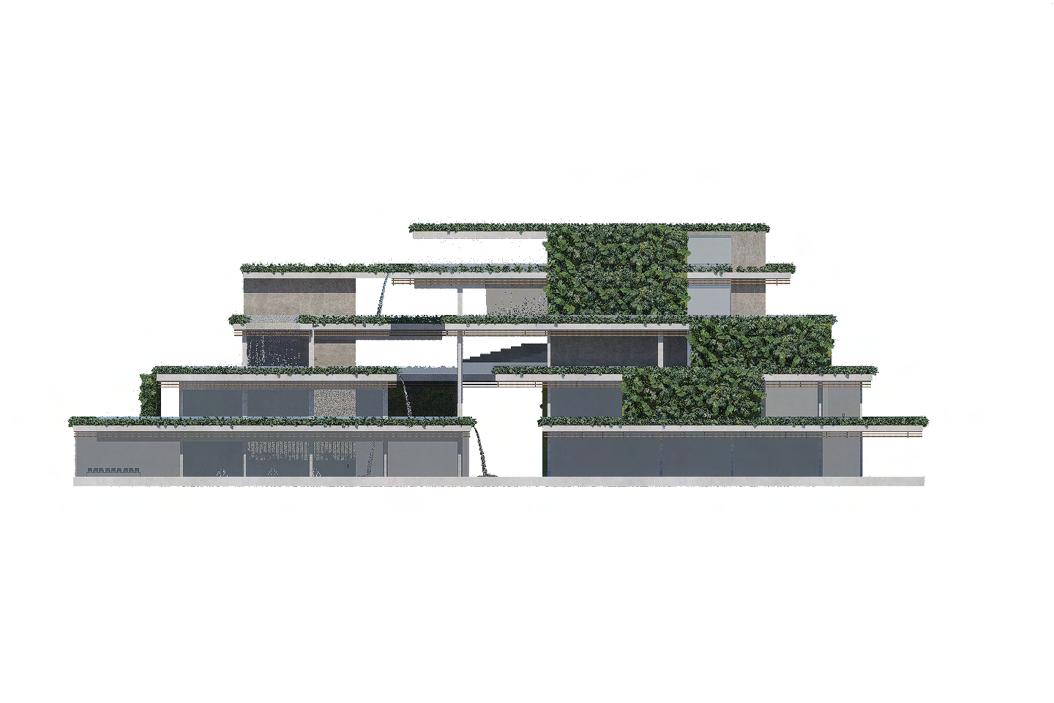

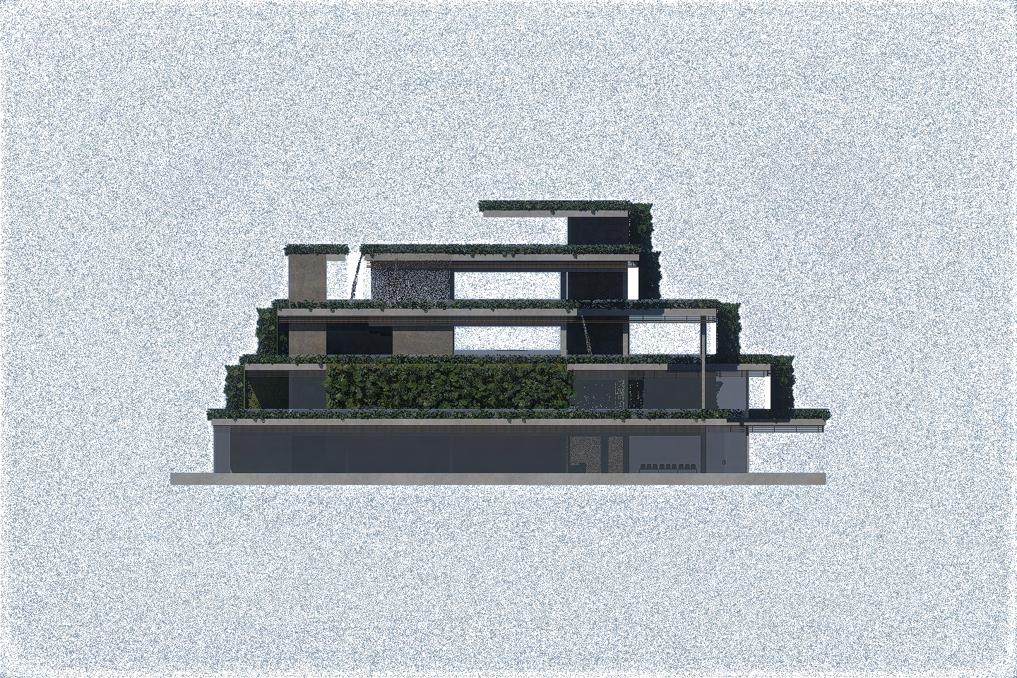

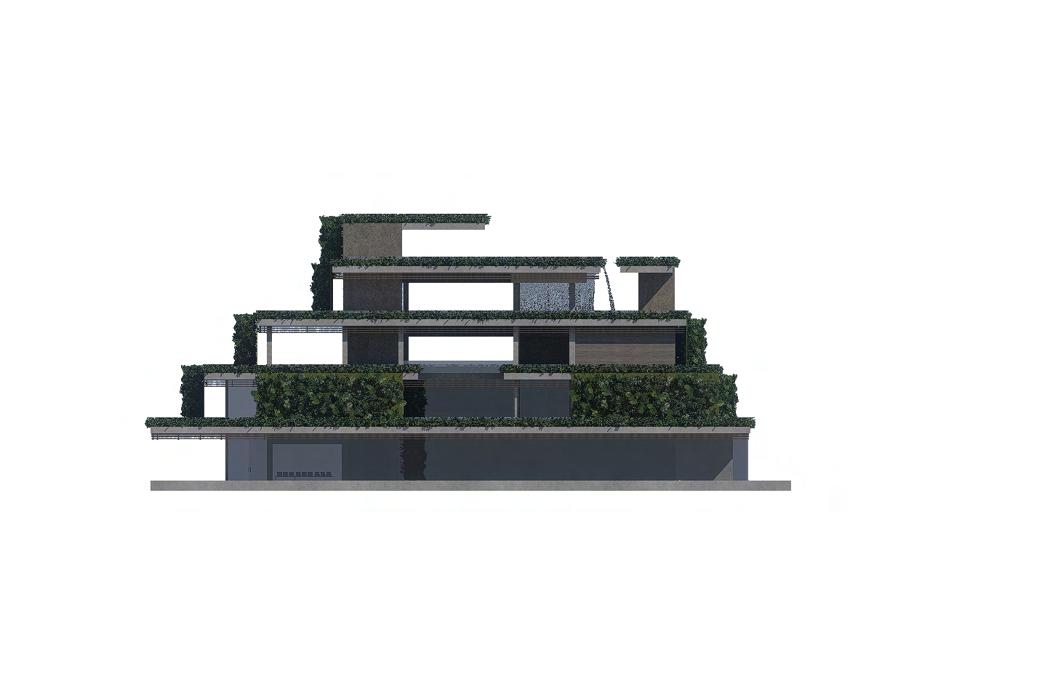

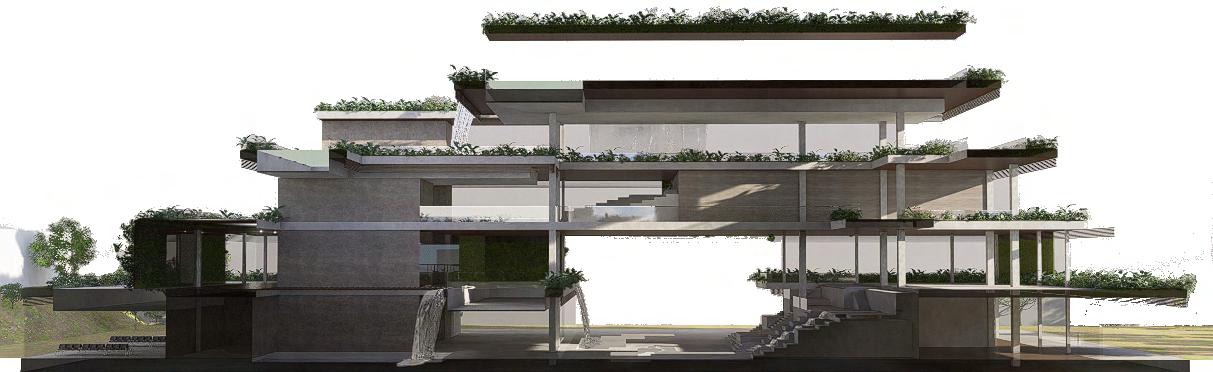

West Elevation
Scale 1:300
SGH SGH SGH

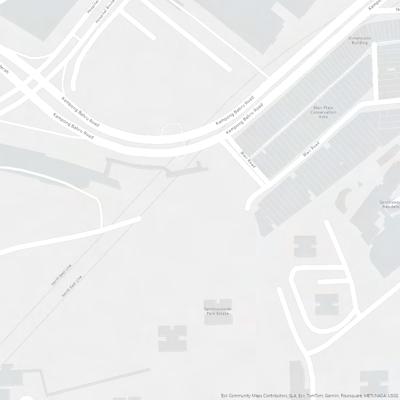

SGH Site Analysis Parti Diagram

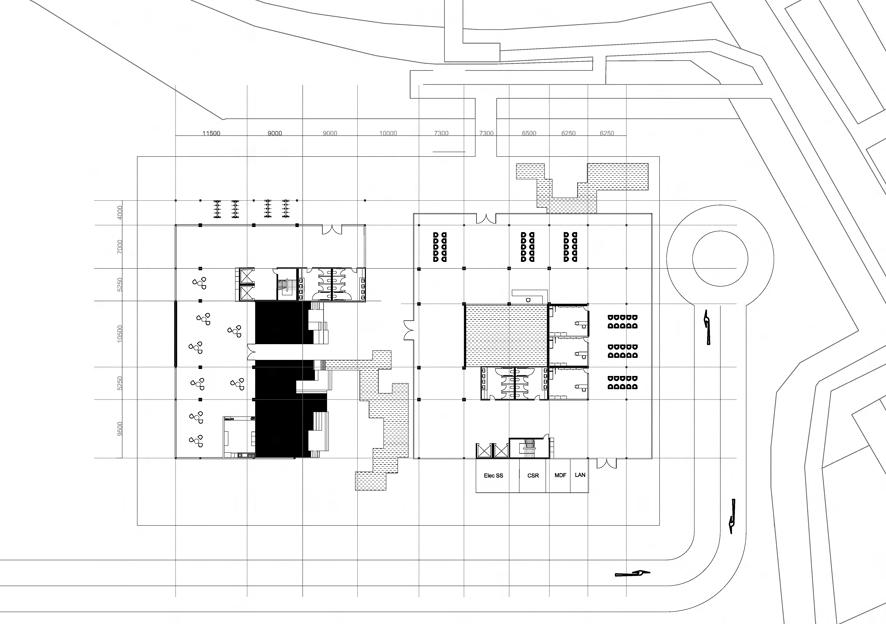

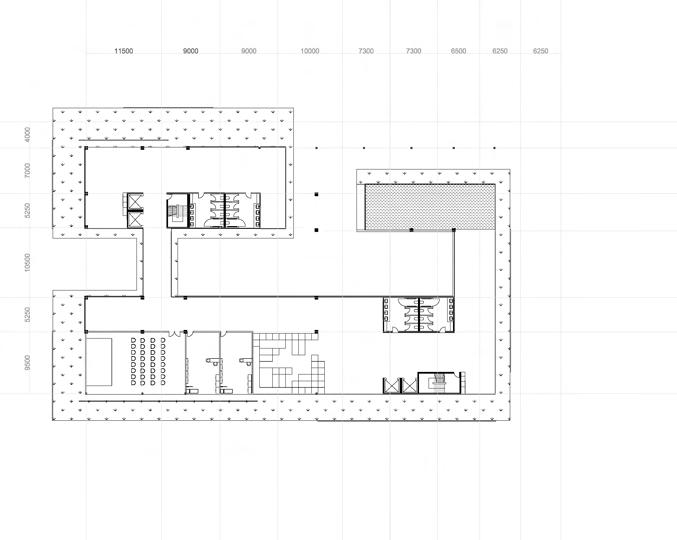

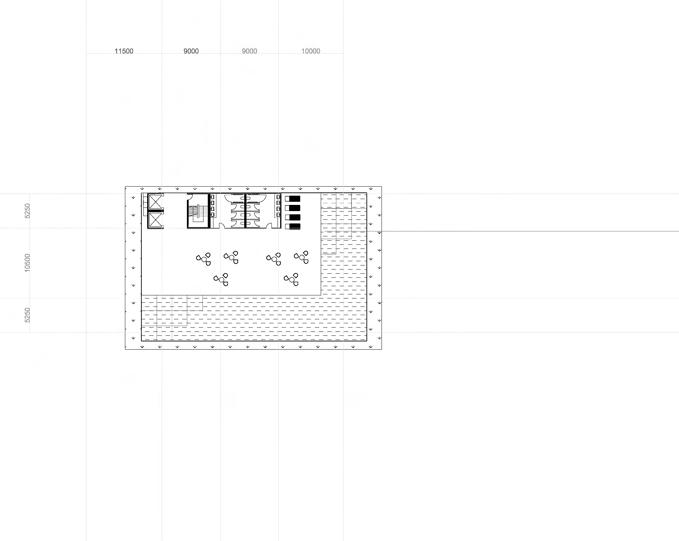

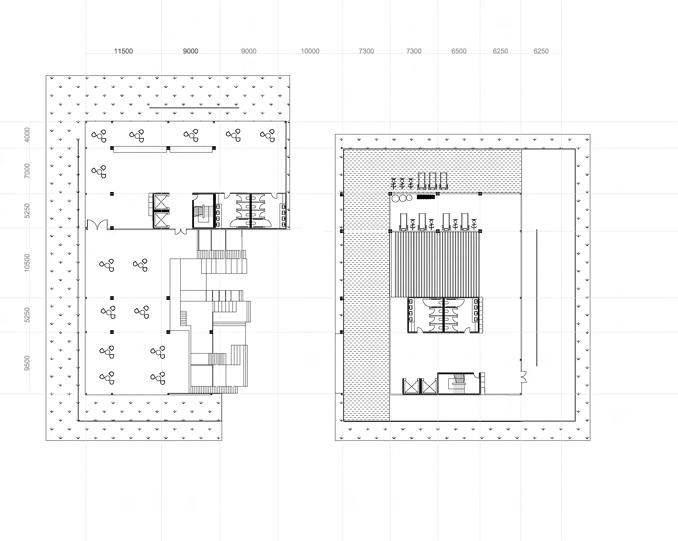

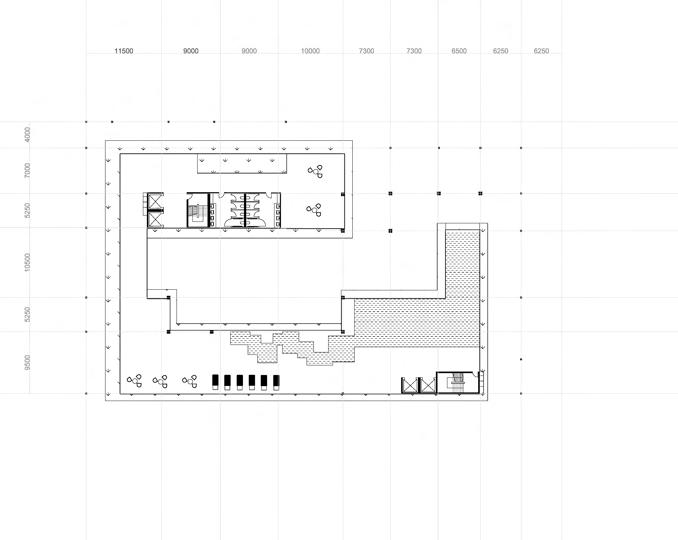

Cafe Social Space Bicycle Lot Library Social Space Social Space Physiotherapy Rm Hydrotherapy Pool Lap Pool Open Exercise Space Meditation/Yoga Corner Function Rm Consultation Physiotherapy Rm Social Space/Waiting Area Hydrotherapy Pool Social Space Social Space Social Space Kids Pool Recreational Pool Recreational Pool Waiting Area Consultation Rm Reception Water Feature Kids Play area Drop-o Point

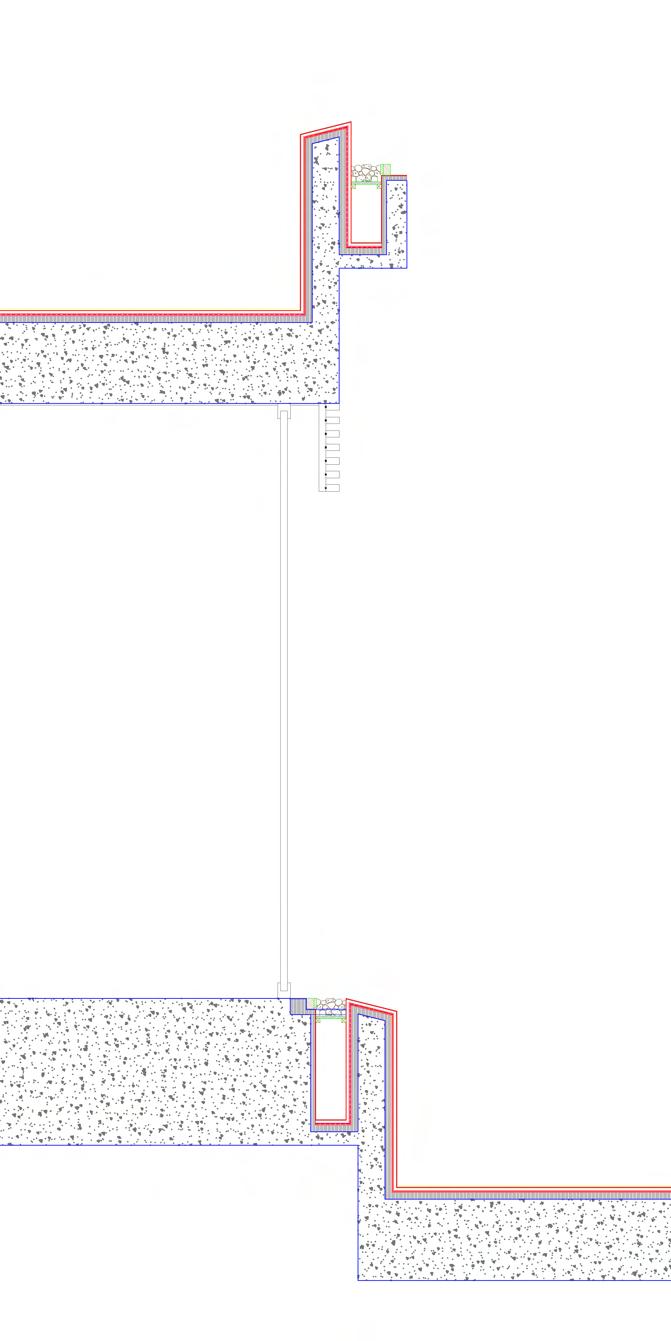

1. Miter Finish
2. Ceramic Coating Finish
3. Mortar
4. Mechanical Protection
5. Polyethylene Seperating Film
6. Asphalt Waterproo ng
7. Reinforced Concrete
1. Pebbles
2. Grill
3. Water catchment
4. Mortar
5. Mechanical Protection
6. Polyethylene Seperating Film
7. Asphalt Waterproo ng
8. Reinforced Concrete
