Laura Drawbaugh, RLA 2019 PORTFOLIO CURRENTLY BEING UPGRADED- 2022 PORTFOLIO AVAILABLE SOON!

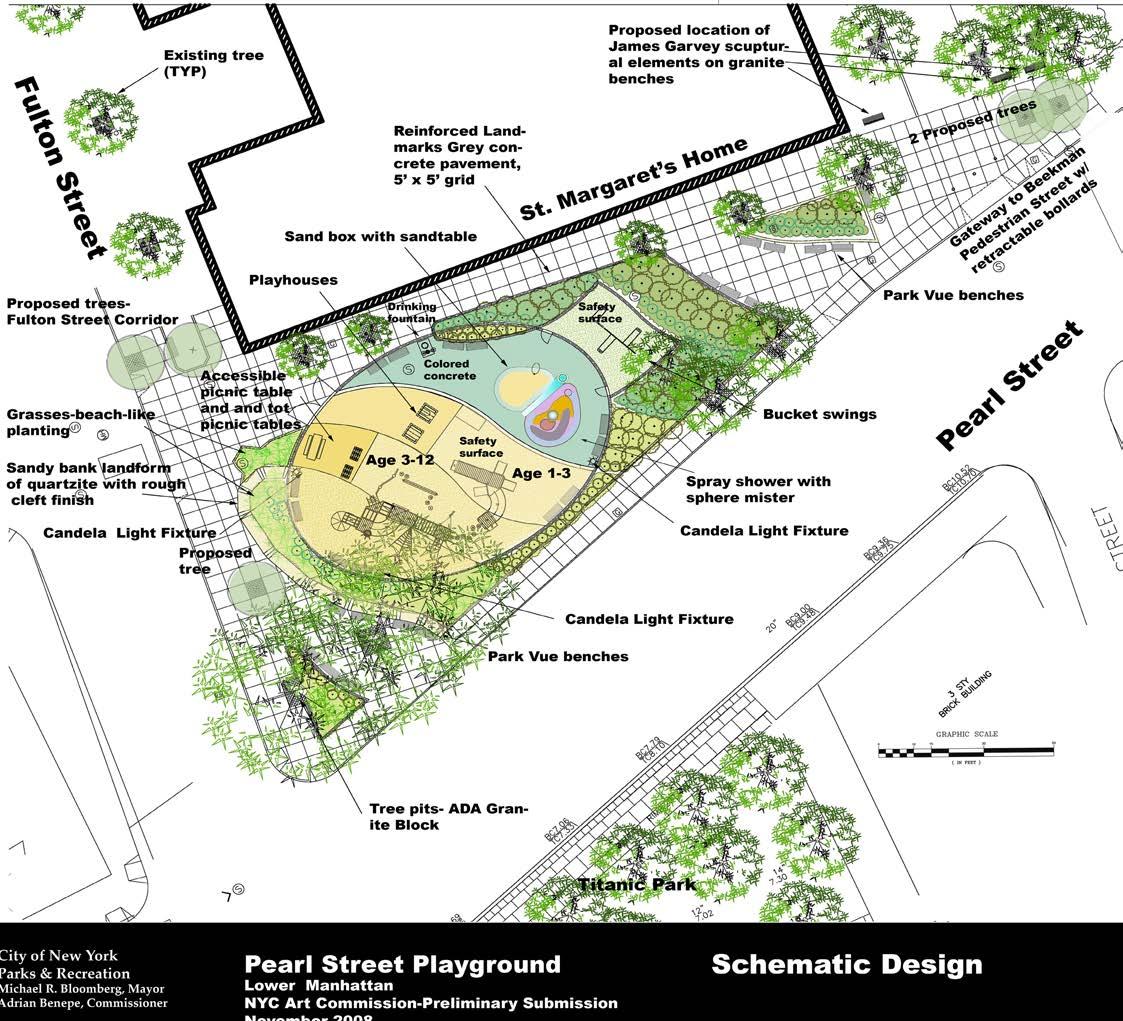

PEARL STREET PLAYGROUND | Plan
3 Stakeholders: FDNY LMDC DOT ConEd DOH DEP DDC PDC DCP MTA CB 1 ECS Southbridge Towers St. Margaret’s House This project included a successful MOU with DEP.
Concept: Radial drainage/sandy bluff of original shoreline
Closure of “Little Pearl Street” allowed playground to expand into streetbed, open up view to Titanic Memorial and create seating on Fulton Street

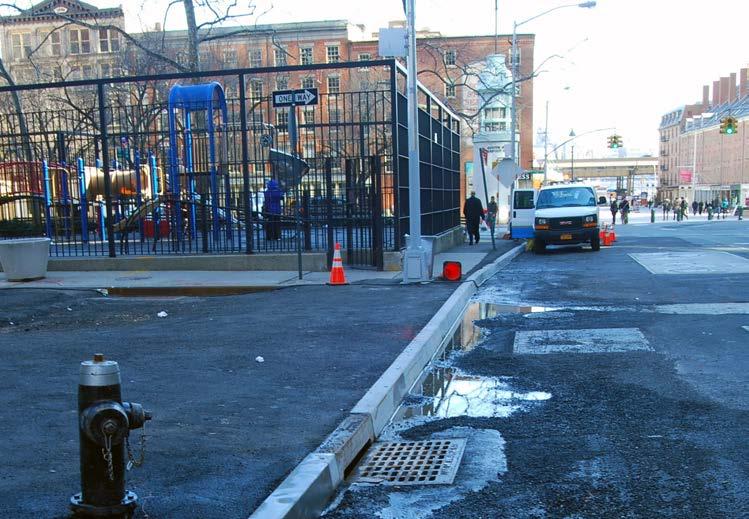

Prior conditions
Three years post construction
5
PEARL STREET PLAYGROUND
Study models for engineered retaining wall
7

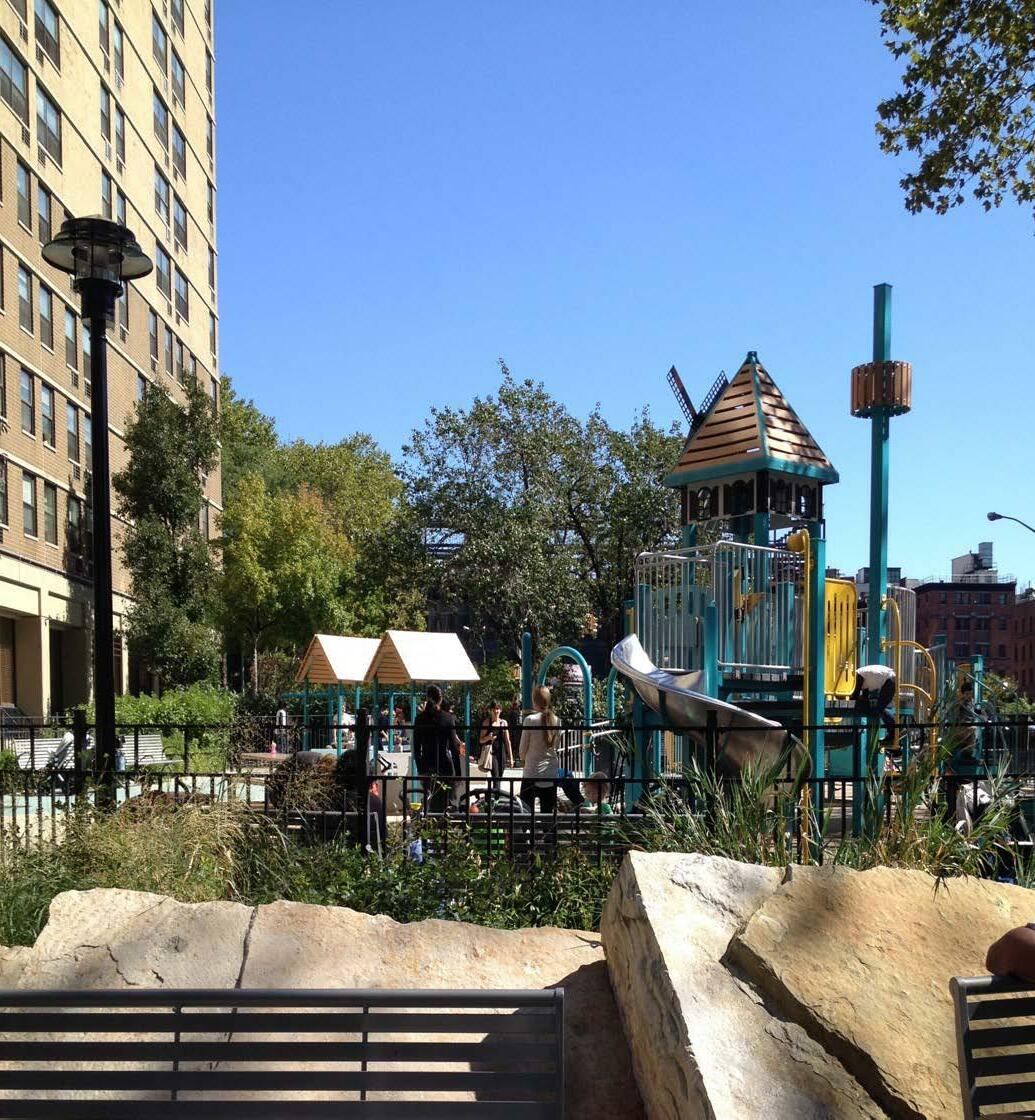

Post construction
PEARL STREET PLAYGROUND
Play equipment : reflect history of early Dutch settlement
9
JUAN BOSCH PLAZA | Plan
Program:
Create a memorial for Juan Bosch, writer and first democratically elected president of the Dominican Republic.
11
JUAN BOSCH PLAZA
Section
Rendering-view from Amsterdam
13
Quotes from the writer/ statesman were cast in place with steel text.
JUAN BOSCH PLAZA
Biographical plaque in Spanish and English
Post construction
15
WHITE PARK | Plan
17 Permeable pavers Ginko allee Active sports area 5-12 play equipment Sandplay 2-5 play equipment Spray shower Community Parks Initiative White Park Features continuous ADA circulation loop through plantings and play equipment.
WHITE PARK | 2-5, 5-12 Play and Spray Shower Permeable pavers 5% slope path Parks security lighting, typ. 5-12 play equipment Flagpole Spray shower 2-5 play equipment Sandplay 5% slope entrance
Notes: Project required two DOB submissions and borings
Also required biographical plaque written primarily by L.D., which included content of a sensitive nature
19
WHITE PARK | Site Elevations
21
WHITE PARK | Contract Documents
WHITE PARK| Post construction photographs
EXISTING CONDITIONS
48” SEWER 12” SEWER EXISTING CATCH BASIN 20” WATER RETAINING WALL BENCH PROJECT LIMITS PLANTING EXISTING TREE SUBWAY LIMITS
DESIGN
PROPOSED
JANE STREET
EIGHTH AVENUE
CURVED GATE WITH GATE CAGES ON PIERS NEW ADA BLUESTONE PAVERS TO ENTRANCE
DECORATIVE 4’ HT. STEEL PERIMETER FENCE ON 6” HT. GRANITE CURB ANY NEW SIDEWALK CONCRETE WILL BE RESTORED TO ORIGINAL CONCRETE COLOR
29
11 N JANE STREET GARDEN | DPR Proposed Design Jane Street Garden Curb and Fence: Stakeholders: Barry Benepe Corey Johnson LPC

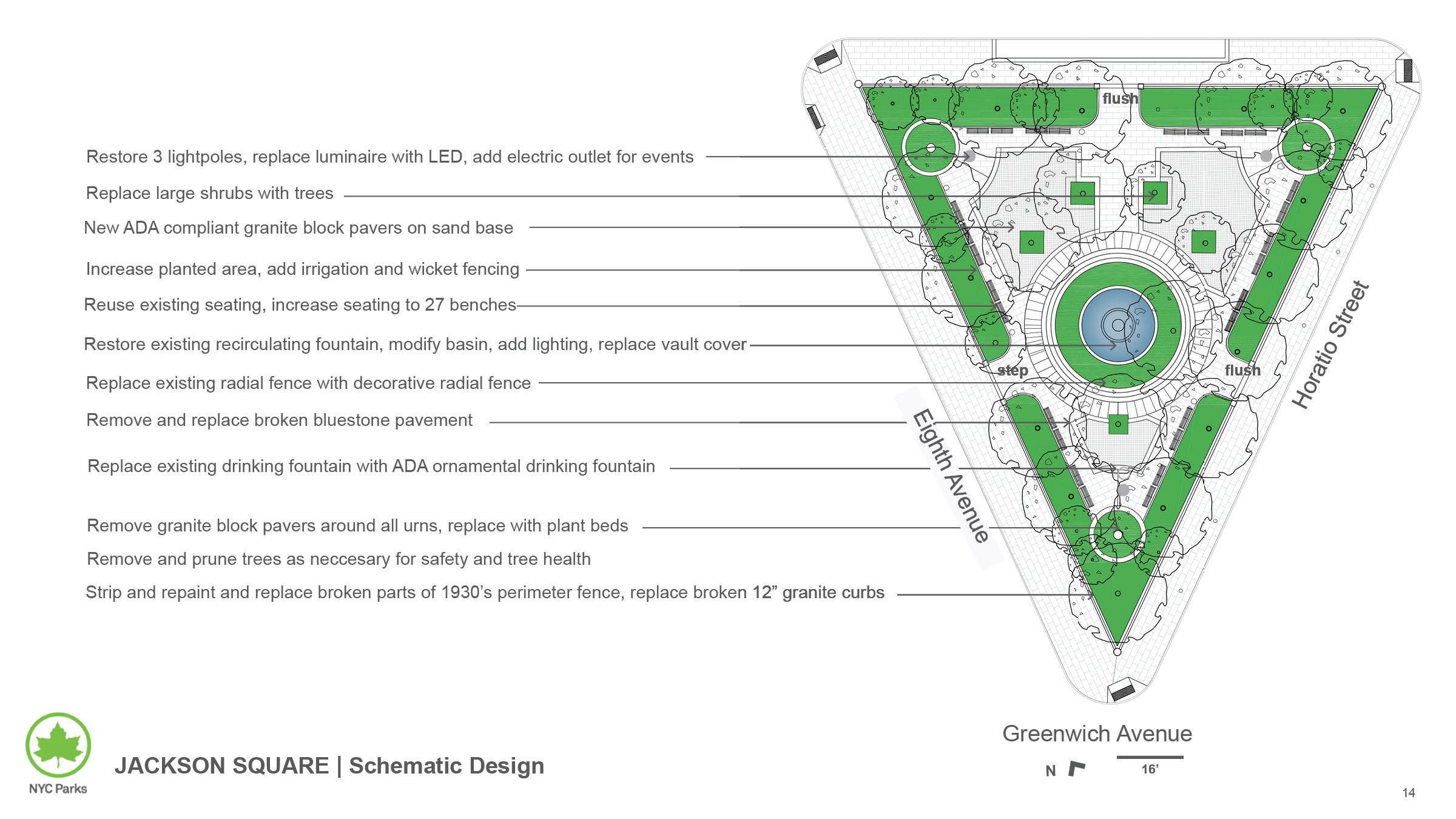

JACKSON SQUARE| Plan
Jackson Square Park
Reconstruct bluestone paving and radial granite paving. Restore recirculating fountain and mechanical system, new ornamental fence and decorative granite basin.
Permits: MTA LPC DEP DOT Engineering: Mechanical Civil Structural Electrical
33
Jackson Square | Existing fencing
Proposed decorative radial fence
New bluestone paving and radial granite bands
New fountain basin with lighting, radial pavers and pedestal
PLAYGROUND ONE | Plan
39 Community Parks Initiative: Playground One Features welcoming community seating options New Tree Entrance MADISON STREET CATHERINE ST. OLIVER ST. Community Seating on ADA Granite Block AGE 5-12 PLAY Seating/ Storytelling Community Seating on Concrete Plant Bed,Typ. Legend Bus Shelter Multi-purpose Sports Area Community Seating on ADA Granite Block Seating 32 Playground One Community Parks Initiative N | Schematic Design 0’10’20’
Green Infrastructure Area Play Animal ADA Granite Block Playhouse “Mobius” Climber Job Box Drinking Fountain Safety Surface on Asphalt Concrete Steps Playground One Community Parks Initiative | Play Area Playground One | Play equipment area
| Playground One Community Parks Initiative | Rendering Rendering of play area
LITTLE RED SCHOOL ENTRANCE LIGHTPOLE, TYP. BICYCLE RACKS “LANDMARKS GREY” CONCRETE, TYP. CURB REALIGNMENT
DOT CURB EXTENSION Little Red Square | Existing Conditions and Schematic Design
GRANITE PAVERS
PROPOSED
Little
PEDESTRIAN BUMP OUT
RADIAL GRANITE BANDS, TYP.
43 ENTRANCE
Red
Little Red
Bar Pitti Avena Restaurant FDNY DOT-SCARA, lighting, signalization ConEd DEP LPC MTA CB 2 ECS Micro purchase for Vibratory
BENCH, TYP. PLANT BED, TYP. Section UConEd ECS
Square: Stakeholders:
Schoolhouse
Monitering
AVENUE OF
THE AMERICAS
STY. BRICK BUILDING
(8A) ℄
(8A) ℄ (8A) ℄
W (6A) (6A)
D T (8A) ℄
(8A) ℄
(8A) ℄ (8A) ℄
(6A) (6A) (6A) (4A) (6A) (4A)
(8A) ℄ (8A) ℄ (8A) ℄ (8A) ℄ (8A) ℄
(8A) ℄ (8A) ℄
CLL CLL CLL CLL CLL CLL CLL CLL
3 STY. BRICK BUILDING
(CLF) (CLF)
BLEECKER STREET
CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL 1,3 L202 GRANITE PAVERS, TYP. "LANDMARKS GREY" FABRIC REINFORCED CEMENT CONCRETE PAVEMENT, SAWCUT JOINTS 3 15 ALL L202 "LANDMARKS GREY" CEMENT CONCRETE PAVEMENT, SAWCUT JOINTS 3 15 GRANITE PAVERS, VARIABLE LENGTHS AND RADII ALL L303 DEP TYPE 1 CATCH BASIN RELOCATE HYDRANT AND FENDERS MANHOLE COVER DOT SIDEWALK PEDESTRIAN RAMP, TYP. 1 17 DOT LIGHTING AND SIGNALIZATION, SEE DOT PLAN ALL E201 CURRENT HYDRANT LOCATION PUBLIC SPACE RECEPTACLE BIN, TYP. DOT STREET LIGHTING, TYP. ALL E201 TRASH COMPACTOR RECEPTACLE, TRASH COMPACTOR RECEPTACLE-COMMINGLE ALL U101 SECTION U CON ED WORK AS REQUIRED. TYP. ALL 22 ALL L204 PROPOSED TREE,SEE NYCTA TREE PLANTING GUIDELINES TYP. ALL L204 P P P P P P BICYCLE RACK, LOOP" TYP. 25' SUBWAY OFFSET LINE NOTCH GRANITE TO BRIDGE ROOT AS REQUIRED REMOVE MAILBOXES AS PER USPS INSTRUCTIONS. 3" GRANITE FLUSH CURB, VARIABLE LENGTHS AND RADII PROPOSED TREE, SEE NYCTA TREE PLANTING GUIDELINES, TYP. BENCH TYPE A, (39' WORLD'S FAIR), CONDITION A, TYP. "LANDMARKS GREY" FABRIC REINFORCED CEMENT CONCRETE PAVEMENT, SAWCUT JOINTS 3 15 1 L301 ALL C201 ALL C201 ALL C201 GRANITE STREET CURB, (STONE CURB), TYP. 10 17 ALL L205 1 L202 ALL E202 FENCE,GRANITE CURB, BENCH PAVER, SECTION, CONDITION A. 1 L301 FENCE,GRANITE CURB,BENCH PAVER, SECTION, CONDITION B 1a L301 "LANDMARKS GREY" FABRIC REINFORCED CEMENT CONCRETE PAVEMENT, SAWCUT JOINTS 3 15 "LANDMARKS GREY" FABRIC REINFORCED CEMENT CONCRETE PAVEMENT, SAWCUT JOINTS, SEE NYCTA SIDEWALK NOTES, TYP. 3 15 ALL L205 3 L301 RADIAL GRANITE BANDS, TYP. 1 L304 RADIAL GRANITE BANDS, TYP. 1 L304 2 L303 NYCTA SUBWAY STRUCTURE FOR JOINT ADJACENT TO GRATINGS , SEE 1 L205 ALL L302 1a L301 FENCE,GRANITE CURB,BENCH PAVER, SECTION, CONDITION B. NYCTA EMERGENCY EXIT MAINTAIN ACCESS AT ALL TIMES ALL L205 PARKS SECURITY LIGHTING,B-12-SEE DOT LIGHTING PLAN BENCH TYPE "A", NUMBER INDICATES LENGTH GARDEN PIPE RAILING AND 3" FLUSH GRANITE CURB DETAIL PARK LIGHT AND SIGNAL- SEE DOT LIGHTING PLAN ITEM SYMBOL CRITICAL ROOT ZONE TREE PROTECTION ZONE BICYCLE RACK- "LOOP" PUBLIC SPACE RECEPTACLE- TRASH TRASH COMPACTOR RECEPTACLES P PLANTING-SEE PLANTING PLAN DOT LIGHT- SEE DOT LIGHTING PLAN (8A) NON-STANDARD DETAIL: DETAIL NUMBER SHEET NUMBER NYC DPR STANDARD DETAIL: DETAIL NUMBER SHEET NUMBER X XXX XX XX 1 L204 1 E201 1 E202 1 E201 T 1 L301 1 22 1 L301 SUBWAY STRUCTURE 25' OFFSET LINE FOR SUBWAY STRUCTURE PROPOSED TREE- SEE NYCTA TREE PLANTING GUIDELINES 1a L301 1 L304 CHECKED BY CONTRACT NO. DRAWN BY SCALE DATE DRAWING TITLE DESIGNED BY DRAWING NO. B-SCAN PROJECT TITLE OLMSTED CENTER FLUSHING MEADOWS CORONA PARK FLUSHING, NEW YORK 11368 CITY OF NEW YORK PARKS & RECREATION BLOCK LOT NYC Parks SHEET No. OF SHEETS SEAL CONTRACT DRAWINGS FOR RECONSTRUCTION OF LITTLE RED SQUARE LOCATED ON 6TH AVENUE BETWEEN BLEECKER STREET AND WEST HOUSTON STREET BOROUGH OF MANHATTAN MG-41350-115M 31 N/A 526 MATERIALS PLAN GEORGE VELLONAKIS, RLALAURA DRAWBAUGH, RLA 1/8"=1'-0" 03/30/2017 L201.00 RICARDO HINKLE, RLA 6 0 8 16 SCALE 1/8" = 1'-0" LEGEND 1.ALL EXISTING SURVEY AND TOPOGRAPHICAL DATA TAKEN FROM SURVEY BY NYC PARKS (DPR), DATED 03/2015, MAP FILE MZ-T-06-100 ALL ELEVATIONS ARE BASED ON THE NORTH AMERICAN VERTICAL DATUM, 1988 (NAVD 88). SEE SURVEY SHEET V101.00 FOR SURVEY LEGEND. 2.THE CONTRACTOR SHALL VERIFY ALL EXISTING SITE CONDITIONS, BOTH ABOVE AND BELOW THE SURFACE. ANY DISCREPANCIES BETWEEN INFORMATION SHOWN ON THE DRAWINGS AND ACTUAL FIELD CONDITIONS SHALL BE BROUGHT TO THE ATTENTION OF THE RESIDENT ENGINEER AND PARKS IN WRITING PRIOR TO COMMENCING WORK. 3.LOCATIONS OF EXISTING TREES SHALL BE VERIFIED IN THE FIELD. 4.NO CHANGES SHALL BE MADE TO THE DESIGN OR LAYOUT WITHOUT THE WRITTEN APPROVAL OF THE LANDSCAPE ARCHITECT. LAY OUT THE WORK AS DIMENSIONED ON THE PLANS. WRITTEN DIMENSIONS SHALL GOVERN; DO NOT SCALE DISTANCES. 5.CONTRACTOR SHALL LAY OUT AND STAKE IN THE FIELD THE ALIGNMENT AT ALL PATHS, PAVEMENTS AND TRAILS FOR REVIEW BY THE LANDSCAPE ARCHITECT. ADJUSTMENTS MAY BE MADE ONLY AS DIRECTED BY THE LANDSCAPE ARCHITECT. CONTRACTOR MAY NOT PROCEED WITH CONSTRUCTION OF IMPROVEMENTS UNTIL HE HAS RECEIVED THE FINAL APPROVAL OF THE LAYOUT FROM THE LANDSCAPE ARCHITECT. 6.ALL NEW PAVEMENTS CURBS AND EXISTING PAVEMENTS AND CURBS TO REMAIN SHALL MEET IN SMOOTH FLUSH CONDITION UNLESS NOTED OTHERWISE. NEW CURBS, WALLS, AND PAVEMENTS SHALL BE BUILT TO A SMOOTH EVEN FINISH WITH A CONSISTENT TOP AND PROFILE WITHOUT WAVES OR IRREGULARITIES. ANY WORK NOT MEETING THIS QUALITY STANDARD SHALL BE REPLACED AT THE CONTRACTOR'S EXPENSE. 7.THE CONTRACTOR SHALL EXERCISE CARE DURING EXCAVATION OPERATIONS TO AVOID DISTURBING ADJACENT FACILITIES, SUBGRADE STRUCTURES AND TREES. ALL DAMAGE RESULTING FROM THE CONSTRUCTION SHALL BE THE CONTRACTOR'S RESPONSIBILITY AND SHALL BE REPAIRED AT NO EXPENSE TO THE CITY AND DPR. ALL REPAIR WORK SHALL BE TO THE SATISFACTION OF THE RESIDENT ENGINEER AND DPR. PLANTED AREAS DISTURBED BY CONTRACTOR'S WORK SHALL BE RESTORED AS DIRECTED BY THE LANDSCAPE ARCHITECT. 8.NO HEAVY MACHINERY, EQUIPMENT OR STOCKPILING OF MATERIAL IS PERMITTED WITHIN THE DRIP LINES OF EXISTING TREES. 9.THE CONTRACTOR SHALL TAKE SPECIAL CARE TO PROTECT ALL EXISTING TREES AND THEIR ROOT SYSTEM. EXCAVATIONS WITHIN THE DRIP LINES OF TREES SHALL BE KEPT TO A MINIMUM AND SHALL BE COMPLETED BY HAND ONLY AND SHALL BE PERFORMED IN THE PRESENCE OF THE RESIDENT ENGINEER, AT NO ADDITIONAL EXPENSE TO THE CITY. NO ROOTS SHALL BE DISTURBED WITHOUT AUTHORITY OF DIRECTOR OF LANDSCAPE CONSTRUCTION. BRIDGE CURBS SHALL BE CONSTRUCTED OR THE AMOUNT OF FOUNDATION MATERIAL SHALL BE REDUCED WHERE NECESSARY, AS DIRECTED BY ENGINEER (SEE GENERAL CONDITIONS, SPECIAL PROVISION, SECTION C, ARTICLE 14 "TREE WORK"). 10.THE CONTRACTOR IS RESPONSIBLE FOR IDENTIFYING LONG LEAD ITEMS AND ORDERING THESE MATERIALS IN A TIMELY MANNER. LAYOUT & MATERIALS NOTES: SEE NYCTA DRAWINGS FOR SECTION DETAILS OVER SUBWAY STRUCTURE AND WITHIN 25' SUBWAY OFFSET SEE U101 FOR ADDITIONAL SECTION U WORK FOR CON ED Little Red Square | Materials Plan
6
CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL
CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL CLL
21
LITTLE RED SQUARE | B. Granite Plaza- view from the west
East view
REBUILD STAIRWAY REPAVE PATH ADD SEATING REPLACE 8FT CHAIN LINK FENCE WITH 4FT DECORATIVE STEEL IMPROVE ENTRANCE REPLACE BENCHES EXPAND AND PROTECT TREE BEDS CREATE WELCOMING ENTRANCE CREATE WELCOMING ENTRANCE
PROJECT AREA 2: EDGECOMBE AVENUE (SOUTH OF 150TH STREET) PROJECT AREA 2: PROJECT AREA 3: PROJECT AREA 3: SOUTHERN CONNECTION
Jackie Robinson Park | Project areas
PROJECT AREA 1: NORTH CONNECTION
PROJECT AREA 1:
REOPEN ENTRANCE REBUILD TOP STAIRWAY ADD HANDRAILS
NEW ASPHALT PATH WITH SEATING AND LIGHTING REPAIR AND REOPEN STAIRWAY ADD HANDRAILS
REPAVE ENTRY PLAZA ADD SEATING AND PLANTINGS REMOVE OR REPLACE CHAIN LINK FENCE WITH DECORATIVE STEEL
Parks Without Borders: Jackie Robinson Park
North Connection: Restore original stairs and path from 155th and Edgecombe to Bradhurst Avenue
Edgecombe Avenue: Lower fences and improve sidewalk seating experience
South Connection: Reconstruct south stairs and plaza , lower and remove fences Stakeholders::
51
ENTRANCE
LPC DOT -SCARA
