LITAL CHERTKOV ARCHITECTURE PORTFOLIO

|1

2 | ABOUT

LITAL CHERTKOV (818) 441 9133 | LITALCHERTKOV@GMAIL.COM | DEERFIELD BEACH, FL 33442 , USA

As a passionate architecture graduate, my creative journey is defined by a relentless pursuit of innovative design solutions. Beyond architecture, I find inspiration through various avenues - from playing the piano to capturing the intricate details of structures through photography. Traveling to diverse destinations allows me to immerse myself in different architectural styles, enriching my perspective and fueling my creativity. I firmly believe in the power of collaboration, recognizing that great design emerges from diligent teamwork. My approach to architecture is driven by a curiosity to explore new solutions, constantly seeking to integrate cutting-edge ideas into my designs. Through my portfolio, I invite you to embark on a journey through my diverse projects, each a testament to my unwavering commitment to excellence and passion for pushing the boundaries of architectural innovation.

https://www.issuu.com

https://www.linkedin.com/in/lital-chertkov-a46b106b/

RESUME | 3

EDUCATION

Florida International University (FIU)

Master of Architecture, Accelerated

2022 Miami, FL

GPA 3.91/4.00 Awards and Honors

• 2022 Master’s Project Award • Tau Sigma Delta National Honor Society • 2020-2022 Dean’s List

Design Your Blind - Custom Window Treatments • Skilled in conducting window measurements, ensuring accuracy and precision in project documentation.

• Produced visualizations using Adobe photoshop and illustrator to communicate design concepts effectively to client.

• Recording of managing multiple projects simultaneously, prioritizing tasks, and meeting tight deadlines without compromising quality.

• Found creative design solutions, contributed fresh ideas and perspectives to project’s problem-solving sessions.

• Utilized communication skills, verbal and written, to facilitate concise interaction with clients, team members, and workrooms.

• Carefully reviewing order forms, drawings and specifications, identifying potential errors and implementing necessary revisions.

Summer Intern

2016-Present Boca Raton,FL

*English *Russain

SKILLS

Revit AutoCAD

Rhino3D

Illustrator

Indesign

Photoshop

June 2019 - August 2019

REG Architects - Architecture Firm West Palm Beach,FL • Utilized Adobe Photoshop and Illustrator to create presentations that effectively communicated design concepts.

• Collaborated with senior architects on the development of construction documents, ensuring all materials met firm standards.

• Conducted site analyses including evaluating environmental, legal, and zoning constraints.

• Worked effectively in a team environment, contributing to a positive and productive work culture.

Real Estate Agent

Fluent More

*Hebrew *Spanish

EXPERIENCES

Design and Sales Manager

LANGUAGES

2015-Present Boca Raton,FL

Self Employed • Implemented innovative marketing strategies to promote properties, including creating visually appealing listing presentations.

• drafted, reviewed, and negotiated contracts for real estate transactions, ensuring compliance with legal requirements.

• Provided personalized assistance to clients during property open houses, offering insightful information about architectural features neighborhood amenities, and market trends.

Grasshopper

Microsoft Office

Lumion

3D Printing

GIS-ArcMap

4 | CONTENT

P. 6-17

DADELAND PALMS

DADELAND, KENDALL , FLORDIA

P. 18-23

INFILL HOUSING

SAVANNAH , GEORGIA

CONTENT | 5

P. 24-31

P. 32-39

PARASITE DECO

THE MANTA PIER

MIAMI BEACH , FLORIDA

SOUTH POINT , FLORDIA

6 | project name

PARALLAEL AND PENPENDICULAR LINES TO THE UNDERLINE

20’ ZONING SET BACK

CRATING A BOUNDRY WITH THE LINES

DIVIDING BOUNDRY INTO 3 SECTIONS

SELSECTING BUILDING BOUNDRY

TOWER

GROUND

OFFICE

DADELAND PALMS -MIAMI | 7

RE SID EN AM TIA EN L IT IE S

RE SID EN TIA L

RE SID EN AM TIA EN L IT IE S

RE SID EN TIA L

SITE BOUNDRY

01

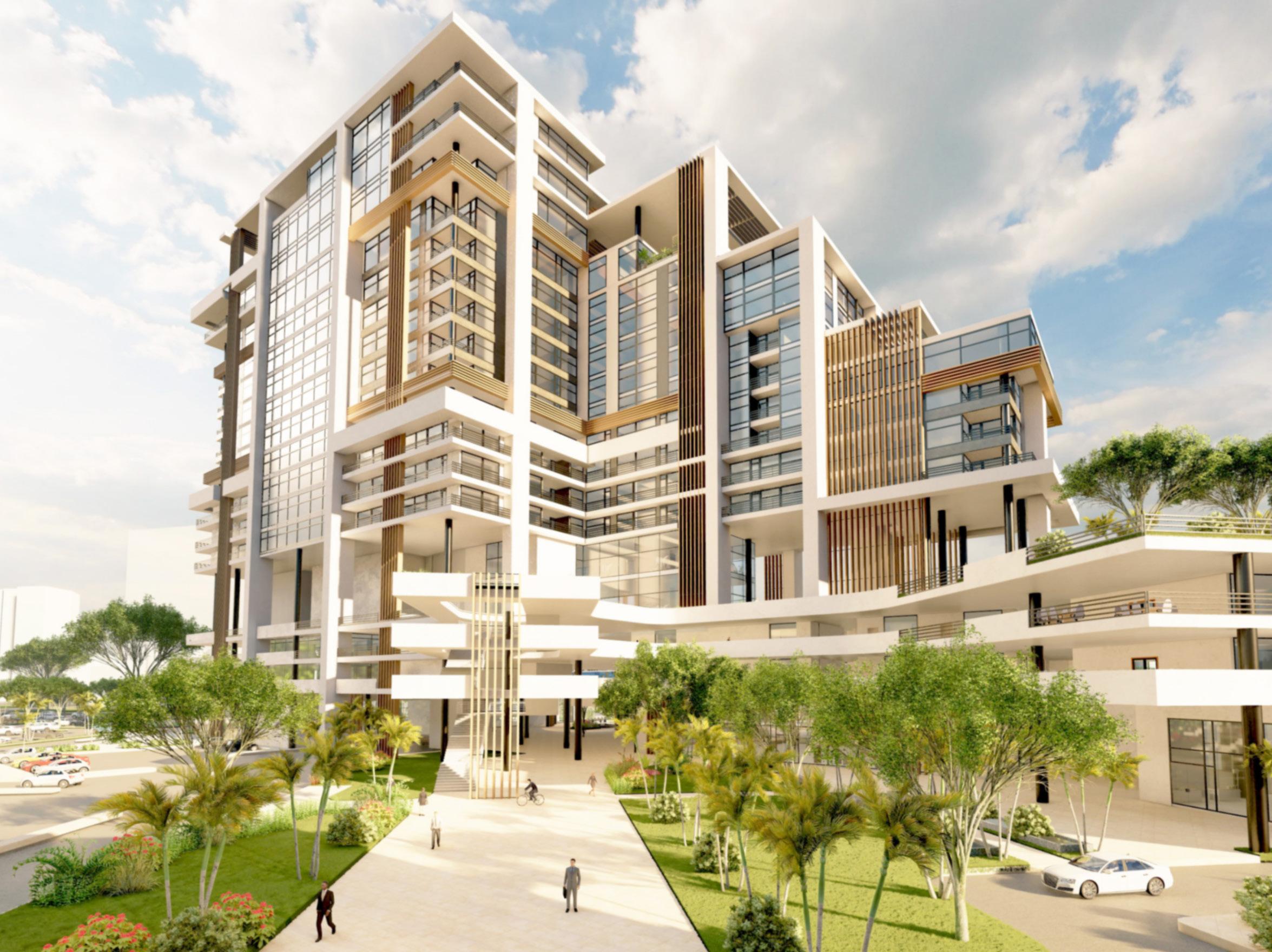

DADELAND PALMS MIXED-USE BUILDING

7201 N KENDALL DR MIAMI, FL

REQUIRED PROPOSAL

Designing a mixed-use building to connnect the community to the on going and future Miami Underline Project.

SOFTWARES

Revit | Rhino | Illustrator | Lumion | Photoshop

2022 MASTER’S PROJECT AWARD WINING

The Dadeland Palms is a mixed – use building, located at the intersection between two new projects in Miami – Dade County, The Underline and The Ludlam Trail. The Underline project aims to transform the below spaces of the metrorail into a multiuse urban trail. It will provide paths to improve the connectivity. between the surrounding nei borhoods and promote emission free movement. The Dadeland Palm will provide residents with an active lifestyle by its proximity to the Dadeland Mall , one of the most successful malls in Miami , dining, and outdoor activities.The building provides a living solution for the rapid urban growth of Miami, as well as improving mobility and accessibility to the eight Metrorail stations. It will serve as a focal landmark for where private and public spaces mergeto a vibrant housing and business community.The up-scaled amenities level includes a two-level fitness center, spa, pool,and an exclusive roof top garden.The Dadeland Palms brings luxury living into a higher standard of residential experience.

8 | DADELAND PALMS -MIAMI

CONNECTION TO THE UNDERLINE AND THE METRO

Up scaled multi-use building connecting social and urban living near the Underline project. Its proximity tothe station makes it adventageous to commuters.

DADELAND PALMS -MIAMI | 9

10 | DADELAND PALMS -MIAMI H

JC PENNY ENTRANCE

RT NO ND ION A L AT DE ST

DA

LU DL AM

TR AI L

JC PENNY ENTRANCE

JC PENNY ENTRANCE

NORDSTROM ENTRANCE E

TH

1

E

IN

RL

E ND

US

U

TOTAL OF 258004’ SQFT

SW 88TH ST

SITE ACCESS MAP

Parks Single family Commercial Trabsportation Vacant Institutional Office

LAND USES

Multi - Family

BUBBLE DIAGRAM

The goal of the diagram is toconnect the fundmental project of the Underline to the building and provide smooth transition from it to the mall. The multi-use building is set as the social heart of the neighborhod by allowing all the pedesrain traffic to meet at the center of it. Its boundry is set by the surrounding developments - the mall , residential complex, and the Underline. The diagram also demonstrates how spaces within the building are spatially connected and promotes social interaction.

O

DADELAND PALMS -MIAMI | 11

BUILDING USE

N

N

LA DE

DA

US

TIO A T DS

1

SW 88th ST

LEGEND Retail Spaces

Office Spaces

Amenities Floor

Apartment Units

Penthouse Units

Green Spaces

Green Spaces

12 | DADELAND PALMS -MIAMI

SITE PLAN OVERLAYING SITE ARIEL PHOTO

The souranding’s elements play an integral role in the design of the building.

They set exits and entrances on the ground floor, to maximize flow and accesability.

Those major elements are the Mall, The Train Station and the residential building.

US

SW 88TH ST

-1

SW 88TH ST

DADELAND PALMS -MIAMI | 13

14 | DADELAND PALMS -MIAMI

DESIGN FLOOR PLANS AND CORRESPONDING PROGRAMS

Sa

W et un a

Sa Dry un a

Sa Dry un a

Sa

W et un a

Sa

W e un t a

Sa Dry un a

Sa Dry un a

Sa

W e un t a

DN

DN

FITNESS CENTER SPA POOL WET/DRY SAUNA BATHROOM GREEN SPACES

AMENITIES LEVEL

DADELAND PALMS -MIAMI | 15

TOWER UNITS PLAN

DN

RESIDENTIAL TOWER

16 | DADELAND PALMS -MIAMI

CROSS SECTION

DADELAND PALMS -MIAMI | 17

18 |project name

INFILL HOUSING - GEORGIA | 19

PRIVATE VS PUBLIC

02

SOLID VS VOID

CIRCULATION

PROGRAM Duplex Apartment

ADA Apartment

1 Bedroom Apartment

Roof Top Garden

Circulation

Lobby

INFILL HOUSING SOUTH BEACH POINTE PIER SAVANNAH, GEORGIA

REQUIRED PROPOSAL Designing a complex building with common social areas.

SOFTWARES

Autocad | Rhino | Illustrator | Lumion | Photoshop

The urban design of Savannah, Georgia suggests a unique contrasting relationship between private and public spaces.On site, the major conflict is between large-scale elements and smaller elements. The main design strategy addresses and solves this conflict by designing a building with variable heights, scaling gradually up to where it blends with the larger surrounding elements. In addition, since the world is transforming into a world where people favor communal life over solitude, then architecture should adapt to those needs and create spaces in which relationships can arise. When analyzing the conditions in which the carriage house and the multi-family building intersect, I found the garden as common grounds. Therefore, in my design,the residential building and the carriage house has a mutual interactive courtyard area that serves as the main social space that connects and ties both spaces together. Moreover, the rooftop garden serves as an additional gathering area that not only promotes socializing but also allows the patrons to experience the architectural space from a different perspective. Lastly, the design has large floor to ceiling glazes that allow the residents to experience the outside, almost entirely. Its corridors defined by wood screens that also provides a sustainable solution to the functionality of the building, since it doesn’t require a large cooling system. In conclusion, the design’s goals in this project are to overcome the conflicts of where small and large elements connects, promote social living and provide a sustainable solution for multifamily housing in the neighborhood.

20 | INFILL HOUSING - GEORGIA

Glass windows

Oak wood panels

Black anodized aluminum

Pre-cast concrete

Brick Tiles

FITTING WITHIN THE SURROUN

N

1st FLOOR PLAN SCALE 1/16”=1’

The main idea in the design is to respond to the The scaling up technique used in the design cr

THIRD FLOOR PLAN

LONGITUDINAL SECTION - W WAYNE S

INFILL HOUSING - GEORGIA | 21

DETAILED FRONT FACADE

NDINGS

e historical and architectural context of the surroundings. reates a strong connection between the old and the new architecture.

ST

FRONT ELEVATION

22 | INFILL HOUSING - GEORGIA

SECTIONS

Roof Slab Roof Drainage Ceiling Hangers HVAC System Tapcon Concrete Screws Lighting Clear Glazing

Mulions

Railing

Stairs Landing

Floor Tiles Concrete T Beams HVAC System

Clear Glazing

Gypsum Wall

Floor Tile Concrete Concrete Float Finish Wood Louvers

2” Metal Insulation Compacted Fill Compacted Soil Ground

PERSPECTIVE RENDERED SECTION

Drainage Pipe Filter Fabric over 4” Tile Drain Gravel Fill Concrete Foundation

2D DETAILED SECTION

INFILL HOUSING - GEORGIA | 23

24 |project name

PARASITE DECO - MIAMI BEACH | 25

+

03

+

+

PARASITE DECO ART PAVILIONS

MIAMI BEAHCH, FLORIDA

REQUIRED PROPOSAL

Creating pedestrian engagement oppurtinities in the back alleys of Miami Beach through art paviilions installation.

SOFTWARES

Rhino | Grsshopper | Python | Illustrator | Lumion | Photoshop

South Beach Miami is one of the most popular destination for tourists and art lovers around the world. It offers beautiful beaches,restaurants, hotels, extensive night life , unique architectural experience of the art deco, and art exhibitions ( like Art Basel). The goal of the 12 Parasite Deco Pavilions is to give visitors a new experience in which they can enjoy and connect with the unique atmosphere of South Beach. And this is all being set next to the most popular two main roads, Ocean Drive and Collins Ave. The 12 pavilions are generated and suppurated by a tensional system, that was developed in order to keep them suspended from the ground and allow free movement of transportation beneath. The tensional systemis an inspiration from the spider web pavilion in abandoned building in Berlin and Zaha Hadid’s public art installation at the Moore building in the Miami Design District. . The structure is made of transparent webs wrapped around steel members. Through the transparent webs light is projected at night.

26 | PARASITE DECO - MIAMI BEACH

THE SITE

Performing a site analysis to set project boundaries and location

.

Collins Av

e

Open Lot

13th Street

Parks

Open Lot

14th Street

Edge Of Pavement Streets

14th Street

et

13th Stre

Parking Garage

Major Roads Ocean Drive Street Collins Ave Main Island Entry

Ocean Dr

ive

Hotels/Motels Building Footprint Water Cartographic Street Project Site

South Beach Site

Project Site Boundary

USGS, AeroGRID, IGN, and the GIS User Community

ARCHITECTURAL CONCEPT OF THE SITE Creating the grid line and boundry

14th ST

Collins Ave

2

2 3

1

3 1

Ocean Drive

Using the initial grid of the 1st pavilion as a base grid to project onto the entire site. ( Parallel Lines to X ) + Using the existing building's foot print as the cross grid ( parallel lines to Y )

Projecting 2 lines from the largest volume of all 3.

Area 1< Area 2 < Area 3 , then using Shape 3 as the guide line for projecting lines.

Setting projecting lines as an addition to the site grid in order to attract additional pedestrian traffic from the nearby main streets.

Generating additional 12 pavilions, consisting of 3 corresponding shapes within the boundary of the grid lines and 2 projecting lines.

PARASITE DECO - MIAMI BEACH | 27

PERSPEVTIVE SITE VIEW Generation of 12 Pavlions.

Marked Pavilions are selected for a further development.

8

6

4.Ocean Pavilion

7 9 5

8

7

9 6

10

5 4 11

12

3 2 1

1

11 Collins Pavilion

3 Overlook Pavilion

10 12 Theater Pavilion

2

28 | PARASITE DECO - MIAMI BEACH

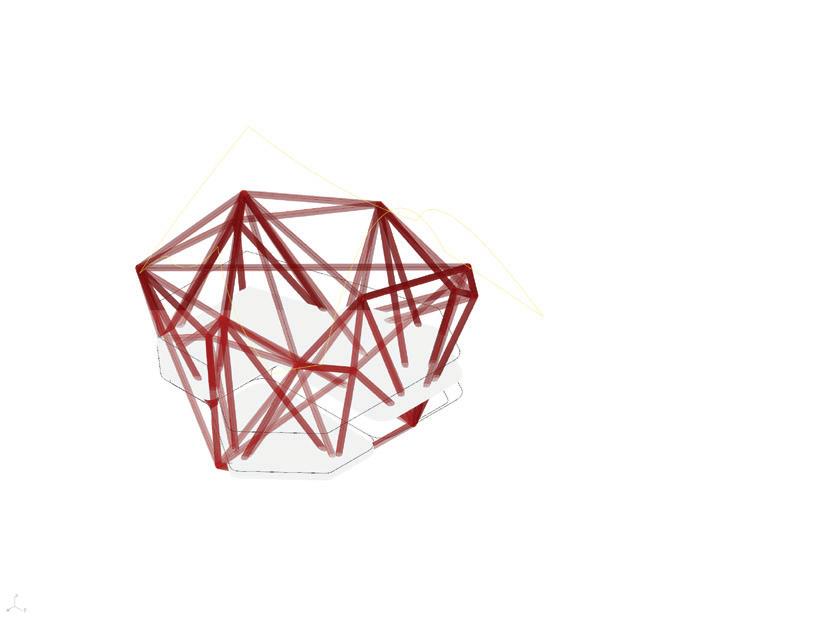

FORM GENERATION GRASSHOPPER Structure Generation

Lofting all 3 curves = 3D bouandry Loft Options: Rebuild: 0 - 40 (40=100%) Refit : Constant 1 Loft Type: Always 5 = Uniform

Applying the Lunch Box Panelizing tool to set s grid pattern on a surface.

Inputs Surface - U division + V divisions Outpots Structure lines - centerlines of the structure Strcture Nodes - connection nodes of the structure

Extracting End Points of all the Curves

Piping all curves: Input Curves Outputs Brep- resulting pipe

Control Points Redesigning the tensile system to comply with site’s heights conditions.

If Tension is needed, the control points of the upper curve will be modified.

If Support is needed underneath, then the points of the bottom curve will be modified.

Creating closed Surfaces Retrieving lIst of curves Creating a surface between 3 vertices

Merging and solid union adding: Pipes + Surfaces + Bases Input Breps to union Output Union Result

Transforming:

Creating a smooth mesh Mesh to smooth Input Smoothing strength Output Smoothed mesh

Delaunay Edges Inputs End Points for traingulate Outpots Topological connectivity diagram Edges of the connectivity diagram

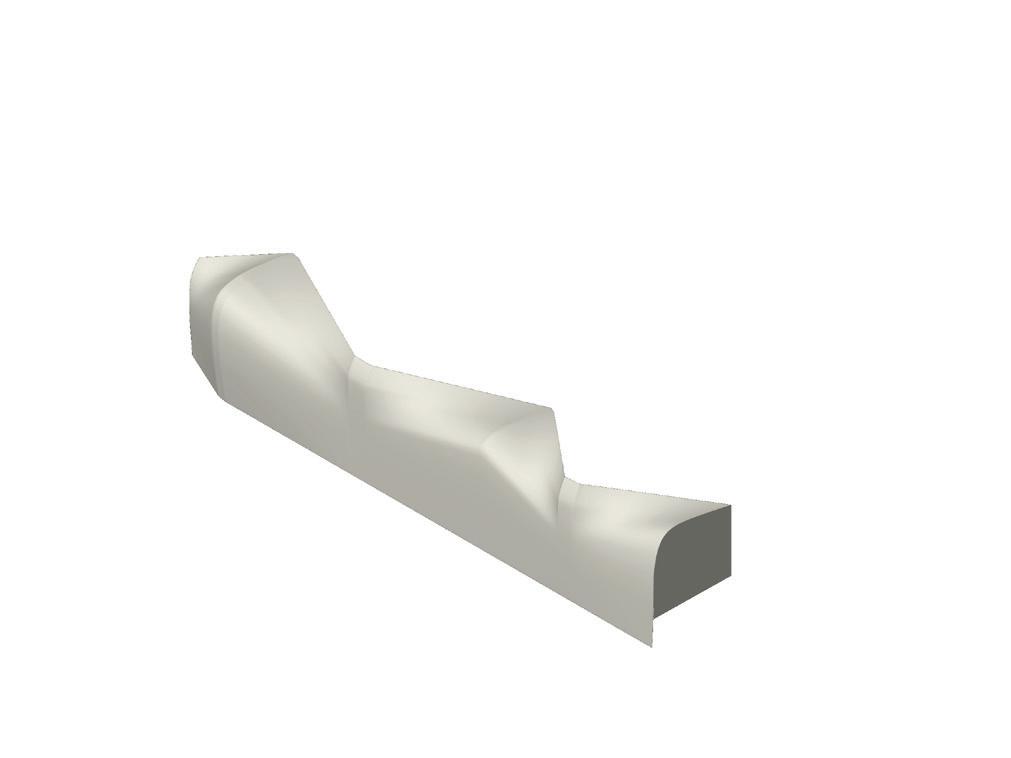

GRASSHOPPER Volumizing Curves

RHINO Surface Generation

Nurbs --------> Mesh

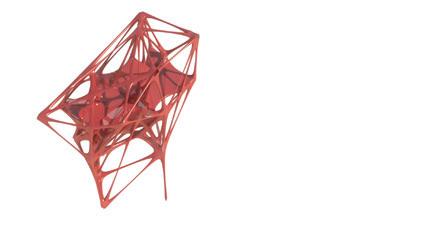

Final Result

PARASITE DECO - MIAMI BEACH | 29

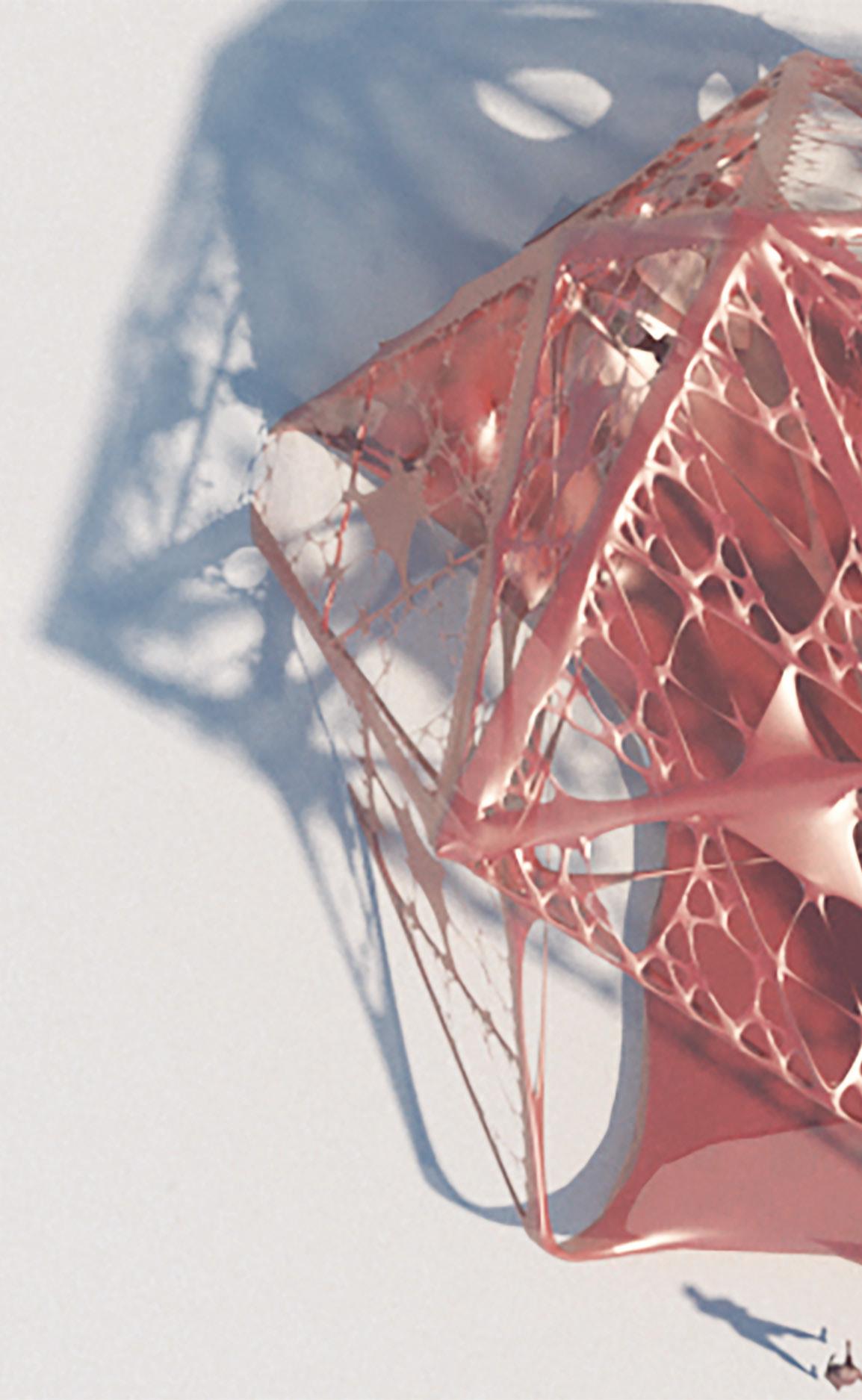

4TH PAVILION

4TH PAVILION PLAN

30 | PARASITE DECO - MIAMI BEACH

PYTHON SCRIPTING : FLOW DIAGRAMS

Designing the walls of the sclupture by setting a recursive function to the facade

2ND PAVILION

PARASITE DECO - MIAMI BEACH | 31

3RD PAVILION PLAN

3RD PAVILION SECTION

32 |project name

THE MANTA PIER - MIAMI BEACH | 33

+

04

THE MANTA PIER SOUTH POINTE PIER MIAMI BEACH, FLORIDA

REQUIRED PROPOSAL

Designing a pier pavilion to serve as a community gathering space.

SOFTWARES

Rhino | Illustrator | Lumion | Photoshop | Subdub

South Beach Miami is one of the most popular destination for tourists and art lovers around the world. It offers beautiful beaches,restaurants, hotels, extensive night life , unique architectural experience of the art deco, and art exhibitions (like Art Basel). The goal of the 12 Parasite Deco Pavilions is to give visitors a new experience in which they can enjoy and connect with the unique atmosphere of South Beach. And this is all being set next to the most popular two main roads, Ocean Drive and Collins Ave. The 12 pavilions are generated and suppurated by a tensional system, that was developed in order to keep them suspended from the ground and allow free movement of transportation beneath. The tensional systemis an inspiration from the spider web pavilion in abandoned building in Berlin and Zaha Hadid’s public art installation at the Moore building in the Miami Design District. . The structure is made of transparent webs wrapped around steel members. Through the transparent webs light is projected at night.

34 | THE MANTA PIER - MIAMI

PARALLEL WALKWAYS

The social mid point of the pier is where the shoreline and water meet. The choices are parallel but offer diffrent uniqe experiances.

SHORT SECTION

THE MANTA PIER - MIAMI BEACH | 35

36 | THE MANTA PIER - MIAMI

CONNECTING THE PIER TO THE SHORE The design of the social space in the intersection is what sets the heart of the pavilion.

Each side of it allows a uniqe overlook to the beach and to the sea.

8

7

6

5

6

4

1 2

FLOOR PLAN

3

1.Old pier walk-way | 2.Marina Deck | 3. Seating on existing pier | 4. Right wing common area | 5. Left wing common area | 6. Floor mesh seating area | 7. Playgtoung/fishing zone | 8. Semi-private sitting areas

THE MANTA PIER - MIAMI BEACH | 37

38 | THE MANTA PIER - MIAMI

EXPLODED AXONOMETRY The strcuture is made of metal frame and pre-cured concrete segments.

THE MANTA PIER - MIAMI BEACH | 39
