STUDIO PROJECT FROM FALL 2022
House of Hits

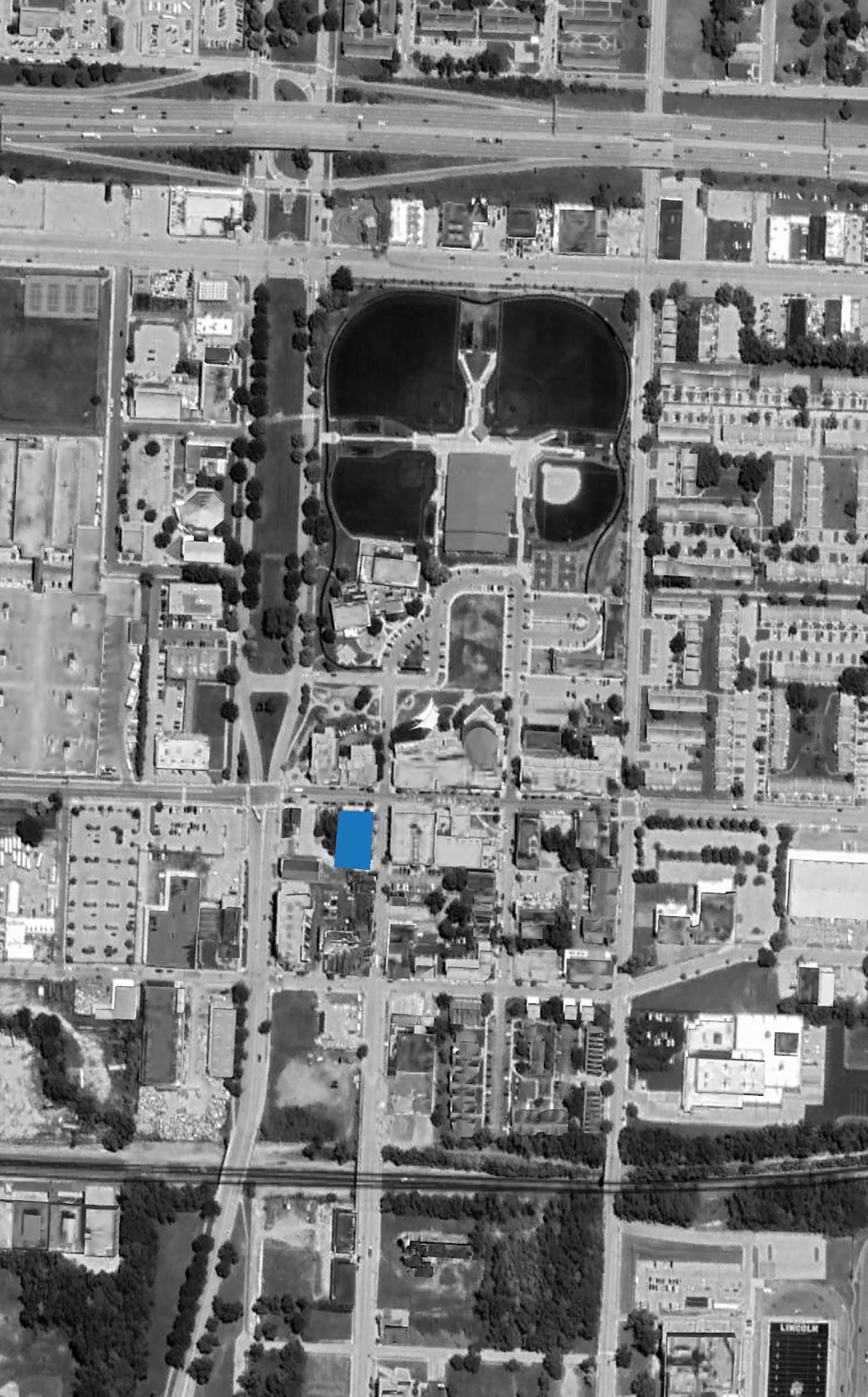

The House of Hits was an iconic place of Jazz in the 18th and Vine District of Kansas City. This was a design to bring a jazz theater to the corner of 18th and Vine. There were two ways to initially address the corner: keep the urban edge or break away from it. In shaping the building and developing the program on the site it was clear that subtracting from the corner and keeping partial urban edge of both promenint sides allowed for the building to give back to the community as a gathering space. The two objectives became (1) Engage the Corner through carving of the building, (2) Extend the Public Realm through physical access to the theater and exterior. This allowed for a natural public space on the corner to be an overflow of venders on First Fridays where people come to buy and sell local items and jazz performances to fill the street.
2
Rhino | Revit | Adobe Illustrator & Photoshop | Twinmotion
Breeze Through
Buffer Engaging
Urban Front

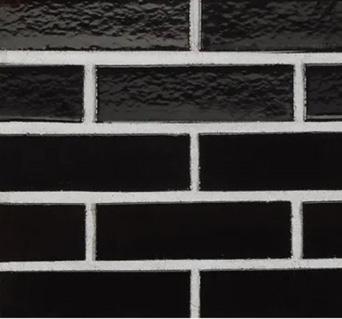

3 YEAR 4 FALL 2022 | Kansas City, MO 0 4' 8' 16' 32' 18th Street Vine Street Overhead Bandshell Pavement Color Change Brick Cladded Seats/Planters Large Bus Turning Radius TPO Roofing Native Kansas Grasses Loading and Trash Truck Drive Dumpster
18thStreet
18thStreet
18thStreet
VineStreet
VineStreet
VineStreet

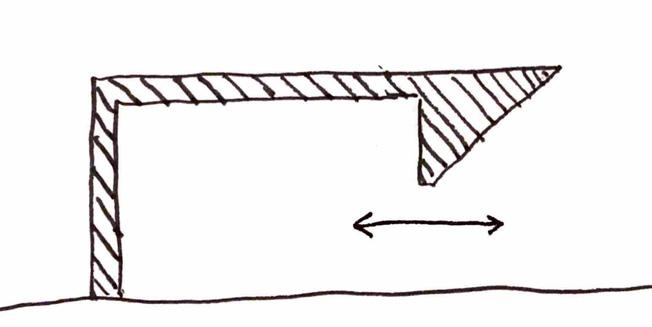

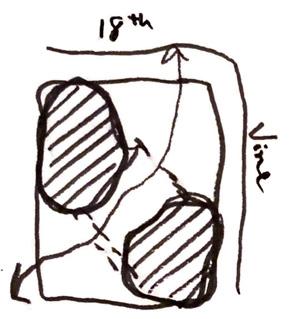

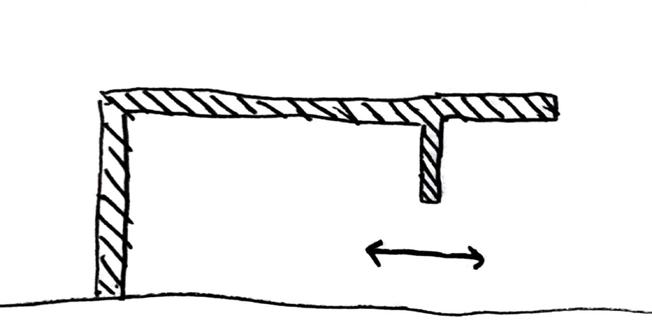

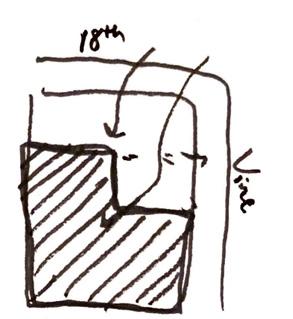

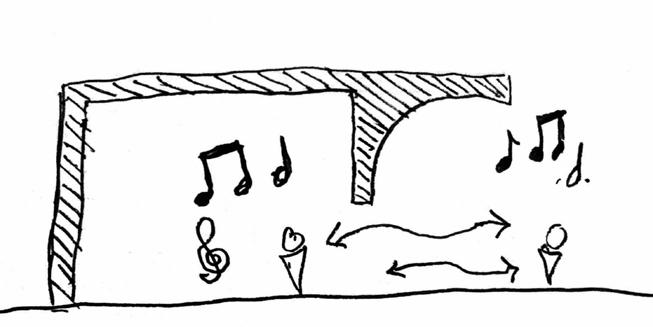

Engaging the Corner Engage the corner through carving of the building.
Extend public realm through physical access.
The bandshell shape came form from the curvature of the brass instruments of jazz such as the trumpet and saxophone.
4 Process
and Diagrams
Black Box Theater
5 House of Hits Floor Plan 0' 4' 8' 16' 32' 9 1 3 6 8 10 12 11 13 13 13 14 7 5 4 2 12 7
1 -
2
3 -
4 -
5 -
6 -
7 -
8 -
9 -
10
11
12
13
14
Program
Vestibule
- Lobby
Sound & Light Vestibule
Black Box Theater
Office/Ticket Booth
Tech Booth
Unisex Restroom
Family Restroom
Green Room
- Black Box Storage
- Loading Dock
- Mech Room
- Leasable Studio
- Small Gallery/Lobby
Theater
Closed off from Exterior
0 2' 4' 8' 16'

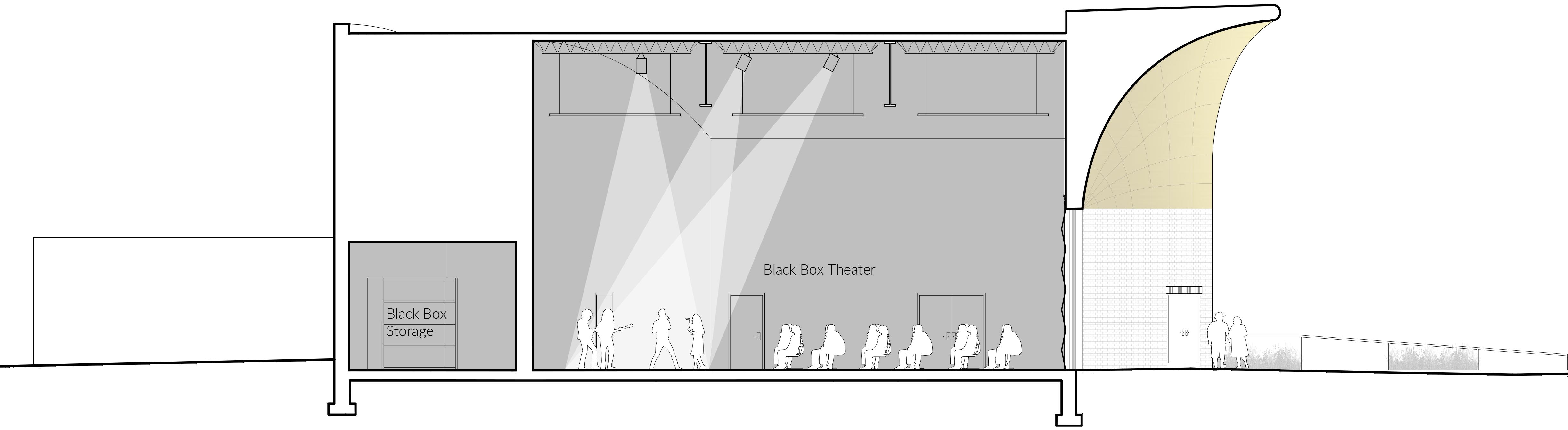

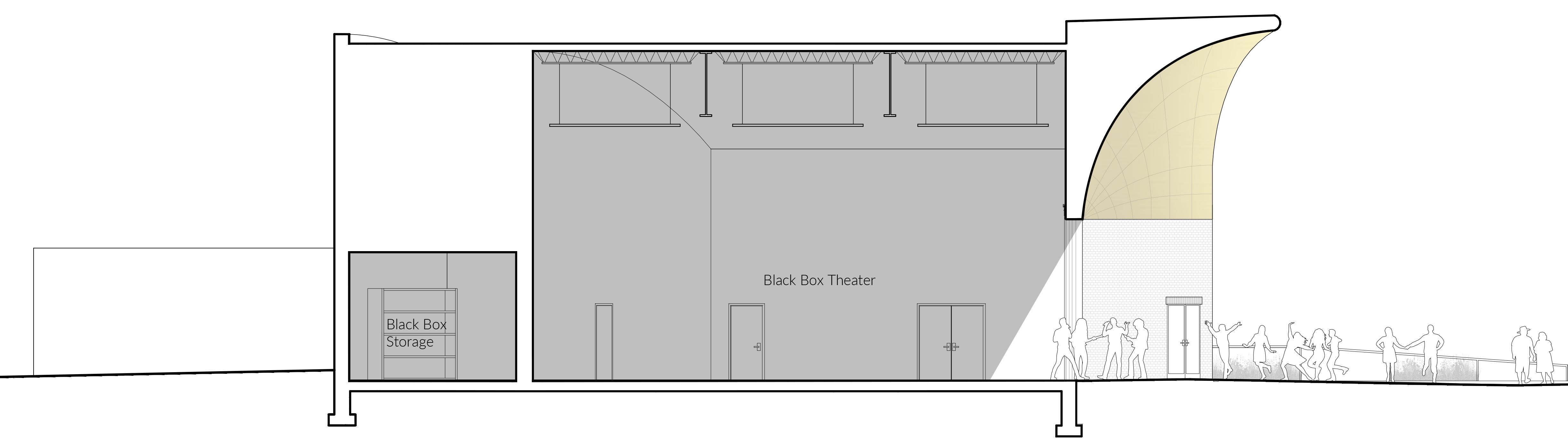

Vine Street Elevation Section with Closed Theater Wall

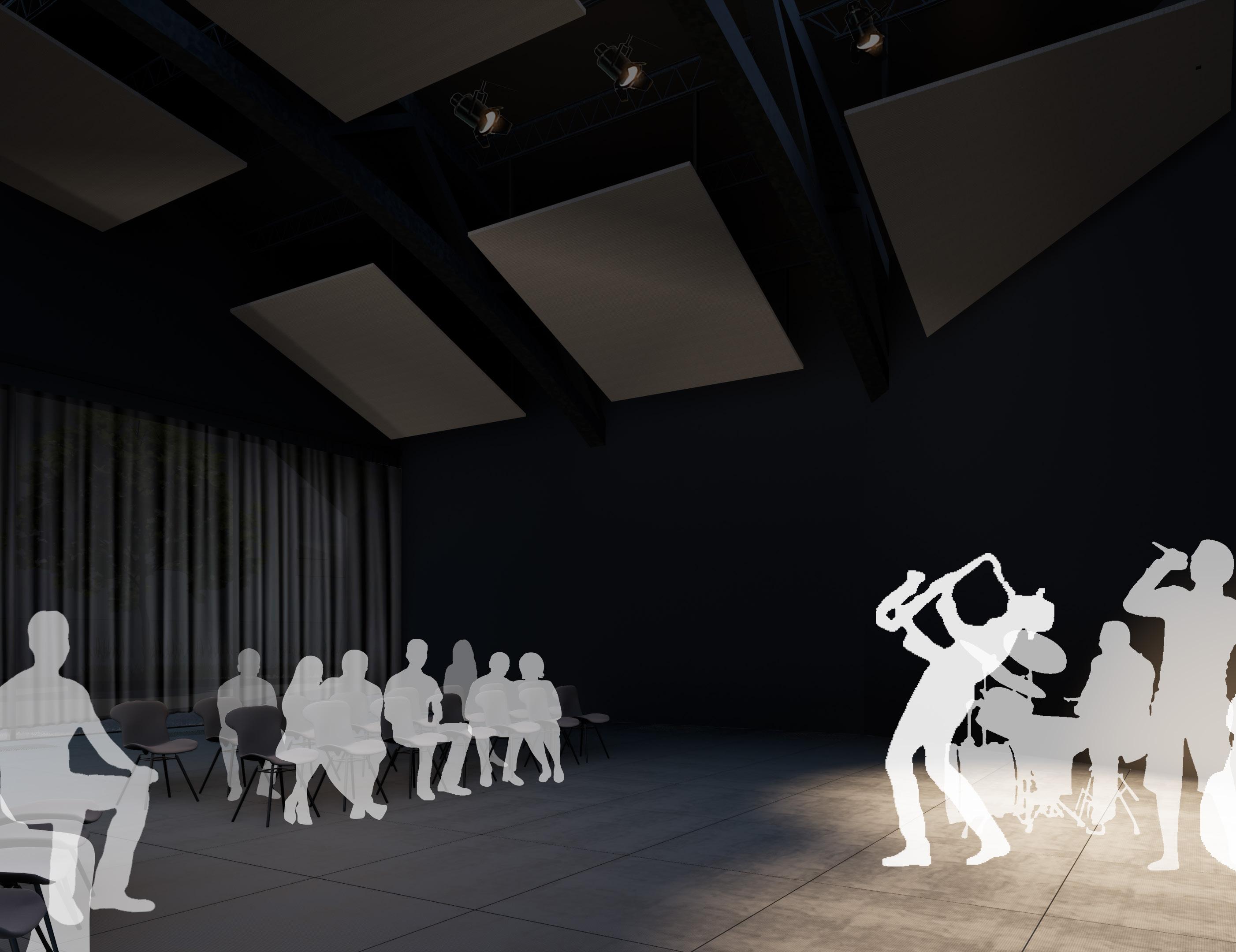

Theater Interior Performance
7
of Hits
House

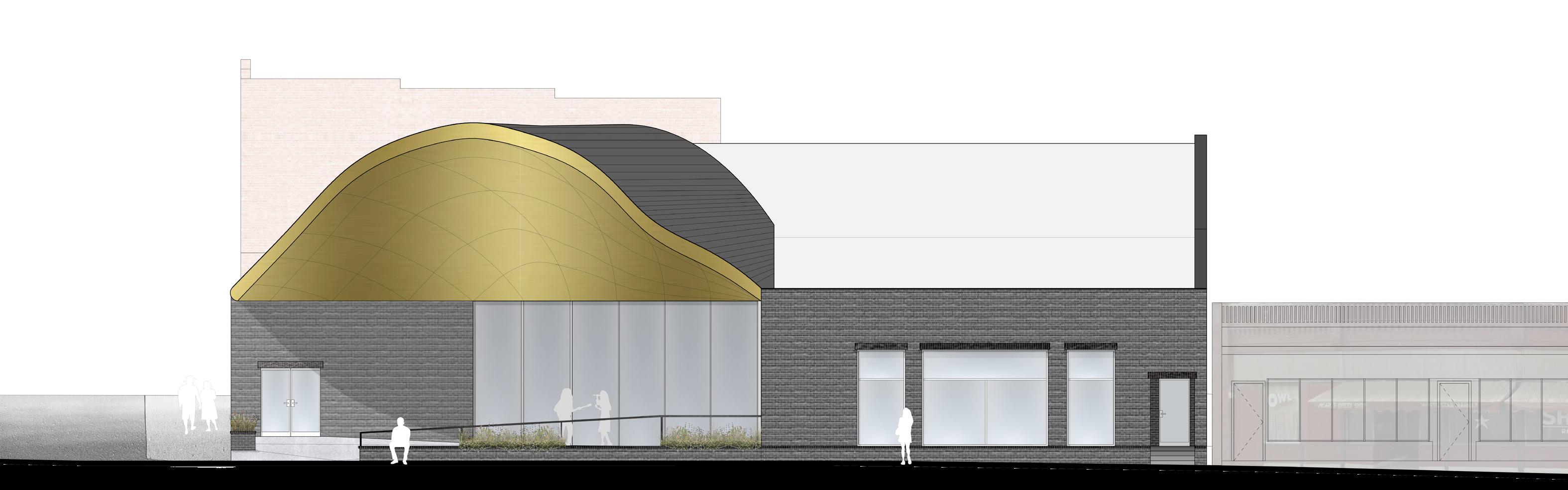

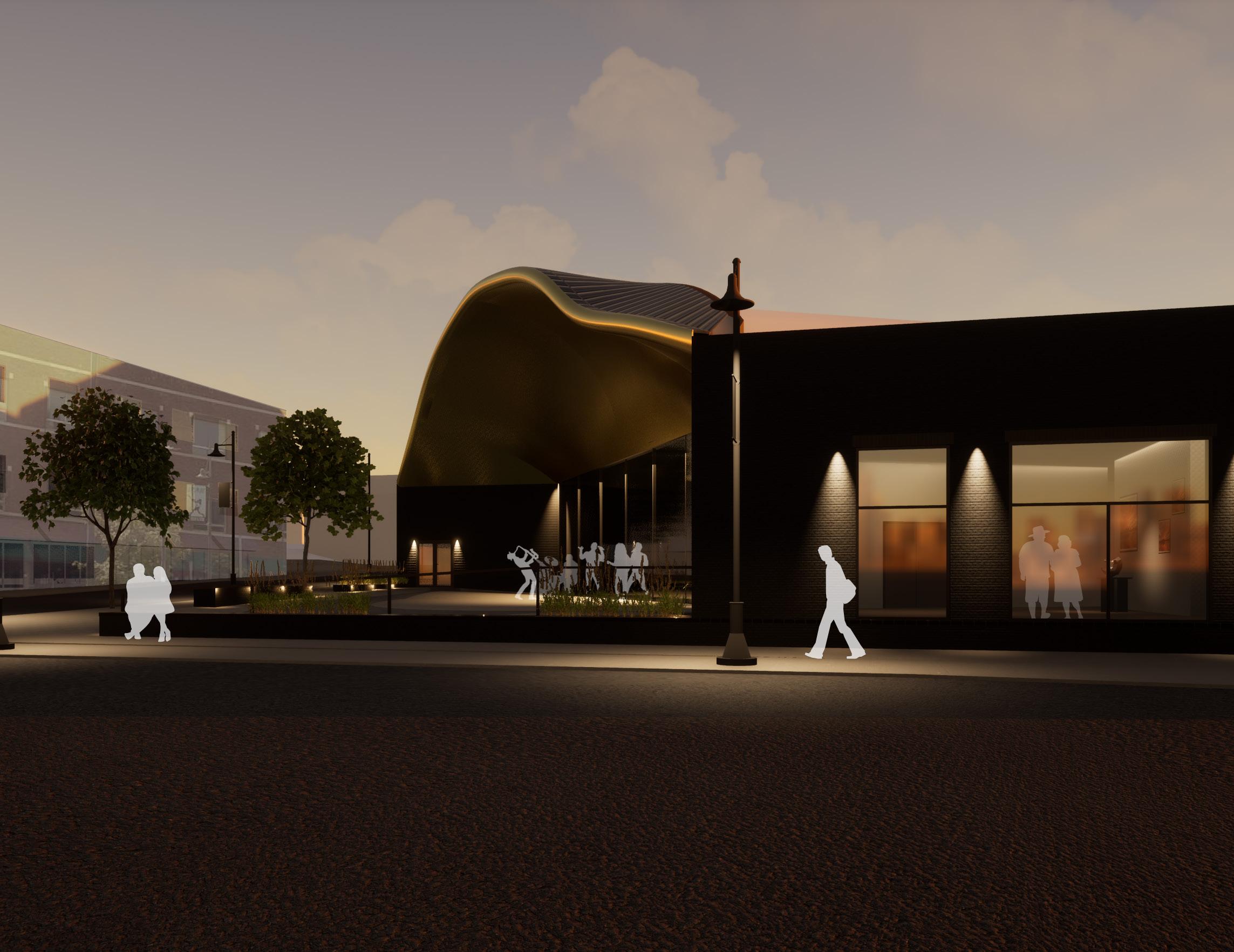

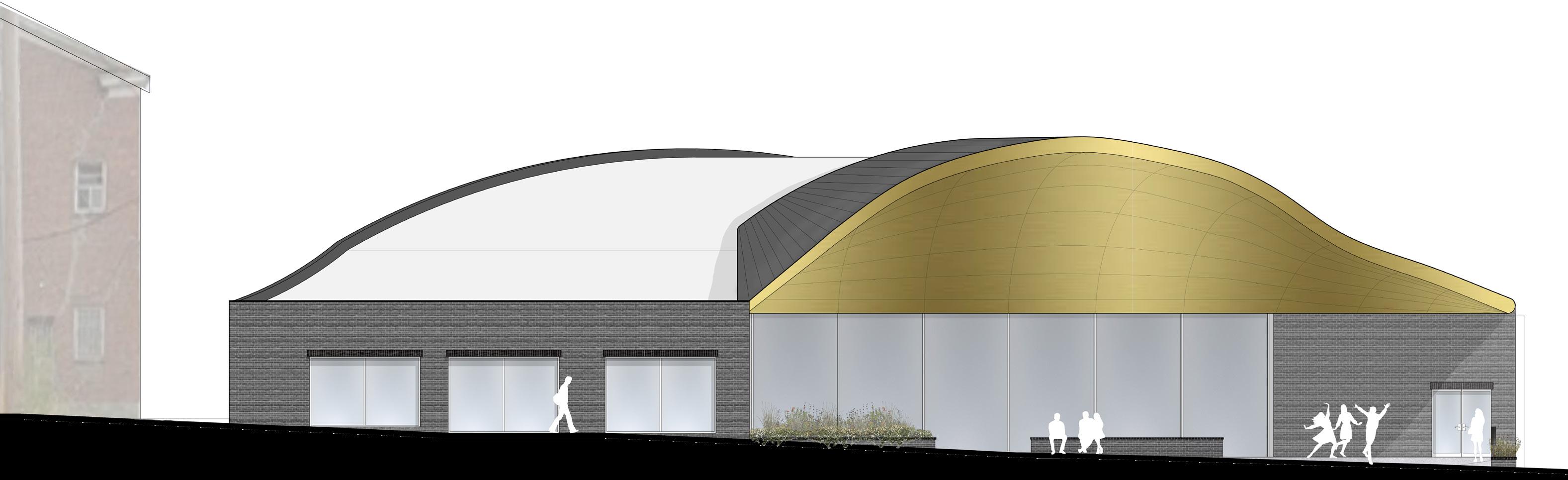

18th Street Elevation
Theater Open
to Exterior Section with Open Theater Wall
0 2' 4' 8' 16'

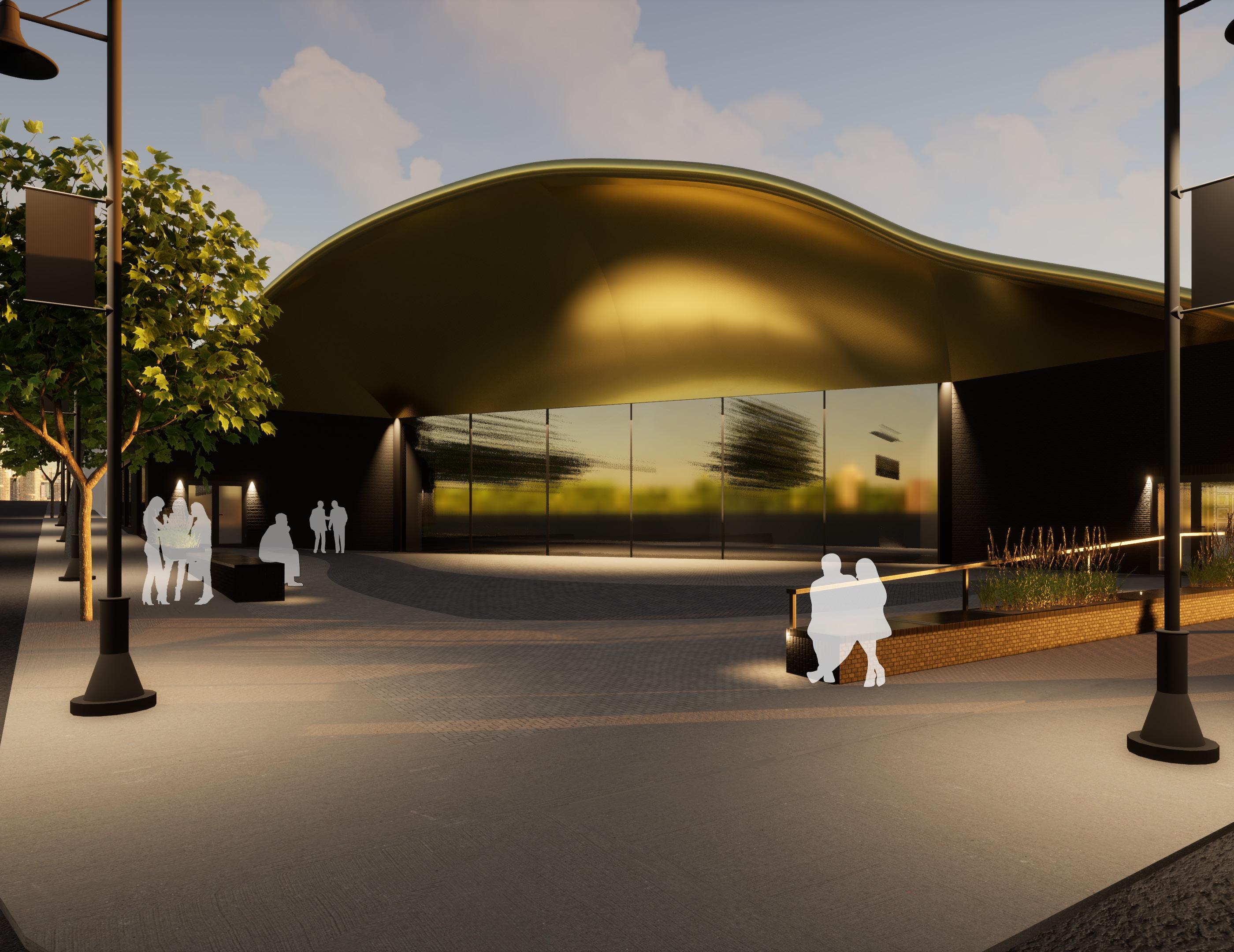

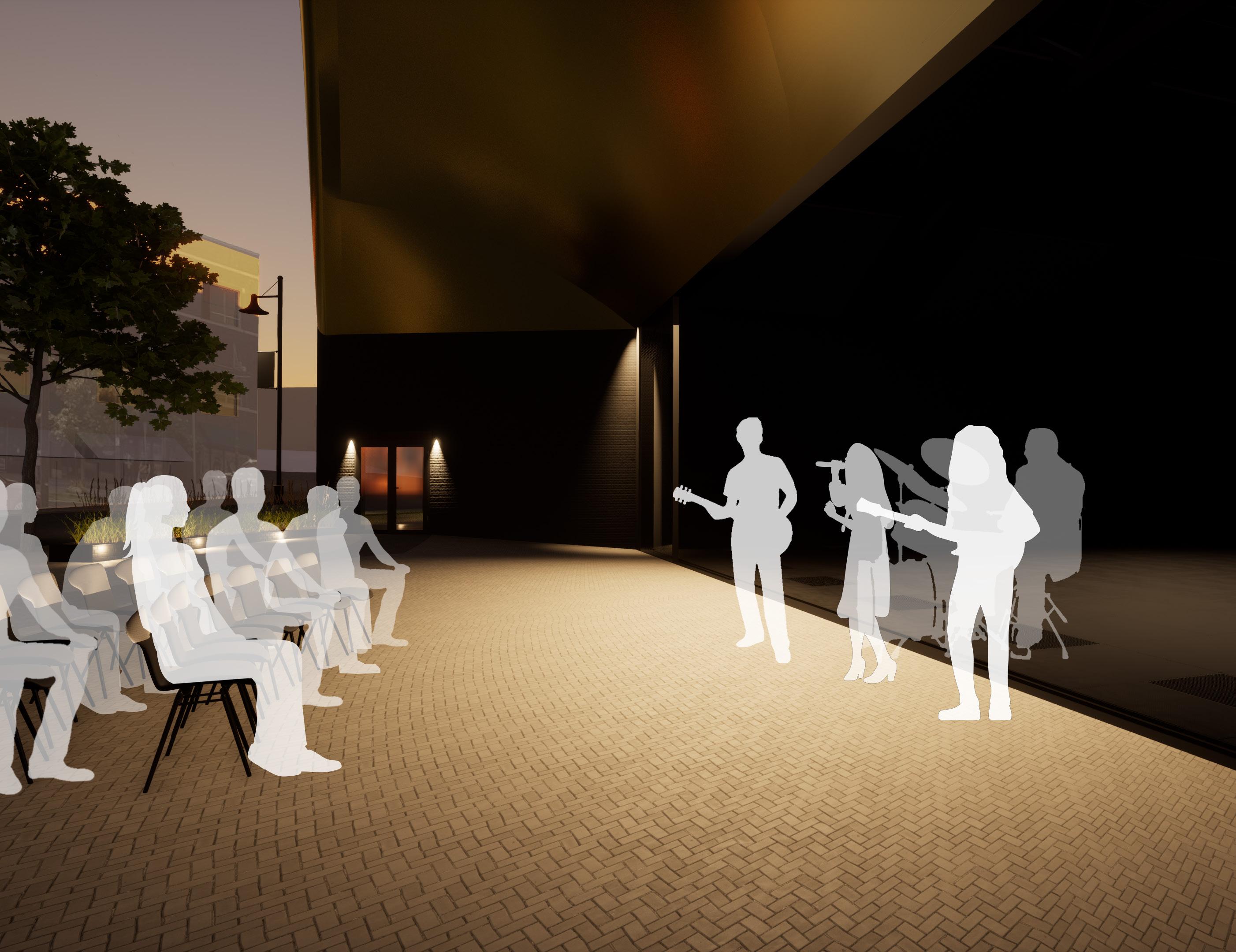

Theater Opened for Exterior Performance
9
Black Box Theater

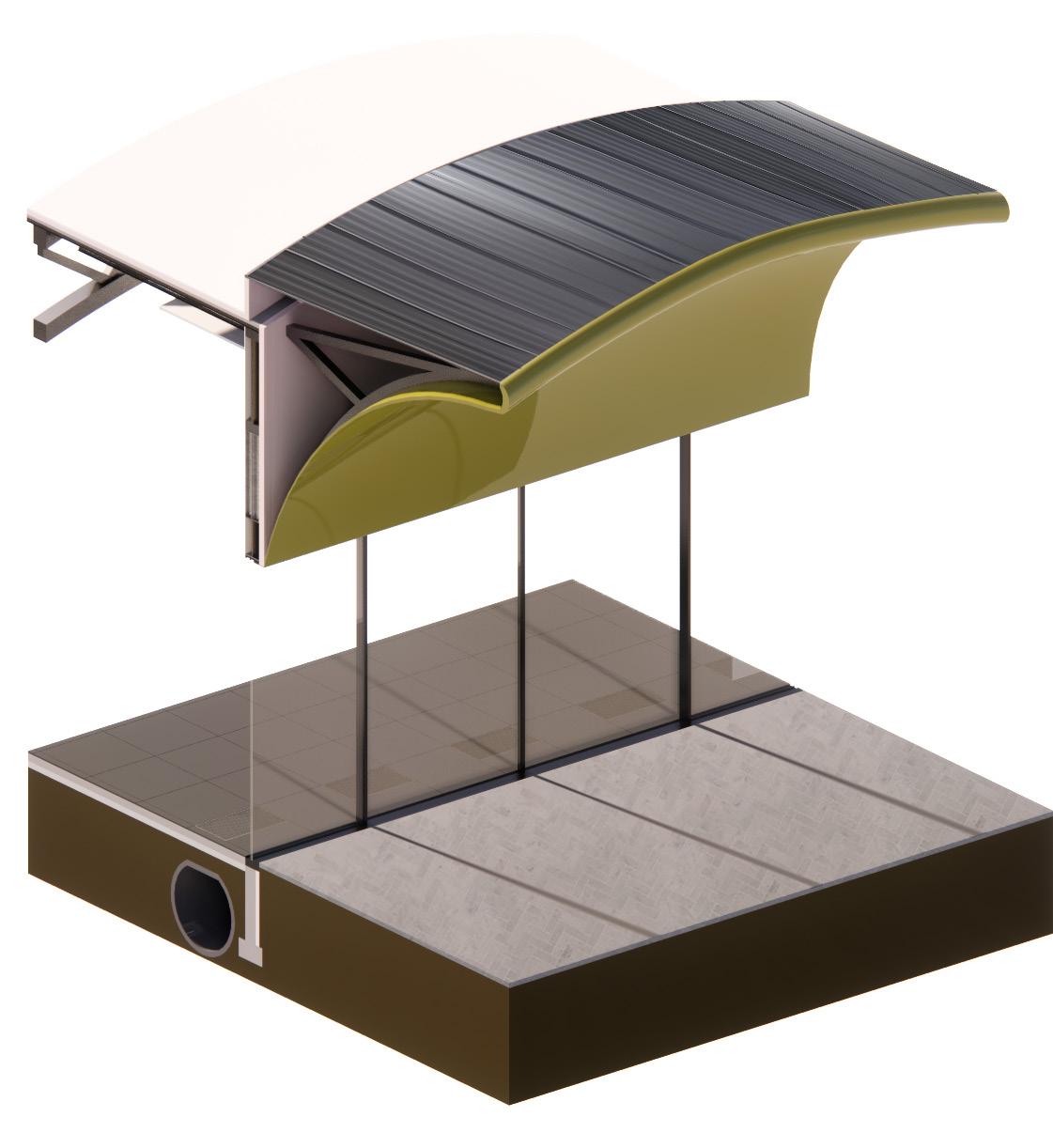

Bandshell Wall Section Exploration
Standing Seam Zinc Roofing
6” Steel Studs 16” O.C.
Spanning from Steel Supports
6” Steel Studs
TPO adheared to Plywood
Tapered Polyisocyanurate Insulation
2” Concrete Topping
1 1/2” Composite Steel Decking
Steel Open Web Joists
5/8” Gypsum
1 5/8” Steel Studs
Steel Plate Girder
5/8” Gypsum attached to
6” Steel Studs
3/4” Fire Retardant Plywood
4” Mineral Fiber Insulation
Steel Bandshell Structure Brass Metal Panels
L-Shaped Brackets attached to Metal Panels
Bracket to Primary Structure
1 5/8” Steel Studs
280 Silent Steel Curtain Track
W 24x162 Steel Beam
1 Parapet Detail
3-pane Insulated Sky Frame Classic Sliding Door
Permeable Pavement
3” Rigid Insulation
Soft Theater Flooring
BlueDuct Diffuser
5” On-Grade Concrete Slab
Concrete Spead Footing
Inground BlueDuct
2 Bandshell to Glass
3 Glass to Ground
10
Curved
11 Black Box Theater

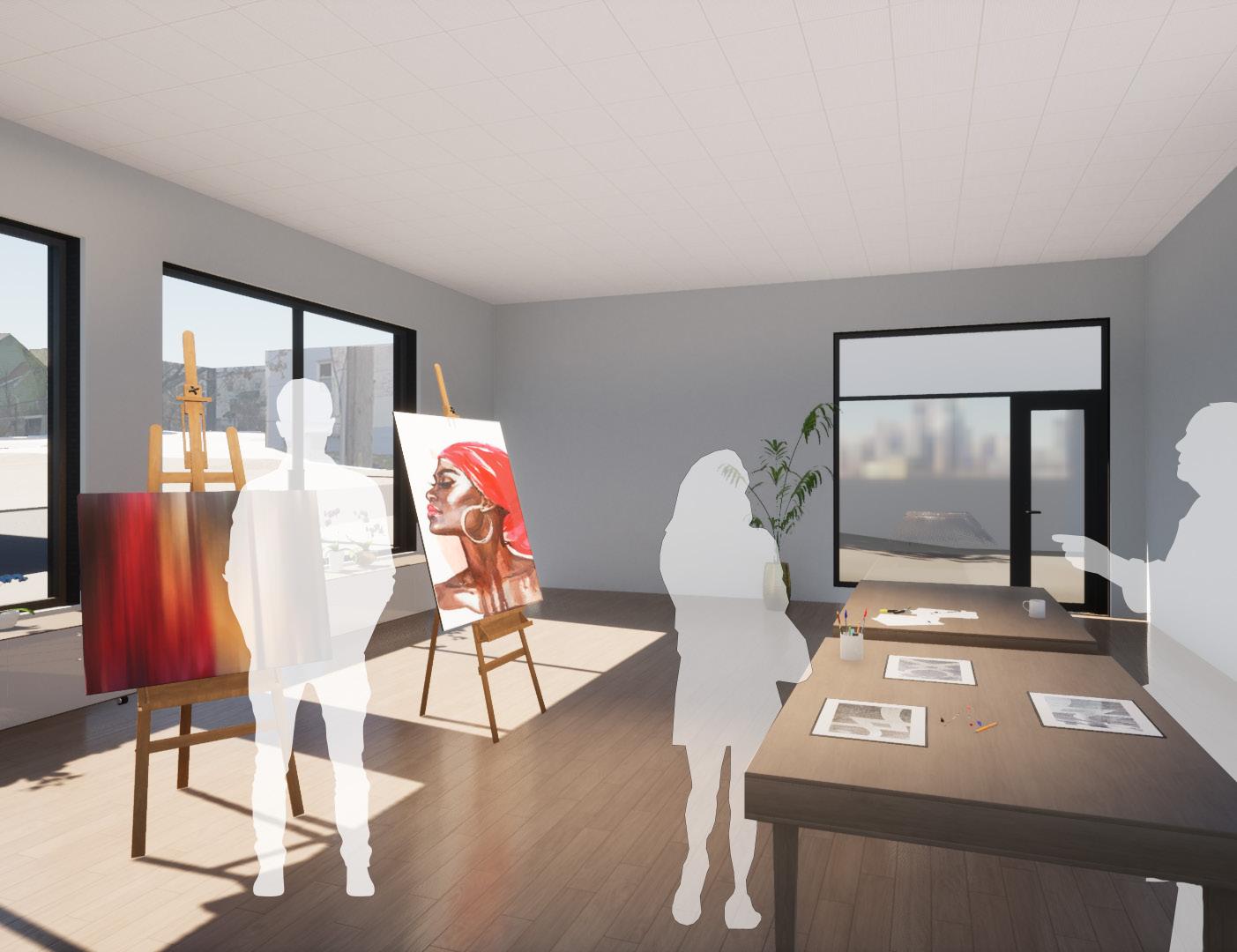

Interior Exploration of Studio Space
