Sun Protection Solutions AI MOTOR SPECIALIST A leading manufacturer in precision window & door drive control system. Liana Liu Mob: +86-134 3081 9312 Email: Headquarter:Website:cnaok41@aoksz.comwww.a-okmotor.com21/F,TowerA,Qianhai Excellence Times Square, Bao'an Center, Shenzhen, Guangdong, CN Factory: Hexing Road South side, Sanhe Economic Development Zone, Huiyang, Huizhou, Guangdong, CN
AM15 Mini Roller Blinds Motor
AM15 Mini Roller Blinds Motor
AM15 Mini Roller Blinds Motor
Low energy consumption. Built-in lithium battery. USB-Type C DC5V charging, optional solar panel for power supply. Electric limit setting (6 limit positions). Stop by RF/Bluetooth/WiFi/ZigBeeobstacle. smart control. Roller Blinds Zebra Blinds Shangri-la Blinds Model AM25-1/30-ES-E Motor Diameter 25mm Torque 1N.m RPM 30rpm RF 433.92MHz Battery 2600mAh AM22/AM25/AM28 Roller/Zebra/Shangri-la Blinds Motor Model AM22-0.5/25-ES-E Motor Diameter 22mm Torque 0.5N.m RPM 25rpm RF 433.92MHz Battery 2600mAh Model AM28-1.8/25-ES-E Motor Diameter 28mm Torque 1.8N.m RPM 25rpm RF 433.92MHz Battery 3000mAh
USP of AM22/AM25/AM28 Motor Child Safey Easy to Install Fire Retardant Durable Design Ultra-thin 7mm motor head, Smaller light gap. Privacy/AccurateLightControl Hidden antenna/power cable for child safety, neat looks Long Battery 2600mAh/3000mAhLife(Last for 4-6 months once fully charged.) Micro-USB/USB-type C charging port, DC5V charging. Solar panel optional for continuous power supply. Energy Generating caseFlame-retardantbatteryhousingtoprotectthe circuit board and lithium battery, which helps reduce the static electric. Make processinstallationtheas simple as possible. A good product is thoughtful in design and reliable in usage.
USP of AM22/AM25/AM28 Motor • Ultra-thin 7mm motor head, smaller light gap. • Hiding antenna for child safety, looks neat. • Standby power ≤100uA, long standby time. • Micro-USB/USB-type C charging port, DC5V charging • AM22/AM25 with built-in 2600mAh rechargeable lithium battery, AM28 with built-in 3000mAh rechargeable lithium battery (Last for 4-6 months once fully charged. Solar panel optional for continuous power supply) • Flame-retardant battery housing case to protect the circuit board and lithium battery, which helps reduce the static electric. No Wire * Energy Saving * Convenient Charging
USP of AM22/AM25/AM28 Motor
High precision planetary gear reducer (helical gear) for silent running. (The main reason for the silence of the helical gears is that the teeth are not in full contact with each other, which reduces the contact area and friction.)
Newest Coreless DC motor, super silent ≤22dB within 1m distance.
Stop by obstacle. Built-in current monitoring, timely stop to protect the motor when the fabric is overloaded. Slow start and slow stop. The gentle protection system makes the motor run smoothly and gracefully.
USP of AM22/AM25/AM28 Motor
Multiple Control Ways of AM22/AM25/AM28 Motor
Multiple Control Ways of AM22/AM25/AM28 Motor
Mini size, light weight, easy installation. Suits for venetian slats width: 12.5cm,15cm,16cm DC motor, constant speed, quiet running design. Current protection design to prevent the damage of motor Simple to operate and set limit. Convenient charging. Able to connect with voice devices via Hubs Smart connect with below protocols AM19 Hollow Glass Venetian Blinds Motor Model AM19B-03/35-H Dimension 93.5*25.8*18.6mm Voltage DC24V Torque 0.3N.m RPM 35rpm (constant speed) RF 433.92MHz Mini venetian supply power to motor through it.

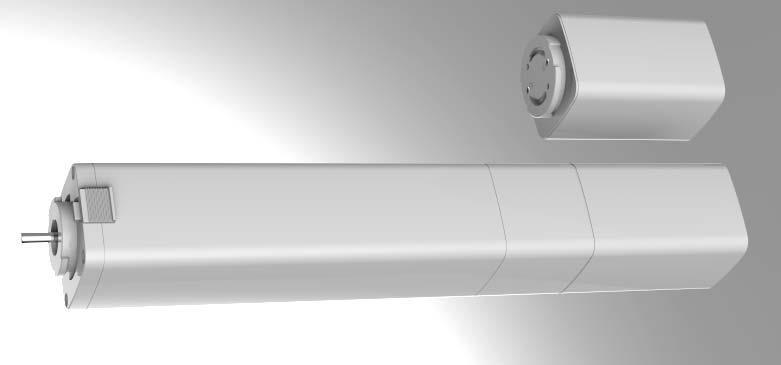

AM24 Venetian Blinds Motor Single/Dual Shaft AM24B-08/34-EL-I AM24B-1/34-EL-II Input 24V Torque 0.8N.m/1N.m RPM 34rpm RF 433.92MHz Limit Type Electronic Limit Single/Dual Shaft AM24BAM24B-06/34-ES-I-08/34-ES-II Input 7.4V Torque 0.6N.m/0.8N.m RPM 34rpm RF 433.92MHz Battery Pack 2600mAh Limit Type Electronic Limit Single/Dual Shaft AM24BAM24B-08/34-I-H-1/34-II-H Input 24V Torque 0.8N.m/1N.m RPM 34rpm Speed Constant Limit Type Mechanical Limit Multiple Control RF/Bluetooth/Wi-Fi /ZigBee smart control Voice Control-Alexa, Google Home, Siri, IFFFT Honeycomb Blinds Pleated Blinds Roman Blinds Venetian Blinds
AM24 TDBU Honeycomb Blinds Motor Top down bottom up lift option allows natural light into the room while maintaining privacy. Single/Double Shaft AM24BAM24B-1/34-EL-I-1/34-EL-II Input 24V Torque 1N.m RPM 34rpm RF 433.92MHz Limit Type Electronic Limit Setting
Double shaft design. Electrionic limit setting, easy for operation. Lift &Tilt dimming,dot/continuous running. Rubber adaptor on both sides of the motor to lower down the vibration noise when motor runs. Overloading protection. Soft start and soft stop. Smart connect with below protocols and voice control AM40 Venetian Blinds Motor Model AM40-2/28-EL-II Dimension 40*290mm Voltage 24V Torque 2N.m RPM 28rpm RF 433.92MHz Aluminum Venetian Blinds VenetianPVCBlinds Wooden Venetian Blinds AM24 AM40 2N.M Large Torque
AM54 Faux Wood Venetian Blinds Dimming Motor Model AM54-08/12-ES Voltage DC12V Torque 0.8N.m RPM 12cm/s RF 433.92MHz dB 40dB, ultra quite Retrofit your manual blinds to motorized shades IN SECONDS ◆ Patent energy saving design, powered by battery pole and solar panel. ◆ Constant speed ◆ Tilt light accurately ◆ Multiple control way, remote control, APP or voice control via gateway ◆ Ultra silent design www.a-okmotor.com
AM20 Plantation Shutter Motor ➢ 5VDC Type-C port for charging, solar panel optional. ➢ Detachable lithium battery housing , easy for recharging ➢ Anti-UV housing material, durable lifecycle ➢ Different sizes of slat clip (2.5/3.5/4.5 inch) ➢ 3M stickers or screws for installation. ➢ Multiple control, remote control,APP control, voice control. Model AM20 Torque 0.25N Open Speed Max 6 or 8mm/s RF 433.92MHz Battery Capacity 1000mAh Working Time 6 hours DC 8.4V 0.3A
AMC50 Vertical Blinds Motor Model AMC50 Dimension 36.5*41.5*280mm Voltage 100-240VAC Torque 1N.m RPM 12cm/s RF 433.92MHz dB 40dB, ultra quite Max Rail Length 6 meters Brushless DC double motors Stepless adjustable speed Arbitrary dimming slats Limit position memory function Obstacle detection function Manual/RF remote/RS485/dry contact control Applicable to curved rails

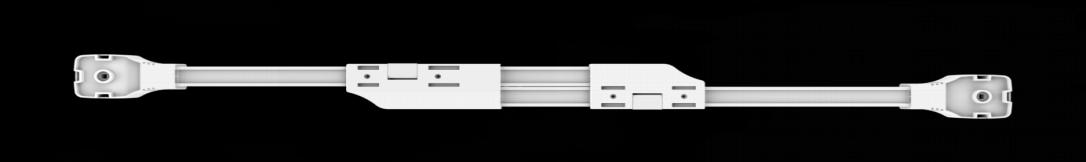

AM50 Lithium Battery Curtain Motor Model AM50 Torque 1.2N.m Open Speed Max 12cm/s RF 433.92MHz dB 40db, ultra quite Rated Power 40W Bluetooth/WiFi/Zigbee Support Battery capacity 14.8VDC 2600mAh ➢ 5V USB/Type-C charging interface. ➢ Detachable lithium battery housing, easy for recharging. ➢ Ultra-low power consumption design, lithium battery power. ➢ Stop by block function. ➢ Touch to go. ➢ Fabric rebound journey correction. ➢ Automatic memory stroke function. Extendable curtain rail: 1m to 4 m as you wish Smart connect with below protocols
