Raymond West x Levrack for Manufacturing

An Affordable Solution for More Efficient Storage

LEVRACK for Manufacturing

MAXIMIZING THE STORAGE IN YOUR FACILITY? Uncover your wasted space Traditional pallet racking is widely used in manufacturing facilities for a reason - it’s sturdy, functional, and affordable. But hiding beneath that bottom tier of your racking is untapped capacity, organizational capabilities, and increased productivity. Standard racking often creates a significant amount of wasted space, and stacking materials often makes them difficult to access. LEVRACK allows you to make full use of the space you’re currently wasting so that your facility can operate as efficiently as possible.

WASTED SPACE

2

800.NOW.LIFT

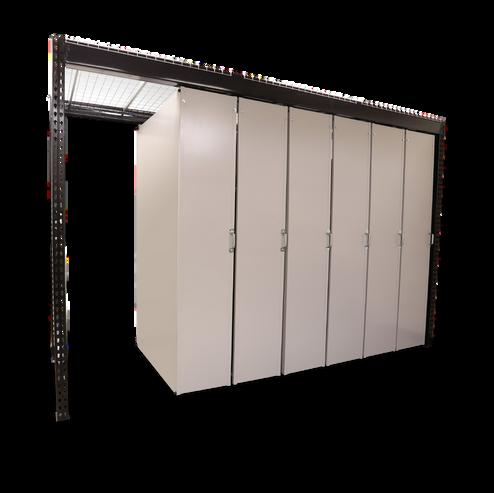

Optimize Your Existing Racking Instead of shelves standing alone or in aisles, LEVRACK uses shelves mounted to an overhead track, “levitating” off the ground. This allows the shelves to compact together to save space and slide apart to access your items.

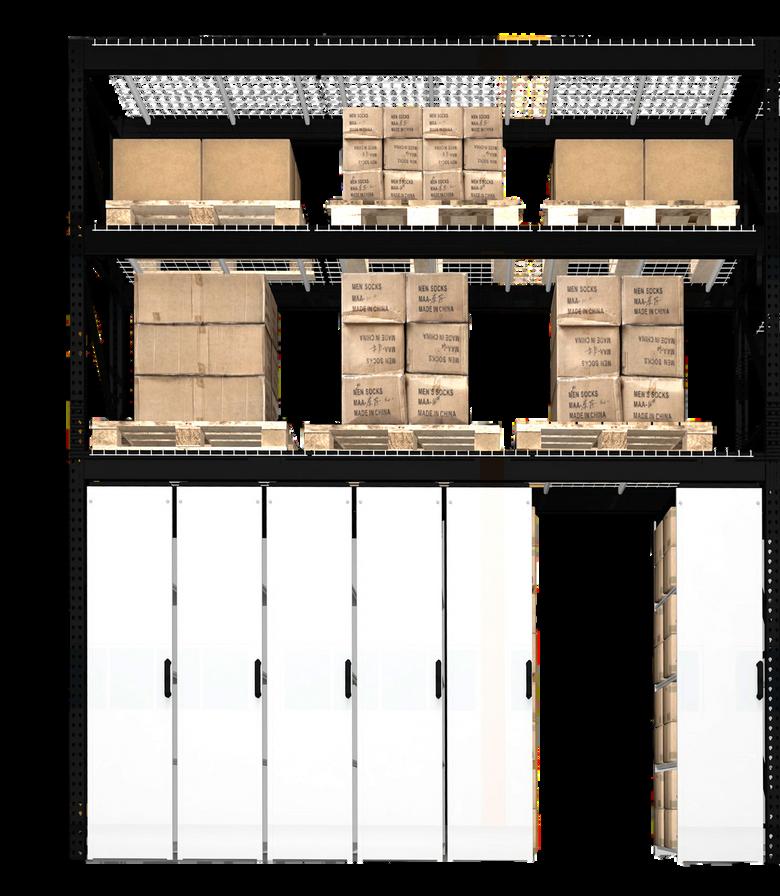

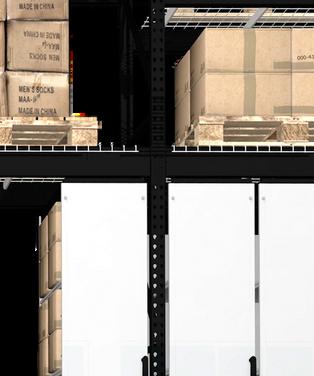

The best part? You can install LEVRACK shelves beneath your existing pallet racking to instantly get more capacity out of the shelves you’ve already invested in.

www.raymondwest.com

Maximize Capacity Basic pallet racking may be functional, but it also wastes a lot of space, makes things difficult to organize, and can require you to move a lot of stuff out of the way to get at the things you need.

LEVRACK allows you to make the most of every square foot so that you can keep your focus on the task at hand rather than waste time hunting for items you need.

3

STORAGE THAT WORKS AS HARD AS YOU Focus on What Matters In a manufacturing facility or warehouse, every wasted square foot, misplaced tool, or lost part can lead to unplanned reorders, machine downtime, and decreased employee productivity. LEVRACK is a unique system designed to save space and transform the way you store tools, spare parts, inventory, and supplies while keeping items organized and at the ready–so your employees can focus on the activities that impact your bottom line.

TOOL ROOM

SHIPPING & RECEIVING

ASSEMBLY PRODUCTION FLOOR

MAINTENANCE

WORK CELL

PARTS STOCK

OFFICE

4

800.NOW.LIFT

TOOL ROOM

SHIPPING & RECEIVING

ASSEMBLY PRODUCTION FLOOR

MAINTENANCE

WORK CELL

PARTS STOCK

OFFICE

TOOL & MAINTENANCE

Decrease Production Downtime In the event a machine needs repair or maintenance, you want to ensure that your line can get back up and running as quickly as possible. LEVRACK allows you to keep specialized tools and equipment accessible and organized, so that you can spend less time hunting down tools and increase production time.

Exactly What You Need.

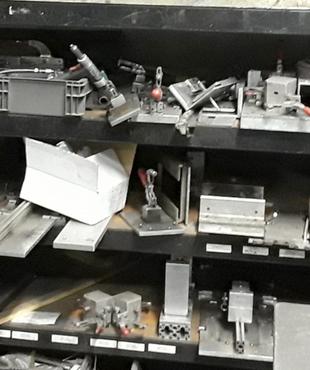

When & Where You Need It. Storing items on traditional shelving is functional, but it also wastes a lot of space, makes things difficult to organize, and can require employees to move a lot of stuff out of the way to get at the things they need.

Not only is this situation frustrating, but it also leads to decreased productivity. LEVRACK improves morale and boosts efficiency by keeping parts, supplies, and equipment organized right at the point of need.

www.raymondwest.com

5

TOOL ROOM

SHIPPING & RECEIVING

ASSEMBLY PRODUCTION FLOOR

MAINTENANCE

WORK CELL

PARTS STOCK

OFFICE

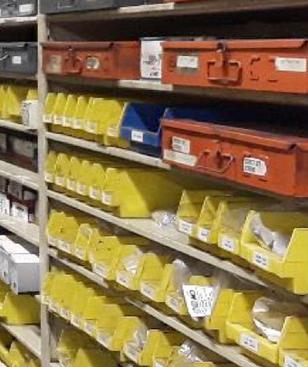

PARTS STOCK

Decrease Unplanned Reorders Disorganization and improper storage can lead to production and repair parts being misplaced or damaged - which means needless reorders, wasted money, and lost production time. By keeping parts organized and at the ready, employees on every shift know exactly where to find what they need so you can achieve your lean manufacturing goals.

Make Room for More Revenue Using space optimally can turn what was once a storage area into a productive, revenuegenerating space. Add room for new machinery, an extra line, additional offices, or new services for your customers by compacting your storage with LEVRACK.

6

800.NOW.LIFT

TOOL ROOM

SHIPPING & RECEIVING

ASSEMBLY PRODUCTION FLOOR

MAINTENANCE

WORK CELL

PARTS STOCK

OFFICE

ASSEMBLY

Optimize Assembly Keep inventory and partially-finished goods at the ready and logically organized with accessories that allow employees to be more productive with less frustration.

Add Space without Expanding By allowing shelves to compact together and eliminating wasted aisle space, LEVRACK can save your facility a significant amount of space – without the need for a costly renovation.

That means you can get the space you need for new manufacturing capabilities within your current space.

www.raymondwest.com

7

TOOL ROOM

SHIPPING & RECEIVING

ASSEMBLY PRODUCTION FLOOR

MAINTENANCE

WORK CELL

PARTS STOCK

OFFICE

WORK CELL AREA Customize Sections by Work Cell Configuring your LEVRACK system with sections specific to each job function allows employees to find exactly what they need as quickly as possible. Custom accessories allow specialized tools and parts to be stored perfectly, and fewer employees accessing each section means a lowered risk of misplaced items.

Mix and Match Accessories Each section of a LEVRACK can have different shelving configurations to accommodate for different work cells. Add accessories like bins, dividers, pegboard, or open shelving based on your needs.

8

800.NOW.LIFT

TOOL ROOM

SHIPPING & RECEIVING

ASSEMBLY PRODUCTION FLOOR

MAINTENANCE

WORK CELL

PARTS STOCK

OFFICE

OFFICE Office Supplies Made Smarter LEVRACK fits into the office just as well as it functions on the manufacturing floor! Use it to store office supplies, files and reference materials, and cleaning or custodial items that need to be accessed easily. It’s also the perfect place to stash spare safety goggles, hard hats, or protective coverings for visitors, as well as employee jackets.

Improving Facility Aesthetics Many manufacturing facilities offer tours to existing or potential customers, and even if your materials are organized, the shop floor can often look cluttered. LEVRACK keeps your stuff hidden and organized so you can make a great impression on customers and employees alike.

www.raymondwest.com

9

CUSTOMIZATION & ORGANIZATION A Place for Every Part, Tool, and Piece of Equipment Outfit your LEVRACK with a variety of accessories suited to the needs of your facility. Choose from a variety of heights and depths based on your space. Plus, each section can be customized with different shelf heights, hanging rods, bins, dividers, and more than can be expanded and changed as your needs evolve.

8’, 10’ & 12’ Wide

7’ to 8’ High

15”, 18” & 24” Wide Shelving Section 10

36” to 48” Deep 800.NOW.LIFT

Universal or Plain Shelf

Double-Face shelf with centerstop

Back Panel

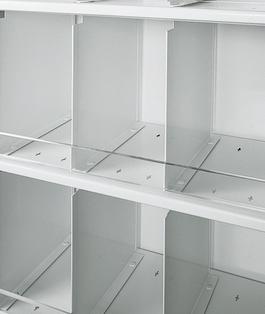

Bin Divider

Covers the back of the whole shelving section from top to bottom.

Compartmentalizes the storage of threedimensional objects and other media.

Helps separate and contain media being stored.

Backstop

Modular Support Rail

File Dividers

Wire Dividers

Support bar to assist with placing dividers and prevent items from falling off open shelves.

Supports hanging bins, peg board hooks and slat wall accessories.

Metal dividers easily slide into backstop to organize items on the shelf.

Provides open-shelf access to all file folders contained in suspended compartments.

Bin Fronts

Hanger Rail

Label Holder

Wire Shelving

Available in acrylic (shown) or steel. Keep items from falling off open shelves.

Spans the width of the shelving notches to allow for flexibility in positioning rail(s) depending on the size of items being stored.

Adhesive label holders in multiple lengths help you keep items organized.

Open construction minimizes dust accumulation and allows free circulation of air, greater visibility of stored items and maximum light penetration.

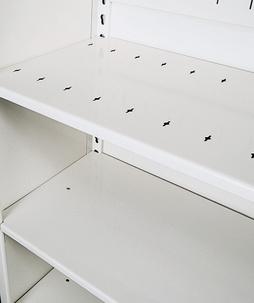

Universal shelf offers a patented design to allow for file dividers, bin dividers, rods, and more.

www.raymondwest.com

11

HELPING YOU UNCOVER YOUR FACILITY’S POTENTIAL We’re here to help you make your storage works smarter so that your organization can achieve its goals more easily, efficiently, and cost-effectively. All of our storage systems are engineered and manufactured in the USA, and we know firsthand all the challenges that come with storing specialized tools and equipment, as well as parts, packaging, and supplies.

800.NOW.LIFT | www.raymondwest.com

RAYMOND WEST 9939 Norwalk Blvd.

Santa Fe Springs, CA 90670 800.NOW.LIFT sales@raymondwest.com
