Selected Works 2021-2024
Lena Le Designer
2 SALUTATIONS LIBRARY 2022 .02 .01
MAKE SENSE CENTRE .04 THE FORKS MARKET LOUNGE
3
2023 2023 .03
UNEARTH | ARTIST-IN-RESIDENCE

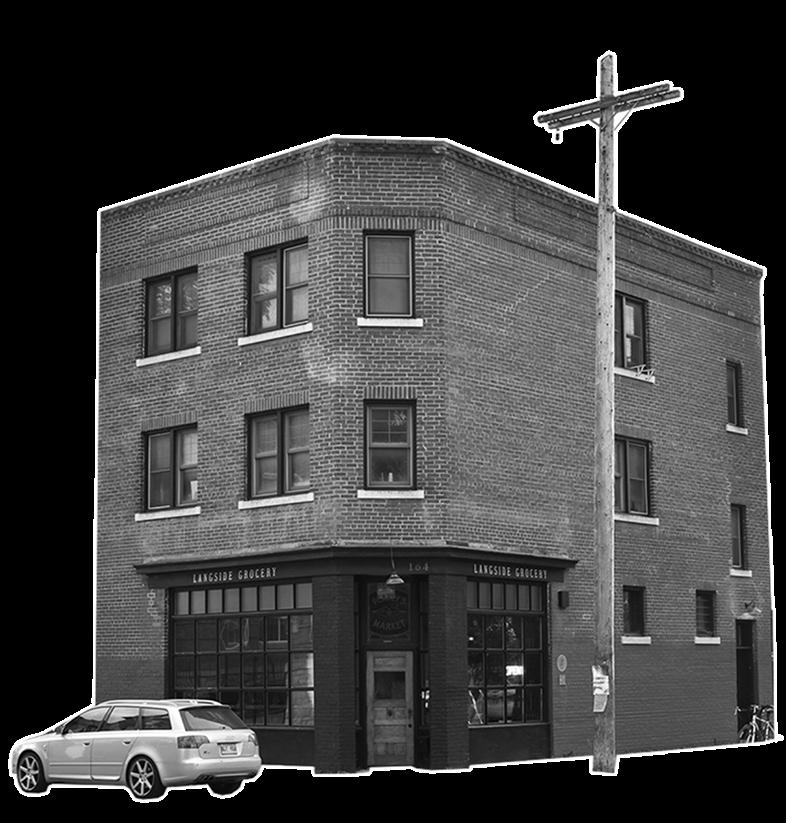

Location: 164 Langside Street
Year: 2021
For this studio, the hypothetical scenario is that an important building at 164 Langside Street has been purchased by the West Broadway Neighbourhood Society (WBNS --a fake society).
The WBNS purchased the building with the intent of creating an “artist-in-residence” program where by living quarters, a studio, and a gallery would be provided to a long list of artists for either a six month or year-long term.
The interior design will be a Mid Century Modern style to reflect the neighbourhood concept of old and new. The space will have pops of colour to compliment the natural wood elements. It will generally be symmetric to give a sense a familiarity and comfort.
01
Lena Le Year 3 UnEarth Studios 5

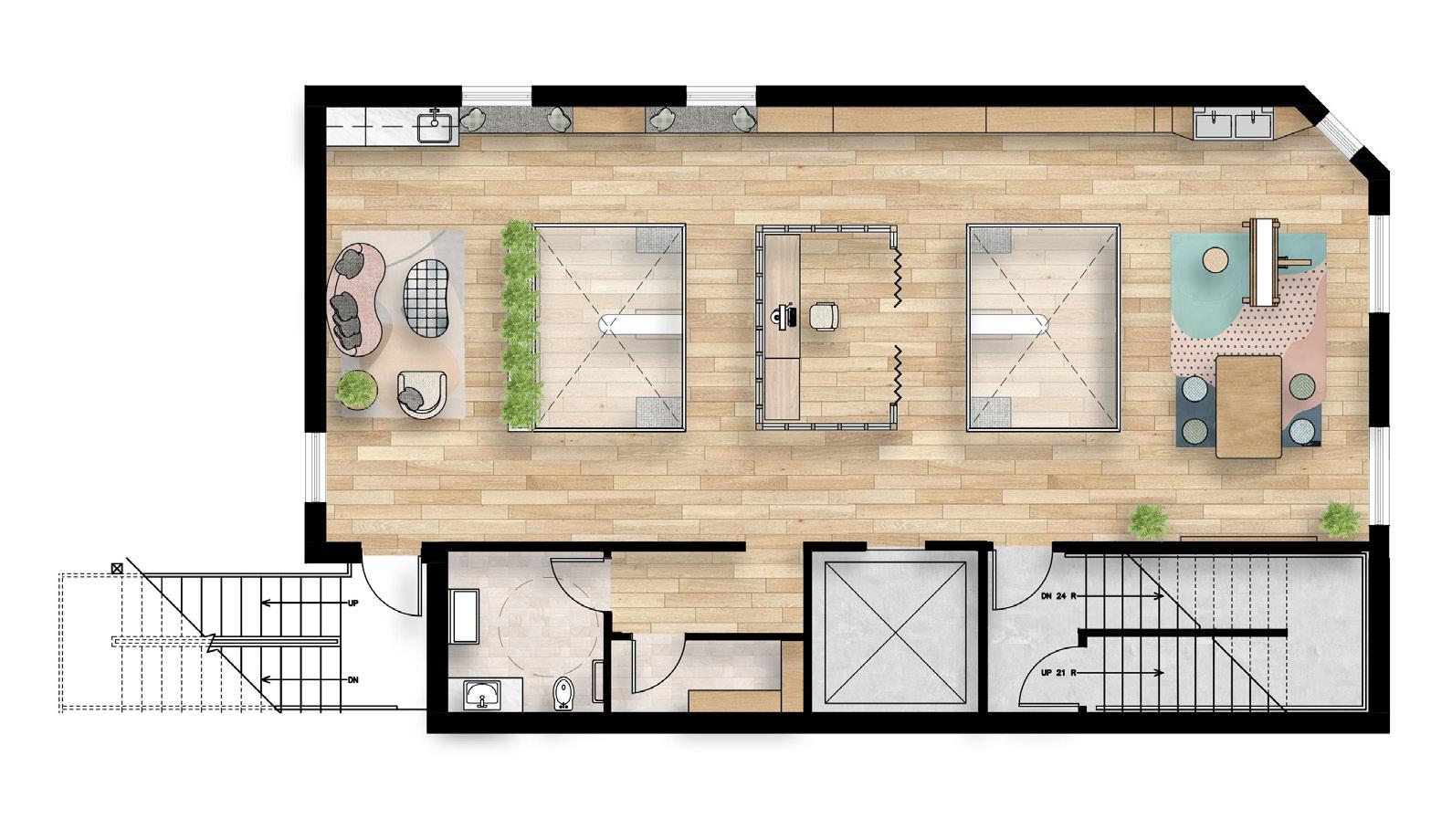

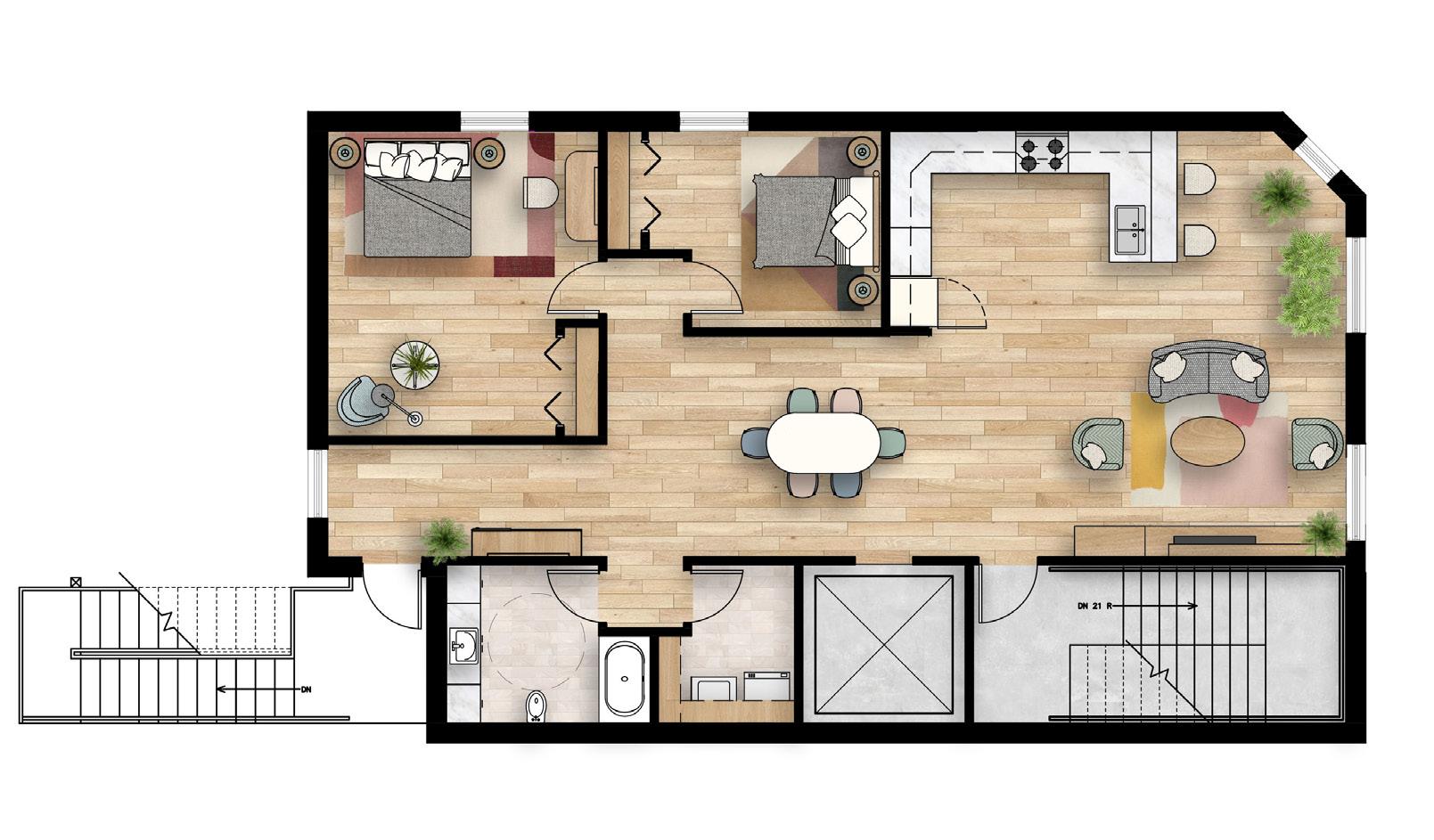

(1) First Floor Plan
(2) Second Floor Plan
(3) Third Floor Plan
Lena Le Year 3 UnEarth Studios 6 S1 4 S2 5 BATH ROOM MAIN BEDROOM DINING ROOM GUEST BEDROOM KITCHEN LIVING ROOM LAUNDRY S1 S2 OFFICE WORKSHOP AREA OPEN TO BELOW OPEN TO BELOW LOUNGE W.C STORAGE E2 S1 4 W.C GALLERY W.C S2 5 E1
Top-Bottom:
INTERACTIVE MAP ARTIST INFO
Gallery View
8
Left-Right:

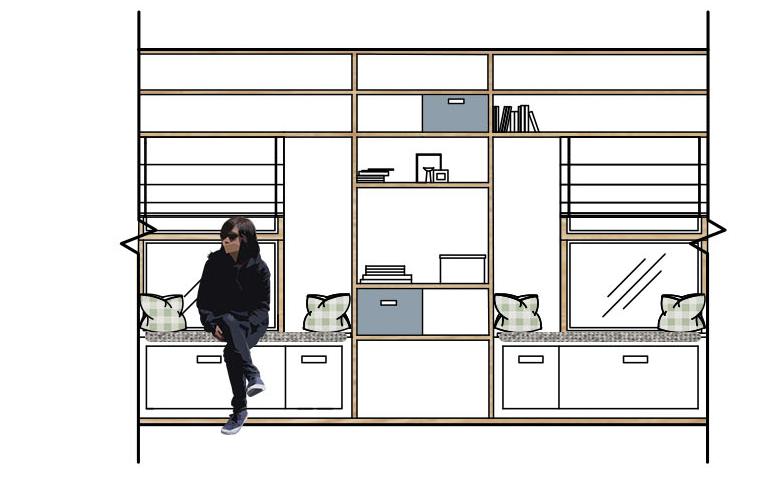

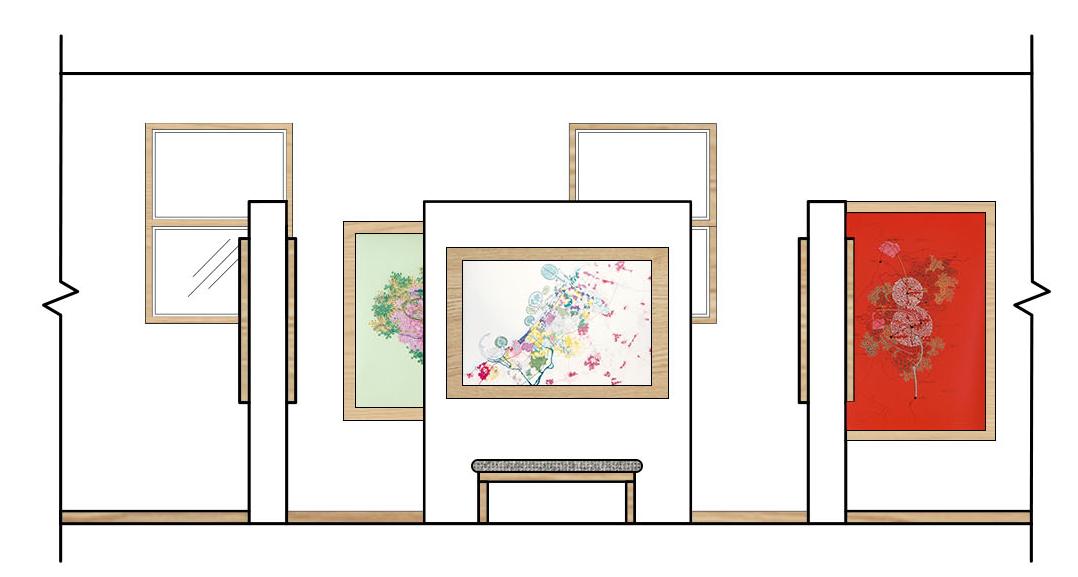

(1) Window Seating Elevation
(2) Gallery Elevation
Studio View

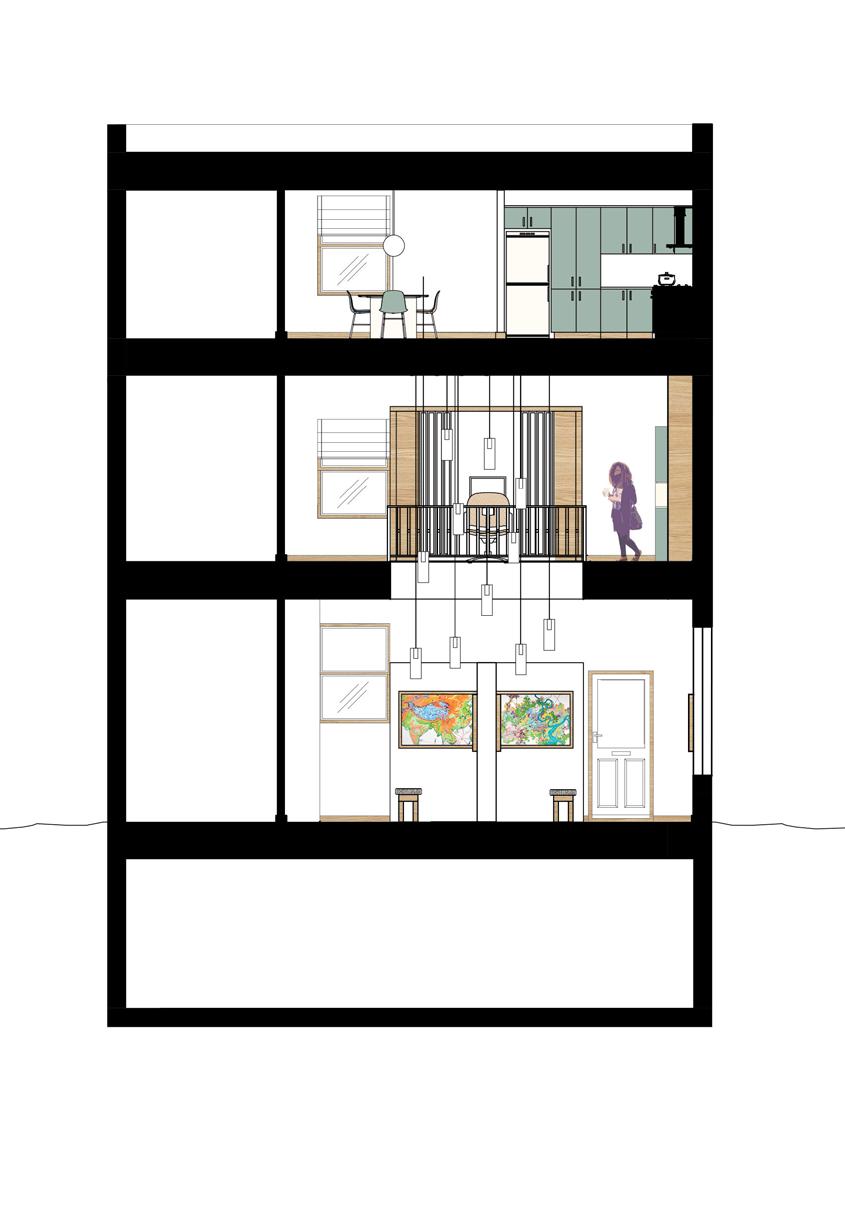

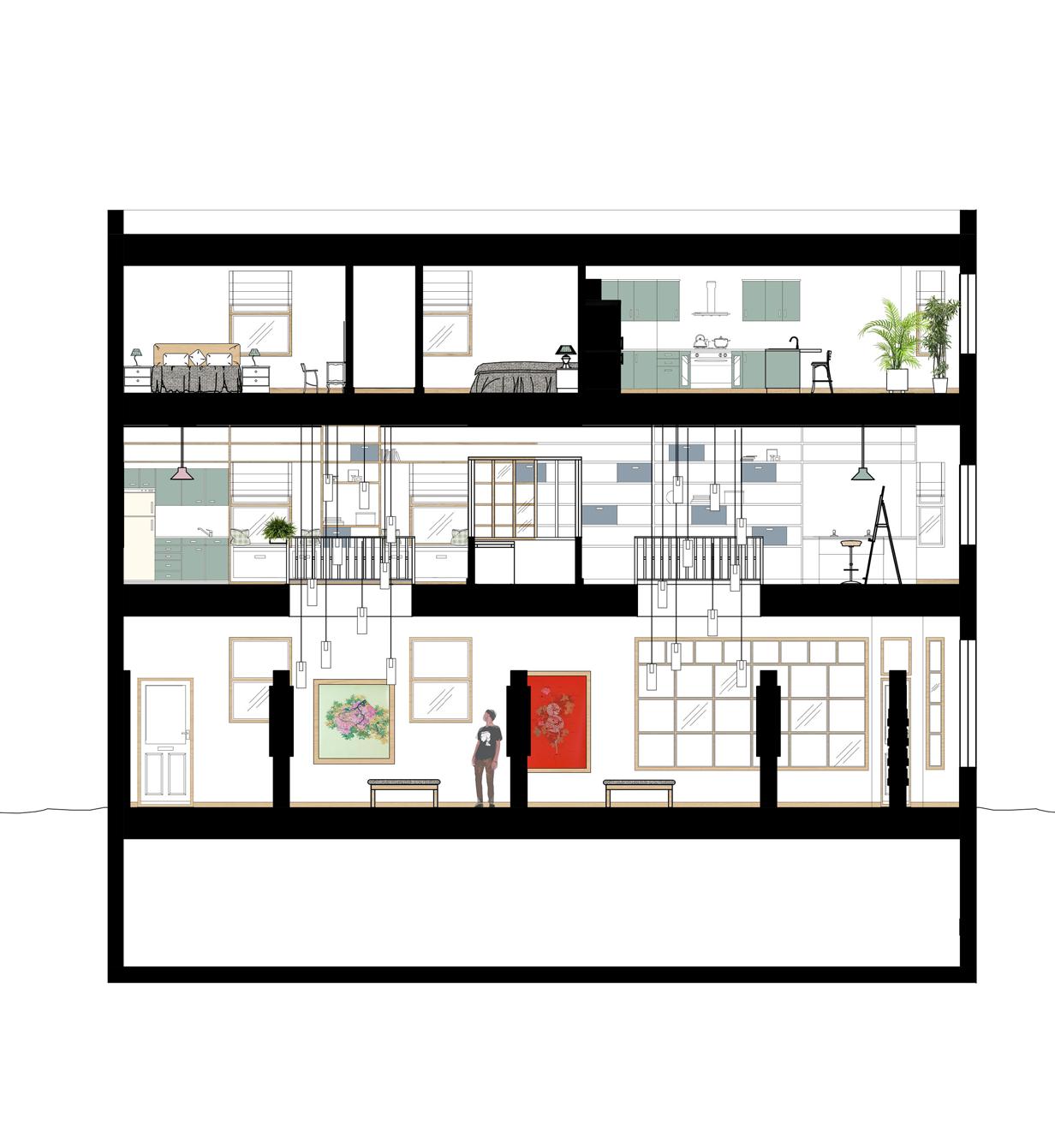

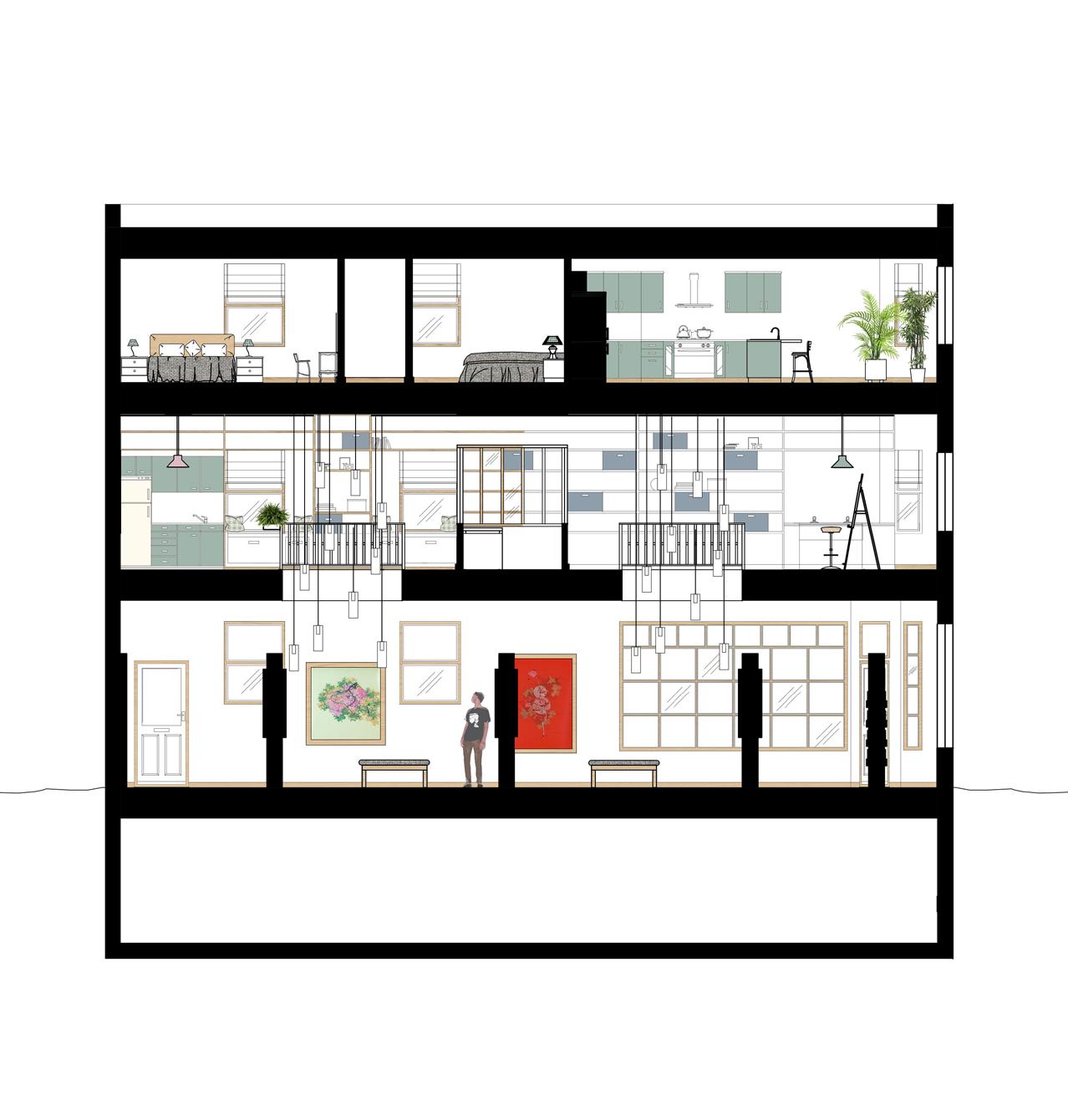

(1) South/North Section
(2) East/West Section
Lena Le Year 3 UnEarth Studios 9 HVAC AND STORAGE GALLERY SPACE STUDIO SPACE LIVING SPACE HVAC AND STORAGE GALLERY SPACE STUDIO SPACE LIVING SPACE
Living Room View
Left-Right:
SALUTATIONS | THE OPEN LIBRARY
02

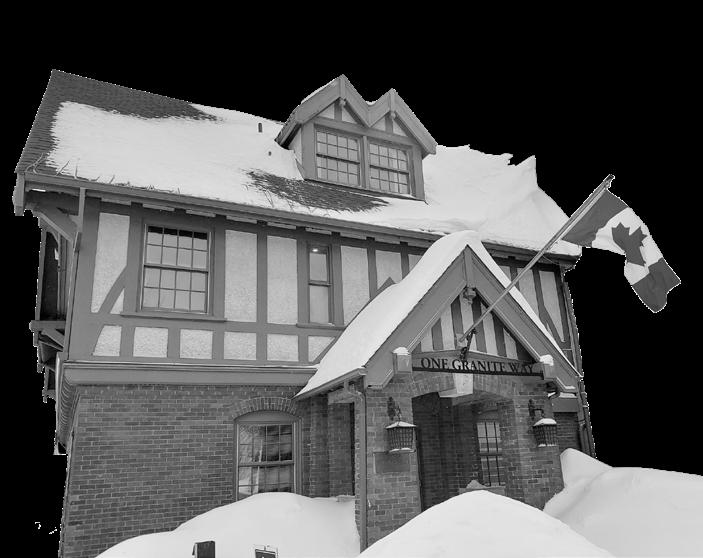

Location: 22 Granite Way
Year: 2022

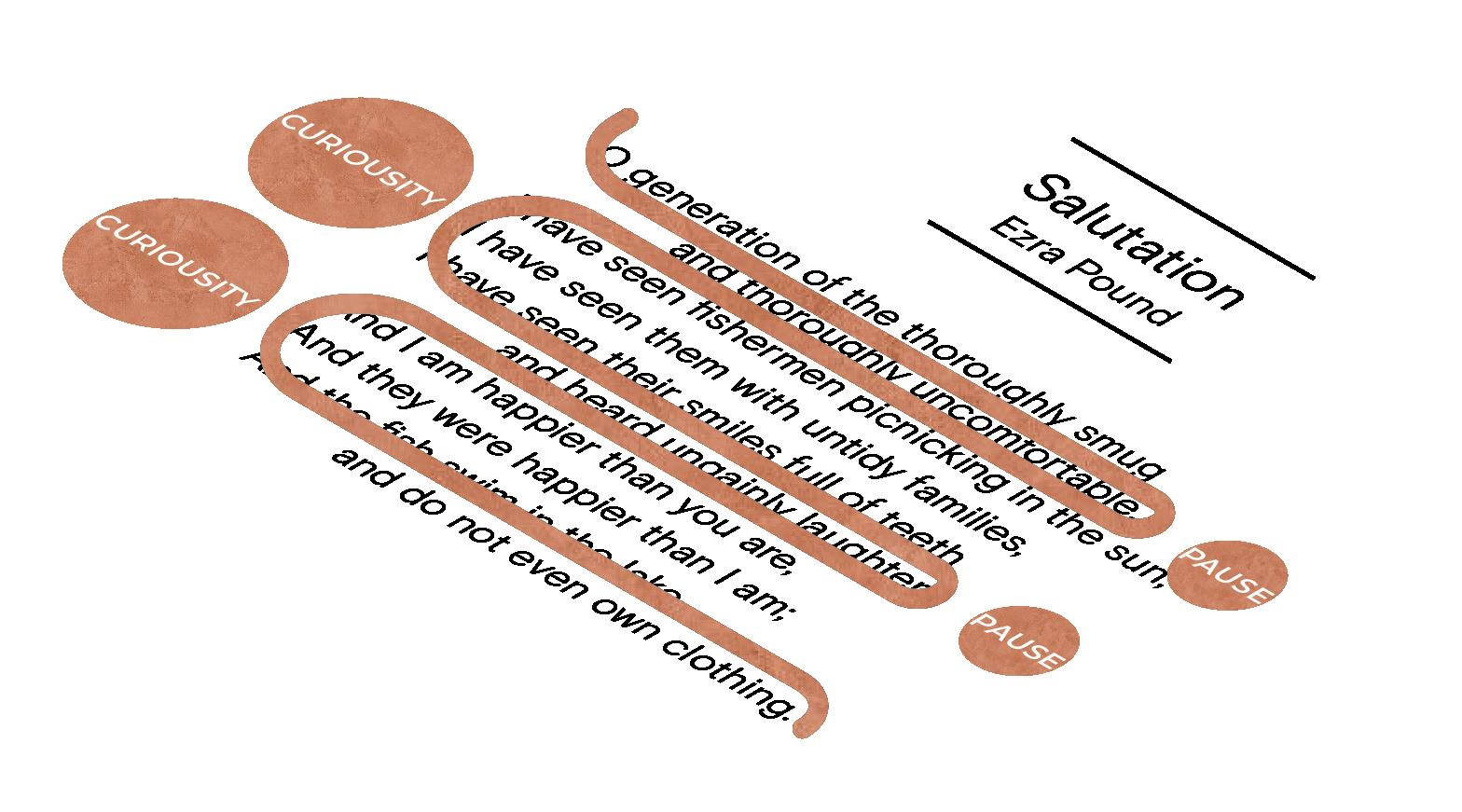

The conceptual design challenge will be centred on a conceptual understanding and expression of the poem or poetry as outlined in Oliver’s book A Poetry Handbook.
Salutations, an open library will be based on the concept of the narrative poem and turning the line technique.

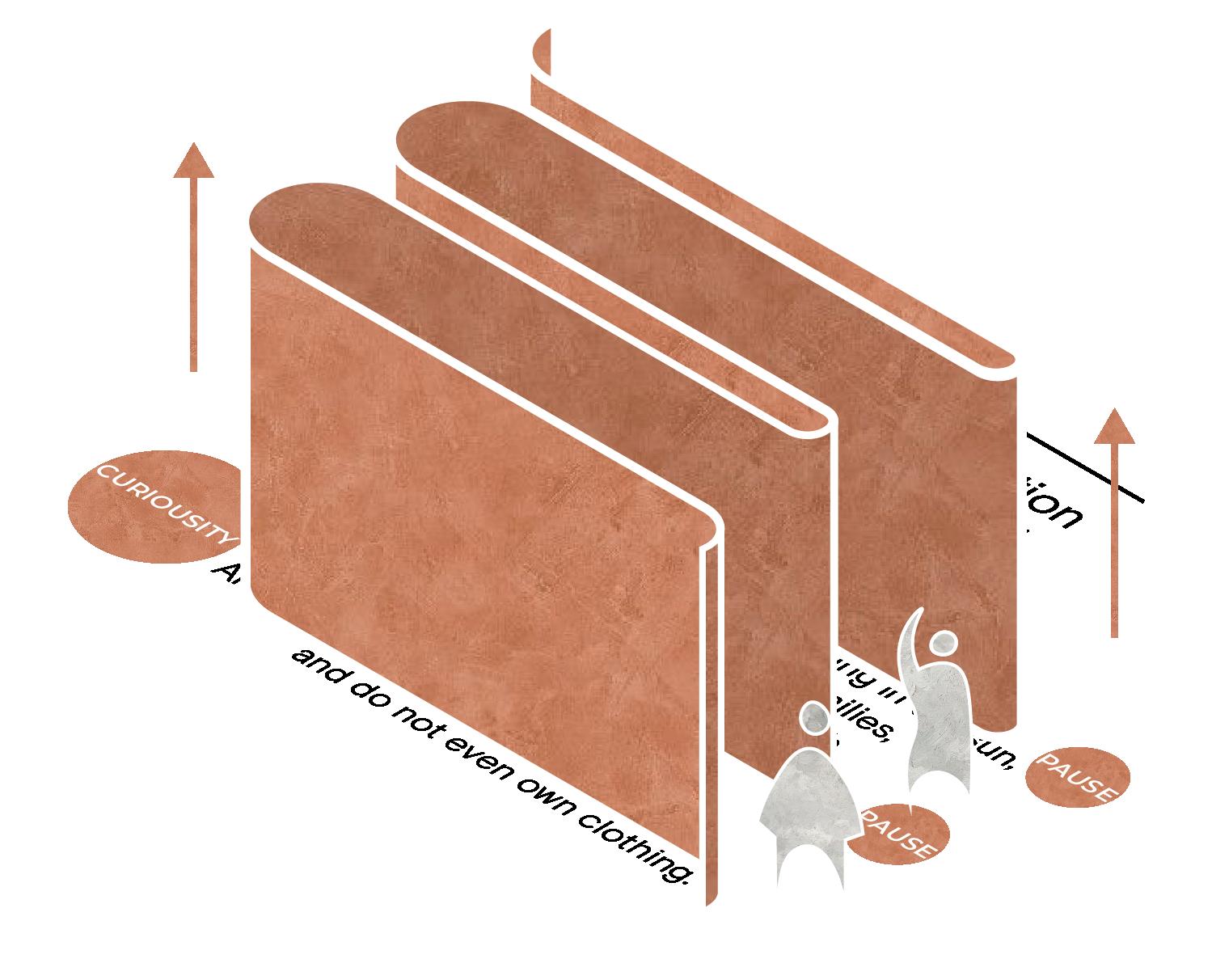

The pause helps sequential events to be more enjoyable. The design will flow like a narrative poem where it does not follow a strict format. It will instead follow an easy pace that aid in the curiosity of the visitor and keeps them interested. By turning the line in a free verse poem, it creates a moment of pause and invites the reader’s curiosity.
10
Lena Le Year 3 Saluations Library 11
12 Floor Plans | Revit & Enscape
Left-Right:

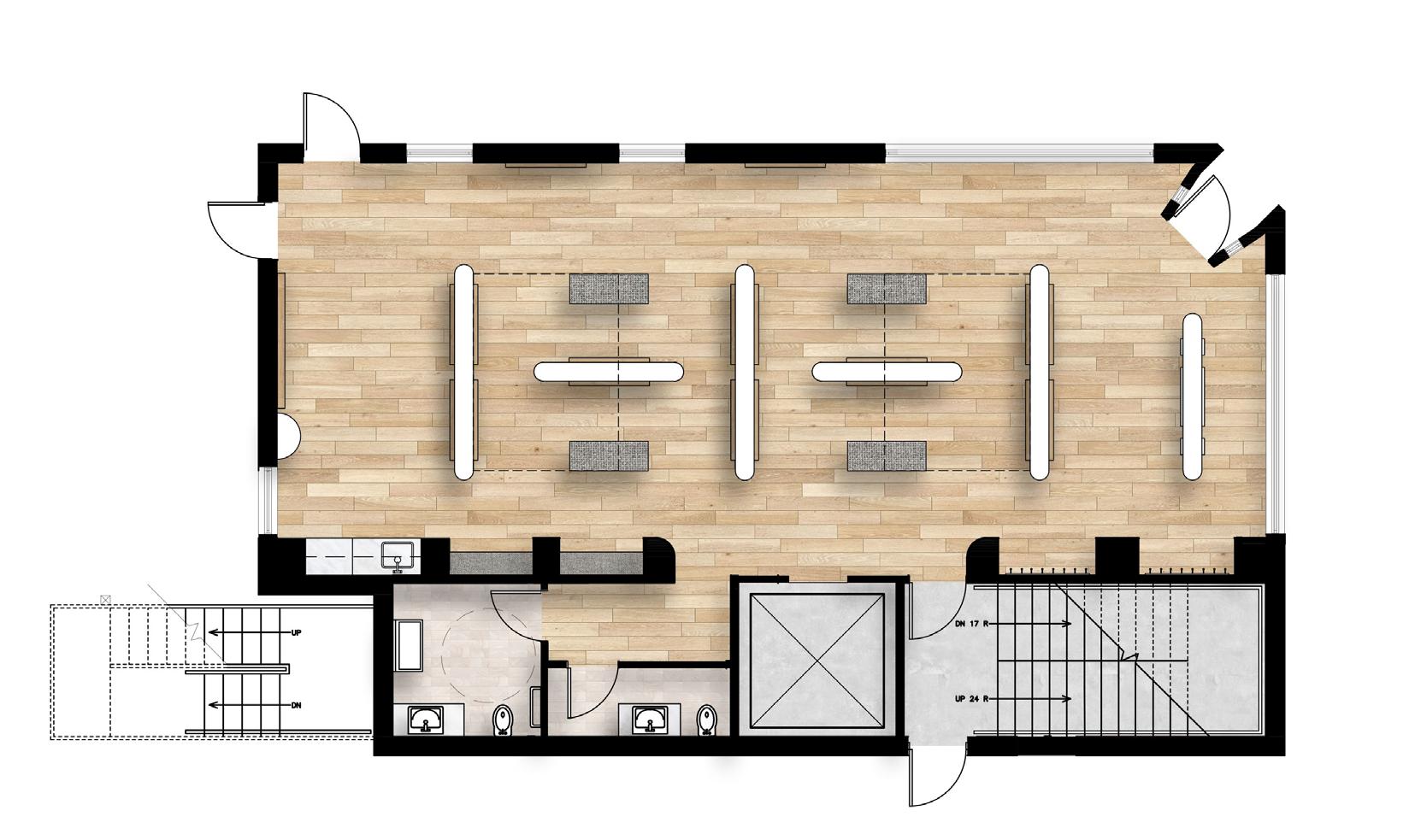

(1) First Floor Plan
(2) Second Floor Plan
Lena Le Year 3 Saluations Library 13
Left-Right:
(1) Cafe Elevation
(2) Cafe Seating Elevation
Cafe View
REFERENCE DESK 1
3/4" = 1'-0"
2
3/4"
= 1'-0" PROJECTOR ROOM
= 1'-0" CAFE 3
= 1'-0" CAFE SEATING 4
3/4"
3/4"
Lena Le Year 3 Saluations Library 15
Clockwise:
(1) Library View
(2) Reception View
(3) Theatre Room View
NAVIGATE | THE FOREST SCHOOL
Location: 125 Dysart Road
Year: 2022
This project aims to connect interior and exterior spaces to provide a fluid experience for a sustainable education. Users will be given an opportunity to experience the relationship between the natural and the built environments and all the spaces in between by utilizing all of their physical senses.

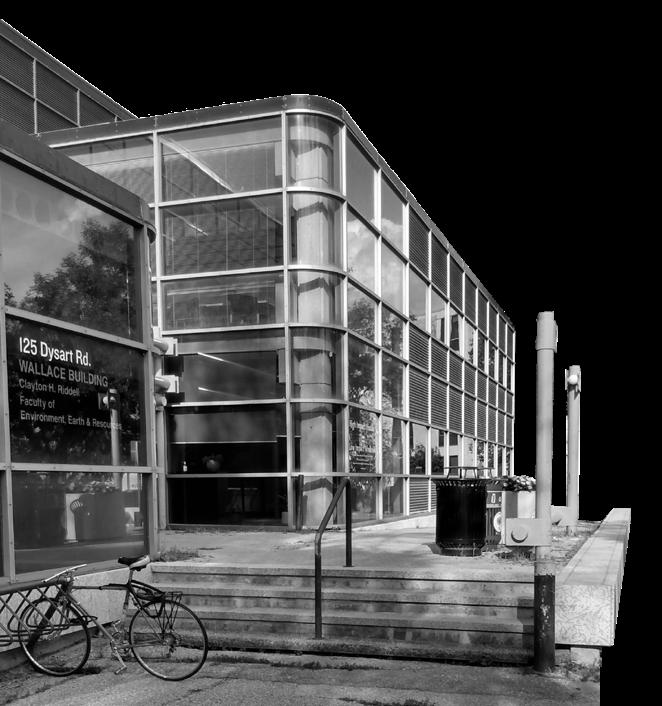

In the current study, students will be involved in redesigning the interior spaces of the Wallace Building on the University of Manitoba Fort Garry campus. The primary goal is to design a forest school that reflects the local culture, environment, and history.
Lena Le Year 4 Navigate School 16
03
PROPOSAL
The Red River interrupts the rectilinear grid of Winnipeg and serves as a reminder of the natural versus the built environment. Inspired by the city finding ways to navigate through these bends, the layout of the school molds into these curves.
Maker Space Greenhouse Play Space Gather Space
from the building’s dinosaur museum.
Lena Le
Left Image: Atrium View
Lena Le Year 4 Navigate School 20
Lena Le Year 4 Navigate School 21
Counterclockwise:
(1) Library View
(2) Cafeteria View
(3) Create Area
MAKE SENSE | NATURE & NORDIC CENTRE
Location: 339 Waterfront Drive
Year: 2023

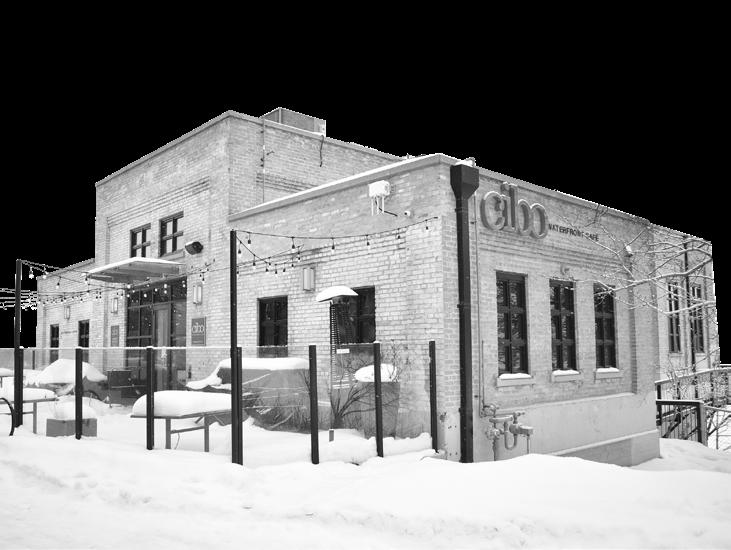

This studio aims to create an Interpretive Nature Centre & Nordic Recreational Facility at Cibo Waterfront Café, located at 339 Waterfront Dr in Winnipeg, Manitoba. This centre will operate throughout all seasons to connect with Winnipeg’s Unique Weather.
The center will create phenomenological experiences of Manitoba’s seasonal environments by involving the five senses through hands-on workshops and spaces.
22 04
Le
Lena
Lena Le Year 4 Make Sense Centre 24

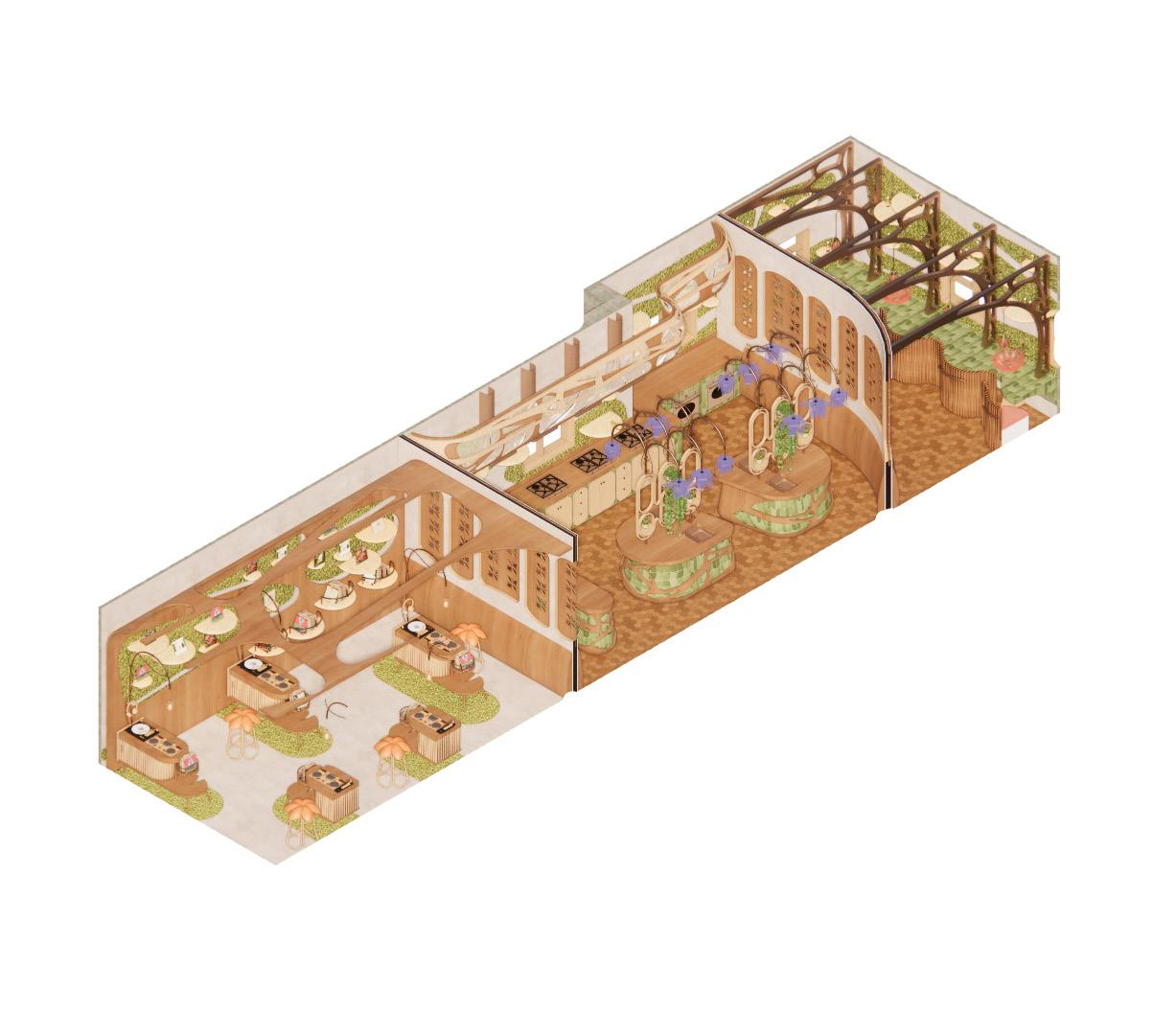

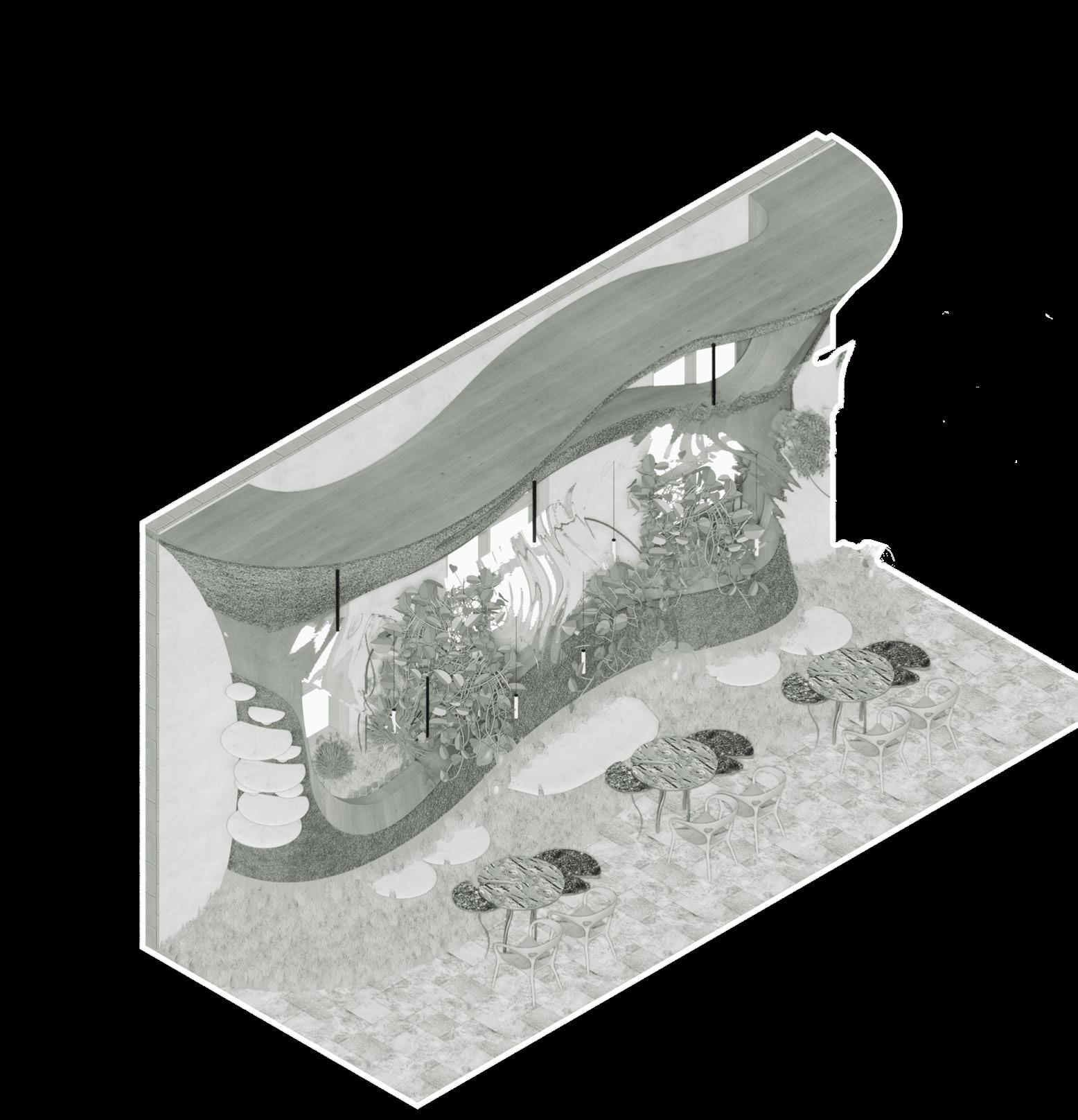

Top-Bottom: (1) Workshop Iso (2) Cafe Seating Iso
Lena Le Year 4 Make Sense Centre 27
Top-Bottom:
(1) Hearing Workshop View
(2) Tasting Workshop View
(3) Smelling Workshop View
FORKS LOUNGE | RENOVATION
Location: 1 Forks Market Rd
Year: 2023
The lively and wonderfully diverse food hall at The Forks Market showcases the finest local delicacies on the main floor, while the second floor boasts an array of exceptional local crafts and retail choices. Formerly used as horse stables and haylofts during the peak of the railway era, The Forks Market has transformed into its present-day incarnation.
Tucked in a corner, this lounge space is located on the second floor. The client requested the design to be more intentional with an atmosphere to fit the Forks Market overall design.
This new design creates flexible furnishings to accommodate individuals and small groups as well as provide workshop space to accommodate groups from 10 to 100.
Lena Le Professional Practice The Forks Market Lounge 28
05

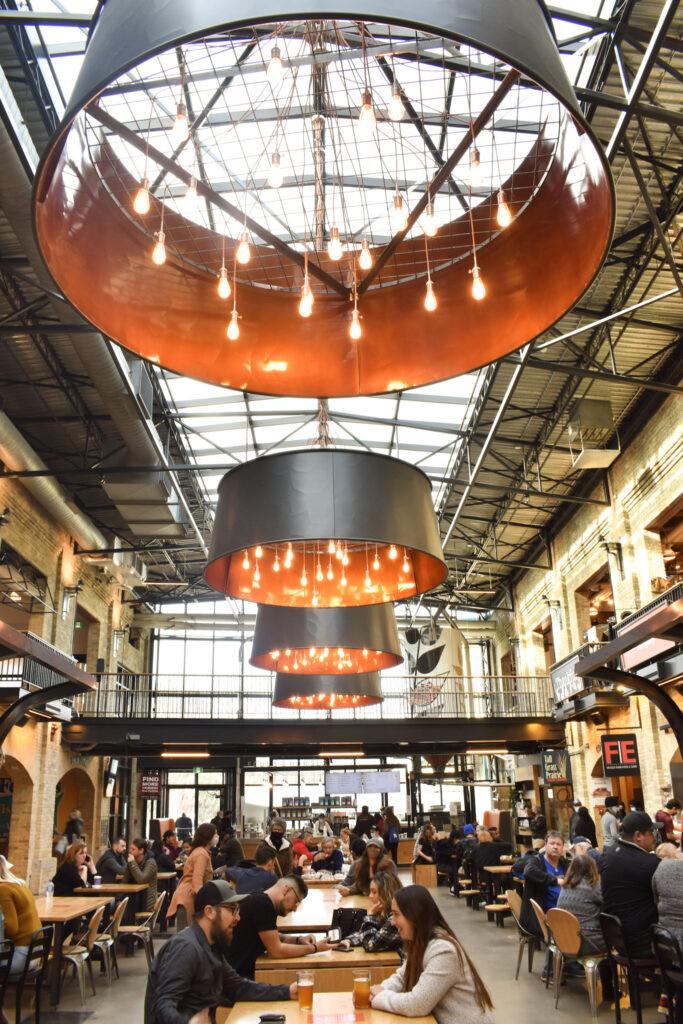

UP DN 11 12 12 13 14 L M N P Q R 213 MCNALLY OPEN TO BELOW OPEN TO BELOW 2-01 ELECT. 2-11 TEL. RM. 1555 WATER BOILER CABINET ART WORK ART WORK WASTE/RECYCLING ELEC CABINET Clockwise: (1) Floor Plan (2) Existing Lounge (3) The Forks Market
Lena Le Professional Practice The Forks Market Lounge 31
Clockwise:
(1) Main Lounge View
(2) Middle Lounge View
(3) Back Lounge View
