PORTFOLIO

Interior Architecture Graduate

Hoang My Le

2 3 PORTFOLIO HOANG MY LE PORTFOLIO HOANG MY LE 01. 02. 04. 03. MUSEUM OF COFFEE CULTURE Capstone Project STUDENT HOUSING KITCHEN RENOVATION MUSEUM OF THE HANDMADE

MUSEUM OF COFFEE CULTURE

Softwares used: Revit, Enscape , Photoshop, Illustration

Museum of coffee culture is a project that renovates an unused warehouse into a place to exhibit the narrative of coffee. The project aims to celebrate multiculturalism in Melbourne through the diversity of cultures that are famous for their coffee and provide a narrative about coffee. The concept of this project is to create a sense of coffee throughout the building and ensure that each culture expresses a distinct atmosphere and features. Nevertheless, the development of coffee culture in many countries also carries a significant negative impact on the environment, which is the coffee ground waste; therefore, the museum further encourages the recycle practice when visitors participate in this journey.

CONCEPT DIAGRAM

1. Flatten the existing roof

2. Change the roof shape of the two highest storeys

3. Extend to embrace the view of the river

4. Distortion for landscaping

5. Connect

6. Add atrium, void and reshape

7. Final form

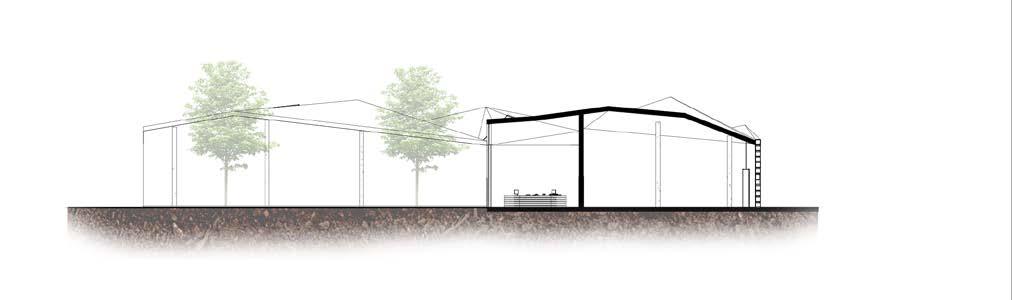

The diagram illustrates the journey for the changes of the existing warehouse. These changes based on the site analysis and the experience on the circulaiton of the building

4 5 PORTFOLIO HOANG MY LE PORTFOLIO HOANG MY LE

01.

1 4 2 3 6 5 7

7

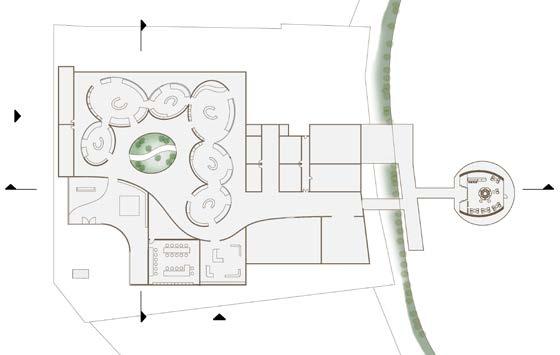

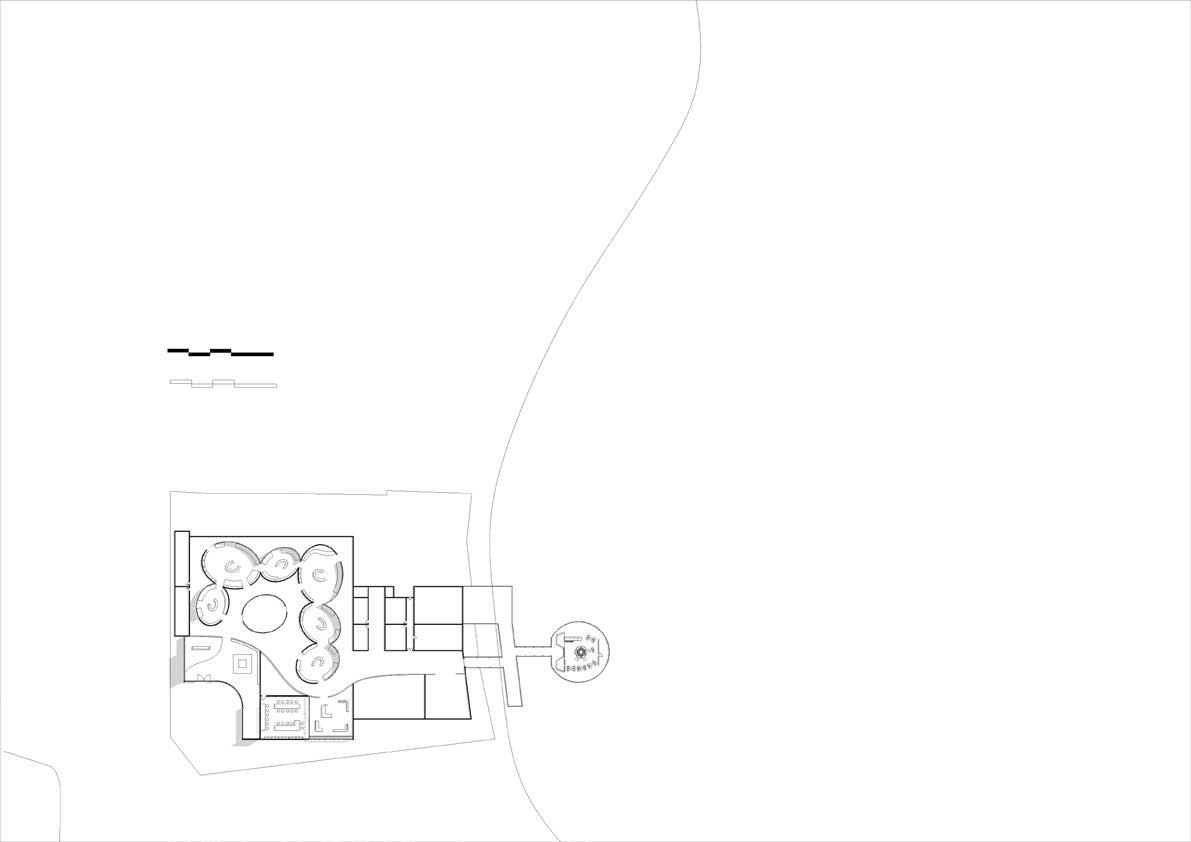

GROUND FLOOR PLANS

Scale 1:800

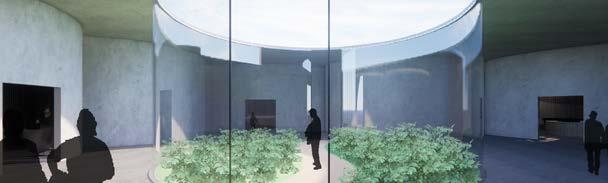

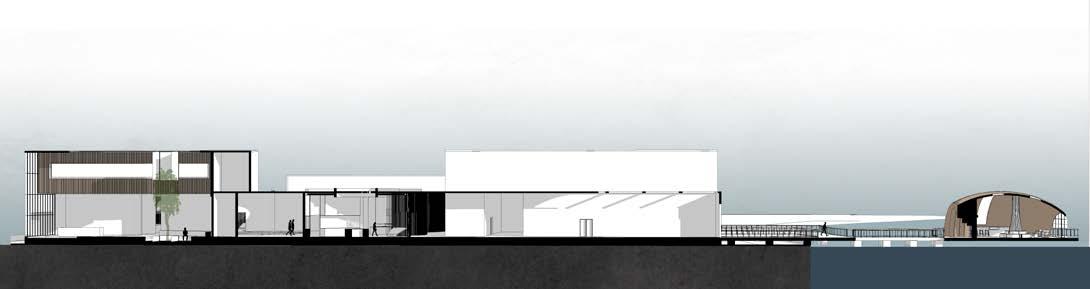

The cultural exhibition in the middle of the building is designed to connect to demonstrate the journey of coffee culture from Europe to Asia. The courtyard in between the cultural spaces operates as an area for planting coffee bushes to spread the aroma of the coffee bean. Furthermore, the cafe at the end combines with the harbour, which is utilized for coffee transportation by the river.

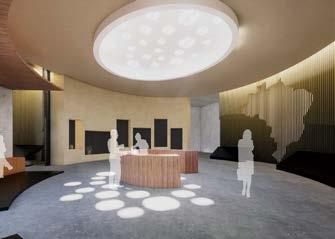

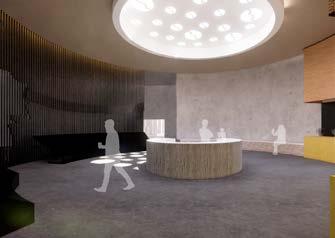

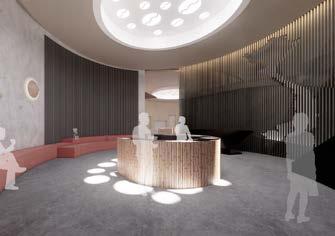

THE LOBBY

The lobby has to present the atmosphere of a coffee museum; therefore, the design idea was to create an area for a coffee tree, which can be the main highlight in the lobby, which will illustrate the concept and spread the aroma of coffee beans to the surrounding. The entrance also uses a warm and dark brown tone for a coffee atmosphere.

6 7 PORTFOLIO HOANG MY LE PORTFOLIO HOANG MY LE

Entrance

Italy exhibition

Public restroom 1 0 6 12 18 30m 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 19 18 20 21

1.

2.

3.

CULTURAL EXHIBITION

Each space will have a steel layer wall to represent the geography of that country. Using steel can create a unique effect and is sustainable with its long lifespan. Each space will have a tasting section and seating area for visitors to experience that country’s coffee beside the exhibition.

COFFEE WASTE

EXHIBITION + WORKSHOP

The workshop will be used for creating a playground for visitors to make clay from coffee watse whereas the exhibition area is for displaying the products of artist made from coffee waste. Each panel of curtain walls in this area will be made from coffee grounds to illustrate the concept of recycling coffee waste. These panel can rotate to receive sunlight and create different visual.

8 9 PORTFOLIO HOANG MY LE PORTFOLIO HOANG MY LE

10 11 PORTFOLIO HOANG MY LE PORTFOLIO HOANG MY LE

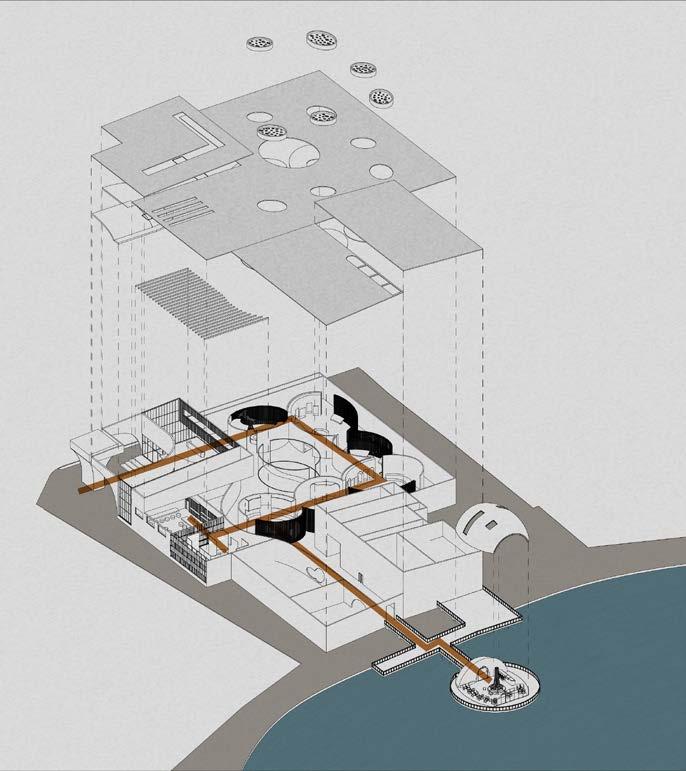

AXONOMETRIC

02. STUDENT HOUSING

Softwares used: Revit, Enscape, Photoshop, Illustration

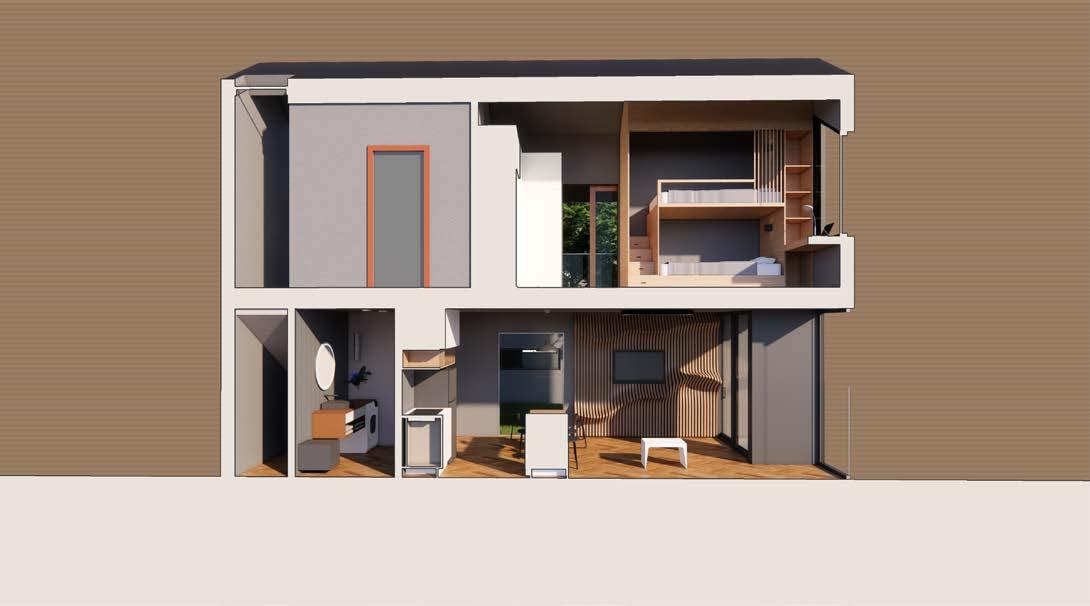

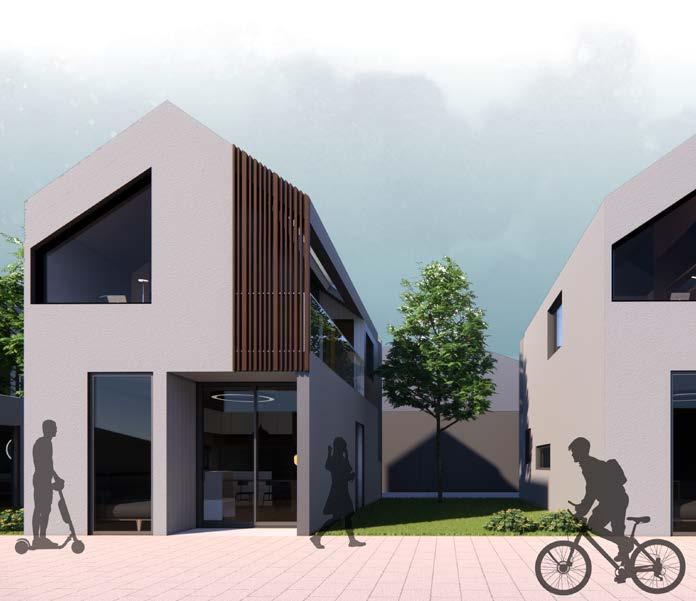

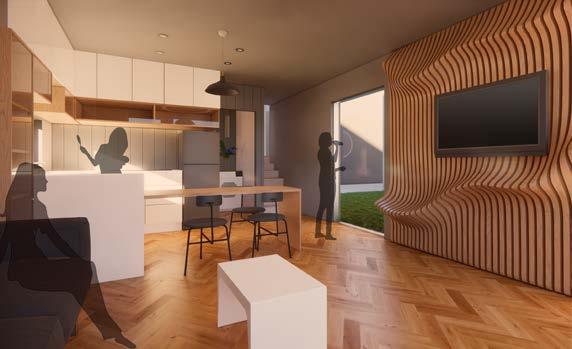

The project is a Revit exercise to design a student village for Swinburne student. The chosen site located in a friendly neighbourhood, therefore, the design was take after the friendly and warm atmosphere. As the houses are for students, it also combines with modern and dynamic features. This project was the first project designed when started studying in Melbourne, it helped me become familiar with the building code in Australia and the environment. The project offered me a chance to critical thinking how to maximised a small space for three people living together.

12 13 PORTFOLIO HOANG MY LE PORTFOLIO HOANG MY LE

GROUND FLOOR PLAN

1:800 FLOOR PLAN LEVEL 1

1:800 1 2 3 4 5 6 1. Living room 2. Kitchen - Dining 3. Bathroom 4. Single bedroom 5. Double bedroom 6. Balcony Section 2 Section 2 Section 1 Section 1

Scale

15 PORTFOLIO HOANG MY LE Section 1 Section 2

PLAN Scale 1:25

SIDE ELEVATION Scale 1:35

FRONT ELEVATION Scale 1:35

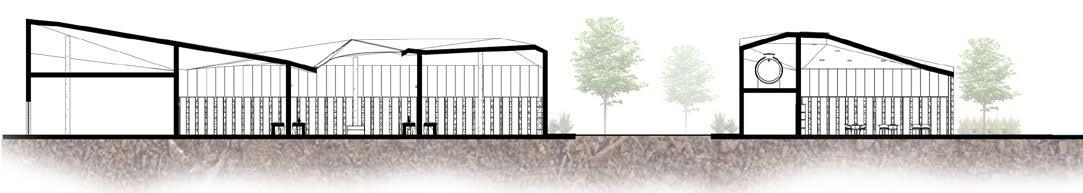

SECTION

1:35

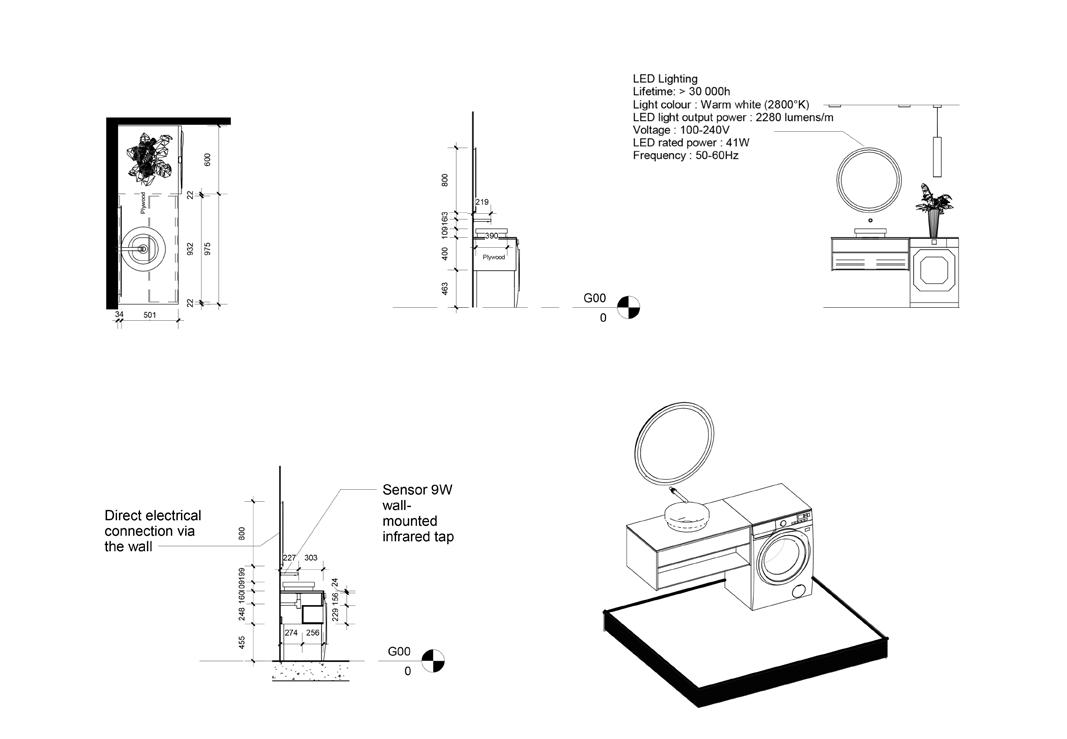

VANITY

Scale

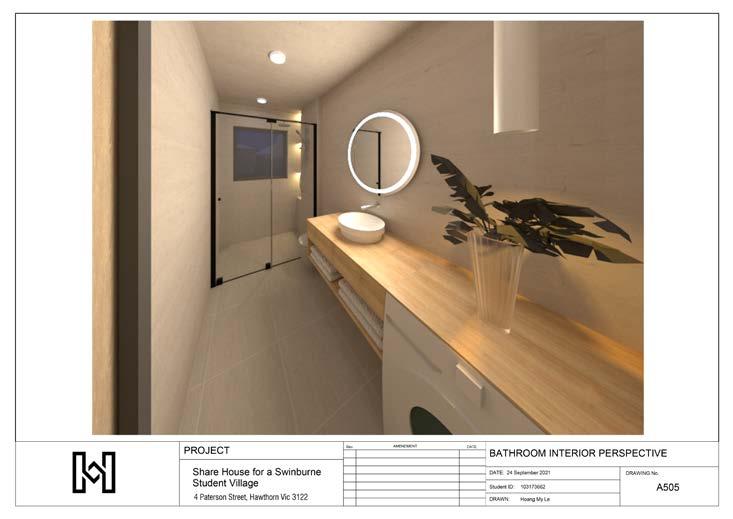

VANITY PERSPECTIVE

16 17 PORTFOLIO HOANG MY LE PORTFOLIO HOANG MY LE

18 19 PORTFOLIO HOANG MY LE PORTFOLIO HOANG MY LE

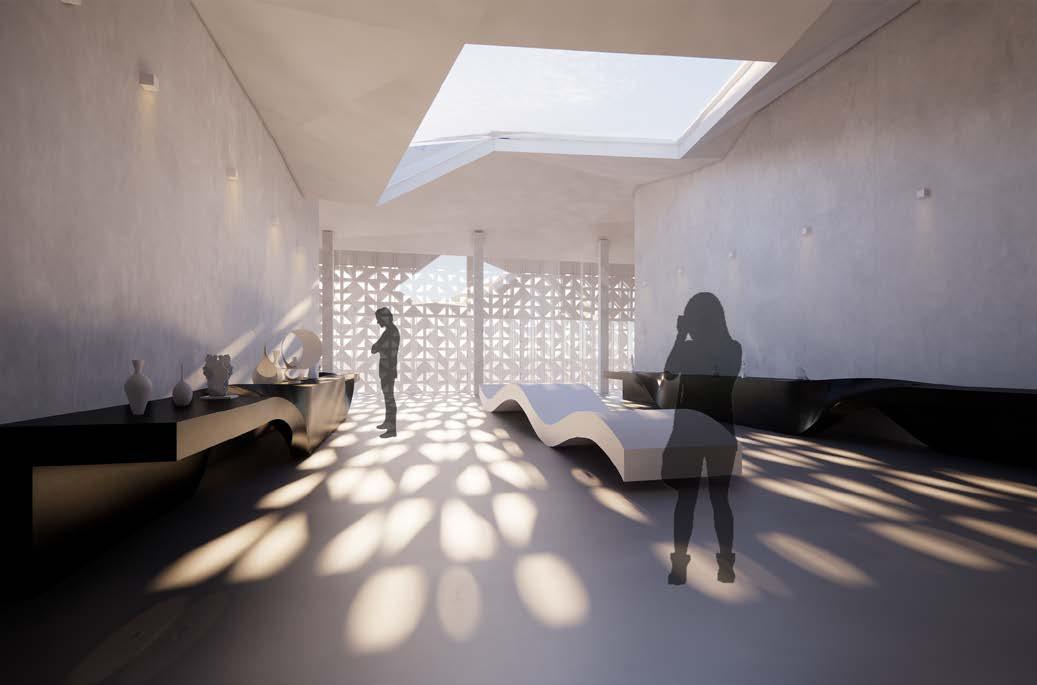

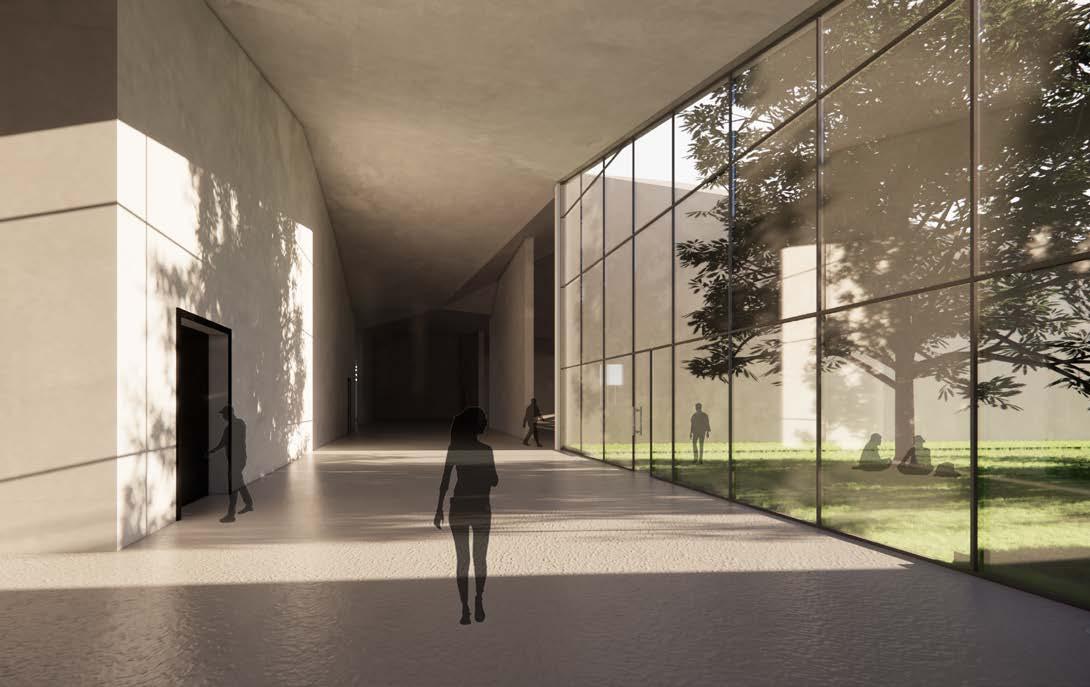

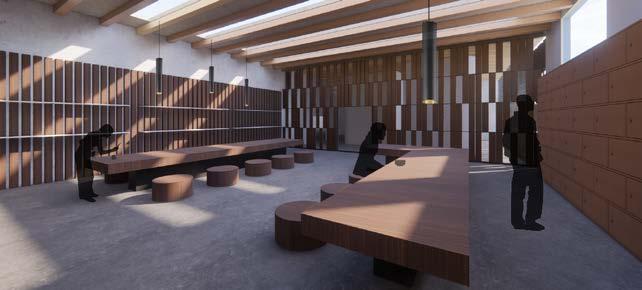

03. MUSEUM OF THE HANDMADE

Softwares used: Rhino, Revit, Vray,

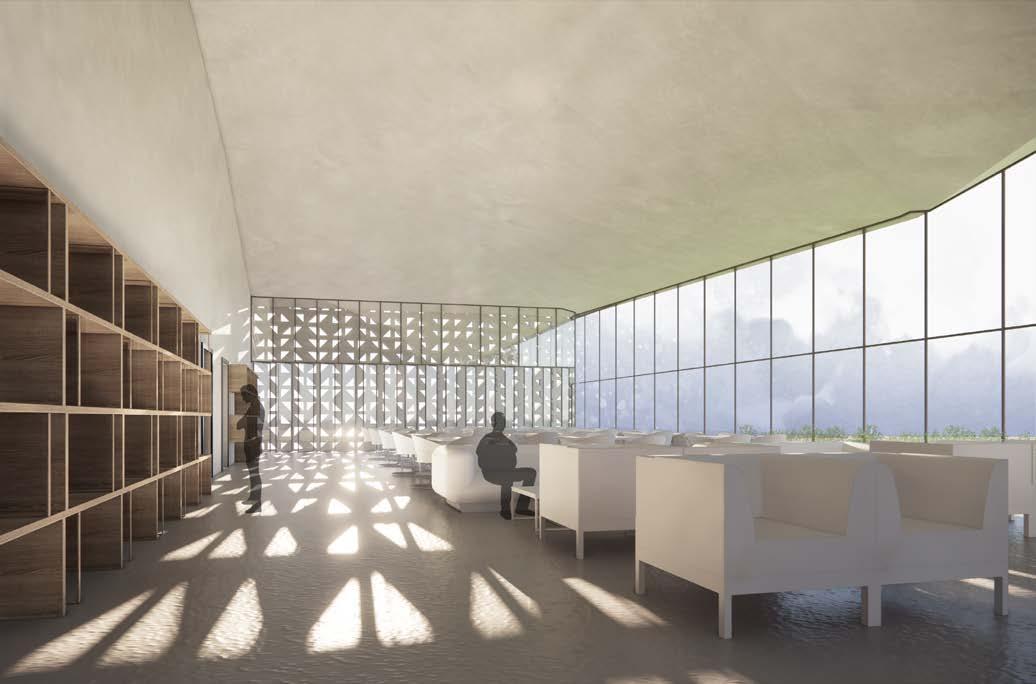

The project is to design a museum for the handmade display object in a local context in Vietnam. The project’s mission is to create a sustainable design by analysing the site and providing a shading facade. Designing the facade required time to test the aesthetic effect with sunlight, yet considered the manufactured process. This perspective allowed me to comprehend the sun diagram as well as the wind diagram in order to design a facade.

20 21 PORTFOLIO HOANG MY LE PORTFOLIO HOANG MY LE

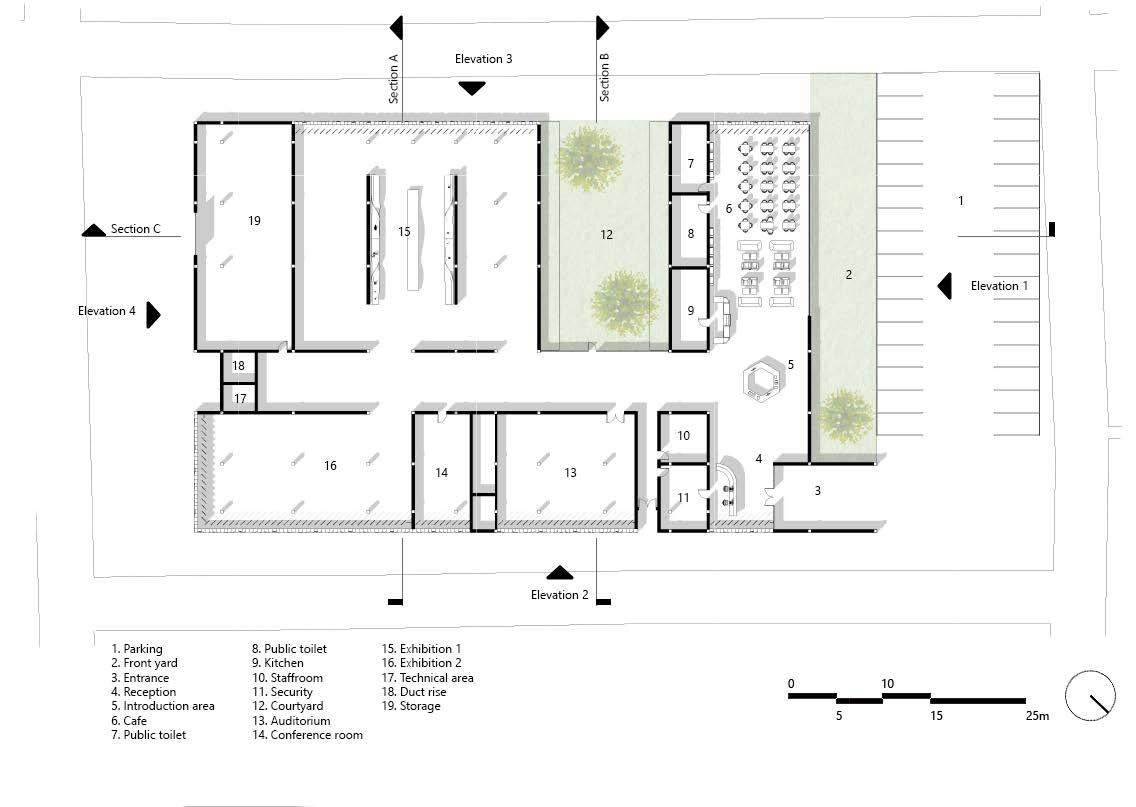

PLAN

GROUND FLOOR

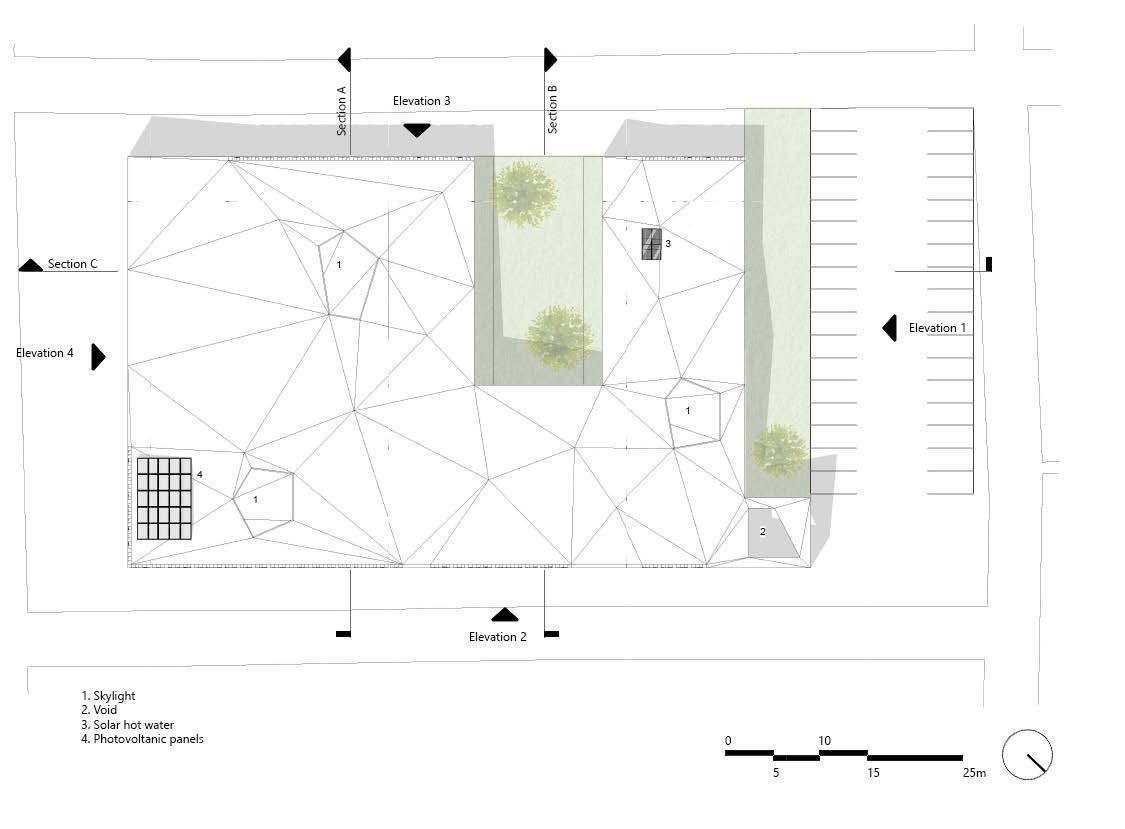

22 23 PORTFOLIO HOANG MY LE PORTFOLIO HOANG MY LE Front View Top View 10° 5° 400.0 15° 53.3 293.3 53.3 400.0 365.0 ROOF PLAN 1. Single brick 2. Stack up bricks

24 25 PORTFOLIO HOANG MY LE PORTFOLIO HOANG MY LE

1

3

2

4

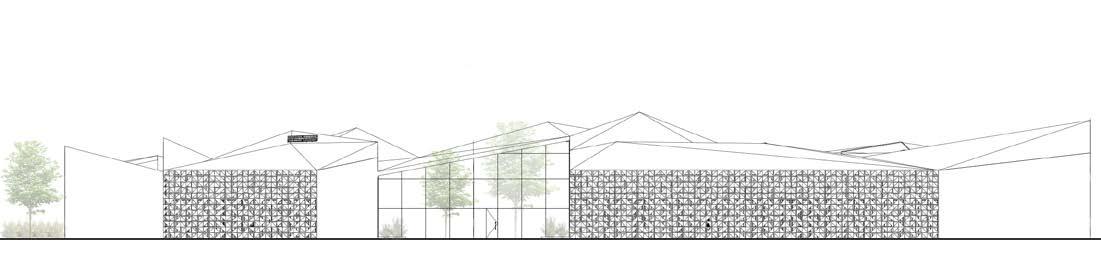

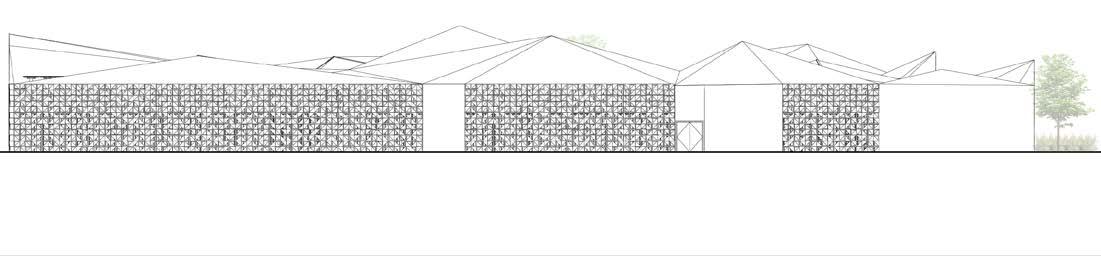

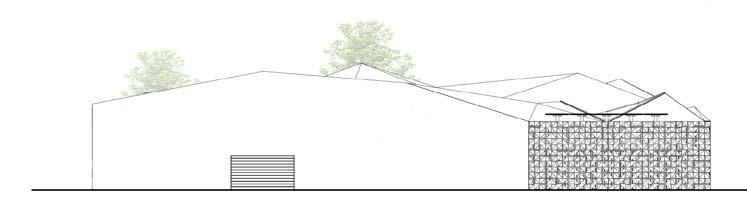

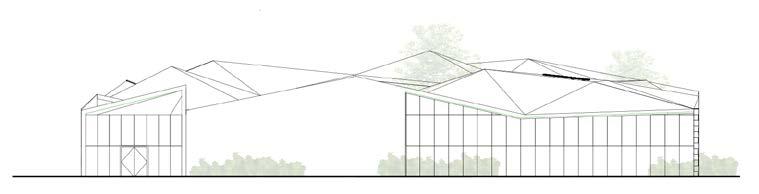

ELEVATION

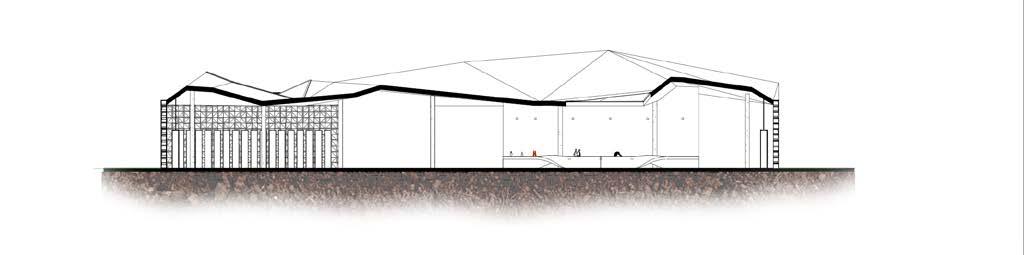

26 27 PORTFOLIO HOANG MY LE PORTFOLIO HOANG MY LE SECTION A SECTION B SECTION C

28 29 PORTFOLIO HOANG MY LE PORTFOLIO HOANG MY LE

30 31 PORTFOLIO HOANG MY LE PORTFOLIO HOANG MY LE

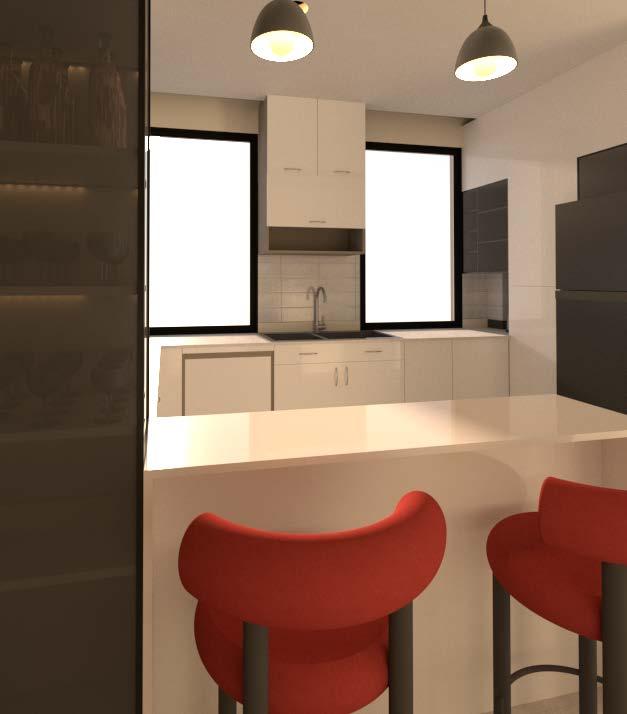

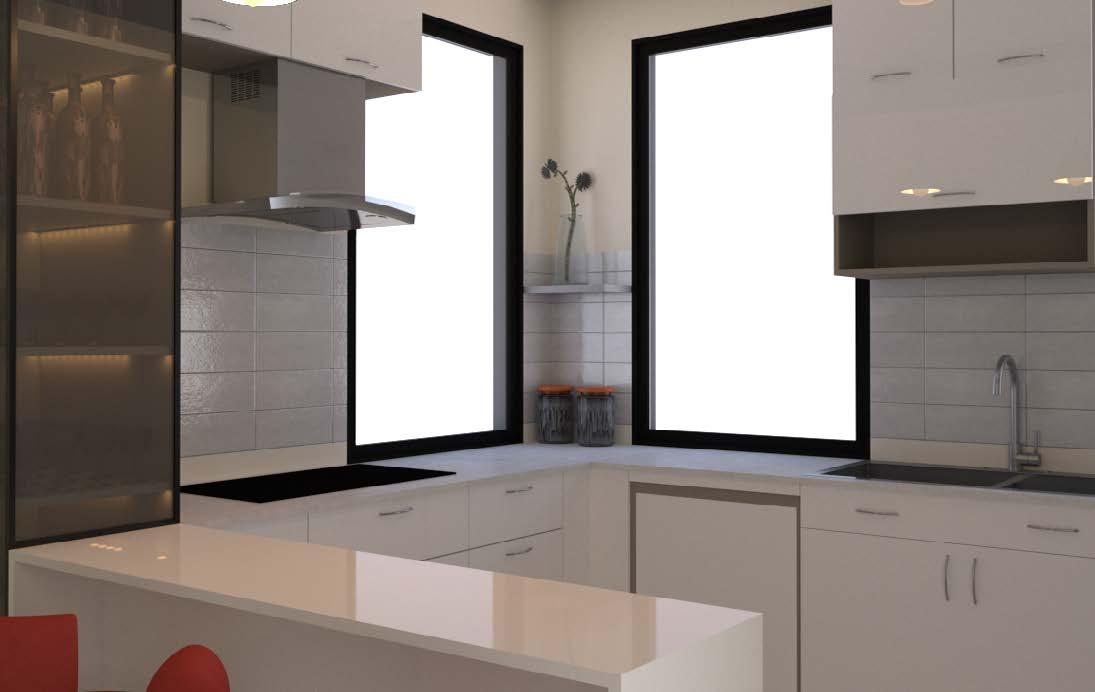

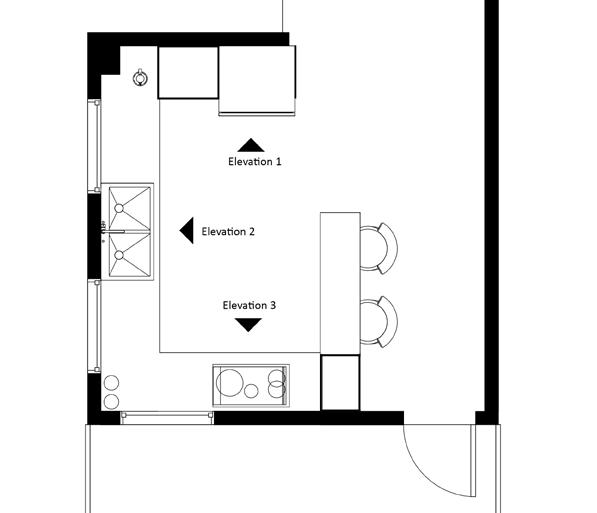

Kitchen Renovation

Softwares used: Revit, Vray, Photoshop

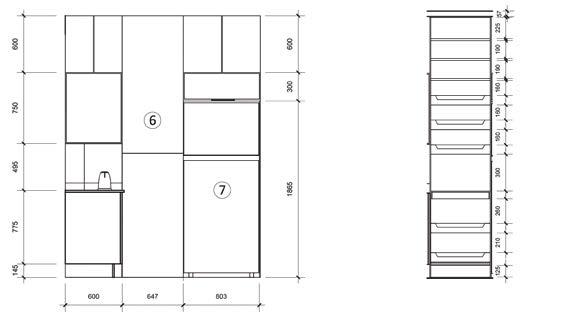

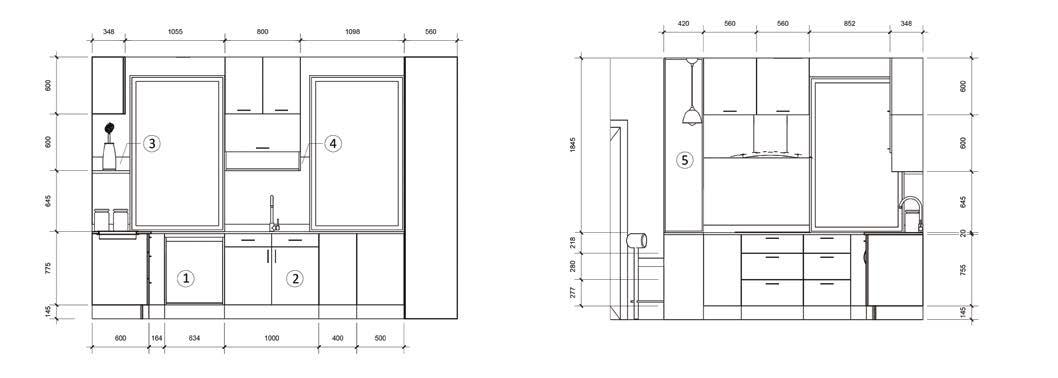

The project is to renovate an old The project is about renovating an old kitchen into a modern one, as desired by the owner. Due to the overabundance of kitchen appliances and other related kitchen items, the goal was to build a kitchen that maximises storage cabinet space, making the kitchen less cluttered. Furthermore, the owner enjoys collecting wine, so the design incorporates a cabinet to store and display the bottles.
