Juhan Lee Architecture Portfolio

PORTFOLIO

JUHAN LEE

JUHAN LEE ARCHITECTURAL DESIGNER

leejuhan98@gmail.com https://www.linkedin.com/in/juhan-lee-a6b989292

LANGUAGE: ENGLISH (NATIVE), KOREAN (NATIVE)

PROFILE Architectural Designer with 1.5+ years of experience, specializing in commercial projects. Proficient in Revit, Rhino, and AutoCAD, with hands-on experience in producing permit sets across Preliminary, Schematic Design, and Construction Documentation phases. Eager to learn and grow among other creative minds, delivering high-quality designs.

WORK EXPERIENCE Architectural Designer: SPACE GROUP, South Korea Internship: SPACE GROUP, South Korea Internship/Model Maker: RAD Workshop, New Zealand

2023 - Present (1 Year 6 Month) 2022 (2 Month) 2019 (1 Month)

EDUCATION

PARTICIPATED PROJECTS 2023 Cultural Korea

Busan Opera House Facade Design (4,953 unique panels) Phase: Construction Documentation, Delivered In BIM Role: Façade Detailed Design, Panels Planar Figure

2023 Laboratory India

Motors Research and Development Campus India Phase: Schematic Design Role: Permit Sets, 3d Modeling, Renders, Planning

2023 Education Korea

Mokdong Primary/Middle School Extension Phase: Preliminary Design, Delivered in BIM Role: Design, Permit Sets, 3d Modeling, Renders, Planning

Korea University

Master of Science in Architecture 2 Years Global Korea Scholarship(GKS) Program University of Auckland

Namyangju Regional Distribution Center Phase: Preliminary, Schematic Design Role: Design, Permit Sets, 3d Modeling, Renders, Planning

2021 Archasm: Pandemic Memorial

1st Prize

2021 ArchTwist: Death-in-between

1st Prize

2021 Sain Gobain Student Competition

3rd Prize (Regional)

2022 AIK: Student Architectural Exhibition

Excellence Award

2023 AIK: Excellent Graduation Thesis Exhibition

Bachelor Exchange Program 1 Semester

SKILLS

ACHIEVEMENTS

Honourable Mention

2017-2019

Bachelor of Architectural Studies 3 Years Seoul National University

2024 Storage Korea

2021-2022

Rhino Revit Autocad Adobe Softwares Lumion Enscape Vray Grasshopper Physical Modeling

2018

TABLE OF

CONTENTS

01

POLYNESIAN STORAGE MUSEUM

Pg 1 - 8

02

NIUEAN CULTURAL CENTER

Pg 9 - 16

03

CHILDREN’S HOUSE IN SENEGAL

Pg 16 - 24

04

DESERT HOUSE

Pg 25 - 32

05

S’MORE HOUSE

Pg 33 - 40

06

KOREAN GRAIN WAREHOUSE ANALYSIS

Pg 41 - 48

STORAGE MUSEUM 01 POLYNESIAN Project Type: Personal Project Context:

As we react against natural disasters we’ve been seeking for the latest and most functional technologies.

Through this process we’ve been desensitized of the loss of culture and history. The islands in Polynesia are accurate examples of this occurrence where they face a constant threat of sea level rising, hurricanes, tsunamis, earthquakes and etc. Therefore, less established countries in Polynesia seek for functional rubber stamped buildings to keep them safe, rather than their sacred structures and spaces. Islands like the Cook Island, Niue and Tokelau are already under its realm where New- Zealand functions as a head of state and gives support when they are in need. New Zealand is able to take responsibility to help maintain the -

culture of other islands through a symbolic skyscraper to raise the awareness of loss in Polynesian culture which can hold the history and crafts of other islands while exhibiting to the public.

The main body of the Skyscraper takes form of a New- Zealand version of a canoe called the “Waka” (Māori War canoe) and along its back, different sizes of upside down canoe shaped structures are cantilevered out creating an image of a Waka carrying other Polynesian canoes.

The cantilevered canoes points towards south for this was the way that Polynesian people found their ways to navigate and not to get lost by identifying the Southern Cross.

LOCATION: WELLINGTON, WARD ISLAND

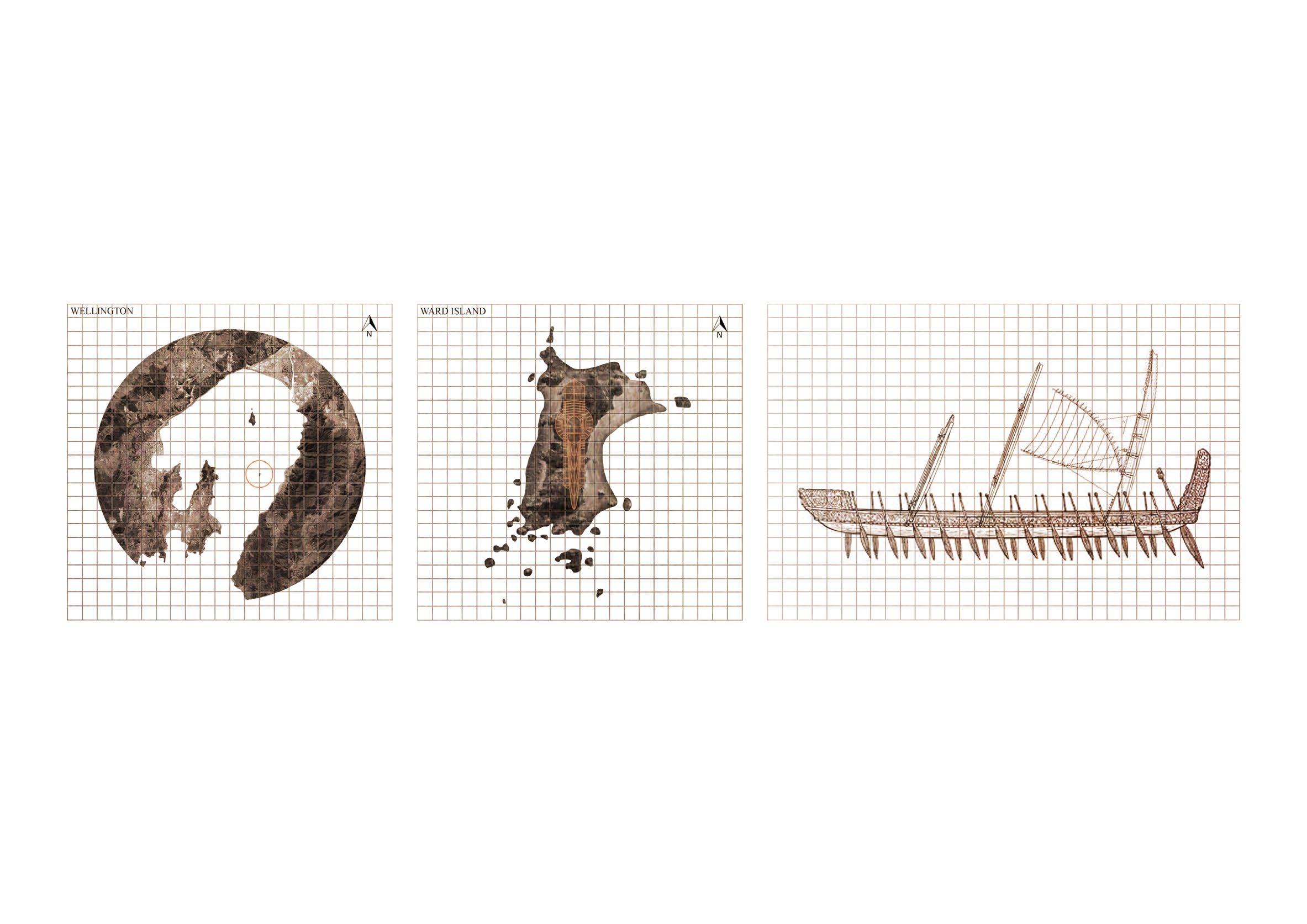

CONCEPT COLLAGE

2

4

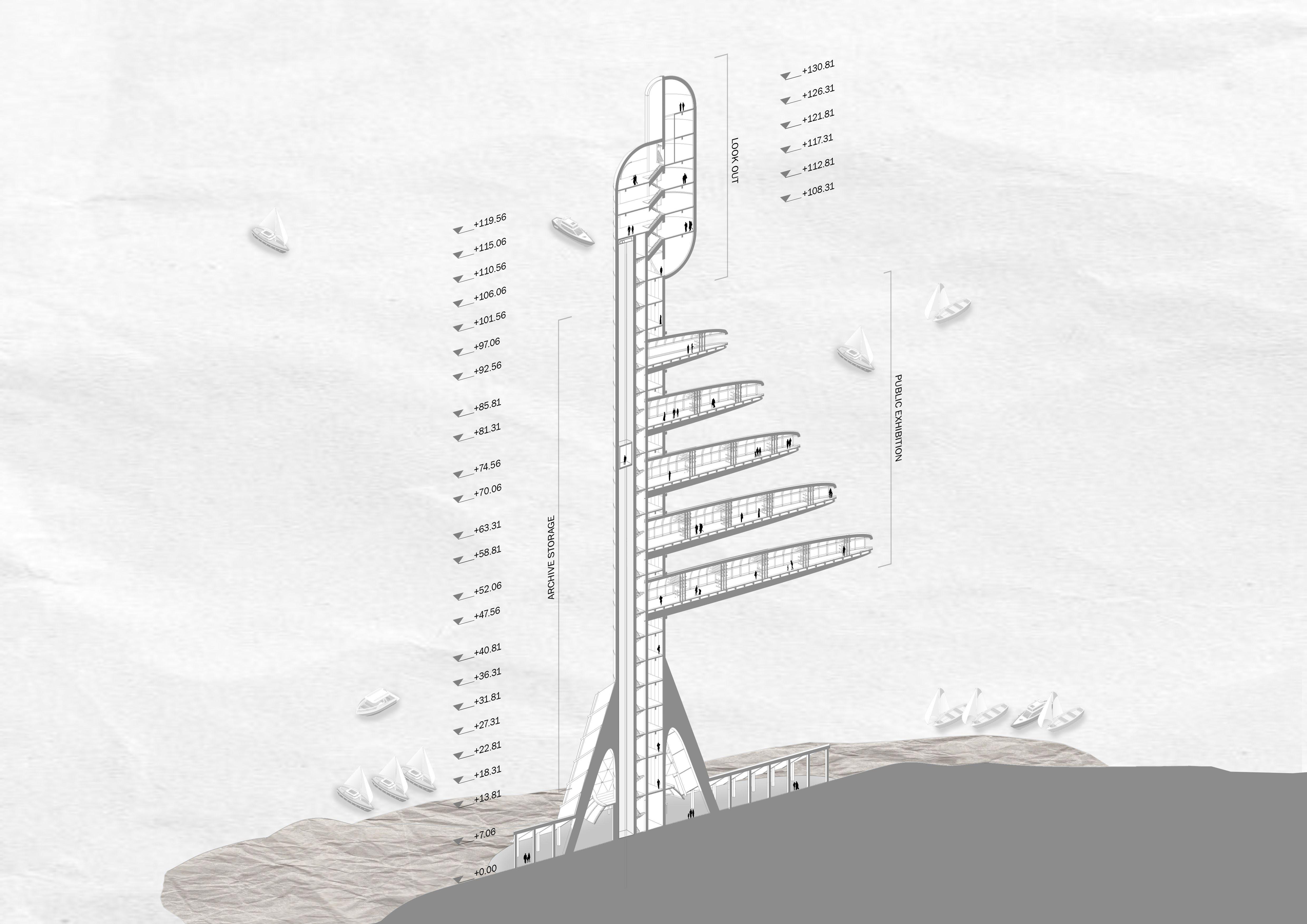

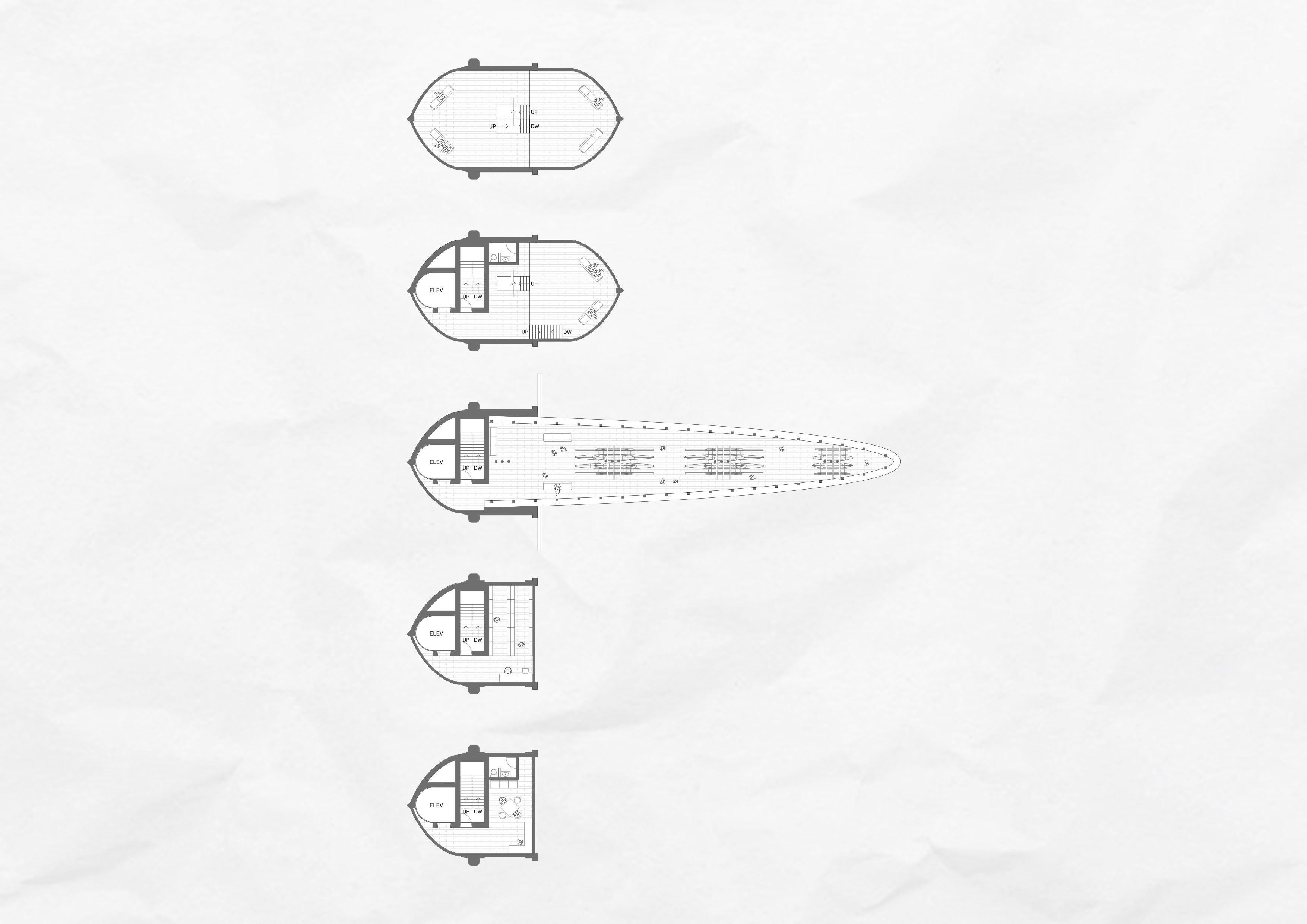

24F EL+ 112.81 LOOK OUT FLOOR

22F EL+ 108.31 LOOK OUT START FLOOR

11F EL+ 63.31 PUBLIC EXHIBITION

7F EL+ 31.81 ARCHIVE STORAGE

6F EL+ 27.31 WORKER LOUNGE

6

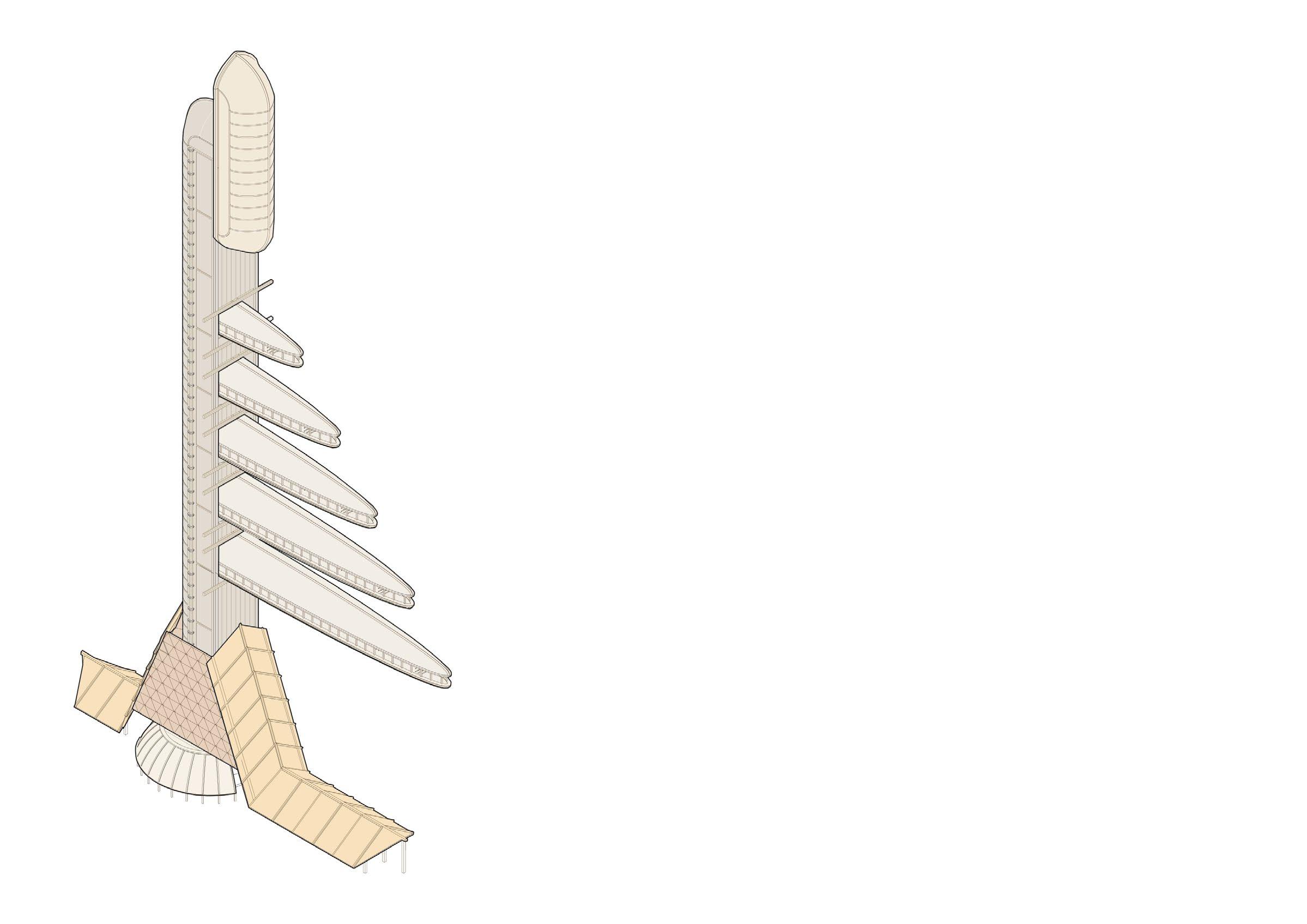

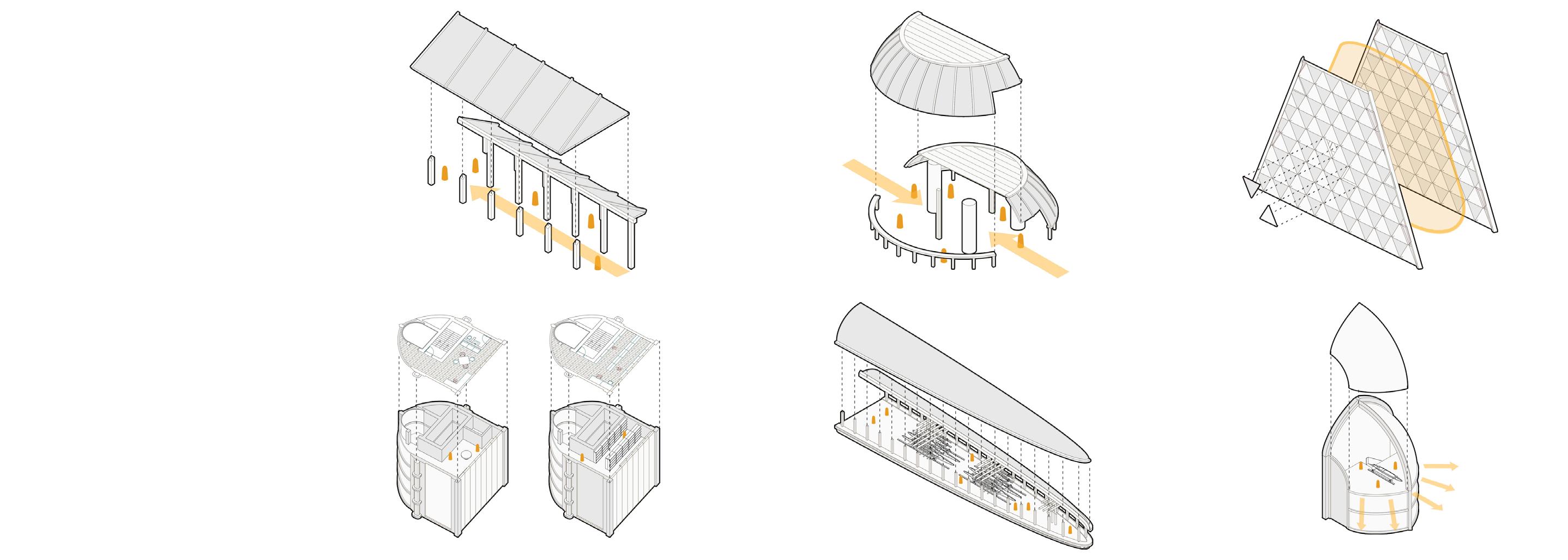

FUNCTIONS AND PROGRAMS

6

4 5

1

3 2

1

1: MARAE ENTRANCE

2: FALE GATHERING SPACE

3: CAPTURING THE VA

4: STORAGE/OFFICE

5: EXHIBITION SPACE

6: LOOK OUT

EXHIBITION / PUBLIC SPACE

MARAE / FALE

LOOK OUT

8

CULTURAL CENTER 02 NIUEAN Project Type: Graduation Project Context:

The project sits on a historically significant site “Cooks Landing” in Niue where James Cook landed and had the first ever interaction with the Niueans. The island is completely made of coral therefore; the challenge of this project was to react to this organic material while appreciating the undulating landscape.

The Three Men Vaka is a fishing boat which portrays the detailed craftsmanship of Niue. Vaka is a fishing boat that is commonly used in Niue. The Three Men Vaka is used to fish further out sea. However, this craft is no longer made or available due the importation of motor boats. To establish a cultural symbol on a historic site, the cultural

centre takes form of this lost craft. The body of the building points towards Samoa which is their primary cultural influence while the roof top is perpendicular to Tonga which is also one of their cultural influences. Therefore, when people walk along the building they get to appreciate both cultures.

The outrigger of the building points towards New Zealand to appreciate their guidance over Niue for the outrigger of the Vaka is also a safety feature.

CONCEPT COLLAGE

THE PREPARATION

THE JOURNEY

THE BATTLE

THE RECOVERY 10

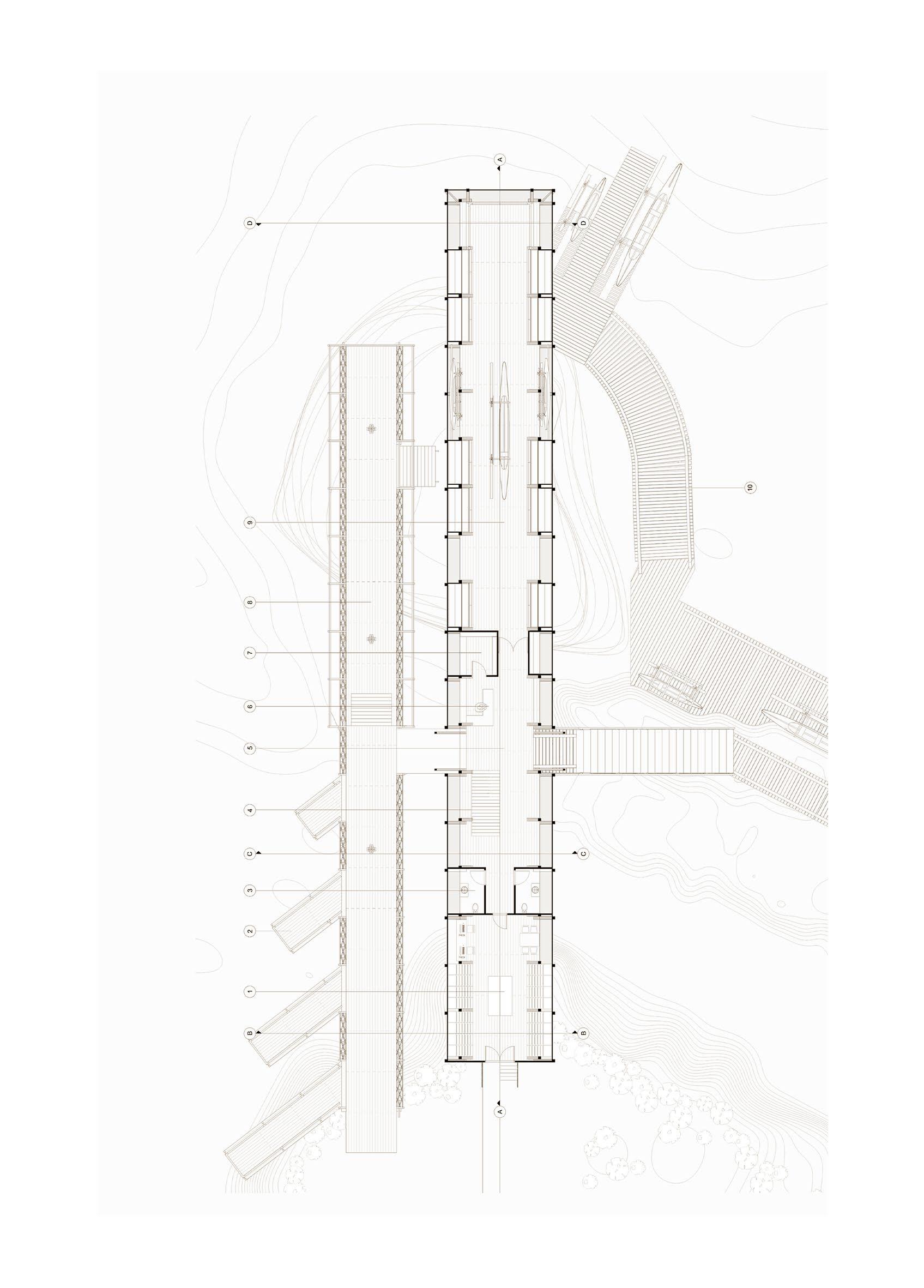

GROUND FLOOR PLAN

1: Office 2: Look Out 3: Toilet 4: Staircase 5: Lobby 6: Information Desk 7: Storage 8: Outrigger Deck 9: Exhibition Space

12

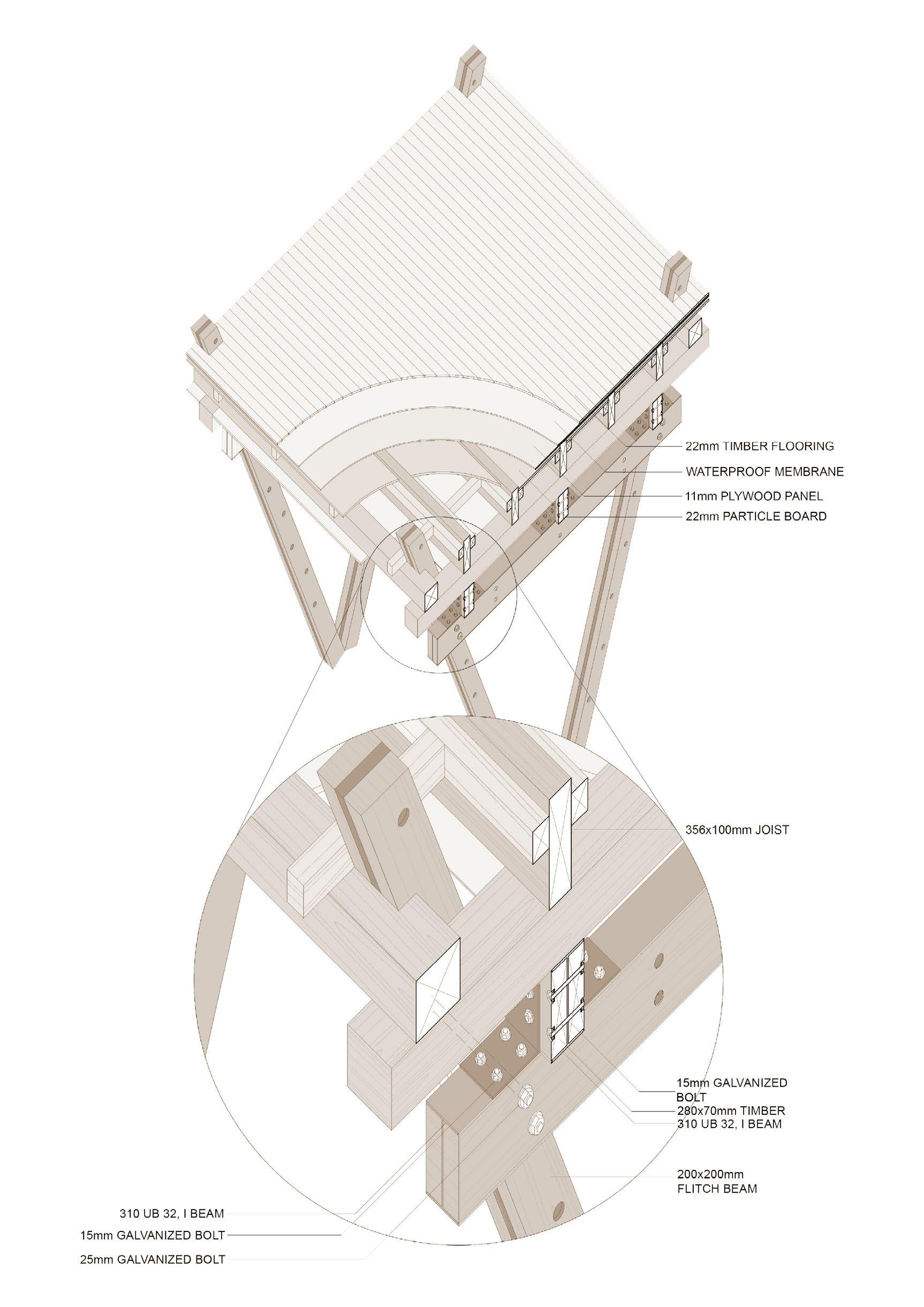

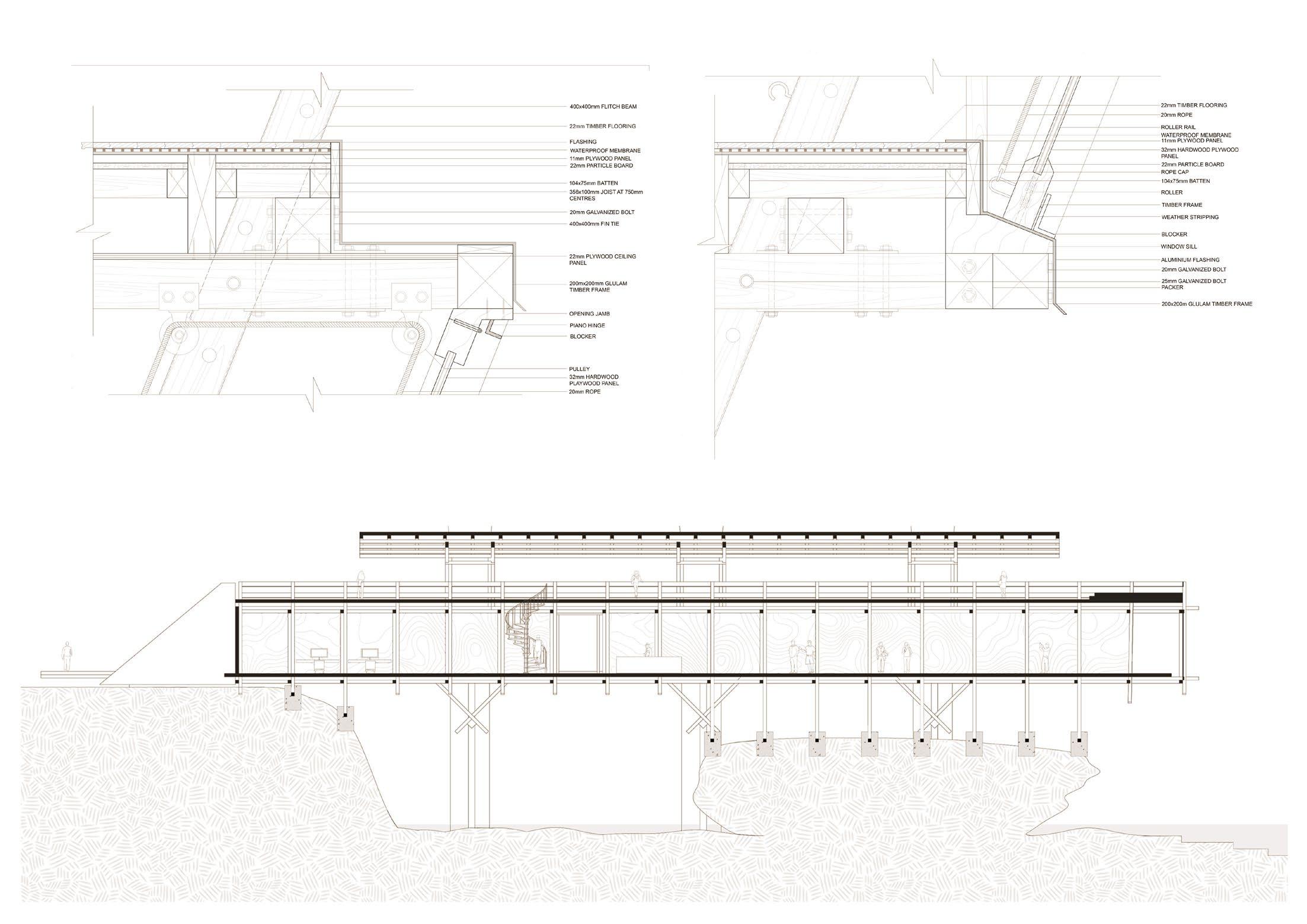

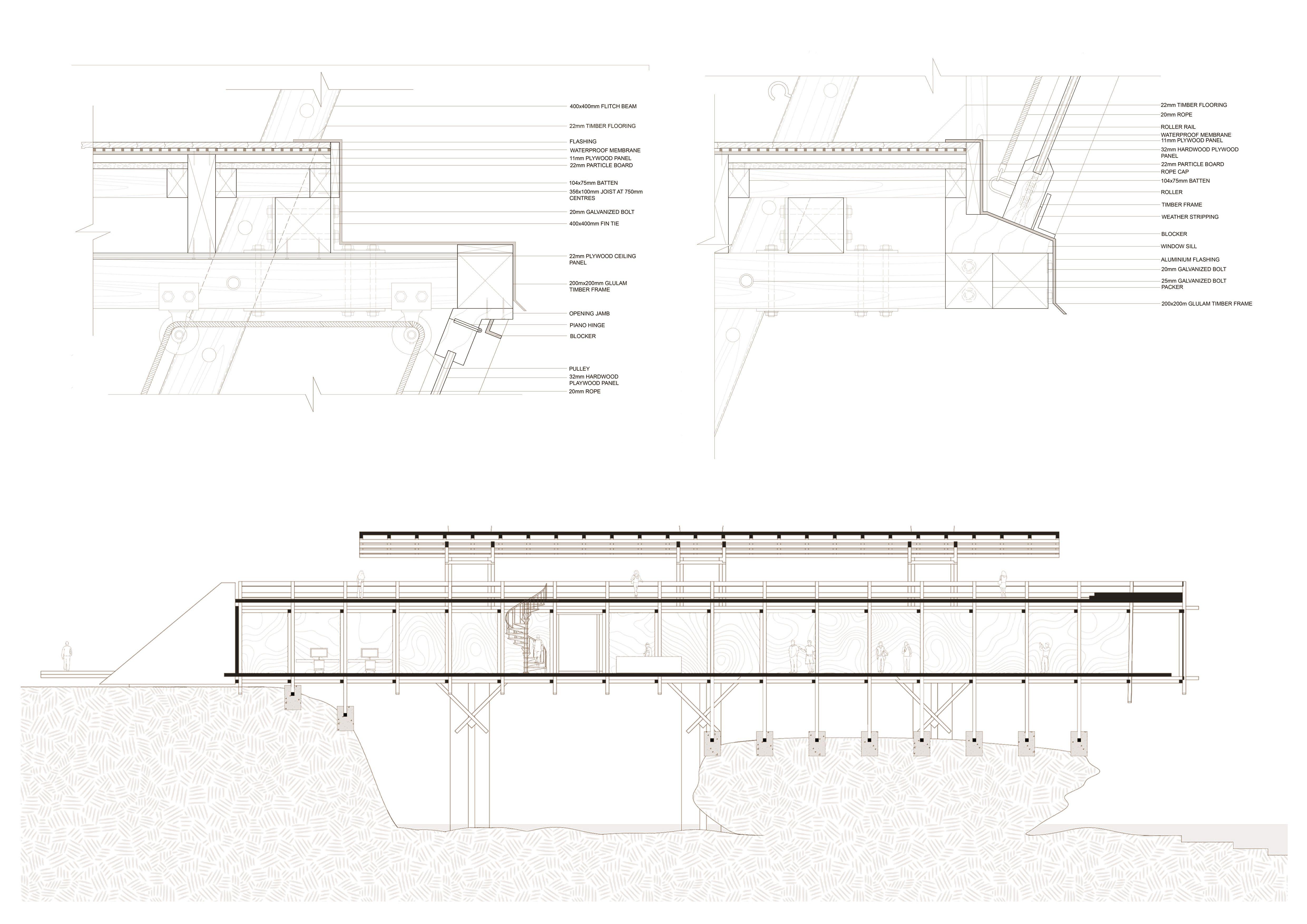

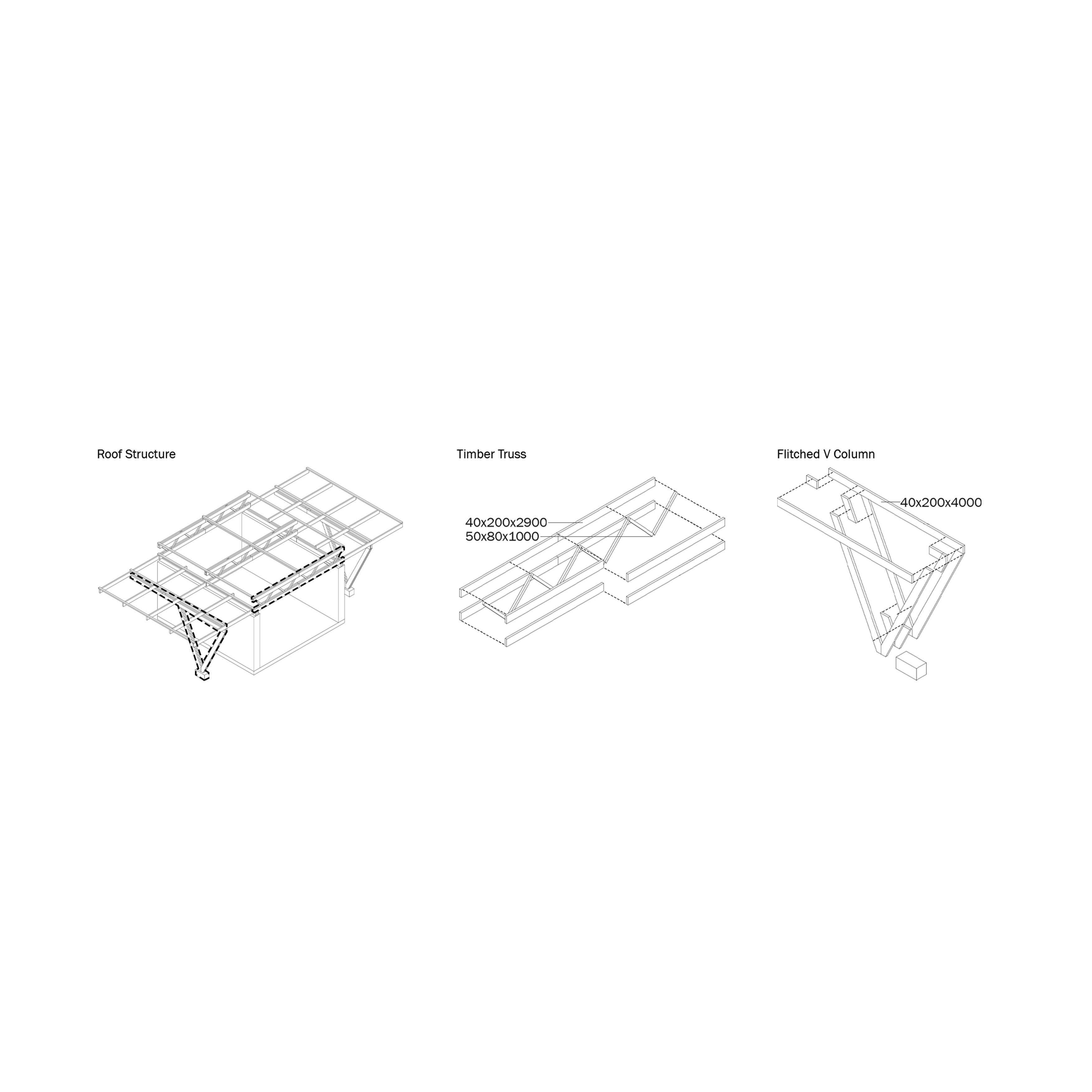

STRUCTURE DETAIL

LONG SECTION

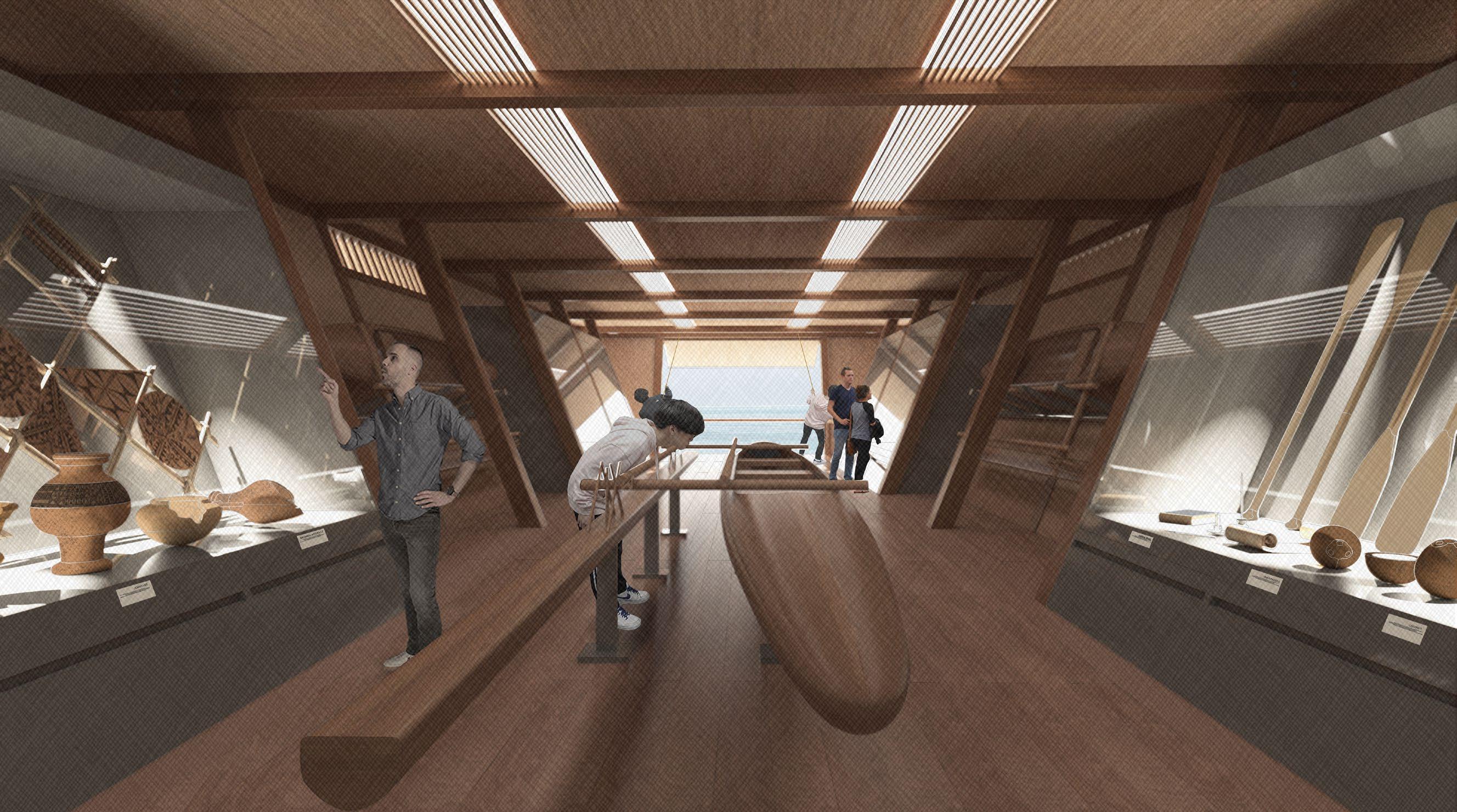

EXHIBITION SPACE

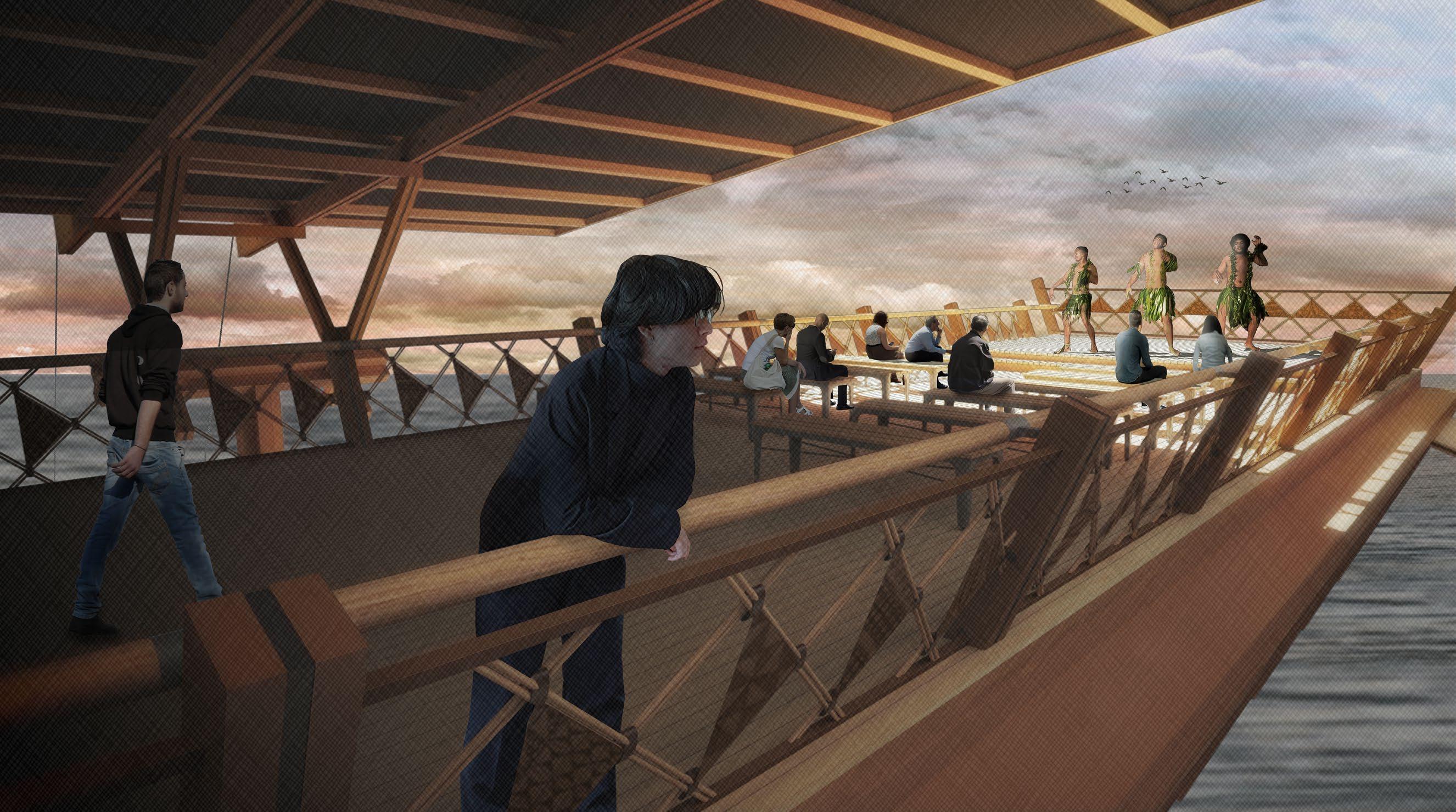

ROOF TOP SPACE

14

DETAIL A

DETAIL B

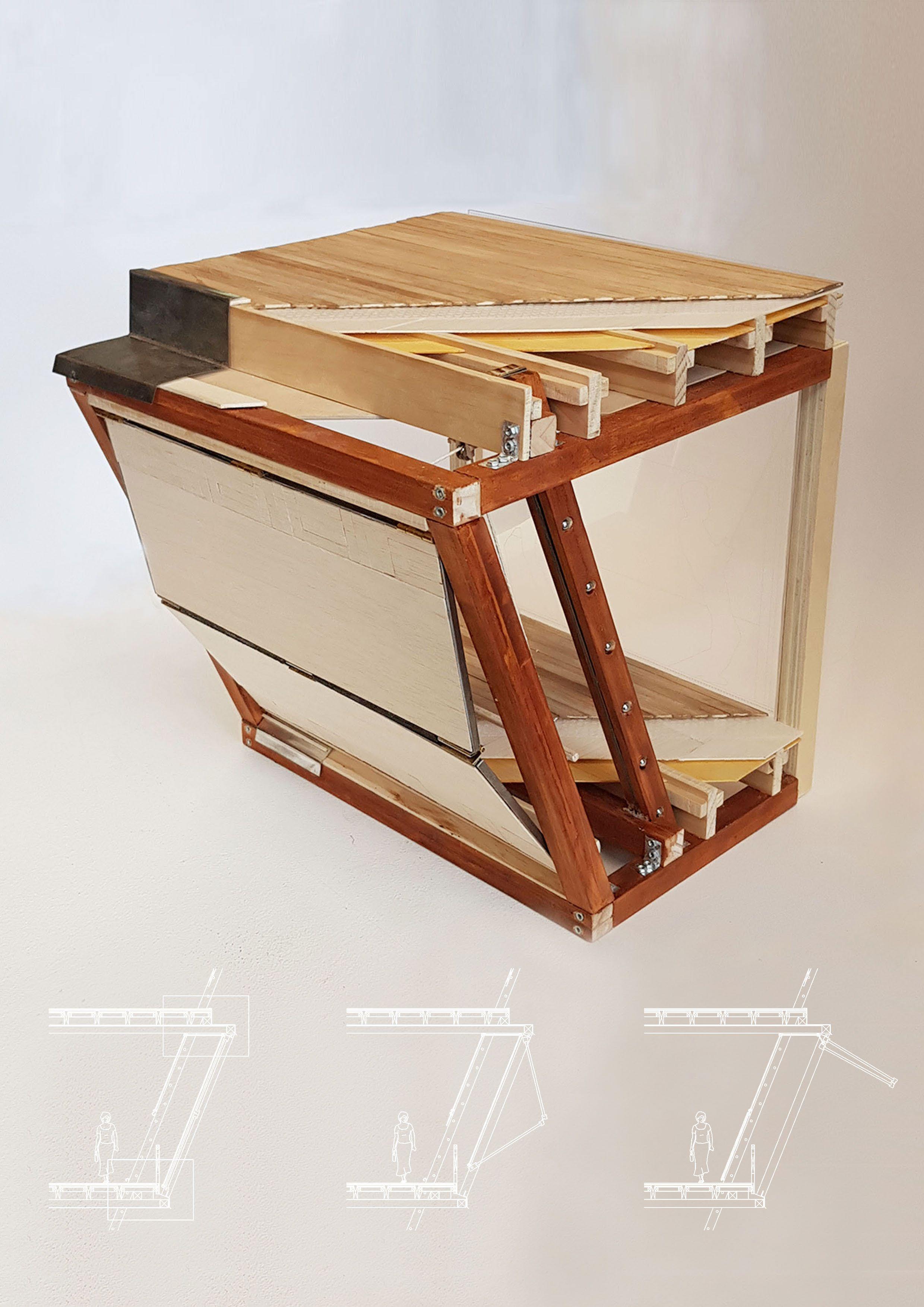

DETAIL MODEL 1:10

16

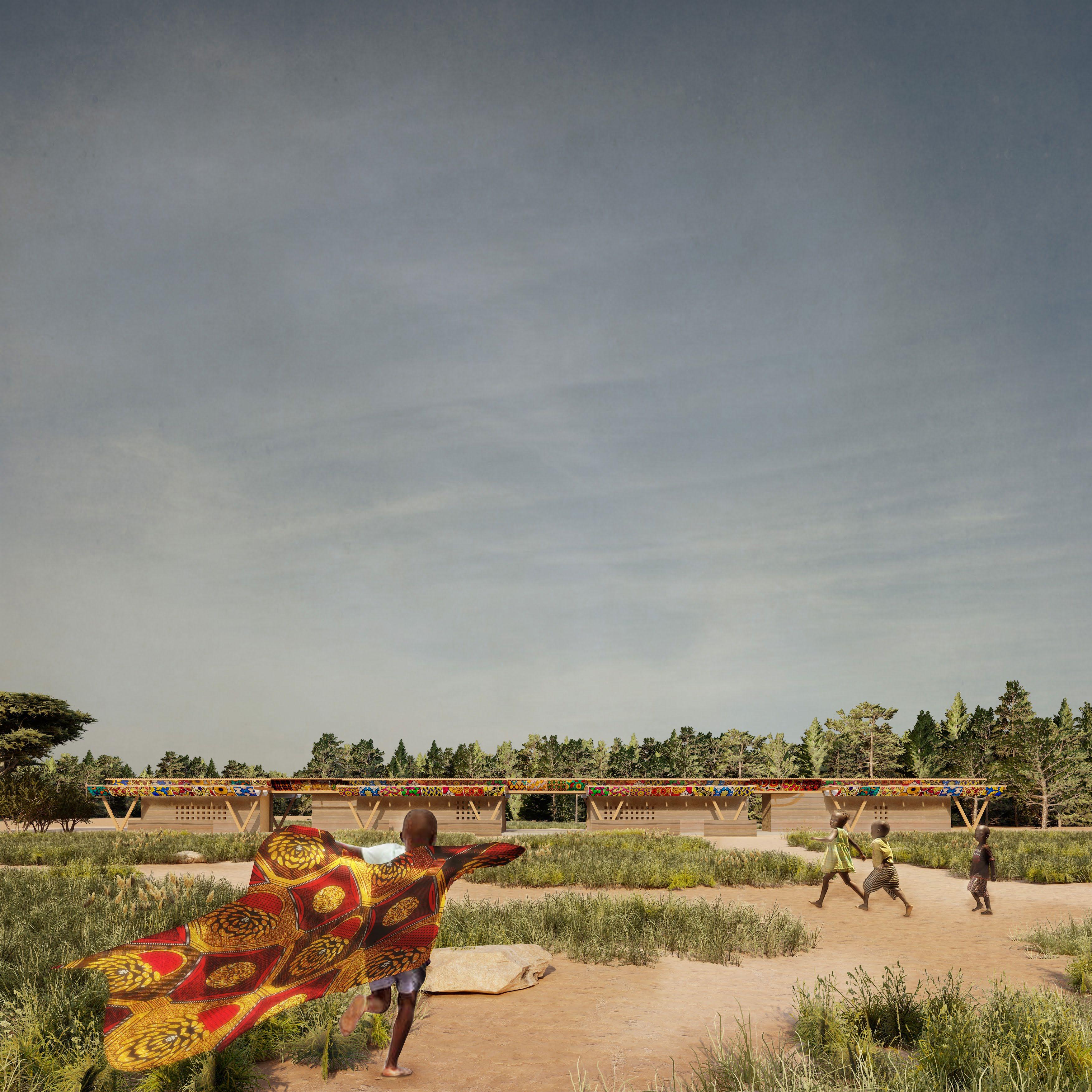

HOUSE IN SENEGAL 03 CHILDREN’S Project Type: Personal Project Context:

The main goal of this project was to create a space that indulges a “Sense of Belonging” to the kids so they can easily approach the space and get the necessary treatment they deserve. The search for a space that reflects a welcoming atmosphere started from understanding the idea of a “sense of belonging” in playgrounds. Due to completely exposed and transparent nature of playgrounds the kids feel safe and easily approach the space. To translate this architectural language to the project, first, the site was observed.

The site is an empty area in the village of Baghere, senegal. On the North and West side of the site, there are streets parallel to the sides of the site, joining at the north

west corner. In order for the building to have complete exposure from both streets, each function within the building were laid out one by one at a 45 degrees angle at the point where the two streets meet. By doing so, the building was completely exposed where ever the person was standing.

Then, three evenly spread out openings were introduced throughout the building. By doing so, it clearly differentiates each function within the building where the kids know exactly know what each mach mass is for. The openings unhide the spaces behind to assure safety and suggest the building to be used as another path to cut through the field to get to the opposite street.

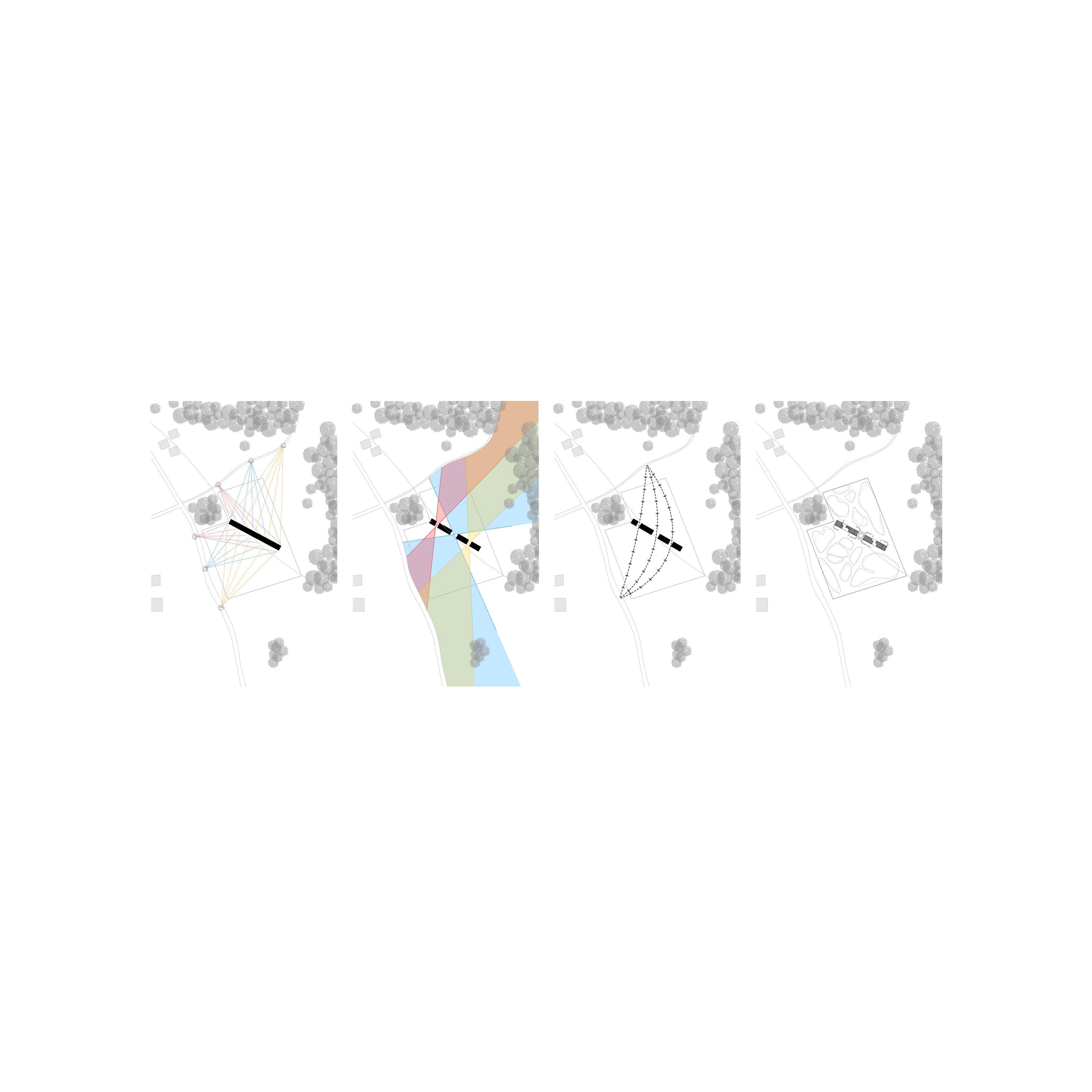

DESIGN DIAGRMS

EXPOSURE

TRANSPARENCY

ACCESSIBILITY

LANDSCAPING 18

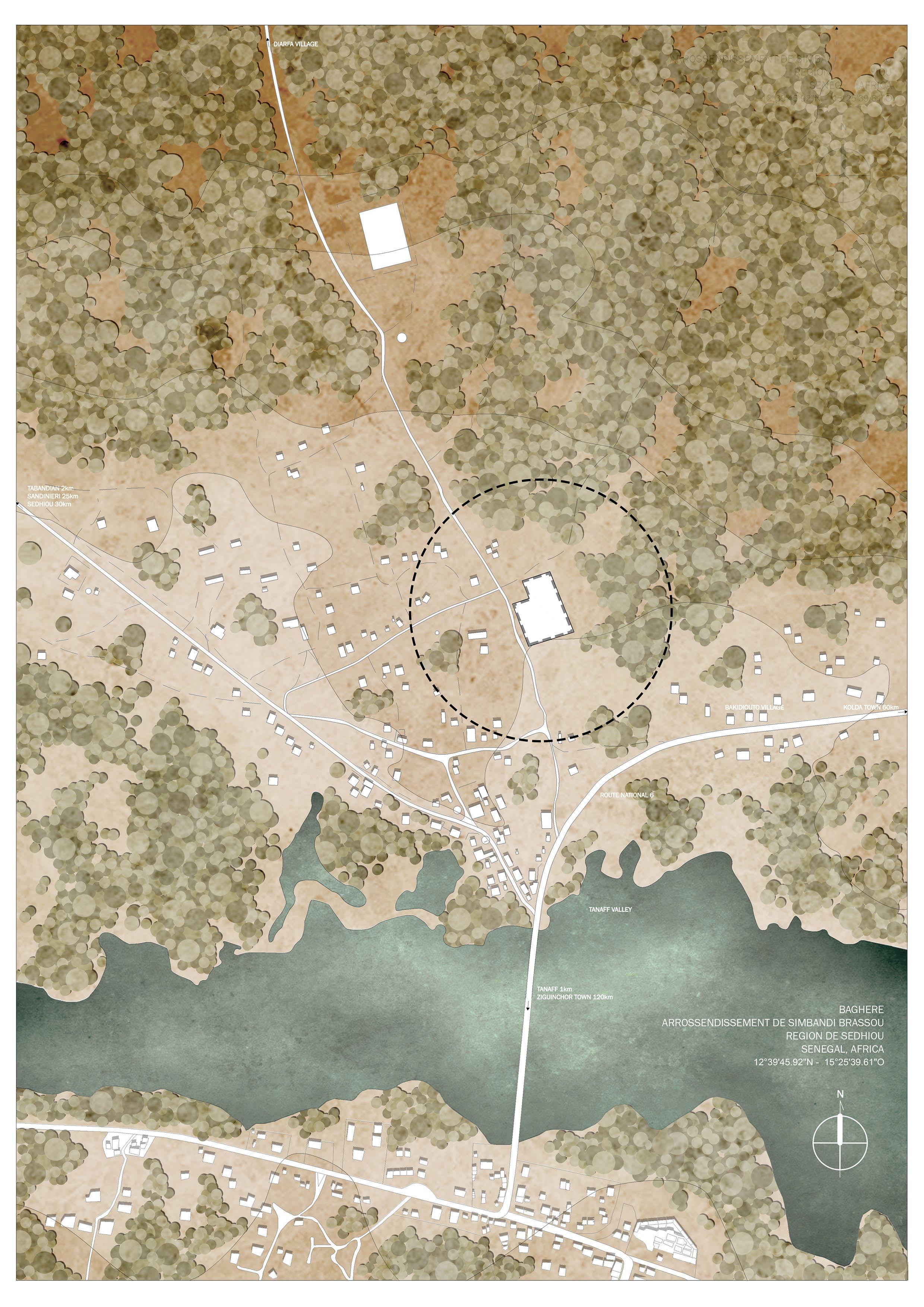

SITE PLAN

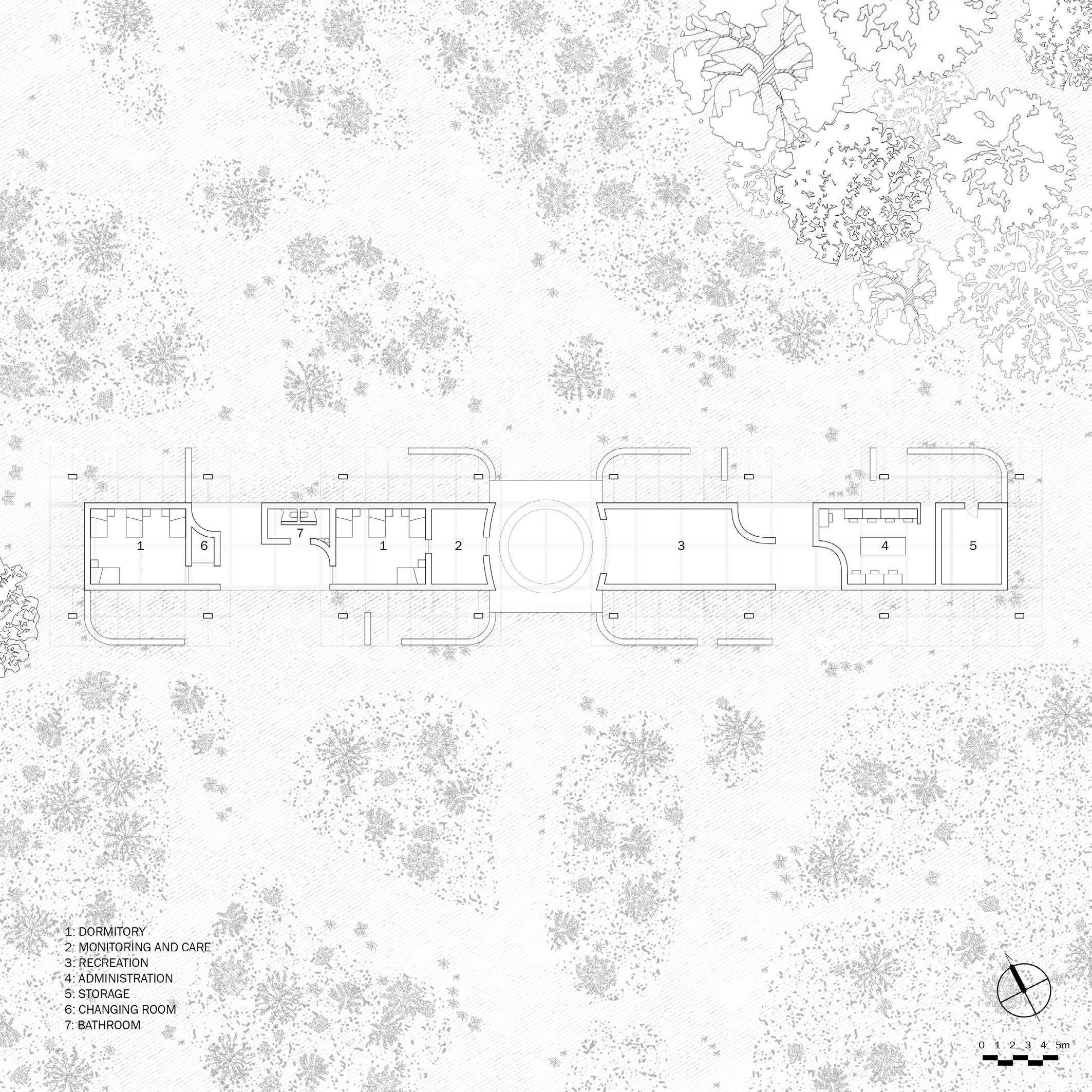

FLOOR PLAN

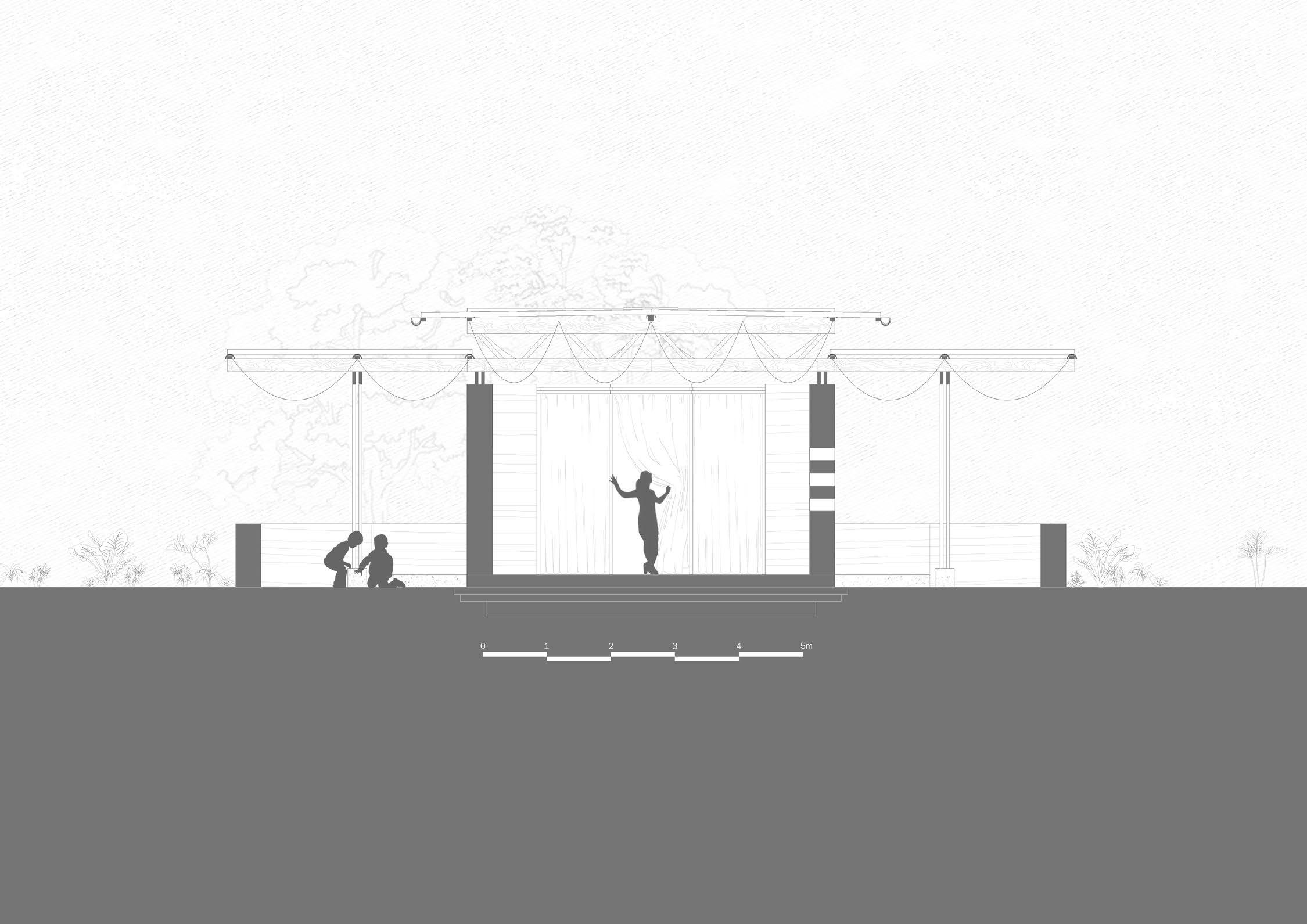

SHORT SECTION

20

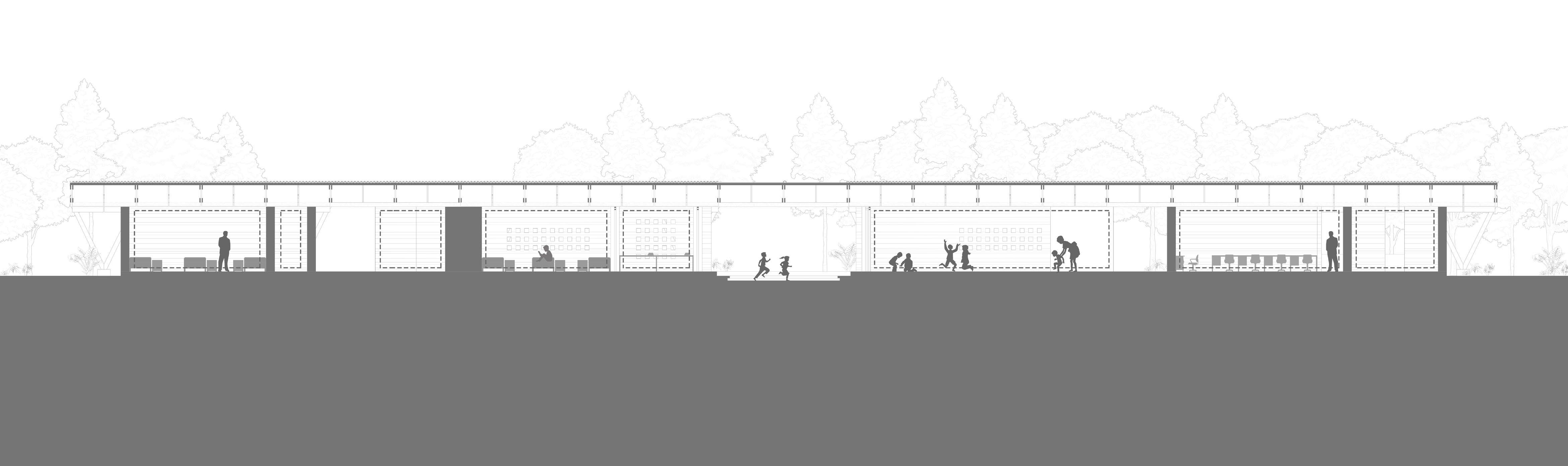

LONG S

SECTION

22

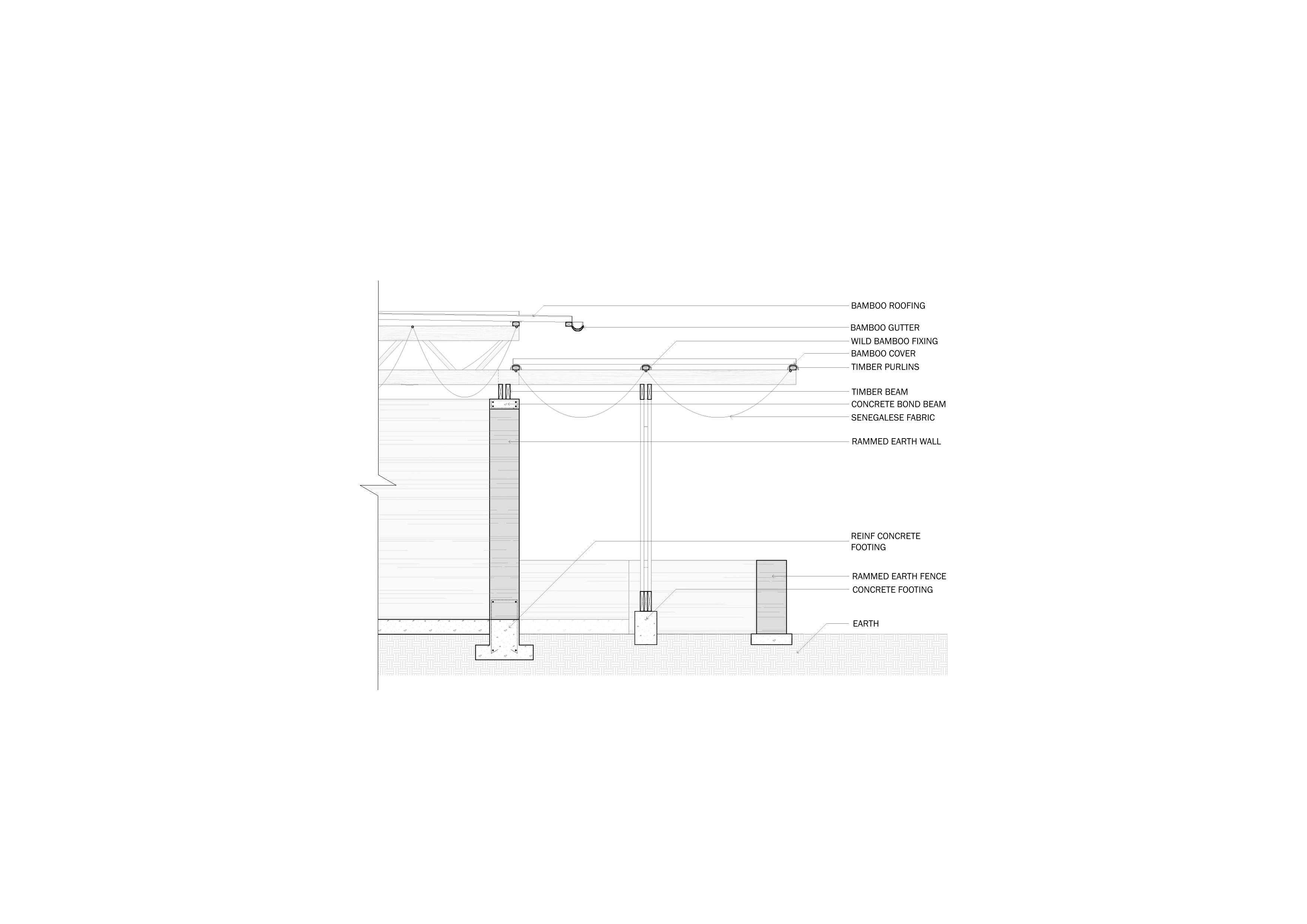

DETAIL SECTION

WRESTLING PIT

INTERIOR SPACE

24

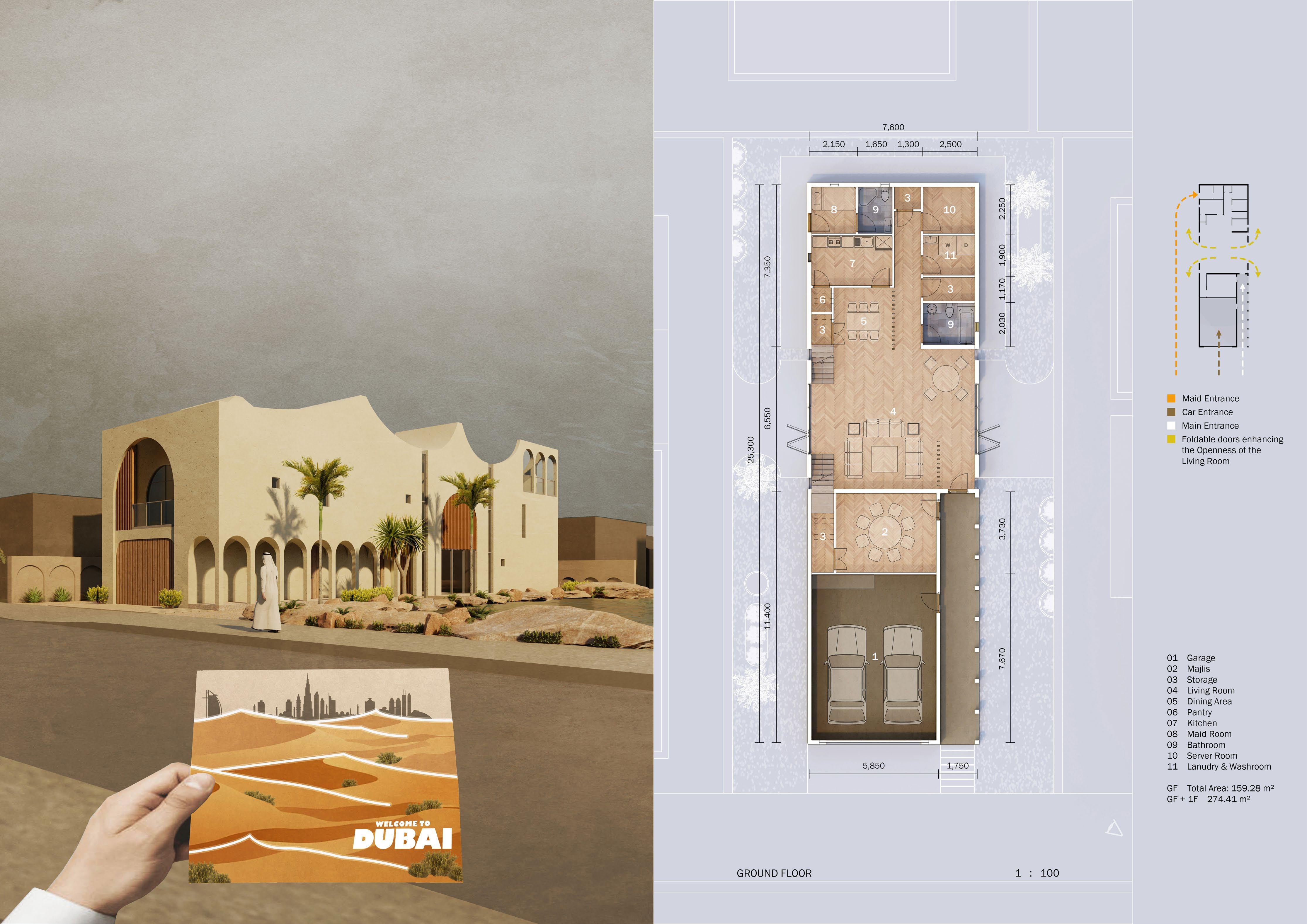

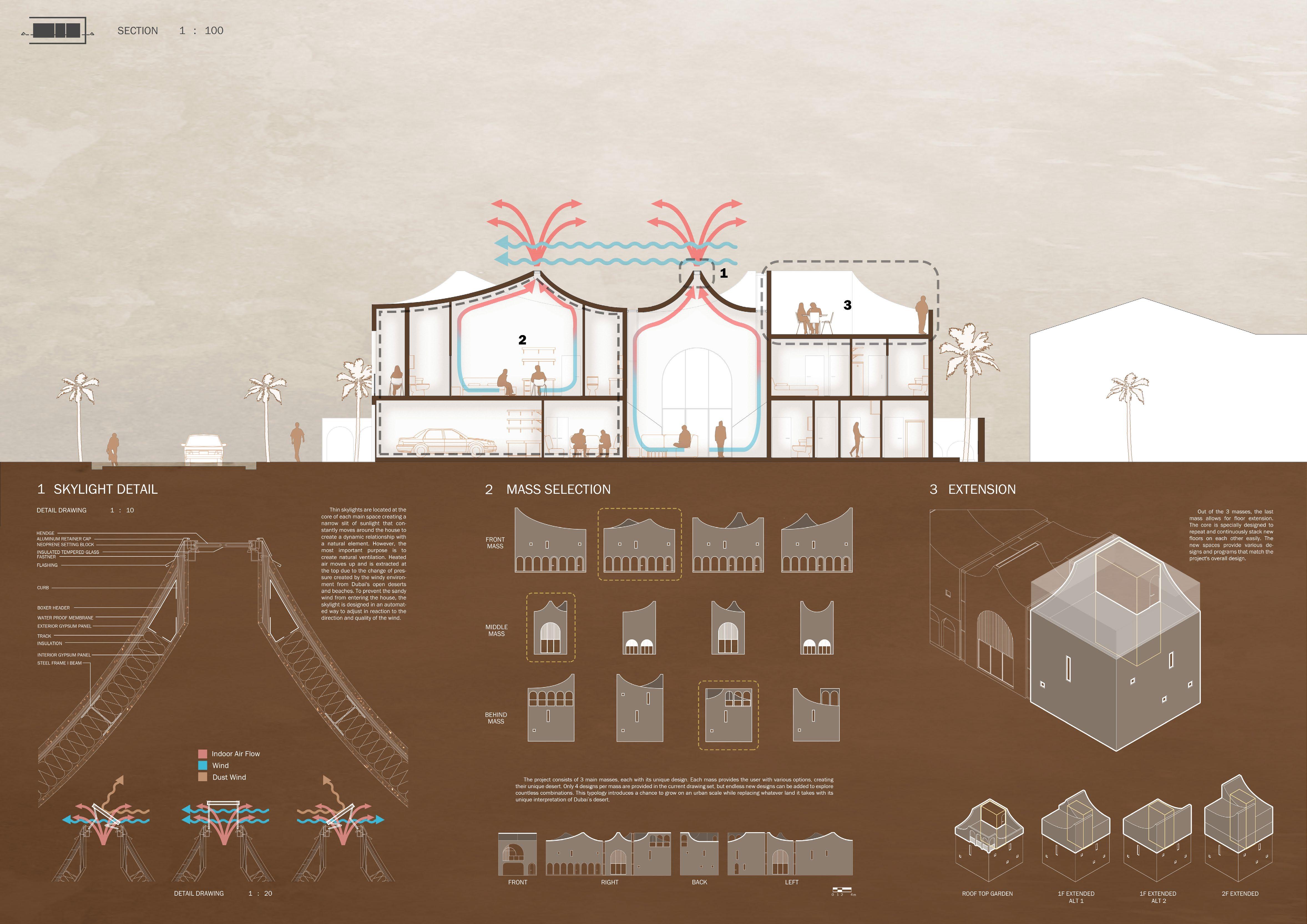

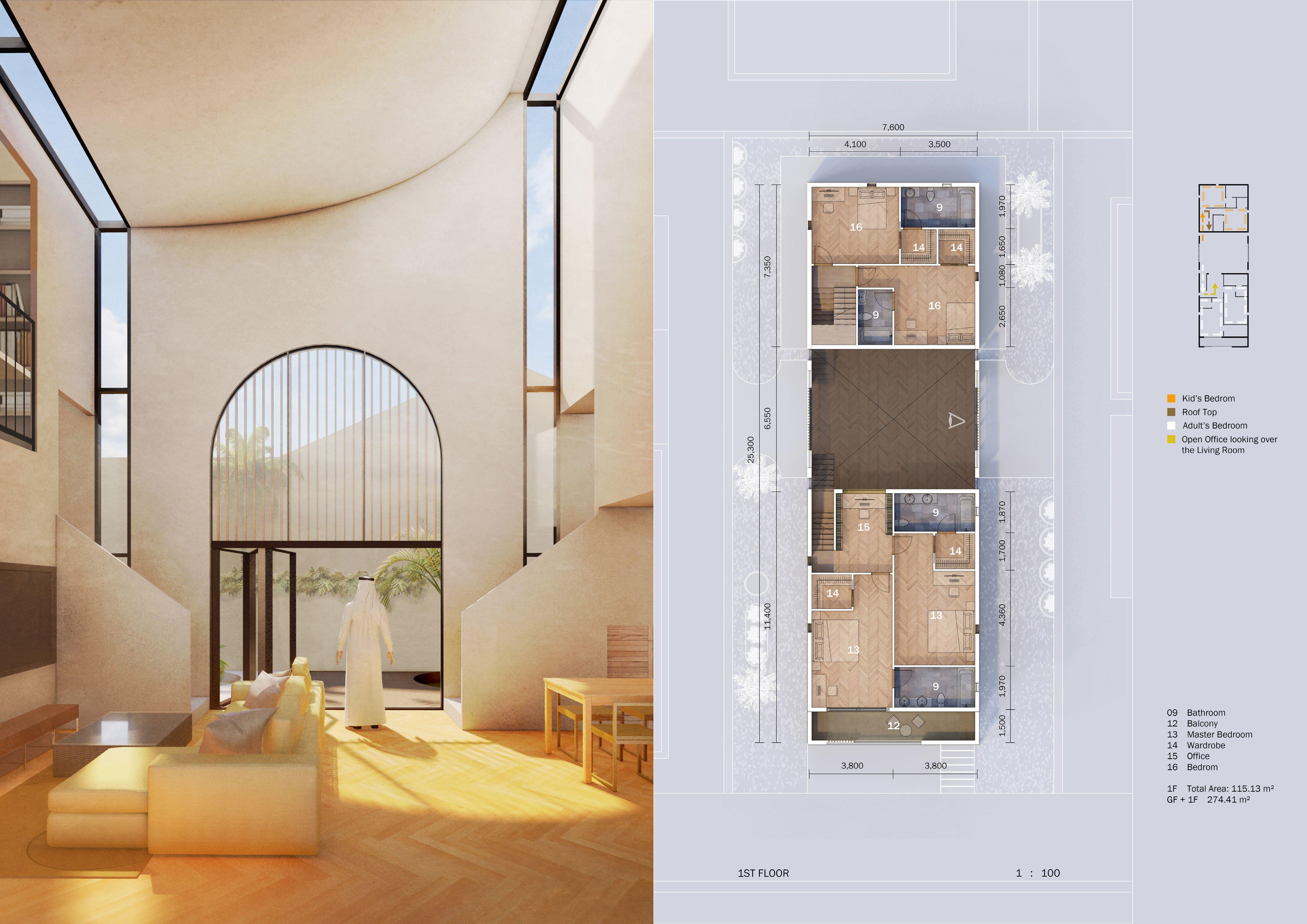

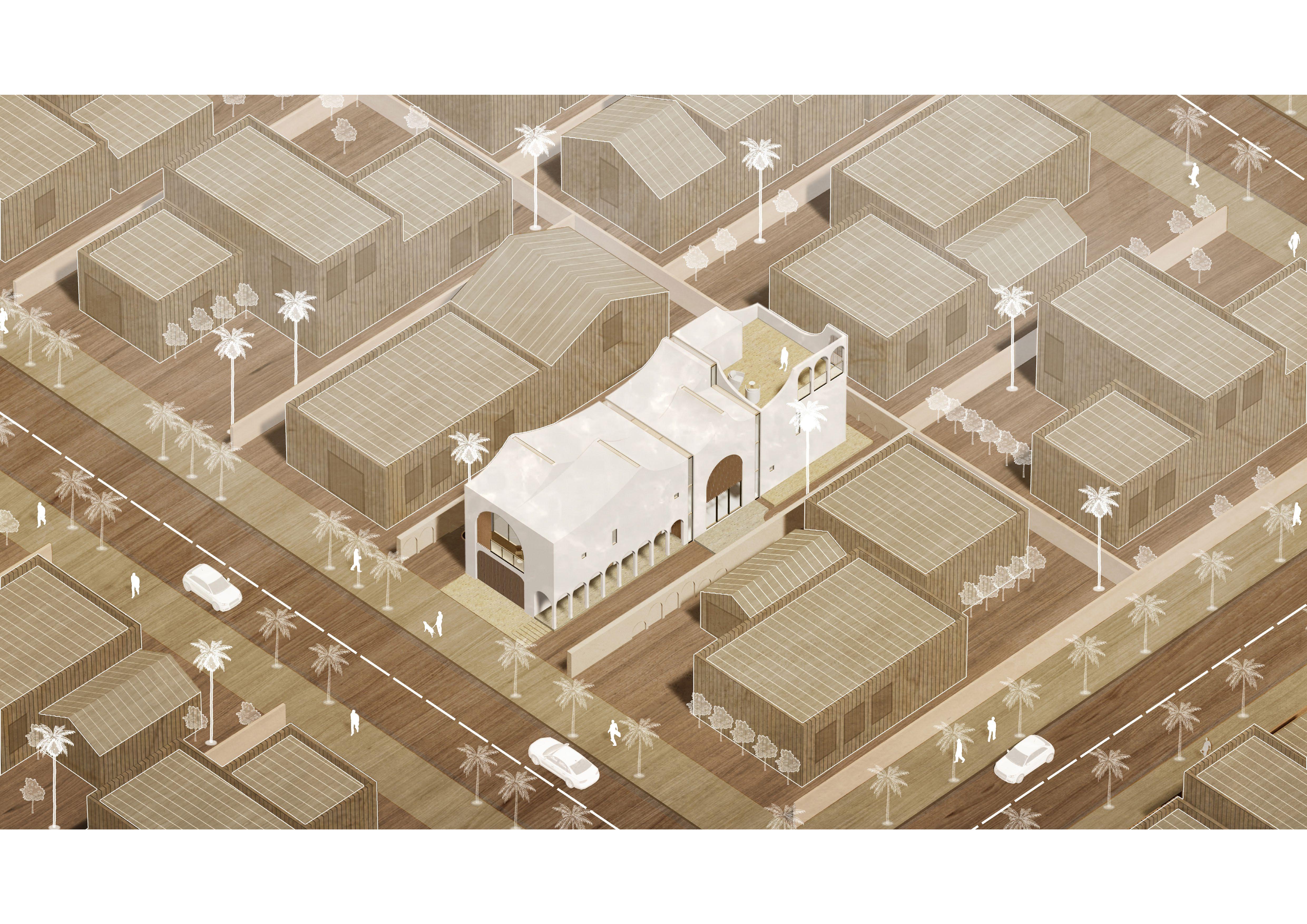

HOUSE 04 DESERT Project Type: Personal Project Context:

The beautiful desert landscape of Dubai doesn’t get enough attention it deserves amongst the rich culture and the world-renowned cityscape. This project aims to pay tribute to the desert’s profound influence on Dubai’s heritage and contemporary identity. The design blends seamlessly with the natural surroundings by drawing inspiration from the desert’s undulating dunes and the ever-changing play of light.

Beyond aesthetics, the architecture orchestrates a dynamic experience, blurring boundaries between indoors and outdoors at the core of the design. The design attempts to revive the aesthetic of the natural landscape it has taken

over with its desert like form. As the project grows into an urban scale, the overall aesthetic becomes the Arabian Desert rather than a contemporary village.

Considering the cost-effectiveness, this project is executed using a skeleton framing technique with steel.

Notably, the 3 masses are independent with their own separate steel framing structure, allowing for a potential modular expansion approach for future enhancements.

A “House of the Future” should reflect future endeavors and achievements while appreciating the characteristics of the city’s origin.

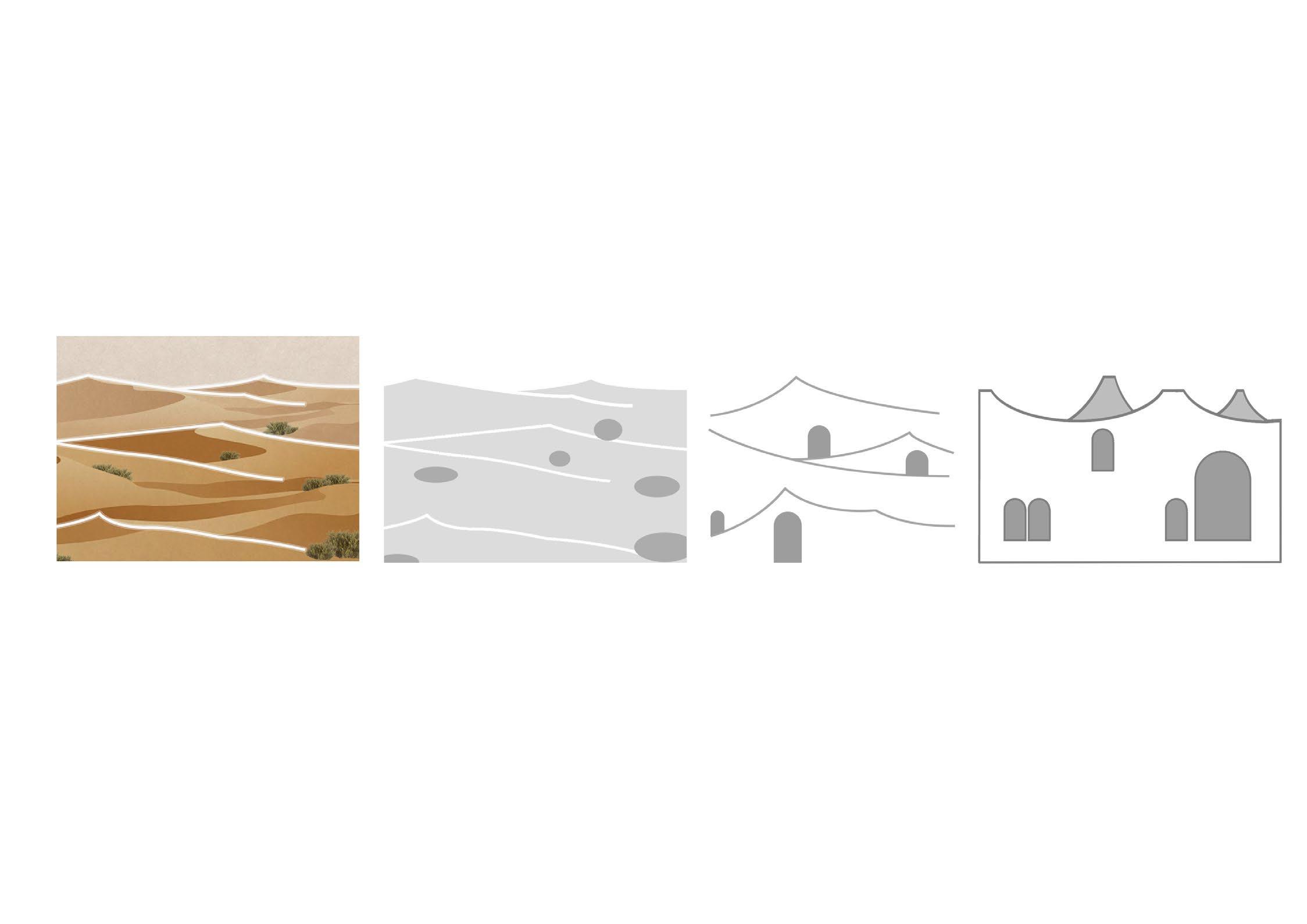

DESIGN DIAGRMS

DESERT

CHARACTERISTICS

IDEATION

TRANSLATE TO FORM

26

28

30

32

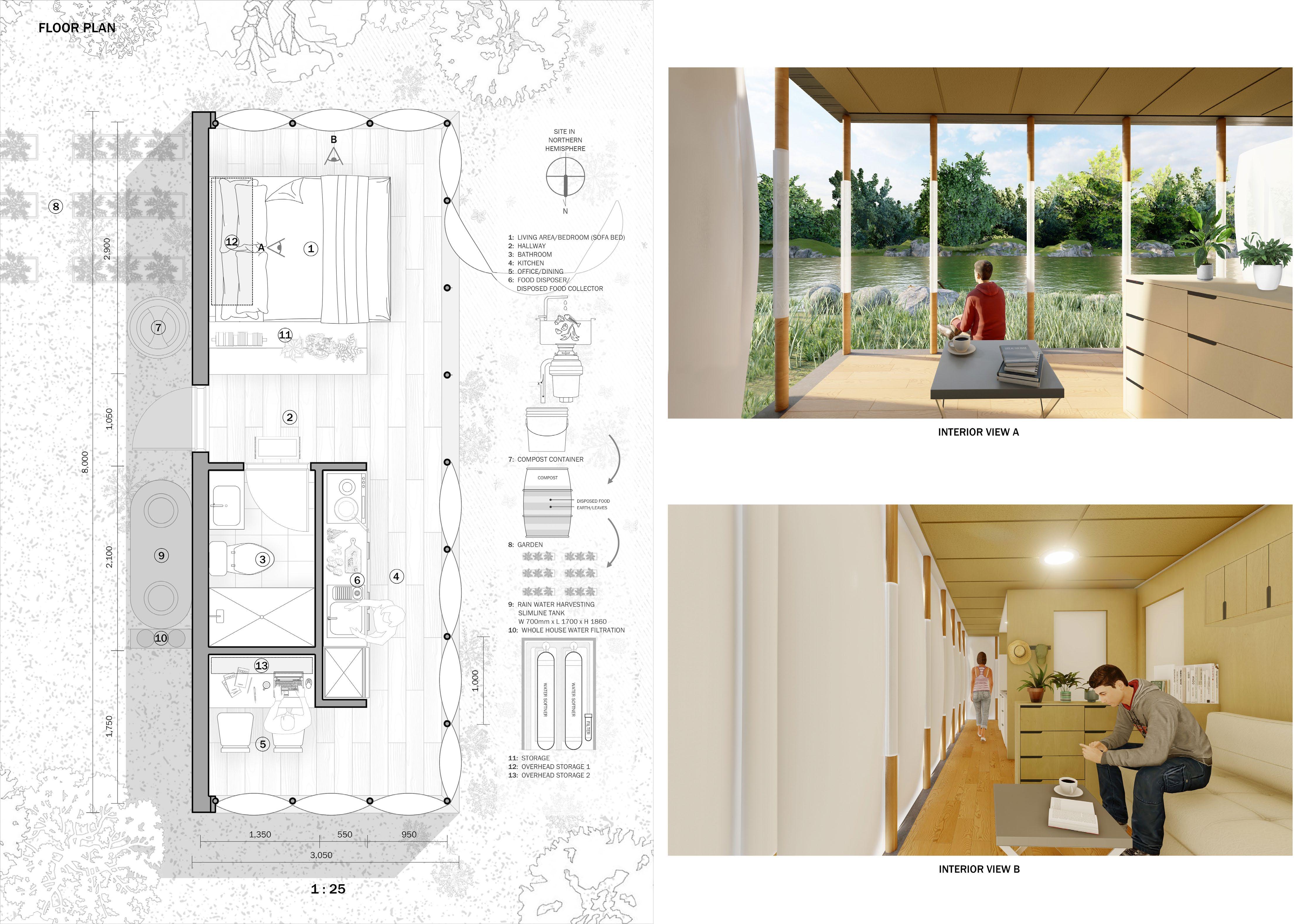

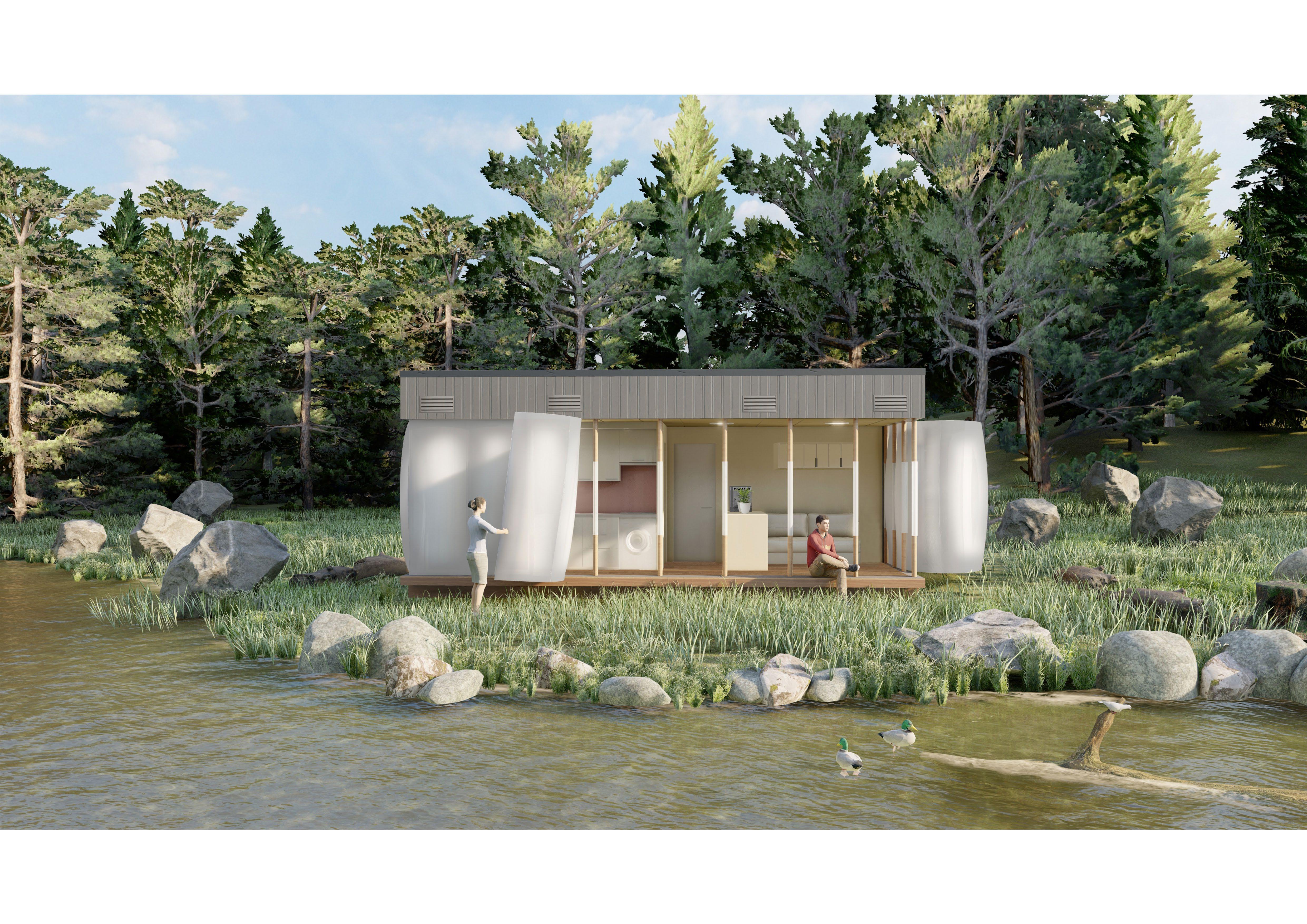

HOUSE 05 S’MORE Project Type: Personal Project Context:

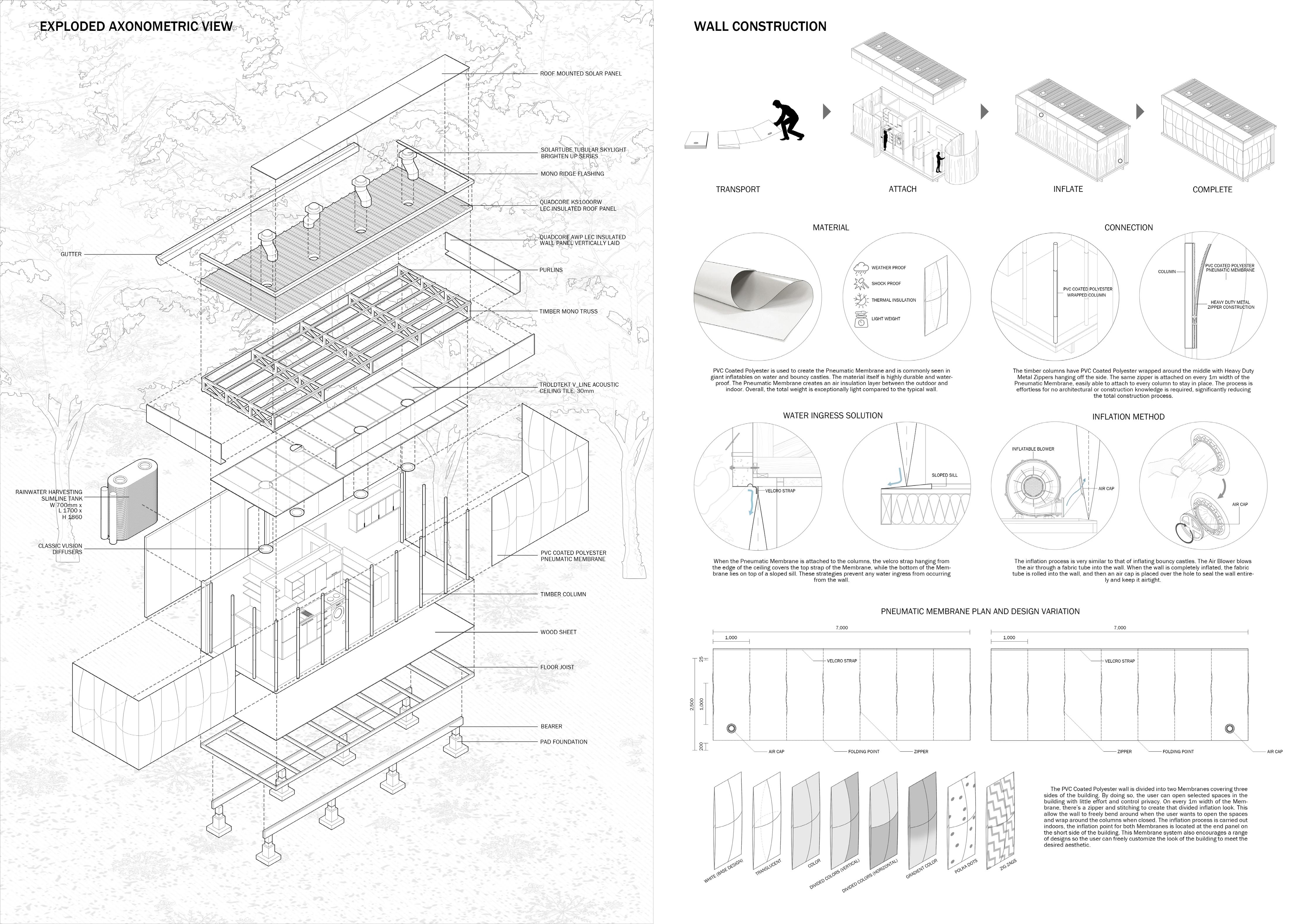

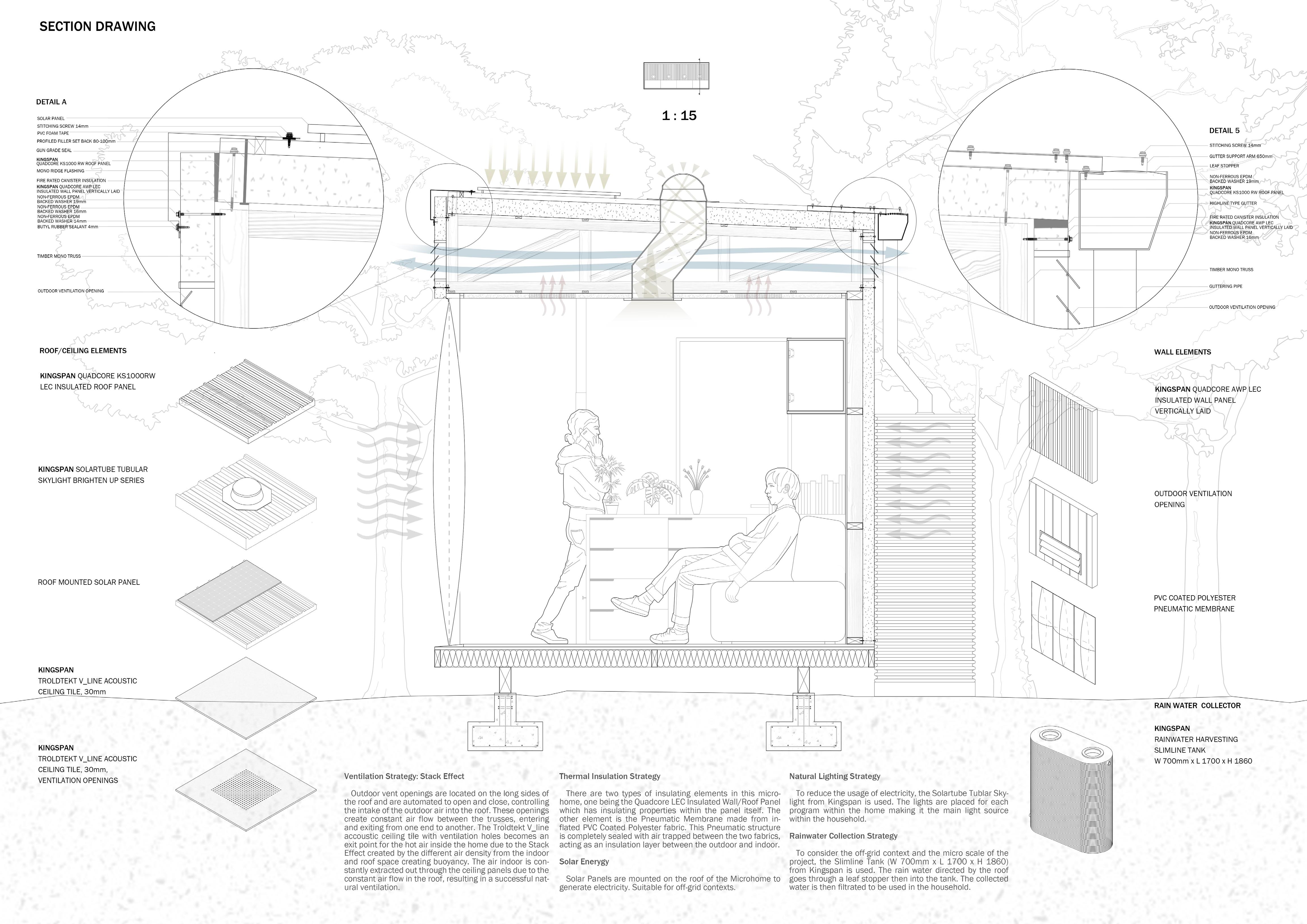

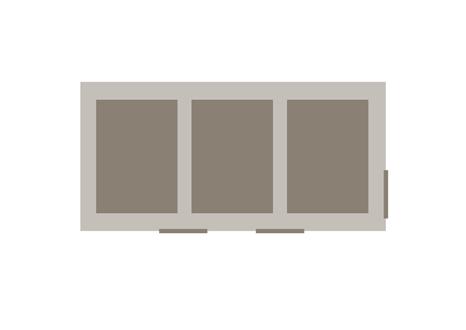

This microhome explores a new possible solution to challenge the norm of the typical “Wall” in micro-scale living. The typical building wall requires the most surface area and many layers, such as the mainframe, insulation, waterproof membrane, and interior/exterior lining. This extends the building process and enhances the construction’s complexity. To replace this traditional wall construction method, PVC-Coated Polyester is used to create two Pneumatic Membranes covering three sides of the building along with Kingspan’s Insulated Wall Panel.

The one hard wall in the building is constructed with Kingspan’s Quad Core LEC Insulated Wall Panel, which

has in sulating properties within the panel, significantly reducing the complexity of the construction process. The hard wall allows the programs in the building to be strategically located while providing functions that’s hard for the Pneumatic Wall to provide such as storage and plumbing.

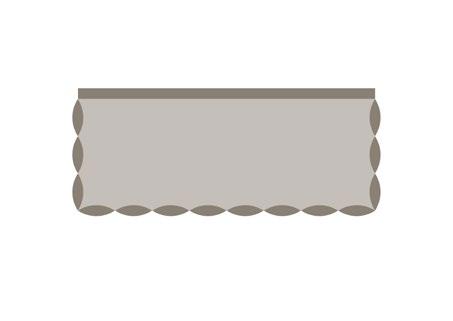

The Pneumatic Membrane is an inflated structure made from PVC-Coated Polyester commonly seen in giant pool inflatables and bouncy castles. The lightweight and bendable property of the wall allows the user to easily reveal and hide large areas with ease, giving complete control over the level of privacy.

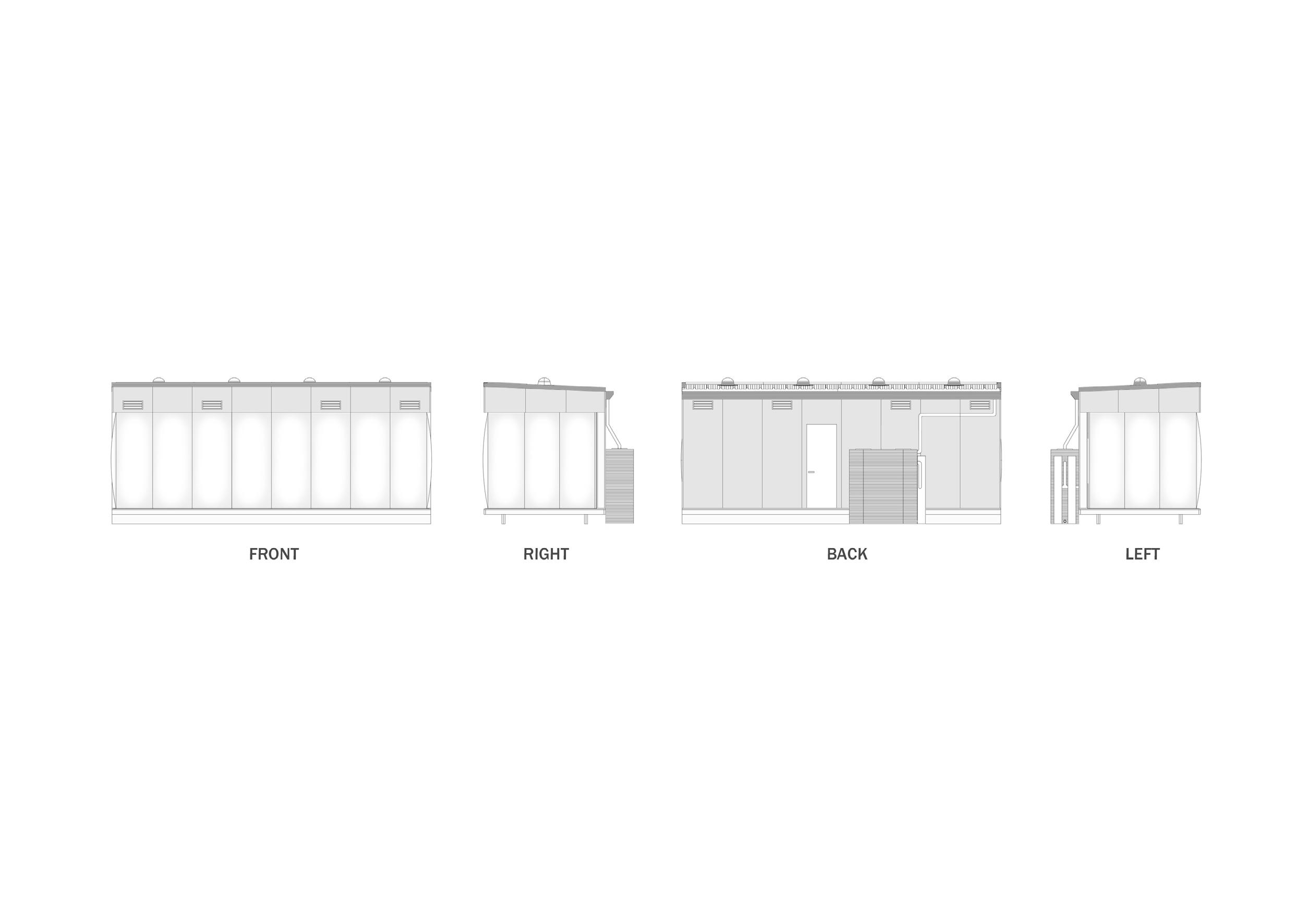

ELEVATION

34

36

38

40

SAMPL

GRAIN WAREHOUSE ANALYSIS 06 KOREAN Project Type: Research Thesis Context:

The thesis focuses on the re-documentation of the lost architectural drawings and information of Industrial Korean Grain Warehouses while analyzing its passive design strategies. The process involves recreating elevations, sections, details, and plans while identifying Passive Design features utilized within these structures. Additionally, I have conducted on-site recordings of 22 warehouses across Korea, capturing architectural nuances and environmental conditions firsthand.

A wide range of samples was chosen from 4 rural cities in Korea. 8-grain warehouses from Jeongeaup, 6 from Samnye-eup, 6 from Damyang, and 2 from Suncheon were

analyzed. Elevations and sections were drawn for each Warehouse, and the primary size, exterior material, built date, and structure was observed. Through these design elements, Passive Design Strategies were identified and analyzed. The indoor / outdoor temperature and humidity were then measured to prove the validity of the strategies.

The analysis shows that the design elements reflect the context of the time period while the signs of Passive Design Strategies are kept constant throughout the 1900s. The study concludes with evidence which proves the invalidity of the Passive Design Strategies but raises the historical significance of these features.

LE SIZE

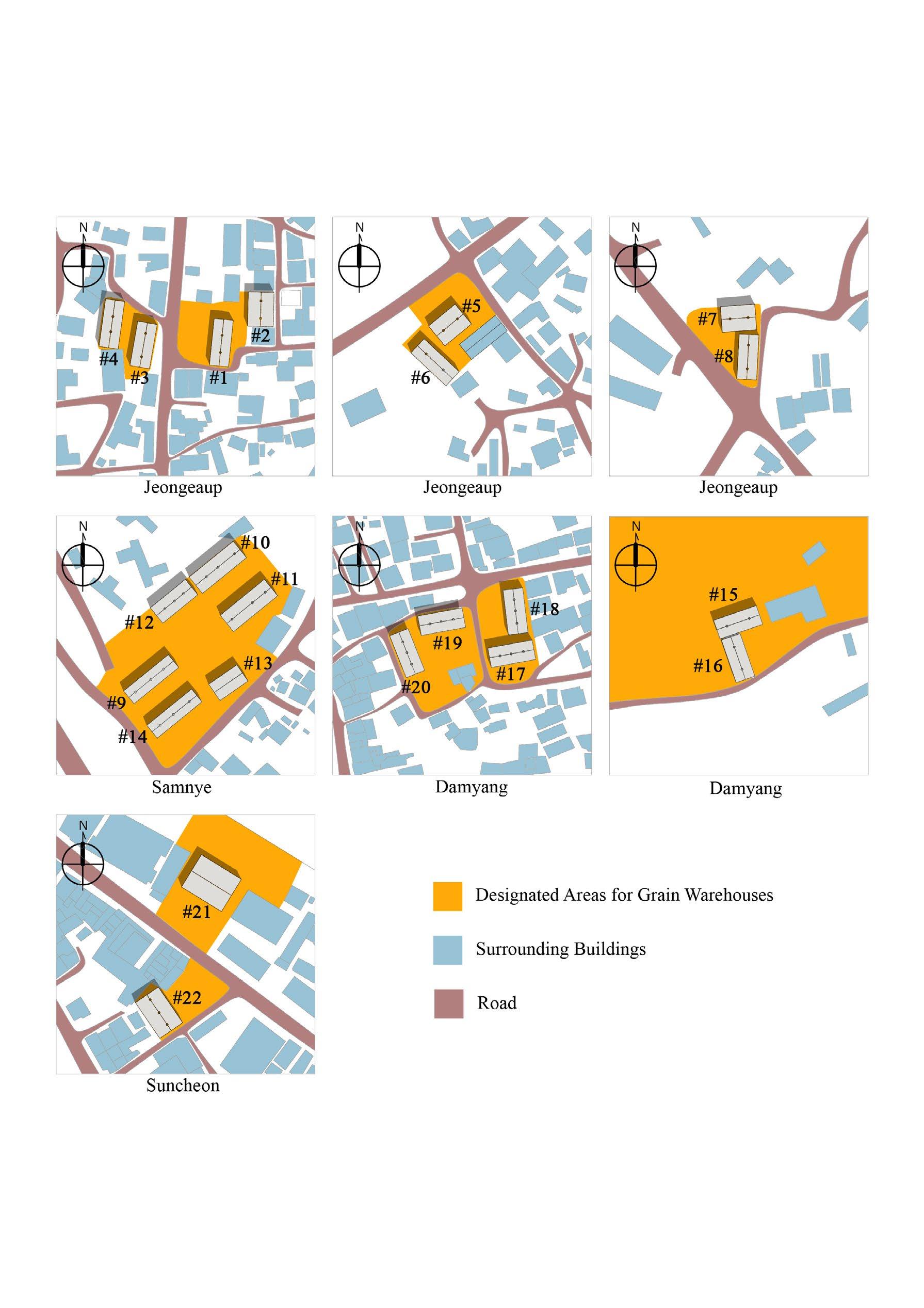

SAMPLE SIZE LOCATIONS

42

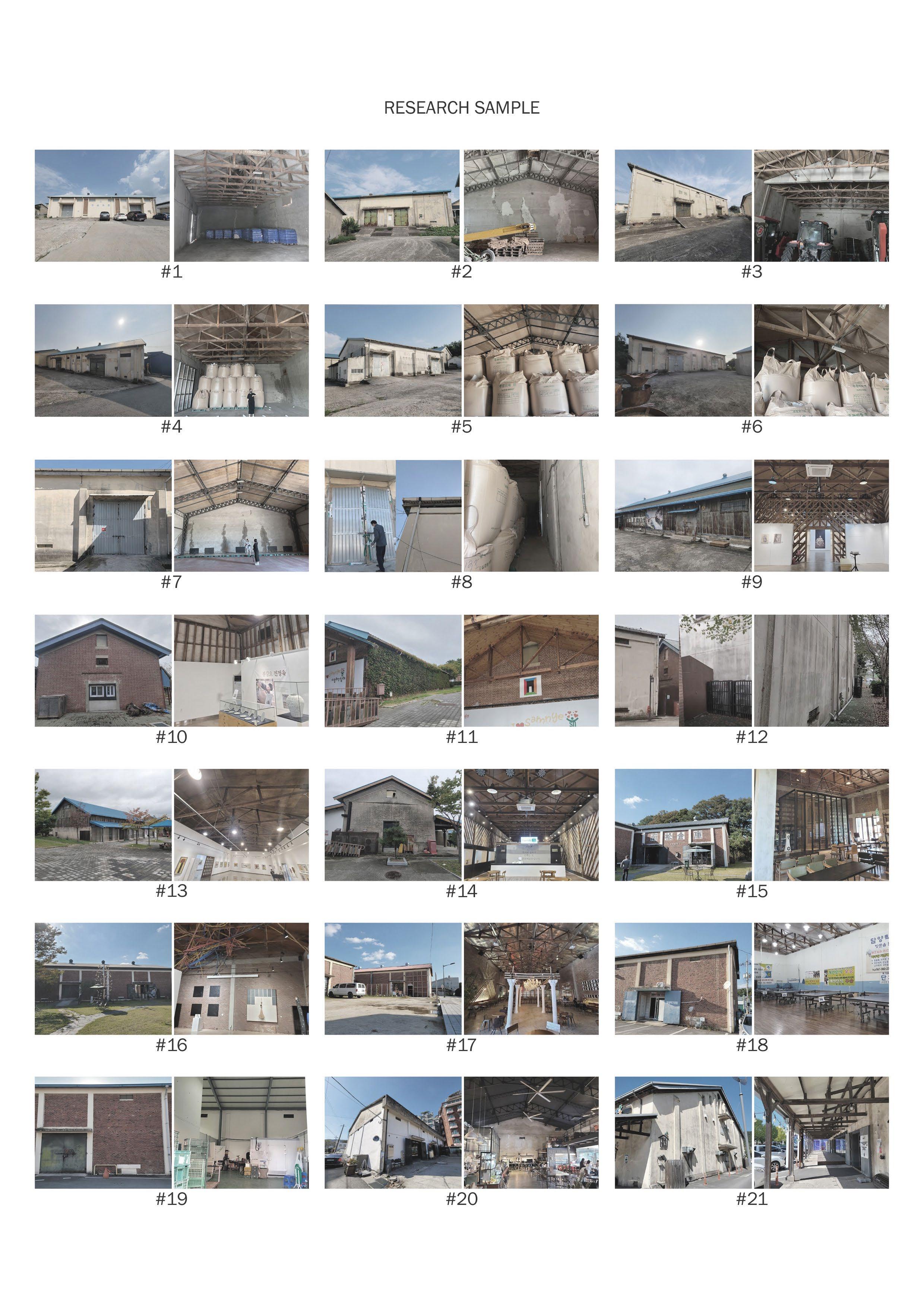

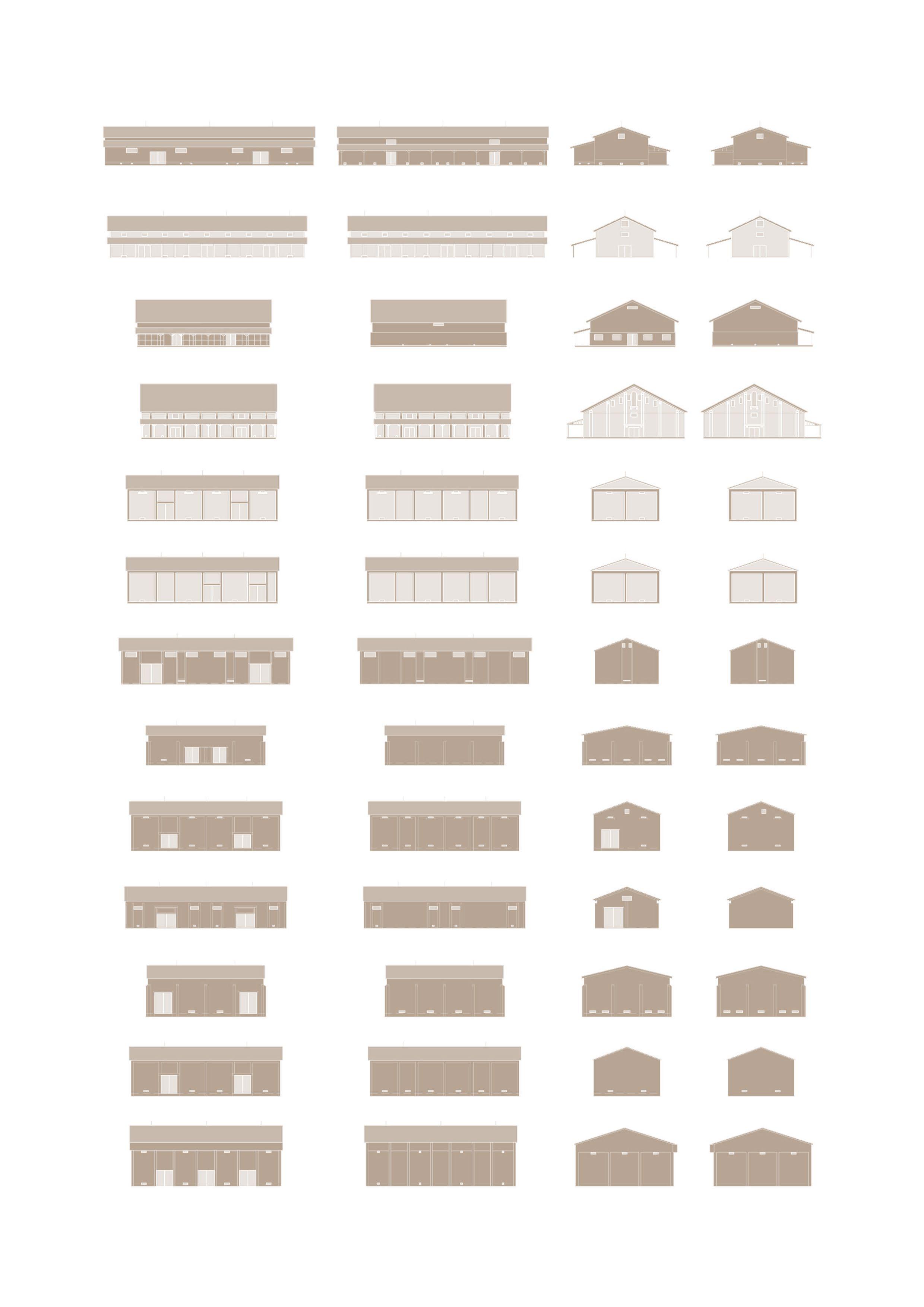

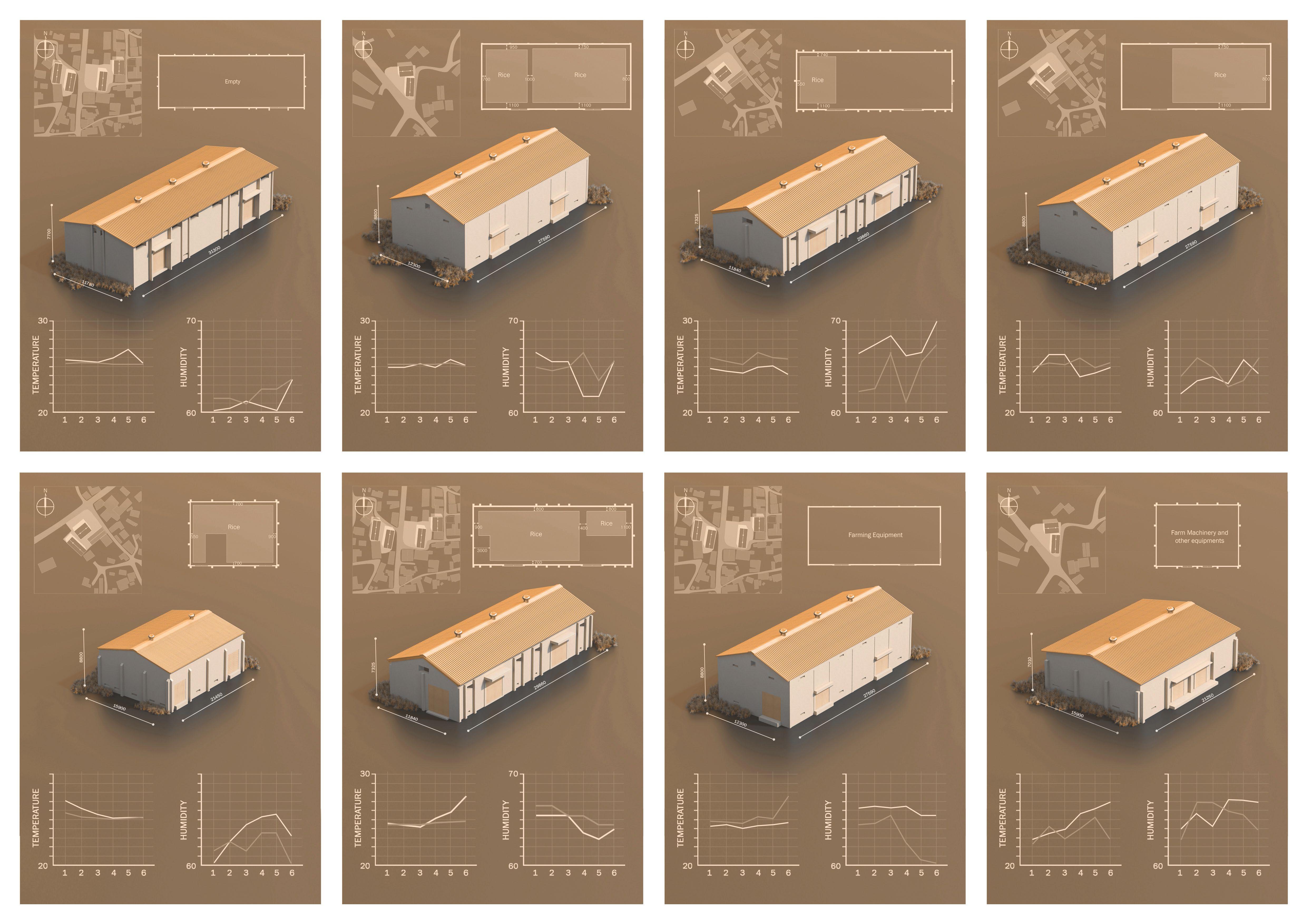

RESEARCH SAMPLE ELEVATION

MEASUREMENT DATA

44

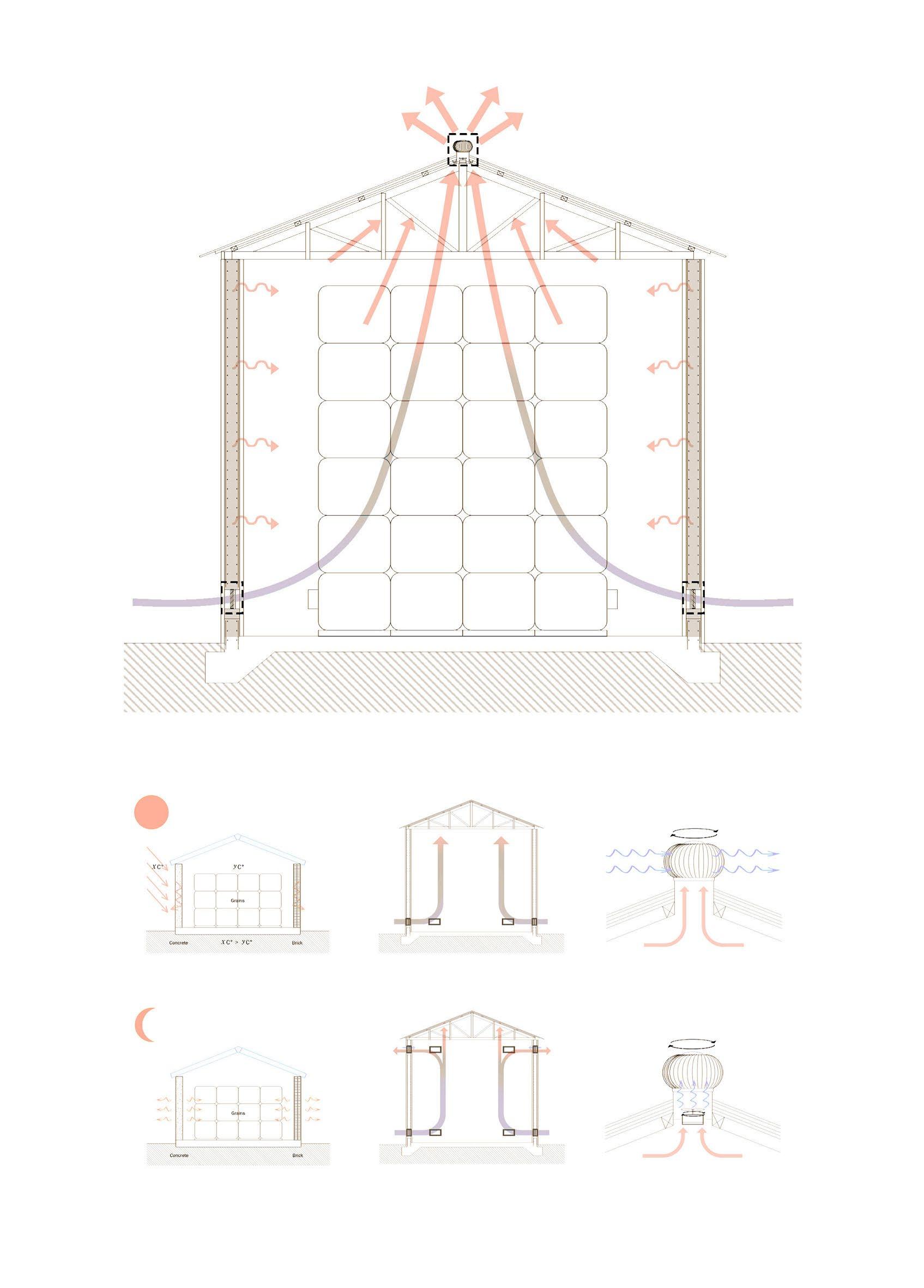

GRAIN WAREHOUSE FUNCTION DIAGRAM

THERMAL MASS

OPENINGS

TURBINE VENTS

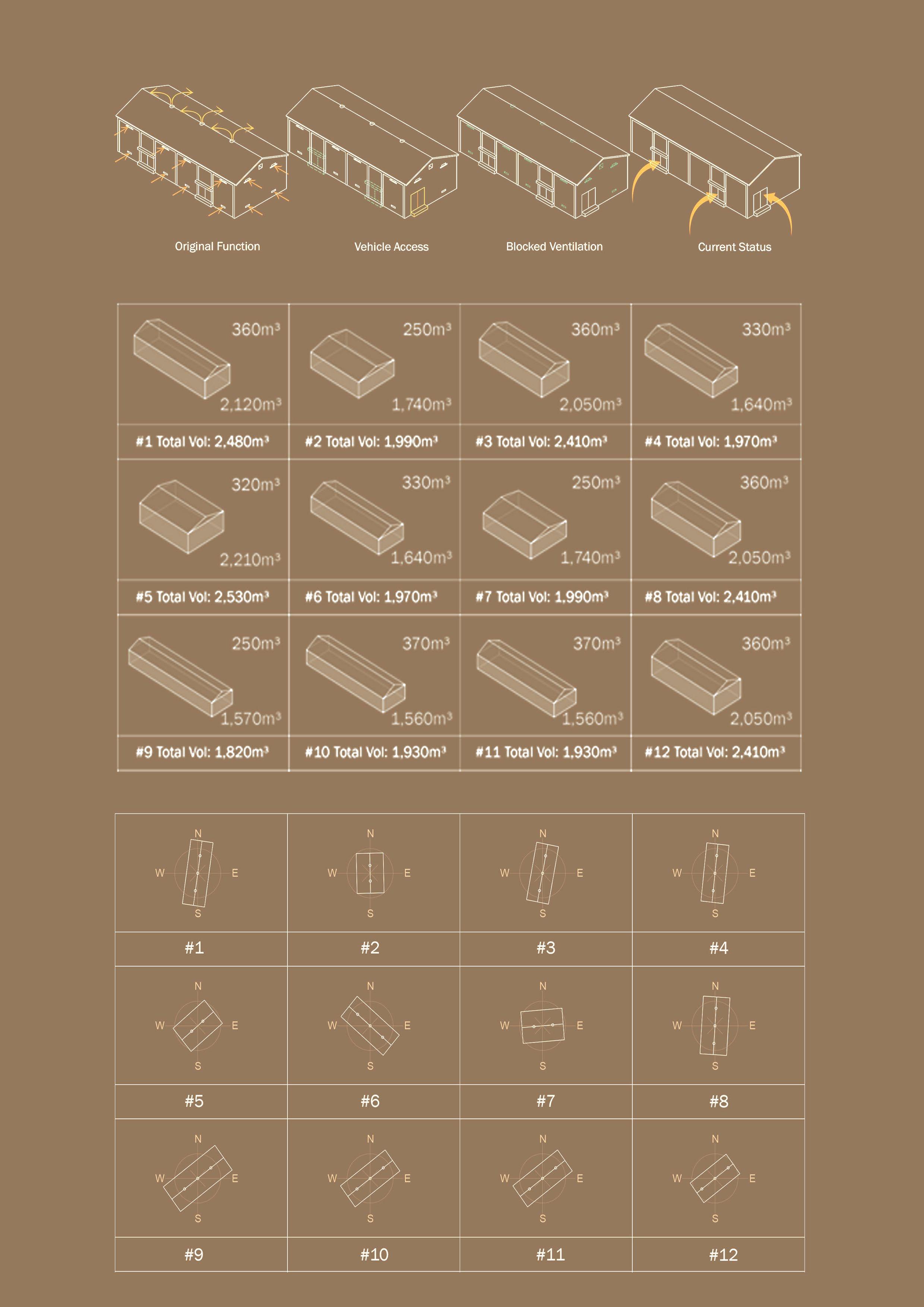

GRAIN WAREHOUSE EVOLUTION

STORAGE VOLUME CALCULATION

ORIENTATION

46

TO BE CONTINUED
