TALE OF A TREE HOUSE
MATERNAL HEALTH CENTER
URBAN MOBILITY HUB
INHABITABAL FACADE + CULTURAL CENTER
1 4 2 5 3 6
THE HUMAN SCALE
OTA
THE HUMAN SCALE
DESIGN I

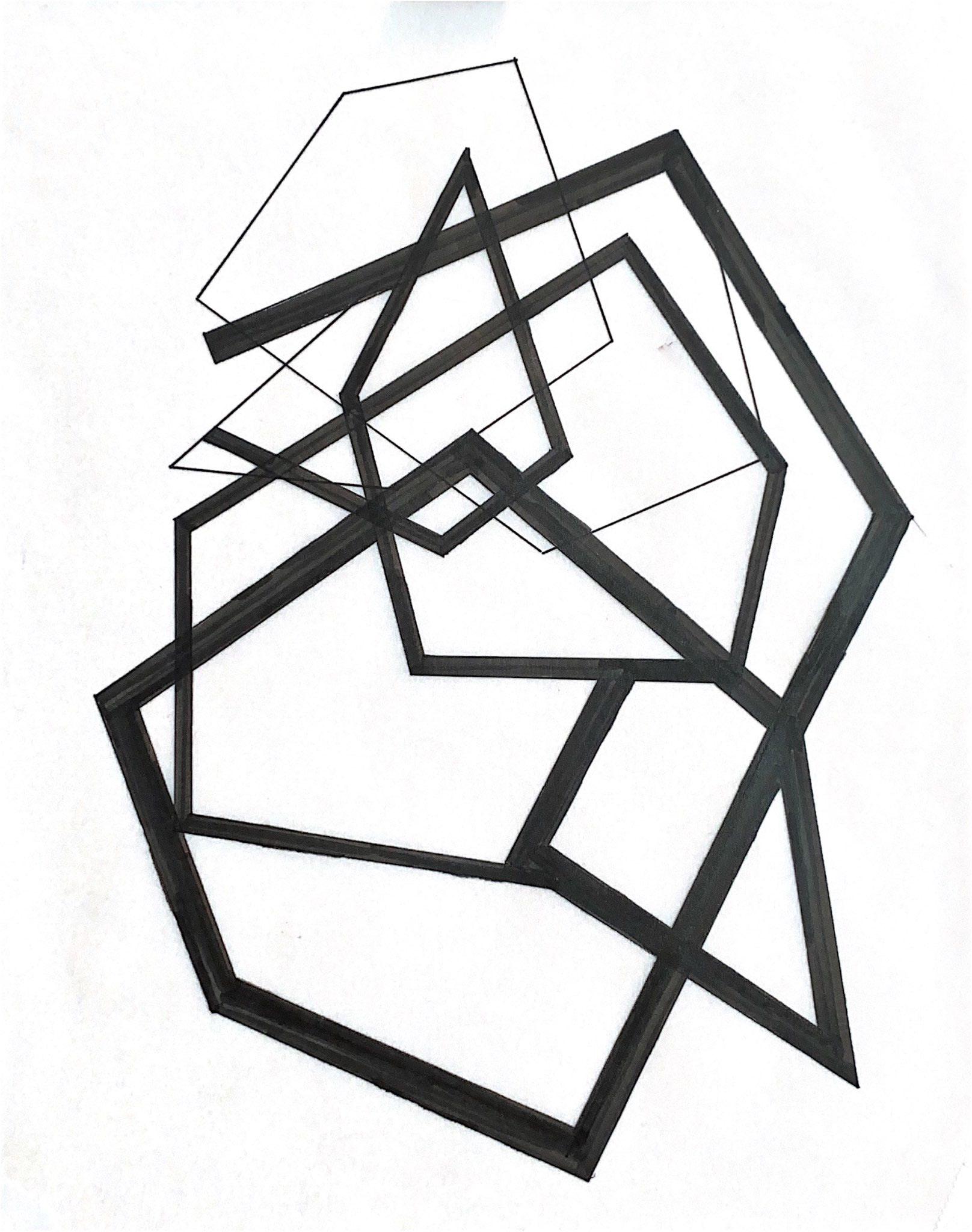

THIS PROJECT WAS SPLIT INTO 4 PHASES. PHASE 1 WAS TO MEASURE DIFFERENT PARTS OF OUR BODY, SCALE THE MEASUREMENT DOWN AND CREATE A SHAPE THAT WOULD LATER ALLOW US TO WORK WITH FOR THE CONTINUING PHASES.
SECOND PHASE WAS TO USE OUR FIRST LINE SHAPE AND CREAT A SECOND SHAPE BY TURNING CLOCK
WISE, DIFFERENT SCALE, AND DIFFERENT LINE WEIGHT

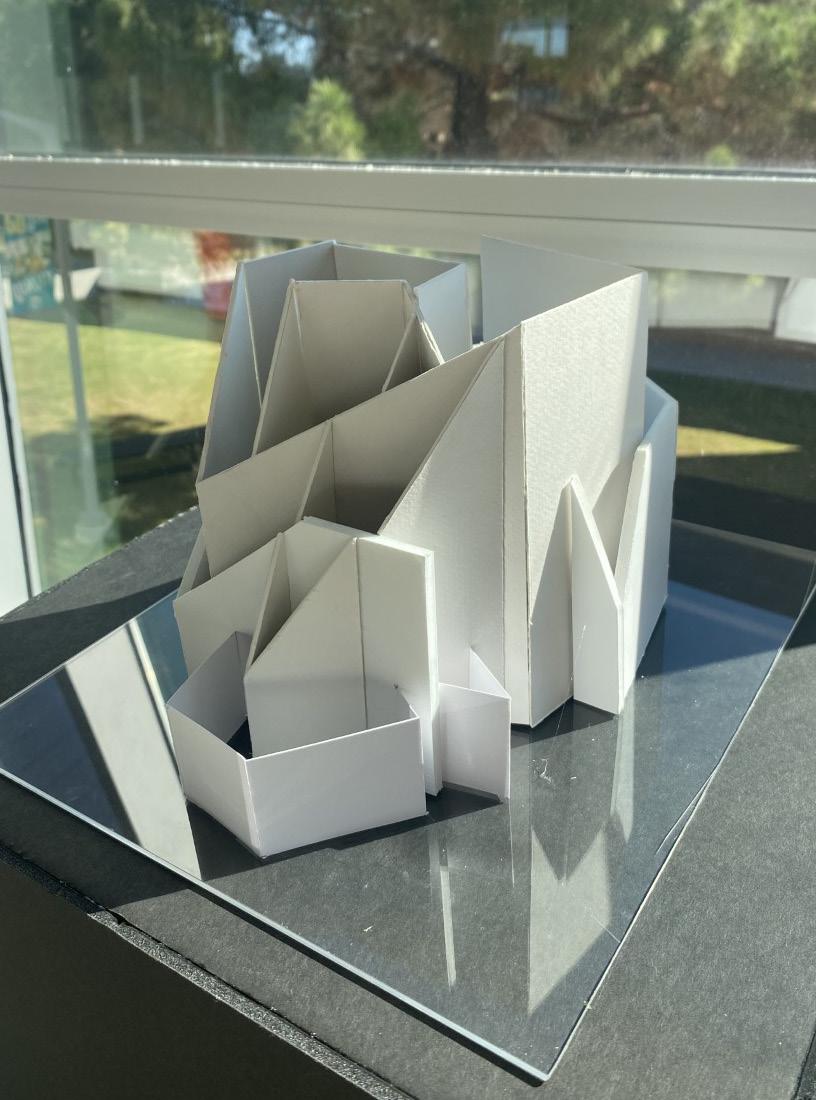

PHASE 3 CONSISTED OF USING OUR SECOND PHASE DRAWING AND TRANSFORMING IT INTO A 3D PIECE WHILE USING DIFFERENT HIGHT SCALE AND MATERIAL THICKNESS

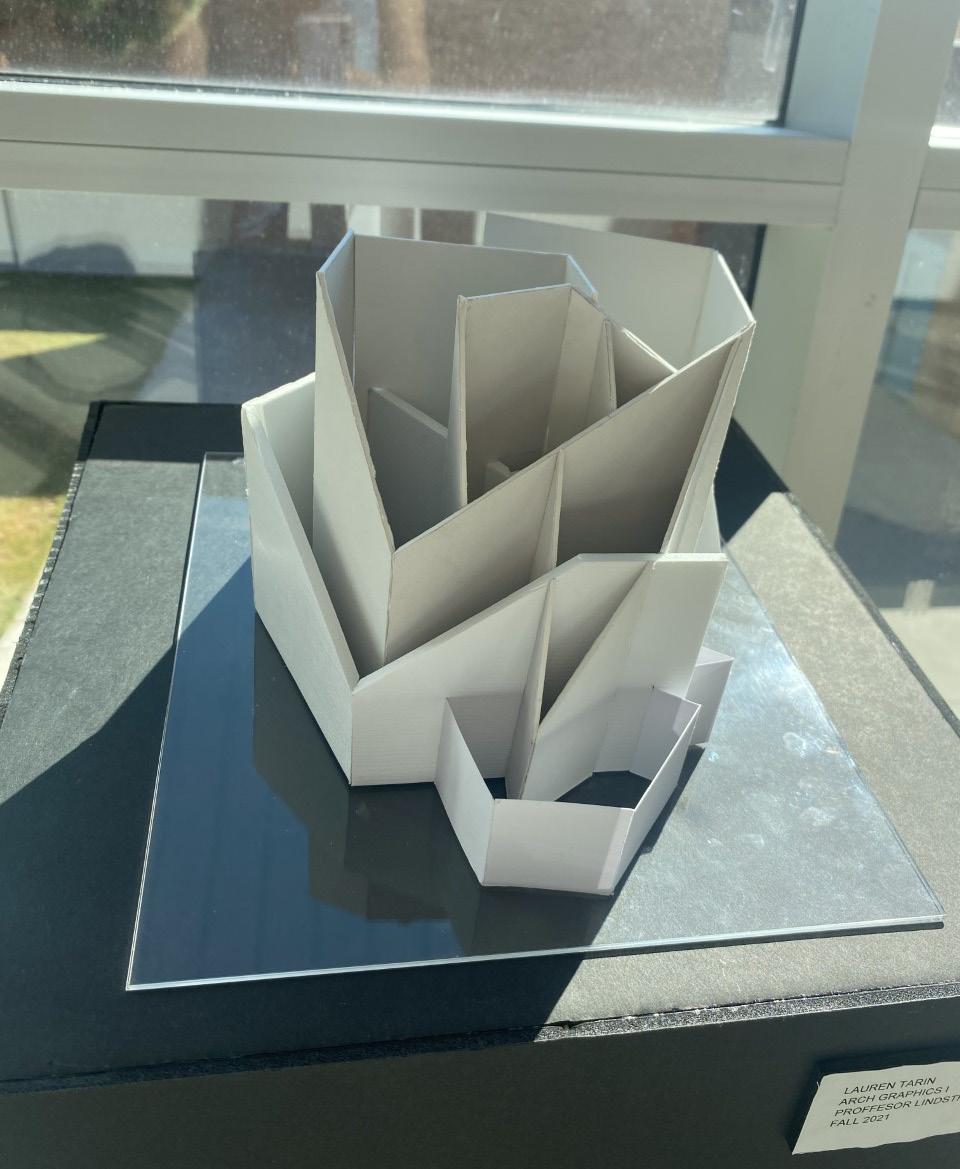

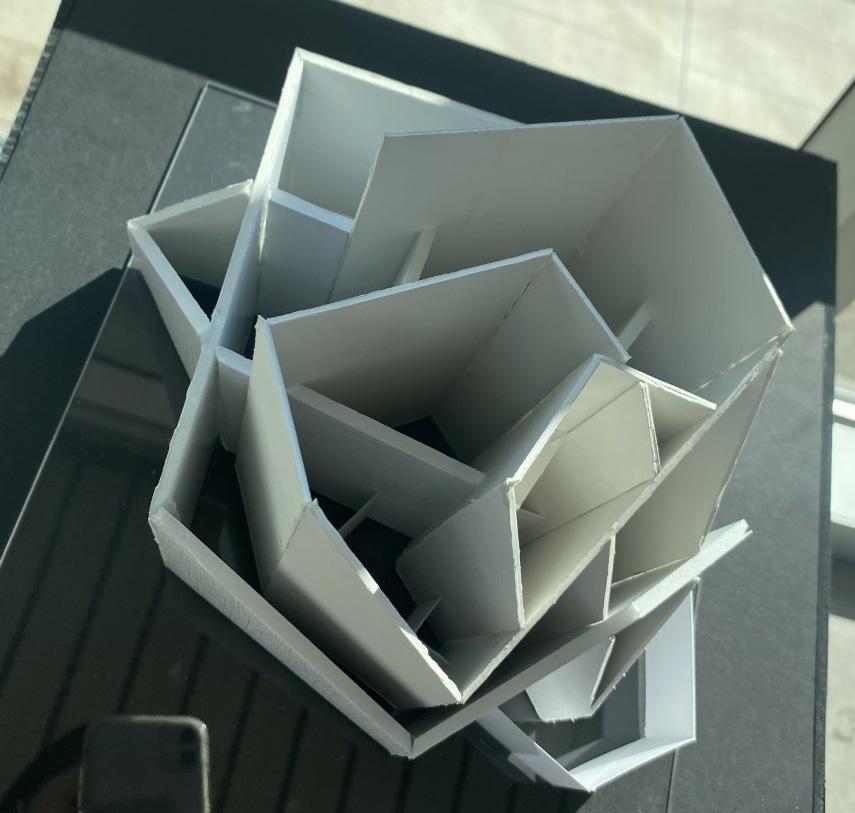

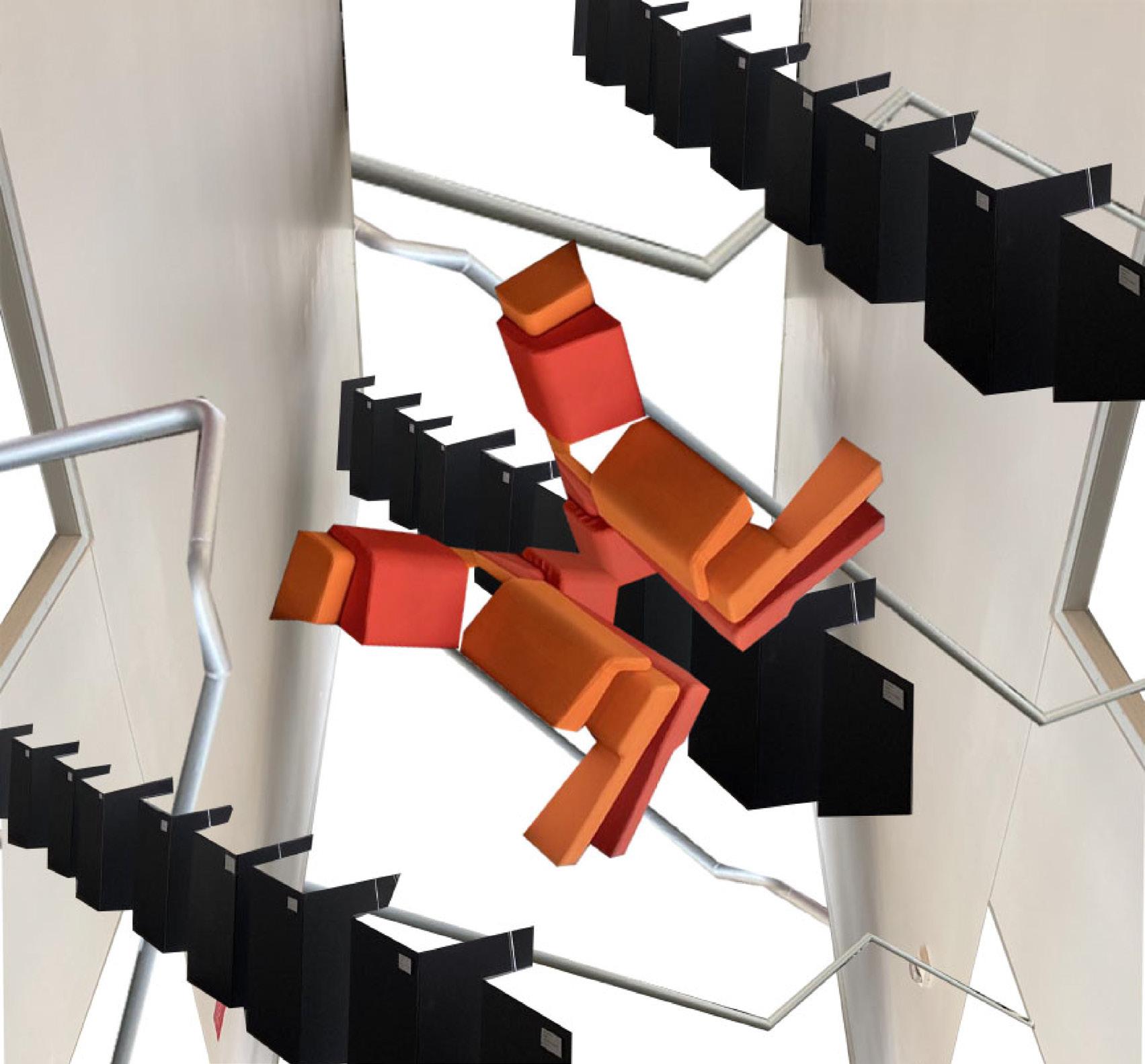

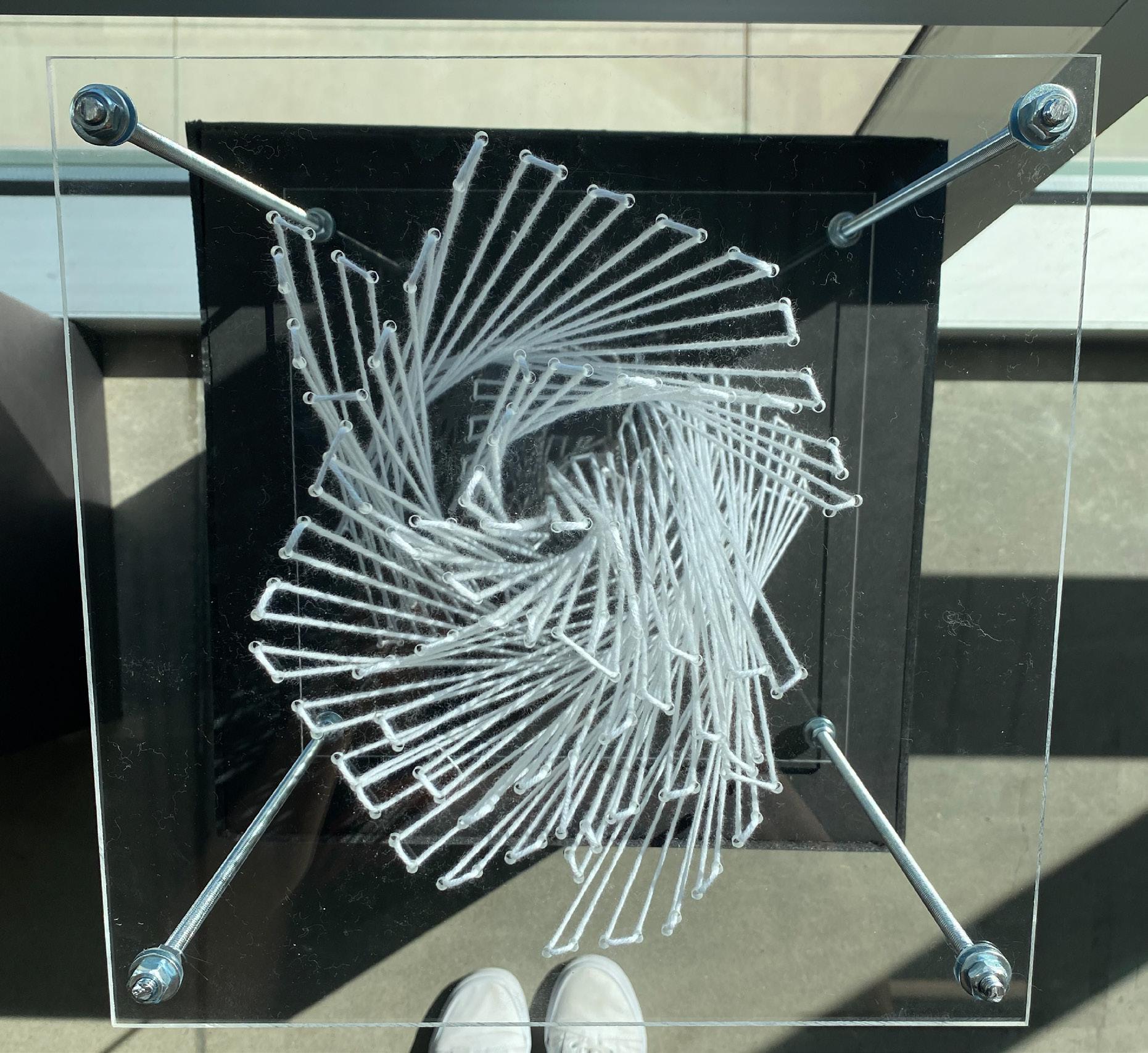

FINAL PHASE WAS TO CREATE A SECOND 3D OBJECT USING PLEXI GLASS AND STRING.
PROJECT WAS A 3 PHASE PROJECT. PROJECT WAS AIMED TO CREATE A BASE IMAGE ON PHOTOSHOP USING 3-5 PICTURES OF THE EXTERIOR OR INTERIOR OF THE ARCHETECTURE BUILDING.
ONCE OUR IMAGE WAS CREATED WE THEN WERE REQUIRED TO CREATE THREE SCHEMAS (ORTHOGINAL, TENSION, AND ARCHITECTONIC.)

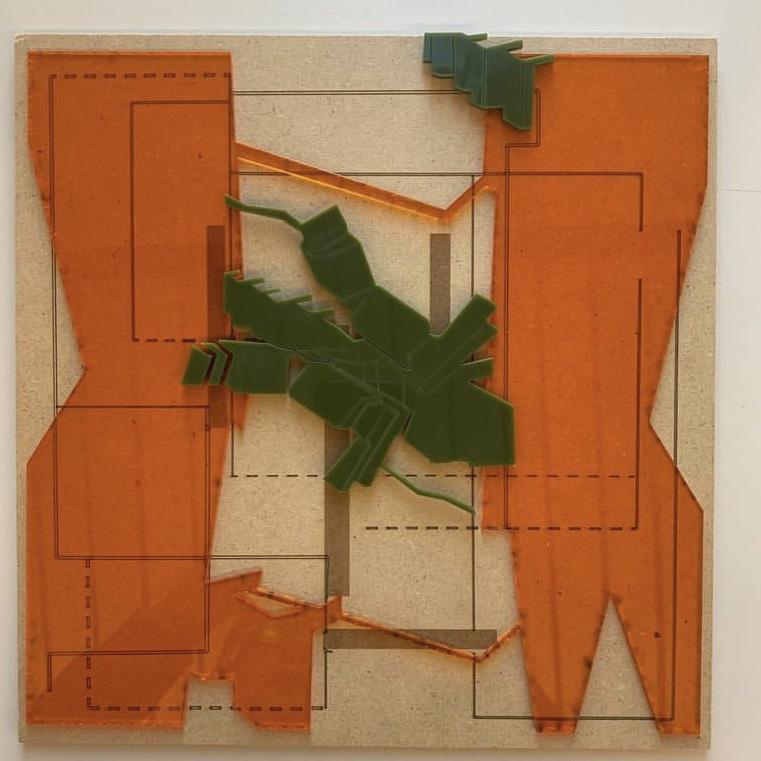

FOR THE FINAL PHASE WE WERE REQUIRED FABRICATE FINAL IMAGE BY LAZER CUTTING 3 LAYERS WITH MATERIALS OF OUR CHOICE TO SHOW OFF OUR THREE SCHEMAS. (PLEXI GLASS & MDF)
GRAPHICS II OTA

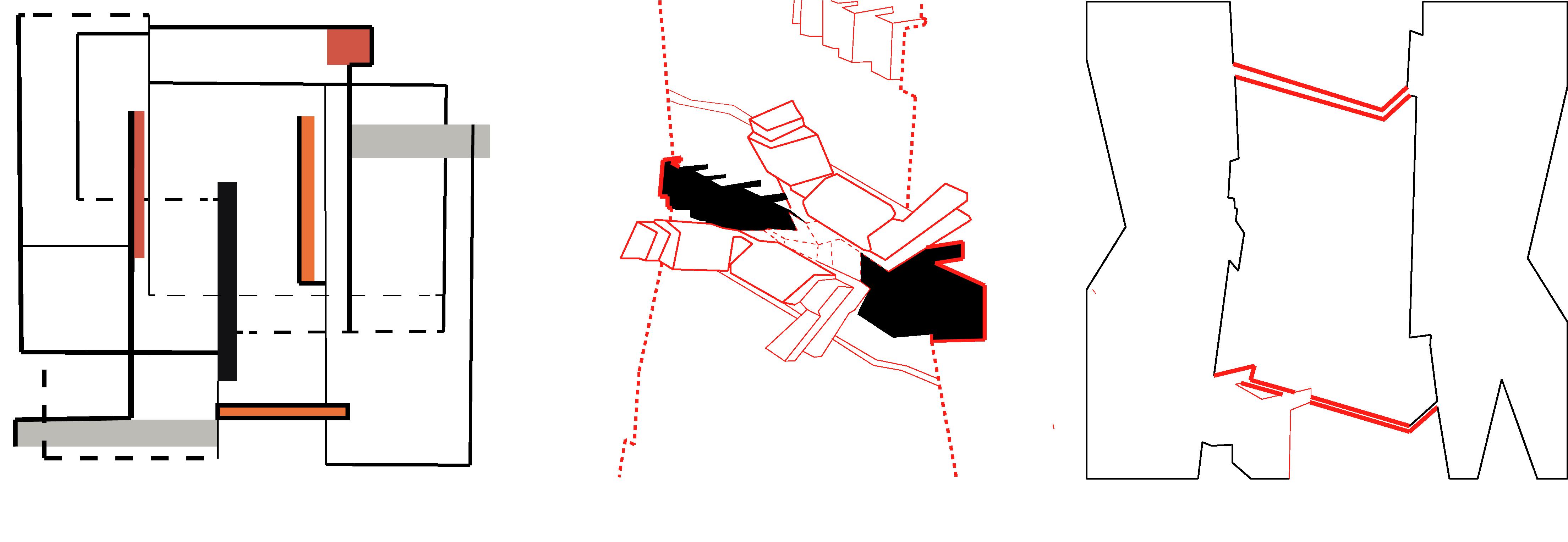

ORTHOGONAL SCHEMA TENSION SCHEMA ARCHITECTONIC SCHEMA

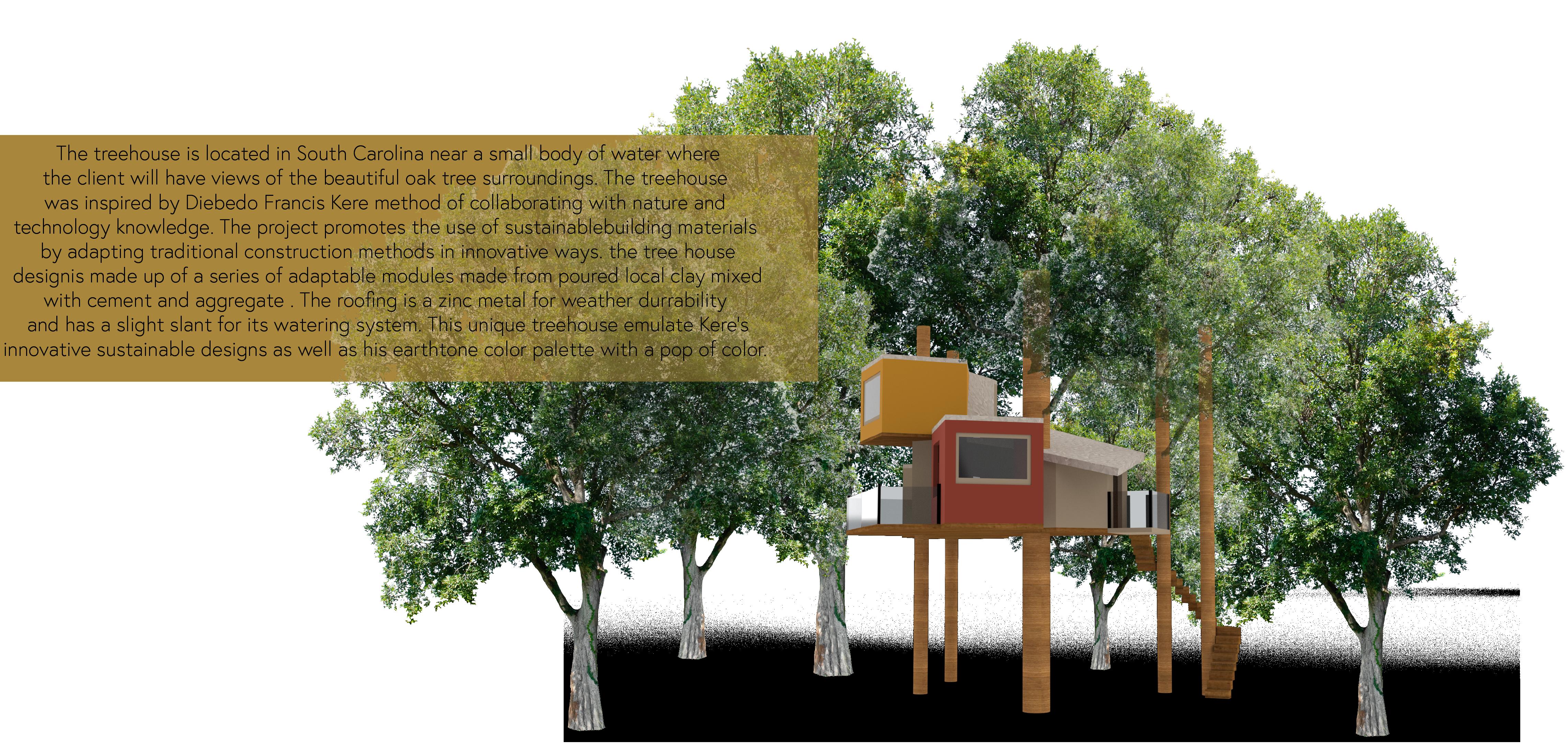

TALE OF A TREE HOUSE
GRAPHICS II

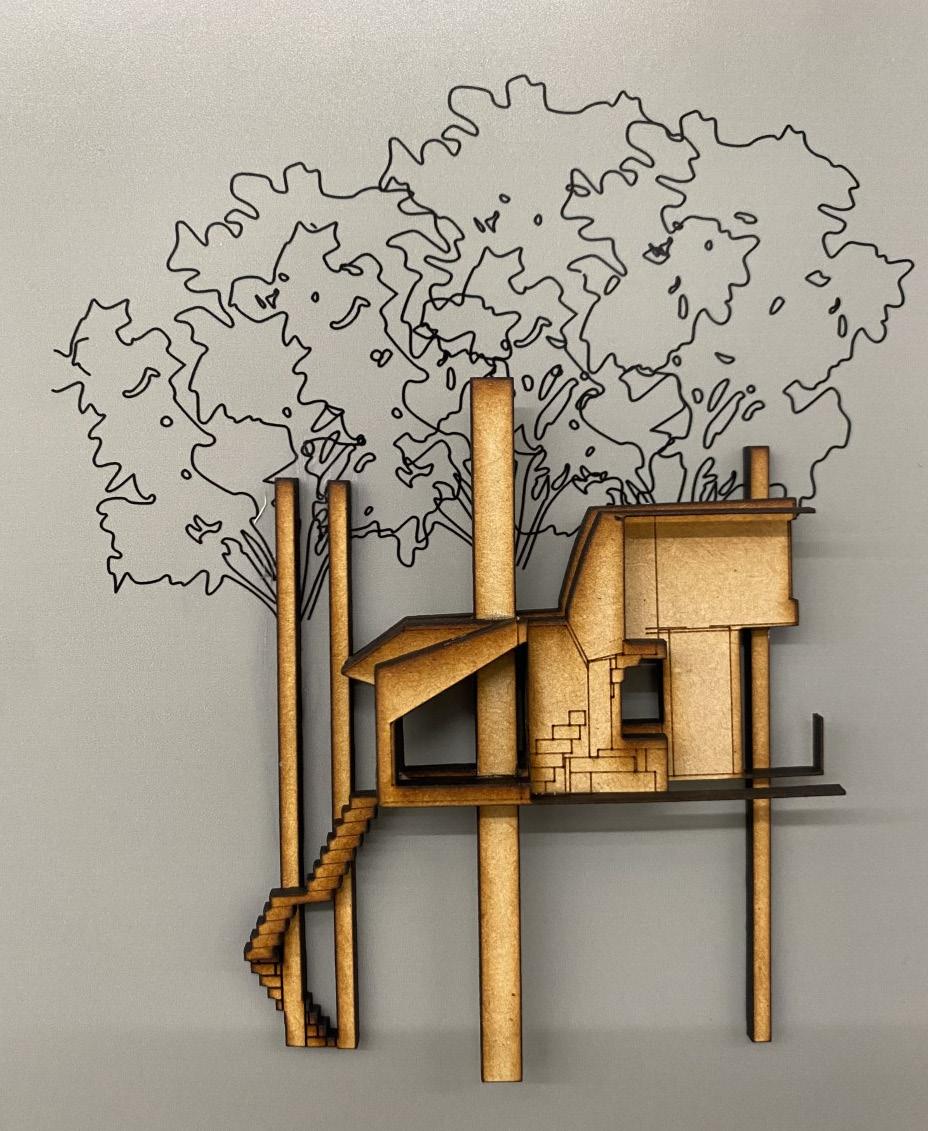

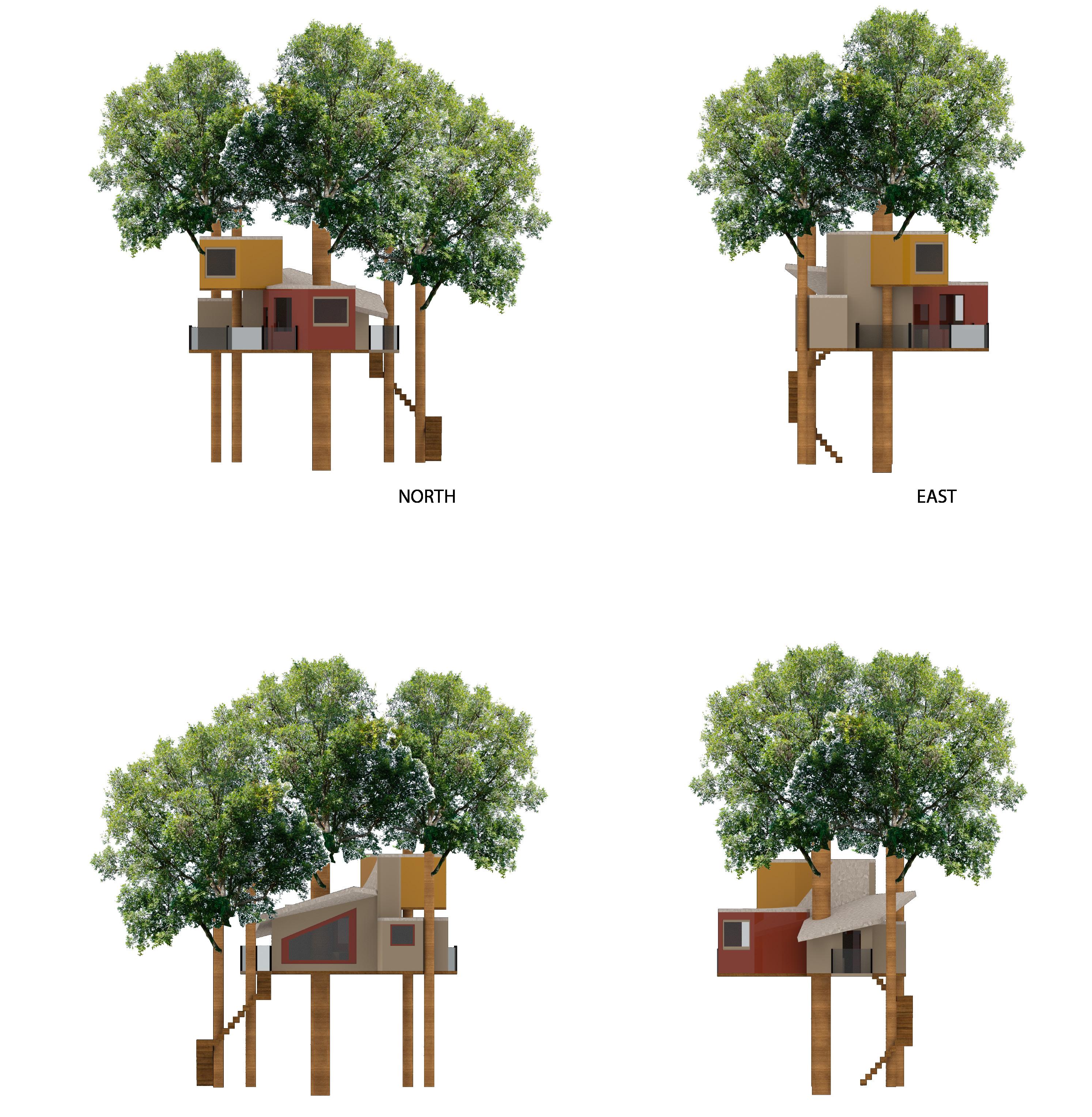

Project aims to creat a tree house based on a Pritzker Prize Architect of choice (Diebedo Francis Kere). The project was to fit the clients request of a “small home” 80 sq/ft each room, with a small book shelf and table. Presentation board was required to have fabricated model of MDF laser cut in 4-6 layers.

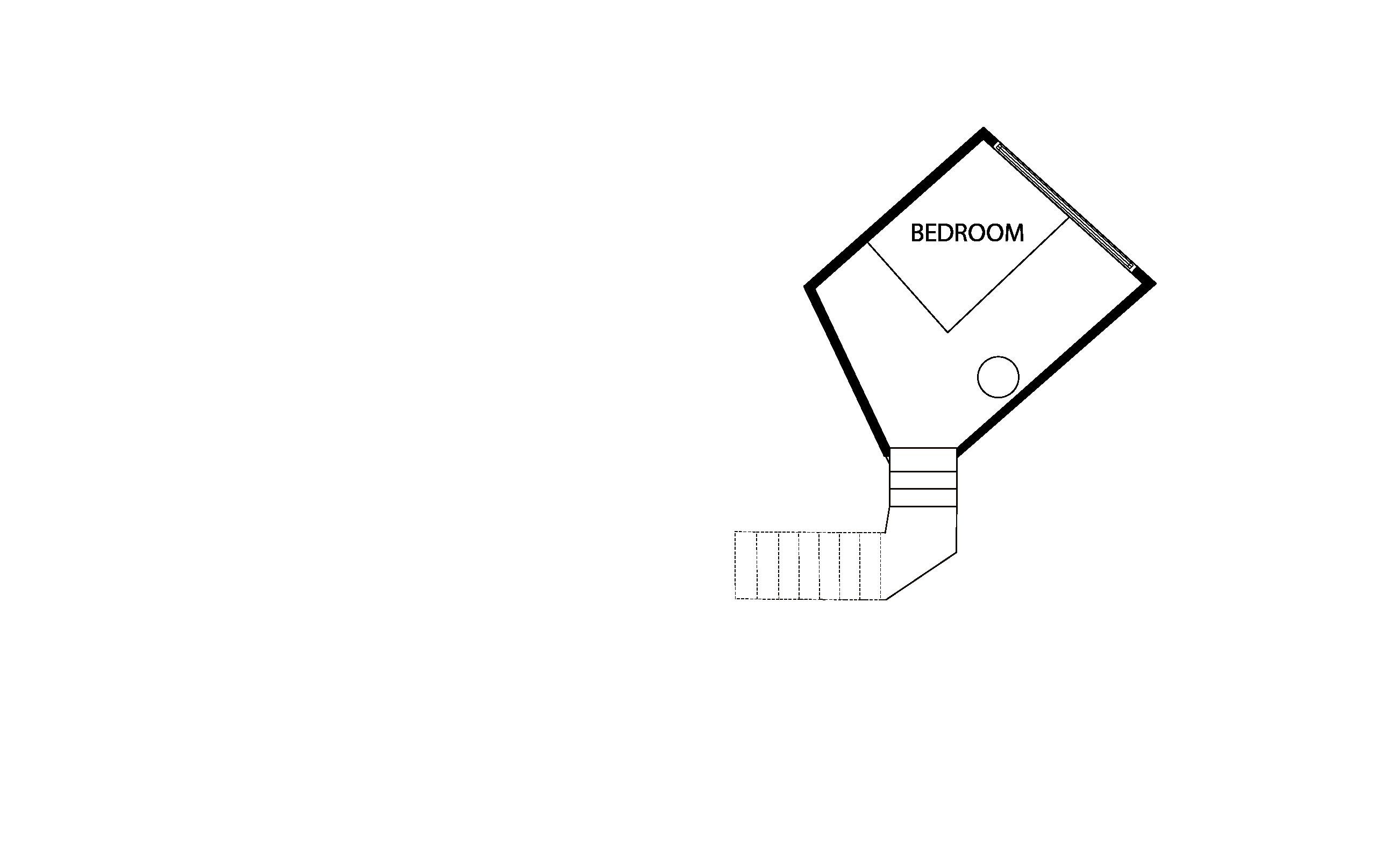

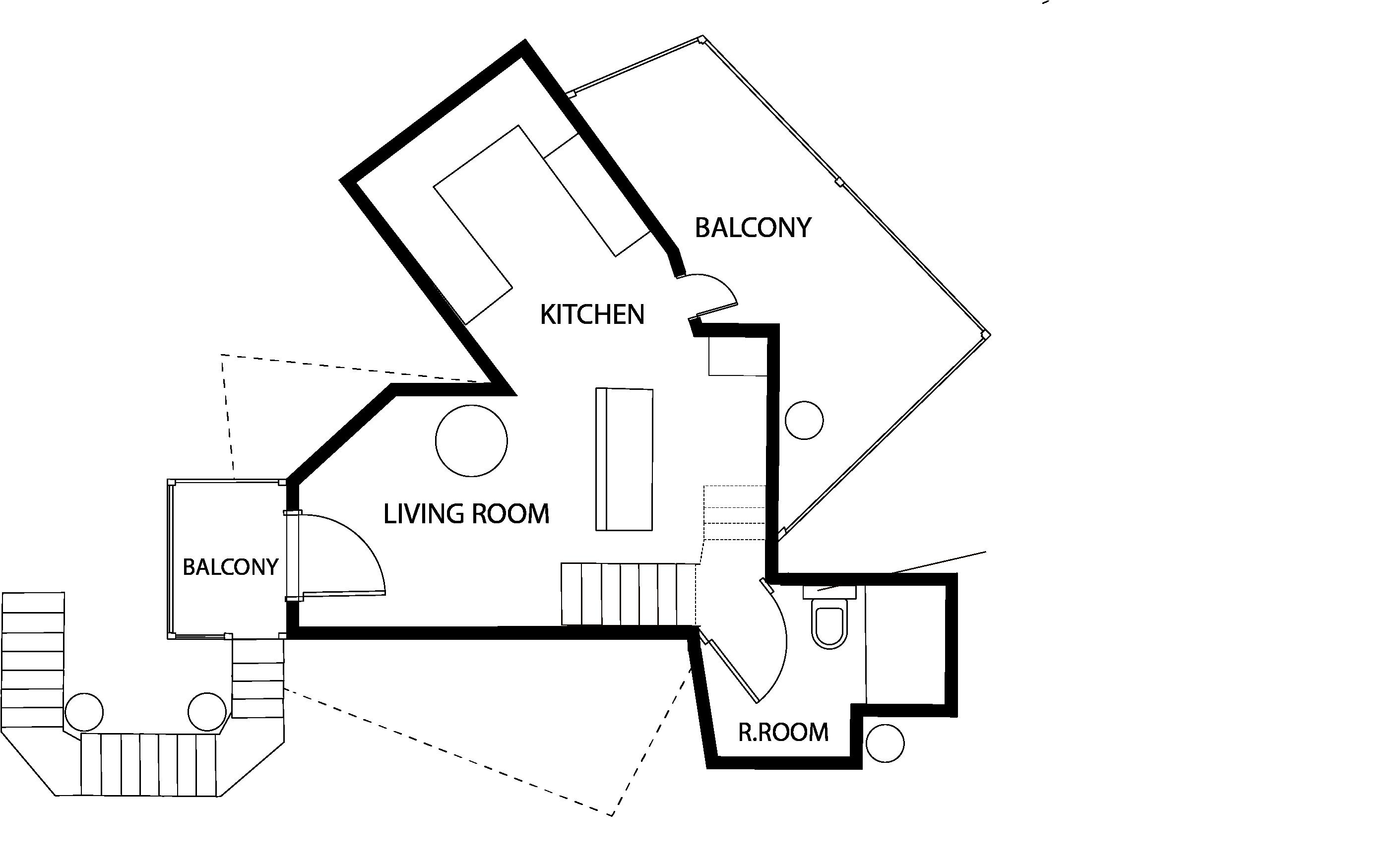

LEVEL 1 LEVEL 2
TRAVERSE
MATERNAL HEALTH CENTER

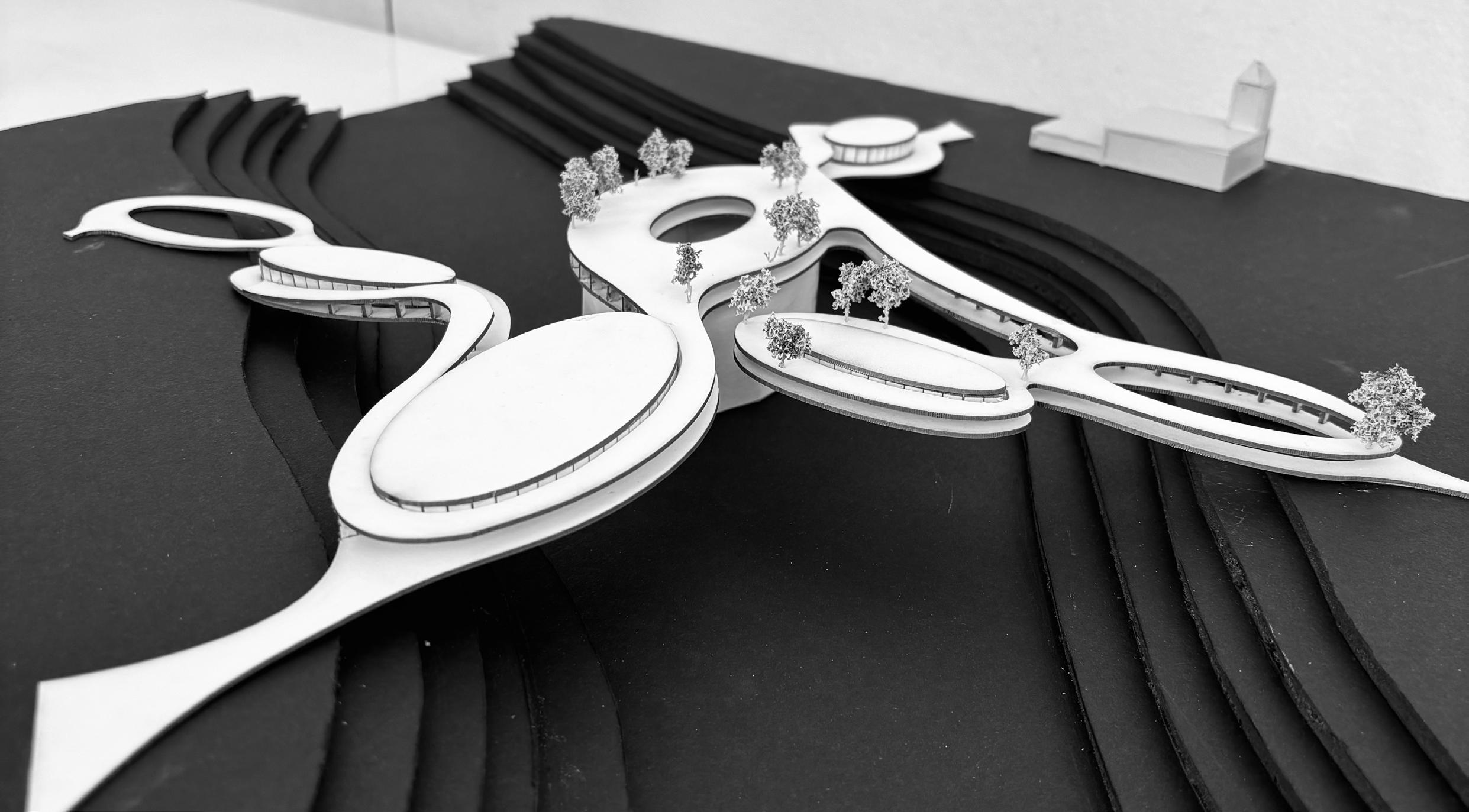

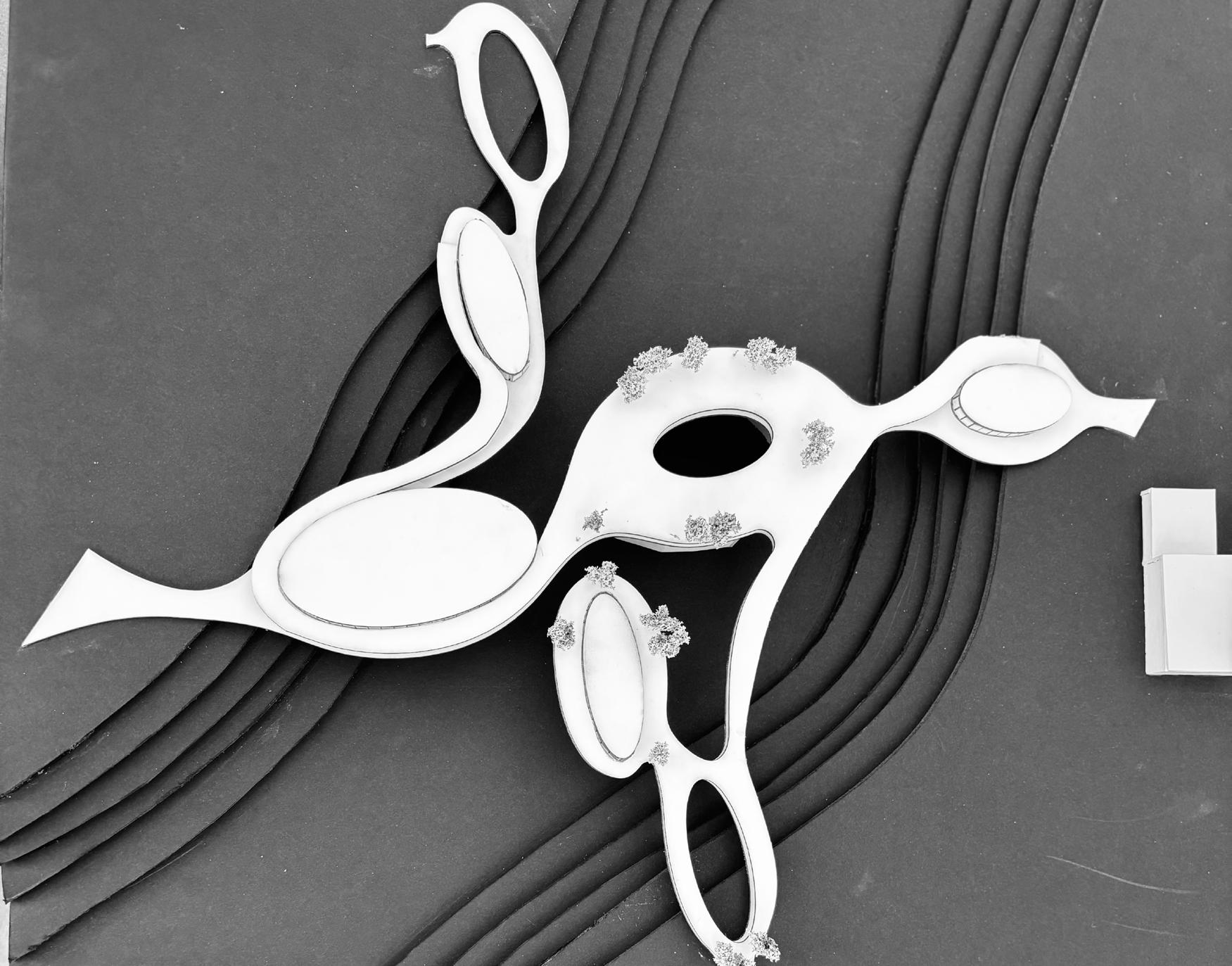

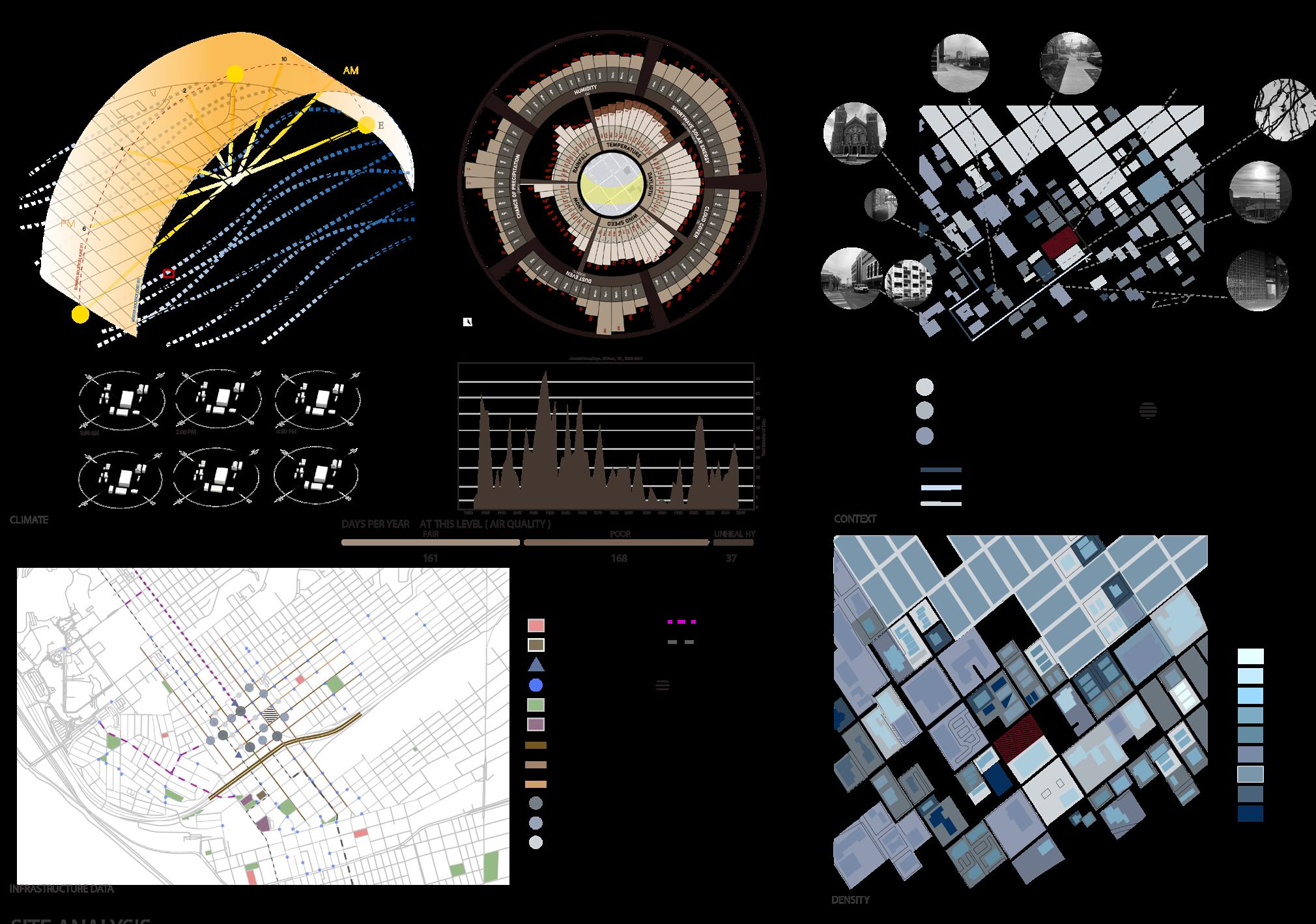

Project was to create a inovation center of choice that would aim to help the community. This project aimed to create a welcoming and supportive environment that prioritizes maternal health and provides resources and services to help women manage their mental health. Through our project, we aim to offer safe and comfortable living spaces and access to comprehensive healthcare services, educational classes, counseling, and support groups. Additionally, we established an innovation center designed to develop and implement new strategies for maternal mental health support. These resources allow mothers to focus on their well-being and that of their children. Our goal is to break down the stigma surrounding maternal mental health and create a space where women feel understood, supported, and empowered to seek help for themselves and their families. Project includes housing apartments for women andchildren, Teen center, Day Care, Nursing rooms, Auditorium, Library, Womens Therapy, Learning Center, and SITE ANALYSIS
DESIGN IIII
BASEMENT
LEVEL 4 LEVEL 3

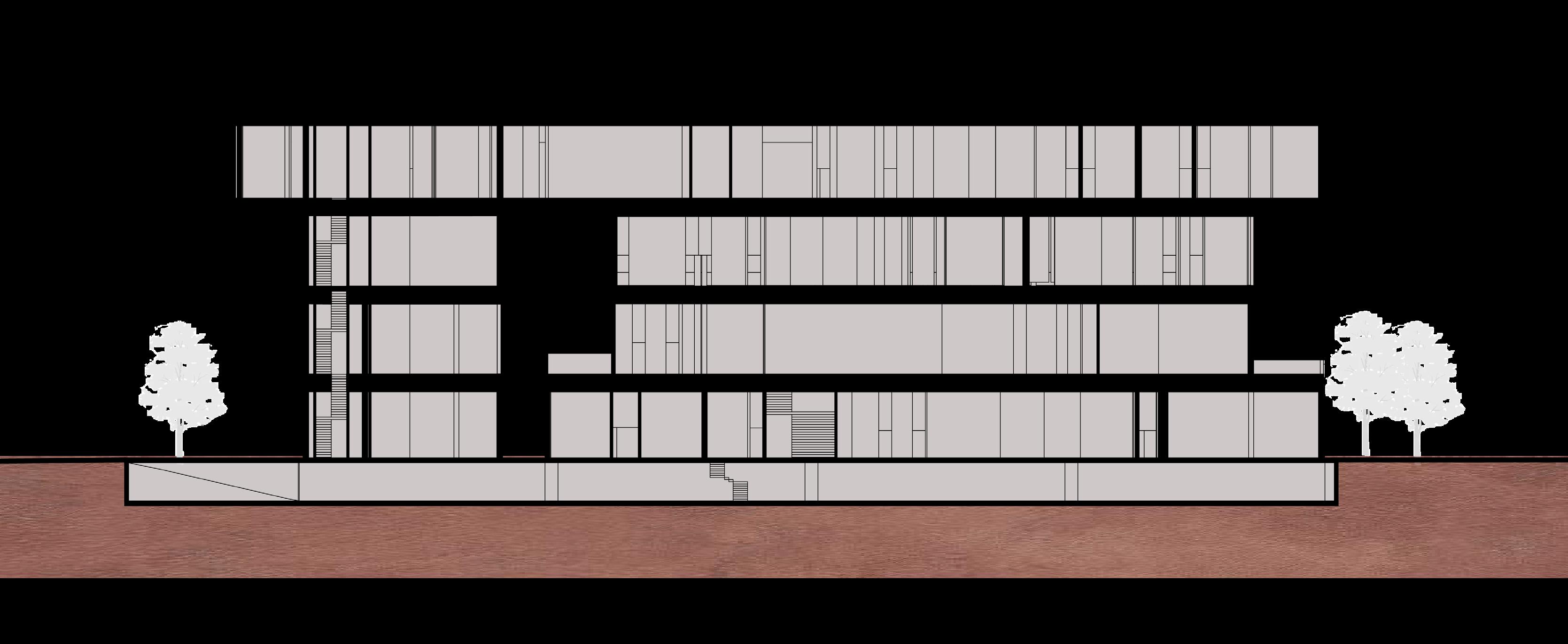

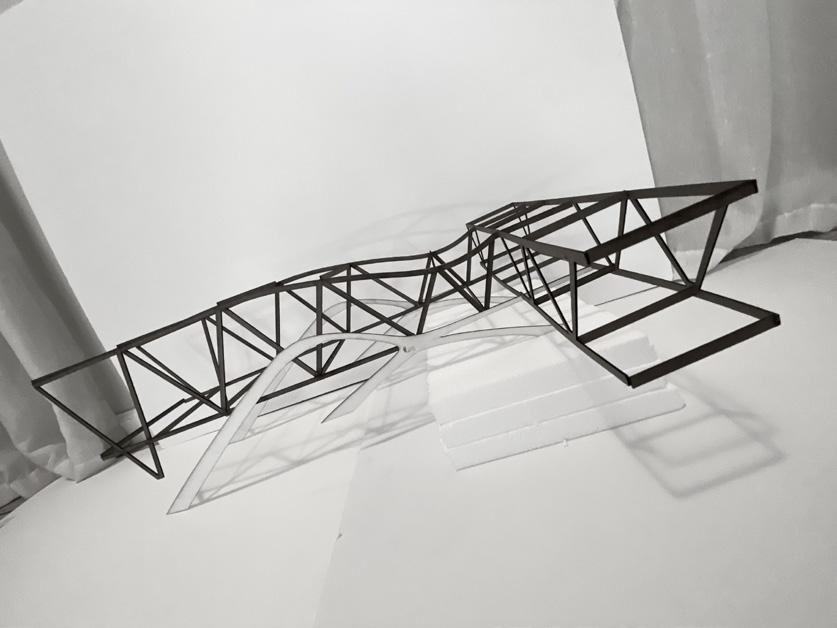

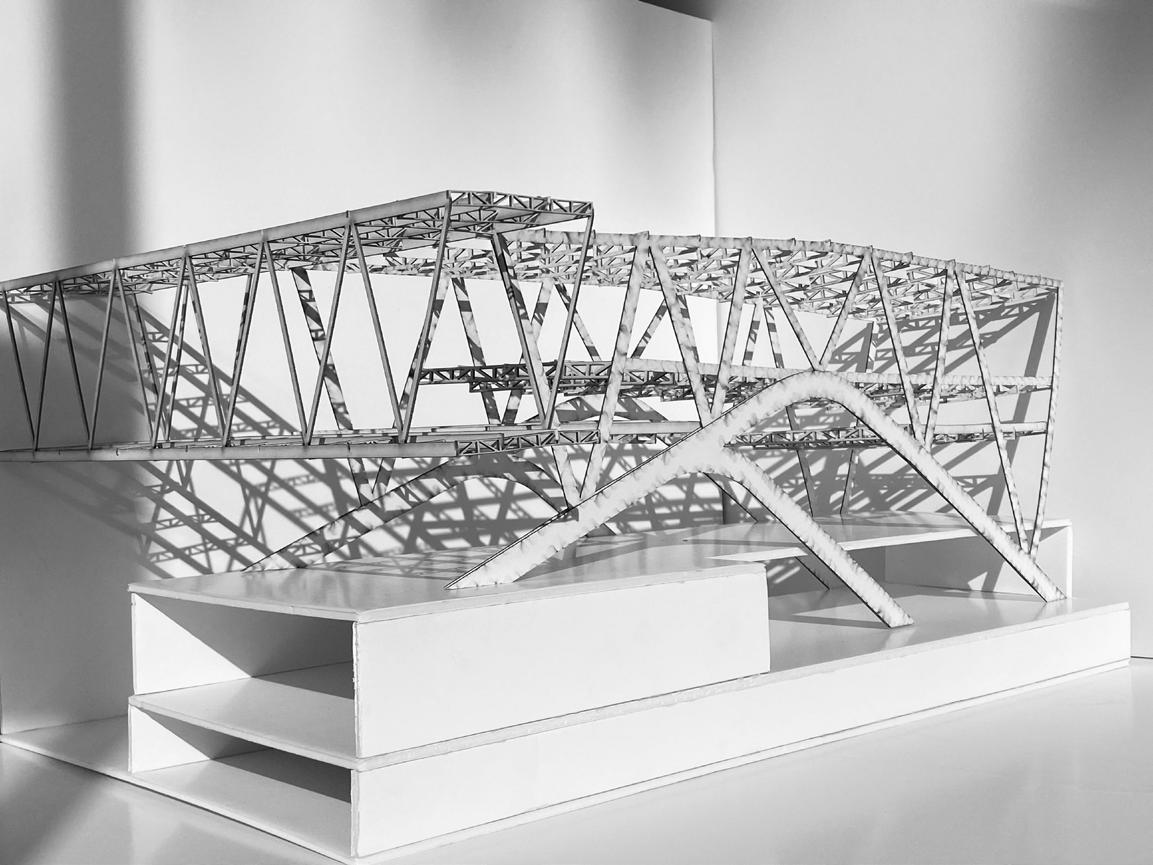

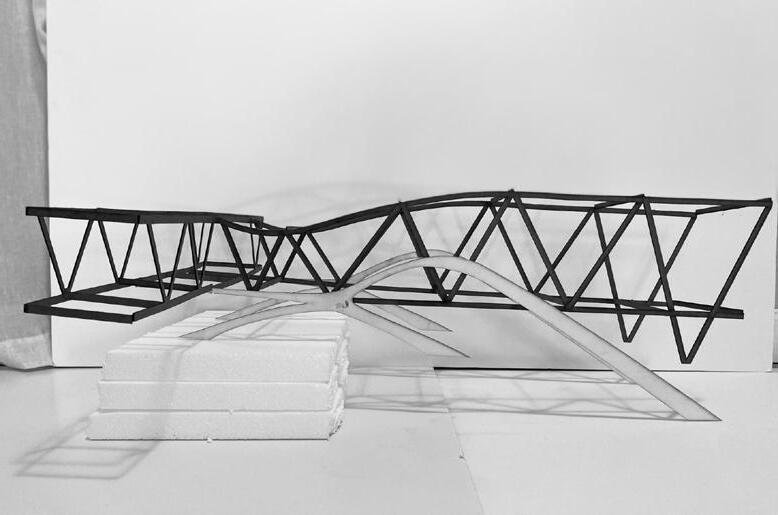

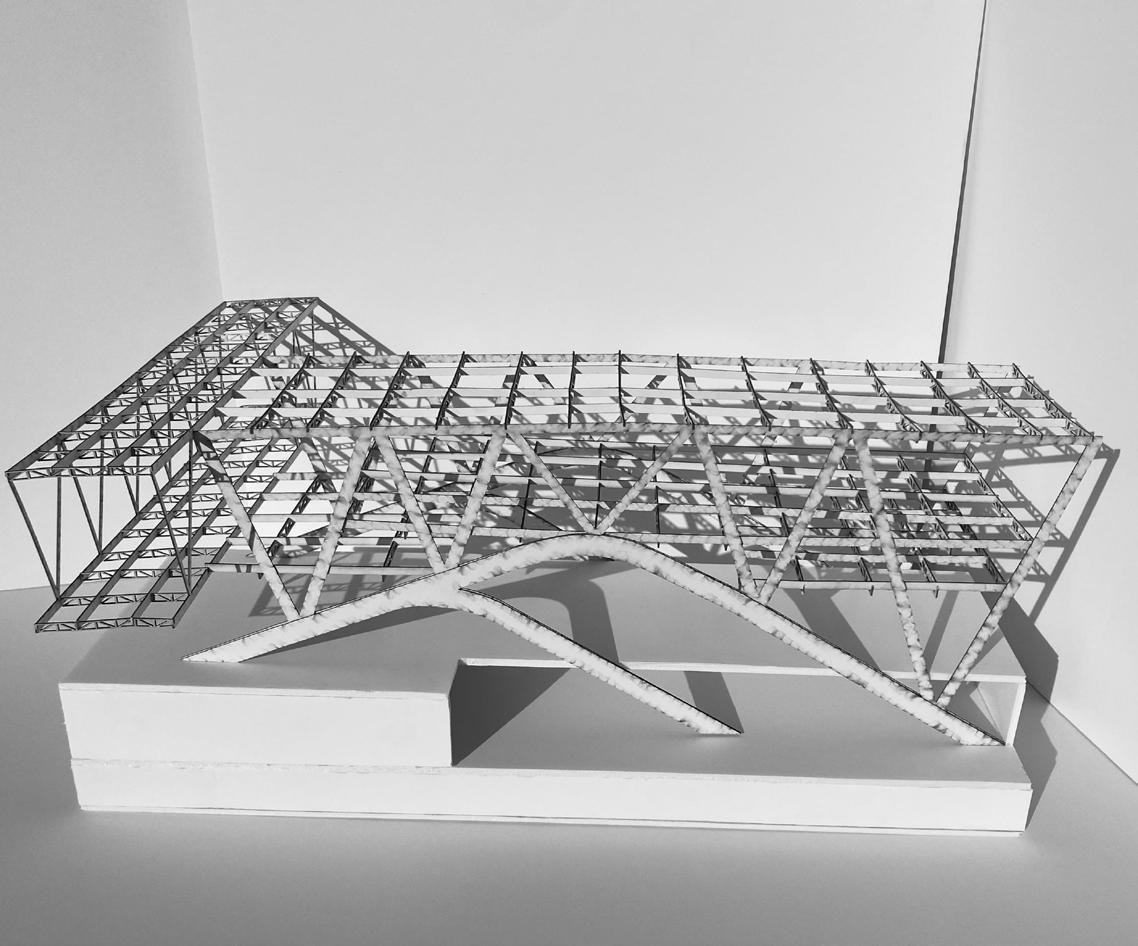

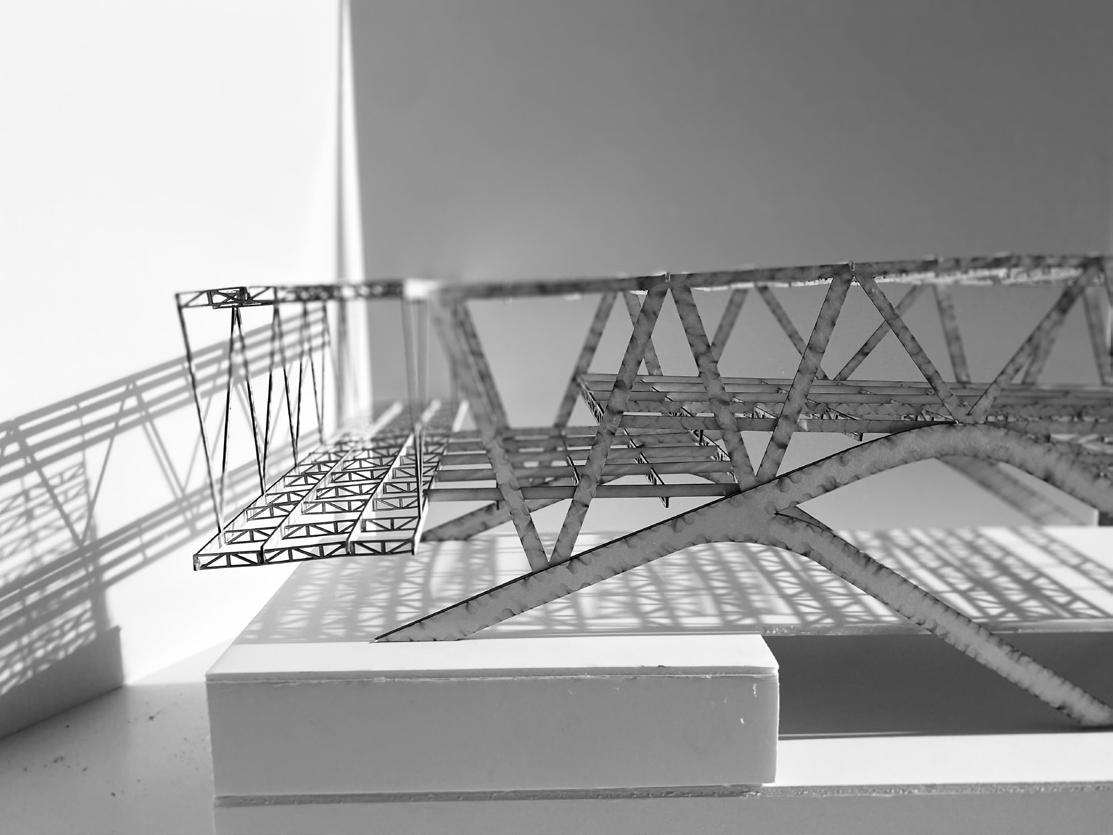

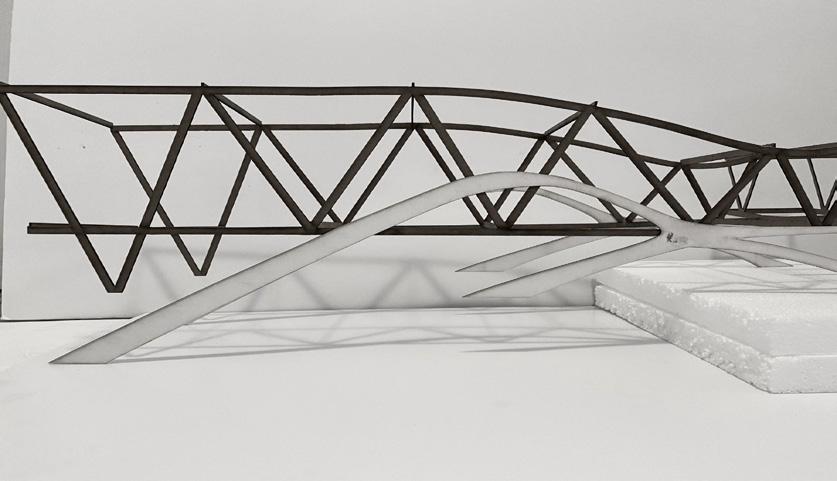

MOBILITY HUB TWO-WAY FLOOR SYSTEM WITH STEEL I-BEAM FIRST LEVEL CIRCULATION PUBLIC/ PRIVATE ENTRANCE HALL, MEETING POINTS, ACCESS PARKING GARAGE,OFFICES, ELECTRONIC CHARGING STATION PRIMARY TRUSS WITH BUTTRESS AUDITORIUM, BATHROOMS, EXHIBITION UNDERGROUND LEVEL FLOOR PUBLIC FAMILYSPACE, PLAYROOM, STROLLER RENTAL, BATHROOMS GROUND LEVEL PUBLIC, BUSS CART BUSS SEATING, LOCKERS, BICYCLE RACK, BATHROOMS TWO-WAY FLOOR SYSTEM FLAT WARREN TRUSS AND I-BEAM ROOF ENCLOSURE DESIGN V SECTION D SECTION D SCALE 1/16" = 1'-0" SECTION C SECTION A SCALE 1-16" 1' SCALE 1-16" 1' SCALE 1/8" 1'-0" SCALE 1/4" 1'-0" SECTION SECTION SCALE 1/8" 1'-0" UNDERGROUND LEVEL SCALE 1/8" 1'- 0" 5 1 B 13 14 16 16 D C 2 3 4 6 7
URBAN
LEVEL 1 LEVEL 2 SCALE 1/8" 1'- 0" SCALE 1/8" 1'C 18 18 19 15 BUS STATION STREETCAR STATION RESTROOMS MAIN HALL OFFICES BREASTFEEDING LOUNGE AUDITORIUM ARCHIVE CONTROL ROOM 10 LOCKERS 11 BICYCLE PARKING 12- STROLLER PARKING 13 STROLLER RENTAL 14 KIDS PLAY AREA 15 OBSERVATION DECK 16 CHANGING STATION 17 ELECTRONIC CHARGING STATION 18 EXHIBIT 19 STORAGE 10 17 17 16 B A C D A 15 D B A B C C C A B A 5 B A GROUND LEVEL LEVEL 1 UNDERGROUND LEVEL SCALE 1/8" 1'- 0" SCALE 1/8" 0" SCALE 1/8" 0" A 6 5 11 1 11 B A 13 14 10 10 ARCHIVE CONTROL ROOM 10 LOCKERS 11 BICYCLE PARKING 12- STROLLER PARKING 13 STROLLER RENTAL 14 KIDS PLAY AREA 15 OBSERVATION DECK 16 CHANGING STATION 17 ELECTRONIC CHARGING STATION 18 EXHIBIT 19 STORAGE 17 16 16 D A 14 D D B A B C B C 2 3 C C 4 6 B 7 1 2 C
INHABITABLE FACADE
Project focuses on promoting right-to-shelter concepts while actively working to reduce hostile architecture. Project requires the creation of a flexible “in-between” program that serves as a mixed-use space, adaptable to various needs. This innovative space is designed to function as a storefront, an apartment unit, a temporary shelter from harsh weather, or an of space, depending on the immediate requirements of its users. As working and housing conditions continue to evolve, so will this double-skinned envelope system, ensuring it remains responsive.
BLOCK CONNECTION
VI
LANDSCAPE REQUIRED: 7,770 SQ FT TOTAL LAND AREA: 1.5 ACRES SKIN
DESIGN
SKIN DEVELOPMENT
DEVELOPMENT
SECTION - A
SCALE 1/6" = 1' 0"
UNROLLED ELEVATION

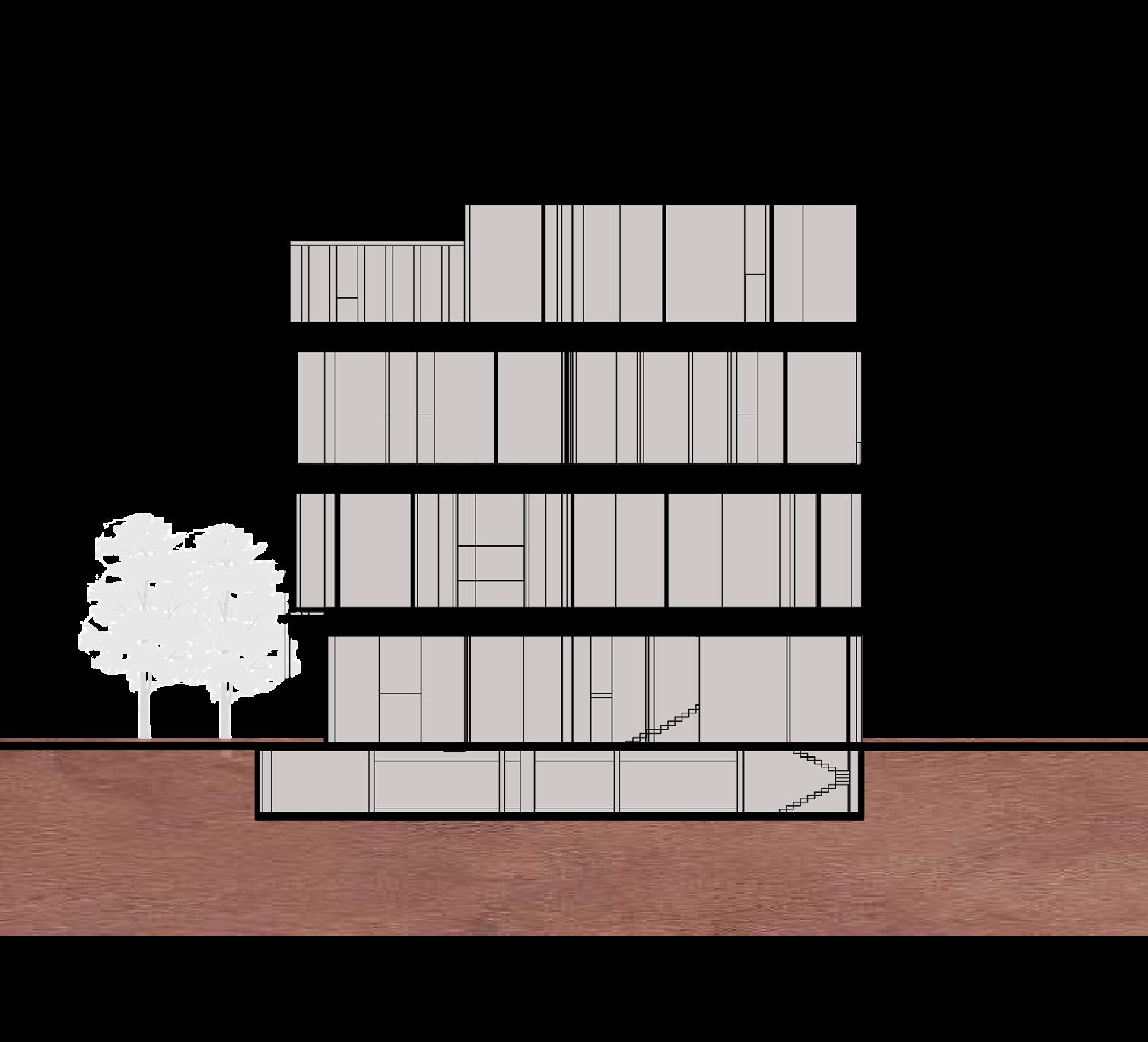

INHABITABLE UNITS SCALE 1/8" SCALE 1/8" GROUND LEVEL SECOND LEVEL ROOF THIRD LEVEL GYM STORE FRONTS FOOD LIVING PODS LAUNDRY LAB ON CALL POD BOTANICAL GARDEN STORAGE PROJECTED NORTH TRUE NORTH TRUE NORTH PROJECT NORTH PROJECT NORTH TRUE NORTH SECTION - A SHEATHING BOARD SCALE 1/8" 1'- 0"
CONCRETE FOUNDATION SLAB MALE AND FEMALE CONNECTION DOUBLE GLAZED WINDOW INSULATION FIBER REINFORCED CONCRETE REBAR

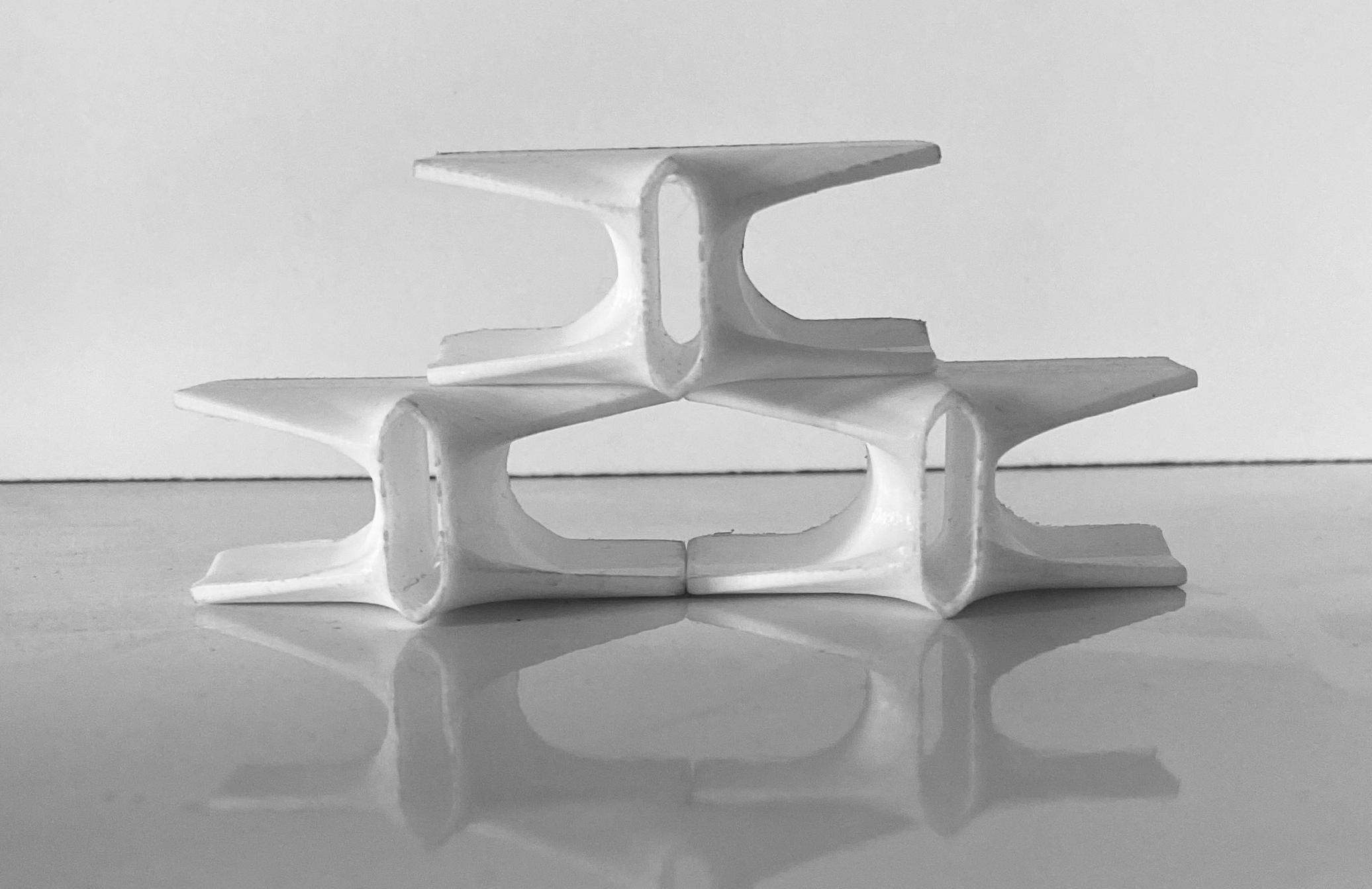

BLOCK TYPOLOGIES

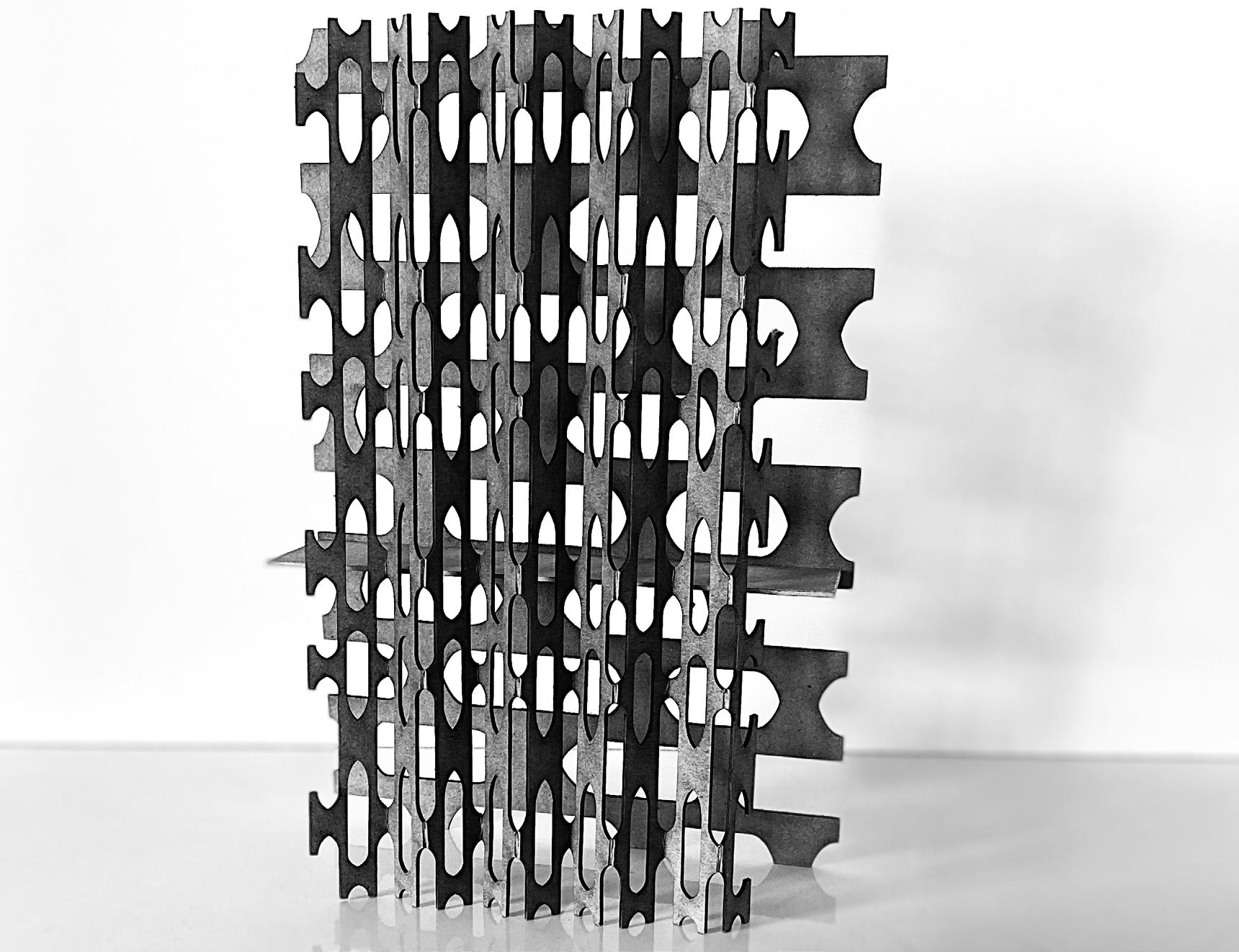

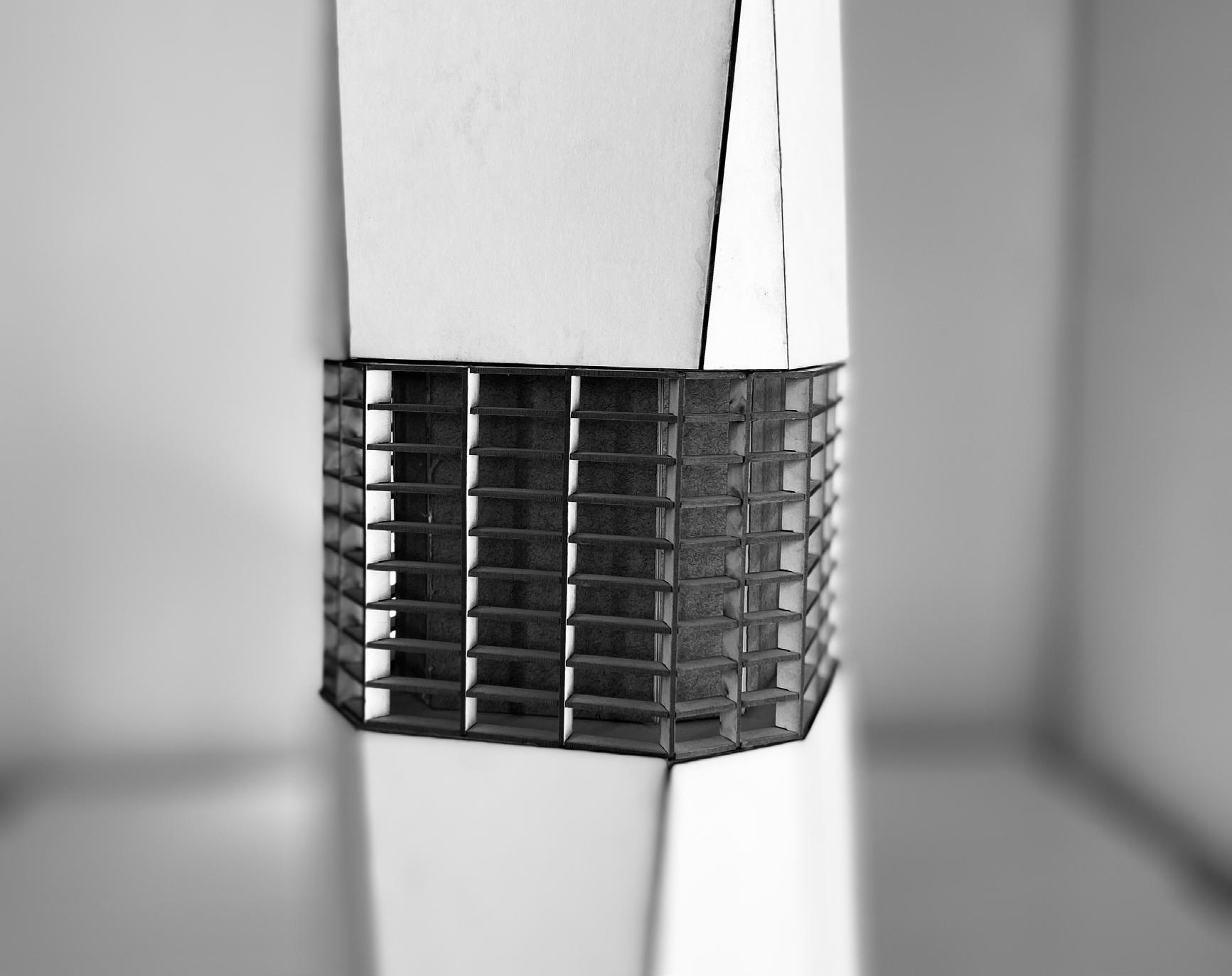

MODEL PHOTOS
