SEKO India Case Study

Case Study Commercial laundry dosing system

Who we are SEKO’s manufacturing processes are driven by the Kaizen principle of continuous improvement, which sees us constantly refine our systems by integrating cutting-edge technology to adapt to the latest market needs.

As well as enhancing product quality, this philosophy allows SEKO to minimize waste and streamline production. The resulting savings are passed on to customers, who enjoy premium-quality yet cost-effective solutions to their requirements.

Globally Present, Locally Active Twenty-four national SEKO subsidiaries across six continents means that, wherever you are, you enjoy the same exceptional level of service as every SEKO customer around the world.

And an accredited partner distributor network allows us to provide local customer support in over 120 countries, so you benefit from region-specific knowledge and rapid delivery of goods as well as world-class after-sales service and technical assistance.

3

Case Study - Commercial laundry dosing system

A high-demand laundry solution When the operator of Quick Smart Wash, a leading Indian laundry company, was planning a new large-scale commercial laundry in Bangalore, they turned to SEKO to supply a chemical dosing system from our award-nominated range.

This new site had also secured a hospital linen contract, resulting in an average laundry demand of 6,000 kg per day.

The hospital’s high-volume, regular turnover of bed linen, blankets and towels meant that all QSW’s laundry equipment had to be capable of handling heavy demand without compromising on performance.

Meanwhile, in a competitive industry where margins are tight and chemical costs continue to increase, minimising detergent waste was essential.

For these reasons, QSW management needed a detergent injection system capable of not only dosing chemical precisely and consistently but also providing in-depth wash data for accurate reporting and cost control.

SEKO, with decades of experience in the design and production of laundry dosing systems, was approached to provide a solution from its dedicated range.

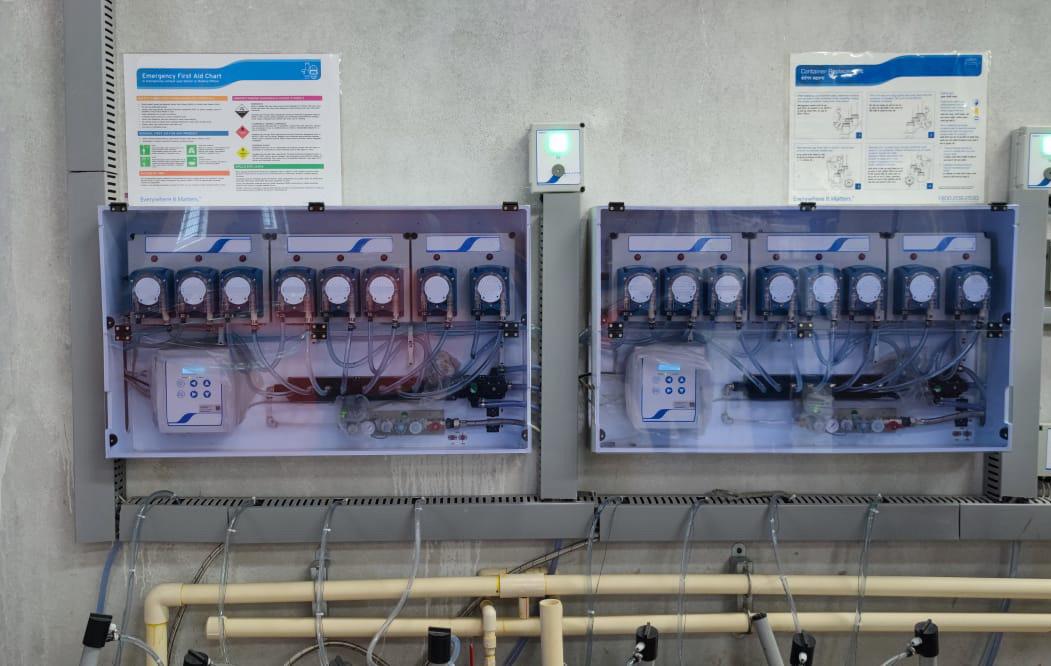

Following a comprehensive analysis of the site and application, and working in close collaboration with the client, SEKO recommended its WashMulti Peri system as the ideal solution.

The world-renowned WashMulti Peri is a peristaltic-driven system that allows the laundry operator to inject a variety of chemicals into as many as 10 washerextractors with the exceptional accuracy, repeatability and reliability a facility such as this demands.

4

Case Study - Commercial laundry dosing system

This is achieved in part thanks to the system’s premium-grade peristaltic tubing, supplied as standard. This material provides excellent chemical compatibility with a broad range of detergents, fabric softeners and additives, reducing tube degradation and ensuring dosing remains precise and consistent for longer.

The IoT-enabled WashMulti Peri also boasts compatibility with the dedicated SekoWeb app and online platform, meaning management can examine detailed wash data for every load 24/7 – without the need to set foot on site. With this power at their fingertips, they’re able to instantly calculate cost per load and discover the true cost of their operation for unprecedented efficiency.

With SEKO’s system in place, QSW can fulfil its contracts and enjoy tight control of wash performance, chemical consumption and cost as part of a world-class operation.

Another example of a SEKO solution helping customers achieve long-term, cost-effective improvements in their daily operations.

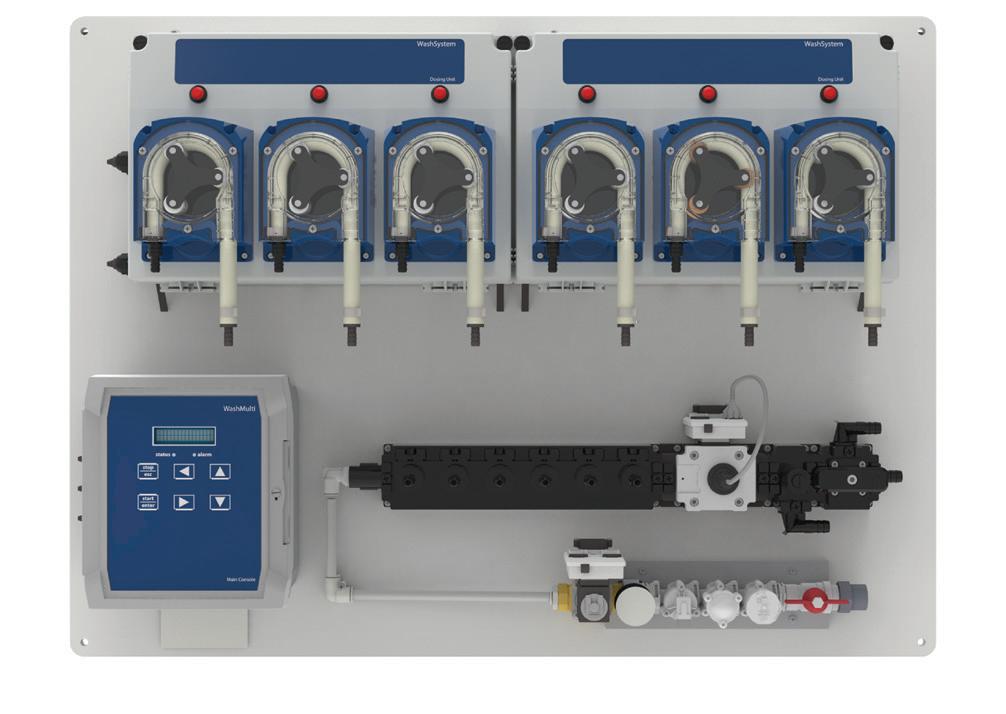

WashMulti Peri Features • Compatible with the SekoWeb app and online platform • Modular

system configurable for up to 10 washer extractors, with 16 chemicals • Gear

flowmeter ensures correct dosing even for highly viscous chemicals • Outstanding chemical compatibility of manifold parts, tubes and seals • Hygiene

temperature monitoring for washed linen disinfection certification • Quick

uploading and downloading of parameters and formulas

Specification • Power: 100 - 240 VAC, 50 - 60 Hz • Flow

rate: up to 1.6 litres per minute (using SekoMed tubing) • Maximum

load total: 400/500 kg (900/1,100 lbs) • Transport

tubing: 12x18mm PVC reinforced • Duty

cycle: 60% with a maximum continuous run time of 10 minutes • Internal

ambient temperature range: 5 - 40°C (41 - 104°F) - for indoor use

5

Case Study - Commercial laundry dosing system

Wash Series Intelligent laundry dosing at your fingertips SEKO’s Wash Series gives operators of commercial and on-premise laundries unprecedented access to chemical usage data, programming and system status from anywhere in the world courtesy of IoT-enabled smartphone connectivity.

With live and historical data at their fingertips, managers can optimise wash performance, reduce detergent consumption, save energy and minimise maintenance requirement at any time - setting a new standard in operational efficiency.

Meanwhile, the systems contain all the hallmarks that make SEKO the provider of choice for discerning operators - ultra -precise consistent chemical dosing, superior reliability and ease of use.

Applications

OPL

Commercial Laundry

Washer-Extractors

Industrial Laundry

Continuous Batch Washers

Data on demand with SekoWeb By connecting to SekoWeb, SEKO’s revolutionary app and online portal, Wash Series users benefit from data on demand via PC, laptop, smartphone or tablet.

As well as the power to monitor chemical and equipment performance, users can adjust programming and parameters for immediate efficiency improvements and reduced maintenance costs.

Combining the Wash Series and SekoWeb means commercial laundry managers can take control of their overall operation, helping to reduce over consumption of chemical, water and energy within the overall wash process.

SEKO Hub A world of SEKO in one For everyone from buyers and engineers to end users, SEKO Hub is the ultimate all-encompassing platform that brings you to the heart of SEKO and gives you what you need when you need it.

Bringing together essential documents such as manuals, case studies and brochures as well as tutorial videos, favourite products, an appointment booking system and so much more, SEKO Hub is a central personalised platform to revolutionise the way you work.

SEKO Hub is available online or via app, so you’re never without it whether you’re at work, at home or on the move. It’s your home for the complete SEKO experience, so join SEKO Hub and make our world a part of yours.

Join the Hub
