MINING EQUIPMENT

ABout US Macon Industries is your premier destination for alluvial gold mining equipment proudly crafted on Vancouver Island. With nearly two decades of expertise, we have been at the forefront of designing and manufacturing versatile machinery tailored to the needs of miners worldwide. Our commitment to customization and innovation in the mining industry has led to the development of a comprehensive product line that caters to both local and international markets.

At Macon Industries, quality is paramount. Every piece of mining machinery is meticulously designed, fabricated, and assembled in-house right here in Canada, ensuring the highest standards of craftsmanship and reliability. Our team is driven by a passion for excellence, constantly striving for improvement in every aspect of our operations.

Beyond delivering top-notch equipment, we believe in building lasting relationships with our clients. We understand that our success is intertwined with yours, which is why we prioritize transparency, integrity, and customer satisfaction. When you choose Macon Industries, you’re not just investing in superior machinery – you’re investing in a partnership built on trust and mutual success. Join us in shaping the future of mining, one project at a time.

SHAKER DECK MINING EQUIPMENT SD-300 SD-400 SD-500 SD-600

TROMMEL MINING Equipment T-400 T-600 T-700

DEROCKER MINING EQUIPMENT SS-800

GRizzly feeder GF-4236

CLEAN-UP EQUIPMENT GOLDROOM 40 GOLDROOM 20 T-150

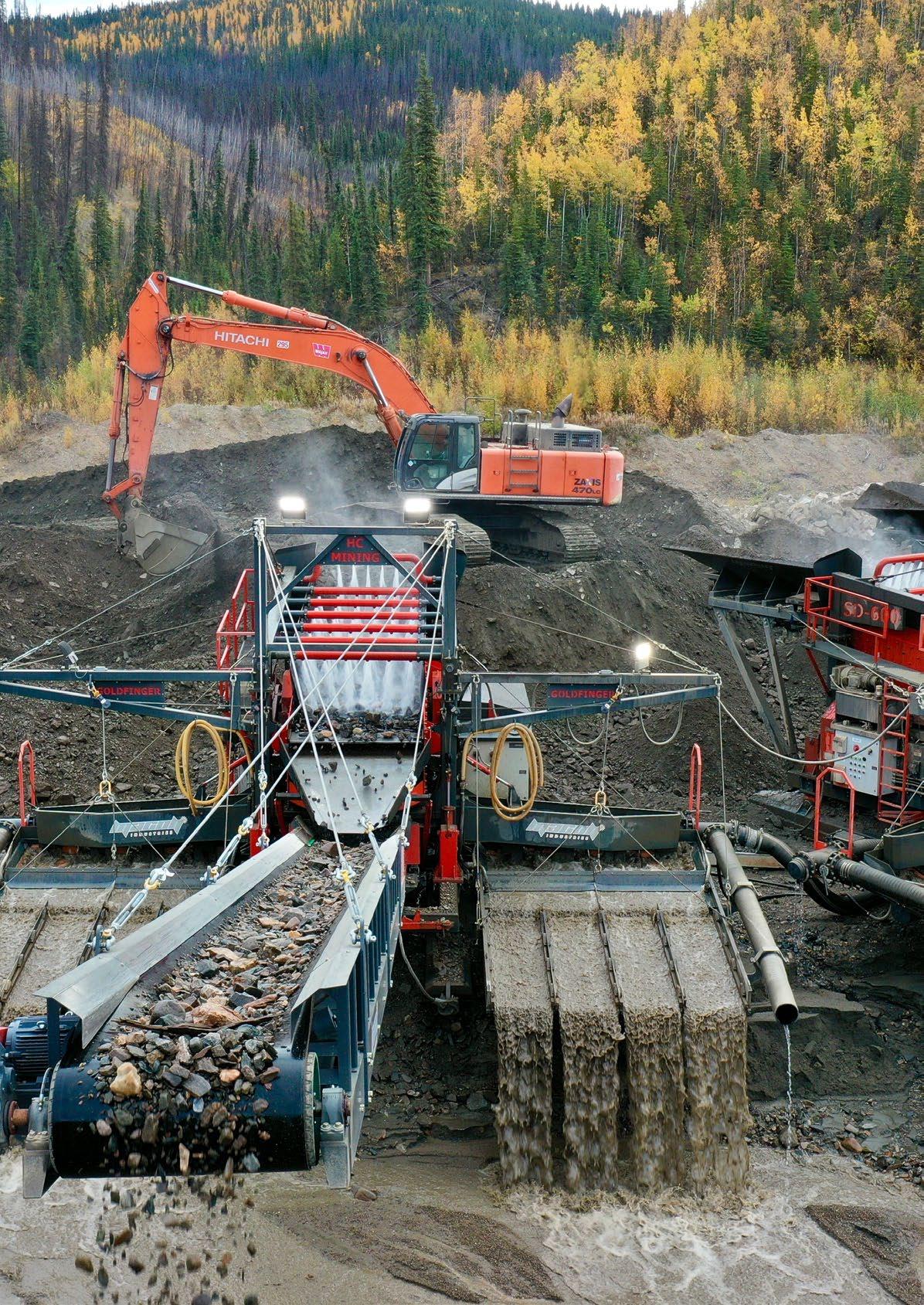

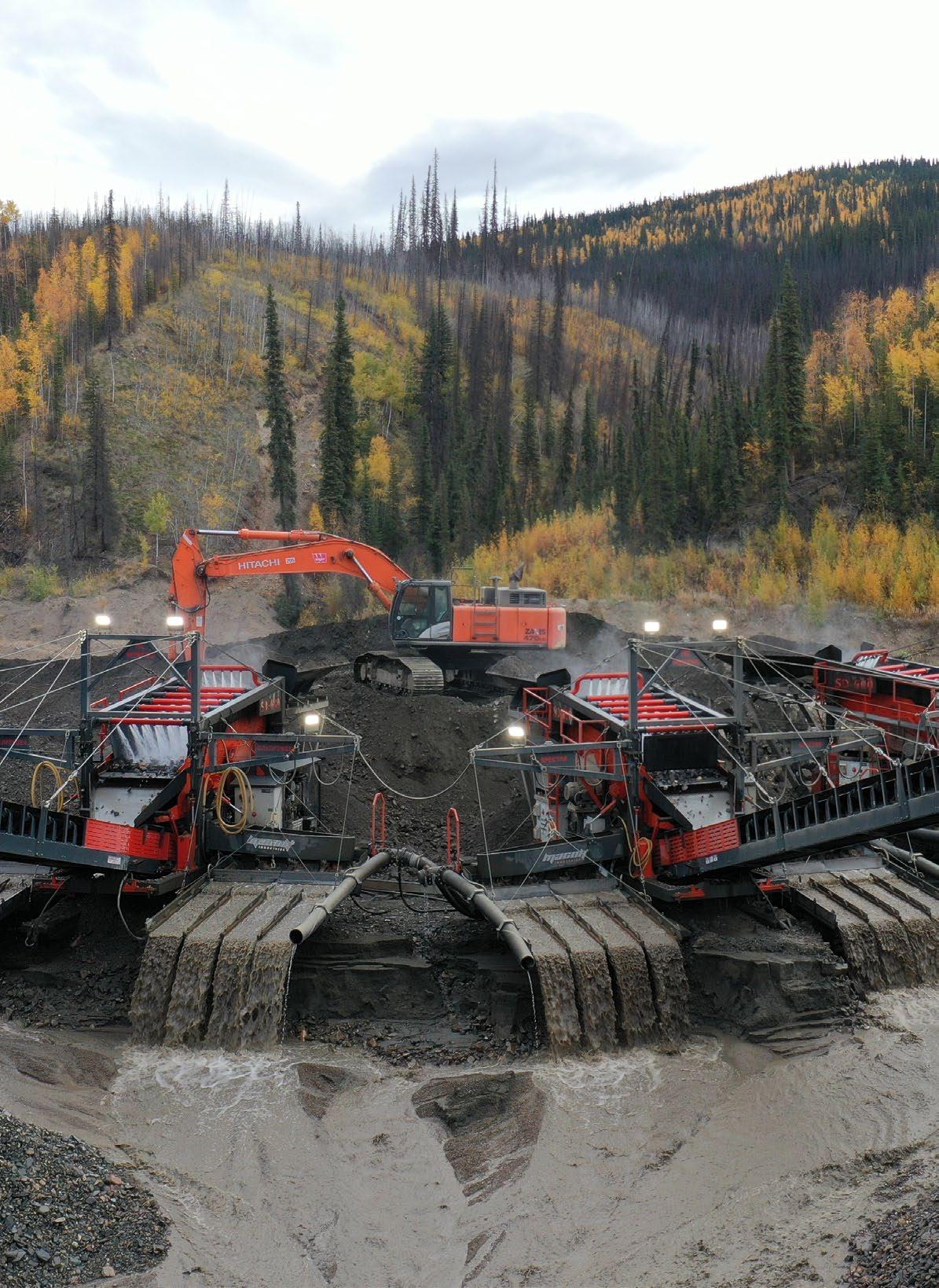

Shaker Decks SD-300 / SD-400 / SD-500 / SD-600

SD-300 Macon Industries SD-300 is a shaker deck designed specifically for mobility and ease of use.

Processing Capabilities: 50-75 tons/hr • Ideal for bulk testing or a small operations • Solid mechanical design, manual levelling (no hydraulics) • Modular design fits into shipping containers for delivery overseas Water: Typically fed by 4” or 6” pump c/w 85 hp diesel engine Power: Typically powered by 30kW diesel generator Turn key packages available

SD-300 / Shaker decks

SPECIFICATIONS CAPACITY TONS PER HOUR 50-75 WATER GALLONS PER MINUTE 1100 WEIGHT POUNDS 19,000 POWER REQUIREMENTS KW 30” CONVEYOR LENGTH FEET 20” BELT WIDTH INCHES 24” BELT THICKNESS INCHES ⅜ DECK SCREEN SIZE FEET 3 X 8 SCREENING AREA SQUARE FEET 48 DECK DRIVE MOTOR HP 10 CONVEYOR DRIVE MOTOR HP 5 SLUICE RUN WIDTH FEET 6 SLUICE RUN LENGTH FEET 12

SD-300 / Shaker decks office. 250-586-4311

Salesteam@maconindustries.com

SD-400 Macon Industries SD-400 has an over-sized skid base and hinging side sluice making it easily mobile. The modular design fits easily into shipping containers for overseas shipments or fits onto a low bed fully assembled for shipping in North America.

Processing Capabilities: 100-180 tons/hr • Ideal for medium scale operations • Solid mechanical design, manual levelling (no hydraulics) • Modular design fits into shipping containers for delivery overseas Water: Typically fed by 8” pump c/w 175 hp diesel engine Power: Typically powered by 50-100kW diesel engine Turn key packages available

SD-400 / Shaker decks

SPECIFICATIONS CAPACITY TONS PER HOUR 100-180 WATER GALLONS PER MINUTE 2200 WEIGHT POUNDS 35,000 POWER REQUIREMENTS KW 70 CONVEYOR LENGTH FEET 30 BELT WIDTH INCHES 30 BELT THICKNESS INCHES 3/8 DECK SCREEN SIZE FEET 4 X 10 SCREENING AREA SQUARE FEET 80 DECK DRIVE MOTOR HP 15 CONVEYOR DRIVE MOTOR HP 10 SLUICE RUN WIDTH FEET 12 SLUICE RUN LENGTH FEET 16

SD-400 / Shaker decks office. 250-586-4311

Salesteam@maconindustries.com

SD-500 Macon Industries SD-500 is designed to be durable and tough for the large scale operator, who needs consistent production with minimal down time.

Fast clean ups and high recovery rates are features of this most recent model.

Processing Capabilities: 200-330 tons/hr • Ideal for large scale operations • Onboard power generator and hydraulic power unit (HPU) for maximum mobility • Mechanical feeder or wash hopper options available (compatible for grizzly feeder) Water: Typically fed by 8” or 10” pump c/w 200 hp diesel engine Power: Typically powered by 100kW diesel generator Turn Key packages available

SD-500 / Shaker decks

SPECIFICATIONS CAPACITY TONS PER HOUR 200-330 WATER GALLONS PER MINUTE 2900 WEIGHT POUNDS 70,000 POWER REQUIREMENTS KW 100 CONVEYOR LENGHT FEET 42 BELT WIDTH INCHES 42 BELT THICKNESS INCHES 7/16 DECK SCREEN SIZE FEET 5 X 10 SCREENING AREA SQUARE FEET 100 DECK DRIVE MOTOR HP 40 CONVEYOR DRIVE MOTOR HP 20 SLUICE RUN WIDTH FEET 16 SLUICE RUN LENGTH FEET 20

SD-500 / Shaker decks office. 250-586-4311

Salesteam@maconindustries.com

SD-600 Macon Industries SD-600 is the highest production gold wash plant to date. It is one of the most durable and easy-to-operate gold wash plants on the market.

Processing Capabilities: 300-450 tons/hr • Ideal for large scale operations • Onboard power generator and hydraulic power unit (HPU) for maximum mobility • Mechanical feeder or wash hopper options available (compatible for grizzly feeder) Water: Typically fed by 10” pump c/w 275 hp engine Power: Typically powered by 100kW diesel generator Turn Key packages available

SD-600 / Shaker Decks

SPECIFICATIONS CAPACITY TONS PER HOUR 300-450 WATER GALLONS PER MINUTE 3600 WEIGHT POUNDS 95,000 POWER REQUIREMENTS KW 100 CONVEYOR LENGTH FEET 53 BELT WIDTH INCHES 42 BELT THICKNESS INCHES 7/16 DECK SCREEN SIZE FEET 6 X 14 SCREENING AREA SQUARE FEET 168 DECK DRIVE MOTOR HP 40 CONVEYOR DRIVE MOTOR HP 20 SLUICE RUN WIDTH FEET 20 SLUICE RUN LENGTH FEET 26

SD-600 / Shaker Decks office. 250-586-4311

Salesteam@maconindustries.com

TROMMEls T-400 / T-600 / T-700

T-400 The Macon Industries T-400 is a 4’ Trommel designed for the medium production operations. The exclusive modular design allows for transportation by truck through continental America or by shipping container worldwide.

Processing Capabilities: 100-150 tons/hr • Ideal for medium scale operations • Available in mobile, stationary, or floating configurations upon request • Extended maintenance intervals • Modular design fits into containers for shipping overseas Water: Typically fed by 8” pump c/w 175 hp diesel engine Power: Typically powered by 50-100kW diesel generator Turn key packages available

T-400 / trommels

SPECIFICATIONS CAPACITY TONS PER HOUR 100-150 WATER GALLONS PER MINUTE 2200 WEIGHT POUNDS 44,500 POWER REQUIREMENTS KW 50 CONVEYOR LENGTH FEET 30 BELT WIDTH INCHES 30 BELT THICKNESS INCHES 3/8 TROMMEL SPEED RPM 0-10 TROMMEL DIAMETER INCHES 48 SCREENING AREA SQUARE FEET 78 TROMMEL DRIVE MOTOR HP 12.5 CONVEYOR DRIVE MOTOR HP 10 SLUICE RUN WIDTH FEET 12 SLUICE RUN LENGTH FEET 10

T-400 / trommels office. 250-586-4311

Salesteam@maconindustries.com

T-600 The Macon Industries T-600 trommel is designed to withstand the rigors of a higher production operation. The oversized frame and heavy drum design enables it to endure the demands of coarser grade materials.

Processing Capabilities: 150-250 tons/hr • • •

Available in various stationary or mobile configurations upon request Ideal for Large scale operations Extended maintenance intervals

Water: Typically fed by 8” or 10” pump c/w 200 hp diesel engine Power: Typically powered by 100kW diesel generator Turn key packages available

T-600 / trommels

SPECIFICATIONS CAPACITY TONS PER HOUR 150-250 WATER GALLONS PER MINUTE 2900 WEIGHT POUNDS 74,500 POWER REQUIREMENTS KW 70 CONVEYOR LENGTH FEET 49 BELT WIDTH INCHES 36 BELT THICKNESS INCHES 7/16 TROMMEL SPEED RPM 0-10 TROMMEL DIAMETER INCHES 72 SCREENING AREA SQUARE FEET 225 TROMMEL DRIVE MOTOR HP 15 CONVEYOR DRIVE MOTOR HP 12.5 SLUICE RUN WIDTH FEET 16 SLUICE RUN LENGTH FEET 10

T-600 / trommels office. 250-586-4311

Salesteam@maconindustries.com

T-700 The Macon Industries T-700 trommel is designed specifically for mobility and low maintenance. The heavy drum design enables it to endure the demands of coarser grade materials.

Processing Capabilities: 200-350 tons/hr • Ideal for Large scale operations • Available in various stationary, mobile, and track driven configurations upon request • Extended maintenance intervals • Onboard diesel-hydraulic power pack drives tracks, trommel, conveyor, feeder and levelling cylinders Water: Typically fed by 8-10” pump c/w 200-275 hp diesel engine Power: Onboard 85 hp diesel-hydraulic engine - no generator required Turn key packages available

T-700 / trommels

SPECIFICATIONS CAPACITY TONS PER HOUR 200-350 WATER GALLONS PER MINUTE 3600 WEIGHT POUNDS 110,000 POWER REQUIREMENTS HP 85 Diesel Hydraulic CONVEYOR LENGTH FEET 42 BELT WIDTH INCHES 42 BELT THICKNESS INCHES 7/8 TROMMEL SPEED RPM 0-5 TROMMEL DIAMETER INCHES 84 SCREENING AREA SQUARE FEET 330 TROMMEL DRIVE MOTOR - Hydraulic CONVEYER DRIVE MOTOR - Hydraulic SLUICE RUN WIDTH FEET 16-20 SLUICE RUN LENGTH FEET 12

T-700 / trommels office. 250-586-4311

Salesteam@maconindustries.com

IN STOCK ITEMS OR SERVICES • • • • • • • • • • • • •

TOP DECK SCREEN MEDIA BOTTOM DECK MEDIA IMPACT PADS MOSS BY THE ROLL SHAKER DECK SPRINGS CONVEYOR BELT CLIPS CONVEYOR TROUGH IDLERS PREVENTIVE MAINTENANCE PACKAGES STARTUP & WINTERIZATION PACKAGES STEEL SALES (SHIPPED FROM WAREHOUSE) FORMING, PLASMA, WATER JET, MILLING & MACHINING PUMPS & SUCTION SCREEN PACKAGES CUSTOM FIT HUNGARIAN OR HYDRAULIC RIFFLES

•

TIDY TANKS

Spares & Accessories • • • • • • • • • • • • • • • •

SKID MOUNTED WATER PUMPS FLOATING WATER PUMPS SUCTION SCREENS CONVEYOR PULLEYS CONVEYOR ROLLERS CONVEYOR BELTS DRIVE BELTS CONVEYOR DRIVE MOTORS CONVEYOR IMPACT BEDS BEARINGS WEAR LINER OPTIONS T-100 / AR-400 RUBBER LINING, GLUE & PRIMER OPTIONS CUSTOM SLUICE RUNS WATER LINE & LAY FLAT FLANGES & REDUCERS UHMW

IN STOCK ITEMS OR SERVICES

office. 250-586-4311

Salesteam@maconindustries.com

DERocker Mining equipment SS-800

SS-800 The Macon Industries SS-800 has a reinforced 8’ wide triple deck design and is able to handle up to 36” boulders, making it ideal for coarse ground conditions.

Processing Capabilities: 120-180 tons/hr • Heavy duty construction with few moving parts • Ideally suited for excavator feed with coarse material • 1” slot aperture sizing allows for nugget recovery Water: Typically fed by 8” pump c/w 175 hp diesel engine Power: Stand-alone diesel-hydraulic power pack - no generator required

SS-800 / De-rocker equipment

SPECIFICATIONS CAPACITY TONS PER HOUR 120-180 WATER GALLONS PER MINUTE 1500-2000 WEIGHT POUNDS 34,500 POWER REQUIREMENTS HP 118 Diesel Hydraulic SCREENING AREA SQUARE FEET 96 FEED CYLINDERS INCHES 50” STROKE, 3.25 BORE x 2” ROD SLUICE RUN WIDTH FEET 8 SLUICE RUN LENGTH FEET 20

SS-800 / De-rocker equipment office. 250-586-4311

Salesteam@maconindustries.com

Grizzly Feeder GF-4236 The Macon Industries Grizzly Feeder GF-4236 is specifically designed for Placer Mining to optimize efficiency and productivity on mine sites.

The Grizzly Feeder’s standout feature lies in its compatibility with the same generator used in Macon’s 500 and 600 class models, minimizing extra fuel consumption, and ensuring a consistent feed rate for more throughput and better gold recovery. Equipped with a 17 cubic yard hopper, the Grizzly Feeder significantly reduces machine cycle intervals, facilitating simultaneous handling of tailings while material is being fed from the hopper into the wash plant.

Built to withstand rugged mine site terrain, the Grizzly Feeder comes with a robust framework and skid design that can be towed by heavy equipment. For increased durability and reduced downtime, the machine features an AR steel lined hopper cassette feeder conveyor and incline conveyor with impact beds. Additionally, the Grizzly Feeder comes with adjustable grizzly bars, providing operators the flexibility to adjust the initial oversize reject size.

grizzly feeder

SPECIFICATIONS Grizzly Feeder FEED CAPACITY TONS PER HOUR UP TO 450 HOPPER CAPACITY CUBIC YARDS 17 GRIZZLY SPACING INCHES ADJUSTABLE GRIZZLY FUNCTION TYPE HYDRAULIC TILT WEIGHT POUNDS 75,000 (APPROX) SKID DIMENSIONS

FEET (W x Lx H)

12 x 71 x 18

Feeder Conveyor CONVEYOR LENGTH FEET 16 CONVEYOR WIDTH INCHES 36 BELT THICKNESS INCHES 7/8 PULLEY DIAMETER INCHES 16 DRIVE MOTOR HP 10 SPEED CONTROL TYPE VFD

Incline Conveyor CONVEYOR LENGTH FEET 60 CONVEYOR WIDTH INCHES 42 BELT THICKNESS INCHES 7/8 PULLEY DIAMETER INCHES 16 DRIVE MOTOR HP 20 SPEED CONTROL TYPE Fixed Speed

grizzly feeder office. 250-586-4311

Salesteam@maconindustries.com

grizzly feeder

cleanup equipment GOLDROOM 40 / GOLDROOM 20 / T-150

GOLDROOM 40 The Macomatic Goldroom 40 modular gold room is a fully integrated, turnkey system for placer/alluvial and hard rock operations to process their concentrates to a sell-able or smelt-able product Ideal for: Large scale operations producing large amounts of concentrate from washplants or centrifugal concentrators containing both coarse and fine gold Unique design allows for: Fully mechanized feeding, screening and materials handling between tailored processing stages with continuous recirculation of middlings for maximum fine gold recovery How it differs: Instead of processing the bulk sluice concentrate over jig or a cleanup sluice-run, concentrate is classified as the first step of the process.

Then, fine and coarse material is processed on the optimal machine for each.

Material flow is mechanized via augers and pumps. Shaking table middlings are recirculated for high recovery performance and peace of mind.

Processing Capacity: Up to 1 ton of concentrate per hour

GOLDROOM 40 / clean-up equipment

SPECIFICATIONS CAPACITY TONS PER HOUR 0.5-1 WATER REQUIREMENTS GALLONS PER MINUTE 150 POWER REQUIREMENTS KW 10 POWER REQUIREMENTS VOLTAGE 230 - 460 WEIGHT POUNDS 20,000 DIMENSIONS FEET (LXWXH) 40 X 8 X 10 SCREEN APERTURE MESH 10 OR 18 (Low Intensity

MAGNETITE/STEEL REMOVAL SYSTEM TYPE LIMS Magnetic Seperator) COARSE GOLD RECOVERY SYSTEM TYPE DUPLEX JIG FINE GOLD RECOVERY SYSTEM TYPE SHAKING TABLE

GOLDOROM 40 / cleanup equipment office. 250-586-4311

Salesteam@maconindustries.com

GOLDROOM 20 The Macomatic Goldroom 20 is a fully integrated, turn-key system for placer/ alluvial operations to process their concentrates to a sell-able or smelt-able product.

Ideal for: Medium scale gold operations producing large amounts of concentrate from washplants containing both coarse and fine gold.

Unique design allows for: Three dedicated concentrating stages, including Macon’s T150 cleanup plant for efficient volume reduction, followed by sizing and de-magnetizing and then tabling to a sellable product.

How it differs: A simple, but complete processing solution, pre-assembled in a wired 20′ open-sided shipping container. Other than our Macomatic 2000 gold room, this system requires manual concentrate handling between three key processing steps.

Processing capacity: Up to 1 ton (2000 lbs) of concentrate in 2-3 hours.

Key features: • Compact design, fully pre-assembled in 20′ HC container format • Securely lockable • Coarse and fine gold processed separate for maximum efficiency • No chemicals • 5 kW power consumption (Can be operated by Generator or Grit Power) • 50 GPM water consumption (Typically supplied by 2″ Honda Pump) goldroom 20 / clean-up equipment

SPECIFICATIONS CAPACITY TONS PER HOUR 0.5 WATER REQUIREMENTS GALLONS PER MINUTE 50 POWER REQUIREMENTS KW 5 POWER REQUIREMENTS VOLTAGE 120 or 240 WEIGHT POUNDS 10,000 DIMENSIONS FEET (LXWXH) 20 X 8 X 10 SCREEN APERTURE INCH 3/16 MAGNETITE/STEEL REMOVAL SYSTEM TYPE HAND MAGNET COARSE GOLD RECOVERY SYSTEM TYPE SLUICE or JIG FINE GOLD RECOVERY

SYSTEM TYPE

KNUDSEN BOWL +

SHAKING TABLE

goldroom 20 / cleanup equipment office. 250-586-4311

Salesteam@maconindustries.com

T-150 The Macon Industries T-150 is a compact plant capable of small tests or reducing large amounts of concentrate.

Processing Capabilities: 2,000lbs of concentrate in 30-60 mins or 2 t/h feed rate for testing placer gravels • Compact design is skid or trailer portable Water: Typically fed by 2” Honda pump Power: Powered by 120V/240V grit power or by 2kW Honda Generator Turn Key packages available

t-150 / clean-up equipment

SPECIFICATIONS CAPACITY TONS PER HOUR 2 WATER GALLONS PER MINUTE 50 SHIPPING WEIGHT POUNDS 2300 SHIPPING DIMENSIONS INCHES 97 X 84 X 50 POWER REQUIREMENTS KW 2 POWER REQUIREMENTS VOLTAGE 120V OR 240V SCREEN APERTURE INCHES 3/16 SLUICE RUN WIDTH FEET 1.5 SLUICE RUN LENGTH FEET 5 FINE GOLD RECOVERY SYSTEM TYPE KNUDSEN BOWL COARSE GOLD RECOVERY SYSTEM TYPE SLUICE OR JIG NOTE: In a concentrate cleanup application, the T-150 reduces 2,000lbs of sluice concentrate to approx. 20lbs, which then requires further screening and tabling to a sell-able product. For turn-key packages see Goldroom 1000

t-150 / cleanup equipment office. 250-586-4311

Salesteam@maconindustries.com

contact us Want to know more about Macon’s placer equipment or do you require support equipment for your mining operation?

We are committed to delivering the highest level of customer service to ensure you have the solution you need when you need it. Whether you require onsite support or specialized equipment, simply reach out to us and our dedicated team will promptly address your needs. Let Macon Industries be your trusted partner in achieving success in the mining industry.

salesteam@maconindustries.com 250-586-4311 | MACONINDUSTRIES.COM
