REFRAMING LANEWAYS
Project Type: Academic
Course: Advanced Architecture Studio [4th Year]
Authorship: Group Work
Climate: Humid Continental Climate [Toronto, ON]
Design Role: Unit and Facade Design
Digital Tools: Revit, Twinmotion, Illustrator, Photoshop

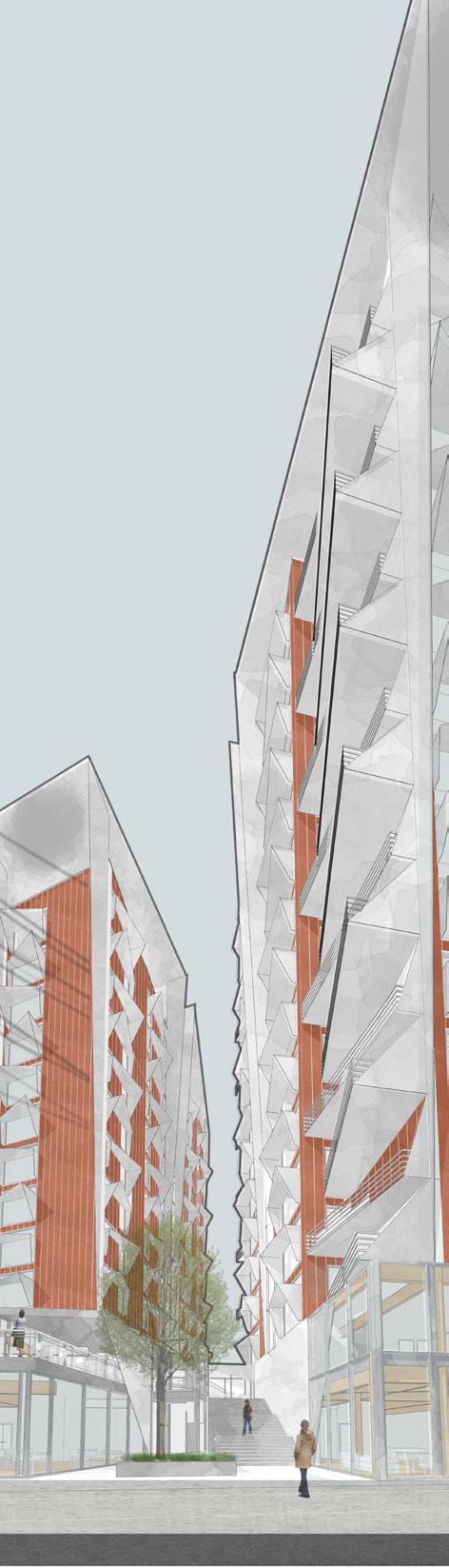

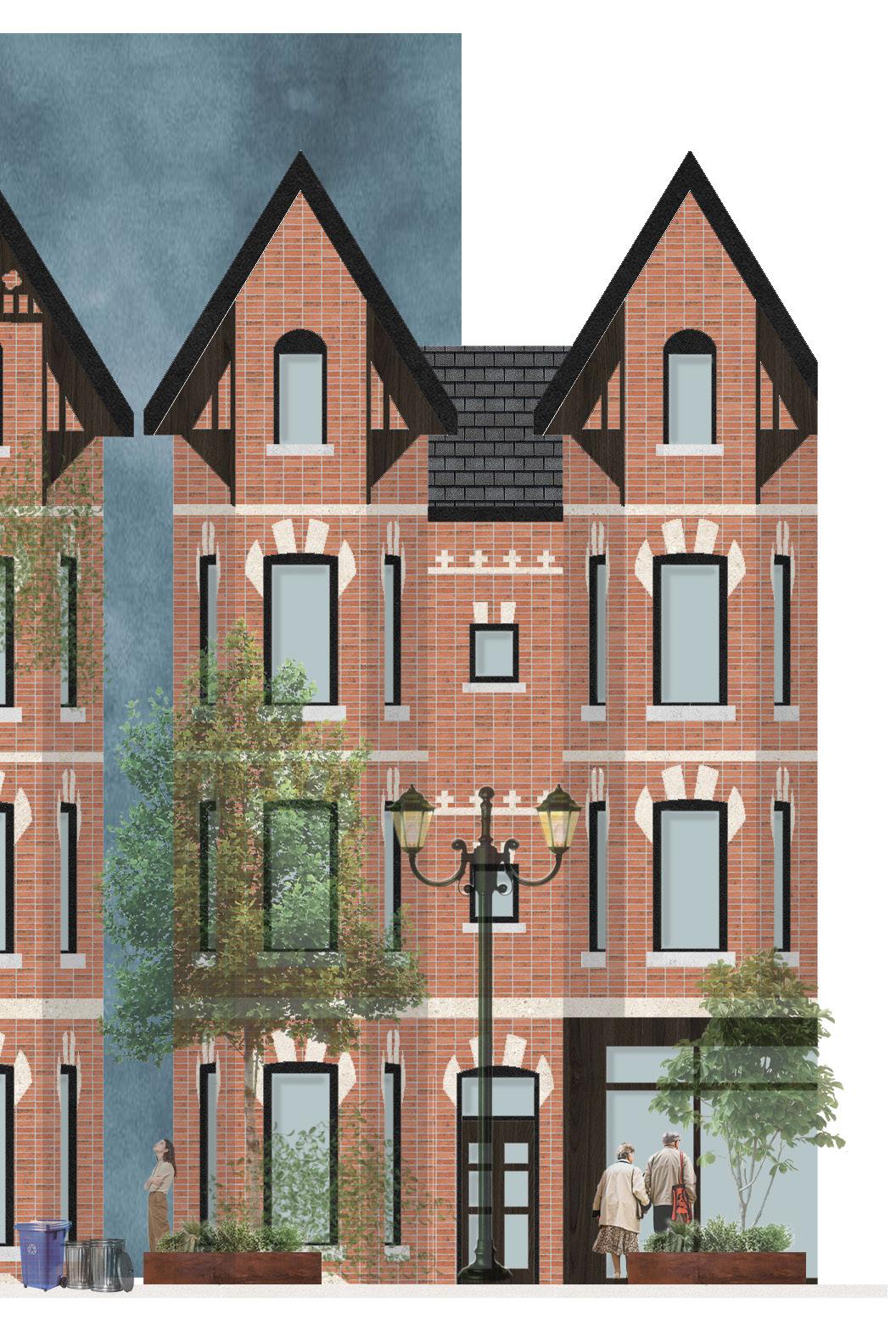

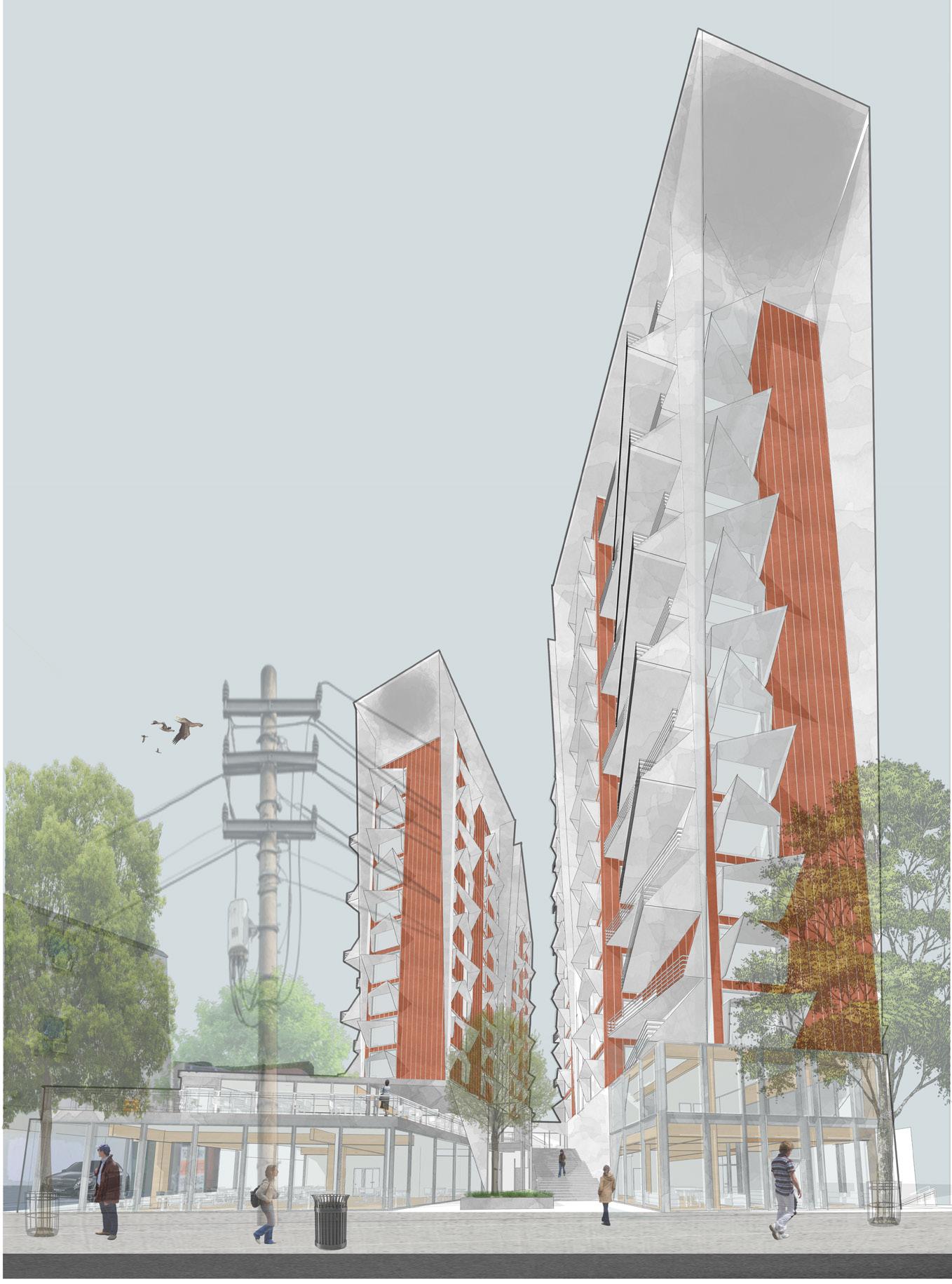

This project aims to address ‘the missing middle’ that is currently found in Toronto’s housing market. 34 units have been tailored to provide housing for students, while also fostering a daycare on the first floor. The building also promotes sustainable design through the use of photo voltaics, a ground source heat pump, and CLT design.

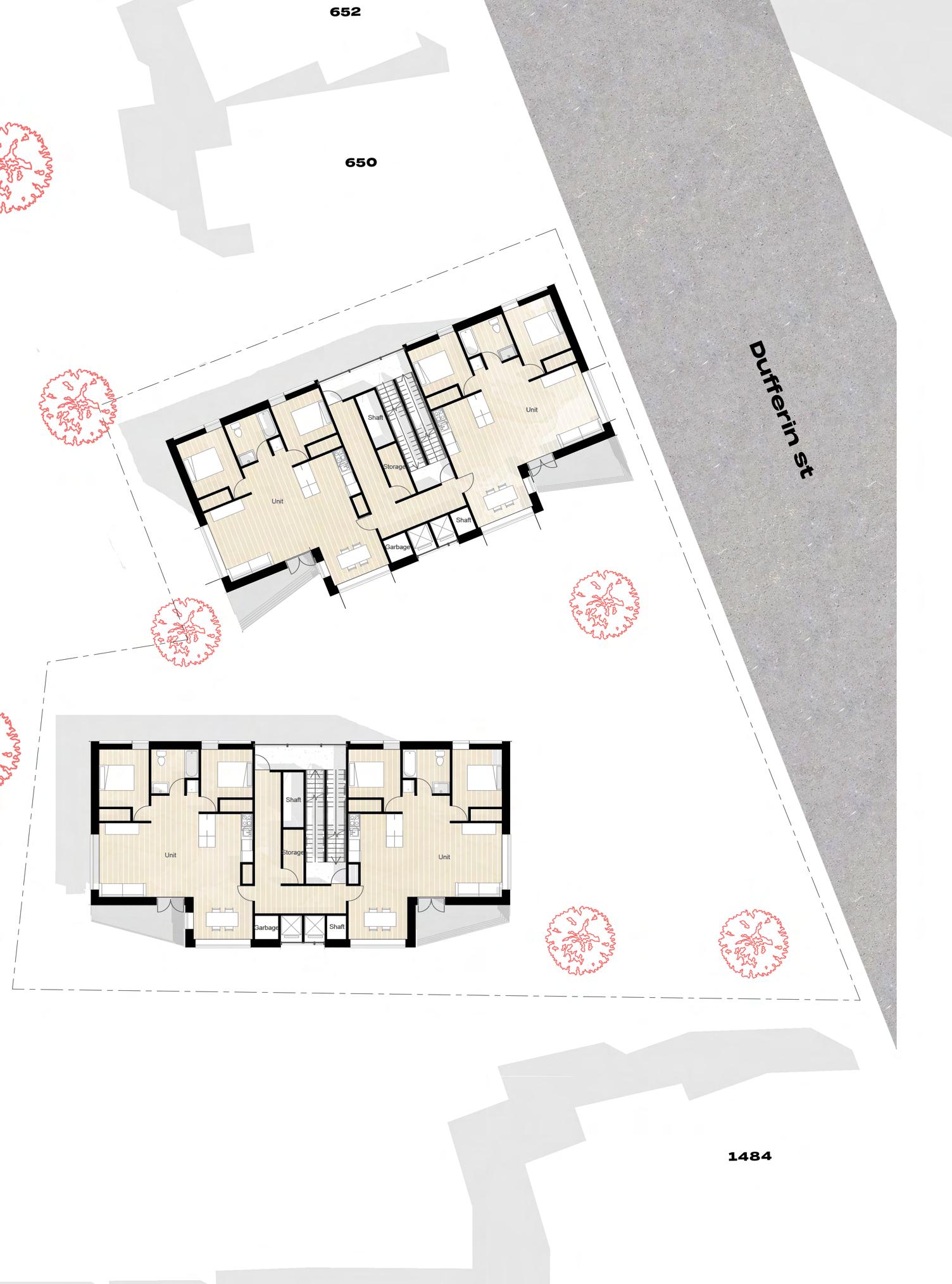

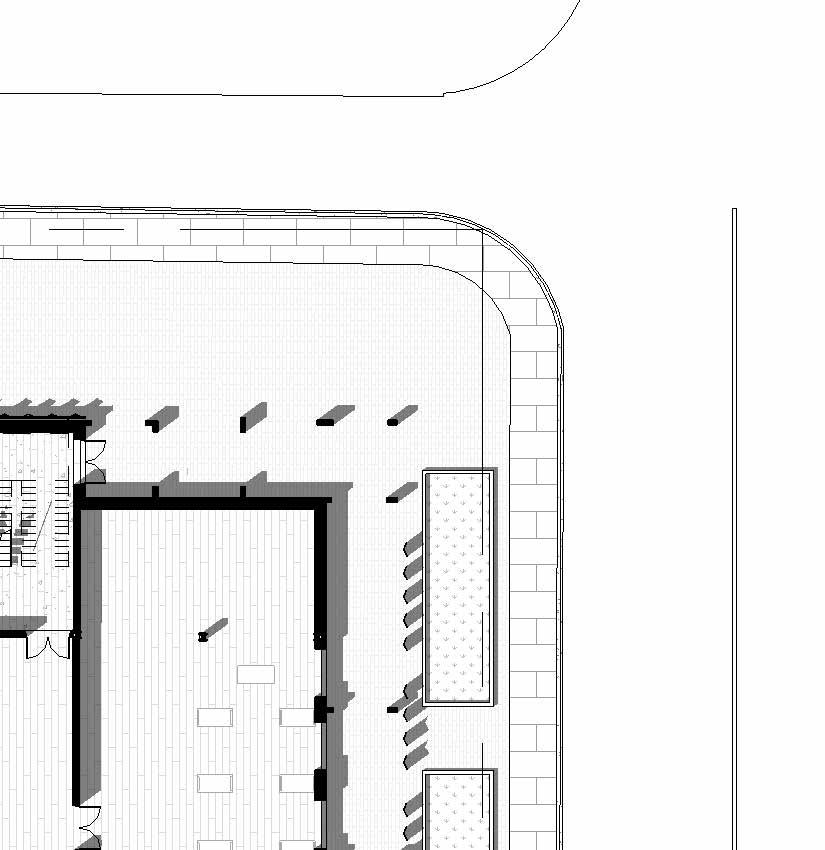

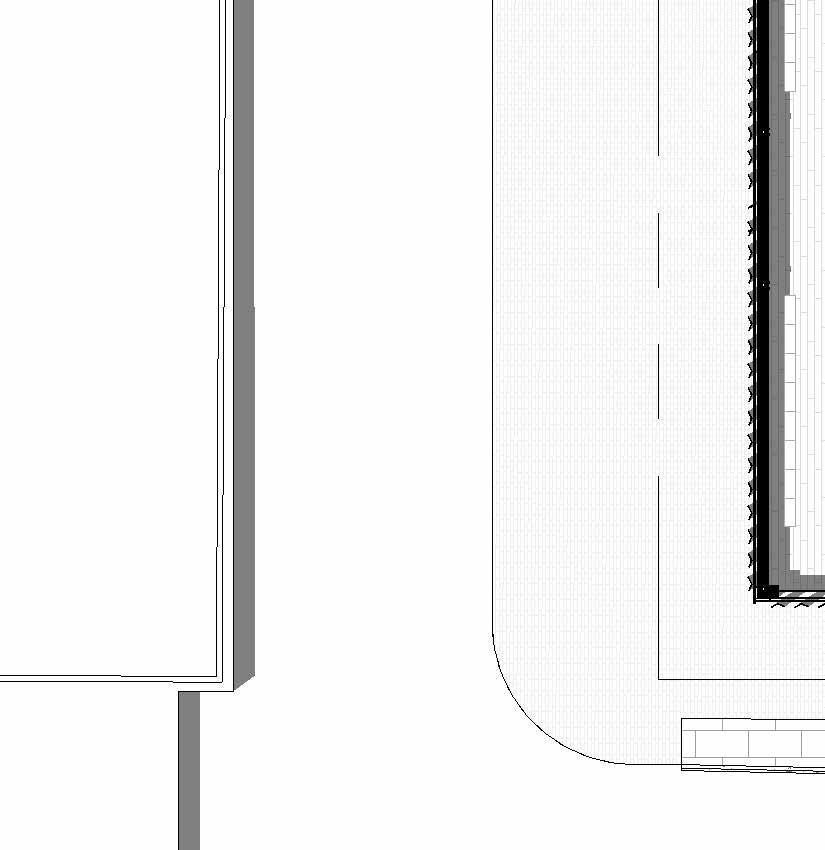

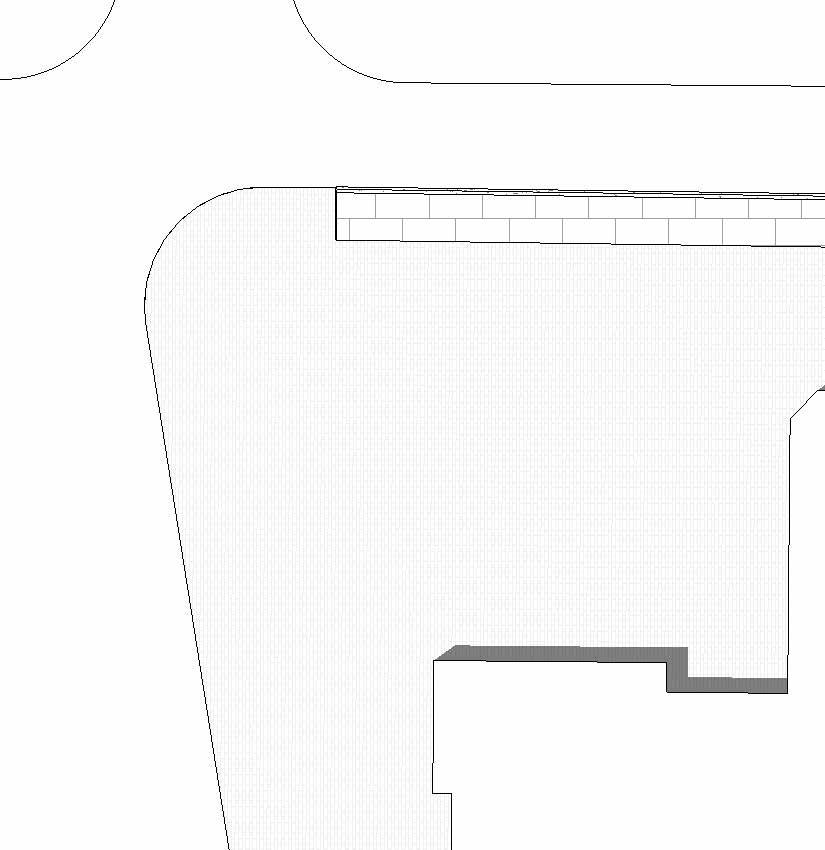

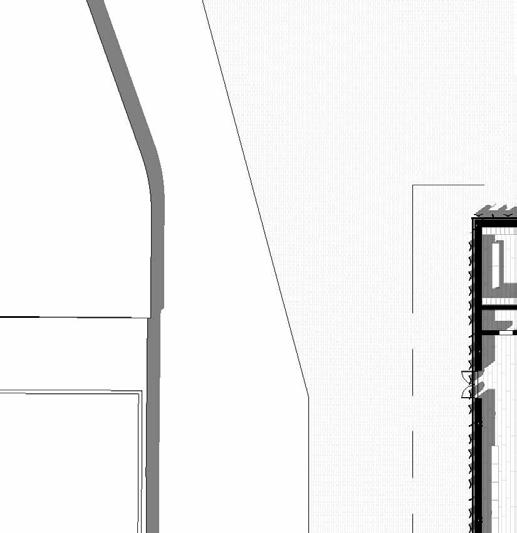

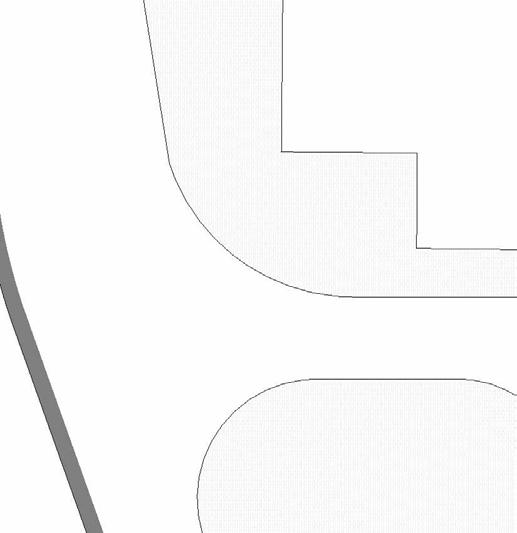

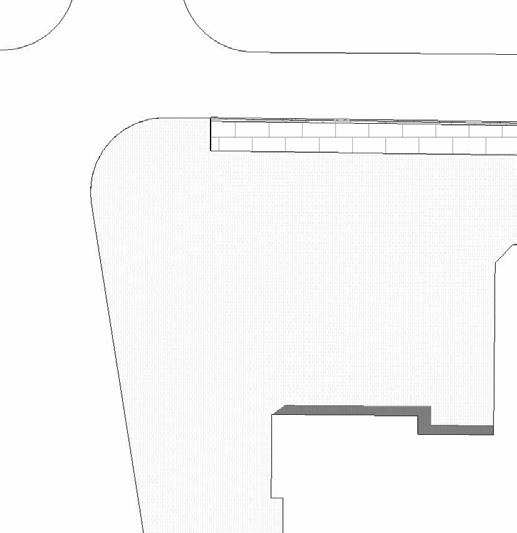

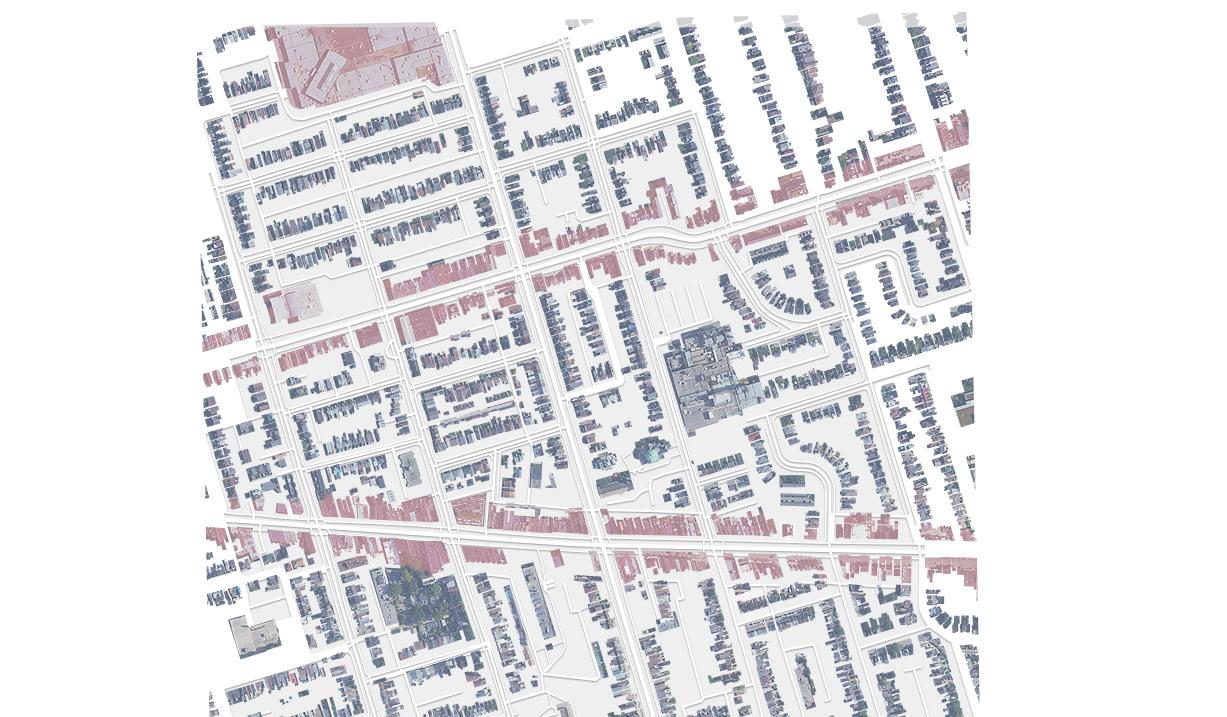

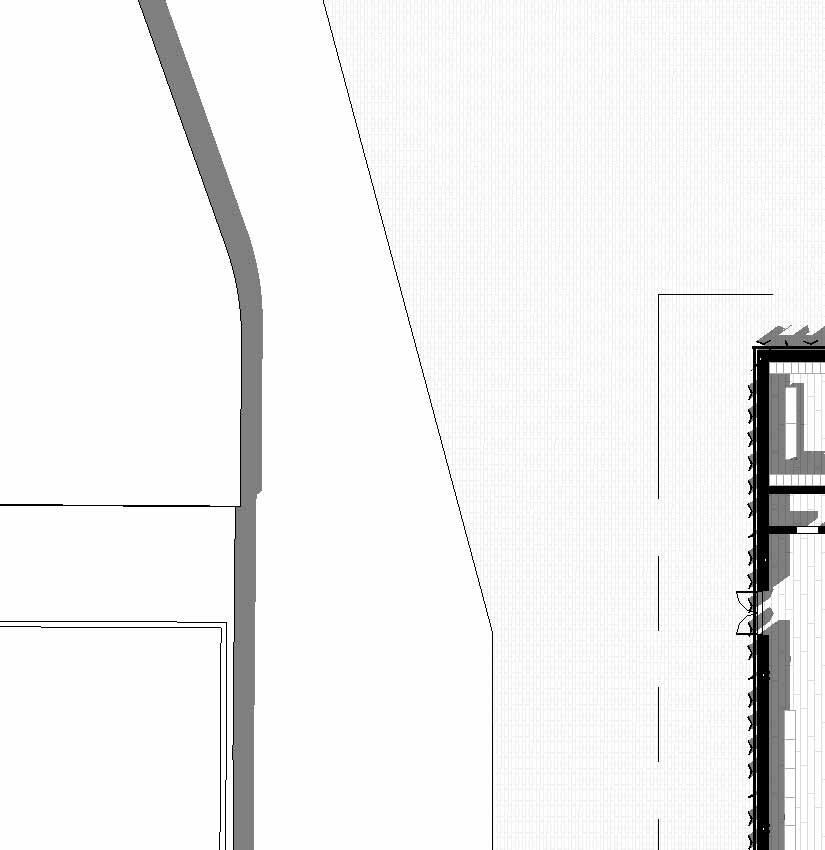

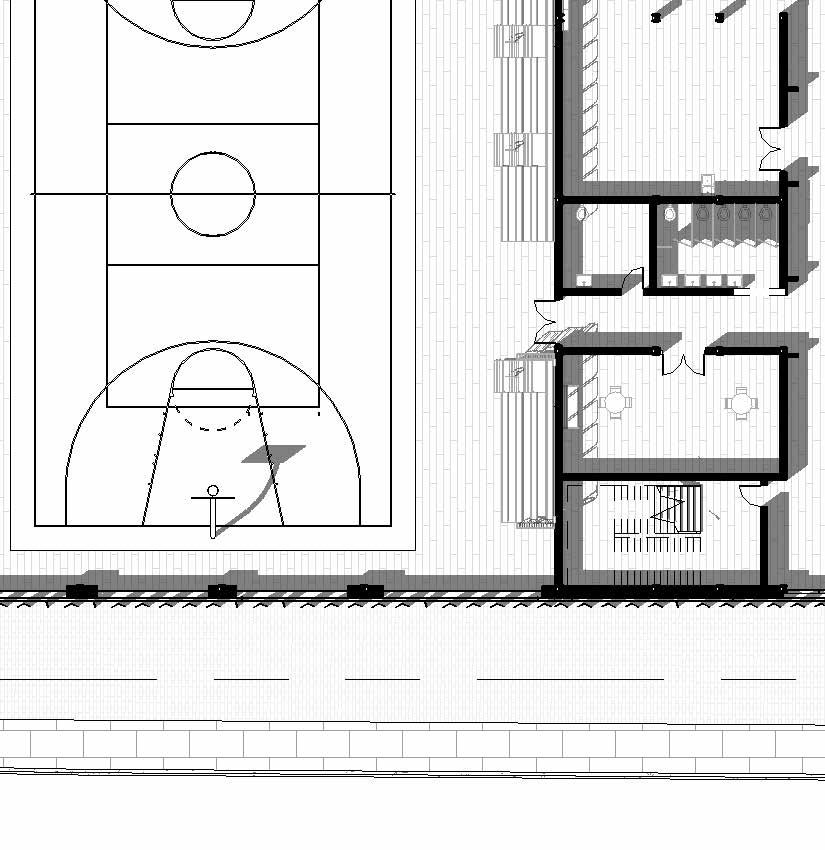

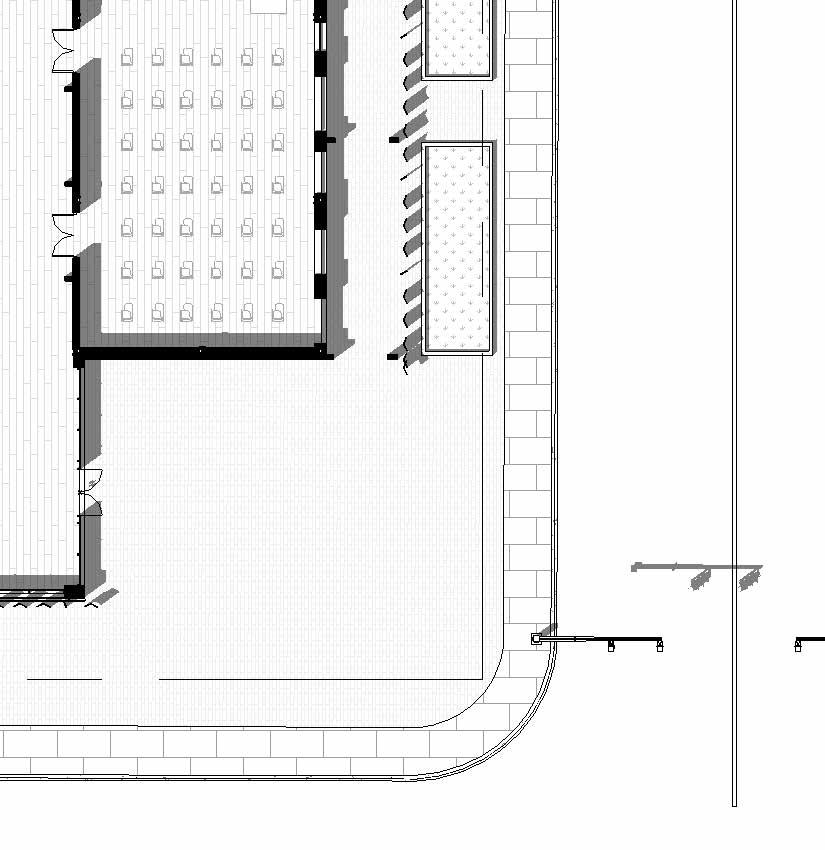

SITE PLAN

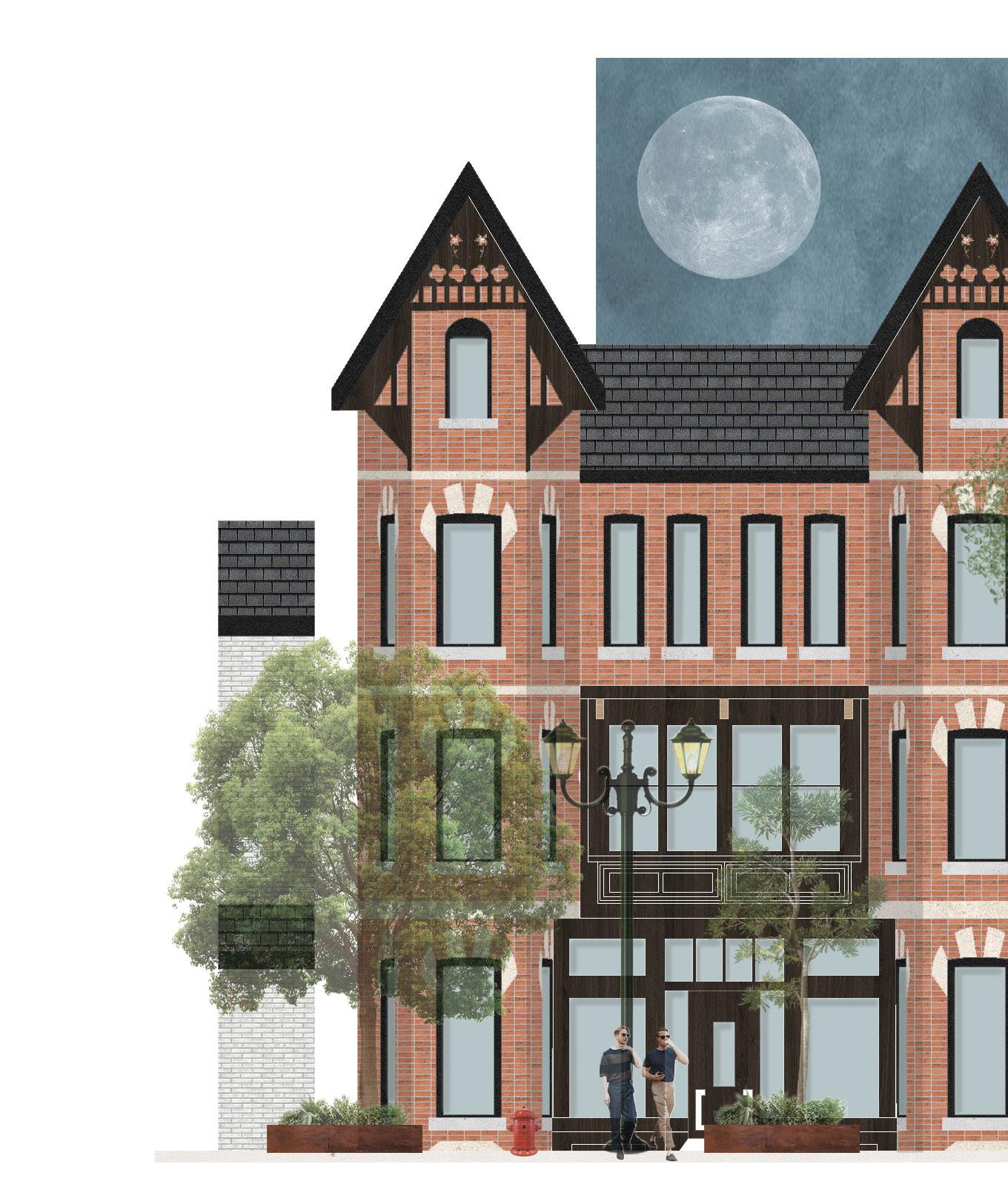

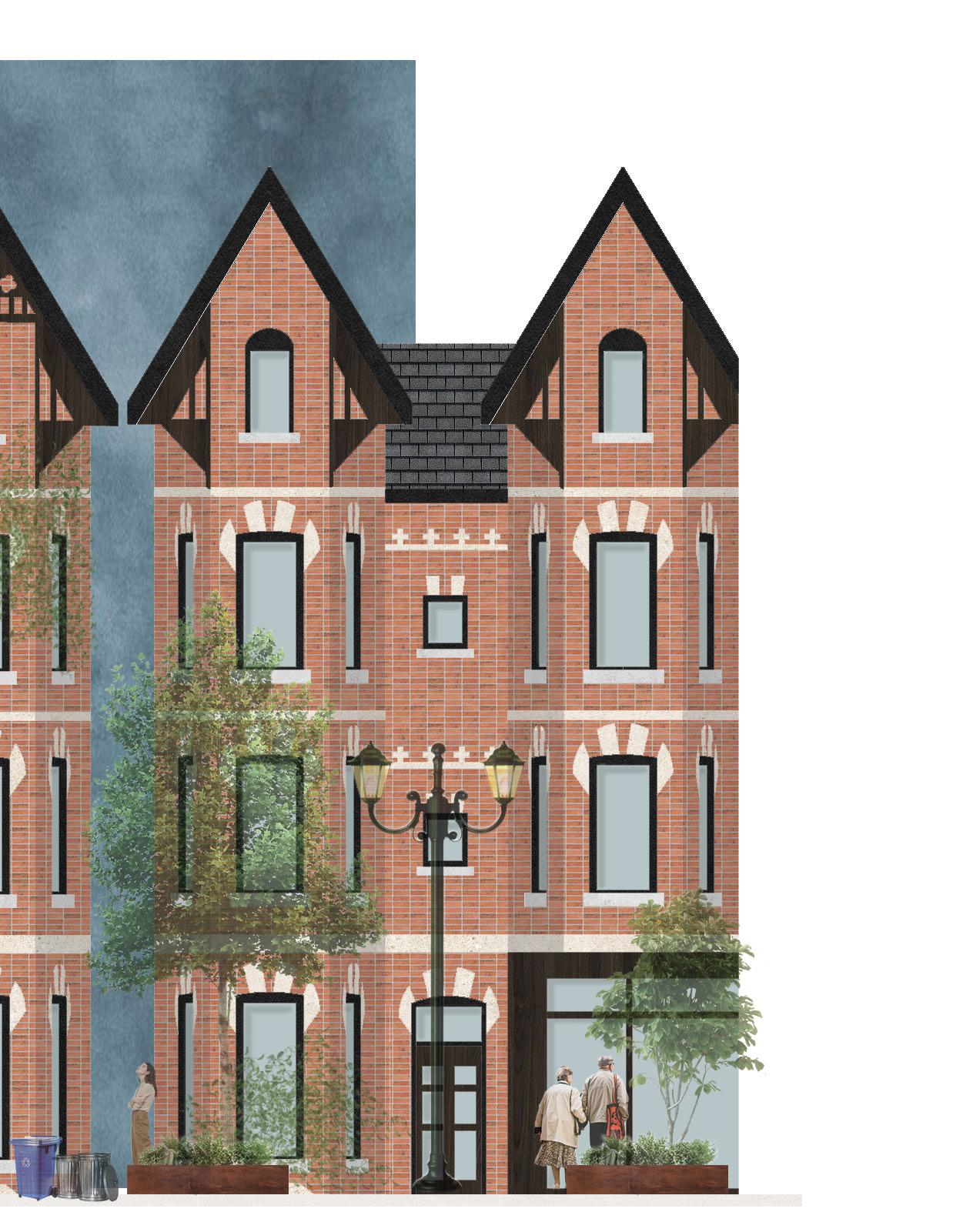

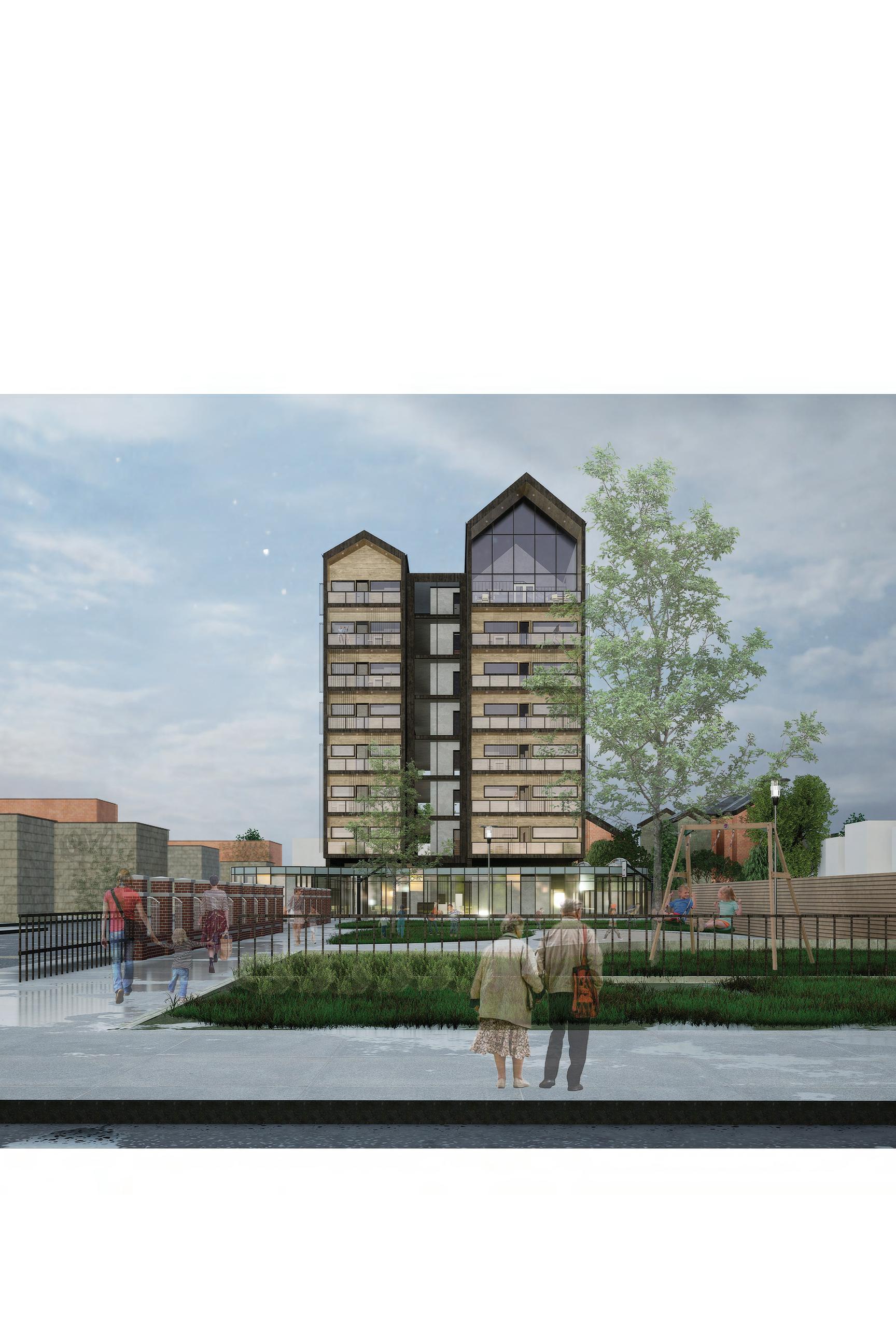

RENDER
SOUTH
BLOCK
EXPLODED AXO 1
NORTH
EXPLODED AXO 2
BLOCK
1 BEDROOM UNIT (41m2) x 21 UNITS
2 BEDROOM UNIT (88m2) x 12 UNITS
4 BEDROOM UNIT (144m2) x 1 UNIT
AMMENITY SPACE (144m2) x 1 UNIT
02 REDESIGNING DUFFERIN COLLEGIATE
Project Type: Academic
Course: Integration Studio II [3rd Year]
Authorship: Group Work
Climate: Humid Continental Climate [Toronto, ON]
Design Role: Space Planning and Facade Design
Digital Tools: Revit, AutoCAD, Twinmotion, Photoshop

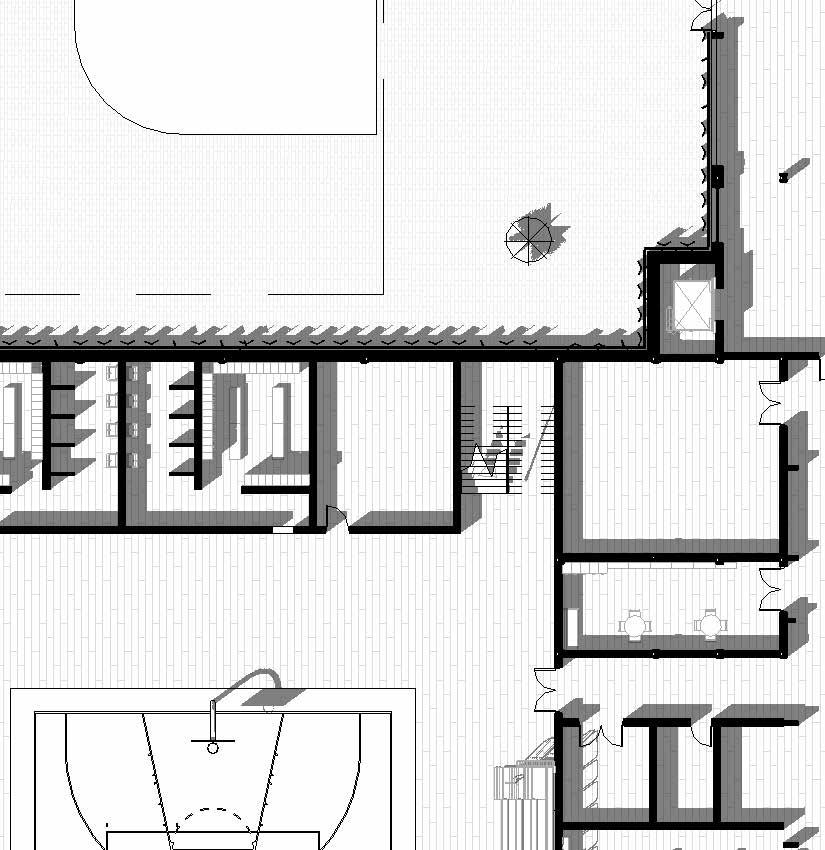

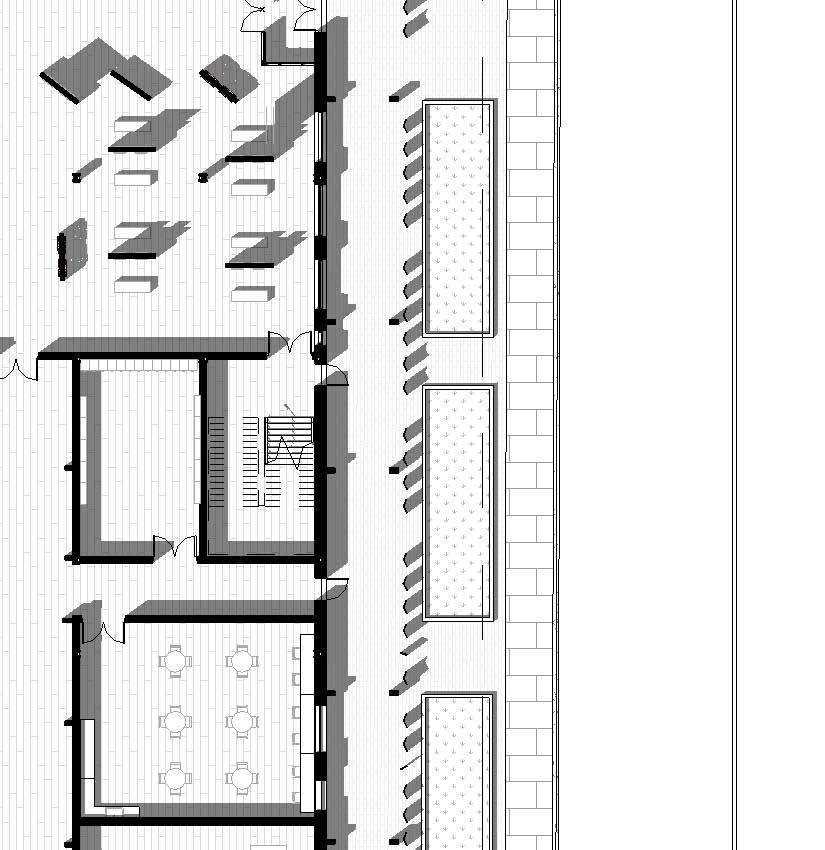

The project redesigns the existing Toronto Dufferin Collegiate highschool. Through incorporating arches, all corridors are designed as arcades, breaking away from conventional boxy corridors engaging visual appeal. An exterior louver system is strategically rotated to form a dynamic pattern of arches along the façade. The school is organized along a linear axis, with arts programs situated at the southern end and essential classes at the northern end. On the first floor, an art gallery doubles as a vibrant community space, fostering a sense of connection to the Dufferin Community.

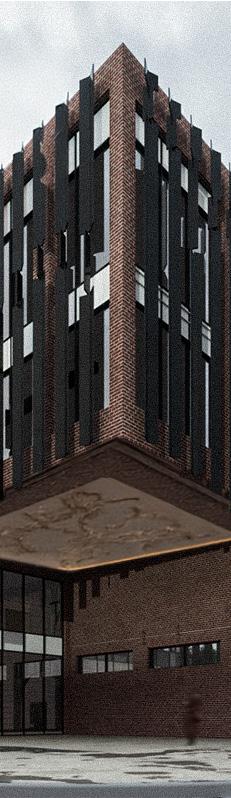

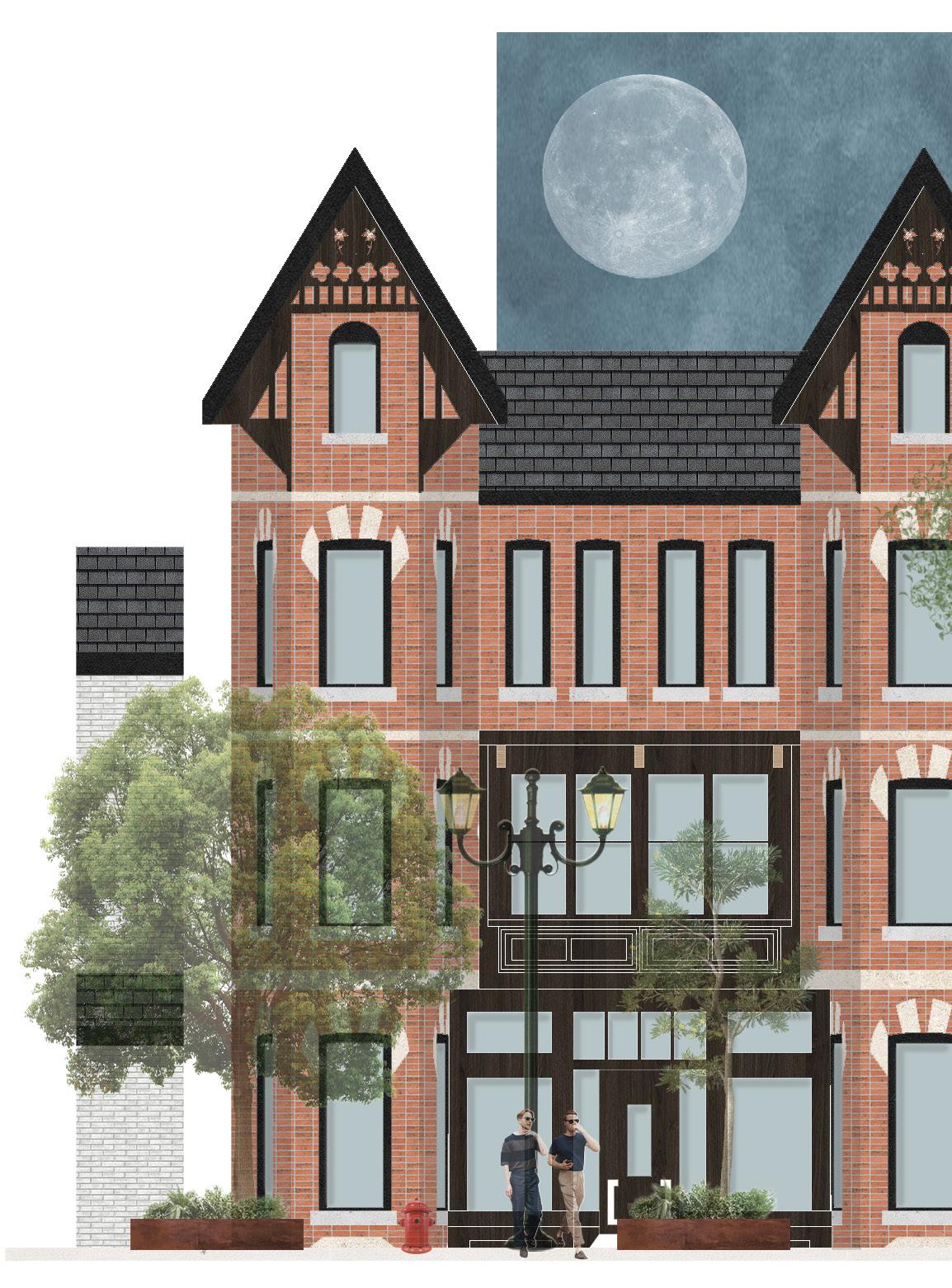

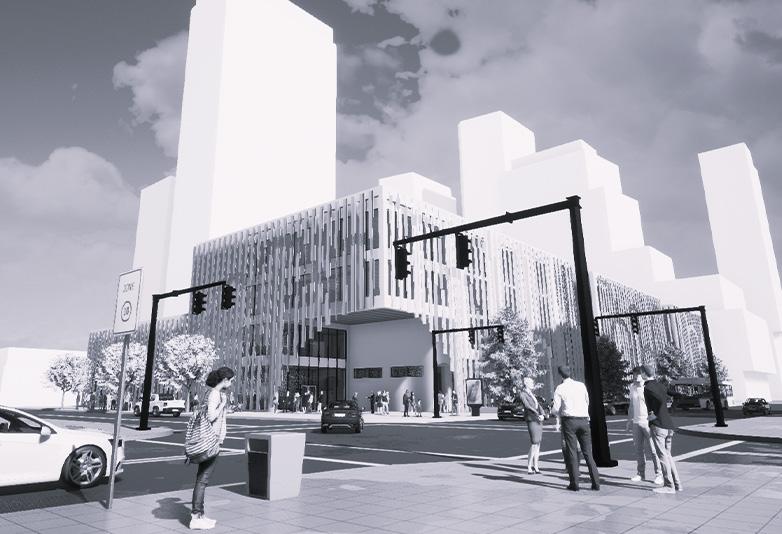

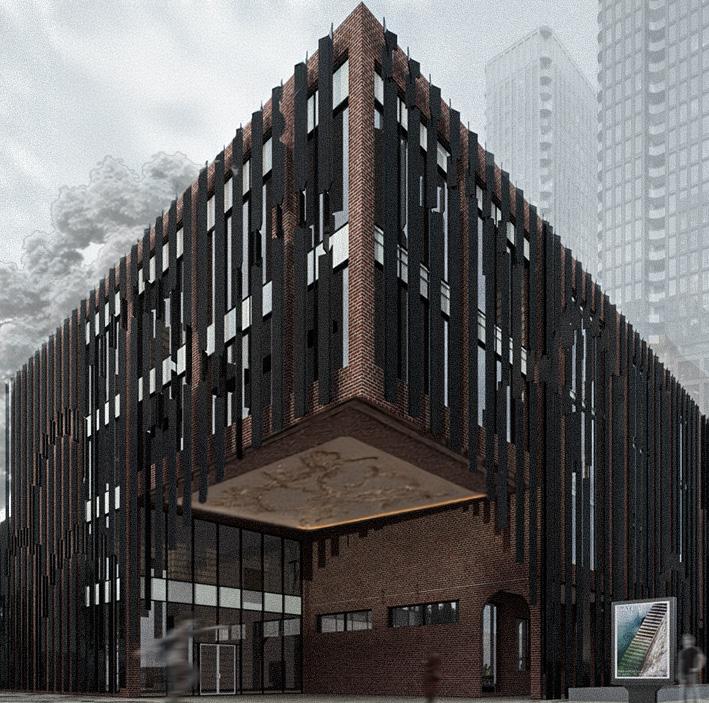

RENDER
LEGEND
1. Metal cap flashing 2. Pea gravel 3. Vegetation 4. Soil growing medium
5. Drainage and water resistance
6. Root barrier
7. Water proof membrane
8. Concrete
9. Metal decking
10. Fire proofing
11. Hanger wire
12. Florecent light
13. Pressed steel channels
14. Ceiling finish
15. Brick wall tie
16. Masonary veneer
17. Air space
18. Weather proofing board
19. Water repellent
20. Batt insulation
21. Rigid insulation
22. Steel I beams
23. Screw attachments
24. Supply air
25. Louvre connection
26. Exterior louvre
27. Interior gypsum DETAIL SECTION

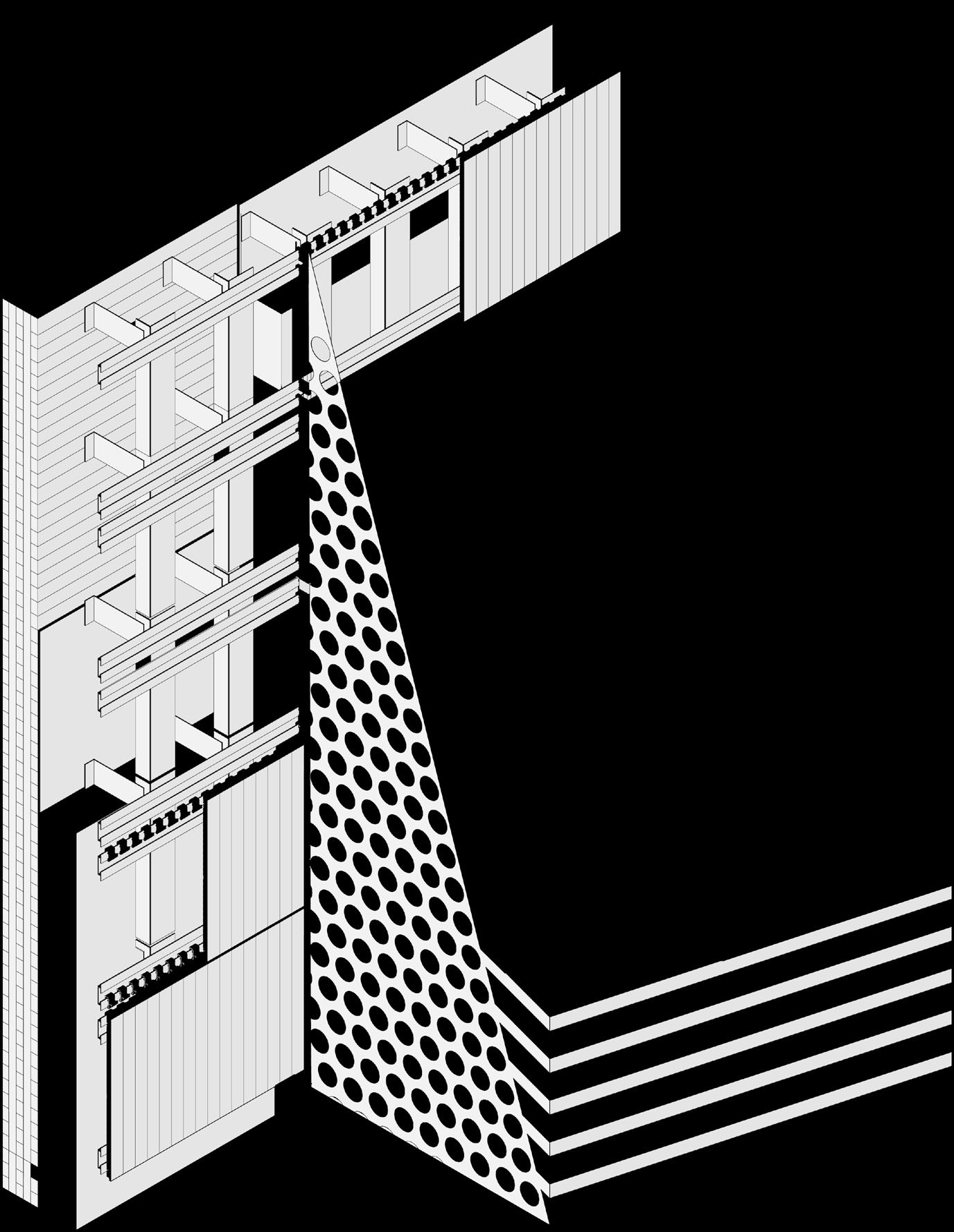

DETAIL AXO
03
REINVENTING THE MURB
Project Type: Academic
Course:
Advanced Architecture Studio [4th Year]
Authorship: Individual
Climate: Humid Continental Climate [Toronto, ON]
Digital Tools: Revit, AutoCAD, Photoshop

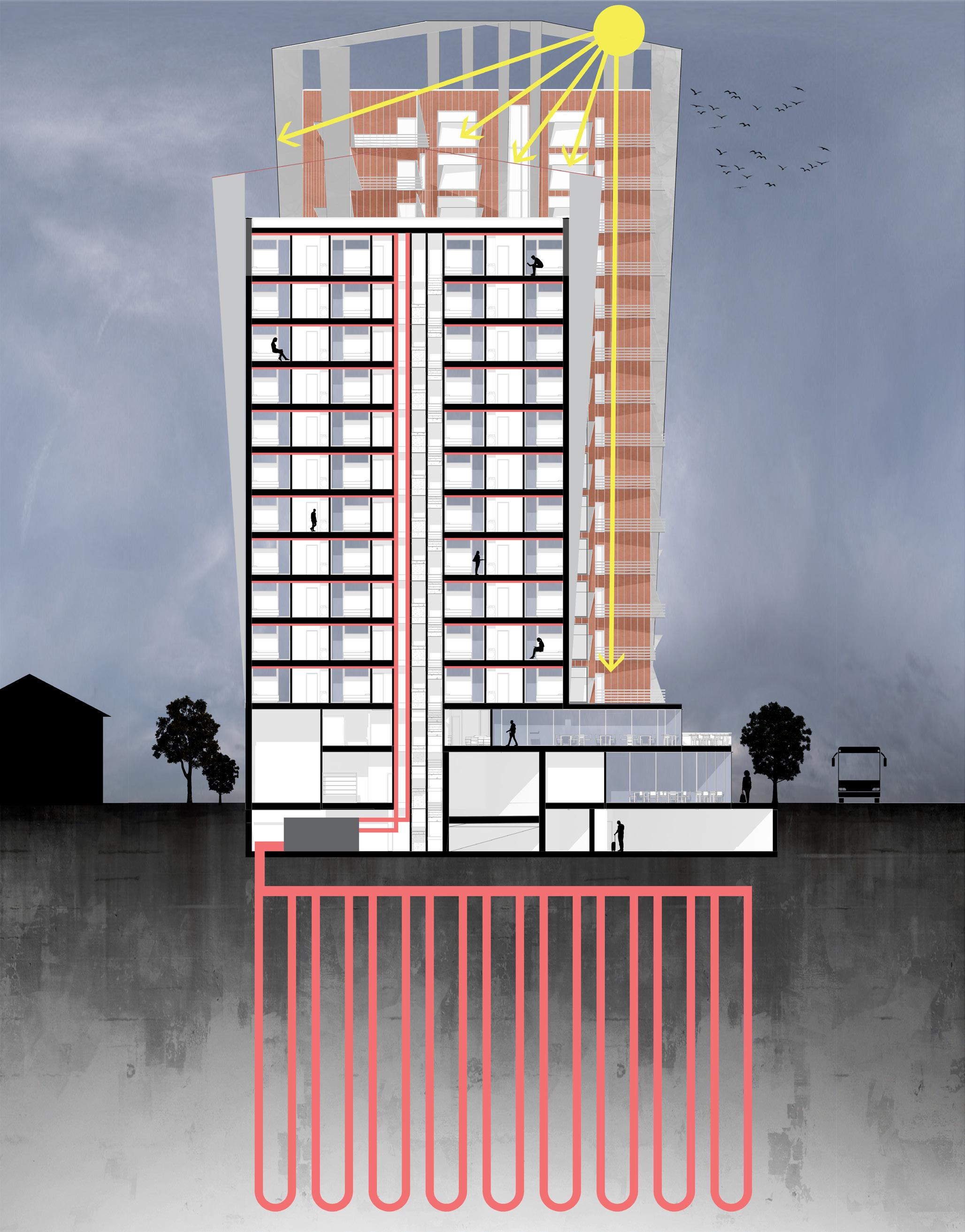

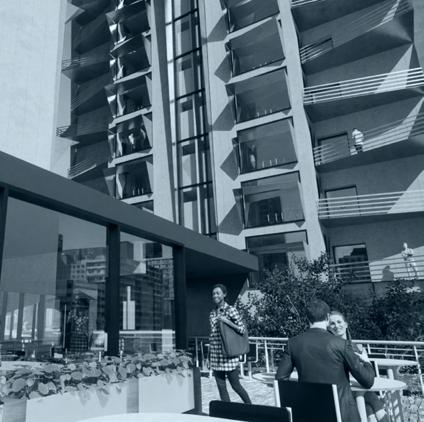

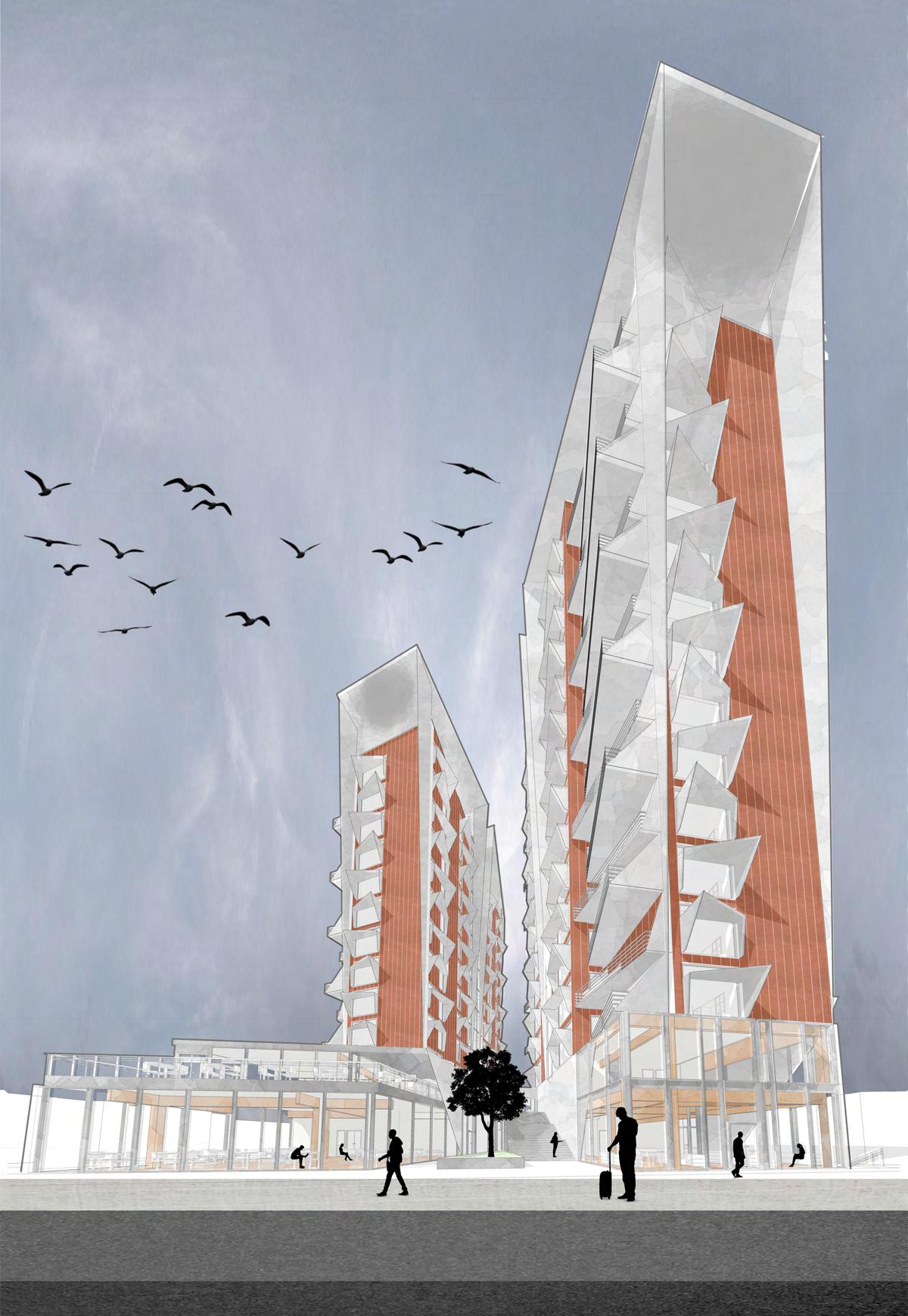

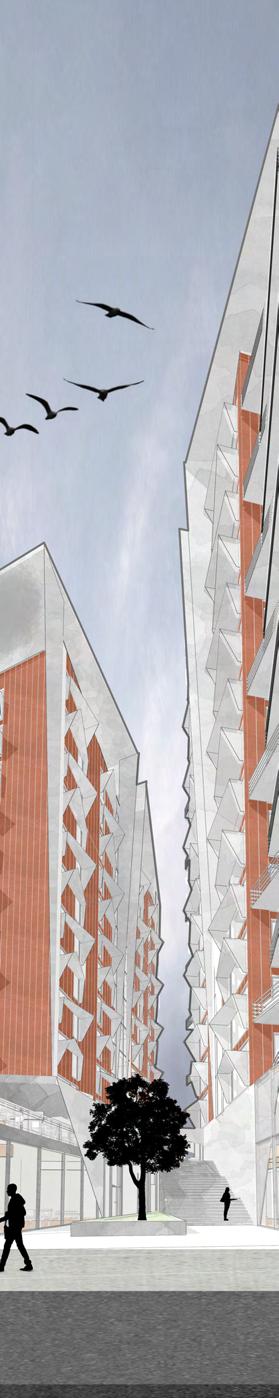

This Multi-Unit Residential Building (MURB) incorporates ‘the Low TEDI approach’ using multiple sustainable technologies to power the building through an aestetically pleasing way. Technologies used include CLT, high preformance windows, and a ground source heat pump. Triangular steel plates have been bolted onto the structure forming light shelves, trusses to support photovoltaics, as well as balconies.

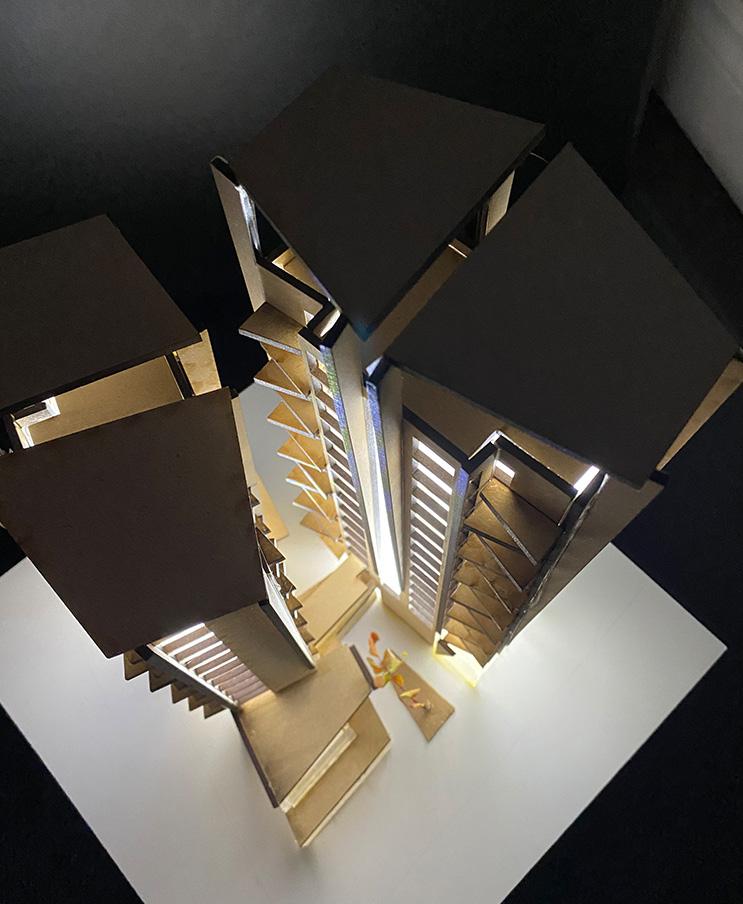

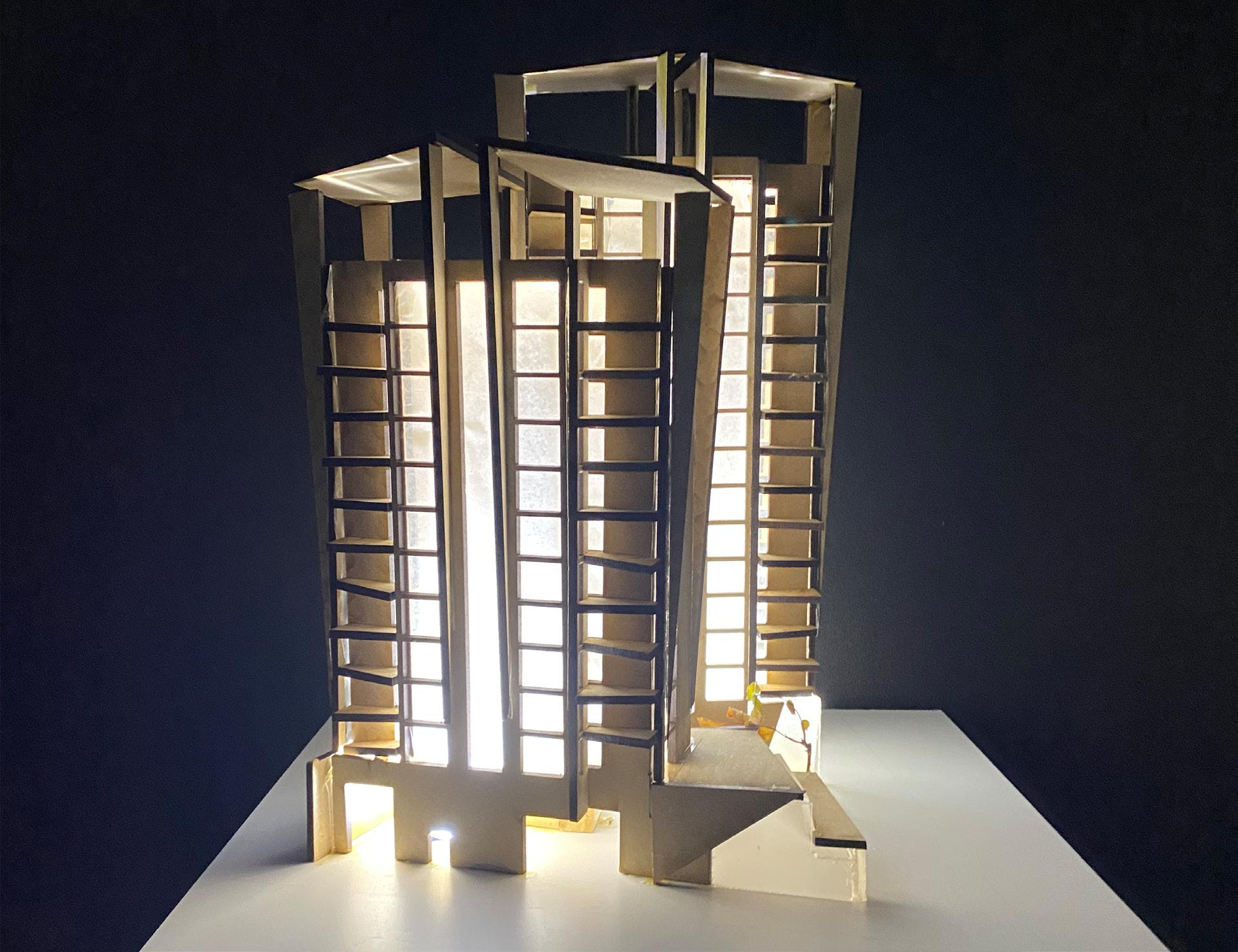

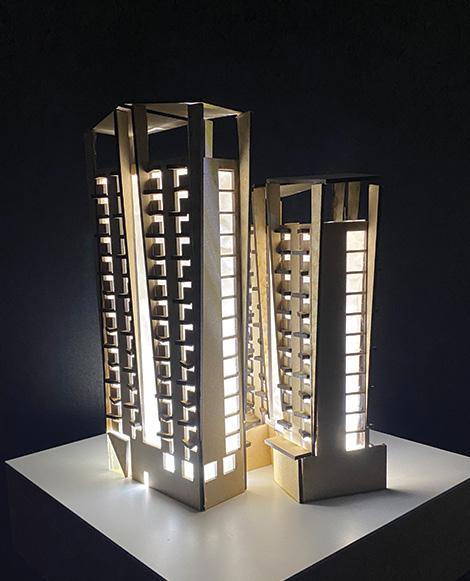

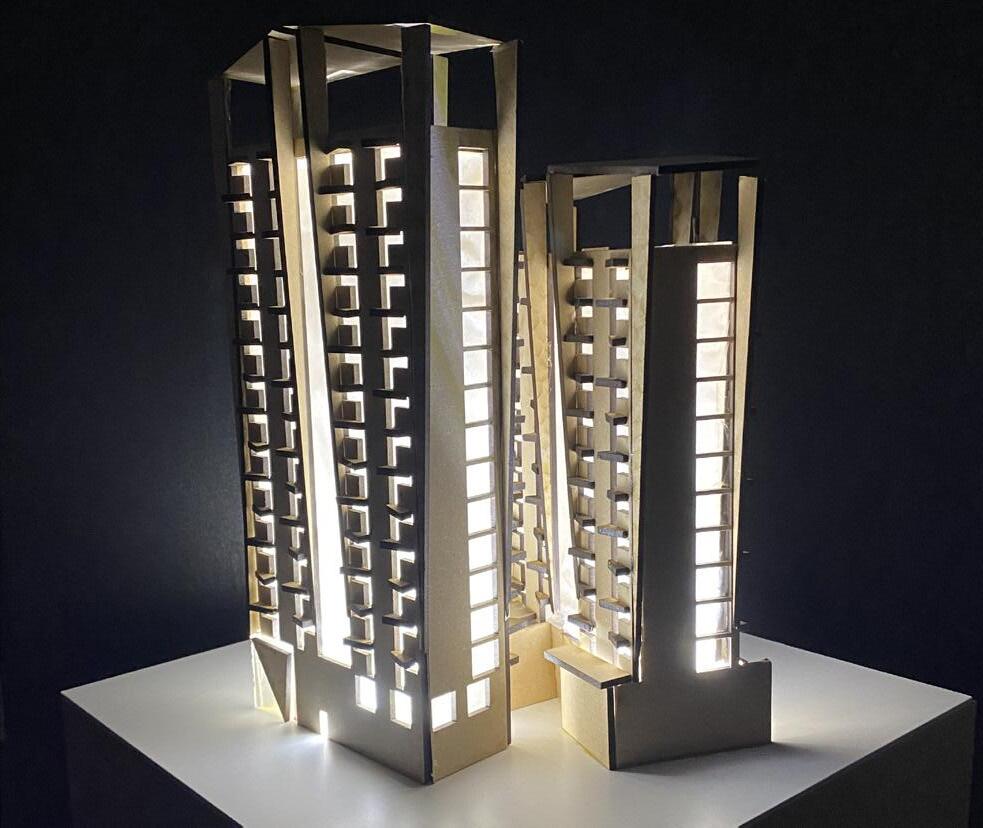

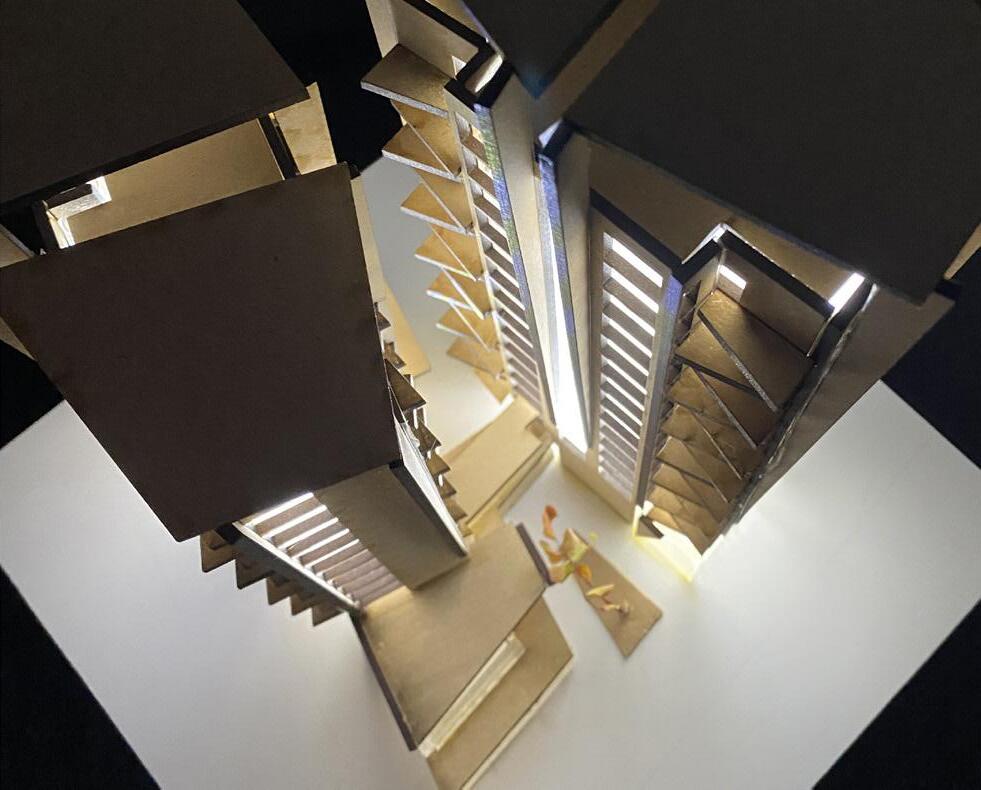

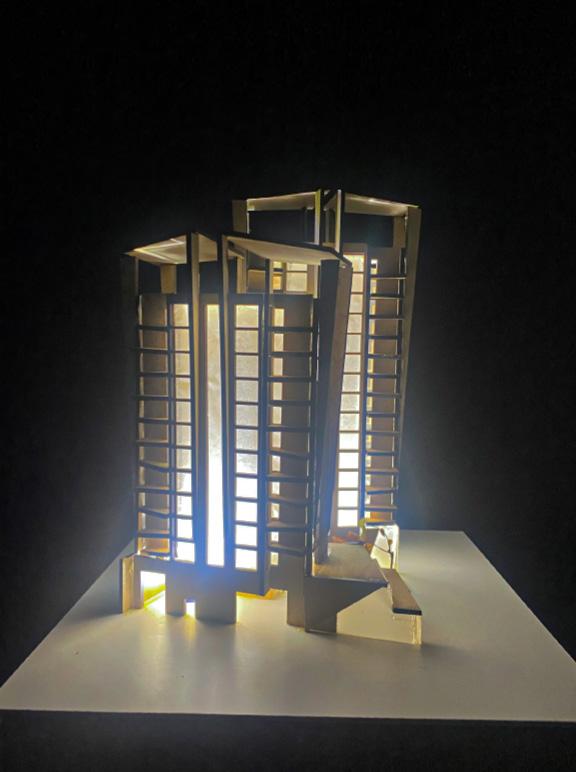

LUMINOUS MODEL IMAGE 1
LUMINOUS MODEL IMAGE 2
LUMINOUS MODEL IMAGE 3
LEGEND
1. Hard wood flooring
2. Polyester fiber mat
3. Gypsum fiberboard
4. Stonewool - density 140 kg/m3
5. Marble granulate
6. Wooden floor studs
7. CLT floor panel - 5 layers
8. Stonewool density 50 kg/m3
9. Plasterboard
10. 500 mm Terracotta pannel
11. Self drilling screw 3/16 x 3/4
12. Adjustable hanger
13. S/S adjustable screw
14. Tekselect screw
15. Carrier rail
16. Window frame
17. Alpha V+ wall bracket
18. Vertical L profile
19. A/V barrier
20. Exterior wall
21. Fiberglass insulation
22. CLT Wall panel
23. Wall flashing
24. Exterior Insulation
25. Vapour membrane
26. 10 mm perferated steel
27. Guard rail
SECTIONAL DETAIL
04
REENGAGING THE COMMUNITY
Project Type: Academic
Course: Design Studio II [2nd Year]
Authorship: Individual
Climate: Humid Continental Climate [Toronto, ON]
Digital Tools: Rhino, AutoCAD, Twinmotion, Photoshop, Illustrator

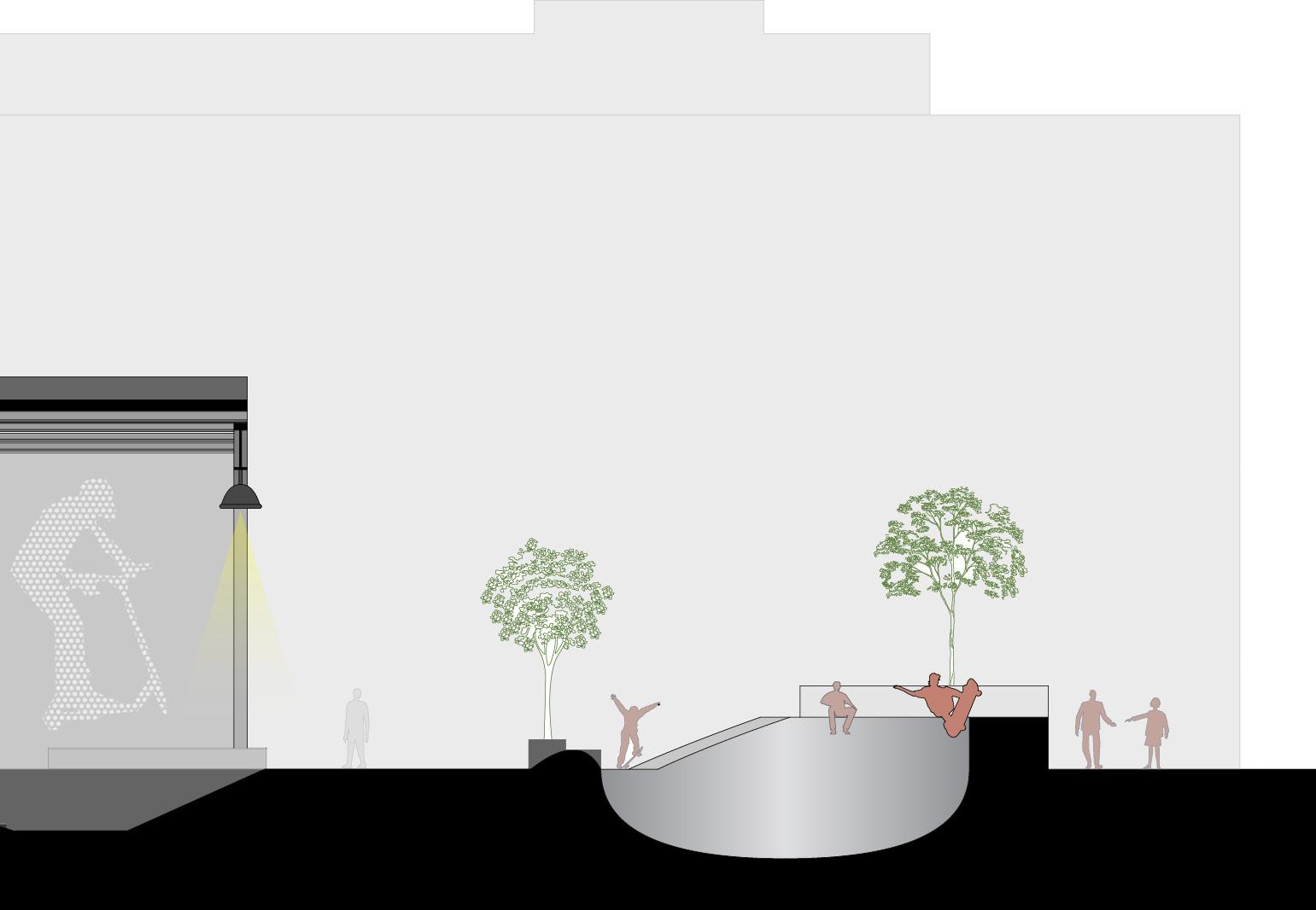

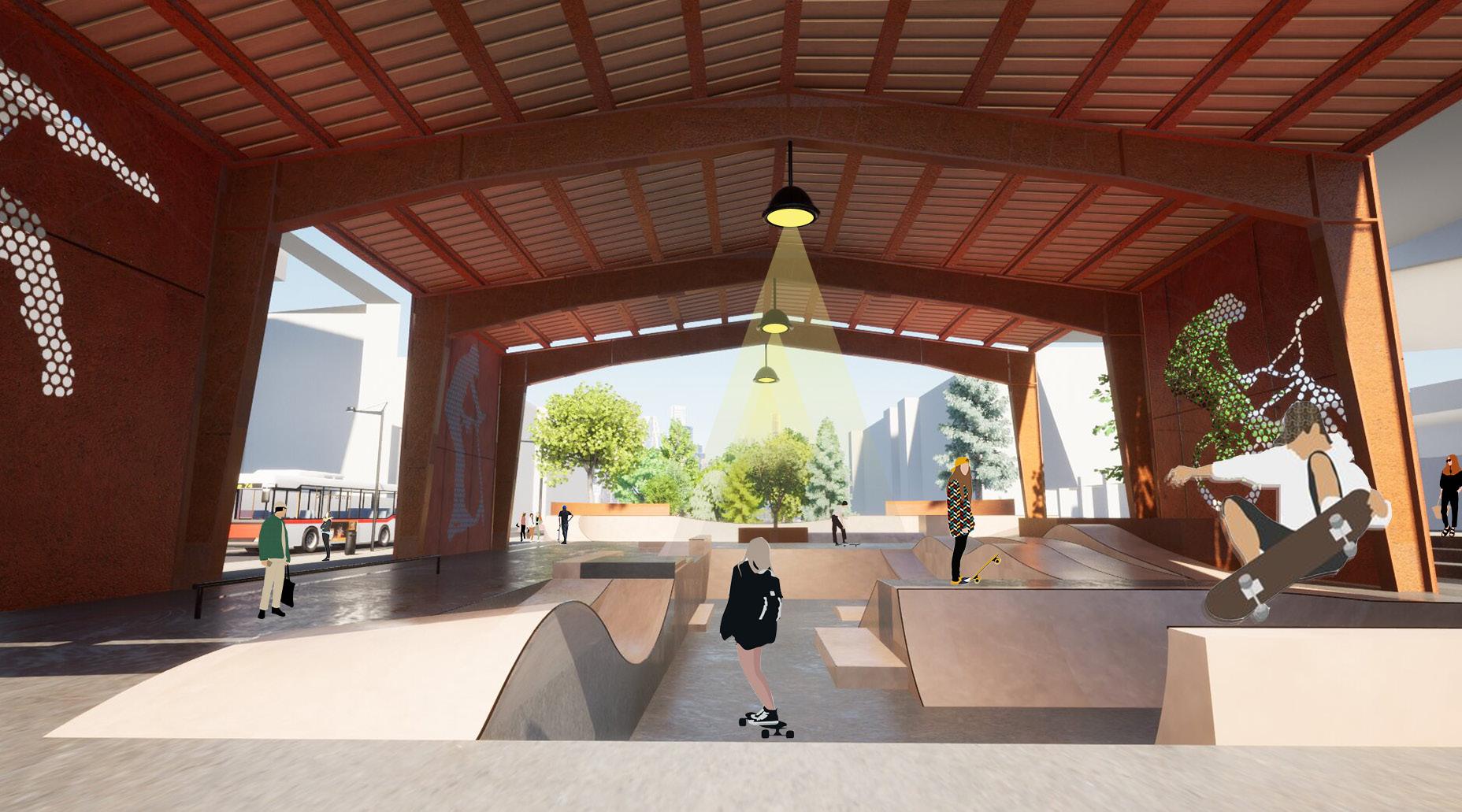

The skatepark is designed along a linear axis, with the west end dedicated to street skating within a sheltered space, while the east end caters to bowl skating under the open sky. This dual-environment setup infuses the park with a sense of adventure and dynamism as skaters move from one section to the other. Upon entering, skaters encounter smaller features that act as a threshold, setting the stage for the larger experiences that awaits them.

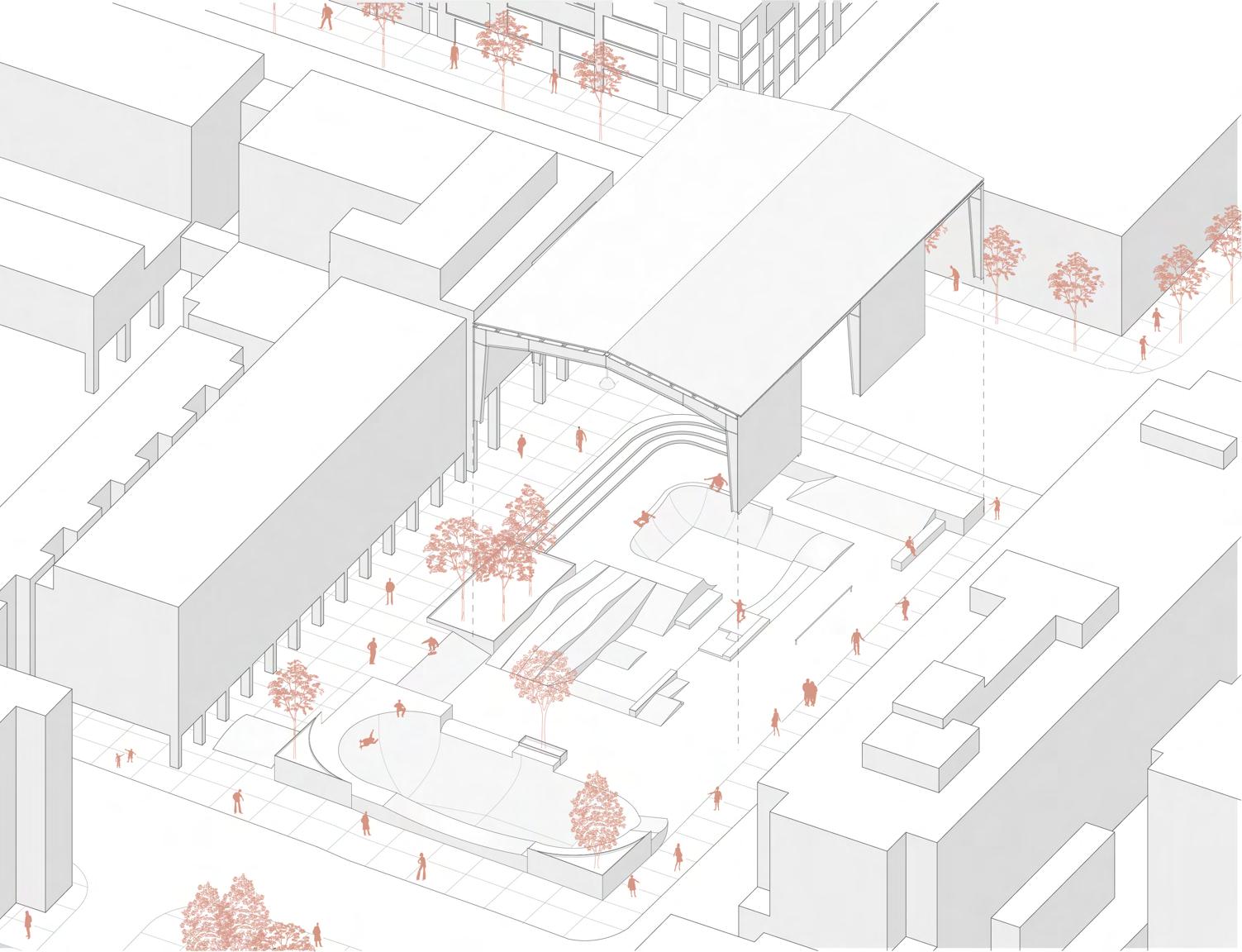

ISOMETRIC

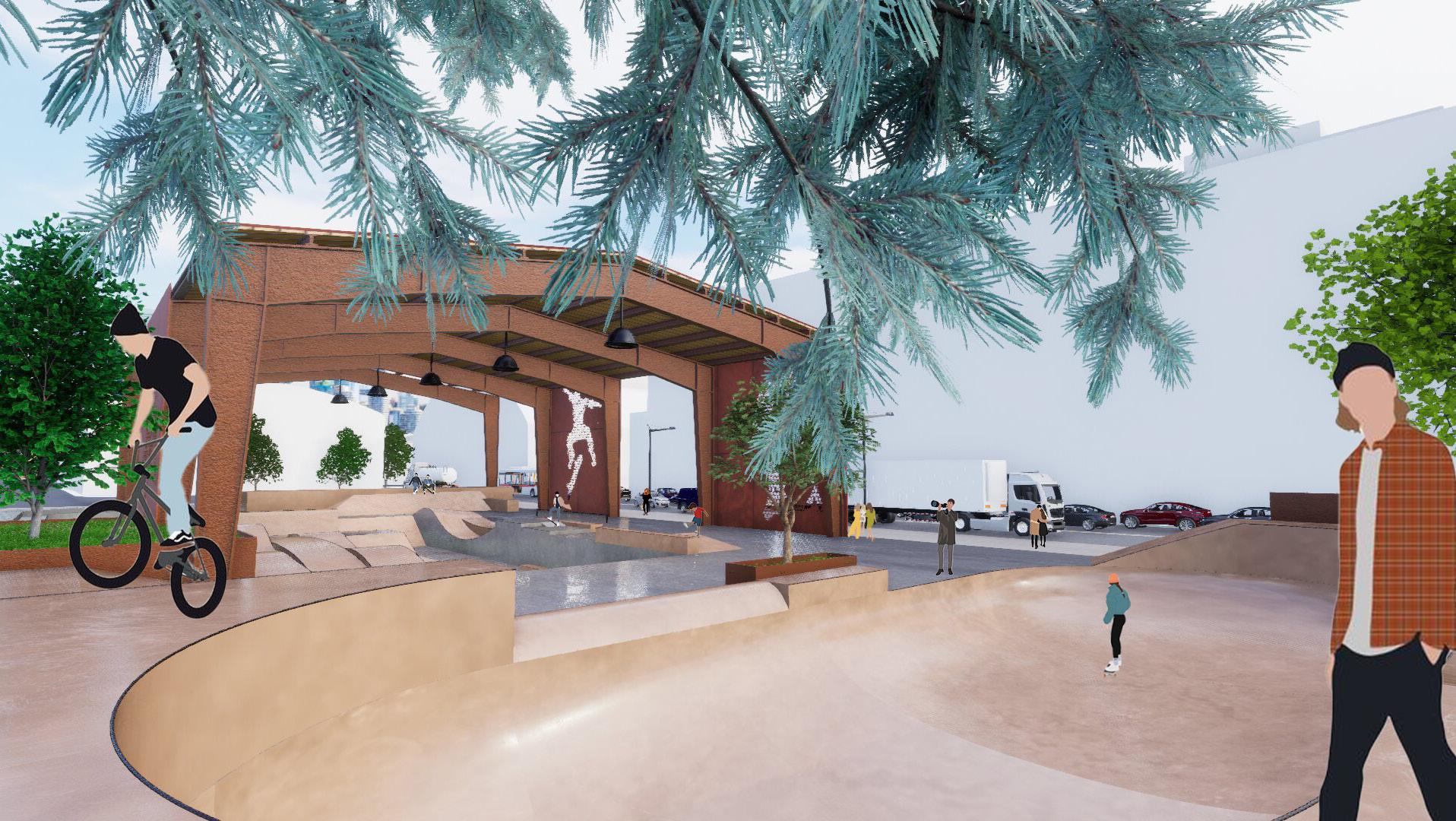

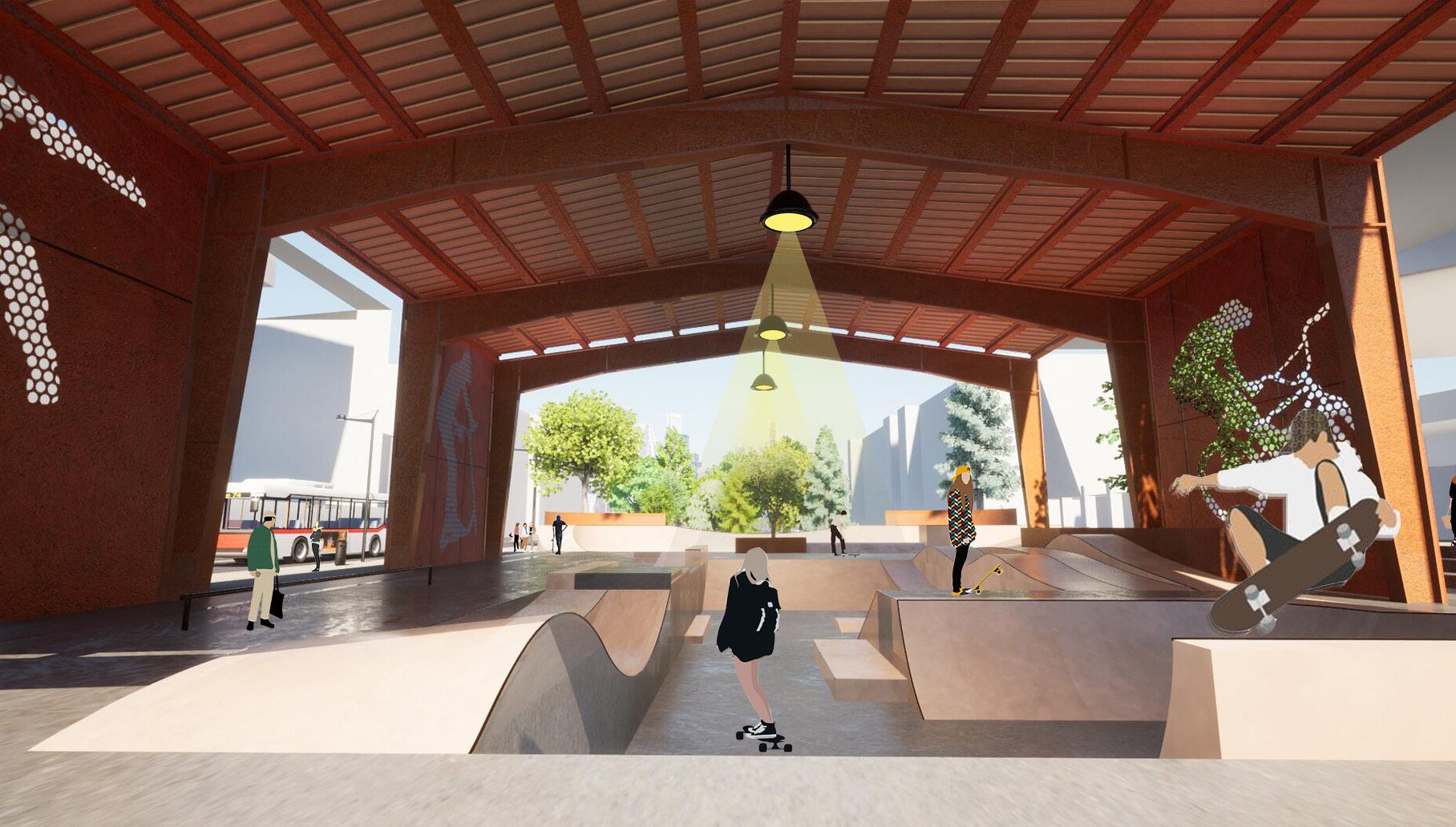

RENDER 1

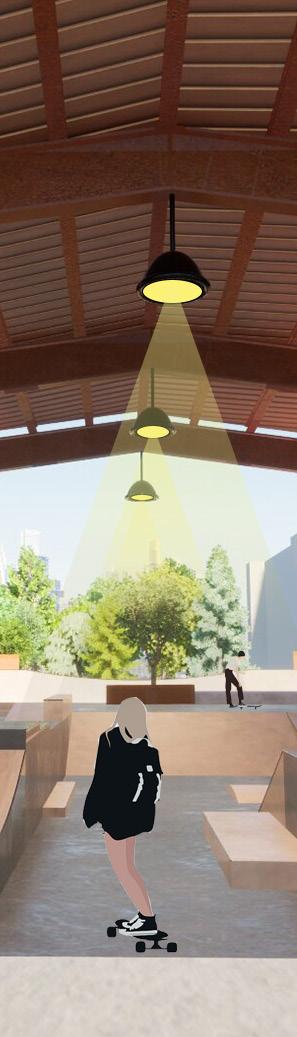

RENDER 2
05 CITY EXPRESS RENOVATION
Project Type: Professional Authorship: Group Work Climate: Humid Continental Climate [Collingwood, ON]
Design Role: Space Planning of Guestrooms and Basement Digital Tools: AutoCAD

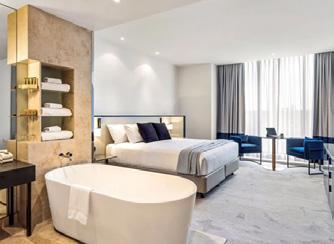

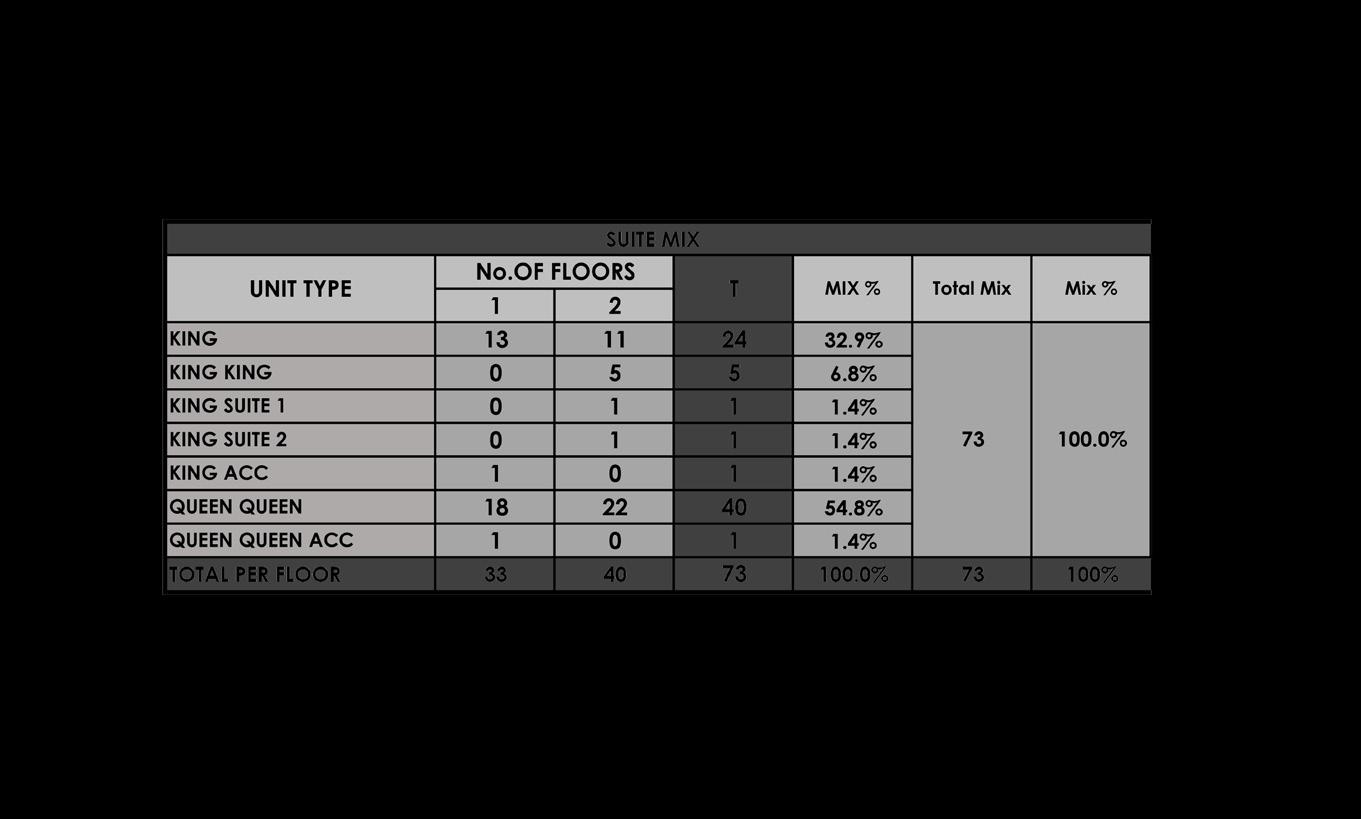

This project involves the redesign of an underutilized hotel property, transforming it into a City Express by Marriott. The renovation focuses on implementing spatial layouts, maximizing usable area and reconfiguring interior programs.

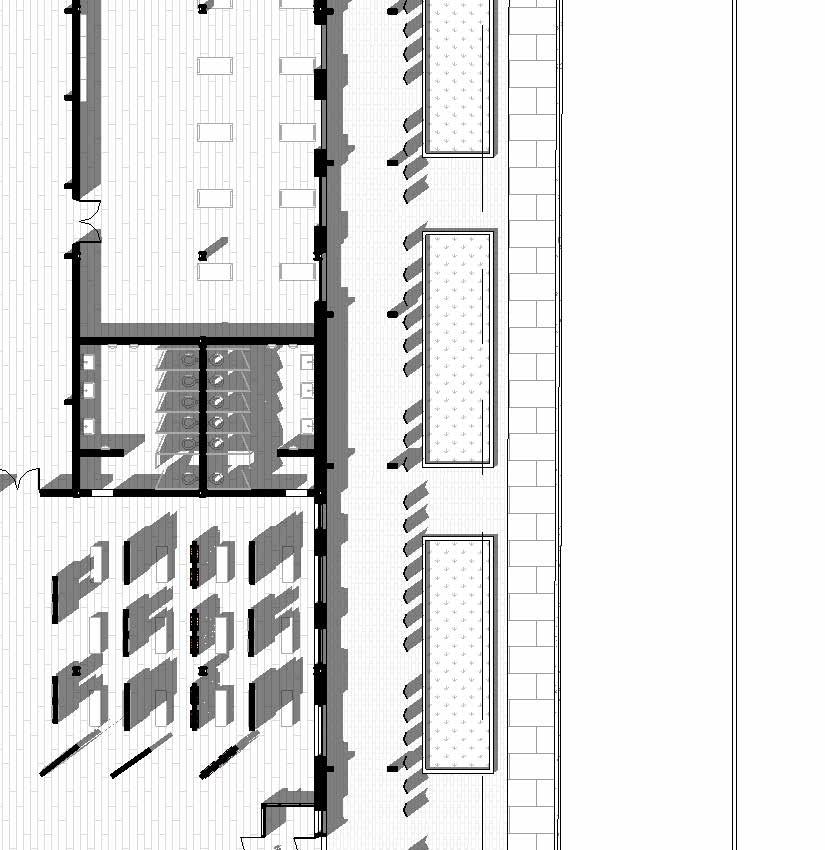

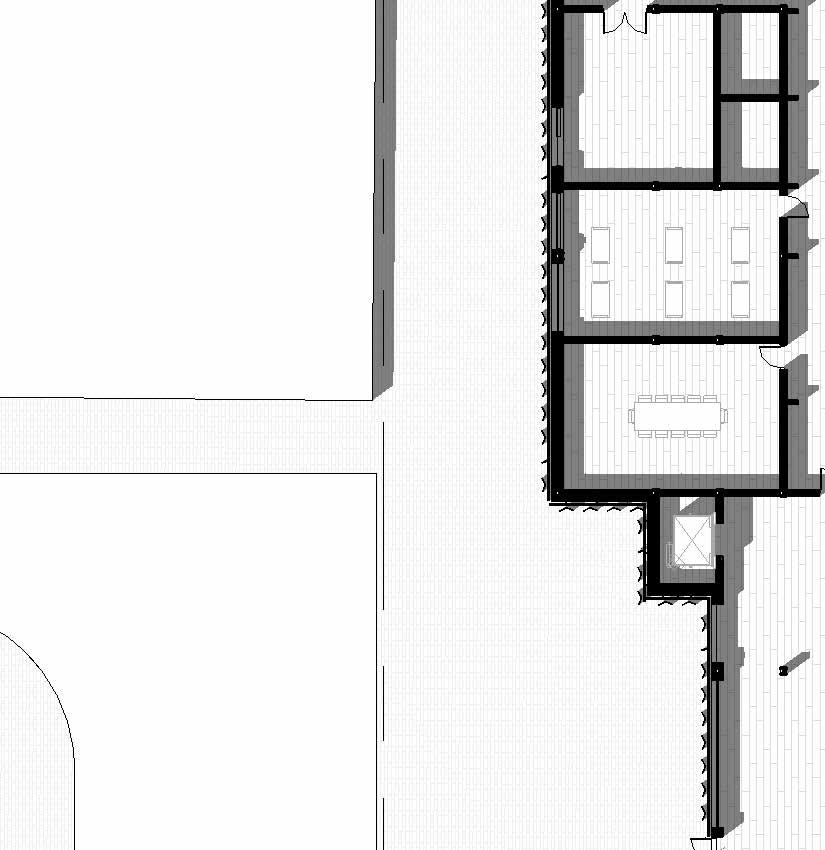

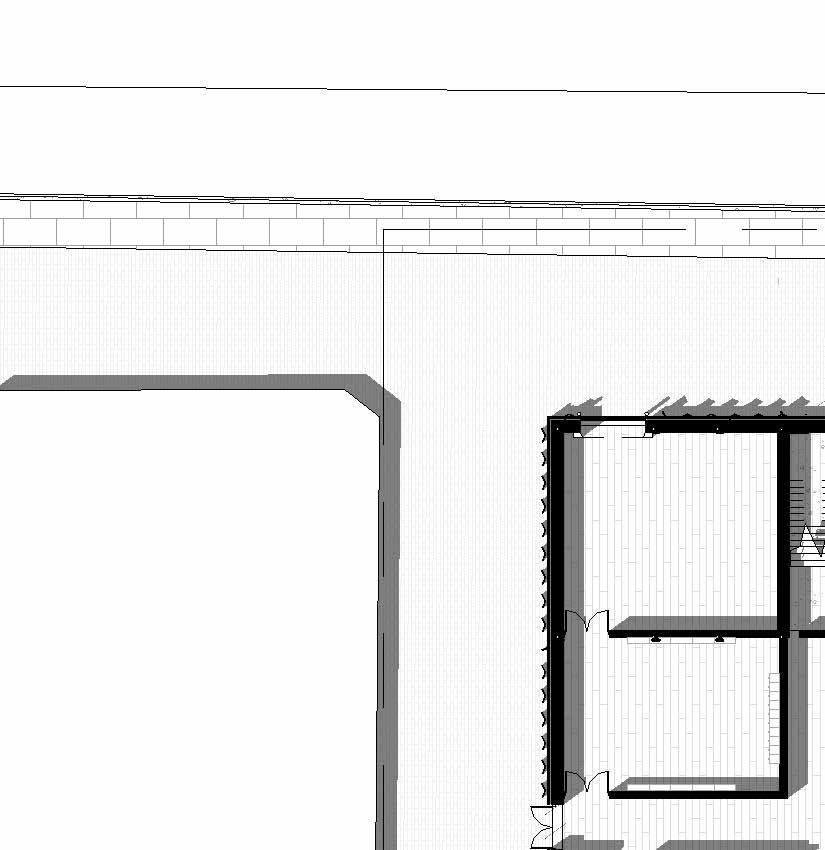

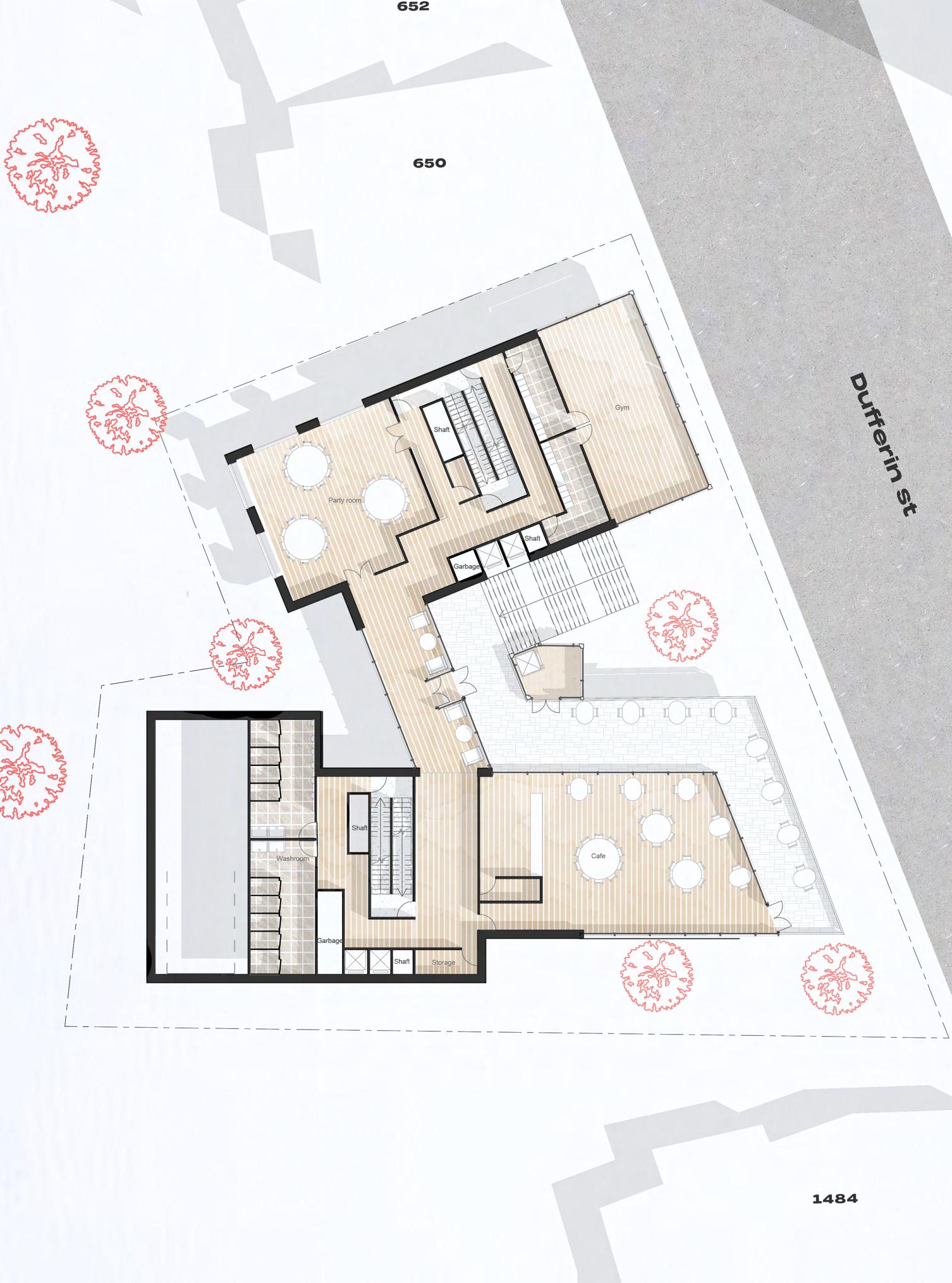

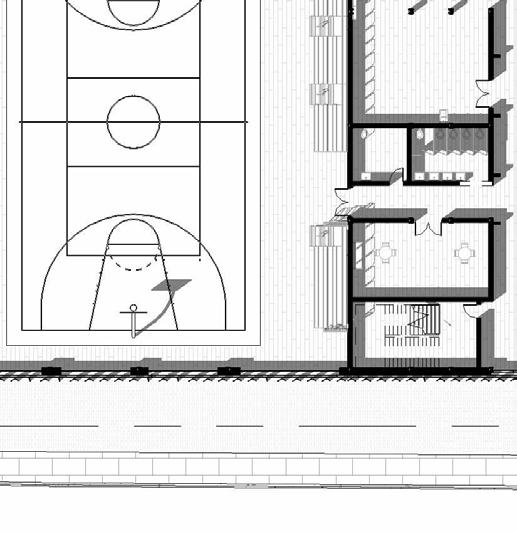

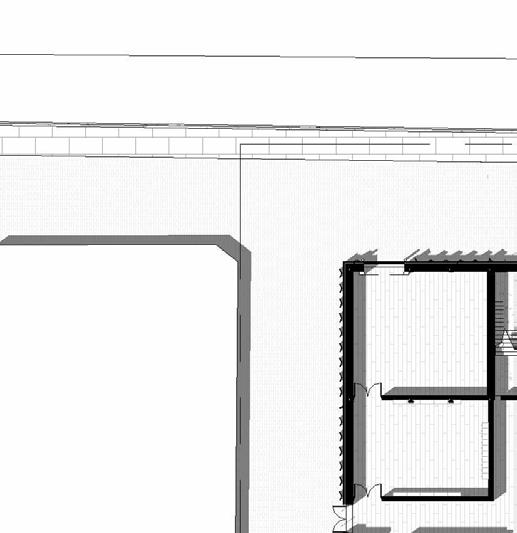

SECOND FLOOR PLAN
06 ADDITIONAL WORKS
MARKETING DESIGN: 2024 AMERICAS DEVELOPMENT AWARD
Professional, Individual, Photoshop
Designed glass award and photoshopped on background to be displayed for API Development Consultants Inc. social media page.

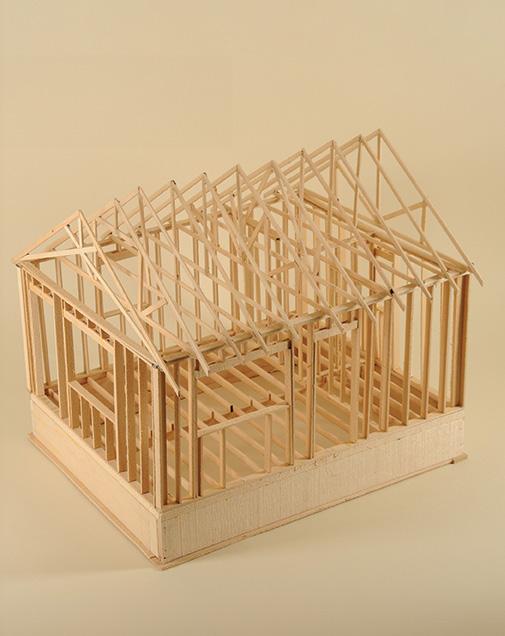

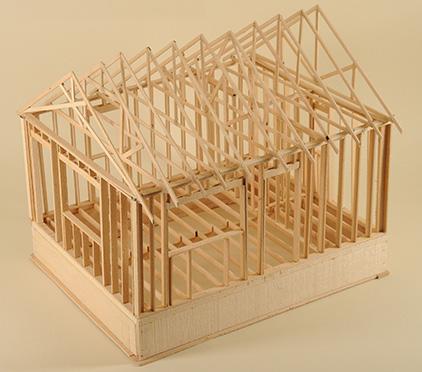

WOOD CABIN STRUCTURE MODEL
Personal, Individual
STILL LIFE DRAWING
Personal, Individual
ELEVATING
With over two decades of industry leadership, KABANA Group has successfully delivered projects across the globe, shaping over one million square meters of high-end interiors. From luxury hotels to iconic commercial spaces, we create bespoke environments that redefine sophistication.
As global sourcing specialists, we offer cost-effective and time-efficient solutions, leveraging an extensive international network to ensure precision, quality, and unmatched craftsmanship in every project.
End-to-End Interior Solutions - From concept to execution.
Custom Manufacturing & SourcingPremium materials & Finishes.
Flawless Project Execution - On time, beyond expectations.

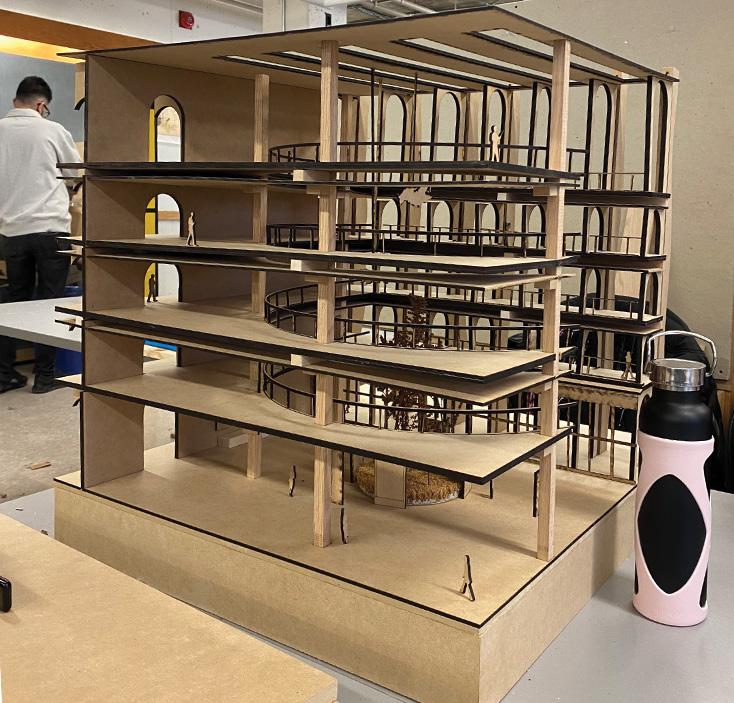

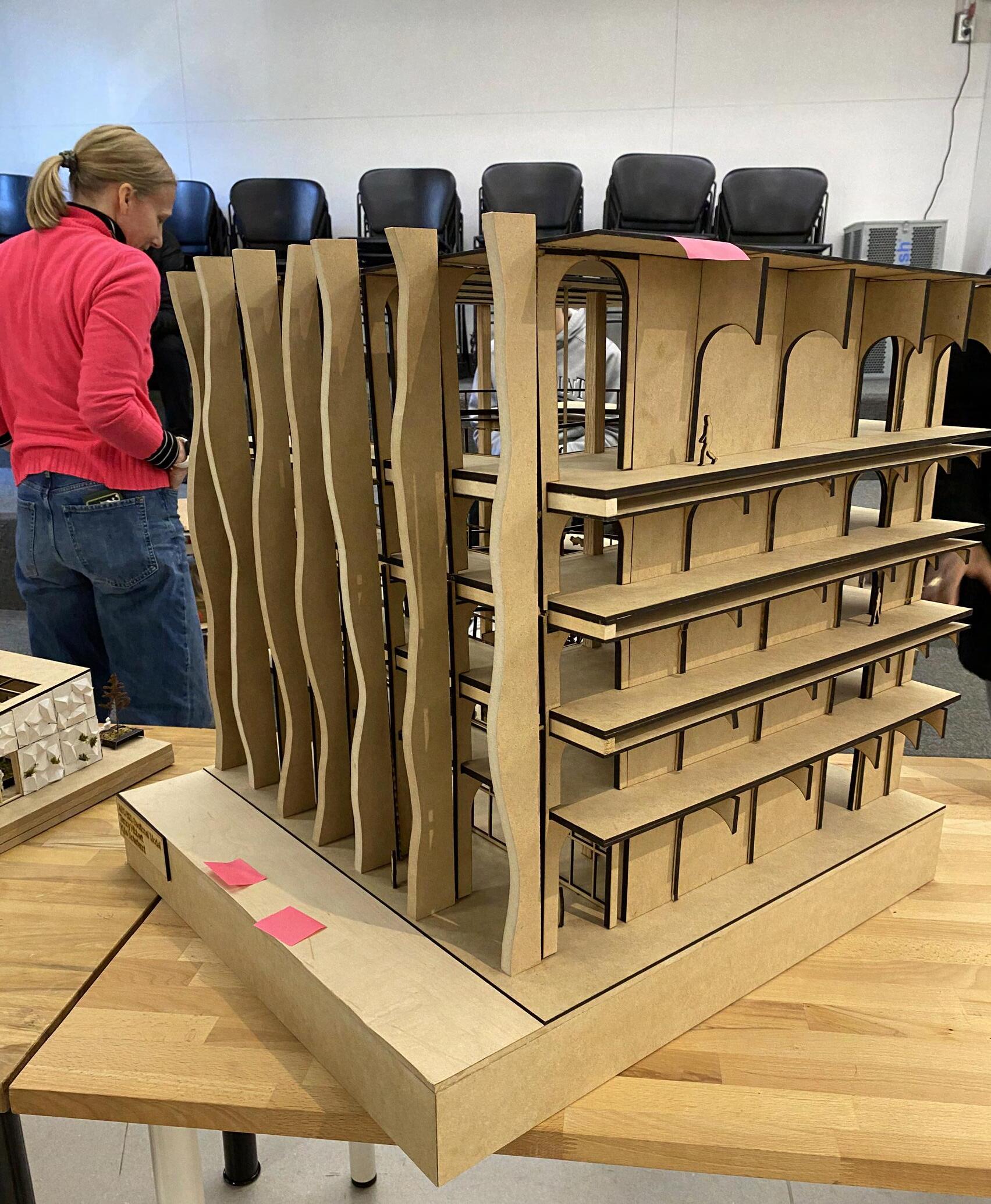

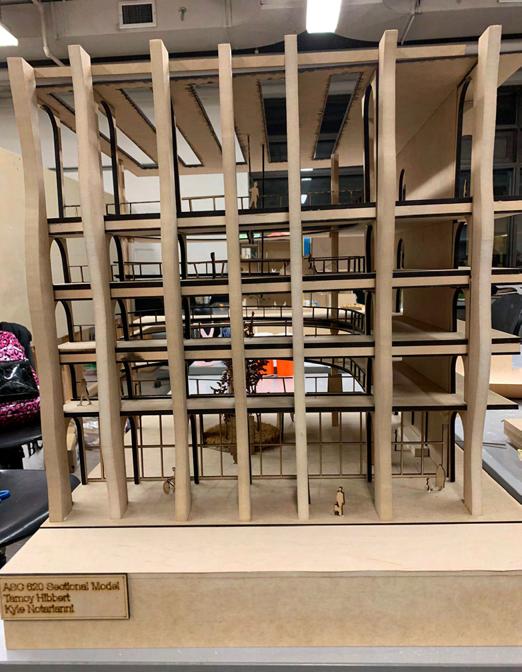

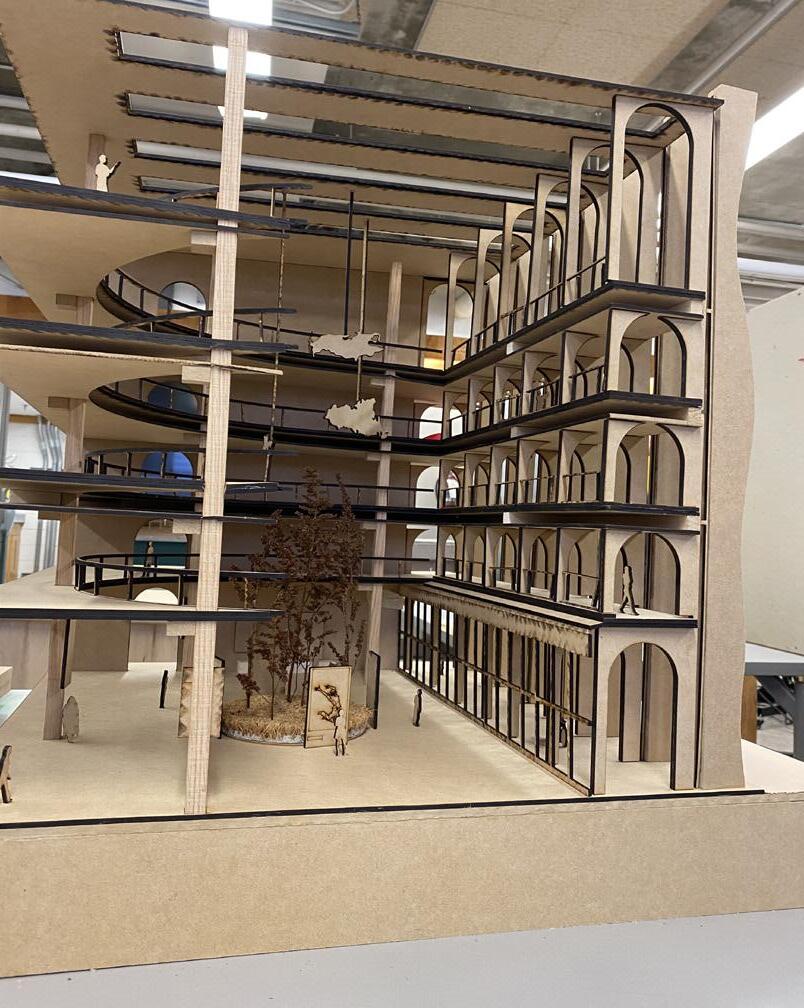

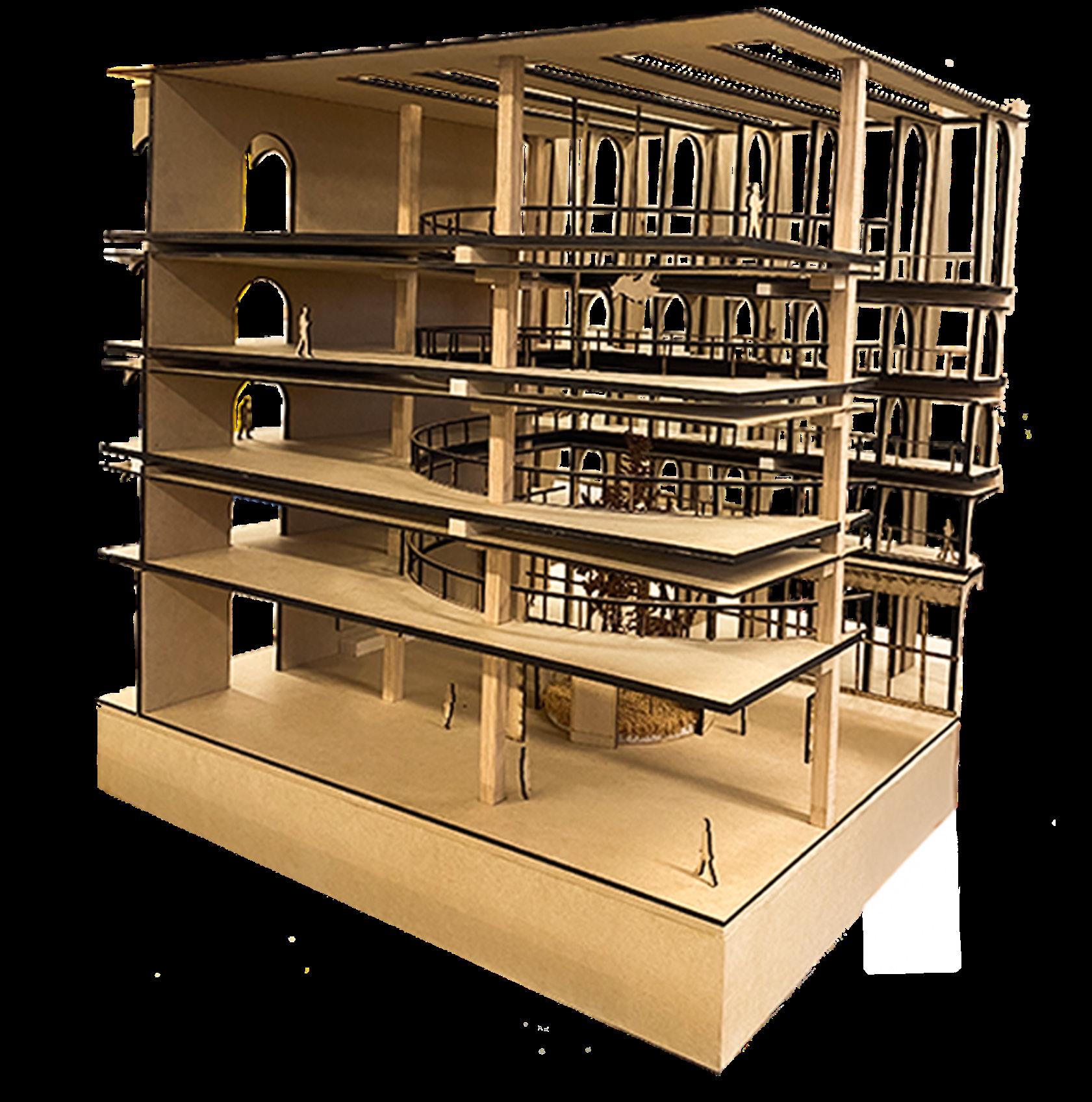

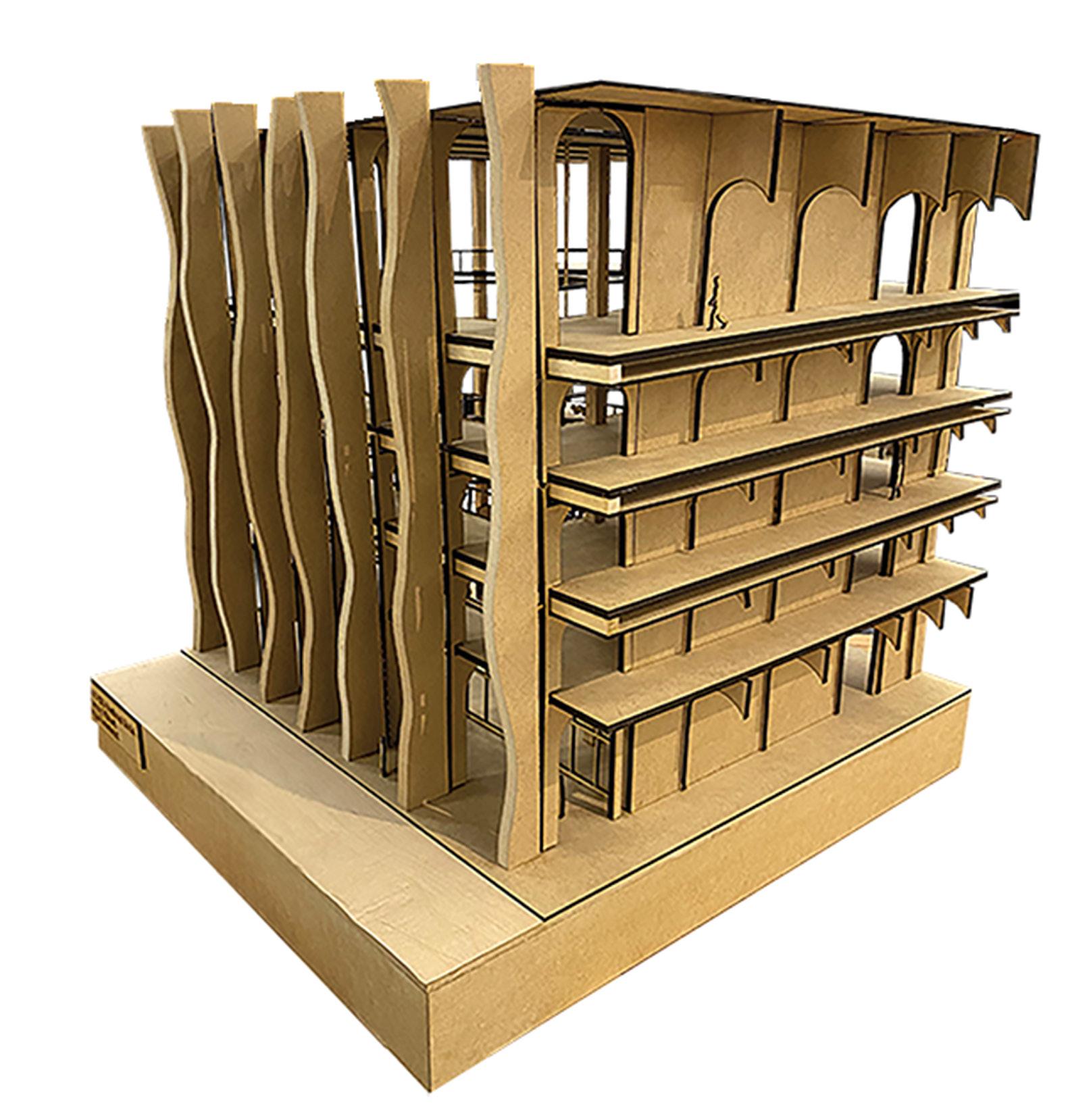

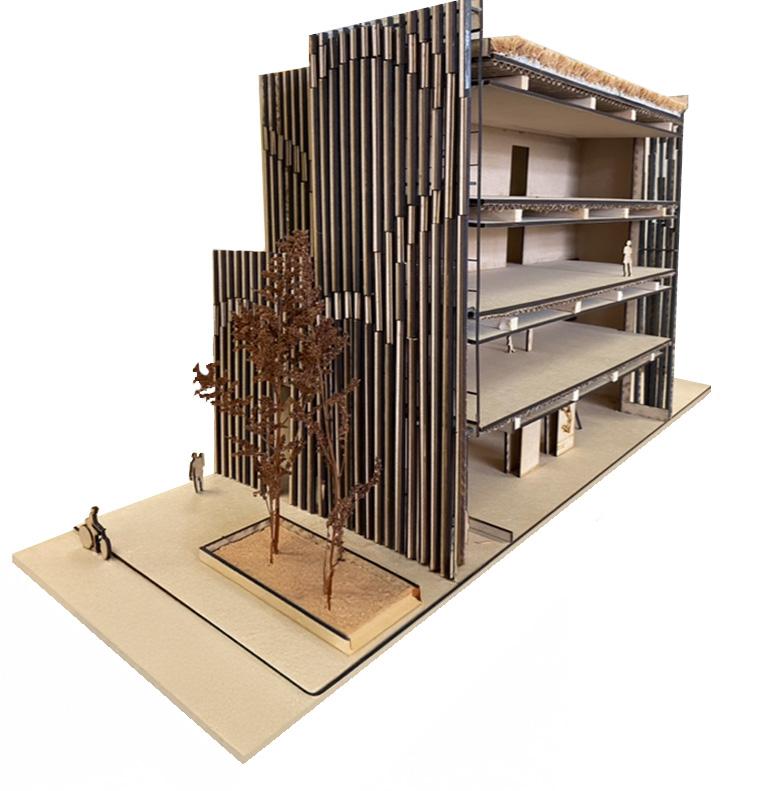

1:50 SECTIONAL MODEL
Project Type: Academic
Course: Integration Studio II [3rd Year]
Authorship: Group Work
Climate: Humid Continental Climate [Toronto, ON]
Design Role: Assembling Model
Digital Tools: Revit, Rhino
