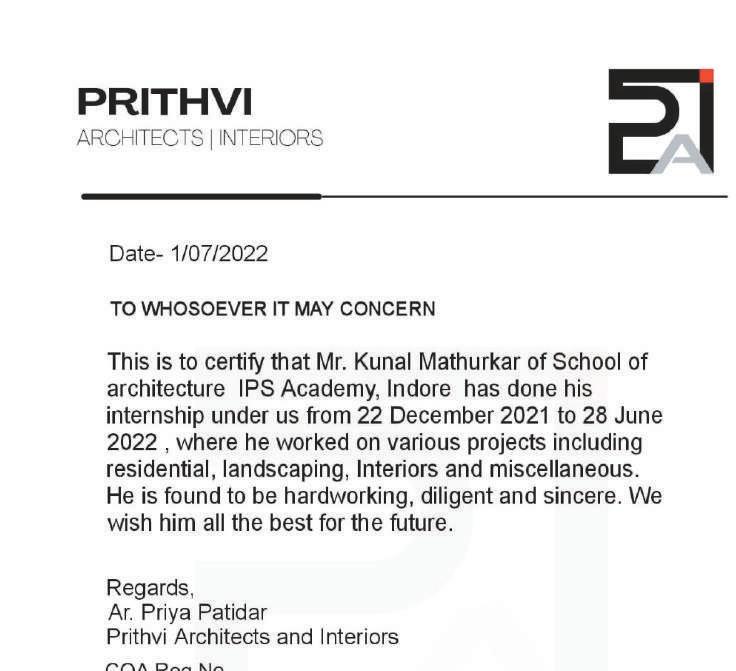

Prithvi Architects , Indore - Internship
-Worked as an intern in several type of architectural project like Landscape ,Residential ,Commercial and Interior
Freelancing - Fiverr ,Upwork
-Worked as a freelancer on 3D visualization , Modelling and Rendering of different kind of project for clients from various foreign countries
Studio 1573, Goa - Internship
-Worked as a intern at a architecture firm named studio 1573 on various luxery vill projects including architectural, landscaping and interior services.Have done depth work on concept making, working drawings and site visits
Software Skills
Revit - Architecture
Naviswork
AutoCAD
Sketchup 3D
Lumion
VRay
Photoshop
Indesign
Microsoft Office
Hobbies / Skills
Singing
Guitarist
Sketching
Leadership
Selected Works 3
2021 - 2022 2017 - 2019 2019 - 2024 2022 - 2023 2022 - 2023
Kunal Mathurkar 4
2S2, Edcon Enclave, Vasudha Colony Lane 1, Alto Santa Cruz, Bambolim – Goa. Ph: 0832-2951715, Email: hi@studio1573.com
To Whom It May Concern
This is to certify that Mr. Kunal Mathurkar worked in this studio as a Trainee Architect from the 5th of June 2023 to the 30th of November 2023. During his internship he excelled at every aspect of the projects he handled, including conceptualisation, production of drawings, documents and renderings, site supervision and liaising with clients, contractors and others involved in the design & construction process. He is a talented designer, an efficient worker and organiser, and a good team player. We were very happy to have him as part of our team and during his time here he proved himself to be an important part of the studio. We wish him all the best for his future.
(Rajiv D’Silva, Reg. No. CA/97/21771)
For Studio 15,73
30th November 2023
Selected Works 5
Kunal Mathurkar 6
Selected Works 7
KALA KENDRA - ARCHITECTURAL THESIS
Kunal Mathurkar 8 C ONTEN T
RESIDENTIAL PROJECT 10-19
HIGHRISE
KASHI
28-35
4562 C
NANDA HOUSE, GOA 40-47
5 STAR HOTEL 20-27
Selected Works 9 1 2 3 4 5
ROAD COMPOUND WALL WELL COMPOUND WALL 20.00 0.90
SIOLIM - VILLA C, GOA 36-39

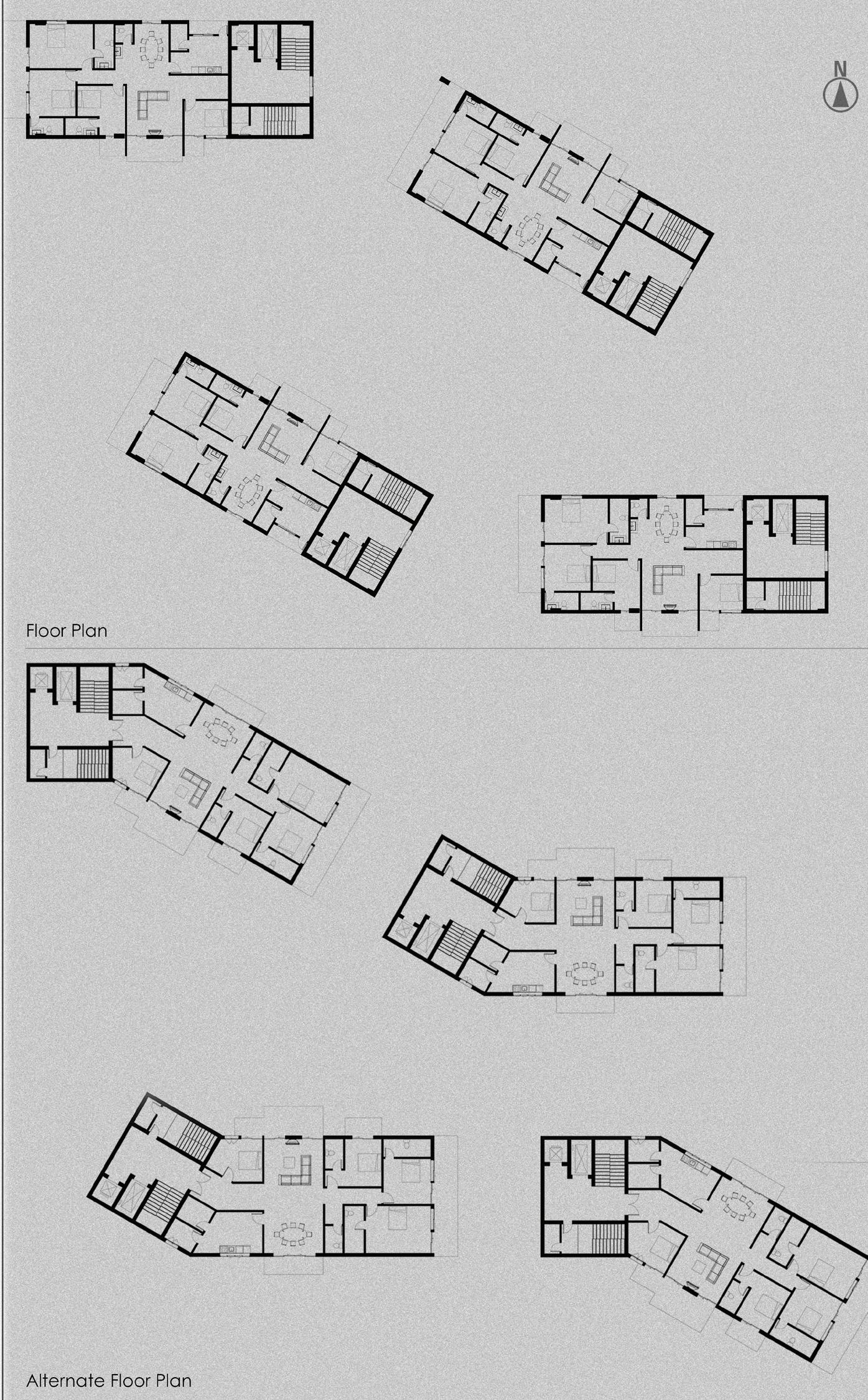

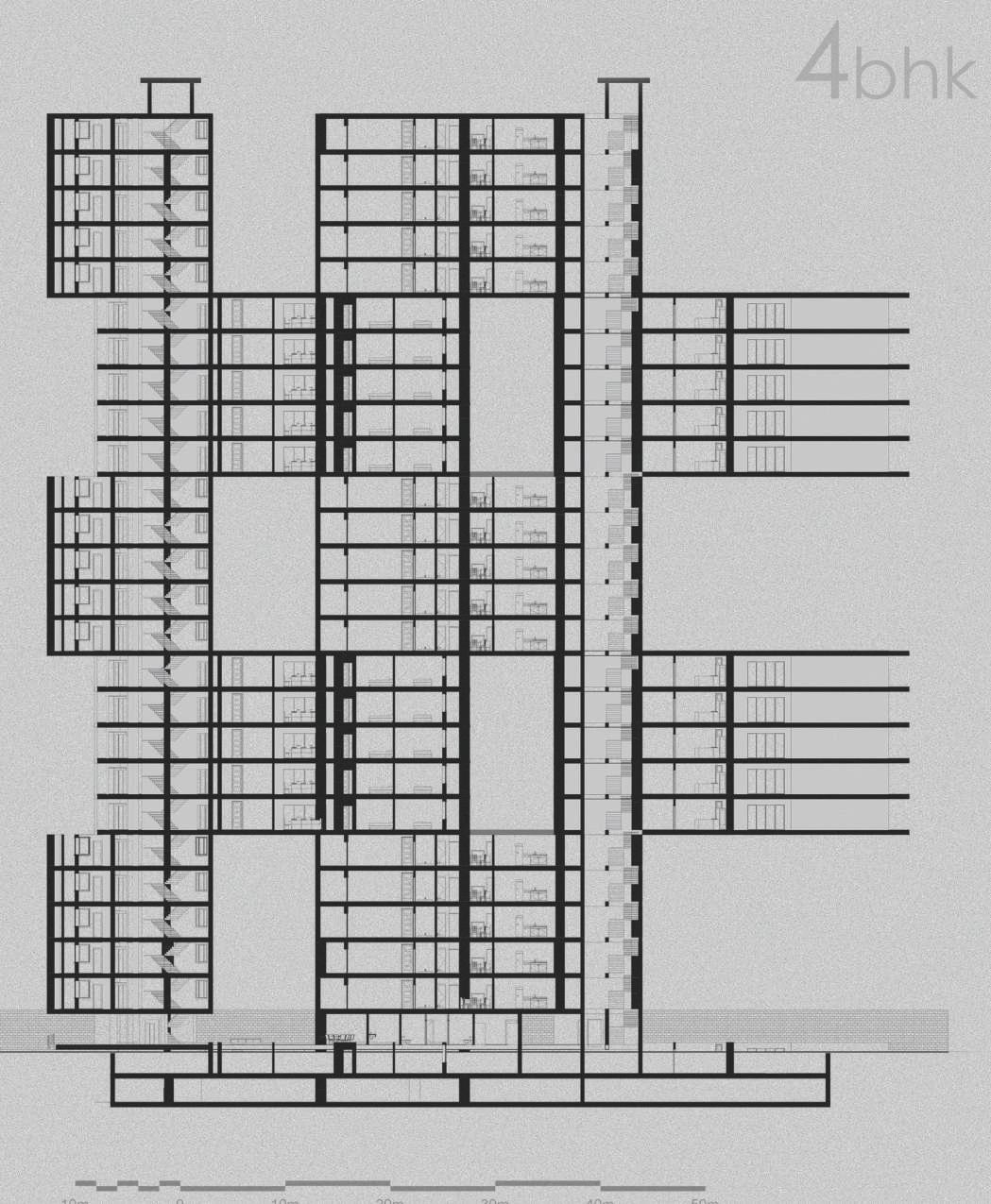

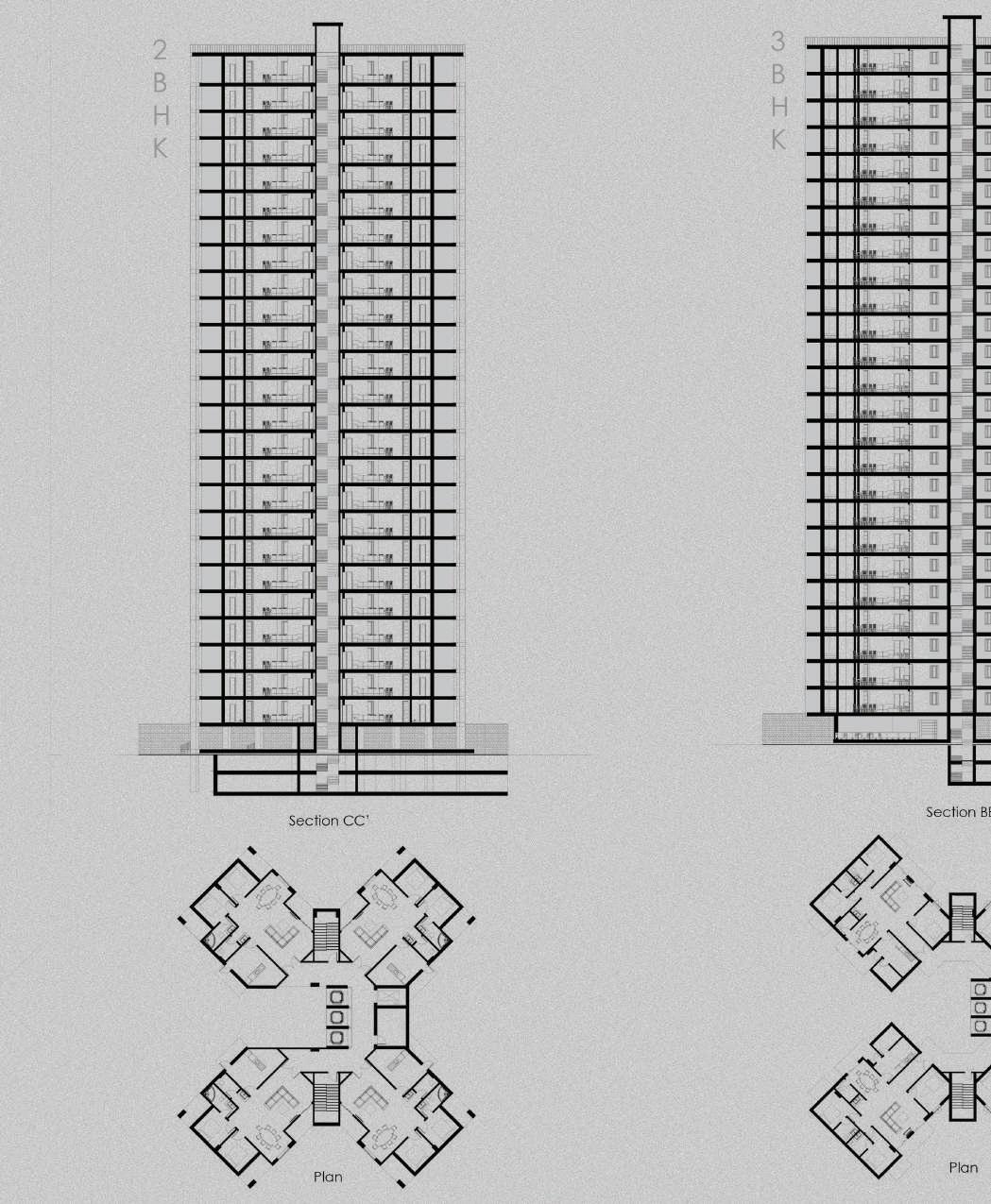

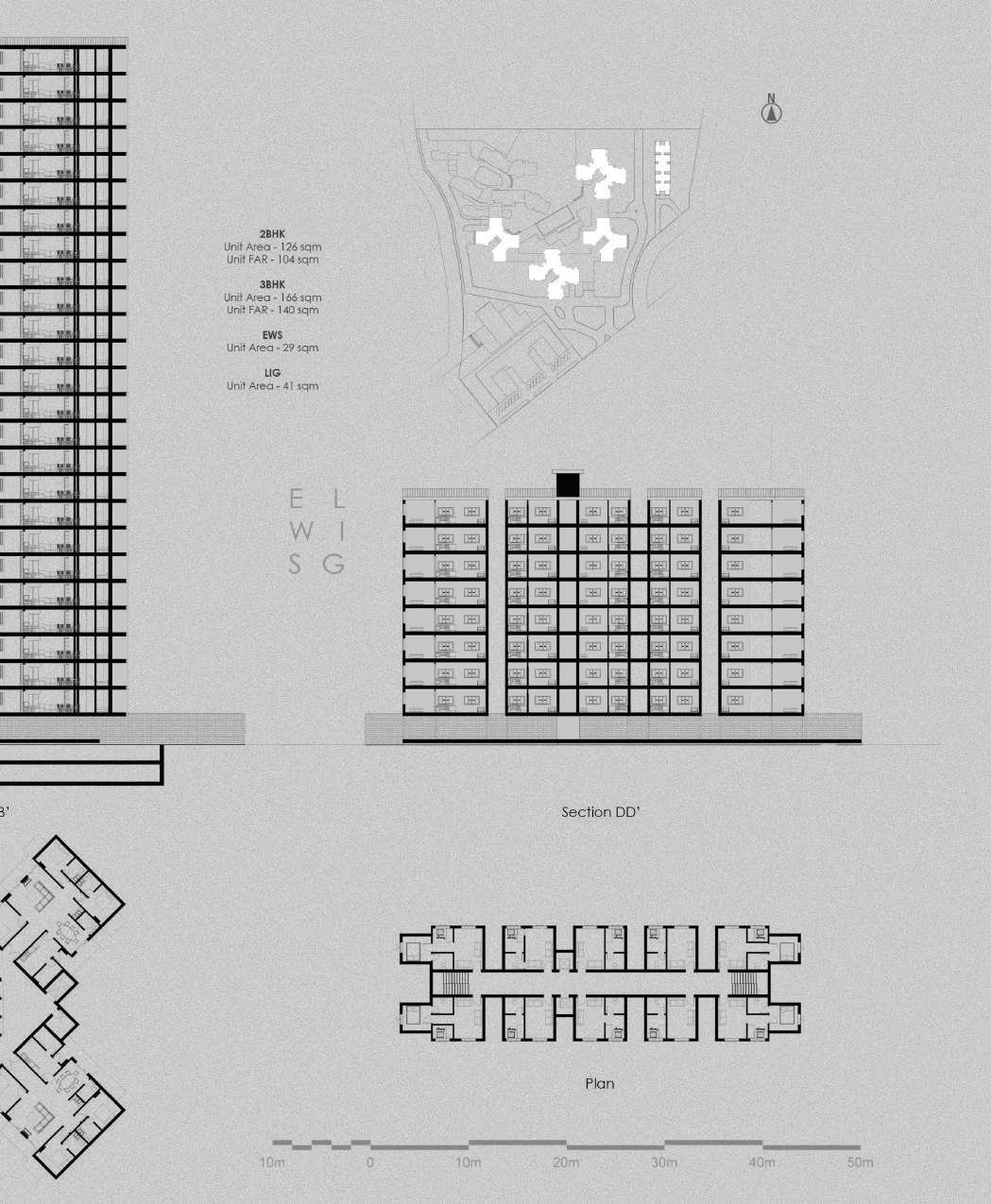

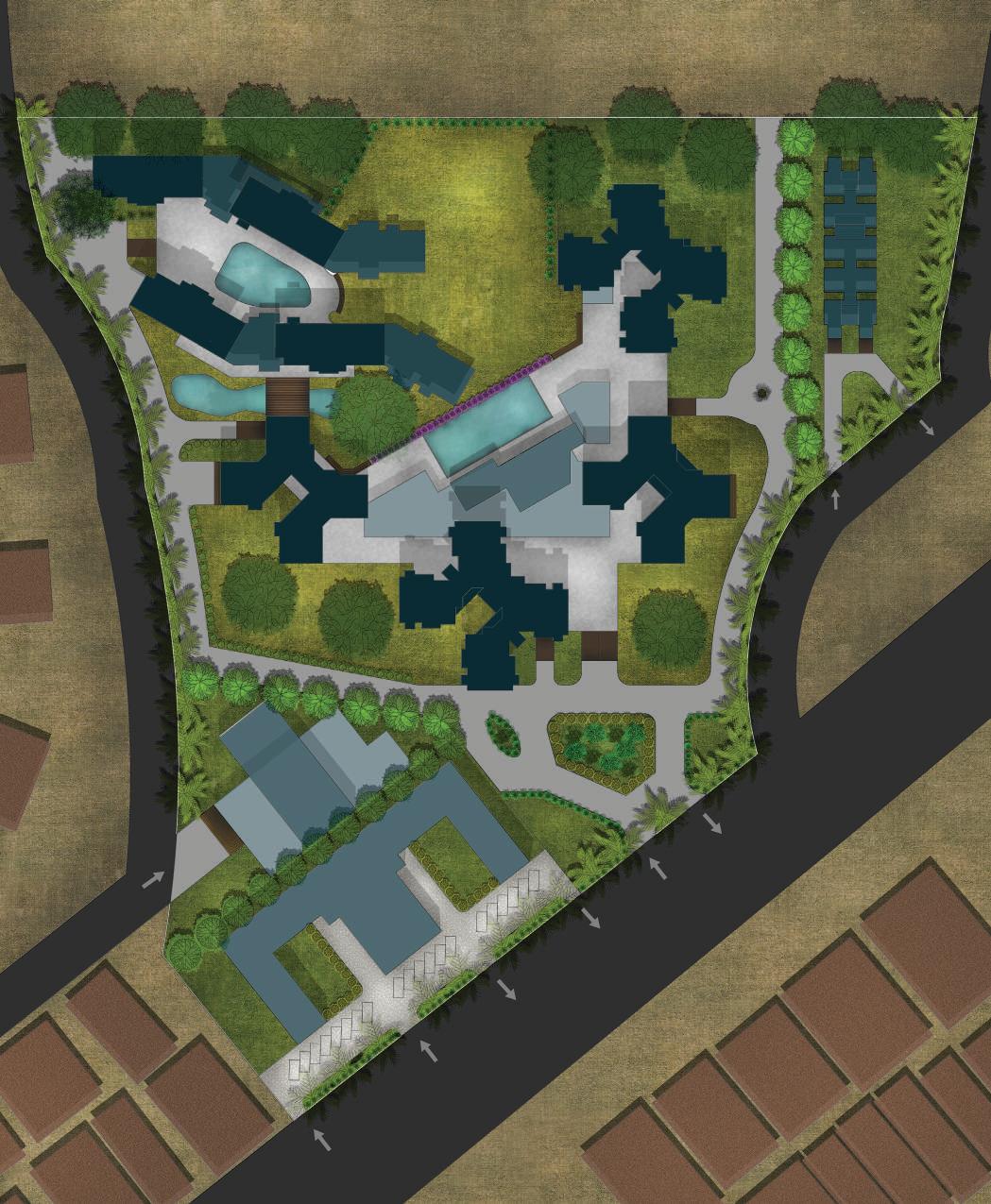

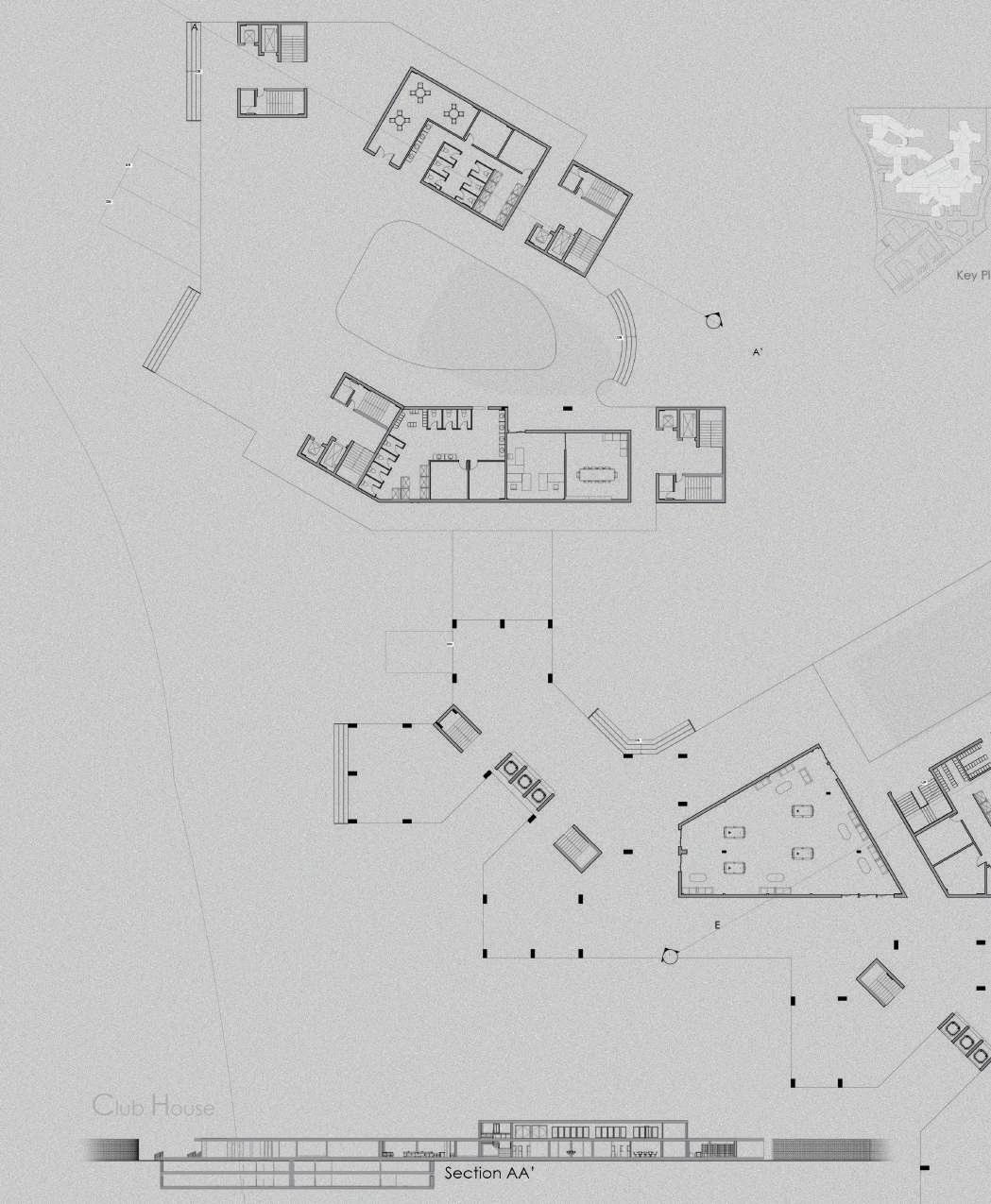

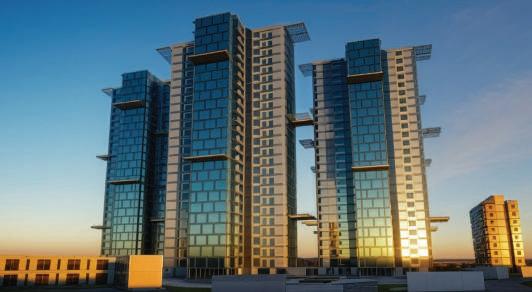

Highrise Residence
YEAR: 2023 - 4th YR
TYPE STATUS: Residencial Project
Location: Mahu Naka, Indore
Kunal Mathurkar 10
7 Selected Works
Kunal Mathurkar 12
Selected Works 9
Kunal Mathurkar 14
11
16
Selected Works 17
Kunal Mathurkar 18
Selected Works 19
YEAR: 2022 - 3rd YR
TYPE: 5Star Hotel
STATUS: Proposed
Location: Super Corridor ,Indore
5 Star Hotel
This is a proposed design of a 5 Star Hotel for a prime location near super corridorr indore.
The design is for a 150 keys hotel with 3 banquet halls.
The design revolves around the central atrium , which provides a gradeur to the hotel ambience.
FRONT ELEVATION
REAR ELEVATION
Kunal Mathurkar 20
E L E V A T I O N H E L E V A T I O N ( S C A L E -1 : 2 0 0 ) H E L E V A T I O N ( S C A L E -1 : 2 0 0 ) E L E V A T I O N ( S C A L E -1 : 2 0 0 ) E A S T E L E V A T I O N ( S E L E V A T I O N S E L E V A T I O N ( S C A L E -1 : 2 0 0 ) E L E V A T I O N ( S C A L E -1 : 2 0 0 ) E L E V A T I O N ( S C A L E -1 : 2 0 0 ) E A S T E L E V A T I O N ( S C
Drop-off
Hall
Ramps
Pool
Block
Block
Selected Works 21 1 3 8 7 6 5 4
4.Banquet
7.Podium
8.Tower
2 7 3 4
LEGENDS1.Entrance
2.On-site Parking 3.Atrium
5.Basement
6.Swimming
Ground
Floor
Kunal Mathurkar 22
First Floor
Selected Works 31
Section A-A’
Section B-B’

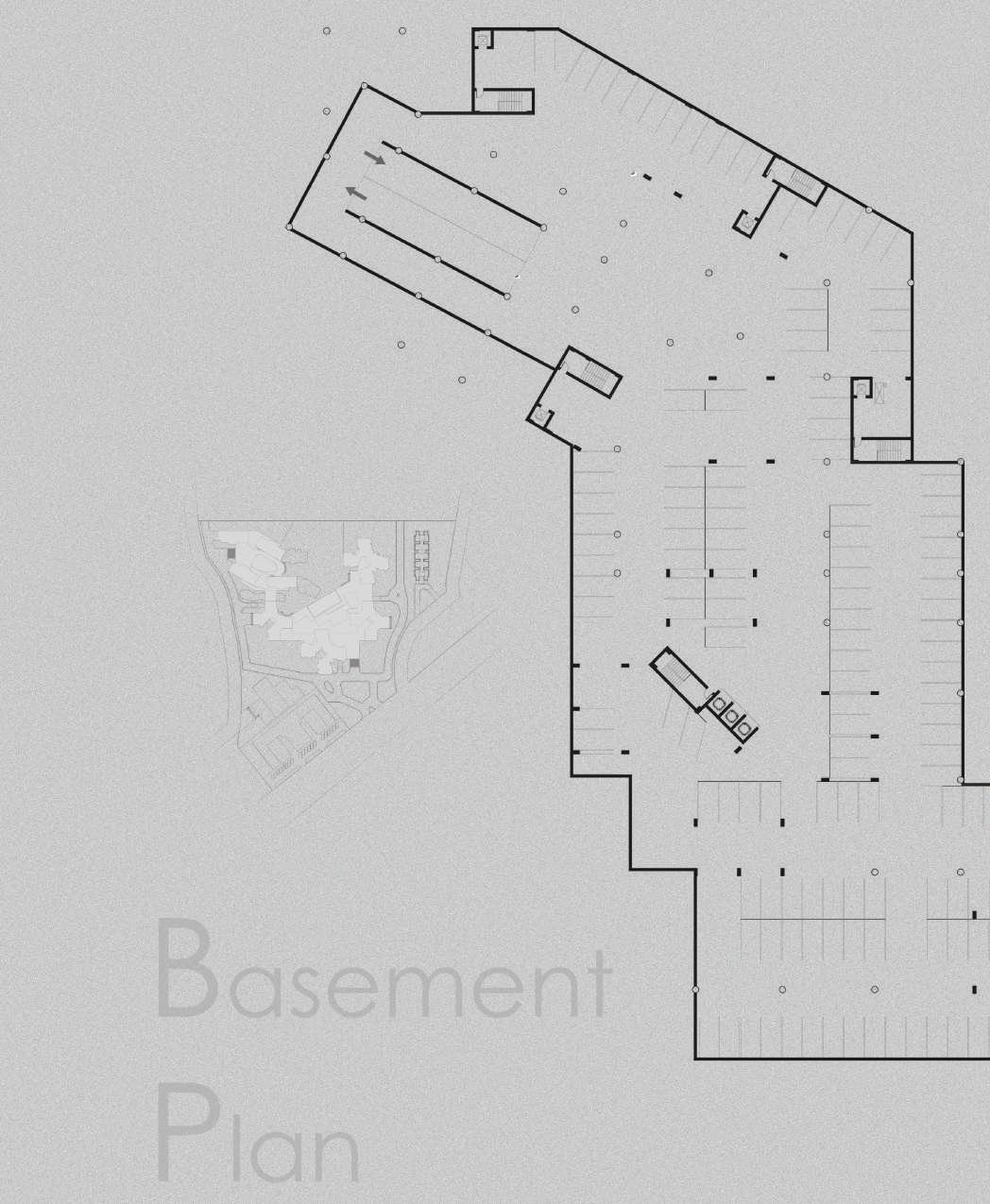

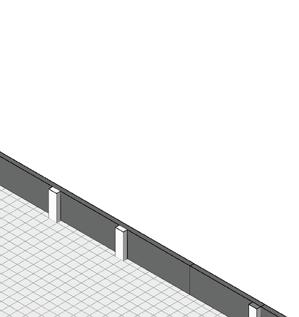

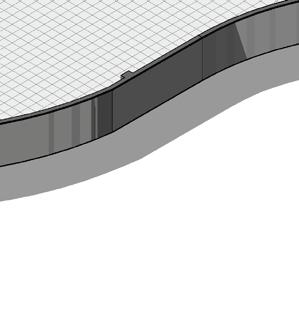

13360 6740 7900 F I R S T B A S E M E N T I S O M E T R I C V I E W P A R K I N G C A L C U L A T I O N

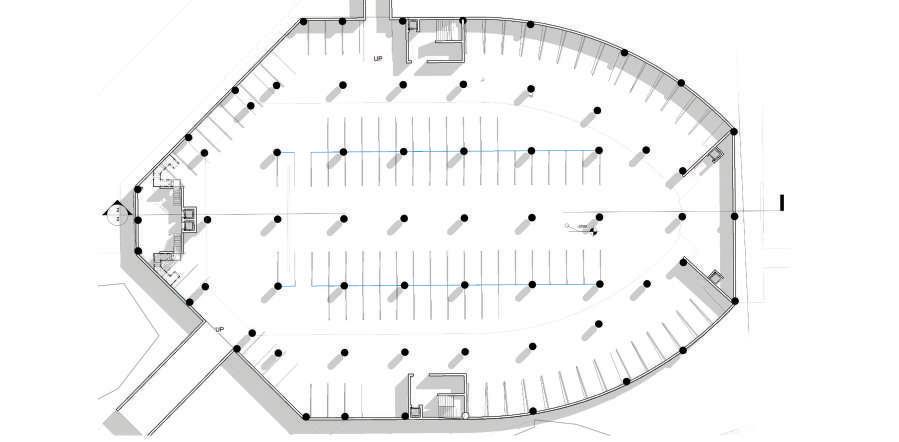

ON SITE PARKING - 25 FIRST BASEMENT PARKING - 50
Kunal Mathurkar 24

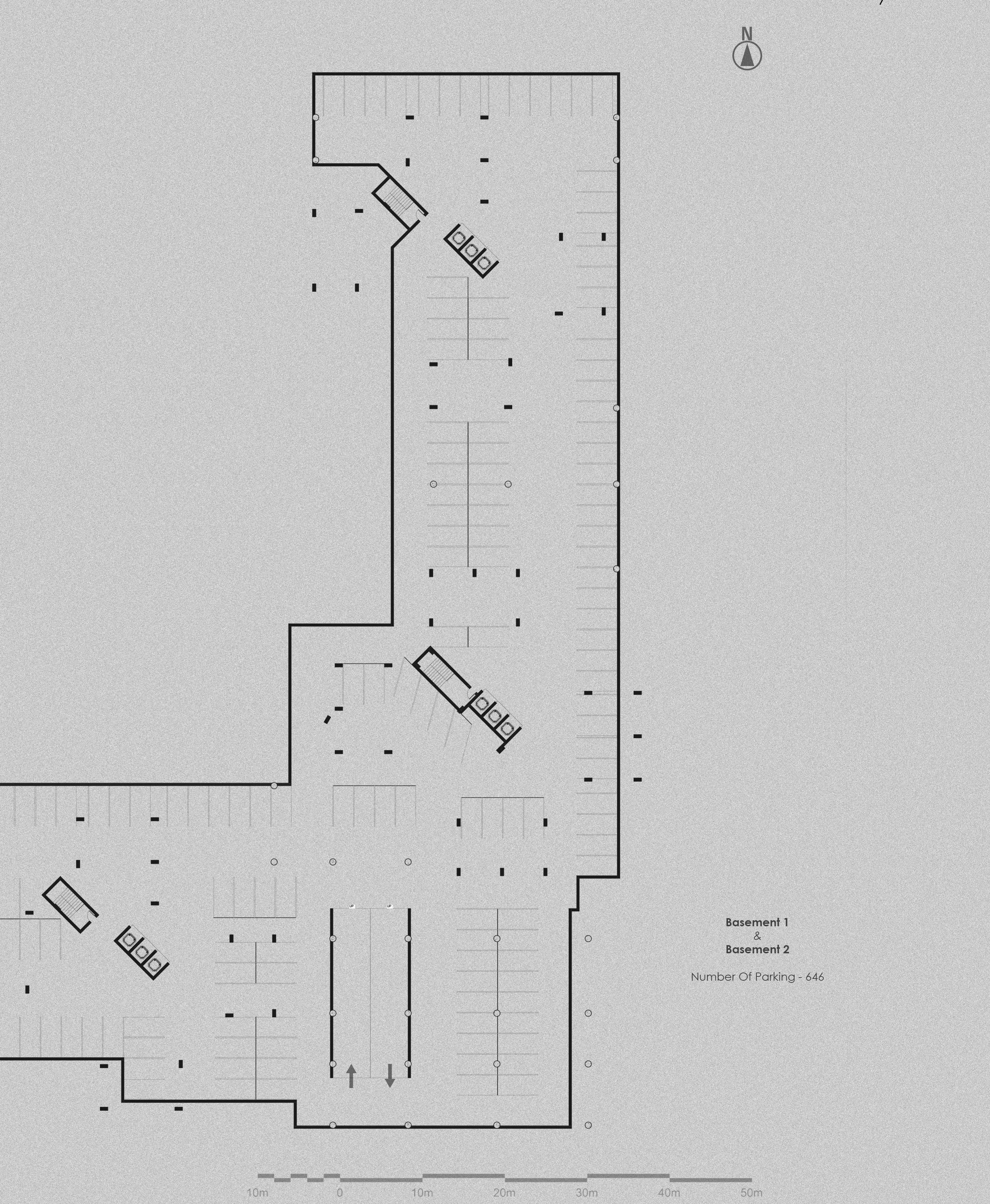

SECOND BASEMENT PARKING - 250 TOTAL PARKING - 325
25 UP 100 100 8148 X 19924 162 m² CONTROL ROOM 6524 X 13505 88 m² HOUSE KEEPING 7070 X 15667 111 m² NON-VEG KITCHEN 3269 X 8374 27 m² MEAT PREPRATION 5035 X 6487 33 m² FISH PREPRATION 3270 X 17826 58 m² SERVICE CORE 3348 X 4696 16 m² FISH STORAGE 3348 X 4696 16 m² MEAT STORAGE 3348 X 4696 16 m² COLD STORAGE 2610 X 5924 15 m² Room 3528 X 9876 35 m² DESSERT SECTION 3188 10816 34 m² UTENSIL STORAGE 9507 X 18302 174 m² VEG KITCHEN 6292 X 28901 182 m² LAUNDRY 8815 X 17259 152 m² TEMPRARY STORAGE 12206 X 32292 394 m² MAIN STORAGE 9002 X 10757 97 m² KITCHEN OFFICES 9002 X 11202 101 m² DISH WASHING 7900 X 12904 102 m² DESSERT SECTION 9972 X 18973 189 m² STAFF LAUNGE 5808 X 12543 73 m² TANDOOR ROOM 6204 X 12000 74 m² 7871 X 23240 183 m² VEG KITCHEN 7715 X 22138 171 m² NON-VEG KITCHEN 9967 X 28411 283 m² U P 14031 X 26723 375 m² D.G SET ROOM 4552 X 10476 48 m² Room 11343 X 54882 623 m² PUMP 4202 X 10476 44 m² FEMALE CHANGING 4126 X 12353 51 m² MALE CHANGING 5727 X 6000 34 m² OFFICE 5702 X 6000 34 m² OFFICE 5252 X 6000 32 m² OFFICE 4532 X 8959 41 m² VEG STORE 5522 X 7439 41 m² MEAT STORE 4481 X 8866 40 m² FISH STORE 2460 3000 2876 3000 3000 3282 3376 9819 4562 7700 -3400 4400 5642 5875 5021 5564 4820 -6797 -6797 F I R S T B A S E M E N T P L A N S E C O N D B A S E M E N T P L A N N Selected Works 21
Kunal Mathurkar 26
Delux Room
Inter-Connected Room
Typical F
Selected Works 35 loor Plan
Suite Room
m
Twin Sharing Room

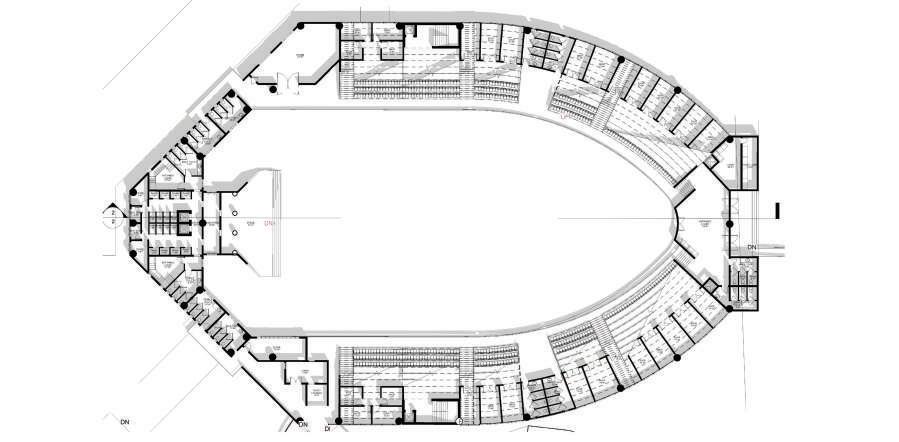

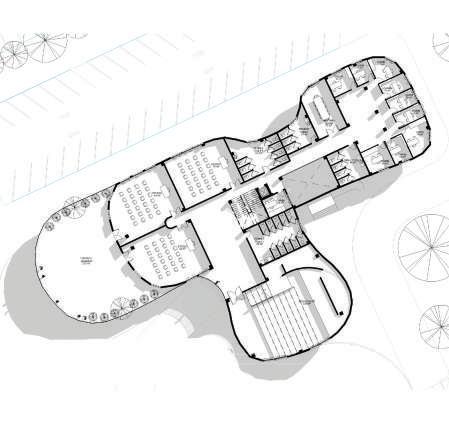

KASHI KALA KENDRA - ARCHITECTURE THESIS
YEAR: 2024 - 5th Year
TYPE: Performing Art Centre
STATUS: Proposed
Location: BHU Campus, Varanasi, Uttar Pradesh

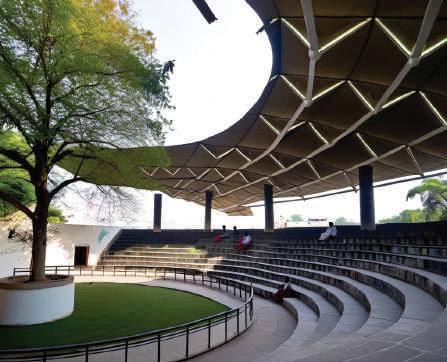

The Performing Arts Centre at Banaras Hindu University (BHU), nestled in the heart of Varanasi, pulsates with the vibrant energy of artistic expression. Boasting four open-air theaters, each a stage for creativity to unfold, it stands as a sanctuary for the convergence of tradition and innovation. Amidst the ancient city’s spiritual aura, these theaters serve as platforms where classical music, dance, theater, and contemporary performances intertwine, enchanting audiences with a tapestry of cultural richness. Against the backdrop of the holy Ganges and the serene landscape, the center becomes a haven where artists transcend boundaries, connecting with spectators on profound levels. Here, the ethos of Varanasi’s heritage merges seamlessly with the avant-garde, fostering a dynamic dialogue between the past and the present, making it a beacon of artistic excellence in the heart of India.
Kunal Mathurkar 28

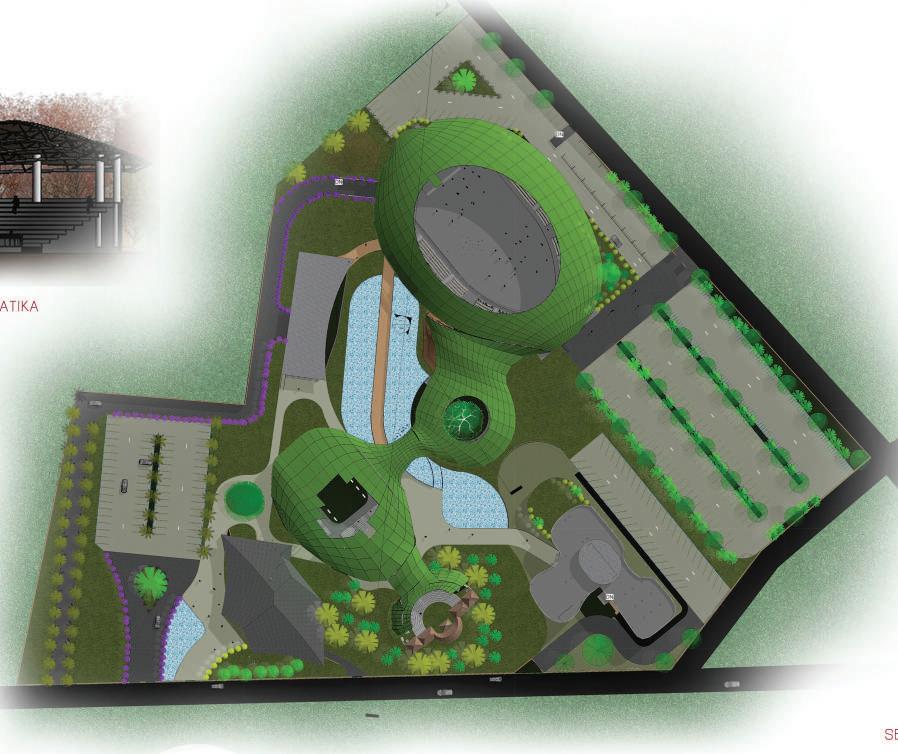

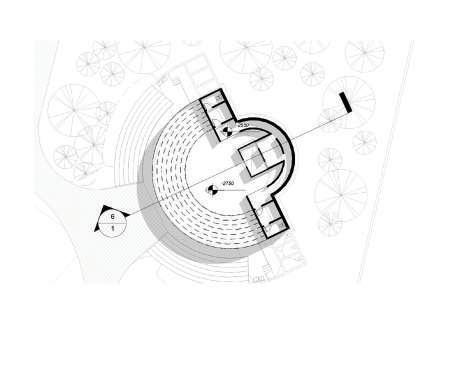

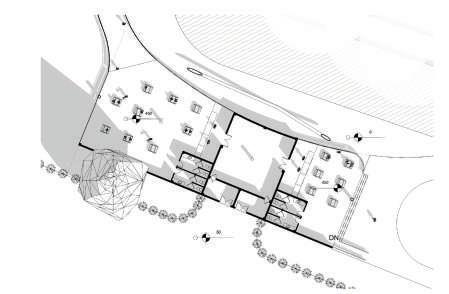

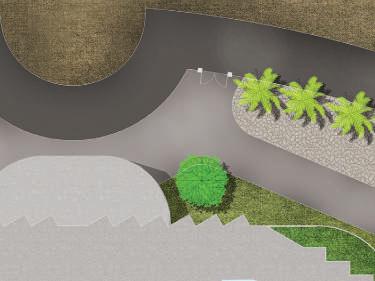

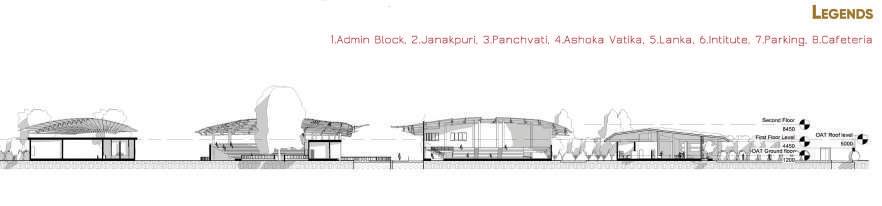

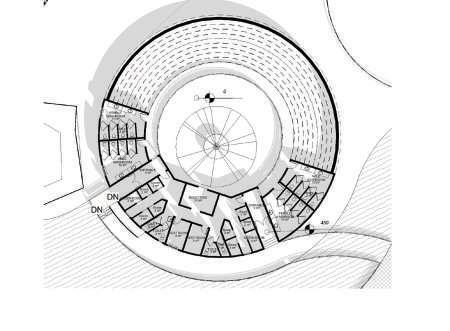

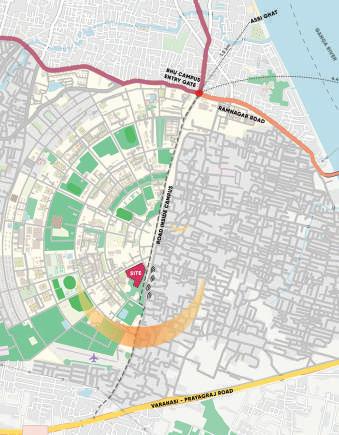

Selected Works 29 SITE PLAN 1 2 3 4 5 6 8 7 7 7 7

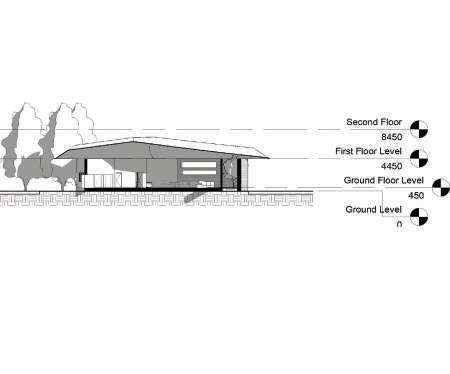

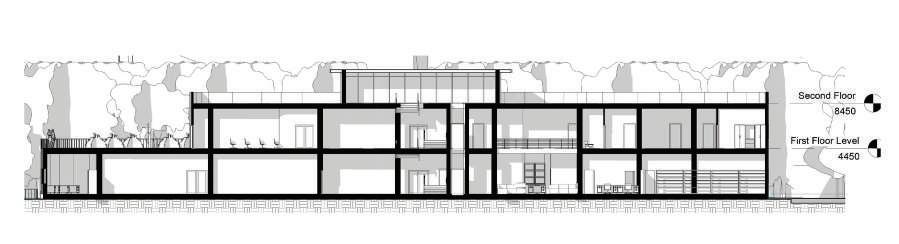

ECTION
S
ADMIN BLOCK
30
Kunal Mathurkar
PLAN PLAN SECTION SECTION VIEW VIEW
JANAKPURI OAT
Selected Works 31 PLAN PLAN SECTION SECTION VIEW VIEW
OAT ASHOKA VATIKA
PANCHVATI

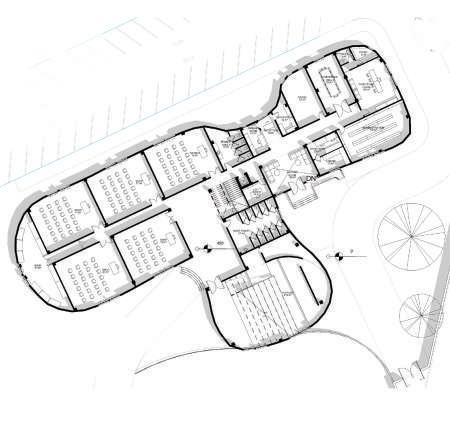

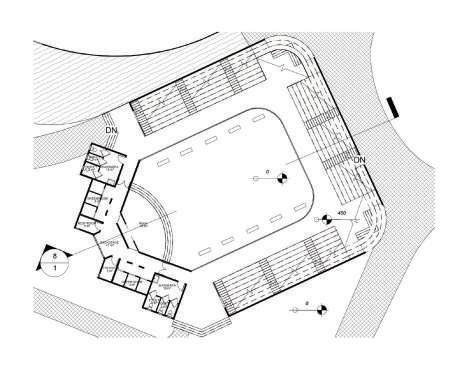

Kunal Mathurkar 32 GROUND FLOOR PLAN LANKA (AMPHITHEATRE) FIRST FLOOR PLAN SECTION

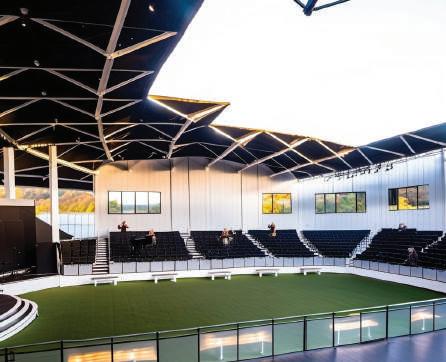

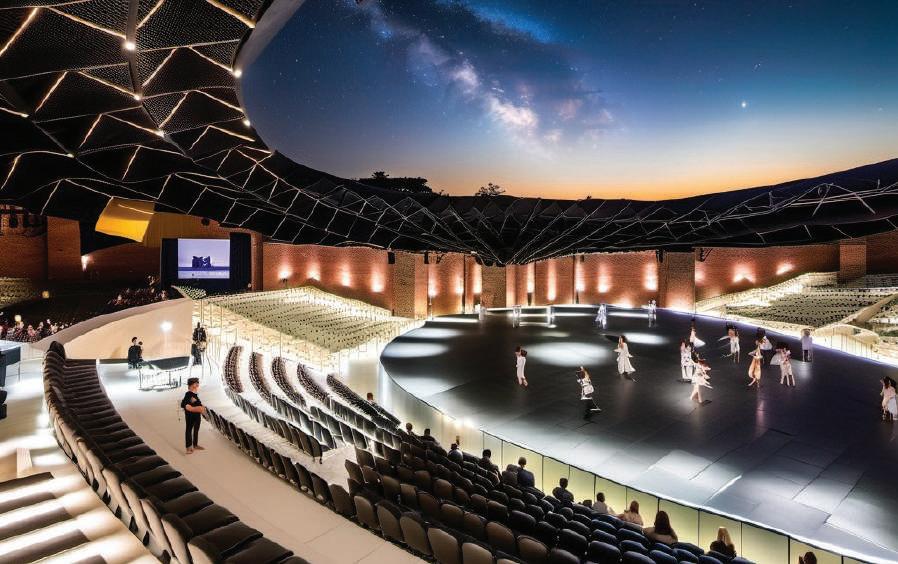

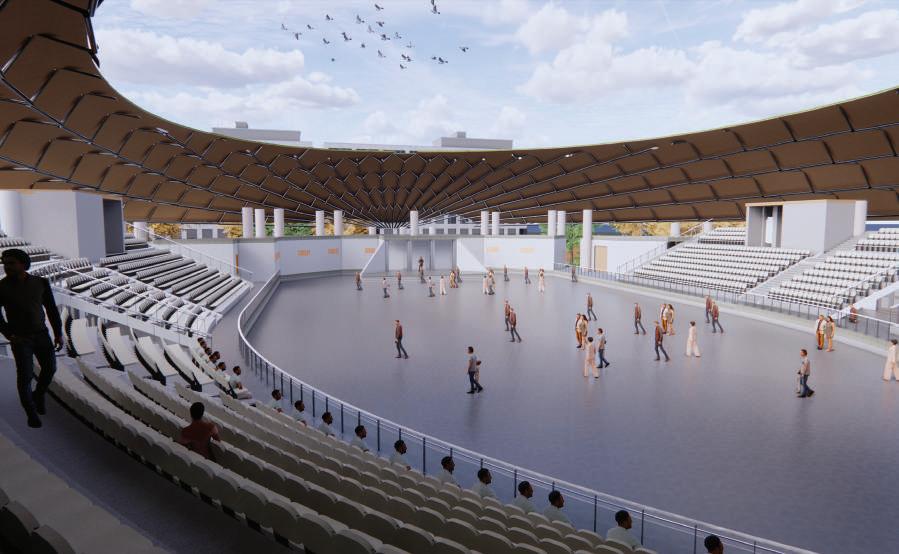

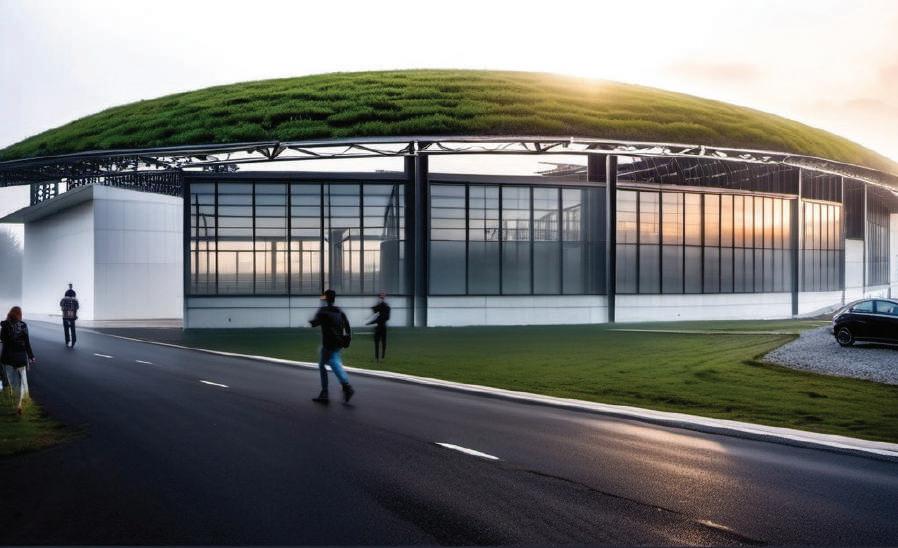

Selected Works 33 AMPHITHEATRE VIEW
Kunal Mathurkar 34
FIRST FLOOR PLAN

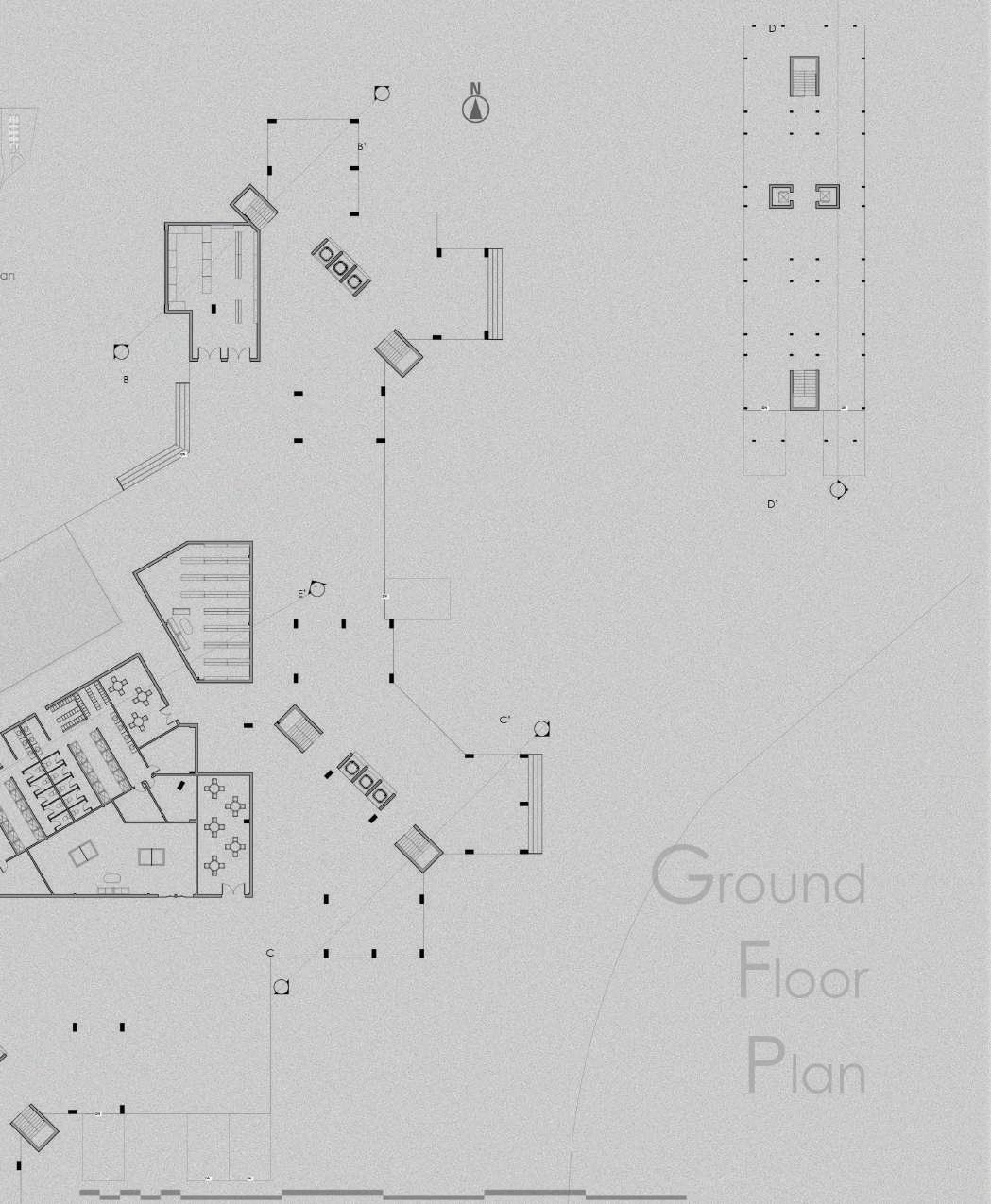

GROUND FLOOR PLAN

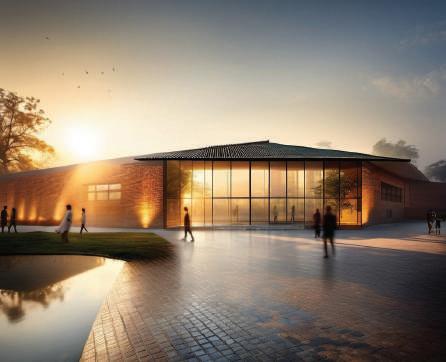

INSTITUTE VIEW

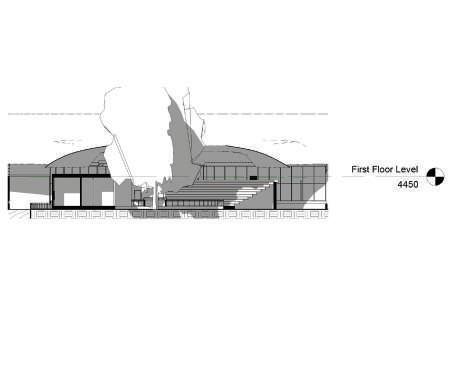

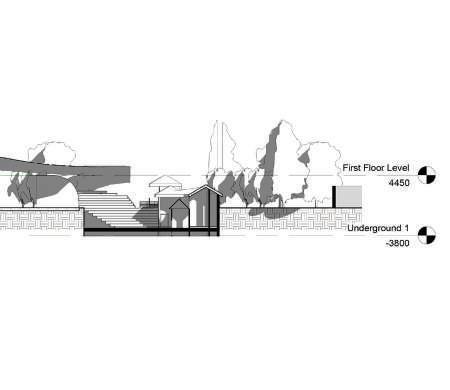

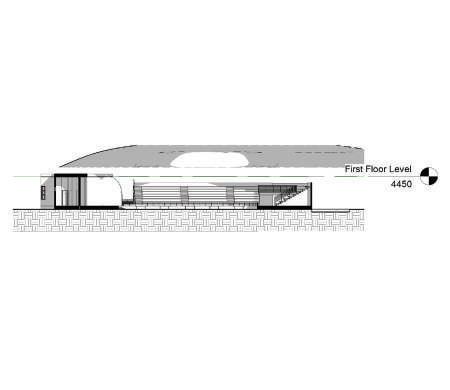

INSTITUTE SECTION
CAFETERIA
CAFETERIA VIEW
INSTITUTE
DOOR SCHEDULE
DOOR
090 x 2100mmM_Single-Flush 900210004
DOOR SCHEDULE
108" x 80" Three_Panel_Sliding_Door_175342743203201
800 x 2100mmM_Door-Single-Panel 8002100020
0813 x 2134mmM_Single-Flush 813213404
0813 x 2134mmM_Door-Opening 00010
x
0864 x 2032mmM_Door-Opening 0003 0864 x 2134mmM_Door-Opening 00021 900 x 2000mmM_Door-Passage-Single-Flush-Dbl_A cting 90020000119
900210004
8002100020
x 2134mmM_Door-Opening 00010
0915 x 2032mmM_Single-Flush 9152032-28802
0915 x 2032mmM_Door-Opening 00-28802
0915 x 2134mmM_Single-Flush 9152134061
8002100020 0813 x 2134mmM_Single-Flush 813213404 0813 x 2134mmM_Door-Opening 00010 0864 x 2032mmM_Door-Opening 0003 0864 x 2134mmM_Door-Opening 00021 900 x 2000mmM_Door-Passage-Single-Flush-Dbl_A cting 90020000119
x 2032mmM_Door-Opening 0003 0864 x 2134mmM_Door-Opening 00021 900 x 2000mmM_Door-Passage-Single-Flush-Dbl_A cting 90020000119 0915 x 2032mmM_Single-Flush 9152032-28802
0915 x 2134mmM_Door-Opening 00 29 1600 x 2100mmM_Door-Double-Glass 16002100011 1800 x 2100mmM_Door-Double-Glass 1800210005 1800 x 2100mmM_Door-Exterior-Double-Two_Lite18002100030 2100 x 2100mmM_Door-Passage-Double-Flush-Dbl_ Acting 2100210009 2400 x 2100mmM_Door-Exterior-Double-Two_Lite2400210004 3000 x 3000mmM_Door-Passage-Double-Flush-Dbl_ Acting 30003000011
0915 x 2032mmM_Single-Flush 9152032-28802
0915 x 2032mmM_Door-Opening 00-28802
0915 x 2032mmM_Door-Opening 00-28802
0915 x 2134mmM_Single-Flush 9152134061
0915 x 2134mmM_Single-Flush 9152134061 0915 x 2134mmM_Door-Opening 00 29 1600 x 2100mmM_Door-Double-Glass 16002100011
0915 x 2134mmM_Door-Opening 00 29
1800 x 2100mmM_Door-Double-Glass 1800210005
1600 x 2100mmM_Door-Double-Glass 16002100011
1800 x 2100mmM_Door-Exterior-Double-Two_Lite18002100030
1800 x 2100mmM_Door-Double-Glass 1800210005
1800 x 2100mmM_Door-Exterior-Double-Two_Lite18002100030
2100 x 2100mmM_Door-Passage-Double-Flush-Dbl_ Acting 2100210009
2100 x 2100mmM_Door-Passage-Double-Flush-Dbl_ Acting 2100210009
2400 x 2100mmM_Door-Exterior-Double-Two_Lite2400210004
2400 x 2100mmM_Door-Exterior-Double-Two_Lite2400210004
3000 x 3000mmM_Door-Passage-Double-Flush-Dbl_ Acting 30003000011
x 3000mmM_Door-Passage-Double-Flush-Dbl_ Acting 30003000011
Column Schedule
Column Schedule

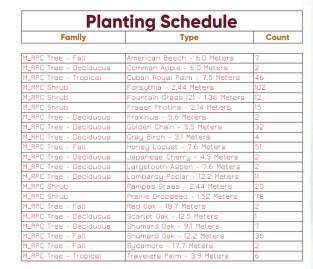

Furniture Schedule
COLUMNS
Railing Schedule
Window Schedule
FLOOR
Window Schedule
SITE
Selected Works 35
17 19 20 FURNITURE
SCHEDULES
WALLS
Type
WidthHeight
HeightCount
Family
Sill
Window Schedule Family WidthHeightSill 0406 x 0610mmM_Window-Louvers 406 91516 600 x 1800mmM_Window-Awning-Triple-Vertical60018009006 0610 x 0610mmM_Window-Louvers 610 900 x 1800mmM_Window-Awning-Triple-Vertical900180090011 0915 x 1830mmM_Fixed 9151830 1550 x 1200mmM_Window-Casement-Multi-Sash-Horiz ontal 1500120090014 1800 x 1350mmM_Window-Casement-Multi-Sash-Horiz ontal 1800135090052 1800 x 1500mmM_Window-Sliding-Double 180015009003 2150 x 1500mmM_Window-Casement-Multi-Sash-Horiz ontal 215015009003 Wall Schedule Type FamilyWidthCount Generic - 150mm Basic Wall150293 Generic - 150mm MasonryBasic Wall1502 Generic - 200mm Basic Wall200220 Generic - 250mm Basic Wall2506 Interior - 79mm Partition (1-hr) Basic Wall80 Interior - 100 Basic Wall100290 Retaining - 300mm Concrete Basic Wall30070 Retaining - 300mm Concrete 2 Basic Wall30019 Storefront Curtain Wall Furniture Schedule Type Family LevelCount 48" x 144"Variable_Size_Conference_Table_ with_Chairs_7984 First Floor Level 1 54" x 168"Variable_Size_Conference_Table_ with_Chairs_7984 Ground Floor Level 1 457 x 610mmM_Seating-Auditorium Ground Floor Level 4 0610 x 0610 x 0762mm M_Table-Night Stand Ground Floor Level 2 0915 x 0254 x 1830mm M_Shelving 79 0915 x 1830mmM_Table-Dining Oval Ground Floor Level 2 0915mm Diameter M_Table-Dining Round Ground Floor Level 2 1525 x 457 x 457mm M_Bench-Locker Room Ground Level 10 1525 x 762mmM_Desk Ground Floor Level 4 1525 x 762mm Student M_Desk Ground Floor Level 1 1830 x 0762mmM_Table-Rectangular 14 1830 x 915mmM_Desk 36 1830 x 1830 x 0610mm M_Entertainment center 14 2440 x 0305 x 2134mm M_Shelving Ground Floor Level 24 2743 x 2134 x 0762mm M_Entertainment center 10 Chair-ExecutiveChair-Executive 24 Desk ChairM_Chair-Desk 25 M_Chair-Task (Arms) M_Chair-Task (Arms) 224 Sofa M_Sofa-Corbu 11 Sofa_6855Sofa_6855 Ground Floor Level 6 Grand total: 494 Railing Schedule TypeFamily Railing HeightLengthCount 900mm PipeRailing900 900mm Rectangular Railing900 Glass PanelBottom Fill Railing900 seating Railing0 process. By simulating construction sequences and identifying potential clashes or issues before construction begins, BIM can help reduce errors, improve safety, and streamline the construction timeline. Overall, using BIM for a performing center can lead to a more efficient design process, better-performing spaces, and a more enjoyable experience for performers and audiences alike. Column Schedule TypeFamilyBase LevelTop LevelCount 250 x 250 mm M_Rectangul ar Column 19 305mm Diameter M_Round Column Ground Floor Level First Floor Level 26 350 x 350mm M_Rectangul ar Column Ground Floor Level First Floor Level 63 450 x 450mm M_Rectangul ar Column Ground Floor Level 46 610mm Diameter M_Metal Clad Column OAT Ground floor OAT Roof level 4 610mm Diameter M_Round Column Ground Floor Level First Floor Level 7 17 18 19 20 FURNITURE WALLS COLUMNS FLOOR SITE
Type Family WidthHeight Sill HeightCount 090 x 2100mmM_Single-Flush 900210004 108" x 80" Three_Panel_Sliding_Door_175342743203201 800
2100mmM_Door-Single-Panel
0813
0813
SCHEDULE
x
x 2134mmM_Single-Flush 813213404
0864
Window Schedule Type Family WidthHeightSill 0406 x 0610mmM_Window-Louvers 406 600 x 1800mmM_Window-Awning-Triple-Vertical60018009 0610 x 0610mmM_Window-Louvers 610 900 x 1800mmM_Window-Awning-Triple-Vertical90018009 0915 x 1830mmM_Fixed 9151830 1550 x 1200mmM_Window-Casement-Multi-Sash-Horiz ontal 1500120090014 1800 x 1350mmM_Window-Casement-Multi-Sash-Horiz ontal 1800135090052 1800 x 1500mmM_Window-Sliding-Double 180015009003 2150 x 1500mmM_Window-Casement-Multi-Sash-Horiz ontal 215015009003 Wall Schedule Type FamilyWidthCount Generic - 150mm Basic Wall150293 Generic - 150mm MasonryBasic Wall1502 Generic - 200mm Basic Wall200220 Generic - 250mm Basic Wall2506 Interior - 79mm Partition (1-hr) Basic Wall80 Interior - 100 Basic Wall100290 Retaining - 300mm Concrete Basic Wall30070 Retaining - 300mm Concrete 2 Basic Wall30019 Storefront Curtain Wall
Type Family LevelCount 48" x 144"Variable_Size_Conference_Table_ with_Chairs_7984 First Floor Level 54" x 168"Variable_Size_Conference_Table_ with_Chairs_7984 Ground Floor Level 457 x 610mmM_Seating-Auditorium Ground Floor Level 0610 x 0610 x 0762mm M_Table-Night Stand Ground Floor Level 0915 x 0254 x 1830mm M_Shelving 0915 x 1830mmM_Table-Dining Oval Ground Floor Level 2 0915mm Diameter M_Table-Dining Round Ground Floor Level 2 1525 x 457 x 457mm M_Bench-Locker Room Ground Level 10 1525 x 762mmM_Desk Ground Floor Level 4 1525 x 762mm Student M_Desk Ground Floor Level 1 1830 x 0762mmM_Table-Rectangular 14 1830 x 915mmM_Desk 36 1830 x 1830 x 0610mm M_Entertainment center 14 2440 x 0305 x 2134mm M_Shelving Ground Floor Level 24 2743 x 2134 x 0762mm M_Entertainment center 10 Chair-ExecutiveChair-Executive 24 Desk ChairM_Chair-Desk 25 M_Chair-Task (Arms) M_Chair-Task (Arms) 224 Sofa M_Sofa-Corbu 11 Sofa_6855Sofa_6855 Ground Floor Level 6 Grand total: 494 Railing Schedule TypeFamily Railing HeightLengthCount 900mm PipeRailing900 900mm Rectangular Railing900 Glass PanelBottom Fill Railing900 seating Railing0 Furthermore, BIM can help management of the construction process. By simulating construction sequences and identifying clashes or issues before begins, BIM can help reduce improve safety, and streamline construction timeline. Overall, using BIM for a performing center can lead to a more design process, better-performing spaces, and a more enjoyable experience for performers audiences alike.
TypeFamilyBase LevelTop LevelCount 250 x 250 mm M_Rectangul ar Column 19 305mm Diameter M_Round Column Ground Floor Level First Floor Level 26 350 x 350mm M_Rectangul ar Column Ground Floor Level First Floor Level 63 450 x 450mm M_Rectangul ar Column Ground Floor Level 46 610mm Diameter M_Metal Clad Column OAT Ground floor OAT Roof level 4 610mm Diameter M_Round Column Ground Floor Level First Floor Level 7 17 18 19 20 FURNITURE WALLS COLUMNS FLOOR SITE
Type Family WidthHeight Sill HeightCount
2100mmM_Single-Flush
108" x 80" Three_Panel_Sliding_Door_175342743203201 800
090 x
2100mmM_Door-Single-Panel
Window Schedule Family WidthHeightSill 0406 x 0610mmM_Window-Louvers 406 600
0610 x 0610mmM_Window-Louvers 610 900 x 1800mmM_Window-Awning-Triple-Vertical90018009 0915 x 1830mmM_Fixed 9151830 1550 x 1200mmM_Window-Casement-Multi-Sash-Horiz ontal 1500120090014 1800 x 1350mmM_Window-Casement-Multi-Sash-Horiz ontal 1800135090052 1800 x 1500mmM_Window-Sliding-Double 180015009003 2150 x 1500mmM_Window-Casement-Multi-Sash-Horiz ontal 215015009003 Wall Schedule Type FamilyWidthCount Generic - 150mm Basic Wall150293 Generic - 150mm MasonryBasic Wall1502 Generic - 200mm Basic Wall200220 Generic - 250mm Basic Wall2506 Interior - 79mm Partition (1-hr) Basic Wall80 Interior - 100 Basic Wall100290 Retaining - 300mm Concrete Basic Wall30070 Retaining - 300mm Concrete 2 Basic Wall30019 Storefront Curtain Wall
Type Family LevelCount 48" x 144"Variable_Size_Conference_Table_ with_Chairs_7984 First Floor Level 1 54" x 168"Variable_Size_Conference_Table_ with_Chairs_7984 Ground Floor Level 1 457 x 610mmM_Seating-Auditorium Ground Floor Level 4 0610 x 0610 x 0762mm M_Table-Night Stand Ground Floor Level 2 0915 x 0254 x 1830mm M_Shelving 79 0915 x 1830mmM_Table-Dining Oval Ground Floor Level 2 0915mm Diameter M_Table-Dining Round Ground Floor Level 2 1525 x 457 x 457mm M_Bench-Locker Room Ground Level 10 1525 x 762mmM_Desk Ground Floor Level 4 1525 x 762mm Student M_Desk Ground Floor Level 1 1830 x 0762mmM_Table-Rectangular 14 1830 x 915mmM_Desk 36 1830 x 1830 x 0610mm M_Entertainment center 14 2440 x 0305 x 2134mm M_Shelving Ground Floor Level 24 2743 x 2134 x 0762mm M_Entertainment center 10 Chair-ExecutiveChair-Executive 24 Desk ChairM_Chair-Desk 25 M_Chair-Task (Arms) M_Chair-Task (Arms) 224 Sofa M_Sofa-Corbu 11 Sofa_6855Sofa_6855 Ground Floor Level 6 Grand total: 494 Railing Schedule TypeFamily Railing HeightLengthCount 900mm PipeRailing900 900mm Rectangular Railing900 Glass PanelBottom Fill Railing900 seating Railing0 performances. Furthermore, BIM can help in management of the construction process. By simulating construction sequences and identifying clashes or issues before construction begins, BIM can help reduce improve safety, and streamline construction timeline. Overall, using BIM for a performing center can lead to a more design process, better-performing spaces, and a more enjoyable experience for performers audiences alike.
3000
x 1800mmM_Window-Awning-Triple-Vertical60018009
Furniture Schedule
TypeFamilyBase LevelTop LevelCount 250 x 250 mm M_Rectangul ar Column 19 305mm Diameter M_Round Column Ground Floor Level First Floor Level 26 350 x 350mm M_Rectangul ar Column Ground Floor Level First Floor Level 63 450 x 450mm M_Rectangul ar Column Ground Floor Level 46 610mm Diameter M_Metal Clad Column OAT Ground floor OAT Roof level 4 610mm Diameter M_Round Column Ground Floor Level First Floor Level 7
FLOOR SITE 9152032-28802 00-28802 9152134061 00 29 16002100011 1800210005 2100mmM_Door-Exterior-Double-Two_Lite18002100030 2100mmM_Door-Passage-Double-Flush-Dbl_ 2100210009 2100mmM_Door-Exterior-Double-Two_Lite2400210004 3000mmM_Door-Passage-Double-Flush-Dbl_ 30003000011
COLUMNS
WidthHeightSill HeightCount 0406 x 0610mmM_Window-Louvers 406 91516 600 x 1800mmM_Window-Awning-Triple-Vertical60018009006 0610 x 0610mmM_Window-Louvers 610 80 900 x 1800mmM_Window-Awning-Triple-Vertical900180090011 9151830 17 1550 x 1200mmM_Window-Casement-Multi-Sash-Horiz 1500120090014 1800 x 1350mmM_Window-Casement-Multi-Sash-Horiz 1800135090052 1800 x 1500mmM_Window-Sliding-Double 180015009003 2150 x 1500mmM_Window-Casement-Multi-Sash-Horiz ontal 215015009003 Wall Schedule Type FamilyWidthCount Generic - 150mm Basic Wall150293 Generic - 150mm MasonryBasic Wall1502 Generic - 200mm Basic Wall200220 Generic - 250mm Basic Wall2506 Interior - 79mm Partition (1-hr) Basic Wall80 3 Interior - 100 Basic Wall100290 Retaining - 300mm Concrete Basic Wall30070 Retaining - 300mm Concrete 2 Basic Wall30019 Storefront Curtain Wall 13 Schedule LevelCount First Floor Level 1 Ground Floor Level 1 Ground Floor Level 4 Ground Floor Level 2 79 Ground Floor Level 2 Ground Floor Level 2 Ground Level 10 Ground Floor Level 4 Ground Floor Level 1 14 36 14 Ground Floor Level 24 10 24 25 224 11 Ground Floor Level 6 Railing Schedule TypeFamily Railing HeightLengthCount 900mm PipeRailing900 15 900mm Rectangular Railing900 6 Glass PanelBottom Fill Railing900 68 seating Railing0 72 Schedule LevelCount 19 26 63 46 4 7
FLOOR SITE 8002100020 813213404 00010 0003 00021 2000mmM_Door-Passage-Single-Flush-Dbl_A 90020000119 9152032-28802 00-28802 9152134061 00 29 16002100011 1800210005 2100mmM_Door-Exterior-Double-Two_Lite18002100030 2100mmM_Door-Passage-Double-Flush-Dbl_ 2100210009 2100mmM_Door-Exterior-Double-Two_Lite2400210004 3000mmM_Door-Passage-Double-Flush-Dbl_ 30003000011 Window Schedule Type WidthHeightSill HeightCount 0406 x 0610mmM_Window-Louvers 406 91516 600 x 1800mmM_Window-Awning-Triple-Vertical60018009006 0610 x 0610mmM_Window-Louvers 610 80 900 x 1800mmM_Window-Awning-Triple-Vertical900180090011 0915 x 1830mmM_Fixed 9151830 17 1550 x 1200mmM_Window-Casement-Multi-Sash-Horiz ontal 1500120090014 1800 x 1350mmM_Window-Casement-Multi-Sash-Horiz ontal 1800135090052 1800 x 1500mmM_Window-Sliding-Double 180015009003 2150 x 1500mmM_Window-Casement-Multi-Sash-Horiz ontal 215015009003 Wall Schedule Type FamilyWidthCount Generic - 150mm Basic Wall150293 Generic - 150mm MasonryBasic Wall1502 Generic - 200mm Basic Wall200220 Generic - 250mm Basic Wall2506 Interior - 79mm Partition (1-hr) Basic Wall80 3 Interior - 100 Basic Wall100290 Retaining - 300mm Concrete Basic Wall30070 Retaining - 300mm Concrete 2 Basic Wall30019 Storefront Curtain Wall 13 Schedule LevelCount First Floor Level Ground Floor Level Ground Floor Level 4 Ground Floor Level 2 79 Ground Floor Level 2 Ground Floor Level 2 Ground Level 10 Ground Floor Level 4 Ground Floor Level 1 14 36 14 Ground Floor Level 24 10 24 25 224 11 Ground Floor Level 6 Railing Schedule TypeFamily Railing HeightLengthCount 900mm PipeRailing900 15 900mm Rectangular Railing900 6 Railing900 68 Railing0 72 Schedule LevelCount 19 Floor 26 Floor 63 46 4 Floor 7 COLUMNS FLOOR SITE 2100mmM_Door-Single-Panel 8002100020 2134mmM_Single-Flush 813213404 2134mmM_Door-Opening 00010 2032mmM_Door-Opening 0003 2134mmM_Door-Opening 00021 2000mmM_Door-Passage-Single-Flush-Dbl_A 90020000119 2032mmM_Single-Flush 9152032-28802 2032mmM_Door-Opening 00-28802 2134mmM_Single-Flush 9152134061 2134mmM_Door-Opening 00 29 2100mmM_Door-Double-Glass 16002100011 2100mmM_Door-Double-Glass 1800210005 2100mmM_Door-Exterior-Double-Two_Lite18002100030 2100mmM_Door-Passage-Double-Flush-Dbl_ 2100210009 2100mmM_Door-Exterior-Double-Two_Lite2400210004 3000mmM_Door-Passage-Double-Flush-Dbl_ 30003000011
COLUMNS
Type Family WidthHeightSill HeightCount 0406 x 0610mmM_Window-Louvers 406 91516 600 x 1800mmM_Window-Awning-Triple-Vertical60018009006 0610 x 0610mmM_Window-Louvers 610 80 900 x 1800mmM_Window-Awning-Triple-Vertical900180090011 0915 x 1830mmM_Fixed 9151830 17 1550 x 1200mmM_Window-Casement-Multi-Sash-Horiz ontal 1500120090014 1800 x 1350mmM_Window-Casement-Multi-Sash-Horiz ontal 1800135090052 1800 x 1500mmM_Window-Sliding-Double 180015009003 2150 x 1500mmM_Window-Casement-Multi-Sash-Horiz ontal 215015009003
Type FamilyWidthCount Generic - 150mm Basic Wall150293 Generic - 150mm MasonryBasic Wall1502 Generic - 200mm Basic Wall200220 Generic - 250mm Basic Wall2506 Interior - 79mm Partition (1-hr) Basic Wall80 3 Interior - 100 Basic Wall100290 Retaining - 300mm Concrete Basic Wall30070 Retaining - 300mm Concrete 2 Basic Wall30019 Storefront Curtain Wall 13 Furniture Schedule Family LevelCount 144"Variable_Size_Conference_Table_ First Floor Level 1 168"Variable_Size_Conference_Table_ Ground Floor Level 1 610mmM_Seating-Auditorium Ground Floor Level 4 Stand Ground Floor Level 2 79 Oval Ground Floor Level 2 Round Ground Floor Level 2 Room Ground Level 10 Ground Floor Level 4 Ground Floor Level 1 0762mmM_Table-Rectangular 14 36 center 14 Ground Floor Level 24 center 10 24 25 (Arms) 224 11 Ground Floor Level 6
Wall Schedule
TypeFamily Railing HeightLengthCount 900mm PipeRailing900 15 900mm Rectangular Railing900 6 Glass PanelBottom Fill Railing900 68 seating Railing0 72 Schedule LevelTop LevelCount 19 Level First Floor Level 26 Level First Floor Level 63 Level 46 Ground OAT Roof level 4 Level First Floor Level 7

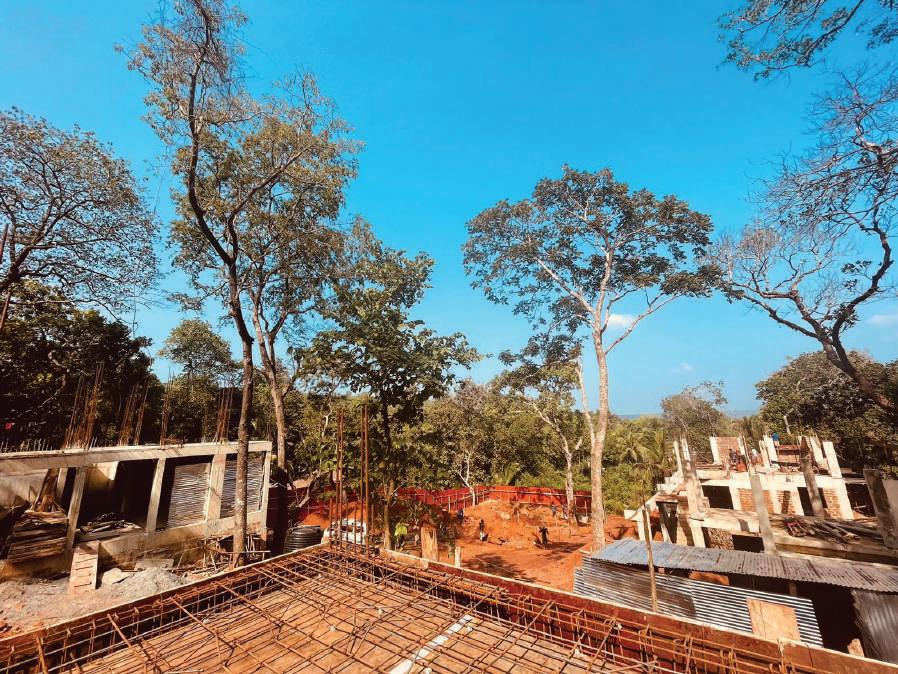

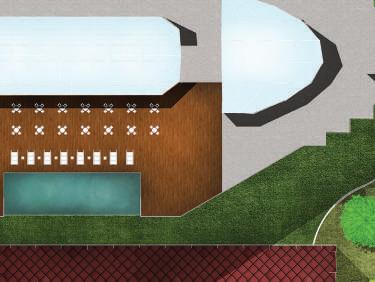

SIOLIM-VILLA C, GOA
YEAR: 2023
TYPE: Residential
STATUS: Construction
Location: Siolim, Bardez, Goa

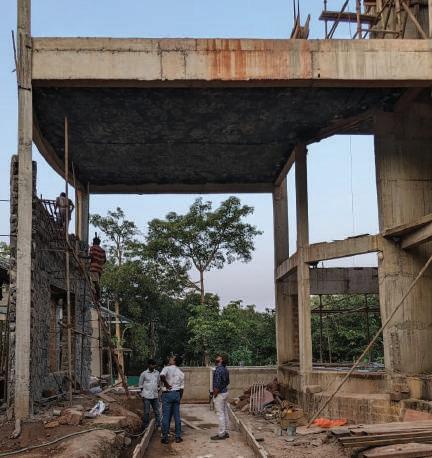

The siolim c is one of bunglow in four bunglow project.It is an bunglow having five bedrooms,kithcen, bar counter, swimming pool and other spaces
Kunal Mathurkar 36
GROUND FLOOR PLAN
FIRST FLOOR PLAN
Selected Works 37 KITCHEN 4.30 x 5.10m LIVING /DINING 10.50 5.10m SWIMMING POOL 13.20 x 4.00m Deck 14.50 X 1.80 MASTER BEDROOM 6.00 x 4.90m WARDROBE 2.80 1.50m BEDROOM 4.50 5.60m TOILET 3.80 x 2.70m TOILET 3.80 x 2.70m OUTDOOR SHOWER 3.80 2.70m LIFT 1.50 X 1.50m POWDER ROOM 2.0 1.80m UTILITY 4.30 1.90 DECK 6.50 x 2.75m FOYER 1.40 x 1.80m DUCT 1.10 X 2.00 DUCT 1.00 x 1.50m PARKING 5.10 x 6.50m +2.6 x 3.25 UP UP UP DOWN UP DOWN +1.20 x 2.00m +1.30 x 1.60m GREEN AREA COURTYARD BELOW PATIO BELOW COURTYARD BELOW VEHICULAR ENTRANCE MAIN ENTRANCE OUTDOOR DINING DECK 9.06 x 2.75m BAR LOUNGE 3.60 x 3.40m W2 W1 W1 W3 D1 SD1 SD2 SD5 SD6 D4 D4 D4 D3 D3 D2 SD3 C1 C2 C5 C3 C4 C9 C10 C7 C14 C13 C11 C12 C15 C16 C17 C19 C20 C21 C22 C23 C24 C25 C27 C28 C29 C30 C31 C18 C26 C8 V V W4 W12 W12 W12 V1 W7 D3 BAR 5.10 x 3.50m D3 W13 DOWN GREEN AREA +1.30 X 2.00 DOWN UP DOWN RAISED GREEN AREA EXISTING 6.0M WIDE ROAD PLANTER 3.80 x 1.10m COURTYARD 3.25 PATIO 3.65 x 4.00m SWIMMING POOL ON GROUND LVL 10° SLOPE SLOPING DOWN THIS WAY NOTES: ALL DIMENSIONS ARE IN METERS UNLESS STATED OTHERWISE. PROJECT:
HOUSE N
SIOLIM-VILLA C
BASEMENT PARKING 6.50m 3.25 GREEN AREA VEHICULAR ENTRANCE DOWN DOWN BEDROOM 4.30 x 5.10m LIVING BELOW TOILET 2.00 3.90 MASTER BEDROOM 6.00 x 4.90m WARDROBE 2.70 x 1.50m BEDROOM 4.50 x 5.60m TOILET 3.80 x 2.70m PASSAGE 6.60 x 1.90m LIFT WELL 1.50 x 1.50m FAMILY LOUNGE 4.00 x 4.50m CLOSET 2.10 1.90 +1.20 x 2.00m FOYER BELOW OUTDOOR SHOWER BELOW PASSAGE 5.50 1.70m DUCT 1.00 x 1.50m DUCT 1.10 X 2.00 BALCONY 6.60 x 1.50m BALCONY 4.90 1.50m +1.20 x 1.60m W2 W3 W8 SD7 D4 D3 D3 D3 V2 C1 C2 C5 C3 C4 C6 C9 C10 C7 C14 C13 C11 C12 C15 C16 C17 C19 C20 C21 C22 C23 C24 C25 C27 C28 C29 C30 C31 C18 C26 C8 S8 S9 W13 W13 W6 S1 W11 S2 W9 W10 S7 S4 S3 S S5 S6 SD3 STUDY 3.60 x 3.20m V V D4 W13 TOILET 3.80 x 2.70m DOWN PLANTER 3.80 x 1.10m PATIO PARKING 1.50 x 3.60m SERVICE ENTRANCE C3 W2 SIZE (cms) SCHEDULE OF OPENINGS - VILLA C W1 TYPE SILL HT. (cms) NOS 60 X 200 50 120 X 200 50 120 X 380 2 2 1 W3 200 D1 D2 D3 140 X 310 100 X 250 90 X 220 6 2 1-SIZE (cms) TYPE SILL HT. (cms) NOS WOODEN DOOR ALUMINUM WINDOWS STYLE Casement Casement Casement & Fixed EXISTING TREE LEGEND JUNGLE TREE BOUNDARY STONE ELECTRIC POLE
ROOF PLAN
BASEMENT PLAN
FIRST FLOOR PLAN
SIOLIM-VILLA C HOUSE
Kunal Mathurkar 38 EXISTING 6.0M WIDE ROAD PLANTER 3.80 PATIO 3.65 SWIMMING POOL ON GROUND LVL 10° SLOPE SLOPING DOWN THIS WAY NOTES: ALL DIMENSIONS ARE IN METERS UNLESS STATED OTHERWISE. PROJECT:
N GROUND
GREEN AREA VEHICULAR ENTRANCE DOWN DOWN BEDROOM 4.30 x 5.10m LIVING BELOW TOILET 2.00 x 3.90 MASTER BEDROOM 6.00 x 4.90m WARDROBE 2.70 x 1.50m BEDROOM 4.50 x 5.60m TOILET 3.80 x 2.70m PASSAGE 6.60 x 1.90m LIFT WELL 1.50 x 1.50m FAMILY LOUNGE 4.00 4.50m CLOSET 2.10 x 1.90 +1.20 x 2.00m FOYER BELOW OUTDOOR SHOWER BELOW PASSAGE 5.50 x 1.70m DUCT 1.00 x 1.50m DUCT 1.10 X 2.00 BALCONY 6.60 x 1.50m BALCONY 4.90 x 1.50m +1.20 x 1.60m W2 W3 SD2 W8 SD7 D4 D3 D3 D3 V2 C1 C2 C5 C3 C4 C6 C9 C10 C7 C14 C13 C11 C12 C15 C16 C17 C19 C20 C21 C22 C23 C24 C25 C27 C28 C29 C30 C31 C18 C26 C8 S8 W13 W13 W6 W11 W7 S7 S4 S3 S S5 S6 SD3 STUDY 3.60 x 3.20m V V D4 W13 TOILET 3.80 x 2.70m STAFF QUARTER 3.90 2.10 + 2.5 X 2.7 EXISTING 6.0M WIDE ROAD DUCT 1.00 x 1.50m TOILET 1.30 2.60m DOWN PLANTER 3.80 x 1.10m COURTYARD 3.25 x 5.10m PATIO 3.65 x 4.00m PARKING 1.50 3.60m SERVICE ENTRANCE V D4 C3 C6 C11 C12 C19 C20 C25 D2 W4 W2 SIZE (cms) SCHEDULE OF OPENINGS - VILLA C W1 TYPE SILL HT. (cms) NOS 60 X 200 50 120 X 200 50 120 X 380 2 2 1 W3 W4 V 200 150 X 160 90 2 80 X 130 150 3 D1 D2 D3 D4 140 X 310 100 X 250 90 X 220 80 X 220 600X 250 180 X 250 430 X 250 SD2 SD6 SD7 1 3 2 7 6 2 1---SIZE (cms) TYPE SILL HT. (cms) NOS V1 100 X 85 165 1 - 350 X 250 SD1 1 360 X 250 SD3 2630X 3.15 SD4 1200X 250 SD5 1WOODEN DOOR ALUMINUM DOOR W5 90 X 200 50 2 V2 100 X 100 150 1 W6 350 X 200 50 1 W7 250 X 200 50 2 W8 360 X 200 50 1 W9 630 X 245 - 1 W10 360 X 245 - 1 W11 140 X 200 50 2 ALUMINUM WINDOWS W13 100 X 200 50 5 S 400 X 145 270 1 ALUMINUM WINDOWS - Fixed Skylights S1 480 X 190 270 1 S2 180 X 190 270 1 S3 520 X 190 270 1 S4 410 X 170 270 1 S5 360 X 135 270 1 S6 200 X 35 270 1 S7 200 X 20 270 1 S8 290 X 30 270 1 S9 290 X 110 270 1 W12 100 X 160 90 3 STYLE Casement Casement Casement & Fixed Casement Fixed & Ventilator Sliding Sliding Sliding Fixed Fixed Casement Casement Fixed & Ventilator Ventilator Fixed & Ventilator Fixed Glass Fixed Glass Fixed Glass Fixed Glass Fixed Glass Fixed Glass Fixed Glass Fixed Glass Fixed Glass Fixed Glass Casement LATERITE MASONRY BASALT MASONRY R.C.C RETAINING WALL LEGEND EXISTING TREE LEGEND JUNGLE TREE MANGO TREE BANYAN TREE BOUNDARY STONE ELECTRIC POLE COCONUT TREE CASHEW TREE BILLO MAD JACKFRUIT TREE 2S2, Edcon Enclave, Vasudha Colony Lane 1, Alto-Santa Cruz, Bambolim, Tiswadi - Goa. Ph: 0832-2458031, email: rajivdsilva@gmail.com DATE: SCALE: SIGNATURE: 1:200 N
FLOOR PLAN ROOF PLAN
Selected Works 39 FRONT ELEVATION VILLA C STAFF ROOM PLINTH LVL - 3.15OUTDOOR SHOWER LVL - 0.15 FIRST FLOOR LVL GROUND LVL5.80 ROOF LVL EAVES LVL 7.415.80 BACK ELEVATION VILLA C DECK LVL - 0.150.00 BALCONY -SECTION LVL 2.00 SIDE ELEVATION 3.30 PLINTH LVL EAVES LVL + 6.00 EAVES LVL + 7.69 - + PLINTH LVLFIRST FLOOR LVL 5.80 ROOF LVL WATER BODY 5.10 x 1.80m DOWN FOYER 1.40 x 1.80m UP UP MAIN ENTRANCE WATER BODY 5.10 x 1.80m FOYER 1.40 x 1.80m 100 X 50 WOODEN BLOCK 1" X 1" C C C EXISTING 6.0M WIDE ROAD FRONT DATE: SCALE: SIGNATURE: NOTES: ALL DIMENSIONS ARE IN METERS UNLESS STATED OTHERWISE. PROJECT: SIOLIM-VILLA C HOUSE 1:300 26/6/2023 N GROUND FLOOR ELECTRICAL PLAN FIRST FLOOR ELECTRICAL PLAN BASEMENT ELECTRICAL PLAN ENTRANCE DETAILS (1:300) FRONT ELEVATION VILLA C - 3.15 ENTRANCE PLINTH LVLPLINTH LVL - 0.15 FIRST FLOOR LVL ± 0.00 GROUND LVL - 0.45 I-SECTION LVL ROOF LVL PARKING + 1.50 EAVES LVL - SECTION LVL EAVES LVL + 7.69 EAVES LVL + 7.34 BACK ELEVATION VILLA C PARKING LVL DECK LVL- 0.45 ± 0.00 PLINTH LVL + 3.30 + 8.32 BALCONY -SECTION LVL + 3.20 2.50 2.46 3.16 + 3.30 ± 0.00 EAVES LVL 6.00 ROOF LVL + 8.06 EAVES LVL 7.69 - SECTION LVL + 5.80 WATER BODY 5.10 x 1.80m DOWN FOYER 1.40 x 1.80m UP UP MAIN ENTRANCE WATER BODY 5.10 x 1.80m FOYER 1.40 x 1.80m WOODEN C 13.20 4.00m +1.20 2.00m PATIO MAIN ENTRANCE DOWN 1.00 1.55 1.55 1.35 1.35 0.75 0.35 1.00 0.65 0.40 0.55 LIFT WELL C 5.50 1.70m DUCT TOILET 0.45 0.35 1.00 3.59 1.00 1.05 1.05 C 2.5 2.7 EXISTING 6.0M WIDE ROAD TOILET DOWN DATE: SCALE: NOTES: ALL DIMENSIONS ARE IN METERS UNLESS STATED OTHERWISE. PROJECT: SIOLIM-VILLA C HOUSE 1:300 26/6/2023 N GROUND FLOOR ELECTRICAL PLAN FIRST FLOOR ELECTRICAL PLAN BASEMENT ELECTRICAL PLAN ENTRANCE FRONT ELEVATION VILLA C W2 - 3.15 ± 0.00 OUTDOOR SHOWER LVLFIRST FLOOR LVL + 3.30 PLINTH LVL - 0.45 I-SECTION LVL + 5.80 ROOF LVL 8.32 PARKING LVL EAVES LVL - SECTION LVL + 5.80 EAVES LVL + 7.34 BACK ELEVATION VILLA C PARKING LVL - 0.15 RAISED GROUND LVLPLINTH LVL LVL ± 0.00 FIRST FLOOR LVL FIRST FLOOR LVL + 3.20 2.50 2.46 2.45 3.16 W13 FIRST FLOOR LVL ± 0.00 EAVES LVL 6.00 + 8.06 7.69 - + WATER BODY 5.10 x 1.80m DOWN FOYER 1.40 x 1.80m UP UP MAIN ENTRANCE WATER BODY 5.10 x 1.80m FOYER 1.40 x 1.80m WOODEN C KITCHEN PARKING BELOW VEHICULAR ENTRANCE 1.00 1.55 1.55 1.35 1.35 0.75 0.35 1.00 0.65 0.40 0.55 1.50 1.50m C 3.80 2.70m 0.45 0.35 1.00 3.59 1.00 1.05 1.05 C EXISTING 6.0M WIDE ROAD 1.00 1.50m 1.50 3.60m C3 DATE: SCALE: NOTES: ALL DIMENSIONS ARE IN METERS UNLESS STATED OTHERWISE. PROJECT: SIOLIM-VILLA C HOUSE 1:300 26/6/2023 N GROUND FLOOR ELECTRICAL PLAN FIRST FLOOR ELECTRICAL PLAN BASEMENT ELECTRICAL PLAN ENTRANCE FRONT ELEVATION VILLA CENTRANCE PLINTH LVL0.00PLINTH LVLPARKINGBACK ELEVATION VILLA CRAISED GROUND LVLLVL 0.00 FIRST FLOOR LVL 3.20 2.45 SIDE ELEVATION ROOF LVL 8.06 - SECTION LVL + 5.80 STAFF ROOM PLINTH LVLI-SECTION LVL ROOF LVL 8.33 GROUND LVL 3.45 WATER BODY 5.10 x 1.80m DOWN FOYER 1.40 x 1.80m UP UP MAIN ENTRANCE WATER BODY 5.10 x 1.80m FOYER 1.40 x 1.80m 100 X 50 1" 1" C C C EXISTING 6.0M WIDE ROAD D1 FRONT ELEVATION DATE: SCALE: SIGNATURE: NOTES: ALL DIMENSIONS ARE IN METERS UNLESS STATED OTHERWISE. PROJECT: SIOLIM-VILLA C HOUSE 1:300 26/6/2023 N GROUND FLOOR ELECTRICAL PLAN FIRST FLOOR ELECTRICAL PLAN BASEMENT ELECTRICAL PLAN ENTRANCE DETAILS (1:300) BACK ELEVATION VILLA C 0.00 FIRST FLOOR LVL FIRST FLOOR LVL 8.32 3.16 3.16 2.50 SIDE ELEVATION FIRST FLOOR LVL 3.30 + 7.69 - SECTION LVL + 5.80 2.50 SECTION AA' False Ceiling 0.00FIRST FLOOR LVL 3.30 SECTION LVL 8.33 PARKING LVL 1.50 GROUND LVL 3.45 SECTION BB' 3.30 7.886.00 1.80m UP ENTRANCE WATER BODY 5.10 x 1.80m FOYER 1.40 x 1.80m WOODEN BLOCK 1" X 1" WOODEN SCREEN D1 IN OUT 0.80 2.80 TAPERED WOODEN COLUMN 100 50 WOODEN BLOCK 1" X 1" WOODEN SCREEN 6 MM FROSTED GLASS 100 X 50 WOODEN BLOCK 100 X 50 WOODEN STRUT R.C.C LINTEL 3.10 BASALT PILLAR 2.50 SECTION X-X' FRONT ELEVATION SCALE: SIGNATURE: 1:300 FIRST FLOOR ELECTRICAL PLAN ENTRANCE DETAILS (1:300) PARKING LVL FIRST FLOOR LVL FIRST FLOOR LVL + 8.32 SIDE ELEVATION 0.00 ROOF LVL - + SECTION AA' PLINTH LVL - 3.15 3.30 8.33 PARKING LVL GROUND LVL 3.45 SECTION BB' FIRST FLOOR LVL - 0.15 6.00 FOYER 1.40 x 1.80m 100 X 50 WOODEN BLOCK 1" X 1" WOODEN SCREEN D1 IN OUT 0.80 2.80 TAPERED WOODEN COLUMN 100 X 50 WOODEN BLOCK 1" X 1" WOODEN SCREEN MM FROSTED GLASS 100 X 50 WOODEN BLOCK WOODEN STRUT R.C.C LINTEL 3.10 WOODEN BASE BASALT PILLAR 2.50 SECTION X-X' FRONT ELEVATION 2S2, Edcon Enclave, Vasudha Colony Lane 1, Alto-Santa Cruz, Bambolim, Tiswadi Goa. Ph: 0832-2458031, email: rajivdsilva@gmail.com © 2023 'Studio 15,73'. NO PART OF THIS DRAWING MAY BE REPRODUCED OR MODIFIED WITHOUT THE WRITTEN CONSENT OF THE ARCHITECTS. DATE: SCALE: Rajiv D'Silva, B. Arch. Reg. No. AR/ 0109/ 2010 SIGNATURE: 1:300 26/6/2023 PLAN ENTRANCE DETAILS (1:300)ENTRANCE PLINTH LVLPLINTH LVLPARKINGBACK ELEVATION VILLA C PARKING LVLPLINTH LVL FIRST FLOOR LVL FIRST FLOOR LVL + 8.32 + 3.20 2.00 SIDE ELEVATION PLINTH LVL 0.00 ROOF LVL + 7.69 - + SECTION AA' False Ceiling PLINTH LVL - 3.15 3.30 8.33 PARKING LVL GROUND LVL 3.45 SECTION BB' - 0.15 6.00 WATER BODY 5.10 x 1.80m DOWN FOYER 1.40 x 1.80m UP UP MAIN ENTRANCE WATER BODY 5.10 x 1.80m FOYER 1.40 x 1.80m 100 X 50 WOODEN BLOCK 1" X 1" WOODEN SCREEN C D1 IN OUT 0.80 2.80 TAPERED WOODEN COLUMN 100 X 50 WOODEN BLOCK 1" X 1" WOODEN SCREEN MM FROSTED GLASS 100 X 50 WOODEN BLOCK WOODEN STRUT R.C.C LINTEL 3.10 WOODEN BASE BASALT PILLAR 2.50 SECTION X-X' FRONT ELEVATION 2S2, Edcon Enclave, Vasudha Colony Lane 1, Alto-Santa Cruz, Bambolim, Tiswadi Goa. Ph: 0832-2458031, email: rajivdsilva@gmail.com © 2023 'Studio 15,73'. NO PART OF THIS DRAWING MAY BE REPRODUCED OR MODIFIED WITHOUT THE WRITTEN CONSENT OF THE ARCHITECTS. DATE: SCALE: Rajiv D'Silva, B. Arch. Reg. No. AR/ 0109/ 2010 SIGNATURE: SIOLIM-VILLA
1:300 26/6/2023 N PLAN FIRST FLOOR ELECTRICAL PLAN ENTRANCE DETAILS (1:300)
C HOUSE

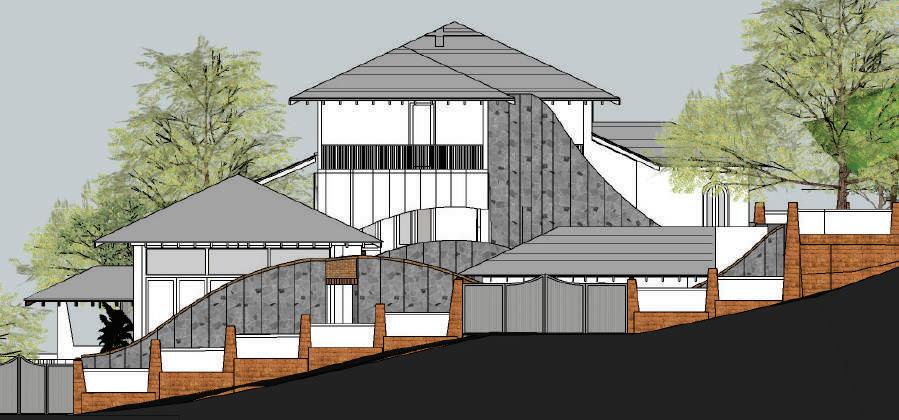

NANDA HOUSE, GOA
YEAR: 2023
TYPE: Residential
STATUS: Construction
Location: Candolim, Bardez, Goa

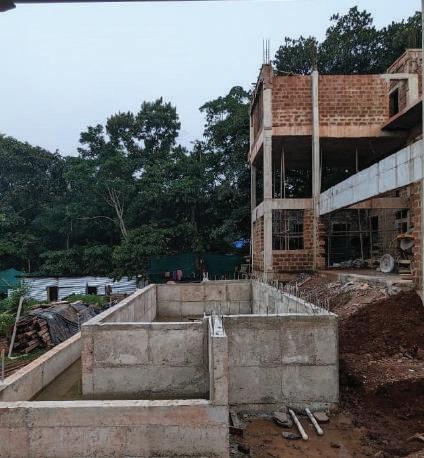

The Nanda house is bunglow which is facing candolim beach side.It is an bunglow having five bedrooms,kithcen, bar counter, swimming pool and other spaces
Kunal Mathurkar 40
Selected Works 41 GROUND FLOOR PLAN FIRST FLOOR PLANSITE PLAN COMPOUND WALL DRAIN POWDER ROOM 2.00 X 2.40 SWIMMING POOL 0.00 LVL - 0.90 LVL - 0.90 LVL-CROSS ROAD J T VEHICULAR EXIT R/W PARKING WELL BEDROOM 5.95 3.40 2.35 5.00 BEDROOM TOILET 5.00 2.40 3.50 7.50 COURTYARD 7.06 X 3.00 OUTDOOR SHOWER 2.76 1.602.00 2.30 ± 0.00 LVL± 0.00 LVL- 0.90 LVL -- 1.90 LVLGADAGA WALL 4.00 ROAD ROAD COMPOUND WALL COMPOUND WALL
GATE DRAIN VEHICULAR ENTRY 4.00 6.00 21.71 COMPOUND WALL BELOW C3 PATHWAY DATE: SCALE: SIGNATURE: NOTES: ALL DIMENSIONS ARE IN METERS UNLESS STATED OTHERWISE. PROJECT: NANDA HOUSE HOUSE 1:300 8/9/2023 N SITE PLAN WITH GROUND FLOOR PLAN FIRST PLAN COMPOUND WALL CROSS J T WELL GAZIBO 1.20 X 2.20 UTILITY DINING 9.84 4.00 2.55 2.40 3.80 1.70 ROOM 3.60 3.80 UPGADAGA WALL GATE 0.45 0.20 0.20 0.50 0.23 0.59 0.40 0.50 0.15 0.35 0.39 0.29 1.62 2.46 0.23 0.12 0.84 4.78 0.77 0.80 1.57 1.39 2.01 0.22 0.17 0.23 2.37 0.40 0.23 1.00 0.32 2.40 0.90 1.35 2.00 1.25 0.600.90 2.50 0.60 0.90 0.350.231.37 0.15 3.20 0.40 0.20 3.19 1.27 0.62 0.66 5.51 0.23 1.00 3.69 0.23 16.76 21.71 WELL COMPOUND WALL OUTDOOR (ROAD LVL) GUTTER 3.00 X 2.40 5.00 2.40 (ON GROUND FLOOR) GATE C2 C7 C8 C10 C12 C13 C4 C9 PATHWAY 1.00 Ledge wall 0.64 1.20 3.00 0.82 1.00 1.00 2.29 0.30 0.33 1.00 1.12 1.28 0.30 GROUND FLOOR PLAN FIRST FLOOR PLAN
GADAGA WALL
SECOND FLOOR PLAN (SCALE:-1:300)
Kunal Mathurkar 42 4.85 0.35 0.94 0.23 0.23 0.17 0.80 0.50 0.20 1.20 1.00 2.10 1.00 1.20 0.20 0.50 0.57 0.40 6.34 9.56 3.22 0.30 0.23 3.67 0.23 3.73 1.00 0.32 1.95 0.23 3.24 0.90 0.23 2.28 0.12 0.23 2.42 0.11 2.22 2.00 2.22 0.23 0.23 2.40 0.23 2.78 0.15 3.21 0.35 0.40 1.20 7.70 0.23 0.50 1.97 0.11 0.35 0.39 1.45 1.96 1.44 0.40 0.93 0.23 0.43 0.50 0.50 0.20 0.65 2.28 0.80 0.87 0.84 0.90 1.40 0.23 1.50 2.40 2.66 6.32 WELL GUTTER POND (ROAD LVL) DUCT COURTYARD BELOW (ON GROUND FLOOR) (ON GROUND FLOOR) STUDY TOILET 5.00 X 2.40 WARDROBE STORE 3.00 X 2.40 DW COVERED TERRACE 6.88 X 6.20 SLOPING ROOF SLOPING ROOF LIFT 1.98 X 1.50 SLOPING ROOF FLAT SLAB BELOW W9 D5 C3 C1 C2 C6 C7 C8 C10 C11 C12 C14 C15 C13 C4 C5 C9 ROOM SLOPING ROOF SLOPING ROOF SLOPING ROOF 3.30 SECOND FLOOR LVL + 3.30 ± 0.00 -0.45 RIDGE LVL 3.30 SECTION A-A' RIDGE LVL +4.25 PLINTH LVL 2.50 0.17 4.19 0.30 2.20 0.90 0.80 0.90 0.25 0.25 6.62 4.06 0.90 2.50 2.50 1.50 0.15 2.50 0.20 0.20 0.800.40 5.80 4.38 1.50 3.40 2.40 6.60 6.18 0.00 COVERED TERRACE ENTRANCE PLINTH LVLSECTION B-B' NOTES: ALL DIMENSIONS ARE IN METERS UNLESS STATED OTHERWISE. PROJECT:
NANDA HOUSE HOUSE
(SCALE:-1:400) (SCALE:-1:400) 4.85 0.35 0.94 0.23 0.23 0.17 0.80 0.23 3.73 1.00 0.32 1.95 0.23 3.24 0.90 0.23 2.28 0.12 0.23 2.42 0.11 2.22 2.00 2.22 0.23 0.23 2.40 0.23 2.78 1.44 0.40 0.93 0.23 0.43 0.50 0.50 0.20 0.65 2.28 0.80 0.87 0.84 0.90 1.40 0.23 UP DUCT STUDY 5.00 X 2.40 WARDROBE & STORE 3.00 X 2.40 SLOPING ROOF W9 C1 C2 C7 C8 C11 C12 C14 C15 C5 WELL UP POND (ROAD LVL) GUTTER (ON GROUND FLOOR) (ON GROUND FLOOR) SLOPING ROOF SKYLIGHT 1.75 1.80 SLOPING ROOF 45° 45° 45° 45° 45° 45° 45° 90° 90° 90° 90° 90° 45° 45° 45° 90° 45° 45° SK2 7.13 3.30 0.30 SECTION D-D' 3.00 ROAD LVL (3.50) + 3.15 3.30 3.30 4.75 1.50 0.45 10.30 3.70 ROOF PLAN LATERITE WOODEN 150MM CONCRETE 500MM BASALT BRICK LEGEND (SCALE:-1:300) (SCALE:-1:300) (SCALE:-1:400) SECOND FLOOR PLAN ROOF PLAN
Selected Works 43 4.25 2.50 2.40 3.89 0.90 3.30 3.00 1.70 1.20 0.60 1.00 0.80 BEDROOM
FOYER RIDGE LVL + 3.52 EAVES LVL + 4.09 RIDGE LVL + 5.92 COUTYARD LVL + 3.00 PLINTH LVL ± 0.00 GROUND LVL -1.80 ENTRANCE PLINTH LVL - 0.90 EAVES LVL + 0.70 RIDGE LVL + 12.13 PLINTH LVL ± 0.00 RIDGE LVL + 12.24 RIDGE LVL + 13.32 RIDGE LVL + 2.20 SOIL TO FIRST FLOOR LVL + 3.30 SECOND FLOOR LVL + 6.60 ROOF RIDGE LVL + 7.11 RIDGE LVL + 7.54 D5 W4 W4 D2 MASONRY PILLARS MASONRY PILLARS 3.02 2.40 RIDGE LVL +4.08 RIDGE LVL +12.24 SECOND FLOOR LVL + 6.60 RIDGE LVL +13.32 FRONT ELEVATION PLINTH LVL ±0.00 FIRST FLOOR LVL + 3.30 4.50 3.40 3.40 2.00 3.20 2.00 5.60 0.23 D FD1 W17 FD4 W7 W12 D1 W15 W14 W14 BASALT MASONRY BASALT MASONRY BASALT PLANTER LIVING ROOM EAVES LVL 6.18 SECTION H-H' DECK LVLSWIMMING POOL 1.50 0.25 1.25 1.10 - 1.35 WATER BODY CUT AT A-A' LVL- M 0.60 - M BEAM LVL - 0.90 KITCHEN 0.20 3.50 1.27 W W17 W9 W6 (SCALE:-1:400) (SCALE:-1:400) (SCALE:-1:300) EAVES LVL + 4.09 RIDGE LVL + 5.92 COUTYARD LVL + 3.00 PLINTH LVL 0.00 RIDGE LVL + 12.13 RIDGE LVL + 13.32 RIDGE LVL + 7.54 FOYER RIDGE LVL + 3.52 ENTRANE PLINTH LVL - 0.90 CAR DROP-OFF LIVING ROOM RIDGE LVL + 6.18 BEDROOM RIDGE LVL + 5.92 CAR PORCH RIDGE LVL + 2.20 PLINTH LVL ±0.00 0.50 2.50 0.50 W1 W D LIVING ROOM EAVES LVL + 4.02 BEDROOM LIVING ROOM WARDROBE SECTION F-F' LIVING ROOM RIDGE LVL + 6.18 EAVES LVL + 4.09 COUTYARD LVL + 3.00 GROUND LVL -1.80 ENTRANCE PLINTH LVL - 0.90 RIDGE LVL + 5.90 CAR DROP OFF RIDGE LVL + 2.20 PLINTH LVL ± 0.00 PLINTH LVL ± 0.00 RIDGE LVL + 12.13 0.90 2.55 3.38 0.71 3.35 PLUM CONRETE 1.70 1.20 0.90 1.20 3.30 SOIL TO BE RETAINED 1.00 0.80 0.60 3.50 1.27 W4 W W4 W4 POOL 1.50 TOILET STAFF QUARTER KITCHEN FIRST FLOOR LVL + 3.30 SECOND FLOOR LVL + 6.60 EAVES LVL + 10.04 PLINTH LVL ± 0.00 0.20 W12 W12 W17 6.18 - M - 0.90 KITCHEN W17 W W3 W3 COVERED PASSAGE LIVING/DINING DECK FAMILY ROOM 2.40 SECTION I-I' 2.64 3.37 0.90 1.60 0.60 0.15 0.15 0.30 LIVING ROOM RIDGE LVL + 6.18 ENTRANE PLINTH LVL - 0.90 CAR PORCH RIDGE LVL + 2.20 PLINTH LVL ± 0.00 RIGHT SIDE ELEVATION CAR PORCH TERRACE RIDGE LVL + 12.13 STUDY RIDGE LVL + 12.24 W11 D5 (SCALE:-1:400) (SCALE:-1:400) 4.25 2.50 2.40 1.50 0.90 3.30 3.00 1.70 0.60 1.00 0.80 SECTION E-E' EAVES LVL + 4.09 RIDGE LVL + 5.92 COUTYARD LVL + 3.00 PLINTH LVL ± 0.00 RIDGE LVL + 12.13 RIDGE LVL + 13.32 SOIL TO BE RIDGE LVL + 7.54 W4 MASONRY PILLARS MASONRY PILLARS 3.02 2.40 FOYER RIDGE LVL + 3.52 ENTRANE PLINTH LVL - 0.90 RIDGE LVL +4.08 RIDGE LVL +12.24 SECOND FLOOR LVL + 6.60 RIDGE LVL +13.32 FRONT ELEVATION CAR DROP-OFF PLINTH LVL - 1.80 LIVING ROOM RIDGE LVL + 6.18 BEDROOM RIDGE LVL + 5.92 CAR PORCH RIDGE LVL + 2.20 PLINTH LVL ±0.00 PLINTH LVL ±0.00 FIRST FLOOR LVL + 3.30 4.50 3.40 3.40 2.00 3.20 2.00 5.60 0.23 0.50 2.50 0.50 W1 W FD1 W17 FD4 W7 W15 BASALT MASONRY BASALT MASONRY BASALT MASONRY PLANTER WALL LIVING ROOM EAVES LVL + 4.02 SECTION F-F' LIVING ROOM RIDGE LVL + 6.18 GROUND LVL -1.80 ENTRANCE PLINTH LVL - 0.90 CAR DROP OFF RIDGE LVL + 2.20 PLINTH LVL ± 0.00 RIDGE LVL + 12.13 3.50 1.27 4.02 LIVING ROOM VERANDAH EAVES LVL LIVING ROOM RIDGE LVL SECTION H-H' - 0.15 1.50 0.25 1.25 1.10 - 1.35 - 1.25 GREEN SPACE - M 0.60 GREEN SPACE - M 2.60 PLINTH LVLFIRST FLOOR LVL + 3.30 SECOND FLOOR LVL + 6.60 EAVES LVL + 10.04 PLINTH LVL ± 0.00 STUDY 0.20 W7 W 3.50 1.27 W1 D W7 LIVING ROOM RIDGE LVL BEAM LVL + 2.60 PLINTH LVLLIVING ROOM RIDGE LVL + 6.18 ENTRANE PLINTH LVL - 0.90 CAR PORCH RIDGE LVL + 2.20 PLINTH LVL ± 0.00 GROUND LVL - 1.80 TERRACE RIDGE LVL + 12.13 STUDY RIDGE LVL + 12.24 (SCALE:-1:400) (SCALE:-1:400) OUTDOOR SHOWER SECTION F-F' EAVES LVL + 4.09 COUTYARD LVL + 3.00 RIDGE LVL + 5.90 PLINTH LVL ± 0.00 0.90 2.55 3.38 0.71 1.50 3.35 1.70 1.20 0.90 3.30 SOIL TO BE RETAINED 1.00 0.80 0.60 3.50 1.27 D3 FD5 FIRST FLOOR LVL + 3.30 SECOND FLOOR LVL + 6.60 EAVES LVL + 10.04 PLINTH LVL ± 0.00 LIVING ROOM RIDGE LVL GREEN SPACE - M BEAM LVL 2.60 PLINTH LVLFIRST FLOOR LVL + 3.30 SECOND FLOOR LVL + 6.60 EAVES LVL + 10.04 PLINTH LVL ± 0.00 STUDY W7 W14 W14 W15 FLAT ROOF 2.40 SECTION I-I' 2.64 3.37 0.90 1.60 0.30 0.10 0.60 0.15 0.15 0.30 3.90 2.80 SECTION I-I' COURTYARD LVL POND ON F.F LVL 0.80 0.15 0.15 0.25 SECTION G-G' 0.80 FIRST FLOOR PARKING LVL FALLING WATER- 1.00 LVL COVERED TERRACE TERRACE RIDGE LVL + 12.13 STUDY RIDGE LVL + 12.24 (SCALE:-1:400) (SCALE:-1:400)
SECTION E-E'
(SCALE:-1:400)
Kunal Mathurkar 44 TOILET 1.20 X 2.20 FOYER COURTYARD BEDROOM 2.14 X 2.40 1.90 M WIDE COURTYARD 5.00 2.40 4.30 X 2.00 4.00 3.5 DECK DECK 3.15 X 5.90 3.50 7.50 COURTYARD 1.70 8.70 5.39 4.07 2.86 2.22 DINING 9.84 4.00 +2.77 X 1.64 7.46 3.00 2.55 X 2.40 1.20 X 2.20 ROOM 2 2.50 X 2.50 3.67 3.70 2.83X 1.63 UP PATHWAY COURTYARD 6.60 4.34 CAR DROP OFF 5.00 X 5.00 GAZIBO 5.00 X 5.00 +2.20 X 2.85 PLANTER +2.77 X 1.69 TOILET 1.97 X 1.46 ROAD WELL 3.20 2.61 (8.88 m sq) OUTDOOR DUCT INVERTER BOX UNDER SB2 SB4 SB9 SB10 SB11 SB12 SB13 SB14 SB16 SB17 SB18 SB19 SB22 SB23 SB24 SB25 SB27 L5 L9 L11 L16 L17 L23 L26 L28 L34 L35 L36 L45 L51 L57 L60 L66 L68 L69 L70 L73 L74 L80 L81 L82 L85 L89 L90 L92 L94 L95 L100 L101 L106 L108 L115 L132 L133 L143 L144 L145 L147 L150 L153 L156 L157 F1 F6 F7 F10 F14 F16 P5 P6 P9 P14 P23 P27 P28 P36 P37 G2 L161 L162 L164 L167 L169 L170 L174 L75A SB21A AC AC DB 1.25 4.00 1.25 1.25 4.00 1.25 1.42 1.42 C/C C/C 1.27 0.30 2.50 2.50 1.63 0.75 0.75 0.25 3.10 0.25 2.26 0.30 2.57 2.57 1.38 0.82 1.38 0.82 0.73 0.73 0.98 0.98 0.80 0.80 C/C 3.00 2.70 2.70 3.59 0.57 1.50 1.50 0.60 0.30 1.00 1.00 0.50 0.74 3.04 1.02 0.25 0.20 0.25 0.40 0.40 0.52 0.30 0.80 2.06 1.50 1.83 1.83 0.70 0.73 0.98 0.20 0.30 C/C 0.30 0.15 0.30 C/C C/C 0.90 3.61 0.51 C/C 1.30 1.35 1.35 0.90 0.90 0.30 0.62 0.15 C/C C/C 1.78 0.25 0.15 1.64 1.64 1.91 0.75 0.15 THE DECK 16 amp points no. 5 amp points no. 1 2 3 4 5 6 7 8 10 9 1 2 3 4 5 6 7 8 10 9 LEGEND SWITCH BOARD EXHAUST FAN DOOR BELL CEILING LIGHT POINT WALL LIGHT POINT SYM TEXT SYM TEXT
SPECIFICATIONS SB1 - HT 1.25 M SB3 - ABOVE SKIRTING SB2 - HT 0.55 M SB4 - HT 0.90 M SB5 - HT 0.35 M SB6 - HT 1.60 M SB7 - HT 2.10 M HANGING LIGHT POINT 10 11 12 A B UP CAR DROP OFF GAZIBO WELL SB7 L48 L84 1.25 4.00 0.30 0.75 16 amp points no. LEGEND SWITCH BOARD EXHAUST FAN D/BELL SWITCH DOOR BELL AC UNIT 6AMP PLUG 16AMP PLUG CEILING LIGHT POINT WALL LIGHT POINT DISTRIBUTION BOARD METER BOX CEILING FAN POINT TV POINT (DISH) PUMP POINT 2 WAY ELEC. WIRE AC UP LIGHTERS SYM TEXT SYM TEXT INTERNET POINT SWITCH BOARD SPECIFICATIONS SB1 - HT 1.25 M SB3 - ABOVE SKIRTING SB2 - HT 0.55 M 1 WAY ELEC. WIRE EXTERIOR & BELL ELEC. WIRE WARDROBE LIGHT POINT SB4 - HT 0.90 M SB5 - HT 0.35 M PARAPET LIGHT SB6 - HT 1.60 M SB7 - HT 2.10 M CCTV POINT FOOT LIGHTS HANGING LIGHT POINT CENTER OF WALL C/C PU DB MB GYSER GY INVERTER POINT CHANDELIER LANDSCAPE LIGHT POINT POOL LIGHT POINT LED STRIP LIGHT 2 3 4 5 6 7 8 10 9 11 12 A B C
SWITCH BOARD
ELECTRICAL PLAN
Selected Works 45
+2.20 X 2.85 SWIMMING POOL 9.00 X 4.00 TOILET 2.20 X 1.15 TOILET 1.20 X 2.20 ROAD COMPOUND WALL WELL
FOYER 3.30 X 2.80 COURTYARD 5.95 X 3.40 COURTYARD 2.35 X 5.00 BEDROOM 4.20 X 5.00 TOILET 5.00 X 2.40 COVERED PASSAGE 8.70 X 2.00 POWDER ROOM 2.00 X 2.40 WATER BODY 4.30 X 2.00 WATER BODY 1.90 M WIDE COURTYARD 4.00 X 3.5 WATER BODY 1.90 M WIDE DECK 3.00 X 8.00 DECK 3.15 X 5.90 INFINITY EDGE COURTYARD 3.45 X 5.40 COURTYARD 1.00 X 8.70 CAR DROP OFF 5.00 X 5.00 COURTYARD 3.50 X 7.50 UTILITY 2.94 X 2.15 DECK 8.60 X 1.50 +2.70 X 1.60 DECK 7.06 X 3.00 OUTDOOR SHOWER 3.00 X 2.65 DUCT 2.55 X 2.40 OUTDOOR SHOWER COMMON KITCHEN 3.80 X 1.70 TOILET 1.20 X 2.20 ROOM 1 2.50 X 2.50 ROOM 2 2.50 X 2.50 PASSAGE 3.60 X 3.80 UP PASSAGE 2.76 X 1.60 UP PATHWAY 1.30 M WIDE OUTDOOR SHOWER (1.2 radius) 2.00 X 2.30 COURTYARD 6.00 X 4.00 PARKING 7.00 x 10.00 GAZIBO 5.00 X 5.00 LIFT 1.98 X 1.50 DECK 11.85 X 3.00 PARKING EXIT SEPTIC TANK 2.50 X 1.50 IC -1 IC -2 IC -7 IC -8 IC -16 IC -14 IC -13 IC -4 IC -3 IC -6 IC -5 IC -10 IC -11 IC -12 IC -9 IC -15 SOAK PIT 1.00 M Ø 20.00 0.90 LEGEND IC UNLESS STATED OTHERWISE. PREVIOUS DRAWING OF THE SAME PROJECT: 15/09/2022 DATE: N.E DRAWN BY: SCALE: A_4.02_R0 DWG. NO.: 1:100 OWNER: Nanda House, Survey No. 359/1, Colvale Village, Bardez taluka, Goa Mr. Brijesh Nanda Mrs. Namita Nanda SEWAGE PLAN : GROUND FLOOR
PLUMNBING PLAN
COMPOUND WALL
SECTION Q-Q'
SECTION S-S'
SECTION T-T'
Kunal Mathurkar 46 ROAD CENTRE LINE 0.19 0.30 0.43 0.41 0.43 0.22 0.30 0.10 REFERENCE LINE REFERENCE LINE 08 0.115 0.115 23 CM BRICK MASONRY IN GROUND LEVEL
20 CM RUBBLE SOLING 10 CM PCC BED 1.10 LATERITE FOUNDATION MASONRY LATERITE PLINTH MASONRY 1.00 20 CM RUBBLE SOLING 0.10 0.115 0.335 0.23 0.70 10 CM UNFINISHED P.C.C OUT 0.85 0.20 0.20 0.45 1.20 IN IN GROUND LEVEL GROUND LEVEL 0.80 1.00 0.115 0.335 0.23 0.70 10 CM UNFINISHED P.C.C 20 CM RUBBLE SOLING 10 CM PCC BED LATERITE FOUNDATION MASONRY LATERITE PLINTH MASONRY 20 CM RUBBLE SOLING 10 CM UNFINISHED P.C.C 23 CM BRICK MASONRY 0.85 0.20 0.20 0.45
OUT GROUND LEVEL 20 CM RUBBLE SOLING 1.00 0.225 0.225 GROUND LEVEL OUT 0.45 0.23 0.70 23 CM BRICK MASONRY 20 CM RUBBLE SOLING 10 CM PCC BED LATERITE FOUNDATION MASONRY 0.85 0.20 0.20 0.45 10 CM P.C.C FOR ARCH TO REST
PASSAGE GROUND LEVEL GROUND LEVEL 0.80 1.00 0.45 0.70 20 CM RUBBLE SOLING 10 CM PCC BED LATERITE FOUNDATION MASONRY LATERITE PLINTH MASONRY 20 CM RUBBLE SOLING 10 CM UNFINISHED P.C.C 0.80 0.10 0.45 0.20 0.20 2.00 0.85 0.20 0.20 0.45 0.85 0.20 0.20 0.45 0.70 IN GROUND LEVEL RAISED GROUND LEVEL 0.80 1.00 0.335 0.115 0.23 0.70 10 CM UNFINISHED P.C.C 20 CM RUBBLE SOLING 23 CM BRICK MASONRY 20 CM RUBBLE SOLING 10 CM PCC BED LATERITE FOUNDATION MASONRY LATERITE PLINTH MASONRY 0.90 0.30 0.85 0.20 0.20 0.45 GROUND LEVEL GROUND LEVEL 0.80 1.00 0.115 0.335 0.23 0.70 10 CM UNFINISHED P.C.C 20 CM RUBBLE SOLING 10 CM PCC BED LATERITE FOUNDATION MASONRY LATERITE PLINTH MASONRY 20 CM RUBBLE SOLING 10 CM UNFINISHED P.C.C 23 CM BRICK MASONRY DECK DECK 0.85 0.20 0.20 0.45 IN GROUND LEVEL 1.00 0.335 0.115 0.23 10 CM UNFINISHED P.C.C 20 CM RUBBLE SOLING 20 CM RUBBLE SOLING 10 CM PCC BED LATERITE FOUNDATION MASONRY LATERITE PLINTH MASONRY 0.45 GROUND LEVEL 0.70 23 CM LATERITE MASONRY OUT 0.35 0.85 0.20 0.20 0.45 IN SECTION X-X' IN GROUND LEVEL GROUND LEVEL 0.35 1.00 0.115 0.335 0.23 0.70 10 CM UNFINISHED P.C.C 20 CM RUBBLE SOLING 10 CM PCC BED LATERITE FOUNDATION MASONRY LATERITE PLINTH MASONRY 20 CM RUBBLE SOLING 10 CM UNFINISHED P.C.C 23 CM BRICK MASONRY 0.85 0.20 0.20 0.45 23 CM BRICK MASONRY IN GROUND LEVEL 20 CM RUBBLE SOLING 10 CM PCC BED 0.60 LATERITE FOUNDATION MASONRY LATERITE PLINTH MASONRY 1.00 20 CM RUBBLE SOLING 0.10 0.115 0.335 0.23 0.70 10 CM UNFINISHED P.C.C OUT 0.85 0.20 0.20 0.45 0.70 SECTION Q-Q'_ SCALE 1:20 SECTION R-R'_ SCALE 1:20 SECTION S-S'_ SCALE 1:20 SECTION T-T'_ SCALE 1:20 SECTION U-U'_ SCALE 1:20 SECTION V-V'_ SCALE 1:20 SECTION W-W'_ SCALE 1:20 SECTION X-X'_ SCALE 1:20 SECTION Y-Y'_ SCALE 1:20
FOUNDATION PLAN
Selected Works 47
WELL 1.00 3.55 SECTION SECTION SECTION SECTION SECTION SECTION Q SECTION Q' R SECTION Q W W' X' 1.88 0.20 1.90 0.20 0.20 0.20 0.335 0.20 0.20 0.115 0.20 0.20 0.335 0.20 0.20 0.35 0.20 0.20 0.225 0.20 0.20 0.35 0.20 0.20 0.45 0.20 0.20 0.45 0.20 0.20 0.45 0.20 0.20 0.45 0.20 0.20 0.45 0.20 0.20 0.20 0.20 0.45 0.20 1.90 0.20 0.20 5.20 0.20 0.20 1.65 0.20 2.90 0.20 0.60 0.20 0.20 0.60 0.20 0.20 0.60 0.20 0.20 0.60 0.20 0.20 0.20 0.45 0.20 0.20 0.45 0.20 0.20 0.45 0.20 0.20 0.45 0.20 0.20 0.45 0.20 0.20 0.45 0.20 0.51 0.20 7.58 0.82 1.10 2.80 5.60 2.40 15.00 0.115 0.20 0.335 0.20 0.115 0.20 0.335 0.20 0.115 0.20 0.335 0.20 0.115 0.335 0.20 0.115 0.20 0.335 0.20 0.335 0.20 0.115 0.20 0.335 0.20 0.115 0.20 0.335 0.20 0.115 0.115 0.20 0.335 0.20 0.115 0.20 0.45 0.20 0.20 0.335 0.20 0.115 0.20 0.115 0.20 0.335 0.20 0.115 0.20 4.07 B6 REFERENCE 1.88 6.02 14.21 2.05 0.08 1.84 5.44 0.3350.20 0.1150.20 0.10 0.10 0.35 0.20 0.10 0.20 0.225 ROAD LINE ROAD CENTRE LINE 3.28 3.22 3.00 A B C D E F 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 8 9 A B C D E F 7 0.20 0.335 0.20 0.115 0.47 0.85 0.51 0.50 0.20 5.20 0.20 0.45 2.35 2.89 1.08 1.87 1.52 2.77 0.93 0.19 1.75 1.56 2.58 2.30 4.28 2.92 2.10 5.01 10.38 6.95 1.08 1.87 1.52 2.77 0.93 0.19 1.01 0.30 0.43 1.56 0.41 1.75 0.43 0.22 1.90 0.30 0.10 4.28 2.92 2.10 5.00 7.97 3.81 3.56 3.06 3.68 1.70 0.50 0.80 0.92 0.57 6.03 4.13 2.05 2.95 0.96 2.26 1.36 1.59 2.07 2.70 1.30 2.57 1.83 1.09 1.07 REFERENCE REFERENCE LINE REFERENCE LINE 3.00 3.00 1.64 3.61 3.06 3.67 1.70 0.50 0.80 0.92 0.57 6.02 4.12 2.05 2.94 0.96 2.26 1.36 1.58 2.07 2.70 1.30 3.97 0.04 1.04 2.63 0.29 2.08 0.60 1.80 0.20 1.80 4.10 6.17 2.93 0.97 1.03 0.20 2.00 6.17 0.115 0.485 0.20 0.20 0.20 0.335 0.20 0.115 0.20 0.335 0.20 0.115 0.20 0.115 0.20 0.335 0.20 0.20 0.10 B1 B1 B2 B2 B4 B4 B5 B5 B6 B7 B7 B3 B3 3.57 2.35 0.57 0.23 3.25 3.47 0.86 0.45 0.20 0.93 PLUM CONCRETE RETAINING WALL PLUM CONCRETE RETAINING WALL PLUM CONCRETE RETAINING WALL PLUM CONCRETE RETAINING WALL 150MM 150MM CONCRETE COLUMNS BASALT MASONRY LEGEND ROAD COMPOUND WALL ROAD COMPOUND WALL COMPOUND WALL ROAD C A D E G H B F I J K L M N W X 07 08 W X 01 02 03 05 07 08 09 06 10 11 12 13 12 13 11 10 09 01 02 03 05 06 C A D E G H B F I J K L M N 04 04 0.115 0.115 0.115 0.115 RETAINING WALL EXCAVATION FOR POOL EXCAVATION FOR WATER BODY 0.39 0.06 0.04 0.41 0.05 3.76 2.71 2.20 0.50 0.09 1.66 0.28 2.42 2.38 2.05 0.93 0.34 0.12 0.45 0.20 GROUND UNLESS STATED OTHERWISE. PREVIOUS DRAWING OF THE SAME PROJECT: Nanda House, Survey No. 359/1, Colvale Village, Bardez taluka, Goa
