T his site is the manufacturing unit for khadi and flags in Kar nataka. The glory of the site is that it provides employment to many people in the underdeveloped area in hubballi that is Bengeri. The purpose was to make the site more functional and improve the existing heritage of the site
IN KHADIGRAM SITE, HUBBALLI CONCEPT - ORIGAMI SITE HISTORY
T he concept is derived from the FOLDS AND CREASES in designing the outfit to the creases on paper in the art of origami to making that in the form of building to create the space filled with creativity and folds which relates to the design process in fashion technology.

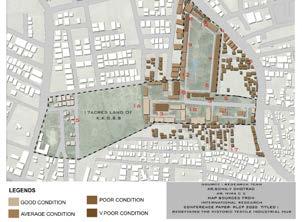

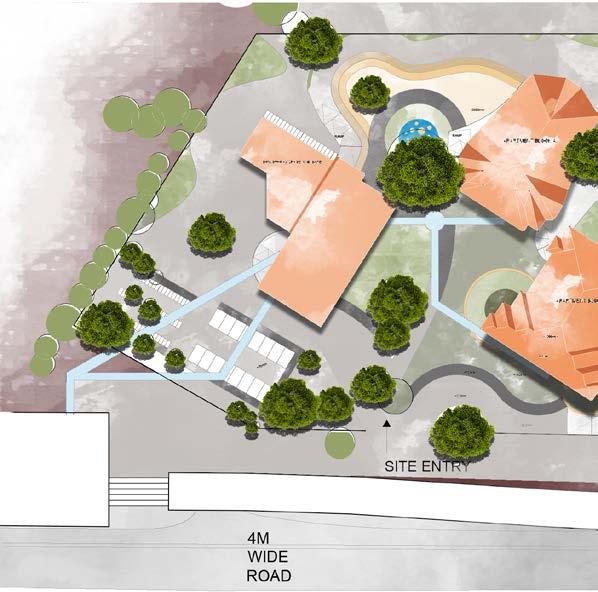

T he existing site condition is mostly in very poor condition and the planning is very scattered, hence the proposal was to make the design from scratch retaining the site contour and planning for the kh adigram workers as well as for the nation al institute of fashion technology.

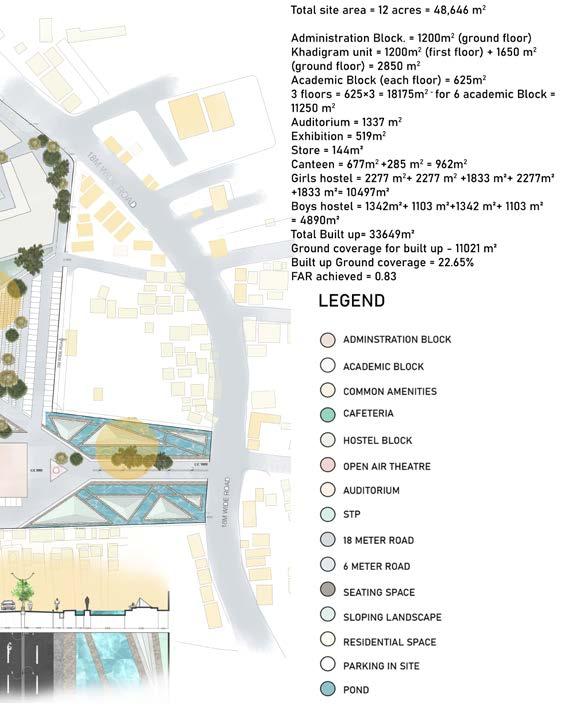

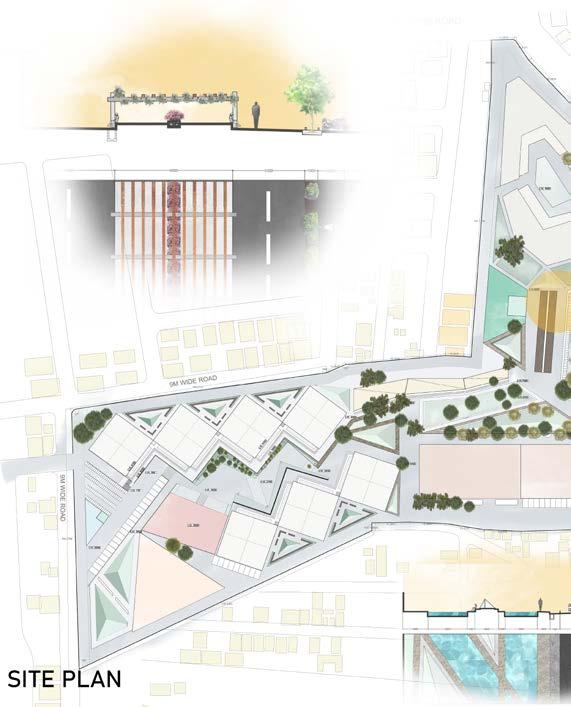

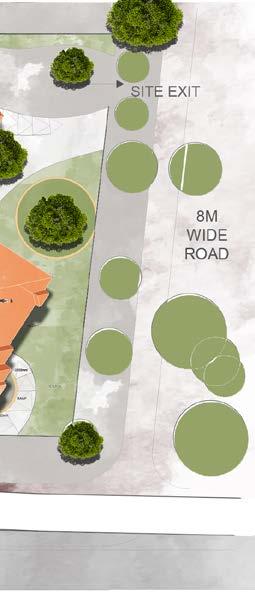

PROPOSEDFOLDCAMPUSDESIGN

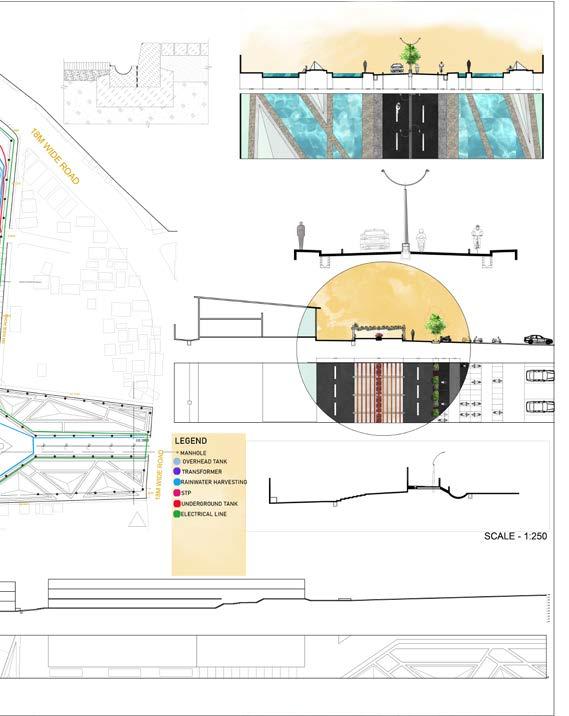

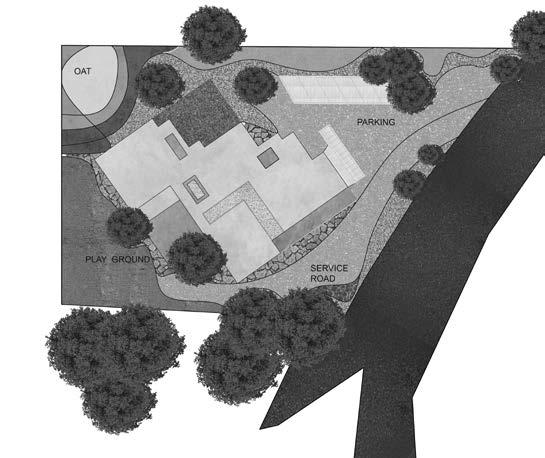

SITE climate analysis

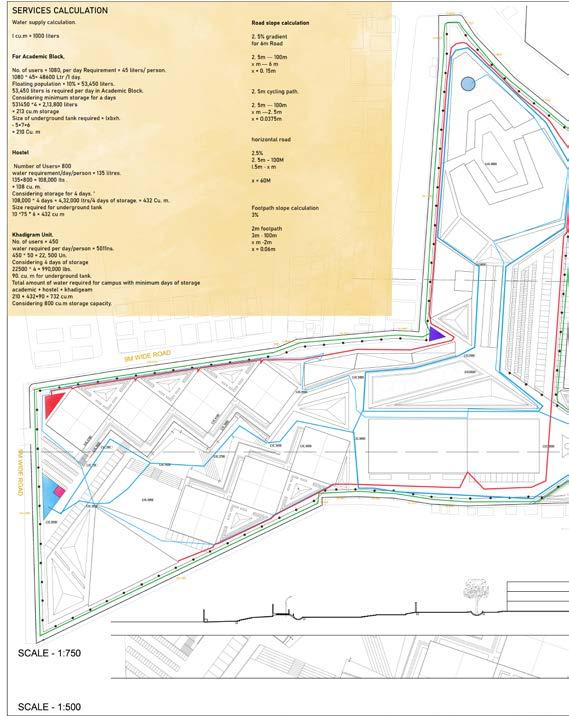

SERVICE LAYOUT
CAFETARIA BLOCK
ORIGAMIC FORMS FOR ACADEMIC BLOCK DIMENSION - 25X25 meter each block dimension ORIGAMIC ROOFING FOR EXHIBITION BLOCK FORM DEVELOPMENT
HUB IN BOMMASANDRA, BANGALORE
NODEPROPOSEDTRANSPORT
T he project was to propose two mixed-use buildings near the constructing B ommasandra metro station and create a nodal space for people in the industrial area and upcoming startups for the city with most startups in India. H ence, a co-working space with a cafeteria for the startup enthusiasts without having to take the burden of a new office at an early stage. F or the workers and students of bommasandra all kinds of residential space has been designed due to rising demand of apartments near metro areas.
Level 60 FIRSTgroundFLOOR3000floor0road level GROUND FLOOR0 ROAD LEVEL SECOND FLOOR6000 THIRD FLOOR9000 FOURTH FLOOR12000 FIFTH FLOOR15000 SIXTH FLOOR18000 SEVENTHTERRACEFLOOR2100024000 The goal was to connect all the blocks and create andterialssion.andmeetingsspaceinteractivemorefordiscusThemausedformof the building is the blend of typical mangalore tile structure along with the contemporary folded plate structure.
WC UP
APARTMENT BLOCK A APARTMENT BLOCK B RAMP Academic blocks include residential space for all groups of peopleStudio apartment for OnestudentsBHK for working class and small familes Two bhk for industrial Threeclass bhk and four bhk for various class of peo Theple. blocks are planned with one central axis considering the climatic feature of the site.

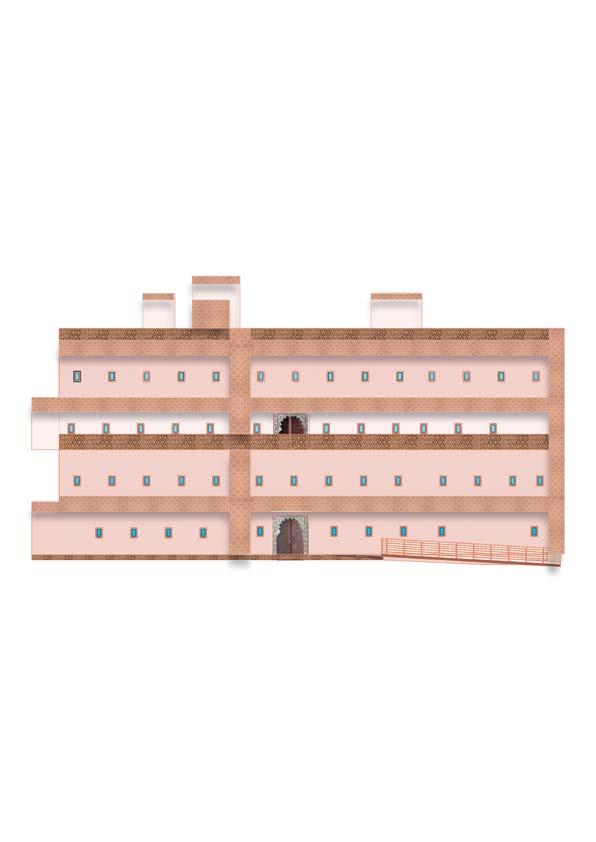

SUNBREAKERPROPOSEDYOUTHHOSTELINJAIPUR,RAJASTHAN

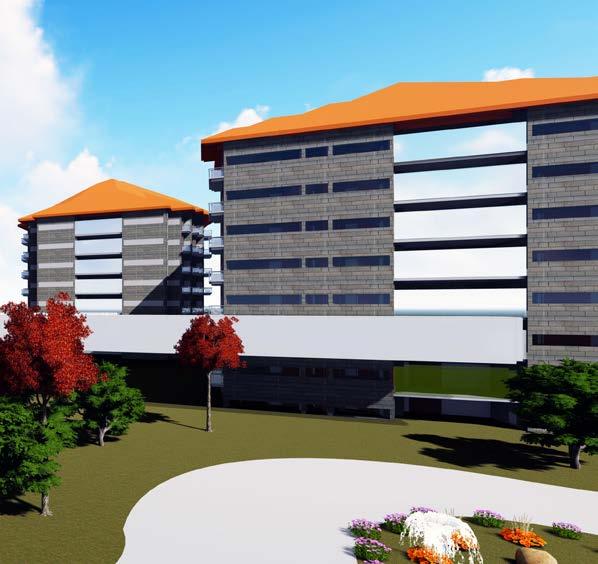

The design ideology was to stack the build ing blocks in such a way that the floor above acts as the sunbreaker to the floor below.

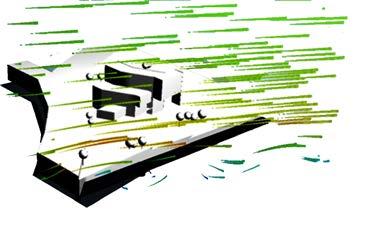

Wind flow anal ysis done from autodesk flow and with the help of climate consultant shows the wind speed and its site.locationaccordingdirectiontotheofthe
The concept of the built up form and how it is stacked not only for its form but also to act and as sunbreaker DESIGN PRINCIPLES - smaller windows -less surface area - lightertonebuilding

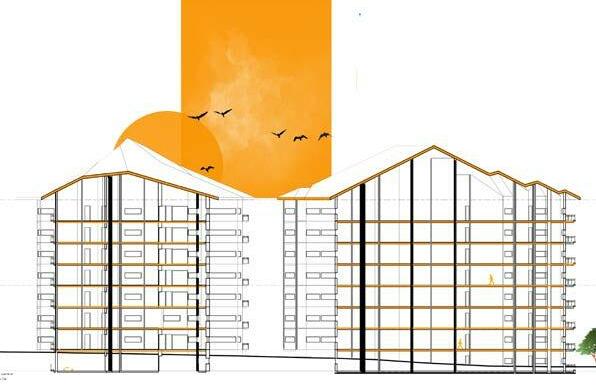

section AA’ section BB’
DAWNPROPOSEDINTERIORDESIGN

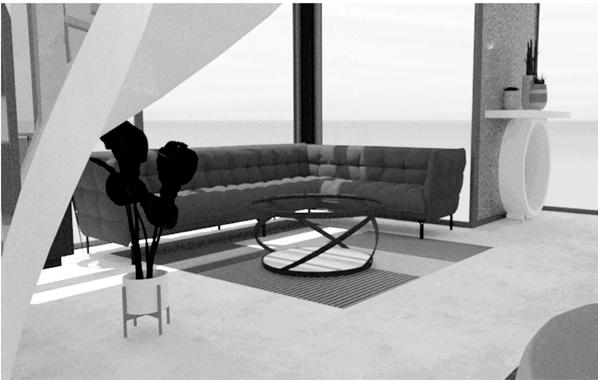

The whole purpose of Bachelor pad is to provide a space for rejuvena tion for a bachelor who is in his bachelor period. This pad is for his rejuvenation and relaxation with his friends. The colours and materials in this pad are chosen in a way that it is relaxing and calming. As he belongs to Mangalore,to rejuvinate the essence of it, sea is taken as inspiraton. Few colours from the pallette as been choosen with warm beach colours
PROJECT FOR BACHELOR PAD
The brief asked us to design a bachelor pad for a cricketer in a restricted area with glass as the main material. It is the group work which was asked to be completed in 3 months of span. My contribution included concept development, planning the bachelor pad along with details of 23rd level. Also decided the colour and material pallette and researched on the standards for the wardrobes and cupboards and the final renderings in photoshop and vray. Software used for this design- autocad, photoshop and vray.-
level 23 lvl+23.4m lift entry
3.0000 WARDROBE BEDROOM POWDER ROOM 3.000 KITCHEN

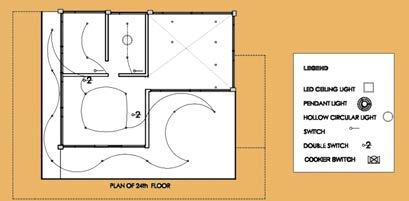

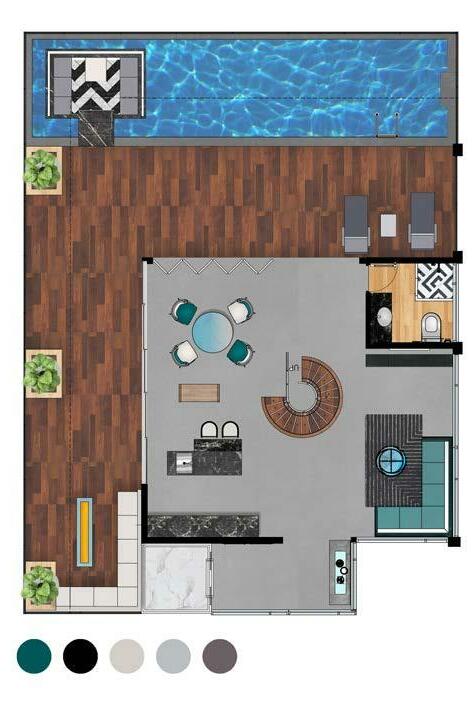

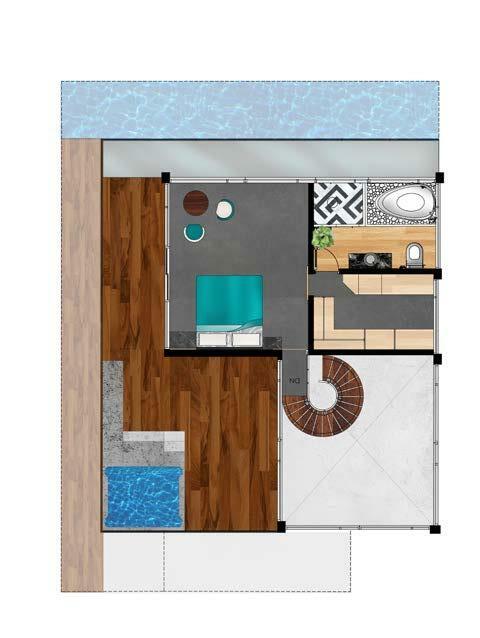

JACUZZI 1.0000 TERRACE BEDROOM0.9000 0.80003.0000 LIFT LOBBY LIVING ROOM DECK SPACE POOL 3.0000
DETAILSSELECTEDONESIWORKEDON

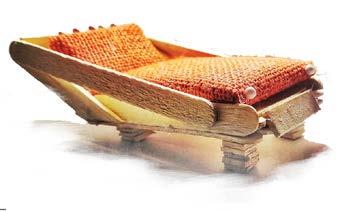

SKILL DEVELOPMENT CENTRE CHAIRMODELDESIGNMAKING RENDERS
WORKING DRAWINGRESIDENCE
MASTER BED ROOM GUEST ROOM UTILITY LANDSCAPE updn up 600mm LVL D1 D2 D2 D3 D3 V1 V2 D4 W1 W3 W4 W4 W5W3W6D5 4656 486 503 850mm LVL 400mm LVL FROM ROAD450mm850mmLEVELLVLLVL850mm1030mmLVL LVL 850mm LVL ENTRY GROUND FLOOR2350mmPLAN850mmLVLLVL2500mmLVL BED DRESSINGWASHROOMROOMROOM LIVINGWASHROOM600mmROOMLVL WASHROOM KITCHEN DINING ROOM POOJA DRESSINGROOMROOM up 4150mmLVL 4600mmLVL 4150mmLVL ENTRY FIRST FLOOR PLAN4150mmLVLMASTER BED ROOM GUEST ROOM dn D1 D2D2D2D3 D3 D3 V2 D4 W2 W3 W4 W4 W2W5W3W6 BED DRESSINGWASHROOMROOMROOM LIVINGWASHROOMROOM WASHROOM KITCHEN DINING ROOM POOJA DRESSINGROOMROOM dn UTILITY CENTRE LINE PLAN 150 150115 15031502668454029091721302834963839 13000 30000 300 230230 1 3640386312001150 ABC C1 C2 C3 C4 C5 C6 C7 C8 C9 C10 C11 C12 C13 C14 C15 C16 C17 C18 C19 C20 C21 C22 35689 31473640386312001150 2200315026684540290917212450302834963839 13000 30000 C1 C2 C4 C3 C5 C8C6 C7C9 C10 C11 C12 C14 C15 C16 C13 C19 C17 C18 C21 C22 C20 LANDSCAPE TERRACE FLOOR PLANupTERRAZOTILESCONCRETEFLOORING
230mm BRICK MASONARY 100mm RCC LINTEL 100X75mm TIMBER FRAME 62mm TEAK WOOD PANEL 12mm CEMENT PLASTER WASHROOM PLASTERED WALL FINISHED WITH OIL PAINTCERAMIC TILES CONCEALEDSHOWER MIXER PANEL ANTISKID VETRIFIED TILEFLOORING30MMLEVEL DROP 12mm THICK GLASS FROM WATER TANK HOT WATER INLET CONCEALED MIXER PANEL NAHANI TRAP D3 600 2000 2512 WET AREA V1 V1 DRY AREA COLD WATER INLET MARBLE TOP 1986 ELEVATIONV1 610mm WOODEN PANEL 230mm THICK150mmX150mmWALL TEAK FRAME TOP ALUMINIUM TRACK 230mm THICK WALL 150mmX150mm TEAK FRAME TOP ALUMINIUM TRACK WASHROOM PLASTERED WALL FINISHED WITH OIL PAINTCERAMIC TILES CONCEALEDSHOWER MIXER PANEL V1 1986 V1
1050 3300 2831 230mm BRICK MASONARY 100mm RCC LINTEL 50mm ALUMINIUM WINDOW FRAME EXTRUSION 50mm ALUMINIUM SHUTTER FRAME 6mm TUFFENED GLASS12mmMESHCEMENT PLASTER
ARTWORKS CHARCOAL
Buddha in general means ‘Awakened One’. That is some one who has awak ened from the sleep of ignorance and sees things as they really are. Mostly preferred by people for peace and tranquility in the house.
COLOUR PENCIL
THE MATTERDETAILS THE BIGTHINGSLITTLEMAKETHINGS: Attention to detail makes all the difference in how we live and what we achieve. A sin gle detail out of ingsitspresentationingish,acanalignmentconstituteseriousblemthusruintheoverallofsurround
PEN DIGITALPENCILPORTRAITUREPORTRAITUREART
PAINTINGS ARCHITECTURALCALLIGRAPHYSKETCHES
PHOTOGRAPHY
