KOMAL RATHI

BIRTHDAY - 21-08-1997

EMAIL - komalrathi218@gmail.com

CONTACT - +91 90331 63563

ADDRESS - Shyam Vatika Township Parvat Patiya Surat Gujrat LANGUAGES

CURRICULUM VITAE

EDUCATIONAL QUALIFICATION

2015-2020 2015

EXPERIENCES

VIDYAMANDIR COLLEGE OF ARCHITECTURE SURAT

Bachelors of Architecture

1st Distinction

RADIANT ENGLISH ACADEMY SURAT H.S.C 88%

SKILLS

AUTOCAD

SKETCHUP

RHINOCEROS

REVIT VRAY

WORKSHOPS

SFURNA DESIGNS - Ar. KALAPI BUCH DESIGN INTERN JAN 2019 - MAY 2019

RAAGIN KARMAN - AR. KUSH PATEL DESIGN INTERN JUNE 2019 - NOV 2019

ANDC TROPHY 2018

LIVE SITE EXECUTION AT CHRISTMAS CARNIVAL , V.R MALL SURAT 2017

DOCUMENTATION CONTRIBUTION

PONDICHERRY TAMIL AND FRENCH STREET 2018

JAISALMER GOLDEN FORT 2017

KUTCHH-BHUJ

RESEARCH READING SKETCHING PHOTOGRAPHY

CONTENTS

INTERESTS

MARWADI

HINDI ENGLISH

GUJARATI

COMPOSER

COLLEGE MAGAZINE THINK IT INK IT 2018 SPORT HEAD 2017 BASIC DESIGN WORKSHOP BY AR. HARIMOHAN PILLAI 2018 POTTERY WORKSHOP 2017 SIPOREX CARVING WORKSHOP 2016 LEATHER WORKSHOP TAPI UTSAV 2016 ADOBE PHOTOSHOP ADOBE INDESIGN ADOBE SKETCHBOOK LUMION MICROSOFT OFFICE KOMAL RATHI ARCHITECT THESIS PROJECT ACADEMIC PROJECTS OTHER WORKS DOCUMENTATION 16 - 17 SKETCHING 22 - 23 INTERNSHIP PROJECTS 18 - 21 PHOTOGRAPHY 24 - 25 DEVELOPMENT CENTER FOR TRIBES 04 - 07 01 02 03 04 05 06 07 08 09 INDOOR SPORTS INSTITUTE 08 - 09 RESIDENCE DESIGN 12 - 13 RESIDENCE WORKING DRAWING 14 - 15 HOUSING FOR JAIN COMMUNITY 10 - 11 NAMASTE ! www.linkedin.com/in/komalr21 komalr21

TRADITIONAL BHUNGA HOUSES 2016

India is known as a country of high ethnic, linguistic and cultural diversity, including a high density of tribal communities.

Chhattisgarh is known for its exceptional scenic beauty and uniquely rich cultural heritage. Over one third of the state population is of tribes.

The tribes of Chhattisgarh are an unique race who mainly inhabit the dense forests of Bastar.

Jagdalpur is the administrative headquarters of Bastar District ‘

Proximity to tribal villages,culturally significant to the tribes commercial headquarter of bastar region.

In spite of having skill sets they are suffering from unem ployment, illiteracy and informal settlements.

So there is need to provide them a platform which will al low them to grow in every aspects of living and also preserve their ancestral and unique cultural identity.

AIM

The aim is

CONCEPT

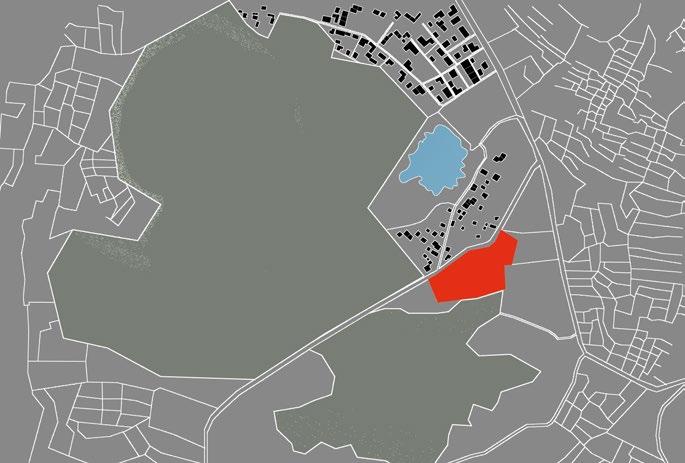

SITE CONTEXT

POINTS OF THE DESIGN

PRESERVATION

DEVELOPMENT CULTURE

EXPOSURE

Such a center must accommodate gatherings that fluctuate in accordance with seasonal and ceremonial practices, include the means for cultural preservation (artifacts language teachings).

DEVELOPMENT CENTER FOR TRIBES OF BASTAR

ART FOR LIVING OR LIVING FOR ART !

WORKSHOP SPACE

MASTER LAYOUT

3. FORM ALONG THE CIRCULATION AND FOCAL POINTS

SECTION THROUGH WORKSHOP GALLERY AND HAAT BAZAAR

4. FINAL BUILT ALONG WITH COURTYARD ELEMENTS AND VIEWS TO THE CONTEXT.

04 05

    O1

1. AXIAL LINES THROUGH SITE 3D RENDERED VIEW

LIVING SPACE INTERACTIVE SPACE

FOCAL

06 07

ADMIN

MULTIPUPOSE AND AMPHITHEATRE PLAN AT LEVEL + 1 M GALLERY AND CAFE PLAN AT LEVEL + 1 M VIEW THROUGH SHOP TO AMPHITHEATRE VIEW OF SHOPS VIEW OF THE HERBAL GARDEN VIEW OF CAFE AT UPPER LEVEL VIEW OF WORKSHOP AREA

PLAN

LEVEL

4 5 M

VIEW OF SCULPTURE GARDEN

PLAN AT LEVEL + 8 M WORKSHOP AREA PLAN AT LEVEL + 4 M SECTION THROUGH WORKSHOP AREA SECTION THROUGH MULTIPURPOSE, AMPHI AND SHOPS

EXPLODED VIEW OF BUILDING

SECTION THROUGH GALLERY AND CAFE

Located in the outskirts of city Surat, near the National Highway the site have advantage of approach from nearby town and city.

The project provides space for indoor sport facilities and teaching facilities as well with accomodation.

The project focuses on the linearlity and volume of spaces with respect to the required volume of spaces.

The concept derived from a 2d game tetris having different modules and shapes interconnecting each other.

The same way the spaces interconnect to other spaces.

CONCEPT

3D PRESENTATION OF TERIS AND THE FORM 2D PRESENTATION OF TETRIS

08 09 O2 INDOOR

LAYOUT SITE CONTEXT

SPORTS INSTITUTE SITE

EAST ELEVATION SOUTH ELEVATION WEST ELEVATION NORTH ELEVATION

SECTION THROUGH SWIMMING POOL RENDERED 3D VIEW GROUND FLOOR PLAN FIRST FLOOR PLAN SECTION THROUGH GYMNASIUM AND SQUASH SECTION THROUGH ADMIN AND GYMNASIUM SECTION THROUGH T.T LIBRARY CAFE AND BADMINTON SECTION THROUGH ADMIN SQUASH VOLLEYBALL AND BASKETBALL

Located in the city area of Surat with all the amenties nearby as Temple School Market Commercial Center.

The project was to design a community housing for Jain Community with row houses and apartment.

The concept is the interconnectivity of each single unit with the other ,thus forming unit level to cluster and then the whole housing level connectivity.

As per the case study done of the pol housing Ahemdabad creating spaces and elements impacting their lifestyle.

The backyards of all houses are being used as pedestrian street keeping in mind the daily activities of pol housing.

CONCEPT

HOUSING FOR JAIN COMMUNITY

10 11 O3

CLUSTER LAYOUT 3D RENDERED VIEW OF A UNIT CLUSTER 3D VIEW OF 2 BHK LAYOUT 3D VIEW OF 3 BHK LAYOUT

SECTION X SECTION Y SECTION X SECTION Y PLAN

RENDERED VIEW OF UNIT TYPOLOGY - 1 PLAN LAYERS OF UNIT TYPOLOGY - 1 LAYERS OF UNIT TYPOLOGY 2 RENDERED VIEW OF UNIT TYPOLOGY - 2 3D RENDERED VIEW OF APARTMENT SECTIONAL ELEVATION OF THE CLUSTER VIEW OF THE BACKYARD OF HOUSES AS PEDESTRIAN STREET FOR PLAYING SEATING AND EVEN WORSHIPPING WITH A TEMPLE SITE CONTEXT

Located near the river edge - tapi Surat thus giving a view of it with adjacent farmlands.

The project focuses on the spaces with outdoor connectivity so as to give view of the environment around and ambience of it.

The residence was to be designed for structural engineer and their family along with workspace.

The concept was inspired by well known architecture - Habitat 67, Montreal , providing the connectivity of indiviadual spaces at every level with transition spaces to nature.

CONCEPT

RESIDENCE DESIGN

PROVIDING EACH SPACE AN OPEN DECK WITH A VIEW OF RIVER FROM FROM EACH SIDE AND ALSO VISUALLY CONNECTING IT WITH OTHER SPACES’ DECK

12 13 O4

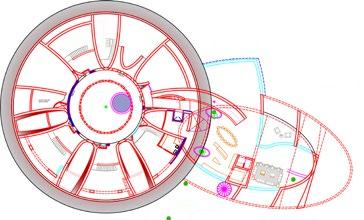

GROUND FLOOR PLAN SOUTH EAST ELEVATION NORTH EAST ELEVATION SOUTH WEST ELEVATION NORTH WEST ELEVATION SITE CONTEXT SECTION BB’ SECTION CC’ SECTION DD’ SECTION AA’ FIRST FLOOR PLAN SECOND FLOOR PLAN TERRACE FLOOR PLAN 3D RENDERED VIEW

VIEW OF JAALI WALL 3D VIEW

SETTING OUT PLAN

UNDER

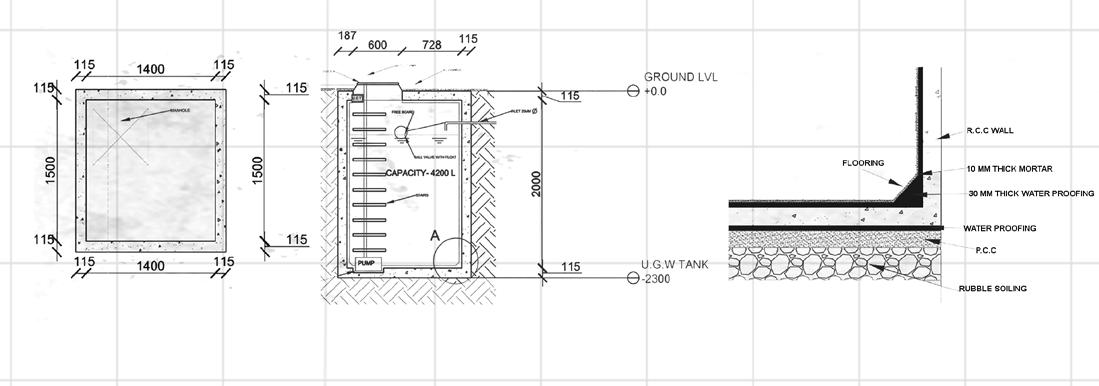

GROUND WATER TANK DETAILS

14 15

O5 RESIDENCE STAIRCASE PLAN SECTION DETAIL AT - A CONSTRUCTION DETAIL

WORKING DRAWING

ELEVATIONS

KITCHEN

PLATFORM DETAIL DETAIL - A DETAIL - B SINK DETAIL TOILET DETAILS PLAN SECTION DETAIL AT A A C B D SECTION YY’ PLAN PLUMBING LAYOUT DETAIL (SCALE 1:2) 700 123 60 FINISHED FLOOR LEVEL SINK BOWL SINK DETAIL PRODUCED AUTODESK STUDENT VERSION DETAIL A (SCALE 1:2) 700 123 60 FINISHED FLOOR LEVEL SINK BOWL SINK DETAIL PRODUCED BY AN AUTODESK STUDENT VERSION FINISHED FLOOR LEVEL DETAIL (SCALE 1:2) FINISHED FLOOR LEVEL SINK DETAIL PLATFORM DETAIL PRODUCED BY AN AUTODESK STUDENT VERSION PRODUCED BY AN AUTODESK STUDENT VERSION FINISHED FLOOR LEVEL DETAIL B (SCALE 1:2) UNFINISHED FLOOR LEVEL FINISHED FLOOR LEVEL PLATFORM DETAIL PRODUCED BY AN AUTODESK STUDENT VERSION PRODUCED BY AN AUTODESK STUDENT VERSION PRODUCED BY AN AUTODESK STUDENT VERSION

GROUND FLOOR CENTERLINE PLAN

KITCHEN PLAN

FURNITURE LAYOUT

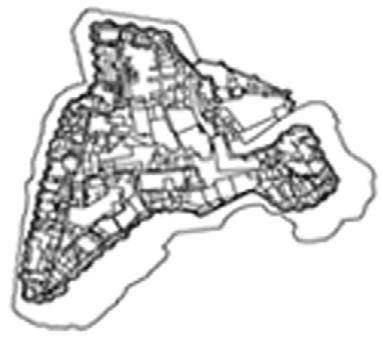

MANAK CHOWK It is known as SARDAR MANDI or GRAIN MARKET. The journey to the fort starts from the market place Manak chowk. It has the prominence of commercial hubs displaying antique and ethnic silver jewellery, embroided goods, leather items, etc

SHIV TEMPLE It is located in the Billa Ki Gali street near Dussehra chowk which is a main place for public gathering. The temple is constructed out of yellow sandstone. It is typically based on Nagara style architecture. It is divided into four parts: Ardhamandapa, Mandapa, Maha Mandapa, Shikhara.

INTACH HERITAGE CENTER Intach Heritage Centre is a franco-tamil two storey residential building,accessed through mutually shaded, narrow street laid in grid pattern.

LYCEE FRANCAIS SCHOOL Lycee Francais School, affiliated with University of Rennes is founded in 1826.It is an international school in pondicherry established by Eugene Panon.

BILLA PADA STREET There are fairly high buildings having narrow streets with 3 m width.Facades have small openings in the form of Jharokhas, allowing them to peep out. The spatial complexity, the fine proportions, the subtle carvings and the way light filters through room to room are some of the architectural qualities.

JAISALMER 2016-2017

VYSIAL STREET Vysial Street

is a heritage site with continuous rows of tamil traditional houses characterized by thalvaram - a social extension and thinnai-a semi public verandah.

FRENCH STREET

The street facade s are usually characterized by a construction with high garden walls and elaborated gates.

PONDICHERRY 2017-2018

16 17 O6 DOCUMENTATION PLAN OF STREET TAMILIAN RESIDENCE TAMILIAN STREET PLAN INNER COURTYARD ENTRANCE COURTYARD STREET VIEW PLAN PLAN ELEVATION ELEVATION LONGITUDINAL SECTION ELEVATION FRENCH RESIDENCE VIEW SECTION SECTION ELEVATION SECTION SECTION MAHAMANDAPA CEILING DETAIL SHIKHAR DETAIL STREET ELEVATION

CLIENT PADMASHRISHRI GUNDECHA BROTHERS

LOCATION BHOPAL M.P

TYPE : RESIDENCE ( ON-GOING )

GROUND FLOOR PLAN

MANDALA

Raag Charuckeshi Mnadala is used in plan of house.

By using same mandala , sections and elevations are defined. Brick Bond is formed with swaras of Raag Charukeshi.

FIRST FLOOR PLAN MEZZANINE FLOOR PLAN

CLIENT SANJAY SHAH & FAMILY

LOCATION ANKLESHWAR GUJRAT

TYPE RESIDENCE ( PROPOSAL)

The pyramid interacts with the universal energies from all six directions. Energy from four sides, top (Heaven) and bottom (Earth).

In this earth is represented by the square base and the apex represents the sky.

CLIENT BRAHMAKUMARIS

LOCATION GANDHINAGAR , GUJRAT

TYPE : PUBLIC BUILDING ( PROPOSAL )

SITE EXECUTION AND VISIT

To make brick jali bricks are rotated in a circular movement. Angle of each brick represents particular swara. Brick is rotated at every 150.

PARKING PLAN

INTERNSHIP PROJECTS

SFURNA DESIGNS- BHARUCH JAN 19 - MAY 19

2ND FLOOR PLAN 3RD FLOOR PLAN

OUTER SKIN

Framing + Green wall

GFRC + Green wall

Light weight Foam concrete Jali

GFRC Jali

PYRAMID

Metal framing

Stone slabs both sides with insulating material

Metal & Glass door / windows

18 19

THE COLUMNS

3D VISUALIZATIONS LAYER 1 JAALI LAYER 2 JAALI 3D JAALI OF BOTH LAYERS

Courtyard -8”x18’128.30 sqft Passage area -6”x13’-4” 135.20 sqft Parking 14’-0”x27’372 sqft Pooja Room -0”x9’-0” 81 Sqft Guest Bed Room 13’-7”x13’167 Sqft Att. Toilet 13’-7”x9’ 126.20sqft Sevak Room 13’-7”x13’-3” 143 Sqft Gym Area 13’-3”x13’157.52 Sqft Courtyard 113 sqft Water Body 193.68 OPEN 14’-0”x9’-4” 372 sqft Court 23’-0”x16’- SEVAK ENTRY PUBLIC ENTRY Total Built Up Area = 1495.60 Sqft P.L ± 00 M G.L + 3.375 M R A M PUBLIC ENTRY Kitchen 13’-9”x13’160.32 sqft Living Area -6”x16’220.58 Sqft Dining Area 11’-0”x13’156.70 Sqft Sitting Area (Swing) 83.92 Sqft Passage 181.84 sqft Foyer -6”x9’sqft Ota -9”x11’110.80 sqft Toilet -7”x4’ UP DN LIFT +3.0 +1.5 +1.5 +0.5 COURT 30’-6”X30’730.28 sqft COURT 23’-0”x16’-0” 730.28 sqft Gazebo -3”x9’Sevak quarter Out Side Sitting Area Studio Area -0”x13’Att.Toilet -9”x13’Son Bed Room2 Area- 303.53sqft Studio Area 13’-0”x13’Area- 303.53sqft Balcony -7”x13’Balcony -7”x13’ Att.Toilet -9”x13’- Wide Passage SON BED ROOM SON BED ROOM Balcony Area -9”x11’10’-10”xBalcony Area -9”x11’BED ROOM BED ROOM Balcony Area -0”x5’Master Room Area 17’-9”x12’Powder toiet Area -6”x4’Balcony MASTER BED ROOM 0 4 Square Base Circular Base GROUND FLOOR PLAN MASTER LAYOUT

CLIENT SCIENCE CITY

LOCATION AHMEDABAD, GUJARAT

TYPE : RESIDENCE ( COMPLETED )

3D RENDER OF T.V UNIT

T.V UNIT DESIGN

CLIENT EMPIRE DOCTOR HOUSE
