Massey Ferguson GC2300 GC2310 TRACTOR (EFF SN JNA25201) Parts Catalogue Manual Instant Download

Massey Ferguson GC2300 / GC2310 TRACTOR EFF S/N JNA25201 651794 TABLE OF CONTENT Page00-00

Massey Ferguson GC2300 / GC2310 TRACTOR EFF S/N JNA25201 651794 TABLE OF CONTENT Page00-00

GC2300 / GC2310 TRACTOR EFF S/N JNA25201 1 Ref24 Page24

Massey Ferguson

GC2300 / GC2310 TRACTOR EFF S/N JNA25201

ENGINE E3112VB19 - ENGINE SHORT BLOCK ASSY

ItemPart NumberQtyDescription

1 6240905M911 BLOCK ASSY, ENGINE SHORT

MFC12403 PR: 6004-012J-0100

651794

Page24

GC2300 / GC2310 TRACTOR EFF S/N JNA25201 4 4 2 2 7 3 8 8 1 5 6 Ref26 Page26

GC2300 / GC2310 TRACTOR EFF S/N JNA25201

ENGINE E3112VB19 - CYLINDER HEAD

ItemPart NumberQtyDescription

1 4266468M931 HEAD ASSY, CYLINDER

2 3704389M12 CUP, SEALING

3 3707877M25 PLUG, PT1/2

4 3710256M16 SEAL, OIL, VALVE

5 3711713M11 BALL

6 3710144M21 GASKET, CYLINDER HEAD

7 3710109M114 BOLT UP TO S/N 255620 6252529M114 BOLT FROM S/N 255621

8 3607420M12 STUD

MFC8613 PR: t05d25l01a0001

Massey Ferguson

651794

Page26

GC2300 / GC2310 TRACTOR EFF S/N JNA25201 6 4 4 5 5 2 1 3 Ref28 Page28

GC2300 / GC2310 TRACTOR EFF S/N JNA25201

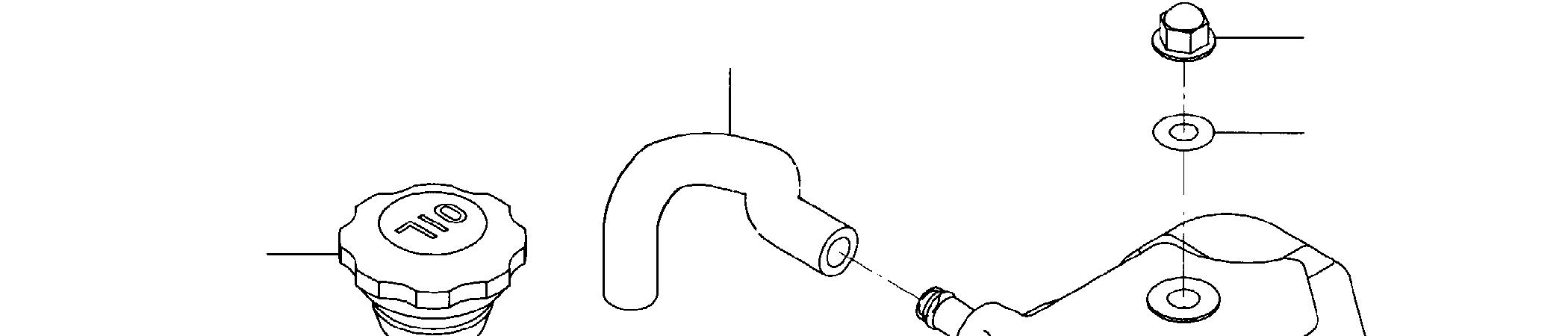

ENGINE E3112VB19 - CYLINDER HEAD COVER

ItemPart NumberQtyDescription

1 3608539M921 COVER ASSY, CYLINDER HEAD

2 3710188M11 CAP, OILFILLER

3 3710151M11 SEAL, CYLINDER HEAD COVER

4 3710127M22 NUT, CAP

5 4267629M12 GASKET

6 3710124M11 HOSE, RUBBER UP TP S/N 278779 3710124M21 HOSE, RUBBER FROM S/N 278780

MFC8614 PR: t05d25l01a0002

Massey Ferguson

651794

Page28

GC2300 / GC2310 TRACTOR EFF S/N JNA25201 4 1 2 3 Ref30 Page30

Massey Ferguson GC2300 / GC2310 TRACTOR EFF S/N JNA25201

ENGINE E3112VB19 - INTAKE MANIFOLD

ItemPart NumberQtyDescription

1 3710307M911 MANIFOLD, INTAKE

2 3710309M11 GASKET, INTAKE

3 4267567M13 BOLT, FLANGE

4 4267570M11 BOLT, FLANGE

MFC8615 PR: t05d25l01a0003

651794

Page30

GC2300 / GC2310 TRACTOR EFF S/N JNA25201 2 1 4 3 Ref32 Page32

Massey Ferguson

GC2300 / GC2310 TRACTOR EFF S/N JNA25201

ENGINE E3112VB19 - EXHAUST MANIFOLD

ItemPart NumberQtyDescription

1 4262617M11 MANIFOLD, EXHAUST

2 3710312M11 GASKET, MANIFOLD

3 3702273M16 BOLT

4 3704353M12 STUD

MFC8616 PR: t05d25l01a0004

651794

Page32

GC2300 / GC2310 TRACTOR EFF S/N JNA25201 29 4 4 4 21 21 2317 14 27 5 19 3 31 16 16 13111311 11 11 15 12 12 12 12 10 8 1 9 2 2 7 7 1A 1B 1C 6 5A 18 26 20 20 25 30 30A 28 24 22 14A 31A Ref34 Page34

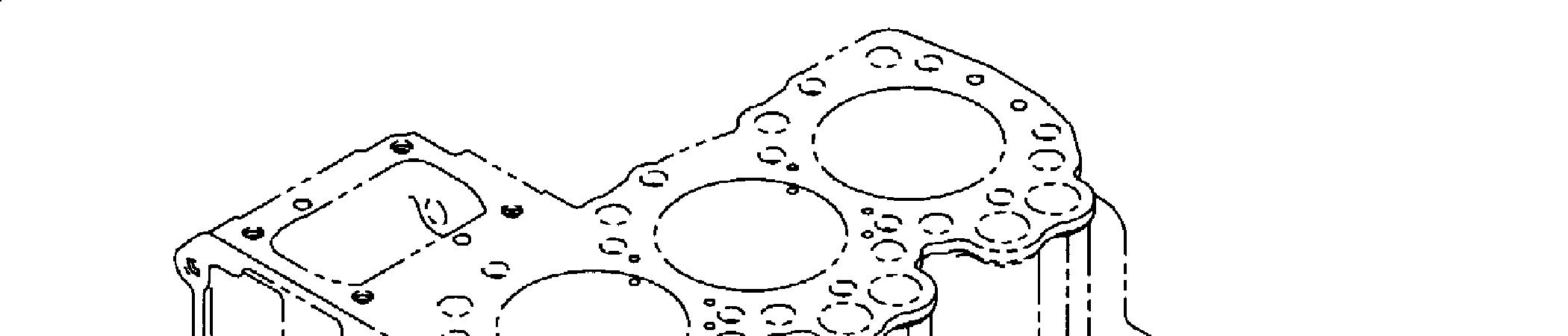

ENGINE E3112VB19 - CYLINDER BLOCK

ItemPart NumberQtyDescription

1 3710152M921 BLOCK ASSY, CYLINDER UP TO S/N 271024

1A 3710152M931 BLOCK ASSY, CYLINDER FROM S/N 271025 TO 308766

1-B 3710152M941 BLOCK ASSY, CYLINDER FROM S/N 308767 TO 322218

1-C 3710152M951 BLOCK ASSY, CYLINDER FROM S/N 322219

2 3710110M28 BOLT

3 3710130M22 CUP, SEALING, 28

4 4265580M14 CUP, SEALING, 36

5 3704257M13 PLUG UP TO S/N 310071

5A 6254909M13 PLUG, PT1/8 FROM S/N 310072

6 3710247M21 PIN, IDLE GEAR

7 4265579M12 CUP, SEALING, 12

8 3710160M14 SEAL, BEARING CAP

9 3710161M12 SEAL, BEARINGCAP, 07

10 3710175M911 BEARING SET, CRANKSHAFT

11 3711637M14 BEARING, CRANKSHAFT, UPPER

12 3711638M14 BEARING, CRANKSHAFT,

651794

Massey Ferguson GC2300 / GC2310 TRACTOR EFF S/N JNA25201

Page34

LOWER 13 3710184M12 BEARING, THRUST, CRANKSHAFT 14 4260024M11 SEAL, OIL UP TO S/N 304283 14A 3710132M11 OIL, SEAL FROM S/N 304284 15 3710137M22 PIN, TUBE 16 4266242M12 PIN, STRAIGHT 17 3757960M12 PIN 18 3706536M11 STUD, M8X40 19 3704806M11 STUD 20 3704353M12 STUD 21 3758287M12 DOWEL 22 3704382M11 NIPPLE 23 3754123M11 PIPE, WATER DRAIN 24 3710284M11 CONNECTOR, OIL FILTER 25 4265439M911 COVER,INJ PUMP 26 3710163M11 GASKET, COVER 27 4267405M14 BOLT, FLANGE 28 3710411M11 PIN, STARTING SPRING 29 4265435M11 BOLT,ADJUST 30 3710489M11 NUT UP TO S/N 278859 30A 339030X11 NUT FROM S/N 278860 31 4262602M11 LEVEL GAGE UP TO S/N 314483 31A 4262602M21 LEVEL GAGE 314484

PR: t05d25l01a0005

MFC12406

GC2300 / GC2310 TRACTOR EFF S/N JNA25201 4 4 2 2 1 5 6 3 Ref36 Page36

Suggest:

If the above button click is invalid.

Please download this document first, and then click the above link to download the complete manual.

Thank you so much for reading

Ferguson

GC2300 / GC2310 TRACTOR EFF S/N JNA25201

ENGINE E3112VB19 - MAIN AND ROD BEARINGS, UNDERSIZE

ItemPart NumberQtyDescription

1 3710178M911 BEARING SET,UNDERSIZE 0.50 MM

2 3710184M12 BEARING, THRUST

3 3710181M911 BEARING SET, UNDERSIZE 1.00 MM

4 3710184M12 BEARING, THRUST

5 4266968M13 BEARING, ROD UNDERSIZE 0.50 MM

6 4266973M13 BEARING, ROD UNDERSIZE 1.00 MM

MFC8618

PR: t05d25l01a0006

Massey

651794

Page36

GC2300 / GC2310 TRACTOR EFF S/N JNA25201 1

Ref38 Page38

4 3 2
