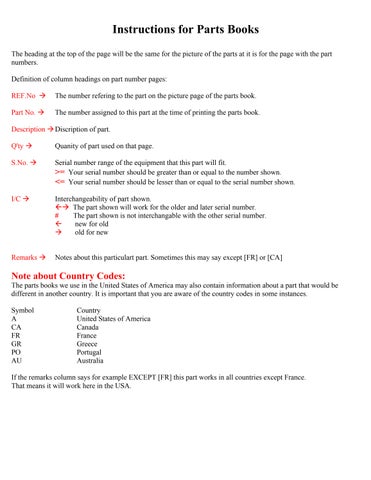

Instructions for Parts Books
The heading at the top of the page will be the same for the picture of the parts at it is for the page with the part numbers.
Definition of column headings on part number pages:
REF.No ‡ The number refering to the part on the picture page of the parts book.
Part No. ‡ The number assigned to this part at the time of printing the parts book.
Description ‡Discription of part.
Q'ty ‡ Quanity of part used on that page.
S.No. ‡ Serial number range of the equipment that this part will fit.
>= Your serial number should be greater than or equal to the number shown.
<= Your serial number should be lesser than or equal to the serial number shown.
I/C ‡ Interchangeability of part shown.
fl
fl‡ ‡ The part shown will work for the older and later serial number.
# The part shown is not interchangable with the other serial number.
fl new for old
‡ old for new
Remarks ‡ Notes about this particulart part. Sometimes this may say except [FR] or [CA]
Note about Country Codes:
The parts books we use in the United States of America may also contain information about a part that would be different in another country. It is important that you are aware of the country codes in some instances.
Symbol Country
A United States of America
CA Canada
FR France GR Greece
PO Portugal
AU Australia
If the remarks column says for example EXCEPT [FR] this part works in all countries except France. That means it will work here in the USA.
ENGINE
HOOD(BONNET)/ROPS
ELECTRICAL SYSTEM
STEERING
SPEED CHANGE LEVER
HITCH/DRAWBAR
HYDRAULIC SYSTEM
CLUTCH
FUEL SYSTEM
FRONT AXLE/FRONT WHEEL/CHASSIS
TRANSMISSION
REAR AXLE/REAR WHEEL/BRAKE
Ref. B6000 Page 11040
|ALL PRODUCT INDEX B6000
Ref. B6000 Page 11040 Item Part No. Description Book ENGINE 0101 CRANKCASE GROUP 100K0134 0102 GEAR CASE GROUP 100K0134 0103 HEAD COVER GROUP 100K0134 0104 CAM SHAFT GROUP 100K0134 0105 FUEL CAMSHAFT GROUP 100K0134 0106 CRANKSHAFT GROUP 100K0134 0107 BREATHER AND INJECTION PUMP GROUP 100K0134 0108 COOLING FAN AND RADIATOR GROUP 100K0134 0109 AIR CLEANER AND MUFFLER GROUP 100K0134 TRANSMISSION 0110 MISSION AND DIFFERENTIAL GEAR CASE GROUP 100K0134 0111 MISSION GEAR GROUP 100K0134 0112 DIFFRENTIAL GROUP 100K0134 SPEED CHANGE LEVER 0113 SPEED CHANGE GROUP 100K0134 REAR AXLE/REAR WHEEL/BRAKE 0114 REAR WHEEL AND BRAKE GROUP 100K0134 CLUTCH 0115 CLUTCH AND PEDAL GROUP 100K0134 HYDRAULIC SYSTEM 0116 OIL PRESSURE GROUP 1 100K0134 0117 OIL PRESSURE GROUP 2 100K0134 0118 CONTOL VALVE GROUP 100K0134 STEERING 011901 STEERING GROUP 100K0134 011902 STEERING GROUP 100K0134 HOOD(BONNET)/ROPS 0120 SEAT AND FENDER GROUP 100K0134 0121 BONNET AND RADIATOR SUPPORT GROUP 100K0134 ELECTRICAL SYSTEM 0122 PANEL GROUP 100K0134 0123 FUEL TANK AND BATTERY GROUP 100K0134 FUEL SYSTEM 0124 FUEL FILTER GROUP 100K0134 FRONT AXLE/FRONT WHEEL/CHASSIS 0125 FRONT AXLE CASE GROUP [B6000] 100K0134 0126 FRONT AXLE DRIVE GROUP [B6000] 100K0134 0127 FRONT WHEEL AND STEERING GROUP [B6000] 100K0134 0129 ACCELERTOR PEDAL GROUP 100K0134 0130 BALUSTRADE GROUP 100K0134 HITCH/DRAWBAR 0131 3 POINT LINKAGE HITCH GROUP [P] 100K0134
CRANKCASE GROUP Reference:0101 Page:1 002 003 003 004 004 004 004 005006007 008 009 010 011 011 012 014 015 016 016 017 018 019 019 019 019 020 021 021 022 023 024 024 025 026 027 028 029 030 031 032 033 034 035 036 037 038 039 040 041 042 043 044 046045 047 048 049 050 052051 053 054
CRANKCASE GROUP
Reference:0101 Page:1 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 001 15231-03200 COMP HEAD CYLINDER 1 002 TO 007 9 19.8 002 15231-03116 HEAD CYLINDER 1 0 0 003 14301-33622 PLUG PIN 2 0 0 004 06311-75028 PLUG BELCH 4 0.01 0.022 005 06311-75020 PLUG BELCH 1 0.004 0.0088 006 15231-13543 GUIDE INLET VALVE 2 0 0 007 15231-13563 GUIDE EXHAUST VALVE 2 0 0 008 15221-03412 STUD CYLINDER HEAD 2 0 0 009 15221-03510 NUT CYLINDER HEAD 2 0.008 0.0176 010 15231-03450 BOLT CYLINDER HEAD 9 0.058 0.1276 011 15221-03540 WASHER PLAIN 11 0.003 0.0066 012 15231-03312 GASKET CYLINDER HEAD 1 0 0 013 15231-01012 COMP CRANKCASE 1 014 TO 022 0 0 014 15231-01122 CRANKCASE 1 0 0 015 15231-39013 SWITCH OIL 1 0 0 016 15231-33960 PIN PIPE 2 0.001 0.0022 017 15221-33650 PIN PIPE 1 0.004 0.0088 018 15221-33620 PLUG PIN 1 0.002 0.0044 019 14301-33622 PLUG PIN 6 0 0 020 06311-75045 PLUG BELCH 1 0.026 0.0572 021 15231-33952 PIN PIPE 2 0 0 022 15231-72840 PIPE WATER 3 1 0.082 0.1804 023 15221-33700 O RING 1 0.001 0.0022 024 15221-01750 HOOK ENGINE 2 0.04 0.088 025 01513-00818 STUD 2 0 0 026 02114-00080 NUT 2 0 0 027 04512-00080 WASHER SPRING 2 0 0 028 15231-04552 BOLT KNOCK 1 0 0 029 15021-33660 PACKING 1 0.001 0.0022 030 15231-36412 GAUGE OIL 1 0 0 031 15231-02315 LINER CYLINDER 2 0 0 032 15231-02350 PACKING CYLINDER LIN 4 0.002 0.0044 033 15231-01614 COVER OIL 1 0 0 034 01053-50616 BOLT 14 0.005 0.011 035 04512-50060 WASHER SPRING 14 0 0 036 01053-50635 BOLT 1 0.009 0.0198 037 04512-50060 WASHER SPRING 1 0 0 038 15231-01660 PACKING OIL COVER 1 0 0 039 14301-33630 PLUG PIN 1 0.001 0.0022 040 15231-32012 ASSY FILTER OIL 1 0 0 041 14301-32580 O RING 1 0 0 042 15231-04623 PLATE 1 0 0 043 05012-00814 PIN STRAIGHT 1 0.006 0.0132 044 05012-00820 PIN STRAIGHT 1 0.008 0.0176 045 01173-51025 BOLT 8 0.021 0.0462 046 04512-50100 WASHER SPRING 8 0 0 047 15231-63012 ASSY STARTER 1 0 0 048 01511-50832 STUD 2 0.015 0.033 049 02113-50080 NUT 2 0 0 050 04512-50080 WASHER SRPING 2 0 0 051 15231-33710 PLUG 1 0.032 0.0704 052 04714-00200 PACKING 1 0.002 0.0044 053 15231-12492 STAY 1 0 0 054 66591-51160 PACKING 1 0 0
Reference:0102 Page:2 001 002 003 004 005 006 007 007 008 008 009 010 011 012 013 014 015 016 017 018 019 020 021 022 023 024 025 026 027 028 029 030
GEAR CASE GROUP
Reference:0102 Page:2 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 001 15231-04114 CASE GEAR 1 0 0 002 15231-04130 PACKING GEAR CASE 1 0 0 003 01053-50665 BOLT 15 0.015 0.033 004 04512-50060 WASHER SPRING 15 0 0 005 01053-50675 BOLT 1 0.015 0.033 006 04512-50060 WASHER SPRING 1 0 0 007 01053-50670 BOLT 2 0.014 0.0308 008 04512-50060 WASHER SPRING 2 0 0 009 01053-50680 BOLT 1 0.02 0.044 010 04512-50060 WASHER SPRING 1 0 0 011 15221-33140 PLUG OIL FILLER 1 0.038 0.0836 012 04811-50300 O RING 1 0.001 0.0022 013 15231-54103 APPARATUS FUEL LIMIT 1 014 TO 018 0 0 014 15231-54170 PIN 1 0 0 015 15231-54230 SPIRNG 1 0.002 0.0044 016 15221-54130 BODY 1 0 0 017 14301-54430 SCREW 1 0.001 0.0022 018 15231-54250 NUT LOCK 1 0 0 019 14301-54150 PACKING 2 0.001 0.0022 020 14301-54420 CAP 1 0.005 0.011 021 14301-54222 NUT CAP 1 0 0 022 15231-54142 BRACKET 1 0.058 0.1276 023 15231-54160 PACKING 1 0 0 024 01202-50616 BOLT 4 0.006 0.0132 025 02014-50060 NUT 4 0.003 0.0066 026 04512-50060 WASHER SPIRNG 4 0 0 027 15232-88222 LABEL 1 0 0 028 15221-54190 SPACER 1 0 0 029 15221-56280 PIN START SPRING 1 0.006 0.0132 030 15231-56482 SPRING START 1 0 0
GEAR CASE GROUP
Reference:0103 Page:3 001 002 003 004 005 006 007 008 009 010 011 012 013 014 014 015 016 017 018 019 020 021 022 023 023 024 025 025 026 027 028 029 030 031 032 033 034 034 035 035 036 036 037 037 038 038 039 039 039 039 040 041 042 042 043 043 044 045 046 047 048 049 050
HEAD COVER GROUP
Reference:0103 Page:3 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 001 15231-14510 COVER HEAD 1 0 0 002 15231-14520 PACKING HEAD COVER 1 0.005 0.011 003 15221-14620 NUT HEAD COVER 2 0.02 0.044 004 15221-14640 WASHER HEAD COVER 2 0.017 0.0374 005 15221-14630 PACKING HEAD COVER N 2 0.003 0.0066 006 15231-66040 ASSY SHAFT DECOMPRES 2 PART 007 INCLUDED 0.017 0.0374 007 04811-10100 O RING 2 0.001 0.0022 008 10211-66353 BOLT DECOMPRESS 2 0 0 009 10211-66373 WASHER DECOMPRESS HA 2 0 0 010 10211-66212 SPRING DECOMPRESS OU 2 0 0 011 02012-50060 NUT 2 0 0 012 04412-50060 WASHER LOCK TOOTHED 2 0.001 0.0022 013 14301-66210 SPRING DECOMPRESS IN 2 0.003 0.0066 014 14107-66292 PIN 2 0 0 015 15231-66310 LEVER DECOMPRESS OUT 1 0.01 0.022 016 15231-66192 LEVER DECOMPRESS OUT 1 0 0 017 14231-66410 JOINT DECOMPRESS 1 0 0 018 05511-50315 PIN SPLIT 2 0.002 0.0044 019 15221-15550 TAPPET 4 0 0 020 15231-15112 PUSH ROD 4 0 0 021 15231-14050 COMP SHAFT ROCKER AR 1 22 023 0.092 0.2024 022 15231-14262 SHAFT ROCKER ARM 1 0 0 023 03410-00808 PLUG 2 0.002 0.0044 024 15231-14030 COMP ROCKER ARM INLE 2 025 TO 028 0.07 0.154 025 15231-14142 ROCKER ARM INLET 2 0 0 026 15231-14180 BUSH 2 0.005 0.011 027 15231-14230 SCREW ADJUSTING 2 0.009 0.0198 028 15021-14240 NUT ADJUSTING 2 0.003 0.0066 029 15231-14040 COMP ROCKER ARM EXHA 2 030 TO 033 0.07 0.154 030 15231-14162 ROCKER ARM EXHAUST 2 0 0 031 15231-14180 BUSH 2 0.005 0.011 032 15231-14230 SCREW ADJUSTING 2 0.009 0.0198 033 15021-14240 NUT ADJUSTING 2 0.003 0.0066 034 15231-14350 BRACKET ROCKER ARM 2 0.041 0.0902 035 15231-14410 STUD 2 0.028 0.0616 036 02156-50080 NUT 2 0.004 0.0088 037 04512-50080 WASHER SPRING 2 0 0 038 04012-50080 WASHER PLAIN 2 0.001 0.0022 039 15231-14430 WASHER ROCKER ARM SH 4 0.004 0.0088 040 15231-14420 SCREW ROCKER ARM SHA 1 0.007 0.0154 041 15231-14310 SPRING ROCKER ARM 1 0.006 0.0132 042 04612-00120 CIR-CLIP EXTERNAL 2 0.001 0.0022 043 15231-13112 VALVE INLET 2 0 0 044 15231-13122 VALVE EXHAUST 2 0 0 045 15231-13240 SPRING VALVE 4 0.025 0.055 046 15231-13332 RETAINER VALVE SPRIN 4 0 0 047 15221-13360 COLLET VALVE SPRING 8 0 0 048 15231-13150 STEM-SEAL VALVE 4 0.002 0.0044 049 15232-88212 LABEL 1 0 0 050 15232-88312 LABEL OIL 1 0 0
HEAD COVER GROUP
CAM SHAFT GROUP Reference:0104 Page:4 002 003 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020 021 021 022 023 024 025 026 027 029028 030 031 032 033034 035
CAM SHAFT GROUP Reference:0104 Page:4 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 001 15231-16010 COMP CAMSHAFT 1 002 TO 007 1.2 2.64 002 15231-16155 CAMSHAFT 1 0 0 003 15221-33630 PLUG PIN 2 0.001 0.0022 004 15231-16512 GEAR CAM 1 0 0 005 05712-00720 KEY 1 0.008 0.0176 006 15231-16220 STOPPER CAMSHAFT 1 0.055 0.121 007 04612-00220 CIR-CLIP EXTERNAL 1 0.001 0.0022 008 01153-50816 BOLT 2 0.01 0.022 009 15231-16250 WASHER 1 0.005 0.011 010 15231-24010 COMP GEAR IDLE 1 11 012 0.652 1.4344 011 15231-24212 GEAR IDLE 1 0 0 012 15231-24280 BUSH IDLE GEAR 1 0.03 0.066 013 15231-24360 COLLAR IDLE GEAR 1 1 0.01 0.022 014 15231-24370 COLLAR IDLE GEAR 2 1 0.014 0.0308 015 15231-24322 CIR-CLIP IDLE GEAR 1 0 0 016 15231-24254 SHAFT IDLE GEAR 1 0 0 017 01153-50818 BOLT 3 0.01 0.022 018 15231-24310 WASHER IDLE GEAR SHA 1 0.014 0.0308 019 15231-35010 ASSY PUMP OIL 1 020 TO 032 1.2 2.64 020 15231-35114 CASE OIL PUMP 1 0 0 021 04811-10100 O RING 2 0.001 0.0022 022 15231-35400 ASSY ROTER PUMP 1 0.14 0.308 023 15231-35660 GEAR 1 0.212 0.4664 024 05712-00410 KEY 1 0.001 0.0022 025 02116-50100 NUT 1 0.004 0.0088 026 04211-50100 WASHER CLAW 1 0.002 0.0044 027 04811-10440 O RING 1 0.001 0.0022 028 15231-36360 BALL OIL PRESSURE AD 1 0.003 0.0066 029 15231-36340 SPRING OIL PRESSURE 1 0.002 0.0044 030 15231-36330 WASHER OIL PRESSURE 1 0.004 0.0088 031 15231-36310 BOLT OIL PRESSURE AD 1 0.015 0.033 032 03410-50808 SCREW SET 1 0 0 033 01053-50640 BOLT 4 0.011 0.0242 034 04512-50060 WASHER SPRING 4 0 0 035 15231-33620 PLUG PIN 1 0 0
FUEL CAMSHAFT GROUP Reference:0105 Page:5 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020 021 022 023 024 025 026 027 028 029 030 031 032 033 034 035 036 037 039 040 041
FUEL CAMSHAFT
Reference:0105 Page:5 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 001 15231-16022 COMP CAMSHAFT FUEL 1 002 TO 013 0 0 002 15231-16162 CAMSHAFT FUEL 1 0 0 003 08150-00002 BEARING BALL 1 0 0 004 15231-51153 GEAR FUEL CAMSHAFT 1 0 0 005 05712-00720 KEY 1 0.008 0.0176 006 04612-00220 CIR-CLIP EXTERNAL 1 0.001 0.0022 007 15231-55453 SLEEVE GOVERNOR 1 0 0 008 15231-55490 CIR-CLIP GOVERNOR SL 1 0.003 0.0066 009 15231-55694 CASE GOVERNOR BALL 1 0.033 0.0726 010 07715-03205 BALL 35 0.001 0.0022 011 07715-00805 BALL 6 0.016 0.0352 012 08100-00020 BEARING BALL 1 0.129 0.2838 013 04612-00250 CIR-CLIP EXTERNAL 1 0.002 0.0044 014 15231-16680 STOPPER FUEL CAMSHAF 1 0.02 0.044 015 01153-50814 BOLT 2 0.009 0.0198 016 04512-50080 WASHER SPRING 2 0 0 017 15231-56043 COMP LEVER FORK 1 0.19 0.418 018 15231-56153 SHAFT FORK LEVER 1 0 0 019 15021-56243 BOLT FORK LEVER SHAF 1 0 0 020 04512-50060 WASHER SPRING 1 0 0 021 15231-56233 HOLDER FORK LEVER 1 0 0 022 01153-50825 BOLT 2 0.012 0.0264 023 04512-50080 WASHER SPRING 2 0 0 024 04013-50080 WASHER PLAIN 2 0 0 025 15231-56414 SPRING GOVERNOR 1 0 0 026 15231-56070 COMP LEVER GOVERNOR 1 0.042 0.0924 027 15231-57150 LEVER SPEED CONTROL 1 0.062 0.1364 028 15231-57380 PLATE FRICTION 1 0.003 0.0066 029 05712-00408 KEY 1 0.001 0.0022 030 04811-10080 O RING 1 0.001 0.0022 031 15231-94010 WASHER PLAIN 1 0.005 0.011 032 02112-50080 NUT 2 0.003 0.0066 033 04013-50080 WASHER PLAIN 1 0 0 034 15108-57282 BOLT 1 0 0 035 02012-50060 NUT 1 0 0 036 07811-11210 WIRE 1 0.001 0.0022 037 07918-00001 LEAD SEALING 1 0.001 0.0022 038 15231-56052 ASSY LEVER FORK 1 017 TO 024 039 TO 041 0 0 039 15231-56202 COMP LEVER 1 0 0 040 13316-94010 WASHER PLAIN 1 0 0 041 04612-00100 CIR-CLIP EXTERNAL 1 0.001 0.0022
GROUP
CRANKSHAFT GROUP
Reference:0106 Page:6 001 002 003 003 004 005 006 007 008 009 010 011 012 013 014 015 016 016 017 018 019 020 021 022 023 024 024 025 025 026 026 027 028 029 030 031 031 032 033 034 035 036 037 038 039 040 041 042 043 044 045 046 046 047 048 049 050
CRANKSHAFT GROUP
Reference:0106 Page:6 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 001 15231-23012 COMP CRANKSHAFT 1 2 003 049 050 0 0 002 15231-23112 CRANK SHAFT 1 PARTS 049 AND 050 REPLACED AT ONCE 0 0 003 15131-01380 PLUG PIN 2 0.001 0.0022 004 15231-24113 GEAR CRANK 1 0 0 005 05712-00720 KEY 1 0.008 0.0176 006 15231-23250 COLLAR CRANK SHAFT 1 0.044 0.0968 007 09550-00007 SEAL OIL 1 0.014 0.0308 008 15231-25010 COMP FLYWHEEL 1 9 010 14 30.8 009 15231-25115 FLYWHEEL 1 0 0 010 15231-63820 GEAR RING 1 0 0 011 15231-25162 BOLT FLYWHEEL 5 0 0 012 15231-25172 WASHER FLYWHEEL 1 0 0 013 15231-21110 PISTON 2 0.354 0.7788 014 15231-21050 ASSY RING PISTON 2 0.07 0.154 015 15231-21310 PIN PISTON 2 0.13 0.286 016 15231-21330 CIR-CLIP PISTON PIN 4 0.002 0.0044 017 15231-21350 BUSH PISTON PIN 2 0.026 0.0572 018 15231-22012 COMP CONNECTING ROD 2 019 TO 022 0 0 019 15231-22112 CONNECTING ROD 2 0 0 020 15231-22140 BOLT CONNECTING ROD 4 0.026 0.0572 021 15231-22172 WASHER ROD BOLT 2 0 0 022 15231-22310 METAL CRANK PIN 4 0.036 0.0792 023 15231-28472 METAL CRANK PIN 1 1 0 0 024 15231-23460 METAL CRANK PIN 2 4 0.064 0.1408 025 15231-23470 METAL SIDE 1 2 0.012 0.0264 026 15231-23480 METAL SIDE 2 2 0.012 0.0264 027 15231-04063 ASSY CASE MAIN BEARI 1 28 029 0 0 028 15231-04913 CASE MAIN BEARING 1 1 0 0 029 15231-04922 CASE MAIN BEARING 2 1 0 0 030 15231-04540 BOLT 1 2 0.026 0.0572 031 15231-04573 WASHER LOCK 1 2 0.004 0.0088 032 15231-04360 PACKING LOCK 1 0 0 033 15231-04812 COVER BEARING 1 0 0 034 15231-04820 PACKING BEARING COVE 1 0 0 035 01153-50830 BOLT 8 0 0 036 15231-06350 WASHER LOCK 1 3 0.004 0.0088 037 15231-06360 WASHER LOCK 2 1 0.007 0.0154 038 01153-50822 BOLT 8 0.011 0.0242 039 04512-50080 WASHER SPRING 8 0 0 040 04012-50080 WASHER PLAIN 8 0.001 0.0022 041 09560-00006 SEAL OIL 1 0 0 042 15231-04072 ASSY CASE MAIN BEARI 1 43 044 0 0 043 15231-04932 CASE MAIN BEARIANG 1 1 0 0 044 15231-04942 CASE MAIN BEARIANG 2 1 0 0 045 15231-04540 BOLT 1 2 0.026 0.0572 046 15231-04580 WASHER LOCK 2 2 0.002 0.0044 047 15231-04560 BOLT 2 1 0.042 0.0924 048 15221-04590 WASHER LOCK 3 1 0.005 0.011 049 32160-15160 BEARING 1 0.005 0.011 050 09400-16267 SEAL OIL 1 0.005 0.011
BREATHER AND INJECTION PUMP GROUP
Reference:0107 Page:7 001 002 003 004 005 006 006 007 008 009 010 011 012 013 014 015 015 016 017 018 018 019 019 020 020 021 021 022 022 023 024 025 026 027 027 028 029 030 031 032
BREATHER AND INJECTION PUMP GROUP
Reference:0107 Page:7 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 001 15231-51012 ASSY PUMP INJECTION 1 0 0 002 15001-52113 SHIM INJECTION PUMP 5 0 0 003 14111-42412 JOINT FUEL PIPE 1 0 0 004 01513-50822 STUD 1 0.01 0.022 005 02156-50080 NUT 1 0.004 0.0088 006 04512-50080 WASHER SPRING 4 0 0 007 15231-53710 PIPE INJECTION 1 1 0.112 0.2464 008 15231-53720 PIPE INJECTION 2 1 0.12 0.264 009 15231-53850 CLAMP PIPE 1 1 0.008 0.0176 010 15121-53860 CLAMP 2 1 0 0 011 03024-50520 BOLT 1 0.004 0.0088 012 01511-00855 STUD 4 0 0 013 02114-50080 NUT 4 0.005 0.011 014 04512-50080 WASHER SPRING 4 0 0 015 15231-65512 PLUG GLOW 2 0.035 0.077 016 15231-65560 CORD GLOW PLUG 1 0.003 0.0066 017 15231-42520 PIPE 1 0 0 018 10244-42320 CLIP 2 0.001 0.0022 019 15231-53002 COMP HOLDER NOZZLE 2 20 021 0 0 020 15231-53012 ASSY HOLDER NOZZLE 2 0 0 021 15231-53610 PIECE NOZZLE 2 0.038 0.0836 022 17011-53620 PACKING 2 0.003 0.0066 023 15103-42570 JOINT FUEL 1 1 0.008 0.0176 024 14117-42560 JOINT FUEL 2 1 0.007 0.0154 025 15231-05110 BREATHER 1 0.04 0.088 026 15231-05410 COVER BREATHER 1 0.056 0.1232 027 15231-05130 PACKING BREATHER 2 0 0 028 15231-05672 ELEMENT BREATHER 1 0 0 029 01202-50612 BOLT 4 0.005 0.011 030 15231-05510 PIPE BREATHER 1 0.03 0.066 031 01153-50822 BOLT 3 0.011 0.0242 032 15231-42300 ASSY PIPE 1 17 018 0 0
COOLING FAN AND RADIATOR GROUP
Reference:0108 Page:8 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 017 018 019 020 021 022 023 024 025 026 027 028 029 030 030 030 030 031 032 033 034 035 036 037 038 039 040
