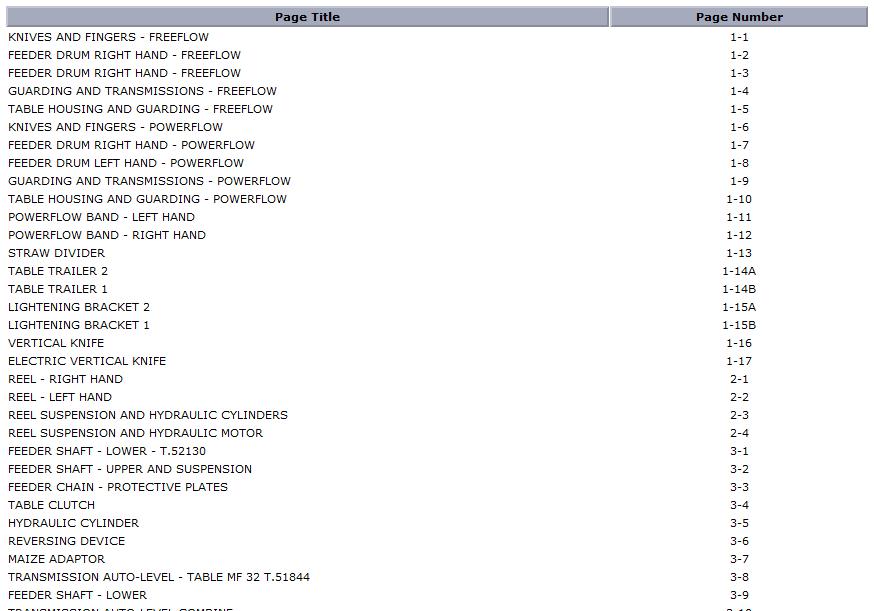

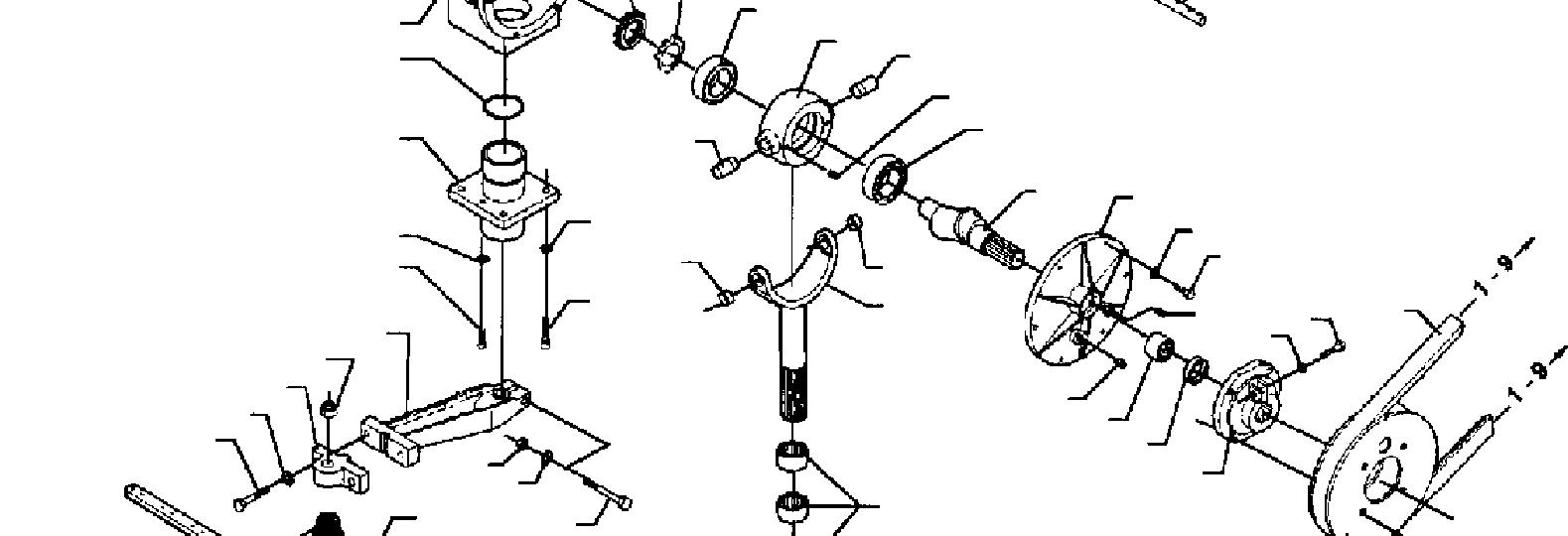

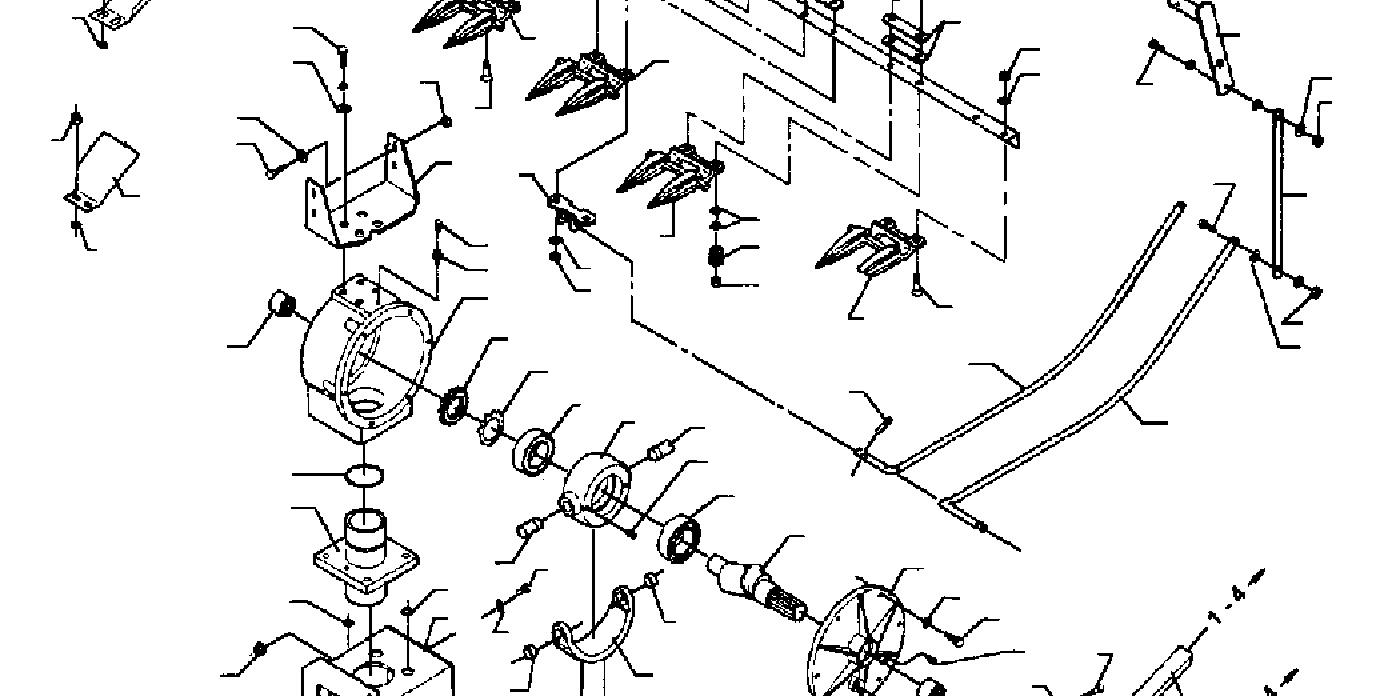

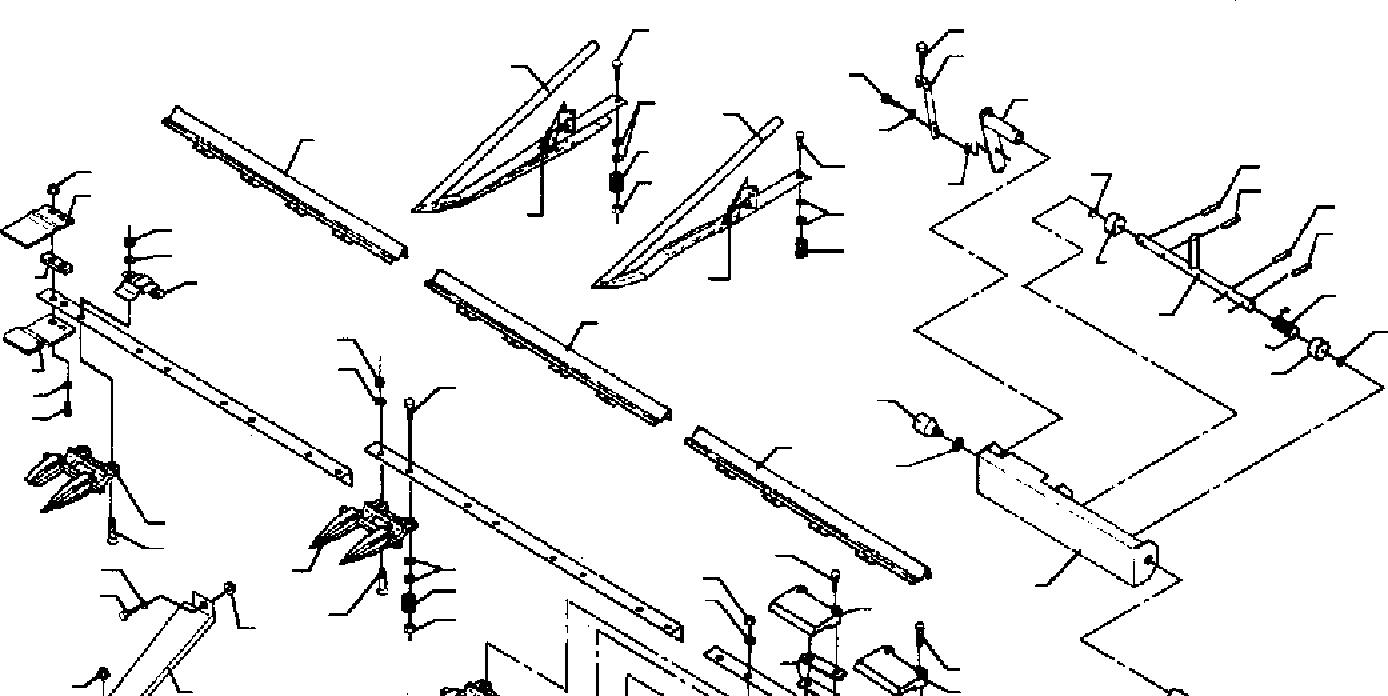

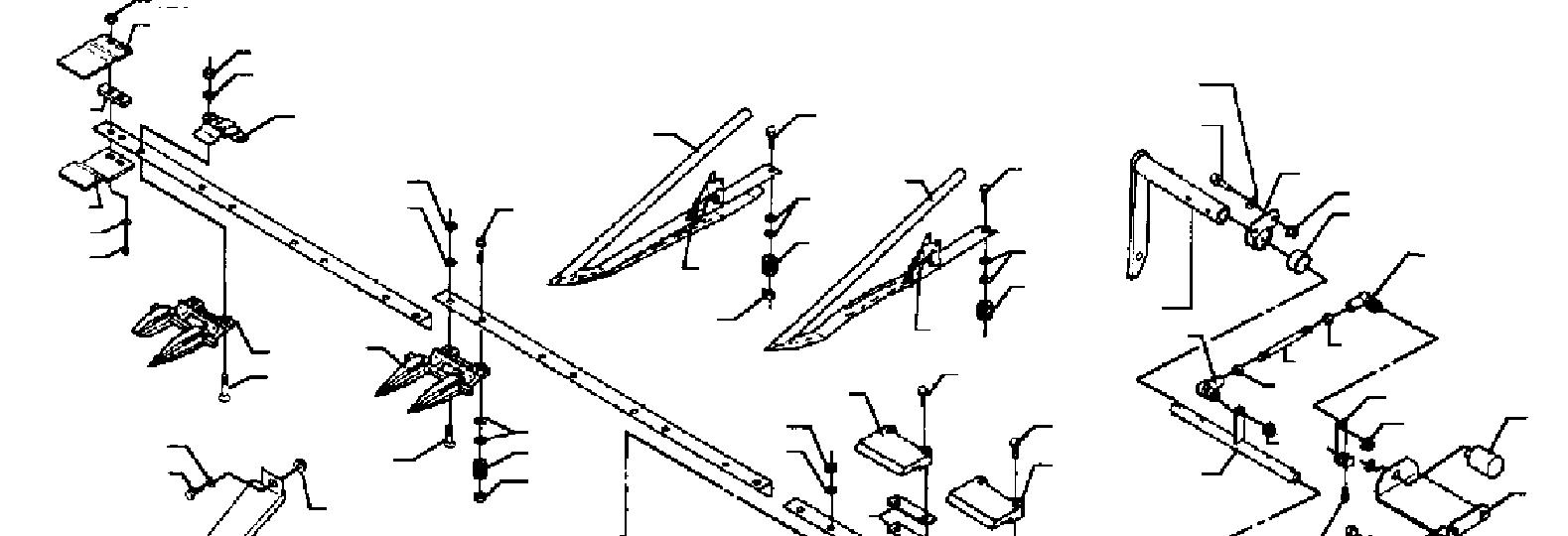

MASSEY FERGUSON MF 30/32 COMBINES,->| 53049 - 1637229 1637229 KNIVES AND FINGERS - FREEFLOW 1-1 ItemPart NumberQtyDescription Comments 001 D2828393411 Pliers (S8) D2828393413 Pliers (T7) D2828393415 Pliers (S4) D2828393417 Pliers (T8) 002 D282302924 Shim 003 D282808091 Guard T.926970 005 D41010800 Nut Metric 006 D282605351 Finger Left Hand 007 D400676002 Screw 008 D4410290023 Finger (S8) D4410290027 Finger (T7) D4410290031 Finger (S4) D4410290034 Finger (T8) 009 D282605311 Finger Right Hand 010 D204005062 Spacer T.926970 011 D441205001 Cap 012 D282831041 Support 013 D404050004 Screw Metric 014 D204004148 Washer 015 D41013500 Nut 016 D282308421 Guard (S8 POS. 35, 36) D282308421 Guard (T7 POS. 35, 36) D282308451 Guard (S4 POS. 35, 36) D282308422 Guard (T8 POS. 35, 36) 017 D282308431 Guard (S8 POS. 35, 36) D282308431 Guard (T7 POS. 35, 36) D282308441 Guard (S4 POS. 35, 36) D282308431 Guard (T8 POS. 35, 36) D282830092 Knife Back (T8) D282833062 Knife Back (S8) D282833072 Knife Back (T7) D282833082 Knife Back (S4) 019 D282830112 Knife Head 020 D282814882 Knife Back (S8) D282814892 Knife Back (T7) D282814902 Knife Back (S4) D282814912 Knife Back (T8) 021 D44103700 Section (5) 022 D441038002 Half Section Right Hand 023 D41306100 Rivet (5) 024 D41306200 Rivet (5) 025 D441040002 Half Section Left Hand 026 D282837011 Stone Trap Right Hand 027 D282837031 Stone Trap (T7) D282837041 Stone Trap (S4) D282837051 Stone Trap (S8) 028 D282837021 Stone Trap Left Hand 029 D49040200 Ear Lifter 030 D49040400 Spring 031 D40426000 Screw 032 D49040600 Roller 033 D40426000 Screw 034 D404024002 Screw Metric 035 D265003172 Spring 036 D282308412 Spring D282810671 Wobble Drive PO. 38-66 038 D441278001 Box 039 D441288001 Bearing Needle 040 D441294001 Connector 041 D461165001 Valve 042 D441291001 Nut 043 D441292001 Washer 044 D416684002 Bearing Roller 045 D441279001 Housing 046 D441280002 Journal 047 D441293001 Shaft 048 D441282001 Cover 049 D411007001 Washer 050 D404049006 Screw Metric 051 D416697001 Bearing Needle Ref1-1 Page1-1
MASSEY FERGUSON MF 30/32 COMBINES,->| 53049 - 1637229 1637229 KNIVES AND FINGERS - FREEFLOW 1-1 ItemPart NumberQtyDescription Comments 052 D441289001 Seal 053 D454815001 O Ring 054 D441283001 Bearing Carrier 055 D411007002 Washer 056 D406972002 Screw 057 D406396002 Pin 058 D441284002 Bush 059 D441285001 Yoke 060 D416698003 Bearing Needle 061 D454095001 Seal 062 D441286001 Plug 063 D452362001 Plug 064 D441271001 Hub 065 D411009001 Washer 066 D406940001 Screw 067 D419856001 Belt 069 D204004264 Washer 070 D404109004 Screw 074 D204005234 Spacer 075 D404654004 Screw 076 D282831031 Clamp 077 D404165005 HEXAGON SCREW 078 D204004615 Washer 079 D406984002 Screw 080 D204004382 Washer 081 D410879002 Locknut 083 D410877001 Locknut 084 D204004281 Washer 085 D404294001 HEXAGON SCREW 086 D414091001 SPLIT PIN 087 D410543001 Nut 088 D441269001 Flange 089 D441270001 Swivel Arm 090 D441272001 Pulley 091 D282809864 Dog 092 D28260362 Clip 093 D400672002 Screw 094 D20400419 Washer 095 D49040300 Ear Lifter 096 D282831091 Support 097 D404051004 Screw Metric 098 D282843564 Fitting (AX) 099 D426118008 Pin (AX) 100 D282842572 Sensing Finger (AX) 101 D282842582 Sensing Finger (AX) 102 D404053004 Screw (AX) 103 D2040050620 Spacer (AX) 104 D410875008 Locknut (AX) 105 D282842234 Link (AX) 106 D404236004 HEXAGON SCREW (AX) 108 D287805232 Meter (AX) 109 D404024002 Screw Metric (AX) 110 D287808452 Stem (AX) 111 D282842254 Arm (T8 AUTO-LEVEL) 111 D282842344 Lever (V7 AUTO-LEVEL) 112 D404027002 Screw Metric (AX) 113 D204004042 Washer (AX) 114 D410134002 Nut (AX) 115 D204004394 Washer (AX) 116 D426119008 Pin (AX) 117 D426123004 Pin (AX) 118 D282842322 Shaft (AX) 119 D282843892 Spring (AX) 120 D282842222 Support (BM) 120 D282842292 Support (T8 AUTO-LEVEL) 121 D282844564 Bush (AX) 122 D282815761 Plate F.926971 123 D282815751 Shim F.926971 124 D282815741 Plate F.926971 125 D404236002 HEXAGON SCREWF.926971 Ref1-1 Page1-1
MASSEY FERGUSON MF 30/32 COMBINES,->| 53049 - 1637229 1637229 KNIVES AND FINGERS - FREEFLOW 1-1 ItemPart NumberQtyDescription Comments 126 D204005062 Spacer F.926971 127 D410135002 Nut F.926971 128 D282815721 Knife F.926971 129 D204005063 Spacer F.926971 130 D410135003 Nut F.926971 131 D404049001 Screw Metric F.926971 132 D282817061 Guard F.926971 133 D404047002 Screw Metric F.926971 134 D204005062 Spacer F.926971 135 D40402400 Screw Metric (OM) 136 D41087400 Locknut (OM) 137 D20400441 Washer +F.929773 (AX) OPTIONAL EQUIPMENT AUTO-LEVEL (BM) AUTO-LEVEL 16' (OM) ALTERNATIVE TO POS. 23 (S4) 16' (S8) 12' (T7) 14' (T8) 18' (V7) 14'-16' (5) OPTIONAL Ref1-1 Page1-1
MF 30/32 COMBINES,->| 53049 - 1637229

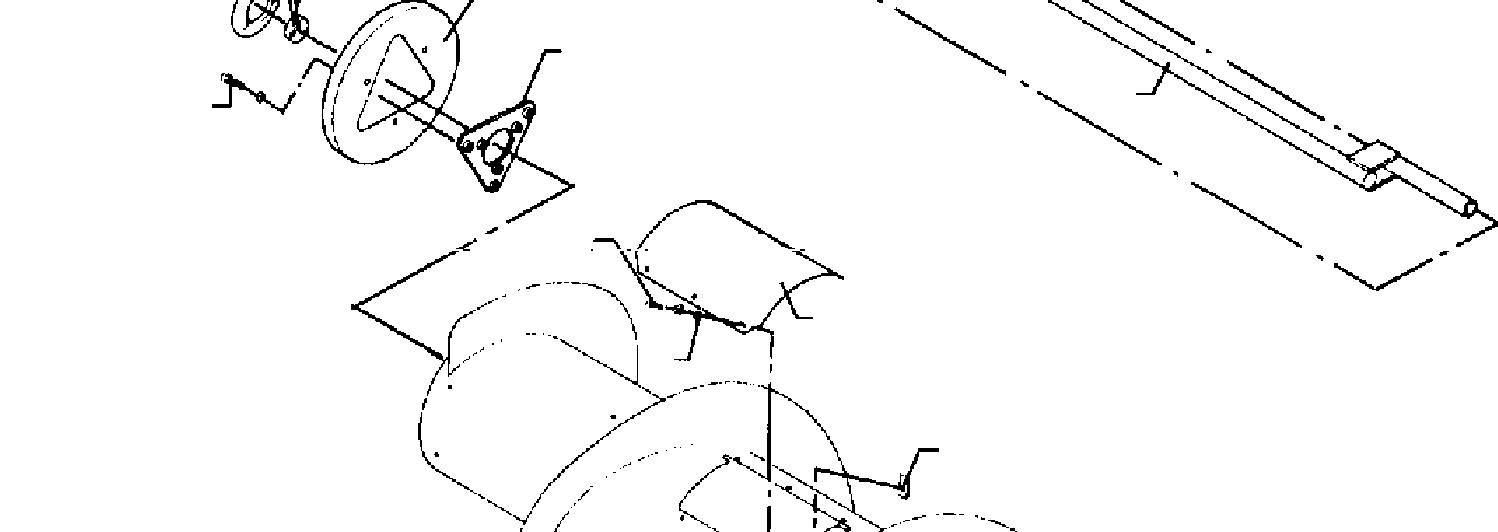

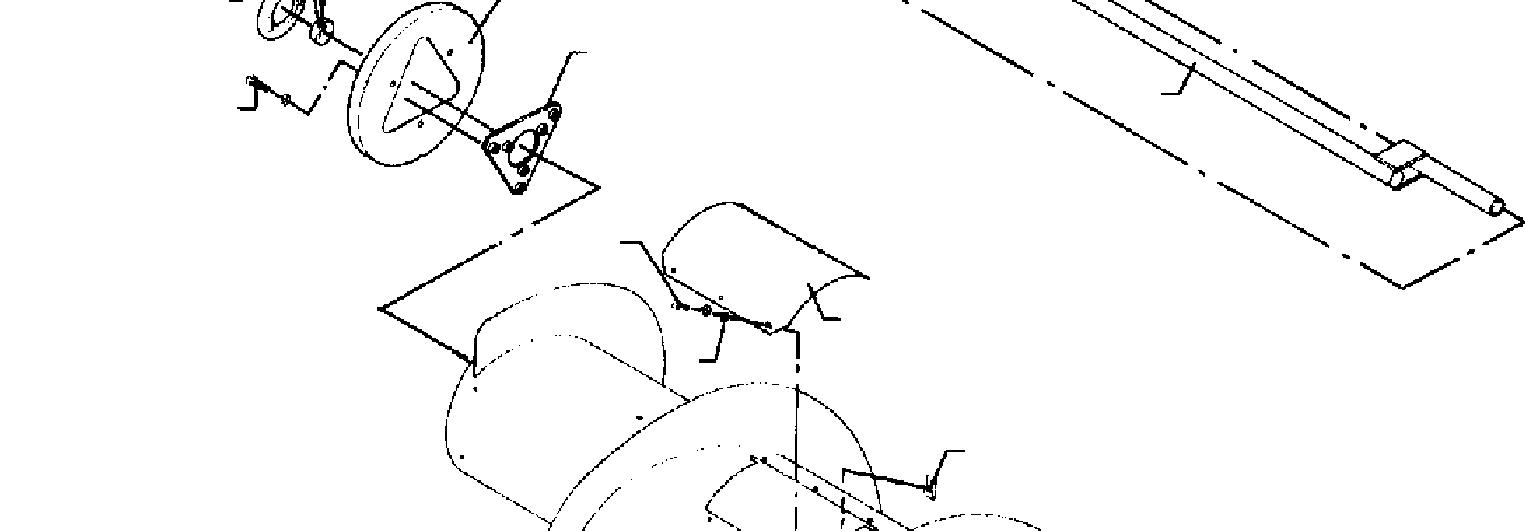

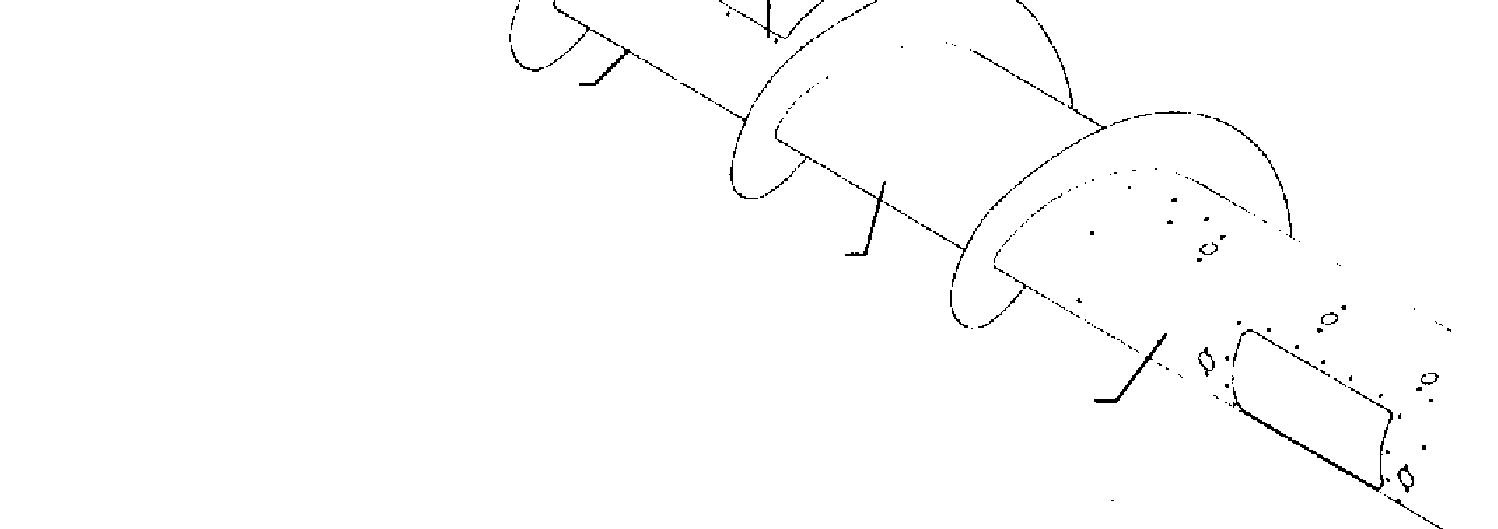

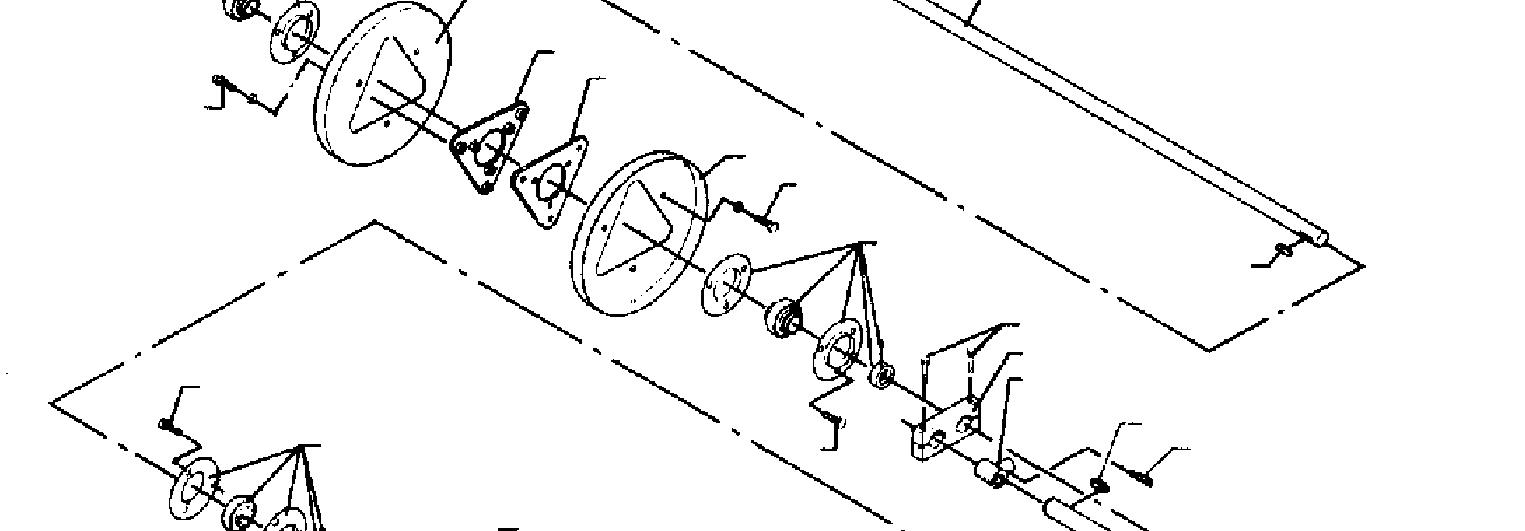

3 3 32 33 8 8 8 4 11 11 11 11 11 11 11 11 10 10 10 10 1 2 5 35 7 13 13 13 13 14 14 14 14 9 34 34 16 17 18 23 15 26 6 25 19 30 27 28 Ref1-2 Page1-2

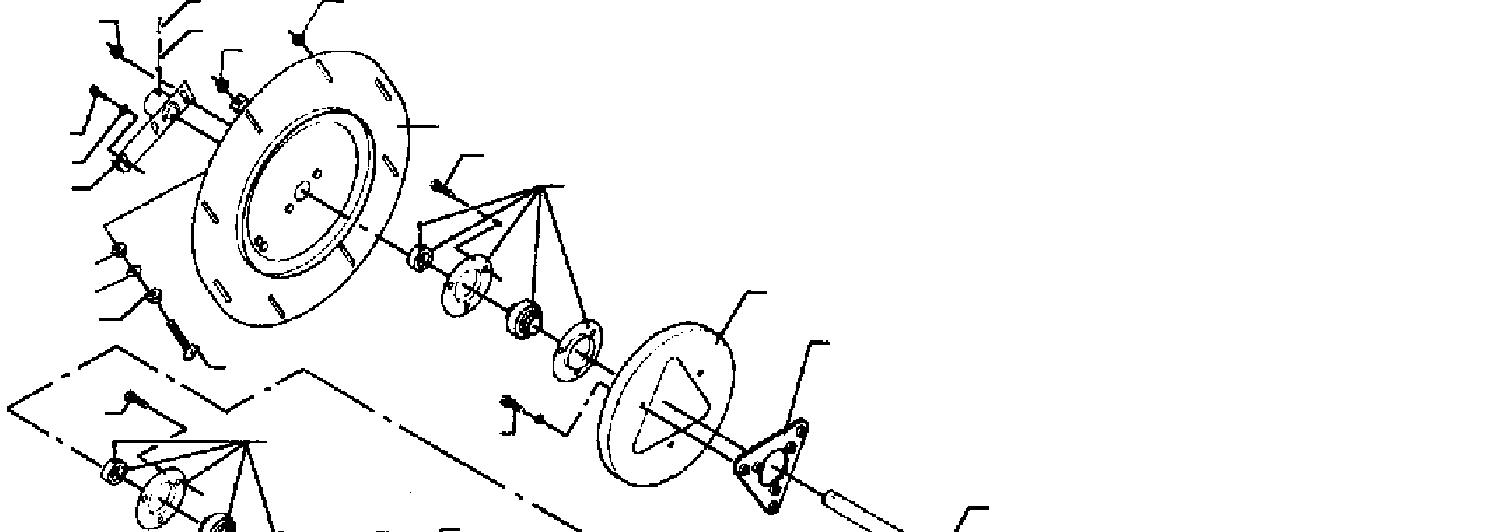

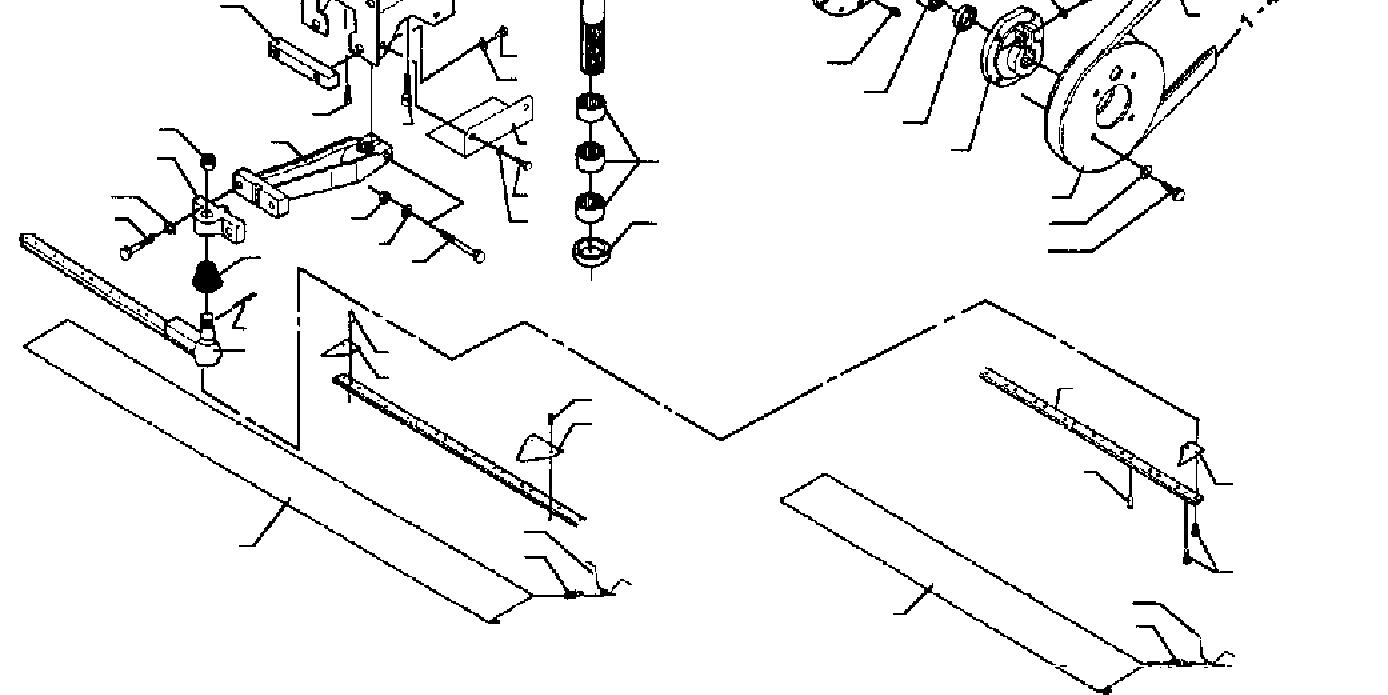

MASSEY FERGUSON MF 30/32 COMBINES,->| 53049 - 1637229 1637229 FEEDER DRUM RIGHT HAND - FREEFLOW 1-2 ItemPart NumberQtyDescription Comments 001 D404047001 Screw Metric 002 D204005061 Spacer 003 D4101350010 Nut 004 D282800401 Plate Right Hand 005 D282830291 Adjuster 006 D204004706 Washer 007 D282110231 Bolt 008 D410108002 Nut Metric +F.929460 009 D282830351 Crankshaft (S8) D282837671 Crankshaft (T7) D282837681 Crankshaft (S4) D282830361 Crankshaft (T8) 010 D417078003 Flange (S3) D417078004 Flange (T9) 011 D40407900 Screw Metric 013 D282800143 Plate (S3) D282800143 Plate (T9) 014 D282838473 Bearing Plate (S3) D282838474 Bearing Plate (T9) 015 D282830161 Crankshaft 016 D404261002 Screw 017 D282830391 Arm 018 D2825183115 Bearing 019 D434282006 Nut 023 D2828385315 Hair Pin 025 D282830701 Cover 026 D404026006 Screw Metric 027 D282837881 Drum (S8) D282837891 Table Auger (T7) D282837901 Drum (S4) D282831341 Drum (T8) 028 D282830121 Shell 030 D282834881 Shell Right Hand (S8) 030 D282837921 Shell Right Hand (T7) 030 D282837951 Shell Right Hand (S4) 030 D282830321 Shell Right Hand (T8) 032 D426164001 Pin 033 D426253001 Pin 034 D431047002 Key 035 D204004712 Washer +F.929460 (S3) 12'-14' (S4) 16' (S8) 12' (T7) 14' (T8) 18' (T9) 16'-18' Ref1-2 Page1-2
MF 30/32 COMBINES,->| 53049 - 1637229

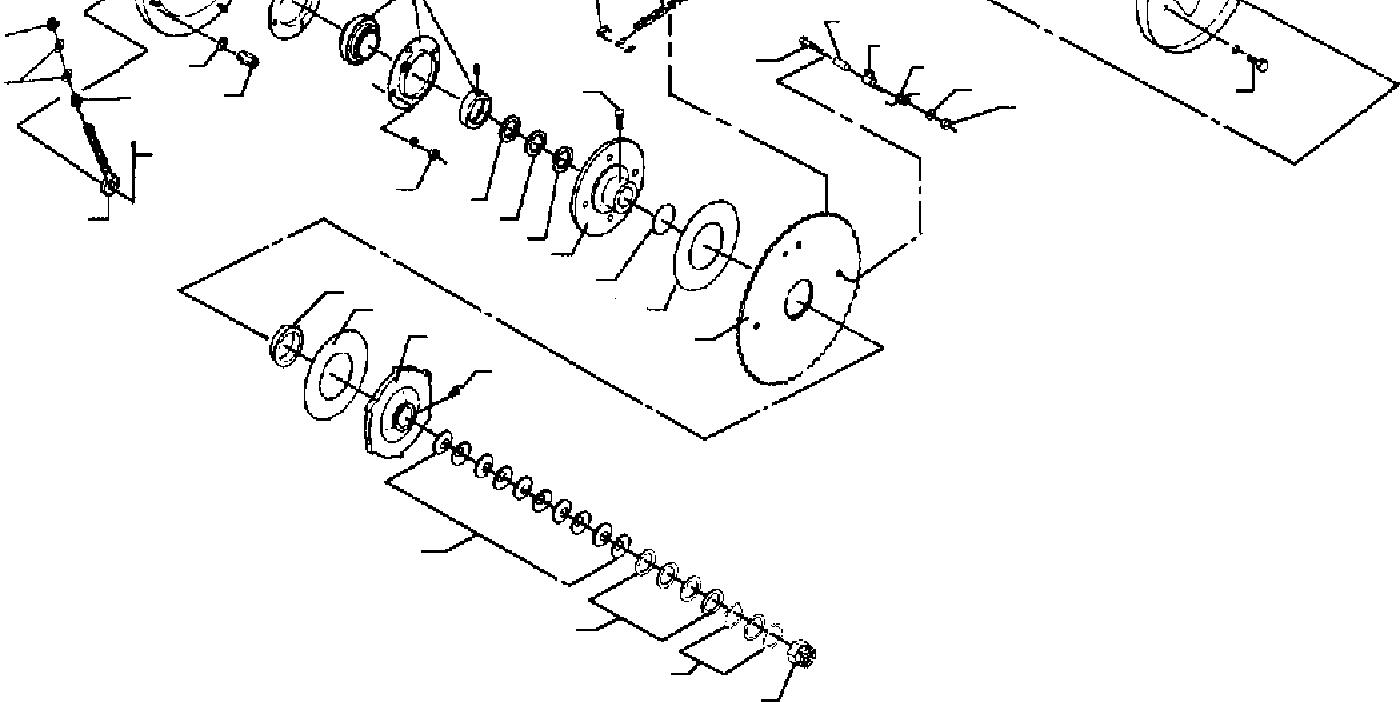

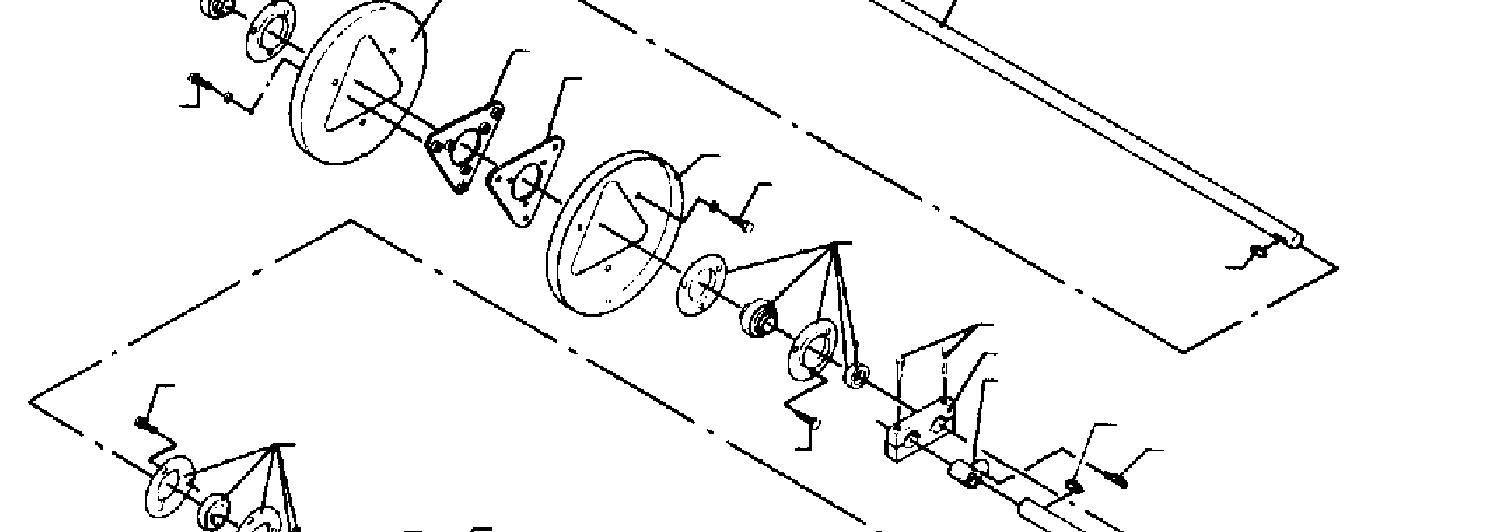

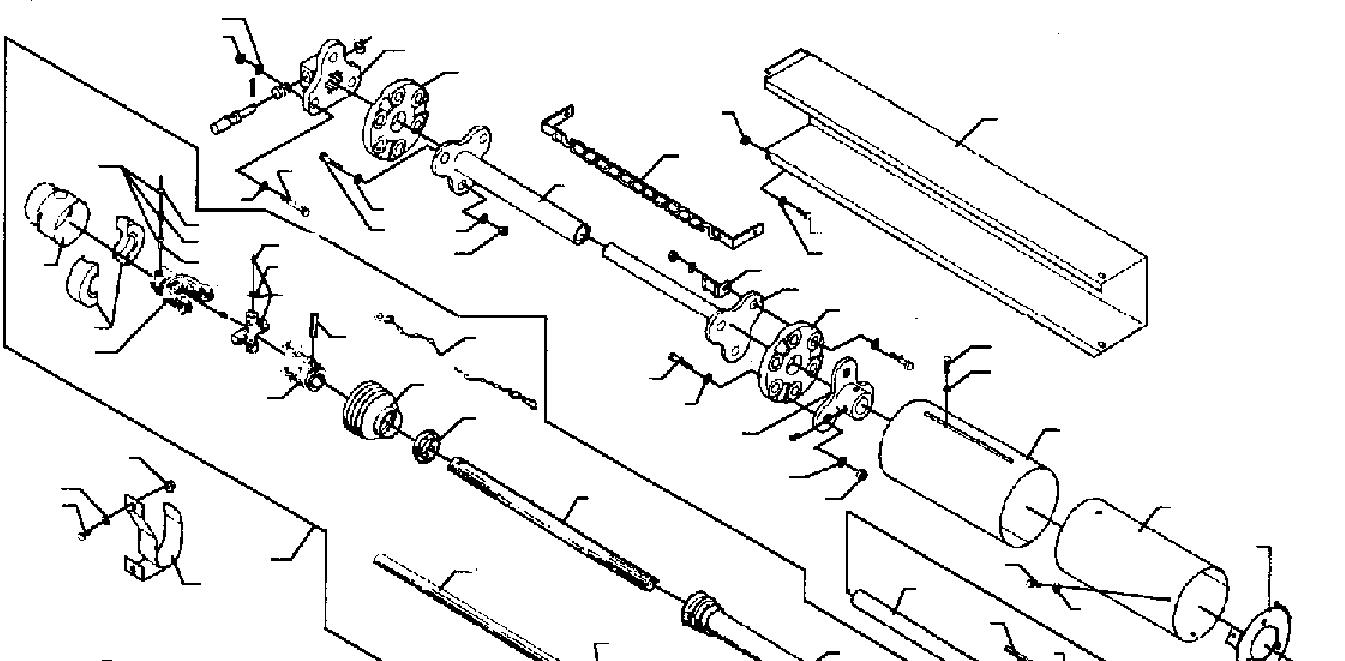

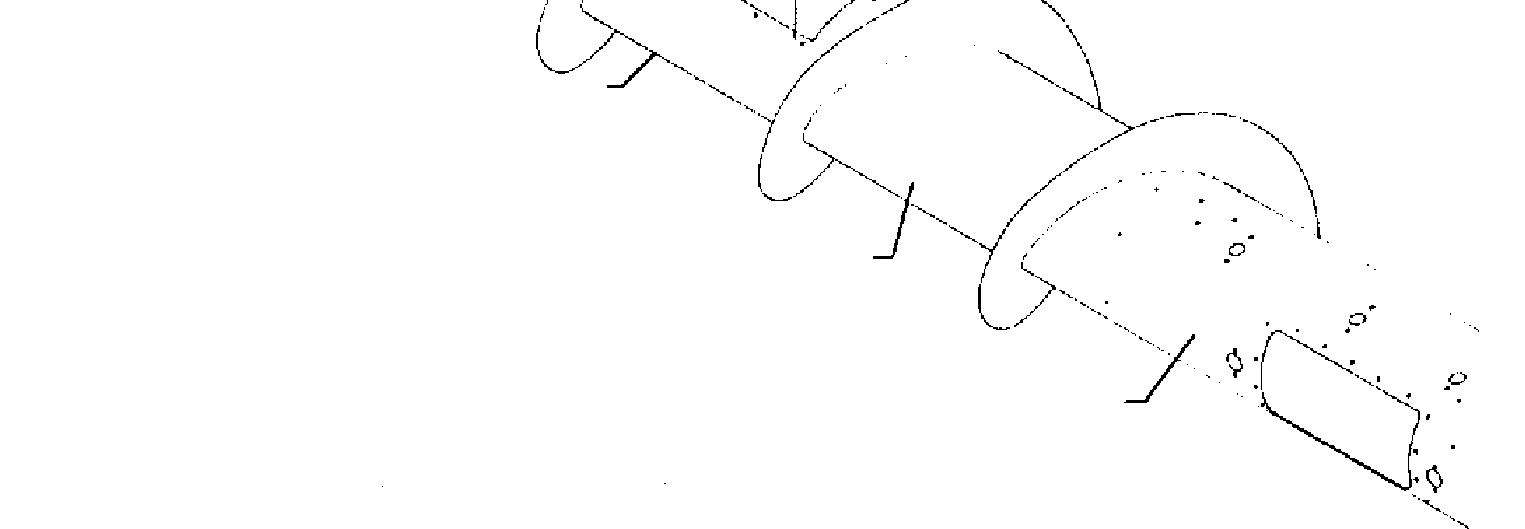

1 6 7 8 56 56 9 10 11 11 3 18 18 15 15 14 14 16 13 46 49 41 39 58 43 23 27 28 30 33 31 31 35 50 51 36 48 45 53 55 55 47 57 54 5 12 19 20 52 42 4 26 25 24 24 37 38 40 17 29 32 44 34 22 21 Ref1-3 Page1-3

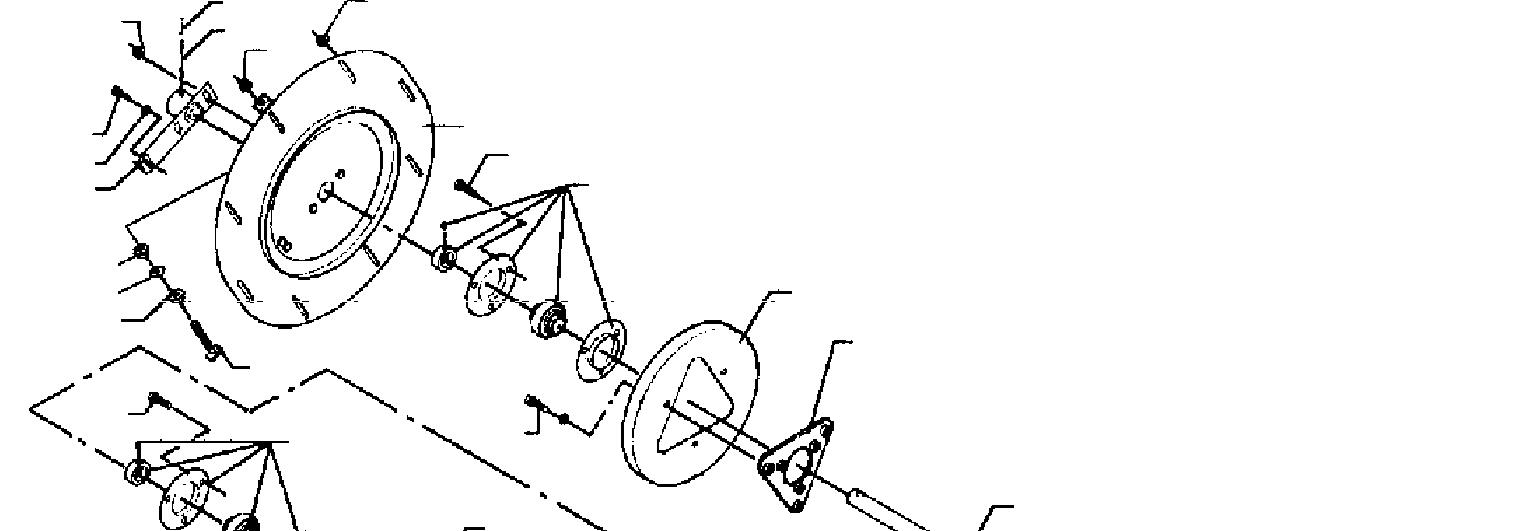

MASSEY FERGUSON MF 30/32 COMBINES,->| 53049 - 1637229 1637229 FEEDER DRUM RIGHT HAND - FREEFLOW 1-3 ItemPart NumberQtyDescription Comments 001 D282837881 Drum (S8) D282837891 Table Auger (T7) D282837901 Drum (S4) D282831341 Drum (T8) 002 D282830121 Shell 003 D282834871 Shell Left Hand (S8) 003 D282837931 Shell Left Hand (T7) 003 D282837941 Shell Left Hand (S4) 003 D282830331 Shell Left Hand (T8) 004 D28280957 Ring (5) 005 D282830781 Cover 006 D2828381515 Spike 007 D40402600 Screw Metric 008 D41087400 Locknut 009 D2828306015 Bush 010 D20400404 Washer 011 D40402600 Screw Metric 012 D434282006 Nut 013 D282830701 Cover 014 D2040047014 Washer 015 D282800142 Plate 016 D282830071 Drive Shaft 017 D431068001 Key 018 D404076006 Screw 019 D282830531 Plate Left Hand 020 D417165001 Bearing 021 D410109004 Nut Metric 022 D282813871 Screw 023 D414089001 Pin 024 D410108002 Nut Metric +F.929460 025 D204004154 Washer 026 D282807294 Nut 027 D28280956 Ring (5) 028 D28281029 Spacer (5) 029 D282830041 Washer 030 D454816001 Ring 031 D459043002 Facing 032 D282830081 Sprocket 033 D282830001 Insert 034 D282830031 Washer 035 D4111240010 Washer 036 D410541001 Castle Nut 037 D282814311 Spacer 038 D282814321 Carrier 039 D282830061 Spring 040 D204005071 Spacer 041 D404261001 Screw 042 D404050001 Screw Metric 043 D410876001 Locknut 044 D430015001 Greaser 045 D2828385315 Hair Pin 046 D414088001 Pin 047 D282814481 Spiral (S8) D282809881 Spiral (T7) D282800521 Spiral (S4) D282800511 Spiral (T8) 048 D282814491 Spiral (S8) D282809891 Spiral (T7) D282800541 Spiral (S4) D282800531 Spiral (T8) 049 D423293001 Chain 050 D20400520 Spacer (5) 051 D204005233 Spacer 052 D423651001 Link 053 D282832944 Spike 054 D282816944 Threaded Part Ref1-3 Page1-3
MASSEY FERGUSON MF 30/32 COMBINES,->| 53049 - 1637229 1637229 FEEDER DRUM RIGHT HAND - FREEFLOW 1-3 ItemPart NumberQtyDescription Comments 055 D4040490020 Screw Metric 056 D2040050620 Spacer 057 D4108750012 Locknut 058 D204004712 Washer +F.929460 (S4) 16' (S8) 12' (T7) 14' (T8) 18' (5) OPTIONAL Ref1-3 Page1-3
MF 30/32 COMBINES,->| 53049 - 1637229

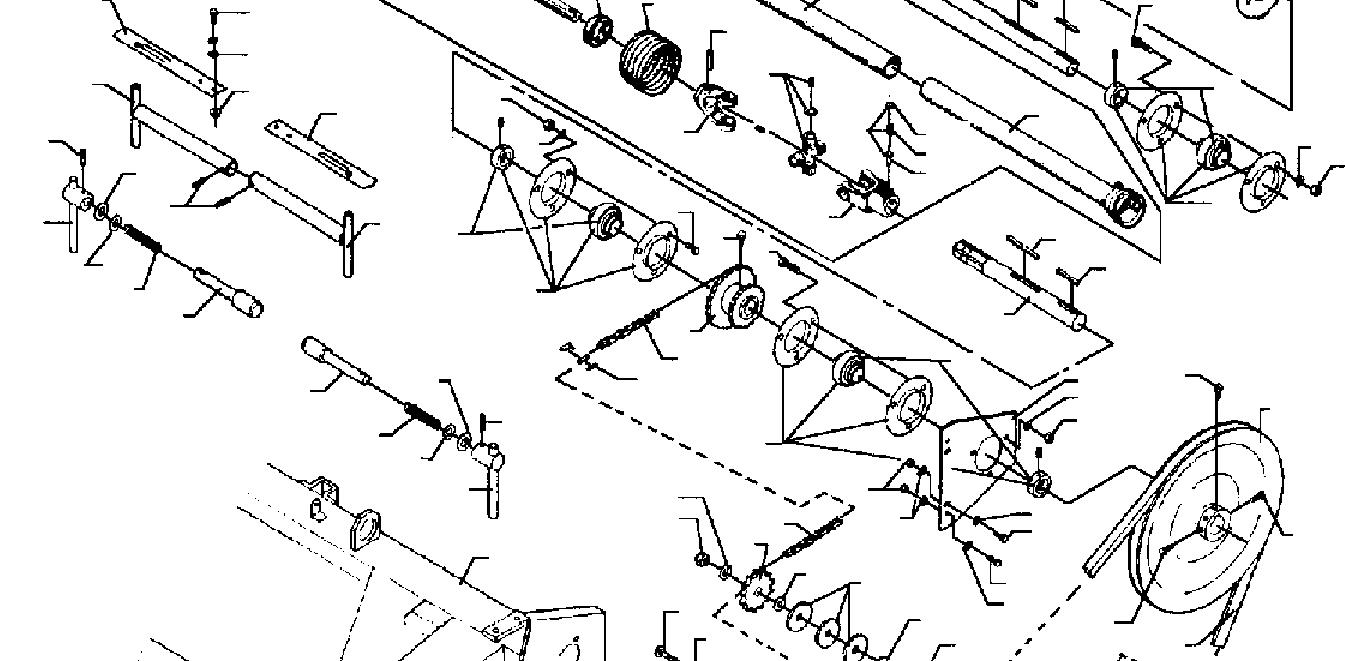

97 97 97 97 97 97 98 98 98 99 100 100 105 93 101 85 85 106 147 107 145 145 148 149 149 138 150 150 92 91 91 96 96 151 88 112 112 111 111 111 111 111 87 169 170 6 90 9 9 10 10 155 113 113 66 66 66 66 116 115 143 143 119 119 118 159 14 14 30 30 29 29 13 11 11 16 8 8 8 52 52 110 110 110 17 17 51 51 60 60 49 49 78 56 56 108 176 176 55 55 82 67 67 67 67 67 67 67 20 20 178 41 177 174 174 35 35 35 35 35 35 181 181 175 175 183 183 184 31 38 36 61 180 144 144 142 142 137 146 171 152 153 141 104 154 94 103 102 89 117 117 27 27 28 120 120 114 157 26 44 44 44 139 140 158 156 172 12 7 63 179 32 34 34 39 37 54 54 83 84 86 48 80 18 79 109 173 21 81 33 40 42 43 182 182 22 62 Ref1-4 Page1-4
MASSEY FERGUSON MF 30/32 COMBINES,->| 53049 - 1637229 1637229 GUARDING AND TRANSMISSIONS - FREEFLOW 1-4 ItemPart NumberQtyDescription Comments 006 D282834831 Shaft (S8 T.924891) D282834841 Shaft (T7 T.924891) D282834851 Shaft (S4 T.924891) D282834861 Shaft (T8 T.924891) 007 D282830991 Support 008 D417078002 Flange 009 D431149001 Key 010 D431050001 Key 011 D423293001 Chain 012 D423651001 Link 013 D282802251 Sprocket 014 D404662003 Setscrew 016 D282802811 Pulley 017 D404667002 Screw Metric 018 D419856001 Belt 020 D404077004 Screw 021 D41087500 Locknut 022 D410876002 Locknut +F.929460 026 D282832811 Arm 027 D426122002 Pin 029 D282832002 Shaft 030 D271007942 Spring 031 D282515932 Lock Washer 032 D282519182 Bracket 033 D404077004 Screw 034 D204005078 Spacer 035 D41087600 Locknut 036 D410879002 Locknut 037 D287601591 Pulley 038 D287601561 Screw 039 D287601551 Bush 040 D282601811 Bolt 041 D410879001 Locknut 042 D20400416 Washer 043 D410108002 Nut Metric 044 D416635002 Bearing Ball 048 D281812841 Washer 049 D404336002 HEXAGON SCREW 050 D204004631 Washer 051 D204004606 Washer 052 D204004592 Washer 054 D417168002 Tightener 055 D20400516 Spacer (5) 056 D410879002 Locknut 060 D282815831 Toy Mf 6150 F.926971 D282831561 Cowl T.926970 061 D447371001 Rubber Strap T.926970 062 D414111001 SPLIT PIN T.926970 063 D282836871 Housing (S8) D282836881 Housing (T7) D282836891 Housing (S4) D282836901 Housing (T8) 066 D400668002 Screw Metric +F.929460 067 D20400419 Washer 078 D282807871 Rail 079 D282813651 Crossmember 080 D406093006 Screw 081 D204004666 Washer 082 D410872006 Locknut 083 D400731001 Screw 084 D282809811 Spacer 085 D204004591 Washer 086 D410879001 Locknut 087 D282821051 Guard T.924891 088 D282821101 Guard T.924891 089 D282808341 Ring T.924891 090 D404047003 Screw Metric T.924891 091 D204005064 Spacer T.924891 092 D433852001 Screw T.924891 093 D282834181 (S8 T.924891) Ref1-4 Page1-4
MASSEY FERGUSON MF 30/32 COMBINES,->| 53049 - 1637229 1637229 GUARDING AND TRANSMISSIONS - FREEFLOW 1-4 ItemPart NumberQtyDescription Comments 093 D282834141 (T7 T.924891) 093 D282834151 (S4 T.924891) 093 D282834161 (T8 T.924891) 094 D282807261 Chain T.924891 095 D282839311 Tube T.924891 096 D404083006 Screw Metric T.924891 097 D2040047118 Washer T.924891 098 D410876009 Locknut T.924891 099 D282839361 Clutch T.924891 100 D441274002 Vibration Mount T.924891 101 D404085003 Screw T.924891 102 D282839321 Tube T.924891 103 D441290001 Spring T.924891 104 D282803011 Flange T.924891 105 D410108001 Nut Metric T.924891 106 D404024002 Screw Metric T.924891 107 D20400404 Washer T.924891 108 D282830901 Plate 109 D282830981 Fitting 110 D404049006 Screw Metric 111 D20400506 Spacer 112 D41013500 Nut 113 D282843622 Spring (AX) 114 D404049004 Screw Metric (AX) 115 D410135004 Nut (AX) 116 D204005064 Spacer (AX) 117 D282843572 Pin (AX) 118 D426188002 Pin (AX) 119 D204005202 Spacer F.924892 120 D282841932 Washer F.924892 137 D456329001 Bush F.924892 138 D456330001 Ring F.924892 139 D456307001 Ring F.924892 140 D456305001 Guard F.924892 141 D456818002 Chain F.924892 142 D456324002 Tube F.924892 143 D456457002 Washer F.924892 144 D456673002 Spring F.924892 145 D456653002 Pin F.924892 146 D456331001 Yoke (BI F.924892) 149 D456303002 Hub F.924892 150 D426191002 Key F.924892 151 D456302001 Yoke F.924892 152 D456304001 Guard F.924892 153 D456306001 Ring F.924892 154 D456308001 Tube (S8 F.924892) 154 D456309001 Tube (T7 F.924892) 154 D456328001 Tube (S4 F.924892) 154 D456311001 Tube (T8 F.924892) 155 D456316001 Tube (S8 F.924892) 155 D456317001 Tube (T7 F.924892) 155 D456326001 Tube (S4 F.924892) 155 D456319001 Tube (T8 F.924892) 156 D456320001 Tube (S8 F.924892) 156 D456321001 Tube (T7 F.924892) 156 D456325001 Tube (S4 F.924892) 156 D456323001 Tube (T8 F.924892) 157 D456312001 Tube (S8 F.924892) 157 D456313001 Tube (T7 F.924892) 157 D456327001 Tube (S4 F.924892) 157 D456315001 Tube (T8 F.924892) 158 D456301001 Yoke F.924892 159 D456332001 Yoke (BI F.924892) 169 D456088001 Shaft (DN F.924892) 169 D456089001 Shaft (DM F.924892) 169 D456090001 Shaft (BJ F.924892) 169 D456091001 Shaft (BL F.924892) 170 D282813451 Blade F.924892 171 D404047002 Screw Metric F.924892 172 D282844041 Shaft F.924892 Ref1-4 Page1-4
MASSEY FERGUSON MF 30/32 COMBINES,->| 53049 - 1637229 1637229 GUARDING AND TRANSMISSIONS - FREEFLOW 1-4 ItemPart NumberQtyDescription Comments 173 D282815771 Angle F.926971 174 D40402400 Screw Metric F.926971 175 D20400470 Washer F.926971 176 D41013400 Nut F.926971 177 D434275001 Pin F.926971 178 D425555001 Circlip F.926971 179 D282815781 Retainer F.926971 180 D282815701 Plate F.926971 181 D404049003 Screw Metric F.926971 182 D204005063 Spacer F.926971 183 D410135003 Nut F.926971 184 D204004162 Washer +F.929460 (AX) OPTIONAL EQUIPMENT AUTO-LEVEL (BI) INCL. P. 143 - 145 (BJ) POS. 137 - 159, 16' (BL) POS. 137 - 159, 18' - 22' (DM) POS. 137 - 159, 14' (DN) POS. 137 - 159, 12' (S4) 16' (S8) 12' (T7) 14' (T8) 18' (5) OPTIONAL Ref1-4 Page1-4
MF 30/32 COMBINES,->| 53049 - 1637229

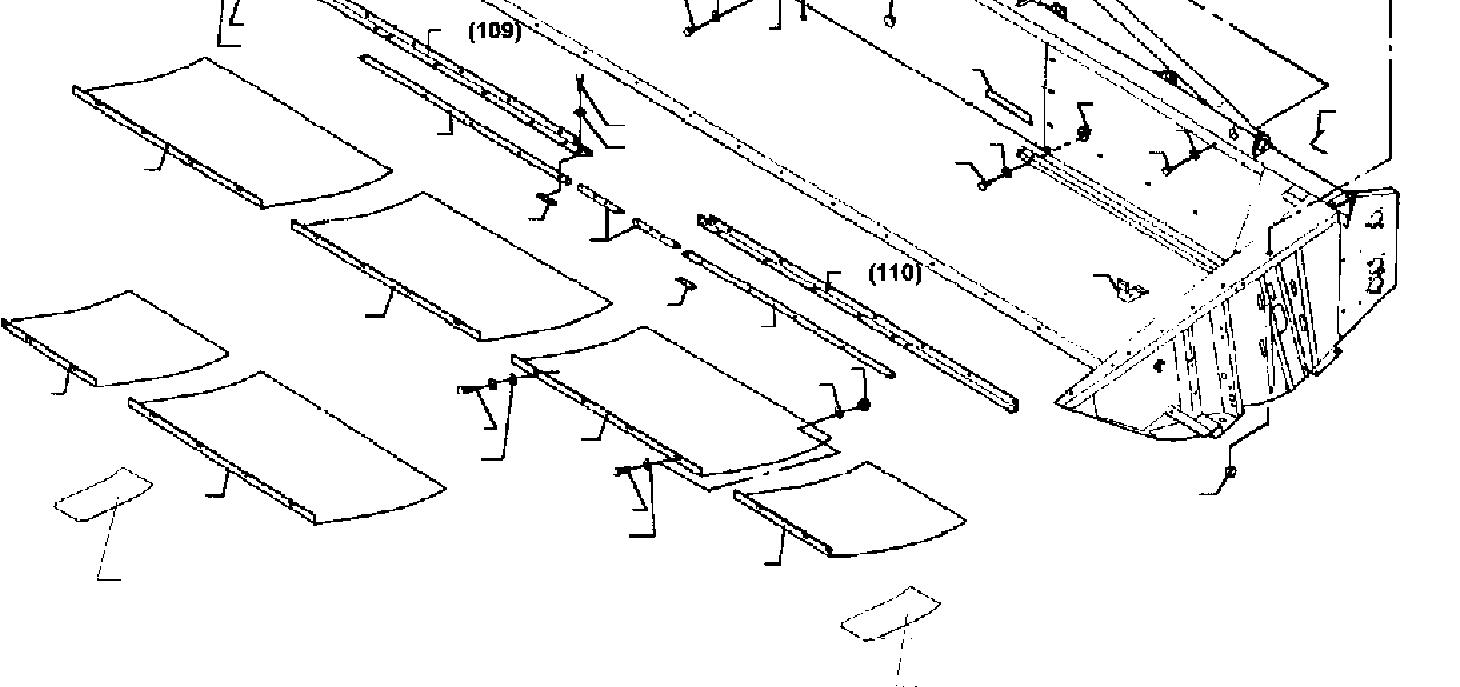

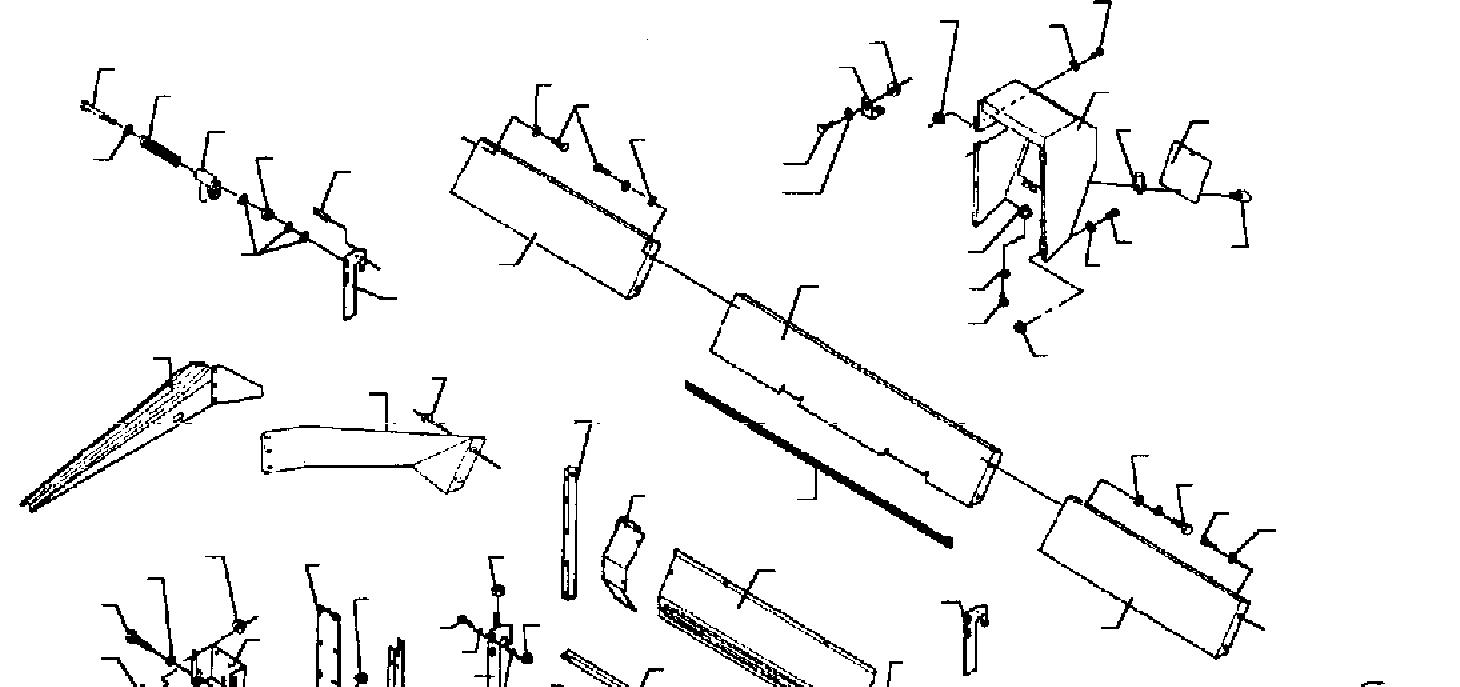

111 111 3 3 3 3 97 69 69 92 92 91 91 91 94 94 37 37 37 37 25 25 25 25 25 25 25 28 35 30 30 34 47 47 38 32 32 40 40 40 39 39 39 29 24 24 24 24 24 24 24 23 23 23 23 23 23 31 31 33 16 6 6 6 6 6 6 6 6 7 7 7 7 7 7 7 7 96 10 27 2 2 2 104 104 63 63 63 63 63 50 50 19 36 93 93 48 64 64 64 70 54 60 18 65 62 62 57 12 8 8 8 8 1 1 11 76 5 5 77 22 21 20 68 17 78 95 74 66 56 59 58 44 45 46 26 80 73 72 61 55 14 13 71 89 67 75 15 98 103 100 99 101 101 102 105 88 85 85 90 87 86 84 79 9 9 41 43 42 81 49 53 52 51 Ref1-5 Page1-5
MASSEY FERGUSON MF 30/32 COMBINES,->| 53049 - 1637229 1637229

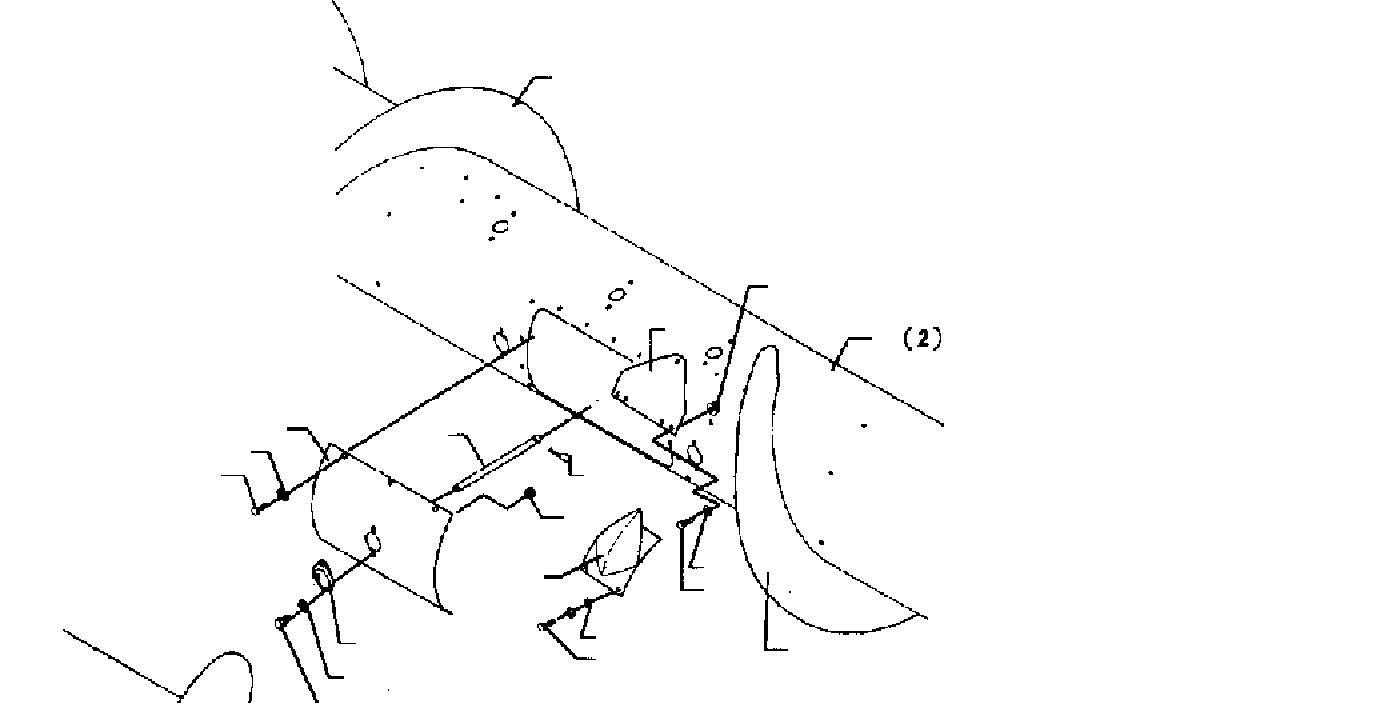

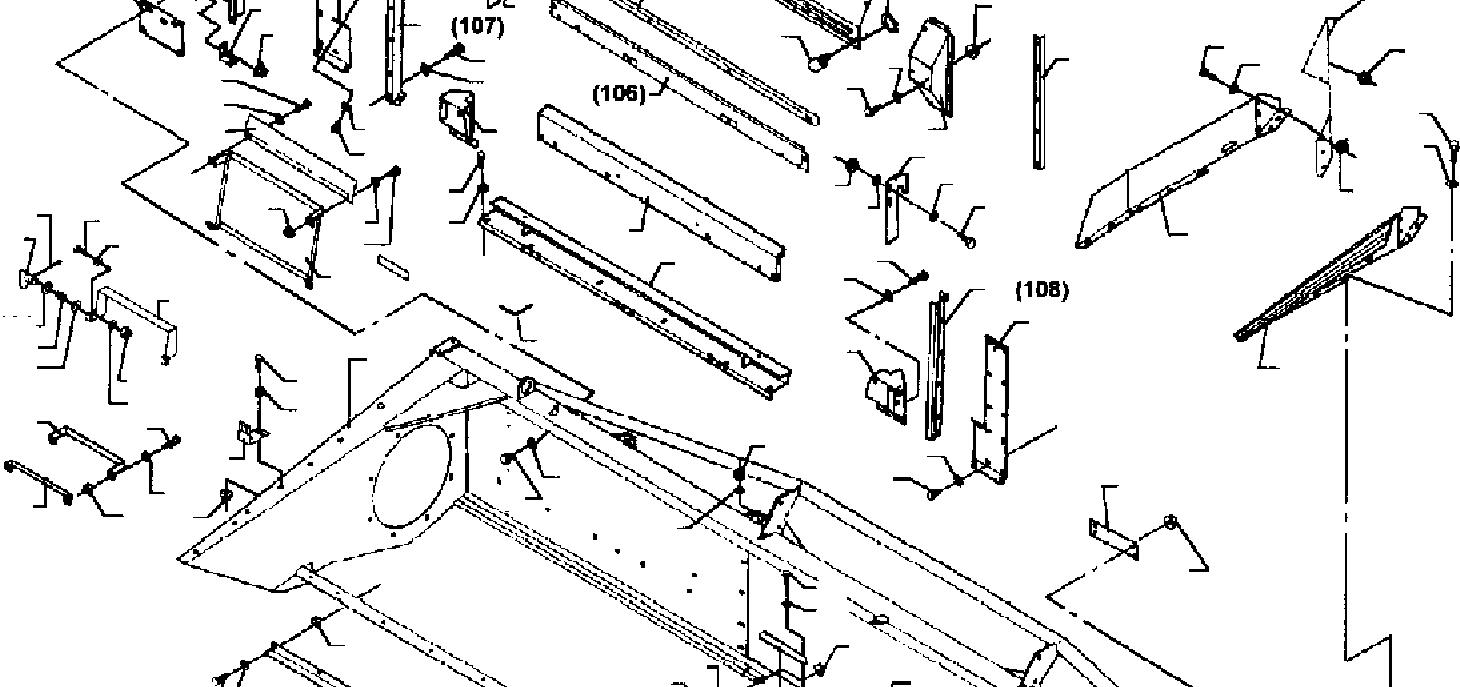

HOUSING AND GUARDING - FREEFLOW 1-5 ItemPart NumberQtyDescription Comments 001 D40402400 Screw Metric 002 D20400470 Washer 003 D41013400 Nut 005 D282834282 Cowl (KX) D282834272 Cowl (KT) D282832372 Cowl (KR) D282834292 Cowl (KY) 006 D40404900 Screw Metric 007 D20400506 Spacer 008 D41013500 Nut 009 D282832361 Cowl (KV) 010 D282836221 Retainer (S8) 011 D282832331 Cowl (KV) Left Hand 012 D282806891 Side T.925030 Left Hand 013 D282835161 Side Right Hand 014 D282832321 Cowl (KV) Right Hand 015 D282836871 Housing (S8) D282836881 Housing (T7) D282836891 Housing (S4) D282836901 Housing (T8) 016 D282836231 Retainer (S8) 017 D282842441 Guard F.924892 Right Hand 017 D282833191 Guard T.924891 Right Hand 018 D282842431 Guard F.924892 Left Hand 018 D282833201 Guard T.924891 Left Hand 019 D45745300 Plug 020 D282805851 Shutter 021 D434275006 Pin 022 D425555006 Circlip 023 D40404900 Screw Metric 024 D20400506 Spacer 025 D41013500 Nut 026 D282515731 Retainer (V7) D282810241 Retainer (T8) 027 D282841941 Deflector Right Hand (S8 F.924892) 027 D282841961 Deflector Right Hand (T7 F.924892) 027 D282841981 Deflector Right Hand (S4 F.924892) 027 D282842001 Deflector Right Hand (T8 F.924892) 027 D282833331 Angle Right Hand (S8 T.924891) 027 D282833291 Deflector Right Hand (T7 T.924891) 027 D282833301 Deflector Right Hand (S4 T.924891) 027 D282833311 Deflector Right Hand (T8 T.924891) 028 D282841951 Deflector Left Hand (S8 F.924892) 028 D282841971 Deflector Left Hand (T7 F.924892) 028 D282841991 Deflector Left Hand (S4 F.924892) 028 D282842011 Deflector Left Hand (T8 F.924892) 028 D282833281 Deflector Left Hand (S8 T.924891) 028 D282833341 Deflector Left Hand (T7 T.924891) 028 D282833351 Deflector Left Hand Ref1-5 Page1-5
TABLE
MASSEY FERGUSON MF 30/32 COMBINES,->| 53049 - 1637229 1637229
HOUSING AND GUARDING - FREEFLOW 1-5 ItemPart NumberQtyDescription Comments (S4 T.924891) 028 D282833361 Deflector Left Hand (T8 T.924891) 029 D282833232 Deflector (T9) 030 D282832412 Deflector (S8) 030 D282833272 Deflector (T7) 030 D282833262 Deflector (S4) 030 D282833252 Deflector (T8) 031 D282832562 Plate (S8) 031 D282832561 Plate (T7) 031 D282832563 Plate (S4) 031 D282832562 Plate (T8) 032 D282832552 Plate (X6) 033 D282832531 Plate Right Hand 034 D282832541 Wearplate Left Hand 035 D41087500 Locknut 036 D404051002 Screw Metric 037 D20400506 Spacer 038 D40405300 Screw 039 D40407800 HEXAGON SCREW 040 D20400419 Washer 041 D282506481 Clip 042 D404026005 Screw Metric 043 D204004055 Washer 044 D282843291 Profile 045 D404078008 HEXAGON SCREW 046 D204004158 Washer 047 D282833212 Clamp (S4) 047 D282833214 Clamp (T8) 048 D282835691 Cover 049 D282843311 Guard 050 D282834062 Deflector +F.928818 051 D282809581 Cover 052 D434275002 Pin 053 D425555002 Circlip 054 D282844061 Plate F.924892 Left Hand 054 D282835751 Plate T.924891 Left Hand 055 D282844051 Plate F.924892 Right Hand 055 D282835741 Plate T.924891 Right Hand 056 D282842041 Profile F.924892 Right Hand 056 D282832041 Profile T.924891 Right Hand 057 D282842421 Profile F.924892 Left Hand 057 D282838941 Profile T.924891 Left Hand 058 D282832281 Profile 059 D282843341 Support F.924892 Right Hand 059 D282832091 Console T.924891 060 D282843351 Support F.924892 Left Hand 060 D282832101 Console T.924891 061 D282835401 Bracket 062 D404333004 HEXAGON SCREW 063 D281812849 Washer 064 D410879005 Locknut 065 D282832601 Hook Left Hand 066 D282832611 Hook Right Hand 067 D282835681 Cover 068 D28283557 Tensioner (KV) 069 D447359002 Seal Section 0.200M 070 D282839381 Plate (DF) 071 D204004701 Washer (AR) 072 D287803811 Retainer (AR) Ref1-5 Page1-5
TABLE
MASSEY FERGUSON MF 30/32 COMBINES,->| 53049 - 1637229 1637229 TABLE HOUSING AND GUARDING - FREEFLOW 1-5 ItemPart NumberQtyDescription Comments 073 D410134001 Nut (AR) 074 D282843531 Profile (AX) 075 D282842611 Plate (AX) 076 D282843491 Profile Left Hand (AX) 077 D282842521 Hook Left Hand (AX) 078 D282843481 Profile Right Hand (AX) 079 D282842531 Hook Right Hand (AX) 080 D282821631 Lifter (T8 AUTO-LEVEL) 081 D404047002 Screw Metric 084 D426188002 Pin (AX) 085 D204004618 Washer (AX) 086 D410111002 Nut (AX) 087 D282842482 Lock (AX) 088 D404351002 Screw (AX) 089 D404024001 Screw Metric (AR) 090 D271007942 Spring (AX) 091 D40402400 Screw Metric 092 D20400404 Washer 093 D41013400 Nut 094 D40405000 Screw Metric 095 D410111001 Nut 096 D287803812 Retainer (AZ) 097 D287803811 Retainer (AY) 098 D282816271 Guard (T8 F.926971) 098 D282816281 Guard (V7 F.926971) 098 D282816291 Guard (S8 F.926971) 099 D282816252 Handle F.926971 100 D414044002 SPLIT PIN F.926971 101 D204004044 Washer F.926971 102 D456673002 Spring F.926971 103 D404051002 Screw Metric F.926971 104 D204005064 Spacer F.926971 105 D410875002 Locknut F.926971 106 D282817131 Plate (NO) 107 D282817201 Profile Right Hand (NO) 108 D282817211 Profile Left Hand (NO) 109 D282822061 Deflector Right Hand (NO 12' 3,72M) 109 D282822081 Deflector Right Hand (NO 14' 4,34M) 109 D282818021 Deflector Right Hand (NO 16' 4,95M) 109 D282818041 Deflector Right Hand (NO 18' 5,56M) 110 D282822051 Deflector Left Hand (NO 12' 3,72M) 110 D282822071 Deflector Left Hand (NO 14' 4,34M) 110 D282818011 Deflector Left Hand (NO 16' 4,95M) 110 D282818031 Deflector Left Hand (NO 18' 5,56M) 111 D282841012 F.920900 (AR) OPTIONAL EQUIPMENT REEL/FIELD PRESSURE ADJUSTMENT (AX) OPTIONAL EQUIPMENT AUTO-LEVEL (AY) OPTIONAL EQUIPM ELECTRIC VERTICAL KNIFE LEFT (AZ) OPTIONAL EQUIPM ELECTRIC VERTICAL KNIFE RIGHT (DF) Ref1-5 Page1-5
MASSEY FERGUSON MF 30/32 COMBINES,->| 53049 - 1637229 1637229 TABLE HOUSING AND GUARDING - FREEFLOW 1-5 ItemPart NumberQtyDescription Comments OPTIONAL EQUIPMENT T.925030 STANDARD EQUIPMENT F.925031 (KR) 18' OPTIONAL EQUIPMENT T.31.12.94, STANDARD EQUIP. F.01.01.95 (KT) 16' OPTIONAL EQUIP. T.31.12.94, STANDARD EQUIPMENT F.01.01.95 (KV) OPTIONAL EQUIP. T.31.12.94, STANDARD EQUIP. F.01.0 1.95 (KX) 14A OPTIONAL EQUIP. T.31.12.94, STANDARD EQUIP. F.01.0 1.95 (NO)
(S4) 16' (S8) 12' (T7) 14' (T8) 18' (T9) 16'-18' (V7) 14'-16' (X6) 14' +18' Ref1-5 Page1-5
A-L COMBINE F.52131, A-L TABLE F.51845, STD. TABLE F.52131
MF 30/32 COMBINES,->| 53049 - 1637229
94 94 94 94 94 94 94 94 94 119 119 119 119 1 120 120 120 95 33 33 121 121 31 30 30 112 5 5 5 5 5 5 5 110 110 9 111 113 7 131 131 32 32 32 32 4 4 4 4 133 114 132 132 8 8 8 8 116 2 2 108 108 3 118 118 14 14 96 102 102 102 102 13 100 6 6 71 10 101 41 98 99 39 42 43 44 44 46 46 57 54 47 74 49 50 58 58 67 75 59 63 66 89 65 87 88 62 70 51 79 64 84 60 86 86 11 61 90 69 19 21 36 36 35 35 34 129 126 125 124 128 127 130 29 92 92 93 109 109 122 122 115 123 123 117 105 107 97 103 104 104 52 48 24 20 25 17 135 23 23 16 134 22 83 80 55 56 53 38 45 40 12 15 15 15 91 37 Ref1-6 Page1-6

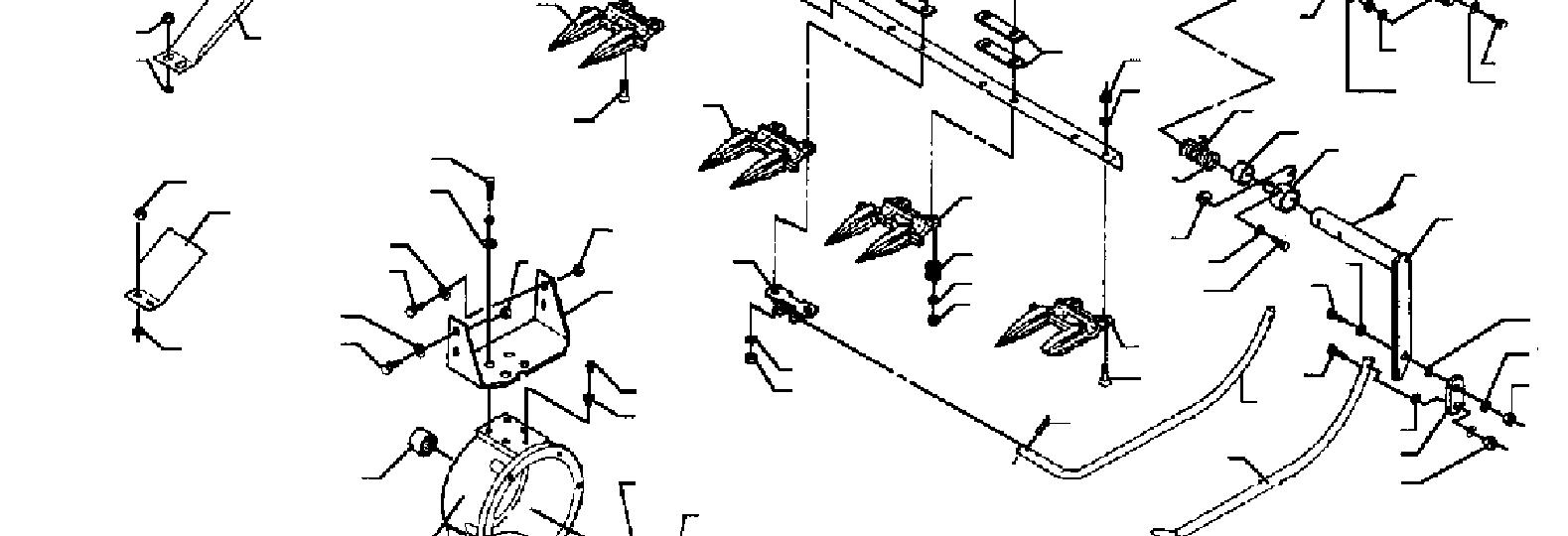

MASSEY FERGUSON MF 30/32 COMBINES,->| 53049 - 1637229 1637229 KNIVES AND FINGERS - POWERFLOW 1-6 ItemPart NumberQtyDescription Comments 001 D2828393411 Pliers (S8) D2828393413 Pliers (T7) D2828393415 Pliers (S4) D2828393417 Pliers (T8) 002 D282302924 Shim 003 D282808091 Guard T.926970 004 D40551500 Bolt 005 D41010800 Nut Metric 006 D282605351 Finger Left Hand 007 D40067600 Screw 008 D4410290023 Finger (S8) D4410290027 Finger (T7) D4410290031 Finger (S4) D4410290035 Finger (T8) 009 D282605311 Finger Right Hand 010 D204005062 Spacer T.926970 011 D441205001 Cap 012 D282831041 Support 013 D404050002 Screw Metric 014 D204004148 Washer 015 D41013500 Nut 016 D282308421 Guard (S3 POS. 35-36) D282308451 Guard (S4 POS. 35-36) D282308422 Guard (T8 POS. 35-36) 017 D282308431 Guard (S3 POS. 35-36) D282308441 Guard (S4 POS. 35-36) D282830092 Knife Back (T8) D282833062 Knife Back (S8) D282833072 Knife Back (T7) D282833082 Knife Back (S4) 019 D282830112 Knife Head 020 D282814882 Knife Back (S8) D282814892 Knife Back (T7) D282814902 Knife Back (S4) D282814912 Knife Back (T8) 021 D44103700 Section 022 D44103800 Half Section Right Hand 023 D41306100 Rivet 024 D41306200 Rivet 025 D441040001 Half Section Left Hand 029 D49040200 Ear Lifter 030 D49040400 Spring 031 D40426000 Screw 032 D49040600 Roller 033 D40426000 Screw 034 D404024002 Screw Metric 035 D265003172 Spring 036 D282308412 Spring 037 D404051004 Screw Metric D282810671 Wobble Drive POS. 38-66 038 D441278001 Box 039 D441288001 Bearing Needle 040 D441294001 Connector 041 D461165001 Valve 042 D441291001 Nut 043 D441292001 Washer 044 D416684002 Bearing Roller 045 D441279001 Housing 046 D441280002 Journal 047 D441293001 Shaft 048 D441282001 Cover 049 D411007006 Washer 050 D404049006 Screw Metric 051 D416697001 Bearing Needle 052 D441289001 Seal 053 D454815001 O Ring 054 D441283001 Bearing Carrier 055 D411007002 Washer 056 D406972002 Screw 057 D406396002 Pin Ref1-6 Page1-6
MASSEY FERGUSON MF 30/32 COMBINES,->| 53049 - 1637229 1637229 KNIVES AND FINGERS - POWERFLOW 1-6 ItemPart NumberQtyDescription Comments 058 D441284002 Bush 059 D441285001 Yoke 060 D416698003 Bearing Needle 061 D454095001 Seal 062 D441286001 Plug 063 D452362001 Plug 064 D441271001 Hub 065 D411009001 Washer 066 D406940001 Screw 067 D419863001 V Belt 069 D204004264 Washer 070 D404109004 Screw 071 D404053002 Screw 074 D204005234 Spacer 075 D404651004 Screw 079 D406984002 Screw 080 D204004382 Washer 083 D410877001 Locknut 084 D204004281 Washer 085 D404294001 HEXAGON SCREW 086 D414091001 SPLIT PIN 087 D410543001 Nut 088 D441269001 Flange 089 D441270001 Swivel Arm 090 D441272001 Pulley 091 D282809864 Dog 092 D282603622 Clip 093 D40067200 Screw 094 D20400419 Washer 095 D49040300 Ear Lifter 096 D282843564 Fitting (AX) 097 D426118008 Pin (AX) 098 D282842592 Sensor (AX) 099 D282842602 Sensor (AX) 100 D404236004 HEXAGON SCREW (AX) 101 D404053004 Screw (AX) 102 D2040050620 Spacer (AX) 103 D282843634 Link (AX) 104 D410875008 Locknut (AX) 105 D282842272 Lever Left Hand (AX) 106 D426119008 Pin (AX) 107 D282816932 Spring (AX) 108 D282842322 Shaft (AX) 109 D464373004 Toggle (AX) 110 D410106004 Nut (AX) 111 D287804462 Rod (AX) 112 D282842262 Lever Right Hand (AX) 113 D282843612 Potentiometer (AX) 114 D282843602 Potentiometer (AX) 115 D287805232 Meter (AX) 116 D404024002 Screw Metric (AX) 117 D410107004 Nut Metric (AX) 118 D410135008 Nut (AX) 119 D2040050616 Spacer (AX) 120 D4040490012 Screw Metric (AX) 121 D282844584 Bearing Bush (AX) 122 D282844564 Bush (AX) 123 D410134002 Nut (AX) 124 D282815761 Plate F.926971 125 D282815751 Shim F.926971 126 D282815741 Plate F.926971 127 D404236002 HEXAGON SCREWF.926971 128 D204005062 Spacer F.926971 129 D410135002 Nut F.926971 130 D282815721 Guard F.926971 131 D204005063 Spacer F.926971 132 D410135003 Nut F.926971 133 D404049001 Screw Metric F.926971 Ref1-6 Page1-6
MASSEY FERGUSON MF 30/32 COMBINES,->| 53049 - 1637229 1637229 KNIVES AND FINGERS - POWERFLOW 1-6 ItemPart NumberQtyDescription Comments 134 D40402400 Screw Metric (OM) 135 D41087400 Locknut (OM) (AX) OPTIONAL EQUIPMENT AUTO-LEVEL (OM) ALTERNATIVE TO POS. 23 (S3) 12'-14' (S4) 16' (S8) 12' (T7) 14' (T8) 18' Ref1-6 Page1-6
