MASSEY FERGUSON MF 376 XCF CRAWLER - 3540436 3540436 ENGINE ASSEMBLY-A4.236 ENGINE 1 ItemPart NumberQtyDescriptionComments 1 3553131M911 Engine "LD31202"PK Ref1 Page1
MF 376 XCF CRAWLER - 3540436 1 Ref2 Page2
MASSEY FERGUSON MF 376 XCF CRAWLER - 3540436 3540436 SHORT ENGINE-A4.236 ENGINE 2 ItemPart NumberQtyDescription Comments 1 LD393361 SHORT ENGINERepairs and replaces LD 39303 2 1 HOUSING [A] (1) 4 LINER (1) 1 (1) 4 PISTON (1) 4 (1) 4 CONROD (1) 10 (1) 8 (1) 4 WASHER (1) 1 SEAL (1) 1 HOUSING (1) 22 BOLT (1) 1 GASKET (1) [A] COMPLETE WITH PLUGS Ref2 Page2
MF 376 XCF CRAWLER - 3540436 15 9 11 14 28 10 12 8 25 4 19 20 21 22 23 16 17 27 7 24 3 29 1 6 5 26 2 18 13 Ref3 Page3
MASSEY FERGUSON MF 376 XCF CRAWLER - 3540436 3540436
ENGINE 3 ItemPart NumberQtyDescription Comments 1 ZZ 501451 CYLINDER BLOCK Repairs and replaces ZZ50110 Repairs and replaces ZZ50114 2 3135X0314 Liner [A, X] (1) . 0. 4. 8 2 3135X032X Liner [B] 3 06507106 Plug (1) Repairs and replaces 0650563 4 324181224 Plug (1) 5 3314211110 Thimble (1) 6 3216632910 Bolt (1) 7 311341641 Bush (1) Repairs and replaces 31134163 Repairs and replaces 31134132 8 06507102 Plug (1) Repairs and replaces 0650563 9 2485A2041 Plug (1) 10 324161051 Plug (1) 11 321682121 PLUG (1) Repairs and replaces 0650582 12 3311R0031 Washer (1) Repairs and replaces 0920130 13 06505882 Plug (1) 14 324171341 Plug 15 3681E0181 Head Gasket [X] Repairs and replaces 36812352 . 1. 2. 4 16 4142V0661 FLANGE Repairs and replaces 4142V064 Repairs and replaces 4142V061 17 2418F4751 Seal [X] (16) . 1. 2. 4 18 3681T0121 GASKET Repairs and replaces 3681T009 19 074621112 Bolt 20 390972X112 Washer Metric 21 03500092 Dowel 22 21725302 Capscrew 23 331121112 Washer 24 06505941 Plug Repairs and replaces 2431131 25 06505774 Plug 26 321611142 Plug 27 06505881 Plug 28 324521131 Pointer 29 321141431 Plug Repairs and replaces 32114116 [A] PRESS FIT [B] SLIP FIT [X] QTY PER TRACTORS SOLD (AA.BBB.CCC.DDD) (AA) FOR 1 ,(BBB) 2-10 (CCC) 11-25 (DDD) 26-50 Ref3 Page3
CYLINDER BLOCK-A4.236
MF 376 XCF CRAWLER - 3540436 10 20 26 13 12 25 19 9 16 17 18 15 11 4 5 1 2 22 24 23 7 8 6 21 14 3 Ref4 Page4
CRANKSHAFT, PISTONS AND CONNECTING RODS-A4.236 ENGINE
MASSEY FERGUSON MF 376 XCF CRAWLER - 3540436 3540436
4 ItemPart NumberQtyDescription Comments 1 ZZ900811 Kit, Crankshaft Repairs and replaces U5BG0024 2 1 SHAFT (1) Not serviced, order REF.1 3 815581 Kit, Bearing [A, X] (1) . 0. 2. 4 3 81558AX Kit, Bearing [A] Thickness (-)0.25MM Thickness (-)0.010 3 81558BX Kit, Bearing [A] Thickness (-)0.50MM Thickness (-)0.020 3 81558CX Kit, Bearing [A] Thickness (-)0.75MM Thickness (-)0.030 4 850421 Kit, Bearing [A, X] (1) . 0. 2. 4 4 85042AX Kit, Bearing [A] Thickness (-)0.25MM Thickness (-)0.010 4 85042BX Kit, Bearing [A] Thickness (-)0.50MM Thickness (-)0.020 4 85042CX Kit, Bearing [A] Thickness (-)0.75MM Thickness (-)0.030 5 311375512 Thrust Washer [X] (1) . 0. 2. 4 5 31137312X Thrust Washer Thickness (+)0.19MM Thickness (+)0.0075 6 311375612 Thrust Washer [X] (1) . 0. 2. 4 6 31137322X Thrust Washer Thickness (+)0.19MM Thickness (+)0.0075 7 3242T0011 Thrust Block [D] 8 321861393 Screw [D] 9 ZZ900094 Kit, Conrod [X] Repairs and replaces M7BJ0015 . 0. 4. 8 10 1 CONROD (9) Not serviced, order REF.9 11 1 SUPPORT (9) Not serviced, order REF.9 12 311341231 Bush (9) 13 327621441 Bolt (9) 14 332213281 Nut (9) 15 U5LU00254 Kit, Piston [B, X] . 0. 4. 8 15 U5LP00354 Kit, Piston [C] 16 1 PISTON (15) Not serviced, order REF.15 17 1 PIN (15) Not serviced, order REF.15 18 01700021 Circlip (15) 19 01700021 Circlip (15) 20 411580414 Kit, Piston Ring [X] . 0. 4. 8 21 311716811 Gear,CrankshaftNumber of teeth/spines 28 22 05000121 Woodruff Key 23 311487981 Pulley,Crank Repairs and replaces 31148797 24 331254161 Washer [E] 25 3552228M11 CROWNWHEELNumber of teeth/spines 115 26 331171276 Washer Repairs and replaces 33117121 [A] PRE-FINISHED [C] PRE-TOPPED [B] UNTOPPED [X] Ref4 Page4
MASSEY FERGUSON MF 376 XCF CRAWLER - 3540436 3540436 CRANKSHAFT, PISTONS AND CONNECTING RODS-A4.236 ENGINE 4 ItemPart NumberQtyDescription Comments QTY PER TRACTORS SOLD (AA.BBB.CCC.DDD) (AA) FOR 1 ,(BBB) 2-10 (CCC) 11-25 (DDD) 26-50 [D] NOT SUPPLIED WITH ASSEMBLY [E] USED ONLY WITH 31148797 Ref4 Page4
MF 376 XCF CRAWLER - 3540436 22 20 31 32 33 21 27 19 59 18 60 25 17 58 16 24 13 14 5 4 11 36 12 52 9 51 10 54 39 34 8 4041 7 43 35 42 1 2 38 45 44 30 15 23 50 55 37 57 49 56 48 47 46 29 28 26 53 6 3 Ref5 Page5
MASSEY FERGUSON MF 376 XCF CRAWLER
3540436 3540436
-
5 ItemPart NumberQtyDescription Comments 1 ZZ801751 CYLINDER HEAD Repairs and replaces ZZ80072 Repairs and replaces ZZ80062 Repairs and replaces ZZ80015 2 ZZ801761 CYLINDER HEAD [F] (1) Repairs and replaces ZZ80157 Repairs and replaces ZZ80061 Repairs and replaces ZZ80004 3 1 CYLINDER HEAD (2) Not serviced, order REF.2 4 3343F0314 GUIDE [C] (2) Repairs and replaces 3343F002 5 3343J0024 Guide [C] (2) 6 06502031 Plug (2) 7 24111571 Washer (2) 8 06507101 Plug (2) 9 3623K0071 Plate 10 3685R0041 Joint 11 07464522 Setscrew 12 09200542 Washer 13 21832054 Screw Repairs and replaces 0746254 14 09200534 Washer 15 314318814 Valve Exhaust [D, G] Alternative 31431886 15 3142A0524 Valve Exhaust [C, H] (1) 31431882X Valve Exhaust [G] Thickness (+) 0,003 15 3142A053X Valve Exhaust [H] Thickness (+) 0.003 15 31431883X Valve Exhaust [G] Thickness (+) 0,015 15 3142A054X Valve Exhaust [H] Thickness (+) 0,015 15 31431884X Valve Exhaust [G] Thickness (+) 0,030 15 3142A055X Valve Exhaust [H] Thickness (+) 0,030 16 334151184 Washer (1) 17 317441314 Spring [J] (1) 317441334 Spring [K] (1) 18 317451214 Spring [J] (1) 317451224 Spring [K] (1) 19 2415B2014 O Ring [J] (1) 20 334231474 Cap [J] (1) 334241074 Cap [K] (1) 21 338171174 Seal (1) 22 331731088 Cotter [A] (1) 23 314316414 Valve Inlet [D] (1) 314313154 Valve Inlet [E] (1) 31431401X Valve Inlet [D] Thickness (+) 0.003 23 31431316X VALVE [E] Thickness (+) 0.003 23 31431402X Valve Inlet [D] Thickness (+) 0,015 23 31431317X VALVE [E] Thickness (+) 0,015 23 31431403X Valve Inlet [D] Thickness (+) 0,030 23 31431318X VALVE [E] Thickness (+) 0,030 24 334151184 Washer (1) 25 317441314 Spring [J] (1) 317441334 Spring [K] (1) 26 317451214 Spring [J] (1) 317451224 Spring [K] (1) 27 338171174 Seal (1) 28 334231474 Cap [J] (1) Ref5 Page5
CYLINDER HEAD-A4.236 ENGINE
AND FIT 31431881
FITTED IN PLACE OF EXHAUST VALVES SUPPLIED WITH CY LINDER HEAD
SUPPLIED BY PERKINS ENGINES LIMITED.
USED ONLY WITH ZZ80015/ZZ80062 [H]
USED ONLY WITH ZZ80062
MASSEY FERGUSON MF 376 XCF CRAWLER - 3540436 3540436
ENGINE 5 ItemPart NumberQtyDescription Comments 28 334241074 Cap [K] (1) 29 331731088 Cotter [A] (1) 30 331521534 Insert (1) 31 321663372 Screw 32 3216633812 Bolt 33 321663398 Screw 34 377627051 Body Repairs and replaces 37762706 35 368535141 Joint 36 24856591 Thermostat [X] . 1. 2. 6 37 24311541 Plug 38 24311541 Plug 39 22172021 Stud 40 21881351 Nut 41 09200541 Washer 42 00962381 Bolt 43 09200531 Washer 44 00964391 Bolt 45 09200541 Washer 46 21832052 Screw 47 09200532 Washer 48 00964342 Bolt 49 09200542 Washer 50 24857911 Pin 51 1 MANIFOLD [I] 52 368622251 GASKET [X] . 1. 2. 6 53 00964332 Bolt 54 09200542 Washer 55 3648C0041 Plate 56 353537X12 Screw Unf 57 09200542 Washer 58 361771111 Plate 59 353537X12 Screw Unf 60 09200542 Washer [A] SERVICED IN PAIRS [X] QTY PER TRACTORS SOLD (AA.BBB.CCC.DDD) (AA) FOR 1 ,(BBB) 2-10 (CCC) 11-25 (DDD) 26-50 [E] USED
(CYLINDER HEAD) [K] USED
[F] MINOR ASSEMBLY [C] REMOVE
[D]
CYLINDER HEAD-A4.236
ONLY WITH ZZ80062/ZZ80072
ONLY WITH ZZ80072
ASSEMBLY [I]
[J]
NOT
Ref5 Page5
MF 376 XCF CRAWLER - 3540436 28 27 29 24 26 25 31 30 22 23 21 11 12 10 9 32 34 3 35 1 5 33 16 14 15 19 7 6 18 17 20 2 4 8 13 Ref6 Page6
QTY PER TRACTORS SOLD (AA.BBB.CCC.DDD) (AA) FOR
(DDD) 26-50
WAS 3775E011 USE 3775E012/2233022.
USED ONLY WITH 3775E011
USED ONLY WITH 3775E012
MASSEY FERGUSON MF 376 XCF CRAWLER - 3540436 3540436
SHAFT-A4.236 ENGINE 6 ItemPart NumberQtyDescription Comments 1 ZZ901581 SHAFT [X] Repairs and replaces ZZ90007/17 Repairs and replaces ZZ90030 . 0. 1. 2 2 ZZ900321 Rocker Shaft (1) 3 1 SHAFT (2) Not serviced, order REF.2 4 06505072 Plug (2) 5 3818X9014 Bracket (1) Repairs and replaces 37521334 6 411514844 LEVER (1) Right Hand 7 411514834 LEVER (1) Left Hand Repairs and replaces 37371271 8 317441232 Spring (1) 9 317431082 Spring (1) 10 3775E0121 Connection [A] (1) 11 22312361 Setscrew [B] 22330221 Screw [C] (1) 12 331174262 Shim (1) 13 01701512 Circlip (1) 14 331174342 Washer (1) 15 07205798 Screw (1) 16 05760528 Nut (1) 17 314341638 Tappet 18 314343078 Pushrod 19 376525X11 Olive 20 00966344 Screw 21 09200064 Washer 22 371881411 COVER 23 3681A0271 Joint [X] Repairs and replaces 36811132 . 1. 2. 6 24 21725134 Screw 25 09200024 Washer 26 09200524 Washer 27 24878451 Cap 28 1 PLUG (27) Not serviced, order REF.27 29 248700021 Joint (27) 30 338725161 Pipe,Breather 31 218251951 Clip Repairs and replaces 0180063 32 357311441 Pipe,Breather 33 00962151 Screw Up to Serial or Engine Number U226708S 21873331 Screw From Serial or Engine Number U226709S 34 390972X11 Washer Metric Up to Serial or Engine Number U226708S 35 09200531 Washer Up to Serial or Engine Number U226708S [X]
ROCKER
,(BBB)
11-25
[A]
1
2-10 (CCC)
[B]
[C]
Ref6 Page6
MF 376 XCF CRAWLER - 3540436 12 13 14 38 2 39 3 16 15 40 41 37 36 35 34 45 9 9 10 6 42 7 5 43 48 8 49 46 17 47 11 27 26 23 21 29 33 28 31 25 32 30 24 18 4 44 22 20 19 1 Ref7 Page7
MASSEY FERGUSON MF 376 XCF CRAWLER - 3540436 3540436 TIMING GEAR AND CAMSHAFT-A4.236 ENGINE 7 ItemPart NumberQtyDescription Comments 1 371616421 Body 2 368141371 Joint [X] . 0. 1. 2 3 21832058 Screw 4 09200538 Washer 5 07462111 Bolt 6 09200531 Washer 7 334261611 Hub 8 411150231 Idler Number of teeth/spines 63 9 00503452 Bush (8) 10 3241H0091 PLATE Repairs and replaces 0941082 11 21846343 Screw 12 314153741 Camshaft 13 331531211 Washer 14 21160531 Pin 15 3117L0121 GEAR Number of teeth/spines 56 16 05000121 Woodruff Key 17 371664011 Timinggear Cover 18 2418F4361 Seal [X] . 1. 2. 4 19 3681P0161 GASKET [X] Repairs and replaces 36813137 . 0. 1. 2 20 00962384 Bolt 21 09200534 Washer 22 218320510 Screw 23 092005310 Washer 24 21832054 Screw 25 09200534 Washer 26 3241H0041 Plate 27 338254191 Joint 28 21832034 Screw 29 09200534 Washer 30 361711211 Plate 31 368331191 Joint 32 21831042 Screw 33 09200522 Washer 34 321612171 Screw 35 331154081 Washer 36 317331211 Washer 37 331531281 Washer 38 362351181 PLATE 39 368621381 Joint 40 21832042 Screw 41 09200532 Washer 42 375561481 Plate 43 368614291 Joint 44 07485051 Screw 45 22381531 Nut 46 09200541 Washer 47 22321512 Screw 48 22381532 Nut 49 09200542 Washer
[X]
Ref7 Page7
QTY PER TRACTORS SOLD (AA.BBB.CCC.DDD) (AA) FOR 1 ,(BBB)
2-10 (CCC) 11-25 (DDD) 26-50
MF 376 XCF CRAWLER - 3540436 30 7 28 1 22 29 20 27 23 17 21 16 25 2 14 5 4 6 3 26 24 15 9 10 34 11 35 12 8 13 37 32 38 31 33 39 18 19 41 40 46 48 50 42 43 45 47 49 44 36 Ref8 Page8
MASSEY FERGUSON MF 376 XCF CRAWLER - 3540436 3540436

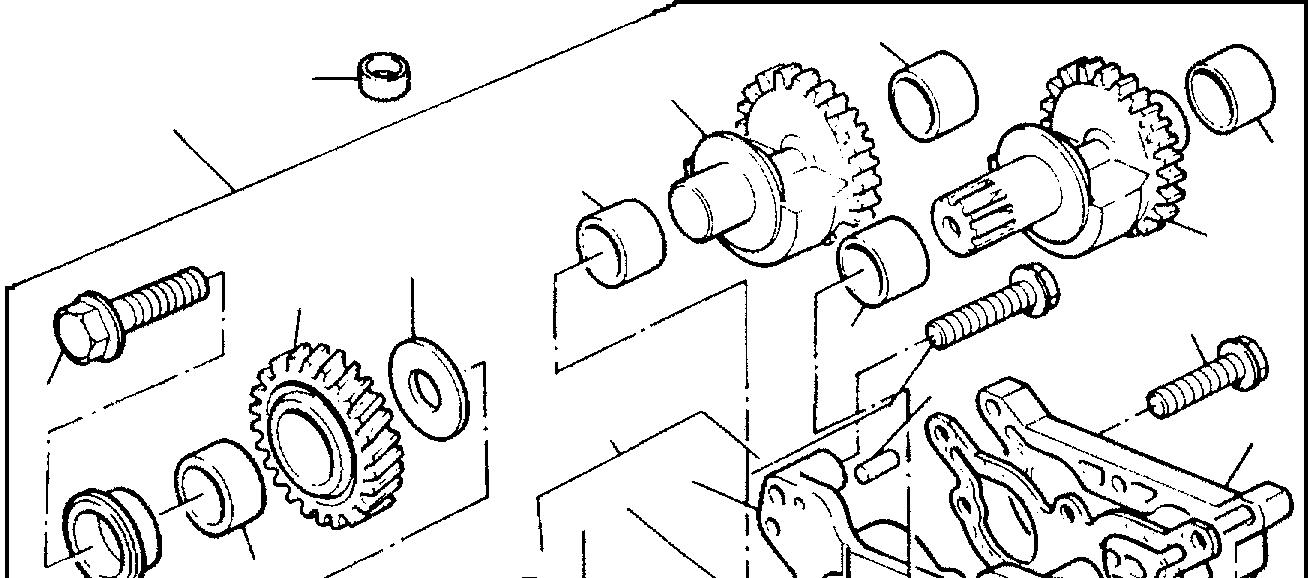

UNIT-A4.236 ENGINE 8 ItemPart NumberQtyDescription Comments 1 4111K0511 Balancer 4111K0511 Balancer [X] . 0. 0. 1 2 4145L0071 Frame (1) 3 1 (2) Not serviced, order REF.2 4 1 (2) Not serviced, order REF.2 5 2315C0524 Screw (2) 6 2314J0052 Screw (2) 7 331374082 Thimble 8 325583141 Plug (1) 9 2431A0541 Plug (1) 10 3272E0051 Plunger (1) 11 3174D0041 Spring (1) 12 3342A6111 Cap (1) 13 2116A0561 Pin (1) 14 3753R0611 Cover (1) 15 3687M0061 Joint (1) 16 03500422 Dowel (1) 17 2315C0524 Screw (1) 18 3117V0031 Shaft (1) Number of teeth/spines 21 19 2551A0091 Bearing Needle (1) 20 3116K0141 Weight (1) Number of teeth/spines 16/38 21 2511A7301 Bush (1) 22 2511A7301 Bush (1) 23 3117C0711 Gear,Balancer (1) Number of teeth/spines 37 24 334518041 Hub (1) 25 2314J6061 Screw (1) 26 2551A2011 Bearing Needle (1) 27 3321A0021 Washer (1) 28 3116K0041 Weight (1) Number of teeth/spines 38 29 2511A7301 Bush (1) 30 2511A7301 Bush (1) 31 4132F0411 Oil Pump (1) Repairs and replaces 4132F021 32 2314J6061 Screw (1) 33 2314H0122 Screw (1) 34 3116W0011 Gear,Balancer (1) Number of teeth/spines 24 35 2551A0141 Bearing Needle (1) 36 335311361 Nut (1) 37 3661K0011 Cover (1) 38 2314C0344 Screw (1) 39 3764E0311 Pipe,Oil 40 3683L0021 Joint 41 2314H0061 Screw Repairs and replaces 2315C053 42 2314H0122 Screw Repairs and replaces 2315C059 43 00964421 Bolt 44 331151291 Washer 45 00964412 Bolt 46 331151292 Washer 47 00964411 Bolt 48 331151291 Washer 49 00964392 Bolt 50 331151292 Washer [X] QTY PER TRACTORS SOLD (AA.BBB.CCC.DDD) (AA) FOR 1 ,(BBB) 2-10 (CCC) 11-25 (DDD) 26-50 Ref8 Page8
BALANCER
MF 376 XCF CRAWLER - 3540436 39 41 40 36 37 18 38 32 17 33 34 16 31 35 15 4 2 3 26 25 27 1 28 30 9 14 8 13 24 5 22 6 21 19 23 12 11 29 7 20 10 Ref9 Page9

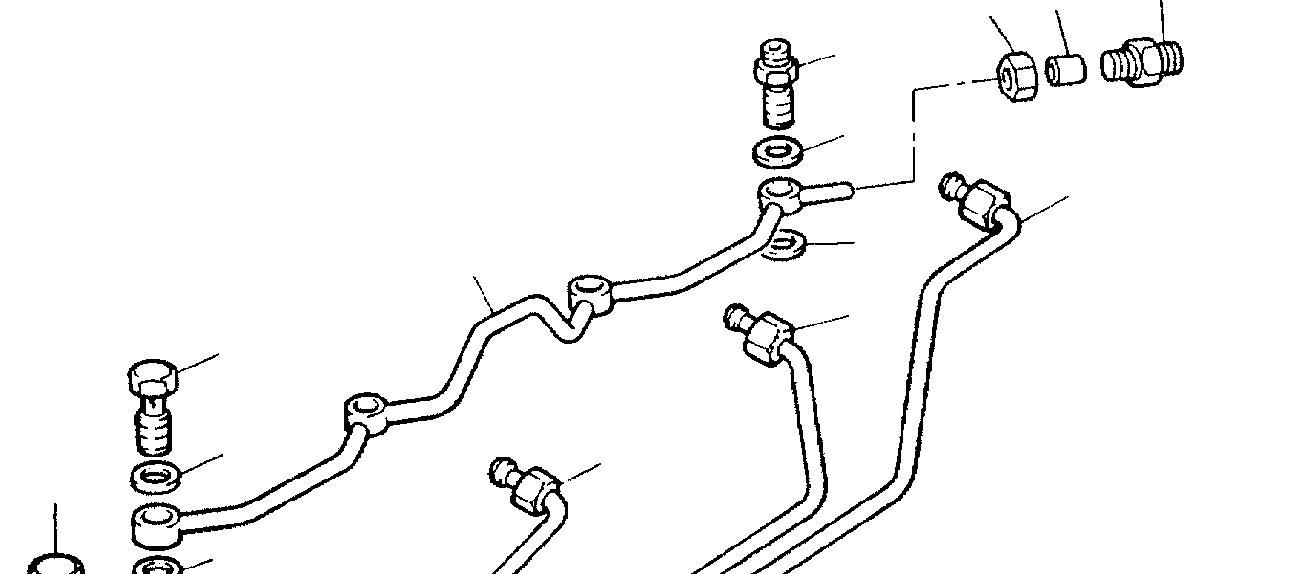

MASSEY FERGUSON MF 376 XCF CRAWLER - 3540436 3540436 FUEL INJECTION EQUIPMENT-A4.236 ENGINE 9 ItemPart NumberQtyDescription Comments 1 383131 Injection PumpUp to Serial or Engine Number 88/08 2643C2821 Injection PumpFrom Serial or Engine Number 88/09 2 3281M0021 SLEEVE 3 317181041 Seal 4 317181051 Wire 5 3687H0111 GASKET 6 22171393 Stud 7 05760023 Nut 8 390972X13 Washer Metric 9 09200533 Washer 10 411151361 Gear,Fuel Pump Number of teeth/spines 56 11 1 GEAR (10) Not serviced, order REF.10 12 03500101 Dowel (10) 13 353517X13 Screw Unf 14 09200533 Washer 15 353431361 PIPE [X] NO.1 CYL. . 1. 2. 4 16 353431361 PIPE [X] NO.2 CYL. . 1. 2. 4 17 353431381 PIPE [X] NO.3 CYL. . 1. 2. 4 18 353431391 PIPE [X] NO.4 CYL. . 1. 2. 4 19 733869M12 Channel 20 733869M12 Channel 21 733868M12 Clip 22 733868M12 Clip 23 07265052 Setscrew 24 22114012 Nut 25 2645L0034 ATOMISER [X] . 4. 8. 16 26 26464601 Holder (25) 27 26468421 Nozzle [X] (25) . 4. 8. 16 28 09211734 Washer [X] . 4. 8. 16 29 338131294 Spacer [X] . 4. 8. 16 30 338131314 Seal [X] . 4. 8. 16 31 07462598 SCREW 32 3558X0111 Leak-Off Pipe [X] . 1. 2. 4 33 00953153 Banjo Bolt 34 09201073 Washer 35 09201073 Washer 36 02015261 Union 37 09201071 Washer [X] . 4. 8. 12 38 09201071 Washer 39 02061021 Union 40 332254121 Union Nut 41 338111121 Olive [X]
PER
(AA)
1 ,(BBB) 2-10 (CCC) 11-25 (DDD) 26-50 Ref9 Page9
QTY
TRACTORS SOLD (AA.BBB.CCC.DDD)
FOR
